JVC TS-C50P1G Parts List

PA RTS LIST

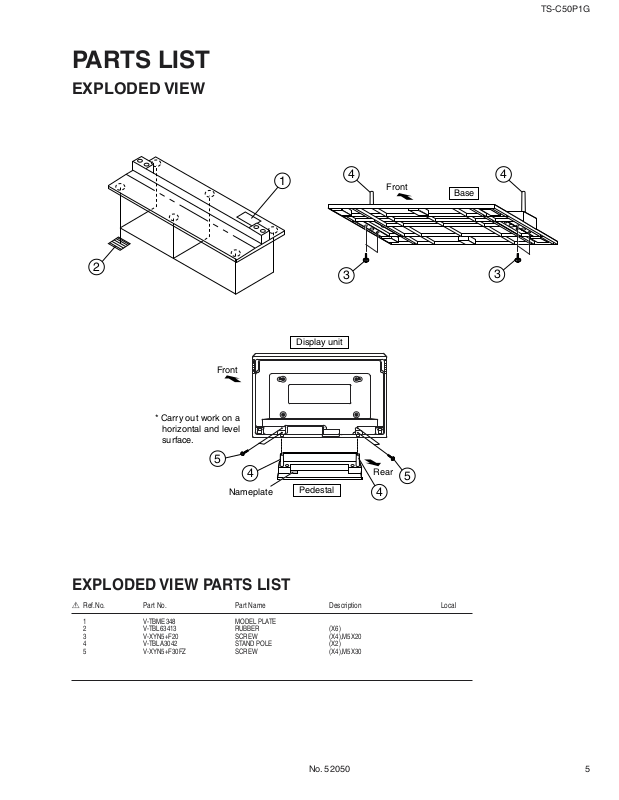

EXPLODED VIEW

TS-C50P1G
1
4
Front
Base
2
3
Display unit
Front
* Carry out work on a
horizontal and level surface.
4
3
5
4
Nameplate
Pedestal
Rear
4
5

EXPLODED VIEW PARTS LIST

!
Ref.No. Part No. Part Name Description Local
1V-TBME348 MODEL PLATE 2V-TBL63413 RUBBER (X6) 3V-XYN5+F20 SCREW (X4),M5X20 4V-TBLA3042 STAND POLE (X2) 5V-XYN5+F30FZ SCREW (X4),M5X30
No. 52050 5
TS-C50P1G

EXPLODED VIEW

7
Preparation
With speakers
9
No speakers
9
Front
7
Front
Wood Worktop
6
Bracket mounting screw
8
Base
6
With screw holes (conventional product)
9
• Securing method
7
9
Screw into the middle of the back edge of a
8
wood worktop.
* Use strong wire or chain which is commercially available to secure
the Wide Plasma Display to a solid area of the wall or a pillar.
7

EXPLODED VIEW PARTS LIST

!
Ref.No. Part No. Part Name Description Local
6V-TKK158539-1 BAND (X2) 7V-XSB4+8FZ BLACK SCREW (X4) 8V-THM915-2 WOOD SCREW (X2) 9V-TMM15478-1 CLAMP (X4)
6No. 52050

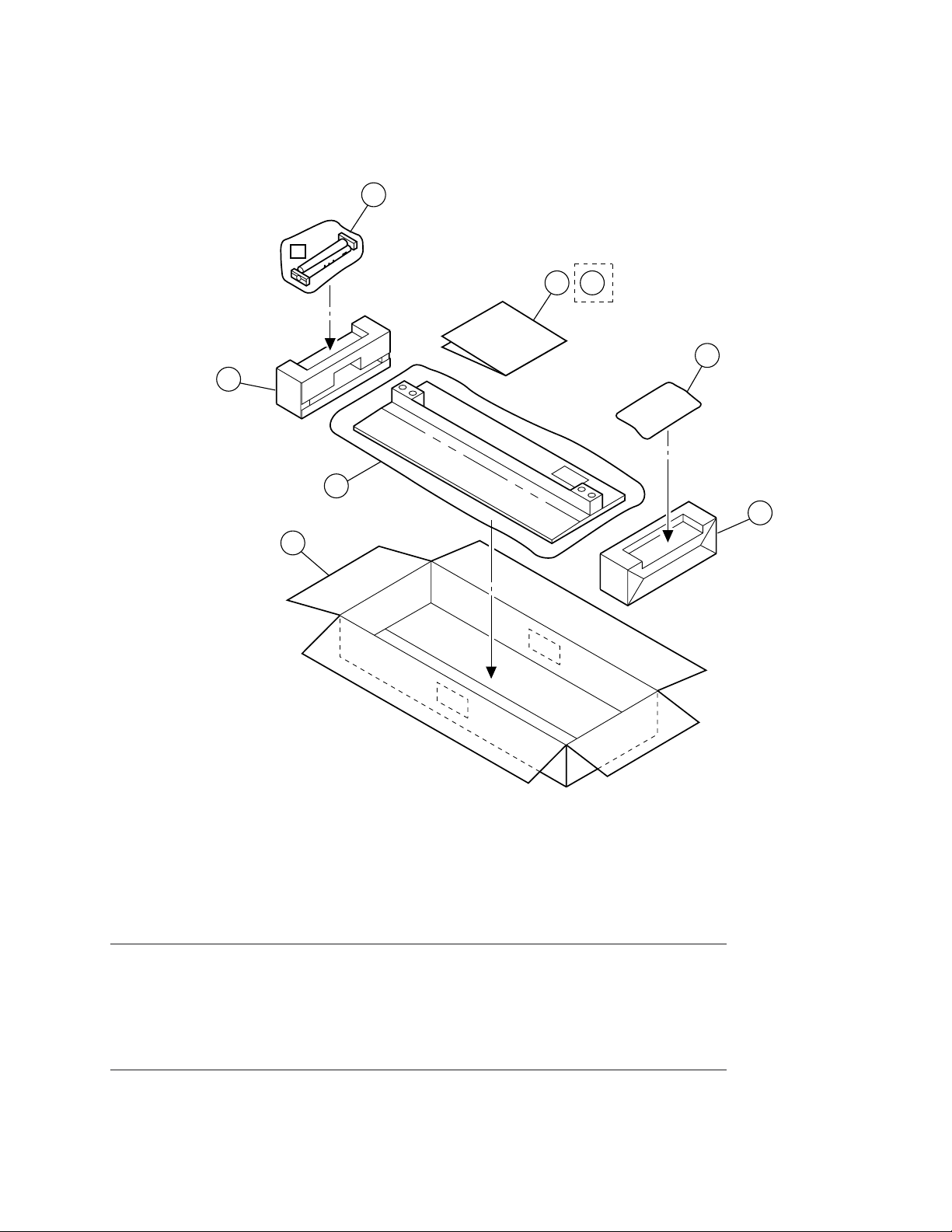

PACKING

TS-C50P1G
4
2 3
5
7
1
6

PACKING PARTS LIST

!
Ref.No. Part No. Part Name Description Local
1V-TPEH004-2 POLY BAG 2V-XZBT6506 POLY BAG 3V-TQZH307 INST BOOK 4V-XZBT6506 POLY BAG 5V-TQE6691 POLY BAG 6V-TPCA73506 PACKING CASE 7V-TPDF0391 CISHION (X2)
7
No. 52050 7
