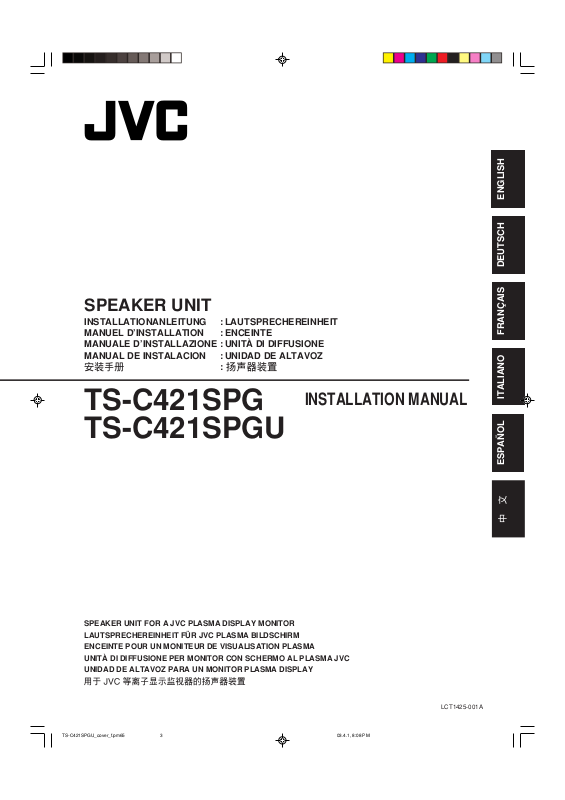

SPEAKER UNIT
INSTALLATIONANLEITUNG :LAUTSPRECHEREINHEIT
MANUEL D’INSTALLATION :ENCEINTE
MANUALE D’INSTALLAZIONE :UNITÀ DI DIFFUSIONE
MANUAL DE INSTALACION : UNIDAD DE ALTAVOZ
:
ENGLISH
DEUTSCH
FRANÇAIS
TS-C421SPG
TS-C421SPGU
INSTALLATION MANUAL
ITALIANO
ESPAÑOL
SPEAKER UNIT FOR A JVC PLASMA DISPLAY MONITOR
LAUTSPRECHEREINHEIT FÜR JVC PLASMA BILDSCHIRM
ENCEINTE POUR UN MONITEUR DE VISUALISATION PLASMA
UNITÀ DI DIFFUSIONE PER MONITOR CON SCHERMO AL PLASMA JVC
UNIDAD DE ALTAVOZ PARA UN MONITOR PLASMA DISPLAY
LCT1425-001A
SAFETY PRECAUTIONS
1
2
4
3
Regarding the “safety precaution”
symbols
Various symbols are indicated on the product and in this
Installation Manual.
These symbols are provided in order to prevent physical
injury and material damage. Be sure you understand the
meaning of the symbols before reading this manual.
Explanation of symbols
• This symbol (including a warning) indicates that
CAUTION should be exercised.
General caution
• Prohibited actions are indicated by the following symbols.
Prohibited
• Actions that should be performed (compulsory and
instructed actions) are indicated by the following symbol.
General instruction
Disassembling
prohibited
Failure to observe what is
mentioned under this symbol
WARNING
• Do not modify (disassemble) the front
speakers.
This could result in fire or electric shock.
CAUTION
• Connect the power cord plug to a wall outlet
only after all necessary equipment has been
connected.
Making connections while the power cord plug
is connected to the wall outlet could result in
electric shock.
could lead to physical injury and
material damage. Extreme
caution should be exercised.
Failure to observe what is
mentioned under this symbol
could lead to physical injury and
material damage. Extreme
caution should be exercised.
ENGLISH
Accessories
Check to be sure you have all of the supplied accessories. The number in the parentheses is the quantity of the
pieces supplied. If anything is missing, contact your dealer immediately.
Front speakers (L,R)
Speaker cords
(1.2 m x 2)
Cord clamps (2)
Mounting screws
(for the GD-V42XX
series display) (6)
Names of parts
Front
1 Speaker unit
2 Saran net
This net protects the speaker.
Back
3 Speaker bracket
Attach to the back of the
display.
4 Speaker terminal
Connect this terminal to the
speaker terminal on the
display using the supplied
speaker cords.
1
Using the speaker brackets, you can attach the front speakers to the side of the display.
• For attaching the front speakers to the GD-V42XX series display, see page 4.
• In this section, the GM-P420 series displays are shown in the illustrations. The mounting screw positions of the
other displays are almost the same as those of the GM-P420 series, therefore you can attach the front speakers as
in the procedure below.
ENGLISH
• Do not loosen the screws other than the mounting screws.
• Use only the screws already attached to the display.
Attaching the front speakers to displays other than
the GD-V42XX series
1. Loosen the mounting screws on the back of the display.
Loosen the mounting screws with phillips screwdriver,
leaving a length of about 3 mm.
Mounting
screws
Mounting
screws
2. Attach the front speaker to the back of the display.
Hook the speaker bracket onto three mounting screws
through the screw holes (A), and slide it down.
Mounting screws
Screw hole (A)
3. Tighten the mounting screws firmly with phillips screwdriver.
Front speaker
Front speaker
Front speaker
• When moving the display, do not hold the speakers.
• The speakers are not of anti-magnetic type.
Do not place anything susceptible to magnetism, such as a video tape, nearby when setting the speakers.
2
Connecting the speaker cord
Attach to the speakers
When you connect the supplied speaker cord to the terminal clamp of the speakers, fold the end of each speaker
cord to avoid short-circuit.
1. Fold the end of each speaker
cord.
• Connect the cord with black stripes to the · (black) terminal and the other cord to the ª (red) terminal.
• Be careful that connection of the speaker cords to incorrect polarity terminals (ª and ·) degrades stereo
feeling and sound qualities.
2. Press and hold the terminal
clamp.
3. Insert the speaker cord, and
release the finger from the
terminal clamp.
Attach to the display
1. Open the terminal clamp. 2. Insert the speaker cord. 3. Close the terminal clamp.
ENGLISH
• Connect the cord with black stripes to the · (black) terminal and the other cord to the ª (red) terminal.
• Be careful that connection of the speaker cords to incorrect polarity terminals (ª and ·) degrades stereo
feeling and sound qualities.
Bundling the speaker cords
You can bundle the speaker cords neatly with the supplied cord clamp, as illustrated.
• Stick the cord clamp after removing its protective seal. Give an amount of time before
bundling the speaker cords, or the cord clamp may be detached.
• If you are sticking the cord clamp to the back of the display, be careful not to block the
ventilation hole.
Cord clamp
Speaker cord
3
Attaching the front speakers to the GD-V42XX
series display
Using the speaker brackets, you can attach the front speakers to the side of the display.
• Do not loosen the screws other than the protective screws.
• Use only the supplied mounting screws for attaching the front speaker.
ENGLISH
1. Remove the protective screws on the back of the display
with phillips screwdriver.
Before removing them, make sure which screws to
be removed by placing the front speaker.
Protective
Protective
screws
screws
2. Place the front speaker on the back of the display so that the screw holes
(B) of the speaker bracket are put on those of the display.
Screw hole (B)
Front speaker
3. Tighten the three supplied mounting screws firmly with phillips
screwdriver.
Use the rest of three supplied mounting screws on the other side.
Front speaker
Front speaker
• When moving the display, do not hold the speakers.
• The speakers are not of anti-magnetic type.
Do not place anything susceptible to magnetism, such as a video tape, nearby when setting the speakers.
4
Connecting the speaker cord
Attach to the speakers
When you connect the supplied speaker cord to the terminal clamp of the speakers, fold the end of each speaker
cord to avoid short-circuit.
1. Fold the end of each speaker
cord.
• Connect the cord with black stripes to the · (black) terminal and the other cord to the ª (red) terminal.
• Be careful that connection of the speaker cords to incorrect polarity terminals (ª and ·) degrades stereo
feeling and sound qualities.
2. Press and hold the terminal
clamp.
3. Insert the speaker cord, and
release the finger from the
terminal clamp.
Attach to the display
1. Press and hold the terminal
clamp.
2. Insert the speaker cord, and
release the finger from the
terminal clamp.
ENGLISH
• Connect the cord with black stripes to the · (black) terminal and the other cord to the ª (red) terminal.
• Be careful that connection of the speaker cords to incorrect polarity terminals (ª and ·) degrades stereo
feeling and sound qualities.
Bundling the speaker cords
You can bundle the speaker cords neatly with the supplied cord clamp, as illustrated.
• Stick the cord clamp after removing its protective seal. Give an amount of time before
bundling the speaker cords, or the cord clamp may be detached.
• If you are sticking the cord clamp to the back of the display, be careful not to block the
ventilation hole.
Cord clamp
Speaker cord
Specifications
• Power Handling Capacity : 3 W
• Impedance : 6 Ω
• Speaker : 9.5 cm x 1 cm
Direct Drive Speaker, two
• Dimensions
(W x H x D) : 43 mm x 640 mm x 43 mm
(Mass) : 0.7 kg (for each excluding the speaker bracket)
5
TS-C421SPG / TS-C421SPGU SPEAKER UNIT
