JVC TK-C1460B User Manual

E-1
TK-C1460B
INSTRUCTIONS
COLOUR VIDEO CAMERA
LWT0066
BF
LOOK
COLOR
VIDEO
CAMERA
DIGITAL
This instruction manual is made from 100% recycled paper.
is a registered trademark owned by VICTOR COMPANY OF JAPAN, LTD. is a registered trademark in Japan, the U.S.A., the U.K. and many other countries.
© 2002 VICTOR COMPANY OF JAPAN, LIMITED
VICTOR COMPANY OF JAPAN, LIMITED
TK-C1460B COLOUR VIDEO CAMERA
Printed in Japan LWT0066
®
®
E-2

IMPORTANT SAFEGUARDS

PORTABLE CART WARNING
(symbol provided by RETAC)
S3125A
1. Read all of these instructions.
2. Save these instructions for later use.
3. All warnings on the product and in the operating instructions should be adhered to.
4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
5. Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.
6. Do not use this appliance near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.
7. Do not place this appliance on an unstable cart, stand, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the appliance. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
8. Slots and openings in the cabinet and the back or bottom are pro-vided for ventilation, and to insure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appli­ance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
9. This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. For appliance designed to operate from battery power, refer to the operating instructions.
10. This appliance system is equipped with a 3-wire grounding type plug (a plug having a third (grounding) pin). This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding plug.
11. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it form the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
12. Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will be abused by persons walking on it.
E-3
13. Follow all warnings and instructions marked on the appliance.
14. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
15. Never push objects of any kind into this appliance through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.
16. Do not attempt to service this appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
17. Unplug this appliance from the wall outlet and refer servicing to qualified service person­nel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the appliance. c. If the appliance has been exposed to rain or water. d. If the appliance does not operate normally by following the operating instructions. Ad-
just only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive
work by a qualified technician to restore the appliance to normal operation. e. If the appliance has been dropped or the cabinet has been damaged. f. When the appliance exhibits a distinct change in performance - this indicates a need
for service.
18. When replacement parts are required, be sure the service technician has used replace­ment parts specified by the manufacturer that have the same characteristics as the origi­nal part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
19. Upon completion of any service or repairs to this appliance, ask the service technician to perform routine safety checks to determine that the appliance is in safe operating condition.
E-4
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Due to design modifications, data given in this instruction book are subject to possible change without prior notice.
AVERTISSEMENT: POUR EVITER LES RISQUES D’INCENDIE OU D’ELECTRO­CUTION, NE PAS EXPOSER L’APPAREIL A L’HUMIDITE OU A LA PLUIE.

Safety Precautions

E-5
Thank you for purchasing this product. (These instructions are for TK-C1460BE) Before beginning to operate this unit, please read the instruction manual carefully in order to make sure that the best possible performance is obtained.

CONTENTS

INTRODUCTION
Features .......................................................................................................................
........
6
Operating Precautions ......................................................................................................... 7
Controls, Connectors and Indicators ................................................................................... 8
CONNECTION/INSTALLATION
RM-P2580 System............................................................................................................. 12
Procedures .....................................................................................................................
...
14
Mounting the lens .............................................................................................................. 15
Installing the ferrite core ....................................................................................................16
Connections on the back ................................................................................................... 16

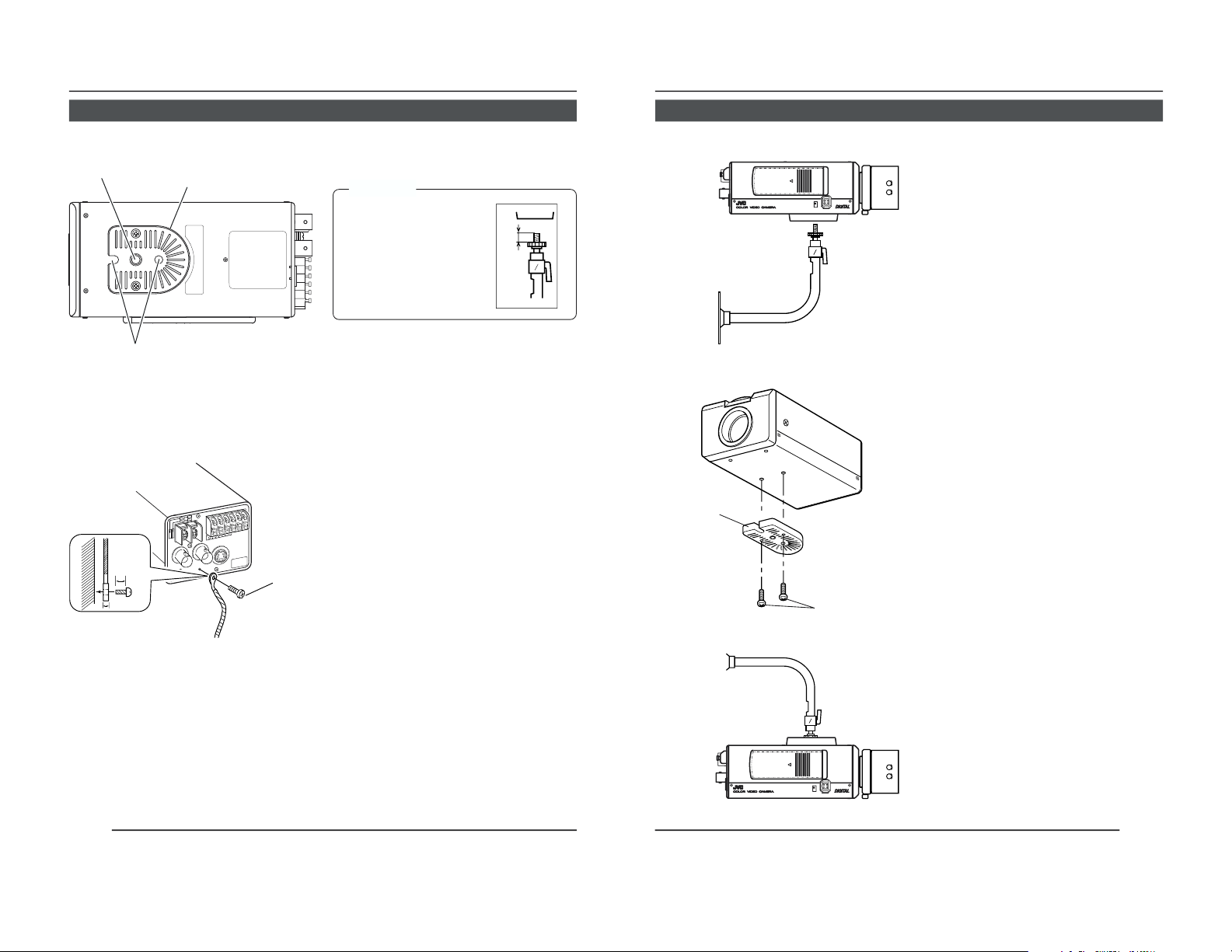

Mounting the camera ......................................................................................................... 18
Lens adjustment ................................................................................................................ 20

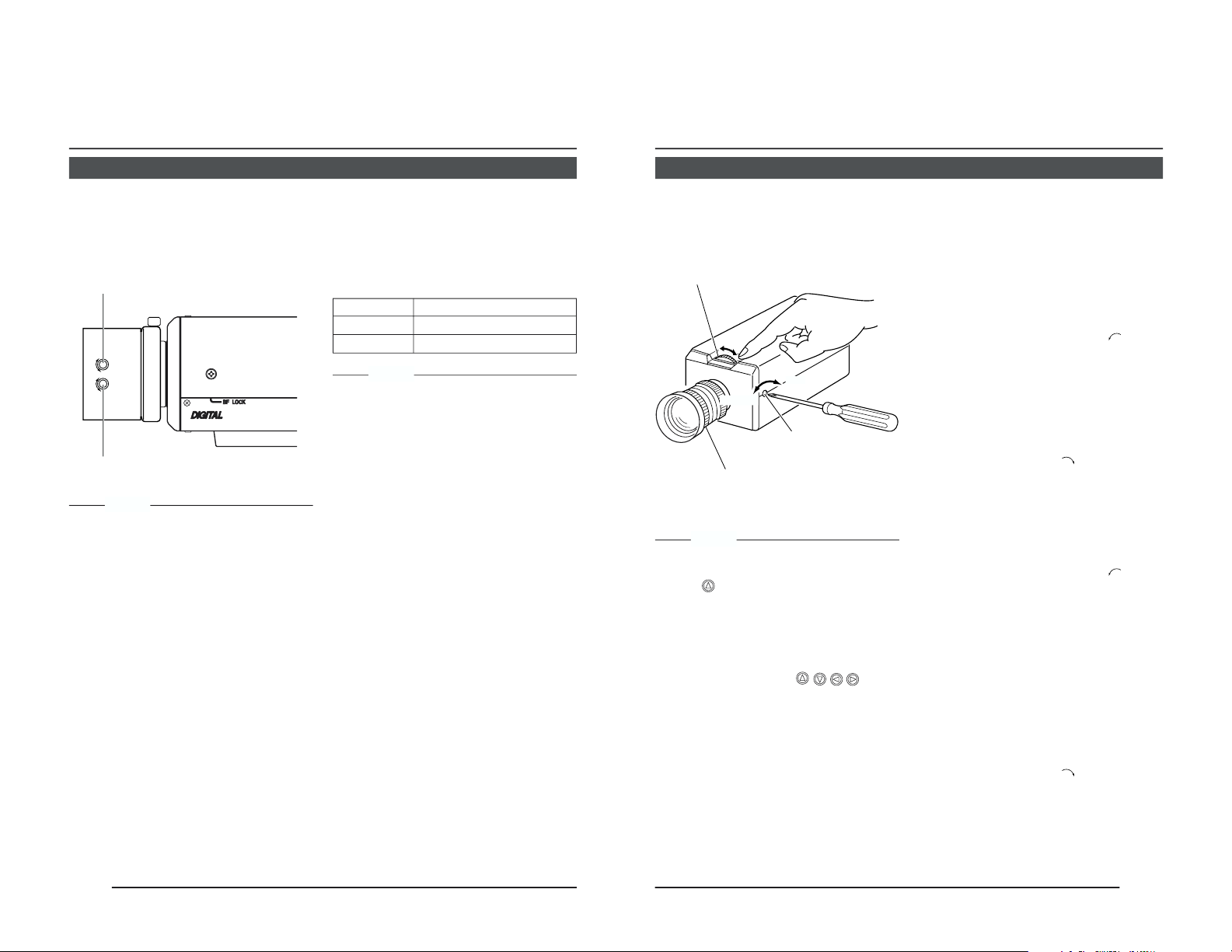

Back focus adjustment ...................................................................................................... 21
Auto white balance control adjustment ............................................................................. 22
MENU SETTING
Setting the menu ............................................................................................................... 23

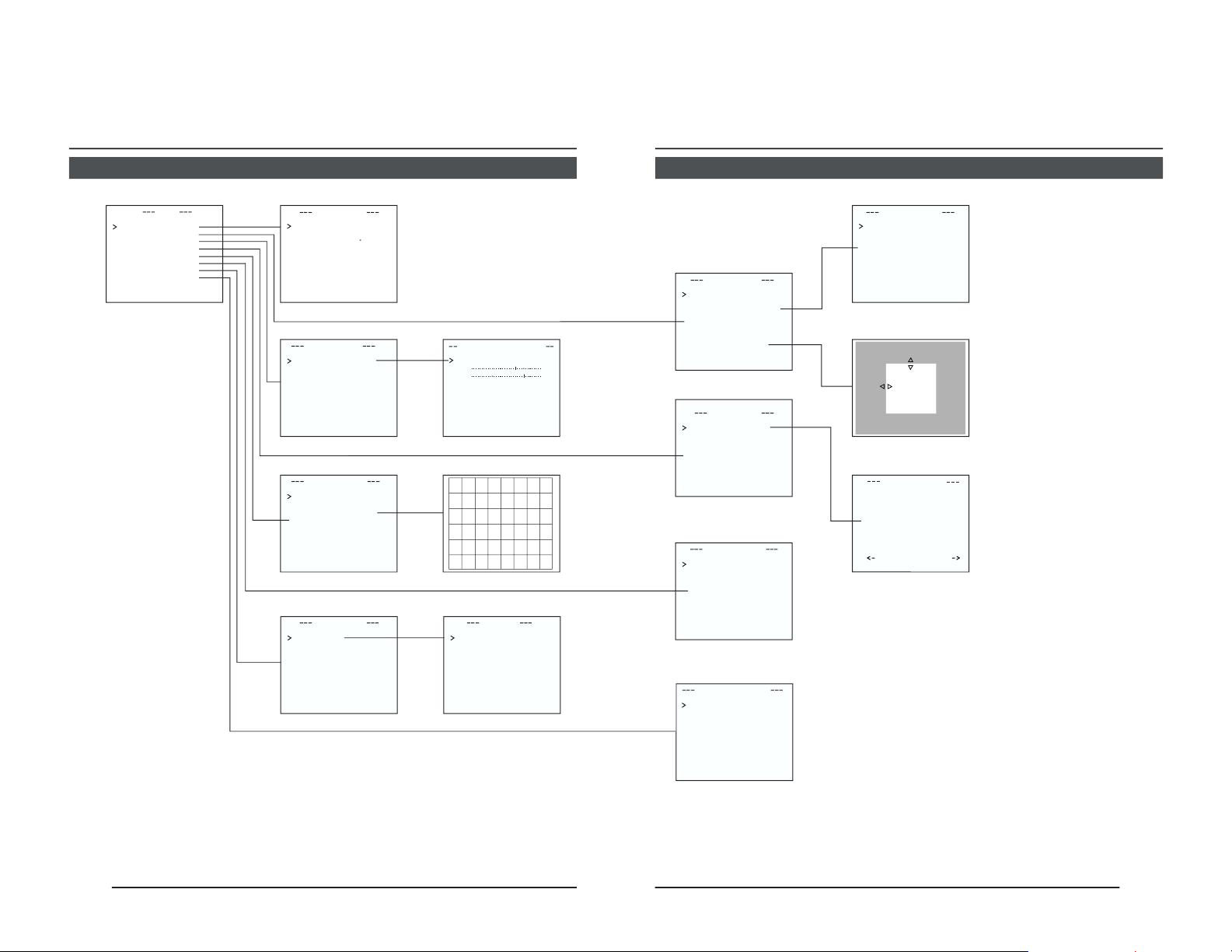

The flow of menu screen ...................................................................................................24
SYNC ADJUST Screen ..................................................................................................... 26
ALC SETTINGS Screen .................................................................................................... 26
VIDEO ADJUST Screen ....................................................................................................31
MODE SELECT Screen .................................................................................................... 32
MOTION DETECT Screen................................................................................................. 34
COMMUNICATION Screen ............................................................................................... 35
MAINTENANCE Screen ....................................................................................................35
FACTORY SETTINGS Screen ..........................................................................................35

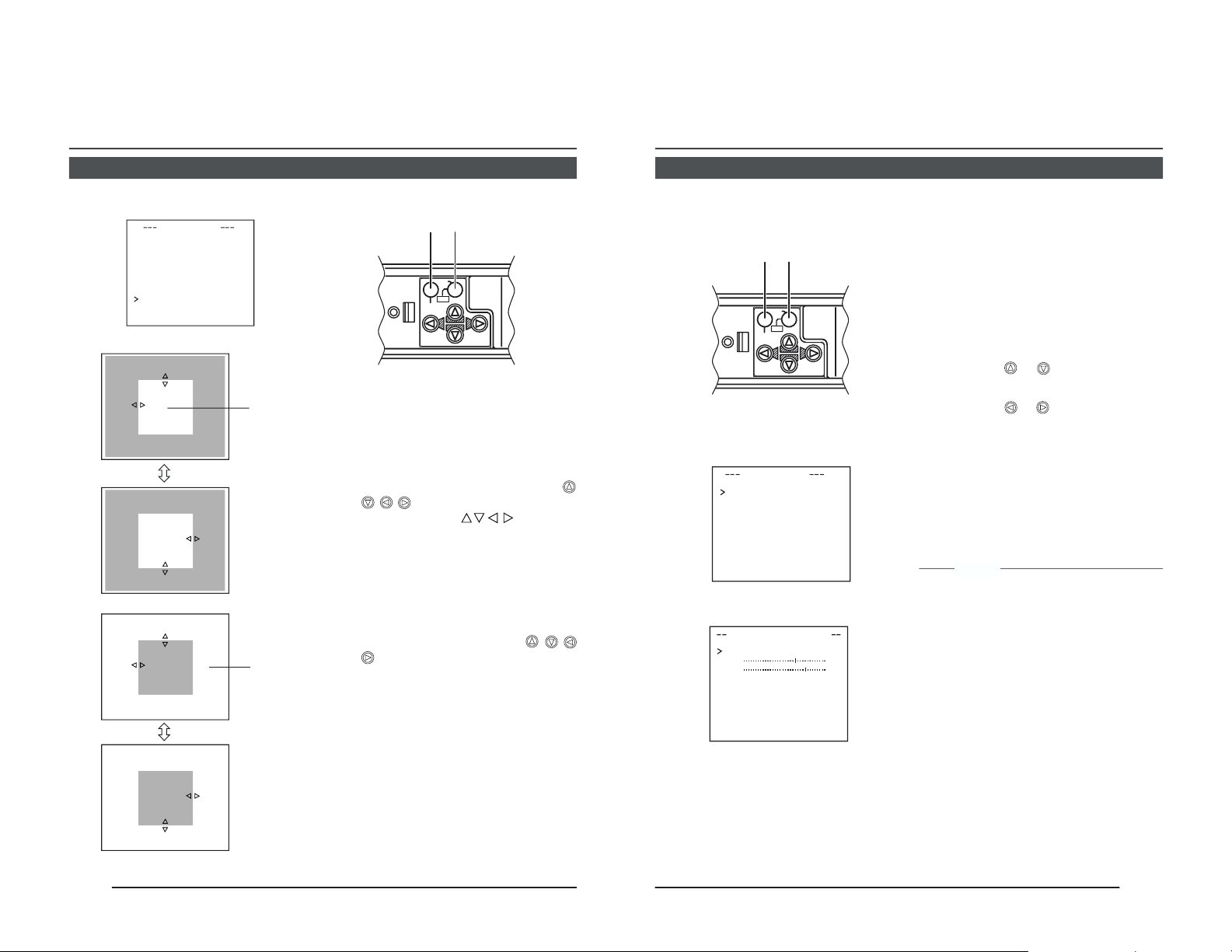

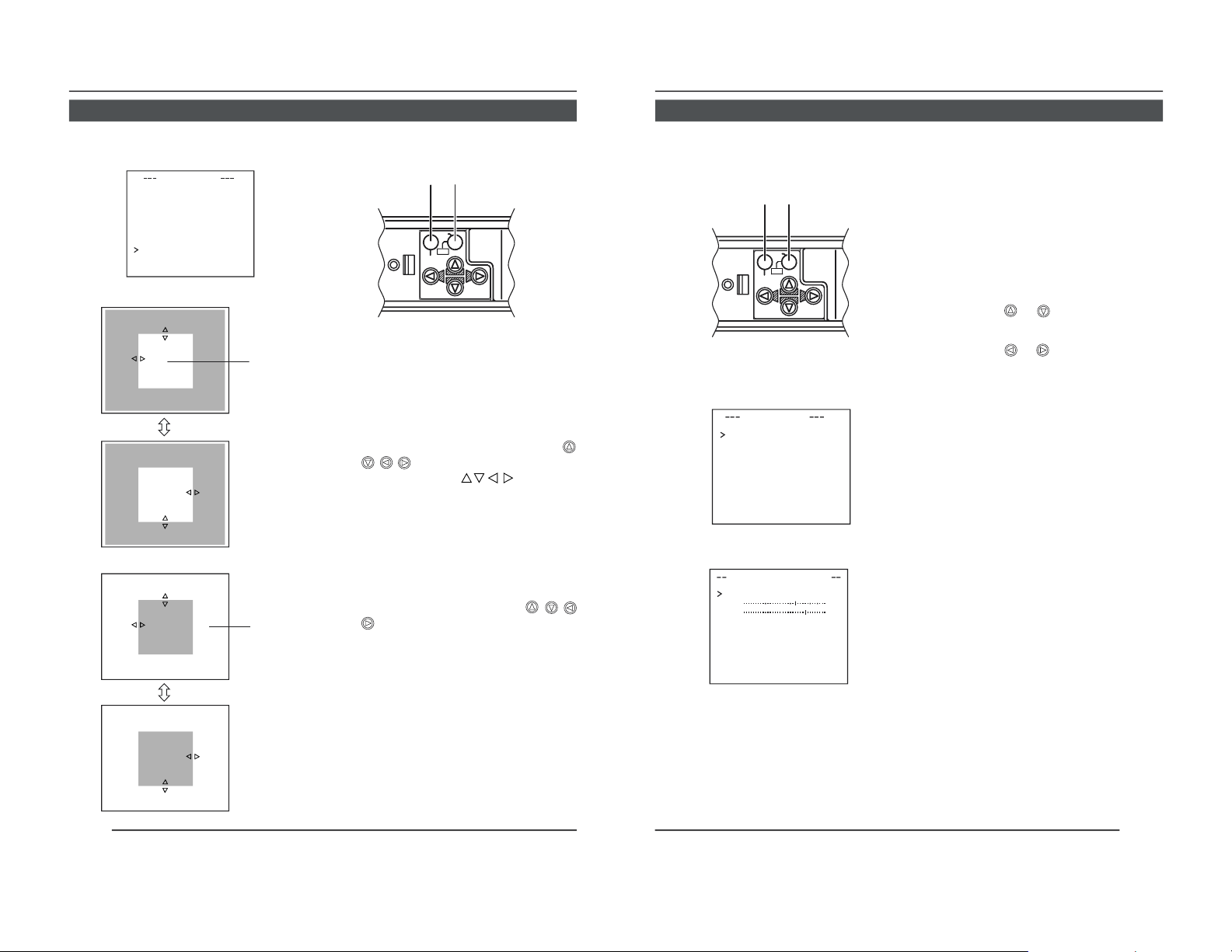

BLC EDITTING Screen ..................................................................................................... 36
Manual Adjustment of White Balance ...............................................................................37
CAMERA TITLE Setting ....................................................................................................38
Setting the MOTION DETECT Function ........................................................................... 39
Output of Black-White/Color switching signal ...................................................................40
Control by Black-White/Color switching signal from the outside ......................................41
White spot compensation ..................................................................................................42
OTHERS
Specifications.................................................................................................................
....
43
E-6
A new DSP (Digital Signal Processor)
features a Extended Dynamic Range (ExDR) and enables to shoot both bright and dark locations.
The use of a new CCD with a SENSE UP
(X32) function realized the minimum luminous flux density for subject of 0.6 lx (F1.2, 50%, AGC 20dB) and 0.019 lx (at SENSE UP (X32)). Furthermore, we realized 0.02 lx (F1.2, 50% AGC 20dB) thanks to the function of B/W mode.
A motion detector function detects the
motion inside an image and emits alarm signals.
The equipped Y/C terminals and RS-
422A/RS-485 terminals allow intended compatibility with diversified systems.
Day/Night surveillance
When the light is low, the camera pictures can be switched automatically to black and white pictures.
Electronic zoom
The 10x electronic zoom allows monitoring in far greater detail.

Features

Before starting an important recording,
be sure to perform a test recording in order to confirm that a normal recording is possible.
We do not accept liability for the loss of
a recording in the case of it becoming impossible to record due to a problem in the video camera, VCR or video tape.
We do not accept liability for any
damage to the camera in cases where it is dropped because of bad installation due to failure to observe the installation instructions correctly. Please be careful when installing the camera.
The motion detector is not a feature
which prevents theft, fire, etc. Even if an accident should occur resulting in damage, we do not accept any liability.

INTRODUCTION

Characters and symbols used in this instruction manual.
CAUTION : Cautionary notes concerning operation of the unit.
MEMO : Reference such as restrictions of features, etc.
: Reference page or item.
E-7
To save energy, when it is not being used
turn the system’s power off.
This camera has been designed for indoor
use. When you use it outdoors, be sure to use a housing or the like.
Do not install or use the camera in the
following places.
• In a place exposed to rain or moisture.
• In a place with vapor or oil soot, for example in a kitchen.
• When the ambient temperature rises above or falls below the acceptable range (from –10°C to 50°C).
• Near a source of radiation, X-rays, strong radio waves or magnetism.
• In a place subject to vibration.
• In a place with excessive dirt.
If this camera and the cables connected to this camera are used where there are strong electromagnetic waves or where there is magnetism present, for example near a radio or TV transmitter, power transformer or an electric motor, the picture may produce noise and the colours may be affected.
This camera incorporates an AGC circuit. As a result, when it is used under low light conditions, the camera sensitivity is automatically boosted and the picture may look uneven. However, this is not a malfunction.
While the AGC is activated, if transceiver which causes strong electromagnetic wave is at close distance, picture might suffer from beat. So please use the camera more than three meters from such transceivers.
When this camera is used in the ATW mode, the recorded colours may be slightly different from the actual colours due to the operational principles of the auto-tracking white balance circuit. However, this is not a malfunction.
If a high-intensity object (such as a lamp) is shot, the image on the screen may have vertical lines (smear) or blur (blooming) at its periphery. This is a characteristic of the CCD, and is not a defect.

Operating Precautions

Observe the following when carrying out camera maintenance.
•Turn the power OFF before proceeding
to carry out maintenance. If it is contaminated seriously, clean the contaminated part with a cloth (or a tissue) which has been soaked in a solution of water and a neutral detergent.
The unit is to be powered by a DC 12 V or an AC 24 V power supply. The AC 24 V power supply should conform to the following: Isolated power supply only
Caution for operating the video iris lens. If the video iris lens is set to an extremely low level, a malfunction – such as the hunting phenomenon where the iris opens and closes in voluntary – can occur. In such a case, first set the “LEVEL” potentiometer on the lens to the H position (iris open), and then adjust it to an optimum level. ( page 20)
The cable stopper on the terminal block can come off sometimes. Therefore, be sure to take enough time and fix the cable securely.
When a highly bright subject is shot, sometimes undulations can be observed on the vertical lines of the subject. However, this phenomenon is peculiar to the unit and is not a sign of malfunction.
The beat may sometimes appear on the screen if gain is raised when the line lock is in use, but the phenomenon takes place due to the fluctuation of power frequency and is not a malfunction.
You may hear some noise when the screen is switched between the color and the black and white mode, because the optical filter moves. Also, black vertical bands will appear on the screen.
E-8
INTRODUCTION
1
Lens mount
To attach the lens. This is applicable to both C-mount lenses and CS-mount lenses.
2
Back focus adjustment ring
Adjusting the back focus during lens installation. When readjustment is required, loosen the locking screw
3
by turning it counterclockwise and turn the back focus adjustment ring
2
. After the adjustment, tighten the locking screw
3
again.
3
[BF LOCK] Back focus locking screw
This serves to fix the back focus-adjusting ring.
4
Camera-mounting bracket
The bracket has been attached on the bottom of the camera before shipment. It can also be attached on the top according to the circumstance. To re-attach the bracket use the threaded holes at the top, with the camera mounting bracket fixing screws
7
.
5
Camera-mounting screw hole (1/4 inch)
Use this hole when mounting the camera onto a fixer, pan/ tilt unit, and the like. (Use a screw shorter than 7 mm.)
6
Rotation-preventive hole
Make use of this rotation-preventive hole to prevent any fall when mounting the camera. Always make sure that the camera is securely mounted.
7
Camera mounting bracket fixing screws (×2: M2.6 × 6 mm)
Be sure to use a 6 mm long screw.
MAX.
7
mm

Controls, Connectors and Indicators

E-9
8
Cover
The cover slides open when push to the left.
9
[VIDEO/DC] Iris Selector Switch
This should be set according to the type of lens if an automatic iris control lens is used. VIDEO: In case of lens with EE amp built-
in.
DC: In case of lens without EE amp
built-in.
(VIDEO: At time of factory shipment)
10
[IRIS] Iris Terminal
This is connected to an automatic iris control lens. ( Page 15)
11
[MENU] Menu Button
When pressed, a menu screen is brought up. ( Page 23)
ON
SIMPLEX
ON LL
SET
AWC
MENU
CAMERA SETUP
EXT TERM-OFF
INT/GL
DUPLEX
RX TERM-OFF
NOT USED
VIDEO
DC
IRIS
12
[SET/AWC] Set. Auto White Control Button SET: Press this button to display a sub-
menu. ( Page 23)
AWC: If this button is kept pressed for
more than 1 second, a one-push­auto-white-balance function works and sets the white balance. Once it is set, even if colour temperature changes, white balance does not change. It is also possible to make fine adjustments on the set white balance. ( Page 22)
E-10
INTRODUCTION
13
[
,
,
,
] Up-and-down, left-and-
right Button
These buttons select items on the menu screen and change a set value. (Page 23)
14
[EXT.TERM-ON/OFF] Terminal On/Off Switch of External Synchronization Signal
This is a terminating ON/OFF switch for the external synchronization input signal. When this is switched ON, termination is executed via a 75 Ω resistor.
ON: terminates at 75Ω. OFF: does not terminate at 75Ω.
(ON: At time of factory shipment)
15
[INT/GL, LL] Selector Switch for Synchronizing System
This switch sets the synchronizing system for the camera.
INT/GL:
This is set for internal synchronization (INT) or external synchronization (GL).
LL (Line Lock):
The camera’s vertical synchronization is locked to the AC 24V power line frequency. When switching between multiple cameras using a switcher, selecting this mode and adjusting the vertical phase can reduce the monitor sync disturbances occur that when the camera image is switched. (This cannot be used in regions where the power frequency is 60 Hz) (INT/GL: At time of factory shipment)
16
[DUPLEX, SIMPLEX] Selector Switch for Transmission System
If the setting is changed, be absolutely sure to switch on the power again.
DUPLEX:
This switch sets to DUPLEX when the transmission between the camera and a remote control unit is in a duplex system (two-way).
SIMPLEX:
This switch sets to SIMPLEX when the transmission between the camera and a remote control unit is in a simplex system (one-way). (DUPLEX: At time of factory shipment)
17
[RX.TERM-ON/OFF] RX Signal Terminal ON/OFF Switch
This sets whether or not the signal between RX + and RX – on the back
20
should be terminated at the value of 110 resistance.
ON: Te r minated. OFF: Not terminated.
If the system including the camera is the M.DROP (Multi-drop, RS-485) system, only the last camera mounted along the control signal cable is set to “ON” and the other cameras are set to “OFF”. In case of the M.DROP system, it becomes necessary to set the Machine ID. ( Page
35) If the system including the camera is the PTOP (Point to Point, RS-422A) system, set this switch of all the cameras to “ON”. The item STYLE on the COMMUNICA­TION screen sets M.DROP or P TO P (Page 35) (ON: At time of factory shipment)
18
NOT USED
This cannot be used. Do not switch.
Controls, Connectors and Indicators (Continued)
E-11
DC12V
AC24V
Y/C OUT
SYNC IN
POWER
VIDEO OUT
SEE INST­RUCTION MANUAL
+
-
12
CLASS 2 ONLY(U TYPE)
ISOLATED POWER ONLY
(E TYPE)
TX
+
TX
-
RX
+
RX
-
AUX
GND
ABCD
)
(
¤
19
[DC 12V, AC 24V] Power input terminals
To input DC 12V or AC 24V power.
20
[TX+A, TX-B, RX+C, RX-D] Control signal connection terminals
Te r minals for inputting signals with electrical characteristics conforming to the EIA/TIA RS-422A or RS-485 standard.
17
RX.TERM switch
21
[AUX, GND] Auxiliary Input/Output Terminals
If there is any change in the area set on the MOTION DETECT screen, these terminals output the corresponding signals. ( Page 34) These terminals also output the B&W/ COLOUR signal. (Page 30) [Open-collector low signal. Maximum voltage 30V, current 30mA.] When carrying out B&W/COLOUR switching using the control signal, the signals are input through these terminals. (Page 30) [B&W: make; COLOUR: break]
22
[Y/C OUT] Y/C output connector
This 4-pin connector outputs the luminance and chrominance signal.
• Pin configuration of Y/C OUT connector
23
[VIDEO OUT] Video signal output connector
This BNC connector outputs a composite video signal. Connect this to the video input connector of a video monitor, switcher, etc.
24
[POWER] Power indicator lamp
This lamp lights when power is supplied to the camera.
25
[SYNC IN] Sync signal input connector
This BNC connector accepts the input of an external sync signal such as a composite video (VBS) or black burst (BB) signal. When a sync signal is input into this connector, the camera operation is automatically synchronized with the external sync signal. To terminate this connector at 75, turn ON the EXT.TERM switch
14
.
Pin No. Signal
1 GND 2 GND 3 Luminance (Y) 4 Chrominance (C)
4
2
3
1
E-12
REC
PLAY
FFREW
REVERSE
PAUSE/ STILL
REC CHECK
STOP/EJECT
COUNT/ CLOCK
TIME MODE
TIMER REC
AL/PL RESET
MENU
VIDEO CASSETTE RECORDER
SHIFT/TRACKING
SET/V.LOCK
RESET /CANCEL
OPERATE
SR-L910
OPE. LOCK
1
TO CAMERATO CAMERA DATA I / ODATA I / O
RXRX+RXRX
­TXTX+TXTX
-
COMCOM
1 2 3 4 5 6 7 8
COMCOM
9/19/110/210/211/311/3 12/412/4 13/513/514/614/6 15/715/7 16/816/8
COMCOM COMCOM COMCOM
CAMERACAMERA
SWSW
UNITUNIT ALARMALARM
AUTO
4312 875 6
2 3 4 5 6 7
8
1
MONITORMONITOR OUTPUTOUTPUT
MONITORMONITOR
SERIAL-2SERIAL-2SERIAL-1SERIAL-1
VIDEO INPUTVIDEO INPUT
VIDEO OUTPUT
OUTPUTOUTPUT
2
1
ONON
2 3 4 5 6 7
8
POWER
OFF
AC INPUT
ALC
LEVEL
Av Pk
L H
ALC
LEVEL
Av Pk
L H
ALC
LEVEL
Av Pk
L H
•••••
CAMERA
SW
Remote Control Unit
RM-P2580
Time lapse VCR
MONITOR
MONITOR
CAM SW OUT
VIDEO IN
COM
TO
CAMERA
MONITOR OUTPUT 2
MONITOR OUTPUT 1

CONNECTION/INSTALLATION

RM-P2580 System

System with up to 8 cameras
Camera
TK-C1460B
Camera
TK-C1460B
Camera
TK-C1460B
Camera 1
Camera 2
Camera 8
Control signal cable
Video signal cable
Power cable
AC24V or DC12V
AC24V or DC12V
AC24V or DC12V
MONITOR screen
(example showing camera ID as “05”)
When controlling with any system except the RM-P2580, execute proper settings using switches and menu screens according to the systems used. ( Page 14)
PROT OOLDUPLEXID-05C
:
“DUPLEX” should be displayed.
The number shown in the □□ part of ID-□□ should be correct.
MACHINE ID:1 (Menu screen) RX TERM: OFF (switch)
MACHINE ID:2 (Menu screen) RX TERM: OFF (switch)
MACHINE ID:8 (Menu screen) RX TERM: ON (switch)
MEMO
• When operating a system using the RM-P2580, several cameras (up to 16) can be con­nected and used on one control signal cable. Consequently, an incorrect switch setting on just a single camera will cause the entire system to work incorrectly.
• Confirm switch settings on the screen as follows.
q Confirm that the image from the camera to be checked
is displayed on the monitor.
w Tu rn OFF and then ON the AC 24 V power to the cam-
era to be checked.
e The camera begins the initial operation and characters
similar to those shown in the illustration on the right appear on the monitor screen.
r Confirm that “DUPLEX” and “ID-□□ ” are displayed and
that the ID number is the correct number (the number should be the same as the number of the VIDEO IN­PUT terminal to which the camera is connected on the rear panel of the RM-P2580).
t If wrong, set the camera ID again.
E-13
CAMERA SETUP
SET
MENU
EXT TERM-OFF
INT/GL DUPLEX
RX TERM-OFF
NOT USED
ON LL SIMPLEX ON
EXT TERM-OFF
INT/GL
DUPLEX
RX TERM-OFF
NOT USED
ON LL SIMPLEX ON
VIDEO
DC
IRIS
AWC
A RX
+
B RX C TX
+
D TX
TX+ A TX
B
RX
+
C
RX
D
TX
+
A
TX
B
RX
+
C
RX
D
RM-P2580
Camera 2 control signal connection terminals
Connect: Camera TX+ to RM-P2580 RX+ Camera TX– to RM-P2580 RX– Camera RX+ to RM-P2580 TX+ Camera RX– to RM-P2580 TX– The A B C D marks indicated on both the camera terminals and the RM-P2580 termi­nals facilitate correct connections. Connect the terminals with identical marks.
Connecting the control signal cable
(Use a twisted-pair cable for connection. Page 17.)
Camera 1 control signal connection terminals
Setting the switches (Page 10)
Select the synchronization method of the camera image. Set the switch on all cameras to LL (Line Lock) and match with the V. PHASE. ( Page 26.)
Set this switch to the DUPLEX * If the setting is changed, be absolutely sure to
switch on the power again.
Set this switch to ON (signal termination ON) only on the camera placed at the end of the control signal cable. Set to OFF on all other cameras.
Setting on the MENU screen (Page 35)
* If the setting is changed, escape from the menu screen once, and definitely switch on the power again.
MACHINE ID setting switches
Set this item to match the RM-P2580 VIDEO INPUT terminal number for each camera.
When connecting
Tu rn OFF the power supply to all equipment to be used before making connections.
Carefully read the Instructions for each piece of equipment to be used before making
connections.
For the appropriate connection cables and the length of these, carefully read “Connections
on the back” on page 16.
The control signal cable cannot be used for loop connection.
Set to M.DROP
Set to M.DROP when the RM-P2580 is used as a remote control unit. When controlling from another machine, make sure that it matches the communication system used.
MMCO UNI CAT ION
ST LE M.DROPY MA H NE DII 1C
E-14
CONNECTION/INSTALLATION
SET
MENU
CAMERA SETUP
EXT TERM-OFF
INT/GL
DUPLEX
RX TERM-OFF
IOT USED
ON LL SIMPLEX ON
VIDEO
DC
ALC
LEVEL
Av Pk
L H
DC12V
AC24V
CLASS 2 ONLY(U TYPE)
ISOLATED POWER ONLY
(E TYPE)
TX
+
TX
-
RX+RX
-
AUX
Y/C OUT
SYNC IN
POWER
VIDEO OUT
GND
ABCD
SEE INST­RUCTION MANUAL
1
+
-
2
Execute connection/installation according to the procedures described below. Tu rn OFF the power supply to all equipment to be used before making carefully.
1.
Mounting the lens ( Page 15)
4.
Setting the switches ( Page 13)
6.
Back focus adjustment ( Page 21)
5.
Lens adjustment ( Page 20)
7.
Auto white balance control adjustment ( Page 22)
3.
Mounting the camera
( Page 18)
To controlling systems such as RM-P2580
To alarm terminals such as switches
Monitor
2.
Connections
( Page 16)
DC 12V/AC 24V power supply
Genlock sync signal generator

Procedures

E-15

Mounting the lens

VIDEO
DC
IRIS
VIDEO
DC
3
42
1
Mount the lens according to the procedures described below.
1.
Before mounting a lens, check whether it is a C-mount or CS-mount lens. To change the mounting method, loosen the back-focus locking screw (M 2.6) using a Phillips head screwdriver, turn the back-focus adjusting ring with your fingers or the screwdriver and change the mounting method. As regards the dimension (b) of the area to which the lens is to be installed as illustrated on the left diagram, use the one with less value than what’s shown in the table below. For both the C-mount and CS-mount, never use whatever exceeds the dimen­sion (b), as such will not allow normal installation and damage the inner part of the camera, resulting in a malfunc­tion.
The F mark indicates a focal point.
2.
Mount the lens on the camera by turning the lens clockwise. Adjust its position.
3.
When using an auto-iris lens with an EE amplifier, turn the switch to the “VIDEO” side. When no EE amplifier is equipped, turn the switch to the “DC” side.
4.
If the lens has an auto-iris mechanism, connect the lens cable after checking the pin arrangement. If the lens cable has a different type of plug, use the 4-P plug supplied.
Lens Flange back (c) Dimension (b)
C mount lens 17.526mm 5.5mm or less
CS mount lens
12.5mm 5.5mm or less
1
3
4
2
BF LOCK
(b)
(c)
F
Lens DC IRIS VIDEO IRIS
Pin No. (does not contain EE amplifier) (contain EE amplifier)
1 Brake
9V [max 50mA]
2 Brake
+
NC
3Drive
+
VIDEO
4Drive
GND
3.
2.
4.
Attached 4 pin plugs
1
3
2
4
CAUTION:
Always attach the fer­rite core (supplied) to the lens cable.
( Page 16)
E-16
DC12V
AC24V
CLASS 2 ONLY(U TYPE)
ISOLATED POWER ONLY
(E TYPE)
TX
+
TX
-
RX
+
RX
-
AUX
Y/C OUT
SYNC IN
POWER
VIDEO OUT
GND
ABCD
SEE INST­RUCTION MANUAL
1
+
-
2
Connect the DC 12 V or the AC 24 V power supply to the DC 12V/AC 24V terminals. To prevent connection errors or a cable disconnection, we recommend the use of lug plates for the connections. The following table shows the connection distances and connection cables provided that 2-conductor VVF cables (vinyl-insulated vinyl sheath cables) are used.
Maximum extension (reference)
Conductor diameter
100 m 260 m 410 m 500 m
1.0mm 1.6mm 2.0mm 2.6mm and more and more and more and more

Connections on the back

CONNECTION/INSTALLATION
Power supply
(DC 12 V or AC 24 V)

Installing the ferrite core

To retain electromagnetic compatibility, use the ferrite cores provided when connecting to the lens.
Notes:
Install the ferrite cores within 50 mm of the camera-side connectors. (Fasten the ferrite core with the wire clamp provided.)
Ferrite core
Video-iris lens (or galvanometnc-iris lens)
VIDEO
DC
IRIS
ALC
LEVEL
Av Pk
L H
Wire clamp
E-17
Control signal cables
These cables should be connected only when it is required to control the camera using the RS-442A or RS-485 signals. The use of 0.65 4-conductor twisted pair cables is recom­mended. With these cables, the maximum ex­tension distance is 1,200 m.
Connect to the other side in pairs like this.
Connect to the other side in pairs like this.
A
B
TX+ TX
-
C
D
RX+ RX
-
Genlock connection
With some systems, when the external sync signal is a composite video or black burst sig­nal genlocking by applying an external sync input requires the horizontal phase (H PHASE) and colour phase (SC COARSE) to be adjusted.
MEMO
• Genlocking is not possible with a signal con­taining too much jitter, such as a VCR or videodisc playback signal.
•For details, consult a JVC authorized dealer.
MEMO
• If thin cables are used (i.e. with a high resistance), a significant voltage drop will occur when the unit is at its maximum power consumption. Either use a thick cable to restrict the voltage drop at the camera side to below 10%, or place the power supply near to the camera. If voltage drop occurs during operation, the performance will be unstable.
• Attach the cable conductors so that they do not come into contact with the drop prevention wires.
• Do not allow input from both a DC 12 V and AC 24 V power supply at the same time.
• When using a DC 12 V power supply, ensure that the polarities of the cable are correct.
• The AC 24 V power supply should conform to the following: Isolated power supply only
E-18
DC12V
AC24V
CLASS 2 ONLY(U TYPE)
ISOLATED POWER ONLY
(E TYPE)
T
X
+
TX
-
R
X
+
R
X
-
A
U
X
Y/C OUT
SYNC IN
POWER
VIDEO OUT
G
N
D
A
B
CD
S
E
E
IN
S
T
-
R
U
C
T
IO
N
M
A
N
U
A
L
+
-
1
2
2mm
6mm
M3 x 6mm
MAX.
7
mm

Mounting the camera

CONNECTION/INSTALLATION
Camera mounting screw hole
Camera-mounting bracket
Rotation prevention hole
When mounting the camera on a fixer, pan/ tilt, etc., use the camera mounting screw hole located on the camera-mounting bracket.
Furthermore, make use of the rotation prevention hole to prevent the camera from falling and securely mount the camera. Special precautions must be taken for mounting the camera on a wall or a ceiling. We are not liable for any damage caused by improper installation.
Fall Prevention
• Exercise maximum caution when installing the unit to the wall or ceiling. You should not engage in the installation work yourself. Ask a professional to do the job, since the fall of the unit can result in injuries and accidents.
• When installing the unit on a fixer, Pan/ Tilt unit, etc., make sure to install it firmly using a rotation-preventing hole provided to prevent fall.
•To prevent fall, connect the unit to a section with sufficient strength (ceiling slab or channel) using a fall prevention wire such as a wire chain and the like. Use the black screw on the back of the unit for installation. Pay utmost attention to the length of the wire, too.
• Specified screw (M3 × 6 mm) Never use any screw longer than the specified length as the inside can be damaged.
CAUTION:
Use the screw with a length shorter than 7mm from a camera-mounting face.
E-19
VIDEO
DC
IRIS
VIDEO
DC
IRIS
Camera­mounting bracket
Fixing screws
Installation of camera
• Mounting from the bottom This camera is originally designed to be mounted from the bottom, as shown q. The hole is standard photographic pan­head screw size (1/4-20 UNC). Example the Fixing unit or Pan/Tilt unit.
• Mounting from the top Remove the CAMERA MOUNTING BRACKET from the bottom of the camera by removing two fixing screws as shown w. Attach the CAMERA MOUNTING BRACKET to the top, then mount the camera on the Fixing Unit as shown e. Make sure that two original screws are used when mounting the CAMERA MOUNTING BRACKET. Be sure to use a 6 mm long locking screw for the camera­mounting bracket. (This camera is used indoor and under similar conditions.)
q
w
e
E-20
CONNECTION/INSTALLATION

Lens adjustment

ALC
LEVEL
Av Pk
L H
Connect the camera according to the connection method, turn it on, display an image on the monitor, and check the image. The camera has been factory-adjusted to the best position, but it may need to be adjusted according to the object conditions or combination of lenses. If the image is unnatural, adjust it as follows: (Also read the instruction manual of the lens.)
• LEVEL adjustment
Monitor screen
LEVEL turning direction
Too bright Counterclockwise (Toward L)
Too dark Clockwise (Toward H)
MEMO
• If the sensitivity adjustment LEVEL is
turned excessively to L, the sensitivity in­creases because of the AGC function of the camera, and the image looks grainy.
• If the video iris lens is set to too low a level,
malfunction such as the hunting phenom­enon, in which the iris opens or closes unintentionally, may occur. In such a case, first set LEVEL potentiom­eter on the lens to the H (iris open) posi­tion then adjust it to the optimum level.
LEVEL adjustment
ALC adjustment
(Does not operate.)
MEMO
Note that the lens cannot make ALC adjust­ments. Make ALC adjustments using the item AVERAGE: PEAK on the menu. (Page 26)
E-21

Back focus adjustment

• With a fixed-focus lens
If the focus can not be adjusted correctly by rotating the lens focus ring, adjust the back focus as follows.
1.
Loosen the back focus locking screw by turning it counterclocckwise (
) with a
screwdriver.
2.
Shoot a pattern closely.
3.
Tu rn the lens focus ring to ⬁.
4.
Tu rn the back focus adjustment ring to focus at the best point.
5.
Tighten the back focus locking screw by turning it clockwise (
).
• With a zoom lens
If the image is out of focus when zooming (telephoto wide-angle), adjust the camera as follows:
1.
Loosen the back focus locking screw by turning it counterclocckwise (
) with a
screwdriver.
2.
Shoot a comparatively dark scene with thin lines.
3.
Set the lens to the maximum telephoto position, and adjust the lens focus.
4.
Set the lens to the maximum wide-angle position, and turn the back focus ring to adjust the focus. (Repeat steps
3.
and
4.
two or three
times.)
5.
Tighten the back focus locking screw by turning it clockwise (
).
Back focus adjustment
Be sure to make back-focus adjustments when changing the lens mounting method or using a different lens. If required, adjust it as follows:
To make accurate back focus adjustments, use the electronic shutter and the ND filter, and carry out the following adjustments in a state where the lens iris is released. (The ND filter acts to reduce the amount of incident light entering the lens evenly over the entire wavelength band.)
MEMO
• LENS FOCUS ADJUSTMENT MODE
At the time of focus adjustment, press the button
at the side of the unit for at least one second to open the lens iris and to fa­cilitate focusing. At this time, “LENS FOCUS ADJUSTMENT MODE” will be displayed on the monitor screen. When the adjustment has been completed, press one of the buttons
to can-
cel focus adjustment mode.
•Focus setting can differ on the color and on the black and white screen. Make adjust­ments so that the focus will come to the op­timum on both screens.
Back focus locking screw (M2.6)
Back focus adjustment ring
Lens focus ring
BF LOCK
Tighten
Loosen
E-22
CONNECTION/INSTALLATION

Auto white balance control adjustment

Each light source has its own colour temperature. Therefore, when the main light source lighting an object is changed, the white balance should be adjusted again by pressing the AWC button.
1.
Place a white object under the same lighting condition as the object to be shot and zoom in to fill the screen with white.
2.
When the AWC button is pressed for approx. one sec., the white balance is adjusted for the object being recorded.
3.
During the time when the Auto White function is operated, "AWC OPERA­TION" is displayed (for approx. 0.5 sec.). When the appropriate white balance is acquired, "AWC OK" is displayed.
4.
Error message display
NG : OBJECT
Displayed when there is not enough white colour on an object or the colour temperature is not suitable. By taking a shot of a white object to fill the screen, adjust the white balance again.
ERROR : LOW LIGHT
Displayed when the light is low. In­crease the illumination then re-adjust the white balance.
ERROR : HIGH LIGHT
Displayed when the light is too bright. Decrease the illumination then re-ad­just the white balance.
MEMO
Even if you press the AWC button, the white balance will not be re-adjusted during the operation in the black-and-white mode.
CAMERA SETUP
SET
MENU
EXT TERM-OFF
INT/GL
DUPLEX
RX TERM-OFF
NOT USED
ON LL SIMPLEX ON
VIDEO
DC
IRIS
AWC
AWC button
AWC OK
DISPLAYING RESULT
AWC OPERATION
DURING OPERATION
AWC NG : OBJECT
OBJECT ERROR
AWC ERROR : LOW LIGHT
LOW LIGHTING
AWC ERROR : HIGH LIGHT
OVER LIGHTING
E-23

MENU SETTING

Setting the menu

CAMERA SETUP
SET
MENU
EXT TERM-OFF
INT/GL
DUPLEX
RX TERM-OFF
NOT USED
CAMERA SETUP
SET
MENU
ON LL SIMPLEX ON
VIDEO
DC
IRIS
AWC
1.
Press the MENU button.
The MENU screen is displayed.
2.
Set the cursor (>) to a desired sub-menu using the
,
button.
3.
Press the SET button.
The selected sub-menu screen is displayed.
4.
Use the
,
button to set the
cursor (>) to a desired item.
5.
Change the set value using the
,
button.
Change of the set value displays a change mark (∗).
If you wish to change the set values of another items, repeat items
2.
to
5.
above.
6.
Press the MENU button.
The screen returns to the previous one (MENU screen).
7.
Press the MENU button.
The screen returns to the normal screen (quitting the menu display).
* When the setting is executed using the RM-
P2580, use a joy stick instead of the
button.
LACSETTINGS
IIRSLEVEL NORMAL
AEVRAEG:PEAK 82:
ACGMODE
2dB0
SUTHTERExD
LUX
R/
NRMALO
L
O
OFF
PIORRITY ––– BCLOFF
SNSEEUP OFF
MODE
B&W/COLOUR MODE
LACSETTINGS
AEVRAEG:PEAK 82:
ACGMODE
2dB0
SUTHTERExDR/
NRMALO
I
IRSLEVEL -5
OFF
PIORRITY ––– BCLOFF
SNSEEUP OFF
LUX
L
O
MODE
B&W/COLOUR MODE
MENU button
SET button
MENU
SYNC ADJUST
VIDEO ADJUST MOD E ESLECT
ALC SETT INGS
COMMUN ICAT ION MA IN TEN NACE
MOT I ON
D
E
TECT
..
F ACTORY SETTI NGS..
..
..
..
..
..
..
LACSETTINGS
IIRSLEVEL NORMAL
AEVRAEG:PEAK 82:
ACGMODE
2dB0
SUTHTERExD
LUX
R/
NRMALO
L
O
OFF
PIORRITY ––– BCLOFF
SNSEEUP OFF
MODE
B&W/COLOUR MODE
E-24
MENU SETTING

The flow of menu screen

Page 26
Page 31
Page 34
Page 37
Page 39
MENU
SYNC ADJUST
VIDEO ADJUST MODE ESLECT
ALC SETT INGS
COMMUN ICAT I ON MA INT ENANCE
MOT I ON
D
E
TECT
SYNC DAJUST
VPHASE 0 HPHASE 0 SC ECOARS 0 SC F INE 12 8
DEVI O ADJUST
WH T E B AL E AT WNC
A
I
CO OUR L E NORMALEL
V
L
EN ANCE LE NORMALEL
V
H
PE
E
STAL LE NORMALEL
V
D
AU
O
BLAC K OFFTL
C
T
TIMO O N DE TEC T
MO E OFFD LE EL NORMALV AR A EDIE AL
R
MTI EM10sA
DE
ON
STRAT
I
N
O
M
WH I T E BAL
A
NCE CON
T
ROL
AWC SET . . RB
::
MG
::
g
.
.
..
FACTORY SETTINGS..
..
..
..
..
..
..
T..
INMA T ENAN CE
CC SPOT ..D
DCC SPOT
CA ELNC EX C TEUE
heat up 30min in advance need Lens
cap to execute
Page 38
Page 38
E-25
Page 26
Page 32
Page 35
Page 30
Page 36
Page 38
Page 35
CTFA ORY SENGSTT I
CA CELN CL A W I
(
HOUT T I TL E)RTE
C
DATA CLEARED
LA
(
)RALLE
LACSETTINGS
IIRSLEVEL NORMAL AEVRAEG:PEAK 82:
ACGMODE
2dB0
SUTHTERExDR/
NRMALO
MODE SE LE C T
CAMERA T IT LE ED I T. . REVERS E MODE OFF HLI MODE OFF ALM .T I TLE S Z
E
IDOUBLE
ALARM COLOUR WH ITE
MMCO UNIC ATI ON
ST LE P TO PY
MA H N E DII – –C
SHUTTER SPEED
SPEED
1 120/ ––– ––– –––
FAST L IMIT ED
x
ER
ED
x
R
LLEV
M.
CAMERA T
I
T
L
E
ÄÖ ÂÊ Î ÔÛÇÑ
длп цьвкоф
Ü
ûáé
í
ó
аим тщзсЯ
¡¿
ú
0123456789
:-/
., ABCDE KL MNOPFGH I J QRS TUVWXY Z ab
c
de klmnopf g hi j
qr
s
tuvwxyz
TDislayitle
WIDE TELE
AUX TERMINAL D. Z00M MAX
(B&W IN) x2
B&W/COLOUR MODE
B&W A UX
NORMAL
LEVEL
PIORRITY ––– BCLOFF
SNSEEUP OFF
B&W/COLOUR MODE
DE
LLUXOMO OFF
SHUT T RE/ExDR
Page 27
E-26
Item Functions and set values Initial value
V PHASE
H PHASE
SC COARSE
SC FINE
This adjusts the vertical synchronization to those of other cameras when a selector switch for the synchronizing system on the side is at LL. (50Hz power region only.) When it is not set to LL, “---” will appear, disabling change the set value. [Set value: –156 to 0 to 156]
This adjusts the horizontal synchronization to those of other cameras and systems when a selector switch for the synchronizing system on the side is at INT/GL. When external signals are not input, “---” will appear, disabling change the set value. [Set values: –16 to 0 to 16]
Coarse adjustment of the SC phase in gen-lock operation. The SC phase can be varied by up to 90° in each direction. Adjust with reference to another camera (or system) and together with the SC FINE adjustment. Adjust SC COARSE and SC FINE only after adjusting H PHASE. When it is not set to GL, “---” will appear, disabling change the set value. [Set values: 0°, 90°, 180°, 270°]
Fine adjustment of the SC phase in gen-lock operation. When it is not set to GL, “---” will appear, disabling change the set value. [Set values: 0 to 255]
MENU SETTING

SYNC ADJUST Screen

This executes the setting regarding synchronization.
0
0
0°
128

ALC SETTINGS Screen

Item Functions and set values Initial value
IRIS LEVEL
AVERAGE: PEAK
This makes automatic adjustments according to brightness.
Adjusts the brightness level of the video signal.
• To lower the brightness level ...Decrease the value
• To raise the brightness level ....Increase the value
[Set values: –5 to NORMAL to 5]
Sets the exposure detection as a ratio of the average value and the peak value.
•AVERAGE value large: Increase the AVERAGE value when portions other than the highlighted areas of the screen are dark and look corrupted. (Ex. 10:0)
• PEAK value large: Increase the PEAK value when halation occurs in the highlighted areas of the screen. (Ex. 5:5)
[Set values: 10:0, 9:1, 8:2, 7:3, 6:4, 5:5]
NORMAL
8 : 2
E-27
Item Functions and set values Initial value
SHUTTER /ExDR
* When the SHUTTER (ExDR) item is set to NORMAL, the following items
(SHUTTER SPEED, FAST LIMIT, ExDR LEVEL, and M.ExDR SPEED) cannot be changed.
SHUTTER SPEED
NORMAL
1/120
This sets the electronic shutter as well as the ExDR (Extended Dynamic Range). The use of an electronic shutter function enables shooting with proper brightness, as more brightness results in higher shutter speed. The ExDR function allows even the shooting of a subject having different luminous flux density by composing a picture shot at 1/ 100 sec. shutter speed with a picture shot by a high-speed shutter. NORMAL: This fixes the shutter speed to 1/50.
The ExDR does not function.
MANUAL: This sets the shutter speed by the item SHUTTER
SPEED on the SHUTTER screen. The ExDR does not function. When SENSE UP is functioning, MANUAL cannot be selected. (Not displayed on MENU)
AUTO: This automatically switches the shutter speed
according to brightness. The ExDR does not function. The item FAST LIMIT on the SHUTTER (ExDR) screen sets a maximum shutter speed value.
M.ExDR: This is used when shooting a subject with difference
in a luminous flux density in the screen under a fixed illumination condition, and so on. During ExDR mode, the item M.ExDR.SPEED on the SHUTTER (ExDR) screen sets the composing high shutter speed. It is possible to set only when the items BLC and SENSE UP are OFF. What’s more, the ExDR LEVEL sets the signal level of the composing high-speed shutter.
A.ExDR: This is used when the subjects having different
luminous flux densities are continuously used night and day in the situation where both indoor and outdoor subjects are mixed in existence, and so forth. During ExDR mode, the composing shutter speed automatically varies according to the contrast of a subject. This is set when shooting the subject with changing brightness. This can be set only when the item BLC is OFF. What’s more, the ExDR LEVEL sets the signal level of the composing high-speed shutter.
MEMO
• Do not set to A.ExDR when using a manual lens.
• When M.ExDR mode or A.ExDr mode is used, the border between a bright part and a dark part can be coloured (cyan, orange, etc.), but this is not a malfunction.
• When the SHUTTER/ExDR item is set to M.ExDR or A.ExDR, a flicker can occur under a fluorescent lamp, mercury lamp, etc. However, this occurs by principle of the ExDR function, and therefore this is not a malfunction.
This sets a shutter speed when MANUAL is set. The AUTO, M. ExDR, A. ExDR set value is displayed as “- - -” and cannot be changed [Set values: 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, and 1/10000]
E-28
1/100000
NORMAL
1/4000
20dB
OFF
OFF
ALC SETTINGS Screen (Continued)
MENU SETTING
Item Functions and set values Initial value
FAST LIMIT
ExDR LEVEL
M.ExDR SPEED
AGC MODE
LOLUX MODE
SENSE UP
This sets the fastest value of a shutter speed when AUTO is set. The MANUAL, M. ExDR, A. ExDR set value is displayed as “- - -” and cannot be changed. The higher the shutter speed becomes, the more smear phenomenon is emphasized, which is peculiar to the CCD. [Set values: 1/1000, 1/2000, 1/4000, 1/10000, 1/20000, 1/40000, 1/100000]
This sets the signal level of the composing high-speed shutter during ExDR mode. This is set according to the brightness of a subject. When using M.ExDR, be sure to set M.ExDR SPEED in advance. When the SHUTTER/ExDR item is set to MANUAL or AUTO, “---” appears, disabling setting. To give priority to the low-brightness par ts of the subject…
increase the value
To give priority to the high-brightness par ts of the subject…
decrease the value
[Set values: –5 to NORMAL to 5]
MEMO
• In the case of a subject with a large difference in the luminous flux density, sometimes images do not change even if ExDR LEVEL is varied. However, this occurrence is a peculiarity of the unit and is not a malfunction.
This sets the composing high shutter speed when ExDR is set to M.ExDR. Set the shutter speed in order that a subject with a high luminous flux density (outdoor, etc.) may come out most clearly. This is displayed as “-
--” during MANUAL, AUTO or A. ExDR and cannot be set.
[Set values: 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/20000]
This sets a maximum gain of the AGC (Automatic Gain Control). OFF: When the AGC function is not used. 10dB: When luminous energy is insufficient. 20dB: When luminous energy is extremely insufficient. SUPER: When brightness is insufficient even when it is set to 20dB.
• If the gain is increased, the screen gets rough in a dark place.
• If it is set to SUPER, it can sometimes consume operation time to
cope with a drastic level change.
When the item “B&W” is set to “AUTO”, [SUPER] is displayed when the item “AGC MODE” is set to “SUPER”, and [20dB] is displayed for other settings. Increase the gain up to the value displayed.
Used when brightness is low even when setting the AGC MODE.
(Functions regardless of the AGC MODE setting.)
OFF: LOLUX MODE is off
ON: LOLUX MODE is on (+ 6dB)
This item makes up a sensitivity should be heightened automatical-
ly when a subject becomes dark.
In case of the X32 AUTO, the sensitivity is automatically heightened
up to 32 times continuously as compared with standard.
As the sensitivity becomes higher, the shutter speed becomes lower,
resulting in unnatural motion.
If SHUTTER/ExDR is set to MANUAL or the M.ExDR,
“---” will appear, disabling the SENSE UP function.
[Set values: OFF, X2 AUTO, X4 AUTO, X8 AUTO, X16 AUTO, X32
AUTO]
MEMO
• When the magnification of SENSE UP is enhanced, the screen can become coarse or whitish, or whitish flaws can emerge sometimes, but this is not abnormal.
• When the item SENSE UP is set other than to OFF, a flicker can occur under a fluorescent lamp, mercury lamp, etc. However, this occurs by principle of SENSE UP, and therefore this is not a malfunction.
E-29

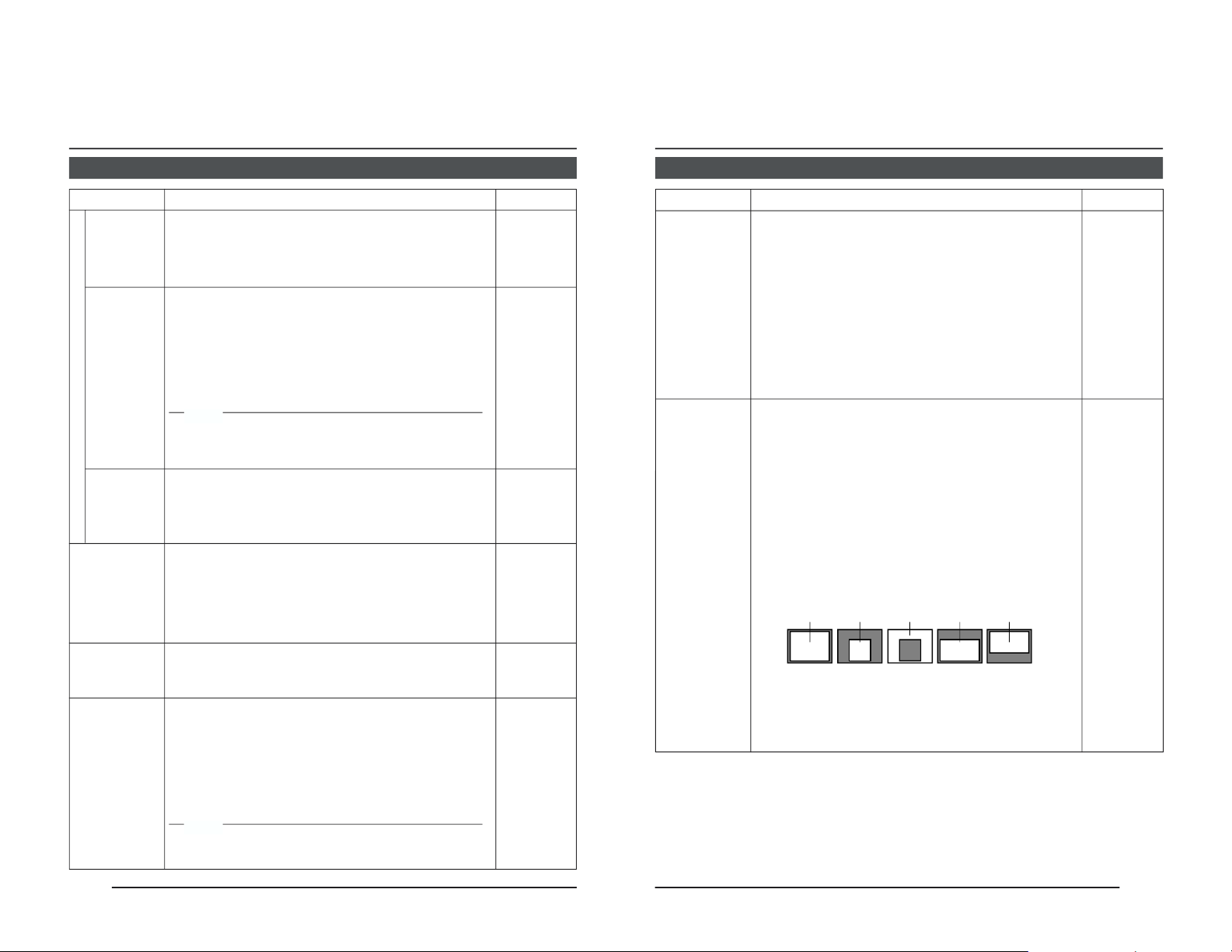

Item Functions and set values Initial value
PRIORITY
BLC
MOTION
OFF
OFF AREA 1 AREA 2 AREA 3 AREA 4
Light metering area
Light metering area
Light metering area
Light metering area
Light metering area
This item sets the order in which the AGC and slow shutter speed decrease function when the object brightness becomes low.
If B&W item of the B&W/COLOUR mode is set to AUTO, and the AGC MODE item or the SENSE UP item is set to OFF, “- - -” will appear, disabling any setting.
MOTION: Priority is given to motion.
This is suitable to a subject with quick motion, since the AGC (automatic gain control) functions with priority when the subject becomes dark.
PICTURE: Priority is given to image.
When the subject becomes dark, SENSE UP (sensitivity goes up) functions with priority, offering suitability that gives priority to image.
Sets the backlight compensation function. Set when a bright light source, etc. is placed in the same direction as the subject.
If the item SHUTTER/ExDR is set to the M.ExDR or the A.ExDR, “- - -” will appear, and the BLC does not function.
OFF: The backlight compensation function does not work.
AREA 1 to AREA 4: When the SET button is pressed, the fixed light metering areas are displayed. Select one of the four types. (Indicated positions on the screen are rough guides. Execute required settings after checking and confirming the functions on actual images.)
* The indicated position on the screen should be used as
a rough guide.
EDIT 1 to EDIT 2: When the SET button is pressed, the user light metering areas are displayed. Select one of the two types. “BLC EDITTING Screen” on page 36.
E-30
ALC SETTINGS Screen (Continued)
MENU SETTING
Item Functions and set values Initial value
B&W COLOUR MODE ..
B&W
LEVEL
This function sets the colour modes to colour or B&W. When switching the mode between “colour’’ and “B&W” is carried out, the focus may be dislocated. In such a case adjust the focus again.
Switches the mode from colour to B&W and visa-versa. OFF : Turns the B&W mode switching function off. ON : Sets the camera permanently to B&W mode. AUTO : The camera automatically switches to Colour
mode when the object is bright and B&W mode when it is dark. ( Page 40)
AUX:B&W/COLOUR switching is carried out
according to the signal input from the AUX terminal. ( Page 41)
MEMO
• If AUTO is selected as the B&W item, the B&W/COLOUR setting can be switched as appropriate according to the brightness of the object, but illumination and screen conditions may make this impossible. Moreover, when you use infrared illumination, if the subject excessively reflects, a B/W screen can switch to a color screen. To make absolutely certain of B&W/COLOUR switching, set to AUX and input the control signal to the AUX terminal.
• If AUX is selected as the B&W item, the AUX TERMINAL
item is automatically set to B&W IN. If this changes to anything other than AUX, the AUX TERMINAL item reverts to the value set before the change was made. ( Page 33.)
When the “B&W” function is set to “AUTO”, this function sets the signal level of the object at which the camera will automatically switch to B&W mode. LOW : Switches to B&W mode when the signal level of
the object indicates low illumination.
NORMAL
: Switches to B&W mode when the signal level of
the object indicates medium illumination.
HIGH : Switches to B&W mode when the signal level of
the object indicates high illumination.
MEMO
When the item “B&W” is set to other than AUTO, “- - -” is displayed and the settings to the item “LEVEL” cannot be varied.
AUX
NORMAL
E-31
Item Functions and set values Initial value
WHITE BALANCE
COLOUR LEVEL
ENHANCE LEVEL
PEDESTAL LEVEL
AUTO BLACK CTL
Selects the white balance adjustment function. The white balance can be adjusted manually or automatically for light within the colour temperature range of 2500K to 8000K.
•ATW: Auto-Tracking White Balance mode.
This automatically adjusts the white balance.
•AWC: Auto White Balance Controll mode. When the
SET button is pressed, the adjustment screen appears. ( See page 37.)
MEMO
The “- - -” will appear during operation in the black-and­white mode and any setting cannot be changed.
To adjust the colour level of the video signal.
•To make colours lighter … Decrease the value
•To make colours darker … Increase the value
[Set values: –5 to NORMAL to 5]
MEMO
The “- - -” will appear during operation in the black-and­white mode and any setting cannot be changed.
To adjust the contour enhancing level of the video signal.
•To make the picture quality harder … Increase the value
•To make the picture quality softer … Decrease the value
[Set values: –5 to NORMAL to 5]
To adjust the pedestal level of the video signal.
•To brighten picture … Increase the value
•To darken picture … Decrease the value
[Set values: –5 to NORMAL to 5]
This is set when it is difficult to view a dark part of the image even if gain is boosted by the AGC (automatic gain control). ON: When a black level of the image signal is low, a
pedestal level that becomes the standard of black is automatically elevated, making it easier to view a dark part.
OFF: AUTO BLACK does not function.
MEMO
• When PEDESTAL LEVEL is set to 5, no function can
take place even if AUTO BLACK CTL is ON.
• When AGC MODE is set to OFF, no function can take
place even if AUTO BLACK CTL is ON.
AT W
NORMAL
NORMAL
NORMAL
OFF

VIDEO ADJUST Screen

Adjustments are made on video signals.
E-32

MODE SELECT Screen

Titles, image reversion, etc., are set.
Item Functions and set values Initial value
CAMERA TITLE EDIT
REVERSE MODE
HLI MODE
ALM.TITLE SIZE
ALARM COLOUR
OFF
OFF
DOUBLE
WHITE
ALARM
ALARM
NORMAL DOUBLE
Bring up the CAMERA TITLE, EDIT screen. ( Page 38)
Settings are executed for image reversion. OFF: Image does not reverse. R-L: Left and right of the image are reversed. U-D: Up and down of the image are reversed. ALL: Up and down and left and right of the image are
reversed.
The highlighted part of the image is made black to make the surroundings of the highlighted part better visible. Set to HIGH when there are many highlighted parts. [Set values: OFF, LOW, MIDDLE, HIGH]
Set the size of the characters displayed in the case of alarms.
This sets the colour of an alarm title. [Set values: WHITE, YELLOW, CYAN, GREEN]
MEMO
In the ALARM mode, the colour of camera title appears in the ALARM COLOUR set.
MENU SETTING
E-33
Item Functions and set values Initial value
AUX TERMINAL
D.ZOOM MAX
(B&W IN)
x2
For setting the signal input or output of the AUX terminal.
MOTION: A signal is output if there is a change in the
area set on the MOTION DETECT screen.
B&W OUT: A signal is output when the camera switches
to B&W or Colour mode.
B&W IN: Set to this position when inputting the B&W/
Colour switching control signal to the AUX terminal. ( Page 11, 30.)
MEMO
• In setting B&W OUT, if you use an infrared illuminator in link motion, hunting can occur. To prevent this, we recommend that you link in motion this unit and the infrared illuminator, etc., by control signals after setting to B&W IN.
• If the B&W item is set to AUX, the AUX TERMINAL item changes to [B&W IN] and can not be changed.
This function sets the maximum zoom ratio of the electronic zooming. [Set values: x1, x2, x4, x6, x8, x10]
MEMO
• The electronic zoom function can only be used by the communication command of exclusive controllers (RM­P2580, etc.).
• Note Picture quality deteriorates under electronic zooming as it is accompanied by digital image processing.
•When the electronic zoom magnification ratio is increased, there may be blurring in the upper center left of the screen. This is a characteristic of the main unit and is not a malfunction.
E-34
MENU SETTING

MOTION DETECT Screen

Item Functions and set values Initial value
MODE
Settings are executed about the motion detecting function that emits alarm signals when there exists any motion in the image. Alarm signals are output from the auxiliary terminals on the back.
This sets ON/OFF of motion detecting function. OFF: Motion detecting function does not work. ON: Motion detecting function works.
OFF
LEVEL
AREA EDIT
ALARM TIME
DEMONSTRATION
This sets the level that detects motion. If the item MODE is set to OFF, “- - -” will appear, and settings cannot be changed. To function with large signal level change…decrease the value To function with small signal level change…increase the value [Set values: –5 to NORMAL to 5]
This sets the range in which the motion detecting function works. ( Page 39)
This sets the output time of the alarm signal output of AUX terminal as well as “ALARM” display on the screen when motion is detected. If the item MODE is set to OFF, “- - -” will appear, and settings cannot be changed. [Set values: OFF, 5s, 6s, 7s, 8s, 9s, 10s, 15s, 20s, 30s, 1min]
MEMO
Even when the ALARM TIME item is set to OFF, an alarm signal is output from the AUX terminal for about 500ms, and “ALARM” is not displayed on the screen.
This is used when checking and confirming the set motion detecting function. The detection area is shown in gray. ( Page 39)
NORMAL
10s
E-35

COMMUNICATION Screen

Item Functions and set values Initial value
STYLE
MACHINE ID
Settings are made for the control signal-connecting terminals on the back. If the setting is changed, be absolutely sure to switch on the power again.
P TO P
– – –
White spot compensation is performed.

MAINTENANCE Screen

Item Functions and set values Initial value
CCD SPOT
The white spots on the screen, which are characteristic for CCDs can be reduced. Page 42 “White Spot Compensation”
This sets a communication system according to the system used. PTOP (Point to point) This is set when a remote control unit controls a camera. M.DROP (Multi-drop) This is set when a remote control unit controls a plural number of cameras.
This is set when the STYLE item is set to M.DROP. This is the number that identifies individual cameras in a group. No proper function can be realized if an ID number is repeated within a system. A combined use with the RM-P2580 necessitates the setting together with the video input number of the RM­P2580. If the item STYLE is set to P TO P, “- --” will appear, and settings cannot be changed.
Item Functions and set values Initial value
FAC TORY SETTINGS
Set values are returned to initial values.
The values set on the menu are returned to initial values. CANCEL : No return to the initial value. CLEAR : Returns set values except titles to the (WITHOUT TITLE)
initial value.
CLEAR (ALL) : Returns all set values including titles
to the initial value. Select respective set value and press the SET button. Then, “DATA CLEARED” will appear for about 3 seconds. Be sure not to switch off the power while the display is still on.
MEMO
However, when FACTORY SETTINGS by means of transmitted commands, the contents of the COMMUNICATION menu do not return to the factory settings.

FACTORY SETTINGS Screen

E-36

BLC EDITTING Screen

MENU SETTING
It is possible to set freely the light metering area for backlight compensation. The 2 screens of EDIT1 and EDIT2 can be set.
CAMERA SETUP
SET
MENU
AWC
LACSETTINGS
IIRSLEVEL NORMAL AEV RAGE :PEAK 8 2: SUTHTERExDR/NRMALO
PIORRITY MTIONO BCL
EDIT 1
SNSEEUP OFF
ACGMODE 2dB0
B&W/COLOUR MODE
DE
LLUOXMO OFF
EDIT 1 screen
Light metering area
Light metering area
SET button
SET button
SET button
MENU button
EDIT 2 screen
1.
Set the item BLC on the ALC SETTING screen to EDT1.
2.
Press the SET button.
The EDIT1 screen is brought up.
3.
Set the upper side and left side of the metering area using the
button.
The sides having
marks can
be changed.
4.
Press the SET button.
The changeable sides of the metering area move to the right side and base side.
5.
Set the base and right side of the metering area using the
button.
If the SET button is pressed once more, the two changeable sides of the meter­ing area return to the top and left sides. (The EDIT2 screen can also be set likewise)
6.
Upon completion of setting, press the MENU button.
The screen returns to ALC SETTING SCREEN.
*To use the set metering area, set the item
BLC to EDIT1 or EDIT2.
* The indicated position on the screen
should be used as a rough guide.
E-37

Manual Adjustment of White Balance

When automatic adjustment of the white balance results in a “reddish screen”, etc., adjust the white balance manually.
1.
Set the WHITE BALANCE item on the VIDEO ADJUST screen to AWC and press the SET button. * The WHITE BALANCE adjustment
screen appears on the monitor.
2.
Select the hue to be adjusted. (R/B or Mg/G) Press the
or
button.
3.
Adjust the hue. Press the
or
button.
* The “ ı ” indicator moves in accordance
with the setting. When a setting is changed, the “+” mark appears at the original position.
4.
Concluding manual white balance ad­justment. Pushing the MENU button returns the screen to VIDEO ADJUST.
MEMO
If the mode is changed from color to black­and-white during the color phase adjustment on the WHITE BALANCE CONTROL screen, the VIDEO ADJUST screen will be brought back. At this time, any adjusted value will not be saved.
DEVI O ADJUST
WH TE B AL E AWCNC
A
I
CO OUR LE NORMALEL
V
L
EN ANCE LE NORMALEL
V
H
PE
E
STAL LE NORMALEL
V
D
AU
O
BLAC K OF FTL
C
T
WH I T E BAL
A
NCE CON
T
ROL
AWC SE T . .
RB
::
MG
::
g
VIDEO ADJUST screen
WHITE BALANCE CONTROL screen
CAMERA SETUP
SET
MENU
AWC
SET buttonMENU button
E-38
1.
Select the item CAMERA TITLE on the MODE SELECT screen, and push the SET button.
Then, the CAMERA TITLE screen is brought up.
2.
Select the first character from the character area using buttons.
The selected character is displayed flashing on and off.
3.
Push the SET button.
The first character gets fixed and the blinking title input area moves to the second character.
4.
Repeat the above items 2 to 3.
It is possible to use up to 24 characters to input the title.
5.
Push the MENU button.
The screen returns to MODE SELECT.
Up to 24 characters can be selected as camera text for each camera. The set characters are displayed at the bottom of the screen.
MENU SETTING

CAMERA TITLE Setting

CAMERA SETUP
SET
MENU
AWC
SET buttonMENU button
MODE S EL E CT
CAMERA T I TLE ED I T. .
REVERS E MODE OFF
ALM .T I TLE S Z
E
IDOUBLE ALARM COLOUR WH ITE AUX TERMINAL (B&W IN) D. ZOOM MAX x2
MODE SELECT screen
CAMERA TITLE screen
CAMERA T
I
T
L
E
’ ДЦ ВК ОФЫЗС длп цьвкоф
Ü
ûáé
í
ó
аим тщзсЯ
¡¿
ú
0123456789
:-/
., ABCDE KLMNO PFGH I J QRS TUVWXY Z ab
c
de k lmnopf g hij
qr
s
tuvwxyz
TDislayitle
WD
IE LETE
Space
Character area
Title input area
E-39

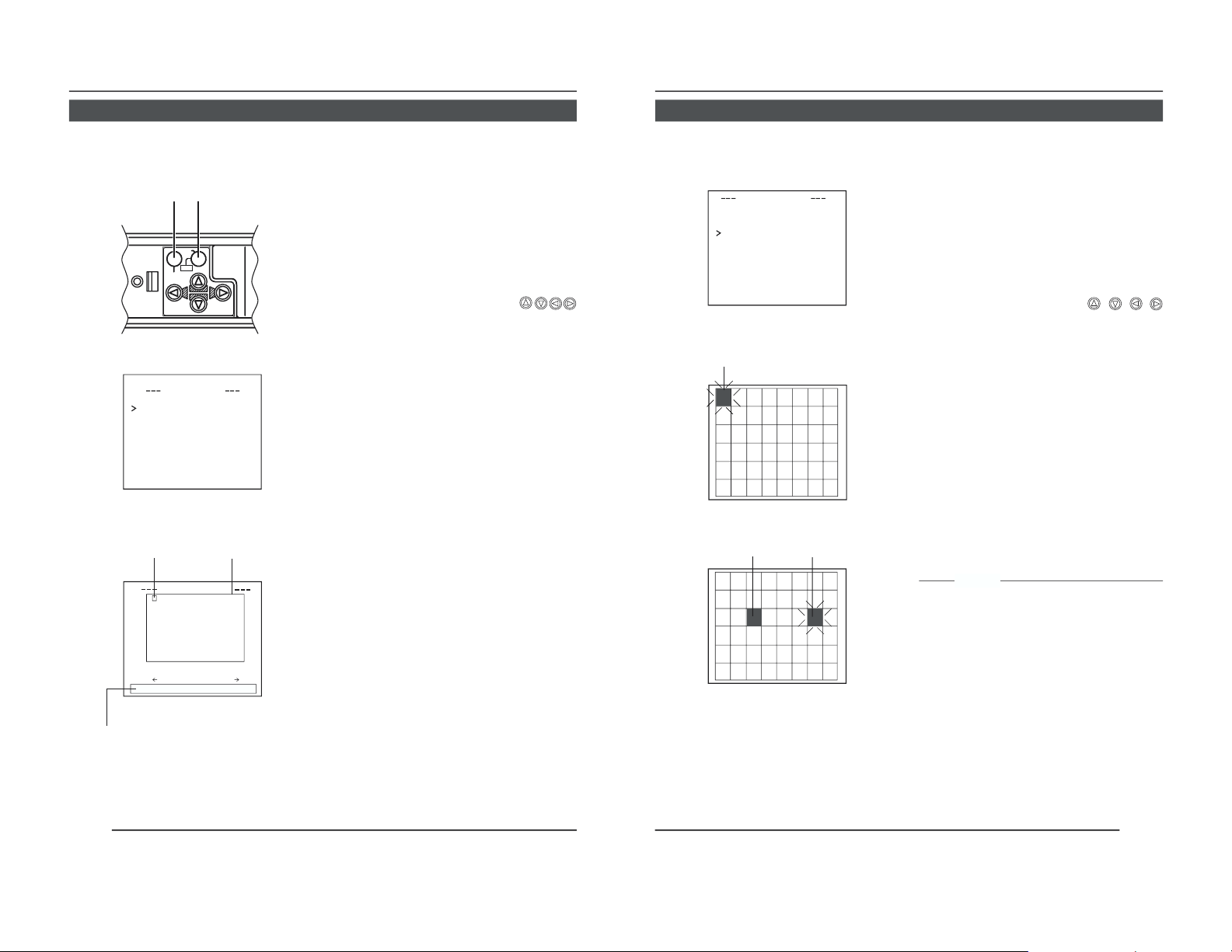

Setting the MOTION DETECT Function

It is possible to set freely the area where MOTION DETECTING functions.
TIMO O N DE TEC T
MO E OFFD LE EL NORMALV AR A EDI TE AL
R
MTI EM10sA
DE
ON
STRAT I N
O
M
..
..
MOTION DETECT screen
flash
lights gray
flash
Setting screen
1.
Select the item AREA EDIT on the MOTION DETECT screen.
2.
Press the SET button.
The setting screen is brought up.
3.
Select the area not subject to detection using the button.
The area flashing ON and OFF in black and white moves.
4.
Press the SET button.
The area not subject to detection is set, and it turns gray (lights up). To cancel the set area, press the SET button again.
5.
Repeat items 3 and 4 above.
6.
Upon completion of setting, press the MENU button.
The screen returns to the MOTION DETECT menu.
MEMO
•Indicated positions on the screen are rough guides. Be sure to check and conform the positions on the actual screen.
* It is possible to check and confirm the set
areas on the DEMONSTRATION screen. The detection area is shown in gray.
• The MOTION DETECT function does not work for about 5 seconds after exiting MENU.
The motion detector is not a feature to prevent theft, fire, etc. Even if an accident should occur resulting in damage, we do not accept any liability.
E-40
MODE S EL E CT
CAMERA T I TLE ED I T. . REVERS E MODE OFF
ALM .T I TLE S Z
E
IDOUBLE ALARM COLOUR WH ITE AUX TERMINAL (B&W IN) D. ZOOM MAX x2
HLI MODE OFF

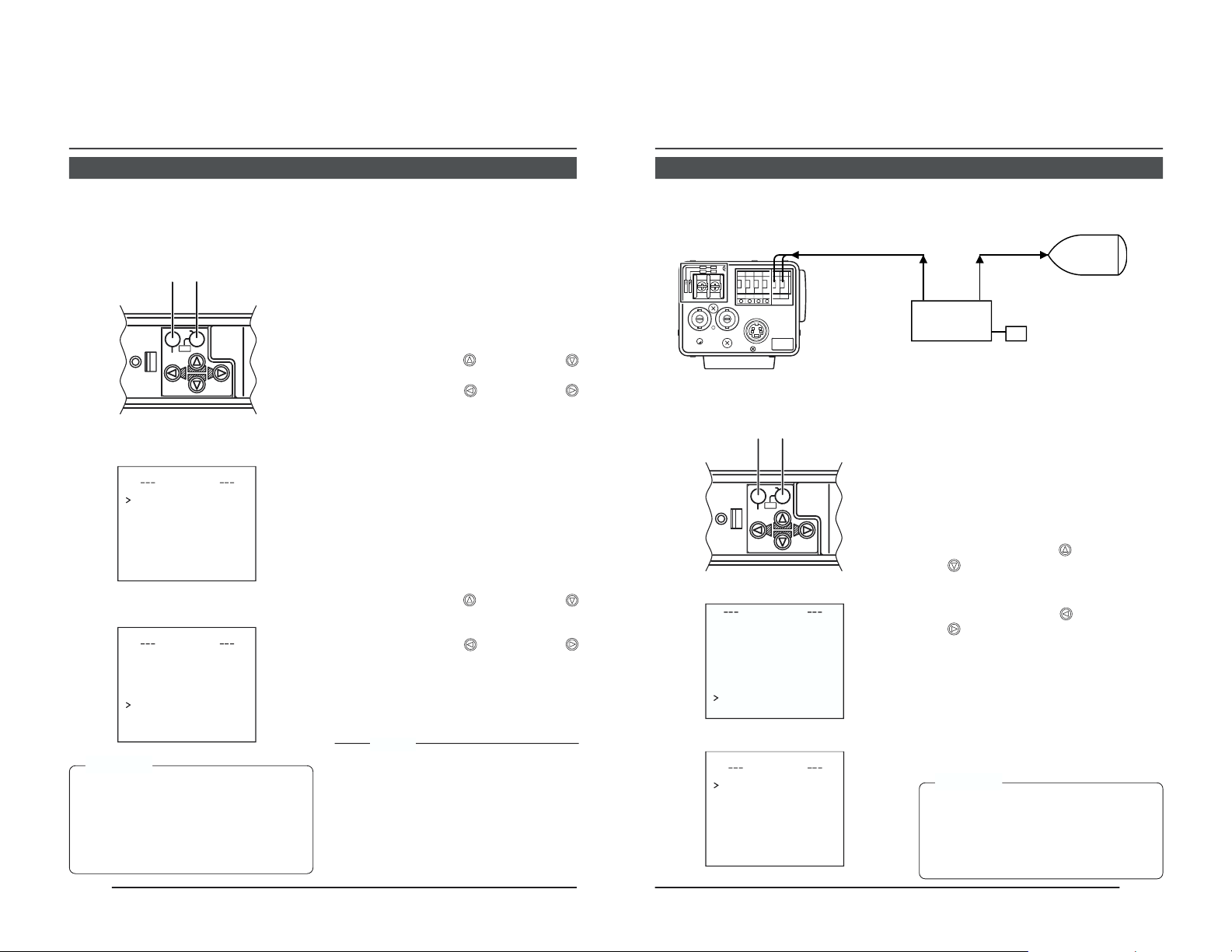

Output of Black-White/Color switching signal

It is possible to output black-white/color switching signal from the AUX terminal on the back of this unit. Perform the following settings.
Set the B&W Item to AUTO.
1.
Select the B&W/COLOR MODE item on the ALC SETTING screen.
2.
Press the SET button. The B&W/COLOR MODE screen
appears.
3.
Press either the
button or the
button and select the B&W item.
4.
Press either the
button or the
button and set to “AUTO”.
5.
Upon completion of setting, press the MENU button twice. Then, the MAIN MENU screen is brought back.
Set the AUX TERMINAL Item to
B&W OUT.
1.
Select MODE SELECT on the MAIN MENU screen.
2.
Press the SET button. The MODE SELECT screen appears.
3.
Press either the
button or the button and select the AUX TERMINAL item.
4.
Press either the
button or the button and set to ”B&W OUT”.
5.
Upon completion of setting, press the MENU button twice.
• Then, the normal screen is brought
back.
B&W LEVE L
NORMAL
AUTO
B&W/COLOR MODE
CAMERA SETUP
SET
MENU
AWC
SET buttonMENU button
MEMO
• When you use infrared illumination, if the subject excessively reflects, a B/W screen can switch to a color screen. To perform switching with higher accuracy, we recommend that you use it by the setting mentioned in [Control by Black-White/Color Switching Signal From the Outside], referring to Page 41.
CAUTION:
When you use near infrared ray illumi­nations, use a lens that is compatible with the near infrared ray illuminations. Any lens other than the compatible one can result in out-of-focus due to such characteristics.
E-41

Control by Black-White/Color switching signal from the outside

Carry out the following setting when you link in motion the black-white/color switching of this unit and infrared illumination, etc., using the switching signal from the outside control device.
Set the B&W item to AUX.
1.
Select B&W/COLOR MODE on the ALC SETTING screen.
2.
Press the SET button.
• The B&W/COLOR MODE screen appears.
3.
Press either the
button or the
button and select the B&W
item.
4.
Press either the
button or the
button and set to “AUX”.
Then, the AUX TERMINAL item on the MODE SELECT screen is automatically set to (B&W IN). Refer to Page 33.
5.
Upon completion of setting, press the MENU button.
• Then, the ALC SETTING screen is brought back.
LACSETTINGS
IIRSLEVEL NORMAL
AEVRAEG:PEAK 82:
ACGMODE
2dB0
SUTHTERExDR/
NRMALO
PIORRITY BCLED
SNSEEUP OFF
B&W/COLOR MODE
TION
T1
MO
I
LLUOXMODE O FF
CAMERA SETUP
SET
MENU
AWC
SET buttonMENU button
B&W LEVE L
NORMAL
AUTO
B&W/COLOR MODE
B&W: Make signal COLOR: Break signal
TK-C1460B
Switching signal
Infrared illumination, etc.
Sensor or switch
Outside control device
CAUTION:
When you use near infrared ray illumi­nations, use a lens that is compatible with the near infrared ray illuminations. Any lens other than the compatible one can result in out-of-focus due to such characteristics.
It is requested that you consult our JVC dealer about connecting devices, etc.
DC12V
AC24V
Y/C OUT
SYNC IN
POWER
VIDEO OUT
SEE INST­RUCTION MANUAL
+
-
12
CLASS 2 ONLY(U TYPE)
ISOLATED POWER ONLY
(E TYPE)
TX
+
TX
-
RX
+
RX
-
AUX
GND
ABCD
E-42

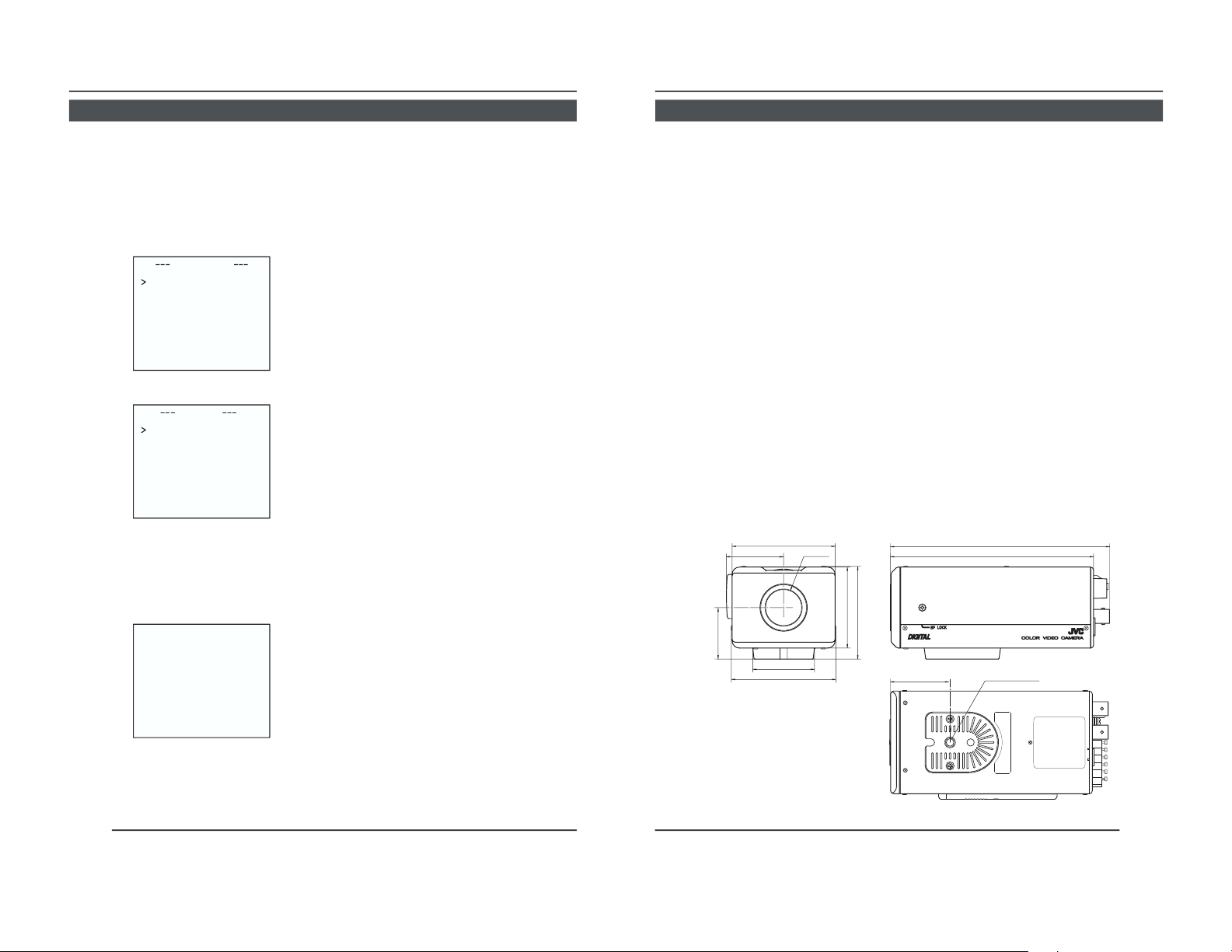

White spot compensation

CCDs have the general characteristic that white spots appear on the screen when the CCD is operated at high temperatures or when they are used with a slow shutter speed. This unit has a built-in white spot compensation function to reduce these white spots. (The number and the size of the white spots changes according to the use temperature, the shutter speed, etc. Furthermore, there is a limit on the number of white spots that can be compensated.)
Operation method
1.
Attach a lens cap or similar.
• Prevent entry of light to the CCD.
• Switch on the camera power supply and wait for at least 30 minutes.
2.
Display the MAINTENANCE screen.
• Confirm that the cursor (>) is at the item CCD SPOT.
3.
Press the SET button.
• The CCD SPOT screen will be dis­played.
• If you do not want to perform white spot compensation, move the cursor (>) to CANCEL and press the SET button.
4.
Move the cursor (>) to EXECUTE.
5.
Press the SET button.
• White spot compensation will operate. (“SPOT SCAN OPERATION” is dis­played during operation.)
6.
Confirm the display.
• When white spot compensation has been performed correctly, “SPOT SCAN OK” is displayed for about 5 seconds, and then return is made to the CCD SPOT screen.
• When “SPOT SCAN ERROR: HIGH LIGHT” is displayed, check that no light enters into the CCD.
7.
Press the MENU button.
• Return to the MENU screen will be made.
INMA T ENA NC E
CC SPOT. .D
DCC SPOT
CA ELNC
EX C TEUE
heat up 30min in advance need Lens
cap to execute
SP T SCAN OKO
E-43
Image pickup device: 1/2 type IT CCD, 752 (H) × 582 (V) Synchronization method : Internal, Line lock, Full Genlock Scanning frequency: (H) 15.625 kHz, (V) 50 Hz Resolution: 480 TV lines (H) VIDEO OUT: Composite video signal 1 V (p-p), 75 (BNC) Y/C OUT: Y: 0.7 V (p–p), 75
C: 0.3 V (p–p), 75 Video S/N ratio: 50 dB (AGC OFF) Minimum required illumination: 0.6 lx (50 %, F1.2, AGC 20 dB)
0.3 lx (50 %, F1.2, AGC 20 dB, LOLUX MODE)
0.3 lx (25 %, F1.2, AGC 20 dB)
0.15 lx (25 %, F1.2, AGC 20 dB, LOLUX MODE)
0.02 lx (50 %, F1.2, AGC 20 dB, B&W MODE)
0.01 lx (50 %, F1.2, AGC 20 dB, LOLUX MODE, B&W MODE)
0.019 lx (50 %, F1.2, AGC 20 dB, SENSE UP × 32)
0.01 lx (50 %, F1.2, AGC 20 dB, LOLUX MODE, SENSE UP × 32)
Communication: RS-422A or RS-485 (switchable)
9600 bit/s Lens mount: C/CS mount Power supply and power consumption:
AC 24 V ` 50 Hz/60 Hz, DC 12 V
---
550 mA
Ambient temperature: –10 °C to 50 °C (operation)
0 °C to 40 °C (recommended) Mass: 640 ˝
Accessory: Instructions .................... 2 Ferrite core..................... 1
4P plug .......................... 1

Specifications

Design and specifications are subject to change without notice.

OTHERS

DIMENSIONS (Unit: mm)
71
70
55
63
42
138
149
41
U1-32
39
35
1/4 – 20UNC
VICTOR COMPANY OF JAPAN, LIMITED
BTK-C1480B, TK-C1481B COLOUR VIDEO CAMERA
is a registered trademark owned by VICTOR COMPANY OF JAPAN, LTD. is a registered trademark in Japan, the U.S.A., the U.K. and many other countries.
© 2002 VICTOR COMPANY OF JAPAN, LIMITED
Printed in Japan LWT0064
®
®
E-1
TK-C1480B TK-C1481B
INSTRUCTIONS
COLOUR VIDEO CAMERA
LWT0064
BF
LOOK
CO
LOR
VIDEO
CAMERA
DIGITAL
This instruction manual is made from 100% recycled paper.
E-2
IMPORTANT SAFEGUARDS
PORTABLE CART WARNING
(symbol provided by RETAC)
S3125A
1. Read all of these instructions.
2. Save these instructions for later use.
3. All warnings on the product and in the operating instructions should be adhered to.
4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.
5. Do not use attachments not recommended by the appliance manufacturer as they may
cause hazards.
6. Do not use this appliance near water - for example, near a bathtub, washbowl, kitchen
sink, or laundry tub, in a wet basement, or near a swimming pool, etc.
7. Do not place this appliance on an unstable cart, stand, or table. The
appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the appliance. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
8. Slots and openings in the cabinet and the back or bottom are pro-vided for ventilation,
and to insure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appli­ance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
9. This appliance should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. For appliance designed to operate from battery power, refer to the operating instructions.
10. This appliance system is equipped with a 3-wire grounding type plug (a plug having a
third (grounding) pin). This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding plug.
11. For added protection for this product during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it form the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
12. Do not allow anything to rest on the power cord. Do not locate this appliance where the
cord will be abused by persons walking on it.
E-3
13. Follow all warnings and instructions marked on the appliance.
14. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
15. Never push objects of any kind into this appliance through cabinet slots as they may
touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.
16. Do not attempt to service this appliance yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
17. Unplug this appliance from the wall outlet and refer servicing to qualified service person-
nel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the appliance. c. If the appliance has been exposed to rain or water. d. If the appliance does not operate normally by following the operating instructions. Ad-
just only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive
work by a qualified technician to restore the appliance to normal operation. e. If the appliance has been dropped or the cabinet has been damaged. f. When the appliance exhibits a distinct change in performance - this indicates a need
for service.
18. When replacement parts are required, be sure the service technician has used replace­ment parts specified by the manufacturer that have the same characteristics as the origi­nal part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
19. Upon completion of any service or repairs to this appliance, ask the service technician to perform routine safety checks to determine that the appliance is in safe operating condition.
E-4
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Due to design modifications, data given in this instruction book are subject to possible change without prior notice.
AVERTISSEMENT: POUR EVITER LES RISQUES D’INCENDIE OU D’ELECTRO­CUTION, NE PAS EXPOSER L’APPAREIL A L’HUMIDITE OU A LA PLUIE.
Safety Precautions
E-5
Thank you for purchasing this product. (These instructions are for TK-C1480BE and TK-C1481BEG) Before beginning to operate this unit, please read the instruction manual carefully in order to make sure that the best possible performance is obtained.
CONTENTS
INTRODUCTION
Features .......................................................................................................................
........
6
Operating Precautions ......................................................................................................... 7
Controls, Connectors and Indicators ................................................................................... 8
CONNECTION/INSTALLATION
RM-P2580 System............................................................................................................. 12
Procedures .....................................................................................................................
...
14
Mounting the lens .............................................................................................................. 15
Installing the ferrite core ....................................................................................................16
Connections on the back ................................................................................................... 16
Mounting the camera ......................................................................................................... 18
Lens adjustment ................................................................................................................ 20
Back focus adjustment ...................................................................................................... 21
Auto white balance control adjustment ............................................................................. 22
MENU SETTING
Setting the menu ............................................................................................................... 23
The flow of menu screen ...................................................................................................24
SYNC ADJUST Screen ..................................................................................................... 26
ALC SETTINGS Screen .................................................................................................... 26
VIDEO ADJUST Screen ....................................................................................................30
MODE SELECT Screen .................................................................................................... 31
MOTION DETECT Screen ................................................................................................ 32
COMMUNICATION Screen ............................................................................................... 33
MAINTENANCE Screen ....................................................................................................33
FACTORY SETTINGS Screen ..........................................................................................33
BLC EDITTING Screen ..................................................................................................... 34
Manual Adjustment of White Balance ...............................................................................35
CAMERA TITLE Setting ....................................................................................................36
Setting the MOTION DETECT Function ........................................................................... 37
White spot compensation ..................................................................................................38
OTHERS
Specifications.................................................................................................................
....
39
E-6
A new DSP (Digital Signal Processor)
features a Extended Dynamic Range (ExDR) and enables to shoot both bright and dark locations.
The use of a new CCD with a SENSE UP
(X32) function realized the minimum luminous flux density for subject of 0.6 lx (F1.2, 50%, AGC 20dB) and 0.019 lx (at slow shutter).
A motion detector function detects the
motion inside an image and emits alarm signals.
The equipped Y/C terminals and RS-
422A/RS-485 terminals allow intended compatibility with diversified systems.
Electronic zoom
The 10x electronic zoom allows monitoring in far greater detail.
Features
Before starting an important recording,
be sure to perform a test recording in order to confirm that a normal recording is possible.
We do not accept liability for the loss of
a recording in the case of it becoming impossible to record due to a problem in the video camera, VCR or video tape.
We do not accept liability for any
damage to the camera in cases where it is dropped because of bad installation due to failure to observe the installation instructions correctly. Please be careful when installing the camera.
The motion detector is not a feature
which prevents theft, fire, etc. Even if an accident should occur resulting in damage, we do not accept any liability.
INTRODUCTION
Characters and symbols used in this instruction manual.
CAUTION : Cautionary notes concerning operation of the unit.
MEMO : Reference such as restrictions of features, etc.
: Reference page or item.
E-7
To save energy, when it is not being used
turn the system’s power off.
This camera has been designed for indoor
use. When you use it outdoors, be sure to use a housing or the like.
Do not install or use the camera in the
following places.
• In a place exposed to rain or moisture.
• In a place with vapor or oil soot, for example in a kitchen.
• When the ambient temperature rises above or falls below the acceptable range (from –10°C to 50°C).
• Near a source of radiation, X-rays, strong radio waves or magnetism.
• In a place subject to vibration.
• In a place with excessive dirt.
If this camera and the cables connected to this camera are used where there are strong electromagnetic waves or where there is magnetism present, for example near a radio or TV transmitter, power transformer or an electric motor, the picture may produce noise and the colours may be affected.
This camera incorporates an AGC circuit. As a result, when it is used under low light conditions, the camera sensitivity is automatically boosted and the picture may look uneven. However, this is not a malfunction.
While the AGC is activated, if a transceiver which causes strong electromagnetic wave is at close distance, the picture might suffer from beat. So please use the camera more than three meters from such transceivers.
When this camera is used in the ATW mode, the recorded colours may be slightly different from the actual colours due to the operational principles of the auto-tracking white balance circuit. However, this is not a malfunction.
Operating Precautions
If a high-intensity object (such as a lamp) is shot, the image on the screen may have vertical lines (smear) or blur (blooming) at its periphery. This is a characteristic of the CCD, and is not a defect.
Observe the following when carrying out camera maintenance.
•Turn the power OFF before proceeding
to carry out maintenance. If it is contaminated seriously, clean the contaminated part with a cloth (or a tissue) which has been soaked in a solution of water and a neutral detergent.
The unit is to be powered by a DC 12 V or an AC 24 V power supply. (TK-C1480BE) The AC 24 V power supply should conform to the following: Isolated power supply only TK-C1481BEG Connect the power cable to the commercial power supply of 230V.
Caution for operating the video iris lens. If the video iris lens is set to an extremely low level, a malfunction – such as the hunting phenomenon where the iris opens and closes involuntary – can occur. In such a case, first set the “LEVEL” potentiometer on the lens to the H position (iris open), and then adjust it to an optimum level.
The cable stopper on the terminal block can come off sometimes. Therefore, be sure to take enough time and fix the cable securely.
When a highly bright subject is shot, sometimes undulations can be observed on the vertical lines of the subject. However, this phenomenon is peculiar to the unit and is not a sign of malfunction.
The beat may sometimes appear on the screen if gain is raised when the line lock is in use, but the phenomenon takes place due to the fluctuation of power frequency and is not a malfunction.
E-8
INTRODUCTION
1
Lens mount
To attach the lens. This is applicable to both C-mount lenses and CS-mount lenses.
2
Backfocus adjustment ring
Adjusting the back focus during lens installation. When readjustment is required, loosen the locking screw
3
by turning it counterclockwise and turn the back focus adjustment ring
2
. After the adjustment, tighten the locking screw
3
again.
3
[BF LOCK] Back focus locking screw
This serves to fix the back focus-adjusting ring.
4
Camera-mounting bracket
The bracket has been attached on the bottom of the camera before shipment. It can also be attached on the top according to the circumstance. To re-attach the bracket use the threaded holes at the top, with the camera mounting bracket locking screws
7
.
5
Camera-mounting screw hole (1/4 inch)
Use this hole when mounting the camera onto a fixer, pan/ tilt unit, and the like. (Use a screw shorter than 7 mm.)
6
Rotation-preventive hole
Make use of this rotation-preventive hole to prevent any fall when mounting the camera. Always make sure that the camera is securely mounted.
7
Camera mounting bracket fixing screws (×2: M2.6 × 6 mm)
Be sure to use a 6 mm long screw.
MAX.
7
mm
Controls, Connectors and Indicators
E-9
ON
SIMPLEX
ON LL
SET
AWC
MENU
CAMERA SETUP
EXT TERM-OFF
INT/GL
DUPLEX
RX TERM-OFF
NOT USED
VIDEO
DC
IRIS
8
Cover
The cover slides open when pushed to the left.
9
[VIDEO/DC] Iris Selector Switch
This should be set according to the type of lens if an automatic iris control lens is used. VIDEO: In case of lens with EE amp built-
in.
DC: In case of lens without EE amp
built-in.
(VIDEO:
At time of factory shipment)
10
[IRIS] Iris Terminal
This is connected to an automatic iris control lens. ( Page 15)
11
[MENU] Menu Button
When pressed, a menu screen is brought up. ( Page 23)
12
[SET/AWC] Set. Auto White Control Button SET: Press this button to display a sub-
menu. ( Page 23)
AWC: If this button is kept pressed for
more than 1 second, a one-push­auto-white-balance function works and sets the white balance. Once it is set, even if colour temperature changes, white balance does not change. It is also possible to make fine adjustments on the set white balance. ( Page 22)
E-10
INTRODUCTION
13
[
,
,
,
] Up-and-down, left-and-
right Button
These buttons select items on the menu screen and change a set value. (Page 23)
14
[EXT.TERM-ON/OFF] Terminal On/Off Switch of External Synchronization Signal
This is a terminating ON/OFF switch for the external synchronization input signal. When this is switched ON, termination is executed via a 75 Ω resistor.
ON: terminates at 75Ω. OFF: does not terminate at 75Ω.
(ON: At time of factory shipment)
15
[INT/GL, LL] Selector Switch for Synchronizing System
This switch sets the synchronizing system for the camera.
INT/GL:
This is set for internal synchronization (INT) or external synchronization (GL).
LL (Line Lock):
The camera’s vertical synchronization is locked to the AC 24V power line frequency. When switching between multiple cameras using a switcher, selecting this mode and adjusting the vertical phase can reduce the monitor sync disturbances occur that when the camera image is switched. (This cannot be used in regions where the power frequency is 60 Hz ) (INT/GL: At time of factory shipment)
16
[DUPLEX, SIMPLEX] Selector Switch for Transmission System
If the setting is changed, be absolutely sure to switch on the power again.
DUPLEX:
This switch sets to DUPLEX when the transmission between the camera and a remote control unit is in a duplex system (two-way).
SIMPLEX:
This switch sets to SIMPLEX when the transmission between the camera and a remote control unit is in a simplex system (one-way). (DUPLEX: At time of factory shipment)
17
[RX.TERM-ON/OFF] RX Signal Terminal ON/OFF Switch
This sets whether or not the signal between RX + and RX – on the back
20
should be terminated at the value of 110 resistance.
ON: Te r minated. OFF: Not terminated.
If the system including the camera is the M.DROP (Multi-drop, RS-485) system, only the last camera mounted along the control signal cable is set to “ON” and the other cameras are set to “OFF”. In case of the M.DROP system, it becomes necessary to set the Machine ID. ( Page
33) If the system including the camera is the PTOP (Point to Point, RS-422A) system, set this switch of all the cameras to “ON”. The item STYLE on the COMMUNICA­TION screen sets M.DROP or P TO P (Page 33) (ON: At time of factory shipment)
18
NOT USED
This cannot be used. Do not switch.
Controls, Connectors and Indicators (Continued)
E-11
DC12V
AC24V
Y/C OUT
SYNC IN
POWER
VIDEO OUT
SEE INST­RUCTION MANUAL
+
-
12
CLASS 2 ONLY(U TYPE)
ISOLATED POWER ONLY
(E TYPE)
TX
+
TX
-
RX
+
RX
-
AUX
GND
ABCD
)
(
¤
19
[DC 12V, AC 24V] Power input terminals (TK-C1480BE)
To input DC 12V or AC 24V power.
20
[TX+A, TX-B, RX+C, RX-D] Control signal connection terminals
Te r minals for inputting signals with electrical characteristics conforming to the EIA/TIA RS-422A or RS-485 standard.
17
RX.TERM switch
21
[AUX, GND] Auxiliary Output Terminals
If any change occurs in the area that was set on the MOTION DETECT screen, these terminals output signals. ( Page 32) [Open-collector Low signal. Maximum voltage 30V, Current 30mA.]
22
[Y/C OUT] Y/C output connector
This 4-pin connector outputs the luminance and chrominance signal.
• Pin configuration of Y/C OUT connector
23
[VIDEO OUT] Video signal output connector
This BNC connector outputs a composite video signal. Connect this to the video input connector of a video monitor, switcher, etc.
24
[POWER] Power indicator lamp
This lamp lights when power is supplied to the camera.
25
[SYNC IN] Sync signal input connector
This BNC connector accepts the input of an external sync signal such as a composite video (VBS) or black burst (BB) signal. When a sync signal is input into this connector, the camera operation is automatically synchronized with the external sync signal. To terminate this connector at 75, turn ON the EXT.TERM switch
14
.
26
Power cable (TK-C1481BEG)
Connect to the commercial AC230V outlet
Pin No. Signal
1 GND 2 GND 3 Luminance (Y) 4 Chrominance (C)
4
2
3
1
Y/C OUT
SYNC IN
POWER
VIDEO OUT
SEE INST­RUCTION MANUAL
TX
+
TX
-
RX
+
RX
-
AUX
GND
ABCD
TK-C1480BE TK-C1481BEG
E-12
REC
PLAY
FFREW
REVERSE
PAUSE/ STILL
REC CHECK
STOP/EJECT
COUNT/ CLOCK
TIME MODE
TIMER REC
AL/PL RESET
MENU
VIDEO CASSETTE RECORDER
SHIFT/TRACKING
SET/V.LOCK
RESET /CANCEL
OPERATE
SR-L910
OPE. LOCK
1
TO CAMERATO CAMERA DATA I / ODATA I / O
RXRX+RXRX
­TXTX+TXTX
-
COMCOM
1 2 3 4 5 6 7 8
COMCOM
9/19/110/210/211/311/3 12/412/4 13/513/514/614/6 15/715/7 16/816/8
COMCOM COMCOM COMCOM
CAMERACAMERA
SWSW
UNITUNIT ALARMALARM
AUTO
4312 875 6
2 3 4 5 6 7
8
1
MONITORMONITOR OUTPUTOUTPUT
MONITORMONITOR
SERIAL-2SERIAL-2SERIAL-1SERIAL-1
VIDEO INPUTVIDEO INPUT
VIDEO OUTPUT
OUTPUTOUTPUT
2
1
ONON
2 3 4 5 6 7
8
POWER
OFF
AC INPUT
ALC
LEVEL
Av Pk
L H
ALC
LEVEL
Av Pk
L H
ALC
LEVEL
Av Pk
L H
•••••
CAMERA
SW
Remote Control Unit
RM-P2580
Time lapse VCR
MONITOR
MONITOR
CAM SW OUT
VIDEO IN
COM
TO
CAMERA
MONITOR OUTPUT 2
MONITOR OUTPUT 1
CONNECTION/INSTALLATION
RM-P2580 System
System with up to 8 cameras
Camera
TK-C1480B
Camera
TK-C1480B
Camera
TK-C1480B
Camera 1
Camera 2
Camera 8
Control signal cable
Video signal cable
Power cable
AC24V or DC12V
AC24V or DC12V
AC24V or DC12V
MONITOR screen
(example showing camera ID as “05”)
This is the connected example of the TK-C1480BE. When controlling with any system except the RM-P2580, execute proper settings using switches and menu screens according to the systems used. ( Page 14)
PROT OOLDUPLEXID-05C
:
“DUPLEX” should be displayed.
The number shown in the □□ part of ID-□□ should be correct.
MACHINE ID:1 (Menu screen) RX TERM: OFF (switch)
MACHINE ID:2 (Menu screen) RX TERM: OFF (switch)
MACHINE ID:8 (Menu screen) RX TERM: ON (switch)
MEMO
• When operating a system using the RM-P2580, several cameras (up to 8) can be con­nected and used on one control signal cable. Consequently, an incorrect switch setting on just a single camera will cause the entire system to work incorrectly.
• Confirm switch settings on the screen as follows.
q Confirm that the image from the camera to be checked
is displayed on the monitor.
w Tu rn OFF and then ON the AC 24 V power to the cam-
era to be checked.
e The camera begins the initial operation and characters
similar to those shown in the illustration on the right appear on the monitor screen.
r Confirm that “DUPLEX” and “ID-□□ ” are displayed and
that the ID number is the correct number (the number should be the same as the number of the VIDEO IN­PUT terminal to which the camera is connected on the rear panel of the RM-P2580).
t If wrong, set the camera ID again.
E-13
CAMERA SETUP
SET
MENU
EXT TERM-OFF
INT/GL
DUPLEX
RX TERM-OFF
NOT USED
ON LL SIMPLEX ON
EXT TERM-OFF
INT/GL
DUPLEX
RX TERM-OFF
NOT USED
ON LL SIMPLEX ON
VIDEO
DC
IRIS
AWC
A RX
+
B RX C TX
+
D TX
TX+ A TX
B
RX
+
C
RX
D
TX
+
A
TX
B
RX
+
C
RX
D
RM-P2580
Camera 2 control signal connection terminals
Connect: Camera TX+ to RM-P2580 RX+ Camera TX– to RM-P2580 RX– Camera RX+ to RM-P2580 TX+ Camera RX– to RM-P2580 TX– The A B C D marks indicated on both the camera terminals and the RM-P2580 termi­nals facilitate correct connections. Connect the terminals with identical marks.
Connecting the control signal cable
(Use a twisted-pair cable for connection. Page 17.)
Camera 1 control signal connection terminals
Setting the switches (Page 10)
Select the synchronization method of the camera image. Set the switch on all cameras to LL (Line Lock) and match with the V. PHASE. ( Page 26.)
Set this switch to the DUPLEX * If the setting is changed, be absolutely sure to
switch on the power again.
Set this switch to ON (signal termination ON) only on the camera placed at the end of the control signal cable. Set to OFF on all other cameras.
Setting on the MENU screen (Page 33)
* If the setting is changed, escape from the menu screen once, and definitely switch on the power again.
MACHINE ID setting switches
Set this item to match the RM-P2580 VIDEO INPUT terminal number for each camera.
When connecting
Tu rn OFF the power supply to all equipment to be used before making connections.
Carefully read the Instructions for each piece of equipment to be used before making
connections.
For the appropriate connection cables and the length of these, carefully read “Connections
on the back” on page 16.
The control signal cable cannot be used for loop connection.
Set to M.DROP
Set to M.DROP when the RM-P2580 is used as a remote control unit. When controlling from another machine, make sure that it matches the communication system used.
MMCO UNI CAT ION
ST LE M.DROPY MA H NE DII 1C
E-14
CONNECTION/INSTALLATION
SET
MENU
CAMERA SETUP
EXT TERM-OFF
INT/GL
DUPLEX
RX TERM-OFF
IOT USED
ON LL SIMPLEX ON
VIDEO
DC
ALC
LEVEL
Av Pk
L H
DC12V
AC24V
CLASS 2 ONLY(U TYPE)
ISOLATED POWER ONLY
(E TYPE)
TX
+
TX
-
RX+RX
-
AUX
Y/C OUT
SYNC IN
POWER
VIDEO OUT
GND
ABCD
SEE INST­RUCTION MANUAL
1
+
-
2
Execute connection/installation according to the procedures described below. Tu rn OFF the power supply to all equipment to be used before making carefully.
1.
Mounting the lens ( Page 15)
4.
Setting the switches ( Page 13)
6.
Back focus adjustment ( Page 21)
5.
Lens adjustment ( Page 20)
7.
Auto white balance control adjustment ( Page 22)
3.
Mounting the camera
( Page 18)
To controlling systems such as RM-P2580
To alarm terminals such as switches
Monitor
2.
Connections ( Page 16)
DC 12V/AC 24V power supply
Genlock sync signal generator
Procedures
This is the connected example of the TK-C1480BE. TK-C1481BEG ( Page 16)
E-15
Mounting the lens
VIDEO
DC
IRIS
VIDEO
DC
3
42
1
Mount the lens according to the procedures described below.
Attached 4 pin plugs
1.
Before mounting a lens, check whether it is a C-mount or CS-mount lens. To change the mounting method, loosen the back-focus locking screw (M 2.6) using a Phillips head screwdriver, turn the back-focus adjusting ring with your fingers or the screwdriver and change the mounting method. Dimension (b) of the lens shown in the illustration must be as shown in the table below. If (b) exceeds the value in the table, it may damage the inside of the camera or correct mounting may be im­possible; never use such lenses. Do not attach the C-mount lens when using a CS-mount.
The F mark indicates a focal point.
2.
Mount the lens on the camera by turning the lens clockwise. Adjust its position.
3.
When using an auto-iris lens with an EE amplifier, turn the switch to the “VIDEO” side. When no EE amplifier is equipped, turn the switch to the “DC” side.
4.
If the lens has an auto-iris mechanism, connect the lens cable after checking the pin arrangement. If the lens cable has a different type of plug, use the 4-P plug supplied.
Lens Flange back (c) Dimension (b)
C mount lens 17.526mm 10mm or less
CS mount lens
12.5mm 5.5mm or less
1
3
4
2
BF LOCK
1
3
2
4
(b)
(c)
F
Lens DC IRIS VIDEO IRIS
Pin No. (does not contain EE amplifier) (contain EE amplifier)
1 Brake
9V [max 50mA]
2 Brake
+
NC
3Drive
+
VIDEO
4Drive
GND
3.
2.
4.
E-16
CONNECTION/INSTALLATION
Installing the ferrite core
To retain electromagnetic compatibility, use the ferrite cores provided when connecting to the lens.
VIDEO
DC
IRIS
ALC
LEVEL
Av Pk
L H
Notes:
Install the ferrite cores within 50 mm of the camera-side connectors. (Fasten the ferrite core with the wire clamp provided.)
Ferrite core
Video-iris lens (or galvanometnc-iris lens)
DC12V
AC24V
CLASS 2 ONLY(U TYPE)
ISOLATED POWER ONLY
(E TYPE)
TX+TX
-
RX
+
RX
-
AUX
Y/C OUT
SYNC IN
POWER
VIDEO OUT
GND
ABCD
SEE INST­RUCTION MANUAL
1
+
-
2
Connect the DC 12 V or the AC 24 V power supply to the DC 12V/AC 24V terminals. To prevent connection errors or a cable disconnection, we recommend the use of lug plates for the connections. The following table shows the connection distances and connection cables provided that 2-conductor VVF cables (vinyl-insulated vinyl sheath cables) are used.
Maximum extension (reference)
Conductor diameter
100 m 260 m 410 m 500 m
1.0mm 1.6mm 2.0mm 2.6mm and more and more and more and more
Connections on the back
Power supply
TK-C1480BE (DC 12 V or 24 V)
Wire clamp
E-17
Control signal cables
These cables should be connected only when it is required to control the camera using the RS-442A or RS-485 signals. The use of 0.65 4-conductor twisted pair cables is recom­mended. With these cables, the maximum ex­tension distance is 1,200 m.
Connect to the other side in pairs like this.
Connect to the other side in pairs like this.
A
B
TX+ TX
-
C
D
RX+ RX
-
Genlock connection
With some systems, when the external sync signal is a composite video or black burst sig­nal genlocking by applying an external sync input requires the horizontal phase (H PHASE) and colour phase (SC COARSE) to be adjusted.
MEMO
• Genlocking is not possible with a signal con­taining too much jitter, such as a VCR or videodisc playback signal.
•For details, consult a JVC authorized dealer.
MEMO
• If thin cables are used (i.e. with a high resistance), a significant voltage drop will occur when the unit is at its maximum power consumption. Either use a thick cable to restrict the voltage drop at the camera side to below 10%, or place the power supply near to the camera. If voltage drop occurs during operation, the performance will be unstable.
• Attach the cable conductors so that they do not come into contact with the drop prevention wires.
• Do not allow input from both a DC 12 V and AC 24 V power supply at the same time.
• When using a DC 12 V power supply, ensure that the polarities of the cable are correct.
• The AC 24 V power supply should conform to the following: TK-C1480BE Isolated power supply only
TK-C1481BEG (AC230V)
Power cable connect to the commercial AC230V outlet
CAUTION:
When you use this camera, the socket-out­let shall be installed near equipment so as to disconnect easily.
Y/C OUT
SYNC IN
POWER
VIDEO OUT
SEE INST­RUCTION MANUAL
E-18
DC12V
AC24V
CLASS 2 ONLY(U TYPE)
ISOLATED POWER ONLY
(E TYPE)
T
X
+
TX
-
R
X
+
R
X
-
A
U
X
Y/C OUT
SYNC IN
POWER
VIDEO OUT
G
N
D
A
B
CD
S
E
E
IN
S
T
-
R
U
C
T
IO
N
M
A
N
U
A
L
+
-
1
2
2mm
6mm
M3 x 6mm
MAX.
7
mm
Mounting the camera
CONNECTION/INSTALLATION
Camera mounting screw
Camera-mounting bracket
Rotation prevention hole
When mounting the camera on a fixer, pan/ tilt, etc., use the camera mounting screw hole located on the camera-mounting bracket.
Furthermore, make use of the rotation prevention hole to prevent the camera from falling and securely mount the camera. Special precautions must be taken for mounting the camera on a wall or a ceiling. We are not liable for any damage caused by improper installation.
Fall Prevention
• Exercise maximum caution when installing the unit to the wall or ceiling. You should not engage in the installation work yourself. Ask a professional to do the job, since the fall of the unit can result in injuries and accidents.
• When installing the unit on a fixer, Pan/ Tilt unit, etc., make sure to install it firmly using a rotation-preventing hole provided to prevent fall.
•To prevent fall, connect the unit to a section with sufficient strength (ceiling slab or channel) using a fall prevention wire such as a wire chain and the like. Use the black screw on the back of the unit for installation. Pay utmost attention to the length of the wire, too.
• Specified screw (M3 × 6 mm) Never use any screw longer than the specified length as the inside can be damaged.
CAUTION:
Use the screw with a length shorter than 7mm from a camera-mounting face.
This diagram shows the installed example of the TK-C1480BE. Be sure to install a fall preventive wire like­wise in case of the TK-C1481BEG.
E-19
VIDEO
DC
IRIS
VIDEO
DC
IRIS
Camera­mounting bracket
Fixing screws
Installation of camera
• Mounting from the bottom This camera is originally designed to be mounted from the bottom, as shown q. The hole is standard photographic pan­head screw size (1/4-20 UNC). Example the Fixing unit or Pan/Tilt unit.
• Mounting from the top Remove the CAMERA MOUNTING BRACKET from the bottom of the camera by removing two fixing screws as shown w. Attach the CAMERA MOUNTING BRACKET to the top, then mount the camera on the Fixing Unit as shown e. Make sure that two original screws are used when mounting the CAMERA MOUNTING BRACKET. Be sure to use a 6 mm long locking screw for the camera­mounting bracket. (This camera is used indoor and under similar conditions.)
q
w
e
E-20
CONNECTION/INSTALLATION
Lens adjustment
ALC
LEVEL
Av Pk
L H
Connect the camera according to the connection method, turn it on, display an image on the monitor, and check the image. The camera has been factory-adjusted to the best position, but it may need to be adjusted according to the object conditions or combination of lenses. If the image is unnatural, adjust it as follows: (Also read the instruction manual of the lens.)
• LEVEL adjustment
Monitor screen
LEVEL turning direction
Too bright Counterclockwise (Toward L)
Too dark Clockwise (Toward H)
MEMO
• If the sensitivity adjustment LEVEL is turned
excessively to L, the sensitivity increases because of the AGC function of the cam­era, and the image looks grainy.
• If the video iris lens is set to too low a level,
malfunction such as the hunting phenom­enon, in which the iris opens or closes un­intentionally, may occur. In such a case, first set LEVEL potentiom­eter on the lens to the H (iris open) position then adjust it to the optimum level.
LEVEL adjustment
ALC adjustment
(Does not operate.)
MEMO
Note that the lens cannot make ALC adjust­ments. Make ALC adjustments using the item AVERAGE: PEAK on the menu. (Page 26)
E-21
Back focus adjustment
• With a fixed-focus lens
If the focus can not be adjusted correctly by rotating the lens focus ring, adjust the back focus as follows.
1.
Loosen the back focus locking screw by turning it counterclocckwise (
) with a
screwdriver.
2.
Shoot a pattern closely.
3.
Tu rn the lens focus ring to ⬁.
4.
Tu rn the back focus adjustment ring to focus at the best point.
5.
Tighten the back focus locking screw by turning it clockwise (
).
• With a zoom lens
If the image is out of focus when zooming (telephoto wide-angle), adjust the camera as follows:
1.
Loosen the back focus locking screw by turning it counterclocckwise (
) with a
screwdriver.
2.
Shoot a comparatively dark scene with thin lines.
3.
Set the lens to the maximum telephoto position, and adjust the lens focus.
4.
Set the lens to the maximum wide-angle position, and turn the back focus ring to adjust the focus. (Repeat steps
3.
and
4.
two or three
times.)
5.
Tighten the back focus locking screw by turning it clockwise (
).
Back focus adjustment
Be sure to make back-focus adjustments when changing the lens mounting method or using a different lens. If required, adjust it as follows:
MEMO
• LENS FOCUS ADJUSTMENT MODE At the time of focus adjustment, press the button
at the side of the unit for at least one second to open the lens iris and to fa­cilitate focusing. At this time, “LENS FOCUS ADJUSTMENT MODE” will be displayed on the monitor screen. When the adjustment has been completed, press one of the buttons
to can-
cel focus adjustment mode.
• When the subject is bright, the use of an ND filter permits more accurate back-focus adjustment. (The ND filter reduces the amount of incident light upon the lens equally over the entire range of wavelength.)
Back focus fixing screw (M2.6)
Back focus adjusting ring
Lens focus ring
BF LOCK
Tighten
Loosen
E-22
CONNECTION/INSTALLATION
Auto white balance control adjustment
Each light source has its own colour temperature. Therefore, when the main light source lighting an object is changed, the white balance should be adjusted again by pressing the AWC button.
1.
Place a white object under the same lighting condition as the object to be shot and zoom in to fill the screen with white.
2.
When the AWC button is pressed for approx. one sec., the white balance is adjusted for the object being recorded.
3.
During the time when the Auto White function is operated, "AWC OPERA­TION" is displayed (for approx. 0.5 sec.). When the appropriate white balance is acquired, "AWC OK" is displayed.
4.
Error message display
NG : OBJECT
Displayed when there is not enough white colour on an object or the colour temperature is not suitable. By taking a shot of a white object to fill the screen, adjust the white balance again.
ERROR : LOW LIGHT
Displayed when the light is low. In­crease the illumination then re-adjust the white balance.
ERROR : HIGH LIGHT
Displayed when the light is too bright. Decrease the illumination then re-ad­just the white balance.
CAMERA SETUP
SET
MENU
EXT TERM-OFF
INT/GL
DUPLEX
RX TERM-OFF
NOT USED
ON LL SIMPLEX ON
VIDEO
DC
IRIS
AWC
AWC button
AWC OK
DISPLAYING RESULT
AWC OPERATION
DURING OPERATION
AWC NG : OBJECT
OBJECT ERROR
AWC ERROR : LOW LIGHT
LOW LIGHTING
AWC ERROR : HIGH LIGHT
OVER LIGHTING
E-23
MENU SETTING
Setting the menu
CAMERA SETUP
SET
MENU
EXT TERM-OFF
INT/GL
DUPLEX
RX TERM-OFF
NOT USED
CAMERA SETUP
SET
MENU
ON LL SIMPLEX ON
VIDEO
DC
IRIS
AWC
1.
Press the MENU button.
The MENU screen is displayed.
2.
Set the cursor (>) to a desired sub-menu using the
,
button.
3.
Press the SET button.
The selected sub-menu screen is displayed.
4.
Use the
,
button to set the
cursor (>) to a desired item.
5.
Change the set value using the
,
button.
Change of the set value displays a change mark (∗).
If you wish to change the set values of another items, repeat items
2.
to
5.
above.
6.
Press the MENU button.
The screen returns to the previous one (MENU screen).
7.
Press the MENU button.
The screen returns to the normal screen (quitting the menu display).
* When the setting is executed using the RM-
P2580, use a joy stick instead of the
button.
LACSETTINGS
IIRSLEVEL NORMAL
AEVRAEG:PEAK 82:
ACGMODE
2dB0
SUTHTERExD
LUX
R/
NRMALO
L
O
OFF
PIORRITY ––– BCLOFF
SNSEEUP OFF
MODE
LACSETTINGS
AEVRAEG:PEAK 82:
ACGMODE
2dB0
SUTHTERExDR/
NRMALO
I∗IRSLEVEL -5
OFF
PIORRITY ––– BCLOFF
SNSEEUP OFF
LUX
L
O
MODE
MENU button
SET button
MENU
SYNC ADJUST
VIDEO ADJUST MOD E ESLECT
ALC SETT INGS
COMMUN ICAT ION MA IN TEN NACE
MOT I ON
D
E
TECT
..
F ACTORY SETTI NGS..
..
..
..
..
..
..
LACSETTINGS
IIRSLEVEL NORMAL
AEVRAEG:PEAK 82:
ACGMODE
2dB0
SUTHTERExD
LUX
R/
NRMALO
L
O
OFF
PIORRITY ––– BCLOFF
SNSEEUP OFF
MODE
E-24
MENU
SYNC ADJUST
VIDEO ADJUST MODE ESLECT
ALC SETT INGS
COMMUN ICAT I ON MA I N TE N NACE
MOT I ON
D
E
TECT
SYNC DAJUST
VPHASE 0 HPHASE 0 SC ECOARS 0 SC F INE 12 8
DEVI O ADJUST
WH T E B AL E AT WNC
A
I
CO OUR L E NORMALEL
V
L
EN ANCE LE NORMALEL
V
H
PE
E
STAL LE NORMALEL
V
D
AU
O
BLAC K OFFTL
C
T
TIMO O N DE TEC T
MO E OFFD LE EL NORMALV AR A EDIE AL
R
MTI EM10sA
DE
ON
STRAT
I
N
O
M
WH I T E BAL
A
NCE CON
T
ROL
AWC SET . . RB
::
MG
::
g
INMA TE NANC E
CC SPOT ..D
DCC SPOT
CA ELNC E
heat up 30min in advance need Lens
cap to execute
XCTEUE
.
.
..
FACTORY SET TI NGS. .
..
..
..
..
..
..
T..
MENU SETTING
The flow of menu screen
Page 26
Page 30
Page 32
Page 38
Page 35
Page 37
Page 38
E-25
CTFA ORY SE NGSTT I
CA CELN CL A W I
(
HOUT T I TL E)RTE
C
DATA CLEARED
LA
(
)RALLE
LACSETTINGS
IIRSLEVEL NORMAL
AEVRAEG:PEAK 82:
ACGMODE
2dB0
SUTHTERExD
DE
R/
NRMALO
LLUXOMO OFF
PIORRITY ––– BCLOFF
SNSEEUP OFF
MODE SE LE C T
CAMERA T IT LE ED I T. . REVERS E MODE OFF HL I MODE OF F ALM .T I TLE S Z
E
IDOUBLE ALARM COLOUR WH ITE D
.
ZOOM MAX x2
MMCO UNIC ATI ON
ST LE P TO PY MA H N E DII – –C
SHUT T RE/ExDR
SHUTTER SPEED
SPEED
1 120/ ––– ––– –––
FAST L IMIT ED
x
ER
ED
x
R
LLEV
M.
CAMERA T
I
T
L
E
’ ДЦ ВК О ФЫЗС длп цьвкоф
Ü
ûáé
í
ó
аим тщзсЯ
¡¿
ú
0123456789
:-/
., ABCDE KL MNOPFGH I J QRS TUVWXY Z ab
c
de klmnopf g hi j
qr
s
tuvwxyz
TDislayitle
WIDE TELE
Page 26
Page 31
Page 33
Page 36
Page 34
Page 33
Page 27
E-26
Item Functions and set values Initial value
V PHASE
H PHASE
SC COARSE
SC FINE
This adjusts the vertical synchronization to those of other cameras when a selector switch for the synchronizing system on the side is at LL. (50Hz power region only.) When it is not set to LL, “---” will appear, disabling change the set value. [Set value: –156 to 0 to 156]
This adjusts the horizontal synchronization to those of other cameras and systems when a selector switch for the synchronizing system on the side is at INT/GL. When external signals are not input, “---” will appear, disabling change the set value. [Set values: –16 to 0 to 16]
Coarse adjustment of the SC phase in gen-lock operation. The SC phase can be varied by up to 90° in each direction. Adjust with reference to another camera (or system) and together with the SC FINE adjustment. Adjust SC COARSE and SC FINE only after adjusting H PHASE. When it is not set to GL, “---” will appear, disabling change the set value. [Set values: 0°, 90°, 180°, 270°]
Fine adjustment of the SC phase in gen-lock operation. When it is not set to GL, “---” will appear, disabling change the set value. [Set values: 0 to 255]
MENU SETTING
SYNC ADJUST Screen
This executes the setting regarding synchronization.
0
0
0°
128
ALC SETTINGS Screen
Item Functions and set values Initial value
IRIS LEVEL
AVERAGE: PEAK
This makes automatic adjustments according to brightness.
Adjusts the brightness level of the video signal.
• To lower the brightness level ...Decrease the value
• To raise the brightness level ....Increase the value
[Set values: –5 to NORMAL to 5]
Sets the exposure detection as a ratio of the average value and the peak value.
•AVERAGE value large: Increase the AVERAGE value when portions other than the highlighted areas of the screen are dark and look corrupted. (Ex. 10:0)
• PEAK value large: Increase the PEAK value when halation occurs in the highlighted areas of the screen. (Ex. 5:5)
[Set values: 10:0, 9:1, 8:2, 7:3, 6:4, 5:5]
NORMAL
8 : 2
E-27
This sets the electronic shutter as well as the ExDR (Extended Dynamic Range). The use of an electronic shutter function enables shooting with proper brightness, as more brightness results in higher shutter speed. The ExDR function allows even the shooting of a subject having different luminous flux density by composing a picture shot at 1/100 sec. shutter speed with a picture shot by a high-speed shutter. NORMAL: This fixes the shutter speed to 1/50.
The ExDR does not function.
MANUAL: This s ets t h e shu t ter
speed b
y the item SHUTTER SPEED on the SHUTTER screen. The ExDR does not function. When SENSE UP is functioning, MANUAL cannot be selected. (Not displayed on MENU)
AUTO: This automatically switches the shutter speed
according to brightness. The ExDR does not function. The item FAST LIMIT on the SHUTTER (ExDR) screen sets a maximum shutter speed value.
M.ExDR: This is used when shooting a subject with
difference in a luminous flux density in the screen under a fixed illumination condition, and so on. During ExDR mode, the item M.ExDR.SPEED on the SHUTTER (ExDR) screen sets the composing high shutter speed. It is possible to set only when the items BLC and SENSE UP are OFF. What’s more, the ExDR LEVEL sets the signal level of the composing high-speed shutter.
A.ExDR: This is used when the subjects having different
luminous flux densities are continuously used night and day in the situation where both indoor and outdoor subjects are mixed in existence, and so forth. During ExDR mode, the composing shutter speed automatically varies according to the contrast of a subject. This is set when shooting the subject with changing brightness. This can be set only when the item BLC is OFF. What’s more, the ExDR LEVEL sets the signal level of the composing high-speed shutter.
MEMO
• Do not set to A.ExDR when using a manual lens.
• When M.ExDR mode or A.ExDr mode is used, the border between a bright part and a dark part can be coloured (cyan, orange, etc.), but this is not a malfunction.
This sets a shutter speed when MANUAL is set. The AUTO, M. ExDR, A. ExDR set value is displayed as “- - -” and cannot be changed [Set values: 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, and 1/10000]
NORMAL
1/120
Item Functions and set values Initial value
SHUTTER /ExDR
* When the SHUTTER/ExDR item is set to NORMAL, the following items
(SHUTTER SPEED, FAST LIMIT, ExDR LEVEL, and M.ExDR SPEED) cannot be changed.
SHUTTER SPEED
E-28
ALC SETTINGS Screen (Continued)
MENU SETTING
1/100000
NORMAL
1/4000
20dB
OFF
OFF
Item Functions and set values Initial value
FAST LIMIT
ExDR LEVEL
M.ExDR SPEED
AGC MODE
LOLUX MODE
SENSE UP
This sets the fastest value of a shutter speed when AUTO is set. The MANUAL, M. ExDR, A. ExDR set value is displayed as “- - -” and cannot be changed. The higher the shutter speed becomes, the more smear phenomenon is emphasized, which is peculiar to the CCD. [Set values: 1/1000, 1/2000, 1/4000, 1/10000, 1/20000, 1/40000, 1/100000]
This sets the signal level of the composing high-speed shutter during ExDR mode. This is set according to the brightness of a subject. When using M.ExDR, be sure to set M.ExDR SPEED in advance. When the SHUTTER/ExDR item is set to MANUAL or AUTO, “- - -” appears, disabling setting. To give priority to the low-brightness par ts of the subject…
increase the value
To give priority to the high-brightness par ts of the subject…
decrease the value
[Set values: –5 to NORMAL to 5]
MEMO
• In the case of a subject with a large difference in the luminous flux density, sometimes images do not change even if ExDR LEVEL is varied. However, this occurrence is a peculiarity of the unit and is not a malfunction.
This sets the composing high shutter speed when ExDR is set to M.ExDR. Set the shutter speed in order that a subject with a high luminous flux density (outdoor, etc.) may come out most clearly. This is displayed as “- --” during MANUAL, AUTO or A. ExDR and cannot be set. [Set values: 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/20000]
This sets a maximum gain of the AGC (Automatic Gain Control). OFF: When the AGC function is not used. 10dB: When luminous energy is insufficient. 20dB: When luminous energy is extremely insufficient. SUPER: When brightness is insufficient even when it is set to 20dB.
• If the gain is increased, the screen gets rough in a dark place.
• If it is set to SUPER, it can sometimes consume operation time to
cope with a drastic level change.
Used when brightness is low even when setting the AGC MODE.
(Functions regardless of the AGC MODE setting.)
OFF: LOLUX MODE is off
ON: LOLUX MODE is on (+6dB)
This item makes up a sensitivity should be heightened automatically
when a subject becomes dark.
In case of the X32 AUTO, the sensitivity is automatically heightened
up to 32 times continuously as compared with standard.
As the sensitivity becomes higher, the shutter speed becomes lower,
resulting in unnatural motion.
If SHUTTER/ExDR is set to MANUAL or the M.ExDR,
“---” will appear, disabling the SENSE UP function.
[Set values: OFF, X2 AUTO, X4 AUTO, X8 AUTO, X16 AUTO, X32
AUTO]
MEMO
• When the magnification of SENSE UP is enhanced, the screen can become coarse or whitish, or whitish flaws can emerge sometimes, but this is not abnormal.
E-29
MOTION
OFF
OFF AREA 1 AREA 2 AREA 3 AREA 4
Light metering area
Light metering area
Light metering area
Light metering area
Light metering area
Item Functions and set values Initial value
PRIORITY
BLC
This item sets the order in which the AGC and slow shutter speed decrease function when the object brightness becomes low. When the item AGC MODE or the item SENSE UP is set to OFF, “- - -” will appear, disabling any setting.
MOTION: Priority is given to motion.
This is suitable to a subject with quick motion, since the AGC (automatic gain control) functions with priority when the subject becomes dark.
PICTURE: Priority is given to image.
When the subject becomes dark, SENSE UP (sensitivity goes up) functions with priority, offering suitability that gives priority to image.
Sets the backlight compensation function. Set when a bright light source, etc. is placed in the same direction as the subject.
If the item SHUTTER/ExDR is set to the M.ExDR or the A.ExDR, “- - -” will appear, and the BLC does not function.
OFF: The backlight compensation function does not work.
AREA 1 to AREA 4: When the SET button is pressed, the fixed light metering areas are displayed. Select one of the four types. (Indicated positions on the screen are rough guides. Execute required settings after checking and confirming the functions on actual images.)
EDIT 1 to EDIT 2: When the SET button is pressed, the user light metering areas are displayed. Select one of the two types. “BLC EDITTING Screen” on page 34.
E-30
Item Functions and set values Initial value
WHITE BALANCE
COLOUR LEVEL
ENHANCE LEVEL
PEDESTAL LEVEL
AUTO BLACK CTL
Selects the white balance adjustment function. The white balance can be adjusted manually or automatically for light within the colour temperature range of 2500K to 8000K.
•ATW: Auto-Tracking White Balance mode.
This automatically adjusts the white balance.
•AWC:Auto White Balance Controll mode. When the
SET button is pressed, the adjustment screen appears. ( See page 35.)
To adjust the colour level of the video signal.
•To make colours lighter … Decrease the value
•To make colours darker … Increase the value
[Set values: –5 to NORMAL to 5]
To adjust the contour enhancing level of the video signal.
•To make the picture quality harder … Increase the value
•To make the picture quality softer … Decrease the value
[Set values: –5 to NORMAL to 5]
To adjust the pedestal level of the video signal.
•To brighten picture … Increase the value
•To darken picture … Decrease the value
[Set values: –5 to NORMAL to 5]
This is set when it is difficult to view a dark part of the image even if gain is boosted by the AGC (automatic gain control). ON: When a black level of the image signal is low, a
pedestal level that becomes the standard of black is automatically elevated, making it easier to view a dark part.
OFF: AUTO BLACK does not function.
MEMO
• When PEDESTAL LEVEL is set to 5, no function can
take place even if AUTO BLACK CTL is ON.
• When AGC MODE is set to OFF, no function can take
place even if AUTO BLACK CTL is ON.
AT W
NORMAL
NORMAL
NORMAL
OFF
VIDEO ADJUST Screen
MENU SETTING
Adjustments are made on video signals.
E-31
MODE SELECT Screen
Titles, image reversion, etc., are set.
Item Functions and set values Initial value
CAMERA TITLE EDIT
REVERSE MODE
HLI MODE
ALM.TITLE SIZE
ALARM COLOUR
D.ZOOM MAX
OFF
OFF
DOUBLE
WHITE
x2
ALARM
ALARM
NORMAL DOUBLE
Bring up the CAMERA TITLE, EDIT screen. ( Page 36)
Settings are executed for image reversion. OFF: Image does not reverse. R-L: Left and right of the image are reversed. U-D: Up and down of the image are reversed. ALL: Up and down and left and right of the image are
reversed.
The highlighted part of the image is made black to make the surroundings of the highlighted part better visible. Set to HIGH when there are many highlighted parts. [Set values: OFF, LOW, MIDDLE, HIGH]
Set the size of the characters displayed in the case of alarms.
This sets the colour of an alarm title. [Set values: WHITE, YELLOW, CYAN, GREEN]
This function sets the maximum zoom ratio of the electronic zooming. [Set values: x1, x2, x4, x6, x8, x10]
MEMO
• The electronic zoom function can only be used by the communication command of exclusive controllers (RM­P2580, etc.).
• Note Picture quality deteriorates under electronic zooming as it is accompanied by digital image processing.
• When the electronic zoom magnification ratio is increased, there may be blurring in the upper center left of the screen. This is a characteristic of the main unit and is not a malfunction.
E-32
Item Functions and set values Initial value
MODE
LEVEL
AREA EDIT
ALARM TIME
DEMONSTRATION
OFF
NORMAL
10s
MENU SETTING
MOTION DETECT Screen
This sets ON/OFF of motion detecting function. OFF: Motion detecting function does not work. ON: Motion detecting function works.
This sets the level that detects motion. If the item MODE is set to OFF, “- - -” will appear, and settings cannot be changed. To function with large signal level change…decrease the value To function with small signal level change…increase the value [Set values: –5 to NORMAL to 5]
This sets the range in which the motion detecting function works. ( Page 37)
This sets the output time of the alarm signal output of AUX terminal as well as “ALARM” display on the screen when motion is detected. If the item MODE is set to OFF, “- - -” will appear, and settings cannot be changed. [Set values: OFF, 5s, 6s, 7s, 8s, 9s, 10s, 15s, 20s, 30s, 1min]
MEMO
When the MODE item is set to OFF, only the alarm signal of the AUX terminal is output, and “ALARM” is not displayed on the screen.
This is used when checking and confirming the set motion detecting function. The detection area is shown in gray. ( Page 37)
Settings are executed about the motion detecting function that emits alarm signals when there exists any motion in the image. Alarm signals are output from the auxiliary terminals on the back.
E-33
COMMUNICATION Screen
Item Functions and set values Initial value
STYLE
MACHINE ID
Settings are made for the control signal-connecting terminals on the back. If the setting is changed, be absolutely sure to switch on the power again.
P TO P
– – –
White spot compensation is performed.
MAINTENANCE Screen
Item Functions and set values Initial value
CCD SPOT
The white spots on the screen, which are characteristic for CCDs can be reduced. Page 38 “White Spot Compensation”
Item Functions and set values Initial value
FAC TORY SETTINGS
Set values are returned to initial values.
The values set on the menu are returned to initial values. CANCEL : No return to the initial value. CLEAR : Returns set values except titles to the (WITHOUT TITLE)
initial value.
CLEAR (ALL) : Returns all set values including titles
to the initial value. Select respective set value and press the SET button. Then, “DATA CLEARED” will appear for about 3 seconds. Be sure not to switch off the power while the display is still on.
MEMO
However, when making settings by means of transmitted commands, the contents of the COMMUNICATION menu do not return to the factory settings.
FACTORY SETTINGS Screen
This sets a communication system according to the system used. PTOP (Point to point) This is set when a remote control unit controls a camera. M.DROP (Multi-drop) This is set when a remote control unit controls a plural number of cameras.
This is set when the STYLE item is set to M.DROP. This is the number that identifies individual cameras in a group. No proper function can be realized if an ID number is repeated within a system. A combined use with the RM-P2580 necessitates the setting together with the video input number of the RM­P2580. If the item STYLE is set to P TO P, “- --” will appear, and settings cannot be changed. [Set values: 1 to 99]
E-34
BLC EDITTING Screen
MENU SETTING
It is possible to set freely the light metering area for backlight compensation. The 2 screens of EDIT1 and EDIT2 can be set.
CAMERA SETUP
SET
MENU
AWC
LACSETTINGS
IIRSLEVEL NORMAL AEV RAGE :PEAK 8 2: SUTHTERExD
LUX
R/NRMALO
SPEURLO OFF
PIORRITY MTIONO BCL
EDIT 1
SNSEEUP OFF
ACGMODE 2dB0
EDIT 1 screen
Light metering area
Light metering area
SET button
SET button
SET button
MENU button
EDIT 2 screen
1.
Set the item BLC on the ALC SETTING screen to EDT1.
2.
Press the SET button.
The EDIT1 screen is brought up.
3.
Set the upper side and left side of the metering area using the
button.
The sides having
marks can
be changed.
4.
Press the SET button.
The changeable sides of the metering area move to the right side and base side.
5.
Set the base and right side of the metering area using the
button.
If the SET button is pressed once more, the two changeable sides of the meter­ing area return to the top and left sides. (The EDIT2 screen can also be set likewise)
6.
Upon completion of setting, press the MENU button.
The screen returns to ALC SETTING SCREEN.
*To use the set metering area, set the item
BLC to EDIT1 or EDIT2.
E-35
Manual Adjustment of White Balance
When automatic adjustment of the white balance results in a “reddish screen”, etc., adjust the white balance manually.
1.
Set the WHITE BALANCE item on the VIDEO ADJUST screen to AWC and press the SET button. * The WHITE BALANCE adjustment
screen appears on the monitor.
2.
Select the hue to be adjusted. (R/B or Mg/G) Press the
or
button.
3.
Adjust the hue. Press the
or
button.
* The “ ı ” indicator moves in accordance
with the setting. When a setting is changed, the “+” mark appears at the original position.
4.
Concluding manual white balance ad­justment. Pushing the MENU button returns the screen to VIDEO ADJUST.
DEVI O ADJUST
WH TE B AL E AWCNC
A
I
CO OUR LE NORMALEL
V
L
EN ANCE LE NORMALEL
V
H
PE
E
STAL LE NORMALEL
V
D
AU
O
BLAC K OF FTL
C
T
WH I T E BAL
A
NCE CON
T
ROL
AWC SE T . .
RB
::
MG
::
g
VIDEO ADJUST screen
WHITE BALANCE CONTROL screen
CAMERA SETUP
SET
MENU
AWC
SET buttonMENU button
E-36
1.
Select the item CAMERA TITLE on the MODE SELECT screen, and push the SET button.
Then, the CAMERA TITLE screen is brought up.
2.
Select the first character from the character area using buttons.
The selected character is displayed flashing on and off.
3.
Push the SET button.
The first character gets fixed and the blinking title input area moves to the second character.
4.
Repeat the above items 2 to 3.
It is possible to use up to 24 characters to input the title.
5.
Push the MENU button.
The screen returns to MODE SELECT.
Up to 24 characters can be selected as camera text for each camera. The set characters are displayed at the bottom of the screen.
MENU SETTING
CAMERA TITLE Setting
CAMERA SETUP
SET
MENU
AWC
SET buttonMENU button
MODE S EL E CT
CAMERA T I TLE ED I T. .
REVERS E MODE OFF
ALM .T I TLE S Z
E
IDOUBLE
ALARM COLOUR WH ITE
MODE SELECT screen
CAMERA TITLE screen
CAMERA T
I
T
L
E
’ ДЦ ВК ОФЫЗС длп цьвкоф
Ü
ûáé
í
ó
аим тщзсЯ
¡¿
ú
0123456789
:-/
., ABCDE KLMNO PFGH I J QRS TUVWXY Z ab
c
de k lmnopf g hij
qr
s
tuvwxyz
TDislayitle
WD
IE LETE
Space
Character area
Title input area
E-37
Setting the MOTION DETECT Function
It is possible to set freely the area where MOTION DETECTING functions.
TIMO O N DE TEC T
MO E OFFD LE EL NORMALV AR A EDI TE AL
R
MTI EM10sA
DE
ON
STRAT I N
O
M
..
..
MOTION DETECT screen
flash
lights gray
flash
Setting screen
1.
Select the item AREA EDIT on the MOTION DETECT screen.
2.
Press the SET button.
The setting screen is brought up.
3.
Select the area not subject to detection using the button.
The area flashing ON and OFF in black and white moves.
4.
Press the SET button.
The area not subject to detection is set, and it turns gray (lights up). To cancel the set area, press the SET button again.
5.
Repeat items 3 and 4 above.
6.
Upon completion of setting, press the MENU button.
The screen returns to the MOTION DETECT menu.
MEMO
Indicated positions on the screen are rough guides. Be sure to check and conform the positions on the actual screen.
* It is possible to check and confirm the set
areas on the DEMONSTRATION screen. The detection area is shown in gray.
The motion detector is not a feature to prevent theft, fire, etc. Even if an accident should occur resulting in damage, we do not accept any liability.
E-38
White spot compensation
CCDs have the general characteristic that white spots appear on the screen when the CCD is operated at high temperatures or when they are used with a slow shutter speed. This unit has a built-in white spot compensation function to reduce these white spots. (The number and the size of the white spots changes according to the use temperature, the shutter speed, etc. Furthermore, there is a limit on the number of white spots that can be compensated.)
Operation method
1.
Attach a lens cap or similar.
• Prevent entry of light to the CCD.
• Switch on the camera power supply and wait for at least 30 minutes.
2.
Display the MAINTENANCE screen.
• Confirm that the cursor (>) is at the item CCD SPOT.
3.
Press the SET button.
• The CCD SPOT screen will be dis­played.
• If you do not want to perform white spot compensation, move the cursor (>) to CANCEL and press the SET button.
4.
Move the cursor (>) to EXECUTE.
5.
Press the SET button.
• White spot compensation will operate. (“SPOT SCAN OPERATION” is dis­played during operation.)
6.
Confirm the display.
• When white spot compensation has been performed correctly, “SPOT SCAN OK” is displayed for about 5 seconds, and then return is made to the CCD SPOT screen.
• When “SPOT SCAN ERROR: HIGH LIGHT” is displayed, check that no light enters into the CCD.
7.
Press the MENU button.
• Return to the MENU screen will be made.
DCC SPOT
CA ELNC
EX C TEUE
heat up 30min in advance need Lens
cap to execute
INMA T ENA NC E
CC SPOT. .D
SP T SCAN OKO
E-39
OTHERS
Image pickup device: 1/2 type IT CCD, 752 (H) × 582 (V) Synchronization method: Internal, Line lock, Full Genlock Scanning frequency: (H) 15.625 kHz, (V) 50 Hz Resolution: 480 TV lines (H) VIDEO OUT: Composite video signal 1 V (p-p), 75 (BNC) Y/C OUT: Y: 1 V(p–p), 75
C: 0.3 V(p–p), 75 Video S/N ratio: 50 dB (AGC OFF) Minimum required illumination: 0.6 lx (50 %, F1.2, AGC 20 dB)
0.3 lx (50 %, F1.2, AGC 20 dB, LOLUX MODE)
0.3 lx (25 %, F1.2, AGC 20 dB)
0.15 lx (25 %, F1.2, AGC 20 dB, LOLUX MODE)
0.019 lx (50 %, F1.2, AGC 20 dB, SENSE UP × 32)
0.01 lx (50 %, F1.2, AGC 20 dB, LOLUX MODE, SENSE UP × 32)
Communication: RS-422A or RS-485 (switchable)
9600 bit/s Lens mount: C/CS mount Power supply and power consumption: TK-C1480BE AC 24 V ` 50 Hz/60 Hz, DC 12 V
--- 500 mA
TK-C1481BEG AC220 V to AC240 V `, 50 Hz/60 Hz, 75 mA Ambient temperature: –10 °C to 50 °C (operation)
0 °C to 40 °C (recommended) Mass: TK-C1480BE 600 ˝
TK-C1481BEG 835 ˝
Accessory: Instructions ..................... 2 Ferrite core ...................... 1
4P plug ........................... 1
Design and specifications are subject to change without notice.
Specifications
SS412174H-002
TUV
Rheinland
Product Safety
..
geprufte
Sicherheit
..
-NE PAS OUVRIR.
RISQUE DE CHOC ELECTRIQUE
-DO NOT OPEN.
SHOCK HAZARD
SC46171H-001
WARNING:
AVIS:
1/4-20UNC
41
35
70
55
63
42
138
149
39
71
U1-32
54-R
DIMENSIONS (Unit: mm)
Loading...
