These are general IMPORTANT SAFEGUARDS and certain items may not apply to all appliances.

IMPORTANT SAFEGUARDS

1. Read all of these instructions.

2. Save these instructions for later use.

3. All warnings on the product and in the operating instructions should be adhered to.

4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

5. Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.

6. Do not use this appliance near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

7. Do not place this appliance on an unstable cart, stand, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the appliance. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

8. Slots and openings in the cabinet and the back or bottom are pro-vided for ventilation, and to insure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

9. This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. For appliance designed to operate from battery power, refer to the operating instructions.

10.This appliance system is equipped with a 3-wire grounding type plug (a plug having a third (grounding) pin). This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding plug.

PORTABLE CART WARNING (symbol provided by RETAC)

S3125A

11.For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it form the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

12.Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will be abused by persons walking on it.

13.Follow all warnings and instructions marked on the appliance.

14.Do not overload wall outlets and extension cords as this can result in fire or electric shock.

15.Never push objects of any kind into this appliance through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

16.Do not attempt to service this appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

17.Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the appliance. c. If the appliance has been exposed to rain or water. d. If the appliance does not operate normally by following the operating instruc-

tions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to

normal operation. e. If the appliance has been dropped or the cabinet has been damaged. f. When the appliance exhibits a distinct change in performance - this indicates

a need for service.

18.When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

19.Upon completion of any service or repairs to this appliance, ask the service technician to perform routine safety checks to determine that the appliance is in safe operating condition.

E-2

E-3

Safety Precautions

Due to design modifications, data given in this instruction book are subject to possible change without prior notice.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

AVERTISSEMENT: POUR EVITER LES RISQUES D’INCENDIE OU D’ELECTROCUTION, NE PAS EXPOSER L’APPAREIL A L’HUMIDITE OU A LA PLUIE.

Thank you for purchasing this product. (These instructions are for TK-C1430E and TK-C1431EG) Before beginning to operate this unit, please read the instruction manual carefully in order to make sure that the best possible performance is obtained.

CONTENTS

INTRODUCTION

Features ............................................................................................................................... 6

Operating Precautions ......................................................................................................... 7

Controls, Connectors and Indicators ................................................................................... 8

CONNECTION/INSTALLATION

RM-P2580 System.............................................................................................................12

Procedures ........................................................................................................................ 14

Mounting the lens .............................................................................................................. 15

Installing the ferrite core ....................................................................................................16

Connections on the back ...................................................................................................16

Mounting the camera ......................................................................................................... 18

Lens adjustment ................................................................................................................ 20

Back focus adjustment ...................................................................................................... 21

Auto white balance control adjustment ............................................................................. 22

MENU SETTING

Setting the menu ............................................................................................................... 23

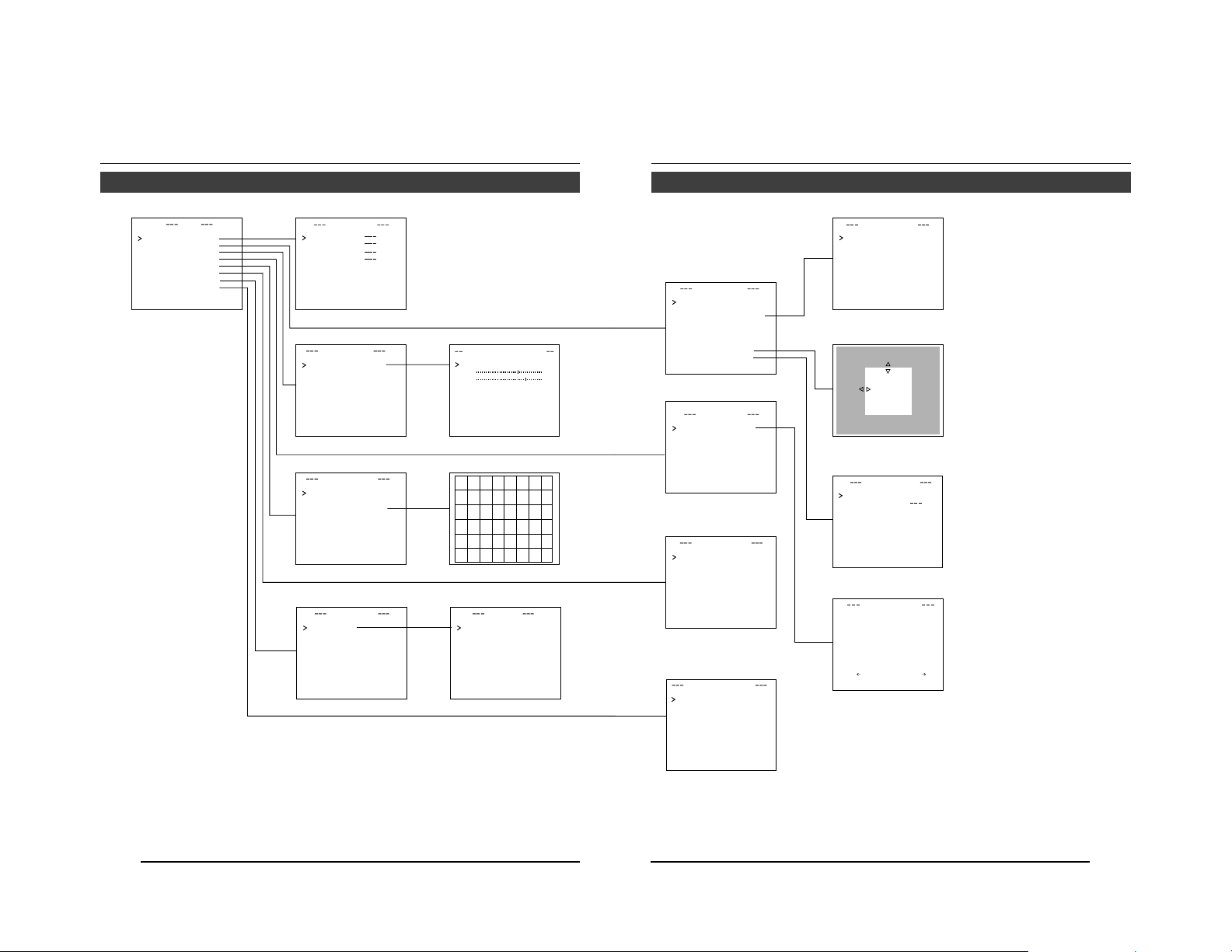

The flow of menu screen ...................................................................................................24

SYNC ADJUST Screen ..................................................................................................... 26

ALC SETTINGS Screen .................................................................................................... 26

VIDEO ADJUST Screen ....................................................................................................31

MODE SELECT Screen .................................................................................................... 32

MOTION DETECT Screen................................................................................................. 34

COMMUNICATION Screen ...............................................................................................35

MAINTENANCE Screen ....................................................................................................35

FACTORY SETTINGS Screen ..........................................................................................35

BLC EDITTING Screen ..................................................................................................... 36

Manual Adjustment of White Balance ............................................................................... 37

CAMERA TITLE Setting ....................................................................................................38

Setting the MOTION DETECT Function ........................................................................... 39

Output of Black-White/Colour switching signal .................................................................40

Control by Black-White/Colour switching signal from the outside ....................................41

White spot compensation ..................................................................................................42

E-4

OTHERS

Specifications.....................................................................................................................43

E-5

INTRODUCTION

Features

 A DSP (Digital Signal Processor) features

a Extended Dynamic Range (ExDR) and enables to shoot both bright and dark locations.

 The use of a CCD with a SENSE UP (X32)

function realized the minimum luminous flux density for subject of 0.9 lx (F1.2, 50%, AGC 20dB) and 0.03 lx (at SENSE UP (X32)). Furthermore, we realized 0.03 lx (F1.2, 50% AGC 20dB) thanks to the function of B/W mode.

 A motion detector function detects the

motion inside an image and emits alarm signals.

 The equipped Y/C terminals and RS-

422A/RS-485 terminals allow intended compatibility with diversified systems.

 Day/Night surveillance

When the light is low, the camera pictures can be switched automatically to black and white pictures.

 Electronic zoom

The 10x electronic zoom allows monitoring in far greater detail.

Characters and symbols used in this instruction manual.

CAUTION : Cautionary notes concerning operation of the unit.

MEMO : Reference such as restrictions of features, etc.

 : Reference page or item.

 Before starting an important recording,

be sure to perform a test recording in order to confirm that a normal recording is possible.

 We do not accept liability for the loss of

a recording in the case of it becoming impossible to record due to a problem in the video camera, VCR or video tape.

 We do not accept liability for any

damage to the camera in cases where it is dropped because of bad installation due to failure to observe the installation instructions correctly. Please be careful when installing the camera.

 The motion detector is not a feature

which prevents theft, fire, etc. Even if an accident should occur resulting in damage, we do not accept any liability.

E-6

Operating Precautions

● To save energy, when it is not being used

turn the system’s power off.

● This camera has been designed for indoor

use. When you use it outdoors, be sure to use a housing or the like.

● Do not install or use the camera in the

following places.

• In a place exposed to rain or moisture.

• In a place with vapor or oil soot, for example in a kitchen.

• When the ambient temperature rises above or falls below the acceptable range (from –10°C to 50°C).

• Near a source of radiation, X-rays, strong radio waves or magnetism.

• In a place subject to vibration.

• In a place with excessive dirt.

● If this camera and the cables connected to this camera are used where there are strong electromagnetic waves or where there is magnetism present, for example near a radio or TV transmitter, power transformer or an electric motor, the picture may produce noise and the colours may be affected.

● This camera incorporates an AGC circuit. As a result, when it is used under low light conditions, the camera sensitivity is automatically boosted and the picture may look uneven. However, this is not a malfunction.

● While the AGC is activated, if transceiver which causes strong electromagnetic wave is at close distance, picture might suffer from beat. So please use the camera more than three meters from such transceivers.

● When this camera is used in the ATW mode, the recorded colours may be slightly different from the actual colours due to the operational principles of the auto-tracking white balance circuit. However, this is not a malfunction.

● If a high-intensity object (such as a lamp) is shot, the image on the screen may have vertical lines (smear) or blur (blooming) at its periphery. This is a characteristic of the CCD, and is not a defect.

● Observe the following when carrying out camera maintenance.

•Turn the power OFF before proceeding

to carry out maintenance. If it is contaminated seriously, clean the contaminated part with a cloth (or a tissue) which has been soaked in a solution of water and a neutral detergent.

● The unit is to be powered by a DC 12 V or an AC 24 V power supply. (TK-C1430E) The AC 24 V power supply should conform to the following: Isolated power supply only TK-C1431EG: Connect the power cable to the commercial power supply of 220V – 240V.

● Caution for operating the video iris lens. If the video iris lens is set to an extremely low level, a malfunction – such as the hunting phenomenon where the iris opens and closes in voluntary – can occur. In such a case, first set the “LEVEL” potentiometer on the lens to the H position (iris open), and then adjust it to an optimum level. ( page 20)

● The cable stopper on the terminal block can come off sometimes. Therefore, be sure to take enough time and fix the cable securely.

● When a highly bright subject is shot, sometimes undulations can be observed on the vertical lines of the subject. However, this phenomenon is peculiar to the unit and is not a sign of malfunction.

● The beat may sometimes appear on the screen if gain is raised when the line lock is in use, but the phenomenon takes place due to the fluctuation of power frequency and is not a malfunction.

● You may hear some noise when the screen is switched between the colour and the black and white mode, because the optical filter moves. Also, black vertical bands will appear on the screen.

● Set the Iris Selector switch to VIDEO to use the manual lens.

E-7

INTRODUCTION

Controls, Connectors and Indicators

SET

CAMERA SETUP

AWC

EXT TERM-OFF

RX TERM-OFF

NOT USED

INT/GL

DUPLEX

VIDEO

IRIS

ON LL SIMPLEX ON

Lens mount

To attach the lens. This is applicable to both C-mount lenses and CS-mount lenses.

Back focus adjustment ring

Adjusting the back focus during lens installation. When readjustment is required, loosen the locking screw

by turning it

counterclockwise and turn the back focus adjustment ring 2. After the adjustment, tighten the locking screw 3 again.

[BF LOCK] Back focus locking screw

This serves to fix the back focus-adjusting ring.

E-8

Camera-mounting bracket

The bracket has been attached on the bottom of the camera before shipment. It can also be attached on the top according to the circumstance. To re-attach the bracket use the threaded holes at the top, with the camera mounting bracket fixing screws

Camera-mounting screw

hole (1/4 inch)

Use this hole when mounting the camera onto a fixer, pan/ tilt unit, and the like. (Use a screw shorter than 7 mm.)

Rotation-preventive hole

Make use of this rotation-preventive hole to prevent any fall when mounting the camera. Always make sure that the camera is securely mounted.

Camera mounting bracket fixing screws

(×2: M2.6 × 6 mm)

Be sure to use a 6 mm long screw.

MAX.

Cover

The cover slides open when push to the left.

[VIDEO/DC] Iris Selector Switch

This should be set according to the type of lens if an automatic iris control lens is

used. VIDEO: In case of lens with EE amp built-

in.

DC: In case of lens without EE amp

built-in.

(DC: At time of factory shipment)

[IRIS] Iris Terminal

This is connected to an automatic iris control lens.

[SET/AWC] Set. Auto White Control

Button SET: Press this button to display a sub-

menu. ( Page 23)

AWC: If this button is kept pressed for

more than 1 second, a one-pushauto-white-balance function works and sets the white balance. Once it is set, even if colour temperature changes, white balance does not change. It is also possible to make fine adjustments on the set white balance. ( Page 22)

( Page 15)

[MENU] Menu Button

When pressed, a menu screen is brought up. ( Page 23)

E-9

INTRODUCTION

Controls, Connectors and Indicators (Continued)

[ , , , ] Up-and-down, left-and-

right Button

These buttons select items on the menu screen and change a set value. ( Page 23)

[EXT.TERM-ON/OFF] Terminal On/Off

Switch of External Synchronization Signal

This is a terminating ON/OFF switch for the external synchronization input signal. When this is switched ON, termination is executed via a 75 1 resistor.

ON: terminates at 751. OFF: does not terminate at 751.

(ON: At time of factory shipment)

[INT/GL, LL] Selector Switch for

Synchronizing System

This switch sets the synchronizing system for the camera.

INT/GL:

This is set for internal synchronization (INT) or external synchronization (GL).

LL (Line Lock):

The camera’s vertical synchronization is locked to the AC power line frequency. When switching between multiple cameras using a switcher, selecting this mode and adjusting the vertical phase can reduce the monitor sync disturbances occur that when the camera image is switched. (This cannot be used in regions where the power frequency is 60 Hz) (INT/GL: At time of factory shipment)

[DUPLEX, SIMPLEX] Selector Switch

for Transmission System

If the setting is changed, be absolutely sure to switch on the power again.

DUPLEX:

This switch sets to DUPLEX when the transmission between the camera and a remote control unit is in a duplex system (two-way).

E-10

SIMPLEX:

This switch sets to SIMPLEX when the transmission between the camera and a remote control unit is in a simplex system (one-way). (DUPLEX: At time of factory shipment)

[RX.TERM-ON/OFF] RX Signal Terminal

ON/OFF Switch

This sets whether or not the signal between RX + and RX – on the back should be terminated at the value of 1101 resistance.

ON: Te r minated. OFF: Not terminated.

If the system including the camera is the M.DROP (Multi-drop, RS-485) system, only the last camera mounted along the control signal cable is set to “ON” and the other cameras are set to “OFF”. In case of the M.DROP system, it becomes necessary to set the Machine ID. ( Page

35) If the system including the camera is the PTOP(Point to Point, RS-422A) system, set this switch of all the cameras to “ON”. The item STYLE on the COMMUNICATION screen sets M.DROP or P TO P ( Page 35) (ON: At time of factory shipment)

NOT USED

This cannot be used. Do not switch.

(

AC24V

DC12V

ﬁ

›

SYNC IN

POWER

‹¤

[DC 12V, AC 24V] Power input terminals

(TK-C1430E)

To input DC 12V or AC 24V power.

[TX+A, TX-B, RX+C, RX-D] Control

signal connection terminals

Te rminals for inputting signals with electrical characteristics conforming to the EIA/TIA RS-422A or RS-485 standard.

RX.TERM switch



[AUX, GND] Auxiliary Input/Output Terminals

If there is any change in the area set on the MOTION DETECT screen, these terminals output the corresponding signals. ( Page 34) These terminals also output the B&W/ COLOUR signal. ( Page 30) [Open-collector low signal. Maximum voltage 30V, current 30mA.] When carrying out B&W/COLOUR switching using the control signal, the signals are input through these terminals. ( Page 30) [B&W: make; COLOUR: break]

[Y/C OUT] Y/C output connector

This 4-pin connector outputs the luminance and chrominance signal.

• Pin configuration of Y/C OUT connector

)

TX+TX

CLASS 2 ONLY(U TYPE)

ISOLATED POWER ONLY

(E TYPE)

ABCD

VIDEO OUT

TK-C1430E TK-C1431EG

RX+RX

AUX

Y/C OUT

SEE INSTRUCTION MANUAL

⁄

GND

ﬂ

ﬁ

SYNC IN

VIDEO OUT

›

POWER

‹¤

Pin No. Signal

1 GND 2 GND 3 Luminance (Y) 4 Chrominance (C)

[VIDEO OUT] Video signal output

connector

This BNC connector outputs a composite video signal. Connect this to the video input connector of a video monitor, switcher, etc.

[POWER] Power indicator lamp

This lamp lights when power is supplied to the camera.

[SYNC IN] Sync signal input connector

This BNC connector accepts the input of an external sync signal such as a composite video (VBS) or black burst (BB) signal. When a sync signal is input into this connector, the camera operation is automatically synchronized with the external sync signal. To terminate this connector at 751, turn ON the EXT.TERM switch

Power cable (TK-C1431EG)

Connect to the commercial AC (220V –

240V) outlet.

)

TX+TX

RX+RX

ABCD

AUX

Y/C OUT

SEE INSTRUCTION MANUAL

⁄

GND

E-11

TO CAMERA

DATA I / O

COM

10/2

11/3

12/4

13/5

15/7

COM

CAMERA

UNIT ALARM

AUTO

MONITOR OUTPUT

MONITOR

SERIAL-2

SERIAL-1

VIDEO INPUT

VIDEO OUTPUT

OUTPUT

POWER

OFF

AC INPUT

CONNECTION/INSTALLATION

RM-P2580 System

 System with up to 8 cameras

Camera

TK-C1430

Camera 1

MACHINE ID:1 (Menu screen) RX TERM: OFF (switch)

Camera 2

MACHINE ID:2 (Menu screen) RX TERM: OFF (switch)

Camera 8

MACHINE ID:8 (Menu screen) RX TERM: ON (switch)

Camera

TK-C1430

Camera

TK-C1430

This is the connected example of the TK-C1430E. When controlling with any system except the RM-P2580, execute proper settings using switches and menu screens according to the systems used. ( Page 14)

MEMO

• When operating a system using the RM-P2580, several cameras (up to 16) can be connected and used on one control signal cable. Consequently, an incorrect switch setting on just a single camera will cause the entire system to work incorrectly.

• Confirm switch settings on the screen as follows.

q Confirm that the image from the camera to be checked

is displayed on the monitor.

w Tu rn OFF and then ON the AC power to the camera to

be checked.

e The camera begins the initial operation and characters

similar to those shown in the illustration on the right appear on the monitor screen.

r Confirm that “DUPLEX” and “ID-□□ ” are displayed and

that the ID number is the correct number (the number should be the same as the number of the VIDEO INPUT terminal to which the camera is connected on the rear panel of the RM-P2580).

t If wrong, set the camera ID again.

E-12

Control signal cable

Video signal cable

Powe r cable

Remote Control Unit

RM-P2580

AC24V or DC12V

CAMERA

TO CAMERA

COM

1 2 3 4 5 6 7 8

431 2 8756

•••••

CAMERA

DATA I / O

COM

9/110/2

11/3

12/4

13/5

14/615/7

16/8

COM

AUTO

VIDEO INPUT

2 3 4 5 6 7

VIDEO OUTPUT

Time lapse VCR

CAM SW

REC

STOP/EJECT

OUT

VIDEO CASSETTE RECORDER

CHECK

PAUSE/

COUNT/

SHIFT/TRACKING

STILL

PLAY

REVERSE

FFREW

RESET

CLOCK

/CANCEL

SET/V.LOCK

TIME

TIMER

AL/PL

MODE

REC

RESET

VIDEO IN

COM

UNIT

CAMERA

SERIAL-2

SERIAL-1

COM

ALARM

MONITOR

OUTPUT

OUTPUT 2

MONITOR OUTPUT 1

MONITOR screen

(example showing camera ID as “05”)

PROT OOLDUPLEXID-05C :

“DUPLEX” should be displayed.

The number shown in the □□ part of ID-□□ should be correct.

SR-L910

OPERATE

OPE. LOCK

MONITOR

 Connecting the control signal cable

(Use a twisted-pair cable for connection.  Page 17.)

Camera 1 control signal connection terminals

TX TX B

RX D

Camera 2 control signal connection terminals

TX+A TX B

RM-P2580

A RX

B RX

C TX D TX

Connect: Camera TX+ to RM-P2580 RX+ Camera TX– to RM-P2580 RX– Camera RX+ to RM-P2580 TX+ Camera RX– to RM-P2580 TX– The A BCD marks indicated on both the camera terminals and the RM-P2580 terminals facilitate correct connections. Connect the terminals with identical marks.

RX+C RX D

 Setting the switches ( Page 10)

EXT TERM-OFF

SET

CAMERA SETUP

EXT TERM-OFF

AWC

INT/GL

DUPLEX

SIMPLEX ON

RX TERM-OFF

NOT USED

IRIS

VIDEO

DUPLEX

RX TERM-OFF

NOT USED

INT/GL

Select the synchronization method of the camera image. Set the switch on all cameras to LL (Line Lock) and match with the V. PHASE. ( Page 26.)

ON LL

Set this switch to the DUPLEX

SIMPLEX

* If the setting is changed, be absolutely sure to

switch on the power again.

Set this switch to ON (signal termination ON) only on the camera placed at the end of the control signal cable. Set to OFF on all other cameras.

 Setting on the MENU screen ( Page 35)

* If the setting is changed, escape from the menu screen once, and definitely switch on the power again.

MMCO UNICAT ION

ST LE M.DROPY MA H NE DII 1C

When connecting

● Tu rn OFF the power supply to all equipment to be used before making connections.

● Carefully read the Instructions for each piece of equipment to be used before making

connections.

● For the appropriate connection cables and the length of these, carefully read “Connections on the back” on page 16.

● The control signal cable cannot be used for loop connection.

Set to M.DROP

Set to M.DROP when the RM-P2580 is used as a remote control unit. When controlling from another machine, make sure that it matches the communication system used.

MACHINE ID setting switches

Set this item to match the RM-P2580 VIDEO INPUT terminal number for each camera.

E-13

+ 15 hidden pages
