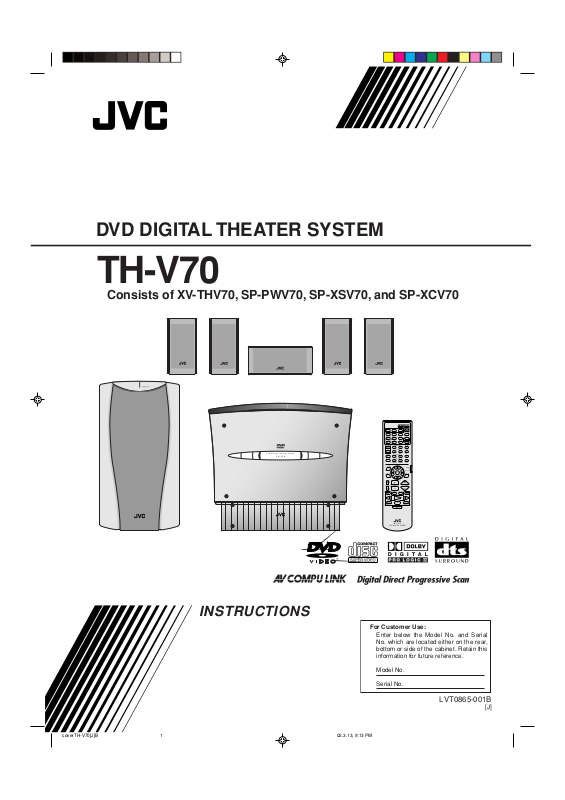

JVC TH-V70 Instruction Manual
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
DVD DIGITAL THEATER SYSTEM
DVD DIGITAL THEATER SYSTEM
TH-V
70
RM–STHV70J
DVD THEATER SYSTEM
CHANNEL VOLUMETV VOL
TUNING
STOP
DIMMER
PAUSE
FF/
/REW
TV/VIDEO1MUTING
¡
REC
PLAY
DOWN UP
MEMORY
STROBE
DVD
VCR 1
AUDIO
AUX
ANGLE
FM/AM
SUBTITLE
DECODE
RETURN DIGEST ZOOM VFP
TOP MENU MENU ZOOM
CONTROL– SUBWOOFER +EFFECT
–
CENTER
+
–
REAR-R
+
TEST
SLEEP
TV
VCR
SETTING
TV RETURN
ENTER
ON
SCREEN
CHOICE
AUDIO/
TV/VCR
SURROUND
MODE
FM MODE
123
456
789
10
0
+10
100+
CATV/DBS
TV AUDIO
VCR
–
+
–
REAR-L
+
SOUND
PROGRESSIVE
TH-V70
Consists of XV-THV70, SP-PWV70, SP-XSV70, and SP-XCV70
INSTRUCTIONS
LVT0865-001B
[J]
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
INFORMATION
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
Warnings, Cautions and Others
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible and invisible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user service-
able parts inside the Unit; leave all servicing to qualified service
personnel.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
Caution –– button! (XV-THV70)
Disconnect the mains plug to shut the power off completely (the
goes off).
The button in any position does not disconnect the mains line.
• When the system is on standby, the lights red.
• When the system is turned on, the operation lamps light red.
For Canada/pour le Canada
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS
LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQUAU FOND.
For Canada/pour le Canada
THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS
B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL
APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING
EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,”
ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.
CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE
BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS
NUMIRIQUES DE CLASSE B PRESCRITES DANS LA NORME
SUR LE MATERIEL BROUILLEUR: “APPAREILS NUMERIQUES”,
NMB-003 EDICTEE PAR LE MINISTRE DES
COMMUNICATIONS.
G-1
Table of Contents
Introduction ........................................... 2
Notes on handling ............................................................. 2
Checking the supplied accessories ................................. 2
Names of parts and controls .................. 3
About discs ............................................ 6
Playable disc types ............................................................ 6
Disc structure..................................................................... 7
Playback Control function (PBC) ..................................... 7
Getting started ...................................... 8
Setting the DISP.SET selector .......................................... 8
When placing the center unit vertically ........................... 9
Connections ..................................................................... 10
Connecting a TV ............................................................... 10
Connecting the FM and AM antennas .............................. 11
Connecting the powered subwoofer ................................ 12
Connecting the satellite speakers .................................... 12
Connecting to an analog component ............................... 14
Connecting to a digital component .................................. 14
Connecting the power cord .............................................. 15
Installing the equipment on the wall .............................. 16
When attaching the rear speakers to a wall ..................... 16
When attaching the AM loop antenna to a wall ................ 16
When attaching the center unit to a wall .......................... 17
Using the remote control ................................................ 19
Putting batteries in the remote control.............................. 19
Operating the system from the remote control ................. 19
Using the remote control for TV operations ...................... 20
Basic operations .................................. 21
Turning on/off the system ............................................... 21
Selecting the source to play ........................................... 22
Adjusting volume ............................................................. 22
Turning off the sound temporarily ................................. 23
Adjusting the brightness ................................................ 23
Turning off the power with the timer .............................. 24
Setting the subwoofer ..................................................... 24
Changing the decode mode............................................ 25
Changing the scan mode ................................................ 26
Basic playback .................................... 27
Inserting and removing a disc ........................................ 27
Stopping playback temporarily ...................................... 28
Stopping playback completely ....................................... 29
Moving back the playback position during DVD
playback ...................................................................... 29
Searching for a particular point...................................... 30
Locating the beginning of a desired chapter or track .. 30
Locating a desired selection using Number buttons ... 30
Tuner operations.................................. 31
Tuning in to stations manually ....................................... 31
Using preset tuning ......................................................... 31
Selecting the FM reception mode .................................. 32
Reducing the noise of AM broadcast............................. 32
Creating the realistic sound fields......... 33
Dolby Surround................................................................. 33
DTS Digital Surround ........................................................ 33
DAP modes ...................................................................... 34
All Channel Stereo ............................................................ 34
Selecting the surround mode ......................................... 35
Using Dolby Pro Logic II, Dolby Digital and DTS Digital
Surround ..................................................................... 35
Using DAP Modes and All Channel Stereo.................... 36
Advanced operations ........................... 37
Using the on-screen bar .................................................. 37
Showing the on-screen bar .............................................. 37
Basic operation through the on-screen bar...................... 38
Changing the time information ......................................... 38
Locating a desired scene from the disc menu .............. 39
Locating a desired scene from the DVD menu ................ 39
Locating a desired scene from the Video CD/SVCD menu
with PBC ..................................................................... 39
Selecting a view angle of DVD ........................................ 40
Selecting a view angle ..................................................... 40
Showing all view angles on the TV ................................... 41
Changing the subtitle languages and audio languages ..... 41
Selecting the subtitle language ........................................ 41
Selecting the audio language .......................................... 42
Selecting the audio channel ............................................. 43
Playing from a specified position on a disc .................. 44
Locating a desired chapter from the on-screen bar ........ 44
Locating a desired position by specifying the time.......... 45
Locating a desired scene from the digest display ........... 45
Special picture playback ................................................. 46
Frame-by-frame playback ................................................ 46
Showing continuous still pictures ..................................... 46
Playing back in slow-motion ............................................. 47
Zooming in/out .................................................................. 47
Changing the VFP setting ................................................. 48
Changing the track order ................................................ 49
Playing back in the desired order .................................... 49
Playing back tracks in random order ............................... 49
Repeat playback............................................................... 50
Repeating a current title, chapter, or all tracks ................ 50
Repeating a desired part ................................................. 50
MP3 disc playback .............................. 51
JPEG disc playback .............................. 53
Setting DVD preferences ...................... 55
Using the choice menus.................................................. 55
Choice menus .................................................................. 55
Basic procedure through the choice menus ...................... 56
LANGUAGE menu ............................................................ 57
PICTURE menu ................................................................ 58
AUDIO menu ..................................................................... 59
SPK. SETTING menu ....................................................... 60
OTHERS menu ................................................................ 62
Restricting playback by Parental Lock .......................... 63
Setting Parental Lock........................................................ 63
Changing the setting of Parental Lock ............................. 64
Releasing Parental Lock temporarily ................................ 64
Setting the system through the display
window ........................................... 66
AV COMPU LINK remote control system 67
Operating other manufacturers’ video
equipment ....................................... 69
Using the remote control for CATV converter or DBS
tuner operations ......................................................... 69
Using the remote control for VCR .................................. 70
Maintenance........................................ 71
Troubleshooting ................................... 72
Glossary .............................................. 75
Index................................................... 76
Specifications....................................... 77
1
Introduction
Notes on handling
Important cautions
Installation of the system
• Select a place which is level, dry and neither too hot nor
too cold between 5°C and 35°C (41°F and 95°F).
• Leave sufficient distance between the system and the TV.
• Do not use the system in a place subject to vibrations.
Power cord
• Do not handle the power cord with wet hands!
• A small amount of power (1.3 watts) is always consumed
while the power cord is connected to the wall outlet (the
center unit only).
• When unplugging the power cord from the wall outlet,
always pull the plug, not the power cord.
To prevent malfunction of the system
• There are no user-serviceable parts inside. If anything goes
wrong, unplug the power cord and consult your dealer.
• Do not insert any metallic object into the system.
• Do not apply any shock to the moving panel when it is
open.
• An 8 cm (3”) disc cannot be played back in this system.
(Do not attempt to insert an 8 cm (3”) disc using an
adaptor. Doing so will damage the system.)
• Do not use any non-standard shape disc (like a heart,
flower, or credit card, etc.) available on the market,
because it may damage the system.
• Do not use a disc with tape, stickers, or paste on it,
because damage to the system may result.
Label sticker
Sticker
Note about copyright laws
Check the copyright laws in your country before recording
from DVD Video, Super Video CD (SVCD), Video CD, and
Audio CD discs. Recording of copyrighted material may
infringe copyright laws.
Note about the copyguard system
The DVD Video discs are protected by the copyguard
system. When you connect the system to your VCR directly,
the copyguard system activates and the picture may not be
played back correctly.
Paste
Care of the cabinet
When cleaning the system, use a soft cloth and follow the
relevant instructions on the use of chemically-coated cloths.
Do not use benzene, thinner or other organic solvents
including disinfectants. These may cause deformation or
discoloring.
• Do not clean the moving panel when it is open.
If water gets inside the system
Turn the system off and remove the plug from the wall outlet,
then call the store where you made your purchase. Using the
system in this state may cause a fire or electrical shock.
Checking the supplied
accessories
Check to be sure you have all of the supplied accessories.
The number in the parentheses is the quantity of the pieces
supplied.
If anything is missing, contact your dealer immediately.
• Remote control (1)
• Batteries (2)
• Stand (1) (for the center unit)
• Legs (2) (for the stand)
• FM antenna (1)
• AM loop antenna (1)
• Power cord (1)
• System cord (1)
• Video cord (1)
• AV COMPULINK cord (1)
• Speaker cords
5 m (3): For the left front speaker, right front speaker, and
center speaker
10 m (2): For the left rear speaker and right rear speaker
(The length of the above speaker cords are approximate.)
• Speaker wall brackets (2)
• Screws
For the stand (1)
For the speaker wall brackets (2)
• Paper pattern (1) (for attaching the center unit to a wall)
Safety precautions
Avoid moisture, water and dust
Do not place the system in moist or dusty places.
Avoid high temperatures
Do not expose the system to direct sunlight or do not place it
near a heating device.
When you are away
When away on travel or otherwise for an extended period of
time, remove the plug from the wall outlet.
Do not block the vents
Blocking the vents may damage the system.
2
Names of parts and controls
COMPACT
SUPER VIDEO
SOURCE VOL
SOURCE VOL
DVD DIGITAL THEATER SYSTEM
TH-V
70
2
1
3
4
5
6
7
8
e
9
p
q
w
r
1
e
3
4
5
6
7
8
w
q
p
9
2
VIDEO
S-VIDEO
Y
P
B PR
VIDEO OUT
COMPONENT
ANTENNA
DISP.SET
AUX
TO SP-PWV70
IN
AC IN
AV
COMPU
LINK
AM
COAXIAL
75
AM
RL
HV
FM
EXT
LOOP
DIGITAL IN
OPTICAL
3
1 4
2
87
6
5
See pages in the parentheses for details.
Center unit
Front panel
Placed vertically (with DISP. SET set to “V”)
Placed horizontally (with DISP. SET set to “H”)
Front panel
1 Moving panel (21)
2 Display window
3 Button name indicators (21)
4 button (21)
5 SOURCE button (22)
6 4 (reverse skip) button (30)
7 7 (stop) button (29)
8 3 (play) button (29)
9 0 (open/close) button (27)
p VOLUME +/– buttons (22)
q ¢ (forward skip) button (30)
w 8 (pause) button (28, 46)
e Remote sensor (19)
r Illumination lamps (21)
Rear panel
3
Rear panel
1 System cord CONNECTOR (12)
2 AUX IN jacks (14)
3 DIGITAL IN jack (14)
4 AV COMPU LINK jacks (67)
5 DISP. SET (Display set) selector (8)
6 ANTENNA terminals (11)
7 VIDEO OUT jacks (10)
VIDEO, S-VIDEO, COMPONENT
B, PR)
(Y, P
8 Ó AC IN socket (15)
Display window
L
LFE
LS
S
PRO LOGIC
RS
CR
DSP CH
SURROUND
RESUME
TUNED
STEREO AUTO MUTING
DIGITAL
RESUME
TUNED
STEREO AUTO MUTING
L
LFE
LS
S
PRO LOGIC
RS
CR
DSP CH
SURROUND
DIGITAL
7
p9
8
76
5
32
1
432
1
8
9 p
6
5
4
LEFT
RIGHT
LEFT
MAX
REVERSE
NORMAL
MIN
RIGHT
SPEAKER IMPEDANCE
VOLUME
PHASE
SUB WOOFER
FRONT SPEAKERS
CONNECTOR
FROM XV-THV70
CENTER
SPEAKER
4~16
CAUTION :
SPEAKER IMPEDANCE
CAUTION :
4~16
REAR
SPEAKERS
SPEAKER IMPEDANCE
CAUTION :
4~16
8
1
2
3
4
5
6
7
Placed vertically (with DISP. SET set to “V”)*
Display window
1 Signal indicators (34)
2 DSP indicator (34)
3 CH indicator (32)
4 Main display
5 • PRO LOGIC II indicator (33)
• Digital signal format
Placed horizontally (with DISP. SET set to “H”)
* This manual explains operations using the illustrations of the display window that are when the center unit is placed vertically
(the DISP.SET selector is set to “V”).
indicators (33)
DOLBY DIGITAL and DTS
6 SURROUND indicator (36)
7 RESUME indicator (29)
8 TUNED indicator (31)
9 STEREO indicator (31, 32)
p AUTO MUTING indicator (32)
Powered subwoofer
Rear Front
Powered subwoofer
1 VOLUME knob (24)
2 PHASE button (24)
3 System cord CONNECTOR
(12)
4 FRONT SPEAKERS
terminals (13)
5 CENTER SPEAKER
terminals (13)
6 REAR SPEAKERS terminals
(13)
7 Power cord (15)
8 POWER ON lamp (22)
4
RM–STHV70J
DVD THEATER SYSTEM
CHANNEL VOLUMETV VOL
TUNING
STOP
DIMMER
PAUSE
FF/
/REW
TV/VIDEO1MUTING
¡
REC
PLAY
DOWN UP
MEMORY
STROBE
DVD
VCR 1
AUDIO
AUX
ANGLE
FM/AM
SUBTITLE
DECODE
RETURN DIGEST ZOOM VFP
TOP MENU MENU ZOOM
CONTROL– SUBWOOFER +EFFECT
–
CENTER
+
–
REAR-R
+
TEST
SLEEP
TV
VCR
SETTING
TV RETURN
ENTER
ON
SCREEN
CHOICE
AUDIO/
TV/VCR
SURROUND
MODE
FM MODE
123
456
789
10
0
+10
100+
CATV/DBS
TV AUDIO
VCR
SOUND
–
+
–
REAR-L
+
PROGRESSIVE
8
1
2
3
4
6
7
5
9
p
q
w
e
r
t
y
u
i
o
;
a
s
d
f
h
j
k
l
/
z
g
Names of parts and controls
Remote control
Remote control
1 Source selecting buttons (22)
AUX, FM/AM, DVD
2 AUDIO button (42, 43)
3 ANGLE button (40, 41)
4 RETURN button (39)
5 DIGEST button (45)
6 TOP MENU button (39)
7 MENU button (39, 54)
8 CONTROL buttons
VCR (70), TV (20)
9 SLEEP button (24)
p SETTING button (66)
q ON SCREEN button (37)
w Cursor 2/3/5/∞ and ENTER buttons
e CHOICE button (56, 63)
r CHANNEL +/– buttons (20, 69, 70)
t TV VOL +/– buttons (20)
y TV/VIDEO button (20)
u Operating buttons
1, ¡ (30, 47)
4/REW (TUNING DOWN) (30, 31, 51, 53)
PLAY (29, 46, 51, 53)
FF/¢ (TUNING UP) (30, 31, 51, 53)
÷ REC (MEMORY) (31, 70)
STOP (29, 51, 53)
PAUSE (STROBE) (28, 46, 51, 53)
i DIMMER button (23)
o TV
; AUDIO
a VCR
button (20, 69)
button (21)
button (70)
s DECODE button (25)
d SUBTITLE button (41)
f VFP (PROGRESSIVE) button (26, 48)
g ZOOM +/– buttons (47, 53)
h SOUND button (35, 36)
j • Number buttons
• Sound setting buttons (24, 35, 36)
SUBWOOFER +/–, CENTER +/–, REAR-L +/–,
REAR-R +/–
• EFFECT button (36)
• TEST button (35)
• FM MODE button (32)
k Remote control mode selector
l SURROUND MODE button (35)
/ VOLUME +/– buttons (22)
z MUTING button (23)
5
COMPACT
DIGITAL AUDIO
About discs
Playable disc types
This system has been designed to play back the following discs:
DVD Video, Video CD, Super Video CD (SVCD), Audio CD, CD-R, and CD-RW.
• This system can also play back MP3 and JPEG files recorded on CD-Rs and CD-RWs. For in-depth information about MP3,
see “MP3 disc playback” on page 51, and about JPEG, see “JPEG disc playback” on page 53.
• We refer to DVD Video as DVD in this manual.
Discs you can play:
Disc Type
Mark (Logo)
Video Format
Region Code
Number*
• The following discs cannot be played back:
–DVD Audio, DVD-ROM, DVD-RAM, DVD-R, DVD-RW, CD-ROM, CD-I (CD-I Ready), Photo CD, etc.
Playing back these discs will generate noise and damage the speakers.
–8 cm (3”) disc
An 8 cm (3”) disc cannot be played back in this system. (Do not attempt to insert an 8 cm (3”) disc using an adaptor. Doing
so will damage the system.)
• On some DVD, Video CD, or SVCD discs, their actual operations may be different from what is explained in this
manual. This is due to the disc programming and disc structure, but not a malfunction of this system.
• Notes on CD-R and CD-RW
–User-edited CD-Rs (Recordable) and CD-RWs (Rewritable) can be played back only if they are already “finalized.”
–The system can play back CD-Rs or CD-RWs recorded on a personal computer if they have been recorded in the audio CD
format.
The system can also play back CD-Rs or CD-RWs if MP3 files or JPEG files are recorded on them.
However, they may not be played back because of their disc characteristics, recording conditions, or damage or stain on
them.
Especially, the configuration and characteristics of an MP3 disc or a JPEG disc is determined by the writing (encoding) software and
hardware used for recording. Therefore, due to the software and hardware used, the following symptoms may occur:
• Some discs may not be played back.
• Some tracks on an MP3 disc are skipped and may not be played back normally.
• Some files on a JPEG disc may be played back distortedly.
–Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.
–CD-RWs may require a longer readout time. This is caused by the fact that the reflectance of CD-RWs is lower than for
regular CDs.
DVD Video CD SVCD Audio CD CD-R CD-RW
NTSC
1
ALL
* Note on Region Code
DVD players and DVDs have their own Region Code numbers. This system can play back only DVDs recorded with the color
system of NTSC whose Region Code numbers include “1.”
Examples:
If a DVD with the improper Region Code numbers is loaded, “REGION CODE ERROR” appears on the display and playback
cannot start.
IMPORTANT: Before playing a disc, make sure of the following....
• Check the connection with the TV.
• Turn on the TV and select the correct input mode on the TV to view the pictures or on-screen indications on the TV screen.
• For DVD playback, you can change the initial setting to your preference. (See pages 55 to 65.)
If
appears on the TV screen when pressing a button, the disc cannot accept an operation you have tried to do, or
information required for that operation is not recorded on the disc.
NOTICE: In some cases, without showing
, operations will not be accepted.
6
About discs
Disc structure
A DVD Video disc consists of “titles,” and each title may be divided into some “chapters.” (See Example 1.)
For example, if a DVD disc contains some movies, each movie may have its own title number, and it may be further divided
into some chapters.
On the other hand, a Video CD, SVCD, and Audio CD consist of “tracks.” (See Example 2.)
In general, each track has its own track number. (On some discs, each track may also be divided by Indexes.)
Example 1: DVD
Example 2 : Video CD/SVCD/Audio CD
Playback Control function (PBC)
The Playback Control function allows you to enjoy menu-driven operation and high-resolution still images which have a
resolution four times greater than moving pictures.
• High-resolution still image display
You can display high-quality images four times clearer than moving pictures.
• Menu-driven playback
A selection menu is displayed when you start playing a Video CD and SVCD disc with the Playback Control feature. The
selection menu shows a list of numbers for selection. Some discs may show moving pictures or a divided screen.
You can interact with the screen using a menu display to select and play an entry.
See example illustration below about basic feature of menu-driven playback (for details about the operation through the
menu, see also page 39).
NOTE:
While operating a Video CD or SVCD using the menu, some of the functions such as repeat play may not work.
7
VIDEO
S-VIDEO
Y
PBP
R
VIDEO OUT
ANTENNA
DISP.SET
AUX
TO SP-PWV70
IN
AC IN
AV
COMPU
LINK
AM
COAXIAL
75
AM
RL
HV
FM
EXT
LOOP
DIGITAL IN
OPTICAL
COMPONENT
DISP.SET
HV
Getting started
SOURCE
VOL
DVD DIGITAL THEATER SYSTEM
TH-V
70
ATT
RDSTA
NEWS INFO
ATT
RESUME
TUNED
STEREO AUTO MUTING
RDSTA
NEWS INFO
SOURCE VOL
Setting the DISP.SET selector
You can place the center unit either vertically (on the supplied stand) or horizontally (without the stand) as illustrated below.
Before installing the center unit, set the DISP. SET selector according to your selection.
• The position of the remote control sensor also changes according to this setting. See page 19.
7 When placing the center unit vertically:
Slide the DISP. SET selector to “V” (vertically).
Stand (supplied)*
*To attach the stand, see page 9.
7 When placing the center unit
horizontally:
Slide the DISP. SET selector to “H” (horizontally).
This manual explains operations using the illustrations of
the display window that are when the center unit is placed
vertically (the DISP.SET selector is set to “V”).
8
Getting started
VIDEO
S-VIDEO
Y
P
B
P
R
VIDEO OUT
COMPONENT
ANTENNA
DISP.SET
AUX
TO SP-PWV70
IN
AC IN
AV
COMPU
LINK
AM
COAXIAL
75
AM
R
L
H
V
FM
EXT
LOOP
DIGITAL IN
OPTICAL
D
V
D
D
I
G
IT
A
L
T
H
E
A
T
E
R
S
Y
S
T
E
M
T
H
-
V
70
VIDEO
S-VIDEO
Y
P
B
P
R
VIDEO OUT
COMPONENT
ANTENNA
DISP.SET
AUX
TO SP-PWV70
IN
AC IN
AV
COMPU
LINK
AM
COAXIAL
75
AM
R
L
H
V
FM
EXT
LOOP
DIGITAL IN
OPTICAL
D
V
D
D
I
G
I
T
A
L
T
H
E
A
T
E
R
S
Y
S
T
E
M
T
H
-
V
7
0
When placing the center unit vertically
When placing the center unit vertically, attach the supplied stand.
1 Connect the cords by passing them through the holes of the stand as illustrated below.
For connections, see pages 10 to 15.
Power cord
System cord, Video cord, Digital optical cord,
FM and AM antennas
NOTE:
To avoid the interference from other cords, you had better separate three bundles of cords respectively.
RCA pin plug cord, and AV COMPULINK cord
2 Attach the stand to the center unit firmly using the supplied screw.
3 Attach the legs to the stand.
NOTE:
Avoid an unstable place when placing the center unit vertically. Make sure to place it on the level surface.
9
Connections
VIDEO
S-VIDEO
Y
P
B PR
VIDEO OUT
ANTENNA
DISP.SET
AUX
TO SP-PWV70
IN
AC IN
AV
COMPU
LINK
AM
COAXIAL
75
AM
RL
HV
FM
EXT
LOOP
DIGITAL IN
OPTICAL
COMPONENT
VIDEO
S-VIDEO
VIDEO
S-VIDEO
Y
P
BPR
VIDEO OUT
ANTENNA
DISP.SET
AUX
TO SP-PWV70
IN
AC IN
AV
COMPU
LINK
AM
COAXIAL
75
AM
RL
HV
FM
EXT
LOOP
DIGITAL IN
OPTICAL
COMPONENT
Y
P
BPR
COMPONENT
• Do not connect the AC power cord until all other connections have been made.
• Since different components often have different terminal names, carefully read the instructions supplied with the component
you are going to connect.
Connecting a TV
To view pictures and on-screen displays, connect a TV to the center unit.
• Connecting to a TV through a VCR, or to a TV with a built-in VCR, may cause distortion of picture.
• You need to set “MONITOR TYPE” in the PICTURE menu correctly according to the aspect ratio of your TV. See page 58.
7 To connect a TV without the component video input jacks
To composite video input
Center unit
Video cord (supplied)
S-video cord (not supplied)
TV
To S-video input
If your TV has S-video (Y/C-separation) jack, connect it using an S-video cord.
By using this jack, you can get a better picture quality than using composite video connection.
• Connect S-video cord by matching the ∞ mark on the plug to the one on the system.
7 To connect a TV with the component video input jacks
If your TV has the component video input jacks, connect it with the component video cord (not supplied) to view a high
quality picture.
• Connect “Y” to “Y,” “P
• If your TV supports the progressive video input, you can enjoy a high quality picture by making the progressive scan
mode active. See page 26.
B” to “PB,” “PR” to “PR” correctly.
Center unit
To component video input
TV
NOTE:
If the component video input jacks of your TV are of the BNC type, use a plug adapter to convert the pin plugs to BNC plugs (not supplied).
Component video cord (not supplied)
Green
Red
Blue
10
Getting Started
VIDEO
S-VIDEO
Y
P
BPR
VIDEO OUT
ANTENNA
DISP.SET
AUX
TO SP-PWV70
IN
AC IN
AV
COMPU
LINK
AM
COAXIAL
75
AM
RL
HV
FM
EXT
LOOP
DIGITAL IN
OPTICAL
COMPONENT
1
2
3
Connecting the FM and AM antennas
• Make sure the antenna conductors do not touch any other terminals, connecting cords, and power cords. This could cause
poor reception.
7 AM loop antenna
Connecting AM loop antennaSetting up AM loop antenna
Attach the AM loop to its base by snapping the tabs on the loop into the
slot in the base.
Press and hold the
terminal clamp.
Insert the antenna cord.
If the antenna cord is covered with vinyl, remove the
vinyl by twisting it as shown.
Outdoor single vinyl-covered wire (not supplied)
If reception is poor:
Connect an outdoor single vinylcovered wire to the AM EXT
terminal. (Keep the AM loop
antenna connected.)
Center unit
7 FM antenna
Connecting the supplied FM antenna
If reception is poor:
Connect an outdoor FM antenna
with the standard type (coaxial)
connecter.
AM loop antenna
Wire
Release the finger from
the clamp.
• Turn the loop until you
Extend the supplied FM antenna horizontally.
Outdoor FM antenna
(not supplied)
have the best
reception.
Outdoor FM antenna cord (not supplied)
NOTES:
• Disconnect the supplied FM Antenna before attaching a 75 Ω coaxial connector (the kind with a round wire going to an outdoor antenna).
• We recommend that you use a coaxial cable to the FM antenna, since it is well-shielded against interference.
11
Connecting the powered subwoofer
VIDEO
S-VIDEO
Y
P
BPR
VIDEO OUT
ANTENNA
DISP.SET
AUX
TO SP-PWV70
IN
AC IN
AV
COMPU
LINK
AM
COAXIAL
75
AM
RL
HV
FM
EXT
LOOP
DIGITAL IN
OPTICAL
COMPONENT
LEFT
RIGHT
LEFT
MAX
REVERSE
NORMAL
MIN
RIGHT
SPEAKER IMPEDANCE
VOLUME
PHASE
SUB WOOFER
FRONT SPEAKERS
CONNECTOR
FROM XV-THV70
CENTER
SPEAKER
4~16
CAUTION :
SPEAKER IMPEDANCE
CAUTION :
4~16
REAR
SPEAKERS
SPEAKER IMPEDANCE
CAUTION :
4~16
TO SP-PWV70
CONNECTOR
FROM XV-THV70
DVD DIGITAL THEATER SYSTEM
TH-V
70
Connect the supplied powered subwoofer (SP-PWV70) using the supplied system cord.
• Connect the system cord by matching the 5 marks on the plugs to the ones on the system and powered subwoofer.
Powered subwoofer
System cord (supplied)
Ensure that the 5 mark
on the plug faces down.
Center unit
Connecting the satellite speakers
7 Speaker layout
Center unit
Right front speaker*
Left front speaker*
Left rear speaker*
When placing the speakers, to obtain the best possible sound from this system, you need to place all satellite speakers at the
same distance from the listening position with the front of each speaker faced toward the listener.
When you cannot place them at the same distance from the listening position, you can make adjustment as if those
speakers are placed at the best position. See page 61.
• Normally, place the powered subwoofer in front of you. (Since bass sound is non-directional, you do not need to place it at
the same distance as the satellite speakers.)
NOTES:
• Although the satellite speakers and the powered subwoofer are magnetically shielded, the TV screen may be mottled. In this case, keep the
distance from them to the TV by over 10 cm.
• For safety reasons, always ensure that there is a sufficient space behind the subwoofer.
• When you place the satellite speakers on the relatively high position, such as the top of your bookshelf, place them on a flat and level surface.
Center speaker*
Powered subwoofer*
Right rear speaker*
* The speaker grilles
are not removable.
Trying to remove
them by force may
damage them.
12
Getting Started
LEFT
RIGHT
LEFT
MAX
REVERSE
NORMAL
MIN
RIGHT
SPEAKER IMPEDANCE
VOLUME
PHASE
SUB WOOFER
FRONT SPEAKERS
CONNECTOR
FROM XV-THV70
CENTER
SPEAKER
4~16
CAUTION :
SPEAKER IMPEDANCE
CAUTION :
4~16
REAR
SPEAKERS
SPEAKER IMPEDANCE
CAUTION :
4~16
LEFT
RIGHT
LEFT
RIGHT
SPEAKER IMPEDANCE
FRONT SPEAKERS
CENTER
SPEAKER
4~16
CAUTION :
SPEAKER IMPEDANCE
CAUTION :
4~16
REAR
SPEAKERS
SPEAKER IMPEDANCE
CAUTION :
4~16
7 Connecting the satellite (front, center, rear) speakers
Connect the satellite speakers to the powered subwoofer using the supplied speaker cords.
• Connect the white cord to the red (+) terminal and the black cord to the black (–) terminal.
CAUTION:
• When you do not connect the supplied speakers but connect other (larger) speakers, use the speakers with the SPEAKER IMPEDANCE
indicated by the speaker terminals on the rear panel of the subwoofer.
• DO NOT connect more than one speaker to one speaker terminal.
Before connecting the speaker cord
1
If the speaker cord is
covered with vinyl,
remove the vinyl by
2
Fold the end of each
speaker cord to avoid
short-circuit.
twisting it as shown
above.
Front speakers*
(SP-XSV70)
Connecting the speaker cord to the satellite speakers
* The terminal of SP-XSV70
1
Press and hold the
terminal clamp.
2
Insert the speaker
cord.
3
Release the finger from the
terminal clamp.
Powered subwoofer
Connect the
speaker cords.
Center speaker (SP-XCV70)
Rear speakers*
(SP-XSV70)
Groove
Let the cables
pass through the
groove.
Connecting the speaker cord to the powered subwoofer
1
Open the terminal
clamp.
2
Insert the speaker
cord.
3
Close the terminal
clamp.
13
Connecting to an analog component
VIDEO
S-VIDEO
Y
P
BPR
VIDEO OUT
ANTENNA
DISP.SET
AUX
TO SP-PWV70
IN
AC IN
AV
COMPU
LINK
AM
COAXIAL
75
AM
RL
HV
FM
EXT
LOOP
DIGITAL IN
OPTICAL
COMPONENT
L
AUX IN
R
VIDEO
S-VIDEO
Y
P
BPR
VIDEO OUT
ANTENNA
DISP.SET
AUX
TO SP-PWV70
IN
AC IN
AV
COMPU
LINK
AM
COAXIAL
75
AM
RL
HV
FM
EXT
LOOP
DIGITAL IN
OPTICAL
COMPONENT
DIGITAL IN
OPTICAL
You can enjoy the sound of an analog component such as a VCR, TV, or Cassette recorder through this system. Connect an
analog component using the cord with RCA pin plugs (not supplied).
• Connect the white plug to “AUX IN L” (the left audio jack), the red to “AUX IN R” (the right audio jack).
Center unit
RCA pin plug cord
To audio output
To audio
output
Cassette recorderTVVCR
NOTES:
• If you connect a sound-enhancing device such as a graphic equalizer between the source components and this system, the sound output
through this system may be distorted.
• When playing a video component such as a VCR:
– To listen to the sound, operate this system. (Select “AUX” as the source to play. See page 22.)
– To see the picture, connect the video output jack of the component to the video input jack of the TV, and select the correct input mode on
the TV.
To audio output
Connecting to a digital component
You can enjoy the sound of a digital component such as a DBS tuner or MD recorder through this system. Connect a digital
component using the digital optical cord (not supplied).
DBS tuner
Before connecting a
digital optical cord,
Digital optical cord
MD recorder
NOTES:
When playing a video component such as a DBS tuner:
• To listen to the sound, operate this system. (Select “AUX DIGITAL” as the source to play. See page 22.)
• To see the picture, connect the video output jack of the component to the video input jack of the TV directly, and select the correct input mode
on the TV.
Center unit
unplug the protective
plug.
14
Getting started
VIDEO
S-VIDEO
Y
P
BPR
VIDEO OUT
ANTENNA
DISP.SET
AUX
TO SP-PWV70
IN
AC IN
AV
COMPU
LINK
AM
COAXIAL
75
AM
RL
HV
FM
EXT
LOOP
DIGITAL IN
OPTICAL
COMPONENT
LEFT
RIGHT
LEFT
RIGHT
CENTER
SPEAKER
SPEAKER IMPEDANCE
CAUTION :
4~16
REAR
SPEAKERS
SPEAKER IMPEDANCE
CAUTION :
4~16
AC IN
Connecting the power cord
Make sure that all connections have been made, before plugging the power cords of the center unit and powered subwoofer.
Center unit
Powered subwoofer
1 Firmly insert the
supplied power cord into
the Ó AC IN socket on
the rear panel of the
center unit.
2 Plug the power cords into AC
outlets.
Power cord (supplied)
Power cord
CAUTIONS:
• Disconnect the power cord before cleaning or moving the system.
• Do not touch the power cord with wet hands.
• Do not pull on the power cord to unplug the cord.
When unplugging the cord, always grasp the plug so as not to damage the cord.
NOTES:
• Keep the power cords away from the connecting cords. The power cords may cause noise or screen interference.
• The preset settings such as preset stations, and sound adjustment may be erased in a few days in the following cases:
– When you unplug the power cord of the center unit.
– When a power failure occurs.
• The speakers will not produce any sound if the power cord of the powered subwoofer is removed from the AC outlet while the center unit is
turned on.
In this case, press AUDIO on the remote control or on the center unit to turn off the power, plug in the powered subwoofer, then
press AUDIO or again.
15
Installing the equipment on the wall
When attaching the rear speakers to a wall
Using the supplied speaker wall brackets, you can fix the rear speakers to the wall.
CAUTION: Attaching the brackets to the wall
When attaching the brackets to the wall, have them attached to the wall by a qualified person.
DO NOT attach the brackets to the wall by yourself to avoid an unexpected damage due to their falling from the wall, caused by incorrect
attachment or weakness in the wall.
Location of attachment to wall:
Take care when selecting a location for attaching rear speakers to the wall. Injury to personnel, or damage to equipment, may
result if the speakers are attached in a location which interferes with daily activities.
Attaching speakers to the brackets
1 Use the supplied screws to attach the brackets to the rear speakers.
2 Adjust the angle of the rear speakers.
Loosen the screw slightly, make an adjustment, and then tighten the screw firmly.
CAUTION:
If the screws are not tightened firmly, this may cause injury to personnel or damage to equipment.
When attaching the AM loop antenna to a wall
You can attach the AM loop antenna to the wall.
Mount the AM loop antenna to a wall using the screw (not supplied) as illustrated below.
16
Getting started
DVD DIGITAL THEATER SYSTEM
TH-V
70
When attaching the center unit to a wall
You can attach the center unit to a wall.
CAUTIONS: location of attachment to a wall
• Take care when selecting a location for attaching the center unit to the wall. Injury to personnel, or damage to the center
unit, may result if the center unit is attached in a location which interferes with daily activities, or a location that the users
are liable to knock their bodies or heads against the center unit.
• Avoid a location above a bed, sofa, water tank, sink, etc. or in a passage.
CAUTIONS: attachment to a wall
• The center unit weighs approximately 2.95 kg (6.51 lbs). When you operate the buttons on the center unit, an additional
force will be applied to the center unit in downward direction. Therefore, sufficient care must be required when attaching
the center unit to a wall to prevent any accidents caused by the unit’s falling off.
• Before attaching the center unit to a wall, check the wall (or other related aspects) you want to attach it to, and verify
whether the strength of the wall will be sufficient not only to support the weight of the center unit itself but also to withstand
the additional downward force which will be applied to it during operations.
(Do not attach the center unit to a plywood or plasterboard wall. The center unit will fall and sustain damage as a result.)
If you cannot judge the strength of the wall or other aspects, consult a qualified person (such as a qualified constructor).
• The screws needed for attachment are not supplied. Use screws which are compatible with the strength and material of
the pillar or wall.
• When attaching the center unit, the screws must be secured tightly in all three locations. Failure in attaching the center
unit to the wall using all three holes on the back of the center unit makes for an unstable attachment, and it constitutes a
safety hazard as the center unit may fall down.
Example of attachment
The procedure below is an example of how to attach the center unit to a wall:
It does not make any guarantee for safety while using the center unit on the wall. Take into account such factors as the
material, strength, and the status of the wall as well as the reinforcing material, and the possible changes that will take place
over time.
NOTES:
• You need to connect the cords to the center unit (and attach the supplied stand) before attaching it to the wall.
• DO NOT plug the power cord into an AC outlet before attaching the center unit to the wall.
• When attaching the supplied stand to the center unit, connect the video cords, AV COMPULINK cord, and so on by passing them through the
holes at the bottom of the stand, and do not attach the legs to the stand. See page 9.
1 Select the place (wooden wall) where the center unit is to be attached.
Avoid a plywood or plasterboard wall.
2 For reinforcement purposes, prepare the wooden board
Supports inside the wall
which will be used to attach the center unit to the wall.
Before proceeding, check the position of the supports inside the wall.
Use a sturdy board sized as below:
• A (Height): Higher than the unit
• B (Width): Wider than the distance between the two supports inside the
wall
• C (Thickness): 9 mm to 15 mm
A
B
Board
C
17
3 Attach the board to the wall.
DVD DIGITAL THEATER SYSTEM
TH-V
70
Anchor the board securely in at least four places to the supports inside the wall.
The diameter of the screws must be more than 4 mm, and their length must be 3 times the thickness of the board mounted
on the wall (also take the thickness of the wall into account ).
4 Mount three screws (not supplied) to the board which has been attached on the wall.
Use the screws as illustrated below.
You can use the supplied paper pattern to mark the positions where the screws are mounted.
Keep the space of 6 to 7 mm.
Board
6 to 9 mm
3 mm
Within 3 mm
12 to 19 mm:
According to the thickness
of the board
Screws (not supplied)
5 Hook the center unit onto the mounted screws, and slide it to left, then down .
Make sure that the center unit is attached securely.
• Adjust the screws if the center unit is not attached securely.
Slide to left, then down.
NOTES:
• Do not place anything on top of the center unit. Doing so may cause the center unit to fall down, and cause injury to the persons arround.
• Do not climb onto the center unit or hang from it. Doing so may damage the center unit and/or cause injury to the person.
Take care specially when there are small children at the home.
• Avoid sandwiching the cords between the unit and wall. This may upset the balance of the center unit, and cause the center unit to fall down.
• Make sure that the connected cords will not interfere with daily activities and that the users will not be caught in the cords.
• Do not pull the connected cords with excessive force.
• Check regularly that none of the screws are loose.
• In the event that the center unit has fallen, turn the power off, disconnect the power plug from the AC outlet, and contact your dealer for an
inspection and repairs. Using it in this state may cause a fire or electrical shock.
• Do not place valuables (breakables) underneath the location where the center unit is attached. They will be damaged if the center unit should
fall.
• The manufacturer accepts absolutely no liability for any accidents or damage resulting from inadequate assembly or mounting, insufficient
strength of attachment, misuse or abuse, or natural disasters.
18
Getting Started
SOURCE
VOL
DVD DIGITAL THEATER SYSTEM
TH-V
70
SOURCE VOL
Using the remote control
The remote control makes it easy to use many of the functions of the system at a distance of up to 7 m (23 feet) away.
• You can also operate other components from the remote control supplied with this system.
– To operate your TV, see page 20.
– To operate your VCR, CATV convertor, or DBS tuner, see page 69.
Putting batteries in the remote control
Before using the remote control, put two supplied batteries first.
1 On the back of the remote control, remove the battery cover.
2 Insert batteries.
• Make sure to match the polarity: (+) to (+) and (–) to (–).
3 Replace the cover.
123
If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6P (SUM-3)/AA (15F) type drycell batteries.
CAUTION:
Follow these precautions to avoid leaking or cracking batteries:
• Place batteries in the remote control so they match the polarity: (+) to (+) and (–) to (–).
• Use the correct type of batteries. Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
Operating the system from the remote control
Aim the remote control directly at the remote sensor on the center unit.
• To control other components, aim the remote control directly at the remote sensor on each component.
Refer also to their instruction manuals .
• To operate the remote control properly, do not hide the remote sensor by placing any obstruction.
Remote sensor
19
When the center unit is placed vertically
When the center unit is placed horizontally
NOTE:
When the moving panel is open, the remote
sensor looks up, so the remote control may not
work.
You can use the remote control while the moving
panel is shut.
Using the remote control for TV operations
AUDIO/
TV/VCR
CATV/DBS
RM–STHV70J
DVD THEATER SYSTEM
CHANNEL VOLUMETV VOL
TUNING
STOP
DIMMER
PAUSE
FF/
/REW
TV/VIDEO1MUTING
¡
REC
PLAY
DOWN UP
MEMORY
STROBE
DVD
VCR 1
AUDIO
AUX
ANGLE
FM/AM
SUBTITLE
DECODE
RETURN DIGEST ZOOM VFP
TOP MENU MENU ZOOM
CONTROL– SUBWOOFER +EFFECT
–
CENTER
+
–
REAR-R
+
TEST
SLEEP
TV
VCR
SETTING
TV RETURN
ENTER
ON
SCREEN
CHOICE
AUDIO/
TV/VCR
SURROUND
MODE
FM MODE
123
456
789
10
0
+10
100+
CATV/DBS
TV AUDIO
VCR
SOUND
–
+
–
REAR-L
+
PROGRESSIVE
You can operate your TV using the remote control supplied with this system.
• Refer also to the instruction manuals supplied with your TV.
7 Setting the remote control signal for operating your TV.
TV
button
Number
buttons
TV CONTROL
button
Remote
control mode
selector
• You can operate your TV without setting the remote control signal if your TV is a
JVC TV.
1 Slide the remote control mode selector to ”AUDIO/TV/VCR.”
2 Press and hold TV .
• Keep it pressed until step 4 is finished.
3 Press TV CONTROL.
4 Press Number buttons (1-9, 0) to enter a manufacturer’s code
(2 digit).
See the list below to find the codes.
• For a Hitachi TV, press 1, then 0.
• For a Toshiba TV, press 0, then 8.
5 Release TV .
CHANNEL
+/– buttons
TV/VIDEO
button
TV VOL +/–
buttons
6 Try to operate your TV by pressing TV .
When your TV turns on or off, you have entered the correct code.
If there are more than one code listed for your brand of TV, try each one
until you enter the correct one.
Manufacturers’ codes* for TV
Manufacturer Code Manufacturer Code
JVC 01 Samsung 12
Hitachi 10 Sanyo 13
Magnavox 02 Sharp 06
Mitsubishi 03 Sony 07
* Manufacturers’ codes are
subject to change without
notice. If they are changed,
this remote control cannot
operate the equipment.
Panasonic 04,11 Toshiba 08
RCA 05 Zenith 09
7 To operate your TV
You can use the following buttons for operating your TV:
IMPORTANT:
When using the remote control, check to see if its
remote control mode selector is set to the correct
position:
To operate TV, set it to “AUDIO/TV/VCR.”
TV : Turns on and off your TV.
TV VOL +/–: Adjust the volume.
TV/VIDEO: Select the input mode (either TV or VIDEO).
• After pressing TV CONTROL, you can perform the following operations on the
TV.
CHANNEL +/–: Changes the channels.
1-10, 0, +10 (100+): Selects the channel.
20
Basic operations
AUDIO/
TV/VCR
CATV/DBS
CHANNEL VOLUMETV VOL
TV/VIDEO1MUTING
¡
DVD
VCR 1
AUDIO
AUX
ANGLE
FM/AM
SUBTITLE
DECODE
RETURN DIGEST ZOOM VFP
TOP MENU MENU ZOOM
CONTROL– SUBWOOFER +EFFECT
–
CENTER
+
–
REAR-R
+
TEST
SLEEP
TV
VCR
SETTING
TV RETURN
ENTER
ON
SCREEN
CHOICE
AUDIO/
TV/VCR
SURROUND
MODE
FM MODE
12
3
4
56
7
8
9
10
0
+10
100+
CATV/DBS
TV AUDIO
VCR
SOUND
–
+
–
REAR-L
+
PROGRESSIVE
DVD DIGITAL THEATER SYSTEM
TH-V
70
SOURCE VOL
NOW READING
This section mainly explains operations commonly used when you enjoy this system.
• This manual mainly explains operations when the center unit is placed vertically (the DISP.SET selector is set to “V”) as an example.
• Turn also on your TV and select the correct input mode on the TV.
IMPORTANT:
When using the remote control, check to see if its
remote control mode selector is set to the correct
position:
To operate this system, set it to “AUDIO/TV/VCR.”
Moving panel
Button name indicators
Display window
AUDIO
button
Source
selecting
buttons
Illumination lamps
SOURCE button
button
VOLUME +/–
buttons
VOL +/– buttons
Turning on/off the system
From the remote control: Press AUDIO to turn the power on.
On the center unit: Press to turn the power on.
• When you place the center unit vertically:
The moving panel stands up.
The illumination lamps and the button name indicators light up, and the current source name appears on the display window.
• When you place the center unit horizontally:
The illumination lamps and the button name indicators light up, and the current source name appears on the display window.
• When DVD, AUX, or AUX DIGITAL is selected as the source (see page 22), the opening screen* appears on the TV screen.
* Opening screen
Message area
The following messages may appear in the message area depending on the status of this
system.
• “LOADING”/“EJECT”: Appears when inserting or removing a disc.
• “NOW READING”: Appears when the system is reading the disc information.
• “REGION CODE ERROR!”: Appears when the region code of the DVD does not match
the system.
The DVD cannot be played back.
• “NO DISC”: Appears when no disc is inserted.
21
To turn power off
L
R
From the remote control: Press AUDIO
On the center unit: Press
The illumination lamps and the button name indications (except the
• When placing the center unit vertically, the moving panel closes.
7 When the resume playback is set to “ON” (see page 62):
If you turn off the power while playing back a disc, playback stops and the position where playback has been stopped is
stored.
To resume playback from the stored position, press DVD or PLAY on the remote control. (See below and page 29.)
If you press AUDIO (or on the center unit), the stored position is erased.
NOTES:
• The power supply to the subwoofer is linked to the center unit. The POWER ON lamp on the subwoofer lights in green when the power is turned on.
• A small amount of power is consumed even though the power is turned off (called standby mode). Remove the power cord from the AC outlet
to turn off the power supply completely.
• You can also turn on the system by pressing 0 on the center unit or one of the source selecting buttons on the remote control. See below and
page 28.
• The resume playback does not work for Audio CDs.
again.
again.
indicator) go off.
Selecting the source to play
From the remote control: Press one of the source selecting buttons (DVD, FM/AM, and AUX).
DVD: Select the DVD player, and the remote control can be used to operate the DVD player. (See pages 27 and 37.)
FM/AM: Select an FM or AM broadcast, and the remote control can be used to operate the tuner (FM/AM). (See page 31.)
• Each time you press the button, the band alternates between FM and AM.
AUX: Select a component connected to the AUX IN jacks or DIGITAL IN jack. (See page 14.)
• Each time you press the button, the source alternates between “AUX” and “AUX DIGITAL.”
On the center unit: Press SOURCE repeatedly until the source name you want appears on the
display.
Each time you press the button, the source changes as follows.
] DVD ] AM ] FM ] AUX ] AUX DIGITAL ] (back to the beginning)
The selected source name appears on the display window.
Example: When “AUX” is selected.
When AM, FM, AUX, or AUX DIGITAL is selected as the source to play, this indication appears if a disc is
inserted. (See page 28.)
NOTES:
• When the system is in standby mode, pressing one of the source selecting buttons on the remote control also turns on the system.
