JVC TH-M301, TH-M303 Parts List

PARTS LIST

[ TH-M303 ]
[ TH-M301 ]

* All printed circuit boards and its assemblies are not available as service parts.

TH-M303

Area suffix

J ----------------------------- U.S.A.
C -------------------------- Canada

TH-M301

Area suffix

J ----------------------------- U.S.A.

- Contents -

Exploded view of general assembly and parts list (Block No.M1)

Speaker assembly and parts list (Subwoofer) (Block No.M2)

DVD mechanism assembly and parts list (Block No.MJ)
DVD changer mechanism assembly and parts list (FMU-SD9-1M)(Block No.MK)
DVD changer mechanism assembly and parts list (FMU-SD9-5M)(Block No.MT)
Electrical parts list (Block No.01~08)

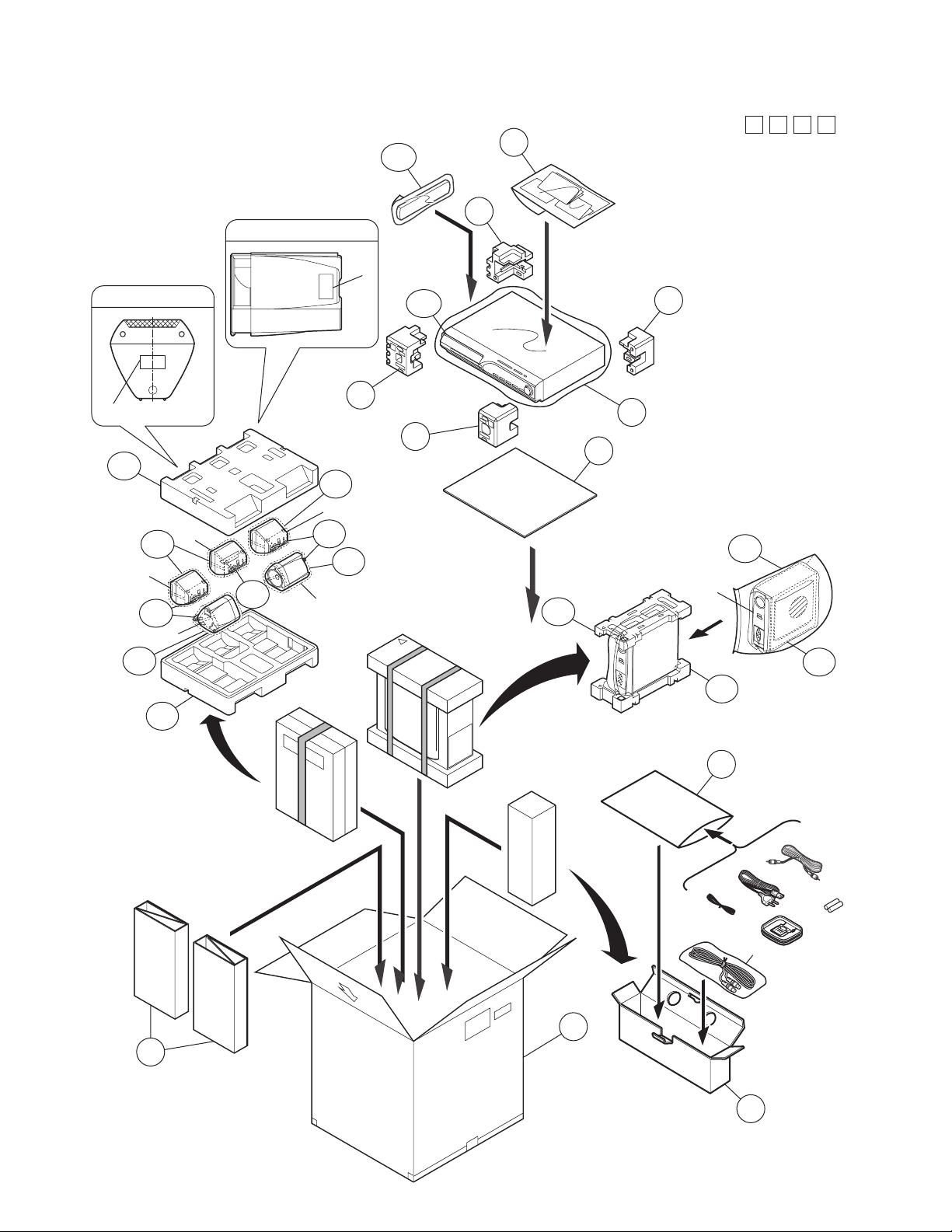

Packing materials and accessories parts list (Block No.M3)

3- 2
3- 5
3- 7
3- 9
3-11
3-13
3-26

No. MB184 3-1

Exploded view of general assembly and parts list

n

3

4

59

Block No.

59

A

57

58

58

36

58

B

MMM1

36

7

A

59

59

10

17

15

25

19

18

65

20

28

Connect board

1

Operation board

9

D

27

a

27

Power key board

b

13

i

12

23

21

8

c

5

64

24

A

68

i

22

D

28

a

3-2

16

Illumination board

69

26

14

30

Pho

3

4

35

2

29

Power supply board

37

60

62

37

37

46

47

50

36

40

39

38

Main board

61

54

B

47

49

56

52

51

53

55

C

74

73

33

72

41

g

e

b

j

c

f

42

d

40

40

48

47

70

C

34

31

A

Audio & Digital input board

45

8

e

i

64

63

Phone jack board

6

7

7

Front board

11

66

g

44

67

6

7

A

32

j

43

7

6

h

71

f

11

h

d

3-3

General assembly

Block No. [M][1][M][M]



Symbol No.

1 LV10858-001A FRONT PANEL
2 LV21605-001A FL LENS
3 LV34588-001A VOL RING
4 QYSDSF2608Z SCREW 2.6mm x 8mm
5 LV21606-001A BUTTON(DISC)
6 QYSDSF2608Z SCREW 2.6mm x 8mm(x3)
7 QYSDSF2608Z SCREW 2.6mm x 8mm(x4)
8 LV42851-006A FL SCREEN
9 LV21607-001A BUTTON(TOP)
10 QYSDSF2612Z TAP SCREW M2.6 x 12mm(x3)
11 QYSDSF2608Z SCREW 2.6mm x 8mm(x2)
12 LV34590-001A BTN(POWER) ASSY
13 QYSDSF2608Z SCREW 2.6mm x 8mm(x2)
14 LV43663-001A ORNAMENT(POWER)

15 LV21608-001A DVD DOOR

15 LV21608-007A DVD DOOR
16 LV34592-002A DOOR LENS
17 LV34593-001A ORNAMENT(DOOR)
18 QYSDSF2608Z SCREW 2.6mm x 8mm
19 LV21609-002A DOOR HOLDER
20 QYSDSF2608Z SCREW 2.6mm x 8mm(x3)
21 LV41694-001A DOOR BKT(L)
22 LV41695-001A DOOR BKT(R)
23 QYSDSF2608Z SCREW 2.6mm x 8mm
24 QYSDSF2608Z SCREW 2.6mm x 8mm
25 LV43806-001A DOOR SPRING(L)
26 LV43665-001A DOOR SPRING
27 QYSDSF2608Z SCREW 2.6mm x 8mm(x2)
28 E69897-002 CUSHION (x2)
29 LV40301-001A FELT SPACER (x2)
30 LV34594-001A VOLUME KNOB
31 LV10770-004A BOTTOM CHASSIS
32 LV40301-002A FELT SPACER (x2)
33 LV30225-0T7A SPACER
34 LV30225-0T8A SPACER
35 QYSDST3006Z TAP SCREW 3mm x 6mm(x3)
36 QYSDST3006Z TAP SCREW 3mm x 6mm(x4)
37 QYSDST3006Z TAP SCREW 3mm x 6mm(x3)
38 LV41548-001A-NK C.B BKT
39 QYSDST3006Z TAP SCREW 3mm x 6mm
40 QYSBST3008Z TH TAP SCREW 3mm x 8mm(x3)
41 LV41548-001A-NK C.B BKT
42 QYSDST3006Z TAP SCREW 3mm x 6mm
43 LV43333-001A BKT(DSP)
44 QYSDST3006Z TAP SCREW 3mm x 6mm
45 QYSDST3006Z TAP SCREW 3mm x 6mm

46 LV21450-043A REAR PANEL

46 LV21450-052A REAR PANEL
47 QYSBSGY3008M SPECIAL SCREW 3mm x 8mm(x3)
48 QAU0346-001 TUNER
49 QYSBSGY3008M SPECIAL SCREW 3mm x 8mm(x2)
50 QYSBSGY3008M SPECIAL SCREW 3mm x 8mm
51 QYSBSGY3008M SPECIAL SCREW 3mm x 8mm(x2)
52 QYSBSGY3008M SPECIAL SCREW 3mm x 8mm
53 QYSBSGY3008M SPECIAL SCREW 3mm x 8mm
54 QYSBSGY3008M SPECIAL SCREW 3mm x 8mm
55 QYSBST3006M TAPPING SCREW 3mm x 6mm
56 QYSBSGY3008M SPECIAL SCREW 3mm x 8mm
57 LV21610-001A/S/ METAL COVER
58 QYSBSGY3008M SPECIAL SCREW 3mm x 8mm(x3)
59 QYSDSG3006N TAP SCREW M3 x 6mm(x4)



60 QMF51U1-1R6-J8 FUSE F 901 1.6A AC125V
61 LV41843-002A LASER CAUTION
62 QYSBSE3008Z SCREW 3mm x 8mm
63 LV43661-001A BKT
64 LV30225-0M9A SPACER (x2)
65 LV42683-001A SPACER
66 QUQH10-3112AJ FFC WIRE
67 QUQH10-0714AJ FFC WIRE
68 QUQH10-1920AJ FFC WIRE
69 QUQ110-0418AJ FFC WIRE
70 QUQH12-1107AJ FFC WIRE

Part No. Part Name Description Local

M303C,
M303J
M301J

M303C,
M303J

M301J



Symbol No.

71 QUQH12-0510AJ FFC WIRE
72 QUQH10-0817AJ FFC WIRE
73 QUQH10-1017AJ FFC WIRE
74 QUQH10-2817AJ FFC WIRE

Part No. Part Name Description Local

3-4

Speaker assembly and parts list

(Subwoofer)

9

17

Block No.

4

M

M

2

M

Amp. board

11

10

12

18

LED board

14

13

12

26

19

e

27

31

21

31

24

25

22

23

5

17

8

7

b

c

15

16

6

A

B

C

9

30

29

c

16

d

b

a

5

e

d

28

20

Mother board

A

C

B

1

2

3

34

32

33

37

a

35

36

36

36

38

3-5

Speaker (Subwoofer)

Block No. [M][2][M][M]



Symbol No.

1 LV10875-002A CHASSIS BASE
2 LV30225-0T5A SPACER
3 LV30225-0T6A SPACER
4 LV10876-001A HEAT SINK
5 QYSBSG3010E TAPPING SCREW 3mm x 10mm(x3)
6 LV43691-001A HOLD SPRING
7 QYSBSG3010E TAPPING SCREW 3mm x 10mm
8 QYSBSG3016E TAP SCREW M3 x 16mm(x4)
9 QYSBSG3010E TAPPING SCREW 3mm x 10mm(x9)



10 QQT0432-001 POWER TRANSF
11 LV43823-001A BARRIER
12 QYSDSTL4008E TAP SCREW M4 x 8mm(x4)
13 LV43692-001A LED HOLDER
14 QYSBSG3010E TAPPING SCREW 3mm x 10mm(x2)
15 LV34712-001A HEAT SINK BKT (x2)
16 QYSBSG3010E TAPPING SCREW 3mm x 10mm(x2)
17 QYSBSG3010E TAPPING SCREW 3mm x 10mm(x4)
18 QYSBSG3006Z TAPPING SCREW 3mm x 6mm(x4)
19 LV21652-010A REAR PANEL
20 QAR0318-001 FAN MOTOR
21 QYSBSGY3008M SPECIAL SCREW 3mm x 8mm(x2)
22 QYSBSGY3008M SPECIAL SCREW 3mm x 8mm(x2)
23 QYSBSGY3008M SPECIAL SCREW 3mm x 8mm(x3)
24 E73562-003 SCREW
25 QYSBST3006M TAPPING SCREW 3mm x 6mm



26 QZW0033-001 STRAIN RELIEF



27 QMPD380-200-JN



28 QMF51U1-6R3-J8 FUSE F101 6.3A AC125V



29 QMF51U1-8R0-J8 FUSE

30 QYSPSPD3008Z SCREW 3mm x 8mm(x2)
31 QYSDSA4016M TAP SCREW M4 x 16mm(x2)
32 QYSDST4014M TAP SCREW M4 x 14mm(x8)

33 LV34891-050A RATING LABEL

33 LV34891-049A RATING LABEL
34 9900031901 BAFFLE ASSY
35 CR160068-01 CONE SPK
36 7001541606 SCREW (x4)
37 9916012001 NET ASSY
38 9000007931 FOOT (x4)

Part No. Part Name Description Local

POWER CORD(US/CA)

2m BLACK

F153 F154 8A
AC125V(x2)

M303C,
M303J
M301J

3-6

DVD mechanism assembly and parts list

FXL-D52-1M

Grease

=JVG-31N
=JVS-1003

21

22

Block No.

OOrOO

M

J

M

M

10

11

28

27

24

20

23

19

18

26

17

a

29

25

9

6

9

3

8

15

a

16

7

OOrOO

12

5

14

13

1

30

30

4

2

30

3-7

DVD mechanism

Block No. [M][J][M][M]



Symbol No.

1 LV10751-001A TM CHASSIS
2 LV10752-003A SF MOTOR BASE
3 QAR0308-001 SPINDLE MOTOR
4 LV43461-001A SPECIAL SCREW (x3)
5 QAR0144-003 MOTOR
6 VKS5557-001 F.M. GEAR
7 QYSPSPT2030M SCREW M2 x 3mm
8 LV33985-001A MIDDLE GEAR
9 QYSDST2008Z TAP SCREW M2 x 8mm(x2)
10 LV33989-001A S.SHAFT HOLDER
11 QYSDST2008Z TAP SCREW M2 x 8mm
12 LV33990-001A G.SHAFT HOLDER
13 QYSDST2008Z TAP SCREW M2 x 8mm
14 LV43291-002A GUIDE SHAFT
15 LV33991-001A ADJUST SPRING
16 QYSPST2008Z TAP SCREW M2 x 8mm
17 QAL0507-001 PICK UP
18 LV33983-001A PS SPRING
19 QYSPSFT1730Z TAP SCREW M1.7 x 3mm
20 LV33984-002A RACK ARM
21 QYSPSFT1730Z TAP SCREW M1.7 x 3mm(x2)
22 LV33986-001A S.SHAFT GEAR
23 LV43293-001A SCREW SHAFT
24 LV43290-001A S.SHAFT COLLOR
25 LV33987-001A GEAR HOLDER
26 QYSPSFT2040Z TAP SCREW M2 x 4mm
27 LV33988-001A SS ADJ SPRING
28 QYSDST2008Z TAP SCREW M2 x 8mm
29 LV43702-001A PICK FFC
30 LV43292-002A ADJUST SCREW (x3)

Part No. Part Name Description Local

3-8

DVD changer mechanism assembly and parts list

Block No.

M

M

M

K

Grease

=JVG-31N
=JVS-1003

FMU-SD9-1M

46

45

44

20

35

B

33

A

30

31

37

d

31

29

B

11

32

18

34

34

E

15

35

C

43

19

21

16

10

1

G

48

F

17

17

17

F

D

C

13

23

12

39

41

c

E

14

28

7

6

5

3

2

D

4

27

28

28

b

G

40

38

22

A

24

9

d

8

36

8

42

a

36

48

47

47

f

51

51

48

25

49

26

47

50

e

51

f

52

b

c

a

e

52

3-9

DVD changer mechanism

Block No. [M][K][M][M]



Symbol No.

1 LV10743-004A CHASSIS ASSY
2 LV43278-001A SENSOR SPRING
3 LV33961-002A SENSOR SLIDER
4 LV33962-001A SENSOR BRACKET
5 QYSDST2605Z SCREW 2.6mm x 5mm(x2)
6 QVY0027-B14 S V RESISTOR
7 QYSDST2004Z SCREW 2mm x 4mm
8 QAR0164-001 MOTOR (x2)
9 LV42340-001A MOTOR PULLEY (x2)
10 LV41431-002A BELT (x2)

11 QYSPSPU1725N SCREW

12 LV10744-002A RACK HOLDER
13 LV21406-003A LOADING RACK
14 LV43279-001A LIFT ARM ASSY
15 LV33963-001A HOOK
16 LV33964-002A HOOK STOPPER
17 QYSDST2605Z SCREW 2.6mm x 5mm(x3)
18 LV33965-004A LIFTER ASSY
19 LV21408-002A RAIL(R)
20 LV21409-002A RAIL(L)
21 LV43285-001A ROD (L)
22 LV21520-003A SIDE(R) ASSY
23 LV33974-001A SELECT LEVER
24 LV33975-001A GEAR COVER
25 LV33976-001A ELEVATOR CAM
26 LV43287-001A ELEVATOR SPRING
27 LV33977-002A CLICK SPRING
28 QYSDST2605Z SCREW 2.6mm x 5mm(x3)
29 LV10749-002A SIDE(L)
30 LV33980-001A OPEN DET.LEVER
31 QYSDST2605Z SCREW 2.6mm x 5mm(x2)
32 LV10746-003A TRAY ASSY (x5)
33 LV10750-002A TOP COVER
34 LV43289-002A ROD (x2)
35 QYSDSF2608Z SCREW 2.6mm x 8mm(x2)
36 QYSDST2605Z SCREW 2.6mm x 5mm(x2)
37 QYSDSF2608Z SCREW 2.6mm x 8mm
38 QYSDST2605Z SCREW 2.6mm x 5mm
39 QYSDST2004Z SCREW 2mm x 4mm
40 WJM0330-002A E-SI C WIRE C-F
41 WJM0331-001A E-SI C WIRE C-F
42 QUQ110-1508BF FFC WIRE
43 LV32417-001A CLAMPER
44 LV42930-003A P.C.MAGNET
45 LV33992-001A DVD YOKE
46 LV41741-001A SPECIAL SCREW
47 LV41659-002A INSULATOR (x4)
48 LV43245-001A SPECIAL SCREW (x4)
49 FXL-D52-1M TRAVERSE MECHANISM
50 LV10872-001A DVD TM BASE 3
51 QYSDST2605Z SCREW 2.6mm x 5mm(x3)
52 QYSDSF2606Z SCREW 2.6mm x 6mm(x2)

Part No. Part Name Description Local

1.7mm x

2.5mm(x4)

3-10

DVD changer mechanism assembly and parts list

Block No.

M

M

M

T

Grease

=JVG-31N
=JVS-1003

CH5-BASE-1M

22

29

FMU-SD9-5M

37

36

35

13

27

B

25

A

23

23

21

B

8

26

26

E

27

9

10

34

C

12

11

F

3

31

33

2

6

d

7

24

5

d

4

28

4

38

a

40

39

f

44

1

G

40

39

43

c

15

C

G

E

b

32

F

40

41

39

4243

e

43

f

14

30

19

20

20

A

18

16

20

17

b

c

a

e

44

3-11

DVD changer mechanism

Block No. [M][T][M][M]



Symbol No.

1 LV10913-001A LOADER ASSY
2 QVY0027-B14 S V RESISTOR
3 QYSDST2004Z SCREW 2mm x 4mm
4 QAR0164-001 MOTOR (x2)
5 LV42340-001A MOTOR PULLEY (x2)
6 LV41431-002A BELT (x2)
7 QYSPSPU1725N SCREW 1.7mm x 2.5mm(x2)
8 LV33965-004A LIFTER ASSY
9 LV33963-001A HOOK
10 LV33964-002A HOOK STOPPER
11 LV43285-001A ROD (L)
12 LV21408-002A RAIL(R)
13 LV21409-002A RAIL(L)
14 LV21520-004A SIDE(R) ASSY
15 LV33974-001A SELECT LEVER
16 LV33977-002A CLICK SPRING
17 LV33975-001A GEAR COVER
18 LV33976-001A ELEVATOR CAM
19 LV43287-001A ELEVATOR SPRING
20 QYSDST2605Z SCREW 2.6mm x 5mm(x3)
21 LV10749-002A SIDE(L)
22 LV33980-001A OPEN DET.LEVER
23 QYSDST2605Z SCREW 2.6mm x 5mm(x2)
24 LV10746-003A TRAY ASSY (x5)
25 LV10750-003A TOP COVER
26 LV43289-002A ROD (x2)
27 QYSDSF2608Z SCREW 2.6mm x 8mm(x2)
28 QYSDST2605Z SCREW 2.6mm x 5mm(x2)
29 QYSDSF2608Z SCREW 2.6mm x 8mm
30 QYSDST2605Z SCREW 2.6mm x 5mm
31 QYSDST2004Z SCREW 2mm x 4mm
32 WJM0330-002A E-SI C WIRE C-F
33 WJM0331-001A E-SI C WIRE C-F
34 LV32417-001A CLAMPER
35 LV42930-003A P.C.MAGNET
36 LV33992-001A DVD YOKE
37 LV41741-001A SPECIAL SCREW
38 QUQ110-1508BJ FFC WIRE
39 LV41659-002A INSULATOR (x4)
40 LV43245-001A SPECIAL SCREW (x4)
41 -------------------- TRAVERSE MECHANISM
42 LV10872-002A DVD TM BASE 3
43 QYSDST2605Z SCREW 2.6mm x 5mm(x3)
44 QYSDSF2606Z SCREW 2.6mm x 6mm(x2)

Part No. Part Name Description Local

3-12

Electrical parts list

Main board



Symbol No.

IC411 MM1233XF-X IC
IC431 MM1623XF-X IC
IC471 MN101C49GMY IC
IC472 S-80840CNNB-W IC
IC473 SN74HCT32NS-X IC(DIGITAL)
IC475 RC4580ID-X IC
IC476 RC4580ID-X IC
IC477 BR24L08F-W-X IC(DIGITAL)
IC478 RC4580ID-X IC
IC491 KIA7805API IC
IC601 RC4580ID-X IC



IC901 STR-G6651 IC
IC951 PQ05RD21 IC
IC953 KIA7805API IC

Q951 2SC3576-JVC-T TRANSISTOR
Q953 KTA1267/YG/-T TRANSISTOR
Q954 SI2305DS-X TRANSISTOR
Q955 KRC103S-X DIGITAL TR
Q958 KTA1271/OY/-T TRANSISTOR
Q959 KRC103S-X DIGITAL TR
Q960 2SB709A/QR/-X TRANSISTOR
Q961 KTC3203/OY/-T TRANSISTOR
Q991 2SD601A/QR/-X TRANSISTOR
Q4091 KTA1271/OY/-T TRANSISTOR
Q4092 KTC3875/YG/-X SI.TRANSISTOR
Q4701 KRC111S-X TRANSISTOR
Q4702 KRC107S-X DIGI TRANSISTOR
Q4703 KRC102S-X DIGI TRANSISTOR
Q4801 KTA1504/YG/-X SI.TRANSISTOR
Q4802 KRC102S-X DIGI TRANSISTOR
Q4811 KRA102S-X DIGI TRANSISTOR
Q4812 KRC102S-X DIGI TRANSISTOR
Q4821 KRC102S-X DIGI TRANSISTOR
Q4831 KRC102S-X DIGI TRANSISTOR
Q4832 KRA110S-X TRANSISTOR
Q4833 KRC110S-X DIGI TRANSISTOR
Q4921 KTC3203/OY/-T TRANSISTOR
Q4931 KTA1271/OY/-T TRANSISTOR
Q4954 2SA1362/G/-X TRANSISTOR
Q4955 KRC102S-X DIGI TRANSISTOR
Q4961 KTC3203/OY/-T TRANSISTOR
Q4971 2SC3661-X TRANSISTOR
Q4972 2SC3661-X TRANSISTOR
Q4973 KRA104S-X DIGI TRANSISTOR



D901 DI106 BRIDGE DIODE
D902 ERA18-04-T1 FR DIODE
D903 ERA18-04-T1 FR DIODE
D904 ERA18-04-T1 FR DIODE
D908 ERA18-04-T1 FR DIODE
D910 ERA18-04-T1 FR DIODE
D911 FR104S-T5 FR DIODE
D950 MTZJ36C-T2 Z DIODE
D951 FR104S-T5 FR DIODE
D952 FR104S-T5 FR DIODE



D953 SB340-F82 FUSEIODE



D954 ERA18-04-T1 FR DIODE



D956 FR104S-T5 FR DIODE



D957 FR104S-T5 FR DIODE
D958 1SS133-T2 DIODE
D960 MTZJ3.6B-T2 Z DIODE
D970 ER204-F33 FR DIODE
D991 MTZJ5.1C-T2 Z DIODE
D4091 1SS133-T2 DIODE
D4092 MTZJ6.8A-T2 Z DIODE
D4703 MTZJ4.7B-T2 Z DIODE
D4704 1SS133-T2 DIODE
D4705 1SS133-T2 DIODE
D4706 1SS133-T2 DIODE
D4707 1SS133-T2 DIODE
D4708 1SS133-T2 DIODE

Part No. Part Name Description Local

Block No. [0][1][0][0]



Symbol No.

D4709 1SS133-T2 DIODE
D4811 1SS133-T2 DIODE
D4831 1SS133-T2 DIODE
D4832 1SS133-T2 DIODE
D4833 1SS133-T2 DIODE
D4834 1SS133-T2 DIODE
D4835 MTZJ6.8A-T2 Z DIODE
D4841 MTZJ2.0A-T2 Z DIODE
D4842 MTZJ3.3A-T2 Z DIODE
D4891 MTZJ6.2C-T2 Z DIODE
D4921 MTZJ8.2C-T2 Z DIODE
D4922 1SS133-T2 DIODE
D4931 MTZJ8.2C-T2 Z DIODE
D4932 1SS133-T2 DIODE
D4961 MTZJ4.7A-T2 Z DIODE
D4962 1SS133-T2 DIODE
D4963 1SS133-T2 DIODE



PC901 PC123Y22FZ PHOTO COUPLER



PC902 PC123Y22FZ PHOTO COUPLER



C902 QFZ9075-683 MPP CAPACITOR 0.068uF AC275V M



C904 QCZ9079-102 C CAPACITOR 1000pF AC250V M



C905 QCZ9079-102 C CAPACITOR 1000pF AC250V M



C907 QETM2DM-157 E CAPACITOR 150uF 200V M
C908 QCZ0136-332Z C CAPACITOR 3300pF 1kV K
C909 QCZ0136-101Z C CAPACITOR 100pF 1kV K
C910 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C913 QCZ0136-101Z C CAPACITOR 100pF 1kV K
C914 QEZ0532-396Z E CAPACITOR 39uF 25V M
C915 QCBB1HK-471Y C CAPACITOR 470pF 50V K



C916 QCZ9079-222 C CAPACITOR 2200pF AC250V M
C918 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z
C951 NDC31HJ-101X C CAPACITOR 100pF 50V J
C952 QCZ0136-101Z C CAPACITOR 100pF 1kV K
C953 NDC31HJ-101X C CAPACITOR 100pF 50V J
C954 NDC31HJ-101X C CAPACITOR 100pF 50V J
C956 NDC31HJ-101X C CAPACITOR 100pF 50V J
C957 NDC31HJ-101X C CAPACITOR 100pF 50V J
C960 QEZ0529-826Z E CAPACITOR 82uF 10V M
C961 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C962 QEKC1HM-226Z E CAPACITOR 22uF 50V M
C963 QEZ0533-396Z E CAPACITOR 39uF 50V M
C964 QETN1HM-226Z E CAPACITOR 22uF 50V M
C965 QEZ0528-108 E CAPACITOR 1000uF 10V M
C966 QETN1AM-477Z E CAPACITOR 470uF 10V M
C967 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C968 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C969 QETN1AM-227Z E CAPACITOR 220uF 10V M
C976 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C977 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C978 QEKC1AM-107Z E CAPACITOR 100uF 10V M
C979 QEZ0530-827 E CAPACITOR 820uF 16V M
C980 QEKC1HM-106Z E CAPACITOR 10uF 50V M
C981 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C982 QEZ0531-567 E CAPACITOR 560uF 25V M
C984 QEKC1CM-227Z E CAPACITOR 220uF 16V M
C985 QETN1EM-107Z E CAPACITOR 100uF 25V M
C986 QETN1EM-107Z E CAPACITOR 100uF 25V M
C987 QEZ0532-187Z E CAPACITOR 180uF 25V M
C989 QEKC1CM-107Z E CAPACITOR 100uF 16V M
C992 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C993 NDC31HJ-101X C CAPACITOR 100pF 50V J
C994 QCBB1HK-223Y C CAPACITOR 0.022uF 50V K
C997 QETN1CM-227Z E CAPACITOR 220uF 16V M
C4006 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C4007 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4011 NCB31HK-822X C CAPACITOR 8200pF 50V K
C4012 NCB31HK-822X C CAPACITOR 8200pF 50V K
C4091 QETN1CM-226Z E CAPACITOR 22uF 16V M
C4092 QETN1CM-107Z E CAPACITOR 100uF 16V M
C4101 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4102 NDC31HJ-470X C CAPACITOR 47pF 50V J
C4111 QFN31HJ-103Z M CAPACITOR 0.01uF 50V J

Part No. Part Name Description Local

3-13



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C4112 NDC31HJ-470X C CAPACITOR 47pF 50V J
C4121 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4122 NDC31HJ-470X C CAPACITOR 47pF 50V J
C4171 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4172 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4173 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4191 QETN1VM-476Z E CAPACITOR 47uF 35V M
C4192 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4301 QETN1VM-476Z E CAPACITOR 47uF 35V M
C4311 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4321 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4331 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4341 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4351 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4391 QETN1AM-477Z E CAPACITOR 470uF 10V M
C4392 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4394 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4395 QETN1CM-226Z E CAPACITOR 22uF 16V M
C4401 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C4402 NDC31HJ-470X C CAPACITOR 47pF 50V J
C4411 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4412 NDC31HJ-470X C CAPACITOR 47pF 50V J
C4421 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C4423 NDC31HJ-470X C CAPACITOR 47pF 50V J
C4431 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C4432 NCS31HJ-470X C CAPACITOR 47pF 50V J
C4441 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C4442 NDC31HJ-470X C CAPACITOR 47pF 50V J
C4451 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C4452 NDC31HJ-470X C CAPACITOR 47pF 50V J
C4605 NCS31HJ-471X C CAPACITOR 470pF 50V J
C4606 NCS31HJ-471X C CAPACITOR 470pF 50V J
C4702 QETN0JM-227Z E CAPACITOR 220uF 6.3V M
C4703 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C4704 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C4705 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4706 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4707 QETN1CM-107Z E CAPACITOR 100uF 16V M
C4708 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4709 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4710 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4711 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4712 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4713 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4714 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4715 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4718 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4719 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4720 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4721 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4771 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4772 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4773 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4774 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4791 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4801 QETN1HM-224Z E CAPACITOR 0.22uF 50V M
C4891 NCB31HK-221X C CAPACITOR 220pF 50V K
C4892 NCB31HK-221X C CAPACITOR 220pF 50V K
C4901 QETN1CM-107Z E CAPACITOR 100uF 16V M
C4902 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4903 QETN1CM-107Z E CAPACITOR 100uF 16V M
C4904 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C4921 QETN1VM-476Z E CAPACITOR 47uF 35V M
C4922 QETN1CM-107Z E CAPACITOR 100uF 16V M
C4931 QETN1VM-476Z E CAPACITOR 47uF 35V M
C4932 QETN1CM-107Z E CAPACITOR 100uF 16V M
C4961 QETN1CM-107Z E CAPACITOR 100uF 16V M
C6001 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C6002 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C6003 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6004 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C6101 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C6102 NCS31HJ-101X C CAPACITOR 100pF 50V J
C6103 QETN1HM-476Z E CAPACITOR 47uF 50V M
C6104 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6105 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C6201 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C6202 NCS31HJ-101X C CAPACITOR 100pF 50V J

C6203 QETN1HM-476Z E CAPACITOR 47uF 50V M
C6204 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6205 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C6501 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C6502 NCS31HJ-560X C CAPACITOR 56pF 50V J
C6503 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C6511 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C6512 NCS31HJ-560X C CAPACITOR 56pF 50V J
C6513 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C6514 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6515 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6516 NCS31HJ-560X C CAPACITOR 56pF 50V J
C6517 NCS31HJ-471X C CAPACITOR 470pF 50V J
C6518 NCS31HJ-471X C CAPACITOR 470pF 50V J
C6601 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C6602 NCS31HJ-560X C CAPACITOR 56pF 50V J
C6603 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C6611 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C6612 NCS31HJ-560X C CAPACITOR 56pF 50V J
C6613 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C6614 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6615 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6616 NCS31HJ-560X C CAPACITOR 56pF 50V J
C6617 NCS31HJ-471X C CAPACITOR 470pF 50V J
C6618 NCS31HJ-471X C CAPACITOR 470pF 50V J
C6901 QETN1VM-476Z E CAPACITOR 47uF 35V M
C6902 QETN1VM-476Z E CAPACITOR 47uF 35V M

R901 QRL01DJ-683X OMF RESISTOR 68kΩ 1W J
R903 QRE141J-270Y C RESISTOR 27Ω 1/4W J
R904 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R905 QRL027J-683 OMF RESISTOR 68kΩ 2W J
R906 QRJ146J-681X UNF C RESISTOR 680Ω 1/4W J
R907 QRT027J-R47 MF RESISTOR 0.47Ω 2W J
R908 QRE141J-332Y C RESISTOR 3.3kΩ 1/4W J
R910 QRE141J-754Y C RESISTOR 750kΩ 1/4W J
R911 QRE141J-754Y C RESISTOR 750kΩ 1/4W J



R921 QRZ9037-335 COMP RESISTOR 3.3MΩ 1/2W K
R951 QRE141J-150Y C RESISTOR 15Ω 1/4W J
R952 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R953 NRSA02J-223X MG RESISTOR 22kΩ 1/10W J



R954 QRZ9005-100X FUSI RESISTOR 10
R955 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R960 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R961 NRSA63J-681X MG RESISTOR 680Ω 1/16W J
R963 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R964 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R965 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R966 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R969 NRSA63J-221X MG RESISTOR 220
R977 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R980 NRSA63J-272X MG RESISTOR 2.7k
R981 NRSA63J-223X MG RESISTOR 22k
R983 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R984 NRSA63J-222X MG RESISTOR 2.2k
R985 NRSA02J-132X MG RESISTOR 1.3k
R986 NRSA02J-152X MG RESISTOR 1.5kΩ 1/10W J
R987 NRSA02J-152X MG RESISTOR 1.5k
R988 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R989 NRSA63J-333X MG RESISTOR 33k
R990 NRSA63J-333X MG RESISTOR 33k
R4011 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R4012 NRSA63J-102X MG RESISTOR 1k
R4013 NRSA63J-682X MG RESISTOR 6.8k
R4014 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R4091 NRSA63J-472X MG RESISTOR 4.7k
R4092 NRSA63J-103X MG RESISTOR 10k
R4093 NRSA63J-821X MG RESISTOR 820
R4101 NRSA63J-750X MG RESISTOR 75
R4111 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R4121 NRSA63J-750X MG RESISTOR 75
R4191 NRSA63J-0R0X MG RESISTOR 0
R4201 NRSA63J-681X MG RESISTOR 680Ω 1/16W J
R4202 NRSA63J-221X MG RESISTOR 220
R4211 NRSA63J-681X MG RESISTOR 680
R4212 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R4231 NRSA63J-681X MG RESISTOR 680
R4232 NRSA63J-221X MG RESISTOR 220

Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/10W J

Ω

1/10W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-14



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R4241 NRSA63J-361X MG RESISTOR 360Ω 1/16W J
R4242 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R4251 NRSA63J-361X MG RESISTOR 360Ω 1/16W J
R4252 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R4401 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R4411 NRSA63J-750X MG RESISTOR 75
R4421 NRSA63J-750X MG RESISTOR 75
R4431 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R4441 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R4451 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R4605 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R4606 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R4703 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R4704 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4705 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R4706 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R4707 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4708 QRE141J-221Y C RESISTOR 220Ω 1/4W J
R4709 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R4710 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R4711 NRSA63J-331X MG RESISTOR 330
R4712 NRSA63J-331X MG RESISTOR 330
R4713 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R4752 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R4753 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4754 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4755 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4756 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4757 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4758 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4760 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R4761 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4762 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4772 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4773 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4774 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4775 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R4776 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R4777 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R4778 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R4781 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R4782 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R4783 QRE141J-151Y C RESISTOR 150Ω 1/4W J
R4784 QRE141J-151Y C RESISTOR 150Ω 1/4W J
R4785 QRE141J-151Y C RESISTOR 150Ω 1/4W J
R4786 QRE141J-151Y C RESISTOR 150Ω 1/4W J
R4791 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R4801 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R4802 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J



R4811 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J
R4821 QRE141J-181Y C RESISTOR 180Ω 1/4W J
R4822 QRE141J-151Y C RESISTOR 150
R4831 NRSA63J-153X MG RESISTOR 15k
R4832 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R4833 NRSA63J-123X MG RESISTOR 12k
R4834 NRSA63J-393X MG RESISTOR 39k
R4835 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R4841 NRSA63J-681X MG RESISTOR 680
R4842 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R4843 QRT017J-2R2 MF RESISTOR 2.2
R4844 NRSA63J-103X MG RESISTOR 10k
R4845 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R4861 NRSA63J-222X MG RESISTOR 2.2k
R4863 NRSA63J-222X MG RESISTOR 2.2k
R4864 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R4866 NRSA63J-272X MG RESISTOR 2.7k
R4871 NRSA63J-331X MG RESISTOR 330
R4872 NRSA63J-331X MG RESISTOR 330
R4873 NRSA63J-331X MG RESISTOR 330
R4874 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R4875 NRSA63J-331X MG RESISTOR 330
R4876 NRSA63J-331X MG RESISTOR 330
R4881 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R4883 NRSA63J-472X MG RESISTOR 4.7k
R4884 NRSA63J-472X MG RESISTOR 4.7k
R4886 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R4891 NRSA63J-221X MG RESISTOR 220
R4892 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J



R4921 QRZ9005-100X FUSI RESISTOR 10
R4922 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J



R4931 QRZ9005-100X FUSI RESISTOR 10
R4932 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R4961 QRE141J-271Y C RESISTOR 270Ω 1/4W J
R4971 NRSA63J-222X MG RESISTOR 2.2k
R4972 NRSA63J-224X MG RESISTOR 220k
R4973 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R4974 NRSA63J-184X MG RESISTOR 180kΩ 1/16W J
R4975 NRSA63J-184X MG RESISTOR 180kΩ 1/16W J
R4997 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R4998 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R6001 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R6101 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R6102 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R6103 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R6105 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R6106 QRE141J-330Y C RESISTOR 33Ω 1/4W J
R6107 QRE141J-390Y C RESISTOR 39Ω 1/4W J
R6201 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R6202 NRSA63J-222X MG RESISTOR 2.2k
R6203 NRSA63J-333X MG RESISTOR 33k
R6205 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R6206 QRE141J-330Y C RESISTOR 33Ω 1/4W J
R6207 QRE141J-390Y C RESISTOR 39Ω 1/4W J
R6302 QRE141J-271Y C RESISTOR 270Ω 1/4W J
R6303 QRE141J-271Y C RESISTOR 270Ω 1/4W J
R6304 QRE141J-271Y C RESISTOR 270Ω 1/4W J
R6305 QRE141J-271Y C RESISTOR 270Ω 1/4W J
R6501 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R6502 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R6503 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R6504 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R6505 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R6506 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R6507 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R6508 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R6509 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R6510 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R6511 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R6512 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R6513 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R6514 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R6515 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R6516 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R6517 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R6518 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R6601 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R6602 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R6603 NRSA63J-102X MG RESISTOR 1k
R6604 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R6605 NRSA63J-103X MG RESISTOR 10k
R6606 NRSA63J-103X MG RESISTOR 10k
R6607 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R6608 NRSA63J-102X MG RESISTOR 1k
R6609 NRSA63J-473X MG RESISTOR 47k
R6610 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R6611 NRSA63J-333X MG RESISTOR 33k
R6612 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R6613 NRSA63J-104X MG RESISTOR 100k
R6614 NRSA63J-103X MG RESISTOR 10k
R6615 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R6616 NRSA63J-103X MG RESISTOR 10k
R6617 NRSA63J-104X MG RESISTOR 100k
R6618 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J



L901 QQR1105-001 LINE FILTER
L951 QQL244K-R22Z COIL 0.22uH K
L952 QQL44BK-220Z COIL 22uH K
L955 QQL26AK-220Z COIL 22uH K
L957 QQL244K-100Z COIL 10uH K
L959 QQL244K-100Z COIL 10uH K
L4391 QQL25CK-221Z COIL 220uH K



T901 QQS0097-001 SW TRANSF

CN401 QGF1036C1-10 CONNECTOR FFC/FPC (1-10)
CN402 QGF1036C1-08 CONNECTOR FFC/FPC (1-8)
CN403 QGF1036C1-28 CONNECTOR FFC/FPC (1-28)

Ω
Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-15



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

CN404 QGD2504C1-05Z CONNECTOR (1-5)
CN405 QGD2504C1-05Z CONNECTOR (1-5)
CN406 QGD2504C1-04Z CONNECTOR (1-4)
CN407 QGD2504C1-05Z CONNECTOR (1-5)
CN410 QGF1205C1-11 CONNECTOR FFC/FPC (1-11)
CN411 QGF1036C1-31 CONNECTOR FFC/FPC (1-31)
CN412 QGF1036C1-07 CONNECTOR FFC/FPC (1-7)
CN450 QGF1036C1-19 CONNECTOR FFC/FPC (1-19)
CN456 QGD2504C1-03Z CONNECTOR (1-3)
CN457 QGD2504C1-03Z CONNECTOR (1-3)
CN460 QGF1205C1-05 CONNECTOR FFC/FPC (1-5)
CN701 QGF1205F1-05 CONNECTOR FFC/FPC (1-5)



CP471 ICP-N5-T IC PROTECTOR 250mA



CP951 ICP-N10-T IC PROTECTOR 400mA



CP952 ICP-N5-T IC PROTECTOR 250mA
EP401 QNZ0136-001Z EARTH PLATE
EP402 QNZ0136-001Z EARTH PLATE
EP403 QNZ0136-001Z EARTH PLATE
EP901 QNZ0136-001Z EARTH PLATE
EP902 QNZ0136-001Z EARTH PLATE
FC901 QNG0003-001Z FUSE CLIP
FC902 QNG0003-001Z FUSE CLIP
FW901 QUM219-06DGZ4 PARA RIBON WIR
FW902 QUM21A-06DGZ4 PARA RIBON WIR
HS901 E70306-002 HEAT SINK
J4401 QNN0570-001 PIN JACK
J4402 QNN0572-001 PIN JACK
J4891 QNS0089-001 3.5 JACK
J6001 QNS0170-001 HEADPHONE JACK
K902 QQR0621-001Z COIL
K4702 QQR0621-001Z COIL
K6001 NQR0007-002X FERRITE BEADS
K6002 NQR0007-002X FERRITE BEADS
K6003 NQR0007-002X FERRITE BEADS
K6004 NQR0007-002X FERRITE BEADS



P901 QNC0082-001 AC INLET
PP401 QZW0112-001 WIRE CLAMP
X4701 QAX0246-001Z C RESONATOR 8.00MHz

Front board

Block No. [0][2][0][0]



Symbol No.

Part No. Part Name Description Local

R522 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R526 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R527 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R528 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R531 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R532 NRSA63J-392X MG RESISTOR 3.9k
R533 NRSA63J-682X MG RESISTOR 6.8k
R534 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R536 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R537 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R538 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R539 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R541 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R542 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R551 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R552 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R553 NRSA63J-331X MG RESISTOR 330Ω 1/16W J

BK501 LV43659-001A FL HOLDER
BK502 LV43659-001A FL HOLDER
CN501 QGF1016F2-19W CONNECTOR FFC/FPC (1-19)
CN551 QGF1036C1-04 CONNECTOR FFC/FPC (1-4)
CN561 QGF1005F1-04 CONNECTOR FFC/FPC (1-4)
DI501 QLF0131-002 FL TUBE
FW502 QUM214-08Z3Z3 PARA RIBON WIR
FW521 QUM213-12DGZ4 PARA RIBON WIRE
FW561 QUM213-16DGZ3 PARA RIBON WIRE
JS541 QSW1059-001 JOG VOLUME
S521 QSW0683-001Z PUSH SW
S522 QSW0683-001Z PUSH SW
S523 QSW0683-001Z PUSH SW
S526 QSW0683-001Z PUSH SW
S527 QSW0683-001Z PUSH SW
S528 QSW0683-001Z PUSH SW
S529 QSW0683-001Z PUSH SW
S531 QSW0683-001Z PUSH SW
S532 QSW0683-001Z PUSH SW
S533 QSW0683-001Z PUSH SW
S534 QSW0683-001Z PUSH SW
S535 QSW0683-001Z PUSH SW
S536 QSW0683-001Z PUSH SW
S537 QSW0683-001Z PUSH SW
S538 QSW0683-001Z PUSH SW
S539 QSW0683-001Z PUSH SW
S540 QSW0683-001Z PUSH SW
X501 NAX0623-001X C RESONATOR

Ω

1/16W J

Ω

1/16W J

IC501 MN101C35DKW IC(MPU)
IC511 GP1UM271XK IR DETECT UNIT 38kHz

Q501 KRC102S-X DIGI TRANSISTOR
Q502 KRC102S-X DIGI TRANSISTOR
Q503 KRC102S-X DIGI TRANSISTOR
Q551 KRC102S-X DIGI TRANSISTOR
Q552 KRC111S-X TRANSISTOR

D511 SLR-343VC-T LED
D551 SELU2E10C-P LED

C501 NCB31HK-471X C CAPACITOR 470pF 50V K
C502 NCB31HK-471X C CAPACITOR 470pF 50V K
C503 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C504 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C505 QEKC0JM-107Z E CAPACITOR 100uF 6.3V M
C506 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C507 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C511 NCB21CK-105X C CAPACITOR 1uF 16V K
C541 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C542 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C551 NCB31HK-103X C CAPACITOR 0.01uF 50V K

R501 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R502 NRSA63J-102X MG RESISTOR 1k
R503 NRSA63J-102X MG RESISTOR 1k
R504 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R511 NRSA63J-221X MG RESISTOR 220
R521 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-16

Audio board

Block No. [0][3][0][0]



Symbol No.

IC151 CD4066BM-X IC
IC152 CD4066BM-X IC
IC153 BD3814FV-X IC
IC158 RC4580ID-X IC
IC159 RC4580ID-X IC
IC160 RC4580ID-X IC
IC509 GP1FA352RZ OPT RECEIVER
IC531 RC4580ID-X IC
IC581 RC4580ID-X IC
IC591 RC4580ID-X IC

Q1131 IMX9-W TRANSISTOR
Q1133 IMX9-W TRANSISTOR
Q1135 IMX9-W TRANSISTOR
Q1137 2SC3661-X TRANSISTOR
Q1251 KRA104S-X DIGI TRANSISTOR
Q1252 KRA104S-X DIGI TRANSISTOR

C1001 QETN1EM-107Z E CAPACITOR 100uF 25V M
C1002 QETN1EM-107Z E CAPACITOR 100uF 25V M
C1003 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C1101 NCS31HJ-331X C CAPACITOR 330pF 50V J

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C1102 NCS31HJ-331X C CAPACITOR 330pF 50V J
C1103 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C1120 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C1121 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C1122 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C1123 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C1124 NCB31HK-472X C CAPACITOR 4700pF 50V K
C1125 NCB31HK-472X C CAPACITOR 4700pF 50V K
C1141 QETN1EM-107Z E CAPACITOR 100uF 25V M
C1142 QETN1EM-107Z E CAPACITOR 100uF 25V M
C1143 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C1144 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C1145 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C1176 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C1177 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C1178 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C1179 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C1180 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C1181 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C1183 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1201 QETN1CM-476Z E CAPACITOR 47uF 16V M
C1202 QETN1CM-476Z E CAPACITOR 47uF 16V M
C1203 QETN1CM-476Z E CAPACITOR 47uF 16V M
C1204 QETN1CM-476Z E CAPACITOR 47uF 16V M
C1205 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1206 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1207 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1208 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1209 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1210 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1211 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1212 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1213 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1214 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1215 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1216 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1217 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1218 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1221 NCS31HJ-470X C CAPACITOR 47pF 50V J
C1222 NCS31HJ-470X C CAPACITOR 47pF 50V J
C1223 NCS31HJ-470X C CAPACITOR 47pF 50V J
C1224 NCS31HJ-470X C CAPACITOR 47pF 50V J
C1225 NCS31HJ-471X C CAPACITOR 470pF 50V J
C1226 NCS31HJ-470X C CAPACITOR 47pF 50V J
C1227 NCB31CK-183X C CAPACITOR 0.018uF 16V K
C1228 NCB31CK-183X C CAPACITOR 0.018uF 16V K
C1230 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C1251 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C1252 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C1253 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C1254 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C2503 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2504 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2525 NCB31HK-102X C CAPACITOR 1000pF 50V K
C2526 NCB31HK-102X C CAPACITOR 1000pF 50V K
C2527 NCB31HK-102X C CAPACITOR 1000pF 50V K
C2528 NCB31HK-102X C CAPACITOR 1000pF 50V K
C2531 NCB31HK-331X C CAPACITOR 330pF 50V K
C2532 NCB31HK-331X C CAPACITOR 330pF 50V K
C2533 QETN1CM-476Z E CAPACITOR 47uF 16V M
C2534 QETN1CM-476Z E CAPACITOR 47uF 16V M
C2539 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C2540 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C2541 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2542 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2561 QETN1HM-105Z E CAPACITOR 1uF 50V M
C2562 QETN1HM-105Z E CAPACITOR 1uF 50V M
C2563 NCB31HK-271X C CAPACITOR 270pF 50V K
C2564 NCB31HK-271X C CAPACITOR 270pF 50V K
C2575 NCB31HK-102X C CAPACITOR 1000pF 50V K
C2576 NCB31HK-102X C CAPACITOR 1000pF 50V K
C2577 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2578 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2581 QETN1HM-105Z E CAPACITOR 1uF 50V M
C2582 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2583 NCB31HK-271X C CAPACITOR 270pF 50V K
C2584 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2585 NCB31HK-102X C CAPACITOR 1000pF 50V K

C2589 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C2590 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C2592 NCB31HK-472X C CAPACITOR 4700pF 50V K
C2594 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C2597 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2599 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C2600 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C2603 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2604 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2605 NCS31HJ-560X C CAPACITOR 56pF 50V J

R1101 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R1102 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R1103 NRSA63J-564X MG RESISTOR 560kΩ 1/16W J
R1104 NRSA63J-564X MG RESISTOR 560kΩ 1/16W J
R1106 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R1107 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R1108 NRSA63J-334X MG RESISTOR 330kΩ 1/16W J
R1109 NRSA63J-334X MG RESISTOR 330kΩ 1/16W J
R1110 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R1120 NRSA63J-472X MG RESISTOR 4.7k
R1121 NRSA63J-472X MG RESISTOR 4.7k
R1122 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1123 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1124 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R1131 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1132 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1133 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R1134 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R1135 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R1136 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R1137 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1138 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1139 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1140 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1141 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1142 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1143 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R1144 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R1145 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1146 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1147 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1148 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1149 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R1150 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1151 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R1152 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R1153 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R1154 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R1155 NRSA63J-104X MG RESISTOR 100k
R1156 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1157 NRSA63J-332X MG RESISTOR 3.3k
R1158 NRSA63J-104X MG RESISTOR 100k
R1161 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1162 NRSA63J-104X MG RESISTOR 100k
R1163 NRSA63J-104X MG RESISTOR 100k
R1164 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1165 NRSA63J-104X MG RESISTOR 100k
R1166 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1167 NRSA63J-332X MG RESISTOR 3.3k
R1168 NRSA63J-332X MG RESISTOR 3.3k
R1169 NRSA63J-393X MG RESISTOR 39kΩ 1/16W J
R1170 NRSA63J-393X MG RESISTOR 39k
R1171 NRSA63J-332X MG RESISTOR 3.3k
R1172 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R1173 NRSA63J-473X MG RESISTOR 47k
R1174 NRSA63J-473X MG RESISTOR 47k
R1175 NRSA63J-432X MG RESISTOR 4.3k
R1176 NRSA63J-393X MG RESISTOR 39k
R1197 NRSA63J-474X MG RESISTOR 470kΩ 1/16W J
R1201 NRSA63J-124X MG RESISTOR 120k
R1202 NRSA63J-124X MG RESISTOR 120k
R1251 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R1252 NRSA63J-223X MG RESISTOR 22k
R1253 NRSA63J-223X MG RESISTOR 22k
R1254 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R2525 NRSA63J-102X MG RESISTOR 1k
R2526 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-17



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R2531 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2532 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2533 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R2534 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R2537 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2538 NRSA63J-104X MG RESISTOR 100k
R2539 NRSA63J-272X MG RESISTOR 2.7k
R2540 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R2551 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2552 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2553 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2554 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2560 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R2561 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R2562 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2563 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2564 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2565 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R2566 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R2567 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2568 NRSA63J-102X MG RESISTOR 1k
R2581 NRSA63J-104X MG RESISTOR 100k
R2582 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2583 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2584 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R2585 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R2586 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R2587 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2588 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2590 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R2592 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R2594 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R2596 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2599 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J

CN441 QGF1036C1-31 CONNECTOR FFC/FPC (1-31)
CN442 QGF1036C1-07 CONNECTOR FFC/FPC (1-7)
EP101 QNZ0136-001Z EARTH PLATE
J1101 QNN0598-001 PIN JACK
J1103 QND0118-001 DIN CONNECTOR
K1101 NQR0007-002X FERRITE BEADS

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Mother board

Block No. [0][4][0][0]



Symbol No.



IC201 STK413-430 IC



IC202 STK413-400 IC
IC301 RC4558D-X IC
IC302 RC4558D-X IC
IC303 RC4558D-X IC
IC601 MN101C427NB IC
IC602 S-80840CNNB-W IC

Q151 KTD863/Y/-T TRANSISTOR
Q152 KTC3203/OY/-T TRANSISTOR
Q501 UN2113-X TRANSISTOR
Q502 UN2211-X TRANSISTOR
Q503 KTC3875/YG/-X SI.TRANSISTOR
Q504 KTA1504/YG/-X SI.TRANSISTOR
Q505 UN2211-X TRANSISTOR
Q517 UN2213-X DIGI TRANSISTOR
Q523 KTC3875/YG/-X SI.TRANSISTOR
Q524 KTA1504/YG/-X SI.TRANSISTOR
Q525 KTC3875/YG/-X SI.TRANSISTOR
Q542 KTC3875/YG/-X SI.TRANSISTOR
Q603 KTC3875/YG/-X SI.TRANSISTOR
Q604 KTC3265/Y/-X TRANSISTOR
Q2101 KTA1504/YG/-X SI.TRANSISTOR
Q2201 KTA1504/YG/-X SI.TRANSISTOR
Q2301 KTA1504/YG/-X SI.TRANSISTOR
Q2401 KTA1504/YG/-X SI.TRANSISTOR
Q2501 KTA1504/YG/-X SI.TRANSISTOR

Part No. Part Name Description Local

Q2601 KTA1504/YG/-X SI.TRANSISTOR
Q2701 KTC3875/YG/-X SI.TRANSISTOR
Q2702 KTA1046/Y/ TRANSISTOR
Q2703 UN2211-X TRANSISTOR
Q3101 KTC3875/YG/-X SI.TRANSISTOR
Q3102 KTC3875/YG/-X SI.TRANSISTOR
Q3201 KTC3875/YG/-X SI.TRANSISTOR
Q3202 KTC3875/YG/-X SI.TRANSISTOR
Q3301 KTC3875/YG/-X SI.TRANSISTOR
Q3302 KTC3875/YG/-X SI.TRANSISTOR
Q3401 KTC3875/YG/-X SI.TRANSISTOR
Q3402 KTC3875/YG/-X SI.TRANSISTOR
Q3501 KTC3875/YG/-X SI.TRANSISTOR
Q3502 KTC3875/YG/-X SI.TRANSISTOR
Q3701 UN2111-X TRANSISTOR
Q3702 UN2111-X TRANSISTOR
Q3703 UN2212-X TRANSISTOR
Q3704 KTC2026/Y/ TRANSISTOR
Q3705 KTC3875/YG/-X SI.TRANSISTOR
Q3706 UN2213-X DIGI TRANSISTOR

D101 1SS133-T2 DIODE



D151 GBU803 BRIDGE DIODE



D152 GBU803 BRIDGE DIODE
D153 1SS133-T2 DIODE
D154 1SS133-T2 DIODE
D161 1SS133-T2 DIODE
D162 MTZJ13C-T2 Z DIODE
D163 1SS133-T2 DIODE
D164 MTZJ6.2A-T2 Z DIODE
D165 MTZJ6.8C-T2 Z DIODE
D166 MTZJ6.8C-T2 Z DIODE
D501 1SS133-T2 DIODE
D502 1SS133-T2 DIODE
D503 1SS133-T2 DIODE
D504 1SS133-T2 DIODE
D505 MTZJ5.1C-T2 Z DIODE
D506 1SS133-T2 DIODE
D507 1SS133-T2 DIODE
D509 1SS133-T2 DIODE
D510 1SS133-T2 DIODE
D514 1SS133-T2 DIODE
D518 MTZJ15C-T2 Z DIODE
D519 1SS133-T2 DIODE
D520 1SS133-T2 DIODE
D521 MTZJ6.8C-T2 Z DIODE
D535 1SS133-T2 DIODE
D541 1SS133-T2 DIODE
D542 1SS133-T2 DIODE
D543 1SS133-T2 DIODE
D544 1SS133-T2 DIODE
D545 1SS133-T2 DIODE
D546 1SS133-T2 DIODE
D548 1SS133-T2 DIODE
D549 1SS133-T2 DIODE
D550 1SS133-T2 DIODE
D551 1SS133-T2 DIODE
D552 1SS133-T2 DIODE
D553 1SS133-T2 DIODE
D561 SLR-342MC-T12 LED
D601 1SS133-T2 DIODE
D610 1SS133-T2 DIODE
D611 1SS133-T2 DIODE
D2101 1SS133-T2 DIODE
D2201 1SS133-T2 DIODE
D2301 1SS133-T2 DIODE
D2401 1SS133-T2 DIODE
D2501 1SS133-T2 DIODE
D2601 1SS133-T2 DIODE
D2701 MTZJ13C-T2 Z DIODE
D2702 MTZJ13C-T2 Z DIODE
D2703 MTZJ16C-T2 Z DIODE
D3101 1SS133-T2 DIODE
D3102 1SS133-T2 DIODE
D3201 1SS133-T2 DIODE
D3202 1SS133-T2 DIODE
D3301 1SS133-T2 DIODE
D3302 1SS133-T2 DIODE

3-18



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

D3401 1SS133-T2 DIODE
D3402 1SS133-T2 DIODE
D3501 1SS133-T2 DIODE
D3502 1SS133-T2 DIODE
D3601 1SS133-T2 DIODE
D3602 1SS133-T2 DIODE
D3703 MTZJ11C-T2 Z DIODE
D3706 1SS133-T2 DIODE
D3707 1SS133-T2 DIODE
D3708 1SS133-T2 DIODE



C101 QCZ9105-472 C CAPACITOR 4700pF 250V M
C151 NCF21HZ-104X C CAPACITOR 0.1uF 50V Z
C152 NCF21HZ-104X C CAPACITOR 0.1uF 50V Z
C153 NCF21HZ-104X C CAPACITOR 0.1uF 50V Z
C154 NCF21HZ-104X C CAPACITOR 0.1uF 50V Z
C155 NCF21HZ-104X C CAPACITOR 0.1uF 50V Z
C156 NCF21HZ-104X C CAPACITOR 0.1uF 50V Z
C157 NCF21HZ-104X C CAPACITOR 0.1uF 50V Z
C158 NCF21HZ-104X C CAPACITOR 0.1uF 50V Z
C159 NCF21HZ-104X C CAPACITOR 0.1uF 50V Z
C161 QETM1HM-338 E CAPACITOR 3300uF 50V M
C162 QETM1HM-338 E CAPACITOR 3300uF 50V M
C163 QETM1EM-478 E CAPACITOR 4700uF 25V M
C164 QETM1EM-478 E CAPACITOR 4700uF 25V M
C165 QETN1EM-476Z E CAPACITOR 47uF 25V M
C166 QETN1EM-107Z E CAPACITOR 100uF 25V M
C167 QETN1EM-476Z E CAPACITOR 47uF 25V M
C168 QETN1CM-107Z E CAPACITOR 100uF 16V M
C171 QETN1CM-107Z E CAPACITOR 100uF 16V M
C172 QETN1CM-107Z E CAPACITOR 100uF 16V M
C501 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C502 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C503 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C512 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C522 QETN1HM-106Z E CAPACITOR 10uF 50V M
C523 QETN1EM-476Z E CAPACITOR 47uF 25V M
C591 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C601 QETN1CM-107Z E CAPACITOR 100uF 16V M
C602 NCB31HK-102X C CAPACITOR 1000pF 50V K
C603 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C604 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C605 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C606 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2102 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C2103 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2104 QETN1CM-107Z E CAPACITOR 100uF 16V M
C2105 NDC31HJ-101X C CAPACITOR 100pF 50V J
C2106 NDC31HJ-3R0X C CAPACITOR 3pF 50V J
C2107 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C2108 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C2202 NCB31HK-471X C CAPACITOR 470pF 50V K
C2203 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2204 QETN1CM-107Z E CAPACITOR 100uF 16V M
C2205 NDC31HJ-101X C CAPACITOR 100pF 50V J
C2206 NDC31HJ-3R0X C CAPACITOR 3pF 50V J
C2207 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C2208 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C2302 NCB31HK-471X C CAPACITOR 470pF 50V K
C2303 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2304 QETN1CM-107Z E CAPACITOR 100uF 16V M
C2305 NDC31HJ-101X C CAPACITOR 100pF 50V J
C2306 NDC31HJ-3R0X C CAPACITOR 3pF 50V J
C2307 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C2308 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C2402 NCB31HK-471X C CAPACITOR 470pF 50V K
C2403 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2404 QETN1CM-107Z E CAPACITOR 100uF 16V M
C2405 NDC31HJ-101X C CAPACITOR 100pF 50V J
C2406 NDC31HJ-3R0X C CAPACITOR 3pF 50V J
C2407 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C2408 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C2502 NCB31HK-471X C CAPACITOR 470pF 50V K
C2503 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2504 QETN1CM-107Z E CAPACITOR 100uF 16V M
C2505 NDC31HJ-101X C CAPACITOR 100pF 50V J
C2506 NDC31HJ-3R0X C CAPACITOR 3pF 50V J
C2507 NCB21HK-104X C CAPACITOR 0.1uF 50V K

C2508 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C2602 NCB31HK-471X C CAPACITOR 470pF 50V K
C2603 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2604 QETN1CM-107Z E CAPACITOR 100uF 16V M
C2605 NDC31HJ-101X C CAPACITOR 100pF 50V J
C2606 NDC31HJ-3R0X C CAPACITOR 3pF 50V J
C2607 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C2608 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C2701 QETN1HM-107Z E CAPACITOR 100uF 50V M
C2702 QETN1EM-107Z E CAPACITOR 100uF 25V M
C2703 QETN1HM-107Z E CAPACITOR 100uF 50V M
C2704 QETN1EM-107Z E CAPACITOR 100uF 25V M
C2705 QETN1HM-107Z E CAPACITOR 100uF 50V M
C2706 QETN1HM-107Z E CAPACITOR 100uF 50V M
C2707 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2711 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2712 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C2713 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C3101 NCB31HK-152X C CAPACITOR 1500pF 50V K
C3102 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3103 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3104 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C3201 NCB31HK-152X C CAPACITOR 1500pF 50V K
C3202 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3203 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3204 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C3301 NCB31HK-152X C CAPACITOR 1500pF 50V K
C3302 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3303 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3304 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C3401 NCB31HK-152X C CAPACITOR 1500pF 50V K
C3402 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3403 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3404 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C3501 NCB31HK-152X C CAPACITOR 1500pF 50V K
C3502 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3503 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3504 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C3601 NCB31HK-152X C CAPACITOR 1500pF 50V K
C3602 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3604 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C3701 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C3702 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C3703 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C3704 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C3705 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C3706 NCF31HZ-103X C CAPACITOR 0.01uF 50V Z
C3715 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3716 QETN1AM-227Z E CAPACITOR 220uF 10V M
C3720 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3721 QEKC1CM-107Z E CAPACITOR 100uF 16V M

Ω

R151 NRSA63J-222X MG RESISTOR 2.2k
R152 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J



R161 QRZ9005-100X FUSI RESISTOR 10
R162 QRJ146J-102X UNF C RESISTOR 1kΩ 1/4W J



R163 QRZ9005-100X FUSI RESISTOR 10
R164 QRJ146J-102X UNF C RESISTOR 1kΩ 1/4W J
R165 QRJ146J-221X UNF C RESISTOR 220Ω 1/4W J
R166 QRL027J-391 OMF RESISTOR 390



R171 QRL027J-470 OMF RESISTOR 47Ω 2W J
R501 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R502 NRSA63J-104X MG RESISTOR 100k
R504 NRSA63J-102X MG RESISTOR 1k
R505 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R506 NRSA63J-103X MG RESISTOR 10k
R522 NRSA63J-103X MG RESISTOR 10k
R523 NRSA63J-223X MG RESISTOR 22k
R533 NRSA63J-103X MG RESISTOR 10k
R534 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R535 NRSA63J-104X MG RESISTOR 100k
R536 NRSA63J-103X MG RESISTOR 10k
R539 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R540 NRSA63J-472X MG RESISTOR 4.7k
R553 NRSA63J-153X MG RESISTOR 15k
R554 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R555 QRJ146J-271X UNF C RESISTOR 270
R556 NRSA63J-102X MG RESISTOR 1k

1/16W J

Ω
Ω

Ω

2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J

3-19



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R557 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R558 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R559 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R560 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R561 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R562 NRSA63J-393X MG RESISTOR 39k
R563 NRSA63J-223X MG RESISTOR 22k
R572 NRSA02J-151X MG RESISTOR 150Ω 1/10W J
R601 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R602 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R603 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R606 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R607 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R608 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R611 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R612 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R613 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R614 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R621 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R622 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R623 NRSA63J-103X MG RESISTOR 10k
R624 NRSA63J-472X MG RESISTOR 4.7k
R625 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R626 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R627 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R628 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R629 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R631 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R633 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R635 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R637 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R640 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R641 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R642 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R643 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R644 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R645 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2101 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2102 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R2103 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R2104 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R2105 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R2106 QRZ0224-R22 EMIT RESISTOR 0.22
R2107 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2108 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R2109 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R2110 QRK126J-4R7X UNF C RESISTOR 4.7Ω 1/2W J
R2111 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J
R2112 NRSA63J-752X MG RESISTOR 7.5kΩ 1/16W J
R2113 NRSA63J-222X MG RESISTOR 2.2k
R2114 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2201 NRSA63J-103X MG RESISTOR 10k
R2202 NRSA63J-471X MG RESISTOR 470
R2203 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R2204 NRSA63J-561X MG RESISTOR 560
R2205 NRSA63J-563X MG RESISTOR 56k
R2206 QRZ0224-R22 EMIT RESISTOR 0.22
R2207 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2208 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R2209 NRSA63J-473X MG RESISTOR 47k
R2210 QRK126J-4R7X UNF C RESISTOR 4.7
R2211 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J
R2212 NRSA63J-222X MG RESISTOR 2.2k
R2213 NRSA63J-222X MG RESISTOR 2.2k
R2214 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2301 NRSA63J-103X MG RESISTOR 10k
R2302 NRSA63J-471X MG RESISTOR 470
R2303 NRSA63J-563X MG RESISTOR 56k
R2304 NRSA63J-561X MG RESISTOR 560
R2305 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R2306 QRZ0224-R22 EMIT RESISTOR 0.22
R2307 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2308 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R2309 NRSA63J-473X MG RESISTOR 47k
R2310 QRK126J-4R7X UNF C RESISTOR 4.7
R2311 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J
R2312 NRSA63J-222X MG RESISTOR 2.2k
R2313 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

R2314 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2401 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2402 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R2403 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R2404 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R2405 NRSA63J-563X MG RESISTOR 56k
R2406 QRZ0224-R22 EMIT RESISTOR 0.22
R2407 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2408 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R2409 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R2410 QRK126J-4R7X UNF C RESISTOR 4.7Ω 1/2W J
R2411 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J
R2412 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R2413 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R2414 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2501 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2502 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R2503 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R2504 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R2505 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R2506 QRZ0224-R22 EMIT RESISTOR 0.22
R2507 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2508 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R2509 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R2510 QRK126J-4R7X UNF C RESISTOR 4.7Ω 1/2W J
R2511 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J
R2512 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R2513 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R2514 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2601 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2602 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R2603 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R2604 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R2605 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R2606 QRZ0224-R22 EMIT RESISTOR 0.22
R2607 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2608 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R2609 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R2610 QRK126J-4R7X UNF C RESISTOR 4.7Ω 1/2W J
R2611 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J
R2612 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R2613 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R2614 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J



R2701 QRZ9005-220X FUSI RESISTOR 22



R2702 QRZ9005-470X FUSI RESISTOR 47Ω 1/4W G
R2703 QRK126J-222X UNF C RESISTOR 2.2kΩ 1/2W J
R2704 QRK126J-222X UNF C RESISTOR 2.2kΩ 1/2W J
R2705 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J



R2706 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J



R2707 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J



R2708 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J



R2709 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J



R2710 QRZ9005-100X FUSI RESISTOR 10
R2711 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R2721 QRE141J-472Y C RESISTOR 4.7k
R2722 QRE141J-472Y C RESISTOR 4.7k
R3101 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R3102 NRSA63J-183X MG RESISTOR 18k
R3103 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R3104 NRSA63J-104X MG RESISTOR 100k
R3105 NRSA63J-474X MG RESISTOR 470k
R3106 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R3107 NRSA63J-334X MG RESISTOR 330k
R3108 NRSA63J-101X MG RESISTOR 100
R3109 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3110 NRSA63J-104X MG RESISTOR 100k
R3111 NRSA63J-471X MG RESISTOR 470
R3112 NRSA63J-103X MG RESISTOR 10k
R3113 NRSA63J-103X MG RESISTOR 10k
R3201 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R3202 NRSA63J-183X MG RESISTOR 18k
R3203 NRSA63J-472X MG RESISTOR 4.7k
R3204 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R3205 NRSA63J-474X MG RESISTOR 470k
R3206 NRSA63J-470X MG RESISTOR 47
R3207 NRSA63J-334X MG RESISTOR 330kΩ 1/16W J
R3208 NRSA63J-101X MG RESISTOR 100
R3209 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

Ω

Ω

Ω

Ω

Ω

Ω

1/4W J

Ω

1/4W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-20



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R3210 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R3211 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R3212 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3213 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3301 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R3302 NRSA63J-183X MG RESISTOR 18k
R3303 NRSA63J-472X MG RESISTOR 4.7k
R3304 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R3305 NRSA63J-474X MG RESISTOR 470kΩ 1/16W J
R3306 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R3307 NRSA63J-334X MG RESISTOR 330kΩ 1/16W J
R3308 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R3309 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3310 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R3311 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R3312 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3313 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3401 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R3402 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J
R3403 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R3404 NRSA63J-104X MG RESISTOR 100k
R3405 NRSA63J-474X MG RESISTOR 470k
R3406 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R3407 NRSA63J-334X MG RESISTOR 330kΩ 1/16W J
R3408 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R3409 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3410 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R3411 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R3412 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3413 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3501 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R3502 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J
R3503 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R3504 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R3505 NRSA63J-474X MG RESISTOR 470kΩ 1/16W J
R3506 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R3507 NRSA63J-334X MG RESISTOR 330kΩ 1/16W J
R3508 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R3509 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3510 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R3511 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R3512 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3513 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3601 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R3602 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J
R3603 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R3604 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R3605 NRSA63J-154X MG RESISTOR 150kΩ 1/16W J
R3607 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R3608 NRSA63J-101X MG RESISTOR 100
R3610 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R3611 NRSA63J-471X MG RESISTOR 470
R3717 NRSA63J-103X MG RESISTOR 10k
R3718 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R3719 QRE141J-102Y C RESISTOR 1k



R3720 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J
R3721 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R3725 NRSA63J-472X MG RESISTOR 4.7k
R3726 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J



R3727 QRL01DJ-180X OMF RESISTOR 18Ω 1W J
R3728 NRSA63J-101X MG RESISTOR 100
R3729 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R3730 NRSA63J-470X MG RESISTOR 47
R3732 NRSA63J-153X MG RESISTOR 15k
R3741 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R3742 NRSA63J-104X MG RESISTOR 100k

L2101 QQLZ038-R45 COIL 0.45uH
L2201 QQLZ038-R45 COIL 0.45uH
L2301 QQLZ038-R45 COIL 0.45uH
L2401 QQLZ038-R45 COIL 0.45uH
L2501 QQLZ038-R45 COIL 0.45uH
L2601 QQLZ038-R45 COIL 0.45uH



CN101 QGA7901C1-02 CONNECTOR W-B (1-2)



CN102 QGA7901C1-02 CONNECTOR W-B (1-2)



CN151 QGA3901C1-05 CONNECTOR W-B (1-5)
CN271 QGB2510J1-14 CONNECTOR B-B (1-14)

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

CN272 QGB2510J1-09 CONNECTOR B-B (1-9)
CN273 QGB2510J1-14 CONNECTOR B-B (1-14)
CN274 QGA3901C1-02 CONNECTOR W-B (1-2)
CN371 QGA2501C1-02 CONNECTOR W-B (1-2)
CN372 QGB2510K2-09 CONNECTOR B-B (1-9)
CN373 QGA2501C1-02 CONNECTOR
CN501 QGB2510K2-14 CONNECTOR B-B (1-14)
CN502 QGB2510K2-14 CONNECTOR B-B (1-14)
EP201 QNZ0136-001Z EARTH PLATE
EP501 QNZ0136-001Z EARTH PLATE
FC101 QNG0003-001Z FUSE CLIP
FC102 QNG0003-001Z FUSE CLIP
FC155 QNG0003-001Z FUSE CLIP
FC156 QNG0003-001Z FUSE CLIP
FC157 QNG0003-001Z FUSE CLIP
FC158 QNG0003-001Z FUSE CLIP
FW501 QUM213-28Z4Z4 RIBBON WIRE
HS151 QZW0138-001 HEAT SINK
J2701 QND0118-001 DIN CONNECTOR
J2702 QNB0195-001 SPEAKER TERMINA



RY101 QSK0142-001 RELAY
RY271 QSK0127-001 RELAY
RY272 QSK0127-001 RELAY
RY273 QSK0127-001 RELAY
TH271 QAD0146-103 N THERMISTOR 10k
WC201 QZW0112-001 WIRE CLAMP
X601 QAX0246-001Z C RESONATOR 8.00MHz

Ω

DVD servo board (FMU-SD9-1M)

Block No. [0][5][0][0]



Symbol No.

IC201 LA6502-X IC
IC301 MN2DS0004AA-H IC
IC302 BA00HC5WF-X IC
IC305 MM1563DF-X IC 3.3V Regulator
IC451 MN101C61GNE IC(MCU)
IC452 BR93L56RFV-W-X IC
IC453 S-80827CNNB-W IC
IC505 K4S643232F-TC60 IC
IC505 or K4S643232E-TC70 IC
IC505 or W986432DH-7 IC
IC509 AT49BV322AT70TI IC(FLASH)
IC512 SN74LVC373APW-X IC(DIGITAL)
IC513 SN74LVC373APW-X IC(DIGITAL)
IC701 AK4384VT-X IC
IC702 AK4384VT-X IC
IC703 AK4384VT-X IC
IC704 CS5342-CZZ-X IC(DIGITAL)
IC705 MM1615AN-X IC

Q101 KTA1001/Y/-X TRANSISTOR
Q101 or 2SB1424/R/-W TRANSISTOR
Q102 2SC4617/R/-X TRANSISTOR
Q103 KTA1001/Y/-X TRANSISTOR
Q103 or 2SB1424/R/-W TRANSISTOR
Q104 2SC4617/R/-X TRANSISTOR
Q105 UN2119-X TRANSISTOR

C101 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C102 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C103 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C104 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C105 NEA70JM-226X E CAPACITOR 22uF 6.3V M
C106 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C107 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C108 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C204 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C205 NCB31HK-271X C CAPACITOR 270pF 50V K
C206 NDC31HJ-151X C CAPACITOR 150pF 50V J
C211 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C217 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C251 NCB31AK-474X C CAPACITOR 0.47uF 10V K

Part No. Part Name Description Local

3-21



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C256 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C257 NCB31HK-822X C CAPACITOR 8200pF 50V K
C258 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C259 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C260 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C261 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C262 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C301 NEA70GM-227X E CAPACITOR 220uF 4V M
C302 NEA70GM-476X E CAPACITOR 47uF 4V M
C303 NBE20JM-476X TA E CAPACITOR 47uF 6.3V M
C304 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C305 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C306 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C307 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C308 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C309 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C310 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C311 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C312 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C313 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C314 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C315 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C316 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C317 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C318 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C319 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C320 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C324 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C325 NDC31HJ-180X C CAPACITOR 18pF 50V J
C326 NDC31HJ-150X C CAPACITOR 15pF 50V J
C328 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C330 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C331 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C332 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C333 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C334 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C335 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C336 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C337 NCB31CK-183X C CAPACITOR 0.018uF 16V K
C338 NCB31HK-562X C CAPACITOR 5600pF 50V K
C339 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C340 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C341 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C349 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C350 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C351 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C352 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C353 NCB31HK-561X C CAPACITOR 560pF 50V K
C354 NCB31HK-561X C CAPACITOR 560pF 50V K
C356 NCB21CK-105X C CAPACITOR 1uF 16V K
C359 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C371 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C380 NCB21CK-105X C CAPACITOR 1uF 16V K
C381 NCB21AK-225X C CAPACITOR 2.2uF 10V K
C382 NCB31HK-471X C CAPACITOR 470pF 50V K
C391 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C451 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C452 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C453 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C454 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C455 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C551 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C552 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C553 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C554 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C555 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C556 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C557 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C558 NEA70GM-476X E CAPACITOR 47uF 4V M
C701 NCB21CK-105X C CAPACITOR 1uF 16V K
C702 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C703 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C704 NCF21CZ-225X C CAPACITOR 2.2uF 16V Z

C705 NCF21CZ-225X C CAPACITOR 2.2uF 16V Z
C706 NCF21CZ-225X C CAPACITOR 2.2uF 16V Z
C707 NCF21CZ-225X C CAPACITOR 2.2uF 16V Z
C708 NCF21CZ-225X C CAPACITOR 2.2uF 16V Z
C709 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C712 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C713 NEA71CM-106X E CAPACITOR 10uF 16V M
C714 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C715 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C716 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C717 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C718 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C722 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C910 NCB31CK-103X C CAPACITOR 0.01uF 16V K

R101 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R102 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R103 NRSA63J-243X MG RESISTOR 24kΩ 1/16W J
R104 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
R105 NRS125J-270X MG RESISTOR 27Ω 1/2W J
R106 NRSA63J-2R2X MG RESISTOR 2.2
R107 NRSA63J-101X MG RESISTOR 100
R108 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R109 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R110 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R111 NRSA63J-243X MG RESISTOR 24kΩ 1/16W J
R112 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
R113 NRSA02J-270X MG RESISTOR 27Ω 1/10W J
R114 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J
R115 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R116 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R117 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R118 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R119 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R120 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R122 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R123 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R125 NRSA02J-1R0X MG RESISTOR 1Ω 1/10W J
R126 NRSA02J-181X MG RESISTOR 180Ω 1/10W J
R127 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R128 NRSA63J-163X MG RESISTOR 16kΩ 1/16W J
R204 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R205 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R206 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
R207 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R213 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R214 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R219 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J
R220 NRSA63J-243X MG RESISTOR 24kΩ 1/16W J
R221 NRSA63J-682X MG RESISTOR 6.8k
R251 NRS125J-R47X MG RESISTOR 0.47Ω 1/2W J
R252 NRSA63J-2R2X MG RESISTOR 2.2
R257 NRSA63J-0R0X MG RESISTOR 0
R259 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R301 NRSA63D-911X MG RESISTOR 910
R302 NRSA63D-202X MG RESISTOR 2k
R303 NRSA63J-270X MG RESISTOR 27Ω 1/16W J
R306 NRSA63J-102X MG RESISTOR 1k
R307 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R308 NRSA63J-223X MG RESISTOR 22k
R309 NRSA63J-104X MG RESISTOR 100k
R312 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R313 NRSA63J-0R0X MG RESISTOR 0
R314 NRSA63J-0R0X MG RESISTOR 0
R315 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R316 NRSA63J-0R0X MG RESISTOR 0
R317 NRSA63J-0R0X MG RESISTOR 0
R319 NRSA63J-0R0X MG RESISTOR 0
R320 NRSA63J-103X MG RESISTOR 10k
R334 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R335 NRSA63J-151X MG RESISTOR 150
R336 NRSA63J-151X MG RESISTOR 150
R337 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R338 NRSA63J-0R0X MG RESISTOR 0
R339 NRSA63J-0R0X MG RESISTOR 0
R340 NRSA63D-303X MG RESISTOR 30kΩ 1/16W D
R341 NRSA63D-362X MG RESISTOR 3.6k
R342 NRSA63D-222X MG RESISTOR 2.2k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W D

3-22



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R343 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R345 NRSA63J-100X MG RESISTOR 10Ω 1/16W J
R346 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R347 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J
R348 NRSA63J-6R8X MG RESISTOR 6.8Ω 1/16W J
R351 NRSA63J-681X MG RESISTOR 680
R352 NRSA63J-105X MG RESISTOR 1M
R353 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R354 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R355 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R356 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R357 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R358 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R359 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R360 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R362 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R363 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R367 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R372 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R373 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R380 NRSA63J-473X MG RESISTOR 47k
R384 NRSA63J-102X MG RESISTOR 1k
R385 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R392 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R393 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R394 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R395 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R452 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R453 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R454 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R455 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R456 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R457 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R458 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R535 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R561 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R562 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R701 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R702 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J
R703 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R704 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R705 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R706 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R707 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R708 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R710 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R714 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R715 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R716 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R717 NRSA63J-473X MG RESISTOR 47k
R718 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R719 NRSA63J-5R1X MG RESISTOR 5.1
R720 NRSA63J-473X MG RESISTOR 47k
R722 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R741 NRSA63J-0R0X MG RESISTOR 0
R742 NRSA63J-0R0X MG RESISTOR 0
R743 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R744 NRSA63J-0R0X MG RESISTOR 0

CN101 QGF0523F1-24W CONNECTOR FFC/FPC (1-24)
CN201 QGF1016F2-08W CONNECTOR FFC/FPC (1-8)
CN301 QGA1002C1-06X CONNECTOR W-B (1-6)
CN451 QGF1016F2-15W CONNECTOR FFC/FPC (1-15)
CN452 QGA2001F2-02X CONNECTOR W-B (1-2)
CN453 QGA2001F2-03X CONNECTOR W-B (1-3)
CN455 QGA1002C1-06X CONNECTOR W-B (1-6)
CN701 QGF1016F2-10W CONNECTOR FFC/FPC (1-10)
CN702 QGF1016F2-08W CONNECTOR FFC/FPC (1-8)
CN703 QGF1016F2-28W CONNECTOR FFC/FPC (1-28)
K101 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K102 NRSA02J-0R0X MG RESISTOR 0
K350 NQR0354-001X FERRITE BEADS
K352 NQR0354-001X FERRITE BEADS
K451 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
K551 NQR0129-002X FERRITE BEADS
K552 NQR0129-002X FERRITE BEADS
K553 NQR0129-002X FERRITE BEADS
K554 NQR0129-002X FERRITE BEADS

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/10W J

K555 NQR0022-005X FERRITE BEADS
K556 NQR0129-002X FERRITE BEADS
K562 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
K566 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
TH301 NAD0025-103X N THERMISTOR 10k
X351 NAX0550-001X CRYSTAL 27.000MHz
X451 NAX0248-001X C OSCILLATOR

Ω

DVD loading board (FMU-SD9-1M)

Block No. [0][6][0][0]



Symbol No.

IC1 LB1641 IC
IC2 LB1641 IC

D1 MTZJ6.2A-T2 Z DIODE

C1 QEKC1AM-107Z E CAPACITOR 100uF 10V M
C2 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z
C3 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C5 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C6 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z
C7 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z

CN1 QGF1036F1-15 CONNECTOR FFC/FPC (1-15)
CN2 QGB1214J1-08S CONNECTOR B-B (1-8)
CN3 QGB1214K1-08S CONNECTOR B-B (1-8)
SW1 QSW0844-001 PUSH SWITCH
SW2 QSW0844-001 PUSH SWITCH
SW3 QSW0844-001 PUSH SWITCH
SW4 QSW0844-001 PUSH SWITCH
SW5 QSW0844-001 PUSH SWITCH
SW6 QSW0854-002 PUSH SW
SW7 QSW0886-002 DETECT SWITCH
SW8 QSW0886-002 DETECT SWITCH

Part No. Part Name Description Local

DVD servo board (FMU-SD9-5M)

Block No. [0][7][0][0]



Symbol No.

IC201 LA6502-X IC
IC301 MN2DS0004AA-H IC
IC302 BA00HC5WF-X IC
IC305 MM1563DF-X IC 3.3V Regulator
IC451 MN101C61GNE1 IC(MCU)
IC452 BR93L56RFV-W-X IC
IC453 S-80827CNNB-W IC
IC505 K4S643232F-TC60 IC
IC509 AT49BV322AT70TI IC(FLASH)
IC512 SN74LVC373APW-X IC(DIGITAL)
IC513 SN74LVC373APW-X IC(DIGITAL)
IC701 AK4384VT-X IC
IC702 AK4384VT-X IC
IC703 AK4384VT-X IC
IC704 CS5342-CZZ-X IC(DIGITAL)
IC705 MM1615AN-X IC

Q101 KTA1001/Y/-X TRANSISTOR
Q102 2SC4617/R/-X TRANSISTOR
Q103 KTA1001/Y/-X TRANSISTOR
Q104 2SC4617/R/-X TRANSISTOR
Q105 UN2119-X TRANSISTOR

C101 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C102 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C103 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C104 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C105 NEA70JM-226X E CAPACITOR 22uF 6.3V M

Part No. Part Name Description Local

3-23



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C106 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C107 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C108 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C204 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C205 NCB31HK-271X C CAPACITOR 270pF 50V K
C206 NDC31HJ-151X C CAPACITOR 150pF 50V J
C211 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C217 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C251 NCB31AK-474X C CAPACITOR 0.47uF 10V K
C256 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C257 NCB31HK-822X C CAPACITOR 8200pF 50V K
C258 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C259 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C260 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C261 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C262 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C300 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C301 NEA70GM-227X E CAPACITOR 220uF 4V M
C302 NEA70GM-476X E CAPACITOR 47uF 4V M
C303 NBE20JM-476X TA E CAPACITOR 47uF 6.3V M
C304 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C305 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C306 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C307 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C308 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C309 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C310 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C311 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C312 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C313 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C314 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C315 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C316 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C317 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C318 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C319 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C320 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C324 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C325 NDC31HJ-180X C CAPACITOR 18pF 50V J
C326 NDC31HJ-150X C CAPACITOR 15pF 50V J
C328 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C329 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C330 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C331 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C332 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C333 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C334 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C335 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C336 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C337 NCB31CK-183X C CAPACITOR 0.018uF 16V K
C338 NCB31HK-562X C CAPACITOR 5600pF 50V K
C339 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C340 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C341 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C349 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C350 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C351 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C352 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C353 NCB31HK-561X C CAPACITOR 560pF 50V K
C354 NCB31HK-561X C CAPACITOR 560pF 50V K
C356 NCB21CK-105X C CAPACITOR 1uF 16V K
C359 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C371 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C380 NCB21CK-105X C CAPACITOR 1uF 16V K
C381 NCB21AK-225X C CAPACITOR 2.2uF 10V K
C382 NCB31HK-471X C CAPACITOR 470pF 50V K
C391 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C451 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C452 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C453 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C454 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C455 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C551 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C552 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C553 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C554 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C555 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C556 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C557 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C558 NEA70GM-476X E CAPACITOR 47uF 4V M
C701 NCB21CK-105X C CAPACITOR 1uF 16V K
C702 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C703 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C704 NCF21CZ-225X C CAPACITOR 2.2uF 16V Z
C705 NCF21CZ-225X C CAPACITOR 2.2uF 16V Z
C706 NCF21CZ-225X C CAPACITOR 2.2uF 16V Z
C707 NCF21CZ-225X C CAPACITOR 2.2uF 16V Z
C708 NCF21CZ-225X C CAPACITOR 2.2uF 16V Z
C709 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C712 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C713 NEA71CM-106X E CAPACITOR 10uF 16V M
C714 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C715 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C716 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C717 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C718 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C722 NCB31CK-104X C CAPACITOR 0.1uF 16V K

R101 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R102 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R103 NRSA63J-243X MG RESISTOR 24kΩ 1/16W J
R104 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
R105 NRS125J-270X MG RESISTOR 27Ω 1/2W J
R106 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J
R107 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R108 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R109 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R110 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R111 NRSA63J-243X MG RESISTOR 24kΩ 1/16W J
R112 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
R113 NRSA02J-270X MG RESISTOR 27Ω 1/10W J
R114 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J
R115 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R116 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R117 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R118 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R119 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R120 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R122 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R123 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R125 NRSA02J-1R0X MG RESISTOR 1Ω 1/10W J
R126 NRSA02J-181X MG RESISTOR 180Ω 1/10W J
R127 NRSA63J-333X MG RESISTOR 33k
R128 NRSA63J-163X MG RESISTOR 16kΩ 1/16W J
R204 NRSA63J-273X MG RESISTOR 27k
R205 NRSA63J-273X MG RESISTOR 27k
R206 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
R207 NRSA63J-473X MG RESISTOR 47k
R213 NRSA63J-103X MG RESISTOR 10k
R214 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R219 NRSA63J-183X MG RESISTOR 18k
R220 NRSA63J-243X MG RESISTOR 24kΩ 1/16W J
R221 NRSA63J-682X MG RESISTOR 6.8k
R251 NRS125J-R47X MG RESISTOR 0.47
R252 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J
R257 NRSA63J-0R0X MG RESISTOR 0
R259 NRSA63J-103X MG RESISTOR 10k
R301 NRSA63J-911X MG RESISTOR 910Ω 1/16W J
R302 NRSA63J-202X MG RESISTOR 2k
R303 NRSA63J-101X MG RESISTOR 100
R306 NRSA63J-102X MG RESISTOR 1k
R307 NRSA63J-102X MG RESISTOR 1k
R308 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R309 NRSA63J-104X MG RESISTOR 100k
R312 NRSA63J-0R0X MG RESISTOR 0
R313 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R314 NRSA63J-0R0X MG RESISTOR 0
R315 NRSA63J-0R0X MG RESISTOR 0
R316 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R317 NRSA63J-0R0X MG RESISTOR 0
R319 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-24



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R320 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R334 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R335 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R336 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R337 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R338 NRSA63J-0R0X MG RESISTOR 0
R339 NRSA63J-0R0X MG RESISTOR 0
R340 NRSA63D-303X MG RESISTOR 30kΩ 1/16W D
R341 NRSA63D-362X MG RESISTOR 3.6kΩ 1/16W D
R342 NRSA63D-222X MG RESISTOR 2.2kΩ 1/16W D
R345 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R346 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R347 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J
R348 NRSA63J-6R8X MG RESISTOR 6.8Ω 1/16W J
R351 NRSA63J-681X MG RESISTOR 680Ω 1/16W J
R352 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R353 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R354 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R355 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R356 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R357 NRSA63J-221X MG RESISTOR 220
R358 NRSA63J-221X MG RESISTOR 220
R359 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R360 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R362 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R363 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R367 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R372 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R373 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R380 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R384 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R385 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R392 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R393 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R394 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R395 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R452 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R453 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R454 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R455 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R456 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R457 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R458 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R530 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R535 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R561 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R562 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R701 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R702 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J
R703 NRSA63J-471X MG RESISTOR 470
R704 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R705 NRSA63J-471X MG RESISTOR 470
R706 NRSA63J-471X MG RESISTOR 470
R707 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R708 NRSA63J-471X MG RESISTOR 470
R710 NQR0129-002X FERRITE BEADS
R714 NRSA63J-221X MG RESISTOR 220
R715 NRSA63J-221X MG RESISTOR 220
R716 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R717 NRSA63J-473X MG RESISTOR 47k
R718 NRSA63J-103X MG RESISTOR 10k
R719 NRSA63J-5R1X MG RESISTOR 5.1Ω 1/16W J
R720 NRSA63J-473X MG RESISTOR 47k
R722 NRSA63J-0R0X MG RESISTOR 0
R741 NQR0129-002X FERRITE BEADS
R742 NQR0129-002X FERRITE BEADS
R743 NQR0129-002X FERRITE BEADS
R744 NQR0129-002X FERRITE BEADS

CN101 QGF0523F1-24W CONNECTOR FFC/FPC (1-24)
CN201 QGF1016F2-08W CONNECTOR FFC/FPC (1-8)
CN451 QGF1016F2-15W CONNECTOR FFC/FPC (1-15)
CN452 QGA2001F2-02X CONNECTOR W-B (1-2)
CN453 QGA2001F2-03X CONNECTOR W-B (1-3)
CN701 QGF1016F2-10W CONNECTOR FFC/FPC (1-10)
CN702 QGF1016F2-08W CONNECTOR FFC/FPC (1-8)
CN703 QGF1016F2-28W CONNECTOR FFC/FPC (1-28)
K101 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

K102 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K350 NQR0354-001X FERRITE BEADS
K352 NQR0354-001X FERRITE BEADS
K451 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
K551 NQR0129-002X FERRITE BEADS
K552 NQR0129-002X FERRITE BEADS
K553 NQR0129-002X FERRITE BEADS
K554 NQR0129-002X FERRITE BEADS
K555 NQR0022-005X FERRITE BEADS
K556 NQR0129-002X FERRITE BEADS
K562 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
K566 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
TH301 NAD0025-103X N THERMISTOR 10k
X351 NAX0550-001X CRYSTAL 27.000MHz
X451 NAX0248-001X C OSCILLATOR

Ω

DVD loading board (FMU-SD9-5M)

Block No. [0][8][0][0]



Symbol No.

IC1 LB1641 IC
IC2 LB1641 IC

D1 MTZJ6.2A-T2 Z DIODE

C1 QEKC1AM-107Z E CAPACITOR 100uF 10V M
C2 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z
C3 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C5 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C6 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z
C7 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z

CN1 QGF1036F1-15 CONNECTOR FFC/FPC (1-15)
CN2 QGB2024K1-07S CONNECTOR B-B (1-7)
CN3 QGB2024J1-07S CONNECTOR B-B (1-7)
SW1 QSW0844-001 PUSH SWITCH
SW2 QSW0844-001 PUSH SWITCH
SW3 QSW0844-001 PUSH SWITCH
SW4 QSW0844-001 PUSH SWITCH
SW5 QSW0844-001 PUSH SWITCH
SW6 QSW0854-002 PUSH SW
SW8 QSW0923-001 DETECT SWITCH

Part No. Part Name Description Local

3-25

Packing materials and accessories parts list

A11

A23,A24

A18

P8

P3

1/2

Block No.

A1, A4, A5,

A14,A15

MMM3

A21,A22A20,

A16, A17

P18

P15

A20

P19

A23

P16

P17

A22

P19

P15

A21

P19

A24

P2

P16

1/2

P20

P2

2/2

P3

2/2

P9

P4

P11

A19

P12

P10

P13

3-26

P5

P1

P7

A9

A7

A8

A12

A10

A6

P6

Packing and accessories

Block No. [M][3][M][M]



Symbol No.

Part No. Part Name Description Local

A 1 LVT1147-001B INST BOOK ENG

A 1 LVT1147-001A INST BOOK ENG

A 4 YU20333 SAFETY INST.

A 5 BT-51034-1 J=REGIST CARD

A 6 QAM0588-001 DIN CABLE
A 7 QAM0236-001 VIDEO CABLE



A 8 QMPE090-183-JD
A 9 QAL0457-001 ANT.WIRE
A 10 QAL0014-001 AM LOOP ANT
A 11 RM-STHM303J REMOCON UNIT
A 12 ------------------- BATTERY (x2)
A 14 LVT1147-002A INST BOOK
A 15 BT-52006-2 WARRANTY CARD
A 16 6000206771 RATING LABEL
A 17 6000206781 RATING LABEL
A 18 6000206791 RATING LABEL
A 19 SPPWM303E-SPBOX SPEAKER BOX
A 20 AB080050-01 SPEAKER BOX
A 21 AB080050-02 SPEAKER BOX
A 22 AB080051-01 SPEAKER BOX
A 23 AB080052-01 SPEAKER BOX
A 24 AB080052-02 SPEAKER BOX
P 1 LV34821-002A CARTON BOX

P 1 LV34822-004A CARTON BOX

P 2 LV21730-001A CUSHION FRONT
P 3 LV21731-001A CUSHION REAR
P 4 LV35024-001A CARTON SHEET
P 5 LV35025-001A CARTON SPACER (x2)
P 6 LV34595-001A ACCESSORY BOX
P 7 QPA02503503P POLY BAG 25cm x 35cm
P 8 QPA02503505P POLY BAG 25cm x 35cm
P 9 QPC05006515P POLY BAG 50cm x 65cm
P 10 8500051881 MIRROR MAT LV34908-001A
P 11 8500051901 POLY BAG LV34907-001A
P 12 8000055201 TOP CUSHION
P 13 8000055211 BOTTOM CUSHION
P 15 8500051971 POLY BAG (x3)
P 16 8500051981 POLY BAG (x2)
P 17 8000054411 BOTTOM CUSHION
P 18 8000054401 TOP CUSHION
P 19 8500052241 POLY BAG (x5)
P 20 LV43936-001A PAPER SHEET

POWER CORD(US/CA)

1.83m BLACK

M303C
M301J,

M303J

M301J,
M303J

M303C
M303C

M301J
M303C,

M303J

3-27
