Consists of XV-THD7, SP-THD7W,
SP-THD7F, SP-THD7C and SP-THD7S
TH-D5
Consists of XV-THD5, SP-THD5W,
SP-THD5F, SP-THD5C and SP-THD5S
INSTRUCTIONS
LVT1704-011B
[US,UW,UG,UX,UA]
Warnings, Cautions and Others
CAUTION — button!
Disconnect the mains plug to shut the power off
completely (the STANDBY lamp goes off). When
installing the apparatus, ensure that the plug is easily
accessible.
The button in any position does not disconnect the
mains line.
• When the system is on standby, the STANDBY lamp
lights red.
• When the system is turned on, the STANDBY lamp
goes off.
The power can be remote controlled.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
CAUTION
• Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able to
get out.)
• Do not place any naked flame sources, such as lighted
candles, on the apparatus.
• When discarding batteries, environmental problems
must be considered and local rules or laws governing
the disposal of these batteries must be followed
strictly.
• Do not expose this apparatus to rain, moisture,
dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover or cabinet. There
are no user serviceable parts inside the unit; leave all
servicing to qualified service personnel.
3. CAUTION:
Visible and/or invisible class 1M laser radiation when
open. Do not view directly with optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL,
PLACED INSIDE THE UNIT.
CAUTION! — TH-D7 only
To avoid personal injury or accidentally dropping the
unit, have two persons unpack, carry, and install the unit.
SP-THD7: 36 kg
CAUTION:
Excessive sound pressure from earphones or headphones
can cause hearing loss.
G-1
Caution: Proper Ventilation
To avoid risk of electric shock and fire and to protect from damage, place the apparatus on a level surface. The minimal
clearances are shown below:
Wall or
obstructions
15 cm
Front view
XV-THD7/
XV-THD5
15 cm
15 cm
Front
No obstructions
15 cm
[European Union only]
Side view
XV-THD7/
XV-THD5
Wall or
obstructions
15 cm
G-2
How to read this manual
«
• Illustrations and button names of the TH-D7 are mainly
used for explanation.
• The following icons and illustrations are used to make the
explanations simple and easy-to-understand.
Icons for System operations
Operations from the center unit
Operations from the remote control
The function can be operated from the
on-screen bar (23).
Icons for the references and notes
Reference page for the function/
operation
Caution for the function/operation
Note for the function/operation
Tip for the function/operation
Icons for operating information
The function is available while playing.
The function is available while paused.
The function is available while
stopped.
There is a time limit on performing the
target operation.
Illustrations for button operations
Press the button briefly.
Press the button repeatedly.
«Hold
Press and hold the button.
Press button A, then press button B.
Hold
Press button B while holding
button A.
Table of contents
Before using this System ............................................... 2
There are no user-serviceable parts inside. If anything
goes wrong, unplug the power cord and consult your
dealer.
Notes on installing the System
• Select a location which is level, dry and neither too hot nor
too cold between 5°C and 35°C.
• Do not install the System in a location subject to
vibrations.
• Do not put heavy objects on the System.
Avoid moisture, water, dust, and high
temperatures
• Do not install the System in moist or dusty locations.
• If water gets inside the System, turn off the power and
remove the plug from the wall outlet, then consult your
dealer. Using the System in this state may cause a fire or
electrical shock.
• Do not expose the System to direct sunlight or place it near
a heating device.
To prevent malfunctions or damage to the System
• Do not insert any metallic objects, such as wires, hairpins,
coins, etc. into the System.
• Do not block the vents.
Notes on the power cord
• When you are away on travel or otherwise for an extended
period of time, remove the plug from the wall outlet. A
small amount of power is always consumed while the
power cord is connected to the wall outlet.
• When unplugging the System from the wall outlet, always
pull the plug, not the power cord.
• Disconnect the power cord before cleaning or moving the
System.
• Do not modify, twist or pull the power cord, or put
anything heavy on it. Doing so may cause fire, electric
shock, or other accidents.
About copyright laws
Observe the copyright laws in your country before recording
from original sources. Recording of copyrighted material
may infringe copyright laws.
About the copyguard system
The discs are protected by the copyguard system. When
connecting the System to a TV via a VCR, or to a TV with a
built-in VCR, the copyguard system activates and distortion
of the picture may occur.
Notes on installing and using the speakers
• Place the speakers and subwoofer on a flat and level
surface.
• The speakers are magnetically shielded to avoid color
distortions on TVs. If the color on a TV is distorted,
perform the following procedure:
– Turn off the TV’s main power switch or unplug it
before installing the speakers. Then wait at least
30 minutes before turning on the TV’s main power
switch again.
Some TVs may still be affected even though you have
followed the above procedure. If this happens, move the
speakers away from the TV.
• The subwoofer is not magnetically shielded. To avoid
color distortion, do not place it near the TV or monitor.
• When moving the speakers and subwoofer, do not pull the
speaker cords. Doing so may cause the speakers and/or
subwoofer to fall over, causing damage or injury.
• When installing the speakers on a wall, be sure to have
them installed by qualified personnel. DO NOT install the
speakers on a wall by yourself.
• Do not lean against the speakers, as they could fall down
or break, possibly causing an injury. Be especially careful
that children do not lean against them.
About the adjustment of volume
Always set the volume to the minimum level before starting
any source. If the volume is set at a high level, the sudden
blast of sound could permanently damage your hearing and/
or blow out the speakers.
To clean the System
• Use a soft cloth. Follow the relevant instructions on the
use of chemically-coated cloths.
• If the System is heavily stained, apply a small amount of
water or neutral detergent to the cloth and wipe clean, then
wipe with a dry cloth.
• Do not use benzene, thinner or other organic solvents and
disinfectants. These may cause deformation or
discoloring.
2
Playable discs/devices/files
Some discs/files may require operations that differ
from those explained in this manual.
Some discs/devices/files may not be recognized or
played back correctly due to their characteristics.
Playable disc types
Type of discTypes of media
• Discs on the market
DVD Video
DVD Audio
Super Video CD
(SVCD)/Video CD
(VCD)
Audio CD
A disc recorded in
the DVD VR format
Audio/video files on
a disc (4)
This System accommodates the PAL and NTSC
system.
It is possible to play back finalized +R/+RW (DVD
Video format only) discs. “DVD” lights on the display
when a +R/+RW disc is loaded.
DVD-R/-RW: This System does not support “multiborder” discs.
CD-R/-RW:
– This System supports “multi-session” discs (up to
20 sessions).
– This System cannot play “packet write” discs.
• DVD-R/-R DL/-RW
•+R/+RW
• DualDisc* (DVD side only)
• Discs on the market
• DVD-R/-R DL/-RW
•+R/+RW
• Discs on the market
• CD-R/-RW
• Discs on the market
• CD Text (Audio part only)
• CD-R/-RW
•DVD-R/-RW
• DVD-R/-R DL/-RW in UDF
Bridge format
• CD-R/-RW in ISO 9660
format
Region code of DVD Video
DVD Video players and DVD Video discs have their own
Region Code numbers. This System can play back DVD
Video discs whose Region Code numbers include the
System’s Region Code, which is indicated on the rear
panel.
Ex.:
For the countries of the Middle East
For the countries of Southeast Asia
For the countries of Central and South America
Playable digital devices
JVC bears no responsibility for any loss of data in an
iPod and/or USB mass storage class device while using
this System.
iPod
iPod modelAUDIO VIDEO
iPod nano 1GB/2GB/4GB√
iPod nano (2nd Generation)
2GB/4GB/8GB
iPod mini 4GB/6GB√
iPod (4th Generation)
20GB/40GB
iPod photo (4th Generation)
20GB/30GB/40GB/60GB
iPod video (5th Generation)
30GB/60GB/80GB
√
√
√√ *
√√
Unplayable discs—unwarranted
Playing back the following discs generates noise and
damages the speakers.
• DVD-ROM, DVD-RAM, DualDisc* (non-DVD side)
• CD-ROM, CD-I (CD-I Ready), Photo CD, SACD
• Unfinalized discs (except DVD VR)
• Discs with an irregular shape or discs with tape, stickers
or paste on either the label side or playback side
• Warped, dirty, or scratched discs
*
The Non-DVD side of a “DualDisc” does not comply with
the “Compact Disc Digital Audio” standard. Therefore, the
use of Non-DVD side of a DualDisc on this product may
not be recommended.
3
* Only still pictures are available.
If the iPod does not play correctly, update your iPod
software to the latest version. For details about
updating your iPod, check on the Apple web site
<http://www.apple.com>.
• iPod is a trademark of Apple Inc., registered in the U.S.
and other countries.
USB mass storage class device
A USB flash memory device, hard disk drive, multimedia
card reader, digital camera, etc. can be used with this System
through a USB connection.
This System is compatible with USB 2.0 Full Speed.
This System cannot recognize a USB mass storage
class device whose rating exceeds 5 V/500 mA.
Playable file types
The following files in a disc or a USB mass storage class
device can be played back.
Type of filePlayable filesExtensions
MP3<.mp3>
Audio
PictureJPEG<.jpg>, <.jpeg>
Movie
If a file on a USB mass storage class device exceeds
the following conditions, it may not be played back
correctly:
– Maximum data transfer rate: 2 Mbps
– Maximum frame rate: 30 fps for progressive
– Maximum file size: 2 GB
The System recognizes up to 150 tracks (files) per
group, and 99 groups per disc/device. The total
number of tracks (files) that the System can detect is
4000.
Information about the recording
conditions for the files on a disc/
device
MP3/WMA files
• The System supports MP3/WMA files recorded at a bit
rate of 32 – 320 kbps and a sampling frequency of 16 kHz,
22.05 kHz, 24 kHz*, 32 kHz, 44.1 kHz or 48 kHz.
• It is recommended to record each file at a sample rate of
44.1 kHz and at a data transfer rate of 128 (96*) kbps.
For WMA only
*
WMA<.wma>
WAV<.wav>
ASF<.asf>
MPEG-1<.mpg>, <.mpeg>
MPEG-2
DivX (6.x, 5.x,
4.x and 3.11)
<.mpg>, <.mpeg>,
<.mod>
<.divx>, <.div>,
<.avi>
WAV files
• The System supports WAV files recorded at a
quantization rate of 8 bit or 16 bit and a sampling
frequency of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,
22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz or 48 kHz.
• It is recommended to record each file at a sample rate of
44.1 kHz and at a quantization rate of 16 bit Linear PCM.
JPEG files
• It is recommended to record a file at 640 x 480 resolution.
(If a file has been recorded at a resolution of more than
640 x 480, it will take a longer time to be displayed.)
• This System can only play baseline JPEG files.
ASF files
• The System supports MPEG-4 files with the following
conditions:
File format: ASF
Visual profile: MPEG-4 SP (Simple Profile)
Audio CODEC: G.726
Max. picture size: 352 x 288 (CIF)
Max. bit rate: 384 kbps
MPEG1/MPEG2 files
• The stream format should conform to the MPEG system/
program stream.
• 720 x 576 pixels (25 fps)/720 x 480 pixels (30 fps) is
recommended for the highest resolution.
• This System also supports resolutions of 352 x 576/
480 x 576/352 x 288 pixels (25 fps) and 352 x 480/
480 x 480/352 x 240 pixels (30 fps).
• The file format should be MP@ML (Main Profile at Main
Level)/SP@ML (Simple Profile at Main Level)/MP@LL
(Main Profile at Low Level).
• Audio streams should conform to MPEG1 Audio Layer-2
or MPEG2 Audio Layer-2.
DivX files
• The System supports DivX files whose resolution is
720 x 480 pixels or less (30 fps), and 720 x 576 pixels or
less (25 fps).
• Audio stream should conform to Dolby Digital (including
multi-channel) or MPEG1 Audio Layer-3 (MP3).
• The System does not support GMC (Global Motion
Compression).
• Files encoded in the interlaced scanning mode may not be
played back correctly.
4
r
r
r
r
Getting started
Checking the supplied
accessories
If anything is missing, contact your dealer immediately.
• Remote control (x 1)
• Batteries (x 2)
• FM antenna (x 1)
• AM loop antenna (x 1)
• Composite video cord (x 1)
• AC plug adapter (x 1) (not supplied for the countries of the
Middle East and Thailand)
• Connection cable for iPod (x 1)
• Stand for iPod (x 1)
• Speaker cords
– TH-D7: 4 m (x 4), 10 m (x 2)
– TH-D5: 3 m (x 4), 8 m (x 2)
•Feet
– TH-D7: For surround speakers (x 8)
– TH-D5: For front and surround speakers (x 16)
• Screws (TH-D7 only): M5 x 115 mm (x 6), M4 x 25 mm
(x 4)
Putting batteries into the remote
control
R03 (UM-4)/AAA (24F) type
dry-cell batteries (supplied)
Connecting the speakers and
subwoofer
Center unit
Connecting the speakers and the
subwoofer to the System
To center speake
(SP-THD7C/SP-THD5C)
To front right speaker
(SP-THD7F/SP-THD5F)
To surround right speaker
(SP-THD7S/SP-THD5S)
Connecting the speaker cords
Connect the speaker cords both to the center unit and to
each speaker.
On the center unit:
To front left speake
(SP-THD7F/SP-THD5F)
To subwoofe
(SP-THD7W/
SP-THD5W)
To surround left speake
(SP-THD7S/SP-THD5S)
Do not expose batteries to heat or flame.
If the range or effectiveness of the remote control
decreases, replace both batteries.

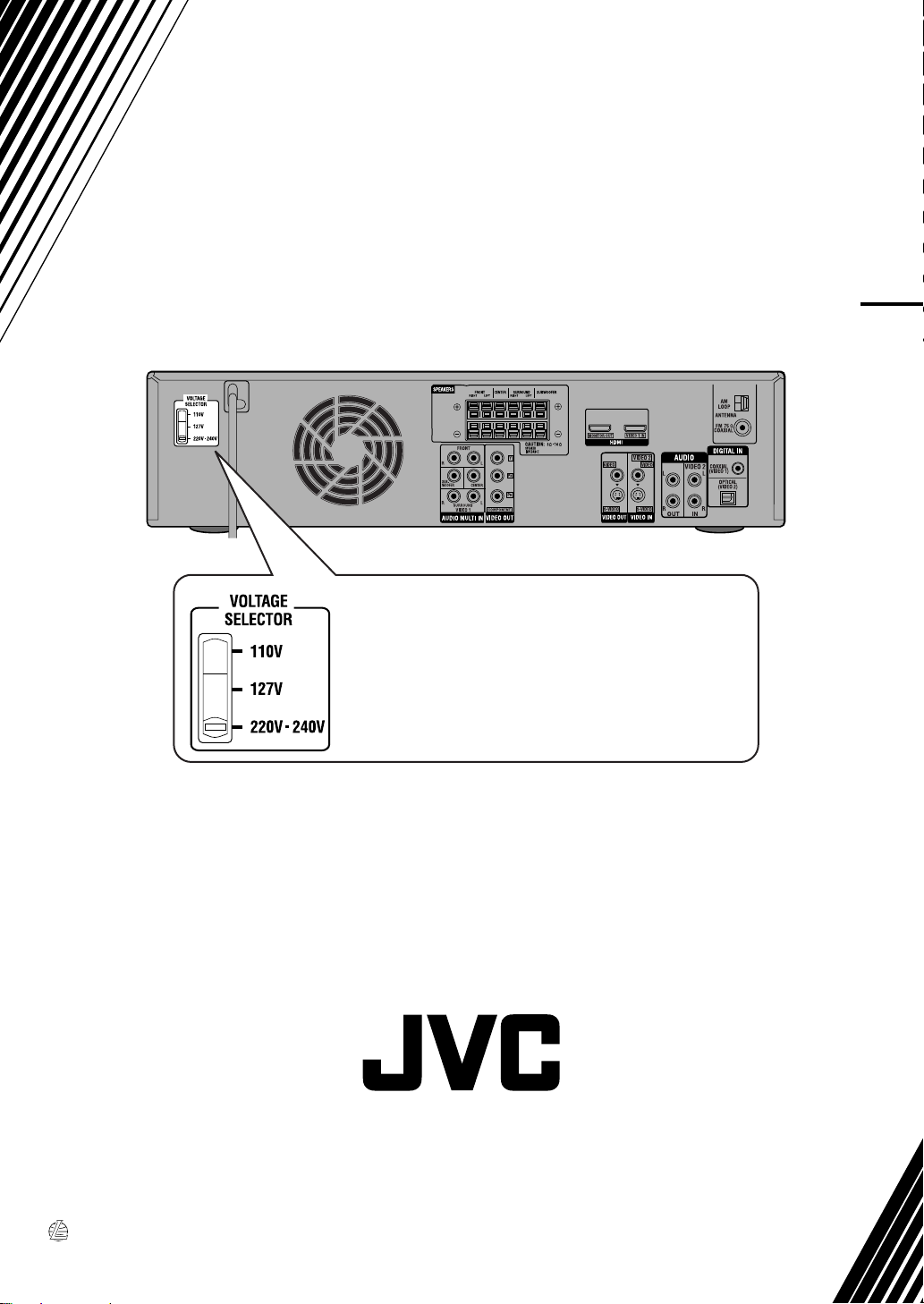

Setting the voltage selector
Before plugging in, set the correct voltage for your area with
the voltage selector switch on the rear of the center unit.
Ex.: When setting to “220V-240V”
5
Speaker cord
On the speaker:
Speaker cord
• Connect the black cords to the r terminals.
• Connect the white cords to the q terminals.
Do not connect the power cord
until all other connections have
been made.
If you connect speakers other than those supplied for
the System, use speakers of the same speaker
impedance (SPEAKER IMPEDANCE) indicated on
the rear of the center unit.
DO NOT connect more than one speaker to one
speaker terminal.
TH-D7 only:
– You can install the front speakers on the wall.
When installing them on the wall, do not attach the
stands and base plates.
– When installing the front speakers on the floor,
they are to be assembled before use (see below).
Assembling the front speakers
—TH-D7 only
Front speaker
(SP-THD7F) (2)
Stand (2)
Assembled speakers:
You can assemble the front speakers either with or without
stands.
Base plate (2)
1 When assembling a speaker with stand:
Speaker
Screws M4 x 25 mm
(supplied)
Stand
When assembling a speaker without stand:
Stand
Bottom
cover
Detach the bottom cover and the screws (M4 x 30 mm)
from the stand, then attach them to the bottom of the
speaker.
2
Connect the speaker cord.
(5)
Speaker
or
Before assembling:
Take care not to drop any component part while
assembling; otherwise, it may cause an injury or
damage to the floor.
Prepare a Phillips screwdriver (not supplied).
Base plate
Stand or speaker
directly
Screws M5 x 115 mm
(supplied)
When holding a speaker, always grasp the lower
portion.
6
Getting started
Speaker layout
You can enjoy surround sound by placing the speakers as
illustrated (Speaker layout A or B).

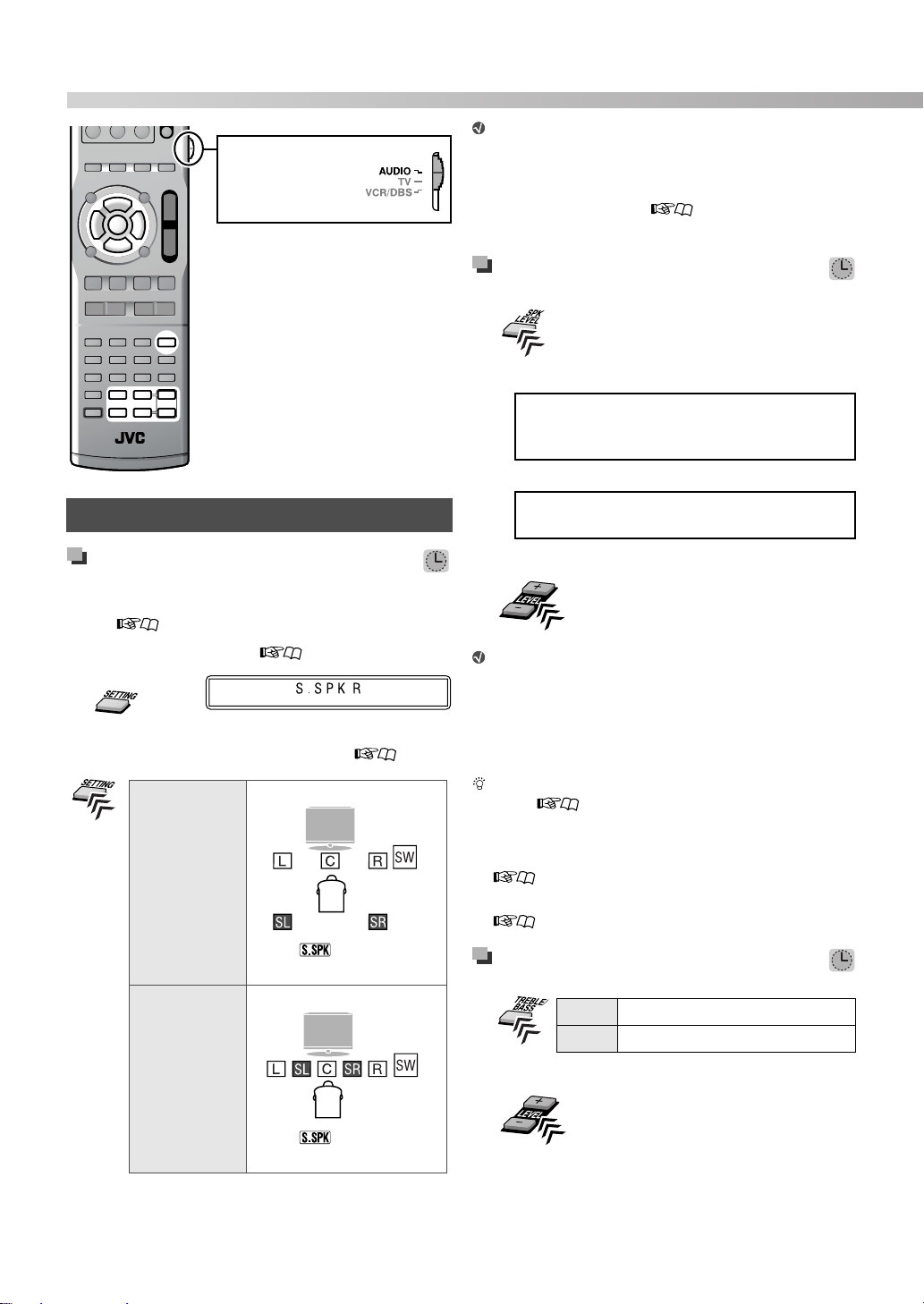

Speaker layout A
Select “S.SPK R” as the speaker position mode for
this layout. (13)
Center (C)
Front left (L)
Surround left
(SL)
To obtain the best possible surround sound from this
System, place all the speakers except the subwoofer
at the same distance from the listening position. If it
is impossible, adjust the delay time from DELAY
menu. (27)
Speaker layout B
Select “S.SPK F” as the speaker position mode for
this layout. (13)
Surround left (SL)
Surround right (SR)
Front right (R)
Subwoofer
(SW)
Surround right
(SR)
Subwoofer (SW)
When placing the speakers horizontally
Lay the speakers horizontally so that the JVC logos are
positioned as illustrated below.
Ex.:
TV
L
SLSR
R
TH-D5 only: you can also lay the front speakers as
illustrated below.
TV
LSLSRR
TH-D7: Do not lay down the front speakers
horizontally.
You can turn the JVC logos to make them
legible.
Attaching the feet
When placing the speakers horizontally, attach the feet to
the bottom of the speakers as illustrated.
Peel off
Front left (L)
Center (C)
Front right (R)
Place the surround speakers close to the center
speaker.
It is recommended to place the surround speakers
horizontally (see the right column).
7
Do not connect the power cord
until all other connections have
been made.
Connecting the AM and FM
antennas
Make sure the antenna conductors do not touch any
other terminals, connecting cords or power cords.
AM loop antenna
(supplied)
FM antenna
(supplied)
Extend it horizontally.
For better FM reception
Standard type (75 Ω
coaxial) connector
Turn it until the best
reception is obtained.
FM outdoor antenna
(not supplied)
FM outdoor antenna cord
(not supplied)
Connecting a TV
Connect the TV to the appropriate video out jacks to view
the playback picture.
The picture quality order is as follows:
HDMI > Component video > S-video > Composite
video
Make the following settings after connecting the TV:
– Color system and scanning mode (15)
– MONITOR TYPE (26)
Connection using the HDMI terminal
From HDMI input
TV
You can make the following settings for the TV when
the HDMI connection is used:
– HDMI DVI COLOR (26)
– HDMI OUT (26)
– HDMI AUDIO OUT (26)
–DOWN MIX (26)*
Use a certified HDMI cable, which has the HDMI
logo.
You can use a monitor with a DVI terminal by
connecting with a DVI-HDMI conversion cable.
When you play HDCP (High-Bandwidth Digital
Content Protection) source, it takes a few seconds
for the sound and picture to be transmitted to the
speakers and TV while the confirmation process is
completed.
On some TVs, no sound may come out during
playback of sources such as DVD Audio even when
the HDMI AUDIO OUT setting is “ON” (26).
This setting is available only when the speaker position
*
mode is set to “S.SPK F” (13).
terminal
HDMI cable (not supplied)
Continued on the next page
8
Getting started
Connection using the component
video jacks
From component
TV
video input
Component video
cord (not supplied)
Do not connect the TVs via both the COMPONENT
jacks and HDMI MONITOR OUT terminal at the
same time.
For the BNC connection, use a plug adapter (not
supplied).
Green
Blue
Red
Connection using the S-video or
composite video jack
Composite video cord
(supplied)
TV
S-video cord (not supplied)
A From Composite video input
B From S-video input
or
Align the
5 marks.
Connecting external components
,
Connection for “VIDEO1”—TH-D7
Select “VIDEO1” as the source (12) for
playing a component connected as follows.
Video connection
HDMI cable
DVD player,
etc.
To view a video from the external component
connected as above, connect a TV via the HDMI
MONITOR OUT terminal. (8)
No sound signal comes into HDMI VIDEO 1 IN
terminal. Make audio connection to listen to the
sound (see the right column).
(not supplied)
From HDMI video output
Audio connection
Connecting a digital component
DBS (Direct
Broadcast
Satellite)
tuner, etc.
A From digital coaxial output
B From digital optical output
Digital coaxial cable
(not supplied)
Digital optical cable
(not supplied)
The initial setting for the audio input setting is
“COAX.” When using OPTICAL terminal, change the
setting to “OPT” before playing back. (14)
Connecting an analog component
RCA pin plug cord (not supplied)
DVD player,
etc.
A From center channel audio output
B From front left/right channel audio outputs
C From subwoofer output
D From surround left/right channel audio outputs
To listen to the sound from AUDIO MULTI IN jacks,
perform the following procedure:
– Place the speakers by following “Speaker layout
A” (7).
– Select “S.SPK R” as the speaker position mode.
(13)
Select “5.1CH” as the audio input setting before
playing back. (14)
Connection for “VIDEO2”—TH-D7
Select “VIDEO2” as the source (12) for
playing a component connected as follows.
Video connection
Composite video cord*
(supplied)
VCR, etc.
A From composite video output
B From S-video output
Connect an external component with the same kind of cable
*
as the one used to connect the TV. (see the left column)
or
S-video cord
(not supplied)
*
Align the
5 marks.
9
Loading...
+ 28 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
