JVC now offers the latest-generation of AV control receivers -- RX-D702, RX-D402, and RX-D401 --

Power 7.1--

Power 7.1

A Host of Digital Technologies Applied for

Superior Sound, Pictures, and Style.

which feature a sleek profile to complement today’s and future home cinema systems.

But what gears the units for the future home cinema is not only the stylish design.

Despite the slim dimensions, the units are ready to deliver powerful, high-quality sound from

various sources -- including PC music files -- and provide superior picture quality, too.

What’s more, their expanded connectivity lets you easily connect the units with your PC, and

even permits HDMI connections -- the latest interface for transmitting audio/video signals.

Enabling these and many other feats are a host of advanced

digital technologies newly incorporated into the units.

In this technical guide, you will see the details of those technologies and find

how the advanced A/V receivers will upgrade your digital home theater systems.

Channel A/V Control Receivers----

Channel A/V Control Receivers

< 2 >

Design Concepts

High-Quality Pictures -- Advanced Technologies that Even Permit HDMI

1

2

3

4

Compatibility

PC Link -- USB Connection for Receiving Uncompressed PCM Data from PC

CC Converter -- A JVC-Original Technology for Superior Sound

Aureus™ -- High-Performance DSP for Superior Sound Quality

5

Hybrid Feedback Digital Amplifier Ver.III -- An Upgraded Version of JVC-Trademark Digital Amp for Unmatched Sound Quality

< 3 >

1

High-Quality Pictures

The JVC A/V receivers deliver not only superior sound, but also superb pictures with a host of advanced technologies. The units feature HDMI terminals and use of DCDi by FAROUDJA.

HDMI

HDMI -- The Next-Generation Digital Interface

HDMI -- Easy Connections for All-Digital Transmission

DCDi

Connection Example -- RX-D702

Connection Example -- RX-D402/RX-D401

by FAROUDJA

Connection Example -- RX-D702

Connection Example -- RX-D402/RX-D401

05

06

07

08

What is DCDi by FAROUDJA?

Effect Examples (1)

Effect Examples (2)

09

10

11

< 4 >

HDMI

HDMI -- The Next-Generation Digital Interface

HDMI (High-Definition Multimedia Interface) -- An Industry-Supported, Digital Audio/Video Interface Developed for Next-Generation Home AV Devices.

Its remarkable benefits include:

1. All digital provides the highest quality available --

HDMI is the only interface in the industry that can handle both uncompressed high-definition video and uncompressed multichannel audio. Supported HD video formats include 720p, 1080i and even upcoming 1080p.

2. A single-cable connection for transmission of high-quality audio and video signals

3. HDCP (High-bandwidth Digital Content Protection) is supported

Analog

Component Video

RX-D702 RX-D402

*Also applies to RX-D401

Digital

HDMIDVI

Cable

Video

13 22Audio

Consumer AVPCConsumer AVApplication

1

HDMI Founders

Yes--Remote Control YesYes-PC Compatibility YesYes-Content Protection

YPbPr/RGBRGBYPbPrSignal Format

Hitachi Matsushita (MEI) Philips Silicon Image SONY Thomson Multimedia Toshiba

< 5 >

HDMI

HDMI -- Easy Connections for All-Digital Transmission

 Single-Cable Connections

10 Audio + 9 Video Cables

3 HDMI Cables

DVD Player

STB

DVD Player

STB

5.1-ch Audio

2-ch Audio

Receiver

Component Video

Receiver

RX-D702 RX-D402

*Also applies to RX-D401

Display

All-Digital Transmission of

High-Quality Video & Audio

Even System Control is

available

Receiver

Digital

D/A

Converter

Display

A/D

Converter

Digital

< 6 >

DCDi

by FAROUDJA

DCDi

by FAROUDJA

Connection Example -- RX-D702

RX-D702

Speakers

Hybrid Feedback

Digital Amplifier

Inputs Outputs

HDMI HDMI

Component Component S-Video S-Video Composite

Composite

DVD/VDR/D-VHS/STB

480i/p, 720p, 1080i PCM (DVD-Audio) / DD / DTS

DVD-Audio

SPDIF

DSP

Y Pb Pr

RX

A/D

Converter

480i/p

Up

Converter

HDMI

480i/p, 720p, 1080i

TX

480pHD, 480p

I/P

Conversion

OSD

Display

FAROUDJA

Component

....

S-Video

....

Composite

< 7 >

DCDi

by FAROUDJA

DCDi

by FAROUDJA

Connection Example -- RX-D402/D401

RX-D402

*Also applies to RX-D401

DVD/VDR/D-VHS/STB

480i/p, 720p, 1080i PCM (DVD-Audio) / DD / DTS

Speakers

Hybrid Feedback

Digital Amplifier

Inputs Outputs

HDMI HDMI

Component Component S-Video S-Video Composite

Composite

DSP

DVD-Audio

SPDIF

A/D

Converter

Video

Decoder

RX

HDMI

480i

480i/p, 720p, 1080i

TX

480p

I/P

Conversion

Display

FAROUDJA

....

S-VideoComposite

Component

< 8 >

DCDi

by FAROUDJA

DCDi

by FAROUDJA

What is DCDi by FAROUDJA?

The new A/V receivers can convert video signal format to HDMI for display on a compatible monitor, whether the signals are from Composite, S-Video, or Component input. In this process, the unit converts interlaced pictures to progressive ones -- a process known as “IP conversion” -using “DCDi by FAROUDJA”, a renowned, high-performance device. It features a host of advanced technologies for noise reduction and reproduction of high-definition pictures, including:

3D Deinterlacer

Film Mode: Recreates the original film frames by

accurately blending the fields back together in progressive scanning -- for images free of motion artifacts and with full vertical resolution.

RX-D702 RX-D402

*Also applies to RX-D401

Video Mode: Delivers pictures from video sources by eliminating jagged edges on diagonal lines.

3D Noise Reduction

Filters out the noise temporally, without smearing or ghosting of moving objects in the image.

3D Cross Color

Suppression

Prevents leakage of color information to chroma channels.

Fleshtone Adaptive

Noise Reduction

Controls noise reduction coefficient to deliver optimum human flesh color.

< 9 >

DCDi

by FAROUDJA

DCDi

by FAROUDJA

Effect Examples (1)

VISUAL PROOF

3D Deinterlacer

A unique algorithm that identifies all the moving edges in a scene and adjusts the angle of interpolation at each pixel so th at t he int erpol ati o n always follows the edge instead of crossing it, eliminating staircasing or jagged edge artifacts.

Jagged Edges on Diagonal Lines

Smooth diagonal lines are also delivered by the 3D Deinterlacer.

RX-D702 RX-D402

*Also applies to RX-D401

Cross-Color Suppression

While composite signals are decoded, high-frequency luma information leaks into the chroma channel, generating noise that looks like flashing colors or rainbow patterns.

Smooth Diagonal Edges

The Cross-Color Suppression effectively eliminates the noise with high-performance chroma processing.

< 10 >

DCDi

by FAROUDJA

DCDi

by FAROUDJA

Effect Examples (2)

VISUAL PROOF

Fleshtone Adaptive Noise Reduction

Noise reduction applied on overall picture may cause an adverse effect -- unnatural flesh color. The Fleshtone Adaptive NR detects flesh color contained in a picture and controls noise reduction coefficient to deliver optimum human flesh color.

Red

Cr

Magenta

CbMi

CbMa

Fleshtone

Yellow

CrMa

CbCrdif

CbCrdiff

Cb

Blue

RX-D702 RX-D402

*Also applies to RX-D401

Corner Cutouts Defined by ABS(Cb-Cr)=CbCrdiff

Green

Cyan

Definition of Fleshtone Area in Color Vector Field

< 11 >

2

PC Link -- USB Connection for Receiving Audio Signals from PC

The RX-D702 permits transmission of stereo audio signals from your PC (MP3, WMA, Linear PCM, etc.) for listening via your audio system. The unit even permits wireless USB transmission, which ensures superior, nearCD sound quality as well as enhanced convenience.

Wireless USB Connection

Superior Sound Quality Matching CD/DVD

User ID Learning Function & Auto Scan

Comparison of Signal Formats

USB Connection

Transmission of Stereo Audio Signals from P C

13

14

15

16

< 12 >

Wireless USB Connection

Superior Sound Quality Matching CD/DVD

(

(((( ))))(((( ))))

(

Max. reach is 30m,

but this depends

on the environment.

(

RX-D702

Note PC or Desk-Top PC

USB Connection

(1) The 2Mbps high transmission rate using the 2.4GHz band permits transmission of uncompressed

signals for lossless reproduction.

(2) Input signals are free of D/A or A/D conversion until just before output, which prevents

conversion loss.

(3) Use of DSSS (Direct Sequence Spread Spectrum) modulation technology enables transmission of

uncompressed signals with superior resistance against noise, which retains superb sound

quality. (4) Corresponds to 16-bit, 32kHz/44.1kHz/48kHz sampling rates. (5) Almost real-time data transmission -- delay time is only 2msecor less.

< 13 >

Wireless USB Connection

User ID Learning Function & Auto Scan

RX-D702

User ID Learning Function

To ensure security, the wirelss USB transmitter and the RX-D702 share a specific “user ID”. This means devices without the same ID cannnot receive signals from the transmitter. And when you replace the transmitter, “User ID Learning Function” would be convenient. This function lets you easily set up a new user ID, so that the unit can receive signals from the new transmitter.

Transmitter

Auto Scan

The Wireless USB additionally features “Auto Scan”, which stops interruption from other signals in the same room. When the system is turned on, this function automatically detects electric waves from other devices -- wireless LAN, for example -- and selects a band that won't be interrupted by the other signals.

When the signal transmission is interfered by other waves while using the unit, simply press and hold the “Channel Key” (on the transmitter) for a few seconds. The transmitter automatically switches the band to a one that won’t be interfered by the waves.

Center FrequencyChannel No.Center FrequencyChannel No.

2,447 MHz82,412 MHz1 2,452 MHz92,417 MHz2 2,457 MHz102,422 MHz3

Channel Key ID Key

2,462 MHz112,427 MHz4 2,467 MHz122,432 MHz5 2,472 MHz132,437 MHz6

2,442 MHz7

< 14 >

Wireless USB Connection

Comparison of Signal Formats

RX-D702

Wifi/802.11bJVCBluetooth

Format

Data Rate

Compression

(due to low data rate)

1Mbps

No Compression

2Mbps

Our Outstanding Points (Compared with Other Wireless Products）

Wireless

Wireless LAN （Optional）

Exclusive Network Only

Compression

No Compression

11Mbps

Approx. 600msecUnder 2msecApprox. 400msecDelay Time

Model BModel A

EthernetEthernetWiredFeature

PCMCIA Card Slot:

for still pictures from

digital cameras

Control with OSD:

= Movie, Music, Pictures

JVC Advantages

O No optional device

required.

O Receives signals

from any PC (including Mac).

O CC Converter improves the sound

quality of compressed music files from PC.

< 15 >

USB Connection

Transmission of Stereo Audio Signals from PC

()

(

(1) Corresponds to 16-bit, 32kHz/44.1kHz/48kHz sampling rates for superior sound.

)

()

(

)

)(

USB Connection

RX-D702 RX-D402

*Also applies to RX-D401

Note PC or Desk-Top PC

(2) Permits playback of any music files that can be played on the connected PC, regardless of

the software (Windows Media Player, iTunes, etc).

(3) All-digital transmission --> No D/A or A/D conversion.

< 16 >

3

CC Converter -- A JVC-Original Technology for Superior Sound

K2 Processing is the result of a close collaboration among JVC studio engineers, producers and hardware engineers, embodying the elaborate algorithms for a sound quality that is close to the master by professional standards. The CC Converter is one of its applications to improve the sound quality of not only pure audio sources but also compressed files, such as dts, Dolby Digital, and MP3. The CC Converter lets you experience a sound that is truer to the original master than ever. With the RX-D702, front L/R channels are processed by the CC Converter.

CC Converter

Background Problems with Digital Conver sion Problem: An analog signal of a very faint strength cannot be

accurately recreated by A/D and D/A conversion. (1) Problem: A high-frequency analog signal cannot be acc u ratel y

recreated by A/D and D/A conversion. (2) CC Converter

Bit Expansion Section Frequency Conversion Section/Range E xpa n sion S ection CC Converter: How its workings differ from other

high-bit/upsampling systems

Comparison of -90dB, 1kHz Sine Waves: Bit Expansion On vs. Off Comparison of Frequency Spectra: Range Expansion On vs. Off

18 19

20

21

22 23 24

25

26 26

P.E.M. D.D. Converter

D.D. Converter

Noise Shaping Response/Noise Spectrum 192kHz/24-bit and 96kHz/24-bit A/D Converters -- RX-D702 192kHz/24-bit and 96kHz/24-bit A/D Converters -- RX-D402/D401

27

28

29 30

< 17 >

CC Converter

Background

RX-D702

Digital audio started with Compact Disc and has since given birth to such super high-fidelity formats as DVD Audio and SACD. There’s another trend in digital audio: compressed data formats. Music distribution over the Internet, silicon audio using compact IC cards, and digital broadcast by satellite -- all these formats take advantage of audio compression technology. This means there are two diverging trends in digital audio -- higher fidelity and higher compression.

JVC is not only a hardware maker but also a software producer as well, so there has been a close collaboration between the hardware engineers and studio engineers for all aspects of digital sound production. “K2 Processing Technology” is one of the many improvements developed by this collaboration to achieve higher sound quality. It was implemented as the “Extended K2 Processing,” a critically acclaimed application to pure audio. The CC Converter is an adaptation of this technology for compressed music. Therefore, it improves the sound quality of both hi-fi sources such as CD and DVD (Linear Mode) and compressed music formats including MP3 and WMA (Compression Mode), benefiting a wide range of digital audio contents.

Sound Formats and Media: Quality vs. Compression

24-bit

20-bit

16-bit

12-bit

Higher

Sound Quality

dts

DD

MP3

MDLP

AAC

SD

DVD Audio

CD

LINEAR MODE

(for CDs, DVDs, etc.)

COMPRESSION

MODE

(for MP3, WMA, etc.)

8-bit

Telephone

Cellular

8kHz 44.1kHz

Higher Compression

176.4/192kHz

< 18 >

CC Converter

Problems with Digital Conversion

In digital audio, music is processed in digital form. The music played by musicians in a recording studio or a concert hall is picked up by a microphone and recorded in digital form, to be released for sale as packaged media, including CD. The consumers buy the CD to play on a CD player: the recorded music is converted from digital to analog for playback through an amplifier and speakers. The process of playing digital music involves analog/digital conversion and digital/analog conversion as shown below.

Process of Playing Digital Music

RX-D702

The sound quality of a signal depends on the following two factors when the signal is converted from analog to digital.

• Quantization wordlength (bits), which determines resolution or the expression of music in the amplitude domain.

• Sampling frequency, which determines the frequency response or the expression of music in the frequency domain.

< 19 >

CC Converter

Problem: An analog signal of a very faint strength cannot be

accurately recreated by A/D and D/A conversion. (1)

When its level is high, a 1kHz signal can produce a smooth waveform after the A/D and D/A conversion. When the level is low, however, a stepped waveform results due to the limitation in the resolution of a digital signal. This phenomenon occurs because digital quantization distortion increases as the levels are reduced.

A/D and D/A Conversion in Amplitude Domain

RX-D702

< 20 >

CC Converter

Problem: A high-frequency analog signal cannot be accurately recreated by A/D and D/A conversion. (2)

RX-D702

The “sampling theorem” says that, if the sampling frequency is more than twice as high as the maximum frequency of original signal, then the original signal can be retrieved by A/D and D/A conversion. With CDs, the sampling frequency is 44.1kHz, meaning the maximum frequency is band-limited to 22.05kHz. Therefore, the information on the waveform for over-

22.05kHz frequencies is not transmitted. Unless it’s sinusoidal, a signal contains multiple high-order harmonics. So does a square

wave. If the input is a 1kHz square wave signal, it retains its shape because much of the information on the waveform for harmonics is retained after the A/D and D/A conversion. But if the input is a square wave of a high frequency, the converted signal presents a rounded shape because of the absence of information on high frequencies.

A/D and D/A Conversion in Frequency Domain

< 21 >

CC Converter

CC Converter Block Diag ram

CC Converter

The CC Converter was developed to solve the problems with digital conversion by (1) increasing quantization resolution for low-level signals and (2) increasing the sampling frequency for high-frequency signals. Because bit expansion and oversampling alone do not guarantee better sound quality, the CC Converter features JVC’s original, advanced digital signal processing.

RX-D702

< 22 >

CC Converter

Hi-bit Expansion Processing

Bit Expansion Section

In the bit expansion section, the JVC-exclusive hi-fi processing generates a high-resolution 24-bit digital signal from a 16-bit signal. The process first analyzes the 16-bit digital signal to deduce the original analog signal before A/D conversion, and then applies hi-bit expansion to smooth the signal waveform. What’s more, the process ensures that the 24-bit signal preserves the same sound energy of the 16-bit digital signal.

RX-D702

< 23 >

CC Converter

Frequency Conversion Section

The frequency conversion section doubles or quadruples the sampling frequency for playback of high-frequency signals that a following stage generates.

Range Expansion Section

The range expansion section applies the JVC-exclusive range expansion processing to compensate for the conversion distortion that occurs when the analog signal is converted into a digital signal.

The human ear, it is said, cannot hear frequencies above 20kHz, but removing frequencies higher than 20kHz changes the waveform of audible frequencies, resulting in a signal that sounds different from the original. The range expansion section overcomes this problem by deducing the original waveform of a signal before A/D and D/A conversion and modifying the signal’s waveform accordingly. For playback of frequencies above 20kHz generated by this waveform processing, the range expansion section has a frequency conversion section preceding it.

RX-D702

Range Expansion Block Diagram

< 24 >

CC Converter

CC Converter: How its workings differ from other high-bit/upsampling systems

RX-D702

There are several high-bit/upsampling processing systems on the market that claim to offer the same benefits as the CC Converter. They are all designed to create and add frequencies (harmonics) over 20kHz deriving from an input signal.

But we do not believe the mechanical addition of harmonics can ensure the faithful recreation of “musicality.” The sound generated by an instrument contains harmonic components. And it is the harmonic components that determine the tone of an instrument. The harmonic components of one violin are different than those of another. One player’s phrasing produces different harmonic components from one by others. Some instruments feature rich resonance, while others produce hardly any.

CC Converter

JVC’s CC Converter does not simply create and add harmonic components. It computes the data that was lost during the D/A conversion by taking advantage of JVC’s exclusive algorithms. This means the CC Converter has the processing power to recreate the original signal that should have been recorded -based on the digital signals for the audible range recorded on a CD.

Therefore, applying the same process for adding harmonic components is not proper in view of “musicality.” Reviewers of European audio magazines are highly critical of this approach. Moreover, the existing high-bit/upsampling processing systems use 2x sampling frequencies -- 88.2kHz for CDs to achieve a 44.1kHz frequency range, or 96kHz for DVD Video to achieve a 48kHz frequency range.

Accurate D/A conversion and reproduction of the recreated data requires a process to expand the frequency range of the analog signals. The frequency-range expansion of the analog signals to beyond 20kHz results in improved music data for the audible range. The CC Converter expands CD’s frequency range fourfold to 88.2kHz using 176.4kHz (44.1kHz x 4) sampling frequency. With DVD-Video, the frequency range is expanded to 96kHz, while the sampling frequency is 192kHz (48kHz x 4).

< 25 >

CC Converter

Comparison of -90dB, 1kHz Sine Waves: Bit Expansion On vs. Off

VISUAL PROOF

RX-D702

The figure shows the actual measured

-90dB, 1kHz Sine Wave: Bit Expansion On

-90dB, 1kHz Sine Wave: Bit Expansion Off

waveform of a bit-expanded -90dB sinusoidal signal.

Comparison of Frequency Spectra: Range Expansion On vs. Off

The figure shows the frequency spectra of a music signal with the range expansion on and off. With the expansion off, the level is sharply reduced beyond 22kHz. But with the expansion on, the level is naturally extended beyond 22kHz and higher.

COMPRESSION MODE

Level (dB)

LINEAR MODE

(for CDs, DVDs, etc.)

Expansion ON

RX-D702

(for MP3, WMA, etc.)

CC Converter

ON

Expansion OFF

Frequency (kHz)

Level

CC Converter

OFF

Frequency (Hz)

< 26 >

P.E.M. D.D. Converter

D.D. Converter

The JVC exclusive D/A converter turns the 192kHz/24-bit output into an analog signal with impeccable accuracy.

RX-D702 RX-D402

*Also applies to RX-D401

< 27 >

P.E.M. D.D. Converter

VISUAL PROOF

Noise Shaping Response/Noise Spectrum

Noise Shaping Response (Theoretical) Noise Spectrum

Conventional D/A Converter

Response (dB)

Frequency (Hz)

P.E.M. D.D. Converter

RX-D702 RX-D402

*Also applies to RX-D401

VANS=JVC Advanced Noise Shaper

Response (dB)

Frequency (Hz)

< 28 >

P.E.M. D.D. Converter

Digital IN

Coax

Opti 11

Opti

192kHz/24-bit and 96kHz/24-bit A/D Converters -- RX-D702

A/D

Converter

Analog IN

L/R

VISUAL PROOF

RX-D702

Opti22

Opti

Opti33

Opti

USB

Wireless

HDMI

Digital Out

DIR

DIT

DSP

Aureus™™

Aureus

TMS320DA601

Dolby Digital/

DAP/3D--

DAP/3D

PLIIx

H/GEQ/

DRC/BM

/DTS

CC

Converter

DVD Audio IN

P.E.M. D.D.

Converter

P.E.M. D.D.

Converter

P.E.M. D.D.

Converter

D/A

Converter

HDMI

Ls/RsRs

Ls/

C/LFE

SurrBackL/R/R

SurrBackL

L/R

< 29 >

P.E.M. D.D. Converter

Digital IN

Coax

Opti 11

Opti

Opti22

Opti

USB

HDMI

Digital Out

192kHz/24-bit and 96kHz/24-bit A/D Converters -- RX-D402/D401

A/D

Converter

DIR

P.E.M. D.D.

Converter

P.E.M. D.D.

Converter

P.E.M. D.D.

Converter

DIT

DSP

Aureus™™

Aureus

TMS320DA601

Dolby Digital/

DAP/3D--

DAP/3D

PLIIx

H/GEQ/

DRC/BM

/DTS

AnalogININ

DVD Audio IN

HDMI

D/A

L/R

SurrBack

VISUAL PROOF

RX-D402

*Also applies to RX-D401

L/R

Ls/RsRs

Ls/

C/LFE

L/R

< 30 >

4

Aureus™ -- High-Performance DSP for Superior Sound Quality

JVC exclusive DSP -- implemented by the Texas Instruments “Aureus”™ DSP -simulates the acoustics of music venues. In doing so, it makes use of a vast amount of DSP-computed data for the creation of sound field patterns that conventional processing systems, based on field-measured impulse responses, have difficulties recreating. With JVC’s DSP, the sound fields are reproduced most naturally, with early reflections simulated realistically. More than ten years ago, JVC sent engineers worldwide to measure the acoustics of famous theaters and concert halls. JVC exclusive DSP embodies both the old know-how and latest technologies to make you feel you are there.

JVC exclusive DSP

Texas Instruments Floating-Point DSP -- Aureus™ (TMS320DA601)

JVC’s DSP

Sound Field Analysis (Ray Tracing)

The reason why sound field simulation by DSP produces better results than one based on actual measured environments.

DAP Modes (1)

DAP Modes (2)

5-Band Graphic Equalization

3D Headphone

Midnight Mode

32

33

34

35

36

37

38

39

40

Center-Channel Alignment

Smart Surround Setup

41

42

< 31 >

JVC exclusive DSP

Texas Instruments Floating-Point DSP -- Aureus™ (TMS320DA601)

RX-D702 RX-D402

At the heart of the RX-D702/D402/D401’s DSP is a new high-performance Texas Instruments DSP -- Aureus™. It’s the world’s fastest, highest-performing chip of its kind now, replacing two conventional DSP chips. The JVC receiver is the world’s first to feature this LSI.

Features

• 1,800MIPS* or 1,350MFLOPS** (at 225MHz clock speed) -- one of the

highest processing power ratings on the market

• 32-bit (64-bit double precision) accurate operations

• Decode formats: Dolby Digital, Dolby Digital EX, Dolby Pro Logic IIx,

DTS, DTS-ES, DTS 96/24, DTS NE O:6

• Functions: DAP, 3D-PHONIC, 3D Headphone, DSP Digital Equalizer,

Dynamic Range Control, Bass Management

Advantages

• A single chip performing DTS 96/24 processing

and DAP (Digital Acoustics Processing) with power to spare

• More accurate implementation of simulated DAP

sound fields

*Also applies to RX-D401

• Compact size conducive to reduction in digital

noise

• Floating-point operations for more accurate

calculations with an expanded range of numbers

* FLOPS (Floating Point Operations per Second): the number of floating-point calculations per second performed with real numbers. ** MIPS (Million Instructions per Second): A 1MIPS computer processes 1 million instructions per second. An “instruction”is a command sent out to a DSP to directly control and operate it. A DSP executes instructions stored in memory, makes calculations and outputs the result. The number represents a DSP or CPU’s capability of computing -- the greater the power of processing.

< 32 >

JVC exclusive DSP

JVC’s DSP

Listening to the 7.1-channel surround as processed by the JVC DAP (Digital Acoustics Processor) evokes a totally different surround sound experience from what you get from stereo or 5.1-channel sound. Listen carefully to the

5.1-channel sound of a DVD in its recorded form and you’ll notice it does not produce the sensation of being surrounded by sound.

JVC developed the DAP for one objective: to make the home theater audience feel as if they were in the best movie theater surrounded by an array of speakers to the left and right, and behind. Then they would feel enveloped in sound, with a helicopter, for instance, moving left to right, or front to back.

JVC exclusive DSP, as implemented by the TI Aureus™ chip -- embodies the algorithms of sound field recreation that are developed specifically for advanced home theater receivers. The sound field patterns are created on the basis of the computer sound field simulation technology developed by a leading concert hall construction company. Patterns of reflections are calculated based on the data of the sound fields of the concert halls, theaters and movie theaters.

RX-D702 RX-D402

*Also applies to RX-D401

Stereo Playback

5.1-channel Playba ck

7-Channel DAP Playback

*To verify simulated halls, the contract or creates a precision scaled-down

miniature hall using the same materials for walls, seats, etc., in the same

shape. A second larger scaled-down model will then be made to further

refine the data.

< 33 >

JVC exclusive DSP

Sound Field Analysis (Ray Tracing)

The figure shows the paths of the “sound rays” as they propagate from a sound source (red, black and brown balls) to the receiver (blue ball). The DSP calculates the properties of a reflection sound (time delay and direction) from the paths of the sound rays. The simulation computations it does for 7.1-channel surround are different from those for 5.1-channel surround or for stereo. This means the DSP does optimal simulation computations according to the configuration of speaker setting.

Blue ball: receiver’s position (seating position) Brown ball up front: sound source (stereo 2-channel) 3 red balls up front: sound source (left, right and center channels) 2 red balls in the rear: sound source (surround left and right channels) (5.1channel surround consists of five red balls.) 4 green balls to the sides and in the rear:

7.1-channel surround consists of three red balls and four black balls.

RX-D702 RX-D402

*Also applies to RX-D401

Rear

Front

< 34 >

JVC exclusive DSP

The reason why sound field simulation by DSP produces better results than

one based on actual measured environments.

To recreate an environment’s sound field, a real hall or cinema’s sound field is measured for data. For measurements, a pulse noise is emitted, its direct and indirect sounds are picked up by microphones, and their data is recorded. This is the approach adopted by other home theater receiver/processor manufacturers.

But measuring the sound field of an existing environment entails inaccuracies in the methodology. For instance, microphones have different characteristics, from model to model and from unit to unit. The measured data gives clues to time and level of a sound, but not to the direction. Measurements are made only at selected spots. Softest sounds are not captured accurately.

RX-D702 RX-D402

*Also applies to RX-D401

Sound field simulation by DSP, on the other hand, can produce accurate data by supplying parameters, such as the shape of a hall, the shape and acoustic properties of interior materials, and the presence/absence of an audience. Because this data is not based on actual measurements that could be affected by the measuring equipment used or its inaccuracy, it allows the accurate recreation of the frequency response and even the direction of each reflection.

Impulse Response

Direct Sound

Level

Early Reflections

Time

Reverberations

Time Series Analysis of Simulated Hall Acoustics

< 35 >

JVC exclusive DSP

DAP Modes (1)

THEATER 1

Capacity: 6,500m3Seats: Approx. 600 Reverberation: 1.23 sec.

THEATER 2

Capacity: 2,000m3Seats: Approx. 300 Reverberation: 0.55 sec.

RX-D702 RX-D402

*Also applies to RX-D401

LIVE CLUB

Capacity: 400m3Seats: 70 Reverberation: 0.35 sec.

DANCE CLUB

Capacity: 2,200m3Seats: 240 Reverberation: 0.55 sec.

PAVILION

Capacity: 549,700m Reverberation: 5.22 sec.

3

< 36 >

JVC exclusive DSP

DAP Modes (2)

DAP Modes for RX-D702/D402/D401

Mode Signal

O* O* O* O* O* O* O* O*

-

O* O* O* O* O* O* O*

-

Multi-Channel DAP

Pro Logic II Movie+DAP

DAP

3D Headphone 3D Phonic All Ch. Stereo

HALL 1 HALL 2 LIVE CLUB DANCE CLUB PAVILION THEATER 1 THEATER 2

O* O* O* O* O* O* O*

-THEATER 1

-THEATER 2

-HALL 1

-HALL 2

-LIVE CLUB

-DANCE CLUB

-PAVILION

-MONO FILM

*When the SURR. BACK SPK. setting is “ON”, the DAP performs 7-channel processing, outputting reverberation components to Surround Back channels.

For Recreation of Spatial Feel of :Mode

Large shoebox-shaped hall designed primarily for classical concertsHALL 1 Large vineyard-shaped hall designed primarily for classical concertsHALL 2 Live music club with a low ceilingLIVE CLUB Rocking dance clubDANCE CLUB Exhibition hall with a high ceilingPAVILION Large movie theaterTHEATER 1 Small movie theaterTHEATER 2 For 3D-like reproduction of classic movies with mono soundtracksMONO FILM

RX-D702 RX-D402

*Also applies to RX-D401

AnalogLinearDolby DigitalDTS

PCM2 ch5.1 ch2 ch5.1 ch

---

O*O*O* O*O*O* O*O*O* O*O*O* O*O*O* O*O*O* O*O*O* O*O*O*

OOOOOO OOOOOO OOOOOO

< 37 >

JVC exclusive DSP

5-Band Graphic Equalization

A graphic equalizer lets you adjust the levels of center frequencies.

An analog equalization circuit is built from resistors and capacitors, therefore noise and phase reversal are inevitable. A digital equalization circuit performs its function in the entirely digital domain. Clarity and consistent definition are its advantages.

8

4

0

Response (dB)

-4

-8

10

2

Frequency (Hz)

10

3

10

4

RX-D702 RX-D402

The TI Aureus™ chip ensures high-speed processing for equalization, while it executes various decode processing (Dolby Digital, dts, etc.)

 Center Frequencies: 63Hz, 250 Hz,

1kHz, 4kHz, 16kHz

 Level: ±8dB, 2dB steps  1 manual EQ setting for each source

10

5

0

-5

Response (dB)

-10 63

250

C

ent

1k

er

F

4k

r

e

q

u

e

16k

n

c

y

(

H

z

)

10

0

10

1

F

2

10

y

c

n

e

u

q

e

r

3

10

)

z

(H

*Also applies to RX-D401

10

4

10

5

< 38 >

JVC exclusive DSP

3D Headphone

In a typical listening room, sound from speakers you perceive consists of three elements: direct sound, early reflections (echoes from walls/ceiling/floor), and reverberation. These elements let you locate the sound source and recognize its size. This is called Head Related Transfer Function (HRTF).

Direct Sound Reflections

Virtual Sound Field Created by the 3D Headphone Technology

Direct Sound

Reflections Reverberations

Sound Frequencies Detected in

a Typical Listening Room

In developing the 3D Headphone technology, JVC has applied an exclusive algorithm that divides the audio signals into the same three elements and conducts processing individually (convolution processing). This ensures that sound from headphones has the same realism, dynamism, and localization as that from multi-channel speakers.

RX-D702 RX-D402

IN

Block Diagram of Convolution Processing

Delay

Direct Sound

Processing

Early

Reflection

Processing

Reverberation

Processing

*Also applies to RX-D401

OUT

+

< 39 >

JVC exclusive DSP

Midnight Mode

RX-D702 RX-D402

INPUT

Low Mid High

Level

Midnight Mode

Level

Low Mid High

OUTPUT

*Also applies to RX-D401

Processing

Frequency

High Sound Levels

Frequencies of Input/Output Audio Signals

The DSP divides input signals into three bands (LOW/MID/HIGH), and processes the signals so that low-level sound in each band will get louder and loud sound will be moderated. This makes the output sound clear across the range, regardless of the original levels.

Frequency

In addition, the unit individually controls the sound compression level of each band. When the sound level is low, the compression levels of

Level

high and low frequencies are raised to deliver enough loudness. When the sound level is high, the gains of the two frequencies are

Low Sound Levels

Frequency

moderated to prevent excessive bass and treble output. These technologies combine to retain the excitement of multi-channel

sound and keep dialog sound clear even at low sound levels.

Frequency of Output Signals

The technologies are applied even when the sound level is lowered suddenly, which is especially useful for midnight viewing, for example.

< 40 >

JVC exclusive DSP

Center-Channel Alignment

The center speaker is usually placed on top of or under the display, while the front speakers are set at or near ear level. The result is that dialog, carried by the center speaker, seems out of place relative to music and sound effects. JVC's exclusive DSP application virtually positions the center speaker to align it with other speakers with respect to height. The dialog simply sounds more natural.

RX-D702 RX-D402

*Also applies to RX-D401

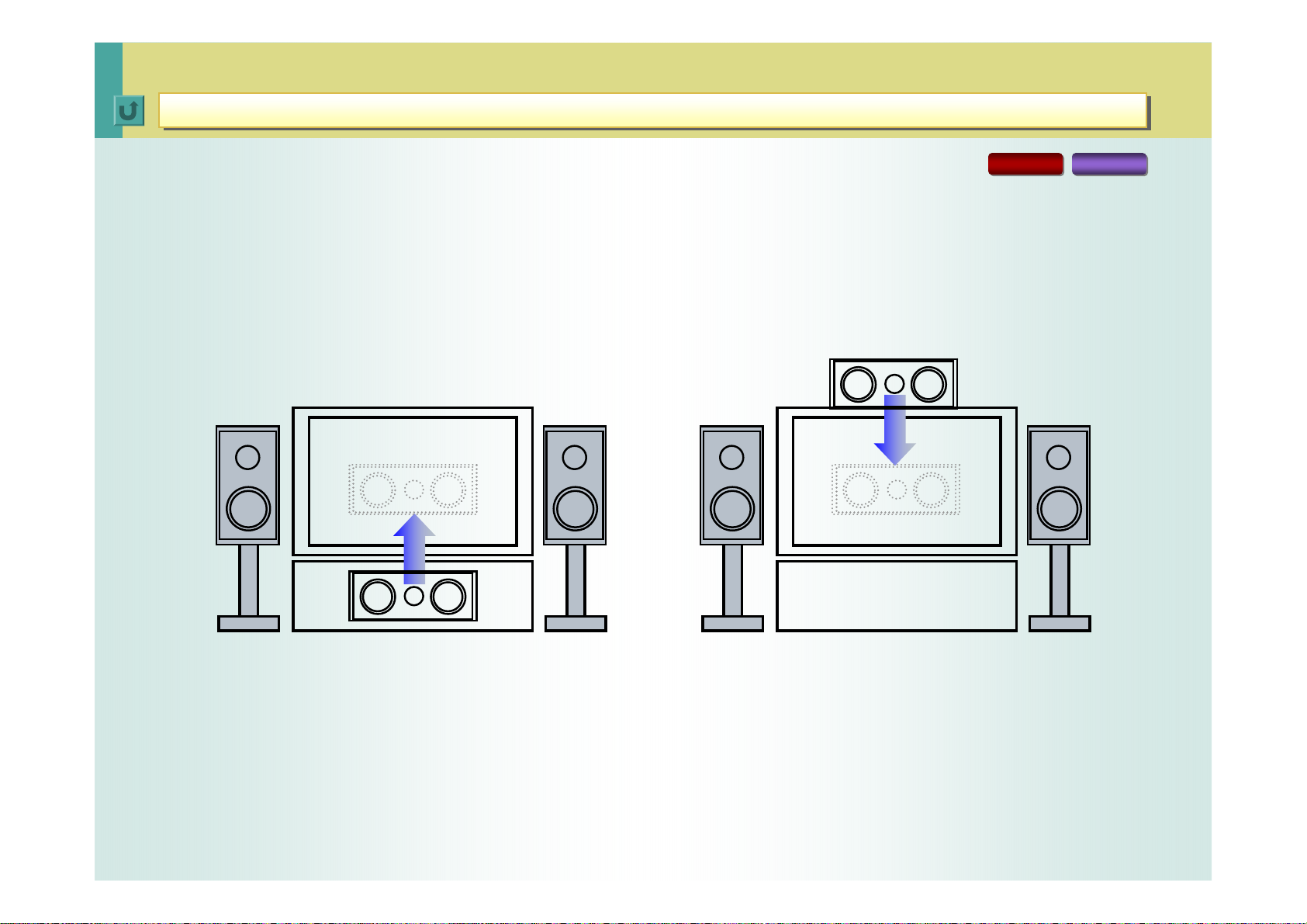

Virtual Repositioning of the Center Speaker with Center Channel Alignment

< 41 >

JVC exclusive DSP

Smart Surround Setup

Setting up a home theater can be time-consuming and even confusing. Normally, you have to check which speaker channels (front, center, surround, and surround back) you have installed, the distance of each speaker from the listening position, and the level of each speaker.

But with JVC's Smart Surround Setup Version 3.0, it takes just seconds to set up the acoustic environment of your home theater. Clap your hands, and the delay times of all channels are set individually, and the level of each speaker is automatically trimmed -- optimized for your listening positio n. You can even finetune the settings if you prefer. Setup information is displayed on-screen for easy confirmation.

RX-D702

< 42 >

5

Hybrid Feedback Digital Amplifier

JVC-exclusive Hybrid Feedback Digital Amplifier enables a lot more than the compact dimensions of the A/V receivers. Featuring dual analog feedback and digital feedback circuits, this device significantly “brushes up” the input signals, which ensures significantly lowered total harmonic distortion -- to 0.004% -- and superior speaker driveability. The result is high-quality sound matching that from a high-grade analog amp.

The RX-D702 and RX-D402/D401 come with an upgraded “Ver. III” device, which incorporates a wide range of technological improvements for even better sound quality.

Hybrid Feedback Digital Amplifier

Background -- What is PWM?

Problems of Digital Amplifiers

Evolution of Hybrid Feedback Digital Amplifier (1)

Evolution of Hybrid Feedback Digital Amplifier (2)

Evolution of Hybrid Feedback Digital Amplifier (3)

Hybrid Feedback Digital Amplifier

Technological Improvement for Even

Better Sound

Low-Voltage Power Supply

One-Chip Solution with JCV8015

JCV8015 Benefits (1) -- Operational Amp

Ver

. III ----

. III

44

45 56

47

48

49

50

51

JCV8015 Benefits (2) -- PWM Modulator/External Clock

JCV8015 Benefits (3) -- ±2.5V Regulator

Quality Parts for Superior Sound Reproduction

Comparison of Speaker Driveability T.H.D. Comparison of Digital Amplifiers

52

53 54

55

56

< 43 >

Hybrid Feedback Digital Amplifier

JVC technologies for satisfyi ng the THX Ultra2 certification

Background -- What is PWM?

Pulse Width Modulation (PWM) is a method of digitally encoding analog signal levels. In the process, continuously varying value of input audio signals is detected based on the reference voltage (Vref) by comparing the signals with triangular waves. When the value is higher than Vref level, the pulse is switched “ON”, and when it gets below Vref, it’s turned “OFF”. The higher than Vref the value is, the longer the pulse is kept “ON”. The lower than Vref the value is, the longer the pulse is left “OFF”. Thus, square-shaped waves are generated, representing either “ON” or “OFF” state of the pulse -- length of the “ON” and “OFF” pulses expresses the value of audio signals with respect to the Vref levels. These waves are called “PWM signals”. Precision of the PWM signals is one of the elements that determine the sound quality delivered by a digital amplifier. This is why “feedback” process is essential for delivering high-quality sound.

PWM (Pulse Width Modulation)

Generation of PWM Signals

RX-D702 RX-D402

*Also applies to RX-D401

Switching Power Supply with Highly-Efficient Operations

OFF ON

Power MOS FET Switch

● Heat Generation

1. Loss from ON Impedance

2. Switching Loss

ON

OFF

ON

+1

-1

+1

0

-1

1. Values of input audio signals are detected by comparison with triangular waves.

2. High-precision triangular waves are necessary.

Input Audio

Signals

Triangular

Waves

Comparator

PWM

< 44 >

Hybrid Feedback Digital Amplifier

JVC technologies for satisfyi ng the THX Ultra2 certification

With conventional amplifiers, the mechanism for digital signal processing tends to cause a wide range of noise.

Problems of Digital Amplifiers

Analog

Digital

Signal

Processor

PCM-PWM

●

Analog-PWM

●

PWM

■

Slew Rate Fluctuation

■

Power Supply Noise

■

Dead Time

■

EMI

Power

Stage

LC type

LPF

■

Magnetic

Distortion

RX-D702 RX-D402

*Also applies to RX-D401

Error & Distortion

Caused at Power Stage and After

Even when the PWM signals are accurate, a wide range of

*

noise is generated at power stage and after.

< 45 >

Hybrid Feedback Digital Amplifier

JVC technologies for satisfyi ng the THX Ultra2 certification

Evolution of Hybrid Feedback Digital Amplifier (1)

Hybrid Feedback Digital Amplifier

Use of two feedback loops eliminates the noise generated at each process: Digital feedback -- for significantly improving the precision of PWM signal generation. Analog feedback -- for “brushing up” the waveform of the analog signal at output to match the original.

1

IN

+

-

Digital feedback -- for significantly improving the precision of PWM signal generation

PWM

Modulator

PWM

Pre-

Driver

Demodulator

(LPF)

RX-D702 RX-D402

*Also applies to RX-D401

Phase Shift

Master Clock

Analog feedback -- for “brushing up” the waveform of the analog signal at output to match the original

< 46 >

Hybrid Feedback Digital Amplifier

JVC technologies for satisfyi ng the THX Ultra2 certification

Evolution of Hybrid Feedback Digital Amplifier (2)

Hybrid Feedback Digital Amplifier Ver. II

Double analog feedback ensures even lower distortion.

2

IN

+

-

Modulator

PWM

Pre-

Driver

RX-D702 RX-D402

*Also applies to RX-D401

Demodulator

(LPF)

Phase Shift

Master Clock

Double analog feedback ensures even lower distortion.

< 47 >

Hybrid Feedback Digital Amplifier

JVC technologies for satisfyi ng the THX Ultra2 certification

Evolution of Hybrid Feedback Digital Amplifier (3)

Hybrid Feedback Digital Amplifier Ver. III

Double analog & digital feedback loops for even lower total harmonic distortion. Use of newly-developed “JCV8015” for containing all the circuits.

Double analog & digital feedback loops for even lower total harmonic distortion

3

IN

+

-

Modulator

PWM

Pre-

Driver

RX-D702 RX-D402

*Also applies to RX-D401

Demodulator

(LPF)

Phase Shift

Master Clock

JCV8015

< 48 >

Hybrid Feedback Digital Amplifier

Ver

. III

JVC technologies for satisfyi ng the THX Ultra2 certification

Hybrid Feedback Digital Amplifier Ver. III also features low voltage power supply, which ensures stable signal transfer.

Large-Capacity

Power

~

Transformer

Low-Voltage Power Supply

+ Power Supply

High-Efficiency

Stabilized

Power Supply

Stabilized

Circuit

RX-D702 RX-D402

*Also applies to RX-D401

Quality

Sound

Digital

Amp

- Power Supply

< 49 >

Hybrid Feedback Digital Amplifier

Ver

. III

JVC technologies for satisfyi ng the THX Ultra2 certification

One-Chip Solution with JCV8015

The Hybrid Feedback Digital Amplifier Ver. III features use of a new IC dubbed “JCV8015”. This superior device, developed by JVC, contains all the circuits necessary for digital signal processing, including dual audio input circuits, the Hybrid Feedback Signal Processing Circuit, and PWM modulators. In addition to allowing a drastic reduction in parts and a smaller “footprint”, JCV8015 comes with the following features:

Superior operational amp for low

distortion and low noise

High-precision PWM modulator --

featuring synchronization by external clock

RX-D702 RX-D402

*Also applies to RX-D401

Built-in ±2.5V regulator

separated from analog GND

< 50 >

Hybrid Feedback Digital Amplifier

Ver

. III

JVC technologies for satisfyi ng the THX Ultra2 certification

JCV8015 Benefits (1) -- Operational Amp

Superior Operational Amp for Low Distortion and Low Noise

High Slew Rate

The operational amp comes with a higher slew rate -- two times higher than the previous types of devices -- to eliminate instantaneous “cross-modulation distortion”.

Interference-Free Layout

The operational amp features a symmetrical layout of parts and devices, which are completely separated for left and right channels. This prevents signal interference between the two channels (see the figure at right).

L-ch

R-ch

JCV8015 -- Layout of Parts and Devices

Operational

Amp with

High Slew

Rate

Operational

Amp with

High Slew

Rate

Circuit for

Selecting

Max.

Modulation

Circuit for

Selecting

Max.

Modulation

High-

Precision

Triangular

Waves

High-

Precision

Triangular

Waves

Ultra-High-

Speed

Comparator

+2.5V

Regulator

-2.5V

Regulator

Ultra-High-

Speed

Comparator

RX-D702 RX-D402

*Also applies to RX-D401

PAD

L-ch out

Symmetrical

Layout

Parts and devices for left

and right channels are

completely separated.

--> Superior sound

quality with no signal

interference.

R-ch out

< 51 >

Hybrid Feedback Digital Amplifier

Ver

. III

JVC technologies for satisfyi ng the THX Ultra2 certification

JCV8015 Benefits (2) -- PWM Modulator/External Clock

High-Precision PWM Modulator

High-Precision Triangular Waves

Distortion or irregular angles of the triangular waves lower the precision of PWM signals, which results in lower sound quality. The JCV8015 uses high-precision triangular waves to prevent the problem.

Ultra-High-Speed

Comparator

Input Audio Signals

RX-D702 RX-D402

*Also applies to RX-D401

Ultra-High-Speed Comparator

Comparison of audio signals with the triangular waves is done by “comparator”. The JVC amp features an ultra-high-speed comparator. This prevents the possible delay of PWM signals with respect to audio signals, which causes distortion.

High-Precision Triangular Waves

PWM

Synchronization by an External Clock

Slight gap of frequencies among channels causes specific noise. To prevent this, the JVC amplifier uses an external clock, which synchronizes the operations of all channels. Noise is also generated when the unit receives AM signals whose frequency overlaps that of audio signals. The external clock detects this and automatically modifies the audio signal frequency of all the channels simultaneously, thus preventing the noise generation.

< 52 >

Hybrid Feedback Digital Amplifier

Ver

. III

JVC technologies for satisfyi ng the THX Ultra2 certification

JCV8015 Benefits (3) -- ±2.5V Regulator

Use of the built-in ±2.5V regulator prevents digital noise interference to analog GND.

VCC (Analog)

Analog Signals

Analog Circuits

+2.5V Regulator

Digital Circuits

(Operational Amp)

-2.5V Regulator

Analog GND

(PWM)

RX-D702 RX-D402

*Also applies to RX-D401

Improved

Sound Quality

PWM

Use of built-in ±2.5V regulator separates the path of current in digital circuits from analog GND.

Analog Signals

Analog GND

VCC (Analog)

Analog Circuits

(Operational Amp)

VDD (Digital, 5V)

Digital Circuits

(PWM)

PWM

Power supply to digital circuits causes the current to interfere with analog GND, which generates noise.

< 53 >

Hybrid Feedback Digital Amplifier

Ver

. III

JVC technologies for satisfyi ng the THX Ultra2 certification

Quality Parts for Superior Sound Reproduction

The superior technologies applied for the digital amp combine to lower the total harmonic distortion by a specific ratio (see the following pages for details). This means when the distortion of input signals are lower, that of output signals are lower than when input signals have higher distortion. This is why JVC engineers applied a wide range of quality parts for the A/V receivers. These devices ensure even better sound quality by sending low-distortion signals to the Hybrid Feedback Digital Amplifier Ver. III.

2SK3770-01MR

Power MOSFET used for

the 150W digital amplifier of the RX-D702.

RX-D702

IRFB4212

Power MOSFET used for

the 110W digital amplifier of the RX-D402/D401.

RX-D402

IRS20124

High-performance Driver IC incorporated in the

digital amplifiers of all the units.

RX-D702 RX-D402

ETQA15

All the units feature highquality coils incorporated

in the output low-pass filter, which help deliver superior sound.

RX-D702 RX-D402

< 54 >

Hybrid Feedback Digital Amplifier

Ver

. III

VISUAL PROOF

JVC technologies for satisfyi ng the THX Ultra2 certification

Usually, speaker impedance fluctuates according to the frequencies of audio signals.

This “frequency response” of the speaker in turn fluctuates the levels of audio signals. How effectively an amplifier can control these fluctuations is called “speaker driveability”.

The feedback processes of the Hybrid Feedback Digital Amplifier significantly improve the speaker driveability, retaining the same output level across the frequencies.

Comparison of Speaker Driveability

RX-D702 RX-D402

*Also applies to RX-D401

RX-D702

Non-Feedback Amp

Speaker Impedance with a Typical 2-Way Speaker

< 55 >

Hybrid Feedback Digital Amplifier

Ver

. III

VISUAL PROOF

JVC technologies for satisfyi ng the THX Ultra2 certification

T.H.D. Comparison of Digital Amplifiers

RX-D702 RX-D402

*Also applies to RX-D401

10

1

Non-Feedback Amp

0.1

0.004%

THD + N [%]

0.01

Hybrid Feedback

Digital Amp (RX-D702)

0.001 0.01 0.1 1 10 100 Output Power [W] /6Ω

< 56 >

Supplementary Information

OSD Superimposed on Screen

RX-D702B Audio/Video Control Receiver

RX-D402B Audio/Video Control Receiver

Multi-Brand A/V-STB (CATV/DBS) Glow Remote Control

Rear Panel

58

59

60

61

62

< 57 >

JVC technologies for satisfyi ng the THX Ultra2 certification

OSD Superimposed on Screen

RX-D702

The RX-D702 displays a wide range of information -- including the Smart Surround Setup processes -- superimposed on your monitor screen to ensure easy recognition and control.

Setting Menu Screen Digital EQ and Bass Boost Setup Speaker Setup

OSD for Smart Surround Setup

< 58 >

JVC technologies for satisfyi ng the THX Ultra2 certification

RX-D702B Audio/Video Control Receiver

7-Channel Receiver Featuring HDMI, New Digital Amplifier, and Wireless PC Connectivity

Basic Features

• Stereo: 150 watts per channel, 6 ohms, from 20Hz to 20kHz, with 0.8% THD

• Surround: (Front) 150 watts per channel, 6 ohms at 1kHz, with 0.8% THD; (Center) 150 watts, 6 ohms at 1kHz, with 0.8% THD; (Surround) 150 watts per channel, 6 ohms at 1kHz, with 0.8% THD; (Surround Back) 150 watts per channel, 6 ohms at 1kHz, with 0.8% THD

• Dolby Digital EX/Dolby Digital/Dolby Pro Logic IIx/Dolby Pro Logic II

• DTS/DTS-ES/DTS NEO:6/DTS 96/24

• DVD Multi-Channel Audio Compatible

Product Highlights

• Hybrid Feedback Digital Amplifier Ver. III

• HDMI – for single-cable, all-digital transmission of audio and video signals

• Wireless Connection with PC -- enjoy playback of music files from PC

• CC Converter (2 Modes, Front Channels) -offers two modes for improving the sound quality of compressed audio and noncompressed sources, respectively

• USB Input for receiving audio signals from PC

• SIRIUS Input and SIRIUS Control on Remote

• On-Screen Display

• Center-Channel Alignment

• Virtual Surround Back for creating even wider sound field without a surround back speaker

• 3D-PHONIC

• DAP for Multi-Channel Digital Sources: THEATER 1/THEATER 2/HALL 1/ HALL 2/ DANCE CLUB/LIVE CLUB/PAVILION

• DAP for 2-Channel Sources: MONO FILM/THEATER 1/THEATER 2/HALL 1/ HALL 2/DANCE CLUB/LIVE CLUB/ PAVILION/ALL CH STEREO

• 3D Headphone

• 192kHz/24-bit P.E.M. D.D. Converter (Front/Center/Surround Channels)

• Video Signal Up-Conversion (to HDMI) for single-cable output of high-quality video from any input terminals

• Smart Surround Setup (Ver. 3.0) -- easy handclap setting up of the acoustic environment

• One-Touch Operation

• DSP Digital Equalizer

• AV COMPU LINK

• Multi-Brand A/V-STB (CATV/DBS) Glow Remote Control

< 59 >

JVC technologies for satisfyi ng the THX Ultra2 certification

RX-D402B Audio/Video Control Receiver

7-Channel Receiver with HDMI, PC Connection via USB and New Digital Amplifier

Basic Features

• Stereo: 110 watts per channel, 6 ohms, from 20Hz to 20kHz, with 0.8% THD

• Surround: (Front) 110 watts per channel, 6 ohms at 1kHz, with 0.8% THD; (Center) 110 watts, 6 ohms at 1kHz, with 0.8% THD; (Surround) 110 watts per channel, 6 ohms at 1kHz, with 0.8% THD; (Surround Back) 110 watts per channel, 6 ohms at 1kHz, with 0.8% THD

• Dolby Digital EX/Dolby Digital/Dolby Pro Logic IIx/Dolby Pro Logic II

• DTS/DTS-ES/DTS NEO:6/DTS 96/24

• DVD Multi-Channel Audio Compatible

Product Highlights

• Hybrid Feedback Digital Amplifier Ver. III

• HDMI -- for single-cable, all-digital transmission of audio and video signals

• Video Up-Conversion (to HDMI) for singlecable output of high-quality video from any input terminals

• USB Input for receiving audio signals from PC

• Center-Channel Alignment

• Virtual Surround Back for creating even wider sound field without a surround back speaker

• 3D-PHONIC

• DAP for Multi-Channel Digital Sources: THEATER 1/THEATER 2/HALL 1/HALL 2/ DANCE CLUB/LIVE CLUB/PAVILION

• DAP for 2-Channel Sources: MONO FILM/THEATER 1/THEATER 2/HALL 1/ HALL 2/DANCE CLUB/LIVE CLUB/ PAVILION/ALL CH STEREO

• 3D Headphone

• 192kHz/24-bit P.E.M. D.D. Converter (Front/Center/Surround Channels)

• Quick Speaker Setup

• One-Touch Operation

• DSP Digital Equalizer

• AV COMPU LINK

• Multi-Brand A/V-STB (CATV/DBS) Glow Remote Control

< 60 >

JVC technologies for satisfyi ng the THX Ultra2 certification

Multi-Brand A/V-STB (CATV/DBS) Glow Remote Control

For RX-D702B For RX-D402B/RX-D401S

< 61 >

JVC technologies for satisfyi ng the THX Ultra2 certification

Rear Panel

RX-D702B

RX-D402B/RX-D401S

< 62 >

< 63 >

JVC RX-D702, RX-D401, RX-D402 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
