JVC RX-D301S, RX-D302B User Manual

0 (0)

AUDIO / VIDEO CONTROL RECEIVER

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

RX-D301S / RX-D302B

INSTRUCTIONS

LVT1321-001A

[J]

Warnings, Cautions, and Others

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

For Canada/pour le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND

For U.S.A

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Mises en garde, précautions et indications diverses

CAUTION

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

For U.S.A

Declaration of Conformity: Trade Name: JVC Model Number: RX-D301S/RX-D302B

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received,

including interference that may cause undesired operation. Responsible Party: JVC Americas Corp. Address: 1700 Valley Road, Wayne

New Jersey 07470

Telephone Number: 973-317-5000

Caution–– STANDBY/ON button!

Disconnect the mains plug to shut the power off completely. The

STANDBY/ON button in any position does not disconnect the

mains line. The power can be remote controlled.

Attention—Touche STANDBY/ON!

Déconnectez la fiche d’alimentation secteur pour couper l’alimentation complètement. La touche STANDBY/ON, dans n’importe quelle position, ne déconnecte pas le système du secteur. L’alimentation ne peut pas être télécommandé.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

For USB wireless transmitter

including interference that may Cause undesired operation.

CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations.

For Canada/pour le Canada

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

For Canada/pour le Canada

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.

Table of Contents

Parts identification ................................................ 2

Getting started ...................................................... 4

Before Installation .................................................................. 4

Checking the supplied accessories ....................................... 4

Putting batteries in the remote control ................................... 4

Connecting the FM and AM antennas ................................... 5

Connecting the speakers ....................................................... 6

Connecting video components .............................................. 7

USB connection ................................................................... 12

Connecting the power cord .................................................. 13

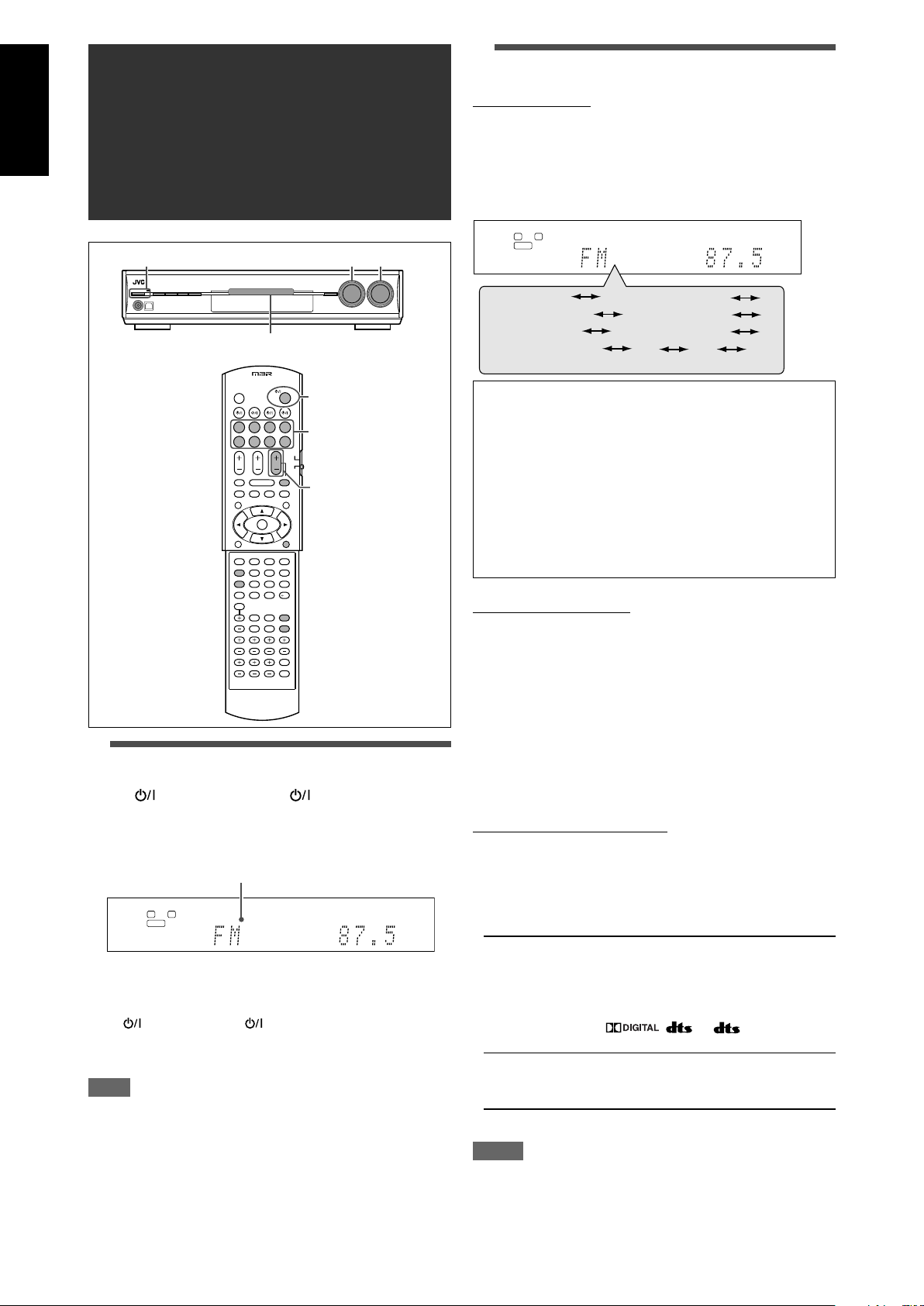

Basic operations ................................................. 14

1 Turn on the power ............................................................ 14

2 Select the source to play .................................................. 14

3 Adjust the volume ............................................................ 15

Selecting the digital decode mode ....................................... 15

Turning off the sounds temporarily ...................................... 15

Changing the display brightness.......................................... 16

Turning off the power with the Sleep Timer ......................... 16

Making sounds natural......................................................... 16

Basic settings ...................................................... 17

Setting the speaker information easily

—Quick Speaker Setup ................................................. 17

Basic setting items ............................................................... 18

Operating procedure ............................................................ 19

Setting the speakers ............................................................ 19

Activating the EX/ES/PLIIx setting—EX/ES/PLIIx ............... 20

Selecting the main or sub channel—DUAL MONO ............. 21

Setting bass sound .............................................................. 21

Using the Midnight mode—MIDNIGHT MODE .................... 21

Setting the digital input (DIGITAL IN) terminals

—DIGITAL IN 1/2/3 ........................................................ 22

Selecting the component video input mode

—DVD VIDEO IN/VCR VIDEO IN/DBS VIDEO IN ......... 22

Memorizing the volume level for each source

—ONE TOUCH OPE ..................................................... 22

Sound adjustments ............................................. 23

Basic adjustment items ........................................................ 23

Operating procedure ............................................................ 23

Adjusting the speaker output levels ..................................... 24

Adjusting the equalization patterns

—D EQ 63Hz/250Hz/1kHz/4kHz/16kHz........................ 24

Adjusting the bass sounds ................................................... 25

Adjusting the sound parameters for the

Surround/DSP modes ................................................... 25

Tuner operations ................................................. 27

Tuning in to stations manually .............................................. 27

Using preset tuning .............................................................. 27

Selecting the FM reception mode ........................................ 28

Creating realistic sound fields ........................... 29

Reproducing theater ambience ........................................... 29

Introducing the Surround modes ......................................... 29

Introducing the DSP modes ................................................. 31

Using the Surround/DSP modes ......................................... 32

Activating the Surround/DSP modes ................................... 33

AV COMPU LINK remote control system .......... 34

Operating other JVC products ........................... 36

Operating other manufacturers’ products ........ 38

Troubleshooting .................................................. 41

Specifications ...................................................... 42

Remote control

A/V CONTROL RECEIVER

REMOTE CONTROL RM-SRXD301J

TV/VIDEO

AUDIO

DBS/CATV

DVR/DVD

USB

VCR

DBS

DVR/DVD

DVD MULTI

VCR

TV VOL

CHANNEL

VOLUME

REC PAUSE

FM MODE MUTING

MEMORY

TUNING/REW

FF/TUNING

TOP MENU MENU

SURROUND

CONVERTER

ANALOG/DIGITAL

EX/ES/PL x

DECODE MODE

MIDNIGHT

D.EQ FREQ

D.EQ LEVEL

C.TONE DIMMER

B.BOOST

TEST

SLEEP

L – FRONT – R

L – SURR – R

CENTER

SUBWFR

L – S. BACK – R

RETURN

100

DVR

DVD

EFFECT

;

f g

Parts identification

See pages in parentheses for details.

1 TV/VIDEO button (36, 38) 2 Standby/on buttons (14, 36 – 40)

AUDIO, TV , DBS/CATV , VCR , DVR/DVD

3 Source selecting buttons (14, 27, 36 – 40)

TV, DBS, VCR, DVR/DVD, FM, AM, USB, DVD MULTI

4 TV VOL (volume) +/– button (36, 38) 5 CHANNEL +/– button (36 – 40) 6 • Operating buttons for video components (36, 37, 39, 40)

REC PAUSE, REW, FF, 3, 4, 7, 8, ¢

• Operating buttons for tuner (27, 28)

FM MODE, ( TUNING, MEMORY, TUNING 9

7 Operating buttons for DVD recorder or DVD player* (37, 40)

TOP MENU, MENU, cursor buttons (3, 2, 5, ∞), ENTER

8 SURROUND button (33) 9 EX/ES/PLIIx button (20) p ANALOG/DIGITAL button (14) q DECODE MODE button (15) w MIDNIGHT button (21) e Adjusting buttons for Digital Equalizer (24)

D.EQ FREQ, D.EQ LEVEL +/–

r B (bass).BOOST button (25) t Adjusting buttons for speaker and subwoofer output levels (24)

FRONT L +/–, FRONT R +/–, CENTER +/–, SUBWFR +/–, SURR L +/–, SURR R +/–, S.BACK L +/–, S.BACK R +/–

y VOLUME +/– button (15) u DVR/DVD mode selector (37, 40) i MUTING button (15) o CC CONVERTER button (16) ; • Numeric buttons (28, 36 – 40)

1 – 10, 0, +10, 100+

• RETURN button (36)

a C (center).TONE button (26) s EFFECT button (25) d DIMMER button (16) f SLEEP button (16) g TEST button (24)

* These buttons can be used for operating a JVC DVD recorder

or DVD player with the mode selector set to “DVR” or “DVD” (see page 37). If these buttons do not function normally, use the remote control supplied with your DVD recorder or DVD player. Refer also to the manuals supplied with the DVD recorder or DVD player for details.

• When operating a DVD recorder (for JVC products

ONLY), set the mode selector (u) to “DVR.”

• When operating a DVD player, set the mode selector (u)

to “DVD.”

To open the cover of the remote control, push here then slide downward

See pages in parentheses for details.

DIGITAL EQ

LINEAR PCM

LSSBRS

S.WFR

NEO : 6

DSP

3D-PHONIC

LFE

96 / 24

AUTO SURR

C.TONE

VIRTUAL SB

B.BOOST

TUNED

STEREO

SLEEP

AUTO MUTING

INPUT ATT

HEADPHONE

MHz kHz

MIDNIGHT

DIGITAL

DIGITAL AUTO

ANALOG

DUAL MONO

SBSSB

ONE TOUCH OPERATION

CC CONVERTER 1 2

(

)

AUDIO/VIDEO CONTROL RECEIVER

STANDBY/ON

CC CONVERTER

SETTING ADJUST SURROUND

DVR / DVD VCR DBS TV USB FM

SOURCE SELECTOR

/ MULTI JOG

MASTER VOLUME

SET / TUNER PRESET

PHONES USB

DVD MULTI

45 6

78 9

321

COMPU LINK-

III

COMPONENT VIDEO

VIDEO

AUDIO

MONITOR

OUT

DVR/DVD

DBS

OUT(REC) IN(PLAY)

VCR DVR

OUT(REC)

DVR/DVD

IN(PLAY)

VCR(DBS)

MONITOR

OUT

DVR

OUT(REC)

VCR

OUT(REC) IN(PLAY)

DBS

DVR/DVD IN(PLAY)

VIDEO

S-VIDEO

DIGITAL IN

2(DBS)

1(DVR/DVD)

LEFTRIGHT LEFTRIGHT

LEFTRIGHT

ANTENNA

COAXIAL

AM LOOP

FM 75

AM EXT

SUBWOOFER

OUT

3(VCR)

DIGITAL OUT

PCM/STREAM

SURROUND SPEAKERS

ANTENNA

USB WIRELESS

CAUTION:SPEAKER IMPEDANCE 6

SURROUND BACK

SPEAKERS

DVD

MULTI IN

FRONT

CENTER

SUBWOOFER

SURR-L

SURR-R

CENTER SPEAKER

FRONT

SPEAKERS

LEARNING

IDON

123

89p w

Front panel

1 STANDBY/ON button and standby lamp (14) 2 CC CONVERTER button (16) 3 SETTING button (17, 19) 4 ADJUST button (23) 5 SURROUND button (33) 6 Source lamps

DVD MULTI, DVR/DVD, VCR, DBS, TV, USB, FM, AM

7 • SET button (17, 19, 23)

• TUNER PRESET button (28)

Display window

1 ANALOG indicator (14) 2 DUAL MONO indicator (21) 3 AUTO SURR (surround) indicator (33) 4 HEADPHONE indicator (15, 30) 5 CC CONVERTER 1 2 indicator (16) 6 Tuner operation indicators (27)

TUNED, STEREO

7 DIGITAL EQ indicator (24) 8 AUTO MUTING indicator (28) 9 C.TONE indicator (26) 0 ONE TOUCH OPERATION indicator (22)

- INPUT ATT (attenuate) indicator (25) = SLEEP indicator (16)

8 • SOURCE SELECTOR (14, 28)

• MULTI JOG (17, 19, 23, 28, 33)

9 MASTER VOLUME control (15) p PHONES jack (15) q USB terminal (12) w Display window (see below) e Remote sensor (4)

~ Digital signal format indicators (15, 29, 30)

DIGITAL AUTO, LINEAR PCM, , , 96/24

! Signal and speaker indicators (16) @ NEO:6 indicator (30) # VIRTUAL SB indicator (32) $ 3D-PHONIC indicator (30, 31) % DSP indicator (30, 31) ^ and indicator (29 – 31) & Main display * B (bass).BOOST indicator (25) ( MIDNIGHT indicator (21) ) Frequency unit indicators

MHz (for FM stations), kHz (for AM stations)

Rear panel

1 Power cord (13) 2 AV COMPU LINK-III terminals (34) 3 DIGITAL IN terminals (11)

• Coaxial: 1(DVR/DVD)

• Optical: 2(DBS)

• Optical: 3(VCR)

4 DIGITAL OUT terminal (11) 5 USB WIRELESS ANTENNA terminal (12) 6 ANTENNA terminals (5) 7 SUBWOOFER OUT jack (6) 8 VIDEO jacks (7– 10)

VIDEO (composite video) jacks, S-VIDEO jacks

• Input: DBS IN, VCR IN (PLAY), DVR/DVD IN (PLAY)

• Output: VCR OUT (REC), DVR OUT (REC), MONITOR OUT

9 COMPONENT VIDEO (Y, PB, PR) jacks (7– 10)

VCR (DBS) IN, DVR/DVD IN, MONITOR OUT

p AUDIO jacks (7 – 10)

• Input: TV IN, DBS IN, VCR IN (PLAY), DVR/DVD IN (PLAY)

• Output: VCR OUT (REC), DVR OUT (REC)

q DVD MULTI IN jacks (8)

CENTER, SUBWOOFER, SURR – L, SURR – R

w Speakers terminals (6)

SURROUND BACK SPEAKERS, SURROUND SPEAKERS, CENTER SPEAKER, FRONT SPEAKERS

Getting started

123

Before Installation

General precautions

• Be sure your hands are dry.

• Turn the power off to all components.

• Read the manuals supplied with the components you are going to connect.

Locations

• Install the receiver in a location that is level and protected from moisture and dust.

• The temperature around the receiver must be between –5˚C and 35˚C (23˚F and 95˚F).

• Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.

• Leave sufficient distance between the receiver and the TV.

Handling the receiver

• Do not insert any metal object into the receiver.

• Do not disassemble the receiver or remove screws, covers, or cabinet.

• Do not expose the receiver to rain or moisture.

• Do not pull on the power cord to unplug the cord. When unplugging the cord, always grasp the plug so as not to damage the cord.

• When you are away on travel or otherwise for an extended period or time, remove the plug from the wall outlet. A small amount of power is always consumed while the power cord is connected to the wall outlet.

Putting batteries in the remote control

Before using the remote control, put two supplied batteries first.

Press and slide the battery cover on the back of the remote control.

Insert batteries.

Make sure to match the polarity: (+) to (+) and (–) to (–).

Replace the cover.

If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6(SUM-3)/AA(15F) type dry-cell batteries.

• Supplied butteries are for initial setup. Replace for continued use.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity:

(+) to (+) and (–) to (–).

• Use the correct type of batteries. Batteries that look similar may

differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

When using the remote control, aim the remote control directly at the remote sensor on the front panel.

Remote sensor

The receiver has a built-in cooling fan which operates while the receiver is turned on. Be sure to leave enough ventilation to obtain sufficient cooling effect.

CAUTION:

Do not connect the AC power plug to the wall outlet until all connections are completed.

Checking the supplied accessories

Check to be sure you have all of the following supplied accessories. If anything is missing, contact your dealer immediately.

• Remote control (× 1)

• Batteries (× 2)

• AM loop antenna (× 1)

• FM antenna (× 1)

• USB wireless antenna (× 1)

• USB wireless transmitter (Model number: QAL0708-001) (× 1)

• USB extension cable (60cm) (× 1)

Connecting the FM and AM antennas

ANTENNA

COAXIAL

FM 75

AM EXT

AM LOOP

ANTENNA

Do not connect the AC power plug to the wall outlet until all connections are completed.

AM loop antenna (supplied)

Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.

If FM reception is poor, connect an outdoor FM antenna (not supplied).

If AM reception is poor, connect an outdoor single vinyl-covered wire (not supplied).

AM antenna connection

Connect the AM loop antenna supplied to the AM LOOP terminals. Connect the white cord to the AM EXT terminal, and connect the black cord to the H terminal. Turn the loop until you have the best reception.

• If the reception is poor, connect an outdoor single vinyl-covered wire (not supplied) to the AM EXT terminal. Keep the AM loop antenna connected.

FM antenna connection

Connect the FM antenna supplied to the FM 75 Ω COAXIAL terminal as a temporary measure. Extend the supplied FM antenna horizontally.

• If the reception is poor, connect an outdoor FM antenna (not supplied). Before attaching a 75 Ω coaxial cable with a connector, disconnect the supplied FM antenna.

FM antenna (supplied)

NOTES

• If the AM loop antenna wire is covered with vinyl, remove the vinyl while twisting it as shown on the right.

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.

SBL

SBR

(*SB)

LEFTRIGHT LEFT

RIGHT

LEFTRIGHT

SUBWOOFER

OUT

SURROUND

SPEAKERS

CAUTION:SPEAKER

IMPEDANCE 6

SURROUND BACK

SPEAKERS

CENTER

SPEAKER

FRONT

SPEAKERS

Connecting the speakers

1324

12 3

–

Do not connect the AC power plug to the wall outlet until all connections are completed.

Speaker Layout Diagram

Right surround

back speaker

(SBR)

*Left surround

back speaker

(SBL)

Right surround

speaker (RS)

CAUTIONS:

• Use speakers with the SPEAKER IMPEDANCE indicated by the speaker terminals (6 Ω – 16 Ω).

• DO NOT connect more than one speaker to one speaker terminal.

Connecting the speakers

Turn off all components before making connections.

Connecting the center speaker and the front speakers

Center

speaker (C)

Powered

subwoofer

(SW)

Left surround

speaker (LS)

Right front

speaker

(R)

Left front

speaker

(L)

Connecting the surround speakers and the surround back speakers

Twist and remove the insulation at the end of each speaker cord.

Turn the knob counterclockwise.

Insert the speaker cord.

• For each speaker, connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals marked on the speakers.

Turn the knob clockwise.

Open the terminal (1), then insert the speaker cord (2).

• For each speaker, connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals marked on the speakers.

Close the terminal.

*When using a single speaker for the surround back speaker

You can enjoy the surround sound by one surround back speaker. When using one surround back speaker, – set “SB OUT” to “<1SPK>” (see page 19) and – connect the surround back speaker to the left surround back

speaker terminal. (No sound comes from the speaker if

you connect it to the right surround back speaker terminal.)

Connecting the powered subwoofer

By connecting a subwoofer, you can enhance the bass or reproduce the original LFE signals recorded in digital software.

Connect the input jack of a powered subwoofer to the SUBWOOFER OUT jack on the rear panel, using a cord with RCA pin plugs (not supplied).

• Refer also to the manual supplied with your subwoofer.

After connecting all the speakers and/or a subwoofer, set the speaker setting information properly to obtain the best possible surround effect. For details, see pages 17 to 21.

NOTE

You can place a subwoofer wherever you like since bass sound is non-directional. Normally place it in front of you.

Î‰ÏÌ

DVR

OUT(REC)

DVR/DVD IN(PLAY)

COMPONENT VIDEO

MONITOR

OUT

DVR/DVD

VCR(DBS)

DVR

OUT(REC)

DVR/DVD

IN(PLAY)

FRONT

Connecting video components

Do not connect the AC power plug to the wall outlet until all connections are completed.

This receiver is equipped with the following video terminals— composite video, S-video, and component video terminals.

• If your video components have S-video (Y/C-separation) and/or component video (Y, PB, PR) jacks, connect them using an S-

Turn off all components before making connections.

• When you connect other components, refer also to their manuals.

video cable (not supplied) or component video cable (not supplied). By using these terminals, you can get a better picture quality in the order:

DO NOT use a TV through a VCR or a TV with a built-in VCR; otherwise, the picture may be distorted.

Component > S-video > Composite

IMPORTANT:

This receiver can convert video signals as follows:

• Composite video signals can be converted into both S-video signals and component signals.

CAUTION:

If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.

• S-video signals can be converted into component signals.

• Component signals cannot be converted.

When converting video signals, there are some points to observe. For details, see “About video signal conversion” on page 11.

If your video components have AV COMPU LINK terminal

See also page 34 for detailed information about the connection and the AV COMPU LINK remote control system.

7 Connecting a DVD recorder or DVD player with its stereo output jacks:

Green

Component video cable (not supplied)

Blue

Red

White

Red

White

S-video cable (not supplied)

Composite video cable (not supplied)

NOTES

• When connecting a DVD recorder or DVD player to the

component video input jacks, select the component video input mode (DVD VIDEO IN) correctly. If you do not, you cannot view the playback picture on the TV or the AV COMPU LINK remote control system cannot operate properly. See page 22 for details.

• You can enjoy digital sound if using a digital coaxial or optical

cable. When shipped from the factory, the audio input mode for a DVD recorder and DVD player is set to use the digital coaxial terminal (DIGITAL IN 1 (DVR/DVD)). For details of digital connection, see page 11.

DVD recorder or DVD player

Stereo audio cable (not supplied)

Composite video cable (not supplied)

Å To component video output

• Connect Y, P

ı To left/right audio channel output Ç Only for DVD recorder: To left/right audio channel

input

Î To composite video output ‰ To S-video output Ï Only for DVD recorder: To S-video input Ì Only for DVD recorder: To composite video input

B, and PR correctly.

7 Connecting a DVD recorder or DVD player with its analog discrete output jacks (DVD MULTI IN):

‰

DVR

OUT(REC)

DVR/DVD IN(PLAY)

DVR

OUT(REC)

DVR/DVD

IN(PLAY)

FRONT

COMPONENT VIDEO

MONITOR

OUT

DVR/DVD

VCR(DBS)

DVD

MULTI IN

CENTER

SUBWOOFER

SURR-L

SURR-R

This connection is the best connection method for enjoying DVD Audio sounds. When a DVD Audio disc is played back, the original highquality sounds can be reproduced only using this connection.

Turn off all components before making connections.

• When you connect other components, refer also to their manuals.

Green

Component video cable (not supplied)

Blue

Red

S-video cable (not supplied)

Monaural audio cable (not supplied)

White

Red

White

Monaural audio cable (not supplied)

Stereo audio cable (not supplied)

Composite video cable (not supplied)

DVD recorder or DVD player

Composite video cable (not supplied)

NOTE

When connecting a DVD recorder or DVD player to the component video input jacks, select the component video input mode (DVD VIDEO IN) correctly. If you do not, you cannot view the playback picture on the TV or the AV COMPU LINK remote control system cannot operate properly. See page 22 for details.

Å To left/right surround channel audio output ı To center channel audio output Ç To component video output

• Connect Y, P

B, and PR correctly.

Î To subwoofer output ‰ To left/right front channel audio output Ï Only for DVD recorder: To left/right front channel

audio input

Ì To composite video output Ó To S-video output È Only for DVD recorder: To S-video input Ô Only for DVD recorder: To composite video input

About “DVD MULTI”

When you select “DVD MULTI” as the source (see page 14), you can enjoy analog discrete output sound (5.1-channel reproduction) from the connected component.

• You may need to select analog discrete output mode on the component.

NOTES

• When using the headphones, you can listen to the front channel sounds (left and right) only. 3D HEADPHONE mode (see page 30) is not available.

• Surround/DSP modes (see pages 29 to 33) are not available for “DVD MULTI.”

Do not connect the AC power plug to the wall outlet until all connections are completed.

VCR

OUT(REC) IN(PLAY)

AUDIO

OUT(REC) IN(PLAY)

VCR

Î‰ÏÌÇ

COMPONENT VIDEO

MONITOR

OUT

DVR/DVD

VCR(DBS)

7 Connecting a VCR

Turn off all components before making connections.

• When you connect other components, refer also to their manuals.

Green

Blue

Red

White

Red

Component video cable (not supplied)

VCR

Stereo audio cable (not supplied)

White

S-video cable (not supplied)

Composite video cable (not supplied)

NOTES

• When connecting a VCR to the component video input jacks,

select the component video input mode (VCR VIDEO IN) correctly. If you do not, you cannot view the playback picture on the TV or the AV COMPU LINK remote control system cannot operate properly. See page 22 for details.

• You can enjoy digital sound if using a digital coaxial or optical

cable. When shipped from the factory, the audio input mode for a VCR is set to use the digital optical terminal (DIGITAL IN 3 (VCR)). For details of digital connection, see page 11

Composite video cable (not supplied)

Å To component video output

• Connect Y, P

B, and PR correctly.

ı To left/right audio channel output Ç To left/right audio channel input Î To composite video output ‰ To S-video output Ï To S-video input Ì To composite video input

Do not connect the AC power plug to the wall outlet until all connections are completed.

COMPONENT VIDEO

MONITOR

OUT

DVR/DVD

VCR(DBS)

ÎÇ

COMPONENT VIDEO

MONITOR

OUT

DVR/DVD

VCR(DBS)

7 Connecting a DBS tuner

Turn off all components before making connections.

• When you connect other components, refer also to their manuals.

Component video cable (not supplied)

Green

Blue

Red

DBS

IN O

White

Red

Stereo audio cable (not supplied)

DBS tuner

VIDEO

S-VIDEO

DBS

OUT(REC)

NOTES

• When connecting a DBS tuner to the component video input

jacks, select the component video input mode (DBS VIDEO IN) correctly. If you do not, you cannot view the playback picture on the TV. See page 22 for details.

Composite video cable (not supplied)

S-video cable (not supplied)

Å To left/right audio channel output ı To component video output

• Connect Y, P

B, and PR correctly.

Ç To composite video output Î To S-video output

• You can enjoy digital sound if using a digital coaxial or optical

cable. When shipped from the factory, the audio input mode for a DBS tuner is set to use the digital optical terminal (DIGITAL IN 2 (DBS)). For details of digital connection, see page 11.

7 Connecting a TV

Connect the TV to the appropriate MONITOR OUT jacks to view the playback picture from any other connected video components.

Green

Blue

Component video cable (not supplied)

TVIND

DVD LAY)

MONITOR

OUT

Composite video cable (not supplied)

NOTE

You can enjoy digital sound if using a digital coaxial or optical cable. For details of digital connection, see page 11.

Red

White

Red

Stereo audio cable (not supplied)

S-video cable (not supplied)

Å To component video input

ı To left/right audio channel output Ç To S-video input Î To composite video input

• Connect Y, PB, and PR correctly.

DIGITAL OUT

PCM/STREAM

DIGITAL IN

2(DBS)

1(DVR/DVD)

3(VCR)

About video signal conversion

Video Input Converted Video Output

Component

S-video

Video (composite)

Component

S-video

Video (composite)

This receiver can convert video signals. See the table below about video signal conversion.

To convert composite video and S-video signal into component video signal, set the “DVD VIDEO IN,” “VCR VIDEO IN,” or “DBS VIDEO IN” to “<S/C>” (see page 22).

• If using composite video cable for connecting to the video input and using S-video cable for connecting to the video output, the video signal is converted into S-video signal automatically.

• Even if the recording components are connected to the receiver using the S-video cords and the playpack components are connected to the receiver using the composite video cords, you can record the picture on TV.

• Pictures may be distorted if the signals are converted. If this happens, connect the playback source component and TV using the cords of the same type.

• Incoming signal of component can be emitted only through the component output jacks.

Digital connection

This receiver is equipped with three DIGITAL IN terminals—one digital coaxial terminal and two digital optical terminals—and one DIGITAL OUT terminal. To reproduce the digital sound, use the digital connection in addition to the analog connection methods described on pages 7 to 10.

Digital coaxial cable (not supplied)

NOTES

• When shipped from the factory, the DIGITAL IN terminals have been set for use with the following components: – 1(DVR/DVD): For DVD recorder or DVD player – 2(DBS): For DBS tuner – 3(VCR): For VCR If you connect other components, change the digital input

(DIGITAL IN) terminal setting correctly. See “Setting the digital input (DIGITAL IN) terminals—DIGITAL IN 1/2/3” on page 22.

• Select the correct digital input mode. See “Selecting the analog or digital input mode” on page 14.

• When you want to operate the connected component (except DBS tuner) using the AV COMPU LINK remote control system (see pages 34 and 35), connect them also as described on pages 7 to 10.

7 Digital output terminal

You can connect any digital components which have an optical digital input terminal.

Connecting digital recording equipment to the DIGITAL OUT terminal enables you to perform digital-to-digital recording.

Digital optical cable (not supplied)

Turn off all components before making connections.

• When you connect other components, refer also to their manuals.

7 Digital input terminals

When the component has a digital coaxial output terminal, connect it to the 1(DVR/DVD) terminal, using a digital coaxial cable (not supplied).

When the component has a digital optical output terminal, connect it to the 2(DBS) or 3(VCR) terminal, using a digital optical cable (not supplied).

NOTE

The digital signal format transmitted through the DIGITAL OUT terminal is the same as that of the input signal. For example, when the DTS signals are input, the DTS signals are transmitted.

Before connecting a digital optical cable, unplug the protective plug.

USB Connection

ANTENNA

USB WIRELESS

LEARNING

IDON

USB

USB WIRELESS TRANSMITTER

IDCHANNEL

POWER PLAYERID

USB WIRELESS TRANSMITTER

POWER PLAYERID

USB WIRELESS TRANSMITTER

This receiver is equipped with a USB terminal on the front panel and a USB WIRELESS ANTENNA terminal on the rear. You can enjoy sound reproduced through your PC with either of the following methods: 1 connecting a USB wireless antenna (supplied) to the USB

WIRELESS ANTENNA terminal and a USB wireless transmitter (supplied) to your PC. (USB WIRELESS)

2 connecting your PC to the USB terminal with a USB cable (not

supplied). (USB TERMINAL) When you connect your PC for the first time, follow the procedure below.

• Remember you cannot send any signal or data to your PC from

this receiver.

• Use USB extension cable (supplied) if it is difficult to connect

the transmitter directly to the USB connector or the transmitter becomes obstacle to other USB connectors.

IMPORTANT:

• Check if your PC equipped with the CD-ROM drive is running

on Windows® 98 SE*, Windows® Me*, Windows® 2000* or Windows® XP* and prepare its CD-ROM.

• Check your PC’s BIOS setting—whether USB is available, and

whether USB IRQ is set to “AUTO” or to available IRQ number.

Preparation

1 (For USB WIRELESS)

Be sure to make this procedure after purchasing the receiver.

1. Connect the antenna to the USB WIRELESS ANTENNA

terminal on the rear panel.

• Tighten the screw with the antenna upright.

USB wireless

antenna

(supplied)

2. Turn on your PC.

• If the PC has been turned on, quit all the applications now running.

3. Connect the USB wireless transmitter to the USB connector of the PC.

Before connecting the transmitter to the PC, remove the cover of the transmitter. When you connect the transmitter, the USB drivers are installed. The POWER and PLAYER lamp on the transmitter light up.

4. Turn on the receiver, then slide the USB WIRELESS switch on the rear to “ID LEARNING,” and select the source as “USB WIRELESS.”

When you slide the switch, the lamp in the switch starts flashing.

5. Set the volume to minimum.

IMPORTANT:

Always set volume to “0” when connecting or disconnecting the other equipment.

6. Press and hold ID on the transmitter to make a wireless communication with the receiver.

When you press and hold the button, the ID lamp on the transmitter flashes.

When the receiver recognizes the transmitter, the “L” and “R” indicators (see page 16) light up on the display. The lamp on the rear stops flashing and lights up.

7. Slide the switch on the receiver to “ON.”

• If you do not, no sound signal is transmitted to the receiver.

NOTES

• The signal-reachable distance is about 30 m (100 ft.), but it may

differ depending on the operating conditions and circumstances.

• The PLAYER lamp on the transmitter keeps flashing when

starting the playback software in your PC.

• If no signals are transmitted from the transmitter for about 30

minutes, the transmitter enters “sleep” mode. The “L” and “R” indicators go off from the display.

• Though the transmitter may become hot, it is not a malfunction.

2 (For USB TERMINAL)

1. Turn on your PC.

• If the PC has been turned on, quit all the applications now

running.

2. Turn on the receiver, and select the source as “USB TERMINAL.”

3. Set the volume to minimum.

IMPORTANT:

Always set volume to “0” when connecting or disconnecting the other equipment.

4. Connect the receiver to the PC using a USB cable (not supplied).

USB wireless

transmitter (supplied)

USB cable (not supplied)

• Use “USB series A plug to B plug” cable when connecting.

How to install the USB drivers

The following procedure is described using the English version of WindowsR XP. If your PC is running on a different version of operation system or language, the screens shown on your PC's monitor will differ from the ones used in the following procedure.

The following procedure is applied both to USB WIRELESS and USB TERMINAL.

1. The USB drivers are installed automatically.

• If the USB drivers are not installed automatically, install the USB drivers by following the instructions on the PC’s monitor.

2. Check if the drivers are correctly installed.

1. Open the Control Panel on your PC:

Select [Start] = [Control Panel].

2. Select [System] = [Hardware] = [Device Manager] =

[Sound, video and game controllers] = [Universal Serial Bus controllers].

• The following window appears, and you can check whether

the drivers are installed.

If no sound comes from the speakers, check the following items:

(For both USB WIRELESS and USB TERMINAL)

- check the USB device is recognized properly.

- check the playback software in your PC is compatible with the USB device.

- open the Control Panel on your PC, select [Sounds and Audio Devices] = [Audio] tab = [Sound playback] = [Default device], and check [Default device] is set to [USB Audio device].

(For USB WIRELESS)

- select “USB WIRELESS” as the source.

- connect the USB wireless transmitter correctly with the USB WIRELESS switch on the receiver “ON.”

- keep proper distance between the receiver and your PC.

- check the ID lamp on the transmitter and the signal indicators “L” and “R” on the display light up.

(For USB TERMINAL)

- select “USB TERMINAL” as the source.

- connect the USB cable correctly.

NOTES

• DO NOT turn off the receiver or disconnect the transmitter or the USB cable while installing the drivers and for several seconds while your PC is recognizing the receiver.

• If your PC does not recognize the receiver, disconnect the transmitter or the USB cable and connect it again. If it does not work yet, restart Windows.

• The installed drivers can be recognized only when the transmitter is connected to your PC or the USB cable is connected between the receiver and your PC.

• The sound may not be played back correctly—interrupted or degraded—due to your PC settings and PC specifications.

• Use a USB cable (version 1.1 or later). Recommended cord length is 1.5 m.

Now PC is ready for playback through the USB connection.

After installation is completed, you can use your PC as the playback source. The PC automatically recognizes the receiver whenever the transmitter is connected to the PC or the USB cable is connected between the PC and the receiver while the receiver is turned on.

• When not using the PC as the playback source, disconnect the transmitter or the USB cable.

To play back sounds on the PC, refer to the manuals supplied with the sound reproduction application installed in the PC. Start the application after the USB device is recognized.

When playing back with USB WIRELESS,

connect the transmitter and aim the transmitter at the antenna. If any obstacles are in between, playback will be interrupted or the wireless communication will be canceled.

If noise comes during playback with USB WIRELESS,

press CHANNEL to change the frequency band.

• By pressing CHANNEL for more than 3 seconds, you can search for the frequency band which is not used around automatically.

* Microsoft®, Windows® 98 SE, Windows® Me, Windows® 2000,

and Windows® XP are registered trademarks of Microsoft corporation.

Connecting the power cord

When all the audio/video connections have been made, connect the AC power plug to the wall outlet. Make sure that the plugs are inserted firmly. The standby lamp lights in red.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not alter, twist or pull the power cord, or put anything heavy on it, which may cause fire, electric shock, or other accidents.

• If the cord is damaged, consult a dealer and have the power cord replaced with a new one.

NOTES

• Keep the power cord away from the connecting cables and the

antenna. The power cord may cause noise or screen interference.

• The preset settings such as preset channels and sound

adjustment may be erased in a few days in the following cases: – When you unplug the power cord. – When a power failure occurs.

• When you unplug the power cord with the receiver on and connect the power cord again, the receiver enters standby mode.

Basic operations

123

456

789

10010

S.WFR

AUTO SURR

TUNED

STEREO

AUTO MUTING

MHz

ANALOG

S.WFR

AUTO SURR

TUNED

STEREO

AUTO MUTING

MHz

ANALOG

DVR/DVD (DGTL)

VCR (DIGITAL)

DBS (DIGITAL)

TV (DIGITAL)

(Back to the beginning)

USB WIRELESS

USB TERMINAL

DVD MULTI

Source lamps

Select the source to play

On the front panel:

Turn SOURCE SELECTOR until the source name you want appears on the display.

The source lamp corresponding to the selected source lights in red.

• As you turn SOURCE SELECTOR, the source changes as follows:

DVD MULTI: Select the DVD player using the analog

discrete output mode (5.1-channel

DVR/DVD (DGTL)*: Select the DVD recorder or DVD player. VCR (DIGITAL)*: Select the VCR. DBS (DIGITAL)*: Select the DBS tuner. TV (DIGITAL)*: Select the TV. USB WIRELESS: Select the PC component using a

USB TERMINAL: Select the PC component. FM: Select an FM broadcast. AM: Select an AM broadcast.

reproduction).

wireless equipment.

Turn on the power

Press STANDBY/ON (or AUDIO on the remote control).

The standby lamp goes off and the source lamp of the current source lights in red.

To turn off the power (into standby)

Press STANDBY/ON (or AUDIO on the remote control) again. The standby lamp lights in red.

NOTE

A small amount of power is consumed in standby mode. To turn the power off completely, unplug the AC power cord.

Current source name appears.

From the remote control:

Press one of the source selecting buttons.

• For USB WIRELESS and USB TERMINAL, press USB. Each time you press USB, the mode alternates between USB WIRELESS and USB TERMINAL.

* Selecting the analog or digital input mode

For a component you have connected using both the analog connection and the digital connection methods (see pages 7 to 11), you need to select the correct input mode.

• You can select the digital input only for sources which you have selected digital input terminals for. (See “Setting the digital input (DIGITAL IN) terminals—DIGITAL IN 1/2/3” on page 22.)

From the remote control ONLY:

Press ANALOG/DIGITAL to select the analog or digital input mode.

• Each time you press the button, the input mode alternates between the analog input (“ANALOG”) and the digital input (“DGTL AUTO”). This setting is memorized for each source.

DGTL AUTO (DIGITAL AUTO):

ANALOG: Select for the analog input mode. The

Initial setting: DGTL AUTO

NOTES

• You cannot select the digital input mode when selecting “DVD MULTI,” “FM,” or “AM” as the source.

• The input mode is fixed to “DGTL AUTO” when selecting “USB WIRELESS” or “USB TERMINAL” as the source.

Select for the digital input mode. The receiver automatically detects the incoming signal format, then the digital signal format indicator (LINEAR PCM,

, , or 96/24) for the

detected signal lights up.

ANALOG indicator lights up on the display.

LS RS

S.WFR LFE

AUTO SURR

DIGITAL

DGTL AUTO DOLBY DIGITAL

DTS

(Back to the beginning)

S.WFR

AUTO SURR

ANALOG

S.WFR

AUTO SURR

ANALOG

Adjust the volume

Selecting the digital decode mode

To increase the volume, turn MASTER VOLUME control clockwise (or press VOLUME + on the remote control).

To decrease the volume, turn MASTER VOLUME control counterclockwise (or press VOLUME – on the remote control).

• When you adjust the volume, the volume level indication appears on the display for a while.

CAUTION:

Always set the volume to the minimum before starting any sources. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/or ruin your speakers.

NOTE

The volume level can be adjusted within the range of “0” (minimum) to “50” (maximum).

Listening with headphones

You can enjoy not only stereo software but also multi-channel software through the headphones. (Sounds are down-mixed to the front channels while playing multi-channel software.)

Connect a pair of headphones to the PHONES jack on the front panel to activate the HEADPHONE mode.

The HEADPHONE indicator lights up on the display.

• You can also enjoy the Surround/DSP mode through the headphones—3D HEADPHONE mode. For details, see page

30.

• Disconnecting a pair of headphones from the PHONES jack cancels the HEADPHONE (or 3D HEADPHONE) mode and activates the speakers.

CAUTION:

Be sure to turn down the volume:

• Before connecting or putting on headphones, as high volume

can damage both the headphones and your hearing.

• Before removing headphones, as high volume may output from

the speakers.

If the following symptoms occur while playing Dolby Digital or DTS software with “DGTL AUTO” selected (see page 14), follow the procedure below:

• Sound does not come out at the beginning of playback.

• Noise comes out while searching for or skipping chapters or tracks.

From the remote control ONLY:

Press DECODE MODE to select “DOLBY DIGITAL” or “DTS.”

• Each time you press DECODE MODE, the digital decode mode changes as follows:

• To play back software encoded with Dolby Digital, select “DOLBY DIGITAL.”

• To play back software encoded with DTS, select “DTS.”

NOTE

“DOLBY DIGITAL” or “DTS” is automatically reset to “DGTL AUTO” in the following cases:

- When you turn off the receiver.

- When you select another source.

- When you select “DGTL AUTO” again by pressing ANALOG/ DIGITAL.

The following digital signal format indicators on the display indicate what type of signal comes into the receiver.

LINEAR PCM: Lights up when Linear PCM signal comes in.

: • Lights up when Dolby Digital signal comes

in.

• Flashes when “DOLBY DIGITAL” is selected for any software other than Dolby Digital.

: • Lights up when conventional DTS signal

comes in.

• Flashes when “DTS” is selected for any software other than DTS.

96/24: Lights up when DTS 96/24 signal comes in.

NOTE

When “DGTL AUTO” cannot recognize the incoming signal, no digital signal format indicator lights up on the display.

Turning off the sounds temporarily

From the remote control ONLY:

Press MUTING to turn off the sound through all connected speakers and headphones.

“MUTING” appears on the display and the volume turns off.

To restore the sound, press MUTING again.

• Pressing VOLUME +/– (or turning MASTER VOLUME control on the front panel) also restores the sound.

S.WFR

Changing the display brightness

LINEAR PCM

LSSBRS

S.WFR

NEO : 6

DSP

3D-PHONIC

LFE

96 / 24

AUTO SURR

VIRTUAL SB

HEADPHONE

DIGITAL

DIGITAL AUTO

ANALOG

DUAL MONO

SBSSB

S.WFR LFE

SBSSB

S.WFR LFE

SBSSB

S.WFR

AUTO SURR

SLEEP

ANALOG

10min

20min

30min 40min

50min

60min

90min

OFF (canceled)

80min

70min

You can dim the display—Dimmer.

From the remote control ONLY:

Press DIMMER repeatedly.

• Each time you press the button, the display brightness changes as follows:

DIMMER 1: Dims the display. DIMMER 2: Dims the display more than DIMMER 1. DIMMER 3: Turns off the display.

(Temporarily canceled when you operate the receiver.)

DIMMER OFF: Cancels the Dimmer (normal display).

Turning off the power with the Sleep Timer

You can fall asleep while listening to music—Sleep Timer.

From the remote control ONLY:

Press SLEEP repeatedly.

• Each time you press the button, the shut-off time changes in 10 minute intervals. The SLEEP indicator lights up on the display.

SLEEP indicator

NOTE

When “DVD MULTI” is selected as the source, this function is not available.

Basic adjustment of auto memory

This receiver memorizes sound settings for each source:

• when you turn off the power, and

• when you change the source.

When you change the source, the memorized settings for the newly selected source are automatically recalled. The following can be stored for each source:

• Analog/digital input mode (see page 14)

• Bass boost (see page 25)

• Digital equalization pattern (see page 24)

• Input attenuator mode (see page 25)

• Midnight mode (see page 21)

• Speaker output level (see page 24)

• Surround/DSP mode selection (see page 33)

NOTE

If the source is FM or AM, you can assign a different setting for each band.

Signal and speaker indicators on the display

Signal indicators Speaker indicators

When the shut-off time comes:

The receiver turns off automatically.

To check or change the remaining time until the shut-off time:

Press SLEEP once. The remaining time (in minutes) until the shut-off time appears.

• To change the shut-off time, press SLEEP repeatedly.

To cancel the Sleep Timer:

Press SLEEP repeatedly so that “SLEEP OFF” appears on the display. (The SLEEP indicator goes off.)

• The Sleep Timer is also canceled when you turn off the receiver.

Making sounds natural

JVC’s CC (Compression Compensative) Converter eliminates jitter and ripples, achieving a drastic reduction in digital distortion by processing the digital music data in 24 bit-quantization and by expanding the sampling frequency to 176.4 kHz (for fs 44.1 kHz signals)/192 kHz (for fs 48 kHz signals) on the front speakers. By using the CC Converter, you can obtain a natural sound field from both digital and analog sources.

Press CC CONVERTER repeatedly.

• Each time you press the button, the mode changes as follows:

CC CNVRTR 1: Select when playing back an analog

source or a digital source with non compressed digital sound signal (Linear PCM). The CC CONVERTER 1 indicator lights

CC CNVRTR 2: Select when playing back a source with

CC CNVRTR OFF: Select when not using the CC Converter.

up on the display.

compressed digital sound signal (Dolby Digital or DTS). The CC CONVERTER 2 indicator lights up on the display.

The signal indicators light up as follows:

L: • When digital input is selected: Lights up when the

left channel signal comes in.

• When analog input is selected: Always lights up.

R: • When digital input is selected: Lights up when the

right channel signal comes in.

• When analog input is selected: Always lights up. C: Lights up when the center channel signal comes in. LS: Lights up when the left surround channel signal comes

in.

RS: Lights up when the right surround channel signal comes

in. S: Lights up when monaural surround signal comes in. SB: Lights up when the surround back channel signal

comes in. LFE: Lights up when the LFE channel signal comes in.

NOTE

When “DVD MULTI” is selected as the source, all the signal indicators except “SB,” “S,” and “LFE” light up.

The speaker indicators light up as follows:

• The subwoofer indicator (

) lights up when

“SUBWOOFER” is set to “SUBWFR <YES>.” For details, see page 19.

• The other speaker indicators light up only when the

corresponding speaker is set to “SML (small)” or “LRG (large),” and also when required for the current playback.

Basic settings

S.WFR

ANALOG

S.WFR

ANALOG

S.WFR

ANALOG

S.WFR

ANALOG

(Back to the beginning)

1,7

2,4,6

1,3,5

S.WFR

ANALOG

3.1ch

4.0ch

6.0ch 6.1ch

4.1ch

2.0ch

2.1ch

5.0ch 5.1ch

7.0ch*

7.1ch

3.0ch

(Back to the beginning)

To obtain the best possible sound effect from Surround/DSP modes (see pages 29 to 33), you need to set up the speaker and subwoofer information after all the connections are completed. From pages 17 to 22, how to set speakers and other basic items of the receiver are explained.

Turn MULTI JOG to select an appropriate number of the connected speakers (speaker channel number).

As you turn the jog, the speaker channel number changes as follows.

• For the details of speaker channel number, see “ Speakers (channels) number and the size” on page 18.

Setting the speaker information easily—Quick Speaker Setup

Quick Speaker Setup helps you to easily and quickly register the speaker size, speaker distance, and output level of each speaker according to your listening room to create the best possible surround effect.

• You can also register each speaker’s information manually. For details, see pages 20 and 24.

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Press SETTING and turn MULTI JOG until "QUICK SPK SET" appears on the display.

Press SET.

* “7.0ch” is the initial setting.

Press SET.

Turn MULTI JOG to select an appropriate room size to match to your listening room.

As you turn the jog, the room size changes as follows.

• To select your appropriate room size, see “Room size and the speaker distance/output level” on page 18.

* “L” is the initial setting.

Press SET.

QUICK SPEAKER SETUP is now completed, then the display goes back to SETTING menu.

Press SETTING.

NOTES

• This procedure will not be completed if you stop in the middle of the setting process.

• Once Quick Speaker Setup is performed, the speaker output levels are also set to appropriate values automatically (common to all sources). If you want to set the speaker output levels separately for each source, see “Adjusting the speaker output levels” on page 24.

CONTINUED ON THE NEXT PAGE

Speakers (channels) number and the size

You can find how each of the speaker size is defined according to the number of connected speakers (speaker channel “ch” number) you select.

• Subwoofer is counted as 0.1 channel.

The size of connected speakers

CH L/R C LS/RS SB SUBWFR

2.0CH LARGE NONE NONE NONE NO

2.1CH SMALL NONE NONE NONE YES

3.0CH LARGE SMALL NONE NONE NO

3.1CH SMALL SMALL NONE NONE YES

4.0CH LARGE NONE SMALL NONE NO

4.1CH SMALL NONE SMALL NONE YES

5.0CH LARGE SMALL SMALL NONE NO

5.1CH SMALL SMALL SMALL NONE YES

6.0CH LARGE SMALL SMALL NO

6.1CH SMALL SMALL SMALL YES

7.0CH LARGE SMALL SMALL NO

7.1CH SMALL SMALL SMALL YES

SMALL (1SPK)

SMALL (2SPK)

Room size and the speaker distance/output level

According to the selected room size, speaker distance and speaker output level for each activated speaker is set as follows:

Room size

Speaker Distance

L L/R 3.0 m (10 ft) 0 dB

(Large) C 3.0 m (10 ft) 0 dB

LS/RS 3.0 m (10 ft) 0 dB

SBL(SB)/SBR 3.0 m (10 ft) 0 dB

M L/R 2.7 m (9 ft) 0 dB

(Medium) C 2.4 m (8 ft) –2 dB

LS/RS 2.1 m (7 ft) –3 dB

SBL(SB)/SBR 1.8m (6 ft) –4 dB

S L/R 2.4 m (8 ft) 0 dB

(Small) C 2.1 m (7 ft) –2 dB

LS/RS 1.5 m (5 ft) –4 dB

SBL(SB)/SBR 1.2 m (4 ft) –6 dB

NOTE

Abbreviations used in the tables above stand for the following speakers and the subwoofer:

- L: Left front speaker

- R: Right front speaker

- C: Center speaker

- LS: Left surround speaker

- RS: Right surround speaker

- SB: Surround back speaker

- SBL: Left surround back speaker

- SBR: Right surround back speaker

- SUBWFR: Subwoofer

Output

level

Basic setting items

You can adjust the following items. See pages in parentheses for details.

• You cannot select the items which is not available with the current setting. For example, when the speaker channel number is set to “ the following items: S BACK OUT, S BACK DIST, S BACK L DIST, S BACK R DIST

Items To do

QUICK SPK SET Register the number of speakers you connect

SUBWOOFER* Register your subwoofer. (19)

FRONT SPK* Register your front speaker size. (19)

CENTER SPK* Register your center speaker size. (19)

SURROUND SPK* Register your surround speaker size. (19)

S BACK SPK* Register your surround back speaker size.

S BACK OUT* Register the number of your surround back

DIST UNIT Select the measuring unit for the speaker

FRONT L DIST* Register the distance from the left front

FRONT R DIST* Register the distance from the right front

CENTER DIST* Register the distance from the center speaker

SURR L DIST* Register the distance from the left surround

SURR R DIST* Register the distance from the right surround

S BACK DIST* Register the distance from the surround back

S BACK L DIST* Register the distance from the left surround

S BACK R DIST* Register the distance from the right surround

EX/ES/PLIIx Select the EX/ES/PLIIx reproduction mode.

DUAL MONO Select the Dual Mono sound channel. (21)

SUBWOOFER OUT

CROSSOVER Select the cutoff frequency to the subwoofer.

LFE ATT Attenuate the bass (LFE) sounds. (21)

MIDNIGHT MODE

DIGITAL IN 1 Select the component connected to the digital

DIGITAL IN 2 Select the component connected to the digital

DIGITAL IN 3 Select the component connected to the digital

DVD VIDEO IN Select the type of video terminal used for the

VCR VIDEO IN Select the type of video terminal used for the

DBS VIDEO IN Select the type of video terminal used for the

ONE TOUCH OPE

* If you have used Quick Speaker Setup on page 17, these

settings are not required.

<5.1ch>” in Quick Speaker Setup, you cannot select

and the size of your listening room. (17)

(19)

speaker(s). (19)

distance. (20)

speaker to your listening point. (20)

to your listening point. (20)

speaker to your listening point. (20)

back speaker to your listening point. (20)

(20)

Select sounds emitted from the subwoofer. (21)

(21)

Reproduce a powerful sound at night. (21)

coaxial terminal—1(DVR/DVD). (22)

optical terminal—2(DBS). (22)

optical terminal—3(VCR). (22)

DVD recorder or DVD player. (22)

VCR. (22)

DBS tuner. (22)

Memorize the volume level for each source. (22)

Operating procedure

S.WFR

ANALOG

2,4

1,7

3,5

S.WFR

ANALOG

CENTER SPK

SURROUND SPK

FRONT R DIST

CENTER DIST

(Back to the beginning)

S BACK SPK

SUBWOOFER

FRONT SPK

DIST UNIT

FRONT L DIST

SURR L DIST S BACK DIST

SURR R DIST

DUAL MONO CROSSOVER

SUBWOOFER OUT

EX/ES/PLIIx

LFE ATT

MIDNIGHT MODE

DBS VIDEO IN

DVD VIDEO IN

VCR VIDEO IN

DIGITAL IN 1

DIGITAL IN 2

QUICK SPK SET

S BACK OUT

S BACK L DIST

S BACK R DIST

DIGITAL IN 3

ONE TOUCH OPE

S.WFR

ANALOG

DVR/DVD

DBS

VCR

Setting the speakers

To obtain the best possible surround effect from the Surround and DSP modes, register the setting about the speaker after all connections are completed.

• If you have used Quick Speaker Setup on page 17, this setting is not required.

On the front panel ONLY:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Ex.: When setting DIGITAL IN 1 terminal.

Press SETTING.

MULTI JOG now works for the setting operation.

Turn MULTI JOG until the item you want to set appears on the display.

• As you turn MULTI JOG, the setting items change as follows:

Setting subwoofer information—SUBWOOFER

Select whether you have connected a subwoofer or not.

SUBWFR <YES> Select when you have connected a

subwoofer. The subwoofer indicator ( on the display. You can adjust the subwoofer output level (see page 24).

SUBWFR <NO> Select when you have disconnected a

Initial setting: SUBWFER

subwoofer. Selecting this changes the front speaker size to “LRG” (see below).

<NO>

) lights up

Setting the speaker size—FRONT SPK (front speakers), CENTER SPK (center speaker), SURROUND SPK (surround speakers), S BACK SPK (surround back speakers)

<LRG> (large) Select when the cone speaker size is larger

than 12 cm (4 3/4 inches).

<SML> (small) Select when the cone speaker size is smaller

than 12 cm (4 3/4 inches).

<NO> Select when you have disconnected a speaker.

(Not selectable for the front speakers.)

Press SET.

The current setting of the selected item appears.

Turn MULTI JOG to select the appropriate setting.

Your setting is stored.

Press SET.

Repeat steps 2 to 5 to set other items if necessary.

Press SETTING.

The source indication resumes on the display.

Initial setting: <LRG> (for the front speakers)

<SML> (for other speakers)

Setting the surround back speaker(s)—S BACK OUT

SB OUT <1SPK> Select when you use 1 surround back

speaker.

SB OUT <2SPK> Select when you use 2 surround back

speakers.

Initial setting: SB OUT <2SPK>

NOTES

• If you have selected “SML (small)” for the front speaker size, you cannot select “LRG (large)” for other speakers.

• When “SUBWOOFER” is set to “SUBWFR <NO>,” the front speaker size is fixed to “LRG” (and you cannot select “SML”).

• When “SURROUND SPK” is set to “SML (small),” you cannot select “LRG (large)” for the surround back speaker.

• When “SURROUND SPK” is set to “NO,” the surround back speaker is fixed to “NO.”

• When “S BACK SPK” is set to “NO,” you cannot select “S BACK OUT.”

• When “SB OUT” is set to “<1SPK>,” connect the surround back speaker to the left surround back speaker terminal (see page 6). No sound comes from the surround back speaker if you connect it to the right surround back speaker terminal.

Setting the speaker distance

SBL

SBR

2.1 m (7 ft)

2.4 m (8 ft)

2.7 m (9 ft)

3.0 m (10 ft)

3.3 m (11 ft)

The distance from your listening point to the speakers is one of the important elements to obtain the best possible sound effect from the Surround/DSP modes. By referring to the speaker distance, the receiver automatically sets the delay time of the sound through each speaker so that sounds through all the speakers can reach you at the same time.

7 Measuring unit—DIST UNIT

Select which measuring unit you use.

UNIT <meter> Select to set the distance in meters. UNIT <feet> Select to set the distance in feet.

Initial setting: UNIT <meter>

7 Speaker distance—

FRONT L DIST (for the left front speaker), FRONT R DIST (for the right front speaker), CENTER DIST (for the center speaker), SURR L DIST (for the left surround speaker), SURR R DIST (for the right surround speaker), S BACK L DIST (for the left surround back speaker), S BACK R DIST (for the right surround back speaker)

Adjustable range: 0.3 m to 9.0 m in 0.3 m intervals

(1 ft to 30 ft in 1 ft intervals)

Initial setting: 3.0 m (10 ft) for all speakers

Activating the EX/ES/PLIIx setting— EX/ES/PLIIx

Depending on this setting, available Surround modes for digital multi-channel software vary—EX/ES/PLIIx (7.1-channel) reproduction or 5.1-channel reproduction. Select an appropriate setting for your enjoyment.

• For details about relation between EX/ES/PLIIx setting and available Surround mode, see page 32.

• To activate the Surround mode, see page 33.

<AUTO> According to the incoming signal, an appropriate

Surround mode is applied.

• For Dolby Digital Surround EX and DTS-ES software, 6.1-channel reproduction is applied*.

• For other multi-channel (more than 4 channel) encoded software, 5.1-channel reproduction is applied.

<ON> Select to apply 6.1-channel reproduction to both

5.1-channel and 6.1-channel encoded software.

<PLIIx MOVIE>Select to apply PLIIx MOVIE (7.1-channel)

reproduction to both 5.1-channel and 6.1channel encoded software.

<PLIIx MUSIC>Select to apply PLIIx MUSIC (7.1-channel)

reproduction to both 5.1-channel and 6.1channel encoded software.

<OFF> Select to cancel the EX/ES/PLIIx (7.1-channel)

reproduction.

In this case, set the distance as follows: Left front speaker (L): “FRONT L <3.0m> (10ft)” Right front speaker (R): “FRONT R <3.0m> (10ft)” Center speaker (C): “CENTER <3.0m> (10ft)” Left surround speaker (LS): “SURR L <2.7m> (9ft)” Right surround speaker (RS): “SURR R <2.7m> (9ft)” Left surround back speaker (SBL) : “SBACK L <2.4m> (8ft)” Right surround back speaker (SBR) : “SBACK R <2.4m> (8ft)”

NOTES

• You cannot set the speaker distance for the speakers you have set to “NO.”

• If you have selected “<1SPK>” for “S BACK OUT” (see page

19), “S BACK DIST” appears instead of “S BACK L DIST” and “S BACK R DIST.”

Initial setting: <AUTO>

* For some Dolby Digital Surround EX software, Dolby Digital 5.1-

channel reproduction (“DOLBY DIGITAL”) may be applied even though you have selected “<AUTO>”. In this case, select “<ON>” to apply “DOLBY D EX.”

From the remote control:

Press EX/ES/PLIIx repeatedly to select either one of the above.

123

456

789

10010

NOTES

• This function is not available

- when “SURROUND SPK” is set to “NO” (see page 19) or

- when “DVD MULTI” is selected as the source.

• When “S BACK SPK” is set to “NO” (see page 19), the Virtual Surround Back (see page 32) is applied for EX/ES/PLIIx (6.1channel) reproduction.

Selecting the main or sub channel

DUAL MONO

setting

Ch 1

Ch 2

Ch 1 Ch 1

SUB Ch 2 Ch 2 Ch 2 Ch 2 Ch 2

Ch1

Ch 1+Ch 2Ch 1+Ch 2Ch 1+Ch 2

LRL RCLR

MAIN

ALL

SURROUND

OFF

With Surround Activated

CENTER SPK setting

SML/LRG NO

—DUAL MONO

You can select the playback sound (channel) you want while playing digital software recorded (or broadcasted) in Dual Mono mode (see page 30), which includes two monaural channels separately. When the receiver detects Dual mono signals, the DUAL MONO indicator lights up on the display.

D MONO <MAIN>Select to play back the main channel (Ch 1).*

Signal indicator “L” lights up while playing back this channel.

D MONO <SUB> Select to play back the sub-channel (Ch 2).*

Signal indicator “R” lights up while playing back this channel.

D MONO <ALL> Select to play back both the main and sub-

channels (Ch 1/Ch 2).* Signal indicators “L” and “R” light up while playing back these channels.

Setting the crossover frequency—CROSSOVER

Small speakers cannot reproduce the bass sounds efficiently. If you use a small speaker in any position, this receiver automatically reallocates the bass sound elements assigned to the small speaker to the large speakers. To use this function properly, set this crossover frequency level according to the size of the small speaker connected.

• If you have selected “LRG (large)” for all speakers (see page

19), this function will not take effect (“CROSS OFF” appears).

CROSS <80Hz> Select when the cone speaker unit built in the

speaker is about 12 cm (4 3/4 inches).

CROSS <100Hz> Select when the cone speaker unit built in the

speaker is about 10 cm (3 15/16 inches).

CROSS <120Hz> Select when the cone speaker unit built in the

speaker is about 8 cm (3 3/16 inches).

CROSS <150Hz> Select when the cone speaker unit built in the

speaker is about 6 cm (2 3/8 inches).

CROSS <200Hz> Select when the cone speaker unit built in the

speaker is less than 5 cm (2 inches).

Initial setting: D MONO <MAIN>

* Dual Mono signals can be heard from the following speakers—L

(left front speaker), R (right front speaker), and C (center speaker), with respect to the current Surround setting:

NOTE

The Dual Mono format is not identical with bilingual broadcasting for TV programs. So this setting does not take effect while watching such bilingual programs.

Setting bass sound

Setting subwoofer output—SUBWOOFER OUT

The subwoofer emits the LFE signals* and the bass elements of each speaker set to “SML.” You can make the bass elements of the front speaker channels (MAIN) emitted through the subwoofer.

SW <LFE> Select to emit the LFE signals and the bass

SW <LFE+MAIN> Select to emit the bass elements of the front

Initial setting: SW <LFE>

NOTE

• When “SUBWOOFER” is set to “SUBWFR <NO>” (see page

19), this function is not available.

* The LFE signals are emitted only when playing the following

software with the LFE signals:

-Dolby Digital multi channel software

-DTS multi channel software When playing analog source or linear PCM software, no LFE signals are emitted.

elements of each speaker set to “SML.”

speakers’ channels (MAIN) when no bass elements are emitted through the subwoofer in “SW <LFE>.”

Initial setting: CROSS <100Hz>

NOTE

Crossover frequency is not valid for the HEADPHONE and 3D HEADPHONE modes.

Setting the low frequency effect attenuator—LFE ATT

If the bass sound is distorted while playing back software encoded with Dolby Digital or DTS, set the LFE level to eliminate distortion.

• This function takes effect only when the LFE signals come in.

LFE <0dB> Normally select this. LFE <–10dB>Select when the bass sound is distorted.

Initial setting: LFE <0dB>

Using the Midnight mode —MIDNIGHT MODE

You can enjoy a powerful sound at night using the Midnight mode. When the Midnight mode is activated, the MIDNIGHT indicator lights up on the display.

MIDNIGHT <OFF> Select when you want to enjoy surround

with its full dynamic range. (No effect applied.)

MIDNIGHT <1> Select when you want to reduce the

dynamic range a little.

MIDNIGHT <2> Select when you want to apply the

compression effect fully (useful at night).

Initial setting: MIDNIGHT <OFF>

From the remote control:

Press MIDNIGHT repeatedly to select either one of the above.

123

456

789

10010

NOTE

When “DVD MULTI” is selected as the source, this function is not available.

Setting the digital input (DIGITAL IN)

DVR/DVD

DIGITAL IN 1 DBS VCR TV

DIGITAL IN 2

DVR/DVD

DBS VCR TV

DIGITAL IN 3

DVR/DVD

DBS VCR TV

terminals—DIGITAL IN 1/2/3

When you use the digital input terminals, register what components are connected to which terminals—DIGITAL IN 1/2/3 (see page 11) so that the correct source name will appear when you select the digital source. Select one of the following components for each terminal:

For the VCR (VCR VIDEO IN):

VCR <S/C> Select when connecting the VCR to the

composite video or S-video input jacks.

VCR <CMPNT> Select when connecting the VCR to the

component video input jacks.

Initial setting: VCR <S/C>

DVR/DVD For the DVD player (or DVD recorder).

DBS For the DBS tuner.

VCR For the VCR.

TV For the TV.

Initial setting: DVR/DVD (for “DIGITAL IN 1”)

DBS (for “DIGITAL IN 2”) VCR (for “DIGITAL IN 3”)

NOTES

• You cannot assign the same component for different terminals. The priority order for assignment is as follows:

“DIGITAL IN 1” > “DIGITAL IN 2” > “DIGITAL IN 3.”

Ex.: When “DIGITAL IN 1” is set to “DVR/DVD.”

For “DIGITAL IN 2,” “DBS,” “VCR,” and “TV” are selectable.

• In this case, “VCR” is selected.

For “DIGITAL IN 3,” “DBS” and “TV” are selectable.

: Selectable : Not selectable

• Setting “DIGITAL IN 1” affects “DIGITAL IN 2” and “DIGITAL IN 3” settings. When you have changed “DIGITAL IN 1,” confirm the components assigned to “DIGITAL IN 2” and “DIGITAL IN 3.”

For the DBS (DBS VIDEO IN):

DBS <S/C> Select when connecting the DBS to the

composite video or S-video input jacks.

DBS <CMPNT> Select when connecting the DBS to the

component video input jacks.

Initial setting: DBS <S/C>

NOTE

You cannot select “CMPNT” for both the VCR and the DBS at the same time. If you select “CMPNT” for the VCR, the setting for the DBS is fixed to “S/C” and vice versa.

Memorizing the volume level for each source—ONE TOUCH OPE

This receiver memorizes some settings separately for each source. In addition, you can store the volume level for each source with the other memorized settings. (see page 16)

• This receiver memorizes the volume level – when you turn off the power, and – when you change the source.

ONETOUCH<ON>

Select to store the volume level separately for each source. (The ONE TOUCH OPERATION indicator lights up on the display.)

ONETOUCH<OFF>

Select this not to store the volume level.

Selecting the component video input mode—DVD VIDEO IN/VCR VIDEO IN/ DBS VIDEO IN

When you use the component video inputs for connecting the DVD recorder (or DVD player), VCR, or DBS, register the type of video input jacks. If you have not selected appropriate video input jacks, you cannot view the playback picture on the TV or the AV COMPU LINK remote control system cannot operate properly (see page 34). Wnen “<S/C>” is selected for each setting, either composite or S-video signals is converted into component signals (see page

11).

For the DVD recorder or DVD player (DVD VIDEO IN):

DVD <S/C> Select when connecting the DVD recorder

(or DVD player) to the composite video or Svideo input jacks.

DVD <CMPNT> Select when connecting the DVD recorder

(or DVD player) to the component video input jacks.

Initial setting: DVD <S/C>

Initial setting: ONETOUCH<OFF>

To recall the volume level

With the ONE TOUCH OPERATION indicator lit, the volume level for the currently selected source is recalled when the source is selected.

To cancel the One Touch Operation

Set One Touch Operation to “ONETOUCH<OFF>” so that the ONE TOUCH OPERATION indicator goes off from the display.

Sound adjustments

S.WFR

ANALOG

S.WFR

ANALOG

–10

0 +10

S.WFR

ANALOG

CENTER LVL

SURR L LVL

D EQ 63Hz

D EQ 250Hz

(Back to the beginning)

SURR R LVL

FRONT L LVL

FRONT R LVL

S BACK L LVL

S BACK R LVL

D EQ 4kHz BASS BOOST

D EQ 16kHz

LIVENESS CENTER WIDTH

PANORAMA

ROOM SIZE

DIMENSION CENTER GAIN CENTER TONE CENTER ALIGN

SUBWFR LVL

S BACK LVL

INPUT ATT EFFECT

D EQ 1kHz

2,4

1,7

3,5

Operating procedure

On the front panel:

You can make sound adjustment to your preference after completing basic setting.

Basic adjustment items

You can adjust the following items. See pages in parentheses for details.

• You cannot select the items which is not available with the current setting.

Items To do

SUBWFR LVL*

FRONT L LVL*1*2Adjust the left front speaker output level.

FRONT R LVL*1*2Adjust the right front speaker output level.

CENTER LVL*1*2Adjust the center speaker output level. (24)

SURR L LVL*1*

SURR R LVL*1*

S BACK LVL*1*

S BACK L LVL*1*2Adjust the left surround back speaker output

S BACK R LVL*1*2Adjust the right surround back speaker

D EQ 63Hz* D EQ 250Hz* D EQ 1kHz* D EQ 4kHz* D EQ 16kHz*

BASS BOOST Boost the bass level. (25)

INPUT ATT Attenuate the input level of analog source.

EFFECT*

ROOM SIZE Select the room size for your virtual listening

LIVENESS Select the liveness level for your virtual

PANORAMA Add “wraparound” sound effect with side-

CENTER WIDTH Adjust the center channel localization

DIMENSION Adjust sound localization pattern. (26)

CENTER GAIN Adjust the sound localization of the center

CENTER TONE*1Make the center tone soft or sharp. (26)

CENTER ALIGN Align the vertical localization of the center

*1You can also use the remote control for the adjustment. *2If you have used Quick Speaker Setup on page 17, these

settings are not required.

Adjust the subwoofer output level. (24)

(24)

Adjust the left surround speaker output level. (24)

Adjust the right surround speaker output level. (24)

Adjust the surround back speaker output level. (24)

level. (24)

output level. (24)

Adjust the equalization pattern of each

band. (24)

(25)

Adjust the effect level. (25)

room. (25)

listening room. (25)

wall image. (25)

between the center speaker and the left/ right speakers. (26)

channel. (26)

channel signals. (26)

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Ex.: When adjusting subwoofer output level.

Press ADJUST.

MULTI JOG now works for the sound adjustment.

Turn MULTI JOG until the item you want to adjust appears on the display.

• As you turn MULTI JOG, the adjustment items change as follows:

Press SET.

The current setting for the selected item appears.

Turn MULTI JOG to adjust the selected item.

Your adjustment is stored.

Press SET.

Repeat steps 2 to 5 to adjust other items if necessary.

Press ADJUST.

The source indication resumes on the display.

Adjusting the speaker output levels

123

456

789

10010

1,3

123

456

789

10010

Adjusting the equalization patterns—

• SUBWFR LVL (subwoofer output level),

• FRONT L LVL (left front speaker output level),

• FRONT R LVL (right front speaker output level),

• CENTER LVL (center speaker output level),

• SURR L LVL (left surround speaker output level),

• SURR R LVL (right surround speaker output level),

• S BACK L LVL (left surround back speaker output level),

• S BACK R LVL (right surround back speaker output level),

You can adjust the speaker output levels. Adjust all the speakers’ output levels so that you can listen to the sounds from all the speakers at the same level.

• Once you have made an adjustment, it is memorized for each source.

Adjustable range: –10 (dB) to +10 (dB) (in 1 step intervals)

Initial setting: 0 (dB) for all speakers

NOTES

• If you have selected “NO” for a speaker (see page 19), the output level for the corresponding speaker is not adjustable.

• If you have selected “DVD MULTI” as the source, “S BACK LVL,” “S BACK L LVL,” and “S BACK R LVL” are not adjustable.

• If you have selected “<1SPK>” for “S BACK OUT” (see page

19), “S BACK LVL” appears instead of “S BACK L LVL” and “S BACK R LVL.”

• While using the headphones, you can adjust only the left and right front speakers’ output level.

From the remote control:

Press TEST to check the speakers’ output balance.

“TEST: FRONT L” starts flashing on the display, and a test tone comes out of the speakers clockwise.

D EQ 63Hz/250Hz/1kHz/4kHz/16kHz

You can adjust equalization patterns in five frequency bands (center frequency: 63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz) for the front speakers.

• Once you have made an adjustment, it is memorized for each source.

Adjustable range: –8 (dB) to +8 (dB) (in 2 dB intervals)

Initial setting: 0 (dB) for all bands

• When adjustment is made, the DIGITAL EQ indicator lights up on the display.

If no adjustment is required, set all the frequency bands to

“0 (dB).”

• The DIGITAL EQ indicator goes off from the display.

NOTE

When “DVD MULTI” is selected as the source, this function is not available.

From the remote control:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Press D. EQ FREQ repeatedly to select the band you want to adjust.

Press D. EQ LEVEL + or – to adjust the equalization pattern of the selected band.

Repeat steps 1 and 2 to adjust other bands.

• You can adjust the speaker output levels without the test tone.

Adjust the speaker output levels.

Press the + or – button corresponding to the speaker you want to adjust.

Press TEST again to stop the test tone.

NOTES

• No test tone comes out of the speakers for which the speaker setting is set to “NO” (see page 19).

• No test tone is available when the headphone is in use or when “DVD MULTI” is selected as the source.

• If you have selected “<1SPK>” for “S BACK OUT” (see page 19), press + or – button for L – S. BACK to adjust the output level.

Adjusting the bass sounds

Reinforcing the bass—BASS BOOST

You can boost the bass level—Bass Boost.

• Once you have made an adjustment, it is memorized for each

source.

From the remote control:

Press EFFECT to select the level you want to adjust.

123

456

789

10010

B BOOST <ON> Select to boost the bass level.

B BOOST <OFF> Select to deactivate the Bass Boost.

Initial setting: B BOOST <OFF>

NOTE

This function affects only the sound coming out through the front speakers.

The B.BOOST indicator lights up on the display.

From the remote control:

Press B.BOOST to select either one of the above.

123

456

789

10010

Attenuating the input signal—INPUT ATT

When the input level of analog source is too high, the sound will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion.

• Once you have made an adjustment, it is memorized for each source.

• You cannot use the remote control for this setting.

ATT <ON> Select to attenuate the input signal level.

ATT <NORMAL> Select to deactivate attenuation.

Initial setting: ATT <NORMAL>

NOTE

When “DVD MULTI” is selected as the source, this function is not available.

The INPUT ATT indicator lights up on the display.

Adjusting the sound parameters for the Surround/DSP modes

You can adjust the Surround/DSP sound parameters to your preference.

• For details about the Surround/DSP modes, see pages 29 to 33.

Adjusting the effect level for DSP modes—EFFECT

This setting is available only when one of the DSP modes (except ALL CH STEREO) is in use. To activate DSP mode, see page 33.

• Once you have made an adjustment, it is memorized for each DSP mode.

Adjustable range: 1 to 5 (in 1 step intervals) Initial setting: EFFECT <3>

As the number increases, the effect becomes stronger. Normally, select “3.”

Adjusting the virtual room size for DSP modes— ROOM SIZE

This setting is available only when one of the DSP modes (except ALL CH STEREO) is in use. To activate DSP mode, see page 33.

• If “SURROUND SPK” is set to “<NO>” (see page 19), this item

is not adjustable.

• Once you have made an adjustment, it is memorized for each DSP mode.

• You cannot use the remote control for this setting.

Adjustable range: 1 to 5 (in 1 step intervals) Initial setting: ROOM SIZE <3>

As the number increases, the interval between reflections increases so that you will feel as if you were in a larger room. Normally, select “3.”

Adjusting the liveness effect for DSP modes— LIVENESS

This setting is available only when one of the DSP modes (except ALL CH STEREO) is in use. To activate DSP mode, see page 33.

• If “SURROUND SPK” is set to “<NO>” (see page 19), this item is not adjustable.

• Once you have made an adjustment, it is memorized for each DSP mode.

• You cannot use the remote control for this setting.

Adjustable range: 1 to 5 (in 1 step intervals) Initial setting: LIVENESS <3>

As the number increases, the attenuation level of reflections over time decreases so that acoustics change from “Dead” to “Live.” Normally, select “3.”

Adjusting the panorama control for Pro Logic IIx Music and Pro Logic II Music—PANORAMA

This setting is available when Pro Logic IIx Music or Pro Logic II Music is activated for the analog or digital 2-channel sound signal. To activate Pro Logic IIx Music or Pro Logic II Music, see page 33.

• Once you have made an adjustment, it is memorized until you change the setting.

• You cannot use the remote control for this setting.

PANORAMA <ON> Select to add “wraparound” sound effect

with side-wall image.

PANORAMA <OFF> Select to listen to originally recorded

sound.

Initial setting: PANORAMA <OFF>

Adjusting the center channel localization for Pro Logic IIx Music and Pro Logic II Music—CENTER WIDTH

• If “CENTER SPK” is set to “NO” (see page 19), this item is not adjustable.

• Once you have made an adjustment, it is memorized until you change the setting.

• You cannot use the remote control for this setting.

Adjustable range: OFF and 1 to 7 (in 1 step intervals)

Initial setting: C WIDTH

As the number increases, the center channel sound moves toward the left and right speakers. Normally, select “3.”

<3>

Adjusting the sound localization position for Pro Logic IIx Music and Pro Logic II Music— DIMENSION

• Once you have made an adjustment, it is memorized until you change the setting.

• You cannot use the remote control for this setting.

Adjustable range: 1 to 7 (in 1 step intervals) Initial setting: DIMENSION <4>

As the number increases, the sound localization moves towards forward from backward. Normally, select “4.”

Adjusting the sound localization of the center channel—CENTER GAIN

This setting is available only when Neo:6 Music is in use.

• If “CENTER SPK” is set to “NO” (see page 19), this item is not adjustable.

• Once you have made an adjustment, it is memorized until you change the setting.

• You cannot use the remote control for this setting.

Adjustable range: 0 to 1.0 (in 0.1 step intervals) Initial setting: C GAIN <0.3>

As the number increases, the center channel will be localized clearly. Normally, select “0.3.”

Adjusting the center tone—CENTER TONE

This setting is available when one of the Surround/DSP modes is in use. To activate Surround/DSP mode, see page 33.

• If “CENTER SPK” is set to “NO” (see page 19), this item is not adjustable.

• This setting is common to all Surround modes, and is memorized separately for DSP modes.

Adjustable range: 1 to 5 (in 1 step intervals) Initial setting: C TONE <3>

As the number increases, the dialogue becomes stronger. Normally, select “3.”

• When the center tone is set to other than “C TONE <3>,” the C.TONE indicator lights up on the display.

From the remote control:

Press C. TONE to select the level you want to adjust.

123

456

789

10010

Aligning the vertical localization of the center channel for Surround/DSP modes—CENTER ALIGN

This setting is available when one of the Surround/DSP modes (except PLIIx Music, PLII Music, NEO:6 Music, and ALL CH STEREO) is in use. To activate Surround/DSP mode, see page

33.

• If “CENTER SPK” is set to “NO” (see page 19), this item is not adjustable.

• Once you have made an adjustment, it is memorized for each Surround/DSP mode.

• You cannot use the remote control for this setting.

C ALIGN <ON> Select this when you cannot feel as if the

C ALIGN <OFF> Center alignment is turned off.

Initial setting: C ALIGN <OFF>

actors or singers are speaking or singing on the screen.
