COMPACT COMPONENT HDD SYSTEM

SYSTEME HDD DE COMPOSANTS COMPACT

— Consists of CA-NXHD10 and SP-NXHD10

NX-HD10

SP-NXHD10 CA-NXHD10 SP-NXHD10

STANDBY/ON

CLOCK

A.P.off

SLEEP

/TIMER

DISP/CHARA

1-MARK 2-ABC 3-DEF

CANCEL

4-GHI 5-JKL 6-MNO

SET

7-PQRS 8-TUV 9-WXYZ

ENTER

10 0 +10

HDD

TUNER

/LINE

REC START

SELECT

ALBUM

ALBUMLIBRARY

REPEAT

FM / PLAY

MODE

ALBUM

TONE

TITLE

AAC

CONTROL

/EDIT

AHB PRO

SOUND

DIMMER

VOLUME

CONTRAST

RM-SNXHD10J REMOTE CONTROL

— Composé du CA-NXHD10 et SP-NXHD10

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

LVT0859-001A

[J(C)]

Warnings, Cautions and Others

Mises en garde, précautions et indications diverses

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Invisible laser radiation when open and

interlock failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user

serviceable parts inside the Unit; leave all servicing to qualified service personnel.

1. PRODUIT LASER CLASSE 1

2. ATTENTION: Radiation laser invisible quand l’appareil

est ouvert ou que le verrouillage est en panne ou désactivé. Eviter une exposition directe au rayon.

3. ATTENTION: Ne pas ouvrir le couvercle du dessus. Il n’y

a aucune pièce utilisable à l’intérieur. Laisser à un personnel qualifié le soin de réparer votre appareil.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

Caution –– STANDBY/ON button!

Disconnect the mains plug to shut the power off completely. The STANDBY/ON button in any position does not disconnect the mains line. The power can be remote controlled.

Attention –– Commutateur STANDBY/ON !

Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé.

Caution

Never try to analyze or retrieve the data stored in the Hard Disk Drive (HDD). Otherwise, you may have your warranty invalid, and be penalized by law. The manufacturer assumes no liability for any damage resulting from such conduct as mentioned above.

Attention

Ne jamais essayer d’analyzer ni d’extraire les données qui se trouvent sur le disque dur (HDD). Sinon, votre garantie risquerait d’être invalidée et vous risqueriez d’être pénalisé par la loi. Le fabricant ne peut être tenu responsable pour tout dommage résultant d’une telle conduite.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

– G-1 –

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

For Canada/pour le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND.

English

Français

For Canada/pour le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.

CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMIRIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR: “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

– G-2 –

Introduction

English

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to

obtain the best possible performance from your unit, and retain this manual

for future reference.

About This Manual

This manual is organized as follows:

• This manual mainly explains playback and editing operations using the remote control, and the other operations such as recording operations using the buttons on the unit. You can use the buttons both on the remote control and on the main unit for the same operations if they have the same or similar names (or marks), unless mentioned otherwise.

• The following marks are used in this manual:

Gives you warnings and cautions to prevent from damage or risk of fire/electric shock. Furthermore, gives you information which is not good for obtaining the best possible performance from the unit.

Gives you information and hints you had better know.

About the built-in HDD

While the unit is turned on, the hard disk is constantly rotating at a high speed. This requires you to notice the following:

• DO NOT impart vibration or shock.

• DO NOT allow anything having strong magnetism or emitting strong electromagnetic waves (cellular phones, etc.) near the unit.

• DO NOT disconnect the power plug from the wall

outlet when the unit is turned on.

Failure in following the above cautions may damage the HDD (the stored data will be lost and be never restored).

• Since the HDD has its lifetime, it is strongly recommended to make a copy of your important recordings, and keep it using other recording devices.

Power sources

• When unplugging the unit from the wall outlet, always pull the plug, not the AC power cord.

Precautions

Installation

This unit has a built-in HDD, which is a device to read minute magnetic changes. The inside of the device is precision components, requiring you to notice the following when installing the unit:

• Install the unit at a place where the following conditions are satisfied: – Level, dry and neither too hot nor too cold—between

5˚C (41˚F) and 35˚C (95˚F).

– At an altitude between –300 m (–98 ft) below sea level

and + 3048 m (+1000 ft) above sea level.

– With adequate ventilation to prevent internal heat

buildup in the unit.

• Leave sufficient distance between the unit and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

• DO NOT install the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• DO NOT place the unit with the side panels top and bottom.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting heating in the room

• In a damp room

• If the unit is brought directly from a cold to a warm place Should this occur, the unit may malfunction. In this case, leave the unit turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Others

• Should any metallic object or liquid fall into the unit, unplug the unit and consult your dealer before operating any further.

• If you are not going to operate the unit for an extended period of time, unplug the AC power cord from the wall outlet.

DO NOT disassemble the unit since there are no user serviceable parts inside.

If anything goes wrong, unplug the AC power cord and consult your dealer.

– 1 –

Location of the Buttons .................................. 3

Front Panel ............................................................. 3

Remote Control ...................................................... 5

Getting Started................................................ 6

Unpacking .............................................................. 6

Connecting Antennas ............................................. 6

Connecting Speakers .............................................. 7

Connecting Other Equipment ................................ 8

Putting the Batteries into the Remote Control ....... 9

Basic Settings ................................................ 10

Turning On the Power .......................................... 11

Setting the Clock .................................................. 11

Changing the Display Brightness ........................ 12

Changing the Display Contrast ............................ 12

Basic and Common Operations ................... 13

Selecting the Sources and Starting Play .............. 14

Adjusting the Volume ........................................... 14

Reinforcing the Bass Sound ................................. 15

Adjusting the Bass and Treble Sounds ................ 15

Using the AAC Sounds ........................................ 16

Listening to FM and AM Broadcasts .......... 17

Tuning in to a Station ........................................... 18

Presetting Stations ................................................ 19

Tuning in to a Preset Station ................................ 19

Playing Back the External Component ...... 20

Selecting the External Component ...................... 21

Adjusting the Input Level .................................... 21

Changing the Source Name ................................. 22

Playing Back CDs (CD/CD-R/CD-RW)...... 23

Precautions on CD Playback ................................ 24

Playing Back the Entire CD—Normal Play ........ 24

Basic CD Operations ........................................... 25

Programing the Playing Order of the Tracks

—Program Play ............................................. 25

Playing at Random—Random Play ..................... 26

Repeating Tracks or CD—Repeat Play ............... 27

Prohibiting Disc Ejection—Disc Lock ................ 27

Playing Back the HDD (Hard Disk Drive) .... 28

Playing Back the Entire HDD

—Continuous Play ......................................... 29

Basic HDD Operations ........................................ 30

Playing Tracks in an Album—Album Play.......... 31

Playing Albums in a Library—Library Play ........ 32

Playing at Random—Random Play ..................... 33

Repeating Tracks—Repeat Play .......................... 33

Searching for Albums and Tracks to Play

—Search Modes ............................................ 34

Recording into the HDD .............................. 38

Before You Start Recording ................................. 39

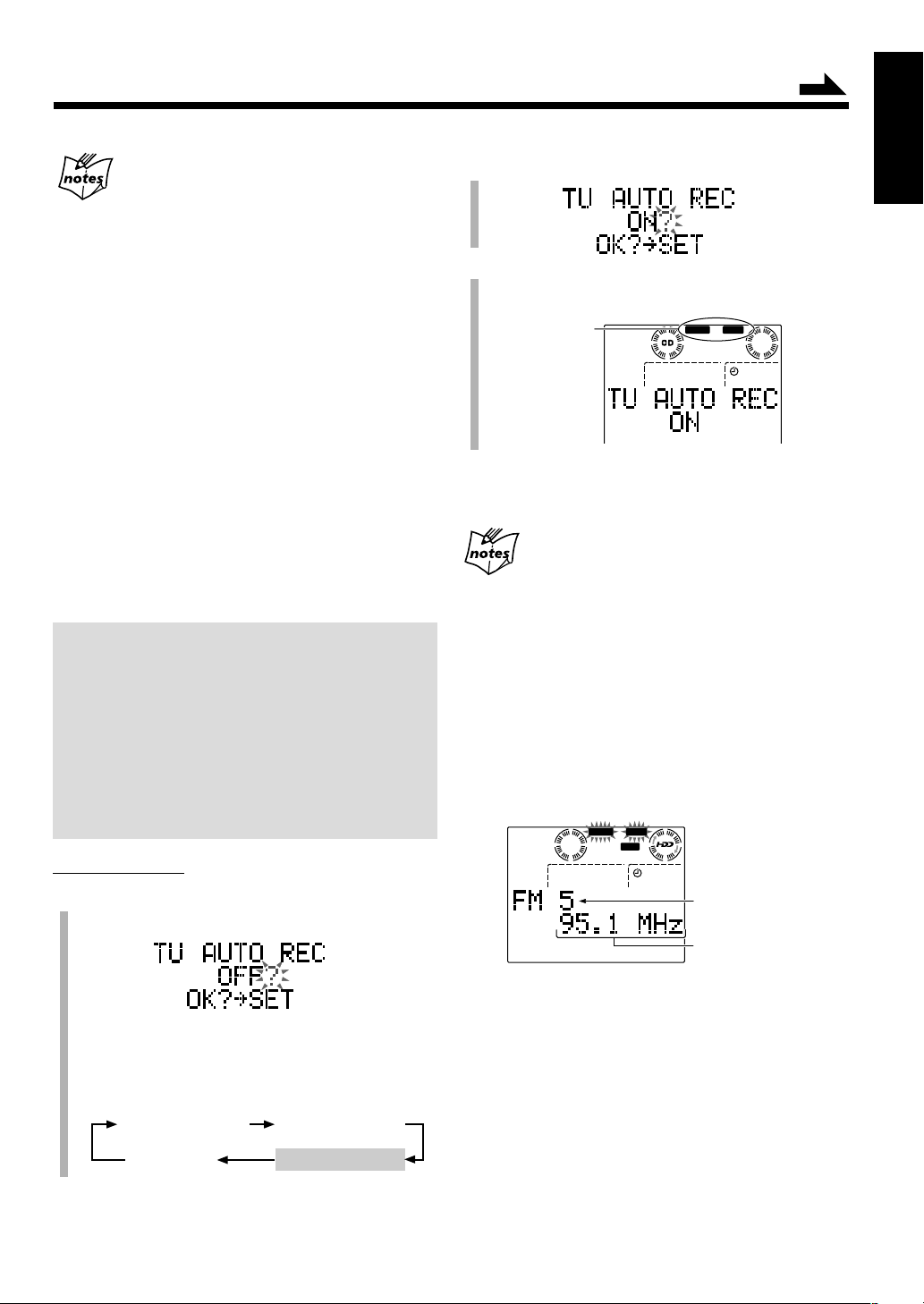

Using Automatic Recording Functions ................ 40

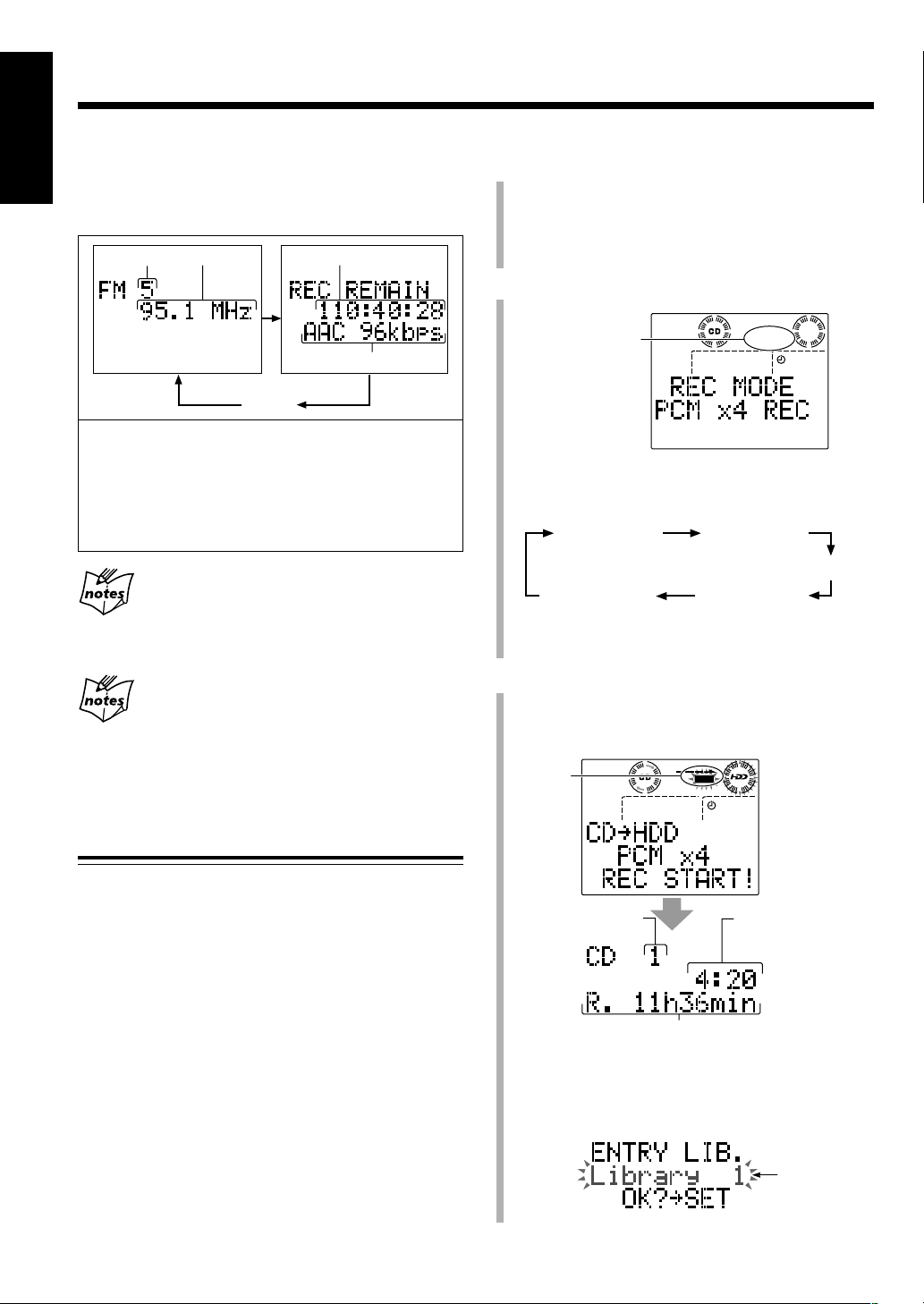

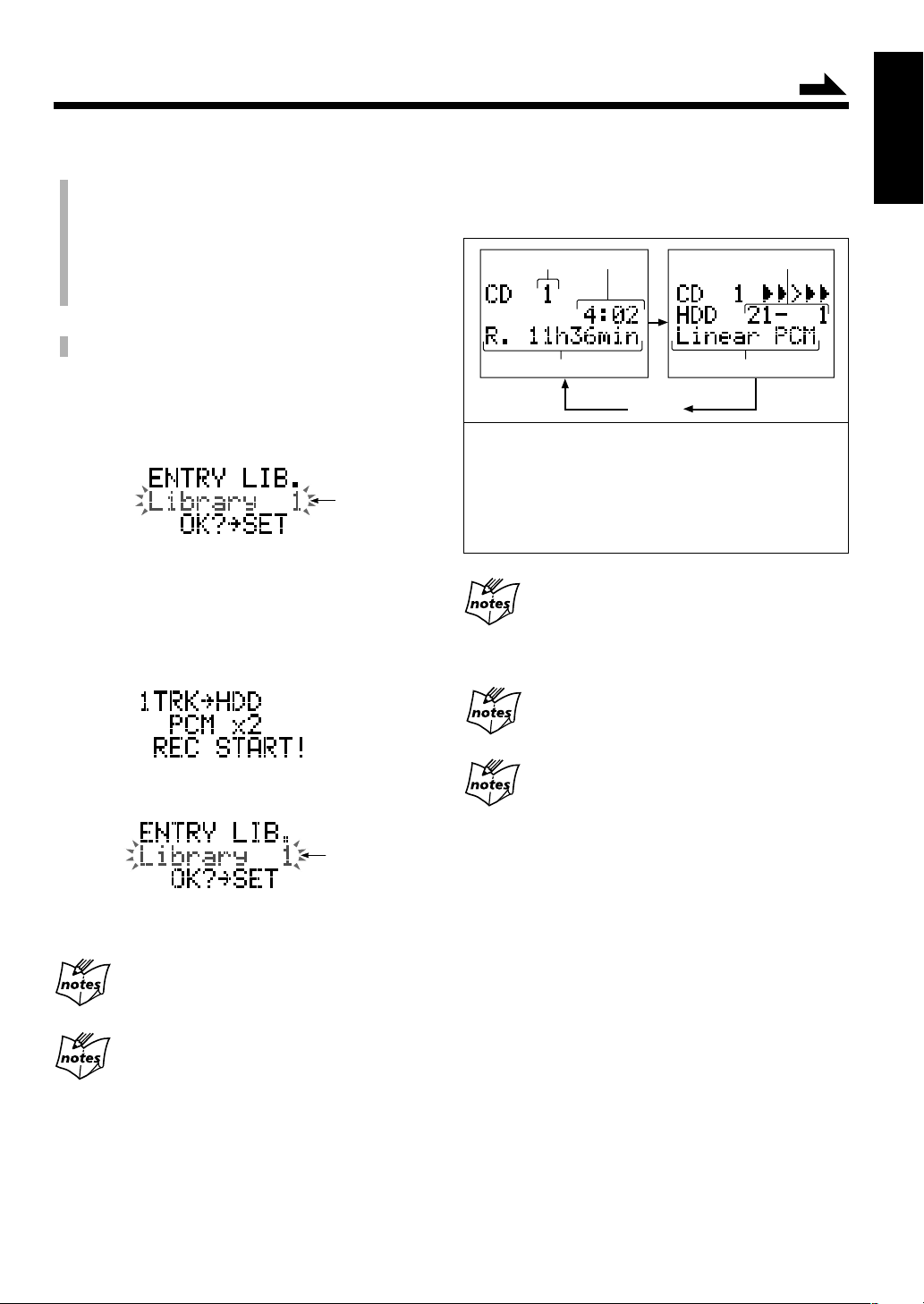

Recording CDs ..................................................... 43

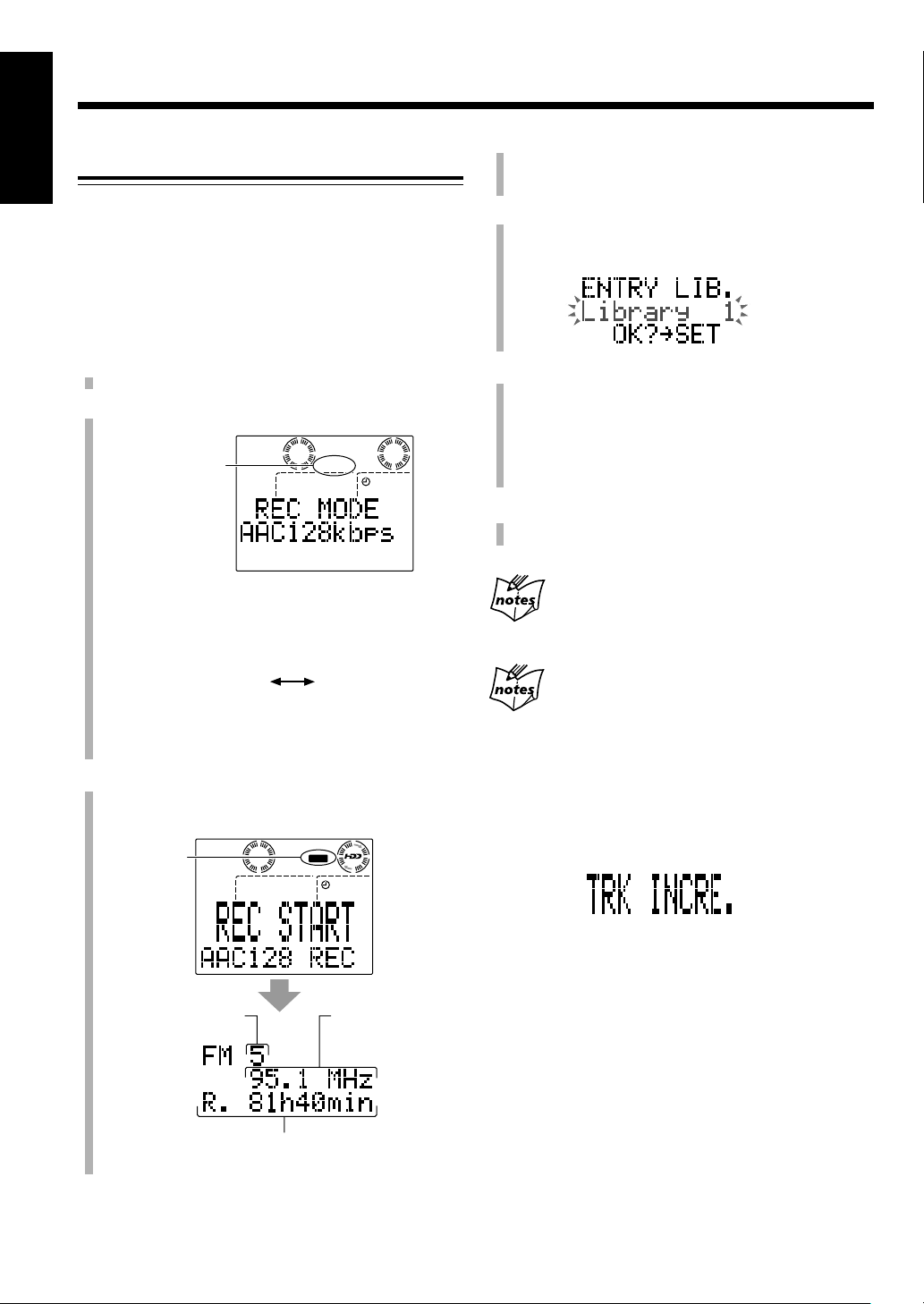

Recording FM/AM Broadcasts ............................ 45

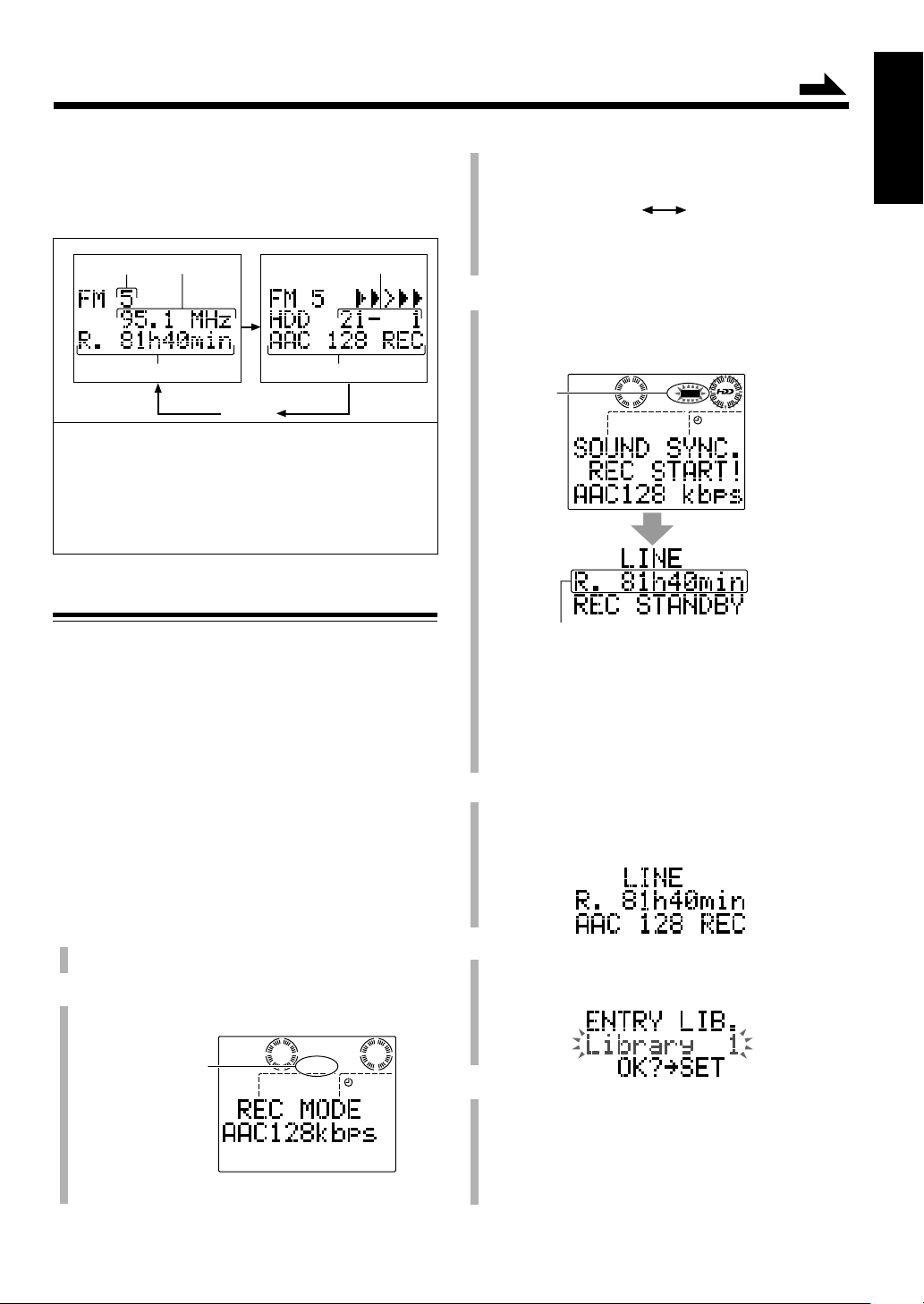

Recording the External Component ..................... 46

Making Your Own Titles .............................. 48

Assigning Titles to Albums and Tracks ............... 49

Editing the HDD ........................................... 51

Introducing HDD Editing Functions .................... 52

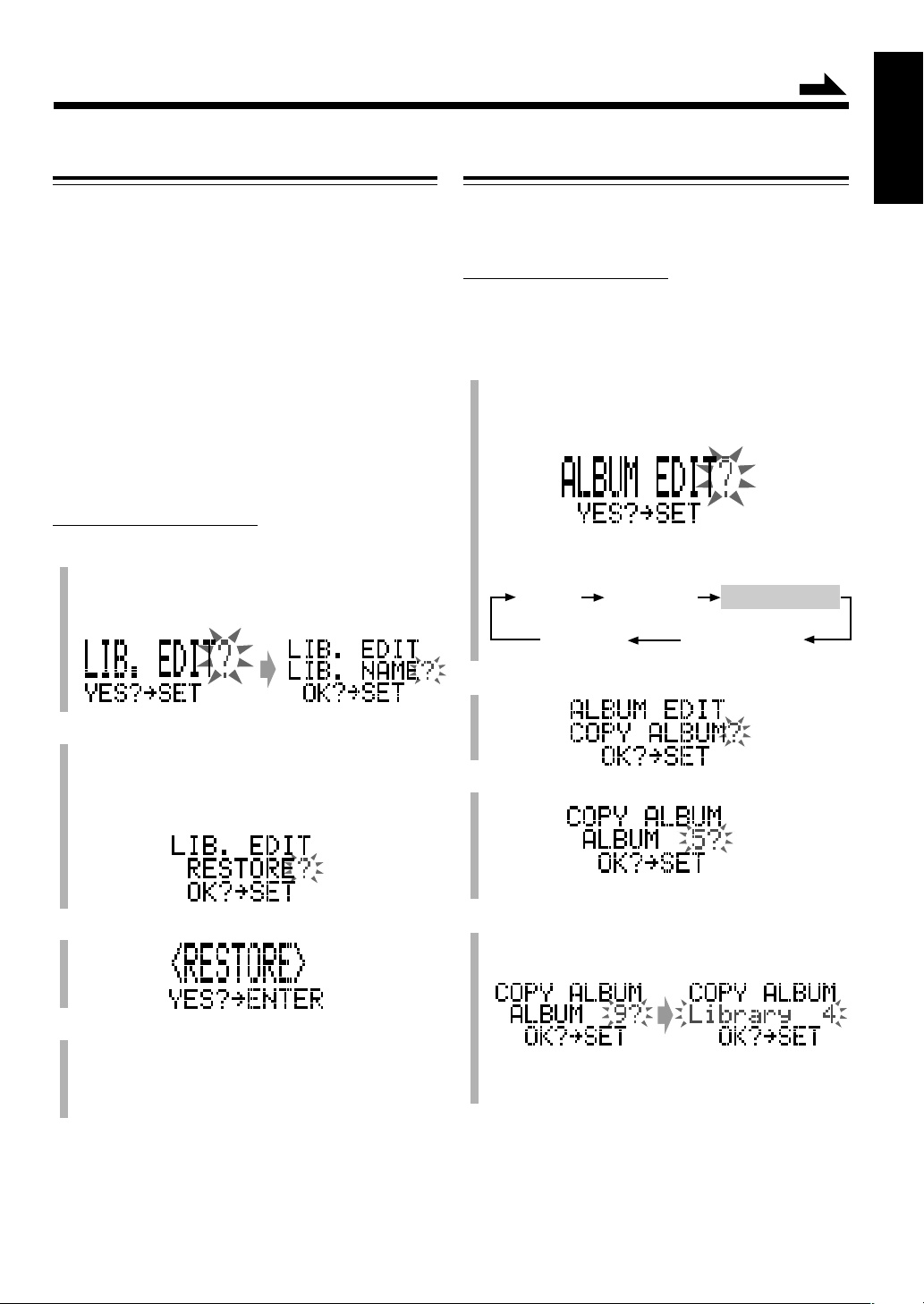

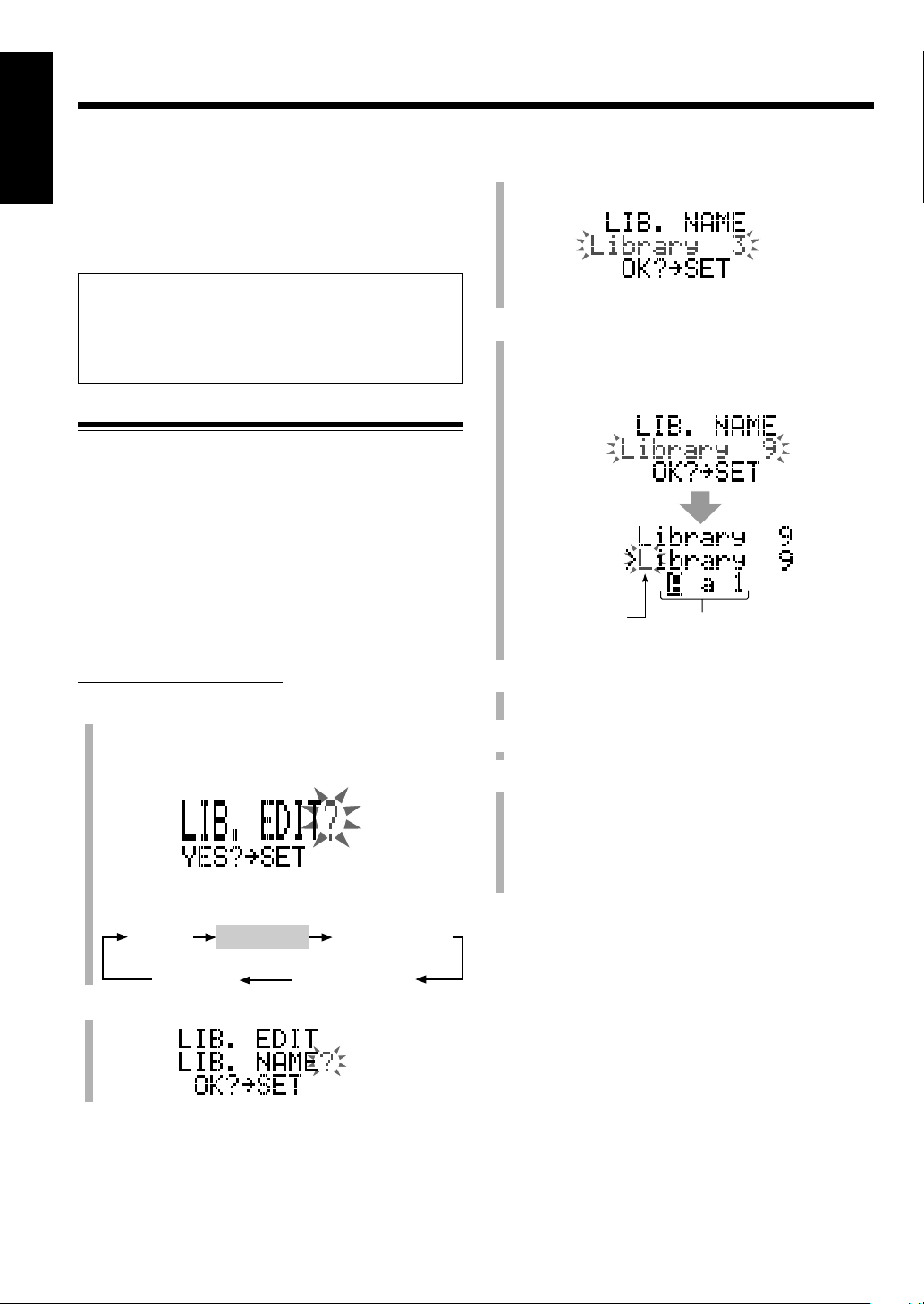

Changing the Library Names—LIB. NAME ....... 53

Restoring the Libraries—RESTORE ................... 54

Copying an Album—COPY ALBUM ................. 54

Moving an Album—LIB. CHANGE ................... 55

Making a New Album—MAKE ALBUM ........... 55

Erasing an Album—ERASE ................................ 56

Erasing All Albums—ALL ERASE ..................... 57

Copying a Track—COPY TRACK ...................... 57

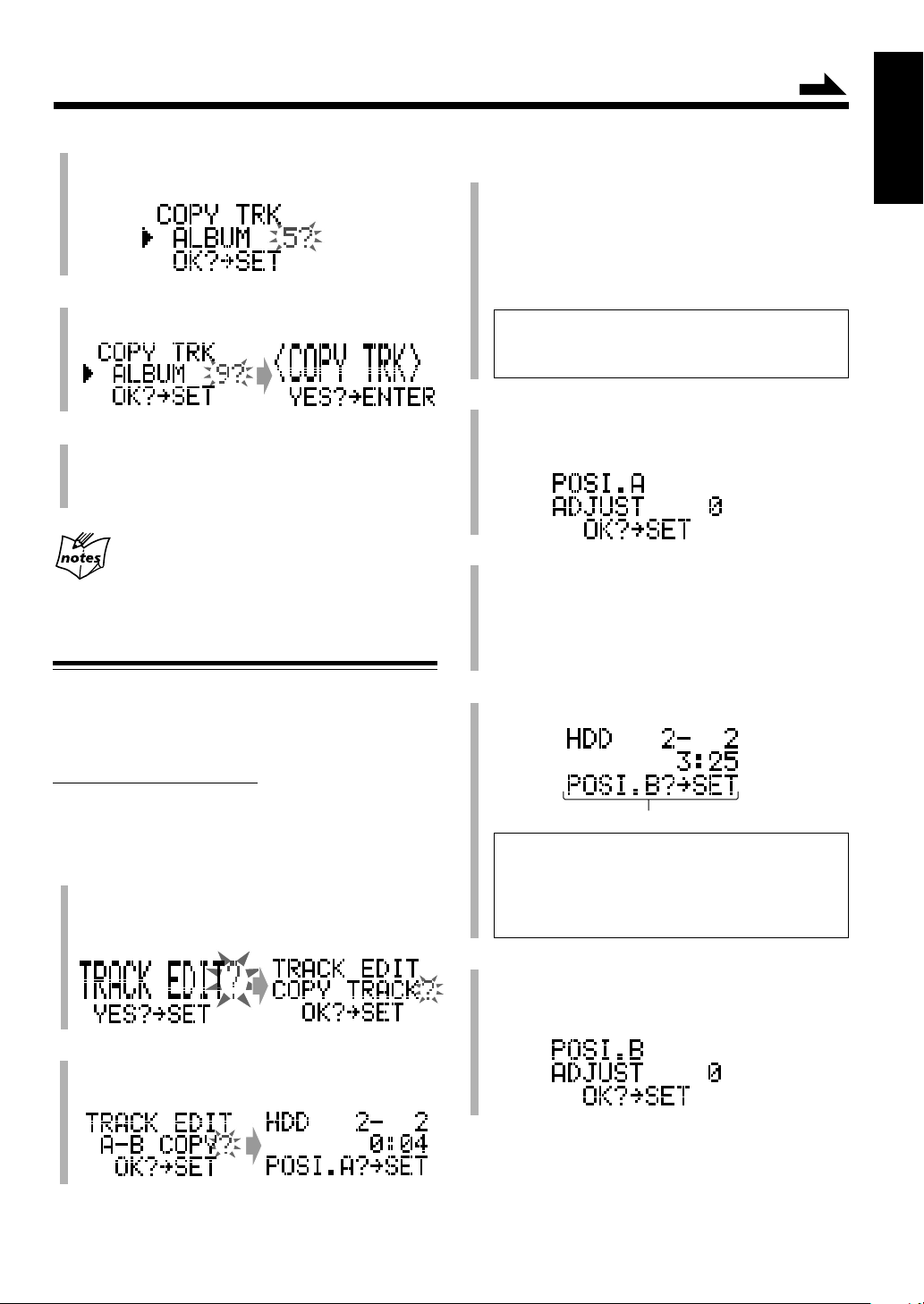

Copying a Portion of a Track—A-B COPY ........ 58

Moving a Track—MOVE .................................... 59

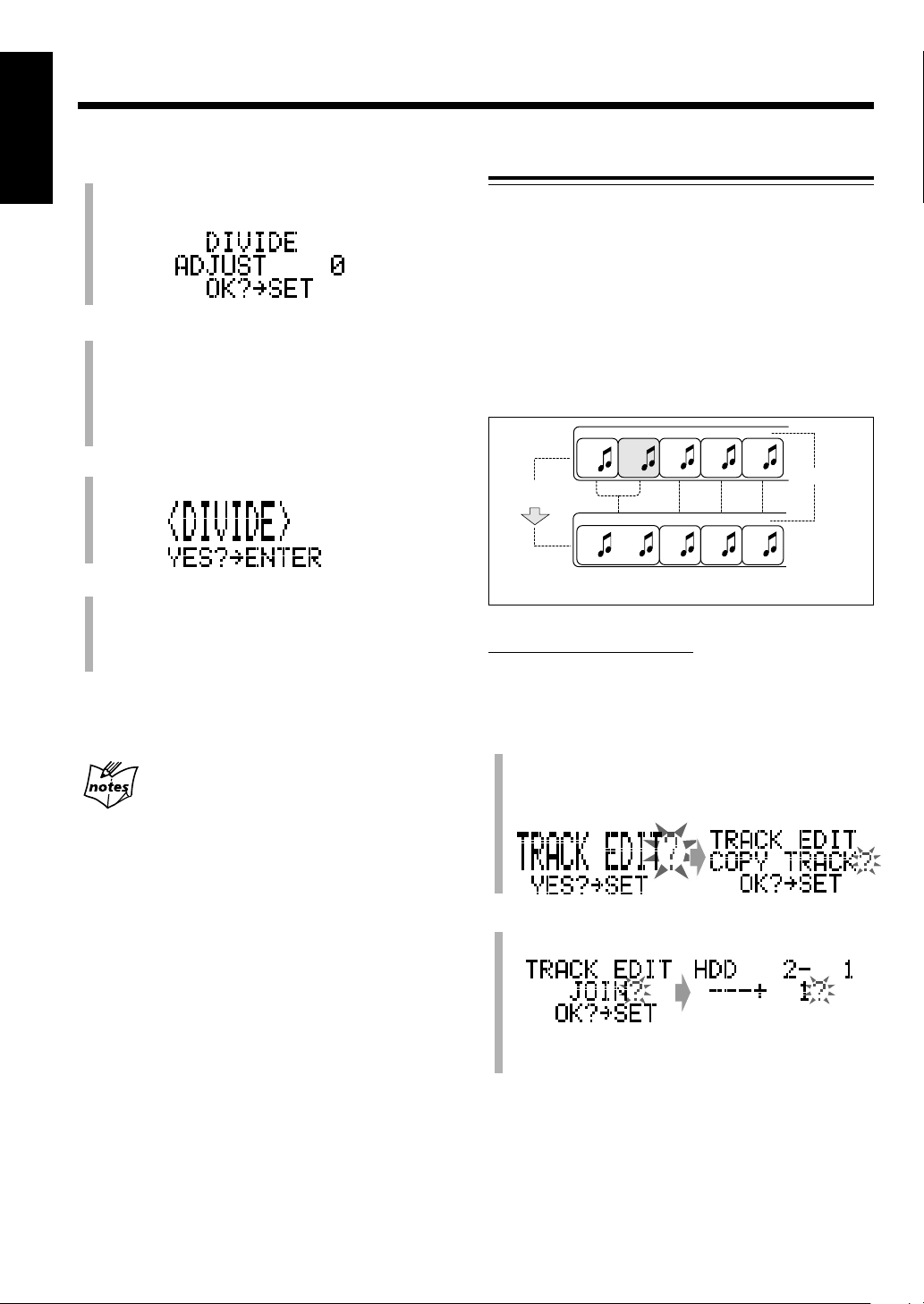

Dividing a Track—DIVIDE ................................. 60

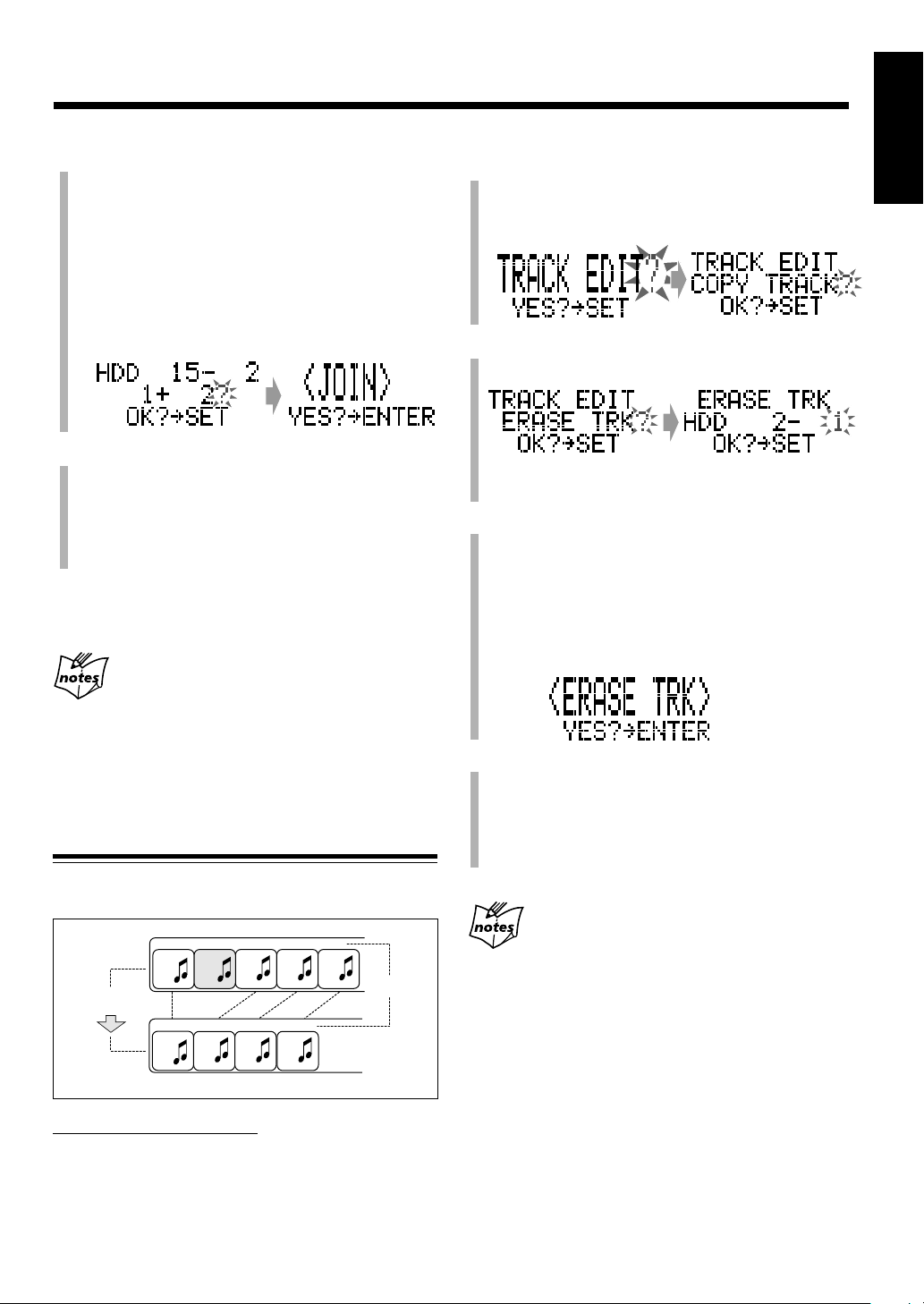

Joining Tracks—JOIN ......................................... 61

Erasing a Track—ERASE TRK ........................... 62

Using the Timers ........................................... 63

Using Recording Timer........................................ 64

Using Daily Timer ............................................... 66

Using Sleep Timer ............................................... 67

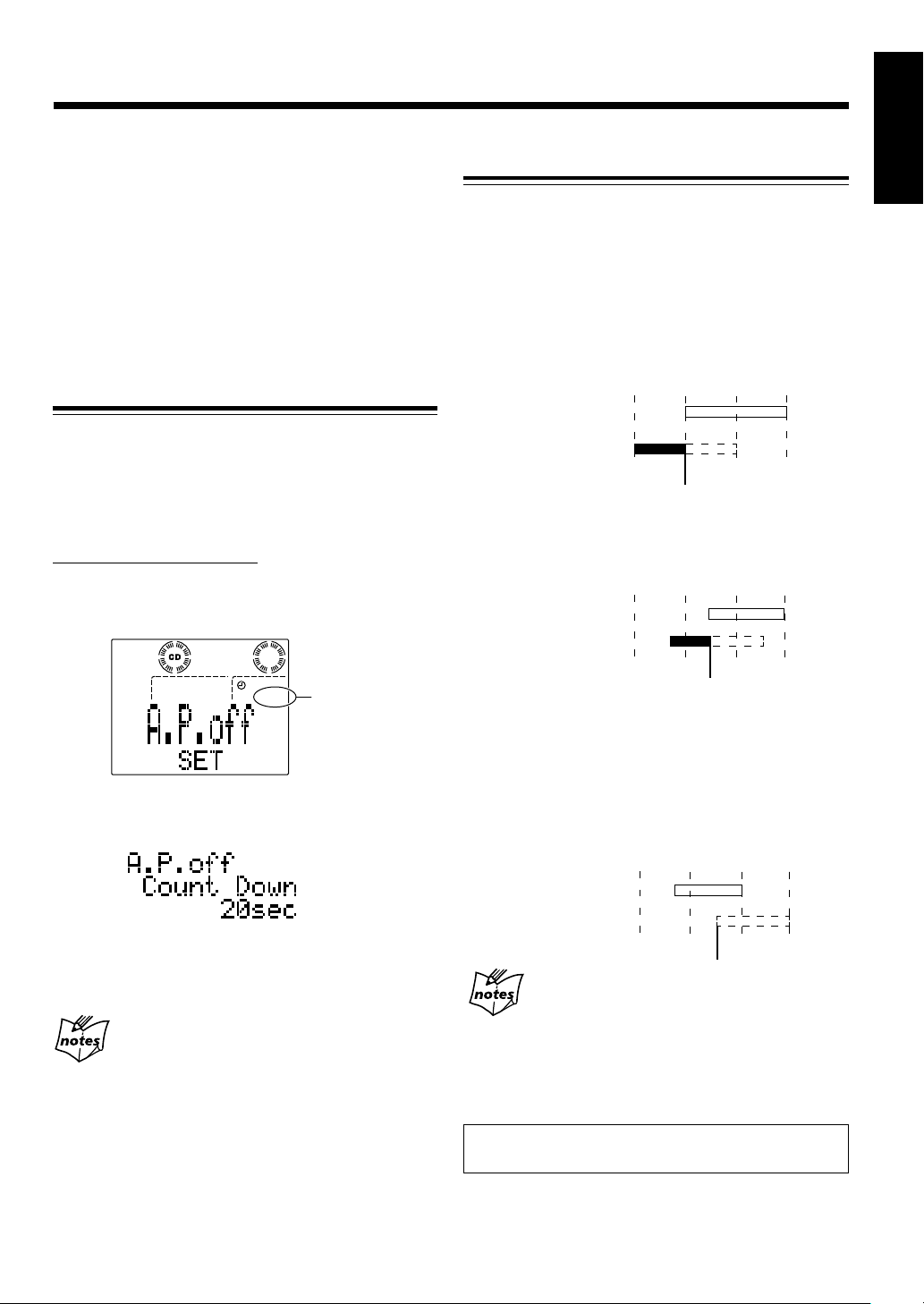

Using Auto Power Off .......................................... 68

Timer Priority....................................................... 68

Using an Optional Keyboard ....................... 69

Keys Used for Operating This Unit ..................... 69

Operating Procedures Using the Keyboard.......... 70

Maintenance .................................................. 72

Messages ........................................................ 73

Troubleshooting ............................................ 75

Specifications................................................. 78

English

– 2 –

Location of the Buttons

English

Become familiar with the buttons on your unit.

Front Panel

Inside of Front Door

Display Window

– 3 –

Continued

REC

MODE

VOLUME

HDD CD

SELECT

LIBRARY

ALBUM

KEYBOARD CONNECTOR for TITLE INPUT

TUNER / LINE

REC

START

SET

COMPACT

DIGITAL AUDIO

See pages in the parentheses for details.

Front Panel

1 HDD lamp (11, 30) 2 STANDBY/ON

button and lamp (11, 40)

3 VOLUME + / – button and lamp (14, 15) 4 REC MODE button (43, 45, 46) 5 REC START button (43 – 47) 6 Multi operation buttons

• SELECT 4 / ¢, and 7

7 HDD operation buttons

• LIBRARY and ALBUM

8 Remote sensor 9 AUTO MODE button (40 – 42) p Display window q SET button w Source selection and operation buttons

• HDD 3/8 (play/pause) button (14, 29)

• CD 3/8 (play/pause) button (14, 24, 43)

• TUNER/LINE button (14, 18, 21)

• Pressing one of these buttons also turns on the unit.

e 0 (eject) CD button (24)

• Pressing this button also turns on the unit.

r Front door t CD tray (24) y KEYBOARD terminal (9) u PHONES jack (14)

How to open the front door

Push on the lower part of the door.

Pull down the door slowly until it clicks.

To close the door, push it up slowly.

English

Display Window

1 CD indicator (25) 2 SMART COMP. indicator (40) 3 CAPS indicator

• Lights up only when the keyboard connected to the KEYBOARD terminal is “caps-locked.”

4 FM mode indicators (18)

• STEREO and MONO

5 BASS indicator (15) 6 SOUND indicator (16) 7 HDD operation indicators (31, 32, 34, 35)

• ALBUM and LIBRARY

8 PROGRAM indicator (25) 9 Repeat indicators (27, 33)

•

and 1

0 Auto recording indicators (41, 42)

• TUNER, CD, and AUTO

- HDD indicator (30) = Recording indicators (43, 45, 46)

• x2, x4, REC, AAC 128, AAC 96, and PCM

~ Clock and timer mode indicators

•

• DAILY, REC 1/2/3, SLEEP, and A.P.off (64 – 68)

! SEARCH indicator (34, 35)

(clock) (11)

@ RANDOM indicator (26, 33) # Main display

• Shows the source name, track and/or album number, and other information.

When using the remote control, point it at the remote sensor on the front panel.

• If you point the remote control diagonally at the remote sensor or far from the unit, or if the path in between is blocked, transmitted signals cannot reach the sensor.

– 4 –

English

Remote Control

1 CLOCK/TIMER button (11, 64 – 67) 2 A.P.off button (68) 3 Number buttons

• 0 – 10, +10 buttons (19, 25, 34)

• Character entry buttons (A – Z, 0 – 9) (35, 49) (10), (+10) buttons (35, 49)

•

• MARK button (35, 49)

4 HDD 3/8 (play/pause) button (14, 29, 50)

• Pressing this button also turns on the unit.

5 TUNER/LINE button (14, 18, 21)

• Pressing this button also turns on the unit.

6 Multi operation buttons

• SELECT 4 / ¢, and 7

7 HDD operation buttons (31)

• ALBUM

and SEARCH MODE

8 TITLE/EDIT button (49, 50, 53 – 62) 9 DIMMER button (12)

CONTRAST button (12)

p SLEEP button (67) q STANDBY/ON w DISP/CHARA button

(18, 21, 25, 30, 41, 43, 44, 46, 47)

e CANCEL button r SET button t ENTER button y CD 3/8 (play/pause) button (14, 24, 43)

• Pressing this button also turns on the unit.

u REC START button (43 – 47) i REPEAT button (27, 33) o FM/PLAY MODE button (18, 25, 26, 31, 32) ; Sound control buttons (15, 16)

• AAC SOUND, TONE CONTROL, and AHB PRO

a VOLUME + / – buttons (14, 15)

/ , LIBRARY, ALBUM + / –,

button (11, 40, 65, 67)

– 5 –

Getting Started

Continued

Unpacking

After unpacking, check to be sure that you have all the following items. The number in the parentheses indicates the quantity of the pieces supplied.

• FM antenna (1)

• AM loop antenna (1)

• Remote control (1)

• Batteries (2)

• AC power cord (1)

• Speaker cords (2)

If any is missing, consult your dealer immediately.

Connecting Antennas

FM antenna

FM antenna (supplied)

To connect an outdoor FM antenna

Before connecting it, disconnect the supplied FM antenna.

Outdoor FM antenna (not supplied)

A 75 Ω antenna with coaxial type connector should be used.

English

Attach the FM antenna to the FM (75 Ω) COAXIAL terminal.

Extend the FM antenna.

Fasten it up in the position which gives you the best reception.

The FM antenna supplied with this unit can be used as temporary measure. If reception is poor, you can connect an outdoor FM antenna.

About the supplied FM antenna

– 6 –

English

AM antenna

Connecting Speakers

You can connect the speakers using the speaker cords.

Use only speakers with the same speaker impedance—more than 4 Ω—as indicated by the speaker terminals on the rear of the unit.

Vinyl-covered wire (not supplied)

AM loop antenna

(supplied)

If cords are covered with insulation, twist the core of the cord at the end of each cord, then remove the insulation.

Connect the AM loop antenna to the AM LOOP terminals as illustrated.

Turn the AM loop antenna until you have the best reception.

To connect an outdoor AM antenna

When reception is poor, connect a single vinyl-covered wire to the AM EXT terminal and extend it horizontally. (The AM loop antenna must remain connected.)

• Make sure the antenna conductors do not touch any other

• Keep the antennas away from metallic parts of the unit,

For better reception of both FM and AM

terminals and connecting cords.

connecting cords, and the AC power cord.

Orange

Black

Orange

Black

Right speaker

If cords are covered with insulation, twist the core of the cord at the end of each cord, then remove the insulation.

Insert the end of the speaker cord into the terminal as illustrated.

Match the polarity of the speaker terminals: (+) to (+) and (–) to (–).

• DO NOT connect or disconnect the speakers while the unit is turned on.

• DO NOT connect more than one speaker to one speaker terminal.

Red

Black

Red

Black

Speaker cord

Left speaker

Red

– 7 –

Continued

To remove the speaker grille

The speaker grilles are removable as shown below:

Projections Holes

Speaker grille

To remove the speaker grille, insert your fingers at the top of the speaker grille, then pull towards you. Do the same at the bottom.

To attach the speaker grille, put the projections of the speaker into the holes of the speaker grille.

Connecting Other Equipment

You can connect a cassette deck, etc.—used as a playback and recording device.

When you connect the other equipment, refer also to the manuals supplied with it.

• DO NOT connect other equipment while the power is on.

• DO NOT plug in any equipment until all connections are complete.

Be sure that the plugs of the audio cords and the jacks on the rear of the unit are color coded: White plugs and jacks are for left audio signals, and red ones for right audio signals.

Ex. When connecting a cassette deck

To input (REC)

To output (PLAY)

Ex. Cassette deck

English

LINE IN

LINE OUT

By using audio cords (not supplied), connect:

• Between the audio input jacks on the cassette deck and the LINE OUT jacks—For recording on the cassette deck.

• Between the audio output jacks on the cassette deck and the LINE IN jacks—For playing a tape.

– 8 –

English

NOW, you can plug in the unit and other connected equipment FINALLY!

Putting the Batteries into the Remote Control

IMPORTANT: Be sure to check all connections to be done before plugging the AC power cord into a wall outlet.

To the AC IN terminal

AC power cord (supplied)

To a wall outlet

Connecting a keyboard

You can connect a PC-compatible keyboard (with the PS/2 plug) to the KEYBOARD terminal inside the front door. By connecting a keyboard, you can easily enter library names, album titles, and track titles. You can also use the keyboard for Search Modes.

• See “Using an Optional Keyboard” on page 69.

Insert the batteries—R6P(SUM-3)/AA(15F)—into the remote control, by matching the polarity (+ and –) on the batteries with the + and – markings on the battery compartment. When the remote control can no longer operate the unit, replace both batteries at the same time.

R6P(SUM-3)/AA(15F)

KEYBOARD

• Before connecting, observe the shape of the plug and of the terminal to match them correctly.

• Before connecting or disconnecting the keyboard, make sure to turn off the unit.

PHONES

Keyboard (not supplied)

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time. Otherwise, it will be damaged from battery leakage.

– 9 –

Basic Settings

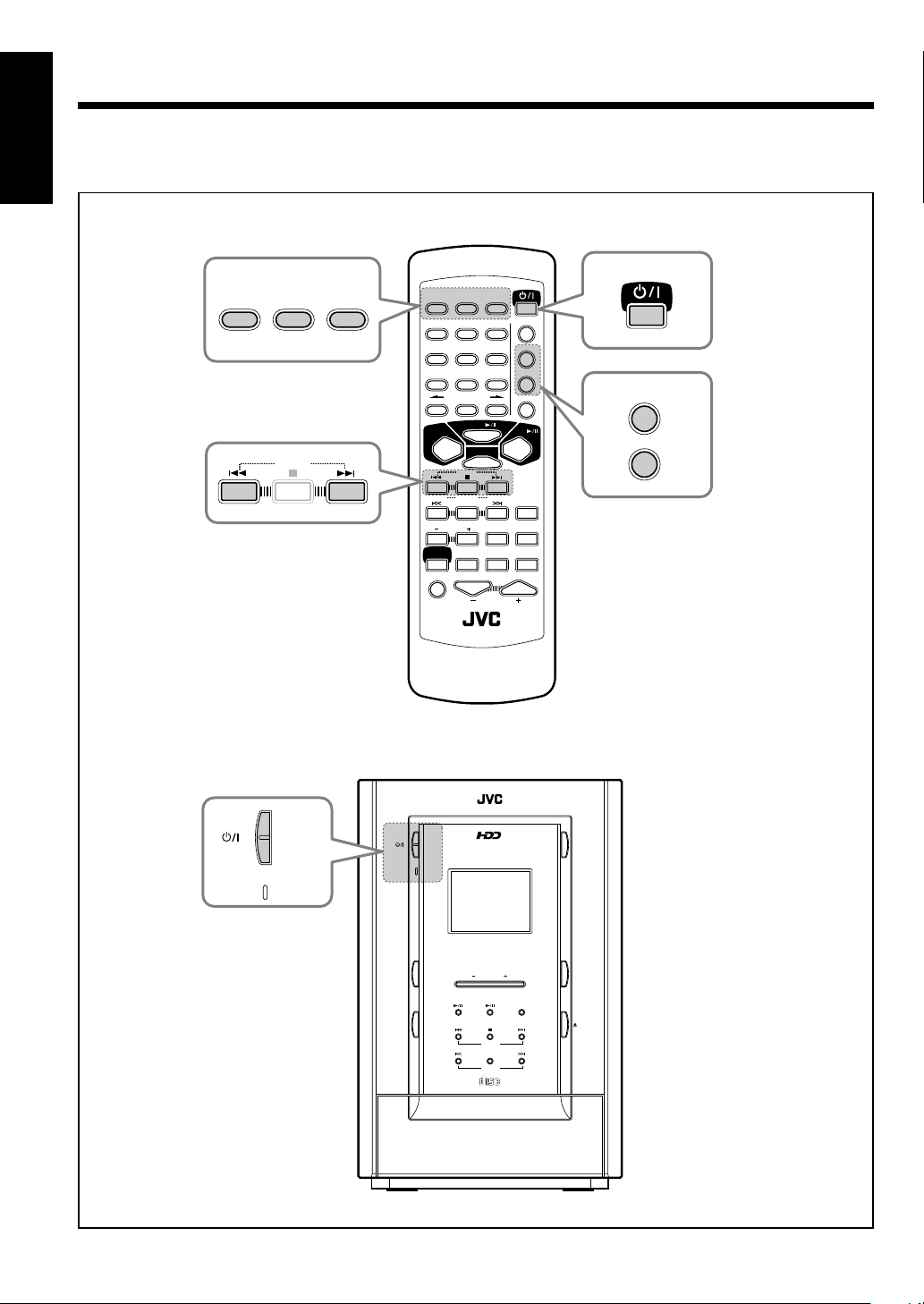

The buttons enlarged in the illustration below are used and explained in this section (pages 11 and 12).

Remote control

STANDBY/ON

CANCEL

SET

ENTER

SELECT

TUNER

/LINE

HDD

REC START

CLOCK

/TIMER

DIMMER

CONTRAST

CLOCK

A.P.off

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

TUNER

/LINE

ALBUM

TITLE /EDIT

DIMMER

CONTRAST

SLEEP

/TIMER

HDD

REC START

SELECT

ALBUMLIBRARY

ALBUM

AAC

SOUND

CONTROL

VOLUME

RM-SNXHD10J REMOTE CONTROL

MODE

TONE

STANDBY/ON

DISP/CHARA

CANCEL

SET

ENTER

REPEAT

FM / PLAY

MODE

AHB PRO

English

Front panel

STANDBY

/ON

COMPACT COMPONENT HDD SYSTEM NX-HD10

STANDBY

/ON

REC

MODE

REC

START

VOLUME

SELECT

LIBRARY

ALBUM

DIGITAL AUDIO

TUNER

COMPACT

HDD CD

KEYBOARD CONNECTOR for TITLE INPUT

AUTO MODE

SET

/ LINE

HDD CD TUNER

/ LINE

– 10 –

English

Before operating the unit any further, first set the clock built in this unit, then some other basic settings.

Turning On the Power

When you press one of the source selecting buttons— HDD 3/8, CD 3/8, TUNER/LINE, the unit automatically turns on (and starts playback if the source is ready).

To turn on the unit without playing, press STANDBY/ON so that the STANDBY/ON lamp on the unit lights in green.

• The HDD lamp flashes then lights in blue. The VOLUME lamp also lights in blue. While the HDD lamp is flashing, no remote control operations are accepted. For detailed information on the HDD lamp, see page 30. (See also “Changing the Display Brightness” on the next page.)

• The

To turn off the unit (on standby), press

STANDBY/ON

lights in red.

indicator starts flashing if the built-in clock is

not set. (It lights if the clock is already set.)

again so that the STANDBY/ON lamp

Setting the Clock

You can set the clock whether the unit is turned on or in standby mode.

On the remote control ONLY:

Press CLOCK/TIMER.

The day of the week starts flashing in the main display.

Press SELECT ¢ or SELECT 4 to select the correct day of the week, then press SET.

• When you press and hold SELECT ¢ or SELECT 4, the day of the week changes

continuously.

The hour digit in the main display starts flashing.

Press SELECT ¢ or SELECT 4 to adjust the hour, then press SET.

• When you press and hold SELECT ¢ or SELECT 4, the hour digit changes continuously.

If Smart Compression has been turned “ON” (see page

40), it starts working and the STANDBY/ON lamp flashes in green while Smart Compression is performed. Then the unit will turn off (on standby).

A little power is always consumed even while the unit is in standby mode.

To switch off the power supply completely, unplug the AC power cord from the AC outlet.

DO NOT unplug the AC power cord in the following cases; otherwise, the data in the HDD may be damaged:

• While recording or editing.

• While Smart Compression is working.

When you unplug the AC power cord or if a power failure occurs

The clock is reset to “Monday AM12:00” after about a minute, while the tuner preset stations and other settings will be erased in a few days.

– 11 –

The minute digits start flashing.

• If you want to correct the hour after pressing SET, press CANCEL. The hour digit starts flashing again.

Press SELECT ¢ or SELECT 4 to adjust the minute, then press SET.

• When you press and hold SELECT ¢ or SELECT 4, the minute digit changes continuously.

“ADJUST OK” appears in the main display, and the built-in clock starts.

To adjust the clock again

Once you have adjusted the clock, you need to press CLOCK/TIMER repeatedly until the clock setting screen appears in the main display (until the day of the week starts

flashing), then follow steps

to 4 on the previous page.

Changing the Display Contrast

You can change the display contrast while the unit is turned on.

On the remote control ONLY:

English

To turn on/off the clock indication

You can turn on the clock indication on the display while the unit is in standby mode.

Press DIMMER (CONTRAST) on the remote control while the unit is in standby mode. The clock indication appears on the display.

To turn off the clock indication for saving the power,

press DIMMER (CONTRAST) again while the unit is in standby mode.

Changing the Display Brightness

You can change the display brightness while the unit is turned on.

On the remote control ONLY:

Press DIMMER (CONTRAST). The display illumination dims, and the HDD and VOLUME lamps go off—dimmer.

• Each time you press the button, the display brightness alternates between normal mode and dimmer mode.

IMPORTANT: Operating procedures through the entire manual are explained assuming that dimmer mode is not activated (initial setting when shipped from the factory).

Press and hold CONTRAST (DIMMER) for more than 2 seconds.

“CONTRAST” and the current setting appear in the main display.

Press SELECT ¢ or SELECT 4 to adjust the contrast.

• You can adjust the contrast within the range of 0 to +7.

Press SET or ENTER to finish setting.

• If you do not press the button for about 60 seconds, the setting will be stored, then the source indication will be resumed.

– 12 –

Basic and Common Operations

English

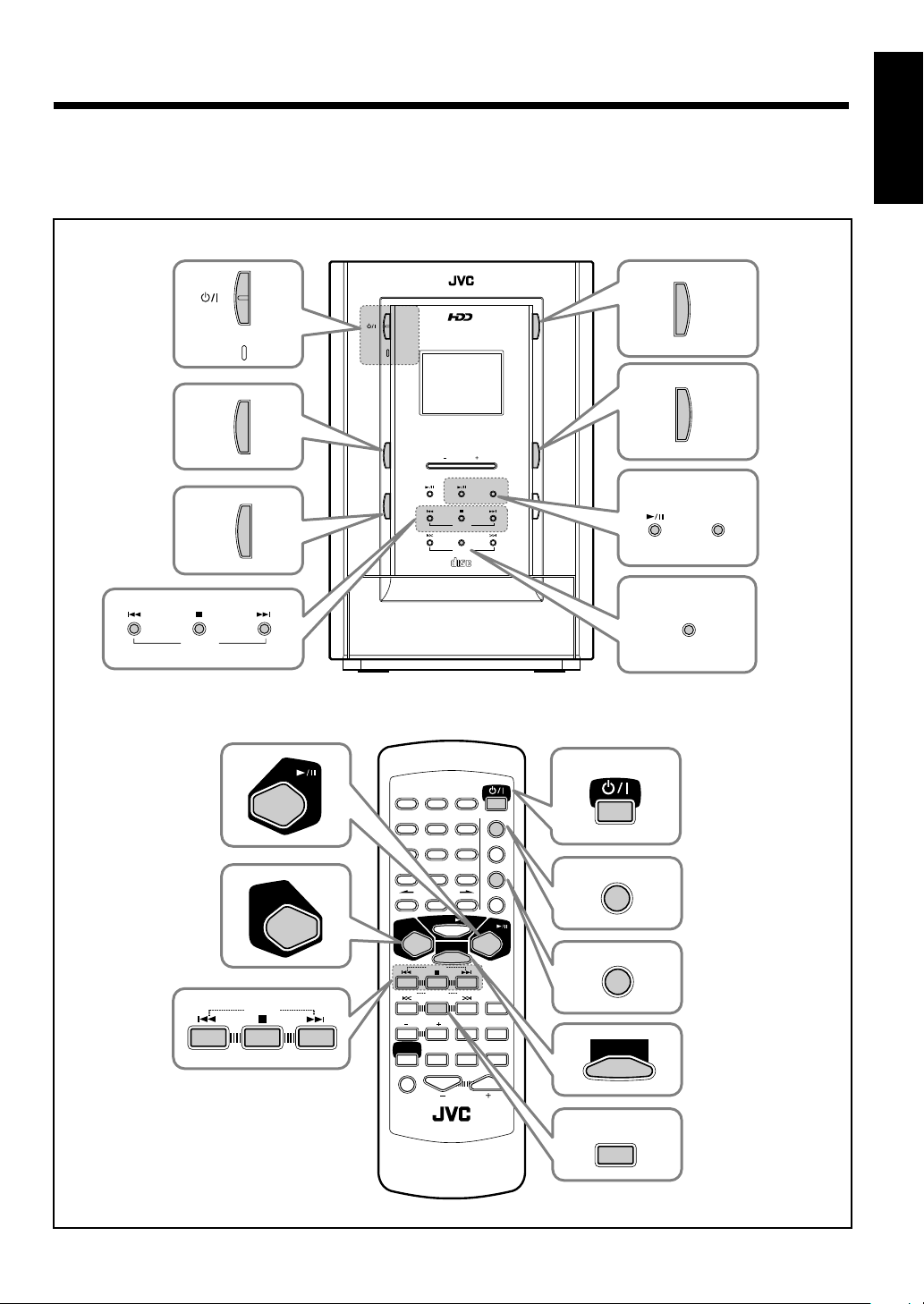

The buttons enlarged in the illustration below are used and explained in this section (pages 14 and 16).

Remote control

STANDBY/ON

CLOCK

TUNER

/LINE

HDD

REC START

A.P.off

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

TUNER

/LINE

ALBUM

TITLE /EDIT

DIMMER

CONTRAST

ALBUM

/TIMER

SELECT

AAC

SOUND

HDD

REC START

VOLUME

SLEEP

ALBUMLIBRARY

MODE

TONE

CONTROL

DISP/CHARA

CANCEL

SET

ENTER

REPEAT

FM / PLAY

MODE

AHB PRO

AAC

SOUND

CONTROL

TONE

AHB PRO

Front panel

VOLUME

RM-SNXHD10J REMOTE CONTROL

COMPACT COMPONENT HDD SYSTEM NX-HD10

STANDBY

/ON

REC

MODE

REC

START

VOLUME

HDD CD

SELECT

LIBRARY

ALBUM

COMPACT

DIGITAL AUDIO

KEYBOARD CONNECTOR for TITLE INPUT

TUNER / LINE

VOLUME

AUTO MODE

SET

HDD CD TUNER

/ LINE

– 13 –

Continued

Selecting the Sources and Starting Play

To select FM, AM or external component as the source,

press TUNER/LINE repeatedly until “FM,” “AM” or “LINE*” is selected.

• If the unit is in standby mode, the power automatically comes on at the first press of the button.

• Each time you press the button, the source changes as follows:

FM AM

LINE

(See page 21.)

FM : To tune in to the last received FM station. AM : To tune in to the last received AM station. LINE* : To use the external equipment connected to

the LINE IN terminal.

* If you have changed the source name of the external

component, the currently selected source name will appear (see page 22).

• For more detailed tuner operations, see pages 17 to

19.

• For operating the external equipment, see pages 20 to

22.

To select the CD player as the source, press CD 3/8.

When the unit is in standby mode: The unit automatically turns on.

When the unit is turned on: “CD PLAY” appears in the main display for a while.

• Playback will start if a CD is on the CD tray.

• “CD NO DISC” will appear in the main display if a CD is not loaded.

To stop playback, press 7.

• For more detailed operations, see pages 23 to 27.

Adjusting the Volume

You can adjust the volume level only while the unit is turned on.

To increase the volume, press VOLUME + . To decrease the volume, press VOLUME – .

• You can adjust the volume within the range of 0 (silence) to 50 (maximum).

• When you press and hold the button, the volume level keeps changing.

For private listening

Connect a pair of headphones to the PHONES jack inside the front door. No sound comes out of the speakers. Be sure to turn down the volume before connecting or putting on the headphones.

If “CANNOT LISTEN!” appears in the main display

During high-speed recording (PCM x2 REC, PCM x4 REC) (see page 43), you cannot listen to any source, and therefore, cannot adjust the volume level.

DO NOT turn off (in standby mode) the unit with the volume set to an extremely high level; otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the unit or start playing any source. REMEMBER you cannot adjust the volume level while the unit is in standby mode.

English

To select the HDD (hard disk drive) as the source, press

HDD 3/8.

When the unit is in standby mode: The unit automatically turns on.

When the unit is turned on: “HDD PLAY” appears in the main display for a while.

• “HDD NO DATA” will appear in the main display if nothing is recorded. (To record into the HDD, see pages 38 to 47.)

To stop playback, press 7.

• For more detailed operations, see pages 28 to 37.

– 14 –

English

Reinforcing the Bass Sound

Adjusting the Bass and Treble Sounds

The richness and fullness of the bass sound is clearly maintained regardless of how low you set the volume —Active Hyper Bass Pro.

• You can use this effect only for playback.

• This function also affects the sound from headphones.

On the remote control ONLY: To get the effect, press AHB PRO repeatedly until

“AHB 1” or “AHB 2” appears in the main display. The BASS indicator lights up on the display.

• Each time you press the button, the Active Hyper Bass Pro mode changes as follows:

AHB 1 AHB 2

AHB OFF

(canceled)

AAC128

BASS indicator

Ex. When “AHB1” is selected

• “AHB 2” is more effective than “AHB 1.”

BASS

You can adjust bass and treble sounds to your taste and surroundings.

• You can use this effect only for playback.

• This function also affects the sound from headphones.

On the remote control ONLY:

Press TONE CONTROL to select “BASS” or “TREBLE.”

The selected tone control mode and the current setting appear in the main display.

• Each time you press the button, the tone control mode changes as follows:

BASS TREBLE

Source indication

(canceled)

Press VOLUME + or VOLUME – to adjust the selected tone level.

• You can adjust the tone level within the range of –5 to +5.

To check the effect level, press AHB PRO once.

To cancel the effect, press AHB PRO repeatedly until

“AHB OFF” appears in the main display. The BASS indicator goes off from the display.

Ex. “BASS” level is set to “+3”

Repeat steps 1 and 2 to adjust the other tone level.

Press TONE CONTROL to finish the setting.

• If you do not press the button for about 5 seconds, the setting will be stored, then the source indication will be resumed.

To check the current level, press TONE CONTROL repeatedly.

– 15 –

Using the AAC Sounds

You can apply special sound modes to the tracks recorded in the AAC (Advanced Audio Coding: see the right column) format.

• You can use this effect only for playback of the AAC encoded tracks.

• This function also affects the sounds through the PHONES jack and the LINE OUT jacks.

• To record into the HDD using the AAC format, see pages 38 to 47.

On the remote control ONLY: To activate the AAC sound modes, press AAC SOUND

repeatedly until an AAC sound mode you want appears in the main display. The SOUND indicator lights up on the display.

• Each time you press the button, AAC sound modes change as follows:

HALL MID NIGHT HEAD PHONES

AAC SOUND OFF

(canceled)

SOUND indicator

HALL : Use this when you want to add

MID NIGHT : Use this when listening at night.

HEAD PHONES : Use this when listening with the

MONO FILM : Use this to listen to a monaural

AAC SOUND OFF : AAC sound mode is canceled.

SOUND

Ex. When “HALL” is selected

depth and brilliance to the sounds.

A powerful sound will be maintained even at a low volume level.

headphones. Spatial and stereophonic feelings will be maintained.

source. Stereophonic feeling will be created.

MONO FILM

AAC128

To check the current AAC sound mode, press AAC SOUND once.

To cancel the AAC sound modes, press AAC SOUND repeatedly until “AAC SOUND OFF” appears in the main display. The SOUND indicator goes off from the display.

If “NOT AAC” appears in the main display

While playing a non-AAC track, you cannot use any AAC sound mode.

What is AAC?

AAC, licensed by Dolby Laboratories, is high-quality sound encoding technology, enabling us to compress sounds without losing the brilliance of the original. AAC can eliminate over 90 percent of the original signal data without noticeable sound quality deterioration. Even compared to MP3 technology, AAC can provide higher-quality sound reproduction, with about 30 percent less data volume.

Licensed AAC Patents (U.S. patent numbers)

Pat. 5,848,391; 5,291,557; 5,451,954;

5 400 433; 5,222,189; 5,357,594; 5 752 225; 5,394,473; 5,583,962; 5,274,740; 5,633,981; 5 297 236; 4,914,701; 5,235,671; 07/640,550; 5,579,430; 08/678,666; 98/03037; 97/02875; 97/02874; 98/03036; 5,227,788; 5,285,498; 5,481,614; 5,592,584; 5,781,888; 08/039,478; 08/211,547; 5,703,999; 08/557,046; 08/894,844; 5,299,238; 5,299,239; 5,299,240; 5,197,087; 5,490,170; 5,264,846; 5,268,685; 5,375,189; 5,581,654; 5,548,574; 5,717,821

English

– 16 –

Listening to FM and AM Broadcasts

English

The buttons enlarged in the illustration below are used and explained in this section (pages 18 and 19).

Remote control

Front panel

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

TUNER

/LINE

CLOCK

A.P.off

/TIMER

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

HDD

TUNER

/LINE

REC START

SELECT

ALBUM

AAC

TITLE

SOUND

/EDIT

DIMMER

CONTRAST

CONTROL

VOLUME

RM-SNXHD10J REMOTE CONTROL

SLEEP

ALBUMLIBRARY

MODE

TONE

STANDBY/ON

DISP/CHARA

CANCEL

SET

ENTER

REPEAT

FM / PLAY

MODE

AHB PRO

DISP/CHARA

CANCEL

SET

SELECT

FM / PLAY

MODE

SELECT

COMPACT COMPONENT HDD SYSTEM NX-HD10

STANDBY

/ON

REC

MODE

REC

START

VOLUME

HDD CD

SELECT

LIBRARY

ALBUM

COMPACT

DIGITAL AUDIO

KEYBOARD CONNECTOR for TITLE INPUT

– 17 –

TUNER

AUTO MODE

SET

/ LINE

TUNER

/ LINE

Continued

Tuning in to a Station

Press TUNER/LINE repeatedly until “FM” or “AM” is selected.

The unit automatically turns on and tunes in to the previously received station.

LINE

AAC128

STEREO

If an FM program is broadcast in stereo, the STEREO indicator lights up.

• Each time you press the button, the source changes as follows:

FM AM

(See page 21.)

* If you have changed the source name of the external

component, the currently selected source name will appear (see page 22).

Press and hold SELECT ¢ or SELECT 4 until the station frequencies start changing in the main display.

• SELECT ¢ : to increase the frequencies.

• SELECT 4 : to decrease the frequencies.

The unit starts searching for stations and stops when a station of sufficient signal strength is tuned in.

To change the FM reception mode

When an FM stereo broadcast is noisy or hard to receive, you can change the FM reception mode to improve the reception.

Press FM/PLAY MODE on the remote control.

• Each time you press the button, FM reception mode alternates between “FM MONO” and “FM AUTO.”

MONO

MONO indicator

AAC128

FM MONO : Select this when an FM stereo broadcast is

noisy or hard to receive. Reception improves though stereo effect is lost. The MONO indicator lights up on the display.

FM AUTO : Normally select this. In this mode, you

can hear stereo sound when a program is broadcast in stereo.

To change the information shown in the main display

Each time you press DISP/CHARA on the remote control, the information in the main display changes as follows:

English

To stop during searching, press SELECT ¢ or SELECT 4.

When you repeatedly press SELECT

SELECT

The frequency changes step by step.

¢¢

¢ or

¢¢

Clock

1 Preset station number if any 2 Station frequency 3 Remaining recording time in the HDD, calculated

based on the current setting of the recording mode

4 Recording mode currently selected

– 18 –

English

Presetting Stations

Tuning in to a Preset Station

You can preset 30 FM and 15 AM stations manually following the procedure below.

In some cases, test frequencies have been already memorized for the tuner since the factory examined the tuner preset function before shipment. This is not a malfunction. You can preset the stations you want into memory by following the presetting method.

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step again.

On the remote control ONLY:

Tune in to the station you want to preset.

• See “Tuning in to a Station” on page 18.

Press SET.

The preset number 1 starts flashing.

• To cancel the presetting, press CANCEL.

Press the number buttons to select a preset number.

Ex. For preset number 5, press 5.

For preset number 15, press +10, then 5. For preset number 20, press +10, then 10.

On the remote control ONLY:

Press TUNER/LINE repeatedly until “FM” or “AM” is selected.

The unit automatically turns on and tunes in to the previously received station.

• Each time you press the button, the source changes as follows:

FM AM

LINE

(See page 21.)

* If you have changed the source name of the external

component, the currently selected source name will appear (see page 22).

Press the number buttons to select a preset number.

Ex. For preset number 5, press 5.

For preset number 15, press +10, then 5. For preset number 20, press +10, then 10.

Ex. When number 5 is selected

Press SET again.

“STORED” appears in the main display. The tuned station in step 1 is stored in the preset number selected in step

• Storing a new station on a used number erases the previously stored one.

When you unplug the AC power cord or if a power failure occurs

The preset stations will be erased in a few days. If this happens, preset the stations again.

To record a broadcast program automatically

The unit is provided with Tuner Auto Recording to automatically record any tuned station’s program for about 30 minutes. Selecting any station automatically starts recording into the HDD without any setting.

• For more details on Tuner Auto Recording, see page

42.

– 19 –

Playing Back the External Component

The buttons enlarged in the illustration below are used and explained in this section (pages 21 and 22).

Remote control

DISP/CHARA

CANCEL

SET

SELECT

TUNER

/LINE

CLOCK

A.P.off

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

TUNER

/LINE

ALBUM

TITLE /EDIT

DIMMER

CONTRAST

SLEEP

/TIMER

HDD

REC START

SELECT

ALBUMLIBRARY

MODE

ALBUM

AAC

TONE

SOUND

CONTROL

VOLUME

RM-SNXHD10J REMOTE CONTROL

STANDBY/ON

DISP/CHARA

CANCEL

SET

ENTER

REPEAT

FM / PLAY

MODE

AHB PRO

English

Front panel

REC

MODE

SELECT

COMPACT COMPONENT HDD SYSTEM NX-HD10

STANDBY

/ON

REC

MODE

REC

START

VOLUME

SELECT

LIBRARY

ALBUM

COMPACT

DIGITAL AUDIO

TUNER / LINE

HDD CD

KEYBOARD CONNECTOR for TITLE INPUT

AUTO

MODE

SET

TUNER

/ LINE

– 20 –

English

Selecting the External Component

Adjusting the Input Level

Press TUNER/LINE repeatedly until “LINE*” (external component) is selected.

The unit automatically turns on.

AAC128

The current input level (see the right column) appears for a while.

* If you have changed the source name of the external

component, the currently selected source name will appear (see page 22).

• Each time you press the button, the source changes as follows:

FM AM

(See page 18.)

LINE

Start playback on the external component.

• For operating the external equipment, see its supplied manual.

To change the information shown in the main display

Each time you press DISP/CHARA on the remote control, the information in the main display changes as follows:

If the sound from the component connected to the LINE IN jacks is too loud or is not loud enough when changing the source to the external component (without adjusting the volume level), you can change the input level through the LINE IN jacks.

On the unit ONLY:

When the source is “LINE*,” press and hold REC MODE.

* If you have changed the source name of the external

component, the currently selected source name will appear (see page 22).

Press SELECT ¢ or SELECT 4 to select an appropriate input level.

• Each time you press the button, the input level alternates between “LEVEL 1” and “LEVEL 2.”

LEVEL 1: Select this when the sound is not loud

enough.

LEVEL 2: Select this when the sound is too loud.

Press SET to finish the adjustment.

Clock

1 Currently selected source name for the external

component—LINE, TAPE, DBS, VCR, TV, or GAME (see page 22)

2 Remaining recording time in the HDD, calculated

based on the current setting of the recording mode

3 Recording mode currently selected

“STORED” appears in the main display. The selected input level will be kept in memory until you change it.

If “Level OVER!” appears in the main display during play

The input level is too high. Select “LEVEL 2” if the current level is “LEVEL 1.”

• If the current level is “LEVEL 2,” adjust the output level on the external component.

• “Level OVER!” will not appear if the “REC REMAIN” time or the clock is shown in the main display.

– 21 –

Changing the Source Name

You can change the source name of the external component according to the one connected to the unit.

• You cannot change the source names while recording.

On the remote control ONLY:

When the source is “LINE*,” press and hold TUNER/LINE until “NAME CHANGE” appears in the main display.

* If you have changed the source name of the external

component, the currently selected source name will appear.

Press SELECT ¢ or SELECT 4 to select an appropriate source name.

• Each time you press the button, the source name changes as follows:

LINE “ TAPE “ DBS “ VCR “ TV “ GAME “ (back to the beginning)

English

Ex. When selecting “TAPE”

• To cancel the setting, press CANCEL.

Press SET to finish changing the source name.

The selected source name appears in the main display.

– 22 –

Playing Back CDs (CD/CD-R/CD-RW)

English

The buttons enlarged in the illustration below are used and explained in this section (pages 24 to 27).

Remote control

Front panel

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

SELECT

CLOCK

A.P.off

/TIMER

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

HDD

TUNER

/LINE

REC START

SELECT

ALBUM

TITLE /EDIT

DIMMER

CONTRAST

ALBUMLIBRARY

ALBUM

AAC

SOUND

CONTROL

VOLUME

RM-SNXHD10J REMOTE CONTROL

SLEEP

MODE

TONE

STANDBY/ON

DISP/CHARA

CANCEL

SET

ENTER

REPEAT

FM / PLAY

MODE

AHB PRO

DISP/CHARA

CANCEL

REPEAT

FM / PLAY

MODE

SELECT

COMPACT COMPONENT HDD SYSTEM NX-HD10

STANDBY

/ON

REC

MODE

REC

START

VOLUME

HDD CD

SELECT

LIBRARY

ALBUM

COMPACT

DIGITAL AUDIO

KEYBOARD CONNECTOR for TITLE INPUT

– 23 –

TUNER

AUTO MODE

SET

/ LINE

AAC128

Continued

Precautions on CD Playback

This unit has been designed to play back discs bearing the following logo:

Audio CD (CD-DA)

In addition to the above discs, this unit can play back audio data recorded on CD Text, CD-G (CD Graphics), and CD-Extra.

The manufacturer assumes no responsibility for the operation or sound quality of discs that may be incompatible with the

Before playing a disc, confirm whether it is compatible or not by:

• Checking whether the compact disc logo ( on the disc itself.

• Reading the instructions or the note printed on the disc package.

When playing a CD-R or CD-RW

User-edited CD-Rs (CD Recordable) and CD-RWs (CD ReWritable) can be played back normally when they are already “finalized.” If you play back unfinalized CDs, “UNFINALIZE” appears in the main display.

• You can play back your original CD-Rs or CD-RWs recorded in music CD format ONLY. (If CD-RWs have been recorded in different format, erase all the data on CD-RWs completely before re-recording on the discs.)

DO NOT play back CD-Rs or CD-RWs including the sound files such as MP3.

CD Standard (CD-DA).

) is printed

Playing Back the Entire CD—Normal Play

Press 0 CD on the unit.

The unit automatically turns on and the CD tray comes out.

• When the source is CD, “CD OPEN” appears in the main display.

Place a CD correctly on the circle of the CD tray, with its label side up.

CD tray

Front door

Good

• When using a CD single (8 cm), place it on the inner circle of the CD tray.

Press CD 3/8.

The CD tray closes automatically and the unit starts playing the first track of the CD.

No good

English

• Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, damage or stain on them, or if the player’s lens is dirty.

Important notices:

• In general, you will have the best performance by keeping your CDs and the mechanism clean. – Store CDs in their cases, and keep them in cabinets or

on shelves.

– Keep the unit’s CD tray closed when not in use.

• Continuous use of irregular shaped discs (heart-shape, octagonal, etc.) can damage the disc rotating mechanism.

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than for regular CDs.

– 24 –

Elapsed playing time

Track No.

• When you press 0 CD instead of CD 3/8, the CD

tray also closes, but the unit does not start playing.

To stop during playback, press 7. The total track number and playing time appear in the main display.

To remove the disc, press 0 CD on the unit.

English

PROGRAM

AAC128

About CD indicator

To change the information shown in the main display

Each time you press DISP/CHARA on the remote control, the information in the main display changes as follows:

Source is

“CD,” but no

CD is loaded

A CD is

loaded

During

playback

During

a pause

Basic CD Operations

While playing a CD, you can do the following operations.

To stop playback for a moment

Press CD 3/8. To resume play, press CD 3/8 again.

To locate a particular point in a track during play

Press and hold ¢ or 4 during play.

• ¢ : Fast-forwards the tracks.

• 4 : Fast-reverses the tracks.

To go to another track

Press ¢ or 4 repeatedly.

• ¢ : Skips to the beginning of the next or succeeding

tracks.

• 4 : Goes back to the beginning of the current or

previous tracks.

Before starting play, you can continuously skip or go back to any track by holding the button.

To go to another track directly using the number buttons

Pressing the number button(s) on the remote control allows you to start playing the track number you want.

Ex. For track number 5, press 5.

For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 32, press +10, +10, +10, then 2.

1 Current track number 2 Elapsed playing time 3 Remaining recording time in the HDD, calculated

based on the current setting of the recording mode

4 Recording mode currently selected

Clock

Programing the Playing Order of the Tracks —Program Play

You can arrange the order in which the tracks play before you start playing. You can program up to 32 tracks.

On the remote control ONLY:

Load a CD.

Press CD 3/8, then 7.

The source is changed to “CD.”

Press FM/PLAY MODE repeatedly until “CD PROGRAM” appears in the main display.

The PROGRAM indicator lights up on the display.

PROGRAM indicator

• If a program has been stored in memory, it will be called up.

– 25 –

RANDOM

AAC128

Continued

• Each time you press the button, play modes change as follows:

CD PROGRAM

(Program play)

CD RANDOM

(Random play)

CD NORMAL

(Normal play)

Press the number buttons to select the tracks you want.

• For how to use the number buttons, see “To go to another track directly using the number buttons” on page 25.

The current track

Ex. Track No. 5 is selected for the first step

Press CD 3/8.

The tracks are played in the order you have programed. Program play ends when all the programed tracks are played (unless Repeat play is activated).

To stop during play, press 7.

To exit from Program play mode, press FM/PLAY MODE

once or twice after stopping the playback so that the unit enters another play mode (Random play or Normal play).

Step No.

Total playing time

“MEMORY FULL” will appear in the main display.

You have tried to program a track number that does not exist on the CD (for example, selecting track 14 on a CD that only has 12 tracks). Such entries are ignored.

The total playing time will not be shown. (“– – : – –” will appear.)

If you try to program a 33rd step

If your entry is ignored

If the total playing time is over “1:39:59”

Playing at Random—Random Play

The tracks of a loaded CD will play at random.

On the remote control ONLY:

Load a CD.

Press CD 3/8, then 7.

The source is changed to “CD.”

Press FM/PLAY MODE repeatedly until “CD RANDOM” appears in the main display.

The RANDOM indicator lights up on the display.

English

To check the program contents

Before playing, you can check the program contents by pressing 4 or ¢ on the remote control.

• 4 : Shows the programed tracks in the reverse order.

• ¢ : Shows them in the programed order.

To modify the program

Before playing, you can erase the last programed track by pressing CANCEL. Each time you press the button, the last programed track is erased from the program.

To add tracks in the program before you start play,

simply select track numbers you want to add.

To erase the entire program, after stopping the playback, press and hold CANCEL until “CD PROGRAM ALL CLEAR” appears in the main display.

• Turning off the unit or ejecting a CD also erases the entire program.

RANDOM indicator

• Each time you press the button, play modes change as follows:

CD PROGRAM

(Program play)

CD RANDOM

(Random play)

CD NORMAL

(Normal play)

Press CD 3/8.

The tracks are played at random. Random play ends when all the tracks are played once (unless Repeat play is activated).

– 26 –

English

To skip the playing track, press ¢.

• You cannot go back to the previous tracks by pressing

To stop during playback, press 7.

To exit from Random play mode, press FM/PLAY MODE

once or twice after stopping the playback so that the unit enters another play mode (Normal play or Program play).

• Pressing one of the number buttons also starts Normal play with the track selected with the number button.

Repeating Tracks or CD—Repeat Play

You can have all the tracks, the program or the individual track currently playing repeat as many times as you like.

On the remote control ONLY: To repeat play, press REPEAT during or before play.

The corresponding Repeat indicator lights up on the display.

AAC128

Repeat indicator

Prohibiting Disc Ejection—Disc Lock

You can prohibit CD ejection from the unit and can lock a CD. To prohibit CD ejection, follow the procedure below:

On the unit ONLY:

Press and hold 7 when the unit is in standby mode.

Press 0 CD.

The display dims, “LOCKED” appears in the main display for a while, and the loaded CD is locked.

Release your finger from 7.

“LOCKED” appears to inform you that the Disc Lock is in use.

To cancel the prohibition and unlock the CD, repeat the above procedure. The display dims, and “UNLOCKED” appears in the main display for a while in step unlocked.

If you try to eject the locked CD

, and the loaded CD is

• Each time you press the button, Repeat play changes as follows:

REPEAT ALL

( )

REPEAT 1TRK

( )

REPEAT OFF

(Canceled)

REPEAT ALL : Repeats all the tracks on the CD (in

Normal play or Random play), or all the tracks in the program.

REPEAT 1TRK: Repeats one track. REPEAT OFF : Cancels Repeat play.

To cancel Repeat play, press REPEAT repeatedly until

“REPEAT OFF” appears in the main display. The Repeat indicator goes off from the display.

– 27 –

Playing Back the HDD (Hard Disk Drive)

The buttons enlarged in the illustration below are used and explained in this section (pages 29 to 37).

Remote control

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

SELECT

ALBUM

ALBUMLIBRARY

MODE

CLOCK

A.P.off

/TIMER

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

HDD

TUNER

/LINE

REC START

SELECT

ALBUM

AAC

TITLE

SOUND

CONTROL

/EDIT

DIMMER

CONTRAST

VOLUME

RM-SNXHD10J REMOTE CONTROL

SLEEP

ALBUMLIBRARY

MODE

TONE

STANDBY/ON

DISP/CHARA

CANCEL

SET

ENTER

REPEAT

FM / PLAY

MODE

AHB PRO

DISP/CHARA

CANCEL

SET

ENTER

HDD

REPEAT

FM / PLAY

MODE

English

Front panel

SELECT

LIBRARY

ALBUM

COMPACT COMPONENT HDD SYSTEM NX-HD10

STANDBY

/ON

REC

MODE

REC

START

VOLUME

SELECT

LIBRARY

ALBUM

DIGITAL AUDIO

TUNER

/ LINE

COMPACT

HDD CD

KEYBOARD CONNECTOR for TITLE INPUT

AUTO MODE

HDD

SET

– 28 –

To play back the HDD, you must record tracks yourself first. To record into the HDD, see “Recording into the HDD” on pages 38 to 47.

English

How tracks are recorded into the HDD

Once you record a song, it is recorded as a “track,” then these recorded tracks can be grouped into an “album.” For example, if you record the entire CD into the HDD, all tracks of the CD are recorded as separate tracks and the entire CD can be considered and grouped as an album. You can record and store these albums separately into 10 “libraries.” In other words, tracks recorded in the HDD are grouped into albums, and albums are located in 10 libraries.

• The maximum number of tracks in an album is 254, and that of albums in a library is 100 (the maximum number of the albums in the HDD is 999).

• The HDD also has two more libraries—“Library CD” and “Library TUNER.” For details on these libraries, see pages 41 and 42.

HDD Configuration

HDD

Libraries Albums Tracks

Playing Back the Entire HDD —Continuous Play

You can play back all tracks recorded in the HDD continuously.

Press HDD 3/8.

The unit automatically turns on and the HDD lamp starts flashing (in blue). After the HDD lamp stops flashing and remains lit, the first track of the last selected or recorded album* playing.

• During play, the HDD produces a silence of about 2 seconds between each track.

AAC128

starts

* Albums are automatically numbered in chronological order.

Album No. & Track No.

Elapsed playing time

Library No. or name* (If a title is assigned to the current track, it will appear before library number or name.)

*1If you have just made a new recording, the unit will starts

playing the new recording rather than the last selected album.

*2If a name has been assigned to the selected library (see page

53), its assigned name will be shown. (If a name is long and cannot be shown at a time, the unit keeps scrolling the name to show the entire name.)

To stop during play, press 7.

– 29 –

Continued

To change the information shown in the main display

Each time you press DISP/CHARA on the remote control, the information in the main display changes as follows:

• Before playing—

1 2

Clock

1 Current album number 2 Total track number in the current album 3 Current library number (or assigned name) 4 Album title* appears following “ALBUM TITLE” 5 Total playing time of the current album

* If no title is assigned, “NO TITLE” will appear.

• While playing—

1 2

If assigned titles (album title or track title) are long

The unit keeps scrolling the title to show the entire title.

and cannot be shown at a time

About HDD indicator

Source is

“HDD,” but no

data is recorded

Ready to

play

During

playback

During

a pause

About HDD lamp (when dimmer is not activated)

• Blue (flashes) : HDD is preparing for playback. (During this period, no remote control operations are accepted.)

• Blue (lights) : HDD is now ready for playback and for recording, or it is now playing or pausing.

• Red (flashes) : HDD is preparing for recording.

• Red (lights) : HDD is now recording.

Basic HDD Operations

While playing a track recorded in the HDD, you can do the following operations.

English

Clock

1 Current album number 2 Current track number 3 Current library number (or assigned name) 4 Elapsed playing time of the track 5 Album title* appears following “ALBUM TITLE” 6 Track title* appears following “TRACK TITLE”

* If no title is assigned, “NO TITLE” will appear.

To stop playback for a moment

Press HDD 3/8. To resume play, press HDD 3/8 again.

To locate a particular point in a track during play

Press and hold ¢ or 4 during play.

• ¢ : Fast-forwards the tracks.

• 4 : Fast-reverses the tracks.

To go to another track

Press ¢ or 4 repeatedly.

• ¢ : Skips to the beginning of the next or succeeding tracks.

• 4 : Goes back to the beginning of the current or previous tracks.

Before starting play, you can continuously skip or go back to any track by holding the button.

– 30 –

English

ALBUM

AAC128

LIBRARY

AAC128

To go to another track directly using the number buttons (in the same album)

Pressing the number button(s) on the remote control allows you to start playing the track number you want.

Ex. For track number 5, press 5.

For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 32, press +10, +10, +10, then 2.

To select another album

Within the same library: Press ALBUM or ALBUM

• ALBUM

• ALBUM : Goes back to the first track of the

Beyond the libraries: Press ALBUM + or ALBUM – on the remote control.

• ALBUM + : Skips to the first track of the succeeding

• ALBUM – : Goes back to the first track of the

: Skips to the first track of the succeeding

albums.

previous albums.

albums (in the sequence of album numbers—see page 29).

previous albums (in the reverse sequence of album numbers—see page 29).

To select another library

Press LIBRARY. Each time you press the button, the next library is selected.

• You cannot select libraries without any album recorded.

Playing Tracks in an Album—Album Play

You can play back tracks in an album.

• To make or edit albums, see pages 40 to 47, and 54 to 56.

On the remote control ONLY:

Press HDD 3/8, then 7.

The source is changed to “HDD.”

Press FM/PLAY MODE repeatedly until “HDD ALBUM” appears in the main display.

The ALBUM indicator lights up on the display.

ALBUM indicator

• Each time you press the button, play modes change as follows:

HDD ALBUM

(Album play)

HDD CONT.

(Continuous play)

* The last recorded (or edited) album will be selected as the

current album when “HDD RANDOM” appears in the main display while selecting a play mode you want.

HDD LIBRARY

(Library play)

HDD RANDOM

(Random play)

– 31 –

Press ALBUM + or ALBUM – to select an album.

Album No. & Total track No.

Total playing time of the current album

Library No. (or Library’s name assigned— see page 53)

• You can also select an album following the procedure below: 1 Press LIBRARY to select a library where an album

you want is included

2 Press ALBUM

album.

or ALBUM to select the

Continued

LIBRARY

AAC128

Press HDD 3/8.

The tracks in the album are played. Album play ends when all the tracks in the album are played once.

• If you move to another album during Album play, another Album play starts with the newly selected album.

To go to another track in the same album, press ¢ or 4 repeatedly or directly press the number button(s) for

the track you want.

To stop during play, press 7.

To exit from Album play mode, press FM/PLAY MODE

repeatedly after stopping the playback so that the unit enters another play mode (Library play, Random play or Continuous play).

Playing Albums in a Library—Library Play

You can play back all albums in a library.

• To make or edit libraries, see pages 40 to 47, and 53 to 55.

On the remote control ONLY:

Press HDD 3/8, then 7.

The source is changed to “HDD.”

Press FM/PLAY MODE repeatedly until “HDD LIBRARY” appears in the main display.

The LIBRARY indicator lights up on the display.

Press LIBRARY to select a library (Library 1 – Library 10, Library CD or Library TUNER).

Album No. & Total track No.

Total playing time of the current album

Library No. (or Library’s name assigned— see page 53)

Press HDD 3/8.

The albums in the library are played. Library play ends when all the albums in the library are played once.

• If you move to another library during Library play, another Library play starts with the newly selected library.

To go to another album in the same library, press ALBUM or ALBUM repeatedly.

To go to another track in the same album, press ¢ or 4 repeatedly or directly press the number button(s) for

the track you want.

To stop during play, press 7.

To exit from Library play mode, press FM/PLAY MODE

repeatedly after stopping the playback so that the unit enters another play mode (Random play, Continuous play, or Album play).

English

AAC128

LIBRARY indicator

• Each time you press the button, play modes change as follows:

HDD ALBUM

(Album play)

HDD CONT.

(Continuous play)

* The last recorded (or edited) album will be selected as the

current album when “HDD RANDOM” appears in the main display while selecting a play mode you want.

LIBRARY

HDD LIBRARY

(Library play)

HDD RANDOM

(Random play)

Its assigned name will be shown. (If a name is long and cannot be

If a name has been assigned to the selected library

shown at a time, the unit keeps scrolling the name to show the entire name.)

– 32 –

English

Playing at Random—Random Play

Repeating Tracks—Repeat Play

All the tracks in the HDD will play at random and repeat endlessly.

On the remote control ONLY:

Press HDD 3/8, then 7.

The source is changed to “HDD.”

Press FM/PLAY MODE repeatedly until “HDD RANDOM” appears in the main display.

The RANDOM and indicators light up on the display.

AAC128

Repeat and RANDOM indicators

• Each time you press the button, play modes change as follows:

HDD ALBUM

(Album play)

HDD CONT.

(Continuous play)

* The last recorded (or edited) album will be selected as the

current album when “HDD RANDOM” appears in the main display while selecting a play mode you want.

Press HDD 3/8.

All tracks in the HDD are played repeatedly and endlessly.

To skip the playing track, press ¢.

• You cannot go back to the previous tracks by pressing

To stop during play, press 7.

To exit from Random play mode, press FM/PLAY MODE

repeatedly after stopping the playback so that the unit enters another play mode (Continuous play, Album play, or Library play).

• Pressing one of the number buttons also starts Continuous play with the track selected with the number button.

RANDOM

HDD LIBRARY

(Library play)

HDD RANDOM

(Random play)

You can repeat the tracks in the HDD as many times as you like. What you can repeat differs depending on the current play mode selected—Continuous play, Album play, Library play, or Random play.

On the remote control ONLY: To repeat play, press REPEAT during or before play.

The corresponding Repeat indicator lights up on the display.

AAC128

Repeat indicator

• Each time you press the button, Repeat play changes as follows:

REPEAT ALL

( )

REPEAT 1TRK

( )

REPEAT OFF

(Canceled)

REPEAT ALL :

REPEAT 1TRK: Repeats one track. REPEAT OFF : Cancels Repeat play except for

To cancel Repeat play, press REPEAT repeatedly until

“REPEAT OFF” appears in the main display. The Repeat indicator goes off from the display.

You cannot cancel Repeat play during Random play

During Random play, you can only select either “REPEAT ALL” or “REPEAT 1TRK.”

For Continuous and Random plays: Repeats all the tracks in the HDD. For Album play: Repeats all the tracks in the current or selected album. For Library play: Repeats all the albums in the current or selected library.

Random play.

You cannot select a library or album during Random play

During Random play, you cannot use the following buttons— LIBRARY, ALBUM +/–, and ALBUM / .

– 33 –

Continued

Searching for Albums and Tracks to Play— Search Modes

This unit features the following four Search Modes to give you an easy access to the albums or tracks you want.

• Album Number Search (ALBUM No.) : See below.

To select and play an album after searching for it by its number.

• Album Title Search (ALBUM T.) : See page 35.

To select and play an album after searching for it by its title.

• Track Title Search (TRACK T.) : See page 35.

To select and play a track after searching for it by its title.

• Last 10 Search (LAST 10) : See page 37.

To select and play one of the last 10 albums recently played or recorded.

• You can use a PC-compatible keyboard for the following Search Mode operations (see page 69).

• Album play, Library play, Random play, and Repeat play are canceled when you press SEARCH MODE (Continuous play will resume).

To search for an album by its number—ALBUM No.

You can easily find and start playing an album by designating its album number.

On the remote control ONLY:

Press HDD 3/8, then 7.

The source is changed to “HDD.”

• If you have already started playback, you can skip this step.

Press SEARCH MODE repeatedly until “ALBUM No.?” is selected for “SEARCH MODE.”

The SEARCH and ALBUM indicators light up on the display.

• Each time you press the button, Search Modes change as follows:

ALBUM No.?

(Album number?)

Canceled

Press SET to enter the album number entry screen.

The first number entry position starts flashing.

Press the number buttons to enter an album number you want, then press ENTER.

The selected album starts playing in Continuous play.

• If the selected album number does not exist, Search Mode is canceled.

Ex. When selecting album 24

Ex. For album number 5, press 5, then ENTER.

For album number 10, press 1, 0, then ENTER. For album number 36, press 3, 6, then ENTER. For album number 204, press 2, 0, 4 then ENTER.

For album number 1, you can also press ALBUM –, then ENTER. For the last album number, you can also press ALBUM +, then ENTER.

LAST 10?

ALBUM T.?

(Album title?)

TRACK T.?

(Track title?)

English

SEARCH and ALBUM indicators

ALBUM

AAC128

– 34 –

English

To search for an album or a track by entering its title —ALBUM T./TRACK T.

You can easily find and play an album or a track by entering its title (up to the first 5 characters)—Album Title Search or Track Title Search.

• Capital letters and small letters are considered as different letters. So, if you enter “ABC,” you cannot search for an album or track named “abc.”

• If a large number of albums and tracks have been recorded in the HDD, the unit will take a long time for searching.

• For details on assigning a title, see pages 48 to 50.

On the remote control ONLY:

Press HDD 3/8, then 7.

The source is changed to “HDD.”

• If you have already started playback, you can skip this step.

To search for an album title, press SEARCH MODE repeatedly until “ALBUM T.?” is selected for “SEARCH MODE.”

The SEARCH and ALBUM indicators light up on the display.

• Playback stops if you press SEARCH MODE during play.

AAC128

SEARCH and ALBUM indicators

ALBUM

Press SET to enter the title entry screen.

The first character entry position starts flashing.

When you have selected Album Title Search in step

Character set

Character entry position

When you have selected Track Title Search in step

Enter a character(s) to search for the title.

• You can enter up to the first 5 characters to search for the album or track you want. The unit will search for the titles with the entered characters at the beginning of their titles.

• If you want to search for an album or a track without its title assigned, do not enter any character and go to

step

1) Press DISP/CHARA to select the character set you

want.

• Each time you press the button, the character sets change as follows:

Capital letters

& Symbols

Small letters

& Symbols

To search for a track title, press SEARCH MODE repeatedly until “TRACK T.?” is selected for “SEARCH MODE.”

The SEARCH indicator lights up on the display.

AAC128

SEARCH indicator

• Each time you press the button, Search Modes change as follows:

ALBUM No.?

(Album number?)

Canceled

LAST 10?

ALBUM T.?

(Album title?)

TRACK T.?

(Track title?)

– 35 –

Numerals

2) Press the character entry button for a character you want to enter.

Examples:

• To enter an “A” or “a,” press ABC once.

To enter a “B” or “b,” press ABC twice. To enter a “C” or “c,” press ABC three times.

• To enter a symbol, press MARK repeatedly until

the mark you want appears (see page 36).

• To enter a numeral, press 0 – 9.

• To enter a space while entering a title, press

twice.

• To insert a character, press

the character entry position, then press a character entry button.

• To erase a character, press

the character entry position, then press CANCEL.

• To cancel the setting, press SEARCH MODE.

or to move

Continued

3) Repeat steps 4 – 1) and 4 – 2) to enter other characters.

• If the character you want to enter next is assigned

to the same button you have just pressed in step

– 2), press once to move the character

entry position to the right.

Press ENTER.

“SEARCH” flashes in the main display. The unit starts searching for the title.

For Album Title Search:

When the title with the entered characters is found, a retrieved album will be shown in the main display and start playing with the first track.

Retrieved album number

Retrieved album title

To play all tracks in the selected album, no operation is required. After all tracks in the album are played, the unit starts searching for another matching album.

• After all albums are searched, “SEARCH END” appears in the main display and Search Mode is canceled (playback stops and the SEARCH and ALBUM indicators go off).

To skip the current album and search for the next matching album, press ALBUM +.

After all tracks in the selected album are played, the unit starts searching for another matching album.

• After all albums are searched, “SEARCH END” appears in the main display and Search Mode is canceled (playback stops and the SEARCH and ALBUM indicators go off).

To start Continuous play with the current (or selected) album, press SET.

Search Mode is canceled and playback continues in Continuous play (the SEARCH and ALBUM indicators go off).

For Track Title Search:

English

When the title with the entered characters is found, a retrieved track will be shown in the main display and start playing.

Retrieved track number

Retrieved track title

To play the selected track, no operation is required. After the track is played, the unit starts searching for another matching track.

• After all tracks are searched, “SEARCH END” appears in the main display and Search Mode is canceled (playback stops and the SEARCH indicator goes off).

To skip the current track and search for the next matching track, press ¢.

After the track is played, the unit starts searching for another matching track.

• After all tracks are searched, “SEARCH END” appears in the main display and Search Mode is canceled (playback stops and the SEARCH indicator goes off).

To start Continuous play with the current (or selected) track, press SET.

Search Mode is canceled and playback continues in Continuous play (the SEARCH indicator goes off).

• If no title with the entered characters is found, “NOT FOUND” appears in the main display and Search Mode is canceled (Continuous play mode is resumed).

Available symbols are as follows:

(Blank)

– 36 –

English

To search for one of the last 10 albums recently played or recorded—LAST 10

You can easily find and play one of the last 10 albums recently played* or recorded. * Tracks played for more than one second can be stored as

the “played” tracks in memory.

On the remote control ONLY:

Press HDD 3/8, then 7.

The source is changed to “HDD.”

• If you have already started playback, you can skip this step.

Press SEARCH MODE repeatedly until “LAST 10?” is selected for “SEARCH MODE.”

The SEARCH and ALBUM indicators light up on the display.

AAC128

SEARCH and ALBUM indicators

• Each time you press the button, Search Modes change as follows:

ALBUM No.?

(Album number?)

Canceled

ALBUM

LAST 10?

ALBUM T.?

(Album title?)

TRACK T.?

(Track title?)

To find and play the albums recently recorded, press SELECT ¢ or SELECT 4 to select “RECORDED?,” then SET.

The last recorded album starts playing (in this example, album number 5—if the selected album has a title, it will appear in the main display instead of the album number).

• Each time you press SELECT ¢ or SELECT 4,

“PLAYED?” and “RECORDED?” alternately appear.

• To cancel the setting, press SEARCH MODE.

Press ALBUM + (or ALBUM –) to select an album you want, then press SET.

The selected album starts playing in Continuous play.

Ex. When you want to play the 5th most recently

played album

When you unplug the AC power cord or if a power

The unit may lose the memory of those recently played or recorded albums.

failure occurs

Press SET.

The following message appears.

To find and play the albums recently played, press SET again.

The last played album starts playing (in this example, album number 5—if the selected album has a title, it will appear in the main display instead of the album number).

– 37 –

Recording into the HDD

The buttons enlarged in the illustration below are used and explained in this section (pages 39 to 47).

For this section, it is convenient to use the buttons on the front panel.

Front panel

COMPACT COMPONENT HDD SYSTEM NX-HD10

STANDBY

/ON

REC

MODE

REC

START

VOLUME

SELECT

LIBRARY

ALBUM

COMPACT

DIGITAL AUDIO

TUNER

/ LINE

HDD CD

KEYBOARD CONNECTOR for TITLE INPUT

AUTO MODE

SET

CD TUNER

LIBRARY

REC

MODE

REC

START

SELECT

STANDBY

/ON

AUTO MODE

SET

/ LINE

English

Remote control

TUNER

/LINE

SELECT

CLOCK

A.P.off

/TIMER

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

HDD

TUNER

/LINE

REC START

SELECT

ALBUM

TITLE /EDIT

DIMMER

CONTRAST

ALBUMLIBRARY

ALBUM

AAC

SOUND

CONTROL

VOLUME

RM-SNXHD10J REMOTE CONTROL

SLEEP

MODE

TONE

STANDBY/ON

DISP/CHARA

CANCEL

SET

ENTER

REPEAT

FM / PLAY

MODE

AHB PRO

STANDBY/ON

DISP/CHARA

SET

REC START

LIBRARY

– 38 –

English

Before You Start Recording

• It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic embodied therein.

• Tracks of less than 3 seconds cannot be created (or recorded) in the HDD.

• Each recording is stored as an album in a library.

• The recording level is not affected by the volume. During recording you can adjust the volume you are actually listening to without affecting the recording level.

• While recording, you can hear the Active Hyper Bass Pro and/or the tone control effect through the speakers or headphones. However, the playback sound is recorded without these effects (see page 15).

• While recording, HDD play modes (Album play, Library play, and Random play) including Repeat play are temporarily canceled.

About the digital formats used for recordings

When recording into the HDD, you can select either linear PCM or AAC (Advanced Audio Coding) format. Linear PCM format is the one used for regular audio CD. Audio signals are recorded without any compression. On the other hand, AAC is a newly developed audio compression technology which can eliminate over 90 percent of the original signal data without losing the brilliance of the original. This unit allows you to select 128 kbps and 96 kbps as a bit rate* Allowable recording time differs according to the digital format used. Assuming that only one format is used for all the recordings, recording time will be as follows:

• Linear PCM: About 15 hours*

• AAC 128 kbps: About 173 hours*

• AAC 96 kbps: About 227 hours*

*1Bit rate is the average number of bits that one second of audio

data will consume. The unit used is kbps (1024 bits/second). To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 kbps.

*2These values are theoretically calculated when there is no data

recorded. They may differ depending on the recording condition (see page 78).

How the HDD separates the recorded tracks?

When playing back the recordings in the HDD, you can move among the tracks. But why?

• When recording from CD: A track number is assigned automatically at the beginning of each track. (The playing time of the track recorded in the HDD may differ from the original playing time of the track on the CD.)

• When recording from the external component

connected to the LINE IN jacks:

Only single track number is assigned. This means that the HDD will regard the entire recording as one track. However, if there is a blank of about 3 seconds or more, the HDD will consider it as a blank separating 2 tracks and consequently assign another track number to the latter portion.

To assign a track number manually (except while recording from CD and while recording with Tuner Auto Recording), press SET at the place where you want

to assign a track number.

• You cannot assign track numbers manually while recording from CD or recording with Tuner Auto Recording (see page 42).

To assign a track number (in other words, separate a track) after recording is over, you can use the DIVIDE

function (see page 60).

About the maximum recording length for one track

You cannot continue recording as a single track if its recording time exceeds the following times:

• Linear PCM: About 3 hours.

• AAC 128 kbps/96 kbps: About 24 hours. Another track number is automatically assigned to the recorded portion exceeding the maximum length.

About SCMS (Serial Copy Management System)

The HDD built in this unit uses the Serial Copy Management System which allows only first-generation digital copies to be made of premastered software such as regular CDs. If you try to record from a duplicated CD-R or CD-RW into the HDD, “SCMS CANNOT COPY / ANALOG REC” appears in the main display then this unit automatically selects analog recording.

• If double normal speed recording (PCM x2 REC) or four times normal speed recording (PCM x4 REC) is selected for the recording, the recording mode will be automatically changed to normal speed recording (PCM x1 REC).

1st Generation

CD-R/RW

DE BC A

2nd Generation

HDD

– 39 –

SMART

COMP.

AAC128

Continued

Using Automatic Recording Functions

This unit features three Auto Modes—Smart Compression, CD Auto Recording, and Tuner Auto Recording. You can activate these functions whether playing a source or not (the unit must be turned on).

• Smart Compression (SMART COMP.) : See below.

To automatically compress linear PCM tracks into AAC formated data.

• CD Auto Recording (CD AUTO REC) : See page 41.

To automatically record a CD when playing back a CD entirely (from the first track to the last) in Normal play (see page 24).

• Tuner Auto Recording (TU AUTO REC) : See page

42. To automatically record broadcasts when a station is tuned in.

Auto Modes cannot be set while recording into the HDD.

To automatically compress linear PCM tracks— Smart Compression

You can automatically search for linear PCM tracks and compress (encode) the linear PCM tracks into AAC formated data when you turn off the unit. You can select your desired bit rate—96 kbps or 128 kbps.

On the unit ONLY:

Press AUTO MODE repeatedly until “SMART COMP.” appears in the main display.

Press SET.

The SMART COMP. indicator lights up on the display.

SMART COMP. indicator

• To cancel the setting, press AUTO MODE.

Press SELECT ¢ or SELECT 4 to select the bit rate—“AAC128kbps” or “AAC 96kbps.”

Press SET again to finish the setting.

Ex. When you have selected “AAC128kbps”

To deactivate the function, repeat steps

“OFF?” in step

How Smart Compression actually works?

When you turn off the unit by pressing STANDBY/ON or by using timers or Auto Power off (see pages 63 to 68), data compression automatically starts. The display dims, and the SMART COMP. indicator starts flashing on the display. The STANDBY/ON lamp also starts flashing in green.

SMART

COMP.

. The SMART COMP. indicator goes off.

SMART

AAC128

COMP.

to 3, and select

AAC128

English

Ex. When the function is currently turned “OFF”

(initial setting)

• Each time you press the button, Auto Modes change as follows:

SMART COMP.

Canceled

Press SELECT ¢ or SELECT 4 to select “ON?”

CD AUTO REC

TU AUTO REC

When the compression is complete, Smart Compression is turned off automatically, and the unit goes into standby mode (the STANDBY/ON lamp stops flashing and remains lit in red.)

• It may take a long time (the sum of the playing times of all existing linear PCM tracks plus searching time) for the unit to compress all the PCM tracks. By pressing

STANDBY/ON

and make the unit go into standby mode.

Smart Compression always works even if no linear PCM track has been recorded

When you turn off the unit with Smart Compression turned on, it always works because the unit starts searching for linear PCM tracks.

again, you can stop compression

– 40 –

English

To automatically record CDs—CD Auto Recording

You can automatically make a recording when playing back a CD entirely (from the first track to the last) in Normal play. (You need to start playback by pressing CD 3/8.) The recording will be stored in a library named “Library CD.”

• “AAC 128 kbps” is automatically selected as the recording format.

• CD Auto Recording will not work for Program play, Random play, and Repeat play.

• CD Auto Recording will be canceled when Recording Timer starts operating.

On the unit ONLY:

Press AUTO MODE repeatedly until “CD AUTO REC” appears in the main display.

How CD Auto Recording actually works?

Recording automatically starts when you start CD play in Normal play by pressing CD 3/8. The HDD lamp lights in red, and the CD and AUTO indicators start flashing on the display.

CD AUTO

REC

AAC128

Elapsed playing time

Track No.

CD Auto Recording will be automatically canceled if—

• you turn off the unit

• you change the source

• you stop, skip, search, pause or eject CD

• you select a track number directly

• you deactivate CD Auto Recording Recording will not be stored in “Library CD.”

Ex. When the function is currently turned “OFF”

(initial setting)

• Each time you press the button, Auto Modes change as follows:

SMART COMP.

Canceled

Press SELECT ¢ or SELECT 4 to select “ON?”

Press SET to finish the setting.

The CD and AUTO indicators light up on the display.

CD and AUTO indicators

To deactivate the function, repeat steps “OFF?” in step The CD and AUTO indicators go off.

CD AUTO REC

TU AUTO REC

CD AUTO

AAC128

to 3, and select

If you press 7 or 0 CD while CD Auto Recording is

“PLEASE WAIT” may appear in the main display for a moment.

To change the information shown in the main display while recording

Each time you press DISP/CHARA on the remote control, the information in the main display changes as follows:

CD Auto Recording will not start. To record a disc of this type, use the ordinary recording methods described on pages 43 and 44.

performed

1 Current track number 2 Elapsed playing time 3 Remaining recording time in the HDD (counts

down about every 10 seconds), calculated based on the current setting of the recording mode

4 Current recording mode

If you play a digitally duplicated CD-R or CD-RW

Clock

If you turn on the function while playing a CD

Recording will not begin. The function will work next time you start playing a CD.

If the recording is not done correctly or a track is skipped while it is being played

Use analog recording (see page 47).

– 41 –

If “CD AUTO REC OFF PLEASE!” appears in the

TUNER AUTO

AAC128

TUNER AUTO

REC

AAC 96

main display

You have tried to do the following operations while CD Auto Recording is performed. – To select recording modes or start recording – To edit recording or assign the title to an album or a track – To select Repeat play These operations cannot be accepted during CD Auto Recording.

To automatically record broadcast programs —Tuner Auto Recording

You can automatically record broadcast program(s) while you are tuning in to the FM or AM stations. So you can always keep the most recent tuned program(s) for up to 30 minutes in the HDD. When you stop tuning in to the FM/ AM stations, Tuner Auto Recording stops. These recorded program(s) will be stored as a single track in a single album in a library named “Library TUNER.”

• “AAC 96 kbps” is automatically selected as the recording format.

• Tuner Auto Recording will be canceled when Recording Timer or Daily Timer starts operating.

IMPORTANT: With Tuner Auto Recording activated, recording in “Library TUNER” is automatically erased and overwritten if you tune in to an FM or AM station after—

• you have selected any source other than FM/AM, or

• you have turned off the unit.

If you want to keep an important recording done using Tuner Auto Recording, copy the album in “Library TUNER” before it is erased. To copy the album, use the COPY ALBUM function (see page 54).

Continued

Press SELECT ¢ or SELECT 4 to select “ON?”

Press SET to finish the setting.

The TUNER and AUTO indicators light up on the display.

TUNER and AUTO indicators

To deactivate the function, repeat steps

“OFF?” in step The TUNER and AUTO indicators go off.

Recording will start automatically.

How Tuner Auto Recording actually works?

When you tune in to a radio station, recording automatically starts. The TUNER and AUTO indicators start flashing, and the HDD lamp lights in red.

• If you change the band (from FM to AM only) or the stations, recording continues.

• If you turn off the unit while Tuner Auto Recording is being performed, it will not re-start working for about one minute next time you turn on the unit.

If you turn on the function while tuning in to a station

to 3, and select

English

On the unit ONLY:

Press AUTO MODE repeatedly until “TU AUTO REC” appears in the main display.

Ex. When the function is currently turned “OFF”

(initial setting)

• Each time you press the button, Auto Modes change as follows:

SMART COMP.

Canceled

CD AUTO REC

TU AUTO REC

Preset station number if any

Station frequency

To stop recording, deactivate the function (repeat steps to 3, and select “OFF?” in step 2).

• If you press 7, “TU AUTO REC OFF PLEASE!”

appears in the main display

Tuner Auto Recording will automatically stop if—

• you turn off the unit

• you change the source (excluding changing FM to AM)

• you deactivate Tuner Auto Recording Recording done by that time will be stored in “Library TUNER.”

– 42 –

English

To change the information shown in the main display while recording

Each time you press DISP/CHARA on the remote control, the information in the main display changes as follows:

Clock

1 Preset station number if any 2 Station frequency 3 Remaining recording time in the HDD (counts

down about every 13 seconds), calculated based on the current setting of the recording mode

4 Current recording mode

If “TU AUTO REC OFF PLEASE!” appears in the

You have tried to select recording modes or start recording while Tuner Auto Recording is performed. These operations cannot be accepted during Tuner Auto Recording.

With this function, you can record only the most recent 30 minutes of the program. To record the entire program, first deactivate the Tuner Auto Recording, then perform the recording procedure explained on page 45.

main display

If you want to record the current broadcast program for more than 30 minutes

Prepare a CD.

• Press CD 3/8, then press 7 after loading a CD.

• You can make a program (see page 25) or select Random play mode (see page 26) if you want. In this case, do not start playing CD manually.

Press REC MODE on the unit to select the recording mode.

Current recording mode setting

Ex. When selecting “PCM x4 REC”

PCM

• Each time you press the button, the recording modes change as follows:

AAC128kbps AAC 96kbps

PCM x1 REC

PCM x2 RECPCM x4 REC

The indicator corresponding to the selected recording mode lights up on the display.

Press REC START to start recording.

The REC indicator starts flashing on the display, and CD play and recording start at the same time.

• Repeat play is temporarily canceled if in use.

REC indicator

REC

PCM

Recording CDs

This unit is equipped with the following recording modes to record CDs.

• AAC128kbps : To record in AAC format at the bit rate

of 128 kbps (normal speed).

• AAC 96kbps : To record in AAC format at the bit rate

of 96 kbps (normal speed).

• PCM x1 REC : To record in Linear PCM format

(normal speed).

• PCM x2 REC : To record in Linear PCM format at

double normal speed. (No playback sound will be heard while recording.)

• PCM x4 REC*: To record in Linear PCM format at four

times normal speed. (No playback sound will be heard while recording.)

* You cannot select “PCM x4 REC” to record Program play and

Random play.

– 43 –

Current track no. of the CD

Remaining recording time in the HDD*

* Remaining recording time is calculated based on the

current setting of the recording mode.

Remaining play time of the current track

When CD play ends, recording also stops and the following message appears in the main display.

Continued

Press LIBRARY to select a library where you store the recording just done.

• Each time you press LIBRARY, the library changes—

“Library 1” to “Library 10.”

• If you do not select any library within one minute, the library currently flashing in the main display is automatically selected.

Press SET to finish the recording.

“ENTRY” flashes in the main display for a while.

To stop while recording, press 7. The following message also appears in the main display. So follow steps

and 5 above (press LIBRARY repeatedly to

select a library, then press SET).

To record a single track during playback

Press REC START while the desired track on the CD is played back (regardless of the play mode). The playback of that CD track stops, and the same track starts playing back from the beginning again. Then, the recording starts (with the currently selected recording mode).

To change the information shown in the main display while recording

Each time you press DISP/CHARA on the remote control, the information in the main display changes as follows:

1 Current track number of the CD played 2 Remaining play time of the current track 3 Remaining recording time in the HDD, calculated

based on the current setting of the recording mode

4 Album number and its track number recorded 5 Recording mode in use

If you cannot record a CD using high speed recording (PCM x2 REC or PCM x4 REC)

This might have occurred due to the recording condition of the disc. Using a slower speed recording than the current one in use (PCM x1 or PCM x2) may solve this trouble.

If the recording is not done correctly, or a track is skipped while it is being played

Use analog recording (see page 47).

Clock

English

When the playback of the current track is over, recording also stops and the following message appears.

Follow steps

and 5 above (press LIBRARY repeatedly to

select a library, then press SET).

Its assigned name will be shown.

You cannot record a track using this method while CD Auto Recording is being performed (see page 41).

If a name has been assigned to the selected library

If “CD AUTO REC OFF PLEASE!” appears in the main display

Tracks of less than 3 seconds cannot be created (or recorded) in the HDD.

During the first 3 seconds of recording of each track, you cannot stop recording.

*1Prior to this operation;

– If you have turned off and on the unit, or if you have

recorded another source—FM, AM, or external component, “Library 1” will appear.

– If you have recorded CDs, the last recorded library will

appear.

– 44 –

English

Recording FM/AM Broadcasts

This unit is equipped with the following recording modes to record broadcast programs.

• AAC128kbps : AAC format is used at the bit rate of

128 kbps.

• AAC 96kbps : AAC format is used at the bit rate of

96 kbps.

Tune in to a station you want (see page 18).

Press REC MODE on the unit to select the recording mode.

Current recording mode setting

AAC128

* Remaining recording time is calculated based on the

current setting of the recording mode.

When the broadcast program ends, press 7 to stop recording.

The following message appears in the main display.

Press LIBRARY to select a library where you store the recording just done.

• Each time you press LIBRARY, the library changes—

“Library 1” to “Library 10.”

• If you do not select any library within one minute, Library 1 is automatically selected.

Press SET to finish the recording.

“ENTRY” flashes in the main display for a while.

Ex. When selecting “AAC128kbps”

• Each time you press the button, the recording modes change as follows:

AAC128kbps AAC 96kbps

The indicator corresponding to the selected recording mode lights up on the display.

Press REC START to start recording.

The REC indicator lights up on the display and the recording starts.

REC indicator

Preset station number if any

AAC128

REC

Station frequency

If “TU AUTO REC OFF PLEASE!” appears in the main display

You cannot start recording using this method while Tuner Auto Recording is being performed (see page 42 and 43).

While recording, you cannot change the source or station

If you need to change the source or station, stop recording first.

To assign track numbers manually while recording

Press SET at the place where you want to assign another track number. “TRK INCRE. (increment)” appears in the main display for a while.

• For details, see “How the HDD separates the recorded tracks?” on page 39.

Remaining recording time in the HDD*

– 45 –

Continued

To change the information shown in the main display while recording

Each time you press DISP/CHARA on the remote control, the information in the main display changes as follows:

1 Preset station number if any 2 Station frequency 3 Remaining recording time in the HDD, calculated

based on the current setting of the recording mode

4 Album number and its track number recorded 5 Recording mode in use

Clock

Recording the External Component

You can start recording automatically when the source sound comes into this unit through the LINE IN jacks —Sound Synchronized Recording. Sound Synchronized Recording will stop automatically if no sound comes in for more than 30 seconds (after making a 30-second silence recording) .

This unit is equipped with the following recording modes to record from the external component.

• AAC128kbps : AAC format is used at the bit rate of

128 kbps.

• AAC 96kbps : AAC format is used at the bit rate of

96 kbps.

• Each time you press the button, the recording modes

change as follows:

AAC128kbps AAC 96kbps

The indicator corresponding to the selected recording mode lights up on the display.

Press REC START.

The REC indicator starts flashing on the display, and the unit now stands by for Sound Synchronized Recording.

REC indicator

Remaining recording time in the HDD*

* Remaining recording time is calculated based on the

current setting of the recording mode.

• If playback has already started on the external

component, the unit will start recording without entering recording standby mode.

Start playback on the external equipment.

Recording starts, and the REC indicator stops flashing and remains lit.

• You can also start recording by pressing HDD 3/8.

AAC128

REC

English

Press TUNER/LINE repeatedly to select the external component (see page 21).

Press REC MODE on the unit repeatedly to select the recording mode.

Current recording mode setting

Ex. When selecting “AAC128kbps”

AAC128

– 46 –

When playback ends, press 7 to stop recording.

The REC indicator goes off, and the following message appears in the main display.

Press LIBRARY to select a library where you store the recording just done.

• Each time you press LIBRARY, the library changes—

“Library 1” to “Library 10.”

• If you do not select any library within one minute,

“Library 1” is automatically selected.

English

Press SET to finish the recording.

“ENTRY” flashes in the main display for a while.

When no sound comes in for more than 30 seconds

Recording stops automatically (after making a 30-second silence recording) and the following message appears in the main display.

So follow steps

select a library, then press SET).

• To erase the 30-second silence recording, use the DIVIDE function (see page 60) and the ERASE TRK function (see page 62).

To assign track numbers manually while recording

Press SET at the place where you want to assign another track number. “TRK INCRE. (increment)” appears in the main display for a while.

• For details, see “How the HDD separates the recorded tracks?” on page 39.

To change the information shown in the main display while recording

Each time you press DISP/CHARA on the remote control, the information in the main display changes as follows:

and 7 above (press LIBRARY repeatedly to

Stop recording, then adjust the input level on this unit (see page

If “Level OVER!” appears while recording

21), or if possible adjust the output level on the external component.

• “Level OVER!” will not appear if the album/track numbers or the clock is shown in the main display.

To record CD into the HDD using analog recording mode

If the recording is not done correctly or a track is skipped while it is being played, use the following recording method.

• Track numbers are assigned automatically even when the following analog recording mode is used.

1 Prepare a CD.

• Press CD 3/8, then press 7 after loading a CD.

2 Press and hold REC START until “ANALOG REC

START?” appears in the main display.

• To cancel analog recording, press REC START

again. Or press SELECT ¢ or SELECT 4 so that “ANALOG REC CANCEL?” appears in the main display (each time your press the button, “ANALOG REC CANCEL?” or “ANALOG REC START?” alternately appears), then press SET.

3 Press SET.

Analog recording starts.

1 Currently selected source name for the external

component—LINE, TAPE, DBS, VCR, TV, or GAME (see page 22)

2 Remaining recording time in the HDD, calculated

based on the current setting of the recording mode

3 Recording mode in use 4 Album number and its track number recorded

Clock

• If “PCM x2 REC” or “PCM x4 REC” is currently selected as the recording mode, the recording mode will be automatically changed to “PCM x1 REC.”

• Analog recording mode is automatically canceled when recording is over.

• If you perform steps 2 and 3 above during play, you can record the currently playing track using the analog recording method (see also “To record a single track during playback” on page 44).

– 47 –

Making Your Own Titles

The buttons enlarged in the illustration below are used and explained in this section (pages 49 and 50).

Remote control

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

HDD

TITLE

/EDIT

CLOCK

A.P.off

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

TUNER

/LINE

ALBUM

TITLE

/EDIT

DIMMER

CONTRAST

SLEEP

/TIMER

HDD

REC START

SELECT

ALBUMLIBRARY

ALBUM

AAC

SOUND

CONTROL

VOLUME

RM-SNXHD10J REMOTE CONTROL

MODE

TONE

STANDBY/ON

DISP/CHARA

CANCEL

SET

ENTER

REPEAT

FM / PLAY

MODE

AHB PRO

DISP/CHARA

CANCEL

SET

ENTER

SELECT

ALBUM

MODE

English

The following operations are possible only from the remote control.

• If you have a keyboard (not supplied) which can be connected to the KEYBOARD terminal (PS/2 port) inside the front door, it makes easier for you to enter your own titles (see page

69).

– 48 –

English

Assigning Titles to Albums and Tracks

You can assign a title to each album and track. Once a title is assigned, it is displayed during playback.

• The maximum number of the characters used for each title is 64.

• When you want to change the libraries’ names, see “Changing the Library Names—LIB. NAME” on page

53.

In the following examples, the processes are explained assuming that the unit is turned on.

• To exit from the title entry screen any time during the process, press TITLE/EDIT.

• To return to the previous screen any time during the process, press CANCEL (except while the title entry screen is shown).

• You cannot enter Title/Edit modes during Random

play and Search Modes.

• Library play, Album play, and Repeat play are

canceled when you press TITLE/EDIT (Continuous play will resume).

• You can also assign a name to an album and track

currently recorded while recording.

To assign a title to an album

On the remote control ONLY:

Press TITLE/EDIT once.

• The source changes to “HDD” automatically if another source has been selected.

• Each time you press the button, Title/Edit modes change as follows:

TITLE?

LIB. EDIT?

(Library edit)

ALBUM EDIT?

TRACK EDIT?Canceled

Press SET.

• Each time you press SELECT ¢ or SELECT 4 , the album title entry mode or the track title entry mode (“TRACK?” or “ALBUM?”) is alternately selected.

Press SET again.

The unit enters the album title entry mode.

Currently selected album number appears first.

Press ALBUM + or ALBUM – to select the album you want to assign a title to, then press SET.

The album title entry screen appears in the main display.

• If a title has been assigned, it will appear.

Character entry position

Ex. When selecting Album 19

Assign the title.

1) Press DISP/CHARA to select the character set you

want.

• Each time you press the button, the character sets change as follows:

Capital letters

& Symbols

Numerals

2) Press the character entry button for a character you want to enter.

Examples:

• To enter an “A” or “a,” press ABC once.

To enter a “B” or “b,” press ABC twice. To enter a “C” or “c,” press ABC three times.

• To enter a symbol, press MARK repeatedly until

the symbol you want appears (see page 36 for available symbols).

• To enter a numeral, press 0 – 9.

• To enter a space while entering a title, press

twice.

• To insert a character, press

the character entry position, then press a character entry button.

• To erase a character, press

the character entry position, then press CANCEL.

3) Repeat steps 5 – 1) and 5 – 2) to enter other characters.

• If the character you want to enter next is assigned

to the same button you have just pressed in step

– 2), press once to move the character

entry position to the right.

Character set

Small letters

& Symbols

or to move

– 49 –

Press ENTER.

The track title entry screen for the currently selected track appears.

• If you want to go on assigning the track titles, go to

on the right column.

step

Press TITLE/EDIT again to exit from the title entry mode.

Press TITLE/EDIT once, then press SET.

Press SELECT ¢ or SELECT 4 to enter the track title entry mode (“TRACK?”).

• Each time you press the button, the album title entry mode or the track title entry mode (“TRACK?” or “ALBUM?”) is alternately selected.

English

If you assign a title during playback

The unit repeats playback of all the tracks of the album until you press ENTER in step 6. When you press ENTER, the unit enters the track title entry mode.

When you unplug the AC power cord or if a power failure occurs before step

The editing you have made is not recorded in the HDD.

To assign titles to tracks

On the remote control ONLY:

Press HDD 3/8.

The source changes to “HDD” automatically if another source has been selected, and HDD playback starts.

• If you do not need to listen to the playback sound, press 7.

Select the album where the tracks you want to assign titles to are located (see also page 34).

1) Press SEARCH MODE repeatedly until “ALBUM

No.?” is selected for “SEARCH MODE, ” then press SET.

2) Press the number buttons to enter an album

number you want, then press ENTER.

The first track of the selected album now starts playing.

Press SET.

Press the number buttons (or SELECT ¢ / SELECT

4) to select the track you want to assign a title to,

then press SET.

The track title entry screen for the selected track appears in the main display.

• If a title has been assigned, it will appear.

Character entry position

Ex. When selecting Track 9

Assign the title by referring step 5 on page 49.

Press ENTER.

The next track title entry screen appears.

• If you want to go on assigning more track titles,

repeat steps

• If you assign a title to the last track in an album or if you assign a title while recording, title entry mode is automatically canceled.

to 8.

Character set

Ex. When selecting Album 4

(it is located in Library 2)

• To select the album number, you can also use ALBUM + or ALBUM – .

– 50 –

Press TITLE/EDIT again to exit from the title entry mode.

For the titles of the duplicated tracks using the COPY ALBUM or COPY TRACK functions (see

The original tracks and their duplicated tracks cannot have different names. If the title of the original track or of the duplicated is changed, the other will also be changed.

pages 54 and 57)

Editing the HDD

English

The buttons enlarged in the illustration below are used and explained in this section (pages 52 to 62).

Remote control

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

HDD

TITLE

/EDIT

CLOCK

A.P.off

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

TUNER

/LINE

ALBUM

TITLE

/EDIT

DIMMER

CONTRAST

SLEEP

/TIMER

HDD

REC START

SELECT

ALBUMLIBRARY

ALBUM

AAC

SOUND

CONTROL

VOLUME

RM-SNXHD10J REMOTE CONTROL

MODE

TONE

STANDBY/ON

DISP/CHARA

CANCEL

SET

ENTER

REPEAT

FM / PLAY

MODE

AHB PRO

CANCEL

SET

ENTER

SELECT

LIBRARY

ALBUM

The following operations are possible only from the remote control.

– 51 –

Introducing HDD Editing Functions

You can edit libraries, albums, and tracks using the following functions.

Library Editing

You can change the library name as you like.

❏ Changing the Library Names (LIB. NAME) : Page 53

You can change the original library name, such as “Library 1,” to the one you assign.

❏ Restoring the Libraries (RESTORE) : Page 54

If you unplug the unit or if a power failure occurs while recording, compressing (Smart Compression), or editing the data into the HDD, the library information stored in the HDD and what has been actually recorded in the libraries may happen to become unmatched. As a result, you cannot select some tracks or albums as you expect to do in the libraries. If this happens, you can use this function and restore the libraries.

Album Editing

This unit allows you to edit the albums using the following functions.

❏ Copying an Album (COPY ALBUM) : Page 54

You can make a duplication of an album.

❏ Moving an Album (LIB. CHANGE) : Page 55

You can move an album from a library to another library. If you have stored an album in an incorrect library, use this function to change the library to store the album in.

❏ Making a New Album (MAKE ALBUM) : Page 55

You can create a new album by selecting a track. Album number is automatically assigned to a newly created album. To make your best album later, add other tracks in this album using the MOVE function. (See page 59.)

❏ Erasing an Album (ERASE) : Page 56

You can erase an album one by one. When an album is erased, the subsequent albums are renumbered automatically.

❏ Erasing All Albums (ALL ERASE) : Page 57

All data in the HDD will be erased.

English

Track Editing

This unit allows you to edit the tracks using the following functions.

❏ Copying a Track (COPY TRACK) : Page 57

You can make a duplication of a track.

❏ Copying a Portion of a Track (A-B COPY) : Page 58

You can copy only a portion of the track you want and store it as a track in an album newly created.

❏ Moving a Track (MOVE) : Page 59

You can move a track either within the same album or into a different album. Tracks are automatically renumbered in both albums—where a track has moved from and where the track has moved to.

❏ Dividing a Track (DIVIDE) : Page 60

This function separates a track into two tracks. The subsequent tracks are automatically renumbered.

❏ Joining Tracks (JOIN) : Page 61

This function joins two adjacent tracks into a single track. The subsequent tracks are automatically renumbered.

❏ Erasing a Track (ERASE TRK) : Page 62

You can erase an unwanted track one by one. The subsequent tracks are automatically renumbered.

If the HDD includes many albums

It will be convenient for you to select the album number (and the track number) using Search Mode (see page 34) before performing most of the editing procedures described in this section. If you do so, you do not need to select the album number (and the track number) in the editing procedures.

For the titles of the duplicated albums and tracks using the COPY functions—COPY ALBUM, MAKE ALBUM, and COPY TRACK

The original titles will be also copied and assigned to the newly duplicated albums and tracks.

• For album titles: You can change the album titles of the newly

duplicated albums later (see pages 49 and 50).

• For track titles: You cannot assign the different titles for the

original tracks and the duplicated tracks. If the title of the original track or of the duplicated is changed, the other will also be changed.

– 52 –

English

In the following examples of editing procedures, the processes are explained assuming that the unit is turned on.

• To exit from the editing screen any time during the

process, press TITLE/EDIT.

• To return to the previous screen any time during the

process, press CANCEL.

• You cannot enter Title/Edit modes during Random play and Search Modes.

• Library play, Album play, and Repeat play are canceled when you press TITLE/EDIT (Continuous play will resume).

Changing the Library Names—LIB. NAME

You can change the library names as you like.

• The maximum number of the characters used for each library name is 64.

• You cannot change the names for “Library TUNER” and “Library CD.”

• Once you change a library name, the changed name will appear instead of the original library name.

• When you want to change the album titles or the track titles, see “Assigning Titles to Albums and Tracks” on page 49.

On the remote control ONLY:

Press TITLE/EDIT repeatedly until “LIB. EDIT?” appears in the main display.

• The source changes to “HDD” automatically if another source has been selected.

• Each time you press the button, Title/Edit Modes change as follows:

TITLE?

Press SET.

LIB. EDIT?

(Library edit)

ALBUM EDIT?

TRACK EDIT?Canceled

Press SET again.

The unit enters the library name entry mode.

Currently selected library appears.

Press LIBRARY to select a library (“Library 1”— “Library 10”) you want to change the name of, then press SET.

The library name entry screen appears in the main display.

Character entry position

Ex. When selecting “Library 9”

Press CANCEL repeatedly until the previous name is completely erased.

Enter a new name referring to step 5 on page 49.

Press ENTER.

“HDD WRITING” appears and the HDD lamp flashes in red while the editing you have made is being stored in the HDD.

• If you have performed the above procedure during play, HDD playback stops.

To restore original library names (when shipped from the factory)

Erasing all characters assigned to a library restores its original library name (“Library 1”—“Library 10”).

Character set

– 53 –

Continued

Restoring the Libraries—RESTORE

If you unplug the unit or if a power failure occurs while recording, compressing (Smart Compression), or editing the data into the HDD, the Library information stored in the HDD and what has been actually recorded in the libraries may happen to become unmatched. As a result, you cannot skip tracks or albums as you expect to do in the libraries. If this happens, you can use this function and restore the libraries.

• NOTICE if you use the RESTORE function, the following may possibly occur even though the HDD is restored. – Library names you have assigned may be reset to the

original names.

– All albums in the HDD may be renumbered newly and

be relocated in libraries.

On the remote control ONLY:

Press TITLE/EDIT repeatedly until “LIB. EDIT?” appears in the main display, then press SET.

• The source changes to “HDD” automatically if another source has been selected.

Copying an Album—COPY ALBUM

You can make a duplication of an album. A new album number is automatically assigned to a newly duplicated album.

On the remote control ONLY:

If the HDD includes many albums, select the album number using Search Mode (see page 34) before performing the procedure below.

Press TITLE/EDIT repeatedly until “ALBUM EDIT?” appears in the main display.

• The source changes to “HDD” automatically if another source has been selected.

• Each time you press the button, Title/Edit Modes change as follows:

TITLE?

LIB. EDIT?

(Library edit)

ALBUM EDIT?

TRACK EDIT?Canceled

English

Press SELECT ¢ or SELECT 4 to select “RESTORE?”

• Each time you press SELECT ¢ or SELECT 4,

“RESTORE?” or “LIB.NAME?” is alternately selected.

Press SET.

Press ENTER.

“HDD WRITING” appears and the HDD lamp flashes in red while the unit is restoring the libraries.

• If you have performed the above procedure during play, HDD playback stops.

Press SET.

Press SET again.

The currently selected album number flashes.

Press ALBUM + or ALBUM – to select the album you want to copy, then press SET.

The library selection screen appears.

Ex. When selecting Album 9

The currently selected library flashes.

– 54 –

English

Press LIBRARY to select a library (“Library 1”— “Library 10,”) you want to copy the selected album into, then press SET.

Album number is automatically assigned to a newly created album (the youngest unused number will be selected).

Press ALBUM + or ALBUM – to select the album you want to move, then press SET.

The library selection screen appears.

Ex. When selecting “Library 9”

Press ENTER.

“PLEASE WAIT” then “HDD WRITING” appears and the HDD lamp flashes in red while the editing you have made is being stored in the HDD.

• It takes a long time if the selected album has many tracks.

• If you have performed the above procedure during play, HDD playback stops.

Moving an Album—LIB. CHANGE

You can move an album from one library to another. If you have stored an album in an incorrect library, use this function to change the library where to store the album into.

On the remote control ONLY:

If the HDD includes many albums, it will be convenient for you to select the album number using Search Mode (see page 34) before performing the procedure below.

Press TITLE/EDIT repeatedly until “ALBUM EDIT?” appears in the main display, then press SET.

• The source changes to “HDD” automatically if another source has been selected.

Ex. When selecting Album 15

Press LIBRARY to select a library (“Library 1”— “Library 10”) you want to move the selected album to, then press SET.

The confirmation screen appears in the main display.

Ex. When selecting “Library 10”

Press ENTER.

“HDD WRITING” appears and the HDD lamp flashes in red while the editing you have made is being stored in the HDD.

• If you have performed the above procedure during play, HDD playback stops.

The currently selected library flashes.

Making a New Album—MAKE ALBUM

You can create a new album by copying a track you want. A new album number is automatically assigned to a newly created album.

On the remote control ONLY:

If the HDD includes many albums and tracks, select the album and track using Search Mode (see page 34) before performing the procedure below.

Press SELECT ¢ or SELECT 4 to select “LIB.CHANGE?,” then press SET.

– 55 –

Press TITLE/EDIT repeatedly until “ALBUM EDIT?” appears in the main display, then press SET.

• The source changes to “HDD” automatically if another source has been selected.

Press SELECT ¢ or SELECT 4 to select “MAKE ALBUM?,” then press SET.

To make your best album later

A newly created album has only one track. You can add other tracks into this album later using the MOVE function (see page 59).

English

The currently selected track number of the current album flashes.

Select a track you want to copy to a new album.

1) Press ALBUM + or ALBUM – to select the album.

2) Press SELECT ¢ or SELECT 4 to select the

track.

• You can select the track directly using the number buttons. In this case, the selected track starts playback repeatedly.

Ex. When selecting Album 12, then Track 3

3) Press SET.

The library selection screen appears.

The currently selected library flashes.

Press LIBRARY to select a library (“Library 1”— “Library 10”) you want to move the selected album to, then press SET.

The confirmation screen appears in the main display.

Erasing an Album—ERASE

You can erase an album one by one. When an album is erased, the subsequent albums are renumbered automatically.

On the remote control ONLY:

If the HDD includes many albums, select the album number using Search Mode (see page 34) before performing the procedure below.

Press TITLE/EDIT repeatedly until “ALBUM EDIT?” appears in the main display, then press SET.

• The source changes to “HDD” automatically if another source has been selected.

Press SELECT ¢ or SELECT 4 to select “ERASE?,” then press SET.

The currently selected album number flashes.

Press ALBUM + or ALBUM – to select an album to erase, then press SET.

The confirmation screen appears in the main display.

Ex. When selecting “Library 10”

Press ENTER.

“HDD WRITING” appears and the HDD lamp flashes in red while the editing you have made is being stored in the HDD.

A new album is created (the track selected in step becomes the first track in the new album). Album number is automatically assigned to the newly created album (the youngest unused number will be selected).

• If you have performed the above procedure during play, HDD playback stops.

– 56 –

Press ENTER.

“PLEASE WAIT” then “HDD WRITING” appears and the HDD lamp flashes in red while the editing you have made is being stored in the HDD.

• It takes a long time if the selected album has many tracks.

• If you have performed the above procedure during play, HDD playback stops.

English

Erasing All Albums—ALL ERASE

Copying a Track—COPY TRACK

All data in the HDD will be erased.

On the remote control ONLY:

Press TITLE/EDIT repeatedly until “ALBUM EDIT?” appears in the main display, then press SET.

• The source changes to “HDD” automatically if another source has been selected.

Press SELECT ¢ or SELECT 4 to select “ALL ERASE?,” then press SET.

The confirmation screen appears in the main display.

Press ENTER.

The following warning screen appears in the main display.

You can make a duplication of a track in the same album or in a different album. A newly duplicated track will become the last track in an album where you copy the track into.

On the remote control ONLY:

If the HDD includes many albums and tracks, select the album and track using Search Mode (see page 34) before performing the procedure below.

Press TITLE/EDIT repeatedly until “TRACK EDIT?” appears in the main display.

• The source changes to “HDD” automatically if another source has been selected.

• Each time you press TITLE/EDIT, Title/Edit Modes change as follows:

Press SET.

TITLE?

LIB. EDIT?

(Library edit)

ALBUM EDIT?

TRACK EDIT?Canceled

Press SET.

The reconfirmation screen appears in the main display.

Press ENTER again.

The HDD lamp flashes in red and “HDD WRITING” appears while the editing you have made is being stored in the HDD.

• If you have performed the above procedure during play, HDD playback stops.

Press SET again.

The currently selected track of the current album flashes.

Select a track you want to copy.

1) Press ALBUM + or ALBUM – to select the album.

2) Press SELECT ¢ or SELECT 4 to select the

track.

• You can select the track directly using the number buttons. In this case, the selected track starts playback repeatedly.

Ex. When selecting Album 5, then Track 9

– 57 –

Continued

3) Press SET.

The album selection screen appears.

Press ALBUM + or ALBUM – to select an album where to copy the track into, then press SET.

Press ENTER.

The editing you have made is being stored in the HDD.

• If you have performed the above procedure during play, HDD playback stops.

If “CANNOT ENTRY LIB. Library TUN” appears in the main display

You have selected the album in “Library TUNER” in step 5. You cannot copy a track into the album in “Library TUNER.”

Copying a Portion of a Track—A-B COPY

If necessary, select a track you want.

1) Press ALBUM + or ALBUM – to select an album.

2) Press SELECT ¢ or SELECT 4 to select a

track.

• You can select the track directly using the number buttons. In this case, the selected track starts playback repeatedly.

By holding SELECT ¢ or SELECT 4, you can fast-forward or fast-reverse the track to find the start point.

Press SET when you find the start point (POSI.A) for A-B copy.

The portion (of about 2-second length) following the selected start point repeats playing.

If necessary, press SELECT ¢ or SELECT 4 to precisely adjust the start point.

The unit repeats the newly selected start point.

• You can shift the start point up to ±128. This range (±128) corresponds to about ±12 seconds from the original point (ADJUST 0).

English

You can copy only a portion of the track you want and store it as a new track (the first track) in a new album.

• You cannot set a start point within the first second and set an end point within the last 5 seconds of a track.

On the remote control ONLY:

If the HDD includes many albums and tracks, select the album and track using Search Mode (see page 34) before performing the procedure below.

Press TITLE/EDIT repeatedly until “TRACK EDIT?” appears in the main display, then press SET.

• The source changes to “HDD” automatically if another source has been selected.

Press SELECT ¢ or SELECT 4 to select “A-B COPY?,” then press SET.

The currently selected track starts playing.

Press SET.

Playback continues.

Within the first 4 seconds, this will not be shown.

By holding SELECT ¢ or SELECT 4, you can fast-forward or fast-reverse the track to find the end point.

• If you reach the end of the track while searching, you will go back to the start point (POSI.A).

Press SET again when you find the end point (POSI.B) for A-B copy.

The portion (of about 2-second length) following the selected end point repeats playing.

– 58 –

English

If necessary, press SELECT ¢ or SELECT 4 to precisely adjust the end point.

The unit repeats the newly selected end point.

• You can shift the end point up to ±128. This range (±128) corresponds to about ±12 seconds from the original point (ADJUST 0).

Press SET.

Playback stops, and the library selection screen appears.

The currently selected library flashes.

Press LIBRARY to select a library (“Library 1”— “Library 10”) you want to copy the selected album into, then press SET.

Album number is automatically assigned to a newly created album (the youngest unused number will be selected). The confirmation screen appears in the main display.

Ex. When selecting “Library 9”

Moving a Track—MOVE

You can move a track either within the same album or into a different album. Tracks are automatically renumbered in both albums— where a track has been moved from and where the track has moved to.

2nd

1st

After moving track 2

1st

C D

Ex. When moving Track 2 (Song B) in front of Track 5 in

the same album

On the remote control ONLY:

If the HDD includes many albums and tracks, select the album and track using Search Mode (see page 34) before performing the procedure below.

Press TITLE/EDIT repeatedly until “TRACK EDIT?” appears in the main display, then press SET.

• The source changes to “HDD” automatically if another source has been selected.

2nd

3rd 4th 5th

C D E

3rd 4th 5th

Track No.

Press ENTER.

The HDD lamp flashes in red. “PLEASE WAIT” then “HDD WRITING” appears while the editing you have made is being stored in the HDD.

• It takes a long time if you have copied a long portion.

Press SELECT ¢ or SELECT 4 to select “MOVE?,” then press SET.

The currently selected track number of the current album flashes.

– 59 –

Continued

Select a track you want to move from.

1) Press ALBUM + or ALBUM – to select an album.

2) Press SELECT ¢ or SELECT 4 to select a

track.

• You can select the track directly using the number buttons. In this case, the selected track starts playback repeatedly.

3) Press SET.

Ex. When moving Track 5 from Album 5

Select the position (track number) you want to move to.

1) Press ALBUM + or ALBUM – to select an album.

2) Press SELECT ¢ or SELECT 4 to select the

position (track number).

• To move the track as the last track in the selected album, select “END.”

• You can select the track directly using the number buttons. In this case, the selected track starts playback repeatedly.

3) Press SET.

Dividing a Track—DIVIDE

This function separate a track into two tracks. The subsequent tracks are automatically renumbered.

• When the original track has a title, two separate tracks are reassigned the same title as the original track.

• You cannot set a dividing point within the first 4 seconds and the last 3 seconds of a track.

2nd

3rd 4th

B CA D

3rd 4th

B C

Track No.

5th

1st

After dividing track 1

1st

Ex. When dividing Track 1 (Song A)

On the remote control ONLY:

If the HDD includes many albums and tracks, select the album and track using Search Mode (see page 34) before performing the procedure below.

Press TITLE/EDIT repeatedly until “TRACK EDIT?” appears in the main display, then press SET.

• The source changes to “HDD” automatically if another source has been selected.

English

Ex. When moving into Album 9 as the last track

Press ENTER.

The HDD lamp flashes in red. “PLEASE WAIT” appears while the editing you have made is being stored in the HDD.

• If you have performed the above procedure during play, HDD playback stops.

If “CANNOT ENTRY LIB.” appears in the main

You have selected the album in “Library TUNER,” or you have selected an album including 254 tracks (fully recorded album) in step 4. You cannot move a track into such albums.

display

– 60 –

Press SELECT ¢ or SELECT 4 to select “DIVIDE?,” then press SET.

The currently selected track starts playing.

Within the first 4 seconds, this will not be shown.

If necessary, select a track.

1) Press ALBUM + or ALBUM – to select an album.

2) Press SELECT ¢ or SELECT 4 to select a

track.

• You can select the track directly using the number buttons.

By holding SELECT ¢ or SELECT 4, you can fast-forward or fast-reverse the track to find the dividing point.

English

Press SET when you find the dividing point.

The portion (of 2-second length) following the selected dividing point repeats playing.

If necessary, press SELECT ¢ or SELECT 4 to precisely adjust the dividing point.

The unit repeats the newly selected dividing point.

• You can shift the dividing point up to ±128. This range (±128) corresponds to about ±12 seconds from the original point (ADJUST 0).

Press SET.

Playback stops.

Joining Tracks—JOIN

This function joins two adjacent tracks into a single track. The subsequent tracks are automatically renumbered.

• When two tracks have their own titles, the title of the preceding track is reassigned to the joined track.

• You cannot join the tracks in different albums or tracks recorded in different recording modes (ex. AAC 128kbps and Linear PCM).

• If you join some tracks recorded from a live CD, you will hear noise when playing back the joined portion. (To avoid this, use analog recording method on page 47, then join the tracks you want.)

2nd

After joining tracks 1 and 2

1st

3rd 4th 5th

C D E

2nd

3rd 4th

C D E

Track No.

Press ENTER.

The HDD lamp flashes in red. “PLEASE WAIT” appears while the editing you have made is being stored in the HDD.

• It takes a long time if you have divided a long track.

To join the divided tracks, see the JOIN function that follows.

If “CANNOT DIVIDE” appears in main display

• You cannot divide the track because the current album already include 254 tracks in it.

• You cannot divide the track recorded using Tuner Auto Recording.

• You cannot divide the track if there is not enough space left in the HDD. (When dividing a track, more space is required to be left in HDD rather than required for recording the separated tracks.)

Ex. When joining Tracks 1 and 2 (Songs A and B)

On the remote control ONLY:

If the HDD includes many albums and tracks, select the album and track using Search Mode (see page 34) before performing the procedure below.

Press TITLE/EDIT repeatedly until “TRACK EDIT?” appears in the main display, then press SET.

• The source changes to “HDD” automatically if another source has been selected.

Press SELECT ¢ or SELECT 4 to select “JOIN?,” then press SET.

Ex. When currently selected Album number appears

with the current track number

– 61 –

Select two adjacent tracks you want to join.

1) Press ALBUM + or ALBUM – to select an album.

• If the album you have selected includes only one track, you cannot go to the step below. Select another album including more than one track in it.

2) Press SELECT ¢ or SELECT 4 to select tracks.

• You can select a track (and its adjacent track) directly using the number buttons. In this case, the selected track starts playback repeatedly.

3) Press SET.

Press ENTER.

The HDD lamp flashes in red. “PLEASE WAIT” appears while the editing you have made is being stored in the HDD.

• If you have performed the above procedure during play, HDD playback stops.

To divide the joined tracks, see the DIVIDE function on page 60.

• You cannot join the tracks because they are recorded in different

• You cannot join tracks if the total playing time of the joined

If “CANNOT JOIN” appears in the main display

recording modes.

track becomes—more than 3 hours in the Linear PCM format, and more than 24 hours in AAC format.

Erasing a Track—ERASE TRK

You can erase an unwanted track one by one. The subsequent tracks are automatically renumbered.

Press TITLE/EDIT repeatedly until “TRACK EDIT?” appears in the main display, then press SET.

• The source changes to “HDD” automatically if another source has been selected.

Press SELECT ¢ or SELECT 4 to select “ERASE TRK?,” then press SET.

The currently selected track number of the current album flashes.

Select a track you want to erase.

1) Press ALBUM + or ALBUM – to select an album.

2) Press SELECT ¢ or SELECT 4 to select a

track.

• You can select a track directly using the number buttons. In this case, the selected track starts playback repeatedly.

3) Press SET.

Press ENTER.

“HDD WRITING” appears and the HDD lamp flashes in red while the editing you have made is being stored in the HDD.

• If you have performed the above procedure during play, HDD playback stops.

English

2nd

After erasing track 2

1st

2nd

C D

3rd 4th 5th

C D E

4th

3rd

Track No.

On the remote control ONLY:

If the HDD includes many albums and tracks, select the album and track using Search Mode (see page 34) before performing the procedure below.

Use the DIVIDE, ERASE, then JOIN functions.

If you want to erase only a portion of a track

First divide a track into three portions (second portion must be the one you want to erase). Then erase the second portion, and finally join the first portion and the third portion.

– 62 –

Using the Timers

English

The buttons enlarged in the illustration below are used and explained in this section (pages 64 to 68).

Remote control

Front panel

A.P.off

CLOCK

/TIMER

SELECT

SLEEP

CLOCK

A.P.off

1-MARK 2-ABC 3-DEF

4-GHI 5-JKL 6-MNO

7-PQRS 8-TUV 9-WXYZ

10 0 +10

TUNER

/LINE

ALBUM

TITLE /EDIT

DIMMER

CONTRAST

SLEEP

/TIMER

HDD

REC START

SELECT

ALBUMLIBRARY

MODE

ALBUM

AAC

SOUND

CONTROL

VOLUME

RM-SNXHD10J REMOTE CONTROL

TONE

STANDBY/ON

DISP/CHARA

CANCEL

SET

ENTER

REPEAT

FM / PLAY

MODE

AHB PRO

STANDBY/ON

CANCEL

SET

STANDBY

/ON

COMPACT COMPONENT HDD SYSTEM NX-HD10

STANDBY

/ON

REC

MODE

REC

START

– 63 –

VOLUME

SELECT

LIBRARY

ALBUM

DIGITAL AUDIO

TUNER

COMPACT

HDD CD

KEYBOARD CONNECTOR for TITLE INPUT

AUTO MODE

SET

/ LINE

Before using these timers, you need to set the clock built in the unit (see page 11).

Continued

There are three timers available—Recording Timer, Daily Timer, and Sleep Timer. In addition, you can use Auto Power Off to turn off the unit automatically.

• When you use more than one timer, make sure to give the unit at least one-minute interval between timers; otherwise, the unit cannot start the timer with a later ontime.

Using Recording Timer

With Recording Timer, you can make an unattended recording. This unit can memorize three daily or weekly Recording Timer settings (Recording Timers 1, 2, and 3). You can set Recording Timer whether the unit is turned on or in standby mode.

• To return to the previous screen any time during the process, press CANCEL.

How Recording Timer actually works

“REC TIMER (with an active timer number) STANDBY” starts flashing in the main display about one minute before the timer on-time (the REC indicator and the timer number indicator also start flashing on the display). When the timer on-time comes, the unit starts recording into the HDD (no sound comes out during recording). Then, when the timer off-time comes, “REC TIMER OFF” flashes, and the unit automatically turns off (on standby). The recording is automatically assigned the youngest unused album number and is stored in “Library 1.”

• Recording Timer settings remain stored in memory until you reset them or unplug the AC power cord.

On the remote control ONLY:

Press CLOCK/TIMER repeatedly until “REC TIMER SET UP” appears in the main display.

The REC (Recording Timer) indicator and the number indicator for the currently selected timer start flashing on the display. Then the timer number also starts flashing in the main display.

AAC128

REC

REC (Recording Timer) indicator

Press SELECT ¢ or SELECT 4 to select the timer number (REC TIMER 1, 2, or 3) you want to use, then press SET.

The day-of-the-week setting screen appears.

Ex. When selecting “REC TIMER 2”

Press SELECT ¢ or SELECT 4 to select the day of the week you want to perform the timer recording.

• Each time you press the button, the day-of-the-week settings change as follows:

Mon (Monday) O Tue (Tuesday) O Wed (Wednesday) O Thu (Thursday) O Fri (Friday) O Sat (Saturday) O Sun (Sunday) O Sat–Sun O Mon–Fri O Mon–Sat O Every O (to the beginning)

Ex. When selecting “Mon (Monday)– Fri (Friday)”

• When you select a week day (“Monday” to “Sunday”), the recording timer works at the set time

on the same day weekly.

• When you select “Sat–Sun,” the recording timer works at the set time both on Saturday and Sunday every week.

• When you select “Mon–Fri,” the recording timer works at the set time on Monday through Friday.

• When you select “Mon–Sat,” the recording timer works at the set time on Monday through Saturday.

• When you select “Every,” the recording timer works at the set time every day.

Press SET.

The timer on-time setting screen appears.

• If you have set the timer before, the previously set timer on-time will appear (instead of “– – : – –”).

English

– 64 –

English

Set the timer on-time.

1) Press SELECT ¢ or SELECT 4 to adjust the hour, then press SET.

The minute digit starts flashing.

2) Press SELECT ¢ or SELECT 4 to adjust the minute, then press SET.

The timer off-time setting screen appears.

• If you have set the timer before, the previously set

timer off-time will appear (instead of “– – : – –”).

Set the timer off-time.

1) Press SELECT ¢ or SELECT 4 to adjust the hour, then press SET.

The minute digit starts flashing.

3) Press SELECT ¢ or SELECT 4 to adjust the minute, then press SET.

The recording source setting screen appears.

Press SELECT ¢ or SELECT 4 to select the recording mode—“AAC128 REC?” or “AAC 96 REC?,” then press SET.

The REC indicator and the timer number indicator stop flashing and remain lit on the display.

The contents of this setting are shown in sequence.

Ex. When selecting “AAC128 REC?”

• For each recording mode, see page 39.

Press STANDBY/ON to turn off the unit if necessary.

To turn off the Recording Timer after its setting is done

1 Press CLOCK/TIMER once.

The currently selected Recording Timer ON/OFF setting screen appears in the main display.

Select the source to record from.

1) Press SELECT ¢ or SELECT 4 to select the source.

• Each time you press the button, the sources

change as follows:

FM? AM?

LINE?

(TAPE?/DBS?/VCR?/TV?/GAME?)

* If you have changed the source names, the changed

names will appear in the main display (see page 22).

2) Press SET.

3) When you select “FM?” or “AM?” as the source, press SELECT ¢ or SELECT 4 again to select a preset channel number, then press SET.

• If you select “– –,” the currently received station

will be tuned in.

When you select the external component as the playback source, prepare the external component with the timer function.

The recording mode setting screen appears.

Ex. When Recording Timer 2 is currently selected

2 Press SELECT ¢ or SELECT 4 to select the timer

number (REC TIMER 1, 2 or 3) you want.

3 Press CANCEL.

The selected Recording Timer will be turned “OFF,” and the timer number indicator goes off from the display. (If the other two Recording Timer settings have been also turned off, the REC indicator also goes off.)

To turn on the Recording Timer, repeat steps 1 and 2, and press SET in step 3. The REC indicator and the timer number indicator for the currently selected timer light up on the display. The settings you have stored are shown in the main display for your confirmation.

• “REC TIMER (with the current timer number) NO SET” appears and “SET REC!” flashes in the main display if no timer setting has been done for the currently selected Recording Timer.

If recording is performed when the timer on-time comes

Recording Timer does not work at all.

If you press CLOCK/TIMER, SLEEP, or TITLE/EDIT during timer recording

Recording Timer is canceled temporarily. Recording continues, but the unit will not turn off when the timer off-time comes.

• If you press 7 or turn off the unit, recording stops.

– 65 –

Continued

Using Daily Timer

With Daily Timer, you can wake up to your favorite music or radio program. You can set Daily Timer whether the unit is turned on or in standby mode.

• To return to the previous screen any time during the

process, press CANCEL.

How Daily Timer actually works

“DAILY TIMER STANDBY” starts flashing in the main display about one minute before the timer on-time (the DAILY indicator also starts flashing). When the timer ontime comes, the unit starts playing the specified source at the specified volume level. Then, when the timer off-time comes, “DAILY TIMER OFF” flashes, and the unit automatically turns off (on standby).

• Daily Timer setting remains stored in memory until you reset it or unplug the AC power cord.

On the remote control ONLY:

Press CLOCK/TIMER repeatedly until “DAILY TIMER SET UP” appears in the main display.

The DAILY indicator starts flashing on the display.

AAC128

DAI LY

Press SET.

The timer on-time setting screen appears. The hour digit of the timer on-time starts flashing.

• If you have set the timer before, the previously set timer on-time will appear (instead of “– – : – –”).

Set the timer on-time.

1) Press SELECT ¢ or SELECT 4 to adjust the

hour, then press SET.

The minute digit starts flashing.

2) Press SELECT ¢ or SELECT 4 to adjust the

minute, then press SET.

The timer off-time setting screen appears.

DAILY indicator

Set the timer off-time.

1) Press SELECT ¢ or SELECT 4 to adjust the hour, then press SET.

The minute digit starts flashing.

2) Press SELECT ¢ or SELECT 4 to adjust the minute, then press SET.

The playback source setting screen appears.

Select the source to play.

1) Press SELECT ¢ or SELECT 4 to select the source.

• Each time you press the button, the sources

change as follows:

– – – – –

LINE?

(TAPE?/DBS?/VCR?/TV?/GAME?)

* If you have changed the source names, the changed

names will appear in the main display (see page 22).

2) Press SET.

When you select “– – – – –,” the unit starts playing

the last selected source when the unit is turned off. When you select “FM?” or “AM?,” press SELECT

¢ or SELECT 4 again to select a preset channel number, then press SET.

• If you select “– –,” the last received station will be

tuned in.

When you select “CD?,” press SELECT ¢ or SELECT 4 again to select a track you want to start

playback with, then press SET.

• If you select “– –,” playback starts with the first

track.

When you select “HDD?,”

1 Press SELECT ¢ or SELECT 4 to select an

album, then press SET.

• If you select “– – –,” the last played album will be selected.

2 Press SELECT ¢ or SELECT 4 to select a

track, then press SET.

• If you select “– – –,” playback starts with the first track of the last selected album.

When you select the external component (such as “LINE”), prepare an external equipment with the

timer function.

The volume setting screen appears.

FM?

AM?

HDD?

English

CD?

– 66 –

English

SLEEP

AAC128

Press SELECT ¢ or SELECT 4 to adjust the volume level, then press SET.

• You can adjust the volume level within the range of 0 (silent) to 50 (maximum).

• When you select “VOL. – –” (selectable only with the unit turned on), the volume is set to the current level.

Press SELECT ¢ or SELECT 4 to select “FADE” or “NoFADE”, then press SET.

FADE : Volume fades in (gradually becomes

louder and is set to the specified level).

NoFADE : No fade-in effect. Volume is set to the

specified level when the timer on-time

comes. The DAILY indicator stops flashing and remains lit on the display. The contents of this setting appear in sequence.

Press STANDBY/ON to turn off the unit.

To turn off the Daily Timer after its setting is done

1 Press CLOCK/TIMER three times.

The Daily Timer ON/OFF setting screen appears in the main display.

If you press CLOCK/TIMER, SLEEP, or TITLE/EDIT during timer recording

Daily Timer is canceled temporarily, and the unit will not turn off when the timer off-time comes.

Using Sleep Timer

With Sleep Timer, you can fall asleep to your favorite music. You can set Sleep Timer when the unit is turned on.

How Sleep Timer actually works

The unit automatically turns off after the specified time length passes.

On the remote control ONLY:

Press SLEEP until the shut-off time you want appears.

The SLEEP indicator lights up on the display. The HDD lamp and the VOLUME lamp on the front panel also go off. “SLEEP” and sleep time appear in the main display.

SLEEP indicator

2 Press CANCEL.

The Daily Timer will be turned “OFF,” and the DAILY indicator goes off from the display.

To turn on the Daily Timer, repeat step 1, and press SET in step 2. The DAILY indicator lights up on the display. The settings you have stored are shown in the main display for your confirmation.

• “DAILY TIMER NO SET” appears and “SET DAILY!” flashes in the main display before you enter the timer settings.

If the unit is turned on when the timer on-time comes

Daily Timer does not work at all.

If you change the source or turn off the unit while Daily Timer is working

Daily Timer is canceled temporarily.

• Each time you press the button, the time length changes as follows:

10 20 30 60

OFF

(Canceled)

• If the built-in clock has not been set, “CLOCK ADJUST!” will flash for a while.

The display dims when the sleep timer starts working.

To check the remaining time until the shut-off time,

press SLEEP once. The remaining time until the shut-off time appears in the main display for about 5 seconds.

To change the shut-off time, press SLEEP repeatedly until the time length you want appears.

To cancel the setting, press SLEEP repeatedly until “SLEEP OFF” appears in the main display.

Sleep Timer will be also canceled in the following cases:

• When the unit is turned off,

• When Recording timer is operated, and

• When the clock or any other timer is readjusted.

120 90

– 67 –

To sleep with Sleep Timer and wake up with Daily Timer

The unit turns off when the shut-off time comes (set by the Sleep Timer), and turns on when the timer on-time (set by the Daily Timer) comes.

1 Set Daily Timer as explained on page 66. 2 Start playing back any source you want to listen to

before sleep.

3 Set Sleep Timer.

Using Auto Power Off

Auto Power Off automatically turns off the unit if no sound comes in for more than 3 minutes except when FM or AM is selected as the source. If some operation is done during this 3-minute period, Auto Power Off is canceled temporarily even though no sound comes in.

On the remote control ONLY: To activate Auto Power Off, press A.P.off.

The A.P.off indicator lights up on the display and “A.P.off SET” appears in the main display.

AAC128

off

A.P.off indicator

• When no sound comes in, the A.P.off indicator starts flashing on the display. About 20 seconds before the unit turns itself off, it starts counting down the time.

Timer Priority

Since each timer can be set separately, you may wonder what happens if the setting for these timers overlaps. Here are the priorities for each timer.

• If Recording Timer (1, 2, or 3) and the other two timers—Daily Timer and Sleep Timer overlap, Recording Timer has priority over the others.

If Recording Timer is set to come on while Daily Timer is operating, Daily Timer is canceled.

10:00PM

7:30AM7:00AM6:30AM

10:30PM

6:00AM

Recording Timer 1

Daily Timer

canceled.

If Recording Timer is set to come on while Sleep Timer is operating, Sleep Timer will not turn off the unit even if the shut-off time comes.

9:30PM9:00PM 10:00PM

Recording Timer 1

Sleep Timer

canceled.

• If two Recording Timers overlap, a timer with an earlier on-time has priority over the other.

A timer with a later on-time will be canceled on that particular day. (For example, if the timer with an earlier on-time is set to work only on Monday but the other timer with a later on-time is set to work every day, the other timer will not work on Monday.)

9:30PM9:00PM

Recording Timer 1

English

To deactivate Auto Power Off, press A.P.off. The A.P.off indicator goes off from the display and “A.P.off CANCEL” appears in the main display.

When Recording Timer or Daily Timer starts working

Auto Power Off will not turn off the unit.

– 68 –

Recording Timer 2

canceled.

More on Recording Timers and Daily Timer

If the timer off-time of one timer (say, Timer A) and the timer ontime of another (Timer B) are set so close (one minute or less apart), Timer B will be canceled temporarily even though they are not overlapped.

Sleep Timer and Auto Power Off can be used at the same time.

Using an Optional Keyboard

English

You can connect a keyboard with the PS/2 plug to the KEYBOARD terminal inside the front door (see page 9). You can use the following keys to operate this unit for Edit and Search Modes.

• You can use such a keyboard as a PS/2 US101 keyboard or an equivalent. However, the keyboard connected to this unit must be a type of DC 5 V and less than 100 mA.

Example of Keyboard

Keys Used for Operating This Unit

F1 : Enter Album Title Edit Mode (see page 70).

Press again to exit from Edit Mode.

F2 : Enter Track Title Edit Mode (see page 70).

Press again to exit from Edit Mode.

F3 : Enter Library Name Edit Mode (see page 71).

Press again to exit from Edit Mode.

F5 : Enter Album Number Search (see page 71).

Press again to exit from Search Mode.

F6 : Enter Album Title Search (see page 71).

Press again to exit from Search Mode.

F7 : Enter Track Title Search (see page 71).

Press again to exit from Search Mode.

Esc : Exit from the above Edit and Search Modes.

: Functions in the same way as the SET and

ENTER buttons on the remote control.

(Enter)

(Delete)

(Back Space)

: While selecting a library, used to select

library numbers.

: While selecting an album, functions in the

same way as the ALBUM + / – buttons on the remote control.

: While selecting a track, functions in the

same way as the SELECT 4 / ¢ buttons on the remote control.

: While entering a title, functions in the

same way as the remote control.

: During Album Number Search, used to

select the last album number by the cursor upward button (±), and the first album number (1) by the cursor downward button (≠).

: Deletes unnecessary characters on the

cursor position.

: Deletes unnecessary characters in front of

the cursor position.

/ buttons on the

– 69 –

Continued

: Moves the cursor at the beginning of the

(Home)

(End)

Alphabet keys, 10 keys, Symbol keys, and Space bar

(Shift)

(Caps Lock)

title entry screen.

: Moves the cursor at the end of the title

entry screen.

: Used to enter letters, numbers, symbols

and spaces.

: Used to enter capital letters and upper

symbols on some of the keys.

: Used to always enter capital letters.

When Caps Lock is in use, the CAPS indicator on the display lights up. (The CAPS indicator on the connected keyboard will not light up—this is normal.)

Operating Procedures Using the Keyboard

While using the keyboard, the character set indication shown in the main display will not change even when you enter small letters or numbers.

To assign an album title—F1

See also “To assign a title to an album” on pages 49 to 50.

Press F1 so that the following screen appears in the main display.

Currently selected album number appears first.

Press = or + to select an album number, then press

Enter.

Character entry position

Ex. When selecting “Album 19”

Enter a title, then press Enter.

The track title entry screen appears (you can go to step

of the procedure below).

• If you are recording, the unit exits from Album Title Edit mode.

To assign a track title—F2

See also “To assign titles to tracks” on page 50.

Character set

English

When disconnecting the keyboard

Make sure that the CAPS indicator on the display is not lit.

• The CAPS indicator on the display will turn off when the unit is turned off then on.

– 70 –

Press F2 so that the following screen appears in the main display.

Currently selected track number of the current album appears first.

Press = or + to select a track number, then press

Enter.

Character entry position

Ex. When selecting “Track 12”

Enter a title, then press Enter.

The next track title entry screen appears.

• If you are recording, the unit exits from Track Title Edit mode.

Character set

English

To change a library name—F3

See also “Changing the Library Names—LIB. NAME” on page 53.

Press F3 so that the following screen appears in the main display.

Ex. For album number 5, press 5, then Enter.

For album number 10, press 1, 0, then For album number 204, press 2, 0, 4 then

Enter.

For album number 1, press the cursor downward button (≠), then For the last album number, press the cursor upward button (±), then Enter.

Enter.

Currently selected library appears.

Press = or + to select a library number, then press

Enter.

Character entry position

Ex. When selecting “Library 9”

Press Delete repeatedly until the previous name is completely erased.

Enter a new name, then press Enter.

“HDD WRITING” appears and the HDD lamp flashes in red while the editing you have made is being stored in the HDD.

• If you have performed the above procedure during play, HDD playback stops.

To search for an album by its number—F5

See also “To search for an album by its number—ALBUM No.” on page 34.

Press F5 so that the following screen appears in the main display.

Character set

To search for an album by entering its title—F6

See also “To search for an album or a track by entering its title—ALBUM T./TRACK T.” on pages 35 and 36.

Press F6 so that the following screen appears in the main display.

Character set

Character entry position

Enter a title (up to 5 characters), then press Enter.

“SEARCH” starts flashing in the main display. The unit starts searching for the title.

To search for a track by entering its title—F7

See also “To search for an album or a track by entering its title—ALBUM T./TRACK T.” on pages 35 and 36.

Press F7 so that the following screen appears in the main display.

Press 10 keys to select a track number, then press

Enter.

The selected album starts playing in Continuous play.

Ex. When selecting album 24

– 71 –

Character set

Character entry position

Enter a title (up to 5 characters), then press Enter.

“SEARCH” starts flashing in the main display. The unit starts searching for the title.

Maintenance

To get the best performance of the unit, keep your CDs and mechanism clean.

General Notes

In general, you will have the best performance by keeping your CDs and the mechanism clean.

• Store CDs in their cases, and keep them in cabinets or on shelves.

• Keep the CD tray closed when not in use.

Handling CDs

• Remove the CD from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the CD.

• Put the CD back in its case after use to prevent warping.

• Be careful not to scratch the surface of the CD when placing it back in its case.

• Avoid exposure to direct sunlight, temperature extremes, and moisture.

Cleaning the unit

• Stains on the unit

Should be wiped off with a soft cloth. If the unit is heavily stained, wipe it with a cloth soaked in waterdiluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the unit may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following.

— DO NOT wipe it with a hard cloth. — DO NOT wipe it strong. — DO NOT wipe it with thinner or benzine. — DO NOT apply any volatile substance such as

insecticides to it.

— DO NOT allow any rubber or plastic to remain in

contact with it for a long time.

English

To clean the CD

Wipe the CD with a soft cloth in a straight line from center to edge.

DO NOT use any solvent—such as conventional record cleaner, spray, thinner, or benzine—to clean the CD.

– 72 –

Messages

For HDD:

English

Message

ALBUM No.

FULL

CANNOT

DIVIDE

CANNOT EDIT! (or REC!)

LOW TEMP

CANNOT

ENTRY LIB.

CANNOT ENTRY LIB. Library TUN

CANNOT JOIN

CANNOT

LISTEN!

CANNOT REC!

HDD FULL

EMERGENCY STOP

EMERGENCY

YES? = SET

HDD FULL

NON-AUDIO

CANNOT COPY

NOT AAC

NOT FOUND

SCMS CANNOT

COPY

TRACK No.

FULL

Signification

No more album can be additionally made.

• You are trying to divide a track (album) recorded in “Library TUNER.”

• You have already 254 tracks recorded in the album.

The room temperature is too low for the operation.

You are trying to store an album in a full library.

You are trying to copy a track into an album of “Library TUNER.”

You are trying to join tracks which cannot be joined.

You are trying to listen to the sound during high-speed recording.

You are trying to record when there is no more space in the HDD.

Something is wrong with the HDD and recording has stopped.

AC power supply has been interrupted while recording, compressing (Smart Compression) or editing the data in the HDD. (For example, a power failure has occurred or AC power cord is unplugged.)

There is no more space in the HDD. You are trying to record a non-audio file into

the HDD. You are trying to apply an AAC sound mode

to non-AAC encoded tracks. After searching for an album or a track by its

name, no album or track is found. You are trying to record the 2nd generation

digital source. No more track can be additionally made in

the current album.

Solution

Erase unnecessary albums from the HDD. (The maximum number of the albums is 999.)

• This is not a malfunction. This track cannot be divided.

• Erase unnecessary tracks from the album. (The maximum number of the tracks in an album is 254.)

This is not a malfunction. You can perform the operation only at a temperature between 5˚C (41˚F) to 35˚C (95˚F).

More than 100 albums cannot be stored in a library. Select another library.

Select another album.

This is not a malfunction (see pages 62).

This is not a malfunction. You cannot adjust the sound during highspeed recording.

Erase unnecessary albums or tracks from the HDD. Then try again.

Try to record one more time. If the trouble still persists, consult your dealer.

Follow the instructions shown in the main display—perform the REBUILD function (see “How to rebuild the HDD” on the next page for details). If the trouble still persists, erase all data using the ALL ERASE function (see page 57).

Erase unnecessary albums from the HDD. Change the source disc.

Change the track.

Use another search mode (see page 34).

Analog recording will be automatically selected (see page 39).

Erase unnecessary tracks from the album. (The maximum number of the tracks in an album is 254.)

– 73 –

For CD:

Message

ALL

SKIP TRK.

CANNOT PLAY

All the tracks on the disc have a Track Skip mark*.

You are trying to play back a CD which

Signification

cannot be played, or there is a problem with the CD.

CD1

SKIP TRK.

CD NO DISC

CD PROGRAM

CANNOT x4

The first track on the CD has a Track Skip mark.

There is no disc loaded on the CD tray.

You are trying to use x4 speed recording method to record a CD program play.

RECORDING!

CD RANDOM

CANNOT x4

You are trying to use x4 speed recording method to record a CD random play.

RECORDING!

UNFINALIZE

You are trying to play back a CD-R/RW which has not been “finalized.”

* Some CD-Rs and CD-RWs have Track Skip marks recorded. If

this mark is recorded to a track, it is always skipped. This unit cannot record or erase these Track Skip marks.

Solution

Change the disc.

Wait for a while until the unit finds another track without a Track Skip mark.

Place a disc.

Use another recording method.

This is not a malfunction.

English

How to rebuild the HDD

If “EMERGENCY / YES? = SET” appears in the main display, follow the procedure below.

1 Press SET.

“REBUILD?” starts flashing in the main display.

• If you want to erase all the data recorded now,

press SELECT ¢ or SELECT 4 so that “ALL ERASE?” appears in the main display (each time your press the button, “REBUILD?” or “ALL ERASE?” alternately appears), then press SET.

Then follow steps Albums—ALL ERASE”).

2 Press SET again.

“REBUILDING!” appears in the main display and the unit starts rebuilding the HDD contents.

• It may take a long time to rebuild the HDD when many albums and tracks have been recorded.

If the trouble still persists, erase all data using the ALL ERASE function (see page 57).

to 5 on page 57 (“Erasing All

After you have rebuilt the HDD, the following symptom may be observed.

• Library names you have assigned may be reset to the original names.

• All albums in the HDD may be renumbered newly and will be relocated in libraries.

• Some albums or track may be erased from the HDD.

These are required to normalize the HDD, and are not malfunctions.

– 74 –

Troubleshooting

English

If you are having a problem with your unit, check this list for a possible solution before calling for service. If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person, such as your dealer, for service.

IMPORTANT: Before calling for service, make sure you have all data in the HDD duplicated into other recording devices, for it may be required to erase all data in the HDD for service purpose.

Symptom

Poor radio reception.

FM/AM

Stereo effect is lost in FM broadcast.

Loaded disc cannot be ejected.

The disc does not play.

Tracks are skipped.

CD playback

Some of the CD functions, such as skip or search, do not work correctly.

Sounds are skipped intermittently.

Search is not performed properly.

HDD playback

A library cannot be selected.

Some albums or tracks cannot be selected.

Possible Cause

• The antenna is not connected correctly.

• The AM loop antenna is too close to the unit.

• The FM antenna is not properly extended and positioned.

FM reception mode is changed to “FM MONO.”

• The main AC power cord is not plugged in.

• The Disc Lock function is in use.

• The disc is upside down.

• Track Skip mark is recorded for the first track of the disc.

• The disc is dirty or scratched.

• Track Skip marks are recorded.

You are playing an unfinalized disc.

• The unit is subject to external vibration or shock.

• If you have recorded the tracks from a live CD, sounds may be interrupted at the beginning of each track.

Search is performed on an AAC track of less than 20 seconds long.

No album or track is recorded in the library.

Library information stored in the HDD and what actually recorded do not match. This may be caused by a power failure while recording, compressing (Smart Compression) or editing the data in the HDD.

Action

• Reconnect the antenna securely.

• Change the position and direction of the AM loop antenna.

• Extend FM antenna to the best reception position.

Press FM/PLAY MODE to select “FM AUTO” (see page 18).

• Plug in the AC power plug.

• Turn off the Disc Lock function (see page 27).

• Put the disc in with the label side up.

• Wait until the unit finds a track without a Track Skip mark.

• Clean or replace the disc (see page

72).

• This is normal.

This is normal. If you need to use these functions, finalize the disc. (This unit cannot finalize CD-Rs/CDRWs.)

• Reduce the volume (speaker output level) or change the installation place.

• This is normal for the HDD. To avoid this, use analog recording, then join the tracks later using the JOIN function (see page 47 and 61).

This is normal.

Unless some recording is stored in a library, you cannot select it.

Use the RESTORE function (see page

54).

– 75 –

Continued

Symptom

Unable to record into HDD.

CD Auto Recording cannot be done correctly.

CD Auto Recording does not start.

Tuner Auto Recording does not start.

HDD recording

Smart Compression is canceled.

Some mechanical noises are heard during Smart Compression.

If “Level OVER!” appears in the main display.

You can erase albums or tracks, but cannot use other editing functions such as “COPY,” “MOVE,” etc.

You cannot copy a portion from a track—“A-B COPY.”

You cannot move a track— “MOVE.”

HDD editing

Tracks cannot be divided.

Possible Cause

Already 999 albums are created in the HDD.

• You have stopped the playback before the entire disc is played back.

• Some of the tracks on the disc are copy-protected.

• You have turned on the function after you started CD playback.

• CD play is started by Daily Timer .

FM or AM station is tuned in by Daily Timer or Recording Timer.

You have pressed STANDBY/ON while Smart Compression is performed.

While Smart Compression is being performed, the internal hard disk is still rotating at a high speed, causing imperceptible mechanical noises.

Recording (input) level through the external component is too high.

There is no space left in the HDD— “HDD FULL.”

You have tried to copy a portion of a track of less than 6 seconds long.

You have tried to move a track to exactly the same position where it now located.

• Already 254 tracks are created in the album.

• You have tried to divide the track (album) in “Library TUNER.”

• You have tried to divide a track of less than 7 seconds long.

Action

Erase unnecessary albums.

• This is normal. (For details, see page

41.)

• Use analog recording method (see page 47).

• To use CD Auto Recording, stop playback, then restart CD playback. CD Auto Recording starts.

• This is normal.

This is normal.

The unit now goes into standby mode.

This is normal.

Adjust the input level (see page 21).

This is normal. To use other editing functions, first erase unnecessary albums and tracks to make enough space in the HDD.

This is normal. You cannot set a start point within the first second and set an end point within the last 5 seconds of a track (see page

58).

Select another track number as the position to move the track to.

• The maximum number of the tracks in an album is 254. Erase unnecessary tracks.

• You cannot divide this track. To divide this, copy this track to another library.

• You cannot set a dividing point within the first 4 seconds and the last 3 seconds of a track.

English

– 76 –

English

Symptom

Tracks cannot be joined.

When playing back the joined

HDD editing

portion, you will hear noise.

Mechanical noises are heard and the cabinet slightly vibrates.

No sound is heard.

Unable to operate the remote control.

If “ERROR” appears in the main

General

display. If “ERROR! SPK DC OUT”

appears in the main display and no sounds come from the speaker.

External keyboard does not work at all.

Operations are disabled.

Possible Cause

• These tracks are recorded in different recording modes or in different albums.

• The total playing time of the joined track exceeds 3 hours in the Linear PCM format or 24 hours in the AAC format.

You have joined some tracks recorded from a live CD.

The hard disk is constantly rotating at a high speed when the power is on, causing imperceptible mechanical noises and cabinet vibration.

Connections are incorrect or loose.

• The path between the remote control and the remote sensor on the unit is blocked.

• The batteries have lost their charge.

• You are using the remote control far from the main unit.

Something is wrong with your unit.

The volume is too high.

The keyboard is not fully discharged electrically.

The built-in microprocessor has malfunctioned due to external electrical interference.

Action

• This is normal. You cannot join these tracks.

• This is normal. The total playing time of a track cannot exceed these hours.

If the tracks have been recorded digitally, this cannot be avoided. To avoid this, use analog recording method when recording these tracks (see page 47). Then join them later.

This is normal.

Check all connections and make corrections (see pages 6 to 9).

• Remove the obstruction.

• Replace the batteries (see page 9).

• Signals cannot reach the remote sensor. Move closer to the main unit.

Unplug the unit immediately, then consult your dealer.

Turn off the unit and unplug it, then consult your dealer.

Turn off the unit, then turn it on back again after a while.

Press REC START and 0 CD on the unit at the same time, or unplug the unit then plug it back in. (See “CAUTION” below.)

DO NOT press REC START and 0 CD on the unit at the same time, or do not unplug the unit then plug it back in while recording, compressing (Smart Compression) or editing the data in the HDD; otherwise, the data will be damaged.

– 77 –

Specifications

Amplifier

Output Power:

25 W per channel, min. RMS, driven into 4 Ω from 40 Hz to 20 kHz, with no more than 10% total harmonic distortion

Audio input sensitivity/Impedance (at 1 kHz)

LINE IN : 260 mV/54 kΩ (at “LEVEL 1”)

640 mV/54 kΩ (at “LEVEL 2”)

Audio output level/Impedance (at 1 kHz)

LINE OUT : 215 mV/3.9 kΩ

Speakers/Impedance: 4 Ω to 16 Ω

Tuner

FM tuning range : 87.5 MHz to 108.0 MHz AM tuning range : 530 kHz to 1 710 kHz

CD player

CD Capacity : 1 CD Dynamic range : 88 dB Signal-to-noise ratio : 95 dB Wow and flutter : Immeasurable

Hard Disc Drive (HDD)

Data storage : 10 Gbytes Recording system : Linear PCM

AAC 128 kbps AAC 96 kbps

Recording length:

Linear PCM : Approx. 15 hours AAC 128 kbps : Approx. 160 hours AAC 96 kbps : Approx. 220 hours

Speaker system—SP-NXHD10

Type: 2-way bass-reflex type Speakers:

Woofer : 10.0 cm (3

Tweeter : 2.0 cm ( Power handling capacity : 25 W Impedance : 4 Ω Frequency range : 52 Hz to 20 000 Hz Sound pressure level : 82 dB/W

Dimensions (W/H/D) (approx.) :

125 mm x 237 mm x 239 mm

Mass (approx.) : 2.3 kg (5.1 lbs) each

/16 in.) cone x 1

/16 in.) dome x 1

•m

/16 in. x 9 3/8 in. x 9 7/16 in.)

Supplied accessories

See page 6.

Design and specifications are subject to change without notice.

English

General

Operating temperature : 5˚C (41˚F) to 35˚C (95˚F) Operating altitude : –300 m to +3 048 m

(– 98 ft to +1 000 ft) Power requirement : AC 120V Power consumption : 55 W (in operation)

1.0 W (on standby: with display

1.2 W (on standby: with display on)

Dimensions (W/H/D) (approx.) :

150 mm x 237 mm x 274 mm

/16 in. x 9 3/8 in. x 10 13/16 in.)

Mass (approx.) : 4.8 kg (10.6 lbs)

, 60 Hz

off)

IMPORTANT: The manufacturer assumes no liability whatsoever for any damage resulting from missed opportunity or accidental erasure due to malfunctioning of the unit or due to trouble in the unit, such as fatal collapse of the hard disk drive itself.

• Since the HDD has its lifetime, it is strongly recommended to make a copy of your important recordings, and keep it using other recording devices.

– 78 –

Authorized Service Centers

QUALITY SERVICE

HOW TO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE: 1 (800) 537-5722

http://www.jvc.com

Dear Customer, In order to receive the most satisfaction from your purchase,please read the instruction booklet before operating the unit.In the event that repairs are necessary, please call 1 (800)537-5722 for your nearest authorized servicer or visit our website at www.JVC.com Remember to retain your Bill of Sale for Warranty Service.

Do not service the television yourself

Caution

To prevent electrical shock,do not open the cabinet.There are no user serviceable parts inside.Please refer to qualified service personnel for repairs.

Accessories

To purchase accessories for your JVC product,please call toll free:1 (800)882-2345 or on the web at www.JVC.com

BT-51018-3 (0301)

LIMITED WARRANTY

AUDIO-1

USA ONLY

ONLY FOR PRODUCT PURCHASED IN U.S.A.

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail purchase for the period as shown below. ("The Warranty Period")

PARTS LABOR

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are covered on an in-home basis.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service center, please call toll free: (800) 537-5722.

If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be given to you by the toll-free number.

If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if the model number or serial number has been altered, tampered with, defaced or removed;

2. Initial installation and installation and removal for repair;

3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;

4. Damage that occurs in shipment, due to act of God, and cosmetic damage;

5. Signal reception problems and failures due to line power surge;

6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;

7. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);

There are no express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

JVC COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No. : Serial No. :

Purchase data : Name of dealer :

1700 Valley Road

Wayne, New Jersey 07470

VICTOR COMPANY OF JAPAN, LIMITED

EN, FR

0602NSMMDWJEM

JVC

JVC NX-HD10 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INSTRUCTIONS

Introduction

Contents

Location of the Buttons

Getting Started

Basic Settings

Basic and Common Operations

Listening to FM and AM Broadcasts

Playing Back the External Component

Playing Back CDs (CD/CD-R/CD-RW)

Playing Back the HDD (Hard Disk Drive)

Recording into the HDD

Making Your Own Titles

Editing the HDD

Using the Timers

Using an Optional Keyboard

Maintenance

Messages

Troubleshooting

Specifications

Authorized Service Centers
