DIGITAL VIDEO CAMERA

GR-DVM1

INSTRUCTIONS

CONTENTS

ABOUT DV PROVIDED ACCESSORIES GETTING STARTED

Charging The Battery Pack ..................... 8

Installing The Battery Pack .................... 9

Indoor Use ..................................... 10

Using The CAM Stand ......................... 10

Clock (Lithium) Battery CR2025

Insertion/Removal .......................... 11

Date/Time Settings ........................... 12

Loading/Unloading A Cassette .............. 13

Recording Mode Setting ...................... 14

Hand Strap Attachment ...................... 14

Lens Cover Detachment....................... 14

Sun Hood Attachment ......................... 15

Grip Attachment ............................... 16

Remote Control Unit .......................... 17

RECORDING

Full Auto/Manual Operation ................ 18

Basic Recording ................................ 19

Advanced Features ............................ 26

PLAYBACK

Basic Playback ................................. 49

Basic Connections ............................. 50

Playback Menu ................................ 54

Advanced Features ............................ 56

EDITING

Docking Station ................................ 58

Dubbing ......................................... 58

Brand Setting .................................. 59

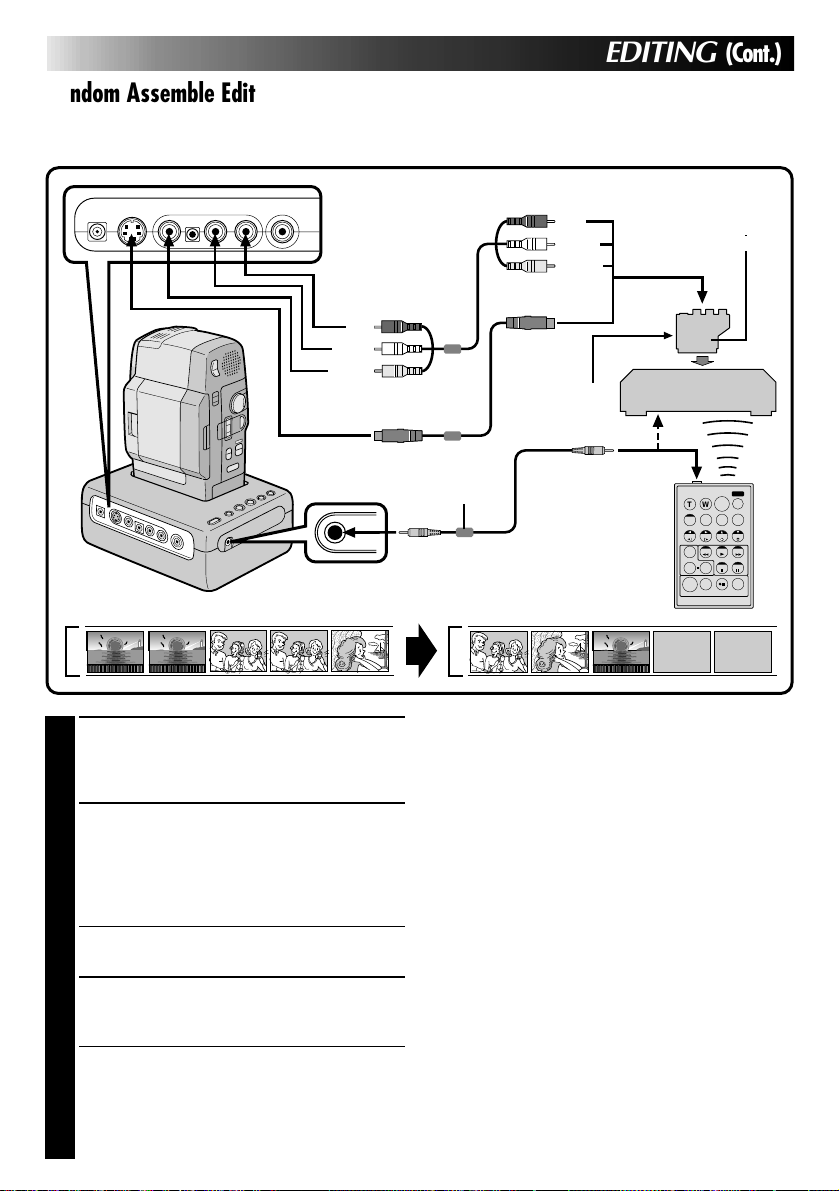

Random Assemble Editing .................... 60

For More Accurate Editing .................... 63

Audio Dubbing ................................. 65

Insert Editing ................................... 66

TROUBLESHOOTING AFTER USE CONTROLS,

INDICATIONS AND CONNECTORS

Main Unit ....................................... 73

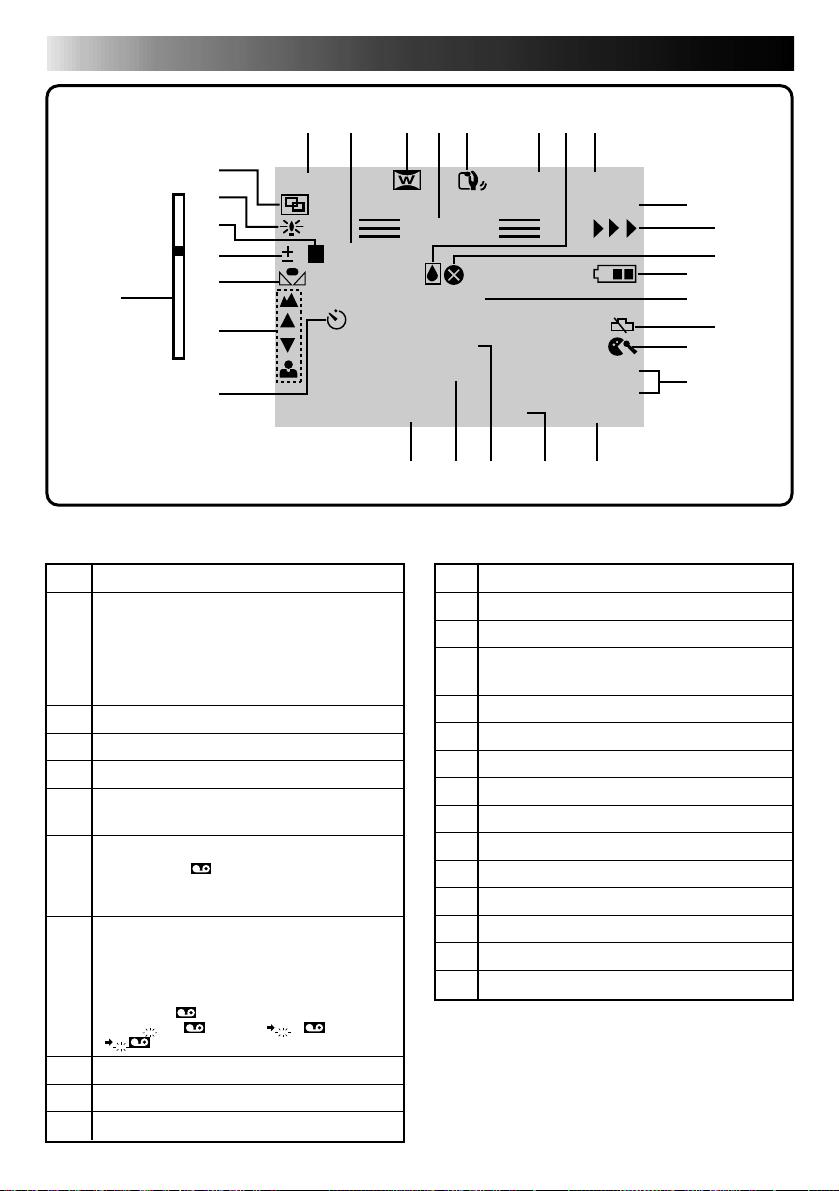

LCD Monitor Indications During Recording ... 74

LCD Monitor Indications During Playback .... 75

Warning Indications ........................... 75

JLIP Video Capture Docking Station ........ 76

CAUTIONS SPECIFICATIONS GLOSSARY OF TERMS INDEX

5 6 8

67 72

77 79 81 82

LYT0002-0A1A

Dear Customer,

Thank you for purchasing this Digital Video Camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product.

Using This Instruction Manual

•All major sections and subsections are listed in the Table Of Contents (Z cover page).

•Notes appear after most subsections. Be sure to read these as well.

•Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

..... refer to “Controls, Indications and Connectors”

(Z pgs. 73 – 76) and familiarize yourself with button locations, etc. before use.

..... read thoroughly the Safety Precautions that follow. They contain extremely important information

regarding the safe use of your new camcorder.

You are recommended to carefully read the cautions on pages 77 and 78 before use.

SAFETY PRECAUTIONS

IMPORTANT

Connection to the mains supply in the United Kingdom.

DO NOT cut off the mains plug from this equipment.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover.

If nontheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:

Blue to N (Neutral) or Black Brown to L (Live) or Red

If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured black. Brown wire to terminal coded L (Live) or coloured Red. If in doubt — consult a competent electrician.

CAUTIONS:

n To prevent shock, do not open the cabinet.

No user serviceable parts inside. Refer servicing to qualified personnel.

n When you are not using the AC Power

Adapter/Battery charger for a long period of time, it is recommended that you disconnect the power cord from AC outlet.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

Warning on lithium cell battery

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C (212°F) or incinerate. Replace battery with Panasonic (Matsushita Electronic), Sanyo or Maxell CR2025; use of another battery may present a risk of fire or explosion.

n Dispose of used battery properly. n Keep away from children. n Do not disassemble and do not dispose of in

fire.

CAUTION (applies to the Docking Station):

TO REDUCE THE RISK OF FIRE, DO NOT REMOVE COVER (OR BACK). NO USER– SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

NOTES:

●

The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

●

The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom.

●

The rating plate (serial number plate) of the Docking Station is on its bottom.

This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and viewfinder playback are possible anywhere. Use the BN-V812U battery pack and, to recharge it, the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

This unit is produced to comply with Standard IEC Publ. 65.

n This camcorder is designed exclusively for

the cassettes marked unit.

digital video cassette. Only

can be used with this

SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you

attempt to use the equipment.

DO ensure that all electrical connections (including

the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.

DO consult your dealer if you are ever in doubt

about the installation, operation or safety of your equipment.

DO be careful with glass panels or doors on

equipment.

DON’T continue to operate the equipment if you are in

any doubt about it working normally, or if it is damanged in any way — switch off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose

dangerous voltages.

DON’T leave equipment switched on when it is

unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or

radios so that you are distracted from the requirements of road safety. It is illegal to watch television whilst driving.

DON’T listen to headphones at high volume, as such

use can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for

example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with

wood screws — to ensure complete safety always fit the manufacturer’s approved stand or legs with the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to

rain or moisture.

ABOVE ALL

— NEVER let anyone especially children push anything

into holes, slots or any other opening in the case — this could result in a fatal electrical shock;

— NEVER guess or take chances with electrical

equipment of any kind — it is better to be safe than sorry!

SAFETY PRECAUTIONS

Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION! The following notes concern possible physical damage to the camcorder and to the user.

When carrying, be sure to always attach and use the provided hand strap. Hold the camcorder firmly in your hand, with the strap securely around your wrist. Carrying or holding the camcorder by the viewfinder can result in dropping the unit, or in a malfunction.

Take care not to get your finger caught in the cassette cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury.

Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.

CAUTION! Attaching the camcorder to the Docking Station, connecting cables (AUDIO/VIDEO, S-VIDEO, Editing, DC) and leaving the unit on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.

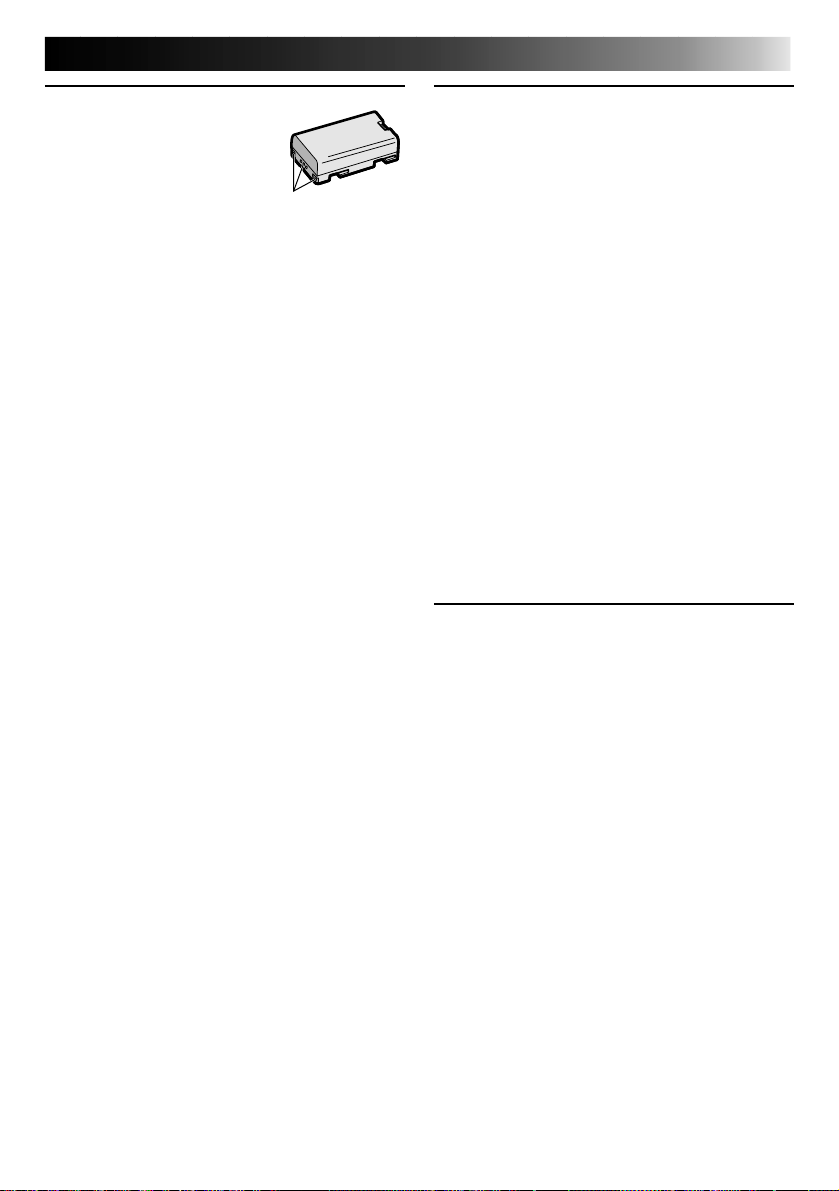

About Batteries

DANGER! Do not attempt to take the batteries

apart, or expose them to flame or excessive heat, as there is a risk of fire or explosion.

WARNING! Do not allow the battery terminals, or the battery itself, to come in contact with metals, as this can result in a short circuit and possibly start a fire.

•When transporting, make sure the provided battery cap is attached to the battery. If you misplace the battery cap, carry the battery in a plastic bag.

Before recording an important scene . . .

..... make sure you only use cassettes with the Mini

DV mark.

..... remember that this camcorder is not compatible

with other digital video formats.

..... remember that the this camcorder is intended

for private consumer use only. Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

The Benefits Of Lithium-Ion Batteries

Lithium-ion battery packs are small but possess a large power capacity. However, when the battery pack becomes cool in an environment subject to cold temperatures (below 10°C/50°F), the battery pack has a characteristic that its usage time becomes shorter and may cease to function. If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then re-attach it to the camcorder. As long as the battery pack itself is not cold, it should not affect performance. (If you’re using some kind of heating pad, make sure the battery pack does not come in direct contact with the pad.)

Lithium-ion is vulnerable in colder temperatures.

ABOUT DV

The digital video camera converts incoming audio and video signals into digital form for recording. A video signal is composed of a luminance signal (Y) and colour signals (R-Y and B-Y). These signals are

identified and recorded digitally (Digital Component Recording). The A/D (Analog to Digital) converter samples the Y signal at 13.5 MHz, and R-Y and B-Y at 6.75 MHz, and changes them to an 8-bit quantum signal.

Sound sampled at 48 kHz is changed to a 16-bit quantum signal, and sound sampled at 32 kHz is converted to a 12-bit signal.

NOTE:

The data recorded on a tape is digital, but the output of the this camcorder is analog.

VIDEO

Lens

Chrominance (C)

AUDIO

Mic

This camcorder separates the data into blocks, writing one block of each data type on each track of the tape.

Head tracking direction

Luminance Signal (Y)

Colour Difference Signal (R-Y/B-Y)

Chromatic

Analysis

A/D

conversion

A/D

conversion

A/D

conversion

Tape direction

Sub-Code Area

Video Area

Signal

compression

Audio Area

ITI Area

Recording by rotating head helical scan

5.24 mm

6.35 mm

1 Sub-Code Area

The Time Code and Date/Time data are written here, separate from the video data. This enables you to display the date and time during playback, even if they weren’t displayed while recording.

2 Video Area

The digital video signal is recorded here.

12 tracks/frame

3 Audio Area

The digital audio signal is recorded here.

4 ITI (Insert and Tracking

Information) Area

Insert editing and post-recording editing tracking signals are recorded here.

PROVIDED ACCESSORIES

AC Power Adapter/Charger

AA-V80EK or AA-V80EA

CAM Stand Sun hood

Hand strap

AUDIO/VIDEO cable

(Docking Station to TV or

VCR, RCA plug 4 RCA plug)

Battery pack BN-V812U

VIDEO cable (ø 3.5,

camcorder to TV or VCR,

mini-plug 4 RCA plug)

Soft camera case

Grip

Cable adapter (provided

only with U.K. models)

AUDIO cable (ø 3.5,

camcorder to TV or VCR,

mini-plug 4 RCA plug)

S-VIDEO cable Editing cable DC cord

Remote control unit

RM-V708U or RM-V710U

MiniDV Cassette Tape 30 min (DVM-30)

M-DV30ME

JLIP connection cables x 2,

3.5 mm dia

Computer connection cable,

D-SUB 9-pin

JLIP Video Capture Docking Station

GV-DS1 (referred to in the manual as

“Docking Station”)

Use of the JLIP Video Capture Docking

Station enables you to capture video

images from video sources such as

camcorders and VCRs.

Also refer to the JLIP Video Capture

Docking Station's instruction manual.

CD-ROM

The CD ROM contains the following

2 software programs:

•JLIP Video Capture

•JLIP Movie Player

Lithium battery CR2025 x 2

(one for clock operation and one for

remote control unit)

Cleaning cloth

Charging The Battery Pack

You can charge one battery pack at a time, or two consecutively.

ATTACH

Battery pack BN-V812U

To AC outlet

DC jack

Charger indicator 2

Power lamp

Charger indicator 1

Power cord

AC Power Adapter/ Charger

• The charge marker does not move by itself. After

GETTING STARTED

DETACH

RED

BLACK

Charge marker

charging or removing a discharged battery, be sure to set the marker to the predetermined position.

SUPPLY POWER TO CHARGER

Plug the AC Adapter/Charger's power cord into an AC outlet. The power indicator comes on.

ATTACH BATTERY/BATTERIES

Make sure the + – marks are facing down and aligned with the corresponding marks on the AC Power Adapter/Charger.

•The Charge Indicator (1 or 2) begins blinking to indicate charging has started.

CONFIRM STATUS

When the charger indicator stops blinking but stays lit, charging is finished.

•If two batteries are attached to the charger, they will be charged in the order that they were attached.

CHARGING TIME

BATTERY ONE TWO

BN-V812U approx. 100 min. approx. 200 min.

DETACH BATTERY/BATTERIES

Slide the battery or batteries in the direction of the arrow and lift off.

•Remember to unplug the AC Adapter/ Charger's power cord from an AC outlet.

Charge Marker

The charge marker makes it easy for you to differentiate between charged and discharged batteries. Choose RED or BLACK to mean charged or discharged, and you'll always know the status of your batteries.

NOTES:

●

If you connect the camcorder’s DC cord to the adapter during battery charging, power is supplied to the camcorder and charging stops.

●

When using the AC Power Adapter/Charger, be sure to use the supplied power cord only.

●

The AC Power Adapter/Charger is for use with the BN-V812U Battery Pack only.

●

When charging the Battery Pack for the first time or after a long storage period, the Charge Indicator may not light. In this case, remove the Battery Pack from the AC Power Adapter/Charger, then try charging again.

●

Since the AC Power Adapter/Charger processes electricity internally, it becomes warm during use. Be sure to use it only in well-ventilated areas.

** Charging Environment

Perform charging where the temperature is between 10° and 30°C. (20°–25°C is the ideal temperature range for charging.) If the environment is too cold, charging may be incomplete.

Continuous Shooting

Continuous shooting is possible for approximately 60 minutes, under the following conditions:

•A BN-V812U Battery Pack is in use

•The temperature is approximately 20°C/68°F However, . . .

•If the temperature is below 10°C/50°F, or

•If zoom or Record/Standby are engaged repeatedly, continuous shooting capability is reduced significantly. Before extended use, it is recommended that you prepare enough battery packs to cover 3 times the planned shooting time.

Installing The Battery Pack

The battery pack does not charge while in the camcorder. Before installation, make sure the battery pack has been charged fully.

Battery cover

Open switch

Battery

OPEN BATTERY COVER

1 Slide the open switch on the battery cover. 2 Pull open the battery cover in the direction

of the arrow.

INSERT BATTERY

Insert the + – end of the battery first.

CLOSE BATTERY COVER

Slide the open switch and close the battery cover.

BATTERY RECORDING TIME

BN-V812U approx. 60 min.

NOTES:

●

To remove the battery pack, turn the Power Dial to "OFF", open the battery cover and slide the battery pack out.

●

Be careful not to drop the battery pack.

GETTING STARTED

(Cont.)

To AC outlet

AC Power Adapter/Charger

DC cord

Power cord

Core Filter

DC-IN

Connector is under this cover

Bottom of the camcorder

d c

b a

Lens

CAM Stand

Indoor Use

When using the camcorder indoors, you can use the AC Adapter instead of a battery.

SUPPLY POWER TO ADAPTER

Plug the AC Adapter/Charger's power cord in to an AC outlet.

SUPPLY POWER TO CAMCORDER

Connect the AC Adapter to the camcorder.

NOTES:

●

When using the provided DC cord, make sure you connect the end of the cable with the core filter to the camcorder. The core filter improves performance of equipment.

●

When using the AC Power Adapter/Charger, the “Battery Low” indicator (Z pg. 75) may appear. This is not a malfunction.

Using The CAM Stand

During Playback

If you leave the camcorder's power on for a long time while using it on a table top etc., the camcorder's surface may become hot. Attach it to the CAM Stand and play back.

During Recording

It is recommended to use the CAM Stand while shooting from a table top or any other flat surface. This provides stability to the camcorder.

SUPPLY POWER

Plug the DC cord into the camcorder.

ATTACH TO CAM STAND

Line up A with a, B with b, C with c, and

with d. Slide the camcorder in the

direction of the arrow.

•To detach the camcorder, slide it in the opposite direction of the arrow.

Clock (Lithium) Battery CR2025 Insertion/Removal

This battery is necessary to operate the clock and to perform date/time settings.

Battery holder

Open switch

Battery cover

OPEN BATTERY COVER

1 Slide the open switch on the battery cover. 2 Pull open the battery cover in the direction

of the arrow.

REMOVE OLD BATTERY

Pull the battery holder out in the direction of the arrow and slide the battery down and out of the holder.

INSERT NEW BATTERY

Insert the battery, with the “+” side showing, in the holder.

REPLACE BATTERY HOLDER

Insert the battery holder into the battery cover.

CLOSE BATTERY COVER

NOTES:

●

After changing the lithium battery, reset the date and time (Z pg. 12).

●

When the battery is depleted, the “ ” indicator appears in the LCD monitor after you turn the power on.

●

See “SAFETY PRECAUTIONS” on page 2 for information on safe handling of lithium batteries.

GETTING STARTED

(Cont.)

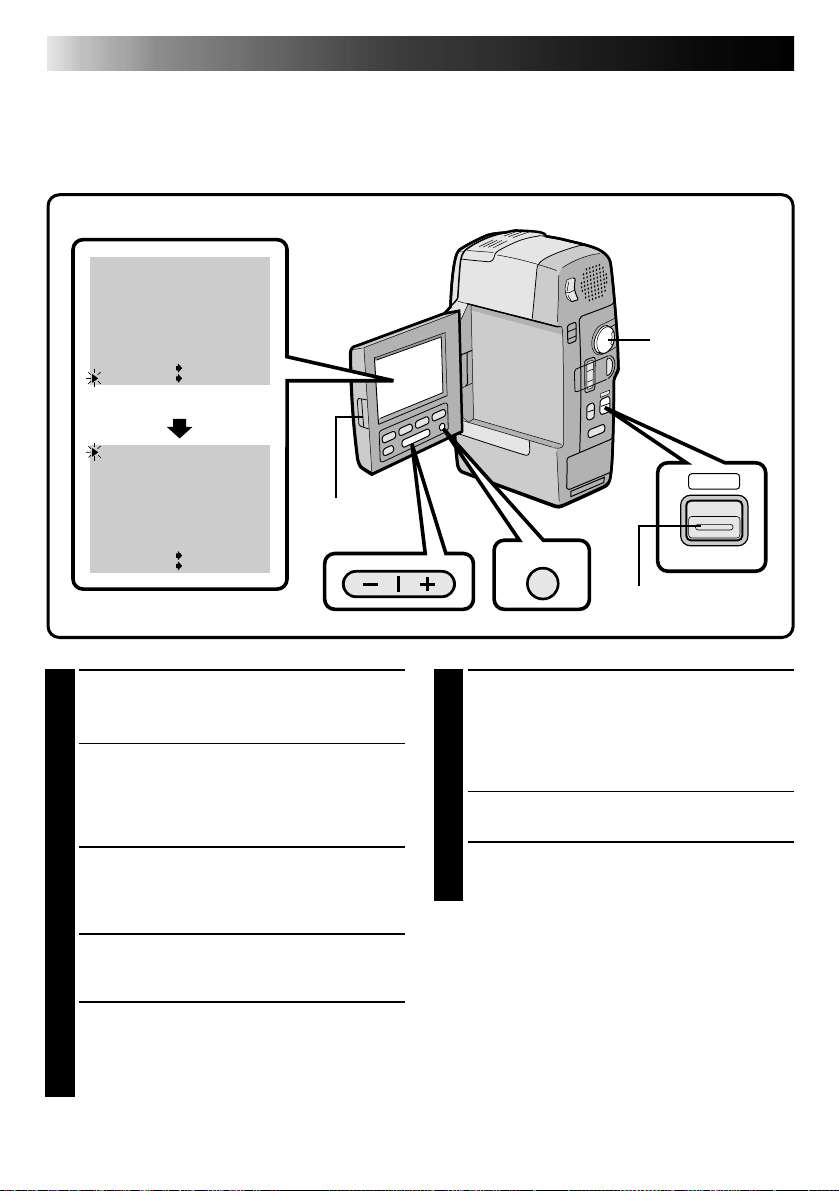

Date/Time Settings

Date and time will automatically be recorded on tape at all times. It is your choice to display it or not during playback (Z pg. 54). To set date and time follow the instructions from 1 to 5.

LCD monitor

WIDE MODE ZOOM DIS GA I N UP TO F ADER / W IPE MENU TO P.AE / EFFECT MENU TO DATE / TIME MENU TO SYSTEM MENU W.BALANCE 

END

Recording Menu

  ON SCREEN DISPLAY DATE/T I ME      END

Date/Time Menu

OFF

20X

OFF AGC

AUTO

ITEM –/+ BUTTON

SET MENU BUTTON

OFF OFF 25 . 12 . 17 : 30

ITEM –/+ BUTTON

SET MENU BUTTON

97

PUSH-OPEN

OPEN LCD MONITOR

First press PUSH-OPEN button and open the LCD monitor fully.

•The LCD monitor turns on/off automatically when it is opened/closed while the Power Dial is set to “REC”.

•The LCD monitor can be tilted upward up to 180 degrees and downward up to 90 degrees.

SELECT OPERATION MODE

Set the Power Dial to "REC" by pressing down the lock button located on the dial and set the shooting mode selector to "MANUAL".

ACCESS RECORDING MENU

Press MENU. The Recording Menu appears in the LCD monitor.

ACCESS DATE/TIME MENU

Place the pointer next to "TO DATE/TIME MENU" by pressing the –/+ button. Press "+" to move up and "–" to move down. Press MENU and the Date/Time Menu appears in the LCD monitor.

Lock button

Power Dial

OFF

AUTO

MANUAL

Shooting mode selector

INPUT DATE AND TIME

Place the pointer next to “DATE/TIME” by pressing the –/+ button. Press MENU and “day” begins blinking.

Using the –/+ button (press "+" to increase and "–" to decrease), input the day. Press MENU. Repeat the procedure to input the month, year, hour and minute. Press MENU when the pointer is next to “END” to exit.

NOTE:

If you don’t exit the Date/Time Menu, the clock display will not move but the camcorder’s internal clock continues to operate. Once you close the menu, the date and time in the LCD monitor begin operation from the current date and time, with no delay or loss.

Loading/Unloading A Cassette

The camcorder needs to be powered up to load or eject a cassette.

OPEN/EJECT switch

Cassette holder

PUSH HERE

Make sure the window side is facing out.

Erase protection switch

OPEN CASSETTE DOOR

Turn on the power, then slide the OPEN/EJECT switch in the direction of the arrow. The cassette cover releases. Open the cover in the direction of the arrow until it locks. The holder opens automatically.

•Before opening the cassette cover, disconnect the headphones and AUDIO/VIDEO connectors from the jacks because the cassette cover will interfere with them.

•Do not touch internal components.

INSERT/REMOVE TAPE

Insert or remove a tape and press “PUSH HERE” to close the cassette holder.

•Once the cassette holder is closed, it

recedes automatically. Wait until it recedes completely before closing the cassette cover.

•When the battery's charge is low, you may not be able to close the cover. Do not apply force. Replace the battery with a fully charged one before continuing.

RECORDING TIME

TAPE RECORDING MODE

SP LP

DVM-30 Approx. 30 min. Approx. 45 min. DVM-60 Approx. 60 min. Approx. 90 min.

Cassette cover

NOTES:

●

It takes a few seconds for the cassette holder to open. Do not apply force.

●

If you wait a few seconds and the cassette holder doesn’t open, close the cassette cover and try again.

●

Be careful not to get your fingers caught in the holder when it’s closing. If this happens, the holder will open automatically after a few seconds.

●

When the camcorder is suddenly moved from a cold place to a warm environment, wait a short time before opening the cover.

●

Closing the cassette cover before the cassette holder comes out may cause damage to the camcorder.

●

When shooting again after already shooting a scene, a blank portion is recorded on the tape or a previously recorded scene is erased (recorded over) if you open the cassette cover, regardless of whether the cassette holder comes out or not. See page 20 for information about recording from the middle of a tape.

** To protect valuable recordings . . .

..... slide the erase protection switch on the back of

the tape in the direction of “SAVE”. This prevents this tape from being recorded over. If you decide later that you do want to record on this tape, slide the switch back to “REC” before loading the tape.

LCD monitor

Recording mode indicator

Set POWER to “REC”.

SP-LP recording mode switch

GETTING STARTED

(Cont.)

Recording Mode Setting

Set depending on your preference.

SET RECORDING MODE

Set SP•LP switch. “LP” (Long Play) is more economical, recording at 2/3 the speed of “SP” (Standard Play).

•Insert Editing or Audio Dubbing is impossible on a tape recorded in the LP mode.

NOTES:

●

If the recording mode is switched during recording, the playback picture will be blurred at the switching point.

●

It is recommended that tapes recorded in the LP mode on this camcorder be played back on this camcorder.

●

During playback of a tape recorded on another camcorder, blocks of noise may appear or there may be momentary pauses in the sound.

Hand Strap Attachment

The provided Hand Strap helps you to keep a firm hold on the camcorder. Make sure you never hold the camcorder without using the Hand Strap.

Eyelet

Hand strap

ATTACH HAND STRAP

Slide the strap through the eyelet, pulling firmly to ensure secure attachment.

Lens Cover Detachment

When using an optional conversion lens or lens filter (commercially available), you must first detach the lens cover.

Lens cover

DETACH LENS COVER

Turn the lens cover in the direction of the arrow to detach it.

•To re-attach it, turn it in the opposite direction of the arrow.

•Do not forcefully re-attach the lens cover as this may damage its ridge, making further use of the lens cover impossible.

•Take care so that dust does not get on the lens.

Sun Hood Attachment

The sun hood shields the LCD monitor from reflection so that the user can watch it with ease even under direct sunlight. It also helps protect the monitor from damage.

LCD monitor

Sun hood

Lens

Sun hood

LCD monitor

ATTACH SUN HOOD

Mount the sun hood on the LCD monitor so that it opens when you pull A up.

•To detach, pull in the opposite direction of the arrow.

OPEN SUN HOOD

Pull A up to open the sun hood.

DETACH SUN HOOD

•If detaching is difficult, grasp the sun hood at the positions marked with a on top and bottom, and pull toward yourself.

To close the sun hood, push

Mark

NOTE:

When not using the LCD monitor, detach the sun hood and close the LCD monitor. The LCD monitor can not be closed with the sun hood attached.

To use the sun hood when tilting the LCD monitor upward 180 degrees . . .

..... it is possible to attach the sun hood upside down.

When turning over the LCD monitor, attach the sun hood upside down.

Grip Attachment

Use of the grip enables stable shooting.

Bottom of the camcorder

Tripod mounting socket

GETTING STARTED

Grip

(Cont.)

Screw

ALIGN

Align the grip's screw with the camcorder's socket for

tripod mounting,

with a and B with b.

Grip Adjustment

Pad

Grip band

When loading/unloading a cassette . . .

...... tilt the grip toward you. You can

load/unload a cassette with the grip attached.

When mounting on a tripod . . .

...... align the tripod's screw with the

To detach, turn the screw in the opposite direction of the arrow.

TIGHTEN

Tighten the screw in the directon of the arrow as in

the illustrations.

INSERT HAND

Pass your right hand through the loop and grasp the grip. Separate the pad. Take special care not to drop the camcorder.

ADJUST STRAP LENGTH

Adjust so your thumb and fingers can easily operate the RECORDING START/STOP button and the zoom switch. Refasten the grip band.

RE-ATTACH PAD

When putting the camcorder

mounting socket on the bottom of the grip.

with the grip attached into the soft camera case . . .

...... insert with lens side down, slide

the soft camera case's flap through the grip's loop and close the flap.

Cassette cover

Bottom of the grip

Grip

Tripod mounting socket

Remote Control Unit

You can use the RM-V708U or RM-V710U to control the camcorder when it’s attached to the Docking Station.

RECORDING START/STOP Button (Z pg. 66)

PAUSE IN connector (

ZOOM Buttons (

DISPLAY Button (Z pg. 65)

SHIFT Button (Z pg. 56)

SLOW Rewind/Forward Buttons (

LEFT/RIGHT Buttons (Z pg. 56)

FADE/WIPE Button (Z pg. 60)

Knob

Z pg. 56)

Z pg. 53)

EFFECT Button (Z pg. 57)

EFFECT ON/OFF Button (Z pg. 57)

CANCEL Button (

Z pg. 60)

Z pg. 61)

POWER ON/OFF Button

When the camcorder’s Power Dial is set to “PLAY”, you can turn the unit’s power on and off using the Remote Control Unit.

AUDIO MONITOR Button (Z pg. 65)

MBR SET Button (

A. DUB Button (

DOWN Button (

INSERT Button (Z pg. 66)

UP Button (Z pg. 56)

Operation Buttons (Z pg. 56, 66)

R.A. EDIT Buttons (

Z pg. 60)

Z pg. 59)

Z pg. 65)

Z pg. 56)

Installing The Battery

The RM-V708U or RM-V710U uses one lithium battery (CR2025).

PULL OUT BATTERY HOLDER

Pull out in the direction of the arrow while pressing the knob as shown.

INSERT BATTERY IN HOLDER

Insert the battery in the holder, and be sure to have the “+” mark visible.

RE-INSERT HOLDER

Slide the holder back in until you hear a click.

RECORDING

Full Auto/Manual Operation

The following chart shows you which functions are available in the Full Auto and Manual operation modes.

According to the shooting mode selector position you have selected, "F.AUTO" or "MANUAL" appears in the upper left corner of the LCD monitor screen.

When set to "AUTO" When set to "MANUAL"

F.AUTO

PAUSE

MANUAL

PAUSE

AUTO

Shooting mode selector

MANUAL

Function Shooting mode selector position

F(ull) AUTO mode MANUAL mode

Snapshot (Z pg. 26) YES*1 (Active until reset) YES Scene (Z pg. 28, 33) YES*2 (Active until reset) YES Self-Timer (Z pg. 29) YES YES Focus (Z pg. 46) AUTO AUTO/MANUAL D.I.Stabilizer (Z pg. 31)*3 Not operational ON/OFF Exposure Control (Z pg. 47) AUTO AUTO/MANUAL White Balance (Z pg. 44) AUTO AUTO/MANUAL Digital Zoom (Z pg. 25) 20x only ON/OFF P.AE/Effects (Z pg. 40) Not operational YES FADER/WIPE (Z pg. 34) Not operational YES

*1– Only "ON" is available for "PHOTO FRAME" (Z pg. 33). ("OFF" is not possible.) It is not possible to

mute the shutter sound effect.

*2– To change a setting in the system menu, follow steps on page 32. The new setting becomes available

when you engage the “F.AUTO” mode.

*3– Set to OFF at shipment.

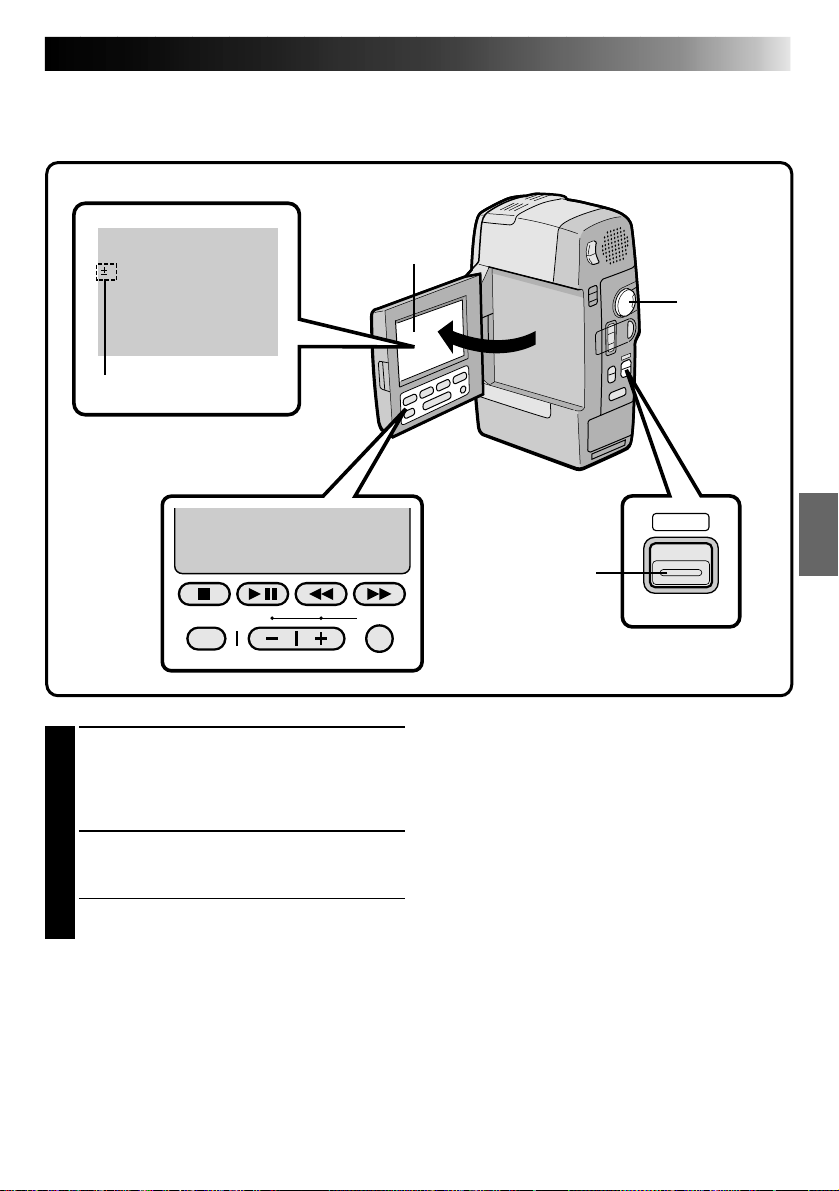

Basic Recording

You should already have performed the necessary preparations (Z pgs. 8 – 16). Set the shooting mode selector to "AUTO" and try recording that way before attempting to use more advanced features.

NOTE:

Before starting recording, make sure you set the date and time (Z pg. 12). Even if they don’t appear during recording, you can display them during playback (Z pg. 55).

LCD monitor

PUSH-OPEN

OPEN LCD MONITOR

Press PUSH-OPEN to open the LCD monitor fully.

•The LCD monitor turns on/off automatically when it is opened/closed while the Power Dial is set to “REC”.

TURN ON POWER

Press the lock button located on the Power Dial and turn the Power Dial to "REC". The power lamp comes on and Record/Standby mode is engaged.

•If you don't open the LCD monitor, power cannot be turned on.

SELECT OPERATION MODE

Set the shooting mode selector to "AUTO".

•In the “AUTO” mode, only Zoom (20x), Snapshot, 5S (if you change the setting in the System Menu, either 5SD or ANIM. (animation) becomes available — see pg. 32, 33) and Self-Timer are available.

Power Dial

Power lamp

Lock button

OFF

AUTO

MANUAL

LCD monitor

PAUSE

Record/Standby

RECORDING START/STOP button

LCD monitor

During recording

START RECORDING

When “PAUSE” appears in the LCD monitor, press RECORDING START/STOP. A beep signals the start of recording.

END RECORDING

When you’re finished recording, press RECORDING START/STOP. Close the LCD monitor; the power lamp goes out.

•When transporting, make sure the LCD monitor is closed and locked.

•To turn power on again, open the LCD monitor.

Set the Power Dial to "OFF".

•When turning to "OFF", it is not necessary to press down the lock button.

REC

NOTES:

●

If 5 minutes elapse in the Record-Standby mode, power shuts off automatically to conserve energy and protect the heads. To turn the camcorder on again, set the Power Dial to “OFF”, then to “REC”. As long as you don’t take out the tape you were using or play it back, you can continue from where you left off with no noticeable break on the recorded video.

●

When a blank portion is left between recorded scenes on the tape, the time code is interrupted and errors may occur when editing the tape. Continue recording from where you stop so there are no gaps by following "Recording from the middle of a tape" (

●

Recored/Standby means that a tape is loaded and the camcorder is ready to record.

●

During recording, sound is not heard from the speaker. If you want to hear the sound, connect optional headphones to the headphones jack.

●

The sun hood should be used when under direct sunlight.

pg. 20).

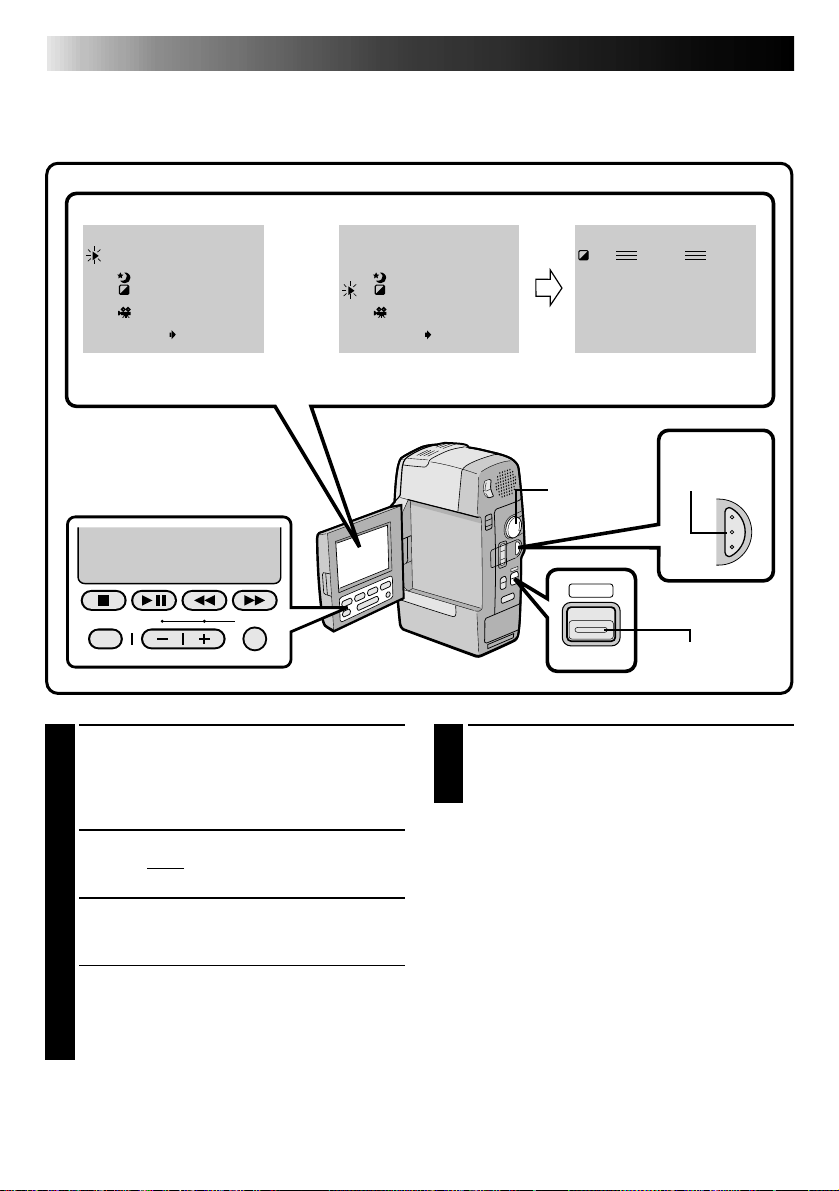

RECORDING

(Cont.)

Recording From The Middle Of A Tape

When removing a tape on which you were recording, or when you resume recording on a tape after playing back the recording previously made (without taking the tape out between recordings), perform this procedure.

LCD monitor

OFF

STOP PLAY REW FF

PLAY/PAUSE REW FF

STOP

Power Dial

OFF

Lock button

RECORDING START/STOP Button

OPEN LCD MONITOR

Make sure the LCD monitor is open fully.

SELECT MODE

Press down the lock button located on the Power Dial and turn the Power Dial to "PLAY".

START SEARCH

Press PLAY/PAUSE, then press REW or FF. Watch in the LCD monitor for the spot where you want to begin recording.

ENGAGE STILL MODE

Once you find the spot at which you want to start recording, press PLAY/PAUSE to engage the Still mode.

START RECORDING

Set the Power Dial to “REC” and press RECORDING START/STOP.

•Start recording from a point prior to the end of the last recording. A few seconds of the end of the last recording will be erased.

NOTE:

If you start recording from the end of the previous recording leaving no blank space, there may be situations where a clean transition is not possible.

Time Code

During recording, a time code is recorded on the tape. This code is to confirm the location of the recorded scene on the tape during playback. If recording starts from a blank portion, the time code begins counting from "00:00:00" (minute:second:frame). If recording starts from the end of a previously recorded scene, the time code continues from the last time code number.

To perform Snapshot Search (Z pg. 27) and Random Assemble Editing (Z pg. 60), time code is necessary. If during recording a blank portion is recorded partway through the tape, the time code is interrupted. When recording is resumed, the time code starts counting up again from "00:00:00". This means the camcorder may record the same time codes as those existing in a previously recorded scene. To prevent leaving a blank portion on a tape, perform the procedure in "Recording From The Middle of A Tape" (Z pg. 20) in the following cases;

•After playing back the recorded tape, when you shoot again.

•When power shuts off during shooting.

•When a tape is removed and re-inserted during shooting.

•When shooting using a partially recorded tape.

•When shooting on a blank portion located partway through the tape.

•When shooting again after already shooting a scene and opening/closing the cassette cover.

NOTES:

●

The Time Code cannot be reset.

●

During fast-forwarding and rewinding, time code indication does not move smoothly.

When blank portion is recorded on a tape

Time code 00:00:00

Time code 05:43:21

LCD monitor

12 : 34 : 24

Time code 00:00:00

Time code is displayed during playback.

Minutes

Seconds

Frames (25 frames = 1 second)

Tape

Shooting start point

Proper recording

Time code 00:00:00

Tape

Shooting start point

Time code 05:43:21

Newly recorded sceneBlankAlready recorded scene

Shooting start pointShooting stop point

Time code 05:44:00

Latest sceneNew sceneAlready recorded scene

Shooting start pointShooting start point

Tape Remaining Indicator

The time remaining on the tape is automatically monitored and displayed in the LCD monitor (Z pg. 74). When the tape ends, “TAPE END” appears in the LCD monitor. If the LCD monitor indications are turned off (Z pg. 23), the tape remaining indicator appears when remaining time reaches 2 minutes.

RECORDING

(Cont.)

What Happens When You Shoot Sideways

If the camcorder is held horizontally (on its side) while shooting, the recorded/played-back image also appears on its side.

1 min

blinking

2 min

90min

REC

blinking

0 min

blinking

89 min

3 min

Holding The Camcorder

GRASP CAMCORDER

Grasp the camcorder with the pinkie finger positioned under the bottom of the camcorder.

•Be sure to use the provided hand strap.

•The grip is also recommended.

OPEN LCD MONITOR

Hold the camcorder with both hands for stable shooting.

•Be careful not to push the LCD monitor or the buttons you do not wish to use.

LCD monitor

IND/DISPLAY

BRIGHT

Brightness Control

You can adjust the brightness of the LCD monitor by pressing the –/+ button.

ADJUST BRIGHTNESS

If you want to brighten the image...

Press the "+" button.

If you want to darken the image...

Press the "–" button.

•The brightness indication appears in the LCD monitor.

LCD Monitor Indications

You can make the LCD monitor indications appear/ disappear.

PRESS IND/DISPLAY BUTTON

When you do not want the indications to appear, press the IND/DISPLAY button. Certain indications disappear. Press again to make the indicaitons reappear.

•If you keep this button pressed more than 2 seconds, the LCD monitor switches off. To turn on the LCD monitor again, keep IND/ DISPLAY pressed more than 2 seconds.

NOTE:

It is impossible to make the tape running indicator and warnings disappear from the LCD monitor.

Journalistic shooting

In some situations different angles of shooting may be required for more dramatic results.

OPEN LCD MONITOR

Make sure the LCD monitor is fully open.

TILT LCD MONITOR

Tilt the LCD monitor in the most convenient direction.

•The LCD monitor can rotate almost full circle (270°: 90° downward, 180° upward).

Lens

RECORDING

(Cont.)

Interface Shooting

You can shoot yourself while viewing your own image in the LCD monitor.

TILT LCD MONITOR UPWARD

Open the LCD monitor and tilt it upward to 180 degrees so that it faces forward.

START RECORDING

Point the lens toward yourself and start recording.

•During Interface Shooting, the “Tape Running” indicator and warning indications (Z pg. 74, 75) are the only ones that will be shown; they will appear horizontally reversed in the display, but are not reversed in the recording.

NOTE:

The tape remaining indicator does not appear during interface shooting. However, when the remaining time reaches 2 minutes, the indicator appears showing the remaining time: (blinking)

– –

(blinking)

–

– – –

(blinking)

Zoom

Select any one of the three powers of magnification and get “closer” to the subject (Z pg. 31).

Simply set the zoom switch to either zoom in (toward “T”) or zoom out (toward “W”). The zoom speed is variable — the quicker you set the zoom switch, the quicker the zoom action.

NOTE:

Digital zoom (20x and 100x) cannot be used while the Video Echo effect (Z pg. 41), the Picture Wipe/ Dissolve function (Z pg. 36) or the 5SD mode (Z pg. 28) are activated.

Digital zoom zone

10X zoom zone

Zoom switch

Zoom in (T: Telephoto)

D T

Zoom out (W: Wide angle)

D T

Zoom display

D T

RECORDING

Advanced Features

Snapshot

Use your camcorder like a regular camera and take a snapshot, or several of them in succession.

Speaker

LCD monitor

PUSH-OPEN

Press SNAPSHOT during recording

SNAPSHOT

Press SNAPSHOT during Record/Standby mode

OPEN LCD MONITOR

Press the PUSH-OPEN switch and open the LCD monitor fully.

SELECT OPERATION MODE

Press the lock button located on the Power Dial and turn the Power Dial to "REC", "5S" or " ".

TAKE SNAPSHOT

Press the SNAPSHOT Button. “PHOTO” appears in the LCD monitor, and the image, bordered by a white frame, will be recorded and displayed in the LCD monitor for 6 seconds. The next image then gradually overlaps the snapshot and normal recording resumes.

•When using the Snapshot function from Record/Standby, the camcorder returns to Record/Standby after 6 seconds.

•The sound effect of a shutter closing is recorded together with the image.

OFF

Power Dial

Lock button

Motor Drive mode:

Keeping SNAPSHOT pressed provides an effect similar to serial photography. (The interval between the still pictures: approx. 0.7 seconds).

Changing the Snapshot Setting:

•Still image with no frame can also be recorded (Z pg. 32).

•When you don't want to hear the shutter sound, set BEEP/TALLY to "NO" in the system menu (Z pg. 32). Though the sound is not heard from the speaker, it is recorded on the tape.

Snapshot Search

The Snapshot Search function enables you to quickly and easily access scenes recorded in the Snapshot mode, or scenes where Strobe (Z pg. 41) was used.

ENABLE SNAPSHOT SEARCH

Set the Power Dial to “PLAY”.

REWIND TAPE

Press REW. Let the tape rewind to the beginning, where it stops automatically.

BEGIN SEARCH

Press SNAPSHOT. The camcorder begins searching for the first scene recorded in Snapshot mode or where the Strobe effect was used.

•If the first scene on the tape was recorded in Snapshot mode or with the Strobe effect, the camcorder may not be able to locate the exact beginning of the scene.

Snapshot Search could malfunction if the recorded tape has:

•Too little time between Snapshots

•Blank space between recordings

•Snapshots taken using Motor Drive mode

To Stop A Snapshot Search In Progress . . .

..... press SNAPSHOT again.

NOTE:

By attaching the camcorder to the Docking Station and connecting a video printer to the station, it is possible to print out snapshots. (Z pg. 49).

RECORDING

Advanced Features (Cont.)

Scene

Record a vacation or an important event in 5-second clips to keep the action moving. The 5-Second function may also be activated during Full Auto operation. While the 5-Second mode is activated, Fade/ Wipe (Z pg. 34), P.AE/Effects (Z pg. 40) and other manual operations cannot be performed.

LCD monitor

PUSH-OPEN

Dissolves during 5 second mode recording

Select “5SD” at the System Menu (Z pg. 32). “5SD MODE” appears in the LCD monitor in step 2 below. Record one 5-second clip, and the image at the end of the clip is stored. If you record the next clip within 5 minutes, the previous scene dissolves as the new scene appears. * If you turn the power off, the stored image will be lost

Lock button

OFF

Power Dial

RECORDING START/STOP button

LCD monitor

REC

5S MODE

After 5 sec.

PAUSE

5S MODE

Record/Standby

OPEN LCD MONITOR

Press the PUSH-OPEN switch and open the LCD monitor fully.

SELECT MODE

Press the lock button located on the Power Dial and turn the Power Dial to "5S". Then press RECORDING START/STOP. “5S MODE” appears in the LCD monitor, the tally lamp lights to indicate the start of recording, and after 5 seconds the camcorder enters Record/ Standby mode.

•If you press and hold RECORDING START/ STOP within 5 seconds after recording starts, Record/Standby mode is not engaged.

END 5-SECOND MODE RECORDING

Set the Power Dial to the “REC” or “OFF” position.

To Take A Snapshot In The 5-Second Mode . . .

..... instead of pressing RECORDING START/STOP

in step 2, press SNAPSHOT. The camcorder records a 6-second still with the shutter sound. (Z pg. 26).

Self-Timer

Once the camcorder is set, the camcorder operator can become part of the scene in a more natural way adding the final touch to a memorable picture.

LCD monitor

PUSH-OPEN

Lock button

OFF

OPEN LCD MONITOR

Press the PUSH-OPEN switch and open the LCD monitor fully.

•You can tilt the LCD monitor upward to 180 degrees so that it faces forward and view yourself while self-recording.

SELECT MODE

Press the lock button located on the Power Dial and turn the Power Dial to “ ” and press RECORDING START/STOP. “ ” appears in the LCD monitor, and the tally lamp lights and begins blinking 15 seconds before recording starts. When the light stops blinking and stays on, recording begins.

Power Dial

RECORDING START/STOP button

LCD monitor

F .AUTO

PAUSE

F .AUTO

During recording

– – –

After 15 sec.

REC

END RECORDING

Press RECORDING START/STOP and set the Power Dial to the “REC” or “OFF” position.

•When turning to “OFF”, it is not necessary to press down the lock button.

To Take A Snapshot In The Self-Timer Mode . . .

..... in step 2, press SNAPSHOT instead of

RECORDING START/STOP. After 15 seconds, a

6-second still with the shutter sound effect is recorded. After that, the camcorder enters the Record/Standby mode.

RECORDING

Advanced Features (Cont.)

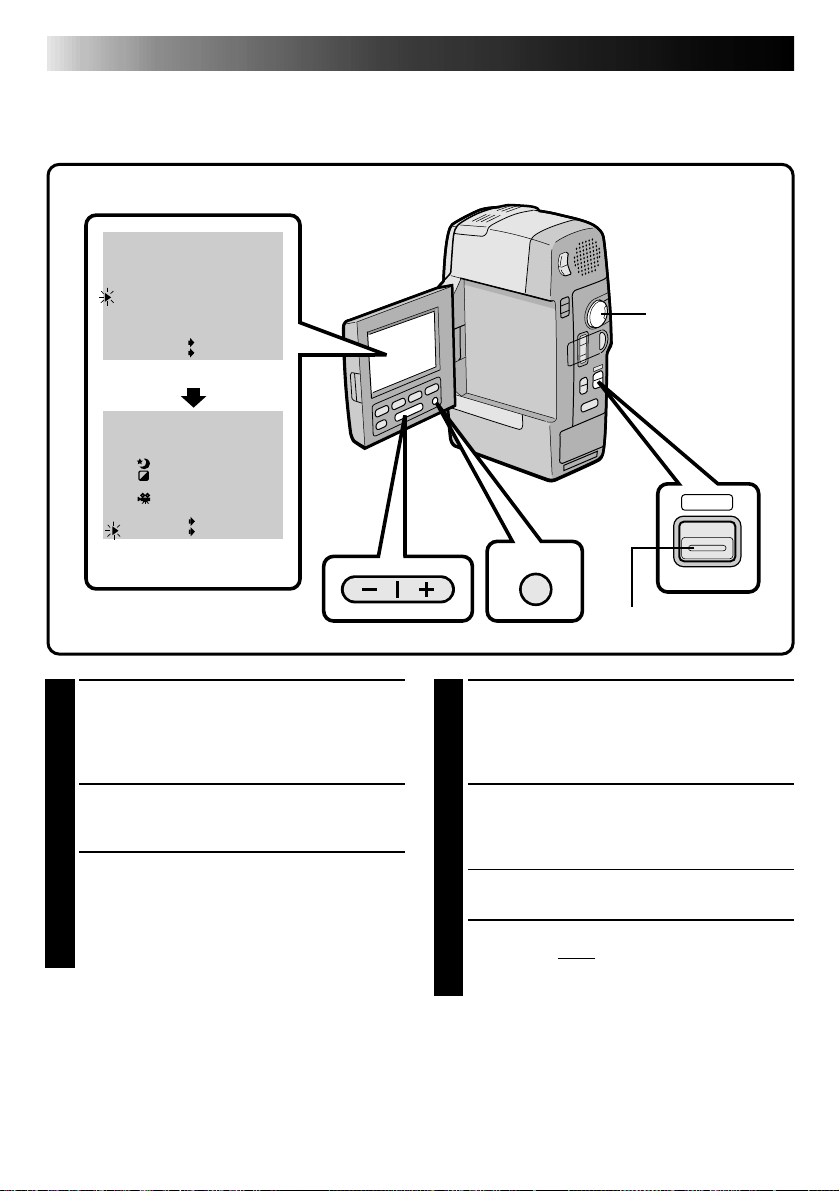

Menus

The Recording Menu allows you to set these functions:

Stabilizer, Gain Up, Fade/Wipe (Z pg. 38), P.AE/Effect (Z pg. 42), Date/Time Menu, System Menu, and White Balance (Z pg. 44) Stabilization

and

Gain Up

LCD monitor

. The following selection procedure applies to

Wide Mode, Zoom Magnification, Digital Image

Wide Mode, Zoom Magnification,

WIDE MODE

ZOOM DIS

GA I N UP

TO F ADER / W IPE MENU TO P.AE / EFFECT MENU TO DATE / TIME MENU

TO SYSTEM MENU W.BALANCE 

END

Recoring Menu

WIDE MODE

ZOOM

DIS GA I N UP

TO F ADER / W IPE MENU

TO P.AE / EFFECT MENU

TO DATE / TIME MENU

TO SYSTEM MENU W.BALANCE 

END

OFF

X OFF AGC

AUTO

ITEM –/+ BUTTON

SET MENU BUTTON

OFF

X OFF AGC

AUTO

ITEM –/+ BUTTON

SET MENU BUTTON

OPEN LCD MONITOR

First press PUSH-OPEN button and open the LCD monitor fully.

•The LCD monitor turns on/off automatically when it is opened/closed while the Power Dial is set to "REC".

•The LCD monitor can be tilted upward up to 180 degrees and downward up to 90 degrees.

SELECT OPERATION MODE

Set the Power Dial to "REC" by pressing down the lock button located on the dial and setting the shooting mode selector to "MANUAL".

ACCESS RECORDING MENU

Press MENU. The Recording Menu appears in the LCD monitor.

SELECT FUNCTION

Place the pointer next to the desired function by pressing the –/+ button, then press MENU. The pointer stops blinking, indicating that the function has been selected.

PUSH-OPEN

Power Dial

AUTO

Shooting mode selector

MANUAL

SET FUNCTION PARAMETERS

Cycle the available settings of the selected function by pressing the +/– button. Stop when the one you need is displayed. Then press MENU and the pointer automatically moves to “END”.

•To set the parameters for a different function,

repeat steps 4 and 5.

CLOSE RECORDING MENU

Press MENU. Selection is complete and the menu disappears.

10X 20X 100X

WIDE MODE

ZOOM DIS

GA I N UP

OFF SQUEEZE CINEMA

OFF

20X

OFF AGC

ON OFF

TO FADER / W IPE MENU TO P.AE / EFFECT MENU TO DATE / TIME MENU

TO SYSTEM M ENU W.BALANCE 

END

ITEM –/+ BUTTON

SET MENU BUTTON

AGC OFF

AUTO

WIDE MODE

This recording mode is compatible with wide-screen TVs (16:9 aspect ratio). When using this mode, please refer to your wide-screen TV’s instruction manual.

SQUEEZE–For playback on TVs with an aspect ratio of 16:9. Naturally expands the image to fit the screen without distortion. playback/recording on 4:3 TVs/LCD monitors, the image is elongated vertically. CINEMA–Inserts black bands at the top and bottom of the screen. During playback on wide-screen TVs, the black bands at the top and bottom of the screen are cut and the screen ratio becomes 16:9. During playback/recording on 4:3 TVs/LCD monitor, black bands are inserted at the top and bottom of the screen and the image appears like a letterboxed 16:9 movie. OFF–Select “OFF” when you don’t want to use either of the above modes. *During Full-Auto operation, both Squeeze and Cinema modes are unusable.

A discriminating signal is automatically recorded when you select either “SQUEEZE” or “CINEMA” for recording. If your wide TV has the automatic discriminating function, connect an S-Video cable between S2 connector on the TV and the S-Video output connector on the Docking Station. During playback, the image is naturally expanded to fit the wide screen, with no proportional distortion. If your wide screen TV has no S2 connector, automatic signal discrimination can not be performed, and it should be done manually.

appears in the LCD monitor. During

NOTES:

●

When playing back through a video cassette recorder, or to a wide-screen TV, that doesn’t have the automatic discriminating function, change the setting on the TV manually.

●

When playing back a tape recorded in Squeeze and Cinema, Squeeze cannot be distinguished from Cinema during fast-forward or rewind.

DIS (Digital Image Stabilizer)

When recording while holding the camcorder in your hand, or when shooting a subject with little or no contrast, subtle hand movements will cause shakiness in the recorded image.

ON–Compensates for relatively small shakes that occur when shooting close up. “ ” appears in the LCD monitor during recording. *This function is usable when the shooting mode selector is set to "MANUAL". OFF–When shooting with the camcorder in a fixed position or on a tripod, set the Stabilizer to “OFF”. If you leave it on and then move or turn the camera to follow a moving subject, unnecessary compensation occurs and this can result in an unnatural recorded image.

NOTES:

●

The Stabilizer cannot compensate for drastic hand movements while shooting.

●

The Stabilizer will not work when certain P.AE/ Effects (Classic Film, Strobe, Slow 1, 2

pg. 41) and Fade/Wipe Effects (Picture Wipe/ Dissolve Z pg. 36) are activated. The “ ” indicator appears blinking in the LCD monitor.

ZOOM Magnification

You can select 10x, 20x, or 100x zoom magnifications.

10x–Optical zoom that does not degrade the quality of the recording. 20x–Electronic processing (Digital zoom) that lets you get closer up. 100x–Electronically-processed images at 100-times magnification.

NOTE:

Digital zoom (20x and 100x) cannot be used while the Video Echo effect (Z pg. 41), the Picture Wipe/ Dissolve function (Z pg. 36) or the 5SD mode (Z pg. 28) are activated.

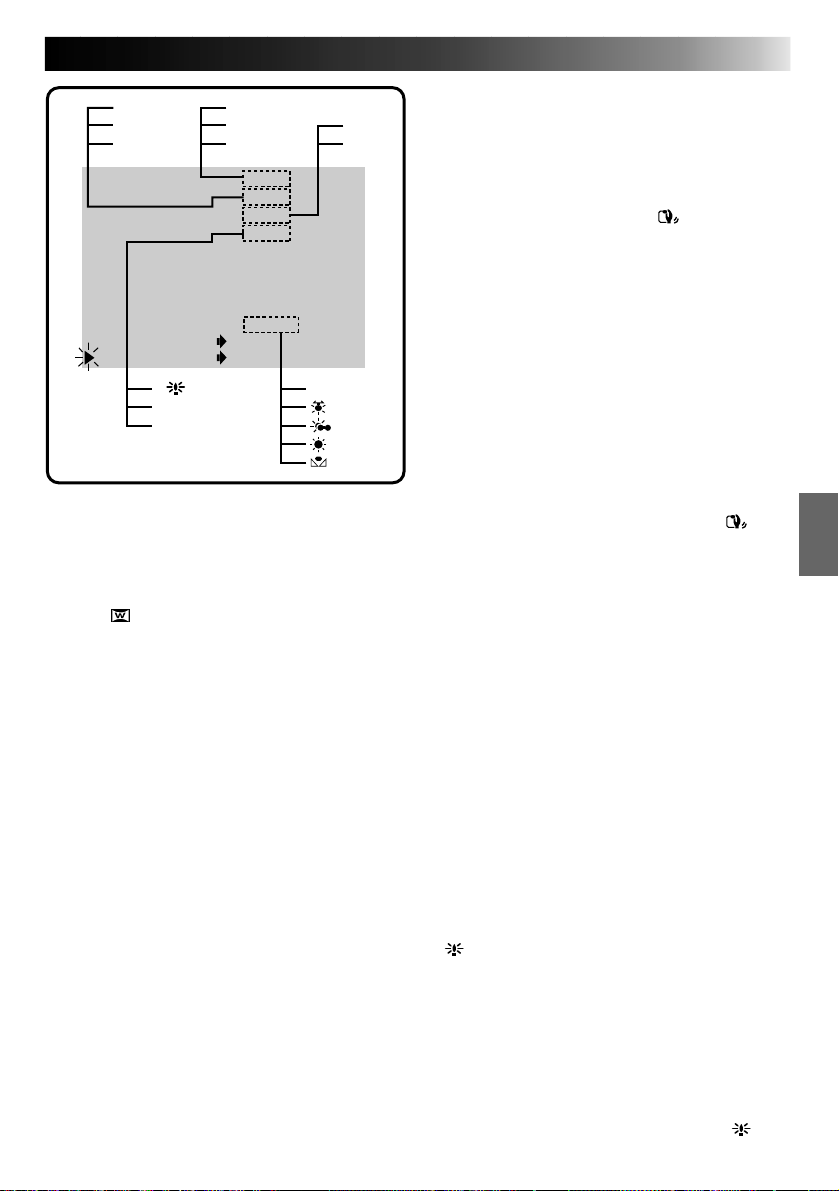

GAIN UP

Bright, natural recordings can be taken even in areas with low or poor lighting.

–The shutter speed is automatically adjusted (1/25 — 1/200 sec.). Shooting a subject in low or poor lighting at 1/25 sec. shutter speed provides a brighter image than in the AGC mode, but the subject’s movements are not smooth nor natural. OFF–Select this setting when lighting is not a problem. AGC–This is the factory setting, and is automatically activated during Auto operation. The overall appearance is jagged, but the image is bright and the movements are more natural than in “A” mode.

RECORDING

System Menu

The System Menu allows you to set the following functions:

numbers, and Photo Frame.

LCD monitor

Advanced Features (Cont.)

Scene, Beep/Tally, Wind Cut, Sound Mode, ID

WIDE MODE

ZOOM DIS

GA I N UP

TO F ADER / W IPE MENU TO P.AE / EFFECT MENU TO DATE / TIME MENU

TO SYSTEM MENU W.BALANCE 

END

Recording Menu



SCENE

BEEP/TALLY WIND CUT

SOUND MODE 

I D No. PHOTO FRAME   END

OFF

20X

OFF AGC

AUTO

ITEM –/+ BUTTON

SET MENU BUTTON

ITEM –/+ BUTTON

SET MENU BUTTON

System Menu

5S

ON OFF

32 06 ON

kHz



PUSH-OPEN

OPEN LCD MONITOR

First press PUSH-OPEN switch and open the LCD monitor fully.

•The LCD monitor turns on/off automatically when it is opened/closed while the Power Dial is set to "REC".

•The LCD monitor can be tilted upward up to 180 degrees and downward up to 90 degrees.

SELECT OPERATION MODE

Set the Power Dial to "REC" by pressing down the lock button located on the dial and setting the shooting mode selector to "MANUAL".

ACCESS RECORDING MENU

Press MENU. The Recording Menu appears in the LCD monitor.

ACCESS SYSTEM MENU

Place the pointer next to “TO SYSTEM MENU” by pressing the –/+ button, then press MENU. The System Menu appears in the LCD monitor.

Power Dial

AUTO

Shooting mode selector

MANUAL

SELECT FUNCTION

Place the pointer next to the desired function by pressing the –/+ button, then press MENU. The pointer stops blinking, indicating that the function has been selected.

SET FUNCTION PARAMETERS

Press the –/+ button to cycle through the available settings for the selected function, and stop when the desired setting appears. Then press MENU, and the pointer automatically moves to “END”.

•To set the parameters for a different function,

repeat steps 5 and 6.

CLOSE SYSTEM MENU

Press MENU twice. Setting is complete and the System Menu disappears.

 

SCENE

BEEP/TALLY

WIND CUT

SOUND MODE

I D No.

PHOTO FRAME

5S

ON OFF

kHz

06 ON

 

END

ITEM –/+ BUTTON

SET MENU BUTTON

SCENE (5-Second Mode) (Z pg. 28)

5S–Pressing RECORDING START/STOP allows you

to take a 5-second “clip”. Press repeatedly for a succession of short recordings.

5SD–If you record a 5-second clip within 5 minutes after the previous one, the end of the old scene dissolves and is replaced by the new scene over a 2-second period.

ANIM. (Animation)–Each time you press RECORDING START/STOP, a 1/8-second recording

is taken. By using an inanimate object and changing its position between shots, you can record the subject as though it’s moving.

•Animation is not available in the LP mode. If you tried to record in the LP mode after setting ANIM., the recording mode indicator "LP" begins to blink, and recording goes on in the SP mode.

NOTE:

During use of SCENE effect, focus (Z pg. 46) and exposure control (Z pg. 47) enter Full Auto operation.

BEEP/TALLY

The beep sounds when the power is turned on or off, and at the beginning and end of recording. Tally lamp lights up during recording. Shutter sound is heard when pressing the SNAP-

SHOT button. ON–To activate the beep/shutter sounds and tally

lamp. OFF–To turn off the beep/shutter sounds and tally lamp. Even though not heard while shooting, shutter sound is recorded on the tape.

NOTE:

Beep is automatically turned on during Full Auto operation.

5S 5SD ANIM. ON

OFF OFF



32 kHz 48 kHz

This number is necessary when connecting the camcorder to a

computer [01 to 99].

OFF

AUTO

WIND CUT

When activated, this mode helps cut down on noise created by wind.

AUTO–When shooting in high winds, noise is automatically reduced.

•“

” appears in the LCD monitor.

•The quality of the sound will change. This is normal.

OFF–This function is disabled.

NOTE:

The Wind Cut mode is disabled during Full Auto operation.

SOUND

Sound signals can be sampled at 32 kHz or 48 kHz. 32 kHz–The camcorder is factory-preset for 32 kHz.

This setting enables recording of stereo sound on four separate channels, and is recommended for use when performing Audio Dubbing. 48 kHz– This setting enables recording of stereo sound on two separate channels. *A tape recorded at 48 kHz cannot be used for Audio Dubbing.

PHOTO FRAME

The snapshot function (Z pg. 26) has two types of photo effects; with frame and without frame.

–When engaged during recording, there will be a momentary camera shutter-type blackout, a shutter sound effect is recorded on the tape, and a white-bordered still image is displayed and recorded.

OFF–When engaged during recording, a still image is displayed and recorded.

NOTE:

Photo Frame can not be set to OFF during Full Auto operation.

RECORDING

Advanced Features (Cont.)

FADE/WIPE Effects

Use these to spice up the transition from one scene to the next. You can also vary transitions from scene to scene.

Select any one effect from the Fader/Wipe Menu. To use effects that don’t appear in the menu, exchange them (Z pg. 38, 39).

 

FADER / W IPE SELECT

 



OFF

WH ITE FADER

1

BL ACK FADER

2

DISSOLVE

3

CORNER WIPE

4

WINDOW WIPE

5



ITEM –/+ BUTTON



FADER/WIPE Menu

FOCUS PRO. EXP.

IND/DISPLAY



BRIGHT

Shooting mode selector

AUTO

MANUAL

SELECT OPERATION MODE

First make sure the LCD monitor is open fully. Turn the Power Dial to "REC" while pressing down the lock button located on the dial, and set the shooting mode selector to "MANUAL".

ACCESS FADER/WIPE MENU

Press 2. The Fader/Wipe Menu appears in the LCD monitor.

SELECT EFFECT

Place the pointer next to the desired effect by pressing the –/+ button.

•Approximately 2 seconds after you place the pointer, the P.AE/Effects Menu disappears and the selected mode is activated. The name or symbol of the selected mode appears in the LCD monitor.

NOTE:

Refer to pages 35 – 39 for Fade/Wipe effects and techniques.



LCD monitorLCD monitor



FADER / W IPE SELECT

 



OFF

WH ITE FADER

1

BL ACK FADER

2

Power Dial

3 4 5

 

MANUAL

RECORDING START/STOP button

DISSOLVE CORNER WIPE WINDOW WIPE

ITEM –/+ BUTTON

PAUSE



After 2 sec.

START RECORDING

Press RECORDING START/STOP. The beep sounds, indicating the start of recording.

DEACTIVATE FADE/WIPE EFFECTS

In step 3, place the pointer next to “OFF”.

NOTES:

●

When "PRO." is not displayed on the LCD monitor, FADE/WIPE Effects are not available. To make it appear, press the IND/DISPLAY button.

●

If certain P.AE/Effects (Z pg. 40) are activated, some Fade/Wipe Effects cannot be used. If you select a Fade/Wipe Effect that is unusable in the current situation, the indication blinks.

●

The P.AE Effect Menu is displayed if 2 is pressed twice. Press 2 again to display the Fader/Wipe Menu.

●

Beep won't sound when the shooting mode selector is set to “MANUAL” if “BEEP” is set to “OFF” in the System Menu (Z pg. 32).

Fades and Wipes

A scene gradually appears on a black or white screen (Fade In/Wipe In), or disappears, leaving a black or white screen (Fade Out/Wipe Out). Select Fade or Wipe at the Fader/Wipe Menu (Z pg. 34).

Select any one effect from the Fader/Wipe Menu. To use effects that don’t appear in the menu, exchange them (Z pg. 38).

FADE

Example WHITE FADER

Fade In

Example SCROLL WIPE

Wipe In

RECORDING START/STOP button

Fade Out

WIPE

Wipe Out

ACTIVATE FADE IN OR WIPE IN

Press RECORDING START/STOP to start recording, and the Fade In or Wipe In occurs automatically.

ACTIVATE FADE OUT OR WIPE OUT

When you want to stop recording the scene, press RECORDING START/STOP. Before the camcorder enters the Record/Standby mode, the Fade Out or Wipe Out occurs automatically.

NOTE:

You can extend the length of a fade or wipe by pressing and holding the RECORDING START/

STOP button.

WHITE FADER:

Fade in or out with a white screen.

BLACK FADER:

Fade in or out with a black screen.

BLACK & WHITE FADER:

B/W

Fade in to a colour screen from a black and white screen, or fade out from colour to black and white.

MOSAIC FADER:

Fade in or out with a full-screen mosaic effect.

CORNER WIPE:

Wipe in on a black screen from the upper right to the lower left corner, or wipe out from lower left to upper right, leaving a black screen.

WINDOW WIPE:

The scene starts in the center of a black screen and wipes in toward the corners, or comes in from the corners, gradually wiping out to the center.

SLIDE WIPE:

Wipe in from right to left, or wipe out from left to right.

DOOR WIPE:

Wipe in as the two halves of a black screen open to the left and right, revealing the scene, or wipe out and the black screen reappears from left and right to cover the scene.

SCROLL WIPE:

The scene wipes in from the bottom to the top of a black screen, or wipes out from top to bottom, leaving a black screen.

SHUTTER WIPE:

Wipe in toward the center of a black screen from the top and bottom, or wipe out from the center toward the top and bottom, leaving a black screen.

CONTINUED ON NEXT PAGE

RECORDING

Advanced Features (Cont.)

Picture Wipe/Dissolve

Combine the Picture Wipe and Dissolve functions for a professional transition effect. There are 6 Picture Wipe effects and 1 Dissolve effect. Select the Picture Wipe effect at the Fader/Wipe Menu (Z pg. 34).

Select any one effect from the Fader/Wipe Menu. To use effects that don’t appear in the menu, exchange them (Z pg. 38).

Previous scene end

RECORDING START/STOP button

Wipe In

START RECORDING

Press RECORDING START/STOP.

ENGAGE RECORD/STANDBY MODE

Press RECORDING START/STOP when one scene is finished. The point at which the scene ended is stored in memory.

RESUME RECORDING

If you start recording a new scene within 5 minutes of the end of the previous recording (without having turned the camcorder’s power off), the previous scene wipes out, revealing the new scene.

NOTES:

●

If you turn off the power after having finished recording a scene, the stored point is erased. This disables the Picture Wipe/Dissolve combination. When this happens, the Picture Wipe/Dissolve indicator blinks. Try recording again, but don’t turn the power off when you’re finished. The camcorder stores the end point of the last recorded scene, and you can use Picture Wipe/Dissolve between the last scene and the next one.

●

The sound at the end of the last recorded scene is not stored.

Example

SCROLL WIPE

The next scene gradually wipes in over the previous scene.

Within 5 minutes . . .

DISSOLVE:

The new scene gradually appears as the

old one gradually disappears.

CORNER WIPE:

The new scene wipes in over the

previous one from the upper right corner to the lower left corner.

WINDOW WIPE:

The next scene gradually wipes in from the

center of the screen toward the corners, covering the previous scene.

SLIDE WIPE:

The next scene gradually wipes in over

the previous one from right to left.

DOOR WIPE:

The previous scene wipes out from the center to the right and left, like a door being pushed open to reveal the next scene.

SCROLL WIPE:

The new scene wipes in over the last one

from the bottom of the screen to the top.

SHUTTER WIPE:

The new scene wipes in over the previous one from the center toward the top and bottom of the screen.

RECORDING START/STOP button

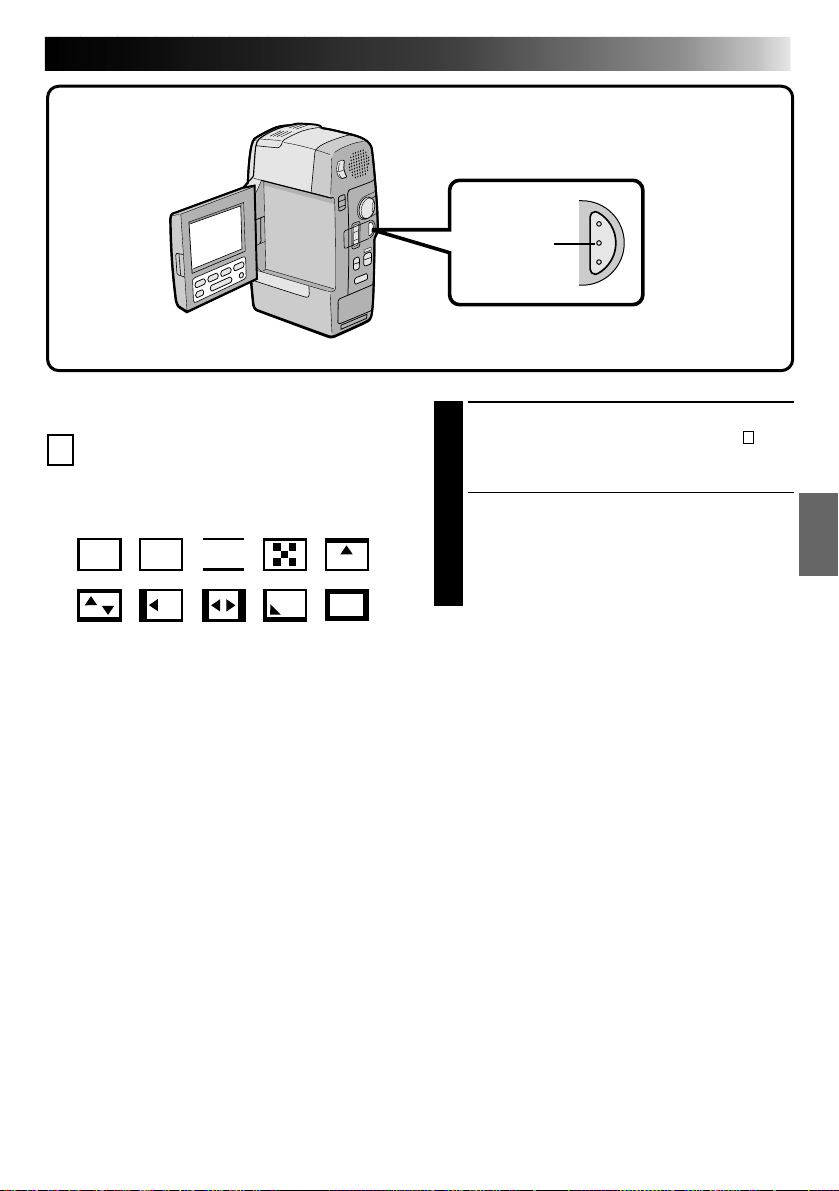

Random Variations

When this function is activated, the camcorder randomly selects the effect used in scene transition (from the Fade and Wipe effects).

The camcorder chooses one of the fades/wipes at random.

To customize the selection of Fade and Wipe Effects used with Random Variations, refer to the procedures on pg. 38.

RANDOM FADER:

WHB

B/W

START RECORDING

Press RECORDING START/STOP, and “ appears in the LCD monitor. The camcorder does the rest, selecting an effect at random.

•The recording starts with a Fade In or Wipe

In. If you press RECORDING START/STOP during recording, Record/Standby mode is preceded by a Fade Out or Wipe Out; when you resume recording, it begins with a Fade In or Wipe In.

”

NOTE:

The Picture Wipe/Dissolve feature is not available when Random Fader is activated.

RECORDING

Advanced Features (Cont.)

Exchanging FADE/WIPE Effects

You can replace the 5 effects currently appearing in the menu with 5 others. After exchanging, the new effects appear in the Fader/Wipe Menu.

LCD monitor

WIDE MODE ZOOM DIS GA I N UP TO F ADER / W IPE MENU TO P. AE / EFFECT MENU TO DATE / TIME MENU TO SYSTEM MENU W.BALANCE



END

Recording Menu

 

FADER / W IP E CUSTOM IZE  

1

2 3 4 5

  END

FADER/WIPE Customize

OFF

20X

OFF AGC

AUTO

ITEM –/+ BUTTON

SET MENU BUTTON

 WH ITE FADER BL ACK FADER DISSOLVE

CORNER WIPE WINDOW WIPE

ITEM –/+ BUTTON

SET MENU BUTTON



SELECT OPERATION MODE

First make sure the LCD monitor is open fully. Turn the Power Dial to "REC" while pressing down the lock button located on the dial, and set the shooting mode selector to "MANUAL".

ACCESS RECORDING MENU

Press MENU. The Recording Menu appears in the LCD monitor.

ACCESS FADER/WIPE CUSTOMIZE

Place the pointer next to “TO FADER/WIPE MENU” by pressing the –/+ button, then press MENU. The Fader/Wipe Customize Menu appears.

SELECT EFFECT TO BE REPLACED

Place the pointer next to the number of the effect you want to replace by pressing the –/+ button, then press MENU. The cursor stops blinking.

Power Dial

AUTO

Shooting mode selector

MANUAL

SELECT NEW EFFECT

Cycle through the remaining effects by pressing the –/+ button and stop when the one you want is displayed. Press MENU.

•The pointer automatically moves to “END”.

•To replace other effects, repeat steps 4 and 5.

CLOSE MENU

Press MENU twice. Selection is complete, and you can use the new effects during recording (Z pg. 34).

To use the exchanged FADE/WIPE effects, refer to the following pages:

•Fades and Wipes ............................. Z pg. 35

•Picture Wipe/Dissolve ..................... Z pg. 36

•Random Variations ..........................

Z pg. 37

Refer to page 34 on using the exchanged effects.

18 scene transitions

pg. 35 Fades and Wipes

WHITE FADER BLACK FADER BLACK & WHITE FADER

MOSAIC FADER CORNER WIPE WINDOW WIPE

SLIDE WIPE DOOR WIPE SCROLL WIPE

SHUTTER WIPE

pg. 36 Picture Wipe/Dissolve

DISSOLVE CORNER WIPE WINDOW WIPE

SLIDE WIPE DOOR WIPE SCROLL WIPE

B/W

SHUTTER WIPE

pg. 37 Random Variations

RANDOM FADER

FADER/W IPE CUSTOMIZE  

  END



WH ITE FADER

1

BLACK FADER

2

DISSOLVE

3

CORNER WIPE

4

WINDOW WIPE

5

ITEM –/+ BUTTON

SET MENU BUTTON

LCD monitor



FADER/WIPE Customize

Select 5 of the 18 scene transitions one by one.

RECORDING

Advanced Features (Cont.)

P.AE/Effects

You can choose any one of the effects from the P.AE/Effects Menu. In addition, you can exchange 5 of the 12 options that appear for other available effects (Z pg. 42).



LCD monitor LCD monitor



 P .AE/EFFECT SELECT

  OFF

SHUTTER 1/250

1/250

1

TWILIGHT

2

SEP I A

3

B/W

4 5

 

P.AE/EFFECTS Menu

(factory setting)

FOCUS PRO. EXP.

IND/DISPLAY



MONOTONE CLASSIC F ILM

ITEM –/+ BUTTON

BRIGHT

SELECT OPERATION MODE

First make sure the LCD monitor is open fully. Turn the Power Dial to "REC" while pressing down the lock button located on the dial, and set the shooting mode selector to "MANUAL".

ACCESS P.AE/EFFECT SELECT MENU

Press 2 twice. The P.AE/Effects Menu appears in the LCD monitor.

SELECT EFFECT

Place the pointer next to the desired effect by pressing the –/+ button.

•Approximately 2 seconds after you place the pointer, the P.AE/Effects Menu disappears and the selected mode is activated. The name or symbol of the selected mode appears in the LCD monitor.



 

 P .AE/EFFECT SELECT

  OFF

SHUTTER

1/250

1

TWILIGHT

2

SEP I A

3

B/W

4 5

 

The indicator for the selected mode appears, and the selected mode is engaged.



MONOTONE CLASSIC F ILM

ITEM –/+ BUTTON

1/250

After 2 sec.

Power Dial

AUTO

MANUAL

PAUSE

RECORDING START/STOP button

Shooting mode selector

DISABLE P.AE/EFFECT

To turn off the selected effect, re-access the P.AE/Effects Menu and place the pointer next to “OFF” by pressing the –/+ button.

NOTES:

●

When "PRO." is not displayed on the LCD monitor, P.AE/Effects is not available. To make it appear, press the IND/DISPLAY button.

●

If certain Fades or Wipes (Z pg. 34 – 39) are activated, some P.AE/Effects cannot be used, If you select a P.AE/Effect that is unusable in the current situation, the effect’s name or symbol begins flashing.

B/W

Like classic black and white films, your footage is shot in B/W. Used together with the Wide Cinema function, it enhances the “classic film” effect.

Recorded scenes have a brownish tint like old photos. Combine this with the Cinema mode for a classic look.

Gives recorded scenes a strobe effect.

Makes evening scenes look more natural.

** Checked “u”effects are factory preset.

MONOTONE u

SEPIA u

CLASSIC FILM u

TWILIGHT u

To use other effects, refer to “Exchanging P.AE/ Effects” on page 42.

VIDEO ECHO

Adds a “ghost” to the subject, giving your recording a “fantasy” feeling.

STROBE

Your recording looks like a series of consecutive snapshots.

SHUTTER (Variable Shutter

(Speed)

1/50–The shutter speed is fixed at 1/50th of a

second. 1/100–The shutter speed is fixed at 1/100th of a second. 1/250 (factory preset), 1/500–These settings allow fast-moving images to be captured one frame at a time, for vivid, stable slow-motion playback. The faster the shutter speed, the darker the picture becomes. Use the shutter function under good lighting conditions.

SLOW (Slow Shutter)

You can light dark subjects or areas even brighter than they would be under good natural lighting.

x 4 = 4 times sensitivity

(shutter speed 1/12.5 sec.) x 10 = 10 times sensitivity

(shutter speed 1/5 sec.)

NOTES:

●

When using Slow, the image takes on a strobe-like effect.

●

Use Slow only in dark areas.

●

The Manual Focus indication may appear and flash when Slow is in use.

●

If the image is out of focus, adjust manually. It is also recommended that you use a tripod, if possible.

RECORDING

Exchanging P.AE/Effects

You can replace 5 of the effects that appear in the menu with 5 others. Refer to page 40 on using the exchanged effects.

LCD monitor

Advanced Features (Cont.)

WIDE MODE

ZOOM DIS

GA I N UP

TO F ADER / W IPE MENU TO P. AE / EFFECT MENU TO DATE / TIME MENU TO SYSTEM MENU

W.BALANCE



END

Recording Menu

  P .AE/EFFECT CUSTOMIZE  

1

1/250 2 3 4

B/W

5

  END

Customize Menu

OFF

20X

OFF AGC

AUTO

ITEM –/+ BUTTON

SET MENU BUTTON

1/250

SHUTTER TWILIGHT SEP I A



MONOTONE CLASSIC F ILM

ITEM –/+ BUTTON

SET MENU BUTTON

P.AE/EFFECT

SELECT MODE

First make sure the LCD monitor is open fully. Turn the Power Dial to "REC" while pressing down the lock button located on the dial, and set the shooting mode selector to "MANUAL".

ACCESS RECORDING MENU

Press MENU. The Recording Menu appears in the LCD monitor.

ACCESS P.AE/EFFECT CUSTOMIZE

Place the pointer next to “TO P.AE/EFFECT MENU” by pressing the –/+ button. Then press MENU and the P.AE/Effect Customize Menu appears in the LCD monitor

Power Dial

AUTO

Shooting mode selector

MANUAL

SELECT EFFECT TO BE REPLACED

Place the pointer next to the number of the effect you want to replace by pressing the –/+ button, then press MENU. The pointer stops blinking.

SELECT NEW EFFECT

Cycle through the remaining effects by pressing the –/+ button and stop when the one you want is displayed. Press MENU.

•The pointer automatically moves to “END”.

•To replace other effects, repeat steps 4 and 5.

CLOSE MENU

Press MENU twice. Selection is finished, and you can use the new effect(s) in recording (Z pg. 40).

Displaying The Date And Time During Recording

You must first set the date and time (see “Date/Time Settings” Z pg. 12). Set “DISPLAY” to “ON” in the Date/Time Menu. The Date/Time appears in the LCD monitor if the Shooting mode selector is set to “MANUAL”. The Date/Time is always displayed in the LCD monitor when the Shooting mode selector is set to “AUTO”.

LCD monitor

WIDE MODE

ZOOM DIS

GA I N UP

TO F ADER / W IPE MENU TO P.AE / EFFECT MENU TO DATE / TIME MENU

TO SYSTEM MENU W.BALANCE 

END

Recording Menu

  ON SCREEN DISPLAY DATE/T I ME      END

Date/Time Menu

OFF

20X

OFF AGC

AUTO

ITEM –/+ BUTTON

SET MENU BUTTON

OFF OFF

25. 12. 97

17 :30

ITEM –/+ BUTTON

SET MENU BUTTON

SELECT OPERATION MODE

First make sure the LCD monitor is open fully. Turn the Power Dial to "REC" while pressing down the lock button located on the dial, and set the shooting mode selector to "MANUAL".

ACCESS RECORDING MENU

Press MENU. The Recording Menu appears in the LCD monitor.

ACCESS DATE/TIME MENU

Place the pointer next to "TO DATE/TIME MENU" by pressing the –/+ button. Press toward "+" to move up and toward "–" to move down. Press MENU and the Date/Time Menu appears in the LCD monitor.

SELECT FUNCTION

Place the pointer next to "DISPLAY" by pressing the –/+ button, then press MENU. The cursor stops blinking, indicating that the function has been selected.

Power Dial

AUTO

Shooting mode selector

MANUAL

SET FUNCTION PARAMETERS

Cycle through the available settings of the selected functions by pressing the –/+ button and stop when the one you want is displayed. Then press MENU and the pointer automatically moves to “END”.

CLOSE RECORDING MENU

Press MENU twice. Selection is complete and the menu disappears.

NOTES:

●

Connect the camcorder to a TV and set “ON SCREEN” to “ON” in the Date/Time Menu. The display appears on the connected TV when the camcorder is in Record/Standby mode.

●

The Indicator/Display function overrides these settings. If you have set the ON SCREEN or DISPLAY function and the indication does not appear on the display then press the IND/ DISPLAY button (Z pg. 23).

RECORDING

Advanced Features (Cont.)

White Balance Adjustment

A term that refers to the correctness of colour reproduction under various lighting. If the white balance is correct, all other colours will be accurately reproduced. The white balance is usually adjusted automatically. However, the more advanced camcorder operator would prefer to control this function manually and achieve a more professional colour/tint reproduction.

LCD monitor

WIDE MODE

ZOOM

DIS

GA I N UP

TO F ADER / W IPE MENU

TO P.AE / EFFECT MENU

TO DATE / TIME MENU

TO SYSTEM MENU

W.BALANCE



END

Recording Menu

WIDE MODE

ZOOM

DIS

GA I N UP

TO F ADER / W IPE MENU

TO P.AE / EFFECT MENU

TO DATE / TIME MENU

TO SYSTEM MENU

W.BALANCE



END

OFF

20X

OFF AGC

AUTO

ITEM –/+ BUTTON

SET MENU BUTTON

OFF

20X

OFF AGC

AUTO

ITEM –/+ BUTTON

SET MENU BUTTON

SELECT MODE

First make sure the LCD monitor is open fully. Turn the Power Dial to "REC" while pressing down the lock button located on the dial, and set the shooting mode selector to "MANUAL".

ACCESS RECORDING MENU

Press MENU. The Recording Menu appears in the LCD monitor.

ACCESS WHITE BALANCE MENU

Place the pointer next to "W.BALANCE" by pressing the –/+ button. Press "+" to move up and "–" to move down. Then press MENU. The pointer stops blinking, indicating that the function has been selected.

AUTO–The white balance is adjusted automatically. This is the factory preset position.

“

”– When using a video light or other similar

type of lighting. “ ”– When shooting outdoors on a cloudy day. “ ”– When shooting outdoors on a sunny day.

“

”–When shooting with the white balance

already having been set on the subject (Z pg. 45).

Power Dial

AUTO

Shooting mode selector

MANUAL

SET FUNCTION PARAMETERS

Cycle through the available settings of the selected functions by pressing the –/+ button, and stop when the one you want is displayed. Then press MENU and the pointer automatically moves to "END".

CLOSE RECORDING MENU

Press MENU again. Selection is complete and the menu disappears.

To Return To Automatic White Balance . . .

..... select “AUTO” in step 3. Or set the shooting

mode selector to “AUTO”.

NOTE:

White balance cannot be used when P.AE/Effects Sepia or Monotone are activated.

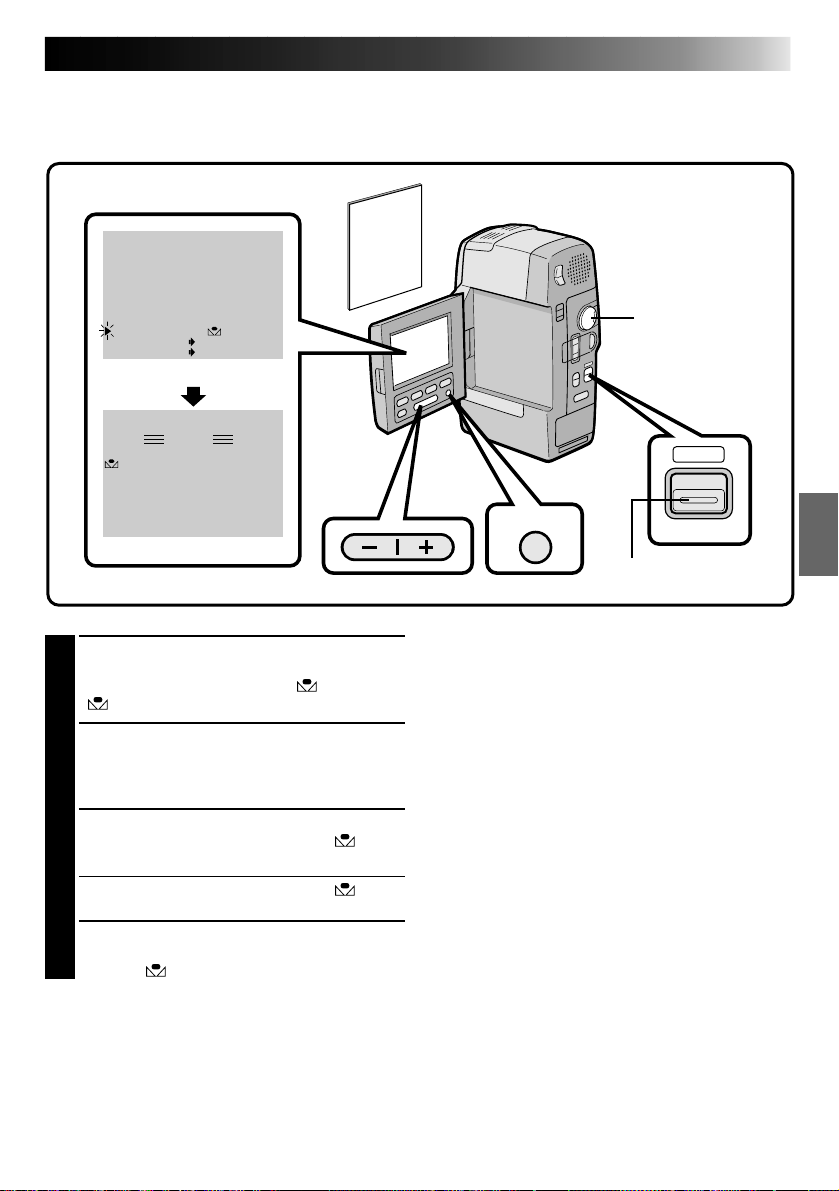

Manual White Balance Operation

If the camera is operating in manual mode, perform a Manual White Balance when shooting under various types of lighting

LCD monitor

WIDE MODE

ZOOM DIS

GA I N UP

TO F ADER / W IPE MENU TO P.AE / EFFECT MENU TO DATE / TIME MENU

TO SYSTEM MENU W.BALANCE 

END

Recording Menu

MANUAL

OFF

20X

OFF AGC



ITEM –/+ BUTTON

SET MENU BUTTON

PAUSE

SELECT MODE

Follow steps 1 through 4 of the white balance adjustment (Z pg. 44), select “ ”. “ ” begins blinking.

SET MANUAL WHITE BALANCE

Hold a sheet of plain white paper in front of the subject. Adjust zoom or position yourself so that the white paper fills the screen.

ENTER SETTING

Press and hold “–” or “+”. When the begins blinking quickly, release the button.

•When the setting is completed, the stops blinking and 4 moves to "END".

EXIT RECORDING MENU

Press MENU. The Manual White Balance indicator is displayed in the LCD monitor.

White paper

Power Dial

AUTO

MANUAL

Shooting mode selector

To Change The Tint For Recording . . .

..... In step 2, substitute coloured paper for white. The

white balance is adjusted based on the colour, changing the tint. Red paper — deeper green; blue paper — orange; yellow paper — deeper purple.

NOTES:

●

A subject can be shot under various types of lighting conditions indoors (natural, flourescent, candlelight, etc.). Because the colour temperature is different depending on the light source, the tint of the subject will differ depending on the white balance settings. Use this function for a more natural result.

●

Once you adjust white balance during Manual White Balance operation, the setting is retained even if the power is turned off or the battery removed.

RECORDING

Advanced Features (Cont.)

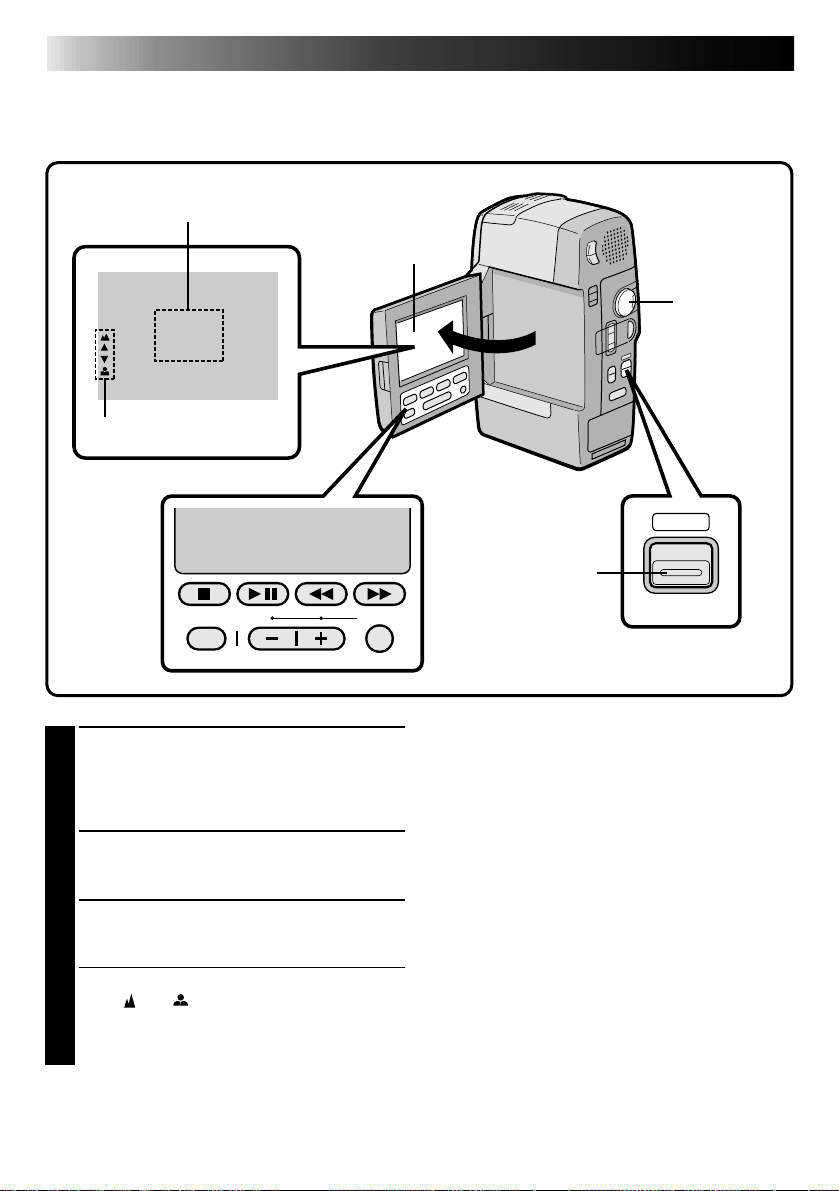

Manual Focus Adjustment

The recorder, in most cases, adjusts the focus from 10 cm to infinity automatically. However, when focusing is difficult or when the subject is not in the middle of the LCD monitor, adjust the focus manually.

Focus zone

(Focus is adjusted at the center of the screen)

LCD monitor

FOCUS

Power Dial

Manual focus indicator

AUTO

FOCUS PRO. EXP.

IND/DISPLAY

BRIGHT

SELECT MODE

First make sure the LCD monitor is open fully. Turn the Power Dial to "REC" while pressing down the lock button located on the dial, and set the shooting mode selector to "MANUAL".

ACCESS MANUAL FOCUS DISPLAY

Press 46. “FOCUS” is displayed in the LCD monitor. The focus is locked at this point.

ADJUST FOCUS

Press “+” to adjust to faraway targets, or “–” to focus on closer targets.

•When the focus reaches its near or far limit, the “ ” or “ ” will begin blinking.

•When focus cannot be adjusted manually, try zooming in or out, then try the manual focus adjustment again.

Shooting mode selector

To Change To Auto Focus . . .

..... Press 46. The manual focus indicators

disappear. Or set the shooting mode selector to “AUTO”.

MANUAL

NOTES:

●

When "FOCUS" is not displayed on the LCD monitor, Manual Focus Adjustment is not available. To make it appear, press the IND/ DISPLAY button.

●

Manual focus is recommended in the following situations:

•

When shooting a flat wall, a blue sky or an

object with little or no contrast.

•

When wire or other obstacles come between the

camcorder and the subject.

•

When shooting in dark places.

•

When shooting objects with a detailed design or

pattern.

•

When shooting under flourescent or flickering

lighting.

Exposure Control

Usually this is adjusted automatically. However, when the background is too bright or too dark in comparison with the subject, the exposure could be corrected manually.

EXP.

Exposure control indicator

LCD monitor

Power Dial

AUTO

FOCUS PRO. EXP.

IND/DISPLAY

BRIGHT

SELECT MODE

First make sure the LCD monitor is open fully. Turn the Power Dial to "REC" while pressing down the lock button located on the dial, and set the shooting mode selector to "MANUAL".

ADJUST EXPOSURE

Press 3. "EXP." and the Exposure Control indicator are displayed in the LCD monitor.

•The adjustment range is from –6 to +6. Press “+” to brighten the image, or “–” to darken it.

To Return To Automatic Exposure Control . . .

..... Press 3 quickly. The Exposure Control indicator

NOTES:

●

Shooting mode selector

disappears. Or set the shooting mode selector to “AUTO”.

When "EXP." is not displayed on the LCD monitor, Manual Exposure Control is not available. To make it appear, press the IND/DISPLAY button. Manual exposure adjustment is recommended in the following situations:

•

When shooting using reverse lighting or when the background is too bright.

•

When shooting on a reflective natural background such as at the beach or when skiing.

•

When the background is overly dark or the subject light.

MANUAL

Brightness control of the LCD monitor

To adjust the brightness of the LCD monitor, press BRIGHT on the LCD monitor (Z pg. 23). Note that the actual recorded image's brightness can not be changed by pressing this button.

RECORDING

Advanced Features (Cont.)

Iris Lock

Use this function when shooting a moving subject, when zooming, when the subject changes its distance (thus its size in the LCD monitor), or when you want to lock the brightness level.

When the subject is close, keep the iris locked. Even when the subject moves away from you, the image will not darken.

LCD monitor

Power Dial

0 L

AUTO

Iris lock indicator

IND/DISPLAY

SELECT MODE

First make sure the LCD monitor is open fully. Turn the Power Dial to "REC" while pressing down the lock button located on the dial, and set the shooting mode selector to "MANUAL".

CENTER SUBJECT, LOCK IRIS

Press 3. "EXP." is displayed in the LCD monitor. Adjust zoom so that the subject fills the LCD monitor, then press and hold 3 for about 2 seconds. The exposure setting display and “L” appear, indicating that the iris is locked.

To Return To Automatic Iris Control . . .

..... Press 3. The Exposure Control indicator and

“L” disappear. Or set the shooting mode selector to “AUTO”.

FOCUS PRO. EXP.

BRIGHT

NOTES:

Iris lock is recommended in the following situations:

●

When shooting on a reflective natural background such as at the beach or when skiing.

●

When shooting objects under a spotlight.

●

When the subject is backing away.

●

When zooming.

** Locking the exposure control and the iris

After step 1, adjust the exposure using the –/+ button. Then lock the iris in step 2. For automatic locking, press 3 automatic after about 2 seconds.

Iris

Works like the pupil of the human eye. In a welllighted environment, the human pupil contracts to keep too much light from enterintg. In low lighting, the pupil dilates to allow more light in.

MANUAL

Shooting mode selector

quickly. The iris becomes

PLAYBACK

You can watch what you’ve recorded in the LCD monitor.

Basic Playback

VOLUME

LCD monitor

PUSH-OPEN

OPEN LCD MONITOR

Press PUSH-OPEN to open the LCD monitor.

SELECT OPERATION MODE

Turn the Power Dial to “PLAY” while pressing down the lock button located on the dial.

REWIND TAPE

Press 2. “2” is displayed on the LCD monitor. If you rewind all the way to the end of the tape, it stops automatically.

VIEWING RECORDING

Press 46. “46” is displayed on the LCD monitor and the recorded footage can be viewed.

END PLAYBACK

Press 5. Set the Power Dial to “OFF”.

•When turning to “OFF”, it is not necessary to press down the lock button.

To Perform High-Speed Search . . .

..... press 2 or 3 after pressing 46. The tape

will move at approximately 9 times the normal playback speed. Watch in the LCD monitor and, when you reach the spot you want to see, press 46 and normal playback resumes.

NOTES:

●

You can also perform a High-Speed Search by pressing and holding mode. The search continues as long as you hold the button. Once you release it, normal playback resumes.

●

A slight mosaic effect appears on screen during High-Speed Search. This is not a malfunction.

●

The sound is not available during High-Speed Search.

or 3 during the PLAY

Speaker

STOP PLAY REW FF

IND/DISPLAY

Power lamp

OFF

Power Dial

BRIGHT

Lock button

Playback Sound

You can hear sound from the speaker or using headphones connected to the headphones connector during playback. To adjust the sound volume, press the VOLUME button. The sound volume indication is displayed in the LCD monitor. Press "+" to turn up the volume, or "–" to turn it down.

Still Playback

To temporarily stop playback, press 46. Press again to resume playback. If still playback continues for more than about 3 minutes, the camcorder’s Stop mode is automatically engaged. After 5 minutes in the stop mode, the camcorder’s power is automatically turned off.

Print Of Scenes

It is possible to print out recorded scenes using an optional video printer. Attach the camcorder to the Docking Station and connect the station to a video printer. Operate video printer using the LCD monitor. When connecting the station's PRINTER connector (Z pg. 76) to the video printer's video output connector, the date and time code are not displayed in the LCD monitor. If you want to print out a scene with its date, connect the video printer's video output connector to TV and operate the video printer using a TV monitor.

VCR/TV Connection

PLAYBACK

Basic Connections

Lens

CAM stand

CONNECT CAMCORDER TO TV OR

VCR

Connect as shown in the illustration.

•It is recommended to place the camcorder on the CAM stand for playback (Z pg. 10).

TURN ON POWER

Turn the Power Dial to "PLAY" and turn on the TV/VCR.

SELECT TV’S VIDEO MODE

Set the TV to the channel or mode appropriate for video playback.

If Using A VCR . . . go to step 4. If not . . . go to step 5.

CONNECT VCR OUTPUT TO TV

INPUT

Refer to your VCR’s instruction manual.

START PLAYBACK

Press 46. You can watch the scenes you recorded on the TV.

END PLAYBACK

Press 5 and, if you’re not going to continue using the camcorder, set the Power Dial to “OFF”.

Core filter

To AUDIO OUT

To VIDEO OUT

AUDIO and VIDEO cables (ø3.5, DVM1 to TV or VCR)

VIDEO OUT select switch (Y/C or CVBS)

To VIDEO IN connector

To AUDIO IN connectors

To choose whether or not the following displays appear on the connected TV . . .

•Date/Time, Time Code

•Playback Sound Mode Display

Cable adapter (provided only with U.K. models)

.... set to “ON” or “OFF” in the Playback Menu

(Z pg. 54).

.... set the Power Dial to “REC”, and set “ON

SCREEN” in the Date/Time Menu (Z pg. 12) to “ON” or “OFF”. Then set the Power Dial back to “PLAY”.

NOTES:

●

When using the provided VIDEO cable (ø 3.5, DVM1 to TV or VCR) or AUDIO cable (ø

3.5, DVM1 to TV or VCR), make sure you connect the end of the cable with the core filter to the camcorder. The core filter improves performance of equipment.

●

Before opening the cassette cover, disconnect the headphones and AUDIO/VIDEO connectors from the jacks because the cassette cover will interfere with them.

●

For camcorders sold in the U.K., set the VIDEO OUT select switch of the Cable adapter as required: Y/C: When connecting to a TV or VCR which accepts Y/C signals and uses an S-VIDEO cable. CVBS: When connecting to a TV or VCR which does not accept Y/C signals and uses an audio/ video cable.

To TV or VCR

VCR

(Recording deck)

Docking Station Attachment

When you attach your camcorder to the Docking Station, you can add many interesting effects during playback.

To DC input jack

Core filter

To AC outlet

CONFIRM POWER-OFF STATUS

Make sure the camcorder’s power is off.

ATTACH AND LOCKS

Press down on the camcorder and slide the Lock Lever in the direction of the arrow. The camcorder and the Docking Station are now securely attached.

•When removing the camcorder, slide the lock lever in the opposite direction of the arrow while pressing down the Release button and lift the camcorder out.

SUPPLY POWER

The Docking Station must be powered by the AC adapter whether the battery is in the camcorder or not.

•The Docking Station cannot function using the camcorder’s battery.

SELECT MODE

Set the Power Dial to “PLAY”.

Power cord

To DC jack

Power Dial

Docking Station

AC Power Adapter/Charger

Release button

Lock lever

Using The Remote Control During Playback

Once the camcorder is attached to the Docking Station, you can use the RM-V708U or RM-V710U remote control for regular playback, slow motion (approx. 1/10 speed (Z pg. 53), Playback Zoom (Z pg. 56), and P.AE/Effects (Z pg. 40).

NOTE:

When using the provided DC cord, make sure you connect the end of the cable with the core filter to the Docking Station. The core filter improves performance of equipment.

PLAYBACK

TV Playback

* Please refer to your VCR and/or TV instruction manual(s) when connecting.

Basic Connections (Cont.)

To DC input jack

AC Power Adapter/Charger

DC cord

Core filter

To VIDEO output jack

AC Power Adapter/Charger

DC cord

Core filter

To VIDEO output jack

To DC output jack

To AUDIO output jacks (L/R)

Red

White

Yellow

To DC output jack

To AUDIO input jacks (L/R)

To AUDIO output jacks (L/R)

Red

White

Yellow

Core filter

To S-VIDEO output jack

Core filter

To AUDIO

AUDIO and VIDEO cables

input jacks (L/R)

To VIDEO input jack

Cable adapter (provided only with U.K. models) If your VCR has the 21 pin AV input connector (SCART), use the provided cable adapter.

S-VIDEO cable To S-VIDEO input jack

To VIDEO input jack

Cable adapter (provided only with U.K. models) If your VCR has the 21 pin AV input connector (SCART), use the provided cable adapter.

Connection to a VHS recorder or a standard TV

VIDEO OUT select switch (Y/C or CVBS)

Red White

Yellow

(Recording deck)

Connection to an S-VHS recorder or a TV with a 21-pin Y/C compatible AV input connector

VIDEO OUT select switch (Y/C or CVBS)

Red White Yellow

(Recording deck)

Connect to AV jack-equipped TV or to VCR

VCR

Connect to AV jack-equipped TV or to VCR

VCR

To DC input jack

AC Power Adapter/Charger

To DC output jack

DC cord

Core filter

To S-VIDEO output jack

To AUDIO input jacks (L/R)

To AUDIO output jacks (L/R)

Red

White

Yellow

To VIDEO output jack

CONNECT DOCKING STATION TO

TV OR VCR

Connect as shown in the illustration (Z pg. 52, 53).

TURN ON POWER

SELECT TV’S VIDEO MODE

Set the TV to the channel or mode appropriate for video playback.

If Using A VCR . . . go to step 4. If not . . . go to step 5.

CONNECT VCR OUTPUT TO TV

INPUT

Refer to your VCR’s instruction manual.

START PLAYBACK

Press play and your pre-recorded scenes will be played on your TV.

END PLAYBACK

Press STOP and, if you’re not going to continue using the camcorder, set the Power Dial to “OFF”.

Core filter

Connection to an S-VHS recorder or a TV with an S-Video connector (4-pin)

S-VIDEO cable To S-VIDEO input jack

Connect to AV

Red White

Yellow

To VIDEO input jack

AUDIO and VIDEO cables

jack-equipped TV or to VCR

VCR

(Recording deck)

Slow-Motion Playback

● To change from normal to slow-motion playback,

press PAUSE at the point where you want to start playback in slow motion, then point the remote control at the Docking Station's sensor and press SLOW (Rewind/Forward). After playing back in slow motion for about 10 to 20 seconds, normal playback resumes. Speed is 1/10 times normal. To stop slow-motion playback in progress, press PLAY.

● During slow-motion playback, due to digital image processing, the picture may take on a mosaic effect.

● After SLOW is pressed, the still image may be displayed for a few seconds, then the screen may become blue back for a few seconds.

● There may be a small margin between the slowmotion playback start point you chose and the start point at which the camcorder actually begins playback in slow motion.

NOTES:

●

When using the provided AUDIO/VIDEO cable (Docking Station to TV or VCR), DC cord, S-VIDEO cable or editing cable, make sure you connect the end of the cable with the core filter to the Docking Station. The core filter improves performance of equipment.

●

Playback Menu

The Playback Menu allows you to set the following functions:

Comp, Display

and

LCD monitor

 

kHz

MODE

kHz

MODE SYNCHRO DISPLAY T I ME CODE   

ITEM –/+ BUTTON

END

SET MENU BUTTON

Playback Menu

 

kHz

MODE

kHz

MODE SYNCHRO DISPLAY T I ME CODE   

ITEM –/+ BUTTON

END

SET MENU BUTTON

Time Code

FULL SOUND

SOUND

0.0

 ON OFF

FULL SOUND

SOUND

0.0

 ON OFF

. The following procedure applies to all except

FULL SOUND SOUND 1



SOUND 2

ON OFF

PLAYBACK

Playback Menu

Playback Sound (32 kHz, 48 kHz), Synchro

Synchro Comp

(Z pg. 63, 64).

Power Dial

SELECT OPERATION MODE

First make sure the LCD monitor is open fully. Turn the Power Dial to "PLAY" while pressing down the lock button located on the dial.

ACCESS PLAYBACK MENU

Press MENU. The Playback Menu appears in the LCD monitor and on the connected TV.

SELECT FUNCTION

Place the pointer next to the desired function by pressing the –/+ button, then press MENU. The pointer stops blinking, indicating that the function has been selected.

SET FUNCTION PARAMETERS

Press the –/+ button to cycle through the available settings for the selected function, and stop when the desired setting appears. Then press MENU, and the pointer automatically moves to “END”.

•To set parameters for other functions, repeat

steps 3 and 4.

CLOSE MENU

Press MENU again, and the menu disappears.

Playback Sound

During playback, the camcorder detects the sound mode in which the recording was made, and plays the sound back. Select the type of sound to accompany your playback picture. (32 kHz is preset to “SOUND 1” and 48 kHz is preset to “FULL SOUND”.)

RECORDING SOUND DISPLAY OUTPUT SOUND

32 kHz FULL SOUND

SOUND 1 Stereo sound SOUND 2

48 kHz FULL SOUND Stereo sound

SOUND 1 “L” sound is output on both channels SOUND 2 “R” sound is output on both channels

When watching a tape recorded at 32 kHz, if you want to change the output sound, access the Playback Menu and, in step 3 on page 54, select “32kHz MODE” and set it for “FULL SOUND”, “SOUND 1” or “SOUND 2”. When playing back a tape recorded at 48kHz, set in the same manner. For information on output sound during Audio Dubbing, see page 65.

NOTES:

●

You can also use the RM-V708U or RM-V710U remote control’s AUDIO MONITOR Button to change the output sound (without having to access the Playback Menu). Make sure you point the remote control at the Docking Station’s sensor.

●

During playback, the camcorder detects the sound mode in which the recording was made. This detection cannot be made during fast-forward or rewind.

LCD monitor

12 : 34 : 24

*25 frames = 1 second

TIME CODE (Displaying The Time Code During Playback)

You can display the Time Code on screen during playback. This is especially useful for editing. This function is preset to “OFF”. To turn it on, select “TIME CODE” at the Playback Menu and change the setting (Z pg. 54).

ON– The Time Code is displayed on the playback

screen.

OFF– The Time Code doesn’t appear.

Minutes

Seconds

Frames*

25 . 12 . 97

DISPLAY (Displaying the Date During Playback)

If the time has been set, the date is automatically recorded separately from the recorded video signal. You can display or remove the date anytime during playback. This function is preset to “ON”. To turn it off, select “DISPLAY” at the Playback Menu and change the setting (Z pg. 54).

ON– The date is displayed on the playback screen. OFF–The date is not displayed.

10 : 35 

PLAYBACK

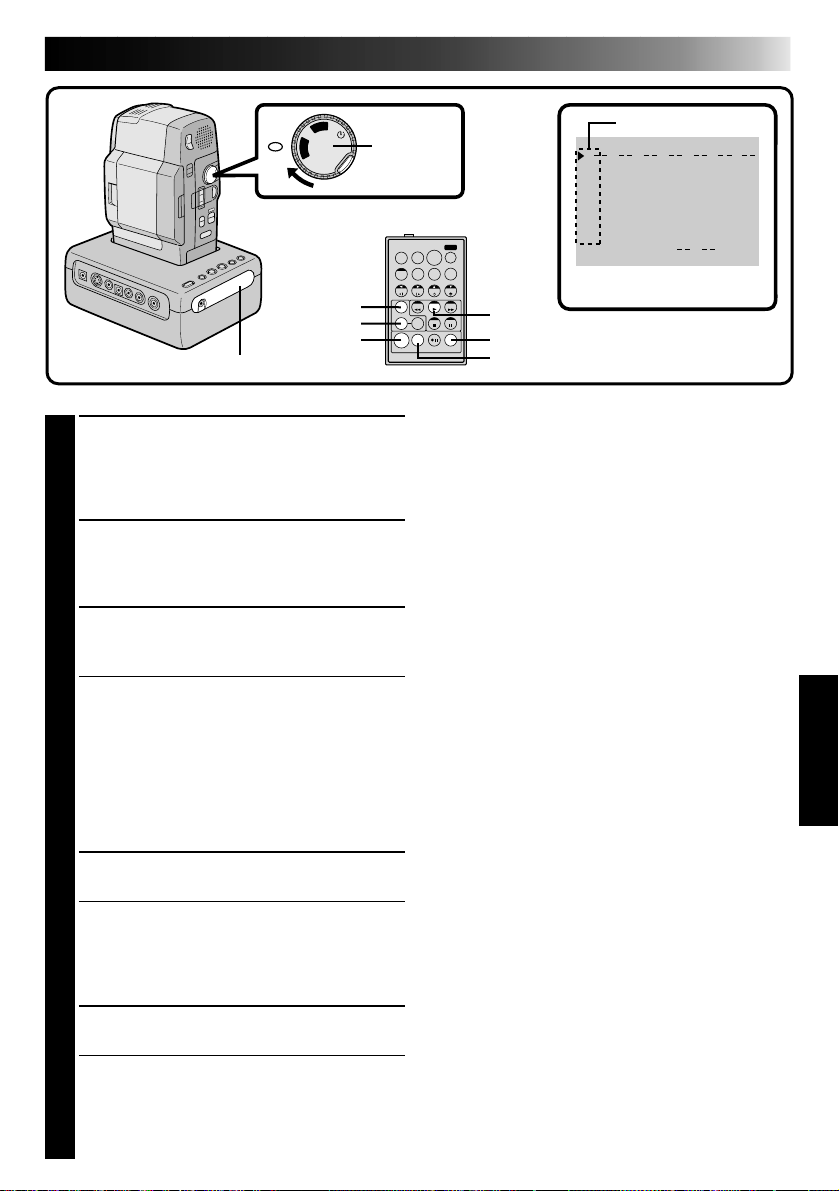

Playback Zoom

The recorded pictures can be magnified up to 10x at any time during playback.

Normal playback

Advanced Features

OFF

Power Dial

Lock button

Press T

Press move image

SELECT OPERATION MODE

First make sure the LCD monitor is open fully. Turn the Power Dial to "PLAY" while pressing down the lock button located on the dial.

FIND THE SCENE OF INTEREST

Press play to start playback.

ACTIVATE ZOOM

Press the zoom buttons (T/W) on the remote control. Make sure the remote control is pointed at the Docking Station’s sensor.

•Pressing T zooms in.

PLAY

Remote sensor

Zoom buttons

SHIFT

Left/Right/Up/Down buttons

STOP

PAUSE

RM-V708U or RM-V710U (provided)

LOCATE PORTION OF MAGNIFIED

SCENE

You can move the image on screen around to find a particular portion of the picture. While holding down SHIFT, press § (Left),

END ZOOM

Press and hold W until magnification returns to normal. Or, press STOP and then press PLAY.

NOTES:

●

Zoom can also be used during slow-motion and normal playback.

●

If the Video Echo effect (Z pg. 57) is selected during playback zoom, playback zoom is canceled.

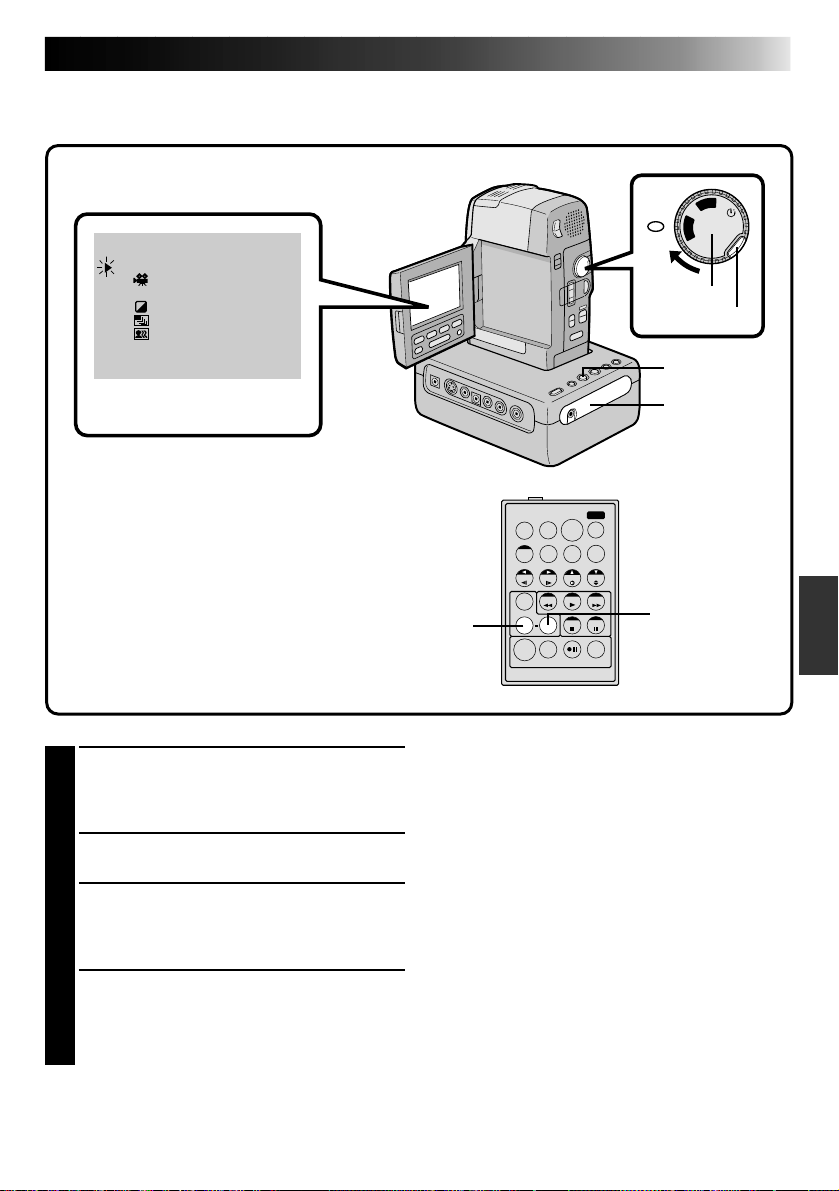

Playback Effects

These effects allow you to be creative with the playback picture. You can use any one of the 5 effects.

 

EFFECT SELECT

  OFF

 

EFFECT Select Menu (Playback)

1 2

B/W 3 4 5

 CLASSIC F ILM MONOTONE SEPIA

 STROBE V I DEO ECHO

OFF

Power Dial

Lock button

PLAY

Remote sensor

RM-V708U or RM-V710U (provided)

SELECT OPERATION MODE

First make sure the LCD monitor is open fully. Turn the Power Dial to "PLAY" while pressing down the lock button located on the dial.

START PLAYBACK

Press PLAY.

ACCESS EFFECT SELECT MENU

Point the remote control at the Docking Station’s sensor and press EFFECT. The EFFECT Select Menu appears on the LCD monitor.

SELECT EFFECT

Place the pointer next to the desired effect by pressing EFFECT. After 2 seconds the menu disappears and the selected function is activated.

EFFECT

EFFECT ON/OFF

NOTE:

To deactivate the selected effect, press EFFECT ON/OFF on the remote control.

The effects that can be used during playback are

Classic Film, Monotone, Sepia, Strobe and Video Echo

. The effects work the same in playback as they did in recording. Refer to page 41 for more information.

EDITING

Docking Station

Refer to “Docking Station Attachment” on page 51 for attachment procedures. Make sure the camcorder is attached to the Docking Station before beginning editing.

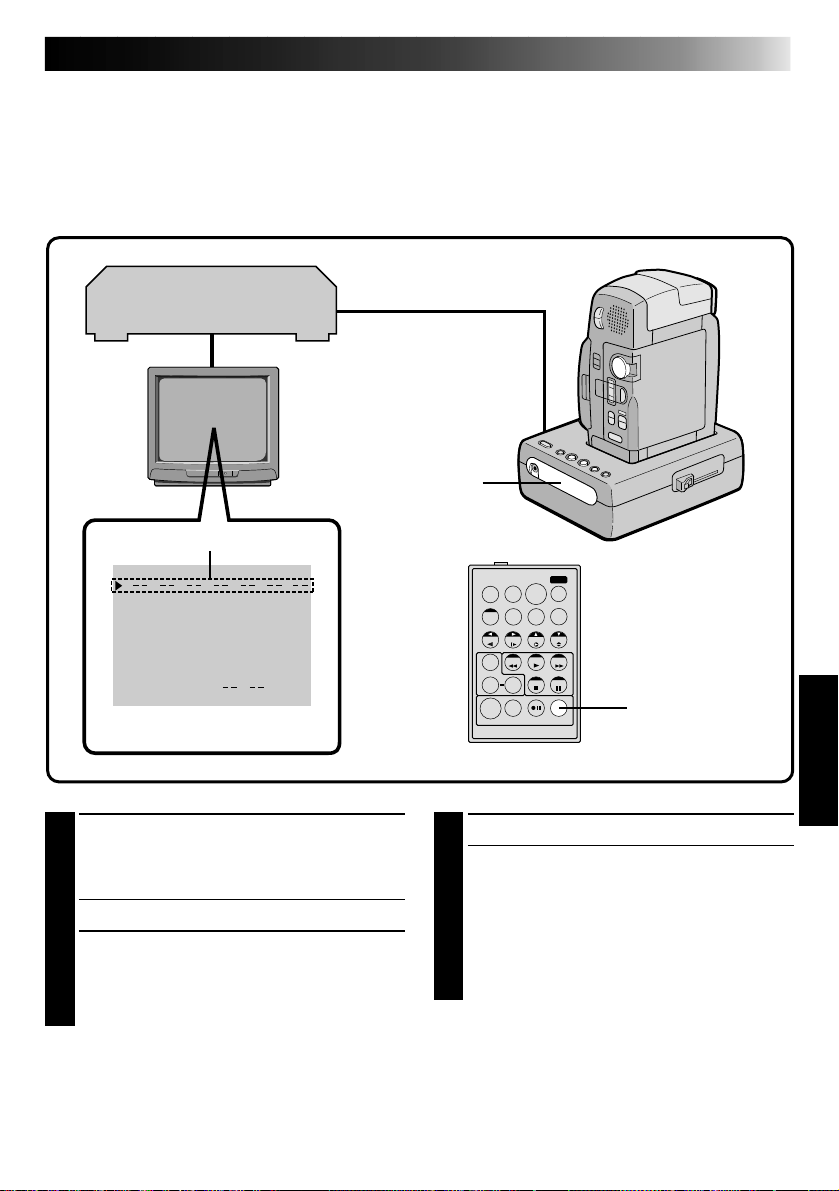

Dubbing

You can copy recorded scenes from the camcorder onto a videotape. Refer to your VCR’s instruction manual for details.

OFF

Power Dial

VCR (Recording deck)

STOPPLAY

MAKE CONNECTIONS

Connect the Docking Station to your VCR as shown in the illustration on page 52.

START PLAYBACK

Press PLAY to play back the source tape.

START RECORDING

While watching on the connected TV, engage your VCR’s record mode from the spot on the source tape you want to begin recording.

PAUSE RECORDING

Engage your VCR’s pause mode to stop recording a segment.

END RECORDING

Press STOP to stop the source tape, and engage the VCR’s stop mode.

NOTES:

●

You can use Playback Zoom (Z pg. 56) or Playback Effects (Z pg. 57) in step 2.

●

Before you start dubbing, make sure that the LCD moitor indications don’t appear on the connected TV. If they do appear during dubbing, they are being recorded onto the new tape. To clear the Playback Sound Mode Display, press DISPLAY on the RM-V708U or RM-V710U Remote Control.

●

Select “DISPLAY” and “TIME CODE” from the Playback Menu (Z pg. 54) to show or hide the Date/Time and the Time Code on the recording.

●

To show or hide all indications, press the IND/ DISPLAY button on the camcorder.

VCR (Recording deck)

SHIFT

1 6

VCR CODE LIST

VCR BRAND NAME

AKAI 6 2

BLAUPUNKT 1 3 FERGUSON 9 7

GRUNDIG 1 4

HITACHI 6 6

JVC A B C

MITSUBISHI

NEC

PANASONIC 1 3

BUTTONS (A) (B)

6 4 7 7

9 8 3 2

3 4

6 3

9 1 9 6 9 3

6 7 6 8

3 7 3 8

1 7 1 1 9 4 1 8

789`

VCR BRAND NAME

PHILIPS 1 9

SANYO 3 6

SELECO, REX 9 1

SHARP

SONY

THOMSON, TELEFUNKEN, SABA, NORDMENDE 

TOSHIBA 6 9

MBR SET

2 4 5

RM-V708U or RM-V710U (provided)

BUTTONS (A) (B)

9 5 1 1 9 4 9 1 9 6 1 2 3 3

3 5

9 6

1 5 1 `

6 5 6 ` 3 9



3 1

9 1 9 6 9 7 3 2

6 1

Brand Setting

Before you can perform Automatic Dubbing, or control the VCR using the RM-V708U or RMV710U remote control, you must set the VCR brand.

SET REMOTE/VCR CODE

SET REMOTE TO OPERATE VCR

Turn off the power to the VCR and point the remote toward the VCR’s infrared sensor. Then, referring to the VCR CODE LIST on the left, press and hold MBR SET, and press button (A) and then (B).

•The code is automatically set once you

release the MBR SET button, and the VCR’s power comes on.

OPERATE THE VCR

Make sure the VCR’s power is on. Then, while holding SHIFT, press the button on the remote for the desired function. The functions the remote can control are PLAY, STOP, PAUSE, FF, REW and VCR REC STBY (you don’t need to press SHIFT for this one).

You’re now ready to try Random Assemble Editing.

IMPORTANT

Although the MBR is compatible with JVC VCRs and those of many other makers, it may not work with yours or may offer limited functions.

NOTES:

●

If the VCR’s power doesn’t come on in step 1, try another code from the chart.

●

Some brands of VCR don’t come on automatically. In this case, turn the power on manually and try step 2.

●

If the RM-V708U or RM-V710U is not able to control the VCR, use the controls on the VCR.

EDITING

(Cont.)

Random Assemble Editing

Using the RM-V708U or RM-V710U remote control, you can use P.AE/Effects and make an original edited tape.

To S-VIDEO output jack

Source tape (Camcorder)

MAKE CONNECTIONS

Connect the Docking Station to your VCR and make sure that the playback picture and sound are available on the connected TV (Z pg. 52).

START SOURCE PLAYBACK

(IF NECESSARY)

First turn the Power Dial to "PLAY". Press PLAY and then press R.A. EDIT ON/OFF on the remote control. Make sure to point the remote control at the Docking Station's sensor.

•The Random Assemble Editing Menu appears on the TV screen.

EXECUTE FADE/WIPE IN

(IF NECESSARY)

Press FADE/WIPE.

•Cycle through the effects by pressing repeatedly, and stop when the one you want is displayed.

•You can’t use a Picture Wipe/Dissolve at the beginning of Program 1, or at the end of the last scene.

To AUDIO input jacks (L/R)

AUDIO and VIDEO cables

To AUDIO output jacks (L/R)

Red

White

Yellow

To VIDEO output jack

S-VIDEO cable

Core filter

To EDIT jack

NOTES:

●

To Operate The VCR With The Remote Control . . .

..... press and hold SHIFT, then press the

Cable adapter (provided

only with U.K. models) Red White Yellow

To VIDEO input jack

To S-VIDEO input jack

VIDEO OUT select switch (Y/C or CVBS)

To remote pause jack

Editing cable

New tape (VCR)

When using a JVC VCR with a remote pause terminal, connect the editing jack on the Docking Station to the VCR’s remote pause terminal using an editing cable. If you use a JVC VCR not equipped with a remote pause terminal or a non-JVC VCR, connect the Docking Station's editing jack to the remote control's remote pause terminal using an editing cable. If the VCR has an S-Video input terminal, connect it using an S-Video cable. If the VCR has only one audio input terminal, connect it using a conversion plug (not provided). When using the provided cable, make sure you connect the end of the cable with the core filter to the Docking Station. For camcorders sold in the U.K., set the VIDEO OUT select switch of Cable adapter as required: either to “CVBS” (with the direct VCR connection) or to “Y/C” (with the RGB converter connection).

appropriate control button.

If your VCR has the 21-pin

AV input connector

(SCART), use the provided

cable adapter.

VCR

(Recording deck)

RM-V708U or RM-V710U

OFF

RM-V708U or RM-V710U (provided)

FADE/WIPE

EFFECT

EDIT IN/OUT

Remote sensor

SET EDIT-IN POINT

At the beginning of the scene, press EDIT IN/ OUT on the remote control. The Edit-In

position appears in the LCD monitor and on the connected TV.

SET EDIT-OUT POINT

At the end of the scene, press EDIT IN/OUT. The Edit-Out position appears in the LCD monitor and on the connected TV.

USE FADE WIPE ON SCENE TRANSI-

TION (IF NECESSARY)

Press FADE/WIPE.

•Cycle through the effects by pressing repeatedly, and stop when the one you want is displayed.

•If you select a Fade/Wipe effect for an Edit-Out point, the effect is automatically applied to the following Edit-In point.

•When you use Fade/Wipe effects, that time is included in the total time (this does not apply to Picture Wipe/Dissolve).

USE P.AE/EFFECT (IF NECESSARY)

Press EFFECT.

•Cycle through the effects by pressing repeatedly, and stop when the one you want is displayed.

•You can use Classic Film, Monotone, Sepia, Strobe or Video Echo effects.

CONTINUE EDITING

Repeat steps 4 – 7.

•To change previously registered points, press CANCEL on the remote control. The registered points disappear, one at a time, from the most recently registered point.

•If you're not using Fade/Wipe or P.AE/Effects, repeat steps 4 and 5 only.

Power Dial

PLAY R.A.EDIT ON/OFF

CANCEL

Program

OUT



: :

1

~

2

~

3

~

4

~

5

~

6

~

7

~

8

~ T I ME CODE  TOTAL 

Random Assemble Editing Menu

00:00

NOTES:

●

Before Random Assemble Editing, make sure the LCD monitor indications don't appear on the TV monitor. If they appear during Random Assemble Editing, they will be recorded onto the new tape. To clear them, set "ON SCREEN" to "OFF" ( When Random Assemble Editing starts, its indications disappear and are not recorded on the new tape.

●

When the source tape has more than 2 identical time codes (

Edit-In point you chose and a malfunction may occur.

●

When choosing a scene, set Edit-In and Edit-Out points so there’s a relatively large difference between them.

●

If the search time for an in-point exceeds 5 minutes, the recording deck's Record-Standby mode will be cancelled and editing will not take place.

●

If there are blank portions before or after the Edit-In and Edit-Out points, a blue-backed screen may be included in the edited version.

●

Since time codes register time only as accurately as seconds, the time code total time may not match the total program time exactly.

●

Turning off the camcorder’s power erases all registered Edit-In and Edit-Out points.

●

If you use Sepia or Monotone P.AE/Effects, you can’t use the Dissolve or Black & White Fader. In this case the Dissolve or Black & White indicator begins blinking. Once the next Edit-In point is registered, the effect is turned off. To combine these effects, use Sepia or Monotone during recording, then use Dissolve or Black & White Fader during Random Assemble Editing.

pg. 21), the camcorder may not find the

CONTINUED ON NEXT PAGE

pg. 43).

EDITING

(Cont.)

FADE/WIPE

EFFECT

EDIT IN/OUT

PREPARE SOURCE TAPE

Rewind the tape in the camcorder to the beginning of the scene you want to edit and press PAUSE.

ENGAGE VCR'S RECORD-PAUSE

MODE

Point the remote control toward the VCR's front panel and press VCR RECORD/ STANDBY, or manually engage the VCR's Record-Pause mode.

START EDITING

Press EDIT on the Docking Station. Editing proceeds as programmed, right through to the end of the last registered scene.

•When dubbing is complete, the camcorder enters the Pause mode, and the recorder enters its Record/Standby mode.

•If you don’t register an Edit-Out point, the tape will be dubbed all the way to the end automatically.

REW

STOP EDIT



1

00: 25 ~ 02 : 05

2

07:18 ~ 08 : 31

3

03: 33 ~ 05 : 53

4

09: 30~13: 15

5

15: 55 ~

6

~

7

~



T I ME CODE TOTAL



R.A.EDIT program screen

RM-V708U or RM-V710U (provided)

R.A. EDIT ON/OFF VCR RECORD/STANDBY

OUT MODE



15: 55 09: 02

B/W

STOP EDITING

Engage the Stop modes for the camcorder and the recorder. To make the R.A. Edit counter display disappear, press R.A. EDIT ON/OFF on the remote control.

NOTES:

●

When the editing cable is connected to the Pause terminal during dubbing, make sure the remote control is pointed at the recorder’s sensor, and that the path between the two is unobstructed.

●

If, during dubbing, you press any button on the camcorder, its Record/Standby mode is automatically engaged.

For More Accurate Editing

Some VCRs make the transition from Record/Standby to Record mode faster than others. Even if you begin editing for the camcorder and the VCR at exactly the same time, you may lose scenes you wanted, or find that you’ve recorded scenes you didn’t want. For a cleanly edited tape, confirm and adjust the timing of the camcorder against your VCR.

Diagnosing VCR’s against Camcorder Timing

VCR (Recording deck)

Remote sensor

Program 1

MODE

: :

OUT

00:00



1

~

2

~

3

~

4

~

5

~

6

~

7

~



T I ME CODE  TOT AL



R.A.EDIT program screen

RM-V708U or RM-V710U (provided)

R.A.EDIT ON/OFF

PREPARE FOR R.A. EDIT

Play back the tape in the camcorder, then point the remote control at the Docking Station’s sensor and press R.A. EDIT ON/OFF.

•”R.A. EDIT” appears on the TV screen.

CHOOSE A SCENE

Perform Random Assemble Editing on Program 1 only. In order to check VCR and camcorder timing, select the beginning of a scene transition as your Edit-In point.

PLAY BACK DUBBED SCENE

•If any images from the scene prior to the transition you chose for your Edit-In point were recorded, that means your VCR moves quickly from Record/Pause to Record mode.

•If the scene you tried to dub starts in progress, the VCR is slow to start recording.

CONTINUED ON NEXT PAGE

Adjustment of VCR‘s against Camcorder Timing

EDITING

(Cont.)

IND/DISPLAY

BRIGHT

VCR (Recording deck)

 

kHz

kHz SY NC HR O DISPLAY T I ME CODE    END

FULL SOUND

MODE

SOUND

MODE

0.0

 ON OFF

ITEM –/+ BUTTON

SET MENU BUTTON

Playback Menu



SELECT OPERATION MODE

Open the LCD monitor. To make the R.A. Edit counter display disappear, press R.A. EDIT ON/OFF on the remote control.

ACCESS PLAYBACK MENU

Press MENU. The Playback Menu appears on the TV screen.

SELECT FUNCTION

Place the pointer next to “SYNCHRO” by pressing the –/+ button, then press MENU. The pointer stops blinking, indicating that the function has been selected.

Power Dial

STOP PLAY



BRIGHT



kHz

kHz SY NC HR O DISPLAY

T I ME CODE    END

FULL SOUND

MODE

SOUND

MODE

–0.1

 ON OFF

ITEM –/+ BUTTON

SET MENU BUTTON



INPUT CORRECTION DATA

Based on the diagnostics performed, (Z pg. 63) you can now increase the VCR’s speed by pressing “+”. You can also slow down the VCR’s speed by pressing “–”. The adjustment range is from –1.3 to +1.3 seconds, in 0.1-second increments.

CLOSE MENU

Press MENU twice.

•Now perform Random Assemble Editing

beginning with step 2 on page 60.

NOTE:

Depending on the recorder, there may be situations where the timing difference cannot be fully corrected.

Audio Dubbing

The audio track can be customized only when recorded on the 32Khz mode (Z pg. 33).

NOTE:

Audio Dubbing is not possible on a tape recorded at 48 kHz, on a tape recorded in the LP mode or on a blank portion of a tape.

Speaker

Audio Dub Standby

EXT. MIC input connector (Located beneath the cover.)

MIC

Remote sensor

Power Dial

RM-V708U or RM-V710U (provided)

DISPLAY AUDIO

MONITOR A.DUB

PLAY

PAUSE STOP

FIND EDIT-IN POINT

Play back the tape to locate the point where editing will start, then press PAUSE.

ENGAGE AUDIO DUB STANDBY

While holding A. DUB on the remote control, press PAUSE. “6e” appears.

BEGIN DUBBING

Press PLAY, then begin “narrating”.

PAUSE DURING DUBBING

Press PAUSE.

STOP DUBBING

Press STOP.

NOTES:

●

Audio dubbing is possible using an optional microphone connected to the EXT. MIC input connector.

●

While an optional microphone is connected, the built-in microphone is disabled.

●

When editing onto a tape that was recorded at 32 kHz, the old and new soundtracks are recorded separately.

●

To select the desired sound for playback, press AUDIO MONITOR on the remote control.

●

If you dub onto a blank space on the tape, the sound may be disrupted. Make sure you only edit recorded areas.

●

If feedback or howling occurs during TV Playback, move the Docking Station so the camcorder’s microphone is away from the TV, or turn down the TV’s volume.

●

Sound is not heard from the speaker during Audio Dubbing. To hear sound, connect optional headphones to the headphones jack.

●

If you change from 32 kHz to 48 kHz in mid-recording and then use the tape for Audio Dubbing, it is not effective from the point where 48 kHz recording began.

●

During Audio Dubbing, when the tape moves to scenes recorded in the LP mode, scenes recorded at 48 kHz or a blank portion, Audio Dubbing stops and "ERROR: REFER MANUAL" appears on the LCD monitor.

RECORDING SOUND DISPLAY OUTPUT SOUND

32 kHz FULL SOUND Original and new tracks are combined and output in stereo.

SOUND 1 Original track is output on both "L" and "R" channels in stereo. SOUND 2 New track is output on both "L" and "R" channels in stereo.

EDITING

(Cont.)

Insert Editing

You can record a new scene into a previously recorded tape, replacing a section of the original recording with minimal picture distortion at the in- and out-points. The original audio remains unchanged.

NOTE:

Insert Editing is not possible on a tape recorded in the LP mode or on a blank portion of a tape.

Power Dial

RM-V708U or RM-V710U (provided)

RECORDING START/STOP

DISPLAY

INSERT PLAY

PAUSE REW(IND)

12:34

Remote sensor

FIND EDIT OUT POINT

Open the LCD monitor and turn the Power Dial to "PLAY" while pressing down the lock button located on the dial. Confirm the time code at this point (Z pg. 55).

FIND EDIT IN POINT

Press REW until the point is located, then press PAUSE.

PREPARE FOR INSERT EDITING

Press and hold INSERT on the remote control, then press PAUSE. “6w” and the Time Code (min.:sec.) appear in the LCD monitor.

START RECORDING

Press RECORDING START/STOP to begin editing.

•Confirm the insert at the time code you

checked in step 1.

PAUSE DURING EDITING

Press RECORDING START/STOP. Press again to resume editing.

STOP EDITING

Press RECORDING START/STOP, then press STOP.

NOTES:

●

When performing Insert Editing, the tape’s Video Area and Sub-Code Area (Z pg. 5) are rewritten, so the date and time information changes.

●

If you perform Insert Editing onto a blank space on the tape, the audio and video may be disrupted. Make sure you only edit recorded areas.

●

During Insert Editing, when the tape moves to scenes recorded in the LP mode or a blank portion, Insert Edting stops and "ERROR: REFER MANUAL" appears on the LCD monitor.

TROUBLESHOOTING

If, after following the steps in the chart below, the problem still exists, please consult your nearest JVC dealer or Technical Service Center.

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

No power is supplied.

Recording cannot be performed.

There is no playback picture.

Some functions are not available.

The focus does not adjust automatically.

The cassette won’t load properly.

Play, Rewind and Fast-Forward functions don’t work.

The tape is moving, but there’s no picture.

In the 5-Second mode, recording ends before 5 seconds have elapsed.

•The power is not connected properly.

•The battery is dead.

•The LCD monitor is not open fully when recording.

•The tape’s record safety tab is set to “SAVE”.

•The Power Dial is set to “PLAY”.

•The cassette's cover is open.

•The camcorder is not getting power, or some other malfunction exists.

•The shooting mode selector is set to “AUTO”.

•The Power Dial is set to “5S”.

•Focus is set to “MANUAL”.

•The recording was done in a dark place, or the contrast was low.

•The lens is dirty or covered with condensation.

•The cassette is in the wrong position.

•The battery’s charge is low.

•The Power Dial is not set to “PLAY”.

•The cassette’s cover is open.

•The LCD monitor is turned off.

•Your TV has AV input terminals, but is not set to its VIDEO mode.

•The 5-Second mode in the System Menu is set to “ANIMATION”.

•Connect the AC Adapter securely (

•Replace the dead battery with a fully charged one (

Z pg. 9).

•Open the LCD monitor fully. The LCD monitor turns on/off when it is opened/closed while the Power Dial is set to “REC”.

•Set the tape’s record safety tab to “REC” (

•Set the Power Dial to “REC” (

•Close the cassette's cover.

•Turn the camcorder’s power off and on again (

•Set the shooting mode selector to "MANUAL" (

Z pg. 18).

•Set the Power Dial to any position except “5S” (Z pg. 28).

•Set Focus to “AUTO” (

Z pg. 46).

•Clean the lens and check the focus again (

•Set it in the right position (

Z pg. 13).

•Install a fully charged battery (Z pg. 8).

•Set the Power Dial to “PLAY” (

•Close the cassette's cover (Z pg. 13).

•Press and hold the IND/ DISPLAY button for over 2 seconds (

•Set the TV to the mode or channel appropriate for video playback (Z pg. 53).

•Select “5S” or “5SD” in the System Menu (

Z pg. 10).

Z pg. 13).

Z pg. 19).

Z pg. 72).

Z pg. 49).

Z pg. 23).

Z pg. 33).

CONTINUED ON NEXT PAGE

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

10.

Even though “GAIN UP” was set to “ shot in dark places are not brightened.

11.

Snapshot mode cannot be used.

12.

Although the SNAPSHOT button is pressed, the white border does not appear.

13.

Digital Zoom doesn’t work.

14.

P.AE/Effects and Fade/ Wipe Effects don’t work.

15.

The Black & White Fader doesn’t work.

16.

The Dissolve function doesn’t work.

17.

Scene transition does not go as expected.

”, scenes

TROUBLESHOOTING

10.

•Depending on the light source, the 1/30 shutter speed may be deactivated in order to reduce the shakiness in the picture.

11.

•P.AE/Effects Sepia, Monotone or Slow (Slow Shutter) are activated.

•The Squeeze mode is selected.

12.

•"PHOTO FRAME" is set to "OFF" in the system menu.

•The Cinema mode is engaged, disabling the white border.

13.

•10X optical zoom is selected.

•The Video Echo effect is activated.

•Picture Wipe or Dissolve are being used in a scene transition.

•5-Second recording was done with the Power Dial set to “5S”, and with “5SD” selected in the System Menu.

•Snapshot Dissolve was attempted during Digital Zoom.

14.

•The shooting mode selector is set to “AUTO”.

•The Power Dial is set to “5S”.

15.

•The Sepia or Monotone effects are activated.

16.

•P.AE/Effects Sepia, Monotone or Slow are activated.

•The Squeeze mode is selected.

17.

•When using "Picture Wipe/ Dissolve" ( "Dissolves during 5 second mode recording" (

28), there is a delay of a fraction of a second between the previous record stop-point and the Dissolve start-point. This is normal, but this slight delay becomes especially noticeable when shooting fast-moving subject or during rapid panning.

Z pg. 36) or

Z pg.

10.

————

11.

• Disengage them (Z pg. 40).

•Disengage the Squeeze mode (

Z pg. 31).

12.

•Set "PHOTO FRAME" to "ON" in the system menu (

Z pg. 32).

•Disengage the Cinema mode (Z pg. 31).

13.

•Turn off the Video Echo effect (

Z pg. 41).

•Wait until the Picture Wipe or Dissolve effects are completed (

•Change the setting of either the System Menu or the Power Dial (

•Do not attempt to take a Snapshot when performing Digital Zoom (

14.

•Set the shooting mode selector to “MANUAL” (

Z pg. 18).

•Change the setting of the Power Dial.

15.

•Turn off Sepia and Monotone (Z pg. 40).

16.

•Turn off Sepia and Monotone before adding Dissolve to a scene transition (

•Make sure that the Squeeze mode in the Recording Menu is set to “OFF” (Z pg. 31).

17.

————

Z pg. 36).

Z pg. 32).

Z pg. 26).

Z pg. 40).

(Cont.)

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

18.

The Picture Wipe and Dissolve functions don’t work.

19.

The Picture Wipe function doesn’t work.

20.

Even when Slow (Slow Shutter) isn't selected, the image looks like it is activated.

21.

The Video Echo effect doesn’t work.

•The last selected editing scene is ending.

•At the end of the last selected scene for editing, the Power Dial was set to “OFF”.

•The power is off.

•The previously selected P.AE/Effect was changed after the last selected scene for editing was registered.

•The P.AE/Effects in the Recording Menu were exchanged after the last selected scene for editing was registered.

19.

•The Slow (Slow Shutter) effect is activated.

•The Squeeze or Cinema mode is selected in the Recording Menu.

20.

•When shooting in the dark with GAIN UP set to unit becomes highly sensitive to light and the image takes on an effect similar to Slow (Slow Shutter).

21.

•The Picture Wipe or Dissolve functions are in use.

•The Squeeze mode is selected in the Recording Menu.

•Snapshot Dissolve is in progress.

•A Fade-In or Fade-Out is in progress (White Fader, Black Fader or Black & White Fader).

, the

18.

•Select Picture Wipe or Dissolve before beginning recording. The effects are then automatically activated (

•Do not turn off the camcorder’s power after setting Edit-In and Edit-Out points, as they will all be erased (

•The camcorder automatically shuts off after 5 minutes have elapsed in the Record/ Standby mode. Make sure you continue operations within 5 minutes after engaging Record/Standby mode (

Z pg. 19).

•Make sure you have selected the P.AE/Effects you want before starting editing (

•Exchanging P.AE/Effects may deactivate the effect(s) you selected. Once you’ve selected an effect, do not perform an exchange before beginning editing. If you do, make sure you don’t replace the effect(s) you selected (Z pg. 40).

19.

•Make sure the Squeeze mode, Cinema mode, or Slow effect is not activated when preparing to use the Picture Wipe function (Z pgs. 31, 41).

20.

•If you want the lighting to look more natural, set GAIN UP to "AGC" or "OFF" in the Recording Menu (

21.

•Make sure the Squeeze mode is set to “OFF” (

Z pg. 31).

•Do not try to use the Video Echo effect during a Fade-In or Fade-Out (

Z pg. 35).

Z pg. 36).

Z pg. 40).

Z pg. 31).

CONTINUED ON NEXT PAGE

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

22.

There is no strobe when the Classic Film and Strobe effects are activated.

23.

White Balance cannot be activated.

24.

When shooting a subject illuminated by bright light, vertical lines appear.

25.

There are disturbances in audio and video.

26.

During recording, the date/time does not appear.

27.

The indicators do not appear on the LCD monitor.

28.

Images on the LCD monitor appear dark or whitish.

29.

The rear of the LCD monitor is hot.

TROUBLESHOOTING

22.

•The Picture Wipe or Dissolve functions are in use.

•Snapshot Dissolve is in progress.

23.

•The Sepia or Monotone effects are activated.

•Snapshot Dissolve is in progress.

24.

•This is a result of exceedingly high contrast, and is not a malfunction.

25.

•If Audio Dubbing or Insert Editing have been performed repeatedly on the same portion of the tape, disturbance to the sound and picture may result.

26.

•"DISPLAY" is set to "OFF" in the Date/Time Menu.

•Interface shooting is performed.

•The clock's lithium battery is not loaded, or its power is low.

27.

•You have made the indicators on the LCD monitor disappear.

28.

•In places subject to low temperature, images become dark due to the characteristics of the LCD monitor. When this happens, the displayed colours differ from those that are actually recorded. This is not a defect of the camcorder.

•When the LCD monitor's fluorescent light reaches the end of its service life, images on the LCD monitor become dark. Consult your nearest JVC dealer or Technical Service Center.

29.

•The light used to illuminate the LCD monitor causes it to become hot.

22.

•Do not try to use the Classic Film or Strobe effects during a scene transition (

23.

•Turn off Sepia or Monotone before setting White Balance (

•Wait until the Snapshot Dissolve is finished before setting White Balance (Z pg. 26).

24.

————

25.

•Use a new, or infrequently used, tape for Audio Dubbing and Insert Editing (

Z pgs. 65, 66).

26.

•Set "DISPLAY" to "ON" in the Date/Time Menu (

Zpg. 12).

•During interface shooting, the date/time does not appear (

•Confirm if the clock's lithium battery is loaded and if it has enough power (Z pg. 11).

27.

•Press the IND/DISPLAY button to make the indicators appear on the LCD monitor (Z pg. 23).

28.

•Adjust the brightness and angle of the LCD monitor (

Z pg. 23).

29.

•Close the LCD monitor to turn it off or set the Power Dial to "OFF", and let the unit cool down (

Z pg. 41).

Z pg. 24).

Z pg. 19).

(Cont.)

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

30.

The indicators and the image colour on the LCD monitor are not clear.

31.

Images on the LCD monitor are jittery.

32.

The LCD monitor and the lens have become dirty (ex. fingerprints).

33.

The LCD monitor indications blink.

34.

Coloured bright spots appear all over the LCD monitor.

35.

The LCD monitor indications are distorted.

36.

An unusual mark appears in the LCD monitor.

37.

An error indication (E01 — E07) appears in the LCD monitor.

38.

The charge indicator on the AC Power Adapter/ Charger does not light.

39.

The recording mode

indicator "LP" blinks on the LCD monitor.

•This may occur when the surface or the edge of the LCD monitor is pressed.

31.

•The speaker volume is too great.

32.

————

33.

•Certain FADE/WIPE, P.AE/ Effects and other functions that cannot be used together are selected at the same time.

34.

•The LCD monitor is made with high-precision technology. However, black spots or bright spots of light (red, green or blue) may appear constantly on the LCD monitor. These spots are not recorded on the tape. This is not due to any defect of the unit. (Effective dots: more than 99.99 %)

35.

•During playback of the unrecorded portion, Highspeed Search and still playback, LCD monitor indications appear distorted. This is not a defect.

36.

————

37.

•A malfunction of some kind has occurred. In this case the camcorder’s functions become unusable.

38.

•The temperature of the battery is extremely high/ low.

•Charging is difficult in places subject to extremely high/low temperatures.

39.

•This occurs when recording in the LP mode is not available. After the indicator blinks, the recording mode switches to "SP" and recording goes on.

30.

————

31.

•Turn the speaker volume down (Z pg. 73).

32.

•Wipe them gently with soft cloth. Wiping strongly can cause damage.

33.

•Re-read the sections covering FADE/WIPE and P.AE/Effects (

Z pgs. 34 – 42).

34.

————

35.

36.

•Check the section of the manual that explains LCD monitor indications (Z pgs. 74, 75).

37.

•Remove the tape or the battery pack, and wait a few minutes for the indication to clear. When it does, you can resume using the camcorder. If the indication remains, please consult your nearest JVC dealer or Technical Service Center.

38.

•To protect the battery, it is recommended to charge it in places with a temperature of 10°C to 30°C (

Z pg. 9).

39.

————

Cleaning The Camcorder

PUSH-OPEN

AFTER USE

LCD monitor

Lens cover

Battery pack

CLEAN EXTERIOR

Wipe gently with a soft cloth.

REMOVE LENS COVER

Z pg. 14.

CLEAN LENS

Blow it with a blower brush, then wipe gently with lens cleaning paper.

RE-ATTACH LENS COVER

Do not forcefully re-attach the lens cover as this may damage it.

REMOVE POWER SUPPLY

Remove the battery pack or disconnect the AC Power Adapter/Charger.

OPEN LCD MONITOR

Press the PUSH-OPEN switch to open the LCD monitor fully.

CLEAN LCD MONITOR

With soft cloth, gently wipe the LCD monitor in a semicircular pattern. Avoid using too much pressure as this will smear the monitor screen, making it much more difficult to clean.

CLOSE LCD MONITOR

CONTROLS, INDICATIONS AND CONNECTORS

Main Unit

9 0

1 Stereo microphone

Take care not to cover the sensor with your hand while shooting.

2 White Balance Sensor

Take care not to cover the sensor with your hand while shooting.

3 Lens cover ......................................... Z pg. 14

When using an optional conversion lens or lens filter (commercially available), you must first detach the lens cover.

4 Lens 5 Tally lamp (record indicator)

Lights during recording.

Jacks

6 to 0 are located beneath the covers.

6 Headphones jack

7 AUDIO output jack ........................... Z pg. 50

8 VIDEO output jack ............................ Z pg. 50

9 Ext. Mic input jack ............................ Z pg. 65

An optional microphone can be connected for use with shooting or audio dubbing. When an external microphone is used, the built-in microphone automatically shuts off.

0 DC input jack .................................... Z pg. 10

! LCD monitor PUSH-OPEN switch...... Z pg. 19

@ VOLUME buttons .............................. Z pg. 49

Adjusts the speaker volume.

# Speaker .............................................. Z pg. 26

$ OPEN/EJECT switch .......................... Z pg. 13

IND/DISPLAY

BRIGHT

@ # $

(

)

opQ

% Power lamp ....................................... Z pg. 19

^ Power Dial ........................................ Z pg. 19

& RECORDING START/STOP

* Zoom switch ...................................... Z pg. 25

( Shooting mode selector ......................Z pg. 18

) SP-LP recording mode button ............ Z pg. 14

q SNAPSHOT button ............................ Z pg. 26

w Battery cover open switch ..................Z pg. 9

e Battery cover ..................................... Z pg. 9

r Multi connector

t Stop button ........................................ Z pg. 49

y Play/Pause button ............................. Z pg. 49

u P.AE/Effect button.............................. Z pg. 34

i Exposure button ................................ Z pg. 47

o MENU button .................................... Z pg. 12

p –/+ button ......................................... Z pg. 12

Q IND/DISPLAY button ........................ Z pg. 23

W Hand strap eyelet .............................. Z pg. 14

E Tripod mounting socket ...................... Z pg. 16

W E

button ................................................

Located inside the cover. Connect to the Docking Station’s multi connector. To avoid malfunction, do not touch this connector or force the cover open.

Focus button......................................

Rewind button ...................................

Fast-Forward button ..........................

Z pg. 19

Z pg. 46

Z pg. 49

CONTROLS, INDICATIONS AND CONNECTORS

(Cont.)

12 34

r e

) (

MANUAL


PAUSE

TAPE!

5 SD

SOUND

MODE

32kHz

LCD Monitor Indications During Recording

No. NAME & FUNCTION

1 Shooting mode selector position and

setting indications (

Displays shooting mode selector position. When selecting functions, each name ("FOCUS", "EFFECT", "EXP.", etc.) is displayed.

2 Snapshot indicator (Z pg. 26) 3 Wide mode (Z pg. 31) 4 Record-Standby indicator (Z pg. 19) 5 Digital image stabilizer indicator

6 Recording mode indicator (Z pg. 14)

Casette mark appears when no tape is loaded or, when you try to record with the record safety tab set to “SAVE”.

7 Tape Remaining indicator (Z pg. 22)

When the LCD monitor indications are turned off or during interface shooting, the tape remaining indicator will not appear. However, when the remaining time reaches 2 minutes, time;

–

8 Recording indicator (Z pg. 19) 9 “Tape Running” indicator (Z pg. 19) 0 Wind cut indicator (Z pg. 33)

appears indicating remaining

– – –

(2 min.)

(0 min.)

– –

Z pg. 18)

(Z pg. 31)

(1 min.)

5 6Y7

30minSP

REC

9 T

R I

25. 12. 97 10:35

EXP.FOCUS PRO.

@$^

No. NAME & FUNCTION

! Date/Time display (Z pg. 12) @ Exposure setting indication (Z pg. 47) # Fade/Wipe effects &

$ Scene indicator (Z pg. 28) % Sound mode display (Z pg. 33) ^ Focus setting indication (Z pg. 46) & Self-Timer indicator (Z pg. 29) * Manual focus indicators (Z pg. 46) ( White balance indicator (Z pg. 45) ) Exposure control indicator (Z pg. 47) q Iris lock indicator (Z pg. 48) w Zoom level indicator (Z pg. 25) e P.AE/Effect indicator (Z pg. 40) r FADE/WIPE indicator (Z pg. 34)

P.AE/Effects indication (Z pg. 34, 40)

tUR

32kHz / SOUND1 SP

00:00:00

LCD Monitor Indications During Playback

No. NAME & FUNCTION

t Playback sound mode display (Z pg. 55) y “Tape Running” indicator

Cassette mark appears when no tape is loaded or a tape reaches its end.

u Audio Dubbing/Insert Editing mode

indicator (Z pg. 65, 66)

i Date/Time Display (Z pg. 55) o Fast-Forward indication (Z pg. 49)

p Rewind indication (Z pg. 49) Q Time Code Display (Z pg. 55) W Play/Pause indication (Z pg. 49)

“STILL” is displayed during playback.

E Stop indication (Z pg. 49)

Warning Indications

No. NAME & FUNCTION

R “Battery Low” indicator

Changes as follows according to the remaining power level: When the battery power is coming to an end, the battery indicator ( LCD monitor. After indication blinks, power turns off automatically. Replace the battery pack with a fully charged one.

) blinks in the

TAPE!

6we

25. 12. 9 7 10:35 

FFSTOP STILL REW

No. NAME & FUNCTION

T Head clog warning

At the start of recording, appears and blinks if dirt is detected on heads. Stop recording and clean the heads using the Cleaning

Cassette. (Z pg. 78)

Y Condensation warning

When this indicator appears, all functions are disabled. Turn the unit off for a few hours, and when you turn it on again the indicator should disappear.

U Clock Battery warning

Appears when the clock (lithium) battery is not in place or exhausted. For inserting or replacing the clock battery, refer to page 11.

I “No Tape Loaded” indicator

Appears for 10 seconds after power is turned on if there's no tape loaded.

— “Tape End” indicator (Z pg. 22) — An error number (E01, etc.)

appears (Z pg. 71)

Consult your nearest JVC dealer.

— "ERROR: REFER MANUAL" indicator

Appears when Audio Dubbing or Insert Editing is impossible.

oQW

(

Z pg. 65, 66)

CONTROLS, INDICATIONS AND CONNECTORS

JLIP Video Capture Docking Station

(Cont.)

1 Fast-Forward (FF) button

2 Rewind (REW) button........................ Z pg. 62

3 STOP button ...................................... Z pg. 58

4 PLAY button ...................................... Z pg. 56

5 PAUSE button

6 EDIT button....................................... Z pg. 62

7 Multi connector

Connect to the camcorder’s multi connector. To avoid malfunction, do not touch this connector.

8 RELEASE button ................................. Z pg. 51

9 Lock lever .......................................... Z pg. 51

0 DIGITAL jack

•Connect to COM port (RS-232C).

! JLIP jack (joint Level Interface Protocol)

•It is used to connect the camcorder to a device such as a personal computer.

For further detail consult your nearest JVC dealer. Information (in English) is also available at our home page: http://www.jvc-victor.co.jp/

@ DC input jack .................................... Z pg. 51

Use of the JLIP Video Capture Docking Station enables you to capture video images from video sources such as camcorders and VCRs. Also refer to the JLIP Video Capture Docking Station's instruction manual.

$* (

#S-Video output jack ........................... Z pg. 52

Outputs S-Video signal.

$ Video output jack .............................. Z pg. 52

% DC output jack

For dealer use.

^ Audio output jack [L] ........................ Z pg. 52

& Audio output jack [R] ........................ Z pg. 52

* CAPTURE INPUT (EXT.)/PRINTER connector

•Connects to the optional video printer's video output connector. This allows you to watch the image from the video printer on the LCD monitor without connecting to a television (

Z pg. 49).

• When the VIDEO cable is connected to this connector, the date and time code are not displayed on the LCD monitor. To print out a scene with its date, connect the video printer's video output connector to a TV and operate the video printer using a TV monitor.

( EDIT jack ........................................... Z pg. 60

) Remote control sensor ....................... Z pg. 56

CAUTIONS

Battery Packs

The supplied battery pack is a lithium-ion battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:

1. To avoid hazard . . .

.... do not burn.

.... do not short-circuit the terminals.

.... do not modify or disassemble.

.... do not expose the battery to temperatures

exceeding 60°C, as this may cause the battery to overheat, explode or catch fire.

.... use only specified chargers.

2. To prevent damage and prolong service life . . .

.... do not subject to unnecessary shock.

.... charge in an environment where tempera-

tures are within the tolerances shown in the chart below. This is a chemical reaction type battery—cooler temperatures impede chemical reaction, while warmer temperatures can prevent complete charging.

.... store in a cool, dry place. Extended exposure

to high temperatures will increase natural

discharge and shorten service life.

.... avoid prolonged uncharged storage.

.... remove from charger or powered unit when

not in use, as some machines use current

even when switched off.

3. To prevent damage to the camcorder . . .

.... replace the battery pack when it begins to

deliver less recording time per charge.

NOTE:

It is normal for the battery pack to be warm after charging, or after use.

Temperature Range Specifications

Charging ................................... 10°C to 35°C

Operation ................................. 10°C to 40°C

Storage...................................... –10°C to 30°C

NOTES:

●

Recharging time is based on room temperature of 20°C.

●

The lower the temperature, the longer recharging takes.

Terminals

Cassettes

To properly use and store your cassettes, be sure to read the following cautions:

1. During use . . .

.... make sure the cassette bears the Mini DV

mark.

.... be aware that recording onto prerecorded

tapes automatically erases the previously recorded video and audio signals.

.... make sure the cassette is positioned properly

when inserting.

.... do not load and unload the cassette

repeatedly without allowing the tape to run at all. This slackens the tape and can result in damage.

.... do not open the front tape cover. This

exposes the tape to fingerprints and dust.

2. Store cassettes . . .

.... away from heaters or other heat sources.

.... out of direct sunlight.

.... where they won’t be subject to unnecessary

shock or vibration.

.... where they won’t be exposed to strong

magnetic fields (such as those generated by motors, transformers or magnets).

.... vertically, in their original cases.

Main Unit

1. For safety, DO NOT . . .

.... open the camcorder’s chassis.

.... disassemble or modify the unit.

.... short-circuit the terminals of the battery pack.

Keep it away from metallic objects when not in use.

.... allow inflammables, water or metallic objects

to enter the unit.

.... remove the battery pack or disconnect the

power supply while the power is on.

.... leave the battery pack attached when the

camcorder is not in use.

2. Avoid using the unit . . .

.... in places subject to excessive humidity or

dust.

.... in places subject to soot or steam such as

near a cooking stove.

.... in places subject to excessive shock or

vibration.

.... near a television set.

.... near appliances generating strong magnetic

or electric fields (speakers, broadcasting

antennas, etc.).

.... in places subject to extremely high (over

40°C or 104°F) or extremely low (under 0°C

or 32°F) temperatures.

CONTINUED ON NEXT PAGE

3. DO NOT leave the unit . . .

.... in places of over 50°C (122°F).

.... in places where humidity is extremely low

(below 35%) or extremely high (above 80%).

.... in direct sunlight.

.... in a closed car in summer.

.... near a heater.

4. To protect the unit, DO NOT . . .

.... allow it to become wet.

.... drop the unit or strike it against hard objects.

.... subject it to shock or excessive vibration

during transportation.

.... keep the lens directed at extremely bright

objects for long periods.

.... expose the lens to direct sunlight.

.... carry it by holding the LCD monitor.

.... swing it excessively when using the hand

strap.

.... swing the soft camera case excessively when

the camcorder is inside it.

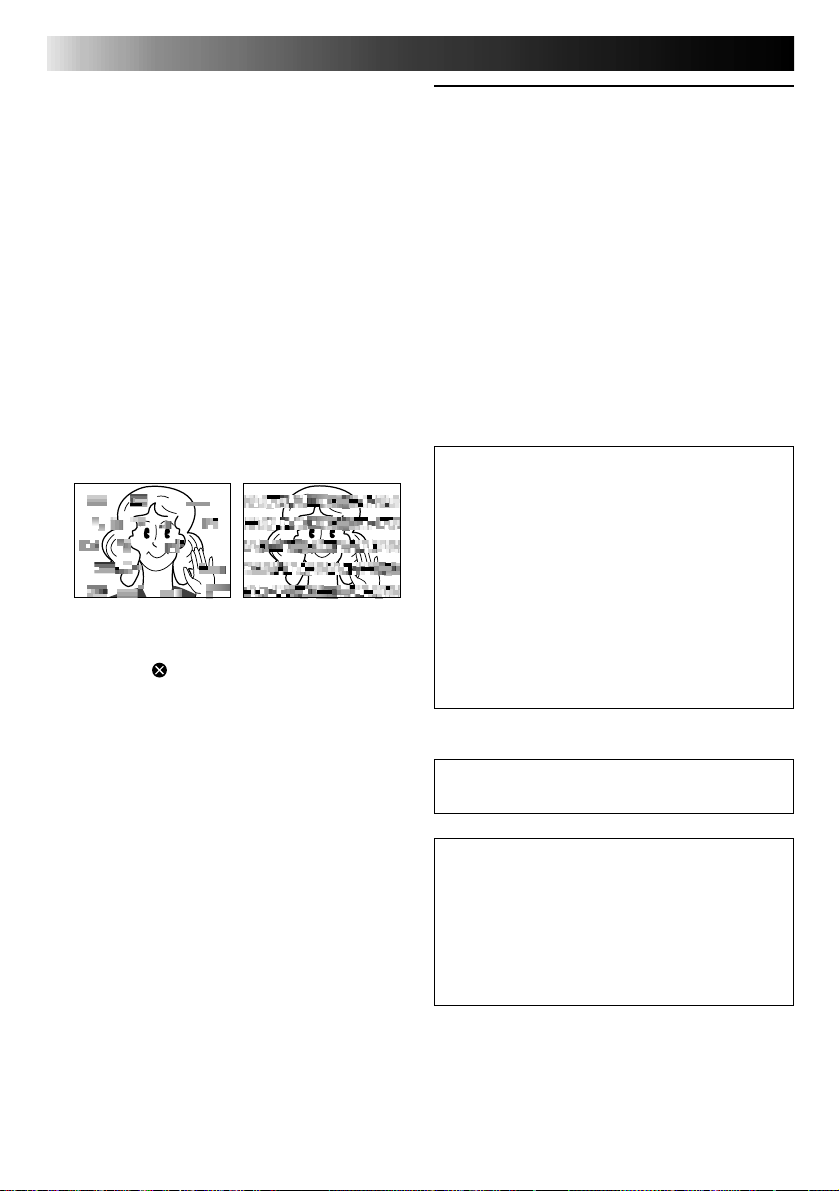

5. Dirty heads can cause the folowing problems:

•No picture during playback.

•Blocks of noise appear during playback.

•During recording, the Head Clog Warning indicator “

In such cases, use the optional Cleaning Cassette. Insert it and play back. If the cassette is used more than once consecutively, damage to the video heads may result. After the camcorder plays back for about 20 seconds, it stops automatically. Also refer to the Cleaning Cassette’s instructions. If, after using the Cleaning Cassette, the problems still exist, consult your nearest JVC dealer.

” appears in the LCD moitor.

CAUTIONS

(Cont.)

LCD monitor

1. To prevent damage to the LCD monitor, DO NOT . . .

.... push it strongly or apply any shocks.

.... place the camcorder with the LCD monitor

on the bottom.

2. To prolong service life . . .

.... avoid rubbing it with coarse cloth.

3. Make be aware of the following phenomena for LCD monitor use.

These are not mulfunctions. . . .

•While using the camcorder, the surface around the

LCD monitor and/or the back of the LCD monitor may heat up.

•If you leave power on for a long time, the surface

around the LCD monitor becomes hot.

About moisture condensation . . .

● You have observed that pouring a cold liquid into a glass will cause drops of water to form on the glass‘ outer surface. This same phenomenon occurs on the head drum of a camcorder when it is moved from a cool place to a warm place, after heating a cold room, under extremely humid conditions or in a place directly subjected to the cool air from an air conditioner.

● Moisture on the head drum can cause severe damage to the video tape, and can lead to internal damage to the camcorder itself.

Serious malfunctioning

If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer.

The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.) and clock battery; and then re-connect it and proceed as usual from the beginning.

SPECIFICATIONS

MAIN UNIT

General

Power : DC 6.3 V (using AC Adapter) DC 7.2 V (using Battery) Power consumption : 8.6 W Format : DV Format (SD mode) Signal format : PAL Standard Video signal recording format : Digital Component Recording Data compression rate : 25 Mbps Digital compression technology : DCT (Discrete Cosine Transform) & VLC (Variable

Cassette : MINI DV Cassette Tape Speed : SP: 18.8 mm/sec.

Maximum recording time : SP: 60 min.

Continuous recoring time : Approx. 60 min. (using fully charged BN-V812U

Fast-Forward/Rewind Time : Approx. 100 sec. (using DVM-60 cassette) Pickup : 1/3" CCD (single) 670,000 pixels

Zoom : 10x Optical Zoom 20x/100x Digital Zoom Lens diameter : F1.6, f = 4.5`45 mm (Filter Diameter) ø27 mm LCD monitor : 2.5", 180,000 pixel polysilicon TFT/LCD panel Minimum required illumination : 14 lx, 7 lx (during 1/30 sec. slow shutter) White balance : Automatic/manual Iris : Automatic/lock Microphone : Condensor type/stereo Operating temperature : 0 — 40°C Operating humidity : 35 — 80% Storage temperature : –20 — 50°C Dimensions : 59 (W) x 156 (H) x 94 (D) mm Weight : Main unit approx. 620 g

During recording Approx. 730 g (With BN-V812U Battery Pack,

Audio

Sampling frequencies : 48 kHz, 32 kHz Channels : 2 (48 kHz)

Quantum Bits : 16 linear (48 kHz)

Speaker : Monaural

Connectors

Microphone input connector : ø3.5 mm, –62 dBs stereo AUDIO output connector : ø3.5 mm, (–8 dBs, 1 k¸) analog output VIDEO output connector : ø3.5 mm, (1 Vp-p, 75 ¸) analog output Headphone connector : ø3.5 mm, stereo DC input connector : 6.3 V Multi connector : 34-pin

Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change without notice.

Length Coding)

LP: 12.5 mm/sec.

LP: 90 min. (using DVM-60 cassette)

Battery Pack)

(recording area approx. 330,000 pixels)

Cassette M-DV30ME, Hand Strap)

4 (32 kHz)

12 non-linear (32 kHz)

SPECIFICATIONS

BATTERY PACK

Power : 7.2 V/1,250mAh Dimensions : 38 mm (W) x 20 mm (H) x 70 mm (D) Weight : Approx. 88 g

REMOTE CONTROL UNIT

Power : DC 3 V (Lithium Battery CR2025) Battery Life : Approx. 1 year (depending on usage) Effective distance : Approx. 5 m (front shaft) Operating temperature : 0°C — 40°C Storage temperature : –20°C — 50°C Dimensions : 54 mm (W) x 86 mm (H) x 12 mm (D) Weight : Approx. 26 g (with battery installed)

AC ADAPTER/CHARGER

Power : AC 110–240 V, 50/60 Hz Power consumption : 20 W Output power : DC 7.2 V, 1.2 A (charge)

: DC 6.3 V, 1.8 A (VTR)

Operating temperature : 0°C — 40°C (when charging, 10°C — 35°C) Dimensions : 94 mm (W) x 36 mm (H) x 122 mm (D) Weight : Approx. 380 g (AA-V80EK)

Approx. 330 g (AA-V80EA)

JLIP VIDEO CAPTURE DOCKING STATION

Connectors

S-Video : Output Y : 1.0 Vp-p, 75 ohms (S2 output) C: 0.3 Vp-p, 75 ohms Video : Input 1.0 Vp-p, 75 ohms (pin jack)

(CAPTURE INPUT (EXT.)/PRINTER connector)

: Output 1.0 Vp-p, 75 ohms (pin jack)

(VIDEO output connector)

Audio : Output -8 dB, 1 kiloohm (pin jack) JLIP (x 2) : 3.5 mm dia., 4-pole, mini-head jack

(compatible with EIAJ RC-5325 plug)

Digital : Mini DIN 8-pin Multi-connector : 34-pin Editing connector : 3.5 mm dia., 2-pole

DC output : 5 V DC Captured image sizes : 768 x 552 dots, 80 x 60 dots Operating temperatures : 5 to 30° C External dimensions : 113W x 61H x 145D mm Weight : Approx. 395 g Power supply : 6.3 V DC

(Cont.)

GLOSSARY OF TERMS

Iris

Works like the pupil of the human eye. In a well-lighted environment, the human pupil contracts to keep too much light from entering. In low lighting, the pupil dilates to allow more light in.

Colour temperature

A measurement in Kelvin degrees which indicates the colour contents of a light source; bluish light has a higher colour temperature than reddish light. To reproduce white as white under different types of lighting, the chrominance signal must be adjusted to match the light source’s colour temperature. (See “White Balance”.)

AC Adapter

Used when charging the battery. Or, when connected directly to the camcorder, it can be used as a power supply.

Auto focus

Focus can be set for automatic adjustment, for beginners who find the adjustment difficult.

On-screen display

Displays in the viewfinder can be shown on a connected TV.

Strobe

In the early days of movie making, 1-second strobes were uncommon, so movies didn’t have the smooth movement they have today. This function gives movies the old-film flicker effect.

Record/Standby

Engage this mode by pressing START/STOP during Stop or Record modes. It means that the camcorder, or your VCR, is paused and ready to record.

CCD (Charge coupled device)

Solid-state imaging device used in camcorders as the camera’s image pickup; analogous to the eye’s retina except that picture information is output as electric signals.

Dew sensor

If condensation forms inside the unit due to a temperature change, the indicator appears in the viewfinder, and the camcorder becomes unusable.

Digital zoom

10x Optical zoom image is taken and digitally processed to provide 20x or 100x magnified images.

Digital Image Stabilizer

When shooting while holding the camcorder in your hand, even if you think you’re perfectly still, there is slight movement. This function compensates for that movement.

Fade

An effect used in scene transitions. Like movies or TV, the scene gradually goes black or white (fade out), or comes in from a black or white screen (fade in).

White balance

A term that refers to the correctness of colour reproduction under various lighting. If the white balance is correct, all other colours will be accurately reproduced.

Wipe

An effect used in scene transitions. A scene disappears as though it’s being wiped off the screen (wipe out), or appears as though it’s wiped on (wipe in).

Animation ............................................... Z pg. 33

Audio Dubbing ....................................... Z pg. 65

Auto Focus ............................................. Z pg. 46

Auto Shut off ........................................... Z pg. 27

Battery .................................................... Z pg. 8

Battery Low ............................................ Z pg. 75

Beep/Tally............................................... Z pg. 33

Charging ................................................. Z pg. 8

Cleaning The Camcorder ........................ Z pg. 72

Connections ............................ Z pgs. 10, 50 – 53

Date/Time Display .................................. Z pg. 12

Date/Time Settings .................................. Z pg. 12

Digital Image Stabilizer .......................... Z pg. 31

Digital Zoom .......................................... Z pg. 25

Docking Station ...................................... Z pg. 51

Dubbing ................................................. Z pg. 58

Editing .................................................... Z pg. 58

Exposure Control .................................... Z pg. 47

5SD ........................................................ Z pg. 28

5-Second Mode ...................................... Z pg. 28

Fade-In/Out ............................................ Z pg. 35

Focus Adjustment ................................... Z pg. 46

Insert Editing ........................................... Z pg. 66

Iris .......................................................... Z pg. 48

Iris Lock .................................................. Z pg. 48

LCD monitor indications ................. Z pgs. 74, 75

Lithium-Ion Battery ................................. Z pg. 4

Loading A Tape ....................................... Z pg. 13

Motor Drive Mode .................................. Z pg. 26

INDEX

On-Screen Menus ............................ Z pgs. 30, 32

P.AE/Effects ............................................. Z pg. 40

Photo Frame ........................................... Z pg. 33

Play Back on TV .......... Z pgs. 50, 52 – 54, 56, 57

Play Back Zoom ..................................... Z pg. 56

Power (AC/Battery) ............................ Z pgs. 9, 10

Random Assemble Editing ....................... Z pg. 60

Record Safety Tab ................................... Z pg. 13

Record/Standby ...................................... Z pg. 19

Recording Format ................................... Z pg. 5

Remote Control ...................................... Z pg. 17

Self-Timer ............................................... Z pg. 29

Set VCR Brand ........................................ Z pg. 59

Shutter/Slow shutter ................................ Z pg. 41

Slow Motion Playback ............................ Z pg. 53

Snapshot Mode ....................................... Z pg. 26

Snapshot Search ..................................... Z pg. 27

Sound ..................................................... Z pg. 33

Squeeze .................................................. Z pg. 31

Still Play Back ......................................... Z pg. 49

Strobe ..................................................... Z pg. 41

Tapes ...................................................... Z pg. 13

Time Code .........................................Z pgs. 5, 21

White Balance ........................................ Z pg. 44

Wide....................................................... Z pg. 31

Wipe In/Out............................................ Z pg. 35

VICTOR COMPANY OF JAPAN, LIMITED

GR-DVM1



EK/EA

Printed in Japan 0397MKV*UN*VP

JVC LYT0002-0A1A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
