JVC LT-32DS6, LT-26DS60, LT-32DS60, LT-37DS60SJ, LT-26DS6 User Manual

LT-37DS6BJ LT-32DS6BJ LT-32DS6SJ LT-26DS6BJ LT-26DS6SJ

WIDE LCD PANEL TV INSTRUCTIONS

Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996) Number : 3476, 3477, 3478, 3479, 3480

LCT1847-001B-U

Expanding the world of

2

beautiful images

Contents

Enjoy rich multi-media with JVC

VHF / UHF / DVB-T broadcasting

Digital camera

Video camera

Game console

Personal

Audio components

VCR DVD player

DVD recorder

computer

*In this manual,

ATV : analogue terrestrial broadcasting (VHF/UHF) DTV : digital terrestrial broadcasting (DVB-T)

First things ﬁ rst!

Warning 4

Getting started

Names of all the parts Basic connections Connecting external devices Initial settings Editing DTV channels Editing ATV channels

6

8 10 12 14 16

Let's try it out

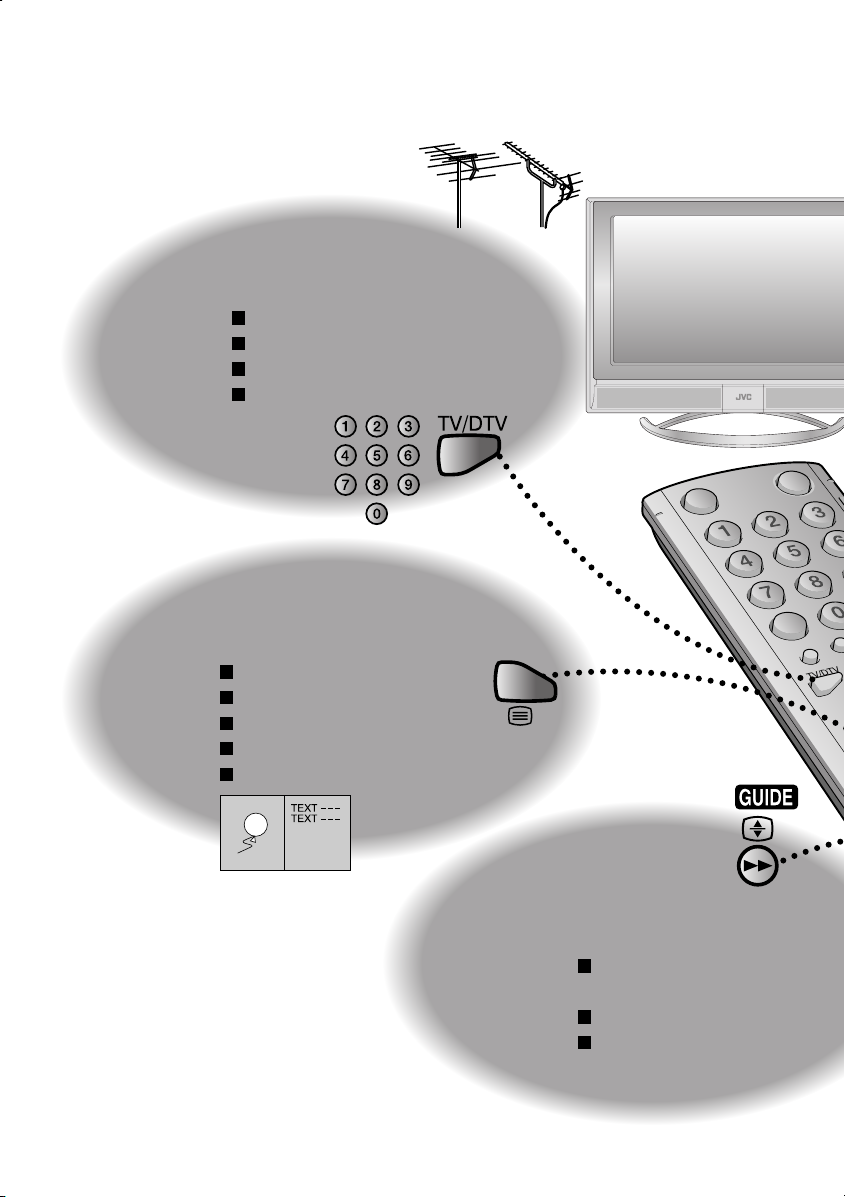

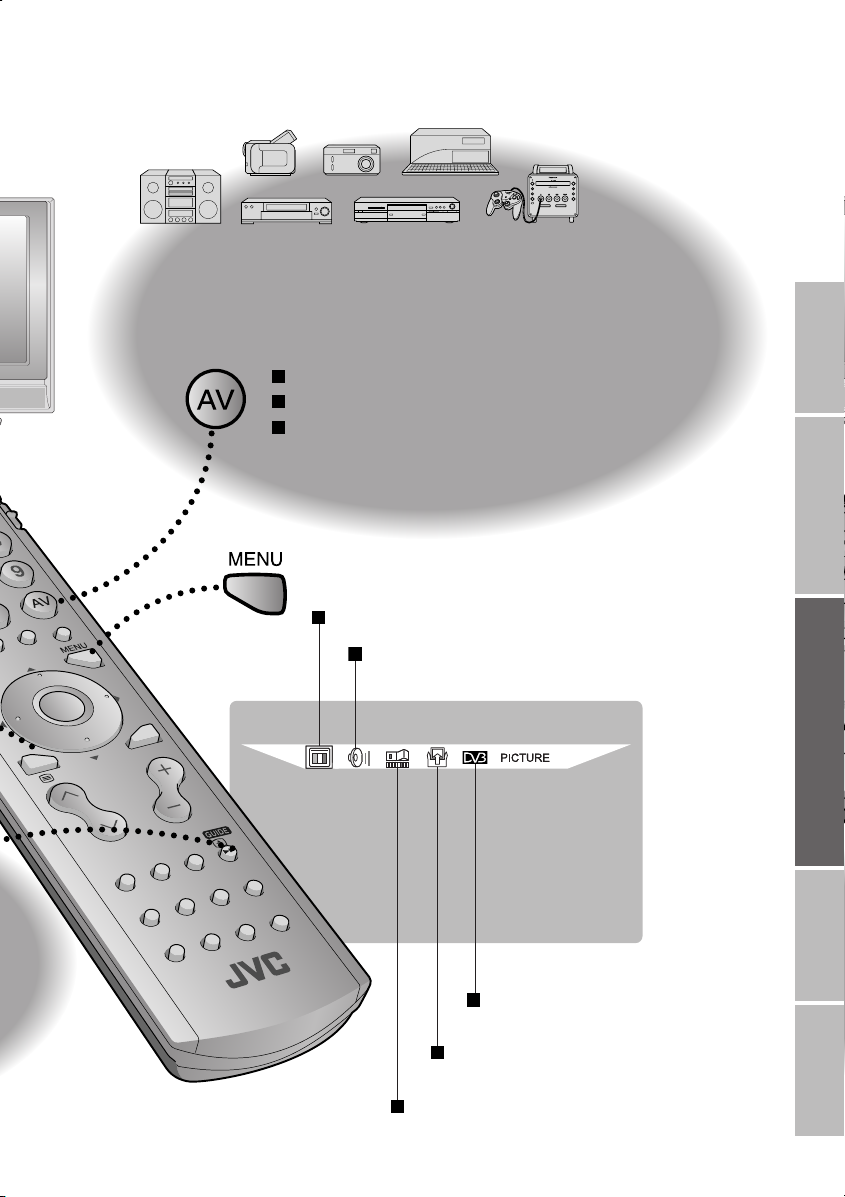

Enjoying your new TV! 18

· TV / Teletext / EPG / Video / Menu

Watching TV Using EPG Viewing teletext Watching videos / DVDs

20 22 24 26

Try the advanced features

Useful functions 28

· Multi-picture / Favourite channel

· Sleep timer / Child lock

Just the way you like it

Customising your TV Using DTV Advanced picture adjustment

·

Reduce noise / Watch a more natural picture

· Set the aspect ratio, etc.

32 34 40

When you have trouble

Troubleshooting CH/CC List Technical information Speciﬁ cations

42 45 46 47

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

3

Warning

Please follow all the guidelines below

Never cut or damage the power cord!

If the AC plug is not the right shape, or the power cord is not long enough, use an appropriate plug adapter or extension cable. (Consult your retailer.)

Never try to repair the TV yourself!

If the problem cannot be solved in "Troubleshooting" (P. 42), unplug the power cord and contact your retailer.

If you have cut or damaged the power cord.

"Technical information" (P. 46)

To change the fuse in UK plugs

"Technical information" (P. 46)

Follow this manual regarding setup!

Connect only to a 110-240V, 50/60Hz AC

outlet.

Never place anything on the TV!

Placing liquids, naked ﬂ ames, cloths, paper, etc. on the TV may cause a ﬁ re.

4

Unplug the power cord when going out!

The power buttons on the remote control and the TV unit can not completely turn off the TV. (Make appropriate arrangements for bedridden people.)

For more details on installation, usage and safety

Never insert objects into the cabinet openings!

It may cause a fatal electric shock. Take care when children are near.

Consult your retailer

Never expose to rain or moisture!

To prevent ﬁ re or electric shock, never allow liquids to enter the unit.

If the TV is damaged or behaving strangely, stop using it at once!

Unplug the power cord and contact your retailer.

Do not allow the TV to fall!

Do not rest your elbows on, or allow children

to hang from the TV. There is a risk that the TV will fall and cause injuries.

Hold the TV so as not to scratch the screen!

Do not touch the screen when carrying the

TV.

Do not carry the TV on your own!

In order to prevent accidents,

ensure that the TV is carried by two or more people.

When attaching the TV to the wall, use the optional JVC wall mounting unit!

IMPORTANT! PREPARE USE

Never dismantle the rear panel!

It may cause an electric shock.

Never obstruct the ventilation holes!

It may cause overheating or a ﬁ re.

Handle LCD panel with care!

Use a soft, dry cloth when cleaning.

Consult a qualiﬁ ed technician. See the included manual on mounting

procedures.

JVC assumes no responsibility for damage

due to improper mounting.

Never listen to headphones at high volume!

It may damage your hearing.

SETTINGS

TROUBLE?

5

Names of all the parts

Remote control

sensor

Power lamp

ON: Lit (Green) OFF: Unlit

LT-32DS6BJ/SJ, LT-26DS6BJ/SJ LT-37DS6BJ

Press to remove.

TV/AV

MENU

/OK

P

Illumination lamp

Illumination lamp lights while the TV is on.

“ILLUMINATION” (P.33)

Remove the terminal covers

Press to remove.

Switch between TV / AV devices

Display on-screen menu / set

Change channel / page

Volume

Power On/Off

To headphones

(P. 10)

Press to remove.

6

If the cover cannot be closed due to the cables being in the way

Do not force the cover to close (leave it open).

Connecting terminals on the back of the TV Connecting External devices (P. 10)

Change the direction of TV

Check accessories

Remote control

(RM-C1813H)

AA/R6 Batteries

For conﬁ rming the TV works

Mute

Power On/Off

Switch between VCR/TV/DVD

(P. 26)

Channel information

(P. 20)

To ATV/DTV

The coloured buttons can perform different functions according to the situation.

When viewing teletext

Follow on-screen instructions.

Other uses

> COUNTRY

OK

When watching TV/Video

Change the aspect ratio (P. 20)

Turn on 3D sound (P. 20)

Take a snapshot of the screen (P. 20)

View in multi-picture mode (P. 28)

(P. 24)

START

Follow instructions in on-screen guides.

Change the channel/page

Watch video, etc.

To menu

(P. 32)

(P. 26)

Select and conﬁ rm settings in menus

To the previous channel To teletext

(P. 24)

Volume

Change the channel/page

When watching DTV

View subtitles (P. 20)

View the electronic programme guide (EPG)(P. 22)

When watching ATV

when viewing teletext (P. 24)

(P. 16)

IMPORTANT! PREPARE USE

SETTINGS

Insert the batteries

Use two AA/R6 dry cell batteries. Insert the batteries from the - end, making

and polarities are correct.

sure the

When choosing a favourite

(P. 29)

channel

When operating a JVC VCR

(P. 26)

or DVD

TROUBLE?

7

Basic connections

Please read the user manuals of each device carefully before setup. It is necessary to connect an aerial to watch TV.

Connect with other devices

"Connecting external devices" (P. 10)

Connect the aerial

Right side of back surface

AERIAL

8

After all the connections have been made, insert the plug into an AC outlet.

Care when setting

Power requirements

Connect the power cord only to a 110-240V, 50/60Hz AC outlet.

When attaching the TV to the wall, use the optional JVC wall mounting unit

Consult a qualiﬁ ed technician. See the included manual on mounting procedures. JVC assumes no responsibility for damage due to improper mounting.

Installation requirements

To avoid overheating, ensure the unit has ample room.

200mm

50mm150mm 150mm 50mm

Connect a VCR / DVD recorder

AERIAL

Left side of back surface

VCR / DVD recorder

After all the connections have been made, insert the plug into an AC outlet. Connect T-V LINK compatible recording device to EXT-2. T-V LINK "What is T-V LINK?" (P. 12)

EXT-1

EXT-2

Right side of back surface

IMPORTANT! PREPARE USE

Watch pay-per-view

Contract with a broadcasting company beforehand.

Unplug the power cord

Insert the Viewing Card into the CAM.

Insert the CAM.

Plug the power cord, and turn the power on.

Set pay-per-view (P. 38)

The CAM and Viewing Card will be sent by the broadcasting company after contracting with them.

Conditional Access Module

Viewing Card

SETTINGS

TROUBLE?

9

Connecting external devices

You can connect many different devices to the rear panel of the TV. Please read the user manuals of each device before setting up. (Connecting cables are not supplied with this TV.)

PC

To EXT-3 R/L (PC IN)

Check for PC compatibility

"Technical information" (P. 46)

PC IN

Satellite broadcast tuner

EXT-1

VCR / DVD recorder

(T-V LINK compatible)

EXT-2

(T-V LINK)

10

Game consoles

Video camera

DVD player

Ampliﬁ er

(L) (R)

Headphones

(R)

(Pr)

(R)

(L)

(Y)

(Pb)

(L)

EXT-3

EXT-4

AUDIO

OUT

VCR / DVD / other devices

: signal direction

AERIAL

EXT-5

(HDMI)

DVD player

(HDMI compatible)

Connect DVI devices

(P. 46)

T-V LINK

EXT-1

Output

· Composite signal

· Sound L / R

Use S-VIDEO "S-IN" (P. 27)

EXT-2

Output

· Composite signal

· S-VIDEO (only for DTV)

· Sound L / R

· T-V LINK

Use S-VIDEO "S-IN" (P. 27) Use DTV S-OUT "S-OUT" (P. 27) Select dubbing sources

"DUBBING" (P. 27)

Connect a decoder

"DECODER (EXT-2)" (P. 33)

EXT-3

Output

EXT-4

Output

Component auto select (P. 33)

EXT-5

Output

(P. 12)

Watching videos

Input

·

Composite signal /

RGB / S-VIDEO

· Sound L / R

Dubbing videos Using T-V LINK

Input

·

Composite signal /

RGB / S-VIDEO

· Sound L / R

Watching videos

Input

· Composite signal / S-VIDEO

· Sound L / R

Watching DVDs

Input

·

Component signal

(P. 47)

· Sound L / R

Connecting HDMI devices

Input

· HDMI signal (P. 47)

IMPORTANT! PREPARE USE

SETTINGS

Not available.

(For service adjustments)

CAM slot

(“Watch pay-per-view” P.8)

HDMI setting (P. 33)

AUDIO OUT

Listening to the TV on external speakers

Output

· Sound L / R

TROUBLE?

11

Initial settings

Register DTV/ATV channels on TV. These channels can be edited later. (In this manual, digital broadcasting is indicated as DTV, and analogue broadcasting as ATV.)

(Set to "TV".)

To the previous screen

12

Exit

If the "JVC" logo does not appear or if you wish to make changes later

DTV : "Automatic Seach" (P. 38) ATV : "AUTO PROGRAM"(P. 33)

TV/DTV

What is "T-V LINK"?

Connecting the TV to a T-V LINK compatible device allows :

ATV Channels on the TV to be instantly registered on the device. The "DIRECT REC" function to be used.

"Technical information" (P. 46)

T-V LINK variations

“T-V LINK” (JVC) “Q-LINK” (Panasonic) “Megalogic” (Grundig) “Data Logic” (Metz) “SMARTLINK” (Sony) “Easy Link” (Philips)

MENU

BACK

>EDIT

01

AV

PR

02 03 04 05 06 07 08 09

ID CH

BBC1 CH

21

BBC2 CH

22

ITV CH

23

CH4 CH

24

CH5 CH

25

CH

26

CH

27

CH

28

1

Begin

Shown only when powering on for the ﬁ rst time. The power button on the remote control can also be used.

IMPORTANT! PREPARE USE

2

3

4

5

Automatically register DTV channels

Installation > Automatic Search

Channels: BBC ONE

BBC TWO BBC THREE BBC NEWS 24 BBCi CBBC Channel

UHF CH:68

100%

Check what was registered

1 BBC ONE

Select Delete Edit Name Lock Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Edit DTV channels Conﬁ rm

in "Editing DTV

channels" (P. 14)

Automatically register ATV channels

> COUNTRY

select

(blue)

Check what was registered

Edit ATV channels

in "Editing ATV

channels" (P. 16)

>> AUTO PROGRAM

CH 28

14%

If "ACI START" appears, select and start settings. (This will set up cable television channels.)

"What is ACI (Automatic Channel Installation)?" (P. 46)

Conﬁ rm

SETTINGS

6

Finish

T-V LINK

DOWNLOAD TV RECORDING DEVICE

If "FEATURE NOT AVAILABLE" appears :

Is a T-V LINK compatible

device connected to EXT-2?

Is the device turned on?

When not using T-V LINKWhen using T-V LINK

TROUBLE?

13

Editing DTV channels

Edit the channels registered with "Automatic search" in "Initial settings" (P. 12).

To the previous screen

When coming from "Initial settings" (P. 12), skip to .

Select DTV

1

Display the menu bar

2

3

4

5

Select "DTV"

Select "Edit PR List"

DTV

Timers

Configuration

Edit PR List

Installation

Common Interface

Select a channel

1 BBC ONE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

select

Conﬁ rm the channel picture

Select

Delete a channel

Delete

Edit a channel name

Edit Name

14

Exit

Tips for operation

Red: Page up Green: Pagedown

MENU

TV/DTV: Go to DTV

OK

Guide: Go to guide Back: Go to previous

i: Exit help

6

7

Select Delete Edit Name Lock Favourites

Edit

Finish

Stop Children from watching speciﬁ c channels

Lock

Register your favourite channel

Favourites

Select "Select"

1 BBC ONE

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

EDIT PR LIST

select

7 BBC THREE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

DeleteSelect

Edit Name Lock Favourites

Select "Delete"

1 BBC ONE

Select Edit Name Lock Favourites

1 BBC ONE

Select Delete Lock Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Delete

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Edit Name

Decide

1 BBC ONE

BBC 3CH

Select Delete Edit Name Lock Favourites

1 BBC ONE

Select Delete Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Edit Name Lock

view

Select "Yes"

1 BBC ONE

select

Change the nameSelect "Edit Name"

1 BBC ONE

select

BBC

1 BBC ONE

Select Delete Lock Favourites

Enter PIN codeSelect "Lock"

1 BBC ONE

select

DeleteSelect

Edit Name Lock Favourites

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

The selected service will be permanently

51. BBCi

deleted. Are you sure?

Edit Name

Enter PIN code

NoYes

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC 3CH

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCil

"Change the PIN code" (P. 37)

1 BBC ONE

select

delete

Select Edit Name Lock Favourites

enter character

move position

1 BBC ONE

To release, repeat the same steps.

Delete

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Lock icon

IMPORTANT! PREPARE USE

SETTINGS

Select "Favourites"

1 BBC ONE

Select Delete Lock

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Edit Name Favourites

select

1 BBC ONE

set

To release, repeat the same steps.

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Favourite icon

Move through only your favourite channels

"Favourite Mode" (P. 37)

TROUBLE?

15

>EDIT

01

AV

PR

02 03 04 05 06 07 08 09

ID CH

BBC1 CH

21

BBC2 CH

22

ITV CH

23

CH4 CH

24

CH5 CH

25

CH

26

CH

27

CH

28

Editing ATV channels

Edit the channels registered with "AUTO PROGRAM" in "Initial settings" (P. 12).

When coming from "Initial settings" (P. 12), skip to .

Select ATV

1

Display the menu bar

2

Move a channel's position

MOVE

To the previous screen

Exit

3

4

5

6 7

8

Select "SET UP"

Select "EDIT/MANUAL"

SET UP

AUTO PROGRAM

EDIT/MANUAL

DECODER(EXT-2) COMPONENT AUTO SELECT EXT SETTING HDMI SETTING ATTENUATOR

OFF ON

OFF

Select a row

Edit

Conﬁ rm settings

Finish

T-V LINK

DOWNLOAD TV RECORDING DEVICE

select

When using T-V LINK

select

ID

Insert a channel

INSERT

Delete a channel

DELETE

16

If "FEATURE NOT AVAILABLE" appears :

Is a T-V LINK compatible device connected to EXT-2?

Is the device turned on?

T-V LINK (P. 12)

When not using T-V LINK

Register a new channel

MANUAL

Begin Select a destination Finish

>EDIT

ID CH

PR AV

BBC1 CH

01

BBC2 CH

02 03

CH4 CH

04

CH5 CH

05 06 07

move out move in

08 09

CH CH CH

21 22

24 25

26 27 28

ITV CH

23

select

>EDIT

PR AV

01 02 03 04

05

06 07 08 09

ID CH

BBC1 CH BBC2 CH CH4 CH CH5 CH

ITV CH

21 22 24 25

23

CH

26

CH

27

CH

28

IMPORTANT! PREPARE USE

Begin Enter a channel name

>EDIT

ID CH

PR

(red) (blue)

AV

01 02 03 04 05 06

07

08 09

BBC1 CH BBC2 CH ITV CH CH4 CH CH5 CH

A

21 22 23 24 25

CH

26

CH

27

CH

28

enter the ﬁ rst character

When selecting a preset name from the ID LIST

When manually naming a channel

Begin Enter a CH number

>EDIT

ID CH

PR AV

BBC1 CH

(green)

01

BBC2 CH

02

ITV CH

03

CH4 CH

04

CH5 CH

05 06

07

08 09

CH/CC List (P. 45) In Ireland, slect CH/CC with .

CH

CH CH

21 22 23 24 25

30

27 28

Set

Receives the broadcast signal.

Delete

(yellow)

>EDIT

PR AV

01

02 03 04 05 06 07

ID CH

BBC2 CH

ITV CH CH4 CH CH5 CH

22

23 24 25

CH

26

CH

27

next column

>EDIT

PR AV

01 02 03 04 05 06 07 08 09

>EDIT

ID CH

BBC1 CH BBC2 CH ITV CH CH4 CH CH5

M

ID CH

PR AV

BBC1 CH

01

BBC2 CH

02

ITV CH

03

CH4 CH

04

CH5 CH

05 06

07

JVC

08 09

ID LIST

M6

MBC

21

MCM

22

MDR

23

MOVIE

24

MTV

CH

25

MTV3

CH

26

CH

27

CH

28

21 22 23 24 25

CH

26

CH

27

CH

28

select

set

enter

set

SETTINGS

Begin

(blue)

Set

Search for a channel

>MANUAL

ID CH

PR

>EDIT

10 11 12 13 14 15 16 17

ID

PR

10

11

12 13 14 15 16 17

29

CH

30

CH

29

CH

35

From high frequencies

(red) (green)

or

From low frequencies

>MANUAL

PR

10 11 12 13 14 15 16 17

Auto-search begins, and the nearest frequency is imported.

Repeat the previous steps until the

desired channel is displayed

Picture ﬁ ne tuning

CH

ID

29

CH

35

(yellow) (blue)

/

TROUBLE?

17

Enjoying your new TV!

Watching TV

PAGE

20

PAGE

24

View channel information Change the aspect ratio Enjoy 3D sound Take snapshots of the screen

Viewing teletext

Enlarge the text To the index page Hold the current page Switch brieﬂ y between teletext and TV Bookmark your favourite pages

18

TV and Text tmode

PAGE

22

Using EPG

View the programme list for 8 days Search from a genre Reserve a programme to watch / record

PAGE

Watching

IMPORTANT! PREPARE USE

26

videos / DVDs

Watch high quality video (S-VIDEO) Name connected devices Dub videos

Personal preferences

Adjust the picture

Adjust the sound

PAGE

32

SETTINGS

Use DTV

(

timer-record / conﬁ guration / channel settings, etc.

Basic settings

(channel settings, etc.)

Advanced settings

(sleep-timer / child lock, etc.)

)

TROUBLE?

19

Watching TV

Power on

1

2

3

The green power lamp on the TV lights.

Press again to turn the screen off and put the TV into standby mode.

Select ATV/DTV

DTV : Digital broadcasting ATV : Analogue broadcasting

Select a channel

Channel information and clock

INFORMATION

Move up or down a channel

up

down

With DTV, you can select only from your favourite channels (P. 37)

Mute

Switch between stereo/mono/ bilingual broadcasting

"STEREO/ · " ( P. 32)

Note

To completely turn off the TV, unplug the AC plug. Watch pay-per-view (P. 38) Add a new station (P. 38)

Volume

To the previous channel

Basic operations using the side buttons

1

2

Power on

Volume

Change

P

the channel

TV/AV

MENU

/OK

P

View subtitles

SUBTITLE

(DTV)

Change the aspect ratio

ZOOM

Enjoy ambient sound

3D SOUND

Take snapshots of the screen

FREEZE

20

When DTV is selected

Name of station

ITV News

41

Now: 13:00-14:00 Steve Scott

13:19

Next: 14:00-14:30 Steve Scott

Time

Channel

When ATV is selected

PR LIST

PR ID

AV

BBC1

01

02 03 04 05 06 07

Select a page

Select and view a channel

Reception level

CH61

PR LIST

Channels registered in "Initial settings" will appear here.

Current programme

Following programme

select

BBC1

12 : 00

(No indication)

select

view

Channel information

Time

(in case of having viewed teletext)

IMPORTANT! PREPARE USE

Subtitle ON

Today's news!

ZOOM

AUTO

REGULAR

PANORAMIC 14:9 ZOOM 16:9 ZOOM 16:9 ZOOM SUBTITLE FULL

3D SOUND HIGH

Cancel

Press again, or change the channel

Shown only when subtitles exist To avoid subtitle recording, turn the subtitles off before recording.

select

16 : 9 ZOOM

set

Move the picture with

or while this bar

is displayed

HIGH

: For stereo sound

LOW

: For stereo sound (when the sound distorts in HIGH mode)

MONO

: For mono sound (emulates a stereo-like sound)

OFF

: Turns off 3D SOUND

Turn off subtitles

When set to AUTO, the aspect ratio will turn to the ratio obtained from the information the TV received. Without receiving aspect information, it will be the setting in "4:3 AUTO ASPECT" (P. 40). Not available in PC mode or 1080i (1125i)/720p (750p) signals.

Current programme

Not available when viewing DTV or PC. Not available when the SUB-PICTURE is displayed. You cannot save or export the snapshot.

Still picture

SETTINGS

TROUBLE?

21

(

Using EPG

Electronic Programme Guide

You can ﬁ nd a programme from an eight-day programme guide, check its information, and make a reservation.

Select DTV

1

)

Display EPG

2

Find a programme

3

Close EPG

Search from a genre

While EPG is displayed...

Display the Genre List

(green)

Electronic Programme Guide 05:27 20/10/2004

GENRE

20/10

2. BBC TWO

21/10

7. BBC THREE

22/10

30. CBBC Channel

23/10

40. BBC NEWS 24

24/10

51. BBCi

25/10

89. BBC R Scotland

26/10

90. BBC R n Gaidheal

27/10

800. 16:9monoscope

select

04:00-6:00

Secondary Schools, How industrialisation changed the day-to-day lives of the British people.

Select a date

History: Britain 1750-1900

Select a channel

GENRE

20/10

2. BBC TWO

21/10

7. BBC THREE

22/10

30. CBBC Channel

23/10

40. BBC NEWS 24

24/10

51. BBCi

25/10

89. BBC R Scotland

26/10

90. BBC R n Gaidheal

27/10

800. 16:9monoscope

04:00-6:00

History: Britain 1750-1900

Secondary Schools, How industrialisation changed the day-to-day lives of the British people.

Genre

All

News Sports Movies Drama Entertainment Lifestyle Kids Education

All

04:00-

History: Britain 1750-1900

06:00-

Big Cook Little Cook

06:20-

Tots TV

06:30-

Bobinogs

06:45-

Wide Eye

07:00-

Snailsbury Tales

07:15-

Arthur

07:30-

I Love Mummy

EPG

All

04:00-

History: Britain 1750-1900

06:00-

Big Cook Little Cook

06:20-

Tots TV

06:30-

Bobinogs

06:45-

Wide Eye

07:00-

Snailsbury Tales

07:15-

Arthur

07:30-

I Love Mummy

Select a programme

You can check programme content.

Select a genre

select

set

22

Electronic Programme Guide 05:43 20/10/2004

GENRE

20/10

1. BBC ONE

21/10

2. BBC TWO

22/10

7. BBC THREE

23/10

40. CBBC Chennel

24/10

40. BBC NEWS 24

25/10

51. BBCi

26/10

89. BBC R Scotland

27/10

90. BBC R n Gaidheal

03:25-6:00

BBC ONE joins the BBC's rolling news channel for a night of news, with bulletins on the hour and the headlines every 15 minutes.

BBC News 24

Movies

00:15-

Last Embrace

Find a programme

Only programmes in the selected genre are displayed.

select

Reservations

After

Reserve a programme to watch

Programme-

view setting

After

·Set the recording device to external input mode before the start time.

·For T-V LINK incompatible devices, manually set the timer on the device.

·Make sure that recording times on the recording device do not overlap with

·When Rec Timer has been set, the power lamp on the TV will :

·Some T-V LINK compatible DVD recorders may not work correctly.

Reserve a programme to record

Programme-

record setting

Electronic Programme Guide 06:06 20/10/2004

All

GENRE

20/10

2. BBC TWO

06:0021/10 22/10 23/10 24/10 25/10 26/10 27/10

04:00-6:00

Secondary Schools, How industrialisation changed the day-to-day lives of the British people.

Cancel the reservation

(red)

REC TIMER 06:02 20/10/2004

No. Name Start End Date Mode 1 BBC ONE 00:00 00:00 01/01/2004 Inactive 2 BBC ONE 00:00 00:00 01/01/2004 Inactive 3 BBC ONE 00:00 00:00 01/01/2004 Inactive 4 BBC ONE 00:00 00:00 01/01/2004 Inactive 5 BBC ONE 00:00 00:00 01/01/2004 Inactive 6 BBC ONE 00:00 00:00 01/01/2004 Inactive 7 BBC ONE 00:00 00:00 01/01/2004 Inactive 8 BBC ONE 00:00 00:00 01/01/2004 Inactive 9 BBC ONE 00:00 00:00 01/01/2004 Inactive 10 BBC ONE 00:00 00:00 01/01/2004 Inactive

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

89. BBC R Scotland

90. BBC R n Gaidheal

800. 16:9monoscope

Name BBC TWO Start End Date Mode

Big Cook Little Cook

06:20-

Tots TV

06:30-

Bobinogs

06:45-

Wide Eye

07:00-

Snailsbury Tales

07:15-

Arthur

07:30-

I Love Mummy

07:55-

Newsround

History: Britain 1750-1900

(yellow)

Select the reserved programme and press "OK"

06:30

06:45

20/10/2004

Once

Prepare for recording

For details, refer to the manual of the recorder.

recording times on the TV.

Start blinking 3 minutes before the start time (green or red) Light during recording (green or orange)

Exit

Press "MENU"

Conﬁ rm the reservation

Electronic Programme Guide 06:06 20/10/2004

GENRE 20/10 21/10 22/10 23/10 24/10 25/10 26/10 27/10

04:00-6:00

Secondary Schools, How industrialisation changed the day-to-day lives of the British people.

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

89. BBC R Scotland

90. BBC R n Gaidheal

800. 16:9monoscope

History: Britain 1750-1900

All

06:0006:2006:3006:4507:0007:1507:3007:55-

Big Cook Little Cook Tots TV Bobinogs Wide Eye Snailsbury Tales Arthur I Love Mummy Newsround

(red)

Change a reservation

"MENU" " " "Rec Timer"

select a reservation

"MENU" " " "Rec Timer"

select a reservation

set the mode to "Inactive"

REC TIMER 06:02 20/10/2004

No. Name Start End Date Mode 1 BBC ONE 00:00 00:00 01/01/2004 Inactive 2 BBC ONE 00:00 00:00 01/01/2004 Inactive 3 BBC ONE 00:00 00:00 01/01/2004 Inactive 4 BBC ONE 00:00 00:00 01/01/2004 Inactive 5 BBC ONE 00:00 00:00 01/01/2004 Inactive 6 BBC ONE 00:00 00:00 01/01/2004 Inactive

Name BBC TWO

7 BBC ONE 00:00 00:00 01/01/2004 Inactive

Start

8 BBC ONE 00:00 00:00 01/01/2004 Inactive

End

9 BBC ONE 00:00 00:00 01/01/2004 Inactive

Date

10 BBC ONE 00:00 00:00 01/01/2004 Inactive

Mode

REC TIMER 06:02 20/10/2004

No. Name Start End Date Mode

1 BBC ONE 06:30 06:45 20/10/2004 Inactive

2 BBC ONE 00:00 00:00 01/01/2004 Inactive 3 BBC ONE 00:00 00:00 01/01/2004 Inactive 4 BBC ONE 00:00 00:00 01/01/2004 Inactive 5 BBC ONE 00:00 00:00 01/01/2004 Inactive 6 BBC ONE 00:00 00:00 01/01/2004 Inactive 7 BBC ONE 00:00 00:00 01/01/2004 Inactive 8 BBC ONE 00:00 00:00 01/01/2004 Inactive 9 BBC ONE 00:00 00:00 01/01/2004 Inactive 10 BBC ONE 00:00 00:00 01/01/2004 Inactive

06:30

06:45

20/10/2004

Once

Change with

Enter using the numerical keypad

Change with (Once/Daily/Weekly)

At the start time, the channel will automatically change. If the TV's power is off at the start time, nothing happens.

REC TIMER 06:02 20/10/2004

No.

Name

Start

End

1 BBC TWO 06:30 06:45 20/10/2004 Active

2

BBC ONE

3

BBC ONE

4

BBC ONE

5

BBC ONE 6 BBC ONE 00:00 00:00 01/01/2004 Inactive 7 BBC ONE 00:00 00:00 01/01/2004 Inactive 8 BBC ONE 00:00 00:00 01/01/2004 Inactive 9 BBC ONE 00:00 00:00 01/01/2004 Inactive 10 BBC ONE 00:00 00:00 01/01/2004 Inactive

At the start time, the channel will automatically change and the device connected to EXT-2 will begin recording the programme.

Date

00:00

01/01/2000

00:00

01/01/2000

00:00

01/01/2000

00:00

01/01/2000

Mode

Inactive Inactive Inactive Inactive

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

23

Viewing teletext

This TV can display TV broadcasts and teletext on the same channel in two windows.

Select ATV/DTV

1

When ATV is selected

When watching TV

Bookmark your favourite page

LIST MODE

(ATV)

2

When DTV is selected

Operate according to the screen indications

When ATV is selected

Enter a teletext page

Move up or down a page

up

down

View sub-pages

to sub-page

(RED) (

Display your

1

favourites list

Select a coloured button to save your page to

2

Enter the number of the page to save

GREEN

(red) (blue)(green) (yellow)

3

) (

YELLOW

) (

BLUE

TV

TEXT

)

TEXT

.....

24

Save

4

Recall your favourite page

Press the coloured button as in step 2

Hold the current page

HOLD

(ATV)

Reveal hidden pages

REVEAL

(ATV)

Enlarge the text

SIZE

(ATV)

Hold the current page

Release

Display hidden information (answers to quizzes, etc)

Double the size of the displayed text

Press again

IMPORTANT! PREPARE USE

To the index page

INDEX

(ATV)

Switch brieﬂ y from teletext to TV

CANCEL

(ATV)

Returns to page "100" or a previously designated page

Leave the current page open, while you switch to watch TV

Useful when running a page search.

SETTINGS

TROUBLE?

25

Watching videos / DVDs

Select the video source

1

E1 VCR

*1

AV (PR 0)

To TV

Operate the VCR (DVD)

E1

E2

E3

E4

*1 : Only appears when AV

has been registered as a channel.

*2 : Switches to DTV.

2

E.g. For EXT-1

Operate the connected device and play a video

Operate JVC VCRs and other devices

DVD players

1

VCRs and DVD recorders

Turn on the device

2

Select a channel (VCR mode)

3

Rewind/Playback/Fast-forward

Stop/Pause

*2

DTV

PC

E5

26

Record/Display DVD top menu

Select a chapter (DVD mode)

Some models of JVC devices cannot be operated with this remote control.

1

Advanced functions

Display the menu bar

Switch to S-VIDEO input/output

S-IN

S-OUT

(DTV)

Edit names of connected devices

ID LIST

Select "SET UP" Select "EXT SETTING"

2

select

SET UP

AUTO PROGRAM

EDIT/MANUAL

DECODER(EXT-2) COMPONENT AUTO SELECT

EXT SETTING

HDMI SETTING ATTENUATOR

> EXT SETTING

EXT-1

EXT-3

TV

DTV

Cancel this mode Set the S-OUT

DUBBING EXT-2

EXT-4

select

(yellow)

Press

Cancel S-IN at “EXT-2”, then select “DTV” and press yellow button. (available only for DTV)

(yellow)

in again

Set S-VIDEO input

> EXT SETTING

EXT-1

S

EXT-3

TV

DTV

Select an EXT to assign a name to Show the name list

> EXT SETTING

EXT-1

EXT-3

TV

DTV

DUBBING EXT-2

EXT-4

select

(blue)

> EXT SETTING

EXT-1

EXT-3

TV

DTV

Select a name from the list

> EXT SETTING

EXT-1

EXT-3

TV

DTV

DUBBING EXT-2

EXT-4

Clear the name

ID LIST

VHS S-VHS DVC CAM SAT STB GAME

DVD

DVR

select

set

Select the blank space in

> EXT SETTING

EXT-1 DVD

EXT-3

TV

DTV

DUBBING EXT-2

EXT-4

DUBBING EXT-2

EXT-4

DUBBING EXT-2

EXT-4

OFF ON

OFF

select

ID LIST

VHS S-VHS DVC CAM SAT STB GAME DVD DVR

IMPORTANT! PREPARE USE

SETTINGS

Set up dubbing on EXT-2

DUBBING

Select the arrow Select the dubbing source

> EXT SETTING

EXT-1

EXT-3

TV

DTV

DUBBING EXT-2

EXT-4

Record DTV with S-VIDEO

select

> EXT SETTING

EXT-1

EXT-3

TV

DTV

DUBBING EXT-2

EXT-4

Set S-OUT at “DTV”.

select

TROUBLE?

27

Useful functions

Select the number of screens

Selecting " " returns to normal viewing mode

Not available in PC mode.

Watch in dual-picture mode

E.g. You can watch TV and video at the same time.

(For wide aspect ratio signals)

select

set

Watch in multi-picture mode

MULTI-PICTURE

Main Sub

Switch between the sound sources

When watching DTV programmes, there may be occasions where the aspect ratio changes, for example during commercials. In this case, the layout of the screen in dual-picture mode changes automatically according to the aspect ratio signal.

Select a channel in 12-screen mode (ATV)

All registered channels are displayed as still images.

Main

Only the selected frame has a moving picture.

Move up or down a page

Not available when in DTV channels or EXT-5 input.

Main

Sub

Change the channel

(Main)

(Sub)

select a channel

watch

28

While the channel is displayed

(For 3 seconds)

Press the number to register it on

SET 1 - 4?

"NOT AVAILABLE" is displayed: Already registered

IMPORTANT! PREPARE USE

Register a channel to a button

FAVOURITE CHANNEL

(ATV)

PROGRAMMED!

Disappears after a few seconds

Recall the favourite channel

Press the number you registered

FAVOURITE 1 - 4?

Customisations (P. 32) to the

BBC1

1

Check your favourite channels

picture of a favourite channel get saved as well. "NOT MEMORY" is displayed: Not registered

Press and conﬁ rm that the channels you have registered have a

Delete a favourite channel

"MENU" " " "FEATURES" "FAVOURITE SETTING"

FAVOURITE SETTING

1

2

3

4

FAVOURITE SETTING

07

PR

01

PR

PR 23

11

PR

1

07

PR

2

01

PR

3

4

11

PR

select Delete

(blue)

beside them

SETTINGS

TROUBLE?

29

Useful functions

1

FEATURES

Set a time for the TV to turn itself off

SLEEP TIMER

FEATURES

2

FEATURES

SLEEP TIMER CHILD LOCK

3

APPEARANCE BLUE BACK FAVOURITE SETTING ILLUMINATION

> SLEEP TIMER

TYPE A

BRIGHT

ON

4

Cancel

Set the time to "0" in step 4

Remaining time

You can conﬁ rm the remaining time at step 4,

after repeating this process.

select "FEATURES"

set

30

ID

BBC

1

Stop children from watching speciﬁ c channels

CHILD LOCK

(ATV)

2

3

4

5

6

FEATURES

SLEEP TIMER CHILD LOCK APPEARANCE BLUE BACK FAVOURITE SETTING ILLUMINATION

>> SET ID NO.

> CHILD LOCK

(blue)

FEATURES

PR

ID

AV

BBC1 CH

01

BBC2 CH

02

ITV CH

03

CH4 CH

04

CH5 CH

05 06 07 08 09

FEATURES

TYPE A

ON

BRIGHT

CH

CH CH CH

> CHILD LOCK

PR AV

01

02 03 04 05 06 07

21

22 23 24 25

26 27 28

ID

BBC1 CH

BBC2 CH ITV CH CH4 CH CH5 CH

select "FEATURES"

enter an "ID NO." (a secret number of your choice)

to the next column

set

select a channel to lock

CH

Lock more channels

21

22 23 24 25

26

Repeat steps 5 and 6

IMPORTANT! PREPARE USE

7

Release a channel

View a locked channel

(blue)

Press again in step 6

Use the numerical buttons to enter the channel number.

appears, press and enter your "ID NO.".

When

(If you forget your "ID NO.", check it in step 4.)

SETTINGS

TROUBLE?

31

Customising your TV

Display the menu bar


SOUND


PICTURE MODE

BRIGHT-1 CONTRAST BRIGHT-2 SHARP COLOUR HUE COLOUR TEMP. FEATURES

Items


PICTURE MODE

BRIGHT-1 CONTRAST BRIGHT-2 SHARP COLOUR HUE COLOUR TEMP. FEATURES

FEATURES

adjust

SET UP

DTV (P. 34)


Selected menu's title

STANDARD

COOL

STANDARD

COOL

Sub-menu

Adjustments / Conﬁ gurations

To the previous screen

Exit

The menu disappears after one minute of inactivity.

1

2

3

4

Select a menu

select

Adjust/Conﬁ gure

adjust/ select

set

When adjusting with the sliding-bar

32

Move

When selecting from presets

The item will change.

Some items have a sub-menu.

set

select

set

Menu

PICTURE MODE

BRIGHT-1

CONTRAST


BRIGHT-2

SHARP

COLOUR

HUE

COLOUR TEMP.

FEATURES

STEREO / I · II

BASS

SOUND

TREBLE

BALANCE

3D SOUND

A.H.B.

* Sound enhancement technology (ON / OFF)

BBE

SLEEP TIMER

FEATURES

CHILD LOCK

APPEARANCE

BLUE BACK

FAVOURITE SETTING

ILLUMINATION

AUTO PROGRAM

EDIT / MANUAL

DECODER(EXT-2)

SET UP

COMPONENT AUTO SELECT

EXT SETTING

HDMI SETTING

ATTENUATOR

Item Adjustments / Conﬁ gurations

Picture mode (BRIGHT / STANDARD / SOFT)

Backlight brightness (Darker Brighter)

Contrast (LOWER HIGHER)

Brightness (DARKER BRIGHTER)

Sharpness (SOFTER SHARPER)

Colour (LIGHTER DEEPER)

Tint (REDDISH GREENISH)

Colour temperature (WARM / NORMAL / COOL)

Finer picture adjustments (P. 40)

Mode / Language ( : STEREO / : MONO / : SUB1 / : SUB2)

Low tones (WEAKER STRONGER)

High tones (WEAKER STRONGER)

Speaker balance (LEFT STRONGER RIGHT STRONGER)

Ambience level (HIGH / LOW / MONO / OFF)

Emphasize the bass sound (ON / OFF)

Timer for turning off the TV (P. 30)

Stop children from watching speciﬁ c channels (P. 31)

Format for displaying the channel number (TYPE A / TYPE B / TYPE C / TYPE D)

Display a blue screen and mute the sound when the signal is weak or absent (ON / OFF)

Clear favourite channel settings (P. 29)

Lights illumination lamp (P.6) while the power is turned on (BRIGHT / SOFT / OFF)

Select the country of installation, automatically register channels (P. 12, )

Change registered channels or add new ones (P. 16)

For when connected to VCR with T-V LINK (ON / OFF)

Changes the TV input to EXT-4 when the component signals are input to EXT-4. (ON/OFF) (Not available when viewing DTV or PC)

For use with video players and other devices (P. 27)

SIZE (AUTO / 1 / 2) AUDIO (AUTO / ANALOGUE / DIGITAL)

For when the picture is not displayed because of too strong radio waves (ON/OFF)

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Other settings * BBE licence (P. 46)

· Change the aspect ratio "ZOOM" (P. 20)

· Turn on 3D SOUND "3D SOUND" (P. 20)

33

Using DTV

DTV original function and setting, such as a recorder-linked timer-record setting, can be selected from the DTV menu.

Timer-record setting

Select DTV

1

Display the menu bar

2

To the previous screen

Exit

The menu disappears after one minute of inactivity.

Select "DTV"

3

Select an item

4

DTV menu cannot be operated with the front panel buttons.

DTV

Rec Timer

Configuration

Edit PR List

Installation

Common Interface

Rec Timer " Conﬁ guration "Change AV settings" (P. 36) Edit PR List "Editing DTV channels" (P. 14) Installation "Reset channel/Register a new

Common Interface "Set pay-per-view" (P. 38)

Recording using timer setting

channel/Initialise the DTV settings" (P. 38)

select

Recording using timer setting

Rec Timer

34

Select an "Inactive" column

1

REC TIMER 06:02 20/10/2004

No.

Name

1 BBC ONE 00:00 00:00 01/01/2000 Inactive

2

BBC ONE 3

BBC ONE 4

BBC ONE 5

BBC ONE

Start

00:00 00:00 00:00 00:00

End

00:00 00:00 00:00 00:00

Date

01/01/2000 01/01/2000 01/01/2000 01/01/2000

Mode

Inactive Inactive Inactive Inactive

select

set

Settings can be overwritten.

IMPORTANT! PREPARE USE

Channels Start to End Dates Timer-record

Input timer-record setting details

2

REC TIMER 06:02 20/10/2004

No. Name Start End Date Mode 1 BBC ONE 00:00 00:00 01/01/2004 Inactive 2 BBC ONE 00:00 00:00 01/01/2004 Inactive 3 BBC ONE 00:00 00:00 01/01/2004 Inactive 4 BBC ONE 00:00 00:00 01/01/2004 Inactive 5 BBC ONE 00:00 00:00 01/01/2004 Inactive 6 BBC ONE 00:00 00:00 01/01/2004 Inactive 7 BBC ONE 00:00 00:00 01/01/2004 Inactive 8 BBC ONE 00:00 00:00 01/01/2004 Inactive 9 BBC ONE 00:00 00:00 01/01/2004 Inactive 10 BBC ONE 00:00 00:00 01/01/2004 Inactive

Name BBC TWO Start End Date Mode

Set

3

For more details about the timer-record setting, refer to the notice of

"Prepare for recording" (P. 23)

REC TIMER 06:02 20/10/2004

Name

No.

1 BBC TWO 06:30 06:45 20/10/2004 Active

BBC ONE

2

BBC ONE

3

BBC ONE

4

BBC ONE

5 6 BBC ONE 00:00 00:00 01/01/2004 Inactive 7 BBC ONE 00:00 00:00 01/01/2004 Inactive 8 BBC ONE 00:00 00:00 01/01/2004 Inactive 9 BBC ONE 00:00 00:00 01/01/2004 Inactive 10 BBC ONE 00:00 00:00 01/01/2004 Inactive

Date

End

Start

01/01/2000
