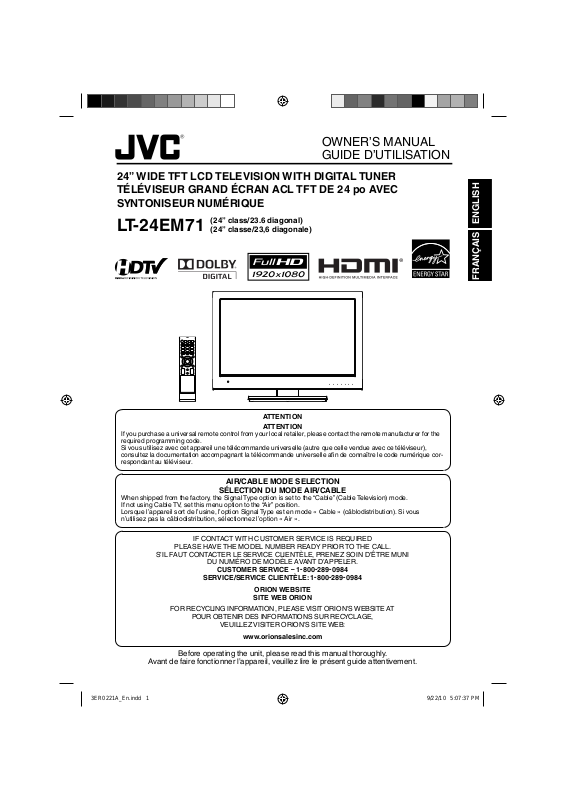

JVC LT-24EM71 User Manual
OWNER’S MANUAL
GUIDE D’UTILISATION
24” WIDE TFT LCD TELEVISION WITH DIGITAL TUNER
TÉLÉVISEUR GRAND ÉCRAN ACL TFT DE 24 po AVEC
SYNTONISEUR NUMÉRIQUE
LT-24EM71
If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the
required programming code.
Si vous utilisez avec cet appareil une télécommande universelle (autre que celle vendue avec ce téléviseur),
consultez la documentation accompagnant la télécommande universelle afin de connaître le code numérique correspondant au téléviseur.
When shipped from the factory, the Signal Type option is set to the “Cable” (Cable Television) mode.
If not using Cable TV, set this menu option to the “Air” position.
Lorsque l’appareil sort de l’usine, l’option Signal Type est en mode « Cable » (câblodistribution). Si vous
n’utilisez pas la câblodistribution, sélectionnez l’option « Air ».
(24” class/23.6 diagonal)
(24” classe/23,6 diagonale)
ATTENTION
ATTENTION
AIR/CABLE MODE SELECTION
SÉLECTION DU MODE AIR/CABLE
FRANÇAIS ENGLISH
IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED
PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL.
S’IL FAUT CONTACTER LE SERVICE CLIENTÈLE, PRENEZ SOIN D’ÊTRE MUNI
FOR RECYCLING INFORMATION, PLEASE VISIT ORION’S WEBSITE AT
Before operating the unit, please read this manual thoroughly.
Avant de faire fonctionner l’appareil, veuillez lire le présent guide attentivement.
DU NUMÉRO DE MODÈLE AVANT D’APPELER.
CUSTOMER SERVICE – 1-800-289-0984
SERVICE/SERVICE CLIENTÈLE: 1-800-289-0984
ORION WEBSITE
SITE WEB ORION
POUR OBTENIR DES INFORMATIONS SUR RECYCLAGE,
VEUILLEZ VISITER ORION’S SITE WEB:
www.orionsalesinc.com
ENGLISH
The lightning flash with arrowhead
symbol, within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY
FROM THIS PRODUCT AT TIMES.
CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE.
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device,
However, there is no guarantee that interference will not occur in a particular installation. If
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Rules could void the user's authority to operate this equipment.
Location of the required Marking
The rating sheet and the safety caution are
on the rear of the unit.
Important Note:
In the spaces below, enter the model and serial number
of your television (located at the rear of the television
cabinet). Staple your sales receipt or invoice to the inside
cover of this guide. Keep this user’s guide in a convenient
place for future reference. Keep the carton and original
packaging for future use.
Serial Number:
Model Number:
2
15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as
vases, should not be placed on the apparatus.
16) An outside antenna system should not be located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from touching such power lines or
circuits, as contact with them might be fatal.
17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points
or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into
the unit.
19) If an outside antenna or cable system
EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE
is connected to the unit, be sure the
antenna or cable system is grounded
to provide some protection against
voltage surges and built-up static
charges, Section 810 of the National
Electrical Code, ANSI/NFPA 70, provides
information with respect to proper
grounding of the mast and supporting
structure, grounding of the lead-in
wire to an antenna discharge unit, size
of grounding conductors, location of
GROUND
ELECTRIC SERVICE
EQUIPMENT
NEC-NATIONAL ELECTRICAL CODE
S2898A
CLAMP
ANTENNA LEAD IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
ENGLISH
3
IMPORTANT SAFETY INSTRUCTIONS
20) When replacement parts are required, be sure the service technician uses replacement parts
specified by the manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety
checks to determine that the unit is in proper operating condition.
22) When you connect the product to other equipment, turn off the power and unplug all of the
equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal
injury. Read the owner's manual of the other equipment carefully and follow the instructions when
making any connections.
23) Sudden high volume sound may cause hearing or speaker damage. When you use headphones,
(if the unit is equipped with a headphone jack) keep the volume at a moderate level. If you use
headphones continuously with high volume sound, it may cause hearing damage.
24) Do not allow the product to output distorted sound for an extended period of time. It may cause
speaker overheating and fire.
25) This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to the point of cable entry as
practical.
26) The socket-outlet must be installed near the unit and easily accessible.
CHILD SAFETY:
It Makes A Difference How and Where You Use Your Flat Panel Display
Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:
THE ISSUE
The home theater entertainment experience is a growing trend and larger flat panel displays are popular
purchases. However, flat panel displays are not always supported on the proper stands or installed
according to the manufacturer’s recommendations.
Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers,
chests or carts may fall over and cause injury.
THIS MANUFACTURER CARES!
The consumer electronics industry is committed to making home entertainment enjoyable and safe.
TUNE INTO SAFETY
One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of
your flat panel display.
Carefully read and understand all enclosed instructions for proper use of this product.
Don’t allow children to climb on or play with furniture and television sets.
Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.
Remember that children can become excited while watching a program, especially on a “larger than life” flat
panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or
knocked down.
Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be
pulled or grabbed by curious children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:
Use a mount that has been recommended by the display manufacturer and/or listed by an independent
laboratory (such as UL, CSA, ETL).
Follow all instructions supplied by the display and wall mount manufacturers.
If you have any doubts about your ability to safely install your flat panel display, contact your retailer about
professional installation.
Make sure that the wall where you are mounting the display is appropriate to support the weight of the unit/
product and wall mount. If you are unsure, contact a professional installer.
A minimum of two people are required for installation. Flat panel displays can be heavy.
4
IMPORTANT SAFETY INSTRUCTIONS
CONDENSATION
Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm
room or if the temperature of the room rises suddenly. When this happens, unit's performance will be impaired.
To prevent this, let the unit stand in its new surroundings for about an hour before switching it on, or make sure
that the room temperature rises gradually.
Condensation may also form during the summer if the unit is exposed to the breeze from an air conditioner. In
such cases, change the location of the unit.
HOW TO HANDLE THE LCD PANEL
•
Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.
•
If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause
skin inflammation.
If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your
eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.
Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD Panel for
long periods of time, the image can become permanently engrained in the LCD Panel and cause subtle but
permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your
LCD Panel on for long periods of time while it is displaying the following formats or images:
•
Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
•
Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on
a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a
widescreen (16:9) display (black bars on left and right sides of screen).
The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any
responsibility for these symptoms.
LCD Panels are manufactured using an extremely high level of precision technology, however sometimes
•
parts of the screen may be missing picture elements or have luminous spots.
This is not a sign of a malfunction.
Do not install the LCD Panel near electronic equipment that produces electromagnetic waves. Some
•
equipment placed too near this unit may cause interference.
Effect on infrared devices – There may be interference while using infrared devices such as infrared cordless
•
headphones.
ENGLISH
SAFETY PRECAUTIONS
The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating.
Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When placing on a shelf leave 10 cm
(4 inches) free space around the entire unit.
10cm
10cm
Notes when mounting the LCD TV on a wall
If the unit is to be mounted on the wall, contact the retailer where
•
you purchased the LCD TV for advice, and have the equipment
professionally installed. Incomplete or improper installation may
cause injury to you, and/or damage to the LCD TV.
Bracket holes: To attach a wall mounting bracket (not supplied) attach
•
where indicated in the drawing right.
This manufacturer recommends professional installation.
•
Utilize an appropriate bracket and fasteners, sufficient to
•
accommodate the size and weight of the unit.
Assure the wall to which the unit is to be mounted will safely support
•
the size and weight of the unit, using the bracket and fasteners you
have selected.
Keep cords and cables connected to this flat panel display out of
•
reach of children.
To hang the television on a wall, remove these screws and then
•
remove a stand. Before performing work spread cushioning over the
base area to lay the TV on.
100 mm
100 mm
Bracket holes
Screws
M4 × 10
5
How to attach the stand
NOTE:
• Unplug the AC cord from the AC INPUT terminal.
• Before beginning this process, assure that TV is laid on a clean, safe, and cushioned space to avoid any
damage to the unit.
• Do not touch or press the LCD screen, glass might break under pressure.
Place the TV on its front onto a table.
Align the stand’s bottom-plate (supplied) as seen here.
It will fi t in only one direction.
Hold the unit and attach the stand slowly, as shown in Figure 1.
LCD PANEL SIDE
Figure 1
Figure 2
Finally secure the bottom-plate with 3 screws (supplied) as indicated by the arrows in Figure 2.
Be sure to follow the instructions. Incorrect installation of the stand will not support your unit correctly, and
•
could result in damage or injury.
How to remove the stand
When you transport this product, remove the stand and pack fl at against the back of the unit in the carton. To
remove the stand, perform these steps in reverse order.
For wall mounting, the base must be removed. To disconnect the base/stand remove the 3 screws from the back
(see page 5).
6
Features
•
LED Backlight System - It realize thin profile, low power consumption, eco-friendly Hg-less design and high
contrast picture.
•
Integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box.
•
Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for
hearing impaired viewers.
•
Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control
adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.
•
Programmable TV Sleep Timer - Operable from the remote control, the LCD TV can be programmed for up
to 120 minutes to turn off automatically.
•
V-Chip - The V-Chip function can read the rating of a broadcast program or movie content if the program is
encoded with this information. V-Chip will allow you to set a restriction level.
•
Digital Audio Jack (Coaxial) - When a component with a built-in Dolby Digital decoder is connected, Dolby
Digital sound can produce the effect of being in a movie theater or a concert hall.
•
HDMI/Component Video Jacks - A VCR, DVD player, satellite receiver or other audio/video component can
be connected to this unit.
•
On-Screen 3 Language Display - You can select one of 3 languages, English, French or Spanish for on-
screen programming.
* Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
* HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks
of HDMI Licensing LLC in the United States and other countries.
Power source
TO USE AC POWER
Connect the AC cord plug into this unit’s AC INPUT jack.
1.
Connect the AC cord into an AC outlet.
2.
ENGLISH
Wider Hole
and Blade
AC 120V, 60Hz
AC cord (supplied)
NOTE:
•
Please make sure to insert the cord securely at both the LCD TV and the wall outlet.
•
The AC cord has a polarized type AC line plug. If the supplied AC cord does not match your AC outlet,
contact a qualified electrician.
WARNING:
•
DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC
CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
•
DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE SPECIFIED. THIS COULD CAUSE
FIRE, ELECTRICAL SHOCK, OR DAMAGE.
CAUTION:
•
WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF
SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.
•
DO NOT PLUG/UNPLUG THE AC CORD WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL
SHOCK.
•
IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS
RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0984.
AC Outlet
7
Contents
Before using your unit
IMPORTANT SAFETY INSTRUCTIONS ...........3
SAFETY PRECAUTIONS .................................5
How to attach the stand ....................................6
How to remove the stand ..................................6
Features ............................................................7
Power source ....................................................7
Contents ...........................................................8
Parts and functions ...........................................9
Remote control ...............................................10
Antenna connections ......................................11
Cable TV connections ..................................... 11
Connections to other equipment .....................12
TV operation
Starting setup .................................................15
TV operation ...................................................15
Quick guide for menu operation ......................16
Convenience functions ...................................17
Memorizing channels ......................................18
Checking the digital signal strength ................19
Labeling channels ...........................................19
Labeling video inputs ......................................19
Setting the V-Chip ...........................................20
Closed Caption ...............................................21
CC advanced .................................................. 21
Setting the picture size ....................................22
Additional information
Reception disturbances ..................................23
Troubleshooting ..............................................24
Specifications .................................................25
limited WARRANTY ........................................26
8
Left side
HDMI2 IN jack
HDMI1/DVI IN jack
VIDEO IN jacks
(VIDEO/AUDIO
(L(MONO)/R))
DIGITAL AUDIO
COAXIAL OUT jack
COMPONENT
IN jacks
(Y/Pb/Pr/ AUDIO
(L(MONO)/R))
RF (ANT.) IN jack
HEADPHONE jack
To display the menu screen.
Touch MENU button to display the menu screen.
CH (CHANNEL)
+/– buttons and INPUT/ENTER button can be used
to select the desired setting during the menu screen
operations.
/ buttons, VOL (
Front
Remote sensor
Power Indicator
Red : Standby
Blue : On
VOL (VOLUME) +/– buttons
CH (CHANNEL)
VOLUME)
Parts and functions
/ buttons
MENU
button
INPUT/ENTER button
POWER button
ENGLISH
Right side
AC INPUT jack
Rear
PC/DVI AUDIO IN jack
PC MONITOR IN jack
Service connector cover: Please do not open this cover. There is a socket only for service purpose inside.
9
Remote control
1
2
3
4
5
6
7
8
9
10
11
1.POWER Button - Used to turn the power on/off to
the LCD TV.
2.DISPLAY Button - When you press this button,
the current information will be displayed on a
screen. To remove the display from the screen,
press this button again.
3.Direct Channel Selection Buttons (0-9) - Allows
direct access to any channel of the LCD TV.
4.– Button -This button is the “–” button used when
selecting digital channels.
5.MENU Button - Use to display the On-Screen
menu function.
6.
12
13
14
15
16
17
CURSOR ▲/▼/◀/▶
menu functions of the LCD TV.
7.ENTER Button - Use to enter or select
information for On-Screen operations.
8.MUTING Button - To turn off the sound, press
this button once. The LCD TV will be silenced and
the symbol “Muting” will appear on the screen.
The muting feature can be released by pressing
the MUTING button again or one of the VOL
(VOLUME) + or – buttons.
9.VOL (VOLUME) + / – Buttons - Press the +
button to increase, or the – button to decrease the
sound level.
10.INPUT SELECT Button - Use to change the
external input.
11.CCD Button - Used to display the Closed Caption
menu screen.
12.SLEEP Button - To set the LCD TV to turn off
after a preset amount of time, use the SLEEP
button on the remote control.
13.PICTURE SIZE Button - Used to change the
picture size.
14.RECALL Button - This button allows you to go
back to the previous channel selected by just
pressing the RECALL button. Press this button
again to return to the channel you were watching.
15.EXIT Button - Press to remove setup menu.
16.AUDIO Button - Change soundtrack language.
17.CH (CHANNEL)
channels of the LCD TV.
Buttons
- Used to operate the
/ Buttons - To change the
Before using the remote control, batteries must first be installed.
HOW TO INSTALL BATTERIES
1. Open the battery compartment cover.
2. Install two “AA” batteries (supplied).
3. Replace the battery compartment cover.
If this symbol is shown, it is only valid in the
European union.
10
Use two “AA” size batteries. The batteries may last
approximately one year depending on how much the
remote control is used. For best performance, it is
recommended that batteries should be replaced on a
yearly basis, or when the remote operation becomes
erratic. Do not mix old and new batteries or different
types.
BATTERY PRECAUTIONS
These precautions should be followed when using
batteries in this device:
•
Use only the size and type of batteries specified.
•
Be sure to follow the correct polarity when
installing the batteries as indicated in the battery
compartment. Reversed batteries may cause
damage to the device.
•
Do not mix different types of batteries together (e.g.
Alkaline and Carbon-zinc) or old batteries with fresh
ones.
•
If the device is not to be used for a long period of
time, remove the batteries to prevent damage or
injury from possible battery leakage.
•
Do not try to recharge batteries not intended to be
recharged; they can overheat and rupture. (Follow
battery manufacturer’s directions.)
•
Batteries should not be exposed to excessive heat
such as sunshine, fire or the like.
Antenna connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your
antenna system. If you are using a Cable TV service, see “Cable TV connections”.
Combination VHF/UHF Antenna (Single 75 ohm cable)
Antenna
Jack
75 ohm
Coaxial
Cable
Connect the 75 ohm cable from the combination
VHF/UHF antenna to the antenna jack.
Cable TV connections
This TV has an extended tuning range and can tune most cable channels without using a Cable TV
Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled.
Descrambling these signals for normal viewing requires the use of a descrambler device which is
generally provided by the Cable TV company.
For subscribers to basic Cable TV service
75 ohm
Antenna
Jack
Coaxial
Cable
For subscribers to scrambled Cable TV service
If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect
the incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial
Cable, connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV. Follow the
connections shown below. Set the TV to the output channel of the Converter/Descrambler box (usually channel
3 or 4) and use the Converter/Descrambler box to select channels.
Incoming
75 ohm
Cable TV
Cable
Converter/
Descrambler
For basic Cable TV service not requiring a Converter/
Descrambler box, connect the 75 ohm Coaxial Cable directly
to the Antenna Jack on the back of the TV.
Antenna
Jack
75 ohm Cable to TV
ENGLISH
For subscribers to unscrambled Cable TV service with scrambled premium
channels
If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require
the use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available
from the Cable TV company or an electronics supply store). Follow the connections shown below. With the
switch in the “B” position, you can directly tune any nonscrambled channels on your TV. With the switch in the
“A” position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the
Converter/Descrambler box to tune scrambled channels.
Incoming
75 ohm
Cable TV
Cable
Splitter
Converter/
Descrambler
A/B Switch
75 ohm Cable to TV
A
B
Antenna
Jack
11
Connections to other equipment
The exact arrangement you use to interconnect various video and audio components to this unit is dependent
on the model and features of each component. Check the Owner’s Manual provided with each component for
the location of video and audio inputs and outputs.
To connect the LCD TV to a VCR
Left of the unit
To VIDEO/AUDIO IN
Video/Audio cord (not supplied)
To Video/Audio OUT
To connect the LCD TV to a DVD player with Component Video Input
You can enjoy a high quality picture by connecting the unit’s COMPONENT VIDEO OUT jacks of your DVD
player with the COMPONENT video cables (not supplied).
Left of the unit
To
COMPONENT
AUDIO IN
NOTE:
Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and
•
480p/720p progressive signals.
To COMPONENT IN
Y
Component video cord
Pb
Pr
Audio cord
(not supplied)
(not supplied)
To Component OUT
Y
Pb
Pr
To Audio OUT
VCR
DVD
To connect the LCD TV to a camcorder, or a TV Game
To playback from a camcorder, connect the camcorder to the unit as shown.
This unit can also be used as a display device for many video games. However, due to the wide variety of
signals generated by these devices and subsequent hook-up variations required, they have not all been
included in the suggested connection diagrams. You’ll need to consult each component’s Owner’s Manual for
additional information.
Left of the unit
To VIDEO/AUDIO IN
Video/Audio cord (not supplied)
To Video/Audio OUT
or
12
Connections to other equipment (continued)
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including
Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, etc. as shown below.
Left of the unit
Digital Audio
Coaxial Output
Coaxial digital cable
(not supplied)
Front
Speaker
(Left)
Subwoofer
TV
Front
Speaker
(Right)
ENGLISH
To Coaxial
Digital Audio Input
AV Amplifier with built-in digital surround
decoder as listed above
Surround
Speaker (Left)
Center Speaker
Surround
Speaker
(Right)
NOTE:
When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio.
•
There will be no sound output if connected to an AV amplifier with a built-in DTS decoder or MPEG decoder.
To connect a HDMI or a DVI device to the unit
The HDMI1/DVI input receives digital audio and uncompressed video from a HDMI device or uncompressed
digital video from a DVI device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate
analog audio cords required.
To PC/DVI AUDIO IN
Left and Rear of the unit
Audio cord (not supplied)
HDMI - to - DVI adapter cable
(HDMI type A connector)
To HDMI/DVI IN
(not supplied)
HDMI cable (type A connector)
(not supplied)
NOTE:
•
When using HDMI1/DVI to connect your HDMI or DVI devices, you must select the corresponding
audio input source (HDMI or DVI) on the menu screen (see page 17). Otherwise you will only see the
image with no sound.
•
If you connect an external component (cable box, satellite receiver, etc.) to this LCD TV using an HDMI cable
or a DVI to HDMI cable, the image will not display if the output resolution of the component is set to 480i. To
receive the picture you must change the output resolution on the external component.
Should you require further instruction, please contact the manufacturer of the external component.
To DVI output
DVI device
or
HDMI device
To HDMI out
13
Connections to other equipment (continued)
To connect the TV to a PC (Personal Computer)
BEFORE YOU CONNECT THIS TV TO YOUR PC, CHANGE THE ADJUSTMENT OF YOUR PC’S
RESOLUTION AND REFRESH RATE (60 HZ).
Connect one end of a (male to male) VGA cable to the video cord of the computer and the other end to the
connector PC MONITOR IN on the rear of the
of a Multimedia computer, connect the audio cord to the audio output of your Multimedia computer and to the
AUDIO connector of the PC/DVI AUDIO IN jack of the TV. You can also connect the PC with HDMI cable. If you
use HDMI cable, you don’t have to connect the audio cord. If you use DVI-to-HDMI cable, please connect audio
cord as same way as VGA cable.
Press INPUT SELECT on the remote control to select PC mode.
Switch on the computer. The TV can operate as the computer monitor.
To
PC/DVI
AUDIO
IN
NOTE:
•
The on-screen displays will have a different appearance in PC mode than in TV mode.
•
If there is no video signal from the PC when the unit is in PC mode, “No signal” will appear on the TV-screen.
•
When the PC connected to the HDMI terminal and 1920x1080 resolution (FHD) is selected, the top and
bottom, right and left edges of the picture may be hidden on all PICTURE SIZE. In this case, use the PC
MONITOR IN jack (VGA cable) is recommended to connect.
•
When the PC’s resolution is set to 1920 x 1080/60 Hz (FHD mode), a signal that differs from the FHD signal,
which has been confirmed operational on this TV, may appear depending on the PC used. In this case, “Auto
Adjust” or other Position Adjustment functions may fail to correct the image position.
To solve this problem, change the PC settings to select another resolution.
Left and Rear of the unit
To PC
MONITOR
IN
VGA cable (not supplied)
To HDMI IN
HDMI cable (not supplied)
Audio cord (not supplied)
TV
. Attach the connectors firmly with the screws on the plug.
Monitor Display modes
MODE Resolution Refresh rate
VGA 640x480 60/ 72/ 75 Hz
VGA 720x400 70Hz
SVGA 800x600 56/ 60/ 72/ 75 Hz
XGA 1024x768 60/ 70/ 75 Hz
WXGA 1280x768 60Hz
WXGA 1360x768 60Hz
SXGA 1280x1024 60Hz
WXGA+ 1440x900 60Hz
FHD 1920x1080 60Hz
To return to normal mode
Press INPUT SELECT again.
VGA
In case
14
Starting setup
The Auto Setup menu appears the first time you
turn on the TV, and assists you to specify the
Air/Cable setting, and program your channels
automatically.
IMPORTANT: Make sure that the antenna or cable
TV system connection is made!
To turn on the TV, touch POWER (POWER
1
indicator on the front of the unit changes blue.
It may take approx. 10 seconds for a picture to
appear on screen.). The auto setup function
begins.
Auto Setup
Signal Type Cable
Automatic Search Start
: Adjust
: Select
Press ◀ or ▶ to select “Cable” or “Air”.
2
Press ▲ or ▼ to select “Automatic Search”, then
3
press ▶ or ENTER.
Now the “Auto Setup” starts. After the Auto Setup
4
is completed, the TV channel appears on the
screen.
•
Depending on the reception condition, it may
take from 15 minutes to 30 minutes to complete
memorizing digital cable channels. Please be
patient.
NOTE:
If you press ENTER in the process of “Auto Setup”,
•
the Auto Setup stops and changes to the normal
screen.
When you make a menu selection, your changes
•
occur immediately. You do not have to press EXIT to
see your changes.
TV operation
To turn on the TV, touch POWER.
1
(POWER indicator on the front of the unit
changes blue. It may take approx. 10 seconds for
a picture to appear on screen.)
Adjust the volume level by pressing VOL + or – .
2
The volume level will be indicated on the screen
by blue bars. As the volume level increases, so do
the number of bars. If the volume decreases, the
number of blue bars also decreases.
Set the Signal Type option to the appropriate
3
position (see “Air/Cable selection” on page 18).
Press the Direct Channel Selection (0-9, –)
4
buttons to select the channel.
(If you press only channel number, channel
selection will be delayed for a few seconds.)
TO SELECT ANALOG CHANNELS
1-9: Press 1-9 as needed. Example, to
10-99: Press the 2 digits in order. Example,
100-135: Press the 3 digits in order. Example, to
TO SELECT DIGITAL CHANNELS
Press the first 1-3 digits, then press the – button,
followed by the remaining number.
Example, to select channel 15-1, press 1, 5, –, 1,
then press ENTER.
•
•
The same program may be available on either
•
VHF/UHF/CABLE CHANNELS
VHF
2-13
UHF
14-69
NOTE:
If a channel with no broadcast is selected, the
•
sound will automatically be muted.
It may take a few seconds for a digital channel
•
picture to appear on screen after being selected.
To select the video input source
To view a signal from another device connected to
your LCD TV, such as a VCR player, press INPUT
SELECT, then press ▲ or ▼ or corresponding
Number buttons (0-5), then press ENTER. You can
select TV,
depending on which input jacks you used to connect
your devices.
0.TV
1.Video
2.Component
3.HDMI1
4.HDMI2
5.PC
[0-5]:Select
CH /
Press and release CH / . The channel
automatically stops at the next channel set into
memory.
For proper operation, before selecting channels, they
should be set into the memory. See “Memorizing
channels” on pages 18.
select channel 2, press 2, then press
ENTER.
to select channel 12, press 1, 2, then
press ENTER.
select channel 120, press 1, 2, 0, then
press ENTER.
If a channel is selected with only audio content,
“Audio only” will be displayed on the screen.
If a channel is selected with a weak digital
signal, “Digital channel signal strength is low”
will be displayed on the screen.
an analog channel or a digital channel. You may
choose to watch either format.
If a channel is selected to which you have not
subscribed,
be displayed on the screen.
Air Cable
Input Select
“Digital channel is encrypted” will
VHF
2-13
STD/HRC/IRC
14-36 (A) (W)
37-59 (AA) (WW)
60-85 (AAA) (ZZZ)
86-94 (86) (94)
95-99 (A-5) (A-1)
100-135 (100) (135)
01 (4A)
Video, Component, HDMI1, HDMI2 or PC
ENGLISH
15
DISPLAY
Press DISPLAY to display the current information on
the screen.
When the TV receives a digital signal, the digital
information will appear.
62-1 HDTV Moving Picture1
CH-1 TV-MA
Digital Air
No Program Information is available
Full
1080i
Sleep Timer
Off
English
Channel number• Station name•
Broadcast program name
Channel label (if preset)•
•
V-Chip rating• Signal type•
Sleep timer• Audio language•
Program guide• Picture size•
Resolution•
When the TV receives an analog signal, the analog
information will appear.
14
Analog Cable
G
Mono
Full
480i
Sleep Timer
Off
Channel number• Channel label (if preset)•
V-Chip rating• Signal type•
Sleep timer• Picture size•
Audio information
• Resolution•
(Stereo, SAP or Mono)
Press DISPLAY again to clear the call display.
NOTE:
After a few seconds, DISPLAY screen will return to
•
normal TV-operation automatically.
RECALL
This button allows you to go back to the last channel
selected by pressing RECALL. Press RECALL again to
return to the last channel you were watching.
MUTING
Press MUTING to switch off the sound. The TV’s
sound will be silenced and “Muting” will appear on
the screen. The sound can be switched back on by
pressing this button again or the VOL + or –.
SLEEP
To set the TV to turn off after a preset amount of time,
press SLEEP on the remote control. The clock will
count up 10 minutes for each press of the SLEEP button (Off, 0h 10m, 0h 20m, ..., 2h 0m). After the sleep
time is programmed, the display will appear briefly
every ten minutes to remind you that the sleep timer
is operating. To confirm the sleep timer setting, press
SLEEP and the remaining time will be displayed for a
few seconds. To cancel the sleep timer, press SLEEP
repeatedly until the display turns to Off.
Quick guide for menu
operation
Call menu and for example: Select Language.
Press INPUT SELECT to select TV mode.
1
Press MENU. The TV menu screen will appear.
2
3
4
5
NOTE:
•
Main Menu
Audio
Channel
Lock
Setup
: Select ENTER:Set
>>
Press ▲ or ▼ to select “Setup”, then press ▶ or
ENTER.
Press ▲ or ▼ to select “Language”, then press ◀
or ▶ to select the desired language.
…on the following pages the menu can be called
in the same way as here.
Press EXIT to return to the normal screen.
If no buttons are pressed for more than about 60
seconds, the menu screen will return to normal
operation automatically.
16
Loading...
