PTZ IP DOME CAMERA OUTDOOR PTZ IP DOME CAMERA

VN-V685U VN-V686BU VN-V686WPBU

INSTRUCTIONS

Thank you for purchasing this product. Before beginning to operate this unit, please read the instruction manual carefully in order to make sure that the best possible performance is obtained.

For Customer Use:

Enter below the Serial No. which is located on the

body.

Retain this information for future reference.

Model No.

Serial No.

VN-V685U/VN-V686BU/VN-V686WPBU

VN-V685U/ VN-V686BU

VN-V686WPBU

LST0819-001A

Getting Started

Safety Precautions

Information for Users on Disposal of Old Equipment [European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service

Attention:

This symbol is only valid in the European Union.

or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

FOR USA AND CANADA

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC

SHOCK. DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE.REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash wish arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Information for USA

This device complies with part 15 of the FCC Rules. Changes or modifications not approved by JVC could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

● This installation should be made by a

qualified service person and should conform to all local codes.

● This installation shall be in accordance with

the National Electrical Code, ANSI/NFPA 70.

● The unit is to be powered by an AC 24 V

power supply. The AC 24 V power supply should conform to

the following:Class 2 only(For USA),Isolated power supply only(For Europe and other).

● Any Mention in this manual of Alarm inputs/

outputs have not been evaluated by UL to be used for Burglar Alarm Functionality.

FOR USA-California Only

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

Getting Started

These are general IMPORTANT SAFEGUARDS and certain items may not apply to all appliances.

IMPORTANT SAFEGUARDS

1. Read all of these instructions.

2. Save these instructions for later use.

3. All warnings on the product and in the operating instructions should be adhered to.

4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or

aerosol cleaners. Use a damp cloth for cleaning.

Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.

6. Do not use this appliance near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Do not place this appliance on an unstable cart, stand, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance.

Use only with a cart or stand recommended by the manufacturer, or sold with the appliance. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturer. An appliance and cart combination should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

8. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface.

This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. For appliance designed to operate from battery power, refer to the operating instructions.

10.For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

11.Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will be abused by persons walking on it.

12.Follow all warnings and instructions marked on the appliance.

13.Do not overload wall outlets and extension cords as this can result in fire or electric shock.

14.Never push objects of any kind into this appliance through cabinet slots as they may touch

dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

15.Do not attempt to service this appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

16.Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the appliance. c. If the appliance has been exposed to rain or water. d. If the appliance does not operate normally by following the operating instructions. Adjust only those controls

that are covered by the operating instructions as improper adjustment of other controls may result in damage

and will often require extensive work by a qualified technician to restore the appliance to normal operation. e. If the appliance has been dropped or the cabinet has been damaged. f. When the appliance exhibits a distinct change in performance - this indicates a need for service.

17.When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

18.Upon completion of any service or repairs to this appliance, ask the service technician to perform routine safety checks to determine that the appliance is in safe operating condition.

PORTABLE CART WARNING

(symbol provided by RETAC)

S3125A

Getting Started

Safety Precautions ........................................2

Contents ........................................................5

Main Features ............................................... 6

Safety precautions .........................................8

Operating Environment .................................8

Precautions ...................................................9

Name and Function of Parts .......................13

VN-V685U/VN-V686BU ...........................13

VN-V686WPBU .......................................15

Features ......................................................16

Connection/Installation (VN-V685U/VN-V686BU)

Mounting the Camera .................................. 18

Power Connection .......................................23

LAN Cable Connection ................................ 24

Connecting the alarm signal terminal ..........25

Connection/Installation (VN-V686WPBU)

Mounting the Camera .................................. 26

Power Connection .......................................30

LAN Cable Connection ................................ 31

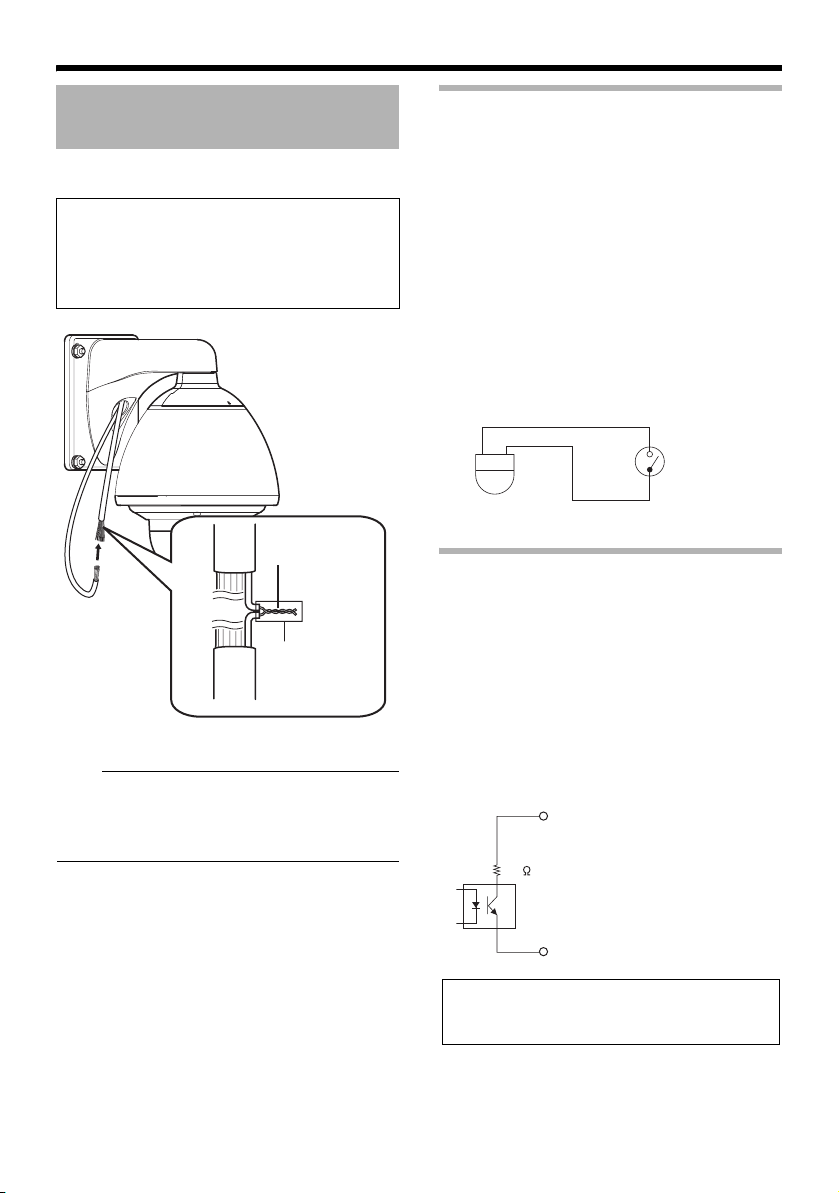

Connecting the alarm signal cable ..............32

Network Setting

Network Requirements ................................ 33

IP Address Settings ..................................... 36

IP address setting procedure ..................36

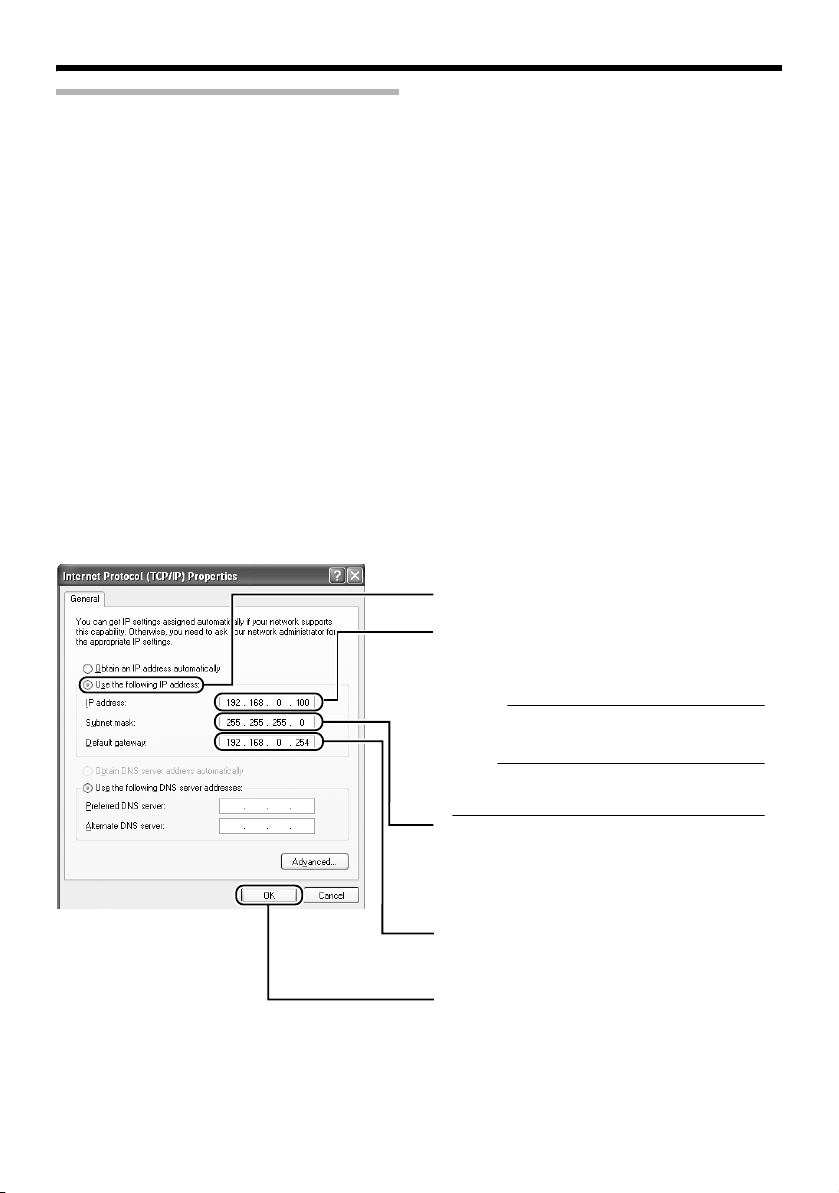

IP address setting at the computer .......... 37

Internet Explorer settings ........................38

Connecting the camera to the computer

IP address setting for the camera ............42

Enter user name and password ...............44

.....40

Setting Using Internet Explorer

Setting ......................................................... 46

How to open the setting page .................. 46

Basic Settings1 ....................................... 47

Basic Settings2 ....................................... 48

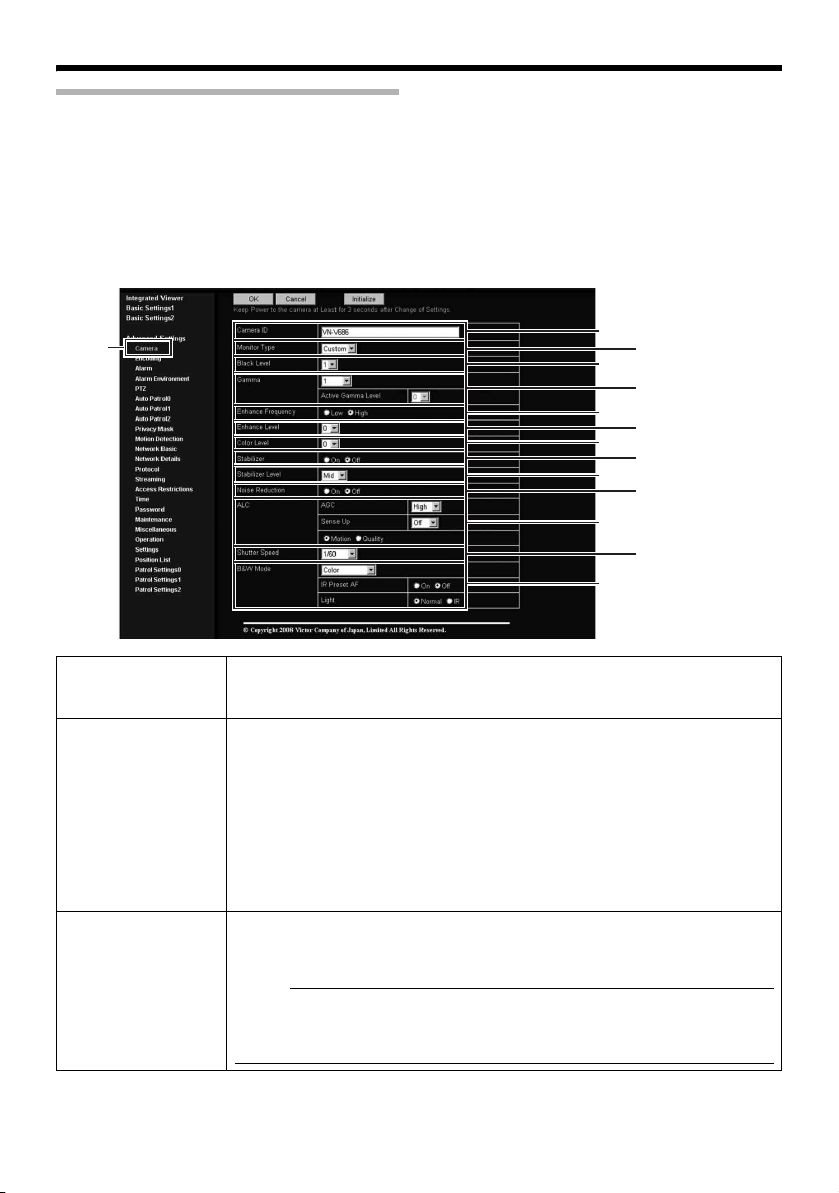

Camera Page .......................................... 51

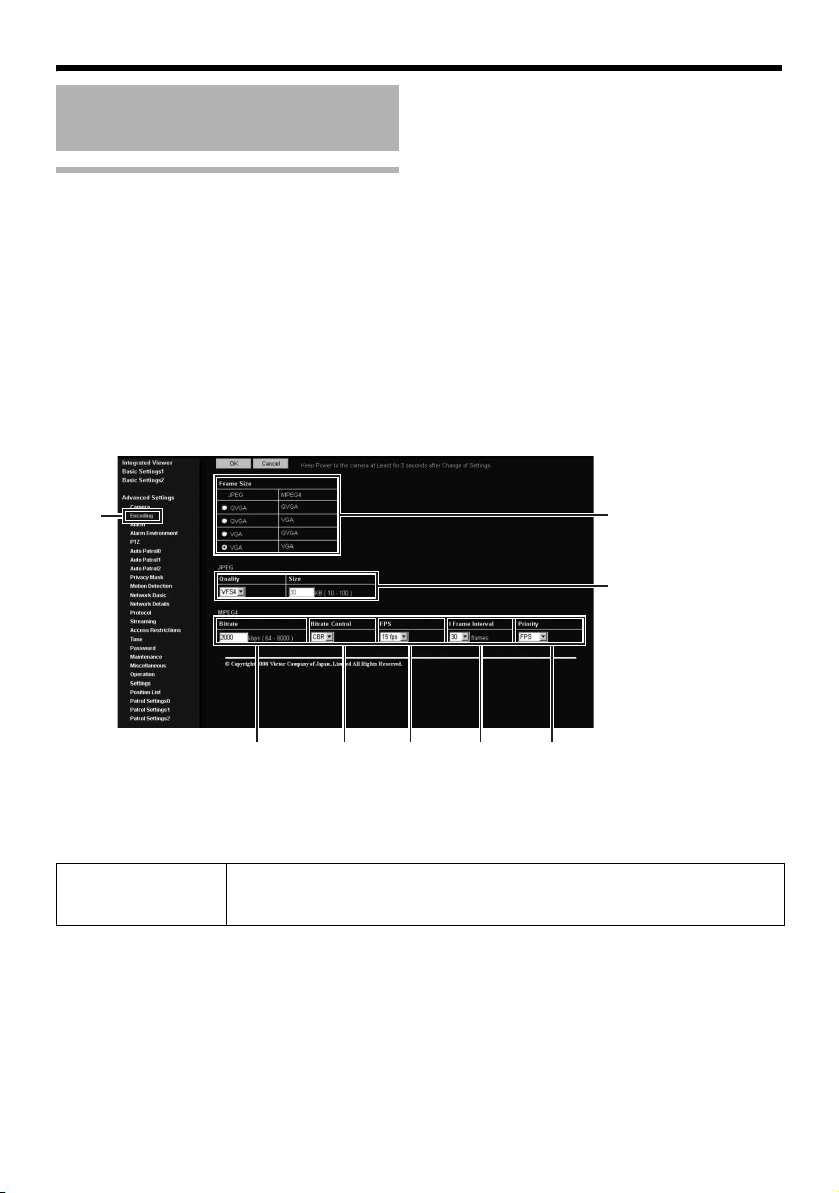

Encoding Page ........................................56

Alarm Page ..............................................58

Alarm Environment Page ........................62

PTZ Page ................................................ 66

Auto Patrol Page .....................................72

Privacy Mask Page .................................. 74

Motion Detection Page ............................76

Network Basic Page ................................78

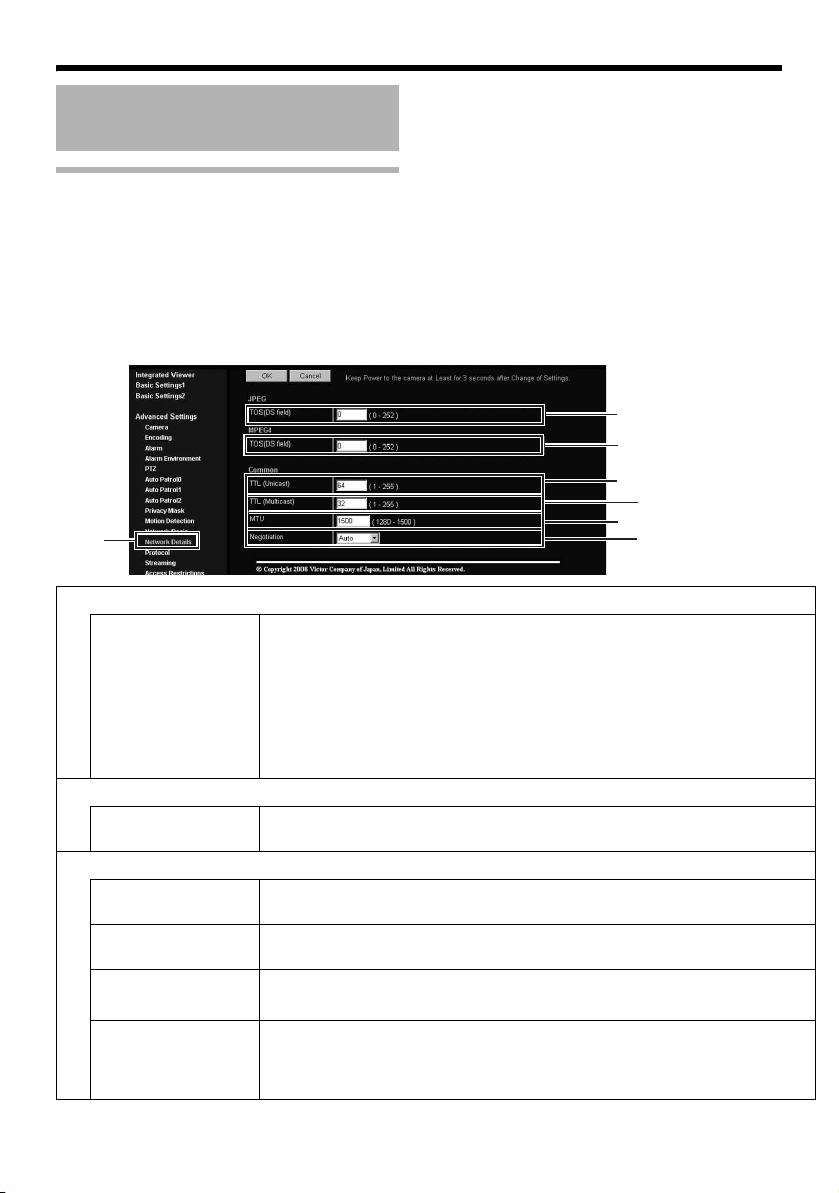

Network Details Page .............................. 80

Protocol Page .......................................... 81

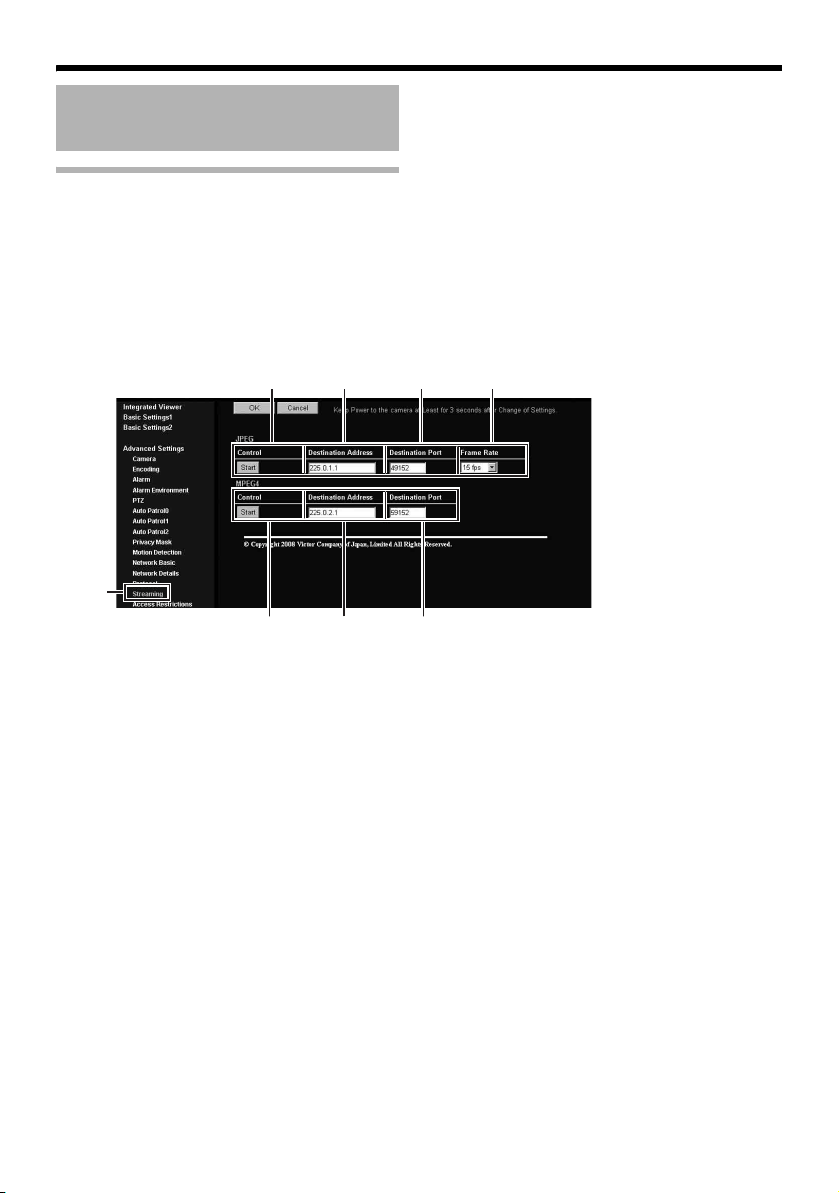

Streaming Page .......................................82

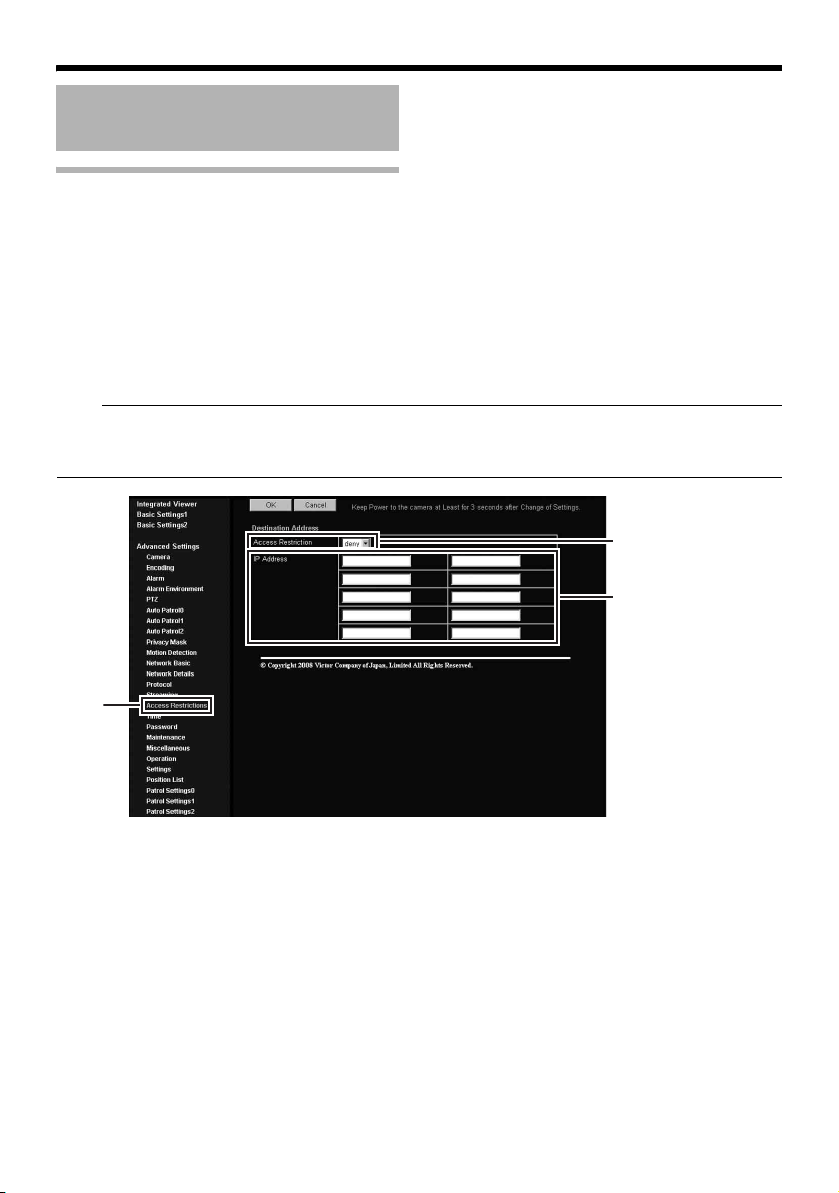

Access Restrictions Page ........................84

Time Page ...............................................86

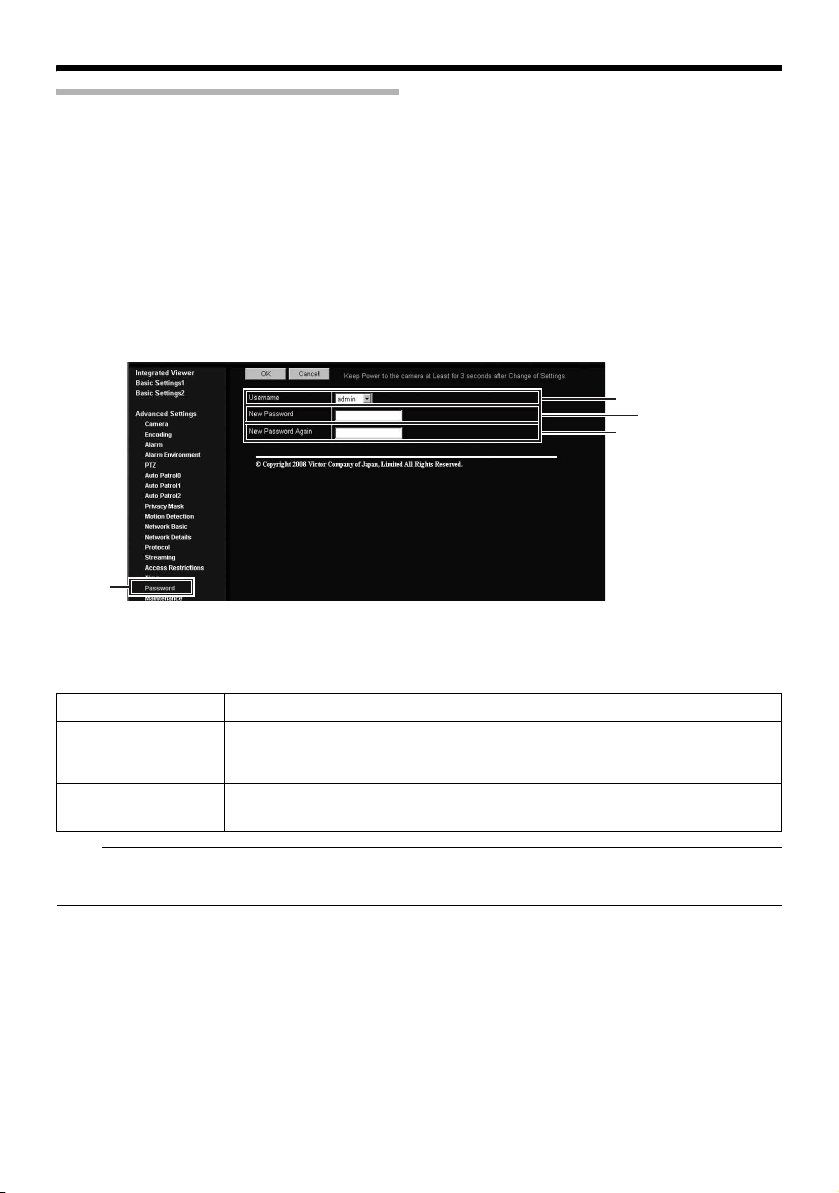

Password Page ........................................87

Maintenance Page ..................................88

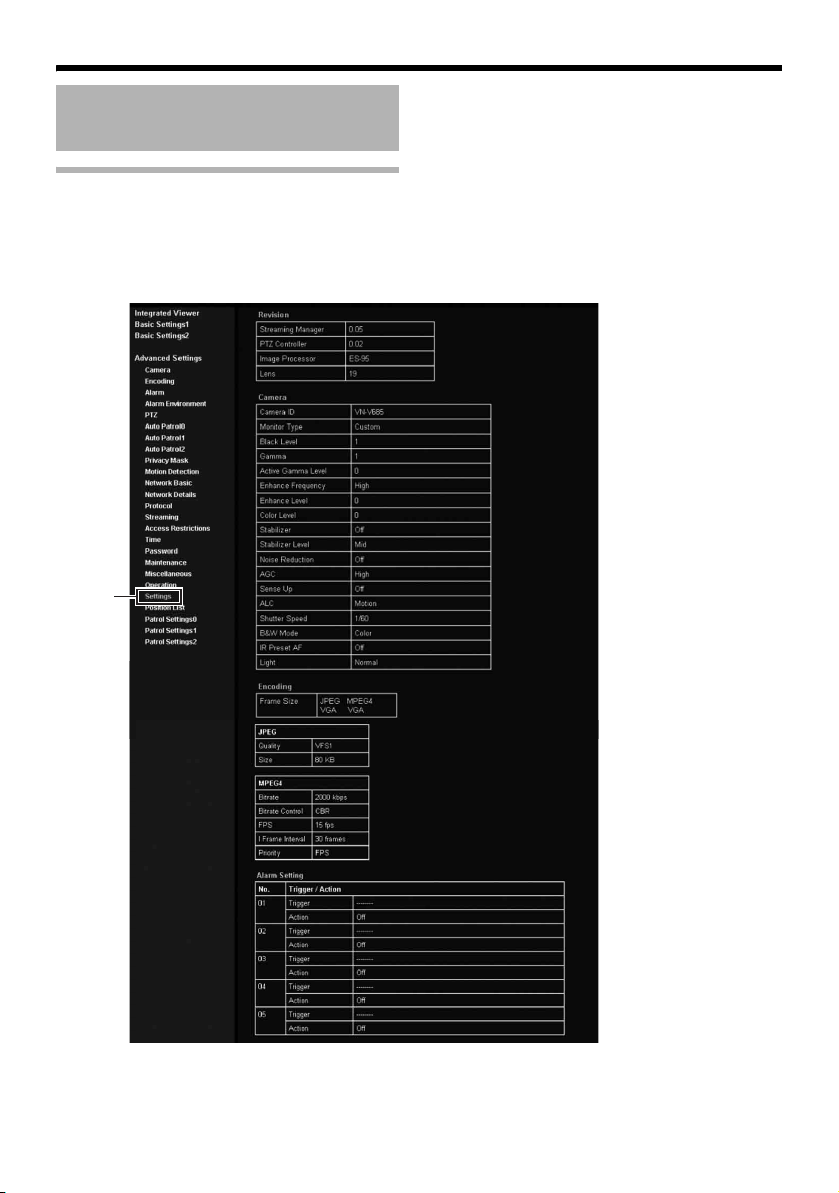

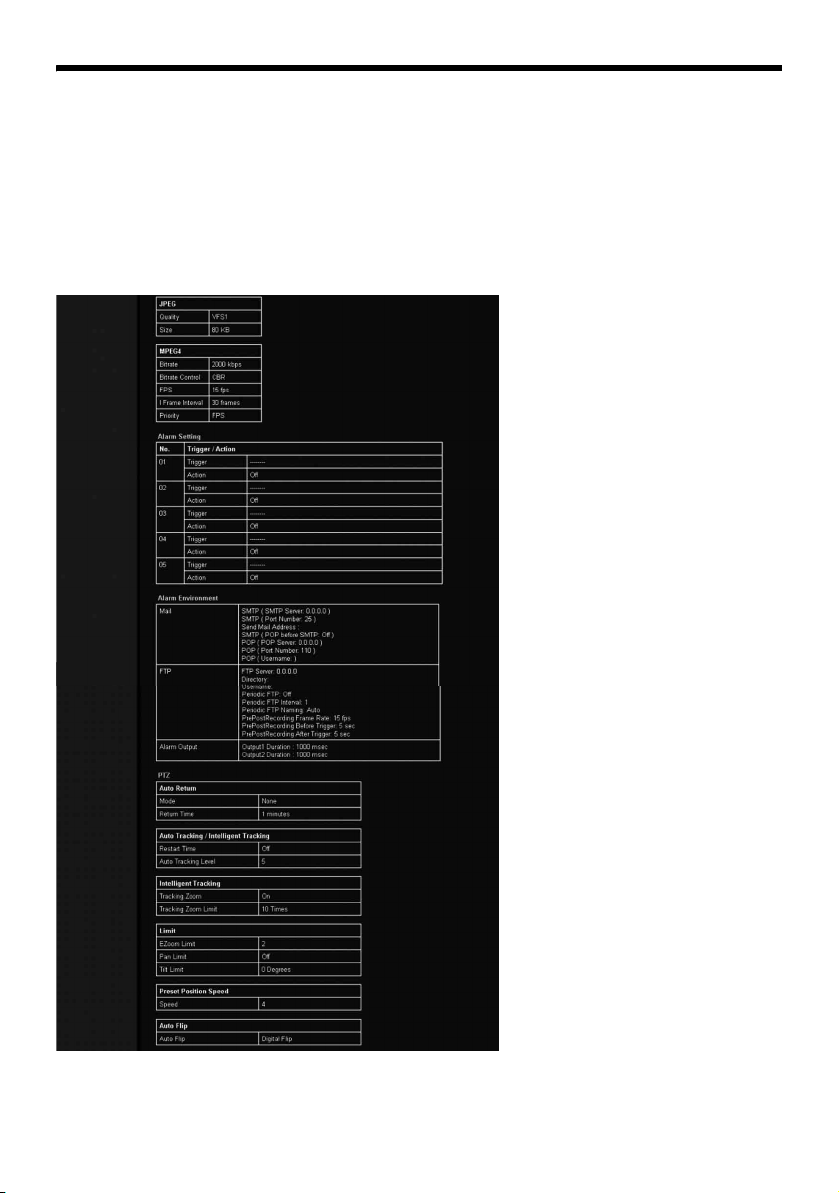

List of Factory Settings of Each Page .....90

Miscellaneous page .................................94

Operation Page ....................................... 95

Settings Page ..........................................96

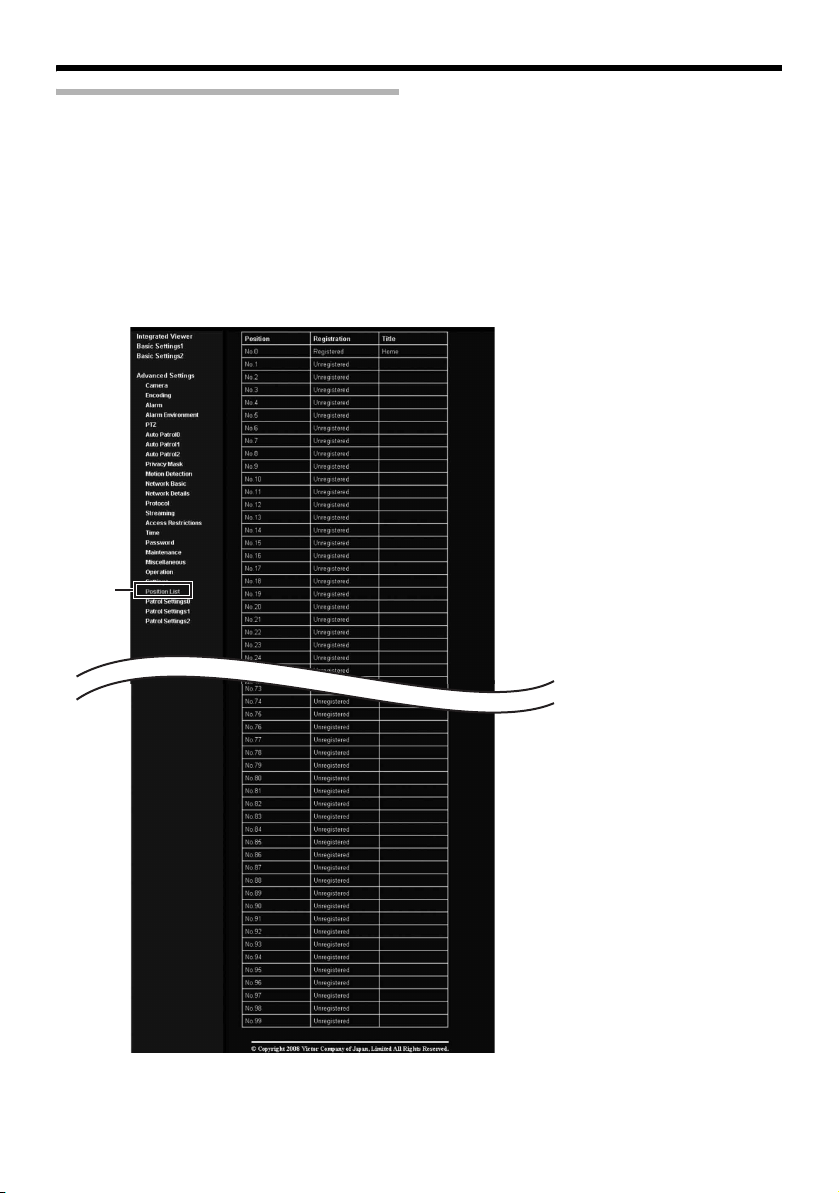

Position List Page ....................................99

Patrol Settings Page ..............................100

Operation

Built-in Viewer ........................................... 101

Screen Configuration of Built-in Viewer

Image quality setting .............................104

PTZ Setting ...........................................106

PTZ Control ...........................................112

JPEG Viewer Settings ...........................117

MPEG4 Viewer Settings ........................ 119

Operator Password ................................121

Exiting the Viewer ..................................122

....102

Others

Troubleshooting .........................................123

Specifications ............................................ 126

Getting Started

Main Features

Support for PoE (Power over Ethernet)

This camera supports PoE (IEEE802.3af) and enables power supply through a LAN cable.

Connect to AC 24 V when using the heater. (VN-V686WPBU only)

Dual Stream Full Frame Rate Transmission

Dual stream (JPEG, MPEG4) data transmission is possible in VGA size at a rate of 30 fps.

Realizing a High Picture Quality

This product uses high resolution 380,000 pixels CCD and a new digital image processing IC to achieve high resolution and image quality.

Progressive Output

This function realizes high picture quality of moving objects by fixing combing noise on the contour of the objects.

Long Magnification Zoom Lens

The optical 36 times (VN-V686BU/VNV686WPBU) and 27 times (VN-V685U) long magnification lenses allow you to conduct detailed monitoring. The high power and large focal ratio F1.6 (WIDE edge) and bright zoom lens realize 1.0 lux (AGC Super, 50 %) high sensitivity during color mode.

Equipped with high precision high speed rotation platform

The newly developed direct drive rotation platform rotates at a high speed of 400 and vertically, thus allowing the camera to move to the preset positions quickly. As it does not have a slowdown mechanism, it is very durable, has a high stopping accuracy and can rotate smoothly even at low speed.

Image Stabilizer

This function detects camera shaking and reduces image shaking.

Automatic Tracking function

This product is equipped with a function that easily tracks moving objects when home position is displayed.

⬚

/s both horizontally

Intelligent Tracking Feature

This feature enables you to track color information of the object that you selected by clicking. Linking the zoom feature enables tracking while automatically adjusting to the optimal magnification ratio.

Day/Night surveillance

This product is equipped with infrared filter mechanism for day/night surveillance. During low illuminance such as nighttime, switching out the infrared filter will switch the product to high sensitivity mode (B&W).

Privacy Mask function

This function allows you to blank out areas that you do not wish to display in the location to be recorded.

Motion Detection Feature

This feature enables output of an alarm upon detection of motion in the video image within preset area. Pre-/Post-recorded JPEG image files can be sent to FTP server by the alarm.

Support for Multicast

This product supports multicast, which enables transmission of image data to multiple computers on the network without lowering the frame rate.

Support for IPv6 dual stack

This camera supports IPv6 and enables transition from IPv4.

HTTP-based API

This product comes with HTTP-based API. This feature enables you to perform setting and control via the network.

Built-in Integrated Viewer Software

This product comes with a built-in integrated viewer that enables you to monitor camera images (JPEG or MPEG4) on the computer. It can also be used to configure the camera settings and control the camera. It also employs a new GUI for greater userfriendliness.

Waterproof and Weatherproof Chassis (VN-V686WPBU)

This camera is equipped with a dust-proof and dripproof mechanism that prevents it from being subject to rain, and therefore can be installed outdoors. (IP66 specification)

T However, VN-V685U/VN-V686BU can only

be used indoors. Do not use them in an outdoor environment or expose them to moisture.

This manual contains the detailed instructions for using this unit.

Please refer to [READ ME FIRST] for description on the general usage of this unit.

For the latest information, please refer to the AReadmeB file in the CD-ROM supplied with this product.

The supplied CD-ROM includes

●

INSTRUCTIONS (this manual) (pdf), [API Guide] (pdf), [VSIP Guide] (pdf) and [Search tool].

● Before starting an important recording, be

sure to perform a test recording in order to confirm that a normal recording is possible. We do not accept liability for the loss of a

●

recording in the case of it becoming impossible to record due to a problem in the video camera, VTR, hard disk recorder or video tape.

●

The Automatic Tracking, Intelligent Tracking, and Motion Detection features are simple functions and cannot be used as a substitute for a security alarm. JVC shall not be liable for any inconveniences or damages caused in the event of false detection or when these functions cannot be detected. We shall not be liable for any inconveniences or damages caused as a result of operational failure for alarm input/output.

How to Read this Manual

䡵

Symbols used in this manual

Note

Memo

䡵

●

:States precautions to be taken

during operation.

:States restrictions on the functions

or use of this equipment. For reference purposes.

:Indicates the page numbers or items

to refer to.

Contents of this manual

JVC holds the copyright to this manual. Any part or all of this manual may not be reproduced without prior consent from the company. Windows is a registered trademark of Microsoft Corporation in the U.S. Product names of other companies described in this manual are trademarks or registered trademarks of the respective companies. Symbols such as this manual. Design, specifications and other contents described in this manual are subject to change for improvements without prior notice. Screen displays in this manual may differ from the actual ones.

姠, 姞

and 姝 are omitted in

Getting Started

Safety precautions

Mounting to a firm place

As the unit rotates at high speed, mount it on a firm place with sufficient strength to support the vibration and weight of the unit

Mass:Approx. 1.9 kg

:Approx. 5.5 k

If the strength is weak, the vibration will cause fuzzy images on the monitor screen. In the worst scenario, the camera may even fall off and hit somebody, resulting in serious accidents.

Mounting the camera correctly with the designated clamping brackets

Always use the designated clamping brackets. Be sure to connect the fall prevention wire and tighten the fixing screws or nuts securely.

Using the correct power and voltage

The rated power of this product is AC 24 V, 50 Hz/60 Hz. Supplying a power beyond the rated value may result in failures and in the worst scenario, smoking and fire.

This unit is able to divert lightning conduction to itself and the connecting cables to a certain extent but this is not 100 % guaranteed. For installation locations that are likely to suffer lightning strikes, be sure to take appropriate measures such as adding arrestor to the connecting cables.

Consult your dealer as special technique is required when installing this product. Ensure that the fixing screws or nuts are tightened securely, otherwise, the unit may fall off.

Inspect the unit regularly.

Screws may be loosened due to vibration or deterioration of the mounting section. Perform regular inspections for loosened screws and check whether there is any danger of the unit falling off.

Do not hang on this product, shake it, or hang objects over it. Applying an excessive load may cause the product to fall off and result in accidents.

Do not modify this product. It may result in accidents.

(VN-V685U/VN-V686BU)

(VN-V686WPBU)

Operating Environment

Recommended Computer Specifications

OS : Windows XP (Professional or

CPU : Pentium4 2 GHz or higher Memory capacity: 1 GB and above Free hard disk space

Display and video card

Web browser: Internet Explorer

LAN Environment

● 10BASE-T/100BASE-TX network

interconnected using devices such as an IEEE802.3-compliant switching hub.

● IEEE802.3af-compliant switching hub when

PoE is used

●

IGMPv2-compliant network when multicast is in use.

emo:

● The above PC specifications are guides for

smooth use of the applications, and not a guarantee of their operation.

● Depending on the condition of use,

applications may not run smoothly even when the user’s computer meets the specification requirements.

● The following may occur if the performance of

the computer is insufficient.

● Playback frame rate for JPEG images may

drop

● Delay in the MPEG4 playback images

may occur, and playback is interrupted

● To use MPEG4 images on the integrated

viewer, install the open source codec “ffdshow”. You can download “ffdshow” from the Internet.

Home Edition) (SP2)

:Windows Vista Business (SP1)

:512 MB or more

:1024 ⳯ 768 pixels or higher, True

Color (24 bits or 32 bits) VRAM 8 MB or more (256 MB and above recommended)

XP : Version 6.0

Vista : Version 7.0

Precautions

Storage and operating environment

䢇

VN-V685U/VN-V686BU is an indoor camera. It cannot be used outdoors.

䢇

VN-V685U/VN-V686BU is a pendant mount camera. Be sure to place the camera head horizontally. The product will not work properly if it is tilted.

䢇

VN-V686WPBU is specially designed to be mounted on walls. Be sure to place the camera head horizontally. The product will not work properly if it is tilted.

䢇

Do not store in the following environments. It might result in malfunctions or failure.

●

Locations beyond the allowable operating humidity range of 20 %RH to 90 %RH. (condensation is not allowed)

●

Near equipment that emits strong magnetic fields, such as transformers or motors.

●

Near equipment that emits radio waves, such as transceivers and mobile phones.

●

Locations with excessive dust and sand.

●

Locations that are subject to vibration such as inside the car or ship.

●

Locations prone to moisture such as window side.

●

Locations subject to steam or oil, such as kitchens.

●

Special environment, such as those with combustible atmosphere

●

Locations that are subjected to radiation, X-rays, salt attack or corrosive gases.

●

Locations where medicine is used such as pools.

●

Hot or cold places that are beyond the allowable operating temperature range

䡵Allowable operating temperature

VN-V685U/VN-V686BU -10I to 50

VN-V686WPBU

AC 24 V power supply -40

PoE power supply -10I to 50

●

When power is supplied to VN-V686WPBU using PoE, the heater will not work. Use an AC 24 V power supply when using the camera in an environment under -10

䢇

When using VN-V686WPBU in a low temperature environment (-40 displayed for up to two hours until the interior is warmed up by the built-in heater. It is therefore recommended that power be supplied to the camera at all times when the surrounding temperature is low. Inadequate heat ventilation may result in malfunction

to -20I), images may not be

to 50

of this product. Be sure not to block vents around the product. This product discharges heat from the surface of the main unit.

䢇

Do not install it at locations directly subjected to cold air such as near the vents of air-conditioners or at locations with high temperature. Condensation may occur inside the dome cover.

䢇

Use of this product and cables connected to this product at locations where strong electric waves and magnetic waves are generated (e.g., near radio, TV, transformer, monitor, etc.) may cause noise interferences in the images or changes in the color.

Others

䢇

Do not subject the lens to strong light source such as sun rays. This may cause the equipment to malfunction.

䢇

This camera comes with a built-in AGC circuit. The sensitivity increases automatically at a dark place and the screen may appear grainy. This is not a malfunction.

䢇

While AGC is activated, if a transceiver which causes strong electromagnetic wave is used near the camera, the picture may suffer from beat. Please use the camera more than three meters away from such transceivers.

䢇

When automatic iris is selected, the Iris Control button may not work depending on the brightness of the screen (when the amount of light is not sufficient). In this case, set the iris to Manual.

䢇

When automatic iris is selected and AGC is ON, even if the iris setting can be changed with the Iris Control button, the Sense Up function will be enabled and the brightness of the screen may not change. In this case, set AGC to OFF or set the iris to Manual.

䢇

When this camera is used in the White Balance

AT W- N a rr o wB, AAT W- W i deB (automatic adjustment) mode, the color tone may differ slightly from the actual color due to the principle of the automatic tracking white balance circuit. This is not a

malfunction.

䢇

If a high brightness object (such as a lamp) is shot, the image on the screen may have white vertical tailings. This phenomenon (smear) is characteristic of solid-state image sensors and is not a malfunction.

䢇

Do not touch the dome cover with your hands. Dirty covers will cause image deterioration.

䢇

Do not subject the dome cover to strong impact. It may result in damage and water seepage.

䢇

The dome cover may fog up due to the drastic change of temperature when humidity is high.

䢇

Do not connect an AC 24 V cable to AC 110 V/AC 230 V power supply. The camera internal circuit will be damaged. Should that happens, do not use the camera. Bring it to your nearest JVC dealer for repair. (charged separately)

䢇

To supply AC 24 V, use an AC 24 V supplying power unit that is insulated from AC 110 V/AC 230 V line.

Getting Started

Precautions (continued)

䢇

If you sense that the focus has become unclear due to temperature changes, use the Auto Foucua(AF) function or reset the focus manually.

Others (continued)

䢇

Depending on the stop position and rotation speed of the horizontal/vertical rotation platform, the running sound of the rotation platformfs motor may be heard, but this is not a malfunction.

䢇

When using multicast, make use of a IGMPv2compliant network switch.

䢇

Some hubs/switches of products that are equipped with intelligent features may include a broadcast/ multicast suppression function. Viewing of multicast images on this product may fail if this function is enabled.

䢇

The electronic shutter of this product is set to 1/60 by default. For regions with a commercial power supply frequency of 50 Hz, switch to the 1/100 during use under fluorescent lights (excluding inverter lighting equipment) to prevent flickers.

䢇

When the B&W mode is set to AAutoB, the image turns black-and-white in a dark location. As the sensitivity level is increased in this case, the screen may appear grainy and more white spots may appear. When switching between color and black-and-white images, the brighter area on the screen is emphasized, which may reduce the visibility. However, this is not a malfunction.

䢇

If the power supply voltage is momentarily cut off or reduced due to lightning or turning on of the air conditioner’s power, the image may be disrupted or noise interference may occur.

䢇

As the dome cover is of a semiglobular shape, image distortion will occur at the hemispherical edge. When the hemispherical edge of this unit is masked and horizontal level is shot in a tilt direction, the hemispherical edge will enter the field angle. This may cause the upper edge of the screen to become black and the focus unclear. In this case, you can avoid shooting the above area by using the tilt limit settings (

䢇

When shooting objects with a luminance difference or near a light source, ghost may occur on the screen. This is a feature of the dome cover and the built-in lens, and is not a malfunction.

䢇

In particular, manual and auto pan operation near the TELE edge (telephoto side) may cause the screen to vibrate (unsmooth rotation). This is a feature of the motor and is not a malfunction.

䢇

As long magnification lens is used in this product, the focus may be unclear due to temperature changes but this is not a malfunction.

䢇

Preset the focus under an environment with a temperature closest to that in your actual usage. If the temperature change is large and the focus becomes unclear, preset the focus again before using the product.

Page 70).

Transporting the unit

䢇

Remove the connecting cables when transporting the unit.

䢇

When transporting the unit, turn off the power of the system.

䢇

Pack the unit with cushioning material so as to avoid shock when transporting.

䢇

Handle the unit with care and do not subject it to vibration or shock.

䢇

With the exception of the user being the copyright holder or when permission such as for duplication has been granted by the copyright holder, permission is required in principle for the duplication, modification, or transmission of copyrighted video and audio data. Unauthorized duplication, modification, or transmission of copyrighted material may constitute a copyright infringement, and the user may be liable to compensate for any damages. When using copyrighted video/audio data, be sure to check the license agreement of the copyrighted material thoroughly. When rights or rights holders are involved with regard to the targeted duplicating subject, permission may be required for shooting or using (processing) it. Be sure to check the licensing conditions thoroughly.

Maintenance

䢇

Turn off the power before performing maintenance.

䢇

Wipe using a soft cloth. Wiping with thinner or benzene may melt or tarnish its surface. For tough stains, wipe using a cloth that is dipped into a neutral detergent diluted with water, followed by wiping with a dry cloth.

䢇

When the same position is monitored for 24 hours continuously over a long period, the increased contact resistance on the horizontal rotation section may cause noise interferences in the images and operation from the computer may become unstable. As such, this product is equipped with an auto cleaning function that performs cleaning once a week.

Saving Energy

䢇

If the camera is not to be used for a long time, turn off the power of the system for safety and energy conservation reasons.

Disclaimer

䢇

The Automatic Tracking, Intelligent Tracking, and Motion Detection features are not features to prevent theft or fire. Our company shall not be liable for any inconveniences or failures that occur.

䢇

We shall not be responsible for any inconveniences or disturbances caused in the event of privacy invasion as a result of camera footages of this product.

Transportation

䢇 Do not throw away the original box of the unit.

Keep it and use it for transporting the unit in future.

䢇 As the camera unit is of an easily rotatable

structure, secure the camera unit inside the dome cover such that it does not rotate before transporting. Otherwise, an error may occur during camera operation.

AFace the heat release vents upward and

secure the lens section with tape.

BInsert cushioning material wrapped with air

caps (approx. 50 mm x 200 mm) at two opposite sides of the camera.

䢇 When attaching the ceiling clamping bracket

to the camera unit before transporting, pull out the tip of the fall prevention wire to prevent it from being caught between the camera and clamping bracket. Otherwise, it may be difficult to detach the bracket from the camera. (VN-V685U/VN-V686BU)

䡵VN-V685U/VN-V686BU

䡵VN-V686WPBU

Cushioning material

Secure with tape

Pull out the tip of the fall prevention wire

Cushioning material

Secure with tape

Getting Started

Precautions (continued)

䡵

Consumable parts

The following are consumable parts. They must be replaced once they reach their lifetime. The lifetime is only an estimation and differs according to the usage environment and conditions. Replacement of consumable parts is chargeable within the guarantee period.

●

Zoom lens assembly

Zoom operation ..... Approx. 2 million operations

Focus operation..... Approx. 4 million operations

●

Slip ring ................. Approx. 5 million operations

●

Cooling fan ...................... Approx. 50,000 hours

●

Heater relay(VN-V686WPBU)......... Approx. 100,000

times

●

Heater fan(VN-V686WPBU) ........... Approx. 50,000

hours

䡵

Auto Focus

This unit is equipped with Auto Focus functions. However, depending on the object and the camera setting, it might be out of focus. In this case, please adjust the focus manually.

●

Objects which are difficult to be focused automatically

●

When the brightness of the image plane is extremely high (bright)

●

When the brightness of the image plane is extremely low (dim)

●

When the brightness of the image plane is constantly changing (for example, a blinking light)

●

When there is almost no contrast

●

When there are repetitive vertical striped patterns on the image plane

●

Auto Focus is difficult to set under the following conditions

●

When sensitivity is increased with AGC and the screen is grainy

●

When there is less movement on the screen due to the Sense Up function.

●

When there is no clear contour in electronic zoom

䡵

Zoom Operation

The following phenomena are the results of the built-in lens performance and are not malfunctions.

●

When manual operation or preset is selected, focus moves slightly after the zoom operation has stopped near the TELE edge.

●

Manual zoom operation is not smooth.

●

When Preset is selected, the camera becomes out of focus for an instant during zooming.

䡵

Preset Positions

The total number of preset positions that can be set in this unit is 100, including the home position and 99 preset positions.

Name and Function of Parts

VN-V685U/VN-V686BU

䡵 Ceiling mount section

erminal

Reverse side

C D

Fixing holes (x3)

This hole is for mounting the ceiling clamping bracket to the ceiling or the ceiling recessed bracket (WB-S685: Sold separately).

[AC24VHINPUT] AC 24 V Input terminal

This connects the camera to AC 24 V power.

[10BASE-T/100BASE-TX] LAN cable connection terminal

This connects the unit to the network. It supports PoE (IEEE802.3af) and enables you to use this camera without having to connect to a power supply using a power cord. PoE: class0 (A Page 24)

Alarm input/Alarm output terminal

This terminal is for alarm input/alarm output. (A Page 25)

Pin number Signal Name

1 Input 1

2 Input 1 COM

3 Input 2

4 Input 2 COM

5 Output 1

6 Output 1 COM

7 Output 2

8 Output 2 COM

Fall prevention wire fixing bracket

This attaches to the fall prevention wire J of the camera.

Wire clamp fixing hole

This is used to bundle wires. (A Page 19)

Fall prevention wire mounting hole

Mount wires from the ceiling slab or channel to this hole to prevent the camera from falling.

Power indicator

The indicator lights up in green when AC 24 V power/ PoE power is turned on.

[Mac address] indication

The MAC address is a unique physical address of the product. This address cannot be altered.

Camera connection terminal (female)

This connects to the connection terminal (male) of the camera.

Getting Started

Name and Function of Parts (continued)

VN-V685U/VN-V686BU (continued)

䡵 Camera

K L

Fall Prevention Wire

This is fixed to the fall prevention wire fixing bracket E of the ceiling clamping bracket.

L Camera lock knob (x2)

This mounts the camera on the ceiling and secures it so that it does not fall.

M Front Mask N Lens

Lens cannot be replaced.

O Cable cover

To pull the cables from the side and mount the camera, remove the cover.

P Dome Cover

The dome cover is a delicate object. Handle it with care.

Note:

Do not peel off the protective sheet which is attached at shipment, until the dome cover is mounted on the main unit. (A Page 21)

(A Page 20)

VN-V686WPBU

䡵 Front side

䡵 Inner structure of

the camera

Camera securing hole (4 locations)

This hole is used for mounting the camera on the wall.

B Cable connecting hole, cap

Remove the cap and pull out the cables from this hole for connection. (A Page 27)

C Fall Prevention Wire

Connects the camera to the wall. Secure the camera tightly to the anchor bolts used to mount the fall prevention wire on the wall.

D AC 24 V Power Cable

This connects the camera to AC 24 V power. (A Page 30)

E Alarm Input/Alarm Output Cable (x8)

This cable is for alarm input and alarm output. (A Page 25)

Cable color Signal Name

Brown Input 1

Red Input 1 COM

Orange Input 2

Yellow Input 2 COM

Green Output 1

Blue Output 1 COM

Purple Output 2

Gray Output 2 COM

(A Page 28)

F LAN Cable

This connects the unit to the network. (A Page 24)

G Dome Cover

The dome cover is a delicate object. Handle it with care.

Note:

● It is covered with a protective sheet during

shipment. Do not remove this sheet until installation is complete.

H Dome Cover Fixing Screws (x4) I Heater ON/OFF Switch

This is the automatic control ON/OFF switch of the built-in heater. The built-in heater prevents the dome cover from fogging up and snow or frost from attaching to the dome cover. When installing the heater at an unrequired location, turn off the switch of the heater. It is usually set to ON.

(A Page 26)

J Lens

Lens cannot be replaced.

K Front Mask L [MAC address] indication

The MAC address is a unique physical address of the product. This address cannot be altered.

Getting Started

Features

Surveillance Using Built-in Viewer

This unit comes with a built-in ActiveX JPEG Viewer and MPEG4 Viewer. JPEG images and MPEG4 images of the camera can be monitored using the computer by installing this Built-in Viewer on the computer. JPEG images that are currently displayed can also be captured into the computer’s hard disk. ABuilt-in ViewerB (APage101)

camera

Network

Computer

This unit accepts requests from a maximum of 20 clients.

Monitoring via Multicast

Multicast enables monitoring of JPEG and MPEG4 images on multiple computers.

AStreaming PageB (APage82) AJPEG Viewer SettingsB (APage118) AMPEG4 Viewer SettingsB (APage120)

Surveillance via Dual Stream

Simultaneous distribution of JPEG and MPEG4 images enables real-time surveillance using MPEG4 (30 fps) and recording of JPEG images at the same time. You can also lengthen the recording time by lowering the frame rate, resolution, and picture quality settings for JPEG images.

Real-time Surveillance

camera

Network

Using MPEG4

Computer

Storage Device

Recording JPEG

Saving JPEG images to the FTP server at regular intervals

JPEG images may be uploaded to the FTP server at regular intervals. AFTPB (APage63)

camera

IGMP-

Compliant

Network

Computer

camera

Network

Uploads the latest JPEG images to the FTP server at regular

Computer

Alarm

This unit comes with a motion detection feature and dual alarm input. During motion detection or alarm input, actions such as mail delivery, message transmission via TCP/UDP, alarm output, moving to a preset position, and changing of B&W mode settings can be triggered. These actions can also be triggered by combination of two alarm inputs. Installing an FTP server enables uploading of JPEG images before and after the alarm input time (pre-/post-recording) to the server.

AAlarm PageB (APage58) AJPEG Viewer SettingsB (APage118)

camera

Sending JPEG images before and after alarm input to FTP

Alarm Device

Network

Computer

Restrictions on Clients

This unit enables users to authorize or reject the acquisition of images by specific IP address. (A Page 84)

Control via customized application software

The following uses are also possible by developing a customized application software that supports the API of this unit. For details, please refer to [API GUIDE] in the supplied CD-ROM.

● Monitors via the computer while at the same

time records images to the HDD of the computer.

● Performs recording by changing the frame

size/frame rate during alarm occurrence.

● Records the type and time of alarm

occurrence on the computer.

Connection/Installation (VN-V685U/VN-V686BU)

●

Mounting the Camera

Preparation

Be sure to put on protective glasses to protect your eyes from falling objects when mounting the camera.

Make holes on the ceiling

●

Use the provided template to make a hole (R80 mm) for the connection cables to thread behind the ceiling.

●

If necessary, also open a screw hole to mount the ceiling clamping bracket to the ceiling. In this case,

AD FRONT markB of the template in the

align the direction where the camera faces front and open the screw hole.

Pull the cables from the hole in the ceiling

Pull out the fall prevention wire, power cable, coaxial cable, control signal cable, alarm signal cable and provided alarm cable that were mounted to the ceiling slab from the ceiling.

Doing so detaches the ceiling clamping bracket from the camera. Prevent the bracket from dropping such as by performing this on a table.

emo:

●

If the camera fixing lock knob is too stiff, push the knob hard while pressing the edge of the camera unit ( using.

Lifting the camera unit detaches the ceiling clamping bracket. Remove by sliding it in the direction indicated by the arrows.

Camera fixing lock knob (x2)

Remove the terminal cover

Loosen two screws on the ceiling clamping bracket and remove the terminal cover.

in the diagram) against the table you are

Ceiling mount

Camera

Fall

Preventio

Alarm signal cable

Note:

●

Mount the fall prevention wire on a firm place with sufficient strength.

Remove the ceiling clamping bracket from

LAN Cable

Power cable

the camera unit

The ceiling clamping bracket is attached to the camera unit during packaging of the product. Before installing the camera, remove the ceiling clamping bracket from the camera unit.

Check to make sure that the two camera lock knobs (left and right) are unlocked.

●

If they are locked, unlock by sliding them in the direction indicated by the arrow.

Press the two camera lock knobs from both the left and right sides in the direction indicated by the arrows.

Terminal cover

Mount the fall prevention wire that connects the ceiling clamping bracket to the ceiling

䡵 Fall Prevention Wire

6 mm

6 mm (3/16

R6 mm and

R4 to 5.5 mm

Caution

Take note of the length, strength, pull and

●

material (insulation) of the fall prevention wire and use one with a wire strength of more than 20k

●

The inner diameter of the ring section of the fall prevention wire mounted on the camera should be diameter be

●

The thickness of the screw head and the fall

4 mm to R5.5 mm and the outer

9 mm and below.

prevention wire (including the washer) should be 6 mm and below. If it is more than 6 mm, the screw will touch the ceiling and the camera cannot be installed horizontally.

●

Use M4 fixing screws.

emo:

● The wire should be insulated from the ceiling

structure. If the ceiling structure is metal and insulation is not provided between the camera and the ceiling structure, image noise may occur.

6 Connect the cable (A

23 to 25)

Connect cables to the terminal of the ceiling clamping bracket. The connection cables consist of the alarm signal cable, LAN cable and AC 24 V power cable.

A LAN cable (A Page 24)

This connects the unit to the network.

B Power cable (A Page 23)

This connects to AC 24 V power.

C Alarm input/output signal terminal

(A Page 25)

This connects to devices with alarm input/output terminals.

Note:

● Do not connect an AC 24 V cable to AC 110

V power supply. The camera internal circuit will be damaged. Should that happens, do not use the camera. Bring it to your nearest JVC dealer for repair. (charged separately)

● For safety reasons, turn on the power only

after all the connection is complete.

● To supply AC 24 V, use an AC 24 V supplying

power unit that is insulated from AC 100 V line.

7 Handling cables

Thread the provided wire clamp through the wire clamp fixing hole of the ceiling clamping bracket to tie all the wires.

Wire clamp fixing hole

Tie here

Wire clamp

Note:

● To prevent the cables from tangling and

coming off, be sure to thread a wire clamp through the wire clamp fixing hole to tie the cables.

LAN Cable

Power cable

Alarm signal cable

Connection/Installation (VN-V685U/VN-V686BU)

Mounting the Camera (continued)

Preparation (continued)

Mount the terminal cover

Return the terminal cover that was removed in step 3 to its original position. The direction to pull out the cables changes according to the mounting method of the camera.

䡵 Pulling out the cables from the side

Terminal cover

䡵 Pulling out the cables from the top

Note:

●

Be sure to mount the terminal cover to prevent foreign objects or dust from entering.

●

When pulling out the cables from the top, make the fall prevention wire go under the terminal cover and pull it out together with the other cables.

●

When pulling out the cables from the side, remove the cable cover of the camera.

Fall Prevention Wire (To go under the terminal co

Te r mi n a l cover

Cable cover

Mounting the ceiling clamping bracket to the ceiling

Secure the ceiling clamping bracket to the ceiling

●

Install such that the AD clamping bracket faces the front.

●

Ensure that the connection cables are not caught in between and secure the ceiling clamping bracket to the ceiling with 3 screws.

Front of the camera

DFRONT mark

Note:

●

Use M4 fixing screws and bolts.

●

Use R4.1 wood screws.

●

The length of the screws should be 25 mm (1inch) and above.

●

Place the product horizontally and install. The camera will not operate properly if it is slanted.

●

The screw head should be 5 mm and below. If the ceiling structure is metal, image noise may occur.

●

Do not use screws for which the screw head is embedded after fastening. (e.g. flat countersunk head screws). Otherwise, the insulating resin part may be damaged, thus preventing proper insulation.

emo:

●

Always use 3 screws and mount securely.

●

Tighten the screws again during maintenance just to be safe.

●

The plastic parts on the ceiling fixing holes of the ceiling clamping bracket act as an insulation between the ceiling clamping bracket and the ceiling structure. If the ceiling structure is metal and insulation is not provided between the camera and the ceiling structure, image noise may occur. Be sure to provide insulation.

FRONT markB of the ceiling

Screws

5 mm (3/16 inch) and below

Mounting the camera to the ceiling

1 Remove the tape on the lens section

2 Remove the lens cap

4 Remove the dome cover protective

sheet

Lens cap

3 Mount the dome cover to the camera

A Check that the dome cover and lens are

free from dirt.

Turn the dome cover in a clockwise direction to mount.

Note:

● Be sure to turn the dome cover until it stops

and tighten securely. Make sure that the dome cover is not slanted.

● Do not over-rotate the dome cover. This may

damage the dome cover.

emo:

● If it is difficult to screw on the dome cover,

turn it in an anticlockwise direction until you hear a click sound, then turn it in a clockwise direction. It will screw on smoothly.

Ta pe

Camera

Dome cover

Dome Cover

protective sheet

Caution

● The dome cover is an optical part. Handle

with care.

● When mounting the dome cover, make sure

that there is no dirt inside the cover.

● Tighten the dome cover securely.

Connection/Installation (VN-V685U/VN-V686BU)

Mounting the Camera (continued)

5 Mount the fall prevention wire

Mount the fall prevention wire, which is attached to the camera, to the fall prevention wire fixing bracket of the ceiling clamping bracket.

Caution

● Be sure to connect the fall prevention wire.

Otherwise, the camera may fall.

● To prevent danger, do not leave the fall

prevention wire dangling by the camera.

6 Mount the camera

● Align the ADB mark (blue)/(red) inside the

camera with the ADB mark (blue)/(red) on the ceiling clamping bracket.

● Insert the camera into the ceiling clamping

bracket until you hear a click sound and mount it securely.

7 Check that the camera fixing lock

knobs (x2) are sticking out.

If the camera is mounted on securely, the camera fixing lock knobs (x2) will stick out a little.

Fall prevention

wire fixing bracket

Note:

● Before mounting the camera, check that the

camera fixing lock knobs are not locked (i.e., lock knobs are on top). The camera cannot be mounted if the lock knobs are locked.

● When pulling out the cables from the side,

remove the cable cover of the camera. (A Page 18)

8 Lock

When the camera is mounted on the ceiling clamping bracket, lower the camera fixing lock knobs (x2) in the direction of the arrow and secure the camera such that it does not fall off.

9 Remove the safety precautions sheet

on the camera

Read through details stated on the safety precautions sheet again.

Camera fixing lock knob (x2)

Sheet

D mark (blue)

Caution

● Be sure to check that the camera fixing lock

D mark (red)

Fall Prevention Wire

During mounting

After mounting

knobs (x2) are locked securely. Otherwise, the camera may fall.

● After mounting, check that the camera is

mounted securely. Improper mounting may cause the camera to fall off.

Removing the camera

A Release the lock by sliding the camera fixing

lock knobs toward the ceiling.

B Press the two camera fixing lock knobs from

both the left and right sides to remove the camera unit.

C Remove the fall prevention wire by performing

the mounting procedures in the reverse sequence.

Power Connection

Power can be supplied to this camera either by connecting to an AC 24 V power supply or using

(A Page 24).

PoE

Note:

● If power is supplied from both power cable

and LAN cable, priority will be given to the power supply from the power cable.

● Be sure to use an AC 24 V supply that is

isolated from the primary power supply circuit. Using a variable voltage power supply will cause the camera and system to malfunction or breakdown.

● The unit is to be powered by an AC 24 V

power supply. The AC 24 V power supply should conform to the following: Class 2 only (For USA), Isolated power supply only (For Europe and others).

Connecting to an AC 24 V power supply

This connects the camera to AC 24 V power.

Power cable

To Power Supply

When using 2-core VVF (Vinyl-insulated vinylsheath cable), the connection distance is as follows: (Reference value)

Maximum connectio n distance

Conductor Diameter (mm)

50 m 150 m 230 m 390 m

R1.0 and above

R1.6 and above

2.0 and above

2.6 and above

Warning

● The rated power of this product is AC 24 V, 50

Hz/60 Hz. Make sure to use it with the correct voltage.

● Supplying a power beyond the rated value

may result in failures, smoke or fire. If the camera breaks down, turn off the power and contact our service center immediately.

● When a power beyond the rated value is

supplied, the internal components may be damaged even if no abnormality is found on the appearance and operation of the camera. Please contact your nearest JVC dealer immediately for servicing (charged separately).

emo:

●

After DHCP timeout, all IP addresses of camera are set to 192.168.0.2 by default. If the power of multiple cameras within the same LAN environment are turned on at the same time, the IP addresses of the cameras overlap, thus preventing proper access. As such, make sure to turn on the power of the cameras one by one.

●

In a system where multiple units of camera are used, turn on the power of only one unit to configure the IP address settings using the Internet Explorer. Upon doing so, turn on the power of the second unit and configure accordingly. Configure the subsequent camera settings using the same procedure.

●

When there is an overlap of IP address, access to the camera may fail. When this occurs, turn on the power of only one camera unit within the same LAN environment and wait for a while (at least 10 minutes). Alternatively, turn off the power of all network devices connected to the same LAN environment, followed by turning them on again.

Note:

●

If thin cables are used, the resistance of the cables will be high and a significant voltage drop will occur when the camera is at its maximum power consumption (when pan, tilt and zoom operates at the same time). Either use a thick cable with low resistance or place the power supply near to the camera and shorten the length of the cable to restrict the voltage drop at the rated current of the camera to below 10 %. If voltage drops during operation, the camera may experience unstable performance and be unable to call up the preset position correctly.

●

Turn on the power only after the connection for all the devices is complete.

●

After the power is turned on and activation is completed, this product will move to the home position. The default home position settings for pan, tilt, and zoom are 1.00 °, 45 °, and x1 respectively.

Connection/Installation (VN-V685U/VN-V686BU)

Power Connection (continued)

Using PoE

Supply power to the camera by connecting it to a device that supports PoE via a LAN cable.

What is PoE (Power over Ethernet)?

PoE is a feature that transfers data and supplies power simultaneously through a LAN cable. It enables you to operate a LANcompatible equipment without having to connect it to a power supply using a power cord.

Cable to use

●

Shield (STP) cable

●

Length of 100 m or shorter

●

Make use of a Category 5 (or higher) cable .

LAN Cable Connection

Connect the camera to a hub or computer using a LAN cable.

Cable to use

●

Shield (STP) cable

●

Length of 100 m or shorter

●

Make use of a Category 5 (or higher) cable .

䢇 When connecting to a hub

Make use of a straight cable.

䢇 When connecting to a computer

Make use of a cross cable.

[10BASE-T/100BASE-TX]

LAN cable connection

terminal

[10BASE-T/100BASE-TX]

LAN cable connection

terminal

Note:

● However, cross cables cannot be used with

some computer models. When connecting this unit directly to a computer, check the computer’s LAN specifications in advance.

Connecting the alarm signal terminal

Connect the alarm signal cable to external devices, such as a sensor or buzzer.

Cable to use

● Length of 50 m or shorter

● UL1007, UL1015 or equivalent products

● AWG#22 to AWG#18 or equivalent

products

A Loosen screws on both sides of the

terminal block with a flathead screwdriver and remove the terminal block as shown in the diagram below.

emo:

● Inserting the tip of the screwdriver into the slit

of the terminal block will remove the terminal block easily.

B Peel off about 4 mm of the alarm signal

cable covering and insert into the terminal.

C Turn the screws at the side and secure the

alarm signal cable.

D When the alarm signal cable is secured,

return the terminal block that was removed in A to its original position.

Alarm signal terminal

Alarm input signal

Connects to sensors such as infrared sensors, door sensors, metal sensors and manual switches.

● To prevent noise from entering the internal

circuit, supply non-voltage contact signal to the alarm input signal.

● Do not supply voltage.

● When the contact is short (MAKE) or open

(BREAK) on the menu, you can set it to Alarm.

● Supply such that the alarm signal continues

for at least more than 500 ms. The alarm signal may not be recognized if it is less than 500 ms.

COM

Alarm output signal

Connect to alarm devices such as alarm, indicator, light or buzzer.

●

Alarm output signal is an open collector output insulated with photo coupler.

●

During an alarm, it is ON.

●

As this terminal is polarized, be sure to connect it such that the voltage of the + output is higher than that of the – output.

●

It will be damaged if reverse voltage is supplied.

4 mm

Note:

● Noises from an external source may cause

the camera to malfunction even when the cable used is within 50 m. In this case, move the cable away from the noise source.

OUTPUT

COM

Rating:

Max. applied voltage: DC 20 V Max. driving current: 25 mA

Connection/Installation (VN-V686WPBU)

Mounting the Camera

Setting Up the Wall

Be sure to put on protective glasses to protect your eyes from falling objects when mounting the camera.

1 Make holes in the wall

Make holes (R 45 mm) for the connecting cables to pass through.

Note:

● Check the strength of the wall. A less firm

wall may cause the unit to fall.

2 Install the anchor bolts for mounting

the camera

Install 4 anchor bolts (M8 ⳯ 35 mm and above) to mount the camera.

3 Install the anchor bolt for mounting

the fall prevention wire

Install the anchor bolt (M8 ⳯ 35 mm and above) to mount the fall prevention wire 30 mm below the center of the upper two anchor bolts that are used to mount the camera.

4 Pull the cables from the hole in the

wall

Pull the power cable, LAN cable and alarm signal cable from the wall.

LAN Cable

Power cable

Alarm signal cable

Setting Up the Camera

1 Remove the dome cover

Loosen the screws (x4) and remove the dome cover from the camera.

Dome Cover

Anchor bolt to mount the fall prevention wire

152 126

2 Remove the cushioning material, lens

213

176

Anchor bolts to mount the camera

cap and tape used during transporting

When installing the heater at an unrequired location, turn off the switch of the heater.

Ta pe

Cushioning material

Heater power switch

OFF

Lens cap

3 Insert silica gel (when using PoE

power supply)

Note:

● Be sure to insert the provided silica gel in the

position as shown in the diagram when using the PoE power supply.Otherwise, the camera lens may fog up or the image may become blur.

Remove the screw and lift up the plate

B Take out 3 silica gels from the aluminum bag

and insert them into the position as shown in the diagram.

C Fasten the screw

4 Mount the dome cover to the camera

Use the screws (x4) to mount the dome cover to the camera. As a guide, install the three catches of the dome cover and the central mark. Install such that the central mark appears above the JVC mark of the camera.

Position aligning catches (x3)

Plate

Silica gel ⳯3

emo:

● During reconnection or re-installation after

repair or maintenance, make sure to replace the silica gel with a new one.

● Consult your nearby JVCfs dealer on the

replacement procedures.Serial number of part to be replaced: Use a LW40500-001A silica gel.

Note:

● When mounting is performed on a rainy

day,make sure that rain water does not enter this unit.

Face front

(towards direction of the JVC mark)

Note:

●

Check that there is no dirt or dust inside the dome cover before mounting.

●

When installing on a rainy day, ensure that raindrops do not enter the interior.

●

When mounting the dome cover, temporarily secure the 4 screws and then tighten.

●

As a guide, tighten the screws to 0.5 N•m to 1 N•m (5 kgf•cm to 10 kgf•cm). If the tightening is loose, the dome cover may fog due to water seepage.

Remove the cable connection cap

Remove the cap on the arm of the camera.

Pull out the cables from the cable connection hole

Pull out the cables (except the fall prevention wire) of the camera from the cable connection hole.

Cable connection cap

Connection/Installation (VN-V686WPBU)

Mounting the Camera (continued)

Mounting the Camera

Mount the fall prevention wire

●

Mount the fall prevention wire of the camera to the fall prevention wire anchor bolt that was installed earlier.

●

Secure the fall prevention wire tightly with a nut and washer.

Pull out the cables (from the wall) from the cable connection hole.

Mount the camera to the wall

●

Mount the camera to the camera anchor bolts that were installed earlier.

●

Secure the camera tightly with a nut and washer.

Wash er

Nut

Fall Prevention Wire

Cable Connection

1 Connecting the power cable

(A Page 30)

Connect the power cable and wind the waterproof tape (adhesive). After connecting, push the cable into the arm of the camera.

Arm

Wind the waterproof tape (adhesive)

2 LAN Cable Connection (A Page 31)

A Use the provided RJ-45 conversion connector

and connect the LAN cable.

B Wind the connector section with waterproof

tape (adhesive) and push the cable into the arm of the camera.

Arm

Note:

●

This product weighs approximately 5.5kg. When installing, pay extra attention as it may fall.

●

For your safety, hold the arm section during installation.

●

After installing, paint the nuts and washers to prevent corrosion.

emo:

●

To remove the camera, follow the reverse procedures.

Wind the waterproof tape (adhesive)

RJ-45 conversion connector (provided)

3 Connecting the alarm cable (A

Page 25)

Connect the alarm cable and wind the waterproof tape (adhesive). After connecting, push the cable into the arm of the camera.

Arm

4 Mount the cap

5 Seal the cable connection hole and

around the mounting surface of the camera with waterproof seal (GE silicon).

Cap

Water proof treatment

Wind the waterproof tape (adhesive)

Note:

● For cables that are not used, be sure to wrap

the ends individually with insulating tape.

● For safety reasons, turn on the power only

after all the connection is complete.

Note:

● Ensure that waterproof treatment is

performed. Otherwise, the camera may malfunction due to rain water seepage.

● Use GE silicon or other similar product for the

sealing material.

6 Remove the dome cover protective

sheet

Protective sheet

Connection/Installation (VN-V686WPBU)

Power Connection

Power can be supplied to this camera either by connecting to an AC 24 V power supply or using

(A Page 31).

PoE

Note:

● If power is supplied from both power cable

and LAN cable, priority will be given to the power supply from the power cable.

● Be sure to use an AC 24 V supply that is

isolated from the primary power supply circuit. Using a variable voltage power supply will cause the camera and system to malfunction or breakdown.

● The unit is to be powered by an AC 24 V

power supply. The AC 24 V power supply should conform to the following: Class 2 only (For USA), Isolated power supply only (For Europe and others).

Connecting the power cable

This connects the camera to AC 24 V power.

Solder welding or crimping

Insulating tape

To Po we r

When using 2-core VVF (Vinyl-insulated vinylsheath cable), the connection distance is as follows: (Reference value)

Maximum connectio n distance

Conductor Diameter (mm)

30 m 80 m 120 m 210 m

R1.0 and above

R1.6 and above

2.0 and above

2.6 and above

Warning

● The rated power of this product is AC 24 V,

50 Hz/60 Hz. Make sure to use it with the correct voltage.

● Supplying a power beyond the rated value

may result in failures, smoke or fire. If the camera breaks down, turn off the power and contact our service center immediately.

● When a power beyond the rated value is

emo:

●

When overlapping of the IP address occurs, check to ensure that there is only one camera unit within the same LAN environment, and wait for a while (at least 10 minutes) or power off and on all network devices under the same LAN environment. Otherwise, access to the camera may fail.

Note:

●

Do not connect an AC 24 V cable to AC 110 V/AC 230 V power supply. The camera internal circuit will be damaged.

●

Should that happens, do not use the camera. Bring it to your nearest JVC dealer for repair.

●

Turn on the power only after the connection for all the devices is complete.

●

After the power is turned on and activation is completed, this product will move to the home position.

Using PoE

Supply power to the camera by connecting it to a device that supports PoE via a LAN cable.

What is PoE (Power over Ethernet)?

Cable to use

Shield (STP) cable

●

Length of 100 m or shorter

●

Make use of a Category 5 (or higher) cable .

Note:

●

When power is supplied to VN-V686WPBU using PoE, the heater will not work. Use an AC 24 V power supply when using the camera in an environment under -10I.

LAN Cable Connection

Connect the camera to a hub or computer using a LAN cable.

Cable to use

Shield (STP) cable

●

Length of 100 m or shorter

●

Make use of a Category 5 (or higher) cable .

䢇 When connecting to a hub

Make use of a straight cable.

䢇 When connecting to a computer

Make use of a cross cable.

RJ-45 conversion connector (provided)

Note:

● However, cross cables cannot be used with

some computer models. When connecting the camera directly to a computer, check the computer’s LAN specifications in advance.

Connection/Installation (VN-V686WPBU)

Connecting the alarm signal cable

Connect the alarm signal cable to external devices, such as a sensor or buzzer.

Cable to use

● Length of 50 m or shorter

● UL1007, UL1015 or equivalent products

● AWG#22 to AWG#18 or equivalent

products

Solder welding or crimping

Insulating tape

Note:

● Noises from an external source may cause

the camera to malfunction even when the cable used is within 50 m. In this case, move the cable away from the noise source.

Alarm input signal

Connects to sensors such as infrared sensors, door sensors, metal sensors and manual switches.

● To prevent noise from entering the internal

circuit, supply non-voltage contact signal to the alarm input signal.

● Do not supply voltage.

● When the contact is short (MAKE) or open

(BREAK) on the menu, you can set it to Alarm.

● Supply such that the alarm signal continues

for at least more than 500 ms. The alarm signal may not be recognized if it is less than 500 ms.

COM

Alarm output signal

Connect to alarm devices such as alarm, indicator, light or buzzer.

●

Alarm output signal is an open collector output insulated with photo coupler.

●

During an alarm, it is ON.

●

As this terminal is polarized, be sure to connect it such that the voltage of the + output is higher than that of the – output.

●

It will be damaged if reverse voltage is supplied.

OUTPUT

COM

Rating:

Max. applied voltage: DC 20 V Max. driving current: 25 mA

Network Setting

Network Requirements

● Ensure that there is sufficient network

bandwidth for the data volume to be sent out by the camera. Do not send multicast stream that exceeds the bandwidth. If the entire bandwidth is used by the multicast stream, control of this camera via the network may fail.

● Data volume to be sent by the camera varies

with the settings and number of distributions.

● The maximum bit rate for transmission is about

20 Mbps.

Estimation of Total Bit Rate

The total JPEG bit rate from the camera is determined by the camera settings, number of clients, and the client’s requested number of frames. The total MPEG4 bit rate from the camera is determined by the number of distributions. Develop a design upon taking the above into consideration.

Bit Rate of JPEG Stream

The JPEG file size per frame varies with the encoding settings as well as input video signals. The following table may be used as a reference.

䡵 AFS (Average File Size)

When AFS is selected, encoding will be performed such that the target file size is the average size of multiple JPEG images.

Selectable between 10 KB to 100 KB

䡵 VFS(Variable File Size)

When VFS is selected, the quantization table during JPEG encoding will be maintained, and the file size will increase/decrease according to the input signals.

1 (High)

4 (Medium)

7 (Low)

Selectable between 3 KB to 33 KB

VGA QVGA

80 KB 27 KB

60 KB 20 KB

40 KB 13 KB

30 KB 10 KB

25 KB 8 KB

20 KB 7 KB

15 KB 5 KB

The maximum number of distributions varies with the bit rate settings as well as the client’s requested frame rate. Up to 20 streams can be distributed (including multicast). The total frame rate refers to the sum of these frame rates. For example, when 10 fps is requested by two clients, and in addition, multicast is transmitted at a rate of 10 fps, the total frame rate will be:

10 +10 +10 = 30 fps

If the JPEG file size per frame is 30 KB, then the total bit rate will be:

30 KB × 30 fps = 900 KB/s = Approx. 7.2 Mbps

Network Setting

Network Requirements (continued)

Bit Rate of MPEG4 Stream

You can select either the Variable Bit Rate (VBR) or Constant Bit Rate (CBR) system for MPEG4 stream. When the VBR system is selected, the bit rate varies according to the condition of the input video signals. The VBR system delivers a stable picture quality, but forecast of the bit rate is difficult. When the CBR system is selected, encoding is performed at a fixed bit rate regardless of the condition of the input video signals. The picture quality varies under the CBR system, but the bit rate can be easily forecast. You can specify an estimated bit rate for both VBR and CBR. (64 kbps to 8000 kbps)

Restrictions on the Number of Distributions for Camera

The maximum number of distributions for this unit is determined by the settings as well as requirements from the client. When only JPEG images are distributed, the maximum number of distributions is determined based on the highest bit rate within the stream. When a distribution request that exceeds the maximum number of distributions is received, this request is denied. For example, if Client A requests for and receives data at 1 Mbps, while Client B requests for and receives data at 5 Mbps, the maximum number of distributions is 4 streams according to the table below.

Maximum number of distributions when only JPEG data is distributed

Maxi

Distribution at

maximum bit

rate

1 Mbps and below

5 Mbps and below

10 Mbps and below

Larger than 10 Mbps

When only MPEG4 images are distributed, the maximum number of distributions is determined by the preset bit rate. When a distribution request that exceeds the maximum number of distributions is received, this request is denied.

mum

numb

er of distrib utions

20 20 Mbps

4 20 Mbps

2 20 Mbps

1 Maximum

Total maximum

bit rate

configurable value (24 Mbps)

When distributing only MPEG4 data

Maxi mum

Preset bit rate

0.6 Mbps and below

3 Mbps and below

6 Mbps and below

Larger than 6 Mbps

When both JPEG and MPEG4 images are distributed simultaneously, distribution up to two clients for JPEG and MPEG4 respectively is possible. However, distribution requests that exceed a total bit rate of 20 Mbps will be denied.

Total bit rate

20 Mbps and below

numb

er of distrib utions

20 12 Mbps

4 12 Mbps

2 12 Mbps

1 Maximum

Maximum number of

distributions

for JPEG

Total maximum

bit rate

configurable value (8 Mbps)

Maximum

number of

distributions

for MPEG4

Insufficient network bandwidth

When there is insufficient bandwidth, the number of JPEG frames (frame rate) that the client can acquire will decrease. Delay will also occur in the distribution of images. In the case of MPEG4, noise interference may occur and playback may fail.

Network Delay

When the client acquires JPEG via TCP, the camera will send out data while checking the ACK from the client at the same time. For networks with considerable delay, data cannot be sent out until ACK is received, and therefore the frame rate will drop. In the case of MPEG4, noise interference may occur and playback may fail. Decrease in the frame rate due to network delays can be eliminated by receiving data via multicast.

Network Jitter

When there is considerable network jitter, delay time may be prolonged and the image frame rate may drop. In the case of MPEG4, noise interference may occur and playback may fail.

Packet Loss

When acquiring images from this unit via TCP, packet loss may be recovered by TCP retransmission. When there is considerable delay in the network, however, missing data may occur and the image frame rate may drop. In the case of MPEG4, noise interference may occur and playback may fail. When packet loss occurs during multicast sending from this unit, the image frame rate may drop. In the case of MPEG4, noise interference may occur and playback may fail.

List of Protocols and Port Numbers Used by this unit

This unit uses the protocols and port numbers listed below. Ensure that these ports are allowed through the firewall when a firewall is to be installed.

Protocol/Port No. Purpose of Use

Source

TCP/80 JPEG/MPEG4 server,

TCP/5510 VSIP

TCP/10020 TCP/10021 TCP/10023

TCP/32040 Alarm Server

Destination

TCP/20, 21 FTP

TCP/25 Mail delivery

TCP/110 POP (Mail Delivery)

TCP/User Setting No.

UDP/123 SNTP

UDP/5510 VSIP

UDP/9541 VSIP discovery protocol

UDP/User Setting No.

Web Settings page, API

(Reserved for adjustment)

Sending alarm

Network SettingNetwork Setting

IP Address Settings

IP address setting procedure

Follow the procedure below to configure the IP address of the camera.

Step1 IP address setting at the computer (APager37)

Set the IP address of the computer for configuring the camera settings.

Step2 Internet Explorer settings (APager38)

Configure the Internet Explorer settings in order to establish connection between the computer and the camera.

Step3 Connecting the camera to the computer (APager40)

Connect the computer to the camera.

Step4 IP address setting for the camera (APager42)

Set the [DHCP Disable] item on the [Basic Settings1] screen to ADHCP EnableB or ADHCP EnableB.

䢇 System configuration required for setting

IP address

Camera at factory default is set to ADHCP EnableB (DHCP client function is On). When it is connected to a LAN without DHCP servers, it will activate under the following IP address after timeout.

IP address : 192.168.0.2 Subnet mask : 255.255.255.0 Default gateway

emo:

● To set a static IP address for the camera,

connect the camera, the switching hub and the computer for setting using a straight LAN cable of Category 5 and above.

䢇 Set up the computer for setting the IP

address.

● Minimum computer specifications for

setting

OS : Windows XP (Professional or

Web browser

Note:

● When setting the IP address of the camera,

do so by using a network that is made up of only the camera, the computer for setting and the switching hub.

● Using a hub connected to other network

devices or networks via a LAN cable for setting can cause problems.

: None

Home Edition) (SP2)

: Internet Explorer Version 6.0

IP address setting at the computer

Set the computer to an IP address that enables communication with the camera.

1 Click [Start]

● Select in the sequence of [Control Panel]-[Network Connection]-[Local Area].

Windows Vista:

● Select in the sequence of [Settings]- [Control Panel]- [Network Center]- [Network Connection].

2 The computer on which Internet Explorer is launched automatically selects the

connected network

●

Right-click and select [Properties].

● Check to ensure that the [Client for Microsoft Networks] and [Internet Protocol(TCP/IP)] check

boxes are selected.

Windows Vista:

● Check to ensure that the [Client for Microsoft Networks] and [Internet Protocol Version 4 (TCP/

IPv4)] check boxes are selected.

3 Select [Internet Protocol(TCP/IP)] and click [Properties]

Windows Vista:

● Select [Internet Protocol Version 4 (TCP/IPv4)] and click [Properties].

4 Set the IP address

Select [Use the following IP address].

Specify the [IP address]. (For example, use

192.168.0.100 when the camera is in its default settings and there is no DHCP server.)

emo:

Make sure that you take note of the original IP address before altering.

Note:

Ensure that a duplicate IP address is not specified within the same network environment.

Set [Subnet mask] to a value that is appropriate for the setting operation. Consult the network administrator if you have any queries. (Use 255.255.255.0 the camera is in its default settings and there is no DHCP

When a [Default gateway] is present, make use of the corresponding IP address (e.g.,

192.168.0.254).

Click [OK].

5 Click [OK] on the [Local Area Connection Propertise] screen

Network SettingNetwork Setting

IP Address Settings (continued)

Internet Explorer settings

1 Launch the Internet Explorer on the computer

2 When proxy settings are enabled in the Internet Explorer, follow the steps below to

disable the proxy of the Internet Explorer

● Select in the order of [Tool]-[Internet Options]-[Connections]-[LAN Setting], followed by

deselecting the check for [Use a proxy server for your LAN] under [Proxy Server] of the [Local Area Network (LAN) Settings] window.

Deselect the check

If the active script of the Internet Explorer is disabled, follow the steps below to enable it

● Select [Trusted sites] under [Tool]-[Internet Options]-[Security]. Upon doing so, the [Sites...]

button directly below becomes active. Click this button and deselect the check [in the displayed window], and add the following web site to the zone.

http://192.168.0.2

● Next, select [Trusted sites] under [Tool]-[Internet Options]-[Security], and press the [Custom

Level] button. Select [Enable] under [Scripting]-[Active script] of the [Security Settings] window that has been opened.

Select [Enable]

4 If ActiveX controls and plug-ins of the Internet Explorer is disabled, follow the steps

below to enable it

● Click [Trusted sites] under [Tool]-[Internet Options]-[Security]. Select the [Custom Level] button

and open the [Security Settings] window. Set all items under [ActiveX controls and plug-ins] in the opened window to [Enable]. Enable also [Use the following IP address] under [Miscellaneous].

Select [Enable]

5 Disable pop-up block

Connection of the camera cannot be established when pop-up block in the Internet Explorer is set to AEnableB. Follow the steps below to set the pop-up block to AdisableB.

● Selecting [Tool]-[Pop-up Blocker]-[Turn Off Pop-up Blocker] permits all sites.

● To allow only specific sites such as this unit, select [Tool]-[Pop-up Blocker]-[Turn On Pop-up

Blocker], followed by selecting [Tool]-[Pop-up Blocker]-[Pop-up Blocker Settings] that becomes active to open the [Pop-up Blocker Settings] window.

In the opened window, add the address of VN-V686BU as a permitted web site address.

6 If plug-in tools are installed in the Internet Explorer, disable the pop-up block

function of these plug-in tools as well.

Network SettingNetwork Setting

Connecting the camera to the computer

IP Address Settings (continued)

1 Launch the Internet Explorer

Enter the following IP address into the address field.

http://192.168.0.2

emo:

● If the proxy server settings for access to the Internet via the Internet Explorer is enabled, you may

not be able to specify the IP address directly. In this case, change the proxy settings of the Internet Explorer.

● After the [Security Settings] screen appears, press the [OK] button to proceed.

䡵 When the IP address of the camera is unknown

IP address settings cannot be changed by accessing via a computer when the IP address of the camera is unknown. You can use the following method to identify the IP address.

●

Search for the camera in the LAN using [Search tool] inside [Tool_E] folder of the supplied CD-ROM.

For details on [Search tool], please refer to the AReadmeB file in the CD-ROM supplied with this product.

2 Enter the user name and password (login as administrator) (A Page 44)

Click [Go].

Enter the user name.

This is set to AadminB by default.

Enter the password.

This is set to AjvcB by default.

Click [OK].

emo:

● After the [Security Settings] screen appears, press the [Yes] button to proceed.

3 Built-in Viewer appears

4 The Operator Password entry screen appears

A Operator Password (default password is AjvcB) B Click [OK].

emo:

● The operator password entry screen does not appear if the password is stored on the computer.

Proceed to configure the IP address. (A Page 42)

Network SettingNetwork Setting

IP Address Settings (continued)

IP address setting for the camera

1 Click [Advanced Settings] of the Built-in Viewer

2 The [Basic Settings1] screen appears

Click

A Specify the [DHCP Disable].

● When selecting ADHCP EnableB:

The default setting is ADHCP EnableB (DHCP client function is Enabled). To assign an IP address from the DHCP server, connect the DHCP server to the LAN, set the [DHCP Disable] of the camera to ADHCP EnableB, and click the [OK] button. For details on IP addresses assigned to the camera, consult your network administrator.

● When selecting ADHCP EnableB:

Select ADHCP EnableB, and specify a value in the [IP address], [Subnet Mask] and [Default Gateway] fields.

Note:

● Set the DHCP server such that the same IP address is always assigned to the MAC address of the

camera by the DHCP server. Connection may fail if the above setting is not performed.

B Specify the [Time Zone]. C Click [OK].

3 A confirmation screen appears

Click [OK]. Camera restarts using the new IP address. It takes about one minute for the camera to reboot.

emo:

● Access from this computer may fail when the IP address of the camera is changed. To enable

access to this unit from the same computer, alter the IP address at the computer accordingly.

When the display or configuration of the opened screen appears strange, check the computer settings using the following procedures.

Click [Start]-[Control Panel]-[Display] and open the [Display Properties] window

A B Click the [Settings] tab in the [Display Properties] window and click the [Advanced] button C Check that [DPI setting] in the [General] tab has become [Normal size(96DPI)] D Otherwise, change the setting to [Normal size(96DPI)] and reboot Windows

Network SettingNetwork Setting

IP Address Settings (continued)

Enter user name and password

User name and password entry will be required at the beginning. There are three access authorization levels to the camera. The factory settings are as follows.

User Name

admin jvc All operations and

operator jvc Change of settings

user jvc Viewing of images

䢇 Pages that users have access to

Restrictions are placed on the pages that users have access to. In addition, links on the web pages are also displayed according to the access rights of the user.

(A Page 40)

Default Password

Description

setting changes are allowed

other than those related to network and maintenance are allowed

is allowed

● admin

Basic Settings1 [Network]

[Time]

Basic Settings2 [Camera]

[Encoding] [JPEG] [MPEG4]

Detalis [Camera]

[Encoding] [Alarm] [Alarm Environment] [PTZ] [Auto Patrol0] [Auto Patrol1] [Auto Patrol2] [Privacy Mask] [Motion detection] [Network Basic] [Network Details] [Protocol] [Streaming] [Access Restrictions] [Time] [Password] [Maintenance] [Miscellaneous] [Operation] [Settings] [Position List] [Patrol Infomation 0] [Patrol Infomation 1] [Patrol Infomation 2]

● operator

Basic Settings2 [Camera]

[Encoding] [JPEG] [MPEG4]

Detalis [Camera]

[Encoding] [Alarm] [Alarm Environment] [PTZ] [Auto Patrol0] [Auto Patrol1] [Auto Patrol2] [Privacy Mask] [Motion detection] [Streaming] [Miscellaneous] [Operation] [Settings] [Position List] [Patrol Infomation 0] [Patrol Infomation 1] [Patrol Infomation 2]

● user

Detalis [Miscellaneous]

emo:

● Security Information window may appear

before the top page is displayed. Press the [OK] button to proceed.

If you do not want this warning screen to be displayed, change the Internet Explorer settings as follows.

● Open [Tool]-[Internet Options]-[Security]

and select the [Trusted sites] icon.

● Next, press the [Custom Level] button,

followed by selecting AEnableB for [Miscellaneous]-[Display mixed content].

Note:

● Do not reset or turn off the power of camera

immediately after the settings are changed. Otherwise, changes may not be saved or may be saved incorrectly.

● If settings are changed when sending JPEG

or MPEG4, the transmission may be temporarily cancelled.

Setting Using Internet Explorer

Setting

How to open the setting page

1 Enter the IP address of the camera in the address bar of Internet Explorer (A

Page 40)

● A Built-in Viewer is opened.

Click

2 Click [Detalis]

● [Basic Settings1] page will be opened if accessed by user name AadminB. (A Page 47)

● [Basic Settings2] page will be opened if accessed by user name AoperatorB. (A Page 48)

● [Miscellaneous] page will be opened if accessed by user name AuserB. (A Page 94)

Basic Settings1

This page is for performing basic setting related to the network.

● This page can be used during access using AadminB.

● Click [Basic Settings1].

● Press the [OK] button to enable the new settings.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

Click

A C

emo:

● You can open the [Basic Settings1] screen without going through Built-in Viewer by entering direct

URL address in the address field of Internet Explorer. When the IP address of the camera is 192.168.0.2 for example, enter the URL below.

VN-V685U :http://192.168.0.2/cgi-bin/v685display.cgi?v685basicmenu1.html

VN-V686BU/VN-V686WPBU :http://192.168.0.2/cgi-bin/v686display.cgi?v686basicmenu1.html

Network

A IP Setting For setting the DHCP client function. Connect the camera to a network

environment with a DHCP server when DHCP is to be enabled. If the DHCP server does not exist when [IP Setting] is set to ADHCP EnableB, the camera will start running with IP address 192.168.0.2 and subnet mask 255.255.255.0 in about 2 minutes after startup. (A Page 42)

B IP Address For setting the IP address of the camera. C Subnet

Mask

D Default

Gateway

Time

For setting the Subnet Mask of the camera.

For setting the Default Gateway of the camera. Set as 0.0.0.0 when the Default Gateway is not set.

E Time Displays the clock time of the camera.

The time transmitted by the camera is recorded in the JPEG header. Discontinuity may occur in the JPEG header’s time immediately before and after changing the time.

F Time Zone For setting the time zone. G Pc time to

Camera

Click the [Set] button to set the time of the computer on the camera.

Setting Using Internet Explorer

Basic Settings2

Page for setting fundamental parameters of Camera, JPEG and MPEG4.

● This page can be used during access using AadminB or AoperatorB.

● Click [Basic Settings2].

● Press the [OK] button to enable the new settings.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

Click

A B

EFG

emo:

● You can open the [Basic Settings2] screen without going through Built-in Viewer by entering direct

URL address in the address field of Internet Explorer. When the IP address of the camera is 192.168.0.2 for example, enter the URL below.

VN-V685U :http://192.168.0.2/cgi-bin/v685display.cgi?v685basicmenu2.html

VN-V686BU/VN-V686WPBU :http://192.168.0.2/cgi-bin/v686display.cgi?v686basicmenu2.html

Camera

A Camera ID Character strings entered here will be written to the JPEG comment segment

(item name: Camera). Refer to the [API Guide] (provided CD-ROM) on the file formats of JPEG.

B Monitor

Type

Encoding

For selecting the monitor type according to the monitor used to display the video images. The picture quality varies according to the type of monitor selected.

Custom :Enables setting of picture quality according to the user’s

preference. You can configure the detailed settings on the [Camera] page. (A Page 51)

LCD1, LCD2 :Picture quality setting for LCD monitors. Two types are

available for selection according to the user’s preference.

CRT :Picture quality setting for CRT (cathode-ray tube) monitors.

[Setting value:Custom, LCD1, LCD2, CRT]

C Frame Size For setting the frame size of each JPEG or MPEG4 screen to VGA (640 x

480) or QVGA (320 x 240). Select one of the four different patterns.

emo:

● Refer to the API Guide on the file formats of JPEG.

JPEG

D Quality/

Size

For specifying the JPEG picture quality (rate control mode) and size (target file size). When AVFS1B to AVFS7B is selected, the quantization table during JPEG encoding will be maintained and the file size will increase/decrease according to the input signals. Typical sizes will be displayed in the Size field. When recording JPEG data to a recorder with a limited storage capacity, the maximum recording time may vary as the file size fluctuates under this setting. When AAFSB is selected, encoding is performed such that the target file size is the average size of multiple JPEG images. You can enter the target size in the Size field. [Picture quality values:VFS1 to VFS7, AFS]

emo:

The picture size can be specified only when the picture quality value is set to AFS. [Size field setting range for VGA:10 KB to 100 KB ] [Size field setting range for QVGA:3 KB to 33 KB ]

Setting Using Internet Explorer

Setting (continued)

Basic Settings2 (continued)

MPEG4

E Bitrate For setting the MPEG4 encoding bit rate.

[Setting range: 64 kbps to 8000 kbps]

F Bitrate

Control

G FPS For setting the MPEG4 frame rate.

H I Frame

Interval

I Priority For selecting whether to assign priority to the frame rate or picture quality

For selecting whether to set the MPEG4 rate control mode to CBR (Constant Bit Rate) or VBR (Variable Bit Rate).

CBR : Encoding is performed at a fixed bit rate regardless of the

condition of the input video signals. Enables easy forecast of the bit rate.

VBR : Changes the bit rate according to the condition of the input

video signals. Picture quality is stable, but forecast of the bit rate is difficult.

[Setting range: 1 fps, 7.5 fps, 10 fps, 15 fps, 25 fps, 30 fps]

For setting the I-frame interval. MPEG4 starts encoding from the I-frame. Shortening the interval stabilizes the picture quality even when there are rapid changes in the video image. However, the picture quality for images with little change will deteriorate. In addition, when multicast packet loss occurs, the time interval required to restore the image is shorter.

[Setting value:30, 60, 90, 120, 150]

during MPEG4 encoding. FPS : Assigns priority to frame rate. Select this setting to enable

smooth monitoring of motion images.

Quality : Prioritizes image quality.

Camera Page

F H

This page is for setting the camera’s parameters.

This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

● Click [Camera]. Press the [OK] button to enable the new settings.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

● To restore the settings of this page to the factory settings, press [Initialize] button.

Click

A C

E G

A Camera ID Character strings entered here will be written to the JPEG comment segment

Monitor Type

C Black Level For adjusting the black level. Lowering the value darkens the video image.

(item name: ACameraB). Refer to the [API Guide] (provided CD-ROM) on the file formats of JPEG.

For selecting the monitor type according to the monitor used to display the video images. The picture quality varies according to the type of monitor selected.

Custom : Enables setting of picture quality according to the user’s

LCD1, LCD2 : Picture quality setting for LCD monitors. Two types are

CRT : Picture quality setting for CRT (cathode-ray tube) monitors.

[Setting value:Custom, LCD1, LCD2, CRT]

Increasing the value brightens the image.

[Setting range:0 to 2]

emo:

● If the black level is set to A0B, this may be too low depending on the

connected device, or dark area will become complete black.

● When using MPEG4 images, set to either A1B or A2B.

preference.

available for selection according to the user’s preference.

Setting Using Internet Explorer

Setting (continued)

Camera Page (continued)

D Gamma To alter the appearance of dark areas in a video image, adjust the gamma

curve. 0 : Gamma correction suitable for CRT is performed.

1 : Gamma correction suitable for some LCDs is performed.

Active Gamma Level

E Enhance

Frequency

2 : Do not perform gamma correction. This setting is suitable for

Active : The most appropriate gamma correction is applied according to

[Setting value:0, 1, 2, Active]

emo:

● The set value is fixed when the [Monitor Type] B is set to ALCD1B,

ALCD2B, or ACRTB.

This adjusts the effect when [Gamma] D is set to AActiveB. Objects with little luminance differenceBDecrease the number Objects with large luminance differenceBIncrease the number

[Setting range:-5 to 0 to 5]

emo:

● The color may appear different from the actual one depending on the

object.

● Noise interference and hue changes may appear prominent depending

on the brightness of the object but this is not a malfunction.

● This feature can only be configured when [Gamma] D is set to AActiveB.

For setting the type of edge enhancement.

Low : Enhanced edges become thicker.

High : Enhanced edges become thiner.

[Setting value:Low, High]

emo:

● The set value is fixed when the [Monitor Type] B is set to ALCD1B,

ALCD2B, or ACRTB.

some LCDs.

the darkness of the screen. Select the level under [Active Gamma Level].

F Enhance Level For setting the intensity of edge enhancement.

Larger value : Increases the intensity of edge enhancement.

Smaller value : Decreases the intensity of edge enhancement.

[Setting range:-5 to 0 to 5]

G Color Level For adjusting the color level.

Larger value : Increases the color level.

Smaller value : Decreases the color level.

[Setting range:-5 to 0 to 5]

H Stabilizer This function prevents image shaking caused by vibration.

Set this function to AOnB to control image shaking. Off : Disabled.

On : Enabled.

emo:

● When the function is set to AOnB, the screen is digitally zoomed to

approximately 1.3 times.

● Adjustment is disabled in the electronic zoom area.

● Adjustment is disabled for about 1 minute after power ON and during

Pan/Tilt/Zoom operation.

● Adjustment may not work when the vibration is fast. The effect can be

small when vibration direction does not match with Pan/Tilt position. Depending on the installation environment, the stabilizer may malfunction and increase image shaking due to the vibration transmitting to the camera. In this case, set the stabilizer to AOffB.

I Stabilizer Level This item allows you to set the adjustment level of the [Stabilizer] item H in 3

steps. The adjustment volume is larger if the value is set to AHighB rather than AMidB. When it is set to ALowB, the adjustment volume is lesser than compared to when it is set to AMidB.

[Setting value:Low,Mid,High]

J Noise Reduction When AOnB is set, image noise on the screen will be reduced.

emo:

● This item is only enabled when [AGC] item K is set to a value other than

AOffB.

● Image noise in dark images will be reduced but the resolution will

deteriorate.

● The edges between high and low illumination area may appear rough.

K ALC For setting the priority of ALC (feature for maintaining the video level

according to the brightness of the object). You can select whether to assign priority to the motion or picture quality when the object becomes dark.

Motion : Prioritizes movement.

Quality : Prioritizes image quality.

[Setting value:Motion,Quality]

When the object becomes dark, priority is given to AGC (automatic gain control), and therefore this is suitable for shooting fast-moving objects.

When the object becomes dark, priority is given to the Sense Up feature, and therefore this is suitable for shooting objects requiring a high picture quality.

Setting Using Internet Explorer

Setting (continued)

Camera Page (continued)

KALC (continued)

AGC For setting the AGC (automatic gain control) level.

Off : Disables the AGC feature

Mid : When the amount of light is insufficient

High : When the amount of light is particularly insufficient

Super : When the brightness level is insufficient even upon setting to

[Setting value:Off, Mid, High, Super]

emo:

● The screen appears grainy at dark locations when the AGC feature is in

use.

AHighB.

Sense Up This feature is used to raise the sensitivity level by lengthening the

exposure time. You can specify the number of times by which the sensitivity level is to be increased automatically when the object becomes dark. When Ax32B is selected, the sensitivity is changed dynamically up to 32 times (as compared to the AOffB mode) to fit to current darkness. When sensitivity increases, the shutter speed becomes slower and hence, movement becomes unnatural. When set to AOffB, Sense Up is disabled.

[Setting value:Off, x2, x4, x8, x16, x32, x64, x128]

emo:

● Upon raising the sensitivity level, the screen may appear grainy or

white, or white defects may occur. However, this is not a malfunction.

● When [Sense Up] is set to a value other than AOffB, flickers occur under

the light of fluorescent or mercury lamps. This is not a malfunction of the camera, but is due to principles related to Sense Up.

● When the [Shutter Speed] item L is set to A1/100B to A1/10000B, set

[Sense Up] to AOffB.

L Shutter Speed This item sets the speed of the electronic shutter.

When [Sense Up] item K is set to Ax2B or above, available setting value is A1/60B or A1/100B only.

[Setting value:1/60,1/100,1/250,1/500,1/1000,1/2000,1/4000,1/10000]

emo:

● Flickering of fluorescent lightings can be reduced when the shutter

speed is set to A1/100B or A1/60B respectively in regions of commercial power frequency 50 Hz and 60 Hz.

● The faster the shutter speed is, a smear phenomenon specific to CCD,

where white bands appear vertically along bright light source, is more emphasized.

● The edges between high and low illumination area may appear rough.

M B/W Mode This sets the function to switch from Color to B&W mode.

Color : Always be in Color mode.

Black & White : Always be in B&W mode.

Auto Low,Auto Mid,Auto High

: This item automatically switches between Color Mode

and B&W Mode when the luminance meets defined conditions for over 30 seconds. Select the sensitivity from three options.

emo:

To ensure a successful B&W/Color switching

● If the [B/W Mode] item is set to AAuto Low, Auto Mid, Auto HighB, the

B&W/Color setting can be switched according to the brightness of the object, but the condition of illumination and field angle may make this impossible. To be absolutely certain of B&W/Color switching, connecting external sensor to alarm input cable of this camera and setting alarm action of B&W mode is recommended.

IR Preset AF When switching the Color mode to B&W mode, the type of light source may

Light This item sets the illumination of the object during B&W mode.

cause the focus to be dislocated. This is because the B&W mode is sensitive to both visible light and near-infrared light. When this happens, set this item to AOnB to focus automatically.

On : Enabled.

Off : Disabled.

Normal : Select this for normal illumination.

IR : Select this when using infrared illumination.

emo:

● If AIRB is set under normal sunlight or fluorescent lighting, the camera

will not switch normally from Color to B&W mode.

Setting Using Internet Explorer

Setting (continued)

Encoding Page

This page is for setting JPEG and MPEG4 encoding parameters.

This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

● Click [Encoding]. Press the [OK] button to enable the new settings. Press the [OK] button to enable

the new settings.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

● When settings on this page are altered during playback using Built-in Viewer, reboot the Built-in

Viewer.

● There is a maximum limit to the bit rate for transmission by the camera. If a bit rate that exceeds the

maximum limit is specified, this new setting will not be applied. For details on the maximum transmission limit, refer to [Network Requirements] (A Page 33).

Click

CDEF

A Frame Size For setting the frame size of each JPEG or MPEG4 screen to AVGAB (640 x

480) or AQVGAB (320 x 240). Select one of the four different patterns.

JPEG

B Quality/Size For specifying the rate control mode and target file size for JPEG.

When AVFS1B to AVFS7B is selected, the quantization table during JPEG encoding will be maintained and the file size will increase/decrease according to the input signals. Stipulated values will be displayed in the Size field. When recording JPEG data to a recorder with a limited storage capacity, note that the maximum recording time may vary as the file size fluctuates under this setting. When AAFSB is selected, encoding is performed such that the target file size is the average size of multiple JPEG images. You can enter the target size in the [Size] field.

[Size field setting range for VGA: 10KB to 100KB (Only when setting AAFSB)] [Size field setting range for QVGA: 3KB to 33KB (Only when setting

AAFSB)]

MPEG4

C Bitrate For setting the MPEG4 encoding bit rate.

[Setting range:64kbps to 8000kbps]

D Bitrate Control For selecting whether to set the MPEG4 rate control mode to CBR (Constant

Bit Rate) or VBR (Variable Bit Rate). CBR : Encoding is performed at a fixed bit rate regardless of the

VBR : Changes the bit rate according to the condition of the input

condition of the input video signals. Enables easy forecast of the bit rate.

video signals. Picture quality is stable, but forecast of the bit rate is difficult.

E FPS For setting the MPEG4 frame rate.

[Setting range:1 fps, 7.5 fps, 10 fps, 15 fps, 25 fps, 30 fps]

F I Frame Interval For setting the I-frame interval. MPEG4 starts encoding from the I-frame.

Shortening the interval stabilizes the picture quality even when there are rapid changes in the video image. However, the picture quality for images with little change will deteriorate. In addition, when multicast packet loss occurs, the time interval required to restore the image is shorter.

[Setting value:30, 60, 90, 120, 150]

G Priority For selecting whether to assign priority to the frame rate or picture quality

during MPEG4 encoding. FPS : Assigns priority to frame rate. Select this setting to enable

Quality : Prioritizes image quality.

emo:

● Valid when [Bitrate Control] D is ACBRB. When a very small bit rate is set

for the frame rate or frame size, ACBRB or AVBRB will become the lowest images and a difference will appear in the frame rate. AQualityB which skips frames will be able to realize small bit rates better than AFPSB.

smooth monitoring of motion images.

Setting Using Internet Explorer

E F

Setting (continued)

Alarm Page

This page is for setting actions when there is an alarm. Up to 5 actions (No. 01 to No. 05) may be set.

This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

Click [Alarm]. Press the [OK] button to enable the new settings.

●

Press the [OK] button to enable the new settings. Only items that are valid under the selected action will be saved. When Disable is selected for the action, all settings will be restored to their default values.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

A BCD

Click

A Action For specifying the type of action.

Disable : Does not trigger any action.

Mail : Sends out e-mail. Specify the recipient’s mail address. The

PrePostRecording + FTP

TCP : Sends out the character string entered in the [TCP/UDP

UDP : Sends out the character string entered in the [TCP/UDP

TCP/UDP Data

PinOutout 1 Make :Changes Alarm Output 1 to Make. PinOutout 1 Breake :Changes Alarm Output 1 to Break. PinOutout 2 Make :Changes Alarm Output 2 to Make. PinOutout 2 Breake :Changes Alarm Output 2 to Break. Set the alarm

Position : This item moves the camera to the position set in [Action

BlackWhite → Color

Color → BlackWhite

DayNight:Auto Low

DayNight:Auto Mid

DayNight:Auto High

emo:

● For details on [B/W Mode], see [B/W Mode] (A Page 55).

title of the mail will appear as [Alarm from VN-V685(VNV685U)][Alarm from VN-V686(VN-V686BU/VNV686WPBU)] and the sender as [Camera ID]. Enter the message to send in [Mail Text]. Input up to 127 alphanumeric characters. To attach the latest image to the mail, set [Attach Image] to AOnB.

: Sends out pre-/post-recorded JPEG files via FTP. See the

page on Alarm Environment for details on pre-/postrecording and FTP server settings. (A Page 62)

The maximum transmission rate of FTP is 1 Mbps. If a new FTP trigger occurs during post-recording, the recorded portion is treated as pre-recording and a new postrecording starts. During FTP transmission after completing the post-recording, a new post-recording starts if a new FTP trigger occurs.

Data] field to the destinations specified in [TCP/UDP IP Address] and [TCP/UDP Port Number] via TCP.

Data] field to the destinations specified in [TCP/UDP IP Address] and [TCP/UDP Port Number] via UDP.

:Input up to 127 alphanumeric characters.

output time in the [Alarm Output Duration] field.

Position No.] E.

: Changes the [B/W Mode] setting from ABlack & WhiteB to

: Changes the [B/W Mode] setting from AColorB to ABlack &

: Changes the [B/W Mode] setting to AAuto LowB.

: Changes the [B/W Mode] setting to AAuto MidB.

: Changes the [B/W Mode] setting to AAuto HighB.

AColorB

WhiteB

Setting (continued)

Alarm Page (continued)

B 1st Trigger This item specifies the first trigger to the operation set in [Action] A.

[Setting value:Input 1 Make, Input 2 Make, Input 1 Break, Input 2 Break, Motion Detection, Fan Stop, Position, BlackWhite → Color, Color →

BlackWhite]

emo:

● When the second trigger is turned off, the action will be invoked only by

the first trigger.

● When AMotion DetectionB, AFan StopB, APositionB, ABlackWhite→ColorB, AColor → BlackWhiteB is selected as the first trigger, selection of AMax. IntervalB and A2nd TriggerB will be disabled.

C Max. Interval Enabled when both the first and second triggers are specified.

Specify the maximum interval between the first and second triggers. An action will be invoked only if the interval between the first and second triggers is within the maximum interval.

[Setting range:1sec to 3600sec]

D 2nd Trigger This item specifies the second trigger to the operation set in [Action] A.

[Setting value:Off, Input 1 Make, Input 2 Make, Input 1 Break,

Input 2 Break]

E Action Position

No.

F Tri gg er Po si tion

No.

This item sets the position number for trigger when APositionB is selected in [Action] A.

[Setting range:0 to 99]

This item sets the position number for trigger when APositionB is selected in [1st Trigger] B.

[Setting range:0 to 99]

G Mail Mail Address : For entering the recipient’s mail address.

Mail Text : For entering the mail transmission data. Input up to 127

Attach Image : For specifying whether to attach images to the mail.

alphanumeric characters.

H TCP/UDP TCP/UDP IP Address

: For entering the address when alarm action notification is

to be sent via TCP or UDP. (IP or FQDN)

TCP/UDP Port Number

: For entering the port number when alarm action

notification is to be sent via TCP or UDP. (1-65535)

TCP/UDP Data

: For entering the data to send during TCP or UDP

notification. Input up to 127 alphanumeric characters.

I Alarm Output

Duration

For setting the alarm output time from the alarm output terminal. When this is set to A0B, it is not possible to revert back to break (or make) after changing to make (or break).

[Setting range:0/100msec to 5000msec]

J Time Filter For specifying the alarm action with respect to each day of the week and

setting the corresponding time of the day.

Applicable day of week

: Sunday, Monday, Tuesday, Wednesday, Thursday, Friday,

Saturday

Alarm action : Mask span

Applicable time period

Unmask span Mask All Unmask All

: For specifying the Start and End time in hours and

minutes.

Setting Using Internet Explorer

Setting (continued)

Alarm Environment Page

This page is for setting alarm-related environments.

This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

● Click [Alarm Environment]. Press the [OK] button to enable the new settings. Press the [OK] button

to enable the new settings.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

Click

A Mail For setting the mail environment when AMailB is specified as an [Action]A on

the Alarm page. [SMTP] and [POP] can be used. Configure only the [SMTP] settings under usual circumstances. Enter the camera’s mail address as the [Send Mail Address]. Configure the [POP] settings as well if [POP before SMTP] is set to AOffB. In addition, if AFQDNB is set for [SMTP Server], configure also the [DNS Server] settings on the Basic page. (A Page 79)

emo:

What is FQDN (Fully Qualified Domain Name)?

This is a fully qualified domain name that indicates a notation method of describing the entire host or domain name on the TCP/IP network without abbreviating. For example, if the host name is AwwwB and the domain name is Ajvc.co.jpB, this will be denoted as Awww.jvc.co.jpB in FQDN. Japanese cannot be used in FQDN.

B FTP For setting the FTP environment when AFTPB is specified as an [Action]A

on the Alarm page. This is common with the FTP environment when using the periodic FTP on this page. When [Directory] is left blank, FTP transfer will be performed to the home directory of the FTP server. To enable FTP transfer to a directory below the home directory, set the corresponding directory name in [Directory]. Delimit the directory using A/B.

Example: subdir1/subdir2 Destination directory of FTP transfer will be dependent on the FTP server if

A/B is added at the beginning. Setting [Periodic FTP] to AOnB enables transfer of the latest JPEG images to the FTP server at regular intervals. Specify the interval in seconds for [Periodic FTP Interval].

File name: Select a type from the two types of periodic FTP file names. When AAutoB is selected, file names are generated from the year, month,

day, hour, minute, second, and number. Example: 20071114161032-001-2.jpg

When AManualB is selected, you can select a file name generation method from the following.

● File name containing only the character string entered in [User-defined-

name]

Example: Camera1.jpg

● File name with the year, month, day, hour, minute, and second added to

[User-defined-name]

Example: Camera1_20071114161032001.jpg

The name of the file to be transmitted via FTP is made up of the action number, year, month, day, hour, minute, second, number and trigger flag.

Example: 01-20070711152904-001-0.jpg The first two digits are the action number, and the following 14 digits denote

the year, month, day, hour, minute and second. The three digits after the first hyphen is the number of the series of JPEG files to be sent via the FTP. The number starts from A000B. The last digit denotes the trigger flag. This is displayed as A1B only for the JPEG file during a trigger input, and as A0B if otherwise.

Setting Using Internet Explorer

Setting (continued)

Alarm Environment Page (continued)

B FTP (continued) Setting the Periodic FTP Time Filter:

For specifying the periodic FTP transfer action with respect to each day of the week and setting the corresponding time of the day.

Applicable day of week

:Sunday, Monday, Tuesday, Wednesday, Thursday, Friday,

Saturday

Alarm action : Mask span

Applicable time period: For specifying the Start and End time in hours and

Pre-/Post-recording parameter:

[PrePostRecording Frame Rate]

[PrePostRecording Before Trigger]

[PrePostRecording After Trigger]

The maximum time intervals for [PrePostRecording Before Trigger] and [PrePostRecording After Trigger] are determined by the JPEG size on the Encoding page as well as [PrePostRecording Frame Rate]. A message appears if the combination of the entered values are not feasible.

Unmask span Mask All Unmask All

minutes.

: For specifying the JPEG frame rate for FTP pre-/post-

recording.

[Setting value:1 fps, 2 fps, 3 fps, 5 fps, 6 fps, 7.5 fps,

10 fps, 15 fps, 30 fps]

: For setting the FTP pre-recording trigger time (recording

time before alarm input) in seconds.

[Setting value:0sec to 60sec]

: For setting the FTP post-recording trigger time (recording

time after alarm input) in seconds.

[Setting value:0sec to 60sec]

C Alarm Output For setting the alarm output.

Duration For setting the output time of [Manual Output].

[Setting range:0 / 100 msec to 5000 msec]

Manual Output For operating alarm output manually.

The current output status appears on the right. When [Duration] is set to A0B, pressing the [Make] button switches the alarm to Make output, while pressing the [Break] button switches the alarm to Break output. When [Duration] is set to a value other than A0B, pressing the [Make] button switches the alarm to Make output only during the duration of the output, upon which it switches to Break output. When the output duration is set to a value other than A0B, pressing the [Break] button switches the alarm to Break output only during the duration of the output, upon which it switches to Make output.

Setting Using Internet Explorer

Setting (continued)

PTZ Page

This page is used for specifying Auto Return, Auto Tracking, Intelligent Tracking, Move Preset Position, and Auto Flip. This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

● Click [PTZ]. Press the [OK] button to enable the new settings. Press the [OK] button to enable the

new settings.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

Click

A Auto Return If the camera is not operated over the duration that was set in AReturn

TimeB, it will automatically return to the state that was set in AModeB.

Mode This item sets the operation after Auto Return.

none : Auto Return is disabled. Home : Returns to the home position. Auto Pan : Returns to the Auto Pan operation. Auto Patrol : Returns to the Auto Patrol operation. Auto Trace : Returns to the Auto Trace operation. Auto Tracking : Returns to the automatic tracking operation. Intelligent Tracking : Returns to the Intelligent Tracking operation.

AAuto Return (continued)

Return Time This item sets the time to return the operation with Auto Return.

This feature cannot be configured when the [Mode] is set to AnoneB.

[Setting value:1 minute, 2minutes, 3minutes, 5minutes, 10minutes, 20minutes, 30minutes, 60minutes]

emo:

● When the [Mode] item is set to AIntelligent TrackingB, the camera returns

to the home position after the specified Return Time has elapsed, and action restarts from the detection of tracked objects. When the Intelligent Tracking operation is in progress, PTZ may not function even when an object is being captured. If PTZ operations do not function for a time interval specified in AReturn TimeB, Auto Return starts automatically.

Tes t

B Auto Tracking/

Intelligent Tra cking

Click [Execute] to test run the configured Auto Return operation.

For configuring settings related to Auto Tracking and Intelligent Tracking.

Auto Tracking : Moves to the home position when Auto Return starts.

Shoots the object by tracking it automatically when motion is detected at the home position. Zoom ratio is fixed at x1.

Intelligent Tracking

: Intelligent Tracking is available in two modes, namely the

Auto mode which starts automatically from Auto Return, and the Manual mode for specifying a target on the viewer. You can change the object to track freely by clicking the viewer’s display area when the camera is in the ALockedB or ALosingB mode. To exit, press the [Stop] button on the PTZ Controller screen.

● Auto mode

Detects the color information of the object for which motion is detected at the home position, and shoots the object by tracking it with automatic pan/tilt/zoom operations. You can switch to the Manual mode by clicking on the viewer screen before any motion is detected.

● Manual mode (A Page 113)

Select AIntelligent TrackingB under the [Function] item on the PTZ Control screen, and press the [Start] button to switch to the AStandbyB mode. Once you click on the viewer screen to specify a target, the camera automatically tracks and shoots the target object while performing automatic pan/tilt/zoom operations.

emo:

● Auto tracking may be difficult under the following conditions.

● When multiple moving objects are in the same screen

● When there is a flickering light source in the screen

● When the speed of the moving object is too fast or slow

● When the moving object is too big or small

● When the object and background have same brigthness

● Intelligent tracking may be difficult under the following conditions.

● Strong backlight

● Colors that are similar to the tracking target are present in the same

screen

● No colors on the tracking target (such as white, gray, black)

● When the tracking target moves into the privacy mask area

Setting Using Internet Explorer

Setting (continued)

PTZ Page (continued)

B Auto Tracking/

Intelligent Tra cking (continued)

Restart Time Auto Tracking : This item sets the duration to return to the home position

emo:

● Intelligent tracking cannot begin under the following conditions.

● [B/W Mode] is set to ABlack & WhiteB (A Page 55)

● [B/W Mode] is set to AAutoB and black and white is selected

(A Page 55)

● [Auto Flip] is set to ADigital FlipB (A Page 71)

● All areas of detected motion are masked (A Page 76)

● The zoom ratio exceeds 20x. (The zoom ratio of the home position

exceeds 20x if Intelligent Tracking is started by Auto Return.)

● Dark images can be improved with the [Sense Up] (A Page 54) function but the tracking may be slow.

Note:

● The Auto Tracking function of this camera detects changes in brightness. As such, depending on changes in the illumination, it may or may not detect movement of objects having the same color as the background color. It may be difficult to detect objects with very slow movement. Check the operating conditions thoroughly beforehand and configure the settings such that there will not be any misoperation or omission of detection.

● When [Stabilizer] (A Page 53) is set to AOFFB, this function starts from home position and initial detect area is the screen of the home position without enlargement. When [Stabilizer] is set to AONB, as the screen is enlarged, it will also respond to motion of image which is not shown on the screen. This is the specification of this unit, not a malfunction.

when there is no movement in the images after auto tracking starts.

Intelligent Tracking

: When Intelligent Tracking loses the object, you can return

to the home position after the preset [Restart Time] has elapsed. For Intelligent Tracking, the camera does not return to home position while the object is locked even if the object does not move.

[Setting value:Off, 10seconds, 20seconds, 30seconds, 40seconds, 50seconds, 60seconds, 120seconds]

Note:

● When the [Mode] item of [Auto Return]A is set to AAuto TrackingB and the [Return Time] is set shorter than the [Restar t Time] for [Auto Tracking]B, the camera will operate according to the [Return Time].

Auto Tracking Level

This item sets the detection sensitivity of Auto Tracking/Intelligent Tracking. To lower the sensitivity B Decrease the number To increase the sensitivity B Increase the number

[Setting range:0 to 10]

C Intelligent

Tra cking

Tracking Zoom When this item is set to AOnB, the zoom ratio changes according to the

Tracking Zoom Limit

This item sets the zoom for [Intelligent Tracking].

movement of the object.

When [Tracking Zoom] is set to AOnB, this item sets the threshold limit of the zoom ratio. When Intelligent Tracking is started, tracking is possible if the zoom ratio is within 20x, even if the current zoom ratio has exceeded the [Tracking Zoom Limit]. In that case, behaviour of automatic zoom changes according to the [Tracking Zoom] setting as followings.

● [Tracking Zoom] is AOnB:

Tracking starts at the current zoom ratio. If the [Tracking Zoom Limit] is exceeded, the camera moves in the WIDE direction but not in the TELE direction. Once the zoom ratio enters the [Tracking Zoom Limit], the camera will zoom within the configured tracking zoom limit.

● [Tracking Zoom] is AOffB:

The camera tracks objects at the current zoom ratio. The zoom ratio will not change.

D Limit

Zoom Limit When the zoom lens is operated to TELE side, optical zoom works and

electronic zoom works after optical zoom becomes full. This item sets the maximum value of the electronic zoom function.

[Setting range:Off, 1, 2, 4, 8, 16, 32]

emo:

●

As electronic zoom processes the images digitally, image quality will deteriorate somewhat.

●

Increasing the electronic zoom ratio will shift the center of the screen toward the top left. This is a characteristic of this camera and is not a malfunction.

●

The camera will not operate continuously from optical zoom to electronic zoom. When the optical zoom is full, release and press again the [+] button of [Zoom] in [PTZ Controller]. [PTZ Control] (A Page 113)

Pan Limit This item sets the movable range of the pan (horizontal) operation during

manual operation when AOnB is selected. It is invalid when AOffB is selected. [Set Left], [Set Right] button

: Click these buttons to set the current position to the left or

right edge.

[Go to Left], [Go to Right] button

: Click these buttons to move the camera to the preset left or

right edge.

emo:

● It does not affect the Preset Position, Auto Pan and Auto Trace operations.

Setting Using Internet Explorer

Setting (continued)

PTZ Page (continued)

DLimit (continued)

Pan Limit (continued)

䡵 Basic operation of Pan Limit

When [Pan Limit] is set to AOnB, panning is only available in the effective area. When the camera is moved to prohibited area by some operation that has priority over [Pan Limit] and manual panning is performed, it operates in the following manner.

● Panning can be operated freely even in the prohibited area before the

camera enters the effective area.

● Once the camera enters the effective area, the [Pan Limit] settings take over

and pan operation can only be performed in the effective area.

䢇 Operations that have priority over Pan Limit

The following operations are available regardless of the prohibited areas set in [Pan Limit].

● Auto Pan

● Auto Trace

● Move Preset Position

● Auto Flip

● Auto Tracking

䢇 Settings that have priority over Pan Limit

The following settings come together with pan operation but they can be set regardless of the prohibited areas even when [Pan Limit] is set to AOnB.

● Privacy Mask Setting

● Auto Pan setting

emo:

● When setting Auto Trace and Preset Position and the [Pan Limit] setting is

AOnB, panning is unavailable in the prohibited area.

● As Auto Trace and Move Preset Position have priority over manual pan limit,

setting pan limit after setting Auto Trace or Preset Position does not prevent Auto Trace or Preset Position operation.

Tilt Limit This item sets the movable range of the tilt (vertical) operation during manual

operation. When this item is set to 10, the movable range of the tilt operation is from 10 to 90 degrees. It cannot operate between -5 and 9 degrees.

[Setting range:-5 Degrees to 0 Degrees to 10 Degrees]

emo:

● When the camera is moved to prohibited area by some operation that has

priority over tilt limit and tilt operation is performed manually, it operates in the following manner.

● Tilt operation is disabled in the prohibited area. Tilt will be forcibly moved to

the effective area.

● Once the camera enters the effective area, the tilt limit settings take over

and tilt operation can only be performed in the effective area.

● It does not affect the Preset Position, Auto Pan and Auto Trace operations.

E Preset Position

Speed

Speed [Setting value:1 to 4]

This item sets the speed of moving to the preset position. It is also applicable when moving to the preset position in Auto Patrol.

F Auto Flip Set this item when shooting objects that pass right under the camera.

Otherwise, following operations are necessary to shoot objects that pass right under the camera.

Turn the camera to face down

A BRotate the camera 180 ° horizontally CTurn the camera to face up

You can use the [Auto Flip] function to perform the above operations automatically.

Off : Auto Flip function does not activate.

Digital Flip

: The top/bottom and left/right of the image flips when tilt

position passed the angle of 135 degrees.

Mode1 : When the camera faces bottom, it rotates 180 °

Mode2 : When the camera faces bottom, it rotates 180 °

Mode3 : When the camera faces bottom, it rotates 180 °

[Setting value:Off, Digital Flip, Mode1, Mode2, Mode3]

emo:

● [Intelligent Tracking] is disabled when this is set to ADigital FlipB. (A Page 67)

● Settings for [Preset Position Speed] are reflected in the rotation speed when images are flipped using AMode1B, AMode2B, AMode3B. To flip images in high speed using AMode1B, AMode2B, AMode3B, set the [Speed] in [Preset Position Speed] to A4B.

Note:

● When [Auto Flip] is set to other than AOffB, the camera can be moved to areas outside the pan limit with the Tilt operation. When ADigital FlipB is set, use the Tilt operation to flip and return to the pan limit area again. When AMode1B, AMode2B or AMode3B is set and the camera is moved to inside of the pan limit with Pan operation, it will stop at the pan limit position.

horizontally and stops. In this case, the operating direction of the camera is the same as that of the Pan/Tilt operation.

horizontally and the operating direction of the camera is opposite that of the Tilt operation. Select this mode if you wish to operate continuously. Once operation stops, the direction will return to normal.

horizontally and the operating direction of the camera is opposite that of the Tilt operation. However, the operating direction will return to normal 10 seconds after the operation has stopped.

Setting Using Internet Explorer

Setting (continued)

Auto Patrol Page

This function sets the Auto Patrol operation which patrols multiple positions at specified time intervals. You can set the order in which to view the determined positions. This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

● Click [Auto Patrol]. Press the [OK] button to enable the new settings. Press the [OK] button to enable

the new settings.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

There are three screens in Auto Patrol.

Click

A BCD

A No Switches the camera image from No. 0 to 99 in sequence. B Title This displays the title of the position. C Positio n This sets the position number to be moved in sequence.

[Setting value:0 to 99]

D Time This sets the duration of staying at the position. (Unit: Seconds)

[Setting range:Skip, 10 sec, 20 sec, 30 sec, 45 sec, 60 sec, 120 sec]

Setting Using Internet Explorer

Setting (continued)

Privacy Mask Page

Privacy Mask is a feature that enables masking of a portion of the image. You can set 8 rectangular privacy masks for this unit.

This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

● Click [Privacy Mask]. Press the [OK] button to enable the new settings.

● Press the [OK] button to enable the new settings.

Click

[Mask Settings] screen

[Brightness] screen

A B

[Password] screen

Privacy Mask

For specifying whether to activate the Privacy Mask feature. When this is set to AOnB, the privacy mask specified using the following items will appear on the screen.

emo:

● When setting privacy mask, zoom will be at the Wide edge and [Digital Flip] is set to AOffB.

B Mask Settings This item adjusts the mask. Click this item to open the [Adjustment] screen.

To change the setting, first, enter [Operator Password] in the [Password] screen. ( If the [Operator Password] was entered already to setting page of built-in viewer, it will be displayed as 000000.

䡵 [Mask Settings] screen

Page 44)

A [Adjustment], [Brightness], [Password]

tab

Each setting screen appears.

B [Mask]

When AOffB is selected, mask will not be displayed on the screen.

[Setting value:0 to 7]

C [Size]

This item sets the size of the mask. Use the [Shrink] or [Expand] button to set

[Save]

This saves the new settings.

[Delate]

This removes the privacy mask of the specified mask number.

䡵 [Brightness] screen

This item sets the brightness (color) of the mask. A0B is black. The larger the number is, the closer the color is to white. When the number is A10B, the color is white. You can check the color at [Image].

[Setting value:0 to 10]

䡵 [Password] screen

Enter the AOperator PasswordB. (A Page 44)

Note:

●

The tilt angle where mask can be set is within 40 degrees from the horizontal position.

●

To change the privacy mask position to upper area from horizontal direction, press the up button until the end of the horizontal position, release the button, and press it again. Only the privacy mask will be moved to upper area. This will set the privacy mask at the area above the shallow horizontal position.

●

The mask will appear larger than when it is set. If some area that you wish to hide appear due to the camera direction or zoom, set the mask larger.

●

The default home position is outside the range of the privacy mask.

●

When the [Adjustment] window is opened in the computer for the first time, ActiveX will be installed.

the AHightB or AWidthB of the mask.

D [Position]

This sets the position to place the mask.Set the moving speed in [Pan/Tilt Speed].

[Setting values:1 to 8]

Setting Using Internet Explorer

BC D EF

Setting (continued)

Motion Detection Page

This page is for setting motion detection. This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

● Click [Motion detection]. Press the [OK] button to enable the new settings.

● The area valid for motion detection is displayed in blue.

● When motion is detected, the image screen edge is displayed in red.

● Information of the configured mask is also applicable for detecting the tracking target of Intelligent

Tracking, which starts from Auto Return. (A Page 67)

Click

A Display Screen The screen is divided into blocks of 12 (horizontal) x 8 (vertical). Use this to

set whether to mask each block. All blocks are masked in the default setting. The block turns blue when it is clicked, indicating that it is unmasked. Click again to return to the masked state. Press the [OK] button to enable this setting. Use the [Mask All] button to mask all blocks. Use the [Clear Mask] button to unmask all blocks.

B Detection For setting the On/Off of [Detection].

Press the [OK] button to enable this setting. Motion detection does not work during [Auto Tracking/Intelligent Tracking] (A Page 67).

C OK/Cancel To apply the new parameters, press the [OK] button.

Press the [Cancel] button to cancel the change.

D Level For setting the sensitivity of motion detection.

Increasing the number raises the detection sensitivity level, and hence it is more sensitive. Press the [OK] button to enable this setting.

[Setting value:0 to 10]

E Mask All Masks all blocks.

Press the [OK] button to enable this setting.

F Clear Mask Unmasks all blocks.

Press the [OK] button to enable this setting.

emo:

● The area display position serves as a reference. Make sure to perform operation check.

● The screen is divided into blocks of 96 (12 horizontal x 8 vertical). Set the angle of view such that the

size of the object for which motion is to be detected is larger than the size of multiple blocks.

● When [Stabilizer] is set to AOnB, the image is zoomed to 1.3 times. Thus, the number of blocks

displayed on the motion detection setting screen becomes 48 (8 horizontal x 6 vertical). (A Page 53)

Note:

● Flickers of fluorescent lamps may cause motion detection.

● Changes in brightness due to the light source may be detected as motion.

● The motion detection feature is not intended to prevent theft or fire. This feature may not function

properly depending on the conditions of the object and settings. Our company shall not be liable for any accident or damage that occurs.

● When other client is getting JPEG/MPEG4 stream from this unit, video images may not appear on

the [Motion Detection] page due to the maximum distribution limit of the camera. Stop other clients before using the [Motion Detection] page.

Setting Using Internet Explorer

Setting (continued)

Network Basic Page

This page is for performing basic setting related to the network.

This page can be used during access using AadminB.

● Click [Advanced Settings] to display setting menu.

● Click [Network Basic]. Press the [OK] button to enable the new settings.

● Press the [OK] button to enable the new settings.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

● When settings of the Basic page is changed, all services that are currently running will end

immediately. For example, when changes are made to the [Network Basic] page during JPEG/ MPEG4 distribution, distribution will be discontinued and TCP will be disconnected.

Click

A IP Setting For setting the DHCP client function.

Connect the camera to a network environment with a DHCP server when DHCP is to be enabled. If the DHCP server does not exist when [IP Setting] is set to ADHCP EnableB, the camera will start running with IP address 192.168.0.2 and subnet mask 255.255.255.0 in about 2 minutes after startup. Refer to [IP Address Settings] (A Page 36) for the IP address.

B IP Address For setting the IP address of the camera. C Subnet Mask For setting the subnet mask of the camera. D Default Gateway For setting the default gateway of the camera.

Set as A0.0.0.0B when a default gateway is not set.

E Host Name For setting the host name of the camera.

Specify a name using alphanumeric characters, hyphen (-) or period (.). Underscores (_) cannot be used.

F DNS Server For setting the address of the DNS server. G MAC Address The MAC address of the camera is displayed in a hexadecimal number. H IP Protocol For setting IPv6 to AOnB or AOffB. (IPv4 is set to AOnB at all times. ) When

IPv6 is set to AOnB in a network that supports IPv6, the address appears in the [IPv6 Address] field. If the network does not support IPv6, ADisableB appears in the [IPv6 Address] field. Camera will restart if this item is altered. Wait for about one minute before operation of the unit is enabled.

I IPv6 Address Displays the IPv6 address.

Setting Using Internet Explorer

Setting (continued)

Network Details Page

This page is for performing detailed network setting.

This page can be used during access using AadminB.

● Click [Advanced Settings] to display setting menu.

● Click [Network Details]. Press the [OK] button to enable the new settings.

● Press the [OK] button to enable the new settings.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

A B

Click

JPEG

A TOS(DS field) For setting the TOS value of IP packets in which JPEG is stored.

The upper six bits out of the eight bits that make up the TOS value belong to DSCP. This upper six bits can be set. The lower two bits are A0B. For example, upon setting to A255B, the lower two bits are converted to A0B, and the value becomes A252B. TOS values are used in networks that support QoS. By setting QoS for the network switch, routing can be done by giving priority to packets with a larger TOS value.

MPEG4

B TOS(DS field) For setting the TOS value of IP packets in which MPEG4 is stored.

For details, refer to the [JPEG TOS(DS field)] item A above.

Common

C TTL (Unicast) For setting the TTL value of JPEG/MPEG4 packets that are to be sent via

TCP.

D TTL (Multicast) For setting the TTL value of JPEG/MPEG4 packets that are to be sent via

multicast.

E MTU For setting the maximum packet size for storing JPEG/MPEG4.

[Setting range:1280 to 1500]

F Negotiation For setting the [Negotiation] of the [Network Details].

When a value other than AAutoB is selected, do not set the network device to be connected to AAutoB. Ensure that it is set to the same value as the camera.

Protocol Page

This page is for changing the HTTP server port number.

This page can be used during access using AadminB.

● Click [Advanced Settings] to display setting menu.

● Click [Protocol]. Press the [OK] button to enable the new settings.

● Press the [OK] button to enable the new settings.

● After changing, you will need to re-establish the connection if you are using the Internet Explorer.

A C

Click

A HTTP Server

Port

You can change the port number for the built-in web server of the camera. (1-65535) The default port number setting is A80B. The port number of JPEG/MPEG4 server is changed also. To access to camera from the Internet Explorer, enter the following in the Internet Explorer when the camera is in its default settings.

http://192.168.0.2 If the port number is changed to A8080B, for example, enter the Internet

Explorer as follows. http://192.168.0.2:8080

B VISIP Protocol You can change the On/Off setting of VSIP Protocol. To use this unit from

Nextiva of Verint Systems Inc., select AOnB.

C HTTP Server

Port

D AMX Device

Discovery Protocol

emo:

● If Built-in Viewer is used for playback, change the [HTTP Port] number in the setting screen of Built-

in Viewer to the same value. (A Page 119)(A Page 121)

You can change the port number for Built-in VSIP server of the camera. (1-65535) The default port number setting is A5510B.

You can change the On/Off setting of AMX device detection protocol. Set to AOnB when you are using the camera on AMX’s systems.

[Setting value:On , Off]

Setting Using Internet Explorer

EF G

Setting (continued)

Streaming Page

This page is for setting manual multicast transmission.

This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

● Click [Streaming]. Press the [OK] button to enable the new settings.

● Press the [OK] button to enable the new settings.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

A BCD

Click

JPEG

A Control For starting or stopping streaming of JPEG images.

Parameters that are set on the [Streaming] page will be saved when transmission is started upon pressing the [Start] button.

B Destination

Address

For specifying the destination address of JPEG streaming. Specify the multicast address. When other devices that make use of multicast transmission exist, ensure that each of them is set to a different multicast address.

C Destination Port For specifying the destination port number of JPEG streaming.

Specify an even number for RTP compliance. When other devices that make use of multicast transmission exist, it is recommended that each of them be set to a different port number. Multiple multicast streams cannot be received on a single computer when there are duplicate port numbers.

D Frame Rate For specifying the frame rate when sending JPEG images via multicast.

MPEG4

E Control For starting or stopping streaming of MPEG4 images.

Parameters that are set on the [Streaming] page will be saved when transmission is started upon pressing the [Start] button.

F Destination

Address

For specifying the destination address for MPEG4 streaming. Specify the multicast address. When other devices that make use of multicast transmission exist, ensure that each of them is set to a different multicast address.

G Destination Port For specifying the destination port number for MPEG4 streaming.

emo:

● When the power of the camera is turned off accidentally during multicast transmission, multicast

transmission will restart automatically after the camera is rebooted.

Setting Using Internet Explorer

Setting (continued)

Access Restrictions Page

This page is for setting client restrictions.

This page can be used during access using AadminB.

● Click [Advanced Settings] to display setting menu.

● Click [Access Restrictions]. Press the [OK] button to enable the new settings.

● Press the [OK] button to enable the new settings.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

● This feature is targeted at JPEG/MPEG4 acquisition. It does not impose restrictions on access via a

web browser or use of API.

Note:

● The Access Restriction feature determines whether to impose restrictions during TCP connection by

the client. In the case when access restriction is set after TCP connection by a client has been established, TCP connection will not be disconnected.

Click

Destination Address

A Access

Restrictions

Restrictions may be imposed on clients accessing the camera using the IP address.

When AdenyB is selected, acquisition of JPEG/MPEG4 via the IP address specified for the [IP Address] item B will be denied. Restrictions are not imposed on access to the Web Settings page. When AallowB is selected, acquisition of JPEG/MPEG4 via the IP address specified for the [IP Address] item B will be permitted. Restrictions are not imposed on access to the Web Settings page.

B IP Address When a multicast address is specified and AdenyB is selected, the camera

will deny transmission to this multicast address. When a multicast address is specified and AallowB is selected, the camera will only accept transmission to this multicast address and deny transmission to multicast addresses that are not stated in the [IP Address] item B field.

Note:

● Note that when AallowB is selected and all IP address fields are left blank, JPEG/MPEG4 acquisition

by all IP addresses will be denied. Restrictions are not imposed on access to the Web Settings page.

Additionally, the camera will also deny access when instructions for transmission to the specified IP address are sent via API.

emo:

● To specify a specific IP address range, enter a combination of the IP address and subnet mask in

the [IP Address] item B field.

● Define the subnet mask using a length between 8 to 30 bits.

For example, a range between 192.168.0.0 to 192.168.0.255 is denoted as 192.168.0.0/24 ([IP Address]/[bit length of subnet mask]).

Setting Using Internet Explorer

Setting (continued)

Time Page

This page is for setting time.

This page can be used during access using AadminB.

● Click [Advanced Settings] to display setting menu.

● Click [Time]. Press the [OK] button to enable the new settings.

● Press the [OK] button to enable the new settings.

● If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

Click

A SNTP For setting the SNTP client feature.

B NTP Server For setting the IP address of the NTP server. C Access Interval For setting the time interval for access to the NTP server. D Time Displays the time on the clock of the camera.

E Time Zone For setting the time zone. F PC Time to

Camera

When this is set to AOnB, the system accesses the specified NTP server at regular intervals to acquire the time. In addition, time will be recorded in the JPEG headers distributed by the camera. Discontinuity in JPEG header’s time may occur immediately before and after acquiring time from the NTP server.

The clock time can be changed by entering an appropriate value. (Second value cannot be specified.) In addition, time will be recorded in the JPEG headers distributed by the camera. Discontinuity may occur in the JPEG header’s time immediately before and after changing the time.

Click [Set] to load the clock time of the computer in use on the camera.

Password Page

This page is for setting the password.

This page can be used during access using AadminB.

● Click [Advanced Settings] to display setting menu.

● Click [Password]. Press the [OK] button to enable the new settings.

● Press the [OK] button to enable the new settings.

Click

A Username Select a user name. B New Password Enter a new password.

Passwords should be 8 characters or less (no space allowed). Camera is case-sensitive.

C New Password

Again

Note:

● Be sure to handle the password carefully in case you forget it.

● If you have forgotten the password, please consult your nearest JVC dealer.

Enter again to confirm the new password.

Setting Using Internet Explorer

Setting (continued)

Maintenance Page

This page is for maintenance purposes.

This page can be used during access using AadminB.

● Click [Advanced Settings] to display setting menu.

● Click [Maintenance]. Press the [OK] button to enable the new settings.

Click

D E

A Restart Reboots the camera. (It takes about one minute for the camera to reboot.) B All Settings

[Initialize]

Restores all settings to their default values and reboots the unit. (It takes about one minute for the camera to initialize and reboot.) Passwords will also be initialized. The built-in clock of the camera will not be affected. JPEG/MPEG4 transmission and all other services that are running will be discontinued.

C Update Upgrades the firmware version of the camera and reboots the unit.

Select the update target from [Streaming Manager], [PTZ Controller] or [Image Processor]. The settings of the camera will be saved. Copy the new firmware file to the computer on which Internet Explorer is used, and specify this file using the [Browse...] button. Press the [Update] button to start the update. JPEG/ MPEG4 transmission and all other services that are running will be discontinued. The update process may take several minutes. A message will be displayed on the Internet Explorer when update is successfully completed.

Note:

● Do not turn off the power when update is in progress or during reboot after update is complete. Turning off the power of the camera may cause it to malfunction.

● Before updating, end all accesses to the camera (such as viewer) other than from this page. If there are accesses from other pages, when update starts, the access from this page may be disconnected. In this case, end all the accesses from other pages, then access this page and try updating again.

Auto Cleaning

This item sets whether to automatically clean the power and signal transmission components.

Note:

● When the camera has stopped at the pan position for more than 7 days, it will pan at the specified time and perform cleaning automatically.

Auto Cleanig Time

This item sets the time to start cleaning. To change the setting, enter the time and click the [Apply] button.

[Setting values:0-23 h, 0-59 m]

Setting Using Internet Explorer

Setting (continued)

List of Factory Settings of Each Page

䡵 Camera Page(A Page 51)

Item Factory Settings

Camera ID AVN-V685B

(For VN-V685U)

AVN-V686B (For VN-V686BU/ VN-V686WPBU)

Monitor Type Custom

Black Level 1

Gamma 1

Active Gamma Level 0

Enhance Frequency High

Enhance Level 0

Color Level 0

Stabilizer Off

Stabilizer Level Mid

Noise Reduction Off

AGC High

Sense Up Off

ALC Priority Motion

Shutter Speed 1/60

B/W Mode Color

IR Preset AF Off

Light Normal

䡵 Encoding Page(A Page 56)

Item

JPEG Frame Size VGA

MPEG4 Frame Size VGA

JPEG Quality VFS4

MPEG4 Bitrate 2000 kbps

MPEG4 Bitrate Control CBR

MPEG4 FPS 15 fps

MPEG4 I Frame Interval 30

MPEG4 Priority FPS

Factory Settings

䡵 Alarm Page(A Page 58)

Item Factory Settings

Action Disable

1st Trigger Input 1 Make

Max. Interval ^

2nd Trigger Disable

Action Position No. ^

Trigger Position No. ^

Mail Address ^

Mail Text

Attach Image Off

TCP/UDP IP Address ^

TCP/UDP Port Number ^

TCP/UDP Data ^

Alarm Output Duration ^

Time Filter Unmask All

䡵 Alarm Environment Page(A Page 62) 䡵 PTZ Page(A Page 66)

Item Factory Settings

SMTP Server 0.0.0.0

Por t Number 25

Send Mail Address ^

POP before SMTP Off

POP Server 0.0.0.0

Port Number 110

Username ^

Password ^

FTP Server 0.0.0.0

Directory ^

Username ^

Password ^

Periodic FTP Off

Periodic FTP Interval 1

Periodic FTP Time Filter Auto

Periodic FTP Time Filter Unmask All

PrePostRecording Frame Rate

PrePostRecording Before Trigger

PrePostRecording After Trigger

Duration Output1 1000 msec

Duration Output2 1000 msec

Manual Output Output1 Break

Manual Output Output2 Break

15 fps

5 sec

Item Factory Settings

Mode none

Return Time 1 minute

Restart Time Off

Auto Tracking Level 5

Tracking Zoom On

Tracking Zoom Limit 5 Times

EZoom Limit 2

Pan Limit Off

Tilt Limit 0 degree

Preset Position Speed 4

Auto Flip Digital Flip

Setting Using Internet Explorer

Setting (continued)

List of Factory Settings of Each Page (continued)

䡵 Auto Patrol Page(A Page 72)

Item Factory Settings

Position (Preset Position

number)

Time 10

䡵 Privacy Mask Page(A Page 74)

Item Factory Settings

Privacy Mask Off

Mask 0 to 7 Off

Brightness 4

Password —

䡵 Motion Detection Page(A Page 76)

Item Factory Settings

Mask Clear Mask

Detection Off

Level 5

䡵 Network Basic Page(A Page 78)

Item Factory Settings

IP Setting DHCP Enable

IP Address 192.168.0.2

Subnet Mask 255.255.255.0

Default Gateway 192.168.0.254

Host Name —

DNS Server 0.0.0.0

IP Protocol IP version4

IPv6 Address Disable

IP version6

䡵 Network Details Page(A Page 80)

Item Factory Settings

JPEG TOS 0

MPEG4 TOS 0

TTL (Unicast) 64

TTL (Multicast) 32

MTU 1500

Negotiation Auto

䡵 Protocol Page(A Page 81)

Item Factory Settings

HTTP Server Port 80

VSIP Protocol Off

VSIP Server Port 5510

AMX Device Discovery Protocol

䡵 Streaming Page(A Page 82)

Item Factory Settings

JPEG Destination Address

JPEG Destination Port 49152

JPEG Frame Rate 15 fps

MPEG4 Destination Address

MPEG4 Destination Port 59152

225.0.1.1

225.0.2.1

䡵 Access Restrictions Page (A Page 84)

Item Factory Settings

Access Restrictions deny

IP Address —

䡵 Time Page(A Page 86)

Item Factory Settings

SNTP Off

NTP Server 0.0.0.0

Access Interval hour,1

Time Zone (GMT)UTC

䡵 Password Page(A Page 87)

Item Factory Settings

Username AadminB

Current Password Blank

Default passwords are:

AadminB :jvc

AoperatorB :jvc

AuserB :jvc

Setting Using Internet Explorer

Setting (continued)

Miscellaneous page

This page is for acquiring information.

This page can be used during access using AadminB, AoperatorB and AuserB.

● Click [Advanced Settings] to display setting menu.

● Click [Miscellaneous]. Press the [OK] button to enable the new settings.

Click

A Open Source

Software

Press the [Show] button to display information of the software used by the camera.

Operation Page

Displays the operating status of the camera.

This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

● Click [Operation]. Press the [OK] button to enable the new settings.

Click

Operation

A Total Sending

Bitrate

Displays the total TCP/UDP bit rate sent by the camera as well as the individual bit rates.

B Destination Displays the destination that the camera is sending data to.

Log

C System Log Displays the following information.

● Number of seconds after startup

● Alarm information

Setting Using Internet Explorer

Setting (continued)

Settings Page

This page displays the version information and settings of the camera.

This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

● Click [Settings]. Press the [OK] button to enable the new settings.

Click

Setting Using Internet Explorer

Setting (continued)

Settings Page (continued)

Position List Page

This page displays information on preset positions.

This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

● Click [Position List]. Press the [OK] button to enable the new settings.

Click

Setting Using Internet Explorer

Setting (continued)

Patrol Settings Page

This page displays the information and settings of Auto Patrol.

This page can be used during access using AadminB or AoperatorB.

● Click [Advanced Settings] to display setting menu.

● Click [Patrol Infomation]. Press the [OK] button to enable the new settings.

Click

100

JVC VN-685U, VN-686WPBU, LST0819-001A, VN-686BU User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Getting Started

Safety Precautions

Contents

Main Features

Safety precautions

Operating Environment

Precautions

Name and Function of Parts

VN-V685U/VN-V686BU

VN-V686WPBU

Features

Connection/Installation (VN-V685U/VN-V686BU)

Mounting the Camera

Power Connection

LAN Cable Connection

Connecting the alarm signal terminal

Connection/Installation (VN-V686WPBU)

Mounting the Camera

Power Connection

LAN Cable Connection

Connecting the alarm signal cable

Network Setting

Network Requirements

IP Address Settings

IP address setting procedure

IP address setting at the computer

Internet Explorer settings

Connecting the camera to the computer

IP address setting for the camera

Enter user name and password

Setting Using Internet Explorer

Setting

How to open the setting page

Basic Settings1

Basic Settings2

Camera Page

Encoding Page

Alarm Page

Alarm Environment Page

PTZ Page

Auto Patrol Page

Privacy Mask Page

Motion Detection Page

Network Basic Page

Network Details Page

Protocol Page

Streaming Page

Access Restrictions Page

Time Page

Password Page

Maintenance Page

List of Factory Settings of Each Page

Miscellaneous page

Operation Page

Settings Page

Position List Page

Patrol Settings Page
