JVC LST0728-001C User Manual

NETWORK VIDEO RECORDER

INSTRUCTIONS

VR-N1600U VR-N1600E VR-N900U

VR-N1600U/E (A)

VR-N900U (B)

WARNIN G

㧠

ALARM

HDD

㧤

LOCK



SEARCHFUNCTION ALARM CLEARKEY REC/STOP STOP(PB) PLAY

SERIAL

㧝 㧞 㧟

㧡

㧥  

   

CANCEL ZOOM OUT ZOOMIN

㧢*1/'

㧣

LIVE/BROWSE

OPERATE

SELECT

REC CONTROL

Please read the following before getting started:

Thank you for purchasing this JVC product. Before operating this unit, please read the instructions carefully to ensure the best possible performance.

PTZ/PRESET

REV FWD

SKIP

VR-N1600U/E

VR-N900U

Powered by Milestone

For Customer Use:

Enter below the Serial No. which is located on the body. Retain this information for future reference.

Model No. VR-N1600U/VR-N900U Serial No.

LST0728-001C

IMPORTANT SAFEGUARDS

I

SAFETY PRECAUTIONS (for USA)

Please use this unit in an appropriate power source.

Veuillez employer cette unité dans une source d'énergie appropriée.

(VR-N900U)

II

SAFETY PRECAUTIONS

Please use this unit in an appropriate power source.

PRECAUTIONS WHEN MOUNTING RACK

CAUTION

● Do not install the VR-N1600U/E/VR-N900U to the rack in places where ambient temperature becomes 40˚C or more.

● When rack mounting, keep the internal temperature of rack assembly 40˚C or less.

● When using rack mount, keep the clearance between the rack and the rear of unit 150mm or more.

●

When installing this unit or the like to the rack, refer to the consumption current value of the nameplate of each

device so that the current capacity (including rated capacity of power supply wire) of the rack is not exceeded.

● Use the rack that meets the following requirements:

• must be equipped with overcurrent protection

• must be equipped with protective earthing conductor power plug and socket

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety: This unit should be mounted at the bottom of the rack if it is the only unit in the rack. When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack. If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.

CAUTION

Before you mount this device in a rack, make sure that the rack is secure and in no danger of tipping over.

III

,

INFORMATION (FOR CANADA) RENSEIGNEMENT

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil num rique de la Class A es t

(POUR CANADA)

WARNING (FOR EUROPE):

This is a Class A product. In a domestic environment cause radio interference in which adequate

measures.

case the user may be required to take

this product may

IV

SICHERHEITSVORKEHRUNGEN (for Germany)

Benutzen Sie bitte diese Maßeinheit in einer passenden Energiequelle.

V

VI

SICHERHEITSVORKEHRUNGEN (for Germany)

VII

1600E/VR-N900U

E/VR-N900U

E/VR-N900U.

1600E/VR-N900U

E/VR-N900U

VIII

Getting Started

Features

Automatic detection of network cameras

Significantly reduces the hassle of complex camera registration procedures.

Built-in large-capacity hard disk (500 GB) (VR-N1600U/E)

Built-in hard disk (250 GB) (VR-N900U)

Supports HDD expansion

You can add 250 GB HDD for internal of VR-N900U, and 500 GB HDD for internal of VR-N1600U/E. For external, up to 2 TB HDD units can be added for both models of VR-N900U

Simultaneous recording up to 9 channels at 120 ips (VR-N900U)

Equipped with 4-channel analog input (VR-N900U)

Display/Distribution performance at 80 ips (VR-N1600U/E) and 160 ips (VR-N1600U/E(A))

Display performance of 60 ips and distribution performance of 30 ips (VR-N900U)

Enables simultaneous recording and playback

Playback of recorded images, jog dial playback and skip playback are possible while recording is in progress.

Direct Search

Enables you to retrieve data of a specific date/time or alarm position speedily.

Power failure recovery record

If a power failure occurs during recording, the system resumes recording in the mode selected before the power failure after recovery.

Alarm recording

Enables recording to start automatically in the alarm recording mode when alarm signal input is received during recording.

Motion Detect

Enables recording to start automatically when “motion” is detected in the preset live image. You can also specify the detection area for each camera.

and

VR-N1600U/E

.

Supports RAID1 (VR-N1600U/E)

Adding a built-in HDD enables support for RAID1. RAID1 writes the same data to two hard disks simultaneously (mirroring), so that one of them remains usable when the other breaks down.

Simultaneous recording up to 16 channels at 160 ips (VR-N1600U/E)

Simultaneous recording up to 16 channels at 240 ips is possible when NVR Viewer is not started up. In addition, purchasing additional camera licenses enables the VR-N1600U/E(A) to handle simultaneous recording up to 32 channels. For details, please consult your nearest JVC dealer.

Supports cameras that allow bidirectional audio transmission (VR-N1600U/E)

Microphone audio that is input into the AUDIO IN 1 terminal is transmitted to the camera that supports bidirectional audio transmission, and output from the speakers connected to the camera

How to Read this Manual

䡵

Documents

There are two documents on this unit.

(1) Startup Guide

This comes in a booklet together with this product. It is also available in the PDF file format. You can find it in the CD-ROM provided.

(2) Instruction Manual (PDF)

This manual is available in the PDF file format. You can find it in the CD-ROM provided.

䡵

Symbols Used in this Manual

Caution Notes

A

䡵

Content of this Manual

●

The copyright of this manual belongs to JVC. Reproduction or copy of this manual, in part or in whole, without the prior consent of JVC is strictly prohibited.

●

Product names used in this manual are the trademarks or registered trademarks of the respective companies. Symbols such as ™, ®, and © are omitted in this manual.

●

Milestone and XProtect Enterprise are the registered trademarks of Milestone Systems, Inc.

●

Designs, specifications and other details used in this manual may be modified for improvement without prior notice.

●

Images and illustrations of VR-N1600U/E are used in the explanation of this manual except for some special cases. When images or illustrations of VR-N900U are used, the model name is indicated at the top right corner of the illustration.

Precautions to take during operation of this unit. Details for reference, such as functions and

restrictions on uses. Page or item to refer to.

.

Alarm Mail Notification

Enables notification by e-mails to be sent out when an alarm or motion is detected.

2

oEnd-User License Agreement for Milestone's Software embedded in JVC's NVR products

This license agreement is a legally binding agreement among you (You, either an individual or a single entity), Milestone Systems A/S (Milestone) and Victor Company of Japan, Limited (JVC) for the software product embedded in JVC's Network Video Recorder(NVR) products (Software), which may include associated software components, media, printed materials, and online or electronic documentation, if any. By using JVC's NVR product incorporating the Software, you agree to be bound by the terms of this agreement. The Software is protected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties. Note that the Software is licensed, not sold.

1. Grant of Use.

Milestone hereby grants you the right to use the Software on JVC's NVR products.

2. Copyright.

All title, including but not limited to copyrights, in and to the Software and any copies thereof are owned by Milestone. All rights not expressively granted are reserved by Milestone.

3. No Warranties.

Milestone and JVC expressly disclaims any warranty for the Software. The Software and any related documentation is provided "as is" without warranty of any kind, either express or implied, including, without limitation, the implied warranties of merchantability, fitness for a particular purpose or non-infringement. The entire risk and liability arising out of use or performance of the Software remains with you as the user. You are notified that the Software, when used with certain equipment or other software, may enable you to perform surveillance actions and data processing which are likely to be restricted by or contrary to applicable law, including without limitation data privacy and criminal law. The sole responsibility for verification of your use against compliance with applicable law lies with you as the user.

4. Limitation of Liability.

The provisions of this paragraph are in effect to the maximum extent permitted by applicable law. In no event shall Milestone, JVC or their suppliers be liable for any special, incidental, indirect, or consequential damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or any other pecuniary loss) arising out of the use of or inability to use the Software or the provision of or failure to provide proper support, even if Milestone or JVC have been advised of the possibility of such damages. Absent any wilful misconduct or gross negligence, The entire liability of Milestone and JVC under any provision of this agreement shall be limited to the amount paid by you for the Software portion of JVC's NVR product.

5. Miscellaneous.

You acknowledge that the Software is embedded in JVC's NVR products, and you may not make copies of the Software.

(a)

If necessary for backup and archival purposes, please contact JVC.

(b)

You may not remove the Software from JVC's NVR product nor distribute copies of the Software to third parties.

(c)

You may not reverse engineer, decompile, or disassemble any of the Software except to the extent permitted by applicable law which cannot be contractually waived.

You may permanently transfer all of your rights for the Software, provided the recipient of JVCÕs NVR product

(d)

incorporating the Software agrees to the terms of this agreement.

6.Termination.

Without prejudice to any other rights, Milestone may terminate this license agreement if you fail to comply with its terms and conditions. In such event you must cease to use the Software.

7. Governing Law.

These License Terms and the contract is governed by Japanese law and the sole and proper forum for the settlement of disputes hereunder shall be the Tokyo District Court.

3

Getting Started

VR-N1600U/VR-N1600E/VR-N900U (hereinafter referred to as “this device”) is installed with Windows姞XP Embedded Runtime (hereinafter referred to as “the software”), a licensed software from Microsoft Corporation. By using this device and the software, you agree to abide by the following Microsoft Software License Terms.

Microsoft Software License Terms for:

Windows XP Embedded Runtime

These license terms are an agreement between you and JVC. Please read them. They apply to the software included on this device. The software also includes any separate media on which you received the software. The software on this device includes software licensed from Microsoft Corporation or its affiliate. The terms also apply to any Microsoft

● Updates,

● Supplements,

● Internet-based services, and

● Support services

for this software, unless other terms accompany those items. If so, those terms apply. If you obtain updates or supplements directly from Microsoft, then Microsoft, and not JVC, licenses those to you.

As described below, using some features also operates as your consent to the transmission of certain standard computer information for Internet-based services. By using the software, you accept these terms. If you do not accept them, do not use or copy the software. Instead, contact JVC to determine its return policy for a refund or credit.

If you comply with these license terms, you have the rights below.

1 Use Rights.

You may use the software on the device with which you acquired the software.

2 Additional Licensing Requirements and/or Use Rights.

a.Specific Use.

JVC designed this device for a specific use. You may only use the software for that use.

b.Other Software.

You may use other programs with the software as long as the other programs

● Directly support the manufacturer

● Provide system utilities, resource management, or anti-virus or similar protection.

s specific use for the device, or

Software that provides consumer or business tasks or processes may not be run on the device. This includes email, word processing, spreadsheet, database, scheduling and personal finance software. The device may use terminal services protocols to access such software running on a server.

c.Device Connections.

● You may use terminal services protocols to connect the device to another device running business task or processes software such as email, word processing, scheduling or spreadsheets.

● You may allow up to ten other devices to access the software to use

● File Services,

● Print Services,

● Internet Information Services, and

● Internet Connection Sharing and Telephony Services.

The ten connection limit applies to devices that access the software indirectly through multiplexing or other software or hardware that pools connections. You may use unlimited inbound connections at any time via TCP/IP.

3 Scope of License.

The software is licensed, not sold. This agreement only gives you some rights to use the software. JVC and Microsoft reserve all other rights. Unless applicable law gives you more rights despite this limitation, you may use the software only as expressly permitted in this agreement. In doing so, you must comply with any technical limitations in the software that allow you to use it only in certain ways. For more information, see the software documentation or contact JVC. Except and only to the extent permitted by applicable law despite these limitations, you may not:

● Work around any technical limitations in the software;

● Reverse engineer, decompile or disassemble the software;

● Make more copies of the software than specified in this agreement;

● Publish the software for others to copy;

● Rent, lease or lend the software; or

● Use the software for commercial software hosting services.

Except as expressly provided in this agreement, rights to access the software on this device do not give you any right to implement Microsoft patents or other Microsoft intellectual property in software or devices that access this device.

4

You may use remote access technologies in the software such as Remote Desktop to access the software remotely from another device. You are responsible for obtaining any licenses required for use of these protocols to access other software.

● Remote Boot Feature.

If the JVC enabled the device Remote Boot feature of the software, you may

(i) your server and to deploy the software on licensed devices as part of the Remote Boot process; and (ii) use the Remote Boot Installation Service only for deployment of the software to devices as part of the Remote Boot

process; and

(iii)download the software to licensed devices and use it on them.

For more information, please refer to the device documentation or contact JVC.

● Internet-Based Services.

Microsoft provides Internet-based services with the software. Microsoft may change or cancel them at any time.

a.Consent for Internet-Based Services.

The software features described below connect to Microsoft or service provider computer systems over the Internet. In some cases, you will not receive a separate notice when they connect. You may switch off these features or not use them. For more information about these features, visit

http://www.microsoft.com/windowsxp/downloads/updates/sp2/docs/privacy.mspx.

By using these features, you consent to the transmission of this information.

Microsoft does not use the information to identify or contact you.

b.Computer Information.

The following features use Internet protocols, which send to the appropriate systems computer information, such as your Internet protocol address, the type of operating system, browser and name and version of the software you are using, and the language code of the device where you installed the software. Microsoft uses this information to make the Internetbased services available to you.

● Web Content Features.

Features in the software can retrieve related content from Microsoft and provide it to you. To provide the content, these features send to Microsoft the type of operating system, name and version of the software you are using, type of browser and language code of the device where the software was installed. Examples of these features are clip art, templates, online training, online assistance and Appshelp. These features only operate when you activate them. You may choose to switch them off or not use them.

● Digital Certificates.

The software uses digital certificates. These digital certificates confirm the identity of Internet users sending X.509 standard encrypted information. The software retrieves certificates and updates certificate revocation lists. These security features operate only when you use the Internet.

● Auto Root Update.

The Auto Root Update feature updates the list of trusted certificate authorities. You can switch off the Auto Root Update feature.

● Windows Media Player.

When you use Windows Media Player, it checks with Microsoft for

● Compatible online music services in your region;

● New versions of the player; and

● Codecs if your device does not have the correct ones for playing content. You can switch off this feature. For more

information, go to: http://microsoft.com/windows/windowsmedia/mp10/privacy.aspx.

● Windows Media Digital Rights Management.

Content owners use Windows Media digital rights management technology (WMDRM) to protect their intellectual property, including copyrights. This software and third party software use WMDRM to play and copy WMDRM-protected content. If

the software fails to protect the content, content owners may ask Microsoft to revoke the software WMDRM to play or copy protected content. Revocation does not affect other content. When you download licenses for

protected content, you agree that Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade WMDRM to access their content. Microsoft software that includes WMDRM will ask for your consent prior to the upgrade. If you decline an upgrade, you will not be able to access content that requires the upgrade. You may switch off WMDRM features that access the Internet. When these features are off, you can still play content for which you have a valid license.

c.Misuse of Internet-based Services.

You may not use these services in any way that could harm them or impair anyone else the services to try to gain unauthorized access to any service, data, account or network by any means.

s use of them. You may not use

s ability to use

5

Getting Started

Microsoft Software License Terms for: (continued)

4 Windows Update Agent (also known as Software Update Services).

The software on the device includes Windows Update Agent ( WUA ) functionality that may enable your device to connect to and access updates (

any other disclaimer in this Micrososoft Software License Terms or any EULA accompanying a Windows Update, you acknowledge and agree that no warranty is provided by MS, Microsoft Corporation or their affiliates with respect to any

Windows Update that you install or attempt to install on you

Windows Updates ) from a server installed with the required server component. Withou t limiting

r device.

5 Product Support.

Contact JVC for support options. Refer to the support number provided with the device.

6 Backup Copy.

Yo u may make one backup copy of the software. You may use it only to reinstall the software on the device.

7 Proof Of License.

If you acquired the software on the device, or on a disc or other media, a genuine Certificate of Authenticity label with a genuine copy of the software identifies licensed software. To be valid, this label must be affixed to the device, or included on or

in JVC packaging to prove that you are licensed to use the software.

To identify genuine Microsoft software, see http://www.howtotell.com.

s software packaging. If you receive the label separately, it is not valid. You should keep the label on the device or

8 Transfer to a Third Party.

Yo u may transfer the software only with the device, the Certificate of Authenticity label, and these license terms directly to a third party. Before the transfer, that party must agree that these license terms apply to the transfer and use of the software. Yo u may not retain any copies of the software including the backup copy.

9 Not Fault Tolerant.

The software is not fault tolerant. JVC installed the software on the device and is responsible for how it operates on the device.

10 Restricted Use.

The Microsoft software was designed for systems that do not require fail-safe performance. You may not use the Microsoft software in any device or system in which a malfunction of the software would result in foreseeable risk of injury or death to any

person. This includes operation of nuclear facilities, aircraft navigation or communica

tion systems and air traffic control.

11 No Warranties for the Software.

The software is provided as is . You bear all risks of using it. Microsoft gives no express warranties, guarantees or conditions. Any warranties you receive regarding the device or the software do not originate from, and are not binding on,

Microsoft or its affiliates. When allowed by your local laws, JVC and Microsoft exclude implied warranties of merchantability, fitness for a

particular purpose and non-infringement.

6

12 Liability Limitations.

You can recover from Microsoft and its affiliates only direct damages up to two hundred fifty U.S. Dollars (U.S. $250.00). You cannot recover any other damages, including consequential, lost profits, special, indirect or incidental damages.

This limitation applies to:

● Anything related to the software, services, content (including code) on third party internet sites, or third party programs; and

● Claims for breach of contract, breach of warranty, guarantee or condition, strict liability, negligence, or other tort to the extent permitted by applicable law.

It also applies even if Microsoft should have been aware of the possibility of the damages.

The above limitation may not apply to you because your country may not allow the exclusion or limitation of incidental, consequential or other damages.

13 Export Restrictions.

The software is subject to United States export laws and regulations. You must comply with all domestic and international export laws and regulations that apply to the software. These laws include restrictions on destinations, end users and end use.

For additional information, see www.microsoft.com/exporting.

7

Getting Started

Precautions for Proper Use of this Product

Locations of Storage and Use

䢇 Do not place this product at the following locations.

Doing so may cause this product to malfunction or break down.

●

Hot or cold places beyond the allowable operating temperature range (5I to 40I)

●

Humid places beyond the allowable operating humidity range (30%RH to 80%RH) (no condensation)

●

Places that emit a strong magnetic field, such as near transformers and motors

●

Places near devices that emit radio waves, such as transceivers and mobile phones

●

Places with considerable dust and sand

●

Places with strong vibrations

●

Places where water droplets may be formed, such as window sides

●

Places with considerable vapor and oil, such as kitchens

●

Places that emit radiation, X-rays, and corrosive gases

䢇 Using this unit and the cable that is connected to it near

places where strong radio waves or magnetic fields (such as near radios, TVs, transformers, and monitors) are emitted may cause noises in the video images or color changes.

Handling Precautions

䢇 Do not stack the devices on one another during use.

Heat and noise from the devices may cause the unit to malfunction or break down, and lead to fire.

䢇 Do not block the ventilation holes.

Doing so may cause heat to trap inside the unit and result in fire. Do not use this unit by laying it down sideways, upside down, or at an angle.

䢇 Do not place objects on this unit.

Placing heavy objects, such as TV monitors, or objects that are bigger in size on this unit may cause it to lose balance and drop or fall, hence resulting in injuries.

䢇 Do not stand or sit on this unit.

Doing so may cause this unit to fall or break down, and result in injuries. Keep it out of the reach of young children.

䢇 Do not place objects with water (e.g., vases, flower pots,

cups, cosmetic products, and chemicals) on this unit. Water may enter this unit through the ventilation holes and

result in fire or electric shock.

䢇 Do not insert objects into this unit.

Metallic or other flammable objects that enter this unit from the ventilation holes may result in fire or electric shock.

Precautions for Handling Hard Disk Drive

䢇 The distance between the head and the disk is only about

0.02 μ m when the hard disk (henceforth HDD) is reading the data. Vibration or impact that is exerted on the HDD may therefore cause the head to hit against the disk, hence causing the disk surface to dent or the disk to chip. When this occurs, data may not be properly read, or in a worse scenario, continued use in this condition may result in head crash (damage). Careful attention must therefore be paid when handling it.

䢇 Precautions During Installation and Change of Installation

Location Moving of this unit or installation work is strictly prohibited

when the power of this unit is on or immediately after the power is turned off (approximately 1 minute). The HDD continues to move under its own inertia for some time after the power is disconnected, and exertion of vibration or impact during this interval may result in HDD failure. When moving this unit, wrap it using cushioning materials to protect it from external shock.

䢇 Handling Precautions

Handle this unit carefully without exerting vibration or

●

impact on it.

●

Do not remove the power plug during recording or playback, or when the HDD is being accessed.

●

The HDD is a consumable product. Although it may vary according to the environment of use, it is recommended to replace the HDD after using for 18,000 hours in a

I

surrounding temperature of 25 reference time and not a quaranty for HDD life span. ) For inquiries on maintenance plans and expenses, consult your nearest JVC dealers.

䢇 When installing an external hard disk, we recommend the

use of UPS (uninterruptible power supply) to ensure the stable operation of the system. [Connecting a UPS] (A Page 136)

䢇 Power failure that occurs during formatting or

disconnection of the HDD may affect its subsequent use even when the UPS is connected.

䢇 JVC shall not be held responsible for the compensation of

losses incurred in the event that recording or playback fails due to defects in this unit or its hard disk drive.

䢇 Images recorded on the HDD will be deleted when you

replace it with a new disk. Note also that recorded images may be deleted when you upgrade the software for this unit.

. (However, this is only a

Clock

䢇 Use of a time server is recommended to ensure recording

at an accurate time.

䢇 There may be a daily error of 10 to 20 seconds depending

on the operating environment.

䢇 The clock time may vary significantly when the lithium

battery level used for backup in this unit is running low.

䢇 Connect the time server to the LAN2 network.

10

Precautions when Moving this Unit

䢇 Remove all connected cords before moving

Turn off the power and remove the power plug before moving this unit. Failure to do so may cause damage on the cords, and result in fire or electric shock.

䢇 Moving of this unit or installation work is strictly prohibited

when the power of this unit is on or immediately after the power is turned off (approximately 1 minute).

The HDD continues to move under its own inertia for some time after the power is disconnected, and exertion of vibration or impact during this interval may result in HDD failure.

䢇 When moving this unit, wrap it using cushioning materials

to protect it from external shock.

䢇 Handle this unit carefully without exerting vibration or

impact on it.

Precautions for Handling Power Cords

䢇 Do not use the supplied cords on devices other than this

unit.

䢇 Do not place heavy objects on the power cord, or place it

under this unit Doing so may cause damage on the cords, and result in

fire or electric shock.

䢇 Do not use cords other than those supplied with this unit

Use only power cords supplied together with this unit. Using cords with different withstanding voltage specifications or damaged cords may result in fire or electric shock.

䢇 Do not remove the power plug during recording or

playback, or when the HDD is being accessed.

Maintenance

䢇 Turn off the power before performing maintenance of this

unit.

䢇 Wipe this unit using a soft cloth. Wiping using thinner or

benzene may cause the surface to melt or fog. When the surface is extremely dirty, wipe using a cloth that is dipped into a neutral detergent diluted with water, followed by wiping with a dry cloth.

Energy Conservation

䢇 Turn off the power of the system for safety reasons and to

save energy if this unit is not to be used for a long time.

Copyright

䢇 Use of video or audio sound recorded using this unit for

commercial purposes or playing them for public viewing or listening may be an infringement of the copyrights of their respective authors under the copyright law.

䢇 These video (audio) recordings shall only be restricted to

personal uses, and their use without prior consent of the copyright holder is strictly prohibited under the copyright law.

Others

䢇 When there is variation in the supply voltage such as

during lightning, operation of this unit may be disabled to protect the system until the supply voltage stabilizes again.

䢇 Eliminate static electricity before performing work that

requires you to touch the input/output terminals, such as when installing devices.

䢇 Do not touch the rear panel of this unit when it is running

as static electricity may cause it to malfunction.

䢇 When there is a large number of data recorded on this

unit, such as short alarm records, a longer time may be required during search or backup. This is not a malfunction.

䢇 Data recorded from TV broadcasts or video (audio)

recordings shall only be restricted to personal uses, and their use without the prior consent of the copyright holder is strictly prohibited under the copyright law.

䢇 The width of the border lines (black in color) of images on

the split screen varies according to the type of input signals. This is due to the characteristics of the camera’s input signals, and is not a malfunction. The condition may also be improved by adjusting this unit. For details, consult our authorized dealers or JVC service centers.

䢇 This unit comes with a high-precision hard disk device. Be

careful not to exert vibration or impact on this unit when handling it.

䢇 Exertion of vibration or impact particularly when the power

is on or when the hard disk is being accessed may cause this unit to break down.

䢇 When moving this unit, do so about 1 minute after

disconnecting the power supply.

䢇 Do not turn off the power switch at the rear of this unit or

unplug the power cord during recording or playback, or when the hard disk is being accessed. Otherwise, it may break down.

Precautions During Master/Slave Connection of Milestone XProtect Enterprise (XPE) and this Unit

䢇 Connect only one master PC to this slave unit.

Connecting multiple master computers to this slave unit may cause it to malfunction.

Software Installation

䢇 Do not install any software to this device other than the

provided application software. Otherwise, operations may become unstable. Any malfunctions arised in such a case will not be covered under warranty.

11

Getting Started

Part Names and Functions (VR-N1600U/E)

Front

T

OPERATE

A B

A

[OPERATE] Button/Indicator

REC CONTROL

SELECT

PTZ/PRESET

SERIAL

㧡

㧥  

CANCEL ZOOM OUT ZOOMIN

㧣

㧢*1/'

   

㧝 㧞 㧟

LIVE/BROWSE

Switches operation on or off. Press the button to turn operation

AONB

and hold down the button to turn operation AOFFB. The

indicator blinks while the recorder is starting up or shutting down.

B

[REC CONTROL] Button/Indicator

Switches the recording control mode on or off. The indicator lights up when the recording control mode is set to on. Press and hold the [FUNCTION] button, and press the [REC CONTROL] button at the same time to display the menu.

Memo :

●

The main menu cannot be displayed in the recording control mode or during recording.

●

The recording control mode performs recording in accordance with the settings in the [Camera Record Setting] menu. (APage 53)

C

[SELECT] Button/Indicator

Use the S key to set to the camera selection mode. The indicator lights up when the camera selection mode is set to on. (

D

[PTZ/PRESET] Button/Indicator

Switches between the PTZ mode and PRESET mode of the S key. The mode changes each time the button is pressed. The indicator lights up when PTZ mode is selected and blinks when PRESET mode is selected.

E

[SERIAL] Terminal

For connecting the communication control terminals on a mouse (sold separately), flash memory (sold separately) or UPS (sold separately).

Memo :

●

Use the [SERIAL1 to 4] port on the rear panel for additional hard disk drive connection. (

A

Page 14)

Note :

●

Attach the serial port cover supplied with this product if this port is not in use.

●

This product may malfunction due to the presence of static electricity. Remove any static before starting operation.

㧠

㧤



ENTER

WARNIN G

ALARM

HDD

LOCK

FEDC

A

Page 36)

G

QRS

REV FWD

SEARCHFUNCTION ALARM CLEARKEY REC/STOP STOP(PB) PLAY

HJKML

I

F

Status indicators

䡵

[WARNING] Indicator

Lights up when an error occurs. ( Press and hold the [ALARM CLEAR] button to turn off the light.

䡵

[ALARM] Indicator

Lights up when an alarm is activated. Goes off when the [ALARM CLEAR] button is pressed.

䡵

[HDD] Indicator

Lights up when the built-in hard disk drive is accessed.

䡵

[LOCK] Indicator

Lights up when operation is locked. (

G

[FUNCTION] Button

Press the [FUNCTION] together with another button to use the corresponding features. [Special Key Operations] (APage 138)

H

[SEARCH] Button

Displays the date and time search screen when in the playback mode. (

A

Page 40)

I

[KEY] Button

When [KEY] button is pressed while pressing [FUNCTION] button, key operation on front panel will be disabled. (Key locked mode) To disable, perform same procedure again. Press to display or hide the

A

software keyboardB.

Memo :

●

Use the software keyboard to input characters. (APage 28)

J

[ALARM CLEAR] Button

Clears the [ALARM] display when an event occurs or motion is detected. Press and hold this button to turn off the [WARNING] indicator.

K

[REC/STOP] Button

Press to start recording in all cameras. (When the recording control mode is turned on, recording on all cameras starts after turning off the recording control mode. ) Press and hold down to stop recording. When in the recording control mode, press and hold this button to exit the recording control mode.

SKIP

N

A

Page 156)

A

Page 22)

P

O

12

Memo :

●

The manual recording mode executes recording from all cameras regardless of the settings in the [Camera Record Setting]. Recording is carried out in accordance with the frame rate selected in [Camera Record Setting]. (APage 83)

L

[STOP(PB)] Button

Stops playback when you press this button in the playback mode.

M

[PLAY] Button

Plays back at the speed and in the direction specified by the Shuttle Dial position.

N

[SKIP] Button

䡵

[S]

Press to move the item selection in the reverse direction in the menu or settings screen. Jumps to the beginning of the previous sequence on the selected camera when you press this button in the playback mode. Press and hold it to jump to the first image in the database of the selected camera.

䡵

[T]

Press to move the item selection in the forward direction in the menu or settings screen. Jumps to the beginning of the next sequence on the selected camera when you press this button in the playback mode. Press and hold it to jump to the last image in the database of the selected camera.

Memo :

●

“Sequence” indicates a certain block of images that are recorded during motion detection.

●

Recorded images are stored in the database. “Database” refers to data recorded in this unit.

O

Jog dial

Plays back a single frame when it is rotated in the playback mode.

P

Shuttle dial

The position of the dial specifies the playback speed and playback direction when in the playback mode. Playback speed is selectable from x 1/20, x 1/5, x 1, x 2, x 5, x 10 and x 20 according to the angle.

Q

[REC] Indicator

Lights up during recording. Flashes during EMERGENCY or EXT REC IN recording.

R

Center panel

Do not remove the cover.

S

Keypad buttons/Indicator

[0] to [16]

●

Login screen

●

For entry of passwords (numeric characters). ([1] to [10/0], A0B is input when the [10/0] button is pressed.)

●

Setting screens on the main menu

●

PTZ mode Keypad

For selecting a menu item. ([2/D], [10/0/E])

●

Camera selection keypad mode

For entering numeric characters. ([1] to [10/0], A0B is input when the [10/0] button is pressed.)

●

Live image display and recorded image playback screens

●

Camera selection keypad mode

For selecting a camera number. Upon selecting, the indicator corresponding to the selected camera input lights up.

●

PTZ keypad mode (live image display screen only)

Moves the camera in the direction indicated by the arrow.

D

([1/ ][2/ [6/HOME] moves the camera to the home position.

●

Preset keypad mode (live image display screen only)

For selecting the preset position. ([1] to [9]. 10 to 19 can be selected when [10/0/E] is pressed at first.)

●

During search for recorded images

For narrowing down the search using a date, month, week, or time. ([1/ ] to [10/0/

●

During display of software keyboard

●

Selection keypad mode

For entering numeric characters. ([1/ ] to [10/0/E], A0B is input when the [10/0/

●

PTZ keypad mode (live image display screen only)

Moves the mouse pointer in the direction indicated by the arrow. [1/ ][2/ the mouse pointer to the center of the screen.)

] [3/ ][5/C][7/B] [9/ ][10/0/E] [11/ ])

E

], A0B is input when the [10/0/E] button is pressed.)

E

] button is pressed.)

D

] [3/ ][5/C][7/B] [9/ ][10/0/E] [11/ ], [6/HOME] moves

[13/CANCEL]

●

Setting screens on the main menu

Cancels the selection.

[14/ZOOM OUT]

●

Live image display and recorded image playback screens

●

PTZ keypad mode (live image display screen only)

Zooms out.

●

Preset keypad mode

For selecting the next view.

●

Press the [14/ZOOM OUT] button while holding down the [FUNCTION] button to change the resolution of VGA output.

[15/ZOOM IN]

●

Live image display and recorded image playback screens

●

PTZ keypad mode (live image display screen only)

Zooms in.

●

Preset keypad mode

For selecting the previous view.

●

Press the [15/ZOOM IN] button while holding down the [FUNCTION] button to change the resolution of VGA output.

[16/ENTER]

●

Setting screens on the main menu

Confirms the selection.

●

During display of software keyboard

To perform the mouse click operation.

T

[LIVE/BROWSE] Button/Indicator

Switches between the [Live] mode and [Browse] mode. The indicator lights up when in the [Live] mode. Pressing the [LIVE/BROWSE] button when the wallpaper screen is displayed shows the [Live] screen. Press and hold the [FUNCTION] button, and press and hold the [LIVE/ BROWSE] button at the same time to log out of the system. Press and hold the [FUNCTION] button, and press the [LIVE/BROWSE] button at the same time to reboot the NVR Viewer as well as the internal distribution server.

Memo :

●

When [Auto Logon] is enabled, the login operation starts automatically immediately after logging out. (APage 69 [Unit Setting 1])

13

Getting Started

Part Names and Functions (VR-N1600U/E) (continued)

Rear Panel

POWER

U

V

ON

OFF

d

U

[POWER] switch

Switches the power on or off.

W

X

Memo :

●

Be sure to press and hold down the [OPERATE] button on the front panel to shut down the system before switching off the power supply.

V

[AC IN 120V H 240VH 50Hz/60Hz] power input

terminal

Connect to an AC120 H 240 V outlet using the power cable supplied.

W

[AUDIO IN 1/AUDIO IN 2] audio input terminals 1/2

(RCA)

Connect to the audio output terminal of the device from which audio signals are to be recorded.

X

[AUDIO OUT] audio output terminal (RCA)

Outputs live sound in the live viewing mode. Outputs recorded sound in the playback mode.

Memo :

●

There is no audio output when playing back still images, when running searches other than x1, or when playing back frame-byframe.

Y

[VGA OUT] VGA output terminal

Outputs live images, recorded images and the menu screens.

Z

[LAN1] LAN1 connection terminal (camera network)

For connecting to the IP camera (sold separately) network using a LAN cable.

Color Status

Left Indicator

Right Indicator

Green On Communication at 100 Mbit/

Orange On Communication at 1 Gbit/

Yellow Blinking Communication is in progress.

Off Communication at 10 Mbit/

second.

Off Not connecting to the network.

Z

Y

a

[SERIAL1 to 4] serial terminals 1 to 4

For connecting the communication control terminals on a mouse (sold separately), flash memory (sold separately), UPS (sold separately) or additional disk drive (sold separately).

b

[LAN2] LAN2 connection terminal (Intranet)

For connecting to the remote PC network using a LAN cable.

Color Status

Left Indicator

Green On Communication at 100 Mbit/

Orange On Communication at 1 Gbit/

Right Indicator

c

Connector cover

Yellow Blinking Communication is in progress.

c

Off Communication at 10 Mbit/

second.

Off Not connecting to the network.

b

a

Memo :

●

Do not remove the cover.

d

Signal input/output terminals

For operating VR-N1600U/E using external alarm signals or signals received from external devices, or for operating external devices by outputting signals.

Memo :

●

Diameter of applicable cable: AWG22 to AWG28

14

Rear I/O Terminals

ON

OFF

p

䡵 Input ports

e

[ALARM IN 1 to 8] alarm input terminals 1 to 8

Alarm recording is activated when signals are input to these terminals.

f

[EMERGENCY] emergency input terminal

Recording is activated in all cameras when a signal is input to this terminal.

g

[ALARM RESET] alarm reset input terminal

Output from the alarm output terminal is stopped when a signal is input during output of the Alarm Out signals. Turns off the [ALARM] indicator to turn off the [WARNING] indicator

h

[EXT REC IN] external recording input terminal

Recording in all cameras is started or stopped by an external signal. Recording will not be started in cameras to which no video signal is being input.

i

[OPE ON/OFF] Operate ON/OFF terminal

Switches between OPERATE ON or OFF when a signal is input. (

A

Page 30)

Note :

●

Input ports e to i will not operate when the main menu is displayed. Inputs such as alarms will also be ignored when the main menu is displayed.

F

on the unit. Press and hold down

F

.

e

fghijklmn

o

䡵 Output ports

j

[COMMON] signal ground terminal

This is a common ground terminal. Connect it to the signal ground terminal on the connected device. (This can be used when there are insufficient common ground terminals.)

k

[ALARM OUT] alarm output terminal

Outputs a signal when recording is started by an alarm.

l

[WARNING OUT] warning output terminal

Outputs a signal when an error such as operation abnormality occurs on the hard disk.

m

[REC TALLY] recording status output terminal

Outputs the recording status of this unit.

n

[OPTION OUT1][OPTION OUT2] OPT OUT output

terminals 1/2

Outputs a signal when an event is detected.

o

[COMMON] signal ground terminal

Same as j.

p

[SIGNAL GND] signal ground terminal

This is a common ground terminal. Connect it to the signal ground terminal on the connected device. (This can be used when there are insufficient common ground terminals.

Memo :

●

Do not use this terminal for protective earthing.

15

Getting Started

A B

Part Names and Functions (VR-N900U)

Front Panel

V

F G

EDC

A

[OPERATE] Button/Indicator

Switches operation on or off. Press the button to turn operation

AONB

and hold down the button to turn operation AOFFB. The

indicator blinks while the recorder is starting up or shutting down.

B

[REC CONTROL] Button/Indicator

Switches the recording control mode on or off. The indicator lights up when the recording control mode is set to on. Press and hold the [FUNCTION] button, and press the [REC CONTROL] button at the same time to display the menu.

Memo :

●

The main menu cannot be displayed in the recording control mode or during recording.

●

The recording control mode performs recording in accordance with the settings in the [Camera Record Setting] menu. (APage 53)

C

[SELECT] Button/Indicator

Use the S key to set to the camera selection mode. The indicator lights up when the camera selection mode is set to on. ( Press the [FUNCTION] button, [ALARM CLEAR] button and the [SELECT] button at the same time to reboot the NVR Viewer as well as the internal distribution server.

D

[PTZ/PRESET] Button/Indicator

Switches between the PTZ mode and PRESET mode of the S key. The mode changes each time the button is pressed. The indicator lights up when PTZ mode is selected and blinks when PRESET mode is selected.

E

[SERIAL] Terminal

For connecting the communication control terminals on a mouse (sold separately), flash memory (sold separately) or UPS (sold separately).

Memo :

●

Use the [SERIAL1 to 4] port on the rear panel for additional hard disk drive connection. (APage 14)

H

A

Page 36)

I

STU

JLMON

K

Note :

●

Attach the serial port cover supplied with this product if this port is not in use.

●

This product may malfunction due to the presence of static electricity. Remove any static before starting operation.

F

[ZOOM OUT/CANCEL] Button

Selects ZOOM OUT (APage 35) when PTZ mode is selected and selects a view in PRESET mode. Cancels the selected values in the Main Menu window. Also, pressing the [ZOOM OUT/CANCEL] button while holding down the [FUNCTION] button changes the resolution of VGA output.

G

[ZOOM IN/ENTER] Button

Selects ZOOM OUT (APage 35) when PTZ mode is selected and selects a view in PRESET mode. Sets the selected values in the Main Menu window. Also, pressing the [ZOOM IN/ENTER] button while holding down the [FUNCTION] button changes the resolution of VGA output. You can control the click action of the mouse when the software keyboard is displayed. (

H

Status indicators

䡵

[WARNING] Indicator

Lights up when an error occurs. (APage 156) Press and hold the [ALARM CLEAR] button to turn off the light.

䡵

[ALARM] Indicator

Lights up when an alarm is activated. Goes off when the [ALARM CLEAR] button is pressed.

䡵

[HDD] Indicator

Lights up when the built-in hard disk drive is accessed.

䡵

[LOCK] Indicator

Lights up when operation is locked. (APage 22)

I

[FUNCTION] Button

Press the [FUNCTION] together with another button to use the corresponding features. [Special Key Operations] ( Press the [FUNCTION] button, [ALARM CLEAR] button and the [SELECT] button at the same time to reboot the NVR Viewer as well as the internal distribution server.

A

Page 28)

A

Page 138)

P

R

Q

16

J

[SEARCH] Button

Displays the date and time search screen when in the playback mode. (

A

Page 40)

K

[KEY] Button

When [KEY] button is pressed while pressing [FUNCTION] button, key operation on front panel will be disabled. (Key locked mode) To disable, perform same procedure again. Press to display or hide the

A

software keyboardB.

Memo :

●

Use the software keyboard to input characters. (APage 28)

L

[ALARM CLEAR] Button

Clears the [ALARM] display when an event occurs or motion is detected. Press and hold this button to turn off the [WARNING] indicator. Press the [FUNCTION] button, [ALARM CLEAR] button and the [SELECT] button at the same time to reboot the NVR Viewer as well as the internal distribution server.

M

[REC/STOP] Button

Press to start recording in all cameras. (When the recording control mode is turned on, recording on all cameras starts after turning off the recording control mode. ) Press and hold down to stop recording. When in the recording control mode, press and hold this button to exit the recording control mode.

Memo :

●

Recording will not be started in cameras to which no video signal is being input.

●

The manual recording mode executes recording from all cameras regardless of the settings in the [Camera Record Setting]. Recording is carried out in accordance with the frame rate selected in [Camera Record Setting]. (APage 83)

N

[STOP(PB)] Button

Stops playback when you press this button in the playback mode.

O

[PLAY] Button

Plays back at the speed and in the direction specified by the Shuttle Dial position.

P

[SKIP] Button

䡵

[S]

Press to move the item selection in the reverse direction in the menu or settings screen. Jumps to the beginning of the previous sequence on the selected camera when you press this button in the playback mode. Press and hold it to jump to the first image in the database of the selected camera.

䡵

[T]

Press to move the item selection in the forward direction in the menu or settings screen. Jumps to the beginning of the next sequence on the selected camera when you press this button in the playback mode. Press and hold it to jump to the last image in the database of the selected camera.

Memo :

●

“Sequence” indicates a certain block of images that are recorded during motion detection.

●

Recorded images are stored in the database. “Database” refers to data recorded in this unit.

Q

Jog dial

Plays back a single frame when it is rotated in the playback mode.

R

Shuttle dial

The position of the dial specifies the playback speed and playback direction when in the playback mode. Playback speed is selectable from x 1/20, x 1/5, x 1, x 2, x 5, x 10 and x 20 according to the angle.

S

[REC] Indicator

Lights up during recording. Flashes during EMERGENCY or EXT REC IN recording.

T

Center panel

Do not remove the cover.

U

Keypad buttons/Indicator

[0] to [9]

Selects the camera input when viewing live images and when playing back recorded images. The indicator that corresponds to the selected camera input lights up during camera selection mode. Used to move the camera to the specified position during PTZ mode, to enter the preset number during PRESET mode and to narrow down the search date, month, week and time in the search mode. You can move the mouse cursor when the software keyboard is displayed. When the main menu is displayed, press the [2/ [8/

E

] button to move the option highlight. These buttons are also

used as numeric keys.

V

[LIVE/BROWSE] Button/Indicator

Switches between the [Live] mode and [Browse] mode. The indicator lights up when in the [Live] mode. Pressing the [LIVE/BROWSE] button when the wallpaper screen is displayed shows the [Live] screen. Press and hold the [FUNCTION] button, and press and hold the [LIVE/ BROWSE] button at the same time to log out of the system. Press the [FUNCTION] button, [ALARM RESET] button and the [SELECT] button at the same time to reboot the NVR Viewer as well as the internal distribution server.

D

] or

Memo :

●

When [Auto Logon] is enabled, the login operation starts automatically immediately after logging out. ( Setting 1])

A

Page 69 [Unit

17

Getting Started

Part Names and Functions (VR-N900U) (continued)

Rear Panel

W

X

hifg

Z

a b

W

[POWER] switch

Switches the power on or off.

Memo :

●

Be sure to press and hold down the [OPERATE] button on the front panel to shut down the system before switching off the power supply.

X

[AC IN 120V H 240VH 50Hz/60Hz] power input

terminal

Connect to an AC outlet using the power cable supplied.

Y

[RESET]

Resets the system. Press this button when a malfunction occurs.

Note :

●

Do not press this button in normal circumstances.

Z

[AUDIO IN 1/AUDIO IN 2] audio input terminals 1/2

(RCA)

Connect to the audio output terminal of the device from which audio signals are to be recorded.

a

[AUDIO OUT] audio output terminal (RCA)

Outputs live sound in the live viewing mode. Outputs recorded sound in the playback mode.

Memo :

●

There is no audio output when playing back still images, when running searches other than x1, or when playing back frame-byframe.

b

[VIDEO IN1 to 4] camera video signal input terminals

1 to 4

Connect to the video output terminal of the analog camera (sold separately).

c

[VGA OUT] VGA output terminal

Outputs live images, recorded images and the menu screens.

d

[SERIAL1 to 4] serial terminals 1 to 4

For connecting the communication control terminals on a mouse (sold separately), flash memory (sold separately), UPS (sold separately) or additional disk drive (sold separately).

cYd

e

Connector cover

Memo :

●

Do not remove the cover.

f

[LAN1] LAN1 connection terminal (camera network)

For connecting to the IP camera (sold separately) network using a LAN cable.

Color Status

Left Indicator

Green On Connected to a 100Mbit/Sec

Orange

Right Indicator

g

[LAN2] LAN2 connection terminal (Intranet)

For connecting to the remote PC network using a LAN cable.

Left Indicator

Right Indicator

h

[CAMERA CONTROL] camera control terminal

Lets you control the analog cameras.

i

Signal input/output terminals

For operating VR-N1600U/E using external alarm signals or signals received from external devices, or for operating external devices by outputting signals.

Orange

Color Status

Green Off Not connected to the network.

Green Off Not communicating.

Off Not connected to the network or

connected to a 10Mbit/Sec network.

network.

On Connected to a 1Gbit/Sec

network. Off Not communicating. Blinking Communicating.

Blinking Connected to the network.

Blinking Communicating.

Memo :

●

Diameter of applicable cable: AWG22 to AWG28

18

Rear I/O Terminals

u

klmnopqrs

j

t

䡵 Input ports

j

[ALARM IN 1 to 4] alarm input terminals 1 to 4

Alarm recording is activated when signals are input to these terminals.

k

[EMERGENCY] emergency input terminal

Recording is activated in all cameras when a signal is input to this terminal.

l

[ALARM RESET] alarm reset input terminal

Output from the alarm output terminal is stopped when a signal is input during output of the Alarm Out signals. Turns off the [ALARM] indicator to turn off the [WARNING] indicator

m

[EXT REC IN] external recording input terminal

Recording in all cameras is started or stopped by an external signal. Recording will not be started in cameras to which no video signal is being input.

n

[OPE ON/OFF] Operate ON/OFF terminal

Switches between OPERATE ON or OFF when a signal is input. (

A

Page 30)

Note :

●

Input ports j to n will not operate when the main menu is displayed. Inputs such as alarms will also be ignored when the main menu is displayed.

H

on the unit. Press and hold down

H

.

䡵 Output ports

o

[COMMON] signal ground terminal

This is a common ground terminal. Connect it to the signal ground terminal on the connected device. (This can be used when there are insufficient common ground terminals.)

p

[ALARM OUT] alarm output terminal

Outputs a signal when recording is started by an alarm.

q

[WARNING OUT] warning output terminal

Outputs a signal when an error such as operation abnormality occurs on the hard disk.

r

[REC TALLY] recording status output terminal

Outputs the recording status of this unit.

s

[OPTION OUT1][OPTION OUT2] OPT OUT output

terminals 1/2

Outputs a signal when an event is detected.

t

[COMMON] signal ground terminal

Same as o.

u

[SIGNAL GND] signal ground terminal

This is a common ground terminal. Connect it to the signal ground terminal on the connected device. (This can be used when there are insufficient common ground terminals.

Memo :

●

Do not use this terminal for protective earthing.

19

Getting Started

䢇 N

Rear Panel Terminals

Rear I/O Terminals

Terminal Remarks

[ALARM IN]

䢇 Name of Input Event

Alarm IN 1 to 8 Falling (VR-N1600U/E) Alarm IN 1 to 4 Falling (VR-N900U)

ame of Input Event

Alarm IN 1 to 8 Rising (VR-N1600U/E) Alarm IN 1 to 4 Rising (VR-N900U)

Make Contact Input

[EMERGENCY] [ALARM RESET]

[EXT REC IN]

[OPE ON/OFF]

250 ms and above

Make

250 ms and above

Break

Memo :

●

Set the impedance at the output end to 10 kK or lower.

250 ms and above

Memo :

●

Set the impedance at the output end to 10 kK or lower.

250 ms and above

Memo :

●

Set the impedance at the output end to 10 kK or lower.

Make Contact Input

[REC TALLY] [ALARM OUT] [WARNING OUT] [OPTION OUT1] [OPTION OUT2]

20

1 s and above

OPE ON

Approx. 50 ms

OPE OFF

Memo :

●

Set the impedance at the output end to 10 kK or lower.

䢇 Name of Output Event

Set output Option Out 1,2 high

Make Output

(External Pull-up Level) The make contact is formed using the individual output terminals and the COM terminal. Turning off the power of this unit switches the output of the output terminals to break.

䢇 Name of Output Event

Set output Option Out 1,2 low

Auto Collector Output (DC15V, 10 mA and below)

Camera Control Terminal (VR-N900U)

Use connection cables according to the table below. Also make sure that you read through the instruction manual of the equipment to be connected.

Signal Pin No.

RX+ 1

RX- 2 TX- 3

TX+ 4

GND 5

NC 6 NC 7 NC 8 NC 9

(D-sub 9 pin, male)

Differences when operating VR-N1600U/E and VR-N900U

Mounting to a Rack

Use the supplied rack mount bracket to mount this unit to the EIA rack. For the installation to the rack, consult the specialist or dealer.

1 Mount the rack mount bracket using screw (1)

●

Use the 4 screws (M4 x 10 mm) supplied to fasten this unit at the two sides.

2 Remove the foot screws B (4 pcs) at the bottom

of the unit

●

Remove the foot.

3 Mount to the rack using screws C

●

Use the 4 screws (M5 x 11 mm) supplied to fasten this unit to the rack.

The name of control buttons and operating methods may vary between VR-N1600U/E and VR-N900U. Such circumstances will be indicated using the rules below.

䡵 When name of control button is different

A

Indicated accordingly using [button name of VR-N1600U/E] and (button name of VR-N900U)

B

`

mark is inserted at the end of the sentence

A

Press the [16/ENTER](ZOOM IN/ENTER)button.

䡵 When operating method is different

The operation for the respective model is stated, and the model name is indicated at the end of the sentence.

B



Rack Mount Bracket

(4 Screws)

Note :

●

Do not place any object on this unit when it is mounted to the rack. Doing so may cause it to lose balance and drop or fall, hence resulting in injuries or damages.

●

When mounting more than one of this unit to the rack, make sure to mount each at a distance that is at least equivalent to one unit.

●

When remounting the removed foot, make sure to use same screws (M3x6 mm). Using a longer screw may cause malfunction.

21

Getting Started

Operation Lock

VR-N1600U/VR-N1600E/VR-N900U is equipped with an operation lock feature to prevent the system from being turned off accidentally as well as unauthorized recording operations.

Setting Operation Lock

1

Press and hold the [FUNCTION] button, and press the [KEY] button at the same time

●

Operation is locked. The [LOCK] indicator lights up when in the operation lock mode.

Canceling Operation Lock

1 (When in the operation lock mode) Press the

[KEY] button while holding down the [FUNCTION] button

●

Operation lock is canceled.

●

The light of the [LOCK] indicator goes off.

[LOCK] Indicator

During Initial Startup

Perform language setting and automatic camera registration when starting up this unit for the first time.

Before Starting Up.

●

The DHCP setting is required for the IP camera beforehand. Start up this unit first, then switch the camera on after confirming that the [Auto Detect Setting] window is displayed.

●

Refer to the user manual supplied with the camera for instructions on how to specify the IP camera settings.

●

By default, Time zone is set to GMT. Specify a Time zone according to the region used. Refer to the INSTRUCTIONS on how to specify a Time zone settings.

Keypad

VR-N1600U/E

OPERATE

REC CONTROL

LIVE/BROWSE

SELECT

PTZ/PRESET

SERIAL

㧝 㧞 㧟

㧡

㧢*1/'

㧥  

   

CANCEL ZOOMOUT ZOOM IN ENTER

WARNING

㧠

ALARM

HDD

㧣

㧤

LOCK



SEARCHFUNCTION ALARMCLEARKEY REC/STOP STOP(PB) PLAY

REV FWD

SKIP

OPERATE

REC CONTROL

LIVE/BROWSE

SELECT

PTZ/PRESET

SERIAL

㧝 㧞 㧟

㧡

㧣

㧢*1/'

㧥  

   

CANCEL ZOOMOUT ZOOM IN ENTER

[FUNCTION] button

WARNING

㧠

ALARM

HDD

㧤

LOCK



SEARCHFUNCTION ALARMCLEARKEY REC/STOP STOP(PB) PLAY

[KEY] Button

[LOCK] Indicator

[KEY] Button

VR-N1600U/E

REV FWD

SKIP

VR-N900U

[SKIP] Button[KEY] Button[16/ENTER] Button

Keypad

VR-N900U

[SKIP] Button[KEY] Button[ZOOM IN/ENTER]

Button

Starting the Unit

1 Turn on the power switch at the rear panel.

●

Doing so starts up the unit.

22

Selecting a Language

The [Language Setting] screen appears when you start up this unit for the first time. Select the language to use using the steps below.

1 Select a language

●

Use the [2/D] or [10/0/E](8/E) button to select a language.

`

2 Use the [SKIP] button to select [OK], followed by

pressing the [16/ENTER](ZOOM IN/ENTER) button

●

`

The AThe system is being set up.B message may appear depending on the setting, and the system is automatically rebooted.

Memo :

●

Selecting [OK] changes the color of the [OK] characters from brown to orange.

Automatic Registration of Cameras

After you have started up this unit for the first time and finished selecting a language, the [Auto Detect] screen appears.

1 Check to ensure that [Auto Detect] is selected,

followed by pressing the [16/ENTER](ZOOM IN/ ENTER) button

●

The APlease wait...B message appears.

Memo :

●

The characters of the selected item switches to orange color.

`

2 Check to ensure that the camera is detected

●

After the message disappears, a list of detected cameras is displayed.

●

If all the cameras are not detected, press the [Auto Detect] button again. If doing so does not solve the problem, check the connection with the cameras and the IP address of the cameras.

3 Replace the detected camera accordingly in

sequence

Use the [SKIP] button to select the Sort button, followed by pressing the [16/ENTER](ZOOM IN/ENTER) button to sort the order of the detected cameras in sequence.

●

The Sort button allows you to perform [IP] sort, [MAC] sort, [CH] sort, [MAKER] sort, or [MODEL] sort.

●

After using the [SKIP] button to select the list, followed by using [2/D] or [10/0/E](8/E) to select a camera, use the [SKIP] button to select [Up] or [Down], and press the [16/ ENTER](ZOOM IN/ENTER) button to change the sequence of the cameras.

●

Deselect the check box of any camera that you are not using.

`

Note :

●

Do not remove the check for Analog-In. (VR-N900U)

Memo :

●

Priority is given to cameras at the top of the list during use, and camera numbers will be registered in sequence from the top.

●

Devices other than the cameras may appear in the list. Uncheck the boxes of these devices.

4 Use the [SKIP] button to select [Entry], followed

by pressing the [16/ENTER](ZOOM IN/ENTER) button

●

`

The camera that is automatically detected is registered in the system.

Memo :

●

In the case of VR-N900U, the analog input appears on the [Auto Detect] screen from the start as the encoder (IP video server) of A192.168.201.12B.

A

Analog-inB network

5 Select the analog input channel and signal

format to be used (VR-N900U)

VR-N900U

5

23

Getting Started

During Initial Startup (Continued)

Automatic Registration of Cameras (continued)

6 Use the [SKIP] button to select [OK], followed by

pressing the [16/ENTER](ZOOM IN/ENTER) button

●

`

The [Configure Device] screen appears.

11 Set the display rate of each camera such that

the total display rate of all cameras does not exceed 80 ips (VR-N1600U/E), 160 ips (VR-N1600U/E(A)), or 60 ips (VR-N900U).

●

The default display rate is set at 8 ips. The maximum display performance of 80 ips will be exceeded if 11 or more cameras are detected. In this case, you will need to adjust the display rate of each camera using the following steps. (VR-N1600U/E)

●

The default display rate is set at 8 ips. The maximum display performance of 60 ips will be exceeded if 8 or more cameras are detected. In this case, you will need to adjust the display rate of each camera using the following steps. (VR-N900U)

Note :

●

The recording rate may drop if the total display rate of all cameras exceeds 80 ips (VR-N1600U/E), 160 ips (VR-N1600U/E(A)), or 60 ips (VR-N900U). When playing back the recorded images of VR-N1600U/E(A), set the total display rate to 80 ips or below to display the playback from the main unit and distribution for 13 channels or more simultaneously.

A Press the [SKIP] button to select Device Manager

● The device at the top is selected.

7 Enter the password for the network camera

●

Press the [KEY] button to display the software keyboard. (APage 28)

●

Use the keypad to move the mouse cursor over the software keyboard.

●

Pressing the [16/ENTER](ZOOM IN/ENTER) button inputs the characters on the keyboard into the password

`

field.

Memo :

●

For cameras with the AAnalog-InB message (analog cameras), proceed to Step 7. Password is not required. (VR-N900U)

8 After password entry is complete, press [KEY]

again the close the software keyboard

9 Use the [SKIP] button to select [OK], followed by

pressing the [16/ENTER](ZOOM IN/ENTER) button

`

10 Repeat the steps from 5 to 7 for every detected

camera

●

The [Camera Record Setting] screen appears.

A

B Use the [2/D] or [10/0/E](8/E) button to select a device

`

B

24

C Use the [7/B](5/B) button to display the list of cameras

`

C

D Use the [10/0/E](8/E) button to select a camera

D

`

Memo :

●

Use the [SKIP] to move between the setting items.

●

Using the [2/D] or [10/0/E](8/E) button to select a parameter.

●

To enter numeric characters, press the [SELECT] button to turn on the [SELECT] indicator. After entering the numeric characters, press the [PTZ/PRESET] button to turn on the [PTZ/ PRESET] indicator.

`

G Use the [SKIP] button to select [OK], followed by

pressing the [16/ENTER](ZOOM IN/ENTER) button

`

12 Repeat Step 10 for each camera 13 Use the [SKIP] button to select [Close],

followed by pressing the [16/ENTER](ZOOM IN/ ENTER) button

●

Setting is complete and the [Live] screen appears.

●

The [REC CONTROL] indicator lights up, and recording starts in the recording control mode. (

Memo :

●

For details on the recording control mode, refer to [Recording Camera Images] (

●

You can specify decimal values using the software keyboard.

`

A

Page 52).

A

Page 52)

E

Use the [SKIP] button to select [Settings...], followed by pressing the [16/ENTER](ZOOM IN/ENTER) button

● The [Camera Settings] screen appears.

Speedup Settings

Recording Settings

F Set the display rate for live images

● Set the display rate for live images to ASame as recordingB or ASame sa speedupB under [Live Settings].

● When ASame sa speedupB is selected, the [Frame Rate] specified under [Speedup Settings] is used as the display rate for live images.

● When ASame as recordingB is selected, the [Frame Rate] specified under [Recording Settings] is used as the display rate for live images.

`

[Live] Screen

Live Settings

25

Preparation

System Connection Example

The following operations are possible with this system.

●

Surveillance of up to 16 cameras (VR-N1600U/E)/9 cameras (VR-N900U) (live image, recording and playback)

●

Checking recorded images on the VGA monitor

●

Recording/Playing sound

●

Transmitting audio data to a designated camera (VR-N1600U/E)

●

Alarm recording

●

Remote surveillance using PCs

Analog cameras

VIDEO IN 1 to 4

Speaker (with built-in amplifier)

AUDIO OUT

AUDIO IN

Microphone

VR-N900U

Supplied power cable

AC 120 H 240 V, 50 Hz/60 Hz

VGA monitor

IP cameras

Computer for configuring cameras

NAS

ON

OFF

USB Mouse

VGA OUT

SERIAL

ALARM IN/OUT

ALARM IN/ALARM OUT

LAN2

LAN1

Switching

HUB

Switching

SERIAL

UPS control

HUB

●

Mic Amp

VR-N1600U/E

Surveillance computer

You can connect up to 16 cameras. (VR-N1600U/E) You can connect up to 9 cameras, out of which a maximum of 4 analog cameras are allowed. (VR-N900U) You can connect up to 10 surveillance computers.

Memo :

●

Connect LAN1 to the camera network.

●

LAN2 to the surveillance computer network.

●

For details of the protocol and port number for the network cameras on the LAN1 network, refer to the network camera’s user manual.

●

The protocol and port number used on the LAN2 network are shown below.

●

Surveillance computer: HTTP 80

●

Mail: SMTP 25, POP 110

●

Time Synchronization: NTP 123

●

Connect NAS to the LAN1 network.

●

Connect the time server to the LAN2 network.

●

Purchasing additional camera licenses enables the VR-N1600U/ E(A) to handle simultaneous recording up to 32 channels. For details, please consult your nearest JVC dealer.

26

UPS

120 V - 240 V

Note :

●

Connect only after having turned AOFFB the power of all devices.

●

Set the IP address of the camera to 192.168.0.xxx. When setting the IP address of the camera to an address other than

192.168.0.xxx, you must also change the IP address of LAN1. Refer to the [Instruction Manual] of each camera for procedures to change the camera’s IP address,

Note :

●

Do not connect LAN1 to the internet. If the internet is busy or the relay equipment fails, you may not be able to save important camera images. To maintain full recording capacity, it is recommended that a dedicated network be used. Be sure to connect the LAN1 camera network to the same segment. (Do not use the address translation of NAT and NAPT etc. or a router.)

●

If you connect LAN2 to the internet from a surveillance computer, you will need to configure IP Masquerading.

●

Communication between LAN1 and LAN2 is not possible. Nor is it possible to configure a camera connected to LAN1 from the surveillance computer connected to LAN2. In order to configure a camera connected to LAN1, it is necessary to connect the computer for configuring cameras to LAN1.

●

LAN1 and LAN2 are incompatible with QoS. Sound may not be played normally depending on the condition of the circuit.

●

The default LAN1 IP address is 192.168.0.253 and the default LAN2 IP address is 192.168.1.253. To change the address, use [OS Setting] (

●

In VR-N900U, analog input circuitry is considered as a network encoder (IP video server) and the IP address is set to

192.168.201.12 by default. When altering the IP address of LAN1 and LAN2, specify an address (different segment) other than 192.168.201.0 to 192.168.201.255. Also make sure that the same segment is not specified for LAN1 and LAN2. (VR-N900U)

●

When a single network camera is registered with multiple units of VR-N1600U/VR-N1600E/VR-N900U, recording may not be properly completed in some cases. Camera control (e.g. PTZ control) may also become unstable. It is recommended that a single VR-N1600U/VR-N1600E/VR-N900U be used for registering one IP camera as well as for controlling PTZ operations.

●

Do not connect a broken hub, router or deteriorated network cable etc. Doing so may prevent the system from operating properly.

●

Connection to a keyboard is not recommended.

A

Page 73).

Performance Meter

This unit comes with a performance meter, which allows you to check its load on the meter. At high operating loads, the system may not be able to record at the preset frame rate or operate normally.

1 Press and hold the [FUNCTION] button, and

press the [1/ ] keypad button at the same time

●

The performance meter appears on the screen.

Green

Load factor of 5 % or less, indicated in gray

Load factor of 60 % or less, lights up in green

Load factor of 90 % or less, lights up in green and yellow

Load factor exceeds 90 %, lights up in green, yellow and red

Yellow

Red

Clock Display

This unit comes with a clock display feature. You can display the current time on the screen.

1 Press and hold the [FUNCTION] button, and

press the [2/D] keypad button at the same time

●

The clock is displayed at the top left corner of the screen beside the performance meter.

Memo :

●

To turn the clock display off, press the [2/D] keypad button while holding down the [FUNCTION] button.

●

To move the clock display position, left click and drag the clock display to the desired position.

Memo :

●

The performance meter automatically appears after this unit starts up.

●

To hide the performance meter, press the keypad button while holding down the [FUNCTION] button.

●

To move the display position of the performance meter, left click and drag it to the desired position.

Note :

●

Do not use the recorder when the performance meter is indicated in red.

27

Preparation

Character Input and Mouse Pointer

You can input characters and move the mouse pointers in two different ways.

●

Operate using the buttons on the front panel.

●

Operate by connecting a mouse (sold separately).

Memo :

●

Connecting a mouse eases the specification of complex settings as well as input of characters.

●

Connection to a keyboard is not recommended.

Keypad

OPERATE

REC CONTROL

㧡

SELECT

㧥  

PTZ/PRESET

SERIAL

   

CANCEL ZOOMOUT ZOOM IN ENTER

[16/ENTER] Button

[ZOOM IN/ENTER] Button

㧝 㧞 㧟

LIVE/BROWSE

㧣

㧢*1/'

Keypad

㧠

㧤



WARNING

ALARM

HDD

LOCK

SEARCHFUNCTION ALARMCLEARKEY REC/STOP STOP(PB) PLAY

[KEY] Button

VR-N1600U/E

REV FWD

SKIP

VR-N900U

Entering Characters Using a Mouse

You can use the software keyboard to input characters when you are using mouse.

1 Press the [KEY] button on the front panel

●

The software keyboard appears.

●

Press the [KEY] button again to hide the software keyboard.

Software Keyboard

2 Move the mouse pointer over the character on

the software keyboard that you want to enter

3 Click on the character

Note :

●

The [16/ENTER](ZOOM IN/ENTER) button is enabled with a click of a mouse when the software keyboard is displayed.

`

Controlling Mouse Pointer from the Front Panel (Without Connecting a Mouse (Sold Separately))

When a mouse is not connected, you can operate the mouse pointer from the front panel.

1 Press the [KEY] button

●

The software keyboard appears.

●

Press the [KEY] button again to close the software keyboard.

28

2 Move the mouse pointer with the keypad (arrow

key)

●

Pressing the [16/ENTER](ZOOM IN/ENTER) button has the same effect as clicking at the position of the mouse pointer.

Memo :

●

You can move the software keyboard by dragging any portion of the keyboard other than the keys with the mouse.

●

To drag the software keyboard from the front panel, press the arrow buttons on the keypad while holding down the [16/ ENTER](ZOOM IN/ENTER) button.

●

You can move the mouse pointer with the keypad when the software keyboard is displayed.

`

Changing Monitor

Precautions when

Resolution

You can switch the resolution of the VGA output using the following procedures.

●

Press and hold the [FUNCTION] button, and press the [14/ ZOOM OUT](ZOOM OUT/CANCEL) button at the same time.

B

Pressing the button each time increases the resolution value.

●

Press and hold the [FUNCTION] button, and press the [15/ ZOOM IN](ZOOM IN/ENTER) button at the same time.

B

Pressing the button each time decreases the resolution value.

Preset Values

: 1024 x 768 (Default value)

1280 x 768

`

1280 x 1024 1600 x 1200

VR-N1600U/E

OPERATE

REC CONTROL

[14/ZOOM OUT] Button

㧡

㧢*1/'

SELECT

㧥  

PTZ/PRESET

SERIAL

   

CANCEL ZOOMOUT ZOOM IN ENTER

[15/ZOOM IN] Button

㧝 㧞 㧟

LIVE/BROWSE

WARNING

㧠

ALARM

HDD

㧣

㧤

LOCK



[FUNCTION] Button

SEARCHFUNCTION ALARMCLEARKEY REC/STOP STOP(PB) PLAY

REV FWD

SKIP

VR-N900U

[ZOOM OUT/ CANCEL] Button

[ZOOM IN/ENTER] Button

[FUNCTION] Button

Memo :

●

Selecting a resolution not supported by the monitor may prevent normal monitor synchronization.

Precautions when Changing Settings

Changing Display Settings

The following table illustrates the relation between the number of camera channels that are displayed simultaneously and the selectable frame rate. When creating the view to display on screen, be careful not to exceed the respective values as shown in the table.

Basic performance Recording/ Display/ Distribution ips

Addition of camera license

Live viewing

Playback of recorded images

Master-Slave connection

Live viewing on the NVR unit during Master-Slave connection

Playback of recorded images on the NVR unit during Master-Slave connection

Live viewing on the surveillance computer

Playback of recorded images on the surveillance computer

VR-N900U/(A)/(B)

120/60/30 160/80/80 160/160/160

Inapplicable Inapplicable Applicable

1 to 9 ch: 60 ips and below

Applicable Applicable Applicable

1 to 9 ch: 60 ips and below

Depends on the basic distribution performance of each NVR

VR-N1600U/E VR-N1600U/E(A)

1 to 16 ch: 80 ips and below

Depends on the basic distribution performance of each NVR

1 to 32 ch: 160 ips and below

1 to 12 ch: 160 ips and below

13 to 16 ch: 80 ips and below 17 to 32 ch: Inapplicable

1 to 32 ch: 160 ips and below

When the number of camera channels registered to the NVR unit among displaying cameras is

1 to 12 ch: 160 ips and below

13 to 16 ch: 80 ips and below 17 to 32 ch: Inapplicable

Depends on the basic distribution performance of each NVR

Depends on the recorded images playback performance of each NVR

Note that any incorrect changes made to the settings of this unit may cause it to malfunction.

●

Before making any changes, save the current settings to [Flash Memory Utility] (

A

Page 111) to allow you to restore the

previous settings should anything go wrong.

●

It is recommended that you save the setting data before making any changes.

●

The section at the bottom left of NVR Viewer might not be operative depending on the monitor resolution. In such a case, double-click the bar of the currently opened upper section to close it to enable the operation of the lower section.

Note :

●

While the basic display performance of the VR-N1600U/E(A) is 160 ips, during the playback of recorded images, the display performance is constrained by the above values depending on the number of camera channels that are displayed simultaneously on the NVR unit.

●

When playing back recorded images simultaneously on the NVR unit and surveillance computer, set the number of camera channels that are displayed simultaneously on the NVR unit and surveillance computer and the total frame rate such that they do not exceed the recorded images playback performance of each NVR.

29

Basic Operation

Switching the Power On/ Off

Switching the Power On

1 Connect the power cable

●

Connect using the power cable supplied to an AC100V (50 Hz/60 Hz) outlet.

2 Turn AONB the power switch at the rear panel.

●

A system check will run when the power is turned on.

●

The [OPERATE] indicator starts blinking.

●

After blinking, the [OPERATE] indicator lights up to indicate that operation has been turned on.

●

When the setting is complete, recording starts

A

automatically in the record control mode. (When the at startup Setting 1] of the main menu is selected.)

Note :

●

Do not disconnect the power cord nor turn the power switch

A

OFFB while the system check is running or in the OPERATE

ON mode. Otherwise, it may break down.

Memo :

●

If the device does not start up even after the power switch on the rear panel is turned front panel.

B

checkbox of [Record Control] under [Unit

AONB

, press the [OPERATE] button on the

Switching the Power Off

1 Press and hold the [OPERATE] button for

about2 seconds to turn off the power

●

After blinking, the [OPERATE] indicator goes off.

2 Turn off the power switch on the rear panel

Note :

●

The recorded images may not be played back properly if they are not archived (

●

It is recommended that an uninterruptible power supply (UPS) be used to protect the hard disk from damage in the event of a power failure. (

●

Be sure to press and hold down the [OPERATE] button on the front panel to shut down the system before switching off the power supply. Turning off the power switch on the rear panel while the device is in the OPERATE ON mode may cause malfunction.

A

Page 110) before the power failure.

A

Page 136)

ON

Switching Operation On/ Off

Switching On/Off Using Operate Button on Front Panel

You can switch operation to ON or OFF.

䡵 Switching Operation On

1 (When Operation is OFF) Press the [OPERATE]

button

●

The [OPERATE] indicator starts blinking.

●

The [OPERATE] indicator lights up, indicating that operation is enabled.

Memo :

●

When the power switch on the rear panel is turned on, the system starts up automatically until the OPERATE ON mode is activated.

䡵 Switching Operation Off

1 (When operation is ON) Press and hold the

[OPERATE] button for about 2 seconds

●

The [OPERATE] indicator starts blinking.

●

The screen display disappears and the [OPERATE] indicator goes off, indicating that operation has been turned off.

Note :

●

Do not turn off the power until operation has been turned off.

Switching On/Off Using Input/Output Terminal on Rear Panel

For details on the layout of the input and output terminals on the rear panel, refer to [Rear I/O Terminals] (

䡵 Switching Operation On

1 (When operation is OFF) Set the [OPE ON/OFF]

terminal to make for at least 50 ms

●

The [OPERATE] indicator starts blinking.

●

The [OPERATE] indicator lights up, indicating that operation is enabled.

䡵 Switching Operation Off

1 (When operation is OFF) Set the [OPE ON/OFF]

terminal to make for at least 1 s

●

The [OPERATE] indicator starts blinking.

●

The screen display disappears and the [OPERATE] indicator goes off, indicating that operation has been turned off.

Note :

●

Do not turn off the power until operation has been turned off.

A

Page 15).

30

Login

If [Auto Logon] is set to AoffB, the [Login] screen appears after operation has been turned on. (Default setting:

Logon] Screen

Memo :

●

You can specify the [on]/[off] setting of [Auto Logon] in [Unit Setting 1] of the main menu. (APage 69)

1 Enter the password using the keypad, and press

the [16/ENTER](ZOOM IN/ENTER) button

●

If login is successful, the wallpaper screen appears.

AonB

)

`

●

When [Live viewing Auto Start] is set to AonB, the [Live] screen appears when login is successful.

[Live] Screen

Memo :

●

You can specify the setting of [Live viewing Auto Start] in [Unit Setting 1] of the main menu. (

A

Page 69)

Note :

●

Operation on the main unit is disabled if you do not log in.

●

Warning messages (APage 156) are not displayed when you are not logged into the system. In this case, the [WARNING] indicator lights up.

Wallpaper Screen

31

Basic Operation

Opening the Main Menu

The following are procedures to open the main menu, which is used for specifying various settings.

Note :

●

The input ports do not operate when the main menu is displayed. Inputs such as alarms will also be ignored when the main menu is displayed. [Input ports] (A Page 15) (VR-N1600U/E)

[Input ports] (A Page 19) (VR-N900U)

[SELECT] Button

[2/D] Button

OPERATE

REC CONTROL

SELECT

PTZ/PRESET

SERIAL

㧡

㧢*1/'

㧥  

   

CANCEL ZOOMOUT ZOOM IN ENTER

㧝 㧞 㧟

LIVE/BROWSE

[13/CANCEL] Button

[REC CONTROL] Button

WARNING

㧠

ALARM

HDD

㧣

㧤

LOCK



SEARCHFUNCTION ALARMCLEARKEY REC/STOP STOP(PB) PLAY

[FUNCTION] Button

[16/ENTER] Button

[10/0/E] Button

[REC/STOP] Button

VR-N1600U/E

REV FWD

SKIP

[SKIP] Button

●

Select a menu with the [2/D] or [10/0/E](8/E) button and press the [16/ENTER](ZOOM IN/ENTER) button to open the selected setting screen.

`

The same operation can be done using the [SKIP] button.

[Main Menu](VR-N1600U/E)

[SELECT] Button

[2/D] Button

[FUNCTION] Button

[ZOOM IN/ENTER] Button

[REC/STOP] Button

VR-N900U

[SKIP] Button

[ZOOM OUT/ CANCEL] Button

[REC CONTROL] Button

[8/E] Button

1 Press and hold the [REC/STOP] button for at

least 2 seconds

●

Recording stops.

Memo :

●

When in the recording control mode, press and hold the [REC CONTROL] button for at least 2 seconds to switch the recording control mode off and stop recording.

●

For details on the recording mode, refer to [Recording Modes] (APage 52).

2 Press and hold the [FUNCTION] button, and

press the [REC CONTROL] button at the same time

●

The main menu appears.

[Main Menu](VR-N900U)

3 Select an item

●

Select the required item using the [2/D] or [10/0/E](8/E) button and specify the settings.

●

Press the [16/ENTER](ZOOM IN/ENTER) button to save the settings, and press the [13/CANCEL](ZOOM OUT/ CANCEL) button to close the screen and return to the main menu.

`

Memo :

●

To exit the main menu, press the [13/CANCEL](ZOOM OUT/ CANCEL) button.

`

Note :

●

In some occasions, the NVR Viewer may appear instead when you try to display the main menu while the NVR Viewer is running. In this case, press the [LIVE/BROWSE] button on the front panel and perform the operation to display the main menu again.

䢇 For details on the main menu settings, refer to

[Main Menu List] (A Page 68).

`

32

NVR Viewer

●

You can view live and recorded images using the NVR Viewer.

●

NVR Viewer can also be used for remote surveillance of this unit from a PC. (APage 126)

●

Some of the NVR Viewer features may vary during remote surveillance from a PC.

[Live] Tab

[Views] Section

View List

[⳯] Button

NVR Viewer[Live] Screen

Memo :

●

NVR Viewer operates by logging into the distribution server inside this unit.

●

The built-in NVR Viewer logs into the distribution server of this unt (http://localhost or http://127.0.0.1). By default, [Auto Login] to this unit is set to [On]. For details on the login procedures, refer to [Connecting to a Computer] (

●

The NVR Viewer is unable to log in when the maximum number

A

Page 121).

of clients are connected to the surveillance computer.

Note :

●

When you have changed the settings in the [Camera Record Setting] of the main menu, log out of the NVR Viewer, and log in again. (

A

Page 126)

●

When in the default state, you can click the [Connect] button on the [Connect to Server] screen to log in. When settings are changed, refer to the description after Step of [Login to the NVR Viewer] (

●

When the following symptoms appear, recovery may be possible

A

Page 125).

2

by restarting the NVR Viewer.

●

Live video and playback images appear in black.

●

NVR Viewer action is slow.

●

NVR Viewer does not respond.

Note :

●

You can restart the NVR Viewer using the following procedure. In this case, the internal distribution server of this unit will also be rebooted.

●

Press and hold the [FUNCTION] button, and press the [LIVE/BROWSE] button at the same time. (VR-N1600U/E)

●

Press the [FUNCTION], [ALARM CLEAR], and [SELECT] buttons at the same time. (VR-N900U)

[LIVE/BROWSE] Button

OPERATE

REC CONTROL

[SELECT] Button [ALARM CLEAR] Button[FUNCTION]

SELECT

PTZ/PRESET

SERIAL

㧡

㧢*1/'

㧥  

   

CANCEL ZOOMOUT ZOOM IN ENTER

㧝 㧞 㧟

LIVE/BROWSE

WARNING

㧠

ALARM

HDD

㧣

㧤

LOCK



SEARCHFUNCTION ALARMCLEARKEY REC/STOP STOP(PB) PLAY

Button

●

The image and sound may not properly synchronize during playback on the NVR Viewer.

●

After you have completed the e-mail setting, perform a test to verify that it can be sent successfully. (

●

When an external hard disk is connected, it may take several

A

Page 107)

minutes to start up.

●

Do not start the NVR Viewer during recording on VR-N1600U/E at a frame rate that exceeds 160 ips. Doing so may cause the recording frame rate to drop.

●

Avoid the continuous playback of recorded images (1 hour or more) as it may cause recordings to be missed, etc.

REV FWD

SKIP

33

Basic Operation

Viewing Live Images via Front Panel Control

This section describes the procedures for viewing live images by using the front panel of this unit.

Memo :

●

To operate by connecting a mouse (sold separately), refer to [Viewing Live Images via Mouse Control] (APage 36).

[LIVE/BROWSE] Button

[SELECT] Button

Keypad

OPERATE

REC CONTROL

[REC CONTROL] Button

[LIVE/BROWSE] Button

[REC CONTROL] Button

㧡

㧢*1/'

SELECT

㧥  

PTZ/PRESET

SERIAL

   

CANCEL ZOOMOUT ZOOM IN ENTER

[14/ZOOM OUT] Button

[PTZ/PRESET] Button

[SELECT] Button

Keypad

[ZOOM OUT/CANCEL] Button

[PTZ/PRESET] Button

㧝 㧞 㧟

LIVE/BROWSE

WARNING

㧠

ALARM

HDD

㧣

㧤

LOCK



[FUNCTION] Button

[15/ZOOM IN] Button

[FUNCTION] Button

[ZOOM IN/ENTER] Button

SEARCHFUNCTION ALARMCLEARKEY REC/STOP STOP(PB) PLAY

[ALARM CLEAR] Button

Displaying the [Live] Screen

1 Press the [LIVE/BROWSE] button when the

wallpaper *1 or main menu *2 screen is displayed.

*1 Wallpaper Screen *2 Main Menu Screen

●

Press the [LIVE/BROWSE] button when the [Browse] screen is displayed.

●

Press the button to toggle between the [Live] and [Browse] screens.

VR-N1600U/E

REV FWD

SKIP

VR-N900U

NVRViewer

[Live] Screen

[Browse] Screen

Select a View

For details on the view settings, refer to [Screen Setup] (

A

Page 60).

1 Press the [PTZ/PRESET] button to switch the

[PTZ/PRESET] indicator to the blinking mode

●

Press the [PTZ/PRESET] button to switch the [PTZ/ PRESET] indicator between the lit and blinking modes.

2 Press the [15/ZOOM IN](ZOOM IN/ENTER) and

[14/ZOOM OUT](ZOOM OUT/CANCEL) buttons to select a view

`

Note :

●

Do not switch the view frequently within a short time interval.

●

When live images do not appear on VN-C625U/VN-C655U, set the password for connecting VN-C625U/VN-C655U on the camera unit as well as this unit again. For details on the setting procedures, refer to the [INSTRUCRTIONS] of the camera in use and procedures for setting the root password on the [Edit device settings] screen in this manual (

●

The audio setting is restored to ANo Audio SourcesB when you

A

Page 87).

return from the setting screen to [Live]. Select the parameters again.

Select a Camera

Select the camera image that you want to view as follows.

1 Press the [SELECT] button

●

The [SELECT] indicator lights up.

2 Enter the camera number with the keypad

●

Enter using the [1] to [16] keys in the case of VR-N1600U/ E, and [0] to [9] in the case of VR-N900U.

Memo :

●

You can specify a camera number between 10 to 19 by pressing [10/0] followed by a number from [10/0] to [9]. (VR-N1600U/E)

●

You can specify a camera number between 10 to 19 by pressing [0] followed by a number from [0] to [9]. Numbers from 20 cannot be selected. (VR-N900U)

●

When you have selected a camera, the blue bar at the top of each live image changes to a lighter blue tone.

●

Each bar comes with a tri-color square indicator, which indicates the following features, as well as characters that indicate the operating status of the camera.

34

A B

C

D

[Live] Screen

A Event indicator (Left: yellow)

Lights up when events specified in the [Camera Record Setting] occur. The indicator appears black if event indication has not been specified for the camera in question, or if no specified event has occurred.

B Motion indicator (Center: red)

Lights up when motion is detected.

C Online indicator (Right: green)

Blinks every time an image is received from the camera.

D Operating status of the camera (Characters to the left

of the indicator)

Operating the Camera

PTZ stands for pan, tilt and zoom. If the camera supports the PTZ functions, you can use the keypad, and the [16/ENTER](ZOOM IN/ENTER) and [13/CANCEL](ZOOM OUT/CANCEL) buttons to move the camera up/down (tilt), left/right (pan), or enlarge/reduce the image (zoom).

`

䡵 Pan/Tilt

1 Press the [PTZ/PRESET] button to switch the

keypad to the PTZ mode

●

The [PTZ/PRESET] indicator lights up.

●

Press the button to switch between the APTZ ModeB (indicator lights up) and APreset ModeB (indicator blinking).

2 Press the 1 to 9 key on the keypad

●

Pans/Tilts in the direction indicated by the arrow on the keys.

●

Press the [6/HOME](5/HOME) key to move to the home position.

`

䡵 Zoom In/Zoom Out

1 Press the [PTZ/PRESET] button to switch the

keypad to the PTZ mode

●

The [PTZ/PRESET] indicator lights up.

●

Press the button to switch between the APTZ ModeB

A

(indicator lights up) and blinking).

2

Press the [15/ZOOM IN](ZOOM IN/ENTER) or [14/ ZOOM OUT](ZOOM OUT/CANCEL) button

䡵 Using Preset Positions

Preset ModeB (indicator

`

Display Status

Live (Green) When live images are displayed without

being recorded Recording (Red) When recording is in progress Stop (Yellow) When images are not acquired from the

camera, or when the camera is in the

offline mode (

You can press the [ALARM CLEAR] button to hide the event

●

indicator and motion indicator.

●

The image bar displays the name of the camera as well as the name of the device to which the camera is connected.

●

Entering the number of the selected camera switches to an enlarged display. To return to normal display, enter the camera number of the enlarged display. You can identify the camera number of the [Camera Record Setting] screen of the main menu.

A

Page 53)

1 Press the [PTZ/PRESET] button to switch the

keypad to the Preset mode

●

The [PTZ/PRESET] indicator starts blinking.

●

Press the button to switch between the APTZ ModeB (indicator lights up) and blinking).

A

Preset ModeB (indicator

2 Enter the preset number using the keypad

●

Enter using the [1] to [16] keys in the case of VR-N1600U/ E, and [0] to [9] in the case of VR-N900U.

●

The camera moves to the preset position.

Memo :

●

You can specify a camera number between 10 to 19 by pressing [10/0] followed by a number from [10/0] to [9]. (VR-N1600U/E)

●

You can specify a camera number between 10 to 19 by pressing [0] followed by a number from [0] to [9]. (VR-N900U)

●

To specify a number beyond 20, use the mouse to make a selection from the [Presets:] list in the [PTZ Control] section.

Note :

●

You need to specify the preset positions in advance in order to use the preset feature. (APage 92 [Defining a Preset Position])

35

Basic Operation

Viewing Live Images via Mouse Control

This section describes the procedures for viewing live images by controlling the mouse.

Displaying the [Live] Screen

1 Select [Live] from the main menu

●

The NVR Viewer starts up and the [Live] screen appears.

●

When the [Browse] or [Screen Setup] screen of the NVR Viewer is displayed, click the [Live] tab.

●

To exit the NVR Viewer, click the [⳯] button.

[Live] Tab

[Views] Section

View List

[⳯] Button

Select a View

For details on the view settings, refer to [Screen Setup] (

A

Page 60).

1 Select a view from the [Views] section, or from

the view list at the upper end of the window

Note :

●

Do not switch the view frequently within a short time interval.

●

When live images do not appear on VN-C625U/VN-C655U, set the password for connecting VN-C625U/VN-C655U on the camera unit as well as this unit again. For details on the setting procedures, refer to the [INSTRUCRTIONS] of the camera in use and procedures for setting the root password on the [Edit device settings] screen in this manual (

●

The audio setting is restored to ANo Audio SourcesB when you return from the setting screen to [Live]. Set the audio parameters again.

A

Page 87).

Select a Camera

1 Select a camera by clicking on the bar at the

upper end of the screen of the camera to select using the mouse

●

When you have selected a camera, the blue bar at the top of each live image changes to a lighter blue tone.

[Outputs...] Section

[Event] Section

A B

[Live] Screen

●

If you have specified the camera record settings without closing the [Live] screen, live images may not appear immediately after you have exited the camera settings. In this case, the server name(camera name)! Reconnecting to the server on the [Live] screen. (127.0.0.1:80 is the internal IP address of this unit that is currently in operation.)

A

Unable to connect to the server! Reconnecting to

B

or AUnable to connect to 127.0.0.1:80 on the device

B

will appear

Memo :

●

Depending on the condition of the network circuit, it may take some time before images from the camera are displayed.

●

Depending on the connection of the additional hard disk, several minutes may be required for the [Live] screen to appear.

C

D

[Live] Screen

[PTZ Control] Section

[Audio] Section

36

Memo :

●

When you have selected a camera, the blue bar at the top of each live image changes to a lighter blue tone. This bar comes with a tri-color square indicator, which indicates the following features, as well as characters that indicate the operating status of the camera.

A Event indicator (Left: yellow)

Lights up when events specified in the [Camera Record Setting] occur. The indicator appears black if event indication has not been specified for the camera in question, or if no specified event has occurred.

B Motion indicator (Center: red)

Lights up when motion is detected.

C Online indicator (Right indicator: Green)

Blinks every time an image is received from the camera.

D Operating status of the camera (Characters to the left

of the indicator)

Display Status

Live (Green) When live images are displayed without

REC (Red) When recording is in progress Stop (Yellow) When images are not acquired from the

●

The image bar displays the name of the camera as well as the name of the device to which the camera is connected.

●

To enlarge the camera image, double-click the blue bar at the top. To return to the original size, double-click the blue bar again.

●

You can turn off the light of the indicator by clicking the event or motion indicator that is lit.

being recorded

camera, or when the camera is in the

A

offline mode (

Page 53)

Viewing Images Using the PTZ Features

PTZ stands for pan, tilt and zoom. The PTZ features are only available if the camera supports the PTZ functions. If the camera is not a PTZ camera, pressing the button will have no effect.

PTZ Navigation Button

Home Button

[Live] Screen

Note :

●

The PTZ features are only available if the camera supports the PTZ functions. If the camera is not a PTZ camera, pressing the button will have no effect.

Memo :

●

If you see a set of crosshairs when placing your mouse pointer over the image from a PTZ camera, then you are able to control the orientation of the camera using point-and-click control on the image screen. Control of the camera on the image screen is not possible if the mouse pointer does not change to the cross shape pointer. The mouse pointer may not change to the crossshape pointer depending on the type of the PTZ camera. Control of the PTZ camera may not be possible for some PTZ cameras even though the mouse pointer changes to the cross-shape pointer. In this case, use the PTZ navigation button of the [PTZ Control] section to control the PTZ camera.

●

The mouse pointer does not change to the cross shape pointer for analog cameras that are connected to the network encoder (IP video server) (e.g. VN-E4).

●

If your mouse is equipped with a scroll wheel, you can use it to control the zoom in and out function on the PTZ camera.

●

When using electronic zoom feature on VN-C625U/VN-C655U, zooming will stop at the boundary between optical zoom and electronic zoom. To continue zooming, perform zoom operation again.

1 Click the PTZ navigation button in the [PTZ

Control] section

●

The camera moves in the direction indicated by the arrow.

●

Click the round button at the center to return to the home position.

●

Click the [+] and [-] buttons to zoom in and out respectively.

37

Basic Operation

Viewing Live Images via Mouse Control (continued)

Viewing Images Using the PTZ Features (continued)

䡵 Digital Zoom

By selecting the [Digital Zoom] check box in the [PTZ Control] section, you are able to use digital zoom on images from any camera displayed in the view. When digital zoom is enabled, you will see a small overview frame at the bottom right corner.

PTZ Navigation Button

[Digital Zoom]

Using Preset Positions

You can select a position from the preset list to change the camera orientation to this preset position. ( Position])

A

Page 92 [Defining a Preset

Memo :

●

The buttons are only available if the camera is a PTZ camera.

[Presets] List

1 Click the [v] button on the [Presets] list in the

[PTZ Control] section

●

The preset list appears on the screen.

2 Select a preset position from the preset list

●

The camera moves to the preset position.

Memo :

●

You can configure the preset list by going to Main Menu

B

[Camera Record Setting]B[Settings...]B[PTZ Preset

Positions...]. (APage 90)

[Live] Screen

Memo :

●

The recorded images will not be recorded in zoom even when digital zoom is used.

●

When digital zoom is used, the recording frame rate may decrease due to an increase in the load factor of this unit.

●

To exit the digital zoom function, deselect the [Digital Zoom] check box.

Note :

●

When [Digital Zoom] is ticked, the actual PTZ operation will not be performed.

Other Useful Functions

䡵 Listening to Audio Sound

To listen to live audio sound, select the required audio source from the [Audio Source] list of the [Audio] section. To temporarily mute the live audio sound, select the [Mute] check box.

Select check box

Note :

●

When the audio source is selected by multiple surveillance computers, the sound quality may deteriorate.

●

The audio setting is restored to ANo Audio SourcesB when you return from the setting screen to [Live]. Select the parameters again.

[Live] Screen

38

Memo :

●

If you have selected a camera for which an audio source has been set on the [Camera Settings] screen of [Camera Record Setting], the preset audio sound is being output. (

●

If you have selected a camera for which an audio source has not been specified, the most recently selected audio source will be continuously output.

●

When the recorded and live images are simultaneously displayed, the displayed video image and audio sound may not synchronize properly. (However, this has no impact on recording to the system or additional hard disk.)

A

Page 55)

䡵 Manually Triggering an Event

To manually trigger an event, select the event in the [Event] section, and click the [Activate] button.

Click

[Live] Screen

Memo :

●

For details on events, refer to [Camera Input/Output Port and Events] (

●

Events must be defined in advance. (APage 95)

A

Page 95).

䡵 Triggering Outputs

To trigger an output, select the output in the [Outputs...] section, and click the [Activate] button.

䡵 Camera Shortcut Menus

You can right-click on one of the images from the camera to access the shortcut menu. Items in the shortcut menu may vary according to the configuration of the selected camera.

A B C

D E

Item Description

A Camera

B Sound

Notifications

C PTZ Presets

D Matrix

Displays the video image of another camera in the selected position.

Temporarily mutes warning sounds.

Moves the camera to the preset position you have selected.

Select this option to use the Milestone XProtect Matrix feature.

Memo :

●

For details, refer to the Milestone XProtect Matrix manual available on the website of Milestone Systems (http:// www.milestonesys.com).

●

The URL address may be subject to changes.

E Send

Camera

Sends images from the selected camera to another single-camera position in an open view.

Click

[Live] Screen

Memo :

●

Outputs must be defined in advance.

A

Page 98 [Specifying an Output])

( (APage 103 [Specifying Output During Manual Control])

39

Basic Operation

Playing Back Recorded Images via Front Panel Control

This section describes the procedures for viewing recorded images using the front panel of this unit.

[LIVE/BROWSE] Button/Indicator

Keypad/Indicator

OPERATE

REC CONTROL

[PTZ/PRESET] Button/Indicator

[LIVE/BROWSE] Button/Indicator

[PTZ/PRESET] Button/Indicator

㧡

㧢*1/'

SELECT

㧥  

PTZ/PRESET

SERIAL

   

CANCEL ZOOMOUT ZOOM IN ENTER

[16/ENTER] Button

[13/CANCEL] Button

Keypad/Indicator

[ZOOM IN/ENTER] Button

[ZOOM OUT/CANCEL] Button

㧝 㧞 㧟

LIVE/BROWSE

WARNING

㧠

ALARM

HDD

㧣

㧤

LOCK



[SEARCH] Button

SEARCHFUNCTION ALARMCLEARKEY REC/STOP STOP(PB) PLAY

[STOP(PB)] Button

キーロック

[STOP(PB)] Button

VR-N1600U/E

REV FWD

SKIP

[SKIP] Button

VR-N900U

[SKIP] Button

Select a View

For details on the view settings, refer to [Screen Setup] (

A

Page 60).

1 Press the [PTZ/PRESET] button so that the [PTZ/

PRESET] indicator starts to blink

●

The [PTZ/PRESET] indicator switches between lit and blinking each time the [PTZ/PRESET] button is pressed.

2 Press the [15/Zoom In] (ZOOM IN/ENTER) and

[14/Zoom Out] (ZOOM OUT/CANCEL) buttons to select a view

`

Note :

●

Do not switch the view frequently within a short time interval.

●

When live images do not appear on VN-C625U/VN-C655U, set the password for connecting VN-C625U/VN-C655U on the camera unit as well as this unit again. For details on the setting procedures, refer to the [INSTRUCRTIONS] of the camera in use and procedures for setting the root password on the [Edit device settings] screen in this manual (

●

Setting of the [Audio] section is restored to ANo Audio SourcesB

A

Page 87).

when you return from the setting screen to [Browse]. Select the parameters again.

Searching Recorded Image Using a Specific Date/Time

You can search for and play back images by specifying a date and time using the [SEARCH] button on the front panel.

1 Press the [SEARCH] button on the [Browse]

screen

●

The date and time input screen appears.

Displaying the [Browse] Screen

1 Press the [LIVE/BROWSE] button when the

wallpaper or main menu screen is displayed

●

The NVR Viewer starts up and the [Live] screen appears.

2 When the [Live] screen appears, press the

[LIVE/BROWSE] button again

●

Press the button to toggle between the [Live] and [Browse] screens.

NVRViewer

[Live] Screen

[Browse] Screen

[Go To] Button

2 Use the keypad to enter the search date and

time

●

Use the [SKIP] button (S or T) to select an item and input accordingly.

3

Press the [16/ENTER](ZOOM IN/ENTER) button `

●

The view in the image display screen on the right jumps to the selected date and time.

Memo :

●

You can also jump to the selected date/time by clicking the [Go To] button.

●

When you are using the software keyboard, click the [Go To] button.

40

Playing, Skipping and Stopping Recorded Images

Control using the [PLAY], [SKIP], and [STOP(PB)] buttons.

䡵 Control using the [PLAY], [SKIP], and

[STOP(PB)] buttons on the front panel

䢇 Playing Back

1 Press the [PLAY] button

●

Playback starts from the date/time indicated on the [Master Time] of [Time Navigation].

●

Images are played back according to the angle of the shuttle dial (x1/20, x1/5, x1, x2, x5, x10, x20).

[Master Time] area

[Time Navigation] Section

NVRViewer

[Browse] Screen

[Go To] Button

䢇 Skipping

1 Press the [SKIP] button

●

The [SKIP] buttons have the following functions.

S Moves to the first image in the previous sequence.

Moves to the first image in the database of the selected camera when the button is pressed and held down.

T Moves to the first image in the next sequence. Press and

hold down the button to move to the latest image in the database of the selected camera.

Memo :

●

“Sequence” indicates a certain block of images that are recorded during motion detection.

●

Recorded images are stored in the database.

Note :

●

The [SKIP] buttons are only enabled when a camera has been selected.

●

During simultaneous recording and playback, an AAfter Database End with recording during playback near the current time.

●

When recording is set to be triggered by motion/event

A

Page 57), recording will not start unless a motion/event

( occurs. During playback near the current time, however, the image that is not recorded will also be played.

䢇 Stopping

B

message may appear as playback catches up

Adjusting the Playback Speed (Jog/ Shuttle Playback)

You can adjust the playback speed by turning the jog dial/shuttle dial on the front panel.

䡵 Shuttle Playback

●

Rotate the shuttle dial during playback or when playback is paused to start fast forward, fast reverse or slow playback.

still

x1/20

x1/5

REV FWD

x1

x2

x5

x10

x20

Jog/Shuttle dial

Memo :

●

The playback speed that is indicated during fast forward or fast reverse playback by rotating the shuttle dial is an approximate value. The speed may differ depending on the conditions, such as the playback mode (multi-view, single view) and the recording mode (motion detection, recorded frame rate).

䡵 Jog Playback

●

Rotate the jog dial to play back frame by frame.

●

Rotate the dial clockwise to play back a single frame in the forward direction, and rotate the dial counterclockwise to play back a single frame in the reverse direction.

●

Release the dial to pause the playback. However, when frames are played back successively in the forward or reverse direction, playback may continue momentarily after the jog dial is released.

Note :

●

The jog dial is only enabled when a camera has been selected.

●

When the playback speed is adjusted or when playing back at high speed during recording, the frame rate of the recording may decrease. Check the performance meter while adjusting the playback speed to ensure that the display does not turn red.

x1/20

x1/5

x1

x2

x5

x10

x20

Shuttle Dial (External)

Jog Dial (Internal)

1 Press the [STOP(PB)] button

●

Playback stops.

䢇 Enlarging a Display

●

Entering the number of the selected camera switches to an enlarged display.

●

To return to normal display, enter the camera number of the enlarged display.

41

Basic Operation

Playing Back Recorded Images via Mouse Control

This section describes the procedures for viewing recorded images by controlling the mouse.

Notes:

●

The recording frame rate may decline when you are using the [Browse] screen.

●

When access to the hard disk occurs frequently, such as when recording and playback of recorded images are performed simultaneously, the playback image may pause and the audio sound may be interrupted. (This has no impact on recording to the system or additional hard disk.)

●

The audio setting is restored to ANo Audio SourcesB when you return from the setting screen to [Browse]. Set the audio parameters again.

●

Set the time zone of the PC to the same time zone as this unit. If recorded images are viewed on a PC with a different time zone, the time displayed on the recorded images of this unit will be converted to the time in the PC’s time zone.

●

When the time zone in [OS Setting] is altered, press the [LIVE/ BROWSE] while holding down the [FUNCTION] button to reboot the NVR Viewer.

Displaying the [Browse] Screen

1 Select [Live] from the main menu

●

The NVR Viewer starts up and the [Live] screen appears.

2 Double-click the [Browse] tab on the NVR

Viewer.

●

Similarly, click the [Browse] tab when the [Screen Setup] screen of the NVR Viewer is displayed.

[Browse] Tab

[Browse] Screen

[Views] Section

NVRViewer

[Sequence] Section [Alerts] Section

[Time Navigation] Section [Audio] Section [Smart Search] Section [Export] Section

●

It may take a few minutes before the [Browse] screen is displayed.

●

If you have specified the camera recording settings without closing the [Browse] screen, the playback images may not appear immediately after you have exited the camera settings.

A

In this case, Reconnecting to the serverB or AUnable to connect to

127.0.0.1:80 on the device name(camera name)! Reconnecting to the server screen. (127.0.0.1:80 is the IP address of the this unit that is currently in operation.)

●

If playback is executed when there are no recorded images, the AConnection:[NVR]Camera1 on

127.0.0.1:80 Playback screen.

●

To exit the NVR Viewer, click the Close button.

Unable to connect to the server!

B

will appear on the [Browse]

B

message will continue to appear on the

[⳯] Button

[Browse] Screen

Memo :

●

Each image bar comes with an online indicator at the top of the [Browse] screen. The indicator lights up in green each time a new image is displayed.

●

Recorded images are saved in the database. “Database” refers to data recorded in this unit.

●

When ABefore Database StartB appears on the [Browse] screen, no database (recorded image) is found in the position prior to the currently viewed image.

●

When AAfter Database EndB appears on the [Browse] screen, no database (recorded image) is found in the position after the currently viewed image.

Note :

●

If several sections are opened on the left side of the [Browse] screen, it may not be possible to display them all in the screen. In this case, double-click the section bars to close the sections.

●

Do not switch the view frequently between [Live] and [Browse] within a short time interval.

42

Select a View

For details on the view settings, refer to [Screen Setup] (

A

Page 60).

1 Select a view from the [Views] section, or from

the view list at the upper end of the window

Note :

●

Do not switch the view frequently within a short time interval.

●

When live images do not appear on VN-C625U/VN-C655U, set the password for connecting VN-C625U/VN-C655U on the camera unit as well as this unit again. For details on the setting procedures, refer to the [INSTRUCRTIONS] of the camera in use and procedures for setting the root password on the [Edit device settings] screen in this manual (

●

The audio setting is restored to ANo Audio SourcesB when you return from the setting screen to [Live]. Set the audio parameters again.

A

Page 87).

Searching Recorded Image Using [Time Navigation]

You can search recorded images using [Browse] on the [Time Navigation] screen as follows.

1

Double-click the [Time Navigation] bar on the [Browse] screen

2

Select the search date/time from the box

●

Specify the date in the left box and the time in the right box.

3

Click the [Go To] button

●

The view in the image display screen jumps to the specified date and time.

●

The specified date and time will appear in the Master Time area.

Master Time Area

NVRViewer

[Browse] Screen

[Go To] Button

[Time Navigation] Section

Memo :

●

The Master Time area displays the recording date and time of the selected playback images. The master time is the time to which all the cameras are linked, and when you specify a time, all the recorded images you see in [Views] will be accurately displayed.

●

There are cases when there is no recorded image on motion detection or on the specified date/time among the multiple cameras within the view. In this case, the last image in the camera’s database prior to the specified point in time is displayed in the view. (Recorded images are saved to the database.)

●

The Master Time area also displays the currently selected playback speed.

Note :

●

The Master Time area may display a recording date/time beyond that of the latest recorded image. In this case, click the button to move to the latest recorded image, and click the button.

●

When ASkip gaps during playbackB in the [Time Navigation] section is ticked, playback may stop when it exceeds the end of the recorded portion during simultaneous recording and playback. In this case, deselect the tick in [Skip gaps during playback]. If playback stops, click the Play button again.

43

Basic Operation

Playing Back Recorded Images via Mouse Control (continued)

Searching Recorded Image Using the Timeline Browser

You can search recorded images using the Timeline Browser to the right of the [Browse] screen. The vertically extended timeline shows the recording status and the number of cameras that can be displayed in the NVR Viewer. Drag the timeline up or down with the mouse while checking the time display pointer.

Note :

●

The timeline is an approximate value. Therefore, the display may not coincide with the actual time.

Timeline

Memo :

●

The items under the timeline browser enable you to specify the time span to display on the timeline (1 hour, 2 hours, and whether to set the time flow from top to bottom or bottom to top by using the [Newest images at top] check box. These settings will not be saved. They will be lost each time the NVR Viewer is rebooted.

●

If your mouse has a scroll wheel, you can also use the scroll wheel for browsing the timelines.

●

Double-click on any point within the timeline to display image at the desired point in time.

●

When you do not need the timeline browser, you can hide it by clicking the [Display ON/OFF] button at the center of the timeline browser’s left edge.

_

1 day),

Note :

●

A portion of the timeline may not be refreshed if you drag the timeline up and down using the mouse. In this case, reboot the NVR Viewer. (APage 33)

Searching Recorded Image Using Sequence

Sequences refers to sequences of images that are recorded when an event or motion is detected. Each sequence contains a list of the recorded images.

1 Double-click the [Sequence] bar on the [Browse]

screen

Display ON/

OFF Button

[Timeline Browser]

Time Display Pointer

䡵 Timeline Colors and Lines

The timeline of the camera selected in the view is highlighted in a lighter color.

Red Indicates recordings of motion detection or

Green Shows recordings before and after motion

Black Indicates the period during which there is

Center White Line (Time Display Pointer)

events. (Pink when highlighted.)

is detected. (Light green when highlighted.)

no recording. (Gray when highlighted.)

Shows the time of the displayed image.

[Sequence]

Sequence Bar

NVRViewer

[Browse] Screen

2 Click [Get Sequence]

●

A list of 20 images each prior to and following the display time appears.

●

If the [Preview Image] check box is selected, you are able to preview the images by placing the mouse pointer over the sequence in the list.

3 Click a sequence in the list

●

Display of all the images in the view changes according to the date/time of the selected sequence.

Memo :

●

Clicking the expand icon [+] next to a sequence in the list will show you the exact date and time of the first and last image in the sequence as well as the exact date and time of the motion detection or event that triggered the recording.

Note :

●

Depending on [( )seconds pre/post recordings on motion/event:]

A

Page 57), a consecutive number of sequences may

( sometimes be integrated into one sequence.

44

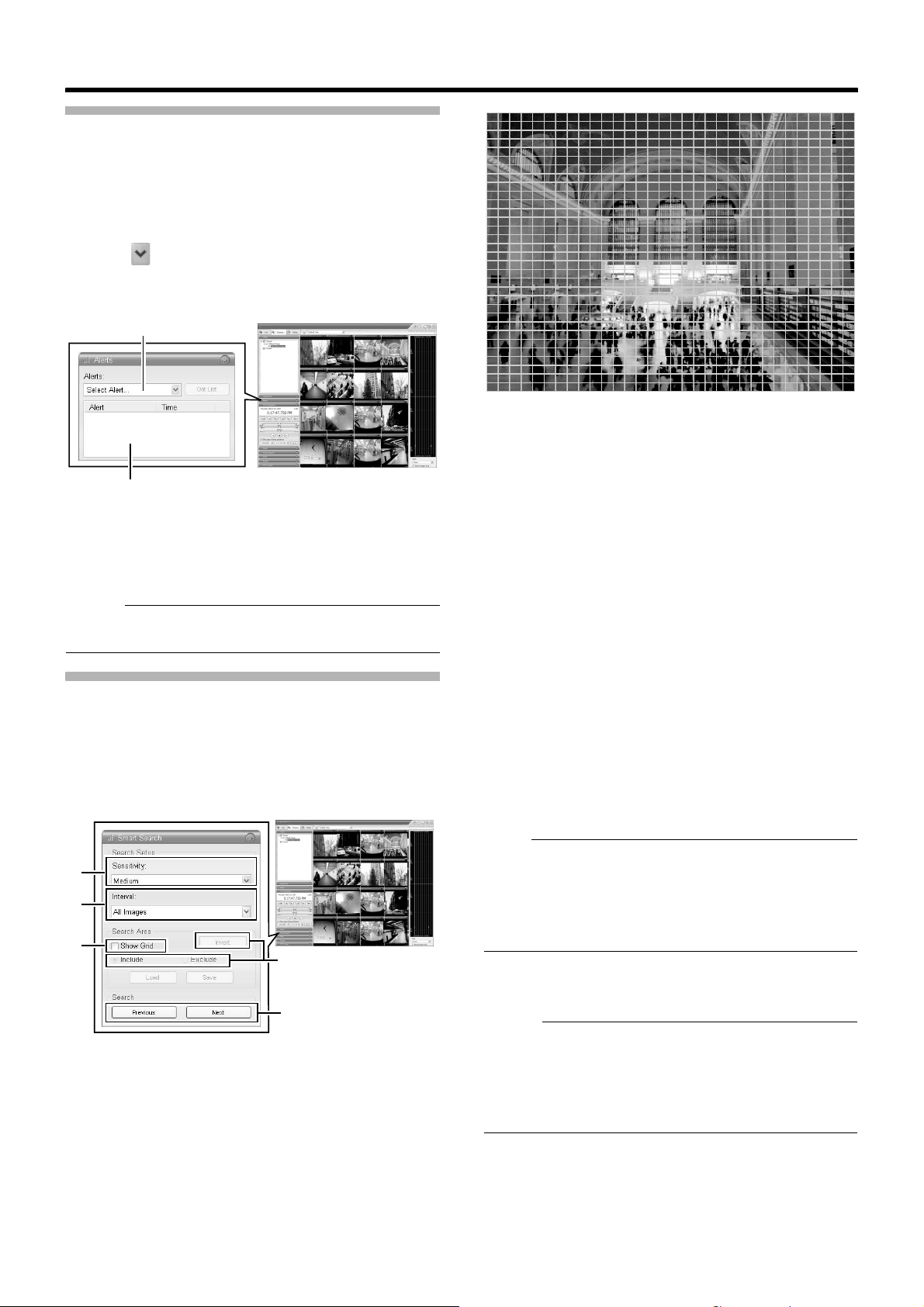

Searching Recorded Image from the Alert List

A list of recorded images is displayed for each [Alart], such as when motion is detected (

A

Page 105).

1 Double-click the [Alerts] bar on the [Browse]

screen

2 Click [ ] on the [Alerts] list and select an event

from the list

●

You can select a specific event, camera or [Server].

[Alerts] List

Event List

NVRViewer

[PLAY] Screen

3 Click the [Get List] button

●

A list of detected events appears.

●

You can click on the event list to view recorded images of the selected event.

Memo :

●

The Alerts list displays events occurring around the time (approx. 1 day before and after) set in [Time Navigation].

Smart Search

Smart Search enables you to search the parts with motion by specifying the search area within the recorded images of the selected camera.

1 Double-click the [Smart Search] bar on the

[Browse] screen

NVRViewer

5

6

2

4

[Browse] Screen

7,8

2 Tick [Show Grid] in [Search Area] setting 3 Select the camera to display

●

A blue grid overlay appears.

4 Click and drag within the screen to specify the

search area.

●

The areas that you have selected become transparent.

●

Selecting the [Include] checkbox adds the dragged section to the search area. Selecting the [Exclude] checkbox deletes the dragged section from the search area.

5 Select the sensitivity level from the [Sensitivity]

list in [Search Setup]

●

The setting values are as follows. [Very High] [High] [Medium] [Low] [Very Low]

6 Set the time interval in the [Interval] list 7 Press the [Previous] or [Next] button to search

through data for which motion has been detected within the area

●

Smart Search begins. When motion is detected inside the selected area, it will be highlighted in the view.

Note :

●

Smart Search is carried out in the [Forward] and [Backward] directions from the time of the image you are viewing.

●

Smart Search that is performed during recording may lower the recording frame rate. Check the performance meter while adjusting the playback speed to ensure that the display does not turn red.

8 To continue searching, click the [Previous] and

[Next] buttons

Memo :

●

You can use the [Save] button to temporarily save the area that you have selected in Step 4. To return to the saved area settings, click the [Load] button after selecting another area.

●

To cancel the area selection, tick [Exclude] and drag all the areas.

45

Basic Operation

Playing Back Recorded Images via Mouse Control (continued)

Playing, Skipping and Stopping Recorded Images

Use the [Time Navigation] of the NVR Viewer to perform playback, stop, and skip operations.

Browse Button

NVRViewer

䢇 [Time] Slider

Dragging the slider to the left changes the recording date to an older date, and dragging the slider to the right changes it to a more recent date. Use the top slider bar for fine browsing (x0.4 to x240) within a limited period of time, and use the bottom bar for easy browsing (x20 to x36,000) for longer time spans.

䢇 [Playback] Slider

The center position is for playback at normal speed (x1). Drag the slider to the left and right to reduce and increase the playback speed respectively. Dragging the slider to the leftmost position pauses playback. The playback speed is displayed at the top right of the [Master Time] area.

● Play Button

: Plays back images in the reverse direction.

: Plays back images.

[Time] Slider [Playback] Slider Play Button

The buttons and sliders have the following functions.

[Browse] Screen

䢇 Browse Button

Moves to the previous image on the selected camera (frame-by-frame reverse playback).

:

Moves to the next image on the selected camera (frame-by-frame forward playback).

:

Moves to the first image in the previous sequence of the selected camera. (This function may not work

:

properly when there is no sequence or for some sequence lengths.)

Moves to the first image in the next sequence of the selected camera. (This function may not work

:

properly if there is no sequence or for some sequence lengths.)

Moves to the oldest recorded image of the selected camera. (This function may not work properly at a

:

playback speed of 10x or higher.)

Moves to the latest recorded image of the selected camera. (This function may not work properly at a

:

playback speed of 10x or higher.)

: Stops playback.

Note :

●

The Play buttons do not work when the [Playback] slider is at its leftmost position (paused). Select the desired speed by moving the [Playback] Slider.

●

The angle of the shuttle dial does not affect playback, which is operated in the [Time Navigation] section using a mouse.

Memo :

●

When ASkip gaps during playbackB of [Time Navigation] is checked, playback is performed by skipping portions for which no recorded image is found in the selected camera.

●

When the recorded images are played back with some images skipped, the [SKIP] display will appear in red in the [Master Time] area for some time.

●

During playback, skip playback operations may differ between a single screen and multiple screens. Even if the selected camera does not contain any recording, skipping will not take place as long as recording is found in another camera. If recorded images are not found, the last displayed image appears.

Note :

●

The browse buttons are only enabled when a camera has been selected.

●

It may take several minutes for moving to complete after you have pressed the browse buttons . Note that if the buttons are clicked continuously before the images are moved, the selected sequences will be moved collectively.

46

Listening to Audio Sound

To listen to recorded audio sound, select the required audio source from the [Audio Source] list of the [Audio] section. To temporarily mute the live audio sound, select the [Mute] check box.

Writing Images/Audio Sound to CDs, DVDs and Other Media (Export)

NVRViewer

Select

[Browse] Screen

Note :

●

The sound may become distorted when audio is played back with multiple surveillance computers.

●

The audio setting is restored to [No Audio Sources] when you return from screen display setting to the [Live] or [Browse] screen. To listen to an audio sound, reselect an audio source from the [Audio Source] list.

●

There will be no audio output during still image playback or search/frame advance playback except at the speed of

●

When a recorded image is played back during recording, the played back audio sound may be interrupted.

⳯

1.

Memo :

●

If you have selected an camera that has been set to record an audio sound, the specified audio sound will be output.

●

If you have selected a camera that is not set to record an audio sound, the most recently played back audio sound will be output continuously.

●

During simultaneous recording and playback of recorded images, the playback image may pause and the sound may be interrupted. (This has no impact on recording to the system or additional hard disk.)

You can write (export) recorded images or audio sound to other media.

●

The VR-N1600U/VR-N1600E/VR-N900U unit enables you to write images and audio sound to a CD-R, CD-RW, DVD-R, DVDRW, or USB memory device.

●

On a surveillance computer, you can write recorded images and audio to the desktop or to any folder you select.

Burning a CD/DVD

●

Steps 1 to 9 are common steps between writing to CD/DVD and USB memory devices.

(Operation on the unit)

1 Double-click the [Export] bar on the [Browse]

screen

2 Enter the start date and time

●

Click the [Set] button to input the date/time of the Master Time area.

3 Enter the end date and time

●

When the [Set] button is clicked, the time input will be a second ahead of the date/time displayed in the Master Time area.

4 Select a camera from the [Source:] list, and click

the [AVI/JPEG Export...] or [Database Export...] button

●

You can also select [-Current View Source-] when selecting the source. When [-Current View Source-] is selected, images from all cameras within the view are exported.

●

This export dialog appears. The specified start time, end time, and camera are shown in the dialog.

Master Time Area

NVRViewer

2

3

4

[Browse] Screen

[Export] Section

Memo :

●

Export preparation may take some time depending on how the external hard disk drive is connected.

47

Basic Operation

Writing Images/Audio Sound to CDs, DVDs and Other Media (Export) (continued)

8 If you have selected [Database Export...], setting

of the following items will be enabled.

Burning a CD/DVD (continued)

5 Select the export format if you have selected

[AVI/JPEG Export...]

●

Select either [AVI] (movie clip) or [JPEG] (still image).

●

Select whether to add time stamps to the exported images.

6 Select the required frame rate if you have

selected the [AVI] format

●

Select either the [Full] option, which sends all images to the AVI file, or the [Half] option, which reduces the size of the AVI file by sending images on a per second basis (though images will still be played back in real-time).

7 If you have selected the [AVI] format, select [AVI

Codec] from the [AVI Codec] list and enter the file name

●

The default file name is Ayyyymmdd-hhmmss.aviB.

[NVR]

5

6

7

Note :

●

Make sure that the total number of characters used for the device and camera names does not exceed 61.

●

If recording fails, the recorder may not be able to read the existing data correctly.

●

New data cannot be added to existing data on a DVD media.

A

B C

9

Item Description

A Include Audio

B Compress

Exported Database

C Encrypt

Exported Database

Tick this box if you wish to include audio sound in the image to export. (You cannot select this check box if the audio source does not contain any data.)

Select this check box to compress the exported database.

Select this check box to encrypt the exported database. Specify a password for subsequent decryption.

9 Assign a stand-alone viewer (application for

playing recorded images) to the data to be exported

●

If you have selected [Database Export...], you are able to include a stand-alone version of the viewer (application for playing recorded images) to the data to be exported by selecting the [Include Viewer Program Files] check box.

Memo :

●

To view the exported data on a PC, double-click the [Browser.exe] file in the [Exported Images] folder of the USB memory, CD-R/RW, or DVD-R/RW used for the export. It will open the Viewer and you can view the exported data.

●

For details on the Viewer, refer to [Export Viewer] (APage 142).

●

DB To include audio sound by exporting in the AVI format, open the recorded image that has been exported in the DB format on the Viewer, and export it again in the AVI format on the Viewer.

Note :

●

The [Database Export...] format enables you to export audio sound together, which is not possible when you export in the [AVI] or [JPEG] format.

●

The recording frame rate may decline during export.

48

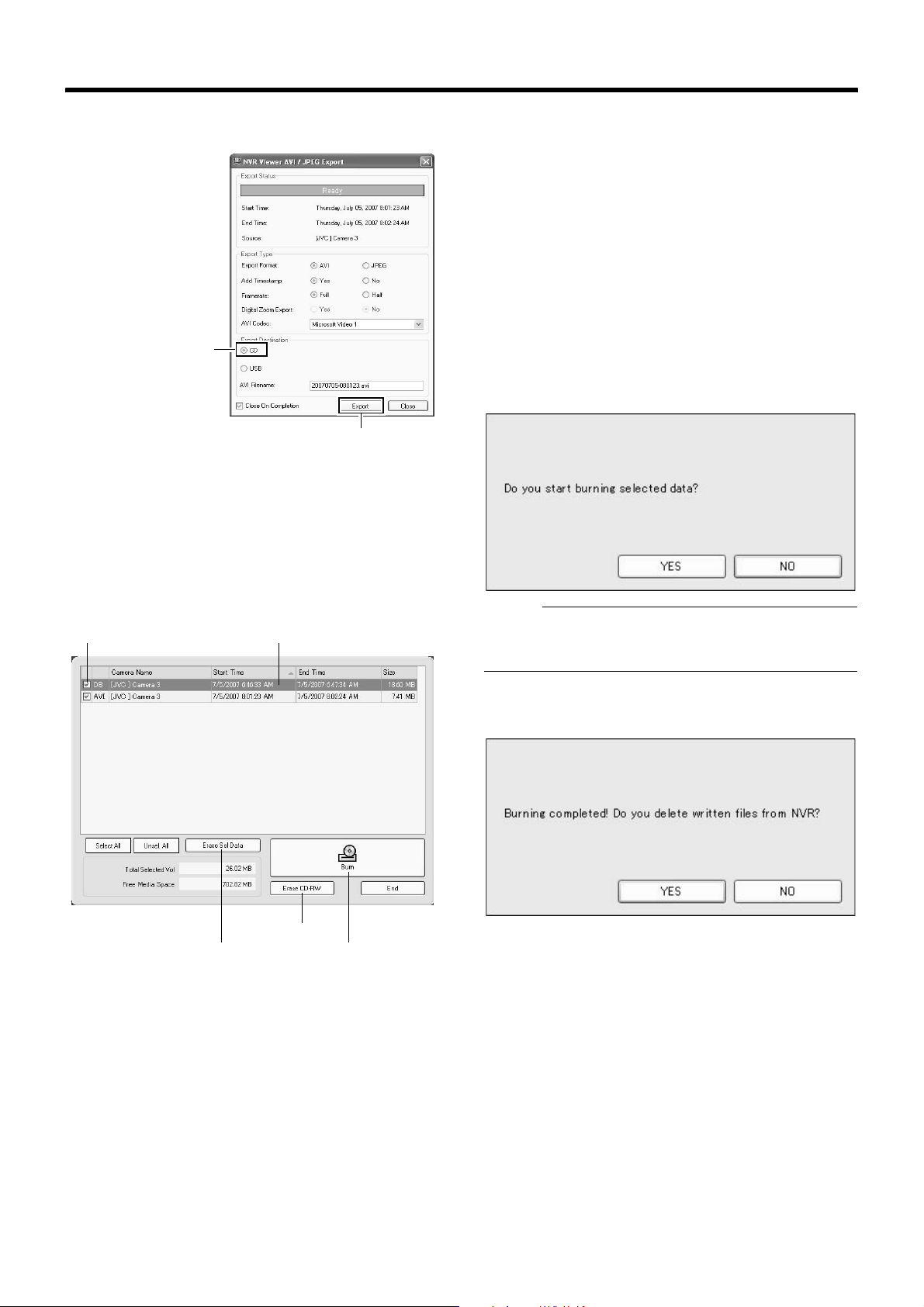

10 Specify the export destination

To write data to a CD/DVD, select [CD].

[CD] Check Button

11

11 Click [Export]

●

Export begins to prepare for writing data to the CD/DVD.

12 When export is complete, connect the CD/DVD

drive to this unit

14 Insert the media (CD-R/RW or DVD-R/RW) that

you want to write data to into the CD/DVD drive

●

The space available in the media is shown in [Free Media Space].

●

The [Burn] button is enabled (operable).

15 Select the check boxes for the AVI/JPG/DB

files that you want to write to the CD from the data list.

●

The total volume of the selected data will appear in [Total Selected Vol].

●

To select all the files, click the [Select All] button.

●

To deselect all the files, click the [Unsel.All] button.

16 Press the [Burn] button

●

A [YES] or [NO] message asking you whether to start writing appears. Select AYESB.

13 Press and hold the [FUNCTION] key in front,

and press [4] on the keypad

●

The Burn CD/DVD screen appears.

Check Box Data List

Burn CD/DVD Screen

[Erase RW] Button

[Erase Sel Data] Button

[Burn] Button

Memo :

●

If no file has been selected from the data list, an error will occur.

●

If the total volume of the selected data exceeds the available memory space in the media, an error will occur.

17 When writing is complete, the following

message appears.

●

To delete the temporary files, select AYESB.

●

To write the same data to another CD, select ANOB.

49

Basic Operation

Writing Images/Audio Sound to CDs, DVDs and Other Media (Export) (continued)

Deleting Temporary Files (Operation on the Unit)

1 Select the temporary files you want to delete

from the data list.

2 Click the [Erase Sel Data] button

A [YES] or [NO] message asking you whether to delete the selected data appears. Select

A

YESB.

Writing Data to a USB Memory Device (Operation on the Unit)

Insert the USB memory device that you wish to export data to into VR-N1600U/VR-N1600E/VR-N900U, and perform the same procedures for [Burning a CD/DVD] from Steps 1 to 9. (APage 47)

1 Specify the export destination

●

To export to a USB memory device, select [USB].

[USB] Check Button

Deleting Data from a CD-RW (Operation on the Unit)

1 Insert the CD-RW

●

The [Erase RW] button is AenabledB.

2 Click the [Erase RW] button

●

A [YES] or [NO] message asking whether you want to

A

delete data in the RW appears. Select

Note :

●

You cannot perform other operations while data is being written to a CD/DVD.

●

Recorded images may be omitted during writing to the CD/DVD (temporary recording error).

●

Do not display the Burn CD/DVD screen during export.

●

Do not connect the CD/DVD drive while a media is inserted.

●

Do not disconnect the CD/DVD drive while the Burn CD/DVD screen is displayed.

●

If media is not detected, restart the Burn CD/DVD screen.

YESB.

2

2 Click [Export]

●

Export begins.

50

Operation from a Surveillance Computer

Follow the same procedures for [Burning a CD/DVD] from Steps 1 to 9. (

A

Page 47)

1 Specify the export destination

1

Printing Recorded Images (Operation from a Surveillance Computer)

You can print out playback images that are displayed on the screen.

Note :

●

You cannot print directly from this unit. This function is for use by the [NVR Viewer], which is downloaded onto the surveillance computer.

1 Double-click the [Print] bar on the [PLAY]

screen.

NVRViewer

[Browse] Screen

2

Desktop Use this to export to the desktop. Path Use this to export to a selected folder.

2 Click [Export]

●

Export begins.

Memo :

●

You can use the button to the right of the Print bar to display the screen at one click.

2 Click the [Print...] button in the [Print] section.

●

The [NVR Viewer Survellance Report] screen appears.

[User's Note]

3

4

3 Click the [NVR Viewer Survellance Report]

button on the [Page Setup] screen to specify the printer settings

4 Click the [Print] button to start printing

●

After printing ends, click the [Close] button to close the print window.

●

Comments entered in [User's Note] are also printed.

51

Basic Operation

Recording Camera Images

Recording Modes

There are four different recording modes.

●

Recording Control Mode

●

Manual Recording Mode

●

EXT REC IN Signal Recording Mode

●

Emergency Recording Mode

䡵

Recording Control Mode (APage 53)

This mode performs recording according to the [Camera Record Setting]. The [REC CONTROL] indicator lights up. You can switch the recording control mode on or off by pressing and holding the [REC CONTROL] button.

●

Set each camera to on/off using the [Scheduler...] settings (

A

Page 53).

●

Specify the frame rate and conditions for starting recording in [Camera Settings] (

Note :

●

During the interval that is set as offline in [Scheduler...], recording will not be performed regardless of the [Camera Settings].

●

The [REC CONTROL] button is AdisabledB when the main menu is displayed, when settings are being specified, and during recording.

●

When there is an unconnected camera, it may take a while before the [REC CONTROL] indicator lights up.

Memo :

●

Press the [REC/STOP] button to cancel the Arecording control mode

B

and enable manual recording mode.

●

Press and hold down the [REC/STOP] button to cancel all

A

recording modesB and stop recording.

●

Setting [Operate] to ON switches the mode automatically to the

A

recording control modeB. (When the AON at startupB checkbox of [Record Control] under [Unit Setting 1] of the main menu is selected.)

䡵

Manual Recording Mode

The manual recording mode executes recording from all cameras regardless of the [Camera Record Setting]. Recording is executed in the frame rate specified in [Recording Settings]-[Desired framerate] of the [Camera Settings] screen. Manual recording lets you start and stop recording on all cameras by using the [REC/STOP] button. Press the [REC/STOP] button to start recording. Press and hold down the [REC/STOP] button to stop recording. The [REC CONTROL] indicator lights up.

䡵

[EXT REC IN] Signal Recording Mode

Recording starts on all cameras when the [EXT REC IN] terminal of the rear input/output terminal is set to MAKE. Recording is executed in the frame rate specified in [Recording Settings] framerate] of the [Camera Settings] screen. Recording using [EXT REC IN] signals has priority over the recording control mode or manual recording. When recording by the [EXT REC IN] signals is complete, the cameras return to the original recording mode.

A

Page 55).

-

[Desired

Memo :

●

When recording using signals from the [EXT REC IN] terminal, the light of the [REC CONTROL] indicator goes off, and the [REC] indicator appears blinking.

●

Emergency recording lets you start and stop recording on all cameras regardless of the [Scheduler...] settings or [Camera Settings].

●

Pressing the [REC/STOP] button cancels recording by signals from the [EXT REC IN] terminal and switches automatically to the Amanual recording modeB. The [REC] indicator also changes from

●

Pressing and holding down the [REC/STOP] button cancels recording by signals from the [EXT REC IN] terminal and stops recording.

A

blinkingB to the AlitB mode.

䡵

Emergency Recording Mode

Recording starts on all cameras when a MAKE signal is detected by the [EMERGENCY] terminal of the rear input/output terminal. Recording is executed in the frame rate specified in [Recording Settings] Recording is only executed during the time specified in [Emergency Record] of [Unit Setting 1] ( Emergency recording has priority over the [recording control mode] or [manual recording] mode. When emergency recording is complete, the cameras return to the original recording mode.

-

[Desired framerate] of the [Camera Settings] screen.

A

Page 70).

Memo :

●

The [REC CONTROL] indicator goes off and the [REC] indicator appears blinking during emergency recording.

●

Emergency recording lets you start and stop recording on all cameras regardless of the [Scheduler...] settings or [Camera Settings].

●

Pressing the [REC/STOP] button cancels emergency recording and switches automatically to the The [REC] indicator also changes from mode.

●

Press and hold down the [REC/STOP] button to cancel all recording modes and stop recording.

A

manual recording modeB.

A

blinkingB to the AlitB

Note :

●

When in the manual recording, [EXT REC IN] signal recording or emergency recording mode, motion detection and event recording settings are ignored.

Recording Operation During Power Failure

If a power failure occurs during recording, the system resumes recording in the mode selected before the power failure after recovery.

●

In the recording control mode, recording by a motion or event does not resume unless another motion or event occurs after recovery from the power failure.

●

The recording control mode returns to the status before the power failure.

Note :

●

The recorded images may not be played back properly if they are not archived (

●

It is recommended that an uninterruptible power supply (UPS) be used to protect the hard disk from damage in the event of a power failure. (

●

If a power failure occurs while formatting a hard disk or archiving, subsequent operations may be affected even when a UPS is connected.

A

Page 108) before the power failure.

A

Page 136)

52

Selecting the Recording Control Mode

In order to record in the recording control mode, you need to specify the scheduler settings (A Page 53), image recording settings (A Page 55), and picture quality settings (A Page 58) in the main menu [Camera Record Setting].

1 Press and hold down the [REC CONTROL]

button while camera recording is stopped ([REC] indicator is off).

●

The [REC CONTROL] indicator lights up and the unit switches to the recording control mode.

●

Recording will be executed according to the camera record settings.

Memo :

●

To stop recording, press and hold down the [REC/STOP] button during recording in a mode other than recording control (the [REC] indicator lights up or appears blinking). After the light of the [REC] indicator goes off, press and hold the [REC CONTROL] button.

●

To exit the recording control mode, press and hold down the [REC CONTROL] or [REC/STOP] button.

●

Depending on camera status or other circumstances, it may take a while before recording starts after switching to the recording control mode.

Note :

●

Do not turn off the power while you are configuring the camera recording settings.

Scheduler Setting

This feature lets you specify when to switch each camera to the online mode, as well as the online/offline mode of cameras when an event occurs.

Memo :

●

When in the online mode, the camera executes recording according to the camera record settings.

●

When in the offline mode, recording is not executed regardless of the camera record settings.

●

You can specify the time zone during which e-mail alerts are triggered when motion is detected. You can also specify the time zone to activate automatic patrolling (

A

Page 93) when using

PTZ cameras.

●

The minimum unit of time that you can specify is 5 minutes.

Note :

●

The online/offline mode has no impact on the manual recording, [EXT REC IN] signal recording, and emergency recording modes.

●

Even when AofflineB or AEventB is specified in the scheduler, the camera switches to the remote live requests](

A

OnlineB mode if [Start cameras on

A

Page 106) is specified in [General

Settings] and live images are displayed on the [NVR Viewer].

●

During the interval that is set to AOfflineB, recording will not be performed even when in the that is set to

A

EventB, recording is performed according to the

A

OnlineB mode. During the interval

recording settings when the unit switches to the AOnlineB mode.

1 Select [Camera Record Setting] from the main

menu

Selecting the Manual Recording Mode

1 Press the [REC/STOP] button

●

The unit switches to the manual recording mode and starts recording from all cameras.

●

The [REC] indicator lights up.

Memo :

●

To exit the manual recording mode, press and hold down the [REC/STOP] button. Upon doing so, the light of the [REC] indicator goes off.

●

To clear all recording modes, press and hold down the [REC/ STOP] button.

[REC] Indicator

OPERATE

REC CONTROL

[REC CONTROL] Button/Indicator [REC/STOP] Button

SELECT

PTZ/PRESET

SERIAL

㧡

㧢*1/'

㧥  

   

CANCEL ZOOMOUT ZOOM IN ENTER

㧝 㧞 㧟

LIVE/BROWSE

WARNING

㧠

ALARM

HDD

㧣

㧤

LOCK



SEARCHFUNCTION ALARMCLEARKEY REC/STOP STOP(PB) PLAY

REV FWD

SKIP

2 Click the [Scheduler...] button

●

The [Scheduler...] screen appears.

[Scheduler...] Button

[Camera Recording Administator] Screen

3 Select the camera for which you want to set a

schedule from [Camera].

Select a Camera

[Scheduler] Screen

53

Basic Operation

Recording Camera Images (continued)

Scheduler Setting (continued)

4 Select [Set] from [Mode]

●

The mouse pointer turns into a ApencilB.

●

Moving the mouse pointer to the day-of-week band in the calendar section enables you to zoom in/zoom out on the calendar. To check the detailed schedule, enlarge the day of week area of the calendar.

Mode

[JVCVN-E4]Camela1

Memo :

●

Selecting the [E-mail], [Patrolling], and [Enable speedup] check boxes enables you to specify the following settings.

A Enable

speedup

B E-mail

C Audio D Patrolling

Enables you to specify a constant speedup period regardless of any conditions when speedup in [Settings...] is set to AEnableB (

A

Page 56).

Enables you to specify the period to send out the e-mail alert when e-mail alert notification during a motion is selected (APage 96).

You cannot select this check box. Enables you to specify the patrol scheme and

patrolling period. Select a patrol scheme from the [Patrol scheme] list, and specify the corresponding period in the calendar section. [Patrol scheme] must be defined in advance. (

A

Page 94)

7 The Schedule Settings window appears

●

Click [On Event] or [Always].

A

5 Select the [Online] check box 6 Specify the date to switch online in the calendar

section

●

Hold down the mouse in the calendar section, and move the mouse pointer to specify the date.

●

The selected period is indicated in light blue color.

5

A B

C D

6

B

C

A On Event

B Always C Cancel

Memo :

●

To clear the period, select [Cancel] from [Mode] at the top left, select the check box of the item you want to delete ([Online], [Email] or [Patrolling]), and move the mouse pointer while leftclicking the mouse on the period in the calendar section.

Switches to the online mode only when an event occurs. Specify the event in the event start/stop item.

Online mode at all time. Cancels the settings.

54

䡵 Camera/Alert Scheduler Screen

A B C

Specifying Image Recording Settings

1 Select [Camera Record Setting] from the main

menu

D

[Settings...]

A Copy

Schedule

B Paste

Schedule

C Copy and

Paste to All

D Close

䢇

Display Bar

The display bar indicates the active period for each option ([Online], [E-mail] and [Patrolling]) in different colors.

● Online Bar

Pink Indicates the period during which this unit always

Yellow Indicates the period during which images of the

● E-mail Bar

Active periods are indicated in blue.

● Patrolling Bar

Active periods are indicated in gray.

Enables you to copy the schedule displayed in the calendar section.

Pastes the schedule copied using [Copy Schedule]

Pastes the schedule displayed in the calendar section to all cameras.

Exits the [Scheduler...] screen.

displays images of the selected camera.

selected camera are displayed when an event is input to this unit.

A

to the selected camera.

Memo :

●

The Patrolling Bar is only available when at least one [Patrol scheme] has been registered in advance. When several patrol schemes have been registered and are used successively, changes between the schemes are indicated by a thin vertical line. (

A

Page 94)

●

To check the [Patrol scheme], click the bar of the period to check in the calendar section. The [Patrol scheme] specified for that period will appear in the [Patrol scheme] list.

[Camera Recording Administator] Screen

2 Select a camera from [Device Manager] and click

[Settings...]

●

The [Camera Settings] screen appears.

●

Specify the setting for each item. (APage 56)

A

B

C

D E

F G

H

L

[Camera Settings] Screen

KJ

I

55

Basic Operation

Recording Camera Images (continued)

Settings

(R: Factory settings)

Item Preset Values Description

A Speedup Settings

Frame Rate

^

B Live Settings

Frame Rate Same as recording

● Same sa speedup

C Camera

Monitor Setup

D Audio

Source

Show Motion Show Regions Update on motion only

● Disabled

Audio1

E Recording Settings

Desired framerate

[none]

Enables you to specify the frame rate to acquire from the camera. This is the frame rate during speedup recording. Specify the frame rates such that the total rate of all cameras displayed in each view of the [Live Viewing] screen does not exceed 80 ips (image per second) for VR-N1600U/E, 160 ips for VR-N1600U/E(A) , and 60 ips for VR-N900U. When playing back the recorded images of VR-N1600U/E(A), set the total display rate to 80 ips or below to display the playback from the main unit and distribution for 13 channels or more simultaneously.

Note :

●

Do not set a value that exceeds the camera’s capacity.

●

If the frame rate is not specified for the camera, a frame rate that is supported by the camera is automatically set.

Displays the viewing frame rate of the [Live Viewing] screen.

Same sa speedup:

Displays live images using the frame rate specified in the [Speedup Settings] item A.

Same as recording:

Displays live images using the frame rate specified in the [Recording Settings] item E. When speedup is set to detection of motion, the live viewing rate also increases.

Select the ADisabledB checkbox to disable the camera.

AONB

and the recording frame rate increases such as due to

Memo :

●AShow MotionB, AShow RegionsB and AUpdate on motion onlyB cannot be selected.

You can select the audio source to play back when a camera is selected in the NVR Viewer. You can also specify the audio source in the NVR Viewer if the audio source is included in the source to be exported in the [Database Export...] format. ( Sound to CDs, DVDs and Other Media (Export)]) This has no impact on audio recording.

Enables you to specify the recording frame rate. You need to specify a value that is larger than the [Frame Rate] of the [Speedup Settings] item rate of all cameras displayed in each view of the [Live Viewing] screen does not exceed 80 ips (image per second) for VR-N1600U/E, 160 ips for VR-N1600U/E(A), and 60 ips for VR-N900U.

Note :

●

See below for the recordable frame rate of each model. Set the total frame rate of all cameras so that it does not exceed the respective values. When speedup settings are used, restore the frame rate of the speedup settings to the original value.

●

VR-N1600U/E :160 ips or below (When using NAS: 80 ips or below)

●

VR-N900U(A),(B):120 ips or below (When using NAS: 60 ips or below) Analog input of VR-N900U(A),(B): 60 ips or below Analog input of VR-N900U: 20 ips or below

●

Recording frame rate may fall below the preset frame rate depending on the signal processing condition of this unit.

●

Recording frame rate may deteriorate under the following conditions:

●

During export

●

When changing the picture quality of the displayed image

●

When the total frame rate of the display images (including display on PC) exceeds 80 ips for VR-N1600U/E, 160 ips for VR-N1600U/E(A), and 60 ips for VR-N900U

●

When the frame rate is set to a high value, the recording frame rate may be slightly higher or lower.

A

Page 47 [Writing Images/Audio

A

. Specify the frame rates such that the total

56

Item Preset Values Description

ERecording Settings (continued)

Enable speedup

When to store images in database

On motion On event

Always Never

䢇 Conditionally

Enables you to specify whether to execute recording with a higher maximum frame rate when motion is detected or when an event occurs.

When [On event] is selected : Specify the starting and ending events in the [Start]

and [Stop] fields respectively. The speedup recording frame rate uses the [Frame Rate] in the [Speedup Settings] A item.

When the input is analog : Values of frame rate that can be set are 30, 15, 10, 7,

6, 5, 3, 2, and 1.

When set to 7, the rate is 7.5 frames per second. Always : Select this check box to record images at all times. Never : Do not perform recording in the recording control mode. Record

starts when the [REC/STOP] button is pressed.

Enables you to specify the recording conditions in recording control mode. If you have selected [Conditionally], specify the following fields as well.

On motion : Select this check box to record all images for which motion has been

detected.

On event : Select this check box to record all images from the occurrence of an

event until the next event occurs regardless of motion. Specify the starting and ending events in the [Start] and [Stop] fields respectively.

Memo :

●

For details on events, refer to [Camera Input/Output Port and Events] (APage 95).

Note :

●

If you have selected [Conditionally], the [ALARM] indicator on the front panel lights up regardless of the recording status when the motion or event specified in [When to store images in database] occurs. Press the [ALARM CLEAR] button to turn off the light of the [ALARM] indicator.

( )seconds pre/post recordings on motion/event:

You can record images preceding and following a detected motion or event. Specify the time interval to record in the number of seconds before and after the occurrence. (

A

Page 139)

Memo :

●

Do not set to A0 secondsB.

●

If Offline is selected in [Scheduler...], images will not be recorded.

●

This setting has no impact on manual recording, emergency recording, and [EXT REC IN] recording.

F Datebase

Settings

G Motion

Detection Settings

Motion Detection.. Enables you to specify the two parameters for motion detection, namely [Sensitivity] and

Motion Color.. Enables you to specify the color to be used for highlighting detected motion.

^

Enables you to specify the database settings. (APage 110)

[Motion Sensitivity]. (

A

Page 104)

57

Basic Operation

Recording Camera Images (continued)

Settings (continued)

Item Preset Values Description

H Exclude

Regions Settings

Exclude Regions...

Region Color...

I PTZ Preset

Positions...

J Outputs... ^

K Event

Notifications...

L Image Quality... ^

^

Enables you to specify the regions to exclude from motion detection. (APage 104)

Not used. Enables you to specify preset positions and patrolling.

When a configurable camera is selected, this button is displayed to the right of the [Outputs...] button.

Enables you to specify output settings. (APage 102) Enables you to select events for triggering event notification. (APage 102)

Enables you to specify the image resolution and picture quality. (APage 58)

Note :

●

When the recording program (recording server) is operating, the [PTZ Preset Positions...] button is disabled. To stop the recording server temporarily, press the [Service Manager...] button on the [Camera Record Setting] screen, followed by clicking the [Pause] button. (

A

Page 83)

●

Video images and audio sound are not recorded when the recording server is temporarily stopped. Display of live images on the surveillance computer is also turned off.

●

Even when AAlwaysB is selected under [When to store images in database]D in the recording control mode, recording is not executed during the interval when the [Scheduler...] is set to

●

Clicking [Cancel] does not cancel the picture quality and settings that are specified on another screen.

A

offlineB. (APage 53)

Setting Picture Quality

Clicking the [Preview Image] button while you are adjusting the camera settings enables you to view the effect of your settings.

1 Select [Camera Record Setting] from the main

menu

2 Select a camera from [Device Manager] and click

[Camera Settings]

●

The [Camera Settings] screen appears.

3 Click [Image Quality...]

●

The [Configure Device] screen appears.

Note :

●

It is recommended that you set the picture quality to approximately 24 KB (VGA). Specifying a higher image quality may affect the sound and cause the frames to be dropped.

Example of [Configure Device] Screen

Memo :

●

The [Configure Device] screen may vary with cameras.

●

Refer to the [Instruction Manual] of the respective cameras for the setting items.

58

Specifying Audio Recording Settings

1

Select [Camera Record Setting] from the main menu

●

The [Camera Recording Administator] screen appears.

Memo :

●

You can also specify audio settings using the following operation.

A

Click the [+] mark beside the device with an audio source

B

Select the audio source and right-click on it. Click [Edit] and specify the settings accordingly on the [Audio Device Settings] screen.

2

Select an audio source from [Device Manager], and press the [Settings...] button

●

The [Audio Device Settings] screen appears.

●

Audio sound is indicated using a microphone icon.

Memo :

●

The audio sound is recorded in the database of the camera image specified in the [Target Database] item

●

Audio sound is recorded throughout the interval when the scheduler of the camera specified in the [Target Database] item

C

is in the online mode.

●

In the case of VR-N1600U/E, audio signals that are input to [AUDIO IN 1/AUDIO IN 2] on the rear panel are allocated as [Audio1] and [Audio2] in [NVR](127.0.0.1) on the [Device Manager].

●

In the case of VR-N900U, audio signals that are input to [AUDIO IN 1/AUDIO IN 2] on the rear panel are allocated as [Audio1] and [Audio2] in [N900](192.168.201.12) on the [Device Manager].

C

.

Note :

●

If the camera specified in the [Target Database] item C is set to

A

DisableB, audio sound is not recorded.

●

To play back audio sound of the camera selected using NVR Viewer, you need to specify the audio source on the [Settings...] screen under [Camera Record Setting] (APage 55).

Precautions when enabling the analog audio source of VR-N1600U/E

When entering a device for [Target Database] in the [Audio1] and [Audio2] settings of NVR, make use of an input channel that is after the channel for recording the audio device of the selected device. (Example)

X VN-E4 Audio1 B E4 Camera2, NVR Audio1 B VN-E4

Camera1

⳯ VN-E4 Audio1 B E4 Camera1, NVR Audio1 B VN-E4

Camera2

⳯ VN-E4 Audio1 B Disable, NVR Audio1 B VN-E4

Camera1

●

Specify the setting for the following items.

Item Description

A Enabled

Enables/Disables the audio source.

Memo :

●

Right-click on the camera or audio source in the [Device Manager] section to select [Disable] or [Edit].

B Device

name

C Tar get

Database

Displays the name of the audio source. You can overwrite the existing name with a new one.

Enables you to specify the camera database to record audio sound to.

A B

C

59

Basic Operation

Recording Camera Images (continued)

Renaming Cameras and Assigning Camera Numbers

1

Select a camera name and right-click on it, followed by clicking [Edit]

●

The Camera Name and Number editing screen appears.

Screen Setup

Screen Display (Groups and Views)

Multi-view setting for multiple cameras is referred to as [Views]. All views are placed in folders called [Groups].

Memo :

●

[Groups] can be private or shared.

●

[Private] folder:

Views in this folder can only be accessed by the user who created them.

[Shared] folder:

●

Views in this folder can be accessed by all remote PC users with access to the system. (A Page 61 [Creating Groups and Views])

[Views] Section

A

B

Item Description

A Camera Name

B

Camera Number

Displays the name of the camera. You can overwrite the existing name with a new one.

Enables you to specify the camera number.

Note :

●

Do not assign a camera number that is used by other cameras. If the camera numbers overlap, the camera may not function properly.

[Screen Setup] Screen

[System Overview] Section

[Delete] Button [Rename] Button [Create New View] Button [Create New Group] Button

Note :

●

The default user setting is AAdministratorB.

●

The Default View created by the Auto Detect feature may change the camera placement in the view. To maintain a fixed position, name the view and save it.

●

When changing the view of the [Shared] folder, the [Save View Group Error] screen may sometimes appear. In this case, click the [OK] button to close the screen, log out from the [NVR Viewer] once ( procedures for changing the view.

A

Page 126), and log in again to repeat the

60

Creating Groups and Views

䡵 Creating a Group

1 Select [Screen Setup] from the main menu

●

If the [Live] or [Browse] screen is displayed, you can also click on the [Setup] tab using the mouse.

Main Menu

2 Select the root folder in which you want to

create a new group

䡵 Creating [Views] within a Group

1 Select the group in which you want to create a

new view

2 Click the [Create New View] button, and select a

layout for the new view

Select

[Create New View] Button

View Layouts

[Create New Group] Button

3 Click the [Create New Group] button in the

[Views] section

●

A new group is created.

4 Enter a name for the new group

●

A new view is created under the group you selected.

Note :

●

Do not display more than 17 windows at any one time. (VR-N1600U/E)

●

Do not display more than 10 windows at any one time. (VR-N900U)

●

For live images only, VR-N1600U/E(A) can display more than 17 windows.

61

Basic Operation

Screen Setup (continued)

Creating Groups and Views (continued)

3 Enter a name for the new view

2 Click the [Rename] button

[Rename] Button

3 Overwrite the existing group or view name with

a new name

●

Next, add cameras to the view. (APage 63 [Adding Cameras to a View])

䡵 Renaming a Group/View

1 Select the group or view that you want to

rename in the Views section.

Select

䡵 Deleting a Group or View

1 Select the group(s) or view(s) that you want to

delete from the Views section.

2 Click the [Delete] button

A confirmation message appears to ask whether you want to delete the selected group and all views inside the group, or whether you want to delete the selected views.

62

Adding Cameras to a View

1 Select a view

●

The layout of the selected view appears.

2 Click the [+] mark to the left of [Server] under

[System Overview]

●

A list of available cameras appears.

2

Camera List

[Screen Setup] Screen

Adjusting Camera Settings

1 Select the camera you want to adjust on the

[Screen Setup] screen

2 Select [Properties]

A

B

C

D E

F

[Screen Setup] Screen

[Server]

3 Select the camera you want to add from the list,

and drag the camera name over the screen of

the view on the right

●

An image from the selected camera appears together with the camera name.

●

Repeat the procedure for each camera that you want to add.

Memo :

●

Images from a total of 16 cameras can be simultaneously

displayed. (VR-N1600U/E)

●

Images from a total of 9 cameras can be simultaneously

displayed. (VR-N900U)

G

H

3 Adjust the following camera settings

accordingly

Item Description

A Camera

Name

B Image

Quality

C Frame Rate

D Maintain

Image Aspect Ration

E Update on

Motion

F Sound on

Motion Detection

Always off Does not produce sound notification when

Always on Notifies with a sound each time motion is

Displays the name of the selected camera. (This is a read-only field.)

Enables you to adjust the image resolution and picture quality during viewing. Select [Full] at all times.

This is the viewing frame rate. Select [Unlimited] (default value; same as live settings), [Medium] (25 % of the frame rate), or [Low] (5 % of the frame rate), depending on the frame rate specified in [Live Settings] ( [Camera Settings] screen.

If this check box is selected, images will not be stretched to fit the size of the display position. Images will be displayed in the aspect ratio (horizontal to vertical ratio of the screen) that they have been recorded.

If this check box is selected, the camera’s images will only be updated on the [Live] screen when motion is detected.

Enables notification with a simple sound when motion is detected while viewing images from the camera on the [Live] screen.

motion is detected.

detected.

A

Page 56) on the

63

Basic Operation

Screen Setup (continued)

Adjusting Camera Settings (continued)

Item Description

G Sound on

Event

Always off Does not output sound alert when an event

Always on Outputs a sound alert each time an event

H Apply To

All

Note :

●

Set this unit such that the total distribution frame rate to all

surveillance computers does not exceed 80 ips (VR-N1600U/E),

160 ips (VR-N1600U/E(A)), or 30 ips (VR-N900U).

●

The recording frame rate may deteriorate if you change the

picture quality. Changing the [Image Quality] settings may affect

the recording performance. As such, use this function with the

value fixed at

●

When you drag the timeline browser using the mouse during

playback, the frame rate setting is disabled. [Searching

Recorded Image Using the Timeline Browser] (

●

Notification sound is not output from this unit during motion

detection or occurrence of an event. This function is for use by

the NVR Viewer, which is downloaded onto the surveillance

computer.

4 To adjust the settings on other cameras, repeat

Steps 2 to 3

Memo :

●

To adjust the settings of all cameras at once, click the [Apply To

All] button. The new camera settings will be applied to all

cameras in the view.

Enables notification with a simple alert sound when events related to the selected camera occur while viewing images from the camera on the [Live] screen. To use this feature, you need to configure the event notification setting. (

related to the camera occurs.

related to the camera occurs. Press this button to apply the new settings to

all cameras.

A

FullB.

A

Page 102)

A

Page 44)

Using Your Views on Different Computers

User settings, including the [Private] view, are stored on this unit. In other words, you can use your [Private] views on any surveillance computer that has this unit and the ANVR ViewerB installed (

A

Page 123) by logging in with your own user name and

password.

1 Double-click the [Setup] tab on the NVR Viewer.

Note :

●

User rights may be configured to restrict access to the [Setup] tab. In this case, consult your system administrator.

2 Select the folder you want to use in the [Views]

section

●

You can create or edit views.

●

Folders that cannot be edited are indicated by the [LOCK] icons.

Adding a Carousel

You can use the carousel feature to display images from multiple cameras in sequence in a single view position. Also, you can set the time interval for switching the camera to view.

1 Displaying the [Screen Setup] Screen

[Carousel]

64

2 Click and drag the [Carousel] icon in the

[System Overview] section to the position that

you want to set in the view

A B

C

[NVR]Camera3

[NVR]Camera1

[NVR]Camera2

[NVR]Camera4

[NVR]Camera3

[NVR]Camera4

3 Release the mouse button at the position

[NVR]Camera2

[NVR]Camera3

[NVR]Camera4

4 Select the preset carousel position and specify

its properties in the [Properties] section

●

Begin by selecting the cameras to include in the carousel. You can also select all cameras on a server at once by selecting the check box next to the [Server] icon.

Item Description

A Image

Quality

Enables you to adjust the image resolution and picture quality during viewing. Select

A

FullB at

all times.

B Frame

Rate

This is the viewing frame rate. Select [Unlimited] (default value; same as live settings), [Medium] (25 % of the frame rate), or [Low] (5 % of the frame rate), depending on the frame rate specified in [Live Settings] (

A

Page 56) on the [Camera Settings] screen.

C Maintain

Image Aspect Ration

If this check box is selected, images will not be stretched to fit the size of the display position. Images will be displayed in the aspect ratio (horizontal to vertical ratio of the screen) that they have been recorded.

Note :

●

The recording frame rate may deteriorate if you change the picture quality. The [Image] settings may affect the recording performance. As such, use this function with the value fixed at

A

FullB.

●

When you drag the timeline browser using the mouse during playback, the frame rate setting is Recorded Image Using the Timeline Browser] (

A

disabledB. [Searching

A

Page 44)

Memo :

●

The green border indicates that the position is used for the carousel feature.

●

The sequence in which cameras appear in the carousel is automatically determined by camera and device names. The cameras appear recurrently in alphabetical order.

65

Basic Operation

Screen Setup (continued)

Adding Hot Spots (Enlarged Images)

The selected camera within the view is displayed in the hot spot designated position. Setting the hot spot in a larger position, such as in [1] of the [1+7] view, displays an enlarged image when the hot spot is selected.

1 Displaying the [Screen Setup] Screen 2 Click and drag the [Hotspot] icon in the [System

Overview] section to the position that you want

to set in the [Views]

Memo :

●

Using the [Hotspot] function enables you to use a low frame rate for other cameras and a high frame rate for the hot spot.

●

The orange border indicates that the position is used for a hotspot.

●

When the hot spot is set in multiple views and the view is switched, the camera image displayed in the view before switching continues to be displayed in the hot spot window in the view after switching.

[Screen Setup] Screen

[Hotspot]

3 Release the mouse button at the position 4 Select the preset position in [Hotspot] and

specify its properties in the [Properties] section

Item Description

A Image

B Frame

Rate

C Maintain

Image Aspect Ration

Note :

●

The recording frame rate may deteriorate if you change the

picture quality. The [Image] settings may affect the recording

performance. As such, use this function with the value fixed at

A

FullB.

●

When you drag the timeline browser using the mouse during

playback, the frame rate setting is

Recorded Image Using the Timeline Browser] (APage 44)

Enables you to adjust the image resolution and picture quality during viewing. Select all times.

This is the viewing frame rate. Select [Unlimited] (default value; same as live settings), [Medium] (25 % of the frame rate), or [Low] (5 % of the frame rate), depending on the frame rate specified in [Live Settings] (

A

Page 56) on the [Camera Settings] screen.

If this check box is selected, images will not be stretched to fit the size of the display position. Images will be displayed in the aspect ratio (horizontal to vertical ratio of the screen) that they have been recorded.

A

disabledB. [Searching

A

FullB at

66

Using the [Html Page]

1 Click [Html Page] under [System Overview]

Using Still Images (GIF/JPEG files, etc.)

1 Click [Image] under [System Overview]

[Screen Setup] Screen

[Html Page]

2 Drag and drop at the required position using the

mouse.

The [Open URL] screen appears.

3 Type in the URL and click [OK] 4 Select [Html Page] under [Views], and specify

the properties in the [Properties] section

Item Description

Url Click the [New...] button to specify a new URL. Scaling Select the display size of the HTML page. Enable HTML

scripting

Note :

●

Pages containing such content as ActiveX and Flash will not be

supported.

●

Pages containing such content as ActiveX and Flash will not be

supported.

●

Note that some links may involve security issues.

Select this check box to specify HTML files that contain navigation or trigger functions.

[Screen Setup] Screen

[Image]

2 Drag and drop at the required position using the

mouse.

●

The [Open] screen appears.

[Open] Screen

3 Select the required image file

Note :

●

When connected to a surveillance computer, still images that are set on a different computer are not displayed.

●

Still images cannot be added to this unit.

Adding Matrix Content

Select this option to use the Milestone XProtect Matrix feature. For details, refer to the Milestone XProtect Smart Client User’s Manual available on the website of Milestone Systems (http:// www.milestonesys.com).

Memo :

●

The URL address may be subject to changes.

67

Applications

Main Menu List

List of Menu Screens

(A Page 69)

(A Page 72)

(A Page 85)

(A Page 111) (A Page 116)

(A Page 115) (A Page 117)

(A Page 60)

(A Page 36)

(A Page 80)

(A Page 83)

(A Page 73)

(A Page 129)

T VR-N1600U/E only

(A Page 76)

68

Unit Setting 1

Unit Setting 1 enables you to specify settings related to this unit, including account configuration, error recovery, and serial port configuration.

A

B

C

D

E

F

G

J

I

H

Item Preset Values Description

A Password

Current Password

New Password

New Password(reenter)

Auto Logon

Change

B Live viewing

Live viewing Auto Start

^

● Select check box

Do not select check box

^

● Select check box

Do not select check box

Enables you to specify the login password for this unit.

Note :

●

Specify the password using numeric characters only.

To change to a new password, enter the [Current Password]. Enter a new password. Enter the new password again for confirmation, and click [Change] to

enable the password change. To log in automatically after turning on the power of this unit, select

the [Auto Logon] check box.

Executes the password change.

Select this check box to display live images automatically when the system starts up.

Reference Page

A

Page 31

69

Applications

Main Menu List (continued)

Unit Setting 1 (continued)

Item Preset Values Description

C Error Report

Dialog ● Select check box

Do not select check box

Mail ● Select check box

Do not select check box

D Record Control

ON at startup ● Select check box

Do not select check box

E Mail Server

SMTP Server

Port Number ● 25

User ID

Password

POP Server

Port Number ● 110

User ID

Password

SMTP Authentication

Send Test Mail

● NONE

^

Authentication POP before SMTP

F Emergency Record

Time of Record NONE

30seconds

● 60seconds

5minutes 10minutes 20minutes Continue

Enables you to select how you want to be notified when an error is detected in the system.

Select [Dialog] to display a warning dialog on the screen.

Select [Mail] to receive an e-mail notification on any abnormality at the preset e-mail address.

Memo :

●

For details on errors, refer to the actions to take when the [WARNING] indicator lights up. (APage 156)

Select this check box to turn on the recording control mode when the system starts up.

Enables you to configure the necessary information on the mail server to be used if you have selected

C

.

item Setting for the outgoing mail server.

Setting for the incoming mail server.

Enables you to select the method of user authentication when sending out a mail. For queries on the settings, consult your system administrator.

Click to send out a test mail to the address specified in the [Mail Send List] item

Select the duration of emergency recording, which starts recording of all channels when a signal is input to the [EMERGENCY] terminal on the rear panel. Select

A

on the front panel.

I

.

ContinueB to continue recording until it is stopped manually

A

MailB in the [Error Report]

Reference

Page

^

A

Page 156

^

A

Page 52

70

Item Preset Values Description

G Serial(VR-N900U)

Speed Speed

1800 2400 4800

䢇 9600

19200 38400

Data Lenght 7

䢇 8

Parity

Stop Bit

H Encode Mode

(VR-N900U)

䢇 NONE

ODD EVEN

䢇 1

2 Variable File Size

䢇 Average File

Size

Constant File Size

Interpolate ● Select check box

Do not select check box

I Mail Send List

List

Input

^

J Close

Lets you specify the settings for the serial ports controlling the cameras. Please refer to the [Instruction Manual] of the camera in use to configure the parameters correctly for all settings.

Lets you select the encoding mode for converting analog image data into digital data. You can choose from the following three modes. Specify the encoding size control method and target file size when encoding JPEG files. Variable File Size: The file size increases or decreases depending on the image. Specify this to maintain a constant image quality.

Memo :

●

Note that maximum recording time varies when recording JPEG files with this option as the file size increases or decreases.

Average File Size: Multiple JPEG files are encoded to reach the designated size as average size. Constant File Size: Each JPEG file is encoded to reach the designated size. The processing load is heavy with decreases the maximum processing frame rate to approximately one quarter of the value.

A

Constant File SizeB, which

Memo :

●

Specify the designated size using the [Quality] bar on the [Configure Device] screen under [Camera Record Setting]. (APage 58)

Select this check box to eliminate the comb-shaped noise (noise that appears jagged) of the moving object. .

Enables you to specify the mail recipient if you have selected AMailB in the [Error Report] item address in the entry field and click the [Add] button. To remove an email address from the notification list, select the required e-mail address in the [List] and click [Delete].

Closes the [Unit Setting 1] screen.

C

. To add a new recipient, type the e-mail

Reference

Page

^

71

Applications

A

B

Main Menu List (continued)

Unit Setting 2

C

D

Item Preset Values Description

A HDD meter

Display at startup Select check box

● Do not select check box

B Clock setting

Display at startup Select check box

● Do not select check box

Display at date Select check box

● Do not select check box

Display at second Select check box

● Do not select check box

C SNMP setting

Enable of SNMP Select check box

● Do not select check box

Enable of TRAP Select check box

● Do not select check box

SNMP manager’s address

Community name ^

Confirmation interval of alarm

Confirmation interval of CPU usage

Confirmation interval of D-drive

Confirmation interval of NVR Viewer

Confirmation interval of camera

Copy extension MIB onto the flash memory

10 seconds

60 seconds

10 seconds

60 seconds

^

D OK/Cancel ^

Select this check box to display the HDD meter when the system starts up.

●

For details on HDD meter, refer to [HDD Meter] (APage 133).

Select this check box to display the clock when the system starts up.

Select this check box to display the date on the clock.

Select this check box to display the seconds on the clock.

Select this check box to enable the SNMP function.

Select this check box to enable the TRAP function.

Specify the IP address of the SNMP manager. (IP address)

Specify the SNMP community name. (1 to 32 characters. Alphanumeric characters only.)

Specify the interval to monitor the alarm. (10 to 9999 seconds)

Specify the interval to monitor CPU usage. (10 to 9999 seconds)

Specify the interval to monitor the writing rate to the D drive. (30 to 9999 seconds)

Specify the interval to monitor the startup status of NVR viewer. (10 to 9999 seconds)

Specify the interval to monitor connection status of the camera. (60 to 9999 seconds)

Copy the MIB extension information into a flash memory device.

●

For details on SNMP settings, refer to [Setting SNMP] (

A

Page 134).

OK: Exits after entries and the selected content are configured to the system. Cancel: Exits without saving all entries and selected settings.

Reference

Page

A

Page 133

A

Page 152

A

Page 152

A

Page 152

A

Page 134

A

Page 134

A

Page 134

A

Page 134

A

Page 152

A

Page 152

A

Page 152

A

Page 152

A

Page 152

A

Page 134

^

72

OS Setting

Enables you to specify settings related to the OS, including network, time, and volume settings. You may need to reboot your computer depending on the settings.

B

A

C

D E F

䡵 Network Adapter

This section enables you to specify settings such as the IP address of this unit. The camera network and Intranet of this unit are configured with a different IP address. The default address for the camera network is (192.168.0.253), and that for the Intranet is (192.168.1.253). There is a common host name for all adapters.

䢇 When specifying LAN1 (camera network) settings

Item Preset Values Description

A Network adapter

interface name

Obtain an IP address automatically

IP address ● 192.168.0.253

Subnet Mask ● 255.255.255.0

Default Gateway ● 0.0.0.0

Perferred DNS Server

Alternate DNS Server

Host Name VR-N1600U/E :vr-n1600

DNS Domain Name

VR-N1600U/E:

Intel姞 82566DM Gigabit Network

VR-N1600U/E(A):

Realtek RTL8168C(P)/ 8111C(P) PCI-E Gigabit Ethernet NIC

VR-N900U:

Realtek RTL8169/8110 Family Gigabit Ethernet NIC

Select check box

● Do not select check box

● 0.0.0.0

VR-N900U :vr-n900

● 0.0.0.0

Settings when you are using LAN1 (camera network).

Memo :

●

To specify an IP address other than the default value, consult your system administrator.

●

If the host name is changed, you need to add a new Windows user in [User Administration] under [Image Server Setting]. (

●

Do not set the default gateway for both the camera network and Intranet on the [OS Setting] screen. Doing so may cause the system to malfunction.

A

Page 118)

73

Applications

Main Menu List (continued)

OS Setting (continued)

䢇 When specifying LAN2 (Intranet) settings

Item Preset Values Description

VR-1600/VR-N900:

Intel

姠

8225xER PCI

ANetwork adapter

interface name (continued)

Obtain an IP address automatically

IP address ● 192.168.1.253

Subnet Mask ● 255.255.255.0

Default Gateway ● 192.168.1.254

Perferred DNS Server

Alternate DNS Server

Host Name VR-N1600U/E :vr-n1600

DNS Domain Name

Adapter

VR-N1600U/E(A):

Realtek RTL8168C(P)/ 8111C(P) PCI-E Gigabit Ethernet NIC#2

Select check box

● Do not select check box

● 0.0.0.0

VR-N900U :vr-n900

^

Settings when you are using LAN2 (Intranet).

Memo :

●

To specify an IP address other than the default value, consult your system administrator.

●

If the host name is changed, you need to add a new Windows user in [User Administration] under [Image Server Setting]. (

●

Do not set the default gateway for both the camera network and Intranet on the [OS Setting] screen. Doing so may cause the system to malfunction.

A

Page 118)

䢇 When specifying analog camera network settings (VR-N900U only)

Item Preset Values Description

ANetwork adapter

interface name (continued)

Obtain an IP address automatically

IP address ● 192.168.201.253

Subnet Mask ● 255.255.255.0

Default Gateway ● 0.0.0.0

Perferred DNS Server

Alternate DNS Server

Host Name ● vr-n900

DNS Domain Name

Enc Board Bus Master Driver

Select check box

● Do not select check box

● 0.0.0.0

^

Settings when you are using an analog camera network.

Memo :

●

To specify an IP address other than the default value, consult your system administrator.

●

If the host name is changed, you need to add a new Windows user in [User Administration] under [Image Server Setting]. (

●

Do not set the default gateway for both the camera network and Intranet on the [OS Setting] screen. Doing so may cause the system to malfunction.

A

Page 118)

Note :

●

In VR-N900U, analog input circuitry is considered as a network encoder (IP video server) and the IP address is set to A192.168.201.12B by default.

●

The IP address of the analog camera network for VR-N900U is set to A192.168.201.253B by default. Do not change the IP address. Doing so may cause the system to malfunction.

74

䢇 Other Settings

Item Preset Values Description

B Day and Time Properties

Automatically synchronize with an Internet server

Server

NTP Polling Interval

Date

Time

Time Zone ● VR-1600U:

Select check box

● Do not select check box

(GMT-05:00) Eastern Time

● VR-1600E: (GMT) Greenwich Mean Time

C Volume Properties

Device Volume

● Center position

D LOAD configuration E SAVE changes

F CANCEL changes

^

To synchronize the time with the Internet time server or to specify the date and time manually, click [Update Now].

Select this check box to synchronize the time with the Internet time server.

Note :

●

You cannot specify the date and time manually when this box is selected. The settings in the boxes cannot be changed.

●

The date and time properties are not enabled until you have clicked the [Update Now] button.

●

Changing the time setting may prevent normal playback of recordings made at the same time as a result.

●

Changing the ATimeB field of the time setting when operations are in progress may prevent normal display of live images. In this case, reboot this unit.

Enter the address of the Internet time server.

Note :

●

Connect the time server to the LAN2 network.

For specifying the time interval (in minutes) for synchronizing with the Internet time server.

Enter this field when you are specifying the date manually.

Memo :

●

The [Day and Time Properties] settings are not enabled until you have clicked the [Update Now] button.

●

Changing the time setting may prevent normal playback of recordings made at the same time as a result.

●

Changing the AhourB value of the hour/minute/second setting when operations are in progress may prevent normal display of the live images. In this case, reboot this unit.

For specifying the time zone.

Note :

●

Make sure that the date and time that you specify does not overlap with any previous recorded data.

●

If the specified time zone is incorrect, the system may not run at the correct time after synchronizing with the Internet time server.

●

When the time zone is altered, press the [LIVE/BROWSE] while holding down the [FUNCTION] button to reboot the NVR Viewer.

Adjust the volume using the slider bar. Reads the preset configuration files and displays them on the screen. Exits after entries and the selected content are configured to the system.

Manual update of time is disabled. To update the time manually, go to the [Day and Time Properties] item

Exits without saving all entries and selected settings.

C

.

75

Applications

Main Menu List (continued)

Image Server Setting

This section enables you to specify settings for connecting this unit to a computer, and for displaying the [Live] and [Browse] screens. The distribution settings are also applied to operation on the [Live], [Browse], and [Screen Setup] screens of this unit.

A

B

C

D

E

F

G

76

Item Preset Values Description

A Server Configuration

Name ● Server

Port ● 80

Enable Outside IP Address

Outside address

Outside Port

Local IP Ranges...

Max,number of clients

● Do not select

● 11

B User

Administration

User Setup...

User

Add Basic User...

VR-N1600U/E:vr-n1600 VR-N900U:vr-n900

Administrator Type: Windows or Active Directory user or Active Director User

Select check box

check box

^

Enables you to specify the server name, port number, and details on external access to the server.

For specifying the server name. For specifying the port number to use for the server. Select this check box to enable access to this unit from a surveillance computer

connected to the Internet via the router or firewall. If you have selected this option, specify the global IP address in the [IP address] column for the Internet router or firewall, and the port number in the [Port] column for access to the Internet by the surveillance computer. You have to configure an appropriate port forwarding on the router or firewall to allow access by a surveillance computer that is connected to the Internet. For details, refer to the “Instruction Manual” of the respective devices.

For specifying the global IP address or host name when connecting to this unit via the Internet.

For specifying the port number to use when connecting to this unit via the Internet. Settings for using the Master/Slave feature by Milestone Systems.

For specifying the beginning of the IP address range in the left field on the screen, and the end of the IP address range in the right field. Click the [Add] button. You may define as many local IP address ranges as required.

Memo :

●

You may specify only one IP address. (Example: 192.168.10.1 to 192.168.10.1)

●

For details, refer to the Milestone XProtect Smart Client User’s Manual available on the website of Milestone Systems (http://www.milestonesys.com).

●

The URL address may be subject to changes.

For specifying the maximum number of NVR Viewer users allowed for connection at any one time. The number of users also includes the use of the [NVR Viewer] on the [Live] and [Browse] screens of this unit. Do not set a number of larger than 11.

This section describes procedures to configure user accounts and rights.

Click this button to display the [User Administration] screen for setting the [User] and [Password]. You can add new users in two ways: (

A

Page 118 [User Settings])

Memo :

●

After adding a new user, a small square appears to the top left of the icon on the [User Administration] screen. You can distinguish between [Add Basic User...] and [Add Windows User...] using this mark when the same user name is registered with both.

Type:Basic user Password:vr-n1600(VR-N1600U/E), vr-n900(VR-N900U)

Password: Nil You can create a dedicated user account for the surveillance system through

authentication of the user name and password.

77

Applications

Main Menu List (continued)

Image Server Setting (continued)

Item Preset Values Description

B User Administration (continued)

User Setup... (continued)

Add Windows User...

Delete

Change password...

Define Username and Password

C Master/Slave Setup

Designate as Master Server

Pre-6.0 Version Slaves

^

● Full access for all users

Restrict user access

Select check box

● Do not select check box

Select check box

● Do not select check box

Do not select this option. For details, consult your system administrator.

Note :

●

When the host name in the OS settings is changed, enter [Administrator] in [Enter the object names to select] on the [Serect Users or Groups] screen, and click the [Advanced...] button. Next, click the [OK] button.

●

Windows users need to define a Windows user for each host name specified in [Host Name] in [OS Setting]. ( As the user’s host name is not displayed on the [User Administration]

screen, it is recommended that you delete the Windows user and add again if you have changed the host name. (A Page 118)

Deletes a preset user. Select the user to delete from the [Current isers/groups] list, and click the [Delete] button. The user that has been deleted from the list is no longer able to login to NVR Viewer.

Enables you to edit a preset user name and password. Select the user to edit from the [Current isers/groups] list, and click the [Change password...] button.

[Full access for all users]:

Select this option to grant all users access to all NVR Viewer features and cameras.

[Restrict user access]:

Select this option to restrict users’ access. Then click the [User Access...] button to define access right for each user.

Memo :

●

For details on access rights, refer to [Defining User Rights] (APage 118).

Select this check box to use this unit as the master server. When multiple units of slave servers are registered to the master server, multiple units of NVR cameras can be mixed and displayed on the NVR viewer.

This check box is always not selected.

A

Page 73)

78

Item Preset Values Description

D Log Files

Days to log ● 10

E Audit Log

Enable Audit Logging

Days to log ● 30

Minimum Logging Interval

In Sequence Timespan

F Language Support and XML Encoding

Language

Select check box

● Do not select check box

^

Traditional Chinese (Big5) Japanese (euc-jp) Simplified Chinese (GB2312) Central,Eastern European (ibm852) Cyrillic (ibm866)

● Western(European)(iso-8859-1)

Thai(iso-8859-11) Central,Eastern European (iso8859-2) Southern European (latin) (iso8859-3) Baltic (iso-8859-4) Cyrillic (iso-8859-5) Arabic (iso-8859-6) Greek (iso-8859-7) Hebrew (iso-8859-8) Turkish (iso-8859-9) Korean (ks_c_5601-1987) Japanese (shift-jis) Universal(UTF7) (utf-7) Universal(UTF8) (utf-8) Central,Eastern European (windows-1250) Cyrillic (windows-1251) Western(European) (windows-

1252) Greek (windows-1253) Hebrew (windows-1255) Arabic (windows-1256) Baltic (windows-1257) Vietnamese (windows-1258) Thai (windows-874) Japanese (_iso-2022-jp$ESC)

Log information may be required for diagnosing troubles. For specifying the number of days for storing the event log in the [Image Server Setting]. Enables you to configure log file settings related to client computer users.

For specifying the number of days for storing the audit log files. For specifying the minimum time interval for acquiring logs.

For specifying the maximum viewing time interval that is to be considered as the same sequence.

Enables you to select the available languages. Select a language (local character set) for the camera name, user name, and password. Select the language of your choice.

Memo :

●

The settings for [Days to log] under [Image Server Setting]-[Log Files] (Item C) as well as [Days to log] under [Audit Log] (Item D) are disabled.

●

[Camera Record Setting]-[General Settings]-[Logfile Settings](APage 106) is enabled.

79

Applications

Main Menu List (continued)

Auto Detect Setting

This section enables you to assign an IP address to each camera and configure various auto detect settings. For procedures on using the Auto Detect feature, refer to [Auto Detect Settings] (

A

B

A

Page 113).

E

C

D

Item Preset Values Description

A IP Lease

䢇 Enable

Disable

T VR-N900U only

For configuring the function to assign IP addresses to each network camera.

Memo :

● In order to assign an IP address of the network camera using the IP Lease feature, you need to enable the DHCP of the network camera. For procedures to enable the DHCP of the network camera, refer to the [INSTRUCRTIONS] of the network camera.

● If a network uses a multiple number of this product, enable [IP Lease] only for one unit. Select ADisableB if a DHCP server is operating on the same network. When the [IP Lease] is enabled for two or more devices at the same time, the IP address may change to a static address, and cause malfunction of the cameras.

F

G

Reference

Page

A Page 113

80

B IP Lease Parameter ^

Start Address ● 192.168.0.100 For specifying the first IP address to be assigned to the

cameras.

Unit ● 20Units

1Unit to 99Units

Subnet Mask ● 255.255.255.0 For specifying the subnet mask for the cameras. Gateway ● 192.168.0.254 For specifying the gateway for the cameras.

DNS Server

Primary ● 192.168.0.253 For specifying the primary DNS for the cameras. Secondry ● 192.168.0.252 For specifying the secondary DNS for the cameras.

Domain Name ^ For specifying the domain name for the cameras.

C Lease Time Limit ● No

Ye s

D Client ● Only Camera

Any Client

E IP Information ^ The [IP Information] list contains information on the [IP

For selecting the number of IP addresses to be assigned to the cameras. The selected number of IP addresses will be assigned starting from the first IP address.

For specifying the valid period of the IP address assigned to the cameras. If AYe s B is selected, you can set the lease time in units of hours. (Setting value: 1 hour to 99 hours)

For selecting whether to apply restrictions on the device when assigning the IP address. If AOnly CameraB is selected, IP address will only be assigned to the corresponding camera. If AAny ClientB is selected, IP address will be assigned to all devices.

address] of the automatically detected camera, MAC address, number of video CH, manufacturer, and model. Click [Auto Detect] to start auto detect and display the result. The camera at the top of the list is used with priority. You can click the Sort button to sort the order of detected cameras. There are five types of sort buttons, including Sort by [IP], Sort by [MAC], Sort by [CH], Sort by [MAKER], and Sort by [MODEL] buttons. Select the detected cameras, followed by clicking the [Up] or [Down] button to change the order of the cameras. Deselect the check box of any camera that you are not using. After doing so, click [Entry]-[OK]. The [Autodetect Device] screen appears. After entering the camera password, the [Camera Record Setting] screen appears. Clicking [Close] automatically creates a Default View. To save this view, change its name.

^

A Page 113 A Page 23

Memo :

● When multicast packets are configured such that they do not pass through the network equipment, such as a switching hub, the Auto Detect of the camera may not function properly.

● [Analog-in] is the built-in analog input of VR-N900U. The highest priority is given to the number of CH used during configuration. (VR-N900U)

● Devices other than the cameras may appear in the list. Uncheck the boxes of these devices.

Note :

● Deselecting the [Analog-in] check box disables the [ALARM IN 1 to 4] signal input terminal at the rear of the unit. (VR-N900U)

F Reserve MAC

Address

G OK/Cancel ^ Clicking this button closes the setup screen, and starts/stops

^ Configure the [Reserve MAC Address] if you want to assign a

specific IP address to the cameras. A specific IP address is always mapped to a MAC address. Enter a value in the [MAC] and [IP] fields, and click [Add] to set the addresses. To cancel the setting, select a displayed MAC and IP address, and click [Del].

the IP address assignment function according to the settings.

^

81

Applications

Main Menu List (continued)

Note :

●

When the ADo not detect in the future.B check box on the [Detect Device] screen is selected during automatic detection, the [Detect Device] screen of the said camera will not appear during subsequent automatic detection operations. You can add the camera manually to enable its detection again. [Adding Cameras] (

A

Page 86)

82

Camera Record Setting

I

A

B

C

D

E

F

G

H

J

K

L

M

N

O

P

Q

Memo :

●

If you are configuring the [PTZ Preset Positions...] settings from the [Settings...] button recording server temporarily using this menu. (APage 90)

M

, do so after stopping the

83

Applications

Main Menu List (continued)

Item Description

A Service Manager...

B Scheduler... C General Settings... D Archive Setup... E Import DLKs... F Matrix...

G Transact... H Exit I Device Manager

J Add Device... K Edit Device... L Remove Device

M Settings...

N I/O Setup... O Event Buttons... P Generic Events... Q I/O Control...

Pressing the [Service Manager...] button opens a small [Service Manager] screen, which enables you to pause/resume the Use this feature when you need to pause the program, such as when configuring PTZ cameras.

Displays the [Scheduler...] screen. Displays the [General Settings] screen. Displays the [Archive Setup] screen. Not used. Settings for using the Milestone XProtect Matrix by Milestone Systems.

A

Recording ServerA recording program.

Memo :

●

For details, refer to the Milestone XProtect Smart Client User’s Manual available on the website of Milestone Systems (http://www.milestonesys.com).

●

The URL address may be subject to changes.

Not used. Closes the [Camera Recording Administator] screen. Displays the list of all added devices and connected cameras, which provides you with a

summarized view of the surveillance system. Starts the [Device Setup Wizard]. Displays the [Edit device settings] screen. For deleting a device selected in the [Device Manager] section I.

Note :

●

If you remove the device, you will not be able to view recorded images. Do not delete devices that are needed to view recorded images subsequently. In this case, select

A

DisabledB under [Camera Monitor Setup] (APage 56) on the [Camera Settings]

screen. To view recorded images, cancel ADisabledB in [Camera Monitor Setup].

For specifying the recording settings for a selected camera or settings for a selected audio device.

Displays the [I/O Setup] screen. Displays the [Event Buttons] screen. Displays the [Generic Events] screen. Displays the [I/O Control] screen.

Reference

Page

A

Page 90

A

Page 53

A

Page 106

A

Page 108

^

A

Page 86

A

Page 87

^

A

Page 55

A

Page 59

A

Page 95

A

Page 99

A

Page 100

A

Page 102

84

Optional Installation

A

B

This section enables you to install camera drivers and additional softwares.

Item Description

A Information on additional

softwares

B Install C Close

Insert the flash memory device with the additional software saved in the root folder and select Optional Installation. The additional software will appear in the list.

Select the additional software and click [Install]. The installer starts up and the software is installed. Closes the [Optional Installation] window .

C

85

Applications

Adding Cameras

To specify settings on camera connection, you first need to add the required devices, such as network cameras or network encoders (IP video servers), to the system. Devices have their own IP addresses and host names. The system identifies the devices based on their IP address or host name.

Memo :

●

Even though each device is managed using a unique IP address or host name, in cases such as when multiple analog cameras are connected to a network encoder (IP video server), a multiple number of cameras may be connected to a single device and thus share the same IP address or host name. Although several cameras are connected to one device in this case, this unit manages the cameras on an individual basis.

●

In addition to the network camera and network encoder (IP video server), you can also add a number of dedicated I/O (input/ output) devices to the system. You can configure and use the event settings for the I/O devices in the same way as cameras.

●

When a device is added to the system, it is listed on the [Camera Recording Administator] screen. To add a new device, follow the procedure below. Firstly, configure the IP address and password of the device according to instructions in the camera manual.

●

You cannot add a camera for which there is user access restriction. For details on access restrictions, refer to the camera’s “Instruction Manual”.

●

If the camera is registered with the user access restriction set to ON, the camera is registered with access restriction and unable to display live images unless the settings are changed.

1 Select [Camera Record Setting] from the main

menu

2 Click [Add Device...]

●

The [Device Setup Wizard] screen appears.

3 Enter the IP address or DNS host name that can

be identified by the system

●

To enter the DNS host name, select the [Use DNS host name] check box and click [Next].

Note :

●

The Ahttp port 80B followed by AFTP port 21B are used by default. To use a different port, click [Port Setup] and specify the required port numbers. You may need to specify a different port if the device is located behind a NAT router or firewall. In this case, configure the router or firewall so that it maps the ports and IP address used by the device.

4 If an administrator password is specified for the

device, enter the password

●

The password is usually set to [root] or [admin].

●

Click [Next] without specifying [Autodetect Device].

5 Enter a unique name for the device that has

been detected

●

The device is listed in the [Device Manager].

6 Click [Finish]

●

To view the list of cameras connected to the device, click the plus (+) sign to the left of the device name.

Memo :

●

The camera names are set as [Camera1], [Camera2], [Camera3], [Camera4], …etc. by default. To change the name of a camera, select the device and click the camera name.

●

The camera number increases in sequence as new cameras are added.

●

Registration of the cameras can also be performed automatically. (APage 113 [Auto Detect Settings])

Analog Cameras (VR-N900U)

In VR-N900U, analog input circuitry is considered a network encoder (IP video server), and the IP address is set to

192.168.201.12. This is registered as Manager of the [Camera Record Setting] screen. Cameras connected to the [VIDEO IN1 to 4] input terminal at the rear correspond to Cameras 1 to 4 of name

A

N900B using the [Edit Device...] button. However, the IP

address

A

192.168.201.12B cannot be changed.

Memo :

●

Audio signals that are input to [AUDIO IN 1/AUDIO IN 2] on the rear panel are allocated as [Audio1] and [Audio2] in [N900](192.168.201.12) on the [Device Manager].

A

[N900](192.168.201.12)B on the Device

A

N900B. You can alter the default

[Device Setup Wizard] Screen

86

Adding an Analog Camera (VR-N900U)

To add an analog camera manually when using VR-N900U, specify

A

192.168.201.12B as the IP address on the [Edit device settings] screen. As no password has been specified, leave the password entry field blank and continue to the next step. Analog cameras are already added on VR-N900U by default.

Editing Device Settings

This section describe the procedures to edit the settings of added devices.

1 Select [Camera Record Setting] from the main

menu

●

The [Camera Recording Administator] screen appears.

[Camera Recording Administator] Screen

2 Select a device in the [Device Manager] section,

and click the [Edit Device...] button

●

The [Edit device settings] screen appears.

A

●

The following items can be specified.

Item Description

A Identify Video Device

Device Type

Detect Device

Device Name

Camera Settings...

Device Serial Number

For selecting the type of device from the list. Click this button to enable automatic

detection of the device type and serial number.

Name used to identify the device. You cannot assign the same name to multiple devices.

Displays the camera setting screen.

Serial number of the device. The 12character MAC address of the device is normally used.

B Network Settings for Video Device

IP-address

Use DNS host name

Default Http Port

Default Ftp Port

Root Password

IP address or DNS host name of the device. Select this check box to identify the device

using the DNS host name instead of its IP address.

Select this check box to allow HTTP traffic to the device through the default port (Port 80). To use another port, deselect the check box and specify the port number in the field to the left of the check box.

Select this check box to allow FTP traffic to the device through the default port (Port 21). To use another port, deselect the check box and specify the port number in the field to the left of the check box.

Enter the password for logging into the device using the root account (also known as Admin or Administrator account).

Memo :

●

If you are using VN-C625U/VN-C655U, an error message does not appear if you have entered a wrong password and clicked OK, but access to the camera may fail, such as not being able to view the live images.

C OK/Cancel

Confirms or cancels the settings.

[Edit device settings] Screen

B

C

87

Applications

PTZ Camera Settings (COM1/COM2)

The [Camera Settings] screen enables you to specify of the information on cameras. The number of configurable parameters available on the [Camera Settings] screen may be limited if the camera does not come with the PTZ features or if the device connected to the network encoder (IP video server) is not a camera. To display the [Camera Settings] screen, click the [Camera Settings...] button on the [Edit device settings] screen.

A

B

C

[Camera Settings]

Item Description

A PTZ Camera Section

Some of the connected cameras are Pna/ Tilt/Zoom cameras

P/T/Z type controlled through COM1/COM2

B Camera List

C Camera Name

D Camera

Number

Select this check box if any of the cameras connected to the network encoder (IP video server) is a PTZ camera. If the PTZ features are not available on the device, the check box is disabled.

For selecting a control method that conforms with the PTZ camera from the list if the PTZ camera is controlled through the COM1 or COM2 port of the network encoder (IP video server). If all the PTZ cameras are not controlled through the COM1 or COM2 port, select

On the camera list, the camera numbers on the device are listed in sequence. For example, the top line corresponds to camera number 1, and the second line corresponds to camera number 2, and so on. To change the camera settings, select a camera number from the list, specify the required information in the following fields, and click the [Apply] button.

Name used to identify the selected camera. Do not assign a camera name that is used by other devices.

Note :

●

For specifying the camera number.

Note :

●

D E F G

A

NoneB.

The “Camera Name” is not the name specified for the camera unit, but for identifying the camera on this unit.

Do not assign a camera number that is used by other cameras.

88

E Camera Type

F Device Port

G Port Addr.

For specifying whether the camera corresponding to the selected number is [Fixed] or [Moveable]. Fixed : Fixed Camera Moveable : PTZ Camera

This option is enabled only if AMoveableB is selected in the [Camera Type] item E. For specifying which control port on the network encoder (IP video server) to use for controlling the PTZ features.

This option is enabled only if AMoveableB is selected in the [Camera Type] item E. Use this option to specify the port address of the camera. The port address is usually set to If the PTZ cameras are serially connected, they are identified by their the port addresses. Refer to the camera’s [INSTRUCRTIONS] for the recommended settings.

[CAMERA CONTROL] Terminal at the Rear of VR-N900U (VR-N900U)

The analog camera acts as a network encoder (IP video server) in the VR-N900U system, and the device name assigned to it is [N900]. The [CAMERA CONTROL] terminal at the rear is assigned as

A

COM1B on the Camera Settings screen.

(

A

Page 88)

A0B

or A1B.

89

Applications

Defining a Preset PTZ Position

Stopping the Recording Server

Stop the recording server before defining the PTZ camera settings.

1 Select [Camera Record Setting] from the main

menu

Display the [PTZ Preset Positions for Device Name] Window

The [PTZ Preset Positions for Device Name] window lets you define preset positions for the PTZ cameras.

1 Select [Camera Record Setting] from the main

menu

2 Select a camera from [Device Manager] and click

[Settings...]

1

2

[Camera Recording Administator] Screen

Main Menu

[Camera Recording Administator] Screen

2 Click the [Service Manager...] button

The [Service Manager] screen appears.

[Service Manager...] Screen

[Camera Settings] Screen

Note :

●

The preset position may be displaced by a few degrees for some cameras.

[PTZ Preset Positions...] Button

3 Click the [Pause] button

Note :

●

Video images and audio sound are not recorded when the recording server is temporarily stopped. Display of live images on the surveillance computer is also turned off.

90

3 Click the [PTZ Preset Positions...] button

●

The [PTZ Preset Positions for Device Name] window appears.

A

B

C

D

[PTZ Preset Positions for Device Name] Window

Note :

●

When using VN-C625U/VN-C655U, the preset position cannot be registered if electronic zoom feature of camera is functioning. Please take note that no error message will be displayed in such case. During PTZ preset setting, turn off electronic zoom in the following operations to prevent registration by mistake.

●

From [PTZ page] of VN-C625U/VN-C655U, set [EZoom Limit] to A1B. For details, refer to [INSTRUCRTIONS] of VN-C625U/VN-C655U.

●

The following configuration options are available in the [PTZ Preset Positions for Device Name] window.

Item Description

A PTZ View

B Preset

Positions

Use preset positions from device

For moving the PTZ camera to the desired position. You can check the position on the screen.

For registering, deleting and testing a PTZ camera position.

This is only applicable to cameras that support this feature. Select this check box to use preset positions defined by the camera or network encoder (IP video server).

Note :

●

To import preset PTZ positions from a device, the preset PTZ positions of this unit first has to be deleted. Note that by doing this you will lose all information on the preset PTZ positions in this unit.

Memo :

●

In order to use preset positions from the camera or network encoder (IP video server) on, the names of the preset positions must contain only alphanumeric characters (space is not allowed). Preset positions with names that contain blank characters cannot be imported.

Set Position Registers the position specified in [PTZ

Edit Name... For editing the preset position name

Test For testing a defined preset position. Select

Delete For deleting the preset position selected in

J/K

C Preset

Position on Events

D Patrolling

View] as the preset position selected in the list.

selected in the list.

the preset position from the list, and click the [Test] button. The result is displayed immediately in [PTZ View].

the list. For moving a preset position selected in the

list upward or downward. For specifying settings to move the PTZ

camera to a preset position when an event occurs.

For configuring PTZ patrolling.

A

Page 93 [Auto PTZ Patrolling])

(

Note :

●

The configurable items may differ according to the camera in use.

91

Applications

Defining a Preset PTZ Position (continued)

Defining a Preset Position

1 Display the [PTZ Preset Positions for Device

Name] window (A Page 90)

Moving to Preset Positions by Events

This feature enables the PTZ camera to move automatically to a preset position when an event occurs.

1 Display the [PTZ Preset Positions for Device

Name] window (A Page 90)

2 Select the [Goto preset on event] check box

under [Preset Position on Events]

3 Click the [Setup...] button

[PTZ Preset Positions for Device Name] Window

2 Move the camera and determine the position

using the [PTZ View]

3 Select an item in the [Preset Positions] list to

register the preset position to.

●

The position at the top of the list corresponds to Preset Position 1.

●

The number of preset positions that can be registered may differ according to the camera in use.

4 Click the [Set Position] button and name the

preset position

2

[PTZ Preset Positions for Device Name] Window

3

4 Select a preset position from the [Available

Preset Positions] list

5 Select an event from [Available Events] 6 Click the [ ] button

●

Doing so copies the selected event to the list on the right. This list shows events that are assigned by the selected preset position.

4 5 6

5 To define another preset position, repeat Steps

2 to 4

92

Memo :

●

To remove the association between a preset position and an event, select the event from the list on the right and click the

button.

JVC LST0728-001C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Getting Started

Features

Contents

Precautions for Proper Use of this Product

Part Names and Functions (VR-N1600U/E)

Part Names and Functions (VR-N900U)
