PARTS LIST
[ KW-XC66 ]
* All printed circuit boards and its assemblies are not available as service parts.
Area suffix
UN ----------------------------Asean
MA025
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
CD mechanism assembly and parts list (Block No.MB)
Cassette mechanism assembly and parts list (Block No.MP)
Electrical parts list (Block No.01~03)

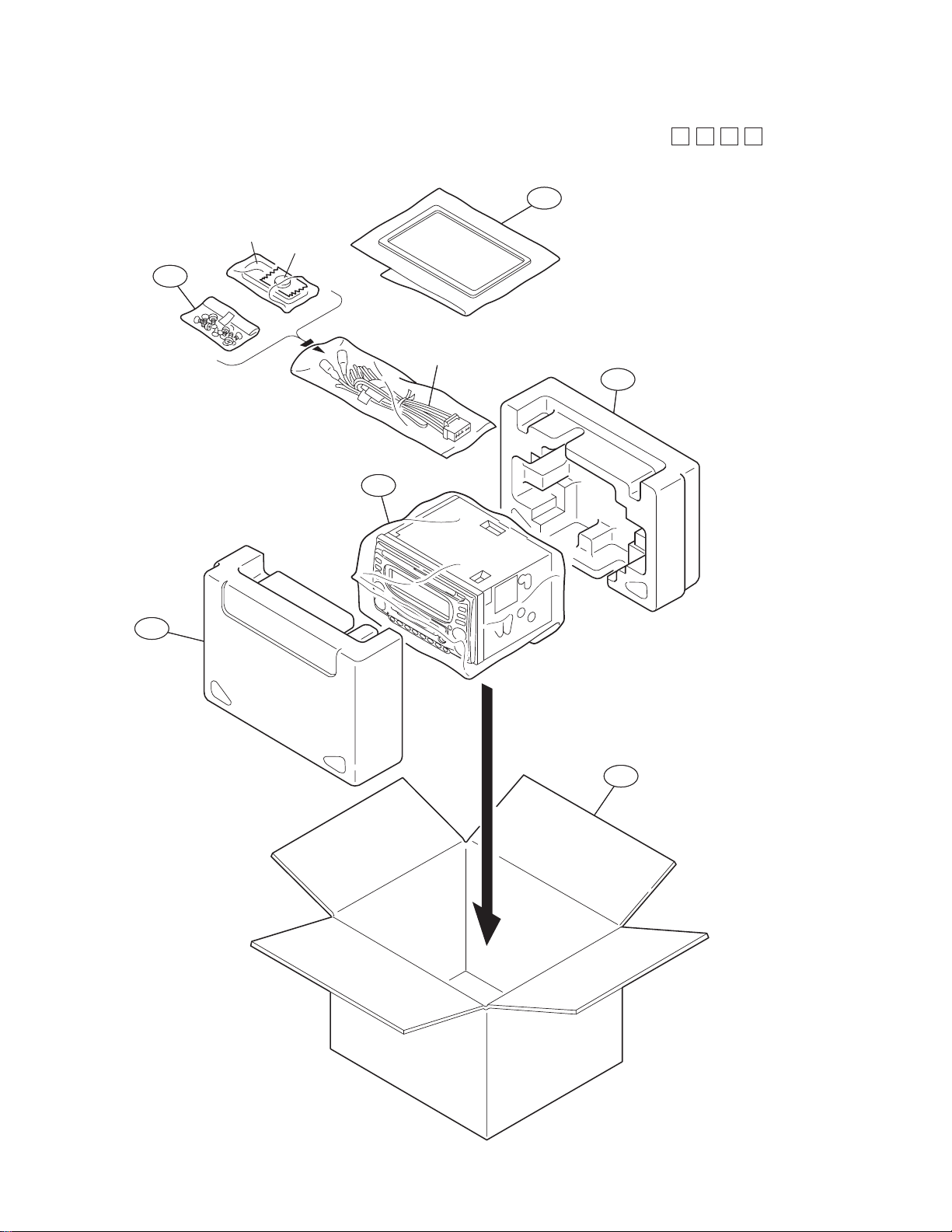

Packing materials and accessories parts list (Block No.M3)
3- 2
3- 4
3- 6
3-10
3-16
3-1
Exploded view of general assmbly and parts list
Block No.
51
a
14
Changer control
board
17
21
16
17
20
17
10
18
55
17
22
17
4
D
a
62
Mecha control board
54
C
53
Main board
15
B
15
15
52
14
c
b
6
12
D
8
13
b
c
12
5
M
13
5
E
5
M
1
M
50
3
11
A
B
7
C
24
61
23
19
24
9
56
58
60
11
45
45
1
2
11
61
45
45
LCD board
47
12
45
45
46
59
46
46
49
39
43
44
28
30
37
38
29
A
Switch board
32
36
35
42
25
48
41
34
33
E
25
26
3-2
40
63
57
31
25
27
General assembly
Block No. [M][1][M][M]
Symbol No.
1 QYSDST2004Z SCREW 2mm x 4mm
2 LV40847-002A SPACER
3 LV21157-001A MECHA BKT(CA)
4 QYSDST2604Z SCREW 2.6mm x 4mm
5 QYSDST2604Z SCREW 2.6mm x 4mm(x4)
6 FSYH4036- 050 SPACER
7 LV10611-003A TOP CHASSIS
8 LV10612-003A BOTTOM CHASSIS
9 LV33135-001A HEAT SINK
10 LV21156-001A REAR BRACKET
11 QYSD ST2604Z SCREW 2.6mm x 4mm(x3)
12 QYS DST2604Z SCREW 2.6mm x 4mm(x4)
13 QYS DST2606Z SCREW 2.6mm x 6mm(x3)
14 QYS DST2606Z SCREW 2.6mm x 6mm(x2)
15 QYS DST2606Z SCREW 2.6mm x 6mm(x3)
16 QYSD ST2610Z SCREW 2.6mm x 10mm
17 QYS DST2606Z SCREW 2.6mm x 6mm(x6)
18 QYSD ST2606Z SCREW 2.6mm x 6mm
19 QYSD ST2610Z SCREW 2.6mm x 10mm
20 QYS DST2606Z SCREW 2.6mm x 6mm(x2)
21 QYS DSF3006Z SCREW 3mm x 6mm
22 QYSD ST2606Z SCREW 2.6mm x 6mm
23 QYS DSP2612Z SCREW M2.6 x 12mm(x2)
24 QYSD ST2610Z SCREW 2.6mm x 10mm(x 2)
25 QYS DST2004Z SCREW 2mm x 4mm(x4)
26 LV33945-005A F.PANEL ASSY
27 LV21403-007A FINDER
28 LV33934-001A BUTTON 1
29 LV33935-001A BUTTON 2
30 LV33936-001A BUTTON 3
31 LV33937-003A BUTTON 4
32 LV21404-001A BUTTON 5
33 LV33938-001A BUTTON 6
34 LV33939-003A BUTTON 7
35 LV33940-001A BUTTON 8
36 LV33941-001A BUTTON 9
37 LV33147-004A CS LID
38 VKW5312-001 DOOR SPR ING
39 LV42673-001A CS LENS
40 LV33942-001A BUTTON HOLDER L
41 LV33943-001A BUTTON HOLDER R
42 LV43265-001A CS GUIDE
43 LV33148-003A DISC GUIDE
44 LV42674-001A BLIND
45 VKZ47 77-005 MINI SCREW (x12)
46 VKZ47 77-003 MINI SCREW (x5)
47 VKZ47 77-003 MINI SCREW (x2)
48 VKZ47 77-003 MINI SCREW (x2)
49 VKZ47 77-003 MINI SCREW
50 LV34546-001A NAME PLATE
51 QUQ110-2107AJ FFC WIRE
52 QUQ110-1512AJ FFC WIRE
53 LV42302-001A POWER IC BKT
54 LV42670-001A REG.IC BRACKET
55 QMF Z 047-150-T FUSE 15A
56 LV33136-002A LIGHTING CASE
57 LV33137-003A LCD CASE
58 LV42671-001A LCD LENS
59 LV33138-001A LED HOLDER
60 LV42672-001A LCD FILTER
61 QNZ0556-001 RUBBER CONNE (x2)
62 VMA4652-001SS EARTH PLATE
63 QLD0229-001 LCD MODULE
Part No. Part Name Description Local
3-3
CD mechanism assembly and parts list
Grease
G-31SA
G-31SA(Bottom side)
RX-405
101
14
12
70
b
90
91
17
16
5
71
15
1
100
7
TN-CCD1001Z-138S
Block No.
M
M
B
M
102
23
49
102
23
101
101
101
20
62
67
62
64
b
a
68
d
c
110
61
72
10
9
13
2
4
100
7
6
8
65
66
11
105
113
88
93
3
80
86
102
c
62
79
22
113
133
101
82
134
81
117
22
108
89
19
18
135
116
92
49
103
84
107
43
36
48
131
56
107
d
107
d
33
106
49
130
29
50
108
32
38
41
40
39
106
132
42
a
104
51
63
107
57
3-4
CD mechanism
Block No. [M][B][M][M]
Symbol No.
1 30310101T FRAME
2 30310103T DANPER PIN (x2)
3 30310107T UPPER PL
4 30310108T SEL STOP PL
5 30310142T SEL ARM (L)L
6 30310143T SEL ARM (R)L
7 30310145T S ARM SPRING(L) (x2)
8 30310112T TRIG LVR
9 30310155T TRIG PL(Z)
10 3031 0115T TRIG PL SPRING
11 3031 0116T TRIG ARM
12 3031 0134T FIX ARM (L )B
13 3031 0159T FIX ARM (R) Z
14 3031 0150T FIX PL (L)Z
15 3031 0156T FIX PL (R) Z
16 3031 0138T LDG GR (6 ) B
17 3031 0122T LDG GR (6 ) S P
18 3031 0148T S.L ARM(N)
19 3031 01 25T S.L ARM SPR IN G
20 3031 01 49T REAR DAM B KT( Z)
22 3031 0151T HUNG U P SP (FZ) (x2)
23 3031 0129T HUNG U P SP (R) (x2)
29 3030 0510T PU GEAR( B )
32 3031 0544T F.M.BASE(Z)
33 3031 0547T FD GR B LK(Z)
36 3031 0546T PU GUID E( Z)
38 3031 0533T THRUS T SPR(M)
39 3031 05 77T PU M NUT(Z- S)
40 30310512T NUT PUSH SPR PL
41 3031 0558T CLP ARM( Z)
42 3031 0514T CLP ARM SPRING
43 3031 0552T CLAMP ER(Z)
48 3031 0557T CLAMPER PLATE(Z
49 3031 0524T DAMPER (J) (x3)
50 3031 0525T CLP ARM SPR (L)
51 3031 0545T F SCREW G UI D E(Z
56 6418 0405T DET SW
57 QAL0230-001 C.D PICK (SONY)
61 30311035T FPC HOLDER( Z)
62 1950 1403T WIRE CL UM PER (x4)
63 30311045T PICK UP FPC(Z -S
64 30311044T CONNECT.PCB(Z-S
65 30311038T WIRE (5P-Z)
66 30311039T WIRE (LD-Z)
67 30311040T WIRE (FD-Z)
68 30311041T WIRE (RS-Z)
70 6418 0402T DET SW (x2)
71 6418 0403T DET SW (x2)
72 6815 0242T CONN EC TO R
79 30311105T SOPPORT PL
80 30311138T GR MT BLK(N)
81 30311109T LDG GR (2)
82 30311110T LDG GR (3)
84 30311112T LDG GR (5)
86 30311136T LDG ROLLER ( x2)
88 30311118T L.P SP (L)
89 30311119T L.P SP (R)
90 30311123T SW PCB
91 30311124T SW ACTR
92 30311129T LDG BELT
93 30311140T FRONT BRKT (J)
100 9C0620503T C B TAP SCREW (x2)
101 9C2020401T C SCREW TS.G (x5)
102 9C4320403T C B TAP SCREW (x4)
103 9C0117223T SCREW (x2)
104 9C0917703T C TAP SCREW S3
105 9C0320201T C TAP SCREW S3
106 9C4920013T C TAP SCREW S3 (x2)
107 9C4920603T C TAP SCREW B3 (x4)
108 9P0220031T TAMS SCREW (x2)
110 9C0420253 C TAP SCREW
113 9W0330276 NW BLUE (x2)
116 9W0725030T LUMILAR W
117 9W0640030T WASHER
Part No. Part Name Description Local
Symbol No.
130 303105310T FEED MO ASSY
131 303105311T SPINDLE MO ASSY
132 303105312T FEED SCREW ASSY
133 303111301T LDG MOTOR ASSY
134 303111302T RDG RLR SFT ASY
135 303105502T T.T.BASE ASSY
Part No. Part N am e Description Local
3-5
Cassette mechanism assembly and parts list
94
24
CDS-802JE3
M
116
4
M
M
P
28
59
17
64
34
108
3
46
27
50
23
63
33
93
65
106
16
39
66
38
32
66
67
91
38
114
25
5
96
73
62
117
35
75
11
7
44
1
114
26
82
10
45
87
84
107
83
86
111
107
37
111
43
114
40
85
47
111
22
51
21
13
110
31
42
61
49
74
113
109
6
109
2
113
41
60
48
72
12
71
3-6
Cassette mechanism
Block No. [M][P][M][M]
Symbol No.
1 X-0802-1009S MAIN CHASSIS AS
2 X-0802-1002S SLIDE CHASSIS A
3 X-0802-1003S SIDE BKT ASSY
4 X-0802-1004S CASSETTE HANGER
5 X-0802-1005S PINCH ARM F ASS
6 X-0802-1006S PINCH ARM R ASS
7 X-0802-1007S GEARBASE LINK A
10 X-0802-2001S M OD E RACK ASSY
11 X-0802 -2002S GEAR BASE ASSY
12 1-0802-6001S FLYWHEEL ASSY F
13 1-0802-6002S FLYWHEEL ASSY R
16 X-0802-7002S SUB MOTOR ASSY
17 X-0802-7004S MAI N M OTO R ASSY
21 1-0802-1002S DIR ECTION PLATE
22 1-0802-1005S DI RE CTION LINK
23 1-0802-1006S CAS SETTE HOLDER
24 1-0802-1011S EJECT CAM LIMIT
25 1-0802-1012S HEA D SU PT SPG
26 1-0802-1013S PINCH SPG ARM
27 1-0802-1014S LOAD ARM
28 1-0802-1015S EJECT CAM PLATE
31 1-0101-2056S IDLE PULLEY(A1)
32 1-0802-2001S CAS SETTE GUIDE
33 1-0802-2004S GEA R BASE ARM
34 1-0802-2006S LOAD RACK
35 1-0802-2007S TAPE GUIDE
37 1-0802-2009S REDUCTION GE ARA
38 1-0802-2010S REEL SPINDLE (x2)
39 1-0802-2011S REEL DRIVER (x2)
40 1-0802-2012S REDUCTION GE ARB
41 1-0802-2013S SPG HO LDER F
42 1-0802-2014S SPG HO LDER R
43 1-0802-2015S MOD E GEAR
44 1-0802-2016S TAKE UP GEAR
45 1-0802-2017S REFLECTOR GEAR
46 1-0802-2018S RACK LINK
47 1-0802-2019S MOD E SW ACTUATR
48 1-0802-2020S FRICTION GEARPL
49 1-0802-2021S FRICTION GEARFF
50 1-0802-2022S CAS SETTE CATCH
51 1-0802-2026S FFC PAD
59 1-0802-4001S EJECT CAM PL SP
60 1-0802-4002S TU SP G
61 1-0802-4003S FF S PG
62 1-0802-4004S PINCH ARM SPG
63 1-0802-4005S HOL DER STAB SPG
64 1-0802-4006S HOLDER CUSH SPG
65 1-0802-4007S GEA R BASE SPG
66 1-0802-4008S REEL DRIVER SP G (x2)
67 1-0802-4013S COMPULSION SPG
71 1-0802-5001S BELT
72 1-0802-5002S FELT 7.5*18.5*1
73 1-0802-5003S AZIMUTH SCREW (x2)
74 1-0802-5004S FELT 11*18.5*1
75 1-0050-5023S WTR E CLAMPER
82 1-0802-7001S REE L PCB DL
83 1-0802-7010S
84 1-0802-7003S SW( M I C M PU11750)
85 1-0802-7016S FLAT CABLE 10P
86 1-0801-7024S PHO TO SENSOR
87 1-0802-7009S SW( M I C M PU12370)
91 1-0802-7007S
93 1-0801-7009-0S M.MOTOR WI R E B
94 1-0801-7009-1S M.MOTOR WI R E R
96 1-0802-7017S JOIN T WIRE ASSY
106 2-1032-0025-C2S SCREW (x2)
107 2-13S2-0025-P2S +PLAIN SCR M2 (x2)
108 2-1112-6035-C2S +PLAIN SCR M2.6
109 2-1816-0032-E8S MYLAR WASHER(S) (x2)
11 0 2- 1812-0032 - D 2S PSW-S 1.2
111 1-0036-5024S PSW(REEL) (x3)
113 2-1821-0040-D1S POLY WASHER (x2)
Part No. Part Name Description Local
SW(MATSUCHITA
ESE22)
HEAD(MI TSUMI P-
5344)
Symbol No.
114 2-1821-0040-D2S PSW-S 2.1 (x3)
116 2-1711-5040-16S E RING
117 2-1031-7030-C2S SCREW (x2)
Part No. Part N am e Description Local
3-7

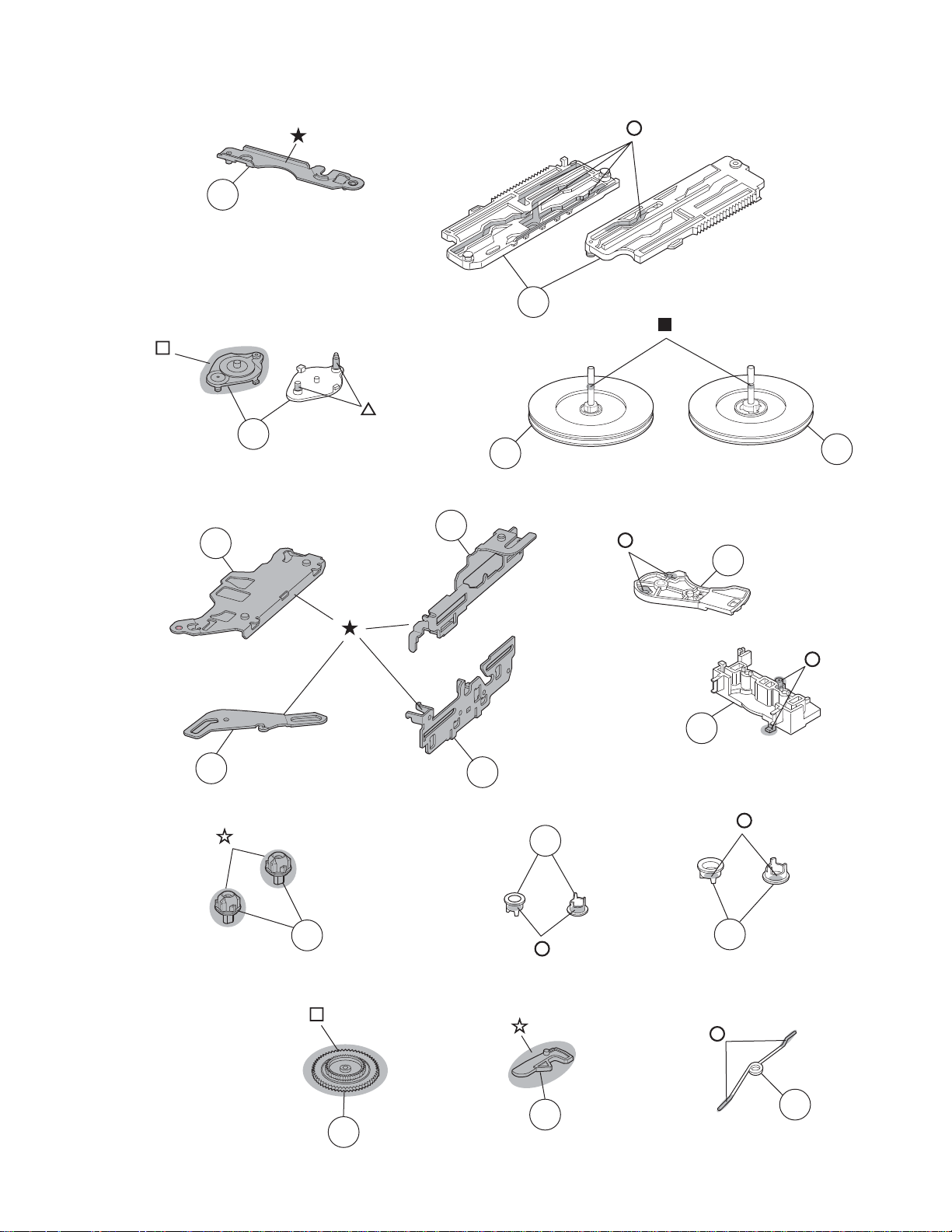

Grease point 1/2
FG-84M
MEA-512R
MEN-223
SW-902
CFD-409
CFD-250H
EP-56
SW-474B
1
3-8
2
5
4
3
6
Grease point 2/2
7
10
21
27
11
24
28
12
13
33
35
41
39
44
46
42
62
3-9
Electrical parts list
Main board
Block No. [0][1][0][0]
Symbol No.
IC21 TB2118F-X PLL IC PLL
IC601 TA2147F-X IC RF amp.
IC621 TC9490FA I C DSP & DAC
IC661 FAN8037 IC CD driver
IC701 UPD784216AGC205 IC
IC761 HD74HC126FP-X IC Buffer
IC791 IC-PST9333U-X IC Regulator
IC901 LA4743K P OWER IC Po w er am p .
IC911 HA13164A IC Regulator
IC951 M61508FP-X IC
IC961 NJM4580V-X IC Ope amp.
Q1 UN2211-X TRANSISTOR
Q2 2SB815/7/-X TRANSISTOR
Q3 2SB815/7/-X TRANSISTOR
Q4 UN2211-X TRANSISTOR
Q81 2SD601A/RS/-X TRANSISTOR
Q91 UN2111-X TRANSISTOR
Q101 2SD1048/6-7/-X TRANSISTOR
Q102 2SD1048/6-7/-X TRANSISTOR
Q201 2SD1048/6-7/-X TRANSISTOR
Q202 2SD1048/6-7/-X TRANSISTOR
Q601 2SB1241/QR/-T TRANSISTOR
Q661 2SB1241/QR/-T TRANSISTOR
Q662 UN2 111-X TRANSISTOR
Q663 UN2 211-X TRANSISTOR
Q691 2SD601A/RS/-X TRANSISTOR
Q701 UN2 211-X TRANSISTOR
Q901 UN2 211-X TRANSISTOR
Q903 UN2 111-X TRANSISTOR
Q911 UN2211-X TRANSISTOR
Q914 2SB709A/QR/-X TRANSISTOR
Q918 UN2 111-X TRANSISTOR
Q919 UN2 211-X TRANSISTOR
Q941 UN2 211-X TRANSISTOR
Q943 UN2 21 3- X DIGI TRANSISTOR
D1 1SS355-X SI DIODE
D2 1SS355-X SI DIODE
D3 MA152WK-X SI DIODE
D81 MA152WK-X SI DIODE
D82 1SS355-X SI DIODE
D83 1SS355-X SI DIODE
D84 RB160M-30-X SB DIODE
D90 1SS355-X SI DIODE
D91 1SS355-X SI DIODE
D92 1SS355-X SI DIODE
D101 MA152WA-X DIODE
D185 UDZS6.2B-X Z DIODE
D201 MA152WA-X DIODE
D691 MA152WK-X SI DIODE
D791 1SS355-X SI DIODE
D901 UDZS11B-X Z DIODE
D902 1SS355-X SI DIODE
D911 1N5404-TU-15 DIODE
D912 RB160M-30-X S B DIODE
D913 RB160M-30-X S B DIODE
D914 1SS355-X SI DIODE
D932 RB160M-30-X S B DIODE
D933 RB160M-30-X S B DIODE
C1 NCB31H K- 103X C CAPACITOR 0.01uF 50V K
C2 NCB31H K- 103X C CAPACITOR 0.01uF 50V K
C4 NCB31H K- 103X C CAPACITOR 0.01uF 50V K
C5 NCB31H K- 103X C CAPACITOR 0.01uF 50V K
C6 QERF1HM-104Z E CAPACITOR 0.1uF 50V M
C8 NCB31H K- 103X C CAPACITOR 0.01uF 50V K
C9 QERF1AM-227Z E CAPACITOR 220uF 10V M
C11 QERF1CM-106Z E CAPACITOR 10uF 16V M
C21 QERF1AM-227Z E CAPACITOR 220uF 10V M
C22 QERF1CM-226Z E CAPACITOR 22uF 16V M
C23 NCB31CK-473X C CAPACIT OR 0.047uF 16V K
Part No. Part Name Description Local
Symbol No.
C24 NCB31HK-102X C CAPACITOR 1000pF 5 0V K
C25 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C26 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C27 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C28 NCB31HK-272X C CAPACITOR 2700pF 5 0V K
C29 QFV61HJ-473Z MF CAPACITOR 0.047uF 50V J
C30 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C31 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C32 QERF1CM-106Z E CAPACITOR 10uF 16V M
C33 NDC31HJ-100X C CAPACITOR 10pF 50V J
C34 NDC31HJ-100X C CAPACITOR 10pF 50V J
C35 NCS31HJ-7R0X C CAPACITOR 7pF 50V J
C36 NCB31HK-102X C CAPACITOR 1000pF 5 0V K
C37 NCB31HK-102X C CAPACITOR 1000pF 5 0V K
C38 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C39 NCS31HJ-470X C CAPACITOR 47pF 50V J
C81 QERF1HM-105Z E CAPACITOR 1uF 50V M
C82 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C83 QERF1CM-226Z E CAPACITOR 22uF 16V M
C84 QERF1HM-224Z E CAPACITOR 0.22uF 50V M
C91 QERF0JM-476Z E CAPACITOR 47uF 6.3V M
C101 QERF1HM-105Z E CAPACITOR 1uF 50V M
C102 QERF1HM-105Z E CAPACITOR 1uF 50V M
C103 NCS31HJ-331X C CAPACITOR 330pF 50V J
C104 NCS31HJ-331X C CAPACITOR 330pF 50V J
C111 NCB31EK-183X C CAPACITOR 0.01 8uF 25V K
C112 QERF1EM-475Z E CAPACIT OR 4.7uF 25V M
C113 NCS31HJ-681X C CAPACITOR 680pF 50V J
C114 QERF1EM-475Z E CAPACIT OR 4.7uF 25V M
C142 QERF1HM-105Z E CAPACITOR 1uF 50V M
C146 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C147 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C148 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C149 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C150 NCS31HJ-101X C CAPACITOR 100pF 50V J
C151 NCS31HJ-821X C CAPACITOR 820pF 50V J
C152 QERF1EM-475Z E CAPACIT OR 4.7uF 25V M
C153 NCS31HJ-121X C CAPACITOR 120pF 50V J
C154 QERF0JM-476Z E CAPACITOR 47uF 6.3V M
C172 QERF1HM-105Z E CAPACITOR 1uF 50V M
C181 QERF1EM-475Z E CAPACIT OR 4.7uF 25V M
C182 QERF0JM-226Z E CAPACITOR 22uF 6.3V M
C183 NCS31HJ-101X C CAPACITOR 100pF 50V J
C191 QERF1HM-105Z E CAPACITOR 1uF 50V M
C201 QERF1HM-105Z E CAPACITOR 1uF 50V M
C202 QERF1HM-105Z E CAPACITOR 1uF 50V M
C203 NCS31HJ-331X C CAPACITOR 330pF 50V J
C204 NCS31HJ-331X C CAPACITOR 330pF 50V J
C211 NCB31EK-183X C CAPACITOR 0.01 8uF 25V K
C212 QERF1EM-475Z E CAPACIT OR 4.7uF 25V M
C213 NCS31HJ-681X C CAPACITOR 680pF 50V J
C214 QERF1EM-475Z E CAPACIT OR 4.7uF 25V M
C242 QERF1HM-105Z E CAPACITOR 1uF 50V M
C246 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C247 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C248 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C249 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C250 NCS31HJ-101X C CAPACITOR 100pF 50V J
C251 NCS31HJ-821X C CAPACITOR 820pF 50V J
C252 QERF1EM-475Z E CAPACIT OR 4.7uF 25V M
C253 NCS31HJ-121X C CAPACITOR 120pF 50V J
C254 QERF0JM-476Z E CAPACITOR 47uF 6.3V M
C272 QERF1HM-105Z E CAPACITOR 1uF 50V M
C281 QERF1EM-475Z E CAPACIT OR 4.7uF 25V M
C291 QERF1HM-105Z E CAPACITOR 1uF 50V M
C601 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C602 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C603 QERF0JM-107Z E CAP AC I TOR 100uF 6.3 V M
C604 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C605 QERF0JM-107Z E CAP AC I TOR 100uF 6.3 V M
C607 NCB31HK-682X C CAPACITOR 6800pF 50V K
C608 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C609 QERF0JM-107Z E CAP AC I TOR 100uF 6.3 V M
C610 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C611 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C612 NCS31HJ-820X C CAPACITOR 82pF 50V J
Part No. Part Name Description Local
3-10
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part N am e Description Local
C613 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C614 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C621 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C622 QERF0JM-107Z E CAPACITOR 100uF 6.3V M
C623 NCS31HJ-470X C CAPACITOR 47pF 50V J
C624 NCB31HK-153X C CAPACITOR 0.015uF 50V K
C625 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C626 NCB31HK-272X C CAPACITOR 2700pF 50V K
C627 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C628 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C629 QERF0JM-107Z E CAPACITOR 100uF 6.3V M
C630 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C631 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C633 NCS31HJ-471X C CAPACITOR 470pF 50V J
C634 NCS31HJ-471X C CAPACITOR 470pF 50V J
C635 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C636 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C637 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C638 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C639 QERF0JM-107Z E CAPACITOR 100uF 6.3V M
C640 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C641 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C642 NDC31HJ-100X C CAPACITOR 10pF 50V J
C643 NDC31HJ-100X C CAPACITOR 10pF 50V J
C644 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C645 QERF0JM-107Z E CAPACITOR 100uF 6.3V M
C646 NCS31HJ-101X C CAPACITOR 100pF 50V J
C647 QERF0JM-476Z E C APACITOR 47uF 6.3V M
C648 QERF0JM-107Z E CAPACITOR 100uF 6.3V M
C649 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C650 QERF1HM-105Z E CAPACITOR 1uF 50V M
C651 QERF0JM-107Z E CAPACITOR 100uF 6.3V M
C652 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C661 QERF1CM-226Z E CAPACITOR 22uF 16V M
C662 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C663 QERF1AM-227Z E CAPACITOR 220uF 10V M
C664 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C701 QERF1AM-227Z E CAPACITOR 220uF 10V M
C702 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C703 NCS31HJ-8R0X C CAPACITOR 8pF 50V J
C704 NDC31HJ-270X C CAPACITOR 27pF 50V J
C705 NDC31HJ-270X C CAPACITOR 27pF 50V J
C706 NDC31HJ-220X C CAPACITOR 22pF 50V J
C708 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C709 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C710 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C714 QEKJ0JM-476Z E CAPACITOR 47uF 6. 3V M
C733 NCS31HJ-101X C CAPACITOR 100pF 50V J
C771 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C783 NCS31HJ-101X C CAPACITOR 100pF 50V J
C784 NCS31HJ-101X C CAPACITOR 100pF 50V J
C791 QERF0JM-476Z E C APACITOR 47uF 6.3V M
C792 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C798 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C799 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C901 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C902 QERF1CM-476Z E CAPACITOR 47uF 16V M
C904 QERF1CM-107Z E CAPACITOR 100uF 16V M
C905 QERF1HM-475Z E CAPACITOR 4.7uF 50V M
C906 QERF1CM-106Z E CAPACITOR 10uF 16V M
C911 QEZ0338-228 E CAPACITOR 2200uF
C913 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C914 QERF1HM-225Z E CAPACITOR 2.2uF 50V M
C915 QERF1CM-226Z E CAPACITOR 22uF 16V M
C916 QERF1CM-226Z E CAPACITOR 22uF 16V M
C917 QERF1CM-226Z E CAPACITOR 22uF 16V M
C918 QERF1AM-227Z E CAPACITOR 220uF 10V M
C919 QERF1CM-106Z E CAPACITOR 10uF 16V M
C920 QERF1AM-227Z E CAPACITOR 220uF 10V M
C921 QERF1CM-226Z E CAPACITOR 22uF 16V M
C922 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C925 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C927 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C928 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C930 QERF1AM-227Z E CAPACITOR 220uF 10V M
C931 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C941 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C942 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C943 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C944 QERF1CM-107Z E CAPACITOR 100uF 16V M
C951 QERF1HM-105Z E CAPACITOR 1uF 50V M
C952 QERF1CM-106Z E CAPACITOR 10uF 16V M
C953 QERF1AM-107Z E CAPACITOR 100uF 10 V M
C954 NBE21AM-106X TA E CAPACITOR 10uF 10V M
C955 QERF1HM-105Z E CAPACITOR 1uF 50V M
C961 QERF1AM-107Z E CAPACITOR 100uF 10 V M
C963 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C974 NCF31EZ-104X C CAPACITOR 0.1uF 25V Z
C981 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C982 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C983 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C984 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C990 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C991 NCS31HJ-101X C CAPACITOR 100pF 50V J
C992 NCS31HJ-101X C CAPACITOR 100pF 50V J
C993 NCS31HJ-101X C CAPACITOR 100pF 50V J
C994 NCS31HJ-101X C CAPACITOR 100pF 50V J
C995 NCS31HJ-101X C CAPACITOR 100pF 50V J
C996 NCS31HJ-101X C CAPACITOR 100pF 50V J
C997 NCS31HJ-101X C CAPACITOR 100pF 50V J
C998 NCS31HJ-101X C CAPACITOR 100pF 50V J
ΩΩ
R1 NRSA63J-470X MG RESISTOR 47
R2 NRSA63J-103X MG RESISTOR 10k
R3 NRSA63J-223X MG RESISTOR 22k
R4 NRSA63J-103X MG RESISTOR 10k
R5 NRSA63J-222X MG RESISTOR 2.2k
R6 NRSA63J-103X MG RESISTOR 10k
R7 NRSA63J-102X MG RESISTOR 1k
R8 NRS181J-8R2X MG RESISTOR 8.2
R9 NRSA63J-103X MG RES ISTOR 10k
R21 NRS181J-220X MG RESISTOR 22
R22 NRSA63J-0R0X M G RESISTOR 0
R23 NRSA63J-0R0X M G RESISTOR 0
R24 NRSA63J-472X MG RESISTOR 4.7k
R25 NRSA63J-222X MG RESISTOR 2.2k
R26 NRSA63J-222X MG RESISTOR 2.2k
R27 NRSA63J-222X MG RESISTOR 2.2k
R28 NRSA63J-222X MG RESISTOR 2.2k
R29 NRSA63J-103X MG RESISTOR 10k
R30 NRSA63J-393X MG RESISTOR 39k
R31 NRSA63J-101X MG RESISTOR 100
R32 NRSA63J-103X MG RESISTOR 10k
R33 NRSA63J-103X MG RESISTOR 10k
R81 NRSA63J-473X MG RESISTOR 47k
R82 NRSA63J-184X MG RESISTOR 180k
R83 NRSA63J-223X MG RESISTOR 22k
R84 NRSA63J-123X MG RESISTOR 12k
R85 NRSA63J-391X MG RESISTOR 390
R86 NRSA63J-102X MG RESISTOR 1k
R87 NRSA63J-274X MG RESISTOR 270k
R101 NRSA63J-0R0X MG RESISTOR 0
R102 NRSA63J-0R0X MG RESISTOR 0
R103 NRSA63J-0R0X MG RESISTOR 0
R104 NRSA63J-0R0X MG RESISTOR 0
R108 NRSA63J-473X MG RESISTOR 47k
R109 NRSA63J-473X MG RESISTOR 47k
R111 NRSA63J-472X MG RESISTOR 4.7k
R115 NRSA63J-123X MG RESISTOR 12k
R121 NRSA63J-203X MG RESISTOR 20k
R122 NRSA63J-203X MG RESISTOR 20k
R131 NRSA63J-102X MG RESISTOR 1k
R132 NRSA63J-102X MG RESISTOR 1k
R133 NRSA63J-332X MG RESISTOR 3.3k
R134 NRSA63J-332X MG RESISTOR 3.3k
R141 NRSA63J-0R0X MG RESISTOR 0
R147 NRSA63J-124X MG RESISTOR 120k
R151 NRSA63J-203X MG RESISTOR 20k
R152 NRSA63J-333X MG RESISTOR 33k
R153 NRSA63J-123X MG RESISTOR 12k
R155 NRSA63J-103X MG RESISTOR 10k
R156 NRSA63J-103X MG RESISTOR 10k
R161 NRSA63J-101X MG RESISTOR 100
R162 NRSA63J-101X MG RESISTOR 100
R171 NRSA63J-0R0X MG RESISTOR 0
R181 NRSA63J-104X MG RESISTOR 100k
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
1/16W J
1/16W J
3-11
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
R182 NRSA63J-10 2X MG RESISTOR 1kΩ 1/16W J
R191 NRSA63J-47 2X MG RESISTOR 4.7k
R201 NRSA63J-0R0X MG RE SISTOR 0
R202 NRSA63J-0R0X MG RE SISTOR 0
R203 NRSA63J-0R0X MG RE SISTOR 0
R204 NRSA63J-0R0X MG RE SISTOR 0
R208 NRSA63J-47 3X MG RESISTOR 47k
R209 NRSA63J-47 3X MG RESISTOR 47k
R211 NRSA63J-47 2X MG RESISTOR 4.7k
R215 NRSA63J-12 3X MG RESISTOR 12k
R221 NRSA63J-20 3X MG RESISTOR 20k
R222 NRSA63J-20 3X MG RESISTOR 20k
R231 NRSA63J-10 2X MG RESISTOR 1k
R232 NRSA63J-10 2X MG RESISTOR 1k
R233 NRSA63J-33 2X MG RESISTOR 3.3k
R234 NRSA63J-33 2X MG RESISTOR 3.3k
R241 NRSA63J-0R0X MG RE SISTOR 0
R247 NRSA63J-12 4X MG RESISTOR 120k
R251 NRSA63J-20 3X MG RESISTOR 20k
R252 NRSA63J-33 3X MG RESISTOR 33k
R253 NRSA63J-12 3X MG RESISTOR 12k
R255 NRSA63J-10 3X MG RESISTOR 10k
R256 NRSA63J-10 3X MG RESISTOR 10k
R261 NRSA63J-10 1X MG RESISTOR 100
R262 NRSA63J-10 1X MG RESISTOR 100
R271 NRSA63J-0R0X MG RE SISTOR 0
R281 NRSA63J-10 4X MG RESISTOR 100k
R282 NRSA63J-10 2X MG RESISTOR 1k
R291 NRSA63J-47 2X MG RESISTOR 4.7k
R601 NRSA63J-82 3X MG RESISTOR 82k
R602 NRSA63J-82 3X MG RESISTOR 82k
R603 NRSA63J-82 3X MG RESISTOR 82k
R604 NRSA63J-82 3X MG RESISTOR 82k
R605 NRSA63J-15 4X MG RESISTOR 150k
R606 NRSA63J-15 4X MG RESISTOR 150k
R607 NRSA02J-22 0X MG RESISTOR 22
R608 NRSA02J-22 0X MG RESISTOR 22
R609 NRSA63J-82 3X MG RESISTOR 82k
R610 NRSA63J-47 3X MG RESISTOR 47k
R611 NRSA63J-10 3X MG RESISTOR 10k
R612 NRSA63J-20 2X MG RESISTOR 2k
R613 NRSA63J-10 2X MG RESISTOR 1k
R614 NRSA63J-27 3X MG RESISTOR 27k
R615 NRSA63J-10 1X MG RESISTOR 100
R616 NRSA63J-82 1X MG RESISTOR 820
R617 NRSA63J-47 3X MG RESISTOR 47k
R620 NRSA63J-10 1X MG RESISTOR 100
R621 NRSA63J-56 2X MG RESISTOR 5.6k
R622 NRSA63J-47 3X MG RESISTOR 47k
R623 NRSA63J-47 4X MG RESISTOR 470k
R624 NRSA63J-33 3X MG RESISTOR 33k
R625 NRSA63J-10 3X MG RESISTOR 10k
R626 NRSA63J-0R0X MG RE SISTOR 0
R627 NRSA63J-10 1X MG RESISTOR 100
R628 NRSA63J-10 1X MG RESISTOR 100
R629 NRSA63J-0R0X MG RE SISTOR 0
R630 NRSA63J-0R0X MG RE SISTOR 0
R631 NRSA63J-10 1X MG RESISTOR 100
R632 NRSA63J-10 1X MG RESISTOR 100
R633 NRSA63J-10 5X MG RESISTOR 1M
R634 NRSA63J-47 2X MG RESISTOR 4.7k
R635 NRSA63J-47 2X MG RESISTOR 4.7k
R636 NRSA63J-47 2X MG RESISTOR 4.7k
R637 NRSA63J-47 2X MG RESISTOR 4.7k
R638 NRSA63J-10 3X MG RESISTOR 10k
R639 NRSA63J-22 2X MG RESISTOR 2.2k
R640 NRSA63J-22 5X MG RESISTOR 2.2M
R661 NRSA63J-33 2X MG RESISTOR 3.3k
R662 NRSA63J-12 2X MG RESISTOR 1.2k
R663 NRSA63J-33 2X MG RESISTOR 3.3k
R664 NRSA63J-18 2X MG RESISTOR 1.8k
R665 NRSA63J-68 2X MG RESISTOR 6.8k
R666 NRSA63J-68 2X MG RESISTOR 6.8k
R667 NRSA63J-68 2X MG RESISTOR 6.8k
R668 NRSA63J-68 2X MG RESISTOR 6.8k
R673 NRSA63J-51 2X MG RESISTOR 5.1k
R674 NRSA63J-62 2X MG RESISTOR 6.2k
R675 NRSA63J-10 3X MG RESISTOR 10k
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/10W J
Ω
1/10W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
Ω
Ω
1/16W J
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
R676 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R691 NRSA63J-103X MG RESISTOR 10k
R694 NRSA63J-473X MG RESISTOR 47k
R704 NRSA63J-102X MG RESISTOR 1k
R705 NRSA63J-821X MG RESISTOR 820
R706 NRSA63J-473X MG RESISTOR 47k
R707 NRSA63J-106X MG RESISTOR 10M
R708 NRSA63J-102X MG RESISTOR 1k
R709 NRSA63J-102X MG RESISTOR 1k
R710 NRSA63J-102X MG RESISTOR 1k
R711 NRSA63J-102X MG RESISTOR 1k
R712 NRSA63J-102X MG RESISTOR 1k
R714 NRSA63J-103X MG RESISTOR 10k
R715 NRSA63J-473X MG RESISTOR 47k
R716 NRSA63J-473X MG RESISTOR 47k
R717 NRSA63J-473X MG RESISTOR 47k
R718 NRSA63J-332X MG RESISTOR 3.3k
R719 NRSA63J-103X MG RESISTOR 10k
R720 NRSA63J-103X MG RESISTOR 10k
R721 NRSA63J-103X MG RESISTOR 10k
R722 NRSA63J-332X MG RESISTOR 3.3k
R723 NRSA63J-332X MG RESISTOR 3.3k
R724 NRSA63J-332X MG RESISTOR 3.3k
R725 NRSA63J-102X MG RESISTOR 1k
R726 NRSA63J-102X MG RESISTOR 1k
R727 NRSA63J-102X MG RESISTOR 1k
R728 NRSA63J-102X MG RESISTOR 1k
R729 NRSA63J-102X MG RESISTOR 1k
R730 NRSA63J-102X MG RESISTOR 1k
R731 NRSA63J-102X MG RESISTOR 1k
R732 NRSA63J-102X MG RESISTOR 1k
R733 NRSA63J-222X MG RESISTOR 2.2k
R734 NRSA63J-222X MG RESISTOR 2.2k
R735 NRSA63J-222X MG RESISTOR 2.2k
R739 NRSA63J-473X MG RESISTOR 47k
R740 NRSA63J-473X MG RESISTOR 47k
R741 NRSA63J-473X MG RESISTOR 47k
R742 NRSA63J-473X MG RESISTOR 47k
R743 NRSA63J-473X MG RESISTOR 47k
R744 NRSA63J-102X MG RESISTOR 1k
R745 NRSA63J-102X MG RESISTOR 1k
R746 NRSA63J-102X MG RESISTOR 1k
R747 NRSA63J-222X MG RESISTOR 2.2k
R752 NRSA63J-102X MG RESISTOR 1k
R753 NRSA63J-102X MG RESISTOR 1k
R754 NRSA63J-331X MG RESISTOR 330
R755 NRSA63J-473X MG RESISTOR 47k
R759 NRSA63J-102X MG RESISTOR 1k
R765 NRSA63J-102X MG RESISTOR 1k
R766 NRSA63J-102X MG RESISTOR 1k
R767 NRSA63J-103X MG RESISTOR 10k
R768 NRSA63J-331X MG RESISTOR 330
R769 NRSA63J-331X MG RESISTOR 330
R770 NRSA63J-331X MG RESISTOR 330
R771 NRSA63J-331X MG RESISTOR 330
R772 NRSA63J-332X MG RESISTOR 3.3k
R773 NRSA63J-473X MG RESISTOR 47k
R774 NRSA63J-223X MG RESISTOR 22k
R775 NRSA63J-104X MG RESISTOR 100k
R776 NRSA63J-473X MG RESISTOR 47k
R777 NRSA63J-101X MG RESISTOR 100
R778 NRSA63J-104X MG RESISTOR 100k
R779 NRSA63J-331X MG RESISTOR 330
R780 NRSA63J-103X MG RESISTOR 10k
R781 NRSA63J-223X MG RESISTOR 22k
R782 NRSA63J-101X MG RESISTOR 100
R783 NRSA63J-473X MG RESISTOR 47k
R784 NRSA63J-223X MG RESISTOR 22k
R787 NRSA63J-473X MG RESISTOR 47k
R789 NRSA63J-473X MG RESISTOR 47k
R790 NRSA63J-102X MG RESISTOR 1k
R791 NRSA63J-473X MG RESISTOR 47k
R792 NRSA63J-222X MG RESISTOR 2.2k
R795 NRSA63J-103X MG RESISTOR 10k
R796 NRSA63J-473X MG RESISTOR 47k
R902 NRSA63J-273X MG RESISTOR 27k
R903 NRSA63J-273X MG RESISTOR 27k
R904 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
3-12
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part N am e Description Local
R907 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R908 NRSA63J-0R0X MG RESISTOR 0
R911 NRS181J-222X MG RESISTOR 2.2k
R912 NRS181J-222 X MG RESISTOR 2.2k
R913 QRE142J-102X C RESISTOR 1k
R914 NRSA63J-912X MG RESISTOR 9.1k
R915 NRSA63J-472X MG RESISTOR 4.7k
R916 NRSA63J-104X MG RESISTOR 100k
R917 NRSA63J-472X MG RESISTOR 4.7k
R918 NRSA63J-473X MG RESISTOR 47k
R921 NRSA63J-562X MG RESISTOR 5.6k
R922 NRSA63J-183X MG RESISTOR 18k
R925 NRSA63J-273X MG RESISTOR 27k
R926 NRSA63J-153X MG RESISTOR 15k
R927 NRSA63J-332X MG RESISTOR 3.3k
R929 NRSA63J-473X MG RESISTOR 47k
R931 NRSA63J-103X MG RESISTOR 10k
R971 NRS181J-0R0 X MG RESI STO R 0
R974 NRSA63J-271X MG RESISTOR 270
R975 NRSA63J-271X MG RESISTOR 270
R976 NRSA63J-0R0X MG RESISTOR 0
R977 NRSA63J-0R0X MG RESISTOR 0
R991 NRSA63J-0R0X MG RESISTOR 0
L1 NQL334J-4R7X COIL 4.7uH J
L21 NQL114K-470X COIL 47uH K
L621 NQL114K-470X COIL 47uH K
L622 NQL114K-470X COIL 47uH K
L624 NQL114K-470X COIL 47uH K
L701 NQL114K-470X COIL 47uH K
L702 NQL114K-101X COIL 100uH K
L781 NQL093K-1R8X COIL 1.8uH K
L782 NQL093K-1R8X COIL 1.8uH K
L911 QQR0703- 0 01 CHO KE COIL
L941 NQL114K-100X COIL 10uH K
L942 NQL114K-470X COIL 47uH K
L999 NQL114K-470X COIL 47uH K
CN601 QGB2027M2-26 X CONNECTOR B-B (1-26)
CN701 QGB1004K1-2 0 CONNECTOR B-B (1-20)
CN702 QGF1016F3-21 CO NNECTOR FFC/FPC (1-21)
CN911 QNZ0002-001 16P CONNECTOR
CN951 QNN0175-001 PIN JA C K
CN971 QNZ0095-001 CONNECTOR
CN972 QGF1016F3-15 CO NNECTOR FFC/FPC (1-15)
CN973 QGF1016F3-21 CO NNECTOR FFC/FPC (1-21)
J1 QNB0100-002 CAR ANT JACK
TH795 NAD0028-103X N TH ERMISTOR 10k
TU1 QAU0223-001 TUNER
X21 QAX 0616-001Z CRY STAL 10.250MHz
X621 QAX0413-001Z CRYSTAL 16.9344MHz
X701 QAX0617-001Z CRYSTAL 12.500MHz
X702 QAX0401-001 CRYSTAL 32.768KHz
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/4W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Front board
Block No. [0][2][0][0]
Symbol No.
IC501 LC75878 W IC LCD driver
IC502 RP M6 938-SV4 IC Remote sensor
Q501 2SB815/7/-X TRANSISTOR
Q502 DTC114EKA-X TRANSISTOR
D501 UDZS9.1B-X Z DIODE
D520 MA152WK-X SI DIODE
D521 SML-310LT/MN/-X LED
D522 SML-310DT/KL/-X LED
D524 SML-310DT/KL/-X LED
D525 SML-310DT/KL/-X LED
D526 SML-310DT/KL/-X LED
D527 SML-310DT/KL/-X LED
D528 SML-310DT/KL/-X LED
Part No. Part Name Description Local
D529 SML-310DT/KL/-X LED
D530 SML-310DT/KL/-X LED
D531 SML-310DT/KL/-X LED
D532 SML-310DT/KL/-X LED
D533 SML-310DT/KL/-X LED
D534 SML-310DT/KL/-X LED
D535 SML-310DT/KL/-X LED
D536 SML-310DT/KL/-X LED
D537 SML-310DT/KL/-X LED
D538 SML-310DT/KL/-X LED
D541 NSPW310BS/BRS/ LED
D542 NSPW310BS/BRS/ LED
D543 NSPW310BS/BRS/ LED
D561 SML-310DT/KL/-X LED
D562 SML-310DT/KL/-X LED
D569 SML-310DT/KL/-X LED
D570 SML-310DT/KL/-X LED
D571 SML-310DT/KL/-X LED
D572 SML-310DT/KL/-X LED
D573 SML-310DT/KL/-X LED
D574 SML-310DT/KL/-X LED
D575 SML-310DT/KL/-X LED
D576 SML-310DT/KL/-X LED
D581 SML-310DT/KL/-X LED
D582 SML-310DT/KL/-X LED
D583 SML-310DT/KL/-X LED
C501 NBE21AM-106X TA E CAPACITOR 10uF 10V M
C502 NBE21AM-106X TA E CAPACITOR 10uF 10V M
C503 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C504 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C505 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C506 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C507 NCS31HJ-681X C CAPACITOR 680pF 50V J
C509 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C511 NCB31HK-472X C CAP ACITOR 4700pF 50V K
C512 NCB31HK-472X C CAPACITOR 4700pF 50V K
C513 NCB31CK-473X C CAPACITOR 0.047uF 16V K
Ω
R501 NRSA63J-471X MG RESISTOR 470
R502 NRSA63J-823X MG RESISTOR 82k
R503 NRSA63J-0R0X MG RESISTOR 0
R508 NRSA63J-103X MG RESISTOR 10k
R509 NRSA63J-470X MG RESISTOR 47
R511 NRSA63J-473X MG RESISTOR 47k
R512 NRSA63J-473X MG RESISTOR 47k
R513 NRSA63J-471X MG RESISTOR 470
R515 NRSA63J-221X MG RESISTOR 220
R516 NRSA63J-221X MG RESISTOR 220
R517 NRSA63J-223X MG RESISTOR 22k
R518 NRSA63J-222X MG RESISTOR 2.2k
R520 NRSA63J-471X MG RESISTOR 470
R521 NRSA63J-122X MG RESISTOR 1.2k
R522 NRSA63J-122X MG RESISTOR 1.2k
R523 NRSA63J-821X MG RESISTOR 820
R524 NRSA63J-821X MG RESISTOR 820
R525 NRSA63J-821X MG RESISTOR 820
R526 NRSA63J-821X MG RESISTOR 820
R527 NRSA63J-561X MG RESISTOR 560
R528 NRSA63J-561X MG RESISTOR 560
R529 NRSA63J-561X MG RESISTOR 560
R530 NRSA63J-561X MG RESISTOR 560
R531 NRSA63J-561X MG RESISTOR 560
R532 NRSA63J-561X MG RESISTOR 560
R533 NRSA63J-561X MG RESISTOR 560
R534 NRSA63J-561X MG RESISTOR 560
R535 NRSA63J-561X MG RESISTOR 560
R536 NRSA63J-561X MG RESISTOR 560
R537 NRSA63J-561X MG RESISTOR 560
R538 NRSA63J-561X MG RESISTOR 560
R539 NRSA63J-561X MG RESISTOR 560
R540 NRSA63J-561X MG RESISTOR 560
R541 NRSA63J-471X MG RESISTOR 470
R542 NRSA63J-471X MG RESISTOR 470
R543 NRSA63J-471X MG RESISTOR 470
R544 NRSA63J-471X MG RESISTOR 470
R545 NRSA63J-471X MG RESISTOR 470
R546 NRSA63J-471X MG RESISTOR 470
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
3-13
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
R551 NRSA63J-62 1X MG RESISTOR 620Ω 1/16W J
R552 NRSA63J-62 1X MG RESISTOR 620
R553 NRSA63J-82 1X MG RESISTOR 820
R554 NRSA63J-12 2X MG RESISTOR 1.2k
R555 NRSA63J-62 1X MG RESISTOR 620
R556 NRSA63J-62 1X MG RESISTOR 620
R561 NRSA63J-56 1X MG RESISTOR 560
R562 NRSA63J-56 1X MG RESISTOR 560
R569 NRSA63J-56 1X MG RESISTOR 560
R570 NRSA63J-56 1X MG RESISTOR 560
R571 NRSA63J-56 1X MG RESISTOR 560
R572 NRSA63J-56 1X MG RESISTOR 560
R573 NRSA63J-56 1X MG RESISTOR 560
R574 NRSA63J-56 1X MG RESISTOR 560
R575 NRSA63J-56 1X MG RESISTOR 560
R576 NRSA63J-56 1X MG RESISTOR 560
R581 NRSA63J-82 1X MG RESISTOR 820
R582 NRSA63J-82 1X MG RESISTOR 820
R583 NRSA63J-82 1X MG RESISTOR 820
R584 NRSA63J-82 1X MG RESISTOR 820
R585 NRSA63J-82 1X MG RESISTOR 820
R586 NRSA63J-82 1X MG RESISTOR 820
R587 NRSA63J-62 1X MG RESISTOR 620
R588 NRSA63J-62 1X MG RESISTOR 620
R589 NRSA63J-82 1X MG RESISTOR 820
R590 NRSA63J-12 2X MG RESISTOR 1.2k
R591 NRSA63J-18 2X MG RESISTOR 1.8k
R592 NRSA63J-30 2X MG RESISTOR 3k
R593 NRSA63J-56 2X MG RESISTOR 5.6k
R594 NRSA63J-62 1X MG RESISTOR 620
R595 NRSA63J-62 1X MG RESISTOR 620
R596 NRSA63J-82 1X MG RESISTOR 820
R597 NRSA63J-12 2X MG RESISTOR 1.2k
R598 NRSA63J-18 2X MG RESISTOR 1.8k
R599 NRSA63J-30 2X MG RESISTOR 3k
CN501 QGB1004J1-20X CONNECTOR B-B (1-20)
PJ501 Q NS0180-002 3.5 JACK
S501 NSW0066-001X TACT SW
S502 NSW0066-001X TACT SW
S503 NSW0066-001X TACT SW
S504 NSW0066-001X TACT SW
S505 NSW0066-001X TACT SW
S511 NSW0 066-001X TACT SW
S512 NSW0066-001X TACT SW
S513 NSW0066-001X TACT SW
S520 NSW0066-001X TACT SW
S521 NSW0066-001X TACT SW
S522 NSW0041-001X TACT SW
S523 NSW0041-001X TACT SW
S524 NSW0041-001X TACT SW
S525 NSW0041-001X TACT SW
S526 NSW0041-001X TACT SW
S527 NSW0041-001X TACT SW
S528 NSW0041-001X TACT SW
S531 NSW0066-001X TACT SW
S532 NSW0066-001X TACT SW
S533 NSW0066-001X TACT SW
S534 NSW0066-001X TACT SW
S535 NSW0066-001X TACT SW
S536 NSW0066-001X TACT SW
S537 NSW0041-001X TACT SW
WR501 QUM024-06BGBG PARA RIBON WIRE
WR502 QUM023-06BGBG PARA RIBON WIRE
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Mecha control board
Block No. [0][3][0][0]
Symbol No.
IC401 CXA2560Q IC
IC402 LB1641 IC DC Motor driver
Part No. Part Name Description Local
Dolby B type noise
reduction sy st em
with play back
equalizer amp .
IC431 UPD789166GB-590 IC CPU
IC432 IC-PST9333U-X IC Regulator
IC461 HD74HC126FP-X IC Buffer
Q402 DTC114EKA-X TRANSI STOR
Q403 2SB1322/RS/-T TRANSISTOR
Q431 DTC114EKA-X TRANSI STOR
Q432 2SD601A/QR/-X TRANSISTOR
D401 MA8047/H/-X Z DIODE
D402 1A3G-T1 SI DIODE
C401 NCS31HJ-101X C CAPACITOR 100pF 50V J
C402 NCS31HJ-101X C CAPACITOR 100pF 50V J
C403 NCS31HJ-101X C CAPACITOR 100pF 50V J
C404 NCS31HJ-101X C CAPACITOR 100pF 50V J
C405 NCS31HJ-101X C CAPACITOR 100pF 50V J
C406 NCS31HJ-101X C CAPACITOR 100pF 50V J
C407 NCS31HJ-101X C CAPACITOR 100pF 50V J
C408 NCS31HJ-101X C CAPACITOR 100pF 50V J
C409 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C410 QFV61HJ-153Z MF CAPACITOR 0.015uF 50V J
C411 QFV61HJ-153Z MF CAPACITOR 0.015u F 50 V J
C412 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C413 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C414 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C416 QFVD1HJ-104Z MF CA PACITOR 0.1uF 50V J
C417 QFVD1HJ-104Z MF CA PACITOR 0.1uF 50V J
C418 NCS31HJ-221X C CAPACITOR 220pF 50V J
C419 QEKJ1HM-474Z E CAPACITOR 0.47u F 50V M
C421 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C422 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C423 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C424 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C425 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C431 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C432 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C433 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C434 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C435 NCS31HJ-220X C CAPACITOR 22pF 50V J
C436 NCS31HJ-220X C CAPACITOR 22pF 50V J
C437 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C438 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C439 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C461 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C491 NCS31HJ-101X C CAPACITOR 100pF 50V J
Ω
R401 NRS181J-681X MG RESISTOR 680
R402 NRSA63J-104X MG RESISTOR 100k
R403 NRSA63J-104X MG RESISTOR 100k
R404 NRSA63J-104X MG RESISTOR 100k
R405 NRSA63J-104X MG RESISTOR 100k
R406 NRSA63J-181X MG RESISTOR 180
R407 NRSA63J-181X MG RESISTOR 180
R412 NRSA63J-101X MG RESISTOR 100
R413 NRSA63J-183X MG RESISTOR 18k
R414 NRSA63J-392X MG RESISTOR 3.9k
R415 NRSA63J-223X MG RESISTOR 22k
R416 NRSA63J-155X MG RESISTOR 1.5M
R417 NRSA63J-103X MG RESISTOR 10k
R418 NRSA63J-153X MG RESISTOR 15k
R420 NRSA63J-124X MG RESISTOR 120k
R421 NRSA63J-0R0X MG RESISTOR 0
R422 NRSA63J-332X MG RESISTOR 3.3k
R423 NRSA63J-473X MG RESISTOR 47k
R424 NRSA63J-222X MG RESISTOR 2.2k
R425 NRSA63J-680X MG RESISTOR 68
R426 NRSA63J-680X MG RESISTOR 68
R432 NRSA63J-473X MG RESISTOR 47k
R433 NRSA63J-473X MG RESISTOR 47k
R435 NRSA63J-473X MG RESISTOR 47k
R437 NRSA63J-473X MG RESISTOR 47k
R438 NRSA63J-473X MG RESISTOR 47k
R439 NRSA63J-473X MG RESISTOR 47k
R440 NRSA63J-473X MG RESISTOR 47k
R441 NRSA63J-473X MG RESISTOR 47k
R442 NRSA63J-473X MG RESISTOR 47k
R443 NRSA63J-222X MG RESISTOR 2.2k
1/8W J
Ω
Ω
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
3-14
Symbol No.
Part No. Part Name Description Local
R444 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R445 NRSA63J-473X MG RESISTOR 47k
R446 NRSA63J-473X MG RESISTOR 47k
R447 NRSA63J-473X MG RESISTOR 47k
R449 NRSA63J-103X MG RESISTOR 10k
R450 NRSA63J-473X MG RESISTOR 47k
R461 NRSA63J-223X MG RESISTOR 22k
R462 NRSA63J-334X MG RESISTOR 330k
R463 NRSA63J-101X MG RESISTOR 100
R464 NRSA63J-104X MG RESISTOR 100k
R465 NRSA63J-223X MG RESISTOR 22k
R466 NRSA63J-104X MG RESISTOR 100k
R467 NRSA63J-103X MG RESISTOR 10k
R468 NRSA63J-331X MG RESISTOR 330
R469 NRSA63J-223X MG RESISTOR 22k
R470 NRSA63J-101X MG RESISTOR 100
R471 NRSA63J-334X MG RESISTOR 330k
R481 NRSA63J-473X MG RESISTOR 47k
R484 NRSA63J-473X MG RESISTOR 47k
VR401 QVP0009-333Z TRI M R ESISTOR 33 k
VR402 QVP0009-333Z TRI M R ESISTOR 33 k
L431 QQL244K -4 R 7Z COIL 4.7uH K
CJ402 QGA2001C1-06 CONNECTOR W-B (1-6)
CN401 QGF1016C1- 15 CONN EC TO R FFC/FPC (1-15)
CN403 QGF1219F1-10 CO NNECTOR FFC/FPC (1-10)
X431 QAX0414-001Z CRYSTAL 4.19430MHz
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
3-15
Packing materials and accessories parts list
P1A1P1
A5
P2
A2A3KIT:
A6
A4
P3
Block No.
A1
P6
M
3
M
M
P5
P4
3-16
Packing
Block No. [M][3][M][M]
Symbol No.
A 1 VJC3300-001SS BLIND PLATE
A 2 QYSDSP5008Z SCREW M5 x 8mm(x8)
A 3 QYSSSP5008Z SCREW M5 x 8mm(x8)
A 4 QAM0397-001 CAR CABLE
A 5 RM-RK31 REMOCON UNIT
A 6 ------------ BA TTER Y
KIT SRW-KW66U SCREW PARTS KIT A2,A3
P 1 FSPG4002-001 POLY BAG
P 2 QPA00801205 POLY BAG 8cm x 12cm
P 3 QPC03 004315P POLY BAG 30cm x 43cm
P 4 LV338 76-001A CAR TON
P 5 LV106 14-001A CUSHI ON
P 6 LV106 15-001A CUSHI ON
Part No. Part Name Description Local
3-17
Loading...
