JVC KD-SX947R User Manual

CD RECEIVER

РЕСИВЕР С ПРОИГРЫBATEЛEM KOMПAKT-ДИCКOB

KD-SX947R

SOUND

ATT

KD-SX947R

For installation and connections, refer to the separate manual.

Указания по установке и выполнению соединений приводятся в отдельной инструкции.

SOURCE

VOL

В соответствии с Законом Российской Федерации “О защите прав потребителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем, в течение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения инструкции по эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее ремонтное обеспечение в специализированном сервисном центре.

Дополнительные косметические материалы к данному товару, поставляемые вместе с ним, могут храниться в течение двух (2) лет со дня его производства.

Срок службы (годности), кроме срока хранения дополнительных косметических материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.

ENGLISH

РУCCKИЙ

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0126-001A

[EE]

Position And Reproduction Of Labels

Bottom panel of the main unit

CAUTION: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE

ENGLISH

Name/Rating plate

Caution:

This product contains a laser component of higher laser class than Class 1.

How to reset your unit

After detaching the control panel, press the reset button on the panel holder using a ball-point pen or a similar tool. This will reset the built-in microcomputer.

TO BEAM. (e)

ADVARSEL: Usynlig laser stråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgåudsættelse for stråling. (d)

VARNING: Osynlig laser- strålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s)

VARO : Avattaessa ja suojalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f)

IMPORTANT FOR LASER PRODUCTS

Precautions:

1.CLASS 1 LASER PRODUCT

2.CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3.CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.

4.CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.

5.CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Note:

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

How to use the MODE button

If you press MODE, the unit goes into functions mode (“MODE” flashes on the upper part of the display). While in functions mode, the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

MO (monaural) indicator lights up.

To use these buttons for original functions again after pressing MODE, wait for 5 seconds without pressing any of these buttons until the functions mode is cleared (“MODE” disappears from the display).

• Pressing MODE again also clears the functions mode.

Time countdown indicator

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

How to reset your unit ............................... 2

How to use the MODE button ................... 2

LOCATION OF THE BUTTONS ............ 4

Control panel ............................................. 4

Remote controller ...................................... 5

Preparing the remote controller ................ 6

BASIC OPERATIONS ....................... 7

Turning on the power ................................ 7

Setting the clock ........................................ 8

RADIO OPERATIONS ...................... 9

Listening to the radio ................................. 9

Storing stations in memory ....................... 11

Tuning in to a preset station ...................... 12

RDS OPERATIONS ......................... 13

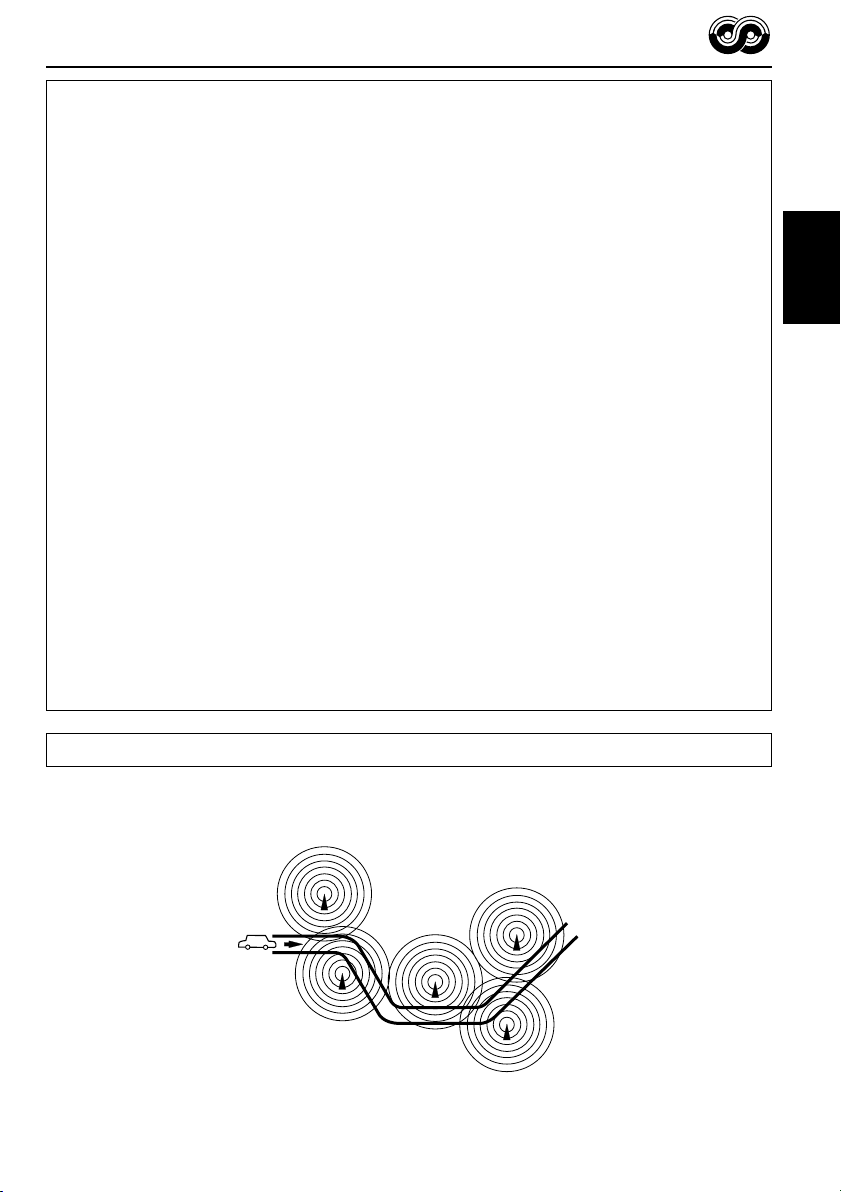

What you can do with RDS ....................... 13

Other convenient RDS functions and

adjustments ............................................ 17

CD OPERATIONS ........................... 20

Playing a CD ............................................. 20

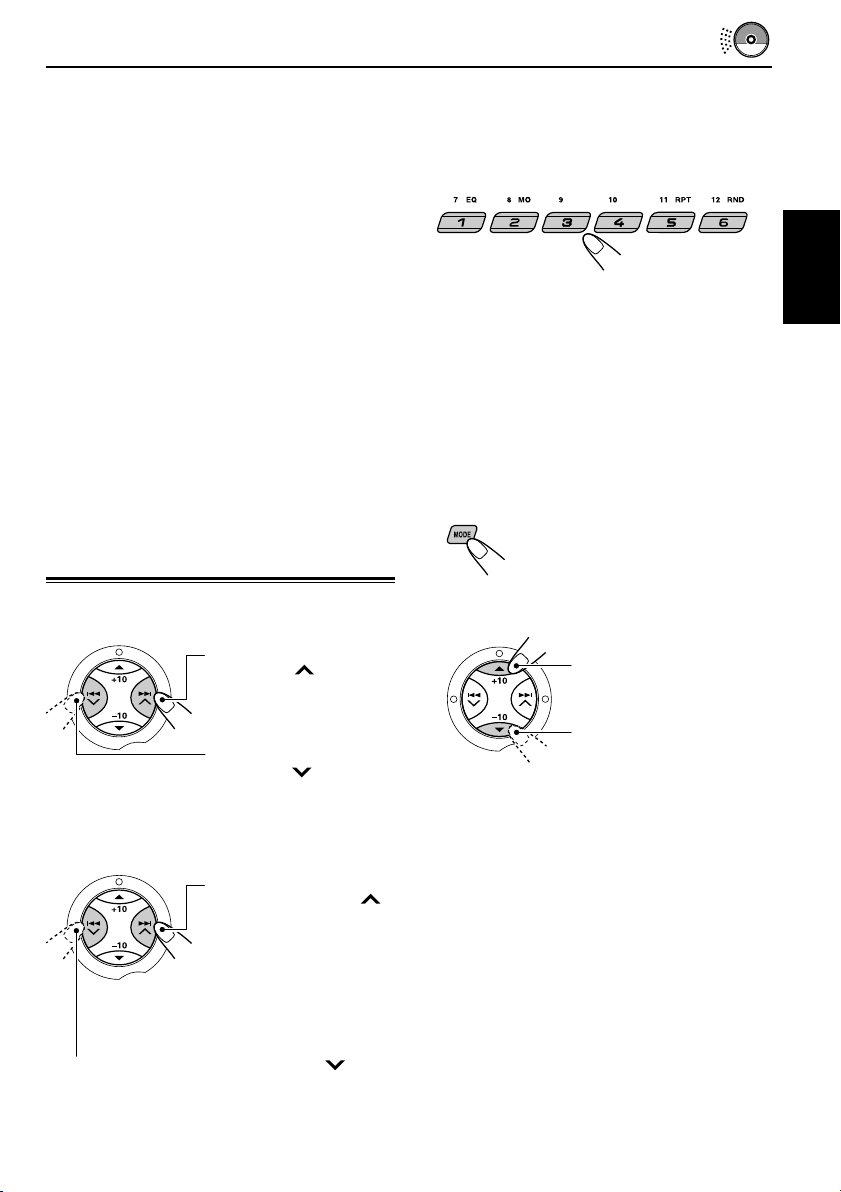

Locating a track or a particular portion

on a CD .................................................. 21

Selecting CD playback modes .................. 22

Playing a CD Text ...................................... 23

Prohibiting disc ejection ............................ 23

MP3 INTRODUCTION ...................... 24

What is MP3? ............................................ 24

How are MP3 files recorded and

played back? .......................................... 24

MP3 OPERATIONS ......................... 26

Playing an MP3 disc ................................. 26

Locating a file or a particular portion on

an MP3 disc ............................................ 27

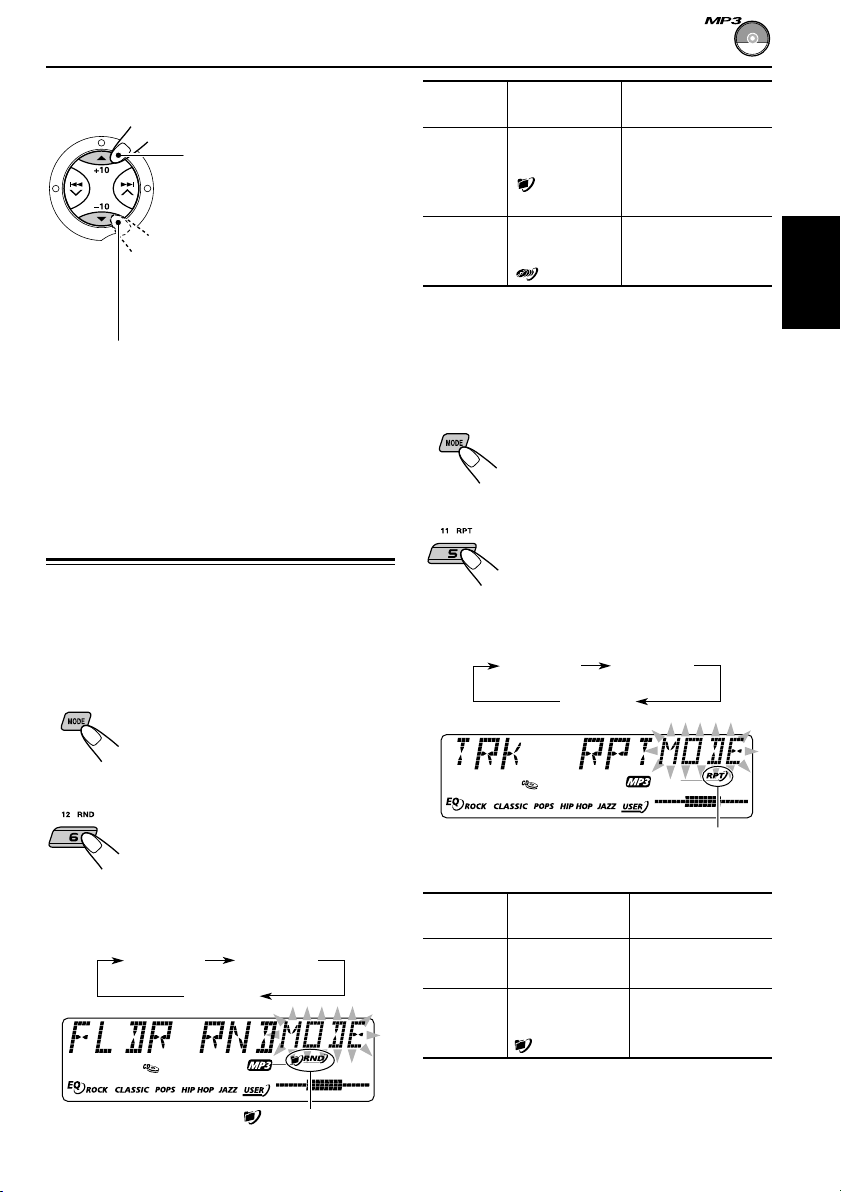

Selecting MP3 playback modes ................ 29

SOUND ADJUSTMENTS ................... 30

Selecting preset sound modes

(C-EQ: custom equalizer) ....................... 30

Adjusting the sound .................................. 31

OTHER MAIN FUNCTIONS ................ 32

Changing the general settings (PSM) ....... 32

Assigning names to the sources ............... 35

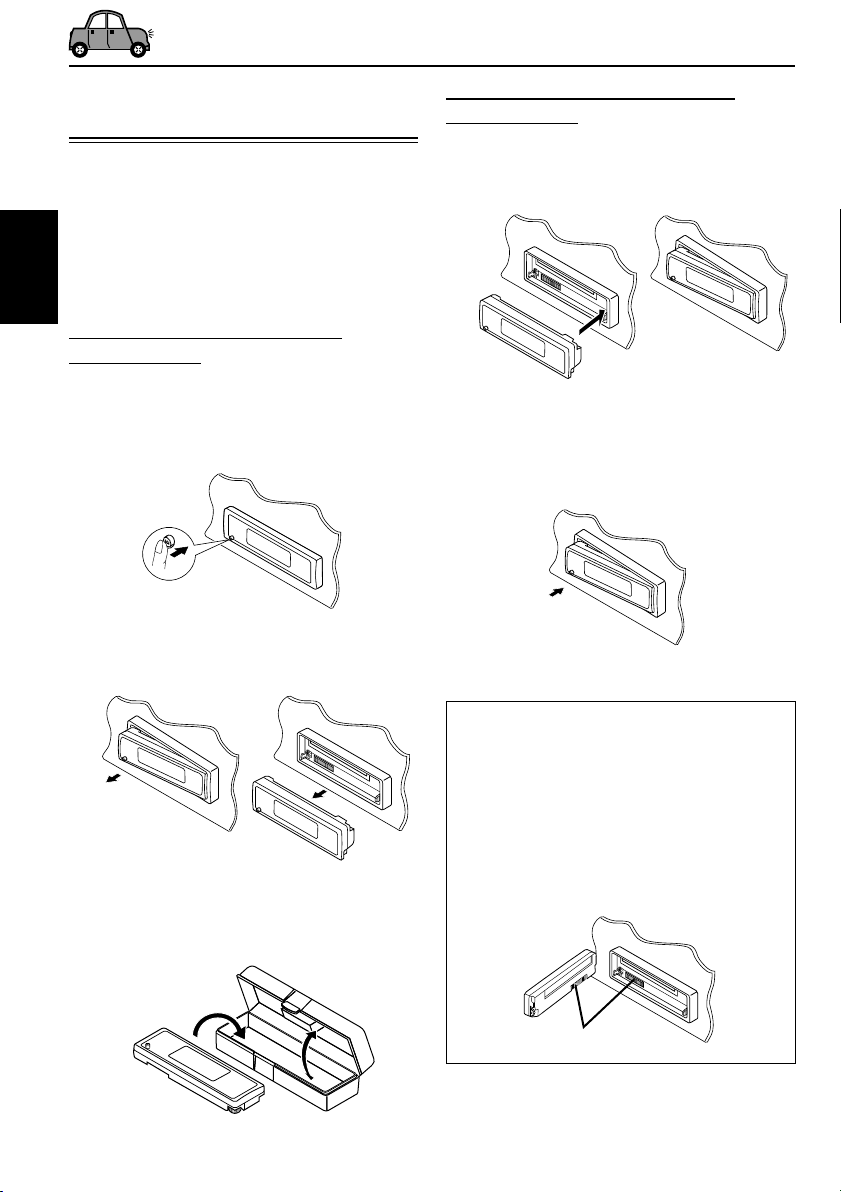

Detaching the control panel ...................... 36

CD CHANGER OPERATIONS .............. 37

Playing discs ............................................. 37

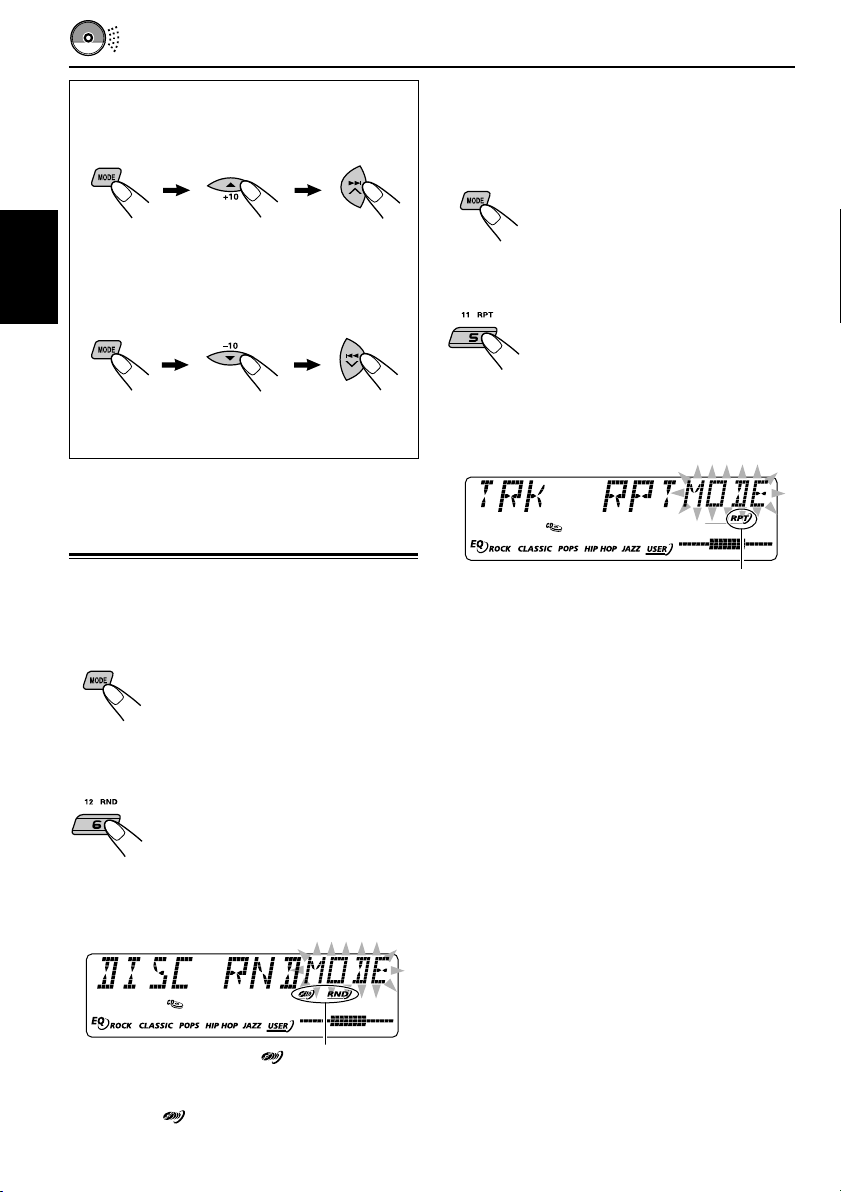

Selecting the playback modes .................. 40

EXTERNAL COMPONENT OPERATIONS

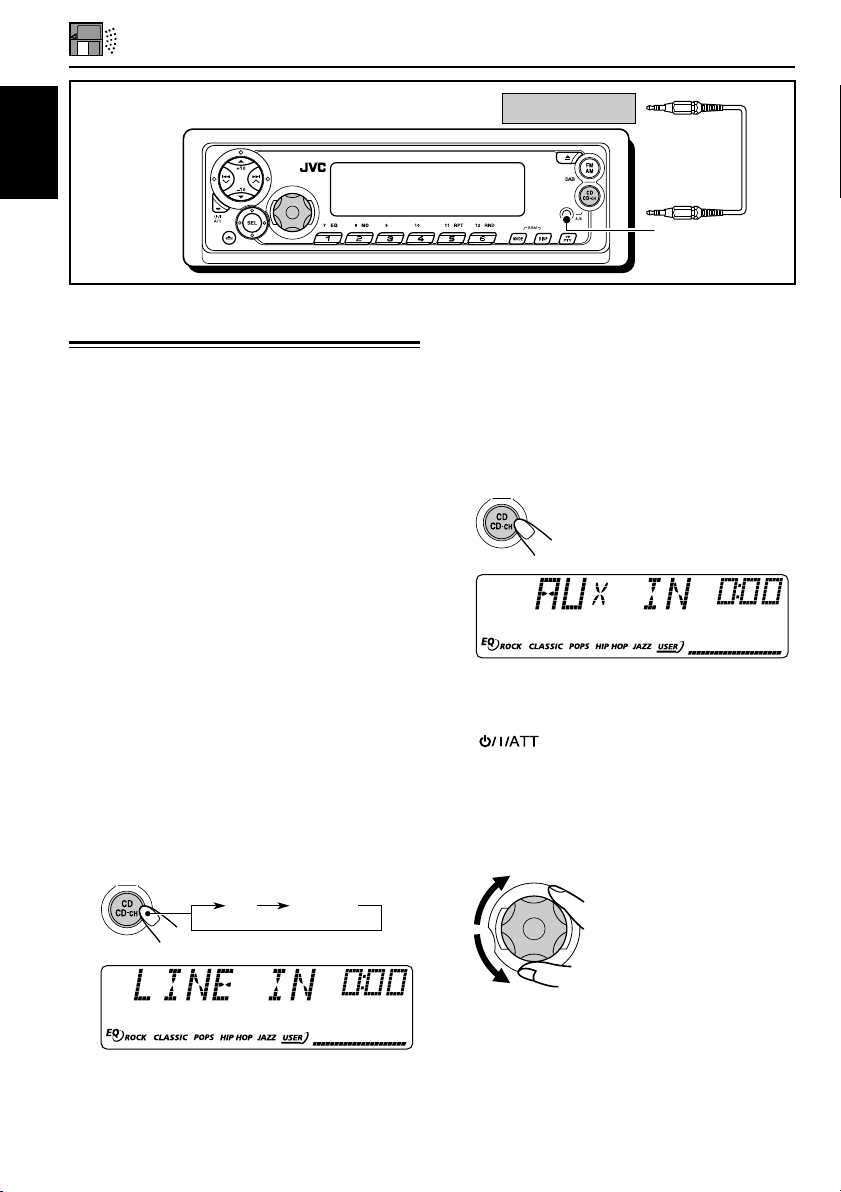

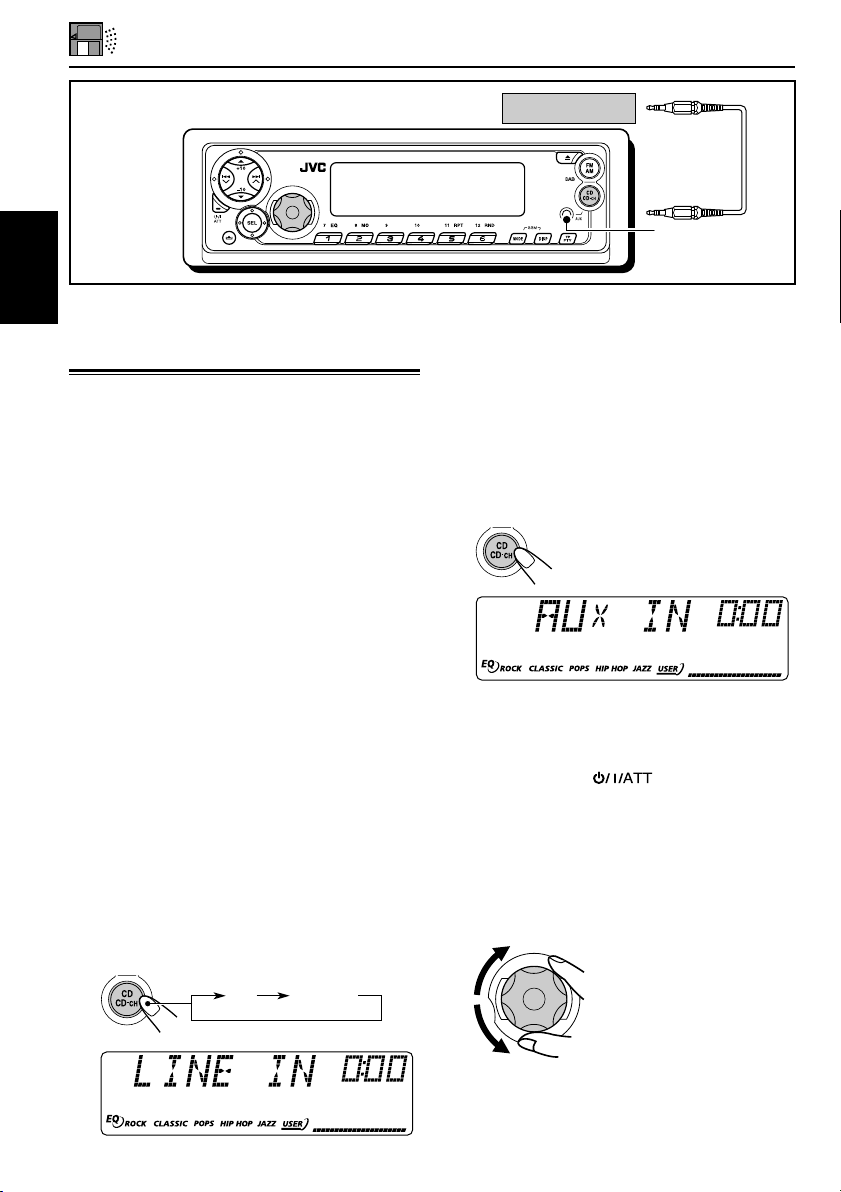

Playing an external component ................. 42

... 42

DAB TUNER OPERATIONS ................ 43

Tuning in to an ensemble and one of the

services .................................................. 43

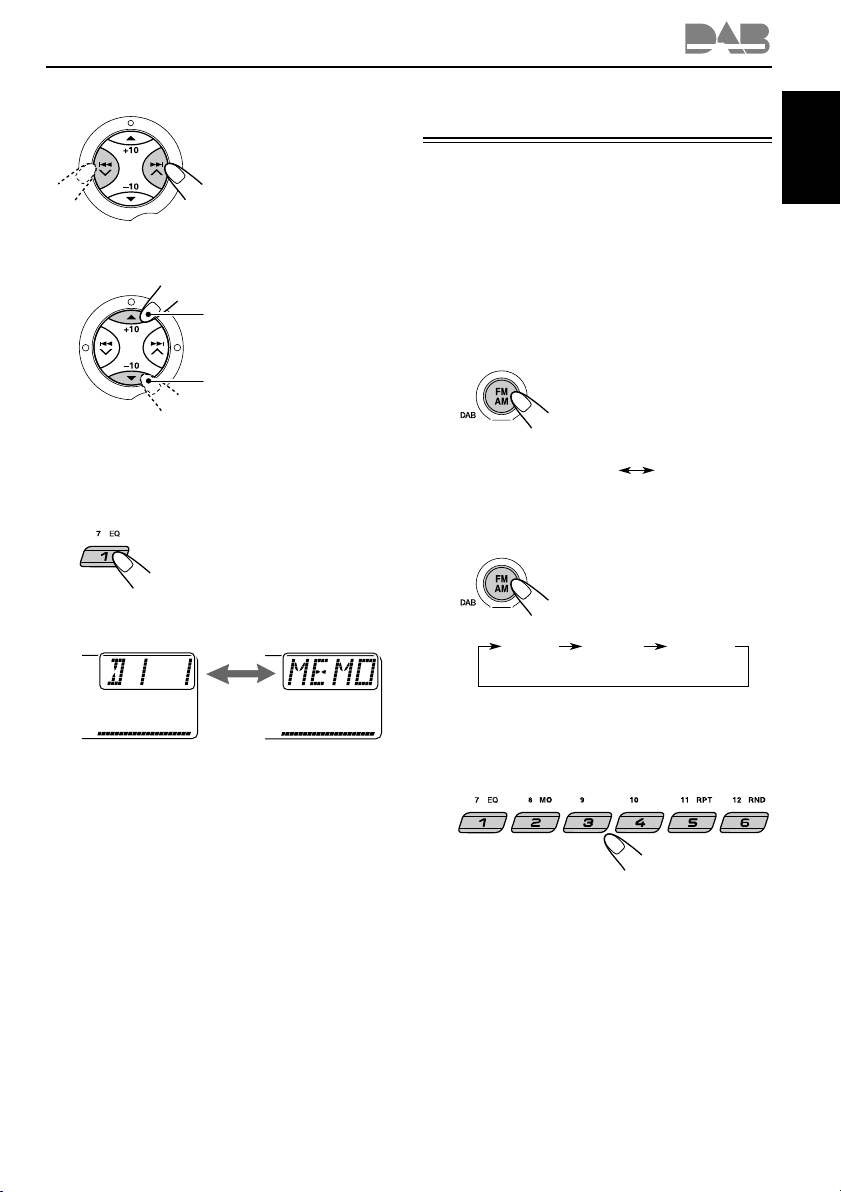

Storing DAB services in memory .............. 44

Tuning in to a preset DAB service ............. 45

What you can do more with DAB .............. 46

TROUBLESHOOTING ...................... 47

MAINTENANCE ............................. 50

Handling discs ........................................... 50

SPECIFICATIONS........................... 51

ENGLISH

BEFORE USE

*For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Control panel

Display window

ENGLISH

LOCATION OF THE BUTTONS

jk l x

1 (standby/on/attenuator) button 2 5 (up) button

+10 button

3 4 /¢ buttons 4 Remote sensor 5 Display window 6 0 (eject) button 7 FM/AM (DAB) button 8 CD CD-CH (CD changer) (AUX: auxiliary) button 9 (control panel release) button p ∞ (down) button

–10 button

q SEL (select) button w Control dial e EQ (equalizer) button r MO (monaural) button t Number buttons y RPT (repeat) button u RND (random) button i MODE button

• Also functions as SSM buttons when pressed together with DISP (display) button.

o DISP (display) button

• Also functions as SSM buttons when pressed together with MODE button.

2 3 67

9 p

w t u iq er o;

5 84

/ z

KD-SX947R

; TP/PTY (traffic programme/programme type)

button

a AUX (auxiliary) input jack

Display window

s Disc information indicators

TAG (ID3 Tag), (folder), (track/file)

d CD–in indicator f Main display g Playback item indicators

(disc), (folder)

h Source/clock display j EQ (equalizer) indicator k Sound mode (C-EQ: custom equalizer)

indicators ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER

l LOUD (loudness) indicator / Tuner reception indicators

MO (monaural), ST (stereo)

z RDS indicators

AF, REG, TP, PTY

x MP3 indicator c Volume (or audio) level indicator

Equalization pattern indicator

v Playback mode indicators

RND (random), RPT (repeat)

Remote controller

ATT

SOURCE

VOL

SOUND

VOL

3 • Selects the preset stations while listening to

the radio (or the DAB tuner). Each time you press the button, the preset station (or service) number increases, and the selected station (or service) is tuned in.

• Skips to the first file of the previous folder while listening to an MP3 disc. Each time you press the button, you can move to the previous folder and start playing the first file.

• While playing an MP3 disc on an MP3compatible CD changer;

– Skips to the previous disc if pressed briefly. – Skips to the previous folder if pressed and

held.

Note:

While playing a CD on a CD changer, this always skips to the previous disc.

4 Functions the same as the control dial on the

main unit.

Note:

These buttons do not function for the preferred setting mode adjustment.

ENGLISH

1 • Turns on the unit if pressed when the unit is

turned off.

• Turns off the unit if pressed and held until “SEE YOU” appears on the display.

• Drops the volume level in a moment if

pressed briefly. Press again to resume the volume.

2 • Selects the band while listening to the radio

(or the DAB tuner). Each time you press the button, the band changes.

• Skips to the first file of the next folder while listening to an MP3 disc. Each time you press the button, you can move to the next folder and start playing the first file.

• While playing an MP3 disc on an MP3compatible CD changer;

– Skips to the next disc if pressed briefly. – Skips to the next folder if pressed and held.

Note:

While playing a CD on a CD changer, this always skips to the next disc.

5 Selects the sound mode (C-EQ: custom

equalizer). Each time you press the button, the sound mode (C-EQ) changes.

6 Selects the source.

Each time you press the button, the source changes.

7 • Searches for stations while listening to the

radio.

• Selects services while listening to the DAB tuner if pressed briefly.

• Searches for ensembles while listening to the DAB tuner if pressed for more than one second.

• Fast-forwards or reverses the track/file if pressed and held while listening to a disc.

• Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

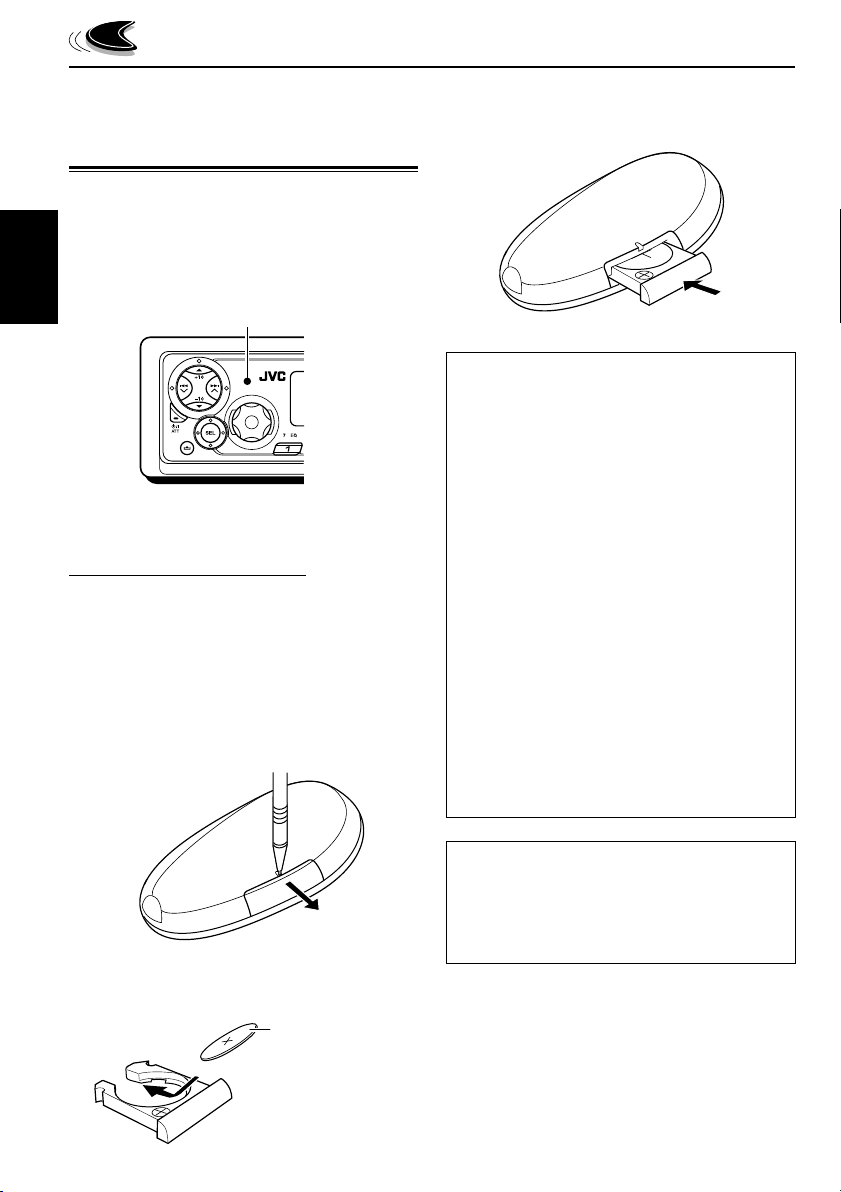

Preparing the remote controller

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no

ENGLISH

obstacle in between.

Remote sensor

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

3. Return the battery holder.

Insert again the battery holder by pushing it until you hear a clicking sound.

(back side)

WARNING:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire. Doing any of these things may cause the battery to give off heat, crack, or start a fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack, or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or start a fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack, or start a fire.

(back side)

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

Lithium coin battery (product number: CR2025)

BASIC OPERATIONS

ENGLISH

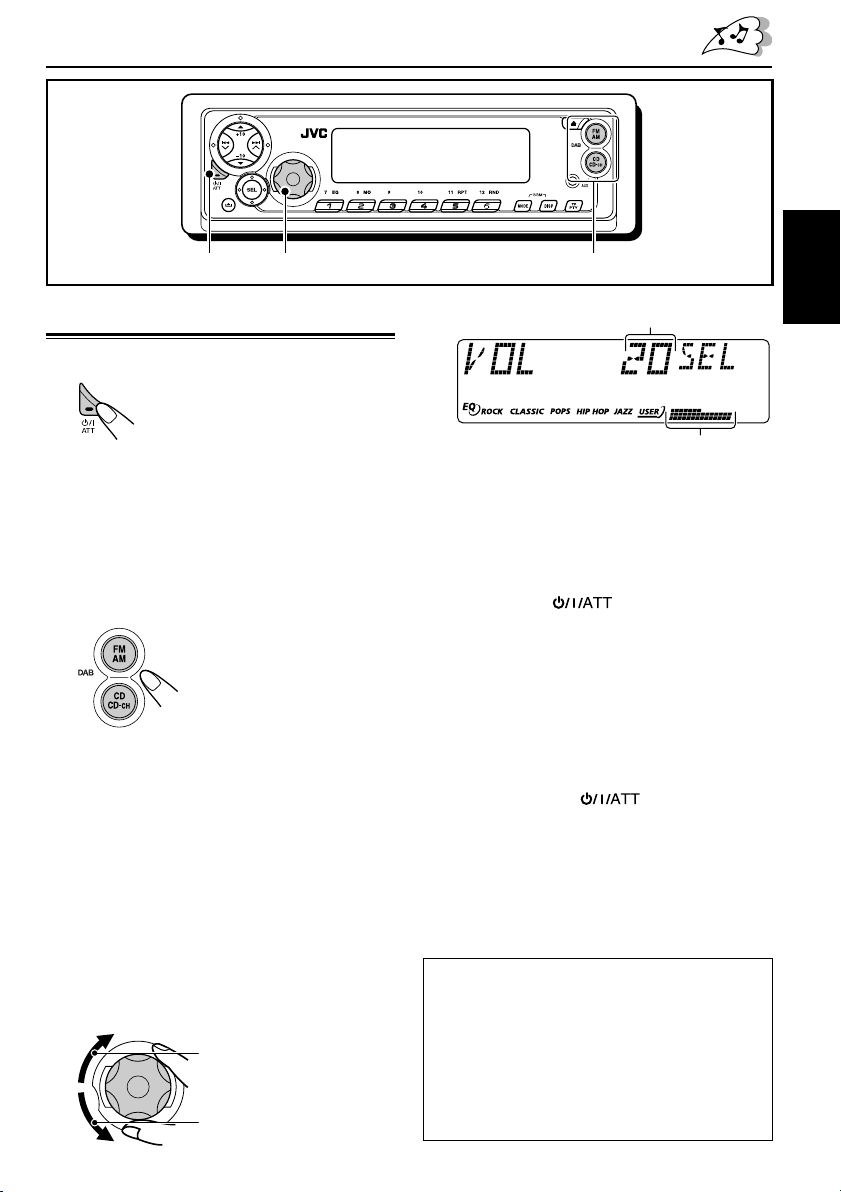

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

To operate the tuner (FM or AM),

see pages 9 – 19.

To play a CD,

see pages 20 – 23.

To play an MP3 disc,

see pages 24 – 29.

To operate the CD changer,

see pages 37 – 41.

To operate the external component

(LINE IN or AUX IN), see page 42.

To operate the DAB tuner,

see pages 43 – 46.

Volume level appears.

Volume (or audio) level indicator

Adjust the sound as you want. (See

(see page 33)

pages 30 and 31.)

To drop the volume in a moment

Press briefly while listening to any source. “ATT” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold for more than one second.

“SEE YOU” appears, then the unit turns off.

• If you turn off the power while listening to a

disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

Adjust the volume.

To increase the volume

To decrease the volume

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

ENGLISH

Setting the clock

You can also set the clock system to either 24 hours or 12 hours.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM item appears on the display. (PSM: see pages 32 and 33.)

Set the hour.

1 Select “CLOCK H” (hour) if not shown on

the display.

2 Adjust the hour.

Set the clock system.

1 Select “24H/12H.” 2 Select “24H” or “12H.”

Finish the setting.

Note:

To show the clock time on the display, see page 33.

To check other information during play, press DISP (display).

Set the minute.

1 Select “CLOCK M” (minute). 2 Adjust the minute.

Each time you press the button, the other information will be shown on the upper part of the display. (See page 33 for details.)

• Pressing DISP (display) with the unit turned off will show the clock time for about 5 seconds.

RADIO OPERATIONS

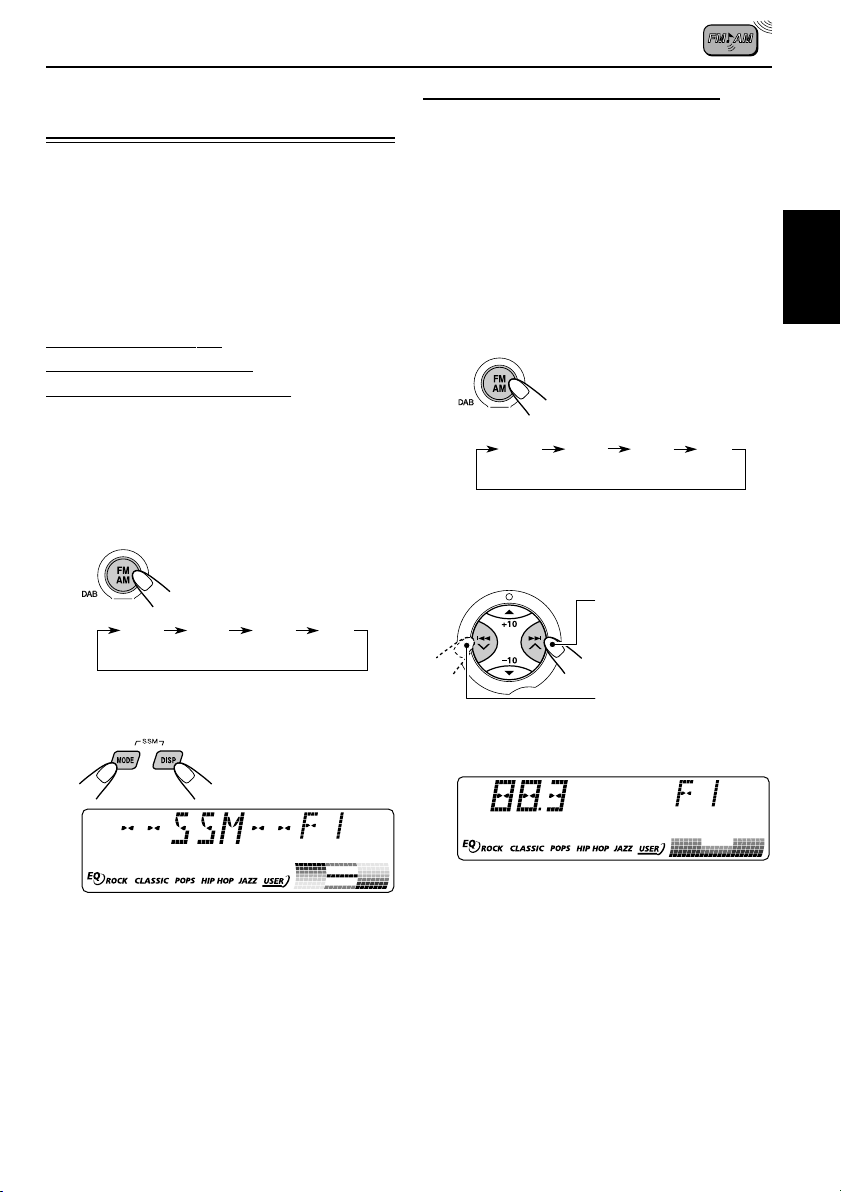

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching a station automatically: Auto search

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM 1

(F1)

FM 2

(F2)

FM 3

(F3)

Selected band appears*.

A M

Start searching a station.

To search stations of higher frequencies

To search stations of lower frequencies

When a station is received, searching stops.

To stop searching before a station is received,

press the same button you have pressed for searching.

Note:

FM1 and FM2: 87.5 MHz – 108.0 MHz

FM3: 65.00 MHz – 74.00 MHz

ENGLISH

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

* When “CLOCK” is set to “ON” (see page 33),

the current indication will soon change to the clock time.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Searching a station manually: Manual search

Select the band (FM1 – 3, AM).

ENGLISH

Each time you press the button, the band changes as follows:

When an FM stereo broadcast is hard to receive:

1 Press MODE to enter the

functions mode while listening to an FM stereo broadcast. “MODE” flashes on the upper part of the display.

FM 1

(F1)

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Press and hold ¢ or 4

FM 2

(F2)

FM 3

(F3)

until “MANU” (manual) starts flashing on the display.

Tune in to a station you want while “MANU” (manual) is flashing.

To tune in to stations of higher frequencies

A M

2 Press MO (monaural), while

“MODE” is still flashing on the display, so that the MO indicator lights up on the display. Each time you press the button, the MO indicator lights up and goes off alternately.

MO (monaural) indicator

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

To tune in to stations of lower frequencies

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

• If you hold down the button, the frequency keeps changing—in 50 kHz intervals (87.5 MHz — 108.0 MHz for FM 1 and FM

2), in 30 kHz intervals (65.00 MHz — 74.00 MHz for FM 3) and 9 kHz for AM—MW/LW until you release the button.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strongstation Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

FM 1

(F1)

Press and hold both buttons for more than 2 seconds.

FM 2

(F2)

FM 3

(F3)

A M

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

Ex.: Storing FM station of 88.3 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

FM 1

(F1)

Tune in to a station (in this example, of 88.3 MHz).

FM 2

(F2)

FM 3

(F3)

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

A M

ENGLISH

“- -SSM- -” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3). These stations are preset in the number buttons —No.1 (lowest frequency) to No.6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

CONTINUED ON THE NEXT PAGE

Press and hold the number button (in this example, 1) for more than 2 seconds.

ENGLISH

Selected band/preset number and “MEMO” (memory) appear alternately for a while.

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see “Storing stations in memory” on pages 11 and 12.

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM 1

(F1)

Select the number (1 – 6) for the preset station you want.

FM 2

(F2)

FM 3

(F3)

A M

RDS OPERATIONS

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “Enhanced Other Networks.” By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favorite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favorite programme

• PTY (Programme Type) search

• Programme search

• And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on page

19.)

Two types of the RDS data are used to make Network-Tracking Reception work correctly—PI (Programme Identification) and AF (Alternative Frequency). Without receiving these data correctly from the RDS station you are listening to, NetworkTracking Reception will not operate.

To use Network-Tracking Reception

You can select the different modes of networktracking reception to continue listening to the same programme in its finest reception. When shipped from the factory, “AF” is selected.

• AF: Network-Tracking Reception is activated with Regionalization set to “off.” With this setting, the unit switches to another station within the same network when the receiving signals from the current station become weak. (In this mode, the programme may differ from the one currently received.) The AF indicator lights up but the REG indicator does not.

• AF REG: Network-Tracking Reception is activated with Regionalization set to “on.” With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the receiving signals from the current station become weak. Both the AF indicator and the REG indicator light up.

• OFF: Network-Tracking Reception is deactivated. Neither the AF indicator nor the REG indicator lights up.

REG indicatorAF indicator

Note:

If a DAB tuner is connected and Alternative Reception (for DAB services) is activated, Network-Tracking Reception (“AF”) is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception. (See page 46.)

ENGLISH

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 32 and 33.)

ENGLISH

Select “AF-REG” (alternative frequency/regionalization reception) if not shown on the display.

Select the desired mode—“AF,” “AF REG,” or “OFF.”

Finish the setting.

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station, CD, or other connected components).

• TA Standby Reception will not work if you are listening to an AM station.

Press TP/PTY to activate TA Standby Reception.

7 When the current source is FM, the TP

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby

Reception is activated. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 18) and the traffic announcement can be heard.

• If the TP indicator flashes, TA Standby

Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

7 When the current source is other than FM,

the TP indicator lights up. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically changes the source and tunes in to the station.

To deactivate the TA Standby Reception,

press TP/PTY again. The TP indicator disappears.

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source (another FM station, CD, or other connected components).

• PTY Standby Reception will not work if you are listening to an AM station.

You can select your favorite programme type for PTY Standby Reception. When shipped from the factory, PTY Standby Reception is turned off. (“OFF” is selected for PTY Standby Reception.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 32 and 33.)

Select “PTY STBY” (standby) if not shown on the display.

7 When the current source is FM, the PTY

indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception. To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

7 When the current source is other than FM,

the PTY indicator lights up. If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

To deactivate the PTY Standby Reception,

select “OFF” in step 3 on the left column. The PTY indicator disappears.

ENGLISH

Select one of the twenty-nine PTY codes. (See page 19.)

Selected code name appears on the display and is stored into memory.

Finish the setting.

Searching your favorite programme

You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons.

ENGLISH

When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favorite programme types, see below. To search your favorite programme type, see page 17.

POP M

CLASSICS

To store your favorite programme types

Press and hold TP/PTY for more than 2 seconds while listening to an FM station.

ROCK M EASY M

AFFAIRS

VARIED

Select one of the twenty-nine PTY codes. (See page 19.)

Selected code name appears on the display.

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

Selected preset number and “MEMO” (memory) appear alternately.

Press and hold TP/PTY for more than 2 seconds to exit from this mode.

The last selected PTY code appears.

To search your favorite programme type

Press and hold TP/PTY for more than 2 seconds while listening to an FM station.

The last selected PTY code appears.

To select one of your favorite programme type

To select any one of the twenty-nine PTY-codes

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Other convenient RDS functions and adjustments

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in. However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

• The unit takes some time to tune in to another station using programme search.

ENGLISH

Preset number appears only if you select a PTY code using the number buttons.

Ex.: When “ROCK M” is selected

Press ¢ or 4 to start PTY search for your favorite programme.

To activate programme search, follow the

procedure below.

• See also “Changing the general settings (PSM)” on page 32.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select

“P(Programme)-SEARCH.”

3 Turn the control dial clockwise to select “ON.”

Now programme search is activated.

4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same

procedure and select “OFF” in step 3 by turning the control dial counterclockwise.

Changing the display mode while listening to an FM station

You can change the initial indication on the display to station name (PS NAME) or station

ENGLISH

frequency (FREQ) while listening to an FM RDS station.

• See also “Changing the general settings (PSM)” on page 32.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TU DISP”

(tuner display).

3 Turn the control dial to set to the desired

indication (“PS NAME” or “FREQ”).

4 Press SEL (select) to finish the setting.

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings (PSM)” on page 32.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TA VO L”

(volume).

3 Turn the control dial to set to the desired

volume. You can set it from “VOL 00” to “VOL 50.”

4 Press SEL (select) to finish the setting.

Note:

By pressing DISP (display), you can change the display while listening to an FM RDS station. Each time you press the button, the following information appears on the display:

Station name

(PS NAME)

Station frequency

(FREQ)

Programme type

(PTY)

• Then, the display goes back to the original indication in several seconds.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

• See also “Changing the general settings (PSM)” on page 32.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “AUTO

ADJ” (adjustment).

3 Turn the control dial counterclockwise to

select “OFF.” Now automatic clock adjustment is canceled.

4 Press SEL (select) to finish the setting.

To reactivate clock adjustment, repeat the same

procedure and select “ON” in step 3 by turning the control dial clockwise.

Note:

You must stay tuned to the same station for more than 2 minutes after setting “AUTO ADJ” to “ON.” Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

PTY codes

NEWS: News AFFAIRS: Topical programmes expanding

on current news or affairs

INFO: Programmes which impart

advice on a wide variety of

topics SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or

regional culture SCIENCE: Programmes on natural

science and technology VARIED: Other programmes like

comedies or ceremonies POP M: Pop music ROCK M: Rock music EASY M: Easy-listening music LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information FINANCE: Reports on commerce, trading,

the Stock Market, etc.

CHILDREN: Entertainment programmes for

children SOCIAL: Programmes on social activities RELIGION: Programmes dealing with any

aspect of belief or faith, or the

nature of existence or ethics PHONE IN: Programmes where people can

express their views either by

phone or in a public forum TRAVEL: Programmes about travel

destinations, package tours, and

travel ideas and opportunities LEISURE: Programmes concerned with

recreational activities such as

gardening, cooking, fishing, etc. JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from

another nation or region, in that

country’s language OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programmes dealing with factual

matters, presented in an

investigative style

ENGLISH

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1 broadcasting on frequency E

Programme 1 broadcasting on frequency D

ENGLISH

CD OPERATIONS

Refer to “MP3 OPERATIONS” on pages 26 to 29 for operating MP3 discs.

Playing a CD

Open the control panel.

Notes:

• When an external component is connected to the AUX input jack on the control panel, be careful of handling a CD.

• When a CD is already in the loading slot, pressing CD CD-CH (AUX) turns on the unit and starts playback automatically.

Insert a CD into the loading slot.

The unit turns on, draws the CD and starts playback automatically.

Close the control panel by hand.

All tracks will be played repeatedly until you stop playback.

The display changes to show the following:

Current source indication*CD–in indicator

Total playing time of the inserted disc

Elapsed playing time

* When “CLOCK” is set to “ON” (see page 33),

the current indication will soon change to the clock time.

Notes:

• When a CD is inserted upside down, the CD automatically ejects (if the control panel is open). If the control panel is closed, the source changes to the previously selected source, “PLEASE” and “EJECT” appear alternately on the display.

• When you open the control panel by pressing 0, the CD automatically ejects.

• If there is no CD in the loading slot, you cannot select CD as the source. “NO DISC” appears on the display.

• If a disc is a CD Text, disc title/performer and then track title will automatically appear.

Total track number of the inserted disc

Current track

To stop play and eject the CD

Press 0. CD play stops and the control panel flips down. The CD automatically ejects from the loading slot. The source changes to the previously selected source.

• If you change the source, CD play also stops (without ejecting the CD). Next time you select “CD” as the source, CD play starts from where playback has been stopped previously.

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc play will not start this time.)

• You can eject the disc even when the unit is turned off.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold ¢ , while playing a CD, to fast-forward the track.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

ENGLISH

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To go to a track quickly (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing a CD.

“MODE” flashes on the upper part of the display.

2 Press +10 or –10.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

Press and hold 4 , while playing a CD, to reverse the track.

To go to the next or previous tracks

Press ¢ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

* The first time you press +10 or –10 button,

the track skips to the nearest higher or lower track with a track number of multiple

ten (ex. 10th, 20th, 30th). Then each time you press the button, you can skip 10 tracks (see “How to use the +10 and – 10 buttons” on page 22).

• After the last track, the first track will be

selected, and vice versa.

CONTINUED ON THE NEXT PAGE

How to use the +10 and –10 buttons

• Ex. 1: To select track number 32 while playing track number 6

ENGLISH

(Three times)

Track 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select track number 8 while playing track number 36

(Three times) (Twice)

Track 36 \ 30 \ 20 \ 10 \ 9 \ 8

(Twice)

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

1 Press MODE to enter the

functions mode while playing a CD. “MODE” flashes on the upper part of the display.

2 Press RPT (repeat), while “MODE”

is still flashing on the display, so that “TRK RPT” appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

You can play back all tracks on the CD at random.

1 Press MODE to enter the

functions mode while playing a CD. “MODE” flashes on the upper part of the display.

2 Press RND (random), while

“MODE” is still flashing on the display, so that “DISC RND” appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

(disc) and RND indicators

When disc random play is turned on, the and RND indicators light up on the display. A track randomly selected starts playing.

RPT indicator

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

Playing a CD Text

Prohibiting disc ejection

In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown automatically when you play a CD Text.

To change the CD Text information manually, select text display mode while playing a CD Text.

Each time you press the button, the display changes as follows:

Disc title / performer

Track title

( lights up on the display)

Elapsed playing time and

Current track number

Notes:

• The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 34. Some characters or symbols will not be shown (and will be blanked) on the display. (Ex. “ABCå!d#” ]“ABCA D ”)

• When you press DISP (display) while playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

You can prohibit disc ejection and can lock a disc in the loading slot.

ENGLISH

While pressing CD CD-CH (AUX), press and hold for more than 2 seconds.

“NO EJECT” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc

While pressing CD CD-CH (AUX), press and hold

again for more than 2 seconds. “EJECT OK” flashes on the display for about 5 seconds, and the disc is unlocked.

MP3 INTRODUCTION

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10

ENGLISH

(128 Kbps*). That means, by using MP3 format, one CD-R or CD-RW can contain 10 times as much data volume as a regular CD can.

* Bit rate is the average number of bits that one

second of audio data will consume. The unit used is Kbps (1024 bits/second). To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

This unit is incorporated with an MP3 decoder. You can play back MP3 files (tracks) recorded on CD-Rs, CD-RWs, and CD-ROMs.

Compatible with ID3v1 (Version 1)

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3 file.

This unit can show ID3v1 (Version 1) tags (album name, performer name, and song title) on the display. (See page 27.)

• Some characters cannot be shown correctly.

• This unit is not compatible with ID3v2 (Version 2).

Other main features in this unit:

• Maximum number of folders/files: 289 (Total)

• Available characters for folder/file names: A–Z, 0–9, _ (underscore)

• Maximum number of characters for file name (ISO 9660 Level 1): 12 (inclusive of

separation mark—“.” and extension code —“mp3”)

(ISO 9660 Level 2): 31 (inclusive of

separation mark—“.” and extension code —“mp3”)

(Joliet): 64 (inclusive of

• Maximum number of characters for folder name: 64

separation mark —“.” and extension code —“mp3”)

Precautions when recording MP3 files on a CD-R or CD-RW

This unit can only read MP3 files that are recorded in the format that is compliant with ISO 9660 Level 1, Level 2, or Joliet.

How are MP3 files recorded and played back?

MP3 “files (tracks)” can be recorded in “folders” —in PC terminology. During recording, the files and folders can be arranged in a way similar to arranging files and folders of computer data. “Root” is similar to the root of a tree. Every file and folder can be linked to and be accessed from the root.

Playback order, file search order, and folder search order of the MP3 files recorded on a disc are determined by the writing (or encoding) application; therefore, playback order may be different from the one you have intended while recording the folders and the files.

The illustration on the next page shows an example of how MP3 files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• The unit can read a CD-ROM containing MP3 files. However, if non-MP3 files are recorded together with MP3 files, this unit will take a longer time to scan the disc. It may also cause the unit to malfunction.

• The unit cannot read or play an MP3 file without the extension code—mp3.

• This player is not compatible with the data encoded with Layer 1 and Layer 2 formats.

• The unit is not compatible with Playlist**.

**A playlist is a simple text file, used on a PC, which

enables users to make their own playback order without physically rearranging the files.

MP3 folder/file configuration

Level 1

Level 2

Level 3

1 2

Hierarchy

Level 4

Level 5

Level 6

ROOT

3 4

: Root

: Folders

5 6

ROOT

ENGLISH

05 09

1110 2120

06 07

1312

15 1614

2322 24

: MP3 files

Note:

There is no limit on the number of the hierarchy levels (nested folders). However, up to 8 hierarchy levels is recommended for stable operations.

MP3 playback/search order

• The numbers in circles below the MP3 files ( ) indicate the playback order and search order of the MP3 files. Normally, this unit plays back MP3 files in the recorded order.

• The numbers inside the folders indicate the playback order and search order of the folders on an MP3 disc. Normally, this unit plays back MP3 files in the folders in the recorded order.

ENGLISH

MP3 OPERATIONS

Refer also to “CD OPERATIONS” on pages 20 to

23.

Playing an MP3 disc

Open the control panel.

Notes:

• When an external component is connected to the AUX input jack on the control panel, be careful of handling a disc.

• When a CD is already in the loading slot, pressing CD CD-CH (AUX) turns on the unit and starts playback automatically.

Insert an MP3 disc into the loading slot.

The unit turns on, draws the disc and starts playback automatically.

The display changes to show the following:

Current source

CD–in indicator

Total folder number

Ex.: When the disc contains 19 folders

and 144 MP3 files

* When “CLOCK” is set to “ON” (see page 33),

the current indication will soon change to the clock time.

Total file number

MP3 indicator

indication*

Close the control panel by hand.

All files will be played repeatedly until you stop playback.

Notes:

• MP3 discs require a longer readout time. (It differs due to the complexity of the folder/file configuration.)

• When playback starts, folder and file names (or ID3 tags) will automatically appears. (See also page 27.)

• If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc play starts from where playback has been stopped previously.

To stop play and eject the disc

Press 0. Playback stops and the control panel flips down. The disc automatically ejects from the loading slot.

To change the display information

While playing back an MP3 file, you can change the MP3 disc information shown on the display.

Each time you press DISP (display), the display changes to show the following:

• When “TAG DISP” is set to “TAG ON” (initial setting: see pages 34 and 35)

Album name / performer

(folder name*)

(TAG lights up on the display)

Locating a file or a particular portion on an MP3 disc

For “MP3 playback/search order” see page 25.

To fast-forward or reverse the file

Press and hold ¢ while playing an MP3 disc, to fast-forward the file.

Press and hold 4 while playing an MP3 disc, to reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

ENGLISH

Track title (file name*)

(TAG lights up on the display)

Elapsed playing time and

Current file number

* If an MP3 file does not have ID3 tags, folder

name and file name appear. In this case, the TAG indicator will not light up on the display.

• When “TAG DISP” is set to “TAG OFF”

Folder name

( lights up on the display)

File name

( lights up on the display)

Elapsed playing time and

Current file number

Note:

The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 34.

To skip to the next or previous files

Press ¢ briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next files is located and played back.

Press 4 briefly while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back.

To go to a particular file quickly within the current folder (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing an MP3 disc.

ENGLISH

2 Press +10 or –10.

* The first time you press +10 or –10 button,

the file skips to the nearest higher or lower file with a file number of multiple ten (ex.

10th, 20th, 30th). Then each time you press the button, you can skip 10 files (see “How to use the +10 and

–10 buttons” below).

• After the last file, the first file will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select file number 32 while playing

File 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select file number 8 while playing

“MODE” flashes on the upper

part of the display.

To skip 10 files* forwards to the last file

To skip 10 files* backwards to the first file

file number 6

(Three times)

file number 36

(Twice)

To go to a particular folder directly

IMPORTANT:

To directly select the folders using the number button(s), it is required that folders are assigned 2 digit numbers at the beginning of their folder names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If folder name is “01 ABC”

= Press 1 to go to Folder 01 ABC.

If folder name is “1 ABC,” pressing 1 does not work.

If folder name is “12 ABC” = Press and hold 6 (12) to go to Folder

12 ABC.

Press the number button corresponding to the folder number to start playing the first file in the selected folder.

• To select a folder number from 01 – 06: Press 1 (7) – 6 (12) briefly.

• To select a folder number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Notes:

• If “MP3” flashes on the display after you have selected a folder, it means that the folder does not contain any MP3 files.

• You cannot directly select a folder with a number greater than 12.

To select a particular file in a folder, press

¢ or 4 after selecting the folder.

(Three times) (Twice)

File 36 \ 30 \ 20 \ 10 \ 9 \ 8

To skip to the next or previous folder

Press 5 (up) while playing an MP3 disc to skip to the next folder. Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).

Mode

FLDR RND and RND All files of the

DISC RND and RND All files on the disc.

Active

indicator

indicators current folder, then light up. files of the next

indicators light up.

Plays at random

folder and so on.

ENGLISH

Press ∞ (down) while playing an MP3 disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder is located (and the first file in the folder starts playing, if recorded).

Note:

If the folder does not contain any MP3 files, it is skipped.

Selecting MP3 playback modes

To play back files at random (Folder Random/Disc Random Play)

You can play back all files of the current folder or all files on the MP3 disc at random.

1 Press MODE to enter the functions

mode while playing an MP3 disc. “MODE” flashes on the upper part of the display.

2 Press RND (random), while “MODE”

is still flashing on the display, so that “FLDR RND” or “DISC RND” appears on the display. Each time you press the button, the random play mode changes as follows:

DISC RNDFLDR RND

Canceled

To play back files repeatedly (Track Repeat/Folder Repeat Play)

You can play back the current file or all the files in the current folder repeatedly.

1 Press MODE to enter the functions

mode while playing an MP3 disc. “MODE” flashes on the upper part of the display.

2 Press RPT (repeat), while “MODE”

is still flashing on the display, so that “TRK RPT” or “FLDR RPT” appears on the display. Each time you press the button, the repeat play mode changes as follows:

TRK RPT FLDR RPT

Canceled

RPT indicator

Ex.: When you select “TRK RPT”

Mode

TRK RPT RPT indicator The current (or

FLDR RPT and RPT All files of the

Active

indicator

lights up. specified) file.

indicators current (or light up. specified) folder.

Plays repeatedly

(folder) and RND indicators

Ex.: When you select “FLDR RND”

SOUND ADJUSTMENTS

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode (C-EQ:

ENGLISH

custom equalizer) suitable to the music genre.

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press MODE to enter the functions mode.

“MODE” flashes on the upper part of the display.

Press EQ (equalizer) while “MODE” is still flashing on the display.

The last selected sound mode is recalled and applied to the current source.

Indication For: Preset values

BAS TRE LOUD

USER (Flat sound) 00 00 OFF

ROCK Rock or +03 +01 ON

disco music

CLASSIC Classical +01 –02 OFF

music

POPS Light music +04 +01 OFF

HIP HOP Funk or rap +02 00 ON

music

JAZZ Jazz music +02 +03 OFF

Note:

You can adjust each sound mode to your preference. Once you make an adjustment, it is automatically stored for the currently selected sound mode. See “Adjusting the sound” on page 31.

Sound mode indicator flashes.

Ex.: If you have selected “USER” previously

Select the sound mode you want.

Each time you press the button, the sound modes change as follows:

USER

Sound mode indicator flashes.

Ex.: When you select “ROCK”

ROCK

CLASSIC

POPSHIP HOPJAZZ

+ 72 hidden pages
