Page 1
CD RECEIVER KD-SX939/SX930
ENGLISH
RECEPTOR CON CD KD-SX939/SX930
RECEPTEUR CD KD-SX939/SX930
KD-SX939
ATT
BAND
PROG
DISC
FUNC
DISC
PRESET
ATT
BAND
PROG
DISC
FUNC
DISC
PRESET
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l’installation et les raccordements, se référer au manuel séparé.
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
/I
ATT
KD-SX930
/I
ATT
SOUND
SEL
KD-SX939
40WX4
SSM
CD CHANGER CONTROL
78 9101112
123456
SOUND
SEL
KD-SX930
40WX4
SSM
CD CHANGER CONTROL
78 9101112
123456
MO
DISP
RND
CRUISE
RPT
SCAN
AUDIO CRUISE MODE
CD-CHTUNER
CD-CHTUNER
INT
BAND
CD
MO
DISP
RND
LOUD
RPT
SCAN
BAND
CD
COMPACT
DIGITAL AUDIO
For customer Use:
Enter below the Model No. and
Serial No. which are located on
the top or bottom of the cabinet.
Retain this information for future
reference.
Model No.
ESPAÑOL
FRANÇAIS
Serial No.
VNN3831-631S
[J]
Page 2
INFORMATION (For U.S.A.)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Identification and
Certification labels
Bottom of the main unit
NAME/RATING PLATE
US JVC CORP.41 SLATER DRIVE
ELMWOOD PARK, N.J. 07407
MANUFACTURED A T
MADE IN
Product complies with DHHS Rules 21
CFR Subchapter J in effect at date of
manufacture.
MANUFACTURED
*3
*1
Notes:
*1 The date of manufacture.
*2 The ID code of manufacturing plant.
*3 Marking of country origin.
BEFORE USE
* For safety....
• Do not raise the volume level too much, as this
will block outside sounds, making driving
dangerous.
• Stop the car before performing any complicated
operations.
*2
IMPORTANT FOR LASER
PRODUCTS (For U.S.A. only)
Precautions:
1. CLASS 1 LASER PRODUCT
2. DANGER: Invisible laser radiation when
open and interlock failed or defeated. A void
direct exposure to beam.
3. CAUTION: Do not open the top cover.
There are no user-serviceable parts inside.
Leave all servicing to qualified service
personnel.
4. CAUTION: This CD player uses invisible
laser radiation, however, is equipped with
safety switches to prevent radiation
emission when unloading CDs. It is
dangerous to defeat the safety switches.
5. CAUTION: Use of controls, adjustments or
performance of procedures other than
those specified herein may result in
hazardous radiation exposure.
* Temperature inside the car....
If you have parked the car for a long time in hot
or cold weather, wait until the temperature in the
car becomes normal before operating the unit.
2
Page 3
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to
ensure your complete understanding and to obtain the best possible performance from the unit.
CONTENTS
BASIC OPERATIONS....................................................4
RADIO OPERATIONS...................................................5
Listening to the radio .....................................................................5
Storing stations in memory............................................................ 6
FM station automatic preset: SSM ...............................................6
Manual preset.............................................................................. 7
Tuning into a preset station ...........................................................8
Other convenient tuner functions .................................................9
Scanning broadcast stations ........................................................9
Selecting FM reception sound......................................................9
CD OPERATIONS.......................................................10
Playing a CD .................................................................................10
Locating a track or a particular portion on a CD ..................... 11
Selecting CD playback modes......................................................12
Other convenient CD functions ...................................................13
Prohibiting CD ejection.............................................................. 13
SOUND ADJUSTMENTS .............................................14

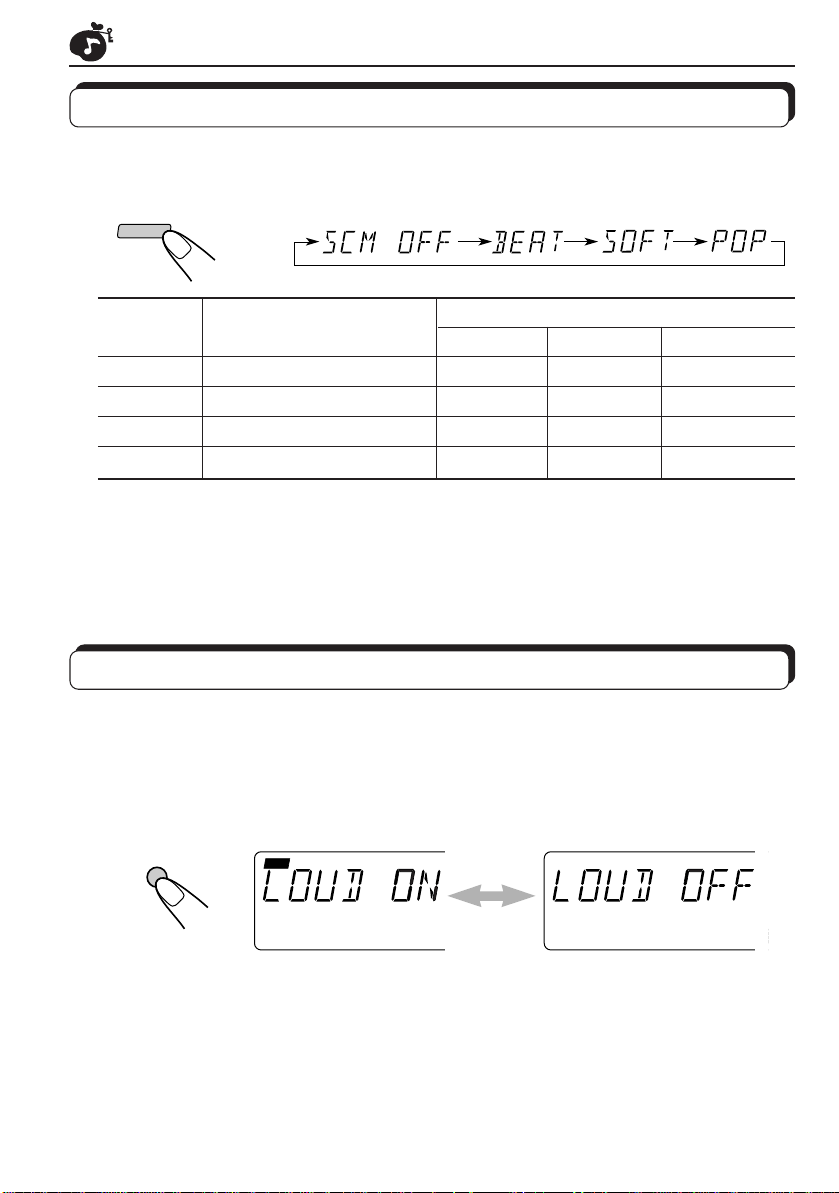

Selecting preset sound modes ...................................................... 14
Turning on/off the loudness function ..........................................14
Adjusting the sound......................................................................15
Storing your own sound adjustments ......................................... 16
OTHER MAIN FUNCTIONS .........................................17
Changing general settings (PSM)................................................ 17
Setting the clock ........................................................................ 17
Changing the level indicator mode ............................................. 18
Selecting the dimmer mode .......................................................18
Changing the AM/FM channel intervals..................................... 19
Turning on or off the key-touch tone........................................... 19
Controlling the volume automatically ........................................ 20
(ONLY FOR KD-SX939)
Detaching the control panel .........................................................22
REMOTE OPERATIONS...............................................23
Installing the batteries..................................................................23
Using the remote controller .........................................................23
CD CHANGER OPERATIONS ......................................24
Playing CDs ...................................................................................24
Selecting CD playback modes......................................................26
MAINTENANCE.........................................................27
Handling CDs................................................................................ 27
TROUBLESHOOTING .................................................28
SPECIFICATIONS .......................................................29
ENGLISH
3
Page 4
1
BASIC OPERATIONS
Note:
When you use this unit for the
first time, set the built-in cloc k
correctly, see page 17.
23
1
2
CH
/ I
ATT
Turn on the power.
Note on One-Touch Operation:
When you select a source in step 2 below, the power automatically comes on.
You do not have to press this button to turn on the power.
BAND
TUNER C DCD-
Select the source.
To operate the tuner, see pages 5 – 9.
To operate the CD player, see pages 10 – 13.
To operate the CD changer, see pages 24 – 26.
3
Adjust the volume.
Volume level appears.
Volume level indicator
(See page 18.)
CRUISE
4
Adjust the sound as you want (see pages 14 – 16).
To drop the volume in a moment
Press briefly while listening to any source. “A TT” starts flashing on the display, and
the volume level will drop in a moment.
To resume the previous volume level, press the button briefly again.
To turn off the power
Press for more than 1 second.
CAUTION on Volume Setting
CDs produce very little noise compared with other sour ces. If the volume le vel is adjusted for the
tuner, for example, the speakers may be damaged by the sudden increase in the output level.
Therefore, lower the volume before playing a CD and adjust it as required during playback.
4
Page 5
RADIO OPERATIONS
Listening to the radio
ENGLISH
12
1
2
To stop searching before a station is received, press the same button you have pressed
for searching.
BAND
TUNER
F1 F2 F3 AM
(FM 1) (FM 2) (FM 3)
To search stations
of higher
SS
frequencies.
To search stations
of lower
frequencies.
Select the band (FM1, FM2, FM3 or AM).
Y ou can select any one of FM1, FM2, and FM3 to listen to an
FM station.
CRUISE
Selected band appears
Start searching a station.
While searching stations, “SEEK” appears on the
display .
When a station is received, searching stops.
CRUISE
To tune in a particular frequency without searching:
1 Press TUNER/BAND repeatedly to select the band (FM or AM).
2 Press and hold SSM ¢ or SSM 4 until “MANU” starts flashing on the display.
Now you can manually change the frequency while “MANU” is flashing.
3 Press SSM ¢ or SSM 4 repeatedly until the frequency you want is reached.
• If you hold down the button, the frequency keeps changing until you release the button.
5
Page 6
Storing stations in memory
You can use one of the following two methods to store broadcasting stations in memory.
• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)
• Manual preset of both FM and AM stations
FM station automatic preset: SSM
You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).
12
1
BAND
TUNER
Select the FM band number (FM1, FM2 or
FM3) you want to store FM stations into.
F1
(FM 1) (FM 2) (FM 3)
F2 F3 AM
2
Press and hold both buttons for more than 3
seconds.
SS
“SSM” appears, then disappears when
automatic preset is over.
Local FM stations with the strongest signals are searched and stored automatically in the
band number you have selected (FM1, FM2 or FM3). These stations are preset in the number
buttons — No. 1 (lowest frequency) to No. 6 (highest frequency).
When automatic preset is over, the station stored in number button 1 will be automatically
tuned in.
6
Page 7
Manual preset
You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually.
EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band
132
ENGLISH
1
2
3
BAND
TUNER
Select the FM1 band.
CRUISE
Tune into a station of 88.3 MHz.
See page 5 to tune into a station.
Press and hold the button for more than 1
second.
Preset number and “MEMO”
flashes alternately for a while.
DISC
CH
CRUISE
CRUISE
4
Repeat the above procedure to store other stations into other
preset numbers.
Notes:
• A previously preset station is erased when a new station is stored in the same preset number.
• Preset stations ar e er ased when the power supply to the memory circuit is interrupted (for example,
during battery replacement). If this occurs, preset the stations again.
7
Page 8
Tuning into a preset station
You can easily tune into a preset station.
Remember that you must store stations first. If you have not stored them yet, see pages 6
and 7.
12
1
BAND
TUNER
F1 F2 F3 AM
(FM 1) (FM 2) (FM 3)
2
123456
Select the band (FM1, FM2, FM3 or AM) you
want.
Select the number (1 – 6) for the preset station
you want.
8
Page 9
Other convenient tuner functions
MO/RND
SCAN/INT (for KD-SX939)
SCAN (for KD-SX930)
Scanning broadcast stations
When you press SCAN/INT (Scan/Intro) for KD-SX939 or SCAN for KD-SX930 while listening
to the radio, station scanning starts. Each time a broadcast is tuned in, scanning stops for
about 5 seconds (“SCAN” flashes on the display), and you can check what program is now
being broadcast.
If you want to listen to that program, press the same button again to stop scanning.
Selecting FM reception sound
When an FM stereo broadcast is hard to receive:
Press MO/RND (Mono/Random) while listening to an FM stereo broadcast so that the MO
indicator lights up on the display.
The sound you hear becomes monaural but reception will be improved.
ENGLISH
MOST
CRUISE
Lights up when receiving
an FM broadcast in stereo.
MOST
CRUISE
To restore the stereo effect, press the same button again.
When using this unit in an area other than North or South America:
You need to change the AM/FM channel intervals. See “Changing the AM/FM channel
intervals” on page 19.
9
Page 10
CD OPERATIONS
E
Playing a CD
1
1
Open the control panel.
2
1. Insert a disc into the loading slot.
The unit turns on, draws a CD and starts playback
automatically.
2. Close the control panel by hand.
• When a CD is inserted upside down, “PLEASE EJECT” appears on the display.
When you open the control panel by pressing 0, the CD automatically ejects.
Total track number
of the inserted disc
TRACK
CRUISE
Note on One-Touch Operation:
When a CD is already in the loading slot, pressing CD turns on the unit and starts playbac k
automatically.
Total playing time of
the inserted disc
TRACK
Current track
TRACK
CRUISE
Elapsed playing
time
CRUIS
To stop play and eject the CD
Press 0.
CD play stops, the control panel opens, then the CD automatically ejects from the loading
slot.
If you change the source to AM/FM or CD changer, the CD play also stops (without ejecting
the CD this time).
• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into
the loading slot to protect it from dust. (CD play will not start this time.)
• You can eject the CD even when the unit is turned off.
10
Page 11
Locating a track or a particular portion on a CD
ENGLISH
SSM ¢
SSM 4
Number buttons
To fast forward or reverse the track
Press and hold SSM ¢ , while playing a CD, to fast forward the track.
SS
Press and hold SSM 4 , while playing a CD, to reverse the track.
To go to the next track or the previous track
Press SSM ¢ briefly, while playing a CD, to go ahead to the beginning
of the next track. Each time you press the button consecutively , the beginning
SS
of the next track is located and played back.
Press SSM 4 briefly, while playing a CD, to go back to the beginning
of the current track. Each time you press the button consecutively, the
beginning of the previous track is located and played back.
To go to a particular track directly
78 9101112
123456
Press the number button corresponding to the track number to start its
playback.
• To select a track number from 1 – 6:
Press 1 (7) – 6 (12) briefly.
• To select a track number from 7 – 12:
Press and hold 1 (7) – 6 (12) for more than 1 second.
11
Page 12
Selecting CD playback modes
RPT
To play back tracks at random (Random Play)
You can play back all tracks on the CD at random.
MO
RND
To play back tracks repeatedly (Repeat Play)
RPT
Each time you press MO/RND (Mono/Random) while playing a CD, Random
Play mode turns on and off alternatively.
When Random Play is turned on, the RND indicator lights up on the display
and a track randomly selected starts playing.
TRACK
RNDRPT
You can play back the current track repeatedly.
Each time you press RPT (Repeat) while playing a CD, Repeat Play mode
turns on and off alternatively.
When Repeat Play is turned on, the RPT indicator lights up on the display.
Track number of the currently playing track
MO/RND
SCAN/INT
(ONL Y FOR
KD-SX939)
TRACK
RNDRPT
To play back the beginning of each track (Intro Play)
This function is ONLY FOR KD-SX939.
12
SCAN
INT
You can play back the first 15 seconds of each track in sequence. So you
can check what tunes are in the CD.
When you press SCAN/INT (Scan/Intro) while playing a CD, Intro Play starts.
During Intro Play, the track number of the current playing track flashes on
the display .
To stop Intro Play and start playing the current track, press SCAN/INT
again.
Track number of the currently playing track
TRACK
CRUISE
CRUISE
Page 13
Other convenient CD functions
CD
Prohibiting CD ejection
You can prohibit CD ejection and “lock” a CD in the loading slot.
While holding CD, press for more than 2 seconds. “EJECT” flashes on the display
for about 5 seconds, and the CD is “locked.”
TRACK
CRUISE
To cancel the prohibition and “unlock” the CD, press again for more than 2
seconds, while holding CD. “EJECT” appears on the display , and the CD is “unlocked.”
ENGLISH
13
Page 14
SOUND ADJUSTMENTS
Selecting preset sound modes
You can select a preset sound adjustment suitable to the music genre:
Each time you press SOUND, the sound mode changes as follows.
SOUND
Indication For: Preset values
Bass Treble Loudness
SCM OFF (Flat sound) 00 00 On
BEAT Rock or disco music +02 00 On
SOFT Quiet background music +01 –03 Off
POP Light music +04 +01 Off
Notes:
• You can adjust the preset sound mode to your preference, and store it in memory.
If you want to adjust and store your original sound mode, see “Storing your own sound adjustments”
on page 16.
• T o adjust only the bass and tr eble reinfor cement levels to your pr eference , see “Adjusting the sound”
on page 15.
Turning on/off the loudness function
The human ear is less sensitive to low and high frequencies at low volumes.
The loudness function can boost these frequencies to produce a well-balanced sound at low
volume levels.
For KD-SX930:
Each time you press LOUD, the loudness function turns on and off alternatively.
LOUD
For KD-SX939:
See “Adjusting the sound” on the next page to turns on and off the loudness function.
14
LOUD
CRUISE CRUISE
Page 15
Adjusting the sound
Y ou can adjust the sound characteristics to your preference.
1
2
ENGLISH
1
SEL
Select the item you want to adjust.
For KD-SX939
Indication To do: Range
BAS Adjust the bass –06 (min.) — +06 (max.)
(bass)
TRE Adjust the treble –06 (min.) — +06 (max.)
(treble)
FA D Adjust the front and rear speaker R06 (rear only) — F06 (front only)
(Fader)* balance
BAL Adjust the left and right speaker L06 (left only) — R06 (right only)
(Balance) balance
LOUD** Turn on or off the loudness function ON — OFF
(Loudness)
VOL Adjust the volume 00 (min.) — 50 (max.)
(Volume)
Note:
* If you are using a two-speaker system, set the fader level to “00” (center).
** ONLY FOR KD-SX939: See also “Turning on/of f the loudness function” on the previous page .
For KD-SX930
2
Adjust the level.
Note:
Normally the control dial work as the volume control. So you do
not have to select “VOL” to adjust the volume level.
15
Page 16
Storing your own sound adjustments
You can adjust the sound modes (BEAT, SOFT, POP: see page 14) to your preference and
store your own adjustments in memory .
1
2
3
4
SOUND
Within
5 seconds
SEL
LOUD
Within
5 seconds
Within
5 seconds
SOUND
3
(ONLY FOR
1,4
2
2
KD-SX930)
Call up the sound mode you want to adjust.
See page 14 for details.
Select “BAS (bass),” “TRE (treble)” or “LOUD
(loudness: for KD-SX939).”
T o select and change the loudness setting for KD-SX930,
press LOUD (see page 14), and go to step 4.
Adjust the selected item.
See page 15 for details.
Press and hold SOUND until “MEMO” appears
and starts flashing on the display.
Your setting is stored in memory.
5
Repeat the same procedure to store other settings.
To reset to the factory settings
Repeat the same procedure and reassign the preset values listed in the table on page 14.
16
Page 17
OTHER MAIN FUNCTIONS
Changing general settings (PSM)
Y ou can change the following settings for this unit by using the PSM (Preferred Setting Mode)
control.
• CLOCK H and CLOCK M: Adjusts the built-in clock (see below).
• LEVEL: Changes the level indicator mode on the display (see page 18).
• DIMMER: Selects the dimmer mode (see page 18).
• AREA: Changes the FM/AM channel interval (see page 19).
• BEEP: Turning on/of f the key-touch tone (see page 19).
16
3, 5
Setting the clock
After installation, set the built-in clock correctly.
1 Press SEL (Select) for more than 2 seconds.
One of the PSM items appears on the display.
2 If “CLOCK H” does not appear, press SSM ¢ or SSM 4 until it appears.
2, 4
Current setting appears.
ENGLISH
3 Rotate the control dial to adjust the hour.
4 Press SSM ¢ or SSM 4 until “CLOCK M” appears.
5 Rotate the control dial to adjust the minute.
6 Press DISP to start clock.
17
Page 18
To check the current clock time (changing the display mode)
Clock
Elapsed
playing time
Press DISP repeatedly . Each time you press the button, the display mode changes as follows.
During tuner operation:
Frequency
Clock
During CD operation:
• If the unit is not in use when you press DISP, the power turns on, the clock time is shown for
5 seconds, then the power turns off.
Changing the level indicator mode
When shipped from the factory, the level indicator on the display shows the audio level.
Y ou can change it to show the audio level or volume level.
• AUDIO: Audio level indicator
• OFF: Volume level indicator
1 Press SEL for more than 2 seconds.
One of the PSM items appears on the display.
2 If “LEVEL” does not appear, press SSM ¢ or SSM 4 until it appears.
Current setting appears.
3 Rotate the control dial clockwise or counterclockwise to select the level indicator mode you
want to use.
Level indicator
Selecting the dimmer mode
When you turn on the car head lights, the display automatically dims (Auto Dimmer).
When shipped from the factory, Auto Dimmer function has been activated.
If you want to cancel this function, follow the procedure below and select “OFF.”
• AUTO: Activates Auto Dimmer
• ON: Always dims the display
• OFF: Cancels Auto Dimmer
1 Press SEL for more than 2 seconds.
One of the PSM items appears on the display.
2 If “DIMMER” does not appear, press SSM ¢ or SSM 4 until it appears.
3 Rotate the control dial clockwise or counterclockwise to turn on or off Auto Dimmer.
18
Current setting appears.
Page 19
Changing the AM/FM channel intervals
When this unit is shipped from the factory , the channel intervals are set to 10 kHz for AM and
200 kHz for FM (AREA US settings).
Y ou will have to change the channel intervals when using this unit in an area other than North
America and South America.
• AREA EU: Select this when using this unit in an area other than North and South America.
(9 kHz for AM and 50 kHz (for manual tuning) / 100 kHz (for searching) for FM)
• AREA US: Select this when using this unit in North or South America. (10 kHz for AM and
200 kHz for FM)
1 Press SEL for more than 2 seconds.
One of the PSM items appears on the display.
2 If “AREA” does not appear, press SSM ¢ or SSM 4 until it appears.
Current setting appears.
3 Rotate the control dial clockwise or counterclockwise to select the correct channel intervals.
Turning on or off the key-touch tone
You can deactivate the key-touch tone if you do not want to make it beep when pressing a
button. (When shipped from the factory, the key-touch tone is activated.)
• ON: The key-touch tone is activated.
• OFF: The key-touch tone is deactivated.
ENGLISH
1 Press SEL for more than 2 seconds.
One of the PSM items appears on the display.
2 If “BEEP” does not appear, press SSM ¢ or SSM 4 until it appears.
Current setting appears.
3 Rotate the control dial clockwise or counterclockwise to turn on or off the key-touch tone.
19
Page 20
Controlling the volume automatically
This function is ONLY FOR KD-SX939.
This unit change the volume level automatically (at 3 possible levels) based on the driving
speed of your car by detecting the alternator’s generating frequency (Audio Cruise).
If you want to use this function, follow the procedures below. (When shipped from the factory,
this mode is set to “OFF.”)
1
1
CRUISE
• CRUISE 1: Select this if your car is relatively quiet.
• CRUISE 2: Select this if your car is relatively loud.
The volume increase rate is twice as much as that of the CRUISE 1 setting.
• OFF: Cancels Audio Cruise.
When this function is turned on (the CRUISE indicator lights up on the display), the proper
volume level is automatically selected among the 3 possible levels according to the driving
speed, and the selected level is shown on the display .
CRUISE CRUISECRUISE
Select the proper cruise mode for your car.
• Each time you press the button, the Audio Cruise mode
changes as follows.
When the driving speed increases.
When the driving speed decreases.
20
Page 21
To adjust the volume increase rate
If you find Audio Cruise increase (or decrease) the volume either too much or too little as the
driving speed changes. You can adjust the increase rate by changing the boost level.
To change it, follow the procedure below .
1 Press CRUISE to select either “CRUISE 1” or “CRUISE 2.”
2 Press and hold CRUISE until the maximum boost level appears on the display.
ENGLISH
CRUISE
Ex. When you have selected “CRUISE 2”
CRUISE
3 Rotate the control dial, while the maximum boost level is shown on the display, to change
the boost level (among 1 to 15) as you want.
• To increase the volume increase rate, rotate it clockwise.
• To decrease the volume increase rate, rotate it counterclockwise.
If Audio Cruise does not function correctly
Y ou may need to store the idling speed into memory to make Audio Cruise function correctly.
NOTICE that a number of factors, such as electric power steering, wipers, power windows,
air conditioner, etc. do generate noises and, as a result, may cause Audio Cruise not to
function correctly. If this is the main cause of malfunction, connect the memory backup lead
(yellow lead) directly to the car battery to prevent these noises from affecting Audio Cruise.
1 Start the engine and let it warm up.
2 Press CRUISE to select either “CRUISE 1” or “CRUISE 2.”
3 Press and hold CRUISE and SEL for more than 2 seconds to store the idling speed into
memory.
CRUISE
CRUISE
Ex. When you have selected “CRUISE 2”
When the setting is complete, the unit automatically checks to see if Audio Cruise functions
correctly with this new idling setting. If it does not function correctly , Audio Cruise is canceled
automatically and the idling setting becomes invalid.
• If this happens, see the NOTICE above.
21
Page 22
Detaching the control panel
You can detach the control panel when leaving the car.
When detaching or attaching the control panel, be careful not to damage the connectors on
the back of the control panel and on the panel holder.
How to detach the control panel
Before detaching the control panel, be sure
to turn off the power.
1
Unlock the control panel.
2
Pull the control panel out of
the unit.
3
Put the detached control
panel into the provided case.
How to attach the control panel
1
Insert the right side of the
control panel into the groove
on the panel holder.
2
Press the left side of the
control panel to fix it to the
panel holder.
Note on cleaning the connectors:
If you frequently detach the contr ol panel, the
connectors will deteriorate.
T o minimize this possibility , periodically wipe
the connectors with a cotton swab or cloth
moistened with alcohol, being careful not to
damage the connectors.
22
Connectors
Page 23
REMOTE OPERATIONS
Before using the remote controller:
• Aim the remote controller directly at the remote sensor on
the main unit. Make sure there is no obstacle in between.
• Do not expose the remote sensor to strong light (direct
sunlight or artificial lighting).
Installing the batteries
R03(UM-4)/AAA(24F)
Insert the ·
ends first.
Using the remote controller
1 Functions the same as the button on the main unit.
ATT
BAND
14
2
FUNC
PROG
DISC
DISC
PRESET
3
2 Select the source.
Each time you press FUNC (function), the source changes.
3 Functions the same as the control dial on the main unit.
5
• Does not function for the PSM adjustments.
4 • Functions as the BAND button while listening to the radio.
6
Each time you press the button, the band changes.
• Functions as the DISC + button while listening to the CD
changer.
Each time you press the button, the disc number increases,
and selected disc starts playing.
• Does not function as the PROG button.
5 • Functions as the PRESET button while listening to the radio.
Each time you press the button, the preset station number
increases, and selected station is tuned in.
• Functions as the DISC – button while listening to the CD
changer.
Each time you press the button, the disc number decreases,
and selected disc starts playing.
6 • Searches stations while listening to the radio.
• Fast forwards or reverses the track if pressed and held
while listening to the CD.
• Skips to the beginning of the next tracks or go back to the
beginning of the current (or previous tracks) if pressed
briefly while listening to the CD.
Remote sensor
ENGLISH
When the controllable
range or effectiveness of
the remote controller
decreases, replace the
batteries – R03(UM-4)/
AAA(24F).
23
Page 24
CD CHANGER OPERATIONS
We recommend that you use one of the CH-X series with your unit.
If you have another CD automatic changer, consult your JVC car audio dealer for connections.
• For example, if your CD automatic changer is one of the KD-MK series, you need a cord (KSU15K) for connecting it to this unit.
Before operating your CD automatic changer:
• Refer also to the Instructions supplied with your CD changer.
• If no discs are in the magazine of the CD changer or the discs are inserted upside
down, “NO DISC” will appear on the display. If this happens, remove the magazine
and set the discs correctly.
• If “RESET 1 – RESET 8” appears on the display , something is wrong with the connection
between this unit and the CD changer. If this happens, check the connection, connect
the connecting cord(s) firmly if necessary , then press the reset button of the CD changer.
Playing CDs
24
SSM ¢
SSM 4
Number buttons
1
1
CD-
CH
Note on One-Touch Operation:
When you press CD-CH, the power automatically comes on. You do not have to press
to turn on the power.
Select the CD automatic changer.
Playback starts from the first track of the first disc.
All tracks of all discs are played back.
Elapsed playing time
Track number
TRACK
CHANGER
(The clock time is shown if you have pressed
DISP to see the clock time. See page 18.)
DISC
CH
Disc number
Page 25
To fast forward or reverse the track
Press and hold SSM ¢ , while playing a CD, to fast forward the track.
SS
Press and hold SSM 4 , while playing a CD, to reverse the track.
To go to the next track or the previous track
Press SSM ¢ briefly, while playing a CD, to go ahead to the beginning
of the next track. Each time you press the button consecutively , the beginning
SS
of the next track is located and played back.
Press SSM 4 briefly, while playing a CD, to go back to the beginning
of the current track. Each time you press the button consecutively, the
beginning of the previous track is located and played back.
To go to a particular disc directly
78 9101112
123456
Press the number button corresponding to the disc number to start its
playback (while the CD changer is playing).
• To select a disc number from 1 – 6:
Press 1 (7) – 6 (12) briefly.
• To select a disc number from 7 – 12:
Press and hold 1 (7) – 6 (12) for more than 1 second.
ENGLISH
Ex. When disc number 3 is selected
Track number
TRACK
CHANGER
Disc number
DISC
CH
25
Page 26
Selecting CD playback modes
RPT
MO/RND
SCAN/INT
(ONLY FOR KD-SX939)
To play back tracks at random (Random Play)
MO
RND
Mode RND indicator Plays at random
RND1 Lights All tracks of the current disc, then the tracks of the
RND2 Flashes All tracks of all discs inserted in the magazine.
Each time you press MO/RND (Mono/Random) while playing a CD, Random
Play mode changes as follows:
RND1 RND2 Canceled
(Random1) (Random2)
next disc, and so on.
To play back tracks repeatedly (Repeat Play)
RPT
Each time you press RPT (Repeat) while playing a CD, Repeat Play mode
changes as follows:
RPT1 RPT2 Canceled
(Repeat1) (Repeat2)
Mode RPT indicator Plays repeatedly
RPT1 Lights The current track (or specified track).
RPT2 Flashes All tracks of the current disc (or specified disc).
To play back the beginning of each track (Intro Play)
This function is ONLY FOR KD-SX939.
Each time you press SCAN/INT (Scan/Intro) while playing a CD, Intro Play
mode changes as follows:
INT1 INT2 Canceled
(Intro-1) (Intro-2)
26
SCAN
INT
Mode Indication Plays the beginnings (15 seconds)
INT1 Track number flashes. Of all tracks on all inserted discs.
INT2 Disc number flashes. Of the first track on each inserted disc.
Page 27
MAINTENANCE
Handling CDs
This unit has been designed only to play back CDs bearing the mark.
Other discs cannot be played back.
How to handle CDs
When removing a CD from its case, press down the center holder of
the case and lift the CD out, holding it by the edges.
• Always hold the CD by the edges. Do not touch its recording surface.
When storing a CD into its case, gently insert the CD around the
center holder (with the printed surface facing up).
• Make sure to store CDs into the cases after use.
To keep CDs clean
A dirty CD may not play correctly. If a CD does become dirty, wipe it with
a soft cloth in a straight line from center to edge.
To play new CDs
New CDs may have some rough spots around the inner and outer edges.
If such a CD is used, this unit may reject the CD.
To remove these rough spots, rub the edges with a pencil or ball-point
pen, etc.
COMPACT
DIGITAL AUDIO
ENGLISH
Center holder
Moisture condensation
Moisture may condense on the lens inside the CD player in the following cases:
• After starting the heater in the car.
• If it becomes very humid inside the car.
Should this occur, the CD player may malfunction. In this case, eject the CD and leave the
unit turned on for a few hours until the moisture evaporates.
CAUTIONS:
• Do not insert 8cm (3 3/16") CDs (single CDs) into the loading slot. (Such CDs cannot be
ejected.)
• Do not insert any CD of unusual shape — like a heart or flower; otherwise, it will malfunction.
• Do not expose CDs to direct sunlight or any heat sour ce or place them in a place subject to high
temperature and humidity. Do not leave them in a car.
• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.)
to clean CDs.
About mistracking:
Mistracking may result from driving on extremely rough roads. This does not damage the
unit and the CD, but will be annoying.
We recommend that you stop CD play while driving on such rough roads.
27
Page 28
TROUBLESHOOTING
What appears to be trouble is not always serious. Check the following points before calling a
service center.
Symptoms
• CD cannot be played back.
• CD sound is sometimes
interrupted.
• Sound cannot be heard from
the speakers.
• SSM (Strong-station
Sequential Memory)
automatic preset does not
work.
• Static noise while listening
to the radio.
• “NO DISC” appears on the
display.
• “RESET 8” appears on the
display.
• “RESET 1 – RESET 7”
appears on the display .
• CD can be neither played
back nor ejected.
• The unit does not work at
all.
Causes
CD is inserted upside down.
You are driving on rough
roads.
CD is scratched.
Connections are incorrect.
The volume control is turned
to the minimum level.
Connections are incorrect.
Signals are too weak.
The antenna is not connected
firmly.
No CD is in the loading slot (or
in the magazine).
CD is inserted incorrectly.
This unit is not connected to a
CD changer correctly .
The CD player may function
incorrectly .
The built-in microcomputer
may function incorrectly due to
noise, etc.
Remedies
Insert the CD correctly.
Stop CD play while driving on
rough roads.
Change the CD.
Check the cords and
connections.
Adjust it to the optimum level.
Check the cords and
connections.
Store stations manually.
Connect the antenna firmly.
Insert CD.
Insert it correctly.
Connect this unit and the CD
changer correctly and press
the reset button of the CD
changer.
Press the reset button of the
CD changer.
Press CD and SEL at the
same time for more than 2
seconds. (“PLEASE EJECT”
appears on the display.) When
you open the control panel by
pressing 0, be careful not to
drop the CD when it ejects.
Press
the same time for more than 2
seconds to reset the unit. (The
clock setting and preset
stations stored in memory are
erased.)
and SEL at
28
Page 29
SPECIFICATIONS
AUDIO AMPLIFIER SECTION
Maximum Power Output:
Front: 40 watts per channel
Rear: 40 watts per channel
Continuous Power Output (RMS):
Front: 16 watts per channel into 4 Ω, 40
to 20,000 Hz at no more than 0.8%
total harmonic distortion.
Rear: 16 watts per channel into 4 Ω, 40
to 20,000 Hz at no more than 0.8%
total harmonic distortion.
Load Impedance: 4 Ω (4 to 8 Ω allowance)
Tone Control Range:
Bass: ±10 dB at 100 Hz
Treble:±10 dB at 10 kHz
Frequency Response: 40 to 20,000 Hz
Signal-to-Noise Ratio: 70 dB
Line-Out Level/Impedance: 2.0 V/20 kΩ load
(full scale)
Output Impedance: 1 kΩ
TUNER SECTION
Frequency Range:
FM: 87.5 to 107.9 MHz
(with channel interval set to 200 kHz)
87.5 to 108.0 MHz
(with channel interval set to 50 kHz)
AM: 530 to 1,710 kHz
(with channel interval set to 10 kHz)
531 to 1,602 kHz
(with channel interval set to 9 kHz)
[FM Tuner]
Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity:
16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz):
65 dB
Frequency Response: 40 to 15,000 Hz
Stereo Separation: 35 dB
Capture Ratio: 1.5 dB
CD PLAYER SECTION
Type: Compact disc player
Signal Detection System: Non-contact optical
pickup (semiconductor laser)
Number of channels: 2 channels (stereo)
Frequency Response: 5 to 20,000 Hz
Dynamic Range:
KD-SX939: 96 dB
KD-SX930: 95 dB
Signal-to-Noise Ratio:
KD-SX939: 98 dB
KD-SX930: 97 dB
Wow and Flutter: Less than measurable limit
GENERAL
Power Requirement:
Operating Voltage: DC 14.4 volts (11 to
16 volts allowance)
Grounding System: Negative ground
Dimensions (W x H x D):
Installation Size: 182 x 52 x 150 mm
(7-3/16" x 2-1/16" x 5-15/16")
Panel Size: 188 x 58 x 14 mm
(7-7/16" x 2-5/16" x 5/8")
Mass: 1.4 kg (3.1 lbs) (excluding accessories)
Design and specifications subject to change
without notice.
If a kit is necessary for your car, consult
your telephone directory for the nearest
car audio speciality shop.
ENGLISH
[AM T uner]
Sensitivity: 20 µV
Selectivity: 35 dB
29
Page 30
VICTOR COMPANY OF JAPAN, LIMITED
KD-SX939/SX930 CD RECEIVER
EN, SP, FR
Printed in Singapore
JVC
1297MNMMDWJES
Loading...
