MD/CD RECEIVER
MD/CD RECEIVER
RECEPTEUR MD/CD
MD/CD RECEIVER
KD-MX2800R
Detachable
DEUTSCH
FRANÇAIS ENGLISH
SEL
KD-MX2800R
SSM
7
1234
SOUND
MD / CD RECEIVER
8 9 10 11 12
5
6
40WX4
EXT/CH
FM/AM
MD/CD
/I/ATT
TP
RDS
PTY
MO
RPT
RND
DISP
For installation and connections, refer to the separate manual.
Angaben zu Einbau und Verkabelung entnehmen Sie bitte der gesonderten Anleitung.
Pour l’installtion et les raccordements, se référer au manuel séparé.
Zie de afzonderlijke handleiding voor details aangaande het installeren en verbinden van het toestel.
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D’INSTRUCTIONS
GEBRUIKSAANWIJZING
NEDERLANDS
LVT0304-001A
[E]
Position And Reproduction Of Labels
ENGLISH
WARNING LABEL, PLACED INSIDE THE UNIT
DANGER: Invisible laser
radiation when open and
interlock failed or defeated.
AVOID DIRECT EXPOSURE
TO BEAM. (e )
ADVARSEL: Usynlig laserstråling ved åbning, når
sikkerhedsafbrydere er ude
af funkti on. Undgåudsættelse for stråling. (d)
VARNING: Osynlig laserstrålning när denna del
är öppnad och spärren är
urkopplad. Betrakta ej
strålen. (s)
VARO : Avattaessa ja suojalukitus ohitettaessa olet
alttiina näkymättömälle
lasersäteilylle. Älä katso
säteeseen. (f)
Bottom panel of the main unit
IMPORTANT FOR LASER
PRODUCTS
Precautions:
1. CLASS 1 LASER PRODUCT
2. DANGER: Invisible laser radiation when
open and interlock failed or defeated. Avoid
direct exposure to beam.
Name/Rating plate
CLASS 1
LASER PRODUCT
Caution:
This product contains a laser component
of higher laser class than Class 1.
CAUTION on Volume Setting
CDs and MDs produce very little noise compared with other sour ces. If the v olume level is adjusted
for the tuner, for example , the speakers may be damaged by the sudden incr ease in the output level.
Therefore, lower the volume before playing a disc and adjust it as required during playback.
3. CAUTION: Do not open the top cover.
There are no user-serviceable parts inside.
Leave all servicing to qualified service
personnel.
4. CAUTION: This CD player uses invisible
laser radiation and is equipped with safety
switches to prevent radiation emission
when unloading CDs. It is dangerous to
defeat the safety switches.
5. CAUTION: Use of controls, adjustments or
performance of procedures other than
those specified herein may result in
hazardous radiation exposure.
Note:
For security reasons, a numbered ID card is provided with this unit, and the same ID number is
imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to
identify your unit if stolen.
2
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to
ensure your complete understanding and to obtain the best possible performance from the unit.
CONTENTS
BASIC OPERATIONS.................................................... 5
RADIO BASIC OPERATIONS ......................................... 6
Listening to the radio ..................................................................... 6
Storing stations in memory ............................................................ 7
FM station automatic preset: SSM...............................................7
Manual preset.............................................................................. 8
Tuning into a preset station ........................................................... 9
Selecting FM reception sound ....................................................... 9
RDS OPERATIONS .....................................................10
What you can do with RDS EON ................................................10
Tracing the same programme automatically (Network-Tracking
Reception) ................................................................................. 10
Using Standby Reception.......................................................... 12
Selecting Y our Favorite Programme for PTY Standby Reception .... 13
Se arching Y our Favorite Programme ............................................13
Other convenient RDS functions.................................................16
Automatic selection of the station when using the number buttons.. 16
Changing the display mode while listening to an FM station..... 16
Setting the TA volume level........................................................ 16
Automatic clock adjustment .......................................................17
CD OPERATIONS....................................................... 19
Playing a CD ................................................................................. 19
Locating a track or a particular portion on a CD .....................20
Selecting CD playback modes......................................................21
Prohibiting CD ejection ............................................................... 22
MD OPERATIONS......................................................23
Playing an MD .............................................................................. 23
Locating a track or a particular portion on an MD ..................24
Selecting MD playback modes.....................................................25
Prohibiting MD ejection...............................................................26
ENGLISH
SOUND ADJUSTMENTS .............................................27
Selecting preset sound control modes .........................................27
Adjusting the sound......................................................................28
Storing your own sound adjustments ......................................... 29
CONTINUED TO THE NEXT PAGE
BEFORE USE
* For safety....
• Do not raise the volume level too much, as this
will block outside sounds, making driving
dangerous.
* Temperature inside the car....
If you have parked the car for a long time in hot
or cold weather, wait until the temperature in the
car becomes normal before operating the unit.
• Stop the car before performing any complicated
operations.
3
OTHER MAIN FUNCTIONS .........................................30
Setting the clock............................................................................30
Changing the general settings (PSM) ......................................... 31
Selecting 24-hour or 12-hour clock ............................................33
Selecting the level display......................................................... 33
ENGLISH
Selecting the dimmer mode .......................................................33
Controlling the volume automatically (Audio Cruise Mode) .......34
Selecting the telephone muting..................................................36
Turning on or off the key-touch tone ..........................................36
Turning on or off the power amplifier switch ..............................36
Adjusting the contrast level ........................................................37
Selecting the scroll mode .......................................................... 37
Assigning names to the sources ...................................................38
Detaching the control panel .........................................................41
CD CHANGER OPERATIONS ......................................42
Playing CDs ...................................................................................42
Selecting CD playback modes......................................................44
Playing the CD Text......................................................................45
EXTERNAL COMPONENT OPERATIONS ..................... 46
MAINTENANCE.........................................................47
Handling Discs ..............................................................................47
Taking care of CDs .................................................................... 47
Taking care of MDs.................................................................... 48
Moisture condensation .............................................................. 48
TROUBLESHOOTING .................................................49
SPECIFICATIONS .......................................................51
When this unit malfunctions or does not operate:
Press the reset button on the front panel
using a ball-point pen or a similar tool. If
this does not work, contact your JVC INCAR ENTERTAINMENT dealer.
4
4

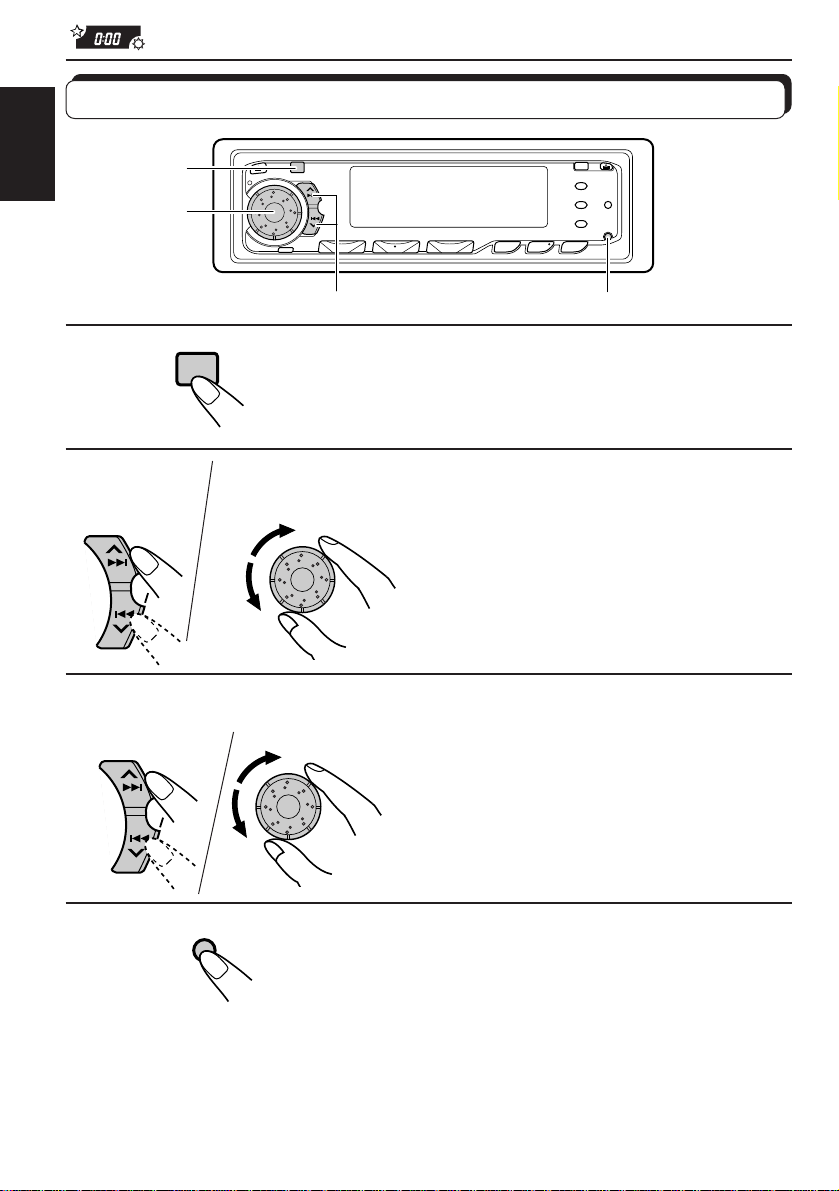

BASIC OPERATIONS
1
Note:
4
32
When you use this unit for the
first time, set the built-in
clock correctly, see page 30.
ENGLISH
1
/I/ATT
Note on One-Touch Operation:
When you select a source in step 2 below, the power automatically comes on.
You do not have to press this button to turn on the power.
Turn on the power.
2
FM/AM MD/CDEXT/CH
Select the source.
To operate the tuner, see pages 6 – 18.
To operate the CD player, see pages 19 – 22.
To operate the MD player, see pages 23 – 26.
To operate the CD changer, see pages 42 – 45.
To operate an external component, see page 46.
3
Adjust the volume.
Volume level appears.
4
Adjust the sound as you want (see pages 27 – 29).
Volume level indicator
(see page 33).
To drop the volume in a moment
Press briefly while listening to any source. “ATT” starts flashing on the display, and
the volume level will drop in a moment.
To resume the previous volume level, press the button briefly again.
To turn off the power
Press for more than 1 second.
5
RADIO BASIC OPERATIONS
Listening to the radio
ENGLISH
2
1
1
FM/AM
F1
(FM1)F2(FM2)F3(FM3)
Select the band (FM1, FM2, FM3 or AM).
Y ou can select any one of FM1, FM2, and FM3 to listen to an
FM station.
AM
Selected band appears.
2
To search stations
of higher
SSM
To stop searching before a station is received, press the same button you have pressed
for searching.
frequencies.
To search stations
of lower
frequencies.
To tune in a particular frequency without searching:
1 Press FM/AM repeatedly to select the band (FM or AM).
2 Press and hold ¢
Now you can manually change the frequency while “M” is flashing.
3 Press ¢
• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and
9kHz intervals for AM–MW/LW) until you release the button.
or 4 repeatedly until the frequency you want is reached.
or 4 until “M” (for Manual) starts flashing on the display.
Start searching a station.
When a station is received, searching stops.
6
Storing stations in memory
You can use one of the following two methods to store broadcasting stations in memory.
• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)
• Manual preset of both FM and AM stations
FM station automatic preset: SSM
You can preset 6 local FM stations in each FM band (FM1, FM2 and FM3).
ENGLISH
2
1
1
Select the FM band number (FM1, FM2 or
FM3) you want to store FM stations into.
F3
(FM3)
AM
F1
(FM1)
FM/AM
F2
(FM2)
2
Press and hold both buttons for more than
SSM
Local FM stations with the strongest signals are searched and stored automatically in the
band number you have selected (FM1, FM2 or FM3). These stations are preset in the number
buttons — No. 1 (lowest frequency) to No. 6 (highest frequency).
When automatic preset is over, the station stored in number button 1 will be automatically
tuned in.
3 seconds.
“SSM” appears, then disappears when
automatic preset is over.
7
Manual preset
You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually.
EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band
ENGLISH
1
2
3
2
FM/AM
SSM
78
1
2
13
Select the FM1 band.
Tune into a station of 88.3 MHz.
See page 6 to tune into a station.
Press and hold the number button (in this
example, 1) for more than 2 seconds.
Preset number and “MEMO”
flash alternately for a while.
4
Repeat the above procedure to store other stations into other
preset numbers.
Notes:
• A previously preset station is erased when a new station is stored in the same preset number.
• Preset stations are erased when the power supply to the memory circuit is inter rupted (f or e xample,
during battery replacement). If this occurs, preset the stations again.
8
Tuning into a preset station
You can easily tune into a preset station.
Remember that you must store stations first. If you have not stored them yet, see pages 7
and 8.
DISP
2 1
ENGLISH
1
FM/AM
Select the band (FM1, FM2, FM3 or AM) you
want.
2
789101112
12
3
4
5
6
Select the number (1 – 6) for the preset station
you want.
To change the display information while receiving an FM RDS
station
Press DISP. Each time you press the button, the display changes as follows:
Station Frequency
PTY (Programme type)
PS (Station name)
Selecting FM reception sound
When an FM stereo broadcast is hard to receive:
Press MO/RPT (Mono/Repeat) while listening to an FM stereo broadcast. “MONO” appears
on the display and the sound you hear becomes monaural but reception will be improved.
MO
RPT
Lights up when receiving an FM broadcast in stereo.
To restore the stereo effect, press the same button again.
9
RDS OPERATIONS
What you can do with RDS EON
RDS (Radio Data System) allows FM stations to send an additional signal along with their
regular programme signals. For example, the stations send their station names, as well as
ENGLISH
information about what type of program they broadcast, such as sports or music, etc.
Another advantage of RDS function is called “EON (Enhanced Other Networks).” The EON
indicator lights up while receiving an FM station with the EON data. By using the EON data
sent from a station, you can tune into a different station of a different network broadcasting
your favorite programme or traffic announcement while listening to another programme or to
another source such as CD.
By receiving the RDS signals, this unit can do the following:
• Tracing the same programme automatically (Network-tracking Reception)
• Standby Reception of TA (Traffic Announcement) or your favorite programme
• PTY (Program Type) search
• TA (Traffic Announcement) search
• And some other functions
Tracing the same programme automatically (NetworkTracking Reception)
When driving in an area where FM reception is not good, the tuner built in this unit automatically
tunes in another RDS station broadcasting the same programme with stronger signals. So,
you can continue to listen to the same programme in its finest reception, no matter where you
drive. (See illustration.)
Two types of the RDS signals are used to make Network-Tracking Reception work correctly
— PI (Programme Identification) and AF (Alternative Frequency) data.
Without receiving these data correctly from the RDS station you are listening to, NetworkTracking Reception will not operate.
10
TP
To use Network-Tracking Reception, press and hold TP/RDS (Traffic
RDS
Programme/Radio Data System) for more than 1 second. Each time you
press and hold the button, Network-Tracking Reception modes change as
follows:
Mode 1 Mode 2 Mode 3
Mode 1 (AF:on / REG:off)
Network-Tracking is activated with Regionalization set to “off.”
Switches to another station within the same network when the receiving
signals from the current station become weak.
Note:
In this mode, the programme may differ from the one currently received.
Mode 2 (AF:on / REG:on)
Network-Tracking is activated with Regionalization set to “on.”
Switches to another station, within the same network, broadcasting the same
programme when the receiving signals from the current station become weak.
Mode 3 (AF:off / REG:off)
Network-Tracking is deactivated.
The same programme can be received on different frequencies.
ENGLISH
Programme 1 broadcasting
on frequency A
Programme 1 broadcasting on
frequency B
Programme 1 broadcasting on frequency C
Programme 1 broadcasting on frequency E
Programme 1 broadcasting on frequency D
11
Using Standby Reception
Standby Reception allows the unit to switch temporarily to your favorite programme (PTY:
Programme Type) and Traf fic Announcement (TA) from the current source (another FM station,
MD, CD, and other connected components).
ENGLISH
Note:
Standby Reception will not work if you are listening to an AM station.
TA Standby Reception
TP
RDS
• When TP/RDS is pressed briefly in the FM mode, the TP indicator is lit
during reception of a TP station and the TA standby mode is engaged.
Note:
When the station being received is not a TP station, the TP indica tor flashes. Press
or 4 to engage the TA standby mode. “SEARCH” appears on the
¢
display, and TP station sear ch star ts. When a TP station is tuned in, the TP indicator
is lit.
• If you are listening to a CD or an MD, and wish to hear a TA broadcast,
press TP/RDS to enter the TA standby mode. (The TP indicator lights up.)
If a T A programme starts broadcasting while the TA standby mode is active,
“TRAFFIC” appears and the FM mode is engaged. The volume increases to
the preset “TA VOLUME” level and the TA programme can be heard (see
page 16).
Note:
To deactivate the TA standby mode, press TP/RDS again.
PTY Standby Reception
PTY
• When PTY is briefly pressed in the FM mode, the PTY indicator is lit during
reception of a PTY station and the PTY standby mode is engaged. The
selected PTY name stored on page 13 flashes for 5 seconds.
Note:
When the station being received is not a PTY station, the PTY indicator flashes.
Press ¢
the display, and PTY station search starts. When a PTY station is tuned in, the PTY
indicator is lit.
or 4 to engage the PTY standby mode. “SEARCH” appears on
12
• If you are listening to a CD or an MD, and wish to hear a selected PTY
broadcast, press PTY to enter the PTY standby mode. (The PTY indicator
lights up.)
If the PTY starts broadcasting while the PTY standby mode is active, the
selected PTY name appears and the FM mode is engaged. The selected
PTY can then be heard.
Note:
To deactivate the PTY standby mode, press PTY again.
Selecting Your Favorite Programme for PTY Standby
Reception
You can select your favorite programme for PTY Standby Reception to store in memory.
When shipped from the factory, “NEWS” is stored as the programme type for PTY Standby
Reception.
1, 4
3
2
ENGLISH
1
2
SEL
SSM
Press and hold the button for more than 2
seconds to call up the Preferred Setting Mode
(PSM: see page 31).
Select “PTY STANDBY” if not shown on the
display.
3
Select one of twenty-nine PTY codes. (See
the table on page 18.)
Selected code name appears on the display and is stored
into memory.
4
SEL
Searching Your Favorite Programme
You can search one of your 6 favorite programme types stored in memory.
When shipped from the factory, the following 6 programme types have been stored in the
number buttons (1 to 6).
To change the factory preset settings, see page 14.
To search your favorite programme, see page 15.
Finish setting.
1
POP M
2
ROCK M
3
EASY M
4
CLASSICS
5
AFFAIRS
6
VARIED
13
To store your favorite programme types
2
ENGLISH
1
2
3
1, 5
3
SEL
SSM
4
Press and hold the button for more than 2
seconds to call up the Preferred Setting Mode
(PSM: see page 31).
Select “PTY SEARCH” if not shown on the
display.
Select one of twenty-nine PTY codes. (See
the table on page 18.)
Selected code name appears on the display.
• If the code already stored in memory is selected, it will
flash on the display.
14
4
789101112
12
3
4
5
6
Press and hold the number button for more than 2 seconds to
store the PTY code selected into the preset number you want.
PTY preset number appears, and selected code name and “MEMORY” alternate on
the display.
5
SEL
Finish setting.
To search your favorite programme type
1
2
2
PTY
Press and hold the button for more than 1
second while listening to an FM station.
The last selected PTY code and preset number appear.
789101112
12
3
4
5
6
Select one of PTY codes stored in the preset
number buttons (1 to 6).
1
ENGLISH
Ex. When “CLASSICS” is stored in preset number button 2.
PTY search for your favorite programme starts after 5
seconds.
• If there is a station broadcasting a programme of the same PTY code you selected, that
station is tuned in.
• If there is no station broadcasting a programme of the same PTY code you selected, the
station will not change.
Note:
In some areas, the PTY search will not work correctly.
15
Other convenient RDS functions
Automatic selection of the station when using the number
buttons
ENGLISH
Usually when you press the number button, the preset station is tuned in.
However, when the preset station is an RDS station, something different will happen. If the
signals from that preset station are not sufficient for good reception, this unit starts searching
another station broadcasting the same programme as the original preset station is broadcasting,
then if any station broadcasting the same programme is found, the station will be tuned in.
Changing the display mode while listening to an FM
station
You can change the initial indication on the display to either station name (PS) or to station
frequency, while listening to an FM RDS station.
• See also “Changing the general settings (PSM)” on page 31.
1. Press and hold SEL (select) for more than 2 seconds so that “PSM” appears on the lower
part of the display.
2. Select “DISPLAY MODE” with ¢
3. Set to the desired indication (either station name or station frequency) with the control dial.
Note:
By pressing DISP, you can also change the display while listening to an FM RDS station.
Each time you press the button, the display changes to show the following:
or 4 .
Station Frequency
PTY (Programme type)
PS (Station name)
Setting the TA volume level
You can preset the volume level for TA Standby Reception. When a traffic programme is
received, the volume level automatically changes to the preset level.
• See also “Changing the general settings (PSM)” on page 31.
1. Press and hold SEL (select) for more than 2 seconds so that “PSM” appears on the lower
part of the display.
2. Select “TA VOLUME” with ¢
3. Set to the desired volume level with the control dial.
16
or 4 .
Loading...
