SERVICE MANUAL

CD RECEIVER

MA05020041

KD-G700

Area suffix

J -------------- Northern America

SOUND

ATT

U

SOURCE

F

R

D

VOL

VOL

TABLE OF CONTENTS

1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2 SPECIFIC SERVICE INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26

5 TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-27

COPYRIGHT © 2004 VICTOR COMPANY OF JAPAN, LIMITED

No.MA050

2004/1

SPECIFICATION

AUDIO AMPLIFIER SECTION

Maximum Power Output Front 50 W per channel

Rear 50 W per channel

Continuous Power Output (RMS) Front 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more

than 0.8% total harmonic distortion.

Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more

than 0.8% total harmonic distortion.
Load Impedance 4 Ω (4 Ω to 8 Ω allowance)
Equalizer Control Range Low ±12 dB (60 Hz, 80 Hz, 100 Hz, 120 Hz)

Mid ±12 dB

High ±12 dB (8 kHz, 10 kHz, 12 kHz, 15 kHz)
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-In Level/Impedance KD-AR800 1.5 V/20 kΩ load
Line-Out Level/Impedance KD-AR800 5.0 V/20 kΩ load (full scale)

KD-G800 4.0 V/20 kΩ load (full scale)

KD-G700 2.5 V/20 kΩ load (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance KD-AR800/KD-G800 2.0 V/20 kΩ load (full scale)

TUNER SECTION

Frequency Range FM 87.5 MHz to 107.9 MHz

AM 530 kHz to 1 710 kHz
[FM Tuner] Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz) 65 dB

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 35 dB

Capture Ratio 1.5 dB
[AM Tuner] Sensitivity 20 µV

Selectivity 35 dB

CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 decoding format MPEG1/2 Audio Layer 3 Max. Bit Rate:320 Kbps
WMA (Windows Media Audio) decoding format Max. Bit Rate:192 Kbps

GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0ºC to +40ºC (32ºF to 104ºF)
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 159 mm (7-3/16" × 2-1/16" × 6-5/16")

Panel Size (approx.) 188 mm × 58 mm × 12 mm (7-7/16" × 2-5/16" × 1/2")

Mass (approx.) 1.5 kg (3.4 lbs) (excluding accessories)

Design and specifications are subject to change without notice.

1-2 (No.MA050)

1.1 Safety Precautions

SECTION 1

PRECAUTION

!

!

Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.

(No.MA050)1-3

1.2 Preventing static electricity

Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

1.2.1 Grounding to prevent damage by static electricity

Static electricity in the work area can destroy the optical pickup (laser dio de) in devices such as CD players.
Be careful to use proper grounding in the area where repairs are being performed.

(1) Ground the workbench

Ground the workbench by laying conductive material (such as a conductive sh eet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.

(2) Ground yourself

Use an anti-static wrist strap to release any static electricity built up in your body.

(caption)
Anti-static wrist strap

1M

Conductive material
(conductive sheet) or iron plate

(3) Handling the optical pickup

• In order to maintain quality during transpo rt and before install ation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)

• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.

1.3 Handling the traverse unit (optical pickup)

(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the

replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a

time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.

1.4 Attention when traverse unit is decomposed *Please refer to "Disassembly method" in the text for the CD pickup unit.

• Apply solder to the short land before the flexible wire is disconnected from the connector on the CD pickup unit.
(If the flexible wire is disconnected without applying solder, the CDpickup may be destroyed by static electricity.)

• In the assembly, be sure to remove solder from the short land after connecting the flexible wire.

Short-circuit point

(Soldering)

Flexible wire

1-4 (No.MA050)

Pickup

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.

(No.MA050)1-5

SECTION 3

DISASSEMBLY

3.1 Main body

3.1.1 Removing the front panel assembly

(See Fig.1)

(1) Push the detach button in the lower right part of the front

panel assembly.

(2) Remove the front panel assembly.

3.1.2 Removing the heat sink

(See Fig.2)

(1) From the left side of the main body, remove the two screws

A, two screws B and screw C attaching the heat sink.

Front panel assembly

AAC

B

Detach button

Fig.1

Heat sink

Fig.2

1-6 (No.MA050)

3.1.3 Removing the top chassis assembly
(See Figs.3 to 6)

• Prior to performing the following procedu res, remove the heat

sink.

Reference:

Remove the front panel assembly as required.
(1) From the bottom side of the main body, remove the two

screws D attaching the top chassis assembly to the bottom
chassis assembly. (See Fig.3.)

(2) From the both and rear sides of the main body, remove the

four screws E attaching the top chassis assembly to the
bottom chassis assembly. (See Figs.4 to 6.)

(3) Lift the top chassis asse mbly in the di rection of the arrow ,

disconnect the connector CN501
Figs.5 and 6.)

(4) Take out the top chassis assembly from the bottom chassis

assembly.

on the main board. (See

Bottom chassis assembly

D

D

Top chassis assembly

Fig.3

Top chassis assembly

Bottom chassis assembly

Top chassis assembly

Main board

Bottom chassis assembly

CN501

E

Fig.4

CD mechanism assembly

Bottom chassis assembly

Fig.5

Top chassis assembly

E

Rear bracket

Fig.6

E

E

(No.MA050)1-7

3.1.4 Removing the front chassis
(See Figs.7 and 8)

• Prior to performin g the following procedure, remove the front

panel assembly, heat sink and top chassis assembly.
(1) From the both sides of the top chassis assembly, remove

the two screws F attaching the front chassis.

Top chassis assembly

F

Front chassis

Fig.7

Top chassis assembly

F

Front chassis

Fig.8

3.1.5 Removing the CD mechanism assembly
(See Fig.9)

• Prior to performing the following procedures, remove the front

panel assembly, heat sink and top chassis assembly.
(1) From the inside of the top chassis assembly, remove the

three screws G attaching the CD mechanism assembly.

(2) Take out the CD mechanism assembly from the top

chassis.

Top chassis

CD mechanism assembly

G

G

G

Fig.9

1-8 (No.MA050)

3.1.6 Removing the main board

(See Figs.10 and 11)

• Prior to performing the following procedures, remove the front

panel assembly, heat sink and top chassis assembly.
(1) From the rear side of the bottom chassis assembly, remove

the two screws H attaching the rear bracket to the bottom
chassis assembly. (See Fig.10.)

(2) From the top side of the bottom chassis assembly, remove

the two screws J attaching the main board to the b ottom
chassis assembly. (See Fig.11.)

(3) Release the stopper of the connector CN701

board in an upward direction, disconnect the card wire from
the connector CN701

(4) Disconnect the wire from the connector of the front door

mechanism assembly. (See Fig.11.)

(5) Disconnect the wire from the connector CN951

board. (See Fig.11.)

Reference:

After connecting the wires, fix the wire with the wire
holder.

(6) Take out the main board from the bottom chassis

assembly.

. (See Fig.11.)

on the main

on the main

H

Front door mechanism assembly

Connector

Wire holder

Card wire

Bottom chassis assembly

Fig.10

CN701

Stopper

Rear bracket

Bottom chassis assembly

3.1.7 Removing the rear bracket

(See Fig.12)

• Prior to performing the following procedures, remove the front

panel assembly, heat sink, top chassis assembly and main
board.
(1) Remove the screw K and three screws L attaching the rear

bracket to the main board.

J

K

Main board

CN951

Fig.11

J

Wires

Rear bracket

L

L

Fig.12

(No.MA050)1-9

3.1.8 Removing the front door mechanism assembly
(See Fig.13.)

• Prior to performing the following procedures, remove the front

panel assembly, heat sink, top chassis assembly and main
board.
(1) From the top side of the bottom chassis assembly, remove

the screw M attaching the FPC guide to the bottom
chassis.

(2) Remove the five screws N attaching the front door

mechanism assembly to the bottom chassis.

Reference:

When attaching the screws M and N, apply a locking
agent them.

(3) Take out the front door mechanism assembly from the bot-

tom chassis.

Bottom chassis

N

Front door mechanism assembly

N

3.1.9 Removing the front board
(See Figs.14 to 16)

• Prior to performing the following procedures, remove the front

panel assembly.
(1) From the rear side of the front panel assembly, remove the

four screws P attaching the rear cover assembly to the front
panel assembly. (See Fig.14.)

(2) Release the twelve joints a of the front panel assembly and

remove the rear cover assembly. (See Fig.15.)

(3) Take out the front board from the front panel assembly.

(See Fig.16.)

Note:

When removing the rear cover assembly and front board, be
careful not to lose the comp. spring. (See Fig.16.)

FPC guide

P

joints a

M

Fig.13

Rear cover assembly

Fig.14

Rear cover assembly

P

P

joints a

1-10 (No.MA050)

joints a

Front panel assembly

Comp. spring

joints a

Fig.15

Front board

Fig.16

3.2 CD Mechanism Assembly

A

3.2.1 Removing the top cover

(See Figs.1 and 2)

(1) Remove the two screws A on the both side of the body.
(2) Lift the front side of the top cover and move the top cover

backward to release the two joints a.

Top cover

Joints a

A

Joints a

A

Fig.1

Fig.2

Top cover

(No.MA050)1-11

3.2.2 Removing the connector board
(See Figs.3 to 5)

CAUTION:

Before disconnecting the flexible wire from the pickup, solder
the short-circuit point on the pickup. No observance of this in­struction may cause damage of the pickup.
(1) Remove the screw B fixing the connector board.
(2) Solder the short-circuit point on the connector board.
(3) Disconnect the flexible wire from the pickup.
(4) Move the connector board in the direction of the arrow to

release the two joints b.

(5) Unsolder the wire on the connector board if necessary.

CAUTION:

Unsolder the short-circuit point after reassembling.

B

Connector board

Flexible wire

Wires

Joints b

Short-circuit point

Fig.3

Short-circuit point

(Soldering)

Pickup

Flexible wire

Frame

Pickup

Fig.4

B

Connector board

Fig.5

1-12 (No.MA050)

3.2.3 Removing the DET switch

(See Figs.6 and 7)

(1) Extend the two tabs c of the feed sw. holder and pull out

the switch.

(2) Unsolder the DET switch wire if necessary.

Connector
board

DET switch

DET switch

Pickup

Fig.6

Tab c

DET switch wire

Tab c

Feed sw. holder

Fig.7

(No.MA050)1-13

3.2.4 Removing the chassis unit

r

(See Figs.8 and 9)

• Prior to performing the follow ing procedure, remove the top

cover and connector board.
(1) Remove the two suspension springs (L) and (R) attaching

the chassis unit to the frame.

CAUTION:

• The shape of the suspension spring (L) and (R) are dif­ferent. Handle them with care.

• When reassembling, make sure that the three shafts
on the underside of the chassis unit are inserted to the
dampers certainly.

Suspension spring (R)

Chassis unit

Suspension spring (L)

Frame

Suspension spring (R)

Chassis unit

Shafts

Damper

Damper

Suspension spring (L)

Fig.8

Shaft

Dampe

Frame

Fig.9

1-14 (No.MA050)

3.2.5 Removing the clamper assembly
(See Figs.10 and 11)

• Prior to perfo rming the following procedure, remove the top

cover.
(1) Remove the clamper arm spring.
(2) Move the clamper assembly in the direction of the arrow to

release the two joints d.

Clamper arm
spring

Joint d

Joint d

Clamper assembly

Fig.10

Clamper arm spring

Chassis rivet
assembly

Joint d

Clamper
assembly

Chassis rivet assembly

Fig.11

Joint d

(No.MA050)1-15

3.2.6 Removing the loading / feed motor assembly
(See Figs.12 and 13)

• Prior to performing the follow ing procedure, remove the top

cover, connector board and chassis unit.
(1) Remove the screw C and move the loading / feed motor

assembly in the direction of the arrow to remove it from the
chassis rivet assembly.

(2) Disconnect the wire from the loading / feed motor assembly

if necessary.

CAUTION:

When reassembling, connect the wire from the loadin g /
feed motor assembly to the flame as shown in Fig.12.

Loading / feed motor assembly

Fig.12

Loading / feed motor assembly

C

Fig.13

1-16 (No.MA050)

3.2.7 Removing the pickup unit

(See Figs.14 to 18)

• Prior to perfo rming the following procedure, remove the top

cover, connector board and chassis unit.
(1) Remove the screw D and pull out the pu. shaft holder from

the pu. shaft.
(2) Remove the screw E attaching the feed sw. holder.
(3) Move the part e of the pickup unit upward with the pu. shaft

and the feed sw. holder, then release the joint f of the feed

sw. holder in the direction of the arrow. The joint g of the

pickup unit and the feed rack is released, and the feed sw.

holder comes off.
(4) Remove the pu. shaft from the pickup unit.
(5) Remove the screw F attaching the feed rack to the pickup

unit.

3.2.8 Reattaching the pickup unit
(See Figs.14 to 17)

(1) Reattach the feed rack to the pickup unit using the screw F.
(2) Reattach the feed sw. holder to the feed rack while setting

the joint g to the slot of the feed rack and setting the part f
of the feed rack to the switch of the feed sw. holder correct­ly.

(3) As the feed sw. holder is temporarily attached to the pickup

unit, set to the gear of the joint g and to the bending part of
the chassis (joint h) at a time.

CAUTION:

Make sure that the part i on the underside of the feed
rack is certainly inserted to the slot j of the change lock

lever.
(4) Reattach the feed sw. holder using the screw E.
(5) Reattach the pu. shaft to the p ickup uni t. Reattach the pu.

shaft holder to the pu. shaft using the screw D.

Feed sw. holder

Joint f

Joint g

Feed sw.
holder

Part e

Feed rack

E

Pickup unit

Part i

Slot j

F

Fig.15

Pu. shaft

Pickup unit

Joint f

Joint h

Fig.16

Feed rack

Pickup unit

Feed sw. holder

D

Pu. shaft
holder

Pu. shaft

D

Pu. shaft holder

Pickup unit

Fig.14

Part e

E

Joint g

Feed rack

Fig.17

Pickup unit

Joint g

Joint f

Feed sw. holder

Fig.18

(No.MA050)1-17

3.2.9 Removing the trigger arm

r

(See Figs.19 and 20)

• Prior to performing the follow ing procedure, remove the top
cover, connector board and clamper unit.
(1) Turn the trigger arm in the direction of the arrow to release

the joint k and pull out upward.

CAUTION:

When reassembling, insert the part m and n of the trigger
arm into the part p and q at the slot of the chassis rivet
assembly respectively and join the joint k at a time.

Chassis rivet assembly

Trigger arm

Chassis rivet
assembly

Joint k

Trigger arm

Fig.19

Part p

Part q

Part m

Part n

3.2.10 Removing the top plate assembly

(See Fig.21)

• Prior to performing the follow ing procedure, remove the top
cover, connector board, chassis unit, and clamper assembly.
(1) Remove the screw H.
(2) Move the top plate assembly in the direction of the arrow to

release the two joints r.

(3) Unsolder the wire marked s if necessary.

H

Fig.20

Top plate assembly

Joints

s

Fig.21

1-18 (No.MA050)

3.2.11 Removing the mode sw. / select lock arm
(See Figs.22 and 23)

• Prior to perfo rming the following procedure, remove the top

plate assembly.
(1) Bring up the mode sw. to release from the link plate (joint t)

and turn in the direction of the arrow to release the joint u.
(2) Unsolder the wire of the mode sw. marked s if necessary.
(3) Turn the select lock arm in the direction of the arrow to re-

lease the two joints v.
(4) The select lock arm spring comes off the select lock arm at

the same time.

Top plate

Link plate

Joint u

Joint t

s

Fig.22

Select lock arm

Select lock arm

Mode sw.

Select lock arm

Top plate

Hook w

Select lock
arm spring

Link plate

Joints v

Fig.23

(No.MA050)1-19

3.2.12 Reassembling the mode sw. / select lock arm
(See Figs.24 to 26)

REFERENCE:

Reverse the above removing procedure.
(1) Reattach the select lock arm spring to the top plate and set

the shorter end of the select lock arm spring to the hook w
on the top plate.

(2) Set the other longer end of the select lock arm spring to the

boss x on the underside of the select lock arm, and join the
select lock arm to the slots (joint v). Turn the select lock
arm as shown in the figure.

(3) Reattach the mode sw. whil e setting the part t to the first

peak of the link plate gear, and join the joint u.

CAUTION:

When reattaching the mode sw., check if the points y and
z are correctly fitted and if each part operates properly.

Select lock arm spring

Hook w

Joint v

Joint v

Select lock arm

Boss x

Fig.24

Joint t

Point y

Link plate

Point z

Link plate

Fig.25

Mode sw.

Select
lock arm

Joint t

Joint u

Fig.26

1-20 (No.MA050)

3.2.13 Removing the select arm R / link plate

(See Figs.27 and 28)

• Prior to perfo rming the following procedure, remove the top

plate assembly.
(1) Bring up the select arm R to release from the link plate

(joint a') and turn as shown in the figure to release the two
joints b' and joint c'.

(2) Move the link plate in the direction of the arrow to release

the joint d'. Remove the link plate spring at the same time.

REFERENCE:

Before removing the link plate, remove the mode sw..

Select arm R

Joint b'

Link plate spring

Joint c'

Joint a'

Link plate

Joint b'

Fig.27

Joint r

3.2.14 Reattaching the Select arm R / link plate

(See Figs.29 and 30)

REFERENCE:

Reverse the above removing procedure.
(1) Reattach the link plate spring.
(2) Reattach the link plate to the link plate spring wh ile j oining

them at joint d'.

(3) Reattach the joint a' of the select arm R to the first peak of

the link plate while joining the two joints b' with the slots.
Then turn the select arm R as shown in the figure. The top
plate is joined to the joint c'.

CAUTION:

When reattaching the sele ct arm R, check if the points e'
and f' are correctly fitted and if each part operates prop­erly.

Top plate

Select arm R

Joint b'

Joint d'

Link plate

Fig.28

Link plate spring

Joint c'

Joint d'

Joint b'

Joint a'

Fig.29

Joint a'

Point e'

Link plate

Point f'

Fig.30

(No.MA050)1-21

3.2.15 Removing the loading roller assembly
(See Figs.31 to 33)

• Prior to performing the following procedure, remove the

clamper assembly and top plate assembly.
(1) Push inward the loading roller a ssembly on the gear side

and detach it upward from the slot of the joint g' of the lock
arm rivet assembly.

(2) Detach the loading roller assembly from the slot of the joint

h' of the lock arm rivet assembly.

Roller guide
spring

Part k'

Loading roller assembly

Loading roller assembly

The roller guide comes off the gear section of the loading
roller assembly.

Remove the roller guide and the HL washer from the shaft

of the loading roller assembly.
(3) Remove the screw J attaching the lock arm rivet assembly.
(4) Push the shaft at the joint i' of the lock arm rivet assembly

inward to release the lock arm rivet assembly from the slot

of the L side plate.
(5) Extend the lock arm rivet assembly outward and relea se

the joint j' from the boss of the chassis rivet assembly. The

roller guide springs on both sides come off at the same

time.

CAUTION:

When reassembling, reattach the left and right roller
guide springs to the lock arm rivet assembly before reat­taching the lock arm rivet assembly to the chassis rivet
assembly. Make sure to fit the part k' of the roller guide
spring inside of the roller guide. (Refer to Fig.34.)

Roller guide

HL washer

Loading roller assembly

Roller guide

Chassis rivet assembly

J

Roller guide
spring

Fig.32

Boss

L side plate

Roller guide spring

Joint h'

Roller guide spring

Loading roller assembly

Joint g'

Lock arm rivet assembly

Fig.31

Roller guide spring

Roller guide spring

Lock arm rivet assembly

Lock arm rivet assembly

Joint i'

Part j'

Fig.33

Roller guide

HL washer

Roller shaft assembly

Loading roller

Roller guide spring

Fig.34

1-22 (No.MA050)

3.2.16 Removing the loading gear 5, 6 and 7
(See Figs.35 and 36)

• Prior to perfo rming the following procedure, remove the top

cover, chassis unit, pickup unit and top plate assembly.
(1) Remove the screw K attaching the lo ading gear bracket.

The loading gear 6 and 7 come off the loading gear brack­et.

(2) Pull out the loading gear 5.

K

Loading gear bracket

K

Loading gear 6

Loading gear 5

Loading gear 3

Fig.35

Loading gear bracket

Loading gear 5

Loading gear 6

Loading gear 7

Fig.36

(No.MA050)1-23

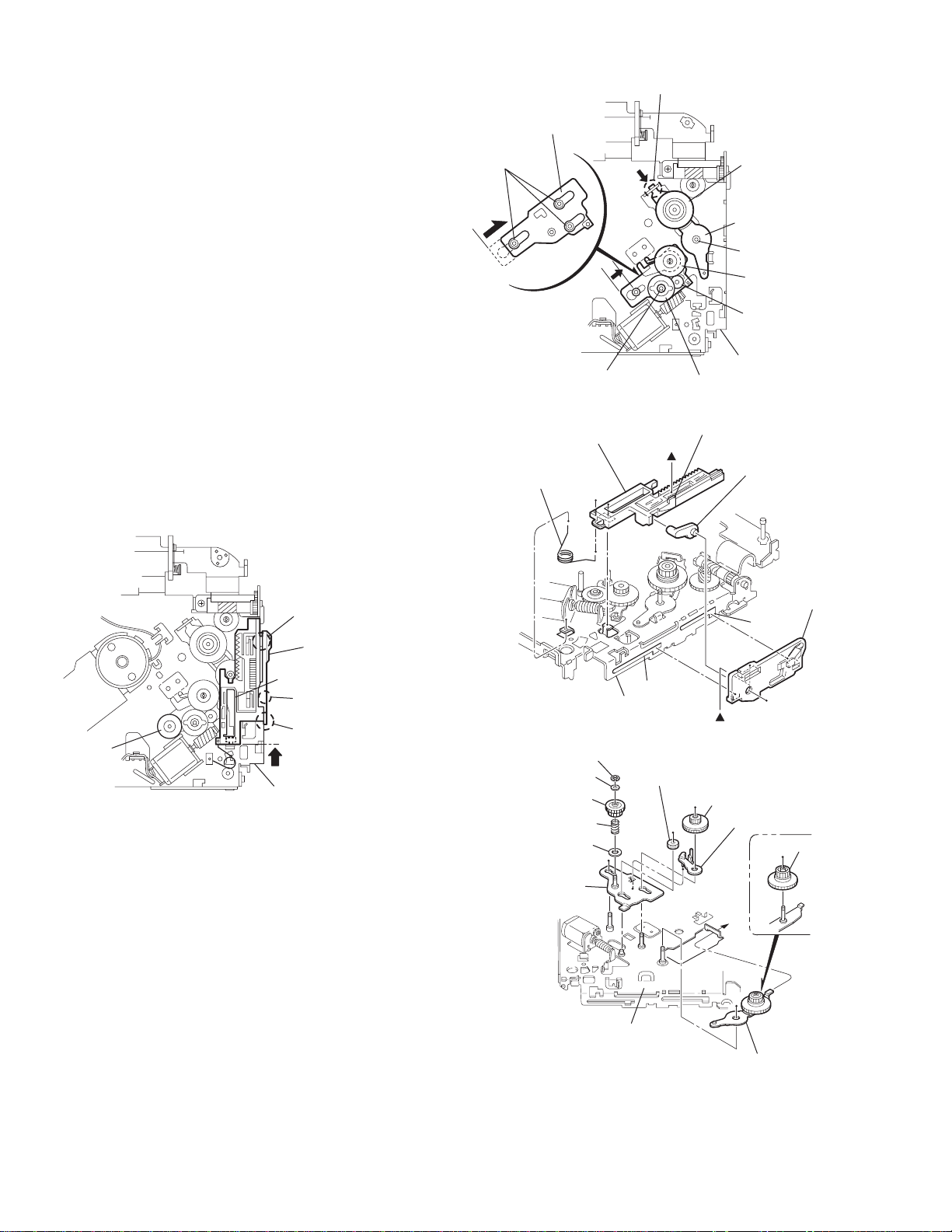

3.2.17 Removing the gears
(See Figs.37 to 40)

• Prior to performing the follow ing procedure, remove the top

cover, chassis unit, top plate assembly and pickup unit.

• Pull out the loading gear 3. (See Fig.35.)

(1) Pull out the feed gear.
(2) Move the loading plate assembly in th e directio n of th e ar-

row to release the L side plate from the two slots m' of the
chassis rivet assembly. (See Fig.37.)

(3) Detach the loading plate assembly upward from the chas-

sis rivet assembly while releasing the joint n'. Remove the
slide hook and loading plate spring from the loading plate
assembly.

(4) Pull out the loading gear 2 and remove the change lock le-

ver.

(5) Remove the E ring and washer attaching the changer gear

2.

(6) The changer gear 2, change gear spring and adjusting

washer come off.
(7) Remove the loading gear 1.
(8) Move the change plate rivet assembly in the direction of the

arrow to release from the three shafts of the chassis rivet

assembly upward. (See Fig.38.)
(9) Detach the loading gear plate rivet assembly from the shaft

of the chassis rivet assembly upward while releasing the

joint p'. (See Figs.38 and 40.)

(10) Pull out the loading gear 4.

Change plate
rivet assembly

Shafts

E ring

Loading plate assembly

Loading plate spring

Joint p'

Loading gear 4

Loading gear plate
rivet assembly

Shaft

Loading gear 2

Loading gear 1

Chassis rivet assembly

Change gear 2

Fig.38

Joint n'

Slide hook

Feed gear

Fig.37

Slot m'

L side plate

Loading plate assembly

Joint n'

Slot m'

Chassis rivet assembly

Chassis rivet assembly

E ring

Washer

Change gear 2

Change gear spring

Adjusting washer

Change plate

rivet assembly

Chassis rivet assembly

L side plate

Slot m'

Slot m'

Fig.39

Loading gear 1

Loading gear 2

Change lock lever

Loading gear 4

1-24 (No.MA050)

Loading gear plate rivet assembly

Fig.40

3.2.18 Removing the turn table / spindle motor
(See Figs.41 and 42)

• Prior to perfo rming the following procedure, remove the top

cover, connector board, chassis unit and clamper assembly.
(1) Remove the two screws L attaching the spindle motor as-

sembly through the slot of the turn table on top of the body.

(2) Unsolder the wire on the connector board if necessary.

Turn table

L

Fig.41

L

Turn table

Spindle motor

Fig.42

(No.MA050)1-25

SECTION 4

ADJUSTMENT

4.1 Adjustment method  Test instruments required for adjustment

(1) Digital oscilloscope (100MHz)
(2) AM Standard signal generator
(3) FM Standard signal generator
(4) Stereo modulator
(5) Electric voltmeter
(6) Digital tester
(7) Tracking offset meter
(8) Test Disc JVC :CTS-1000
(9) Extension cable for check

EXTSH002-22P × 1

 Standard volume position

Balance and Bass &Treble volume : lndication"0"
Loudness : OFF

 How to connect the extension cable for adjusting

Caution:

Be sure to attach the heat sink and rear bracket onto the power amplifier IC and regulator IC respectively, before supply the power.
If voltage is applied without attaching these parts, the power amplifier IC and regulator IC will be destroyed by heat.

 Standard measuring conditions

Power supply voltage DC14.4V(10.5 to 16V)
Load impedance 20KΩ(2 Speakers connection)
Output Level Line out 2.0V (Vol. MAX)

 Dummy load

Exclusive dummy load should be used for AM,and FM. For FM
dummy load,there is a loss of 6dB between SSG output and
antenna input.The loss of 6dB need not be considered since
direct reading of figures are applied in this working standard.

Extension cable: EXTSH002-22P

1-26 (No.MA050)

Heat sink

Rear bracket

5.1 Feed section

SECTION 5

TROUBLE SHOOTING

Is 5v or 0V at IC541
pin 40?

YES

Is 4V present at both
sides of the feed motor?

YES

Check the feed motor.

5.2 Focus section

5.3 Spindle section

NO

Is the wiring for IC541
pin 40 correct?

NO

Is 6V or 2V present at
IC501 pins 4 and 5?

Check IC501.

When the lens is
moving:

Does the S-search
waveform appear at
IC501 pins 8 and 9?

NO

NO

YES

4V

YES

YES

NO

Is 5V present at IC501
pins 3,12 and 21?

Check the vicinity of
IC501.

Check the feed motor
connection wiring.

Check the circuits in
the vicinity of IC501
pins 15 and 16.

Check the pickup and
its connections.

NO

Check CD8V.

YES

YES

Is the disk rotated?

YES

Does the RF signal
appear at IC541 pin 24?

YES

Is the RF waveform
at IC541 pin 24 distorted?

YES

Proceed to the Tracking
section

5.4 Tracking section

When the disc is rotated
at first:

Is the tracking error
signal output at IC541
pin 31?

NO

Is 4V present between
IC501 pins 6 and 7?

Check the spindle motor
and its wiring.

NO

Check the circuits in
the vicinity of IC541
or the pickup.

NO

NO

Approx. 1.2V

YES

NO

YES

Check the circuits in
the vicinity of IC541
pins 2 to 12.

Is 4V present at IC541
pin 41?

YES

Check the vicinity of
IC501.

NO

Check the pickup and
its connections.

NO

Check IC541.

Check IC541.

(No.MA050)1-27

5.5 Signal processing section

Is the sound output from
both channels (L, R)?

YES

Normal

NO

No sound from either
channel.

Is 9V present at IC161
pin 40?

Is the audio signal
(including sampling
output components)
output to IC581 pins 1
and 7 during playback?

Is the audio signal
output at IC161 pins 36
to 39 during playback?

YES

YES

YES

Compare the L-ch and

NO

R-ch to locate the
defective point.

NO

Is 9V present at IC901
pin 10?

Check the connection
between IC901 pin10
and IC161 pin40.

NO

Check IC581 and its
peripheral circuits.

NO

Check IC161 and its
peripheral circuits.

YES

NO

Check IC901 and its
peripheral circuits.

YES

Is the audio signal output
at IC301 pins 17and 21
during playback?

YES

Check the power amp.
IC301.

NO

Check IC301 and its
peripheral circuits.

1-28 (No.MA050)

5.6 Maintenance of laser pickup

(1) Cleaning the pick up lens

Before you replace the pick up, please try to clean the lens
with a alcohol soaked cotton swab.

(2) Life of the laser diode

When the life of the laser diode has expired, the following
symptoms will appear.

• The level of RF output (EFM output: amplitude of eye
pattern) will be low.

5.7 Replacement of laser pickup

Turn of the power switch and, disconnect the
power cord.

Replace the pickup with a normal one. (Refer
to "Removing the pickup unit" on the previous page.)

Is RF output

1.3 0.4Vp-p?

NO

Replace it.

YES

OK

(3) Semi-fixed resistor on the APC PC board

The semi-fixed resistor on the APC printed circuit board
which is attached to the pickup is used to adjust the laser
power.Since this adjustment should be performed to match
the characteristics of the whole optical block, do not touch
the semi-fixed resistor.
If the laser power is lower than the specified value, the la­ser diode is almost worn out, and the laser pickup should
be replaced. If the semi-fixed resistor is adjusted while the
pickup is functioning normally, the laser pickup may be
damaged due to excessive current.

Plug the power cord in, and turn the power on.
At this time, check that the laser emits for about
seconds and the objective lens moves up and down.
Note: Do not observe the laser beam directly.

Play a disc.

Check the eye-pattern at

RF test point.

Finish.

(No.MA050)1-29

5.8 16 pin cord diagram

BK

8

RD

7

6

BL

BL/WH

5

WH

3

GN

4

VI

1

GY

2

GY

+

-

+

-

+

-

2

10

1

9

4

12

GY/BK

VI

VI/BK

GN

GN/BK

OR/WH

WH/BK

GN/BK

VI/BK

GY/BK

FR

FR

RR

RR

RL

RL

YL

NC

NC

16

15

14

13

11

12

10

BK

RD

BL

Black

Red

Blue

WH White

9

OR/WH

15

ILL

7

RD

ACC

16

YL

MEMORY

BK

8

GND

5

BL/WH

REMOTE

BL

6

ANT

3

FL

11
FL

WH

WH/BK

+

-

GN

VI Violet

GY

YL

OR

Green

Gray

Yellow

Orange

1-30 (No.MA050)

RR

FR

FL

RL

REMOTE

Rear Right

Front Right

Front Left

Rear Left

Remote

ANT

ACC

ILL

GND

MEMORY

Auto Antenna

ACC Line

Illuminations Control

Ground

Memory Backup Battery+

(No.MA050)1-31

VICTOR COMPANY OF JAPAN, LIMITED

AV & MULTIMEDIA COMPANY MOBILE ENTERTAINMENT CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan

(No.MA050)

Printed in Japan

WPC

PARTS LIST

[ KD-G700 ]

* All printed circuit boards and its assemblies are not available as service parts.

Area suffix

J -------------- Northern America

MA050

- Contents -

Exploded view of general assembly and parts list (Block No.M1)

CD mechanism assembly and parts list (Block No.MB)

Electrical parts list (Block No.01~02)
Packing materials and accessories parts list (Block No.M3)

3- 2
3- 4
3- 6
3-12

3-1

Exploded view of general assembly and parts list

Block No.

M

M

1

M

17

16

68

1

28

36

c

G

36

18

H

35

E

33

75

D

F

3

12

68

24

12

C

33

F'

4

64

G'

31

78

28

89

22

77

72

K

74

76

71

66

67

73

85

41

86

82

87

J

H

81

B

32

41

30

J

30

2

c

83

a

A

a

6

8

79

80

84

b

29

7

32

Main board

14

G

G'

13

9

10

5

11

27

40

F

F'

15

K

67

E

40

65

70

88

52

51

54

55

63

62

59

Front board

60

50

58

61

56

47

B

D

C

26

Mecha control board

40

53

48

56

42

45

46

43

3-2

37

25

38

39

37

A

34

20

19

26

21

23

49

57

44

69

General Assembly

Block No. [M][1][M][M]



Symbol No.

1 GE20156-001A GEAR BKT UNIT
2 FSYH4036-100 SHEET
3 GE30968-001A LEVER BKT UNIT
4 GE30964-001A LOWER LEVER ASS
5 GE30975-001A FRONT BKT ASSY
6 FSYH4036-100 SHEET
7 GE30972-001A DETACH LEVER
8 GE30973-001A KICK LEVER
9 GE40192-001A SHAFT
10 GE40193-001A SHAFT
11 WDL123525 WASHER (x2)
12 WDL215025 WASHER (x2)
13 GE40194-001A T SPRING
14 GE40195-002A T.SPRING
15 GE40218-009A SHEET (x2)
16 GE10073-004A TOP CHASSIS
17 GE40135-001A EARTH PLATE
18 GE10074-001A BOTTOM CHASSIS
19 GE10075-001A FRONT CHASSIS
20 GE40156-001A BLIND
21 GE40224-001A MIRROR SHEET (x2)
22 GE30974-001A FPC GUIDE
23 GE40196-001A ABSORBER (x2)
24 GE31204-003A INSULATOR
25 GE31206-002A HEAT SINK
26 QYSPSP2003M SCREW 2mm x 3mm(x2)
27 QYSPSTU2040M TAP SCREW M2 x 4mm(x2)
28 LV42181-002A SPECIAL SCREW (x2)
29 LV40865-001A MINI SCREW (x2)
30 LV40865-001A MINI SCREW (x3)
31 LV40865-001A MINI SCREW
32 LV41200-001A SPECIAL SCREW (x2)
33 QYSDST2606Z SCREW 2.6mm x 6mm(x2)
34 QYSDST2604Z SCREW 2.6mm x 4mm
35 QYSDST2604Z SCREW 2.6mm x 4mm
36 LV41200-001A SPECIAL SCREW (x2)
37 FSKZ4005-002 SCREW (x2)
38 QYSDST2610Z SCREW 2.6mm x 10mm(x2)
39 QYSDST2612Z SCREW 2.6mm x 12mm
40 QYSDST2604Z SCREW 2.6mm x 4mm(x3)
41 QYSDST2604Z SCREW 2.6mm x 4mm(x2)
42 GE10084-001A FRONT PANEL
43 GE31184-001A FINDER ASSY
44 GE31199-001A COVER PLATE L
45 GE31218-001A COVER PLATE R
46 GE31198-001A COVER PLATE B
47 GE31189-001A DISPLAY BUTTON
48 GE31190-001A ANGLE BUTTON
49 GE31185-001A POWER BUTTON
50 GE31186-001A MODE BUTTON
51 GE31187-001A EJECT BUTTON
52 GE20166-001A PRESET BUTTON
53 GE31191-003A D.FUNC BUTTON
54 GE31192-001A SEARCH BUTTON
55 GE31193-001A UP/DOWN BUTTON
56 GE31197-001A RIM LENS (x2)
57 GE31196-001A RIM COVER
58 FSYH4036-032 SHEET
59 GE40218-002A SHEET
60 GE31195-002A SEL BUTTON
61 GE31194-001A KNOB
62 GE31188-001A DETACH BUTTON
63 FSKW3002-012 COMP.SPRING
64 GE10085-001A REAR COVER
65 GE40211-001A REAR LENS
66 GE40216-001A REAR LENS (R)
67 GE40218-010A SHEET (x2)
68 VKZ4777-001 MINI SCREW (x4)
69 GE40204-001A JVC BADGE
70 GE40218-005A SHEET (x2)
71 GE31201-002A LCD CASE
72 GE31036-001A LCD LENS
73 GE31037-001A LENS CASE
74 GE40200-002A LIGHTING SHEET

Part No. Part Name Description Local



Symbol No.

75 GE31154-003A NAME PLATE
76 QLD0296-001 LCD MODULE LCD1
77 QNZ0442-001 LCD CONNECTOR
78 QNZ0442-001 LCD CONNECTOR
79 QAL0536-001 FPC CABLE
80 QNZ0664-001 CAR CONNECTOR



81 QMFZ047-150-T FUSE 15A
82 GE31205-004A REAR BRACKET
83 GE40207-001A POWER IC BKT
84 GE40124-002A REG BRACKET
85 QYSDSF2606Z SCREW 2.6mm x 6mm
86 QYSDSF2606Z SCREW 2.6mm x 6mm(x2)
87 QYSDST2604Z SCREW 2.6mm x 4mm
88 FSKS3017-002 LED HOLDER
89 GE40218-011A SHEET

Part No. Part Name Description Local

3-3

CD mechanism assembly and parts list

Grease

TNG-87
GP-501MK
CFD-005Z
GP-501A

72

26

74

35

TN-2001-1011

34

33

111

Block No.

M

M

B

M

2

C

101

93

112

24

76

94

31

22

122

61

36

29

100

116

111

25

73

85

15

111

37

A

19

B

21

62

D

75

38

95

14

100

112

96

97

123

11

32

a

113

114

D

90

89

38

30

A

C

B

92

18

82

115

87

88

20

13

23

125

32

99

12

121

16

17

124

86

27

28

83

98

83

4

3-4

84

73

74

111

91

111

93

71

1

3

111

3

94

81

75

77

a

CD mechanism

Block No. [M][B][M][M]



Symbol No.

1 30320101T FRAME
2 30320102T TOP COVER
3 30320115T DANPER F
4 30320116T DANPER R
11 303205505T CHASSIS RIVET
12 303205503T CHANGE P. RVT A
13 303205301T CLAMPER ASS'Y
14 303205302T SPINDLE MOTOR A
15 30320502T CLAMPER ARM
16 30320503T CHANGE GEAR SPG
17 30320505T CHANGE GEAR 2
18 30320506T FEED GEAR
19 30320507T FEED RACK
20 30320509T CHANGE LOCK RAR
21 30320510T FEED SW HOLDER
22 30320511T PU SHAFT HOLDER
23 30320513T CLAMPER SUB SPG
24 30320514T FD SUB HOLDER
25 30320518T TOP PLATE
26 30320519T SELECT LOCK ARM
27 30320520T TRIGGER ARM
28 30320521T SLIDE HOOK
29 30320522T PU SHAFT
30 30320525T CLAMPER ARM SPG
31 30320526T SELECT L ARM SP
32 30320538T SUSPENSION SP R
33 30320529T SELECT ARM R
34 30320530T LINK PLATE
35 30320531T LINK PLATE SPG
36 30320523T CUSHION F
37 30320524T CUSHION R
38 30320539T SUSPENSION SP L
61 69011614T PICKUP OPT-725
62 64180406T DET SW ESE22
71 303210301T CONN PWB ASS'Y
72 30321002T MODE SW
73 30321003T LOAD MOTOR WIRE
74 30321005T MODE SW WIRE
75 30321009T SL WIRE
76 30321011T WIRE HOLDER
77 19501403T WIRE CLUMPER
81 303211301T ROLLER SHAFT AS
82 303211501T L GEAR PLATE RV
83 303211302T LOADING PLATE A
84 303211502T LOCK ARM RV ASS
85 303211303T L/F MOTOR ASS'Y
86 30321101T LOADING GEAR 1
87 30321102T LOADING GEAR 2
88 30321103T LOADING GEAR 3
89 30321104T LOADING GEAR 4
90 30321105T LOADING GEAR 5
91 30321106T LOADING GEAR 6
92 30321107T LOADING GEAR 7
93 30321111T RO L LER G UID E
94 30321114T ROLLER GUIDE SP
95 30321116T DISC STOPPER AR
96 30321117T DISC ST ARM SPG
97 30321118T LD GEAR BRACKET
98 30321125T L SIDE PLATE
99 30321131T LOAD PLATE SPG
100 30321133T LDG ROLLER
101 18211223T COLLAR SCREW
111 9P0420031T SCREW
112 9P0420041T TAP.SCREW
113 9B0320041T SCREW
114 9C0117183T SCREW
115 9C0120203T SCREW
116 9C0317503T SCREW
121 9W0130170T PW 3.5X8X0.3
122 9W0513060T HL WASHER
123 9W0710070T L WASHER
124 9E0100152T E RING
125 9W0113020T PW 2.1X4X0.13

Part No. Part Name Description Local

3-5

Electrical parts list

Main board



Symbol No.

IC31 TB2118F-X PLL IC
IC161 BD3807K IC
IC301 LA47515 IC
IC401 TC94A34FG-002 IC
IC461 NJU7772F15-X IC
IC481 AK4385VT-X IC
IC501 LA6242H-X IC
IC521 TA2157FN-X RF AMP IC
IC541 TC94A14FA CD LSI IC
IC581 NJM4565M-WE IC
IC701 UPD784217AGC244 MICON IC
IC702 IC-PST3433U-X IC
IC703 BR24L16F-W-X IC
IC901 HA13164A IC
IC951 BA6956AN IC

Q1 UN2211-X TRANSISTOR
Q2 2SD601A/R/-X TRANSISTOR
Q4 2SB709A/R/-X TRANSISTOR
Q5 2SB624/4/-X TRANSISTOR
Q6 UN2211-X TRANSISTOR
Q7 UN2211-X TRANSISTOR
Q31 UN2211-X TRANSISTOR
Q241 2SD601A/R/-X TRANSISTOR
Q321 2SD1781K/QR/-X TRANSISTOR
Q331 2SD1781K/QR/-X TRANSISTOR
Q341 2SD1781K/QR/-X TRANSISTOR
Q351 2SD1781K/QR/-X TRANSISTOR
Q401 UN2211-X TRANSISTOR
Q402 UN2211-X TRANSISTOR
Q403 2SB624/4/-X TRANSISTOR
Q404 UN2211-X TRANSISTOR
Q481 UN2111-X TRANSISTOR
Q501 2SB1322/RS/-T TRANSISTOR
Q521 2SB1241/QR/-T TRANSISTOR
Q542 UN2211-X TRANSISTOR
Q781 UN2111-X TRANSISTOR
Q782 UN2211-X TRANSISTOR
Q783 UN2111-X TRANSISTOR
Q841 UN2211-X TRANSISTOR
Q881 UN2211-X TRANSISTOR
Q901 2SB709A/QR/-X TRANSISTOR
Q902 UN2211-X TRANSISTOR
Q951 UN2211-X TRANSISTOR

D1 1SS355-X SI DIODE
D2 1SS355-X SI DIODE
D3 1SS355-X SI DIODE
D4 1SS355-X SI DIODE
D161 1SS355-X SI DIODE
D162 1SS355-X SI DIODE
D241 RB160M-30-X SB DIODE
D242 1SS355-X SI DIODE
D243 UDZS5.1B-X Z DIODE
D321 1SS355-X SI DIODE
D331 1SS355-X SI DIODE
D341 1SS355-X SI DIODE
D351 1SS355-X SI DIODE
D481 UDZS5.1B-X Z DIODE
D501 1A3G-T1 SI DIODE
D702 1SS355-X SI DIODE
D704 UDZS6.2B-X Z DIODE
D705 UDZS6.2B-X Z DIODE
D706 UDZS6.2B-X Z DIODE
D717 UDZS6.2B-X Z DIODE
D718 1SS355-X SI DIODE
D719 1SS355-X SI DIODE
D781 1SS355-X SI DIODE
D782 1SS355-X SI DIODE
D783 UDZS11B-X Z DIODE
D901 1N5401-TU-15 DIODE
D902 RB160M-30-X SB DIODE

Part No. Part Name Description Local

Block No. [0][1][0][0]



Symbol No.

D903 RB160M-30-X SB DIODE
D904 1SS355-X SI DIODE
D951 UDZS3.9B-X Z DIODE

C2 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C3 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C4 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C5 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C6 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C7 NDC31HJ-100X C CAPACITOR 10pF 50V J
C8 NCB31HK-102X C CAPACITOR 1000pF 50V K
C9 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C10 QEKJ1HM-104Z E CAPACITOR 0.1uF 50V M
C31 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C32 NDC31HJ-470X C CAPACITOR 47pF 50V J
C33 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C34 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C35 NDC31HJ-100X C CAPACITOR 10pF 50V J
C36 NDC31HJ-7R0X C CAPACITOR 7pF 50V J
C37 NDC31HJ-100X C CAPACITOR 10pF 50V J
C38 NCB31HK-102X C CAPACITOR 1000pF 50V K
C39 NCB31HK-102X C CAPACITOR 1000pF 50V K
C40 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C41 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C42 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C43 QFV61HJ-473Z MF CAPACITOR 0.047uF 50V J
C44 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C45 NCB31HK-272X C CAPACITOR 2700pF 50V K
C46 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C47 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C48 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C50 NDC31HJ-101X C CAPACITOR 100pF 50V J
C55 NDC31HJ-331X C CAPACITOR 330pF 50V J
C81 NCB31HK-153X C CAPACITOR 0.015uF 50V K
C82 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C83 NCB31HK-562X C CAPACITOR 5600pF 50V K
C84 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C91 NCB31HK-153X C CAPACITOR 0.015uF 50V K
C92 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C93 NCB31HK-562X C CAPACITOR 5600pF 50V K
C94 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C161 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C162 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C163 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C164 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C165 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C168 NCB31HK-221X C CAPACITOR 220pF 50V K
C169 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C170 NCB31HK-221X C CAPACITOR 220pF 50V K
C171 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C172 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C173 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C174 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C175 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C176 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C177 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C178 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C179 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C180 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C181 QEKJ1HM-475Z E CAPACITOR 4.7uF 50V M
C241 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C242 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C243 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C244 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C301 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C302 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C303 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C304 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C305 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C306 NCB31EK-223X C CAPACITOR 0.022uF 25V K
C307 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C308 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C309 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C310 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C311 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C312 NDC31HJ-101X C CAPACITOR 100pF 50V J

Part No. Part Name Description Local

3-6



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C313 NDC31HJ-101X C CAPACITOR 100pF 50V J
C314 NDC31HJ-101X C CAPACITOR 100pF 50V J
C315 NDC31HJ-101X C CAPACITOR 100pF 50V J
C316 NDC31HJ-101X C CAPACITOR 100pF 50V J
C317 NDC31HJ-101X C CAPACITOR 100pF 50V J
C318 NDC31HJ-101X C CAPACITOR 100pF 50V J
C319 NDC31HJ-101X C CAPACITOR 100pF 50V J
C320 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C321 NCS31HJ-391X C CAPACITOR 390pF 50V J
C322 QFVD1HJ-474Z MF CAPACITOR 0.47uF 50V J
C331 NCS31HJ-391X C CAPACITOR 390pF 50V J
C332 QFVD1HJ-474Z MF CAPACITOR 0.47uF 50V J
C333 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C341 NCS31HJ-391X C CAPACITOR 390pF 50V J
C342 QFVD1HJ-474Z MF CAPACITOR 0.47uF 50V J
C344 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C351 NCS31HJ-391X C CAPACITOR 390pF 50V J
C352 QFVD1HJ-474Z MF CAPACITOR 0.47uF 50V J
C401 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C402 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C403 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C404 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C405 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C406 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C407 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C408 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C409 NDC31HJ-7R0X C CAPACITOR 7pF 50V J
C410 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C411 NCB31HK-222X C CAPACITOR 2200pF 50V K
C412 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C461 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C462 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C463 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C464 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C481 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C482 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C483 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C501 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C502 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C503 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C504 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C505 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C506 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C507 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C509 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C510 NDC31HJ-680X C CAPACITOR 68pF 50V J
C511 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C521 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C522 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C523 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C524 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C525 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C527 NCB31HK-682X C CAPACITOR 6800pF 50V K
C528 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C529 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C530 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C531 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C532 NDC31HJ-680X C CAPACITOR 68pF 50V J
C533 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C534 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C541 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C542 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C543 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C544 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C545 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C546 NDC31HJ-470X C CAPACITOR 47pF 50V J
C547 NCB31HK-153X C CAPACITOR 0.015uF 50V K
C548 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C549 NCB31HK-272X C CAPACITOR 2700pF 50V K
C550 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C551 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C552 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C553 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C554 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C555 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C556 NCB31HK-471X C CAPACITOR 470pF 50V K
C557 NCB31HK-471X C CAPACITOR 470pF 50V K
C558 NCB31EK-473X C CAPACITOR 0.047uF 25V K

C559 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C560 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C561 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C562 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C565 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C566 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C571 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C572 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C580 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C581 NCB31HK-332X C CAPACITOR 3300pF 50V K
C582 NDC31HJ-271X C CAPACITOR 270pF 50V J
C583 NDC31HJ-271X C CAPACITOR 270pF 50V J
C584 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C585 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C589 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C590 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C591 NCB31HK-332X C CAPACITOR 3300pF 50V K
C592 NDC31HJ-271X C CAPACITOR 270pF 50V J
C593 NDC31HJ-271X C CAPACITOR 270pF 50V J
C594 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C595 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C596 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C597 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C599 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C702 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C703 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C704 NDC31HJ-270X C CAPACITOR 27pF 50V J
C705 NDC31HJ-270X C CAPACITOR 27pF 50V J
C706 NDC31HJ-220X C CAPACITOR 22pF 50V J
C707 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C708 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C709 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C710 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C711 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C712 NDC31HJ-121X C CAPACITOR 120pF 50V J
C713 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C714 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C715 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C771 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C781 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C782 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C783 NCB31EK-823X C CAPACITOR 0.082uF 25V K
C784 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C801 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C841 QEKJ1HM-105Z E CAPACITOR 1uF 50V M
C881 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C901 QEZ0676-338 E CAPACITOR 3300uF
C902 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C903 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C904 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C905 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C906 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C907 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C908 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C909 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C910 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C913 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C914 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C915 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C916 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C951 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C952 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C953 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C954 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C990 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C995 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C996 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C997 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C998 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C999 NCB31HK-103X C CAPACITOR 0.01uF 50V K

R1 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R2 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3 NRSA63J-0R0X MG RESISTOR 0
R5 NRSA63J-473X MG RESISTOR 47k
R6 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R7 NRSA63J-472X MG RESISTOR 4.7k
R8 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-7



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R9 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R10 NRS181J-100X MG RESISTOR 10Ω 1/8W J
R12 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R31 NRSA02J-100X MG RESISTOR 10Ω 1/10W J
R32 NRSA63J-622X MG RESISTOR 6.2kΩ 1/16W J
R33 NRSA63J-103X MG RESISTOR 10k
R38 NRSA63J-101X MG RESISTOR 100
R39 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R40 NRSA63J-393X MG RESISTOR 39kΩ 1/16W J
R41 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R42 NRSA02J-100X MG RESISTOR 10Ω 1/10W J
R43 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R44 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R59 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R72 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R73 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R81 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R82 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R91 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R92 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R161 NRSA63J-224X MG RESISTOR 220k
R162 NRSA63J-224X MG RESISTOR 220k
R164 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R165 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R166 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R167 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R168 NRS181J-100X MG RESISTOR 10Ω 1/8W J
R169 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R170 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R171 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R172 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R173 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R174 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R175 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R176 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R177 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R178 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R179 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R241 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R242 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R243 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R244 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R245 NRSA63J-184X MG RESISTOR 180kΩ 1/16W J
R246 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R247 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R248 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R301 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R321 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R322 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R323 NRSA63J-222X MG RESISTOR 2.2k
R331 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R332 NRSA63J-101X MG RESISTOR 100
R333 NRSA63J-222X MG RESISTOR 2.2k
R341 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R342 NRSA63J-101X MG RESISTOR 100
R343 NRSA63J-222X MG RESISTOR 2.2k
R351 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R352 NRSA63J-101X MG RESISTOR 100
R353 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R401 NRSA63J-472X MG RESISTOR 4.7k
R403 NRSA63J-103X MG RESISTOR 10k
R404 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R406 NRSA63J-472X MG RESISTOR 4.7k
R407 NRSA63J-222X MG RESISTOR 2.2k
R408 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R409 NRSA63J-472X MG RESISTOR 4.7k
R410 NRSA63J-272X MG RESISTOR 2.7k
R411 NRSA63J-470X MG RESISTOR 47
R412 NRSA63J-222X MG RESISTOR 2.2k
R413 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R414 NRSA63J-222X MG RESISTOR 2.2k
R415 NRSA63J-472X MG RESISTOR 4.7k
R416 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R417 NRSA63J-472X MG RESISTOR 4.7k
R418 NRSA63J-103X MG RESISTOR 10k
R419 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R420 NRSA63J-473X MG RESISTOR 47k
R422 NRSA63J-225X MG RESISTOR 2.2M

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R423 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R424 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R425 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R440 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R461 NRSA02J-101X MG RESISTOR 100Ω 1/10W J
R462 NRSA02J-101X MG RESISTOR 100
R463 NRSA63J-222X MG RESISTOR 2.2k
R464 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R481 NRSA02J-181X MG RESISTOR 180Ω 1/10W J
R501 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R502 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R503 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R504 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R507 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R508 NRSA63J-302X MG RESISTOR 3kΩ 1/16W J
R509 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R510 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R511 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R512 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R513 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R514 NRS181J-220X MG RESISTOR 22
R515 NRS181J-220X MG RESISTOR 22
R517 NRSA63J-512X MG RESISTOR 5.1kΩ 1/16W J
R518 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R523 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R524 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R525 NRSA63J-334X MG RESISTOR 330kΩ 1/16W J
R526 NRSA63J-334X MG RESISTOR 330kΩ 1/16W J
R527 NRSA02J-220X MG RESISTOR 22Ω 1/10W J
R528 NRSA02J-220X MG RESISTOR 22Ω 1/10W J
R529 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R530 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R531 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R532 NRSA63J-202X MG RESISTOR 2kΩ 1/16W J
R533 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R534 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R535 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R536 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R537 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R539 NRSA02J-151X MG RESISTOR 150Ω 1/10W J
R541 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R542 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R543 NRSA63J-474X MG RESISTOR 470kΩ 1/16W J
R544 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R545 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R546 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R547 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R548 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R549 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R550 NRSA63J-101X MG RESISTOR 100
R551 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R552 NRSA63J-101X MG RESISTOR 100
R553 NRSA63J-105X MG RESISTOR 1M
R558 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R559 NRSA63J-155X MG RESISTOR 1.5M
R581 NRSA63J-822X MG RESISTOR 8.2k
R582 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R583 NRSA63J-822X MG RESISTOR 8.2k
R584 NRSA63J-181X MG RESISTOR 180Ω 1/16W J
R585 NRSA63J-181X MG RESISTOR 180
R586 NRSA63J-682X MG RESISTOR 6.8k
R587 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R588 NRSA63J-102X MG RESISTOR 1k
R591 NRSA63J-822X MG RESISTOR 8.2k
R592 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R593 NRSA63J-822X MG RESISTOR 8.2k
R594 NRSA63J-181X MG RESISTOR 180
R595 NRSA63J-181X MG RESISTOR 180
R596 NRSA63J-682X MG RESISTOR 6.8k
R597 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R598 NRSA63J-102X MG RESISTOR 1k
R703 NRSA63J-473X MG RESISTOR 47k
R704 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R707 NRSA63J-0R0X MG RESISTOR 0
R708 NRSA63J-821X MG RESISTOR 820
R709 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R710 NRSA63J-103X MG RESISTOR 10k
R711 NRSA63J-103X MG RESISTOR 10k

Ω

1/10W J

Ω

1/16W J

Ω

1/8W J

Ω

1/8W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-8



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R712 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R713 NRSA63J-106X MG RESISTOR 10MΩ 1/16W J
R714 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R715 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R716 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R717 NRSA63J-472X MG RESISTOR 4.7k
R718 NRSA63J-472X MG RESISTOR 4.7k
R719 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R723 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R725 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R726 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R731 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R732 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R733 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R734 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R735 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R736 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R737 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R739 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R740 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R741 NRSA63J-473X MG RESISTOR 47k
R742 NRSA63J-102X MG RESISTOR 1k
R744 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J
R745 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J
R746 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J
R748 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R749 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R751 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R752 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R753 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R758 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R761 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R762 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R763 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R764 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R765 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R766 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R771 NRSA63J-271X MG RESISTOR 270Ω 1/16W J
R772 NRSA63J-271X MG RESISTOR 270Ω 1/16W J
R773 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R781 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R782 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R841 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R881 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R882 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R901 QRE142J-102X C RESISTOR 1kΩ 1/4W J
R902 NRS181J-222X MG RESISTOR 2.2kΩ 1/8W J
R903 NRS181J-222X MG RESISTOR 2.2kΩ 1/8W J
R904 NRSA63J-912X MG RESISTOR 9.1kΩ 1/16W J
R905 NRSA63J-472X MG RESISTOR 4.7k
R906 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R907 NRSA63J-203X MG RESISTOR 20k
R951 NRSA63J-102X MG RESISTOR 1k
RA31 NRZ0065-222X MG RESISTOR 2.2kΩ
RA541 NRZ0065-103X MG RESISTOR 10k
RA701 NRZ0065-103X MG RESISTOR 10k
RA702 NRZ0065-102X MG RESISTOR 1kΩ

L1 NQL334J-4R7X COIL 4.7uH J
L401 QQL244J-470Z COIL 47uH J
L402 QRE142J-470X C RESISTOR 47
L404 QQL244J-470Z COIL 47uH J
L541 QRE142J-470X C RESISTOR 47
L543 QQL244J-470Z COIL 47uH J
L544 QQL244J-470Z COIL 47uH J
L701 QQL244J-470Z COIL 47uH J
L901 QQR1378-002 CHOKE COIL

BZ841 QAN0023-001Z BUZZER
CN501 QGB2027M4-22S CONNECTOR B-B (1-22)
CN701 QGF1041C1-16W CONNECTOR FFC/FPC (1-16)
CN703 QJB005-040909 SIN ID C-B WIRE
CN901 QNZ0611-001 16P CONNECTOR
CN951 QGA2501F1-02 CONNECTOR W-B (1-2)
J1 QAM0556-001 ANT CABLE
J301 QNN0489-001 PIN JACK
PP2 QZW0010-001 STYLE PIN
TU1 QAU0312-001 TUNER

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω
Ω

Ω

1/4W J

Ω

1/4W J

X31 QAX0616-001Z CRYSTAL 10.250MHz
X401 QAX0413-001Z CRYSTAL 16.9344MHz
X701 QAX0617-001Z CRYSTAL 12.500MHz
X702 QAX0401-001 CRYSTAL 32.768KHz

Front board

Block No. [0][2][0][0]



Symbol No.

IC601 PT6578LQ IC
IC602 RPM7338-V4 REMOCON RCV

Q641 2SB624/4/-X TRANSISTOR
Q643 UN2211-X TRANSISTOR
Q644 UN2211-X TRANSISTOR

D601 SML-310LT/MN/-X LED
D602 SML-310VT/JK/-X LED
D603 SML-310VT/JK/-X LED
D604 SML-310VT/JK/-X LED
D605 SML-310VT/JK/-X LED
D606 SML-310VT/JK/-X LED
D607 SML-310VT/JK/-X LED
D608 SML-310VT/JK/-X LED
D609 SML-310VT/JK/-X LED
D610 SML-310VT/JK/-X LED
D611 SML-310VT/JK/-X LED
D612 SML-310VT/JK/-X LED
D613 SML-310VT/JK/-X LED
D614 SML-310VT/JK/-X LED
D616 SML-310VT/JK/-X LED
D617 SML-310VT/JK/-X LED
D618 SML-310VT/JK/-X LED
D620 SML-310VT/JK/-X LED
D621 SML-310VT/JK/-X LED
D622 SML-310VT/JK/-X LED
D623 SML-310VT/JK/-X LED
D624 SML-A12BC2T-X BLUELED
D625 SML-A12BC2T-X BLUELED
D641 NSPW310BS/BRS/ LED
D642 NSPW310BS/BRS/ LED
D643 NSPW310BS/BRS/ LED
D650 UDZS9.1B-X Z DIODE
D651 UDZS5.1B-X Z DIODE
D652 1SS355-X SI DIODE
D653 1SS355-X SI DIODE
D654 1SS355-X SI DIODE
D655 1SS355-X SI DIODE
D656 1SS355-X SI DIODE
D657 1SS355-X SI DIODE
D658 1SS355-X SI DIODE
D680 UDZS5.6B-X Z DIODE 1.5k

C601 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C602 NCS31HJ-681X C CAPACITOR 680pF 50V J
C603 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C604 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C605 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C608 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C609 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C610 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M
C611 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C612 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C680 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M

R601 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R602 NRSA63J-821X MG RESISTOR 820
R603 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R604 NRSA63J-182X MG RESISTOR 1.8k
R605 NRSA63J-821X MG RESISTOR 820
R606 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R607 NRSA63J-122X MG RESISTOR 1.2k
R608 NRSA63J-182X MG RESISTOR 1.8k

Part No. Part Name Description Local

Ω

1/10W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-9



Symbol No.

R609 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R610 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R611 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R612 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R613 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R614 NRSA63J-122X MG RESISTOR 1.2k
R615 NRSA63J-182X MG RESISTOR 1.8k
R622 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R624 NRSA02J-911X MG RESISTOR 910Ω 1/10W J
R625 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R628 NRSA02J-911X MG RESISTOR 910Ω 1/10W J
R630 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R632 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R633 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R636 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R638 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R639 NRSA02J-911X MG RESISTOR 910Ω 1/10W J
R642 NRSA02J-911X MG RESISTOR 910Ω 1/10W J
R643 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R646 NRSA02J-911X MG RESISTOR 910Ω 1/10W J
R648 NRSA02J-621X MG RESISTOR 620
R650 NRSA02J-621X MG RESISTOR 620
R651 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R654 NRSA02J-621X MG RESISTOR 620Ω 1/10W J
R655 NRS181J-391X MG RESISTOR 390Ω 1/8W J
R656 NRS181J-391X MG RESISTOR 390Ω 1/8W J
R657 NRS181J-391X MG RESISTOR 390Ω 1/8W J
R658 NRS181J-471X MG RESISTOR 470Ω 1/8W J
R659 NRS181J-473X MG RESISTOR 47kΩ 1/8W J
R660 NRS181J-102X MG RESISTOR 1kΩ 1/8W J
R661 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R665 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R668 NRS181J-102X MG RESISTOR 1kΩ 1/8W J
R669 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R670 NRSA63J-394X MG RESISTOR 390kΩ 1/16W J
R671 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R672 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R673 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R674 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R675 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R676 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R677 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R678 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R679 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R680 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R681 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R685 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R690 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J

Part No. Part Name Description Local

Ω

1/16W J

Ω

1/16W J

Ω

1/10W J

Ω

1/10W J

CN601 NNZ0098-001X CAR CONNECTOR
JS601 QSW0793-001 ROTARY ENCODER
S601 NSW0124-001X TACT SW
S602 NSW0124-001X TACT SW
S603 NSW0124-001X TACT SW
S605 NSW0124-001X TACT SW
S606 NSW0124-001X TACT SW
S607 NSW0124-001X TACT SW
S608 NSW0124-001X TACT SW
S609 NSW0124-001X TACT SW
S610 NSW0124-001X TACT SW
S611 NSW0124-001X TACT SW
S612 NSW0124-001X TACT SW
S613 NSW0124-001X TACT SW
S614 NSW0124-001X TACT SW
S615 NSW0124-001X TACT SW
S616 NSW0124-001X TACT SW
S617 NSW0124-001X TACT SW
S690 NSW0124-001X TACT SW
SD601 NSW0218-001X LUMISWITCH
SD602 NSW0218-001X LUMISWITCH
TH685 NAD0022-103X N THERMISTOR 10k

3-10

Ω

10mW F

<MEMO>

3-11

Packing materials and accessories parts list

P1

A1, A2, A3, A4,
A5, A6, A7, A8,
A9, A10

P6

Block No.

P7

3

M

M

M

P7

A17

KIT:

A11, A12, A13,
A14, A15

P2

A18

A20

A19

P5

P3

A21

P4

3-12

A16

Packing and Accessories

Block No. [M][3][M][M]



Symbol No.

A 1 GET0197-001A INST BOOK ENG SPA FRE
A 2 GET0197-002A INSTALL MANUAL
A 3 GET0206-001A IMPORTANT SHEET
A 4 GET0210-001A DEMO MODE SHEET
A 5 BT-51018-3 WARRANTY CARD
A 6 BT-52006-2 WARRANTY CARD
A 7 BT-51034-1 J=REGIST CARD
A 8 LVT1120-001A MP3 GUIDE
A 9 LVT0717-001B TROUBLE SHEET(C
A 10 GET0213-001A CAUTION SHEET
A 11 VKZ4027-202 PLUG NUT
A 12 VKH4871-001SS MOUNT BOLT
A 13 VKZ4328-001 LOCK NUT
A 14 WNS5000Z WASHER
A 15 GE40130-002A HOOK (x2)
A 16 FSJB3002-00C HARD CASE
A 17 GE20137-003A MOUNTING SLEEVE
A 18 GE20164-003A TRIM PLATE
A 19 RM-RK50 REMOCON UNIT
A 20 ------------ BATTERY
A 21 QAM0306-001 16P CORD ASSY
KIT SRW-200J SCREW PARTS KIT A11 A12 A13 A14 A15
P 1 FSPG4002-001 POLY BAG
P 2 QPA00801205 POLY BAG 8cm x 12cm
P 3 FSYH4036-068 SHEET
P 4 QPA01003003 POLY BAG 10cm x 30cm
P 5 QPC03004315P POLY BAG 30cm x 43cm
P 6 GE31155-002A CARTON
P 7 GE10086-001A EPS CUSHION (x2)

Part No. Part Name Description Local

3-13

SCHEMATIC DIAGRAMS

CD RECEIVER

KD-G700

CD-ROM No.SML200401

Area suffix

J -------------- Northern America

SOUND

ATT

U

SOURCE

F

R

D

VOL

VOL

Contents

Block diagram
Standard schematic diagrams
Printed circuit boards

2-1

2-3
2-9 to 11

COPYRIGHT 2004 VICTOR COMPANY OF JAPAN, LTD.

No.MA050SCH

2004/1

Safety precaution

!

!

Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.

< MEMO >

Block diagram

POSITION SET

SWITCH

LOAD&FEED

MOTOR

SPINDLE

MOTOR

SW1, SW2

PICK UP

PSW

FEED+
FEED-

SPINDLE+
SPINDLE-

SW1, SW2

VF1,VF2
VT1,VT2
LD,MD
TRACKING+
TRACKING­FOCUS+
FOCUS-

IC602

REMOCON

REMOCON

CN501

S601 to S603
S605 to S617
SD601,SD602
KEY MATRIX

SW1,SW2,PSW

SPINDLE+
SPINDLE­FEED+
FEED­TRACKING+
TRACKING­FOCUS+
FOCUS-

VF1,VF2,
VT1,VT2,
MD,LD

KEY0
KEY1
KEY2

CN601

LM

IC501

CD

DRIVER

KEY0
KEY1
KEY2
LCDCL
LCDDA
LCDCE
REMOCON

CN701

ENC1
ENC2

DMO,FMO
TRO,FOO

RFGC,RF
RFRP,RFDC
TEB,SEL
TE,FE

IC521

RF AMP

IC541

DSP

BCK
LRCK
AOUT

DAC-CDTI
DAC-CCLK
DAC-CSN
DAC-PDN

BCK
LRCK

BCK
LRCK
AOUT

J1

ANT

BUS0 to BUS3
BUCK,CCE
RST

CDRW

IC481

DAC

IC401

MP3/WMA LSI

& INT.SRAM

2-1

LCD1

COM1
to COM10
S1 to S73

IC601

LCD

DRIVER

ENC1
ENC2

JS601

ENCODER

LCDCL
LCDDA
LCDCE

J1

ANT

IC31

PLLCE
PLLDA
PLLCL
PLLDI

PLL

FM/AM

TUNER

FM/AM OSC
FM VT
AM VT

IC701

CPU

TU1

SD/ST
MONO
SM,FM/AM
SEEK/STOP

SDA
SCL

L-CH
R-CH

VOLDA
VOLCL

IC703

EPROM

IC161

E.VOLUME

CD.L
CD.R

OUTLF
OUTLR
OUTRF
OUTRR

REGULATOR

EACH BLOCK

FRONT L,FRONT R
REAR L,REAR R

IC301

POWER

AMP.

FRONT LEFT (+)
FRONT LEFT (-)
FRONT RIGHT (+)
FRONT RIGHT (-)
REAR LEFT (+)
REAR LEFT (-)
REAR RIGHT (+)
REAR RIGHT (-)

IC901

J301
LINE OUT

MP3STBY
MP3CLK
MP3DOUT
MP3RESET
MP3REQ
MP3DIN

EFD-OUT1
EFD-OUT2

EFD-IN1
EFD-IN2
EFD-IN3

RESET

AOUTL +
AOUTL ­AOUTR +
AOUTR -

RESET

CD L.P.F.

IC951
MOTOR
DRIVER

IC702

IC581

CN901

SPK

BATTERY

CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN951

DOOR

MOTOR

CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN251CN703

SWITCH

2-2

Standard schematic diagrams

C

C

R718

47K

Main amplifier section

To CN601
(SHEET 3)

(SHEET 2)

QGA2006F1-02

CN702

MP3RESET

DAC-CDTI
DAC-CCLK

CD8V

CD.L

CD.R

CDON

CD-RW

BUS0

BUS1
BUS2

BUS3

BUCK

CCE

MP3REQ

MP3STBY

MP3DIN

MP3DOUT

MP3CLK

DAC-CSN
DAC-PDN

SW5V

CN701
QGF1041C1-16W

PSW

SW1

SW2

LM

MSW

RST

9V

CN703

QJB005-040909

CN951
QGA2501F1-02

C954

0.1

J1
QAM0556-001

BA6956AN

C953

DIMMER

DETACH

LCDCE

LCDDA

LCDCL

KEY2

KEY1

KEY0

ENC2
ACC5V

TEMP

ENC1

REOCON

IC951

UDZS3.9B-X

0.1

C952

0.1

D951

Q951
UN2211-X

UDZS6.2B-X

D717

UDZS6.2B-X

D704

NRZ0065-222X

UDZS6.2B-X

UDZS6.2B-X

D706

D705

RA31

R951

100/10

UDZS6.2B-X

D703

1K

C951

C36

7P

C35

10P

R33

UDZS6.2B-X

UDZS6.2B-X

D708

D707

10K

UDZS6.2B-X

D709

C1
5P

C34

0.047

UDZS6.2B-X

UDZS6.2B-X

D710

D711

R32

6.2K

C714

UDZS6.2B-X

D712

X31

QAX0616-001Z

0.1

UDZS6.2B-X

D713

TB2118F-X

IC31

220K

R745

EFD-OUT2

EFD-OUT1

560

R759

L1

4.7

C33
47/6.3

PLLDI

PLLCL

PLLDA

PLLCE

220K

220K

R746

R744

CD8V

0.1

C715

560

R760

D714

SML-310LT

D715

SML-310LT

D716

SML-310LT

TU1

QAU0312-001

C94

1/50

2.2K

R91

2.2K

R81

C84

C91

Q2

R4

Q3

DETACH

R737

C706C705

22P

MP3REQ

SW1

47K

0.01

MP3RESET

INT

C92

C82

0.01

MP3DOUT

MP3STBY

QAX0401-001

1/50

C81

0.015

LEVEL

UDZS5.1B-X

D243

MONO

SD/ST

MP3CLK

MP3DIN

DAC-PDN

DAC-CDTI

10K

10K

R736

R735

2.2K

2.2K
10K

R710

R72

R73

REMOCON

MUTE

R762

47K

0.047

D718

C707

R714

R82

3.9K

C241

1K

1SS355-X

0.0056

C93

R92

3.9K

C83

0.0056

D241

R248

RB160M-30-X

220

82K

0.22
R241

R734

DAC-CSN

DAC-CCLK

47K

270

270

R771

R772

R773

R733

R732

R731

R730

R729

R728

R727

R726

R725

NRZ0065-103X

R723

10K

RESET

47K

C708

0.01

R715

D702

1SS355-X

100

R761

0.01

D2

D1

1SS355-X

1SS355-X

C2

0.047

R38
100

C38

1000P

C37
10P

R40

39k

0.047

CDON

MUTE

VOLCL

BUCK

CCE

RST

BUS0

BUS1

BUS2

BUS3

CD-RW

R41

0.01

0.047
C43

C42

C41

0.047

C44

C46

0.01

0.01

C47

R43

R44

470

220

C32

C50

100P

47P

10

Q31

C31

100/10

UN2211-X

C713

0.047

C40

10/16

C48

R42

DIMMER

VOLDA

220/10

R1

C3

C4

22/16

C39
1000P

R2

0.0027

C45

10

0.01

C995

OSC

R31

D719

1SS355-X

RA702

NRZ0065-102X

0.01

C996

2SB709A/R/-X

R764

R747

R748

R749

R750

R751

R752

R763

R753

R758

R701

R702

R703

R704

Q4

1SS355-X

VPP

10k

D4

R9

R743

1K

100

10K

47K

R39
0

10k

0.01

VDD

0.01

C990

0

C5

C6

10/16

R6

47K

Q5

2SB624/4/-X

D3

1SS355-X

47K

R7

4.7K

Q6

UN2211-X

3.3K

FM/AM

CTRL

R742

1K

1.2K

47K

47K

47K

47K

1K

1K

47K

47K

47K

47K

R705

22K

D701

C701

UDZS6.2B-X

100P

Q1
UN2211-X

C7
10P

0.001

R12

POWER

10K

C8

10

22

R10

R11

SEEK/STP

MONO

R59

27K

Q7
UN2211-X

DIMIN

PLLDI

FED-OUT1

EFD-OUT2

47K

R741

10K

R740

LM

MSW

PSW

SW2

MSW

LM

TELMUTE

C702

0.047

0

R707

C703
8P

R8

C9

0.1

C55

330P

SM

R706

2.2K

0.1/50

SD/ST

R60

27K

PLLCL

PLLDA

UPD784217AGC244

R708

X701

QAX0617-001Z

C704

0.015

C10

R3

0

2SD601A/R/-X

4.7K

UN2111-X

R5

47k

D51
1SS355-X

AFCK

FM/AM

PLLCE

SEEK/STP

10K

10K

0

R738

R739

IC701

820

4.7

R709

L702

R713

X1

10M

R712

47K

X702

27P27P

CD.L

R711

RA701

47/6.3

CD.R

C771

0.047

10K

2.2K

2.2K

2.2K

0

4.7K

4.7K

4.7K

10K

10K

10K

IC702

IC-PST3433U-X

R716

2.2K

C709

CH.L

C242

0.047

1SS355-X

D242

BR24L16F-W-X

C

C

CH.R

R244

R242

1K

IC703

47K

47K

4.7K

R765

R766

R717

2-3

J301

4

CD.L

QNN0489-001

IC301

100

100

1SS355-X

Q331

2SD1781K/QR/-X

C909

0.1

R332

R342

Q341

2SD1781K/QR/-X

820

820

R341

R331

R333

2.2K

D331

1SS355-X

C783

0.082

SI

C914

C913

0.01

22/16

1SS355-X

R905

2.2K

R343

D341

1SS355-X

R781

1K

D782

R802
100K

R801

100K

R810

100

R803
100K

R904

9.1K

C916

10/16

4.7K

R322

100

Q321

2SD1781K/QR/-X

1/50

C162

C163

1/50

1/50

C164

C165

1/50

C166
1/50

C167
1/50

R161

220K

220K

R162

D161

1SS355-X

D162

1SS355-X

220p

C170

C168

220p

47K4.7K

R164

47K

R166

R165

R167

4.7K

C169

C171

0.1

0.1

CH.L

CH.R

CD.R

241
60M-30-X

R711

RA701

0065-103X

1SS355-X

D242

C771

0.047

10K

2.2K

2.2K

2.2K

0

4.7K

4.7K

4.7K

10K

10K

10K

IC702

IC-PST3433U-X

R716

2.2K

C709
47/6.3

C242

0.047

R242

IC703

BR24L16F-W-X

47K

47K

R765

R766

1K

4.7K

R717

R244

2SD601A/R/-X

RD

4.7K

R718

R245
180K

12K

C244

Q241

1/50

R246

47

R243

LCDCE

LCDCL

LCDDA

TD

4.7K

R719

R247

22K

47K

C243

22/16

C712

120P

DIMIN

I/O

SCK

SO

CTRL

SI

C710

ENC1

SM

LEVEL

KEY2

KEY1

KEY0

ENC2

TEMP

C711

100/10

0.047

C175C174C173

C172

0.01

0.01

0.010.01

VDD5V

TELMUTE

R881
47k

Q881

UN2211-X

C881
22/16

Q841

UN2211-X

L701

47

Q902

UN2211-X

Q901

2SB709A/QR/-X

R907

20K

10/16

C161

IC161
BD3807K

R171

R170

R169

33K

0.1

10

C176

C177

MUTE

Q781

UN2111-X

D781

1SS355-X

Q891

UN2211-X

R882

4.7k

QAN0023-001Z

D891

C841

1/50

BZ841

D904

1SS355-X

100/16

1SS355-X

C910

R892
1K

D892

1SS355-X

C891

0.1

C905
22/16

22/16

R891
47K

R841

3.3K

R906

8.2K

C904

100/10

820

R321

2.2K

R323

D321

2.2K

2.2K

4.7/50

C181

4.7/50

C179

C180

4.7/50

C178

4.7/50

R168

VOLCL

VOLDA

Q783
UN2111-X

C781
220/10

22/16

UDZS11B-X

C782

D783

IC901

HA13164A

C915
47/16

C908

0.1

C907

C906

22/16

Q782

UN2211-X

SO

R901

100

R352

Q351
2SD1781K/QR/-X

820

R351

R353

2.2K

D351

1SS355-X

C352

R179

0.47

27K

R178

C332

27K

0.47

47K47K

47K47K

R177R175

R176R174

C331
390P
C341
390P

C342

0.47

R173

27K

R172

C322

27K

0.47

R782

1K

C784

4.7/25100/16

IC801

HD74HC126FP-X

CN901

QNZ0611-001

1K

LA47515

C305

22/16

J801
QNZ0095-001

QQR1378-002

3300/16

C901

C306

0.022

C307

C320

1/50

100/16

C333

C344

0.047

D319

RB160M-30-X

D318

RB160M-30-X

D317

RB160M-30-X

RB160M-30-X

D316

C801

0.01

0.047

C309C308

0.10.1

C319

100P

C318
100P

C317
100P

C316
100P

FL-

RL-

FL+

RL+

CH.L

D901

1N5401-TU-15

47/16

C303

C304

0.022

C301

C302

1/50

C351
390P

C321
390P

R804

47/16

C903

22/16

C310 C311

0.1 0.1

D315

C315

RB160M-30-X

100P

D314

C314

RB160M-30-X

100P

R301

1K

POWER

RR+

RR-

I/O

INT

SCK

R808
100K

10K

R806
22K

R805

100

R809

R807

100K

100K

D903

D902

RB160M-30-X

RB160M-30-X

R902

R903

C902

RR-

D313

C313

RB160M-30-X

100P

D312

C312

RB160M-30-X

100P

FR+

FR-

CH.R

2.2K

2.2K

L901

0.1

RL+

RL-

FL-

RR+

FL+

FR+

FR-

Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.

SHEET 1

2-4

CD servo control section

7

RF

RFGC

C532

R533

1k

68P

R535

R532 R531

2k 10k

100

C534

5p

15k

R534

IC521

C522

0.01

TA2157FN-X

C523

CN501

GND

FEED-

VF2

FEED+

VCC

GND

VT2

SW1

VT1

SW2

VF1

PSW

VR

SPINDLE-

LD

SPINDLE+

FOCUS-

VREF

FOCUS+

MD

TRACKING+

VDD5V

TRACKING-

FEED-

FEED+

SPINDLE-

SPINDLE+

FOCUS-

FOCUS+

TRACKING+

TRACKING-

QGB2027M4-22S

VF2

VCC

VT2

SW1

VT1

SW2

VF1

PSW

VR

LD

VREF

MD

100/6.3

R523

C406

C407

R421

X401

QAX0413-001Z

C410

C411

0.01
C401

82k

R524

82k

R525

330k

R526

330k

C521

0.01

C524

0.01

B402

0

Q403

2SB624/4/-X

R464

47k

R463

2.2k

Q404

UN2211-X

C412

L404
47u

IC401

TC94A34FG-002

100/6.3

0.01

10k

R425

0

R422

2.2M

R424

2200.1

0.0022

R403

10k

C402

0.01

0.01

C403
1/50

Q401

UN2211-X

4.7k

R401

4.7K

2.2k

R404

R406

MP3DIN

MP3RESET

VF1

VF2

VT2

VT1

MD

R539
150

C533

0.01

C408

8P

C409

7P

47

R423

0.1

2SB1241/QR/-T

C464

0.1

C404

0.01

2.2k

2.2k

R408

R407

MP3CLK

MP3DOUT

RF

C530C531

Q521

47u

L401

C463
100/6.3

2.7K

4.7k
47

R411

R409

R410

SD0

FE

RFRP

C529
100/6.3

0.1

56k

R530

R529

82k

C525

100/6.3

R527

22

R528

22

IC461

NJU7772F15-X

R415

R416

R417

2.2K

2.2K

2.2K

R412

R413

R414

AOUT

BCK

LRCK

VREF

C528

0.01

VREF

33K

R538

R537

0

R536

820

47u

L402

C461

0.1

R420

Q402

UN2211-X

R418

10K

C405

0.01

4.7K

4.7K

4.7K

CD-RW

C527

0.0068

RFDC

TE

TEB

SEL

R461

100

R462

100

C462
100/6.3

47K

R419

22K

4.7K

R440

BCK

SD0

LRCK

DAC-PDN

DAC-CSN

DAC-CCLK

DAC-CDTI

CDON

MP3STBY

MP3REQ

LM

FEED+

FEED-

SPINDLE+

SPINDLE-

FOCUS+

FOCUS-

TRACKING-

TRACKING+

R511

1.5k

R512

1.5k

BUS0

BUS1

BUS2

BUS3

BUCK

CCE

RST

CDON

IC481

AK4385VT-X

C504

0.047

C505

0.047

C506

0.047

C507

0.047

Q541
UN2111-X

Q542
UN2211-X

R513

1.5K

B541

UDZS5.1B-X

R510

8.2k

R509
12k

D481

NRZ0065-103X

0

L543

47u

C483

C482

C481

C589

C580

C599

C590

RA541

4

R481

180

2-5

7

6

5

4

1.5K

MSW

RST

R510

8.2k

R509
12k

7

7

7

7

RA541

NRZ0065-103X

B541

0

1

L543

111-X

47u

11-X

C483

0.1

C482

0.1

C481

47/6.3

C589

4.7/25

C580

4.7/25

C599

4.7/25

C590

4.7/25

R481

180

D481

DZS5.1B-X

R508

3k

IC501

LA6242H-X

0.01

C565

C566

100/6.3

C571

0.01

10k

R558

C542

C541

100/10

0.01

C543
1/50

R581

8.2k

C581
3300P

R582

R594
180

8.2k

R592

R584
180

8.2k

8.2k

8.2k

C591

3300P

R583

R593

R591

8.2k

1k

Q481
UN2111-X

1k

R588

R598

1k

1k

C584C585

C594

0.147/6.3

0.1

R597

R587

6.8k

R507

R503

4.7k

C510

R517

C501

68P

5.1k

C502

0.01

R504

15k

R502

8.2k

33k

R501

C559

0.047

47u

L541

C562

0.01

1M

R553

C545

BCK

AOUT

LRCK

0.01

R586

R585

270P

C583

270P

C593

R595

180

R596

6.8k

C595
47/6.3

C509

0.1

47/6.3

R518

C511

8.2k

0.1

TRO

FMO

DMO

C557
470P

0.047
C558

100

100

47u

L544

R551

R552

C560 C561

0.01 100/6.3

C544

0.01

6.8k
C582

180

270P

C592
270P

C597

C596

0.01

100/10

Q501

2SB1322/RS/-T

FOO

100

R550

CD.L

IC581

NJM4565M-WE

22

22

IC541

TC94A14FA

C547

0.015

C550

C549

C548

D501

2SB1132/QR/-X

R516

330

0.033

R545

10k

R544

10K

R543

470k

C503

100/10

1A3G-T1

Q502

C508

10/16

VREF

0.01

0.01

0.01

C997

C998

C999

0
0
0

C551

0.033

C572

0.01

0.01

0.0027

0.01

47k

R542

C546

47P

0.047

0.047

0.047

C553

C554

C555

SEL

TEB

RFGC

TE

RFDC

FE

RFRP

RF

CD8V

PSW

SW1

SW2

LM

MSW

CD.L
CD.R

CDON

CD-RW

BUS0

BUS1

BUS2

BUS3

BUCK

CCE

RST

MP3REQ

MP3RESET

MP3STBY

MP3DIN

MP3DOUT

MP3CLK

DAC-CDTI

DAC-CCLK

DAC-CSN

DAC-PDN

GND

(SHEET 1)

R514

R515

C556
470P

100

R549

R548
R547
R546

C552

R559

1.5M

R541

5.6k

CD.R

SHEET 2

2-6

LCD & Key control section

R659

LCD1

QLD0296-001

S6

S5

S4S3S2

COM10

COM9

S7

COM8

COM7

COM6

S11

S10S9S8

COM4

COM5

S12

COM3

S13

COM2

S14

COM1

S17

S16

S15

S72

S73

S71

S23

S22

S21

S20

S19

S18

S70

S69

S68

S29

S28

S27

S26

S25

S24

S35

S34

S33

S32

S31

S30

S67

S66

S65

S64

S63

S41

S40

S39

S38

S37

S36

S62

S42S1S43

S44

S45

S46

S47

S48

S49

S50

S51

S52

S53

S54

S55

S61

S60

S59

S58

S57

S56

S613

R611

1.2K

1.2K

1.2K

1.2K

R617

0

D613

1.2K

R637

R618

Q646

UN2211-X

SML-310VT/JK/-X

D614

SML-310VT/JK/-X

620

R638

1.2K

R619

D626

SML-A12UT-X

1.8K

R641

D616

SML-310VT/JK/-X

910

R642

D618

620

R643

R616

D610

620

R633

D609

SML-310VT/JK/-X

SML-310VT/JK/-X

1.2K

1.2K

R635

R634

D627

SML-A12UT-X

R663

D611

SML-310VT/JK/-X

D612

SML-310VT/JK/-X

620

R636

R601

R602R603R604

820

8201.2k1.8k

SD602

NSW0218-001X

1.8K

910

R645

R646

R610

10K

R609 R608 R605

SD601

NSW0218-001X

R640

1.8K

R639

910

R606R607

8201.2k3.9k 2.7k 1.8k 820

S608

S609S610S611S612

R613R614R615

S617

S616

S607

S601

S602S603S605

S606

1.2K

R629

D605

SML-310VT/JK/-X

D606

SML-310VT/JK/-X

1.2K

620

R631

R630

D607

SML-310VT/JK/-X

D608

SML-310VT/JK/-X

620

R632

S615

R612

D602

1SS355-X

D632

1SS355-X

R622

1.8K

910

R623

R624

D601

SML-310LT/MN/-X

0

620

R625

D603

1.2K

R626

SML-310VT/JK/-X

D604

SML-310VT/JK/-X

SML-310VT/JK/-X

910

1.8K

R628

R627

D631

8208201.2k1.8k

S614

UN2211-X

D617

SML-310VT/JK/-X

SML-310VT/JK/-X

1.2K

R644

620

R654

D624

SML-A12BC2T-X

Q644

1.2K

R647

1.2K

R653

R661

0

D620

SML-310VT/JK/-X

D621

SML-310VT/JK/-X

620

R648

R649

R652

D622

D623

1.2K

620

R651

D625

SML-A12BC2T-X

Q645

UN2211-X

390

SML-310VT/JK/-X

R655

SML-310VT/JK/-X

D641

620

R650

JS601

QSW0793-001

390

390

R656

R657

D642

D643

NSPW310BS/BRS/

NSPW310BS/BRS/

R666

47k

R667

47k

C608

0.01

R658

470

Q641

2SB624/4/-X

1k

NSPW310BS/BRS/

Q643

UN2211-X

R660

R665

0

2-7

D643

R657

390

S53

S54

S55

CN601

NNZ0098-001X

3.3k

R676

LCDDA

R677

3.3k

LCDCE

10V

R678

3.3k

LCDCL

KEY1

S601
001

R666

47k

R667

47k

C608 C609

0.01 0.01

Q641

2SB624/4/-X

NSPW310BS/BRS/

Q643

R665

R658

470

R660

1k

UN2211-X

R685
10K

TH685
NAD0022-103X

R681
470

R680
10k

4.7/6.3

KEY2

ENC2

KEY0

TEMP

ACC5V

ENC1

INH

1SS355-X

D690

D691

R690

UDZS6.2B-X

RESET

REMOCON

0

0.047

C690

S690

NSW0124-001X

S73

COM10

COM9

ENC2

0

R659

ENC1

KEY2

KEY1

KEY0

47k

R662

R668

R669

1k

220

UDZS5.1B-X

4.7/16

R670

4.7/6.3
C612

D650

UDZS9.1B-X

D652

390k

1SS355-X

C601

4.7/6.3

C611

0.1

D651

R679

C610

150

1SS355-X

1SS355-X

1SS355-X

D654

D655

D653

LCDCE

LCDCL

LCDDA

INH

0

1SS355-X

1SS355-X

1SS355-X

D656

D657

D658

0.1

C605

0.1

C604

COM8

COM7

COM6

COM5

COM4

COM3

COM2

COM1

R674

R673R672R671

10k10k10k

10k

0.1

82K

680P

C603

R675

C602

S1

S2

S3S4S5

S6S7S8S9S10

IC601

PT6578LQ

S11

S12

S60

S59

S58

S57

S56

S55

S54

S53

S52

S51

S50

S49

S48

S47

S46

S45

S44

S43

S42

S41

S40

S39

S38

S37

S36

S35

S34

S33

S32

S31

S30

S29

S28

S27

S26

S13

S14

S15

S16

S17

S18

S20

S21

S22

S23

S24

S19

S25

IC602

RPM7338-V4

D680

UDZS5.6B-X

C680

S61

S62

S63

S64

S65

S66

S67

S68

S69

S70

S71

S72

DIMMER

To CN701
(SHEET 1)

SHEET 3

2-8

Printed circuit boards

Main board

C901

CN901

IC301

IC901

C905

C307

C301

C915

C910

C309

C318
C319

C308

C312

C311

C313
C314
C315

C310

C907

C904

C906

R906
R907

BZ841

C316
C317

C881

C304

C331

C321

CN501

Q502

C508

C914

C305

C351

C341

C462

C841

C302

R516

C320

D501

R882

C891

C342

C521

R513

L402

IC461

D316

C503

C502

R509

C461

C501

D317

Q881

R511
R512

R510

R508

C509

L401

D318

C525

R464

D319

Q902

D312

C463

Q901

D314

D315

D313

Q782

C352

D891

D892

R301

R517 R518

C406

L404

R782

R781

R881

Q521

B402

Q891

R891

R892

Q501

Q403

C322

C505

Q404

C464

IC501

D781

C507

R463

IC401

C412

C407

X401

D782

R526

C784

R525

C332

R524

R901

C781

R523

R507

C522

C523

C510

C553

C554

C555

C783

R904

R504

R905

R172
R173
R174
R175

Q783

C559

R418

C402

C916

R501

R544

C548
C549
C572

R545
C551

C405

R414

C403

C951

D783

IC521

R529

C527

C557

C547

C552

R413

C179

R536

C556

R559

R503

R502

R543

R549

R176
R177
R178
R179

C178

Q781

R533

C558

R542

R550
R546

R412
R411
C404

R537

C546

C401

R538

R541

R420
R419

R424

C411

D901

C181

C782

C532

L544

Q402

C410

Forward side

L901

C903

CN702

C180

C177

IC161

C176

C161

C582 C583

R531

R532

R535

C531

IC581

R585 R586

R534

C534

C530

C580

R404
R401

R403

R530
C528

C529

Q542

Q541
B541

R481

Q481

C561

C585

D481

L543

Q401
R406
R440

C481

R759

R760

C992

C544

R409

R408
R407
R410

R547

C589

C545

IC541

R548

R551

IC481

C543

R552

C593

C571

L541

D719

C562

D714

L701

C565

R553

D715

C482

RA541

C566

R762
D718

D716

C175

C165

C174

R752

L702

C172

C483

C173

C597

C592

R595

C711

C541

C170
R166

C166

R596

C590

PP1

C171

C599

R751

R763

RA702

R707

R701

R709

R167

C596

R702

D717
D711
D712

J801

C163 C164

R165
C168

C595

C993

R743

R170

R171

R749 R750

X701

R703

R704

CN701

R162
R161

R758

R753

R164

R747 R748

C714

C169

C162

IC701

D710

R247
D162
D161

R246

CN703

R742

D704

C244

C167

D705

C243

R805

R806

D706

R807

R804

R740

C702

C715

R808

R705

R741

R714

R710

D707

R343

D708

R341

C242

R353

D241

R248

IC801

C708

R761

R351

R736

X702

R323

R706

RA31

R735

R715

R321

R333

R809
R802

IC702

D702

R331

D341

D242

R241
C241
D243

R739
R738

R723

R725

D351

Q241

R801

PP2

R72

R773

R711

D321

R243

R245

R810

R73

R772

Q341

D331

R242

R244

R803

IC703

R771

C709

D709

C41

RA701

D703
D713

Q7

C771

R12

Q351

X31

C48

R730
R729
R728
R727

R726

C31

C40

C32

R737

D951

R734

C990

C50

Q951

R764

TU1

J301

C6

Q331

Q321

C4

C33

C43

IC31

R44

Q3

R951

IC951

C82

C81

R731

R766

R4

C712

R765

C84

R732

R717

R733

R42 R43

Q2

R718

C10

R719

C34
R32

C91

C92

R3

CN951

C94

Q1

J1
L1

C3

2-9

Main board

Reverse side

C38

D3

R60

R2

R41

C33

C8

D2

D1

C333

C6

C5

R10
R11

R40
C44

C47

R1

C46

C7

C94

R91

C93

R5

C10

C9

Q31

C952

CN951

C84

C953

C45

J301

C4

C31

C43

C40

C42

C37

R33

C83

R81

R92

C954

IC951

RD

VPP

C991

C36

R31

R82

C35

R332

R322

X31

C709

R716

RESET

TD

PP2

R352

C710

R342

C707

C344

C243

R713

R712

C706

R745
R746
R744

C705

C704

X702

C167

C996

J801

C244

R593

C703

C595

R708

C591

C594

C596

X701

C163

R597

C801

C166

C165

R598

CN703

C541

C713

L702

TU1

C1

J1

C2

Q4

R6

C3

D4

R9

R8

R7

Q5

Q6

R38

R39

C39

C55
R59

D51

PP1

R592

C711

L701

R584

C599

R591

C590

C566

C164

C589

C903

C580

C543

D902

C997

C701

C161 C162

C542
R558

D701

C180

R169

C481

R594

C581

L543

L541

C561

CN702

C176

C995

C585

C584
R587
R588

R581

C181

R582

C560

D901

R168

R583

L544

D903

R903

R902

C902

C403

C529

C550

R416

C178

C999

C951

C917

C179

C782

C523

R415

L901

C916

R901

R422

CN501

C998

R423

C409

R417

C784

C332

R527

C506

C781

C322

C533

C994

R425

Q501

Q521

R421

C524

C511

R515
R514

C406

X401

C352

C463

C408

C342

L404

C501

C504

C841

C302

C525

C914

L401

Q904

Q903

VDD

C320

R528

C503

C508

L402

C462

C908

D904

GND

C881

R539

D501

VREF

R841

C305

C304

BZ841

CN901

C915

C913

C904

R462

R909

R908

Q841

C301

RF

C910

C907

R461

C906

C909

R910

C307

C905

IC301

IC901

C901
C918

C306

C303

2-10

Front board

Forward side

D601

S617

R615

IC602

R631

D616

R648

S616

R646

R644

R632

R643

SD601

JS601

R614

R647

R651

R613

R645

R652

D622

CP602

R626

S613

R625

D605

D625

D604

D606

S605

D607

S615

R616

R617

D608

D623

R637

R612
R611

R604

R638

R636
R635

Q644

D691

Q645

D641

TH685

D642

D643

R690

R685

LCD1

D609

S690

S612

D610

CN601

R608

D611

R609

S614

S611

Reverse side

IC601

D612

R634

S610

R633

D613

R610

S609

R673

R674
C603
C604
C605

R677

R607

R678

R676

C602

R675

D657

D614

D656

S608

D658

D642

D643

R656
R657
R672
R671

R606

D641

D690

D655

C610

R605

R655

C690

Q641

D654

D650

D653

R618

R662

D651

R619

R670

C612

D603

Q646

D652

C601

C611

R660

S607

D624

R663

R679

R661

R668

Q643

R639
R640

R654

R653

CP601

R658

R659

R669

SD602

S602

S601

D602

R601

R602

R681

D618

S606

D617

C609

R603

D620

D631

JS601

IC602

S603

D621

R622

R666

R649

R650
R642
R641

R623

R665
R628
R627
R630
R629
C608

R667

R624

C680

R680

D632

D680

2-11

< MEMO >

VICTOR COMPANY OF JAPAN, LIMITED

AV & MULTIMEDIA COMPANY MOBILE ENTERTAINMENT CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan

(No.MA050SCH)

Printed in Japan

WPC
