JVC KD-G430 User Manual

CD RECEIVER KD-AR480/KD-G430

RECEPTOR CON CD KD-AR480/KD-G430

ENGLISHESPAÑOL

RÉCEPTEUR CD KD-AR480/KD-G430

For canceling the display demonstration, see page 7. Para cancelar la demostración en pantalla, consulte la página 7. Pour annuler la démonstration des affichages, référez-vous à la page 7.

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

GET0415-001A

[J]

FRANÇAIS

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

INFORMATION (For U.S.A.)

ENGLISH

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Caution:

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

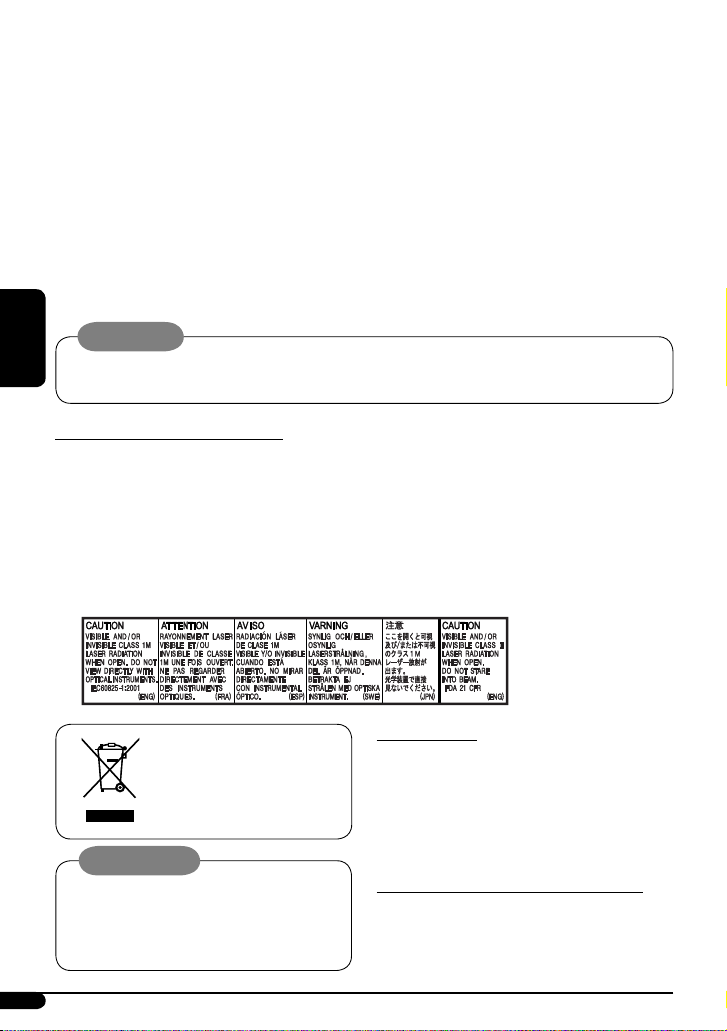

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

[European Union only]

Warning:

If you need to operate the unit while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

The following marks are used to indicate...

: Built-in CD player operations.

: External CD changer operations.

: Indicator displayed for the

corresponding operation.

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

“PLEASE” and “EJECT” appear alternately on the display.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

How to use the M MODE button

If you press M MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural)

button.

CONTENTS

Control panel — KD-AR480/KD-G430 .......... 4

Remote controller —

Getting started ................................ 6

Basic operations ................................................... 6

Radio operations ............................. 7

Disc operations ................................ 8

Playing a disc in the unit ..................................... 8

Playing discs in the CD changer ........................... 9

Sound adjustments .......................... 11

General settings — PSM .................. 12

Title assignment .............................. 15

Satellite radio operations ................. 15

iPod/D. player operations ................. 18

Other external component

operations ................................... 20

More about this unit ........................ 20

Maintenance ................................... 23

Troubleshooting .............................. 24

Specifications .................................. 27

Detaching the control panel

Attaching the control panel

RM-RK50 ............. 5

ENGLISH

To use these buttons for their original functions again after pressing M MODE, wait for 5 seconds

without pressing any of these buttons until the functions mode is cleared or press M MODE again.

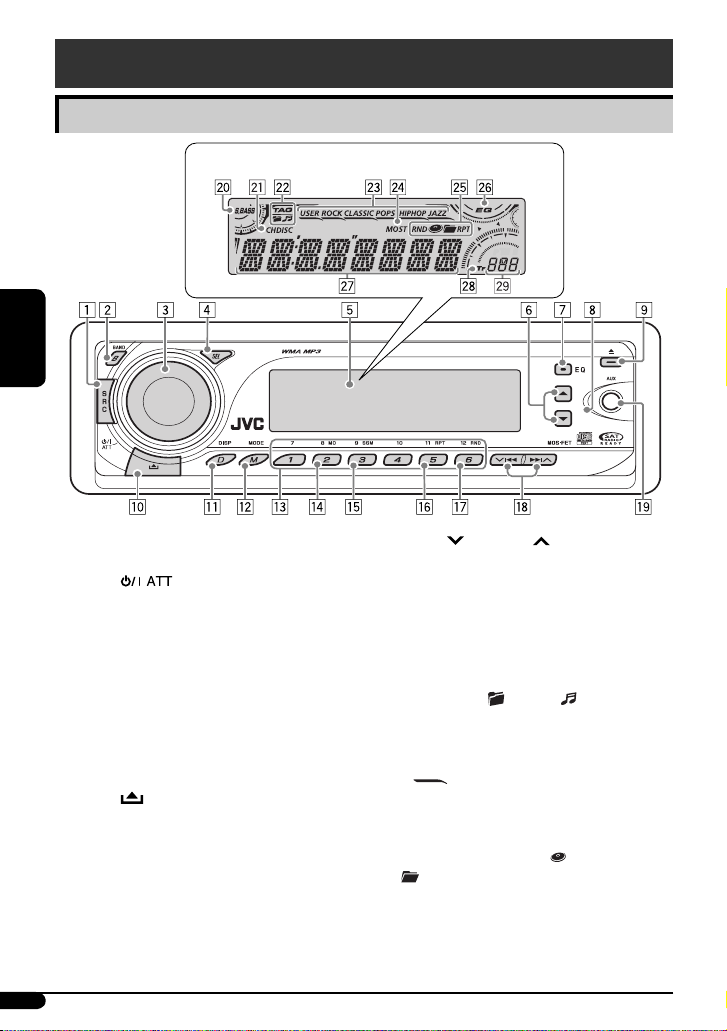

Control panel — KD-AR480 / KD-G430

Parts identification

ENGLISH

1 SRC (source) button 2 B BAND button 3 (standby/on attenuator) button /

Display window

Control dial

4 SEL (select) button 5 Display window 6 5 (up) / ∞ (down) buttons 7 EQ (equalizer) button 8 Remote sensor

DO NOT expose the remote sensor to strong light (direct sunlight or artificial lighting).

9 0 (eject) button p (control panel release) button q D DISP (display) button w M MODE button e Number buttons r MO (monaural) button t SSM (Strong-station Sequential Memory) button y RPT (repeat) button u RND (random) button

i 4 /¢ buttons o AUX (auxiliary) input jack ; S.BASS (super bass) indicator a Playback source indicators—

CH: Lights up only when CD-CH is selected as the

playback source.

DISC: Lights up for the built-in CD player.

s Disc information indicators—

TAG (Tag information), (folder), (track/file)

d Sound mode (iEQ: intelligent equalizer) indicators

—USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ

• lights up for the selected item.

f Tuner reception indicators—MO (monaural),

ST (stereo)

g Playback mode / item indicators—RND (random),

(disc), (folder), RPT (repeat)

h EQ (equalizer) indicator j Main display k Tr (track) indicator l Source display / Time countdown indicator

Remote controller — RM-RK50

Installing the lithium coin battery

(CR2025)

Main elements and features

ENGLISH

For USA-California Only: This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste /perchlorate

Aim the remote controller directly at the remote sensor on the unit. Make sure there is no obstacle in between.

Warning:

• Do not install any battery other than CR2025 or its equivalent; otherwise, it may explode.

• Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time; otherwise, it may explode.

• Store the battery in a place where children cannot reach to avoid risk of accident.

• To prevent the battery from over-heating, cracking, or starting a fire:

– Do not recharge, short, disassemble, heat the

battery, or dispose of it in a fire.

– Do not leave the battery with other metallic

materials.

– Do not poke the battery with tweezers or similar

tools.

– Wrap the battery with tape and insulate when

throwing away or saving it.

KD-AR480 is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate volume) for connection.

1 (standby/on/attenuator) button

• Turns the power on if pressed briefly or attenuates the sound when the power is on.

• Turns the power off if pressed and held.

2 5 U (up) / D (down) ∞ buttons

• Changes the FM/AM bands with 5 U.

• Changes the preset stations with D ∞.

• Changes the folder of the MP3/WMA discs.

• While playing an MP3 disc on an MP3-compatible CD changer:

– Changes the disc if pressed briefly. – Changes the folder if pressed and held.

• While listening to the satellite (SIRIUS or XM) radio:

– Changes the categories.

• While listening to an Apple iPod or a JVC D. player:

– Pauses/stops or resumes playback with D ∞. – Enters the main menu with 5 U. (Now 5 U/D ∞/2 R/F 3 work as the menu

selecting buttons.)*

3 VOL – / VOL + buttons

• Adjusts the volume level.

4 SOUND button

• Selects the sound mode (iEQ: intelligent equalizer).

* 5 U : Returns to the previous menu. D ∞ : Confirms the selection.

Continued on the next page

5 SOURCE button

• Selects the source.

6 2 R (reverse) / F (forward) 3 buttons

• Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if pressed and held.

ENGLISH

• Changes the tracks if pressed briefly.

• While listening to the satellite radio:

– Changes the channels if pressed briefly. – Changes the channels rapidly if pressed and

held.

• While listening to an iPod or a D. player (in menu selecting mode):

– Selects an item if pressed briefly. (Then, press

∞ to confirm the selection.)

– Skips 10 items at a time if pressed and held.

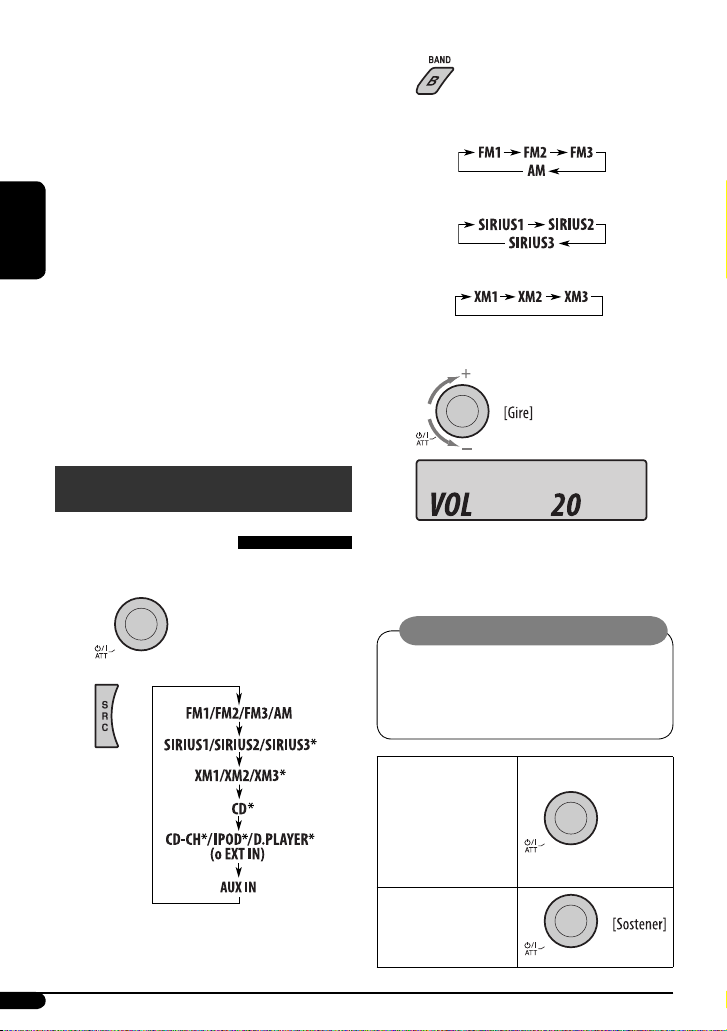

Getting started

Basic operations

• For FM/AM tuner

• For SIRIUS radio

• For XM radio

⁄ Adjust the volume.

~ Turn on the power.

* You cannot select these sources if they are not

ready or not connected.

Volume level appears.

@ Adjust the sound as you want. (See

pages 11 and 12.)

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

To drop the volume in a moment (ATT)

To restore the sound, press the button again.

To turn off the power

Basic settings

• See also “General settings — PSM” on pages 12 – 14.

! Start searching for a station.

When a station is received, searching stops. To stop searching, press the same button again.

ENGLISH

1 Canceling the display demonstrations Select “DEMO,” then “DEMO OFF.” 2 Setting the clock Select “CLOCK H” (hour), then adjust the hour. Select “CLOCK M” (minute), then adjust the

minute.

3 Finish the procedure.

To check the current clock time while the power is turned off

Clock time is shown on the display for about 5 seconds. See also page 13.

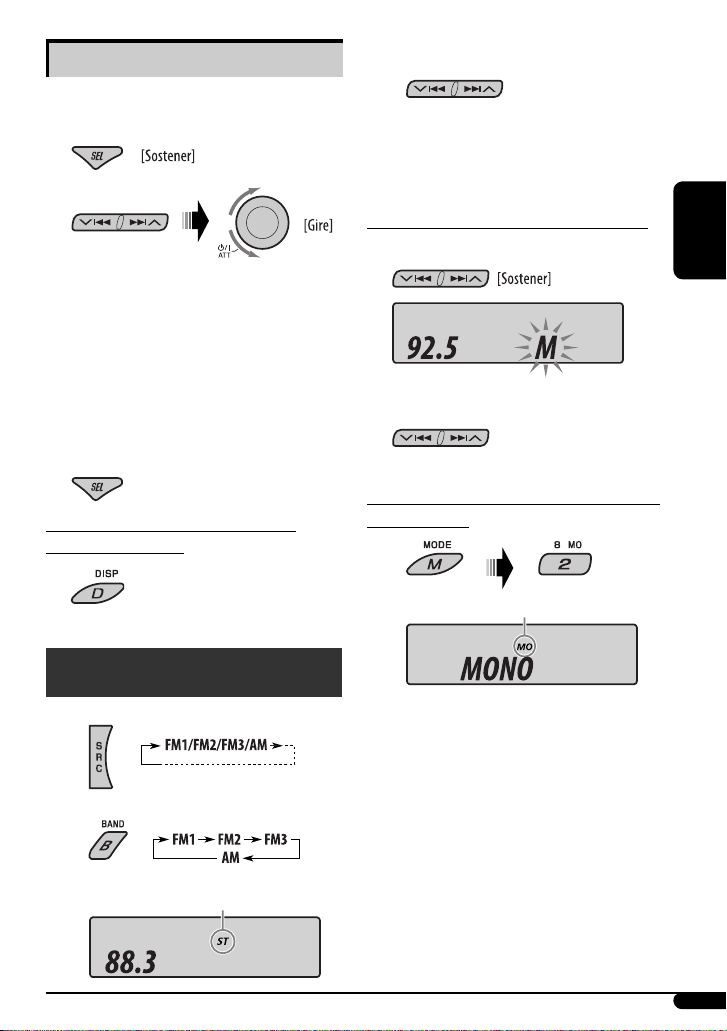

Radio operations

To tune in to a station manually

In step ! above...

2 Select a desired station frequency.

When an FM stereo broadcast is hard to receive

Lights up when monaural mode is activated.

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

ENGLISH

SSM (Strong-station Sequential Memory)

1 Select the FM band (FM1 – FM3) you want to

store into.

Listening to a preset station

2 Select the preset station (1 – 6) you want.

“SSM” flashes, then disappears when automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into preset number

4 of the FM1 band.

Preset number flashes for a while.

To check other information while listening to the radio

Clock = Station name* = Frequency = (back to the

beginning)

* If no name is assigned to a station, “NO NAME”

appears. To assign a title to a station, see page 15.

Disc operations

Playing a disc in the unit

All tracks will be played repeatedly until you change the source or eject the disc.

To stop play and eject the disc

• Press SRC to listen to another playback source.

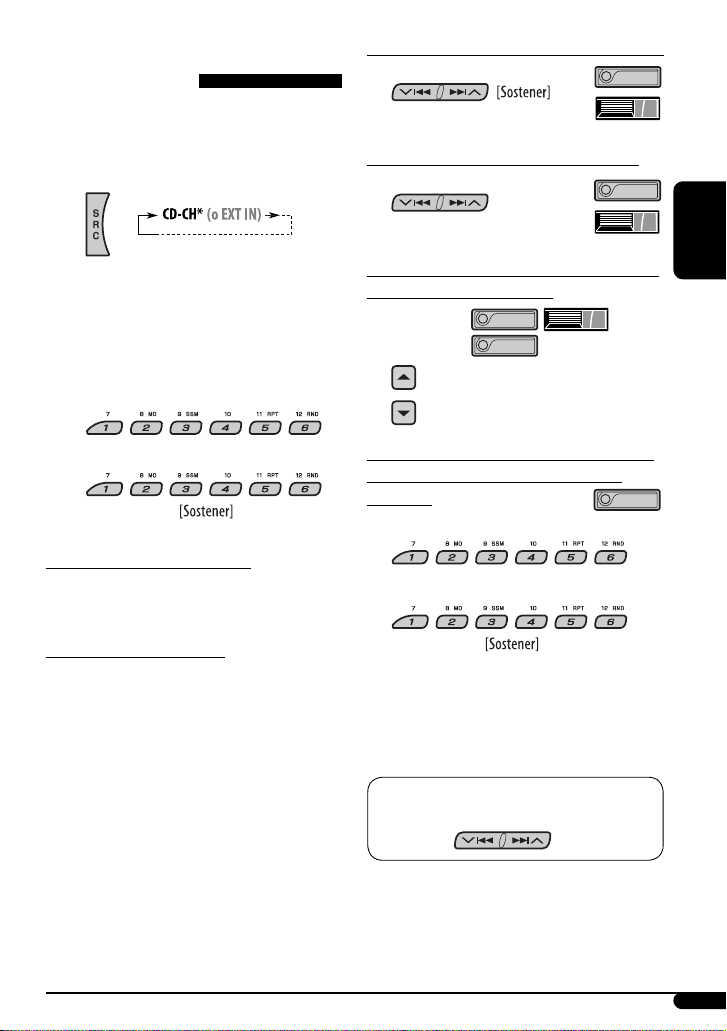

Playing discs in the CD changer

All discs in the magazine will be played repeatedly until you change the source.

• Ejecting the magazine will also stop playback.

To fast-forward or reverse the track

To go to the next or previous tracks

ENGLISH

* If you have changed the external input setting

to “EXT IN” (see page 14), you cannot select the CD changer.

Ÿ Select a disc.

For disc number from 01 – 06:

For disc number from 07 – 12:

About MP3 and WMA discs

MP3 and WMA “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”

About the CD changer

It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can also connect MP3-incompatible CD changers. However, these units are not compatible with MP3 discs.

• You cannot use the CH-X99, CH-X100, and KD-MK series CD changers with this unit.

• You cannot play any WMA disc in the CD changer.

• Disc text information recorded in the CD Text can be displayed when a JVC CD Text compatible CD changer is connected.

• For connection, see Installation/Connection Manual (separate volume).

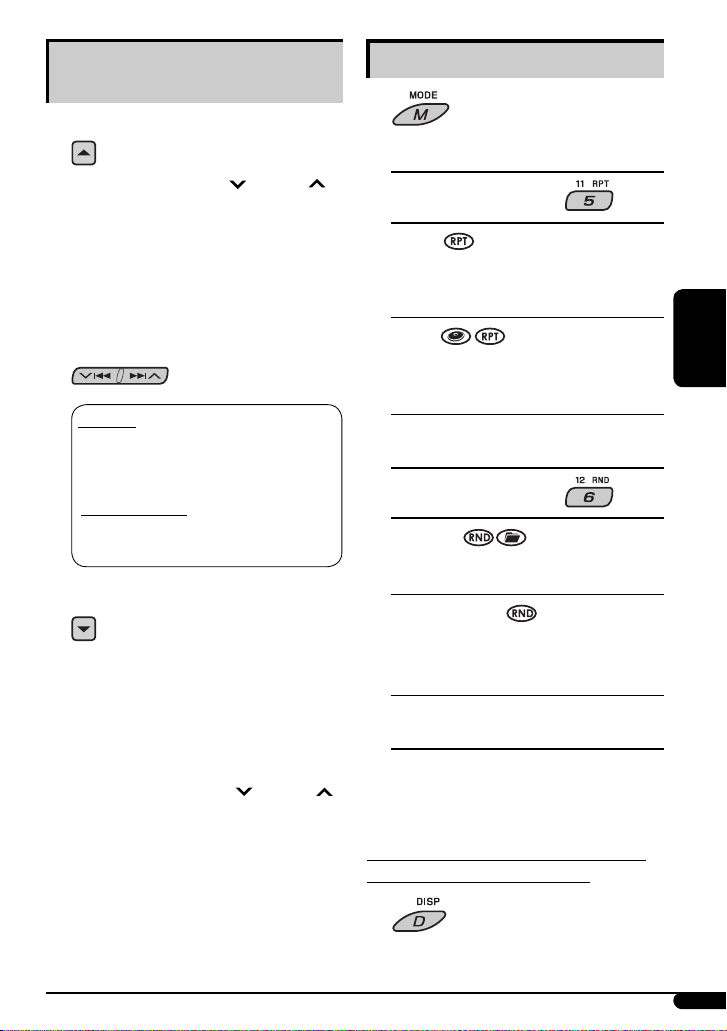

To go to the next or previous folders (only for MP3 or WMA discs)

For MP3 discs:

For WMA discs:

To locate a particular track (for CD) or folder (for MP3 or WMA discs) directly

To select a number from 01 – 06:

To select a number from 07 – 12:

• To use direct folder access on MP3/WMA discs, it is required that folders are assigned with 2-digit numbers at the beginning of their folder names— 01, 02, 03, and so on.

To select a particular track in a folder (for MP3 or

WMA discs):

Other main functions

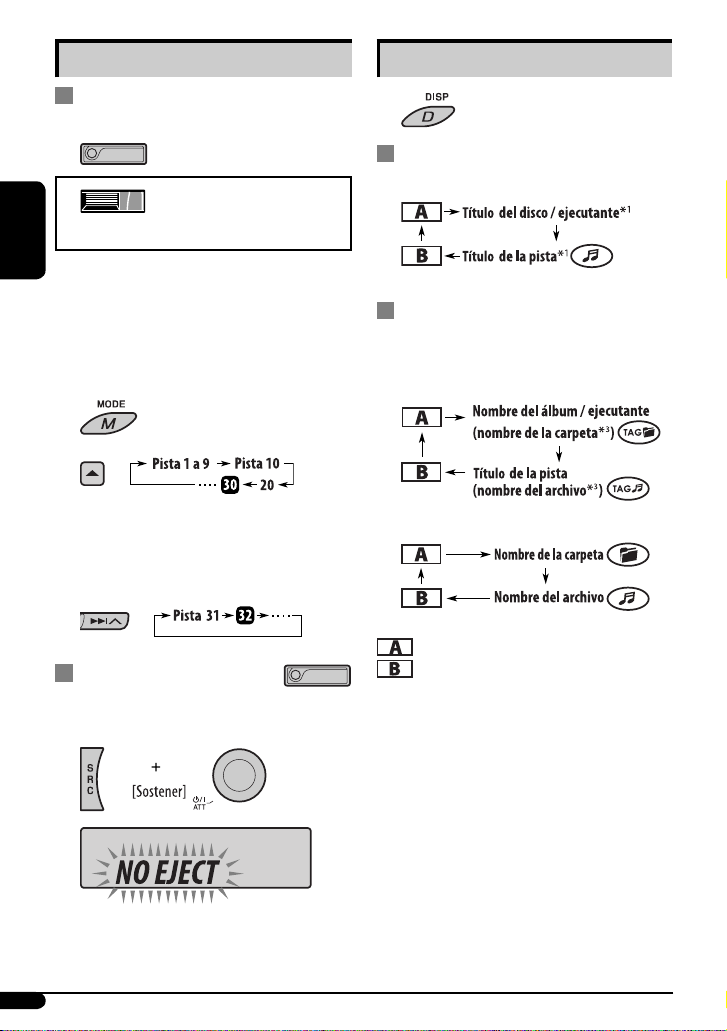

Skipping tracks quickly during play

Changing the display information

ENGLISH

Only possible on JVC MP3-compatible CD changer

• For MP3 or WMA discs, you can skip tracks within the same folder.

Ex.: To select track 32 while playing a track whose

number is a single digit (1 to 9)

Each time you press the button, you can skip 10 tracks.

• After the last track, the first track will be selected and vice versa.

Prohibiting disc ejection

You can lock a disc in the loading slot.

While playing an audio CD or a CD Text

While playing an MP3 or a WMA

• When “TAG DISP” is set to “TAG ON” (see page 14)

• When “TAG DISP” is set to “TAG OFF”

: Clock with the current track number : Elapsed playing time with the current

track number

*1 If the current disc is an audio CD, “NO NAME” appears. *2 Only for the built-in CD player. *3 If an MP3/WMA file does not have Tag information,

folder name and file name appear. In this case, the TAG indicator will not light up.

disc

To cancel the prohibition, repeat the same

procedure.

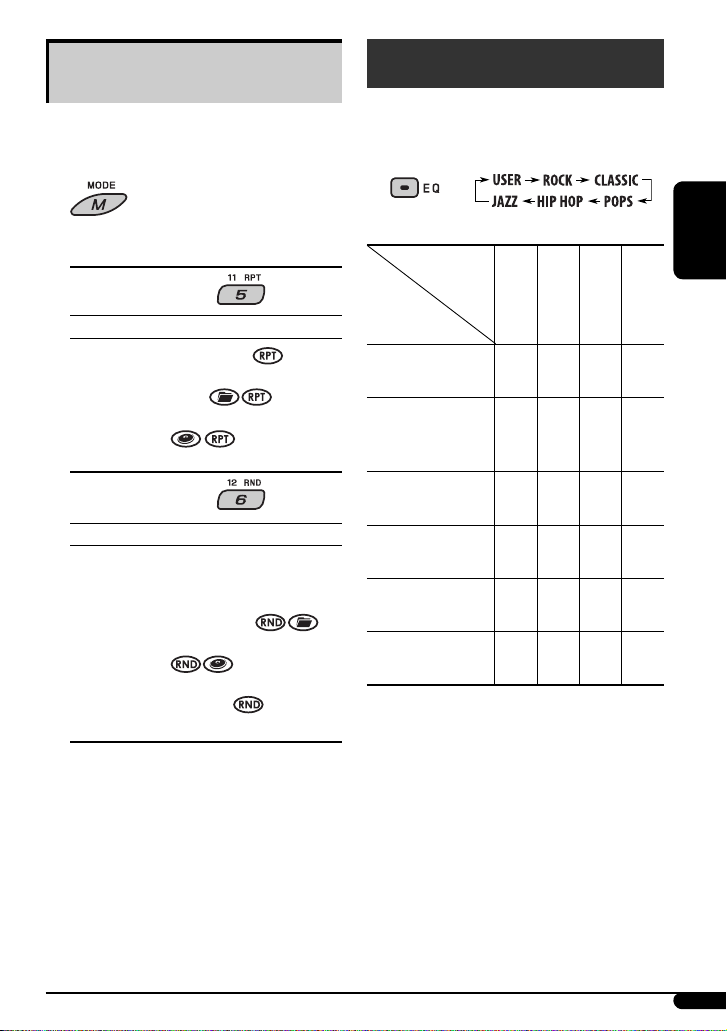

Selecting the playback modes

You can use only one of the following playback modes at a time.

Sound adjustments

You can select a preset sound mode suitable to the music genre (iEQ: intelligent equalizer).

ENGLISH

2 Select your desired playback mode.

7 Repeat play

Mode Plays repeatedly

TRK RPT : The current track. FLDR RPT*1 : All tracks of the current folder.

DISC RPT*2 : All tracks of the current disc.

RPT OFF : Cancels.

7 Random play

Mode Plays at random

FLDR RND*

DISC RND : All tracks of the current disc.

MAG RND*2 : All tracks of the inserted discs.

RND OFF : Cancels.

Only while playing an MP3 or a WMA disc.

*2 Only while playing discs in the CD changer.

: All tracks of the current folder,

then tracks of the next folder and so on.

Preset values

BAS*

MID*2TRE*3S.BS*

Indication (For)

USER

(Flat sound)

ROCK

(Rock or disco music)

CLASSIC

(Classical music)

POPS

(Light music)

HIP HOP

(Funk or rap music)

JAZZ

(Jazz music)

: Bass; *2 : Mid-range; *3 : Treble; *4 : Super bass

00 00 00 OFF

+03 00 +02 ON

+01 00 +03 OFF

+02 +01 +02 OFF

+04 –02 +01 ON

+03 00 +03 OFF

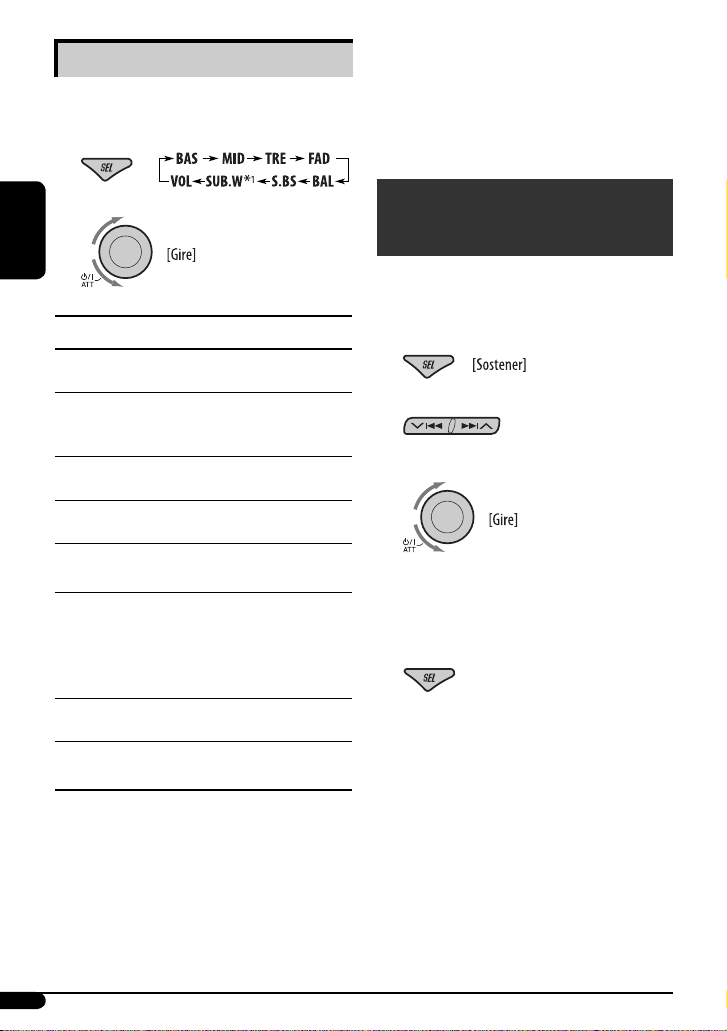

Adjusting the sound

You can adjust the sound characteristics to your preference.

ENGLISH

*4 This adjustment will not affect the subwoofer output. *5 Range adjustment for super bass is adjustable only

when it is set to “S.BS ON.“

*6 Depending on the amplifier gain control setting. (See

page 14 for details.)

Indication, [Range]

(bass), [–06 to +06]

BAS*

Adjust the bass.

MID*

(mid-range), [–06 to +06]

Adjust the mid-range frequencies sound level.

TRE*

(treble), [–06 to +06]

Adjust the treble.

(fader), [R06 to F06]

FAD*

Adjust the front and rear speaker balance.

BAL*

(balance), [L06 to R06]

Adjust the left and right speaker balance.

S.BS*

(super bass), [S.BS ON or S.BS OFF], [01 to 05, initial: 03]* Maintain the richness and fullness of the bass sound regardless of how low you set the volume.

(subwoofer), [00 to 08, initial: 04]

SUB.W*

Adjust the subwoofer output level.

VOL (volume), [00 to 30 or 50* Adjust the volume.

Displayed only when “L/O MODE” is set to “WOOFER”

(see page 14).

*2 When you adjust the bass, mid-range, treble, or super

bass, the adjustment you have made is stored for the currently selected sound mode (iEQ) including “USER.”

*3 If you are using a two-speaker system, set the fader

level to “00.”

]

General settings — PSM

You can change PSM (Preferred Setting Mode) items (except “SID”) listed in the table that follows.

2 Select a PSM item.

3 Adjust the PSM item selected.

4 Repeat steps 2 and 3 to adjust other PSM

items if necessary.

5 Finish the procedure.

Indications Item

Setting, [reference page]

( : Initial)

DEMO

Display demonstration

CLK DISP*

Clock display

• DEMO ON

• DEMO OFF

• ON

• OFF

: Display demonstration will be activated automatically if no

operation is done for about 20 seconds, [7].

: Cancels.

: Clock display is shown on the display even when the power is

turned off.

: Cancels; pressing D DISP will show the clock time for about

5 seconds when the power is turned off, [7].

CLOCK H

1 – 12 [Initial: 1 (1:00)], [7].

Hour adjustment

CLOCK M

00 – 59 [Initial: 00 (1:00)], [7].

Minute adjustment

CLK ADJ*

Clock adjustment

, *

T-ZONE*

Time zone

• AUTO

• OFF

EASTERN, ATLANTIC, NEWFOUND, ALASKA,

: The built-in clock is automatically adjusted using the clock data

provided via the satellite radio channel.

: Cancels.

: Select your residential area from one of the following time

zones for clock adjustment.

PACIFIC, MOUNTAIN, CENTRAL

DST*

, * Daylight savings time

SID*

SIRIUS ID

• ON

: Activates daylight savings time if your residential area is subject

to DST.

• OFF

: Cancels.

— : The 12-digit SIRIUS identification number scrolls on the display

5 seconds after “SID” is selected, [16].

• Press SEL to resume the previous display.

DIMMER

Dimmer

If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select “OFF” to

• AUTO

• ON

• OFF

: Dims the display when you turn on the headlights. : Activates dimmer. : Cancels.

save the car’s battery.

*2 Displayed only when SIRIUS Satellite radio or XM Satellite radio is connected. *3 Displayed only when “CLK ADJ” is set to “AUTO.” *4 Displayed only when SIRIUS Satellite radio is connected.

ENGLISH

Continued on the next page

Indications Item

Setting, [reference page]

( : Initial)

SCROLL*

Scroll

ENGLISH

• ONCE

• AUTO

• OFF

: Scrolls the disc information once. : Repeats scrolling (at 5-second intervals). : Cancels.

• Pressing D DISP for more than one second can scroll the display regardless of the setting.

L/O MODE

Line output mode

• REAR

• WOOFER

: Select if both the LINE OUT terminals are used for connecting the

speakers (through an external amplifier).

: Select if the REAR LINE OUT terminals are used for connecting a

subwoofer (through an external amplifier).

WOOFER*

Subwoofer cutoff frequency

EXT IN*

External input

AUX ADJ

Auxiliary input level adjustment

TAG DISP

Tag display

AMP GAIN

Amplifier gain control

AREA

Tuner channel interval

• LOW

• MID

• HIGH

• CHANGER

: Frequencies lower than 90 Hz are sent to the subwoofer. : Frequencies lower than 135 Hz are sent to the subwoofer. : Frequencies lower than 180 Hz are sent to the subwoofer.

: To use a JVC CD changer, [9], a JVC compatible satellite

(SIRIUS/XM) tuner, [15], an Apple iPod or a JVC D. player, [18].

• EXT IN

: To use any other external component than the above, [20].

A.ADJ 00 — A.ADJ 05 : Adjust the auxiliary input level to avoid the sudden increase of the

output level when changing the source from external component connected to the AUX input jack on the control panel.

• TAG ON

• TAG OFF

• LOW PWR

: Shows the Tag information while playing MP3/WMA tracks, [10]. : Cancels.

: VOL 00 – VOL 30 (Select this if the maximum power of the speaker

is less than 50 W to prevent damaging the speaker.)

• HIGH PWR

• AREA US

: VOL 00 – VOL 50

: When using in North/Central/South America. AM/FM intervals are

set to 10 kHz/200 kHz.

• AREA EU

: When using in any other areas except North/Central/South

America. AM/FM intervals are set to 9 kHz/50 kHz (100 kHz during auto search).

• AREA SA

: When using in South American countries. AM/FM intervals are set

to 10 kHz/100 kHz.

IF BAND

Intermediate frequency band

• AUTO

• WIDE

: Increases the tuner selectivity to reduce interference noises

between close stations. (Stereo effect may be lost.)

: Subject to interference noises from adjacent stations, but sound

quality will not be degraded and the stereo effect will remain.

Some characters or symbols will not be shown correctly (or will be blanked) on the display.

* *6 Displayed only when “L/O MODE” is set to “WOOFER.” *7 Displayed only when one of the following sources is selected—FM, AM, CD, or AUX IN.

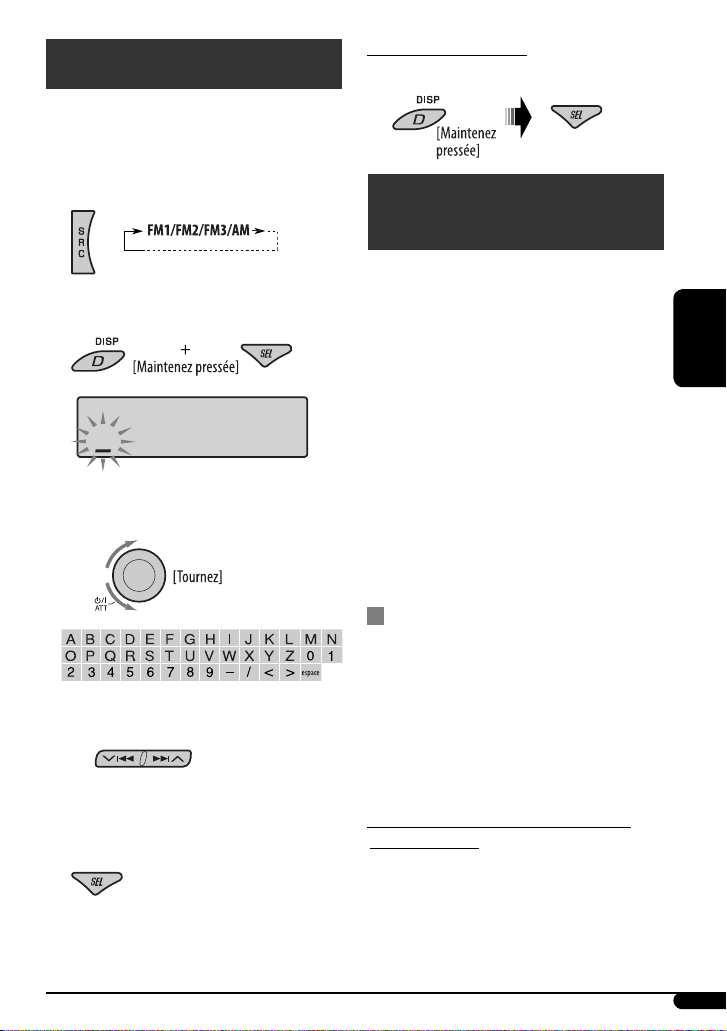

Title assignment

You can assign names to 30 station frequencies (FM and AM) and up to 8 characters for each station name.

1 Select FM/AM.

To erase the entire title

In step 2 on the left...

ENGLISH

Satellite radio operations

This unit is satellite (SAT) Radio Ready—compatible with both SIRIUS Satellite radio and XM Satellite radio.

2 Show the title entry screen.

3 Assign a title.

1 Select a character.

2 Move to the next (or previous) character

position.

3 Repeat steps 1 and 2 until you finish

entering the title.

4 Finish the procedure.

Before operating your satellite radio:

• For connection, see Installation/Connection Manual (separate volume).

• Refer also to the Instructions supplied with your SIRIUS Satellite radio or XM Satellite radio.

• “SIRIUS” and the SIRIUS dog logo are registered

trademarks of SIRIUS Satellite Radio Inc.

• XM and its corresponding logos are registered

trademarks of XM Satellite Radio Inc.

• “SAT Radio,” the SAT Radio logo and all related marks

are trademarks of SIRIUS Satellite Radio Inc., and XM Satellite Radio, Inc.

Listening to the satellite radio

Connect either one of the following (separately purchased) to the CD changer jack on the rear of this unit.

• JVC SIRIUS radio DLP—Down Link Processor, for listening to the SIRIUS Satellite radio.

• XMDirectTM Universal Tuner Box—Using a JVC Smart Digital Adapter (XMDJVC100: not supplied), for listening to the XM Satellite radio.

GCI (Global Control Information) update:

• If channels are updated after subscription, updating starts automatically.

“UPDATING” flashes and no sound can be heard.

• Update takes a few minutes to complete.

• During update, you cannot operate your satellite radio.

Activate your SIRIUS subscription after connection:

ENGLISH

JVC DLP starts updating all the SIRIUS channels.

Once completed, JVC DLP tunes in to the preset

channel, CH184.

3 Check your SIRIUS ID, see page 13.

3 Check your XM Satellite radio ID labelled on

the casing of the XMDirectTM Universal Tuner Box, or tune in to “Channel 0” (see page 17).

4 Contact XM Satellite radio on the internet

at <http://xmradio.com/activation/> to activate your subscription, or you can call 1-800-XM-RADIO (1-800-967-2346).

Once completed, the unit tunes in to one of the

available channels (Channel 4 or higher).

Listening to the SIRIUS Satellite radio

4 Contact SIRIUS on the internet at

<http://activate.siriusradio.com/> to activate your subscription, or you can call SIRIUS toll-free at 1-888-539-SIRIUS (7474).

“SUB UPDT PRESS ANY KEY” scrolls on the display

once subscription has been completed.

Activate your XM subscription after connection:

• Only Channel 0, 1, and 247 are available before activation.

XMDirectTM Universal Tuner Box starts updating

all the XM channels. “Channel 1” is tuned in automatically.

3 Select a category.

You can tune in to all the channels of every category by selecting “ALL.” Selecting a particular category (SPORTS, ENTERTAINMENT, etc.) allows you to enjoy only the channels from the selected category.

4 Select a channel for listening.

Holding the button changes the channels rapidly.

• When changing the category or channel, invalid and unsubscribed channels are skipped.

Listening to the XM Satellite radio

3 Select a channel for listening.

In Channel Search, channel name and channel number appear on the display during search.

• While searching, invalid and unsubscribed channels are skipped.

ENGLISH

Checking the XM Satellite radio ID

While selecting “XM1,” “XM2,” or “XM3,” select “Channel 0.”

Holding the button changes the channels rapidly.

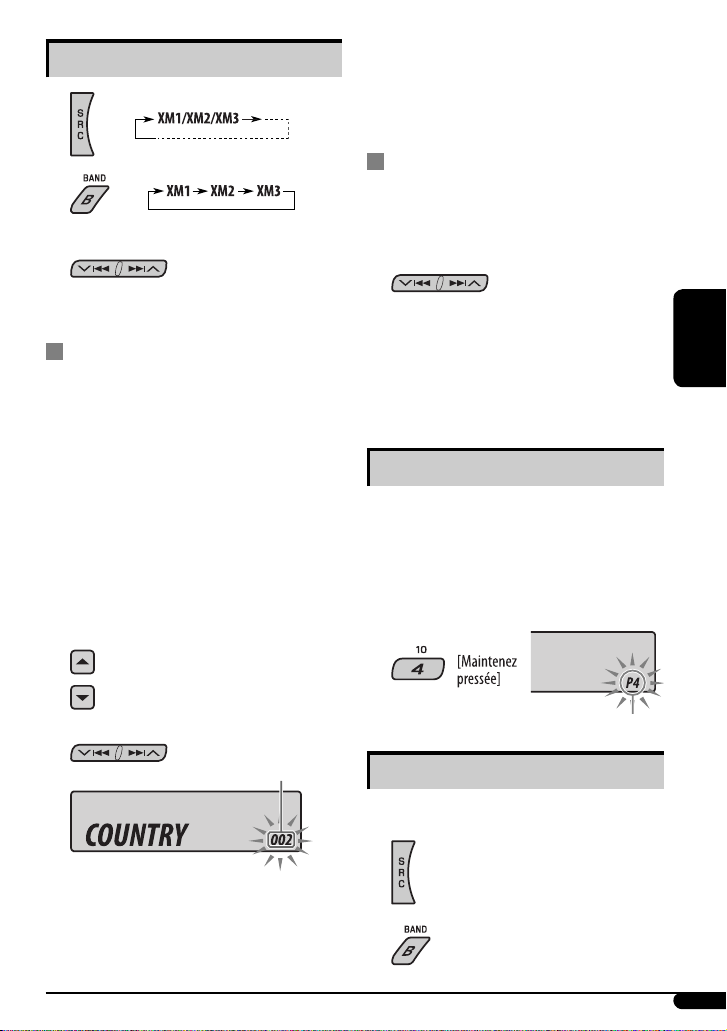

Searching for category/channel

You can search for programs by category (Category Search) or channel number (Channel Search).

• In Category Search, you can tune in to the channels of the selected category. Category Search begins from the currently selected channel. The selected channel number flashes on the display.

• In Channel Search, you can tune in to all channels (including non-categorised channels).

1 Select a category (Category Search).

• For Channel Search, skip this step.

2 Select a channel for listening.

Current channel number

Ex.: When you select “COUNTRY” for Category Search

If no operation is done for about 15 seconds, Category Search is canceled.

The display alternately shows “RADIO ID” and the 8-digit (alphanumeric) ID number.

To cancel the ID number display, select any channel other than “Channel 0.”

Storing channels in memory

You can preset six channels for each band.

Ex.: Storing a channel into preset number 4.

1 Tune in to a channel you want.

Preset number flashes for a while.

Listening to a preset channel

1 Select either SIRIUS Satellite radio or XM

Satellite radio.

Continued on the next page

3 Select the preset channel (1 – 6) you want.

Preparations:

Make sure “CHANGER” is selected for the external input setting, see page 14.

ENGLISH

To change the display information while listening to a channel

Clock = Category name = Channel name = Artist name = Composer name* = Song/ program name/title = (back to the beginning)

* Only for SIRIUS Satellite radio.

iPod / D. player operations

This unit is ready for operating an Apple iPod or a JVC D. player from the control panel.

Before operating your iPod or D. player: Connect either one of the following (separately purchased) to the CD changer jack on the rear of this unit.

• Interface adapter for iPod—KS-PD100 for controlling an iPod.

• D. player interface adapter—KS-PD500 for controlling a D. player.

• For connection, see Installation/Connection Manual (separate volume).

• For details, refer also to the manual supplied with the interface adapter.

Playback starts automatically from where it has been paused*

or stopped*2 previously.

! Adjust the volume.

⁄ Adjust the sound as you want. (See

pages 11 and 12.)

• Make sure the equalizer on the iPod or D. player is deactivated.

To pause*1 or

stop

playback

To resume playback, press the button again.

To fast-forward or reverse the track

To go to the next or previous tracks

*1 For iPod *2 For D. player

Selecting a track from the menu

Selecting the playback modes

1 Enter the main menu.

Now the 5/∞/ 4 /¢ buttons work as the menu selecting buttons*.

* The menu selecting mode will be canceled: – If no operations are done for about 5 seconds. – When you confirm the selection of a track.

2 Select the desired menu.

For iPod: PLAYLIST Ô ARTISTS Ô ALBUMS Ô SONGS Ô GENRES Ô COMPOSER Ô

(back to the beginning)

For D. player: PLAYLIST

Ô ARTIST Ô ALBUM Ô GENRE

Ô TRACK Ô (back to the beginning)

3 Confirm the selection.

To move back to the previous menu, press

• If a track is selected, playback starts automatically.

• If the selected item has another layer, you will enter the layer. Repeat steps 2 and 3 until the desired track is played.

• Holding 4 /¢ can skip 10 items at a time.

2 Select your desired playback mode.

7 Repeat play

ONE RPT Functions the same as “Repeat One” of the iPod or “Repeat Mode = One” for the D. player.

ALL RPT Functions the same as “Repeat All” of the iPod or “Repeat Mode = All” for the D. player.

RPT OFF

Cancels.

7 Random play

ALBM RND* Functions the same as “Shuffle Albums” of the iPod.

SONG RND/RND ON Functions the same as “Shuffle Songs” of the iPod or “Random Play = On” of the D. player.

RND OFF

Cancels.

* For iPod: Functions only if you select “ALL” in

“ALBUMS” of the main “MENU.”

To check other information while listening to an iPod or a D. player

ENGLISH

Other external component operations

You can connect an external component to...

ENGLISH

• CD changer jack on the rear using the Line Input Adapter—KS-U57 (not supplied) or AUX Input Adapter—KS-U58 (not supplied) for any other

components (except iPod and D. player).

• AUX (auxiliary) input jack on the control panel.

For connection, see Installation/Connection Manual (separate volume). For listening to the Satellite radio, iPod, or D. player, see pages 15 – 19.

Ÿ Turn on the connected component and

start playing the source.

! Adjust the volume.

⁄ Adjust the sound as you want. (See

pages 11 and 12.)

To check other information while listening to an external component

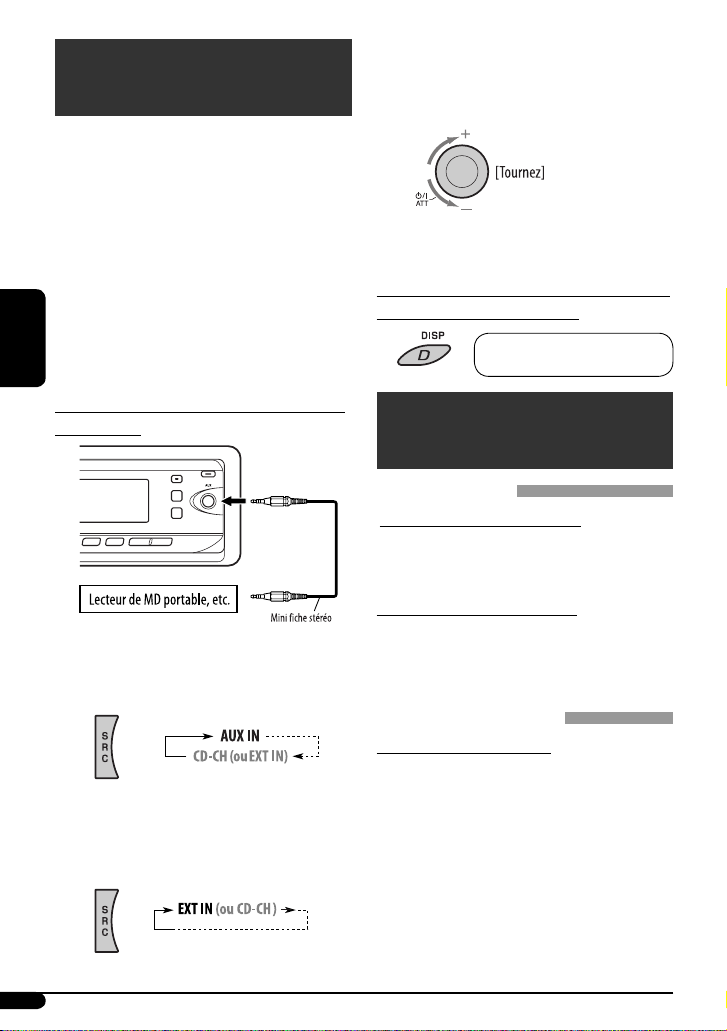

Connecting an external component to the AUX input jack

~ For selecting the external component

connected to...

• AUX input jack

• CD changer jack on the rear using KS-U57

or KS-U58

If “EXT IN” does not appear, see page 14 and

select the external input (“EXT IN”).

Clock Ô AUX IN or EXT IN

More about this unit

Basic operations

Turning on the power

• By pressing SRC on the unit, you can also turn on the power. If the source is ready, playback also starts.

Turning off the power

• If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

Tuner operations

Storing stations in memory

• During SSM search... – All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in No. 1 will

be automatically tuned in.

• When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.

Disc operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

General

• This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3 and WMA formats.

• When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press 0 to eject the disc.

• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can play back only files of the same type which are first detected if a disc includes both audio CD (CD-DA) files and MP3/WMA files.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, or for the following reasons: – Discs are dirty or scratched. – Moisture condensation occurs on the lens inside

the unit. – The pickup lens inside the unit is dirty. – CD-R/CD-RW on which the files are written with

“Packet Write” method. – There are improper recording conditions (missing

data, etc.) or media conditions (stained, scratched,

warped, etc.).

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or a protective seal stuck

to the surface.

– Discs on which labels can be directly printed by an

ink jet printer.

Using these discs under high temperatures or high

humidities may cause malfunctions or damage to the unit.

ENGLISH

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with the extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

• This unit can show the names of albums, artists (performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

• This unit can play back MP3/WMA files meeting the conditions below: – Bit rate: 8 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2) – Disc format: ISO 9660 Level 1/Level 2, Romeo,

Joliet, Windows long file name

• The maximum number of characters for file/folder names vary among the disc format used (includes 4 extension characters—<.mp3> or <.wma>). – ISO 9660 Level 1: up to 12 characters – ISO 9660 Level 2: up to 31 characters – Romeo: up to 128 characters – Joliet: up to 64 characters – Windows long file name: up to 128 characters

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in elapsed

time display, and do not show the actual elapsed time. Especially, after performing the search function, this difference becomes noticeable.

• This unit can recognize a total of 512 files, of 200 folders, and of 8 hierarchies.

• This unit cannot play back the following files: – MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format.

Continued on the next page

– MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional, and

voice format.

– WMA files which are not based upon Windows

Media® Audio.

– WMA files copy-protected with DRM.

ENGLISH

– Files which have the data such as AIFF, ATRAC3,

etc.

• The search function works but search speed is not constant.

Changing the source

• If you change the source, playback also stops.

Next time you select “CD” for the playback source,

disc play starts from where it has been stopped previously.

Ejecting a disc

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. Playback starts automatically.

• After ejecting a disc, “NO DISC” appears and you cannot operate some of the buttons. Insert another disc or press SRC to select another playback source.

General settings—PSM

• “AUTO” setting for “DIMMER” may not work correctly on some vehicles, particularly on those having a control dial for dimming.

In this case, change “DIMMER” setting to any other

than “AUTO.”

• If you change the “AMP GAIN” setting from “HIGH PWR” to “LOW PWR” while the volume level is set higher than “VOL 30,” the unit automatically changes the volume level to “VOL 30.”

Title assignment

• If you try to assign titles to more than 30 station frequencies, “NAMEFULL” appears. Delete unwanted titles before assignment.

Satellite radio operations

• You can also connect the JVC SIRIUS radio PnP (Plug and Play), using the JVC SIRIUS radio adapter, KS-U100K (not supplied) to the CD changer jack on the rear.

By turning on/off the power of the unit, you can turn

on/off the JVC PnP. However, you cannot control it from this unit.

• To know more about SIRIUS Satellite radio or to sign up, visit <http://www.sirius.com>.

• For the latest channel listings and programming information, or to sign up for XM Satellite radio, visit <http://www.xmradio.com>.

iPod or D. player operations

• When you turn on this unit, the iPod or D. player is charged through this unit.

• While the iPod or D. player is connected, all operations from the iPod or D. player are disabled. Perform all operations from this unit.

• The text information may not be displayed correctly. – Some characters such as accented letters cannot be

shown correctly on the display.

– Depends on the condition of communication

between the iPod or D. player and the unit.

• If the text information includes more than 8 characters, it scrolls on the display. This unit can display up to 40 characters.

Notice:

When connecting an iPod or a D. player, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: For iPod users: <http://www.jvc.co.jp/english/car/

support/ks-pd100/index.html>

For D. player users: <http://www.jvc.co.jp/

english/car/support/ks-pd500/index.html>

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

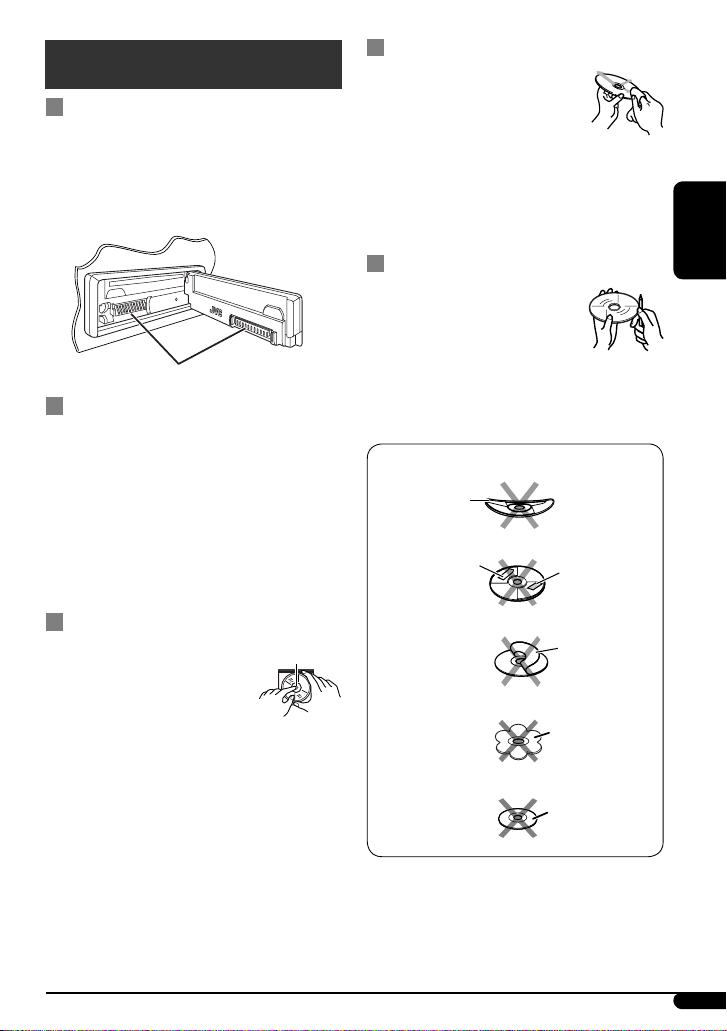

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Warped disc

Sticker

Sticker residue

ENGLISH

How to handle discs

When removing a disc from its case, press down the center holder

of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Center holder

Stick-on label

Unusual shape

Single CD—8 cm (3- 3/16”) disc

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

Symptoms Remedies/Causes

• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.

• Check the cords and connections.

General

• The unit does not work at all. Reset the unit (see page 3).

• SSM automatic presetting does not work. Store stations manually.

FM/AM

• Static noise while listening to the radio. Connect the antenna firmly.

• Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/CD-RW cannot be skipped.

• Disc can neither be played back nor ejected. • Unlock the disc (see page 10).

Disc playback

• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.

• “NO DISC” appears on the display. Insert a playable disc into the loading slot.

• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in the

• Noise is generated. Skip to another track or change the disc. (Do not add the

MP3/WMA playback

• A longer readout time is required (“CHECK” keeps flashing on the display).

• Tracks do not play back in the order you have intended them to play.

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

• Eject the disc forcibly (see page 3).

• Change the disc.

• Check the cords and connections.

format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

• Add the extension code <.mp3> or <.wma> to the file names.

extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

Do not use too many hierarchies and folders.

Playback order is determined when the files are recorded.

+ 56 hidden pages
