SERVICE MANUAL
DVD/CD RECEIVER
MA11420048
KD-DV5000
Area suffix
UL -------------------- Philippines
COMPACT
DIGITAL VIDEO
SRC
ATT
SEL
This model is KD-DV5000 UL that is added to the preceding model, the KD-DV5000 U.
Therefore, this service manual is consiting of difference parts list with KD-DV5000 U.
Please refer to the service manual of KD-DV5000 U. (issue No. 49880)
MODE
DISP
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
COPYRIGHT © 2004 Victor Company of Japan, Limited
No.MA114
2004/8
SPECIFICATION
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output
(RMS)
Load Impedance 4 Ω (4 Ω to 8 Ω allowance)
Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz
Audio output level Analog (2nd AUDIO OUT) 6 mW (at 16 Ω)
Digital
(DIGITAL OUT: Optical)
Line-Out Level/Impedance 2.0 V/20 kΩ load (full scale)
Color system PAL/NTSC
Video output (composite) 1 Vp-p/75 Ω
Frequency Range FM 87.5 MHz to 108.0 MHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
AM Tuner Sensitivity 20 µV
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of channels 2 channels (stereo)
Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 recording format MPEG 1/2 Audio Layer 3
Max. Bit rate 320 Kbps
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0ºC to +40ºC
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm
Mass (approx.) 1.7 kg (excluding accessories)
Front 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than
0.8% total harmonic distortion.
Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than
0.8% total harmonic distortion.
Level ±10 dB
Signal-to-Noise Ratio 70 dB
Signal wave length 660 nm
Output level -21 dBm to -15 dBm
Output Impedance 1 kΩ
TUNER SECTION
AM 531 kHz to 1 602 kHz
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
Capture Ratio 1.5 dB
Selectivity 35 dB
DVD/CD PLAYER SECTION
DVD, fs=96 kHz 16 Hz to 44 000 Hz
VCD, CD, MP3 16 Hz to 20 000 Hz
GENERAL
Panel Size (approx.) 188 mm × 58 mm × 12 mm
Design and specifications are subject to change without notice.
1-2 (No.MA114)
Please refer to "KD-DV5000U No.49880" about this section.

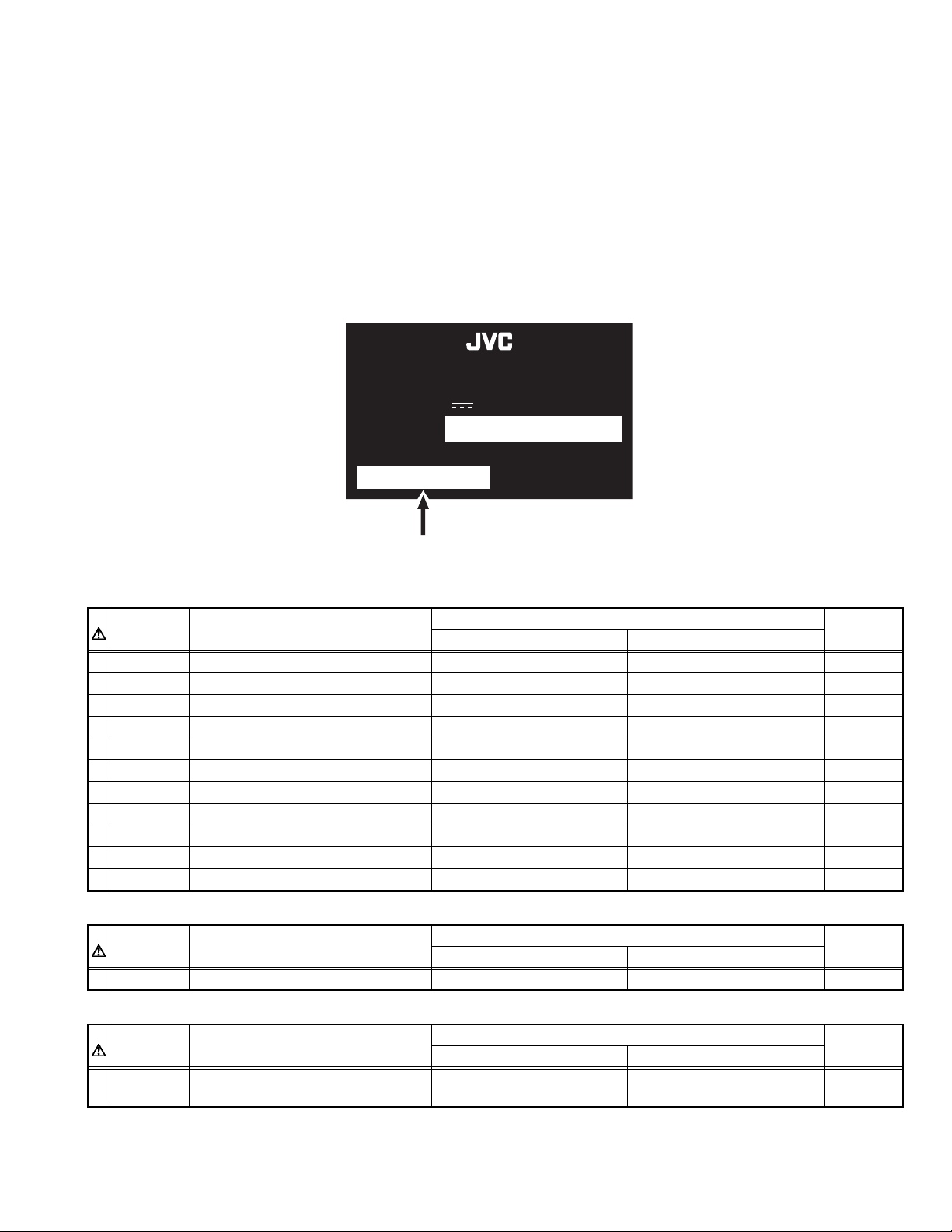

2.1 HOW TO IDENTIFY MODELS
SECTION 1
RECAUTION
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
DVD/CD RECEIVER
MODEL NO.
DC 12 V NEGATIVE GROUND
KD-DV5000
SERIAL NO.
FOR ISUZU
Here "FOR ISUZU" What is displayed is UL version.
KD-DV5000
Parts list(General assembly) [P3-3 Block NO.M1MM]
Item Parts name
15 SCREW QYSDST2606Z QYSDST2606ZA 2
21 SCREW QYSDST2606Z QYSDST2606ZA 2
25 SCREW QYSDST2606Z QYSDST2606ZA 2
26 SCREW QYSDST2612Z QYSDST2612ZA 3
81 NAME PLATE LV34169-001A LV35604-001A 1
92 SCREW QYSPSPD2608Z QYSPSPD2608ZA 1
93 SCREW QYSPSPD2608Z QYSPSPD2608ZA 1
98 SCREW QYSDST2606Z QYSDST2606ZA 3
99 SCREW QYSDST2606Z QYSDST2606ZA 1
101 SCREW QYSDST2606Z QYSDST2606ZA 2
103 SCREW QYSDST2606Z QYSDST2606ZA 1
Victor Company of Japan, Limited
MADE IN INDONESIA
UUL
LV35604-001A
Parts number
Q'ty
Parts list(Main board) [P3-6 Block NO.0100]
Item Parts name
TH601 N THERMISTOR NAD0022-103X NAD0028-103X 1
Parts list(Back end board) [P3-11 Block NO.0300]
Item Parts name
IC509 IC
SST39VF160-7CEK
UUL
UUL
(FLASH)
Parts number
Parts number
MR27T1602F1SSNX
(MICRO C ROM)
Q'ty
Q'ty
1
(No.MA114)1-3
SECTION 3
DISASSEMBLY
Please refer to "KD-DV5000U No.49880" about this section.
SECTION 4
ADJUSTMENT
Please refer to "KD-DV5000U No.49880" about this section.
SECTION 5
TROUBLESHOOTING
Please refer to "KD-DV5000U No.49880" about this section.
1-4 (No.MA114)
(No.MA114)1-5
Victor Company of Japan, Limited
AV & MULTIMEDIA COMPANY CAR ELECTRONICS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
(No.MA114)
Printed in Japan
