JVC KD-DV5000 User Manual

Download

DVD/CD RECEIVER KD-DV5000

ENGLISH

RECEPTOR CON DVD/CD KD-DV5000

RECEPTEUR DVD/CD KD-DV5000

SUBTITLEAUDIO ANGLE

ATT

Detachable

DVD

DUAL ZONE

DAB

FOLDER

PRESET

TOP

SETUP

EQS

DISC

ENTER

DISC

INTRORANDOM

ZOOM

564

–

RETURN

897

REPEAT

010

+10

OSD

SRC

ATT

2ndVOL

SEL

2ndVOL

–

SHIFT

• This unit is equipped with the display demonstration. To cancel it, see page 9.

• Esta unidad está equipada con demostración en la pantalla. Para cancelarla, consulte la página 9.

• Cet appareil est équipé d’une fonction de démonstration des affichages. Pour l’annuler, référezvous à la page 9.

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

COMPACT

DIGITAL VIDEO

SEL

200W

KD-DV5000

MODE

DISP

3456 EQ21

ESPAÑOL

FRANÇAIS

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No.

Serial No.

LVT1053-001A

[J]

INFORMATION (For U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can

ENGLISH

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

– Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT FOR LASER PRODUCTS

Precautions:

1.CLASS 1 LASER PRODUCT

2.DANGER: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3.CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.

4.CAUTION: This DVD/CD player uses invisible laser radiation, however, is equipped with safety switches to prevent radiation emission when unloading discs. It is dangerous to defeat the safety switches.

5.CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

How to reset your unit

After detaching the control panel, press the reset button on the panel holder using a ball-point pen or similar tool. This will reset the built-in microcomputer.

Note:

If you reset the unit during play, the playback mode selections (e.g. repeat play mode setting), you have selected for the current disc will be reset to the initial settings.

• During DVD playback, the disc menu selection will also be reset to the initial disc settings.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

WARNINGS

• DO NOT install any unit in locations where; – it may obstruct the steering wheel and

gearshift lever operations, as this may result in a traffic accident.

– it may obstruct the operation of safety

devices such as air bags, as this may result in a fatal accident.

– it may obstruct visibility.

• DO NOT operate any unit while manipulating the steering wheel, as this may result in a traffic accident.

• The driver must not watch the monitor while driving. If the driver watches the monitor while driving, it may lead to carelessness and cause an accident.

• The driver must not put on the headphones while driving. It is dangerous to shut off the outside sounds while driving.

• If you need to operate the unit while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

• If the parking brake is not engaged, “DRIVER MUST NOT WATCH THE MONITOR WHILE DRIVING.” appears on the monitor, and no playback picture will be shown. – This warning appears only when the parking

brake wire is connected to the parking brake system built in the car (refer to the Installation/Connection Manual).

CAUTION: DO NOT insert a disc while the disc loading lamp is flashing or is not lit. (See page 18.)

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing use only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

ENGLISH

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

BEFORE USE

* For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Caution:

If the temperature inside the car is below 0°C (32°F), the movement of animation and text scroll will be halted on the display to prevent the display from being blurred. (LOW TEMP.) indicator appears on the display. When the temperature increases, and the operating temperature is resumed, these functions will start

working again.

* Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

CONTENTS

How to reset your unit ............................... 2

LOCATION OF THE BUTTONS ............ 5

Control panel ............................................. 5

Remote controller ...................................... 6

Preparing the remote controller ................ 7

ENGLISH

BASIC OPERATIONS ....................... 8

Turning on the power ................................ 8

Canceling the display demonstration ........ 9

Setting the clock ........................................ 9

Activating the level meter .......................... 10

RADIO OPERATIONS ...................... 11

Listening to the radio ................................. 11

Storing stations in memory ....................... 13

Tuning in to a preset station ...................... 14

Changing the display pattern .................... 15

PLAYABLE DISCS .......................... 16

BASIC DISC PLAYBACK ................... 18

Starting playback ...................................... 18

Locating a particular title/chapter/track ..... 20

Locating a particular folder ........................ 21

DVD/VCD SPECIAL FUNCTIONS ......... 22

Selecting subtitles ..................................... 22

Selecting audio languages ........................ 23

Selecting multi-angle views ....................... 23

Menu operations ....................................... 24

Zoom in ..................................................... 25

ADVANCED DISC OPERATIONS .......... 26

Searching for a particular point ................. 26

Playing in various play modes .................. 28

DVD SETUP MENU ......................... 43

Basic setting procedure ............................ 43

SOUND ADJUSTMENTS ................... 47

Adjusting the sound .................................. 47

Selecting preset sound modes

(iEQ: intelligent equalizer) ...................... 48

Storing your own sound adjustments ........ 49

OTHER MAIN FUNCTIONS ................ 50

Changing the general settings (PSM) ....... 50

Selecting the dimmer mode ...................... 54

Changing the display color ........................ 55

Assigning names to the sources ............... 57

Detaching the control panel ...................... 58

CD CHANGER OPERATIONS .............. 59

Playing discs ............................................. 59

Selecting the playback modes .................. 63

EXTERNAL COMPONENT OPERATIONS .... 65

Playing an external component ................. 65

ADDITIONAL INFORMATION ............. 66

LANGUAGE CODES ........................ 67

GLOSSARY.................................. 68

TROUBLESHOOTING ...................... 69

MAINTENANCE ............................. 72

Handling discs ........................................... 72

SPECIFICATIONS........................... 73

DUAL ZONE OPERATIONS ................ 30

Listening with headphones ....................... 30

OSD DISC OPERATIONS .................. 32

Operations on the monitor screen ............. 32

OTHER DISC OPERATIONS ............... 35

Basic disc playback ................................... 35

Locating a title/chapter/track on a disc ...... 36

Selecting a folder/track to play

using the lists .......................................... 37

Selecting playback modes ........................ 38

Prohibiting disc ejection ............................ 41

Changing the display pattern .................... 41

Control panel

LOCATION OF THE BUTTONS

2 4 5

SRC

ATT

SEL

200W

Refer to the pages in parentheses for details.

1 SRC (source) button (8, 57, 59, 65) 2 • (standby/on/attenuator)

button (8)

• Control dial

3 Display window 4 Remote sensor 5 5 (up) button

• Functions as the Play button for DVDs and VCDs.

KD-DV5000

MODE

DISP

3456 EQ21

e r

6 0 (eject) button (20, 35) 7 4/¢ buttons 8 (control panel release) button (58) 9 SEL (select) button p Number buttons q MODE (M) button w DISP (D) (display) button (10, 15, 41, 60, 65) e EQ (equalizer) button (10, 48) r ∞ (down) button

• Functions as the Stop button for DVDs and VCDs.

ENGLISH

How to use the MODE (M) button

If you press MODE (M), the unit goes into functions mode. While in functions mode, the number buttons work as different function buttons.

• The 5/∞ buttons also work as +10/–10 buttons after pressing MODE (M).

Ex.: When the source is the tuner

MODE

To use these buttons for original functions again after pressing MODE (M), wait for 5 seconds without pressing any of these buttons until the functions mode is cleared.

• Pressing MODE (M) again also clears the functions mode.

Time countdown indicator

345621

Remote controller

ENGLISH

ATT

DVD

DUAL ZONE

DAB

2ndVOL

SEL

2ndVOL

–

SHIFT

IMPORTANT:

If “Dual Zone” is turned “On” (see page 30), the remote controller only functions for operating the DVD/CD player.

Refer to the pages in parentheses for details.

1 (standby/on/attenuator) button 2 Source selection button

DVD, FM, AM, and CH

• DVD button also functions as the DUAL ZONE button while pressed with SHIFT (S) button. (30)

• FM button also functions to change the FM bands. Each time you press the button, FM band changes to FM1, FM2, and FM3 in sequence.

• FM button does not function as the DAB button for this model.

• CH button does not function if no CD changer is connected.

SUBTITLEAUDIO ANGLE

FOLDER PRESET

TOP

ENTER

SETUP

EQS

ZOOM

DISC

564

–

DISC

897

010

RETURN

REPEATINTRORANDOM

+10

OSD

7 8

9 p

w e

u i

3*SETUP button (43) 4 Basic sound setting buttons

SEL, +, and –

• The +/– buttons normally function as the

volume adjustment buttons.

• The +/– buttons also function as the 2ndVOL +/– buttons when pressed with SHIFT (S) button. (31)

5 SHIFT (S) button 6 EQ (equalizer) button (48)

• This button does not work for selecting the level meter.

7 SUBTITLE button (22) 8 ANGLE button (23) 9 AUDIO button (23) p Disc basic operation buttons (20)

7 (stop), 8 (pause), 3 (play)

q Disc advanced operation buttons

4 / ¢ (reverse search/forward search)

• The 4 / ¢ buttons also work for searching for stations.

1 / ¡ (reverse/fast forward) FOLDER PRESET 5 / ∞

• The FOLDER PRESET 5 / ∞ buttons also work for selecting the preset stations.

w*TOP MENU button (24) e*MENU button (24) r*Menu operation buttons

Cursor (5 / ∞ / 2 / 3), and ENTER

t*RETURN button (24) y*Play mode buttons (28, 29, 63, 64)

RANDOM (R), INTRO (I), and REPEAT ( )

u OSD button (32) i ZOOM button (25)

* These buttons function as the number buttons

when pressed with SHIFT (S) button.

Preparing the remote controller

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between.

Remote sensor

MODE

DISP

6EQ

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

(back side)

3. Return the battery holder.

Insert again the battery holder pushing it until you hear a clicking sound.

(back side)

WARNING:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble or heat the battery or dispose of it in a fire. Doing any of these things may cause the battery to give off heat, crack or start a fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack or start a fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack or start a fire.

ENGLISH

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

Lithium coin battery (product number: CR2025)

BASIC OPERATIONS

SRC

ENGLISH

ATT

1, 3

Turning on the power

Turn on the power.

ATT

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

SRC

To operate the tuner (FM or AM),

To play a disc,

To operate the CD changer,

To operate the external component

*1If a disc is not in the loading slot, you cannot

*2Without connecting a CD changer, you cannot

*3To select “LINE IN,” select “Line In” for the

Each time you press the button, the source changes as follows.

TUNER

DISC

CD-CH or LINE IN

(CD changer)

see pages 11 – 15.

see pages 16 – 46.

see pages 59 – 64.

(LINE IN), see page 65.

select “DISC” as the source to play.

select it as the source to play.

“Ext Input” setting on page 53.

MODE

SEL

3456 EQ21

Adjust the volume.

ATT

Current sound (iEQ) mode (see page 48)

Adjust the sound as you want. (See

DISP

Volume level appears.

pages 47 – 49.)

Note:

While playing a source, you can also show the level meter on the display. For details, see “Activating the level meter” on page 10.

To drop the volume in a moment

Press briefly while listening to any source. “ATT ” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore

the sound.

To turn off the power

Press for more than 1 second.

• If you turn off the power while listening to a

disc, playback will start from where playback

has been stopped previously, next time you turn on the power.

Canceling the display demonstration

When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 20 seconds.

• It is recommended to cancel the demonstration before you use the unit for the first time.

To cancel the display demonstration, follow the procedure below:

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 51.)

SEL

Press number button 1 to select “MOVIE”—Movie category of the PSM settings.

To activate the display demonstration, repeat

the same procedure and select “All Demo” or “Int Demo” in step 3.

• For more details, see “To set the movie demonstration—Graphics” on page 52.

Setting the clock

You can also set the clock system to 24 hours or 12 hours.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 51.)

SEL

Press number button 2 to select “CLOCK”—Clock category of the PSM settings.

ENGLISH

345621

The “Graphics” setting screen appears on the display.

Select “Off.”

ATT

Finish the setting.

SEL

345621

The “Clock Hr” setting screen appears on the display.

Adjust the hour.

ATT

Set the minute.

1 Select “Clock Min (minute).” 2 Adjust the minute.

CONTINUED ON THE NEXT PAGE

ATT

Set the clock system.

1 Select “24H/12H.” 2 Adjust “24Hours” or “12Hours.”

ENGLISH

Meter 1:

The audio level meter fluctuates vertically.

ATT

Finish the setting.

SEL

To check the current clock time when the unit is turned off, press DISP (D).

The power turns on and the clock time is shown for about 5 seconds, then the power turns off.

Activating the level meter

You can show the level meters on the display while playing any source. This unit is equipped with three level meter patterns.

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press EQ (equalizer) twice.

• If you press the button only once, the sound selection screen appears (see page 48).

Select the level meter pattern you want.

ATT

Last selected level meter appears on the display.

As you turn the control dial, the level meters change as follows:

Off

Meter 2:

The speaker on the display vibrates as input audio level changes.

Meter 3:

The left and right audio level meters appear.

• If the display pattern is changed, only one audio level meter will be shown.

Off:

No level meter is shown. The source animation appears.

NOTICE:

The illustrations of the display used in this manual are mainly of the initial setting when shipped from the factory. If you have changed the display patterns or some PSM items, the actual displays you see will be different.

RADIO OPERATIONS

SRC

ATT

SEL

3456 EQ21

The operations of this section are mainly explained using the buttons on the control panel. When the remote controller can be used for the same operations, it is then explained.

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching for a station automatically: Auto search

This operation is also possible from the remote controller.

Select the band (FM1 – 3, AM).

SRC

Selected band appears.

1 Press SRC (source)

repeatedly to select the tuner.

2 Press and hold SRC.

Each time you press and hold the button, the band changes.

FM1 FM2 FM3 AM

MODE

DISP

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Start searching for a station.

To search for stations of higher frequencies

To search for stations of lower frequencies

When a station comes in, searching stops.

To stop searching before a station is received,

press the same button you have pressed for searching.

When using the remote controller

Press FM or AM.

• When selecting the FM bands, press FM repeatedly until the band you want is selected.

DAB

2 Press ¢ or 4 to start

searching.

ENGLISH

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Searching for a station manually: Manual search

ENGLISH

Select the band (FM1 – 3, AM).

SRC

1 Press SRC (source)

repeatedly to select the tuner.

2 Press and hold SRC.

Each time you press and hold the button, the band changes.

FM1 FM2 FM3 AM

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Press and hold ¢ or 4 until “Manual Search” starts flashing on the display.

When an FM stereo broadcast is hard to receive:

1 Press MODE (M) to enter the

functions mode while listening to an FM stereo broadcast. “Mode” appears on the display.

2 Press number button 1 to select “Mono On”

while “Mode” is still on the display. Each time you press the button, “Mono On” and “Mono Off” appears alternately.

See page 30 for this function.

345621

After about

5 seconds

The display returns to the source indication screen.

MODE

Tune in to a station you want while “Manual Search” is flashing.

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

• If you release your finger from the button, the manual mode automatically turns off after 5 seconds.

• If you hold down the button, the frequency keeps changing (in 200 kHz intervals for FM and 10 kHz for AM) until you release the button.

When “Mono On” is selected, the MONO indicator appears, and the sound you hear becomes monaural but the reception will be improved.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strongstation Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

SRC

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Start automatic preset.

1 Press MODE (M) to enter the functions

1 Press SRC (source)

repeatedly to select the tuner.

2 Press and hold SRC.

Each time you press and hold the button, the band changes.

FM1 FM2 FM3 AM

mode.

MODE

“Mode” appears on the display.

2 Press and hold number button 5 while

“Mode” is still on the display.

ENGLISH

345621

Then

“–SSM–” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3). These stations are preset in the number buttons —No.1 (lowest frequency) to No.6 (highest frequency).

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

Ex.: Storing an FM station of 92.5 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

SRC

1 Press SRC (source)

repeatedly to select the tuner.

2 Press and hold SRC.

Each time you press and hold the button, the band changes.

FM1 FM2 FM3 AM

CONTINUED ON THE NEXT PAGE

Tune in to a station (in this example, of 92.5 MHz).

ENGLISH

To tune in to stations of higher frequencies

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see “Storing stations in memory” on pages 13 and 14.

To tune in to stations of lower frequencies

Press and hold the number button (in this example, 1) for more than 2 seconds.

The display pattern automatically changes like the above pattern (see page 15). The preset number flashes for about 5 seconds, then the previous display pattern resumes.

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Selecting a preset station directly

Select the band (FM1 – 3, AM).

SRC

Select the number (1 – 6) for the preset station you want.

Note:

You can also use the 5 (up) or ∞ (down) button on the unit to select the next or previous preset stations. Each time you press the 5 (up) or ∞ (down) button, the next or previous preset station is tuned in.

When using the remote controller

Press FM or AM.

• When selecting the FM bands, press FM repeatedly until the band you want is selected.

2 Press the number buttons (1 to 6) while

holding SHIFT (S).

SHIFT

Note:

You can also use the PRESET (FOLDER) 5 / ∞ buttons for selecting a preset station.

1 Press SRC (source)

repeatedly to select the tuner.

2 Press and hold SRC.

Each time you press and hold the button, the band changes.

FM1 FM2 FM3 AM

345621

TOP

DISC

ENTER

564

DAB

Selecting a preset station using the preset station list

If you forget which stations are stored in which preset numbers, you can check the preset station list, then select your desired station.

Select the band (FM1 – 3, AM).

SRC

Press and hold 5 (up) or ∞ (down) until the preset station list for the current band (FM1, FM2, FM3, or AM) appears on the display.

1 Press SRC (source)

repeatedly to select the tuner.

2 Press and hold SRC.

Each time you press and hold the button, the band changes.

FM1 FM2 FM3 AM

Changing the display pattern

By pressing DISP (D), you can change the information shown on the display.

DISP

Appears only when selecting a preset station number.

Each time you press the button, the display patterns change as follows:

Clock time

ENGLISH

Notes:

• You can show the other FM band preset station lists (FM1, FM2, or FM3) by pressing 5 (up) or ∞ (down).

• If a name has been assigned to a station (see page 57), it will be shown instead of the station frequency.

Select the number (1 – 6) for the preset station you want.

345621

If a name has been assigned to a station, it will be shown instead of “NO NAME.”

PLAYABLE DISCS

Discs you can play:

Disc Type Mark (Logo) Video Format Region Code*

ENGLISH

DVD Video

Video CD

Audio CD

COMPACT

DIGITAL VIDEO

NTSC

ALL

MP3 disc

• On some discs, the actual operations may be different from what is explained in this manual.

• The following discs cannot be played back; – DVD-Audio, DVD-ROM, DVD-RAM, DVD-R,

DVD-RW, CD-ROM, CD-I (CD-I Ready), Photo CD, etc. Playing back these discs will generate noise and damage the speakers.

* Note on Region Code

DVD players and DVD Video discs have their own Region Code numbers. This unit can only play back DVD discs whose Region Code numbers include “1.”

If you insert a DVD Video disc of an incorrect Region Code

“REGION CODE ERROR!” appears on the monitor, and “Please Eject” flashes on the display. (If the control panel is not yet closed, the disc ejects automatically.)

CD-Rs or CD-RWs including MP3 files with the file extension code <mp3>. They must be recorded in the format compliant with ISO 9660 Level 1, ISO 9660 Level 2, Romeo, and Joliet.

Examples:

Disc structure

DVD

A DVD disc consists of Titles, and each title may be divided into Chapters. For example, if a DVD disc contains some movies, each movie may have its own title number, and it may be further divided into chapters.

Video CD (VCD) and Audio CD (CD)

On the other hand, a VCD or CD consists of Tracks. In general, each song has its own track number. (On some discs, each track may also be divided by Indexes.) When playing back a VCD with the Playback Control (PBC) function, you can select what to view using the menu shown on the monitor. (While operating a VCD using the menu, some of the functions such as Repeat and Track Search may not work.)

MP3 discs

MP3 is an abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. MP3 is simply a file format with a data compression. By using MP3 format, one CD-R or CD-RW can contain 10 times as much data as a regular CD can.

On an MP3 disc, files (also called “tracks” and both words are used interchangeably in this manual) are usually grouped into a folder. Folders can also include other folders, creating hierarchical layers of folders.

This unit can recognize up to 150 files per folder, and up to 99 folders per disc (up to 14,850 files). The unit ignores those exceeding the maximum number and cannot play them back.

• All folders on the disc are counted in the total number of 150, even a folder which does not include any MP3 files.

About sounds reproduced through the rear terminals

• Through the analog terminals (Speaker out/LINE OUT/2nd AUDIO OUT):

2-channel signal is emitted. When playing a multi-channel encoded disc, multi-channel signals are downmixed. (AUDIO—ANALOG DOWN MIX: see page

46)

• Through DIGITAL OUT (optical):

Digital signals (Linear PCM, Dolby Digital*, DTS**) are emitted through this terminal. (For more details, see page 71.) To reproduce multi-channel sounds such as Dolby Digital and DTS, connect an amplifier or a decoder compatible with these multichannel sources to this terminal, and set “DIGITAL AUDIO OUTPUT” to the correct value. (See page 46.)

• About Dual Zone

While you are listening to the radio, CD changer, or external component through the speakers built into your car compartment, you can listen to the playback sound of this DVD/CD player using the headphones connected to the 2nd AUDIO OUT plug at the same time.

• For details, see “DUAL ZONE OPERATIONS” on page 30.

ENGLISH

Notes for MP3 disc

• MP3 discs require a longer readout time, which differs due to the complexity of the folder/file configuration.

• This unit supports “multi-session” discs.

• This unit cannot play “packet write” discs.

• The unit can play MP3 files with the correct extension code—<.mp3> (case insensitive—any combination of upper and/or lower is acceptable)

• It is recommended that MP3 files be recorded at a sample rate of 44.1 kHz and at a data transfer rate of 128 kbps.

• If a file has a file name consisting of more than 62 characters, it will neither be recognized nor played back.

• For more information about MP3 discs, see “A Guide to MP3” (separate volume).

* Manufactured under license from Dolby

Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

** “DTS” and “DTS Digital Out” are trademarks of

Digital Theater Systems, Inc.

BASIC DISC PLAYBACK

SRC

ENGLISH

ATT

SEL

The following marks used in this manual indicate the playable discs.

DVD Video

Audio CD

Video CD

with/without PBC

MP3 disc

Video CD with PBC

All discs

listed here

Before performing any operations, make sure

the following....

• Turn on the monitor for playing a DVD or VCD. If you turn on the monitor, you can also control the CD and MP3 playback by referring to the monitor screen.

• For DVD playback, you can change the Setup Menu setting to your preference. (See pages 43 – 46.)

• When you want to operate the DVD/CD player using the buttons on the control panel, see “OTHER DISC OPERATIONS” on pages 35 to

42.

If “ ”appears on the monitor when pressing a button, the disc cannot accept an

operation you have tried to do.

• In some cases, without showing “ ,”

operations will not be accepted.

MODE

3456 EQ21

Starting playback

Open the control panel.

Insert a disc into the loading slot.

The disc loading lamp start flashing, and the unit draws in the disc automatically.

DO NOT insert a disc while the disc loading lamp is flashing* or is not lit**. * Flashing: while loading or ejecting a disc **Not lit: when a disc has been loaded.

Close the control panel by hand.

DISP

Disc loading lamp

The disc type is automatically detected, and playback starts automatically. (If a disc is CD, VCD without the PBC function, or MP3, playback will be repeated until you stop it.)

• If a menu appears while playing a DVD or VCD with PBC function, see “Menu operations” on page 24.

• Display indications when inserting a DVD:

• Display indications when inserting an MP3 disc

ENGLISH

1 Total title number 2 Elapsed playing time of the current title 3 Current title number and chapter number

• Display indications when inserting a VCD or CD:

1 Total playback time of the disc 2 Total track number 3 VIDEO CD indicator: appears only when playing

back a Video CD.

4 Elapsed playing time of the current track 5 Current track number

1 Total track number 2 Total folder number 3 MP3 indicator 4 Elapsed playing time of the current track 5 Current folder number and track number

Note:

When a new folder starts playing, its folder name is shown on the display (the display pattern automatically changes for a while—see page 42.)

Notes:

• When a disc is already in the loading slot, selecting “DISC” as the source starts disc play.

• This unit cannot read or play an MP3 file without the extension code <mp3>.

• When a disc is inserted upside down, the disc automatically ejects (if the control panel is open). If the control panel is closed, the source changes to the previously selected source, “Please Eject” flashes on the display.

To stop playback temporarily

Press 8 on the remote controller. “Pause” flashes on the display.

ENGLISH

• For DVD and VCD only: A still picture appears.

Frame by Frame Playback—You can advance the still picture frame by frame by pressing the 8 repeatedly.

To resume normal speed, press 3.

Slow Motion Playback— You can advance the

still picture in slow motion by pressing ¡ or

1. Each time you press the button, the

search speed changes as follows:

1/32 \ 1/16 \ 1/8 \ 1/4 \ 1/2

To resume normal speed, press 3.

To stop playback

Press 7 on the remote controller.

• Except for MP3 discs: This unit can remember the end point (until the disc is ejected), and when you start playback again, playback begins from where it has been stopped. (Resume play)

• For MP3 discs: This unit can remember the last playing track (until the disc is ejected), and when you start playback again, playback begins from the beginning of the same track.

To eject a disc

Press 0 on the control panel. Playback stops and the control panel flips down. The disc comes out of the loading slot.

Notes:

• No sound comes out during Reverse Slow Motion Playback

• When playing a VCD, Reverse Slow Motion Playback is prohibited.

To replay the previous scenes —One Touch Replay

Press 3 on the remote controller (or 5 (up) on the control panel) during play.

The playback position moves back about 10 seconds before the current position.

Notes:

• This function works only within the same title.

• For some DVDs, this function does not work.

Locating a particular title/ chapter/track

To go to the next or previous chapter/tracks

• For DVD: During play or pause

Press ¢ to go ahead to the beginning of the next chapter/track. Each time you press the button, the beginning of the next chapter/track is located (and played back).

Press 4 to go back to the beginning of the current chapter/track. Each time you press the button, the beginning of the previous chapter/track is located (and played back).

Note:

Playback will not start automatically if you locate the chapter/track while a disc is pausing or not playing.

To locate a particular title/chapter/track directly

On-screen guide icons

• For DVD: During play or pause—select a chapter While stopped—select a title

• For VCD: While PBC (see page 24) is not in use.

From the remote controller:

While holding SHIFT (S), press number buttons to select a title, chapter, or track number you want.

SHIFT

Examples:

RANDOM

SETUP

TOP

DISC

ENTER

564

–

DISC

RETURN

897

REPEAT

+10

• To select number 5, press 5 while pressing SHIFT (S).

• To select number 10, press 10 while pressing SHIFT (S).

• To select number 23, press +10, +10, then 3 while pressing SHIFT (S).

Notes:

• If you directly select the track number for a VCD with the PBC function while it is not playing, playback starts with PBC function canceled. (See page 24).

• Playback will not start automatically if you select a chapter or track during pause.

Locating a particular folder

During play, the following guide icons may appear for a while on the monitor.

: Appears at the beginning of a

scene containing multi-subtitle languages (for DVD only).

: Appears at the beginning of a

scene containing multi-audio languages (for DVD only).

: Appears at the beginning of a

scene containing multi-angle views (for DVD only).

: Appears when you press 3.

: Appears when you press 8.

: Appears when you start forward

slow motion. (Slow motion speed also appears.) (for DVD and VCD only).

: Appears when you start reverse

slow motion. (Slow motion speed also appears.) (for DVD only).

: Appears when you start forward

search. (Search speed also appears.)

: Appears when you start reverse

search. (Search speed also appears.)

: Appears when you select repeat

mode (see page 28).

ENGLISH

FOLDER PRESET

Press FOLDER (PRESET) 5 to select the next folder. Each time you press the button, the next folder is located and the first track in it starts playing.

Press FOLDER (PRESET) ∞ to select the previous folder. Each time you press the button, the previous folder is located and the first track in it starts playing.

Note:

If a folder does not contain any MP3 tracks, it is skipped.

DVD/VCD SPECIAL FUNCTIONS

Selecting subtitles

ENGLISH

AUDIO

ENTER

Number

SHIFT

(S)

2ndVOL

DVD

DUAL ZONE

SEL

SHIFT

ATT

DAB

–

SUBTITLEAUDIO ANGLE

TOP

SETUP

EQS

FOLDER PRESET

DISC

ENTER

DISC

ZOOM

–

564

RETURN

897

REPEATINTRORANDOM

+10

010

OSD

ANGLE

SUBTITLE

TOP MENU

MENU Cursor

RETURN

ZOOM

While playing a disc containing subtitles in different languages, you can select which subtitle to display.

• You can also set your favorite subtitle language as the initial language shown on the monitor. (See pages 43 to 45.)

Select a desired subtitle language.

SUBTITLE

The following pop-up window appears on the monitor. Each time you press the button, the subtitle language changes.

1/3

ENGLISH

1/3

ENGLISH

Ex. When the disc has 3 selections—

English, French, Spanish and no subtitle (OFF)

Notes:

• When the pop-up window is shown, you can also select the subtitle languages by pressing cursor buttons (5/∞).

• For some DVDs and VCDs, changing the subtitle language without using the disc menu is prohibited.

Selecting audio languages

For DVD:

While playing a disc containing multiple audio languages (ex. English, French, Spanish), you can select the language to listen to.

• You can also set your favorite language as the initial audio language. (See pages 43 to 45.)

For VCD:

When you play a VCD, you can select the audio channel to play. This is convenient when playing a Karaoke VCD.

Selecting multi-angle views

While playing a disc containing multi-angle views, you can view the same scene at different angles.

Select a desired view angle.

ANGLE

The following pop-up window appears on the monitor. Each time you press the button, the view angle changes.

1/3

ENGLISH

Select a desired audio language (or audio channel).

AUDIO

• For DVD:

The following pop-up window appears on the monitor. Each time you press the button, the audio language (or audio channel) changes.

1/3

ENGLISH

1/3

ENGLISH

Ex. When the disc has 3 selections—

English, French, and Spanish

• For VCD:

• ST: To listen to normal stereo (left/right)

playback.

• L: To listen to the L (left) audio channel.

• R: To listen to the R (right) audio channel.

Notes:

• When the pop-up window is shown, you can also select the audio languages (or audio channels) by pressing cursor buttons (5/∞).

• For some DVDs and VCDs, changing the audio language (or audio channel) without using the disc menu is prohibited.

1/3

Ex.: When the disc has 3 multi-angle views

Note:

When the pop-up window is shown, you can also select the multi-angle views by pressing cursor buttons (5 /∞).

1/3

Menu operations

Menu-driven playback is possible while playing

ENGLISH

back a DVD with menu-driven features or a VCD with the PBC (PlayBack Control) function.

While playing a VCD:

The PBC (PlayBack Control) function allows you to operate the VCD using menus. When you start playback, a menu will automatically appear on the monitor.

• A menu may be a list of items, divided screens, or some moving pictures.

While playing a DVD:

DVD discs generally have their own menus or title lists. A title list usually contains titles of movies and songs recorded. On the other hand, a menu usually contains various information about the disc and playback selections.

Press TOP MENU or MENU.

A title list or menu will appear on the monitor.

TOP

Select the item you want from the menu or the title list, by pressing cursor buttons (5 / ∞ / 3 / 2) then ENTER.

The unit starts playback of the selected item.

DISC

–

DISC

• On some discs, you can also select items by pressing the number buttons corresponding to the item numbers listed.

To cancel the title list or menu

Press TOP MENU or MENU.

If “ ”appears on the monitor in step 1,

the disc does not have a title list or menu.

ENTER

Select the item you want from the menu.

• When a list of items is displayed on the monitor, press the number buttons to select an item.

• When “3” or “SELECT” is displayed on the monitor, press 3 (or ENTER if pressing 3 does not work) to start playback.

How to select items using the number buttons

• To select number 5, press 5 while pressing SHIFT (S).

• To select number 10, press 10 while pressing SHIFT (S).

• To select number 23, press +10, +10, then 3 while pressing SHIFT (S).

TOP

SHIFT

To return to the previous menu

Press RETURN .

DISC

ENTER

564

–

DISC

RETURN

SETUP

897

REPEAT

RANDOM

+10

RETURN

To cancel the PBC playback

You can cancel the menu-driven operations (PBC function): 1 Press 7 to stop playback.

Press number buttons to select a track. Normal playback starts from the selected track.

To resume the PBC function again, press TOP MENU or MENU.

TOP

Zoom in

DISC

–

ZOOM x4

Move the zoomed-in portion on the monitor.

You can zoom into a particular portion of the picture while playing a DVD or VCD.

Zoom in to the picture.

The pop-up window appears on

ZOOM

the monitor to show the current magnification. Each time you press the button, magnification change as follows:

\ x 2 \ x 4 \ x 8 \ x 1 \ x 2 \ x 4 \ x 8 \ • • • •

Ex. When “ZOOM x4” is selected

ZOOM x4

ENGLISH

Note:

While zoomed in, the picture may look coarse.

To cancel Zoom, press ENTER or press ZOOM repeatedly until “ZOOM x1” appears.

ADVANCED DISC OPERATIONS

SUBTITLEAUDIO ANGLE

FOLDER PRESET

ENGLISH

ATT

DVD

DUAL ZONE

DAB

ENTER

Number

SHIFT

(S)

2ndVOL

TOP

SETUP

SEL

–

SHIFT

EQS

DISC

ENTER

564

–

DISC

897

010

ZOOM

RETURN

REPEATINTRORANDOM

OSD

Searching for a particular point

+10

1¡

Cursor

REPEAT

OSD

INTRO

(I)

RANDOM

(R)

Notes:

* “x60” is only for DVD.

• When playing an MP3 disc, no sound comes out during Search.

• When playing a DVD or VCD, no sound comes out during x5, x10, x20, and x60 Search.

• Reverse Search stops automatically when it reaches the beginning of the disc. Playback resumes at normal speed.

Time Search

You can start playing a particular point by specifying the elapsed playing time of the current title (for DVD) and of the disc (CD and VCD).

• For DVD: During play or pause.

• For VCD: While PBC (see page 24) is not in

Press OSD twice.

OSD

use.

The on-screen bar appears on the monitor.

• For details on the on-screen bar, see pages 32 and 33.

TITLE 33 TOTAL 1:25:58CHAP 33

5.1ch

CHAP

1/3 1/3OFF 1/5

Forward/Reverse Search

You can search for a particular point while playing a disc.

To fast-forward or reverse the chapter or track, press ¡ or 1 while playing a disc.

Each time you press the button, the search speed changes as follows:

x2 \ x5 \ x10 \ x20 \ x60*

To resume normal speed, press 3.

When using the buttons on the control panel

Press and hold ¢ or 4 while playing a disc. The search speed changes: x2 \ x10.

• If you release the button, normal speed playback resumes.

Move to (Time Search), then press ENTER.

TITLE 33 TOTAL 1:25:58CHAP 33

5.1ch

CHAP

TIME

_:__:__

The time entry window appears.

Press number buttons (0 to 9) to

ENTER

1/3 1/3OFF 1/5

enter the time while holding SHIFT (S).

TOP

SHIFT

SETUP

DISC

ENTER

–

DISC

INTRO

564

RETURN

897

Example (for DVD VIDEO)

To play back from 2(H):34(M):00(S) Press number buttons 2, 3, then 4.

TIME 2 : 34 :_ _

To play back from 58(M):00(S) Press number buttons 0, 5, then 8.

TIME 0 : 58 :_ _

Example (for Video CD/Audio CD)

To play back from 23(M):40(S) Press number buttons 2, 3, then 4.

TIME 23 : 4 _

You do not have to press “0” to enter the trailing zeros.

To correct a mistake

Press cursor button 2 repeatedly to move back to the digit where you entered a wrong number, and reenter the correct one.

Finish entry.

ENTER

To erase the on-screen bar, press OSD once.

The unit starts playback from the

specified time.

Move to

CHAP.

(Chapter

Search), then press ENTER.

TITLE 33 TOTAL 1:25:58CHAP 33

5.1ch

CHAP

CHAPTER

The chapter number entry window appears.

Press number buttons (0 to 9) to

ENTER

1/3 1/3OFF 1/5

enter the chapter number while holding SHIFT (S).

TOP

SHIFT

• To select number 5, press 5 while pressing SHIFT (S).

• To select number 10, press 1, then 0 while pressing SHIFT (S).

• To select number 23, press 2, then 3 while pressing SHIFT (S).

SETUP

DISC

ENTER

564

–

DISC

897

INTRO

ENGLISH

RETURN

Chapter Search

You can select a specific chapter when a DVD is inserted.

Press OSD twice.

OSD

The on-screen bar appears on the monitor.

• For details about the on-screen bar, see pages 32 and 33.

TITLE 33 TOTAL 1:25:58CHAP 33

5.1ch

CHAP

1/3 1/3OFF 1/5

To correct a mistake

• To correct a two digit number, enter the correct number again.

• To correct a single digit number, press 0 first, then enter the correct number.

Finish entry.

ENTER

The unit starts playback from the selected chapter.

To erase the on-screen bar, press OSD once.

Playing in various play modes

You can use any of three methods to activate various play modes.

• Using the direct buttons on the remote

ENGLISH

controller.

• Using the on-screen bar (see page 32).

• Using the buttons on the control panel (see

page 38). In the following explanation, how to use the direct buttons on the remote controller is explained.

Repeat Play

You can repeat a title, chapter, track, or disc endlessly.

• For VCD: While PBC (see page 24) is not in use.

• For VCD/CD:

• TRACK: Current (or specified) track will

• OFF: Track Repeat is canceled.

• For MP3:

TRACK

be repeated.

TRACK

•

on the monitor.

All the tracks in the disc will be repeated.

•

the monitor.

indicator appears

OFF

indicator appears on

TRACK

OFF

FOLDER

OFF

Select the repeat mode you want.

REPEAT

+10

• For DVD:

The menu bar icon appears on the monitor to show the selected mode. Each time you press the button, the repeat mode changes as follows:

TITLECHAP

OFF

• CHAP: Current (or specified) chapter will

• TITLE: Current title will be repeated.

• OFF: Repeat Play is canceled.

be repeated.

•

CHAP

the monitor.

TITLE

•

the monitor.

OFF

•

the monitor.

indicator appears on

• TRACK: Current (or specified) track will be repeated.

•“REPEAT TRACK” appears on

the MP3 CONTROL screen (see page 34).

• FOLDER: All the tracks in the current (or specified) folder will be repeated.

•“REPEAT FOLDER” appears

on the MP3 CONTROL screen (see page 34).

• OFF: Track Repeat and Folder Repeat is canceled. All the tracks in the disc will be repeated.

Notes:

• On some DVDs, Repeat Play may be canceled by the disc itself.

• On CD, VCD, and MP3 discs, Repeat Play mode cannot be turned off.

• Repeat Play mode will be canceled when you start playing back a VCD with the PBC function.

Random Play

Intro Scan

You can play back tracks on a disc (or in a folder for MP3 discs) at random.

• For VCD: While PBC (see page 24) is not in use.

Select the random mode you want.

RANDOM

• For CD/VCD:

• DISC: All the tracks in the disc will be

• OFF: Random Play is canceled.

• For MP3:

The menu bar icon appears on the monitor to show the selected mode. Each time you press the button, the random mode changes as follows:

DISC

OFF

played at random.

• indicator on the menu bar (see page 33) is highlighted in blue.

FOLDER

DISC

OFF

You can play back the first 15 seconds of each track sequentially.

• For VCD: While PBC (see page 24) is not in use.

Select the intro scan mode you want.

INTRO

• For CD/VCD:

• TRACK: The beginnings of all the tracks

• OFF: Intro Scan is canceled.

• For MP3:

The menu bar icon appears on the monitor to show the selected mode. Each time you press the button, the intro scan mode changes as follows:

TRACK

OFF

in the disc will be played.

• indicator on the menu bar (see page 33) is highlighted in blue.

TRACK

FOLDER

OFF

ENGLISH

• FOLDER: All the tracks in the folder will be played at random, then move to the next folder and so on.

•“RND FOLDER” appears on

the MP3 CONTROL screen (see page 34).

• DISC: All the tracks in the disc will be played at random.

•“RND DISC” appears on the

MP3 CONTROL screen (see page 34).

• OFF: Random Play is canceled.

• TRACK: The beginnings of all the tracks

in the disc will be played.

•“INTRO TRACK” appears on the MP3 CONTROL screen (see page 34).

• FOLDER: The beginnings of the first tracks in all folders will be played.

•“INTRO FOLDER” appears on

the MP3 CONTROL screen (see page 34).

• OFF: Intro Scan is canceled.

DUAL ZONE OPERATIONS

Listening with headphones

ENGLISH

DUAL ZONE

(DVD)

2ndVOL

+/–

DUAL ZONE

2ndVOL

SHIFT

DVD

SEL

ATT

DAB

–

SUBTITLEAUDIO ANGLE

FOLDER PRESET

TOP

SETUP

EQS

DISC

ENTER

564

–

DISC

897

010

ZOOM

RETURN

REPEATINTRORANDOM

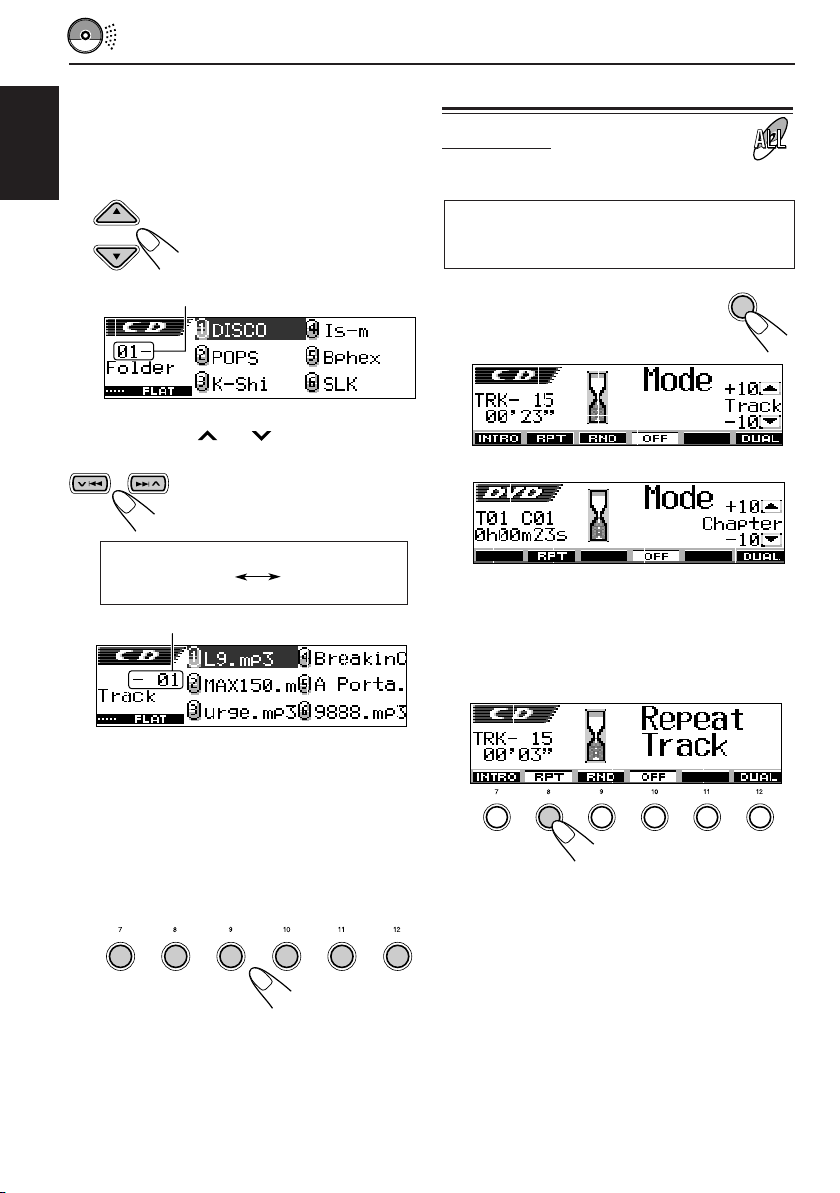

By connecting headphones to the 2nd AUDIO OUT plug on the rear, you can listen to the playback sound through the DVD/CD player while listening to another source (except AM) through the speakers. You can activate Dual Zone while listening to any source.

• You can operate the DVD/CD player using the remote controller.

While holding SHIFT (S), press DUAL ZONE (DVD) to activate Dual Zone.

OSD

SHIFT

+10

Each time you press DUAL ZONE (DVD), Dual Zone is turned “On” and “Off” alternately.

Then

DVD

DUAL ZONE

• DO NOT put on the headphones while driving a car. It is dangerous to shut off the outside sounds while driving.

• DO NOT put on the headphones before adjusting the headphone volume level properly; otherwise, it may damage your hearing.

For Dual Zone operations, aim the remote controller at the remote sensor on the receiver as usual, not at the monitor.

DUAL indicator appears.

The source automatically changes to “DISC.”

To select a different source (except AM) to listen through the speakers, press SRC

on the control panel. By using the buttons on the control panel, you can operate the newly selected source without affecting Dual Zone operations.

Adjust the headphone volume through the 2nd AUDIO OUT plug.

SHIFT

2ndVOL

–

Operate the DVD/CD player using the remote controller by referring to the monitor screen.

• When Dual Zone is in use, you can only operate the DVD/CD player using the remote controller.

To control the other sources (except AM) while Dual Zone is activated, use

the buttons on the control panel.

On the control panel:

You can also activate and deactivate Dual Zone, but can neither control the DVD/CD player nor adjust the headphone volume level.

• To adjust the headphone level, use the remote controller.

1 Press MODE (M) to enter the

functions mode while listening to any source. “Mode” appears on the display.

MODE

To cancel Dual Zone operations, repeat steps

and 2 (“Dual Zone Off” appears on the display.)

When the sounds through the rear speakers are troublesome while listening with the headphones

You can deactivate the rear speaker sound output.

• See also “Changing the general settings (PSM)” on page 50.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press number button 5 to select “AUDIO”—

Audio category of the PSM settings.

3 Press ¢ or 4 to select “Rear

SPK.”

4 Turn the control dial counterclockwise to

select “Off.”

5 Press SEL (select) to finish the setting.

To reactivate the rear speakers, repeat the

same procedure and select “On” in step 4 by turning the control dial clockwise.

ENGLISH

2 Press number button 6 while “Mode”

is still on the display.

Then

DUAL indicator appears.

The source automatically changes to “DISC.”

OSD DISC OPERATIONS

Operations on the monitor

ATT

SUBTITLEAUDIO ANGLE

screen

ENGLISH

ENTER

Number

SHIFT

(S)

2ndVOL

DVD

DUAL ZONE

DAB

SEL

SHIFT

–

TOP

SETUP

EQS

FOLDER PRESET

DISC

ENTER

564

–

DISC

897

010

ZOOM

Cursor

RETURN

REPEATINTRORANDOM

+10

OSD

Status bars for DVD, VCD, and CD

• For DVD

TITLE 33 TOTAL 1:25:58CHAP 33

5.1ch

2 3

• For VCD/CD

TIME 25:58TRACK 38

1 Disc type—DVD-VIDEO, VCD, CD 2 Audio signal format type (only for DVD) 3 Current title number (only for DVD) 4 Current chapter number (only for DVD) 5 Time information 6 Current operation mode—3, 8, 7, ¡, etc. 7 Current track number

Note:

While operating an MP3 disc on the monitor screen, see page 34.

4¢

FOLDER

OSD

5 6

You can show the on-screen bar on the monitor, and operate the disc using the on-screen bar.

Basic procedure for DVD, VCD and CD

Press OSD once.

OSD

Note:

When you start playing a CD, the status bar automatically appears.

Press OSD again.

OSD

• For DVD

• For VCD

• For CD

Note:

While playing a CD Text, the disc information will also be shown on the monitor. (The maximum number of the characters shown on the monitor is 64, while 255 characters on the display of the receiver.)

A status bar for the type of disc inserted appears on the monitor.

• For details, see the left column.

A menu bar appears under the status bar.

• For details about the items on the menu bar, see page 33.

TITLE 33 TOTAL 1:25:58CHAP 33

5.1ch

CHAP

OFF

INTRO

1/3 1/3OFF 1/5

STRND.

RND

TIME 25:58TRACK 38

Move to an item on the menu bar, then press ENTER.

The pull-down window for the selected items appears.

TITLE 33 TOTAL 1:25:58CHAP 33

5.1ch

CHAP

OFF

Ex. When selecting

When you select or , the pulldown window does not appear. Skip the following steps.

• See the following explanation.

Select an option or enter a chapter

ENTER

1/3 1/31/5

(Repeat) for a DVD

number.

• For details, see the following explanation for each item.

Select the Repeat Play modes. Each time you press cursor 5 or ∞ in step 4, the repeat mode changes.

• For available repeat modes, see page 28.

Activate Time Search. Press the number buttons to enter the elapsed time to a particular point in step

• For details, see page 26.

CHAP.

Activate Chapter Search (only for DVD). Press the number buttons to enter a chapter number in step 4.

• For details, see page 27.

Select multi-audio sound (for DVD) or playback channel (for VCD). Each time you press cursor 5 or ∞ in step 4, multi-audio or playback channel changes.

• For details, see page 23.

ENGLISH

Finish the setting.

ENTER

The pull-down window goes off.

To erase the on-screen bar, press OSD once.

What you can do on the on-screen bars

Change the time information on the status bar. Each time you press ENTER in step 4 , the following time information alternately appears.

For DVD:

• TOTAL: Current title elapsed time

• T.REM: Current title remaining time

• TIME: Current chapter elapsed time

• REM: Current chapter remaining time

For VCD and CD:

• TIME: Current chapter elapsed time

• REM: Current track remaining time

• TOTAL: Disc elapsed time

• T.REM: Disc remaining time

Select the subtitles (only for DVD). Each time you press cursor 5 or ∞ in step 4, the subtitles change.

• For details, see page 22.

Select the multi-angle views (only for DVD). Each time you press cursor 5 or ∞ in step 4, the multi-angle view change.

• For details, see page 23.

Turns on and off Intro Scan (only for VCD and CD). Each time you press ENTER in step 3, Intro Scan modes change.

• For details, see page 29.

Turns on and off Random Play (only for VCD and CD). Each time you press ENTER in step 3, Random Play modes change.

• For details, see page 29.

Basic procedure for MP3 discs

Operations from the remote controller:

While playing an MP3 disc, the following MP3 CONTROL screen always shows on the monitor. By referring to this screen, you can easily operate

ENGLISH

the MP3 disc.

• Up to 32 characters can be shown for the file names on the monitor, while 62 characters on the display of the receiver.

• For more details about MP3 discs, refer to “A Guide to MP3” (separate volume).

MP3 CONTROL screen

MP3 CONTROL REPEAT TRACK Folder : 01 / 10 spring

sumer fall winter sea

Title :

Begonia Artist : Annie Lim Album : Flowers

1 Currently activated play mode 2 Elapsed playing time of the current track 3 Cursor (highlighted position) 4 ID3 Tag information (see page 68) 5 Folder column—folder names

(Ex. The first folder is selected out of 10 folders)

• Only 5 folders can be listed at a time.

6 Track column—track names

(Ex. The first track is selected out of 30 tracks in the current folder. 128 tracks are included in the disc)

• Only 12 tracks can be listed at a time.

Time : 00:03:08 Track : 01 / 30 (Total 128) begonia.mp3

german chamomile.mp3 kiwi fruit.mp3 orchard grass.mp3 petunia.mp3 north pole.mp3 begonia2.mp3 german chamomile2.mp3 kiwi fruit2.mp3 orchard grass2.mp3 petunia2.mp3 north pole2.mp3

To select (highlight) a “Folder” column or “Track” column on the screen, press cursor

3 or 2.

To select a folder, press cursor 5 or ∞ when the cursor (highlighted position) is in the “Folder” column. If there are unshown folders, they will appear in this column as you selecting folders.

• By pressing FOLDER (PRESET) 5 or FOLDER (PRESET) ∞, you can change the folder without respect to the cursor (highlighted) position.

To select a track, press cursor 5 or ∞ when the cursor (highlighted position) is in the “Track” column. If there are unshown tracks, they will appear in this column as you selecting tracks.

• By pressing ¢ or 4, you can change the tracks without respect to the cursor (highlighted) position.

To select Repeat Play modes, press REPEAT ( ) repeatedly until the Repeat Play mode you want appears on the screen.

• For details about the Repeat Play modes, see page 28.

To select Random Play modes, press RANDOM (R) repeatedly until the Random Play mode you want appears on the screen.

• For details about the Random Play modes, see page 29.

To select Intro Scan modes, press INTRO (I) repeatedly until the Intro Scan mode you want appears on the screen.

• For details about the Intro Scan modes, see page 29.

Note:

When using the buttons on the control panel, you can use various methods for performing the above operations. These different methods are explained in “OTHER DISC OPERATIONS” on pages 35 to 42.

OTHER DISC OPERATIONS

SRC

ATT

SEL

3456 EQ21

In this section, you can learn how to use the buttons on the control panel in order to operate the DVD/CD player.

Basic disc playback

To stop playback

Press ∞ (down).

• This unit can remember the end point, and when you start playback again, playback begins from where it has been stopped. (Resume play)

To start playback again

Press 5 (up). Playback begins from where it has been stopped.

Normally disc playback automatically starts in the following cases:

• When you insert a disc

Playback starts from the beginning of the disc.

• When change the source to “DISC” (DVD/CD player) if a disc has been inserted

Playback starts from where it has been stopped. (Resume play)

Note:

If you press the button during DVD playback, the playback position moves back about 10 seconds before the current position. (See page 20: One Touch Replay)

To eject a disc

Press 0. Playback stops and the control panel flips down. The disc comes out of the loading slot.

MODE

DISP

To fast-forward or reverse the chapter/ track (Forward/Reverse Search)

Press and hold ¢ , while playing a disc, to fast-forward the chapter/track. The search speed changes: x2 \ x10.

Press and hold 4 , while playing a disc, to reverse the chapter/track. The search speed changes: x2 \ x10.

Notes:

• When playing an MP3 disc, no sound comes out during Search.

• When playing a DVD or VCD, no sound comes out during x10 Search.

• Reverse Search stops automatically when it reaches the beginning of the disc. Playback resumes at normal speed.

To go to the next or previous chapter/tracks

• For DVD: During play or pause.

Press ¢ briefly to go ahead to the beginning of the next chapter/track. Each time you press the button consecutively, the beginning of the next chapter/track is located and played back.

Press 4 briefly to go back to the beginning of the current chapter/track. Each time you press the button consecutively, the beginning of the previous chapter/track is located and played back.

Note:

Playback will not start automatically if you locate the chapter/track while a disc is pausing or not playing.

ENGLISH

Locating a title/chapter/track on a disc

ENGLISH

While playing a DVD:

To locate a particular title/chapter/track directly

• For DVD: During play or pause—select a chapter While stopped—select a title

• For VCD: While PBC (see page 24) is not in use.

345621

Press the number button corresponding to the title/chapter/track number to start its playback.

• To select a number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second.

Notes:

• If you directly select the track number for a VCD with the PBC function while it is not playing, playback starts with PBC function canceled. (See page 24).

• Playback will not start automatically if you select a chapter or track during pause.

To go to a chapter/track quickly

• For DVD: During play or pause.

• For VCD: While PBC (see page 24) is not in

use.

While playing a VCD or CD:

While playing an MP3 disc:

2 Press 5 (up) or ∞ (down), while

“Mode” is still on the display. First time you press 5 (up) or ∞ (down), the chapter/track skips to the nearest higher or lower chapter/track with a chapter/track number of an even multiple ten (ex. 10th, 20th, 30th). Then, each time you press the button, you can skip 10 chapters/tracks (see “How to go to the desired chapter/track quickly” that follows).

Notes:

• For CD and VCD: If you perform this operation while a disc is not playing, playback will not start automatically.

• Except for DVD: After the last track, the first track will be selected, and vice versa.

• While playing an MP3 disc, this operation is possible only within a folder.

1 Press MODE (M) to enter the

functions mode. “Mode” appears on the display.

MODE

How to go to the desired chapter/track quickly

• Ex. 1: To select chapter/track number 32 while playing chapter/track number 6

MODE

Chapter/ track 6

• Ex. 2 : To select chapter/track number 8 while

MODE

Chapter/ track 36

(Three times) (Twice)

\ 10 \ 20 \ 30 \ 31 \ 32

playing chapter/track number 36

(Three times) (Twice)

\ 30 \ 20 \ 10 \ 9 \ 8

To skip to the next or previous folder

Selecting a folder/track to play using the lists

You can show the folder name and track name lists on the display while playing a disc, then select the folder or track you want.

To select a folder and start playback

Press and hold 5 (up) or ∞ (down) so that the folder name list of the inserted disc appears on the display.

The name of the currently playing folder will be highlighted on the display.

Current folder number

ENGLISH

Press 5 (up) while playing a disc to skip to the next folder. Each time you press the button consecutively, the next folder is located and the first track in the folder starts playing.

Press ∞ (down) while playing a disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder is located and the first track in the folder starts playing.

Note:

If the folder does not contain any MP3 tracks, it is skipped.

Notes:

• The display can show only six items at a time. You can show the other items on the next lists by pressing 5 (up) or ∞ (down).

• If you press ¢ or 4, the track name list of the current playing folder appears. (See the following column.)

• Only folders including MP3 tracks will be listed.

Select the number (1 – 6) for the folder you want to play.

345621

To select a track and start playback

Press and hold 5 (up) or ∞ (down) so that the folder name list of the inserted

ENGLISH

disc appears on the display.

The name of the currently playing folder will be highlighted on the display.

Current folder number

Press ¢ or 4 to show the track list of the current folder.

Each time you press the button, the lists on the display changes as follows:

Selecting playback modes

Repeat Play

You can repeat a title, chapter, track, or disc.

• For DVD: During play or pause.

• For VCD: While PBC (see page 24) is not

in use.

1 Press MODE (M) to enter the

functions mode. “Mode” appears on the display.

Ex. While playing a CD

MODE

Folder name

list

Current track number

Note:

The display can shows only six items at a time. You can show the other items on the next lists by pressing 5 (up) or ∞ (down).

Select the number (1 – 6) for the track

Track name

list

you want to play.

345621

Ex. While playing a DVD

2 Press number button 2, while “Mode” is still

on the display. Each time you press the button, repeat play mode changes as follows:

345621

Ex. While playing a CD

• For DVD:

Chapter

Off

Title

To cancel Repeat Play, select “Repeat Off” by pressing number button 2 repeatedly or press number button 4 in step 2.

• Chapter: Current (or specified) chapter will

• Title: Current title will be repeated.

• Off: Repeat Play is canceled.

• For CD/VCD:

• Track: Current (or specified) track will

• Off: All the tracks in the disc will be

• For MP3:

be repeated.

• indicator appears on the display.

•

the display.

be repeated.

• indicator appears on the display.

repeated.

indicator appears on

Track

Off

FolderTrack

Off

Notes:

• On some DVDs, Repeat Play may be canceled by the disc itself.

• On CD, VCD, and MP3 discs, Repeat Play mode cannot be turned off.

• Repeat Play mode will be canceled when you start playing back a VCD with the PBC function.

Random Play

You can play back tracks on a disc (or in a folder) at random.

1 Press MODE (M) to enter the

functions mode. “Mode” appears on the display.

2 Press number button 3, while “Mode” is still

on the display. Each time you press the button, Random Play mode changes as follows:

MODE

ENGLISH

• Track: Current (or specified) track will be repeated.

• indicator appears on

the display.

• Folder: All the tracks in the current (or specified) folder will be repeated.

• indicator appears on

the display.

• Off: All the tracks in the disc will be repeated.

345621

Ex. While playing a CD

CONTINUED ON THE NEXT PAGE

• For CD:

Off

FolderTrack

Disc

• Disc: All the tracks in the disc will be

ENGLISH

• Off: Random Play is canceled.

• For MP3:

played at random.

• indicator appears on the display.

Folder

Off

Disc

Off

• Folder: All the tracks in the folder will be

• Disc: All the tracks in the disc will be

• Off: Random Play is canceled.

To cancel Random Play, select “Random Off” by pressing number button 3 repeatedly or press number button 4 in step 2.

played at random, then move to the next folder and so on.

• indicator appears on

the display.

played at random.

• indicator appears on

the display.

Intro Scan

You can play back the first 15 seconds of each track sequentially.

1 Press MODE (M) to enter the

functions mode. “Mode” appears on the display.

MODE

2 Press number button 1, while “Mode” is still

on the display. Each time you press the button, Intro Scan play mode changes as follows:

345621

Ex. While playing a CD

• For CD:

Track

• Track: The beginnings of all the tracks in the disc will be played.

• indicator appears on

the display.

• Off: Intro Scan is canceled.

• For MP3:

• Track: The beginnings of all the tracks in the disc will be played.

• indicator appears on

the display.

• Folder: The beginnings of the first tracks in all folders will be played.

• indicator appears on

the display.

• Off: Intro Scan is canceled.

To cancel Intro Scan, select “Intro Off” by pressing number button 1 repeatedly or press number button 4 in step 2.

Off

Prohibiting disc ejection

Changing the display pattern

You can prohibit disc ejection and can lock a disc in the loading slot.

While pressing SRC, press and hold

for more than 2 seconds.

SRC

ATT

“No Eject” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc

While pressing SRC, press again for more than 2 seconds. “Eject OK” flashes on the display for about 5 seconds, and the disc is unlocked.

By pressing DISP (D), you can change the information shown on the display.

• If the information cannot be shown at a time, it will scroll on the display. Some characters or symbols will not be shown (will be blanked or substituted) on the display.

DISP

While playing a DVD:

Each time you press the button, the display patterns change as follows:

Clock time

ENGLISH

While playing a VCD:

CONTINUED ON THE NEXT PAGE

Clock time

ENGLISH

While playing an MP3 disc:While playing a CD Text (or CD):

Clock time

Notes:

• When the disc title/performer is shown, the (disc) indicator lights up. When the track title is shown, the (track) indicator lights up.

• If no name is assigned to the conventional CD, “NO NAME” will appear. To assign a name to a conventional CD, see page 57.

• If no disc title/performer or no track title is recorded for the CD Text, “NO NAME” will appear.

Clock time

The above diagram shows examples of the display when “Ta g” is set to “Off.”

Notes:

• When the folder name is shown, the (folder) indicator lights up. When the file name is shown, the

(file) indicator lights up.

• If “Tag” is set to “On” (see page 52), ID3 tag information will appear on the display if the disc has an ID3 tag. The (disc) indicator appears for album name/performer; while the (track) indicator appears for track title.

ENTER

SETUP

2ndVOL

DVD

DUAL ZONE

SEL

SHIFT

ATT

DAB

–

SUBTITLEAUDIO ANGLE

FOLDER PRESET

TOP

ENTER

SETUP

INTRORANDOM

EQS

ZOOM

DISC

564

–

DISC

897

010

RETURN

RETPEAT

OSD

DVD

DVD SETUP MENU

Basic setting procedure

Show the Setup menu (LANGUAGE menu) on the monitor.

SETUP

Select which Setup menu screen you

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

ENGLISH

OFF

ENGLISH

want to use.

Cursor

Each time you press the button, the Setup menus change as

follows:

PICTURELANGUAGE

+10

AUDIO

DIGITAL AUDIO OUTPUT

ANALOG DOWN MIX

D. RANGE COMPRESSION

Ex. When selecting the AUDIO screen

AUDIO

STREAM/PCM

STEREO

ENGLISH

You can store the initial selection for subtitle languages, audio languages, and other settings using the Setup Menu.

• DVD Setup menu can only be displayed while a disc, except MP3 disc, is inserted and selected for the playback source.

The following operations are only possible using the remote controller, and by referring to the monitor screen.

Move (cursor) to an item you want to set up.

DISC

–

DISC

Press ENTER.

ENTER

AUDIO

DIGITAL AUDIO OUTPUT

ANALOG DOWN MIX

D. RANGE COMPRESSION

Ex. When selecting ANALOG DOWN MIX

The pop-up window listing the

selectable options appear on the screen.

AUDIO

DIGITAL AUDIO OUTPUT

ANALOG DOWN MIX

D. RANGE COMPRESSION

CONTINUED ON THE NEXT PAGE

STREAM/PCM

STEREO

STREAM/PCM

STEREO

DOLBY SURROUND STEREO

DVD

Move (cursor) to select an option.

AUDIO

DISC

–

DISC

ENGLISH

Confirm and enter your selection.

ENTER

DIGITAL AUDIO OUTPUT

ANALOG DOWN MIX

D. RANGE COMPRESSION

AUDIO

DIGITAL AUDIO OUTPUT

ANALOG DOWN MIX

D. RANGE COMPRESSION

STREAM/PCM

STEREO

DOLBY SURROUND STEREO

STREAM/PCM

DOLBY SURROUND

To set other items on the same menu screen

Repeat steps 3 to 6.

To set other items on other menu screens

Repeat steps 2 to 6.

To return to the normal screen

Press SETUP.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

USE TO SELECT, USE ENTER TO CONFIRM. TO EXIT, PRESS SETUP.

ENGLISH

OFF

ENGLISH

You can select the initial languages for the disc menu, audio, and subtitle. You can also select the language for the Setup menu and some indications shown on the monitor.

AUDIO

DIGITAL AUDIO OUTPUT

ANALOG DOWN MIX

D. RANGE COMPRESSION

STREAM/PCM

STEREO


MONITOR TYPE

SELECT

ENTER

USE TO SELECT, USE ENTER TO CONFIRM. TO EXIT, PRESS SETUP.

4:3LB

You can select the desired options concerning picture size on the monitor.

SELECT

ENTER

USE TO SELECT, USE ENTER TO CONFIRM. TO EXIT, PRESS SETUP.

You can adjust the output sounds through this unit.

Items For what and options

MENU LANGUAGE *1Select the initial disc menu language.

ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, and language codes from AA to ZU (see page 67).

AUDIO LANGUAGE *1Select the initial audio language.

ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, and language codes from AA to ZU (see page 67).

SUBTITLE *

Select the initial subtitle language.

OFF (no subtitles), ENGLISH, SPANISH, FRENCH, CHINESE,

LANGUAGE

GERMAN, ITALIAN, JAPANESE, and language codes from AA to ZU (see page 67).

DVD

ENGLISH

ON SCREEN LANGUAGE

Select the language for the Setup menu and some indications shown on the monitor.

ENGLISH, SPANISH, and FRENCH

MONITOR TYPE Select the monitor type to watch a wide screen picture on your

monitor.

• 16:9 NORMAL *

Select this when the aspect ratio of your monitor is 16:9 and it does not have the screen size adjustment function.

16:9

• 16:9 AUTO

Select this when the aspect ratio of your monitor is 16:9 and it has the screen size adjustment function.

• 4:3 LB (Letter Box)


4:3 LB

Select this when the aspect ratio of your monitor is 4:3. While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

• 4:3 PS (Pan Scan) *

Select this when the aspect ratio of your monitor is 4:3. While viewing a wide screen picture, the black bars do not appear;

4:3 PS

however, the left and right edges of the pictures will not be shown on the screen.

*1• When the language you have selected is not recorded on a disc, the original language is automatically used

as the initial language. In addition, for some discs, the initial languages settings will not work as you set due to their internal disc programming.

• While playing (or pausing), you cannot change these languages. After you change any of these language settings, eject the disc and insert it (or another disc) again so that your setting takes effect.

*2When you select “16:9 NORMAL” for a picture whose aspect ratio is 4:3, the picture slightly changes due to

the process for converting the picture width.

*3Even if “4:3 PS” is selected, the screen size may become “4:3 LB” with some DVDs. This depends on how

they are recorded.

CONTINUED ON THE NEXT PAGE

DVD

Items For what and options

DIGITAL AUDIO OUTPUT

ENGLISH

ANALOG DOWN MIX When playing back a multi-channel DVD disc, this setting affects the

AUDIO

D.RANGE COMPRESSION

Select the signal format to be emitted through the DIGITAL OUT (Optical) terminal on the rear.

• PCM ONLY

Select this when connecting an amplifier or a decoder incompatible with Dolby Digital and DTS, or connecting to a recording device.

• DOLBY DIGITAL/PCM

Select this when connecting an amplifier or a decoder compatible with Dolby Digital.

• STREAM/PCM

Select this when connecting an amplifier or a decoder compatible with Dolby Digital and DTS.

sounds reproduced through the analog terminals.

• STEREO

Normally select this to enjoy and reproduce conventional 2channel stereo sound from the original multi-channel sounds.

• DOLBY SURROUND

Select this when you want to enjoy multi-channel surround audio by connecting an amplifier compatible with Dolby Surround to this receiver.

You can enjoy a powerful sound at low or middle volume levels while playing a Dolby Digital software.

• AUTO: Select this to apply the effect to multi-channel encoded software (excluding 1 channel and 2 channel software).

• ON: Select this to always use this function.

SOUND ADJUSTMENTS

Operations of this section are explained using the buttons on the control panel unless mentioned otherwise.

Adjusting the sound

You can adjust the sound characteristics to your preference.

• “Vol Adj” setting is required for each source except FM. Before starting “Vol Adj,” select an appropriate source for which you want to make an adjustment.

Select the item you want to adjust.

Each time you press the button,

SEL

the adjustable items change as follows:

Fad (Fader) Bal (Balance)

Canceled

Note:

You can also use the SEL button on the remote controller to call up the fader/balance adjustment screen.

Indication To do: Range

Fad* Adjust the front R06 (Rear only)

and rear speaker | balance. F06 (Front only)

Bal Adjust the left L06 (Left only)

and right speaker | balance. R06 (Right only)

Vol Adj Adjust and store –12 (min.)

the input level | of each source. +12 (max.)

* If you are using a two-speaker system, set the fader

level to “00.”

Vol Adj

(Volume Adjustment)

Make adjustments.

• To adjust fader and balance—Fad, Bal:

You can make these two adjustments at the same time, by referring to the indication on the display.

• Press 5 (up) or ∞ (down) to adjust the fader.

• Press ¢ or 4 to adjust the balance.

Note:

You can also use the ¢ or 4 buttons and FOLDER PRESET 5 (up) or FOLDER PRESET ∞ (down) on the remote controller for adjustment.

• To adjust the input level of each source —Vol Adj:

This setting is required for each source except FM. Before making an adjustment, select an appropriate source for which you want to make an adjustment. Once you have made an adjustment, it is memorized, and you will not need to adjust the volume level each time you change the source.

Adjust to match the input level to the FM sound level.

To increase the level

ATT

To decrease the level

ENGLISH

Selecting preset sound modes (iEQ: intelligent equalizer)

You can select a preset sound mode (iEQ:

ENGLISH

intelligent equalizer) suitable to the music genre.

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press the number button to select the sound mode you want.

• This unit has two sound mode selection screens. To move to the other screen, press 5 (up) or ∞ (down).

Available sound modes:

• FLAT • Country

(Flat) (Country music)

• H.ROCK • REGGAE

(Hard Rock) (Reggae)

• R & B • CLASSIC

(Rhythm and Blues) (Classical music)

• POP • USER 1 (Popular music) • USER 2

• JAZZ • USER 3

(Jazz music)

• DANCE

(Dance music)

Press EQ (equalizer) once.

Ex.: If you have selected “Flat” previously

• If you press the button twice, the level

meter selection screen appears (see page 10).

Last selected sound mode is called up.

345621

Press 5 (up) or ∞ (down).

345621

To cancel the preset sound mode, select

“FLAT” in step 2.

To exit from the preset sound mode (iEQ),

press EQ (equalizer) repeatedly or wait for about 5 seconds.

Note:

For details about the preset settings of each sound mode, see page 66.

Storing your own sound adjustments

Make adjustments as you like.

You can adjust the sound modes to your preference and store your own adjustments in memory (User 1, User 2, and User 3).

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press EQ (equalizer) once.

Ex.: When you have selected “Country” previously

• If you press the button twice, the level

meter selection screen appears (see page 10).

Select the sound mode you want to adjust.

345621

• This unit has two sound mode selection screens. To move to the other screen, press 5 (up) or ∞ (down).

Enter the sound adjustment mode.

The following sound mode adjustment screen appears on the display.

Press ¢ or 4 to select the frequency band—60Hz, 150Hz, 400Hz, 1kHz, 2.4kHz, 6kHz, 12kHz.

2) Press 5 (up) or ∞ (down) to adjust the

level of the selected band within the range of –05 to +05.

3) Repeat steps 1) and 2) to adjust the

other frequency bands.

Store the adjustment you made.

SEL

If you want to cancel the adjustments,

press EQ (equalizer).

• Adjustment you made remains effective until you select another sound mode.

Select one of the user sound modes

The confirmation message appears—whether you want to store the adjustment.

(User 1, User 2, or User 3) you want to store into.

345621

ENGLISH

Ex.: When you select “User 1”

OTHER MAIN FUNCTIONS

Operations of this section are explained using the buttons on the control panel unless mentioned otherwise.

ENGLISH

Changing the general settings (PSM)

You can change the items listed in the table on page 51 by using the PSM (Preferred Setting Mode) control.

• The PSM items are grouped into five categories—MOVIE, CLOCK, DISP (display), AUDIO, and COLOR.

Basic Procedure

Ex. To change “Contrast”

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.

SEL

Select the PSM item you want to adjust.

• By pressing ¢ or 4 repeatedly, you can also move to other categories.

Adjust the PSM item selected.

ATT

Repeat steps 2 to 4 to adjust the other PSM items if necessary.

Press number button (in this example, 3) to select one of the PSM categories.

345621

The first-listed item in the selected category appears.

Finish the setting.

SEL

Preferred Setting Mode (PSM) items

Indications Selectable values/items

Graphics Movie demonstration

MOVIE

KeyIn CFM Key in confirmation

Clock Hr Hour adjustment

Clock Min Minute adjustment

CLOCK

24H/12H 24 hours or 12 hours

Scroll Scroll mode

Dimmer Dimmer mode

From– To

Dimmer time setting

Contrast Contrast

LCD Type Display type

DISP (display)

Font Type Font type

Tag Tag display

Beep Key-touch tone

Factory-preset See

settings page

All Demo

Long

1 – 12 (0 – 23)

12Hours

Once Auto

Auto Off

Time Set

Off

00 – 59

Off

Int Demo

Short

24Hours

All Demo

Long 52

1 (1:00) 9

00 (1:00)

12Hours 10

Once

Auto

Any time – Any time 6PM – 7AM 54

Positive

Off

1 – 10

Negative

Auto

OnOff

552

Auto

152

9, 52

ENGLISH

Ext Input

External component

Changer Line In

AUDIO

Rear SPK Rear speaker output

All SRC Selected source

User User color selection

R Red

Off

See page 55 for details

Day

00 – 11

Night

COLOR

G Green

B Blue

00 – 11

*1Displayed only when “Dimmer” is set to “Time Set.” *2Displayed only when one of the following sources is selected—FM, AM, and CD.

Changer

On 31

Every

Day

Day: 07/Night: 05

To set the movie demonstration—Graphics

When shipped from the factory, the movie has been activated.

• All Demo: If no operation is done for about

ENGLISH

• Int Demo: If no operation is done for about

• Off: Cancels the movie demonstration.

20 seconds, the movie demonstration starts automatically.

20 seconds, the movie demonstration and playback source indication appears alternately on the display.

To select the source animation on the display—KeyIn CFM

When changing the source, the display shows the source animation. You can select the source animation on the display according to your preference.

• Long: A long source animation appears.

• Short: A short source animation appears.

• Off: Cancels the source animation.

To select the scroll mode—Scroll

You can select the scroll mode for the disc information (when the entire text cannot be shown at once).

• Once: Scrolls only once.

• Auto: Repeats the scroll (in 5-second

• Off: Cancels scroll mode.

Note:

Even if the scroll mode is set to “Off,” you can scroll the display by pressing DISP (D) for more than one second.

intervals).

To adjust the display contrast level —Contrast

You can adjust the display contrast level among 1 to 10. Adjust it to make the display indications clear and legible.

To select the display illumination pattern —LCD Type

You can select the display illumination patterns according to your preference.

• Auto: Positive pattern will be selected during the day time (depending on the “Dimmer” setting); on the other hand, negative pattern will be used during the night time (depending on the “Dimmer” setting).

• Positive: Positive (normal) pattern of the display.

• Negative: Negative pattern of the display.

To select the font on the display —Font Type

You can change the font types used on the display. Select either “1” or “2” according to your preference.

To turn the tag display on or off—Tag

An MP3 file can contain file information called “ID3 Tag” where its album name, performer, track title, etc. are recorded. There are two versions–ID3v1 (ID3 Tag version 1) and ID3v2 (ID3 Tag version 2). Only ID3v1 can be shown.

• On: Turns on the ID3 tag display while playing MP3 files.

• If an MP3 file does not have ID3

tags, folder name and file name appear.

Note:

If you change the setting from “Off” to “On” while playing an MP3 file, the tag display will be activated when the next file starts playing.

• Off: Turns off the ID3 tag display while playing MP3 files. (Only the folder name and file name can be shown.)

To turn on/off the key-touch tone—Beep

You can deactivate the key-touch tone if you do not want it to beep each time you press a button.

• On: Activates the key-touch tone.

• Off: Deactivates the key-touch tone.

To select the external component to use —Ext Input

You can connect an external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied). To use the external component as the playback source through this unit, you need to select which component—CD changer or external component—to use.

• Changer: To use the CD changer.

• Line In: To use the external component

other than CD changer.

Note:

For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

You can use the following table to keep memo of your own PSM settings.

Graphics

KeyIn CFM

MOVIECLOCK

Clock Hr

Clock Min

24H/12H

Scroll

Dimmer

From– To

Contrast

LCD Type

DISP (display)

Font Type

Tag

Beep

Rear SPK

AUDIO

Ext Input

All SRC

Changer

Line in

COLOR

User Day R G B

User Night R G B

ENGLISH

Selecting the dimmer mode

You can dim the display at night automatically or as you set the timer. When shipped from the factory, Auto Dimmer

ENGLISH

mode is activated.

Note:

Auto Dimmer supplied with this unit may not work correctly on some vehicles, particularly on those having a control dial for dimming. In this case, select any setting other than “Auto.”

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: See pages 51.)

SEL

Press number button 3 to select “DISP”—Display category of the PSM settings.

345621

Set the dimmer mode to your preference.

ATT

• Auto: Activates Auto Dimmer. When you turn on the car head lights, the display automatically dims.

• Off: Cancels Auto Dimmer.

• On: Always dims the display.

• Time Set: Used to set the timer for the

dimmer function.

Note:

Selecting “Auto” or “Time Set” may change the display pattern to the “Negative” or “Positive” pattern if “LCD Type” is set to “Auto.”

• If you select “Time Set,” go to the following steps to set the timer.

• If you select any setting other than “Time Set,” go to step 7 to finish the setting.

Select “From– To” to set the timer for the dimmer mode.

Press ¢ or 4 to select “Dimmer.”

Set the timer.

1 Turn the control dial to select the start

time.

2 Press ¢ once. 3 Turn the control dial to select the end

time.

Finish the setting.

SEL

Changing the display color

You can set the display color using the PSM control. You can select your favorite color for each source (or for all sources). You can also create your own colors, and set them as the display color.

Setting the desired color for each source

Once you have set the color for each source (or for all sources), the display illuminates in the selected color when the source is selected.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: See pages 51.)

SEL

Press number button 6 to select “COLOR”—Color category of the PSM settings.

*1When you select “All SRC,” the same color

will be used for all sources.

*2Either component which is selected in the

“Ext Input” setting appears.

Select the display color.

As you turn the control dial, the colors change as follows:

ATT

Every*1 O Aqua O Sky O Sea O Leaves O Grass O Red O Rose O Amber O Honey O Violet O Cotton O

Snow O User

O (back to the

beginning)

*1 When you select “Every,” the color changes

every 2 seconds (changing to every color listed above except “User”).

*2 When you select “User,” the user-edited

colors—“Day” and “Night” will be applied. (See page 56.)

Repeat steps 3 and 4 to select the color for each source (except when selecting “All SRC” in step

• If you want to apply different colors to the different sources, select any source other than “All SRC” before finish the setting.

ENGLISH

345621

The “All SRC” setting screen appears on the display.

Select the source—All SRC, CD, Changer (Line), FM, or AM—that you want to set the display color for.

All SRC CD

Changer

(Line)

Finish the setting.

SEL

Creating your own color—User

You can create your own colors—“Day” and “Night,” and select them as the display color for

any desired source.

• Day: Can be used as your user color during

ENGLISH

• Night: Can be used as your user color during

the day time (while the headlights are turned off), or as set by the timer— “From – To.”

the night time (while the headlights are turned on), or as set by the timer— “From – To.”

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: See pages 51.)

SEL

Press number button 6 to select “COLOR”—Color category of the PSM settings.

Select the user color adjustment screen.

One of the user color adjustment screens appears. “User Day” or “User Night” is shown on the left side of the display.

Select either “Day” or “Night” to make an adjustment for.

ATT

Adjust the selected user color.

1) Press ¢

or 4 to select one of three primary colors—“R” (red), “G” (green), and “B” (blue).

345621

The source/color selecting screen appears on the display.

Select “User” as a color.

The user color will be applied to the currently selected source (the one shown on the upper

ATT

To select which source to apply your user color to, select the target source first by pressing 5 (up) or ∞ (down), before selecting “User” in this step.

portion of the display. In this example “All SRC”).

2) Press 5 (up) or ∞ (down) to adjust the selected primary color.

You can adjust within the range of 00 to

11.

3) Repeat steps 1) and 2) to adjust the other primary colors.

Repeat steps 5 and 6 to adjust the other user colors—“Day” or “Night.”

Finish the setting.

SEL

Assigning names to the sources

You can assign names to station frequencies, CDs (both in this unit and in the CD changer), and the external component. After assigning a name, it will appears on the display when you select the source.

Sources

Station frequencies Up to 10 characters (up to

CDs* Up to 32 characters (up to

External component Up to 8 characters

* You can assign a name only to conventional CDs.

Select a source you want to assign a name to.

SRC

While pressing DISP (D), press and hold SEL (select) for more than 2 seconds.

DISP

Maximum number of characters

30 station frequencies including both FM and AM)

40 discs)

When you select a source, the power automatically comes on.

SEL

Select the character set you want while the first character position is flashing.

DISP

Each time you press the button,

the character set changes as follows:

(a – z: small)(A – Z: capital)

(0 – 9: numbers, and

symbols)

Select a character.

• About the available characters, see page

66.

ATT

Move the cursor to the next (or previous) character position.

Repeat steps 3 to 5 until you finish entering the name.

Finish the procedure while the last selected character is flashing.

SEL

ENGLISH

Ex.: When you select “DISC” as the source

To erase entered characters

Insert spaces using the same procedure described above.

Notes:

• When you try to assign a name to the 41st disc or to the 31st station frequency, “Name Full” appears and you cannot enter the text entry mode. In this case, delete unwanted names before assignment.

• When the CD changer is connected, you can assign names to CDs in the CD changer. These names can also be shown on the display if you insert the CDs in this unit.

Detaching the control panel

You can detach the control panel when leaving the car. When detaching or attaching the control panel,

ENGLISH

be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Unlock the control panel.

Pull the control panel out of the unit.

Put the detached control panel into the provided case.

Attaching the control panel

Insert the right side of the control panel into the groove on the panel holder.

Press the left side of the control panel to fix it to the panel holder.

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

CD CHANGER OPERATIONS

SRC

ATT

SEL

Operations of this section are explained using the buttons on the control panel unless mentioned otherwise.

We recommend that you use the JVC MP3compatible CD changer with your unit.

By using this CD changer, you can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) recorded either in audio CD format or in MP3 format.

• You can also connect other CH-X series CD changers (except CH-X99 and CH-X100). However, they are not compatible with MP3 discs, so you cannot play back MP3 discs.

• You cannot use the KD-MK series CD changers with this unit.

Before operating your CD changer:

• Refer also to the Instructions supplied with your CD changer.

• If no discs are in the magazine of the CD changer or the discs are inserted upside down, “No Disc” will flash on the display. If this happens, remove the magazine and position the discs correctly.

• If no magazine is loaded in the CD changer, “No Magazine” flashes on the display. If this happens, insert the magazine in the CD changer.

• If “Reset 1” – “Reset 8” flashes on the display, something is wrong with the connection between this unit and the CD changer. If this happens, check the connection and make sure the cords are connected firmly. Then, press the reset button of the CD changer.

Note:

You cannot play back a DVD and a VCD on the CD changer.

MODE

DISP

3456 EQ21

Playing discs

Select the CD changer (CD-CH).

SRC

Notes:

• You can also use the CH button on the remote controller.

• If you have changed the “Ext Input” setting to “Line In” (see page 53), you cannot select the CD changer.

When the current disc is an MP3 disc:

Playback starts from the first folder of the current disc once file check is completed.

Current folder/track and elapsed playing time

Each time you press the button, the source changes as described on page 8. When you select a source, the power automatically comes on.

Selected disc number

MP3 indicator

ENGLISH

• When the current disc is a CD:

Playback starts from the first track of the current disc.

Selected disc number

ENGLISH

To go to a particular disc directly

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

345621

• To select a disc number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Current track and elapsed playing time

Note:

If you change the source, CD changer play also stops. Next time you select the CD changer as the source, CD changer play starts from where playback has been stopped previously.

To change the display information

While playing back a disc, you can change the disc information shown on the display.

DISP

Press DISP (D) repeatedly. Each time you press the button, the display changes.

• For details, see pages 41 and

42.

Note:

You can also use the DISC +/– buttons on the remote controller to select a disc.

To fast-forward or reverse the track

Press and hold ¢ , during play, to fast-forward the track.

Press and hold 4, during play, to reverse the track.

Note:

During this operation on an MP3 disc, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To go to the next or previous tracks

Press ¢ briefly during play, to skip ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next track is located and played back.

Press 4 briefly during play, to skip back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous track is located and played back.

This operation is only possible when using JVC MP3-compatible CD changer (CH-X1500).

To go to a track quickly

1 Press MODE (M) to enter the functions mode

while playing a disc.

MODE

2 Press 5 (up) or ∞ (down).

“Mode” appears on the display.

How to go to the desired track quickly

• Ex. 1: To select track number 32 while playing track number 6

MODE

(Three times) (Twice)

Track 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2 :To select track number 8 while playing track number 36

MODE

ENGLISH

To skip 10 tracks* forward to the last track

To skip 10 tracks* backward to the first track

* The first time you press 5 (up) or ∞ (down)

button, the track skips to the nearest higher or lower track with a track number of an even

multiple ten (ex. 10th, 20th, 30th). Then each time you press the button, you can skip 10 tracks (see “How to go to the desired track quickly” on the right column).

Notes:

• After the last track, the first track will be selected, and vice versa.

• If the current playing disc is an MP3 disc, tracks are skipped within the same folder.

(Three times) (Twice)

Track 36 \ 30 \ 20 \ 10 \ 9 \ 8

To skip to the next or previous folder (only for MP3 discs)

Press 5 (up) while playing an MP3 disc, to go to the next folder. Each time you press the button consecutively, the next folder is located, and the first track in the folder starts playback.

Press ∞ (down) while playing an MP3 disc, to go to the previous folder. Each time you press the button consecutively, the previous folder is located, and the first track in the folder starts playback.

Note:

If the folder does not contain any MP3 tracks, it is skipped.

To select a disc using the disc lists

If you forget what discs are loaded in the CD changer, you can show the disc title list and select a disc in the list shown on the display.

• The display can show only six disc names at a

ENGLISH

time.

While playing a disc, press and hold 5 (up) or ∞ (down) until a disc name list appears on the display.

Selected disc number

Note:

If a disc has a disc title (CD Text) or an assigned disc name, it will be shown on the display. However, if the disc has not been played before, its disc number will appear.

Press 5 (up) or ∞ (down) to show the other disc name list, if necessary.

While playing an MP3 disc, you can also show

the folder list(s) and track list(s) on the display, then select a folder or track.

1 While playing an MP3 disc,

press and hold 5 (up) or ∞ (down) until a disc name list

appears on the display.

2 Press ¢ or 4 to

show a folder list of the current disc or track list of the current folder. Each time you press the button, lists on the display changes as follows:

Disc list Folder list

Track list

Current folder number

Ex.: When folder list is selected

Current track number

Ex.: When track list is selected

Note:

The display can show only six items at a time. You can show the other items on the next lists by pressing 5 (up) or ∞ (down).

Select the number (1 – 6) for the disc you want to play.

345621

3 Press the number button for the disc, folder,

or track you want to play.

345621

Selecting the playback modes

To play back tracks repeatedly (Repeat Play)

From the remote controller:

REPEAT

On the control panel:

1 Press MODE (M) to enter the

functions mode during play. “Mode” appears on the display.

Press REPEAT ( ) repeatedly until the Repeat Play mode you want is

+10

selected.

MODE

Mode

Active

indicator

Plays repeatedly

Repeat The current (or Track indicator specified) track.

lights up.

Repeat All tracks of the Folder* indicator current (or

lights up. specified) folder of

the current disc.

Repeat All tracks of the Disc indicator current (or

lights up. specified) disc.

* “Repeat Folder” is only applicable for MP3 disc.

ENGLISH

2 Press number button 2 repeatedly

while “Mode” is still on the display.

Each time you press the button, Repeat Play mode changes as follows:

For MP3 discs:

Repeat FolderRepeat Track

Repeat Off

For CDs:

Repeat Disc

Repeat DiscRepeat Track

Repeat Off

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

To cancel Repeat Play, select “Repeat Off” by pressing number button 2 repeatedly or press number button 4 in step 2.

To play back tracks at random (Random Play)

From the remote controller:

RANDOM

On the control panel:

1 Press MODE (M) to enter the

functions mode during play. “Mode” appears on the display.

Press RANDOM (R) repeatedly until the Random Play mode you want is

selected.

MODE

CONTINUED ON THE NEXT PAGE

2 Press number button 3 repeatedly

while “Mode” is still on the display. Each time you press the button, Random Play mode changes as follows:

ENGLISH

For MP3 discs:

Random DiscRandom Folder

Random Off

For CDs:

Random All

Random AllRandom Disc

Random Off

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

Mode

Random All tracks of the Folder* indicator current folder, then

Random All tracks of the Disc indicator current (or

Random All tracks of all All indicator discs inserted in

* “Random Folder” is only applicable for MP3 disc.

To cancel Random Play, select “Random Off” by pressing number button 3 repeatedly or press number button 4 in step 2.

Active

indicator

Plays at random

lights up. tracks of the next

folder and so on.

lights up. specified) disc.

lights up. the magazine.

To play back only intros (Intro Scan)

From the remote controller:

INTRO

Press INTRO (I) repeatedly until the

Intro Scan mode you want is selected.

On the control panel:

1 Press MODE (M) to enter the

functions mode during play.

MODE

“Mode” appears on the display.

2 Press number button 1 repeatedly

while “Mode” is still on the display. Each time you press the button, Intro Scan mode changes as follows:

For MP3 discs:

Intro FolderIntro Track

Intro Off

For CDs:

Intro Disc

Intro DiscIntro Track

Intro Off

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

Mode

Intro All tracks of the Track indicator current disc.

Intro The first track of every Folder* indicator folder of the current

Intro The first tracks of Disc indicator the inserted discs.

Active Plays the beginnings

indicator (15 seconds) of

lights up.

lights up. disc.

lights up.

* “Intro Folder” is only applicable for MP3 disc.

To cancel Intro Scan, select “Intro Off” by pressing number button 1 repeatedly or press number button 4 in step 2.

EXTERNAL COMPONENT OPERATIONS

SRC

ATT

SEL

Operations of this section are explained using the buttons on the control panel unless mentioned otherwise.

Playing an external component

You can connect the external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied).

Preparation:

For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

Before operating the external component,

select the correct external input correctly by following the procedure below.

• See also “Changing the general settings (PSM)” on page 50.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press number button 5 to select “AUDIO”—

Audio category of the PSM settings.

3 Press ¢ or 4 to select “Ext

Input”*.

4 Turn the control dial clockwise to select

“Line In.”

5 Press SEL (select) to finish the setting.

• For details, see “To select the external component to use—Ext Input” on page 53.

* Displayed only when one of the following sources is

selected—FM, AM, and CD.

MODE

DISP

3456 EQ21

Select the external component

(LINE IN).

SRC

* Displayed only when one of the following sources is

selected—FM, AM, and CD.

Turn on the connected component

Each time you press the button, the source changes as described on page 8. When you select a source, the power automatically comes on.

and start playing the source.

Adjust the volume.

ATT

Adjust the sound characteristics you want. (See pages 47 – 49.)

Note:

You can also change the display pattern by pressing DISP (D) repeatedly.

ENGLISH

ADDITIONAL INFORMATION

Sound modes (preset frequency level settings)

The list below shows the preset frequency level settings for each sound mode.

• You can adjust the preset sound modes temporarily. However, your temporary adjustments will be reset when you select another sound mode.

ENGLISH

Sound Preset equalizing values

Mode 60 Hz 150 Hz 400 Hz 1 kHz 2.4 kHz 6 kHz 12 kHz

Flat 00 00 00 00 00 00 00

Hard Rock +03 +03 +01 00 00 +02 +01

R & B +03 +02 +02 00 +01 +01 +03

Pop 00 +02 00 00 +01 +01 +02

Jazz +03 +02 +01 +01 +01 +03 +02

Dance Music +04 +02 00 –02 –01 +01 +01

Country +02 +01 00 00 00 +01 +02

Reggae +03 00 00 +01 +02 +02 +03

Classic +02 +03 +01 00 00 +02 00

User 1 00 00 00 00 00 00 00

User 2 00 00 00 00 00 00 00

User 3 00 00 00 00 00 00 00

Available characters

You can use the following characters to assign names to stations, CDs, and external component. (See page 57.)

Capital letters Small letters Numbers and symbols

space

LANGUAGE CODES

Code Language

AA Afar AB Abkhazian AF Afrikaans AM Ameharic AR Arabic AS Assamese AY Aymara AZ Azerbaijani BA Bashkir BE Byelorussian BG Bulgarian BH Bihari BI Bislama BN Bengali, Bangla BO Tibetan BR Breton CA Catalan CO Corsican CS Czech CY Welsh DA Danish DZ Bhutani EL Greek EO Esperanto ET Estonian EU Basque FA Persian FI Finnish FJ Fiji FO Faroese FY Frisian GA Irish GD Scots Gaelic GL Galician GN Guarani GU Gujarati HA Hausa HI Hindi HR Croatian HU Hungarian HY Armenian IA Interlingua IE Interlingue IK Inupiak IN Indonesian IS Icelandic IW Hebrew JI Yiddish JW Javanese

Code Language

KA Georgian KK Kazakh KL Greenlandic KM Cambodian KN Kannada KO Korean (KOR) KS Kashmiri KU Kurdish KY Kirghiz LA Latin LN Lingala LO Laothian LT Lithuanian LV Latvian, Lettish MG Malagasy MI Maori MK Macedonian ML Malayalam MN Mongolian MO Moldavian MR Marathi MS Malay (MAY) MT Maltese MY Burmese NA Nauru NE Nepali NL Dutch NO Norwegian OC Occitan OM (Afan) Oromo OR Oriya PA Panjabi PL Polish PS Pashto, Pushto PT Portuguese QU Quechua RM Rhaeto-Romance RN Kirundi RO Rumanian RU Russian RW Kinyarwanda SA Sanskrit SD Sindhi SG Sangho SH Serbo-Croatian SI Singhalese SK Slovak SL Slovenian SM Samoan

Code Language

SN Shona SO Somali SQ Albanian SR Serbian SS Siswati ST Sesotho SU Sundanese SV Swedish SW Swahili TA Tamil TE Telugu TG Tajik TH Thai TI Tigrinya TK Turkmen TL Tagalog TN Setswana TO Tonga TR Turkish TS Tsonga TT Tatar TW Twi UK Ukrainian UR Urdu UZ Uzbek VI Vietnamese VO Volapuk WO Wolof XH Xhosa YO Yoruba ZU Zulu

ENGLISH

GLOSSARY

4:3 Letterbox Screen

This is one method for displaying a wide screen picture on a conventional sized (4:3) TV. While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

ENGLISH

4:3 Pan-Scan Screen

This is one method for displaying a wide screen picture on a conventional sized (4:3) TV. While viewing a wide screen picture, the left and right edges of the pictures will not be shown on the screen.

Dolby Digital

This is a digital audio compression technology that was developed by Dolby Laboratories. Dolby Digital encoding method (so-called discrete 5.1 channel digital audio format) records and compresses digitally signals of the left front channel, right front channel, center channel, left rear channel, right rear channel, and LFE channel (total 6 channels, but LFE channel is counted as 0.1 channel, therefore called 5.1 channels) signals digitally. Each channel is completely independent from other channel signals to avoid interference; therefore, you can obtain much better sound quality with stereo and surround effects. To reproduce these original surround signals, you need to connect an amplifier or a decoder compatible with Dolby Digital.

DTS Digital Surround

This is another discrete 5.1 channel digital audio format, available on CD, LD, and DVD software, developed by Digital Theater Systems, Inc. Compared to Dolby Digital, the audio compression rate is relatively low. This fact allows DTS Digital Surround format to add breadth and depth to the reproduced sounds. As a result, DTS Digital Surround features natural, solid and clear sound. To reproduce these surround signals, you need to connect an amplifier or a decoder compatible with DTS Digital Surround.

ID3 Tag (MP3)

Linear PCM

This is a digital recording format that is used for audio CDs.

Playback Control (VCD)

When a VCD has the PBC (Playback Control) function, you can use menu-driven operations and enjoy high-resolution still pictures.

Sampling Frequency, Quantization Bits

When analog signals are converted into digital signals, they are divided into many points and digitized. This dividing method is called “sampling.” The sampling frequency indicates how many points one second is divided into – for example, for CD sound, one second is divided into 44100 points since its sampling frequency is

44.1 kHz. On the other hand, the number of quantization bits indicates the volume size used to memorize each divided point. The larger this number is, the clearer the sound can be reproduced.

TROUBLESHOOTING

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms

• Sound cannot be heard from the speakers.

• This unit does not work at all.

General

•“Panel Connect Error” appears on the display.

• No sound comes out of the 2nd AUDIO OUT plug.

• SSM (Strong-station Sequential Memory) automatic preset does not work.

• Static noise while

FM/AM

listening to the radio.

• AM band cannot be selected.

• Disc cannot be played back.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/ CD-RW cannot be skipped.

• Disc cannot be ejected.

Disc Playback

Causes

The volume level is set to the minimum level.

Connections are incorrect.

The built-in microcomputer may have functioned incorrectly due to noise, etc.

The control panel is not attach correctly and firmly.

Dual Zone is not activated

Signals are too weak.

The antenna is not connected firmly.

Dual Zone is activated.

Disc is inserted upside down.

CD-R/CD-RW is not finalized.

Disc is locked.

Remedies

Adjust it to the optimum level.

Check the cords and connections.

Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

Remove the control panel, wipe the connectors, then attach it again. (See page 58.)

Activate Dual Zone.

Store stations manually.

Connect the antenna firmly.

Deactivate Dual Zone.

Insert the disc correctly.

• Insert a finalized CD-R/ CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

Unlock the disc. (See page 41.)

ENGLISH

• Disc cannot be recognized.

The CD player may function incorrectly.

While holding SRC, press SEL for more than 2 seconds to eject the disc.

• Sound and picture are

ENGLISH

Symptoms

sometimes interrupted or distorted.

Causes

You are driving on rough roads.

Disc is scratched.

Connections are incorrect.

Remedies

Stop playback while driving on rough roads.

Change the disc.

Check the cords and connections.

•“No Disc” flashes on the display.

• No playback picture (DVD, VCD) appears on the monitor.

• No picture appears on the monitor at all.

• The left and right edges of the picture are missing on the screen.

• Disc can be neither played back nor ejected.

Disc Playback

• MP3 disc is skipped or cannot be played back.

• Noise is generated while playing an MP3 disc.

No disc in the loading slot.

Disc is inserted incorrectly.

Parking brake wire is not connected.

The video cord is not connected correctly.

An incorrect input has been selected on the TV or monitor.

“4:3 PS” is selected when viewing on a conventional TV (aspect ratio 4:3).

The built-in microcomputer may function incorrectly due to noise, etc.

MP3 files do not have the extension code—mp3 in their file names.

MP3 files are not recorded in a format compliant with ISO 9660 Level 1, ISO 9660 Level 2, Romeo, or Joliet.

The file played back is not an MP3 file (although it has the extension code—mp3).

Insert a disc into the loading slot.

Insert the disc correctly.

Connect the wire (see Installation/Connection Manual).

Connect the video cord correctly

Select a correct input on the TV or monitor.

Select “4:3 LB.” (See page 45.)

Turn off the power, then turn it on again.

Add the extension code —mp3 to their file names.

Change the disc. (Record MP3 files using a compliant application.)

Skip to another file or change the disc. (Do not add the extension code—mp3 to nonMP3 files.)

• MP3 files cannot be played back in the order you have intended them to play.

• Elapsed playing time is not correct for an MP3 disc.

Playback order is determined when the files are recorded.

This sometimes occurs during play. This is caused by how the files are recorded on the disc.

Symptoms

•“No Disc” flashes on the display.

•“No Magazine” flashes on the display.

Causes

No disc is in the magazine.

Discs are inserted upside down.

Discs are unplayable.

The current disc does not contain any MP3 files.

No magazine is loaded in the CD changer.

Remedies

Insert discs into the magazine.

Insert discs correctly.

Insert playable discs.

Insert a disc that contains MP3 files.

Insert the magazine.

ENGLISH

•“Reset 8” flashes on the display.

•“Reset 1” – “Reset 7” flashes on the display.

• The CD changer does not work at all.

This unit is not connected to the CD changer correctly.

The built-in microcomputer may function incorrectly due to noise, etc.

Connect this unit and the CD changer correctly and press the reset button on the CD changer.

Press the reset button on the CD changer.

Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

Output signals through the DIGITAL OUT terminal

They differ depending on the “DIGITAL AUDIO OUT” setting on the Setup Menu.

DIGITAL AUDIO OUT

Playback Disc

DVD

48 kHz,

16/20/24 bit Linear PCM

96 kHz, Linear PCM

with Dolby Digital

with DTS

PCM ONLY

kHz, 16 bit Linear PCM

Output Signals

DOLBY DIGITAL/PCM

48 kHz, 16 bit Linear PCM

None

Dolby Digital bitstream

CD Changer

STREAM/PCM

DTS bitstream48 kHz, 16 bit Linear PCM

Video CD, Audio CD

Audio CD with DTS

MP3

* While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate)

through the DIGITAL OUT terminal if the discs are not copy-protected.

44.1 kHz, 16 bit Linear PCM

DTS bitstream44.1 kHz, 16 bit Linear PCM

Linear PCM

MAINTENANCE

Handling discs

This unit has been designed to reproduce DVDVideos, VCDs, CDs, CD-Rs (Recordable), CDRWs (Rewritable), and CD Texts.

ENGLISH

• This unit is also compatible with MP3 discs.

How to handle discs

When removing a disc from its case, press down

the center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

Center holder

When playing a CD-R or CD-RW

Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Use only “finalized” CD-Rs or CD-RWs.

• Some CD-Rs or CD-RWs may not play back

on this unit because of their disc characteristics, and for the following reasons:

– Discs are dirty or scratched. – Moisture condensation on the lens inside the

unit.

– The pickup lens inside the unit is dirty.

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower than that of regular CDs.

• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity, so do not leave them inside your car.

• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or a protective

seal stuck to the surface.

– Discs on which labels can be directly printed

by an ink jet printer. Using these discs under high temperatures or high humidity may cause malfunctions or damage to discs. For example, – Stickers or labels may shrink and warp a

disc. – Stickers or labels may peel off so discs

cannot be ejected. – Print on discs may get sticky. Read instructions or cautions about labels and printable discs carefully.

CAUTIONS:

• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

Warped disc

Sticker

Sticker residue

Disc

Stick-on label

SPECIFICATIONS

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range:

Frequencies: 60 Hz, 150 Hz, 400 Hz,

1 kHz, 2.4 kHz, 6 kHz, 12 kHz

Level: ±10 dB Signal-to-Noise Ratio: 70 dB Audio output level:

Analog (2nd AUDIO OUT): 6 mW (at 16 Ω) Digital (DIGITAL OUT: Optical):

Signal wave length: 660 nm Output level: –21 dBm to –15 dBm

Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ Color system: NTSC Video output (composite): 1 Vp-p/75 Ω

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 107.9 MHz AM: 530 kHz to 1 710 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity: 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 35 dB Capture Ratio: 1.5 dB

[AM Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

DVD/CD PLAYER SECTION

Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response:

DVD, fs=48 kHz: 16 Hz to 22 000 Hz DVD, fs=96 kHz: 16 Hz to 44 000 Hz

VCD, CD, MP3: 16 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 recording format: MPEG 1/2 Audio Layer 3 Max. Bit rate: 320 Kbps

GENERAL

Power Requirement:

Operating Voltage:

DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature:

0°C to +40°C (32°F to 104°F)

Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 158 mm

(7-3/16" x 2-1/16" x 6-1/4")

Panel Size (approx.):

188 mm × 58 mm × 12 mm

(7-7/16" x 2-5/16" x 1/2")

Mass (approx.):

1.7 kg (3.8 lbs) (excluding accessories)

Design and specifications are subject to change without notice.

If a kit is necessary for your car, consult a telephone directory for the nearest car audio speciality shop.

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying. We recommend that you stop disc play while driving on such rough roads.

ENGLISH

http://www.jvcmobile.c

Visit us on-line for

Technical Support & Customer Satisfaction Survey.

US RESIDENTS ONLY

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to Reset

Still having trouble??

USA ONLY

Call 1-800-252-5722

http://www.jvc.com

We can help you!

VICTOR COMPANY OF JAPAN, LIMITED

EN, SP, FR

JVC

0303MNMMDWJEIN

KD-DV5000

JVC

Installation/Connection Manual Manual de instalación/conexión Manuel d’installation/raccordement

LVT1053-002A

[J]

0303MNMMDWJEIN EN, SP, FR

ENGLISH

• This unit is designed to operate on 12 V DC, NEGATIVE ground

electrical systems.

WARNINGS

• DO NOT install any unit in locations where; – it may obstruct the steering wheel and gearshift lever

operations, as this may result in a traffic accident.

– it may obstruct the operation of safety devices such as air bags,

as this may result in a fatal accident.

– it may obstruct visibility.

• DO NOT operate any unit while manipulating the steering wheel, as this may result in a traffic accident.

• The driver must not watch the monitor while driving. If the driver watches the monitor while driving, it may lead to carelessness and cause an accident.

• The driver must not put on the headphones while driving. It is dangerous to shut off the outside sounds while driving.

• If you need to operate the unit while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

connected to the parking brake system built in the car.

ESPAÑOL

• Esta unidad está diseñada para funcionar con 12 V de CC, con

sistemas eléctricos de masa NEGATIVA.

ADVERTENCIAS

• NO instale la unidad en los siguientes sitios: – Donde pueda obstruir la maniobra del volante de dirección y

del cambio de engranajes, con el consiguiente riesgo de accidentes de tráfico.

– Donde pueda obstruir el funcionamiento de dispositivos de

seguridad tales como bolsas de aire, pues podría resultar en un accidente fatal.

– Donde pueda obstruir la visibilidad.

• NO OPERE la unidad mientras está maniobrando el volante de dirección, pues podría producirse un accidente de tráfico.

• El conductor no debe mirar el monitor mientras conduce. Si el conductor mira el monitor mientras conduce puede descuidarse y causar un accidente.

• El conductor no deberá ponerse los auriculares mientras conduce. Es muy peligroso no escuchar los ruidos exteriores durante la conducción.

• Si necesita operar el receptor mientras conduce, asegúrese de mirar atentamente hacia adelante para no provocar un accidente de tráfico.

• Si no está aplicado el freno de estacionamiento, aparecerá en el monitor “DRIVER MUST NOT WATCH THE MONITOR WHILE DRIVING.” (El conductor no debe mirar el monitor mientras conduce), y no se mostrará la imagen de reproducción. – Esta advertencia aparece únicamente cuando el cable del

freno de estacionamiento se encuentra conectado al sistema del freno de estacionamiento incorporado al automóvil (refiérase al Manual de instalación/conexión).

FRANÇAIS

•

Cet appareil est conçu pour fonctionner sur des sources de courant continu de 12 V à masse NEGATIVE.

AVERTISSEMENTS

• N’INSTALLEZ aucun élément dans les endroits suivants; – où il peut gêner l’accès au volant ou au levier de vitesse car

cela peut entraîner un accident de la circulation.

– où il peut gêner la manipulation de dispositifs de sécurité tels

que les airbags car cela peut entraîner un accident fatal.

– où il peut gêner la visibilité.

• NE COMMANDEZ pas l’appareil lors de la manipulation du volant car cela peut entraîner un accident de la circulation.

• Le conducteur ne doit pas regarder le moniteur lorsqu’il conduit. Regarder le moniteur lorsqu’on est au volant réduit considérablement la vigilance du conducteur et multiplie les risques d’accident.

• Le conducteur ne doit pas utiliser un casque d’écoute quand il est au volant. Il est en effet dangereux de bloquer les sons de la circulation routière pendant la conduite d’un véhicule.

• Si vous avez besoin de commander l’autoradio pendant que vous conduisez, continuez de regarder droit devant vous ou vous risquez de causer un accident de la circulation.

• Si le frein de stationnement n’est pas mis, “DRIVER MUST NOT WATCH THE MONITOR WHILE DRIVING.” (Le conducteur ne doit pas regarder le moniteur lorsqu’il conduit.) apparaît sur le moniteur et l’image de lecture n’apparaît pas. – Cet avertissement apparaît uniquement quand le fil du frein de

stationnement est connecté au système de frein de stationnement intégré à la voiturestationnement intégré à la voiture

Parts list for installation and connection

The following parts are provided with this unit. After checking them, please set them correctly.

Hard case/Control panel

Estuche duro/Panel de control

Etui de transport/Panneau de commande

Power cord

Cordón de alimentación

Cordon d’alimentation

Sleeve

Cubierta

Manchon

Handles

Manijas

Poignées

Lista de piezas para instalación y conexión

Con esta unidad se suministran las siguientes piezas. Después de inspeccionarlas, colóquelas correctamente.

Trim plate

Placa de guarnición

Plaque d’assemblage

Lock nut—M5

Tuerca de seguridad—M5

Ecrou d’arrêt—M5

Washer—ø5

Arandela—ø5

Rondelle—ø5

Remote controller

Control remoto

Télécommande

Liste des pièces pour l’installation et raccordement

Les pièces suivantes sont fournies avec cet appareil. Après vérification, veuillez les placer correctement.

Crimp connector

Sujeción

Cosse à sertir

Battery

Pila

Pile

CR2025

Mounting bolt—M5 x 20 mm (M5 x 13/16")

Perno de montaje—M5 x 20 mm (M5 x 13/16 pulgada)

Boulon de montage—M5 x 20 mm (M5 x 13/16 pouces)

Rubber cushion

Cojín de goma

Amortisseur en caoutchouc

TROUBLESHOOTING

• The fuse blows. * Are the red and black leads connected correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in

common?

• Unit becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in

common?

LOCALIZACION DE AVERIAS

• El fusible se quema.

* ¿Están los conductores rojo y negro correctamente conectados?

• No es posible conectar la alimentación.

* ¿Está el cable amarillo conectado?

• No sale sonido de los altavoces.

* ¿Está el cable de salida del altavoz cortocircuitado?

• El sonido presenta distorsión.

* ¿Está el cable de salida del altavoz conectado a masa? * ¿Están los terminales “–” de los altavoces L y R conectados a

una masa común?

• La unidad se calienta.

* ¿Está el cable de salida del altavoz conectado a masa? * ¿Están los terminales “–” de los altavoces L y R conectados a

una masa común?

EN CAS DE DIFFICULTES

• Le fusible saute.

Les fils rouge et noir sont-ils racordés correctement?

• L’appareil ne peut pas être mise sous tension.

Le fil jaune est-elle raccordée?

• Pas de son des enceintes.

Le fil de sortie de d’enceinte est-il court-circuité?

• Le son est déformé.

Le fil de sortie de d’enceinte est-il à la masse?

Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• L’appareil devient chaud.

Le fil de sortie de d’enceinte est-il à la masse?

* *

Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

53 mm

184 mm (7-1/4")

(2-1/8")

INSTALLATION (IN-DASH

NSTALACION (MONTAJE EN EL

INSTALLATION (MONTAGE DANS LE

MOUNTING)

• The following illustration shows a typical installation. However,

you should make adjustments corresponding to your specific car. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits.

Before mounting: Press (Control Panel Release button) to detach the control panel if already attached. * When shipped from the factory, the control panel is packed

in the hard case.

Remove the trim plate.

Remove the sleeve after disengaging the sleeve locks.

1 Stand the unit.

Note: When you stand the unit, be careful not to damage the fuse on the rear.

2 Insert the 2 handles between the unit and the sleeve, as

illustrated, to disengage the sleeve locks.

3 Remove the sleeve.

Note: Be sure to keep the handles for future use after installing the unit.

Install the sleeve into the dashboard.

* After the sleeve is correctly installed in the dashboard, bend

the appropriate tabs to hold the sleeve firmly in place, as illustrated.

Fix the mounting bolt to the rear of the unit’s body and place the rubber cushion over the end of the bolt.

Do the required electrical connections.

Slide the unit into the sleeve.

Attach the trim plate.

Attach the control panel.

TABLERO DE INSTRUMENTOS)

• La siguiente ilustración muestra una instalación típica. Sin

embargo usted deberá efectuar los ajustes correspondientes a su automóvil. Si tiene alguna pregunta o necesita información acerca de las herramientas para instalación, consulte con su concesionario de JVC de equipos de audio para automóviles o a una compañía que suministra tales herramientas.

Antes de instalar: Pulse (botón de liberación del panel de control) para desenganchar el panel de control, si ya está fijado. * El panel de control se expide de fábrica dentro del

estuche duro.

Retire la placa de guarnición.

Retire la cubierta después de desenganchar los retenes de la cubierta.

1 Ponga la unidad vertical.

Nota: Al poner la unidad vertical, tenga cuidado de no dañar el fusible provisto en la parte posterior.

2 Inserte las dos manijas entre la unidad y la cubierta tal

como en la ilustración y desenganche los retenes de la cubierta.

3 Retire la cubierta.

Nota: Después de instalar la unidad, asegúrese de guardar las manijas para uso futuro.

Instale la cubierta en el tablero de instrumentos.

* Después de que la cubierta esté correctamente instalada

en el tablero de instrumentos, doble las lengüetas correspondientes para sostener la cubierta firmemente en su lugar, tal como se muestra.

Fije el perno de montaje en la parte trasera del cuerpo de la unidad y coloque el cojín de goma sobre el extremo del perno.

Realice las conexiones eléctricas requeridas.

Deslice la unidad dentro de la cubierta hasta que quede trabada.

Coloque la placa de guarnición.

Coloque el panel de control.

TABLEAU DE BORD)

•

L’illustration suivante est un exemple d’installation typique. Cependant, vous devez faire les ajustements correspondant à votre voiture particulière. Si vous avez des questions ou avez besoin d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie d’approvisionnement.

Avant le montage:

de commande) pour èventeullement détacher le panneau de commande. * Lorsque ce panneau de commande sort d’usine, il est rangé

dans un étui de transport.

Retirer la plaque d’assemblage.

Libérer les verrous du manchon et retirer le manchon.

Poser l’appareil à la verticale.

Remarque:

faire attention de ne pas endommager le fusible situé sur l’arrière.

Insérer les 2 poignées entre l’appareil et le manchon comme indiqué pour désengagé les verrous de manchon.

Retirer le manchon.

Remarque:

utilisation ultérieur, après l’’installation de l’appareil.

Installer le manchon dans le tableau de bord.

* Après installation correcte du manchon dans le tableau de

bord, plier les bonnes pattes pour maintenir fermement le manchon en place, comme montré.

Monter le boulon de montage sur l’arrière du corps de l’appareil puis passer l’amortisseur en caoutchouc sur l’extrémité du boulon.

Réalisez les connexions électriques.

Faites glisser l’appareil dans le manchon jusqu’à ce qu’il soit verrouillé.

Attachez la plaque d’ajustage.

Remonter le panneau de commande.

Appuyer sur (dèblocage du panneau

Lorsque vous mettez l’appareil à la verticale,

S’assurer de garder les poignées pour une

Slot

Ranura

Fente

Handle

Manija

Poignée

Control panel

Panel de control

Panneau de commande

Fuse

Fusible

Lock Plate

Placa de bloqueo

Plaque de verrouillage

Sleeve

Cubierta

Manchon

Trim plate

Placa de guarnición

Plaque d’assemblage

Control panel

Panel de control

Panneau de commande

Rubber cushion

Cojín de goma

Amortisseur en caoutchouc

Sleeve

Cubierta

Manchon

Trim plate

Placa de guarnición

Plaque d’assemblage

Dashboard

Tablero de instrumentos

Tableau de bord

Mounting bolt

Perno de montaje

Boulon de montage

See “ELECTRICAL CONNECTIONS.”

Véase “CONEXIONES ELECTRICAS”.

Référez-vous “RACCORDEMENTS ELECTRIQUES” .

Connecting the leads / Conexión de los conductores / Raccordement des fils

Twist the core wires when connecting.

Retuerza los alambres de alma para conectarlos.

Torsader les âmes des fils en les raccordant.

Solder the core wires to connect them securely.

Suelde los alambres de alma para conectarlos con firmeza.

Soudez les âmes des fils pour les raccorder entre eux de façon sûre.

CAUTION / PRECAUCION / PRECAUTION:

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• Para evitar cortocircuitos, cubra los cables NO UTILIZADOS con cinta aislante.

• Pour éviter les court-circuits, couvrir les bornes des fils qui ne sont PAS utilisés avec de la bande isolante.

• When using the optional stay

• Cuando emplea un soporte opcional

• Lors de l’utilisation du hauban en option

Washer

Arandela

Rondelle

Dashboard

Tablero de instrumentos

Tableau de bord

Fire wall

Tabique a prueba de incendios

Cloison

Sleeve

Cubierta

Manchon

Stay (option)

Soporte (opción)

Hauban (en option)

Lock nut

Tuerca de seguridad

Ecrou d’arrêt

Screw (option)

Tornillo (opción)

Vis (en option)

Mounting bolt

Perno de montaje

Boulon de montage

Less than 30˚

Menos de 30˚

Moins de 30˚

Install the unit at an angle of less than 30˚.

Instale la unidad a un ángulo de menos de 30˚.

Installez l’appareil avec un angle de moins de 30˚.

• When installing the unit without using the sleeve

In a Toyota for example, first remove the car radio and install the unit in its place.

Flat type screws—M5 x 8 mm (M5 x 3/8")*

Tornillos tipo plano—M5 x 8 mm (M5 x 3/8 pulgada)*

Vis à tête plate—M5 x 8 mm (M5 x 3/8 pouces)*

Bracket*

Ménsula*

Support*

Pocket

Compartimiento

Poche

Note : When installing the unit on the mounting bracket,

make sure to use the 8 mm (3/8")-long screws. If longer screws are used, they could damage the unit.

• Instalación de la unidad sin utilizar la cubierta

En un Toyota por ejemplo, primero extraiga la radio del automóvil y luego instale la unidad en su lugar.

Flat type screws—M5 x 8 mm (M5 x 3/8")*

Tornillos tipo plano—M5 x 8 mm (M5 x 3/8 pulgada)*

Vis à tête plate—M5 x 8 mm (M5 x 3/8 pouces)*

Bracket*

Ménsula*

Support*

Nota : Cuando instala la unidad en la ménsula de montaje,

asegúrese de utilizar los tornillos de 8 mm (3/8 pulgada) de longitud. Si se utilizan tornillos más largos, éstos pueden dañar la unidad.

• Lors de l’installation de l’appareil sans utiliser de manchon

Par exemple dans une Toyota, retirer d’abord l’autoradio et installer l’appareil à la place.

* Not included with this unit.

* No suministrado con esta unidad.

Non fourni avec cet appareil.

Remarque:

Lors de l’installation de l’appareil sur le support de montage, s’assurer d’utiliser des vis d’une longueur de 8 mm (3/8 pouces). Si des vis plus longues sont utilisées, elles peuvent endommager l’appareil.

Removing the unit

• Before removing the unit, release the rear section.

Remove the control panel.

Remove the trim plate.

Insert the 2 handles into the slots, as shown. Then, while gently pulling the handles away from each other, slide out the unit. (Be sure to keep the handles after installing it.)

Extracción de la unidad

• Antes de extraer la unidad, libere la sección trasera.

Extraiga el panel de control.

Retire la placa de guarnición.

Inserte las 2 manijas entre las ranuras, como se muestra. Luego, separe shavemente las manijas y extraiga la unidad.

(Asegúrese de conservar las manijas después de instalarlo.)

Retrait de l’appareil

•

Avant de retirer l’appareil, libérer la section arrière.

Retirer le panneau de commande.

Retirer la plaque d’assemblage.

Introduire les deux poignées dans les fentes, comme montré. Puis, tout en tirant doucement les poignées écartées, faire glisser l’appareil pour le sortir.

poignées après l’installation de l’appareil.)

(S’assurer de conserver les

Control panel

Panel de control

Panneau de commande

Trim plate

Placa de guarnición

Plaque d’assemblage

Handle

Manija

Poignée

ESPAÑOL FRANÇAISENGLISH

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit. If you are not sure how to install this unit correctly, have it installed by a qualified technician.

Note: This unit is designed to operate only on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this

system, a voltage inverter is required, which can be purchased at JVC car audio dealers.

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC car audio dealer.

• If noise is a problem... This unit incorporates a noise filter in the power circuit. However, with some vehicles, clicking or other unwanted noise may occur. If this happens, connect the unit’s rear ground terminal (see connection diagram) to the car’s chassis using shorter and thicker cords, such as copper braiding or gauge wire. If noise still persists, consult your JVC car audio dealer.

• Maximum input of the speakers should be more than 50 W at the rear and 50 W at the front, with an impedance of 4 Ω to 8 Ω.

• Be sure to ground this unit to the car’s chassis.

• The heat sink becomes very hot after use. Be careful not to

touch it when removing this unit.

CONEXIONES ELECTRICAS

Para evitar cortocircuitos, recomendamos que desconecte el terminal negativo de la batería y que efectúe todas las conexiones eléctricas antes de instalar la unidad. Si usted no está seguro de cómo instalar correctamente la unidad, hágala instalar por un técnico cualificado.

Nota: Esta unidad está diseñada para funcionar con 12 V de CC, con sistemas eléctricos de masa NEGATIVA solamente. Si su

vehículo no posee este sistema, será necesario un inversor de tensión, que puede ser adquirido en los concesionarios de JVC de equipos de audio para automóviles.

• Reemplace el fusible por uno con la corriente especificada. Si el fusible se quemase frecuentemente consulte con su concesionario de JVC de equipos de audio para automóviles.

• Si el ruido fuese un problema... Esta unidad tiene un filtro de ruido en el circuito de alimentación. Sin embargo, en algunos vehículos, pueden producirse chasquidos u otros ruidos indeseados. En tal caso conecte el terminal de tierra posterior (véase diagrama de conexión) del receptor al chasis del automóvil, utilizando cordones más gruesos y cortos tales como alambre de cobre trenzado o de grueso calibre. Si el ruido persiste, consulte a su concesionario de JVC de equipos de audio para automóvil.

• La entrada máxima de los altavoces debe ser de más de 50 W en el trasero y 50 W en la frontal, con una impedancia de 4 Ω a 8 Ω.

• Asegúrese de conectar esta unidad a tierra en el chasis del

automóvil.

• El sumidero térmico estará muy caliente después del uso. Asegúrese de no tocarlo al desmontar esta unidad.

RACCORDEMENTS ELECTRIQUES

Pour éviter tout court-circuit, nous vous recommandons de débrancher la borne négative de la batterie et d’effectuer tous les raccordements électriques avant d’installer l’appareil. Si l’on n’est pas sûr de pouvoir installer correctement cet appareil, le faire installer par un technicien qualifié.

Remarque:

Cet appareil est conçu pour fonctionner sur des sources de courant continu de

12 V à masse NEGATIVE

n’offre pas ce type d’alimentation, il vous faut un convertisseur de tension, que vous pouvez acheter chez un revendeur d’autoradios JVC.

•

Remplacer le fusible par un de la valeur précisée. Si le fusible saute souvent, consulter votre revendeur d’autoradios JVC.

•

Si le bruit est un problème... Cet appareil incorpore un filtre de bruit dans le circuit d’alimentation. Cependant, avec certains véhicules, quelques claquements ou autres bruits non désirés risquent de se produire. Si cela arrive, raccorder la

borne arrière de masse

au châssis de la voiture (voir le schéma de raccordement) en utilisant des cordons les plus gros et les plus courts possibles telle qu’une barre de cuivre ou une tresse. Si le bruit persiste, consulter votre revendeur d’autoradios JVC.

•

La puissance admissible des enceintes devrait supérieure à 50 W à l’arrière et à 50 W l’avant, avec une impédance de

8 Ω

• S’assurer de raccorder la mise à la masse de cet appareil au châssis de la voiture.

•

Le dissipateur de chaleur devient très chaud après usage. Faire attention de ne pas le toucher en retirant cet appareil.

seulement. Si votre véhicule

de l’appareil

4 Ω à

Heat sink

Sumidero térmico

Dissipateur de chaleur

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be seriously damaged.

• Connect the black lead (ground), yellow lead (to car battery, constant 12 V), and red lead (to an accessory terminal) correctly.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car. – If the speaker wiring in your car is as illustrated in Fig. 1

and Fig. 2 below, DO NOT connect the unit using that original speaker wiring. If you do, the unit will be seriously damaged. Redo the speaker wiring so that you can connect the unit to the speakers as illustrated in Fig. 3.

– If the speaker wiring in your car is as illustrated in Fig. 3,

you can connect the unit using the original speaker wiring in your car.

– If you are not sure of the speaker wiring of your car, consult

your car dealer.

PRECAUCIONES sobre las conexiones de la fuente de alimentación y de los altavoces:

• NO conecte los conductores de altavoz del cable de alimentación a la batería de automóvil, pues podrían producirse graves daños en la unidad.

• Conecte correctamente el conductor negro (a tierra), el conductor amarillo (a la batería del automóvil, 12 V constantes), y el conductor rojo (a un terminal de accesorio).

• ANTES de conectar a los altavoces los conductores de altavoz del cable de alimentación, verifique el conexionado de altavoz de su automóvil. – Si el conexionado de altavoz de su automóvil es como se

indica en las Fig. 1 y Fig. 2 de abajo, NO conecte la unidad utilizando ese conexionado de altavoz original. Si lo hace, se producirán daños graves en la unidad. Vuelva a efectuar el conexionado de altavoz de manera que pueda conectar la unidad a los altavoces de la manera indicada en la Fig. 3.

– Si el conexionado de altavoz de su automóvil es como se

indica en la Fig. 3, podrá conectar la unidad utilizando el conexionado de altavoz original de su automóvil.

– Si tiene dudas sobre el conexionado de altavoz de su

automóvil, consulte con su concesionario.

PRECAUTIONS sur l’alimentation et la connexion des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du cordon d’alimentation à la batterie; sinon, l’appareil serait sérieusement endommagé.

• Connectez correctement le fil noir (a la masse), le fil jaune (a la batterie de la voiture,12 V constant) et le fil rouge (à la prise accessoire).

• AVANT de connecter les fils d’enceintes du cordon d’alimentation aux enceintes, vérifiez le câblage des enceintes de votre voiture.

–

Si le câblage des enceintes de votre voiture est réalisé comme montré sur la Fig. 1 ou Fig. 2 ci-dessous,

CONNECTEZ PAS l’appareil en utilisant ce câblage original d’enceintes. Si vous le faites, l’appareil sera sérieusement endommagé. Recommencez le câblage des enceintes de façon que vous puissiez connecter l’appareil aux enceintes comme montré sur la Fig. 3.

Si le câblage des enceintes de votre voiture est comme

–

montré sur la Fig. 3,

vous pouvez connecter l’appareil en

utilisant ce câblage original d’enceintes pour votre voiture.

– Si vous n’êtes pas sûrs du câblage d’enceintes de votre

voiture, consulter le concessionnaire de votre voiture.

Fig. 1 Fig. 2 Fig. 3

About sounds reproduced through the rear terminals

• Through the analog terminals (Speaker out/LINE OUT/2nd AUDIO OUT):

2-channel signal is emitted. When playing a multi-channel encoded disc, multi-channel signals are downmixed. (AUDIO—ANALOG DOWN MIX: see page 46 of the Instructions.)

• Through DIGITAL OUT (optical):

Digital signals (Linear PCM, Dolby Digital*, DTS**) are emitted through this terminal. (For more details, see page 71 of the Instructions.) To reproduce multi-channel sounds such as Dolby Digital and DTS, connect an amplifier or a decoder compatible with these multi-channel sources to this terminal, and set “DIGITAL AUDIO OUTPUT” to the correct value. (See page 46 of the Instructions.)

* Manufactured under license from Dolby Laboratories. “Dolby” and the

double-D symbol are trademarks of Dolby Laboratories.

** “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems,

Inc.

Acerca de los sonidos reproducidos a través de los terminales traseros

• A través de los terminales analógicos (salida de altavoz/ LINE OUT/2nd AUDIO OUT):

Se emite la señal de 2 canales. Cuando se reproduce un disco codificado multicanal, las señales multicanal se mezclan. (AUDIO—MEZCLA ANAÓGICA: véase la página 46 de las Instrucciones).

• A través de DIGITAL OUT (óptico): Las señales digitales (Linear PCM, Dolby Digital*, DTS**) se emiten a través de este terminal. (Para mayor información, véase la página 71 de las Instrucciones). Para reproducir sonidos multicanal, como Dolby Digital y DTS, conectar a este terminal un amplificador o decodificador compatible con estas fuentes multicanal, y ajustar “SALIDA DE AUDIO DIGITAL” al valor correcto. (Véase la página 46 de las Instrucciones).

* Fabricado bajo licencia de Dolby Laboratories. “Dolby” y el símbolo

con une doble D son marcas registradas de Dolby Laboratories.

** “DTS” y “DTS Digital Out” son marcas comerciales de Digital Theater

Systems, Inc.

À propos des sons reproduits par les prises arrière

• Par les prises analogiques (sortie des enceintes/LINE OUT/ 2nd AUDIO OUT):

Un signal à deux canaux est émis. Lors de la lecture d’un disque codé multicanaux, les signaux multicanaux sont sous-mixés. (AUDIO—MIX DEMUL. ANALOGIQUE: voir page 46 du manuel d’instructions).

• Par la prise DIGITAL OUT (optique):

Les signaux numériques (Linear PCM, Dolby Digital*, DTS**) sont émis par cette prise. (Pour plus de détails, référez-vous à la page 71 du manuel d’instructions). Pour reproduire des sons multicanaux, tels que le Dolby Digital et le DTS, connectez un amplificateur ou un décodeur compatible avec ces sources multicanaux à cette prise, et réglez “SORTIE AUDIO NUM.” sur la valeur correcte. (Voir page 46 du manuel d’instructions).

* Fabriqué sous licence de Dolby Laboratories. “Dolby” et le symbole

double D sont des marques de commerce de Dolby Laboratories.

** “DTS” et “DTS Digital Out” sont des marques de commerce de Digital

Theater Systems, Inc.

(ILLUMINATION)

(PARKING BRAKE)

A Typical Connections / Conexiones típicas / Raccordements typiques

PARKING

BRAKE

PARKING

BRAKE

Before connecting: Check the wiring in the vehicle carefully not to fail in connecting this unit. Incorrect connection may cause a serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color.

Connect the colored leads of the power cord to the car battery, speakers and automatic antenna (if any) in the following sequence.

1 Black: ground 2 Yellow: to car battery (constant 12 V) 3 Red: to an accessory terminal 4 Blue with white stripe: to remote lead of other equipment

or automatic antenna if any (200 mA max.)

5 Light green: To parking brake, metallic body or chassis of

the car

6 Orange with white stripe: to car light control switch 7 Others: to speakers

Connect the antenna cord.

Finally connect the wiring harness to the unit.

Antes de la conexión: Verifique atentamente el conexionado del vehículo para no cometer errores al conectar esta unidad. Una conexión incorrecta podría producir daños graves en la unidad. Los cordones del cable de alimentación y los del conector procedentes de la carrocería del automóvil podrían ser de diferentes en color.

Conecte los conductores de color del cable de alimentación a la batería del automóvil, altavoces y antena automática (si la hubiere) en la secuencia siguiente.

1 Negro: a tierra 2 Amarillo: a la batería del automóvil (12 V constantes) 3 Rojo: a un terminal de accesorio 4 Azul con rayas blancas: al conductor remoto de otro equipo

o de la antena automática, si hubiere (máx. 200 mA)

5 Verde claro: al freno de estacionamiento, la carrocería

metálica o el chasis del automóvil

6 Naranja con raya blanca: Al interruptor de control de las

luces del automóvil

7 Otros: a los altavoces

Conecte el cable de antena.

Por último, conecte a la unidad el cableado preformado.

Avant de commencer la connexion:

vérifiez attentivement le câblage du véhicule pour ne pas connecter incorrectement cet appareil. Une connexion incorrecte peut endommager sérieusement l’appareil. Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent être différents en couleur.

Connectez les fils de couleur du cordon d’alimentation à la batterie de la voiture, aux enceintes et à l’antenne automatique (s’il y en a une) dans l’ordre suivant.

Noir: a la masse

Jaune: a la batterie de la voiture (12 V constant)

Rouge: à la prise accessoire

Bleu à bande blanche: au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une (200 mA max.)

Vert clair: Au frein de stationnement, corps métallique ou châssis du véhicule

Orange à bande blanche: à l’interrupteur d’éclairage de la voiture

Autres fils: aux enceintes

Connectez le cordon d’antenne.

Finalement, connectez le faisceau de fils à l’appareil.

Before connecting the CD changer, make sure that the unit is turned off.

Antes de conectar el cambiador de CD, asegúrese de que la unidad esté apagada.

Avant de connecter le changeur CD, s’assurer que l’unité est éteinte.

Antenna terminal

Terminal de la antena

Borne de l’antenne

Rear ground terminal

JVC CD changer jack

Jack del cambiador de CD de JVC

Prise de changeur CD JVC

VIDEO OUT (see diagram B )

(véase diagrama

(voir le diagramme B )

2nd AUDIO OUT (see diagram B )

(véase diagrama B )

(voir le diagramme B )

*2: Before checking the operation of this unit prior to installation, this

lead must be connected, otherwise power cannot be turned on.

*2: Antes de comprobar el funcionamiento de esta unidad previa

a la instalación, es necesario conectar este cable, de lo contrario no se podrá conectar la alimentación.

*2: Pour vérifier le fonctionnement de cet appareil avant installation,

ce fil doit être raccordé, sinon l’appareil ne peut pas être mis sous tension.

To car light control switch

Al interruptor de control de las luces del automóvil

À l’interrupteur d’éclairage de la voiture

B )

LINE OUT (FRONT) LINE OUT (REAR) DIGITAL OUT (see diagram B )

(véase diagrama B )

(voir le diagramme B )

Terminal de tierra posterior

Borne arrière de masse

15 A fuse

Fusible de 15 A

Fusible 15 A

Orange with white stripe

Amarillocon rayas blancas

Orange à bande blanche

To antenna

A la antena

A l’antenne

Yellow*

Amarillo*

Jaune*

Red/Rojo/

Blue with white stripe

Azul con rayas blancas

Bleu à bande blanche

Light green

Verde claro

Vert clair

Cambiador de CD JVC

Changeur de CD JVC

Black/Negro/

Rouge

We recommend you to connect the JVC MP3-compatible CD changer. You can also connect other CH-X series CD changers (except CH-X99 and CH-X100).

• You cannot use the KD-MK series CD changers with this unit. You can also use an external component such as a portable MD player by connecting the Line Input Adapter KS-U57 (not supplied). (See diagram .)

Se recomienda conectar el cambiador de CD de JVC compatible con MP3. También se pueden conectar otros cambiadores de CD de la serie CH-X (excepto CH-X99 y CH-X100).

• Con esta unidad no se podrán utilizar cambiadores de CD de la serie KD-MK. Conectando el adaptador de entrada de línea KS-U57 (no suministrado), también podrá usar un componente

JVC CD changer

*1Not supplied with this unit.

*1No suministrado con esta unidad.

*1Non fourni avec cet appareil.

Noir

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch)

A un terminal activo del bloque de fusibles conectado a la batería del automóvil (desviando el interruptor de encendido)

À une borne sous tension du porte-fusible connectée à la batterie de la voiture (en dérivant l’interrupteur d’allumage)

exterior, tal como un reproductor de MD. (Véase diagrama .)

Nous vous recommandons de connecter le changeur de CD compatible MP3 JVC. Vous pouvez aussi connecter d’autres changeurs de CD de la série CH-X (sauf le CH-X99 et le CH-X100).

• Vous ne pouvez pas utiliser les changeurs de CD de la série KD-MK avec cet appareil. Vous pouvez aussi utiliser un appareil extérieur tel qu’un lecteur de MD en connectant l’adaptateur d’entrée

de ligne KS-U57 (non fourni). (Voir le diagramme .)

To metallic body or chassis of the car

A un cuerpo metálico o chasis del automóvil

Au corps métallique ou châssis de la voiture

To an accessory terminal in the fuse block

A un terminal accesorio del bloque de fusibles

À la prise accessoire du porte-fusible

To remote lead of other equipment or automatic antenna if any

Al conductor remoto de otro equipo o de la antena automática, si hubiere

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une

To parking brake, metallic body or chassis of the car

Al freno de estacionamiento, carrocería metálica o chasis del automóvil

Au frein de stationnement, corps métallique ou châssis du véhicule

Fuse block

Bloque de fusibles

Porte-fusible

Ignition switch

Interruptor de encendido

Interrupteur d’allumage

White with black stripe

Blanco con rayas negras

Blanc à bande noire

White

Blanco

Blanc

Gray with black stripe

Gris con rayas negras

Gris à bande noire

Gray

Gris

Green with black stripe

Verde con rayas negras

Vert à bande noire

Green

Verde

Vert

Purple with black stripe

Púrpura con rayas negras

Violet à bande noire

Purple

Púrpura

Violet

Left speaker (front)

Altavoz izquierdo (frontal)

Enceinte gauche (avant)

Right speaker (front)

Altavoz derecho (frontal)

Enceinte droit (avant)

Connecting the parking brake wire / Conexión del cable del freno de estacionamiento / Connexion du cordon de frein de stationnement

When installing the monitor in a location where it can be seen by the driver Al instalar el monitor en un lugar donde pueda ser visto por el conductor Lorsqu’on installe le moniteur à un emplacement où il peut être vu du conducteur

Connect the parking brake wire to the parking brake system built in the car.

Conecte el cable del freno de estacionamiento al sistema de freno de estacionamiento del automóvil.

Connectez le fil de frein de stationnement au système de frein de stationnement.

Parking brake wire (light green)

Cable del freno de estacionamiento (verde claro)

Fil du frein de stationnement (vert clair)

Parking brake

Freno de estacionamiento

Frein de stationnement

Crimp connector

Sujeción

Cosse à sertir

When installing the monitor in a location where it cannot be seen by the driver

Al instalar el monitor en un lugar donde no pueda ser visto por el conductor Lorsqu’on installe le moniteur à un emplacement où il ne peut pas être vu du conducteur

Connect the parking brake wire to metallic body or chassis of the car.

Conecte el cable del freno de estacionamiento a la carrocería metálica o al chasis del automóvil.

Connectez le fil du frein de stationnement au corps métallique ou châssis du véhicule.

Parking brake switch

Interruptor del freno de estacionamiento

Commutateur de frein de stationnement

To metallic body or chassis of the car

A la carrocería metálica o el chasis del automóvil

Vers corps métallique ou châssis du véhicule

Left speaker (rear)

Altavoz izquierdo (trasero)

Enceinte gauche (arrière)

*3 Not included with this unit.

*3 No suministrado con esta unidad.

*3 Non fourni avec cet appareil.

Right speaker (rear)

Altavoz derecho (trasero)

Enceinte droit (arrière)

Parking brake wire (light green)

Cable del freno de estacionamiento (verde claro)

Cordon du frein de stationnement (vert clair)

INPUT

LINE OUT

REAR

FRONT

How to connect the crimp connector / Cómo usar el conector de sujeción / Comment utiliser la cosse à sertir

Wire connecting the battery and the parking brake switch.

Conecte la batería y el interruptor del freno de estacionamiento.

Fil connectant la batterie et l’interrupteur de frein de stationnement.

Attach the parking brake wire to this point.

Conecte el cable del freno de estacionamiento a este punto.

Attachez le fil du frein de stationnement ici.

Contact the metallic part of the crimp to the wires inside.

Conecte la parte metálica de la sujeción a los cables de dentro.

Mettez en contact la partie métallique de la cosse à sertir et des fils intérieurs.

Pinch the crimp firmly.

Apriete la sujeción con firmeza.

Pincez la cosse à sertir fermement.

B Connections Adding Other Equipment / Conexiones para añadir otros equipos / Raccordement pour ajouter d’autres appareils

You can connect an amplifier and other equipment to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.

• For amplifier: – Connect this unit’s line-out terminals to the amplifier’s line-in

terminals.

– Disconnect the speakers from this unit, connect them to

the amplifier. Leave the speaker leads of this unit unused.

Usted podrá conectar un amplificador y otros equipos para mejorar el sistema estéreo de su automóvil.

• Conecte el conductor remoto (azul con rayas blancas) al conductor remoto del otro equipo para poderlo controlar a través de esta unidad.

• Para el amplificador: – Conecte los terminales de salida de línea de esta unidad a

los terminales de entrada de línea del amplificador.

– Desconecte los altavoces de esta unidad y conéctelos al

amplificador. Deje los conductores de los altavoces de esta unidad sin usar.

Vous pouvez connecter un amplificateur ou autre appareil pour améliorer votre système autoradio.

• Connectez le fil de commande à distance (bleu à bande blanche) au fil de commande à distance de l’autre appareil de façon qu’il puisse être commandé via cet appareil.

• Pour l’amplificateur: – Raccorder les fiches de sortie ligne de cet appareil aux fiches

d’entrée ligne de l’amplificateur.

– Déconnectez les enceintes de cet appareil et connectez-

les à l’amplificateur. Laissez les fils d’enceintes de cet appareil inutilisés.

Required connections for DVD playback / Conexiones requeridas para reproducción de DVD / Connexions requises pour la lecture de DVD

Headphones (not supplied) *

Auriculares (no suministrado) *

Casque d’écoute (non fourni) *

When using JVC’s KV-MR9000 and KS-HP1K, connect using a conversion cable of this type (not supplied).

Al usar el KV-MR9000 y KS-HP1K de JVC, conectar usando un cable de conversión de este tipo (no suministrado).

Lors de l’utilisation du KV-MR9000 et du KS-HP1K de JVC, connectez en utilisant un câble de conversion de ce type (non fourni).

Audio/video control amplifier or the decoder compatible with the multichannel digital sources

Amplificador de control de audio/vídeo o el decodificador compatibles con las fuentes digitales multicanal

Amplificateur de commande audio/vidéo ou décodeur compatible avec les sources numériques multicanaux

Digital optical cable (not supplied)

Cable óptico digital (no suministrado)

Câble optique numérique (non fourni)

KD-DV5000

KV-MR9000

Wide color monitor (not supplied)

Monitor color de pantalla ancha (no suministrado)

Moniteur couleur à écran large (non fourni)

KS-HP1K

Cordless headphones (not supplied) *

Auriculares inalámbricos (no suministrado) *

Casque d’écoute sans fil (non fourni) *

Amplifier / Amplificador / Amplificateur

Rear speakers

Altavoces traseros

Enceintes arrière

JVC Amplifier

Amplificador de JVC

Amplificateur JVC

Signal cord (not supplied with this unit)

Cable de señal (no suministrado con esta unidad)

Cordon de signal (non fourni avec cet appareil)

Front speakers

Altavoces delanteros

Enceintes avant

Video cord (not supplied)

Cordón de video (no suministrado)

Cordon vidéo (non fourni)

*4 To listen to disc playback sound while in Dual Zone operations (see page 30 of Instructions.)

*4 Para escuchar el sonido de reproducción de disco mientras se está en operaciones Dual Zone (véase la página 30 de las instrucciones).

*4 Pour écouter le son de lecture des disque lors de l’utilisation du mode Dual Zone (voir page 30 du manuel d’instructions).

Remote lead

Cable remoto

Fil d’alimentation à distance

KD-DV5000

Stereo mini plug

Miniclavija estéreo

Mini fiche stéréo

See “About sounds reproduced through the rear terminals.”

Colsulte también “Acerca de los sonidos reproducidos a través de los terminales traseros”.

Référez-vous “À propos des sons reproduits par les prises arrière”.

RCA Pin plugs

Clavijas RCA

Fiches cinch

2nd AUDIO OUT

VIDEO OUT

*5Firmly attach the ground wire to the metallic body or to the

chassis of the car—to the place not coated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.

Y-connector (not supplied with this unit)

Conector en Y (no suministrado con esta unidad)

Connecteur Y (non fourni avec cet appareil)

Fije firmemente el cable de tierra a la carrocería metálica o al

—

chasis

a un lugar no cubierto con pintura (si está cubierto con pintura, quítela antes de fijar el cable). De lo contrario, se podrían producir daños en la unidad.

*5Attachez solidement le fil de mise à la masse au châssis

métallique de la voiture—à un endroit qui n’est pas recouvert de

Remote lead (Blue with white stripe)

Cable remoto (Azul con rayas blancas)

Fil d’alimentation à distance (Bleu à bande blanche)

JVC Amplifier

Amplificador de JVC

Amplificateur JVC

peinture (s’il est recouvert de peinture, enlevez d’abord la peinture avant d’attacher le fil). L’appareil peut être endommagé si cela n’est pas fait correctement.

To automatic antenna if any

A la antena automática, si la hubiere

Vers l’antenne automatique, s’il y en a une

Front speakers

Altavoces delanteros

Enceintes avant

You can connect another power amplifier for front speakers.

Podrá conectar otro amplificador de potencia para los altavoces delanteros.

Vous pouvez connecter un autre amplificateur de puissance pour les enceintes avant.

DIGITAL OUT

External component / Componente exterior / Appareil extérieur

Signal cord (not supplied with this unit)

Cable de señal (no suministrado con esta unidad)

Cordon de signal (non fourni avec cet appareil)

KD-DV5000

JVC CD changer jack

Toma del cambiador de CD de JVC

Prise CD changeur JVC

KS-U57 *

*6Line Input Adapter KS-U57 (not supplied with this unit)

*6Adaptador de entrada de línea KS-U57 (no

suministrado con esta unidad)

External component

Componente exterior

Appareil extérieur

*6Adaptateur d’entrée de ligne KS-U57 (non fourni avec

cet appareil)

LVT1082-001A

[J/A]

0303MNMMDWJEIN EN, SP, FR

ENGLISH

A Guide to MP3

What is MP3?

MP3 (MPEG Audio Layer 3) is one of digital audio compression standards.

• This player cannot play back MP3i and MP3 PRO formats.

About Tag of MP3

This player can show the names of albums, artists (performer), and tracks of MP3 Tag.

• This player can handle only one-byte characters. Any other characters cannot be correctly displayed.

About formats of MP3

This player cannot play back the following files:

• MP3 files without extensions such as [.MP3].

• MP3 files with the extensions other than [.MP3].

• Files which do not have MP3 data.

• MP3 files are not encoded in an appropriate format.

• MP3 files encoded with Layer1/2.

• Files which have the data such as WMA, WAVE, ATRAC3, MPEG 2.5, etc.

About available formats of disc

This player cannot play back the following cases:

• CD-R/RW on which the files are written with “Packet Write” method.

• There are improper recording conditions (missing data, etc.) or media conditions (stain, scratch, warp, etc.).

• There are unclosed sessions on CD-R/RW (this player skips unclosed sessions).

About functions restrained during MP3 playback

• The search function works but search speed is not constant during search.

• When skip is tried at the last file in a folder, the next folder is selected.

Glossary

CD-DA

The data of music CD

Mixed-CD

A CD-R/RW on which audio tracks (CD-DA data) have been added to data tracks before closing a session.

Enhanced-CD

A CD-R/RW on which data tracks have been added to audio tracks (CD-DA data) before closing a session.

Multiple session

A CD-writing method, which make it possible to add data on a CD-R/RW after closing a session.

ESPAÑOL

Una guía sobre MP3

¿Qué es MP3?

MP3 (MPEG Audio Layer 3) es una de las normas de compresión de audio digital.

• Los formatos MP3i y MP3 PRO no se encuentran disponibles.

Acerca del Tag para MP3

Este reproductor puede mostrar los nombres de los albumes, artistas (ejecutantes), y pistas del Tag para MP3.

• Este reproductor puede manejar solamente caracteres de un byte. Los demás caracteres no serán visualizados correctamente.

Acerca de los formatos disponibles con MP3

Este reproductor no puede reproducir los archivos siguientes:

• Archivos MP3 que no tengan las extensiones [.MP3].

• Archivos MP3 con otras extensiones que no sean [.MP3].

• Archivos que no tengan datos MP3.

• Los archivos MP3 no están codificados en un formato apropiado.

• Archivos MP3 codificados con Layer1/2.

• Archivos que disponen de datos tales como WMA, WAVE, ATRAC3, MPEG 2.5, etc.

Acerca de los formatos de discos disponibles

Este reproductor no podrá efectuar la reproducción en los casos siguientes:

• CD-R/RW cuyos archivos están escritos con el método “Packet Write” (escritura por paquetes).

• Condiciones inadecuadas de grabación (datos faltantes, etc.) o del medio (manchas, rayaduras, alabeo, etc.).

• Hay sesiones sin cerrar en el CD-R/RW (este reproductor omite las sesiones sin cerrar).

Acerca de las funciones inhibidas durante la reproducción de MP3

• Es posible activar la función de búsqueda, pero la velocidad de búsqueda no se mantiene constante.

• Cuando se intente omitir en el último archivo de una carpeta, se seleccionará la siguiente carpeta.

Glosario

CD-DA

Datos de un CD de música

Mixed-CD

Un CD-R/RW con pistas de audio (datos de CD-DA) añadidas a las pistas de datos antes de cerrar una sesión.

Enhanced-CD

Un CD-R/RW al que se han añadido pistas de audio (datos de CD-DA) antes de cerrar una sesión.

Multiple session

Un método de escritura de CD, que hace posible añadir datos a un CD-R/RW después de cerrar una sesión.

FRANÇAIS

Un guide du format MP3

Qu’est-ce que le format MP3?

MP3 (Norme MPEG Audio de Layer 3) est une des normes de compression audio numérique.

• Ce lecteur ne peut pas reproduire les formats MP3i et MP3 PRO.

À propos des balises MP3

Ce lecteur peut afficher le nom des albums, des artistes (interprète) et des plages des balises MP3.

• Ce lecteur peut prendre en charge uniquement les caractères d’un octet. Tous les autres caractères ne peuvent pas être affichés correctement.

À propos des formats MP3

Ce lecteur ne peut pas reproduire les fichiers suivants:

• Les fichiers MP3 sans extension telle que [.MP3].

• Les fichiers MP3 avec une extension différente que [.MP3].

• Les fichiers qui ne contiennent pas de données MP3.

• Les fichiers MP3 ne sont pas codés dans le format approprié.

• Les fichiers MP3 codés avec le Layer 1/2.

• Les fichiers avec des données telles que WMA, WAVE, ATRAC3, MPEG 2.5, etc.

À propos des formats de disque disponibles

Ce lecteur ne peut pas reproduire les disques dans les cas suivants:

• Les CD-R/RW sur lesquels les fichiers ont été écrits avec la méthode “Packet Write” (écriture par paquet).

• Il y a eu des conditions d’enregistrement incorrectes (données manquantes, etc.) ou le support est en mauvaise condition (tâché, rayé, gondolé, etc.)

• Une session sur le CD-R/RW n’a pas été fermée (ce lecteur saute les sessions non fermées).

À propos des fonctions réduites pendant la lecture MP3

• La fonction de recherche fonctionne mais la vitesse de recherche n’est pas constante.

• Quand vous essayez d’utiliser la fonction de saut pour le dernier fichier d’un dossier, le dossier suivant est choisi.

Glossaire

CD-DA

Les données des CD musicaux

Mixed-CD

Des plages audio (données CD-DA) ont été ajoutées aux plages de données d’un CD-R/RW avant la fermeture d’une session.

Enhanced-CD

Des plages de données ont été ajoutées aux plages audio (données CD-DA) d’un CD-R/RW avant la fermeture d’une session.

Multiple session

Une méthode d’écriture de CD qui permet d’ajouter des données sur un CD-R/RW après la fermeture d’une session.

(CD mixé)

(CD amélioré)

(Session multiple)

Table of playable disc types / Tabla de los tipos de discos reproducible / Tableau des types de disque reproductibles

KD-DV5000

Discs containing MP3 files / Discos conteniendo tanto archivos MP3 / Disques contenant à la fois des fichiers MP3

Mixed-CD MP3 + CD-DA CD-DA playback / Reproducción de CD-DA /

Other files + CD-DA / Otros archivos + CD-DA / CD-DA playback / Reproducción de CD-DA / Autres fichiers + CD-DA

Enhanced CD CD-DA + MP3 CD-DA playback / Reproducción de CD-DA / File name system / ISO9660 Level1 / Level1 / Niveau1 Up to 12 characters (8.3 format) / Hasta 12 caracteres (formato 8,3) /

Sistema de nombre de archivo / Système de noms de fichiers

Multiple session / Sesión múltiple / Session multiple ‡ 80-minute discs (capacity: 700 MB) /

Discos de 80 minutos (capacidad: 700MB) / Disques de 80 minutes (capacité: 700 Mo)

ISO9660 Level2 / Level2 / Niveau2 Up to 31 characters / Hasta 31 caracteres / ISO9660 Level3 / Level3 / Niveau3 Not available / No disponible / Romeo Up to 62 characters / Hasta 62 caracteres / Joliet Up to 62 characters / Hasta 62 caracteres / Windows long file name / Norma de archivo largo Windows / Up to 62 characters / Hasta 62 caracteres / Nom de fichier long Windows

MP3 playback / Reproducción de MP3 /

31 caractères maximum

Non disponible

62 caractères maximum 62 caractères maximum

62 caractères maximum

‡

‡: Compatible / Compatibles /

Lecteur MP3

Lecture CD-DA

12 caractères maximum (format 8,3)

Compatible

• Maximun number of characters for file/folder names includes 4 extension characters—“.MP3”.

• El número máximo de caracteres para los nombres de archivos/carpetas incluye 4 caracteres de extensión—“.MP3”.

Le nom maximum de caractères pour les noms de fichier/dossier comprend les 4 caractères de l’extension—“.MP3”.

•

Table for playable MP3 files / Tabla de archivos MP3 reproducible / Tableau des fichiers MP3 reproductibles

KD-DV5000

MP3 Bit-rate / Velocidad de bit / Débit binaire 8 kbps—320 kbps

VBR ‡ Sampling frequency / MPEG-1 48 kHz, 44.1 kHz, 32 kHz Frecuencia de muestreo / Fréquence d’échantillonnage

Joint stereo / Joint Stereo / Mode stéréo combiné ‡ Emphasis / Emphasis / Accentuation —

ID3-Tag / ID3-Tag / Balise ID3 m3u playlist / m3u playlist / Playlist m3u Not available / No disponible / Manual search / Búsqueda manual / Recherche manuelle Maximum number of folder hierarchy /

Número máximo de jerarquía de carpetas / 10 Nombre maximum de hiérarchies de dossiers

Maximum number of files/folders / Files on each folder / Número máximo de archivos/carpetas / Nombre maximum de fichiers/dossiers

Maximum number of characters on the display / 62 (32 on the monitor) (including [.MP3]) Número máximo de caracteres en la pantalla / 62 (32 en el monitor) (incluyendo [.MP3]) Nombre maximum de caractères sur l’affichage

MPEG-2 24 kHz, 22.05 kHz, 16 kHz

Ver. 1.0, 1.1

Non disponible

(Search speed is not constant. / La velocidad de búsqueda no es constante. /

‡

Archivos en cada carpeta / Fichiers dans chaque dossier

Folders on a disc / Carpetas en un disco / 99 Dossiers dans un disque

Total / Total / Total 14 850

62 (32 sur le moniteur) (incluant [.MP3])

150

La vitesse de recherche n’est pas constante.

‡: Compatible / Compatibles /

)

Compatible

Questions and Answers

An MP3 disc requires a long readout time…?

When an MP3 disc is inserted, information inside the disc (number of folders and files, and positions of data) is first read. So, in the following cases, a fairly long time may be needed before playback starts:

• If the file structure is complicated,

• If the number of files is large, or

• If the number of sessions is large (in case of multisession discs).

There occurs sound interruption or sound skipping…?

Sound interruption or sound skipping may occur, depending on recording conditions (missing data, etc.) or media conditions (stain, scratch, warp, etc.).

MP3 files are not played back in an intended order…?

This player plays back MP3 files in the order they are organized on the disc.

• The playback order may differ from your intended order because of your writing software.

Elapsed playing time is not displayed correctly…?

Files recorded in VBR (variable bit rate) have a discrepancy in elapsed time display, and do not show the actual passage of time. Especially, after performing the search function, this difference becomes noticeable.

Preguntas y respuestas

¿Un disco MP3 requiere un mayor tiempo de lectura...?

Cuando se inserta un disco MP3, primero se lee la información contenida dentro del disco (número de carpetas y archivos, y posiciones de los datos). Por lo tanto, en los siguientes casos, es posible que se tarde un poco antes de iniciarse la reproducción:

• Si la estructura del archivo es complicado,

• Si el número de archivos es grande,

• Si el número de sesiones es grande (en caso de discos de múltiples sesiones).

¿Ocurre la interrupción de sonido o la omisión de sonido...?

Puede producirse interrupción u omisión de sonido, dependiendo de las condiciones de grabación (datos faltantes, etc.) o del medio (manchas, rayaduras, alabeo, etc.).

¿Los archivos MP3 no se reproducen en el orden previsto...?

Este reproductor reproduce archivos MP3 en el orden en que se encuentran organizados en el disco.

• El orden de reproducción puede ser distinto del orden previsto debido a su software de escritura.

¿El tiempo transcurrido no se visualiza correctamente...?

Los archivos grabados en VBR (velocidad de bit variable) presentan discrepancia en la visualización del tiempo transcurrido, y no visualizan exactamente el tiempo que transcurre. Especialmente, esta diferencia se vuelve más evidente después de realizar la función de búsqueda.

Questions et réponses

Le temps d’initialisation d’un disque MP3 est plus long...?

Quand un disque MP3 est inséré, les informations dans le disque (nombre de dossiers et de fichiers, position des données) sont lues. Dans les cas suivants, un temps plus long peut être nécessaire avant que la lecture démarre:

• Si la structure des fichiers est compliquée.

• Si le nombre de fichiers est grand.

• Si le nombre de sessions est grand (dans le cas d’un disque multi sessions).

Il y a des interruptions de son ou le son est sauté...?

Des interruptions du son ou des sauts dans la lecture peuvent se produit en fonction des conditions d’enregistrement (données manquantes, etc.) ou des conditions du support (saleté, rayure, disque gondolé, etc.)

Les fichiers MP3 ne sont pas reproduits dans l’ordre souhaité...?

Ce lecteur reproduit les fichiers MP3 dans l’ordre où ils sont organisés sur le disque.

• L’ordre de lecture peut différer de l’ordre souhaité à cause du logiciel de gravure.

La durée de lecture écoulée n’est pas affichée correctement...?

Les fichiers enregistrés en mode VBR (débit binaire variable) ont une différence dans l’affichage de la durée de lecture écoulée et n’affiche pas le temps du passage actuel. Plus spécialement, la différence devient importante après l’utilisation de la fonction de recherche.

JVC KD-DV5000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INSTRUCTIONS

LOCATION OF THE BUTTONS

BASIC OPERATIONS

RADIO OPERATIONS

PLAYABLE DISCS

BASIC DISC PLAYBACK

DVD/VCD SPECIAL FUNCTIONS

ADVANCED DISC OPERATIONS

DUAL ZONE OPERATIONS

OSD DISC OPERATIONS

OTHER DISC OPERATIONS

DVD SETUP MENU

SOUND ADJUSTMENTS

OTHER MAIN FUNCTIONS

CD CHANGER OPERATIONS

EXTERNAL COMPONENT OPERATIONS

ADDITIONAL INFORMATION

LANGUAGE CODES

GLOSSARY

TROUBLESHOOTING

MAINTENANCE

SPECIFICATIONS

WARNINGS

TROUBLESHOOTING

ELECTRICAL CONNECTIONS

External component

A Guide to MP3

Questions and Answers
