JVC KD-R80BT, KD-A65, KD-R60 Instructions Manual

ENGLISH

ESPAÑOL

FRANÇAIS

KD-R80BT/KD-A65/KD-R60

CD RECEIVER / RECEPTOR CON CD / RÉCEPTEUR CD

For canceling the display demonstration, see page 4. / Para cancelar la demostración en pantalla, consulte la página 4. / Pour annuler la démonstration des affichages, référez-vous à la page 4.

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel

séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

GET0798-001A

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to

obtain the best possible performance from the unit.

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

– Consult the dealer or an experienced radio/TV technician for help.

Caution:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.

JVC KENWOOD Corporation 2967-3, ISHIKAWA-MACHI, HACHIOJI-SHI, TOKYO, JAPAN

THIS PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE.

Location: Bottom Plate

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do

not stare into beam.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do

not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

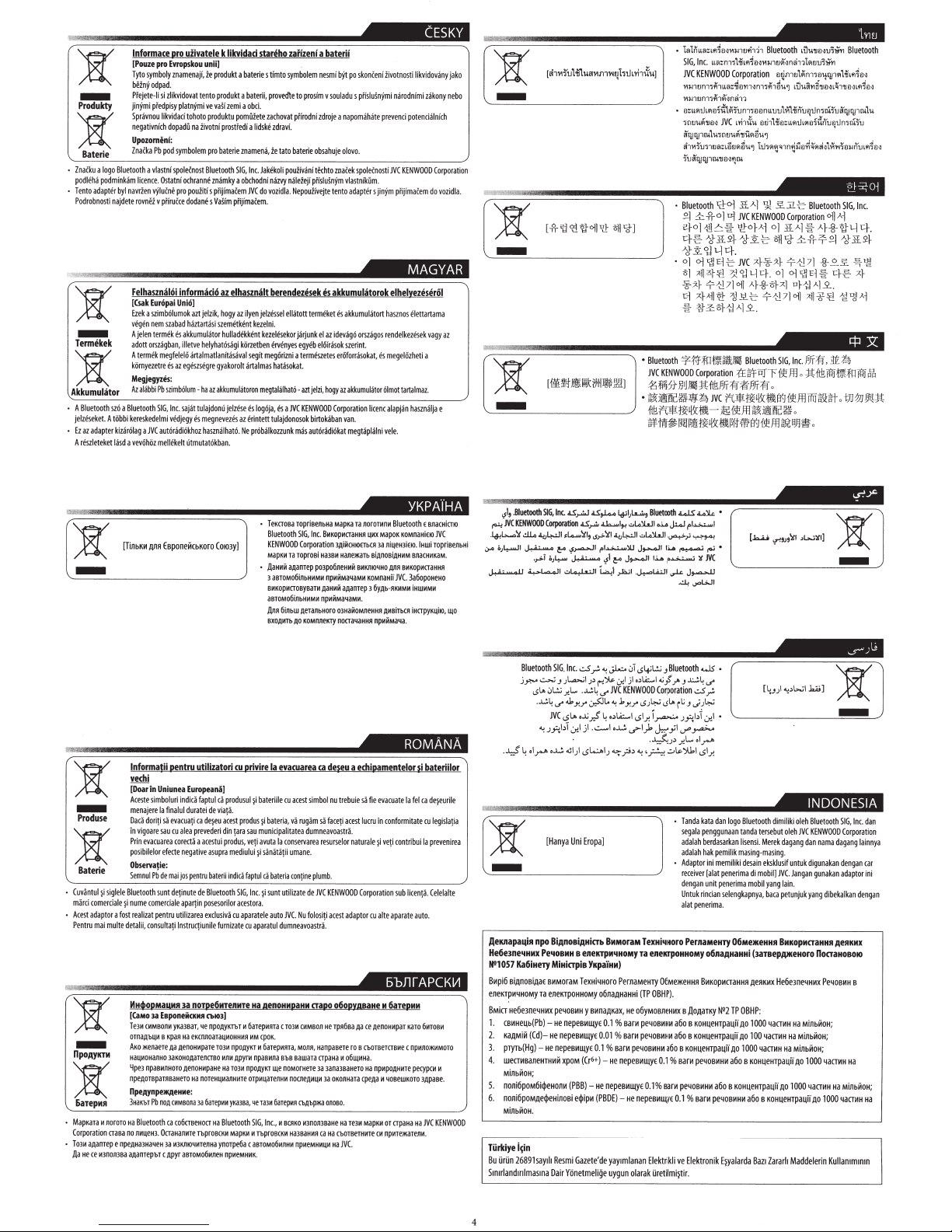

[European Union only]

|ޓENGLISH

2

Warning:

Stop the car before operating the unit.

Caution:

Adjust the volume so that you can hear sounds outside the car. Driving with the volume too high may cause an accident. Avoid using the USB device or iPod/iPhone if it might hinder driving safety.

Caution on volume setting:

Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by the sudden increase of the output level.

Temperature inside the car:

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

 appears on the display and animation/text scroll will be stopped to prevent the display from being blurred when the temperature falls below 0°C. Once operating temperature is normalised, these functions will start working again.

Contents

Preparation ............................................................ 4

Canceling the display demonstration

Setting the clock

Basic operations ................................................... 5

Radio ........................................................................ 6

HD Radio™ tuner control

(KD-R80BT/KD-A65 only)

Satellite Radio tuner control

(KD-R80BT/KD-A65 only)

CD/USB ................................................................. 11

iPod/iPhone

.......................................................... 12

Quick Search ....................................................... 14

External components ...................................... 14

Bluetooth姞 connection

Bluetooth mobile phone ................................ 17

Bluetooth audio player ................................... 21

Illumination color adjustments .................... 22

......................................... 8

......................................... 9

..................................... 15

Condensation:

When the car is air-conditioned, moisture may collect on the laser lens. This may cause disc read errors. In this case, remove the disc and wait for the moisture to evaporate.

Maintenance

Cleaning the unit

Wipe off the dirt on the panel with a dry silicon or soft cloth. Failure to observe this precaution may result in damage to the unit.

Cleaning the connector

Wipe off dirt on the connector of the unit and panel. Use a cotton swab or cloth.

Brightness adjustments .................................. 23

Sound adjustments .......................................... 23

Menu operations ............................................... 24

Remote controller

............................................... 27

Additional information ................................... 28

Troubleshooting ................................................ 31

Specifications ..................................................... 34

How to read this manual:



This manual mainly explains operations using the buttons on the control panel.



< > indicates the displays on the control panel.



[XX] indicates the initial setting of a menu item.

ENGLISHޓ|

3

How to attach the control panel

How to reset your unit

Your preset adjustments will also be erased.

How to detach the control panel

Avoid touching the connectors.

Preparation

Canceling the display demonstration

The display demonstration is always turned on unless you cancel it.

1

(Hold)

2

3

Select <Off>.

DEMO

Off

PUSH

On

4

Press MENU to exit.

SET UP

DEMO

PUSH

Clock

DEMO

Off

On

PUSH

(Initial setting)

How to forcibly eject a disc

(Hold)



Be careful not to drop the disc when it ejects.



If this does not work, reset your unit.

Setting the clock

1 : 00AM

SET UP

DEMO

PUSH

Clock

1

(Hold)

2

Select <Clock>.

Clock

DEMO

Clock

PUSH

Color

3

Select <Set Clock>.

Clock

Clock Display

Set Clock

PUSH

24/12H

4

Adjust the hour.

Set Clock

PUSH

(Initial setting)

5

Adjust the minute.

|ޓENGLISH

4

Set Clock

PUSH

6

Select <24H/12H>.

Clock

PUSH

7

Select <24Hours> or <12Hours>.

8

Press MENU to exit.

1 : 00AM

Set Clock

24/12H

Clock Adjust

Basic operations

Control panel

KD-R80BT

Control dial

Display window

Remote sensor

Aim the remote controller directly at the sensor. DO NOT expose to bright sunlight.

When you press or hold the following button(s)...

Control panel

 /SOURCE

Control dial

(turn)

Control dial

(press)

EQ SOUND



FUNC. —



 /  / 

 / 

Remote

controller



Turns on.



—

Turns off. (Hold)



Press the /SOURCE button on the control panel and turn the control dial within 2 seconds to select the source.

SOURCE Press repeatedly to select the source. VOL - / + Adjusts the volume level.

— Selects items.



Mutes the sound or pauses playback.



)

Press the button again to cancel muting or resume playback.

— Confirms selection.

Selects the preset sound mode. (' page 23)



Enters “Hands-Free” menu (' page 18), or answers

—

incoming call when the unit rings.



Ends a call. (Hold)

Enters <BRIGHTNESS> menu directly (if the USB Bluetooth Adapter* is not connected). (KD-A65/KD-R60 only) (' page 23)

* Separately purchased.

— Returns to the previous menu.



Selects a preset station (' page 7)/category (' page 10).



Searches for HD Radio stations only. (Hold)



Searches for HD Radio multicast channels.



Selects MP3/WMA/WAV folder. (' page 11)



Searches for a station automatically. (' page 6)



Searches for a station manually. (Hold)

 / 



Selects track (' page 11, 12, 21)/Satellite Radio channel.



Fast-forwards or reverses track. / Changes Satellite Radio channel rapidly. (Hold)

Flips down the panel

Remote controller

KD-A65/ KD-R60

General function

ENGLISHޓ|

5

Basic operations

Display information

Changes the display information. (Press) Scrolls the current display information. (Hold)

Source Display (Normal display pattern)*1

Radio Non-Radio Broadcast Data System station: Frequency

FM Radio Broadcast Data System station: Programme

type (PTY)/Frequency/Station name (PS) HD Radio *3 Track title*2/Album title*2/Frequency Satellite Radio *3 Category name/Channel name/Track title CD/USB/Bluetooth Audio Track title/Album title/Artist* iPod/iPhone (Headunit Mode/iPod

Mode) iPod/iPhone (Application Mode) Application Mode Pandora姞 internet radio Station name/Album title/Track title External Components Ext Input or Aux In

*1 Display information varies for large font and large clock display patterns. *2 “No Text” appears when no text is received. *3 For KD-R80BT/KD-A65 only.

* “No Name” appears for conventional CDs or if not

recorded.

Radio

Searching for a station

A

B

FM

“ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.

ST DYNAMIC 1:00AM

88.3 MHz

Storing stations in memory

Manual presetting

You can preset up to 18 stations for FM and 6 stations for AM.

While listening to a station...

1

(Hold)



Select <FM> or <AM>.



Auto search. (Press) Manual search. (Hold)

“M” appears, then press the button repeatedly.

2

Select preset number.

The preset number flashes.

“Preset Mode” screen appears.

|ޓENGLISH

6

Radio

Auto presetting (FM)

SSM (Strong-station Sequential Memory)

You can preset up to 18 stations for FM.



If an HD Radio tuner box is connected, you can also preset up to 6 stations for AM. (KD-R80BT/ KD-A65 only)

1

2

“SSM” appears. When all the stations are stored, “SSM” disappears.

To preset <SSM 07 – 12>/<SSM 13 – 18>,

repeat steps 1 and 2.

(Hold)

-<Tuner>

-<SSM>

-<SSM 01 – 06>

Selecting a preset station

4

Set the activation time.

5

Press MENU to exit.



 lights up after the Radio Timer has been set.



Only one timer can be set. Setting a new timer will override the previous setting.



The Radio Timer will not activate if the unit is turned off or if <AM> is set to <Hide> after selecting an AM station for the timer. (' page 26)

.

Searching for your favorite Programs—Program Type (PTY) Search

This feature is only available for FM Radio Broadcast Data System stations.

1

(Hold)

You can also select a preset station using  / .

Setting the Radio Timer

You can tune in to a preset station at a specific time regardless of the current source.

1

2

[Off] Cancels Radio Timer.

Once Activates once.

Daily Activates daily.

3

Select the preset station.

(Hold)

-<Tuner>

-<Radio Timer>

-<Off>/<Once>/

<Daily>

-<FM>/<AM>

-<1> ... <18> for FM/

<1> ... <6> for AM

2

Select a PTY code.

PTY Search starts.

.

If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

PTY codes

News, Inform (Information), Sports, Talk, Rock, Cls Rock

(Classic Rock), Adlt Hit (Adult Hits), Soft Rck (Soft Rock), Top

40, Country, Oldies, Soft, Nostalga (Nostalgia), Jazz, Classicl

(Classical), R & B (Rhythm and Blues), Soft R & B (Soft Rhythm

and Blues), Language, Rel Musc (Religious Music), Rel Talk

(Religious Talk), Persnlty (Personality), Public, College, Habl

Esp (Spanish Talk), Musc Esp (Spanish Music), Hip Hop,

Weather

ENGLISHޓ|

7

HD Radio™ tuner control

KD-R80BT/KD-A65 only

(KD-R80BT/KD-A65 only)

This unit can control the JVC KT-HD300 HD Radio tuner box (separately purchased). Refer to the KT-HD300 instruction manual for installation and connection details.



HD Radio tuners can also tune in to conventional analog broadcasts.



Many HD Radio stations offer more than one channel of programming. This service is called multicasting.



To find HD Radio stations in your area, visit <http://www.hdradio.com/>.

Searching for a station

A

B

AT HD DYNAMIC 1:00AMHD Radio

Classic Hits Classic Hits Album

92.5 MHz FM

WXYZ-HD1



Select <FM> or <AM>.



Auto search. (Press) Manual search. (Hold)

“M” appears, then press the button repeatedly.

HD Radio station

Call Sign

HD Radio

Classic Hits

AT HD NATURAL

WXYZ-HD

1:06AM

Searching for HD Radio stations only

HD Radio

(Hold)

“HD” flashes when a station is tuned in, and

searching stops.

Selecting an HD Radio multicast channel

When receiving HD Radio multicast channels...

Select your desired channel (HD1 to HD8).

“Linking” appears while linking to a multicast channel.

AT NATURAL

HD-SEARCH

1:08AM

HD Radio multicast channel

First four letters of Call Sign

HD Radio

Classic Hits

AT HD NATURAL

WXYZ-HD-1

1:06AM

Channel number

Changing HD Radio reception mode

While receiving an HD Radio broadcast, you can change the reception mode—digital or analog.



This setting does not take effect for the conventional FM/AM stations.

1

2

[Auto]

Analog

(Hold)

-<Tuner>

-<Blend Hold>

-<Auto>/<Analog>/

Switches between digital and analog audio automatically. “HD” flashes if the radio station forces only analog reception.

Tunes to analog audio only.

“ANA” lights up.

|ޓENGLISH

8

Digital

Tunes to digital audio only. “DIGI” lights up.

The setting automatically returns to <Auto> when you tune in to another broadcast.



For storing stations in memory and selecting a preset station, ' page 6.

Satellite Radio tuner control

KD-R80BT/KD-A65 only

Before operating, connect either one of the following systems (not supplied) to the expansion port on the rear of this unit. Refer to the “Installation/Connection Manual” for details.

SIRIUS Satellite Radio

XM Satellite Radio



For details, refer also to the instructions supplied with the other components.



For SIRIUS/XM programming, visit <www.siriusxm.com>.

Activating your SIRIUS

JVC KS-SRA100 (SIRIUS Satellite Radio interface) and



SCC1 (SiriusConnect Vehicle Tuner) or



SCVDOC1 (SiriusConnect Vehicle Docking Kit) and SIRIUS radio



XMDJVC100 (Smart Digital Adapter for JVC) and XM Universal Tuner Box



CNPJVC1 (Connection cable for JVC) and CNP2000UCA (Protocol Interface Adapter and XM Direct 2 Tuner)

Activating your XM subscription

subscription

1

Select <XM>.

1

Select <SIRIUS>.

XMDirect2 Tuner System starts updating all the

SIRIUS Satellite Radio starts updating the SIRIUS channels. Once completed, SIRIUS Satellite Radio tunes in to the Preview Channel.

2

Select “Channel 0” to check your SIRIUS ID.

XM channels. “Channel 1” is tuned in automatically.

2

Select “Channel 0” to check your XM Satellite Radio ID.

The 12-digit SIRIUS ID will be displayed.



You can also check your SIRIUS ID from the label on the packaging, or from menu operations (' page 25).

3

Contact Sirius Satellite Radio on the internet at <www.siriusxm.com/ activatenow> to activate your subscription.

Once subscription has been activated, “SUB UPDATE PRESS ANY KEY” appears on the display.

Channel Updates (SIRIUS)



If channels are updated after subscription, updating starts automatically. “UPDATING” appears and no sound can be heard.



Updates take a few minutes to complete.



During an update, you cannot operate your Satellite Radio.

The display alternates between “RADIO ID” and the 8-digit alphanumeric ID number.



You can also check your XM Satellite Radio ID labeled on the casing of the XMDirect2 Tuner System.

3

Contact XM Satellite Radio on the internet at <www.siriusxm.com/activatenow> to activate your subscription.

Once subscription has been activated, the unit can be tuned to one of the available channels.

ENGLISHޓ|

9

Satellite Radio tuner control

(KD-R80BT/KD-A65 only)

Selecting a channel

C

A

B



Select <SIRIUS> or <XM>.



Select a category.

If you want to select channels of all categories...



SIRIUS: Select <ALL>.



XM: Skip this step.



Select a desired channel.

Holding the button changes the channels rapidly. While searching, invalid and unsubscribed channels are skipped.

Storing stations in memory

Selecting a preset station/ category/channel from the list

1

“List” menu appears.

2

Select <Preset>, <Category> or <Channel>.

If a category is selected, the first channel of this category is tuned in.

3

Select a desired item.

You can preset up to 18 channels for both SIRIUS and XM.

While listening to a station...

1

(Hold)

“Preset Mode” screen appears.

2

Select preset number.

The preset number flashes.

|ޓENGLISH

10

CD/USB

Playing a CD/USB device

Label side

CD/USB

USB cable from the rear of the unit

or

The source changes to “CD” and playback starts.



This unit can play MP3/WMA files stored in CD-R, CD-RW, and MP3/WMA/WAV files in USB mass storage device (such as a USB memory and Digital Audio Player).



Make sure all important data has been backed up. We shall bear no responsibility for any loss of data in USB mass storage class device while using this system.



Ejected disc not removed within 15 seconds will reload automatically.



If the disc cannot be ejected, ' page 4.

Selecting a folder/track

Selects folder. (For MP3/WMA/WAV)

The source changes to “USB” and playback starts.

Selecting the playback modes

You can select one of the following playback modes at a time.

1

(Hold)



Selects track. (Press)



Fast-forwards or reverses the track. (Hold)

Selecting a track/folder from the list

1

2

Repeat  

Off Cancels repeat playback.

Track Repeats current track.

Folder * Repeats current folder.

2

Select a folder. (For MP3/WMA/WAV)

3

Select a track.



For MP3/WMA/WAV

If there are many folders or tracks, you can fast search for the desired folder or track by turning the control dial quickly, or use Quick Search (' page 14).

Random  

Off Cancels random playback.

Randomly plays all tracks of

Folder *

All Randomly plays all tracks.

* For MP3/WMA/WAV

current folder, then tracks of next folders.

ENGLISHޓ|

11

iPod/iPhone

Playing an iPod/iPhone

USB cable from the rear of the unit

or

USB 2.0 cable (not supplied)*

The source changes to “iPod-1/iPod-2” and playback starts. * Recommend to use a cable suitable for car use.

Selecting the control mode

(Hold)

Headunit Mode

iPod Mode Controls iPod playback from the

Application Mode



You can also change the setting using <iPod Switch> in the menu. (' page 26)

-<Headunit Mode>/

<iPod Mode>/ <Application Mode>

Controls iPod playback through this unit.

iPod/iPhone. The sound of any functions

(music, games, applications, etc.) running on the connected iPod/ iPhone is emitted through the speakers connected to this unit.

2

Select the desired list.

Playlists)Artists)Albums)Songs) Podcasts)Genres)Composers) Audiobooks) (back to the beginning)

3

Select the desired track.

Repeat this step until the desired track is selected.



If the selected menu contains many tracks, you can fast search for the desired track by turning the control dial quickly, or use Quick Search (' page 14).

Selecting the playback modes

Applicable under <Headunit Mode> only. You can select one of the following playback modes at a time.

1

(Hold)

2

Selecting a track

Applicable under <Headunit Mode>/<iPod Mode> only. For <Application Mode>, applicable only for some audio applications.



Selects track/chapter. (Press)



Fast-forwards or reverses the track. (Hold)

Selecting a track from the list

Applicable under <Headunit Mode> only.

1

Repeat  

Off Cancels repeat playback.

One

All

Random  

Off Cancels random playback.

Song

Album



“Album” is not applicable for some iPod/ iPhone.

Functions the same as “Repeat One” of the iPod.

Functions the same as “Repeat All” of the iPod.

Functions the same as “Shuffle Songs” of the iPod.

Functions the same as “Shuffle Albums” of the iPod.

|ޓENGLISH

12

姞

iPod/iPhone

iPod/iPhone application

You can operate JVC original application with this unit in <Application Mode>. For more details, visit JVC website: <http://www3.jvckenwood.com/ english/car/index.html> (English website only).

Pandora姞 internet radio

Preparation

1

Search for “Pandora” in the Apple iTunes App Store to find and install the most current version of the Pandora姞 application onto your device.

2

In the application on your device, log in and create an account with Pandora姞. If you are not a registered user, an account can also be created at www.pandora.com.



Pandora姞 is only available in the US.



Because Pandora姞 is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.



Some functions of Pandora姞 cannot be operated from this unit.



For issues using the application, please contact Pandora at pandora-support@pandora.com.

Listening to Pandora

internet radio

Creating a new station

You can create a new station based on the currently playing song or artist.

1

2

A new station is created based on the current song or artist.

-<NEW STATION>

-<From Artist>/

Searching the registered station from the list

1

2

Select the station list display mode.

BY DATE According to the registration date A - Z Alphabetical order

You can proceed directly to step 3 to select station or use the search menu to scroll through the desired menu. (' page 14)

3

Select the desired station.

1

Open the Pandora姞 application on your device.

2

Connect the device to one of the USB terminals. (' page 12)

The source switches and broadcast starts automatically from your current station.

Basic Operations

Starts/pauses playback.

Selects thumbs up/thumbs down.



If thumbs down is selected, current track is skipped.

Skips track.

To bookmark song/artist information

While receiving a song...



(Hold)





“BOOKMARKED” appears and the song/artist

information is stored to the iPod/iPhone.



This unit allows you to bookmark songs and/or artists in your personalized Pandora姞 account. The bookmarks will not be available for review on the unit but will be available in your Pandora姞 account.



-<BOOKMARK>

ENGLISHޓ|

13

Quick Search

If you have many folders/tracks/contacts, you can search through them quickly according to the first character (A to Z, 0 to 9 and OTHERS).

1

Enter list menu or “Hands-Free” menu.

CD (MP3/WMA)/ USB (MP3/WMA/WAV)

iPod/iPhone Bluetooth phonebook

Select the desired list.

2

Select the desired character (A to Z, 0 to 9

3

Select your desired folder/track/contact.

Select <Phonebook>.

and OTHERS).

For CD/USB and iPod/iPhone, repeat step 3 until the desired track is selected.



“OTHERS” appears if the first character is not A to Z or 0 to 9, such as #, -, !, etc.

Searching may not work on some of the layers of the selected menu (for iPod/iPhone).

External components

You can connect an external component to the following terminals:



EXT IN (KD-R80BT/KD-A65 only): Expansion port on the rear of this unit using the following adapters (not supplied):

- JVC KS-U57, Line Input Adapter

- JVC KS-U58, AUX Input Adapter



AUX: AUX (auxiliary) cable from the rear of the unit.

For details, refer also to the instructions supplied with the adapters or external components. For connection to expansion port on the rear of this unit, refer to the “Installation/Connection Manual”.

1

Playing an external component from AUX/expansion port

Portable audio player, etc.

Connect to AUX cable and/or the expansion port from the rear of the unit.

2

Set the source as necessary.



(Hold)

AUX

3.5 mm (1/8") stereo mini plug (not supplied)

Use a 3-terminal plug head stereo mini plug for optimum audio output.

|ޓENGLISH

14



Select <Show>.

-<Source Select>

-<AUX Source> or

-<Show>



Press MENU to exit.

3

Select <AUX IN> or <EXT IN>.

4

Turn on the connected component and start playing the source.

Bluetooth姞 connection

Bluetooth

姞姞 connection

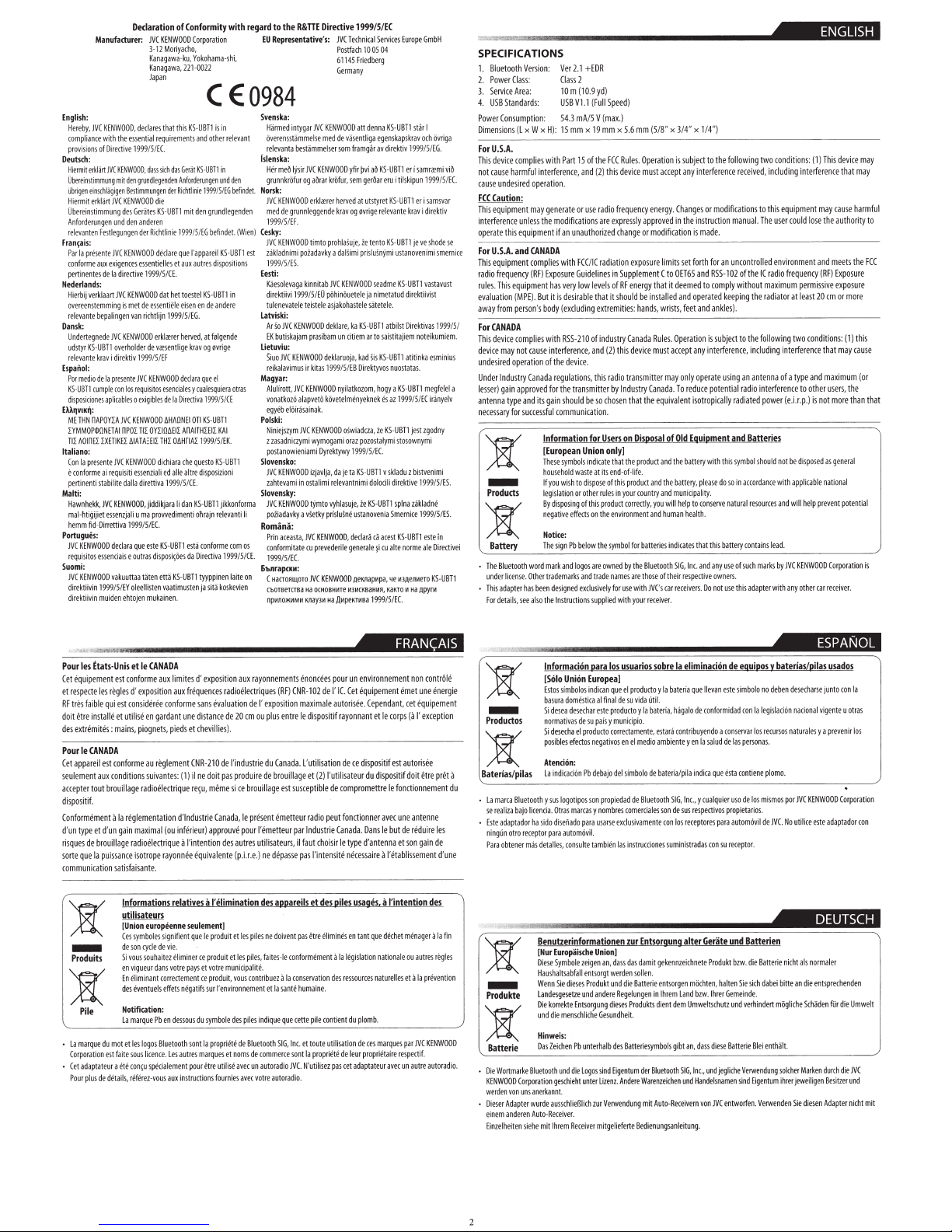

By connecting the supplied KS-UBT1 USB Bluetooth Adapter* and microphone* to this unit, you can operate a Bluetooth device using this unit. Refer to the “Installation/Connection Manual” for details on connecting the microphone. Once the USB Bluetooth Adapter is attached, this unit is always available for pairing.



Refer also to the instructions supplied with the Bluetooth device.



Refer to the separate appendix to check the countries where

KS-UBT1

Microphone

you may use the Bluetooth function.



If you turn off the unit, detach the control panel, or unplug the USB Bluetooth Adapter during a phone call conversation, the Bluetooth connection is disconnected. Continue the conversation using your mobile phone.

* KD-R80BT only. KS-BTA50 Accessory Kit (USB Bluetooth Adapter and microphone) available

separately for KD-A65/KD-R60.

This unit supports the following Bluetooth profiles



Hands-Free Profile (HFP 1.5)



Object Push Profile (OPP 1.1)



Phonebook Access Profile (PBAP 1.0)



Advanced Audio Distribution Profile (A2DP 1.2)



Audio/Video Remote Control Profile (AVRCP 1.3)

Warning:

Stop the car in a safe place before operating complicated steps such as dialing numbers, using phonebook, etc.

Pairing a Bluetooth device

When connecting a Bluetooth device to the unit for the first time, perform pairing between the unit and the device.



Up to five Bluetooth devices can be registered in this unit.



A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time.



This unit supports Secure Simple Pairing (SSP).

1

Connect the USB Bluetooth adapter (KS-UBT1) to one of the USB input terminals.

USB cable from the rear of the unit

KS-UBT1

or

2

Search and select “JVC Unit” on the Bluetooth device.



For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.

ENGLISHޓ|

15

Bluetooth

3

Perform (A) or (B) depending on what appears on the display.



For some Bluetooth devices, pairing sequence may vary from the steps described below

(A)

Device: Passkey: XXXXXX

姞姞 connection

Pairing?

[Device name]

Pairing? Yes: Press VOL No: Press BACK

(B)

Pairing?

Device:

[Device name]

Pairing? Yes: Press VOL No: Press BACK



“XXXXXX” is a 6-digit passkey randomly generated during each pairing.



Ensure that the passkey which appears on the unit and Bluetooth device is the same.



Select “Yes” to confirm the passkey.



(1) When the Bluetooth device prompts you to key in a PIN or passcode, enter the PIN code “0000” into the Bluetooth device. The above should then appear on the display.



You can change to a desired PIN code before pairing. (' page 26)

(2) If only “Pairing” appears, operate the Bluetooth device to confirm pairing.



Operate the Bluetooth device to confirm



Select “Yes” to confirm the pairing.

the passkey.

After pairing is successful, “Pairing COMPLETED” appears on the display. The unit will establish a connection with the newly paired Bluetooth device and you can then control the Bluetooth device through the unit.



“” will light up when a phone is connected.



“” will light up when an audio device is connected.



Once the connection is established, the device is registered to the unit and there is no need to perform the pairing again unless you delete the registered device.



Some Bluetooth devices may not be able to connect to the unit after pairing. Connect the device to the unit manually. Refer to the instruction manual of the Bluetooth device for more information.

Connecting/Disconnecting a registered device manually

To connect

1

2

Select <Connect>.

3

Select the desired device.

“Connecting...” appears on the display when the

unit is connecting to the device. “Connected”#“[Device Name]” appears on the display when the device is connected.

4

Press MENU to exit.

(Hold)

-<Bluetooth>

-<Phone>/<Audio>

-<Connect>

To disconnect

1

2

Select <Disconnect>.

3

Select the desired device.

“Disconnected”#“[Device Name]” appears on the

display when the device is disconnected.

4

Press MENU to exit.

(Hold)

-<Bluetooth>

-<Phone>/<Audio>

-<Disconnect>

|ޓENGLISH

16

Bluetooth

姞姞 connection

Connecting to JVC original application

JVC original application is designed to view JVC car receiver status and perform simple control operations on Android smart phones.



For JVC original application operations, visit JVC website: <http://www3.jvckenwood.com/english/car/ index.html> (English website only).

1

2

Select <Connect>.

3

Select the desired smart phone.

(Hold)

-<Bluetooth>

-<Application>

-<Connect>

Deleting a registered device

1

2

Select <Delete OK>.

“OK” appears when the device is deleted.

3

Press MENU to exit.

(Hold)

-<Bluetooth>

-<Delete Pairing>

- [Device Name]

-<Delete OK?>



“Connected”#“[Device Name]” appears on the display when the device is connected.

4

Press MENU to exit.

Bluetooth mobile phone

Receiving a call

To receive a call

When there is an incoming call, the source automatically changes to “BT-1”/“BT-2”.



“Receiving...” appears on the display, followed by the phone number or name.



The display flashes in blue. (' page 20)

or

You can also press ////SOURCE on the remote control to answer a call.



When <Auto Answer> is set to <On>, the unit answers incoming calls automatically. (' page 20)

To end a call

or

(Hold)

You can also press and hold ////SOURCE on the remote control to end a call.

(Hold)

To deactivate/activate hands-free mode

During a phone conversation...



Operations may vary according to the connected Bluetooth device.

ENGLISHޓ|

17

Bluetooth mobile phone

Adjustments during a call

Text message notification

Phone volume(00 — 50) [Volume 15]: Volume

adjustments made during a call will not affect the other sources.

Microphone level (01— 03)[02]: As the number

increases, the microphone becomes more sensitive.

When a text message is received, the unit rings and “[Device Name]”#“Received Message” appears.



<Message Notice> must be set to <On>. (' page 20)



You cannot read, edit, or send a message through the unit.



This feature is only available on certain phones.

Noise Reduction and Echo Cancellation mode:

Turns on/off.

Switching between two connected mobile phones

When two mobile phones are connected to the unit, you can access to both “Hands-Free” menus.



Press  / FUNC. to enter 1st phone’s “Hands-Free” menu.



Press  / FUNC. twice to enter 2nd phone’s “Hands-Free” menu.



Press  to return to 1st phone’s “Hands-Free” menu.

Making a call from the hands-free menu

1

Enter the “Hands-Free” menu.

3

Select and call the contact (name/phone number).

Dialed Calls

Select the name/phone number

Received Calls

Missed Calls

Phonebook

If the phonebook contains many numbers, you can fast search for the desired number by turning the control dial quickly, or use Quick Search (' page 14).



“No History Found” appears if there is no recorded call history.



“No Data” appears if no entries are found in the Bluetooth device’s phonebook.



“Send Phonebook Manually” appears if <Phonebook Select> is set to <In Unit> or the phone does not support PBAP. (' page 20)

Dial Number Enter the phone number to dial.

Select number/character

2

Select a calling method.

Refer to the table below for options.

Call

Move the entry position

Call

|ޓENGLISH

18

Bluetooth mobile phone

Using voice recognition

You can use the voice recognition features of the connected phone through this unit.



“Not Support” appears if the connected phone does not support this feature.

1

Enter voice recognition mode.

If only one phone is connected,

(Hold)

If two phones are connected,

Select the desired phoneEnter “phone list”

(Hold)

2

When “Waiting Voice”#“[Device Name]” appears on the display, speak the name of the contact you want to call or the voice command to control the phone functions.

Supported voice recognition features vary for each phone. Please refer to the instruction manual of the connected phone for details.

Deleting a contact (name/ phone number)

Only when <Phonebook Select> is set to <In Unit>. (' page 20)

1

Enter the “Hands-Free” menu.

2

Select a call method.

-<Dialed Calls>/ <Received Calls>/ <Missed Calls>/ <Phonebook>

3

Select the contact (name/phone number) to be deleted.

Name

4

Enter “Delete Entries” menu.

(Hold)

5

Select <Delete> or <Delete All>.

Phone Number

or

Delete Selected name/phone number

from step 3 is deleted.

Delete All

All name/phone numbers from selected menu in step 2 are deleted.

ENGLISHޓ|

19

Bluetooth mobile phone

Using the Settings menu

3

1

Enter the “Hands-Free” menu.

2

Select <Settings>.

The following settings are applicable to the paired device. If another device is paired, perform the settings again.

Repeat this step to perform the necessary settings.



To return to the previous menu, press .



To exit from the menu, press MENU.

Menu item

Phonebook Select *

Auto Answer On: The unit answers incoming calls automatically.

Ringing Tone [In Unit]: The unit rings to alert you when a call/text message comes in.

Ringing Color

NR/EC Mode [On]: Turns on the Noise Reduction and Echo Cancellation of the connected

[In Phone]: The unit browses the phonebook of the connected phone. In Unit: The unit browses the phonebook registered in the unit. (You can copy

the phonebook memory using <Phonebook Trans> (' page 26).)

[Off]: The unit does not answer incoming calls automatically.

– Call Tone: Select your preferred ring tone (Tone 1 — 5) for incoming calls. – Message Tone: Select your preferred ring tone (Tone 1 — 5) for incoming text messages.



Default ring tone is different according to the paired device. In Phone: The unit uses the connected phones’ ring tone to alert you when a call/text message comes in. (The connected phone will ring if it does not support this feature.)

Color 01 — 29[06]: Select your preferred color for incoming call/text message alerts. Off: Cancels.

microphone for clearer sound.

Off: Cancels.

Selectable setting (Initial: [XX])

MIC Setting

Message Notice

* Selectable only when the connected phone supports PBAP.

|ޓENGLISH

20

Level (01— 03)[02]: The sensitivity of the microphone increases as the MIC level is increased.

[On]: The unit rings and “[Device Name]”#“Received Message” appears to alert you of an incoming text message. Off: The unit does not alert you of an incoming text message.

姞

Bluetooth audio player

Playing a Bluetooth audio player

Bluetooth audio player

A



Select <BT-1> or <BT-2> depending on the location of the USB Bluetooth adapter KS-UBT1.



Operate the Bluetooth audio player to start playback.

Operations and display indications may differ according to their availability on the connected device.

.

Basic operations

Starts or resumes playback.

Mutes the sound.

Selects group/folder.

Reverse skips or forward skips. (Press) Fast-forwards or reverses the track. (Hold)

Random  

Off Cancels random playback. All

Group

Listening to BT Pandora姞

Randomly plays all tracks. Randomly plays all tracks of

the current group.

internet radio

You can listen to Pandora姞 internet radio on your smart phone through Bluetooth on this unit.

1

Open the Pandora姞 application on your device.

2

Connect to Bluetooth audio.

Refer to “To connect” ' page 16, select <Bluetooth>#<Audio>#<Connect>.

Selecting the playback modes

For Bluetooth devices that support AVRCP 1.3.

1

(Hold)

2

Repeat  

Off Cancels repeat playback. Track Repeats current track. All Repeats all tracks.

Group

Repeats all tracks of the current group.

3

Select <BT-1> or <BT-2> depending on the location of the USB Bluetooth adapter KS-UBT1.

4

Select <Pandora>.

(Hold)

The source switches and broadcast starts automatically.



You can also activate Pandora姞 on your Bluetooth smart phone via <BT Audio Switch>. (' page 26)



BT Pandora姞 internet radio is only for Android OS and RIM OS.



You can operate Pandora姞 in the same way as Pandora姞 for iPod/iPhone. (' page 13)

ENGLISHޓ|

21

Illumination color adjustments

Button zone

Display zone

All zone

Selecting the preset color

You can select a preset color for <Button Zone>, <Display Zone>, and <All Zone> separately.

1

2

Select <Color>.

(Hold)

All zone: Includes both Button zone and Display zone.

Storing your own adjustments

You can store your own day and night colors for <Button Zone> and <Display Zone> separately.

1

2

Select <Color Setup>.

(Hold)

3

Button Zone

Display Zone

All Zone



Initial color: Button Zone [Color 06], Display Zone [Color 01], All Zone [Color 06].



If <All Zone> is selected, the button and display illumination will change to the current/ selected <Button Zone> color.

4

Press MENU to exit.

Color 01-29/User/ COLORFLOW 1-3*

* Color changes in

different speeds.

3

Day Color

Night Color

Menu Color

Button Zone

Display Zone

Button Zone

Display Zone

On

Off



Press / to select a primary color <Red/ Green/Blue>, then turn the control dial to adjust the level <00-31>. Repeat this procedure until you have adjusted all the three primary colors.



Your adjustment is automatically stored to “User”.



If “00” is selected for all the primary colors for <Display Zone>, nothing appears on the display.

Changes the display and buttons illumination during menu, list search, and playback mode operations.

|ޓENGLISH

22



Night Color/Day Color is changed by turning on/off your car’s headlight.

4

Press MENU to exit.

Brightness adjustments

You can select your preferred brightness for <Button Zone>, <Display Zone> separately.

1

2

Brightness adjustments



FUNC. is only available for KD-A65/KD-R60.



For KD-R80BT, ' page 24.

Button Zone Level 00 to 31 Display Zone Level 00 to 31

3

Press MENU to exit.

Sound adjustments

This unit memorizes sound settings adjusted for each individual source. HD Radio tuner, Satellite Radio tuner and <EXT IN> share the same sound adjustment settings. (KD-R80BT/KD-A65 only)

Selecting the preset sound

You can select a preset sound mode, for each individual source, suitable for the music genre.

- - - - - - - - or - - - - - - - -

Press repeatedly.

DYNAMIC-VOCAL-BASS-USER-FLATNATURAL-(back to the beginning)

Pro Equalizer

1

2

3

Press  /  to adjust the frequency.

4

Press  /  to adjust the Q-slope.

5

Adjust the level.

(Hold)

-<PRO EQ>

-<Bass>**/<Middle>/

Storing your own adjustments

While listening, you can adjust and store the tone level for each individual source.

Easy Equalizer

1

2

Select a setting item (Sub. W/Bass/Middle/ Treble).

3

Adjust the level.

Sub.W* 00 to 08 [08] Bass** -6 to +6 [+5] Middle -6 to +6 [0] Treble -6 to +6 [+5]

The adjustments are stored and <USER> is activated.

(Hold)

(Initial: [XX])

Adjust the sound elements of the selected tone.

Bass (Initial: [XX])

Frequency 60/80/[100]/200 Hz Level Lvl -6 to +6 [+5] Q [Q1.0]/Q1.25/Q1.5/Q2.0

Middle

Frequency 0.5/[1]/1.5/2.5 kHz Level Lvl -6 to +6 [0] Q Q0.75/Q1.0/[Q1.25]

Treble

Frequency 10/[12.5]/15/17.5 kHz Level Lvl -6 to +6 [+5] Q [FIX]

6

Repeat steps 2 to 5 to adjust other tones.

The adjustments are stored and <USER> is activated.

7

Press MENU to exit.

* Adjustable only when <Subwoofer On/Off>

is set to <On>. (' page 25)

** Adjustable only when <HPF> is set to <Off>.

(' page 25) (KD-R60 only)

ENGLISHޓ|

23

Menu operations

1

If no operation is done for about 60 seconds, the operation will be canceled.

(Hold)

3

Repeat step 2 if necessary.



To return to the previous menu, press .



To exit from the menu, press DISP or MENU.

2

Menu item

DEMO

Clock Display On: Shows the clock display when the power is off.

Set Clock 24H/12H Clock Adjust Off: Cancels.

Clock

Time Zone *1*2

DST *1*2 [On]: Activates daylight savings time if your residential area is subject to

Color Color Setup

Dimmer Set Selects the display and button illumination adjusted in the <Brightness>/

Dimmer

Brightness Day Brightness[31]/Night Brightness[15]: Brightness settings for the

Scroll *4 Off: Cancels.

Tag Display [On]: Shows the TAG information while playing MP3/WMA/WAV tracks.

LCD Type [Negative]: Negative pattern of the display.

Display

Contrast Level 01 — Level 15 [Level 09]: Adjusts the contrast of the display to

*1 Displayed only when SIRIUS Satellite Radio or XM Satellite Radio is connected. *2 Displayed only when <Clock Adjust> is set to <Auto>. *3 The illumination control lead connection is required. (See “Installation/Connection Manual”.)

This setting may not work correctly on some vehicles (particularly on those having a control

dial for dimming). In this case, change the setting to other than <Dimmer Auto>. *4 Some characters or symbols will not be shown correctly (or will be blanked) on the display. *5 Depends on the <Dimmer Set> setting.

For settings, ' page 4.

[Off]: Cancels. For settings, ' page 4. For settings, ' page 4.

[Auto]: The built-in clock is automatically adjusted using the clock data provided via the Satellite Radio channel.

[Eastern]/Atlantic/Newfndlnd/Alaska/Pacific/Mountain/Central: Selects your residential area from one of the time zones for clock adjustment.

DST. Off: Cancels.

For settings, ' page 22.

<Color Setup> setting.

Off: Selects the Day adjustments. On: Selects the Night adjustments. [Auto]: Changes between the Day and Night adjustments when you turn

off/on the car headlights. *3 Time Set: Sets the start/end timer for dimmer. Turn the control dial to adjust the start time, then press the control dial to confirm. Repeat this step to enter the end time.

display and button illumination for day and night.

Button Zone/Display Zone: Sets the brightness levels 00 — 31.

[Once]: Scrolls the display information once. Auto: Repeats scrolling (at 5-second intervals).

Off: Cancels.

Positive: Positive pattern of the display. Auto: Positive pattern will be selected during the day*5, while negative will

be selected during the night*5.

make indications clear and legible.

Selectable setting (Initial: [XX])

|ޓENGLISH

24

Menu operations

Menu item

PRO EQ

Fad/Bal *6*7

For settings, ' page 23.

R6 — F6[0]: Press  /  to adjust the front and rear speaker output balance.

Selectable setting (Initial: [XX])

L6 — R6[0]: Press  /  to adjust the left and right speaker output balance.

Loud

(Loudness)

On: Boosts low and high frequencies to produce a well-balanced sound at a low volume level.

[Off]: Cancels.

Volume Adjust

Level -5 — Level +5[Level 0]: Presets the volume adjustment level of

each source, compared to the FM volume level. Before adjustment, select the source you want to adjust. (“FIX” appears if “FM” is selected.)

Subwoofer On/ Off

Subwoofer LPF *8

[On]: Turns on the subwoofer output. Off: Cancels.

LOW 55Hz/MID 85Hz/[HIGH 120Hz]: Audio signals with frequencies

lower than 55 Hz/85 Hz/120 Hz are sent to the subwoofer.

Subwoofer

00 — 08[08]: Adjusts the subwoofer output level.

Level *8 Subwoofer

Phase *8

Audio

HPF

(High-pass filter) (KD-R80BT/ KD-A65 only)

HPF

(High-pass filter) (KD-R60 only)

Beep

[0 Deg] (normal)/180 Deg (reverse): Selects the subwoofer phase.

Low 100Hz/Mid 120Hz/High 150Hz: Activates the High Pass Filter. Audio

signal with frequencies lower than 100 Hz/120 Hz/150 Hz are cut off from the front/rear speakers.

[Off]: Deactivates. (All signals are sent to the front/rear speakers.) On: Activates the High Pass Filter. Low frequency signals are cut off from

the front/rear speakers.

[Off]: Deactivates. (All signals are sent to the front/rear speakers.) [On]/Off: Activates or deactivates the keypress tone.

(Keytouch tone)

Amplifier Gain

Off: Deactivates the built-in amplifier. Low Power: Limits the maximum volume level to 30. (Select if the

maximum input power of each speaker is less than 50 W to prevent damaging the speakers.)

[High Power]: The maximum volume level is 50.

SSM

For settings, ' page 7. (Displayed only when the source is “FM” or “HD Radio”.)

Area Change

(Frequency tuning interval)

IF Band

(Intermediate frequency band)

[US]: For North/Central/South America, AM/FM intervals: 10kHz/200kHz. EU: For any other areas, AM/FM intervals: 9kHz/50kHz. SA: For some South American countries, AM/FM intervals: 10kHz/50kHz.

[Auto]: Increases the tuner selectivity to reduce interference noises

between adjacent stations. (Stereo effect may be lost.) Wide: Subject to interference noises from adjacent stations, but sound quality will not be degraded and the stereo effect will remain.

Tuner

Sirius ID *9 The 12-digit SIRIUS identification number appears on the display. (Displayed

only when SIRIUS Satellite Radio is connected.)

Blend Hold *9

For settings, ' page 8. (Displayed only when the source is “HD Radio”.)

Stereo/Mono Displayed only when the source is “FM” or “HD RADIO”.

[Stereo]: Enables stereo FM reception. Mono: Improves the FM reception but stereo effect will be lost.

Radio Timer *10

For settings, ' page 7.

*6 If you are using a two-speaker system, set the fader level to “0”. *7 This adjustment will not affect the subwoofer output. *8 Displayed only when <Subwoofer On/Off> is set to <On>. *9 For KD-R80BT/KD-A65 only. *10 Not available when JVC KT-HD300 HD Radio tuner box is connected.

ENGLISHޓ|

25

Menu operations

Menu item

Selectable setting (Initial: [XX])

USB *11 Drive Change: Selects to change the drive when a device with multiple

drives is connected to the USB input terminal.

iPod Switch *12 (iPod/iPhone control)

[Headunit Mode]/iPod Mode/Application Mode: For settings, ' page 12.

Audiobooks *12 Normal/Faster/Slower: Selects the playback speed of the Audiobooks

sound file in your iPod/iPhone. Initial selection depends on your iPod/iPhone setting.

Phone *14 Connect/Disconnect: Connects or disconnects the Bluetooth phone/ Audio

audio device. (' page 16)

Application Connect/Disconnect: Connects or disconnects the application in the

smart phone. (' page 17)

BT Audio

Switches between “Bluetooth Audio” and “Bluetooth Pandora”.

Switch *15 Delete Pairing

Phonebook Trans

For settings, ' page 17. Copies up to 400 numbers from the phonebook memory of a connected

phone to the unit via OPP.

Set PIN Code Changes the PIN code (1 to 6-digits). (Default PIN code: 0000)

Turn the control dial to select a number, press  /  to move to the entry position. After entering the PIN code, press the control dial to confirm.

Auto Connect [On]: Establishes connection automatically with the Bluetooth device when

Bluetooth *13

the unit is turned on.

Off: Cancels.

Initialize [No]: Cancels.

Yes: Initializes all the Bluetooth settings (including stored pairing,

phonebook, and etc.).

Information Connected Phone/Connected Audio/Connected Application *16:

Displays connected phone/audio/application device name.

My BT Name: Displays the unit name (JVC Unit). My Address: Shows address of USB Bluetooth Adapter.

Ext Input *17 Show/[Hide]: Enables or disables “EXT IN” in source selection. AM Source *17 [Show]/Hide: Enables or disables “AM” in source selection. AUX Source *17 [Show]/Hide: Enables or disables “AUX In” in source selection. Bluetooth

Audio *18

Source Select

[Show]/Hide: Enables or disables “BT Audio” in source selection.

Software Version Displays the firmware version of the unit.

*11 Displayed only when the source is “USB-1/USB-2”. *12 Displayed only when the source is “iPod-1/iPod-2”. *13 If the USB Bluetooth Adapter is not connected to the unit, “Please Connect BT Adapter”

appears on the display. *14 <Connect> will not be displayed if two Bluetooth phones are connected at the same time. *15 Displayed only when the source is “BT-1/BT-2”. *16 Displayed only when a Bluetooth phone/audio player/application is connected. *17 Displayed only when the unit is in any source other than the corresponding source “Ext Input/

AM Source/AUX Source”. *18 Displayed only when the USB Bluetooth Adapter (KS-UBT1) is attached and current source is

not “BT-1/BT-2”.

|ޓENGLISH

26

Remote controller

Preparing

When you use the remote controller for the first time, pull out the insulation sheet.

Insulation sheet

For USA-California Only: This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material— special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

Replacing the lithium coin battery



If the effectiveness of the remote controller decreases, replace the battery.

CR2025

Warning:



Do not install any battery other than CR2025 or its equivalent.



Do not leave the remote controller in places (such as dashboards) exposed to direct sunlight for a long time.



Store the battery in places out of reach of children.



Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.



Do not place the battery with other metallic materials.



Do not poke the battery with tweezers or similar tools.



Insulate the battery by wrapping it with tape when disposing or storing it.

This unit is equipped with the steering wheel remote control function. For details, refer also to the instructions supplied with the remote adapter.

Caution:



Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.



Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

ENGLISHޓ|

27

Additional information

About discs

This unit can only play the following CDs:

This unit can play back multi-session discs; however, unclosed sessions will be skipped during playback.

Unplayable discs



Discs that are not round.



Discs with coloring on the recording surface or discs that are dirty.



Recordable/ReWritable disc that has not been finalized. (For details on disc finalization, refer to your disc writing software and your disc recorder instruction manual.)



8 cm (3 inch) CD. Attempting to insert using an adapter can cause malfunction. There may also be problems ejecting the disc if inserted.

Handling discs



Do not touch the recording surface of the disc.



Do not stick tape etc. on the disc, or use a disc with tape stuck on it.



Do not use any accessories for the disc.



Clean from the center of the disc and move outwards.



Clean the disc with a dry silicon or soft cloth. Do not use any solvents.



When removing discs from this unit, pull them out horizontally.



Remove any burrs from the center hole and disc edge before inserting a disc.

DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

About audio files

Playable files



File extensions: MP3(.mp3), WMA(.wma), WAV(.wav)

For MP3/WMA discs:



Bit rate: MP3/WMA: 5 kbps - 320 kbps



Sampling frequency: MP3 (MPEG-1): 32 kHz, 44.1 kHz, 48 kHz MP3 (MPEG-2): 16 kHz, 22.05 kHz, 24 kHz WMA: 8 kHz - 48 kHz

For USB devices:



Bit rate: MP3 (MPEG-1): 32 kbps - 320 kbps MP3 (MPEG-2): 8 kbps - 160 kbps WMA: 5 kbps - 320 kbps WAV: Linear PCM at 705 kbps and 1 411 kbps



Sampling frequency: MP3 (MPEG-1): 32 kHz, 44.1 kHz, 48 kHz MP3 (MPEG-2): 16 kHz, 22.05 kHz, 24 kHz WMA: 8 kHz - 48 kHz WAV: 44.1 kHz



Channel: WMA/WAV: 1 ch/2 ch



Variable bit rate (VBR) files. (The elapsed time for VBR files will not be displayed correctly.)

Unplayable files



MP3 files:

- encoded in MP3i and MP3 PRO format

- encoded in an inappropriate format

- encoded with Layer 1/2



WMA files:

- encoded in lossless, professional, and voice format

- not based upon Windows Media® Audio

- copy-protected with DRM



Files which include data such as AIFF, ATRAC3, etc.

File/folder names

This unit supports files/folder names recorded in a format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet, and the proper extension code <.mp3>, <.wma> or <.wav>.

|ޓENGLISH

28

Others



This unit can show WMA Tag and ID3 Tag Version 1.0/1.1/2.2/2.3/2.4 (for MP3).



The search function works but search speed is not constant.

Additional information

About USB device



When connecting a USB cable, use the USB 2.0 cable.



You cannot connect a computer or portable HDD to the USB input terminal of the unit.



Connect only one USB device to the unit at a time. Do not use a USB hub.



USB devices equipped with special functions such as data security functions cannot be used with the unit.



Do not use a USB device with 2 or more partitions.



This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.



This unit may not recognize a memory card inserted into the USB card reader.



This unit may not play back files in a USB device properly when using a USB extension cord.



Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.



Operation and power supply may not work as intended for some USB devices.



The maximum number of characters for: – Folder names: 25 characters – File names: 25 characters – MP3 Tag: 128 characters – WMA Tag: 128 characters – WAV Tag: 128 characters



This unit can recognize a total of 20000 files, 2000 folders (999 files per folder including folder without unsupported files), and of 8 hierarchies. However, the display can only show until 999 folders/files.

About iPod/iPhone



iPod/iPhone that can be connected to this unit:

- iPod touch (4th generation)

- iPod touch (3rd generation)

- iPod touch (2nd generation)

- iPod touch (1st generation)

- iPod classic

- iPod with video (5th generation)*

- iPod nano (6th generation)

- iPod nano (5th generation)

- iPod nano (4th generation)

- iPod nano (3rd generation)

- iPod nano (2nd generation)

- iPod nano (1st generation)*

- iPhone 4S

- iPhone 4

- iPhone 3GS

- iPhone 3G

- iPhone *<iPod Mode>/<Application Mode> are not applicable.



It is not possible to browse video files on the “Videos” menu in <Headunit Mode>.



The song order displayed on the selection menu of this unit may differ from that of the iPod.



When operating an iPod/iPhone, some operations may not be performed correctly or as intended. In this case, visit the following JVC website: <http://www3.jvckenwood.com/english/car/ index.html> (English website only).

Cautions



Do not pull out and attach the USB device repeatedly while “READING” is shown on the display.



Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset this unit and the USB device.



Do not leave a USB device in the car, expose to direct sunlight, or high temperature. Failure to do so may result in deformation or cause damages to the device.

ENGLISHޓ|

29

Additional information

About Bluetooth



Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.



This unit may not work with some Bluetooth devices.



Signal conditions vary, depending on the surroundings.



When the unit is turned off, the device is disconnected.



For more information about Bluetooth, visit the following JVC website: <http://www3.jvckenwood.com/english/car/ index.html> (English website only)

Trademark and license notice



Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.



The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.



Ready to receive HD Radio broadcasts when connected to the KT-HD300, sold separately.



“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone may affect wireless performance.



iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.



PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.

|ޓENGLISH

30

Troubleshooting

Symptom Remedy/Cause

4 General

No sound, sound interrupted or static noise.



Check the cords, antenna and cable connections.



Check the condition of the disc, connected device and recorded tracks.



Ensure to use the recommended stereo mini plug when connecting to an external component. (' page 14)

“Miswiring Check Wiring Reset The Unit”/“Warning Check Wiring Reset The Unit” appears on the display and no operations

Ensure the terminals of the speaker leads are properly insulated with tape before resetting the unit. (' page 4) If the message does not disappear, consult your JVC car audio dealer or kits supplying company.

can be done. The unit does not work at all. Source cannot be selected. The correct characters are not

displayed (e.g. album name).

Reset the unit. (' page 4) Check the <Source Select> setting. (' page 26) This unit can only display letters (upper case), numbers, and a

limited number of symbols.

4 FM/AM

SSM automatic presetting does

Store stations manually.

not work.

4 CD/USB/iPod/iPhone

“Please Eject” appears on the

Press [], then insert the disc correctly.

display. “In Disc” appears on the display. The disc cannot be ejected properly. Make sure nothing is

blocking the loading slot.



“Reading” keeps flashing on the display.

Tracks/folders are not played back in the order you have

A longer readout time is required. Do not use too many hierarchical levels and folders.



Reload the disc or reattach the USB device.

The playback order is determined by the file name (USB) or the order in which files were recorded (disc).

intended. The elapsed playing time is not

correct.

This sometimes occurs during playback. This is caused by how the tracks are recorded on the disc.

“No File” appears on the display. Check whether the selected folder, the connected USB device,

or the iPod/iPhone contains a playable file.

“Not Support” appears on the

Check whether the track is a playable file format.

display and track skips.



“Cannot Play” flashes on the display.



The unit cannot detect the connected device.

The iPod/iPhone does not turn on or does not work.



Check whether the connected device is compatible with this unit. (USB: ' page 34) (iPod/iPhone: ' page 29)



Ensure that the device contains files in the supported formats. (' page 28)



Reattach the device.



Check the connection between this unit and iPod/iPhone.



Detach and reset the iPod/iPhone using hard reset. For details on resetting the iPod/iPhone, refer to the instruction manual supplied with the iPod/iPhone.



Check whether <iPod Switch> setting is appropriate. (' page 12)

“CANNOT SKIP” The skip limit has been reached. “NO STATION” No registered station in your iPod/iPhone. “NO ACTIVE STATION” No active station. “SET UP PANDORA ON YOUR

Pandora姞

DEVICE”

Pandora姞 setup is not completed. Connect the iPod/iPhone to this unit after completing the setup in your iPod/iPhone.

ENGLISHޓ|

31

Troubleshooting

Symptom Remedy/Cause

New station creation:

“NO STATION” There are no stations found for the current song or artist. “STATION REACH LIMIT” You may not create more than 100 stations. “CANNOT MAKE NEW

Pandora姞

STATION”

4 HD Radio

Sound quality changes when receiving HD Radio stations.

No sound can be heard.

“Reset 08” appears on the display.

4 Satellite Radio

“UNSUBSCRIBED CH” appears on the display while listening to the SIRIUS Satellite Radio.

No sound can be heard. “UPDATING” appears on the display.

“ACQUIRING SIGNAL” or “NO SIGNAL” appears on the display.

“ANTENNA ERROR” or “CHECK ANTENNA” appears on the display.

“INVALID CHANNEL” appears on the display for about 5 seconds, then returns to the previous channel or default channel while listening to the SIRIUS Satellite Radio.

Blank display appears. No text information for the selected channel. “CHANNEL---” or “CHANNEL

UNAVL” appears on the display for about 2 seconds, then returns to the previous channel while listening to the XM Satellite Radio.

“OFF AIR” appears on the display while listening to the XM Satellite Radio.

“LOADING” appears on the display while listening to the XM Satellite Radio.

“RESET 08” appears on the display. Satellite Radio does not work at all.

There is a problem creating a new station, such as a network issue.

Fix the reception mode to either <Analog> or <Digital>. (' page 8)



<Analog> is selected when receiving all digital broadcast of HD Radio station. Select <Auto> or <Digital>. (' page 8)



<Digital> is selected when receiving weak digital signals or receiving conventional radio broadcast. Select <Auto> or <Analog>. (' page 8)

Reconnect this unit and the HD Radio tuner box correctly, then reset the unit.

SIRIUS or XM Satellite Radio is connected but does not have an active subscription. For information on how to subscribe, ' page 9.

The unit is updating the channel information and it takes a few minutes to complete.

Make sure your Satellite Radio antenna is mounted outside the vehicle. Move the vehicle to an area with a clear view of the sky.

Check your Satellite Radio antenna connection and be sure it is firmly attached.



No broadcast on the selected channel.



Select another channel or continue listening to the previous channel or default channel.



Selected channel is no longer available or is unauthorized.



Select another channel or continue listening to the previous channel.



Selected channel is not broadcasting at this time.



Select another channel or continue listening to the previous channel.



The unit is loading the channel information and audio.



Text information are temporarily unavailable.

Reconnect this unit and the Satellite Radio correctly and reset this unit.

|ޓENGLISH

32

Troubleshooting

Symptom Remedy/Cause

4 Bluetooth

“BT-1”/“BT-2” cannot be selected.

No Bluetooth device is detected.

Pairing cannot be made.

“Pairing Full” appears on the display when trying to perform pairing.

Echo or noise occurs.

Phone sound quality is poor.

The unit does not respond when you try to copy the phonebook to the unit.

Sound is being interrupted or skipped during playback of a Bluetooth audio player.

The connected Bluetooth audio player cannot be controlled.

“Voice” calling method is not successful.

“Not Support” appears when trying to perform voice dial.

“Connection Error” appears on the display.

“Error” appears on the display. Try the operation again. If “Error” appears again, check if the

“Please Wait” appears on the

display.

“HW Error” appears on the display.

“BT Device Not Found” appears on the display.

Check <Bluetooth Audio> in the <Source Select> setting. (' page 26)



Search from the Bluetooth device again.



Reset the unit. (' page 4)



Make sure you have entered the same PIN code to both the unit and Bluetooth device.



Delete pairing information from both the unit and the Bluetooth device, then perform pairing again.



You have already registered the maximum of five Bluetooth devices in the unit. To pair another device, delete an existing paired device from the unit first. (' page 17)



Adjust the microphone unit’s position.



Adjust <NR/EC Mode> and <Mic Level> to a better combination. (' page 20)



Reduce the distance between the unit and the Bluetooth device.



Move the car to a place where you can get a better signal reception.

You may have tried to copy the same entries (as stored) to the unit. Press DISP or  to exit.



Reduce the distance between the unit and the Bluetooth audio player.



Turn off, then turn on the unit and try to connect again.



Other Bluetooth devices might be trying to connect to the unit.



Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)



Disconnect and connect the Bluetooth player again.



Use “Voice” calling method in a more quiet environment.



Reduce the distance from the microphone when you speak the name.



Change “NR/EC Mode” to “Off” (' page 20), then try again.

The connected phone does not support this feature.

The device is registered but the connection has failed. Connect the device manually. (' page 16)

device supports the function you have tried. The unit is preparing to use the Bluetooth function. If the

message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit). (' page 4)

Reset the unit and try the operation again. If “HW Error” appears again, consult your nearest JVC car audio dealer.



The unit failed to search for the registered Bluetooth devices during Auto Connect. Turn on Bluetooth from your device and connect manually.

ENGLISHޓ|

33

Specifications

AUDIO AMPLIFIER SECTION

Power Output 20 W RMS x 4 Channels at 4Ω and

≤1% THD+N

Load Impedance 4Ω (4Ω to 8Ω allowance)

Frequency Response 40 Hz to 20 000 Hz Signal-to-Noise Ratio 80 dBA (reference: 1 W into 4Ω) Line-Out, Subwoofer-Out Level/Impedance 4.8 V (KD-R80BT/KD-A65), 2.5 V (KD-R60)/20 kΩ

load (full scale)

Output Impedance ≤ 600Ω

TUNER SECTION

FM Frequency Range 200 kHz step: 87.9 MHz to 107.9 MHz

50 kHz step: 87.5 MHz to 108.0 MHz Usable Sensitivity 9.3 dBf (0.8 μV/75Ω) 50 dB Quieting Sensitivity 16.3 dBf (1.8 μV/75Ω) Alternate Channel

Selectivity (400 kHz) Frequency Response 40 Hz to 15 000 Hz Stereo Separation 40 dB

AM Frequency Range 10 kHz step: 530 kHz to 1 700 kHz

Sensitivity/Selectivity 20 μV/40 dB

65 dB

9 kHz step: 531 kHz to 1 611 kHz

CD PLAYER SECTION

Signal Detection System Non-contact optical pickup (semiconductor

laser)

Number of Channels 2 channels (stereo) Frequency Response 5 Hz to 20 000 Hz Signal-to-Noise Ratio 98 dB Wow and Flutter Less than measurable limit

USB SECTION

USB Standard USB 1.1, USB 2.0 Data Transfer Rate (Full Speed) Max. 12 Mbps Compatible Device Mass storage class Compatible File System FAT 32/16/12 Playable Audio Format MP3/WMA/WAV Maximum Supply Current

DC 5 V " 1 A

BLUETOOTH SECTION

Version Bluetooth 2.1 certified (+EDR) Power Class Class 2 Radio Service Area 10 m (10.9 yd) Profile HFP 1.5, OPP 1.1, A2DP 1.2, AVRCP 1.3, PBAP 1.0

|ޓENGLISH

34

GENERAL

Power Requirement (Operating Voltage) DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Allowable Operating Temperature 0°C to +40°C (32°F to 104°F) Dimensions

(W × H × D) (approx.)

Mass

Subject to changes without notice.

Installation Size 182 mm × 52 mm × 159 mm

(7-3/16" × 2-1/16" × 6-5/16")

Panel Size 188 mm × 59 mm × 13 mm

(7-7/16" × 2-3/8" × 9/16")

1.4 kJ (3.1 lbs) (excluding accessories)

Specifications

ENGLISHޓ|

35

.

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

USA ONLY

Still having trouble??

Call 1-800-252-5722

http://www.jvc.com

We can help you!

.

K EN, SP, FR

0212DTSSANJEIN

KD-R80BT/KD-A65/KD-R60

Installation/Connection Manual Manual de instalación/conexión

GET0798-002A

[J]

ENGLISH / ESPAÑOL / FRANÇAIS

• Mounting and wiring this product requires skills and experience. For safety’s sake, leave this work to professionals. If you experience problems during installation, consult your JVC car audio dealer.

• The unit can only be installed in a car with a 12 V DC power supply, negative ground.

• Disconnect the battery’s negative terminal and make all electrical connections before installing the unit.

• Connect speakers with a maximum power of more than 50 W (impedance of 4 Ω to 8 Ω). Otherwise, change the <Amplifier Gain> setting. (See page 25 of the INSTRUCTIONS.)

• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.

• If the fuse blows, first make sure the wires are not touching to cause a short circuit, then replace the old fuse with one that has the same rating.

• Install this unit in the console of your vehicle.

• Mount the unit so that the mounting angle is 30° or less.

• Be sure to ground this unit to the car’s chassis again after installation.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot.

Manuel d’installation/raccordement

WARNINGS / ADVERTENCIAS / AVERTISSEMENTS

• La instalación y cableado de este producto requiere de habilidad y experiencia. Por motivos de seguridad, deja la labor de instalación y montaje en manos de profesionales. Si experimenta problemas durante la instalación, póngase en contacto con su distribuidor de equipos de audio para automóvil JVC.

• La unidad puede instalarse solamente en un automóvil con fuente de alimentación de 12 V CC, negativo a masa.

• Desconecte el terminal negativo de la batería y realice todas las conexiones eléctricas antes de instalar la unidad. Conecte los altavoces con una potencia máxima de más de 50 W

• (impedancia de 4 Ω a 8 Ω). De lo contrario, cambie el ajuste <Amplifier Gain>. (Véase la página 25 del MANUAL DE INSTRUCCIONES).

• Aísle los cables no conectados con cinta de vinilo u otro material similar. Para prevenir los cortocircuitos, no quite las tapas de los extremos de los cables o terminales no conectados.

• Si se funde un fusible, asegúrese primero de que los cables no estén en contacto pues pueden ocasionar un cortocircuito, luego reemplace el fusible dañados por otro de las mismas características.

• Instale esta unidad en la consola de su vehículo.

• Instale la unidad en un ángulo de montaje de 30° o menos.

• Asegúrese de volver a conectar a masa esta unidad al chasis del automóvil después de la instalación.

• Después de haber instalado la unidad, compruebe que las luces de freno, los intermitentes, los limpiaparabrisas, etc. del automóvil funcionan correctamente.

• No toque la parte metálica de esta unidad durante e inmediatamente después de usar la unidad. Las partes metálicas tal como el disipador de calor y la carcasa estarán calientes.

0212DTSSANJEIN

• Le montage et le câblage de ce produit nécessitent des compétences et de l’expérience. Pour des raisons de sécurité, laissez un professionnel effectuer le travail de montage et de câblage. Si vous rencontrez des problèmes durant l’installation, consultez votre revendeur d’autoradio JVC.

• L’appareil peut uniquement être installé dans une voiture avec une alimentation de 12 V CC, à masse négative.

• Déconnectez la borne négative de la batterie et réaliser toutes les connexions avant d’installer l’appareil.

• Connectez des enceintes avec une puissance maximum de 50 W (impédance de 4 Ω à 8 Ω). Sinon, changez le réglage <Amplifier Gain>. (Voir la page 25 du MANUEL D’INSTRUCTIONS.)

• Isolez les câbles non-connectés avec un ruban de vinyle ou d’un autre matériel similaire. Pour éviter les courtscircuits, ne retirez pas non plus les capuchons à l’extrémité des câbles non-connectés ou des prises. Si un fusible saute, assurez-vous d’abord que les câbles n’ont pas causé de

• court-circuit puis remplacez le vieux fusible par un nouveau de même valeur.

• Installez cet appareil dans la console de votre véhicule.

• Monter l’unité de façon à ce que l’angle de montage soit de 30˚ ou moins.

• Assurez-vous de raccorder de nouveau la mise à la masse de cet appareil au châssis de la voiture après l’installation.

• Après avoir installé l’appareil, vérifiez si les lampes de frein, les indicateurs, les clignotants, etc. de la voiture fonctionnent correctement.

• Ne touchez pas la partie métallique de cet appareil pendant ou juste après son utilisation. Les parties métalliques, comme le dissipateur de chaleur et le boîtier, deviennent chaudes.

EN, SP, FR

PRECAUTIONS on power supply and speaker connections

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

• Connect the speaker wires correctly to the terminals to which they correspond. The unit may damaged or fail to work if you share the G wires or ground them to any metal part in the car.

PRECAUCIONES sobre las conexiones de la fuente de alimentación y de los altavoces

• NO conecte los conductores de altavoz del cable de alimentación a la batería de automóvil, pues podrían producirse graves daños en la unidad.

• ANTES de conectar a los altavoces los conductores de altavoz del cable de alimentación, verifique el conexionado de altavoz de su automóvil.

• Conecte los cables del altavoz correctamente con los terminales que correspondan. La unidad puede estropearse o averiarse si se conectan entre sí los cables G o los conecta a tierra con la carrocería del coche.

PRECAUTIONS sur l’alimentation et la connexion des enceintes

• NE CONNECTEZ PAS les fils d’enceintes du cordon d’alimentation à la batterie; sinon, l’appareil serait sérieusement endommagé.

• AVANT de connecter les fils d’enceintes du cordon d’alimentation aux enceintes, vérifiez le câblage des enceintes de votre voiture.

• Veillez à brancher correctement les câbles des enceintes aux prises correspondantes. L’appareil risquerait d’être endommagé ou de mal fonctionner si les câbles G ne sont pas raccordés séparément ou s’ils sont raccordés à la carrosserie métallique de la voiture.

1

INSTALLATION / INSTALACION / INSTALLATION

Part list

A Hard case (×1) B Control panel (×1) C Sleeve (×1) D Trim plate (×1) E Power cord (×1) F Handles (×2) G* Microphone (×1) H* KS-UBT1: USB Bluetooth adapter (×1)

* KD-R80BT only. KS-BTA50 Accessory Kit (USB Bluetooth Adapter and

microphone) available separately for KD-A65/KD-R60.

In-dash mounting / Montaje en el tablero / Montage encastré

Lista de componentes

A Estuche duro (×1) B Panel de control (×1) C Cubierta (×1) D Placa de guarnición (×1) E Cordón de alimentación (×1) F Manijas (×2) G* Micrófono (×1) H* KS-UBT1: Adaptador Bluetooth USB (×1)

*

Sólo KD-R80BT. KS-BTA50 Kit de accesorios (Adaptador USB

Bluetooth y micrófono) disponible por separado para KD-A65/KD-R60.

Liste de pièces

A Etui de transport (×1) B Panneau de commande (×1) C Manchon (×1) D Plaque d’assemblage (×1) E Cordon d’alimentation (×1) F Poignées (×2) G* Microphone (×1) H* KS-UBT1: Adaptateur USB Bluetooth (×1)

KD-R80BT uniquement. KS-BTA50 Kit d’accessoires (Adaptateur USB

*

Bluetooth et microphone) disponibles séparément pour KD-A65/KD-R60.

When installing the unit without using the sleeve / Instalación de la unidad sin utilizar la cubierta / Lors de l’installation de l’appareil scans utiliser de manchon

Flat head screws—M5 × 8 mm (M5 × 3/8") / Tornillos de cabeza plana—M5 × 8 mm (M5 × 3/8 pulgada) / Vis à tête plate—M5 × 8 mm (M5 × 3/8 pouces) *

Do the required electrical connections. / Realice las

conexiones eléctricas requeridas. /

Réalisez les connexions électriques.

Bend the appropriate tabs to hold the sleeve firmly in place. / Doble las lengüetas apropiadas

para retener firmemente la manga en su lugar. /

Tordez les languettes appropriées pour maintenir le manchon en place.

Removing the unit / Extracción de la unidad / Retrait de l’appareil

Release the rear section first... / Primero libere la sección trasera... / Ouvrez la section arrière en premier...

Install the unit at an angle of less than 30˚. / Instale

la unidad a un ángulo de menos de 30˚. / Installez

l’appareil avec un angle de moins de 30˚.

* Avoid touching the connectors. /

No toque los conectores. /

Éviter de toucher les connecteurs.

Pocket / Compartimiento /

Poche

*

Not supplied for this unit / No suministrado con esta unidad. /

Non fourni avec cet appareil.

Bracket / Ménsula / Support *

TROUBLESHOOTING / LOCALIZACION DE AVERIAS / EN CAS DE DIFFICULTES

• The fuse blows. h Are the red and black leads connected correctly?

• Power cannot be turned on. h Is the yellow lead connected?

• No sound from the speakers. h Is the speaker output lead short-

circuited?

• “Miswiring Check Wiring Reset The Unit” / “Warning Check

Wiring Reset The Unit” appears on the display and no operation can be done. h Is the speaker output lead short-circuited or touches

the chassis of the car/head unit? ; Have you reset your unit?

• Sound is distorted. h Is the speaker output lead grounded? ; Are

the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds. h Is the rear ground terminal

connected to the car’s chassis using shorter and thicker cords?

• This unit becomes hot. h Is the speaker output lead grounded? ;

Are the “–” terminals of L and R speakers grounded in common?

• This unit does not work at all. h Have you reset your unit?

• El fusible se quema. h ¿Están los conductores rojo y negro

correctamente conectados?

• No es posible conectar la alimentación. h ¿Está el cable amarillo

conectado?

• No sale sonido de los altavoces. h ¿Está el cable de salida del

altavoz cortocircuitado?

• Aparece “Miswiring Check Wiring Reset The Unit” / “Warning

Check Wiring Reset The Unit” en la pantalla y no se puede realizar ninguna operación. h ¿El conductor de salida de altavoz

está en cortocircuito o en contacto con el chasis del automóvil/ auriculares? ; ¿Reinicializó la unidad?

• El sonido presenta distorsión. h ¿Está el cable de salida del altavoz

conectado a masa? ; ¿Están los terminales “–” de los altavoces L y R conectados a una masa común?

• Perturbación de ruido. h ¿El terminal de tierra trasero está

conectado al chasis del automóvil utilizando los cordones más corto y más grueso?

• Esta unidad se calienta. h ¿Está el cable de salida del altavoz

conectado a masa? ; ¿Están los terminales “–” de los altavoces L y R conectados a una masa común?

• Esta unidad no funciona en absoluto. h ¿Reinicializó la unidad?

2

• Le fusible saute. h Les fils rouge et noir sont-ils racordés correctement?

• L’appareil ne peut pas être mise sous tension. h Le fil jaune est-elle

raccordée?

• Pas de son des enceintes. h Le fil de sortie d’enceinte est-il court-

circuité?

• “Miswiring Check Wiring Reset The Unit” / “Warning Check

Wiring Reset The Unit” apparaît sur l’affichage et aucune opération ne peut être réalisée. h Est-ce qu’un fil de sortie d’enceinte

est court-circuité ou touche le châssis de la voiture/appareil principal? ; Avez-vous réinitialisé votre appareil?

• Le son est déformé. h Le fil de sortie d’enceinte est-il à la masse? ; Les

bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Interférence avec les sons. h La prise arrière de mise à la terre est-elle

connectée au châssis de la voiture avec un cordon court et épais?

• Cet appareil devient chaud. h Le fil de sortie d’enceinte est-il à la

masse? ; Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Cet appareil ne fonctionne pas du tout. h Avez-vous réinitialisé

votre appareil?

ELECTRICAL CONNECTIONS / CONEXIONES ELECTRICAS / RACCORDEMENTS ELECTRIQUES

SW : To subwoofer / Al subwoofer / Au caisson de

grave

FRONT : To front speakers / A los altavoces delanteros /

Aux enceintes avant

REAR : To rear speakers / A los altavoces traseros / Aux

enceintes arrière

USB-1

USB-2

KD-R80BT / KD-A65:

Expansion port / Puerto de expansión / Port d’extension

Reset the unit. / Reinicialice la unidad. /

Réinitialisez l’appareil.

Signal cord / Cable de señal / Cordon de signal *

MIC (Microphone input terminal / Terminal de entrada de micrófono / Prise d’entrée de microphone) (see page 4 /

AUX* (Auxiliary input terminal / Terminal de entrada

auxiliar

Rear ground terminal / Terminal de tierra

posterior / Borne arrière de masse

1

consulte la página 4 /

3

/ Prise d’entrée auxiliaire)

voir page 4)

JVC Amplifier /

Amplificador de JVC /

JVC Amplificateur

USB cable (approx. 1 m/3.3 feet) / Cable USB (aprox. 1 m/3.3 pie) /

Câble USB (environ 1 m/3.3 pieds)

MIC

AUX

H

KS-UBT1

USB Bluetooth adapter / Adaptador Bluetooth USB /

Adaptateur USB Bluetooth

Vehicle-specific Wiring

Harness (separately

purchased) /

Mazo de cables del vehículo

específico (se vende por

separado) /

Faisceau de câble spécifique

pour le véhicule (vendu

séparément)

For more information / Para más información / Pour plus d'informations :

Metra Electronics:

www.metraonline.com

Scosche Industries:

www.scosche.com

Factory wiring harness (vehicle) / Mazo de cables de fábrica (vehículo) /

Faisceau de câbles de l'usine (véhicule)

Remote adapter / Adaptador para control

remoto / Adaptateur de télécommande *

Antenna terminal /

Terminal de la antena /

Borne de l’antenne

Light blue (yellow stripe) / Azul claro (rayas

1

amarillas) / Bleu clair (bande jaune)

10 A fuse / Fusible de 10 A / Fusible 10 A

E

Power cord / Cordón de

alimentación / Cordon d’alimentation

Caution / Precaución / Précautions

Join the same color leads together. / Junte los cables del mismo color. / Joignez les fils de même couleur ensemble.

To join the open-ends of the leads: / Para juntar los extremos abiertos de los cables: / Pour joindre les extrémités des fils:

Recommended connection / Conexión recomendada /

Blue: Automatic antenna / Azul: Antena automática /

Bleu: Antenne automatique

Blue (white stripe): Amp Turn-on /

Azul (rayas blancas):

Bleu (bande blanche): Mise sous tension de l'amplificateur

Illumination / Iluminación / Éclairage

Telephone Muting / Silenc. teléfono /

Sourdine téléphonique

12 V Battery / Batería 12 V / Batterie 12 V

12 V Ignition Switch / Interruptor de encendido 12 V /

Interrupteur d'allumage 12 V

Ground / Tierra / Masse

Strip lead ends / Pele los extremos de los cables /

Dénudez les extrémités des fils

Twist ends together / Retuerza los extremos conjuntamente /

Torsadez les extrémités ensemble

Connexion recommandée

Alimentación amplificador /

Solder / Suelde /

Soudez

Tape / Cinta /

Ruban adhésif

Blue (white stripe), 200 mA max. / Azul (rayas blancas), máx. 200 mA /

Bleu (bande blanche), 200 mA max.

Orange (white stripe) / Naranja (rayas blancas) / Orange (bande blanche)

(Not used/ No utilizado / Non utilisé) Insulate to prevent short circuit /

Aislar para evitar cortocircuitos /

Isolez pour éviter les courts-circuits

Yellow / Amarillo / Jaune

Red / Rojo / Rouge

Black / Negro / Noir

Remote lead /

Cable remoto /

Fil d’alimentation à distance

Extension lead /

Cable prolongador /

Fil prolongateur *

Power cannot be turned on? / ¿No se puede conectar la alimentación? / L’appareil ne peut pas être mis sous tension?

Ignition switch / Interruptor de encendido / Interrupteur d’allumage

Fuse block / Bloque de

Separate red lead / Cable rojo

separado / Fil rouge séparé

fusibles / Porte-fusible

1

Front speaker (left) / Altavoz delantero (izquierdo) / Enceinte avant (gauche)

Front speaker (right) / Altavoz delantero (derecho) / Enceinte avant (droit)

Rear speaker (left) / Altavoz trasero (izquierdo) / Enceinte arrière (gauche)

Rear speaker (right) / Altavoz trasero (derecho) / Enceinte arrière (droit)

1

*

Not supplied for this unit.

2

*

Firmly attach the ground wire to the metallic body or to the chassis

of the car—to the place uncoated with paint.

3

For connection, see page 14 of the INSTRUCTIONS.

*

White / Blanco / Blanc

White (black stripe) / Blanco (rayas negras) / Blanc (bande noire)

Gray / Gris / Gris

Gray (black stripe) / Gris (rayas negras) /

Gris (bande noire)

Green / Verde / Vert

Green (black stripe) / Verde (rayas negras) /

Vert (bande noire)

Purple / Púrpura / Violet

Purple (black stripe) / Púrpura (rayas negras) /

Violet (bande noire)

1

No suministrado con esta unidad.

*

2

*

Fije firmemente el cable de tierra a la carrocería metálica o al

chasis—a un lugar no cubierto con pintura.

3

*

Para la conexión, véase la página 14 del MANUAL DE INSTRUCCIONES.

3

If your vehicle factory wiring harness does not have “12 V ignition switch” lead, connect the red lead of the supplied power cord, to the vehicle fuse block (through a separate red lead provided with the fuse tap). / Si el

mazo de cables de fábrica de su vehículo no incluye el cable del “interruptor de encendido de 12 V”, conecte el cable rojo del cordón de alimentación fusibles del vehículo (a través del cable rojo separado suministrado con la toma de fusible). /

Si le faisceau de câbles de votre véhicule ne possède pas de fil “Interrupteur d'allumage 12 V”, connectez le fil rouge du cordon d'alimentation fourni, porte-fusible du véhicule (un fil rouge séparé est fourni avec le porte-fusible).

*1 Non fourni avec cet appareil.

2

*

Attachez solidement le fil de mise à la masse au châssis métallique de la

voiture—à un endroit qui n’est pas recouvert de peinture.

3

*

Pour la connexion, voir la page 14 du MANUEL D’INSTRUCTIONS.

E

suministrado, al bloque de

E

,

E

, au

Connecting the microphone unit / Conexión de la unidad de micrófono / Connexion du

1

Secure using cord clamps * Si es necesario, asegure por medio de las abrazaderas * Fixez en utilisant des serre-fils *

if necessary. /

1

si nécessaire

1

Adjust the microphone angle / Ajuste el ángulo del micrófono / Ajustez l’angle du microphone

/

microphone

G Microphone / Micrófono / Microphone

MIC (Microphone input terminal / Terminal de entrada de micrófono / Prise d’entrée de microphone )

MIC

KD-R80BT/KD-A65 only: / Sólo KD-R80BT/KD-A65: / KD-R80BT/KD-A65 uniquement:

Connecting the external components / Conexión de componentes externos / Connexion d’appareils extérieurs

You can connect the following system to the expansion port.

Caution:

Before connecting the external components, make sure that the unit is turned off.

HD Radio™ tuner

•

JVC KT-HD300, HD RadioTM tuner box

SIRIUS Satellite Radio

1 • JVC KS-SRA100, SIRIUS Satellite Radio interface

• SCC1, SiriusConnect Vehicle Tuner 2 • JVC KS-SRA100, SIRIUS Satellite Radio interface

• SCVDOC1, SiriusConnect Vehicle Docking Kit

• SIRIUS radio

XM Satellite Radio

1 • XMDJVC100, Smart Digital Adapter for JVC

• XM Universal Tuner Box 2 • CNPJVC1, Connection cable for JVC

• CNP2000UCA, Protocol Interface Adapter and XM Direct 2 Tuner

Portable audio player

1 • JVC KS-U57, Line input adapter

• Portable audio player with line output jacks

2 • JVC KS-U58, AUX input adapter

• Portable audio player with 3.5 mm (1/8") stereo mini jack

•

When connecting the external components, refer to the manuals

supplied for the components and adapter/interface/cable.

Puede conectar el siguiente sistema al puerto de expansión.

Precaución:

Antes de conectar los componentes externos, asegúrese de que la unidad esté apagada.

Sintonizador HD Radio™

•

JVC KT-HD300, sintonizador HD Radio

Radio por satélite SIRIUS

1

• JVC KS-SRA100, Interfaz de radio por satélite SIRIUS

• SCC1, Sintonizador SirusConnect para automóviles

2

• JVC KS-SRA100, Interfaz de radio por satélite SIRIUS

• SCVDOC1, Kit de acoplamiento para automóviles SiriusConnect

• Radio SIRIUS

Radio por satélite XM

1

• XMDJVC100, Adaptador digital inteligente para JVC

• Sintonizador universal XM

2

• CNPJVC1, Cable de conexión para JVC

• CNP2000UCA, Adaptador para interfaz de protocolo y

sintonizador XM Direct 2

Reproductor de audio portátil

1

• JVC KS-U57, Adaptador de entrada de línea

• Reproductor de audio portátil con conectores de salida de línea

2

• JVC KS-U58, Adaptador de entrada AUX

• Reproductor de audio portátil con miniconector estéreo de

3,5 mm (1/8 pulgada)

•

Al conectar los componentes externos, consultar los manuales

facilitados para los componentes y para el adaptador/interfaz/cable.

TM

Vous pouvez brancher le système suivant au port d’extension.

Attention :

Avant de connecter les appareils extérieurs, assurez-vous que l’appareil est hors tension.

Tuner HD Radio™

•

JVC KT-HD300, tuner HD Radio

Radio satellite SIRIUS

1

• JVC KS-SRA100, interface radio satellite SIRIUS

• SCC1, tuner automobile SiriusConnect

2

• JVC KS-SRA100, interface radio satellite SIRIUS

• SCVDOC1, kit d’ancrage pour automobile SiriusConnect

• Radio SIRIUS

Radio satellite XM

1

• XMDJVC100, adaptateur Smart Digital pour JVC

• Tuner universel XM

2

• CNPJVC1, câble de connexion pour JVC

•

CNP2000UCA, adaptateur d’interface de protocole et tuner XM Direct 2

Lecteur audio portable

1

• JVC KS-U57, adaptateur d’entrée de ligne

• Lecteur audio portable avec prises de sortie de ligne 2

• JVC KS-U58, adaptateur d’entrée auxiliaire

• Lecteur audio portable avec mini prise stéréo 3,5 mm (1/8 pouces)

•

Pour brancher les appareils extérieurs, consultez les manuels des

appareils et de l'adaptateur/interface/câble.

TM

Expansion port of the unit / Puerto de expansión de la unidad / Port d’extension de l’appareil

To disconnect... / Para desconectar... /

Pour déconnecter...

SIRIUS Satellite Radio and XM Satellite Radio cannot be used together.

*1 Not supplied for this unit.

2

Connect the power cord supplied for the component separately for

*

power supply.

3

*

To use these components, set the external input setting correctly

(see page 26 of the INSTRUCTIONS).

o When connecting 2 systems in series / Al conectar 2 sistemas en serie / Pour brancher 2 systèmes en série

A

HD Radio tuner or SIRIUS Satellite Radio or XM Satellite Radio / Sintonizador de radio HD o radio

por satélite SIRIUS o radio por satélite XM / Tuner radio HD ou radio satellite SIRIUS ou radio satellite XM

KT-HD300

CNP2000UCA

2

*

/ KS-SRA100

*

2

*

/ XMDJVC100/

B *3

Portable audio player /

Reproductor de audio portátil /

Lecteur audio portable

KS-U57/ KS-U58

o When connecting 3 systems in series / Al conectar 3 sistemas en serie / Pour brancher 3 systèmes en série

A

HD Radio tuner / Sintonizador de radio HD /

Tuner radio HD

2

KT-HD300

*

Radio por satélite SIRIUS y radio por satélite XM no pueden usarse juntas.

1

*

No suministrado con esta unidad.

2

*

Conecte el cable de alimentación suministrado separadamente para

el componente.

3

*

Para utilizar estos componentes, configure el ajuste de entrada externa correctamente (consulte la página 26 del INSTRUCCIONES

).

4

B

SIRIUS Satellite Radio or XM Satellite Radio / Radio por satélite SIRIUS o

radio por satélite XM / Radio satellite SIRIUS ou radio satellite XM

KS-SRA100 CNP2000UCA

*

Ne pas utiliser la radio satellite SIRIUS et la radio satellite XM ensemble.

*1 Non fourni avec cet appareil.

2

*

3

MANUAL DE

*

C *3

Portable audio player /

Reproductor de audio portátil /

Lecteur audio portable

2

/ XMDJVC100/

2

*

Connectez le cordon d’alimentation fourni avec les appareils

séparément à l’alimentation.

Pour utiliser ces appareils, réglez l’entrée extérieure correctement (voir

page 26 du MANUEL D’INSTRUCTIONS).

KS-U57/ KS-U58

To

use

the

Bluetooth

Function,

connect

the

supplied

USB

Bluetooth input

Front

Rear

terminals USB

USB

Adapter

Port

Cable

of

(KS-UBT1)

the

unit.

to

or

either

one

of

the

----------------

USB

GET0725-001 A

.JVC

KS-UBT1

Adaptateur

Bluetooth

USB Bluetooth

Bluetooth

per adapter

Bluetooth

USB Bluetooth

Bluetooth

USB aAanrep

u~'Jiill~n~thmri'

Adapter

1

USB

Adaptador

I

Bluetooth-adapter

USB

I

-sovitin

npoaap~Joyta~

I

adapter

Adaptor

I

USB

USB~..:.~~~

I

USB-Biuetooth-Adapter

USB

I

Bluetooth

USB

I

Bluetoolh

USB

Bluetooth

USB

I

USB

I

J~

USB

INSTRUCTIONS I

MANUEL BEDIENUNGSANLEITUNG GEBRUIKSAANWIJZING

YTTOOHJE I

KA INSTRUKCJA

TALiMA

OBSLUG/

IHCTPYKL.IIi" I INSTRUCT/UN/ I

EN,

I.::,~!

GE, IT,

, SP,

FR

HU, UK, RO,

CZ,

fiE/tJIJliJij.

~

,.. PO,

D'INSTRUCTIONS I

I ISTRUZIONI I INSTRU(:OES I

I BRUKSANVISNING I /NSTRUKTIONSBOG I

lf1HCTPYKL.IIf11f1

I

TLAR I PRiRUCKA

lf1HCTPYKL.jlf11f1

,;~.J

IAJ-I!

I

J,!.J

NL, SW,

PR,

BU, TH,

USB

Bluetooth

de

USB-Biuetooth-adapter

I

Bluetooth

USB

Bluetooth

o-J

Bluetooth

OBSLUZE

K

I

BUKU

I

DA, Fl, TR,

KO, CT, AR, PE,

Bluetooth

0

Bluetooth

Adattatore

1

USB

I

Adaptor Adapter

USB

I

"?l

MANUAL

no

fi1u

PETUNJUK

I

Adapter

I

Bluetooth USB

1

E~

Adaptor

;~\.)\I

DE

3KCnflYATALjlf1/A I

HASZNALATI

I

/If§

I

U::Jh

, GR,

RU

IN

®

Adaptador

I

USB

Bluetooth

I

USB-aAanrep

I

Bluetooth

Bluetooth-

~3Uf:t*~

INSTRUCCIONES I

USB

aAanrep

1

Blueloolh

OilHrtEI.

UTASiTASA I

I

!!!'lilt/

GET0617-001H

I

[K]

TA-2008/

APPROVED

NTC

Accepted

e

Typ

E-0903971(

P

ESD-C

No.:

~%\1£

~

~.§

I.C

4!-~~!::J

-BHEt

tJ

:£jAf2j

7[7\21

Aj~Ej§

'i;l!

2.

X11-'l'.\:"!.S:.

~~~

OHE}

Ol

A"Jt:l]~-c-

"Este

cardter

tem direito

interf

de

nao

sistemas opera

~§-

]

-5-~0

~

J

~:

\

0

~~

.Ef-{:jc1jOjE]%~

~~:

7\7\

{:!

.Ef'-

KS-UBTl

:

I~

o

.!f-~~t:I

2

'U

erencia

esta~iles

pode causar interferencia a

2009,February

~:

';;!

JVC

OfOICI:

t:J:rr

J-c-

tzJ~~~

~£.

~-@L]C~.

T

-g{

equipamento opera em

secunddri

prote~ao

a

judicial

pre

do

ndo

primdrio."

o,

mesmo

87

11

JVC-KSUBTl

:

~rr~~

3-

(9-)Cl Dj_"f

~~

~

/

tl

~~

t}~~

~

-

P

:

nao

e,

isto

contra

mo

es

m

,

tipo,

em cardter

0N49

TRA

Approved

MTC:OFICIO

CONATEL

SUBTEL:

is

Th

"

by

8396-2008-MTC/29

No

certificate

30234/DFRS00045/F-49

technical

equ

requ

telecommunication

NTC

001516

No:

t

men

ip

rement"

i

conforms

to

13973/POSTEU2010

2366

RA

B

LETRO

BRAS

0

SIL

NICOS

IL COS

I

tion

08

LTDA

TEUWR/I/MOD-08/02/135.APR

365/FR/201

URSEC

DO

OOD

KENW

JVC

name:

tributor

Dis

J

CNP

nufacturer

Ma

del

Mo

d:

Bran

distributor:

of

no.:

:

COMERCIO JVC COMERCIO JVC KS JVC

DE

OD

KENWO

DE

KENWOOD

UBTl

-

E

DO

ELETRON

Corpora

eJANATEL

11-6733

-

0178

e

1111111111111111

I

)07898929117502

(01

1111111111

11

English:

the

of

copy

A

Directive

R&TTE

Web sit

owing

ll

fo (http://www3 [CE0984]

KENWOOD

JVC

Hereby,

compliance

in

provi

evant

rel

Fran1ais:

de

copie

e

Un

R&TTE

e

Directiv

uivant

s

Web

sites

CE0984]

[

presente

Ia

Par

est

KS-UBTl]

[

spositions

di

autres

:

Espaiiol

scargarse

de

Puede

dad

i

conform

radio

(equipos

CE telecomunicaci6n) [http://www3.jvckenwood

]

984

[CE0

t

sen

pre

a

PorI

umple

c

UBTl]

-

[KS

es

disposicion Deutsch:

der

Kopie

Eine

lini

cht

-Ri

&TIE

R

ade

el

rg

e

runt

he

3.

(http://www

l

984

[CE0

KENWOOD

JVC

c

li

wesent

den

immungen

t

es

B Italiano:

Dichiarazion

lla

de

ia

Cop

puo

E

999/5/C

1 (http://www3.jvckenwood

[CE0984j

nte

ese

pr

n Ia

Co

co

e

UBTl]

-

[KS

pertinenti

izioni

spos

di

Confor

of

Declaration

can

EC

999/5/

1

es

jvckenwood.com/ecdoc/).

.

declares essentia

the

with

ion

s

Dec

Ia

JVC

,

con

relaci

JVC

e,

pertinentes

Obereinstimm

e n we jvck

erklart

hen

essere

JVC

nforme

Directive

of

de

aration

l

peut

CE

/5/

1999

//www3.jvcke

:

(http

s

KENWOOD

exigences

aux

forme

pertinentes

copia

una

n Ia

co

da

ona

y

cos

ri

elect

u

sig

s

lo

en

com/ecdoc/).

.

KENWOOD

requisitos

s

lo

con

previstos

un

ka

1999/5/EG

en

rd

com/ec

.

ood

nw

e

hiermit,

Anforderungen

e

Richtlini

der

Conformita

di

e

scaricata

com/ec

.

KENWOOD

requisiti

ai

tabilite

s

1999

Conformite

de

equipos

ie

gserklarung

nn

da

19

with

mity

downloaded

be

unit

t this

ha

t

requirements

l

/5/EC.

telechargee

etre

nwood.com

que

declare

essentielles

Directive

Ia

de

Declaraci6n

Ia

1

iva

ct

Dire

minale

ter

web

itios

s

es

nt

que

declara

lunda

Oirectiva

Ia

en

folgenden

den

von

c/J.

do

es

s

die

ss

andere

und

e

EG

99/5/

ia

al

seguenti

dai

c/l.

do

che

dichiara

ial

z

essen

direttiva

dalla

egar

r

from

-

[KS

and

relative

a

appareil

cet

1999/5/CE.

de

999/5/

de

s

unidad

esta

es

l

enta

m

bezuglich

[K

t

Gera

relevanten

n

ht.

ic

spr

nt

Direttiva

Web

siti

questa

e a

il

a

i ed

999/5/CE.

1

to

d

the

UBTll

h

ot

Ia

a

partir /ec

et

otras

y

1999

der

Web

UBTl]

S-

R&

unita

ltre

e

th

is

er

doc

aux

/5/CE.

si

TTE

es

d

.

/)

tes

Portugues:

transferir

possivel

E Conformidade

dos

(h ICE0984] A em disposi1iies

Nederland

Een de de (http [CE0984j Hi

vold()('t

bepaling Svenska:

En R& we [CE0984] H star och 1999

Dansk

Et

henvi f0 I JVC er relevante

Suomi

Vaatimustenmuk te voidaan (http [CE0984l JVC on koskevien

re

se

Web

s

itio

s

://www3.jvckenwood.com/ecdoc/).

ttp

ENWOOD

K

JVC

dade

i

rm

nfo

co

le

re

s:

de

van

kopie

htlijn

R&TTEric

websites

de

en

lg

vo

://www3.

art

la

verk

erbij

de

aan

van

en

dek

av

kopia TTE-direktivet

http

(

ser

bbplat

gar

inty

armed

overensstammelse

i

vanta

rele

ovriga

.

EG

/5/

:

af

eksemplar

R&TIEdirektivet

til

ing

sn

websteder

gende

l

CE0984]

KENWOOD

overensstemme

i

bestemme

:

aitteita

l

epaate

l

ladata

wwwl.jvckenwood.com/ecdoc/)

://

KENWOOD

1

in

direktiiv

direktiivin

Declara1

da

c6pia

uma

R&

Directiva

a

lativ

guintes

unid

esta

que

declara

requisitos

os

com

vantes

conform

1999/5/EG

kenwood.com

c

jv

KENWOOD

JVC

essentie

lijn

richt

arationen

l

999/5/EG

1

://www3

KENWOOD

C

JV

Overensstemme

(http://www3.jvckenwood

rer

if

erkl

se

l

uu

ais

(R&TTE) uraavi

se

vakuuttaa 999/5/EY

Directiva

da

verklaring

iteits

kan

vereisten

le

1999/5/EG

overensstammelse

om

kan

cke

jv

.

de

med

bestamme

1

ed,

rv

he

Vifs

de

med

t

direk

i

ser

vakuutuk

s

skeva

ko

verkko

ta

s

,

taten

ellisten

le

o

ht

e

muiden

1999/5/CE.

worden

/ecdoc/).

dat

.

amtas

h nwood

denna

att

vasentliga er

ls

sese

l

999/5/EF

de

at

e

1999/5/

iv

n

se

direktiivi osoitteista

-

etta

ojen

ao

(1999/5/CE)

TIE

KS-

[

ade

essenciais

met gedownl

apparaat

dit

ander

en

fo

pa

m/

co

.

nh

e

egenskapskrav

framgar

som

ring

if

rkl

kan

nhed

e e

nn

krav

ige

l

nt

EF.

ja

radio-

.

UBTl

S-

[K

sten

vaatimu

ainen.

uk

m

de

UBTl

ou

e

betrekk

IKS-U

evan

rel

e

jande

l ecdoc

[K

et

av

med

en

hentes

co

.

[

og

1999

Iai

J-

ja

tras

oad

med

/)

S-

direktiv

m/

-

KS

an

/EY

/5

te

sita

partir

a

esta

]

tot

ing

van

BTl]

te

.

UBTl]

ra

I

ecdoc/).

I

UBTl dre

Tiirk1e:

TTE

R& kopyast (http [CE0984l Burada, EC'nin

uyumlu

ile EAAqvlKrj

Iva 05qyia tqAEIT

an6

(http [CE0984] 8ta

~ov<i5o

onmr~o"<

1999

Polski

Kopi

pobra

http

(

0

CE

[ Niniejszym

urz~dzenie

wymogami Dyrektywy

Cesky: Kopii 199 (http://www3.jvckenw

CE0984]

[ JVC

s

ve ustanoven

99/5/EC

19

Direktifi

web

aj<lgrdaki

www3.jvckenwo

://

KENWOOD

JVC

gereksinimleri

vazge1ilmez

aVTiypa~o

tK

n<

://ww

TOU

/5/E

oldugun

:

tq<

9/5/EK

199

tvWVlOK

O

nw

napaKi

jvckenwo

.

w3

nop6V10(

UBTlJ

-

[KS

Kmn<

K.

beyan

u

A~Awo

OXEnK<i

~

np

O

rorroSmiE<

JVC

, q

u~

o

Aotrri<

:

zgodnoici

i

aracj

l

dek

~

nast~puj~cych

c z

nw

cke

jv

.

/www3

:/

984]

Proh

9/5/ES

KENWOOD

hode

se

1

aieni

l

mi

i

firma

UBTll

-

[KS

pozosta

i

999

st

ze

ti

l

zak

sme

JVC

C.

E

5/

/

shode

o

ahno

o

mt

adnimi

ice

rn

KENWOO

lym

ut

prohlaiuje,

Uygunluk

ilgili

ile

indirilebilir.

inden

ler

te

si

bu

,

anK6

~o

s

oo

est

j

z

oo

poladavky 1999/5/ES

/)

com/ecdoc

od.

KS-U8Tll1999

[

unitenin

diger

ve

eder.

q

ou~~6p~wo

<

q

pOOlOE(OnAt0~6

TO

~E

~nop

E(onAto~6

Web

010

).

/ecdoc/

om

d.c

o

oqAWVEIOTI

KENWOOD

p

ox

tron

d

stoso

i

s

nasledujicich

d

11(

npo(

~wvrrat

5tot<i(Et<

m•i<

19

Dyrektyw~

z

internetowych

.

doc/)

ec

m/

.co

adcza,

i

iw

o

D

dni

zasa

z

godne

z

poladavky

wnymi

om/ecdoc/J

.c

le

a

.

po

mernice

s

webov'ic

tento

da

sta

.

mi

li

l

nr

a

Bey

hukumleri

ilgili

tqv

~E

<

Kat

Aqq>6Ei

va

i

E

out~

iiMEt

OUO

Ooqyio<

tq<

/5/EC

99

niejsze

ni

ie

mi

czy

owieniam

n

R&TTE

stranek

h

IKS-UBTl]

prislulnimi

nrn

'

/5/

TOV

q <

moin

je

bir

a

i

Magyar:

1999/5/EC

Az

eg

M

webhelyekrol

(http://www3.

E0984]

[C

JV

A

-

[KS

kove

Romanii:

copie

0

TTE

R&

situ [CE0984

in

Pr

-

KS

[

portant

im 6bnrapcKH:

n~e

Ko

Jl•pm•sa 1

Ha

~JrerneHo

http://www

(

CE0984]

[

HaCToR

C

KS-UBTlJ

[ APYr•re EO.

R&TTE

jelu

nyilatko

losegi

e

fel

tolthetole:

jvckenwood.com

kijelent

KENWOOD

C UBTl]

telmenye

web

ri

prezenta UBTll

az

lel

megfe

es

nek

i

de

DeclaraJiei

a

poate

/5/EC

1999

www3.jvckenwood

//

(http:

]

KENWOOD

JVC

,

cer

respecta

directiv

ale

e

,neKllapau~ouna

or

999/5/

Clle,aH~Te

oT

nwood

cke

jv

3.

KENWOOD

JVC

oro

~

CbOTBeTCTBHe

e B

np•no>t<HMH

pcs

ka

z

elvhe

ny

ira

kovet

a

peldanya

zat

c/)

ecdo

/

eszkoz

en

l

je

a

hogy

i.

19

egyeb

conformitate

fi

nJele

i ei

EO

ye6caHro

pa

ra

i

jeiU

99/5/EC

re

natkoz6

vo

refer

de

ta

rca

desca

.ccm/

ca

declara

ji

ale

i

esenJ

C.

/E

99/5

19

CbOTBeTCTB~e

Ja

TTE

R&

CHO

OTHO

ae

/).

doc

.com/ec

AeK11ap•pa

OCHOBHHTe

C

Jl•pe

Ha

6•

nopeA

3

ol6d6

kez6

veto

lap

a

nyelv

ndelkezeseinek.

ct

dire

Ia

itoare

e

urmatoarel

pe

ecdoc/).

unitate

aceasta

prevederi

te

al

orHoweHHe

no

fibAe

A'

MO>t<e

H3Aen•e

, "'rosa

H

H3HCKBaHHR

1999/5/

Ba

KTH

a

iv

Declaration

KENWOOD

JVC

:

Manufacturer

English:

KENWOOD,

JVC

Hereby,

comp provisions

Deutsch:

H

Ober~nstimmung

Ubr~en

Hiermit Obereinstimmung Anforde rele

Fran~ais:

Par conforme pertinentes

Nederlands:

Hierbij overeenstemming rel

Dansk:

U udstyr re

Espallol:

Por KS

di

EAAf'JVIK~

ME rYMMOP$0NETA

TIL

Italiano: p

Con

e

pert

Malti:

Hawnhekk,

ma hemm

Portugu

JVC requisi

Suomi

JVC direktiivin direk

with

liance

of

erklan

mit

ier

einschli!gigen

erkliirt rungen

Festlegungen

vanten

presente

Ia

aux

de

verklaart

bepaling

!'

nt

eva

ndertegnede

UBT1

KS-

av

kr

levante

Ia

de

dio

me

cumple

TI

UB

-

aplicables

nes

cio

sposi

:

POYLA

nA

THN

LXE

~OinEL

presente

Ia

ai

rme

confo

stabilite

i

nent

i

JVC

iet

ij

l·htig

Oirrettiva

-

frd es:

KENWOOD

essenciais

es

t

:

KENWOOD

1999/5/EY

muiden

ivin

ti

the

Directive

KENWOOD,

JVC

mit

JVC

unddenanderen

JVC

exigencesessent

directive

Ia

JVC

over direktiv

i

presente

con

TIKEL

JVC

requisiti

KENWOOD,jiddikjara

sse

e

declara

vakuunaa

l-

Kanagawa-ku,

f:;:~awa

declares

l r

essentia

999/5/EC.

1

d.m

grundlegenden

den

Bestimmungen

KENWOOD

Gerates

des

Richtlinie

der

KENWOOD

999

1

KENWOO

essen

de

met

is

cht

ri

van

rn KENWOOD

de

er

hold

999/5/EF

1

KE

JVC

reqursitos

los

exigibles

o

KENWOOD

JVC

OYLI06E

TIL

OL

nP

I

IL

ATH

61

KENWOOD

iali

essenz

direttiva

dalla

provvedimenti

rna

u

li

zja

n

S/EC.

/

1999

este

que

di

ras

ut

o

e

tiiten

oleellisten

mukainen.

ehtojen

Mor

12

that

equirements

sich

die

-

KS

dfflare

elles

i

/S/

dat

D

ijn

l

erklif

sentlige

v<e

NWOODdeclara

esenc

de

6H~ONEI

TH

dichiara

ed

KS-UBTl

sposi~Oes

etta

vaatimusten

Co

yacho,

i

Yo

-

lll

,

KS-UBTl

this

and

Gerat

das

Anforderungen

htlinie

Ri<

r

de

den

mit

UBTI

/S/

99

19

l'ap

qur

aut

aux

et

CE.

toestel

het

sen

tii!le ei

EG.

/S/

1999

herved,

rer

kra

ycualesquiera

es

ial

Oire<tiva

Ia

011

AnAITHHIL

IL

L

fiA

06H

L

questa

che

altre

aile

.

CE

/

999/S

1

KS-UBTl

dan

li

ohrajn

ta

es

Directiv

da

KS-UBT1

ation

rpor

sh

-

kohama

0022

C

in

is

relevant

other

in

K5-UBTI

und

999/5/EG

1

egenden

l

und

gr

befindet

fG

KS-UBT1

l

parei

dispo

es

r

UBT1

-

KS

andere

de

en

fDigende

at

0vrige

og

v

el

que

1999/5/CE

UBT1

K5-

KAI

1999/5/EK.

KS-UBT1

disposizioni

jikkonforma

evanti

l

re

conforme

19

a

tyyppinen

koskevien

ii

sit

ja

i,

E0984

den

befindet.

Wien}

. {

rst

itions

s

in

otras

li

os

com

99/S/CE.

on

laite

regard

with

Conformity

of

to the

Representative's:

EU

Svenska:

intygar

Harmed

Overensstammelse

bestiimmelser

a

relevant

lslenska:

ir

j1

l

meO

Her

ur

Of

nkr

n

ru

g

Norsk:

KENWOOD

JVC

grunnleggende

de

med

EF.

5/

/

1999

(esky:

WOOD

EN

K

JVC

poi:ada

fmi

ladn

zak

ES

/

999/5

1

Eesti:

ga

va

Kiiesole

99/5/EO

19

i

ektiiv

r

di tulenevatele

:

Latviski

KENWOOD

JVC

so

Ar

skajam

i

but

EK

lietuviu:

NWOOD

KE

VC

J

)iuo

mus

i

reikalav

Magyar:

Alulirott.JVC

z6alapve

vonatko

ilsainak.

r

iOf

e

eb

y

eg

:

Polski

JVC

zym

>

ieJ

Nin

zasadnraym

z

owieniami

tan

os

Slovensko:

KENWOOD

JVC

in

zahtevami

Slovensky:

KENWOOD

JVC

a

poiiadavky

Romana:

,

ceasta

a

Prin

ate

it

conform

EC.

/

1999/5

:

6"bnrap<KM

oro

HaCTO.Rut

C CbOTBeTCJBa

np~tna>t<ltMI-1

JVC

Postfach

61145

Germany

KENWOOD

JVC

de

med

KENWOOD

JVC

krtifur,

rar

a~

og

herved

r

a?re

l

erk

krav

prohlaSuje

tfmto

daiSfm

a

vky

JVC

itab

nn

ki

pOhinOu

jakoha

as

le

te

teis

lar

dek

un

prasibam

deklaruoja,

1999/5/EB

as

ir kit

nyilatkozom

KENWOOD

k0vet

t0

KENWOOD

wymogami

i

Dyrektywy

da

avlja,

zj

i

relevantnimi

limi

osta

vyhlasuje,

tjmto

prislu

ky

'/Set

KENWOOD,

JVC

er

rrved

p

cu

KENWOOD

JVC

OCHOBHI1Te

Ha

,llitpeKTI1Ba

Ha

1Ulay31-1

Technical

Friedb

att

vasentliga

framgar

som

pvi

yfir

m

se

at

0vrige

og

ir

,

i pr

KENWOOD

etele

tele

s

KS-UBT1

ka

e,

em

citi

kad Direktyvos

€nyeknek

lm

e

oswiadaa,

pozo

oraz

9/

199

KS-UBT1

ta

je

le

ustanovenia

ne

S

ecl

d

gener

e

il

.QeK11ap11pa,

11311CKBaHI1R,

Directive1999/5/EC

R&TIE

Services

04

1005

rg

e

KS-

denna

egenskap

direkt

av

KS-UBTl

aO

f

u

er

r

gerOa

KS-UBTl

utstyret

relevante

-

KS

tento

ustanoven

mi

fsluSnY

seadme

etatud

nim

ja

.

satetrle

atbilst

stita

i

sa

to

ar

KS-UBT1

Sis

nuost

a

hogy

,

az

es

UBT1

-

K5

ie

ymi

1tal

S/EC.

skladu

v

direktive

i

dolocil

KI-UBTisplna

Smernice

aces!

ca

a

ar

alte n

cu

~

e~

t

a

1.1e

KaKTO

/5/EC.

1999

GmbH

Europe

I

ar

st

Tl

UB

stosow

KS

iga

tivr

och

skrav

S/EG.

/

1999

iv

viO

r

samrifm

i

er

5/EC.

/

999

1

lskipun

ti

r

samsva

i

er

tiv

rek

i di

krav

sr

shode

ve

je

T1

smernice

mi

f

ust

vastav

UBTl

-

KS

t

is

direktiiv

9915/

19

vas

i

rekt

Di

noteikumiem.

iem

j

nius

i

esm

atitinka

s.

ta

a

felel a

meg

BTl

-U

KS

1999

113

v

yel

n

ir3

EC

/S/

zgodny

je>t

mi

ny

imi

ven

st

bi

z

.

ES

/

9/5

199

zakladne

ES.

/5/

99

19

in

te

rs

UBT1

or

.Qen~o~ero

11

me

Ha

le

a

,llpyrM

Direc

KS-U

BTl

ei

tiv

......

..

o,

•~

~·--~

SPECIFICATIONS

Version:

Bluelooth

I.

2. l.

4. Power

Dimension For

Thi not

ca

FCC This interference

opera

For

This

radio rules. evaluation away

For Thi device undesired

Under

esser)

l antenna

ne

•

PowerCiass ServiceArea:

Standards:

USB

Consump

s (l x W x H): IS

A,

.

U.S

complies

device

s

harmful

cause

undesired

se

u

Caution: equipment

unless

equipment

this

te

and

U.S.A.

uipment

eq

frequency

equipment

This

(MPE). pe

from

CANADA

compl

device

s

not

may

operation

slry

lndu

app

gain

ype

t

for

ry

cessa

Products

-

Battery

toot

e

lu

B

The

license.

under

r

adapte

This

see

,

details

For

:

ion:

t

interf

operat

may

CANADA comp (Rf)

But

's

rson

es

i

cause

Canada

oved

r

its

and

essfu

succ

word

h

Other

been

has

so

al

th

wi

ion.

generate

mod

the

es

li

Exposure

has

it

body

th

wi

interference,

the

of

regu

or

f

gain

l

Information [European

ese

Th househo If you wi lf9isl

disposing

By

at

neg

Notice:

e

Th

mar trademarks

des

the Ins

..........

+

2.1

r

Ve

2

ass

Cl

m(10.9yd)

1D

Vll

USB

mA/5

54.3 x

mm

of

ri IS

Pa

and

nce,

ere

use

or

ifications

unauthorized

an

if

FCC/IC

th

wi

Guidelines

low

very

irable

des

is

cluding

(ex

-210

RSS

device.

s,

ation

l

lransmitter

e

th

be

should

cat

i

commun

for

Union

indicate

bols

ym

s

dwasteat

l

dispose

to

sh

roth

ono

i

at

this

of

effectsontheenvironmentandhuma

ive

below

Pb

sign

s

logo

k and

and

exclus

ed

n

ig

s s

truction

......................

EDR

Speed)

(Full

(max.)

V

mm

S.6

x

mm

19

Operati

Rules.

FCC

the

(2)

level

that

of and

this

so

erru

are

trade

upplied

mu

device

this

frequency

radio

appro

expressly

are

or

change

u

expos

radiation

upplement

S

in

energy

RF

of

s

installed

be

hould

it s

hands

:

extremities

Canada

stry

indu

vice

de

this

(2)

lransmilter

radio

Canada

stry

Indu

by

the

that

chosen

on.

i

Disposal

on

Users

only[

product

the

that

.

ife

-of-!

itsend

product

this

of

esinyourcountryandmu

l

correctly,

product

batter

for

l

ymbo

e s

th

Blu

e

th

by

owned

tho

are

names

ithJVC'sc

w

use

for

ively

with

your

receive

"

(S/8

on

a«ept

sl

energy

ve

modificat

lim

re

to

C

it

that

i

wr

,

es.

ul

R must

may

i

equ

of

and t

th

and

will

you

i

es

i

ooth

et

he

of t

se

ar r.

J/4"

x

subjec

is

any

ng

Cha

.

the

d in

ion

fo

t

se

its

OET65 deeme

op

nd

a

feet

,

sts

Operation

pt

a«e

ly

on

duce

re

To

.

isotropkally

ent

l

va

Equipment

Old

batte

he

ry

e batte

ip

ic

n

to

lp

he

ea

nh

icates

nd

In

SIG,

pec

s

re

ir

vers.

i

rece

1/4")

x

he

I

to

t

interference

modifications

or

es instruction

.

made

is

an

for

rth

102

-

RSS

and

comply

to

d

keeping

erated

ankles)

and

issubject

interference,

y

an

using

perate

o

potential

thi

with

ry

do

please

,

ality.

natural

onseNe

c

lth.

batt

is

th

t

tha

u

any

and

c.

owners.

tive

use

not

Do

~lllllll§@(!ril~111

may

device

is

(1) Th

ons:

i

condit

two

llowing

fo

eceived,

r

manual.

uncont

of

without

.

to

an

radio

radiated

and

symbo

s

accordan

in

so

co

ry

e

su

of

se

this

includi

this

to

The

ed

ll

ro

radio

I(

lhe

max radi

the

followi

the

in

d

inclu

antenna

interference

power

Batteries

should

l

ce

resources

le

s

ntain

arks

m

ch

adapter

ng

equipmen

co

user

vironme

en

freq um

im

at

tor

a

two

ng

nterference

i

g

ty

a

of

(e.i.r

be

not

app

with

wi

and

.

ad

JVC

by

any

with

interference

t

lose

ld

u

nt

y (R

nc

ue

miss

per

t 20

leas

condit

nd

pea

oth

to

is

.)

.p

sposed

di

cab

li

elp

h

ll

NWOOD

KE

r

he

ot

cause

may

authority

he

t

meels

d

an

Exposure

F)

exposure

ive

em

ons:

i

that

maximum

users,

er

more

not

general

as

tional

na

le

vent

pre

Corporation

receiver.

car

that

more

or

(1)

may

the

than

potential

ay

m

harmful

to

FCC

the

is

th

cause

(or

that

is

Cet

et

RF

doit des

Pour Cet seu accepler di

respecte

faible

tres

etre

emites:

r

ext

le

appareil

ement

l

tif.

sposi

regl

les

qui

lli

sta

in

CANADA

est

condition

aux

brou

tout

-

Etats

es

l

Pour

equipement

Conformement

d'un

et

type

un

d'

brouillage

de

ues

sq

ri sorte

communication

• Cet

ssa

pui

Ia

e

qu

Produits

-

:a

Pile

mot

du

marqur

La

t

es

on

ti

a

rpor

Co

eur a

adaptat

detail

de

plus

Pour

le

et

Unis

nform

co

t

es

exposi

d'

es

conside

est

lise

i

ut

et

piognets

,

mains

conforme

radioilectrique

ge

lla

i

e

regl

Ia

a

maximal

gain

radioilectrique

isotrope

nce

ante

s

atisfai

s

Informations utilisateurs

[Union

ymb

s

Ces

ncycledevie.

eso

d

s

vou

Si

vigueur

en

limin

e

En

entue

ev

des Notifi<

rqu

ma

La

es

l

et

sous

faite

n~u

co

ete

reterez

s,

CANADA

aux

e

on

ti

confo

ee

r

gardant

en

, pieds

reglemen

au

uivant

s

io

mentat

(ou

rayon

.

europt!enne

gnifi

si

es

ol

ez

ait

uh

so

s votre

dan

rr

co

nt

a

effets

ls

:

ion

at

en d

Pb

e

Bluetooth

os

log

L

.

cence

li

le

cia

spe

aux

s

vou

·

es

limit

frequences

aux

rm

une

et

t

(1)

es:

lndustr

d'

n

er

inf

!'

a

ee

n

relatives

seulement]

ent

imin

€1

pays

ectement

nfgatifs

us

esso

so

utr

esa

po

ment

tru

s

in

exposition

d'

evaluation

ans

e s

distan

illies).

ev

ch

-210

CNR

doit

ne

il

meme si

re(u,

ie

ap

)

ur

ie

intention

uivalente

eq

relimination

a

produit

le

e

qu

od

pr

ce

er

vo

et

produit,

ce

ur

s

mbol

sy

du

propri

Ia

nt

marqu

es

re

et

ur

ons

cti

aux

radioilectriques

de

em

20

de

ce

s

indu

l'

de

produire

s

pa

brouill

ce

pr

le

Canada,

pour

prouve

autres

es

d

.e

(p.i.r

pile

es

l

et

piles,

s

le

et

uit

municipal

e

tr

co

vous

ment

e

nn

o

nvir

'e

l

es

pil

es

e d

Blu

de

fte

de

s

nom

et

es

un

se avec

li

i

ut

avec

urnies

fo

ments

e

rayonn

RF)

(

expos

I'

plus

ou

Canada

du

trie

brouillag

de

es

age

emetteur

nt

ese

l'emetteur

utilisateurs,

p

de

ne

.)

aopareils

des

do

ne

s

s-le

faite

itt'.

a

ntribuez

sa

Ia

et

e

indiqu

SIG,

tooth

e

mmerc

co

dio

ra

uto

a

autor

votre

enoncees

02

-1

CNR

maximale

ion

it

sp

di

le

entre

ti

'u

. [

et

e

scept

t su

radio ndustrie

l

par

faut

il

l'i

as

p

asse

et

pas

venl

i

conformfment

conserv

Ia

huma

e

nt

pile

cette

e

qu

toute

et

c

In

p

Ia

t

son

e

N'utili

C.

JV

.

adio

os

sation

li (2) ible

ch

nt

des

re

tion

a ine.

ropri

sez

pour

I' I

de

autorisfe.

itif

l'util

de

peut

ir le

ois ensite n

piles

limin

f

a

de

ont

c

utili

te

e

p

nvironn

e

un

uip

eq

Cet

C.

Cepen

et

rayonnant

dispositif

ce

de

dispositif

du

isateur

compromettre

fonctionner

Dans

.

ada

n

Ca

d'antenna

type

aire

ecess

usages,

que

tant

en

fs

ation

isl

eg

Ia l

naturelles

ressources

s

plomb.

du

nt

ie

m

ces

de

ation

s

proprift

eur

l

de

eur

at

t

adap

cet

as

ment

e

em

ement

cet

,

dant

(a

corps

le

autorisie

t

es

d

fonctionnement

le

une

avec

de

but

le

so

et

tabliss

'e

l

a

ntention

'i

!

a

menager

het

dec

ou

le

ona

nati

eta

ar

p

es

u

arq

p

es

aire r

un

ec

av

contr6

non

un

et

fqui

except

I'

etre

t

oi

enne

t

an reduire

ga

n

men

e

autres

prevention

Ia

C

JV

tif.

e<

re

aut

energie

e

pem

pret

les

de

in

d'

t

des

Ia

a

reg

NWOOD

KE

auto

usados

las

s/pi

bateria

y

eguipos

de

eliminacion

sobrela

usuarios

los

para

/pilas

oth

to

e

Blu

arca

licencia

o

baj

za

li

ha

ador

pt

t

ep

rec

otro

de

s

ma

obtener

Benutzerinformationen

(Nur Oi Haushalt We Land Di u

Hinw

Oa

e Bluet

rk

a

rtm

rporati

Co

erkannt.

san

vonun

en

ur

w

Adapter

r

ut

enA

der

an

en siehe mit lh

Informacion

Union

[Scilo

sim

os

Est

do

ra

su

ba

desechar

esea

d

Si

ativasdes

rm

no

ch

se

de

Si

e

es

bl

i

pos AtenciOn:

indicac

La

gotipos

lo

ysus

as

Otr

.

riado

se

di

o

sid

auto

para

or

co

,

lles

ta

Europaische

bole

Sym

ese

sabfa

di

Sie

nn

esgesetze

kte

e

rr

ko

e

me

die

nd

is:

e

en

Zeich

s

und

ooth

ie

sch

ge

on

schl

aus

de

eive

c

Re

o-

rem

Europea[

indican

bolos

mesticaalfinald

este

upaisymunicipio.

producto

el

a

negatives

ctos

fe

debajo

Pb

i6n

op

pr

son

nomb

y

marcas

usarse

ra

pa

m6vil.

bi

tam

e

ult

ns

Union]

an

gen

i

ze

orgtwerdensollrn.

s

nt

e

ll

Produkt

es

ere

d

an

und

Entsorgung

s

Ge

e

hlicti

c

ns

lb

rha

e

unt

Pb

ind

s s

logo

e

di

lize

er

unt

ht

Ve

ur

z

ch

ii

eB

i

r.

mitgelief

ver

Recei

ct

produ

el

que

vidaUtil.

esu

Ia

y

producto

correctamente

med

el

en

lo

o

mb

sf

l

de

lu

de B

ad

ied

rci

come

res

xclusivam

e

cione

c

instru

las

en

Entsorgung

zur

dam

s

da

ss

da

,

Batte

die

und

Regelungen

odukts

Pr

es

dies

it.

he

und

Batteriesymbol

es

d

de

ntum

ge

Ei

Wa

dere

An

.

nz

mit

rwendung

diermng

Be

e

rt

e

y

o

bater

estara

,

ambiente

ia

bat

de

etooth

son

s

le

a

e

nt

e

s

it gek

en

e

ri

hr

l

in

dien

et

lu

B

r

enzeich

r

Auto

bat

Ia

h

fa,

co

erfa/pila

SIG, de

os

l

con

sum

nze

en sorgen

t

em

dem

t

gi

s

th

oo

en

Recei

-

n

sa

ia

er

lo

aga

ntrib

y

Inc.,

sus

re

stradas

ini

alter

ich

land

Umwe

an

bt

SlG

un

ve

leitung

llevan

e

qu

conformidad

de

uyendo

sa

Ia

en

a

ndic

i

cua

y

ctiv

respe

es

tor

cep

co

Gerate

P

te

ne

en

ht

mOc

lhrer

.

bzw

sc

lt

ass

, d

und

,

c.

, In

ande

d H

n

vo

rn

.

a d

lu

e

qu

lqui

os

para

su

n

rodukt

h

, hut

ese

di

eg

j nam

ls

C

JV

simb

este

con

conseNar

persona

as

l

de

contiene

ta

es

de

sa

er u

arios

propiet

om6

ut

a

ptor

ece

r

Batterien

und

bzw.

Sie

n

alte

Gemeinde

verhind

und

z

e

ri

e

Batt

Ve

iche

l

sind

en

ntworf

e

olo

los

die sich

rw

Eig

Ia lo

vil

.

Bl

en

.

de

no

isl

eg

l

ecursos

r

s

s.

plomo

mos

s

mi

.

JVC.

de

Batterie

abe

d

rt

e

nth

eie

og

du

m

tu

en

e

Verw

ben

ac

bitt

i

mtigli

a

so

ihr

nd

6n

i

.

po

No

nicht

lt.

lcher

en

ese

d

naci

natura

JV

r

ut

ea

che

er je

Sie

charse

onal

es

l

KENWOO

C

este

ice

il

no

als

ie

n d

Schade

Mark

ge

ili

we

diesen

vige

y

rm

entsp

en

n

junto

a

ada

aler

o

ur

d

Be

Ad

nte

ap

D

ec

ch sitz

con

u o

enir

Corpo

ptad

he di

die

er

t

tr

or

nden

Umw

e

JV

und

ni

Ia

as

los

ation

r

wn

C

cht mit

elt

1e

ent

on

i

Productos

-

Baterias

a

du

Lam

• rea

se

e ada

Est ningUn

a

Par

e

un

fin

es

l

Produkte

-

Batterie

io.

ad

r

e Wo

Di

KENWOOD

rd

we

ese

Oi

inem

e Einzelheit

=

)t

marchio

maggiori

Pilha

adaptador mais

Qualora

nazionale Mediante

potenziali

Nota

il

e

i

logo

in

licenza.

e

stato

con

ri

cevitori

i

nformazioni

lnforma@o

[Apenas

Estes

forma

Se

outras Ao

eteitos Aviso:

0

marcas

e

Corporation

toi

detalhes,

Prodotti

-

)t

Batteria

II concesso

o

L'adattatore impiegato Per

Produtos

-

)t

o

A

palavra,

KENWOOD Este re<eptordeautom6vel. Para

lnfonnazioni

[Esdusivamente

Questi

domesticigeneric

mondiali

desenhado

per

simboli

indicano

i

allafinedellalorovita

si

desideri

smaltire

applicabile lo

smaltimento

effetti

negativi

:

simbolo

Pb

sotto

il

simbolo

di

Bluetooth

Altri

morchi

e

nomi

concepito

esclus

i

vamente

di

altra

marca.

in

merito

si

prega

oara

para

a

Uniao

simbolos

indicam

que

outros

aparelhos

pretenderdescartar-se

regras

em

vigor

eliminar

este

produto

negatives

no

ambiente

sinal

Pb

abaixo

do

simbolo

logotipos

Bluetooth

esta

sob

licen~a.

para

uso

consulte

tambem

as

gli

utenti

sullo

il

prodotto

il

prodotto

altre

corretto

sull

'

ambiente

delle

per

di

vedere

o

produto

domest deste seu

pais

da

forma

e

para

de

propriedade

outros

com

smaltimento

Europea]

e

Ia

e

Ia

leggi

della

di

questa

e

batterie

a

Bluetooth

appartengono

essere

impiegato

il

relativo

acerca

e

a

i

cos,

no

produto

e

ou

municipio.

correcta,

saUde

humana.

pilhas

indica

nomes

comerciais

receptores

tornecidas

I'Unione

che

o

aile

appartengono

di

fabbrica

os

utilizadores

Europeia]

que

no

sao Os

exclusivo

instru~Oes

batteria

su

utile.

batteria,

effettuare

propria

nazionee

prodotto,

sulla

salute

indica

che

SIG,

ai

rispettivi coni

manuale

da

eliminado

pilha

que

tiverem

tim

da

sua

da

pilha,

portavorfa~

ajudara

a

que

esta

da

Bluetooth

e

marcas

de

autom6vel

como

seu

delle

apparecchiature

rui

essi

appaiono

lo

smaltimento

del

proprio

si

contribuir.i

a

umana.

questa

batteria

Inc.

e

l'

uso

di

tali

titolari

.

ricevitori

di

marca

d'istruzioni.

de

este

sfmbolo

vida

de

utiliza~ao.

-

o

de

conservar

recursos

pilha

contem

SIG,

Inc.

e

qualquer

rf9istadas

JVC.

Nao

receptor.

non

devono

essere

in

conformit.i

comune.

preservare

le

risorse

contiene

piombo.

marchi

fatto

da

JVC

per

automeui.

eguioamento

nao

devem

ser

acordo

com

a

legisla~ao

naturais

e

ajudara

chumbo.

utiliza~ao

sao

dos

seus

respectivos

utilize

este

adaptador

e

batterie

smaltiti

alia

naturali

JVC

KENWOOD

Non

usado

descartados

a

evitar

detais

marcas

com

obsolete

tra

i

rifiuti

normativa

e

a

prevenire

Corporation

deve

quindi

e

pilhas

da

mesma

nacional

aplicavel

potenciais

pela

JVC

proprietaries.

nenhum

outro

essere

ou

e

Tuotteet

-

';g

Bluetooth-merkki tuotenimet

kuuluvat

o

Tama

sovitin kanssa. Katso

tarkempia

)t

-

Tietoja

[vain

Euroopan

Nama

symbol

elinkaan

Jos

haluat

voimassa

Kun

havitiit

jaterveyshaittoja. Huomautus:

Akkusymoblin

ja

logot

vastaaville

on

suunniteltu

tietoja

myOs

[sadece

Avrupa

vanhojen

unioni]

it

tarkoittavat,

paattyy.

hiivittaa

taman

olevien

maaraysten

tuotteen

alapuolella

kuuluvat

Bluetooth

omistajille.

erityisesti

kaytettavaksi

vastaanottimen

Birligi]

laitteiden

ja

ettei

symbolilla

tuotteen

ja

mukaan.

asianmukaisella

oleva

Pb

-

merkinta

SIG,

lnc:lle

JVC

mukana

Bluetooth bu

markalan

sahiplerineaittir.

•

Bu

adaptOr

Bu

adapttiri.i

Aynnt1lar

akkujen

havittamisesta

varustettua

tuotetta

akun,

tee

niin

kansallisen

tavalla,

autat

saastamaan

tarkoittaa,

etta

ja

JVC

KENWOOD

Corporation

-autovastaanottimissa.

toimitetuista

kaytttiohjeista

markas1

ve

logolan

olarak

ara~

allolan

herhangi

birlikte

Bluetooth

kullanmaktad1r.

bir

lisansh

JVC'nin

ba~ka

i~in

allcmlzla

eika

akkua lainsaadanntin luonnonvaroja

akku

sisiiltaa

kiiyttiiii

Ala

kiiytii

tat

.

SIG,Inc.'a

ile

birlikte

ara~

allos1

verilen

talimatlara

saa

laittaa

tai

muiden

ja

estamaan

lyijyii.

niitii

lisenssilla.

a

sov

i

tinta

aittir

Oi§erticari

kullamlmak

ile

kullanmaym1z.

bak1n.

talousjatteisiin,

maassasi

mahdollisia

Muut

muiden

autovastaanottimien

ve

JVC

KENWOOD

markalarve

ilzere

tizel

olarak

kun

sen

ja

kunnassasi

ymparistO-

tavaramerkitja

Corporation

ticari

adlar

kendi

tasarlanm1~t1r

.

Product

-

)t

Batterij

Het

woord

gebruikt

o

Deze

adapter

Zie

tevens

Produkter

-

Batteri

•

Ordmarket Corporation

•

Oenna tillsammans Se

aven

lnformatie

[Aileen

Deze

symbolen

het

normale

Wanneer

en

regels

in

Door

dit

en

met

het

Opmerldng:

Het

teken

Bluetooth

en

de

deze

onder

licentie.

is

ontworpen

de

bij

uw

re<eiver

lnfonnation [Galler Oessa

symboler hushaJJsavfall, Om

du

galler

i Genom negativa

Observera! Markningen

och

Jogotypen

sker

pa

licens.

adapter

ar

specialkonstruerad

med

nagon

bruksanvisningen

voor

de

Europese

geven

huishoudelijk

u

dit

product

uw

land

en

product

naar

voorkomen

Pb

onder

bijbehorende

Overige

handelsmerken

voor

exdusief

geleverde

for

endast

EU-Iander[

anger

nar

viii

kassera

Jandet

och

an

avyttra

effekter

Pb

under

fiir

Bluetooth

Andra

varumarken

annan

bilstereo.

till

bilstereon

gebruikers

over

Unie]

aan

dat

het

product

afval

mogen

en

de

batterij

gemeente.

het

anvandare

de denna kommunen

denna

pa

wilt

het

inzamelingspunt

van

potentiele

batterijsymbool

markeringen

en

gebruik

met

JVC

gebruiksaanwijzing

glillande

an

produkter

inte

ska

anvandas

produkt

dar

produkt

miljiin

och

den

symbolen

fiir

ags

av

Bluetooth

och

varunamn

for

anvandning

angaende

het

verwijderen

en

de

batterij

worden

weggf9ooid.

weggooien,

te

brengen,

negatieve

effecten

geeft

a

an

dat

logo's

zijn

namen

zijn

eigendom

auto-re<eivers.

voor

details.

bortskaffning

och

banerier mer.

och

baneri,

du

bor.

p!

ran

san,

manskliga

banerier

indikerar

SIG,

tillhiir

tillsammans

detaljer.

met

houdt

werkt

op

deze

batterij

eigendom

Gebruik

med

sa

ska

dena

bidrar

du

halsan.

Inc.

och

varje respektive med

van

oude

dit

symbool

u

dan

aan

de

u

mee

a

an

het

milieu

load

van

Bluetooth

van

de

overeenkomende

deze

adapter

av

gamma!

denna

symbol

giiras

till

an

bevara

an

dena

anvandning

agare.

en

JVC

-bilstereo.

apparatuur

bij

het

einde

geldende

het

behoud

en

de

volksgezondheid.

bevat.

SIG,Inc.

niet

met

utrustning

inte

ska

i

enlighet

med

naturen

baneri

innehaller av

dessa

Anvand

en

van

de

nationale

van

natuurlijke

en

JVC

eigenaren.

andere

kasseras

den

och

bly.

marl<en

inte

batteriien

gebruiksduur wetgeving

hulpbronnen

KENWOOD

Corporation

auto-receivers.

och

batterier

som

vanligt

lagstiftning

forhindrar

potentiellt

av

JVC

adaptern

niet

met

of

andere

som

KENWOOD

CaeAeHMH

[ronbKO

fi~t

JIOmKHbl

MJAenMH

-

)t

6anpe•

o

T

eKcrosbiM MCOOJ\b3yiOTCR RBJlRIOW:I

o

JlaHHbiM

a,qanrep

JlonOJJHMTeJJbHYIO

npo'iona

-

Mnatapia

H

;;(q

Corporation

o

0

npooap~Joyto(

npooappoyta

fta

AEmo~tpEtE(,

YTKJJM33~MA

33KOHOA3TenbCTBa 06ecne4HBaR npeAOTSpautaeTe

YaeAOMneHMe:

Ha.QnHCb

rosapHbiM

lHaK

KOMnaHMeM

Co6CTBeHHOCTbiO

~anrep

npe,qHa3H3"1eH

C

,llpyntMH

npHeMHHKaMM.

HH$OpMa~MIO

DlnootopiEc unataptlilv.

[Eupwnai•Ji1vw01J

Ta

oU~~oAa

OJTOppirrtOVTOI

EOv

~

OMou~

H

OW<JTfl

EV6EX6~EVWV

En•ori~avoq:

To

o~pa

KUI10

loy6wno

yivETat

Kat6mv

outO<;

p.E

01TOl06~JTOlE

avatpt(u

AIIH

nonblO&areneM

EaponelicMM

04M80nbl

Bluetooth JVC COOTBfTCTBYIOUlMX

etAm:

Pb

Bluetooth

oOEia(.llia

tXEI

OXE610atEi

miof'J<

Co103]

yKa3biBaiOT

Ha

TO,

'ITO

yr~t11K3HpOEk1TbCR,

AaHHOfO

MJJM

npaBMJlbHYJO

B03MO~Hb1M

Pb

OOJI

CHMBOJIOM

H

KENWOOD

MCKJJIO"'HTenbHO

CM.

B

pyKOBOJICTBe,

ytCl

aura

Of'JAWvouv

W~

OIKIOK0

va

anoppi'IJETE KQVOVtopoU( on6pp1'1Jf'J

OUTOU

OpVfJTIKWV

KOtw

on6

EivmiOIOKTqoio

y10

Iillo

OfKTfj OTt(

113.Qe11He

KaK

06bi4Hble

Ml.QeJJMA

M

6aTapeK

APYfMMM

npasMnaMK,

yrMnH3a~MIO

Yutep6

6arapeM

yKa3b183eT

coorsercrsyiOli.IMe

Corporation

no

BJJa,qeJJbl.lfB.

AJIR

MCOOJ\b30BaHMR

OOCTaBJJReMOM

lOU<

xpflauc

~civo]

6n

TO

JTpoT6v

OJT6~Af'JTO

KOTci

to

JTpoT6v

aut6

rTOU

taxUouv

O!fJ

IOU

npo'i6VTO(

EJnmWOEWV

OTO

to

aU~~oAo

y1a

tt(

Tq(

Bluetooth

EpnoptK6.

o~pata

anoKAEiatiK~

XP~O~

OUlOKIV~lOU.

oOfJyiE:<

nounaptxovrm

no

JTIUIMlaUMM

6biTOSble

JIOJIIKH3

,qaHHoro

MR

OKpy>t<aiOuteM

nororHnbl

COOTBeTCTBYIOilleM

axEnKti

Kal

TO

Kat

xWpa

~Ofj96

nEptpcillov

l.lnOtapfE(

KQI

EpnoptKE<

~E

naooro

116arapeA,

Ha

KOTOpble

OTXOJibL

ocyuteCTBJIATbCR

.QeMcrsyiOutMMM

fJ TfAO( Tf'JV iltf'JV

SIG,

pa(i

s

BaweM

npo,qyKTa,

Bbl

cpe,Qbl

Ha

TO,

'ITO

AaHHaR

RBJJRIOTCR

co6crseHHOCTbiO

JlH~eH3HM.

COSMeCTHO

C

npMeMHMKOM.

lll

mv

mrOppul!n

~meropia

JTou

cptpouv

Tf'J(

WqlfAI~fl(

pnampia,

KOvn

rTEPlOX~

00(.

atfj

610niPf'JOf'J

TWV

Kat

TTJV

av6pliJJUVf'J

6f1AWVEI6n

our~

Inc

KUI

KOBE

xp~oq

ovo~aoit:<

MKTE(

aurOKIV~IOu

p.E:

10

6lKif'J.

EivmtOIOKifiOia

o6omo&aHMA

OHI!

HaHe<eHbl,

B

COOTBeTCTBKM

C

crpaHe

M

ropo.Qe.

noMoraere

c6epe"'b

H

3J10pOBbR

I!IO.QeM.

6arapeA

CO,llep~MT

KOMnaHHH

npo4Me

TOBapHble

nplteMHHKaMM

JV(.

lOU

nCllatoU

aur6

TO

oU~~oAo

(W~(

IOU(.

ro

oUpcpwva

~E

Tf'JV

!pUotKWV

n6pwv

uyEiO.

f1

pnatapia

ITEpti:XEt

TWY

"'Myw

oq~aTwv

twv

Tfl<

JVC.

Mfl

XPfJOip.OJTOIEiTE

M 6araDei

8

KOH~e

cpoKa

Ol)?K6bl

Tpe60BaHMAMM

Ha~MOHaJJbHOrO

npMpoAHble

pecypcbl

CBHHe4.

Bluetooth

SIG,

3H3KM

H

roprOBble

He

MCOOJ\b3yMre

d,onAtcruoU

Mv

JTplJTEt

va

taxUouoo

EBviK~

Kot

OTfJV

np6Afj~Jlfl

~6Au~Oo.

ono

Tqv

JVC

avtiarmxwv

1610KI~tWv

aut6v

tov

He

M

Inc.

M

MapKM

.ll3HHbiM

Kat

lWV

vopo9Eoia

KENWOOD

IOU(.

"

Produkter

-

~

Bluetooth licens.

o

Adapteren

bilreceiver.

Se

-

Andre

desuden

Brugerinformation [kun

EUI

Disse

symboler

husholdningsaffald,

Hvis

du nationallovgivning Ved

at

bortskaffe

negative

Bemzrk:

Tegnet

Pb

ordmifrket

samt

varemifrker

og

er

designet

udelukkende

vejledningen

,

angiver,

0nsker

at

bortskaffe

dette

pavirkninger

undersymbolet

logoer

ejes

at

navne

brugt

til

der

f0lger

med

om

at

n!r

del

eller

produkt

af

Blue som

brug

receiveren

bortskaffelse

produktet

skal

smides

dette

produkt

andre

love

korrekt

milj0et

og

for

banerierne

tooth

SIG, varema-rker sammen

,

for

af

gammelt

og

batteriet

med

ud.

og

batteriet,

og

bestemmelser

medvirterdu

folkesundheden.

angiver,

at

Inc.

og

enhver

brug

tilherer

de

res

respektive

med

JVCs

bilreceivere.

yder1igere

oplysninger.

dette

bedes

i

dit

til

dene

at

sadanne

udstyr

symbol

du

g0re

land

og

kommune.

bevare

naturens

batteri

indeholder

mifrker

ejere

.

Adapteren

og

batterier

ikke

m~

bortskaffes

det

i

overensstemmelse ressourcer

bly.

at

JVC

KENWOOD

rna

ikke

anvendes

som

samt

Corporation

sammen

almindeligt

med

gifldende

torhindre

med

eventuelle

foregar

nogen

anden

under

Ill

Produkty

-

)t

Bate

ria

-

Znak

slowny

i

logo

licencjonowane.lnne

•

Adapter

zostcK

zaprojektowany

odbiornikiem

samochodowym.

Wi~cej

informacji

lnfonnacie [Kraje

Unii

Europejskiejl

Symbole

przedstawlone

okresu

ich

eksploatacji

W

razie

konie<znoSci

przepisami

lub

DbajifC

o

prawicHowq_

n~atywny

wJMyw

Uwaga: tlznaaenie

Pb,

Bluetooth

S<J

w!asnoS<iq

znaki

i

nazwy

do

na

ten

temat

podano

dla

uMkownikow

obok

nie

naleiy

pozbycia

innymi

zasadami

utylizacj~

oddziatywania

znajduj((ce

si~

Bluetooth

handlowe

sq

wyfc)cznego

uiytku

si~

w

instrukcji

dotyaace

oznaaaj~,

ie

sprz~tu

wyrzuca(

razem

si~

niniejszego

post~powania

produktu,

pod

SIG,

wtasnoSciit

z

produktu

obowi~zuj~cymi

przyayniasz

na

Srodowisko

i

zdrowie

symbolem

baterii

Inc.,

wmlkie

ich

odpowiednich

z

odbiornikami

samochodowymi

obshigi

odbiornika.

pozbvwania

elektryanego

odpadami

gospodarczymi.

i

baterii

naleiy

si~

do

ochrony

ludzi.

wskazuje,

ie

uiycie

tych

znak6w

wlaScicieli.

sie

zuMeao

i

etektronianego

post~powaC

w

danym

kraju

zasob6w

naturalnych

ta

bateria

zawiera

przez

JVC

JVC.

Nie

naleiy

sprzetu

oraz

baterii

zgodnie

zlokalnymi

i

miejscowoSci.

i

zmniejszasz

ot6w.

KENWOOD

uiywa(

adaptera

i

baterii

po

zakor'laeniu

Corporation

jest

z

innym

!E

ii!!M

-

i

Baterie

•

ZnaCku

podh

~ha

•

Tento

adapter

Podrobnosti

a

logo

Bluetooth

podmink3m

byl

najdete

lnformace ]Pouze

pro

Tyto

sym

belny

odpad.

Pfejete-li

jinjmi

pfedpisy

Spravnou

negativnich

Upozomeni:

ZnaCka

Pb

a

vlastni

licenc

e.

navrien

vYiuCne

rovne

i

v

oro

Evropskou

bo

ly

znamenajl,

si

zlikvidovat

likvidaci

dopadU

pod

symbolem

s

poleCnost

Ostatni

pro

pfiruCce

uiivatele k

tento

platnjmi

tohoto

na

i:ivotni

o<hranne

pouiiti

dodane

likvldad stareho

unli]

i.e

produkt

ve

va~i

zemi

produktu

prostfedi

pro

baterie

Bluetooth

zn.imky

s

piijima(em

s

VaSim

a

baterie

a

Daterii,

a

obd.

pomiii:ete

a

lidske

znamena,

SIG,

Inc.

a

obchodni

JVC

pfijima(

s

timto

provedte

zachovat

le

Jakekoli

nazvy

do

vozidla.

e

m.

zdravL

zaiizeni a baterii

symbolem

to

prosim

piirodni

zdroje

tato

baterie

obsahuje

poui:ivclni

tf<:hto

naleieji

pfisluSnYm

Nepouiivejte

nesmi

v

so

bjt

po

uladu

s

a

napomahate

olovo.

znaCek

spote<nosti

vlastnfkUm.

tento

adapters

-

skonCenf

i:ivotnosti

pifsluSnjmi

prevenci

jinYm

l

nclrodnimi

potencialnich

JVC

KENWOOD

piijima(em

ikvidovany

Ukony

Corporation

do

vozidla.

jako

nebo

~

:a

~~~

-

llllllllllllllllllllllll

llllllllllllllllllllllllllllllllllllllllllllllllllllllll~-·o~

j

01lll'u\-ln>~H>~m><~hu,ri1>i'>~

l

~

ol

~

••

~

,

~

,

.

~

~fl

~

'

~

SIG,

Inc.

]

LLii::m;liiL'fl~£l..:J"r11-11U~..:Jn~T

JVC

KENWOOD

't·UJ1tJn1

7

#hLLa::~E

MI-/1Un14fh~~n~11

•

v:LLfliJ

L

11'1tl'

i

\il~

4fiUU.l1Jtl..:J

JV(

!Ttyqpru.lu

;

fluufi"11Ufl5U")

fl1wlunui'I::L~ufl~U"]1tl7fl~~1n~~D~~fl~..:Jl~~7El).JnuL'fl~D~

1

uir;yQJint1lD..:JfJru.

.......

"

~"'

~

"

~

,;

~

,

~

.•

~B~Iu~etooth

~o.ii\.1.1JD~u11ffl

Bluetooth

l

Corporation

I'

tn..:Jn17fh~~

1

unl

;

tl[lnLLuul..Uiirluut.Jn

L

,htf\.1.

1fluu71ffl

oomu\iim

,

ouqp•Hi

•

")

LiJuani1l~·U~11J£l>lLfl~[I..:J

£l~1liiD::LLf!iJL!11~-H1fllJ~tlmr.ii

•~••

;

r.ii

i'

1Jrir;yqp~l\.l.

7u

Termekek

-

:a

Akkumulator

o A

Bluetooth

jelzfseket.

o

Ez

az

adapter

A

r&le

-

Prod

use

-

:a

Bat erie

•

Cuviintul marci

comerciale

•

Acest

adaptor

Pentru

mai

npOAYKTM

-

:a

6arep••

MapKara Corporation

•

T

0314

a,&amep

.Qa

He

ce

Felhaszmlloi informado

[Csak

Eunipai

Ezek

a

sz

imb

vegennemszaba

A

jelen

termek

adott

orszilgban,

A

termek

megfele!O

kOrnyezetre Megjegyzes:

Az

al.ibbi

Pb

szimbO

szo

a

Bluetooth

SI

G,

bi

kereskedelmi

a

JVC

aut6radi6khoz

a

vev6h0z

mellfkelt

[TinbKH

Afl•

EsponeHCbKoro

lnformatii oentru ve<hi

[Doar

in

Uniunea

Aceste

simboluri menajerelafinaluldurateideviata. Oaca

dorili

sa

in

vigoare

sa

u

Prin

evacuarea

po

s

ibilelor

efecte

Observatie:

Semnul

Pb

de

Bluetooth

su

nt

$i

nume

comerciale

fost

realizat

pentru

detalii,

consultati

MHcbopMaUMH

(CaMo

1a

EaponeiicKMR

Te3M

CKMBOflM

OTOaAbi.IM

B

KpiiR

AKo

)Kenaere Hai.IMOHiiiiHO lfpe

3

npaBI4nHOTO

npeAOTBpaTRBaHeTO

npeAynpt>KAOHMe:

3HaKbT

Pb

OOA

Ha

Bluetooth

ca

no

11141.1eH3

.

OrraHanHTeTbproacKM

npeAH33Ha~eH

3a

a,&anrepbT

c

Apyr

te

~i

M

M3

ket

A

t

Ob kizarolag

1.3sd

siglele

a

multe

nororo

rrasa

e

nomaa

az

Unio]

il

lumok

dh

es

akkumuliltor

illetve

es

az

egeszsegre

Inc.

sajat

vedjegy

i

nd

evacuati

cu

a

lea

corecta

nega

mai

jos

detinute

apartin

utiliz

ln

s

3a

yKa3BaT,

Ha

Aa

AenoHMpare

33KOHOAaTeiiCTBO

,&eiiOHMpaHe

CMMBOJla

co6rrseHOCT

M3KiliO~MrenHa

aeroM06MneH

elhasznalt

azt

jelzik,

hogy

az

hulladfkkfnt

helyhat6silgi

gyakorolt

ha

az

akkumulcitoron

jelzese megnevezfs hasznathat6.

Cot03Y

faptul

ca

produsul

de~u

acest

i

di

n

acestui

produ

asupra

mediului

ba

terii

indic

Bluetooth

pose

sori

lor

excl

u

siva

furnizate

Cb103]

~e

npOAYKTbT

T03M

npOAYKT MllM Hil

T03M

IIOT

e

H1.1

143fl

6arepi4M

yKa3Ba,

Ha

Bluetooth

MapKM

ynorpe6a

npMeMHMK.

ilyen ntk

ki:i12etben

segit

.irtalmas

es

az

frintett

Ne

l

ru

orivire

prod

tara

sau

s,

veti

a

faptul

SIG,Inc. acestora.

cu

aparatele

cu

M

6arep14RT3

MM

APYfM

IIPOAYKT

HM

Te

OTP14LiaTellHM

c

ilztart3siszemftkf

.irtalmatlanitasaval

ium

tulajdonu

es

Utmutat6kban.

utilizatori

EuropeaniJ

ica

ca

preveder

a

t

ive

pentru

de

a

rea

truqiunile

norpe6MrenMre

eKCni103T3l.IMOHHMR

Ha

3a

berendezesek

jelzfssel

eze

lni.

kezelesekor

ervenyes

meg6rizni

hat.isokat.

megtal.ilhat6-

logoja,

tulajdonosok

pr6bilkouunk

•

T

etmoaa Bluetooth KENWOOD M3pKM

•

,llaHMM 3

3BTOM06illbH~M14

BMKOp1400BYBaTM aBTOM06illbHMMI4 Jlnn BXOAMTb

Ia

~i

bateriile

us

~

i

bateria,

municipalitatea

avuta

~

i

sanatatii

cii

bateria

$i

sunt

auto

aparatul

Ha

AenoHMpaHM

CpOK.

M

6arep14RTa,

npa

e

Mna

11\e

lie

Ta31t

6arep~R

SIG,

Inc.

, M

M

TbproacKM

asTOM0614nHM

es

ell.:itott

termfket

j.irjunk

el

az

egyfb

el6ir.isok

a

terme

sze

tes

azt

jelzi

,

hogy

es

a

JVC

KENWOOD

birtokaban

mas

aut6radi6kat

ropriaenbHa

SIG,

Inc.

BHKOPMCTaHHR

Corporation

T3

TOprOBi

H3

3BM

3Aanrep

po3po6neH14M

npMHMa~aMI4

AaHMH

npltMMa~aMM.

6illbW,fteTanbHOrO

AO

KOMnnetny

evaruarea

<a

dej!!u

cu

acest

simbol

nu

va

rugam

sa

faceti

dumneavoastra.

Ia

conservarea

resur

umane.

Cont

ine

plumb

.

utiliza

te

de

JVC

KENWOOD

JVC.

Nu

folositi

aapo

T03M

CI!MBOII

Monn,

Hanpaa

aawara

apaHa

OOMOfHeTe

3il

norneAMI.IM

CbAbp)K(t

BeRKO

143nomsaHe

Ha3BaH

IHI

ca

npMeMHMLIM

acest

He

3iiOa3B3

3a

011080.

Hil

dumneavoastra.

C

BbB

akkumulatorok

es

akkumulatort

hasznos

idev

ii

g6

orszilgos

rendelkez

szerint.

erOforr.isokat,

es

megeiOzheti

az

akkumul.itor

Olmot

Corporation

licenc

alapjan

van.

megtaptalni

vele.

MapKa

ra

noronml!

~Hx

MapoK

3

Ai~CHIO£Tb01

33

niueH3iEKJ.IHwi

HaneJ~~:aTb

BiAOOBiAHitM

BMKIIIOtiHO

KOM03Hil

3A30Tep

3

6yAb-RKMM14

03HaMOM11eHHR

AMBiTbUI

noaa~aHHR

npMMMa~a

..

a

e<hioamentelor

trebuie

sa

fie

evac

acest

lucru

in

conformitate

se

lor

naturale

$i

veti

Corporation

adaptor

cu

alte

o6opyAaaHe

TpR6Ba

OKOflHaTa

Ha

M

Aa

ce

AeOOHMpar

ere

roB

CbOTBe

TCTBMe

14

o6uti4Ha.

HeTO

Ha

npMpOAHMTe

cpeAil

14

Ha

re3M

MapK~!

JVC.

or

cM

npurelt<arenM.

CbOTBeTHI4Te

6arepMM

~OBeWKOTO

elhelyezeserol

elettartama

esek

vagy

az

a

tartalmaz.

hasznatja

e

Bluetooth

£

BJlacHiCTHJ

KoMnaHi£KJJVC

TOpriaenbHi

B1130H1KaM.

AllR

BMKOp~aaHHR

JV(.

3a6opOHeHO

iHW14M14

iHCTpyK~iHJ,

LUO

.

;{e1Hf4@t+i

si

bateriilor

uate

Ia

fe

l

ca

de~eurile

cu

legislatia

co

ntr

ibu

i

Ia

preven

irea

s

ub

lic

enta.

Celelalte

aparate

auto.

K3TO

61410814

c

npMnOJII:MMor

o

pecyp<:lt

M

3APiiBe.

rrpaHa

Ha

JVC

KENWOOD

"I' .

muetooth

SIG,

In<.

as_,..w

as~

l,!.>I,LL..>.,

muetooth

4lS

~ll<

,..._,·JVCKENWOOOCorporatlonas,..,.ah...I.,~WWI...,JW~I~I

·"-'L-...':1

dL.

o."l...cll

,L..,...,':II,

~':II

"'"~I

~

OJ4--JI

.

..J.-:$

~

..,.,._

1

..,..........,,

Bluetooth

jp-t

~

c>Lo

.

..:.L..,..;,

"J.>':l

4

olrA

~

.s,...-.-11

OJ~-~

"'~'

SIG.

Inc

d

_r,

JJL.a.,..;1

J::>~"':fts.

~t.:.;

.r.l. • ..:.L

Y.r

~l-"

JVC

<.5Lo

,_,;

_,?

'i

.f-1

jl

•

·

o..l..!.

~1)

ol.:.AI.>

~LolWI.~>'.,..,....,

pi~'J.U

J~ll.l..l.

.,sl~

J~ll.l..l.

;.:.,,

_,.10.;1

..,

JL..:.o

,:r-1

_,.

JVC

.t.

4

,,\A;....

.::..-1

• ...: ..r-1)>

~_?::>"'!~H.

f~

.J...olli.ll

...'-'

~i

c>(o;t.:.;

Bluetooth

1

j1

dA:

....

1

..;J

KENWOOD

Corporation

Y.r

c>J4-'

c>Lo

I

<.SI.r.

i_,...-:..

J,.o

_,;1

·~J'.r.l.olr-"

..:.o\s.

em

~

:a

~~~~~~~

~~~~~~~-·o~T~

[Hanya

Uni

Eropa]

-

AeKnapaqio

npo He6e1neq••• N'1057

6Hpi6 eneKTpH4HOMY

BMirr

1.

CBHHe~b(Pb)-

2.

KaAMiH

J.

pT)'Tb(Hg)

4.

WeiTHBaneHTHHH

Mlnb~OH;

5.

nonifipoMfii~eHOOH

6.

nonifipOMAe~eHinoBi

Millb~OH.

Tiirkiye Bu

UrUn

Stntrlandtrtlmastna

BiAnoaiAHi<Tb

PeqoaMH

Ka6iHery

MiHi<TpiB

BiAnOBiAaE

BHMoraM

ra

eneKTpOHHOMY

He6eJne4HHX

((d)-

He

-

He

ipn

26891sayth

Dair

pe40BHH He

nepeBHutyE

nepeBHutY

Resmi

B

enenpMqHoMy

YKpa"iHM)

TexHi4Horo

y

BHna~Kax,

nepeBHutYE

E

0.1%

XpOM

((r&+)-

(PBS)-

He

e~ipH

(PBDE)-

Gazete'de

Yonetmelige

BMMOraM

TexHiqMoro

ra

eneKTJIOHHOMY

PemaMeHry

(

TP

He

ofiyMoBneHHX

%BaC

H

pe40BHHH

%

83CH

pe40BHHH

BarH

pe40BHHH

nepeBHutYE

0.1%

He

nepeBHutYE

olarak

06Me>t<eHHR

OBHP).

afio

0.1

%Ba

BarH

Elektrikli

Uretilmijtir.

ofina~HaHHi

0.1

0.01

He

nepeBHutYE

yaytmlanan uygun

•

~

•

¥

NC

J,......_ll

~~G.JI

W5

o

/'

J~4

if

d

_r,

r~

J

.;J4-'

J.>':;,j

.f.

I

o

,/

~

">'-ki~Sl.r.

...

an

~da~k~at~a~da~n~lo~go~B~Iu~et~oo~th~d~imilikiolehBiuetoothSIG,Inc.dan

segala

penggunaan

tanda

adalah

berdasarkan

adalah

hak

•

Adaptor

ini

receiver

[alat

dengan

unit

Untukrincianselengkapnya,baca

alatpenerima.

PernaMeHTY

o6naAHaHHi

BHKOpHaaHHR

B

.QoAaTKY

afio

B

KOH4eHrpa4ii

afio

B

KOH4eHTpa4ii

B

KOH4eHTpa4ii

CH

pe40BHHH

0.1

%

BarH

ve

Elektronik

tersebut

lisensi.

pemilik

masing-masing

memiliki

desain

penerima

di

mobil]

penerima

mobil

06Me*""""

(3aTBep11JKeHoro

AeRKHX

N'2

TP

OBHP:

AO

1000

AO

100

AO

1000

4aCTHH

a6o

8

KOH~eHTpa~ii

afio

8

KOH4eHTpa4ii

pe40BHHH

a6o

Ejyalarda

Bazt

B

!@ititl@i!W4i

oleh

JVC

KENWOOD

dan

nama

digunakan

gunakan

noaaHOBOIO

Pet~OBHH

MiObHOH

MiObHOH;

1000

4aCTHH

~0

1000

Corporation

dagang

dengan adaptorini

A•••••

;

Ha

MiObHOH

4aCTHH

Kullantmmtn

Merek

dagang

.

eksklusif

untuk

JVC.

Jangan

yang

lain

.

petunjukyangdibekalkandengan

BMKOpMaa•••

He6eJne4HHX

43ITHH

H3

4aiTHH

Ha

MiObHOH;

~0

AO

1000

KOH~eHTJJa4ii

Zararh

Maddelerin

lainnya

car

s

;

Ha

4

• The countries where you

may

use

the

JVC

• Die Lander, in denen

•

Pays

ou vous pouvez

• De Ianden waar u de Bluetooth®-functie

• Palses en los

• Paesi nei

• Lander

• Lande,

• Land

• Maat, joissa voi kayttaa Bluetooth®-toimintoa

• Palses

•

Ot

•

CTpaHbl,

• Zeme, ve kterych muzete

• Azok

• Kraje, w

• Drzave, kjer

• Krajiny, v

• Valstis,

• Salys, kuriose

• 11-pajjii:i fejn tista' tui:a 1-funzjoni Bluetooth®

• Lond

• Riigid, kus on

• Bluetooth®

dar

hvor

onde onde

xwpEc;

az

kur

t>ar

que

quali

du

pode

voce

6nou

rAe

MO>KHO

orszagok, amelyekben hasznalhatjuk a Bluetooth®-funkci6t

kt6rych

lahko

ktorych

jus

sem hcegt er aa

fonksiyonunu

Bluetooth® function

Sie

die

Bluetooth® Funktion

utiliser

se

puede

e possibile utilizzare

kan anvanda Bluetooth®-funktionen

kan

bruge

kan bruke Bluetooth®-funksjonen

usar a

pode

IJnOpEiTE

moi:na ui:ywac

varat

galite

voimalik

usar a

socnonb30BaTbCfl

uporabljate

mozete vyuzlvat'

izmantot naudotis

kasutada Bluetooth®

Ia

fonction

utilizar

Bluetooth®-funktionen

fun~ao

va

XPilOIIJOnOlrlOETE

vyuzlvat

nota

kullanabileceginiz ulkeler

Ia

Bluetooth®

fun~ao

funkci Bluetooth®

funkcji

funkcijo

Bluetooth®

,Biuetooth®/1 funkcija

Bluetooth®

mag

funci6n

Ia

funzione

Bluetooth®

<I>YHK4111elll

Bluetooth® Bluetooth®

funkciu

Bluetooth®

funkciju

verwenden

gebruiken

Bluetooth®

Til AEITOupyia Bluetooth®

Bluetooth®

funktsiooni

konnen

•

th~L

YIAYhiTtHt13-JT'H1L~

•

Na

tlortha

• Lanner an denen

• 0

nhfrng

•

Els

pa·isos

• Zemlje u kojima

• Zemlje u kojima mozete

• Zemlje u kojima 3eMjll1

•

CTpaHII1Te, B KOII1TO

• Tarile

• Die Iande waar u

• Amazwe

• Ang mga bansa

• Negara-negara yang

• Negara-negara yang anda

•

c)"

~~r

•

1~Hm~iiffl

•

1ftHi~~~ffl

• Bluetooth®

inar

feidir

quoc

on podra fer servir

je

KaAe

MO>KeTe

in

care

puteli

lapho

~

ungasebenzisa khona

kung

3fTQ"

Bluetooth® Bluetooth®

Jl~~

Bl

uetooth®

leat

der

d'Biuetooth®

gia

rna

dozvoljena

koristiti

dopusteno

Aa

ja

MO>KeTe

utiliza

die

Bluetooth®-funksie kan

saan maaari kang

memperbolehkan

Bluetooth®

r}Jfi~I¥-JOO~

l}Jfi~~~~

A~~~-?~~

rr~fiitu

feidhmiu

b~n

Ia

KOp111CTII1Te

Aa

funclia

boleh

Bluetooth® a usaid Funktioun

co

the

Slr

funci6

upotreba

Bluetooth®

koristiti

<J>yHK4111jaTa

non3BaTe

Bluetooth®

uhlelo

menggunakan

~-~

~J~

~

Bluetooth®

benotze kennt.

d~:Jng

Bluetooth®

Bluetooth® funkcije.

Bluetooth®.

<I>YHK4111f1Ta

gumamit

penggunaan

CJiT

ch(rc

funkciju

gebruik lwe-Biuetooth®

fungsi Bluetooth®

3Q<£flal

nang

Bluetooth®

ng

Bluetooth®

fungsi Bluetooth®

Cll{

~9

Bluetooth®

function

~

ff~;

~

•uf

,s:t;

S'

0::

~f

J9..l.Jf

•

Country

··

•

.·

...

Country Country

Andorra

o~l

~.rt-JI

Australia bsterreich Bosna i Hercegovina Belgien

Belgique

6bnraplt1H Brasil Canada Schweiz

Suisse Chile Kunpoc:

K1bns Ceska

republika Deutschland Dan

mark Eesti Espana Suomi

Finland

-:JI)

.

..o/(1

Ireland Sverige Eire

India

am<l

fsland ltalia

cHEt'2J~

Lichtenstein Lietuva Luxemburg

Singapore

WTJJDJ&:

Singapura Slovenija Slovensko

U"i~b

'YIAl

Turkiye

A~71F.

!=lli:S

United States

Luxembourg

U~tzebuerg

Latvija

Venezuela Vietnam

Vi~t

Nam

Monaco

South Africa

Crna

Gora

MaKe.QOHlllja

ENingizimu Afrika

Suid-Afrika

Malta Malaysia Nederland Norge New

Zealand

Peru

'YI

t1

of

America

France United

Kingdom EAA66a Hong

Kong

~;!

~;i

Hrvatska

Magyarorszag Indonesia

Philippines Pilipinas

Polska Portugal Republica

Uruguay Romania

Srbija

POCCltlH

Oriental

del

II

G ET0820-00

1

A

w

a:

z

U)~Q

•

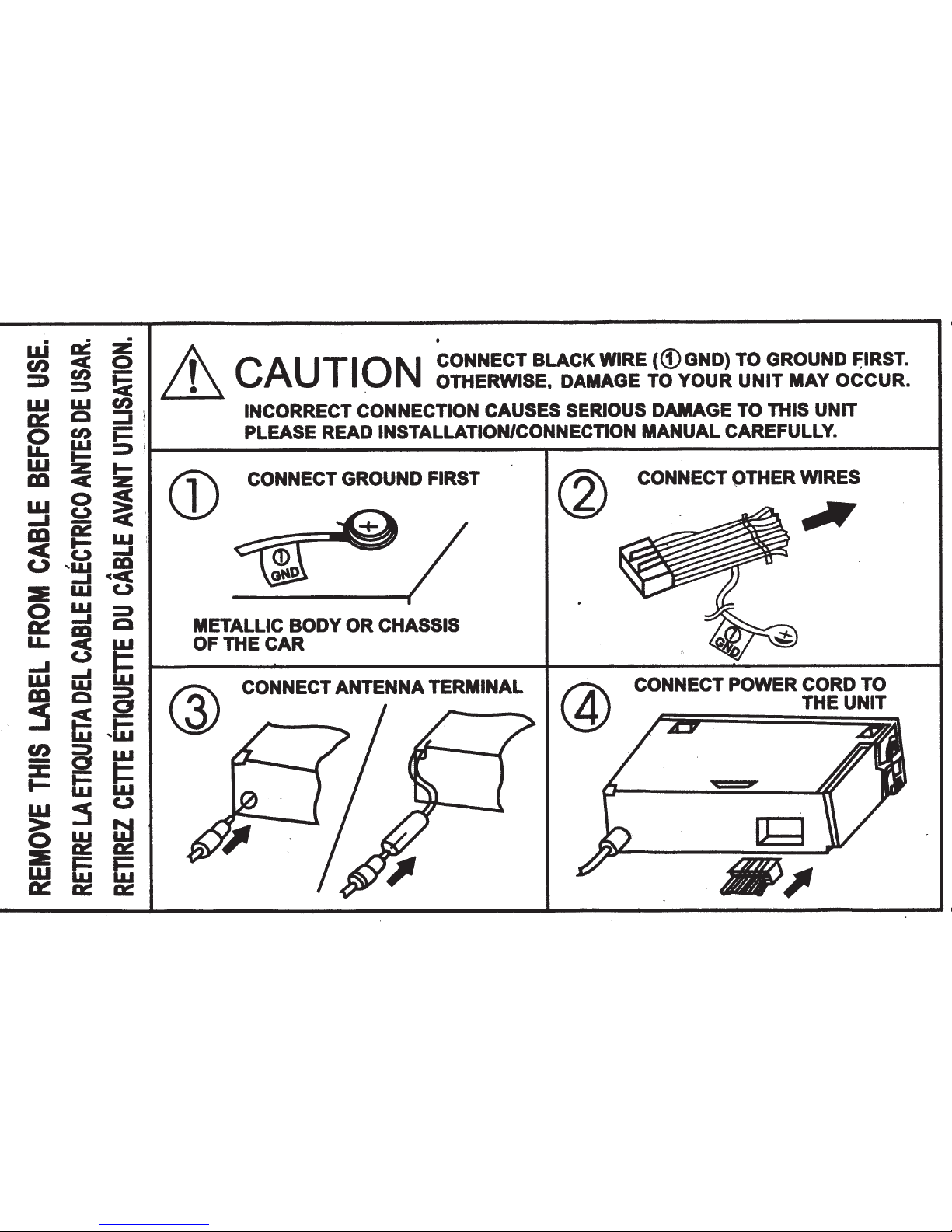

CONNECT

BLACK

WIRE

((l)GND)

TO

GROUND

F:IRST.

OTHERWISE,

DAMAGE TO YOUR

UNIT

MAY

OCCUR.

::D

::::»

~

i

INCORRECT CONNECTION CAUSES SERIOUS

DAMAGE

TO THIS UNIT

0

en

i=

:

PLEASE

READ

INSTALLATIONJCONNECnON

MANUAL

CAREFULLY.

~CAUTION

LL.

w

::::»

i

l---------------....-----------------1

w

!i

al

·

c(

~

w

0

~

...J

S:!

::i

'

m

.,_a::

w :

-c

(.)

.....

t_),~~~

:E

w

(.)

0

w

::::»

a::

.....

Q

~

wt=

w

m

c

g

:5

~

i=

w

,w

U)

::::»

w

-a

I=

~

ffi

w

:5

(.)

~

w

Gt

a::

D::

iS

ffi

~

'D::

a::

CONNECT GROUND

FIRST

METALLIC BODY

OR

CHASSIS

OF

THE

CAR

CONNECT ANTENNA

TERMINAL

@

CONNECT OTHER WIRES

CONNECT POWER CORD

TO

THE

UNIT

Please correspondence to this address.

JVC

1700 Valley

Wayne,

do not send products or other

AMERICAS CORP.

Road

NJ

07470

PLEASE

PLACE STAMP

HERE

PRODUCT

PO BOX

1189

BEDFORD, TX 76095-1189

11

•••

1.11

..

11

•••

1.1

•••

1.1

••••

11

•••

111

••

1.1.1

REGISTRATION CARD

USA CUSTOMERS ONLY

I QUESTIONNAIRE

••

1

..

1.1.1

..

1

...

11

Registering your product event a product safety notification is required.

This form is for Product Registration purposes this form does not diminish your rights during the warranty period.

THANK

YOU FOR

REGISTER ONLINE

will allow

us to contact you

only.

PURCHASING THIS

AT:

REGISTER.JVC.COM

in

the

unlikely

Failure to return

JVC

PRODUCT

·

First Name: Last Name: Address: Apt.# City: State: Zip Code: Phone Number: E-Mail Address:

Register online at REGISTER.JVC.COM

and receive a special offer!

PRODUCT REGISTRATION

1) Would you like to receive the JVC Community e-mail newsletter?

2) Would you like to receive special offers from JVC?

3) Have you purchased an extended warranty for this product?

Date

of

Purchase Model Number: Serial Number: Purchase· Price: Dealer:

of

1 to

5,

On a scale JVC product.

with 5 being the best, please rate each

Performance Features Ease

of

use 1 2 3

1 2 1 2 3 4

of

the following attributes about your new

3

4

5 5 5

Yes Yes Yes

No No No

Design 1 2 3 Value 1 2 3

COMMENTS:

BT-51044-1 (0208)

Instructions: Fold at crease and tape open edge

4 4

in

the middle.

5 5

Thank You for completing this questionnare.

Printed

in

Indonesia

...

CANADA ONLY

JVC

CANADA SEULEMENT

OWNER'S

COPY

OF

WARRANTY

CARD

COPIE D'ENREGISTREMENT

DE

LA

GARANTIE

DU

PROPRIETAIRE

(Save sales

docket together with this warranty card, as a proof of date of purchase.

La facture et cette garantie sont vos preuves de

Ia

date d'achat;

rangez-

les.)

MODEL

.

SERIAL NO.

.

MODELE. ......... .

..

..........

NO

DE

SERlE

..............

....

.

..

Purchase from.

Achete chez ........

..

.......... .

Dealer's

Address .

Adresse du Vendeur'

City or Town Ville

Owner's

Name

No. No

Nom du Proprietaire :

..

Owner's

Address

Adresse du Proprietaire·

...

City or Town Ville

No. No

Date purchased . Date achete ·

................

..

.......

·····················

··

Street Rue

··

·

··················sireei····

.................

Prov. Prov.

Rue

........

.

...

.

...........

.

...

..

...

Postal Code

Code

Postal

.

................ .

Apt. App.

Postal Code Code

Postal

BT-52008-1 (1007)

Printed in

Indonesia

Detach here.

a

decouper ici

WARRANTY

CONTROL

CARD

CARTE DE CONTROLE

DE

LA

GARANTIE

IMPORTANT:

This

warranty

control

card

must

be

filled

in

and

posted

to

the address indicated

on the back hereof

or

register

via

internet within 7 (seven)

days

from the date

of

purchase.

IMPORTANT:

Cette carte doit

etre

renvoyee dument

remplie

a

l'adresse

indiquee au verso,

dans

les

7

jours

de

Ia

date d'achat ou

aller

sur

le

site

par

internet pour !'enregistrement.

MOOEL

.

MOOELE·

.....

Purchased from .

Achete chez ....

:

(PLEASE

PRINT

/EN

LETIRES

MOULEES

)

SERIAL

NO.

.

...

NO

DE

SERlE

..

··

·············

··-

Date purchased .

.. .. .. .. .. .. .. .. .. .. .. .. ..

..

.. Date achete

·

Dealer's

Address

Adresse

du

Vendeur

·riia:·

..

.......

..

.................

.....

....

.

siriiat

No Rue

City or Town Ville

Owner's

Name

.

Nom

du

Proprietaire

· ..

.....

.

..

•... ...

......

••

Owner's

Address

Adresse

du

Proprietaire

·

....................••..... ...

No. No

............................................

.

....

.

••..•.•...

City

or

Town

Ville

You

may

also

register

on-line

at:www.ivc.ca

WARRANTY

APPLIES

ONLY

TO

PRODUCT

DISffiiBUTED

IN

CANADA

BY

JVC

CANADA

INC.

Prav

·.

·

··

· ······· ·

.....

· · ....................

····••·· · ·

··

·

..

'"'POStiti

'CCX£9"'

..

· ·

..

.

·

Prov.

Code Postal

.

..

...

............................

..

....

.....

........

...

.......

.....

.

....

..

...

Street

Apt.

Rue App.

Postal Code Code Poslal

Vous pouvez

egalement

vous

inscrire

par

internet a:www.jvc.ca

LA

GARANTIE

S'APPLIQUE

SEULEMENT

AUX

PRODUITS

DISTRIBUES

AU

CANADA

PAR

JVC

CANADA

INC.

WARRANTY

GARANt II

JVC CANADA

INC.

21

Finchdene Square, Toronto,

ON

M1X

1A7

TEL: (416) 293-1311 FAX: (416) 293-8208

http://www.jvc.ca

JVC

CANADA

INC. (hereafter

called "JVC")

gives

the

following

express warranty for each new

JVC

product distributed in Canada

by

JVC

and sold

by an authorized

JVC

dealer.

JVC

warrants that this

JVC

product

is

free, under

normal

use and maintenance, from

any

defects in

material

and workmanship subject to the following

terms and conditions:

1.

To

Obtain

Warranty Service:

(a)

The

JVC

Warranty

Co

ntrol

Card herein

provided

mus

t be

completed in

full

and

posted

or

registered via internet within 7 days

of date

of

purchase

of

the

JVC

product.

(b) This

JVC

Warranty

Control

Card must be

completed

in

full and presented together

with proof

of

purchase

of

the

JVC

product

requiring service.

(c) The

JVC

product

must

be

brought

in

for

service to an authorized JVC Service

Centre.

2.

Limitation:

This Warranty shall

not

apply

to:

(a) Repair

or

replacement

of

any

cab

inets,

batteries,

plates, connection cords, anten-

nas,

dust

covers, knobs, speaker

grills, speaker cones, projection screens, projection screen savers, and

all

accessories.

(b) Any defects caused or repairs required as a

result

of

misuse, abusive operation,

negligence, improper use and/or insufficient care.

(c) Any defect caused

or

repairs required as

a

result

of

not

following

the

instructions in

the operation

manual.

(d) Any

JVC

product tampered with, adjusted

or repaired

by

any party

other

than

JVC

or

authorized

JVC

Service

Centre

personnel.

JVC

CANADA

INC.

( ci-apres

appele

"

JVC

")

en

once

Ia

garantie

ex

pr

esse suivante

po

ur

t

out

nouveau produit

JVC

distribue au Canada

par

J

VC

et vendu

par

un

deta

illant

JVC

autorise.

JVC

vous

garantit

que

ce

produit est

degage,

sous

utilisation

et

entretien

normal,

de

tout

de

f

aut

materiel

et

de

fab

rication

sous

reserve

des

modalites

et conditions suivantes :

1.

Pour obtenir un service

de

garantie :

(a)

La

carte

de

co

nt

role

de garantie

JV

C ci-

incluse

doit

etre

completee

avec

les

renseignements

complets et

etre

post

ee

ou

enregistree

via

internet

dans

l

es

7 j

ours

JVC

.

(b) Cette carte

de

controle de garantie

JVC

doit

etre

dument

re

mp

lie

et

etre presen

te

e

avec

Ia

preuve

d'

achat

du

produit

JVC

necessitant

une

reparation.

(c) Le produit

JVC

do

it

etre

apporte

po

ur

service

chez

un

centre

de

serv

ice J

VC

autorise.

2. Restrictions:

Cette garantie ne

s'applique

pas aux :

(a)

Reparation

ou

remplacement

de

tout cabinet, batteries, panneau avant, cordons de

raccord,

antennas,

housses

de

protection,

bo

uto

ns

, couverts

de

h

autparleur, cones

de

haut-parleur, ecrans

de

projection, protecteurs d'ecran

de

projection

et tous

les

accessoires.

(b) Tous defauts occasionnes ou

repa

r

at

i

ons

requises s

uit

e

a

une utilisation abusive,

mauvaise, negligente

et/ou une

ut

ilisation

incorrecte.

(c) Tous defauts occasionnes ou r

epa

rati

ons

requises sui

te

a

!'omission

de

su

ivr

e

les

recommandations

du

manuel

d'instru

ct

ion.

(d) Tout produit

JVC

altere, ajuste ou

repare

par

tout autre entrep

ri

se

que

JVC

ou

un

centre

de

service

d'entretien ou

de

se

rv

ice

autorise JVC.

(e) Any

JVC

products on which the

serial num-ber has been defaced, modified or removed.

(f)

Maintenance, cieaning or periodic check-up

(g) Conversion to foreign or domestic voltage or

frequency.

(h) Any

JVC

product without the Canadian

Electrical Safety

Regulations

ID.

(

i ) Any

JVC

products used for commercial or

institutional,

rental,

or

display

purposes.

Parts . ... ..

1 year (except video head -

90

days)

Labour ...

90

days

(j)

Any JVC

product which has been

resold

and

no

longer

owned by the

original purchaser.

(k)

Product purchased from

"outside Canada

",

"bankruptcy"

or

"liquidator".

(e)

Tout produit

JVC

dont

le

numero de

serie

a

ete altere, modifie ou

enleve.

(f) L'entretien, les

verifications periodiques et

nettoyage.

(g) La

conversion

a

une

frequenc

e ou

une

tension

etrangere

ou·domestique.

(h)

Tout

produit

JVC

n'

ayant

pas

le

sigle

d'identification

conforme

aux

normes

electriques Canadiennes

(GSA).

(i)

Pour

tout

produit

utilise

a

des

fins

commerciales,

institutionnelles,

de

location

ou

utilise

a

des fins

d'etalage.

Pieces.......

.....

1 An (Excepte

les tetes

video-

90

jours)

Main d'ceuvre ...

90 Jours

(j)

Tout produit

JVC ayant

ete

revendu et qui

n'est

plus

Ia

propriete

de l'acheteur original.

(

k)

Produit

achete

a

"l'exterieur

du

Canada

",

provenant d'une

"faillite"

ou d'un

"liquidateur".

WARRANTY TERM

(VALID FROM

THE DATE

OF

PURCHASE)

CONDITIONS

DE GARANTIE (VALABLE

a

PARTIR

DE

LA

DATE

D'ACHAT)

PRODUCT

PARTS

(Years)

Labour

(Years)

PRODUIT

PIECES

(annees)

MA

I

N-D

'

OEU

VE

R

(a

nn

e

es

)

Projection

TV

In-Home

Service

Colour

TV

In-Home (

25

"

and

above)

D-ILA

Rear

Projection In-Home

Service

LCD

TV

In-Home

Service

(25"

and

above)

Ecrans

de

projection Service

a

Domicile

1 1

Ecrans

de

TV

Couleur

Service

a

Domicile

(25"

et

plus)

TV

projection arriere

D-ILA

Service

a

Domicile

Ecrans

de

LCD

Service

a

Domicile

(25"

et

plus)

• In-home

service

to

be

provided where available

Where

it

is

not

available,

the

Purchaser

must

assume

the

responsibility

and

expense

for

the

proper

packing, shipment

and

all

costs associated

with

the

delivery

of

the

equipment

to

and

from

the

closest

JVC

Authorized Service Centre.

•

Serv

i

ce

a

domicile

fourni par

un

detaillant

disponible.

S'il

n'y

a

pas

de service JVC disponible

a

proximite, l'acheteur doit assumer

Ia

responsabilite

et

les

couts

pour

un

emballage

adequat,

!'expedition,

ainsi

que tous

les

couts

associes.

a

Ia

livraison

de

l'equipement

chez

et

depuis

le

detaillant

JVC autorise

le

plus

pres

pour

un

service d'entretien.

Receivers

and

Home

Speakers purchased separately, Front

Projection

and

Car Audio

"ARSENAL"

Series

2 2

Recepteurs

et

Hauts-Parleurs

achetes separement, Projecteur

Avant

et

Audio d'Auto

de

Serie "

ARSENAL

"

AC

Adapters,

Remote

Controls, Headphones, Microphones

and

90

DAYS

90

DAYS

Projector

Lamps

Adaptateurs

AC

,

Telecommande,

Casque D'ecoute, Microphones

90

JOURS

90

JOURS

et

Lampe

de

Projecteur

Wood

Cone

Speakers

5 5

Enceinte

a

Cone

en

Bois

All

Other

JVC KD-R80BT, KD-A65, KD-R60 Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
