JVC HV-Z29V1, HV-Z29L1, HV-Z34L1 User Manual

COLOUR TELEVISION

HV-Z34L1
HV-Z29V1

Contents

Setting up your TV. . . . . . . . . . . . . . . . . . 3

TV buttons and functions. . . . . . . . . . . . . 6

Remote control buttons and functions. . . 8

Using the TV’s menu. . . . . . . . . . . . . . . 19

PICTURE menu . . . . . . . . . . . . . . . . . 20

FEATURES menu . . . . . . . . . . . . . . 21

SOUND menu . . . . . . . . . . . . . . . . . . . 24

FEATURES menu. . . . . . . . . . . . . . . . 26

SETUP menu . . . . . . . . . . . . . . . . . . . 29

Additional preparation . . . . . . . . . . . . . . 36

Troubleshooting. . . . . . . . . . . . . . . . . . . 40

Specifications . . . . . . . . . . . . . . . . . . . . 43

INSTRUCTIONS

LCT1457-001A-H
1003-CR-JMT

© 2003 VICTOR COMPANY OF JAPAN, LIMITED

Thank you for buying this JVC colour television.
To make sure you understand how to use your new TV, please read this manual thoroughly
before you begin.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING

RULES REGARDING THE USE OF THIS TV.

1 Operate only from the power source indicated on the rear of the TV.
2 Avoid damaging the power cord and mains plug. When unplugging the TV, grasp the

mains plug. Do not pull on the power cord.

3 Never block or cover the ventilation openings.

Never install the TV where good ventilation is unattainable.
When installing this TV, leave spaces for ventilation around the TV of more than the
minimum distances as shown.

15 cm

10 cm 10 cm 15 cm

4 Do not allow objects or liquid into the cabinet openings.
5 In the event of a fault, unplug the unit and call a service technician. Do not attempt to repair

it yourself or remove the rear cover.

6 The surface of the TV screen is easily damaged. Be very careful with it when handling the

TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never use rub it
forcefully. Never use any cleaner or detergent on it.

7 If you are not going to use this TV for a long period of time, be sure to disconnect the AC

plug from the AC socket.

8 The apparatus shall not be exposed to dripping or splashing and that no objects filled with

liquids, such as vases, shall be placed on the apparatus.

D.I.S.T. demonstration

To start the D.I.S.T. demonstration:
Press the H button to display the menu bar. Then press the yellow button.
A picture split in two (D.I.S.T. turned on and D.I.S.T. turned off) will appear on the screen.

To quit the D.I.S.T. demonstration:
Press the yellow button, BACK button, CHANNELp buttons or any of the number buttons.

2

Setting up your TV

A

CAUTION

• Turn off all the equipment including the
TV before connecting anything.

1 Connecting the woofer unit

(only for HV-Z29V1)

1 Fitting the woofer unit

Align the projection on the base of the
woofer unit with the hole in the top of the
TV, and insert the connector into the
woofer terminal.

2 Connecting the supplied woofer

connector to the BASS SPEAKER
OUT terminal on the back of the TV

If the woofer unit is not connected, you
will not be able to enjoy the bass sound.

• Connect so that the lever is raised.

• When disconnecting the woofer
connector, do so while pushing the lever.

2 Connecting the aerial and VCR

• Aerial cable is not supplied. Use a
good quality 75-ohm coaxial cable.

• Read the manual that came with the
VCR before connecting.

If not connecting a VCR (see Fig. A):

Connect an aerial cable to the aerial socket
on this TV.

If connecting a VCR (see Fig. B):
1 Connect the aerial cable to the aerial

input socket on the VCR, and connect
the VCR and TV with another aerial
cable.

2 Connect the VCR’s VIDEO OUT (video

output) jack and the TV’s VIDEO jack
with a video cable.

To connect a VCR to the TV with an
S-VIDEO cable:

Connect the VCR’s S-VIDEO OUT (S­VIDEO output) connector and TV’s S
connector with an S-VIDEO cable A,
instead of connecting with a video cable.

3 Connect the VCR’s AUDIO OUT (audio L/

R output) jacks and the TV’s AUDIO jacks
(L/MONO and R) with an audio cable.

• If the VCR’s audio output is in mono,
connect the VCR’s AUDIO OUT (audio
output) jack and the TV’s AUDIO L/
MONO jack with an audio cable.

Lever

Fig. A

Fig. B

3

Setting up your TV

K

3 Connecting the power cord

Connect the mains plug to the AC outlet.

4 Putting the batteries into the

remote control

Use two AA/R6 batteries.

Insert the batteries from the - end, making
sure the + and - polarities are correct.

• Follow the warnings printed on the
batteries.

• If the remote control does not work
properly, replace the batteries.

• The batteries we supply are only for
setting up and testing your TV. Please
replace them as soon as necessary.

5 Making the initial settings

(SETUP TOUR)

When the TV is first turned on, it enters the
initial setting mode, and the JVC logo is
displayed.

1 Press the main power button on the TV.

The TV is turned on, and the JVC logo
appears.

• If the POWER lamp on the TV lights
red and does not change to green,
your TV is in the standby mode. Press
the # button on the remote control to
turn the TV on.

• If the JVC logo does not appear, your
TV has already been turned before. In
this case, use the “LANGUAGE”,
“TELETEXT LANGUAGE” and “AUTO
PROGRAM” functions to make the
initial settings. For details, see
“SETUP menu” on page 29.

2 Press the OK button on the remote

control.

The LANGUAGE menu appears. You
can choose a language for the on-screen
language.

HV-Z34L1

POWER lamp

HV-Z29V1

POWER

Main power button

POWER

POWER lamp

Main power button

FAVORITE CHANNEL

SUB-P

TV/VIDEO MENU

OK

DISPLAY

SUB-P

CHANNEL VOLUME

O

BACK

4

Setting up your TV

3 Press the 6 buttons to choose

ENGLISH. Then press the OK button
on the remote contol.

The TELETEXT LANGUAGE menu
appears. Set the teletext language group
that corresponds to the language of the
teletext program that you want to watch.
For details, see “TELETEXT
LANGUAGE” on page 34.

> TELETEXT LANGUAGE

GROUP-1
GROUP-2
GROUP-3
GROUP-4

OK

OSD-10-EN

4 Press the 6 buttons to choose a

group. Then press the OK button.

The AUTO PROGRAM function starts.
The TV channels you receive are
automatically stored in the PR
(programme numbers) LIST.

>> AUTO PROGRAM

CH 28

14%

OK

D0004-EN

• To stop the AUTO PROGRAM
function, press the OK button.

5 After the TV channels have been

stored in the programme numbers
(PR) list, the EDIT menu appears.

> EDIT

CH/CC

CH
CH
CH
CH
CH
CH
CC
CC
CC

ID

INSERT

21
22
23
24
25
26
01
02
03

MANUAL

DELETE

D0038-EN

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

MOVE

• You can proceed to edit the
programme numbers list using the
EDIT/MANUAL function. For details,
see “EDIT/MANUAL” on page 30.

• If a TV channel you want to view is not
stored in the programme numbers list,
you can register it using the MANUAL
function. For details, see “EDIT/
MANUAL” on page 30.

• The AUTO PROGRAM function does
not store a TV channel to the
programme number 0 (AV).

• If you do not need to use the EDIT/
MANUAL function, press the OK
button to close the EDIT menu.

Now, setting up is complete. Please
enjoy your new JVC TV!

5

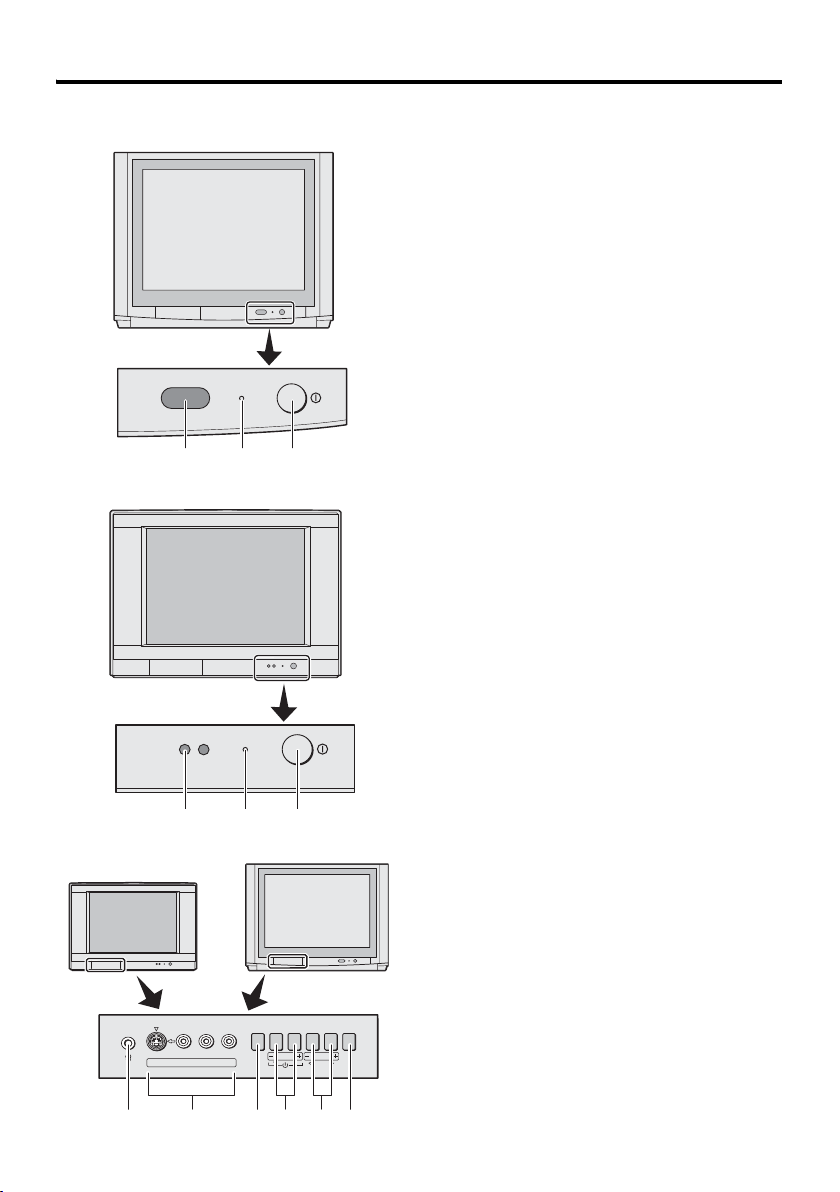

TV buttons and functions

172

986543

Turn the main power on

HV-Z34L1

POWER

172

HV-Z29V1

Press the main power button 1.

The POWER lamp 2 lights red and your TV
is in the standby mode.

To turn the main power off:

Press the main power button again. The
POWER lamp 2 goes off.

Turn the TV on from standby
mode

Press the CHANNEL-/+ buttons 5.

The POWER lamp 2 lights red to green
and your TV will be turned on.

• You can also turn on the TV by

Choose a TV channel

Press the CHANNEL-/+ buttons 5.

Choose a VIDEO terminal

Press the TV/VIDEO button 3 or
CHANNEL-/+ buttons 5.

Adjust the volume

Press the VOLUME-/+ buttons 4.

The volume level indicator appears.

pressing the TV/VIDEO button 3
while it is in standby mode.

POWER

L/MONO

HV-Z34L1

MENU

OK

HV-Z29V1

OVER

VR

S

IN (VIDEO-4)

6

(Behind the cover)

CHANEL VOLUME

TV/VIDEO
EXIT

MENU button 6

Press to open the menu.
For details, see “Operation with the buttons
on the TV” on page 20.

Remote control sensor 7
VIDEO-4 terminal 8

See page 36.

Headphone jack 9

Connect the headphones with a stereo
mini-jack (3.5mm in diameter).

TV buttons and functions

@#

Back of the TV

!

~

VIDEO-1 terminal 0

• See pages 3 and 36.

0

-

=

VIDEO-2 (COMPONENT)
terminal -

• See pages 33 and 36.

VIDEO-3 (COMPONENT)
terminal =

• See pages 33 and 36.

OUTPUT terminal ~

• See page 37.

Aerial socket !

Connect the aerial cable.

• See page 3.

AV COMPU LINK terminal @

• See page 38.

BASS SPEAKER OUT terminal
# (only for HV-Z29V1)

• See page 3.

7

Remote control buttons and functions

Turn the TV on from standby
mode

Press the # button.

The POWER lamp lights red to green and
your TV will be turned on.

• You can turn on the TV from the
standby mode by pressing the TV/
VIDEO button, the CHANNELp
buttons or the number buttons.

To turn the TV off:

Press the # button again.
The POWER lamp changes from green to

red and the TV enters standby mode.

To turn the TV on or off, set the PIP/TV/
DVD switch on the remote control to the
TV or PIP position and press the #
button.
If the PIP/TV/DVD switch on the remote
control is set to the DVD position, the TV
will not be turned on or off even if the #
button is pressed.

Choose a TV channel

Choose a programme number in which a
TV channel has been set.

Press the CHANNELp buttons or enter
the programme number (PR) with the
number buttons.

Example:

•PR 6 → press 6

• PR 12 → press 1 and 2

• You can select a channel from the PR
LIST. For details, see “DISPLAY
button” on page 11.

• If you do not have a clear picture or no
colour appears, follow the operation
procedure “COLOUR SYSTEM” on
page 23.

123

456

789

RETURN+

0

FAVORITE CHANNEL

STROBE

SUB-P

OK

SUB-P

CINEMA

SURROUND

F. T/L

BASS ZOOM

?

TOP MENU

TV/VIDEO MENU

DISPLAY

CHANNEL VOLUME

SOUND

MODE

DVDPIP T V

BACK

8

Remote control buttons and functions

Adjust the volume

Press the VOLUME-/+ buttons.

Watch images from an
external device

Choose a VIDEO terminal to which the
external device has been connected.

Press the TV/VIDEO button.

• You can choose a VIDEO terminal with

the CHANNELp buttons or from the
PR LIST.

To return to a TV channel:

Press the TV/VIDEO button, the
CHANNELp buttons or the number buttons.

l (Muting) button

Press the l (Muting) button to turn off the
volume. Pressing the l (Muting) button
again resumes the previous volume level.

ZOOM button

You can change the screen size according
to the picture aspect ratio. Choose the
optimum one from the following ZOOM
modes.

1 Press the ZOOM button to display the

ZOOM menu.

• The ZOOM button works only in the
normal screen.

>> ZOOM

REGULAR
ZOOM
16:9

OK

D0017-EN

2Press the 6 buttons to choose a

ZOOM mode. Then press the OK button.

REGULAR:

Use to view a normal picture (4:3 aspect
ratio) as its original size is.

ZOOM:

You can zoom up the Wide picture (16:9
aspect ratio) to fill the TV screen.

• The left side and right side of the Wide
picture (16:9 aspect ratio) will be cut off.

16:9:

This mode converts a normal picture (4:3
aspect ratio) into a Wide picture (16:9
aspect ratio).

• Use for picture with a 16:9 aspect ratio
that have been squeezed into a normal
picture (4:3 aspect ratio), you can
restore their original dimensions.

• When a 1125i signal is input, the 16:9
aspect ratio is chosen automatically.

CINEMA SURROUND button

You can enjoy an enhanced sound for a
wider audience by using CINEMA
SURROUND function.

Press the CINEMA SURROUND button to
select one of CINEMA SURROUND modes.

HIGH/LOW:

When you listen to the stereo sound, please
select HIGH or LOW mode.
You can enjoy the sound for a wider
audience similar to the experience at the
theatre.
When you combine the functions of SOUND
MODE, SUPER BASS and DIGITAL BBE,
you can enjoy more powerful sound.

• In case that you setting up the
CINEMA SURROUND function to
HIGH mode, there may be slight
volume distortion. In case that occurs,
please switch the HIGH mode to LOW
mode, the effect of CINEMA
SURROUND functions will be less
noticeable, however, the volume
distortion will be corrected.

9

Remote control buttons and functions

MONO:

Select the MONO mode, when you listen to
the mono sound.
You can enjoy the sound for a wider
audience similar to stereo sound.

OFF:

The CINEMA SURROUND function
switches off.

SOUND MODE button

You can select the SOUND MODE of you
liking from 4 types of sound modes to fully
enjoy the sound of your TV.

Press the SOUND MODE button to select
one of sound modes.

DYNAMIC:

Dynamic sound is created by enhancing
high and low tones.
You can get the 3D effect by using the
CINEMA SURROUND function in this mode.

MUSIC:

The mode suitable for music programmes.
Enjoy a concert hall-like atmosphere.
Combination with the CINEMA SURROUND
function will bring wider range sound.

NEWS:

The mode suitable for news programmes
makes the voice of the newscaster or the
like easier to hear.

USER:

Save your own sound setting to memory
with this mode.
The USER setting is performed with the
“SOUND MODE” menu (see page 25).

BASS button

You can choose the SUPER BASS mode
which emphasizes the bass sound.

Press tge BASS button to select one of
SUPER BASS modes.

You can choose HIGH, MID or LOW.
Choosing LOW will reduce the bass sound
and choosing HIGH will increase the bass
sound.

RETURN+ button

The RETURN+ button has two functions;
the RETURN+ function and the RETURN
function. If a channel has been registered
as the “Return Channel”, the RETURN+
function operates. If there is no setting for
the “Return Channel”, the RETURN function
operates.

RETURN+ function

By registering a channel you frequently
view as the “Return Channel”, you can
select that channel at any time simply by
pressing the RETURN+ button.

To register a TV channel as the “Return
Channel”:

Choose the Programme number to which
the channel you want to register has been
set, and press the RETURN+ button and
hold for more than 3 seconds continuously.
“RETURN PLUS PROGRAMMED!” is
displayed and the registration is completed.

To cancel a TV channel registered as the
“Return Channel”:

While viewing any TV channel, press the
RETURN+ button and hold for more than 3
seconds continuously. “RETURN PLUS
CANCELED!” is displayed and the
registration is cancelled.

• When you turn off the TV, the
registration for the “Return Channel” is
cancelled.

• If you want to view the “Return
Channel” and another TV channel
alternately, first choose a channel
other than the “Return Channel”. And
then press the RETURN+ button to
change the channel to the “Return
Channel” In this way, you can view two
channels alternately by pressing the
RETURN+ button.

10

Remote control buttons and functions

RETURN function

The TV temporarily memorises the TV
channel that was chosen right before the
current TV channel as the “Last Channel”.
By pressing the RETURN+ button, you can
alternately view the current TV channel and
the “Last Channel”.

• If you want to view two channels
alternately by using the RETURN
function, first choose one TV channel
and then choose the other TV channel
with the Number buttons. If you choose
the TV channel without using the
Number buttons, there are cases
where a channel other than the one
you first chose is registered as the
“Last Channel”.

DISPLAY button

You can display the PR LIST, programme
number or VIDEO terminal number on the
screen.

Press the DISPLAY button.

Press the DISPLAY button changes the
display as follows:

PR LIST

PR ID

AV

D0011-EN

01
02
03
04
05
06
07
08
09

OK

+10-10

Programme or VIDEO

terminal number

No indication

Choose a TV channel or a
VIDEO terminal

1 Press the DISPLAY button to display

the PR LIST.

2 Press the 6 and 5 buttons to

choose a programme number or
VIDEO terminal.
Then press the OK button.

• For programme numbers with the

CHANNEL GUARD function set, the n
(CHANNEL GUARD) mark is
displayed next to the programme
number in the PR LIST.

• The VIDEO terminals are registered
after the programme number PR99.

• The AV channel (channel number 0) in
the PR LIST will be chosen only if you
connect the VCR to the TV with an
aerial cable without connecting a video
cable.

Favorite channel registration

You can register your favorite TV channels
with the colour buttons (Red, Green, Yellow
and Blue). After registration you can recall
the favorite channel by pressing the colour
button.

1 In the normal screen, choose a TV

channel (PR01-99) you want to
register.

For detailed operation, see “Choose a
TV channel” on page 8.

2 Press and hold a colour button for 3

seconds or more.

Then “FAVORITE CH PROGRAMMED”
appears on the screen and the current
channel is registered.

11

Remote control buttons and functions

• If the chosen channel is already
registered as the favorite channel,
when a colour button is pressed, the
registered colour button icon appears
on the top right of the screen.

• You cannot register in the Text mode,
or while multiple screens, such as PIP
(picture in picture) are displayed.

• Also you cannot register if the chosen
channel is guarded with the CHANNEL
GUARD function and the screen is
blue, or if an on-screen menu is
displayed.

• Starting the AUTO PROGRAM deletes
the registered favorite channel.

 Recalling the favorite channel

Press the colour button, then the registered
favorite channel will be displayed.

• You cannot recall the favorite channel
in the Text mode, Menu mode where
an on-screen menu is displayed.

• The picture effect dedicated for the
colour button applies. For details, see
“Setting the picture effect” below:

 Setting the picture effect

Each colour button has a dedicated picture
effect. When you choose a favorite channel
with a colour button, the dedicated picture
effect is used. When shipped, the factory
set picture effect is used for this purpose.
However, you can set this picture effect as
required. For details, see “FAVORITE
SETTING” on page 28.

 Showing the favorite channels

Press the DISPLAY button to display the
PR LIST.
You can see the favorite channel that has
the registered colour button icon at the right
of the channel number.

PR LIST

PR ID

AV
01
02
03
04
05
06
07
08
09

OK

+10-10

D0011-EN

Twin and PIP (picture in
picture) function

You can view two pictures (Main picture and
sub picture). Two different TV programmes
can be watched at the same time or a TV
programme and a video programme from
an externaldevice can be watched at the
same time.

Operate with the PIP/TV/DVD switch set
to the PIP position.

Twin mode

Press .
Each time it is pressed the mode changes
as shown below.

Normal screen Twin mode

12

Sub

Main

Remote control buttons and functions

PIP (picture in picture) mode

Press .
Each time it is pressed the mode changes
as shown below.

Normal screen PIP mode

Sub

Main

To return to the normal screen:

Press the or again, or press the
BACK button.

• The and buttons do not work in
the Text mode.

• Twin and PIP functions do not work for
a picture of 1125i signal.

• A picture of 625p or 525p signal
cannot be displayed as the sub­picture.
Pay attention to the following.

- When the VIDEO-2 or VIDEO-3

picture is a picture of 625p or 525p
signal, you cannot choose VIDEO-2
or VIDEO-3 with the SUB-P6
buttons.

- When the VIDEO-2 or VIDEO-3

picture signal is changed to 625p,
525p or 1125i signal while the
VIDEO-2 or VIDEO-3 picture is
displayed as the sub-picture, the
Twin or PIP modes is cancelled.

 Listening to the sound of the

sub-picture:

You can listen to the sound of the sub­picture with the headphones while listening
to the sound of the main-picture from the TV
speakers.
For details, see “HEADPHONE VOLUME”
on page 25.

• The sub-picture sound is monaural.

 TV channel selection

For the main picture:

Choose a channel using the CHANNELp
buttons or the number buttons.

For the sub picture:

Choose a channel using the SUB-P6
buttons.

 Input source selection (TV,

VIDEO-1, -2, -3 or -4)

For the main picture:

Press the TV/VIDEO button.
Each time you press the button, the input
source changes as follows (the one used for
the sub picture will be skipped):
VIDEO-1 → VIDEO-2 → VIDEO-3 →
VIDEO-4 → TV

For the sub picture:

Press the (Input) button.
Each time you press the button, the input
source changes as follow (the one used for
the main picture will be skipped):
VIDEO-1 → VIDEO-2 → VIDEO-3 →
VIDEO-4 → TV

 Swapping the pictures

Press the (Swap) button.

Each time you press the button, the main
picture and the sub picture will be swapped.

• The pictures cannot be swapped when
a picture of 625p or 525p signal from
VIDEO-2 or VIDEO-3 is being
displayed as the main picture.

13

Remote control buttons and functions

 Changing the sub picture

position (in PIP mode only)

You can position the sub picture to one of
corners of the main picture.

Press the (Position) button.
Each time you press the button, the sub

picture moves clockwise (lower right →
lower left → upper left → upper right).

 Setting the colour system of

the sub picture

You can choose the colour system of the
sub picture.
The setting is performed with the “COLOUR
SYSTEM” menu (see page 23) when in the
Twin mode or PIP mode.

Multi-picture function

You can display multi-pictures that enable you
to easily find a program you want to view.

1 Set the PIP/TV/DVD switch to the PIP

position

2 Press the X button to display multi-

pictures

The channels are displayed in the
channel number order.
The multi-pictures will appear in one of
the two multi-picture modes.

9 pictures multi:

Still pictures

Moving picture

5 pictures multi:

Still pictures

Main picture

Moving picture

3 Choose the screen you want to view

The picture you choose changes to a
moving picture.

9 pictures multi:

Choose by pressing 56.

5 pictures multi:

Choose by pressing 6.

4 Press the OK button

The multi-pictures disappears and the
chosen picture appears.

Changing the multi-picture mode:

See “MULTI” on page 24.

Cancelling the multi-pictures

Press the BACK button, CHANNELp
buttons, the number buttons or OK button.

You can also enter this mode while in the

•
Twin mode, but not in the Text mode.

• Pictures will appear in the assigned
order in the PR LIST (PR01-99).

• The guarded channel with the
CHANNEL GUARD function will be
skipped and will not be displayed.

• Pictures from external devices cannot
be displayed in the 9-pictures multi
mode.

• In the 5-pictures multi mode, the
picture from external devices can only
be displayed as the main picture.

• In the 5 pictures multi mode, 1125i
signal cannot be displayed as the main
picture.

• The RETURN+ button is disabled in
the 9 pictures multi mode.

• In the multi-picture mode, the menu
cannot be displayed.

• In the 5 pictures multi mode, the sound
in the moving picture can be listened
through the headphone.

• To display the next multi-pictures,

press the X button.

14

Remote control buttons and functions

Freeze function

1 Set the PIP/TV/DVD switch to the PIP

position.

2 Press the (Freeze) button.

Still picture is captured and displayed on
the right side of the screen. On the left,
the moving picture is displayed.
While watching a picture, you can
capture a still picture you want. The
captured still picture and the moving
picture are displayed at a time. (They are
the pictures of the same source.)

Moving

Still

To return to the normal screen:

Press the (Freeze) button again or
press the BACK button, the CHANNEL p
buttons or the number buttons.

• The (Freeze) button do not work in
the Text mode, Twin mode, or PIP
mode.

• The FREEZE function does not work
for picture of 1125i signal.

Strobe function

You can display eight consecutive still
pictures and one moving picture at a time.
(They are the pictures of the same source.)

1 Set the PIP/TV/DVD switch to the PIP

position.

2 Press the STROBE button.

Eight consecutive still pictures which are
captured at intervals of about 0.2 second
are displayed in the order of “1” to “9”.
(These numbers are not actually
displayed.)

To return to the normal screen:

Press the STROBE button again or press
the BACK button, the CHANNEL p
buttons or the number buttons.

• If signal level of the main picture is
weak, the still images become
abnormal.

• The STROBE button do not work in the
Text mode, Twin mode, or PIP mode.

• The STROBE function does not work
for picture of 1125i signal.

• The menu cannot be displayed in the
STROBE mode.

15

Remote control buttons and functions

Operating a JVC brand DVD
player

You can operate a JVC brand DVD player.
Pressing the button having the same
appearance as the original remote control
button of a device makes the function work
in the same way as the original remote
control.

F. T/L

?

STROBE

1 Set the PIP//TV/DVD Switch to the

DVD position

When you are operating the DVD player,
set the switch to the DVD position.

• You can turn the DVD player on or off

with the # (Standby) button.

• You can also press the MENU or TOP
MENU button and display the DVD
disc menu screen, and then operate by
pressing the 56 buttons.

2 Press the DVD Control Button to

control your DVD player

• If your device is not made by JVC,
these buttons cannot be used.

• Even if your device is made by JVC,
some of these buttons or any one of
the buttons may not work, depending
on the device.

You cannot turn the TV on or off when the
PIP//TV/DVD switch is set to the DVD
position. When you turn the TV on or off,
set the PIP/TV/DVD switch to the TV or
PIP position.

TOP MENU

Viewing a teletext programme

1 Choose a TV channel with a teletext

broadcast.

2 Set the PIP/TV/DVD switch to the TV

position.

DVDPIP TV

3 Press P (Text) button to display the

teletext.

Pressing P (Text) button changes the
mode as follows:

TV mode

4 Choose a teletext page by pressing

the CHANNEL p buttons, number
buttons or colour buttons.

To return to the TV mode:

Press the P (Text), BACK or TV/VIDEO
button.

• If you have trouble receiving teletext
broadcasts, consult your local dealer
or the broadcast station.

• In the Text mode, the ZOOM mode is
fixed to the REGULAR mode.

• No menu operations are possible
when viewing a teletext programme.

• If characters on a teletext programme
do not appear properly, change the
TELETEXT LANGUAGE setting. For
details, see “TELETEXT LANGUAGE”
on page 34.

TV and
Text mode

Text mode

16

Remote control buttons and functions

(Hold) button

You can hold a teletext page on the screen
for as long as you want, even while several
other teletext pages are being received.

Press the (Hold) button.
The (hold) are displayed at the top left
of the screen.

To cancel the Hold function:

Press the (Hold) button again.

(Reveal) button

Some teletext pages include hidden text
(such as answers to a quiz).
You can display the hidden text.

Each time you press the (Reveal)
button, text is hidden or revealed.

(Size) button

You can double the height of teletext
display.

Press the (Size) button.

(Index) button

You can return to the index page instantly.

Press the (Index) button.

• In the List mode, you can return to the
page number displayed in the lower
left area of the screen.

3 Press the (Cancel) button to

return to a teletext page when the
page number is on the screen.

• You cannot return to the TV mode with
the (Cancel) button.

Sub-page

Some teletext pages include sub-pages that
are automatically displayed.

1 Choose a teletext page that includes

sub-pages.

Sub-page numbers that can be viewed
are automatically displayed at the top of
the screen.

2 Press the 5 buttons to choose a

sub-page number.

(Cancel) button

You can search for a teletext page while
watching TV.

1 Press the number button to enter a

page number, or press the colour
button.

The TV searches for a teletext page.

2 Press the (Cancel) button.

The TV programme appears. When the
TV finds the teletext page, its page
number appears in the upper left of the
screen.

17

Remote control buttons and functions

Using the List mode

You can store the numbers of your favorite
teletext pages in memory and call them up
quickly using the colour buttons.

To store the page numbers:
1 Press the F.T/L button to engage the

List mode.

The stored page numbers are displayed
at the bottom of the screen.

2 Press a colour button to choose a

position. Then press the number
buttons to enter the page number.

3 Press and hold down the (Store)

button.

The four page numbers blink white to
indicate that they are stored in memory.

To call up a stored page:
1 Press the F.T/L button to engage the

List mode.

2 Press a colour button to which a page

has been assigned.

To exit the List mode:

Press the F.T/L button again.

18

Using the TV’s menu

789



This TV has a number of functions you can operate using menus.
To fully utilize all your TV’s functions, you need to understand the basic menu operating
techniques fully.

Buttons used to operate the menus

RETURN+

0

TV/VIDEO

FAVORITE CHANNEL

SUB-P

TV/VIDEO MENU

OK

DISPLAY

SUB-P

CHANNEL VOLUME

MENU
OK

BACK

BACK

1Press the H button to display the

menu bar

D0105-EN

2 Press the 5 buttons to choose the

menu you want to use and then press
the a button

D1105-EN

Chosen
menu

Chosen
menu name

3 Press the 6 buttons to choose the

item to be set, press the 5 buttons
to set the item, and then press the a
button

If there are sub-menus, use the 7
buttons to operate them.

• Press the b button to return to

the previous menu.

• Press the TV/VIDEO or MENU button
to exit from the menu.

Types of menu

PICTURE menu

D0106

Choose to set the screen set­tings.

SOUND menu

D0107

Choose to set the sound set­tings.

FEATURES menu

D0108

Choose to set the sleep timer
and child lock settings.

SET UP menu

Choose to edit the channels

D0109

or set the display language
settings.

The menu guide area can be made to
appear and disappear for some menus.
While the menu is displayed, press the
DISPLAY button to change between the
guide area being displayed and not
displayed.

>> ZOOM

REGULAR
ZOOM
16:9

OK

D0017-EN

Guide area

>> ZOOM

REGULAR
ZOOM
16:9

D1017-EN

• The guide area for some menus will
still be displayed even if the DISPLAY
button is pressed. This is not a
malfunction.

19

Using the TV’s menu

Operation with the buttons on the
TV

You can also operate the menus using the
buttons on the front panel of the TV.

MENU

OK

button

MENUOKCHANNEL

• The OK button acts as the MENU
button when the menu bar is not
displayed, and as the OK button when
the menu bar is displayed.

• Press the TV/VIDEO button to exit
from the menu.

6

buttons5 buttons

VOLUME

TV/VIDEO

button

TV/VIDEO
EXIT

PICTURE menu


PICTURE MODE
CONTRAST
BRIGHT
SHARP
COLOUR
TINT
WHITE BALANCE
FEATURES

OK

D0014-EN

 PICTURE MODE

You can choose one of three PICTURE
MODEs to adjust the picture settings
automatically.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustment.

SOFT:

Softens contrast and sharpness.

 Adjusting the picture

You can change the picture settings of each
picture mode, as you like. The picture
settings changed are stored in the picture
mode.

CONTRAST

You can adjust the picture contrast.

2 : lower
3 : higher

BRIGHT

You can adjust the picture brightness.

2 : darker
3 : brighter

SHARP

You can adjust the picture sharpness.

2 : softer
3 : sharper

COLOUR

You can adjust the picture colour.

2 : lighter
3 : deeper

STANDARD

COOL

RESET

20

Using the TV’s menu

TINT

You can adjust the picture tint.

2 : reddish
3 : greenish

• You can change the TINT setting
(picture tint) only when the colour
system is NTSC 3.58 or NTSC 4.43.

To return to the default settings in each
PICTURE MODE:

Press the blue button. This will return the
picture settings in the currently chosen
PICTURE MODE to the default settings,
and stores them in the PICTURE MODE
again.

 WHITE BALANCE

You can select one of three WHITE
BALANCE modes (three tones of white) to
adjust the white balance of the picture.
Since white is the colour which is used as a
reference for all the other colours, changing
the WHITE BALANCE mode affects the
appearance of all the other colours on the
screen.

COOL:

A bluish white. Using this mode when
watching bright pictures allows you to enjoy
a more vivid and bright picture.

MID:

The normal white colour.

WARM:

A radish white. Using this mode when
watching films allows you to enjoy colours
that are characteristic of films.

FEATURES menu

Choose FEATURES in the “PICTURE”
menu and press the a or 3 button to
display the sub-menu.

> FEATURES

DIGITAL VNR
Super DigiPure
PULL DOWN
Colour DigiPure
COLOUR SYSTEM
ZOOM
MULTI

OK

D1015-EN

 DIGITAL VNR

The DIGITAL VNR function cuts down the
amount of noise in the original picture.
You can choose from the four DIGITAL
VNR function settings of AUTO(LOW),
AUTO(HIGH), MIN and MAX.

AUTO(LOW)/AUTO(HIGH):

The TV will automatically adjust the level of
the DIGITAL VNR effect to match the
amount of noise in the picture, giving you
the best possible picture.

• If you set the DIGITAL VNR effect too
high it can make the picture less
sharp. It is recommended to use the
AUTO(LOW) setting if you can. If you
set the DIGITAL VNR function to
AUTO(LOW)but still notice some
noise, change the setting from
AUTO(LOW) to AUTO(HIGH).

MIN:

The level of the DIGITAL VNR effect is set
to the minimum. If you set the DIGITAL
VNR function to AUTO(LOW) but feel that
the sharpness of the original picture has not
been reproduced fully, change the setting
from AUTO(LOW) to MIN.

• The MIN setting is not suitable for low­quality pictures which contain a lot of
noise.

AUTO(LOW)

AUTO
AUTO

ON

21

Using the TV’s menu

MAX:

The level of the DIGITAL VNR effect is set
to the maximum. If you set the DIGITAL
VNR function to AUTO(HIGH) but still notice
some noise, change the setting from
AUTO(HIGH) to MAX.

• The MAX setting is not suitable for
high-quality pictures which contain
very little noise.

 Super DigiPure

The Super DigiPure function uses the latest
in digital technology to give you a natural­looking picture. The Super DigiPure
function includes the following two
functions.

DigiPure function:

This function helps to create a natural­looking picture by eliminating unnecessary
edges from high-contrast and crisp images.
For images with low-contrast, edges are
added to produce a sharper, more detailed
picture.
You can choose from the three DigiPure
function settings of AUTO, MIN and MAX.

• If you set the DigiPure effect too high
on a low-quality picture that contains a
lot of noise, this may actually make
the noise worse. We recommend you
use the AUTO setting if you can.

Picture motion compensation function:

This function displays fast-moving pictures
(for example, the players or ball in a football
game) more smoothly and naturally on the
screen.

• The effect level of the picture motion
compensation function cannot be
changed. The effect level is the same
no matter which of the AUTO, MIN or
MAX settings is used.

AUTO:

The TV will automatically adjust the level of
the DigiPure effect to match the amount of
noise in the picture, giving the best possible
picture.

MIN:

The level of DigiPure effect is set to the
minimum. When you set the Super DigiPure
function to AUTO and notice some noise,
change the setting from AUTO to MIN.

• The MIN setting is not suitable for
high-quality pictures which contain
very little noise.

MAX:

The level of DigiPure effect is set to the
maximum. If you set the Super DigiPure
function to AUTO but feel that the original
picture quality has not been reproduced
fully, change the setting from AUTO to
MAX.

• The MAX setting is not suitable for
low-quality pictures which contain a lot
of noise.

OFF:

The Super DigiPure function is turned off.

 PULL DOWN

The PULL DOWN function displays a
cinema film picture more smoothly and
naturally on the screen.

AUTO:

This function is turned on. Normally keep
this function set to AUTO.

ON :

This function is turned on.

OFF:

This function is turned off.

• The motion may appear unnatural
when viewing images with the NTSC
colour system. To make the motion
smoother, switch the PULL DOWN
function from AUTO or ON to OFF.

22

Using the TV’s menu

 Colour DigiPure

Makes the colour outline stand out and
increases the sharpness giving a clearer
picture.

ON:

Colour DigiPure works. Normally use with
this function turned on.

OFF:

Colour DigiPure doesn’t work. This gives a
less clear picture than when this function is
turned on.

 COLOUR SYSTEM

The colour system is chosen automatically.
However, if the picture is not clear or no
colour appears, choose the colour system
manually.

1 Choose COLOUR SYSTEM. Then

press the a or 3 button

The sub-menu of the COLOUR SYSTEM
function appears.

>> COLOUR SYSTEM

MAIN

PAL

OK

D0016-EN

2 Press the 5 buttons to choose

MAIN or SUB

MAIN:

You can change the colour system of the
main-picture.

SUB:

You can change the colour system of the
sub-picture.

• Choose MAIN when a sub-picture is
not displayed.

3 Press the 6 buttons to choose the

appropriate colour system. Then
press the a button

PAL:

PAL system

SUB

AUTO

SECAM:

SECAM system

NTSC 3.58:

NTSC 3.58 MHz system

NTSC 4.43:

NTSC 4.43 MHz system

AUTO:

This function detects a colour system
from the input signal.

• The AUTO function may not function
properly if you have poor signal
quality. If the picture is abnormal in
the AUTO function, choose another
colour system manually.

For colour system in your country or
region, refer to the table below:

Area Country or Region System

Bahrain, Kuwait, Oman,
Qatar, United Arab Emirates,
Yemen, etc.
Indonesia, Malaysia,
Singapore, Thailand, India,

Asia,
Middle
East

Europe

Oceania Australia, New Zealand, etc. PAL

Africa

etc.
China, Vietnam, etc. PAL
Hong Kong, etc. PAL
Islamic Republic of Iran,

Lebanon, Saudi Arabia, etc.
Philippines, Taiwan,

Myanmar, etc.
Russia, etc. SECAM
Czech Republic, Poland, etc. PAL
Germany, Holland, Belgium,

etc.
UK, etc. PAL

Republic of South Africa, etc. PAL
Nigeria, etc. PAL
Egypt, Morocco, etc. SECAM

PAL

SECAM

NTSC

PAL

23

Using the TV’s menu

 ZOOM

You can change the screen size according
to the picture aspect ratio. Choose the
optimum one from three ZOOM modes.

1 Choose ZOOM, then press the OK or

3 button.

>> ZOOM

REGULAR
ZOOM
16:9

OK

D0017-EN

2 Press the 6 buttons to choose a

ZOOM mode. Then press the OK
button.

• You can choose a ZOOM mode from
REGULAR, ZOOM or 16:9 modes. For
details, see “ZOOM button” on page 9.

 MULTI

Choosing the number of pictures for the
Multi-picture function.

1 Choose MULTI, then press the OK or

3 button.

>> MULTI

OSD-2-EN

2 Press the 5 buttons to choose the

number of pictures. Then press the
OK button.

SOUND menu

SOUND

STEREO/
SOUND MODE
BALANCE
HEADPHONE VOLUME
CINEMA SURROUND
SUPER BASS
BBE DIGITAL

OSD-3-EN

• Functions in the “SOUND” menu other
than “HEADPHONE VOLUME” work
for the TV speakers. They do not work
for the sound from the headphones.

• When the headphones are connected
and only one screen is displayed,
“STEREO/I•II” and “HEADPHONE
VOLUME” can be used.

 STEREO / I•II

When you are viewing a bilingual broadcast
programme, you can choose the sound
from Bilingual I (sub I) or Bilingual II (sub II).
When the stereo broadcasting is received
poorly, you can change from stereo to mono
sound so that you can hear the broadcast
more clearly and easily.

s : Stereo sound
v : mono sound
t : Bilingual I (sub I)
u : Bilingual II (sub II)

MONO: Cancels the Multi Sound function,

and the sound becomes monaural.

• The sound mode you can choose
differs depending on the TV
programme.

• This function does not work in the
VIDEO modes.

MONO

MONO

LOW

ON

24

Using the TV’s menu

 SOUND MODE

Register your preferred pattern in the
SOUND MODE USER.

1 Choose SOUND MODE, then press the

OK or 3 button.

The “SOUND MODE“ menu appears.

> SOUND MODE

NEWS

120Hz 500Hz 1.5kHz 5kHz 10kHz

OK

OSD4-EN

2 Press the red button and choose your

preferred SOUND MODE.

3 Press the 5 buttons and choose the

frequency to adjust, then press the
6 buttons and adjust the frequency.

• The adjusted frequency is registered
to USER.

• When DYNAMIC, MUSIC, or NEWS is
chosen and the frequency is adjusted,
the SOUND MODE automatically
changes to USER.

• Adjust the other frequencies
according to your preference.

• After adjusting the frequencies in step
3, pressing the blue button will return
to the SOUND MODE pattern chosen
in step 2.

• You can choose a SOUND MODE
function with the SOUND MODE
button. For details, see “SOUND
MODE button” on page 10.

 BALANCE

You can adjust the volume balance
between the left and right speakers.

2 : turn the left speaker’s volume level up.
3 : turn the right speaker’s volume level up.

SOUND MODE

 HEADPHONE VOLUME

Adjust the volume of the sub-picture sound
which is heard through the headphones
when set to Twin mode, PIP mode or 5
pictures multi.

2 :Reduce volume
3 :Increase volume

• When not set to Twin mode or PIP
mode, the headphone volume is
adjusted with the r q (volume)
buttons.

 CINEMA SURROUND

You can enjoy Surround sound with a “live”
effect by using the CINEMA SURROUND
function.

• You can choose a CINEMA SURROUND
mode from HIGH, LOW, MONO and OFF
modes. For details, see “CINEMA
SURROUND button” on page 9.

• You can also operate the CINEMA
SURROUND function with the
CINEMA SURROUND button. For
details, see “CINEMA SURROUND
button” on page 9.

 SUPER BASS

You can choose the SUPER BASS mode
which emphasizes the bass sound.

• You can choose HIGH, MID or LOW.
Choosing LOW will reduce the bass
sound and choosing HIGH will
increase the bass sound.

• You can also operate the SUPER
BASS function with the BASS button.
For details, see “BASS button” on
page 10.

 BBE DIGITAL

You can use the BBE DIGITAL function to
enjoy easy-to-listen sound that is faithful to
the original sound recorded.

• You can choose ON or OFF.

• Licensed by BBE Sound, Inc. BBE is a
registered trademark of BBE Sound, Inc.

25

Using the TV’s menu

FEATURES menu

FEATURES

SLEEP TIMER
CHANNEL GUARD
APPEARANCE
BLUE BACK
CHILD LOCK
AUTO SHUTOFF
FAVORITE SETTING

OSD-5-EN

 SLEEP TIMER

You can set the TV to automatically turn off
after a set time.

1 Choose SLEEP TIMER, then press the

OK or 3 button.

> SLEEP TIMER

0120

OFF

OK

D0024-EN

2 Press the 5 buttons to set the

period of time.

The TV begins count down from the set
time.

• You can set the period of time a
maximum of 120 minutes (2 hours) in
10 minute steps.

To cancel this function:

• Press the 2 button to set a period of
time to “OFF”.

3 Press the OK button to complete the

setting.

The menu disappears.

• One minute before this function turns
off the TV, “GOOD NIGHT!” appears.

• This function cannot be used to turn off
the TV’s main power.

• When this function is on, you can
display the SLEEP TIMER menu again
to confirm or change the remaining
time.

TYPE A

ON

OFF

ON

 CHANNEL GUARD

When there is a TV channel you do not
want your children to watch, you can lock
out the channel. Even when a child chooses
a programme number for a locked out
channel the screen will change to blue and
display n so the channel cannot be viewed.

To set this function:
1 Choose CHANNEL GUARD, then

press the number 0 button.

> SET ID NO.

040

0

OK

D0025-EN

2 Set the ID number you want.

To choose a number:

Press the 6 buttons.

To move a cursor:

Press the 5 buttons.

3 Press the OK button.

>> CHANNEL GUARD

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

D0026-EN

4 Press the 6 buttons to choose a TV

channel.

• The TV shows the TV programme
which the chosen TV channel is now
broadcasting.

5 Press the blue button to set this

function to the TV channel.

n (CHANNEL GUARD) appears and the
TV channel is locked.

CH

CH
CH
CH
CH
CH
CH
CC
CC
CC

21
22
23
24
25
26
01
02
03

GUARD

26

Using the TV’s menu

To cancel this function:

Press the blue button again.
n (CHANNEL GUARD) disappears and
the lock is released.

6 Press the OK button to complete the

setting.

The menu disappears.

To view a locked TV channel:
1 Choose a programme number in

which a TV channel locked with the
number buttons or PR LIST.

The screen changes to blue and the n
(CHANNEL GUARD) appears.

5

D0027-EN

• You cannot choose a locked TV channel

with the CHANNEL p buttons.

2 Press the DISPLAY button to display

“ID NO.” (ID number input screen).

5

ID NO. :

D0028-EN

3 Press the number buttons to enter the

ID number.

The lock is temporarily released so you
can view the TV channel.

If you have forgotten the ID number:

Perform step 1 of “To set this function:” on
page 26. After confirming the ID number,
press the TV/VIDEO button to exit the menu.

• When you would like to cancel the
CHANNEL GUARD function, you must
perform the operation “To set this
function” again.

 APPEARANCE

Press the 5 button and choose the
format in which the channel number is
displayed from the three types: TYPE A,
TYPE B and TYPE C.

 BLUE BACK

You can set the TV to automatically change
to a blue screen and mute the sound if the
signal is weak or absent, or when there is
no input from an external device.

ON:

This function is turned on.

OFF:

This function is turned off.

 CHILD LOCK

You can disable the front control buttons of
the TV. When this function is set to ON, the
TV can be operated only by using the
remote control.
Use this function to prevent children from
operating the TV at their own discretion
(without parent consent).

ON:

This function is turned on.

OFF:

This function is turned off.
Turning the power off with the main power
button cancels the CHILD LOCK.

 AUTO SHUTOFF

You can set the power to turn off if no signal
is received and no operation is performed
for about 15 minutes or longer after the end
of a broadcast.

ON:

This function is turned on.

OFF:

This function is turned off.

• The AUTO SHUTOFF function does
not turn off the TV’s main power.

• The AUTO SHUTOFF will not work for
a VIDEO mode.

27

Using the TV’s menu

 FAVORITE SETTING

You can set a dedicated picture effect for
the favorite channels registered to the
colour buttons (Red, Green, Yellow and
Blue). For favorite channel registration, see
“Favorite channel registration” on page 11.

1 Choose FAVORITE SETTING, then

press the OK or 3 button.

> FAVORITE SETTING

FAVORITE CH SETTING
VIDEO SETTING

OSD-6-EN

2 Choose FAVORITE CH SETTING, then

press OK or 3 button.

>> FAVORITE CH SETTING

FAVORITE CHANNEL

PICTURE MODE
DIGITAL VNR
WHITE BALANCE
Super DigiPure
PICTURE ADJUST

OK

OSD-7-EN

3 Press the 6 button to choose

FAVORITE CHANNEL, then press the
5 button to choose the registered
favorite channel.

Each time you press the 5 button, the
colour button icon (Red, Green, Yellow
or Blue) of the registered favorite
channel and its channel number (e.g.
PR1) appear.

4 Set the picture effect.

Press the 6 button to choose an item
listed in the following table and press the
5 button to choose one of options.

• As explained in the table, if PICTURE
EFFECT is set to OFF, the dedicated
picture effect for the favorite channel is
not used. In this case, normal picture
effect is used.

RP 06

BRIGHT

AUTO(LOW)

COOL

OFF
OFF

RESET

• For details of each item, see
“PICTURE MODE” on page 20,
“DIGITAL VNR” on page 21, “WHITE
BALANCE” on page 21, “Super
DigiPure” on page 22.

Item Options

PICTURE MODE BRIGHT*, STANDARD,

SOFT

DIGITAL VNR AUTO (LOW)*, AUTO

(HIGH), MIN, MAX

WHITE

COOL, MID*, WARM

BALANCE

Super DigiPure AUTO*, MAX, OFF, MIN

EFFECT

ON*:
Above picture effect
applies to the chosen
favorite channel.
OFF:
No picture effect applies.

*: When shipped

• Pressing the blue button returns each
setting back to initial setting and cancels
the favorite channel registration.

5 Press the OK button to complete the

setting.

 VIDEO SETTING

You can set a dedicated picture effect for
the video inputs, VIDEO-1 to -4.

1 Choose FAVORITE SETTING, then

press the OK or 3 button.

2 Choose VIDEO SETTING, then press

the OK or 3 button.

>> VIDEO SETTING

VIDEO
PICTURE MODE
DIGITAL VNR
WHITE BALANCE
Super DigiPure
PICTURE ADJUST

OK

OSD-8-EN

VIDEO-1

BRIGHT

AUTO(LOW)

COOL
AUTO

ON

RESET

28

Using the TV’s menu

3 Press the 6 button to choose

VIDEO, then press the 5 button to
choose one of video inputs, VIDEO-1
to -4.

4 Set the picture effect.

Press the 6 button to choose an item
listed in the following table and press the
5 button to choose one of options.

• As explained in the table, if PICTURE
EFFECT is set to OFF, the dedicated
picture effect for the video inputs is not
used. In this case, normal picture
effect is used.

Item Options

PICTURE MODE BRIGHT*, STANDARD,

SOFT

DIGITAL VNR AUTO (LOW), AUTO

(HIGH), MIN*, MAX

WHITE

COOL, MID*, WARM

BALANCE

Super DigiPure AUTO, MAX*, OFF, MIN

EFFECT

ON*:
Above picture effect
applies to the chosen
video input.
OFF:
No picture effect applies.

*: When shipped

• For details of each item, see
“PICTURE MODE” on page 20,
“DIGITAL VNR” on page 21, “WHITE
BALANCE” on page 21, “Super
DigiPure” on page 22.

• When the signal is 625p or 525p:

- In “DIGITAL VNR”, AUTO

(LOW and HIGH) cannot be selected.

- In “Super DigiPure”, AUTO cannot be

selected.

• Pressing the blue button will return the
picture effect to the factory set value.

5 Press the OK button to complete the

setting.

SETUP menu

SET UP

AUTO PROGRAM
EDIT/MANUAL
LANGUAGE
PICTURE TILT
VIDEO-2 SETTING
VIDEO-3 SETTING
AI VOLUME
TELETEXT LANGUAGE

OSD-9-EN

 AUTO PROGRAM

You can automatically register the TV
channels which can be received well at your
residence in the TV’s programme numbers
by performing the following.

1 Choose AUTO PROGRAM, then press

the OK button.

The AUTO PROGRAM function starts.
The TV channels you receive are
automatically stored in the programme
numbers list.

>> AUTO PROGRAM

CH 28

14%

OK

D0004-EN

• To stop the AUTO PROGRAM
function, press the OK button.

2 After the TV channels have been

stored in the programme number list,
the EDIT menu appears.

> EDIT

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

MOVE

D0038-EN

COMPONENT
COMPONENT

CH/CC

CH
CH
CH
CH
CH
CH
CC
CC
CC

ID

INSERT

ON

21
22
23
24
25
26
01
02
03

MANUAL

DELETE

29

Using the TV’s menu

• You can proceed to edit the
programme numbers list using the
EDIT/MANUAL function. For details,
see “EDIT/MANUAL” on page 30

• If a TV channel you want to view is not
stored in the programme numbers list,
you can register it using the MANUAL
function.
For details, see “EDIT/MANUAL” on
page 30.

• The AUTO PROGRAM function does
not store a TV channel to the
programme number 0 (AV).

• If you do not need to use the EDIT/
MANUAL function, press the OK
button to exit the EDIT menu.

• Starting the AUTO PROGRAM deletes
the registered favorite channel.

 EDIT/MANUAL

The EDIT/MANUAL functions are divided
into two types: editing of the current
programme numbers (EDIT functions) and
manual registration of a TV channel you
want to view to the programme number
(MANUAL function).

CAUTION

• Using the MOVE, DELETE or INSERT
function rewrites the current programme
numbers list.
Resultingly, the programme number of
some of the TV channels will change.

• When a TV channel which has been
locked out using the CHANNEL GUARD
function, using the MANUAL function for
that TV channel cancels the CHANNEL
GUARD function.

• When a TV channel has already been
registered in PR 99, using the INSERT
function deletes the TV channel.

1 Choose EDIT/MANUAL, then press the

OK or 3 button.

> EDIT

CH/CC

CH
CH
CH
CH
CH
CH
CC
CC
CC

ID

INSERT

21
22
23
24
25
26
01
02
03

MANUAL

DELETE

D0038-EN

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

MOVE

2 Follow the operation description of a

function you want to use and operate
the function.

MOVE:

This function changes a programme
number of a TV channel.

ID:

This function registers a Channel name
(ID) to a TV channel.

INSERT:

This function adds a new TV channel in
the current programme numbers list by
using the CH/CC number.

DELETE:

This function deletes an unnecessary TV
Channel.

MANUAL:

This function manually registers a new
TV channel in a programme number.

3 Press the OK button to complete the

setting.

• For programme number PR 0, “AV”
appears in the programme numbers
list.

30

Using the TV’s menu

FUNCTIONS

MOVE
1 Press the 6 buttons to choose a TV

channel.

2 Press the 3 button to start the MOVE

function.

> EDIT

OK

STORE

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

CH/CC

CH
CH
CH
CH
CH
CC
CC
CC

M

22
23
24
25
26
01
02
03

CH/CC

CH
CH
CH
CH
CH
CH
CC
CC
CC

CH 21

21
22
23
24
25
26
01
02
03

PR ID
AV
01
02
03
04
05
06
07
08
09

D0030-EN

3 Press the 6 buttons to choose a

new programme number.

To cancel the MOVE function:

Press the BACK button.

4 Press the 2 button to change the

programme number of a TV channel
to a new programme number.

ID
1 Press the 6 buttons to choose a TV

channel.

2 Press the red button to start the ID

function.

3 Enter a channel name (ID). Press the

6 buttons to choose a character.
Press the 5 buttons to move the
cursor.

> EDIT

D0032-EN

To cancel the ID function:

Press the BACK button.

4 Press the OK button to register a

channel name to a TV channel.

DELETE
1 Press the 6 buttons to choose a TV

channel.

2 Press the yellow button to delete the

TV channel.

The TV channel is deleted from the
programme numbers list.

MANUAL
1 Press the 6 buttons to choose a

programme number to which you
want to register a new TV channel.

2 Press the blue button to activate the

MANUAL function.

At the right side following the CH/CC
number, the SYSTEM (sound system) of
the TV channel appears.

> MANUAL

BBC1

CH/CC

CH
CH
CH
CH
CH
CH
CC
CC
CC

SEARCH+

SEARCH-

21
22
23
24
25
26

(

)

01

B / G
02
03

FINE-

FINE+

D0035-EN

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

SYSTEM

To cancel the MANUAL function:

Press the BACK button.

31

Using the TV’s menu

3 Press the 3 button to choose the

system (sound system) for a TV
channel you want to register.

• For the sound systems in each country
or region, refer to the table below:

Area Country or Region System

Bahrain, Kuwait, Oman,
Qatar, United Arab Emirates,
Yemen, etc.
Indonesia, Malaysia,

B/G

Singapore, Thailand, India,
Asia,
Middle

East

etc.

China, Vietnam, etc. D/K

Hong Kong, etc. I

Islamic Republic of Iran,

Lebanon, Saudi Arabia, etc.

Philippines, Taiwan,

Myanmar, etc.

B/G

M

Russia, etc. D/K

Czech Republic, Poland, etc. D/K
Europe

Germany, Holland, Belgium,

etc.

B/G

UK, etc. I
Oceania Australia, New Zealand, etc. B/G

Republic of South Africa, etc. I
Africa

Nigeria, etc. B/G

Egypt, Morocco, etc. B/G

4 Press the green or red button to

search for a TV channel.

Scanning stops when the TV finds a TV
channel. Then the TV channel is
displayed.

5 Press the green or red button

repeatedly until the TV channel you
want appears.

If the TV channel reception is poor:

Press the blue or yellow button to fine­tune the TV channel.

If you cannot hear the normal sound
even when the picture of the TV
channel appears normally:

The SYSTEM setting is wrong. Press the
3 button and choose a SYSTEM that has
normal sound.

6 Press the OK button and register the

TV channel to a programme number.

The normal EDIT menu is resumed.

INSERT

Preparation:

• Find the CH/CC number
corresponding to the channel number
of the TV channel from page 35.

1 Press the 6 buttons to choose a

programme number for which you will
register a new TV channel.

2 Press the green button to start the

INSERT function.

> EDIT

0 9

CH/CC

CH
CH
CH
CH
CH
CH
CC
CC
CC

21
22
23
24
25
26

02
03

D0034-EN

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

CH/CC

3 Press the 6 buttons to choose “CC”

or “CH” according to the CH/CC
number of the TV channel.

To cancel the INSERT function:

Press the BACK button.

4 Press the Number buttons to enter the

remaining CH/CC number.

The TV shifts to registration mode. When
the registration is completed, the picture
of the TV channel appears on the
screen.

32

Using the TV’s menu

• The CH/CC number is a number
indicating the broadcast frequency to
the TV. If the TV cannot detect the TV
channel corresponding to the
broadcast frequency indicated by the
CH/CC number, a picture in the no­signal state appears.

 LANGUAGE

You can choose the language you want to
use for the on-screen display from the
language list in a menu.

1 Choose LANGUAGE, then press the

OK button.

2 Press the 6 buttons to choose a

language.

3 Press the OK button to complete the

setting.

The menu disappears.

 PICTURE TILT

There are cases where the Earth’s
magnetic force may make the picture tilt. If
this happens, you can correct the picture tilt.

1 Choose PICTURE TILT, then press the

OK or 3 button.

> PICTURE TILT

OK

D0018-EN

2 Press the 6 buttons until the

picture becomes level. Then press the
OK button.

 VIDEO-2 SETTING/VIDEO-3

SETTING

Set the VIDEO-2 SETTING or VIDEO-3
SETTING correctly according to the video
signal input from the external device
connected to the VIDEO-2 or VIDEO-3
terminal. If this setting is incorrect, images
will not be displayed.

VIDEO:

If a normal video signal (composite video
signal) is input.

COMPONENT:

If a Component video signal (Y, Cb/Pb,
Cr/Pr signals) is input.

• For detailed connecting methods, see
“Additional preparation” on page 36.
This Television is compatible with the
1125i, 625p or 525p video signal only
when the component video signal is
input.

• When the input signal is 1125i, 625p or
525p, each signal type is displayed at
the upper right side on the TV screen
by setting the input to VIDEO-2 or
VIDEO-3.

 AI VOLUME

You can prevent the sudden increase or
decrease of sound that occurs when
changing the channel to another channel or
switching the VIDEO mode to another
VIDEO mode.

ON:

This function is turned on.

OFF:

This function is turned off.

• The AI VOLUME function may not
operate as expected if the sound input
level from a broadcast station (or video
software) is extremely low.

• When the Video or the DVD is used, it
is recommended to select OFF to get
more dynamic sound.

33

Using the TV’s menu

 TELETEXT LANGUAGE

There are four types of teletext language
groups. Set the teletext language group that
corresponds to the language of the teletext
program that you want to watch.

1 Choose TELETEXT LANGUAGE, then

press the OK or 3 button.

> TELETEXT LANGUAGE

GROUP-1
GROUP-2
GROUP-3
GROUP-4

OK

OSD-10-EN

2 Press the 6 buttons to choose a

group.

Group Languages

GROUP-1 Turkish, Hungarian, English,

GROUP-2 Polish, Serbian, Croatian,

German, French, Italian,
Spanish, Portuguese, Greek,
Swedish, Finnish

Slovenian, Czech, Slovak,
Rumanian, Hungarian,
German, French, Italian,
Swedish, Finnish

3 Press the OK button to complete the

setting.

The menu disappears.

• Languages that are not included in the
teletext language group that you
select, the sub-titles of the teletext
program will not be displayed properly.

GROUP-3 Russian, Bulgarian, Lettish,

Lithuanian, Estonian,
Ukrainian, Serbian, Croatian,
Slovenian, Czech, Slovak,
English, German

GROUP-4 Arabic, Czech, Slovak.

Hungarian, English, German,
French, Italian, Spanish,
Portuguese, Swedish, Finnish

34

Using the TV’s menu

CH/CC number

When you want to use the INSERT function on page 32, find the CH/CC number
corresponding to the Channel number of the TV channel from this table.
US: The US channel numbers are the channel numbers used in the United States,
Philippines, etc. CCIR: The CCIR channel numbers are the channel numbers used in the
Middle East, Southeast Asia, etc. OIRT: The OIRT channel numbers are the channel
numbers used in Eastern Europe, Russia, Vietnam, etc. AUSTRALIA: The AUSTRALIA
channel numbers are the channel numbers used in Australia, etc.

Channel Channel

CH US CCIR OIRT AUSTRALIA
CH 02 US-2 E2 R1 AU-0
CH 03 US-3 E3 AU-1
CH 04 US-4 E4 R2 AU-2
CH 05 US-5 E5 R6 AU-6
CH 06 US-6 E6 R7 AU-7
CH 07 US-7 E7 R8 AU-8
CH 08 US-8 E8 R9 AU-9
CH 09 US-9 E9
CH 10 US-10 E10 R10 AU-10
CH 11 US-11 E11 R11 AU-11
CH 12 US-12 E12 R12
CH 13 US-13
CH 14 US-14, W+29
CH 15 US-15, W+30
CH 16 US-16, W+31
CH 17 US-17, W+32
CH 18 US-18, W+33
CH 19 US-19, W+34
CH 20 US-20, W+35
CH 21 US-21, W+36 E21
CH 22 US-22, W+37 E22
CH 23 US-23, W+38 E23
CH 24 US-24, W+39 E24
CH 25 US-25, W+40 E25
CH 26 US-26, W+41 E26
CH 27 US-27, W+42 E27
CH 28 US-28, W+43 E28
CH 29 US-29, W+44 E29
CH 30 US-30, W+45 E30
CH 31 US-31, W+46 E31
CH 32 US-32, W+47 E32
CH 33 US-33, W+48 E33
CH 34 US-34, W+49 E34
CH 35 US-35, W+50 E35
CH 36 US-36, W+51 E36
CH 37 US-37, W+52 E37
CH 38 US-38, W+53 E38
CH 39 US-39, W+54 E39
CH 40 US-40, W+55 E40
CH 41 US-41, W+56 E41
CH 42 US-42, W+57 E42
CH 43 US-43, W+58 E43
CH 44 US-44, W+59 E44
CH 45 US-45, W+60 E45
CH 46 US-46, W+61 E46
CH 47 US-47, W+62 E47
CH 48 US-48, W+63 E48
CH 49 US-49, W+64 E49
CH 50 US-50, W+65 E50
CH 51 US-51, W+66 E51
CH 52 US-52, W+67 E52
CH 53 US-53, W+68 E53
CH 54 US-54, W+69 E54
CH 55 US-55, W+70 E55
CH 56 US-56, W+71 E56
CH 57 US-57, W+72 E57
CH 58 US-58, W+73 E58
CH 59 US-59, W+74 E59
CH 60 US-60, W+75 E60
CH 61 US-61, W+76 E61
CH 62 US-62, W+77 E62
CH 63 US-63, W+78 E63
CH 64 US-64, W+79 E64
CH 65 US-65, W+80 E65
CH 66 US-66, W+81 E66
CH 67 US-67, W+82 E67
CH 68 US-68, W+83 E68
CH 69 US-69, W+84 E69

CC US CCIR OIRT AUSTRALIA
CC 01 S-1 AU-5
CC 02 S-2
CC 03 S-3
CC 04 S-4
CC 05 S-5
CC 06 S-6 AU-5A
CC 07 S-7
CC 08 S-8
CC 09 S-9
CC 10 S-10
CC 11 S-11
CC 12 S-12
CC 13 S-13
CC 14 A S-14
CC 15 B S-15
CC 16 C S-16
CC 17 D S-17
CC 18 E S-18
CC 19 F S-19
CC 20 G S-20
CC 21 H S-21
CC 22 I S-22
CC 23 J S-23
CC 24 K S-24
CC 25 L S-25
CC 26 M S-26
CC 27 N S-27
CC 28 O S-28
CC 29 P S-29
CC 30 Q S-30
CC 31 R S-31
CC 32 S S-32
CC 33 T S-33
CC 34 U S-34
CC 35 V S-35
CC 36 W S-36
CC 37 W+1 S-37
CC 38 W+2 S-38
CC 39 W+3 S-39
CC 40 W+4 S-40
CC 41 W+5 S-41
CC 42 W+6
CC 43 W+7
CC 44 W+8
CC 45 W+9
CC 46 W+10
CC 47 W+11
CC 48 W+12
CC 49 W+13
CC 50 W+14
CC 51 W+15
CC 52 W+16
CC 53 W+17
CC 54 W+18
CC 55 W+19
CC 56 W+20
CC 57 W+21
CC 58 W+22
CC 59 W+23
CC 60 W+24
CC 61 W+25
CC 62 W+26
CC 63 W+27
CC 64 W+28
CC 75 X
CC 76 Y R3
CC 77 Z R4 AU-3
CC 78 Z+1 R5
CC 79 Z+2 AU-4
CC 95 A-5
CC 96 A-4
CC 97 A-3
CC 98 A-2
CC 99 A-1

35

Additional preparation

 Connecting the external

devices

Connect the devices to the TV, paying
attention to the following connection
diagram.

Before connecting anything:

• Read the manuals provided with the
devices. Depending on the devices,
the connection method may differ from
the figure. In addition, the device
settings may be changed depending
on the connection method to secure
proper operation.

• Turn off all the devices including the
TV.

• The “Specifications” on page 43
contains the details of the VIDEO
terminals. If you are connecting a
device not listed in the following
connection diagram, see the
“Specifications” to choose the best
VIDEO terminal.

• Note that connecting cables are not
supplied.

HV-Z34L1

OVER

S

VRL/MONO

IN (VIDEO-4)

HV-Z29V1

(Behind the cover)

1 VCR (composite signal)
2 VCR (S-VIDEO signal; Y/C)
3 VCR for recording (composite signal)
4 DVD player (composite signal)
5 DVD player (S-VIDEO signal; Y/C)
6 DVD player (component video signals;

Y, Cb/Pb, Cr/Pr)

7 TV game (composite signal)
8 TV game (S-VIDEO signal; Y/C)
9 Camcorder (composite signal)
0 Camcorder (S-VIDEO signal; Y/C)

- Headphones

36

Back of the TV

Additional preparation

Connecting methods

1 Connect the TV’s VIDEO jack and the

device’s VIDEO OUT (video output)
jack with a video cable.

If connecting a device to the TV with an
S-VIDEO cable:

Connect the VCR’s S-VIDEO OUT (S­VIDEO output) connector and the TV’s S
connector with an S-VIDEO cable, instead
of connecting with a video cable.
Note that the connection with a video cable
will be ignored in case you connect a VCR
to the TV with both video cable and S­VIDEO cable.

If connecting a DVD player to the TV with
a component video cable.

Connect three jacks (Y, Cb/Pb, Cr/Pr) in the
VIDEO-2 or VIDEO-3 terminal and the DVD
player’s COMPONENT (component video
output) jacks with a component video
cables, instead of connection with a video
cable. Then set the VIDEO-2 SETTING/
VIDEO-3 SETTING to COMPONENT,
according to “VIDEO-2 SETTING/VIDEO-3
SETTING” on page 33.

• If you have a DVD player that outputs
1125i, 625p or 525p video signals as a
component video signal, then by
attaching the device to the television
with a component video cable you can
see the actual images that are
recorded on a DVD disc as an original
image source.

If connecting a device to the VIDEO-2
(COMPONENT) or VIDEO-3 (COMPONENT)
terminal with a video cable.

Connect the TV’s VIDEO jack and the
device’s VIDEO OUT (video output) jack
with a video cable.
Then set the VIDEO-2 SETTING or VIDEO­3 SETTING to VIDEO according to “VIDEO­2 SETTING/VIDEO-3 SETTING” on
page 33.

• In the VIDEO-4 terminal, the VIDEO
jack is indicated by “V”.

2 Connect the TV’s AUDIO jacks (L/

MONO and R) and the device’s AUDIO
OUT (audio L/R output) jacks with an
audio cable.

If the device’s sound output is in mono:

Connect the device’s AUDIO OUT jack and
the TV’s L/MONO jack with an audio cable.

Connecting devices to the
OUTPUT terminal

The signals of the images and sound you
are currently viewing with this TV are output
through the OUTPUT terminal. By
connecting a VCR to the OUTPUT terminal,
you can record the currently shown image
and sound to that VCR. To do this, connect
the VCR and OUTPUT terminal following
the steps below.

1 Connect the VIDEO jack in the

OUTPUT terminal and the VCR’s
VIDEO IN (video input) jack with a
video cable.

2 Connect the AUDIO jacks (L and R) in

the OUTPUT terminal and the VCR’s
AUDIO IN (audio L/R input) jacks with
an audio cable.

• When you turn off the TV, the signals
from the OUTPUT terminal are also
turned off.

• The component signals input from the
VIDEO-2 (COMPONENT) or VIDEO-3
(COMPONENT) terminal cannot be
output through the OUTPUT terminal.

37

Additional preparation

Connecting Headphones

Connect the headphones with a stereo
mini jack (of 3.5 mm in diameter) to the
Headphone jack at the TV front panel.

 Connecting AV COMPU LINK

Supported Devices

AV COMPU LINK remote control system is
a system in which related devices are
automatically controlled when you operate
one device.
If you apply this system to the TV, you can
have the TV automatically perform the
required operations by operating one
external device. You don’t have to use the
TV’s remote control to turn on the TV or
change the VIDEO modes.

Examples of the AV COMPU LINK
remote control system
operations

Simply by pressing the PLAY button on a
VCR or a DVD player, you can view images
from the device.
Simply by inserting a prerecorded tape (a
tape with the record safety tab removed) to
a VCR, you can view the tape.
Simply by operating the AV Control
Receiver, you can have the TV turned on/off
(in standby mode) or the VIDEO mode
changed correctly.

• The performance of the AV COMPU
LINK remote control system varies
depending on the connected device.
See the device’s instruction manual.

• When you select “TV SOUND” as the
input source with the AV Control
Receiver, there are cases where the
TV’s MUTING function automatically
operates and the sound from the TV’s
speakers is muted.
In such cases, press the VOLUME-/+
buttons or the MUTING button on the
TV’s remote control to cancel the
MUTING function. You can regain the
sound from the TV’s speakers.

38

Conditions to use the AV COMPU
LINK remote control system

• A device equipped with an AV COMPU
LINK terminal is required.

• You must connect the TV and the
device with an AV COMPU LINK cable.
AV COMPU LINK cable is not supplied
with this TV. If an AV COMPU LINK
cable is unavailable, connect them with
a cable with dia. 3.5 mm (mono) male
plugs at both ends.

• You must connect the device to an
appropriate VIDEO terminal and set it
up correctly. Otherwise the AV
COMPU LINK remote control system
will not function correctly. For details,
see “Setting up the AV COMPU LINK
remote control system”.

• The TV must be in standby mode (the
POWER lamp lighting red). If the TV’s
Main power is off (the POWER lamp
off), the AV COMPU LINK remote
control system does not function.

Setting up the AV COMPU LINK
remote control system

CAUTION:

• With some devices, the setup method
differs from the ones explained here. Be
sure to read the device’s instruction
manual thoroughly before setting it up.

1 Connect the device to the TV’s VIDEO-1,

VIDEO-2 (COMPONENT) or VIDEO-3
(COMPONENT) terminal.

If you want to connect a DVD player to
the TV with a component video cable:

Connect the DVD player to the TV’s
VIDEO-2 (COMPONENT) or VIDEO-3
(COMPONENT) terminal.

• For detailed connecting instructions,
see “Connecting the external devices”
on page 36.

2 Connect the TV’s AV COMPU LINK

terminal and the device’s AV COMPU
LINK terminal with an AV COMPU
LINK cable.

3 Change the device’s setting

according to the VIDEO terminal it is
connected to.

If a VCR is connected to the VIDEO-1
terminal:

Set the VCR’s remote control code to A
code.

If a DVD player is connected to the
VIDEO-1 terminal:

Set the DVD player’s AV COMPULINK
MODE to DVD2.

If a VCR is connected to the VIDEO-2
(COMPONENT) terminal:

Set the VCR’s remote control code to B
code.

If a DVD player is connected to the
VIDEO-2 (COMPONENT) terminal:

Set the DVD player’s AV COMPULINK
MODE to DVD3.

If a DVD player is connected to the
VIDEO-3 (COMPONENT) terminal with a
component video cable:

Set the DVD player’s AV COMPULINK
MODE to DVD1.

• For instructions on how to change the
device’s setting, refer to the device’s
instruction manual.

• If the device you are connecting has
neither the remote control code nor the
AV COMPULINK MODE, then connect
it to the TV’s VIDEO-1 terminal.

Additional preparation

39

Troubleshooting

If a problem arises while you are using the TV, please read this “Troubleshooting” well
before you request having the TV repaired. You may be able to fix it easily by yourself. For
example, if the AC plug is disconnected from the AC outlet, or the TV aerial has problems,
you may think there is a problem with the TV itself.

Important:

• This Troubleshooting guide only covers problems whose causes are not easy to
determine. If a question arise when you are operating a function, read the page(s)
corresponding to the operation of the function well, not this Troubleshooting guide.

• After you have followed the Troubleshooting description or the operating description of
the functions concerned without any success, remove the AC plug from the AC outlet
and request a repair of your TV. Do not attempt to repair the TV by yourself or remove
the rear cover of the TV.

 If you cannot turn on the TV

• Is the AC plug connected to the AC
outlet?

• Is the POWER lamp lit? If not, press
the Main power button.

• Make sure to set the PIP/TV/DVD
switch to the TV or PIP position. You
cannot turn the TV on when the PIP/
TV/DVD switch is set to the DVD
position.

 If you cannot turn off the TV

• Make sure to set the PIP/TV/DVD
switch to the TV or PIP position. You
cannot turn the TV off when the PIP/
TV/DVD switch is set to the DVD
position.

 No picture/No sound

• Have you chosen a TV channel whose
reception is extremely bad? In this
case, the BLUE BACK function will be
activated, the entire screen becomes
blue, and the sound is muted. In spite
of this, if you want to view the TV
channel, follow the description “BLUE
BACK” on page 27 to try to change the
BLUE BACK function setting to OFF.

• Are your SOUND SYSTEM settings for
the TV channels correct?
Follow the description “EDIT/
MANUAL” on page 30 to use the
MANUAL function to try to change the
SYSTEM setting.

 Poor picture

• If noise totally obscures the picture
(snow), the aerial or aerial cable may
have trouble. Check the following to try
to solve the trouble:
Has the TV and aerial been connected
properly?
Has the aerial cable been damaged?
Is the aerial pointed to the right
direction?
Is the aerial itself faulty?

• If the TV or aerial receives interference
from the other devices, stripes or noise
may appear in the picture. Move such
device as an amplifier, personal
computer, or a hair drier that can
cause interference away from your TV,
or try changing its location. If the aerial
suffers interference from a radio tower
or high-voltage wire, please contact
your local dealer.

• If the TV receives interferences from
signal reflecting from mountains or
building, double-pictures (ghosting) will
occur.
Try to change the aerial’s direction or
replace the antenna with the one with
better directionality.

• Are your COLOUR SYSTEM settings
for the TV channels correct? Follow
the description “COLOUR SYSTEM”
on page 23 to try to solve the trouble.

40

Troubleshooting

• Has COLOUR or BRIGHT been
controlled properly? Follow the
description “Adjusting the picture” on
page 20 to try to adjust them properly.

• Videotaping teletext is not
recommended because it may not
record correctly.

• When a white and bright still image
(such as a white dress) is displayed on
the screen, the white part may look as
if it were coloured.
It is a phenomenon unavoidable due to
the nature of the picture tube itself, and
not due to a TV failure.
When the picture disappears from the
screen, the unnatural colours will also
disappear.

• When viewing images from
commercially available video software
products, or videos from videotapes
which have been recorded improperly,
the top of the image may be distorted.
This is due to the condition of the video
signal, and not because of
malfunction.

 Poor sound

• When the TV channel reception is
poor, it can be hard to hear the stereo
or bilingual sound. In this case, follow
the description “STEREO / I•II” on
page 24 to hear the sound more easily
by changing it to a mono sound.

 Operation disabled

• Have the batteries of the remote
control become exhausted?
Follow the description “Putting the
batteries into the remote control” on
page 4 and replace them with new
batteries to try solve the problem.

• Have you attempted to use the remote
control at the sides or rear of the TV or
at a location more than seven meters
apart from the TV location? Operate
the remote control in the front of your
TV or a location less than seven
meters from your TV to try to solve the
problem.

• When you are viewing a teletext
programme, you cannot operate the
menus.
Press the BACK or TV/VIDEO button
to return the teletext programme to the
ordinary TV programme to try
operating the menus.

• Is the CHILD LOCK function set to
ON? If the CHILD LOCK function is set
to ON, you cannot operate the TV with
the front control buttons of the TV.
Follow the description “CHILD LOCK”
on page 27 to try to set the CHILD
LOCK function to OFF.

• If the TV operation becomes disabled
suddenly, press the Main power button
on the TV and turn off the main power.
Try to press the Main power button
again to turn on the main power. If the
TV returns to a normal state, it is not a
failure.

• The following functions do not operate
when receiving 1125i, video signal.

- Twin, PIP, Multi-display, FREEZE

and STROBE functions

41

Troubleshooting

 Other concerns

• When the AUTO SHUTOFF function
operates, the TV is automatically
turned off.
If the TV is turned off suddenly, try to
press the # button to turn on the TV
once again. At this time, if the TV
resumes a normal state, there is no
problem.

• If you bring a magnetized device such
as a speaker near to your TV, a picture
may be warped or unnatural colours
appear at the corners of the screen. In
this case, keep the device apart from
your TV. If the speaker causes such
phenomena, use the magnetic­shielded speaker instead.

• A picture may be tilted due to the
influence of the earth’s magnetism. In
this case, use the “PICTURE TILT” on
page 33 to complete the tilt.

• It takes a short period of time from the
time an operation such as changing
channels is performed until an image is
displayed. This is not a malfunction.
This is the time required for the image
to stabilize before it can be displayed.

• The TV may emit a crackling sound
due to a sudden change in
temperature. It does not matter if a
picture or sound does not show any
abnormality. If you hear crackling
sounds frequently while you are
viewing the TV, other causes may be
assumed.
For precautionary purposes, request
your service technician to inspect it.

• Touching the screen may cause you
feel a slight electric shock due to its
static electricity.
It is an unavoidable phenomenon due
to the construction of the picture tube.
It is not a problem with the TV.
You can rest assured that this static
discharge does not have harmful
influence over the human body.

42

Specifications

Broadcasting systems B, G, I, D, K, K1, M

Colour systems PAL, SECAM, NTSC3.58/4.43MHz

Channels and frequencies VHF low channel (VL) =46.25 to 168.25 MHz

Sound-multiplex systems A2 (B/G), NICAM (B/G, I, D/K) system

Teletext systems FLOF(Fastext), WST(World Standard Text)

Languages displayed by
teletext

Power requirements AC 110 to 240V, 50/60Hz

Audio output Rated Power output: 15W + 15W [HV-Z34L1], 10W + 10W + 18W [HV-Z29V1]
VIDEO-1 terminal RCA connector × 3, S-VIDEO connector × 1

VIDEO-2 (COMPONENT) RCA connector × 6

VIDEO-3 (COMPONENT) RCA connector × 6

VIDEO-4 terminal RCA connector × 3, S-VIDEO connector × 1

OUTPUT terminal RCA connector × 3

Headphone jack Stereo mini-jack (3.5 mm in diameter)
Accessories Remote control unit × 1 (RM-C1850)

Speakers HV-Z34L1: 12cm round × 2, 3.5cm round × 2

VHF high channel (VH) =175.25 to 463.25 MHz
UHF channel (U) =471.25 to 863.25 MHz

• Receives cable channels in mid band (X to Z+2, S1 to S10), super band (S11
to S20) and hyper band (S21 to S41).

Please see the table in the description “TELETEXT LANGUAGE” on page 34.

• Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

• Video input, Componet video (Y, Cb/Pb, Cr/Pr) input and Audio L/R inputs are
available.

• 625p, 525p and 1125i signals are available.

• Video input, Componet video (Y, Cb/Pb, Cr/Pr) input and Audio L/R inputs are
available.

• 625p, 525p and 1125i signals are available.

• Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

• Video output and Audio L/R outputs are available.

AA/R6 dry cell battery × 2
Woofer unit × 1 [HV-Z29V1 only]

HV-Z29V1: (13cm × 6.5cm) oval × 2, 13cm round × 1(Woofer unit)

Design and specifications subject to change without notice.

Pictures displayed on the screen using this TV’s ZOOM functions should not be shown for any commercial or
demonstration purpose in public places (cafes, hotels, etc.) without the consent of the owners of copyright of
the original picture sources, as this constitutes an infringement of copyright.

This TV does not conform to the PAL-D Chinese broadcasting system.

43

VICTOR COMPANY OF JAPAN, LIMITED

VICTOR COMPANY OF JAPAN, LIMITED

COLOUR TELEVISION

HV-Z34L1
HV-Z29V1

Contents

Setting up your TV. . . . . . . . . . . . . . . . . . 3

TV buttons and functions. . . . . . . . . . . . . 6

Remote control buttons and functions. . . 8

Using the TV’s menu. . . . . . . . . . . . . . . 19

PICTURE menu . . . . . . . . . . . . . . . . . 20

FEATURES menu . . . . . . . . . . . . . . 21

SOUND menu . . . . . . . . . . . . . . . . . . . 24

FEATURES menu. . . . . . . . . . . . . . . . 26

SETUP menu . . . . . . . . . . . . . . . . . . . 29

Additional preparation . . . . . . . . . . . . . . 36

Troubleshooting. . . . . . . . . . . . . . . . . . . 40

Specifications . . . . . . . . . . . . . . . . . . . . 43

INSTRUCTIONS

LCT1460-001A-H
1103-CR-JMT

© 2003 VICTOR COMPANY OF JAPAN, LIMITED

Thank you for buying this JVC colour television.
To make sure you understand how to use your new TV, please read this manual thoroughly
before you begin.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING

RULES REGARDING THE USE OF THIS TV.

1 Operate only from the power source indicated on the rear of the TV.
2 Avoid damaging the power cord and mains plug. When unplugging the TV, grasp the

mains plug. Do not pull on the power cord.

3 Never block or cover the ventilation openings.

Never install the TV where good ventilation is unattainable.
When installing this TV, leave spaces for ventilation around the TV of more than the
minimum distances as shown.

15 cm

10 cm 10 cm 15 cm

4 Do not allow objects or liquid into the cabinet openings.
5 In the event of a fault, unplug the unit and call a service technician. Do not attempt to repair

it yourself or remove the rear cover.

6 The surface of the TV screen is easily damaged. Be very careful with it when handling the

TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never use rub it
forcefully. Never use any cleaner or detergent on it.

7 If you are not going to use this TV for a long period of time, be sure to disconnect the AC

plug from the AC socket.

8 The apparatus shall not be exposed to dripping or splashing and that no objects filled with

liquids, such as vases, shall be placed on the apparatus.

D.I.S.T. demonstration

To start the D.I.S.T. demonstration:
Press the H button to display the menu bar. Then press the yellow button.
A picture split in two (D.I.S.T. turned on and D.I.S.T. turned off) will appear on the screen.

To quit the D.I.S.T. demonstration:
Press the yellow button, BACK button, CHANNELp buttons or any of the number buttons.

2

Setting up your TV

A

CAUTION

• Turn off all the equipment including the
TV before connecting anything.

1 Connecting the woofer unit

(only for HV-Z29V1)

1 Fitting the woofer unit

Align the projection on the base of the
woofer unit with the hole in the top of the
TV, and insert the connector into the
woofer terminal.

2 Connecting the supplied woofer

connector to the BASS SPEAKER
OUT terminal on the back of the TV

If the woofer unit is not connected, you
will not be able to enjoy the bass sound.

• Connect so that the lever is raised.

• When disconnecting the woofer
connector, do so while pushing the lever.

2 Connecting the aerial and VCR

• Aerial cable is not supplied. Use a
good quality 75-ohm coaxial cable.

• Read the manual that came with the
VCR before connecting.

If not connecting a VCR (see Fig. A):

Connect an aerial cable to the aerial socket
on this TV.

If connecting a VCR (see Fig. B):
1 Connect the aerial cable to the aerial

input socket on the VCR, and connect
the VCR and TV with another aerial
cable.

2 Connect the VCR’s VIDEO OUT (video

output) jack and the TV’s VIDEO jack
with a video cable.

To connect a VCR to the TV with an
S-VIDEO cable:

Connect the VCR’s S-VIDEO OUT (S­VIDEO output) connector and TV’s S
connector with an S-VIDEO cable A,
instead of connecting with a video cable.

3 Connect the VCR’s AUDIO OUT (audio L/

R output) jacks and the TV’s AUDIO jacks
(L/MONO and R) with an audio cable.

• If the VCR’s audio output is in mono,
connect the VCR’s AUDIO OUT (audio
output) jack and the TV’s AUDIO L/
MONO jack with an audio cable.

Lever

Fig. A

Fig. B

3

Setting up your TV

K

3 Connecting the power cord

Connect the mains plug to the AC outlet.

4 Putting the batteries into the

remote control

Use two AA/R6 batteries.

Insert the batteries from the - end, making
sure the + and - polarities are correct.

• Follow the warnings printed on the
batteries.

• If the remote control does not work
properly, replace the batteries.

• The batteries we supply are only for
setting up and testing your TV. Please
replace them as soon as necessary.

5 Making the initial settings

(SETUP TOUR)

When the TV is first turned on, it enters the
initial setting mode, and the JVC logo is
displayed.

1 Press the main power button on the TV.

The TV is turned on, and the JVC logo
appears.

• If the POWER lamp on the TV lights
red and does not change to green,
your TV is in the standby mode. Press
the # button on the remote control to
turn the TV on.

• If the JVC logo does not appear, your
TV has already been turned before. In
this case, use the “LANGUAGE”,
“TELETEXT LANGUAGE” and “AUTO
PROGRAM” functions to make the
initial settings. For details, see
“SETUP menu” on page 29.

2 Press the OK button on the remote

control.

The LANGUAGE menu appears. You
can choose a language for the on-screen
language.

HV-Z34L1

POWER lamp

HV-Z29V1

POWER

Main power button

POWER

POWER lamp

Main power button

FAVORITE CHANNEL

SUB-P

TV/VIDEO MENU

OK

DISPLAY

SUB-P

CHANNEL VOLUME

O

BACK

4

Setting up your TV

3 Press the 6 buttons to choose

ENGLISH. Then press the OK button
on the remote contol.

The TELETEXT LANGUAGE menu
appears. Set the teletext language group
that corresponds to the language of the
teletext program that you want to watch.
For details, see “TELETEXT
LANGUAGE” on page 34.

> TELETEXT LANGUAGE

GROUP-1
GROUP-2
GROUP-3
GROUP-4

OK

OSD-10-EN

4 Press the 6 buttons to choose a

group. Then press the OK button.

The AUTO PROGRAM function starts.
The TV channels you receive are
automatically stored in the PR
(programme numbers) LIST.

>> AUTO PROGRAM

CH 28

14%

OK

D0004-EN

• To stop the AUTO PROGRAM
function, press the OK button.

5 After the TV channels have been

stored in the programme numbers
(PR) list, the EDIT menu appears.

> EDIT

CH/CC

CH
CH
CH
CH
CH
CH
CC
CC
CC

ID

INSERT

21
22
23
24
25
26
01
02
03

MANUAL

DELETE

D0038-EN

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

MOVE

• You can proceed to edit the
programme numbers list using the
EDIT/MANUAL function. For details,
see “EDIT/MANUAL” on page 30.

• If a TV channel you want to view is not
stored in the programme numbers list,
you can register it using the MANUAL
function. For details, see “EDIT/
MANUAL” on page 30.

• The AUTO PROGRAM function does
not store a TV channel to the
programme number 0 (AV).

• If you do not need to use the EDIT/
MANUAL function, press the OK
button to close the EDIT menu.

Now, setting up is complete. Please
enjoy your new JVC TV!

5

TV buttons and functions

172

986543

Turn the main power on

HV-Z34L1

POWER

172

HV-Z29V1

Press the main power button 1.

The POWER lamp 2 lights red and your TV
is in the standby mode.

To turn the main power off:

Press the main power button again. The
POWER lamp 2 goes off.

Turn the TV on from standby
mode

Press the CHANNEL-/+ buttons 5.

The POWER lamp 2 lights red to green
and your TV will be turned on.

• You can also turn on the TV by

Choose a TV channel

Press the CHANNEL-/+ buttons 5.

Choose a VIDEO terminal

Press the TV/VIDEO button 3 or
CHANNEL-/+ buttons 5.

Adjust the volume

Press the VOLUME-/+ buttons 4.

The volume level indicator appears.

pressing the TV/VIDEO button 3
while it is in standby mode.

POWER

L/MONO

HV-Z34L1

MENU

OK

HV-Z29V1

OVER

VR

S

IN (VIDEO-4)

6

(Behind the cover)

CHANEL VOLUME

TV/VIDEO
EXIT

MENU button 6

Press to open the menu.
For details, see “Operation with the buttons
on the TV” on page 20.

Remote control sensor 7
VIDEO-4 terminal 8

See page 36.

Headphone jack 9

Connect the headphones with a stereo
mini-jack (3.5mm in diameter).

TV buttons and functions

@#

Back of the TV

!

~

VIDEO-1 terminal 0

• See pages 3 and 36.

0

-

=

VIDEO-2 (COMPONENT)
terminal -

• See pages 33 and 36.

VIDEO-3 (COMPONENT)
terminal =

• See pages 33 and 36.

OUTPUT terminal ~

• See page 37.

Aerial socket !

Connect the aerial cable.

• See page 3.

AV COMPU LINK terminal @

• See page 38.

BASS SPEAKER OUT terminal
# (only for HV-Z29V1)

• See page 3.

7

Remote control buttons and functions

Turn the TV on from standby
mode

Press the # button.

The POWER lamp lights red to green and
your TV will be turned on.

• You can turn on the TV from the
standby mode by pressing the TV/
VIDEO button, the CHANNELp
buttons or the number buttons.

To turn the TV off:

Press the # button again.
The POWER lamp changes from green to

red and the TV enters standby mode.

To turn the TV on or off, set the PIP/TV/
DVD switch on the remote control to the
TV or PIP position and press the #
button.
If the PIP/TV/DVD switch on the remote
control is set to the DVD position, the TV
will not be turned on or off even if the #
button is pressed.

Choose a TV channel

Choose a programme number in which a
TV channel has been set.

Press the CHANNELp buttons or enter
the programme number (PR) with the
number buttons.

Example:

•PR 6 → press 6

• PR 12 → press 1 and 2

• You can select a channel from the PR
LIST. For details, see “DISPLAY
button” on page 11.

• If you do not have a clear picture or no
colour appears, follow the operation
procedure “COLOUR SYSTEM” on
page 23.

123

456

789

RETURN+

0

FAVORITE CHANNEL

STROBE

SUB-P

OK

SUB-P

CINEMA

SURROUND

F. T/L

BASS ZOOM

?

TOP MENU

TV/VIDEO MENU

DISPLAY

CHANNEL VOLUME

SOUND

MODE

DVDPIP T V

BACK

8

Remote control buttons and functions

Adjust the volume

Press the VOLUME-/+ buttons.

Watch images from an
external device

Choose a VIDEO terminal to which the
external device has been connected.

Press the TV/VIDEO button.

• You can choose a VIDEO terminal with

the CHANNELp buttons or from the
PR LIST.

To return to a TV channel:

Press the TV/VIDEO button, the
CHANNELp buttons or the number buttons.

l (Muting) button

Press the l (Muting) button to turn off the
volume. Pressing the l (Muting) button
again resumes the previous volume level.

ZOOM button

You can change the screen size according
to the picture aspect ratio. Choose the
optimum one from the following ZOOM
modes.

1 Press the ZOOM button to display the

ZOOM menu.

• The ZOOM button works only in the
normal screen.

>> ZOOM

REGULAR
ZOOM
16:9

OK

D0017-EN

2Press the 6 buttons to choose a

ZOOM mode. Then press the OK button.

REGULAR:

Use to view a normal picture (4:3 aspect
ratio) as its original size is.

ZOOM:

You can zoom up the Wide picture (16:9
aspect ratio) to fill the TV screen.

• The left side and right side of the Wide
picture (16:9 aspect ratio) will be cut off.

16:9:

This mode converts a normal picture (4:3
aspect ratio) into a Wide picture (16:9
aspect ratio).

• Use for picture with a 16:9 aspect ratio
that have been squeezed into a normal
picture (4:3 aspect ratio), you can
restore their original dimensions.

• When a 1125i signal is input, the 16:9
aspect ratio is chosen automatically.

CINEMA SURROUND button

You can enjoy an enhanced sound for a
wider audience by using CINEMA
SURROUND function.

Press the CINEMA SURROUND button to
select one of CINEMA SURROUND modes.

HIGH/LOW:

When you listen to the stereo sound, please
select HIGH or LOW mode.
You can enjoy the sound for a wider
audience similar to the experience at the
theatre.
When you combine the functions of SOUND
MODE, SUPER BASS and DIGITAL BBE,
you can enjoy more powerful sound.

• In case that you setting up the
CINEMA SURROUND function to
HIGH mode, there may be slight
volume distortion. In case that occurs,
please switch the HIGH mode to LOW
mode, the effect of CINEMA
SURROUND functions will be less
noticeable, however, the volume
distortion will be corrected.

9

Remote control buttons and functions

MONO:

Select the MONO mode, when you listen to
the mono sound.
You can enjoy the sound for a wider
audience similar to stereo sound.

OFF:

The CINEMA SURROUND function
switches off.

SOUND MODE button

You can select the SOUND MODE of you
liking from 4 types of sound modes to fully
enjoy the sound of your TV.

Press the SOUND MODE button to select
one of sound modes.

DYNAMIC:

Dynamic sound is created by enhancing
high and low tones.
You can get the 3D effect by using the
CINEMA SURROUND function in this mode.

MUSIC:

The mode suitable for music programmes.
Enjoy a concert hall-like atmosphere.
Combination with the CINEMA SURROUND
function will bring wider range sound.

NEWS:

The mode suitable for news programmes
makes the voice of the newscaster or the
like easier to hear.

USER:

Save your own sound setting to memory
with this mode.
The USER setting is performed with the
“SOUND MODE” menu (see page 25).

BASS button

You can choose the SUPER BASS mode
which emphasizes the bass sound.

Press tge BASS button to select one of
SUPER BASS modes.

You can choose HIGH, MID or LOW.
Choosing LOW will reduce the bass sound
and choosing HIGH will increase the bass
sound.

RETURN+ button

The RETURN+ button has two functions;
the RETURN+ function and the RETURN
function. If a channel has been registered
as the “Return Channel”, the RETURN+
function operates. If there is no setting for
the “Return Channel”, the RETURN function
operates.

RETURN+ function

By registering a channel you frequently
view as the “Return Channel”, you can
select that channel at any time simply by
pressing the RETURN+ button.

To register a TV channel as the “Return
Channel”:

Choose the Programme number to which
the channel you want to register has been
set, and press the RETURN+ button and
hold for more than 3 seconds continuously.
“RETURN PLUS PROGRAMMED!” is
displayed and the registration is completed.

To cancel a TV channel registered as the
“Return Channel”:

While viewing any TV channel, press the
RETURN+ button and hold for more than 3
seconds continuously. “RETURN PLUS
CANCELED!” is displayed and the
registration is cancelled.

• When you turn off the TV, the
registration for the “Return Channel” is
cancelled.

• If you want to view the “Return
Channel” and another TV channel
alternately, first choose a channel
other than the “Return Channel”. And
then press the RETURN+ button to
change the channel to the “Return
Channel” In this way, you can view two
channels alternately by pressing the
RETURN+ button.

10

Remote control buttons and functions

RETURN function

The TV temporarily memorises the TV
channel that was chosen right before the
current TV channel as the “Last Channel”.
By pressing the RETURN+ button, you can
alternately view the current TV channel and
the “Last Channel”.

• If you want to view two channels
alternately by using the RETURN
function, first choose one TV channel
and then choose the other TV channel
with the Number buttons. If you choose
the TV channel without using the
Number buttons, there are cases
where a channel other than the one
you first chose is registered as the
“Last Channel”.

DISPLAY button

You can display the PR LIST, programme
number or VIDEO terminal number on the
screen.

Press the DISPLAY button.

Press the DISPLAY button changes the
display as follows:

PR LIST

PR ID

AV

D0011-EN

01
02
03
04
05
06
07
08
09

OK

+10-10

Programme or VIDEO

terminal number

No indication

Choose a TV channel or a
VIDEO terminal

1 Press the DISPLAY button to display

the PR LIST.

2 Press the 6 and 5 buttons to

choose a programme number or
VIDEO terminal.
Then press the OK button.

• For programme numbers with the

CHANNEL GUARD function set, the n
(CHANNEL GUARD) mark is
displayed next to the programme
number in the PR LIST.

• The VIDEO terminals are registered
after the programme number PR99.

• The AV channel (channel number 0) in
the PR LIST will be chosen only if you
connect the VCR to the TV with an
aerial cable without connecting a video
cable.

Favorite channel registration

You can register your favorite TV channels
with the colour buttons (Red, Green, Yellow
and Blue). After registration you can recall
the favorite channel by pressing the colour
button.

1 In the normal screen, choose a TV

channel (PR01-99) you want to
register.

For detailed operation, see “Choose a
TV channel” on page 8.

2 Press and hold a colour button for 3

seconds or more.

Then “FAVORITE CH PROGRAMMED”
appears on the screen and the current
channel is registered.

11

Remote control buttons and functions

• If the chosen channel is already
registered as the favorite channel,
when a colour button is pressed, the
registered colour button icon appears
on the top right of the screen.

• You cannot register in the Text mode,
or while multiple screens, such as PIP
(picture in picture) are displayed.

• Also you cannot register if the chosen
channel is guarded with the CHANNEL
GUARD function and the screen is
blue, or if an on-screen menu is
displayed.

• Starting the AUTO PROGRAM deletes
the registered favorite channel.

 Recalling the favorite channel

Press the colour button, then the registered
favorite channel will be displayed.

• You cannot recall the favorite channel
in the Text mode, Menu mode where
an on-screen menu is displayed.

• The picture effect dedicated for the
colour button applies. For details, see
“Setting the picture effect” below:

 Setting the picture effect

Each colour button has a dedicated picture
effect. When you choose a favorite channel
with a colour button, the dedicated picture
effect is used. When shipped, the factory
set picture effect is used for this purpose.
However, you can set this picture effect as
required. For details, see “FAVORITE
SETTING” on page 28.

 Showing the favorite channels

Press the DISPLAY button to display the
PR LIST.
You can see the favorite channel that has
the registered colour button icon at the right
of the channel number.

PR LIST

PR ID

AV
01
02
03
04
05
06
07
08
09

OK

+10-10

D0011-EN

Twin and PIP (picture in
picture) function

You can view two pictures (Main picture and
sub picture). Two different TV programmes
can be watched at the same time or a TV
programme and a video programme from
an externaldevice can be watched at the
same time.

Operate with the PIP/TV/DVD switch set
to the PIP position.

Twin mode

Press .
Each time it is pressed the mode changes
as shown below.

Normal screen Twin mode

12

Sub

Main

Remote control buttons and functions

PIP (picture in picture) mode

Press .
Each time it is pressed the mode changes
as shown below.

Normal screen PIP mode

Sub

Main

To return to the normal screen:

Press the or again, or press the
BACK button.

• The and buttons do not work in
the Text mode.

• Twin and PIP functions do not work for
a picture of 1125i signal.

• A picture of 625p or 525p signal
cannot be displayed as the sub­picture.
Pay attention to the following.

- When the VIDEO-2 or VIDEO-3

picture is a picture of 625p or 525p
signal, you cannot choose VIDEO-2
or VIDEO-3 with the SUB-P6
buttons.

- When the VIDEO-2 or VIDEO-3

picture signal is changed to 625p,
525p or 1125i signal while the
VIDEO-2 or VIDEO-3 picture is
displayed as the sub-picture, the
Twin or PIP modes is cancelled.

 Listening to the sound of the

sub-picture:

You can listen to the sound of the sub­picture with the headphones while listening
to the sound of the main-picture from the TV
speakers.
For details, see “HEADPHONE VOLUME”
on page 25.

• The sub-picture sound is monaural.

 TV channel selection

For the main picture:

Choose a channel using the CHANNELp
buttons or the number buttons.

For the sub picture:

Choose a channel using the SUB-P6
buttons.

 Input source selection (TV,

VIDEO-1, -2, -3 or -4)

For the main picture:

Press the TV/VIDEO button.
Each time you press the button, the input
source changes as follows (the one used for
the sub picture will be skipped):
VIDEO-1 → VIDEO-2 → VIDEO-3 →
VIDEO-4 → TV

For the sub picture:

Press the (Input) button.
Each time you press the button, the input
source changes as follow (the one used for
the main picture will be skipped):
VIDEO-1 → VIDEO-2 → VIDEO-3 →
VIDEO-4 → TV

 Swapping the pictures

Press the (Swap) button.

Each time you press the button, the main
picture and the sub picture will be swapped.

• The pictures cannot be swapped when
a picture of 625p or 525p signal from
VIDEO-2 or VIDEO-3 is being
displayed as the main picture.

13

Remote control buttons and functions

 Changing the sub picture

position (in PIP mode only)

You can position the sub picture to one of
corners of the main picture.

Press the (Position) button.
Each time you press the button, the sub

picture moves clockwise (lower right →
lower left → upper left → upper right).

 Setting the colour system of

the sub picture

You can choose the colour system of the
sub picture.
The setting is performed with the “COLOUR
SYSTEM” menu (see page 23) when in the
Twin mode or PIP mode.

Multi-picture function

You can display multi-pictures that enable you
to easily find a program you want to view.

1 Set the PIP/TV/DVD switch to the PIP

position

2 Press the X button to display multi-

pictures

The channels are displayed in the
channel number order.
The multi-pictures will appear in one of
the two multi-picture modes.

9 pictures multi:

Still pictures

Moving picture

5 pictures multi:

Still pictures

Main picture

Moving picture

3 Choose the screen you want to view

The picture you choose changes to a
moving picture.

9 pictures multi:

Choose by pressing 56.

5 pictures multi:

Choose by pressing 6.

4 Press the OK button

The multi-pictures disappears and the
chosen picture appears.

Changing the multi-picture mode:

See “MULTI” on page 24.

Cancelling the multi-pictures

Press the BACK button, CHANNELp
buttons, the number buttons or OK button.

You can also enter this mode while in the

•
Twin mode, but not in the Text mode.

• Pictures will appear in the assigned
order in the PR LIST (PR01-99).

• The guarded channel with the
CHANNEL GUARD function will be
skipped and will not be displayed.

• Pictures from external devices cannot
be displayed in the 9-pictures multi
mode.

• In the 5-pictures multi mode, the
picture from external devices can only
be displayed as the main picture.

• In the 5 pictures multi mode, 1125i
signal cannot be displayed as the main
picture.

• The RETURN+ button is disabled in
the 9 pictures multi mode.

• In the multi-picture mode, the menu
cannot be displayed.

• In the 5 pictures multi mode, the sound
in the moving picture can be listened
through the headphone.

• To display the next multi-pictures,

press the X button.

14

Remote control buttons and functions

Freeze function

1 Set the PIP/TV/DVD switch to the PIP

position.

2 Press the (Freeze) button.

Still picture is captured and displayed on
the right side of the screen. On the left,
the moving picture is displayed.
While watching a picture, you can
capture a still picture you want. The
captured still picture and the moving
picture are displayed at a time. (They are
the pictures of the same source.)

Moving

Still

To return to the normal screen:

Press the (Freeze) button again or
press the BACK button, the CHANNEL p
buttons or the number buttons.

• The (Freeze) button do not work in
the Text mode, Twin mode, or PIP
mode.

• The FREEZE function does not work
for picture of 1125i signal.

Strobe function

You can display eight consecutive still
pictures and one moving picture at a time.
(They are the pictures of the same source.)

1 Set the PIP/TV/DVD switch to the PIP

position.

2 Press the STROBE button.

Eight consecutive still pictures which are
captured at intervals of about 0.2 second
are displayed in the order of “1” to “9”.
(These numbers are not actually
displayed.)

To return to the normal screen:

Press the STROBE button again or press
the BACK button, the CHANNEL p
buttons or the number buttons.

• If signal level of the main picture is
weak, the still images become
abnormal.

• The STROBE button do not work in the
Text mode, Twin mode, or PIP mode.

• The STROBE function does not work
for picture of 1125i signal.

• The menu cannot be displayed in the
STROBE mode.

15

Remote control buttons and functions

Operating a JVC brand DVD
player

You can operate a JVC brand DVD player.
Pressing the button having the same
appearance as the original remote control
button of a device makes the function work
in the same way as the original remote
control.

F. T/L

?

STROBE

1 Set the PIP//TV/DVD Switch to the

DVD position

When you are operating the DVD player,
set the switch to the DVD position.

• You can turn the DVD player on or off

with the # (Standby) button.

• You can also press the MENU or TOP
MENU button and display the DVD
disc menu screen, and then operate by
pressing the 56 buttons.

2 Press the DVD Control Button to

control your DVD player

• If your device is not made by JVC,
these buttons cannot be used.

• Even if your device is made by JVC,
some of these buttons or any one of
the buttons may not work, depending
on the device.

You cannot turn the TV on or off when the
PIP//TV/DVD switch is set to the DVD
position. When you turn the TV on or off,
set the PIP/TV/DVD switch to the TV or
PIP position.

TOP MENU

Viewing a teletext programme

1 Choose a TV channel with a teletext

broadcast.

2 Set the PIP/TV/DVD switch to the TV

position.

DVDPIP TV

3 Press P (Text) button to display the

teletext.

Pressing P (Text) button changes the
mode as follows:

TV mode

4 Choose a teletext page by pressing

the CHANNEL p buttons, number
buttons or colour buttons.

To return to the TV mode:

Press the P (Text), BACK or TV/VIDEO
button.

• If you have trouble receiving teletext
broadcasts, consult your local dealer
or the broadcast station.

• In the Text mode, the ZOOM mode is
fixed to the REGULAR mode.

• No menu operations are possible
when viewing a teletext programme.

• If characters on a teletext programme
do not appear properly, change the
TELETEXT LANGUAGE setting. For
details, see “TELETEXT LANGUAGE”
on page 34.

TV and
Text mode

Text mode

16

Remote control buttons and functions

(Hold) button

You can hold a teletext page on the screen
for as long as you want, even while several
other teletext pages are being received.

Press the (Hold) button.
The (hold) are displayed at the top left
of the screen.

To cancel the Hold function:

Press the (Hold) button again.

(Reveal) button

Some teletext pages include hidden text
(such as answers to a quiz).
You can display the hidden text.

Each time you press the (Reveal)
button, text is hidden or revealed.

(Size) button

You can double the height of teletext
display.

Press the (Size) button.

(Index) button

You can return to the index page instantly.

Press the (Index) button.

• In the List mode, you can return to the
page number displayed in the lower
left area of the screen.

3 Press the (Cancel) button to

return to a teletext page when the
page number is on the screen.

• You cannot return to the TV mode with
the (Cancel) button.

Sub-page

Some teletext pages include sub-pages that
are automatically displayed.

1 Choose a teletext page that includes

sub-pages.

Sub-page numbers that can be viewed
are automatically displayed at the top of
the screen.

2 Press the 5 buttons to choose a

sub-page number.

(Cancel) button

You can search for a teletext page while
watching TV.

1 Press the number button to enter a

page number, or press the colour
button.

The TV searches for a teletext page.

2 Press the (Cancel) button.

The TV programme appears. When the
TV finds the teletext page, its page
number appears in the upper left of the
screen.

17

Remote control buttons and functions

Using the List mode

You can store the numbers of your favorite
teletext pages in memory and call them up
quickly using the colour buttons.

To store the page numbers:
1 Press the F.T/L button to engage the

List mode.

The stored page numbers are displayed
at the bottom of the screen.

2 Press a colour button to choose a

position. Then press the number
buttons to enter the page number.

3 Press and hold down the (Store)

button.

The four page numbers blink white to
indicate that they are stored in memory.

To call up a stored page:
1 Press the F.T/L button to engage the

List mode.

2 Press a colour button to which a page

has been assigned.

To exit the List mode:

Press the F.T/L button again.

18

Using the TV’s menu

789



This TV has a number of functions you can operate using menus.
To fully utilize all your TV’s functions, you need to understand the basic menu operating
techniques fully.

Buttons used to operate the menus

RETURN+

0

TV/VIDEO

FAVORITE CHANNEL

SUB-P

TV/VIDEO MENU

OK

DISPLAY

SUB-P

CHANNEL VOLUME

MENU
OK

BACK

BACK

1Press the H button to display the

menu bar

D0105-EN

2 Press the 5 buttons to choose the

menu you want to use and then press
the a button

D1105-EN

Chosen
menu

Chosen
menu name

3 Press the 6 buttons to choose the

item to be set, press the 5 buttons
to set the item, and then press the a
button

If there are sub-menus, use the 7
buttons to operate them.

• Press the b button to return to

the previous menu.

• Press the TV/VIDEO or MENU button
to exit from the menu.

Types of menu

PICTURE menu

D0106

Choose to set the screen set­tings.

SOUND menu

D0107

Choose to set the sound set­tings.

FEATURES menu

D0108

Choose to set the sleep timer
and child lock settings.

SET UP menu

Choose to edit the channels

D0109

or set the display language
settings.

The menu guide area can be made to
appear and disappear for some menus.
While the menu is displayed, press the
DISPLAY button to change between the
guide area being displayed and not
displayed.

>> ZOOM

REGULAR
ZOOM
16:9

OK

D0017-EN

Guide area

>> ZOOM

REGULAR
ZOOM
16:9

D1017-EN

• The guide area for some menus will
still be displayed even if the DISPLAY
button is pressed. This is not a
malfunction.

19

Using the TV’s menu

Operation with the buttons on the
TV

You can also operate the menus using the
buttons on the front panel of the TV.

MENU

OK

button

MENUOKCHANNEL

• The OK button acts as the MENU
button when the menu bar is not
displayed, and as the OK button when
the menu bar is displayed.

• Press the TV/VIDEO button to exit
from the menu.

6

buttons5 buttons

VOLUME

TV/VIDEO

button

TV/VIDEO
EXIT

PICTURE menu


PICTURE MODE
CONTRAST
BRIGHT
SHARP
COLOUR
TINT
WHITE BALANCE
FEATURES

OK

D0014-EN

 PICTURE MODE

You can choose one of three PICTURE
MODEs to adjust the picture settings
automatically.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustment.

SOFT:

Softens contrast and sharpness.

 Adjusting the picture

You can change the picture settings of each
picture mode, as you like. The picture
settings changed are stored in the picture
mode.

CONTRAST

You can adjust the picture contrast.

2 : lower
3 : higher

BRIGHT

You can adjust the picture brightness.

2 : darker
3 : brighter

SHARP

You can adjust the picture sharpness.

2 : softer
3 : sharper

COLOUR

You can adjust the picture colour.

2 : lighter
3 : deeper

STANDARD

COOL

RESET

20

Using the TV’s menu

TINT

You can adjust the picture tint.

2 : reddish
3 : greenish

• You can change the TINT setting
(picture tint) only when the colour
system is NTSC 3.58 or NTSC 4.43.

To return to the default settings in each
PICTURE MODE:

Press the blue button. This will return the
picture settings in the currently chosen
PICTURE MODE to the default settings,
and stores them in the PICTURE MODE
again.

 WHITE BALANCE

You can select one of three WHITE
BALANCE modes (three tones of white) to
adjust the white balance of the picture.
Since white is the colour which is used as a
reference for all the other colours, changing
the WHITE BALANCE mode affects the
appearance of all the other colours on the
screen.

COOL:

A bluish white. Using this mode when
watching bright pictures allows you to enjoy
a more vivid and bright picture.

MID:

The normal white colour.

WARM:

A radish white. Using this mode when
watching films allows you to enjoy colours
that are characteristic of films.

FEATURES menu

Choose FEATURES in the “PICTURE”
menu and press the a or 3 button to
display the sub-menu.

> FEATURES

DIGITAL VNR
Super DigiPure
PULL DOWN
Colour DigiPure
COLOUR SYSTEM
ZOOM
MULTI

OK

D1015-EN

 DIGITAL VNR

The DIGITAL VNR function cuts down the
amount of noise in the original picture.
You can choose from the four DIGITAL
VNR function settings of AUTO(LOW),
AUTO(HIGH), MIN and MAX.

AUTO(LOW)/AUTO(HIGH):

The TV will automatically adjust the level of
the DIGITAL VNR effect to match the
amount of noise in the picture, giving you
the best possible picture.

• If you set the DIGITAL VNR effect too
high it can make the picture less
sharp. It is recommended to use the
AUTO(LOW) setting if you can. If you
set the DIGITAL VNR function to
AUTO(LOW)but still notice some
noise, change the setting from
AUTO(LOW) to AUTO(HIGH).

MIN:

The level of the DIGITAL VNR effect is set
to the minimum. If you set the DIGITAL
VNR function to AUTO(LOW) but feel that
the sharpness of the original picture has not
been reproduced fully, change the setting
from AUTO(LOW) to MIN.

• The MIN setting is not suitable for low­quality pictures which contain a lot of
noise.

AUTO(LOW)

AUTO
AUTO

ON

21

Using the TV’s menu

MAX:

The level of the DIGITAL VNR effect is set
to the maximum. If you set the DIGITAL
VNR function to AUTO(HIGH) but still notice
some noise, change the setting from
AUTO(HIGH) to MAX.

• The MAX setting is not suitable for
high-quality pictures which contain
very little noise.

 Super DigiPure

The Super DigiPure function uses the latest
in digital technology to give you a natural­looking picture. The Super DigiPure
function includes the following two
functions.

DigiPure function:

This function helps to create a natural­looking picture by eliminating unnecessary
edges from high-contrast and crisp images.
For images with low-contrast, edges are
added to produce a sharper, more detailed
picture.
You can choose from the three DigiPure
function settings of AUTO, MIN and MAX.

• If you set the DigiPure effect too high
on a low-quality picture that contains a
lot of noise, this may actually make
the noise worse. We recommend you
use the AUTO setting if you can.

Picture motion compensation function:

This function displays fast-moving pictures
(for example, the players or ball in a football
game) more smoothly and naturally on the
screen.

• The effect level of the picture motion
compensation function cannot be
changed. The effect level is the same
no matter which of the AUTO, MIN or
MAX settings is used.

AUTO:

The TV will automatically adjust the level of
the DigiPure effect to match the amount of
noise in the picture, giving the best possible
picture.

MIN:

The level of DigiPure effect is set to the
minimum. When you set the Super DigiPure
function to AUTO and notice some noise,
change the setting from AUTO to MIN.

• The MIN setting is not suitable for
high-quality pictures which contain
very little noise.

MAX:

The level of DigiPure effect is set to the
maximum. If you set the Super DigiPure
function to AUTO but feel that the original
picture quality has not been reproduced
fully, change the setting from AUTO to
MAX.

• The MAX setting is not suitable for
low-quality pictures which contain a lot
of noise.

OFF:

The Super DigiPure function is turned off.

 PULL DOWN

The PULL DOWN function displays a
cinema film picture more smoothly and
naturally on the screen.

AUTO:

This function is turned on. Normally keep
this function set to AUTO.

ON :

This function is turned on.

OFF:

This function is turned off.

• The motion may appear unnatural
when viewing images with the NTSC
colour system. To make the motion
smoother, switch the PULL DOWN
function from AUTO or ON to OFF.

22

Using the TV’s menu

 Colour DigiPure

Makes the colour outline stand out and
increases the sharpness giving a clearer
picture.

ON:

Colour DigiPure works. Normally use with
this function turned on.

OFF:

Colour DigiPure doesn’t work. This gives a
less clear picture than when this function is
turned on.

 COLOUR SYSTEM

The colour system is chosen automatically.
However, if the picture is not clear or no
colour appears, choose the colour system
manually.

1 Choose COLOUR SYSTEM. Then

press the a or 3 button

The sub-menu of the COLOUR SYSTEM
function appears.

>> COLOUR SYSTEM

MAIN

PAL

OK

D0016-EN

2 Press the 5 buttons to choose

MAIN or SUB

MAIN:

You can change the colour system of the
main-picture.

SUB:

You can change the colour system of the
sub-picture.

• Choose MAIN when a sub-picture is
not displayed.

3 Press the 6 buttons to choose the

appropriate colour system. Then
press the a button

PAL:

PAL system

SUB

AUTO

SECAM:

SECAM system

NTSC 3.58:

NTSC 3.58 MHz system

NTSC 4.43:

NTSC 4.43 MHz system

AUTO:

This function detects a colour system
from the input signal.

• The AUTO function may not function
properly if you have poor signal
quality. If the picture is abnormal in
the AUTO function, choose another
colour system manually.

For colour system in your country or
region, refer to the table below:

Area Country or Region System

Bahrain, Kuwait, Oman,
Qatar, United Arab Emirates,
Yemen, etc.
Indonesia, Malaysia,
Singapore, Thailand, India,

Asia,
Middle
East

Europe

Oceania Australia, New Zealand, etc. PAL

Africa

etc.
China, Vietnam, etc. PAL
Hong Kong, etc. PAL
Islamic Republic of Iran,

Lebanon, Saudi Arabia, etc.
Philippines, Taiwan,

Myanmar, etc.
Russia, etc. SECAM
Czech Republic, Poland, etc. PAL
Germany, Holland, Belgium,

etc.
UK, etc. PAL

Republic of South Africa, etc. PAL
Nigeria, etc. PAL
Egypt, Morocco, etc. SECAM

PAL

SECAM

NTSC

PAL

23

Using the TV’s menu

 ZOOM

You can change the screen size according
to the picture aspect ratio. Choose the
optimum one from three ZOOM modes.

1 Choose ZOOM, then press the OK or

3 button.

>> ZOOM

REGULAR
ZOOM
16:9

OK

D0017-EN

2 Press the 6 buttons to choose a

ZOOM mode. Then press the OK
button.

• You can choose a ZOOM mode from
REGULAR, ZOOM or 16:9 modes. For
details, see “ZOOM button” on page 9.

 MULTI

Choosing the number of pictures for the
Multi-picture function.

1 Choose MULTI, then press the OK or

3 button.

>> MULTI

OSD-2-EN

2 Press the 5 buttons to choose the

number of pictures. Then press the
OK button.

SOUND menu

SOUND

STEREO/
SOUND MODE
BALANCE
HEADPHONE VOLUME
CINEMA SURROUND
SUPER BASS
BBE DIGITAL

OSD-3-EN

• Functions in the “SOUND” menu other
than “HEADPHONE VOLUME” work
for the TV speakers. They do not work
for the sound from the headphones.

• When the headphones are connected
and only one screen is displayed,
“STEREO/I•II” and “HEADPHONE
VOLUME” can be used.

 STEREO / I•II

When you are viewing a bilingual broadcast
programme, you can choose the sound
from Bilingual I (sub I) or Bilingual II (sub II).
When the stereo broadcasting is received
poorly, you can change from stereo to mono
sound so that you can hear the broadcast
more clearly and easily.

s : Stereo sound
v : mono sound
t : Bilingual I (sub I)
u : Bilingual II (sub II)

MONO: Cancels the Multi Sound function,

and the sound becomes monaural.

• The sound mode you can choose
differs depending on the TV
programme.

• This function does not work in the
VIDEO modes.

MONO

MONO

LOW

ON

24

Using the TV’s menu

 SOUND MODE

Register your preferred pattern in the
SOUND MODE USER.

1 Choose SOUND MODE, then press the

OK or 3 button.

The “SOUND MODE“ menu appears.

> SOUND MODE

NEWS

120Hz 500Hz 1.5kHz 5kHz 10kHz

OK

OSD4-EN

2 Press the red button and choose your

preferred SOUND MODE.

3 Press the 5 buttons and choose the

frequency to adjust, then press the
6 buttons and adjust the frequency.

• The adjusted frequency is registered
to USER.

• When DYNAMIC, MUSIC, or NEWS is
chosen and the frequency is adjusted,
the SOUND MODE automatically
changes to USER.

• Adjust the other frequencies
according to your preference.

• After adjusting the frequencies in step
3, pressing the blue button will return
to the SOUND MODE pattern chosen
in step 2.

• You can choose a SOUND MODE
function with the SOUND MODE
button. For details, see “SOUND
MODE button” on page 10.

 BALANCE

You can adjust the volume balance
between the left and right speakers.

2 : turn the left speaker’s volume level up.
3 : turn the right speaker’s volume level up.

SOUND MODE

 HEADPHONE VOLUME

Adjust the volume of the sub-picture sound
which is heard through the headphones
when set to Twin mode, PIP mode or 5
pictures multi.

2 :Reduce volume
3 :Increase volume

• When not set to Twin mode or PIP
mode, the headphone volume is
adjusted with the r q (volume)
buttons.

 CINEMA SURROUND

You can enjoy Surround sound with a “live”
effect by using the CINEMA SURROUND
function.

• You can choose a CINEMA SURROUND
mode from HIGH, LOW, MONO and OFF
modes. For details, see “CINEMA
SURROUND button” on page 9.

• You can also operate the CINEMA
SURROUND function with the
CINEMA SURROUND button. For
details, see “CINEMA SURROUND
button” on page 9.

 SUPER BASS

You can choose the SUPER BASS mode
which emphasizes the bass sound.

• You can choose HIGH, MID or LOW.
Choosing LOW will reduce the bass
sound and choosing HIGH will
increase the bass sound.

• You can also operate the SUPER
BASS function with the BASS button.
For details, see “BASS button” on
page 10.

 BBE DIGITAL

You can use the BBE DIGITAL function to
enjoy easy-to-listen sound that is faithful to
the original sound recorded.

• You can choose ON or OFF.

• Licensed by BBE Sound, Inc. BBE is a
registered trademark of BBE Sound, Inc.

25

Using the TV’s menu

FEATURES menu

FEATURES

SLEEP TIMER
CHANNEL GUARD
APPEARANCE
BLUE BACK
CHILD LOCK
AUTO SHUTOFF
FAVORITE SETTING

OSD-5-EN

 SLEEP TIMER

You can set the TV to automatically turn off
after a set time.

1 Choose SLEEP TIMER, then press the

OK or 3 button.

> SLEEP TIMER

0120

OFF

OK

D0024-EN

2 Press the 5 buttons to set the

period of time.

The TV begins count down from the set
time.

• You can set the period of time a
maximum of 120 minutes (2 hours) in
10 minute steps.

To cancel this function:

• Press the 2 button to set a period of
time to “OFF”.

3 Press the OK button to complete the

setting.

The menu disappears.

• One minute before this function turns
off the TV, “GOOD NIGHT!” appears.

• This function cannot be used to turn off
the TV’s main power.

• When this function is on, you can
display the SLEEP TIMER menu again
to confirm or change the remaining
time.

TYPE A

ON

OFF

ON

 CHANNEL GUARD

When there is a TV channel you do not
want your children to watch, you can lock
out the channel. Even when a child chooses
a programme number for a locked out
channel the screen will change to blue and
display n so the channel cannot be viewed.

To set this function:
1 Choose CHANNEL GUARD, then

press the number 0 button.

> SET ID NO.

040

0

OK

D0025-EN

2 Set the ID number you want.

To choose a number:

Press the 6 buttons.

To move a cursor:

Press the 5 buttons.

3 Press the OK button.

>> CHANNEL GUARD

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

D0026-EN

4 Press the 6 buttons to choose a TV

channel.

• The TV shows the TV programme
which the chosen TV channel is now
broadcasting.

5 Press the blue button to set this

function to the TV channel.

n (CHANNEL GUARD) appears and the
TV channel is locked.

CH

CH
CH
CH
CH
CH
CH
CC
CC
CC

21
22
23
24
25
26
01
02
03

GUARD

26

Using the TV’s menu

To cancel this function:

Press the blue button again.
n (CHANNEL GUARD) disappears and
the lock is released.

6 Press the OK button to complete the

setting.

The menu disappears.

To view a locked TV channel:
1 Choose a programme number in

which a TV channel locked with the
number buttons or PR LIST.

The screen changes to blue and the n
(CHANNEL GUARD) appears.

5

D0027-EN

• You cannot choose a locked TV channel

with the CHANNEL p buttons.

2 Press the DISPLAY button to display

“ID NO.” (ID number input screen).

5

ID NO. :

D0028-EN

3 Press the number buttons to enter the

ID number.

The lock is temporarily released so you
can view the TV channel.

If you have forgotten the ID number:

Perform step 1 of “To set this function:” on
page 26. After confirming the ID number,
press the TV/VIDEO button to exit the menu.

• When you would like to cancel the
CHANNEL GUARD function, you must
perform the operation “To set this
function” again.

 APPEARANCE

Press the 5 button and choose the
format in which the channel number is
displayed from the three types: TYPE A,
TYPE B and TYPE C.

 BLUE BACK

You can set the TV to automatically change
to a blue screen and mute the sound if the
signal is weak or absent, or when there is
no input from an external device.

ON:

This function is turned on.

OFF:

This function is turned off.

 CHILD LOCK

You can disable the front control buttons of
the TV. When this function is set to ON, the
TV can be operated only by using the
remote control.
Use this function to prevent children from
operating the TV at their own discretion
(without parent consent).

ON:

This function is turned on.

OFF:

This function is turned off.
Turning the power off with the main power
button cancels the CHILD LOCK.

 AUTO SHUTOFF

You can set the power to turn off if no signal
is received and no operation is performed
for about 15 minutes or longer after the end
of a broadcast.

ON:

This function is turned on.

OFF:

This function is turned off.

• The AUTO SHUTOFF function does
not turn off the TV’s main power.

• The AUTO SHUTOFF will not work for
a VIDEO mode.

27

Using the TV’s menu

 FAVORITE SETTING

You can set a dedicated picture effect for
the favorite channels registered to the
colour buttons (Red, Green, Yellow and
Blue). For favorite channel registration, see
“Favorite channel registration” on page 11.

1 Choose FAVORITE SETTING, then

press the OK or 3 button.

> FAVORITE SETTING

FAVORITE CH SETTING
VIDEO SETTING

OSD-6-EN

2 Choose FAVORITE CH SETTING, then

press OK or 3 button.

>> FAVORITE CH SETTING

FAVORITE CHANNEL

PICTURE MODE
DIGITAL VNR
WHITE BALANCE
Super DigiPure
PICTURE ADJUST

OK

OSD-7-EN

3 Press the 6 button to choose

FAVORITE CHANNEL, then press the
5 button to choose the registered
favorite channel.

Each time you press the 5 button, the
colour button icon (Red, Green, Yellow
or Blue) of the registered favorite
channel and its channel number (e.g.
PR1) appear.

4 Set the picture effect.

Press the 6 button to choose an item
listed in the following table and press the
5 button to choose one of options.

• As explained in the table, if PICTURE
EFFECT is set to OFF, the dedicated
picture effect for the favorite channel is
not used. In this case, normal picture
effect is used.

RP 06

BRIGHT

AUTO(LOW)

COOL

OFF
OFF

RESET

• For details of each item, see
“PICTURE MODE” on page 20,
“DIGITAL VNR” on page 21, “WHITE
BALANCE” on page 21, “Super
DigiPure” on page 22.

Item Options

PICTURE MODE BRIGHT*, STANDARD,

SOFT

DIGITAL VNR AUTO (LOW)*, AUTO

(HIGH), MIN, MAX

WHITE

COOL, MID*, WARM

BALANCE

Super DigiPure AUTO*, MAX, OFF, MIN

EFFECT

ON*:
Above picture effect
applies to the chosen
favorite channel.
OFF:
No picture effect applies.

*: When shipped

• Pressing the blue button returns each
setting back to initial setting and cancels
the favorite channel registration.

5 Press the OK button to complete the

setting.

 VIDEO SETTING

You can set a dedicated picture effect for
the video inputs, VIDEO-1 to -4.

1 Choose FAVORITE SETTING, then

press the OK or 3 button.

2 Choose VIDEO SETTING, then press

the OK or 3 button.

>> VIDEO SETTING

VIDEO
PICTURE MODE
DIGITAL VNR
WHITE BALANCE
Super DigiPure
PICTURE ADJUST

OK

OSD-8-EN

VIDEO-1

BRIGHT

AUTO(LOW)

COOL
AUTO

ON

RESET

28

Using the TV’s menu

3 Press the 6 button to choose

VIDEO, then press the 5 button to
choose one of video inputs, VIDEO-1
to -4.

4 Set the picture effect.

Press the 6 button to choose an item
listed in the following table and press the
5 button to choose one of options.

• As explained in the table, if PICTURE
EFFECT is set to OFF, the dedicated
picture effect for the video inputs is not
used. In this case, normal picture
effect is used.

Item Options

PICTURE MODE BRIGHT*, STANDARD,

SOFT

DIGITAL VNR AUTO (LOW), AUTO

(HIGH), MIN*, MAX

WHITE

COOL, MID*, WARM

BALANCE

Super DigiPure AUTO, MAX*, OFF, MIN

EFFECT

ON*:
Above picture effect
applies to the chosen
video input.
OFF:
No picture effect applies.

*: When shipped

• For details of each item, see
“PICTURE MODE” on page 20,
“DIGITAL VNR” on page 21, “WHITE
BALANCE” on page 21, “Super
DigiPure” on page 22.

• When the signal is 625p or 525p:

- In “DIGITAL VNR”, AUTO

(LOW and HIGH) cannot be selected.

- In “Super DigiPure”, AUTO cannot be

selected.

• Pressing the blue button will return the
picture effect to the factory set value.

5 Press the OK button to complete the

setting.

SETUP menu

SET UP

AUTO PROGRAM
EDIT/MANUAL
LANGUAGE
PICTURE TILT
VIDEO-2 SETTING
VIDEO-3 SETTING
AI VOLUME
TELETEXT LANGUAGE

OSD-9-EN

 AUTO PROGRAM

You can automatically register the TV
channels which can be received well at your
residence in the TV’s programme numbers
by performing the following.

1 Choose AUTO PROGRAM, then press

the OK button.

The AUTO PROGRAM function starts.
The TV channels you receive are
automatically stored in the programme
numbers list.

>> AUTO PROGRAM

CH 28

14%

OK

D0004-EN

• To stop the AUTO PROGRAM
function, press the OK button.

2 After the TV channels have been

stored in the programme number list,
the EDIT menu appears.

> EDIT

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

MOVE

D0038-EN

COMPONENT
COMPONENT

CH/CC

CH
CH
CH
CH
CH
CH
CC
CC
CC

ID

INSERT

ON

21
22
23
24
25
26
01
02
03

MANUAL

DELETE

29

Using the TV’s menu

• You can proceed to edit the
programme numbers list using the
EDIT/MANUAL function. For details,
see “EDIT/MANUAL” on page 30

• If a TV channel you want to view is not
stored in the programme numbers list,
you can register it using the MANUAL
function.
For details, see “EDIT/MANUAL” on
page 30.

• The AUTO PROGRAM function does
not store a TV channel to the
programme number 0 (AV).

• If you do not need to use the EDIT/
MANUAL function, press the OK
button to exit the EDIT menu.

• Starting the AUTO PROGRAM deletes
the registered favorite channel.

 EDIT/MANUAL

The EDIT/MANUAL functions are divided
into two types: editing of the current
programme numbers (EDIT functions) and
manual registration of a TV channel you
want to view to the programme number
(MANUAL function).

CAUTION

• Using the MOVE, DELETE or INSERT
function rewrites the current programme
numbers list.
Resultingly, the programme number of
some of the TV channels will change.

• When a TV channel which has been
locked out using the CHANNEL GUARD
function, using the MANUAL function for
that TV channel cancels the CHANNEL
GUARD function.

• When a TV channel has already been
registered in PR 99, using the INSERT
function deletes the TV channel.

1 Choose EDIT/MANUAL, then press the

OK or 3 button.

> EDIT

CH/CC

CH
CH
CH
CH
CH
CH
CC
CC
CC

ID

INSERT

21
22
23
24
25
26
01
02
03

MANUAL

DELETE

D0038-EN

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

MOVE

2 Follow the operation description of a

function you want to use and operate
the function.

MOVE:

This function changes a programme
number of a TV channel.

ID:

This function registers a Channel name
(ID) to a TV channel.

INSERT:

This function adds a new TV channel in
the current programme numbers list by
using the CH/CC number.

DELETE:

This function deletes an unnecessary TV
Channel.

MANUAL:

This function manually registers a new
TV channel in a programme number.

3 Press the OK button to complete the

setting.

• For programme number PR 0, “AV”
appears in the programme numbers
list.

30

Using the TV’s menu

FUNCTIONS

MOVE
1 Press the 6 buttons to choose a TV

channel.

2 Press the 3 button to start the MOVE

function.

> EDIT

OK

STORE

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

CH/CC

CH
CH
CH
CH
CH
CC
CC
CC

M

22
23
24
25
26
01
02
03

CH/CC

CH
CH
CH
CH
CH
CH
CC
CC
CC

CH 21

21
22
23
24
25
26
01
02
03

PR ID
AV
01
02
03
04
05
06
07
08
09

D0030-EN

3 Press the 6 buttons to choose a

new programme number.

To cancel the MOVE function:

Press the BACK button.

4 Press the 2 button to change the

programme number of a TV channel
to a new programme number.

ID
1 Press the 6 buttons to choose a TV

channel.

2 Press the red button to start the ID

function.

3 Enter a channel name (ID). Press the

6 buttons to choose a character.
Press the 5 buttons to move the
cursor.

> EDIT

D0032-EN

To cancel the ID function:

Press the BACK button.

4 Press the OK button to register a

channel name to a TV channel.

DELETE
1 Press the 6 buttons to choose a TV

channel.

2 Press the yellow button to delete the

TV channel.

The TV channel is deleted from the
programme numbers list.

MANUAL
1 Press the 6 buttons to choose a

programme number to which you
want to register a new TV channel.

2 Press the blue button to activate the

MANUAL function.

At the right side following the CH/CC
number, the SYSTEM (sound system) of
the TV channel appears.

> MANUAL

BBC1

CH/CC

CH
CH
CH
CH
CH
CH
CC
CC
CC

SEARCH+

SEARCH-

21
22
23
24
25
26

(

)

01

B / G
02
03

FINE-

FINE+

D0035-EN

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

SYSTEM

To cancel the MANUAL function:

Press the BACK button.

31

Using the TV’s menu

3 Press the 3 button to choose the

system (sound system) for a TV
channel you want to register.

• For the sound systems in each country
or region, refer to the table below:

Area Country or Region System

Bahrain, Kuwait, Oman,
Qatar, United Arab Emirates,
Yemen, etc.
Indonesia, Malaysia,

B/G

Singapore, Thailand, India,
Asia,
Middle

East

etc.

China, Vietnam, etc. D/K

Hong Kong, etc. I

Islamic Republic of Iran,

Lebanon, Saudi Arabia, etc.

Philippines, Taiwan,

Myanmar, etc.

B/G

M

Russia, etc. D/K

Czech Republic, Poland, etc. D/K
Europe

Germany, Holland, Belgium,

etc.

B/G

UK, etc. I
Oceania Australia, New Zealand, etc. B/G

Republic of South Africa, etc. I
Africa

Nigeria, etc. B/G

Egypt, Morocco, etc. B/G

4 Press the green or red button to

search for a TV channel.

Scanning stops when the TV finds a TV
channel. Then the TV channel is
displayed.

5 Press the green or red button

repeatedly until the TV channel you
want appears.

If the TV channel reception is poor:

Press the blue or yellow button to fine­tune the TV channel.

If you cannot hear the normal sound
even when the picture of the TV
channel appears normally:

The SYSTEM setting is wrong. Press the
3 button and choose a SYSTEM that has
normal sound.

6 Press the OK button and register the

TV channel to a programme number.

The normal EDIT menu is resumed.

INSERT

Preparation:

• Find the CH/CC number
corresponding to the channel number
of the TV channel from page 35.

1 Press the 6 buttons to choose a

programme number for which you will
register a new TV channel.

2 Press the green button to start the

INSERT function.

> EDIT

0 9

CH/CC

CH
CH
CH
CH
CH
CH
CC
CC
CC

21
22
23
24
25
26

02
03

D0034-EN

PR ID
AV
01
02
03
04
05
06
07
08
09

OK

CH/CC

3 Press the 6 buttons to choose “CC”

or “CH” according to the CH/CC
number of the TV channel.

To cancel the INSERT function:

Press the BACK button.

4 Press the Number buttons to enter the

remaining CH/CC number.

The TV shifts to registration mode. When
the registration is completed, the picture
of the TV channel appears on the
screen.

32

Using the TV’s menu

• The CH/CC number is a number
indicating the broadcast frequency to
the TV. If the TV cannot detect the TV
channel corresponding to the
broadcast frequency indicated by the
CH/CC number, a picture in the no­signal state appears.

 LANGUAGE

You can choose the language you want to
use for the on-screen display from the
language list in a menu.

1 Choose LANGUAGE, then press the

OK button.

2 Press the 6 buttons to choose a

language.

3 Press the OK button to complete the

setting.

The menu disappears.

 PICTURE TILT

There are cases where the Earth’s
magnetic force may make the picture tilt. If
this happens, you can correct the picture tilt.

1 Choose PICTURE TILT, then press the

OK or 3 button.

> PICTURE TILT

OK

D0018-EN

2 Press the 6 buttons until the

picture becomes level. Then press the
OK button.

 VIDEO-2 SETTING/VIDEO-3

SETTING

Set the VIDEO-2 SETTING or VIDEO-3
SETTING correctly according to the video
signal input from the external device
connected to the VIDEO-2 or VIDEO-3
terminal. If this setting is incorrect, images
will not be displayed.

VIDEO:

If a normal video signal (composite video
signal) is input.

COMPONENT:

If a Component video signal (Y, Cb/Pb,
Cr/Pr signals) is input.

• For detailed connecting methods, see
“Additional preparation” on page 36.
This Television is compatible with the
1125i, 625p or 525p video signal only
when the component video signal is
input.

• When the input signal is 1125i, 625p or
525p, each signal type is displayed at
the upper right side on the TV screen
by setting the input to VIDEO-2 or
VIDEO-3.

 AI VOLUME

You can prevent the sudden increase or
decrease of sound that occurs when
changing the channel to another channel or
switching the VIDEO mode to another
VIDEO mode.

ON:

This function is turned on.

OFF:

This function is turned off.

• The AI VOLUME function may not
operate as expected if the sound input
level from a broadcast station (or video
software) is extremely low.

• When the Video or the DVD is used, it
is recommended to select OFF to get
more dynamic sound.

33

Using the TV’s menu

 TELETEXT LANGUAGE

There are four types of teletext language
groups. Set the teletext language group that
corresponds to the language of the teletext
program that you want to watch.

1 Choose TELETEXT LANGUAGE, then

press the OK or 3 button.

> TELETEXT LANGUAGE

GROUP-1
GROUP-2
GROUP-3
GROUP-4

OK

OSD-10-EN

2 Press the 6 buttons to choose a

group.

Group Languages

GROUP-1 Turkish, Hungarian, English,

GROUP-2 Polish, Serbian, Croatian,

German, French, Italian,
Spanish, Portuguese, Greek,
Swedish, Finnish

Slovenian, Czech, Slovak,
Rumanian, Hungarian,
German, French, Italian,
Swedish, Finnish

3 Press the OK button to complete the

setting.

The menu disappears.

• Languages that are not included in the
teletext language group that you
select, the sub-titles of the teletext
program will not be displayed properly.

GROUP-3 Russian, Bulgarian, Lettish,

Lithuanian, Estonian,
Ukrainian, Serbian, Croatian,
Slovenian, Czech, Slovak,
English, German

GROUP-4 Arabic, Czech, Slovak.

Hungarian, English, German,
French, Italian, Spanish,
Portuguese, Swedish, Finnish

34

Using the TV’s menu

CH/CC number

When you want to use the INSERT function on page 32, find the CH/CC number
corresponding to the Channel number of the TV channel from this table.
US: The US channel numbers are the channel numbers used in the United States,
Philippines, etc. CCIR: The CCIR channel numbers are the channel numbers used in the
Middle East, Southeast Asia, etc. OIRT: The OIRT channel numbers are the channel
numbers used in Eastern Europe, Russia, Vietnam, etc. AUSTRALIA: The AUSTRALIA
channel numbers are the channel numbers used in Australia, etc.

Channel Channel

CH US CCIR OIRT AUSTRALIA
CH 02 US-2 E2 R1 AU-0
CH 03 US-3 E3 AU-1
CH 04 US-4 E4 R2 AU-2
CH 05 US-5 E5 R6 AU-6
CH 06 US-6 E6 R7 AU-7
CH 07 US-7 E7 R8 AU-8
CH 08 US-8 E8 R9 AU-9
CH 09 US-9 E9
CH 10 US-10 E10 R10 AU-10
CH 11 US-11 E11 R11 AU-11
CH 12 US-12 E12 R12
CH 13 US-13
CH 14 US-14, W+29
CH 15 US-15, W+30
CH 16 US-16, W+31
CH 17 US-17, W+32
CH 18 US-18, W+33
CH 19 US-19, W+34
CH 20 US-20, W+35
CH 21 US-21, W+36 E21
CH 22 US-22, W+37 E22
CH 23 US-23, W+38 E23
CH 24 US-24, W+39 E24
CH 25 US-25, W+40 E25
CH 26 US-26, W+41 E26
CH 27 US-27, W+42 E27
CH 28 US-28, W+43 E28
CH 29 US-29, W+44 E29
CH 30 US-30, W+45 E30
CH 31 US-31, W+46 E31
CH 32 US-32, W+47 E32
CH 33 US-33, W+48 E33
CH 34 US-34, W+49 E34
CH 35 US-35, W+50 E35
CH 36 US-36, W+51 E36
CH 37 US-37, W+52 E37
CH 38 US-38, W+53 E38
CH 39 US-39, W+54 E39
CH 40 US-40, W+55 E40
CH 41 US-41, W+56 E41
CH 42 US-42, W+57 E42
CH 43 US-43, W+58 E43
CH 44 US-44, W+59 E44
CH 45 US-45, W+60 E45
CH 46 US-46, W+61 E46
CH 47 US-47, W+62 E47
CH 48 US-48, W+63 E48
CH 49 US-49, W+64 E49
CH 50 US-50, W+65 E50
CH 51 US-51, W+66 E51
CH 52 US-52, W+67 E52
CH 53 US-53, W+68 E53
CH 54 US-54, W+69 E54
CH 55 US-55, W+70 E55
CH 56 US-56, W+71 E56
CH 57 US-57, W+72 E57
CH 58 US-58, W+73 E58
CH 59 US-59, W+74 E59
CH 60 US-60, W+75 E60
CH 61 US-61, W+76 E61
CH 62 US-62, W+77 E62
CH 63 US-63, W+78 E63
CH 64 US-64, W+79 E64
CH 65 US-65, W+80 E65
CH 66 US-66, W+81 E66
CH 67 US-67, W+82 E67
CH 68 US-68, W+83 E68
CH 69 US-69, W+84 E69

CC US CCIR OIRT AUSTRALIA
CC 01 S-1 AU-5
CC 02 S-2
CC 03 S-3
CC 04 S-4
CC 05 S-5
CC 06 S-6 AU-5A
CC 07 S-7
CC 08 S-8
CC 09 S-9
CC 10 S-10
CC 11 S-11
CC 12 S-12
CC 13 S-13
CC 14 A S-14
CC 15 B S-15
CC 16 C S-16
CC 17 D S-17
CC 18 E S-18
CC 19 F S-19
CC 20 G S-20
CC 21 H S-21
CC 22 I S-22
CC 23 J S-23
CC 24 K S-24
CC 25 L S-25
CC 26 M S-26
CC 27 N S-27
CC 28 O S-28
CC 29 P S-29
CC 30 Q S-30
CC 31 R S-31
CC 32 S S-32
CC 33 T S-33
CC 34 U S-34
CC 35 V S-35
CC 36 W S-36
CC 37 W+1 S-37
CC 38 W+2 S-38
CC 39 W+3 S-39
CC 40 W+4 S-40
CC 41 W+5 S-41
CC 42 W+6
CC 43 W+7
CC 44 W+8
CC 45 W+9
CC 46 W+10
CC 47 W+11
CC 48 W+12
CC 49 W+13
CC 50 W+14
CC 51 W+15
CC 52 W+16
CC 53 W+17
CC 54 W+18
CC 55 W+19
CC 56 W+20
CC 57 W+21
CC 58 W+22
CC 59 W+23
CC 60 W+24
CC 61 W+25
CC 62 W+26
CC 63 W+27
CC 64 W+28
CC 75 X
CC 76 Y R3
CC 77 Z R4 AU-3
CC 78 Z+1 R5
CC 79 Z+2 AU-4
CC 95 A-5
CC 96 A-4
CC 97 A-3
CC 98 A-2
CC 99 A-1

35

Additional preparation

 Connecting the external

devices

Connect the devices to the TV, paying
attention to the following connection
diagram.

Before connecting anything:

• Read the manuals provided with the
devices. Depending on the devices,
the connection method may differ from
the figure. In addition, the device
settings may be changed depending
on the connection method to secure
proper operation.

• Turn off all the devices including the
TV.

• The “Specifications” on page 43
contains the details of the VIDEO
terminals. If you are connecting a
device not listed in the following
connection diagram, see the
“Specifications” to choose the best
VIDEO terminal.

• Note that connecting cables are not
supplied.

HV-Z34L1

OVER

S

VRL/MONO

IN (VIDEO-4)

HV-Z29V1

(Behind the cover)

1 VCR (composite signal)
2 VCR (S-VIDEO signal; Y/C)
3 VCR for recording (composite signal)
4 DVD player (composite signal)
5 DVD player (S-VIDEO signal; Y/C)
6 DVD player (component video signals;

Y, Cb/Pb, Cr/Pr)

7 TV game (composite signal)
8 TV game (S-VIDEO signal; Y/C)
9 Camcorder (composite signal)
0 Camcorder (S-VIDEO signal; Y/C)

- Headphones

36

Back of the TV

Additional preparation

Connecting methods

1 Connect the TV’s VIDEO jack and the

device’s VIDEO OUT (video output)
jack with a video cable.

If connecting a device to the TV with an
S-VIDEO cable:

Connect the VCR’s S-VIDEO OUT (S­VIDEO output) connector and the TV’s S
connector with an S-VIDEO cable, instead
of connecting with a video cable.
Note that the connection with a video cable
will be ignored in case you connect a VCR
to the TV with both video cable and S­VIDEO cable.

If connecting a DVD player to the TV with
a component video cable.

Connect three jacks (Y, Cb/Pb, Cr/Pr) in the
VIDEO-2 or VIDEO-3 terminal and the DVD
player’s COMPONENT (component video
output) jacks with a component video
cables, instead of connection with a video
cable. Then set the VIDEO-2 SETTING/
VIDEO-3 SETTING to COMPONENT,
according to “VIDEO-2 SETTING/VIDEO-3
SETTING” on page 33.

• If you have a DVD player that outputs
1125i, 625p or 525p video signals as a
component video signal, then by
attaching the device to the television
with a component video cable you can
see the actual images that are
recorded on a DVD disc as an original
image source.

If connecting a device to the VIDEO-2
(COMPONENT) or VIDEO-3 (COMPONENT)
terminal with a video cable.

Connect the TV’s VIDEO jack and the
device’s VIDEO OUT (video output) jack
with a video cable.
Then set the VIDEO-2 SETTING or VIDEO­3 SETTING to VIDEO according to “VIDEO­2 SETTING/VIDEO-3 SETTING” on
page 33.

• In the VIDEO-4 terminal, the VIDEO
jack is indicated by “V”.

2 Connect the TV’s AUDIO jacks (L/

MONO and R) and the device’s AUDIO
OUT (audio L/R output) jacks with an
audio cable.

If the device’s sound output is in mono:

Connect the device’s AUDIO OUT jack and
the TV’s L/MONO jack with an audio cable.

Connecting devices to the
OUTPUT terminal

The signals of the images and sound you
are currently viewing with this TV are output
through the OUTPUT terminal. By
connecting a VCR to the OUTPUT terminal,
you can record the currently shown image
and sound to that VCR. To do this, connect
the VCR and OUTPUT terminal following
the steps below.

1 Connect the VIDEO jack in the

OUTPUT terminal and the VCR’s
VIDEO IN (video input) jack with a
video cable.

2 Connect the AUDIO jacks (L and R) in

the OUTPUT terminal and the VCR’s
AUDIO IN (audio L/R input) jacks with
an audio cable.

• When you turn off the TV, the signals
from the OUTPUT terminal are also
turned off.

• The component signals input from the
VIDEO-2 (COMPONENT) or VIDEO-3
(COMPONENT) terminal cannot be
output through the OUTPUT terminal.

37

Additional preparation

Connecting Headphones

Connect the headphones with a stereo
mini jack (of 3.5 mm in diameter) to the
Headphone jack at the TV front panel.

 Connecting AV COMPU LINK

Supported Devices

AV COMPU LINK remote control system is
a system in which related devices are
automatically controlled when you operate
one device.
If you apply this system to the TV, you can
have the TV automatically perform the
required operations by operating one
external device. You don’t have to use the
TV’s remote control to turn on the TV or
change the VIDEO modes.

Examples of the AV COMPU LINK
remote control system
operations

Simply by pressing the PLAY button on a
VCR or a DVD player, you can view images
from the device.
Simply by inserting a prerecorded tape (a
tape with the record safety tab removed) to
a VCR, you can view the tape.
Simply by operating the AV Control
Receiver, you can have the TV turned on/off
(in standby mode) or the VIDEO mode
changed correctly.

• The performance of the AV COMPU
LINK remote control system varies
depending on the connected device.
See the device’s instruction manual.

• When you select “TV SOUND” as the
input source with the AV Control
Receiver, there are cases where the
TV’s MUTING function automatically
operates and the sound from the TV’s
speakers is muted.
In such cases, press the VOLUME-/+
buttons or the MUTING button on the
TV’s remote control to cancel the
MUTING function. You can regain the
sound from the TV’s speakers.

38

Conditions to use the AV COMPU
LINK remote control system

• A device equipped with an AV COMPU
LINK terminal is required.

• You must connect the TV and the
device with an AV COMPU LINK cable.
AV COMPU LINK cable is not supplied
with this TV. If an AV COMPU LINK
cable is unavailable, connect them with
a cable with dia. 3.5 mm (mono) male
plugs at both ends.

• You must connect the device to an
appropriate VIDEO terminal and set it
up correctly. Otherwise the AV
COMPU LINK remote control system
will not function correctly. For details,
see “Setting up the AV COMPU LINK
remote control system”.

• The TV must be in standby mode (the
POWER lamp lighting red). If the TV’s
Main power is off (the POWER lamp
off), the AV COMPU LINK remote
control system does not function.

Setting up the AV COMPU LINK
remote control system

CAUTION:

• With some devices, the setup method
differs from the ones explained here. Be
sure to read the device’s instruction
manual thoroughly before setting it up.

1 Connect the device to the TV’s VIDEO-1,

VIDEO-2 (COMPONENT) or VIDEO-3
(COMPONENT) terminal.

If you want to connect a DVD player to
the TV with a component video cable:

Connect the DVD player to the TV’s
VIDEO-2 (COMPONENT) or VIDEO-3
(COMPONENT) terminal.

• For detailed connecting instructions,
see “Connecting the external devices”
on page 36.

2 Connect the TV’s AV COMPU LINK

terminal and the device’s AV COMPU
LINK terminal with an AV COMPU
LINK cable.

3 Change the device’s setting

according to the VIDEO terminal it is
connected to.

If a VCR is connected to the VIDEO-1
terminal:

Set the VCR’s remote control code to A
code.

If a DVD player is connected to the
VIDEO-1 terminal:

Set the DVD player’s AV COMPULINK
MODE to DVD2.

If a VCR is connected to the VIDEO-2
(COMPONENT) terminal:

Set the VCR’s remote control code to B
code.

If a DVD player is connected to the
VIDEO-2 (COMPONENT) terminal:

Set the DVD player’s AV COMPULINK
MODE to DVD3.

If a DVD player is connected to the
VIDEO-3 (COMPONENT) terminal with a
component video cable:

Set the DVD player’s AV COMPULINK
MODE to DVD1.

• For instructions on how to change the
device’s setting, refer to the device’s
instruction manual.

• If the device you are connecting has
neither the remote control code nor the
AV COMPULINK MODE, then connect
it to the TV’s VIDEO-1 terminal.

Additional preparation

39

Troubleshooting

If a problem arises while you are using the TV, please read this “Troubleshooting” well
before you request having the TV repaired. You may be able to fix it easily by yourself. For
example, if the AC plug is disconnected from the AC outlet, or the TV aerial has problems,
you may think there is a problem with the TV itself.

Important:

• This Troubleshooting guide only covers problems whose causes are not easy to
determine. If a question arise when you are operating a function, read the page(s)
corresponding to the operation of the function well, not this Troubleshooting guide.

• After you have followed the Troubleshooting description or the operating description of
the functions concerned without any success, remove the AC plug from the AC outlet
and request a repair of your TV. Do not attempt to repair the TV by yourself or remove
the rear cover of the TV.

 If you cannot turn on the TV

• Is the AC plug connected to the AC
outlet?

• Is the POWER lamp lit? If not, press
the Main power button.

• Make sure to set the PIP/TV/DVD
switch to the TV or PIP position. You
cannot turn the TV on when the PIP/
TV/DVD switch is set to the DVD
position.

 If you cannot turn off the TV

• Make sure to set the PIP/TV/DVD
switch to the TV or PIP position. You
cannot turn the TV off when the PIP/
TV/DVD switch is set to the DVD
position.

 No picture/No sound

• Have you chosen a TV channel whose
reception is extremely bad? In this
case, the BLUE BACK function will be
activated, the entire screen becomes
blue, and the sound is muted. In spite
of this, if you want to view the TV
channel, follow the description “BLUE
BACK” on page 27 to try to change the
BLUE BACK function setting to OFF.

• Are your SOUND SYSTEM settings for
the TV channels correct?
Follow the description “EDIT/
MANUAL” on page 30 to use the
MANUAL function to try to change the
SYSTEM setting.

 Poor picture

• If noise totally obscures the picture
(snow), the aerial or aerial cable may
have trouble. Check the following to try
to solve the trouble:
Has the TV and aerial been connected
properly?
Has the aerial cable been damaged?
Is the aerial pointed to the right
direction?
Is the aerial itself faulty?

• If the TV or aerial receives interference
from the other devices, stripes or noise
may appear in the picture. Move such
device as an amplifier, personal
computer, or a hair drier that can
cause interference away from your TV,
or try changing its location. If the aerial
suffers interference from a radio tower
or high-voltage wire, please contact
your local dealer.

• If the TV receives interferences from
signal reflecting from mountains or
building, double-pictures (ghosting) will
occur.
Try to change the aerial’s direction or
replace the antenna with the one with
better directionality.

• Are your COLOUR SYSTEM settings
for the TV channels correct? Follow
the description “COLOUR SYSTEM”
on page 23 to try to solve the trouble.

40

Troubleshooting

• Has COLOUR or BRIGHT been
controlled properly? Follow the
description “Adjusting the picture” on
page 20 to try to adjust them properly.

• Videotaping teletext is not
recommended because it may not
record correctly.

• When a white and bright still image
(such as a white dress) is displayed on
the screen, the white part may look as
if it were coloured.
It is a phenomenon unavoidable due to
the nature of the picture tube itself, and
not due to a TV failure.
When the picture disappears from the
screen, the unnatural colours will also
disappear.

• When viewing images from
commercially available video software
products, or videos from videotapes
which have been recorded improperly,
the top of the image may be distorted.
This is due to the condition of the video
signal, and not because of
malfunction.

 Poor sound

• When the TV channel reception is
poor, it can be hard to hear the stereo
or bilingual sound. In this case, follow
the description “STEREO / I•II” on
page 24 to hear the sound more easily
by changing it to a mono sound.

 Operation disabled

• Have the batteries of the remote
control become exhausted?
Follow the description “Putting the
batteries into the remote control” on
page 4 and replace them with new
batteries to try solve the problem.

• Have you attempted to use the remote
control at the sides or rear of the TV or
at a location more than seven meters
apart from the TV location? Operate
the remote control in the front of your
TV or a location less than seven
meters from your TV to try to solve the
problem.

• When you are viewing a teletext
programme, you cannot operate the
menus.
Press the BACK or TV/VIDEO button
to return the teletext programme to the
ordinary TV programme to try
operating the menus.

• Is the CHILD LOCK function set to
ON? If the CHILD LOCK function is set
to ON, you cannot operate the TV with
the front control buttons of the TV.
Follow the description “CHILD LOCK”
on page 27 to try to set the CHILD
LOCK function to OFF.

• If the TV operation becomes disabled
suddenly, press the Main power button
on the TV and turn off the main power.
Try to press the Main power button
again to turn on the main power. If the
TV returns to a normal state, it is not a
failure.

• The following functions do not operate
when receiving 1125i, video signal.

- Twin, PIP, Multi-display, FREEZE

and STROBE functions

41

Troubleshooting

 Other concerns

• When the AUTO SHUTOFF function
operates, the TV is automatically
turned off.
If the TV is turned off suddenly, try to
press the # button to turn on the TV
once again. At this time, if the TV
resumes a normal state, there is no
problem.

• If you bring a magnetized device such
as a speaker near to your TV, a picture
may be warped or unnatural colours
appear at the corners of the screen. In
this case, keep the device apart from
your TV. If the speaker causes such
phenomena, use the magnetic­shielded speaker instead.

• A picture may be tilted due to the
influence of the earth’s magnetism. In
this case, use the “PICTURE TILT” on
page 33 to complete the tilt.

• It takes a short period of time from the
time an operation such as changing
channels is performed until an image is
displayed. This is not a malfunction.
This is the time required for the image
to stabilize before it can be displayed.

• The TV may emit a crackling sound
due to a sudden change in
temperature. It does not matter if a
picture or sound does not show any
abnormality. If you hear crackling
sounds frequently while you are
viewing the TV, other causes may be
assumed.
For precautionary purposes, request
your service technician to inspect it.

• Touching the screen may cause you
feel a slight electric shock due to its
static electricity.
It is an unavoidable phenomenon due
to the construction of the picture tube.
It is not a problem with the TV.
You can rest assured that this static
discharge does not have harmful
influence over the human body.

42

Specifications

Broadcasting systems B, G, I, D, K, K1, M

Colour systems PAL, SECAM, NTSC3.58/4.43MHz

Channels and frequencies VHF low channel (VL) =46.25 to 168.25 MHz

Sound-multiplex systems A2 (B/G), NICAM (B/G, I, D/K) system

Teletext systems FLOF(Fastext), WST(World Standard Text)

Languages displayed by
teletext

Power requirements AC 110 to 240V, 50/60Hz

Audio output Rated Power output: 15W + 15W [HV-Z34L1], 10W + 10W + 18W [HV-Z29V1]
VIDEO-1 terminal RCA connector × 3, S-VIDEO connector × 1

VIDEO-2 (COMPONENT) RCA connector × 6

VIDEO-3 (COMPONENT) RCA connector × 6

VIDEO-4 terminal RCA connector × 3, S-VIDEO connector × 1

OUTPUT terminal RCA connector × 3

Headphone jack Stereo mini-jack (3.5 mm in diameter)
Accessories Remote control unit × 1 (RM-C1850)

Speakers HV-Z34L1: 12cm round × 2, 3.5cm round × 2

VHF high channel (VH) =175.25 to 463.25 MHz
UHF channel (U) =471.25 to 863.25 MHz

• Receives cable channels in mid band (X to Z+2, S1 to S10), super band (S11
to S20) and hyper band (S21 to S41).

Please see the table in the description “TELETEXT LANGUAGE” on page 34.

• Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

• Video input, Componet video (Y, Cb/Pb, Cr/Pr) input and Audio L/R inputs are
available.

• 625p, 525p and 1125i signals are available.

• Video input, Componet video (Y, Cb/Pb, Cr/Pr) input and Audio L/R inputs are
available.

• 625p, 525p and 1125i signals are available.

• Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

• Video output and Audio L/R outputs are available.

AA/R6 dry cell battery × 2
Woofer unit × 1 [HV-Z29V1 only]

HV-Z29V1: (13cm × 6.5cm) oval × 2, 13cm round × 1(Woofer unit)

Design and specifications subject to change without notice.

Pictures displayed on the screen using this TV’s ZOOM functions should not be shown for any commercial or
demonstration purpose in public places (cafes, hotels, etc.) without the consent of the owners of copyright of
the original picture sources, as this constitutes an infringement of copyright.

43

VICTOR COMPANY OF JAPAN, LIMITED

VICTOR COMPANY OF JAPAN, LIMITED

44
