VIDEO CASSETTE PLAYER
HR-JP34K
HR-JP14A
ENGLISH
REMOTE CONTROL UNIT
VIDEO
TV/VCR
AUTO
- TRACKING
-
TV CH +
- VOLUME
+
TV
TV/VCR
STANDBY/ON
VIDEO CASSETTE
PLAYER
HR-JP34K
MIC12
+
STANDBY/ON
VIDEO CASSETTE
PLAYER
HR-JP14A
VIDEO AUDIO
SP/LP/EP
SP/LP/EP
PAL B / G, D / K MESECAM B / G, D / K RECORDING
MIC
DIGITAL ECHO
MAXMIN
NTSC 3.58/4.43
NTSC PLAYBACK ON PAL TV
B.E.S.T
POWER-ON
STANDBY / REC
100
B.E.S.T
POWER-ON
STANDBY / REC
NTSC
PLAYBACK
ON PAL TV
LP / EP
NTSC
4.43
NTSC 3.58
NTSC
PLAYBACK
ON PAL TV
LP / EP
NTSC
4.43
NTSC 3.58
B.E.S.T.
PAL NTSC
B.E.S.T.
PAL NTSC
PAL NTSC
The VCP illustrations appearing in this instruction manual are of the HR-JP34K.
Рисунки для видеомагнитофона, подаваемые в данной инструкции по
эксплуатации, относятся к модели HR-JP34K.
INSTRUCTIONS
LPT0381-001B
Table of contents
Precautions
Thank you for purchasing this JVC video cassette player. To
ensure optimum performance of this unit, please read this
instruction manual thoroughly.
Precautions ...........................................................................2
Controls.................................................................................3
Terminals and wireless remote control .................................4
Connections ..........................................................................5
Setting the video channel......................................................6
The video cassette ................................................................6
Playback................................................................................7
Playback features..................................................................8
Recording..............................................................................9
Karaoke features...................................................................9
B.E.S.T. picture sysytem.....................................................10
Editing .................................................................................11
Troubleshooting ..................................................................12
Specifications ......................................................................12
Features
• 3 system (PAL/MESECAM/NTSC)
• NTSC playback (on PAL television)
• RF output G/K switchable
• Digital auto tracking
• HQ (High Quality)
• Auto playback function
• Repeat playback
• Shuttle search
• Still and slow motion
• Line recording
• Karaoke (HR-JP34K only)
• B.E.S.T. (Biconditional Equalized Signal Tracking) picture
system
Automatic features
Auto power on
The video cassette player is automatically turned on when the
tape is inserted.
Auto rewind
The video tape is automatically rewound when the end of the
tape is reached during the play, recording or shuttle search
forward mode.
Auto playback
If the video cassette’s safety tab has been removed, playback
will begin automatically when the tape is inserted into the video
cassette player.
Power off eject
Even when the video cassette player’s power is off, pressing the
eject button will turn the power on and eject the tape. Once
ejected, the power will be turned off again automatically.
The rating plate and the safety caution are on the rear of the unit.
WARNING: DANGEROUS VOLTAGE IN-
SIDE
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR
MOISTURE.
The STANDBY/ON button does not completely shut off
mains power from the unit, but switches operating current
on and off.
This unit is produced to comply with Standard IEC 60065.
Please follow these precautions. Not doing so may result
in damage to the VCP, remote control, or video cassette.
• Avoid extreme heat and direct sunlight.
• Avoid extreme cold.
• Avoid extreme humidity.
• Avoid dust.
• Avoid places subject to vibrations.
• Avoid strong magnetic fields.
• Do not block the VCP’s ventilation openings.
• Do not place anything heavy on the VCP or remote
control.
• Do not place anything which might spill on top of the
VCP or remote control.
• Do not place the VCP on cushions, pillows, or thick
carpeting.
• Use the VCP in a stable, horizontal position only.
• Place cassettes in cassette cases and store vertically.
Beware of moisture condensation
Moisture in the air will condense on the VCP when you move it
from a cold place to a warm place, or under extremely humid
conditions — just as water droplets form on the surface of a
glass filled with cold liquid. Moisture condensation on the head
drum will cause damage to the tape. In conditions where
condensation may occur, keep the VCP’s power turned on for
a few hours to let the moisture dry.
When transporting
7 Be sure to remove cassette from VCP before packing.
7 Avoid violent shocks to the VCP during packing and trans-
port.
Auto head cleaning
When a tape is loaded or ejected the VCP video head is cleaned
automatically.
PAL NTSC
7 Only cassettes marked “VHS” can be used with this video
cassette player.
2
Controls
Front panel
HR-JP34K
HR-JP14A
STANDBY/ON
VIDEO CASSETTE
PLAYER
HR-JP34K
STANDBY/ON
VIDEO CASSETTE
PLAYER
HR-JP14A
VIDEO AUDIO
MIC12
SP/LP/EP
SP/LP/EP
MIC
DIGITAL ECHO
MAXMIN
NTSC 3.58/4.43
PAL B / G, D / K MESECAM B / G, D / K RECORDING
NTSC PLAYBACK ON PAL TV
NTSC
PLAYBACK
LP / EP
LP / EP
ON PAL TV
NTSC
4.43
NTSC 3.58
NTSC
PLAYBACK
ON PAL TV
NTSC
4.43
NTSC 3.58
PAL NTSC
PAL NTSC
B.E.S.T.
B.E.S.T.
B.E.S.T
POWER-ON
STANDBY / REC
100
B.E.S.T
POWER-ON
STANDBY / REC
1 STANDBY/ON button
To turn the power on and off (standby mode).
2 Cassette loading slot
Load the video cassette here.
3 Rewind 1 button
To rewind the video tape and to start reverse shuttle search
playback mode.
4 Play # button
To start playback.
5 Fast forward ¡ button
To fast forward the video tape and to start forward shuttle
search playback mode.
6 Pause 8 button
To freeze the picture during playback and to engage the
recording pause mode.
7 Stop/Eject § button
To stop playback and to eject the video tape.
8 Record ¶ button
To start recording.
9 B.E.S.T. button
To set the B.E.S.T. (Biconditional Equalized Signal Tracking) system to on.
@ Mode indicators
B.E.S.T. indicator
• Lights when B.E.S.T. in set to on.
POWER-ON indicator
• Lights when the power turns on.
• Blinks while a cassette is ejected.
LP / EP indicator
• Lights when the tape speed is LP(PAL) or EP(NTSC)
mode.
STANDBY / REC indicator
• Lights when the power turns off (Standby mode) or
during recording mode.
• Blinks during recording pause mode.
Note:
All five indicators excluding the STANDBY/REC indicator
blink one by one in a clockwise sequence during playback
or fast forward mode and in a counterclockwise sequence
during rewind mode. They do not blink one by one during
rewinding in the repeat playback mode.
# DIGITAL ECHO control (HR-JP34K only)
To add as much echo to your voice.
$ MIC volume control (HR-JP34K only)
To adjust the microphone volume.
% SP / LP / EP button
To select the recording tape speed.
0 Remote sensor window
For remote control operation.
! Colour System Output switch
Select to watch an NTSC tape and to record NTSC signal.
^ MIC input terminals (HR-JP34K only)
& VIDEO/AUDIO IN terminals (HR-JP14A only)
3
Terminals and wireless remote control
Rear panel
RF OUT
HR-JP34K
HR-JP14A
32(24)
40(27)
K
G
002
32(24)
40(27)
K
G
001
ANT.IN
RF OUT
ANT.IN
AUDIO
VIDEO
IN OUT
AUDIO
VIDEO
1 AC power cord
2 RF channel adjustment screw
3 RF. OUT terminal
4 AUDIO/VIDEO IN terminals
5 AUDIO/VIDEO OUT terminals
6 ANT. IN terminal
OUT
7 TV system switch
(HR-JP34K only)
Remote control
REMOTE CONTROL UNIT
VIDEO
TV/VCR
AUTO
- TRACKING
+
-
TV CH +
- VOLUME
+
TV/VCR
TV
When using the remote control for operation of the video
cassette player, make sure that it is pointed at the remote
sensor window.
You can also use the player’s remote control to operate a JVC
television.
1 Transmitting window
2 TV/VCR (Player) button
Not function
3 Digital AUTO TRACKING button
To cancel the Auto tracking mode.
4 Rewind 1 + button
To rewind the video tape. Also to start reverse shuttle
search playback.
5 Play 3 button
To start playback.
6 Record ¶ button
Press the Record
recording.
¶¶
¶ and Play
¶¶
3 3
3 buttons together, to start
3 3
7 TV channel –/+ buttons
8 TV VOLUME –/+ buttons
9 POWER (Player) button
To turn the power on and off (standby mode).
0 TRACKING –/+ buttons
To adjust tracking during playback.
! Fast forward ¡ Z button
To fast forward the video tape. Also to start forward shuttle
search playback.
@ Pause 8 button
To freeze the picture during playback. Also to engage the
recording pause mode.
# Stop 7 button
To stop playback.
$ POWER (TV) button
To turn the TV power on and off.
% TV/VCR (TV) button
To switch TV between TV and VCR (or AV).
Notes:
• Point the remote control toward the sensor window.
• The maximum operating distance of the remote control is
about 8 m.
• When inserting the batteries, be sure to insert in the correct
directions as indicated under the battery cover.
• If the remote control doesn’t work properly, remove its
batteries, wait a short time, replace the batteries and then try
again.
4

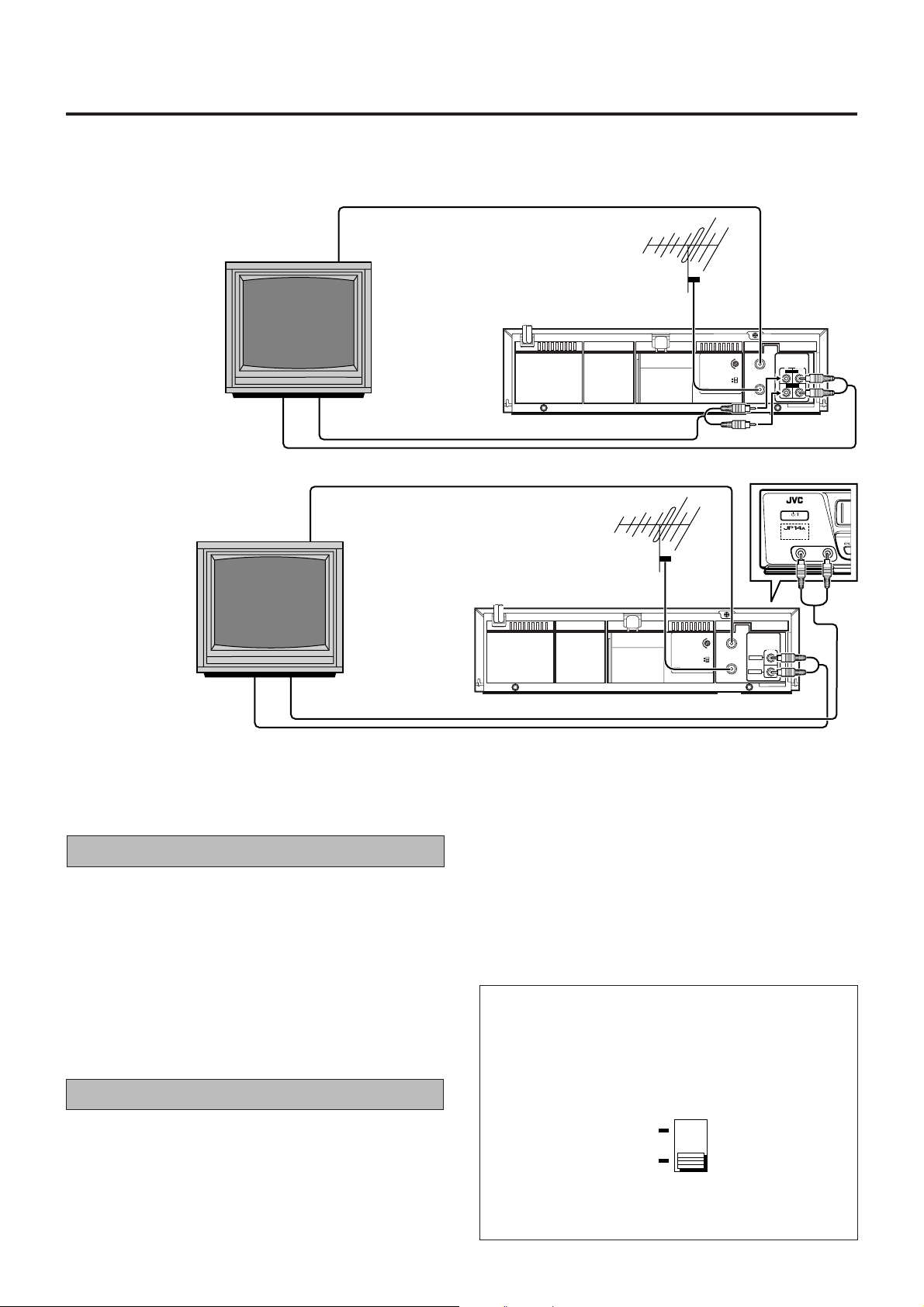

Connections
G
K
Make sure that the power to the video cassette player and TV
is off before making the following connections.
Connection A
HR-JP34K
Connection B
Connection A
RF OUT
32(24)
40(27)
K
G
002
ANT.IN
IN OUT
AUDIO
VIDEO
STANDBY/ON
VIDEO CASSETTE
PLAYER
HR-JP14A
VIDEO AUDIO
HR-JP14A
Connection B
Connection A (basic)
In order to use the video cassette player it must be connected
between the antenna and the TV.
Connect your TV antenna cable to the video cassette
1
player’s ANT. IN terminal.
Connect one end of the provided RF antenna cable to
2
the video cassette player’s RF. OUT terminal and the
other end to the TV’s antenna terminal.
Connect the power cord to your household AC outlet.
3
Connection B
RF OUT
32(24)
40(27)
K
G
002
ANT.IN
OUT
AUDIO
VIDEO
Note:
If you put a TV set directly on this VCP or install it too close to
a TV set, noise may occur. If this noise occurs, separate the
VCP and the TV set.
Connect the TV’s VIDEO OUT and AUDIO OUT termi-
2
nals to the video cassette player’s VIDEO IN and AUDIO IN terminals.
Connect the TV’s VIDEO IN and AUDIO IN terminals to
3
the VCP’s VIDEO OUT and AUDIO OUT terminals.
Connect the power cord to your household AC outlet.
4
TV system
The TV system switch should be set as follows.
K position: Set to this position for K system areas (East-
G position: Set to this position for G system areas (West-
ern European countries).
ern European countries for example).
For connection of a TV that has VIDEO/AUDIO IN/OUT terminals. This connection is necessary to record TV programmes.
Use RCA type pin connection cords (available from audio/video
stores) for connection. This connection is in addition to connection A.
Follow steps 1 and 2 of “Connection A”.
1
Note:
• When connection B is used to connect the TV and video
cassette player, setting the TV system switch is not
necessary.
5
Setting the video channel
The video cassette
To watch videos on your TV, it must be set to the same UHF
channel as the video cassette player. This channel is used as
the video channel.
This video cassette player has been preset to UHF channel 36.
Note:
• When you have connected the VIDEO/AUDIO OUT terminals of this video cassette player to your TV’s video/audio in
terminals (connection B of the “Connections” section), setting the video channel is not necessary. In this case simply
set the TV’s TV/VCR switch to VCR.
Turn the video cassette player’s power on and load a
1
pre-recorded video tape.
Turn on the TV and set it to UHF channel 36.
2
If UHF channel 36 is being used for broadcasting in
your area:
Adjust the TV’s channel selector a little at a time until the TV
screen is blank (set it towards a higher or lower channel).
Adjust the RF channel adjustment screw on the rear panel
of the video cassette player a little at a time until the
playback picture appears on the TV screen.
32(24)
40(27)
Higher channel
Lower channel
Inserting a cassette
STANDBY/ON
VIDEO CASSETTE
PLAYER
HR-JP34K
MIC12
STANDBY/ON
VIDEO CASSETTE
PLAYER
HR-JP34A
SP/LP/EP
MIC12
MIC
MAXMIN
SP/LP/EP
DIGITAL ECHO
B.E.S.T
100
KARAOKE MULTI LONG PLAY RECORDING
7
SUPER HEAD CLEANER 7 AUTO VOLTAGE 7 PAL / MESECAM / NTSC 3.58 / 4.43
MIC
DIGITAL ECHO
MAXMIN
100
STANDBY / REC
B.E.S.T
POWER-ON
NTSC
PLAYBACK
ON PAL TV
LP / EP
NTSC
4.43
NTSC 3.58
NTSC
PLAYBACK
ON PAL TV
POWER-ON
LP / EP
NTSC
4.43
STANDBY / REC
NTSC 3.58
B.E.S.T.
PAL NTSC
B.E.S.T.
PAL NTSC
7 Insert the cassette as shown and push it gently into the
video cassette player.
The video cassette player will be turned on automatically and
the cassette will be loaded.
7 Press the Stop/Eject § button to eject a cassette.
During playback or recording, press the § button twice
(once to stop the tape and once more to eject it).
Notes:
• If the cassette’s safety tab has been removed, playback will
start automatically when the cassette is inserted.
• A cassette can also be ejected when the power is off.
• The POWER-ON indicator blinks while the cassette is ejected.
Special note on Video Cassettes
• If the TV’s channel selector was set to a higher channel
than channel 36, turn the RF channel adjustment screw
to the left and vice versa.
Adjust the TV picture with the TV’s tuning controls.
3
Using the TV while the video
cassette player is connected
To watch a normal TV broadcast, select a TV station with
the TV’s channel selector.
To prevent accidental recording on a recorded cassette, remove its safety tab. To record on it later, cover the hole with
adhesive tape.
Safety tab
6

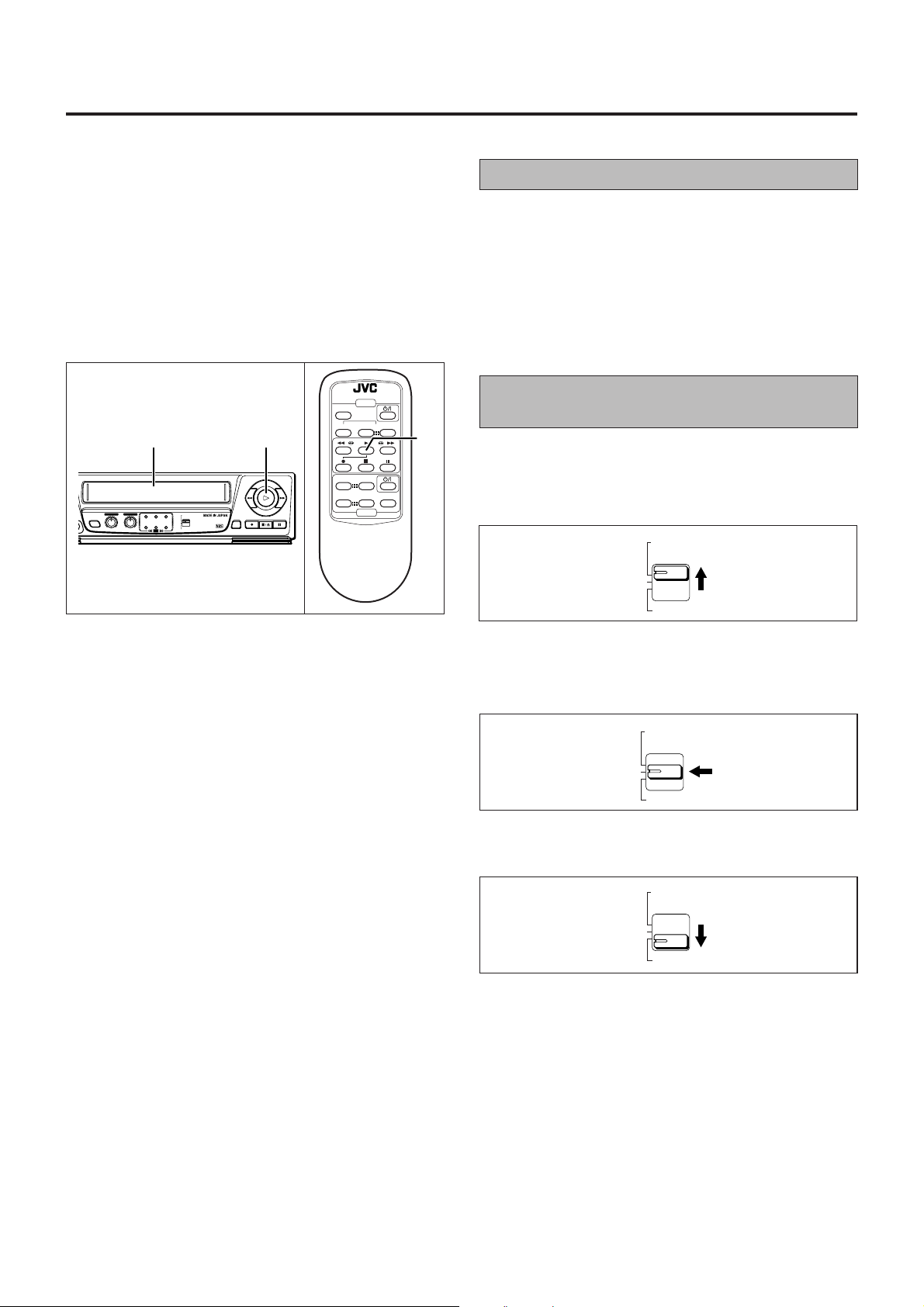

Playback
NTSC
PLAYBACK
ON PAL TV
NTSC
4.43
NTSC3.58
NTSC
PLAYBACK
ON PAL TV
NTSC
4.43
NTSC3.58
NTSC, PAL and MESECAM video tapes can be played back on
this video cassette player. Refer to the “Colour system output
mode selection” section for details.
Before proceeding:
• Turn on the power of the TV and video cassette player.
• Make sure that the TV is set to the video channel or that the
TV’s TV/VIDEO switch is set to VIDEO (refer to the “Setting
the video channel” section for details).
REMOTE CONTROL UNIT
VIDEO
TV/VCR
AUTO
- TRACKING
+
12
-
TV CH +
- VOLUME
+
MIC
DIGITAL ECHO
SP/LP/EP
MAXMIN
100
NTSC
PLAYBACK
ON PAL TV
B.E.S.T
POWER-ON
LP / EP
NTSC
STANDBY / REC
4.43
NTSC 3.58
B.E.S.T.
PAL NTSC
TV
2
TV/VCR
NTSC Playback on PAL TV
• The vertical size of the playback picture will shrink and some
picture “noise” may appear on the screen.
• The playback picture may roll. In this case adjust the picture
with the TV’s vertical hold knob (with some TV’s this adjustment may not be possible).
• The colour of the playback picture may differ from the
original.
• In the forward/reverse shuttle search or still modes there
may be no colour depending on the TV and video cassette
player combination.
Colour system output mode selection
To watch an NTSC tape, it will be necessary to select one of the
following output modes.
Selecting the NTSC PLAYBACK ON PAL TV mode
Select this mode to watch NTSC tapes on a PAL system TV.
Load a pre-recorded cassette.
1
If the safety tab on the cassette is removed, playback will
start automatically.
Press the Play - button to start playback.
2
7 Press the Stop/Eject § button or the remote control’s
Stop 7 button to stop playback.
To fast forward or rewind the tape:
7 From the stop mode, press the Fast forward ¡ or
Rewind 1 button.
Note:
All five indicators excluding the STANDBY/REC indicator blink
one by one in a clockwise sequence during playback or fast
forward mode and in a counterclockwise sequence during
rewind mode. They do not blink one by one during rewinding
in the repeat playback mode.
Selecting the NTSC 4.43 mode
Select this mode to watch NTSC tapes on a multi-system TV
(that has an NTSC 4.43 setting).
Select NTSC 4.43 to record NTSC 4.43 signal.
NTSC
PLAYBACK
ON PAL TV
NTSC
4.43
NTSC3.58
Selecting the NTSC 3.58 mode
Select this mode to watch NTSC tapes on a NTSC system TV.
7
Playback features
Slow motion playback
Slow motion playback is 1/6 of the normal playback speed. The
sound will be cut during slow motion playback.
During playback:
Press the Pause 8 button for 2 seconds.
1
7 Press the Play 3 button to return to the normal playback
speed.
Notes:
• If the picture shakes during the slow mode, use the manual
tracking +/– buttons to correct the picture.
• After approx. 5 minutes, the slow mode will disengage to
protect the video tape.
Still picture and frame advance
Use this feature to freeze the playback picture and to advance
one frame at a time. The sound will be cut during this mode.
During playback:
Press the Pause 8 button.
1
The picture will be frozen.
Press the Pause 8 button repeatedly to advance frames.
2
Each time the button is pressed the still picture will advance
one frame.
Repeat playback
Use this feature to repeat playback of a cassette 50 times.
During playback:
Press the Play 3 button for more than 5 seconds.
1
The Play indicator will blink slowly and playback of the
cassette will repeat 50 times automatically.
Press the Stop 7 button to stop repeat playback.
2
Tape playback will be stopped and the repeat playback
mode will be cancelled.
Rewind power off
When the tape has finished rewinding, the VCP will turn itself off.
During stop:
Press the Rewind 1 button.
1
Press the STANDBY/ON
2
The STANDBY/REC indicator will blink.
button within 2 seconds.
Tracking adjustment
Automatic tracking is adjusted each time a cassette is inserted
in the video cassette player, you may wish to adjust tracking
manually during playback.
Manual tracking:
7 Press the Play 3 button to resume normal playback.
Notes:
• If the picture shakes during the still mode, use the manual
tracking +/– buttons to correct the picture.
• After the picture has been frozen for approx. 5 minutes, the
still mode will disengage to protect the video tape.
Shuttle search playback
Use this feature during playback to visually locate any point on
a recorded cassette. The sound will be cut during shuttle search
operation.
During playback:
Press the Fast forward ¡ or Rewind 1 button to
1
engage shuttle search forward or reverse.
7 Press the Play 3 button to resume normal playback.
Notes:
• When the video cassette player is in the stop mode, press the
Play 3 button to start playback before engaging the shuttle
search mode.
• For short searches, press and hold Fast forward or Rewind
button. When released, normal playback will continue.
Press the remote control’s AUTO button.
1
Press the remote control’s TRACKING + or – button to
2
adjust tracking.
7 Press the AUTO button to return to automatic tracking.
Notes:
• Tracking may need to be adjusted each time a different video
tape is inserted for playback.
• Tracking will be automatically set to the reference position
when the cassette is ejected.
ATTENTION:
In the search, still, slow-motion or frame advance mode,
• the picture will be distorted.
• the noise bars will appear.
• there will be loss of colour.
• the picture may not appear.
These problems may occur especially in the SP mode.
8
Recording
Karaoke features
Use the following procedure to record TV programmes on a
blank video tape.
Before proceeding:
• To record TV programmes, the video cassette player must
be connected to the TV as shown in connection B of the
“Connections” section.
• Turn on the power of the TV and video cassette player.
• Make sure that the video cassette’s safety tab is intact. If it
has been removed, cover the hole with adhesive tape.
REMOTE CONTROL UNIT
VIDEO
TV/VCR
1
AUTO
- TRACKING
+
3
-
TV CH +
MIC
DIGITAL ECHO
SP/LP/EP
MAXMIN
100
NTSC
PLAYBACK
ON PAL TV
B.E.S.T
POWER-ON
LP / EP
NTSC
STANDBY / REC
4.43
NTSC 3.58
B.E.S.T.
PAL NTSC
- VOLUME
+
TV/VCR
TV
32
Karaoke (HR-JP34K only)
Use this feature to enjoy karaoke video. Connect a microphone
to both MIC 1 and MIC 2 for duets.
Insert a pre-recorded Karaoke tape.
1
Press the PLAY 3 button.
2
Adjust the MIC volume as necessary.
3
Adjust the DIGITAL ECHO volume as necessary.
4
Start singing.
5
Note:
Check that the power is off (standby mode) before plugging in
the microphone.
Load a blank video tape.
1
Press SP/LP/EP button to set the recording speed.
2
If LP or EP is selected, the LP/EP indicator will light.
Press the Record
3
remote control unit press the Record
¶¶
¶ button to start recording. (On the
¶¶
¶¶
¶ and Play
¶¶
33
3
33
button at the same time.)
The recording indicator will light during recording.
7 Press the Stop/Eject § button or the remote control’s
Stop 7 button to stop recording.
To stop recording temporarily:
7 Press the Pause 8 button.
The recording indicator will blink.
Press the Play 3 button to resume recording.
Notes:
• To engage recording standby, press the Record ¶ button
and then press the Pause 8 button. The recording indicator
will blink during recording standby. Press the Play 3 button
again to start recording.
• If the Record ¶ button does not work, check to see if the
cassette safety tab has been removed.
• The player automatically stops when record-standby continues for more than 5 minutes.
• The video tape will be rewound automatically when the end
of the tape is reached.
9
B.E.S.T. picture system
The B.E.S.T. (Biconditional Equalized Signal Tracking) system
checks the condition of the tape in use during recording and
playback, and compensates to provide the highest-possible
recording and playback pictures. The default setting for both
recording and playback is ‘‘ON’’.
Recording
Insert a cassette with the record safety tab intact.
1
7 The recorder power comes on automatically.
The default setting is ‘‘ON’’.
2
7 If this is the case, go to step 3. If not, press B.E.S.T. button
to set B.E.S.T.on and B.E.S.T. indicator lights.
Press and hold Record ¶ and Play
3
remote, or press Record ¶ button on the recorder.
7 The recorder spends approximately 7 seconds assessing
the condition of the tape, then begins recording.
33
3 buttons on the
33
Playback
The recorder assesses the quality of the tape once you initiate
playback.
When watching a tape recorded with B.E.S.T. set to on, it is
recommended that you leave B.E.S.T. on during playback as
well.
Press Play
1
7 The recorder adjusts the playback picture quality based on
the quality of the tape in use.
7 B.E.S.T. is active during Auto Tracking.
Notes:
• When watching a rental tape, or one recorded on another
video recorder, set B.E.S.T. to on or off to your preference by
pressing B.E.S.T. button.
• B.E.S.T. indicator only lights at the beginning of automatic
tracking. Even though it doesn’t appear after that, the B.E.S.T.
function is operative.
33
3 button to start playback.
33
Notes:
• The B.E.S.T. system works only after a tape has been
inserted and the Record mode is first initiated. It does not
work during recording.
• Once the cassette is ejected, the B.E.S.T. data is cancelled.
The next time the cassette is used for recording, B.E.S.T. is
re-performed.
ATTENTION:
Since the B.E.S.T. system works before recording actually
starts, there is a delay of approximately 7 seconds after
Record
or Record
sure you record the desired scene or programme in its
entirely, first perform the following steps:
1 Press and hold Pause
2 Press Play 3 button to start recording.
¶¶
¶ and Play 3 buttons on the remote are pressed,
¶¶
¶¶
¶ button on the recorder is pressed. To make
¶¶
88
8 and Record
the Record Pause mode.
•The recorder then automatically check the condition of
the tape and, after approximately 7 seconds, reenters
Record Pause.
•If you want to bypass the B.E.S.T. system and begin
recording immediately, press B.E.S.T. button to set
B.E.S.T. off.
88
¶¶
¶ buttons to engage
¶¶
10
Editing

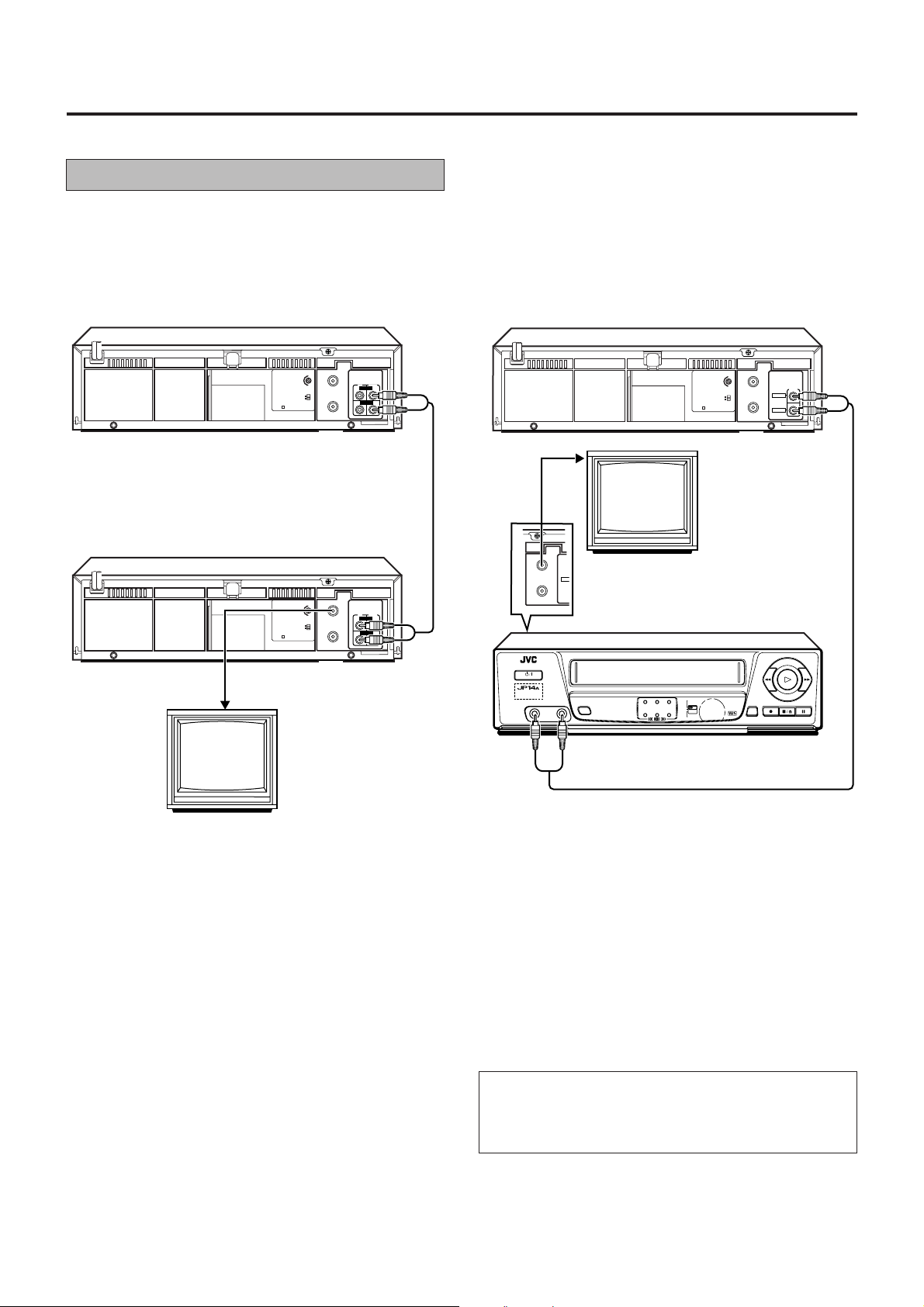

Editing T o/Fr om Another Recorder
HR-JP34K HR-JP14A
Player
Recorder
TV
Receiver
RF OUT
32(24)
40(27)
K
G
002
ANT.IN
IN OUT
AUDIO
VIDEO
Audio/Video signals
RF OUT
32(24)
40(27)
K
G
002
ANT.IN
IN OUT
AUDIO
VIDEO
Player
RF OUT
ANT.IN
STANDBY/ON
VIDEO CASSETTE
PLAYER
HR-JP14A
VIDEO AUDIO
RF OUT
32(24)
TV
40(27)
K
G
002
Audio/Video signals
ANT.IN
OUT
AUDIO
VIDEO
Receiver
VIDEO CHANNEL
AUD
Recorder
NTSC
PLAYBACK
SP/LP/EP
NTSC 3.58/4.43
PAL B / G, D / K MESECAM B / G, D / K RECORDING
NTSC PLAYBACK ON PAL TV
B.E.S.T
POWER-ON
STANDBY / REC
ON PAL TV
LP / EP
NTSC
4.43
NTSC 3.58
B.E.S.T.
PAL NTSC
VIDEO CHANNEL
Connect the player’s AUDIO and VIDEO OUT connectors
1
to the recorder’s AUDIO and VIDEO IN connectors.
Put the player in the Play mode.
2
Put the recorder in the Record mode.
3
Notes:
• NTSC tapes being played back in the NTSC PLAYBACK ON
PAL TV mode cannot be dubbed to another recorder.
• When you dub an NTSC tape using your recorder as the
playback deck, select NTSC 3.58 (or 4.43) with the Colour
System Output switch.
Important:
7 To edit, both the player and the recorder must be of the
same colour system. Press your recorder’s Colour system switch to select the appropriate colour system.
11
Troubleshooting
Specifications
Problem
No power
Tape cannot be ejected
No picture
No colour
Shuttle search does not
function
Disturbances in playback
Remote control does not
function
Auto playback does not
function
Recording does not function
The video cassette player
does not function properly
Check point
Is the power cord plugged
in?
Is the power turned on?
Was the video cassette
player’s § button pressed?
Is the TV set to the video
channel?
Is a cassette loaded?
Are the connections correct?
Set the Colour System Output switch according to the
recorded tape system.
Is the video cassette player
in the playback mode?
Is tracking adjusted properly?
Is the TV adjusted properly?
Install this VCP a little way
apart from the TV set.
The batteries are weak.
Replace the batteries.
The video cassette’s recording safety tab has not been
removed.
Are the connections correct?
Was the Record button
pressed?
The video cassette’s recording safety tab is removed.
Microcomputer malfunction.
Disconnect the power plug
from the AC outlet and then
re-insert it.
The microcomputer will be
reset to its initial mode.
About Head cleaning
7 If the picture playback becomes blurred, it does not mean
that the recorded program has been erased.
7 Dirt accumulated on the video heads after long periods of
use causes such troubles. In this case, head cleaning
requiring highly technical care is necessary.
7 For head cleaning, consult the nearest JVC dealer.
Format................................ VHS Standard
Video recording system ..... Rotary, slant azimuth two-head
helical scan system
Rotary heads...................... 2 video heads
RF output ........................... System G/K type modulation
UHF ch 32 – 40 adjustable (preset
ch 36)
Recording (line input)......... PAL, SECAM (MESECAM tape)
NTSC 3.58, NTSC 4.43
Playback (line output) ........ PAL, SECAM (MESECAM tape)
NTSC 3.58
NTSC 4.43
Simulated PAL (NTSC tape)
Video
Line input level ................. 0.5 – 2.0 Vp-p/75 ohms, unbal-
anced
Line output level............... 1.0 Vp-p/75 ohms, unbalanced
S/N ratio........................... More than 45 dB
Horizontal resolution ........ More than 250 lines
(PAL/MESECAM)
More than 220 lines (NTSC)
Audio
Line input level................. –8 dBm/50 k ohms, unbalanced
Line output level............... –6 dBm/1 k ohm, unbalanced
Frequency response ........ 70 Hz to 10,000 Hz (Normal)
FF, REW time .................... Approx. 3 min. with E-180
cassette
Power requirements
Rating .............................. AC 110 – 240 V, 50/60 Hz
Operating ......................... AC 90 – 260 V, 50/60 Hz
Power consumption ........... 13 W
Operation temperature....... 5°C to 40°C
Dimensions ........................ [HP-JP34K]
400 (W) × 94 (H) × 288 (D) mm
[HP-JP14A]
400 (W) × 94 (H) × 280 (D) mm
Weight................................ 3.1 kg
Standard accessories
Remote control unit...............................................................1
Batteries for remote control...................................................2
RF antenna cable..................................................................1
Microphone (HR-JP34K only) ...............................................1
Conversion plug ....................................................................1
• Design and specifications subject to change without notice.
12
MEMO
13
Loading...
