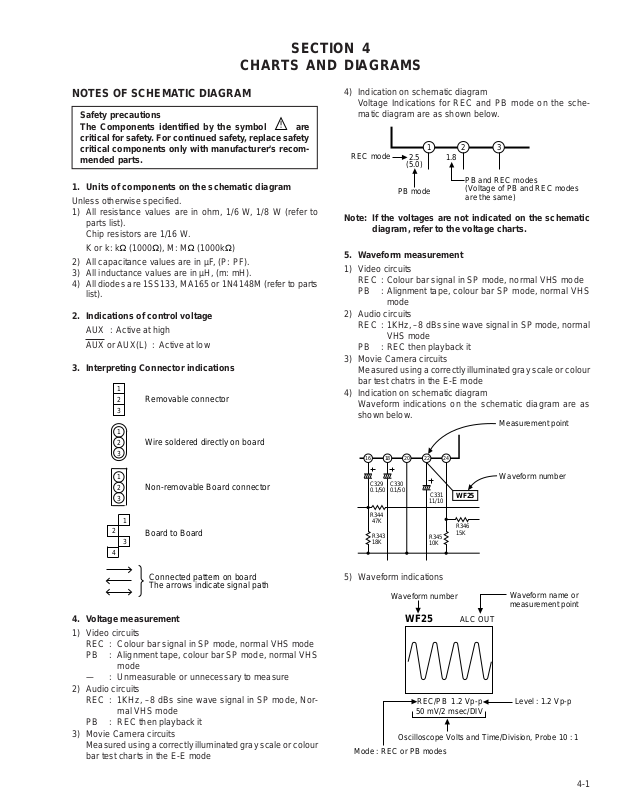

CHARTS AND DIAGRAMS

NOTES OF SCHEMA TIC DIAGRAM

Safety precautions
The Components identified by the symbol are

critical for safety . For continued safety, replace safety
critical components only with manufacturer's recom­mended parts.

1. Units of components on the schematic diagram

Unless otherwise specified.

1) All resistance values are in ohm, 1/6 W, 1/8 W (refer to
parts list).
Chip resistors are 1/16 W.

K or k: k

2) All capacitance values are in µF, (P: PF).

3) All inductance values are in µH, (m: mH).

4) All diodes are 1SS133, MA165 or 1N4148M (refer to parts
list).

2. Indications of control voltage

AUX : Active at high
AUX or AUX(L) : Active at low

3. Interpreting Connector indications

(1000 ), M: M (1000k )

1
2

Removable connector

3

1
2

Wire soldered directly on board

3

4) Indication on schematic diagram
Voltage Indications for REC and PB mode on the sche­matic diagram are as shown below.

Note: If the voltages are not indicated on the schematic

diagram, refer to the voltage charts.

5. Waveform measurement

1) Video circuits
REC : Colour bar signal in SP mode, normal VHS mode
PB : Alignment tape, colour bar SP mode, normal VHS

mode

2) Audio circuits
REC : 1KHz, –8 dBs sine wave signal in SP mode, normal

VHS mode

PB : REC then playback it

3) Movie Camera circuits
Measured using a correctly illuminated gray scale or colour
bar test chatrs in the E-E mode

4) Indication on schematic diagram
Waveform indications on the schematic diagram are as
shown below.

24

22201816

Measurement point

1
2
3

1

2

3

4

4. Voltage measurement

1) Video circuits
REC : Colour bar signal in SP mode, normal VHS mode
PB : Alignment tape, colour bar SP mode, normal VHS

mode

— : Unmeasurable or unnecessary to measure

2) Audio circuits
REC : 1KHz, –8 dBs sine wave signal in SP mode, Nor-

mal VHS mode

PB : REC then playback it

3) Movie Camera circuits
Measured using a correctly illuminated gray scale or colour
bar test charts in the E-E mode

Non-removable Board connector

Board to Board

Connected pattern on board
The arrows indicate signal path

C329

C330

0.1/50

R344
47K

R343
18K

0.1/50
C331

11/10

R345
10K

5) Waveform indications

Waveform number

WF25

REC/PB 1.2 Vp-p

50 mV/2 msec/DIV

Oscilloscope Volts and Time/Division, Probe 10 : 1

Mode : REC or PB modes

WF25

R346
15K

ALC OUT

Waveform number

Waveform name or
measurement point

Level : 1.2 Vp-p

4-1

6. Signal path Symbols

The arrows indicate the signal path as follows.

Playback signal path
Playback and recording signal path
Recording signal path

(including E-E signal path)
Capstan servo path

CIRCUIT BOARD NOTES

1. Foil and Component sides

1) Foil side (B side) :
Parts on the foil side seen from foil face (pattern face)
are indicated.

2) Component side (A side) :
Parts on the component side seen from component face
(parts face) indicated.

Drum servo path

(Example)

R-Y

Playback R-Y signal path

Y

Recording Y signal path

7. Indication of the parts for adjustments

The parts for the adjustments are surrounded with the circle as
shown below.

8. Indication of the parts not mounted on the circuit board

“OPEN” is indicated by the parts not mounted on the circuit
board.

R216

OPEN

2. Parts location guides

Parts location are indicated by guide scale on the circuit board.

REF No. LOCATION

Category: IC

Horizontal “A” zone
Vertical “6” zone

(A : Component side)

(D : Discrete component)

B : Foil side

C : Chip component

IC

IC101 B C 6A

Note:

For general information in service manual, please refer
to the Service Manual of GENERAL INFORMA TION Edi­tion 4 No. 82054D (January 1994).

4-2

4.1 BOARD INTERCONNECTIONS

NO NAME

91

03 MAIN

93

55

57

41

58

12 A/C HEAD

MINI OPE28

38

SAT CTL

LITHIUM BATTERY
R.PA USE

CAP MDA

LOADING MOTOR

U.DRUM

DRUM MOTOR

ADV.JOG

92

OPEN

9

2

SAT CTL

91

R.PAUSE

98

P50 I/O

CN7104

SAT CTL

CN7106

R.PAUSE

CN7106

P50 I/O

OPEN

RF OUT RF IN

TUNER

TU6001

ALPS

BB(AL5V
AUDIO IN

CN7102
SAT CTL

GND

GND

GND

CN7105
R.PAUSE
GND

MOD SDA
MOD B(AL5V
MOD SCL
VIDEO IN
TU(30V
RF AGC
NC
AS
SCL
SDA
NC
MB(SW5V
LOCK
TU(30V
TP
IF OUT
SW 1
SW 2
AUDIO OUT
SIF OUT
AFT
VIDEO OUT

OPEN

CN7106

P50 I/O

GND

GND

MATSUSHITA

)

BB(AL5V

)

AUDIO IN
MOD SDA

)

MOD B(AL5V

)

MOD SCL
VIDEO IN
NC

)

RF AGC
(BT)
AS
SCL
SDA
NC

)

MB(SW5V

)

LOCK

)

TU(30V

)

IF OUT
IF IN
SW 1
SW 2
AUDIO OUT
SIF OUT
AFT
VIDEO OUT

)

MB(30V

RAA

FOR EURO Hi-Fi

REAR OUT REAR IN

FOR ARC MONO

FOR ARC Hi-Fi

J7103 J7104

RR

LL

VV

VVL

FOR ARC Hi-Fi

FOR ARC MONO

03

MAIN

(

VIDEO/AUDIO Page 4-5

(

ON SCREEN Page 4-7

(

SYSCON Page 4-9

(

SW.REG Page 4-11

(

TUNER/DEMOD Page 4-13

(

FRONT Page 4-15

(

TERMINAL Page 4-17

(

SECAM Page 4-19

J7101 J7102

AV1 IN/OUT AV2 IN/DECODER

)
)
)

)
)
)
)
)

93

LITHIUM
BATTERY

(

Page 4-10

LI BACK UP

FW7006
##QGD2001C1-02

CN3005

LI BACK UP

)

GND

GND

AC INPUT

BLU

CN5001

QGA7901C3-02

BRN

OPEN

OPEN

38

ADV.JOG

CN7001 CN7003

GND

KEY OUT

JSA

T1
T2
T3
T4

T6

JSA
JSBJSB
T1
T2
T3
T4
GND
T6
KEY OUT

VIN LIN

FOR Hi-Fi

FRONT IN

J7105

RIN

OPEN

QGB2532J1-02

CN2002

FULL ERASE

F.E

ONLY USED FOR
HR-J480EU/MS

OPEN

)
M

(

QGF1208C1-05

QGF1207C1-05

GND

CN3001

QGF1201C1-05

DRUM 12V

DRUM CTL V

D.PG

D.FG

GND

CN1

QGF1028C2-08

QGF1028C1-11

QGF1028C3-04

LP CH1

LP CH1

SP CH1

SP CH2

SP CH2

SP CH1

FMA CH1

FMA COM

LP CH2

LP CH2

FMA CH2

QGB2015M1-08

CN3003

57

58

CON1

DRUM MO TOR

41

U.DRUM

FULL ERASE HEAD

M

LP

CH1

LP SP SP

CH2 CH1 CH2

FMA

CH1 CH2

)
C

(
GND

CAP FG

)
M

(
GND

SW5V

CAP CTL V

CAP MDA

M

)

L

(

NC

CAP REV

M12V

QGB2534J2-04

LSB

CN3004

ROTARY

ENCODER

)
C

(

LSA

LSC

GND

QGF1207C1-07

CN2001

QGF1201C1-07

QGF1208C1-07

REC

CN1

QGF1208F1-07

)

)

-

+

(

(

QGB2532J1-02

LDM1

PB

GND

AUDIO ERASE

GND

CTL HEAD

CTL HEAD

CN3002

LDM2

M

55

LOADING MOTOR

12

A/C HEAD

CTLR/P

A.E

28

MINI FRONT

(

)

Page 4-15

NC
NC
NC
NC
NC
NC
GND
T6
KEY OUT

p10341001a rev0

4-3 4-4
