JVC HR-DD865EK User Manual

VIDEO CASSETTE RECORDER
HR-DD865EK
CABLE
/SAT
VCR
– –:– –
LCD PROG
1
AUDIO
TV/VCR
ENTER/ENTREE
2
123
30 SEC
456
WEEKLY/HEBDO
DAILY/QTDN.
VPS/PDC
3
789
AUX
0000
4
0
4 3
OK
1
MENU
PROG
2
TV
START
STOP
DATE
PROG
DEBUT
FIN
EXPRESS
R
O
P
G
V
+
T
+
T
V
V
T
T
V
G
P
R
O
VIDEO
STANDBY/ON
(MONO)
L –AUDIO– R
TIMER
SYNCHRO EDIT
TV PROG
TV PROG
+ 8 4
SP
0 6
REC LINK
15dB NORM
REVIEW
VPS/PDC
VCR
INSERT
A.DUB
INSTRUCTIONS
S
L
W
O
O
W
L
S
REW
FF
JOG
SHUTTLE
PAL
CONTENTS
SAFETY FIRST 2
Safety Precautions.............................2
Some Do's And Don'ts .....................3
QUICK SET UP GUIDE 4
CHECK THE CONTENTS ..................4
INSTALLATION ................................5
AUTO SET UP ..................................6
T-V LINK 9
T-V LINK Functions ...........................9
BASIC OPERATIONS 10
Playback.........................................10
Recording .......................................12
VIDEO Plus+ Timer Programming...14
Express Timer Programming............16
ADVANCED OPERATIONS 19
Playback Picture Adjustment ..........19
Playback/Recording According
To Tape Characteristics ...................20
Looking For The Scene You Want ...22
TimeScan........................................24
Selecting The Sound You Want .......26
Automatic Satellite Programme
Recording .......................................28
Remote Control Functions ..............30
Edit From A Camcorder...................33
Synchro Editing...............................34
Edit To Or From Another Video
Recorder.........................................35
Audio Dubbing...............................37
Insert Editing...................................38
Information On J Terminal ..............40
Other Functions..............................41
SYSTEM CONNECTIONS 45
Connection To A Stereo System ......45
SUBSIDIARY SETTINGS 46
Video Channel Set ..........................46
Tuner Set.........................................48
Clock Set ........................................55
VIDEO Plus+ Setup.........................56
SUBSIDIARY INFORMATION 57
Questions And Answers..................57
Troubleshooting ..............................58
Index ..............................................60
SPECIFICATIONS Back Cover
LPT0247-001A
2
SAFETY FIRST
Safety Precautions
The rating plate and the safety caution are on the rear of the unit.
WARNING: DANGEROUS VOLTAGE INSIDE WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR
MOISTURE.
IMPORTANT
n Please read the various precautions on p. 2 – 3 of this
instruction manual before installing or operating the recorder.
n It should be noted that it may be unlawful to re-record
pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video record­ing, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.
IMPORTANT
Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment. If
the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain a proper safety approved extension lead/adapter or consult your dealer.
In the unlikely event of the plug fuse failing be sure to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. If the fuse fails again consult your nearest JVC dealer.
If nonetheless the mains plug is cut off remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:
Blue to N (Neutral) or Black Brown to L (Live) or Red
If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured Black. Brown wire to terminal coded L (Live) or coloured Red.
If in doubt — consult a competent electrician.
PAL
n Cassettes marked "VHS" (or "S-VHS") can be used with this
video recorder. However, only VHS recordings can be made and played back.
n HQ VHS is compatible with existing VHS equipment. n VIDEO Plus+ and PlusCode are registered trademarks of
Gemstar Development Corporation. The VIDEO Plus+ system is manufactured under license from Gemstar Development Corporation.
CAUTION
n When you are not using the recorder for a long period of
time, it is recommended that you disconnect the power cord from the mains outlet.
n Dangerous voltage inside. Refer internal servicing to
qualified service personnel. To prevent electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.
The STANDBY/ON button does not completely shut off mains power from the unit, but switches operating
current on and off. " " shows electrical power standby and " " shows ON.
Video tapes recorded with this video recorder in the LP (Long Play) mode cannot be played back on a single-speed video recorder.
Failure to heed the following precautions may result in damage to the recorder, remote control or video cassette.
1. DO NOT place the recorder . . .
... in an environment prone to extreme temperatures or
humidity. ... in direct sunlight. ... in a dusty environment. ... in an environment where strong magnetic fields are
generated. ... on a surface that is unstable or subject to vibration.
2. DO NOT block the recorder’s ventilation openings.
3. DO NOT place heavy objects on the recorder or remote control.
4. DO NOT place anything which might spill on top of the recorder or remote control.
5. AVOID violent shocks to the recorder during transport.
MOISTURE CONDENSATION
Moisture in the air will condense on the recorder when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form in the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the recorder turned on for a few hours to let the moisture dry.
ABOUT HEAD CLEANING
Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or inter­rupted. Be sure to contact your nearest JVC dealer if such troubles occur.
Some Do's And Don'ts On The Safe Use Of Equipment
This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.
DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnec-
tions between pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug when making or changing connections.
DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equip-
ment.
DO be careful with glass panels or doors on equipment. DON'T continue to operate the equipment if you are in any doubt about it working normally, or if it is
damaged in any way — switch off, withdraw the mains plug and consult your dealer.
DON'T remove any fixed cover as this may expose dangerous voltages. DON'T leave equipment switched on when it is unattended unless it is specifically stated that it is de-
signed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.
DON'T use equipment such as personal stereos or radios so that you are distracted from the requirements
of road safety. It is illegal to watch television whilst driving.
DON'T listen to headphones at high volume, as such use can permanently damage your hearing. DON'T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheat-
ing will cause damage and shorten the life of the equipment.
DON'T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always
fit the manufacturer's approved stand or legs with the fixings provided according to the instruc­tions.
DON'T allow electrical equipment to be exposed to rain or moisture.
3
ABOVE ALL...
NEVER let anyone especially children push anything into holes, slots or any other opening in the
case — this could result in a fatal electrical shock;
NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than
sorry!
4
1 2 3 4 5 6 7 8 9
1
2
3
4
1
2
3
4
VCR
TV
CABLE
/SAT
TV/VCR
– –:– –
AUDIO
0000
START
DEBUT
STOP
FIN
DATE
TV
PROG
DAILY/Q TDN.
VPS/PDC
AUX
WEEKLY/HEBDO
EXPRESS
LCD PROG
ENTER/ENTREE
0
PROG
MENU
OK
30 SEC
T
V
P
R
O
G
+
T
V
P
R
O
G
T
V
T
V
+
QUICK SET UP GUIDE
Dear Customer,
Thank you for purchasing this JVC Video Cassette Recorder. Please use this QUICK SET UP GUIDE to help you to set up your video cassette recorder.
CHECK THE CONTENTS
STEP
VIDEO
1
TIMER
STANDBY/ON
(MONO)
L –AUDIO– R
RF Cable
CHECK ALL THE CONTENTS SHOWN BELOW
Video Cassette Recorder
S
L
W
O
O
W
L
S
TV PROG
TV PROG
SYNCHRO EDIT
REC LINK
+
8
4 0 6 15dB NORM
SP
REVIEW
VPS/PDC
VCR
INSERT
"AA" Batteries (x 2)
REW
A.DUB
FF
JOG
SHUTTLE
Infrared Remote Control Unit
You are now ready to install your video recorder.
INSTALLATION
5
2
STEP
CONNECT VIDEO RECORDER TO TV
Place the recorder on a stable, flat surface.
Back of TV
21-pin SCART Cable (not provided)
Aerial connector
21-pin AV input connector (SCART)
Mains Power Cord
RF Cable (provided)
Make this connection if your TV has a 21-pin AV input connector (SCART) in order to reduce the possibility of interference. And if you are using a stereo TV, you will need this cable in order to enjoy stereo playback of videotapes.
TV Aerial Cable (not provided)
SYNCHRO EDIT
JLIP
ANT. IN
AUDIO OUT
L
R
PAUSE
RF OUT
Back of Recorder
Mains outlet
RF CONNECTION
To connect to a TV with NO 21-pin AV input connector (SCART) . . .
1– Disconnect the TV aerial cable from the TV. 2– Connect the TV aerial cable to the ANT. IN jack on the rear
panel of the recorder.
3– Connect the provided RF cable between the RF OUT jack on
the rear panel of the recorder and the TV’s aerial connector.
AV1 IN/OUT
AV2 IN/DECODER
AV CONNECTION
To connect to a TV with 21-pin AV input connector (SCART) . . .
1– Connect the aerial, recorder and TV as per “RF CONNECTION”. 2– Connect an optional SCART cable between the AV1 IN/OUT
socket on the rear panel of the recorder and the TV’s 21-pin AV input connector (SCAR T).
ATTENTION
n Do NOT Plug the mains power cord into a mains outlet until all connections are completed. n Do NOT press the button on the recorder or on the remote control to turn on the recorder's
power before you start the Auto Set Up procedure described on page 6.
AFTER YOU FINISH THIS STEP
Go to Step 3 – AUTO SET UP
6
QUICK SET UP GUIDE (cont.)
AUTO SET UP
3
STEP
The Auto Set Up function sets the tuner channels, clock, VIDEO Plus+ assigned Guide Program numbers and the video channel* automatically the first time the button on the recorder or on the remote is pressed to turn on the recorder after the mains power cord has been plugged into a mains outlet.
* Useful if you have connected the video recorder to
your TV via RF connection ( Channel (RF output channel) is the channel on which your TV receives picture and sound signals from the video recorder through the RF cable.
SET THE TUNER CHANNELS, CLOCK, GUIDE PROGRAM NUMBERS AND VIDEO CHANNEL*
Before performing the following procedure, make sure that:
n the TV aerial cable is connected to the recorder. n the mains power cord is plugged into the mains outlet. n batteries have been installed in the remote control.
refer to page 8. your TV via both an RF cable and a 21-pin
SCART cable (AV connection) and if the TV is turned on and set to its AV mode, the AUTO SET screen will appear.
Beginning End
If you have connected the video recorder to your TV via the provided RF cable only (RF connection) —
the channel that is shown on the display panel is your Video Channel.
To view picture signals from the video recorder, set your TV to the Video Channel. — Refer to the instructions supplied with your TV set for how to do this.
If you have connected the video recorder to your TV via both an RF cable and a 21-pin SCART cable (A V connection) —
you have to set the video channel to off. Press TV PROG – until the display panel shows "_OUT Video Channel to off.
To view picture signals from the video recorder, set your TV to its AV mode. — Refer to the instructions supplied with your TV set for how to do this.
– –
" to set the
you do not need the video channel so
AUTO SET
PLEASE WAIT
0
[MENU] : EXIT
1
2
1 2 3 4 5 6 7 8 9
1
2
Z
pg. 5). Video
Press . If "Auto" appears on the display
1
panel, press OK or #. "Auto" blinks; do NOT press any button on the recorder or remote control until the display panel shows either the display as illustrated below in item 2 or "– – :– –". Auto Set Up usually takes about 4 – 12 minutes; the duration varies by area.
If "– –:– –" appears on the display panel,
If you have connected the video recorder to
– –:– –
2
3
0
4
4 3
Go to item 3 .
Go to item 3 .
+++
Press OK to finish Auto Set Up and refer to page 8 to check the results.
3
ATTENTION
Once you have performed Auto Set Up, all the stored stations, Guide Program numbers and the video channel remain in the recorder's memory and the recorder will not perform Auto Set Up again. If there is a power cut and the recorder's memory backup expires you only need to reset the clock. (Z pg. 55)
If you have moved to a different area, perform each setting as required.
n Video Channel setting (for RF connection users) Z pg. 46 n Tuner setting Z pg. 48 n Clock setting Z pg. 55
If a new station begins broadcasting in your area, perform tuner setting (Z pg. 48) and, if necessary, video channel setting (Z pg. 46).
NOTES:
Auto channel set function takes place first; it assigns automatically all receivable stations in your area.
Auto clock set function sets the clock automatically.
During auto channel set, the recorder recognizes each
station name of the detected stations and stores them in the recorder's memory, then automatically sets the VIDEO Plus+ assigned Guide Program number for those stations according to the broadcast area.
For RF connection users: The video recorder detects the
channels which are not occupied by local stations and selects one channel automatically for your Video Channel that is located in the middle of more than 5 vacant channels.
If there is power cut or if you press or MENU while
Auto Set Up is in progress, Auto Set Up will be inter­rupted; be sure to turn off the recorder power once and press to turn the power back on in order to re-start Auto Set Up.
PRESET DOWNLOAD

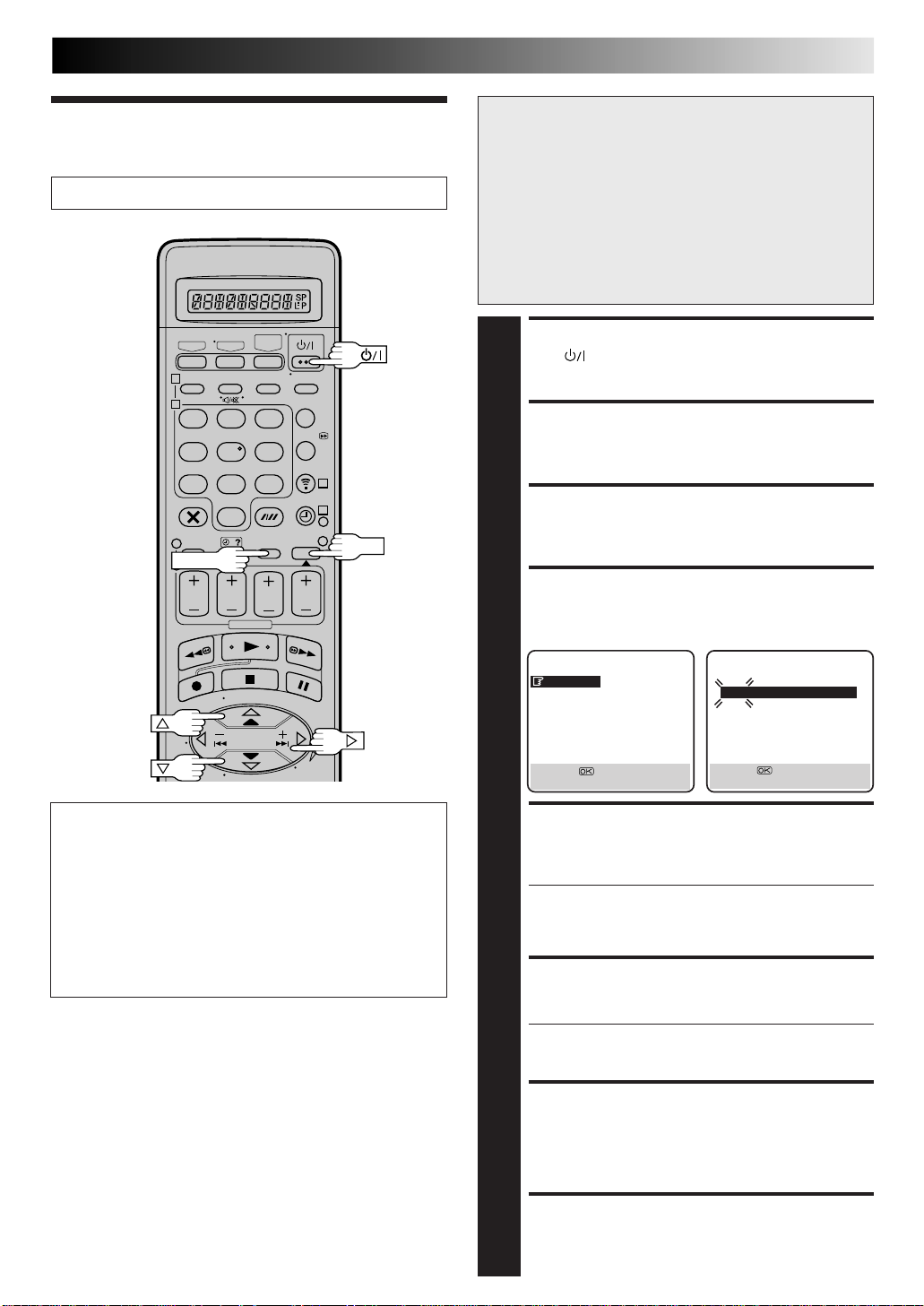

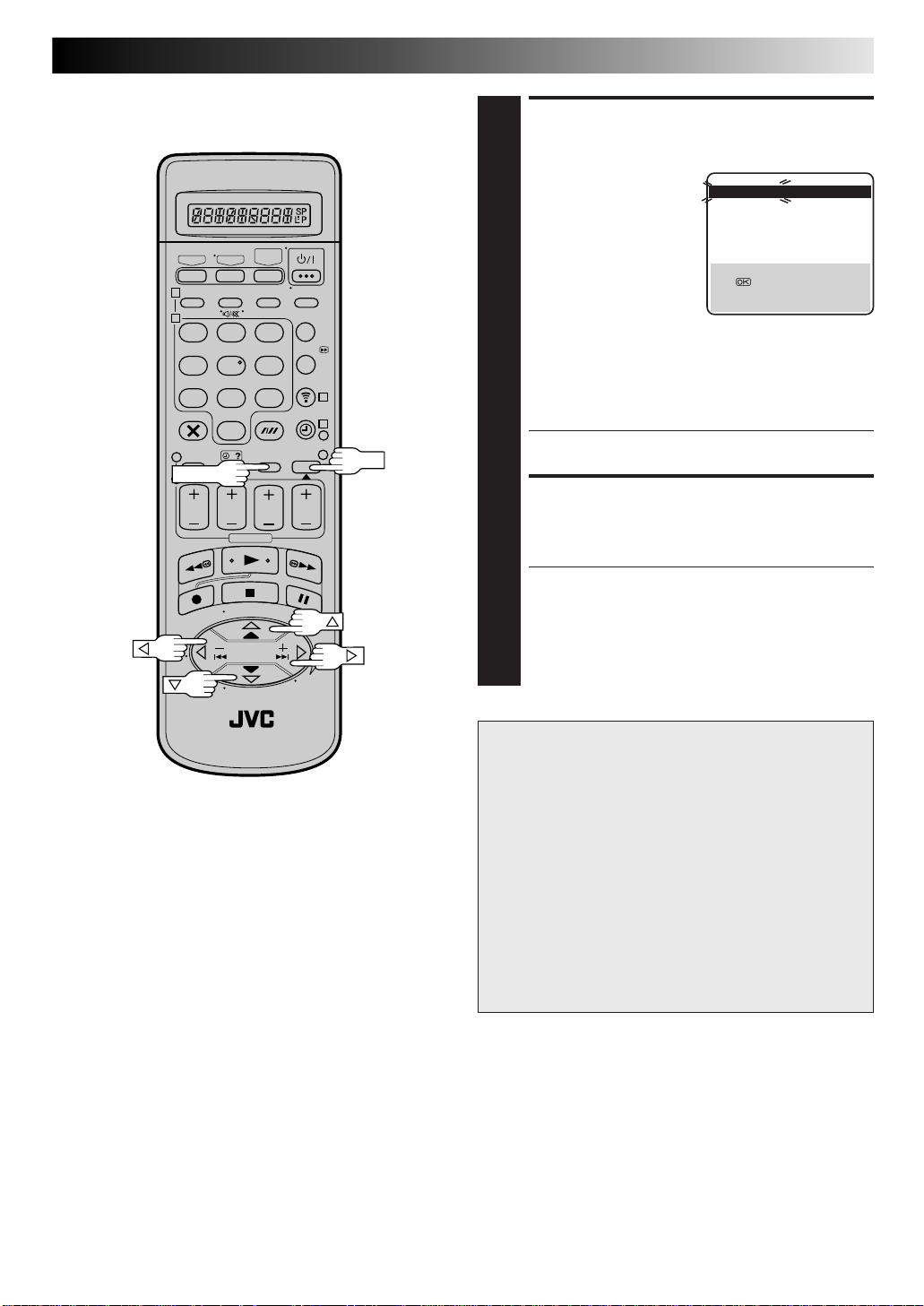

SET THE TUNER CHANNELS BY DOWNLOADING FROM YOUR TV, CLOCK AND GUIDE PROGRAM NUMBERS
When you connect the recorder and your TV via fully-wired 21-pin SCART cable (Z pg. 5), you can set the recorder's tuner channels by downloading preset data from your TV instead of using the Auto Set Up function (Z pg. 6). After downloading is completed, the recorder sets the clock and VIDEO Plus+ assigned Guide Program numbers automatically. For details, refer to the instruction manual for your TV.
ATTENTION
You can use this function only with a TV offering T-V Link, etc.*
* Compatible with TVs offering T-V Link, EasyLink, Megalogic, SMARTLINK, Q-Link, DATA LOGIC or NEXTVIEWLINK via fully-wired 21-pin
SCART cable. The degree of compatibility and available functions may differ by system.
Before performing the following procedure, make sure that:
n the TV aerial cable is connected to the recorder and a 21-pin
SCART cable is connected between your TV and the recorder.
n the mains power cord is plugged into the mains outlet. n batteries have been installed in the remote control.
Press . If "Auto" appears on the display
1
2
1 2 3 4 5 6 7 8 9
1
2
1
panel, Press press OK or #. Preset position on the display panel increases from "CH1"; do NOT press any button on the recorder or remote control until the display panel shows either the display as illustrated on page 8 or "– – :– –".
If "– –:– –" appears on the display panel, refer to page 8.
If you are using the on-screen display, the T-V LINK screen will appear . Then the GUIDE PROG SET screen will appear during Guide Program number set.
– –:– –
3
0
4
4 3
If you press any button on the recorder or remote control while downloading is in progress, this process will be interrupted and you will need to start again. See NOTES below.
%
to select "CH – –" and
T-V LINK
PLEASE WAIT
[MENU] : EXIT
GUIDE PROG SET
PLEASE WAIT
[MENU] : EXIT
7
Press to turn off the recorder. Press
2
and hold down STOP on the recorder until the display panel shows the display
as illustrated on the right. Press TV PROG – until the display panel shows "_OUT– –
" to set the Video Channel to off.
Press OK to exit Video Channel Set mode.
3
To view picture signals from the video recorder, set your TV to its AV mode. — Refer to the instructions supplied with your TV set for how to do this.
NOTES:
In areas where no TV station transmits the PDC signal, the recorder cannot perform either auto clock set or auto Guide Program number set.
If there is a power cut, or if you press or MENU while downloading or set up is in progress, it will be interrupted; be sure to turn off the recorder power once and try again from the beginning.
Auto clock may not function properly depending on reception conditions.
When you perform T-V LINK function, be sure to use fully-wired 21-pin SCART cable.
On this recorder, the characters available for station names (ID) are A–Z, 0–9, –, *, + and (space). The names of some downloaded stations may differ from those on your TV (Z pg. 52).
8
Auto Set Up results appear on the display panel
When both auto channel set and auto clock set have been completed successfully the
A
correct current time will be displayed after the OK button is pressed in item after performing the item 1 on page 7.
QUICK SET UP GUIDE (cont.)
3
on page 6 or
B
C
* You can check if the Guide Program numbers have been set correctly when you perform VIDEO Plus+ Timer Programming
(Z pg. 14); if the correct preset position number is displayed in step 3, this confirms that the Guide Program number for the PlusCode number you enter in step 2 has been set correctly.
When auto channel set has been completed successfully but auto clock set has not, "(PR)1" will be displayed after the OK button is pressed in item item 1 on page 7.
When neither auto channel set nor auto clock set has been completed successfully, "– –:– –" will be displayed.
3
on page 6 or after performing the
A If both auto channel set and auto clock set have been performed successfully:
1 Turn on the TV and select its VIDEO channel or AV mode, then make sure that all necessary stations have been stored in the
recorder's memory by using the TV PROG button(s).
If station names (ID — Z pg. 53) have also been stored in the recorder's memory, the station name will be displayed at the top left corner of the screen for about 5 seconds each time the recorder is tuned to a different station.
If you want to set the tuner manually such as to add or skip channels, to change preset positions, or to set or change station names, see pages 50 – 52.
Now you have finished the basic set up and can use your recorder for both playback and recording.
B If auto channel set has succeeded but auto clock set has not:
1 Turn on the TV and select its VIDEO channel or AV mode, then make sure that all necessary stations have been stored in the
recorder's memory by using the TV PROG button(s).
If station names (ID — Z pg. 53) have also been stored in the recorder's memory, the station name will be displayed at the top left corner of the screen for about 5 seconds each time the recorder is tuned to a different station.
If you want to set the tuner manually such as to add or skip channels, to change preset positions, or to set or change station names, see pages 50 – 52.
2 Perform "Clock Set" on page 55.
Now you have finished the basic set up and can use your recorder for both playback and recording.
C If both auto channel set and auto clock set have failed:
1 Make sure the TV aerial cable is connected properly to the recorder and turn off the recorder power once, then turn the
recorder power back on again.
2 Perform "Auto Set Up" on page 6 or "Preset Download" on page 7.
IMPORTANT
n In certain reception conditions, station names may not be stored correctly, and auto Guide Program Number Set may not work
properly. If the Guide Program numbers are not set properly, when you timer-record a TV programme using VIDEO Plus+, the recorder will record a TV programme of a different station. When programming the timer using VIDEO Plus+, be sure to check that the preset position corresponding to the broadcasting station you wish to record has been selected (Z pg. 14, "VIDEO Plus+ Timer Programming").
n Your video recorder memorizes all detected stations even if reception of some of them is poor. In these cases picture quality
may be poor. To delete those stations which have an unacceptable picture Z "Delete A Channel" on page 51.
n If any of the above problems occur, refer to pages 50 – 52 to input station names (Z "Set Stations") or delete unnecessary
stations (Z "Delete A Channel"). You can also change station preset positions (Z "Change Station Preset Position").
n For RF connection users: In certain reception conditions, the Video Channel may not be set correctly and interference may
appear in the TV picture while the recorder's power is on. Set your Video Channel manually. Z pg. 46, "Video Channel Set".
If you have any difficulty with the above procedures call the JVC Customer Service Hot Line on 0181 208 7654
T-V LINK
T-V Link Functions
9
Direct Rec
You can start recording the programme that you are watching on your TV with simple operation. Press and hold RECORD and press PLAY on the remote control, or press RECORD on the recorder. Follow the procedure below to use this function.
When you connect the recorder and your TV via a fully-wired 21-pin SCART cable (Z pg. 5), the following functions are available. You can use these functions only with a TV offering T-V Link, etc.* For details, refer to the instruction manual for your TV.
* Compatible with TVs offering T-V Link, EasyLink, Megalogic,
SMARTLINK, Q-Link, DATA LOGIC or NEXTVIEWLINK via fully­wired 21-pin SCART cable. The degree of compatibility and available functions may differ by system.
NexTView Link
You can download the EPG (Electronic Programme Guide) information from your TV for timer-programming on the recorder. For details, refer to the instruction manual for your TV.
TV Auto Power On
You can turn on the TV and set it to video mode automatically whenever you play a tape. For details, refer to the instruction manual for your TV.
VCR Auto Standby
You can use your TV's remote control to turn off the recorder. For details, refer to the instruction manual for your TV.
TURN ON THE RECORDER
Press .
1
ACCESS MAIN MENU SCREEN
Press MENU.
2
ACCESS MODE SET SCREEN
Press %fi to move the highlight bar (pointer) to
3
"MODE SET", then press OK or #.
SELECT DIRECT REC MODE
Press %fi to move the highlight bar (pointer) to
4
"DIRECT REC", then press OK or # to set to "ON".
MODE SET
AUTO CH SET MANUAL CH SET INITIAL SET REC LEVEL CTL
T
5
[
] =
[MENU] : EXIT
B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON
DIRECT REC ON
AUTO SP=LP TIMER OFF POWER SAVE OFF NEXT PAGE
[5∞] = [MENU] : EXIT
MAIN MENU
MODE SET
RETURN TO NORMAL SCREEN
Press MENU.
5
NOTES:
If "DIRECT REC" is set to "OFF", the RECORD button functions as described in "Recording" (Z pg. 12) .
During the Direct Rec, "– –" appears on the display panel.
When you perform T-V LINK functions, be sure to use a fully­wired 21-pin SCART cable.
Retake function does not work during Direct Rec (Z pg. 44).
Direct Rec is not possible with a scrambled broadcast.
To record a scrambled broadcast, set "DIRECT REC" to "OFF" and follow the procedure described in "Recording" on page
12.
10
PLAY
PLAY
TV PROG
TV/VCR
JOG
TIME SCAN SHUTTLE
STOP/EJECT
Playback
BASIC OPERATIONS
The easiest, most basic operation possible with your video recorder is tape playback. Already-recorded signals on a video tape are read by your video recorder and displayed on your TV just like a TV programme.
Turn on the TV and select the VIDEO channel (or AV mode).
3
1
PAUSE
1
2
1 2 3 4 5 6 7 8 9
0
1
2
4
– –:– –
3
4
4 3
2
3
LOAD A CASSETTE
Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is
1
point toward the recorder. Don’t apply too much pressure when inserting.
The recorder power comes on automatically and the counter is reset to 0:00:00.
If the record safety tab has been removed, playback begins automatically.
FIND PROGRAMME START POINT
If the tape is advanced past the start point, press REW or turn the TIME SCAN SHUTTLE ring to the left.
2
To go forward, press FF or turn the TIME SCAN SHUTTLE ring to the right.
START PLAYBACK

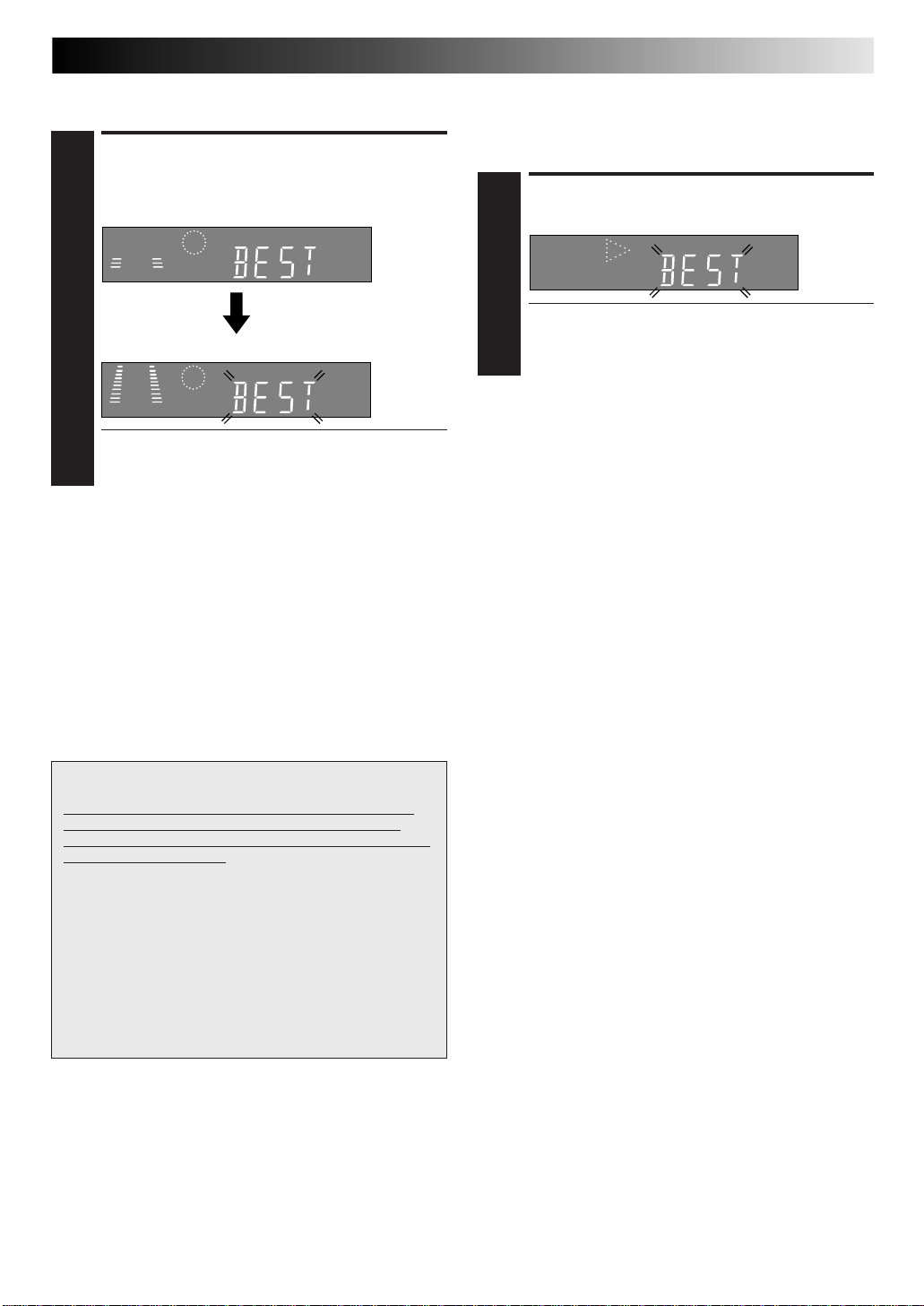

Press PLAY. "BEST" appears blinking in the recorder's display panel during automatic tracking (Z pg. 20).
3
Playback picture quality of LP recordings will not be as high as SP recordings.
STOP PLAYBACK
Press STOP on the remote or STOP/EJECT on the recorder’s front panel. Then press STOP/EJECT to
4
remove the cassette.
FF
PAUSE
2
REW
4
STOP
Tape Position Indicator
The tape position indicator appears on screen when, from the Stop mode, you press FF, REW or perform an Index Search. The position of “5” in relation to “0” (beginning) or “+” (end) shows you where you are on the tape.
”O.S.D.” (Z pg. 41) must be set to “ON”, or the indicator will not appear.
0
Beginning End
3
REMAIN 2:35
NOTE:
Depending on the type of tape used, there may be times when the indication is not correct.
2
1:23:45
INFORMATION
When using the AV connection (Z pg. 5), initiating playback causes the VCR indicator to light and the TV to automatically enter AV mode. To return the TV to TV mode after playback is complete, press TV/VCR so that the VCR indicator turns off. * Depending on the type of TV used, TV/VCR button does
not function as described above.
Usable cassettes
+++
Compact VHS camcorder recordings can be played on this video recorder. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.
This video recorder can record on regular VHS and Super VHS cassettes. However, it will record and play back regular VHS signals only. It is not possible to play back a recorded Super VHS tape.
11
Still Picture/Frame-By-Frame Playback
PAUSE DURING PLAYBACK
Press PAUSE. If there is vertical jitter, use the TV PROG buttons to correct the picture.
1
During still picture, the sound from the previous 3 seconds (approx.) will be played back repeatedly (provided there was at least 6 seconds of normal playback prior to engaging the still picture mode).
"TIME SCAN AUDIO" must be set to "ON", or the sound will not be heard. (Z pg. 25)
ACTIVATE FRAME-BY -FRAME PLAYBACK
Turn the JOG dial to the right for forward frame-by­frame playback, or to the left for reverse frame-by-frame
2
playback.
OR
Press PAUSE.
OR
Press @ or #.
To resume normal playback, press PLAY.
Slow Motion
High-Speed (Turbo) Search
ACTIVATE HIGH-SPEED SEARCH
During playback or still, press FF for forward high­speed search, or REW for reverse high-speed search.
1
To resume normal playback, press PLAY.
NOTE:
For short searches, press and hold FF or REW during playback or still picture. When released, normal playback resumes.
ATTENTION
In the high-speed search, still, slow-motion or frame-by­frame playback mode,
the picture will be distorted.
noise bars will appear.
there will be a loss of colour with a tape recorded in LP
mode.
Picture may not appear during high-speed search with a tape recorded in LP mode.
When normal playback resumes from search, still, slow motion or frame-by-frame playback, the picture may jitter vertically momentarily depending on the type of TV being used.
ACTIVATE SLOW-MOTION PLAYBACK
Turn the TIME SCAN SHUTTLE ring to the left or press @ during playback to decrease speed in the forward
1
direction. To play in reverse slow-motion (and in reverse play mode), continue to turn the TIME SCAN SHUTTLE ring to the left or press @ after selecting all the forward direction slow-motion modes.
OR
During still picture, turn the TIME SCAN SHUTTLE ring to the right for forward slow motion, or to the left for reverse slow motion.
OR
During still picture, press and hold PAUSE for 2 seconds, then release. Press and release again to return to still picture.
OR
During still picture, press and hold @ or #. Release to return to still picture.
To resume normal playback, press PLAY.
12
STOP
PLAY
RECORD
TV PROG
TV/VCR
STOP/EJECT
Recording
Turn on the TV and select the VIDEO channel (or AV mode).
5
1
BASIC OPERATIONS (cont.)
TV signals being received by the recorder’s built-in tuner can be recorded onto a video tape. You can “capture” a TV programme using your video recorder.
LOAD A CASSETTE
Insert a cassette with the record safety tab intact (See below).
1
The counter is reset to 0:00:00 and the recorder power comes on automatically.
CHOOSE A PROGRAMME
Press TV PROG +/– or the NUMBER keys to select the preset you wish to record.
2
2
2
NUMBER
4
4,5
RECORD
5
1
2
1 2 3 4 5 6 7 8 9
1
2
PLAY
PAUSE
4
0
– –:– –
3
4
SP/LP
4 3
TV PROG
3
PAUSE
2
5
6
SET TAPE SPEED
Press SP/LP ( ). Check the SP/LP indicator on the recorder display panel to confirm the selected tape
3
speed.
Picture quality of LP recordings will not be as high as on SP recordings.
START RECORDING
Press and hold RECORD and press PLAY on the remote control, or press RECORD on the recorder.
4
B.E.S.T. takes place at the beginning of both the first SP and the first LP recording after inserting the cassette (Z pg. 20).
If "DIRECT REC" is set to "ON", the programme that appears on the TV screen will be recorded (Z pg. 9).
You can not change the preset whilst recording is in progress. To change the preset, see step 5.
PAUSE/RESUME RECORDING
Press PAUSE. Press PLAY to resume recording.
During the Record Pause mode, you can change the
5
preset by pressing the TV PROG +/– buttons or the NUMBER keys.
6
INFORMATION
When using the AV connection (Z pg. 5), you can switch between TV mode and AV mode by pressing TV/VCR. * Depending on the type of TV used, TV/VCR button does
not function as described above.
Recording Resume Function
If there is a power outage during recording (or Instant Timer Recording or timer recording), the recording will resume automatically when power is restored to the recorder unless the recorder's memory backup has expired.
STOP RECORDING
Press STOP on the remote control or STOP/EJECT on the recorder. Then press STOP/EJECT to remove the
6
cassette.
Accidental erasure prevention
To prevent accidental recording on a recorded cassette, remove its safety tab. To record on it later, cover the hole with adhesive tape.
Record safety tab
RECORD
TV PROG
0000
1
2
1 2 3 4 5 6 7 8 9
0
1
2
– –:– –
– –:– –
3
4
4 3
13
Record One Programme While Watching Another
SELECT PRESET TO WATCH
Once recording is in progress, all you need to do is to set the preset controls on the TV for the station you
1
wish to view.
The programme selected with the TV’s preset controls appears on the TV screen while the one selected with the recorder's TV PROG buttons is recorded on the tape.
Elapsed Recording Time Indication
You can check the exact time of a recording.
SET COUNTER DISPLAY
Press – –:– – until a counter reading appears on the dispay panel.
1
RESET COUNTER
Press 0000 before starting recording or playback.
The counter is reset to “0:00:00” and shows the exact
2
Instant Timer Recording (ITR)
This easy method allows you to record for any length of time from 30 mins. to 6 hours (selectable in 30-min. increments), and shuts off the recorder after recording is finished.
elapsed time as the tape runs.
Tape Remaining Time
DISPLAY REMAINING TIME
Press – –:– – until the time remaining on the tape appears.
1
The display panel shows the tape remaining time with " " displayed.
By pressing the – –:– – button, you can change the display to show the counter reading, preset position*, clock time or tape remaining time.
* Preset position is not displayed during playback.
NOTE:
Depending on the type of tape used, there may be times when the tape remaining time reading may not appear right away, or is not correct. "– –:– –" may sometimes appear, or the display may blink on occasion.
START RECORDING
Press RECORD on the recorder.
1
ENGAGE ITR MODE
Press RECORD again. " " blinks and 0:30 appears on the front display panel.
2
SET RECORDING DURATION
If you want to record for more than 30 minutes, press
RECORD to extend the time. Each press extends
3
recording time by 30 minutes.
NOTE:
You can only perform ITR using the RECORD button on the recorder's front panel.
14
WEEKLY
DAILY
STOP+/–
SP/LP
VIDEO Plus+ Timer Programming
Before performing VIDEO Plus+ Timer Programming:
Make sure that the recorder's built-in clock is set properly.
Insert a cassette with the safety tab in place. The recorder will come on automatically.
Turn on the TV and select the VIDEO channel (or A V mode).
LCD panel
1
LCD PROG
1
2
1 2 3
2
NUMBER
PDC
5
1,6
PROG
You can use the remote control with LCD panel to enter the PlusCode number.
ACCESS VIDEO PLUS+ DISPLAY
Press LCD PROG. The LCD panel looks like this:
1
4 5 6 7 8 9
1
2
– –:– –
3
0
4
4
3
2 7
OK
4
2,6
BASIC OPERATIONS (cont.)
With VIDEO Plus+, timer programming is greatly simplified because each TV programme has a corresponding code number which your recorder is able to recognise.
ACCESS VIDEO PLUS+ SCREEN
Press PROG.
VIDEO PLUS+
1
[0 – 9] : VIDEO PLUS+
+/–
[
] : EXPRESS PROGRAMING
[PROG] : EXIT
The front display panel looks like this:
ENTER PLUSCODE NUMBER
Press the NUMBER keys to enter the PlusCode
2
number of the programme you wish to record, then press OK.
If you make a mistake, press and input the correct number.
The PlusCode number you enter appears on the front display panel:
The display panel shows only a 4-digit number.
ACCESS VIDEO PLUS+ PROGRAM SCREEN
The VIDEO Plus+ Program screen appears (if you’re
3
just starting out, “P1” appears).
The display panel shows the programme start time. Pressing changes the display to the programme stop time, then the date and preset position.
VIDEO PLUS+
12345678
[0 – 9] = [ ] : DELETE [PROG] : EXIT
VIDEO PLUS+ 123456789
– P1 –
START STOP 21:00 = 22:00
SP VPS/PDC OFF
DATE TV PROG
25.12 1
: OK
SP
BBC 1
2
ENTER PLUSCODE NUMBER
Press the NUMBER keys to enter the PlusCode number of a programme you wish to record, then press .
If you make a mistake, press and input the correct number.
The PlusCode number you enter appears on the LCD panel:
Then go to step 3 in the right column.
IMPORTANT
Make sure the preset position number you wish to record is displayed; if not, see "VIDEO Plus+ Setup" on page 56 and set the Guide Program number for that PlusCode number correctly.
If the number you entered is invalid, "ERROR" appears on the screen and "Err" appears on the display panel. Press and input a valid PlusCode number.
If the "GUIDE PROG SET" screen appears, see "ATTENTION – Regarding Guide Program Number Set" on page 15.
15
SET TAPE SPEED
Press SP/LP ( ) to set the tape speed.
4
SET PDC MODE
Press PDC to select "ON" or "OFF".
If "VPS/PDC ON" is displayed on the screen or "VPS/
5
PDC" is lit on the display panel, PDC is set to ON. If "VPS/PDC OFF" is displayed on the screen or "VPS/ PDC" is not lit on the display panel, PDC is set to OFF.
Z "PDC Recording" in the column below.
VPS (Video Programme System) recording is not
currently available in the U.K. and not possible with this recorder.
RETURN TO NORMAL SCREEN
Press PROG or OK. "PROGRAM COMPLETED" appears on the screen for about 5 seconds, then normal screen
6
appears.
Repeat steps 16 for each additional programme.
ENGAGE RECORDER’S TIMER MODE
Press (TIMER). The recorder turns off automatically and appears on the display panel.
7
To disengage the timer, press (TIMER) again.
NOTES:
To Change The Stop Time . . . . . . press STOP +/– in step 3. You can compensate for anticipated programme schedule delays this way.
To Timer-Record Weekly Or Daily Serials . . . . . . in step 3, press WEEKLY (NUMBER key “9”) for weekly serials or DAILY (NUMBER key “8”) for daily serials (Monday – Friday). Either "WEEKLY" or "DAILY" appears on the screen. Pressing the button again makes the corresponding indication disappear.
You can programme this recorder to timer-record as many as 8 programmes. If you try to programme the recorder to record a ninth, "PROGRAM FULL" appears on screen and "FULL" appears on the front display panel. To record the extra programme, you must first cancel any unnecessary programmes (Z pg. 18).
It is not possible to timer-record a TV programme with a PlusCode number which starts with "0".
Satellite Receiver Users
To timer-record a satellite broadcast using VIDEO Plus+:
1 Perform steps 17. 2 Set the satellite receiver to the appropriate channel
before the selected programme begins.
3 Leave the satellite receiver's power on.
ATTENTION
Regarding Guide Program Number Set
"GUIDE PROG SET" appears after performing step 3 if the Guide Program number for the PlusCode number you entered has not been set.
Press the NUMBER keys or %fi to input the preset position number on which your recorder receives that station, then press OK or # to set the Guide Program Number. The VIDEO Plus+ Program screen appears.
GUIDE PROG SET
GUIDE PROG TV PROG
2 – –
5
[
] =
[PROG] : EXIT
(Ex.) To timer-record a BBC2 programme with VIDEO Plus+. * If your recorder receives
BBC2 on the preset position 2, press OK or # after entering "2".
Timer Warning
If you have programmed your recorder to timer-record a programme or a series of programmes, a warning appears on the screen to tell you that the recording is due to start in 5 minutes.
NOTES:
The warning only appears if you’re not in the Timer mode at the time.
If this recorder is being used as the player for tape dubbing, the warning screen will be recorded on the tape in the other video recorder.
The warning blinks for the entire 5 minutes leading up to the start of timer recording. To clear the display, press .
– WARNING– TIMER RECORDING TO START SOON
[ ]
PDC Recording
Now available from some TV stations, PDC (Programme Delivery Control) is a service designed to assure safe, accurate timer recording. With this system, special code signals are transmitted together with the audio/video signals. These code signals control your video recorder and have precedence over the advertised times which you may have preset into the timer. This means that your recorder will start and stop recording when the preset TV programmes actually start and end — even if the broadcast time of a preset TV programme is changed from what has been advertised. PDC is currently available nationally on BBC1, BBC2, Ch.4 and Ch.5, except from a few small relay transmitters. Ch.3 operates a PDC service only in a very few areas. All channels intend to offer this service in due course. Check your TV programme listing guide for latest information. If the channel you intend to record does not offer a PDC service your recorder will not start recording if PDC has been selected. Be sure to set PDC to "OFF" if PDC is not available on your selected channel (Z step 5 above).
NOTES:
PDC recording is also possible when a satellite receiver or a cable system is connected to AV2 IN/DECODER on your recorder.
PDC recording is also possible via the AV1 IN/OUT connector.
16
WEEKLY
DAILY
STOP+/–
DATE+/–
PDC
SP/LP
Express Timer
BASIC OPERATIONS (cont.)
If you don’t know the PlusCode number for the programme you wish to record, use the following procedure to set your recorder to timer-record the programme.
ACCESS VIDEO PLUS+
Programming
Before performing Express Timer Programming:
Make sure that the recorder's built-in clock is set properly.
Insert a cassette with the safety tab in place. The recorder will come on automatically.
Turn on the TV and select the VIDEO channel (or A V mode).
– –:– –
7
3
0
4
4 3
10
OK
9
TV PROG+/–
6
5
1,9
8
PROG
START+/–
2,3
1
2
1 2 3 4 5 6 7 8 9
1
2
4
SCREEN
Press PROG.
1
ACCESS PROGRAMME SCREEN
Press START +/–. (If you’re just starting out, “P1”
2
appears.)
The front display panel looks like this:
ENTER PROGRAMME START TIME
Press START +/– to enter the time you want
3
recording to start.
Press and hold START +/– to move in 30-
minute increments, or press and release repeatedly to move 1 minute at a time.
The front display panel looks like this:
– P1 –
START STOP
– –:– – = – –:– –
SP VPS/PDC OFF
DATE TV PROG
– –.– – – –
[+/–] = [PROG] : EXIT
SP
– P1 –
START STOP
21:00 = – –:– –
SP VPS/PDC OFF
DATE TV PROG
– –.– – – –
[+/–] = [PROG] : EXIT
SP
ENTER PROGRAMME STOP TIME
Press STOP +/– to enter the time you want recording to stop.
4
Press and hold STOP +/– to move in 30-minute increments, or press and release repeatedly to move 1 minute at a time.
ENTER PROGRAMME DATE
Press DATE +/– to enter the date on which you wish to record. (The current date first appears on screen. The
5
date you enter will appear in its place.)
17
ENTER PRESET POSITION
Press TV PROG +/– to enter the preset position
6
corresponding to the broadcasting station you wish to record.
START STOP
21:00 = 22:00
SP VPS/PDC OFF
DATE TV PROG
25.12 1
[+/–] = [PROG] : EXIT
SP
SET TAPE SPEED
Press SP/LP ( ) to set the tape speed.
7
SET PDC MODE
Press PDC to select "ON" or "OFF".
If "VPS/PDC ON" is displayed on the screen or "VPS/ PDC" is lit on the display panel, PDC is set to ON.
8
If "VPS/PDC OFF" is displayed on the screen or "VPS/ PDC" is not lit on the display panel, PDC is set to OFF.
Z "PDC Recording" in the right column.
VPS (Video Programme System) recording is not
currently available in the U.K. and not possible with this recorder.
– P1 –
Satellite Receiver Users
To timer-record a satellite broadcast using Express Timer Programming: 1 Perform steps 110. Enter "L-2" for the preset position
in step 6.
2 Set the satellite receiver to the appropriate channel
before the selected programme begins.
3 Leave the satellite receiver's power on.
BBC 1
PDC Recording
Now available from some TV stations, PDC (Programme Delivery Control) is a service designed to assure safe, accurate timer recording. With this system, special code signals are transmitted together with the audio/video signals. These code signals control your video recorder and have precedence over the advertised times which you may have preset into the timer. This means that your recorder will start and stop recording when the preset TV programmes actually start and end — even if the broadcast time of a preset TV programme is changed from what has been advertised. PDC is currently available nationally on BBC1, BBC2, Ch.4 and Ch.5, except from a few small relay transmitters. Ch.3 operates a PDC service only in a very few areas. All channels intend to offer this service in due course. Check your TV programme listing guide for latest information. If the channel you intend to record does not offer a PDC service your recorder will not start recording if PDC has been selected. Be sure to set PDC to "OFF" if PDC is not available on your selected channel. (Z step 8 in the left column).
RETURN TO NORMAL SCREEN
After confirming all information is correct, press PROG or OK. "PROGRAM COMPLETED" appears on the
9
screen for about 5 seconds, then normal screen appears.
Repeat steps 19 for each additional programme.
ENGAGE RECORDER’S TIMER MODE
Press (TIMER). The recorder turns off automatically and appears on the display panel.
10
To disengage the timer, press (TIMER) again.
To Timer-Record Weekly Or Daily Serials . . .
. . . anytime during steps 2 through 9, press WEEKLY (NUMBER key “9”) for weekly serials or DAILY (NUMBER key “8”) for daily serials (Monday – Friday). Either "WEEKLY" or "DAILY" appears on the screen. Pressing the button again makes the corresponding indication disappear.
NOTE:
You can programme this recorder to timer-record as many as 8 programmes. If you try to programme the recorder to record a ninth, "PROGRAM FULL" appears on screen and "FULL" appears on the front display panel. T o record the extra programme, you must first cancel any unnecessary programmes (Z pg. 18).
NOTES:
Set the start time (PDC time) exactly as advertised in the TV listing. A different time than advertised will result in no recording.
PDC recording is also possible when a satellite receiver or a cable system is connected to AV2 IN/DECODER on your recorder.
PDC recording is also possible via the AV1 IN/OUT connector.
Timer Warning
If you have programmed your recorder to timer-record a programme or a series of programmes, a warning appears on the screen to tell you that the recording is due to start in 5 minutes.
NOTES:
The warning only appears if you’re not in the Timer mode at the time.
If this recorder is being used as the player for tape dubbing, the warning screen will be recorded on the tape in the other video recorder.
The warning blinks for the entire 5 minutes leading up to the start of timer recording. To clear the display, press .
– WARNING– TIMER RECORDING TO START SOON
[ ]
18
SP/LP
DATE+/–
STOP+/–
PDC
START+/–
1
2
1 2 3 4 5 6 7 8 9
0
1
2
– –:– –
3
4
4 3
OK
TV PROG+/–
BASIC OPERATIONS (cont.)
Check, Cancel And Replace Programmes
DISENGAGE TIMER MODE
Press , then press .
1
ACCESS PROGRAMME CHECK SCREEN/DISPLAY
Press .
2
ACCESS PROGRAMME SCREEN/ DISPLAY
Press again to check more information. Each time you press , the
3
next programme's information appears.
PR START STOP CH DATE 1 8:00 10:00 3 24.12 2 10:00 10:45 2 25.12 3 11:30 13:00 1 25.12 4 5 6 7 8
[
] : NEXT
– P1 –
START STOP
8:00 = 10:00
SP VPS/PDC OFF
DATE TV PROG
24.12 3
] : NEXT
[
ITV
SP
The display panel shows the programme start time. Pressing OK changes the display to the programme stop time, then the date and the preset position.
T o cancel or replace a programme...
CANCEL OR REPLACE A PROGRAMME
Press to cancel a programme. To replace a programme, press the appropriate button: START+/–,
STOP+/–, DATE+/–, TV PROG+/–, SP/LP ( ), PDC.
4
RETURN TO NORMAL SCREEN/ DISPLAY
Press as many times as necessary. If there are still some programmes to be recorded, go on to step 6.
5
RETURN TO TIMER MODE
Press .
6
NOTE:
You can also check the programmes on the display panel even if the recorder's power is off (unless the recorder is in the Power Save mode Z pg. 42) or the recorder is in the Timer mode; however, it is not possible to cancel or replace the programmes.
ADVANCED OPERATIONS
Playback Pic-
19
Picture Control
This feature helps you to adjust the playback picture quality according to your preference. *The default setting is "AUTO."
ture Adjustment
0
1
MENU
2

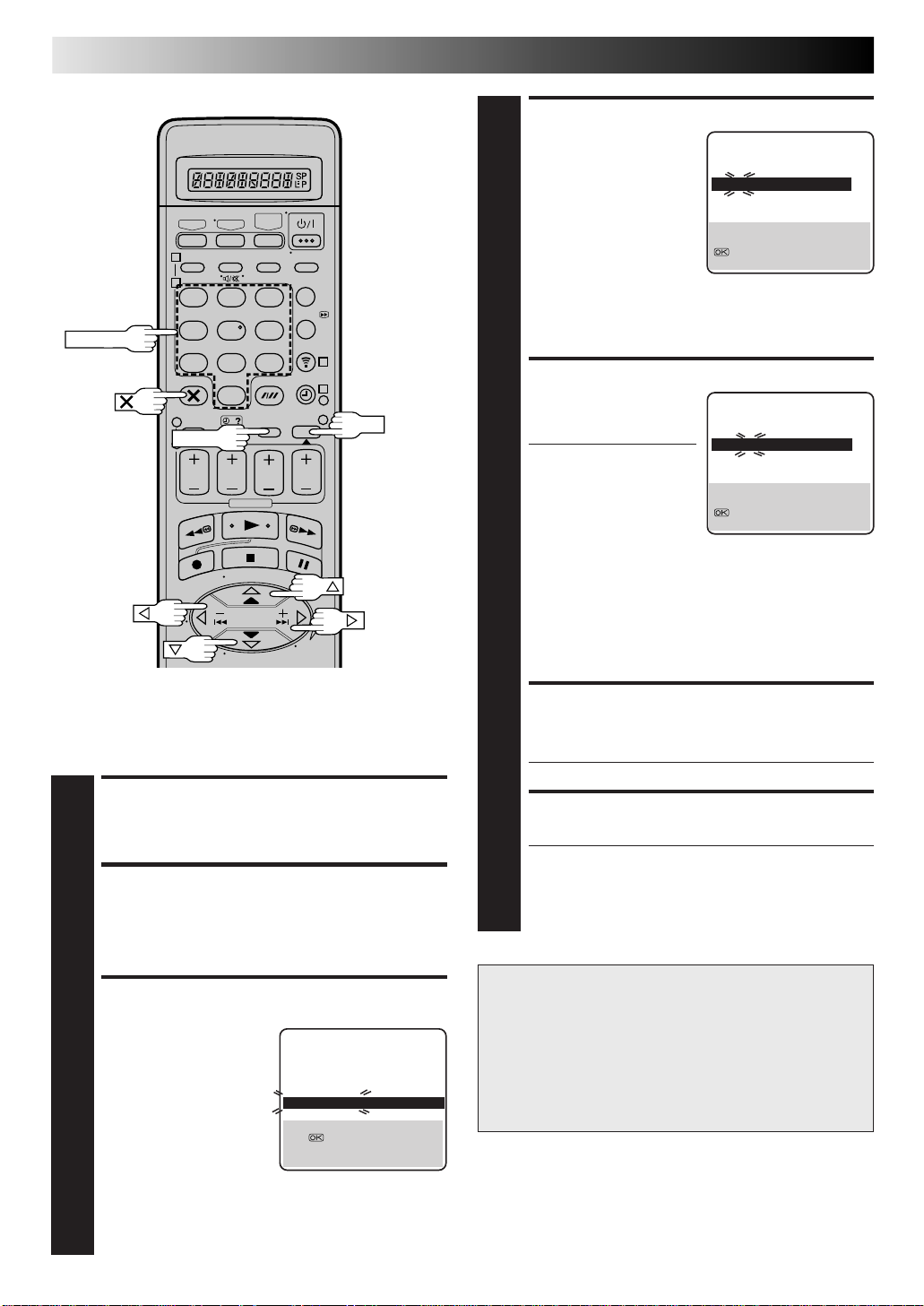

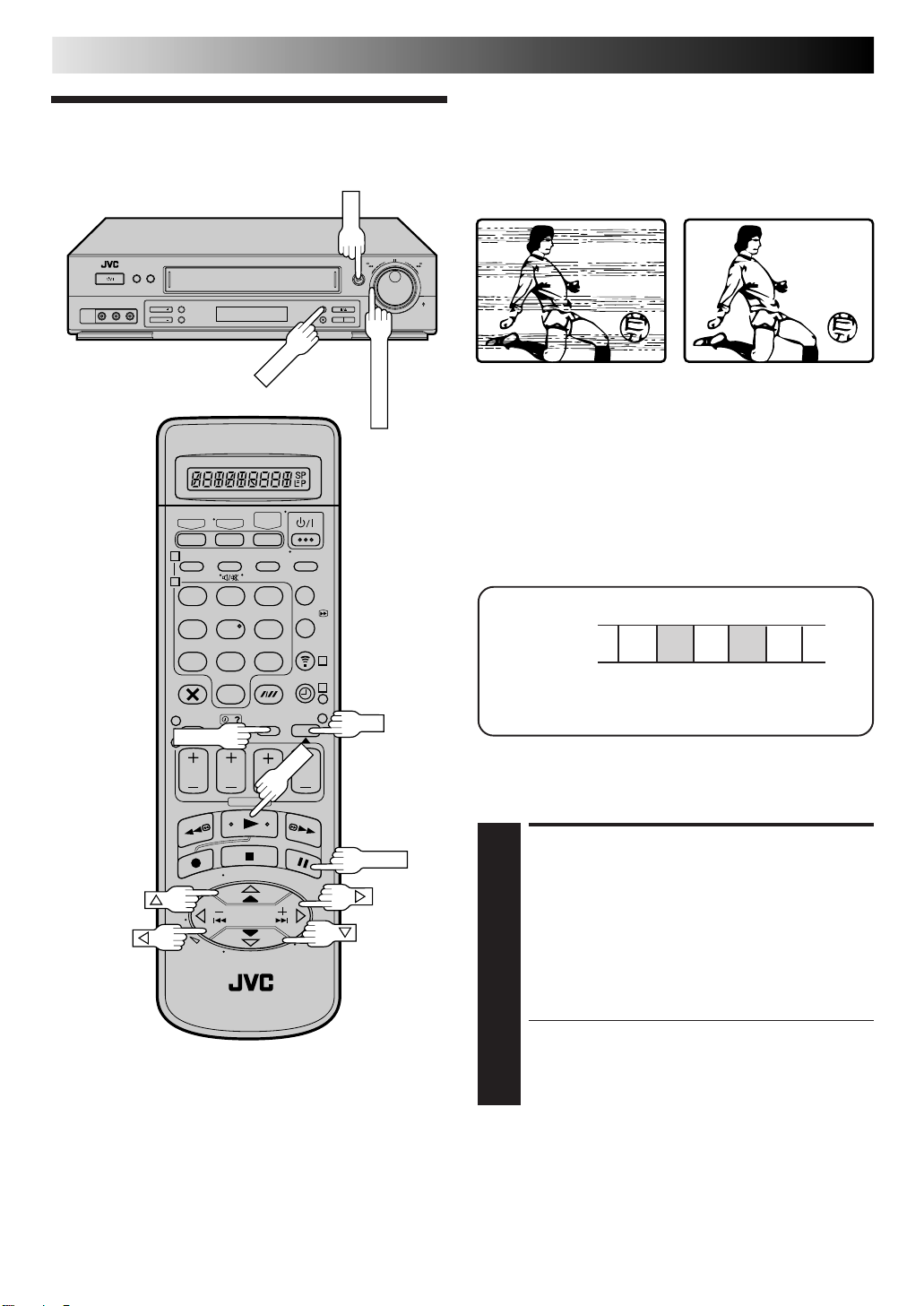

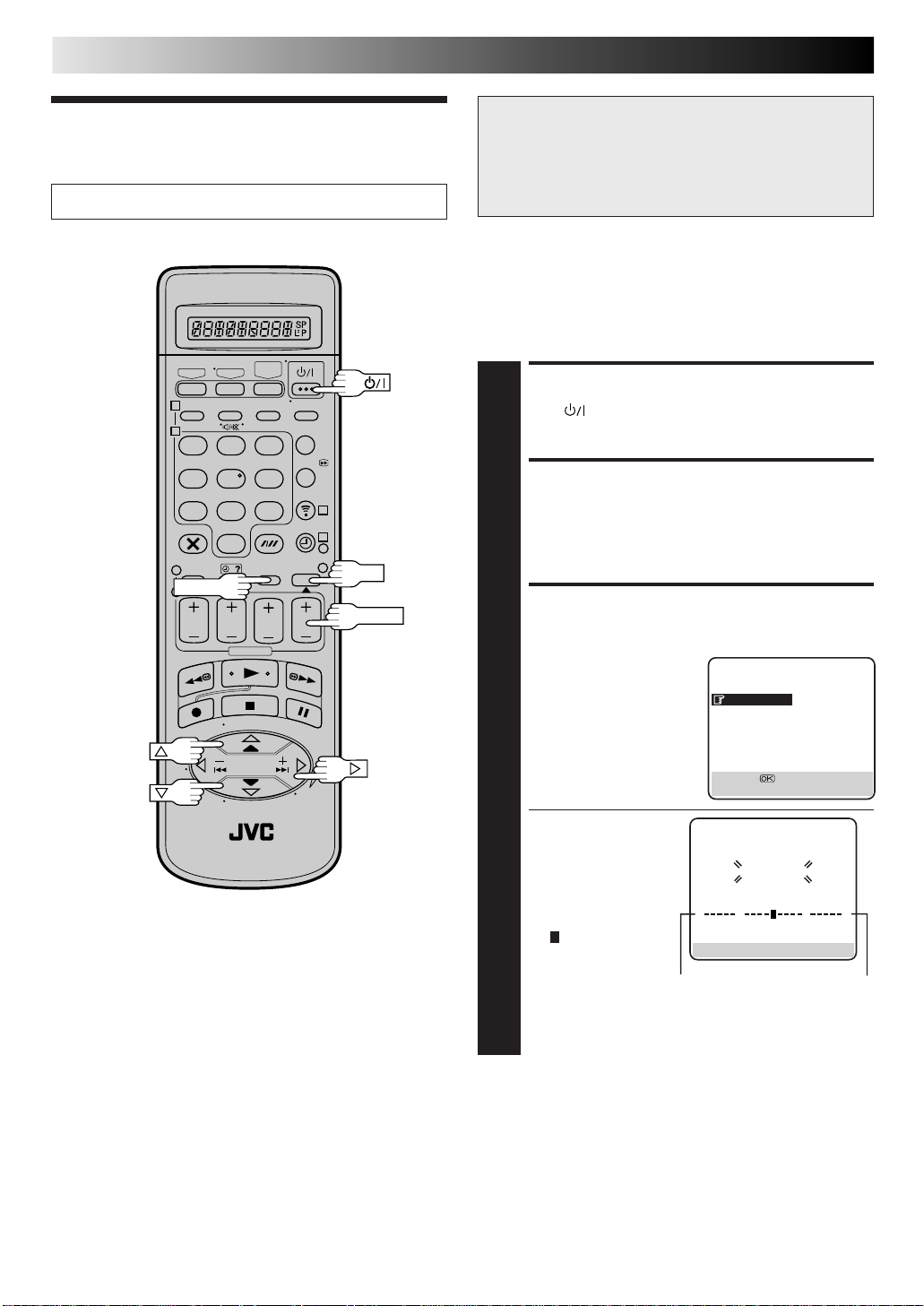

Manual Tracking
Y our video recorder is equipped with automatic tracking control. For most tapes this will automatically adjust the tracking to suit the particular tape you are playing. In some circumstances it may be necessary to make manual tracking adjustments. This is usually only associated with old or worn tapes or recordings made on old or worn recorders. If the automatic tracking control fails to operate correctly you will see noise bars across the picture as shown on the left below. To correct this you can override the automatic control and adjust the tracking manually by pressing the TV PROG buttons.
OVERRIDE AUTOMATIC TRACKING
Press on the remote to engage manual tracking.
4
4 3
TV PROG
OK
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS MODE SET SCREEN
Move the highlighted bar (pointer) to "MODE SET" by pressing %fi, then press OK or #.
2
SELECT PICTURE CONTROL SET MODE
Move the highlighted bar (pointer) to "PICTURE
3
CONTROL" by pressing %fi, then press OK or # to select the desired mode. AUTO: Provides
optimised picture benefits of B.E.S.T. Picture System. Normally select AUTO.
EDIT: Minimizes picture degradation during editing
(recording and playback).
SOFT: Reduces image coarseness when viewing
overplayed tapes containing a lot of noise.
SHARP:Clearer, sharper-edged picture when viewing
images with lots of flat, same-coloured surfaces such as cartoons.
NOTES:
When you select EDIT, SOFT or SHARP, the selected
mode will not change until you select again.
When you select EDIT to dub tapes, be sure to select
AUTO after you finish dubbing the tapes.
B. E. S. T. ON
PICTURE CONTROL AUTO
AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF POWER SAVE OFF NEXT PAGE
[5∞] = [MENU] : EXIT
MODE SET
1
ADJUST TRACKING MANUALLY
Press TV PROG + or – to adjust tracking.
2
RETURN TO AUTOMATIC TRACKING
Press on the remote to re-engage automatic tracking.
3
NOTE:
When a new tape is inserted, the recorder returns to the automatic tracking mode automatically.
RETURN TO NORMAL SCREEN
Press MENU.
4
NOTES:
When B.E.S.T. is OFF, "PICTURE CONTROL" switches automatically from AUTO to NORM.
Select EDIT when you are dubbing tapes. Refer to page 35.
20
PLAY
RECORD
ADVANCED OPERATIONS (cont.)
B.E.S.T. Picture System
Playback/ Recording According To Tape Charac­teristics
Turn on the TV and select the VIDEO channel (or AV mode).
PAUSE
The B.E.S.T. (Biconditional Equalised Signal Tracking) system checks the condition of the tape in use during recording and playback, and compensates to provide the highest-possible recording and playback pictures. The default setting for both recording and playback is “ON”.
TURN ON THE RECORDER
Press .
1
ACCESS MAIN MENU SCREEN
Press MENU.
2
ACCESS MODE SET SCREEN
Press %fi to move the highlight bar (pointer) to
3
"MODE SET", then press OK or #.
MAIN MENU
MODE SET
AUTO CH SET MANUAL CH SET INITIAL SET REC LEVEL CTL
5
] =
[
[MENU] : EXIT
RECORD
1
2
1 2 3 4 5 6 7 8 9
1
MENU
2
PLAY
SELECT B.E.S.T. MODE
– –:– –
Press %fi to move the highlight bar (pointer) to
4
"B.E.S.T.", then press OK or # to set to "ON" or "OFF".
MODE SET
B. E. S. T. ON
PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF POWER SAVE OFF NEXT PAGE
[5∞] = [MENU] : EXIT
RETURN TO NORMAL SCREEN
3
0
4
4
3
OK
PAUSE
Press MENU.
5
21
Recording
START RECORDING
Press and hold RECORD and press PLAY on the remote, or press RECORD on the recorder.
1
NOTES:
DURING B.E.S.T.
B.E.S.T. COMPLETE
The recorder spends approximately 7 seconds assessing the condition of the tape, then begins recording.
The B.E.S.T. system works for both SP and LP modes only after a tape has been inserted and the Record mode is first initiated. It does not work during recording. The B.E.S.T. system does not work while Auto Satellite Prog recording is in progress (Z pg. 28). In the case of timer recording, the B.E.S.T. system works before recording is initiated. Once the cassette is ejected, the B.E.S.T. data is cancelled. The next time the cassette is used for recording, B.E.S.T. is re­performed. Pressing the recorder's RECORD button while "BEST" is displayed does not start Instant Timer Recording (Z pg. 13).
Playback
The recorder assesses the quality of the tape once you initiate playback.
START PLAYBACK
Press PLAY.
1
The recorder adjusts the playback picture quality based on the quality of the tape in use.
B.E.S.T. is active during Auto Tracking. “BEST” appears blinking on the recorder’s display panel.
NOTES:
When watching a tape recorded with “B.E.S.T.” set to “ON”, it is recommended that you leave B.E.S.T. on during playback as well.
When watching a rental tape or one recorded on another video recorder, or when using this recorder as the player for editing, set B.E.S.T. to your preference by performing steps 1 through 5 on page 20.
"BEST" only appears at the beginning of automatic tracking. Even though it doesn't appear after that, the B.E.S.T. function is operative.
ATTENTION
Since the B.E.S.T. system works before recording actually starts, there is a delay of approximately 7 seconds after RECORD and PLAY on the remote are pressed, or RECORD on the recorder is pressed. To make sure you record the desired scene or programme in its entirety, first perform the following steps:
1) Press and hold PAUSE and press RECORD to engage the RECORD PAUSE mode.
The recorder then automatically checks the condition of the tape and, after approximately 7 seconds, re­enters RECORD PAUSE.
2) Press PLAY when you are ready to start recording.
If you want to bypass the B.E.S.T. system and begin recording immediately, set “B.E.S.T.” to “OFF” in step 4 on page 20.
22
Looking For The Scene You Want
1
2
1 2 3 4 5 6 7 8 9
1
2
– –:– –
3
0
4
4
3
30 SEC
ADVANCED OPERATIONS (cont.)

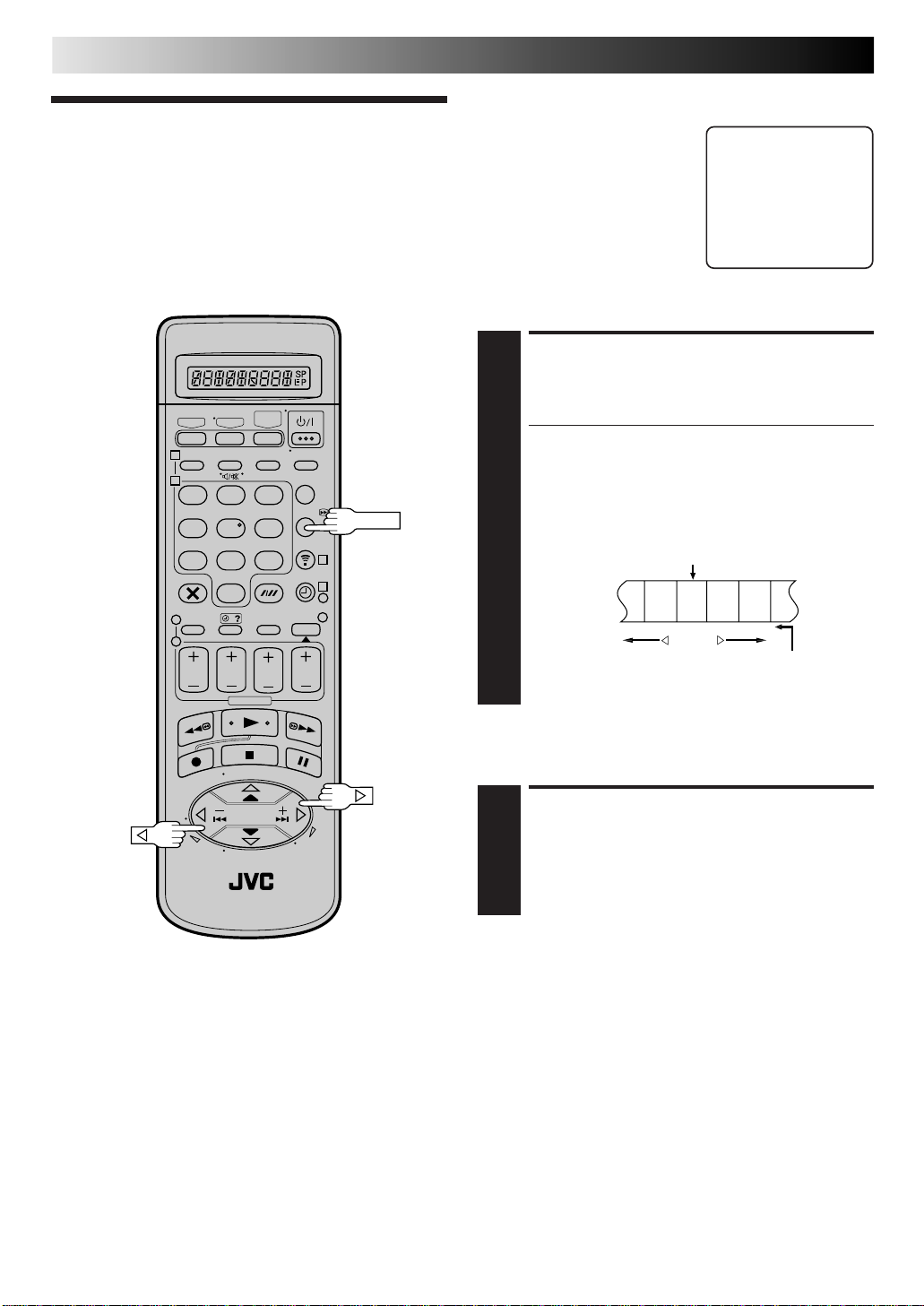

Index Search
Your recorder automatically marks index codes at the beginning of each recording. This function gives you quick access to any one of 9 index codes in either direction.
NOTES:
Before starting, make sure the recorder is in the Stop mode.
If "O.S.D." is set to "ON" (Z pg. 41), "MARK" blinks on the screen while an index code is being marked.
£ 2
ACTIVATE INDEX SEARCH
Press @ or # ( or £). “ 1” or “£ 1” is displayed on screen and search begins in the corre-
1
sponding direction.
To access index codes 2 through 9, press @ or repeatedly until the correct index number is dis­played. Ex.: To locate the beginning of B from the current
position, press @ twice. To locate the beginning of D from the current position, press # once.
Current position
AB C D E F
–2 –1 1 2 3
Index number
When the specified index code is located, playback begins automatically.
#
Skip Search
SKIP OVER UNWANTED SECTIONS
Press 30 SEC 1 to 4 times during playback. Each press initiates a 30-second period of fast-motion playback.
1
Normal playback resumes automatically.
NOTE:
To return to normal playback during a Skip Sear ch, press PLAY.
1
2
1 2 3 4 5 6 7 8 9
0
1
2
– –:– –
3
4
3
4
REVIEW
23

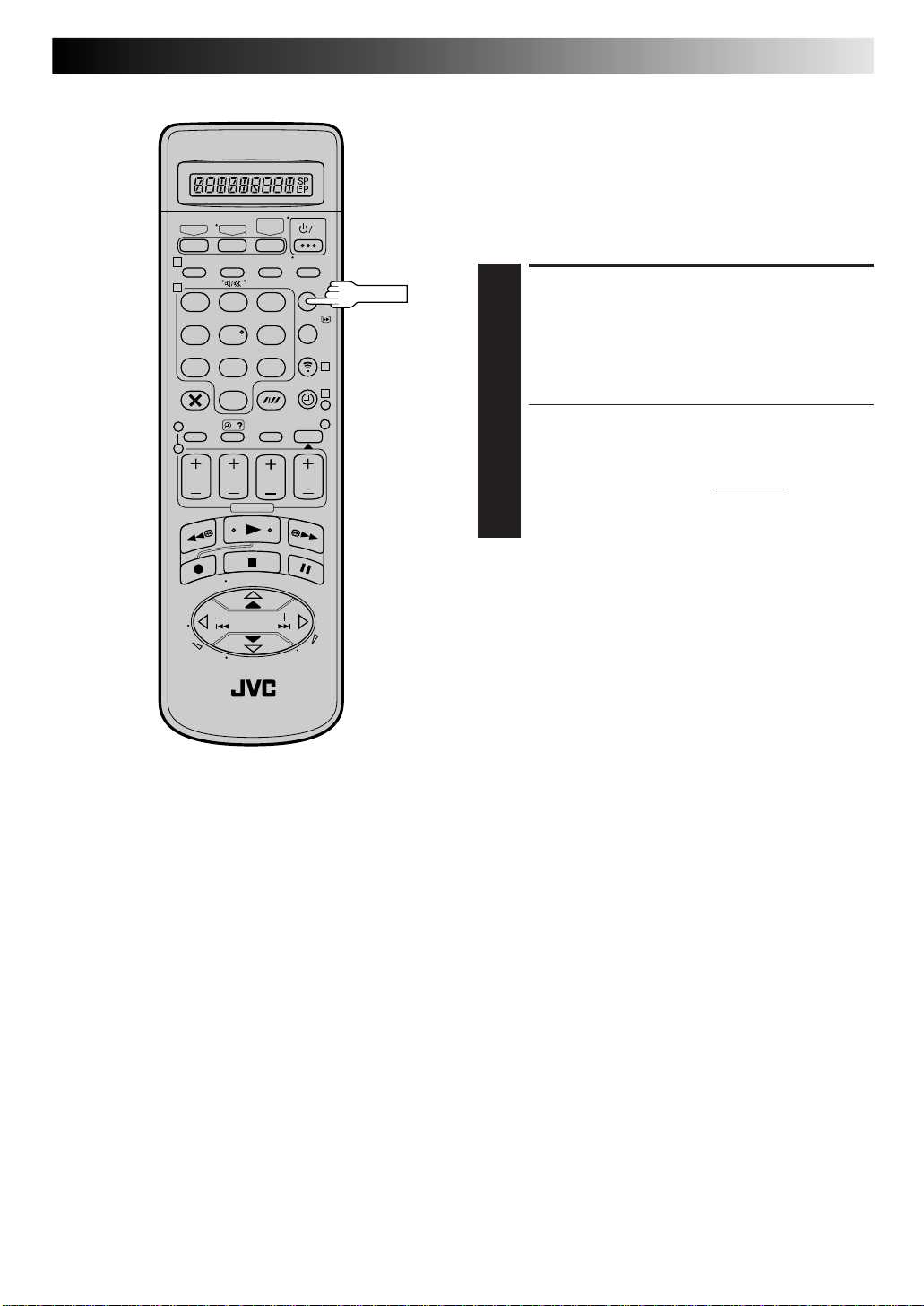

Instant ReView
Simply by pressing a single button, the recorder power comes on, rewinds, and begins playback of the last timer-recorded programme. If you have several programmes recorded, you can easily access any of them.
NOTE:
Before starting, make sure that the recorder is off and that the Timer mode is disengaged.
ACTIVATE INSTANT REVIEW
Press REVIEW. The recorder power comes on and the recorder searches for the index code indicating the start
1
of the last timer-recorded programme. Once it’s found, playback begins automatically.
The front display panel tells you how many programmes have been timer-recorded. If you have, for example, 3 programmes, “REVIEW” and "3" appear and blink. To watch the first of the 3 programmes, press REVIEW three times. The recorder searches and begins playback automatically. You can access a programme as far as 9 index codes away from the current tape position.
NOTES:
Instant ReView is not possible while the recorder is in the Timer mode.
The number of recorded programmes will not be displayed on the front display panel after Auto Satellite Prog recording (Z pg. 28).
24
PLAY
PLAY
PAUSE
TIME SCAN SHUTTLE
TimeScan
1
2
1 2 3 4 5 6 7 8 9
1
MENU
2
– –:– –
0
ADVANCED OPERATIONS (cont.)
Y our recorder is equipped with the TimeScan function. TimeScan allows noise free pictures to be displayed on your TV screen in the forward and reverse search modes. Audio will be played back at normal speed during the TimeScan modes (Z pg. 25). TimeScan also allows you to view a programme in search mode while listening to the audio.
Normal recorder Recorder with TimeScan
Visible Noiseless
NOTES:
The "TIME SCAN AUDIO" must be set to "ON", or the sound will not be heard in TimeScan mode.
The default setting for TimeScan audio is ON. (Z pg. 25)
The audio will not synchronize with the video in TimeScan modes.
In Pause mode 3 seconds (approx.) of audio will be played back repeatedly. (Z pg. 11)
In TimeScan search modes some of the audio information will not be played so that the audio can keep up with the video.
Audio signal during TimeScan
Playback tape
3
4
4
3
OK
Sound of 1, 3 and 5 is heard. Sound of 2 and 4 is not heard. Output audio signal is normal (monaural) sound.
1
2345
Variable-Speed Search/ Reverse Play
PAUSE
ACTIVATE VARIABLE-SPEED SEARCH
During playback, turn the recorder's TIME SCAN SHUTTLE ring. It remains at that position even after you
1
release it. Each time it passes a click position, the playback speed changes. (Refer to the chart on page 25 for playback speeds).
OR
During playback, press @ or #.
The more times you press, the faster the playback picture moves.
To decrease speed, press the button for the opposite direction. (Refer to the chart on page 25 for playback speeds).
To resume normal playback, press PLAY.
TimeScan
25

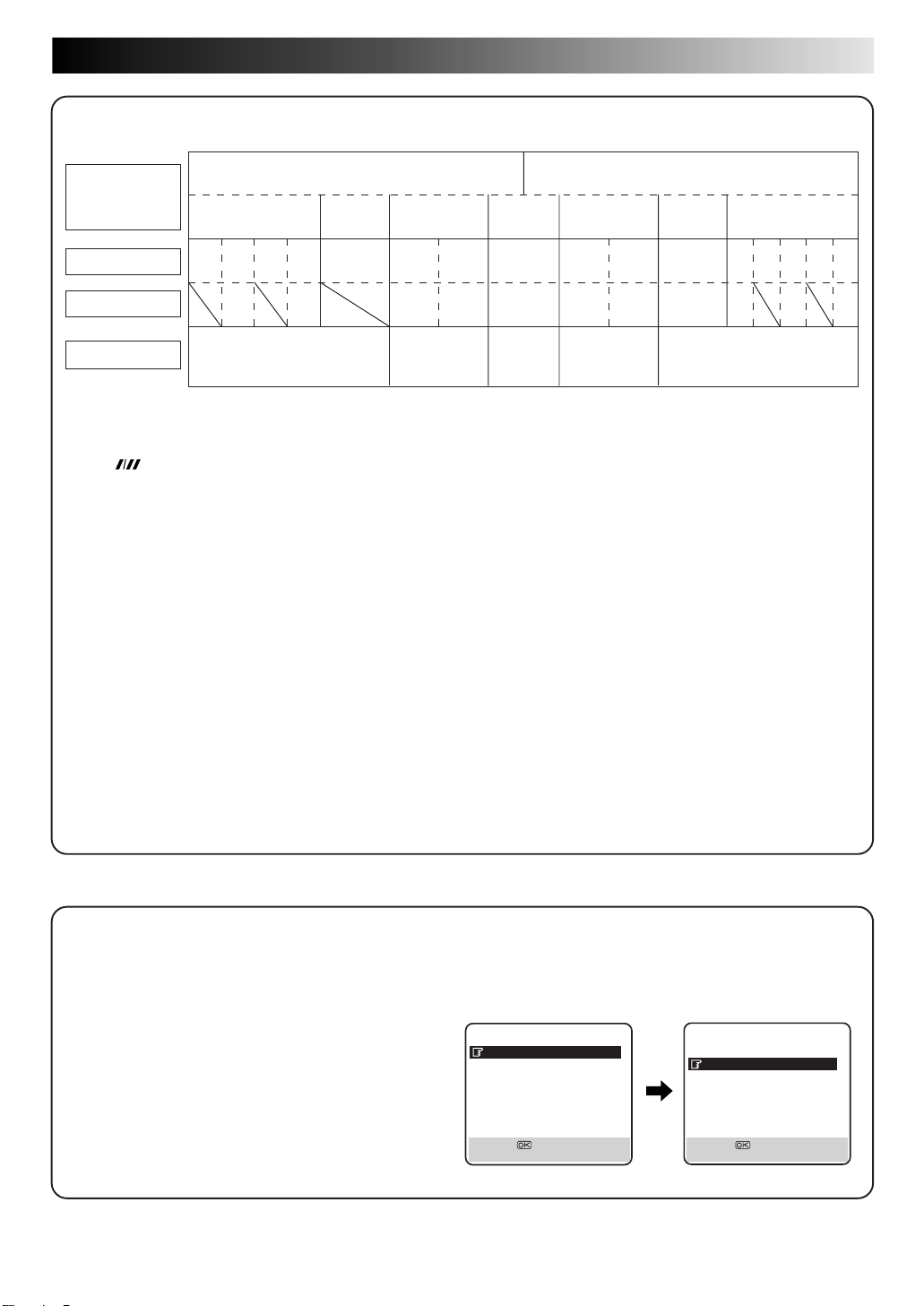

Names of special-effects playback
Speed SP
Speed LP
Audio output
Noise tends to appear at -9x or 9x normal speed during TimeScan search. If noise appears or the picture is distorted, press and adjust tracking with TV PROG + or – button. When the playback speed is changed, adjust tracking again.
The speed is shown during TimeScan in the upper right corner of the TV screen for approx. 5 seconds. (On some TVs the display may be distorted.)
To resume normal playback, press PLAY.
When using the recorder's TIME SCAN SHUTTLE ring, the playback speed may not change in the correct step if it is turned
too fast.
Picture and audio may occasionally become distorted when the recording speed changes. If this happens, resume normal playback once, and then try using TimeScan again.
The picture may be noisy or there may be a loss of colour when you change the playback speed. (More noise will appear with LP recordings.)
Noise may appear or the upper part of the picture may be distorted during still, frame-by-frame playback, 2x search of LP recordings, or with certain tapes.
Picture may appear distorted in comparison to normal playback.
When normal playback resumes from search (including TimeScan), still, slow motion or frame-by-frame playback, the picture
may jitter vertically momentarily depending on the type of TV being used.
Depending on the tape in use, noise may appear or the upper part of the picture may be distorted.
In TimeScan mode there will be a time lag between the video and the audio and noise may appear in the audio signal.
TimeScan sound quality will differ in comparison to normal playback.
When material such as music videos where there is non-stop sound (very few breaks in the soundtrack) are viewed at 2x
normal speed, the audio playback may be faster than normal.
When the playback direction is reversed, it takes approximately 6 seconds until sound is heard.
TimeScan does not work with NTSC playback.
Search Play Slow-Motion *Still Slow-Motion Play Search
-9x -7x -5x -3x -1x -1/6x -1/18x 0 1/18x 1/6x 1x 2x 3x 5x 7x 9x
-7x -3x -1/6x -1/18x 0 1/18x 1/6x 1x 2x 5x 9x
Audio is output.
**To activate the Still mode from the remote control press PAUSE button. Still mode cannot be engaged
using the remote control's
Reverse Forward
Audio is not Audio is Audio is not
output. output. output.
@ #
button.
Audio is output.
If you don't want to hear TimeScan audio, set the "TIME SCAN AUDIO" to OFF. (See below)
TimeScan Audio
The audio output can be set ON/OFF during TimeScan. Select ON/OFF as required. * The default setting is "ON".
1 Press MENU to access the Main Menu screen. 2 Move the highlight bar (pointer) to "MODE SET" by pressing 3 Move the highlight bar (pointer) to "TIME SCAN AUDIO"
by pressing %fi, then press OK or # to select "ON" or "OFF".
4 Press MENU to return to the normal screen.
%
, then press OK or #.
MODE SET
B. E. S. T. ON
PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF POWER SAVE OFF NEXT PAGE
[5∞] = [MENU] : EXIT
PREVIOUS PAGE AV2 SELECT AV2
TIME SCAN AUDIO ON
[5∞] = [MENU] : EXIT
26
Selecting The Sound You
ADVANCED OPERATIONS (cont.)
Hi-Fi Audio Recording LEVEL Control
In most cases, setting the Hi-Fi audio recording level control to the centre position will provide satisfactory results. If necessary, you can adjust the Hi-Fi audio recording level more precisely by reffering to the audio level indicator on the front panel.
Want
1
AUDIO
2
1 2 3 4 5 6 7 8 9
1
MENU
2
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS HI-FI REC LEVEL CONTROL SCREEN
– –:– –
Press %fi to move the highlight bar (pointer) to “REC LEVEL CTL”, then press OK or #.
2
ADJUST AUDIO
3
0
4
4 3
OK
RECORDING LEVEL
Press % or .
HI-FI REC LEVEL CONTROL
3
MIN
5
] =
[
[MENU] : EXIT
Press % or briefly 5 times to move the on-screen's audio levels by one division on the scale. To move the audio levels faster, keep % or pressed.
Adjust the recording level while watching the recorder's audio level meters. Set the level so that maximum volume causes the meters to vary between 0dB to 4dB.
+
MAX
RETURN TO NORMAL SCREEN
Press MENU.
4
NOTES:
Noise will increase if the recording level is too low, while distortion will increase if the level is too high.
When you finished Hi-Fi Audio recording, be sure to set the level control back to its centre position.
27
Receiving NICAM Stereo And Bilingual Programmes
Your recorder is equipped with a Digital stereo sound decoder (NICAM), making reception of stereo and bilingual broadcasts possible.
When the recorder is tuned to a different station, the type of broadcast being received will be displayed on the TV screen for a few seconds.
Type of Broadcast Being Received
Regular Monaural (none) NICAM Stereo ST NICAM NICAM Bilingual BIL NICAM NICAM Monaural NICAM
To listen to a stereo programme, press AUDIO until " " and " " appear on the front display panel or "HI FI L R" appears on the screen.
To listen to a bilingual programme, press AUDIO until either " " or " " appears on the front display panel or "HI FI L " or "HI FI R" appears on the screen (as required).
To listen to the Standard (regular monaural) audio while receiving a NICAM broadcast, press AUDIO until "NORM" appears on the front display panel or on the screen.
NOTES:
The NICAM audio programme will be recorded on the Hi-Fi audio track, and the Standard audio programme on the normal audio track.
If the quality of stereo sound being received is poor, the broadcast will be received in monaural with better quality.
Before playing back a programme recorded in stereo, or a bilingual programme, refer to "Soundtrack Selection" (See below).
"O.S.D." must be set to "ON" or the on-screen displays will not appear (Z pg. 41).
On-screen Display
Soundtrack Selection
Your video recorder is capable of recording three soundtracks (HI-FI L, HI-FI R and NORM) and will play back the one you select.
During Playback
Pressing AUDIO on the remote control changes the soundtrack being played back as follows:
TRACK
Recorder's Front Panel On-Screen Display
+
NORM NORM For audio-dubbed tapes
+ NORM
+
HI FI
LR
HI FI
L
HI FI
R
HI FI
NORM
USE
For Hi-Fi stereo tapes
For main audio of Bilingual tapes
For sub audio of Bilingual tapes
For audio-dubbed tapes
NOTES:
" + " should normally be selected. In this mode, Hi-Fi stereo tapes are played back in stereo, and the normal audio track is played back automatically for tapes with only normal audio.
For instructions on recording NICAM stereo and bilingual programmes, see above.
Bilingual programmes are not currently broadcast in the U.K.
"O.S.D." must be set to "ON" or the on-screen displays will not appear (Z pg. 41).
28
ADVANCED OPERATIONS (cont.)
Automatic Satellite Programme Recording
This facility allows you to record automatically a satellite programme which is timer-programmed on your external satellite receiver. Connect a satellite receiver to the recorder's AV2 IN/DECODER connector and programme the timer on the satellite receiver; the recorder starts recording when the signals input from the satellite receiver to the AV2 IN/DECODER connector, and when there is no input signals the recorder stops recording and the power shuts off.
Aerial connector
Outdoor Unit
Aerial
Back of TV
Satellite Receiver Unit
DECODER VCR TV
Mains outlet
Back of Recorder
Satellite Cable
AV1 IN/OUT
AV2 IN/DECODER
TV Aerial cable
SYNCHRO EDIT
L
AUDIO
OUT
R
PAUSE
RF OUT
ANT. IN RF OUT
21-pin AV input connector (SCART)
JLIP
ANT. IN
EXT.1
IMPORTANT
When you set "AV2 SELECT" to "SAT" (Z pg. 36), it is possible to view a satellite broadcast with the TV set to its AV mode even if the recorder is in Timer mode, in Stop mode, recording or turned off. When the recorder is in Stop mode or recording, press TV/VCR on the remote control to turn off the VCR indicator on the display panel.
NOTE:
Refer to the instructions supplied with your satellite receiver.
ATTENTION
REC LINK
Be sure not to turn on the satellite receiver before the programme is executed; otherwise, the recorder will start recording when the satellite receiver's power is turned on.
If you have connected another appliance other than a satellite receiver to the AV2 IN/DECODER connector, be sure not to engage the Auto Satellite Prog Rec mode; otherwise, the recorder will start recording when the connected appliance's power is turned on.
Auto Satellite Prog recording and timer-recording cannot be done at the same time.
When you press and hold the recorder's REC LINK button to engage the Auto Satellite Prog Rec mode, if the REC LINK button does not light but instead blinks quickly even though your satellite receiver's power is off, Auto Satellite Prog Recording will not work properly with that satellite receiver*. If this is the case, perform "Express Timer Programming" (Z pg. 16) to timer-record a satellite programme.
*Some satellite receivers output signals even if the power is off.
Auto Satellite Prog Recording is not possible with those satellite receivers.
Before performing the following steps:
Make sure the satellite receiver is connected to the recorder's AV2 IN/DECODER connector. (Z pg. 28)
Programme the timer on the satellite receiver.
Insert a cassette with the safety tab in place.
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS MODE SET SCREEN
Move the highlight bar (pointer) to "MODE SET" by pressing %fi, then press OK or #.
2
SELECT AV2 SELECT MODE
Move the highlight bar (pointer) to "AV2 SELECT", by pressing %fi, then press OK or # to set to "SAT".
3
MODE SET
B. E. S. T. ON
PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF POWER SAVE OFF NEXT PAGE
[5∞] = [MENU] : EXIT
PREVIOUS PAGE
AV2 SELECT SAT
TIME SCAN AUDIO ON
[5∞] = [MENU] : EXIT
SET TAPE SPEED
Press SP/LP ( ) to set the tape speed.
4
ENGAGE AUTO SATELLITE PROG REC MODE
Press and hold REC LINK for about 2 seconds. The button lights up and the recorder turns off automatically.
5
To disengage the Auto Satellite Prog Rec mode, press
REC LINK. The light goes off.
If the recorder's power is off, it is not possible to engage the Auto Satellite Prog Rec mode.
29
NOTES:
Auto Satellite Prog recording is possible with the AV2 IN/DECODER connector only.
When the Auto Satellite Prog Rec mode is engaged or the recorder's power is turned off after Auto Satellite Prog recording is finished, the recorder will not enter the Timer mode even though "AUTO TIMER" is set to "ON".
After Auto Satellite Prog recording, the number of recorded programmes will not be displayed on the front display panel for the Instant ReView function (Z pg. 23).
For timer programming of the satellite receiver, refer to the instruction manual of the satellite receiver.
Auto Satellite Prog recording is not possible if your satellite receiver does not have a timer.
The REC LINK button blinks while Auto Satellite Prog recording is in progress.
Pressing the recorder's button while Auto Satellite Prog recording is in progress turns off the recorder's power and disengages the Auto Satellite Prog Rec mode.
If there is more than one satellite programme you wish to record with Auto Satellite Prog Recording, it is not possible to set a different tape speed for each; the tape speed selected in step 4 will apply to all the programmes for Auto Satellite Prog recording.
The B.E.S.T. system (Z pg. 20) does not work while Auto Satellite Prog recording is in progress.
Just Clock (Z pg. 55) does not work when the Auto Satellite Prog Rec mode is engaged.
Depending on the type of satellite receiver, the recorder may not record a short portion at the beginning of the programme or may record slightly longer than the actual length of the programme.
If you engage the Auto Satellite Prog Rec mode when the satellite receiver's power is on, the recorder will not start Auto Satellite Prog recording even though the REC LINK button blinks. When the satellite receiver shuts off once and is turned back on again, the recorder starts recording.
You can also record a programme from your cable system in the same way if the system has a timer and is connected to the recorder's AV2 IN/DECODER connector.
30
NUMBER "2"
Remote Con­trol Functions
VCR
NUMBER "1"
1
2
1 2 3 4 5 6 7 8 9
1
2
– –:– –
3
0
4
4 3
OK
ADVANCED OPERATIONS (cont.)
Remote A/B Code Switching
The remote control is capable of controlling two JVC video recorders independently; one set to respond to the remote control’s A code control signals and another set to respond to B code control signals. The remote control is preset to send A code signals because your video recorder is initially set to respond to A code signals. You can easily modify your video recorder to respond to B code signals.
REMOVE POWER SUPPLY
Unplug the mains power cord from the mains outlet.
1
SET REMOTE CONTROL CODE
Press and hold VCR on the remote control for over 2 seconds, press the NUMBER key "2" and then press OK.
2
RE-SUPPLY POWER
Plug the mains power cord back into the mains outlet.
3
TURN THE RECORDER ON
Press on the remote control. The recorder will now only respond to B code signals.
4
NOTE:
To set the recorder back to respond to A code signals, repeat the same procedure as shown above except pressing NUMBER key
"1" instead of "2" in step 2.
NUMBER
TV
TV/VCR
VCR
TV PROG+/–
1
2
1
2
– –:– –
1 2 3 4 5 6 7 8 9
0
31

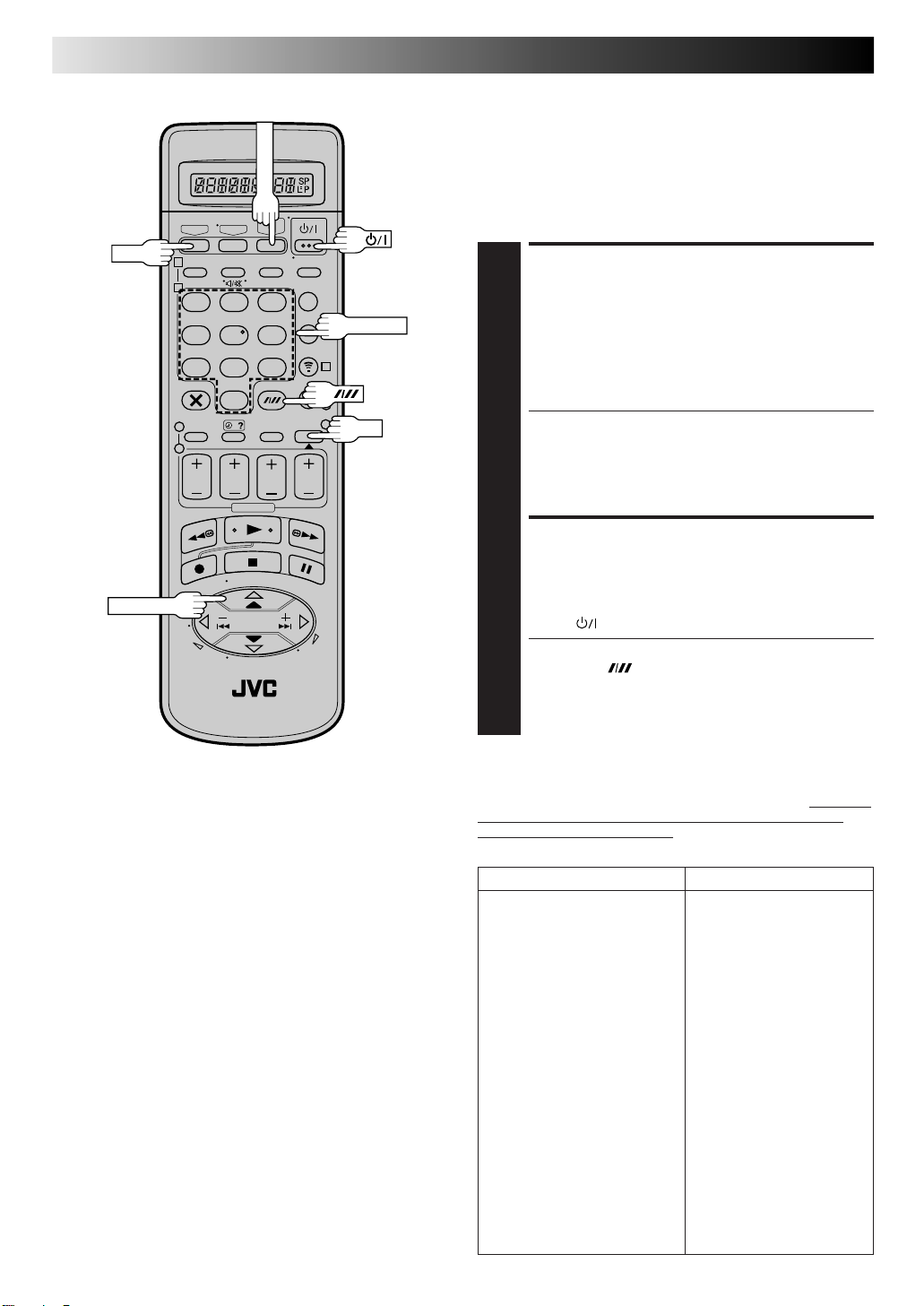

TV Multi-brand Remote Control
Your remote control can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer’s TVs can also be controlled.
Before you start . . .
Turn off the TV using its remote control.
SET TV BRAND CODE
Refer to the chart below. Press and hold TV on the recorder's remote control for over 2 seconds, enter your
1
TV’s brand code using the NUMBER keys, then press OK.
3
4
4 3
OK
+/–
TV
Check if the TV's power goes on as it should. If it does, try other operations (Z step 2).
Once you have set the remote control to operate the TV, you don't have to repeat this step until you replace your remote control's battteries.
JVC or SAMSUNG has more than one code. If the TV does not function with one code, try entering another.
OPERATE TV
First, press TV to set the remote control to TV mode, then press the corresponding button: , TV PROG +/–,
2
TV/VCR, TV +/– (Volume), (Muting), NUMBER
keys.
For some brands of TV, you must press OK after having pressed the NUMBER keys.
To return the remote to video recorder control, press VCR.
Control Your TV Using Additional Buttons
Use the NUMBER keys, and the button, button or button to select the TV’s channel.
With televisions under Code 01, 02, 07, 10, 11, 14, 20, 23, 24, 25, 27, 33 or 35, the button corresponds to the 1-digit/2-digit entry switching button (often labelled – /– –) of your TV’s remote control.
With televisions under Code 01, 28, 29 or 34, the button corresponds to the 10 + button, and the button corre­sponds to the 20 + button of your TV’s remote control.
NOTE:
The way these buttons are used is determined by your TV. Use these buttons as instructed for your TV’s remote control.
IMPORTANT
Although the provided remote control unit is compatible with JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability.
TV BRAND NAME CODE
JVC 01, 23, 24, 25 BLAUPUNKT 19 BRANDT 26 FERGUSON 27 FINLUX 30 FUNAI 32 LG/GOLDSTAR 18 GRAETZ 28 GRUNDIG 19 HITACHI 10 ITT 28 LUXOR 28 MITSUBISHI 03 MIVAR 29 NEC 20 NOKIA 31 NORDMENDE 26 PANASONIC 11 PHILIPS 02 SABA 26 SALORA 28 SAMSUNG 02, 12, 33, 34, 35 SELECO 28 SHARP 06 SONY 07 TELEAVIA 26 TELEFUNKEN 26 THOMSON 26 TOSHIBA 14
32
CABLE/SAT
VCR
1
2
1 2 3 4 5 6 7 8 9
0
1
2
– –:– –
3
4
4 3
NUMBER
OK
ADVANCED OPERATIONS (cont.)
Satellite Receiver Multi­Brand Remote Control
Your remote control can operate the basic functions of your satellite receiver set. In addition to JVC satellite receivers, other manufacturer’s satellite receivers can also be controlled.
Before you start . . .
Turn off the satellite receiver using its remote control.
SET SATELLITE RECEIVER BRAND CODE
Refer to the chart below. Press and hold CABLE/SAT on the recorder's remote control for over 2 seconds, enter your satellite tuner’s brand code using the NUMBER
1
keys, then press OK. Check if the satellite receiver's power goes on as it should. If it does, try other operations (Z step 2).
Once you have set the remote control to operate the satellite receiver, you don't have to repeat this step until you replace your remote control's battteries.
Some satellite receiver brands have more than one code. If the satellite receiver does not function with one code, try entering another.
OPERATE SATELLITE
TV PROG+/–
First, press CABLE/SAT to set the remote control to satellite tuner mode, then press the corresponding button: , TV PROG +/–, NUMBER keys.
2
For VIDEOWAY or some brands of satellite receiver, you must press after having pressed the NUMBER keys.
The NUMBER buttons may not function with some satellite receivers.
To return the remote to video recorder control, press VCR.
IMPORTANT
Although the provided remote control unit is compatible with JVC satellite receivers, as well as many other models, it may not work with your satellite receiver, or in some instances, may have limited function capability.
SATELLITE TUNER BRAND CODE
JVC 72, 73 AMSTRAD 60, 61, 62, 63 BT 72 CANAL + 81 FINLUX 68 GRUNDIG 64, 65 HIRSCHMANN 64 ITT 68 JERROLD 75 KATHREIN 70, 71 LUXOR 68 MASPRO 70 NOKIA 68 PACE 65, 67 PANASONIC 74 PHILIPS 66 RFT 69 SALORA 68 SIEMENS 64 SKYMASTER 69 VIDEOWAY 76 WISI 64
RECEIVER
33
You can use a camcorder as the source player and your video recorder as the recorder.
Edit From A Camcorder
1
2
1 2 3 4 5 6 7 8 9
NUMBER "0"
1
2
– –:– –
3
0
4
4 3
TV PROG
MAKE CONNECTIONS
Connect the camcorder’s AUDIO/VIDEO OUT connectors to the recorder’s front panel AUDIO/VIDEO
1
input connectors.
When using a monaural camcorder, connect its AUDIO OUT connector to the AUDIO L input connector on your recorder.
When a Master Edit Control-equipped JVC camcorder is used, the camcorder is capable of controlling the recorder. Refer to the camcorder’s instruction manual for operating procedure.
SET RECORDER’S INPUT MODE
Press NUMBER key “0” and/or TV PROG so that “F-1” appears in place of a preset position number.
2
SET EDIT MODE
See "Picture Control" on page 19.
3
START CAMCORDER
Engage its Play mode.
4
VIDEO input
Camcorder
Recorder
AUDIO input
Audio/Video Cable (not provided)
VIDEO OUT
AUDIO OUT
To rear panel PAUSE connector
Mini-Plug Cable (not provided) (JVC camcorder only)
START RECORDER
Engage its Record mode.
5
NOTES:
All necessary cables can be obtained from your dealer.
You can also use another video recorder as the player instead of a camcorder.
When you select EDIT to dub tapes in step 3, be sure to select AUTO (or NORM when B.E.S.T. is set to OFF) after you finish dubbing the tapes.
Player
EDIT
34
SYNCHRO EDIT
RECORD

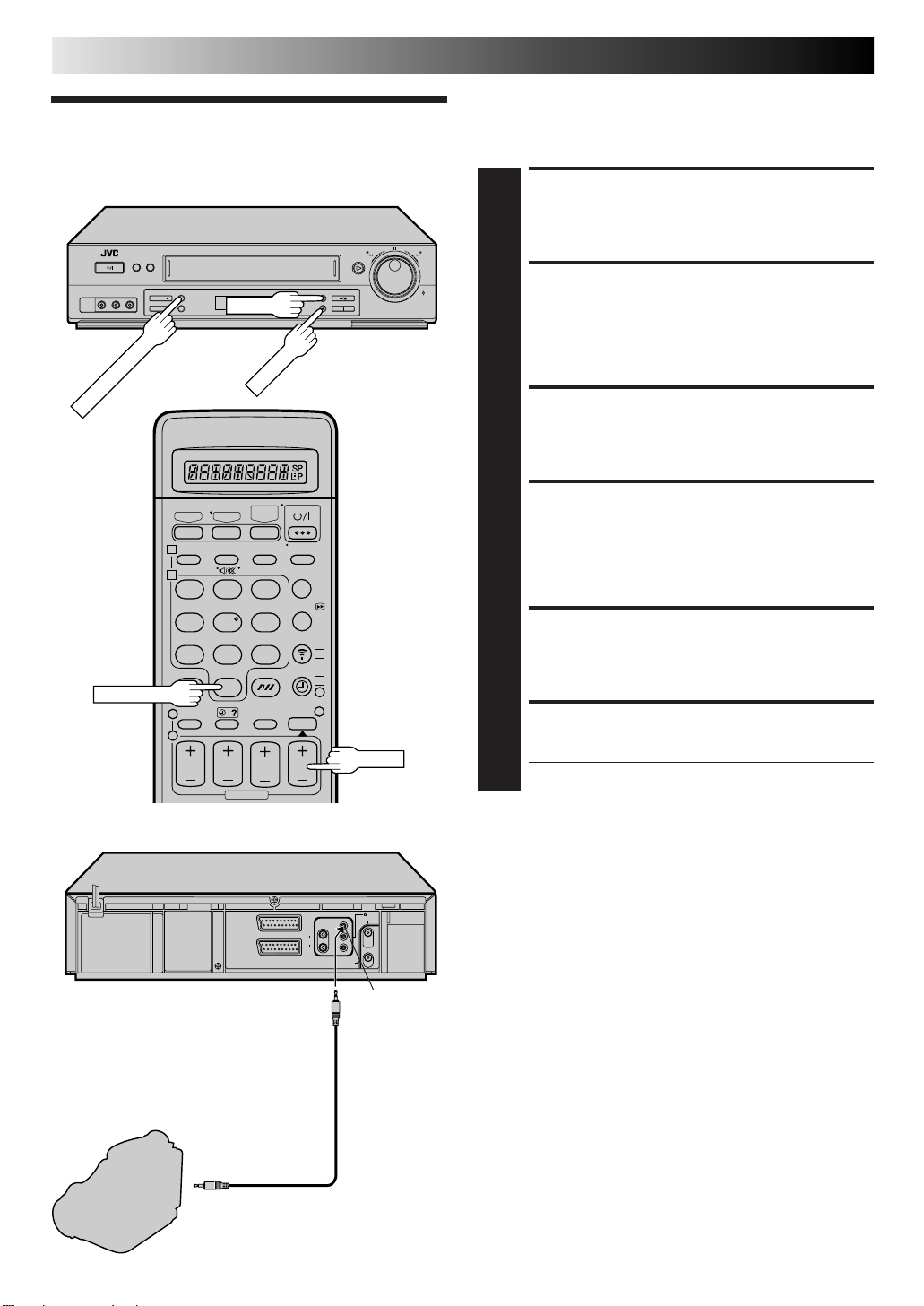

Synchro Editing
PAUSE
1
2
1 2 3
– –:– –
ADVANCED OPERATIONS (cont.)
The Synchro Editing function synchronizes the start of the playback and recording operations when starting an edit operation using a camcorder equipped with a LANC connector and your video recorder.
MAKE CONNECTIONS
Connect your recorder to camcorder (Z pg. 33), and connect your recorder's SYNCHRO EDIT connector to
1
the camcorder's LANC connector.
SET RECORDER'S INPUT MODE
Press NUMBER key “0” and/or TV PROG so that “F-1” appears in place of a preset position number.
2
SET EDIT MODE
See "Picture Control" on page 19.
3
LOCATE START POINT
Start playback of the tape in the camcorder, and pause playback when you find the point where you want to
4
start editing. Press and hold PAUSE and press RECORD on your recorder so that the recorder enters the Record­Pause Mode.
NUMBER "0"
Recorder
4 5 6 7 8 9
0
1
2
AV1 IN/OUT
AV2 IN/DECODER
3
4
4 3
TV PROG
SYNCHRO EDIT
L
AUDIO OUT
R
PAUSE
RF OUT
SYNCHRO EDIT connector
LANC Cable (not provided)
START SYNCHRO EDITING
Press SYNCHRO EDIT.
5
PAUSE SYNCHRO EDITING
Press SYNCHRO EDIT again.
Repeat steps 4 – 6 as necessary.
6
NOTES:
The Synchro Edit function may not work with the initial part of a camcorder tape.
The Synchro Edit function cannot be used when using the JLIP
JLIP
ANT. IN
function. (Pressing SYNCHRO EDIT cancels the JLIP function.)
The Synchro Editing function may not work properly with some type of camcorder.
When you select EDIT to dub tapes in step 3, be sure to select AUTO (or NORM when B.E.S.T. is set to OFF) after you finish dubbing the tapes.
Player
Camcorder
To LANC connector
35
You can use your video recorder as the source player or as the recording deck.

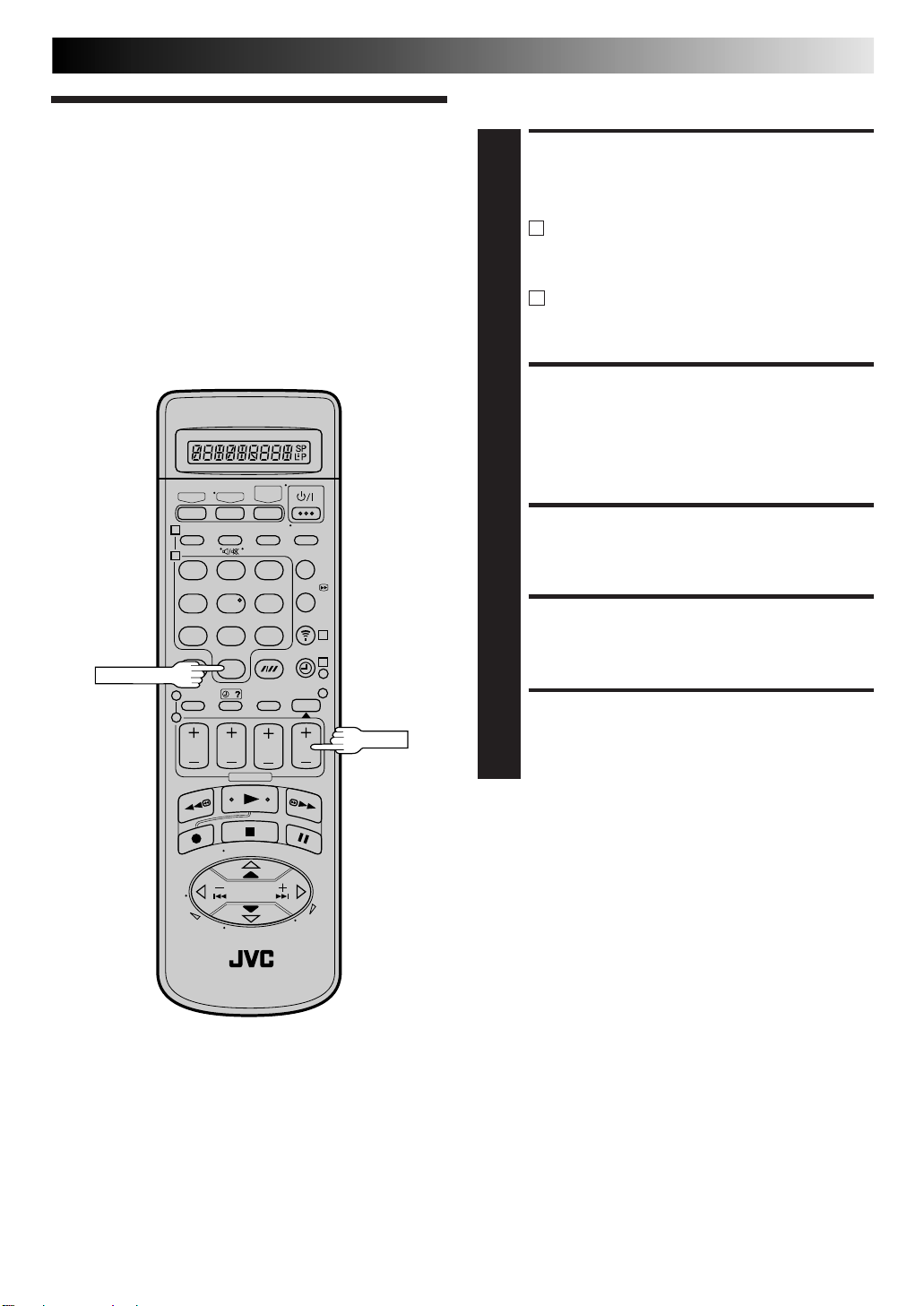

Edit To Or From Another Video Recorder
1
2
1 2 3 4 5 6 7 8 9
NUMBER "0"
1
2
– –:– –
3
0
4
4 3
TV PROG
MAKE CONNECTIONS
Connect the player’s 21-pin SCART connector to the recorder’s 21-pin SCART connector as illustrated on
1
page 36. A
When Using Your Video Recorder As The Source Player ...
... connect its AV1 IN/OUT connector to the recording deck.
BWhen Using Your Video Recorder As The Recording
Deck ...
... connect its AV2 IN/DECODER or AV1 IN/OUT connector to the source player.
SET RECORDING DECK’S INPUT MODE
Set to AUX. With this video recorder, press NUMBER key "0" and/or TV PROG to select “L-1” for the AV1 IN/
2
OUT connector, or “L-2” for the AV2 IN/DECODER connector, depending on the connector being used.
SET EDIT MODE
See "Picture Control" on page 19.
3
START SOURCE PLAYER
Engage its Play mode.
4
START RECORDING DECK
Engage its Record mode.
5
NOTES:
All necessary cables can be obtained from your dealer.
When you select EDIT to dub tapes in step 3, be sure to select AUTO (or NORM when B.E.S.T. is set to OFF) after you finish dubbing the tapes.
When you use this recorder as the player for editing, be sure to set "O.S.D." to "OFF" before starting (Z pg. 41).
36
A B
TV Receiver
Player Your recorder Recorder Your recorder
ADVANCED OPERATIONS (cont.)
TV Receiver
AV1 IN/OUT
AV2 IN/DECODER
AUDIO
OUT
R
PAUSE
RF OUT
AV1 IN/OUT
AV2 IN/DECODER
JLIP
SYNCHRO EDIT
ANT. IN
L
21-pin SCART Cable
RF Cable (provided)
(not provided)
Recorder
Another recorder
21-pin SCART Cable (not provided)
Another recorder
Player
VIDEO CHAN­NEL or AV mode
AV2 SELECT Setting
Set "AV2 SELECT" to the appropriate mode depending on the type of unit connected to the rear panel AV2 IN/DECODER connector of this recorder.
1 Press MENU to access the Main Menu screen. 2 Press %fi to move the highlight bar (pointer) to "MODE SET", then press OK or 3 Press %fi to move the highlight bar (pointer) to "AV2 SELECT". 4 Press OK or
a–AV2 : To use this recorder as the recording deck with the player connected to the
b–DECODER :To use a decoder connected to the AV2 IN/DECODER connector. c–SAT : T o view a satellite programme with the TV set while the recorder is in Timer
#
to select "AV2", "DECODER" or "SAT".
AV2 IN/DECODER connector, or to use the satellite receiver connected to the AV2 IN/DECODER connector.
mode, in Stop mode, recording or turned off. (Z pg. 28)
5 Press MENU to return to normal screen.
If you have a satellite receiver or a decoder connected to the AV2 IN/DECODER connector, be sure to set "AV2 SELECT" back to appropriate mode after editing.
If you're not connecting a satellite receiver or a decoder to the AV2 IN/DECODER connector , leave "AV2 SELECT" set to "AV2".
The default setting is "AV2"; if the recorder's memory backup has expired due to a power cut or because the AC was removed from the recorder , "AV2" will be automatically selected when the power is restored to the recorder. If you are using a satellite receiver or a decoder, be sure to set "AV2 SELECT" back to appropriate mode.
#
.
L
AUDIO OUT
R
JLIP
SYNCHRO EDIT
ANT. IN
PAUSE
RF OUT
RF Cable (provided)
MODE SET
B. E. S. T. ON
PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF POWER SAVE OFF NEXT PAGE
[5∞] = [MENU] : EXIT
PREVIOUS PAGE
AV2 SELECT AV2
TIME SCAN AUDIO ON
[5∞] = [MENU] : EXIT
VIDEO CHAN­NEL or AV mode
37
PLAY
TV PROG
A. DUB
Audio dubbing replaces the normal audio sound of a previously recorded tape with a new soundtrack.

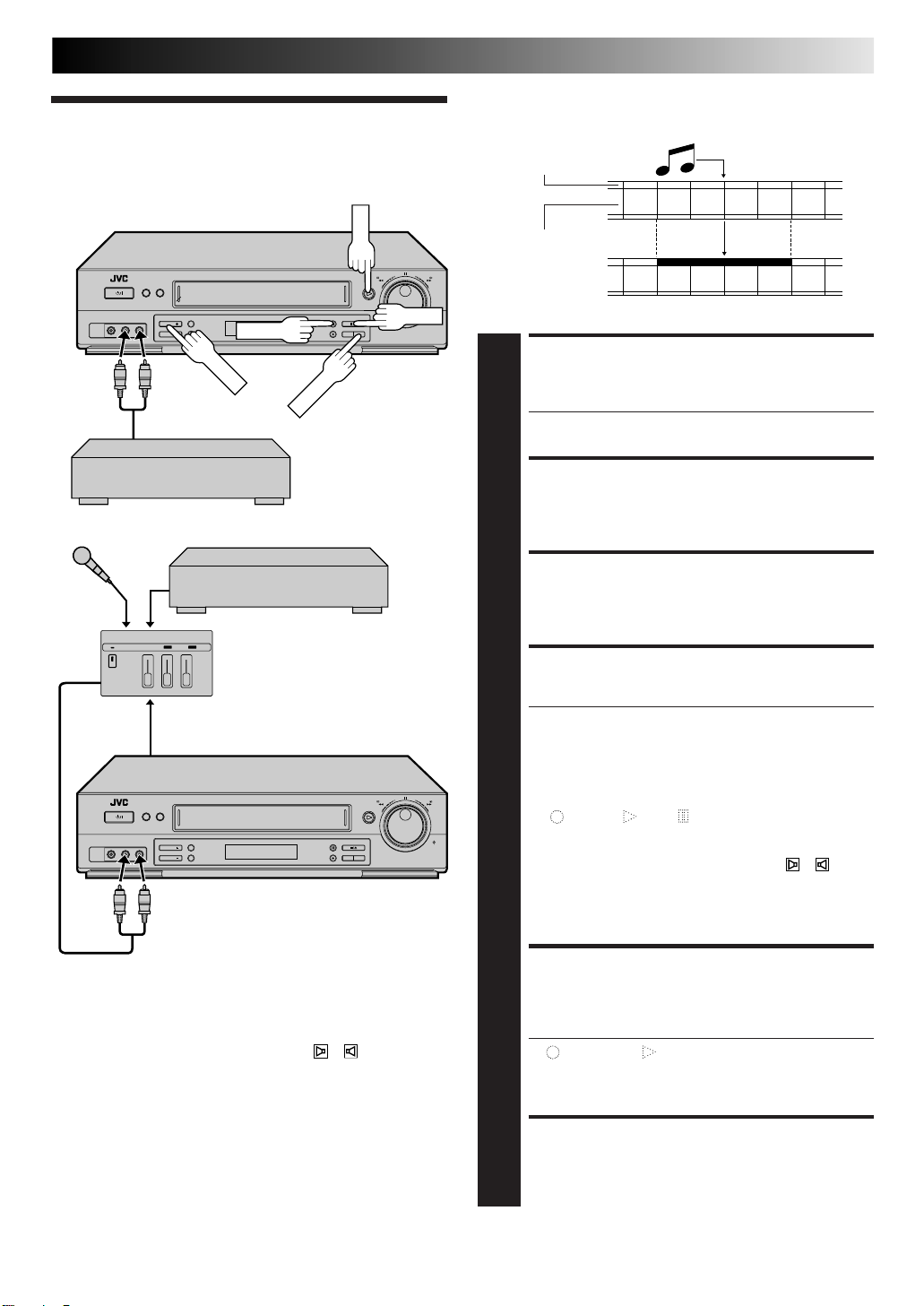

Audio Dubbing
STOP
Mixer output
PAUSE
CD Player etc.
CD Player etc.
Audio mixer
Original sound
AUDIO OUT
Normal audio track
Video/Hi-Fi audio track
Pre-recorded tape
Audio-dubbed tape
MAKE CONNECTIONS
Connect an audio component to the AUDIO L + R connectors on the recorder's front panel.
1
When connecting monaural equipment, use only the recorder's AUDIO L connector.
SET INPUT MODE
Press NUMBER key "0" and/or TV PROG so that "F-1" or "S-1" appears in place of a channel number.
2
LOCATE START POINT
Press PLAY to start playback of the tape in your recorder, and press PAUSE when you find the point
3
where you want to start dubbing.
ENGAGE AUDIO DUBBING
Press A. DUB.
It is possible to take the original sound recorded on
4
the tape in your recorder and mix it with other sounds from a microphone, CD player etc. To perform this audio dubbing with audio mixing, connect as in the diagram on the left.
Your recorder enters the Audio Dubbing Pause mode. (" " blinks, " " and " " light up on the front display panel.)
To perform audio dubbing with audio mixing, press AUDIO on the remote control to select " + (L+R)" at this point. * Audio dubbing with audio mixing is not possible if
you're using a monaural audio component, or if you don't have an audio mixer.
NOTES:
When monitoring the sound during Audio Dubbing, the normal soundtrack is automatically selected. If you wish to hear the mixed sound (Hi-Fi + Normal soundtracks), press AUDIO on the remote control to select " + (L+R) + NORM" (Z pg. 27).
Audio dubbing stops automatically when the counter reaches "0:00:00", and the recorder enters the Play mode. Check the counter reading before dubbing.
Audio dubbing is also possible using the rear panel AV1 IN/OUT or AV2 IN/DECODER connector. When using these connectors, make sure to select the correct input mode in step 2.
Audio dubbing cannot be performed on a cassette that has had its record safety tab removed.
When playing back an audio-dubbed tape, press AUDIO on the remote control to select the soundtrack you wish to hear (Z pg. 27).
START DUBBING
Engage the audio component's Play mode, then press
PLAY to start the tape in your recorder. Audio dubbing
5
begins at this point.
" " blinks and " " is displayed on the front display panel.
To stop dubbing temporarily, press PAUSE. Press PLAY to resume dubbing.
END AUDIO DUBBING
Press STOP to stop the tape in your recorder, and engage the audio component's Stop mode.
6
38
NUMBER "0"
PAUSE
TV PROG
JOG
TIME SCAN SHUTTLE
Insert Editing
Recorder Your recorder
ADVANCED OPERATIONS (cont.)
Insert editing replaces part of the recorded scene with new material. Both the picture and Hi-Fi audio soundtrack are replaced with new ones, while the normal audio soundtrack remains unchanged. If you wish to change the normal audio track as well, use the audio dubbing function simultaneously. Use your video recorder as the recorder.
Source tape
Player
0000
Another recorder
1
2
1 2 3 4 5 6 7 8 9
0
1
2
Audio/Video signal
– –:– –
3
4
4 3
TV PROG
Recorded tape
Before insert editing
After insert editing
MAKE CONNECTIONS
Connect the player's VIDEO OUT and AUDIO OUT connectors to your recorder's VIDEO and AUDIO input
1
connectors on the front panel.
SET INPUT MODE
Press NUMBER key "0" and/or TV PROG so that "F-1" appears in place of a channel number.
2
LOCATE END POINT
Load the recording cassette into your recorder, and play it back to determine the edit-out point (the end of the
3
segment to be replaced) using the TIME SCAN SHUTTLE ring or the JOG dial or pressing
and PAUSE.
@ #
RESET THE COUNTER
Press 0000 to change the counter display to "0:00:00".
4
LOCATE START POINT
Determine the edit-in point (the beginning of the segment to be replaced) using the TIME SCAN SHUTTLE
5
ring or the JOG dial or pressing
Be sure to engage the Still mode at the edit-in point.
and PAUSE.
@ #
Normal audio track
Video/Hi-Fi audio track
PAUSE
ENGAGE INSERT EDITING
A. DUB
INSERT
PLAY
Press INSERT.
Your recorder enters the Insert-Pause mode. (" ", " "
6
and " " light up on the front display panel.)
The TV screen changes from the still picture to the input source you are going to record.
START EDITING
Load the source cassette and play back the segment that is to be inserted. When you reach the start of the
7
section of the source tape that you wish to insert, press PLAY to start the tape in your recorder; Insert Editing begins at this point.
" " and " " are displayed on the front display panel.
END INSERT EDITING
At counter "0:00:00", Insert Editing will stop automati­cally while the tape continues running in the Play
8
mode. If you wish to stop Insert Editing before the specified edit-out point, press 0000.
39
0000
1
2
1 2 3 4 5 6 7 8 9
0
1
2
– –:– –
3
4
4 3
PLAY
FOR AV INSERT EDITING
If you want to replace the picture, Hi-Fi audio soundtrack and normal audio soundtrack all at the same time... ...
In step 6 above, after you press INSERT, press A. DUB also. (" " and " " blink and " " lights up on the front display panel.)
NOTES:
Suitable leads can be obtained from your dealer.
Insert editing is not possible with cassettes whose safety tab has been removed.
When insert editing is performed on a tape that has been recorded on another video recorder, the inserted portion may appear distorted.
In insert editing, the recording speed (SP/LP) is determined by the previous recording to be replaced. If the previous recording's speed changes within a single edit, the inserted picture will be distorted at the switching point.
A small portion of the recording which precedes an insert edit may become erased.
Insert Editing is also possible using the rear panel AV1 IN/ OUT or AV2 IN/DECODER connector. When using these connectors, make sure to select the correct input mode in step
2.
40

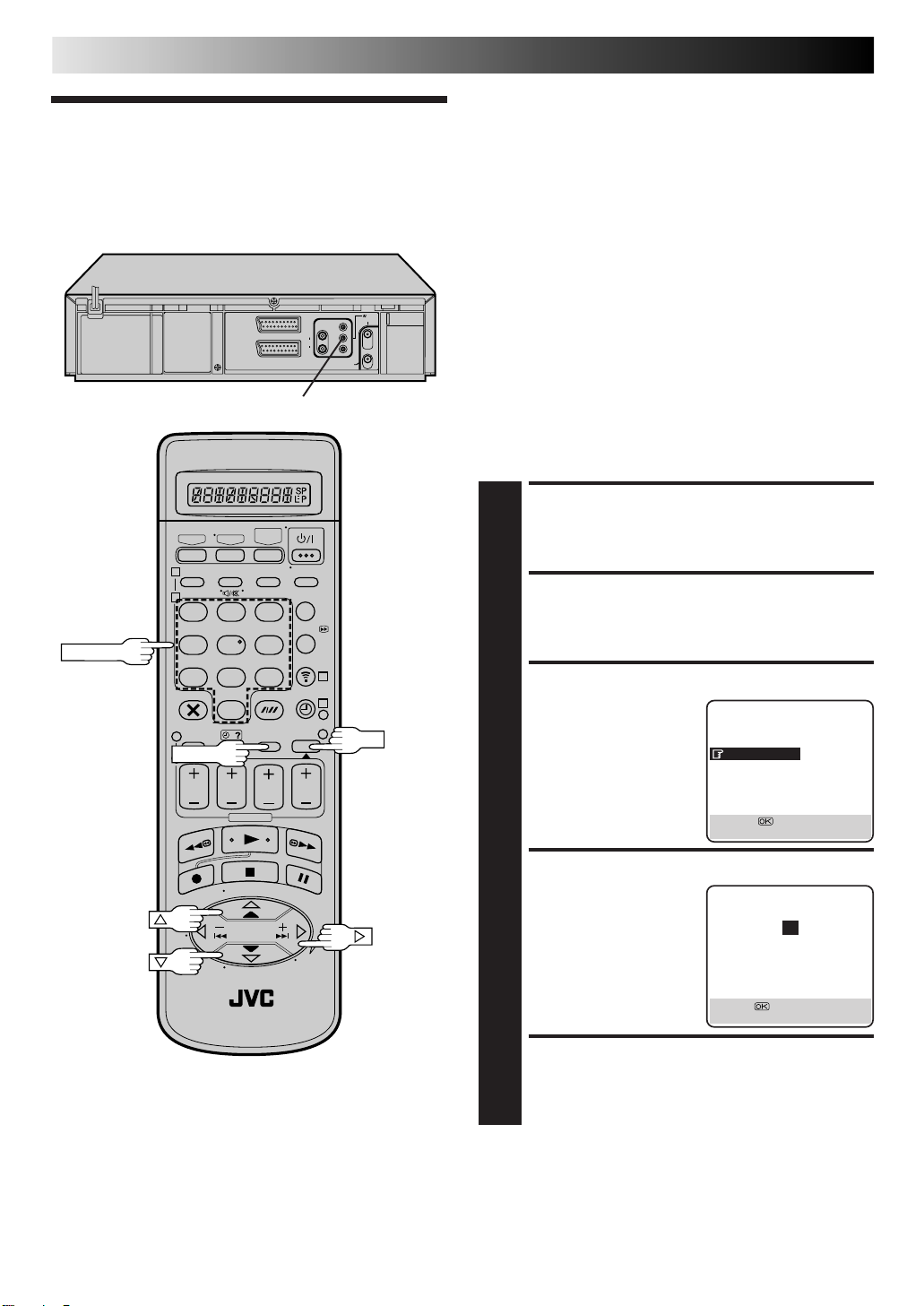

Information On J Terminal
JLIP
SYNCHRO EDIT
AV1 IN/OUT
AV2 IN/DECODER
J terminal
L
AUDIO OUT
R
ANT. IN
PAUSE
RF OUT
ADVANCED OPERATIONS (cont.)
J T erminal (JLIP(Joint Level Interface Protocol) Connector)
The J Terminal is used to connect the recorder to a personal computer or similar device to allow computerized control of the recorder during editing and certain other operations.
Examples:
With the optional JLIP VIDEO CAPTURE BOX GV-CB3E:
Enables Random Assemble Editing of up to 99 segments,
using this recorder as the playback unit.
Allows you to capture still images from the recorder into a
personal computer.
For further details consult your nearest JVC dealer.
JLIP ID Number
Your recorder has its own JLIP ID number. This ID number must be unique when your recorder is connected to another device via its J terminal. The ID Number is preset to "1" at the factory. You can change this number to any number between "1" and "99". If it is necessary to change the JLIP ID number perform the following steps.
ACCESS MAIN MENU SCREEN
Press MENU.
NUMBER
1
2
1 2 3 4 5 6 7 8 9
0
1
MENU
2
– –:– –
1
ACCESS INITIAL SET SCREEN
Press %fi to move the highlight bar (pointer) to "INITIAL SET", then press OK or #.
2
3
4
4 3
OK
ACCESS JLIP ID NO. SET SCREEN
Press %fi and move the highlight bar (pointer) to
3
"JLIP ID NO. SET", then press OK or #.
CLOCK SET GUIDE PROG SET
JLIP ID NO. SET
5
[
] =
[MENU] : EXIT
SET JLIP ID NUMBER
Press NUMBER keys to enter the desired ID
4
number.
CLOCK SET
[0-9] = [MENU] : EXIT
RETURN TO NORMAL SCREEN
Press OK.
INTIAL SET
JLIP ID NO. SET
1
5
Other
41
On-Screen Display
You can choose whether or not to have various operational indicators appear on screen, by setting this function ON or OFF.
Functions
Turn on the TV and select the VIDEO channel (or AV mode).
1
2
1 2 3 4 5 6 7 8 9
1
MENU
2
– –:– –
3
0
4
4 3
OK
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS MODE SET SCREEN
Move the highlight bar (pointer) to "MODE SET" by pressing %fi, then press OK or #.
2
ENABLE/DISABLE ON-SCREEN DISPLAY
The default setting is “ON”, so if you want on-
3
screen displays, leave the setting as it is and go to step 4. If you don’t want the displays to appear, press %fi to move the highlight bar (pointer) to "O.S.D." and press OK or # to set “O.S.D.” to “OFF”.
RETURN TO NORMAL
Press MENU.
B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF
O. S. D. ON
DIRECT REC ON AUTO SP=LP TIMER OFF POWER SAVE OFF NEXT PAGE
[5∞] = [MENU] : EXIT
MODE SET
4
The superimposed indication on the TV screen tells you what the recorder is doing.
13
14
1
12
11 10
PR. 12 ABCD 21 : 00
24. 12. 99 – WARNING– TIMER RECORDING TO START SOON
9
8 7
ST MARK
0
HI FI –1 : 23 : 45
NORM REMAIN 1 : 00
[
++
]
]
q6
+
SP
+
2
3 4
5 6
NOTES:
When you use this recorder as the player for editing, be sure to set "O.S.D." to "OFF" before starting.
During playback, the operation mode indicators may sometimes be disturbed depending on the type of tape being used.
1– Operation mode indicators 2– Tape speed SP/LP/EP (EP is for NTSC playback only) 3– Tape direction 4– Index MARK indicator (Z pg. 22) 5– Counter display 6– Tape remaining time indicator (Z pg. 13) 7– Audio mode display (Z pg. 27) 8– Tape position indicator (Z pg. 10) 9– Type of Broadcast (Z pg. 27) 10– Current day/month/year 11– Clock display 12– Channel position number and station name/Aux. indicator
(L-1, L-2 or F-1)
13– Timer warning display (Z pg. 15, 17) 14– Cassette loaded mark
42
1
2
1 2 3 4 5 6 7 8 9
0
1
MENU
2
– –:– –
ADVANCED OPERATIONS (cont.)
Power Save Mode
You can reduce the power consumption while the recorder is turned off.
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS MODE SET SCREEN
Press %fi to move the highlight bar (pointer) to
2
"MODE SET", then press
3
4
4 3
OK
OK or #.
SELECT POWER SAVE
MAIN MENU
MODE SET
AUTO CH SET MANUAL CH SET INITIAL SET REC LEVEL CTL
T
5
[
] =
[MENU] : EXIT
REW
PLAY
Press %fi to move the highlight bar (pointer) to
3
"POWER SAVE", then press OK or # to set to "ON".
MODE SET
B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF
POWER SAVE ON
NEXT PAGE
[5∞] = [MENU] : EXIT
RETURN TO NORMAL SCREEN
MODE
Press MENU.
4
NOTES:
During Power Save, the display panel will be turned off.
The Just Clock function (Z pg. 55) does not work while the Power Save mode is engaged.
While the recorder is in the Power Save mode, the picture may be distorted momentarily when you turn on/off the recorder.
Power Save does not work when ... ... the recorder is in the Timer mode. ... the recorder's power is turned off after timer-recording (or
Instant Timer Recording).
... the Auto Satellite Prog Recording mode is engaged
(Z pg. 28).
43

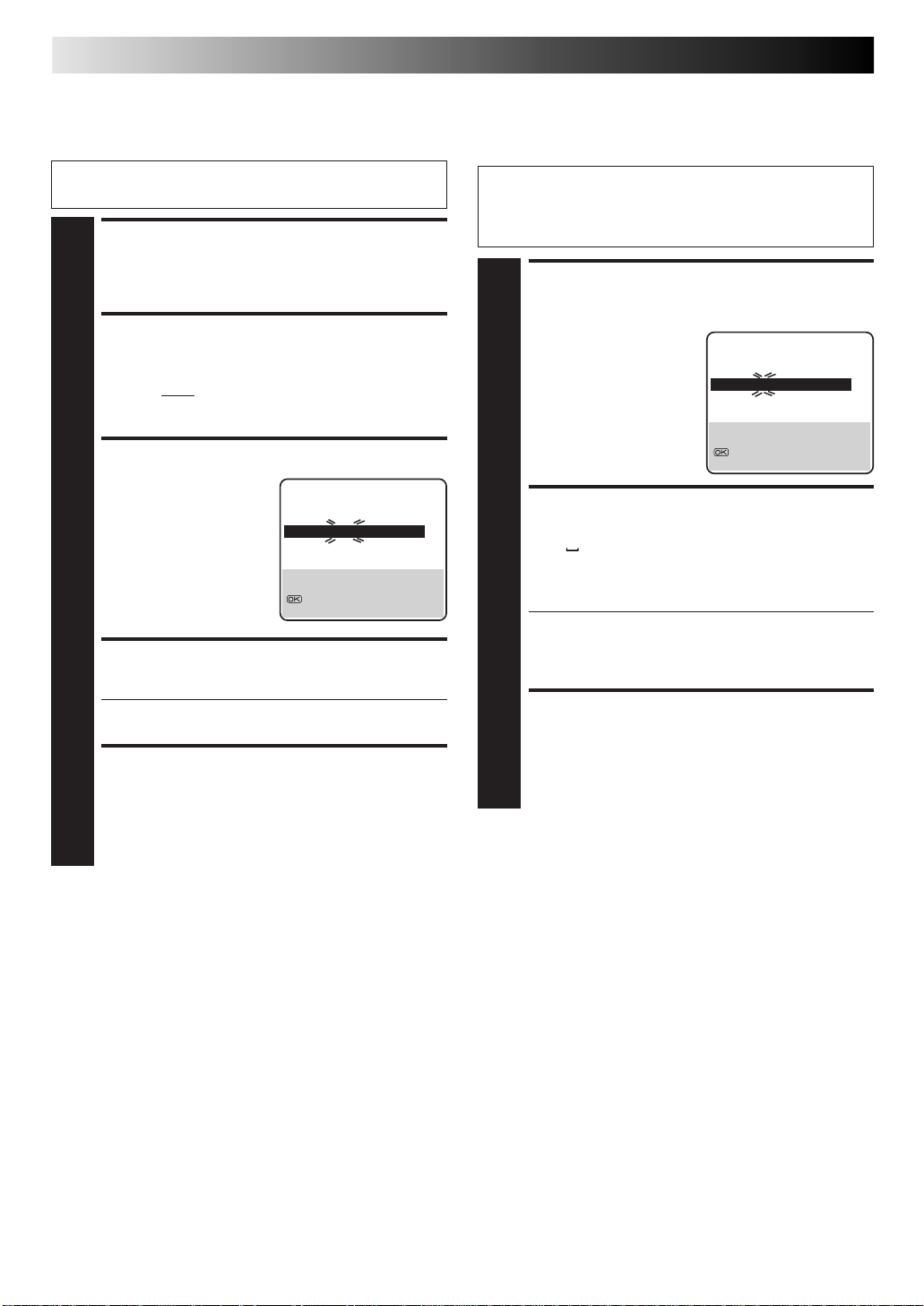

Auto SP→LP Timer
If, when timer-recording in SP mode, there is not enough tape to record the entire programme, the recorder automatically switches to LP mode to allow complete recording.
For Example . . .
Recording a programme of 210 minutes in length onto a 180­minute tape
Approximately 150 minutes Approximately 60 minutes
SP mode LP mode
Total 210 minutes
Make sure you set "AUTO SPLP TIMER" to "ON" at the Mode Set screen before the timer-recording starts.
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS MODE SET SCREEN
Press %fi to move the highlight bar (pointer) to "MODE SET", then press OK or #.
2
SELECT MODE
Press %fi to move the highlight bar (pointer) to
3
"AUTO SPLP TIMER", then press OK or # to select "ON".
[5∞] = [MENU] : EXIT
MODE SET
B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON
AUTO SP=LP TIMER ON
POWER SAVE OFF NEXT PAGE
Auto Timer
When the Auto Timer is set to ON the timer is automatically engaged when the recorder power is turned off and automati­cally disengaged when the recorder is powered back on.
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS MODE SET SCREEN
Press %fi to move the highlight bar (pointer) to
2
"MODE SET", then press OK or #.
SELECT MODE
Press OK or # to select either "ON" or "OFF".
3
RETURN TO NORMAL SCREEN
Press MENU.
MAIN MENU
MODE SET
AUTO CH SET MANUAL CH SET INITIAL SET REC LEVEL CTL
5
[
] =
[MENU] : EXIT
MODE SET
B. E. S. T. ON PICTURE CONTROL AUTO
AUTO TIMER ON
O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF POWER SAVE OFF NEXT PAGE
[5∞] = [MENU] : EXIT
RETURN TO NORMAL SCREEN
Press MENU.
4
NOTES:
The Auto SP→LP Timer feature is not available during ITR (Instant Timer Recording), and the feature will not work properly with any tapes longer than E-180 or with some tapes of shorter lengths.
If you have programmed the recorder to timer-record 2 or more programmes, the second programme and those thereafter may not fit on the tape if you set "AUTO SP→LP TIMER" to "ON". In this case, make sure the mode is not engaged, then set the tape speed manually during timer programming.
In order to ensure that the recording fits on the tape, this feature may leave a short non-recorded section at the end of the tape.
There may be some picture noise and sound disturbance at the point on the tape where the recorder switches from SP to LP mode.
If you perform timer recording with both PDC and the Auto SP→LP Timer activated, and the programme goes beyond its originally scheduled length, there may be times when the programme cannot be recorded in its entirety.
4
NOTE:
For safety, when Auto timer is set to "OFF", all other recorder functions are disabled while the Timer mode is engaged. To disengage the timer, press ‰ (TIMER).
Next Function Memory
The Next Function Memory "tells" the recorder what to do after rewinding. Before continuing, make sure the recorder is in the Stop mode. a– For Automatic Start Of Playback After Tape Rewind . . . . . . press REW, then press PLAY within 2 seconds. b– For Automatic Power Off After Tape Rewind . . . . . . press REW, then press within 2 seconds. c– For Automatic Timer Standby After Tape Rewind . . . . . . press REW, then press (TIMER) within 2 seconds.
44
PLAY
1
2
1 2 3
ADVANCED OPERATIONS (cont.)

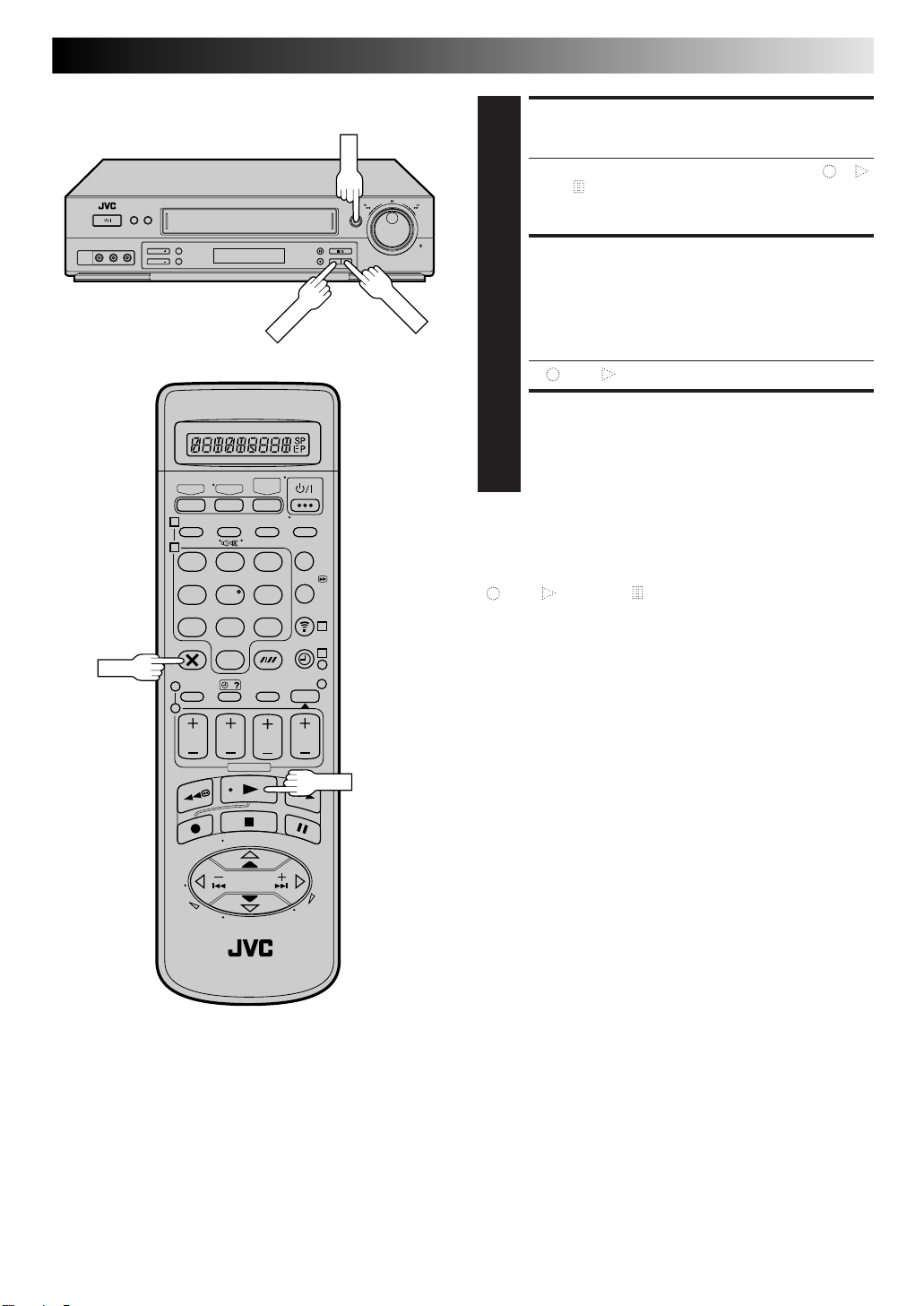

Repeat Playback
Your video recorder can automatically play back the whole tape 50 times repeatedly.
– –:– –
4 5 6 7 8 9
0
1
2
REW
STOP
3
4
4
3
FF
PAUSE
Retake
You can cut out unnecessary parts of a TV programme while you're recording it.
End of programme
Programme
Unnecessary part
Recorded part
Go back to end of programme to cut out unnecessary part
Beginning of programme
Unnecessary part
Programme
ENGAGE RECORD-PAUSE MODE
Press PAUSE during recording.
1
LOCATE START POINT
Turn the JOG dial to the left or right (or hold down REW or FF) and release it when you reach the point
2
where you want to resume recording. * Your recorder returns to the Record-Pause mode.
RESUME RECORDING
Press PLAY when you wish to resume recording.
3
START PLAYBACK
Press PLAY.
1
ACTIVA TE REPEAT PLAYBACK
Press PLAY and hold for over 5 seconds, then release.
The Play indicator ( ) on the display panel blinks
2
slowly.
The tape plays 50 times automatically, and then stops.
STOP PLAYBACK
Press STOP at any time to stop playback.
3
NOTE:
Pressing PLAY, REW, FF or PAUSE also stops Repeat Playback.
NTSC Playback
Your video recorder is equipped with NTSC circuitry that can play back NTSC tapes.
LOAD A CASSETTE
Insert a cassette recorded in NTSC.
1
START PLAYBACK
Press PLAY.
"NTSCPAL" appears on the screen for about 5
2
seconds.
Some TVs shrink the picture vertically and place black bars at the top and bottom of the screen. This is not a malfunction on the part of either the video recorder or the TV.
The picture may roll up and down. This can be corrected using the V-HOLD control found on some TVs. (This cannot be corrected if the TV does not have a V-HOLD control.)
The counter and tape remaining time readings will be incorrect.
During search, still, or frame-by-frame playback, the picture will be distorted, and there may be a loss of colour.
Depending on the type of TV, the top and bottom portions of superimposed displays may be cut off during NTSC playback.
NOTE:
Retake function does not work during Direct Rec (Z pg. 9).
SYSTEM CONNECTIONS
Connection To A Stereo System
FM Tuner
CD Player
45
These instructions enable you to connect your video recorder to your Hi-Fi stereo system (if you have one) and listen to the soundtrack through the stereo.
Speaker
Mains outlet
Stereo Amplifier
Television
Back of Recorder
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
AUX IN or TAPE MONITOR
I
I
I
I
I
I
I
I
I
I
I
I
I
I
Speaker
AV1 IN/OUT
AV2 IN/DECODER
AUDIO OUT
Audio Cable (not provided)
SYNCHRO EDIT
JLIP
ANT. IN
L
AUDIO
OUT
R
PAUSE
RF OUT
MAKE CONNECTIONS
Connect the AUDIO OUT L and R connectors on your video recorder to the AUX IN or TAPE MONITOR
1
terminals on your stereo system's receiver or amplifier.
NOTES:
When connecting your recorder's audio output connectors to a stereo amplifier, make sure you connect L and R correctly.
If you can receive NICAM TV broadcasts in your area, this recorder can record them independently of the TV set and play them back through the connected stereo system.
When listening to sound through the connected stereo system, turn the TV's volume down completely.
CAUTIONS:
This recorder has a dynamic range of more than 80 dB with regards to its Hi-Fi audio capability. It is recommended that you check the maximum level if you are going to listen to the Hi-Fi audio signals through a stereo amplifier. A sudden surge in the input level to the speakers may damage them.
Some speakers and televisions are specially shielded to prevent television interference. If both are of the non-shielded type, do not place the speakers adjacent to the TV set as this can adversely affect the video playback picture.
46
STOP
Video Channel Set
Video Channel (RF Output Channel) is the channel on which your TV receives picture and sound signals from the video recorder through the RF cable.
SUBSIDIARY SETTINGS
IMPORTANT
Perform the following steps only if — — Video Channel Set has not been done correctly by the
Auto Set Up function (Z pg. 6).
— interference appears in the TV picture after you have
moved to a different area or a new station has started broadcasting in your area.
— you change the connection between your recorder and
TV from RF connection to AV connection, or vice versa.
If you have connected the video recorder to your TV via both the provided RF cable and a 21-pin SCART cable (AV connection), you do not need the video channel so you have to set the video channel to off. — Go to "With AV Connection" below.
If you have connected the video recorder to your TV via the provided RF cable only (RF connection), you have to set the correct video channel — Go to "With RF Connection" on page 47.
With AV Connection
Before performing the following procedure, make sure that:
n the mains power cord is plugged into the mains outlet. n the video recorder is turned off and there is no cassette
inserted in the recorder.
n batteries have been installed in the remote control.
1
2
1 2 3 4 5 6 7 8 9
0
1
2
– –:– –
3
4
4 3
OK
TV PROG
ACCESS VIDEO CHANNEL SET MODE
Press and hold down STOP on the recorder until the display panel shows the following.
1
SET VIDEO CHANNEL
Press TV PROG – until the display panel shows
– –
"–OUT
".
2
Now the video channel is set to off.
EXIT VIDEO CHANNEL SET MODE
Press OK.
3
To view picture signals from the video recorder, set your TV to its AV mode. Refer to the instructions supplied with your TV set for how to do this.
1
STOP
2
1 2 3
– –:– –
With RF Connection
Before performing the following procedure, make sure that:
n the mains power cord is plugged into the mains outlet. n the video recorder is turned off and there is no cassette
inserted in the recorder.
n the connected TV is turned on. n batteries have been installed in the remote control.
ACCESS VIDEO CHANNEL SET MODE
Press and hold down STOP on the recorder until the display panel shows the following.
1
SET VIDEO CHANNEL
Press TV PROG+ or – to set the video recorder to a vacant channel between 22 and 69 which is not
2
occupied by any local station in your area. Refer to list on page 54 for details of broadcast stations in your area.
(Ex.) If channel 36 is available in your area
47
TEST SIGNAL
4 5 6 7 8 9
0
1
2
3
4
4 3
TV PROG
The channel on which the screen on the left appears clearly in step 2 is your Video Channel.
OK
Then set your TV to UHF channel 36. (Refer to the instructions supplied with your TV set for how to do this.)
If the two vertical white bars appear clearly on the screen as shown in the illustration at buttom left, go to step 3.
If the two vertical white bars do not appear clearly, re-set the video recorder to another vacant channel and try again.
IMPORTANT
If you set the video recorder to a channel which is occupied by a local station or has neighbouring channels that are occupied by local stations, the picture reception quality will be affected and some interference noise will appear on the TV screen. Be sure to select a vacant channel which has no broadcast on neighbouring channels.
If you cannot obtain the two vertical white bars clearly with any channel between 22 and 69, consult your JVC dealer.
EXIT VIDEO CHANNEL SET MODE
Press OK.
3
To view picture signals from the video recorder, set your TV to the Video Channel.
48
Tuner Set
Turn on the TV and select the VIDEO channel (or AV mode).
SUBSIDIARY SETTINGS (cont.)
IMPORTANT
Perform the following steps only if — — Auto Channel Set has not been set correctly by Auto Set
Up function (Z pg. 6) or Preset Download (Z pg. 7).
— you have moved to a different area or if a new station
starts broadcasting in your area.
Your recorder needs to memorise all necessary stations in preset positions in order to record TV programmes. Auto Channel Set automatically assigns all receivable stations in your area to call them up by using the TV PROG buttons without going through any vacant channel.
Auto Channel Set
1
2
1 2 3 4 5 6 7 8 9
0
1
MENU
2
– –:– –
3
4
4 3
OK
TV PROG
TURN ON THE RECORDER
Press .
1
ACCESS MAIN MENU SCREEN
Press MENU.
2
PERFORM AUTO CHANNEL SET
Move the highlight bar (pointer) to "AUTO CH
3
SET" by pressing %fi, then press OK or #.
The Auto Set screen appears, and remains on screen while the recorder searches for receivable stations. As Auto Channel Set progresses, the " " mark on the screen moves from left to right. Wait until the screen as shown in step 4 appears.
Auto Channel Set usually takes about 4 – 12 minutes; the duration varies by area.
5
[ [MENU] : EXIT
0
[MENU] : EXIT
Beginning
MODE SET
AUTO CH SET
MANUAL CH SET INITIAL SET REC LEVEL CTL
] =
AUTO SET
PLEASE WAIT
MAIN MENU
+++
End
1
2
1 2 3 4 5 6 7 8 9
0
1
MENU
2
– –:– –
49
VIEW CONFIRMATION SCREEN
After "SCAN COMPLETED" is displayed on the screen
4
for about 5 seconds, a Confirmation screen looking like the one on the right appears. The stations your recorder located appear on a Confirmation screen — preset positions (PR), channels (CH) and station names (ID – Z pg. 53). The blueback screen and the programme currently being broadcast by the station which is blinking appear alternately for 8
3
4
4 3
OK
seconds each. To view the next page, use the remote control.
The Guide Program numbers will also be set automatically during Auto channel Set.
RETURN TO NORMAL SCREEN
Press MENU.
Using the Confirmation screen, you can skip or add
5
preset positions, enter station names and perform other operations. Refer to pages 50 – 54 for the procedures.
Depending on reception conditions, the stations may, on occasion, not be stored in order, and the station names may not be stored correctly.
PR CH ID PR CH ID
01 26 BBC1 08 ––––
02 33 BBC2 09 –––– 03 23 ITV 10 –––– 04 30 CH4 11 –––– 05 37 CH5 12 –––– 06 –––– 13 –––– 07 –––– 14 ––––
5
5
[
]
5
5
: EDIT
= = [X] : DELETE
[MENU] : EXIT
%
@ #
button on the
IMPORTANT
In certain reception conditions, station names may not be stored correctly, and auto Guide Program Number Set may not work properly. If the Guide Program numbers are not set properly, when you timer-record a TV programme using VIDEO Plus+, the recorder will record a TV programme of a different station. When program­ming the timer using VIDEO Plus+, be sure to check that the preset position corresponding to the broadcasting station you wish to record has been selected (Z pg. 14, "VIDEO Plus+ Timer Programming").
Your video recorder memorizes all detected stations even if reception of some of them is poor. In these cases picture quality may be poor. To delete those stations which have an unacceptable picture Z "Delete A Channel" on page 51.
NOTES:
Fine tuning is performed automatically during Auto Channel Set. If you wish to perform it manually, refer to page 51.
If, for any reason, you perform Auto Channel Set when the aerial cable is not connected properly, "SCAN COMPLETED
-NO SIGNAL-" appears on the screen in step 4. When this happens, make sure of the aerial connection and press OK; Auto Channel Set will take place again.
50
NUMBER
1
2
1 2 3 4 5 6 7 8 9
0
1
MENU
2
– –:– –
SUBSIDIARY SETTINGS (cont.)
SELECT BAND
%
Press band between CH (regular)
4
and CC (cable), then press #.
3
4
4 3
OK
INPUT CHANNEL
Press the NUMBER keys to input the channel number
5
you want to store.
To input the registered
For fine tuning
When "AV2 SELECT" is set to "AV2", the "DECODER"
to change the
PR CH ID FINE DECODER
06 CH01
– – – –
5
[
] : SELECT
[
] : CURSOR +=
: OK
[MENU] : EXIT
The blueback screen and the programme currently being broadcast by the selected channel appear alternately for 8 seconds each.
PR CH ID FINE DECODER
06 CH21
– – – –
station name (ID – Z pg. 53), press # until "– – – –" (ID setting) begins blinking, then press %fi.
adjustment, press until "+/–" begins blinking, then press %fi. While tuning, “+” or “–” appears.
setting cannot be changed (Z pg. 36).
#
5
[
] : SELECT
[
] : CURSOR +=
: OK
[MENU] : EXIT
The blueback screen and the programme currently being broadcast by the selected channel appear alternately for 8 seconds each.
+/– OFF
+/– OFF
Storing Channels Manually
To store channels that were not stored during Auto Set Up (Z pg. 6), Preset Download (Z pg. 7) or Auto Channel Set (Z pg. 48).
ACCESS MAIN MENU
Press MENU.
1
ACCESS CONFIRMATION SCREEN
Press %fi to move the highlight bar (pointer) to “MANUAL CH SET”, then press OK or #. The Confir-
2
mation screen appears.
SELECT POSITION
%
Press open position in which
3
you want to store a channel begins blinking, then press OK. The Manual Channel Set screen appears.
@ #
until an
(Ex.) To store in position 6.
PR CH ID PR CH ID 01 26 BBC1 08 –––– 02 33 BBC2 09 –––– 03 23 ITV 10 –––– 04 30 CH4 11 –––– 05 37 CH5 12 ––––
06 –––– 13 ––––
07 –––– 14 ––––
5
5
[
]
5
: EDIT
= = [X] : DELETE
[MENU] : EXIT
The blueback screen and the programme currently being broadcast by the selected channel appear alternately for 8 seconds each.
ENTER NEW CHANNEL INFORMATION
Press OK and the Confirmation screen appears.
Repeat steps 3 through 6 as necessary.
6
CLOSE CONFIRMATION SCREEN
Press MENU.
To change positions, see "Change Station Preset
7
Position" (Z pg. 51).
If you wish to set station names other than the ones registered in your recorder, Z "Set Stations (B)" on pg. 52.
ATTENTION
Guide Program numbers are not set when channels are stored manually. If an attempt is made at timer program­ming with VIDEO Plus+ in this state, the “GUIDE PROG SET” screen appears; set the Guide Program numbers on this screen. Z “ATTENTION – Regarding Guide Program Number Set” on pg. 15. Or perform “Guide Program Number Set” (Z pg. 56).
51
Delete A Channel
Perform steps 1 and 2 of "Storing Channels Manually" on page 50 to access the Confirmation screen before continuing.
SELECT ITEM
Press %fi blinking.
@ #
until the item you want to delete begins
1
DELETE CHANNEL
Press .
The item directly beneath the cancelled one moves
2
up one line.
Repeat steps 1 and 2 as necessary.
CLOSE CONFIRMATION SCREEN
Press MENU.
3
Change Station Preset Position
Perform steps 1 and 2 of "Storing Channels Manually" on page 50 to access the Confirmation screen before continuing.
Fine-Tuning Channels Already Stored
Perform steps 1 and 2 of "Storing Channels Manually" on page 50 to access the Confirmation screen before continuing.
SELECT CHANNEL TO FINE-TUNE
Press %fi blinking.
@ #
until the channel you want to tune begins
1
ACCESS MANUAL CHANNEL SET SCREEN
Press OK twice. The Manual Channel Set screen appears.
2
PERFORM TUNING
Press # until "+/–" begins blinking, then press %fi until the picture is clearest. Then press OK.
3
The Confirmation screen appears.
Repeat steps 1 through 3 as necessary.
CLOSE CONFIRMATION SCREEN
Press MENU.
4
SELECT ITEM
Press %fi blinking. Then press OK and the station name (ID) and
1
its channel (CH) number begin blinking.
@ #
until the item you want to move begins
SELECT NEW POSITION
Press %fi position, then press OK.
2
Example: If you moved the station in position 4 to
PR CH ID PR CH ID 01 26 BBC1 08 –––– 02 23 ITV 09 –––– 03 30 CH4 10 ––––
04 33 BBC2 11 ––––
05 37 CH5 12 –––– 06 –––– 13 –––– 07 –––– 14 ––––
Repeat steps 1 and 2 as necessary.
@ #
to move the station to the new preset
position 2, the stations originally in positions 2 and 3 each move down one space.
PR CH ID PR CH ID 01 26 BBC1 08 ––––
02 33 BBC2 09 ––––
03 23 ITV 10 –––– 04 30 CH4 11 –––– 05 37 CH5 12 –––– 06 –––– 13 ––––
5
5
[
] : MOVE
5
: MANUAL CH SET
[MENU] : EXIT
07 –––– 14 ––––
5
[
5
[MENU] : EXIT
5
] : MOVE =
CLOSE CONFIRMATION SCREEN
Press MENU.
3
NOTE:
The characters available for the station name (ID) are A–Z, 0–9, –, *, +, (space) (maximum of 4).
ATTENTION
If channel positions are changed or deleted, the Guide Program numbers that have been set are reset.
Example 1: If a channel is deleted, all the Guide Program numbers are reset.
Example 2: If a channel is changed from position 4 to position 2, the Guide Program numbers above position 4 are reset.
Example 3: If a channel is changed from position 4 to position 6, the Guide Program numbers above position 6 are reset.
* In Examples 2 and 3, if the channel is moved to position
10 before OK is pressed, the Guide Program numbers above position 10 are reset. If an attempt is made at timer programming with VIDEO Plus+ in this state, the “GUIDE PROG SET” screen appears; set the Guide Program numbers on this screen.
Z “ATTENTION – Regarding Guide Program Number
Set” on pg. 15. Or perform “Guide Program Number Set” (Z pg. 56).
52
SUBSIDIARY SETTINGS (cont.)
Set Stations (A)
Set station names that are registered in your recorder.
Perform steps 1 and 2 of "Storing Channels Manually" on page 50 to access the Confirmation screen before continuing.
SELECT ITEM
Press %fi
@ #
until the item you want begins blinking.
1
ACCESS MANUAL CHANNEL SET SCREEN
Press OK twice.
2
SELECT NEW STATION
Press # until the station name (ID) begins
3
blinking, then press until the new station’s name (ID) you want to store begins blinking. Registered station names (Z pg. 53) appear as you press %fi.
SWITCH STATIONS
Press OK.
The Confirmation screen appears.
4
Repeat steps 1 through 4 as necessary.
CLOSE CONFIRMATION SCREEN
Press MENU.
%fi
PR CH ID FINE DECODER
06 CH45
– – – –
+/– OFF
5
[
] : CHANGE ID
[
] : CURSOR +=
: OK
[MENU] : EXIT
Set Stations (B)
Set station names other than the ones registered in your recorder.
Perform steps 1 and 2 of "Storing Channels Manually" on page 50 to access the Confirmation screen and then perform steps 1 and 2 of "Set Stations (A)" on the left before continuing.
SELECT STATION NAME CHARACTER
Press # until the first letter of the station name begins
1
blinking.
PR CH ID FINE DECODER
06 CH45 BBC1 +/– OFF
5
[
] : A-Z, 0-9
[
] : CURSOR +=
: OK
[MENU] : EXIT
ENTER NEW CHARACTER
Press %fi to cycle through the characters (A–Z, 0–9, –,
, +, (space) ) and stop when the desired character
*
2
is indicated, then press characters the same way (maximum of 4). After entering all characters, press OK.
The Confirmation screen appears.
If you make a mistake, press @ until the incorrect
character begins blinking. Then enter the correct character by pressing %fi.
#
to enter. Enter the remaining
CLOSE CONFIRMATION SCREEN
Press MENU.
3
5
TV Station And ID List
STATION NAME ID*
Anglia TV ANGL ARD ARD ARTE ARTE BBC Group BBC BBC1 BBC1 BBC2 BBC2 Berlin 1 BLN1 Berlin 2 BLN2 Border TV BORD Bayern1 BR1 Bayern3 BR3 BRT1 BRT1 BRT2 BRT2 Children Ch CHLD Canal + CH+ CNN CNN Channel TV CHNL Central TV CNTR Channel 4 CH 4 Channel 5 CH 5 DRS DRS DR TV DRTV DSF DSF Euronews EURN Euronews EURO Eurosports EURS France1 FR1 France2 FR2 France3 FR3 Granada TV GRNA Grampian TV GRMP Hessen1 HR1 Hessen3 HR3 HRT HRT HTV HTV ITV Network ITV Kabelkanal KABL London LNDN MDR MDR MTV MTV Nord3 N3 NDR1 NDR1 NDR3 NDR3 NED1 NED1 NED2 NED2 NED3 NED3 Network 2 NET2 NRK NRK N-TV N-TV Offener Kanal OKAN ORF1 ORF1 ORF2 ORF2 ORF3 ORF3 OWL 3 OWL3 Premiere PRMI PR07 PR07 RAI1 RAI1 RAI2 RAI2 RAI3 RAI3 RB1 RB1 RB3 RB3 Rikisutvarpid-S RKPS RTBF 1 RTB1 RTBF 2 RTB2 RTE 1 RTE1 RTL RTL RTL 2 RTL2 RTP RTP
53
STATION NAME ID*
SAT SAT SAT 1 SAT1 Scottish TV SCOT SC4 SC4 SDR SDR SDR1 SDR1 SFB1 SFB1 SFB3 SFB3 SKY SKY Sky One SKY1 Sky Net SKYN Sport SPRT SR 1 SR1 Super RTL SRTL STV Test STVT STV 1 STV1 STV 2 STV2 Suedwest3 SWR SWF 1 SWF1 Schweiz4 SWZ4 TYNE TEES TEES Text TEXT TF1 TF1 TNT int TNT TRT int TRT TSI TSI TSR TSR TSW TSW TVE TVE TV Polonia TVPA TVP 1 TVP1 TVP 2 TVP2 TVS TVS TV2 TV2 TV5 TV5 Tele Zurich TZUR Ulster TV ULST Veronica VERN VIVA VIVA VIVA2 VIV2 VOX VOX VTM VTM VT4 VT4 West1 WDR1 West3 WDR3 YLE 1 YLE1 YLE 2 YLE2 Yorkshire TV YORK ZDF ZDF Zurich 1 ZUR1 3SAT 3SAT
* The "ID" abbreviation is what is shown on-screen in lieu of the
station name. The "ID" abbreviation is listed in the Confirma­tion screen and is displayed on the TV screen each time the recorder is tuned to a different station.
54
SUBSIDIARY SETTINGS (cont.)
TV Station Channel Number Guide
For customers in the U.K.
Only the main stations are listed. There are in addition many relay stations, and full lists are available from the BBC and ITV.
BBC1 BBC2 ITV CH4 CH5
London & South-East
Bluebell Hill......................... 40 46 43 65
Crystal Palace....................... 26 33 23 30 37
Dover................................... 50 56 66 53
Heathfield ............................ 49 52 64 67
Oxford ................................. 57 63 60 53 49
South-West
Beacon Hill .......................... 57 63 60 53
Caradon Hill ........................ 22 28 25 32
Huntshaw Cross ................... 55 62 59 65 67
Redruth ................................ 51 44 41 47 37
Stockland Hill ...................... 33 26 23 29
Channel Islands
Fremont Point....................... 51 44 41 47
South
Hannington .......................... 39 45 42 66 35
Midhurst............................... 61 55 58 68
Rowridge.............................. 31 24 27 21
West
Mendip ................................ 58 64 61 54 37
North-West
Caldbeck.............................. 30 34 28 32 56
Winter Hill ........................... 55 62 59 65 48
North-East
Bilsdale West Moor .............. 33 26 29 23 35
Chatton ................................ 39 45 49 42
Pontop Pike.......................... 58 64 61 54 68
Scotland
Angus................................... 57 63 60 53
Black Hill ............................. 40 46 43 50 37
Sandale ................................ 22 ————
Caldbeck.............................. — 34 28 32 56
Creigkelly............................. 31 27 24 21 48
Darvel .................................. 33 26 23 29 35
Durris................................... 22 28 25 32 67
Eitshal .................................. 33 26 23 29
Keelylang Hill ...................... 40 46 43 50
Knock More ......................... 33 26 23 29
Rosemarkie .......................... 39 45 49 42 67
Rumster Forest...................... 31 27 24 21
Selkirk .................................. 55 62 59 65 52
BBC1 BBC2 ITV CH4 CH5
East
Sandy Heath......................... 31 27 24 21 39
Sudbury................................ 51 44 41 47 35
Tacolneston .......................... 62 55 59 65 52
Midlands
Ridge Hill............................. 22 28 25 32 35
Sutton Coldfield ................... 46 40 43 50 37
The Wrekin .......................... 26 33 23 29 35
Waltham .............................. 58 64 61 54 35
North
Belmont ............................... 22 28 25 32 56
Emley Moor.......................... 44 51 47 41 37
Wales
Blaenplwyf ........................... 31 27 24 21 56
Carmel ................................. 57 63 60 53
Llanddona ............................ 57 63 60 53
Moel-y-Parc ......................... 52 45 49 42
Presely ................................. 46 40 43 50 37
Wenvoe................................ 44 51 41 47
Northern Ireland
Brougher Mountain .............. 22 28 25 32
Divis .................................... 31 27 24 21 37
Limavady ............................. 55 62 59 65
Clock Set
Turn on the TV and select the VIDEO channel (or AV mode).
1
2
1 2 3 4 5 6 7 8 9
1
MENU
2
– –:– –
3
0
4
4 3
OK
IMPORTANT
If you performed Auto Set Up (Z pg. 6), Preset Download (Z pg. 7) or Auto Channel Set (Z pg. 48), without ever having set the clock previously, the recorder's built-in clock is also set automatically. Perform the following steps only if —
— Auto Clock Set has not been performed correctly by
Auto Set Up, Preset Download or Auto Channel Set.
or
— the recorder's memory backup has expired.
or
— you want to change Just Clock setting (Z "Just Clock" in
the left column).
TURN THE RECORDER ON
Press .
1
ACCESS MAIN MENU SCREEN
Press MENU.
2
ACCESS INITIAL SET SCREEN
Move the highlight bar (pointer) to "INITIAL SET" by pressing %fi, then press OK or #.
3
ACCESS CLOCK SET SCREEN
Move the highlight bar (pointer) to "CLOCK SET" by pressing %fi, then press OK or #. The Clock Set screen appears.
4
INITIAL SET
CLOCK SET
GUIDE PROG SET JLIP ID NO. SET
CLOCK SET
TIME DATE YEAR 0: 00 01 . 01 99
JUST CLOCK: ON
TV PR. : 1
55
Just Clock
The Just Clock function provides accurate time keeping through automatic adjustments at regular intervals, by reading data from a PDC signal. The Just Clock option can be set "ON" or "OFF" at the Clock Set screen (the default setting is "ON"). Press OK until the Just Clock setting begins blinking, then press %fi to change the setting.
IMPORTANT: If you turn the Just Clock function off, the accuracy of your recorder’s built-in clock may be im­paired, which could adversely affect timer recording.
NOTES:
Just Clock (when set to "ON") adjusts the recorder's built-in clock every hour, except for 23:00, 0:00, 1:00 and 2:00.
Just Clock is not effective when . . . – the recorder’s power is on. – the recorder is in the Timer mode. – a difference of more than 3 minutes exists between the
built-in clock’s time and the actual time.
– the recorder is in the Auto Satellite Prog Rec mode
(Zpg. 28).
If Just Clock is set to "ON", the recorder’s clock is automati­cally adjusted at the start/end of Summer Time.
Just Clock may not function properly in poor reception conditions.
5
[
] =
5
[
] =
[MENU] : EXIT
[MENU] : EXIT
SET DATE AND TIME
Press %fi to set the time, then press OK or #. The "date" display begins blinking. Repeat the same procedure to set the date and year.
5
When you set the time, press and hold %fi to change the time by 30 minutes.
When you set the date, press and hold %fi to change the date by 15 days.
SET JUST CLOCK
The default setting is “ON”. Set as desired by pressing
%fi, then press OK or #.
6
For the Just clock function, Z "Just Clock" on the left.
If you set to “OFF”, you can disregard the next step as
you won’t be able to receive regular clock adjustments.
SET CLOCK DATA SOURCE PRESET
The recorder is preset to receive clock setting and adjustment data from preset position 1. Press %fi to set the preset position to the number representing the
7
station transmitting clock setting data (BBC1, BBC2, etc.), then press OK or #.
START CLOCK OPERATION
Press MENU.
8
56
SUBSIDIARY SETTINGS (cont.)
VIDEO Plus+ Setup
IMPORTANT
Normally, Auto Set Up (Z pg. 6), Preset Download (Z pg. 7) or Auto Channel Set ( Z pg. 48) sets the Guide Program Numbers automatically. You need to set the Guide Program Numbers manually only in the following cases.
When timer-programming with VIDEO Plus+, the preset position, where the station you wish to record is received on your recorder, is not selected or when you add a channel after Auto Set Up or Auto Channel Set has taken place.
— Set the Guide Program Number for that station manually.
When you delete a channel or change preset positions manually after Auto Set Up or Auto Channel Set has taken place.
— Set the Guide Program Numbers for all the receivable stations manually.
When you wish to timer-record a satellite programme with VIDEO Plus+.
— Set the Guide Program Numbers for all satellite broadcasts received on your satellite receiver.
Turn on the TV and select the VIDEO channel (or AV mode).
Guide Program Number Set
ACCESS MAIN MENU SCREEN
Press MENU.
1
ACCESS INITIAL SET SCREEN
%
Press "INITIAL SET", then press OK or #.
to move the highlight bar (pointer) to
2
ACCESS GUIDE PROG SET SCREEN
%
Press PROG SET", then press OK or #.
to move the highlight bar (pointer) to "GUIDE
3
ENTER GUIDE PROG NUMBER
%
Press keys to enter the Guide
4
Program number for the desired station as shown in the TV listings. Then press OK or #.
or NUMBER
GUIDE PROG TV PROG
45
5
[
] =
[MENU] : EXIT
(Ex.) When inputting the
Guide Program number 4 for CH4.
GUIDE PROG SET
ENTER RECEIVING PRESET POSITION NUMBER
%
Press keys to input the number
5
of the recorder's preset position on which the Guide Program number's broadcast is received. Then press OK or #.
If the satellite broadcast
• Repeat steps 4 and 5 as necessary.
or NUMBER
is received on your recorder's auxiliary channel "L-2", select "L-2" for the preset position.
GUIDE PROG SET
GUIDE PROG TV PROG
44
5
[
] =
[MENU] : EXIT
(Ex.) If CH4 is received on
preset position 4.
RETURN TO NORMAL SCREEN
Press MENU.
6
Guide Program Number
"Guide Program (GUIDE PROG) number" refers to the assigned TV station numbers, according to broadcast area, for VIDEO Plus+ timer recording. The Guide Program numbers can be found in most TV listings.
CH4
SUBSIDIARY INFORMATION
Questions And Answers
57
PLAYBACK
Q. What happens if the end of the tape is reached
during playback or search?
A. The tape is automatically rewound to the beginning.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Can the video recorder indefinitely remain in the
still mode?
A. No. It stops automatically after 5 minutes to protect
the heads.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. When returning from multi-speed search to normal
playback, the picture is disturbed. Should I be concerned about this?
A. No, it is normal.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Sometimes, during Index Search, the video recorder
can’t find the programme I want to see. Why not?
A. There may be index codes too close together.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
RECORDING
Q. When I pause and then resume a recording, the end
of the recording before the pause is overlapped by the beginning of the continuation of recording. Why does this happen?
A. This is normal. It reduces distortion at the pause and
resume points.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
TIMER RECORDING
Q. " " and "" remain lit on the display panel. Is there
a problem?
A. No. This is a normal condition for a timer recording in
progress.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Can I programme the timer while I’m watching a
tape or a TV broadcast?
A. You won’t see the picture as it is replaced by the on-
screen menu, but the audio from the program or tape you’re viewing can be heard.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Is it possible to timer-record a TV programme
broadcast in 2000?
A. Yes, it is possible.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Can the video recorder indefinitely remain in the
Record-Pause mode?
A. No. The video recorder shuts off automatically after 5
minutes to protect the heads.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. What happens if the tape runs out during recording? A. The video recorder automatically rewinds it to the
beginning or, if Timer Recording, the cassette is ejected.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
ATTENTION
This recorder contains microcomputers. External electronic noise or interference could cause malfunctioning. In such cases, switch the recorder off and unplug the mains power cord. Then plug it in again and turn the recorder on. Take out the cassette. After checking the cassette, operate the unit as usual.
58
SUBSIDIARY INFORMATION (cont.)
Troubleshooting
Before requesting service for a problem, use this chart to see if you can correct the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your video recorder off for repair.
POWER
SYMPTOM
1. No power is applied to the recorder.
2. The clock is functioning properly, but the recorder cannot be powered.
3. The remote control won’t function.
TAPE TRANSPORT
SYMPTOM
1. The tape does not run during recording.
2. The tape will not rewind or fast­forward.
PLAYBACK
SYMPTOM
1. The playback picture does not appear while the tape is running.
2. Noise appears during visual search.
3. Noise appears during normal playback.
4. The playback picture is blurred or interrupted while TV broadcasts are clear.
5. Breaks are noticeable in Hi-Fi soundtrack.
POSSIBLE CAUSE
The mains power cord is disconnected.
“ is displayed on the display
panel with Auto Timer set to "OFF".
The batteries are discharged.
POSSIBLE CAUSE
“ “ is displayed on the display panel.
The tape is already fully rewound or fast-forwarded.
POSSIBLE CAUSE
If you’re using the RF OUT connec­tion . . . . . . the TV receiver’s channel selector is not set to the VIDEO channel. . . . the recorder's VIDEO channel has not been correctly set.
If you’re using the AV connection, the TV receiver is not set to the AV mode.
This is normal during visual search other than TimeScan.
The automatic tracking mode is engaged.
The video heads may be dirty.
Automatic tracking is engaged.
CORRECTIVE ACTION
Connect the mains power cord. Press the button to turn the “
indicator off. Replace the dead batteries with new
ones.
CORRECTIVE ACTION
Press PLAY to turn the “ “ indicator off.
Check the cassette.
CORRECTIVE ACTION
If you are using the RF OUT connec­tion . . . . . . set the TV receiver to the VIDEO channel. (Z pg. 6) . . . Perform "Video Channel Set" (Z pg. 46) If you are using the AV connection, set the TV to its AV mode.
Try manual tracking (Z pg. 19).
Consult your JVC dealer.
Engage and adjust tracking manually (Z pg. 19) or press AUDIO to change the soundtrack to "NORM" (Z pg. 27).
RECORDING
SYMPTOM
1. Recording cannot be started.
2. TV broadcasts cannot be recorded.
3. Tape-to-tape editing is not possible.
POSSIBLE CAUSE
There is no cassette loaded, or the cassette loaded has had its Record Safety tab removed.
“L-1”, “L-2” or “F-1” has been selected as the input mode.
The source (another video recorder, camcorder) has not been properly connected.
All necessary power switches have not been turned on.
The input mode is not correct.
CORRECTIVE ACTION
Insert a cassette, or using adhesive tape, reseal the slot where the tab was removed.
Set to the desired preset.
Confirm that the source is properly connected.
Confirm that all units’ power switches are turned on. Set the input mode to “L-1”,“L-2” or “F-1”.
59
4. Camcorder recording is not possible.
TIMER RECORDING
SYMPTOM
1. Timer recording won’t work.
2. Timer programming is not possible.
3. ““ and “]“ on the display panel won’t stop blinking.
4. The cassette is automatically ejected, and ““ and “]“ on the display panel won’t stop blinking.
5. ““ blinks for 10 seconds and the Timer mode is disengaged.
6. The cassette is automatically ejected, the power shuts off and ““ and “]“ won’t stop blinking.
7. VIDEO Plus+ does not timer-record properly.
The camcorder has not been properly connected.
The input mode is not correct.
POSSIBLE CAUSE
The clock and/or the timer have
been set incorrectly.
The timer is not engaged.
Timer recording is in progress.
The timer is engaged but there’s no
cassette loaded.
The loaded cassette has had its
Record Safety tab removed.
‰ has been pressed when there are
no programs in memory, or the timer record information has been programmed incorrectly.
The end of the tape was reached
during timer recording.
The recorder’s preset positions have
been set incorrectly.
Confirm that the camcorder is properly connected. Set the input mode to “L-1”,“L-2” or “F-1”.
CORRECTIVE ACTION
Re-perform the clock and/or timer settings. Press and confirm that ““ is displayed on the display panel.
Timer programming can’t be performed while a timer recording is in progress. Wait until it finishes.
Load a cassette with the Record Safety tab intact, or cover the hole using adhesive tape.
Remove the cassette and cover the hole with adhesive tape, or insert a cassette with the Record Safety tab intact.
Check the programmed data and re­programme as necessary, then press again.
The programme may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire programme.
Refer to "Guide Program Number Set" and re-perform the procedure (Z pg. 56).
OTHER PROBLEMS
SYMPTOM
1. Whistling or howling is heard from the TV during camcorder record­ing.
2. When scanning channels, some of them are skipped over.
3. The preset cannot be changed.
4. Channel settings that were made manually seem to have changed or disappeared.
5. No channels are stored in the recorder's memory.
6. The remote control won’t operate the TV or satellite receiver.
POSSIBLE CAUSE
The camcorder’s microphone is too close to the TV.
The TV’s volume is too high.
Those channels have been desig-
nated to be skipped.
Recording is in progress.
After the manual settings were
made, Auto Channel Set was performed.
The TV aerial cable was not connected to the recorder when Auto Set Up was performed.
The remote control brand setting is incorrect.
CORRECTIVE ACTION
Position the camcorder so its microphone is away from the TV. Turn the TV’s volume down.
If you need the skipped channels, restore them (Z pg. 50).
Press PAUSE to pause the recording, change presets, then press PLAY to resume recording.
Perform manual setting again.
Connect the TV aerial cable to the recorder properly and turn off the recorder power once, then turn the recorder power back on again. The recorder will try Auto Set Up again (Z pg. 6).
Re-set the remote control to the correct brand (Z pg. 31, 32).
60
Index
FRONT VIEW
SUBSIDIARY INFORMATION (cont.)
1 2 3
TIMER
STANDBY/ON
VIDEO
(MONO)
L –AUDIO– R
TV PROG
TV PROG
SYNCHRO EDIT
REC LINK
+
8 4 0
6
15dB
NORM
8 9 0
1 STANDBY/ON Button turns recorder on/off
(loading a cassette also turns power on).
2 TIMER Button engages timer-standby mode.
Z pg. 15, 17
3 REVIEW Button "reviews" timer-recorded
programme. Z pg. 23
4 Cassette Loading Slot is where cassette is
inserted; door closes, "cassette loaded" indicator lights up on front display panel.
5 PLAY Button plays back tape Z pg. 10; cancels
Pause, Still, Slow, Search modes. Z pg. 11
6 JOG Dial plays back frame by frame during Still
or Play mode. Z pg. 11
7 TIME SCAN SHUTTLE Ring rewinds or fast-
forwards tape during Stop mode Z pg. 10; performs forward and reverse slow-motion and search (TimeScan) during Still or Play mode.
Z pg. 11, 24
8 VIDEO Input Connector enables easy connection
of video output from another recorder or camcorder for editing. Z pg. 33
9 AUDIO Input Connector [L] enables easy
connection of audio output (mono) from an­other recorder, camcorder or other source for editing. Z pg. 33
0 AUDIO Input Connector [R] enables easy
connection of audio output (Hi-Fi) from another recorder, camcorder or other source for editing.
Z pg. 33
VPS/PDC
VCR
$
4
SP
REVIEW
^
%
5 6
INSERT
A.DUB
S
L
W
O
L
S
REW
)(*&! #@
! TV PROG +/– Buttons select a preset position.
Z pg. 12
@ REC LINK Button enables/disables the Auto
Satellite Prog Rec mode. Z pg. 29
# SYNCHRO EDIT Button enables Synchro
Editing mode. Z pg. 34
$ Display Panel provides clear view of various
displays and indicators. Z pg. 61
% Infrared Beam Receiving Window is where
remote control should be aimed when in use.
^ RECORD Button starts regular recording (press
once), Instant Timer Recording (press twice); sets duration of ITR. Z pg. 12, 13
& PAUSE Button stops tape temporarily during
recording Z pg. 12; stops tape temporarily during playback; plays back frame by frame with each additional press. Z pg. 11
* INSERT Button engages Insert Editing mode
Z pg. 39
( A. DUB Button engages Audio Dubbing mode.
Z pg. 37
) STOP/EJECT Button stops tape; ejects tape
during Stop mode. Z pg. 10
7
O
W
FF
JOG
SHUTTLE
REAR VIEW
1
2 5
AV1 IN/OUT
AV2 IN/DECODER
AUDIO
4
3
SYNCHRO EDIT
L
OUT
R
PAUSE
RF OUT
ANT. IN
61
JLIP
1 Mains Power Cord supplies power to recorder.
Z pg. 5
2 AV1 IN/OUT Connector enables AV connection to
TV or second recorder; input recordable when "L-1" selected. Z pg. 5, 35
3 J Terminal (JLIP (Joint Level Interface Protocol)
Connector) enables connection of a personal
computer or similar device to allow computerized control of the recorder during editing and certain other operations. Z pg. 40
4 SYNCHRO EDIT Connector enables
connection to camcoder equipped with LANC connector, for easy editing. Z pg. 34
DISPLAY PANEL
1 5 763 42
+
8 4
0 6
15dB
NORM
09
VPS/PDC
VCR
@
!
1 B.E.S.T. Picture System Display lights from bottom to
top while B.E.S.T. is active. Z pg. 20 Audio Level Indicator displays audio input and output levels. Z pg. 26
2 Programme Time Indicators show the programme
start time ( ) and the programme stop time ( ) for timer-recording. Z pg. 16
3 Symbolic Mode Indicators
STILL: PLAY: FF/REW VARIABLE SEARCH:
SLOW:
RECORD:
RECORD PAUSE: AUDIO DUBBING:
AUDIO DUBBING PAUSE: INSERT: INSERT PAUSE: AUDIO DUBBING INSERT:
SP
REVIEW
#
$8
6
7
8 9
5 ANT. IN Connector enables connection of aerial.
Z pg. 5
6 AV2 IN/DECODER Connector enables connection of
satellite receiver, decoder or second recorder; input recordable when "L-2" selected. Z pg. 28, 35
7 AUDIO OUT (L/R) Connectors enable
connection of audio cassette recorder, TV or second video recorder for dubbing. Z pg. 45
8 Remote PAUSE Connector enables connection to
second recorder equipped with R.A. Edit connector, or to JVC camcorder equipped with Master Edit Control, for easy editing. Z pg. 33
9 RF OUT Connector enables connection to aerial
terminal of TV receiver. Z pg. 5
4 "Timer" Indicator lights when has been pressed to
engage Timer mode. Z pg. 15, 17
5 Channel Display shows preset position where the
station currently being received is stored. Clock Display shows current time. Z pg. 8
6 Tape Speed Indicators display mode of recording; light
during Record or Play mode. Z pg. 12
* EP is only for NTSC playback.
7 Instant REVIEW Indicator blinks after timer-recording
and shows how many programmes have been timer­recorded. Z pg. 23
8 Audio Mode Indicator displays audio output mode
currently selected. Z pg. 27
9 Tape Remaining T ime Indicator displays time remaining
on tape when certain buttons are pressed. Z pg. 13
0 "Cassette Loaded" Mark lights once a cassette is
inserted; remains lit until cassette ejected.
! PDC Indicator lights when PDC has been engaged
for timer recording. Z pg. 15, 17
* VPS (Video Programme System) recording is not currently
available in the U.K. and not possible with this recorder.
@ VCR Indicator lights when the video recorder is in
the video mode. At this point, the TV automatically enters AV mode. Z pg. 10
# Counter shows time elapsed since playback or
recording began. With displayed, shows time remaining from current tape position to end of tape (Z pg. 13). Counter, Preset Position*, Clock and Tape Remaining Time Display appear alternately when – –:– – (DISPLAY) is pressed.
* Preset Position is not displayed during playback.
$ Mode shows external input mode selected (L-1, L-2 or
F-1).
AUDIO DUBBING INSERT PAUSE:
62
W
q
T
3
9
7
2
!
4
0
#
% ^
* ( )
i
t
e
w
u
p
R
&
Y
1
5 6
8
@
Q
$
E
r
y
o
SUBSIDIARY INFORMATION (cont.)
REMOTE CONTROL
VCR
LCD PROG
1
2
1 2 3 4 5 6
VPS/PDC
7 8 9
0000
1
PROG
2
Buttons with a small dot on the left side of the name can also be used to operate your TV.
Z pg. 31
START DEBUT
T
V
TV
AUDIO
DAILY/QTDN.
AUX
0
STOP
FIN
EXPRESS
V
T
T
V
CABLE
/SAT
– –:– –
ENTER/ENTREE
WEEKLY/HEBDO
MENU
DATE
R
O
P
G
+
G
P
R
O
1 LCD Panel indicates which of the recorder, TV
and satellite tuner the remote control can currently operate Z pg. 63; is used in VIDEO Plus+ timer programming Z pg. 14.
2 TV Button enables remote control of connected
TV. Z pg. 31, 63
3 VCR Button enables remote control of VCR or is
used for switching A/B code of the remote control. Z pg. 30, 63
4 AUDIO Button changes output sound mode.
Z pg. 27
TV/VCR
30 SEC
OK
5 LCD PROG Button accesses VIDEO Plus+ 6 NUMBER Keys are used in preset position
3
4
4
3
7 DAILY Button enables timer recording of daily 8 PDC Button enables/disables PDC recording.
(TV Muting) Button mutes sound of
connected TV. Z pg. 31 display on LCD panel. Z pg. 14 selection Z pg. 12, VIDEO Plus+ timer pro-
gramming Z pg. 14. serials. Z pg. 15, 17
Z pg. 15, 17
*
VPS (Video Programme System) recording is not currently
TV
PROG
+
V
T
available in the U.K. and not possible with this recorder.
9 Button cancels timer-programme. Z pg. 18
0000 Button resets counter to 0:00:00. Z pg. 13
0 Button accesses Program screens/displays
to check the programme that you have pro­grammed (next programme's information screen/display appears each time button is pressed). Z pg. 18
! PROG Button accesses VIDEO Plus+ Program
screen. Z pg. 14
@ START +/– Button accesses Regular Program
screen; inputs programme Start Time. Z pg. 16
# STOP +/– Button inputs programme Stop Time.
Z pg. 16
$ Rewind [REW] Button rewinds tape ; initiates
high-speed reverse search. Z pg. 10, 11
% Play Button — same as button on recorder.
Z pg. 10, 11
^ Record Button — same as button on recorder.
Z pg. 12
& %fi Button is used for selection in on-screen
menus. Z pg. 20 TV PROG +/– selects the connected TV's/ satellite receiver's channel. Z pg. 31, 32
63
* CABLE/SAT Button enables remote control of
connected satellite receiver. Z pg. 32, “Remote Control LCD” in the right column
( STANDBY/ON Button — same as button on
recorder.
) – –:– – (DISPLAY) Button switches display
between clock time, tape remaining time, counter readings and preset position*. Z pg. 13
* Preset position is not displayed during playback.
q TV/VCR Button switches connected TV's mode
between TV and AV. Z pg. 10
w REVIEW Button — same as button on recorder.
Z pg. 23
e 30 SEC Button initiates a 30-second period of
fast-motion playback. Z pg. 22
r WEEKLY Button enables timer recording of
weekly serials. Z pg. 15, 17
t Button transmits entered VIDEO Plus+ code
to the recorder. Z pg. 14
y AUX Button selects recorder's auxiliary input
mode. Z pg. 33, 34, 35
u (TIMER) Button — same as button on re-
corder. Z pg. 15, 17
i Auto Tracking Button ( ) enables/disables
auto tracking mode during playback Z pg. 19 SP/LP Button selects tape speed. Z pg. 12
o OK Button enters selections made in on-screen
menus. Z pg. 20
p MENU Button accesses Menu screen. Z pg. 20 Q TV PROG +/– Button — same as button on
recorder. Z pg. 12
W DATE +/– Button inputs date of programme for
timer recording. Z pg. 16
E Fast Forward [FF] Button fast-forwards tape;
initiates high-speed forward search. Z pg. 10, 1 1
R Stop Button — same as button on recorder.
Z pg. 10
T Pause Button — same as button on recorder.
Z pg. 11
Y
@ #
Button initiates functions such as Index
Search Z pg. 22, variable-speed search, frame by frame playback. Z pg. 11, 24 TV +/–Button controls volume of connected TV. Z pg. 31
How To Use
The remote control can operate most of your video recorder's functions, as well as basic functions of TV sets and satellite receivers of JVC and other brands. (Z pg. 31, 32)
Point the remote control toward the sensor window.
The maximum operating distance of the remote control
is about 8 m.
NOTES:
When inserting the batteries, be sure to insert in the correct directions as indicated under the battery cover.
If the remote control doesn't work properly, remove its batteries, wait a short time, replace the batteries and then try again.
Remote Control LCD
The remote control can operate not only the video recorder but also some of your TV and satellite tuner's functions. The LCD indicates which of these (VIDEO, TV or CABLE/SAT) the remote control can currently operate. When you first purchase the remote control, or after you have just replaced the batteries, VIDEO A (A code) is selected.
1 To operate your video recorder, first press the VCR
button to set the remote control to the Video mode. To switch remote control's A/B code, refer to page 30.
2 To operate your TV, first press the TV button to set the
remote control to the TV mode (Z pg. 31).
3 To operate your satellite tuner, first press the CABLE/SAT
button to set the remote control to the Satellite tuner mode (Z pg. 32).
NOTES:
Even if “TV” is displayed on the LCD, the following operations can be performed without switching the mode.
Basic operations for the recorder After an operation is completed, “TV” reappears on the LCD.
Express Timer Programming and VIDEO Plus+ Timer Programming operations To perform a TV operation again, switch to TV mode first.
Accessing main menu To perform a TV operation again, switch to TV mode first.
SPECIFICATIONS
GENERAL
Power requirement : AC 220 – 240 V`, 50/60 Hz Power consumption
Power on : 22 W
Power off : 5.5 W Temperature Operating : 5°C to 40°C Storage : –20°C to 60°C Operating position : Horizontal only Dimensions (WxHxD) : 400 x 94 x 347 mm Weight : 4.1 kg Format : VHS PAL standard Maximum recording time
(SP) : 240 min. with E-240 video
cassette
(LP) : 480 min. with E-240 video
cassette
VIDEO/AUDIO
Signal system : PAL-type colour signal and
CCIR monochrome signal, 625 lines/50 fields
Recording system : DA4 (Double Azimuth) helical
scan system Signal-to-noise ratio : 45 dB Horizontal resolution : 250 lines Frequency range : 70 Hz to 10,000 Hz (Normal
audio)
20 Hz to 20,000 Hz (Hi-Fi
audio) Input/Output : 21-pin SCART connectors
(IN/OUT x 1,
IN/DECODER x 1 )
RCA connectors
(VIDEO IN x 1, AUDIO IN x 1,
AUDIO OUT x 1)
TUNER/TIMER
TV channel storage capacity : 99 positions
(+AUX position) Tuning system : Frequency synthesized tuner Channel coverage :
VHF 44.5 – 143/143 – 470 MHz
UHF 470 – 862 MHz Aerial output : UHF channels 22 – 69
(Adjustable) Memory backup time : Approx. 10 min.
ACCESSORIES
Provided accessories : RF cable,
Infrared remote control unit,
"AA" battery x 2
Specifications shown are for SP mode unless otherwise specified. E.& O.E. Design and specifications subject to change without notice.
HR-DD865EK
VICTOR COMPANY OF JAPAN, LIMITED
COPYRIGHT © 1999 VICTOR COMPANY OF JAPAN, LTD.
EK
Printed in Malaysia 0799NFV
*ID*
PJ
Loading...
