Page 1

3D MEMORY CARD CAMERA RECORDER

Detailed User Guide

GY-HMZ1U/ GY-HMZ1E

LYT2384-002A

Page 2

Table of Contents

Getting Started

Recording at Intervals (TIME-LAPSE RECORDING)

................................................................................. 50

Taking Group Shots (Self-timer) .................................. 52

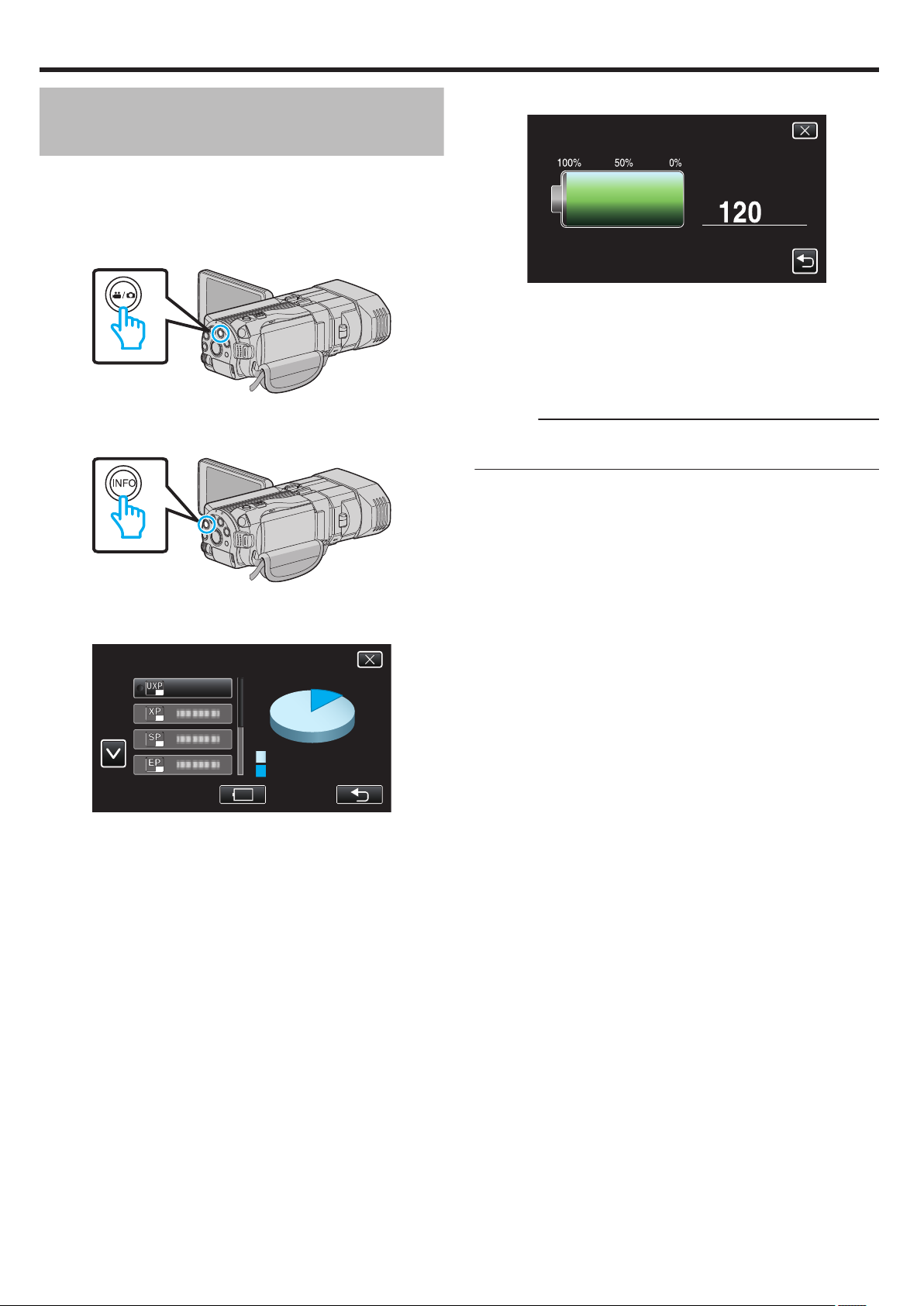

Remaining Recording Time/Battery Power ................. 54

Precautions on Recording and Playing Back 3D Images

................................................................................... 4

Verifying the Accessories .............................................. 6

Attaching the Audio Unit ................................................ 7

Attaching an External Microphone ................................ 7

Charging the Battery Pack ............................................. 8

Grip Adjustment ............................................................ 9

Using the Touch Screen ................................................ 9

Inserting an SD card .................................................... 10

Types of Usable SD Card ........................................ 11

Names of Buttons and Functions on the LCD Monitor

................................................................................. 12

Clock Setting ............................................................... 14

Resetting the Clock ................................................. 15

Changing the Display Language ................................. 16

Holding this Unit .......................................................... 16

Tripod Mounting .......................................................... 17

Attaching Headphones ................................................ 17

Using the Remote Control ........................................... 18

Using this Unit Overseas ............................................. 19

Charging the Battery Pack Overseas ....................... 19

Setting the Clock to Local Time when Traveling

.............................................................................. 20

Setting Daylight Saving Time ................................... 21

Optional Accessories .................................................. 22

Playback

Playing Back Videos .................................................... 57

Playing a Video with Defective Management Information

.............................................................................. 59

Playing Back Still Images ............................................ 60

Adjusting Parallax During Playback ............................. 62

Slideshow Playback .................................................... 63

Searching for a Specific Video/Still Image ................... 64

Date Search ............................................................. 64

Connecting to and Viewing on TV ............................... 65

Playing Back 3D Images .......................................... 66

Playing Back 2D Images .......................................... 67

Editing

Deleting Unwanted Files ............................................. 70

Deleting the Currently Displayed File ....................... 70

Deleting Selected Files ............................................ 71

Protecting Files ........................................................... 72

Protecting/Releasing Protection of the Currently

Displayed File ...................................................... 72

Protecting/Releasing Protection of Selected Files

.............................................................................. 73

Capturing a Still Image in the Video during Playback

................................................................................. 74

Recording

Taking Videos in 3D Mode .......................................... 23

Taking Still Images in 3D Mode ................................... 25

Taking Videos in Intelligent Auto Mode ....................... 26

Zooming .................................................................. 28

Taking Still Images in Intelligent Auto Mode ................ 29

Zooming .................................................................. 31

Adjusting Parallax During Recording ........................... 32

Manual Recording ....................................................... 33

Scene Selection ....................................................... 35

Adjusting Focus Manually ........................................ 36

Using Focus Assist .................................................. 37

Adjusting Brightness ................................................ 38

Setting Shutter Speed .............................................. 39

Setting Aperture ....................................................... 40

Setting White Balance ............................................. 41

Setting Backlight Compensation .............................. 42

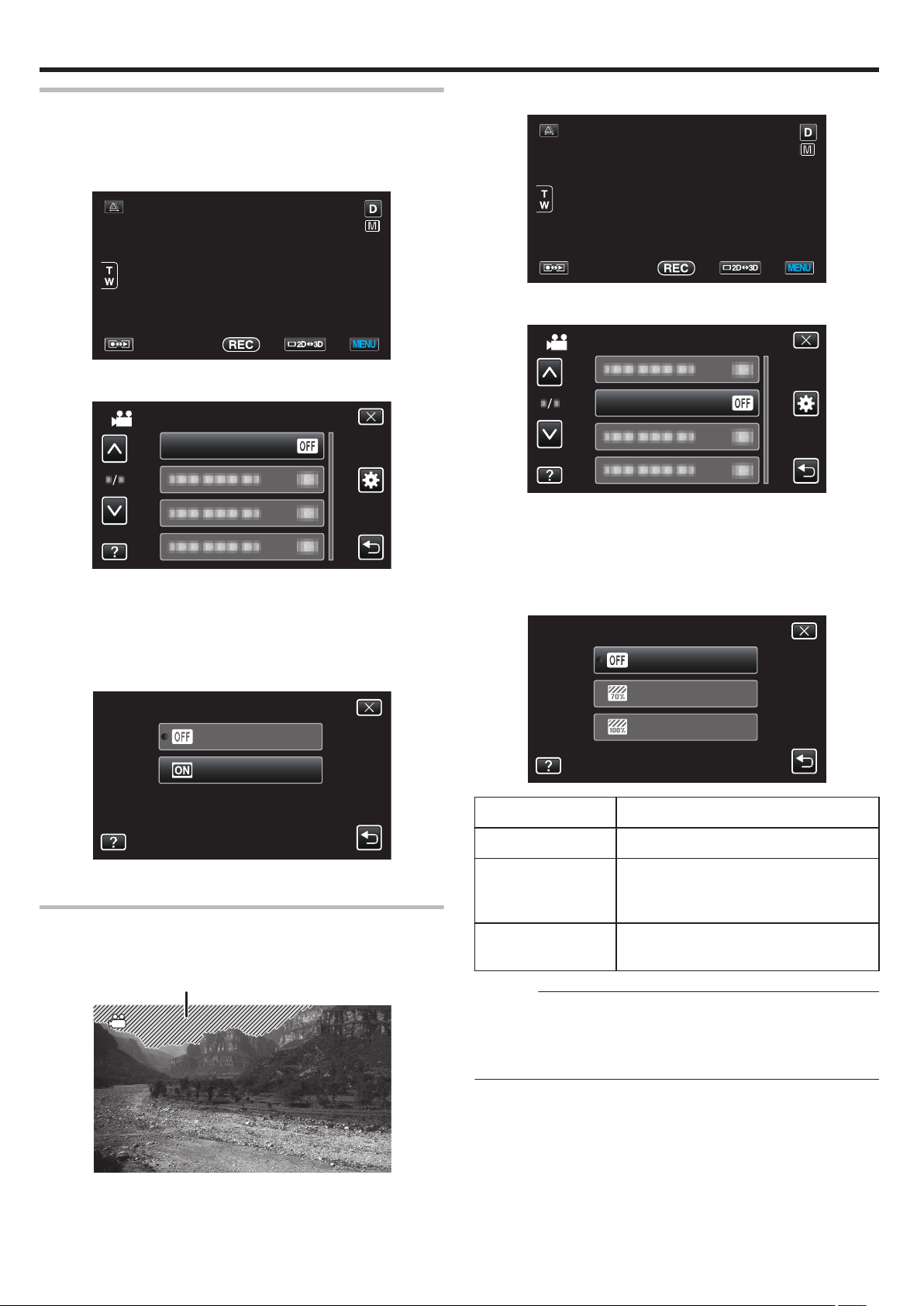

Displaying the Zebra Pattern ................................... 42

Taking Close-up Shots ............................................ 43

Setting the USER Button ......................................... 44

Using the Control Dial for Recording ........................ 45

Reducing Camera Shake ............................................ 46

Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)

................................................................................. 47

Capturing Smiles Automatically (SMILE SHOT)

.............................................................................. 48

Copying

Creating a Disc Using a Connected Blu-ray Recorder

................................................................................. 75

Dubbing Files by Connecting to a DVD Recorder ........ 76

Dubbing Files to a VHS Tape Using a VCR ................. 76

Copying Files to an SD Card ....................................... 77

Moving Files to an SD Card ......................................... 78

Copying to Computer .................................................. 79

Installing the Provided Software .................................. 81

Verifying System Requirements (Guideline) ............ 81

Installing the Provided Software .............................. 82

JVC Software Licence Agreement .............................. 83

Menu Settings

Operating the Menu .................................................... 85

Operating the Main Menu ........................................ 85

Operating the Common Menu ................................. 85

Recording Menu (Video) ............................................. 86

SCENE SELECT ..................................................... 89

FOCUS .................................................................... 89

FOCUS ASSIST ...................................................... 89

FOCUS ASSIST COLOR ......................................... 89

BRIGHTNESS ADJUST .......................................... 90

SHUTTER SPEED ................................................... 90

APERTURE PRIORITY ............................................ 90

WHITE BALANCE ................................................... 90

BACKLIGHT COMP. ............................................... 90

Page 3

ZEBRA .................................................................... 90

TELE MACRO (2D mode only) ................................ 90

CINEMA .................................................................. 90

TOUCH PRIORITY AE/AF ....................................... 90

DIS ........................................................................... 90

GAIN UP .................................................................. 90

WIND CUT ............................................................... 91

GRID ........................................................................ 91

TIME-LAPSE RECORDING ..................................... 91

SYSTEM SELECT ................................................... 92

3D VIDEO REC FORMAT (3D mode only) .............. 92

VIDEO QUALITY ..................................................... 93

ZOOM (2D mode only) ............................................ 94

x.v.Color (2D mode only) ......................................... 95

USER BUTTON SETTING ....................................... 95

3D SOUND .............................................................. 95

MIC LEVEL .............................................................. 96

MIC LEVEL SETTING .............................................. 96

HEADPHONE VOL. ADJ. ........................................ 97

Recording Menu (Still Image) ...................................... 98

SCENE SELECT ................................................... 100

FOCUS .................................................................. 100

FOCUS ASSIST .................................................... 100

FOCUS ASSIST COLOR ....................................... 100

BRIGHTNESS ADJUST ........................................ 101

SHUTTER SPEED ................................................. 101

APERTURE PRIORITY .......................................... 101

WHITE BALANCE ................................................. 101

BACKLIGHT COMP. ............................................. 101

TELE MACRO (2D mode only) .............................. 101

TOUCH PRIORITY AE/AF ..................................... 101

SMILE SHOT ......................................................... 101

SMILE LEVEL ........................................................ 101

SELF-TIMER ......................................................... 101

GAIN UP ................................................................ 101

GRID ...................................................................... 102

SHUTTER MODE .................................................. 102

CONT. SHOOTING SPEED .................................. 103

IMAGE SIZE .......................................................... 104

USER BUTTON SETTING ..................................... 104

Playback Menu (Video) ............................................. 105

SEARCH DATE ..................................................... 105

PROTECT/CANCEL .............................................. 105

COPY .................................................................... 105

MOVE .................................................................... 105

PLAYBACK OTHER FILE ...................................... 105

Playback Menu (Still Image) ...................................... 106

SEARCH DATE ..................................................... 106

PROTECT/CANCEL .............................................. 106

COPY .................................................................... 106

MOVE .................................................................... 106

Common Menu .......................................................... 107

CLOCK ADJUST ................................................... 109

DATE DISPLAY STYLE ......................................... 109

LANGUAGE ........................................................... 109

MONITOR BRIGHTNESS ..................................... 110

REC MEDIA FOR VIDEO ...................................... 111

REC MEDIA FOR IMAGE ...................................... 111

OPERATION SOUND ............................................ 112

AUTO POWER OFF .............................................. 112

QUICK RESTART .................................................. 113

REMOTE ............................................................... 113

TOUCH SCREEN ADJUST ................................... 114

3D DISPLAY WARNING (3D mode only) .............. 115

VIDEO OUTPUT (2D mode only) ........................... 115

HDMI OUTPUT ...................................................... 116

HDMI CONTROL ................................................... 117

AUTO FINALIZE .................................................... 118

FACTORY PRESET .............................................. 118

UPDATE ................................................................ 118

FORMAT BUILT-IN MEM. ..................................... 119

FORMAT SD CARD .............................................. 120

ERASE ALL DATA ................................................. 120

Names of Parts

Front .......................................................................... 121

Rear .......................................................................... 121

Bottom ....................................................................... 122

Interior ....................................................................... 122

Indications on the LCD monitor

Common Recording Indications ................................ 123

Video Recording ....................................................... 124

Snapshot ................................................................... 124

Video Playback ......................................................... 125

Still Image Playback .................................................. 125

Troubleshooting

Battery Pack .............................................................. 126

Recording .................................................................. 126

Card .......................................................................... 126

Playback ................................................................... 127

Editing/Copying ......................................................... 128

Computer .................................................................. 128

Screen/Image ............................................................ 128

Other Problems ......................................................... 129

Error Message? ......................................................... 129

Maintenance ....................................................... 131

Specifications .................................................... 132

Page 4

Open your legs slightly

Keep elbows close to your sides to avoid camera shake

Hold the LCD monitor while recording

It is recommended to perform 3D recording

within the optimal zone.

Te l ephoto Optimal

Zone

Wide Angle Optimal

Zone

50 m

5 m

10 m

1 m

Getting Started

Precautions on Recording and Playing Back 3D Images

3D images can be recorded and played back on this unit. You can enjoy realistic and powerful 3D images recorded on this unit by playing back on a 3D compatible TV. Before use, please read the following precautions to ensure safe and comfortable viewing of the 3D images.

Recording 3D Images

This unit makes use of the misalignment between the images that enter the left and right eyes to create the 3D effect during 3D recording. As the images that enter the left and right eyes are different, fatigue may be experienced. In addition, depending on the content of the video, an illusion of movement may be experienced and result in motion sickness. Take note of the following when recording 3D images.

Basic Way to Hold a Camcorder During 3D

Recording (Recording Stable Images)

Shooting Distance During 3D Recording

(Achieving Comfortable 3D Images)

Memo :

Make sure that you have stable footing during recording.

Do not swing the camera horizontally or vertically during recording.

If the subject is not recorded within the recommended shooting distance, 3D effect may be weak.

When recording night scenes or landscapes, 3D effect of some subjects may be weak.

For subjects that appear at the side of the screen, 3D effect may be weak.

Operate slowly when using the zoom.

If the image is zoomed in too much, 3D effect may be weak.

It is recommended to make use of a tripod.

3D Display on the LCD Monitor

The LCD monitor supports 3D images during both recording and playback. Press the “3D/2D” button on the touch screen to change the display on the LCD monitor between 3D and 2D.

When using the 3D recording mode, the image will be recorded in 3D even if the display on the LCD monitor is set to 2D.

3D effect appears stronger when viewed at approximately 30 cm from the front.

3D effect may be weak if viewed from an angle other than the front.

The LCD monitor appears darker when 3D images are displayed. Change the display to 2D when it is difficult to see, such

as when using this unit outdoors.

Page 5

Right EyeLeft Eye

Slit

Parallax Barrier

Getting Started

Caution :

Recording and viewing of the 3D images is not recommended for people with medical history of photosensitivity, heart diseases,

feel sick, suffer from lack of sleep, suffer from fatigue, or are drunk.

Medical conditions may worsen.

Do not shoot a subject from a distance shorter than the minimum shooting distance.

The 3D effect may become stronger and result in fatigue or discomfort. The minimum shooting distance of this camera is 80 cm (using wide angle).

Be careful not to shake the camera during recording.

Excessive shaking while riding in a vehicle or during walking may result in fatigue or discomfort. To perform recording while moving the camera, keep the speed slow and steady. Keep the camera in a horizontal position, as much as possible, during recording.

If you have vision problems such as short-sightedness, long-sightedness, varying vision in the left and right eyes, or astigmatism,

it is recommended to correct your vision by wearing glasses, etc. Stop recording or viewing of the 3D images if you see double images.

3D images may appear differently for different people. Correct your vision appropriately before viewing the 3D images.

Stop recording or viewing of the 3D images if you experience fatigue or discomfort.

Continual recording or viewing of the 3D images may result in health problems. Take an adequate rest. Recording or viewing of the 3D images in an environment where shaking of the monitor is expected, such as while riding in a vehicle or during walking, may result in fatigue or discomfort.

If you experience fatigue or discomfort while recording or viewing of the 3D images on the LCD monitor, set the display to 2D.

Continual recording and viewing of the 3D images may result in health problems.

Rest well after recording or viewing of the 3D images.

After recording or viewing of the 3D images, check that you do not experience fatigue or discomfort before driving, etc.

Take a break every 30 to 60 minutes when recording or viewing of the 3D images.

Long periods of recording or viewing may cause visual fatigue.

Keep a distance of at least 3 times the effective height of the screen when viewing of the 3D images on a 3D compatible TV.

Viewing of the 3D images from a distance shorter than the recommended distance may cause visual fatigue.

TV Size Recommended Distance

54” Approx. 2.0 m

50” Approx. 1.9 m

46” Approx. 1.7 m

42” Approx. 1.6 m

Recording and viewing of the 3D images is only recommended for ages 5 to 6 and above.

Guardians should pay close attention to children as health problems may result if fatigue and discomfort are not noticed immediately.

3D Effect Mechanism

3D images on the LCD monitor of this unit are displayed using the parallax barrier system. Placed in front of an image source, a parallax barrier consists of a series of slits arranged alternately for the left and right eyes, allowing each eye to see a different image when viewing from a distance, thus creating the 3D effect. As such, 3D effect may appear weak depending on the angle of viewing.

Page 6

INFO

SNAP

SHOT

START

/STOP

INDEX

Getting Started

Verifying the Accessories

If any of the items are missing or defective, consult your JVC dealer or the nearest JVC service center.

Illustration Description

AC Adapter AP-V20U/AP-V20M

Connects to this unit to charge the battery pack.

It can also be used when recording or playing back videos indoors.

Battery Pack BN-VF823U/BN-VF823E

Attaches to this unit to supply power.

Battery Charger AA-VF8

Enables the battery pack to be charged without using this unit.

Remote Control RM-V760U

Operates certain functions from a distance.

HDMI Mini Cable

Connects this unit to a TV to play back recorded images on the TV in a better quality.

AV Cable

Connects this unit to a TV to play back recorded images on the TV.

USB Cable (Type A-Mini Type B)

Connects this unit to a computer.

CD-ROM

For installing the provided software on a computer.

Audio Unit

Enables an external microphone to be attached.

Memo :

SD cards are sold separately. “Types of Usable SD Card” (A p. 11) When using the AC adapter/battery charger overseas, please prepare a commercially available converter plug for the country or region of visit. “Charging the Battery Pack Overseas” (A p. 19)

Page 7

Screw

Audio Unit

Clamp

Shoe

Cable

Open the cover.

Microphone Connector

Clamp

Microphone Holder

Knob

INPUT1/INPUT2 Connector

Microphone

Getting Started

Attaching the Audio Unit

The audio unit (with handle) is not attached to the camcorder unit when purchased. Attach the audio unit according to the following procedure.

Attach the audio unit by sliding it all the way into

the shoe on the top of the camcorder.

Take care not to slide in too much as it will be

impossible to tighten the screws.

Turn the screw on the audio unit clockwise to

fasten it fully and securely to the camcorder.

To fully secure the audio unit, use a coin or the like

to fasten the screw completely. If the audio unit is not fully and securely tightened, it

will be loose and may drop off from the camcorder during use.

Connect the audio unit cable to the microphone

connector of the camcorder.

Memo :

The clamp on the audio unit is for fixing the microphone

cable and cannot be used to fix the audio unit cable.

Attaching an External Microphone

You can attach a microphone (optional) to the microphone holder.

Turn the knob on the microphone holder

anticlockwise to loosen it and open the microphone holder.

Place the microphone in the microphone

holder.

Turn the knob on the microphone holder

clockwise to secure the microphone.

Connect the microphone to the INPUT1/

INPUT2 audio input connector, or the microphone connector according to the type of microphone cable terminal you are using.

INPUT1/INPUT2 Connector: XLR Connector

Microphone Connector: Mini-jack Connector

(stereo)

Attach the microphone cable to the clamp.

Set the CH-2 INPUT switch.

INPUT1: Inputs audio from the INPUT1 connector to

CH-2. INPUT2: Inputs audio from the INPUT2 connector to

CH-2.

Memo :

Audio from the INPUT1 connector is also input to “CH-1”

regardless of the setting.

Page 8

USER

AC Adapter To AC Outlet (110 V to 240 V)

Battery Charger

To Power Outlet

Battery Pack

Indicating Lamp

Power Cord

Getting Started

Charging the Battery Pack

Charge the battery pack immediately after purchase and when the remaining battery power is low. The battery pack is not charged at the time of purchase.

Charging the Battery with this Unit

Attach the battery pack.

Align the top of the battery with the mark on this unit, and

slide in until the battery clicks into place.

Connect the AC adapter to the DC connector.

Plug in the power.

Charging the Battery with the Supplied Charger

Connect the battery charger to a power outlet

using the provided power cord.

Attach the supplied battery to the battery

charger by pressing and sliding it in the

direction of the arrow.

When battery charging starts, the indicating lamp blinks.

When charging is complete, the indicating lamp lights up.

Remove the battery by sliding it in the opposite

direction after charging is complete.

The charging lamp blinks when charging is in progress.

It goes out when charging is finished.

Approximate Battery Charging Time

Using AC Adapter

Battery Pack Charging Time

BN-VF815U/BN-VF815E 2 h 40 m

BN-VF823U/BN-VF823E (Supplied)

Using Battery Charger

Battery Pack Charging Time

BN-VF815U/BN-VF815E 1 h 50 m

BN-VF823U/BN-VF823E (Supplied)

When the battery life is reached, the recording time

becomes shorter even if the battery pack is fully charged. (Replace the battery pack with a new one.)

* The charging time is when the unit is used at 25°C. If the battery pack is charged outside the room temperature range of 10°C to 35°C, charging may take a longer time or it may not start. The recordable and playable time may also be shortened under some usage conditions such as at low temperature. “Approximate Recording Time (Using Battery)” (A p. 56)

3 h 40 m

2 h 30 m

Page 9



Pad

00:01:23 00:12:34

2011

Index ScreenPlayback ScreenRecording Screen

Getting Started

Detaching the Battery Pack

Press the battery release lever to detach the battery from this unit.

Caution :

Be sure to use JVC battery packs.

If you use any other battery packs besides JVC battery

packs, safety and performance cannot be guaranteed.

Be sure to use the supplied JVC AC adapter.

If you use any other AC adapters/battery chargers besides

the supplied JVC AC adapter, malfunctions may occur.

Rechargeable Batteries：

When using the battery in a low temperature environment

(10°C or below), the operating time may be shortened, or it may not function properly. When using this unit outdoors in the winter weather, warm the battery, such as by placing it in the pocket, before attaching it. (Keep away from direct contact with a warm pack.)

Do not expose the battery to excessive heat, such as direct

sunlight or fire. After removing the battery, store it in a dry place between

15°C to 25°C.

Keep a 30 % battery level (X) if the battery pack is not to be used for a long period of time. In addition, fully charge and then fully discharge the battery pack every 6 months,

then continue to store it at a 30 % battery level (X).

Memo :

You can connect this unit to the AC adapter to record for

long hours indoors. (Battery charging begins when the LCD monitor is closed.)

Grip Adjustment

A Pull back the belt B Adjust the length C Attach the belt

Caution :

Be sure to fasten the grip belt properly.

If the belt is loose, this unit may drop and result in injuries or damages.

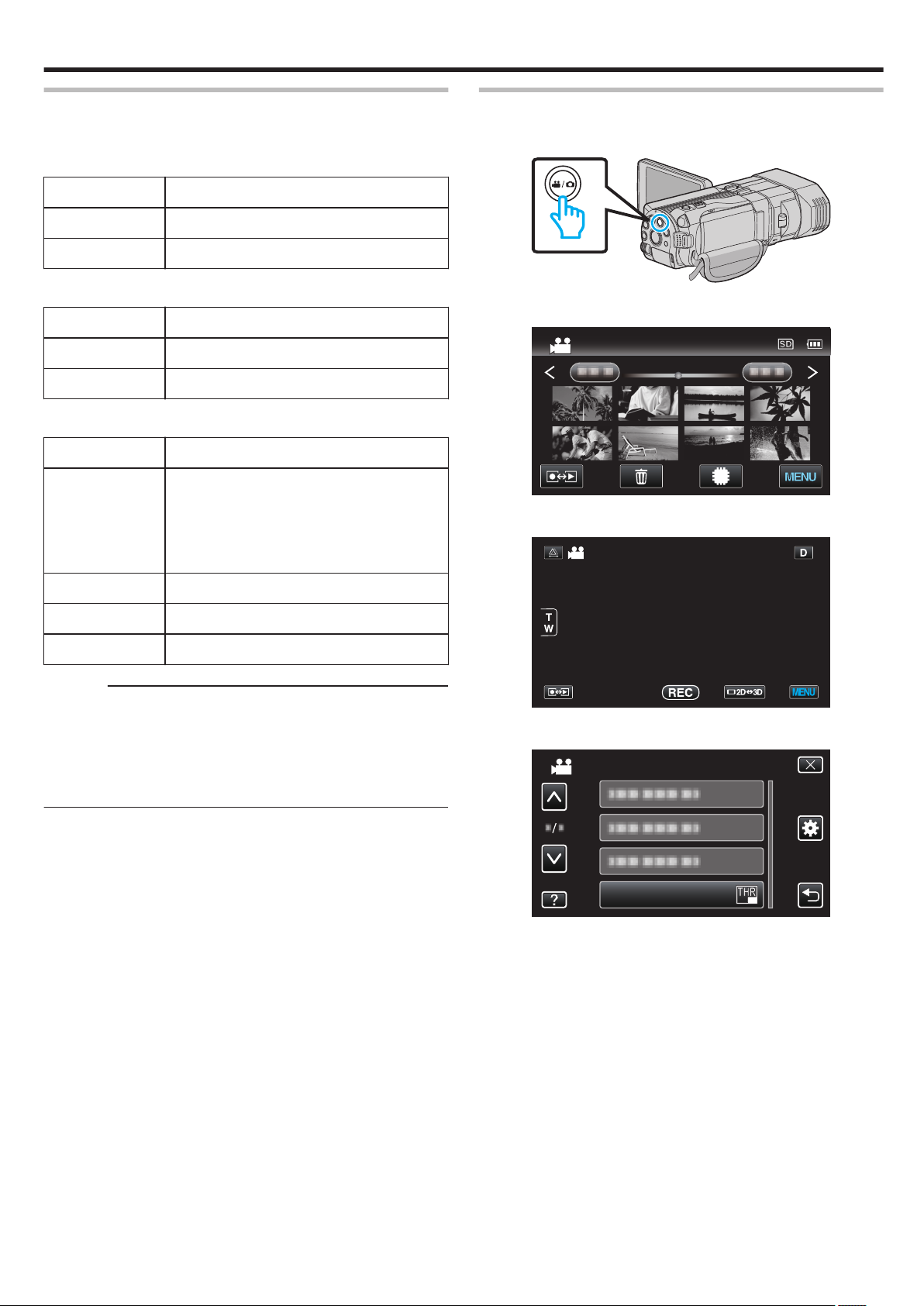

Using the Touch Screen

Icon operation buttons, thumbnails, and menu items are displayed on the touch screen according to the mode in use.

To operate, tap the icon operation buttons, thumbnails, or

menu items on the touch screen lightly. There are two ways to operate the touch screen, namely

“tap” and “drag”. The following are some examples.

A Tap the displayed button (icon) or thumbnail (file) on the touch screen to make selection.

B Drag the thumbnails on the touch screen to search for the desired file.

The touch screen of this unit is pressure-sensitive. When

the touch screen does not respond smoothly, apply slightly more force to your fingertip.

Do not press or rub with excessive force.

If you apply a protect sheet or a sticker, the touch screen

may not respond smoothly. Do not operate the touch screen using an object with a

sharp or hard tip. Pressing two or more places at a time may cause a

malfunction. Tap the buttons (icons) on the touch screen accurately.

The buttons may not respond if they are not tapped on the right area.

Perform “TOUCH SCREEN ADJUST” if the reactive area

of the screen is misaligned with the touched area. (Adjust by lightly tapping with a corner of an SD card, etc. Do not press with an object with a sharp tip or do not press hard.)

“ TOUCH SCREEN ADJUST ” (A p. 114)

Page 10

Label

Getting Started

Inserting an SD card

When a commercially available SD card is inserted, recordings can be made to either the card or built-in memory separately. “Types of Usable SD Card” (A p. 11)

“Approximate Video Recording Time” (A p. 55)

Open the LCD monitor.

Press and hold the M button for 2 seconds or more to turn off the power.

Open the cover.

Warning

Make sure not to insert the card in the wrong direction.

It may cause damage to the unit and card. Turn off the power of this unit before inserting or removing

a card. Do not touch the metal contact area when inserting the

card.

Memo :

To record to the card, it is necessary to perform media

settings. When no card is available, set media settings to “BUILTIN MEMORY” for recording.

“ REC MEDIA FOR VIDEO ” (A p. 111) “ REC MEDIA FOR IMAGE ” (A p. 111)

To use cards that have been used on other devices, it is

necessary to format (initialize) the card using “FORMAT SD CARD” from media settings.

“ FORMAT SD CARD ” (A p. 120)

Removing the Card

Push the SD card inward once, then pull it out straight.

Inserting an SD card

Insert with the label facing upwards.

Page 11

Getting Started

Types of Usable SD Card

The following SD cards can be used on this unit. Operations are confirmed on the SD cards from the following manufacturers.

Panasonic

TOSHIBA

SanDisk

ATP*

* Confirmed for SD/SDHC cards only.

SD Card

This unit supports 256 MB to 2 GB SD cards.

Use a Class 4 or higher compatible SD card (2 GB) for

video recording.

SDHC Card

Memo :

Using SD cards (including SDHC/SDXC cards) other than

those specified above may result in recording failure or data loss.

To record videos with “VIDEO QUALITY” set to “THR”, use

of a Class 10 card is recommended. (Class 6 or higher SDHC/SDXC card is required.)

To record videos with “VIDEO QUALITY” set to “UXP”, use

of a Class 6 compliant SDHC/SDXC card is recommended.

Class 4 and Class 6 are guaranteed to have a minimum

transfer rate of 4 MB/s and 6 MB/s respectively during reading or writing of data.

You can also use a Class 10 compliant SDHC/SDXC card.

To protect the data, do not touch the terminals of the SD

card. Both videos and still images can be recorded on one SD

card.

When your computer cannot recognize the SDXC card

Confirm and update the OS of your computer.

Windows XP / Windows XP SP1

Windows XP SP2 / Windows XP SP3

Necessary to update to SP2 or higher.

Necessary to download the update software. (KB955704)

http://www.microsoft.com/downloads/ details.aspx?familyid=1CBE3906-DDD1-4CA2B727-C2DFF5E30F61&displaylang=ja

Use a Class 4 or higher compatible SDHC card (4 GB to

32 GB) for video recording.

SDXC Card

Use a Class 4 or higher compatible SDXC card (Max. 64

GB) for video recording.

Windows

Necessary to update to SP1 or higher.

Vista

Windows Vista SP1 / Windows Vista SP2

Necessary to download the update software. (KB975823)

32 bit version

http://www.microsoft.com/downloads/ details.aspx? displaylang=ja&FamilyID=2d1abe01-0942-4f8aabb2-2ad529de00a1

64 bit version

http://www.microsoft.com/downloads/ details.aspx? displaylang=ja&FamilyID=7d54c53f-017c-4ea5ae08-34c3452ba315

Windows7Necessary to download the update software.

(KB976422)

32 bit version

http://www.microsoft.com/downloads/ details.aspx? displaylang=ja&FamilyID=3ee91fc2-a9bc-4ee1aca3-2a9aff5915ea

64 bit version

http://www.microsoft.com/downloads/ details.aspx? displaylang=ja&FamilyID=73f766dd-7127-4445b860-47084587155f

Page 12

3 4 65

00:01:23 00:12:34

2 3

54 6

Getting Started

Names of Buttons and Functions on the LCD Monitor

The following screens are displayed during the video and still image modes, and operate as the touch screens.

Recording Screen (Video/Still Image)

Parallax Adjustment Button

Adjusts the effect when 3D or LR MIX images are

displayed on the LCD monitor.

“Adjusting Parallax During Recording” (A p. 32)

Zoom Button

“Zooming” (A p. 28)

Recording/Playback Mode Button

Switches between recording and playback modes.

Recording Start/Stop Button

g: Video Recording Start Button

a: Video Recording Stop Button

Q: Still Image Recording Button

LCD Monitor 3D/2D Display Switching Button

Switches the display on the LCD monitor between 3D

and 2D. The display changes with every press of the button.

3D F LR MIX F 2D(L) F 2D(R) F 3D The image will be recorded in 3D even if the display

on the LCD monitor is set to 2D.

Playback Screen (Video)

Parallax Adjustment Button

Adjusts the effect when 3D or LR MIX images are

displayed on the LCD monitor.

“Adjusting Parallax During Playback” (A p. 62)

Recording/Playback Mode Button

Switches between recording and playback modes.

Index Screen Button

“Operation Buttons for Video Playback” (A p. 58)

Delete Button

“Deleting the Currently Displayed File” (A p. 70)

LCD Monitor 3D/2D Display Switching Button

Switches the display on the LCD monitor between 3D

and 2D.

Menu Button

“Operating the Menu” (A p. 85)

Operation Buttons

“Operation Buttons for Video Playback” (A p. 58)

Menu Button

“Operating the Menu” (A p. 85)

Display Button

Some displays disappear after approximately 3 seconds.

Use the n button to change the displays as shown below.

Tap n button Displays appear for approximately 3 seconds with every tap.

Tap and hold n button Displays are fixed such that they do not disappear.

After setting, the display button changes from n to m. Tap m to release the displays.

Page 13

324 65 7

2011

3 4 5

TOUCH PRIORITY AE/AF

VIDEO

WIND CUT

GAIN UP

DIS

1 2

Getting Started

Playback Screen (Still Image)

Group Playback Button

Continuous playback of grouped files (such as still

images captured by continuous shooting).

“Playing Back Still Images” (A p. 61)

Parallax Adjustment Button

Adjusts the effect when 3D or LR MIX images are

displayed on the LCD monitor.

“Adjusting Parallax During Playback” (A p. 62)

Recording/Playback Mode Button

Switches between recording and playback modes.

Index Screen Button

“Operation Buttons for Still Image Playback” (A p. 61)

Delete Button

“Deleting the Currently Displayed File” (A p. 70)

LCD Monitor 3D/2D Display Switching Button

Switches the display on the LCD monitor between 3D

and 2D.

Menu Button

“Operating the Menu” (A p. 85)

Index Screen

Date Button

“Operation Buttons for Video Playback” (A p. 58) “Operation Buttons for Still Image Playback” (A p. 61)

Recording/Playback Mode Button

Switches between recording and playback modes.

Index Screen Switching Button (Still image

only)

Switches between the group or full index screen

displays.

Delete Button

“Deleting Selected Files” (A p. 71)

Playback Media Button

Switches between SD card and built-in memory.

Menu Button

“Operating the Menu” (A p. 85)

Page Forward/Back Button

“Operation Buttons for Video Playback” (A p. 58) “Operation Buttons for Still Image Playback” (A p. 61)

Operation Buttons

“Operation Buttons for Still Image Playback” (A p. 61)

Menu Screen

Help Button

Menu Items

Return Button

Common Menu Button

Close Button

“Operating the Menu” (A p. 85)

Page 14

NOYES

SET DATE/TIME!

20111 1 10 00

SET

TIMEDATE

CLOCK SETTING

20111 1 10 00

SET

TIMEDATE

CLOCK SETTING

GMT

SAVE

CLOCK/AREA SETTING

Getting Started

Clock Setting

The “SET DATE/TIME!” screen appears when you turn on this unit for the first time after purchase, when it has not been used for a long time, or when the clock is not set yet. Set the clock before recording.

Open the LCD monitor.

The unit turns on.

When the LCD monitor is closed, the unit turns off.

Tap “YES” when “SET DATE/TIME!” is

displayed.

Set the date and time.

After setting the date and time, tap “SET”.

Select the region where you live and tap

“SAVE”.

The city name and time difference are displayed.

Tap “<” or “>” to select the city name.

Memo :

The clock can be reset again later.

“Resetting the Clock” (A p. 15)

When using this unit overseas, you can set it to the local

time for recording.

“Setting the Clock to Local Time when Traveling” (A p. 20)

“SET DATE/TIME!” is displayed when you turn on this unit

after it has not been used for a prolonged period. Connect the AC adapter for more than 24 hours to charge the internal clock battery of this unit before setting the clock.

“Charging the Battery Pack” (A p. 8)

When the year, month, day, hour, or minute item is

tapped, “∧” and “∨” will be displayed. Tap ∧ or ∨ to adjust the year, month, day, hour, and

minute.

Page 15

Resetting the Clock

CLOCK ADJUST

COMMON

CLOCK SETTING

CLOCK ADJUST

20111 1 10 00

SET

TIMEDATE

CLOCK SETTING

20111 1 10 00

SET

TIMEDATE

CLOCK SETTING

GMT

SAVE

CLOCK/AREA SETTING

Set the clock with “CLOCK ADJUST” from the menu.

Tap “MENU”.

Tap “Q”.

Getting Started

Set the date and time.

When the year, month, day, hour, or minute item is

tapped, “∧” and “∨” will be displayed. Tap ∧ or ∨ to adjust the year, month, day, hour, and

minute.

After setting the date and time, tap “SET”.

Tap “CLOCK ADJUST”.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap “CLOCK SETTING”.

Select the region where you live and tap

“SAVE”.

The city name and time difference are displayed.

Tap <or> to select the city name.

Page 16

COMMON

LANGUAGE

ENGLISH

LANGUAGE

Getting Started

Changing the Display Language

The language on the display can be changed.

Tap “MENU”.

Tap “Q”.

Tap “LANGUAGE”.

Holding this Unit

When holding this unit, keep your elbows close to your sides to prevent camera shake.

Hold the LCD monitor with your left hand and adjust the

angle accordingly. Holding the LCD monitor with your left hand helps to stabilize the camera for recording.

Caution :

Be careful not to drop this unit during transportation.

Guardians should pay close attention when this unit is

being used by children.

Memo :

If camera shake is excessive, use the digital image

stabilizer.

“Reducing Camera Shake” (A p. 46)

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap to the desired language.

Tap ∧ or ∨ to move upward or downward for more

selection.

Page 17

Getting Started

Tripod Mounting

This unit can be mounted on a tripod (or monopod). This is useful for preventing camera shake.

To prevent this unit from falling off, check the tripod

mounting screw holes and positioning holes on the unit carefully before mounting, and turn the screws until they are fastened firmly.

Caution :

To prevent injuries or damages which may result if this unit

falls off, read the instruction manual of the tripod (or monopod) to be used and make sure that it is securely attached.

Memo :

It is recommended to use a tripod or monopod when

recording in conditions prone to camera shake (such as in dark places or when zoomed to the telephoto end).

Set the digital image stabilizer to Z (OFF) when using a tripod for recording.

“Reducing Camera Shake” (A p. 46)

Attaching Headphones

You can attach optional headphones to this unit.

Open the cover of the headphones connector.

Connect the headphones to the headphones

connector.

Memo :

The volume level of the headphones can be adjusted

using HEADPHONE VOL. ADJ. in the menu.

“ HEADPHONE VOL. ADJ. ” (A p. 97)

Page 18

Remote Sensor

Pull out the insulation sheet

Lock Tab

Button Battery

INFO

SNAP SHOT

START /STOP

INDEX

Getting Started

Using the Remote Control

You can operate this unit from a distance away using the supplied remote control.

Memo :

Point the remote control toward the sensor directly and use

it within 5 m from this unit. The transmitted beam may not be effective or may cause

incorrect operation when the sensor is directly exposed to sunlight or powerful lighting.

Preparing the Remote Control

Operation Buttons on Remote Control Unit

Recording Start/Stop Button

Starts/stops video recording.

Still Image Button

Takes a still image.

Zoom Button

T: Zooms in

W: Zooms out

Using the Remote Control for the First Time

A button battery (CR2025) is included inside the remote

control at the time of purchase. Remove the insulation sheet before use.

Reinserting the Battery

0 0

Pull out the battery holder by pressing the lock tab. Insert the button battery with the + side facing upward.

Basic Playback Operations

Operation

Buttons

Playback/Pause Button

d / e

Left Button j

Right Button

T Button N

W Button O

Index Button

Stops playback and returns to thumbnail display.

Starts/pauses playback of videos or

slideshows.

Moves the cursor to the left.

Performs reverse search during

playback.

Moves the cursor to the right.

Performs forward search during

playback.

Zooms in. (during pause)

Turns up (+) the volume during video

playback.

Zooms out. (during pause)

Turns down (-) the volume during

video playback.

Description

Info Button

Recording: Displays the remaining time (for video

only) and battery power. Playback: Displays file information such as recording

date.

Page 19

A B BF C O

North America

United States

Canada

Mexico

India

Indonesia

Singapore

Sri Lanka

Thailand

South Korea

China

Japan

Nepal

Pakistan

Bangladesh

Philippines

Vietnam

Hong Kong Special

Administrative Region

Macau Special

Administrative Region

Malaysia

Ｂ.Ｃ.ＢＦ

Ｃ

Ｂ.ＢＦ

Ｂ.Ｃ.ＢＦ

A.BF.C

A.C

A.B.BF.C.O

B.C

A.BF.O

A.C

B.BF

B.C

B.BF.C

Europe

Iceland

Ireland

United Kingdom

Italy

Austria

Netherlands

Canary Islands

Greece

Switzerland

Sweden

Spain

Denmark

Germany

Norway

Hungary

Finland

France

Belgium

Poland

Portugal

Romania

B.BF

A.C

B.C

Asia

Oceania

Australia

Guam

Tahiti

Tonga

New Zealand

Fiji

Argentina

Colombia

Jamaica

Chile

Haiti

Panama

Bahamas

Puerto Rico

Brazil

Venezuela

Peru

B.C

A.C

Latin

Middle East

Israel

Iran

Kuwait

Jordan

B.C

B.BF

Algeria

Egypt

Guinea

Kenya

Zambia

Tanzania

Republic of South Africa

Mozambique

Morocco

A.B.BF.C

B.BF.C

B.C

B.BF

B.C.BF

Africa

Getting Started

Using this Unit Overseas

The shape of the power outlet varies according to countries and regions. To charge the battery pack, you need a converter plug that matches the shape of the outlet. “Charging the Battery Pack Overseas” (A p. 19) Change the date and time display to the local time by selecting your travel destination in “AREA SETTING” of “CLOCK ADJUST” . “Setting the Clock to Local Time when Traveling” (A p. 20) When “ON” is selected in “DST SETTING” of “CLOCK ADJUST”, the time is set 1 hour ahead. “Setting Daylight Saving Time” (A p. 21)

Charging the Battery Pack Overseas

The shape of the power outlet varies according to countries and regions. To charge the battery pack, you need a converter plug that matches the shape of the outlet.

Page 20

CLOCK ADJUST

COMMON

CLOCK ADJUST

AREA SETTING

GMT

SAVE

AREA SETTING

Getting Started

Setting the Clock to Local Time when Traveling

Change the date and time display to the local time by selecting your travel destination in “AREA SETTING” of “CLOCK ADJUST”. Restore the region settings after you returned from the trip.

Tap “MENU”.

Tap “Q”.

Tap “AREA SETTING”.

Select the area you are traveling to and tap

“SAVE”.

Tap “CLOCK ADJUST”.

Tap ∧ or ∨ to move upward or downward for more

selection.

The city name and time difference are displayed.

Tap <or> to select the city name.

Memo :

Setting “AREA SETTING” changes the clock time such

that time difference is accounted for. After returning to your country, re-select the region that was set initially to restore the original clock settings.

Page 21

Setting Daylight Saving Time

CLOCK ADJUST

COMMON

CLOCK ADJUST

DST SETTING



DAYLIGHT SAVING TIME (DST)

DST SETTING

OFFON

CURRENT SETTING: ON

When “ON” is selected in “DST SETTING” of “CLOCK ADJUST”, the time is set 1 hour ahead.

Tap “MENU”.

Tap “Q”.

Tap “CLOCK ADJUST”.

Getting Started

Tap “DST SETTING”.

Tap “ON”.

Memo :

What is daylight saving time?

Daylight saving time is the system of setting the clock 1 hour ahead for a fixed period in summer. It is used mainly in the Western countries.

Restore the daylight saving time settings after you

returned from the trip.

Tap ∧ or ∨ to move upward or downward for more

selection.

Page 22

Getting Started

Optional Accessories

You can record for a longer time by using the optional battery pack.

Product Name Description

Battery Pack

BN-VF815U/BN-VF815E

BN-VF823U/BN-VF823E

HDMI Cable

VX-HD310

VX-HD315

VX-HD320

VX-HD330

Suitable for use as a spare battery pack.

Allows viewing in high picture quality when connected to a TV.

Transmits video, audio, and control signals between devices.

Memo :

For details on the provided accessories, refer to “Verifying the Accessories”.

“Verifying the Accessories” (A p. 6)

Approximate Recording Time (Using Battery)

3D Display on LCD Monitor

Battery Pack Actual Recording Time Continuous Recording Time

3D Recording MP4(MVC)

BN-VF815U/BN-VF815E 55 m 1 h 1 h 45 m 2 h

3D Recording AVCHD

3D Recording MP4(MVC)

3D Recording AVCHD

BN-VF823U/BN-VF823E (Supplied)

2D Display on LCD Monitor

Battery Pack Actual Recording Time

BN-VF815U/BN-VF815E 55 m 1 h 5 m 1 h 20 m

BN-VF823U/BN-VF823E (Supplied)

Battery Pack Continuous Recording Time

BN-VF815U/BN-VF815E 1 h 50 m 2 h 10 m 2 h 35 m

BN-VF823U/BN-VF823E (Supplied)

The above are values when “MONITOR BRIGHTNESS” is set to “STANDARD”.

The actual recording time may be shorter if zooming is used or if recording is stopped repeatedly.

(It is recommended to prepare battery packs ready for three times the expected recording time.) When the battery life is reached, the recording time becomes shorter even if the battery pack is fully charged.

(Replace the battery pack with a new one.)

1 h 20 m 1 h 35 m 2 h 40 m 3 h 5 m

3D Recording MP4(MVC) 3D Recording AVCHD 2D Recording

1 h 25 m 1 h 40 m 1 h 55 m

3D Recording MP4(MVC) 3D Recording AVCHD 2D Recording

2 h 45 m 3 h 15 m 3 h 50 m

Page 23

Taking Videos in 3D Mode

You can record 3D images by pressing the 3D button to set to the 3D mode. During 3D mode, “3D” is displayed on the LCD monitor.

Open the lens cover.

Open the LCD monitor and select the video

mode.

The video mode icon A appears.

Check if the recording mode is P Intelligent Auto.

Recording

Start recording.

Press again to stop.

Memo :

To record 3D images, refer also to ““Precautions on

Recording and Playing Back 3D Images” (A p. 4) ”. If the left and right images of an object close to the camera

do not appear to be in alignment, or the 3D effect of a distant object is weak, adjust the parallax.

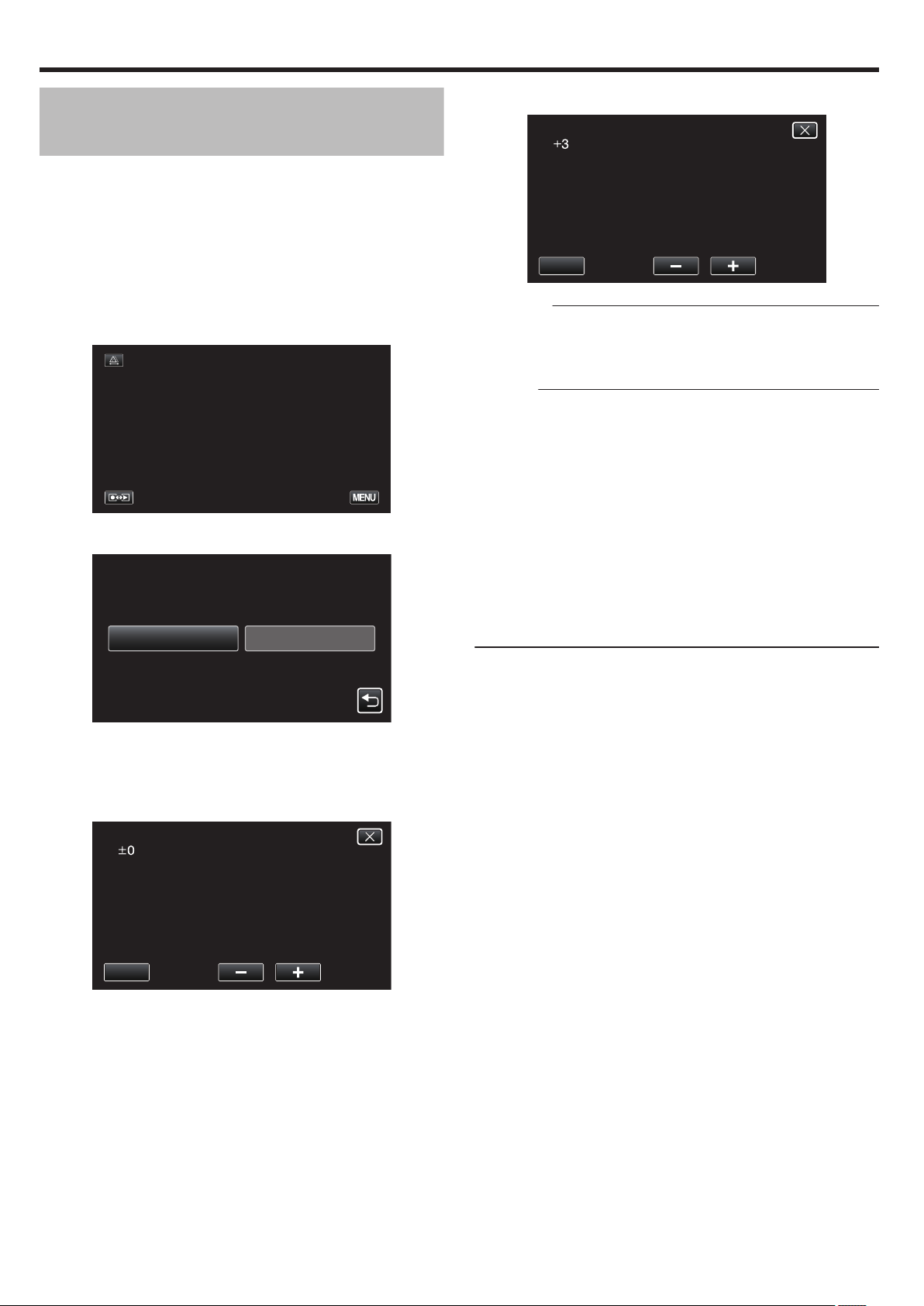

“Adjusting Parallax During Recording” (A p. 32)

When “PARALLAX ADJUSTMENT” is assigned to the

ADJ button, parallax can be adjusted manually using the ADJ button and control dial.

“Using the Control Dial for Recording” (A p. 45)

You can change the display on the LCD monitor between

3D and 2D during recording by tapping on the 3D/2D icon. The image will be recorded in 3D even if the display on the LCD monitor is set to 2D. To record 2D images, press the 3D button to switch to the 2D mode before recording.

“Taking Videos in Intelligent Auto Mode” (A p. 26)

If the microphone level is frequently displayed in red, lower

the setting in “MIC LEVEL SETTING” such that the display turns green so that more realistic audio sounds can be recorded.

“ MIC LEVEL SETTING ” (A p. 96)

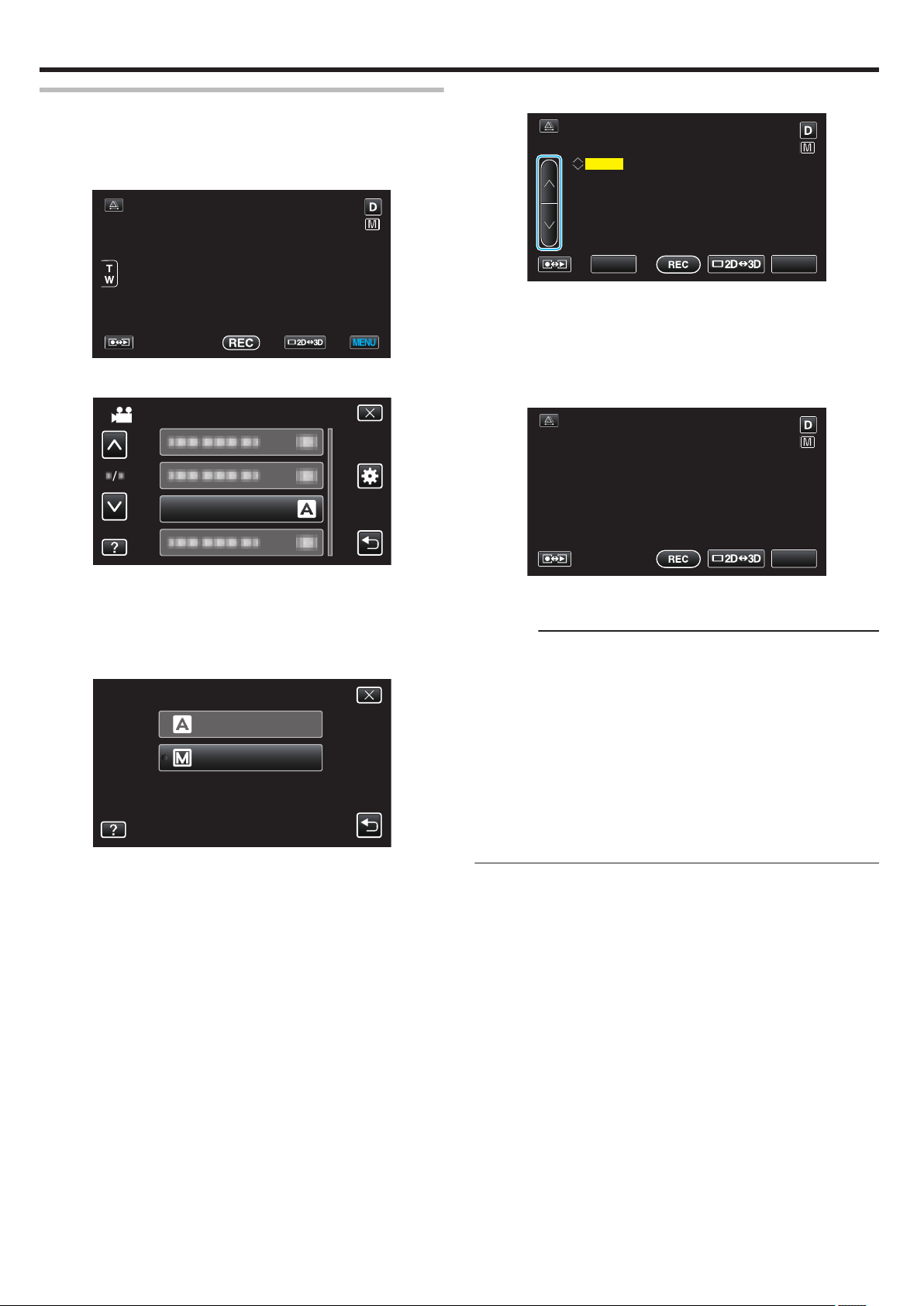

If the mode is H Manual, press the H/T button to switch to P Intelligent Auto.

The mode changes between Intelligent Auto and Manual with every press.

Press the 3D button to set to the 3D mode.

During 3D mode, “3D” is displayed on the LCD

monitor. 3D images may be recorded when the 3D button

lights up.

Page 24

AVC HD

960

1080

Display Example (Line-by-Line)

During Recording

The picture signals for left and right eyes are compressed by 1/2 horizontally and then combined in a side-by-side format.

Side-by-Side

AVC HD 960 × 1080/60i (or AVCHD 960 × 1080/50i)

1920

1080

Display Example (Frame Sequential)

During Recording

LR Independent

MP4(MVC)

The 2 channel full HD 60i (or full HD 50i) picture is recorded as the picture signals for left and right eyes.

1920 × 1080/60i Full HD × 2ch (1920 × 1080/50i Full HD × 2ch)

Recording

3D Recording Formats

There are 2 types of 3D recording formats, namely “AVCHD” and “MP4(MVC)”. By default, “3D VIDEO REC FORMAT” is set to “MP4(MVC)” . “You can select a recording format for 3D video recording.”

(A p. 92)

AVCHD

Set to this recording format for higher compatibility.

Memo :

Videos recorded in “MP4(MVC)” format are saved in full

high definition and can only be played back on this unit. To record 3D images to a disc with a Blu-ray recorder or a

computer, set to “AVCHD”. By dubbing videos recorded in “AVCHD” format to a Blu-

ray recorder, the left and right images will be recorded or played back separately, allowing 3D images to be enjoyed when connected to a 3D compatible TV.

Videos recorded in “MP4(MVC)” and “AVCHD” are

displayed on the playback index screen separately.

MP4(MVC)

Set to this recording format for higher video quality.

Page 25

Taking Still Images in 3D Mode

Press halfway

Press fully

You can record 3D images by pressing the 3D button to set to the 3D mode. During 3D mode, “3D” is displayed on the LCD monitor.

Open the lens cover.

Open the LCD monitor and select the still

image mode.

Recording

Memo :

When 3D recording is performed, still images will be saved

in both 3D and 2D formats. 3D still images are saved as MP files (*.mpo).

3D still images cannot be printed. To print, make use of

the 2D still image that is captured at the same time. To record 3D images, refer also to ““Precautions on

Recording and Playing Back 3D Images” (A p. 4) ”. If the left and right images of an object close to the camera

do not appear to be in alignment, or the 3D effect of a distant object is weak, adjust the parallax.

“Adjusting Parallax During Recording” (A p. 32)

When “PARALLAX ADJUSTMENT” is assigned to the

ADJ button, parallax can be adjusted manually using the ADJ button and control dial.

“Using the Control Dial for Recording” (A p. 45)

The still image icon B appears.

Press the 3D button to set to the 3D mode.

During 3D mode, “3D” is displayed on the LCD

monitor. 3D images may be recorded when the 3D button

lights up.

Set the focus on the subject.

When focused, the focus icon lights up in green.

Take a still image.

PHOTO lights up when a still image is being

captured.

Page 26

0:00:00 [2:04]

Recording

Taking Videos in Intelligent Auto Mode

You can record without worrying about the setting details by using the Intelligent Auto mode.

Before recording an important scene, it is recommended

to conduct a trial recording.

Open the lens cover.

Open the LCD monitor and select the video

mode.

The video mode icon A appears.

Check if the recording mode is P Intelligent Auto.

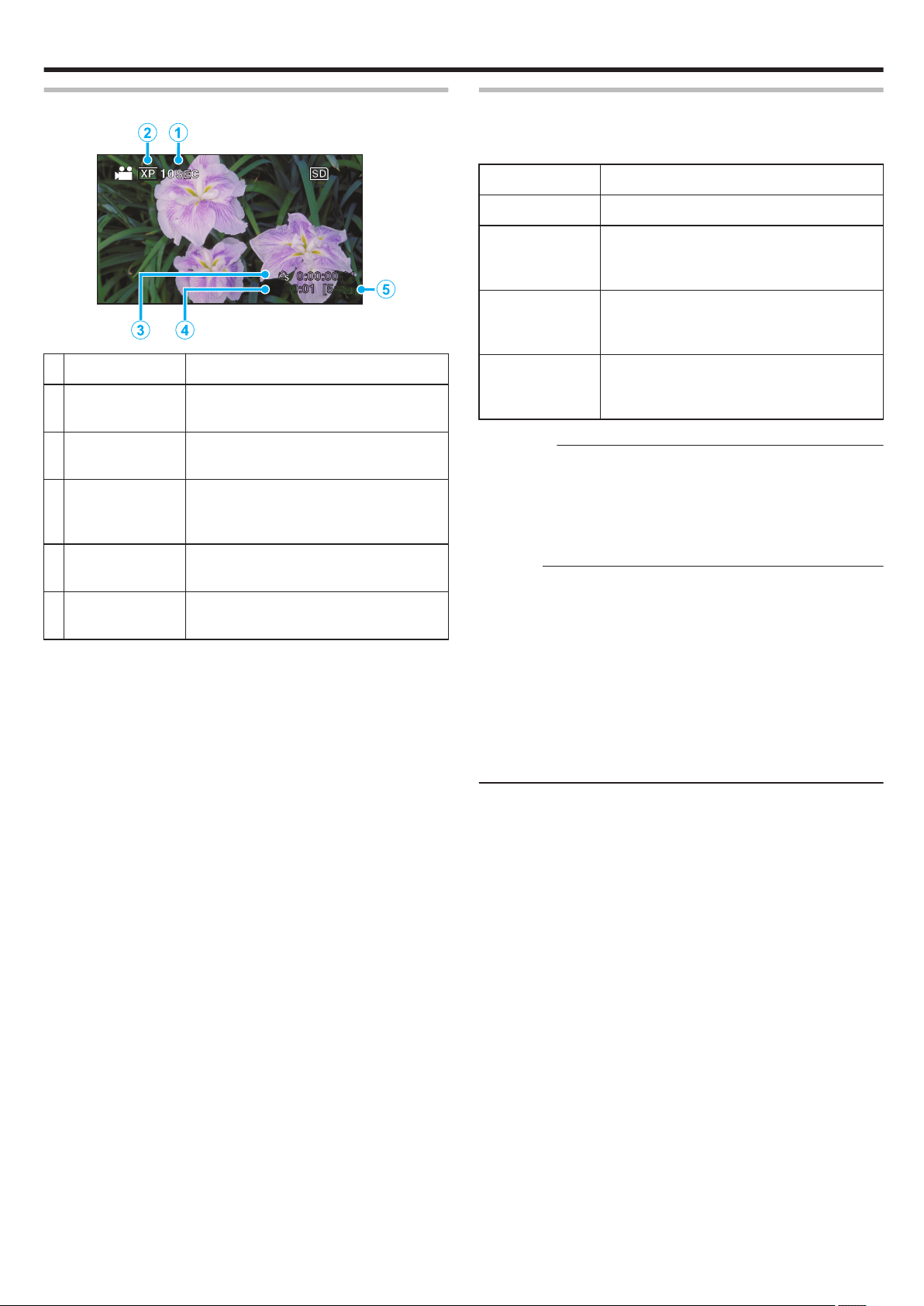

Indications During Video Recording

Display Icon Description

Parallax

Adjustment Value (3D mode only)

3D VIDEO REC

FORMAT (3D mode only)

VIDEO

QUALITY

Displays the adjusted value when performing parallax adjustment manually. “Adjusting Parallax During

Recording” (A p. 32)

Displays the recording format for 3D video recording.

Displays the icon of the “VIDEO QUALITY” setting selected in the recording menu. “ VIDEO QUALITY ” (A p. 93)

0 is displayed when recording in the 24p mode. “ SYSTEM SELECT ” (A p. 92)

If the mode is H Manual, press the H/T button to switch to P Intelligent Auto.

The mode changes between Intelligent Auto and Manual with every press.

Start recording.

Press again to stop.

3D/2D Mode Displays the current recording mode

DIS Displays the icon of the “DIS” setting

Recording

Media

Battery

Indicator

of 3D or 2D. “3D” is displayed during 3D recording, while “2D” is displayed during 2D recording.

selected in the recording menu. “Reducing Camera Shake” (A p. 46)

Displays the icon of the media where videos are recorded to. You can change the setting with REC MEDIA FOR VIDEO. “ REC MEDIA FOR VIDEO ”

(A p. 111)

Displays the approximate remaining battery power. Details of the battery power can be displayed by pressing the INFO button. “Remaining Recording Time/Battery

Power” (A p. 54)

Page 27

Recording

Display Icon Description

Recording

Mode

Remaining

Recording Time

Scene Counter

(Recorded Time)

Scenes of Intelligent Auto

Display Icon Description

Displays the current recording mode of P (Intelligent Auto) or H

(Manual). The mode changes with every press of the i.AUTO button.

Displays the remaining time for video recording.

Displays the elapsed time of the video that is currently being recorded.

Captures one’s skin beautifully.

Allows people to be captured naturally.

Focuses at a far distance and captures a sharp image with vivid colors.

Records with minimal noise in the overall image.

Operation Buttons for Video Recording

Operation

Buttons

Parallax Adjustment

Adjusts the effect when 3D or LR MIX images are displayed on the LCD monitor. “Adjusting Parallax During Recording” (A p. 32)

Description

Allows night scenes to be captured accurately with minimal noise in the overall image.

Prevents colors from fading even when recording in a bright environment.

Records while focusing on a near object.

Reproduces the green color of trees vividly.

Reproduces the colors of sunset naturally.

Adjusts settings so that the subject does not appear too dark due to backlight.

Allows people to be captured naturally with minimal noise in the overall image.

Records while focusing on a near object even in a dark environment.

Memo :

Scenes can be detected according to the shooting

conditions and automatically adjusted in Intelligent Auto mode.

Some functions may not work properly depending on the

shooting conditions.

T/W Zoom Allows the same functions as the

2 /

Recording/

Playback Mode

Recording Start

5 /

RecordStandby a

LCD Monitor

3D/2D Display

MENU Displays the various menus of

Display ButtonnSome displays disappear after

zoom lever to be performed. Camera shake that often occurs when using the zoom lever can be minimized. “Zooming” (A p. 28)

Switches between recording and playback modes.

Functions as the START/STOP button.

Switches the display on the LCD monitor between 3D and 2D.

video recording. “Operating the Menu” (A p. 85)

approximately 3 seconds. Use the n button to change the

displays as shown below.

Tap n button Displays appear for approximately 3 seconds with every tap.

Tap and hold n button Displays are fixed such that they do not disappear. After setting, the display button

changes from n to m. Tap m to release the

displays.

Page 28

TelephotoWide Angle

Zoom Button (T/W)

Recording

Useful Settings for Recording

When “AUTO POWER OFF” is set to “ON”, this unit turns

itself off automatically to conserve power when it is not operated for 5 minutes. (only when using the battery pack)

“ AUTO POWER OFF ” (A p. 112)

When “TOUCH PRIORITY AE/AF” is set to “FACE

TRACKING”, this unit detects faces and automatically adjusts its brightness and focus to record the faces more clearly.

“Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 47)

Caution :

Do not expose the lens to direct sunlight.

Do not use this unit in the rain, snow, or places with high

humidity like the bathroom. Do not use this unit in places subject to excessive humidity

or dust, as well as places exposed to steam or smoke directly.

Do not remove the battery pack, AC adapter, or SD card

when the access lamp is lighted. The recorded data may become unreadable.

“Playing a Video with Defective Management Information” (A p. 59)

Make a backup of important recorded data.

It is recommended to copy your important recorded data to a DVD or other recording media for storage. JVC will not be responsible for any lost data.

Memo :

Before recording an important scene, it is recommended

to conduct a trial recording. Check the remaining recording time in the media before

you start shooting. If there is not enough space, move (copy) the data to a computer or disc.

Do not forget to make copies after recording!

Recording stops automatically as it cannot be performed

for 12 or more consecutive hours according to specifications. (It may take some time to resume recording.)

For long recordings, the file is split into two or more files if

the size exceeds 4 GB. You can connect this unit to the AC adapter to record for

long hours indoors. The maximum number of files that can be recorded to the

same media is 9999 for MP4 video and still image files respectively.

Zooming

The angle of view can be adjusted using zoom.

Use the W end (wide angle end) to shoot a wider field of

view. Use the T end (telephoto end) to magnify the subject for

shooting.

The following zoom options are available:

- Optical Zoom (1 – 5x) *During 3D recording

- Optical Zoom (1 – 10x) *During 2D recording

- Digital Zoom (11 – 200x) *During 2D recording You can also use the zoom (T/W) button on the touch

screen to zoom.

Memo :

When digital zoom is used, the image becomes grainy as

it is digitally enlarged. The zoom ratio range can be changed.

“ZOOM (2D mode only)” (A p. 94)

Page 29

Taking Still Images in Intelligent

Press halfway

Press fully

Auto Mode

You can record without worrying about the setting details by using the Intelligent Auto mode.

Set the focus on the subject.

Recording

Open the lens cover.

Open the LCD monitor and select the still

image mode.

The still image icon B appears.

Check if the recording mode is P Intelligent Auto.

When focused, the focus icon lights up in green.

Take a still image.

PHOTO lights up when a still image is being

captured.

If the mode is H Manual, press the H/T button to switch to P Intelligent Auto.

The mode changes between Intelligent Auto and Manual with every press.

Page 30

[6630]

1/125

[6630]

Recording

Indications During Still Image Recording

Display Icon

IMAGE SIZE Displays the icon of the image size.

The size of still images can be

changed.

“ IMAGE SIZE ” (A p. 104)

SHUTTER

SPEED

Focus Lights up in green when focused.

Recording in

Progress

Remaining

Number of

Displays the shutter speed.

Appears when a still image is being captured.

Displays the remaining number of shots for still image recording.

Shots

Recording

Mode

Press the i.AUTO button to switch the recording mode between P (Intelligent Auto) and H (Manual).

Display Button

Some displays disappear after approximately 3 seconds.

Use the n button to change the displays as shown below.

Tap n button Displays appear for approximately 3 seconds with every tap.

Tap and hold n button Displays are fixed such that they do not disappear. After setting, the

display button changes from n to m. Tap m to release the displays.

Battery Indicator

Displays the approximate remaining battery power. Details of the battery power can be displayed by pressing the INFO button. “Remaining Recording Time/Battery Power” (A p. 54)

Recording

Media

Displays the icon of the media where still images are recorded to. The recording media can be changed. “ REC MEDIA FOR IMAGE ” (A p. 111)

3D/2D Mode Displays the current recording mode

of 3D or 2D. “3D” is displayed during 3D recording, while “2D” is displayed during 2D recording.

Description

Operation Buttons for Still Image Recording

Operation

Buttons

Parallax Adjustment

Adjusts the effect when 3D or LR MIX images are displayed on the LCD monitor. “Adjusting Parallax During

Recording” (A p. 32)

T/W Zoom Allows the same functions as the

2 /

zoom lever to be performed. Camera shake that often occurs when using the zoom lever can be minimized. “Zooming” (A p. 28)

Recording/

Playback Mode

Snapshot

Switches between recording and playback modes.

Functions as the SNAPSHOT button. However, focus cannot be set by pressing halfway.

LCD Monitor

3D/2D Display

MENU Displays the various menus of

Switches the display on the LCD monitor between 3D and 2D.

still image recording. “Operating the Menu” (A p. 85)

Display ButtonnSome displays disappear after

approximately 3 seconds. Use the n button to change the

displays as shown below.

Tap n button Displays appear for approximately 3 seconds with every tap.

Tap and hold n button Displays are fixed such that they do not disappear. After setting, the display button

changes from n to m. Tap m to release the

displays.

Description

Page 31

TelephotoWide Angle

Zoom Button (T/W)

Recording

Useful Settings for Recording

When “QUICK RESTART” is set to “ON”, this unit turns on

immediately if you open the LCD monitor within 5 minutes after the power is turned off by closing the monitor.

“ QUICK RESTART ” (A p. 113)

When “AUTO POWER OFF” is set to “ON”, this unit turns

itself off automatically to conserve power when it is not operated for 5 minutes. (only when using the battery pack)

“ AUTO POWER OFF ” (A p. 112)

When “TOUCH PRIORITY AE/AF” is set to “FACE

TRACKING”, this unit detects faces and automatically adjusts its brightness and focus to record the faces more clearly.

“Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 47)

The image resolution can be changed.

“ IMAGE SIZE ” (A p. 104)

Caution :

Do not expose the lens to direct sunlight.

Do not use this unit in the rain, snow, or places with high

humidity like the bathroom. Do not use this unit in places subject to excessive humidity

or dust, as well as places exposed to steam or smoke directly.

Do not remove the battery pack, AC adapter, or SD card

when the access lamp is lighted. The recorded data may become unreadable.

Memo :

Before recording an important scene, it is recommended

to conduct a trial recording. The digital image stabilizer does not work when recording

still images.

Zooming

The angle of view can be adjusted using zoom.

Use the W end (wide angle end) to shoot a wider field of

view. Use the T end (telephoto end) to magnify the subject for

shooting.

The following zoom options are available:

- Optical Zoom (1 – 5x) *During 3D recording

- Optical Zoom (1 – 10x) *During 2D recording You can also use the zoom (T/W) button on the touch

screen to zoom.

Memo :

Only optical zoom is available in the still image recording

mode.

Page 32

MANUAL

AUTO

SET

Recording

Adjusting Parallax During Recording

When recording 3D images, parallax is automatically adjusted. If the left and right images of an object close to the camera do not appear to be in alignment, or the 3D effect of a distant object is weak, you can make adjustments by bringing the left and right images closer to each other.

Parallax can be adjusted when 3D or LR MIX images are

displayed on the unit’s LCD monitor.

“3D VIDEO REC FORMAT (3D mode only)” (A p. 92)

Tap k.

Tap “MANUAL”.

Tap “SET” to confirm.

Caution :

Too much parallax may cause the 3D effect to be lost.

If you see double images even after parallax adjustment,

set the display on the LCD monitor to 2D immediately.

Memo :

While this unit is equipped with the function to adjust

parallax automatically, it may not work properly for the following subjects.

- Subjects beyond the recommended shooting distance (especially subjects that are extremely close to the camera)

- Numerous subjects of the similar shape arrayed in a line, such as the windows of a building

- Straight subjects such as electric wires In these cases, adjust the parallax manually.

When the power of this unit is turned off or the mode is

switched to playback after parallax is manually adjusted, the “PARALLAX ADJUSTMENT” setting returns to “AUTO”.

The parallax adjustment screen appears.

To set parallax adjustment to auto (default), tap

“AUTO”.

Adjust the parallax.

To increase the amount of correction, tap “+”. Doing

so increases the value of the parallax display. To reduce the amount of correction, tap “-”. Doing so

decreases the value of the parallax display.

Page 33

Manual Recording

SCENE SELECT

VIDEO

You can adjust settings, such as brightness and shutter speed, by using the manual mode. Manual recording can be set for both video and still image modes.

Open the lens cover.

Open the LCD monitor and select the video or

still image mode.

The video A or still image B icon appears.

Recording

Tap “MENU”.

Tap the item to set manually.

For details on the various manual settings, refer to

“Manual Recording Menu”.

Memo :

The manual settings are displayed only in the manual

recording mode.

Select the Manual recording mode.

If the mode is P Intelligent Auto, press the H/T button to switch to H Manual.

The mode changes between Intelligent Auto and Manual with every press.

Page 34

Recording

Manual Recording Menu

The following items can be set.

Name Description

SCENE SELECT

FOCUS

FOCUS ASSIST

FOCUS ASSIST COLOR

BRIGHTNESS ADJUST

Recordings that suit the shooting

conditions can be performed easily.

“Scene Selection” (A p. 35)

Use manual focus if the subject is

not focused automatically.

“Adjusting Focus Manually” (A p. 36)

Focused subject is outlined in

color for more precise focus.

“Using Focus Assist” (A p. 37)

Sets the color of the outline of a

focused object when Focus Assist is used.

“ FOCUS ASSIST COLOR ” (A p. 100)

Overall brightness on the screen

can be adjusted. Use this when recording in a dark

or bright location.

“Adjusting Brightness” (A p. 38)

Name Description

WHITE BALANCE

BACKLIGHT COMP.

ZEBRA

TELE MACRO

Overall color on the screen can be

adjusted. Use this when the color on the

screen appears differently from the actual color.

“Setting White Balance” (A p. 41)

Corrects the image when the

subject appears dark due to backlight.

Use this when shooting against the

light.

“Setting Backlight Compensation” (A p. 42)

Sets whether to display zebra

patterns at the bright areas of the subject.

“Displaying the Zebra Pattern” (A p. 42) *Displayed only in the video recording

mode.

Use this to take close-up (macro)

shots of the subject.

“Taking Close-up Shots” (A p. 43) *Displayed only in the 2D recording mode.

SHUTTER SPEED

APERTURE PRIORITY

Shutter speed can be adjusted.

Use this when shooting a fast-

moving subject or to emphasize the subject’s movement.

“Setting Shutter Speed” (A p. 39)

You can adjust the aperture to

capture an image with only the subject in focus while blurring the surroundings.

“Setting Aperture” (A p. 40)

Page 35

Scene Selection

SCENE SELECT

VIDEO

NIGHTALIVE

OFF

SCENE SELECT

PORTRAIT

NIGHT

Common scenes that are often encountered can be recorded with the most suitable settings.

Tap “MENU”.

*The image is only an impression.

Setting Effect

NIGHTALIVE

Increases gain and brightens the scene automatically using a slow shutter when the surrounding is dark. To prevent camera shake, use a tripod.

Recording

Tap “SCENE SELECT”.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap the appropriate scene.

c NIGHT

w PORTRAIT

e SPORTS

Captures night scenes naturally.

Blurs the background to bring out the people in the picture.

Captures fast-moving subjects clearly in every single frame.

After setting, the selected scene is immediately put

on view. Tap “OFF” to cancel the selection.

Tap ∧ or ∨ or flick on the list to move upward or

downward for more scene selection.

Tap L to exit the menu.

Memo :

When “CINEMA” is set, Scene Select cannot be used.

“ CINEMA ” (A p. 90)

f SNOW

g SPOTLIGHT

Prevents the subject from appearing too dark when recording snow scenes on a sunny day.

Prevents the human subject from appearing too bright under light.

Page 36

VIDEO

FOCUS

MANUAL

AUTO

FOCUS

SET

Recording

Adjusting Focus Manually

Set this when the focus is not clear in Intelligent Auto or when manual focusing is desired.

Tap “MENU”.

Tap “FOCUS”.

Adjust the focus.

Tap E to focus on a distant subject.

Tap p to focus on a near subject.

Tap “SET” to confirm.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “MANUAL”.

When focus is confirmed, the focusing frame

disappears and E and p are displayed. (The icons may appear blinking.)

Memo :

A subject that is focused at the telephoto (T) end remains

in focus when it is zoomed out to the wide angle (W) end. Focus cannot be achieved on a distant or near object

beyond limit. ∧ or ∨ will appear blinking. You can also use the control dial to adjust the focus.

“Using the Control Dial for Recording” (A p. 45)

Page 37

Using Focus Assist

VIDEO

FOCUS ASSIST

SET

Focused subject is outlined in color for more precise focus.

Tap “MENU”.

Tap “FOCUS ASSIST”.

Recording

Tap “SET” to confirm.

Memo :

The image becomes black and white while the outline of

the focused object is displayed in the selected color. Change outline color if it becomes difficult to see.

“ FOCUS ASSIST COLOR ” (A p. 100)

You can also use the control dial to adjust the focus.

“Using the Control Dial for Recording” (A p. 45)

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Adjust the focus.

Tap E to focus on a distant subject.

Tap p to focus on a near subject.

Page 38

VIDEO

BRIGHTNESS ADJUST

MANUAL

AUTO

BRIGHTNESS ADJUST

SET

Recording

Adjusting Brightness

You can adjust the brightness to your preferred level.

Tap “MENU”.

Tap “BRIGHTNESS ADJUST”.

Adjust the brightness value.

Compensation range during video recording: -6 to +6

Compensation range during still image recording:

-2.0 to +2.0 Tap ∧ to increase the brightness.

Tap ∨ to decrease the brightness.

Tap “SET” to confirm.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “MANUAL”.

Memo :

Settings can be adjusted separately for videos and still

images. You can also use the control dial to adjust the brightness.

“Using the Control Dial for Recording” (A p. 45)

Page 39

Setting Shutter Speed

VIDEO

SHUTTER SPEED

MANUAL

AUTO

SHUTTER SPEED

1/30

SET

1/30

You can set the shutter speed to suit the type of subject.

Tap “MENU”.

Tap “SHUTTER SPEED”.

Adjust the shutter speed.

Shutter speed can be set from 1/2 to 1/4000.

(Up to 1/500 for still image.) Tap ∧ to increase the shutter speed.

Tap ∨ to decrease the shutter speed.

Tap “SET” to confirm.

Recording

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “MANUAL”.

After confirmation, the display for adjusting shutter

speed disappears.

Memo :

Settings can be adjusted separately for videos and still

images. While fast-moving subjects can be captured clearly by

increasing “SHUTTER SPEED”, the screen appears darker. When recording in dark places such as indoors, check the brightness of the LCD monitor and set “SHUTTER SPEED” accordingly.

You can also use the control dial to adjust the shutter

speed.

“Using the Control Dial for Recording” (A p. 45)

Page 40

VIDEO

APERTURE PRIORITY

MANUAL

AUTO

APERTURE PRIORITY

F1.8

SET

F1.8

Recording

Setting Aperture

You can adjust the aperture to capture an image with only the subject in focus.

Tap “MENU”.

Tap “APERTURE PRIORITY”.

Adjust the aperture.

Aperture can be set from F1.2 to F5.6.

If you want the background to be in focus as well

(larger aperture value), tap ∧. If you want the background to appear blurry (smaller

aperture value), tap ∨.

Tap “SET” to confirm.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “MANUAL”.

After confirmation, the display for adjusting aperture

disappears.

Memo :

Settings can be adjusted separately for videos and still

images. When zoomed to the telephoto end, setting the aperture

to the minimum value (F1.2) does not stop it down all the way. In this case, the aperture value is set according to the zoom and indicated in yellow. Set the zoom to the wide angle end to enable the aperture to be stopped down all the way.

The larger the aperture value, the darker the subject

appears. You can also use the control dial to adjust the aperture.

“Using the Control Dial for Recording” (A p. 45)

Page 41

VIDEO

WHITE BALANCE

MWB

AUTO

6000K

5200K

Recording

Setting White Balance

You can set the color tone to suit the light source.

Tap “MENU”.

Tap “WHITE BALANCE”.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap the appropriate shooting environment.

Setting Details

AUTO Adjusts automatically to the natural

colors.

MWB Use this when the problem of unnatural

colors is not resolved.

5200K Set this when shooting outdoors on a

sunny day.

6000K Set this when shooting on a cloudy day

or inside a shade.

3200K Set this when shooting under

illumination such as a video light.

MARINE:BLUE Set this when shooting the sea at deep

water area (water appears blue).

MARINE:GREEN Set this when shooting the sea at

shallow water area (water appears green).

Using MWB

Hold a sheet of plain white paper in front of the

lens so that the white paper fills the screen.

Tap “MWB” and keep touching while the icon

appears and blinks.

Release your touch after the menu disappears

and o lights up.

Tap ∧ or ∨ to move upward or downward to select.

Memo :

The setting will not change if “MWB” is being tapped too

fast (less than 1 second). Manual setting is temporarily canceled in the Intelligent

Auto mode. You can also use the control dial or ADJ button to adjust

the white balance.

“Using the Control Dial for Recording” (A p. 45)

Page 42

VIDEO

BACKLIGHT COMP.

OFF

BACKLIGHT COMP.

Zebra Pattern

VIDEO

ZEBRA

OVER100%

ZEBRA

OFF

70-80%

Recording

Setting Backlight Compensation

You can correct the image when the subject appears too dark due to backlight.

Tap “MENU”.

Tap “BACKLIGHT COMP.”.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “MENU”.

Tap “ZEBRA”.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “70-80%” or “OVER100%”.

Tap “ON”.

After setting, the tele macro icon l appears.

Displaying the Zebra Pattern

During video recording, diagonal lines (zebra pattern) are displayed only at areas with the specified luminance levels.

Display Setting

OFF Deactivates the function.

70-80% Sections that are close to be over-

exposed are displayed in striped pattern.

OVER100% Sections that are over-exposed are

displayed in striped pattern.

Memo :

Display on the LCD monitor is in 2D while the zebra pattern

is displayed. During 3D output to a TV via HDMI connection, the zebra

pattern will not be displayed on the TV.

Page 43

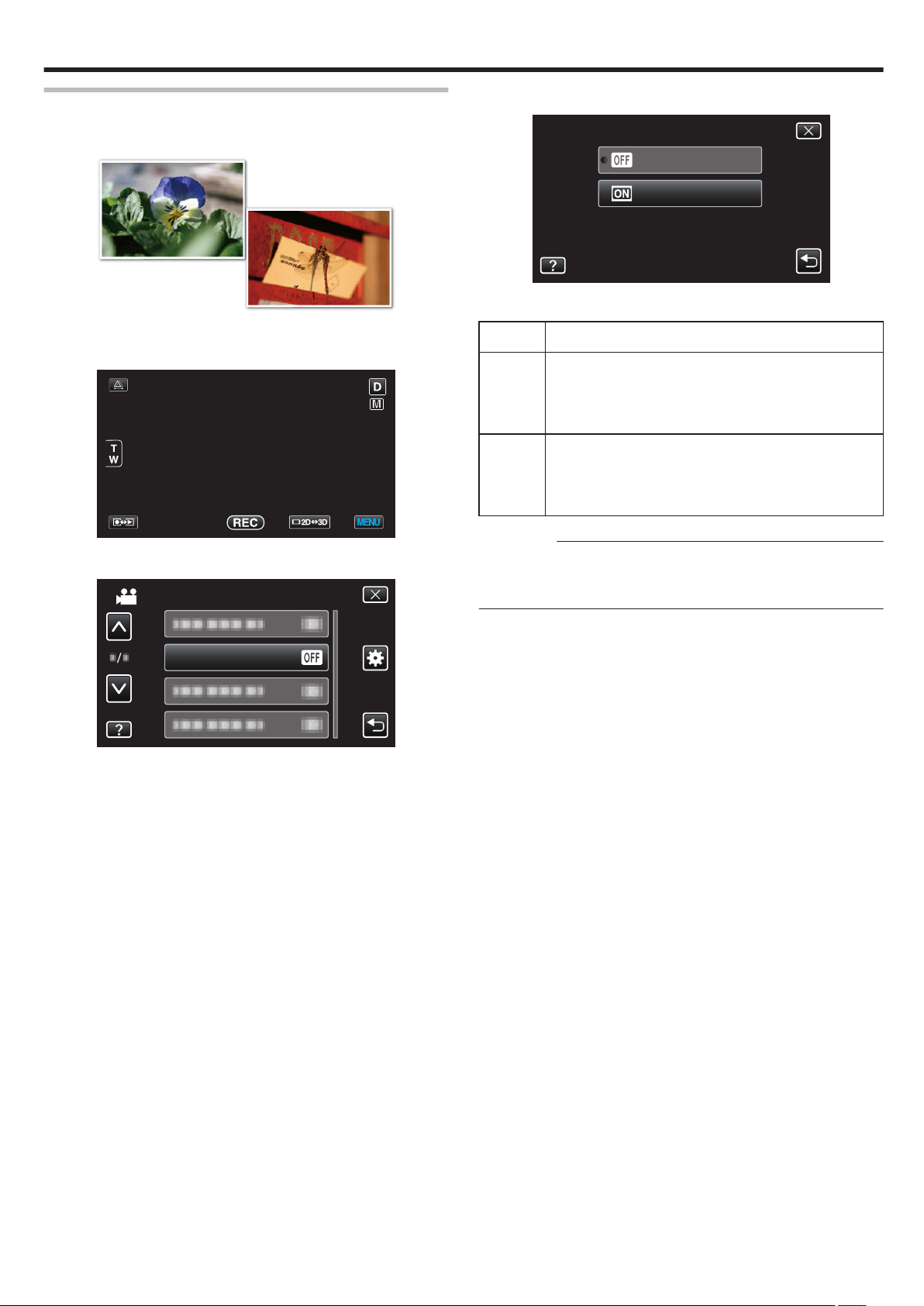

Taking Close-up Shots

VIDEO

TELE MACRO

OFF

TELE MACRO

You can take close-up shots of an object using the tele macro function.

*The image is only an impression.

Tap “MENU”.

Recording

Tap “ON”.

After setting, the tele macro icon o appears.

Setting Details

OFF Enables close-up shots up to 1 m at the telephoto

(T) end. Enables close-up shots up to 5 cm at the wide angle (W) end.

ON Enables close-up shots up to 40 cm at the

telephoto (T) end. Enables close-up shots up to 5 cm at the wide angle (W) end.

Tap “TELE MACRO”.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Caution :

When you are not taking close-up shots, set “TELE

MACRO” to “OFF”. Otherwise, the image may be blur.

Page 44

VIDEO

USER BUTTON SETTING

NIGHTALIVE

USER BUTTON SETTING

BRIGHTNESS ADJUST

TOUCH PRIORITY AE/AF

FOCUS

Recording

Setting the USER Button

By assigning one of manual adjustment functions that you frequently use to the USER button, you can access the function quickly.

Assigning a Function to the USER Button

Tap “MENU”.

Tap “USER BUTTON SETTING”.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Select the desired function.

You can select one of the following functions.

Video mode:

- NIGHTALIVE

- TOUCH PRIORITY AE/AF

- FOCUS

- BRIGHTNESS ADJUST

- SHUTTER SPEED

- APERTURE PRIORITY

- BACKLIGHT COMP.

- WHITE BALANCE

- FOCUS ASSIST

- DIS Still image mode:

- NIGHTALIVE

- TOUCH PRIORITY AE/AF

- FOCUS

- BRIGHTNESS ADJUST

- SHUTTER SPEED

- APERTURE PRIORITY

- BACKLIGHT COMP.

- WHITE BALANCE

- FOCUS ASSIST

- SELF-TIMER

Making Adjustments with the USER Button

Operate as follows.

In the case of functions that are turned on or off

(NIGHTALIVE, BRIGHTNESS ADJUST, SHUTTER SPEED, APERTURE PRIORITY, BACKLIGHT COMP., DIS, FOCUS ASSIST, SELF-TIMER)

Press the USER button to turn on or off the function.

In the case of FOCUS

Press the USER button to switch FOCUS between automatic and manual. To adjust focus manually, refer to “Adjusting Focus Manually” (A p. 36) .

In the case of functions that have settings to be selected

(TOUCH PRIORITY AE/AF, WHITE BALANCE)

1)Press the USER button.

2)Tap the desired function to set.

Memo :

The USER button is invalid when the menu is displayed.

Page 45

Using the Control Dial for Recording

ADJ

You can use the control dial to change the settings for “FOCUS”, “BRIGHTNESS ADJUST”, “SHUTTER SPEED”, “APERTURE PRIORITY”, “WHITE BALANCE”, and “PARALLAX ADJUSTMENT”.

Press the ADJ button for about 3 seconds to

display the control menu.

A menu screen containing the functions that can

adjusted by the control dial is displayed.

Select the function with the control dial.

For details on setting the items and values of each

function, refer to the following.

A BRIGHTNESS ADJUST

“Adjusting Brightness” (A p. 38)

B FOCUS

“Adjusting Focus Manually” (A p. 36)

C SHUTTER SPEED

“Setting Shutter Speed” (A p. 39)

D APERTURE PRIORITY

“Setting Aperture” (A p. 40)

E WHITE BALANCE

“Setting White Balance” (A p. 41)

F PARALLAX ADJUSTMENT

“Adjusting Parallax During Recording” (A p. 32)

G CLEAR

Select this to set all values adjusted by the ADJ button to “AUTO”.

Recording

Adjust the assigned function and record.

Change the setting using the control dial.

Press the ADJ button to set to “AUTO” or activate an

assigned function. To change the setting of a different function, press

the ADJ button for about 3 seconds. The control menu appears. Go back to step 2 and select a different function.

Memo :

By assigning “BRIGHTNESS ADJUST”, “FOCUS”,

“SHUTTER SPEED”, or APERTURE PRIORITY to the control dial, you can adjust the function while recording.

Only one function can be operated by the control dial. The

settings of all other functions will remain unchanged. (Example: When focus is being adjusted, the settings of brightness and shutter speed remain unchanged.)

When “CLEAR” is selected, all values adjusted by the ADJ

button will be set to “AUTO”. (Exits the control menu.)

Caution :

Settings cannot be changed by tapping on the screen

while the control dial is being used. Change the setting with the control dial. (except PARALLAX ADJUSTMENT)

When “3D VIDEO REC FORMAT” is set to MP4(MVC) and

recording is performed together with HDMI output, the control menu will not be displayed.

Press the ADJ button.

The setting screen for the selected function appears.

Page 46

VIDEO

DIS

OFF

ON (AIS)

DIS

Recording

Reducing Camera Shake

When the image stabilizer is set, camera shake during recording can be effectively reduced.

Tap “MENU”.

Tap “DIS”.

Tap “ON” or “ON (AIS)”.

Display Setting

Z(OFF)

X(ON)

r(ON (AIS))

Deactivates image stabilizer.

Reduces camera shake under normal shooting conditions.

Reduces camera shake more effectively when shooting bright scenes on the wide angle end. *Optical zoom (during 3D recording: approx. 5x, during 2D recording: approx. 10x)

Memo :

It is recommended to set the image stabilizer to “OFF”

when shooting a subject of little movement with the unit on a tripod.

Complete stabilization may not be possible if camera

shake is excessive. This setting is effective for video recording only.

Setting with the USER Button

When “DIS” is assigned to the USER button, the setting changes with every press of the button. “Setting the USER Button” (A p. 44)

“OFF”F“ON”F“ON (AIS)”F“OFF”F The setting changes as above with every press of the USER button.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Page 47

Capturing Subjects Clearly (TOUCH

VIDEO

TOUCH PRIORITY AE/AF

OFF

AREA SELECT

COLOR TRACKING

FACE TRACKING

TOUCH PRIORITY AE/AF

PRIORITY AE/AF)

“TOUCH PRIORITY AE/AF” is a function that adjusts focus and brightness based on a tapped position. This function is available for both videos and still images.

Select video or still image mode.

The video or still image mode icon appears.

Tap “MENU”.

Recording

Start recording and tap the desired position.

Focus and brightness will be adjusted automatically

based on the tapped position (face/color/area). A blue frame appears around the selected subject (face/color), while a white frame appears around the selected area.

To reset, tap the desired position (face/color/area)

again. To cancel “FACE TRACKING”, tap the blue frame.

To cancel “COLOR TRACKING”, tap the blue frame.

To cancel “AREA SELECT”, tap the white frame.

Setting Details

OFF Deactivates the function.

Tap “TOUCH PRIORITY AE/AF”.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap the desired setting.

FACE TRACKING

COLOR TRACKING

AREA SELECT

e appears on the screen. Recording is performed while tracking and automatically adjusting the tapped face (subject) with appropriate focus and brightness. In addition, a blue frame appears around the tapped face (subject).

f appears on the screen. Recording is performed while tracking and automatically adjusting the tapped color (subject) with appropriate focus and brightness. In addition, a blue frame appears around the tapped color (subject).

g appears on the screen. Recording is performed while automatically adjusting the tapped area (fixed position) with appropriate focus and brightness. In addition, a white frame appears around the tapped area.

Memo :

When “TOUCH PRIORITY AE/AF” is set, “FOCUS” will be

set to “AUTO” automatically. If the camera loses track of a subject, tap the subject again.

Settings are canceled when zoom operation is performed.

(“AREA SELECT” only) When “COLOR TRACKING” is set, the targeted subject

(color) may change if similar colors are detected. In this case, tap the subject again. The targeted subject (color) may also be tracked back again if it appears in the center of the screen within a specific time.

When the display on the LCD monitor is set to 2D(R),

neither the blue nor white frame will be displayed.

Page 48

SMILE SHOT


OFF

SMILE SHOT

Recording

Caution :

Subjects near the sides of the LCD monitor may not

respond or be recognized when tapped. In this case, move the subject to the center and tap again.

“COLOR TRACKING” may not function properly in the

following cases:

- when recording subjects with no contrast

- when recording subjects that are moving at high speed

- when recording in a dark place

- when the surrounding brightness changes When “FACE TRACKING” is set, the subject may be lost

if the camera is moved vertically or horizontally very fast. To track back the subject, tap on it again.

Capturing Smiles Automatically (SMILE SHOT)

“SMILE SHOT” automatically captures a still image upon detection of a smile.

Select still image mode.

The still image mode icon appears.

Tap “MENU”.

Tap “SMILE SHOT”.

Tap “ON”.

Point the camera toward the human subject.

A still image is automatically captured when smiles

are detected.

PHOTO lights up when a still image is being

captured. You can display the smile level (%) together with the

frame by setting “SMILE LEVEL” in the menu to ON before recording.

“Setting SMILE LEVEL Display (Still image only)”

(A p. 49)

Memo :

The camera is able to detect up to 16 faces. Smile levels

will be displayed for up to 3 of the largest faces displayed on the screen.

This function may not work properly depending on the

shooting conditions (distance, angle, brightness, etc.) and the subject (direction of face, smile level, etc.). It is also difficult to detect a smile in backlight.

After a smile is detected and captured, it takes time before

the next recording may be performed.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Caution :

When “TOUCH PRIORITY AE/AF” is set to “AREA

SELECT” or “COLOR TRACKING”, “SMILE SHOT” does not work.

If appropriate results cannot be obtained, record with

“SMILE SHOT” set to “OFF”.

Page 49

Setting SMILE LEVEL Display (Still image

SMILE LEVEL


OFF

SMILE LEVEL

only)

“SMILE LEVEL” allows you to set the items to display when faces are detected. This item is only displayed when “TOUCH PRIORITY AE/AF” is set to “FACE TRACKING”.

Open the LCD monitor and select the still

image mode.

Tap “MENU”.

Recording

Tap “ON”.

Setting Details

OFF Displays only the frames when faces are

detected.

ON Displays the frames and smile levels (%) when

faces are detected.

Frame: Appears around detected faces.

Smile level: Appears in value (0 % - 100 %) for detected smiles.

Tap “SMILE LEVEL”.

Page 50

VIDEO

TIME-LAPSE RECORDING

1SEC INTERVAL

OFF

TIME-LAPSE RECORDING

80SEC INTERVAL

10SEC INTERVAL

Recording

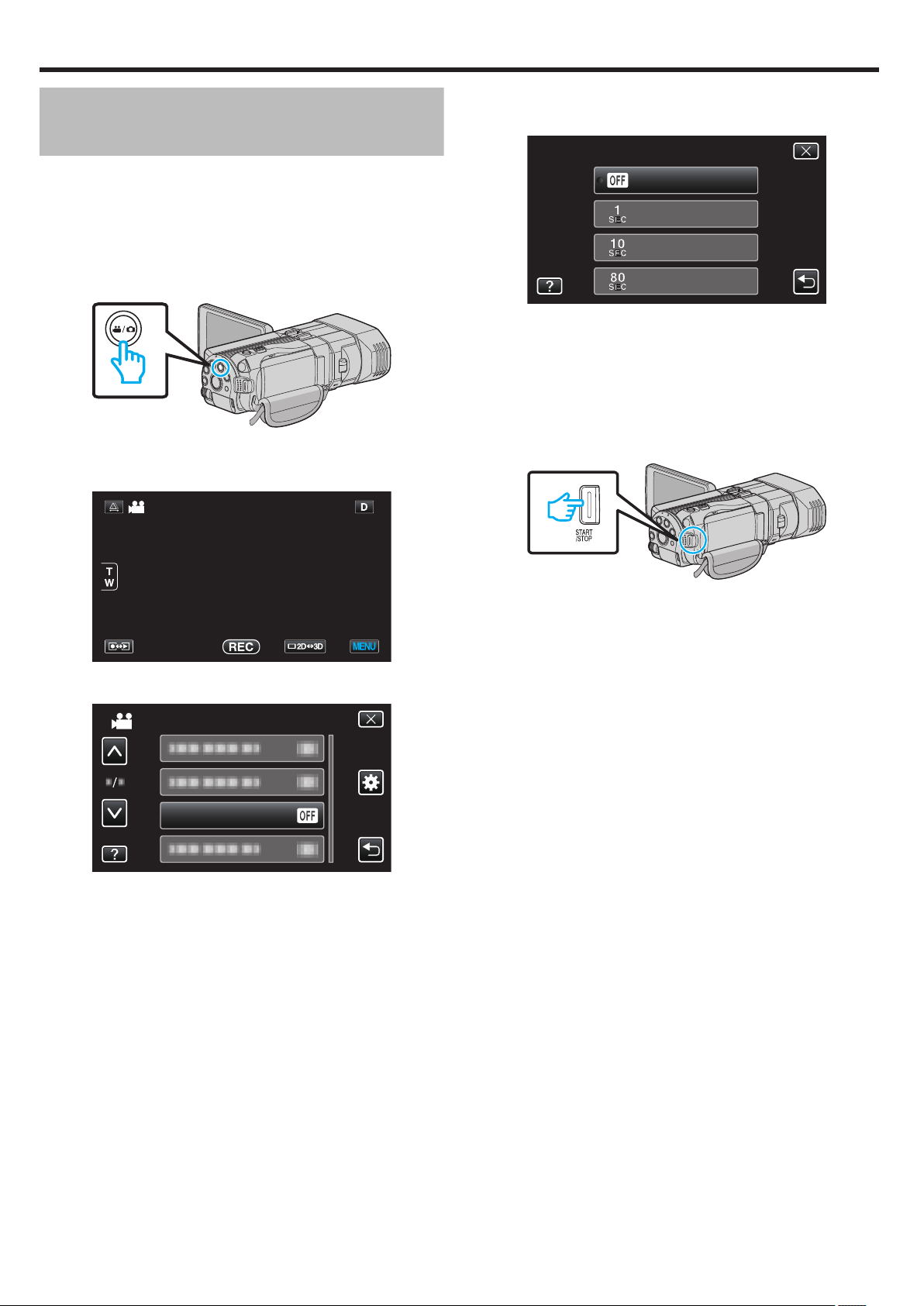

Recording at Intervals (TIMELAPSE RECORDING)

Enables the changes of a scene that occur slowly over a long period to be shown within a short time by taking frames of it at a certain interval. This is useful for making observations such as the opening of a flower bud.

Open the LCD monitor and select the video

mode.

The video mode icon A appears.

Tap “MENU”.

Tap to select a recording interval (1 to 80

seconds).

The greater the number of seconds, the longer the

recording interval. Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Start recording.

Tap “TIME-LAPSE RECORDING”.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

A frame is taken at intervals of the selected period.

When the recording interval is set to “80SEC

INTERVAL”, this unit switches to the power-saving mode between recordings. At the next point to record, the power-saving mode will be turned off and recording will start automatically.

Press the START/STOP button again to stop

recording.

Page 51

0:00:01 [5:56]

0:00:00:01

Recording

Indications During Time-Lapse Recording

Display Description

Speed Indicator Displays the recording interval that is

VIDEO

QUALITY

Recorded Time Displays the actual recorded time of

Actual Elapsed

Time

Remaining

Recording Time

set.

Displays the icon of the video quality that is set.

the video. Recorded time increases in units of frames.

Displays the actual elapsed time after recording starts.

Remaining time left to record with the currently selected video quality.

Time-Lapse Setting

The greater the number of seconds, the longer the recording interval.

Setting Details

OFF Deactivates the function.

1SEC INTERVAL

10SEC INTERVAL

80SEC INTERVAL

Caution :

Audio cannot be recorded during time-lapse recording.

Zooming, simultaneous still image recording, and image

stabilizer are not available in time-lapse recording. When recording is stopped with the recorded time less

than “0:00:00:17”, the video will not be saved.

Memo :

Settings of time-lapse recording are reset when the power

is turned off. To start time-lapse recording again, it is necessary to make the selection once more.

Recording stops automatically 99 hours after it is started.

Make use of a tripod and AC adapter for time-lapse

recordings with long intervals. It is also recommended to fix the focus and white balance manually.

“Tripod Mounting” (A p. 17) “Adjusting Focus Manually” (A p. 36) “Setting White Balance” (A p. 41)

Takes a frame at 1-second intervals. Recorded videos will be played back at 30 times speed.

Takes a frame at 10-second intervals. Recorded videos will be played back at 300 times speed.

Takes a frame at 80-second intervals. Recorded videos will be played back at 2400 times speed.

Page 52

SELF-TIMER


OFF

FACE DETECTION

10SEC

2SEC

SELF-TIMER

Press halfway

Press fully

Recording

Taking Group Shots (Self-timer)

The 10-second self-timer and Face Detection self-timer are convenient functions for taking group photos. The 2-second self-timer is useful for preventing camera shake caused by pressing the shutter button.

Memo :

When shooting a photo using the self-timer function, use of a tripod is recommended. “Tripod Mounting” (A p. 17)

Tap “2SEC” or “10SEC”.

Using the 2-/10-second Self-timer

Select still image mode.

The still image icon B appears.

Tap “MENU”.

Tap “SELF-TIMER”.

Set the focus on the subject.

When focused, the focus icon lights up in green.

Take a still image.

A timer appears and countdown to shooting starts.

To stop the self-timer, press the SNAPSHOT button

again.

Tap ∧ or ∨ to move upward or downward for more selection.

Tap L to exit the menu. Tap J to return to the previous screen.

Page 53

Using the Face Detection Self-timer

SELF-TIMER


OFF

FACE DETECTION

10SEC

2SEC

SELF-TIMER

Photographer

Pressing the SNAPSHOT button starts face detection, and shooting is performed three seconds after another person enters the frame. This function is useful when you want to include the photographer in the group photo.

Select still image mode.

The still image icon B appears.

Tap “MENU”.

Recording

After making sure that everyone is facing the

camera, press the SNAPSHOT button.

Frames appear around the faces of the subjects.

Pressing the SNAPSHOT button again starts the 10-

second self-timer.

Tap “SELF-TIMER”.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “FACE DETECTION”.

The photographer enters the frame.

The frames around the faces disappear when the

photographer is detected, and a countdown timer appears.

The shutter is released three seconds after the

photographer enters the frame. To stop the self-timer, press the SNAPSHOT button

again.

Memo :

The “FACE DETECTION” function may fail to detect faces

depending on the shooting environment.

Page 54

0h46m

BUILT-IN MEMORY

MAX RECORDING TIME

USED

FREE

min

MAX TIME

REMAINING BATTERY

Recording

Remaining Recording Time/Battery Power

You can check the remaining video recording time on the built-in memory and SD card as well as the remaining battery power.

Open the LCD monitor and select the video or

still image mode.

The video A or still image B icon appears.

Press the INFO button.

Display the remaining battery power.

For video recording, tap J to return to the remaining recording time display. For still image recording, tap to return to the recording mode.

To exit the display, press the INFO button or tap L. Remaining battery power will not be displayed when

the AC adapter is connected.

Memo :

You can change to the desired video quality by tapping on

it from the remaining recording time display.

If in the still image mode, go directly to step 4.

Display the remaining recording time.

The remaining recording time is displayed only in the

video recording mode. Press the INFO button to check the remaining

recording time of each recording media.

To display the remaining battery power, tap l.

Tap J to return to the recording mode.

To exit the display, tap L.

Page 55

Approximate Video Recording Time

3D Mode (MP4(MVC))

Recording

Quality Built-in Memory

(64 GB)

THR 4 h 10 m 30 m 1 h 2 h 3 h 4 h 10 m

TSR 6 h 10 m 20 m 40 m 1 h 30 m 3 h 10 m 4 h 40 m 6 h 20 m

3D Mode (AVCHD)

Quality Built-in Memory

(64 GB)

TXP 8 h 10 m 30 m 1 h 2 h 4 h 10 m 6 h 10 m 8 h 20 m

TSP 11 h 40 m 40 m 1 h 20 m 2 h 50 m 5 h 50 m 8 h 40 m 11 h 50 m

2D Mode

Quality Built-in Memory

(64 GB)

UXP 5 h 50 m 20 m 40 m 1 h 20 m 2 h 50 m 4 h 20 m 5 h 50 m

XP 8 h 10 m 30 m 1 h 2 h 4 h 10 m 6 h 10 m 8 h 20 m

4 GB 8 GB 16 GB 32 GB 48 GB 64 GB

SDHC/SDXC Card

SP 11 h 40 m 40 m 1 h 20 m 2 h 50 m 5 h 50 m 8 h 40 m 11 h 50 m

EP 29 h 10 m 1 h 40 m 3 h 40 m 7 h 10 m 14 h 50 m 21 h 50 m 29 h 50 m

The actual recording time may shorten depending on the shooting environment.

Approximate Number of Still Images (Unit: Number of Shots)

3D Mode

Image Size SDHC Card Built-in Memory

4 GB 8 GB 16 GB 32 GB

1920X1080(2M)(16:9) 1000 2200 4400 4999 4999

2D Mode

Image Size SDHC Card Built-in Memory

4 GB 8 GB 16 GB 32 GB

2304X1296(2.9M)(16:9) 2200 4600 9100 9.999 9.999

1920X1080(2M)(16:9) 3200 6700 9.999 9.999 9.999

1728X1296(2.2M)(4:3) 3000 6200 9.999 9.999 9.999

(64 GB)

640X480(0.3M)(4:3) 9.999 9.999 9.999 9.999 9.999

Regardless of image size and quality, up to 9999 still images may be recorded on the built-in memory (during 2D mode)

and SD cards with at least 32 GB capacity (except for “2,304 x 1,296 (2.9M) (16:9)”).

Page 56

Recording

Approximate Recording Time (Using Battery)

3D Display on LCD Monitor

Battery Pack Actual Recording Time Continuous Recording Time

3D Recording MP4(MVC)

BN-VF815U/BN-VF815E 55 m 1 h 1 h 45 m 2 h

BN-VF823U/BN-VF823E (Supplied)

2D Display on LCD Monitor

Battery Pack Actual Recording Time

BN-VF815U/BN-VF815E 55 m 1 h 5 m 1 h 20 m

BN-VF823U/BN-VF823E (Supplied)

Battery Pack Continuous Recording Time

BN-VF815U/BN-VF815E 1 h 50 m 2 h 10 m 2 h 35 m

BN-VF823U/BN-VF823E (Supplied)

1 h 20 m 1 h 35 m 2 h 40 m 3 h 5 m

3D Recording MP4(MVC) 3D Recording AVCHD 2D Recording

1 h 25 m 1 h 40 m 1 h 55 m

3D Recording MP4(MVC) 3D Recording AVCHD 2D Recording

2 h 45 m 3 h 15 m 3 h 50 m

3D Recording AVCHD

3D Recording MP4(MVC)

3D Recording AVCHD

The above are values when “MONITOR BRIGHTNESS” is set to “STANDARD”.

The actual recording time may be shorter if zooming is used or if recording is stopped repeatedly.

battery pack with a new one.)

Page 57

Playing Back Videos

2011

You can select and play back the recorded videos from an index screen (thumbnail display).

Select video mode.

The video mode icon A appears.

Tap q to select the playback mode.

Press the 3D button to select 3D or 2D mode.

Playback

Tap on the file to start playback.

Tap I/J to select the media for playback and change the index screen (thumbnail display).

Tap e to pause.

Tap u to return to the index screen.

Memo :

Images recorded in 2D mode cannot be displayed as 3D

images. 3D images may be played back when the 3D button lights

up. Images recorded in 3D mode and 2D mode are displayed

on the index screen separately. Press the 3D button to switch to the desired mode for playback.

3D images recorded in “MP4(MVC)” format and “AVCHD”

format are displayed on the index screen separately. Change the setting of 3D VIDEO REC FORMAT to the desired format for playback.

“3D VIDEO REC FORMAT (3D mode only)” (A p. 92)

It is recommended to play back in stop-motion for scenes

that are likely to cause motion sickness during 3D playback.

Images recorded in 3D mode and 2D mode are

displayed on the index screen separately. Press the 3D button to switch to the desired mode for playback.

During 3D mode, “3D” is displayed on the LCD

monitor. During 2D mode, “2D” is displayed on the LCD

monitor.

Caution :

To play back 3D images, refer also to “Precautions on

Recording and Playing Back 3D Images”.

“Precautions on Recording and Playing Back 3D Images” (A p. 4)

Page 58

0:01:23 0:12:34

Playback

Operation Buttons for Video Playback

During Index Screen Display

Display Description

Date Moves to the previous/next date

3D/2D Mode Displays the current playback mode

< Displays the previous index screen

> Displays the next index screen

of 3D or 2D. “3D” is displayed during 3D playback, while “2D” is displayed during 2D playback.

(thumbnail display)

During Video Playback

Display Description

3D/2D Mode Displays the current playback mode

Pointer Displays the current estimated

d / e

of 3D or 2D. “3D” is displayed during 3D playback, while “2D” is displayed during 2D playback.

playback position within the scene

Enables manual parallax adjustment

Returns to the beginning of the scene

Reverse search

Playback/pause

Thumbnail

(File)

Tap on thumbnail - Starts playback Drag to right - Scrolls to the right to show the previous index screen (thumbnail display) Drag to left - Scrolls to the left to show the next index screen (thumbnail display)

Recording/

Playback Mode

Switches between recording and playback modes.

Displays the index screen (thumbnail display) to perform deletion

I/J

Switches between the index screen of the built-in memory and SD card

MENU Displays the menu screen

Recording/

Playback Mode

Forward search

Advances to the next video

Switches between recording and playback modes.

Stop (returns to index screen)

Displays the index screen (thumbnail display) to perform deletion

MENU Displays the menu screen

Switches between 3D and 2D modes.

Memo :

Tap or drag on the operation area of the touch screen.

Operations buttons on the touch screen disappear if the

unit is not operated for about 5 seconds. Tap on the screen to display the operation buttons again.

Operation buttons on the touch screen are displayed as

long as there is contact with the effective operation area. You can search for a specific file by the recording date.

“Date Search” (A p. 64)

Caution :

Make a backup of important recorded data.

It is recommended to copy your important recorded data to a DVD or other recording media for storage. JVC will not be responsible for any lost data.

Page 59

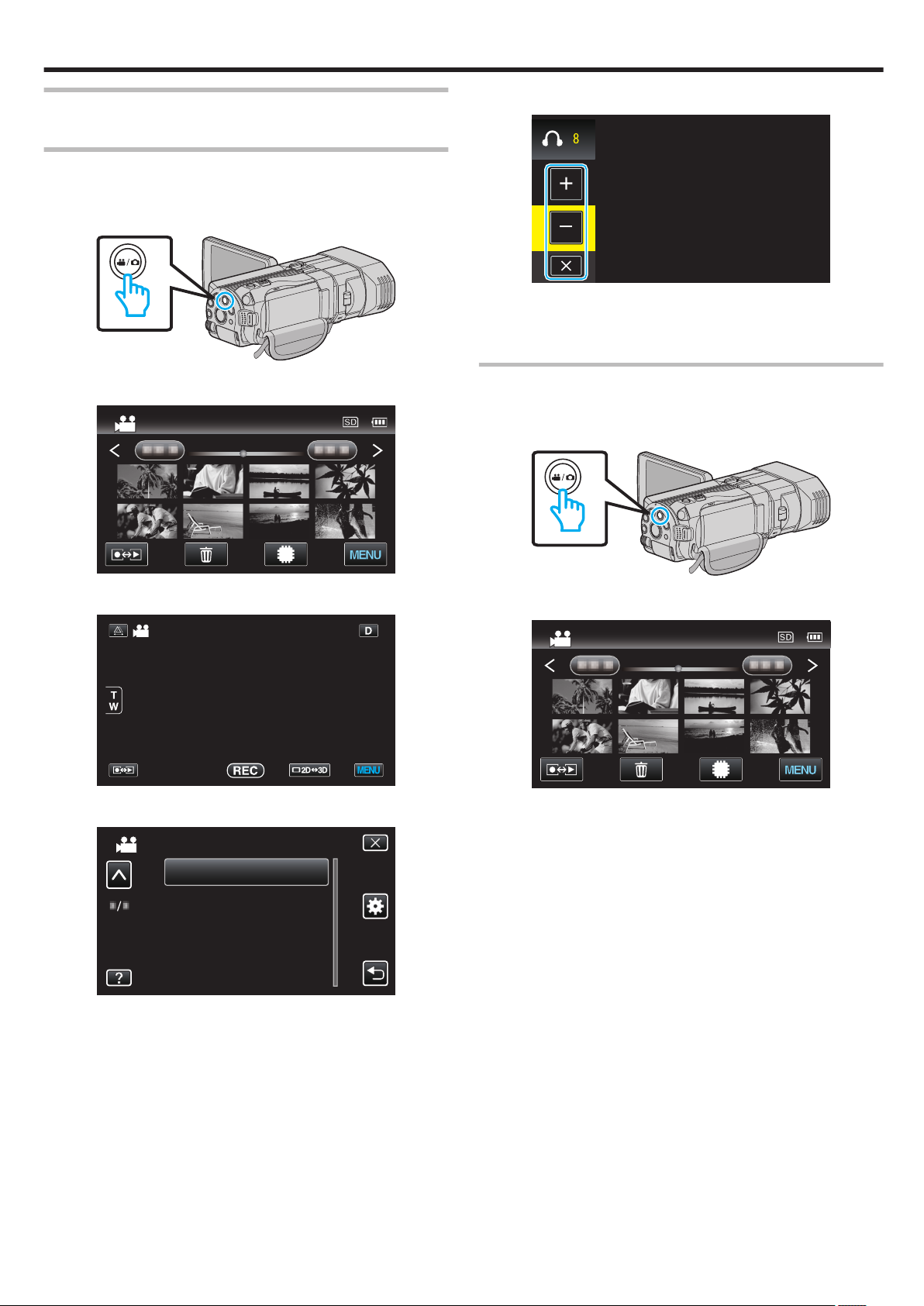

Adjusting the Volume of Videos

Tu r n up the volume

Tu r n down the

volume

: : : :

PROTECT

QUALITY

PB TIME

DATE/TIME

2011

VIDEO

PLAYBACK OTHER FILE

2011

PLAYBACK OTHER FILE

A Press the zoom lever during video playback.

Checking the Recording Date and Other Information

A Select a file and press the INFO button while playback

is paused. You can display the recording date and duration of the selected file.

Playing a Video with Defective Management Information

Plays videos with defective management information.

Select video mode.

Playback

Tap “PLAYBACK OTHER FILE”.

Tap on the file to start playback.

“Playing Back Videos” (A p. 58)

Memo :

An MTS file is created in the EXTMOV folder when

management information is corrupted. The thumbnails of the 3D files in the EXTMOV folder will

be shown as images separated into left and right on the index screen but this is not a malfunction.

Depending on the condition of the damaged file, playback

might fail or may not run smoothly.

Tap q to select the playback mode.

Tap “MENU”.

Page 60

2011

Playback

Playing Back Still Images

You can select and play back the recorded still images from an index screen (thumbnail display). The contents of the selected media are displayed on the index screen. “ REC MEDIA FOR IMAGE ” (A p. 111)

Select still image mode.

Tap q to select the playback mode.

Tap on the file to start playback.

Tap I/J to select the media for playback and change the index screen (thumbnail display).

Tap u to return to the index screen.

Tap W to show all the thumbnails that are displayed in a group. Tap again to restore the group.

Memo :

Only 3D images are displayed during the 3D mode.

Similarly, only 2D images are displayed during the 2D mode.

3D images may be played back when the 3D button lights

up. You can search for a specific file by the recording date.

This is useful when searching from a large number of files.

“Date Search” (A p. 64)

Press the 3D button to select 3D or 2D mode.

Images recorded in 3D mode and 2D mode are

displayed on the index screen separately. Press the 3D button to switch to the desired mode for playback.

During 3D mode, “3D” is displayed on the LCD

monitor. During 2D mode, “2D” is displayed on the LCD

monitor.

Caution :

To play back 3D images, refer also to “Precautions on

Recording and Playing Back 3D Images”.

“Precautions on Recording and Playing Back 3D Images” (A p. 4)

Page 61

2011

6 87 9

: : : : : :

PROTECT

QUALITY

SIZE

DATE/TIME

FOLDER

FILE

Playback

Operation Buttons for Still Image Playback

During Index Screen Display

Display Description

Date Moves to the previous/next date

3D/2D Mode Displays the current playback mode

Thumbnail

(File)

Recording/

Playback Mode

I/J

MENU Displays the menu screen

Recording Date Recording date (only displayed on

of 3D or 2D. “3D” is displayed during 3D playback, while “2D” is displayed during 2D playback.

Switches between recording and playback modes.

Switches between the group or full index screen displays.

Displays the index screen (thumbnail display) to perform deletion

Switches between the index screen of the built-in memory and SD card

the first file of each date)

During Still Image Playback

Display Description

3D/2D Mode Displays the current playback mode

Recording/

Playback Mode

MENU Displays the menu screen

Memo :

Tap or drag on the operation area of the touch screen.

Operations buttons on the touch screen disappear if the

unit is not operated for about 5 seconds. Tap on the screen to display the operation buttons again.

Operation buttons on the touch screen are displayed as

long as there is contact with the effective operation area.

of 3D or 2D. “3D” is displayed during 3D playback, while “2D” is displayed during 2D playback.

Continuous playback of grouped files (such as still images captured by continuous shooting).

Enables manual parallax adjustment

Returns to the previous still image

Switches between recording and playback modes.

Returns to index screen

Displays the index screen (thumbnail display) to perform deletion

Switches between 3D and 2D modes.

Advances to the next still image

Starts/pauses slideshow “Slideshow Playback” (A p. 63)

Checking the Recording Date and Other Information

A Press the INFO button.

You can display the recording date of the selected file.

Page 62

MANUAL

AUTO

SET

Playback

Adjusting Parallax During Playback

When playing back 3D images of scenes where there are multiple objects arrayed in a line from near to far, or objects that are extremely close to the camera, you can change the way they appear to the eye.

Parallax can be adjusted when 3D or LR MIX images are

displayed on the unit’s LCD monitor.

Tap k.

Tap “MANUAL”.

The parallax adjustment screen appears.

To set parallax adjustment to auto (default), tap

“AUTO”.

Tap “SET” to confirm.

Caution :

Too much parallax may cause the 3D effect to be lost.

If you see double images even after parallax adjustment,

set the display on the TV to 2D immediately. In addition, set the LCD monitor to 2D display accordingly.

Memo :

While this unit is equipped with the function to adjust

parallax automatically, it may not work properly for the following subjects.

- Subjects beyond the recommended shooting distance (especially subjects that are extremely close to the camera)

- Numerous subjects of the similar shape arrayed in a line, such as the windows of a building

- Straight subjects such as electric wires In these cases, adjust the parallax manually.

When the power of this unit is turned off or the mode is

switched to recording after parallax is manually adjusted, the “PARALLAX ADJUSTMENT” setting returns to “AUTO”.

Adjust the parallax.

To increase the amount of correction, tap “+”. Doing

so increases the value of the parallax display. To reduce the amount of correction, tap “-”. Doing so

decreases the value of the parallax display.

Page 63

Slideshow Playback

2011

Still images can be played back in a slideshow.

Select still image mode.

Tap q to select the playback mode.

Tap on the thumbnail and tap d.

“Operation Buttons for Still Image Playback” (A p. 61)

Playback

Press the 3D button to select 3D or 2D mode.

Images recorded in 3D mode and 2D mode are

displayed on the index screen separately. Press the 3D button to switch to the desired mode for playback.

During 3D mode, “3D” is displayed on the LCD

monitor. During 2D mode, “2D” is displayed on the LCD

monitor.

Page 64

2011

VIDEO

SEARCH DATE

10.10.2011

SEARCH DATE

2011

SEARCH DATE

Playback

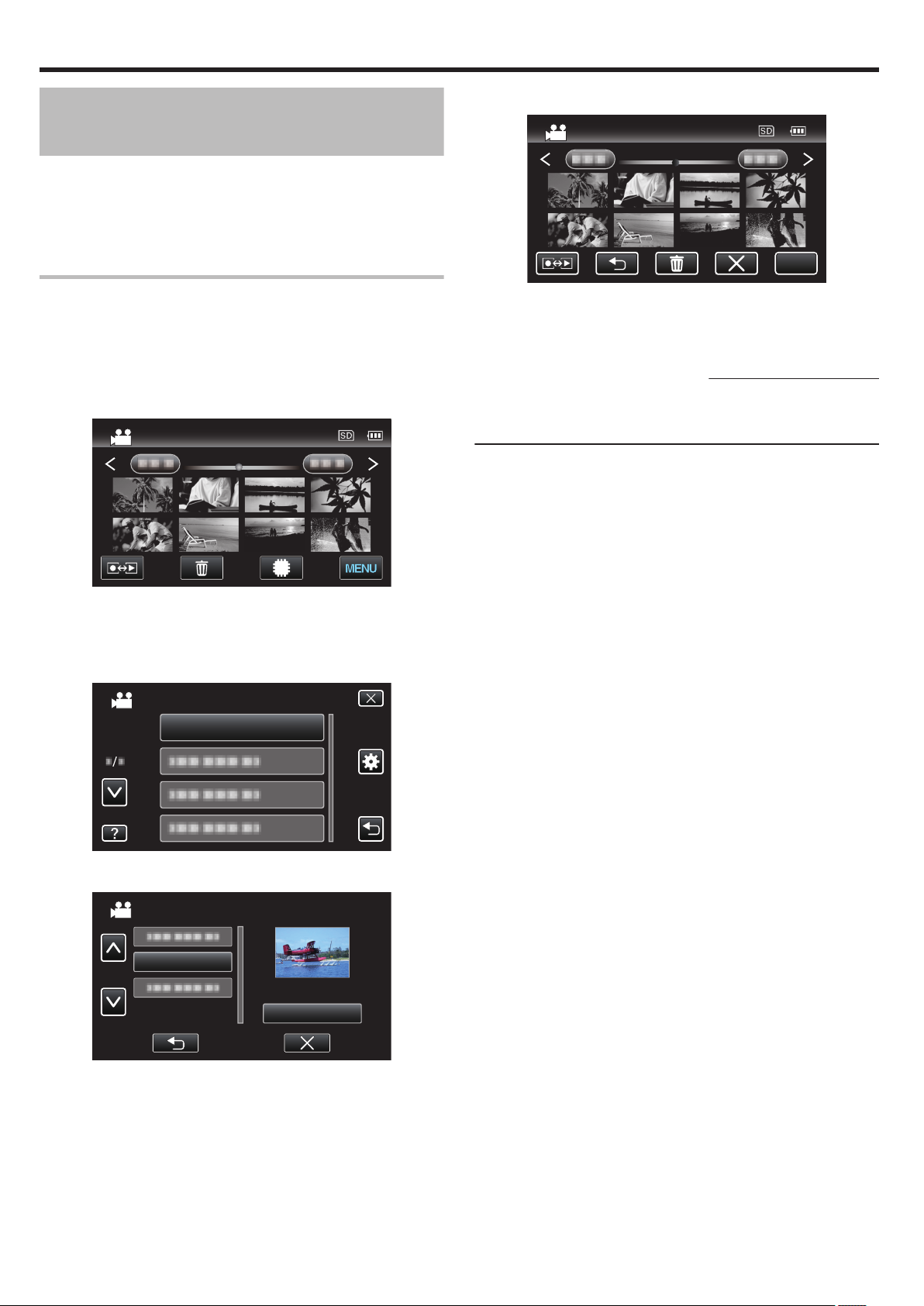

Searching for a Specific Video/Still Image

When there is a large number of recorded videos and still images, it is difficult to look for the desired file from the index screen. Use the search function to find the file you want.

For both videos and still images, you can search by

“SEARCH DATE” (recording date).

Date Search

You can search and play videos or still images according to recording dates.

The contents of the media selected in “REC MEDIA FOR

VIDEO” or “REC MEDIA FOR IMAGE” are searched.

Tap “MENU”.

Tap on the file to start playback.

You can select videos in the video mode and still

images in the still image mode. Only the files recorded on the selected date are

displayed.

Deleting Files of a Selected Date： Tap A on the index screen (thumbnail display) to delete

unwanted files. “Deleting Unwanted Files” (A p. 70)

Searching can be performed in both the video and

still image modes. *The image shows the video mode.

Tap “SEARCH DATE”.

Select a recording date and tap “NEXT”.

Tap again to cancel the selected date.

Page 65

Connecting to and Viewing on TV

You can connect this unit to a TV for playback. Select the most suitable way of connecting to the TV based on the image to view (3D/2D image).

Refer also to the instruction manual of the TV in use.

“Playing Back 3D Images” (A p. 66) “Playing Back 2D Images” (A p. 67)

Unnatural Displays on TV

Trouble Action

Images do not appear on the TV properly.

Disconnect the cable and connect

again. Turn off and on this unit again.

Playback

Memo :

Fatigue or discomfort may be experienced if you view 3D

images for a long period of time. When viewing 3D images on this unit, a message will be displayed every 30 minutes. To turn off the message display, set “3D DISPLAY WARNING” to “OFF”.

“3D DISPLAY WARNING (3D mode only)” (A p. 115)

When recording 3D images, parallax is automatically

adjusted. If the left and right images of an object close to the camera do not appear to be in alignment, or the 3D effect of a distant object is weak, you can change the way they appear to the eye by adjusting the parallax.

“Adjusting Parallax During Playback” (A p. 62)

You can enjoy realistic audio sounds by viewing the video

from the center of the TV or center of the right and left speakers.

Images are projected vertically on the TV.

Images are projected horizontally on the TV.

The color of images looks strange.

HDMI-CEC functions do not work properly, and the TV does not work in conjunction with this unit.

Set “VIDEO OUTPUT” in the

“COMMON” menu to “4:3”.

“VIDEO OUTPUT (2D mode only)” (A p. 115)

Adjust the TV’s screen accordingly.

If the video was recorded with

“x.v.Color” set to “ON”, set the x.v.Color setting of the TV to on.

“x.v.Color (2D mode only)” (A p. 95)

Adjust the TV’s screen accordingly.

TVs may operate differently

depending on the specifications, even if they are HDMI-CEC compliant. Therefore, the HDMI-CEC functions of this unit cannot be guaranteed to operate in combination with all the TVs. In such cases, set “HDMI CONTROL” to “OFF”.

“ HDMI CONTROL ” (A p. 117)

The language on the display changed.

3D images are not displayed in 3D.

It may occur when you connect this

unit to a TV with different language setting using an HDMI mini cable.

Set “HDMI OUTPUT” in the

“COMMON” menu to “CERTAIN TV TYPES”.

“ HDMI OUTPUT ” (A p. 116)

Page 66

HDMI Connector Input

To HDMI Mini Connector

HDMI

2011

Playback

Playing Back 3D Images

If you are using a 3D compatible TV, you can play back 3D images by connecting to the HDMI connector.

Use the provided HDMI mini cable or an optional High

Speed HDMI mini cable. Refer also to the instruction manual of the TV in use.

Close the LCD monitor.

Close the LCD monitor to turn off the camcorder

before connecting to a TV.

Connect to a TV.

Play back a file.

“Playing Back Videos” (A p. 57) “Playing Back Still Images” (A p. 60)

Caution :

To play back 3D images, refer also to “Precautions on

Recording and Playing Back 3D Images”.

“Precautions on Recording and Playing Back 3D Images” (A p. 4)

If you experience fatigue or discomfort while viewing 3D

images, set “HDMI OUTPUT” in the “COMMON” menu to “2D OUTPUT”. In addition, set the TV to 2D display accordingly.

“ HDMI OUTPUT ” (A p. 116)

Connect the AC adapter to this unit.

This unit powers on automatically when the LCD

monitor is opened.

Press the external input button on the TV to

switch to the input from this unit via the connected connector.

Memo :

When connected to the TV via the provided HDMI mini

cable, images and sounds may not be output properly depending on the TV connected. In such cases, perform the following operations.

1) Disconnect the HDMI mini cable and connect it again.

2) Turn off and on this unit again. If 3D images cannot be seen properly, change the setting

in “HDMI OUTPUT”. Refer also to the instruction manual of the TV in use.

“ HDMI OUTPUT ” (A p. 116)

The displayed 3D images may vary depending on the size

of the TV connected. For questions about the TV or method of connection,

contact your TV’s manufacturer.

Page 67

Playback

Operating in Conjunction with TV via HDMI

Connecting this unit to an HDMI-CEC-enabled TV using the HDMI cable allows linked operations with the TV to be performed.

HDMI-CEC (Consumer Electronics Control) is an industry

standard that enables interoperability between HDMICEC compliant devices that are connected via HDMI cables.

Memo :

Not all HDMI-control devices comply with the HDMI-CEC

standard. The HDMI control function of this unit will not work when connected to these devices.

This unit is not guaranteed to operate with all HDMI-CEC-

enabled devices. Depending on the specifications of each HDMI-CEC-

enabled device, some functions may not work with this unit. (For details, refer to the instruction manual of the TV.)

Unintended operations may occur with some connected

devices. In these cases, set “HDMI CONTROL” to “OFF”.

“ HDMI CONTROL ” (A p. 117)

Preparations

Close the LCD monitor to turn off the camcorder before

connecting to a TV. Connect an HDMI cable between this unit and the TV.

“Connecting via the HDMI Mini Connector” (A p. 68)

Turn on the TV and set the HDMI-CEC related setting to

“ON”. (For details, refer to the instruction manual of the TV.)

Turn on this unit and set “HDMI CONTROL” in the

“COMMON” menu to “ON”.

“ HDMI CONTROL ” (A p. 117)

Operation Method 1

Turn on this unit.

Operation Method 2

Turn off the TV.

This unit turns off automatically.

Memo :

Depending on the TV connected, the display language of

this unit will automatically switch to the language that is selected for the TV when this unit is turned on. (This is applicable only if this unit supports the language selected for the TV.) To use this unit with a language that differs from the display language of the TV, set “HDMI CONTROL” to “OFF”.

The display language of the TV will not switch

automatically, even if the display language of this unit is changed.

These functions may not work correctly when devices

such as amplifier and selector are connected. In such cases, set “HDMI CONTROL” to “OFF”.

If HDMI-CEC does not work properly, turn off and on this

unit again.

Caution :

Do not remove the recording medium or perform any other

operation (such as turning off the power) while accessing files. Also, be sure to use the provided AC adapter, as the data on the recording medium may be corrupted if the battery becomes exhausted during operation. If the data on the recording medium becomes corrupted, format the recording medium to use the medium again.

Playing Back 2D Images

The image quality on TV varies with the type of TV and the connecting cable. Select the connector that best suits your TV.

Refer also to the instruction manual of the TV in use.

“Connecting via the HDMI Mini Connector” (A p. 68) “Connecting via the AV Connector” (A p. 69)

Select the playback mode.

Connect the HDMI cable.

TV turns on automatically and switches to HDMI

input mode when this unit is turned on.

Page 68

HDMI Connector Input

To HDMI Mini Connector

HDMI

2011

Playback

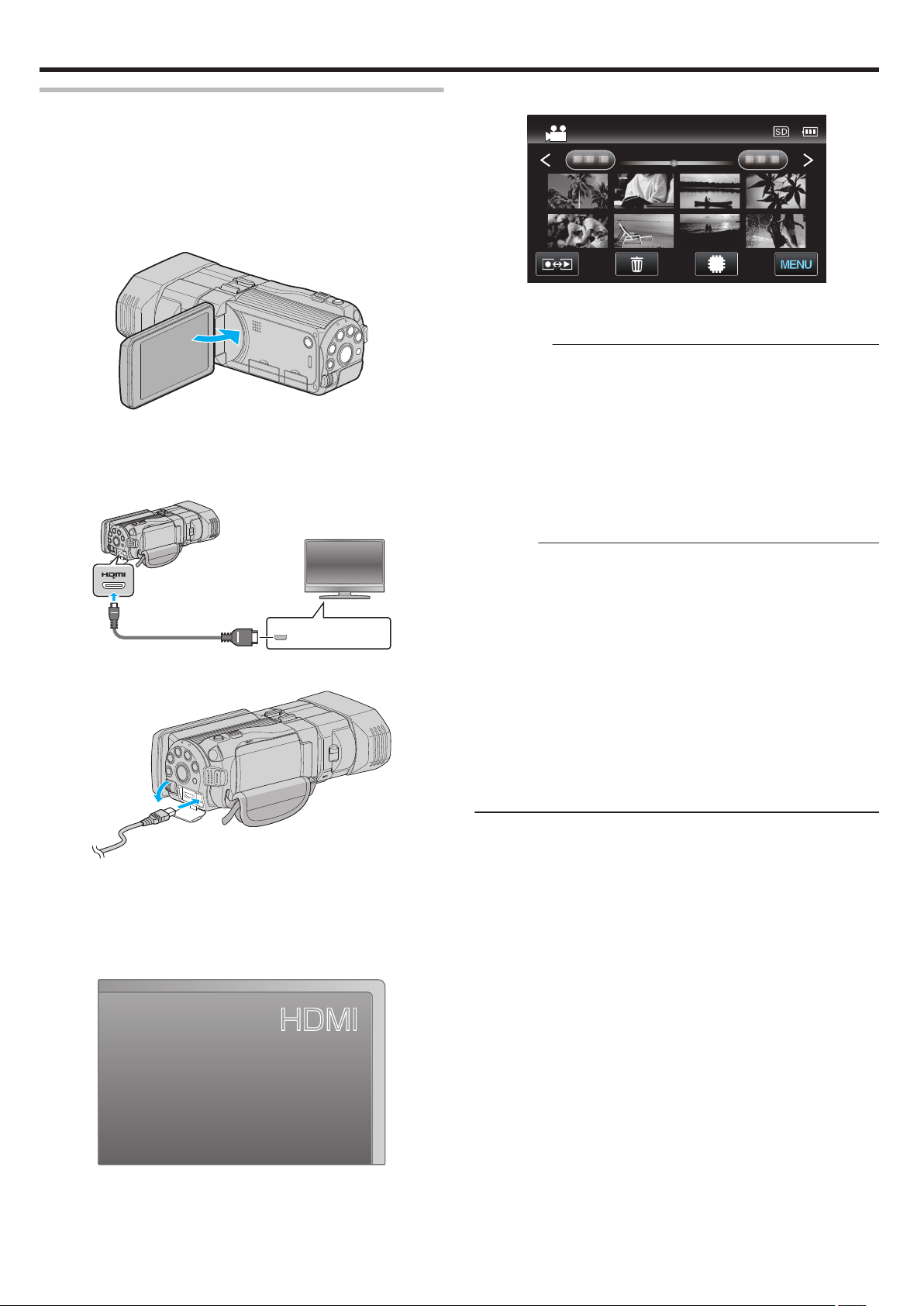

Connecting via the HDMI Mini Connector

If you are using an HDTV, you can play back in HD quality by connecting to the HDMI connector.

Use a High Speed HDMI Cable.

Refer also to the instruction manual of the TV in use.

Close the LCD monitor.

Close the LCD monitor to turn off the camcorder

before connecting to a TV.

Connect to a TV.

Play back a file.

“Playing Back Videos” (A p. 57) “Playing Back Still Images” (A p. 60)

Memo :

Change the settings in “HDMI OUTPUT” according to the

connection.

“ HDMI OUTPUT ” (A p. 116)

When connected to the TV via the HDMI mini cable,

images and sounds may not be output properly depending on the TV connected. In such cases, perform the following operations.

1) Disconnect the HDMI mini cable and connect it again.

2) Turn off and on this unit again. For questions about the TV or method of connection,

contact your TV’s manufacturer.

Connect the AC adapter to this unit.

This unit powers on automatically when the LCD

monitor is opened.

Press the external input button on the TV to

switch to the input from this unit via the connected connector.

Page 69

Connecting via the AV Connector

Red

White

Ye l low

Audio Input (R)

Audio Input (L)

Video Input

To AV Connector

AV Cable (Provided)

Video Input

External Input

2011

By connecting the supplied AV cable to the AV connector, videos can be played back on a TV.

Refer also to the instruction manual of the TV in use.

Open the LCD monitor, then press and hold the

power button for 2 seconds or more to turn off the power.

Connect to a TV.

Playback

Play back a file.

“Playing Back Videos” (A p. 57) “Playing Back Still Images” (A p. 60)

Memo :

For questions about the TV or method of connection,

contact your TV’s manufacturer.

A Connect using the provided AV cable. B Connect the AC adapter to this unit.

This unit powers on automatically when the AC adapter is

connected.

Press the external input button on the TV to

switch to the input from this unit via the connected connector.

Page 70

0:01:23 0:12:34

YES

(REMAINING SCENES: 0030)

DELETE?

Editing

Deleting Unwanted Files

Delete unwanted videos and still images when the space in the recording media is running out. The remaining space in the recording media increases after deleting the files. “Deleting the Currently Displayed File” (A p. 70)

“Deleting Selected Files” (A p. 71)

Memo :

Deleted files cannot be restored.

Files that are protected cannot be deleted.

Release protection before deleting the file.

“Protecting Files” (A p. 72)

Be sure to back up important files on a PC.

Caution :

Do not remove the recording medium or perform any other

operation (such as turning off the power) while accessing files.

Be sure to use the supplied JVC AC adapter.

If the data on the recording medium becomes corrupted,

format the recording medium to use the medium again.

“ FORMAT SD CARD ” (A p. 120)

Deleting the Currently Displayed File

Deletes the currently displayed file.

Caution :

Deleted files cannot be restored.

Tap A.

While the video mode is shown in the image, the

same operations apply for the still image mode.

Tap “YES”.

Tap h / g to select the previous or next file. When no file remains, the screen returns to the index

screen.

Memo :

Files that are protected cannot be deleted.

Release protection before deleting the file.

“Protecting Files” (A p. 72)

Page 71

Deleting Selected Files

2011

REL ALLSEL ALL

DELETE

2011

STOP

REL ALLSEL ALL

DELETE

2011

SET

RETURN

STOP

EXECUTE

REMAINING SCENES:0030

DELETE?

Deletes the selected files.

Caution :

Deleted files cannot be restored.

Select video or still image mode.

Tap q to select the playback mode.

Tap on the files to delete.

P appears on the selected files. To remove P from a file, tap on the file again.

Tap “SEL ALL” to select all files.

Tap “REL ALL” to release all selections.

Still images that are recorded continuously within 2

seconds or with the continuous shooting mode will be grouped together. Only the first recorded file is shown and the group is displayed with a green frame. When this is tapped, an index screen of the grouped files appears. Tap on the files to delete, then tap

“J”.

Editing

While the video mode is shown in the image, the

same operations apply for the still image mode.

Tap A.

Tap “SET”.

Tap “EXECUTE” to confirm the deletion.

After deleting is complete, tap “OK”.

To cancel the deletion, tap “QUIT”.

Memo :

Files that are protected cannot be deleted.

Release protection before deleting the file.

“Protecting Files” (A p. 72)

Page 72

0:01:23 0:12:34

VIDEO

PROTECT/CANCEL

YES

PROTECT?

Editing

Protecting Files

Prevent important videos/still images from being deleted accidently by protecting them. “Protecting/Releasing Protection of the Currently Displayed

File” (A p. 72) “Protecting/Releasing Protection of Selected Files” (A p. 73)

Caution :

When the recording media is formatted, even the

protected files will be deleted.

Protecting/Releasing Protection of the Currently Displayed File

Protects or releases protection of the currently displayed file.

Tap “MENU”.

Tap “PROTECT/CANCEL”.

Tap “YES”.

0 0

Tap h / g to select the previous or next file. After setting, tap “OK”.

Page 73

Protecting/Releasing Protection of Selected

2011

VIDEO

PROTECT/CANCEL

2011

REL ALLSEL ALL SET

PROTECT/CANCEL

2011

REL ALLSEL ALL SET

PROTECT/CANCEL

Files

Protects or releases protection of the selected files.

Select video or still image mode.

Tap on the files to protect or release protection

of.

Editing

Tap q to select the playback mode.

Tap “MENU”.

0 0 0

Tap “SET”.

I and P are displayed on the files that are already protected. To release protection of a file, tap on the file such that

P is removed. P appears on the selected files.

To remove P from a file, tap on the file again. Tap “SEL ALL” to select all files. Tap “REL ALL” to release all selections. Still images that are recorded continuously within 2

protection of, then tap “J”.

Tap “PROTECT/CANCEL”.

Protect marks I appear on the selected files. Protect marks I disappear from the deselected

files.

Page 74

2011

0:01:23 0:12:34

Editing

Capturing a Still Image in the Video during Playback

You can capture still images of the scenes you like in the recorded videos.

Select video mode.

Tap q to select the playback mode.

Tap pause e at the desired scene during playback.

After pausing the video, you can fine-tune the point

to capture by tapping forward slow-motion k and reverse slow-motion l.

Press the SNAPSHOT button.

Tap on the desired video.

Memo :

Still images are captured with a size of 1920×1080.

Captured still images are stored in the media where the

video is being played back from. Still images cannot be captured from 3D videos.

Page 75

Creating a Disc Using a Connected

Blu-ray recorder

To USB Connector

USB Cable

To DC Connector

AC Adapter

To AC Outlet

(110 V to 240 V)

CONNECT TO OTHER

TYPE TO CONNECT

SELECT DEVICE

SD CARDBUILT-IN MEMORY

SELECT MEDIA TO OPEN

CONNECT TO OTHER

Blu-ray Recorder

You can create discs using a Blu-ray recorder by connecting it to this unit using a USB cable.

Connect the USB cable and the AC adapter.

Turn off the camcorder by pressing the M button for about 2 seconds.

A Connect using the provided USB cable. B Connect the AC adapter to this unit.

This unit powers on automatically when the AC

adapter is connected. Be sure to use the supplied JVC AC adapter.

The “SELECT DEVICE” screen appears.

Tap the desired media.

Perform dubbing on the Blu-ray recorder.

Refer also to the instruction manual of the Blu-ray

recorder.

Caution :

MP4(MVC) videos cannot be copied.

Memo :

The created discs are playable only on AVCHD

compatible devices (such as Blu-ray recorders). Refer also to the following website.

http://www.jvc-victor.co.jp/dvmain/

Copying

Tap “CONNECT TO OTHER”.

Page 76

Red

White

Ye l low

DVD Recorder

Audio Input (R)

Audio Input (L)

Video Input

To DC Connector

AC Adapter To AC Outlet (110 V to 240 V)

AV Cable (Provided)

To AV Connector

Red

White

Ye l low

VCR

Audio Input (R)

Audio Input (L)

Video Input

To DC Connector

AC Adapter To AC Outlet (110 V to 240 V)

AV Cable (Provided)

To AV Connector

Copying

Dubbing Files by Connecting to a DVD Recorder

You can dub videos in standard quality by connecting to a DVD recorder.

Refer also to the instruction manuals of the TV and DVD

recorder.

Open the LCD monitor, then press and hold the

power button for 2 seconds or more to turn off the power.

Connect to a DVD recorder.

Dubbing Files to a VHS Tape Using a VCR

You can dub videos in standard quality by connecting to a VCR.

Refer also to the instruction manuals of the TV and VCR.

Caution :

3D images cannot be copied to a VHS tape. Images

recorded in 3D mode cannot be copied as 2D images.

Open the LCD monitor, then press and hold the

power button for 2 seconds or more to turn off the power.

Connect to a VCR/DVD recorder.

A Connect using the provided AV cable. B Connect the AC adapter to this unit.

This unit powers on automatically when the AC adapter is

connected.

Tap q to select the playback mode.

Prepare the TV/DVD recorder for recording.

Switch to a compatible external input.

Insert a disc (DVD-R, etc.) into the DVD recorder.

Prepare this unit for playback.

Set “VIDEO OUTPUT” in the “COMMON” menu to

the aspect ratio (“4:3” or “16:9”) of the connecting TV.

“VIDEO OUTPUT (2D mode only)” (A p. 115)

Start recording.

Start playback on this unit and press the record

button on the recorder.

“Playing Back Videos” (A p. 57)

After playback is complete, stop the recording.

Caution :

3D videos cannot be dubbed.

A Connect using the provided AV cable. B Connect the AC adapter to this unit.

This unit powers on automatically when the AC adapter is

connected.

Tap q to select the playback mode.

Prepare the TV/VCR for recording.

Switch to a compatible external input.

Insert a video tape.

Prepare this unit for playback.

Set “VIDEO OUTPUT” in the “COMMON” menu to

the aspect ratio (“4:3” or “16:9”) of the connecting TV.

“VIDEO OUTPUT (2D mode only)” (A p. 115)

Start recording.

Start playback on this unit and press the record

button on the recorder.

“Playing Back Videos” (A p. 57)

After playback is complete, stop the recording.

Page 77

Copying Files to an SD Card

2011

COPY

VIDEO

SET

2011

REL ALLSEL ALL

QUANTITY:0000

QUIT

2011

REL ALLSEL ALL

QUANTITY:0030

QUITSET

NOYES

START COPY?

COPY QUANTITY:0030

COPY VIDEO

You can copy videos and still images from the built-in memory to SD card. Copying still images to cards makes it convenient to bring them to the shop for printing (developing).

Caution :

Make sure that there is enough space left in the destination

medium. Videos and still images in the SD card cannot be copied

to the built-in memory.

Select 3D or 2D mode.

Select video or still image mode.

Tap “COPY”.

Tap on the files to copy.

P appears on the selected files. To remove P from a file, tap on the file again.

Tap “SEL ALL” to select all files.

Tap “REL ALL” to release all selections.

“SET” is deactivated when no file is selected.

Copying

Tap q to select the playback mode.

Tap “MENU”.

Tap “SET”.

Tap “YES”.

0 0

Copying starts. After copying, tap “OK”.

Page 78

2011

MOVE

VIDEO

2011

REL ALLSEL ALL

QUANTITY:0000

QUITSET

2011

REL ALLSEL ALL

QUANTITY:0030

QUITSET

NOYES

START MOVING?

MOVE QUANTITY:0030

MOVE VIDEO

Copying

Moving Files to an SD Card

You can move videos and still images from the built-in memory to SD card. Files that are moved will be deleted from the built-in memory. Moving still images to SD cards makes it convenient to bring them to the shop for printing (developing).

Caution :

Make sure that there is enough space left in the destination

medium. Videos and still images in the SD card cannot be moved

to the built-in memory.

Select 3D or 2D mode.

Tap “MOVE”.

Tap on the files to move.

Select video or still image mode.

Tap q to select the playback mode.

Tap “MENU”.

0 0 0

Tap “SET”.

Tap “YES”.

P appears on the selected files. To remove P from a file, tap on the file again.

Tap “SEL ALL” to select all files. Tap “REL ALL” to release all selections. “SET” is deactivated when no file is selected.

Moving of files starts.

After moving, tap “OK”.

Page 79

Copying to Computer

To USB Connector

AC Adapter To AC Outlet (110 V to 240 V)

USB Cable (Provided)

To DC Connector

To USB Connector

CONNECT TO PC

TYPE TO CONNECT

SELECT DEVICE

PLAYBACK ON PC

CONNECT TO PC

You can read and copy the files on the built-in memory or SD card by connecting this unit to a computer using a USB cable.

Connect the USB cable and the AC adapter.

Windows

Select “Computer” (Windows Vista) / “My Computer” (Windows XP) / “Computer” (Windows 7) from the “Start” menu, then click on the “JVCCAM_MEM” or “JVCCAM_SD” icon. Mac Computer Double-click on the “No Name” icon, then click on the “JVCCAM_MEM” or “JVCCAM_SD” icon.

Open the folder with the desired files.

“List of Files and Folders” (A p. 80)

Copying

A Connect using the provided USB cable. B Connect the AC adapter to this unit.

This unit powers on automatically when the AC

adapter is connected. Be sure to use the supplied JVC AC adapter.

The “SELECT DEVICE” menu appears.

Tap “CONNECT TO PC”.

Tap “PLAYBACK ON PC”.

Copy the files to any folder in the computer

(desktop, etc).

Caution :

When the folders or files are deleted/moved/renamed in

the computer, they cannot be played back on this unit anymore.

Memo :

To edit/view the files, use a software that supports AVCHD

(video)/MP4 (video)/MPO (3D still image)/JPEG (2D still image) files.

The above operations on computer may vary with the

system used. Data cannot be written to the built-in memory or SD card.

(GY-HMZ1E only)

Tap L to exit the menu.

Tap J to return to the previous screen. The subsequent operations are to be performed on

the computer.

Page 80

Click

Noname

Tra sh

[JVCCAM_MEM]

[JVCCAM_SD]

[DCIM]

[AVCHD]

[BDMV]

[STREAM] [BACKUP] [CLIPINF] [PLAYLIST] [INDEX.BDM] [MOVIEOBJ.BDM]

[EXTMOV]

[PRIVATE]

MOV_0001.MTS MOV_0002.MTS MOV_0003.MTS

…

**XXX.MTS

[JVC]

**__0002.MP4 **__0003.MPO **__0004.JPG

[100JVCSO] [101JVCSO] [102JVCSO]

(Video files with defective management information)

(2D/3D Video File in “AVCHD” Format (*.mts))

(3D Video File in “MP4(MVC)” Format (*.mp4)) (3D Still Image File (*.mpo)) (2D Still Image File (*.jpg))

(Management Information)

(SD Card)

(Built-In Memory)

**: Unique Number (Last 2 Digits of Unit Serial Number)

Copying

Disconnecting this Unit from Computer (Windows)

Click “Safely Remove Hardware and Eject

Disconnecting this Unit from Computer (Mac Computer)

Throw the “No Name” icon into the trash can.

Media”.

Click “Safely Remove USB Mass Storage

Device”.

(For Windows Vista) Click “OK”.

Disconnect the USB cable and close the LCD

monitor.

List of Files and Folders

Folders and files are created in the built-in memory and SD card as shown below. They are created only when necessary.

Caution :

When the folders or files are deleted/moved/renamed in the computer, they cannot be played back on this unit anymore.

Page 81

Installing the Provided Software

Verifying System Requirements (Guideline)

Operating Environment

Copying

CPU Intel Pentium 4, Xeon, Core Duo equivalent or higher

SSE2 or higher required Multi-core/Multi CPU compliant

RAM At least 1 GB (At least 2 GB recommended) At least 2 GB

OS Microsoft Windows 7

Home Premium (32/64-bit) / Professional (32/64-bit) / Ultimate (64-bit) Microsoft Windows Vista Service Pack 2 or later Business (32/64-bit) / Ultimate (64-bit) Microsoft Windows XP Service Pack 3 or later Professional (32-bit) Able to display in Japanese or English. Operations are not guaranteed in virtual OS environments such as Virtual PC, VMWare, etc.

HDD At least 20MB of space required for installation At least 20MB of space required for installation

Graphic Direct 3D 9.0c or later Display resolution of 1280×800 or above

Windows Mac Computer

Mac with Intel processor

Mac OS X 10.6.7 or later Additional support required for Mac OS X 10.7 Lion

ATI or NVIDIA graphics processor / 128MBVRAM (Operations on an integrated Intel graphics processor are not supported.)

Optical drive

Installing the Provided Software

You can separate 3D images recorded in “MP4(MVC)” format into the left and right 2D images using the provided software.

Load the provided CD-ROM into your

computer.

Windows Vista / Windows 7

A Click “Run INSTALL.EXE” in the auto play dialog box. B Click “Common Settings Menu” on the user account

control screen.

The “Choose Setup Language” screen appears after a

while. If it doesn’t appear, double-click the CD-ROM icon in

“Computer”.

Windows XP

Go to Step 2.

Select a language and click “Next”.

Click “Finish”.

Installation ends and icons are created on the

desktop.

For the operating details of “3D to LR Converter”,

refer to the help file.

Mac Computer

A Load the provided CD-ROM into your computer. B Make a new copy of the “3D to LR Converter” disk

image to the applications folder.

Follow the on-screen instructions.

Trouble with Using the Provided Software

Consult the customer service center below.

Pixela User Support Center

Telephone USA and Canada (English): +1-800-458-4029 (toll-free)

Europe (UK, Germany, France, and Spain) (English/German/French/Spanish): +800-1532-4865 (toll-free) Other Countries in Europe (English/German/French/Spanish): +44-1489-564-764 Asia (Philippines) (English): +63-2-438-0090 China (Chinese): 10800-163-0014 (toll-free)

Homepage http://www.pixela.co.jp/oem/jvc/3d_to_lr_converter/e/win/

Page 83

JVC Software Licence Agreement

IMPORTANT

TO CUSTOMERS: PLEASE MAKE SURE TO READ THIS CAREFULLY BEFORE INSTALLING OR USING THE SOFTWARE PROGRAM NAMED “DIGITAL PHOTO NAVIGATOR” (“Program”) ON YOUR PC. The right to use the Program is granted by Victor Company of Japan, Limited (“JVC”) to You only on the condition that You agree to the following. Should You not agree to the terms hereof, You may not install or use the Program. HOWEVER, INSTALLING OR USING THE PROGRAM INDICATES YOUR ACCEPTANCE OF THESE TERMS AND CONDITIONS.

You acknowledge that all copyrights and other intellectual property rights in the Program are owned by JVC and its licensor, and remain vested in JVC and such licensor. The Program is protected under the copyright law of Japan and other countries, and related Conventions.

GRANT OF LICENCE

A Subject to the conditions of this Agreement, JVC grants

to You a non-exclusive right to use the Program. You

may install and use the Program on a HDD or other

storage devices incorporated in Your PC.

B You may make one (1) copy of the Program solely for

your personal backup or archival purposes.

RESTRICTION ON THE PROGRAM

A You may not reverse engineer, decompile,

disassemble, revise or modify the Program, except to

the extent that expressly permitted by applicable law.

B You may not copy or use the Program, in whole or in

part, other than as expressly specified in this

Agreement.

C You have no right to grant a licence to use the Program,

and may not distribute, rent, lease or transfer the

Program to any third party or otherwise let them use the

Program.

LIMITED WARRANTY

JVC warrants that any media in which the Program is embodied are free from any defects in materials and workmanship for a period of thirty (30) days from the date of Your purchasing any our products accompanying the Program.JVC’s entire liability and your exclusive remedy in connection with the Program shall be replacement of such defective media. EXCEPT FOR THE EXPRESS WARRANTIES STATED HEREIN AND TO THE EXTENT PERMITTED BY APPLICABLE LAW, JVC AND ITS LICENSORS DISCLAIM ANY OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE IN REGARD TO THE PROGRAM AND THE ACCOMPANYING PRINTED MATERIALS.SHOULD THERE BE ANY PROBLEM ARISING FROM OR CAUSED BY THE PROGRAM, YOU SHOULD SETTLE ALL SUCH PROBLEM AT YOUR OWN COST AND EXPENSE.

LIMITED LIABILITY

TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL JVC AND ITS LICENSORS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, REGARDLESS OF THE FORM OF ACTION WHETHER IN CONTRACT, TORT OR OTHERWISE ARISING OUT OF OR IN CONNECTION WITH THE USE OF OR INABILITY TO USE THE PROGRAM, EVEN IF JVC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. YOU WILL INDEMNIFY AND HOLD HARMLESS JVC FROM ANY LOSS, LIABILITY OR COST ARISING OUT OF OR IN ANY WAY CONNECTED TO CLAIMS FROM ANY THIRD PARTY RELATING TO THE USE OF THE PROGRAM.

TERM

This Agreement will become effective on the date when You install and use the Program on Your machine, and continue to be in effect until the termination under the following provision. Should You breach any provision of this Agreement, JVC may terminate this Agreement without giving any notice to You. In this event, JVC may claim against You for any damages caused by Your breach. Should this Agreement be terminated, You must immediately destroy the Program stored in Your machine (including the erasing from any memory in Your PC), and no longer own such Program.

Copying

Page 84

Copying

EXPORT CONTROL

You agree that You will not ship, transfer or export the Program or underlying information and technology to any countries to which Japan and other relevant countries have initiated an embargo on such goods.

U.S. GOVERNMENT USER

If You are an agency of the United States of America (the “Government”), You acknowledge JVC’s representation that the Program is a “Commercial Item” as defined in Federal Acquisition Regulation (FAR) part

2.101 (g) consisting unpublished “Commercial Computer Software” as those items are used at FAR part 12.212 and is only licenced to You with the same use rights JVC grants all commercial end users pursuant to the terms of this Agreement.

GENERAL

A No modification, change, addition, deletion or other

alternation of or to this Agreement will be valid unless reduced to writing and signed by an authorized representative of JVC.

B If any part of this Agreement is held invalid by or in

conflict with any law having jurisdiction over this Agreement, the remaining provisions will remain in full force and effect.

C This Agreement shall be governed by and interpreted

under the laws of Japan. The Tokyo District Court has jurisdiction over all disputes which may arise with respect to the execution, interpretation and performance of this Agreement.

Victor Company of Japan, Limited

Memo :

If You acquired the Program in Germany, the provisions of

Sections 4 (Limited Warranty) and 5 (Limited Liability) provided above will be replaced with those of the German version of this Agreement.

Caution :

Operate this equipment according to the operating

procedures described in this manual. Use only the provided CD-ROM.Never use any other CD-

ROM to run this software. Do not attempt to modify this software.

Changes or modifications not approved by JVC could void

user’s authority to operate the equipment.

How to handle a CD-ROM：

Take care not to soil or scratch the mirror surface (opposite

to the printed surface). Do not write anything or put a sticker on either the front or back surface. If the CD-ROM gets dirty, gently wipe it with a soft cloth outward from the center hole.

Do not use conventional disc cleaners or cleaning spray.

Do not bend the CD-ROM or touch its mirror surface.

Do not store your CD-ROM in a dusty, hot or humid

environment. Keep it away from direct sunlight.

Page 85

SCENE SELECT

VIDEO

NIGHTALIVE

OFF

SCENE SELECT

PORTRAIT

NIGHT

CLOCK ADJUST

COMMON

Menu Settings

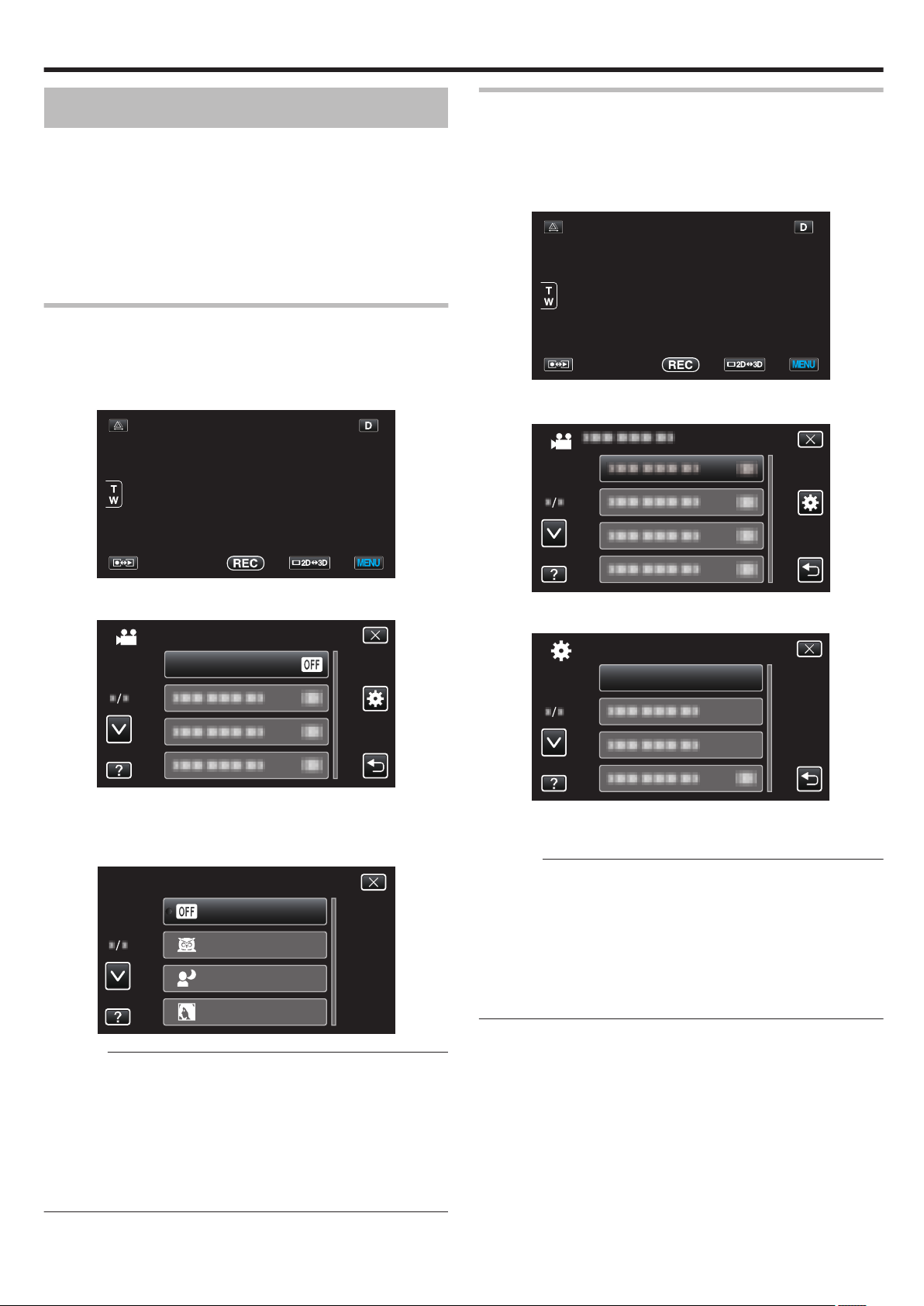

Operating the Menu

There are two types of menus in this unit.

Main menu:

Menu that contains all the items specific to the video recording, still image recording, video playback, and still image playback modes respectively.

Q menu in main (common) menu: Menu that contains all common items in the video recording, still image recording, video playback, and still image playback modes.

Operating the Main Menu

You can configure various settings using the menu.

Tap “MENU”.

The menu differs according to the mode in use.

Operating the Common Menu

You can configure common setting items regardless of the mode using the common menu.

Tap “MENU”.

The menu differs according to the mode in use.

Tap “Q”.

Tap the desired menu.

Tap ∧ or ∨ to move upward or downward for more

selection.

Tap the desired setting.

Memo :

To exit the screen

Tap “L” (quit).

To return to the previous screen

Tap “J” (return).

To display the help file

Tap “K” (help) and tap the item.

Help file may not be available for some items.

Tap the desired setting.

Tap ∧ or ∨ to move upward or downward for more

selection.

Memo :

To exit the screen

Tap “L” (quit).

To return to the previous screen

Tap “J” (return).

To display the help file

Tap “K” (help) and tap the item.

Help file may not be available for some items.

Page 86

2011

Menu Settings

Recording Menu (Video)

You can adjust various settings, such as brightness and white balance, to suit the subject or purpose. You can also change settings such as picture quality and gain.

Select video mode.

Tap q to select the recording mode.

Tap “MENU”.

Setting Details

SCENE SELECT Settings to suit the shooting condition can be selected.

“Scene Selection” (A p. 35) *Displayed only in the manual recording mode.

FOCUS Focus can be adjusted manually.

“Adjusting Focus Manually” (A p. 36) *Displayed only in the manual recording mode.

FOCUS ASSIST Focused subject is outlined in color for more precise focus.

“Using Focus Assist” (A p. 37) *Displayed only in the manual recording mode.

FOCUS ASSIST COLOR Sets the color of the outline of a focused object when Focus Assist is used.

“ FOCUS ASSIST COLOR ” (A p. 89) *Displayed only in the manual recording mode.

Page 87

Menu Settings

Setting Details

BRIGHTNESS ADJUST Adjusts the overall brightness of the screen.

“Adjusting Brightness” (A p. 38) *Displayed only in the manual recording mode.

SHUTTER SPEED Shutter speed can be adjusted.

“Setting Shutter Speed” (A p. 39) *Displayed only in the manual recording mode.

APERTURE PRIORITY Adjusts the aperture value.

“Setting Aperture” (A p. 40) *Displayed only in the manual recording mode.

WHITE BALANCE Adjusts the color according to the light source.

“Setting White Balance” (A p. 41) *Displayed only in the manual recording mode.

BACKLIGHT COMP. Corrects the image when the subject appears dark due to backlight.

“Setting Backlight Compensation” (A p. 42) *Displayed only in the manual recording mode.

ZEBRA Sets whether to display zebra patterns at the bright areas of the subject.

“Displaying the Zebra Pattern” (A p. 42) *Displayed only in the manual recording mode.

TELE MACRO Enables close-up shots when using the telephoto (T) end of the zoom.

“Taking Close-up Shots” (A p. 43) *Displayed only in the 2D manual recording mode.

CINEMA Adds a movie-like effect to images.

“ CINEMA ” (A p. 90)

TOUCH PRIORITY AE/AF Automatically adjusts focus and brightness based on the subjects’ faces or selected

area. “Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 47)

DIS Camera shake during recording can be effectively reduced.

“Reducing Camera Shake” (A p. 46)

GAIN UP Makes the subject appear bright automatically when recording in dark places.

“ GAIN UP ” (A p. 90)

WIND CUT Reduces the noise caused by wind.

“ WIND CUT ” (A p. 91)

GRID Displays gridlines to make it easier to detect when the subject appears slanted.

“ GRID ” (A p. 91)

TIME-LAPSE RECORDING Enables the changes of a scene that occur slowly over a long period to be shown within

a short time by taking frames of it at a certain interval. “Recording at Intervals (TIME-LAPSE RECORDING)” (A p. 50)

Page 88

Menu Settings

Setting Details

SYSTEM SELECT Sets the video recording system.

“ SYSTEM SELECT ” (A p. 92)

3D VIDEO REC FORMAT You can select a recording format for 3D video recording.

“3D VIDEO REC FORMAT (3D mode only)” (A p. 92) *Displayed only in the 3D recording mode.

VIDEO QUALITY Sets the video quality.

“ VIDEO QUALITY ” (A p. 93)

ZOOM Sets the maximum zoom ratio.

“ZOOM (2D mode only)” (A p. 94) *Displayed only in the 2D recording mode.

x.v.Color Captures the true colors.

(Use an x.v.Color compatible TV for playback.) “x.v.Color (2D mode only)” (A p. 95) *Displayed only in the 2D recording mode.

USER BUTTON SETTING Assigns a frequently used function to the USER button.

“Setting the USER Button” (A p. 44)

3D SOUND Records realistic audio sounds.

You can enjoy more realistic audio sounds during playback of a video by recording it with “3D SOUND” set to “ON”. “ 3D SOUND ” (A p. 95)

MIC LEVEL Make the adjustments such that “MIC LEVEL” does not turn red.

“ MIC LEVEL ” (A p. 96)

MIC LEVEL SETTING Sets the microphone level.

“ MIC LEVEL SETTING ” (A p. 96)

HEADPHONE VOL. ADJ. Sets the volume level of the connected headphones.

“ HEADPHONE VOL. ADJ. ” (A p. 97)

Page 89

2011

VIDEO

FOCUS ASSIST COLOR

Menu Settings

SCENE SELECT

Settings to suit the shooting condition can be selected. Operating Details “Scene Selection” (A p. 35)

FOCUS

Focus can be adjusted manually. Operating Details “Adjusting Focus Manually” (A p. 36)

FOCUS ASSIST

Focused subject is outlined in color for more precise focus. Operating Details “Using Focus Assist” (A p. 37)

FOCUS ASSIST COLOR

Sets the color of the outline of a focused object when Focus Assist is used.

Setting Details

RED Outlines the focused object in red.

GREEN Outlines the focused object in green.

BLUE Outlines the focused object in blue.

Displaying the Item

Select video mode.

Tap q to select the recording mode.

Tap “MENU”.

Tap “FOCUS ASSIST COLOR”.

Page 90

2011

GAIN UP

VIDEO

Menu Settings

BRIGHTNESS ADJUST

Adjusts the overall brightness of the screen. Operating Details “Adjusting Brightness” (A p. 38)

SHUTTER SPEED

Shutter speed can be adjusted. Operating Details “Setting Shutter Speed” (A p. 39)

APERTURE PRIORITY

Adjusts the aperture value. Operating Details “Setting Aperture” (A p. 40)

WHITE BALANCE

Adjusts the color according to the light source. Operating Details “Setting White Balance” (A p. 41)

BACKLIGHT COMP.

Corrects the image when the subject appears dark due to backlight. Operating Details “Setting Backlight Compensation” (A p. 42)

GAIN UP

Makes the subject appear bright automatically when recording in dark places.

Setting Details

OFF Deactivates the function.

ON Electrically brightens the scene when it

is dark.

AUTO SLOWSHUTTER

Makes the subject appear bright automatically when recording in dark places.

Memo :

Although AUTO SLOW-SHUTTER brightens the scene

more than ON, movements of the subject may become unnatural.

Setting can be adjusted separately for still images.

Displaying the Item

Select video mode.

ZEBRA

Sets whether to display zebra patterns at the bright areas of the subject. Operating Details “Displaying the Zebra Pattern” (A p. 42)

TELE MACRO (2D mode only)

Enables close-up shots when using the telephoto (T) end of the zoom. Operating Details “Taking Close-up Shots” (A p. 43)

CINEMA

Adds a movie-like effect to images.

Setting Details

OFF Does not add any cinema effect.

ON Adds a movie-like effect to images.

TOUCH PRIORITY AE/AF

Automatically adjusts focus and brightness based on the subjects’ faces or selected area. Operating Details “Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)”

(A p. 47)

Tap q to select the recording mode.

Tap “MENU”.

Tap “GAIN UP”.

DIS

Camera shake during recording can be effectively reduced. Operating Details “Reducing Camera Shake” (A p. 46)

Page 91

2011

WIND CUT

VIDEO

2011

VIDEO

GRID

Menu Settings

WIND CUT

Reduces the noise caused by wind.

Setting Details

OFF Deactivates the function.

ON Activates the function.

Displaying the Item

Select video mode.

Tap q to select the recording mode.

GRID

Displays gridlines to make it easier to detect when the subject appears slanted.

Setting Details

OFF Turns off grid display.

ON Turns on grid display.

Displaying the Item

Select video mode.

Tap q to select the recording mode.

Tap “MENU”.

Tap “WIND CUT”.

Tap “MENU”.

Tap “GRID”.

TIME-LAPSE RECORDING

(A p. 50)

Page 92

2011

VIDEO

SYSTEM SELECT

2011

VIDEO

3D VIDEO REC FORMAT

Menu Settings

SYSTEM SELECT

Sets the video recording system.

Setting Details

60i (or 50i) Select this for normal recordings.

24p Records videos like movies shot with film

cameras.

Displaying the Item

Select video mode.

Tap q to select the recording mode.

3D VIDEO REC FORMAT (3D mode only)

You can select a recording format for 3D video recording.

Setting Details

AVCHD Records in AVCHD format. Set to this

recording format for higher compatibility.

MP4(MVC) Records in MP4(MVC) format. Set to this

recording format for higher video quality.

Displaying the Item

Select video mode.

Tap q to select the recording mode.

Tap “MENU”.

Tap “SYSTEM SELECT”.

Memo :

When in the “24p” mode, the following restrictions apply.

Recording format of 3D videos is fixed at “MP4(MVC)”.

Switching of mode to 2D cannot be performed even when the 3D

button is pressed. The mode cannot be switched to still image.

Images are output in “60i” (or “50i”) from the AV connector.

During the 2D mode, images are output in “480p” (or “576p”) from

the HDMI connector. “SYSTEM SELECT” cannot be changed in the 2D mode or when the

3D video format is set to “AVCHD”. (fixed at “60i”)

Tap “MENU”.

Tap “3D VIDEO REC FORMAT”.

Page 93

2011

VIDEO

VIDEO QUALITY

Menu Settings

VIDEO QUALITY

Sets the video quality.

3D Mode (MP4(MVC))

Setting Details

THR Enables recording in high picture quality.

TSR Enables long recordings.

3D Mode (AVCHD)

Setting Details

TXP Enables recording in high picture quality.

TSP Enables long recordings.

2D Mode

Setting Details

UXP Enables recording in the best picture

quality.

Applies to Blu-ray discs only. Videos

taken in high-definition quality cannot be saved to DVDs.

Displaying the Item

Select video mode.

Tap q to select the recording mode.

Tap “MENU”.

XP Enables recording in high picture quality.

SP Enables recording in standard quality.

EP Enables long recordings.

Memo :

To avoid noise when recording fast-moving scenes or

scenes with extreme changes of brightness, set to “THR” or “TXP” during 3D mode or “UXP” or “XP” during 2D mode.

You can change to the desired video quality by tapping on

it from the remaining recording time display.

Tap “VIDEO QUALITY”.

Page 94

2011

ZOOM

VIDEO

Menu Settings

ZOOM (2D mode only)

Sets the maximum zoom ratio.

Setting Details

10x/OPTICAL Enables recording with 1 - 10x optical

zoom. Set this when digital zoom is not desired.

40x/DIGITAL Enables recording with 1 - 10x optical

zoom and 11 - 40x digital zoom.

200x/DIGITAL Enables recording with 1 - 10x optical

zoom and 11 - 200x digital zoom.

Memo :

When digital zoom is used, the image becomes grainy as

it is digitally enlarged.

Displaying the Item

Select video mode.

Tap q to select the recording mode.

Tap “MENU”.

Tap “ZOOM”.

Page 95

2011

x.v.Color

VIDEO

2011

VIDEO

3D SOUND

Menu Settings

x.v.Color (2D mode only)

Captures the true colors. (Use an x.v.Color compatible TV for playback.)

Setting Details

OFF Captures colors with the same standard

as TV broadcasting.

ON Captures the true colors. (for TVs that

supports x.v.Color)

Displaying the Item

Select video mode.

Tap q to select the recording mode.

3D SOUND

Records realistic audio sounds.

Setting Details

OFF Does not record with 3D sound effects.

ON Records with 3D sound effects.

Displaying the Item

Select video mode.

Tap q to select the recording mode.

Tap “MENU”.

Tap “x.v.Color”.

Tap “MENU”.

Tap “3D SOUND”.

USER BUTTON SETTING

Assigns a frequently used function to the USER button. Operating Details “Setting the USER Button” (A p. 44)

Page 96

2011

VIDEO

MIC LEVEL

2011

VIDEO

MIC LEVEL SETTING

Menu Settings

MIC LEVEL

Make the adjustments such that “MIC LEVEL” does not turn red.

Setting Details

OFF Hides display of microphone input level.

ON Shows display of microphone input

level.

Caution :

When “3D VIDEO REC FORMAT” is set to MP4(MVC) and

recording is performed together with HDMI output, the microphone input level will not be displayed. (It will be displayed after recording stops.)

Displaying the Item

Select video mode.

MIC LEVEL SETTING

Sets the microphone level. Make the adjustments such that “MIC LEVEL” does not turn red.

Setting Details

+2 Increases the microphone input level.

+1 Increases the microphone input level

slightly.

0 The microphone input level is not

changed.

-1 Decreases the microphone input level slightly.

-2 Decreases the microphone input level.

Displaying the Item

Select video mode.

Tap q to select the recording mode.

Tap “MENU”.

Tap “MIC LEVEL”.

Tap q to select the recording mode.

Tap “MENU”.

Tap “MIC LEVEL SETTING”.

Page 97

HEADPHONE VOL. ADJ.

2011

VIDEO

HEADPHONE VOL. ADJ.

2011

Sets the volume level of the connected headphones.

Adjusting the Volume Level of Headphones During Recording

Select video mode.

Tap q to select the recording mode.

Menu Settings

Adjust the volume level of the headphones.

To turn up the volume, tap “+” on the touch screen.

To turn down the volume, tap “-” on the touch screen.

0 0

Tap L to exit the volume adjustment screen.

Adjusting the Volume Level of Headphones During Playback

Select video mode.

Tap “MENU”.

Tap “HEADPHONE VOL. ADJ.”.

The volume adjustment screen appears.

Tap q to select the playback mode.

Adjust the volume level of the headphones.

To turn up the volume, set the zoom lever to the T

end. To turn down the volume, set the zoom lever to the

W end.

Page 98

2011

Menu Settings

Recording Menu (Still Image)

You can adjust various settings, such as brightness and white balance, to suit the subject or purpose. You can also change settings such as picture quality and gain.

Select still image mode.

Tap q to select the recording mode.

Tap “MENU”.

Setting Details

SCENE SELECT Settings to suit the shooting condition can be selected.

“Scene Selection” (A p. 35) *Displayed only in the manual recording mode.

FOCUS Focus can be adjusted manually.

“Adjusting Focus Manually” (A p. 36) *Displayed only in the manual recording mode.

FOCUS ASSIST Focused subject is outlined in color for more precise focus.

“Using Focus Assist” (A p. 37) *Displayed only in the manual recording mode.

FOCUS ASSIST COLOR Sets the color of the outline of a focused object when Focus Assist is used.

“ FOCUS ASSIST COLOR ” (A p. 100) *Displayed only in the manual recording mode.

BRIGHTNESS ADJUST Adjusts the overall brightness of the screen.

“Adjusting Brightness” (A p. 38) *Displayed only in the manual recording mode.

Page 99
