DV CAMCORDER

INTRODUCTION

CONTROLS, INDICATORS AND CONNECTORS

BASIC SYSTEM CONNECTIONS AND ADJUSTMENTS

POWER SUPPLY

PREPARATIONS

SETTING AND ADJUSTMENTS BEFORE SHOOTING

SHOOTING OPERATION

PLAYBACK MODE

GY-DV5100

INSTRUCTIONS

USING EXTERNAL COMPONENTS

TIME CODE OPERATION

MENU SCREENS

FEATURES OF THE CAMERA SECTION

OTHERS

* The illustration shows the GY-DV5100 DV Camcorder with the optional lens, viewfinder and Microphone attached.

Thank you for purchasing this JVC product. Before operating this unit, please read the instructions carefully to ensure the best possible performance.

For Customer Use :

Enter below the Serial No. which is located on the body. Retain this information for future reference.

Model No. GY-DV5100

Serial No.

LWT0230-001A-H

IMPORTANT SAFEGUARDS

1. Read all of these instructions.

2. Save these instructions for later use.

3. All warnings on the product and in the operating instructions should be adhered to.

4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

5. Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.

6. Do not use this appliance near water – for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

7. Do not place this appliance on an unstable cart, stand, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the appliance. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

8. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

9. This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. For appliance designed to operate from battery power, refer to the operating instructions.

10. This appliance system is equipped with a 3-wire grounding type plug (a plug having a third (grounding) pin). This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding plug.

11. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

12. Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will be abused by persons walking on it.

13. Follow all warnings and instructions marked on the appliance.

14. Do not overload wall outlets and extension cords as this can result in fire or electric shock.

15. Never push objects of any kind into this appliance through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

16. Do not attempt to service this appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

17. Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the appliance. c. If the appliance has been exposed to rain or water. d. If the appliance does not operate normally by following the operating instructions. Adjust only those controls that

are covered by the operating instructions as improper adjustment of other controls may result in damage and will

often require extensive work by a qualified technician to restore the appliance to normal operation. e. If the appliance has been dropped or the cabinet has been damaged. f. When the appliance exhibits a distinct change in performance – this indicates a need for service.

18. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

19. Upon completion of any service or repairs to this appliance, ask the service technician to perform routine safety checks to determine that the appliance is in safe operating condition.

SAFETY PRECAUTIONS

FOR USA AND CANADA

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

INFORMATION FOR USA

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmfull interfrence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

CAUTION

CHANGES OR MODIFICATIONS NOT APPROVED BY JVC COULD VOID USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

This unit should be used with 12V DC only. CAUTION: To prevent electric shocks and fire hazards, do NOT use any other power source.

NOTE:

The rating plate (serial number plate) is on the top frame.

CAUTION

To prevent electric shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified service personnel.

AVERTISSEMENT : POUR EVITER LES RISQUES D’INCENDIE OU D’ELECTROCUTION, NE PAS EXPOSER L’APPAREIL A L’HUMIDITE OU A LA PLUIE.

Ce magnétoscope ne doit être utilisé que sur du courant direct en 12V. ATTENTION : Afin d’eviter tout resque d’incendie ou d’électrocution, ne pas utillser d’autres sources d’alimentation électrique.

REMARQUE :

La plaque d’identification (numéro de série) se trouve sur le panneau arrière de l’appareil.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION

INFORMATION (FOR CANADA) RENSEIGNEMENT (POUR CANADA)

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Class B est conforme à la norme NMB-003 du Canada.

Thank you for purchasing the DV Camcorder GY-DV5100. These instructions are for GY-DV5100U.

This unit is a DV video system format camcorder. Videocassettes marked with the symbol or symbol can be used.

The following phenomena may occur when tapes recorded on other units (including another GY-DV5100) are recorded or played back on this camcorder.

●

The transient section between scenes recorded on other units and those recorded on this unit may appear disturbed.

●

Digital noise may appear during playback due to tracking errors.

MAIN FEATURES

●

Built-in compatible mechanism for use of both standard-size DV videocassettes and mini-size DV videocassettes Recording/playback can be made to/from Standard DV, Mini DV and DVCAM cassettes in DV format. Tapes recorded in the DVCAM format can only be played back (simple playback). Recording in the DVCAM format is not possible. DVCAM is a registered trademark of Sony Corporation.

●

Compact, lightweight design Employment of aluminum die-casting has resulted in an operating condition weight as low as 5.6 kg including lens, viewfinder, battery, and cassette.

●

DV high-quality digital format The 4:1:1, 8-bit, 25 Mbps component digital processing ensures recording and playback with high picture quality.

●

High sound quality based on PCM audio Select of sampling, 16-bit, 48 kHz sampling or 12-bit, 32 kHz sampling. Ensures high-quality digital audio.

●

Time code reader/generator The built-in time code reader/generator can be used to record SMPTE time code and user’s bits.

●

Built-in 2.5" color LCD display In addition to displaying the camera image and the playback image, the LCD monitor shows the status screens, menu screens for settings, and alarm indications.

●

Built-in monitor speaker for audio checking The input audio can be monitored in recording or EE mode. The playback sound can be monitored in the playback mode. The speaker also outputs an alarm tone in case an abnormal condition occurs in the unit.

●

Recording check function for convenient recording review and edit search function.

●

Camera section designed with 3-CCD system for high-quality picture 1/2" 3-CCD with 380,000 effective pixels employed. Digital signal processing for reproduction of DV high-quality picture.

●

This unit records and plays back in the SP mode. Recording or playback in the LP mode is not possible.

●

Due to manufacturing dispersion of tapes, we recommend not to record pictures within the first 2 to 3 minutes from the beginning of the tape.

●

Before recording important scenes, be sure to perform a test recording and confirm that both video and audio are recorded correctly.

●

Recorded video and audio contents are for private use. Other use may infringe on the rights of copyright holders.

●

JVC cannot assume liabilities that may derive from the impossibility of normal recording or playback of video or audio due to malfunction of the camcorder or the videocassette.

●

LOLUX for 0.2 lx (F1.4) illumination Employment of LOLUX mode ensures +36 dB gain. This is ideal for difficult shooting conditions with almost no illumination. The gain up value can be selected in the menu.

●

Multi-Zone Auto Iris Detection Circuit Multi-zone auto iris detection circuit ensures optimum iris position even in back light conditions or when a bright subject moves in a frame. Switch provided for selecting over or under level.

●

Safety Zone indication in viewfinder Two types of safety zone indicator functions provided.

●

Zebra pattern video level indication in viewfinder

●

Full Auto Shooting (FAS) function Eliminating the need for troublesome switch or filter operations, the FAS function automatically provides a wide range of compatibility with shooting conditions which varies as you move between indoors and outdoors or between bright and dark locations.

●

Color temperature conversion filters for 3200K, 5600K, 5600K + 1/8ND, 5600 + 1/64ND provided.

●

Variable scan shutter Eliminates flicker when shooting other screen pictures than NTSC, such as computer monitor screens. Copes with the range from 60.1 Hz to 2084.6 Hz.

●

DV (i. LINK) connector DV connector (4-pin) provided. Enables transfer of digital data to other equipment provided with DV connector, such as a non-linear editing system.

●

1/2" bayonet type lens

●

Camera output, VCR playback output (composite/YC) possible

●

Built-in color bar (SMPTE type)

●

Superior operability with shutter speed and menus selected by dial.

CONTENTS

INTRODUCTION

MAIN FEATURES ............................................................... 4

CONTENTS ........................................................................ 5

1. INTRODUCTION

1-1 Precautions for Proper Use ........................................ 6

1-2 Routine and Periodical Maintenance ......................... 7

1-3 Precautions for Use of Head Cleaning Tape .............. 7

1-4 Videocassette to be Used .......................................... 8

1-5 Battery Pack to be Used ............................................ 8

1-6 Condensation ............................................................. 9

1-7 Characteristic CCD Phenomena ................................ 9

2. CONTROLS, INDICATORS AND CONNECTORS

2-1 Front Section ............................................................ 10

2-2 Right Side Section.................................................... 12

2-3 Left Side Section ...................................................... 17

2-4 Top Section .............................................................. 18

2-5 Rear Section ............................................................ 19

2-6 Indications on the LCD Monitor and in

the Viewfinder .......................................................... 21

2-7 Lens (Optional)......................................................... 29

2-8 1.5-Inch Viewfinder (Optional) .................................. 30

PREPARATIONS

3. BASIC SYSTEM CONNECTIONS AND

ADJUSTMENTS

3-1 Basic System ........................................................... 31

3-2 Attaching the Zoom Lens ......................................... 32

3-3 Attaching the Viewfinder .......................................... 32

3-4 Attaching the Microphone (Provided)....................... 33

3-5 Attaching the Microphone (Optional)........................ 33

3-6 Attaching the Tripod Base (Provided) ...................... 34

4. POWER SUPPLY

4-1 AC Operation ........................................................... 35

4-2 Battery Pack Operation (Optional) ........................... 35

BASIC OPERATIONS

5. PREPARATIONS

5-1 Turning the Power ON ............................................. 39

5-2 Cassette Loading and Unloading ............................. 40

5-3 Viewing the LCD Monitor ......................................... 42

5-4 Setting, Displaying and Recording the Date

and Time .................................................................. 43

5-5 Charging the Built-in Battery .................................... 46

6. SETTING AND ADJUSTMENTS BEFORE

SHOOTING

6-1 Camera Settings ...................................................... 47

6-2 Screen Size (4:3/LETTER) Mode Selection............. 47

6-3 Viewfinder Adjustment .............................................. 48

6-4 External Monitor Adjustment .................................... 48

6-5 Back Focus Adjustment............................................ 49

6-6 White Balance Adjustment ....................................... 50

6-7 Audio Input Signal Selection .................................... 51

6-8 Recording Level Adjustment .................................... 52

6-9 Monitoring Audio during Recording .......................... 53

7. SHOOTING OPERATION

7-1 Basic Recording Operation ...................................... 54

7-2 Searching for Recorded Scenes (Edit Search) ........ 56

7-3 If the Record-Standby Mode Continues ................... 57

7-4 Checking Recorded Contents in Record-Standby

Mode (Recording Check Function) .......................... 57

7-5 HEADER REC Function ........................................... 58

7-6 Recording the Color Bars ......................................... 60

8. PLAYBACK MODE

8-1 Playback Procedure ................................................. 61

8-2 Fast-Forward, Rewind .............................................. 62

8-3 Search ...................................................................... 62

8-4 Blank Search ............................................................ 62

8-5 Variable Slow Playback ............................................ 63

8-6 Outputting CH-3, CH-4 Channel Audio .................... 64

APPLICATION

9. USING EXTERNAL COMPONENTS

9-1 Connecting a Video Component with

DV Connector .......................................................... 65

10. TIME CODE OPERATION

10-1 Displaying Time Code .............................................. 67

10-2 Presetting and Recording of Time Code .................. 68

10-3 Recording Time Codes in Continuation of Time

Codes Recorded on Tape ........................................ 70

10-4 Reproducing Time Codes ......................................... 70

11. MENU SCREENS

11-1 Menu Screen Configuration ..................................... 71

11-2 Setting Menu Screens .............................................. 72

11-3 FILE MANAGE Menu Screen ................................... 73

11-4 TOP MENU Screen .................................................. 74

11-5 CAMERA OPERATION Menu Screen ...................... 75

11-6 CAMERA PROCESS MENU Screen ....................... 76

11-7 ADVANCED PROCESS Screen .............................. 78

11-8 SKIN COLOR ADJUST Screen ............................... 79

11-9 AUDIO/VIDEO Menu Screen ................................... 79

11-10

LCD/VF Menu Screen .............................................. 81

11-11

TC/UB/CLOCK Menu Screen................................... 83

11-12

HEADER REC Menu Screen ................................... 84

11-13

TIME/DATE Menu Screen........................................ 85

11-14

OTHERS Menu Screen ............................................ 86

12. FEATURES OF THE CAMERA SECTION

12-1 Full-Time Auto White Balance (FAW) ....................... 88

12-2 IRIS (Brightness) Adjustment ................................... 89

12-3 Adjusting the Shutter Speed .................................... 90

12-4 Shooting the Screen Image on a Computer

Monitor ..................................................................... 91

12-5 Gain (Sensitivity) Adjustment ................................... 92

12-6 Switch Setup According to Illumination

and Subject .............................................................. 93

12-7 How to Use Skin Detail ............................................ 94

OTHERS

13. OTHERS

13-1 Alarm Indications and Actions .................................. 96

13-2 Troubleshooting ....................................................... 99

13-3 Hour Meter Display ................................................ 100

13-4 Specifications ......................................................... 101

1. INTRODUCTION

1-1 Precautions for Proper Use

● Supply voltage

Make sure that the power is between 11 V and 15 V DC. If the power voltage is too low, abnormal color and increased noise may occur. Do not exceed 15 V DC in any case, or the unit could be damaged.

● Allowable ambient temperature and humidity

Be sure to use the unit within the allowable temperature range of 0°C to 40°C and a relative humidity of 30% to 80%. Using the unit at a temperature or humidity outside the allowable ranges could result not only in malfunction but the impact on the CCD elements could be serious as small white spots may be generated.

● Strong electromagnetic waves or magnetism

Noise may appear in the picture or audio and/or the colors may be incorrect if the camera is used near a radio or television transmitting antenna, in places where strong magnetic fields are generated by transformers, motors, etc., or near devices emitting radio waves, such as transceivers or cellular phones.

● Use of wireless microphone near the camera

When a wireless microphone or wireless microphone tuner is used near the camera during recording, the tuner could pick up noise.

● Avoid using or placing the unit in places;

• subject to extreme heat or cold;

• with excessive dirt or dust;

• with high humidity or moisture;

• subject to smoke or vapour such as near a cooking stove;

• subject to strong vibrations or on an unstable surface.

• also do not leave the unit for long hours in a parked car under direct sunlight or near room heating equipment.

● Do not leave the unit where it is subject to radiation or xrays or where corrosive gasses occur.

● Protect the unit from being splashed with water

(especially when shooting in the rain).

● Protect the unit from being wet when shooting on a beach. In addition, salt and sand may adhere to the camera body. Be sure to clean the camera after use.

● Protect the unit against penetration of dust when using it in a place subject to sandy dust.

● Setup level

The video signal of the unit’s video output is provided with a setup level when shipped from the factory. If you want to turn OFF the setup level, set the SET UP item on the AUDIO/ VIDEO menu screen to 0.0%.

● Optical performance of lens

Due to the optical performance of the lens, color divergence phenomena (magnification chromatic aberration) may occur at the periphery of the image. This is not a camera malfunction.

● Noise may appear in the viewfinder when switching between the playback picture and the EE picture.

● Use the unit in an upright position.

If placed on its side, heat release efficiency will deteriorate, adversely affecting the tape transport. Depending on circumstances the tape may also be damaged.

● Vibrations

Colors may fail to appear and/or the image and sound may be disturbed during VTR playback in locations subjected to strong vibrations.

● Precautions for transportation

Do not drop or hit the unit against a hard object.

● Remove the videocassette before transporting the unit.

● Do not insert an object other than a videocassette in the

cassette insertion slot. Be sure to close the cassette cover when the unit is not to be used for a long period.

● Do not set the POWER switch to OFF or remove the power cable during recording or playback. Otherwise the tape may be damaged.

● The sensitivity level of the provided microphone is set lower than the reference input (- 60 dBs) setting.

● When the unit is not in use, be sure to set the POWER switch to OFF in order to reduce power consumption.

● Cleaning the body: Wipe body with a dry, soft cloth. When it is extremely dirty, soak the cloth in a solution of neutral detergent, wipe the body with it, and then use a clean cloth to remove the detergent. To prevent deformation of the body, etc. and to avoid operation hazards, do not allow volatile liquids such as benzine and thinner to touch the body, and do not wipe it with a cloth soaked in such a liquid.

● The camera may not show stable pictures in the period immediately after the power is turned on, but this is not a malfunction.

● If a tape containing recorded PAL signals is played back, “PAL INHIBIT” is displayed and correct playback will not take place. If this happens, remove the videocassette so that the unit returns to its normal state.

● When turning on the power with the tape inserted or after loading a tape, the built-in head cleaner will emit a sound while operating. However, this is not a malfunction of the unit.

● The LCD screen and the viewfinder screen are manufactured using high-precision technology. Black spots may appear on the LCD screen and the viewfinder screen, or red, blue, green and/or white spots may not turn off. However, this is not a malfunction and these spots are not recorded on the tape.

● Do not insert fingers or foreign objects into the cassette insertion slot as this may result in personal injury or damage to the mechanism.

CAUTION :

● Do not point the lens or viewfinder directly at the sun or

other strong light source.

• Eye damage could result.

• If the lens or viewfinder is left pointed at the sun, rays may collect inside the unit and cause damage or a fire.

● When carrying the camera, be sure to hold the carrying handle. Holding the lens or viewfinder may result in damage.

1. INTRODUCTION

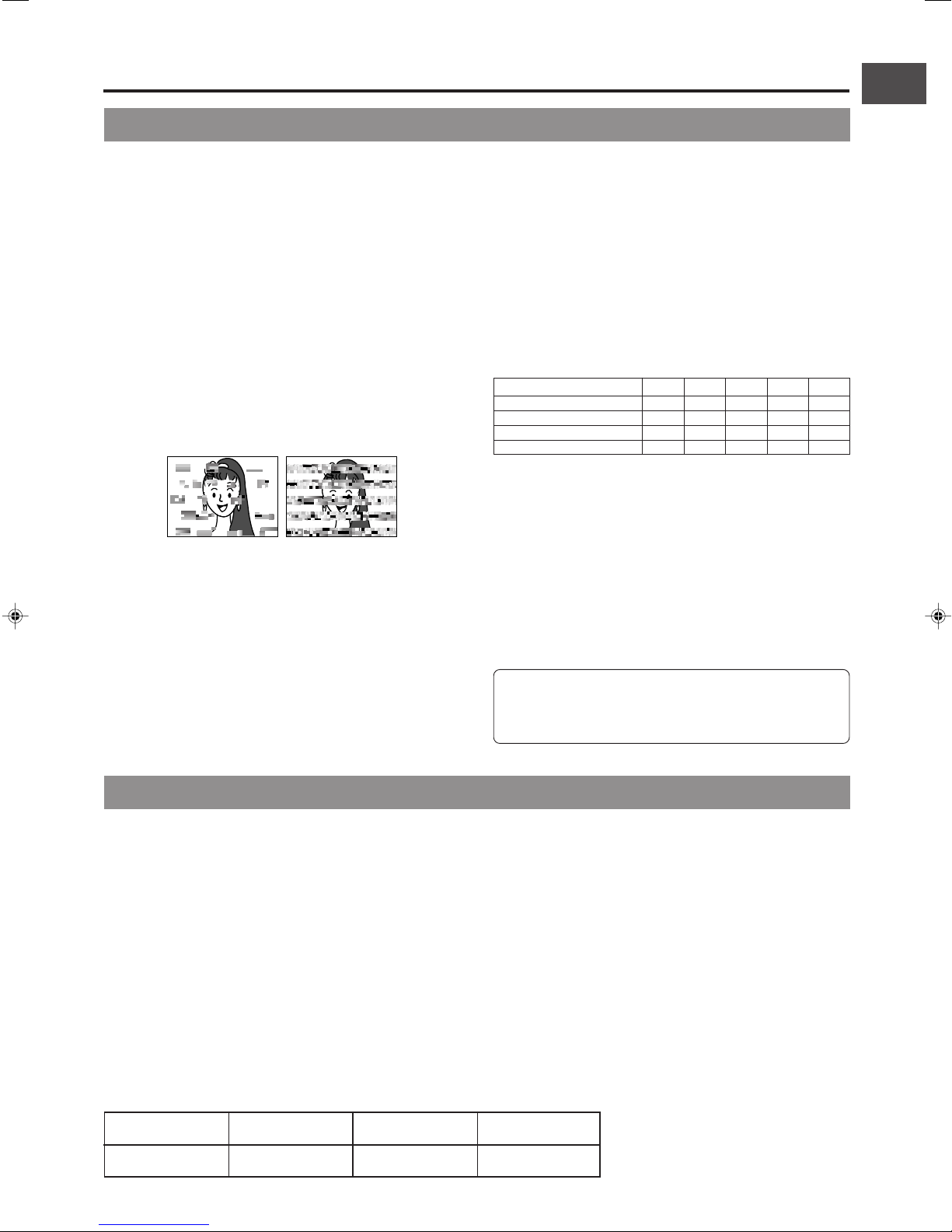

1-2 Routine and Periodical Maintenance

The GY-DV5100 incorporates precision mechanical parts, which will collect dirt, wear out and deteriorate as the unit is used. After the unit has been used for a long period even in a normal environment, the heads, drums and tape transport mechanisms also collect dirt. Especially, dust which penetrates the inside of the VCR section during outdoor use will promote the wear and deterioration of mechanical parts by causing poor contact between tape and heads or failing to maintain the video and audio quality at high levels. To prevent wear and deterioration, clean the mechanical parts using a head cleaning tape as routine maintenance. However, cleaning with a head cleaning tape alone is not enough for cleaning the entire tape transport mechanism, so it is also recommended to apply periodical maintenance (inspection) to prevent the sudden occurrence of failure. As the replacement, adjustment and servicing of parts require advanced skill and equipment, please consult the person in charge of professional video equipment at your nearest JVC-authorized service agent.

Head Cleaning

● To maintain beautiful pictures and sound, be sure to use a head cleaning tape to clean the head periodically. (Read the “Precautions for Use of Head Cleaning Tape”.) If head cleaning is not performed periodically, a type of mosaic noise called block noise may appear in the picture or sound may be interrupted.

Block Noise

● Please use cleaning tape produced by JVC. Do not use head cleaning tapes other than specified. Read the precautions and instructions for use of the head cleaning tape.

● When dust adheres to the heads, the warning message “HEAD CLEANING REQUIRED!” is displayed on the LCD monitor and in the viewfinder during playback, edit search, and recording check using the RET button on the lens section.

Periodical Maintenance

Contents : Check or replace the following mechanical parts

according to the running time.

Running Time

Drum ass’y (including heads) Head cleaner Tape guides & rollers Reel disc and tension bands

–

: Check

䡬:Clean, check and adjust. 夡:Clean and check. Replace as required. 䢇: Replace.

• The maintenance contents vary depending on the operating environment and method. Therefore, the above data should be considered as a reference.

Time management

The accumulated running time of the unit can be confirmed with the hour meter display (which shows the accumulated drum running time). For details, see “HOUR METER DISPLAY” on page 100.

For consultations related to the maintenance planning or cost, please contact the person in charge of professional video equipment at your nearest JVC-authorized service agent.

500H

1000 H 1500H

䡬䡬䡬䢇䢇夡䢇夡䢇䢇䡬夡夡䢇䢇

– 夡 – 䢇䢇

2000H 4000H

1-3 Precautions for Use of Head Cleaning Tape

Please use cleaning tape produced by JVC. Adhere to the following precautions when using the head cleaning tape.

Insert the cleaning tape. Press the PLAY button after the cleaning tape is fully loaded. The tape runs for 10 seconds at a time in the PLAY mode. (The tape stops automatically and then the unit enters the STOP MODE.)

Do not use the tape more than four times at the most for each cleaning.

■ Use the following chart as a guide for periodical head cleaning.

Operating Low temperature Room temperature High temperature environment 0˚C to 10˚C 10˚C to 35˚C 35˚C to 40˚C

Yardstick for use 1 to 2 times 1 to 2 times 1 to 2 times of cleaning tape every 5 hours every 20 to 30 hours every 5 hours

Note 1) When used in a low humidity environment, head cleaning

should be conducted at intervals half of those given in the below chart.

Note 2) If an ME80 tape is used inadvertently, the “HEAD

CLEANING REQUIRED!” indicator may remain on. In this case, let the tape run as the indicator will turn off after the tape has run for a while.

Note 3) Use the cleaning tape in the room temperature (10˚C to

35˚C).

Note 4) The cleaning tape case contains instructions for use of

the cleaning tape. However, some of these instructions differ from the contents of this sheet. When using the cleaning tape, please follow the instructions of this sheet.

Note 5) I f the “HEAD CLEANING REQUIRED!” does not

disappear after repeated head cleanings, the recording tape may be abnormal. Avoid excessive repeated use of the head cleaning tape.

1. INTRODUCTION

1-4 Videocassette to be Used

● Use JVC’s videocassette tapes marked with the “ ” or

“ ” symbol.

Standard DV videocassette: LA-DV276, LA-DV186, LADV124 Mini DV videocassette: M-DV63PRO, M-DV60, M-DV30 * Do not use M-DV80.

● Videocassettes cannot be used upside down.

● Avoid storing a videocassette with its tape not being

completely wound, as this may damage the tape. Rewind it to the beginning before placing a cassette into storage.

● Store videocassettes in a place with little humidity and good

ventilation where mould does not form.

● After a videocassette tape has been used repeatedly,

it becomes unable to maintain full performance due to an increase in noise caused by dropouts, etc. Do not continue to use a dirty or damaged tape, as this will reduce the rotary head life.

● Videocassette tapes with the “ are provided with a switch on the back to prevent accidental erasure.

● Slide the switch to SAVE to protect the required recording in the tape from being overwritten.

● To record on the tape, slide the switch to REC.

■ For recording and storing videotapes in the best condition

Observe the following instructions for the best recording and storage of videotapes.

● Take care of the conditions of handling videotapes. It is recommended that you record and store videotapes in the environment below.

Storage

Recording Short period Long period

Te mperature 17°C to 25°C 15°C to 23°C 15°C to 19°C Humidity 30% to 70% 40% to 55% 25% to 35% Hourly temperature change Hourly humidity change

Less than 10°C – – Less than 10% – –

(Up to 10 years) (Over 10 years)

● Do not leave the videotapes neglected for a long period. If videotapes are left wound for a long period of time, it may result in distortion of the tape. Also it may cause tape-to-tape adhesion (known as blocking). It is recommended that videotapes be unspooled and rewound once a year for refreshing.

● When tapes are not in use, store them in cases and on end. Storage cases protect videotapes from humidity, dust and ultraviolet light. Keep tapes in cases and do not store them lying flat. When housed in a horizontal position, pressure from other tapes can cause distortions and deformations of the tape edges.

” or “ ” symbol

Switch

REC

SAVE

1-5 Battery Pack to be Used

The GY-DV5100 can use any of the following battery packs.

●

Flat shape type

●

Anton-Bauer battery pack: DIONIC 90

Trimpack 13/14 Series Magnum 13/14 Series Compack 13/14 Series Propack 13/14 Series

To display the remaining battery power accurately, set the BATTERY TYPE item on the OTHERS (2/2) menu screen and BATTERY INFO item on the LCD/VF (2/2) menu screen according to the type of the battery pack in use.

☞See “BATTERY TYPE” on page 87. ☞See “BATTERY INFO” on page 82.

*A flat shape type battery pack cannot be connected directly

to the camera. It is necessary to mount the optional battery case.

●

Battery case: SCV2978-002 See “Attaching the NP-1B type Battery” on page 36.

1-6 Condensation

●

If the unit has been cooled down in a cold place and is then carried to a warm place, the moisture contained in the warm air may adhere to the head drum or tape guides and be cooled into water droplets. This phenomenon is referred to as condensation (dewing). When this occurs, the head drum and tape guides are covered with droplets allowing the tape to be stuck to them, leading to tape damage.

●

Condensation occurs in the following cases:

• When the unit is suddenly moved from a cold place to a warm place.

• When a room heater has just started or when the unit is exposed directly to cold air from an air conditioner.

• When the unit is placed in a very humid place.

Do not leave the videocassette inserted when moving the camera under conditions where the temperature environment changes. After moving the unit, do not use until the internal parts have stabilized.

Head drum

Video tape

1. INTRODUCTION

●

“CONDENSATION ON DRUM” is displayed on the LCD monitor and in the viewfinder when condensation occurs in this unit.

WARNING 0201

CONDENSATION ON DRUM

Keep the power on until the warning message disappears.

●

Pay attention to condensation even before the condensation indication appears.

• As condensation forms gradually, the condensation indication may not appear for the first 10-15 minutes after condensation has formed inside.

• In an extremely cold place, the condensation could freeze and turn into frost. In such a case, it takes an additional 23 hours for the frost to first melt into condensation and then to be dissolved.

●

To prevent condensation when moving the unit from one place to another where the temperatures are greatly defferent, first remove the videocassette, place the unit in a tightly sealed vinyl bag, and then move it to a new environment.

To ensure no condensation occurs, allow the temperature of the unit in the bag to reach that of the new environment before using it.

1-7 Characteristic CCD Phenomena

Smear and Blooming

Due to the physical structure of a CCD it is possible to induce vertical streaking (called “smear“) when shooting an extremely bright light source. Another effect is the expansion of light around a bright light or object (called “blooming“). The CCD employed in this unit is characterized by inducing very little smear or blooming. Nevertheless, please take note that smear or blooming may be indured when shooting a bright light source.

Smear (Vertical pale streaking  appearing at high luminous object)

High luminous object (Electric light, sunlight, etc.) 

Blooming

Monitor screen

(Blurring in highlight) 

Moire or Aliasing

Shooting stripes or fine patterns may cause a jagged effect or a banding in fine mesh patterns.

White dots

High temperatures can cause CCD sensor pixels to produce the effect of white dots in the image. This condition is conspicuous especially when gain is applied. This is a characteristic of the charged-coupled device (CCD). As far as possible, use the unit under conditions where the temperature of the unit does not increase.

2. CONTROLS, INDICATORS AND CONNECTORS

2-1 Front Section

[LENS] Lens control connector

Connect 12-pin lens control cable from lens here.

Pin No. Function Pin No. Function

ZEBRA

r t y

Viewfinder mount base, sliding securing ring

OFF

SKIN AREA

VTR

AUDIO

LEVEL CH-1

AUTO WHITE

ACCU FOCUS

Mount the viewfinder on the base and secure it using the sliding securing ring. ☞ See “Attaching the Viewfinder” on page 32.

[VF] Viewfinder connector (6-pin)

Connect the cable from the viewfinder here.

[FRONT MIC IN] Front microphone input

connector (XLR 3-pin)

Balanced 3-pin connector for camera microphone.

● Set the FRONT MIC +48V switch accordance with the connected device.

● To record the audio from this connector, set the CH-1/ CH-2 AUDIO IN switch

on page 16 to “FRONT”.

☞ See page 16.

Pin No. Function

on page 16 in

1 GND

2 HOT

3 COLD

1Return switch 7 Iris position

2VTR trigger 8 IRIS A/R INPUT

3GND 9 EXTENDER position

Lens AUTO/MANU control

5IRIS control 11 —

6 +12V DC 12 —

[ZEBRA] Switch

10 ZOOM position

When this switch is ON, a zebra pattern is imposed on the viewfinder or LCD areas having luminance levels in accordance with the menu settings made for the video signal. This pattern can be used as a reference for manual adjustment of the lens iris. Zebra patterns are also displayed during color bar display when this switch is set to ON.

☞ See “Zebra Pattern Display during Manual Adjustment” on page 89.

● The default value is 70% - 80%. The luminance level can be changed with the ZEBRA setting in the LCD/VF menu screen. ☞ See “ZEBRA” item on page 81.

While this switch is pressed to the SKIN AREA side, the color tone areas specified with the SKIN COLOR ADJUST item on the ADVANCED PROCESS menu are indicated in the viewfinder. The switch returns to the OFF position when released. ☞ See “How to Use Skin Detail” on page 94.

● The Skin Detail color tone areas are not indicated while the color bar or VTR playback picture is shown in the viewfinder or on the LCD monitor.

[VTR] VTR trigger button (record start/stop button)

Recording start/stop can be done with this button. (It is interlocked with the VTR trigger button on the side section and the VTR trigger button on the lens section.)

[AUDIO LEVEL CH-1] CH-1 audio level control

Adjusts the audio level of the CH-1 audio signal input. Normally, the camera is used with the control set to the maximum (10) position.

● To use this control, set the CH1 FRONT VR item on the AUDIO/VIDEO menu screen to “ENABLE”. ☞ See “AUDIO/VIDEO menu screen” on page 79 .

CAUTION:

The provided microphone is a phantom microphone. Please confirm that the FRONT MIC +48V switch is set to the “ON” side when the provided microphone should be used. When using a microphone other than a phantom microphone, first set the FRONT MIC +48V switch to “OFF” before connecting the microphone.

2. CONTROLS, INDICATORS AND CONNECTORS

[AUTO WHITE/ACCU FOCUS] switch

White Balance:

● First, position a white object to occupy 80% of the centre of the screen.

● When the WHT.BAL switch setting this switch to the upper position (“AUTO WHITE”) will provide automatic adjustment for white balance.

* It is not activated in preset, full auto shooting, full-time

auto white balance and color bar modes.

☞ See “White Balance Adjustment” on page 50.

ACCU-FOCUS:

● When this switch is pressed down to “ACCU FOCUS”, the lens iris will be forced to open for approximately ten seconds.

● The depth of field can be reduced and the lens focusing can be adjusted more accurately.

CAUTION:

• As the automatic shutter is activated up to 1/1920,

flicker may appear on the screen depending on the lighting conditions (such as a fluorescent lamp, etc.)

• This operation is not effected in the LOLUX mode.

on page 14 is set to A or B,

Lens mounting ring/Lens lock lever

Hold the lens and use the lever to turn the ring anticlockwise to release lens. To mount lens make sure the lens guide pin fits well, and then turn the ring clockwise until firm. ☞ See “Attaching the Zoom Lens” on page 32.

[FILTER] Color temperature conversion filter

control knob

This knob switches the internal color temperature filters. (3200K, 5600K + 1/8ND, 5600K, 5600K + 1/64ND) ☞ See “Camera Settings” on page 47.

2. CONTROLS, INDICATORS AND CONNECTORS

2-2 Right Side Section

[Camera Setting Section]

EDITSEARCH

w e r

FILTER

3200K

5600K

SHUTTER

AUTO IRIS

BACK L NORMAL SPOT L

POWER

ON OFF

STATUS

FULL AUTO BLACK LOLUX

MONITOR

MODE

STRETCH NORMAL COMPRESS

VTR

CAM

!2 y u i o !0

CH-1 CH-2

AUDI LEV

[MONITOR] Audio monitor volume control

Adjusts the volume of the monitoring loudspeaker and earphone.

[EDIT SEARCH +/–] +/– button for edit search

Pressing this button in the record-standby mode plays back the tape while the button is being pressed.

● While the + button is pressed, playback takes place at the normal speed. When the button is released, the standby mode is reengaged at the point where the button is released.

● While the – button is pressed, playback takes place at –1 times the normal speed (reverse playback). When the button is released, the standby mode is reengaged at the point where the button is released.

Pressing this button in VTR mode plays the tape in slow playback.

● Playback in FWD direction becomes faster each time the + button is pressed.

SLOW+1 → SLOW+2 → SLOW+3

↑

FWD

● Playback in REV direction becomes faster each time the − button is pressed.

↑

SLOW−1 → SLOW−2 → SLOW−3

↑

REV

☞ See “Variable Slow Playback” on page 63.

↑

[STATUS] Status/Menu button

● Pressing this button in the normal screen mode (condition in which the menu screen is not shown) displays a status screen in the viewfinder or on the LCD monitor. The displayed status screen changes each time the button is pressed. ☞ See “Status Screens” on page 21.

● Pressing this button for more than 1 second in the normal screen mode displays the menu screen in the viewfinder or on the LCD monitor. Pressing this button while the menu screen is displayed in the viewfinder or on the LCD monitor makes the menu screen disappear. ☞ See “Setting Menu Screens” on page 72.

[SHUTTER] Shutter/Menu dial

● Every time this dial is pressed while in the normal screen mode (when the menu screen is not displayed), the shutter speed switches between on/off.

● When this dial is turned 1 click up or down in the normal screen mode, the shutter speed indicator is shown for about 3 seconds on the LCD monitor or in the viewfinder. The shutter speed is changed when this dial is turned while the shutter speed indicator is shown. ☞ See “Adjusting the Shutter Speed” on page 90.

● When this dial is turned upward or downward while the menu screen is displayed, the cursor (

) also moves upward or downward to allow selection of items in the menu. To change the setting value of the item, press this dial. When the setting value starts blinking, turn this dial upward or downward to change the setting. ☞ See “Setting Menu Screens” on page 72.

2. CONTROLS, INDICATORS AND CONNECTORS

[AUTO IRIS] Auto iris level switch

This switch selects the automatic iris adjustment reference value according to the condition in which the camera is used. BACK L : Under back light (Opens the iris about 1 step

from the standard level.) NORMAL : Normal condition SPOT L : Under spotlight (Closes the iris about 1 step

from the standard level.) ☞ See “SWITCH FUNCTIONS” on page 93.

[FULL AUTO] Full auto shooting ON/OFF button

and indicator

● This switch toggles the full auto shooting function on and

off.

● The indicator lights when in the full auto mode.

● Full auto shooting combines the auto iris, auto level control

(ALC) to automatically adjust the video signal level and the white balance to their optimum levels. The audio recording level will operate in the auto adjustment mode.

● The iris is placed in automatic mode even if the iris mode

switch of the lens is in manual.

● The gain will vary continuously to the maximum of +18

dB. The shutter speed will vary continuously to the minimum of 1/240 of a second. ☞ See “Full Auto Shooting (FAS) function” on page 93.

[CAM] Camera mode indicator

This indicator lights when the camera is in the Camera mode. To record the camera image, press the MODE switch F to turn on this indicator. When the power is turned on, the mode becomes the Camera mode.

[VTR] VTR mode indicator

This indicator lights when the camera is in the VTR mode. To perform VTR playback or input the DV signal from the DV connector 7 on page 19, press the MODE switch F to turn on this indicator.

[POWER] Power ON/OFF switch

This switch is used to turn the power on and off. “POFF” is displayed on the LCD monitor or in the viewfinder when the power is turned off. *Wait 5 seconds or more before turning the power on again

after it has been turned off.

[VTR] Trigger button (Recording Start/Stop)

This button is used to start and stop recording. (It is interlocked with the VTR trigger button on the front and the VTR trigger button on the lens section.)

[BLACK] Black stretch/black compression switch

Switches the gain for the dark section of the image. Set to an appropriate position depending on the video signal to be shot. STRETCH : By stretching the signal only for the dark

section, contrast in the dark sections of the image is enhanced.

NORMAL : Standard mode. COMPRESS : When an entire image is relatively light and

the contrast is low, the gain of the dark sections is compressed to increase the contrast.

[LOLUX] LOLUX On/Off button

This button toggles the LOLUX mode on and off.

● LOLUX gain gives extremely low light level sensitivity for

special applications. This will result in an increase of 30 dB in the LOLUX mode.

● The gain up value can be selected from the menu.

☞ See page 75.

● LOLUX operation takes priority over normal gain setting.

● If the unit is placed in the LOLUX mode when it is in full

auto shooting mode, the auto level control (ALC) (one of the full auto shooting functions) will be made inactive, so that the LOLUX mode is given preference (FAW still remains active). ☞ See “GAIN BOOST UNDER LOLUX CONDITION” on page 92.

2. CONTROLS, INDICATORS AND CONNECTORS

WHT

MODE

2-2 Right Side Section (Cont’d)

[Camera Setting Section]

FILTER

3200K

5600K

SHUTTER

AUTO IRIS

BACK L NORMAL SPOT L

LH M

GAIN

!3 !4 !5 !6

CAM

OUTPUT

BARS

OFF

AUTOKNEE

.BAL

WHT

MODE

PRST BA

ON OFF

EDITSEARCH

STATUS

FULL AUTO BLACK LOLUX

POWER

VTR

STRETCH NORMAL COMPRESS

MONITOR

AUDI LEV

MODE

VTR

CAM

CH-1 CH-2

[GAIN] Sensitivity selector switch

Electronically boosts the light sensitivity when there is insufficient illumination on the subject. The boosting level differs depending on the switch position as follows: (Factory presets)

L :0 dB (no boosting is applied) M :9 dB (boosted to approximately 3 times the original) H : 18 dB (boosted to approximately 8 times the original)

● The boosting level for each switch position can be

changed with the CAMERA OPERATION menu screen. ☞ See page 75. The more the boosting level is increased, the more the resulting image will be noisy.

[OUTPUT] Color bar/Camera/Auto knee switch

This switch is used to select the output signal. When the video signal from the shooting camera is selected, the auto knee function is available. CAM. AUTO KNEE ON: Outputs the video signal from the shooting camera. In this mode, the auto knee function is available. CAM. AUTO KNEE OFF: Outputs the video signal from the shooting camera. In this mode, the auto knee function is not available. BARS: Outputs the color bar signal. In this mode, the auto knee function is not available. Set to this position when adjusting the video monitor or when recording the color bar signal. Color bars will not appear when Full Auto is set to ON or when in the VTR mode.

AUTO KNEE function

When shooting a foreground subject, such as a human being, etc., with a high-brightness background, if the brightness level is set for the foreground subject, the background image will be blurred with white. In such a case, a clearer background is obtained when the auto knee function is used. It is effective especially in the following cases:

● When shooting a human being indoors with a view to the landscape out through a window.

● When shooting a human being in the shade on a fine day.

● When shooting a high-contrast scene.

CAUTION:

If a fast moving high-brightness section like a car in sunlight is shot, the auto knee function may change the brightness of the entire image along with the motion of the object. In this case, set the auto knee function to OFF.

[WHT.BAL] White balance switch

Three white balance modes are selectable with this switch. B : If white balance is performed with the switch in

this position, it will be memorized into B.

A : If white balance is performed with the switch in

this position, it will be memorized into A.

PRST :A non-erasable white balance setting at 3200K. (PRESET)

● FAW (Full-time Auto White) mode can be set to A, B or PRESET with the CAMERA OPERATION menu. ☞ See page 75. In the FAW mode, video color temperatures are constantly sampled for automatic adjustment to a proper white balance.

[MODE] Mode switching switch

This is a switch to select either the Camera mode or the VTR mode. Each time this switch is pressed upward, the mode is switched to either the Camera mode or the VTR mode and the CAM indicator 9 or VTR indicator 0 lights in accordance with the selected mode.

● Select the Camera mode to record the camera image.

● Select the VTR mode to playback or to input the DV signal

from the DV connector 7 on page 19.

● When the power is turned on, the mode becomes the Camera mode.

1 2 .3 .4

SHUTTER

AUTO IRIS

FILTER

3200K 5600K 5600K 5600K

ON OFF

EDITSEARCH

STATUS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

2. CONTROLS, INDICATORS AND CONNECTORS

q w e

y u tr

LCD BRIGHT DISPLAY

AUDIO LEVEL

FRONT

REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

i o

PULL OPEN

AUDIO LEVEL

LCD BRIGHT DISPLAY

FRONT REAR

CH-1

CH-2 AUDIO INPUT AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

OPEN

CH-1 CH-2

PULL OPEN

MONITOR

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

CH-1 CH-2

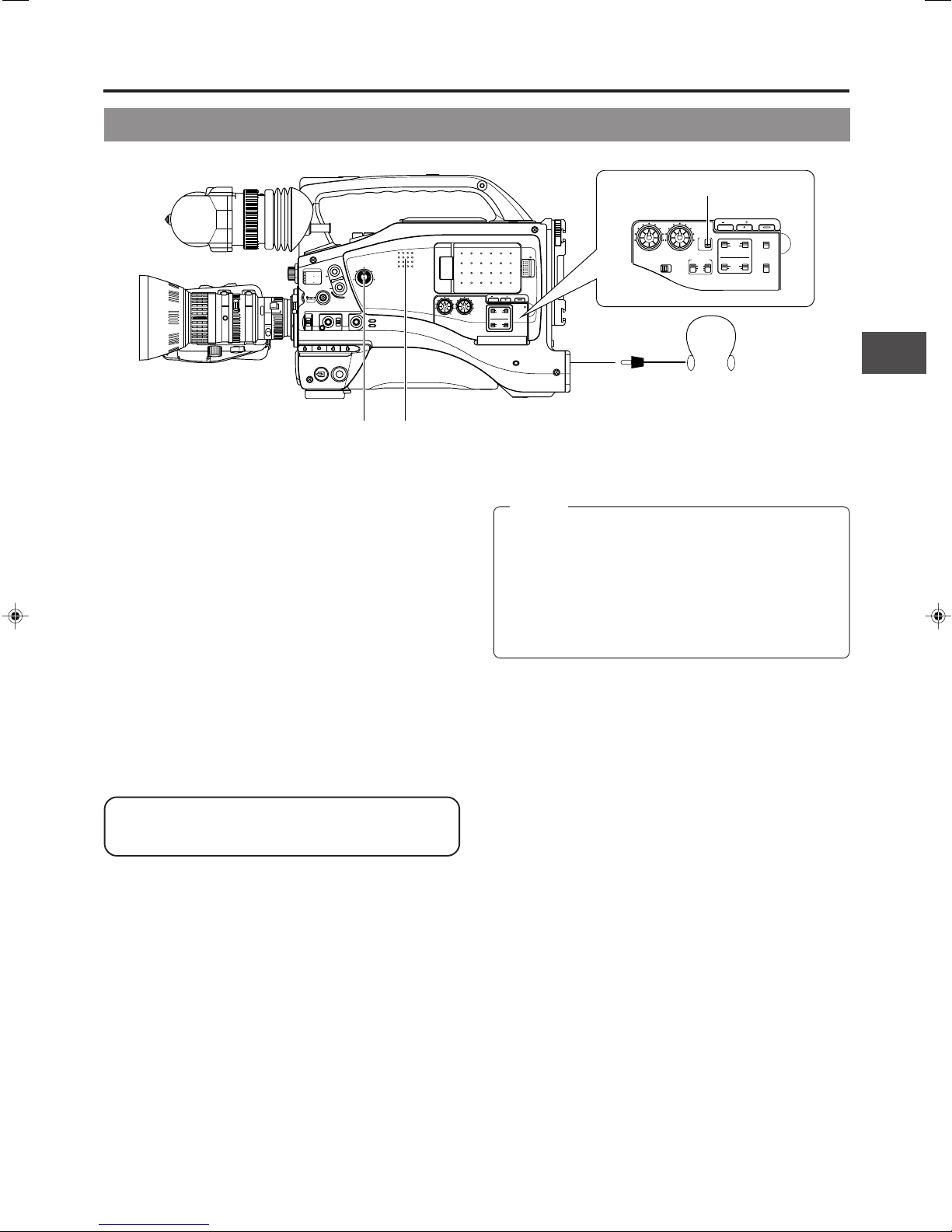

Monitoring speaker

In the Camera mode, the input sound can be EE monitored. In the VTR mode, the speaker outputs the VTR playback sound. The sound to be output is selected with the MONITOR SELECT switch C on page 16.

● The sound level is adjusted with the MONITOR sound

level button 1 on page 12. The sound from this speaker is not output if an earphone is plugged into the PHONES jack 5 on page 19. This speaker also outputs various warning sounds superimposed on other sound. ☞ See “Alarm Sounds” on page 98.

LCD door

LCD monitor door. The LCD monitor is located on the inner side of the door. The LCD monitor can be viewed when this door is opened. The door can be turned to change the orientation of the LCD monitor, and it can be rotated so that it can be accommodated in the main body of the camera. ☞ See page 42.

LCD door lock and release knob

To open the LCD door, move this knob in the direction toward the rear section.

[LCD BRIGHT +/–] LCD brightness +/– button

This button is for adjusting the brightness of the LCD monitor display.

Pushing the button in the + direction makes the monitor brighter.

●

Pushing the button in the – direction makes the monitor darker.

● Pushing the +/− buttons simultaneously returns the setting to the standard setting.

[DISPLAY] Display button

This button is for turning the LCD monitor display ON/OFF and selecting the display mode. When this button is pressed for a long time, the LCD monitor display is turned ON or OFF. Each time this button is briefly pressed while the LCD monitor display is turned on, the display mode changes as shown in the following.

Only image displayed → Characters shown enlarged

↑

Image and characters displayed ←

[CH-1 AUDIO LEVEL] CH-1 audio level control

Adjust the audio level of the CH-1 audio channel with this control.

● To use this control, set the CH-1 AUDIO SELECT switch

8 to “MANUAL”. This control works regardless of the setting of CH1 FRONT VR item on the AUDIO/VIDEO menu screen. To use this control, set the AUDIO LEVEL CH-1 control switch on the front section (7 on page 10) to the maximum (10) position, or set the CH1 FRONT VR item on the AUDIO/VIDEO menu screen to “DISABLE”.

[CH-2 AUDIO LEVEL] CH-2 audio level control

Adjust the audio level of the CH-2 audio channel with this control.

● This control is valid only when the CH-2 AUDIO SELECT

switch 9 is set to “MANUAL”.

[CH-1 AUDIO SELECT] CH-1 audio selector switch

This switch is used to select the method for adjusting the audio level of the CH-1 audio channel. AUTO : When audio at maximum volume is input, a

limiter activates to suppress the audio level. The audio level does not increase when the input level is low.

MANUAL : The audio level can be adjusted with the CH-1

AUDIO LEVEL control 6 or the AUDIO LEVEL CH-1 control 7 on page 10. To use the AUDIO LEVEL CH-1 control on the front section, the CH1 FRONT VR item on the AUDIO/VIDEO menu screen should be set to “ENABLE”.

[CH-2 AUDIO SELECT] CH-2 audio selector switch

This switch is used to select the method for adjusting the audio level of the CH-2 audio channel. AUTO : When audio at maximum volume is input, a

limiter activates to suppress the audio level. The audio level does not increase when the input level is low.

MANUAL : The audio level can be adjusted with the CH-2

AUDIO LEVEL control 7.

2. CONTROLS, INDICATORS AND CONNECTORS

3200K

2-2 Right Side Section (Cont’d)

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

ON OFF

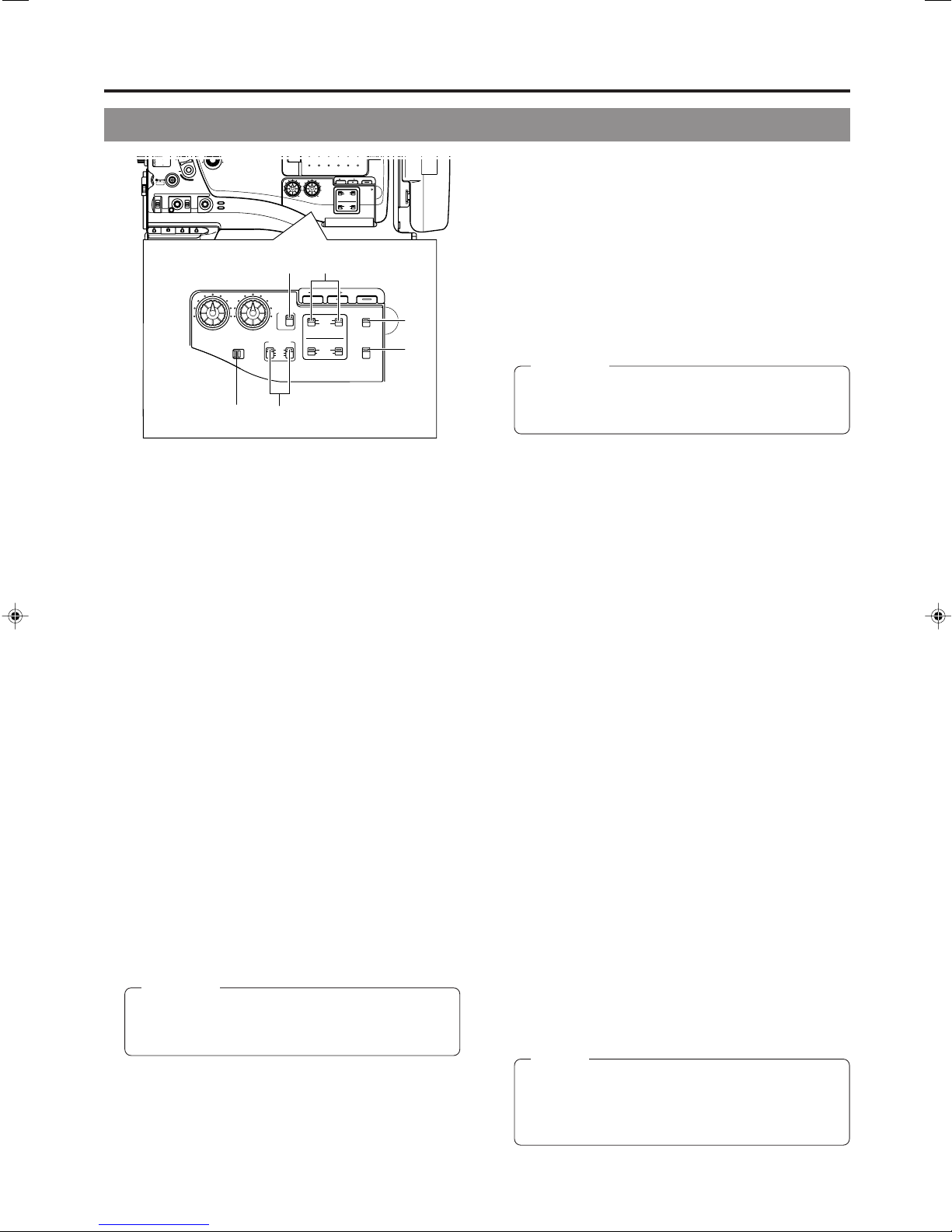

View with cover open.

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

MONITOR

SELECT

CH-1

MIX

AUDIO

CH-1 CH-2

LEVEL

FRONT MIC +48V

[CH-1/CH-2 AUDIO IN] CH-1/CH-2 audio input

CH-2

REAR

AUDIO IN

CH-1 CH-2

LINE

MIC

OFF

+48V

AUDIO LEVEL

CH-1 CH-2

CH-1

CH-1 CH-2

LCD BRIGHT DISPLAY

FRONT

REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

LCD BRIGHT DISPLAY

FRONT REAR

CH-2 AUDIO INPUT AUDIO SELECT

AUTO MANUAL

COUNTER

TC GENE.

PRST

REGEN

PULL OPEN

FREE REC

selector switch

This switch is used to select the input sound of the CH-1 or CH-2 audio channel. It is selected for each of the CH-1 and CH-2 channels. FRONT : The sound from the FRONT MIC IN connector

on the front side section is input.

REAR : The sound from the REAR AUDIO IN connector

on the rear side section is input.

[FRONT MIC +48V] Front microphone power supply selector switch

This is set in accordance to the camera microphone connected to the FRONT MIC IN connector. ON : Set to this position when the included

microphone or another requiring +48 V power supply (phantom microphone) is connected.

OFF : Set to this position when connecting a

microphone that does not require +48 Vpower supply.

[CH-1/CH-2 REAR AUDIO IN] CH-1/CH-2 Rear audio input signal selector switch.

This switch is used to select the input sound signal from the REAR AUDIO IN connector. LINE : Set to this position when connected to audio

equipment, etc. The reference input level is +4 dBs.

MIC : Set to this position when the microphone is

connected. The reference input level is -60 dBs.

+48V : Set to this position when a microphone requiring

+48 V power supply (phantom microphone, etc.) is connected. This connector supplies +48 V DC current.

CAUTION:

When connecting a component that does not require +48 V power supply, make sure that the switch is not set to +48V before the component is connected.

[MONITOR SELECT] Audio monitor selector switch

This switch is used to select the monitor sound output and playback sound output from the monitoring speaker 1 on page 15 or the PHONES 5 jack on page 19.

CH-1 : The CH-1 channel audio is output.

MIX : CH-1 and CH-2 channel audio are output mixed.

When this setting is selected, the menu screen can be used to select whether the mixed sound or stereo sound should be output via the PHONES jack. (AUDIO MONITOR item on the AUDIO/VIDEO menu screen) When AUDIO MONITOR in the AUDIO/VIDEO menu screen is set to “STEREO”, only the audio of CH-1 is output from the monitoring speaker.

CH-2 : The CH-2 channel audio is output.

☞ See “Outputting CH-3, CH-4 Channel Audio” on page 64. ☞ See “AUDIO/VIDEO Menu Screen” on page 79.

CAUTION:

Make sure to move switches all the way. Do not leave a switch stopped in a midway position. Noise will be generated and operation irregularities will occur.

[COUNTER] Counter display switch

Selects the contents displayed on the TC counter of the LCD monitor or in the viewfinder. (This switch works when the TC/UB item on the LCD/VF (2/2) menu screen is set to ON.)

TC : Set to this position to display time code values. UB : Set to this position to display the user’s bits values.

[TC GENE.] Time code generator setting switch

Switch for setting the time code generator to preset mode or regeneration mode. It is also used to select the time code run mode when the preset mode is selected. PRST-FREE : The preset mode is selected, and the time

code run mode becomes the FREE run mode. Set to this position to record with the time code or user’s bits set anew (preset). In this setting, the time code always operates in the run mode.

* If this setting is used when recording scenes one after

another, the time codes become discontinuous at the transition points between scenes.

PRST-REC : The preset mode is selected, and the time

code run mode becomes the REC run mode. Set to this position to record with the time code or user’s bits set anew (preset). The time code operates in the run mode during recording only. If this setting is used when recording scenes one after another, the time codes are recorded as continuous time codes.

REGEN : Regeneration mode, in which the unit reads

existing time codes on the tape and records time codes in continuation of the existing ones. Set to this position when you want to add additional time codes to time codes already recorded on the tape.

MEMO:

Preset of time code and user’s bits is performed on the TC/UB/CLOCK menu.

☞ See “TIME CODE OPERATION” on page 67. ☞ See “TC/UB/CLOCK Menu Screen” on page 83.

2-3 Left Side Section

LINE OUT

CH-1

MONITOR OUT

Y/C OUT

CH-2

ewq

2. CONTROLS, INDICATORS AND CONNECTORS

FRONT MIC IN

LENS

1 [MONITOR OUT] Monitor output connector (BNC)

● Composite video signal output connector.

● Video signals with setup level are output.

(Whether or not setup level output should be enabled or disabled can be selected with the SETUP item on the AUDIO/VIDEO menu screen.) Camera mode: The camera image is output. VTR mode: The playback image is output in the VTR playback mode. When a DV signal (IEEE1394) is input, the EE image of the input video signal is output.

MEMO:

● When the OUTPUT CHAR. item on the OTHERS (1/2) menu screen is set to ON, the same on-screen indications as those on the viewfinder will be shown on the external monitor. (Black and white indications)

● The setup signal can be selected also for the EE output signal of the DV input.

2 [Y/C OUT] Y/C output connector (4-pin)

● Output connector for separate YC video signal.

● Video signals with setup level are output. (Whether or

not setup level output should be enabled or disabled can be selected with the SETUP item on the AUDIO/VIDEO menu screen.) Camera mode: The camera image is output. VTR mode: The playback image is output in the VTR playback mode. When a DV signal (IEEE1394) is input, the EE image of the input video signal is output.

MEMO:

● When the ASPECT RATIO item on the CAMERA OPERATION menu screen is set to LETTER or SQUEEZE, 16:9 aspect ratio distinction ID signal is output.

● The setup signal can be selected also for the EE output signal of the DV input.

3 [CH-1/CH-2 LINE OUT] CH-1/CH-2 line output

connector (RCA)

Output connector for audio signals.

● Outputs the input audio signal in the Camera mode.

● Outputs the playback audio signal in the VTR mode.

● When a DV signal (IEEE1394) is input, the EE sound of

the input audio signal is output in the VTR mode.

MEMO:

● Alarm sound is not output.

4 Microphone attachment holes

For attaching the microphone holder KA-A50U (optional) when the optional microphone MV-P615U or MV-P618U is used. ☞ See “Attaching the Microphone (optional)” on page 33.

2. CONTROLS, INDICATORS AND CONNECTORS

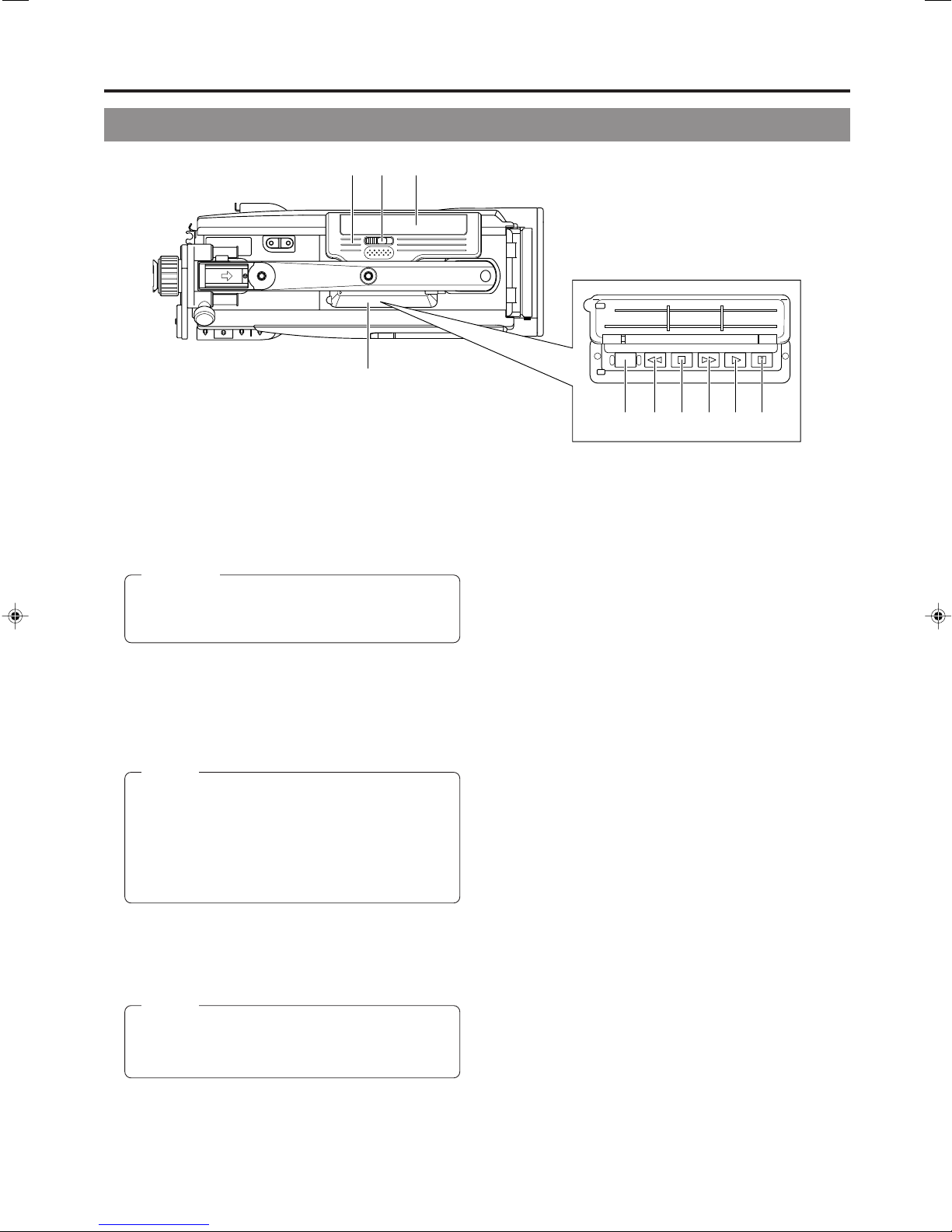

2-4 Top Section

we q

1 Cassette cover

The cassette cover can be opened by sliding the OPEN knob 2. Open this cover to insert or remove a videocassette from the unit. Normally, this cover should be closed.

CAUTION:

To prevent foreign objects from entering the internal parts of the VTR unit, do not leave the unit with the cover open for extended periods of time.

2 [OPEN] Cassette cover lock knob

Slide this knob to open the cassette cover.

3 [EJECT] button

Located inside the cassette cover. Press this button to eject the videocassette.

MEMO:

● It takes a few seconds before the videocassette is ejected. Do not close the cassette cover during the eject operation.

● Do not touch the cassette insertion slot or cassette during the eject operation. This could result in damage.

● Eject operation is not possible while the power is off.

4 Operation cover

Open this cover when operating in the playback mode. Otherwise, keep this cover closed. This cover can be opened by sliding it to the side.

MEMO:

When the STOP button (6) is pressed in the Camera mode to set the VTR operation mode indicator to indicate STOP, playback operations become possible.

BLANK SEARCH

!0 o

FF PLAY

y t u

STILLSTOPREW

5 [PLAY] button

Press to start playback. During still picture playback and search mode, press this button to return to the normal playback mode. * If the auto tracking is active at the moment the play mode

is entered, the playback video will be interfered with digital noise.

6 [STOP] button

Press to enter the stop mode.

7 [STILL] button

Press to enter the still picture mode during playback, in the stop mode or in the search mode. When the still picture mode has continued for about 3 minutes, the unit automatically switches to the stop mode. (Tape protect mode)

8 [FF] Fast forward button

Press this button to fast forward the tape.

● Pressing this button in the stop or rewind mode initiates the fast forward mode.

● Pressing this button during playback, still picture playback or reverse search initiates forward search.

9 [REW] Rewind button

Press this button to rewind the tape.

● Pressing this button in the stop or fast forward mode initiates the rewind mode.

● Pressing this button during playback, still picture playback or forward search initiates reverse search.

0 [BLANK SEARCH] button

Press this button to locate blank parts (unrecorded parts) on the tape, such as the end point of a recording. Blank search starts when this button is pressed in the stop mode. When a blank part (unrecorded part) on the tape is detected, the unit enters the STILL status in the VTR mode and the Standby status in the Camera mode.

2. CONTROLS, INDICATORS AND CONNECTORS

2-5 Rear Section

PHONES

INT

DC OUT

DC IN

re w

1 [TALLY] Tally lamp

This lamp lights up when the GY-DV5100 enters the record mode. It blinks during the transition to the record mode.

● Use the BACK TALLY item on the OTHERS (2/2) menu screen to select whether or not the lamp should light and the lighting pattern. ☞ See “BACK TALLY” on page 87.

2 [CH-1/CH-2 REAR AUDIO IN] CH-1/CH-2 Audio

input connector on the rear section

Connect external audio equipment or a microphone to this connector.

● Set the CH-1/CH-2 REAR AUDIO IN switch B on page 16 in accordance with the connected equipment.

● To record the audio signal input through this connector, set the CH-1 or CH-2 AUDIO IN switch 0 on page 16 to “REAR”. The audio from this connector is recorded on the channel set to “REAR”.

No. Signal

3 [DC IN] DC input connector (XLR 4-pin)

Power input connector for 12 V DC. Connect to the optional AA-P250 power adapter. When a cable is connected here, the power supply from the battery pack is interrupted and the source is switched to the power supplied through this connector.

1 4

TALLY

CH-2

CH-1

REAR AUDIO IN

GND

HOT

COLD

No. Signal

GND

—

+12V

4 [DC OUT] DC output connector

Connector for power output to a wireless microphone transmitter, etc. The supply voltage is identical to the voltage supplied to the unit (DC 17 V max. 0.3 A).

No. Signal

GND

—

DC 12V (power through)

(Surface profile)

5 [PHONES] Earphone jack

This is a stereo mini-jack for connecting an earphone for audio monitoring. Plug in an earphone or headphone with a 3.5 mm diameter plug. The earphone can also be used to monitor alarm tones in accordance with the circumstances. The sound from the monitoring speaker is interrupted when an earphone is connected here. The audio channel to be output is selected with the AUDIO SELECT item on the AUDIO/VIDEO menu screen and MONITOR SELECT switch C on page 16. The audio output level is adjusted with the Audio monitor volume control 1 on page 12.

MEMO:

● The volume of the alarm sound is set with the ALARM VR LEVEL item on the OTHERS (2/2) menu screen.

● When using a stereotype jack and stereo sound should be output, the following setting should be performed. Set the MONITOR SELECT switch to “MIX”. Set the AUDIO MONITOR item on the AUDIO/VIDEO menu screen to STEREO.

6 [DV/INT]DV/INT selector switch

This switch is used to select whether to connect the optional DV Disk Recorder to this camera or a digital video component to the 7 DV connector. DV: Connect a digital video component to the DV

connector INT: Connect a DV Disk Recorder to the camera * Turn the camera off before using this switch.

7 [DV] connector

Using a DV cable (optional), a digital video component with DV connector can be connected here. This connector is used for input and output of the DV signal or to input the VTR control signal from a digital video component with DV connector. To record the DV signal from this connector, set the unit to the VTR mode. (Press the MODE switch F on page 14 upward to turn on the VTR indicator.)

● Camera mode:

The DV compressed signal (IEEE1394) of the camera image is output.

● VTR mode:

The DV input signal from this connector can be recorded on tape. During playback, the tape playback DV compressed signal is output.

MEMO:

To receive FF/REW remote control signals from this connector, select the setting with the REM FF/REW MODE item on the OTHERS (1/2) menu screen.

2. CONTROLS, INDICATORS AND CONNECTORS

2-5 Rear Section (Cont’d)

8 Battery holder

Mount Anton-Bauer battery pack here.

9 Battery release lever

This release lever is used to detach the battery pack. ☞ See “Attaching and Detaching an Anton-Bauer Battery Pack” on page 36.

0 [BREAKER] Breaker button

The breaker trips when the power consumption exceeds the capacity. If the breaker trips, confirm that there are no abnormalities and that the power consumption does not exceed the rated wattage. If no abnormalities are detected, press the BREAKER button before turning the power ON again to put the camera in the operating status. If the unit still does not work normally, please consult the person in charge of professional video equipment at your nearest JVC-authorized service agent.

2. CONTROLS, INDICATORS AND CONNECTORS

2-6 Indications on the LCD Monitor and in the Viewfinder

In addition to showing the EE image and the playback picture, the LCD monitor and viewfinder are also used for the following character displays. To show characters on the LCD monitor, press the DISPLAY button briefly.

■ Status screens (screens for checking the current camera settings)

■ Alarm message display

■ Auto white display (only displayed in the Camera mode)

■ Safety zone display (only displayed in the Camera mode)

■ Menu setting screens

MEMO:

● When the OUTPUT CHAR. item on the OTHERS (1/2) menu screen is set to ON, the character displays mentioned above are also output through the MONITOR OUT connector and Y/C OUT connector.

■ Status Screens

Press the STATUS button while normal screen is displayed to show one of the status screens. The contents of the status display are divided into those for the Camera mode and those for the VTR mode.

● Each time the STATUS button is pressed in the Camera mode, one of four status screens is displayed. (STATUS 0, STATUS 1, STATUS 2, STATUS 3)

● One type of screen is displayed in the VTR mode (DV signal input mode).

MEMO:

● When the STATUS button is pressed for 1 second or longer, the

menu setting screen is displayed. To display the Status screen while the menu setting screen is displayed, press the STATUS button to return to the normal screen.

● The DISPLAY button can be pressed to show characters alone in

magnified size on the LCD monitor.

STATUS button

.3 .4

SHUTTER

AUTO IRIS

FILTER

3200K 5600K 5600K 5600K

ON OFF

EDITSEARCH

STATUS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

MONITOR

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

CH-1 CH-2

AUDIO LEVEL

OPEN

LCD BRIGHT DISPLAY

PULL OPEN

FRONT REAR

CH-1

CH-2 AUDIO INPUT AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

DISPLAY button

● Camera mode (Example of display)

FAS 6dB FAW

STBY

01/02/03 01:23:45

STATUS 3

00:00:00:00

FIL1 F5.6 48k 12.2V

STBY 01/02/03 01:23:45

STATUS 1STATUS 0

FULL AUTO ON GAIN 6dB(L:0 M:9 H:18) SHUTTER 1/1000 WHITE BAL A IRIS LEV. NORMAL FILTER 3200K ZEBRA 70%–80% REMAIN 123 AUDIO 32K(

STBY 01/02/03 01:23:45

min(

CH1 M CH2 M )

STATUS 2

min

SKIN AREA

FAS 6dB FAW

)

● VTR mode (DV signal input mode) (Example of display)

00:00:00:00

PLAY 01/02/03 01:23:45

STATUS

k 12

20min

.2V

2. CONTROLS, INDICATORS AND CONNECTORS

2-6 Indications on the LCD Monitor and in the Viewfinder (Cont’d)

■ Status Screens in the Camera Mode

STBY

●

Status 0

Event display area

01/02/03 AM01:23:45

STATUS 0 Screen STATUS 2 Screen

SKIN AREA

FAS –3dB FAW

00:00:00:00

1 2 3 4 5 6 7

FIL1

F5.6 48k STBY 01/02/03 AM01:23:45

HFGD C

Event display area

STATUS 1 Screen

min

FAS –3dB FAW

SD B

12.2V

FULL AUTO ON GAIN 9dB(L:0 SHUTTER 1/1000 WHITE BAL A IRIS LVL. NORMAL FILTER 3200K ZEBRA 70–80% REMAIN 123min( ) AUDIO 32k(CH1

STBY 01/02/03 AM01:23:45

No. Item Contents

1 Indication of the DV Disk Recorder status Displayed when the optional DV Disk Recorder is connected.

: Displayed (white) when the DV Disk Recorder is

connected.

● : Displayed (red) when the DV Disk Recorder is recording.

2 Indication of various function operations

ACCU-FOCUS

: Blinks during the ACCU-FOCUS operation. SKIN AREA : Blinks while the skin tone detail color area is displayed. ALC : Displayed when ALC function alone is ON. FAS:Displayed when the Full Auto Shooting function is ON. S:Displayed when the SHUTTER function is ON.

3 Gain operation indication * dB : Indicates gain value when gain is other modes than 0 dB, LOLUX

and ALC.

LUX : Indicated when LOLUX is ON.

4 Indication of FAW operation FAW : Indicated when Full Auto White Balance is ON.

5 Indication of Iris level operation I : Indicated when IRIS BACK L or IRIS SPOT L is selected.

6 Indication of skin tone detail color operation SD : Indicated when skin tone detail is ON.

7 Indication of Black operation B : Indicated when BLACK STRETCH or BLACK COMPRESSION is ON.

8 Indication of date and time Indicates the date and time.

Whether or not the date and time should be displayed as well as the display style are set on the TIME/DATE menu.

LCD BRIGHT indication When the brightness of the monitor screen is adjusted with the LCD BRIGHT

button, the date and time indications and the F VTR mode indication are turned off and the LCD BRIGHT indicator is displayed. (Example) BRIGHT +5

Numeric value : Any of –5, –4, –3, –2, –1, 0, +1, +2, +3, +4, +5.

M:9 H:18)

CH2 M)

2. CONTROLS, INDICATORS AND CONNECTORS

9 Event Indication

When the Gain or Shutter Speed is changed manually, the setting condition is displayed for about 3 seconds at the time the change is made.

Setting Condition Contents of Indications

When the gain value is changed GAIN –3 dB, 0dB, 3dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB.

When gain is ALC GAIN ALC

When the LOLUX mode is ON/OFF LOLUX ON, LOLUX OFF

When the AUTO KNEE is ON/OFF AUTO KNEE ON, AUTO KNEE OFF

When the FULL AUTO is ON/OFF FULL AUTO ON, FULL AUTO OFF

When the ZEBRA is ON/OFF ZEBRA ON, ZEBRA OFF

When the shutter speed is changed SHUTTER 1/7.5, 1/15, 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000,

1/10000

When the variable shutter speed is changed V. SHUTTER 1/60.1 to 1/2084.6

When the shutter is OFF SHUTTER OFF (Shutter speed: 1/60)

When the white balance value is changed (Example) WHITE BAL A <3200K>

Numeric value : Any of 2300, 2500, 2800, 3000, 3200, 3400, 3700, 4300, 5200,

5600, 6500, 8000

●

Status 1

In addition to the information on the Status 0 screen, this screen displays the following items.

No. Item Contents

0 Voltage indication (Example) 12.2V: Indicates battery voltage in 0.1V steps.

or (Example)

Battery indication (Example)

Select the display method with the BATTERY INFO item on the LCD/VF (2/2) menu. ☞ See page 82

A Time Code (TC)/User’s Bits (UB) indication Indicates the time code (h:m:s:frame) or user’s bits data.

(Example) Time code TC 00 : 00 : 00 : 00

Whether or not to display this item is set with the TC/UB item on the LCD/ VF (2/2) menu screen. Whether the time code or user’s bits should be shown is selected with the COUNTER switch inside the side cover.

B Remaining tape indication Remaining tape indication (displayed in 1-minute steps)

This indicator blinks when remaining tape time is equivalent to less than 3 minutes. Whether or not to display this item is set with the TAPE REMAIN item on the LCD/VF (2/2) menu screen. * When inserting a brand-new tape, the remaining tape time is not indicated.

When the tape has been run, the indication will appear. * The remaining tape indication is to be regarded only as a guide. * When the unit is used at low temperatures, it may take a while before the

indication of the remaining tape time appears.

C Audio sampling frequency indication 32 K : Indicated when the AUDIO MODE item on the AUDIO/VIDEO menu

48 K : Indicated when the AUDIO MODE item on the AUDIO/VIDEO menu

D Audio level meter indication Displays the CH-1, CH-2 audio level meters.

Whether or not to display this item is set with the AUDIO DISPLAY item on the LCD/VF (2/2) menu.

E Standard audio level indication The level at which audio is recorded on the tape is indicated by “■”.

–20dB, –12dB ☞ See “AUDIO REF. LEVEL” on page 80.

100%: Remaining battery is shown in percentage [%].

60min: Remaining battery is shown in minutes [min].

Non-drop frame: Colon (:)

User’s bits UB FF EE DD 20

screen is set to 32 K. (Audio is recorded with 12-bit, 32 kHz sampling.)

screen is set to 48 K. (Audio is recorded with 16-bit, 48 kHz sampling.)

Drop frame: Dot (.)

–20dB –12dB

❘❘

CH 1 ■ ■ ■ ■ ■

CH 1 ■ ■ ■ ■ ■ – – – + CH 2 ■ ■ ■ ■ ■ – – – +

2. CONTROLS, INDICATORS AND CONNECTORS

2-6 Indications on the LCD Monitor and in the Viewfinder (Cont’d)

No. Item Contents

F VTR mode indication STBY : In record standby mode (record-pause mode)

G Iris indicator display ▲ : Iris set higher than normal

H Iris F-value indication Indicates the F-number of the connected lens.

I Filter position indication Indicates the current filter position

REC : During recording ED.FWD : Edit search in forward direction ED.REV : Edit search in reverse direction PLAY : During playback FF : During fast forward REW : During rewind STL : During still picture playback mode BSRH : During blank search FWD : During playback in forward direction (FWD1: About ×5 speed,

FWD2: About ×9 speed, FWD3: About ×20 speed)

REV : During playback in reverse direction (REV1: About ×5 speed,

REV2: About ×9 speed, REV3: About ×20 speed) STOP : Stop mode (Tape protect mode) EJECT : Cassette being ejected – – – : No tape loaded

■ : Iris set to normal ▼ : Iris set lower than normal

OPEN, F2, F2.8, F4, F5.6, F8, F11, F16, CLOSE It is not displayed when the lens is removed. For some lenses, no display appears. The indication can be switched ON/OFF with the F.NO/IRIS IND. item on the LCD/VF (1/2) menu screen.

FIL1, FIL2, FIL3, FIL4 The indication can be switched ON/OFF with the FILTER item on the LCD/ VF (1/2) menu screen.

●

Status 2

This screen displays the camera setup statuses. Event display is not available while this screen is displayed.

Indication Indication Contents

FULL AUTO ON, OFF

GAIN –3 dB, 0 dB, 3dB, 6 dB, 9 dB, 12 dB, 15dB, 18 dB, LOLUX, ALC

SHUTTER OFF, 1/7.5, 1/15, 1/30, 1/60, 1/100, 1/250. 1/500, 1/1000, 1/2000, 1/4000, 1/10000 (STEP), V.SCAN 1/60.1 to

1/2084.6 (VARIABLE), EEI (in ALC mode)

WHITE BAL A, B, PRESET, FAW

IRIS LEVEL BACK L, NORMAL, SPOT L

FILTER 3200K, 5600K+1/8ND, 5600K, 5600K+1/64ND

ZEBRA 70-80%, 85-95%, OVER95%, OVER100%

REMAIN Remaining tape time (min) or tape type (Example: 95 min ( ))

(when using MiniDV cassette), (when using standard cassette), DVCAM (when using DVCAM cassette)

* DVCAM indicates IC Memory compatible DVCAM cassette.

In the case of other DVCAM cassette than IC Memory compatible cassette, or is indicated.

AUDIO Audio sampling frequency and audio level adjustment method (Example) 32K (CH1 Å CH2 ˜ ) Å (Auto)

˜ (Manual)

●

Status 3

This screen only displays date and time, event display and warning indications. * Whether or not date and time should be displayed and the display style are set on the TIME/DATE MENU screen. ☞ page 45 “Displaying the Time and Date on the Screen”

2. CONTROLS, INDICATORS AND CONNECTORS

■ Status Screen in VTR MODE (DV Signal Input Mode)

00:00:00:00

PLAY 01/02/03 AM01:23:45

Event display area

No. Item Contents

Indication of Time Code (TC)/User’s Bits (UB)

In the playback mode, the recorded time code (hour, minute, second, frame) is displayed. Whether or not to display this item is set with the TC/UB item on the LCD/VF (2/2) menu screen. Whether to show the time code or the user’s bits is selected with the COUNTER switch inside the side cover.

2 Remaining tape time Remaining tape indication (displayed in 1-minute steps)

When the tape has been run, the indication will appear. * The remaining tape indication is to be used only as a guide. * When the unit is used at low temperatures, it may take a while before the

indication of the remaining tape time appears.

3 Indication of the DV Disk Recorder status Displayed when the optional DV Disk Recorder is connected.

: Displayed (white) when the DV Disk Recorder is connected.

● : Displayed (red) when the DV Disk Recorder is recording.

4 Voltage indication (Example) 12.2 V : Indicates battery voltage in 0.1 V steps.

or (Example)

100%: Remaining battery is shown in percentage [%].

Battery indication (Example) 60min: Remaining battery is shown in minutes [min].

Select the display method with the BATTERY INFO item on the LCD/VF (2/2) menu. ☞ See page 82

5 Time/Date indication Recorded data are displayed during playback, fast forward, and rewind.

(Only when the DATE REC item is set to OFF (☞ See page 85)) During recording and stop mode, the data from the DV connector is displayed. Whether or not the date and time should be displayed and the display style are set on the TIME/DATE menu screen. When the date and time have not been set, the following indication appears.

– – / – – / – – – – : – – : – –

6 Audio sampling frequency indication The audio sampling frequency used for the recording is displayed during

playback. (32 K, 48 K, 44.1 K)

7 Audio level meter indication Displays the audio level meters during playback.

Whether or not to display this item is set with the AUDIO item on the LCD/ VF (2/2) menu screen.

8 VTR mode indication Indicates the VTR operation status.

STBY, STOP, PLAY, REC, FF, REW, FWD, REV, STL, BSRH, – – – (No tape loaded), SLOW: During variable playback in forward direction

9 Event display BLANK SEARCH : Indicates that blank search operation is in progress.

min

12.2V

2 3

(SLOW+1: About ×0.1 speed, SLOW+2: About ×0.2 speed, SLOW+3: About ×0.5 speed) During variable playback in reverse direction (SLOW–1: About ×–0.1 speed, SLOW–2: About ×–0.2 speed, SLOW–3: About ×–0.5 speed)

2. CONTROLS, INDICATORS AND CONNECTORS

2-6 Indications on the LCD Monitor and in the Viewfinder (Cont’d)

■ Magnified Status Indications on the LCD Monitor

The characters on the status screens can be showed alone in magnified size on the LCD monitor.

OVER

1020

OVER

109V

1 2 .3 .4

SHUTTER

FILTER

3200K

5600K 5600K

5600K

AUTO IRIS

BACK L NORMAL SPOT L

EDITSEARCH

STATUS

FULL AUTO BLACK LOLUX

STRETCH NORMAL COMPRESS

MONITOR

CH1

3040

∞

48k

CH2

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT

REAR

CH-1 CH-2

CH-1

CH-2

MODE

VTR

CAM

AUDIO IN

AUDIO SELECT

CH-1 CH-2

MANUAL

AUTO

NDF

12 34 34 10

FREE H M S F

PLAY

min

POWER

VTR

ON OFF

■ When the DISPLAY button is pressed while the Status (0, 1,

DISPLAY button

2, 3) screen is shown in the Camera mode, or a status screen is shown in the VTR mode, the displayed contents change every time the DISPLAY button is pressed.

Only image displayed → Characters shown enlarged

↑

Image and characters displayed ←

No. Item Contents

1 Audio Lock Indicator Displayed during recording and playback when the audio signal is locked

to the video signal.

2 Time Code Generator Setting Indicator Indicates the set status of the TC GENE switch on the side section.

FREE : TC GENE switch is set to PRESET-FREE RUN MODE. RECR : TC GENE switch is set to PRESET-REC RUN MODE. REGN : TC GENE switch is set to REGEN MODE.

3 Drop/Non-drop Indicator Displayed during playback of a tape recorded in drop frame or non-drop

frame mode. DF : During playback of a tape recorded in drop frame mode. NDF : During playback of a tape recorded in non-drop frame mode.

4 Time Code Indicator Displays time code. During warnings, messages are displayed here.

☞ see page 27

2. CONTROLS, INDICATORS AND CONNECTORS

■ Alarm Message Display

● The following alarm messages are displayed while the Status(0, 1, 3)

FAS –3dB FAW

.2V

Alarm display area

01/02/03 AM01:23:45

Alarm Indication Contents

PAL INHIBIT Displayed when attempt is made to play back a tape recorded with PAL signal.

REC INHIBIT Displayed when an unrecordable videocassette (the switch on the back of the

cassette is set to “SAVE”) is loaded.

COPY INHIBIT Displayed when attempt is made to record a copy-guarded signal.

LOW VOLTAGE* Displayed when remaining battery power becomes low.

TAPE NEAR END Flashes when the remaining tape is 3 minutes or less in the shooting mode. It is

not shown in the playback mode.

TAPE END Displayed when the tape has reached its end.

INVALID TAPE! Displayed when a data tape for PC use or DVC PRO cassette is used. The tape

is ejected.

LP TAPE INVALID! Displayed when attempt is made to playback a tape recorded in the LP mode.

NO TAPE Displayed when no videocassette is inserted and the VTR trigger button is

pressed.

NO DV SIGNAL Displayed when there is no input to the DV connector and recording is attempted.

COPY GUARD! Displayed when attempt is made to play back a copy-guarded tape.

CLEANING TAPE! Displayed when a head cleaning tape is inserted.

HEAD CLEANING REQUIRED! Displayed when head is clogged. Head cleaning is necessary.

CLOSE CASSETTE COVER! Displayed when operation is attempted while the cassette cover is open.

OPEN CASSETTE COVER! Displayed when the cassette cover is closed during the eject operation.

VTR WARNING (Error code)* Displayed in case abnormalities occur in the VCR, or when condensation occurs (Example) 7001 in the unit. For details, ☞ see page 97.

DRUM MOTOR FAILURE

* When displaying enlarged characters, only LOW VOLTAGE and VTR WARNING are displayed.

screen is shown in the Camera mode, or a status screen is shown in the VTR mode. If an alarm is generated while the Status 2 screen is shown, the Status 0 screen returns to display the alarm.

● When an abnormality occurs in the VTR, a warning message with an error code is displayed.

2. CONTROLS, INDICATORS AND CONNECTORS

2-6 Indications on the LCD Monitor and in the Viewfinder (Cont’d)

■ Auto White Balance Indication (Camera mode only)

The AUTO WHITE indication and the result of the operation are displayed during the auto white balance adjustment operation. ☞ See “White Balance Adjustment” on page 50.

AUTO WHITE A

■ Safety Zone Indication (Camera mode only)

The indication of the following safety zone and center mark indications can be turned ON/OFF with the SAFETY ZONE item and CENTER MARK item on the LCD/VF (1/2) menu screen. ☞ See page 81.

OPERATION

SAFETY ZONE OFF NORMAL NORMAL 16 : 9 16 : 9 CENTER MARK OFF OFF ON OFF ON

MEMO:

● When the ASPECT RATIO item on the CAMERA OPERATION menu screen is set to LETTER, 16:9 is indicated even if the SAFETY ZONE item is set to NORMAL.

● When the ASPECT RATIO item on the CAMERA OPERATION menu screen is set to SQUEEZE while the SAFETY ZONE item is set to 16:9, the SAFETY ZONE item is set to NORMAL and SAFETY ZONE is displayed in 4:3 ratio.

■ Menu Setting Screen

––– MENU ––– CAMERA OPERATION.. CAMERA PROCESS AUDIO/VIDEO.. LCD/VF.. TC/UB/CLOCK.. OTHERS..

FILE MANAGE.. MENU ALL RESET CANCEL EXIT

TOP MENU screen (Camera mode)

Screen used for making various settings. The Menu Setting Screen appears when the STATUS button is pressed for 1 second or more. ☞ See “Setting Menu Screens” on page 72.

2-7 Lens (Optional)

2. CONTROLS, INDICATORS AND CONNECTORS

[S14 x 7.3B12U]

eqw

RET

!0 !4

1 FOCUS ring

Manual focus ring.

2 ZOOM lever/ring

This is the manual zoom ring equipped with a zoom lever. To adjust the zoom manually, turn the zoom mode knob B to position “M”.

3 IRIS ring

Manual iris ring. To activate the auto iris feature, set the Iris Mode switch 7 to “A”.

4 [VTR] Trigger button

To start/stop shooting.

5 [RET] return video button

The return video signal from the VTR section can be monitored in the viewfinder, LCD and MONITOR OUT while this button is pushed. * The playback picture can be viewed in the viewfinder,

LCD and MONITOR OUT during this operation.

6 ZOOM servo control lever

To operate the servo zoom feature with this lever, set the ZOOM knob B to “S”.

● Pressing the “W” section of this lever increases the angle of the lens for a wider shooting angle.

● Pressing the “T” section of this lever narrows the lens angle perspective for telephoto shots.

● Pushing harder changes the speed of the zoom.

tyuio

!1 !2 !3

7 IRIS mode switch

A : Activates the auto iris feature. M : Allows manual iris control.

8 Momentary auto iris button

When the IRIS MODE switch 7 is at “M”, pushing this button activates the Auto Iris Function while it is held down only.

9 [S] IRIS speed adjusting control

For adjusting the iris operation speed.

MEMO:

If the speed becomes too fast, hunting may occur. To avoid the phenomena described above, perform

adjustment again.

0 FILTER thread

Protect the lens with a clear filter or UV filter by screwing the filter onto the thread inside the lens hood from the front. Other filters can be used for various effects.

CAUTION:

The filter thread section rotates, so pay attention when mounting a polarizing filter.

A ZOOM servo connector

Connect an optional zoom servo unit here.

B ZOOM mode knob

MACRO

S : Servo zoom mode. Allows operation by the zoom servo

control lever 6.

M : Manual zoom mode. Allows zoom control by the zoom

lever/ring 2.

C BACK FOCUS ring/fixing screw

For back focus adjustment only. Secure with the screw knob after adjustment. ☞ See “Back Focus Adjustment” on page 49.

D Macro focusing ring (for close-up shooting)

By rotating this ring in the direction of the arrow, close-up shooting of very small objects becomes possible. Normal focus adjustment and zooming are not available in the macro mode. To shoot images in the macro mode, set the focus ring 1 to the infinite position ( maximum wide-angle position. To adjust the focus of the macro image, rotate this ring in the direction of the arrow until the object is focused.

∞) and the zoom ring 2 to the

CAUTION:

● The back-focus knob is located close to the macro ring, be careful not to mistake the back-focus knob for the macro ring.

● After the required operation, be sure to return the macro focusing ring to the normal position.

☞ See “Attaching the Zoom Lens” on page 32. ☞ See “Back Focus Adjustment” on page 49.

2. CONTROLS, INDICATORS AND CONNECTORS

2-8 1.5-Inch Viewfinder (Optional)

[VF-P115B]

1 Stopper screw

This screw prevents the viewfinder from coming off the camera.

2 Mounting guide

To attach on the camera.

3 Connector

Connect to the camera.

4 [CONT] contrast adjustment

To adjust the contours of the viewfinder image.

5 [BRIGHT] brightness adjustment

To adjust the brightness of the viewfinder.

6 [TALLY] switch

Set this switch to OFF to prevent the tally light 7 from turning on and informing people that they are being recorded. However, the REC indicator lamp in the eyepiece will not turn off.

7 Tally light

Lights when recording is in progress. To prevent this light from coming on, set the tally switch 6 to OFF. Select the lightning method with the FRONT TALLY item on the OTHERS (2/2) menu screen. ☞ See page 87.

8 Eyepiece

Ensures that ambient light does not reach the viewfinder screen or falls into the eye of the cameraman. The eyepiece can be opened to allow direct observation of the viewfinder screen.

9 Eyepiece focusing ring

Loosen this ring to move the eyepiece back or forth to adjust the diopter.

☞ See “Attaching the Viewfinder” on page 32.

3. BASIC SYSTEM CONNECTIONS AND ADJUSTMENTS

3-1 Basic System

* For information on connection with the individual attachments, refer to the page explaining the respective connection methods.

2 SHOULDER BELT

EARPHONE

MICROPHONE

MV-P615U MV-P618U

1.5" VIEW FINDER VF-P115B VF-P116

MIC HOLDER

KA-A50U

VIDEO LIGHT

(ANTON BAUER.

PROTEC)

DV CAMCORDER

MICROPHONE

MACRO

ZOOM LENS S14 × 7.3B12U(FUJINON) S17 × 6.6BRM(FUJINON) S20 × 6.4B12U(FUJINON) YH16 × 7K12U(CANON) YH19 × 6.7K12U(CANON)

FOCUS MANUAL UNIT

1 HZ-FM13 (FUJINON

HZ-FM15 (CANON

ZOOM SERVO UNIT

HZ-ZS13B

1 HZ-FM13 cannot be used with S14 × 7.3B12/U.

)

GY-DV5100

STANDARD

CARRYING CASE

PACKAGE

EDITSEARCH

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

VTR

ON OFF

TRIPOD TP-P300

DOLLY TP-P205

MONITOR

STRETCH NORMAL COMPRESS

AUDIO LEVEL

CH-1 CH-2

MODE

VTR

CAM

TRIPOD BASE

ANTON BAUER

OPEN

LCDBRIGHT DISPLAY

PULL OPEN

FRONT REAR

CH-1

CH-2

AUDIO IN AUDIO SELECT CH-1 CH-2

AUTO

MANUAL

BATTERY HOLDER (QR JVC DIGI)

VC-710 (5m

ANTON BAUER BATTERY (

PRO PAC, MAGNUM

TRIMPAC, HYTRON

BATTERY NP-1B TYPE

BATTERY CHARGER

4P4P

)

AC POWER ADAPTER (

BATTERY CHARGER

AA-P250

IEEE1394 CABLE VC-VDV204(2m)(4P-4P) VC-VDV206(2m)(4P-6P)

Y/C CABLE VCG30, VCG50

BNC CABLE

Please use the Focus Manual Unit (FMM-8, CHF-3, CFC-12-990) manufactured by Fujinon.

2 The optional service parts are required to attach the SHOULDER BELT.

1. PIN (SC46310-001) × 2

2. SPACER (SC46311-001) × 2 For details, please consult your JVC authorized dealer.

ANTON BAUER BATTERY CHARGER

, )

Non-linear Editing SYSTEM

)

DV VTR

BR-DV600A BR-DV3000 BR-DV6000

MONITOR

3. BASIC SYSTEM CONNECTIONS AND ADJUSTMENTS

3-2 Attaching the Zoom Lens

Loosen the mount ring.

Connect the cable connector.

Hole

When unplugging the cable connector, first remove the lens itself. Then grasp this portion and pull out.

Attach the lens with its pin aligned with the hole in the mount.

Tighten the mount ring.

CAUTION:

● Be sure to tighten the mount ring completely. Incomplete tightening may result in the lens dropping off or disturbed back focus.

● Set the GY-DV5100's power switch to “OFF” before the zoom lens is attached or detached.

3-3 Attaching the Viewfinder

By changing the position of the viewfinder mount base on the camera the viewfinder can be observed with either the left or the right eye. When shipped from the factory, the viewfinder mount base is attached so that the viewfinder is mounted for right eye use. After the viewfinder has been attached, the viewfinder can be slid forward.

Sliding securing ring

Screw holes for left eye use

Fastening screws

Stopper screw

Viewfinder mount base

Viewfinder

Cap

HEXAGON WRENCH

Mounting guide

Connector

Sliding securing ring

■ Observing the viewfinder with the left eye

Change the mounting position of the viewfinder mount base.

Loosen the two fastening screws of the viewfinder mount base with an hexagon wrench (Provided) and then remove the viewfinder mount base (including the sliding securing ring).

Remove the cap.

Mount the viewfinder mount base (including the sliding securing ring) at the screw holes for left eye use and tighten the screw with the hexagon wrench (Provided).

Attach the removed cap on the right-eye side.

■ Attaching the Viewfinder

Loosen the stopper screw.

Connect the cable connector.

Attach the viewfinder with its guide aligned with the shoe.

Tighten the stopper screw.

Tighten the sliding securing ring. * Reverse the procedure to remove the viewfinder.

■ Sliding the viewfinder forward

Loosen the sliding securing ring.

Slide the viewfinder forward.

Tighten the sliding securing ring.

CAUTION:

● Set the GY-DV5100’s power switch to “OFF” before the viewfinder is attached or detached.

3. BASIC SYSTEM CONNECTIONS AND ADJUSTMENTS

3-4 Attaching the Microphone (Provided)

Connect the provided microphone to the viewfinder. The

1.3.

Cable clampMicrophone cable

provided microphone is a phantom microphone.

Loosen the stopper screw on the viewfinder.

Attach the microphone to the attachment guide on the viewfinder as illustrated.

Confirm that there is no gap between the microphone and the viewfinder, and then tighten the stopper screw.

Tighten the screw on the microphone. The microphone should be firmly attached.

Connect the cable from the microphone to the FRONT MIC IN connector on the camera.

Set the FRONT MIC +48V switch on the right side of the camera to ON.

Secure the microphone cable using the cable clamp provided on the front side of the microphone holder.

MEMO:

When attaching the viewfinder for use with the left eye, the provided microphone cannot be attached. In this case, use the optional microphone holder KA-A50U and microphones MV-P615U/618U (phantom microphone).

3-5 Attaching the Microphone (Optional)

2,4.

FRONT MIC IN Microphone cable

KA-A50U Microphone holder

MV-P615U/MV-P618U

With the optional KA-A50U microphone holder, the optional microphones MV-P615U (phantom microphone) and MV-P618U (phantom microphone) can be used.

Secure the microphone holder with 2 screws.

Turn the small knob located on the outer side of the microphone holder counterclockwise to loosen it, and loosen the large knob located on the inner side in the same way. Rotate the large knob fully counterclockwise to open the holder.

Attach the microphone to the microphone holder at the designated place so that the microphone does not interfere with the cassette cover.

Set the microphone holder so that the height is level, and tighten the inside and outside knobs to secure the microphone.

Connect the microphone cable to the FRONT MIC IN connector.

● When the microphone is connected to REAR AUDIO IN connector on the rear panel, set the CH-1 or CH-2 AUDIO input selector switch to REAR.

Secure the microphone cable using the cable clamp located on the front side of the microphone holder.

Make sure to perform the correct settings for use of a phantom microphone. ☞ See “FRONT MIC +48V switch

CAUTION:

● When the light mounted on the camera is used at the same time, if the microphone in use has a long sound collecting section, the microphone’s shadow may appear in the image.

” on page 16.

3. BASIC SYSTEM CONNECTIONS AND ADJUSTMENTS

3-6 Attaching the Tripod Base (Provided)

Use the provided tripod base to place the camera on a tripod.

Attach the tripod base on the tripod by using the hole that balances the unit most optimally.

While pushing the safety lever, pull the lock lever toward the front until the front mount clip clicks into place.

Place the unit on the tripod base by aligning the rear base mount of the unit with the pin on the tripod base.

Push the unit from the upward direction and slide it toward the front so that the front base mount of the unit is locked by the front mount clip of the tripod base as it clicks into place.

CAUTION:

● The front base mount may be locked while the pin of the tripod base is not inserted into the hole on the rear base mount of the unit. Therefore, after mounting, make sure that these parts are engaged properly.

● When moving the unit mounted on a tripod, any impact or vibration should be avoided as this may cause the unit to become detached and to drop from the tripod. Be sure to remove the unit from the tripod before transporting it.

Front  base  mount

Front mount clip



2. Safety lever

Tripod mounting holes



3. Pin

Lock lever

Rear base mount

3200K

5600K

SHUTTER

AUTO IRIS

FILTER

ON OFF

EDITSEARCH

STATUS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

STRETCH NORMAL COMPRESS

VTR

MONITOR



OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT REAR

CH-1 CH-2

CH-1

CH-2

MODE

VTR

CAM

CH-1 CH-2

AUDIO INPUT

AUDIO SELECT

AUTO MANUAL

4. POWER SUPPLY

The GY-DV5100 is operable with AC power supply or battery pack.

4-1 AC Operation

Use the JVC AA-P250 AC power adapter (max. rated output 12.5 V DC, 3.5 A) as the AC power supply.

Do not use any power source with large fluctuations in the power source voltage, power sources generating noise, such as ripples or power sources with lower voltage.

AA-P250

AC power adapter

DC cable

TALLY

PHONES

INT

DC IN

DC OUT

CH-1

REAR AUDIO IN

After making sure that the power switches of the GY-DV5100 and of the AA-P250 are set to OFF, connect the DC cable

CH-2

from the AA-P250 to the DC IN connector of the GY-DV5100 as shown in the illustration.

Set the CHARGE/CAMERA switch of the AA-P250 to CAMERA.

Press the POWER switch of the GY-DV5100 to ON. Power is supplied to the VTR section and the camera. * For details, read the instruction manual of the AA-P250.

MEMO:

Do not remove or connect the DC cable while recording is being performed.

4-2 Battery Pack Operation (Optional)

The GY-DV5100 can be operated with the following battery packs.

■ Flat shape type battery pack

■ Anton-Bauer battery pack

● DIONIC 90

● Propack 13/14 Series

● Trimpack 13/14 Series

● Magnum 13/14 Series

● Compack 13/14 Series

● When the DC cable is connected to the DC IN connector, the power supply from the battery pack is interrupted and the power

starts to be supplied through the DC IN connector.

● Do not connect or disconnect the DC cable while operating with a battery pack. The following symptoms may occur if the DC cable is connected or disconnected while operating with a battery pack.

• The power is cut off for a moment when the DC cable is disconnected.

• Noise to the video and audio signals occurs. Audio signal are muted.

● When operation is continued with DC input after the battery pack capacity has been used up, set the POWER switch to OFF after the DC power is applied. Then switch ON again.

● If the GY-DV5100 is left with the battery pack attached, a small amount of power is consumed even if the POWER switch on the GY-DV5100 is set to OFF. Remove the battery pack when the GY-DV5100 is not going to be used.

*A flat shape type battery pack cannot be connected directly

to the camera. It is necessary to mount the optional battery case. Battery case: SCV2978-002 See “Attaching the NP-1B type Battery” on page 36.

4. POWER SUPPLY

4-2 Battery Pack Operation (Optional) (Cont’d)

Attaching and Detaching an Anton-Bauer Battery Pack

Attaching the Battery Pack

Align the 3 guide pins of the battery pack with the guide holes on the battery holder, and push straight to insert the battery pack. The battery cannot be attached properly if the guide pins are not inserted straight.

Slide the battery pack toward the side panel where the cassette cover is located until it clicks. Now the battery pack has been attached.

Detaching the Battery Pack

Release lever

Guide pins

Cassette cover side panel

Guide holes (x3)

Battery pack

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT REAR

CH-2

CH-1

CH-2 AUDIO INPUT AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

Release lever

■ While pushing the release lever, slide the battery

Side panel with display

Battery

pack toward the side panel where the LCD display is located, then pull the battery pack outward to remove.

Attaching the NP-1B type Battery

To use the NP-1 type battery, remove the Anton-Bauer Battery holder and attach the NP-1 type battery holder to the camera. Use the following battery case. Battery case: SCV2978-002 For details, please consult your JVC authorized dealer.

Detaching the Anton-Bauer Battery Holder and Attaching the Battery Case

Be careful of pins.

CAUTION:

The Anton-Bauer Battery Holder has pin connectors. Be careful not to touch these pin terminals when attaching or removing the battery and holder. Doing so may cause injury.

Anton-Bauer Battery holder

Connector Compartment

Black screws A

Remove the four battery holder anchoring screws.

Disconnect the connector and battery holder connector coming out of the camera.

Remove the two black screws A for the battery case.

Remove the bottom portion of the battery case cover downwards.

Mount screws B

Connector

Wire layout

4. POWER SUPPLY

Connect the connector and battery holder connector coming out of the camera.

CAUTION:

Following connection of the connectors, insert them into the connector compartment. Take care not to pinch the wires. This could result in damage.

Attach the battery case with the four mount screws B.

CAUTION:

Mount screws B use M3 × 6 mm screws.

Black screws A

Attach the battery case cover.

Attach the two battery case black screws A.

Using a Flat Shape Type Battery Pack (optional)

Attaching a Flat Shape Type Battery Pack

Open the battery case cover while pushing the lock release lever.

Insert the battery pack into the battery case with its electrodes facing the unit.

Close the battery case cover.

Lock release lever

Be sure to set the POWER switch to OFF before replacing the battery pack.

4. POWER SUPPLY

4-2 Battery Pack Operation (Optional) (Cont’d)

REMAINING BATTERY POWER DISPLAY

To display the remaining battery power accurately, set the BATTERY TYPE item on the OTHERS (2/2) menu screen and BATTERY INFO item on the LCD/VF (2/2) menu screen in accordance with the type of the battery pack in use.

☞ See “BATTERY TYPE” on page 87. ☞ See “BATTERY INFO” on page 82.

When the remaining battery power is nearly exhausted, the following warnings will be generated.

■ Viewfinder screen or LCD monitor When a Status screen is displayed (excluding the Status 2 screen in the Camera mode)

● Alarm indication: LOW VOLTAGE displayed.

■ Viewfinder lamps BATT lamp : Lights ALARM lamp : Blinks

■ BACK TALLY lamp on Camera : Blinks

■ Monitoring loudspeaker and PHONES jack: Alarm sound

After the remaining battery power warnings appear, the GY-DV5100 automatically stops operation if the battery power operation is continued.

CH-1 CH-2

AUDIO LEVEL

LCD BRIGHT DISPLAY

FRONT

REAR

CH-1

CH-2 AUDIO INPUT AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

OPEN

PULL OPEN

Battery lamp

LCD monitor

LOW VOLTAGE

10.5V

TALLY lamp

Viewfinder

LOW VOLTAGE

10.5V

ALARM

BATT

REC/ALARM lamp

REC

Operating Time with Battery Pack

When the VF-P115B is used as the viewfinder and a fully charged battery pack is attached, the approximate continuous operating time is as follows:

Battery Pack

NP-1B (SONY) DIONIC 90 (Anton-Bauer) NP-L50(NP-1B Type) (IDX)

Continuous Operating Time (at 25 ˚C)

60 minutes

300 minutes

180 minutes

PRECAUTIONS FOR THE BATTERY PACK

● When the battery pack is not in use, it must be stored in a cool, dry place. Do not leave the battery pack in a place where it might be subject to a high temperature (under direct sunlight in a car, etc.), this could cause leakage of the fluid or shorten service life.

● When the terminal section of the battery pack gets dirty, the operating time will be shortened.

● If the operating time becomes greatly reduced even immediately after recharging, the service life of the battery pack is nearly finished. Purchase a new battery pack.

● Battery operating time may differ depending on the age of the battery, charging conditions and the operating environment, etc. Use the values in the table on the left for approximate reference times.

● Operating time is reduced in areas with a cold environment.

● Operating time is reduced when the power zoom lens and

LCD are used frequently.

Recharging

● Recharge the battery pack after completely discharging it. Repeated recharging with residual charge remaining could result in reduced battery capacity.

● If the battery capacity is reduced by repeating incomplete recharging, or recharging without discharging, once discharge the battery pack completely, then recharge it to restore the battery capacity.

● If the battery pack is recharged with its internal temperature raised immediately after use, recharging may not be performed completely.

5. PREPARATIONS

AUTO IRIS

BACK L NORMAL SPOT L

STRETCH NORMAL COMPRESS

FULL AUTO BLACK LOLUX

MODE

POWER

ON OFF

VTR

CAM

5-1 Turning the Power ON

FILTER

3200K

5600K

SHUTTER

AUTO IRIS

STATUS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

ON OFF

EDITSEARCH

MONITOR

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

CH-1 CH-2

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT

REAR

CH-1

CH-2 AUDIO INPUT AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

POWER switch

Set the POWER switch to ON. The unit turns on in Camera mode.

■ The operation differs according to whether the unit is in the Camera mode or in the VTR mode. When the MODE switch is pressed upward, the mode is changed. The Camera indicator or VTR indicator comes on in accordance with the selected mode.

Camera mode

Mode

The GY-DV5100 enters the Camera mode. The camera image is displayed in the viewfinder

Operation

or on the LCD monitor. When a recordable videocassette is loaded, the GY-DV5100 enters the record-standby mode automatically. “STBY” is displayed in the VTR operation mode indication area of the LCD monitor or in the viewfinder. In this condition, press the VTR trigger button to start recording. * Playback is also possible in the Camera mode.

Playback operation becomes possible when the STOP button is pressed to set the VTR operation mode indicator to indicate STOP.

MODE switch

MODE indicator

VTR mode

The GY-DV5100 enters the VTR mode. The camera image will not be displayed in the viewfinder or on the LCD monitor. When a videocassette is loaded, the GY-DV5100 enters the stop mode. “STOP” is displayed in the VTR operation mode indication area of the LCD monitor or in the viewfinder. DV input is possible through the DV terminal.

Turning the Power OFF

Place the GY-DV5100 in the record-standby or STOP mode.

Set the POWER switch to OFF.

Remove the battery pack or the power supply to the DC IN connector. (When the camera is not going to be used for a longer period.)

CAUTION:

● Do not set the POWER switch to OFF while recording is taking place.

Confirm that the STBY or STOP indication is shown in the VTR operation mode indication area before the power is turned off. Should the POWER switch accidentally be set to OFF during a recording, wait at least 5 seconds before turning the power on again.

● Always set the POWER switch to OFF before disconnecting the power supply

Do not turn the battery pack or AC power supply OFF while the POWER switch on the camera is still set to ON.

5. PREPARATIONS

5-2 Cassette Loading and Unloading

OPEN knob

Cassette cover

● A cassette cannot be loaded or unloaded while the GY-DV5100 is in POWER OFF mode.

● Use a standard DV videocassette or a MiniDV videocassette.

● Press at the center portion of the cassette back and insert the cassette tape straight into the slot.

Cassette insertion slot

Cassette cover

REC/SAVE switch

Standard DV videocassette

Cassette insertion slot

MiniDV videocassette

Guide

After the cassette cover is closed, it takes about 10 seconds before the unit can start recording or before it enters the STOP mode.

Guide

Loading the Cassette

Set the POWER switch to ON.

Slide the OPEN knob to the side to open the cassette cover.

Insert a videocassette into the cassette slot after removing the tape slack.

■ Insert a standard DV videocassette along the cassette insertion slot by pressing at the center portion of the cassette back.

■ Insert a MiniDV videocassette between the left and right side guides on the cassette insertion slot. The tape window should face outward and the cassette back switch should be up. Press on the center of the back of the videocassette and ensure that it is fully inserted.

After the tape is completely loaded, slowly close the cassette cover by pushing it in all the way.

■ The status when the tape is loaded differs with the mode of the GY-DV5100 (Camera mode or VTR mode) and the condition of the REC/SAVE switch on the back of the cassette as show below.

REC/SAVE Switch

REC SAVE

Camera Record-standby mode STO P mode. REC

INHIBIT is displayed on the LCD monitor and in the viewfinder.

VTR STOP mode

Recording can be started by pressing the VTR trigger button from the record-standby mode.

CAUTION:

Do not attempt to push the cassette all the way in while the cassette is being pulled in automatically. This could result in damage.

Cassette cover

5. PREPARATIONS

OPEN knob

EJECT button

Cassette cover

Unloading the Cassette

Set the POWER switch to ON.

Slide the OPEN knob to the side to open the cassette cover.

Press the EJECT button. Tape ejection starts.

MEMO:

● It takes a few seconds before the cassette is ejected after the EJECT button is pressed.

● If the cassette is difficult to remove even when performing the eject operation, press the EJECT button again.

● Do not close the cassette cover during the eject operation.

Take out the videocassette.

Close the cassette cover.

CAUTION:

● Do not leave the unit for a long period with the cassette cover open. Dirt or other foreign objects may enter the VCR section and cause malfunction.

● Do not touch the cassette insertion slot or cassette during the eject operation. This could result in damage.

5. PREPARATIONS

5-3 Viewing the LCD Monitor

The LCD monitor’s orientation, angle, and brightness, etc. can be changed.

LCD monitor

LCD lock and release knob

■ Opening the LCD monitor

Slide the LCD lock and release knob toward the rear section to open the LCD monitor. Grasp the upper and lower edges of the LCD monitor to open it easily.

LCD door

Upward 180 degrees

Downward 90 degrees

LCD monitor

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT REAR

CH-1 CH-2

CH-1

CH-2 AUDIO INPUT AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

LCD BRIGHT +/– button

DISPLAY button

■ Changing the orientation and angle of the LCD monitor

● With the LCD door in the open position, turn the LCD door. The LCD door can be turned 180 degrees upward and 90 degrees downward.

● If the LCD door is turned 180 degrees upward and housed in the camera body, the LCD monitor can be viewed from outside while it remains housed in the camera body.

LCD monitor

■ Displaying on the LCD monitor

● When the DISPLAY button is pressed for a long time, the display on the LCD monitor is switched between ON and OFF.

● Each time the DISPLAY button is briefly pressed while the LCD monitor is used for display, the contents change as follows.

Image only → Characters displayed magnified

↑

Image and Characters ←

■ Adjusting the LCD monitor

● Brightness of screen : Adjust with the LCD BRIGHT +/–

button.

● Color saturation : Adjust the LCD COLOR item on

the LCD/VF (2/2) menu.

● Contrast of screen : Adjust the LCD PEAKING item on

the LCD/VF (2/2) menu.

LCD/VF (2/2) menu

––– LCD/VF(2/2) ––– BATTERY INFO VOLTAGE TAPE REMAIN ON TC/UB ON AUDIO ON LCD COLOR NORMAL LCD PEAKINGS NORMAL PAGE BACK

5. PREPARATIONS

5-4 Setting, Displaying and Recording the Date and Time

The date and time of the built-in clock should be set. Powered by the built-in backup battery the set date and time data continue to count even when the power is switched off.

● The set date and time data are displayed on the LCD monitor or in the viewfinder and recorded on the tape in accordance with the settings made on the menu screen.

Setting the Date and Time

5600K

SHUTTER dial

SHUTTER

AUTO IRIS

TOP MENU screen

––– MENU ––– CAMERA OPERATION.. CAMERA PROCESS.. AUDIO/VIDEO.. LCD/VF.. TC/UB/CLOCK.. OTHERS..

FILE MANAGE.. MENU ALL RESET CANCEL EXIT

TC/UB/CLOCK menu screen

––– TC/UB/CLOCK ––– TC PRESET 00:00:00:00 EXECUTE UB PRESET 00 00 00 00 EXECUTE

DROP/NON DROP DROP HEADER REC.. TIME/DATE.. PAGE BACK

BACK L

STAT

FULL

LCD BRIGHT DISPLAY

FRONT REAR

CH-1

CH-2 AUDIO INPUT AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

OPEN

PULL OPEN

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

ON OFF

POWER switch

EDITSEARCH

MONITOR

AUDIO LEVEL

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

CH-1 CH-2

STATUS button

● The date and time are set on the CLOCK ADJUST menu screen. When setting while observing on a monitor connected to the VIDEO OUT or Y/C OUT connector, set the OUTPUT CHAR. item on the OTHERS (1/2) menu screen to ON.

Set the POWER switch to ON.

Press the STATUS button for 1 second or longer to display the TOP MENU screen.

Rotate the SHUTTER dial to align the cursor ( ) with the TC/UB/CLOCK item, and then press the SHUTTER dial in the direction of the camera body.

● The TC/UB/CLOCK menu screen appears.

Rotate the SHUTTER dial to align the cursor ( ) with the TIME/DATE item, and then press the SHUTTER dial.

● The TIME/DATE menu screen appears.

TIME/DATE menu screen

––– TIME/DATE ––– DISPLAY ON DISPLAY MODE BARS+CAM DATE REC OFF DISPLAY STYLE DATE+TIME DATE STYLE MM/DD/YY TIME STYLE 24HOUR SEC DISPLAY ON CLOCK ADJUST.. PAGE BACK

MEMO:

The TIME STYLE, SEC DISPLAY and DATE STYLE items can also be set and changed after the date and time have been set.

Make settings on the TIME/DATE menu screen. (This includes display style, etc.) DATE STYLE : Selects the style for displaying the date.

YY/MM/DD (Year, month, day) MM/DD/YY (Month, day, year) DD/MM/YY (Day, month, year)

TIME STYLE : The time can be set to display as a 12-

hour or 24-hour clock system.

SEC DISPLAY :To select whether or not indication of

seconds should be displayed on the screen.

1 Rotate the SHUTTER dial to align the cursor (

the item to be set, and then press the SHUTTER dial.

● The setting area of the selected item starts blinking.

2 Rotate the SHUTTER dial to change the setting, and

then press the SHUTTER dial.

● The setting area stops blinking and the setting is entered.

) with

5. PREPARATIONS

5-4 Setting, Displaying and Recording the Date and Time (Cont’d)

TIME/DATE menu screen

––– TIME/DATE ––– DISPLAY ON DISPLAY MODE BARS+CAM DATE REC OFF DISPLAY STYLE DATE+TIME DATE STYLE MM/DD/YY TIME STYLE 24HOUR SEC DISPLAY ON CLOCK ADJUST.. PAGE BACK

CLOCK ADJUST menu screen

DATE (Year/Month/Day)

––– CLOCK ADJUST ––– DATE(MM/DD/YY) 12/12/02 TIME 09:33 PAGE BACK

Display the screen for setting the date and time. Rotate the SHUTTER dial to align the cursor ( ) with the CLOCK ADJUST item, and then press the SHUTTER dial.

● The CLOCK ADJUST screen appears.

Set the date and time. The blinking digit is the one to be set. 1 When the SHUTTER dial is pressed, the blinking digit

moves to the next digit.

2 When the SHUTTER dial is rotated, the value of the

blinking digit changes. When the SHUTTER dial is rotated upward, the value becomes higher. When rotated downward, the value becomes smaller.

3 Repeat the procedure described in 1 and 2 above to

set the month, day, year, hours, minutes. The digits indicating seconds cannot be set.

4 Press the SHUTTER dial in sync with a time signal to

enter the date and time precisely.

When all the settings are completed, rotate the SHUTTER dial to align the cursor with the PAGE BACK item, and then press the SHUTTER dial.

● The TIME/DATE menu screen returns.

Time (Hour:Min)

To return to the normal screen, use either of the following methods. Press the STATUS button or Return to the TOP MENU screen and then select the EXIT item from the TOP MENU screen before pressing the SHUTTER dial.

Displaying the Time and Date on the Screen

TC/UB/CLOCK menu screen

––– TC/UB/CLOCK ––– TC PRESET 00:00:00:00 EXECUTE UB PRESET 00 00 00 00 EXECUTE DROP/NON DROP DROP HEADER REC.. TIME/DATE.. PAGE BACK

TIME/DATE menu screen

––– TIME/DATE ––– DISPLAY ON DISPLAY MODE BARS+CAM DATE REC OFF DISPLAY STYLE DATE+TIME DATE STYLE MM/DD/YY TIME STYLE 24HOUR SEC DISPLAY ON CLOCK ADJUST..

PAGE BACK

01/02/03 AM01:23:45

Date

Time

FAS –3dB FAW

.2V

5. PREPARATIONS

Whether or not the time and date should be displayed on the screen and how to display them are set on the TIME/DATE menu screen.

Display the TIME/DATE menu screen. 1 Select the TC/UB/CLOCK item on the TOP MENU

screen.

2 Select the TIME/DATE item on the TC/UB/CLOCK menu

screen.

Set the TIME/DATE menu screen.

● DISPLAY item : Sets whether or not date and

MEMO:

To display the date and time recorded on the tape, set the DATE REC item to OFF. When the DATE REC item is set to BARS or BARS+CAM, the date and time recorded on the tape are not displayed even if this item is set to ON.

● DISPLAY MODE item : Sets the video output mode in

BARS : Displayed when the OUTPUT switch

CAM : Displayed when the OUTPUT switch

BARS + CAM : Date and time are always displayed.

● DISPLAY STYLE : Sets the style in which the date and

DATE + TIME : Date and time are displayed. DATE : Date only is displayed. TIME :Time only is displayed.

■ Display of date and time in the various operation modes. In Camera mode : The date and time of the internal

In VTR playback mode : The date and time recorded on the

In VTR stop mode : The last read date and time values

During DV signal input: The date and time from the DV

time should be displayed. Set to ON to display the indications.

which date and time should be displayed.

on the side section is set to BARS.

on the side section is set to CAM.

time are displayed.

clock are displayed.

tape are displayed. (Only when the DATE REC item is set to OFF.)

are displayed.

connector are displayed.

Recording the Date and Time Data

TIME/DATE menu screen

––– TIME/DATE ––– DISPLAY ON DISPLAY MODE BARS+CAM DATE REC BARS+CAM DISPLAY STYLE DATE+TIME DATE STYLE MM/DD/YY TIME STYLE 24HOUR SEC DISPLAY ON CLOCK ADJUST.. PAGE BACK

To record the date and time data during shooting, make the menu settings described below. When the DATE REC item on the TIME/DATE screen is set to “BARS” or “BARS+CAM” while ASPECT RATIO item in CAMERA OPERATION menu is set to LETTER, the screen size will be fixed at an aspect ratio of 4:3.

■ Setting the TIME/DATE menu

● DISPLAY item : Set to ON.

● DATE REC item : Select the video mode in which date

and time data should be recorded.

BARS : Date and time data are recorded only

when color bars are output.

BARS+CAM : Date and time data are recorded when

color bars and camera image are output.

OFF : Date and time data are not recorded.

MEMO:

DATE REC cannot be set during recording.

5. PREPARATIONS

5-5 Charging the Built-in Battery

The built-in, rechargeable backup battery retains the date and time and the time code data. The built-in battery is constantly being charge whenever the GY-DV5100 is connected to a power supply, but it gradually discharges while the GY-DV5100 is disconnected from a power supply. The battery will be fully discharged when the GY-DV5100 is not used for about three months, in which case the set date and time and time code data are reset. In this case, recharge the built-in battery and then set the date and time and time code data again. However, it is possible to use the GY-DV5100 even if the bulit-in battery is discharged but the date and time and time code data cannot be recorded.

■ How to charge

AC outlet

AA-P250

TALLY

PHONES

INT

DC cable

AC power adapter

DC IN

DC OUT

CH-2

CH-1

REAR AUDIO IN

Connect the provided AC adapter AA-P250 to the GY-DV5100 and an AC outlet or mount a charged battery on the GY-DV5100.

Set the POWER switch on the GY-DV5100 to “OFF” or “ON” (charging takes places with the POWER switch set to either of the positions.)

Leave the equipment in this condition for about 4 hours.

● The built-in battery will remain charged for about 3 months after being charged for about 4 hours.

6. SETTING AND ADJUSTMENTS BEFORE SHOOTING

CAM

BARS

OFF

6-1 Camera Settings

POWER SUPPLY 1 First place a charged battery pack in the battery case on

GAIN

AUDIO LEVEL

LCD BRIGHT DISPLAY

FRONT REAR

CH-1

AUDIO INPUT AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

CH-2

OPEN

PULL OPEN

CAM indicator

EDITSEARCH

MONITOR

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

MODE

BACK L

STRETCH

VTR

NORMAL

NORMAL SPOT L

COMPRESS

CAM

POWER

VTR

ON OFF

CAM

OFF

AUTOKNEE

MODE

WHT.BAL

PRST BA

OUTPUT

BARS

ON OFF

POWER

CH-1 CH-2

VTR

ADCB

the rear section of the unit. If battery pack is not used, connect DC power to the DC INPUT connector on the rear section of the unit using the AC power adapter (AAP250) to supply DC 12 V current.

2 Set the POWER switch to ON.

SWITCH positions A. MODE switch: Camera mode (CAM indicator should be

on).

B. [GAIN] switch: Set to L. The L position is always 0 dB. C. [OUTPUT] switch: Set to CAM-AUTO KNEE OFF. D. [WHT. BAL] (Auto White Balance) switch: Set to A or B.

Set the lens’ iris mode switch to “A” (AUTO IRIS side)

Choose the proper color temperature conversion filter.

FILTER Suitable Location

1 3200K Indoors, dark outdoors

25600K+1/8ND Outdoors under clear sky

3 5600K Outdoors

4 5600K+1/64ND

Outdoors under extremely bright conditions

Using the SHUTTER dial, set the shutter speed to OFF (1/60).

ZEBRA

OFF

SKIN

AUTO

AREA

WHITE

ACCU FOCUS

VTR

AUDIO

LEVEL CH-1

6-2 Screen Size (4:3/LETTER/SQUEEZE) Mode Selection

The screen size of recorded images can be selected with the ASPECT RATIO item on the CAMERA OPERATION menu screen. ☞ See page 75.

● To record using the standard screen, set ASPECT RATIO to 4:3.

● When ASPECT RATIO is set to LETTER, the image is recorded in a 16:9 aspect ratio with the upper and lower parts of the image

cut. In this case, the viewfinder screen or LCD will show the 16:9 aspect ratio image with the upper and lower parts of the image cut.

● When the ASPECT RATIO is set to SQUEEZE, 16:9 image is output vertically squeezed to fit 4:3 screens.

MEMO:

● The safety zone of the standard screen and the 16:9 screen can be displayed in the viewfinder or LCD by setting the SAFETY ZONE item on the LCD/VF (1/2) menu screen. ☞ See page 81.

● When ASPECT RATIO is set to LETTER or SQUEEZE, 16:9 aspect ratio distinction ID signal is output from the Y/C OUT terminal.

● When the DATE REC item on the TIME/DATE screen is set to “BARS” or “BARS+CAM” while ASPECT RATIO item in CAMERA OPERATION menu is set to LETTER, the screen size will be fixed at an aspect ratio of 4:3.

6. SETTING AND ADJUSTMENTS BEFORE SHOOTING

6-3 Viewfinder Adjustment

Adjust the position and angle of the viewfinder.

Eyepiece

focusing ring

Eyepiece

CONT

BRIGHT

Diopter adjustment Rotate the eyepiece focusing ring until the viewfinder screen image is clearly visible.

Brightness and contrast adjustment When the ambient brightness changes, etc., the brightness and contrast of the viewfinder screen can be adjusted with the BRIGHT and CONT controls.

MEMO:

The screen size of the viewfinder can be changed by selecting the desired size with the ASPECT RATIO item on the CAMERA OPERATION menu screen (4:3 or LETTER).

6-4 External Monitor Adjustment

Display the camera built-in color bar signal on the video monitor and adjust the colors, contrast and brightness.

Color video monitor

Connect a color video monitor to the MONITOR OUT connector of the GY-DV5100.

Set the COLOR BARS/CAMERA/AUTO KNEE switch to BARS to output the color bar signal (SMPTE type color bars).

LINE OUT

CH-1

Y/C OUT

MONITOR OUT

3.~8.

CH-2

POWER

ON OFF

■ SMPTE type color bars

White Yellow Cyan Green Magenta Red Blue

1 2345 6

Blue Black Magenta Black Cyan Black White

8 90AB C

Black White Black

EF G HIJK

VTR

Set the monitor’s BLUE CHECK function to ON while the color bars are being displayed so that the screen turns entirely blue and the color bars become blue stripes.

Adjust the CHROMA control of the monitor so that there is no difference in brightness between the color bars 1 and 8, 7 and D.

With the BLUE CHECK function ON, adjust the PHASE control of the monitor so that there is no difference in brightness between the color bars 3 and 0, 5 and B.

If the phase control adjustment above causes a difference in brightness between the color bars 1 and 8, 7 and D, start again from the CHROMA control adjustment in step

Set the monitor’s BLUE CHECK function to OFF to switch the monitor back to the standard screen (R, G and B will all appear).

Use the monitor's brightness control to adjust so that the color bars H and I disappear but J is visible.

6. SETTING AND ADJUSTMENTS BEFORE SHOOTING

6-5 Back Focus Adjustment

RET

4. 6. 5.3.

It is only necessary to perform this when the lens is attached for the first time or when focusing is not correct in both the telephoto and wide-angle positions.

It is easier to adjust back focus when the subject is more than 3 meters from the camera. The optimal subject for this adjustment is a Siemens star chart.

M A

MACRO

7. 8. 10.2.

Set the IRIS mode switch to M (Manual).

Set the zoom mode to M (Manual).

Open the iris by turning the iris ring. If the illumination is too strong, reduce it or move to a darker place.

Turn the zoom lever until the lens is at the maximum telephoto position.

Bring the subject into focus.

Set the lens to maximum wide-angle.

Loosen the back focus ring retaining knob.

View the same subject and adjust the back focus ring for the best possible focus.

Repeat steps 4. through 8. about three times for fine adjustment until the subject remains in focus in both the telephoto position and the wide-angle position.

Siemens star chart

10.

Tighten the back focus ring retaining knob to secure the ring.

MEMO:

ACCU FOCUS can also be used in the above step 3.

6. SETTING AND ADJUSTMENTS BEFORE SHOOTING

6-6 White Balance Adjustment

Since the color of light (color temperature) varies depending on the light source, it is necessary to re-adjust the white balance when the main light source illuminating the subject changes.

Note

When a subject illuminated by a halogen lamp with a color temperature of 3,200K is shot while the color temperature conversion filter setting is set to 5,600K, 5,600K+1/8 ND, or 5,600K+1/64 ND, a proper white balance adjustment and (FAW) Full Time Auto White balance may not be accomplishable. In this case, change the color temperature conversion filter setting to 3,200K and then carry out the white balance adjustment and (FAW) again.

● Do not adjust using any highly reflective objects, such as metal, etc., as this may result in improper white balance adjustment.

WHITE BALANCE ADJUSTMENT

FILTER knob

Iris mode

switch

WHT.BAL

switch OUTPUT

switch POWER

switch

AUTO WHITE A

OPERATION

During operation

AUTO WHITE A

NG:OBJECT

Improper object

AUTO WHITE A

ERROR:OVER LIGHT

Excessive illumination

AUTO WHT.

/ACCU FOCUS switch

AUTO WHITE A

OK <3200K>

Result message

AUTO WHITE A

ERROR:LOW LIGHT

Insufficient illumination

FULL-TIME AUTO WHITE BALANCE (FAW)

Two kinds of white balance adjustment results can be stored in memories AUTO A and AUTO B.

䡲 Adjustment procedure

Set the following switches.

● Set the POWER switch to ON.

● Set the OUTPUT switch to CAM-AUTO KNEE.

● Set the IRIS mode switch of the lens to A (Auto).

Set the FILTER knob according to the current lighting.

Set the WHT.BAL switch to A or B.

Place a white object near the centre of the screen under the same lighting conditions as the target subject and zoom in to fill the screen with white.

Tilt the AUTO WHT./ACCU FOCUS switch upward (to AUTO WHITE) once and release it. “AUTO WHITE A, B OPERATION” is displayed in the viewfinder while the auto white balance adjustment circuit operates. When correct white balance is obtained, the approximate color temperature is displayed together with “AUTO WHITE A, B OK” for about 5 seconds.

Error messages

If the adjustment ends abnormally, an error message, as described below, blinks for about 5 seconds.

● NG: OBJECT (Improper object)

Displayed when there is not enough white color on an object or the color temperature is not suitable. Replace the color temperature conversion filter or use another white object and re-adjust the white balance.

● ERROR: LOW LIGHT (Insufficient illumination)

Displayed when the illumination is dim. Increase the illumination and then re-adjust the white balance.

● ERROR: OVER LIGHT (Excessive illumination)

Displayed when the light is excessively bright. Decrease the illumination and then re-adjust the white balance.

The FAW function adjusts the white balance value automatically as the lighting condition changes.

This mode is convenient when you have no time to adjust the white balance or when the camera is moved frequently in and out of places under different lighting conditions.

■ Setting procedure

The FAW function can be activated with the FAW item on the CAMERA OPERATION menu screen. The FAW function can be allocated to one of the white balance switching switches A, B, or PRESET. ☞ See “CAMERA OPERATION menu screen” on page 75.

CAUTION:

● The FAW (Full-time Auto White balance) function cannot provide optimum white balance with a subject outside the FAW adjustment range, for example when it contains only a single color or not enough white color.

● The accuracy of the FAW (Full-time Auto White balance) is inferior to that of the Auto white balance.

● When the power is turned on with the FAW mode selected, it takes about 10 seconds for the FAW adjustment to be completed. Do not shoot within this interval.

6. SETTING AND ADJUSTMENTS BEFORE SHOOTING

6-7 Audio Input Signal Selection

EDITSEARCH

ZEBRA

OFF

SKIN

AUTO

AREA

WHITE

ACCU FOCUS

VTR

AUDIO

LEVEL CH-1

FILTER

3200K

5600K

SHUTTER

AUTO IRIS

BACK L NORMAL SPOT L

ON OFF

1 8

1 64

STATUS

POWER

FULL AUTO BLACK LOLUX

STRETCH NORMAL COMPRESS

VTR

MONITOR

FRONT MIC IN connector

CH-1 AUDIO IN switch CH-2 AUDIO IN switch

FRONT MIC +48V (ON/OFF) switch

REAR AUDIO IN

AUDIO

CH-1 CH-2

LEVEL

FRONT MIC +48V

OFF

(LINE/MIC) switch

The GY-DV5100 is provided with the FRONT MIC IN connector and the REAR AUDIO IN connector for audio input. Two channels of sound can be recorded on the tape in digital PCM format. Using the AUDIO IN switch, select for each channel (CH-1 and CH-2) whether the sound to be recorded should be the sound from the FRONT MIC IN connector or the sound from the REAR AUDIO IN connector.

■ Selecting the CH-1 channel input sound

Make the selection using the CH-1 AUDIO IN switch. FRONT : The sound from the FRONT MIC IN connector is

recorded on the CH-1 channel.

REAR : The sound from the REAR AUDIO IN connector is

recorded on the CH-1 channel.

■ Selecting the CH-2 channel input sound

Make the selection using the CH-2 AUDIO IN switch. FRONT : The sound from the FRONT MIC IN connector is

recorded on the CH-2 channel.

REAR : The sound from the REAR AUDIO IN connector is

recorded on the CH-2 channel.

■ Selecting the FRONT MIC IN connector

Select the microphone to connect to the FRONT MIC IN connector using the FRONT MIC +48V (ON/OFF) switch. ON: Set to this position when a microphone requiring

+48 V power supply (phantom microphone) is connected. Use this setting to connect the included microphone to the FRONT MIC IN connector.

OFF: Set to this position when connecting a

microphone that does not require +48 V power supply.

CAUTION:

Before connecting a component that does not require +48 V power supply, make sure that the FRONT MIC +48V (ON/ OFF) switch is not set to ON. Neglecting this could cause damage to the connected component..

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT

REAR

CH-1 CH-2

CH-1

CH-2

LCD BRIGHT DISPLAY

COUNTER

FRONT

REAR

CH-2

AUDIO IN

AUDIO SELECT

TC GENE.

PRST

AUTO

MANUAL

REGEN

AUDIO SELECT

CH-1 CH-2

AUDIO IN

AUTO

MANUAL

FREE REC

MODE

VTR

CAM

MONITOR

SELECT

CH-1

MIX

CH-2

CH-1

REAR

AUDIO IN

CH-1 CH-2

LINE MIC +48V

■ Selecting the REAR AUDIO IN connector

Select the sound to be input to the REAR AUDIO IN connector using the REAR AUDIO IN (LINE/MIC) switch. The setting is made individually for both the REAR AUDIO IN connector. LINE : Set to this position when connected to audio

equipment, etc. The reference input level is +4 dBs.

MIC : Set to this position when using a monaural

microphone. The reference input level is –60 dBs.

+48 V : Set to this position when a microphone

(phantom microphone) requiring +48 V DC power supply is connected.

CAUTION:

Before connecting a component that does not require +48 V power supply, make sure that the REAR AUDIO IN (LINE/ MIC) switch is not set to +48 V. Neglecting this could cause damage to the connected component.

TALLY

PHONES

INT

DC IN

DC OUT

CH-1

REAR AUDIO IN

CH-2

REAR AUDIO IN connector

6. SETTING AND ADJUSTMENTS BEFORE SHOOTING

6-8 Recording Level Adjustment

EDITSEARCH

ZEBRA

OFF

SKIN

AUTO

AREA

WHITE

ACCU FOCUS

VTR

AUDIO

LEVEL CH-1

CH-1 audio input level control

CH-1 audio input level control CH-2 audio input level control

3200K

5600K

SHUTTER

AUTO IRIS

FILTER

ON OFF

STATUS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

MONITOR

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

For each audio channel, use the AUDIO SELECT switches to select whether the audio level adjustment should be set to AUTO mode or MANUAL mode.

● When set to AUTO : Audio input level is fixed. In this

mode, the audio input level control does not function.

● When set to MANUAL: Audio input level can be adjusted

using the audio input level controls for each audio input. (The AUTO mode is selected in the Full Auto shooting mode.)

MEMO:

The reference level for audio recorded on the tape can be set with the AUDIO REF. LEVEL item on the AUDIO/VIDEO menu screen. (–20 dB or –12 dB). The level will change for both CH-1 and CH-2.

■ Adjusting the audio input level control on the front section

The audio input level control on the front section only affects the CH-1 channel sound. To use the audio input level control on the front section, make the following settings.

● Set the CH-1 AUDIO SELECT switch to MANUAL.

● Set the CH1 FRONT VR. item on the AUDIO/VIDEO menu

screen to ENABLE.

MEMO:

The audio input level controls on the side section work regardless of the setting of CH1 FRONT VR. item on the AUDIO/VIDEO menu screen.

The audio input level can be adjusted manually when the GYDV5100 is in the record, record-standby or stop mode.

Set the AUDIO SELECT switch of the channel whose audio level that you want to adjust manually to MANUAL.

Rotate the audio input level control corresponding to the audio input level to be adjusted.

● Adjust so that the peak level does not exceed the –3dB point when a loud sound is input.

AUDIO LEVEL

LCD BRIGHT DISPLAY

FRONT

REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

CH-2 AUDIO

PULL OPEN

CH-1 CH-2

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT

REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

CH-1 CH-2

CH-1 AUDIO SELECT switch

SELECT switch

■ Using the audio input level control on the front section

Set the audio input level control on the front section to

maximum (10) position. Initially, adjust the audio input level using the CH-1 audio

input level control on the side. If a loud sound is input during recording, use the audio

input level control on the front section to lower the audio input level.

Viewfinder Status 1 Mode

00:00:00:00

FIL1

F5.6 ED.FWD 01/02/03 AM01:23:45

48k 12.2V

min

FAS –3dB FAW

SD B

Audio level

Indicator level (reference)

∞ –26 –20 –15 –11 –7 –3 0dB OVER

CAUTION:

● When the REAR AUDIO IN LINE/MIC switch is set to MIC, be sure to check that the microphone is connected to the REAR AUDIO IN connector. If the microphone is not connected, increasing the audio level could cause noise from the input connector to be recorded on the tape. When the microphone is not connected to the REAR AUDIO IN connector, set the REAR AUDIO IN LINE/MIC switch to LINE or turn down the audio level control.

● In the Full Auto shooting mode, the audio level volume cannot be adjusted with the audio level controls on the front and side sections.

6. SETTING AND ADJUSTMENTS BEFORE SHOOTING

6-9 Monitoring Audio during Recording

LCD BRIGHT DISPLAY

FRONT

REAR

CH-1

CH-2 AUDIO INPUT AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

OPEN

PULL OPEN

.3 .4

1 2

SHUTTER

AUTO IRIS

FILTER

3200K 5600K 5600K 5600K

BACK L NORMAL SPOT L

ON OFF

EDITSEARCH

STATUS

FULL AUTO BLACK LOLUX

POWER

MONITOR

AUDIO LEVEL

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

CH-1 CH-2

MONITOR SELECT switch

PHONES jack

AUDIO

CH-1 CH-2

LEVEL

FRONT MIC +48V

LCD BRIGHT DISPLAY

MONITOR SELECT

CH-1 MIX CH-2

REAR

AUDIO IN

CH-1 CH-2

LINE MIC

OFF

+48V

FRONT

REAR

CH-1

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

COUNTER

CH-2

TC GENE.

PRST FREE

REC

REGEN

Monitoring volume

Monitoring speaker

control

The audio input during recording, in record-pause or stop mode can be monitored through the monitoring speaker or earphone.

● The monitoring audio is not output from the speaker while the PHONES jack is in use.

● Select the audio channel to be monitored using the MONITOR SELECT switch.

CH-1 : The sound input to the CH-1 channel is output. MIX : The sound input to the CH-1 and CH-2 channels is

output mixed.

CH-2 : The sound input to the CH-2 channel is output.

● The Monitoring volume control adjusts the monitoring volume.

● The loudspeaker or earphone outputs an alarm tone in the

case of an abnormal condition occurring in the unit. An alarm tone is also output when the tape end is reached or when the battery is running down. The volume of the alarm tone is set with the ALARM VR LEVEL item on the OTHERS (2/2) menu screen. (OFF/LOW/MIDDLE/HIGH)

* Do not increase the audio monitoring volume excessively;

otherwise howling with the camera microphone may occur.

MEMO:

When connecting a stereotype earphone, make the following settings to output stereo sound.

● Set the MONITOR SELECT switch to MIX.

● Set the AUDIO MONITOR item on the AUDIO/VIDEO

menu screen to STEREO.

● When AUDIO MONITOR in the AUDIO/VIDEO menu screen is set to “STEREO”, only the audio of CH-1 is output from the monitoring speaker.

7. SHOOTING OPERATION

7-1 Basic Recording Operation

OPEN knob

ON OFF

Focusing ring

POWER

VTR

7. 8. 9.

FILTER

3200K

5600K

SHUTTER

AUTO IRIS

STATUS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

ON OFF

EDITSEARCH

VTR

MONITOR

MODE

STRETCH NORMAL COMPRESS

VTR

CAM

MODE

EDITSEARCH

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

ON OFF

Zoom ring

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT REAR

CH-1 CH-2

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

VTR

CAM

MONITOR

AUDIO LEVEL

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

CH-1 CH-2

Set the POWER switch to ON.

● Power is supplied to the unit.

The CAM indicator lights up. The GY-DV5100 is in the Camera mode when the CAM indicator is on.

Slide the OPEN switch on the top section to open the cassette cover.

Insert a videocassette into the cassette insertion slot.

● Ensure that the erasure-prevention switch on the back of the cassette is set to REC and insert a videocassette properly. When the cassette is inserted, the tape is loaded and the unit enters the record-standby mode.

● Slowly close the cassette cover.

MEMO:

● Use a standard DV videocassette or a MiniDV videocassette. (When a DVCAM cassette is used for recording, longer recording can be performed than the time indicated on the DVCAM cassette. For the recording time, regard the remaining tape indication displayed on the LCD or in the viewfinder as a guide.)

● Following loading of the cassette and when the POWER switch is turned ON/OFF, the built-in head cleaner will emit a sound while operating. This does not indicate a malfunction.

● After the cassette cover is closed, it takes about 10 seconds before the unit is ready for recording.

Adjust the camera section settings and the white balance.

☞ See “Camera Settings” on page 47. ☞ See “White Balance Adjustment” on page 50.

7. 8. 9.

TALLY lamp

ZEBRA

OFF

SKIN

AREA

VTR

LEVEL CH-1

7. 8. 9.

VTR trigger button

AUTO WHITE

ACCU FOCUS

AUDIO

Point the camera at the subject and determine the angle of view and focus with the zoom lever and the focusing ring.

Start recording. Press the VTR trigger button on the GY-DV5100 to start recording. Once recording has started, the BACK TALLY lamp on the rear section of the unit and the tally lamp on the viewfinder light red, and the REC indication in the viewfinder lights green.

MEMO:

● The lightening conditions of the BACK TALLY lamp on the rear section of the unit and the tally lamp on the viewfinder can be changed by setting the BACK TALLY and FRONT TALLY items on the OTHERS (2/2) menu screen.

● Menu operations cannot be performed when an optional DV Disk Recorder is connected and is recording.

BATT

ALARM

REC

7.8

7. 8. 9.

TALLY lamp

VTR trigger button

7. SHOOTING OPERATION

To stop recording: Press the VTR trigger button on the unit or on the lens section again. The TALLY lamp and REC indicator lamp go out and the unit enters the record-standby mode. When the VTR trigger button is pressed, the unit enters the record-standby mode after rewinding the tape for about 2 seconds (back-spacing).

To restart recording: Press the VTR trigger button on the GY-DV5100 or lens.

10.

Ending recording: Press the VTR trigger button to enter the record-standby mode and perform the following operations as required.

■ When it is required to unload the videocassette:

1 Slide the OPEN knob to open the cassette cover. 2 Press the EJECT button to take out the videocassette.

■ When the power should be turned off

Set the POWER switch to OFF. When the camera is not going to be used for a long period, detach the battery pack.

About the QUICK REC START Mode

If the VTR trigger button is pressed immediately after the videocassette is inserted, the mode becomes the QUICK REC START mode that enables quick start of recording. However, when shooting starts in the middle of the tape, a blank space appears as the new scene will not be linked smoothly with the previous image. Also, the time code does not continue. (Some overlap may also occur.)

7.8.

TALLY lamp

ZEBRA

OFF

SKIN

7. 8. 9.

AUTO

AREA

WHITE

ACCU FOCUS

VTR

AUDIO

LEVEL CH-1

VTR trigger button

CAUTION:

● The unit enters the STOP mode automatically at TAPE END. If this mode continues for 3 minutes, the mode switches to the tape protect mode. ☞ See “LONG PAUSE TIME item on the OTHERS (1/2) menu screen” on page 86.

● If the VTR trigger button is pressed very quickly and repeatedly, or the POWER switch is moved immediately after the trigger button is pressed, the viewfinder REC indicator lamp may blink and the GY-DV5100 may not enter the record mode. To remedy this condition set the POWER switch to OFF and wait for 5 seconds or more before turning the power on again.

● A neat transition to the next recorded scene cannot be guaranteed if a recording is ended by turning the POWER switch or DC power supply OFF, or by removing the battery pack.

● Trial-shooting is always recommended before recording important events to confirm the recording is satisfactory.

● The microphone may pick up the sound of the lens’ iris if the iris is changed abruptly or the iris is manually moved abruptly

during recording. If the sound is found annoying, please purchase an optional microphone in order to move the microphone away from the lens or ensure that the iris is not changed abruptly during shooting.

7. SHOOTING OPERATION

7-2 Searching for Recorded Scenes (Edit Search)

In the record-standby mode, it is possible to search for a scene when you want to check the recorded scene or continue recording from the scene.

EDIT SEARCH

EDITSEARCH

STATUS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

ON OFF

MONITOR

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

CH-1 CH-2

1 2 .3 .4

SHUTTER

AUTO IRIS

FILTER

3200K 5600K 5600K 5600K

Screen indications during Edit Search

During Edit Search, the VTR mode is indicated as ED.FWD or ED.REV on the LCD monitor or in the viewfinder. (When Status 1 screen is displayed.)

00:00:00:00

FIL1 F5.6 ED.FWD 01/02/03 AM01:23:45

48k 12.2V

min

FAS –3dB FAW

SD B

ED.FWD: Forward search ED.REV: Reverse search

EDIT SEARCH + button

EDIT SEARCH – button

AUDIO LEVEL

LCD BRIGHT DISPLAY

FRONT REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

OPEN

PULL OPEN

TUS

Engage the record-standby mode.

■ Searching the tape in forward direction

Press the EDIT SEARCH + button. While the + button is pressed, playback takes place at the normal speed.

When the EDIT SEARCH + button is released, the standby mode is reengaged.

■ Searching the tape in reverse direction

Press the EDIT SEARCH – button. While the – button is pressed, playback takes place at -1times the normal speed.

When the EDIT SEARCH – button is released, the standby mode is reengaged.

MEMO:

● Block noise may appear and the image may freeze during search.

7. SHOOTING OPERATION

7-3 If the Record-Standby Mode Continues

Setting the time before the tape protection mode is engaged

The time before the tape protection mode is engaged from the record-standby mode can be set to 5 minutes or 3 minutes with the LONG PAUSE TIME item on the OTHERS (1/2) screen menu.

00:00:00:00

48k

STOP 01/02/03

VTR mode indication

7-4

Checking Recorded Contents in Record-Standby Mode (Recording Check Function)

01:23:45

min

RET button

When the record-standby mode has continued for about 5 minutes, the GY-DV5100 automatically stops drum rotation in order to protect the tape. (Tape protect mode)

● In the tape protect mode, STOP is shown as the VTR mode indication on the LCD monitor and in the viewfinder screen. (Status 1 screen)

■ To start recording from the tape protect mode, press the VTR trigger button.

● The drum starts rotating, and recording starts after about

3 seconds.

■ To return to the record-standby mode from the tape protect mode, press the RET button.

This function is available only when the GY-DV5100 is in the standby mode. In the record-standby mode, approximately 2 seconds of the last recorded portion can be played back.

● The recorded contents can be checked on the LCD monitor or in the viewfinder or on a monitor connected to the MONITOR OUT or Y/C OUT connectors.

● The video image from the VTR section is shown on the LCD monitor or in the viewfinder or on the monitor connected to the MONITOR OUT or Y/C OUT connectors.

In the record-standby mode, press the RET button on the camera lens section.

• The tape is slightly rewound and played back for approximately 2 seconds. After playback is finished, the tape returns to the position at which the RET button is pressed and the recordstandby mode resumes.

■ When the RET button is kept pressed, the tape is rewound and played back for approximately 15 seconds at maximum.

● Pressing the VTR trigger button during playback will put

the unit in REC standby mode. The camera will automatically return to recording mode after playback.

* This function does not work when the GY-DV5100 is in

the stop mode.

* During recording check, the following indication will

appear if the error rate increases due to head clogging, etc.

HEAD CLEANING REQUIRED! ” is shown on the LCD

•“ monitor or in the viewfinder. (When the Status 0, 1, 3 screen is displayed.)

7. SHOOTING OPERATION

7-5 HEADER REC Function

When the VTR trigger button is pressed while the STOP button is pressed, this function first records the color bar video and the test tone (1 kHz sine-wave) of the built-in signal generator at the beginning of the tape. Then it records the black video signal and the mute audio signal for the duration specified in advance. When the recording is completed, the unit enters the Record-Standby mode. The time code value at the Record-Standby position becomes the time code specified in advance. (HEADER REC function)

● Settings related to the HEADER REC function, such as whether the HEADER REC function should be enabled, the HEADER REC execution duration, and the time code value setting when the HEADER REC recording is completed, etc., are made on the HEADER REC menu screen.

● The HEADER REC function is executed under the following circumstances: Mode switch: Set to CAM mode. In the Record-Standby or Stop mode

Tape beginning

(Example) 30 sec

HEADER REC

Color bar video signal Test tone (1 kHz) (Setting range: 0 to 99 sec)

Time code, user’s bits recording Time code, user’s bits recording

Time code: The value specified on the HEADER REC menu screen – HEADER REC time

User’s bits: The value specified for the UB DATA item on the HEADER REC menu screen.

(Example) 23:59:00:00

■ HEADER REC menu screen contents

TC/UB/CLOCK menu screen

––– TC/UB/CLOCK ––– TC PRESET 00:00:00:00 EXECUTE UB PRESET 00 00 00 00 EXECUTE DROP/NON DROP DROP HEADER REC.. TIME/DATE.. PAGE BACK

HEADER REC menu screen

––– HEADER REC ––– START KEY STOP+VTR TC DATA 00:00:00:00 EXECUTE UB DATA 00 00 00 00 EXECUTE BARS TIME 30SEC BLACK TIME 30SEC PAGE BACK

Record-Standby mode

(Example) 30 sec

Normal recording

Black video signal Mute audio (No sound) (Setting range: 0 to 99 sec)

Time code: The value specified on the HEADER REC menu screen. (Example) 00:00:00:00

User’s bits The value specified for the UB PRESET item on the TC/UB/ CLOCK menu screen. (only when set to REC RUN or FREE RUN mode)

Item Description

START KEY STOP+VTR: Select this setting to turn ON the HEADER REC

function.

DISABLE: Select this setting when the HEADER REC

function should not operate.

TC DATA Sets the time code value for the point when the HEADER

REC operation is completed and the Record-Standby mode is engaged.

● When the TC GENE switch is set to PRESET REC or REGEN, the value set for this item becomes the time code value at the point when the next normal recording is started.

● The Frame mode will be in accordance with the setting of the DROP/NON DROP item on the TC/UB/CLOCK menu screen.

* The time code value at the point when the Record-Standby

mode is engaged may differ some frames from this set value.

UB DATA Sets the user’s bits of the HEADER REC section.

● The user’s bits for the normal recording section are set on the TC/UB/CLOCK menu screen.

BARS TIME Sets the duration for recording of the color bar video signal

and test tone (1 kHz). [Setting range: 0 to 99 sec]

BLACK TIME Sets the duration for recording of the black video signal and

mute audio signal. [Setting range: 0 to 99 sec]

PAGE BACK The TC/UB/CLOCK menu screen returns when the SHUTTER

dial is pressed.

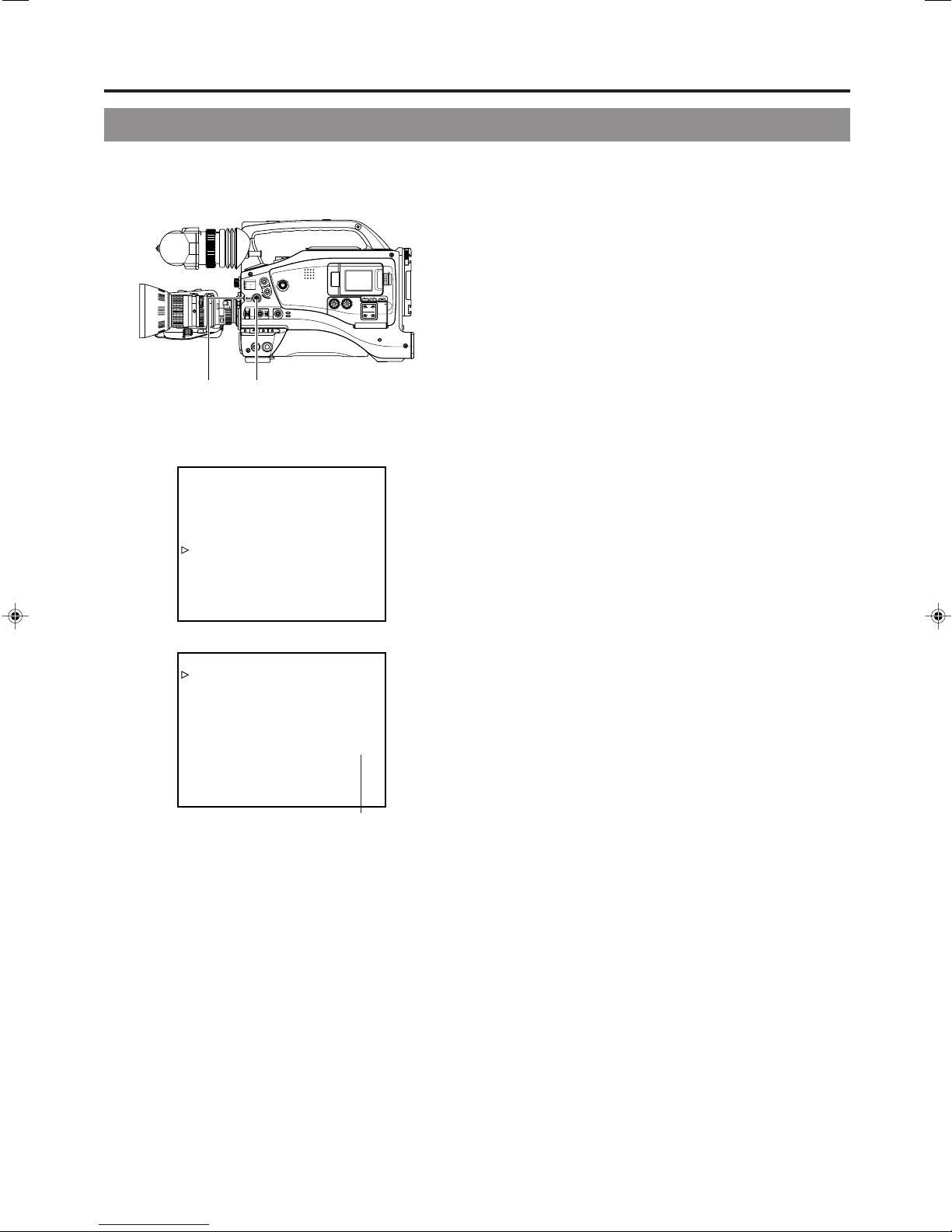

■ How to set the HEADER REC menu screen

HEADER REC menu screen

––– HEADER REC ––– START KEY STOP+VTR TC DATA 00:00:00:00 EXECUTE UB DATA 00 00 00 00 EXECUTE BARS TIME 30SEC BLACK TIME 30SEC PAGE BACK

Cursor Item Set value

Executing the HEADER REC Function

HEADER REC

During HEADER REC

MEMO:

To stop during HEADER REC operation, press the VTR trigger button or the Stop button.

MEMO:

● The HEADER REC menu screen cannot be opened during HEADER REC recording.

● HEADER REC operation is accepted even during loading of the cassette tape.

● The date and time recorded in the color bar section will be in accordance with the settings for the DATE REC item on the TIME/DATE menu screen.

● Date and time data are not written during recording of black video signals.

● The test tone (1 kHz sine-wave) recorded in the color bar section will be recorded unrelated to the setting for the TEST TONE item on the AUDIO/VIDEO menu screen.

7. SHOOTING OPERATION

Display the HEADER REC menu screen. Press the STATUS button for 1 second or longer to display the TOP MENU screen. Use the SHUTTER dial to select TC/UB/CLOCK menu → HEADER REC menu, and then press the SHUTTER dial.

Setting the HEADER REC menu screen. 1 Select the menu item.

Rotate the SHUTTER dial to align the cursor ( ) with the item to be set, and then press the SHUTTER dial.

● The setting area of the selected item starts blinking.

2 Changing the setting value.

Rotate the SHUTTER dial to change the setting, and then press the SHUTTER dial.

■ In the case of the TC DATA item and the UB DATA item, the blinking digit position moves when the SHUTTER dial is pressed. When the SHUTTER dial is rotated, the value of the blinking digit changes. After all the digits have been set and the SHUTTER dial is pressed, EXECUTE starts blinking. Press the SHUTTER dial once more to confirm the set value.

To terminate the setting, press the STATUS button.

■ The START KEY item on the HEADER REC menu screen should be set to STOP+VTR.

Set the MODE switch to CAM mode. Load the cassette and engage the Record-Standby mode or the Stop mode.

While pressing the STOP button, press the VTR trigger button.

● The tape automatically rewinds to the beginning, and HEADER REC operation starts from the beginning of the tape. After HEADER REC recording is performed for the specified duration only, the Record-Standby mode is engaged automatically.

● During HEADER REC recording, “HEADER REC” is shown (blinking) on the LCD monitor and in the viewfinder.

After HEADER REC recording is completed and the RecordStandby mode is engaged, normal recording starts when you press the VTR trigger button.

● When the TC GENE switch is set to either PRESET REC or REGEN, the time code value at the start of the recording will be the time code value set on the HEADER REC menu screen.

● The time code preset on the TC/UB/CLOCK menu screen becomes invalid when HEADER REC recording is performed.

● The user’s bits following completion of HEADER REC recording will be the user’s bits value set on the TC/UB/ CLOCK menu screen.

● The running of the time code following completion of HEADER REC recording will be in accordance with the setting of the TC GENE switch. FREE RUN : Continuous running. REC RUN or REGEN: Runs only during REC.

7. SHOOTING OPERATION

7-6 Recording the Color Bars

OUTPUT switch

EDITSEARCH

STATUS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

ON OFF

MONITOR

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

1 2 .3 .4

SHUTTER

AUTO IRIS

FILTER

3200K 5600K 5600K 5600K

Color bar signal of the built-in signal generator

Compliance with SMPTE standard color bar is output.

White Yellow Cyan Green Magenta Red Blue

Blue Black Magenta Black Cyan Black White

Black White Black

OPEN

CH-1 CH-2

AUDIO LEVEL

LCD BRIGHT DISPLAY

FRONT REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

PULL OPEN

POWER

ON OFF

VTR

Whether the camera image should be output or whether the color bar of the built-in signal generator should be output can be selected during record-standby and recording.

■ To output the color bar, set the OUTPUT switch to the BARS side.

■ To output the camera image, set the OUTPUT switch to the CAM AUTO KNEE ON/OFF side.

MEMO:

● Whether or not the audio reference signal should be

output while the color bar is output can be selected with the TEST TONE item on the AUDIO/VIDEO menu screen.

● Color bars will not appear when Full Auto is set to ON or

when in the VTR mode.

8. PLAYBACK MODE

8-1 Playback Procedure

Recorded pictures can be viewed in the viewfinder, or on the LCD monitor, or on the monitor connected to the video output connector.

Operation cover

EDITSEARCH

STATUS

FULL AUTO BLACK LOLUX

BACK L

STRETCH

NORMAL

SPOT L

COMPRESS

POWER

VTR

ON OFF

MODE switch

MONITOR

MODE

VTR

CAM

POWER switch

1 2 .3 .4

SHUTTER

AUTO IRIS

FILTER

3200K 5600K 5600K 5600K

MEMO:

● The GY-DV5100 can play back the following three types of videocassettes:

• DV videocassette

• MiniDV videocassette

• DVCAM videocassette

● Tapes recorded in the LP mode cannot be played back.

Set the POWER switch to ON.

Set the unit to the VTR mode. Press the MODE switch upward to turn on the VTR indicator.

● Playback is also possible in the Camera mode. Playback operation becomes possible when the STOP button is pressed to set the VTR operation mode indicator to indicate STOP.

Load the recorded videocassette correctly.

Slide the OPEN knob on the top section of the unit to open the cassette cover. Then insert the videocassette and close the cover.

● When the videocassette is loaded, the unit enters the Stop mode.

Open the operation cover on the upper section of the unit. Slide the operation cover to the side to open.

Press the PLAY button.

● Playback starts.

Press the STILL button to stop playback temporarily.

● The unit enters the still mode.

To re-start playback, press the PLAY button.

To stop playback or the still mode, press the STOP button.

CH-1 CH-2

AUDIO LEVEL

LCD BRIGHT DISPLAY

FRONT

REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

OPEN

PULL OPEN

BLANK SEARCH

MODE

VTR

CAM

FF PLAY

PLAY button

STOP button

MEMO:

● In the VTR mode, the camera image is not output on the LCD monitor, in the viewfinder or through the video output connector.

● The VTR mode is indicated on the LCD monitor and in the viewfinder. (Status screen)

TC00:00:00:00

PLAY 01/02/03 AM––:––:––

VTR operation mode indication

● When the still picture mode or stop mode has continued for a while, the unit automatically switches to the tape protect mode. Tape protect mode: Drum rotation is stopped in order to

protect the tape.

● Noise may appear in the picture in the still mode.

● When the automatic tracking function is activated at the

start of the playback mode, digital noise may appear in the playback image.

● This unit does not allow manual tracking adjustment.

● When playing back a tape that was recorded on another

unit, digital noise may appear during playback.

● Following loading of the tape, the built-in head cleaner will emit a sound while operating. This does not indicate a malfunction.

● The data recorded for the date and time or time code on the tape can be shown on the screen. To enable or disable the display is selected on the menu screen: Display of date and time : TIME/DATE menu screen Display of time code : LCD/VF (2/2) menu screen

min

.2V

STILLSTOPREW

Still button

8. PLAYBACK MODE

EDITSEARCH

STATUS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

ON OFF

MONITOR

AUDIO LEVEL

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

CH-1 CH-2

1 2 .3 .4

SHUTTER

FILTER

3200K 5600K 5600K 5600K

AUTO IRIS

8-2 Fast-Forward, Rewind

■ Press the FF button in the stop mode to fast forward the tape. Press the REW button in the stop mode to rewind the tape.

■ Press the STOP button to stop fast forwarding or rewinding.

8-3 Search

■ Press the FF button in the play mode or still mode to search the tape in the forward direction. Playback takes place while fast forwarding.

Pressing the REW button executes search of the tape in the reverse direction. Playback takes place while rewinding.

(Each press on the button switches the speed to X5, X9, and X20.)

LCD BRIGHT DISPLAY

FRONT REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

OPEN

PULL OPEN

BLANK SEARCH

FF PLAY

FF button

REW button

MEMO:

● When the tape approaches the end during fast forwarding or rewinding, the tape speed decelerates to protect the tape.

● The time required for fast forwarding and rewinding may become longer when used in a cold environment. This is not a malfunction.

■ Press the PLAY button to resume normal playback.

■ Press the STOP button to stop.

MEMO:

●

To output sound during the search, set the A.OUT AT SEARCH item on the AUDIO/VIDEO menu screen to ON.

● Block noise may appear in the picture or the image may freeze during the search.

STILLSTOPREW

8-4 Blank Search

BLANK SEARCH button

BLANK SEARCH

Status screen

BLANK SEARCH

BSRH 01/02/03 AM––:––:––

Blank search operation indicator

FF PLAY

This function can be used to locate blank portions (unrecorded portions) on the tape, such as the end of a recording.

Engage the stop or still mode.

STILLSTOPREW

Press the BLANK SEARCH button.

● Blank search starts. When a blank part (unrecorded part) on the tape is detected, the unit enters the STILL status in the VTR mode

.2V

and the Standby status in the CAM mode.

■ To stop blank search, press the STOP button.

MEMO:

● “BLANK SEARCH” is indicated on the LCD monitor and in the viewfinder during blank search. (When the Status screen is shown.)

● To prevent that images will be missing, overwrite from about 3 seconds before the point where the previous recording ends.

8-5 Variable Slow Playback

8. PLAYBACK MODE

EDIT SEARCH

EDITSEARCH

1 64

STATUS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

ON OFF

MONITOR

AUDIO LEVEL

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

CH-1 CH-2

1 2 .3 .4

SHUTTER

AUTO IRIS

FILTER

3200K 5600K 5600K 5600K

■ During stop, playback or still playback, slow motion playback is effected by pressing the EDIT SEARCH + button.

Pressing the EDIT SEARCH – button effects reverse slow motion playback.

Variable Slow Playback

● Playback in FWD direction becomes faster each time the EDIT SEARCH + button is pressed.

× 0.1 (SLOW+1) → × 0.2 (SLOW+2) → × 0.5 (SLOW+3) → × 1 (FWD) → × 0.1 (SLOW+1) ..

● Playback in REV direction becomes faster each time the EDIT SEARCH – button is pressed. × –0.1 (SLOW–1) → × –0.2 (SLOW–2) → × –0.5 (SLOW–3) → × –1 (REV) → × –0.1 (SLOW–1) ..

* The characters indicated in parentheses ( ) are shown

on the Status screen.

LCD BRIGHT DISPLAY

FRONT REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

OPEN

PULL OPEN

TUS

+ button

EDIT SEARCH – button

EDIT SEARCH

■ To return to the normal playback mode, press the PLAY button.

■ To stop, press the STOP button.

■ The amount of frames advanced in slow motion playback

can be set in STEP SLOW MODE on page 86.

8. PLAYBACK MODE

8-6 Outputting CH-3, CH-4 Channel Audio

The DV format is capable of recording up to 4 channels when the 12-bit, 32 kHz sampling frequency is employed. The GY-DV5100 records audio on the two channels CH-1 and CH-2. (4-channel recording is possible in the case of DV input.) When the GY-DV5100 is used for playback of a tape that was recorded on another unit with audio recorded on the CH-3 and CH4 channels, the AUDIO SELECT item on the AUDIO/VIDEO menu screen must be set.

5600K

SHUTTER

5600K

STATUS

AUTO IRIS FULL AUTO

SHUTTER dial

STATUS button

TOP MENU screen

––– MENU ––– AUDIO/VIDEO.. LCD/VF.. TC/UB/CLOCK.. OTHERS.. FILE MANAGE.. MENU ALL RESET CANCEL

EXIT

AUDIO/VIDEO menu screen

––– AUDIO/VIDEO ––– TEST TONE ON AUDIO MODE 32K A.OUT AT SEARCH ON CH1 FRONT VR ENABLE WIND CUT BOTH AUDIO REF.LEVEL –20dB AUDIO SELECT CH3/4 AUDIO MONITOR MIX SET UP 7.5% PAGE BACK

LCD BRIGHT DISPLAY

FRONT REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

OPEN

PULL OPEN

1 2 .3 .4

SHUTTER

FILTER

3200K 5600K 5600K 5600K

AUTO IRIS

BACK L NORMAL SPOT L

ON OFF

EDITSEARCH

STATUS

FULL AUTO BLACK LOLUX

POWER

MONITOR

AUDIO LEVEL

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

CH-1 CH-2

VTR indicator

Setting

■ Confirm that the GY-DV5100 is in the VTR mode. (VTR indicator: On)

Press the STATUS button for 1 second or longer to display the TOP MENU screen.

Rotate the SHUTTER to align the cursor ( ) with the AUDIO/ VIDEO menu, and then press the SHUTTER dial.

● The AUDIO/VIDEO menu screen appears.

Rotate the SHUTTER to align the cursor ( ) with the AUDIO SELECT item, and then press the SHUTTER dial.

● The setting area of the selected item starts blinking.

Rotate the SHUTTER dial to change the setting. CH1/2 :To reproduce the sound (CH-1, CH-2)

recorded during shooting.

MIX :To reproduce the sound recorded during

shooting (CH-1, CH-2) and the after-recorded sound (on CH-3 and CH-4) simultaneously.

CH3/4 :To reproduce the sound after-recorded on CH-

3 and CH-4.

MEMO:

After-recording on the CH-3 and CH-4 channels is not possible.

When the SHUTTER dial is pressed, the set value is confirmed.

To return to the normal screen, use either of the following methods.

● Press the STATUS button or

● Return to the TOP MENU screen and then select the EXIT item before pressing the SHUTTER dial.

9. USING EXTERNAL COMPONENTS

9-1 Connecting a Video Component with DV Connector

Connecting the GY-DV5100 to another video component equipped with DV I/O connector (IEEE1394 standard) using a DV cable (optional) enables dubbing of digital signals with high picture quality and high-quality sound.

Rear section of GY-DV5100

Video component with DV Connector

TALLY

PHONES

INT

DC IN

DC OUT

DV connector

DV cable (VC-VDV204 (4P-4P), VC-VDV206 (4P-6P))

CH-1

REAR AUDIO IN

CH-2

DV connector

When Using the GY-DV5100 as Playback Unit (Dubbing to Another Video)

Connect the units with the DV cable.

Switch the DV/INT selector switch on the rear of the camera

EDITSEARCH

MONITOR

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

MODE

BACK L

STRETCH NORMAL SPOT L

ON OFF

VTR

NORMAL

COMPRESS

CAM

POWER

VTR

MODE switch

CH-1 CH-2

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

MODE

VTR

CAM

INT

● Dubbing still images makes the images coarser. In addition, noise may appear in the sound.

MEMO:

● Turn the camera off before switching DV/INT.

● The operation methods differ with the characteristics and specifications of the connected equipment. Even if connection is

possible, operation or data communication may sometimes be impossible to perform.

● If block noise appears or the sound falls out, try to disconnect and then connect the DV cable again, or turn the power to the GY-DV5100 off and then on again.

● When connecting to a D-9 (digital-S) component with an IEEE1394 connection, the date and time data are not output from the D-9 component. Also, the date and time data cannot be recorded on the D-9 component. When making an IEEE1394 connection with a D-9 component, install SA-DV60 on the device.

● If the power to the component connected to the DV connector is turned on, or the video input is changed, noise may appear in the audio. When these operations have to be performed, reduce the sound volume of the audio component, speaker, etc., connected to the GY-DV5100 to a minimum.

● When using the TC DUPLICATE mode of BR-DV600A, set Menu No. 416 [NON DROP/DROP] of BR-DV600A according to the framing mode (Drop/Non-drop) of the tape to be played back on this unit.

to DV.

Turn ON both units.

Place the GY-DV5100 in the VTR MODE. Press the MODE switch upward to turn on the VTR indicator.

Insert the videocassettes. GY-DV5100: Insert the recorded videocassette. Recording unit: Insert the videocassette to be dubbed to.

Press the PLAY button on the GY-DV5100 to start playback.

Start recording on the recording unit. For details, see the instructions to the unit used for recording.

When dubbing is completed. Stop recording on the recording unit, and then press the STOP button on the GY-DV5100 to stop playback.

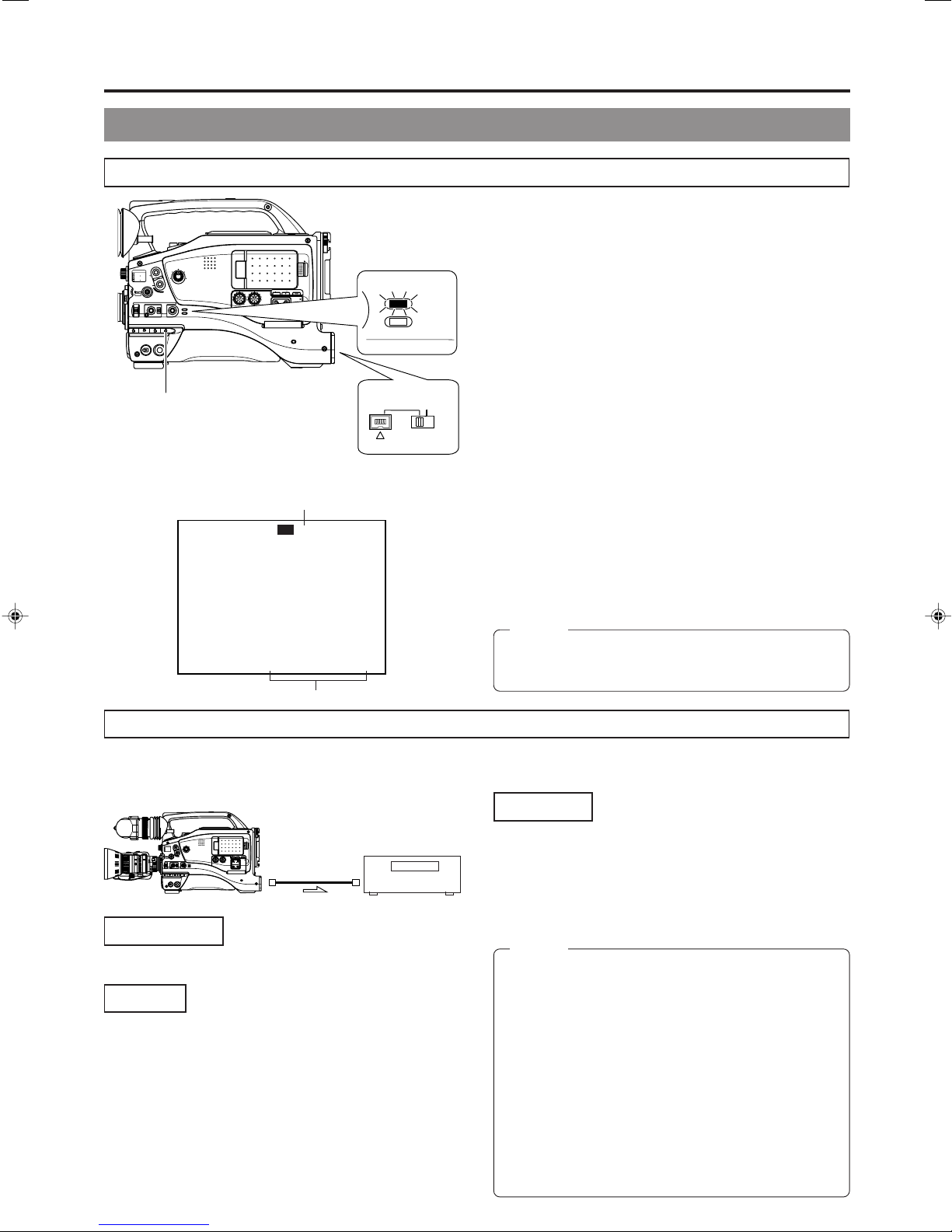

9. USING EXTERNAL COMPONENTS

9-1 Connecting a Video Component with DV Connector (Cont’d)

When Using the GY-DV5100 as RECORDING Unit (Dubbing From Another Videocassette)

Switch the DV/INT selector switch on the rear of the camera to DV.

EDITSEARCH

MONITOR

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

MODE

BACK L

STRETCH

VTR

NORMAL

COMPRESS

SPOT L

ON OFF

CAM

POWER

VTR

MODE switch

Date and time data:

CH-1 CH-2

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

MODE

VTR

CAM

INT

Data transmitted from the playback unit is recorded.

Time code:

The data generated by the GY-DV5100’s time code generator is recorded.

TC00:00:00:00

REC 01/02/03 01:23:45

Time code

Date and time

Turn ON both units.

Place the GY-DV5100 in the VTR MODE. Press the MODE switch upward to turn on the VTR indicator.

Insert the videocassettes. GY-DV5100: Insert the videocassette to be dubbed to. Playback unit: Insert the recorded videocassette.

Connect the units with the DV cable.

Start playback on the playback unit. For details, see the instructions to the unit used for playback.

● The playback picture from the playback unit appears on the GY-DV5100’s LCD monitor and viewfinder screen.

Press the VTR trigger on the GY-DV5100 to start recording.

■ To temporarily pause the recording, press the VTR trigger.

■ To restart the recording, press the VTR trigger again.

When dubbing is completed. Press the VTR trigger or the STOP button on the GY-DV5100 to stop recording, and then stop playback on the playback unit.

MEMO:

Depending on the player, sound may not be heard momentarily from this unit when switching modes from STILL to PLAY.

Backup Recording of the GY-DV5100's Camera Image and Sound Through the DV Connector

The GY-DV5100’s camera image and sound can be recorded for backup on another component that is equipped with DV connector. Recording operation is performed on the backup equipment simultaneously with performance of the recording operations on the GY-DV5100.

Master unit

EDITSEARCH

MONITOR

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

MODE

BACK L

STRETCH

VTR

NORMAL

COMPRESS

SPOT L

CAM

POWER

VTR

ON OFF

OPEN

LCDBRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT REAR

CH-1 CH-2

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

DV cable

Signal flow

Connections

Use the GY-DV5100 as the master unit. Connect the master unit and the backup unit with a DV cable

Settings

■ Master unit (GY-DV5100)

● Place in CAMERA mode.

● Set the DV REC TRIGGER item on the OTHERS (1/2)

Menu Screen to ON.

■ Backup unit

● Place in DV signal input mode. * Depending on the used component, it may be necessary

to set “REMOTE SELECT”.

● When BR-DV600A or BR-DV3000 is used, set the Backup Recording function to OFF.

● Insert the tape and set to STOP or REC PAUSE status.

Backup unit

Operation

Start and stop of recording on the backup unit takes place in accordance with the operation of the VTR trigger button on the master unit. Start and stop of recording on the backup unit takes place in accordance with start and stop of recording on the master unit. (Depending on the GY-DV5100 or the backup unit, the image, audio, and/or time code may deviate from what they should be at the points where the recording is started or stopped.)

MEMO:

● When the backup recording is started, the “TRIGGER TO DV” indication is shown on the LCD or in the viewfinder for 3 seconds.

● When the Backup Recording function of BR-DV600A or BR-DV3000 is used, the DV REC TRIGGER item on the GY-DV5100’s OTHERS (1/2) Menu Screen should be set to OFF.

● If the backup device is equipped with a feature to record time codes input from the DV IN/OUT terminal (TC DUPLICATE feature), time code data the same as on the master side can be recorded.

● When using BR-DV600A as a backup device and switching GY-DV5100 from the EDIT SEARCH or PLAYBACK mode to the RECORD mode, noise will be noticed on the monitor output screen of BR-DV600A (backup will be correctly recorded).

10. TIME CODE OPERATION

The GY-DV5100 records SMPTE-standard time codes and user’s bits. In the play mode or the record mode, the reproduced time codes or user’s bits are shown on the LCD monitor or in the viewfinder.

● Time code data cannot be output through the unit’s connectors.

10-1 Displaying Time Code

The time codes or user’s bits can be shown on the LCD monitor or in the viewfinder during playback and recording as follows. (Status screen)

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT

REAR

CH-1 CH-2

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

Time code indication

00:00:00:00

STBY 01/02/03 01:23:45

Status 1 screen

COUNTER switch

LCD BRIGHT DISPLAY

MONITOR

SELECT

CH-1

MIX

FRONT

CH-2

REAR

AUDIO IN

CH-1 CH-2

CH-1

AUDIO IN

AUDIO SELECT

CH-1 CH-2

LINE MIC

MANUAL

+48V

AUDIO

CH-1 CH-2

LEVEL

FRONT MIC +48V

OFF

Example Time code indication

00:00:00:00

Non-drop frame (:)

Drop frame (.)

User’s bits indication

FF EE DD 20

Setting

COUNTER

REAR

CH-2

TC GENE.

PRST

FREE

AUTO

REC

REGEN

Set the TC/UB item on the LCD/VF (2/2) menu screen to ON.

● Time codes or user’s bit data are displayed on the Status screen.

Whether time codes or user’s bit data should be displayed is selected with the COUNTER switch inside the cover on the side. TC :Time codes are displayed.

The symbol between the seconds and the frame differs with the framing mode. (Colon or dot)

UB : User’s bit data is displayed. Time code entered from the DV connector

■ Time code entered from the DV connector

Pressing the STOP button for 1 second in the EJECT or stop mode displays the time code data or user’s bit data input from the DV terminal on the Status screen.

DTCG : The time code data from the DV terminal DUBG : The user’s bit data from the DV terminal

To return to display of the original time code or user’s bit, press the STOP button. (Display of the normal time code or user’s bit is also restored by performing VTR operation.)

MEMO:

● The time code and user’s bit input from the DV terminal are not recorded. The data generated by the camera’s time code generator is recorded.

● To maintain the continuity of time code data, use with the TC GENE. switch set to REGEN mode when recording input signal from the DV terminal.

10. TIME CODE OPERATION

10-2 Presetting and Recording of Time Code

The time codes or user’s bit data from the internal time code generator can be recorded at the time of recording scenes.

To preset the Time Code, make the following settings.

■ TC GENE. switch

Set to PRST REC or PRST FREE. PRST REC : The data preset in the time code generator

runs only during recording. Use this setting if it is necessary to record continual time codes across different scenes. * However, approximately ±1-frame variations

may occur in scene accuracy.

preset in the time code generator.

set to the drop frame mode. Use this setting when placing emphasis on the recording time.

set to the non drop frame mode. Use this setting when placing emphasis on the number of frames.

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT REAR

CH-1 CH-2

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

TC/UB/CLOCK menu screen

––– TC/UB/CLOCK ––– TC PRESET 00:00:00:00 EXECUTE UB PRESET 00 00 00 00 EXECUTE DROP/NON DROP DROP HEADER REC.. TIME/DATE.. PAGE BACK

LCD BRIGHT DISPLAY

MONITOR

SELECT

CH-1

MIX

CH-2

REAR

AUDIO IN

CH-1 CH-2

CH-1

AUDIO SELECT

CH-1 CH-2

LINE MIC +48V

AUDIO

CH-1 CH-2

LEVEL

FRONT MIC +48V

OFF

TC GENE. switch

Framing mode: Non-drop/Drop setting

FRONT REAR

AUDIO IN

MANUAL

COUNTER

CH-2

TC GENE.

PRST

FREE

AUTO

REC

REGEN

PRST FREE : The time code starts to run from the time it is

■ TC/UB/CLOCK menu screen

Use the DROP/NON DROP item to select the framing mode for the time code generator.

DROP : The time code generator’s running method is

NON DROP : The time code generator’s running method is

Drop frame/Non-drop frame mode

In the NTSC system, the actual number of frames per 1 second is approximately 29.97 frames, but per time code 30 frames are processed. To compensate for this difference, the mode called “drop mode” drops frame 00 and 01 for every minute not divisible by 10. The “non-drop frame mode” is when no frames are dropped and the actual time shift is neglected.

TIME CODE PRESETTING PROCEDURE

EDITSEARCH

MONITOR

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

MODE

BACK L

STRETCH

VTR

NORMAL

NORMAL SPOT L

COMPRESS

CAM

POWER

VTR

ON OFF

SHUTTER dial STATUS button

TOP MENU screen

––– MENU ––– CAMERA OPERATION.. CAMERA PROCESS.. AUDIO/VIDEO.. LCD/VF.. TC/UB/CLOCK.. OTHERS..

FILE MANAGE.. MENU ALL RESET CANCEL EXIT

TC/UB/CLOCK menu screen

––– TC/UB/CLOCK ––– TC PRESET 00:00:00:00 EXECUTE UB PRESET 00 00 00 00 EXECUTE DROP/NON DROP DROP HEADER REC.. TIME/DATE.. PAGE BACK

CH-1 CH-2

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT

REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

10. TIME CODE OPERATION

The time code and user’s bit data are preset on the TC/UB/ CLOCK menu screen.

Display the TC/UB/CLOCK menu screen. 1 Press the Status button for 1 second or more to display

the TOP MENU screen.

2 Rotate the SHUTTER dial to align the cursor (

the TC/UB/CLOCK item, and then press the SHUTTER dial.

● The TC/UB/CLOCK menu screen appears.

Set the time code (hours, minutes, seconds, frames). 1 Rotate the SHUTTER dial to align the cursor ( ) with TC

PRESET, and then press the SHUTTER dial.

● The first digit of the time code blinks. The blinking digit is the one to be set.

2 When the SHUTTER dial is pressed, the blinking digit

changes.

3 When the SHUTTER dial is rotated, the value of the

blinking digit changes. When the SHUTTER dial is rotated upward, the value becomes higher. When rotated downward, the value becomes smaller.

4 Repeat the procedure described in 2 and 3 above to

set the desired value for all digits.

5 After setting the frame digit, press the SHUTTER dial to

make EXECUTE blink. The setting values are confirmed when the SHUTTER dial is pressed again. To cancel the setting, select CANCEL and press the SHUTTER dial.

When all the digits are set.

● Press the STATUS button to return to the normal screen or

● Rotate the SHUTTER dial to align the cursor ( PAGE BACK item, and then press the SHUTTER dial to return to the TOP MENU screen.

) with

) with the

Time code (hour, min, sec, frame)

PRESETTING USER’S BIT DATA

––– TC/UB/CLOCK ––– TC PRESET 00:00:00:00 EXECUTE UB PRESET 00 00 00 00

EXECUTE DROP/NON DROP DROP HEADER REC.. TIME/DATE.. PAGE BACK

Align the cursor with UB

Zero-resetting the Time Code or User’s Bit Data

This is performed with the TC or UB PRESET item on the TC/UB/CLOCK menu screen. (Performed separately for the time code and the user’s bit data.)

1 Rotate the SHUTTER dial to align the cursor ( 2 Rotate the SHUTTER dial to select ZERO PRESET as the setting value, and then press the SHUTTER dial.

The user’s bit data are preset with the UB PRESET item on the TC/UB/CLOCK menu screen. The method for setting is the same as the method for setting the time code described above.

● The user’s bit can be specified using numerals or alphabetic letters from 0 to F for each digit.

CAUTION:

It is not possible to set all the digits of the user’s bit data to “F”. Reading of the data during playback will not be possible for an all-F setting.

) with the TC or UB PRESET item, and then press the SHUTTER dial.

10. TIME CODE OPERATION

10-3

Recording Time Codes in Continuation of Time Codes Recorded on Tape

The GY-DV5100 also incorporates a time code reader. Therefore, when the unit enters record mode from record-standby mode, it can read the time code data recorded on the tape and record time codes in continuation of the existing data. The recorded user’s bit data are identical to the user’s bit data recorded on tape.

● However, approximately ±1-frame variations may occur in scene accuracy. To enable this function, set the time code related switches as follows before starting recording.

Setting

■ Set the TC GENE switch inside the cover on the side to REGEN.

● The time code framing mode automatically becomes the

mode (drop frame or non drop frame) already recorded on the tape.

CH-1 CH-2

REAR

AUDIO IN

CH-1 CH-2

+48V

MONITOR SELECT

CH-1 MIX CH-2

LINE MIC

LCD BRIGHT DISPLAY

FRONT REAR

CH-2

CH-1

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

PRST

REGEN

COUNTER

TC GENE.

FREE REC

OPEN

AUDIO

CH-1 CH-2

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT

REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

LEVEL

FRONT MIC +48V

OFF

TC GENE switch

10-4 Reproducing Time Codes

The GY-DV5100 incorporates a time code reader. During playback, the time code or user’s bit data recorded on the tape is displayed on the LCD monitor or in the viewfinder. (Status screen)

Playback time code indication

00:00:00:00

PLAY 01/02/03 01:23:45

.2V

Status screen

Setting

☞ See “Displaying Time Code” on page 67.

CAUTION:

A time code with a duration of more than 2 hours may not be displayed correctly by DV components for general consumer use, as some of these lack the capability to display longer time codes.

11. MENU SCREENS

11-1 Menu Screen Configuration

The Menu Screen consists of multiple layers of menu screens as shown below. The menu screen to be set is selected from the TOP MENU in accordance with the function or purpose. The items on the menu screens differ with the Camera mode and the VTR mode. The contents of set items are stored in the GYDV5100’s memory and are retained even when the power is turned off. The FILE MANAGE menu screen can be used to store the menu setting contents in two types of files (FILE A, FILE B) on the GYDV5100. When saving menu setting contents that remain more or less fixed, these are stored in FILE A or FILE B. A saved file (FILE A or B) can be read out on the FILE MANAGE menu screen.

––– MENU ––– CAMERA OPERATION.. CAMERA PROCESS.. AUDIO/VIDEO.. LCD/VF.. TC/UB/CLOCK.. OTHERS..

FILE MANAGE.. MENU ALL RESET CANCEL EXIT

TOP MENU screen (CAM)

––– MENU ––– AUDIO/VIDEO.. LCD/VF.. TC/UB/CLOCK.. OTHERS.. FILE MANAGE.. MENU ALL RESET CANCEL

EXIT

––– CAMERA OPERATION ––– SHUTTER STEP FAW NONE

CAM

GAIN L 0dB GAIN M 9dB GAIN H 18dB

LOLUX GAIN 30dB SMOOTH TRANS OFF SPOT L/BACK L MIDDLE ASPECT RATIO 4:3 PAGE BACK

CAMERA OPERATION screen

––– CAMERA PROCESS ––– MASTER BLACK NORMAL DETAIL NORMAL

CAM

DTL.V/H BALANCE NORMAL DTL.FREQUENCY MIDDLE SKIN DTL.DETECT OFF V.RESOLUTION NORMAL

WHITE CLIP 108% KNEE POINT 100% ADVANCED PROCESS.. PAGE BACK

CAMERA PROCESS screen

––– AUDIO/VIDEO ––– TEST TONE OFF AUDIO MODE 48K A.OUT AT SEARCH ON CH1 FRONT VR ENABLE WIND CUT OFF AUDIO REF.LEVEL –20dB AUDIO SELECT CH1/2 AUDIO MONITOR MIX SET UP 7.5%

PAGE BACK

––– ADVANCED PROCESS ––– CINE MODE OFF COLOR MATRIX GAMMA NORMAL FLARE<MASTER> NORMAL FLARE<R> NORMAL FLARE<B> NORMAL SKIN COLOR ADJUST.. PAGE BACK

STANDARD

––– SKIN COLOR ADJUST –––

SKIN COLOR DET. STOP SKIN COLOR RANGE NORMAL PAGE BACK

ADVANCED PROCESS screen SKIN COLOR ADJUST screen

––– LCD/VF ––– BATTERY INFO VOLTAGE TAPE REMAIN ON TC/UB ON AUDIO ON LCD COLOR NORMAL LCD PEAKINGS NORMAL PAGE BACK

VTR

TOP MENU screen (VTR)

AUDIO/VIDEO screen LCD/VF screen (VTR)

––– LCD/VF[1/2] ––– ZEBRA 70–80% F.NO/IRIS IND. OFF

CAM

FILTER ON SAFETY ZONE ON CENTER MARK OFF

NEXT PAGE PAGE BACK

LCD/VF screen (1/2)

––– TC/UB/CLOCK ––– TC PRESET 00:00:00:00 EXECUTE UB PRESET 00 00 00 00 EXECUTE DROP/NON DROP DROP HEADER REC.. TIME/DATE.. PAGE BACK

TC/UB/CLOCK screen

––– OTHERS[1/2] ––– OUTPUT CHAR. OFF DV REC TRIGGER OFF LONG PAUSE TIME 5MIN REM FF/REW MODE FF/REW STEP SLOW MODE FRAME NEXT PAGE

PAGE BACK

OTHERS screen

––– FILE MANAGE ––– LOAD FILE A LOAD CANCEL STORE FILE A STORE CANCEL RESET FILE A RESET CANCEL

PAGE BACK

––– LCD/VF[2/2] ––– BATTERY INFO VOLTAGE TAPE REMAIN ON TC/UB ON AUDIO ON LCD COLOR NORMAL LCD PEAKINGS NORMAL PAGE BACK

LCD/VF screen (2/2)

––– TIME/DATE ––– DISPLAY ON DISPLAY MODE BARS+CAM DATE REC OFF DISPLAY STYLE DATE+TIME DATE STYLE MM/DD/YY TIME STYLE 24HOUR SEC DISPLAY ON CLOCK ADJUST.. PAGE BACK

TIME/DATE screen

––– OTHERS[2/2] ––– ALARM VR LEVEL HIGH BATTERY TYPE 14.4V FRONT TALLY BLINK BACK TALLY BLINK

PAGE BACK

DRUM HOUR 000200H

OTHERS screen

––– HEADER REC ––– START KEY DISABLE TC DATA 00:00:00:00 EXECUTE UB DATA 00 00 00 00 EXECUTE BARS TIME 30SEC BLACK TIME 30SEC PAGE BACK

HEADER REC screen

––– CLOCK ADJUST ––– DATE(MM/DD/YY) 08/20/02 TIME 09:33 PAGE BACK

CLOCK ADJUST screen

FILE MANAGE screen

11. MENU SCREENS

11-2 Setting Menu Screens

EDITSEARCH

MONITOR

FILTER

3200K

5600K

STATUS

SHUTTER dial

Cursor

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

MODE

BACK L

STRETCH NORMAL SPOT L

POWER

ON OFF

VTR

NORMAL

COMPRESS

CAM

VTR

STATUS button

SHUTTER

MENU screen

––– MENU ––– CAMERA OPERATION.. CAMERA PROCESS.. AUDIO/VIDEO.. LCD/VF.. TC/UB/CLOCK.. OTHERS..

FILE MANAGE.. MENU ALL RESET CANCEL EXIT

TOP MENU screen

Item Setting

––– CAMERA OPERATION ––– SHUTTER STEP FAW PRESET GAIN L 6dB GAIN M 9dB GAIN H ALC

LOLUX GAIN 30dB SMOOTH TRANS ON SPOT L/BACK L MIDDLE ASPECT RATIO 4:3 PAGE BACK

CH-1 CH-2

LCD BRIGHT DISPLAY

AUDIO LEVEL

FRONT REAR

CH-1

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

Make the settings while observing the LCD monitor or the viewfinder screen. If the OUTPUT CHAR. item on the OTHERS (1/2) screen is set to ON, the menu screen can also be viewed

OPEN

PULL OPEN

CH-2

on a monitor connected to the MONITOR OUT or Y/C OUT connector.

Set the POWER switch to ON.

Set the mode of the GY-DV5100 with the MODE switch. (Camera mode or VTR mode)

Press the STATUS button for 1 second or longer.

● The TOP MENU screen appears.

Select the menu screen to be set. Rotate the SHUTTER dial to align the cursor ( ) with the menu screen to be set, and then press the SHUTTER dial.

● The selected menu screen appears.

Select the menu item on the menu screen. Rotate the SHUTTER dial to align the cursor ( ) with the item to be set, and then press the SHUTTER dial.

● The setting area of the selected item starts blinking, and the setting can now be made.

Change the setting. Rotate the SHUTTER dial to change the setting, and then press the SHUTTER dial.

● The setting area stops blinking and the setting is entered.

■ To change multiple items, repeat the procedures in steps

and 6. above.

Return to the TOP MENU. Rotate the SHUTTER dial to align the cursor ( ) with the PAGE BACK item, and then press the SHUTTER dial.

■ To change settings on other menu screens, repeat the

procedures in steps

to 7. above.

■ To save the set contents in FILE A or B, select the FILE MANAGE menu screen and perform the operations for saving to file. ☞ See “FILE MANAGE Menu Screen” on page 73.

To return to the normal screen after completing the settings, use either of the following methods.

● Press the STATUS button or

● Return to the TOP MENU screen and align the cursor (

)

with the EXIT item, and then press the SHUTTER dial.

CAMERA OPERATION MENU screen

11-3 FILE MANAGE Menu Screen

The FILE MANAGE menu screen is used to perform the following tasks.

● Storing menu setting contents in two types of files (A, B). When saving menu setting contents that remain more or less fixed, these are stored in A or B.

● Reading out a stored file (A, B, or current settings).

● Resetting menu setting contents to the factory settings.

––– FILE MANAGE ––– LOAD FILE A LOAD CANCEL STORE FILE A STORE CANCEL RESET FILE A RESET CANCEL

PAGE BACK

FILE MANAGE menu screen

● When the LOAD, STORE, RESET items are set to CANCEL, none of the operations are executed.

● To close the FILE MANAGE menu screen: Align the cursor ( the SHUTTER dial. Or, press the STATUS button.

) with the PAGE BACK item, and then press

MEMO:

The currently set value is not reset even when A or B is reset. To reset also the currently set value, select “CURRENT”.

■ Display the FILE MANAGE menu screen.

Select the FILE MANAGE item on the TOP MENU screen, and then press the SHUTTER dial.

● The FILE MANAGE menu screen appears.

Storing Setting Values

Rotate the SHUTTER dial to align the cursor ( ) with the STORE FILE, and then press the SHUTTER dial.

● The area for setting the file name starts blinking.

Rotate the SHUTTER dial to select the storage destination file (A or B), and then press the SHUTTER dial.

Rotate the SHUTTER dial to align the cursor ( ) with the STORE item, and then press the SHUTTER dial.

● The CANCEL indicator in the setting value area blinks.

When you rotate the SHUTTER dial to make EXECUTE in the setting value area blink and then press the SHUTTER dial, the menu settings are stored in the specified file.

Reading Out a Menu Settings File

Rotate the SHUTTER dial to align the cursor ( ) with the LOAD FILE, and then press the SHUTTER dial.

● The area for setting the file name starts blinking.

Rotate the SHUTTER dial to select the file where the setting values are stored (A or B), and then press the SHUTTER dial.

Rotate the SHUTTER dial to align the cursor ( ) with the LOAD item, and then press the SHUTTER dial.

● The CANCEL indicator in the setting value area blinks.

When you rotate the SHUTTER dial to make EXECUTE in the setting value area blink and then press the SHUTTER dial, the menu settings stored in the specified storage location are read out. The power is automatically turned OFF and ON again.

11. MENU SCREENS

Resetting the Menu Settings to the Factory Settings.

Rotate the SHUTTER dial to align the cursor ( ) with the RESET FILE, and then press the SHUTTER dial.

● The area for setting the file name starts blinking.

Rotate the SHUTTER dial to select the name of the file to be reset, and then press the SHUTTER dial. A, B CURRENT: Currently set values

Rotate the SHUTTER dial to align the cursor ( ) with the RESET item, and then press the SHUTTER dial.

● The CANCEL indicator in the setting value area blinks.

When you rotate the SHUTTER dial to make EXECUTE in the setting value area blink and then press the SHUTTER dial, the set values are reset. The power is automatically turned OFF and ON again.

11. MENU SCREENS

11-4 TOP MENU Screen

Different menu screens are displayed depending on whether the GY-DV5100 is in the Camera mode or in the VTR mode. In the VTR mode, the CAMERA OPERATION and CAMERA PROCESS menu screens are not displayed.

Item Function Variation Range Initial Setting

CAMERA OPERATION

CAMERA PROCESS

AUDIO/VIDEO

LCD/VF

TC/UB/ CLOCK

OTHERS

FILE MANAGE

Displays a menu screen for setting the operation mode for camera shooting.

● This item is only displayed in the Camera mode.

Displays a menu screen for adjustments of the picture quality of the camera image. The ADVANCED PROCESS menu screen and SKIN COLOR ADJUST screen can be displayed through the CAMERA PROCESS menu screen.

● This item is only displayed in the Camera mode.

Displays a menu screen related to audio and video.

Displays a menu screen for selecting whether to display characters on the LCD monitor or in the viewfinder, and for adjustments of the picture quality of LCD monitor. It consists of two screens.

Displays a menu screen for setting the time code, user’s bit data, date and time. The ways that the date and time are recorded together with the display style are set here. The TIME/DATE menu screen and CLOCK ADJUST screen can be displayed through the TC/UB/CLOCK menu screen.

Displays a menu screen for setting other functions and to display the hour meter. It consists of two screens.

Displays the FILE MANAGE menu screen. The menu screen setting contents can be stored in the GY-DV5100 in files (FILE A or B), and the menu screen settings stored in files can be read out. The menu screen setting contents can also be reset to the initial setting values. (Individual files.) ☞ See “FILE MANAGE Menu Screen” on page 73.

–––––

MENU ALL RESET

EXIT

Selects whether the menu screen settings should be reset to the initial setting values. If reset operation is performed, the power is automatically turned off and then on again. The Camera mode and VTR mode menu settings are reset. However, TC PRESET, UB PRESET, and CLOCK ADJUST settings are not reset. CANCEL: Reset not performed EXECUTE: Reset

The normal screen returns when the SHUTTER dial is pressed while the cursor is aligned with this item.

CANCEL EXECUTE

–––––

CANCEL

–––––

11. MENU SCREENS

11-5 CAMERA OPERATION Menu Screen

The CAMERA OPERATION menu screen is only displayed in the Camera mode.

Item Function Variation Range Initial Setting

SHUTTER

FAW

GAIN L GAIN M GAIN H

LOLUX GAIN

The SHUTTER button on the right side section is used to select STEP for fixed shutter speed or V.SCAN variable scanning rate for shooting computer monitor screens. STEP :Enables setting of different fixed shutter speeds. [1/7.5, 1/

15, 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000]

VARIABLE :Selected when shooting computer monitor screens, etc.

[Variable range: 60.1 to 2084.6 Hz]

Selects the W.BAL switch ( (Full-Time Auto White Balance Adjustment) function is to be assigned. NONE :FAW function is not used. A:FAW is assigned to the A position. B:FAW is assigned to the B position. PRESET :FAW is assigned to the PRESET position.

Selects the gain value in each position of the GAIN switch (

14).

Sets the gain up value when in the LOLUX mode. (SS: Shutter speed 1/30)

on page 14) position to which the FAW

on page

STEP VARIABLE

NONE A B PRESET

–3dB 0dB 3dB 6dB 9dB 12dB 15dB 18dB ALC

24dB 24dB+SS 30dB 30dB+SS 36dB 36dB+SS

STEP

NONE

L: 0dB M: 9dB H: 18dB

30dB

SMOOTH TRANS

SPOT L/ BACK L

ASPECT RATIO

PAGE BACK

Smoothens the transition when the GAIN switch (# on page 14), or WHT.BAL switch (% on page 14) is switched over and achieves gradual change in place of sudden change. However, the smooth transition function does not function when switching the GAIN switch set in ALC, FAS button and the LOLUX button. ON :Activates the smooth transition function. OFF :Deactivates the smooth transition function.

Sets the level of auto iris when setting the AUTO IRIS switch to BACK L or SPOT L. LOW : Lowers the iris level. MIDDLE : Opens/Closes the iris by 1 step from the standard state. HIGH : Raises the iris level.

Sets the image size of the video signal. 4:3 :4:3 aspect ratio image output. LETTER :LETTER BOX (16:9 aspect ratio) image output. SQUEEZE :SQUEEZE: Images in aspect ratio 16:9 are displayed in

aspect ratio 4:3.

● When this item is set to LETTER or DATE REC in the TIME/DATE menu screen is set to BARS or BARS+CAM, the screen size will be fixed at an aspect ratio of 4:3.

● When ASPECT RATIO is set to LETTER or SQUEEZE, 16:9 aspect ratio distinction ID signal is outputted from the Y/C OUT terminal.

The TOP MENU returns when the SHUTTER dial is pressed with the cursor at this position.

ON OFF

LOW MIDDLE HIGH

4:3 LETTER SQUEEZE

–––––

OFF

MIDDLE

4:3

–––––

11. MENU SCREENS

11-6 CAMERA PROCESS MENU Screen

The CAMERA PROCESS menu screen is only displayed in the Camera mode.

Item Function Variation Range Initial Setting

MASTER BLACK

DETAIL

DTL. V/H BALANCE

DTL. FREQUENCY

Adjusts the pedestal level (master black), which is the reference of black.

● To increase the pedestal level ..... Increase the number. (UP)

● To decrease the pedestal level .... Decrease the number. (DOWN)

Adjusts the detail enhancement level.

● To sharpen details ....................... Increase the number. (UP)

● To soften details .......................... Decrease the number. (DOWN)

Note:

When LOLUX is ON, “FIX” is displayed and setting is not possible.

Sets the direction, horizontal (H) or vertical (V), in which stronger detail enhancement is applied.

To strengthen the H enhancement...... Increase the number (UP).

To strengthen the V enhancement ...... Decrease the number (DOWN).

Note:

When LOLUX is ON, “FIX” is displayed and setting is not possible.

Varies the detail enhancement level by changing the detail enhancement frequency. Set in accordance with the subject.

LOW ------ Lowers the frequency for contour highlight.

Use this when shooting objects with large patterns. MIDDLE --- Sets the frequency for contour highlight to standard. HIGH ------Increases the frequency for contour highlight.

Use this when shooting objects with fine patterns.

Note:

When LOLUX is ON, “FIX” is displayed and setting is not possible.

MAX (10) 9 to NORMAL (0) to –9 MIN (–10)

H-MAX (5) 4 to NORMAL (0) to –4 H-MIN (–5)

LOW MIDDLE HIGH

NORMAL

MIDDLE

11. MENU SCREENS

Item Function Variation Range Initial Setting

SKIN DTL. DETECT

V.RESOLUTION

WHITE CLIP

KNEE POINT

ADVANCED PROCESS

Sets the Skin Detail function to ON or OFF. ON : Skin Detail function activated. OFF : Skin Detail function not activated. ☞ See “Using the Skin Detail Function” on page 95.

Increases the vertical resolution.

● NORMAL : Vertical resolution of approx. 380 lines.

● V.MAX : Vertical resolution of approx. 450 lines.

Note:

In the case of “V.MAX”, colours may be found on the brighter portions of the object depending on its color temperature.

Sets the point where white clipping is to take place for an input video signal with a high luminance level. 108% : The luminance level is white-clipped at the point of 108%. 100% : The luminance level is white-clipped at the point of 100%. If the

screen appears too white even with the point set at 108%, set the point at 100%.

Sets the knee point (brightness level) when the AUTO KNEE function is set to OFF.

Displays the ADVANCED PROCESS Screen. ☞ See “ADVANCED PROCESS Screen” on page 78.

ON OFF

NORMAL V.MA X

108% 100%

100% 95% 90% 85% 80%

–––––

OFF

NORMAL

108%

100%

–––––

PAGE BACK

The TOP MENU returns when the SHUTTER dial is pressed with the cursor at this position.

–––––

11. MENU SCREENS

11-7 ADVANCED PROCESS Screen

Item Function Variation Range Initial Setting

CINE MODE

COLOR MATRIX

When set to ON, produces gamma curve close to the picture characteristics of movies.

Used to set the color matrix. When set to ON, color reproduction becomes good. However, noise will increase. 5 types of color matrix functions are provided. OFF : The function is OFF STANDARD : Standard colour matrix WARM : Colour adjustment with red tinge EXTRA 1 to 3 : To set a color matrix other that those described above. Select the desired option.

Note:

When CINE MODE is ON, “FIX” is displayed and setting is not possible.

OFF ON

OFF STANDARD WARM EXTRA1 EXTRA2 EXTRA3

OFF

STANDARD

GAMMA

FLARE <MASTER>

FLARE <R>

FLARE <B>

Compensates for the gamma curve that determines the reproducibility of black color.

● To enhance the black color reproducibility. However, halftones will be lost for white section

............... Increase the number

● When reproducibility of the black color is not so important

............... Decrease the number

Note:

When CINE MODE is ON, “FIX” is displayed and setting is not possible.

For correcting the entire black level when the flare phenomenon in which light entering the lens is diffused and results in reflection that colors the black portions of the image occurs. To raise the entire black level...Increase the number To lessen the entire black level...Decrease the number

Note:

When LOLUX is ON, “FIX” is displayed and setting is not possible.

For correcting the black level of Rch when the flare phenomenon in which light entering the lens is diffused and results in reflection that colors the black portions of the image occurs. To weaken tinge of red ... Increase the number To strengthen tinge of red ... Decrease the number

Note:

When LOLUX is ON, “FIX” is displayed and setting is not possible.

For correcting the black level of Bch when the flare phenomenon in which light entering the lens is diffused and results in reflection that colors the black portions of the image occurs. To weaken tinge of blue ... Increase the number To strengthen tinge of blue ... Decrease the number

Note:

When LOLUX is ON, “FIX” is displayed and setting is not possible.

MAX (5) 4 to NORMAL (0) to –4 MIN (–5) OFF

MAX (10) 9 to NORMAL to –9 MIN (–10)

NORMAL

SKIN COLOR ADJUST

PAGE BACK

Pressing the SHUTTER dial once when the cursor is at this position switches the screen to display the SKIN COLOR ADJUST screen.

The CAMERA PROCESS menu screen returns when the SHUTTER dial is pressed with the cursor at this position.

11. MENU SCREENS

11-8 SKIN COLOR ADJUST Screen

Item Function Variation Range Initial Setting

SKIN COLOR DET.

SKIN COLOR RANGE

PAGE BACK

Sets whether it is possible to change the color used by the Skin Tone Detail function. EXECUTE : Choose this setting to allow detection of the color used by

the Skin Tone Detail function.

STOP : Choose this setting to stop detection of the color used by the

Skin Tone Detail function.

☞ See “Using the Skin Detail Function” on page 95.

The setting of this item can only be changed when the SKIN COLOR DET. item is set to EXECUTE. This setting is for adjusting the skin color range where Skin Tone Detail functions. (When this item is selected, the area where the Skin Tone Detail function is applicable is indicated by zebra patterns on the screen.) While viewing the zebra pattern range, perform the adjustment.

Increasing the range ........ Increase the number

Increasing the range ........ Decrease the number

The ADVANCED PROCESS menu screen returns when the SHUTTER dial is pressed with the cursor at this position.

STOP EXECUTE

WIDE 11 to NORMAL to –11 NARROW

–––––

STOP

NORMAL

–––––

11-9 AUDIO/VIDEO Menu Screen

Item Function Variation Range Initial Setting

TEST TONE

AUDIO MODE

A.OUT AT SEARCH

CH1 FRONT VR

WIND CUT

Sets whether or not the audio reference signal (1kHz, –20dBFS or –12dBFS) should be output while the color bar is output. OFF : Audio reference signal is not output. ON : Audio reference signal is output.

Selects the sampling frequency for audio recording (both CH-1 and CH-

32K : Recording is performed with 12-bit, 32 kHz sampling frequency 48K : Recording is performed with 16-bit, 48 kHz sampling frequency * The DV format offers recording tracks for up to 4 channel when using

12-bit, 32 kHz sampling. The GY-DV5100 records two of these track. The GY-DV5100 does not allow after-recording.

Selects whether or not audio should be output during search. (Including slow playback) OFF : Audio is not output ON : Audio is output

Used to select whether or not the front section audio level control should be operative. The front section audio level control only affects the audio signal recorded on CH-1. DISABLE : Use of the front section audio level control is disabled. ENABLE : Use of the front section audio level control is enabled. * The operation of the CH-1 audio level control on the side section is

unaffected by this setting.

To select whether or not the low frequencies of the audio signal from the audio input connectors are cut. Set to ON to reduce the wind noise of the microphone. OFF : Low frequencies are not cut. FRONT : Only the low frequencies of the audio signal input to the

FRONT MIC IN connector are cut.

REAR CH1 : Only the low frequencies of the audio signal input to the

CH-1 REAR AUDIO IN connector are cut.

REAR CH2 : Only the low frequencies of the audio signal input to the

CH-2 REAR AUDIO IN connector are cut.

ALL : The low frequencies are cut for both the FRONT and REAR

AUDIO IN connectors.

OFF ON

32K 48K

OFF ON

DISABLE ENABLE

OFF FRONT REAR CH1 REAR CH2 ALL

OFF

48K

ENABLE

OFF

11. MENU SCREENS

11-9 AUDIO/VIDEO Menu Screen (Cont’d)

Item Function Variation Range Initial Setting

AUDIO REF. LEVEL

AUDIO SELECT

Sets the reference audio level of the tape (both CH-1 and CH-2). –20dB : Records with –20 dB as the reference audio level. –12dB : Records with –12 dB as the reference audio level. Use this setting

when playing back the tape using DV equipment for general

consumer use. * Use the same setting for playback as for recording. * This setting is unrelated to the audio level of the IEEE 1394 signal.

Used to select which channels to reproduce when playing back a tape with sound recorded on 4 channels. (Can only be set in the VTR mode.) CH1/2 : To reproduce the sound recorded on CH-1 and CH-2.

The GY-DV5100 records audio on the CH-1 and CH-2 channels

during shooting. MIX : To simultaneously reproduce the sound of all four channels. CH3/4 : To reproduce the sound of the CH-3 and CH-4 channels.

MEMO:

The GY-DV5100 does not allow after-recording on the CH-3 and CH-4 channels.

–20dB –12dB

CH1/2 MIX CH3/4

–20dB

CH1/2

AUDIO MONITOR

SET UP

PAGE BACK

Selects whether stereo sound or mixed sound is output from the PHONES jack when the MONITOR SELECT switch is set to MIX. STEREO : Stereo sound

(CH-1 audio is output from L, CH-2 audio is output from R) * Only audio of CH-1 is output from the monitoring loudspeaker. MIX : Mixed sound

(The mixed CH-1 and CH-2 audio is output from L and R)

Selects whether the camera image or VTR playback image should be provided with the setup signal. * Setup signal can be selected even for IEEE1394 signal input.

0.0% : Setup signal is not attached to the recording/playback signal.

7.5% : Setup signal is attached to the recording/playback signal.

The TOP MENU screen returns when the SHUTTER dial is pressed while the cursor is at this position.

STEREO MIX

0.0%

7.5%

–––––

MIX

7.5%

–––––

11. MENU SCREENS

11-10 LCD/VF Menu Screen

The LCD/VF menu screen consists of two screens. (1/2 screen, 2/2 screen)

■ LCD/VF (1/2) Menu Screen

Settings can be made on the LCD/VF (1/2) menu screen only in the Camera mode.

Item Function Variation Range Initial Setting

ZEBRA

F.NO/ IRIS IND.

FILTER

SAFETY ZONE

Switches the luminance level of the subject sections where the zebra pattern is displayed. 70-80% : Zebra pattern is displayed in sections with luminance

levels between 70% and 80%.

85-95% : Zebra pattern is displayed in sections with luminance

levels between 85% and 95%.

OVER 95% : Zebra pattern is displayed in sections with luminance

levels over 95%.

OVER 100% : Zebra pattern is displayed in sections with luminance

levels over 100%.

Selects whether or not the F-number of the lens iris/iris level mark is displayed in the status display on the LCD monitor or in the viewfinder. (Status 1 screen) OFF : F-number and iris level mark is not displayed. F.NO : F-number is displayed. F.NO+IND. : F-number and iris level mark is displayed.

Selects whether or not the FILTER position of the unit is displayed in the status display on the LCD monitor or in the viewfinder. (Status 1 screen) OFF : FILTER position is not displayed. ON : FILTER position is displayed.

Selects whether or not the safety zone is shown on the LCD monitor or in the viewfinder together with the form of the safety zone indication. OFF : Not displayed NORMAL : 4:3 zone is displayed. 16:9 : 16:9 zone is displayed.

70-80% 85-95% OVER 95% OVER 100%

OFF F.NO F.NO+IND.

OFF ON

OFF NORMAL 16:9

70-80%

OFF

CENTER MARK

PAGE BACK

Sets whether or not a center mark is displayed when the safty zone is displayed. ON : Center mark is displayed. OFF : Center mark is not displayed.

CAUTION:

When the SAFETY ZONE item is set to OFF, “- - -” is indicated and this item cannot be selected.

To display the LCD/VF (2/2) menu screen, align the cursor with this item and then press the SHUTTER dial.

The TOP MENU screen returns when the SHUTTER dial is pressed while the cursor is at this position.

ON OFF

–––––

11. MENU SCREENS

11-10 LCD/VF Menu Screen (Cont’d)

■ LCD/VF (2/2) Menu Screen

Item Function Variation Range Initial Setting

BATTERY INFO

TAPE REMAIN

TC/UB

Selects whether the remaining battery level should be shown in minutes [min], percentage [%] or voltage [V] in the LCD monitor or viewfinder. VOLTAGE : Indicates battery voltage in 0.1 V steps. TIME : Remaining battery is shown in minutes [min]. CAPA% : Remaining battery is shown in percentage [%].

changes as shown below according to the remaining battery level. : 50% or more : 10% to less than 50% : 10% or less

MEMO:

● When remaining battery level is set to TIME or CAPA%, “ RES” is shown when battery level becomes less than 10%.

● Remaining battery levels in [min] and [%] can be selected when an Anton-Bauer Battery Holder (QR JVC DIGI) is attached. Remaining battery level is shown automatically in [V] when using other battery holders.

● When remaining battery level is set to TIME or CAPA% and information from the battery is not correct (calibration required), the display switches between voltage [V] and “ seconds.

Selects whether or not the remaining tape time (minutes) is shown in the status display on the LCD monitor or in the viewfinder. (Camera mode: Status 1 screen, VTR mode: Status screen) OFF : Not displayed. ON : Displayed.

Selects whether or not the time code or user’s bits data should be shown in the status display on the LCD monitor or in the viewfinder. (Camera mode: Status 1 screen, VTR mode: Status screen) OFF : Not displayed. ON : Displayed. * Whether the time code or user’s bits data is shown is selected with the

COUNTER switch.

CAL” every 2

VOLTAGE TIME CAPA%

OFF ON

VOLTAGE

OFF

AUDIO

LCD COLOR

LCD PEAKING

PAGE BACK

Selects whether the audio level meters should be shown in the status display on the LCD screen and the viewfinder screen. (Camera mode: Status 1 screen, VTR mode: Status screen) OFF : Not displayed. ON : Displayed.

Adjusts the color saturation of the LCD monitor.

Adjusts the contour of the LCD monitor.

To return to the LCD/VF (1/2) menu screen, align the cursor with this position and then press the SHUTTER dial.

OFF ON

MAX (5)

4 to NORMAL to

–4 MIN (–5)

MAX (5)

4 to NORMAL to

–4 MIN (–5)

–––––

OFF

NORMAL

–––––

11. MENU SCREENS

11-11 TC/UB/CLOCK Menu Screen

Time codes and user’s bits can be set on this screen. Date and time is set on the screen that can be reached from this screen.

Item Function Variation Range Initial Setting

TC PRESET

UB PRESET

DROP/ NON DROP

HEADER REC

TIME/DATE

To preset the time code, align the cursor with this position and then press the SHUTTER dial. EXECUTE : The set time code is confirmed. CANCEL : The set time code is cancelled. ZERO PRESET : Resets all time codes to zero (0).

To preset the user’s bit data, align the cursor with this position and then press the SHUTTER dial. EXECUTE : The set user’s bit data are confirmed. CANCEL : The set user’s bit data are cancelled. ZERO PRESET : Resets all user’s bits data to zero (0).

To select the time code generator’s framing mode as either drop or nondrop mode. DROP : The internal time code generator runs in drop mode.

Choose this setting when emphasizing the recorded time.

NON DROP : The internal time code generator runs in non drop mode.

Choose this setting when emphasizing the frame number.

To make settings related to the HEADER REC function, align the cursor with this position, and then press the SHUTTER dial. ☞ See “HEADER REC Menu Screen” on page 84.

To make settings related to the date and time, align the cursor with this position and then press the SHUTTER dial. ☞ See “TIME/DATE Menu Screen” on page 85.

EXECUTE CANCEL ZERO PRESET

DROP NON DROP

–––––

EXECUTE

DROP

–––––

PAGE BACK

The TOP MENU returns when the SHUTTER dial is pressed while the cursor is at this position.

–––––

11. MENU SCREENS

11-12 HEADER REC Menu Screen

The HEADER REC menu screen is used for settings related to the HEADER REC function. (☞ page 58)

Item Function Variation Range Initial Setting

START KEY

TC DATA

UB DATA

Sets whether the HEADER REC operation should be executed when the VTR trigger button is pressed while the STOP button is pressed. STOP+VTR : HEADER REC operation is executed. DISABLE : HEADER REC operation is not executed.

Sets the time code value for the point when the Record-Standby mode is engaged following completion of HEADER REC. EXECUTE : Confirms the set time code. ZERO PRESET : Resets all time codes to zero (0).

CANCEL : Clears the set time code. The Frame mode will in accordance with the setting of the DROP/NON DROP item on the TC/UB/CLOCK menu screen. * The time code value at the point when the Record-Standby mode is

engaged may differ some frames from the value set for this item.

Sets the user’s bits of the HEADER REC section. EXECUTE : Confirms the set user’s bits. ZERO PRESET : Resets all user’s bits data to zero (0).

CANCEL : Clears the set user’s bits.

MEMO:

The user’s bits for the normal recording section are set on the TC/ UB/CLOCK menu screen.

STOP+VTR DISABLE

EXECUTE ZERO PRESET CANCEL

DISABLE

EXECUTE

BARS TIME

BLACK TIME

PAGE BACK

Sets the duration (seconds) in which the color bar signal and test tone (1 kHz) is recorded during HEADER REC. (1-sec steps)

Sets the duration (seconds) in which the black signal is recorded during HEADER REC. (1-sec steps)

The TC/UB/CLOCK menu screen returns when the SHUTTER dial is pressed.

0 SEC to 99 SEC

–––––

30 SEC

–––––

11. MENU SCREENS

11-13 TIME/DATE Menu Screen

Item Function Variation Range Initial Setting

DISPLAY

Sets whether the date and time are shown in the status display on the LCD monitor or in the viewfinder. OFF: Not displayed. ON : Displayed.

● When a tape with time and date not recorded is played back, there will be no display of time and date even when this item is set to ON.

● To display the date and time recorded on the tape, set the DATE REC item to OFF. When the DATE REC item is set to BARS or BARS+CAM, the date and time recorded on the tape are not displayed even if this item is set to ON.

OFF ON

OFF

DISPLAY MODE

DATE REC

DISPLAY STYLE

In the Camera mode, the date and time are displayed in accordance with the following settings. In the VTR mode, if the DATE REC item is set to OFF, the date and time recorded on a tape are displayed in accordance with the following settings. BARS+CAM : Date and time are always displayed. BARS : Date and time are displayed when the OUTPUT switch on

the side section is set to BARS.

CAM : Date and time are displayed when the OUTPUT switch on

the side section is set to CAM. When the DATE REC item is set to BARS or BARS+CAM, the TIME/ DATE will be displayed when set to BARS ON. When the DISPLAY item is set to OFF, “- - -” is indicated and this item cannot be selected.

Selects whether date and time are to be recorded on the tape as video data or not, as well as the video mode in case of recording. Recording is done according to the set position of the OUTPUT switch at the side panel. OFF : Date and time data are not recorded. BARS : Date and time data are recorded when color bars are output. BARS+CAM: Date and time data are recorded when color bars and camera image are output. When the DISPLAY item is set to OFF, “- - -” is indicated and this item cannot be selected. When LETTER is set or ASPECT RATIO in the CAMERA OPERATION menu screen is set to BARS or BARS+CAM, the screen size will be fixed at an aspect ratio of 4:3.

Selects the style for the date and time display. DATE+TIME: Date and time are displayed. DATE: Date only is displayed. TIME : Time only is displayed. When the DISPLAY item is set to OFF, “- - -” is indicated and this item cannot be selected.

BARS+CAM BARS CAM

OFF BARS BARS+CAM

DATE+TIME DATE TIME

BARS+CAM

OFF

DATE+TIME

DATE STYLE

TIME STYLE

SEC DISPLAY

CLOCK ADJUST

PAGE BACK

Selects the style for the date display. YY/MM/DD: Displayed in the format of year/month/date. MM/DD/YY: Displayed in the format of month/date/year. DD/MM/YY: Displayed in the format of date/month/year. When the DISPLAY item is set to OFF, “- - -” is indicated and this item cannot be selected.

Selects the style for the time display. 24 HOUR: Displays the time using the 24-hour system. 12 HOUR: Displays the time using the 12-hour system. When the DISPLAY item is set to OFF, “- - -” is indicated and this item cannot be selected.

Selects whether to display the seconds in the time display. OFF: Seconds are not displayed. ON : Seconds are displayed. When the DISPLAY item is set to OFF, “- - -” is indicated and this item cannot be selected.

To adjust the date and time, align the cursor with this position and then press the SHUTTER dial. The date and time are set on the CLOCK ADJUST screen. For the setting method, see “Setting, Displaying and Recording the Date and Time” on page 43.

The TC/UB/CLOCK menu returns when the SHUTTER dial is pressed while the cursor is at this position.

YY/MM/DD MM/DD/YY DD/MM/YY

24 HOUR 12 HOUR

OFF ON

–––––

MM/DD/YY

24 HOUR

–––––

11. MENU SCREENS

11-14 OTHERS Menu Screen

The OTHERS menu screen consists of two screens (1/2 screen, 2/2 screen)

■ OTHERS (1/2) Menu Screen

Item Function Variation Range Initial Setting

OUTPUT CHAR.

DV REC TRIGGER

LONG PAUSE TIME

REM FF/REW MODE

Selects whether characters should be displayed on the screen of a monitor connected to MONITOR OUT connector or Y/C OUT connector. OFF : No on-screen-display ON : On-screen-display

Selects whether or not the VTR trigger command should be output through the DV connector. Set to ON when the GY-DV5100's DV signal should be recorded on another component for backup. OFF : VTR trigger command is not output. ON : VTR trigger command is output. * Set this item to OFF, when the Backup Recording function of BR-DV600A

or BR-DV3000 is used.

Selects the time (minutes) before the tape protect mode (drum head rotation stopped) is engaged when the record-standby condition continues. 3MIN : 3 minutes 5MIN : 5 minutes * When used in a cold environment or when the stopped or STILL status

continues, the setting will be 3 minutes or less regardless of the setting on the menu.

Selects the operation when the FF or REW command is received when the GY-DV5100 is remote controlled using a non-linear editing controller. FF/REW : Fast forward or rewinding is executed. Normally, this setting

is used.

SEARCH : FWD search or REV search is executed.

Use this setting when detection of the beginning of programs (cue-up) works less than satisfactorily when this item is set to FF/REW.

OFF ON

3MIN 5MIN

FF/REW SEARCH

OFF

5MIN

FF/REW

STEP SLOW MODE

PAGE BACK

Selects the amount of frames advanced in the STILL mode and SLOW mode. FIELD : Field-by-field frame advance. FRAME : Frame-by-frame frame advance.

To display the OTHERS (2/2) menu screen, align the cursor with this item and then press the SHUTTER dial.

The TOP MENU screen returns when the SHUTTER dial is pressed while the cursor is at this position.

FIELD FRAME

–––––

FRAME

–––––

11. MENU SCREENS

■ OTHERS (2/2) Menu Screen

Item Function Variation Range Initial Setting

ALARM VR LEVEL

BATTERY TYPE

FRONT TALLY

Selects whether or not alarm sound is emitted and the volume of the alarm sound. The alarm sound is output through the monitoring speaker and the PHONES jack. OFF : Sound is not output. LOW : Alarm sound is soft. MIDDLE : Alarm sound is normal. HIGH : Alarm sound is loud.

To be set in accordance with the used battery back type. 12V : Choose this setting when using 12 V battery (12VDC Flat shape

type).

13.2V : Choose this setting when using 13.2 V battery (Anton-Bauer

Trimpack 13, Propack 13, Magnum 13, Compack 13).

14.4V : Choose this setting when using 14.4 V battery (Anton-Bauer

DIONIC 90, Trimpack 14, Propack 14, Magnum 14, Compack

14).

● If this setting is wrong or neglected, the unit’s display of remaining battery power and generation of battery alarm will not work correctly.

● This setting is valid when a battery pack is used. It is invalid when a DC power supply is used.

Selects the lighting method of the TALLY lamp in the viewfinder during recording. This setting is valid when the viewfinder’s TALLY switch is set to ON. BLINK : The lamp blinks from when the VTR trigger is pressed and until

recording starts. The lamp lights steadily during recording.

ON : The lamp lights only during recording.

OFF LOW MIDDLE HIGH

12V

13.2V

14.4V

BLINK ON

MIDDLE

14.4V

BLINK

BACK TALLY

PAGE BACK

DRUM HOUR

Selects the lighting method of the TALLY lamp on the rear section during recording. OFF : The lamp is always off. BLINK : The lamp blinks from when the VTR trigger is pressed and until

recording starts. The lamp lights steadily during recording.

ON : The lamp lights only during recording.

The OTHERS (1/2) menu screen returns when the SHUTTER dial is pressed while the cursor is at this position.

Displays the accumulated time that the drum has been in operation. To be used as a yardstick for periodical maintenance. The cursor (

) cannot be moved to this item.

OFF BLINK ON

–––––

BLINK

–––––

12. FEATURES OF THE CAMERA SECTION

12-1 Full-Time Auto White Balance (FAW)

––– CAMERA OPERATION ––– SHUTTER STEP FAW A GAIN L 0dB GAIN M 6dB GAIN H 9dB LOLUX GAIN 30dB

SMOOTH TRANS OFF SPOT L/BACK L MIDDLE ASPECT RATIO 4:3 PAGE BACK

EDITSEARCH

MONITOR

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

BACK L NORMAL SPOT L

POWER

ON OFF

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

VTR

CH-1 CH-2

The FAW function adjusts the white balance value automatically as the lighting condition changes.

This mode is convenient when you have no time to adjust the white balance or when the camera is moved frequently in and out of places under different lighting conditions.

Setting procedure

The FAW function can be activated with the FAW item on the CAMERA OPERATION menu. This item allows allocation of the FAW function to one of the WHT.BAL switch positions, A, B or PRST. ☞ See “CAMERA OPERATION Menu Screen” on page 75.

CAUTION:

The FAW (Full-time Auto White balance) function cannot

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

provide optimum white balance with a subject outside the FAW adjustment range, for example when it contains only a single color or not enough white color.

POWER

ON OFF

VTR

WHT.BAL switch

12. FEATURES OF THE CAMERA SECTION



12-2 IRIS (Brightness) Adjustment

ADJUSTMENT OF LENS IRIS

Iris ring

RET

M A

Temporary auto iris button

Iris mode switch

The lens iris can be adjusted using any of the following three methods.

● Automatic adjustment

Set the iris mode switch to “A” (Auto). The iris is adjusted automatically according to the brightness of the object.

● Manual adjustment

Set the iris mode switch to “M” (Manual). The iris can be adjusted manually by rotating the iris ring.

● Temporary auto iris adjustment

During manual iris adjustment, the auto iris adjustment mode is activated only while this temporary auto iris button is held depressed.

䡲 Changing the auto iris adjustment setup

Under special lighting conditions such as backlight, it is often appropriate to change the value set by the auto iris adjustment. This can be done by the following method.

● Setting the AUTO IRIS LEVEL switch of the camera ☞ See “SWITCH FUNCTIONS” on page 93.

ZEBRA PATTERN DISPLAY DURING MANUAL ADJUSTMENT

By setting the switch to ON, oblique stripes (zebra pattern) can be imposed on the viewfinder or LCD areas having luminance levels in accordance with the menu settings made for the video signal. The zebra pattern can be used as a reference for manual iris

ZEBRA

OFF

SKIN

AREA

VTR

LEVEL CH-1

ZEBRA switch

AUDIO

AUTO WHITE

ACCU FOCUS

adjustment.

● The initial setting is 70 to 80%. However, using the ZEBRA setting on the LCD/VF (1/2) menu screen, zebra patterns can be displayed in the sections with a luminance level of 85 to 95%, over 95% and over 100%. ☞ See “LCD/VF Menu Screen” on page 81.

12. FEATURES OF THE CAMERA SECTION

12-3 Adjusting the Shutter Speed

Adjust the shutter speed to obtain special effects or when shooting scenes with slow-moving subjects.

Setting

■ Set the SHUTTER item on the CAMERA OPERATION menu screen.

SHUTTER dial

EDITSEARCH

MONITOR

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

BACK L

STRETCH NORMAL

NORMAL

COMPRESS

SPOT L

POWER

VTR

ON OFF

SHUTTER

MODE

VTR

CAM

CH-1 CH-2

AUDIO LEVEL

CAMERA OPERATION menu screen

––– CAMERA OPERATION ––– SHUTTER STEP FAW NONE GAIN L 0dB GAIN M 6dB GAIN H 9dB LOLUX GAIN 30dB

SMOOTH TRANS OFF SPOT L/BACK L MIDDLE ASPECT RATIO 4:3 PAGE BACK

LCD BRIGHT DISPLAY

FRONT REAR

CH-1

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

OPEN

PULL OPEN

CH-2

STEP : The shutter speed is changed in fixed steps. VARIABLE: The shutter speed is changed with variable scan.

This setting is used for shooting the screen image on a computer monitor, etc.

Operation

Rotate the SHUTTER dial while the normal screen is shown. (when menu screens are not displayed). (If “SHUTTER OFF” is displayed, press the SHUTTER dial.)

● The current shutter speed is shown on the LCD monitor or in the viewfinder for approximately 3 seconds.

Rotate the SHUTTER dial while the shutter speed is shown. Rotating the dial downward makes the shutter slower, and rotating it upward makes it faster.

Stop rotating the SHUTTER dial when the desired shutter speed is indicated. The set shutter speed value is displayed for about 3 seconds on the LCD monitor or in the viewfinder. Setting range STEP: 1/7.5, 1/15, 1/30, 1/60, 1/100, 1/250,

1/500, 1/1000, 1/2000, 1/4000, 1/10000

VARIABLE: 1/60.1 Hz to 1/2084.6 Hz

■ To return the shutter speed to the initial setting, press the SHUTTER dial.

Initial setting: OFF (“SHUTTER OFF” is indicated on the screen.)

SHUTTER 1/1000

Shutter speed indication

SHUTTER OFF

Indication of initial shutter speed value

12. FEATURES OF THE CAMERA SECTION

12-4 Shooting the Screen Image on a Computer Monitor

䡲Outline

The following operation allows the alignment of the shutter speed of the camera with the variable scanning rate of a computer monitor or display. When a computer monitor screen or display is shot with the camera, a bright horizontal line indicating excessive exposure is displayed in cases when the scanning rate of the monitor is faster than the shutter speed of the camera. A dark horizontal line indicating insufficient exposure is displayed in cases when the monitor’s scanning rate is slower than the camera’s shutter speed. The scanning frequency of a monitor varies due to various reasons during the computer operation. Adjust the scanning rate to obtain a stable image while observing the image in the viewfinder or LCD monitor.

䡲 Variable Scan [V.SCAN]

• Basic operation

Set the SHUTTER item on the CAMERA OPERATION menu screen to VARIABLE. Then rotate the SHUTTER dial upward or downward to change the shutter speed. (The speed is displayed in the viewfinder or LCD monitor.)

• Compatible frequencies

The variable scan function is compatible with scanning frequencies in the following range.

60.1Hz to 2084.6 Hz

CAUTION:

This function is not compatible with slow-speed computer monitors with a vertical scanning speed of 50 Hz.

Video monitor

EDITSEARCH

MONITOR

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

MODE

BACK L

STRETCH

VTR

NORMAL

COMPRESS

SPOT L

POWER

ON OFF

CAM

VTR

SHUTTER dial

––– CAMERA OPERATION ––– SHUTTER VARIABLE FAW A GAIN L 0dB GAIN M 6dB GAIN H 9dB LOLUX GAIN 30dB

SMOOTH TRANS OFF SPOT L/BACK L MIDDLE ASPECT RATIO 4:3 PAGE BACK

CH-1 CH-2

AUDIO LEVEL

Band

LCD BRIGHT DISPLAY

FRONT

REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

OPEN

PULL OPEN

CAMERA OPERATION menu screen

12. FEATURES OF THE CAMERA SECTION

AUTO IRIS

BACK L NORMAL SPOT L

STRETCH NORMAL COMPRESS

FULL AUTO BLACK LOLUX

MODE

POWER

ON OFF

VTR

CAM

AUTO IRIS

BACK L NORMAL SPOT L

STRETCH NORMAL COMPRESS

FULL AUTO BLACK LOLUX

MODE

POWER

ON OFF

VTR

CAM

12-5 Gain (Sensitivity) Adjustment

The gain should be switched when the brightness is insufficient due to poor lighting conditions.

GAIN SWITCHING

GAIN switch

CAUTION:

When gain is set to “ALC”, gain is boosted automatically as the illumination becomes darker. However, noise will increase a little because the screen becomes brighter as the ALC (Auto Level Control) function boosts the gain more than in the case of manual adjustment.

This switch allows the gain to be boosted when the illumination of the subject is insufficient.

Switch Position Factory-Set Gain

L 0dB

M 9dB

H 18dB

When the GAIN switch is switched, the newly set gain is displayed for about 3 seconds on the Status (0, 1, 3) screen in the viewfinder or LCD monitor. Set it to L (0 dB) in normal use.

■ The gain set for each of the switch positions can be changed with “GAIN” on the CAMERA OPERATION menu screen. It is also possible to use the ALC function that varies the gain automatically. A setting at –3dB corresponds to a decreased sensitivity equivalent to the brightness of a 1/2 filter.

☞ See page 75 for details.

■ The gain transition can be made smoother by selecting

“SMOOTH TRANS” on the CAMERA OPERATION menu screen. ☞ See page 75. However, note that the SMOOTH TRANS function is not available if gain is set to ALC.

GAIN BOOST UNDER LOLUX CONDITION

LOLUX on/off button

Relationship between gain, iris and shutter

0.2 Lx 32 Lx8 Lx 2000 Lx 4200 Lx 18000 Lx

FULL AUTO SHOOTING

36 dB 12dB 0 dB 1/60 1/240

LOLUX

ALC AUTOMATIC IRIS EEI

The LOLUX button is used when the illumination is still insufficient after compensating with the GAIN switch. Pressing the LOLUX button again will enter the LOLUX mode. The gain up value during the LOLUX mode is set in LOLUX GAIN of the CAMERA OPERATION menu. “LOLUX ON” is displayed for about 3 seconds on the Status (0, 1, 3) mode screen in the viewfinder or LCD monitor. Pressing the button again cancels the LOLUX mode. “LOLUX OFF” is displayed for about 3 seconds.

■ When the LOLUX function is in use, the image definition on the screen will degrade to increase residual images, but this is not a malfunction.

F1.4 F11 F16

12. FEATURES OF THE CAMERA SECTION

AUTO IRIS

BACK L NORMAL SPOT L

STRETCH NORMAL COMPRESS

FULL AUTO BLACK LOLUX

MODE

POWER

ON OFF

VTR

CAM

AUTO IRIS

BACK L NORMAL SPOT L

STRETCH NORMAL COMPRESS

FULL AUTO BLACK LOLUX

MODE

POWER

ON OFF

VTR

CAM

12-6 Switch Setup According to Illumination and Subject

Various switch settings are performed to accommodate the conditions of the illumination and the subject when shooting.

SWITCH FUNCTIONS

AUTO IRIS LEVEL switch

BLACK stretch/black compress switch

1AUTO IRIS LEVEL switch

This switch allows the reference value for the auto iris adjustment to be changed according to the lighting condition. BACK L : When the subject is in backlit conditions.

Opens the iris wider than the standard setting.

NORMAL: Normal lighting condition. SPOT L : When the subject is under a spotlight.

Closes the iris narrower than the standard setting.

■ The level of auto iris can be set in SPOT L/BACK L on the CAMERA OPERATION menu screen when the AUTO IRIS switch is set to BACK L or SPOT L. ☞ See page 75.

2BLACK stretch/black compress switch

This switch makes the image easier to see by varying the black gain. BLACK STRETCH : Boosts the gain of black areas to

improve the reproducibility of black.

NORMAL : Normal black gain. BLACK COMPRESS

: Attenuates the gain of black areas to

make the image sharper.

FULL AUTO SHOOTING (FAS) FUNCTION

FULL AUTO indicator

CAUTION:

● When the power is turned on while the camera is in the FAS mode, it takes about 10 seconds before the automatic adjustment of FAS is completed.

FULL AUTO/shooting button

The FAS function provides a wide range of compatibility with shooting conditions that varies as you move between indoors and outdoors or between bright and dark locations. It eliminates the need to change the switch and filter positions every time you move. The FAS function provides an integrated control of the ALC (Automatic Level Control), Auto iris and FAW (Full-time Auto White balance) functions.

Operation

Simply press the FULL AUTO button to enter the FAS mode, in which the FULL AUTO indicator lights and “FAS” is displayed to the right in the viewfinder or LCD monitor.

Pressing the FULL AUTO button again cancels the FAS mode and turns the FULL AUTO indicator off.

■ Automatic Setting Contents

● If you have been displaying the color bars, the screen is switched automatically to the camera image.

● The auto iris adjustment mode is entered even if the iris mode switch of the lens is set to manual.

● The GAIN switch and WHT.BAL switch settings are defeated in the FAS mode.

● The LOLUX button setting is active even in the FAS mode. However, the ALC and EEI are defeated in the LOLUX mode, in which only the auto iris adjustment and FAW are used.

● All of the previous setting contents are recalled when the FAS mode is cancelled.

● The SMOOTH TRANS function is defeated during switch to the FAS function.

12. FEATURES OF THE CAMERA SECTION

12-7 How to Use Skin Detail

The contour emphasis in the skin color areas of the video signal can be controlled and made to appear gentle and smooth.

■

Setting the Color and Range of the Skin Detail Function

CH-1 CH-2

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO MANUAL

Press the STATUS button for about 1 second to display the TOP MENU screen.

Turn the SHUTTER dial downward to align the cursor ( ) with the CAMERA PROCESS item. Then press the SHUTTER dial in the direction of the arrow to display the CAMERA PROCESS menu screen.

Turn the SHUTTER dial downward to align the cursor ( ) with the ADVANCED PROCESS item. Then press the SHUTTER dial in the direction of the arrow to display the ADVANCED PROCESS menu screen.

Turn the SHUTTER dial downward to align the cursor ( ) with the SKIN COLOR ADJUST item. Then press the SHUTTER dial in the direction of the arrow to display the SKIN COLOR ADJUST screen.

● When the ASPECT RATIO is set to SQUEEZE setting, the screen ratio changes to 4:3.

● The frame shown on the screen indicates the detection area of the skin detail function.

When the cursor ( ) is aligned with the SKIN COLOR DET. item, the SHUTTER dial is pressed in the direction of the arrow and EXECUTE selected, the skin color detection mode is activated.

Shoot so that the area with the color that you want to detect is brought within the detection area frame. To decide on the color for the detection, press the SHUTTER dial to set SKIN COLOR DET. to STOP.

● The color is recognized as a color that the skin detail function works with.

● The areas recognized by the skin detail function appear with superimposed zebra patterns.

● If the color is not recognized as a color that the skin detail function works with, “ERROR” is displayed on the screen.

If you want to change the color range recognized by the skin detail function, perform the following operations.

Set the SKIN COLOR DET. item to EXECUTE. 1 Turn the SHUTTER dial to align the cursor ( ) with SKIN

COLOR RANGE, and then press the SHUTTER dial in the direction of the arrow.

a The area with the setting value starts blinking, and

the value can now be changed.

2 Turn the SHUTTER dial up or down to widen or narrow

the colour range.

● Adjust the range while observing the zebra patterns.

3 To decide the colour range, press the SHUTTER dial in

the direction of the arrow. a The setting value stops blinking but remains lit.

To stop the SKIN COLOR ADJUST operation, align the cursor ( ) with PAGE BACK and press the SHUTTER dial in the direction of the arrow.

● If the ASPECT RATIO is set to SQUEEZE, the screen returns to SQUEEZE display.

2. 3. 4. 5. 6.

7. 8. SHUTTER dial

––– MENU ––– CAMERA OPERATION..

Cursor

Detection area

CAMERA PROCESS.. AUDIO/VIDEO.. LCD/VF.. TC/UB/CLOCK.. OTHERS..

FILE MANAGE.. MENU ALL RESET CANCEL EXIT

––– CAMERA PROCESS ––– MASTER BLACK NORMAL DETAIL NORMAL DTL.V/H BALANCE NORMAL DTL.FREQUENCY MIDDLE SKIN DTL.DETECT ON V.RESOLUTION NORMAL

WHITE CLIP 108% KNEE POINT 100% ADVANCED PROCESS.. PAGE BACK

CAMERA PROCESS menu screen

––– ADVANCED PROCESS ––– CINE MODE OFF COLOR MATRIX STD GAMMA NORMAL FLARE<MASTER> NORMAL FLARE<R> NORMAL FLARE<B> NORMAL SKIN COLOR ADJUST.. PAGE BACK

ADVANCED PROCESS screen

––– SKIN COLOR ADJUST –––

SKIN COLOR DET. EXECUTE SKIN COLOR RANGE NORMAL PAGE BACK

SKIN COLOR ADJUST screen

EDITSEARCH

MONITOR

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

FULL AUTO BLACK LOLUX

MODE

BACK L

STRETCH

VTR

NORMAL

COMPRESS

SPOT L

CAM

POWER

VTR

ON OFF

1. STATUS button

SHUTTER

TOP MENU screen

ERROR

SKIN COLOR ADJUST screen

01/02/03 01:23:45

Status 0

FAS 6dB FAW

.2V

12. FEATURES OF THE CAMERA SECTION

■

Using the Skin Detail Function

To use the skin detail function set on the SKIN COLOR ADJUST screen, select “ON” for the SKIN DTL DETECT item on the CAMERA PROCESS menu screen.

“SD” display

While the Skin Detail function operates, the “SD” indicator is displayed on the Status 0 and Status 1 screen in the viewfinder or LCD monitor.

■

Confirming the color tone area adjusted with the Skin Detail function

ZEBRA

OFF

SKIN

AREA

VTR

AUDIO

LEVEL CH-1

ZEBRA switch

When the ZEBRA switch on the front section is pressed to the “SKIN AREA” side, Skin Detail function turns on, zebra patterns are indicated in the colour tone areas adjusted with Skin Detail and displayed in the viewfinder or on the LCD monitor.

MEMO:

AUTO WHITE

ACCU FOCUS

When the ASPECT RATIO item on the CAMERA OPERATION menu is set to SQUEEZE setting, zebra patterns are not displayed.

13. OTHERS

13-1 Alarm Indications and Actions

The GY-DV5100 displays messages on the LCD monitor and in the viewfinder in the case of improper operation, notices on remaining battery power and tape and warnings in the case of abnormalities during VCR operation. Also, when remaining tape or battery power becomes small, or in the case of abnormalities during VCR operation, the TALLY lamps and viewfinder lamp will blink (or light steadily), and alarm sound will be output through the monitoring loudspeaker or the PHONES jack.

B: Alarm display area

FAW

FAS dB

.2V

TALLY lamp

LCD BRIGHT DISPLAY

FRONT

REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

OPEN

PULL OPEN

TALLY lamp

1 2 .3 .4

SHUTTER

3200K 5600K 5600K 5600K

AUTO IRIS

FILTER

BACK L NORMAL SPOT L

ON OFF

EDITSEARCH

STATUS

FULL AUTO BLACK LOLUX

POWER

VTR

STRETCH NORMAL COMPRESS

MONITOR

AUDIO LEVEL

MODE

VTR

CAM

CH-1 CH-2

PHONES jack

Monitoring loudspeaker (alarm sound)

■ Screen indications on the LCD monitor and in the Viewfinder

● Improper operation caution area (Display area: A)

Indication Condition Remedy

INVALID TAPE!

A data tape for PC or DVCPRO videocassette use is used.

Use a standard DV videocassette or MiniDV videocassette for video use.

LOW VOLTAGE

NO TAPE

01/02/03 01:23:45

A: Improper operation

caution area

(Alarm sound)

LP TAPE INVALID!

NO DV SIGNAL

COPY INHIBIT

REC INHIBIT

Attempt to play back a tape recorded in the LP mode.

DV signal is not input.

Attempt to record a copy-guarded DV signal.

An unrecordable videocassette (the switch on the

The GY-DV5100 cannot play back tapes recorded in the LP mode.

Input a DV signal.

A copy-guarded DV signal cannot be input.

Set the switch on the back of the cassette to “REC”.

back of the cassette is set to “SAVE”) is loaded.

NO TAPE

No videocassette is loaded.

Insert a videocassette.

● Alarm area (Display area: B)

Indication Condition Remedy

LOW VOLTAGE

TAPE NEAR END

HEAD CLEANING REQUIRED!

Remaining battery power is low.

The remaining tape is 3 minutes or less. (Only displayed in the shooting mode.)

Displayed in case of video head clogging. (Head clogging is detected and indicated during edit

Prepare a charged battery or replace the battery immediately.

To continue the recording, prepare a new tape or replace with a new tape immediately.

Clean the head with the special head cleaning tape. (See page 7.)

search in the recording mode and during playback.)

COPY GUARD!

CLOSE CASSETTE

Attempt to play back a copy-guarded tape.

The cassette cover is open.

A copy-guarded tape cannot be played back.

Close the cassette cover.

COVER!

OPEN CASSETTE COVER!

The cassette cover is closed.

Open the cassette cover. If a cassette tape cannot be ejected automatically, press the EJECT button.

MEMO:

The GY-DV5100 is a microcomputer-controlled piece of equipment, which may malfunction due to external noise or interference. In this case, turn the power OFF, and then turn it ON again.

13. OTHERS

● Warning Indications for VCR Abnormalities

Should malfunctions occur during VCR operation, the unit self-diagnoses the cause and shows the diagnose together with an error code on the LCD monitor or in the viewfinder.

Error code

∗1 If the unit is used in a state where the cassette cover is

open after inserting a cassette tape, there can be a

WARNING7001

DRUM MOTOR FAILURE

Error Code Error Details GY-DV5100 Operation Remedy

0201

CONDENSATION ON DRUM

Warning

Indicates dew formation (condensation)

Operation stops. All operations are rejected.

case where an error code “3200, 7202, 7302” appears. In such a case, switch off the power once and switch it on again, and then close the cassette cover before use.

Leave the unit with the power ON, until the indication disappears.

3200

LOADING FAILURE

3300

UNLOADING FAILURE

4100

CASSETTE EJECT FAILURE

TAPE DEFECTIVE

5605 ~ 5609

5702

TAPE END DET. ERROR

5802

TAPE BEGIN DET. ERROR

7001

DRUM MOTOR FAILURE

7101

CAP MOTOR FAILURE

7202 ~ 7203

SUPPLY REEL FAILURE

7302 ~ 7303

TAKE UP REEL FAILURE

7305

TAKE UP REEL FAILURE

Tape cannot be loaded.

∗1

Tape cannot be unloaded.

Irregularity with eject operation.

Tape is cut.

Tape end sensor error.

Tape beginning sensor error.

Drum rotation error.

Capstan rotation error.

Supply reel rotation error.

∗1

Take up reel rotation error.

∗1

Irregular tape winding when unloading.

Operation stops.

Operation stops. All operations are rejected.

Switch the power OFF and then switch it back ON. However, the tape may be damaged depending on the circumstances. Please consult the person in charge of professional video equipment at your nearest JVC-authorized service agent.

Press the EJECT button to take out the cassette.

7401

Reel motor rotation error.

REEL MOTOR FAILURE

TURN POWER OFF.

TURN BACK ON LATER.

System error when power is turned on.

■ TALLY lamp

Blinks when remaining battery power or tape is low. (Only in Camera mode)

Blinking Pattern Remaining Battery/Tape

Slow blinking ● Remaining battery power is low. (once per sec.) ● Remaining tape time is equivalent to less than 3 minutes.

Fast blinking ● Tape has run out. (four times per sec.) ● Irregularity has occurred in the VCR.

MODE indicator and TALLY lamp flash. Only Power switch operation is accepted.

Turn off the power and let the unit sit for sometime before turning it back on.

13. OTHERS

13-1 Alarm Indications and Actions (Cont’d)

■ Viewfinder Warning Lamps

BATTERY lamp This red lamp lights red under the following circumstances. Lights red : When the battery voltage becomes too low for

REC/ALARM lamp This lamp lights or blinks green under the following conditions. Lights Green : ● While recording Blinks Green : ● During the interval where the unit

Whether or not alarm sound should be output and the volume level are selected with the ALARM VR LEVEL item on the OTHERS (2/2) menu screen.

1. 2.

BATT

ALARM

REC

Battery lamp REC/ALARM lamp

■ Alarm Sound

When remaining battery power becomes low, a warning sound is output from the monitoring loudspeaker and the PHONES jack. (In Camera mode only) When an irregularity occurs in the VCR, a warning sound is also output.

the camera to operate.

switches from record-standby to record mode.

● Immediately before the tape runs out or has run out.

● If the VCR malfunctions.

■ Depending on the alarm conditions, the warning indicators on the LCD monitor/viewfinder screen, the TALLY lamp, the viewfinder lamp, and alarm sounds appear as shown in the following table.

Alarm Indications

on LCD Monitor/

Viewfinder Screen

VTR alarm indication (Example)

0701

DRUM MOTOR FAILURE

TAPE NEAR END

LOW VOLTAGE

Display symbols :Steady lighting :Blinking once per second. :Blinking four times per second.

TALLY

Lamp

Sound interrupted once per second.

Lamp Viewfinder Lamp

Alarm Sound Condition

Alarm BATT

Dew formation (condensation) or error has occurred in the VCR.

About 3 min. before tape end (displayed during recording).

Tape end (displayed during recording).

Remaining battery power is low.

:Continuous sound.

13-2 Troubleshooting

Symptoms Remedy

Power cannot be switched ON.

13. OTHERS

● Is power supply connected correctly?

● Is battery pack recharged?

● Was the power turned ON immediately after being turned OFF?

Wait at least 5 seconds before turning the power ON again once it has been turned OFF.

Recording is not possible.

Camera image does not appear on LCD monitor or in viewfinder.

Image shown on LCD monitor or in viewfinder is dark or blurred.

Playback does not start when the play button is pressed.

DV signal cannot be input.

Noise interferes with playback video.

Sound is not output during playback.

Noise appears when playing back a tape recorded on another unit.

● Is the switch on cassette set to “REC”? If it is set to “SAVE”, set it to “REC”.

● The Camera mode has not been selected. (The CAM indicator does not light.)

While the VTR indicator lights, press the MODE switch upward to turn on the CAM indicator.

● The Camera mode has not been selected. (The CAM indicator does not light.) While the VTR indicator lights, camera image will not be output. Press the MODE switch upward to turn on the CAM indicator.

● Adjust the brightness of the LCD monitor or viewfinder screen.

● Is the color temperature conversion filter knob set to 5600K+ND?

● Is the iris closed?

● Is the shutter speed too fast?

● Is the viewfinder cable correctly connected?

● In the Camera mode, is “STOP” indicated as the VTR operation mode indicator?

When “STBY” is indicated, press the STOP button to display “STOP”.

● The VTR mode has not been selected. (The VTR indicator does not light.) While the CAM indicator lights, press the MODE switch upward to turn on the VTR indicator.

● Video head may be clogged with dirt. Clean head with the special head cleaning tape. (☞ See “Precautions for Use of Head Cleaning Tape” on page 7.)

● Is the AUDIO SELECT item on the AUDIO/VIDEO menu screen set to CH3/4. To output the sound of the recording, set to CH1/2.

● When a tape recorded on another unit is played back or used for recording, this phenomenon may occur due to tracking errors.

The transient section between scenes recorded on other units and those recorded on the GY-DV5100 may appear disturbed.

The front section’s audio level control doesn’t work.

The front section’s audio level control doesn’t change the audio level of the sound input to CH-2.

Remaining battery power display is incorrect.

Battery alarm is displayed and the GYDV5100 enters the non-operating mode even when a fully charged battery is used.

Cassette cannot be ejected after the power is turned ON.

Time code or user’s bits data not displayed.

The date and time are not displayed or recorded.

● Is the CH1 FRONT VR item on the AUDIO/VIDEO menu screen set to “DISABLE”? If so, set to “ENABLE”.

● The front section’s audio level control cannot be used to change the audio level of the sound input to CH-2. Use the side section’s CH-2 audio level control for this purpose.

● The OTHERS (2/2) menu screen’s BATTERY TYPE item may not be set correctly in accordance with the type of battery in use. If the menu item setting is incorrect, set it correctly using the OTHERS (2/2) menu screen’s item BATTERY TYPE.

● Is the battery old?

● The capacity of the power supply may be insufficient. Check the power voltage.

● Is the TC/UB item on the LCD/VF menu screen set to OFF? If so, set to ON.

● Is the DISPLAY item on the TIME/DATE menu screen set to OFF? Set to ON

when the data should be displayed and recorded. To record the data, set the DATE REC item as well.

● Is the date and time setting made? ☞ See “Setting, Displaying and Recording the Date and Time” on page 43-45.

13. OTHERS

13-3 Hour Meter Display

The GY-DV5100 can display the accumulated running time of the head drum in the HOUR METER item on the OTHERS (2/2) menu screen. Use this as a guide for periodical maintenance. ☞ See page 7.

Set the POWER switch to ON.

Press the STATUS button for 1 second or longer to display the TOP MENU screen.

Rotate the SHUTTER dial to select the OTHERS item, and then press the SHUTTER dial.

● The OTHERS (1/2) menu screen appears.

Select the NEXT PAGE item on the OTHERS (2/2) menu screen, and then press the SHUTTER dial.

● The OTHERS (2/2) menu screen appears.

■ The accumulated drum running time is shown next to the DRUM HOUR item on the OTHERS (2/2) menu screen.

To return to the normal screen, use either of the following methods.

● Press the STATUS button or

● Return to the TOP MENU screen and then select the EXIT item from the TOP MENU screen before pressing the SHUTTER dial.

SHUTTER dial

––– MENU ––– CAMERA OPERATION.. CAMERA PROCESS.. AUDIO/VIDEO.. LCD/VF.. TC/UB/CLOCK.. OTHERS..

FILE MANAGE.. MENU ALL RESET CANCEL EXIT

EDITSEARCH

MONITOR

FILTER

3200K

5600K

STATUS

SHUTTER

AUTO IRIS

BACK L NORMAL SPOT L

ON OFF

POWER

FULL AUTO BLACK LOLUX

VTR

MODE

STRETCH

VTR

NORMAL COMPRESS

CAM

CH-1 CH-2

STATUS button

TOP MENU menu screen

OPEN

LCD BRIGHT DISPLAY

AUDIO

PULL

LEVEL

OPEN

FRONT

REAR

CH-1

CH-2

AUDIO IN

AUDIO SELECT

CH-1 CH-2

AUTO

MANUAL

OTHERS (2/2) menu screen

––– OTHERS(2/2) ––– ALARM VR LEVEL HIGH BATTERY TYPE 12V FRONT TALLY BLINK BACK TALLY OFF PAGE BACK

DRUM HOUR 00200

Accumulated drum running time

100
