Thank you for purchasing the JVC GY-DV300 Camcorder.

These instructions are for the GY -D V300E and GY-D V301E. The te xt mainly deals with the GY -D V300E. Explanations concerning unique GY-DV301E functions are set off by the (GY-DV301 only) notice. (IEEE1394 input is possible with the GY-DV301E.)

These instructions are for the GY-DV300E and GY-DV301E.

The instructions are given in three languages: English from page E-2 to E-109, German from page G-2 to G-109, French from page F-2 to F-109.

This equipment is in conformity with the provisions and protection requirements of the corresponding European Directives. This equipment is designed for professional video appliances and can be used in the following environments:

● residential area (in houses) or rural area

● commercial and light industry; e.g. offices or theatres

● urban outdoors

In order to keep the best performance and furthermore for electromagnetic compatibilitiy we recommend to use cables not exceeding the following length:

Port Cable Lenght

DC IN Exclusive Cable 1.9 meters VIDEO OUT Shielded Cable 5 meters Y/C OUT Exclusive Cable 3 meters LINE OUT CH-1CH-2 Shielded Cable 3 meters

Port Cable Lenght

EARPHONE Shielded Cable 1 meters DV Exclusive Cable 4.5 meters MIC1 Shielded Cable 0.3 meters MIC2 Shielded Cable 0.3 meters

Caution : Where there are strong electromagnetic waves or magnetism, f or example near a radio or TV

transmitter, transf ormer, motor , etc., the picture and the sound ma y be disturbed. In such case, please keep the apparatus away from the sources of the disturbance.

E-2

SAFETY PRECAUTIONS

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

This unit should be used with 7V DC only. CAUTION: To prevent electric shocks and fire hazards, do NOT use any other power source.

NOTE :

The rating plate (serial number plate) is on the body.

CAUTION

To prevent electric shock, do not open the cabinet. No user servicea-ble parts inside. Refer servicing to qualified service personnel.

AVERTISSEMENT : POUR EVITER LES RISQUES D’INCENDIE OU D’ELECTROCUTION, NE PAS EXPOSER L’APPAREIL A L’HUMIDITE OU A LA PLUIE.

Ce magnétoscope ne doit être utilisé que sur du courant direct en 7V. ATTENTION : Afin d’eviter tout resque d’incendie ou d’électrocution, ne pas utillser d’autres sources d’alimentation électrique.

REMARQUE :

La plaque d’identification (numéro de série) se trouve sur le panneau arrière de l’appareil.

E-3

Thank you for purchasing the DV Camcorder GY-DV300.

This camcorder is a MiniDV video system f ormat camcorder. Videocassettes that are not marked with the MiniDV symbol cannot be used with this unit.

●

The following phenomena may occur when tapes recorded on other units (including another GY -D V300) are recorded or pla yed back on this camcorder.

• The transient section between scenes recorded on other units and those recorded on this unit may appear disturbed.

• Digital noise may appear during playback due to tracking errors.

● In the case of important recordings, do not record within the first 2 to 3 minutes from the beginning of the tape.

● Before recording important scenes, be sure to perform a test recording and confirm that both video and audio are recorded correctly.

● We recommend using the “SP” mode for recording important scenes.

● Recorded video and audio contents are for private use. Other use may infringe on the rights of copyright holders.

● JVC cannot assume liabilities that may derive from the impossibility of normal recording or playback of video or audio due to malfunction of the camcorder or the videocassette.

E-4

About the LP Mode

Recording and playback quality in the LP mode is easily affected by the condition of the tape and the environment of use. Mosaic-like noise may appear in the playback picture and the sound may drop out at times, etc. The picture may also be disturbed at the transient sections between scenes.

MAIN FEATURES

● Newly developed built-in 12-bit DSP employed for high-quality picture

● High quality picture with 400% dynamic range

● Compact, lightweight design

● DV high-quality digital format

The 4:2:0, 8-bit, 25 Mbps component digital signal processing of the format ensures recording and playback with high picture quality.

● High sound quality thanks to PCM audio Two types of sampling, 16-bit, 48 kHz sampling and 12-bit, 32 kHz sampling, ensure high-quality digital audio.

● Camera section designed with 3-CCD system for high-quality picture Three 1/3" CCDs with 440,000 effective pixels employed. Digital processing for high quality picture reproduction.

● Super sensitivity F/11, 2000 lx Enables shooting at normal indoor illumination eliminating the need for extra illumination.

● LOLUX for 2.65 lx (F1.6) illumination Employment of LOLUX mode ensures +24 dB gain. This is ideal for difficult shooting conditions with almost no illumination.

● Zebra pattern video level indication on monitor screen

● Built-in colour bar (EBU type)

● Aspect ratio switchable between standard and

wide-screen Menu allows screen format setting to be switched between 4:3 format and LETTER BOX-screen (16:9).

● Time code reader/generator Recording of EBU time code possible.

● Edit search function for convenient recording review

● Variable scan shutter Eliminates flicker when shooting other screen pictures than PAL, such as computer monitor screens. Copes with the range from 50.1 Hz to 2067.8 Hz.

● DV (i. LINK) connector DV connector (4-pin) provided. Enables transfer of digital data to other equipment provided with DV connector.

● Built-in camera-shake compensation function

● Built-in 2.5" colour LCD display

● Network connection possible (requires

installation of the optional network pack KADV300) This allows audio and video streaming data to be transmitted via LAN card or the data can be recorded on a memory card.

E-5

CONTENTS

INTRODUCTION

Precautions for Proper Use.............................. 7

Routine and Periodical Maintenance ................ 9

Precautions for Use of Head Cleaning Tape ... 10

Videocassette to be Used ............................... 10

Condensation .................................................. 11

Characteristic CCD Phenomena ..................... 11

CONTROLS, INDICATORS AND CONNECTORS

Right Side Section .......................................... 12

Rear Section ................................................... 14

Left Side Section ............................................. 18

Front Section................................................... 20

Top Section ..................................................... 21

Indications on LCD Screen and

Viewfinder Screen ....................................... 22

PREPARATIONS

Basic System .................................................. 32

Power Supply Preparation............................... 33

AC Operation .................................................. 33

Battery Pack Operation ................................... 34

Attaching an External Microphone (optional) .. 36

PREPARATIONS FOR OPERATION

Turning the Power ON ..................................... 37

Cassette Loading ............................................ 38

LCD Screen Adjustment ................................. 39

Adjustment the Viewfinder............................... 40

Setting, Displaying and Recording

the Date and Time....................................... 41

Charging the Built-in Battery ........................... 44

Setting, Displaying and Recording

the Time Code ............................................. 45

SETTINGS BEFORE SHOOTING

Shooting Mode (AUTO/MANUAL) Selection ... 47

Audio Input Signal Selection ........................... 49

Audio Monitor Selection .................................. 51

Focus Mode Selection..................................... 52

Angle of View (Zoom In/Zoom Out)................. 53

Menu Screen Settings..................................... 54

SHOOTING

Basic Recording Operation ............................. 57

Viewing the Recorded Scene (Edit Search).... 59

If the Unit is Left in Recording-Standby Mode .. 60

Recording the Colour Bar ............................... 61

Using the AE Function .................................... 62

MANUAL ADJUSTMENTS

Manual Focus Adjustment............................... 63

Using ND Filter................................................ 65

Obtaining Natural Tint (White Balance)........... 66

Manual Iris Adjustment ................................... 68

Manual Shutter Speed Adjustment ................. 70

Manual Gain Adjustment................................. 72

Displaying Zebra Patterns for Adjustment....... 75

Manual Adjustment of the Audio

Recording Level .......................................... 76

Disabling Operation of the Camera-Shake

Compensation Function .............................. 78

Adjusting the Quality of Camera Image .......... 79

PLAYBACK

Playback of Tape ............................................. 80

Blank Search................................................... 81

Adjusting the Playback Sound Volume............ 82

Outputting CH-3/CH-4 Channel Sound........... 83

EXTERNAL COMPONENTS

Connecting a Video Component with

DV Connector.............................................. 84

MENU SCREEN

MENU Screen Structure ................................. 86

Setting Menu Screens..................................... 88

Contents of Menu Screens ............................. 90

TOP MENU Screen ..................................... 90

SYSTEM Menu Screen ............................... 91

DISPLAY Menu Screen ............................... 94

CAMERA Menu Screen............................... 96

OPERATION Menu Screen ......................... 98

CLOCK/TC Menu Screen............................ 99

VTR Menu Screen....................................... 99

TROUBLESHOOTING

Alarm Indications and Actions ....................... 100

In case of Difficulty ........................................ 102

OTHERS

Displaying the Hour Meter Display................ 104

If dirt penetrates into the interior of

viewfinder ...................................................... 105

Installing the ferrite core................................ 106

Specifications ................................................ 107

E-6

INTRODUCTION

Precautions for Proper Use

● Supply voltage

Make sure that the power is between 6 V and 12 V DC. If the power voltage is too low, abnormal colour and increased noise may occur. Do not exceed 12 V DC in any case, or the unit could be damaged.

● Allowable ambient temperature and humidity

Be sure to use the unit within the allowable temperature range of 0°C to 40°C and a relativ e humidity of 30% to 80%. Using the unit at a temperature or humidity outside the allo w ab le r anges could result not only in malfunction but the impact on the CCD elements could be serious as small white spots may be generated. When storing the GY-DV300 for a long time, the storage temperatures should be –20°C to 60°C.

● Strong electromagnetic waves or magnetism

Noise may appear in the picture or audio and/or the colours may be incorrect if the camera is used near a radio or television transmitting antenna, in places where strong electromagnetic wav es are generated by transformers, motors, etc., or near devices emitting radio waves, such as transceivers or cellular phones.

● If a transceiver or cellular telephone is used closed to the GY-DV300 while the camera-shake

compensation function is in use, the camera image may flicker due to the influence of emitted electromagnetic waves.

● Use of wireless microphone near the camera

When a wireless microphone or wireless microphone tuner is used near the camera during recording, the tuner could pick up noise.

● Avoid using or placing the unit in places;

• subject to extreme heat or cold;

• with excessive dirt or dust;

• with high humidity or moisture;

• subject to smoke or vapour such as near a cooking stove;

• subject to strong vibrations or on an unstable surface.

• also do not leave the unit for long hours in a parked car under direct sunlight or near room heating

equipment.

● Protect the unit from being splashed with water (especially when shooting in the rain).

● Protect the unit from being wet when shooting on a beach.

In addition, salt and sand may adhere to the camera body. Be sure to clean the camera after use.

● Protect the unit against penetration of dust when using it in a place subject to sandy dust.

● Optical performance of lens

Due to the optical performance of the lens, colour divergence phenomena (magnification chromatic aberration) may occur at the periphery of the image. This is not a camera malfunction.

● Use the unit in an upright position.

If placed on its side, heat release efficiency will deteriorate, adversely affecting the tape transport. Depending on the circumstances, the tape may also be damaged.

● Vibrations

Colours may fail to appear during VCR playback in locations subjected to vibrations.

● Precautions for transportation

Do not drop or hit the unit against a hard object.

● Remove the videocassette before transporting the unit.

● Do not inser t other objects than a videocassette in the cassette insertion slot. Be sure to close the

cassette cover when the unit is not to be used for a long period.

● Do not set the POWER switch to OFF or remove the power cord during recording or pla yback. Otherwise

the tape may be damaged.

E-7

INTRODUCTION

Precautions for Proper Use (Cont’d)

● When the unit is not in use, be sure to set the POWER switch to OFF in order to reduce power

consumption.

● Cleaning the camera body: Wipe the body with a dry, soft cloth. When it is extremely dirty, soak the

cloth in a solution of neutral detergent, wring it out and then wipe. To prevent deformation of the body, etc. and to av oid operation hazards, do not allo w volatile liquids such as benzene and thinner to contact the body, and do not wipe it with a cloth soaked in such a liquid.

● The camera may be unstable for a fe w seconds immediately after the power is turned on, but this is not

a malfunction.

● The LCD screen and the viewfinder screen are manufactured using high-precision technology. Black

spots may appear on the LCD screen and the viewfinder screen, or red, blue , green and/or white spots may not turn off. However, this is not a malfunction and these spots are not recorded on the tape.

● In the case of continued use for a long period of time, characters, etc. displayed on the viewfinder

screen may remain displayed on the screen temporarily. However, these indications are not recorded on the tape. If the power is turned off, and you wait a little while before turning it on again, these indications will not be displayed.

CAUTION

● Do not point the lens or viewfinder directly at the sun or other strong light source

• Eye damage could result.

• If the lens or viewfinder is left pointed at the sun, rays may collect inside the unit and cause

damage or a fire.

● When carr ying the camera, be sure to hold the carrying handle. Holding the LCD door, lens or viewfinder may result in damage.

E-8

Routine and Periodical Maintenance

The GY-DV300 incorporates precision mechanical parts, which will collect dirt, wear out and deteriorate as the unit is used. On the other hand, when the unit has been used for a long period in a normal environment, the heads, drums and tape transport mechanisms also accumulate dirt that is deposited on them. Furthermore, dust which penetrates the inside of the VCR section especially during outdoor use will promote the wear and deterioration of mechanical parts by causing poor contact between tape and heads or failure to maintain the video and audio quality at high lev els . To prevent wear and deterioration, clean the mechanical parts using a head cleaning tape as routine maintenance. However, as cleaning with a head cleaning tape alone is not enough for cleaning the entire tape transport mechanism, it is also recommended to apply periodical maintenance (inspection) to prevent troubles that may be caused by the sudden occurrence of failure. As the replacement, adjustment and servicing of parts require advanced skill and equipment, please consult the person in charge of professional video equipment at your nearest JVC-authorized service agent.

Head Cleaning

● To maintain beautiful video and sound, be sure to use a head cleaning tape to clean the head periodically. (Read “Precautions for Use of Head Cleaning T ape” on page 10.) If head cleaning is not performed periodically , a type of mosaic noise called block noise may appear in the picture or sound may be interrupted.

Block Noise

● Use the optional head cleaning tape M-DV12CL. Do not use other than the dºesignated head cleaning tapes. For instructions on how to use the head cleaning tape and precautions for its use, read “Precautions for Use of Head Cleaning T ape ” on page 10.

● When dirt adheres to the video heads of the GYDV300, the warning message “HEAD CLEANING REQUIRED!” appears on the LCD screen and the viewfinder screen during edit search in the recording mode and during playback.

Periodical Maintenance

Contents: Check or replace the f ollowing mechanical

parts according to the running time.

Running Time

Drum assembly (including heads)

Head cleaner  Tape guides & rollers Rotary encoder –  –  Belts & gears –  –  Drive parts 

: Clean, check and adjust. : Clean and check. Replace as required. : Replace.

• The maintenance contents vary depending on the operating environment and method. Therefore, the above data should be considered as a reference.

Time management

The accumulated running time of the unit can be confirmed with the hour meter display (which shows the accumulated drum running time). For details, see “Displaying the Hour Meter Display” on page

104.

500H

1000H 1500H





2000H

HEAD CLEANING

REQUIRED!

For consultations related to the maintenance programming or cost, please contact the person in charge of professional video equipment at your nearest JVC-authorized service agent.

E-9

INTRODUCTION

Precautions for Use of Head Cleaning Tape

Use the separately sold head cleaning tape M-DV12CL. Adhere to the following precautions when using the head cleaning tape.

The tape runs for 10 seconds at a time in the PLA Y mode. (The tape stops automatically and the unit enters the STOP MODE.)

● Set the MODE switch on the unit to “VTR”.

● Press the BAR (f / w ) button after the

cleaning tape is fully loaded.

Do not use the tape more than four times at the most for each cleaning.

The cleaning tape can be used approximately 100 times.

 Use the following chart as a guide for periodical

head cleaning.

Operating Low temperature Room temperature High temperature environment 0°C to 10°C10°C to 35°C35°C to 40°C

Yardstick for 1 to 2 times 1 to 2 times 1 to 2 times use of cleaning every 5 hours every 20 to 30 hours every 5 hours tape

Videocassette to be Used

● Use JVC videocassette tapes marked with MiniDV for this unit. Please use DVM60 or D VM30 type videocassettes .

● Malfunctions may occur if a DVM80 videocassette is used in the LP mode.

● When recording in the LP mode, use videocassettes bearing the “LP Mode” mark on the package. The following phenomena may occur when tapes recorded in the LP mode are attempted played back on another set.

• Noise may appear in the picture and sound

• The sound may fall out and the picture may f ail

to appear

• The tape counter indication may be irregular

● Please play back a tape that is recorded in the LP mode on the unit on which the tape was recorded. Also, these tapes cannot be played back on digital video units that do not support the LP mode.

● Videocassettes cannot be used upside down.

● Avoid storing a videocassette with unevenly

wound tape, as this may damage the tape.

Note 1) When used in a low humidity environment

(10% RH to 30% RH), head cleaning should be conducted at intervals half of those given in the above chart.

Note 2) If an ME80 tape is used immediately after

head cleaning, the VTR WARNING (HEAD) indicator may remain on. In this case, let the tape run as the indicator will turn off after the tape has run for a while.

Note 3) Use the cleaning tape at room temperature

(10°C to 35°C).

Note 4) The cleaning tape case contains instructions

for use of the cleaning tape. However, some of these instructions differ from the contents given in this document. When using the cleaning tape, please follow the instructions of this document.

Note 5) Perform head cleaning before using the

GY-DV300 in the LP mode.

Rewind it to the beginning before placing a cassette into storage.

● Store videocassettes in a place with little humidity and good ventilation where mould does not form.

● After a videocassette tape has been used repeatedly, it becomes unable to maintain full performance due to an increase in noise caused by dropouts, etc. Do not continue to use a dirty or damaged tape, as this will reduce the rotary head life.

● Videocassette tapes marked MiniDV are provided with a switch on the back for use in preventing accidental erasure.

● Slide the switch to “SAVE” to protect the required recording in the tape from being overwritten.

● To record on the tape , slide the s witch to “REC”.

Switch

REC

SAVE

E-10

Condensation

● If the unit has been cooled down in a cold place and is then carried to a warm place, the moisture contained in the warm air may adhere to the head drum or tape guides and be cooled into water droplets. This phenomenon is referred to as condensation (dewing). When this occurs, the head drum and tape guides are covered with droplets allowing the tape to stick to them, leading to tape damage.

● Condensation occurs in the following cases:

• When the unit is suddenly

moved from a cold place

Head drum

to a warm place.

• When a room heater has

just started or when the unit is exposed directly to cold air from an air conditioner.

Videotape

• When the unit is placed in a very humid place .

Do not leave the videocassette inserted when moving the camera under conditions where the temperature environment changes. After moving the unit, do not use until the internal parts have stabilized.

Characteristic CCD Phenomena

Smear and Blooming

Due to the physical structure of a CCD it is possible to induce vertical streaking (called “smear”) when shooting an extremely bright light source. Another effect is the expansion of light around a bright light or object (called “blooming”). The CCD employed in this unit is characterized by inducing very little smear or blooming. Nevertheless, please be careful when shooting a bright light source.

Smear (Vertical pale streaking appearing at high luminous object)

High luminous object (Electric light, sunlight, etc.)

Blooming

Monitor screen

(Blurring in highlight)

● When condensation occurs in this unit, the “VTR WARNING (DEW)” appears on the LCD screen and the viewfinder screen.

VTR WARNING (DEW)

T o remedy, leave the unit with the power ON and wait until the WARNING indicator disappears.

● Prevention of condensation When quickly transporting the GY-DV300 from a cold to a warmer place, first take out the cassette. Then place the GY-DV300 in a plastic bag and seal it before transporting the camera. Lea ve the GY-DV300 in the sealed plastic bag until the camera has the same temperature as the surroundings. This will prevent condensation.

Moire or Aliasing

Shooting stripes or fine patterns may cause a jagged effect or a banding in fine mesh patterns.

White dots

High temperatures can cause CCD sensor pixels to malfunction with the effect of white dots in the image. This condition is conspicuous especially when gain is applied. This is a characteristic of the charged-couple device (CCD). As far as possible, use the unit under conditions where the temperature of the unit does not increase.

E-11

CONTROLS, INDICATORS AND CONNECTORS

Right Side Section

AUDIO LEVEL

IRIS

ND FILTER

OFF

q w etr y i o

1 FOCUS ring

Manual focus ring. Set the FOCUS switch 5 to “MANUAL” before turning this ring to adjust the focus manually. If the FOCUS switch is set to “AUTO”, this ring will not work.

CH-1 CH-2

FOCUS

AUTO MANU

PUSH AUTO

DV CAMCORDER GY-DV300

OPEN

When the AUTO mode is selected for the iris adjustment, this dial can be rotated to adjust the iris from +3 steps to -3 steps from the auto iris condition. Rotating the dial upward opens the iris, and rotating it downward closes the iris. (See “OPERATION Menu Screen” on page 98.)

2 [ND. FILTER] ND-filter switch

T urns the built-in ND-filter ON or OFF. When the shooting conditions are too bright during outdoor shooting, set this switch to “ON”. This will adjust the quantity of light to approximately 1/32. When this switch is ON, the “ND” indicator is shown on the LCD screen. (☞ See page 24.)

3 [IRIS] IRIS adjustment dial

Dial for manual adjustment of iris. To allow iris adjustment with this dial, set the IRIS item to MANUAL on the OPERATION menu screen. When the MANUAL mode is selected for the iris adjustment, this dial can be rotated to move the iris from fully opened to fully closed. Rotating the dial upward opens the iris, and rotating it downward closes the iris.

E-12

4 [IRIS PUSH AUTO] Iris push auto button

Pressing this button when the MANUAL mode is selected for the iris adjustment engages the forced auto iris mode as long as the button is pressed. When the button is released, the manual mode is restored. When the AUTO mode is selected for the iris adjustment, this button does not work.

5 [FOCUS] Focus switch

This is used to switch between AUTO and MANUAL focus adjustment. Set this switch to “MANU” when the focus ring

1 should be used to adjust the focus.

6 [FOCUS PUSH AUTO] Focus push auto button

Pressing this button when the MANUAL mode is selected for the focus adjustment engages the forced auto focus mode as long as the b utton is pressed. When the button is released, the manual mode is restored. When the [FOCUS] switch 5 is set to “AUTO”, this button does not work.

7 [CH1/CH2 AUDIO LEVEL] CH-1/CH-2 audio

recording level controls

Used to adjust the recording level of the CH-1 and CH-2 audio channels. To use these controls to adjust the audio level, set the CH1 AUDIO LEVEL or CH2 AUDIO LEVEL item to MANU AL on the OPERATION menu screen. Rotating clockwise increases the recording lev el. The recording level meter is displayed on the LCD screen and the viewfinder screen.

8 LCD door

This is the door behind which the LCD screen is located. The LCD screen can be viewed when the door is open. This door can be turned to face the LCD screen toward the lens (vertically inverted image) or downward. (☞ See page 39.)

9 LCD door lock release button

Slide the button toward the rear side to open the LCD door.

B Tally lamp

This lamp lights up red when the GY-DV300 is in the recording mode. It blinks slowly When the battery pack is exhausted, or when there is about 3 minutes or less tape remaining. When the tape has run out, or the VTR enters the warning mode, it blinks quickly. Use the TALL Y item on the SYSTEM [2/2] menu screen to select whether or not the lamp should light during recording. (☞ See page 92.)

0 Viewfinder

Displays the camera image and the playback picture. The brightness and colour saturation of the viewfinder screen can be adjusted on the DISPLA Y [2/2] menu screen. The vie wfinder can be turned approximately 75 degrees upward.

A Viewfinder diopter adjustment knob

Knob for adjusting until the viewfinder screen image is clearly visible. Raise the viewfinder to facilitate the adjustment.

E-13

CONTROLS, INDICATORS AND CONNECTORS

!8 @0

MODE CAM-B

CAM-A

GAIN

BAR

FWD

AUDIO

MIC1 MIC2

REV

MONITOR

CH-1

MIX

@4@3@2@1

Rear Section

POWER

OFF

VTR

SHUTTER

CH-2CH-1

CH-2

PUSH

!3 !5

C [POWER] POWER switch

Turn the power ON and OFF with this switch.

D Batter y holder

Mount the optional battery pack BN-V428 here. (☞ See page 34.)

E Batter y lock release button

Press this button to remove the battery pack.

F [DC INPUT] DC connector

Power input connector for 7 V DC. Accepts the optional AC adapter AA-P30. The power range is 6 V to 12 V.

G REC Start/Stop button

This button starts and stops recording. When the GY -D V300 is in the shooting mode , pressing this button starts the recording. Pressing the button during a recording engages the recording-pause (standby) mode.

H [MODE] Mode selector switch

Set in accordance with the operating mode of the GY -D V300. When used in the shooting mode, the switch is set to “CAM-A” or “CAM-B”. When used in the VTR playback mode, it is set to

E-14

“VTR”. When set to “CAM-A” or “CAM-B” in the shooting mode, two separate sets of setting values for recording can be set by means of the menu screens.

“CAM-A” : In this position, shooting takes

place in accordance with the conditions set for “CAM-A” on the menu screen.

“CAM-B” : In this position, shooting takes

place in accordance with the conditions set for “CAM-B” on the menu screen.

“VTR” : ● Set to this position when

performing VTR playback. Also set to this position to record the video signal output from the DV connector with another video component equipped with DVI/ O connector.

● Set to this position to record the video signal input from the DV connector. (GY-DV301only)

I [GAIN] Sensitivity selector button

This button is for manual adjustment of sensitivity. It works when the AE item is set to OFF on the OPERATION menu screen.

● When the AE (Auto Exposure) function is OFF and this button is pressed, the condition of the current gain setting is shown on the LCD screen or the viewfinder screen for about 3 seconds. In this condition, it possible to set the gain setting of the GY-DV300. Gain is set by rotating the SELECT dial L. Rotating the dial upward moves gain in the plus direction, and rotating it downward moves it in the min us direction. When rotation of the dial stops, the set gain is indicated for about 3 seconds. [The variable range is –3 dB to +18 dB. (1 dB step)]

● Pressing the button for 1 second or more engages the LOLUX mode.

J [SHUTTER] Shutter speed selector button

This button is for manual adjustment of the shutter speed.

● It works when the AE item on the OPERATION menu screen is set to OFF. Using the SHUTTER item on the OPERATION menu screen, select the shutter speed mode as STEP or VARIABLE. Set to VARIABLE when shooting computer display screens.

● When the button is pressed in MANUAL mode, the current shutter speed setting is shown on the LCD screen or the viewfinder screen for about 3 seconds. In this condition, it possible to set the shutter speed of the GY -D V300. The shutter speed is set by rotating the SELECT dial L. When rotation of the dial stops, the set shutter speed is indicated for about 3 seconds. [Variable range STEP: 1/50, 1/120, 1/250, 1/500, 1/1000,

1/2000

VARIABLE: 1/50.1 to 1/2067.8]

K [MENU] Menu button

Press this button for 1 second or more to displa y the MENU setting screen. The MENU setting screen is shown on the LCD screen and the viewfinder screen. When the OUTPUT CHAR. item on the DISPLA Y [2/2] menu screen is set to MIX, the MENU setting screen can also be output for display via the VIDEO OUT or Y/C OUT connector.

Selections and settings in the menu are performed with the SELECT dial L. The normal screen returns when this button is pressed while the MENU setting screen is displayed.

L SELECT dial

● When gain and shutter adjustment is set to the MANUAL mode, this dial is rotated to set the gain or shutter speed.

● When the white balance adjustment is set to the MANUAL mode, the white balance setting mode can be selected by rotating this dial. [Variable range: PRESET, MEMORY 1, 2, 3]

● When the MENU setting screen is displayed, this dial is used to select and set items in the menu. To confirm men u items and set values, press the dial.

M [CH-1/CH-2 AUDIO] CH-1/CH-2 audio input

selector switch

Used to select the audio source input to the CH1/CH-2 channel. Separate inputs can be selected for the CH-1/CH-2 channels.

MIC 1: The sound from the built-in microphone

or from the MIC 1 input connector is input. Select the input from the built-in microphone or from the MIC 1 input connector with the MIC1 INPUT SEL item on the SYSTEM [1/2] menu screen.

MIC 2: The sound from the MIC 2 input

connector is input.

N [MONITOR] Audio monitor selector switch

Selects the monitor sound heard from the EARPHONE jack X or the built-in speaker.

CH-1 : CH-1 audio signal CH-2 : CH-2 audio signal MIX : Mixed signal consisting of the CH-1 and

CH-2 audio signals.

E-15

CONTROLS, INDICATORS AND CONNECTORS

LCD door storage compartment

Rear Section (cont’d)

@9 @6

O [BAR] Colour bar/Playback & still button

● Pressing this button in the shooting mode switches the setting between colour bar output and camera image output.

● Pressing this button in the VTR playback mode starts playback. Pressing this button during playback engages the playback mode.

● Pressing this button during playback engages the still picture mode.

P [AW] White balance/Stop button

● Used when white balance adjustment is performed in the shooting mode. To use this button for white balance adjustment, the WHITE BALANCE item on the OPERATION menu screen should be set to PUSH AUTO. When this button is pressed, the current white balance setting mode is displayed for about 3 seconds on the LCD screen or the viewfinder screen after which white balance adjustment of the GY-DV300 becomes possible. The white balance adjustment setting mode is selected by rotating the SELECT dial L. When rotation of the dial stops, the selected

setting mode is displayed for about 3 seconds . When the button is then pressed for 1 second or more, the white balance adjustment starts. [Variable range: PRESET, MEMORY 1, 2, 3]

Memo:

The PRESET mode is fixed at 3200 K (colour temperature). Even if the AW b utton is pressed, white balance adjustment is not performed.

● Pressing this button in the VTR playback mode engages the Stop mode.

Q [FWD] FORWARD/FF button

● Pressing this button in the shooting mode engages playback in forward direction at normal speed for as long as the button is pressed. When the button is released, the recording-standby mode is engaged.

● Pressing this button in the VTR playback mode during stop or rewind operation initiates the fast forward mode . Pressing this button during playback, still picture playback, or reverse search initiates forward search mode.

E-16

● Pressing this button simultaneously with the REV button R during stop in the VTR playback mode initiates the blank search mode (for locating the end point of recordings).

R [REV] REVERSE/REW button

● Pressing this button in the shooting mode engages playback in reverse direction at normal speed for as long as the button is pressed. When the button is released, the recording-standby mode is engaged.

● Pressing this button in the VTR playback mode during stop or fast forward operation initiates the rewind mode. Pressing this button during playback, still picture playback, or forward search initiates reverse search.

S LCD monitor screen

● Shows a colour camera image or the VTR playback picture. It is also used for displaying the following:

• Menu setting screens

• Characters showing the whether the GY-

DV300 is set to shooting mode or VTR playback mode

• Date and time and time code

• Audio level meter

• Warning indications, etc.

For details, ☞ see page 22.

• The angle of the LCD screen can be rotated

to make the LCD screen face toward the lens or downward.

• The brightness and colour saturation can be

adjusted and set on the DISPLA Y [1/2] menu screen.

T Built-in speaker

Outputs the VTR pla yback sound. The playbac k sound level is adjusted with the ZOOM/Pla yback sound level adjustment lever a. The monitor sound is not output in the shooting mode. The audio from the loudspeaker is not output when an earphone is plugged into the EARPHONE jack X. (☞ See page 82.)

E-17

CONTROLS, INDICATORS AND CONNECTORS

Left Side Section

MIC 1 IN

MIC 2 IN

Y/C OUT

VIDEO OUT

CH-1CH-2 OUT

LINE

EARPHONE

#1#5#2#6 #3#4

U [VIDEO OUT] Video output connector (RCA)

Output connector for composite video signal. Outputs the input video signal and playback picture.

● When the OUTPUT CHAR. item on the DISPLA Y [2/2] menu screen is set to MIX, onscreen-indicators like those shown on the LCD monitor screen can be output. (b lack and white display)

V [Y/C OUT] Y/C video output connector (4-pin)

Separate YC video signal output connector. Outputs the input video signal and playback picture.

● When the OUTPUT CHAR. item on the DISPLA Y [2/2] menu screen is set to MIX, onscreen-indicators like those shown on the LCD monitor screen can be output. (b lack and white display)

● When the ASPECT item is set to LETTER on the SYSTEM [2/2] menu screen, an ID signal for identifying the wide-screen aspect is output.

E-18

W [CH-1/CH-2 LINE OUT] CH-1/CH-2 audio

output connector (RCA)

Output connector for audio signal. In the shooting mode the input audio signal is output. In the VTR mode the playbac k sound is output.

X [EARPHONE] Earphone jack

This is a jack for connecting an earphone for monitoring the sound. Plug in an earphone or headphone with a 3.5 mm diameter plug. Monaural sound is output. Select the output sound with the MONITOR switch N. The volume of the monitor sound in the shooting mode is set with the EARPHONE LEVEL item on the TOP MENU screen. The playback sound from the built-in speak er is not output when an earphone is plugged into this jack.

Y [DV] DV connector

Using a DV cable (optional), a digital video component with DV connector can be connected here. To record DV signals (IEEE1394 signals) from this connector, the MODE switch H should be set to “VTR”. (GY-DV301 only)

Memo:

The GY-DV300 is not capable of recording DV signals (IEEE1394 signals).

Z Cassette cover

Sliding the EJECT switch located on the top section opens this cover to allow insertion or removal of the videocassette. The cover locks into place when it is closed after the cassette holder has been properly locked. (☞ See page

38.)

Memo:

• When inser ting a cassette, push the “PUSH HERE” section on the cassette holder to lock the cassette holder correctly, and then close the cassette cover.

• To prev ent foreign matter from penetrating into the interior of the GY-DV300, never leave the unit with this cover left open.

• The GY-DV300 does not function if the cassette cover is not closed.

[ Microphone holder attachment base

Use for attaching an optional microphone holder. Attach the optional microphone holder KA-A33 here. (☞ See page 36.)

E-19

CONTROLS, INDICATORS AND CONNECTORS

Front Section

\ Built-in microphone

Built-in monaural microphone.

● To use this microphone, set the MIC INPUT SEL item to INT on the SYSTEM [1/2] menu screen.

] [MIC 1] Microphone 1 input connector (XLR-

3P)

Connect an external microphone to this connector. Monaural signals are recorded.

● To use the microphone connected to this connector, set the MIC1 INPUT SEL item to XLR on the SYSTEM [1/2] menu screen.

● To use a microphone requiring +48 V power supply (phantom microphone), set the +48V MIC1 item on the SYSTEM [1/2] menu screen to ON. This connector will then supply +48 V DC current. When using a microphone other than a phantom microphone, set the +48V MIC1 item to OFF.

E-20

` [MIC 2] Microphone 2 input connector (XLR-

3P)

Connect an external microphone to this connector. Monaural signals are recorded.

● To use a microphone requiring +48 V power supply (phantom microphone), set the +48V MIC2 item on the SYSTEM [1/2] menu screen to ON. This connector will then supply +48 V DC current. When using a microphone other than a phantom microphone, set the +48V MIC2 item to OFF.

Memo:

• The audio input channel is selected with the CH-1/CH-2 audio input selector switch M.

• To reduce the wind noise of the microphone, set the WIND CUT MIC1/MIC2 item on the SYSTEM [1/2] menu screen to ON.

CONTROLS, INDICATORS AND CONNECTORS

VOLUME

Top Section

START/

STOP

EJECT

$4$2$1

a ZOOM/Playback sound level adjustment

lever

● This works as the zoom lever in the shooting mode. Pressing the lever in the T direction narrows the lens angle perspective for telephoto shots. Pressing it in the W direction increases the angle of the lens for a wider shooting angle. The harder the lever is pressed, the quicker the zoom action.

● In the VTR playback mode, this lever is used for adjusting the playback sound le vel. Pressing the lever in the + direction increases the volume level, and pressing in the - direction decreases the level.

b [EJECT] Eject switch

Slide to the side when inserting or ejecting the videocassette. Sliding this button and then opening the cassette cover will eject the cassette.

c [ZOOM] Zoom lever

Lever for zoom operation from the handle top section.

● In the shooting mode, pressing this lever in the T direction narrows the lens angle perspective for telephoto shots. Pressing it in the W direction increases the angle of the lens for a wider shooting angle. The zoom speed of this zoom lev er is selected with the HANDLE ZOOM item on the SYSTEM [2/2] menu screen.

d [START/STOP] REC START/STOP button

Button for start and stop of recording from the handle top section. When the GY-DV300 is in the shooting mode, pressing this button starts the recording. Pressing the button during a recording engages the recording-standby mode.

E-21

CONTROLS, INDICATORS AND CONNECTORS

In addition to the E-E picture and the playback picture, the f ollowing indications are displa yed on the LCD screen and the viewfinder screen.

 Status screens (screens for use in checking the current camera settings)  Event indications  Alarm indications  Menu setting screens  Auto white balance operation indicator

When the LCD screen is used, the above indicators are not shown on the viewfinder screen. When the LCD screen is faced toward the viewfinder screen side and the LCD door is closed, the abo v e indictors appear on the viewfinder screen. * When the VF+LCD item on the SYSTEM [2/2] menu screen is set to “ON”, displays can be shown

simultaneously on both the LCD screen and the viewfinder screen.

 Status Screens

The contents of the status screens differ in the camera shooting mode and in the VTR playback mode. Also, the items display ed on the status screen differ with the direction that the LCD screen is facing, i.e., toward the viewfinder (normal display) or toward the lens (vertically inverted display).

Indications on LCD Screen and Viewfinder Screen

Normal display in the shooting mode

For a part of the status indicators it is possible to select whether or not the item should be displayed by making a selection on the DISPLAY [2/2] menu screen.

Memo:

After-images will increase on the LCD screen when used under cold circumstances.

Vertically in verted display in the shooting mode

Battery symbol

VTR operation symbol (Recording or pause)

In relation to the normal display, the ver tically inverted display is reversed left to right, and only the battery symbol and the recording symbol/pause symbol are displayed. * The image is not reversed when MENU and

messages are displayed.

• When the LCD screen is faced toward the lens side and the LCD door is closed, the normal display will be seen.

E-22

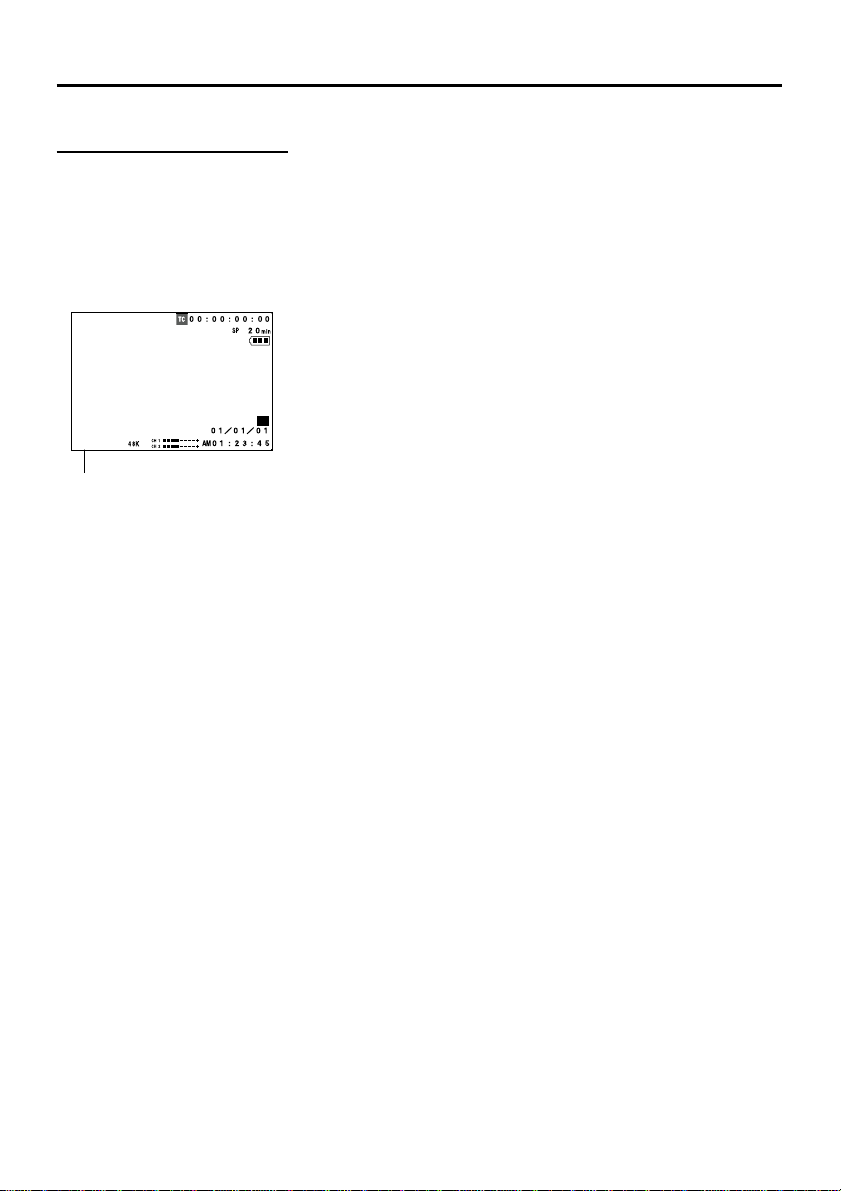

Normal display in the shooting mode

e r

No. Item Contents

1 Zoom ratio (Characters, Displayed during zoom operation. The characters indicate the wide-

numeric v alue) angle (W) and telephoto (T) zoom positions. The numeric value indicates

2 Time code display Shows the time code (hours, minutes, seconds, frames).

3 Recording time mode Shows the recording speed at the time of the recording.

indication SP : Standard Play mode

4 Remaining tape time Indicates the remaining tape amount (minutes) in 1-minute steps.

indication Whether this indication should be ON or OFF can be selected by setting

5 Remaining battery The remaining battery power is indicated by four different indicators.

power indication

the approximate zoom ratio.

Whether this should be displayed can be selected by setting the TIME CODE item on the DISPLAY [2/2] menu screen.

LP : Long Play mode When the remaining tape indication is OFF, this indication is shown at

the 4 position.

the TAPE REMAIN item on the DISPLAY [2/2] menu screen. * The indication may not appear when a new tape is loaded, after the

tape runs, the indication appears.

* When used in a cold environment, it may take a little while before the

remaining tape time indication appears.

Fully charged battery

Blinking indicator

(no remaining

battery power)

E-23

CONTROLS, INDICATORS AND CONNECTORS

Indications on LCD Screen and Viewfinder Screen (Cont’d)

y u i

!2 !3

!0 !1

!6 !7 !8 !9

No. Item Contents

6 Camera-shake Displayed when the camera-shake compensation function is

compensation on (OIS item on the OPERATION menu screen is set to ON). indication

Manual focus indication

Manual shutter mode indication

9 Manual gain mode Indicated in the manual gain setting mode (when the AE item is set to

indication OFF on the OPERATION menu screen).

0 Manual white balance Displayed when manual white balance adjustment is enabled

mode indication (when the WHITE BALANCE item is set to PUSH AUTO on the

MF: Displayed when manual focusing is enabled (when the FOCUS

switch is set to MANUAL).

S: Displayed in the manual shutter mode (when the AE item is set to

OFF on the OPERATION menu screen). This indication is not shown when the shooting mode is AUTO or the AE item is set to ON. It is not shown when the shutter is NORMAL (1/50) or gain is set to ALC.

6 dB: The gain value is indicated for anything b ut 0 dB , LOLUX, or ALC . L: Displayed in LOLUX mode. The indication is not shown when the gain setting is 0 dB or ALC. It is not shown when the shooting mode is AUTO, or the AE item is set to ON.

OPERATION menu screen). Indicates the white balance setting mode. WBP: White Balance Preset mode (fixed at a colour temperature of

3200 K. Manual white balance adjustment is inhibited.) WB1: White Balance memory 1 mode WB2: White Balance memory 2 mode WB3: White Balance memory 3 mode When WB1, WB2 or WB3 is indicated, manual white balance adjustment is enabled. The result of the white balance adjustment is retained in the indicated memory. It is not shown when the shooting mode is AUTO, or when the WHITE BALANCE item is set to AUTO.

E-24

No. Item Contents

A Shooting mode Indicates whether the shooting mode is AUTO or MANUAL.

indication Å: Displayed when the shooting mode is A UT O (when the MODE item

B Filter indication ND: Displayed when the ND filter switch is set to ON. C Iris F-value indication Indicates the F-value of the lens in the manual iris adjustment mode

D Iris compensation -3 ~ ±0 ~ +3: Indicates the compensation value set with the iris

value indication adjustment dial in the auto iris mode.

E VTR mode indicators STBY : Recording-standby mode

F Fade indication Displayed when the fade function is ON (when the FADER item is set to

G Audio sampling 32K: Displayed when the AUDIO MODE item is set to 32K on the

frequency indication SYSTEM [1/2] menu screen. (Audio is recorded with 12-bit, 32

H Audio level meter Indicates the audio levels of CH-1, CH-2.

display These meters are not shown when the AUDIO LEVEL item is set to

I Date and time Shows the date and time.

indication The indication is enabled/disabled by selecting the TIME/D ATE item on

is set to AUTO on the TOP MENU screen).

˜: Displayed when the shooting mode is MANUAL (when the MODE

item is set to MANUAL on the TOP MENU screen).

(when the IRIS item is set to MANUAL on the OPERATION menu screen). The indications are: F1.6, F2, F2.8, F4, F5.6, F8, F11, F16. CLOSE

M: Displayed in the manual iris adjustment mode.

REC: During recording ED.FWD: During playback in forward direction ED.REV: During playback in reverse direction STOP: Tap protect mode EJECT: During cassette ejection – – –: Tape is not loaded

BLACK on the SYSTEM [2/2] menu screen). BK : Displayed when the FADER item is set to BLACK. (Fade-in and

fade-out from black screen.)

kHz sampling.) 48K: Displayed when the AUDIO MODE item is set to 48K on the

SYSTEM [1/2] menu screen. (Audio is recorded with 16-bit, 48

kHz sampling.)

OFF on the DISPLAY [2/2] menu screen.

the DISPLA Y [2/2] menu screen. The display style is selected b y setting the DISP STYLE item. When the date and time are not set, the indication will be as follows.

– – / – – / – – – – : – – : – –

E-25

CONTROLS, INDICATORS AND CONNECTORS

Vertically inverted display indications in the shooting mode

Indications on LCD Screen and Viewfinder Screen (Cont’d)

Remaining battery power indication The remaining battery power is indicated by four different indicators.

: Fully charged battery

: Remaining battery power is low

: No remaining battery power

(blinking) VTR operation mode indication

● symbol: During recording w symbol: In recording-standby mode

E-26

VTR playback mode status indications

VOL.

e r

PLAY

No. Item Contents

1 Audio playback volume Displayed in the VTR mode. Characters indicate the high and low of

indication the playback volume .

2 Time code indication The recorded time code data (hours, minutes, seconds, frames) are

3 Recording/playback The mode in which the tape was recorded is displayed during playback.

speed mode indication SP: Standard Play mode

4 Remaining tape time Indicates the remaining tape time in 1-minute steps.

indication The indication is turned ON/OFF by setting the TAPE REMAIN item on

5 Remaining battery The remaining battery power is indicated by four different indicators.

power indication

shown here in the playback mode. The indication is turned ON/OFF by setting the TIME CODE item on the DISPLAY [2/2] menu screen.

LP: Long Play mode When the remaining tape time indication is set to OFF, this indication is shown at the position indicated by 4.

the DISPLAY [2/2] menu screen. * The indication may not appear when a new tape is loaded, after the

tape runs, the indication appears.

* When used in a cold environment, it may take a little while before the

remaining tape time indication appears.

Fully charged battery

Blinking indicator

(no remaining

battery power)

E-27

CONTROLS, INDICATORS AND CONNECTORS

VOL.

Indications on LCD Screen and Viewfinder Screen (Cont’d)

PLAY

y u i o !0

No. Item Contents

6 VTR mode indication Indicates status of VTR operation.

7 DV signal indication DV : Displayed when IEEE1394 signal is recorded from the DV

(GY-DV301 only) connector.

8 Audio sampling The audio sampling frequency by which the recording was made is

frequency indication displayed during playback. (32K, 48K, 44.1K)

9 Audio level meters The playback audio level meters are displayed during playback.

display These are not shown when the AUDIO LEVEL item is set to OFF on the

0 Date and time Recorded data is show during playback, fast forward and rewind

indication operations.

(STOP, PLAY, FF, REW, EJECT, STBY, FWD, REV, BSRH)

DISPLAY [2/2] menu screen.

The current data is shown in the stop mode. The indication is enabled/disabled by selecting the TIME/D ATE item on the DISPLA Y [2/2] menu screen. The display style is selected b y setting the DISP STYLE item. When the date and time are not set, the indication will be as follows.

– – / – – / – – – – : – – : – –

E-28

 Event Indications

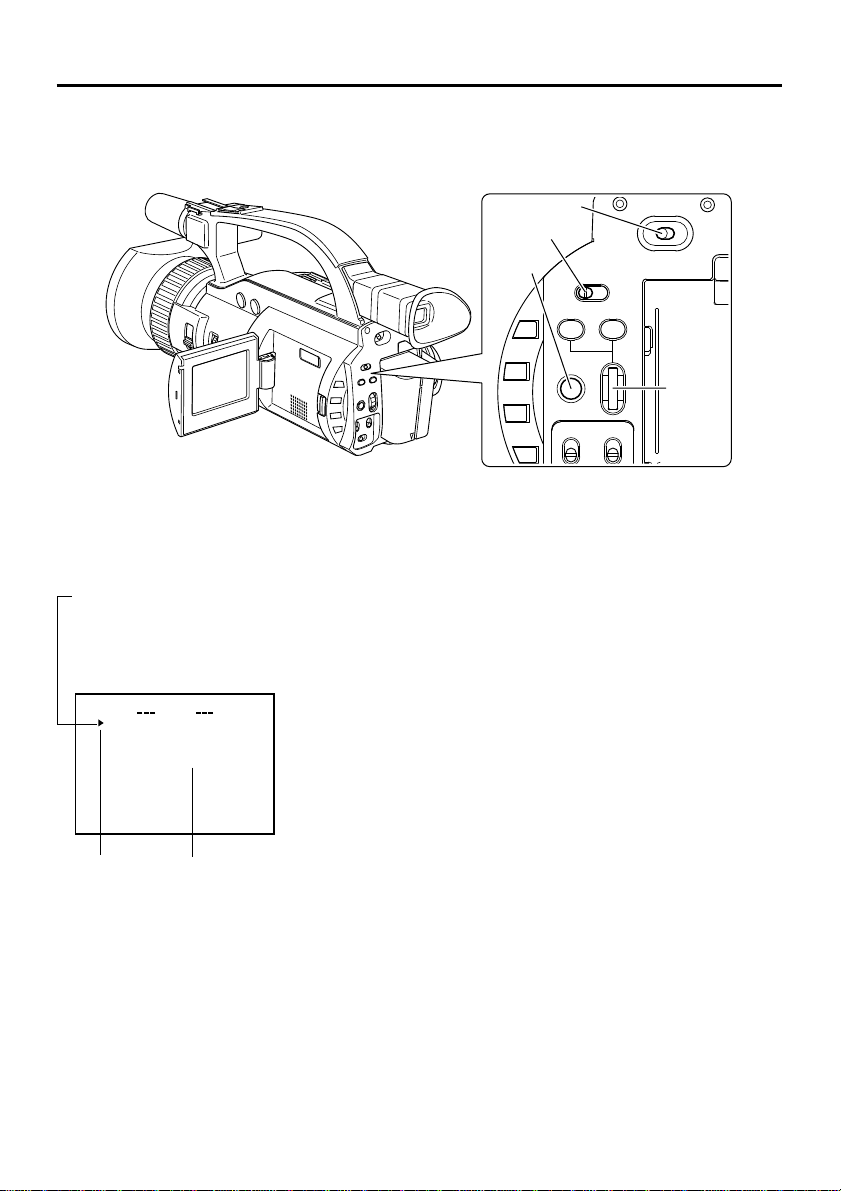

When the gain and shutter speed are changed manually , the set condition is displayed f or about 3 seconds at the time the change is made.

Event display area

Set Condition Contents of Indication

When the gain value is changed GAIN -3dB to 18dB (1dB step) When the LOLUX gain mode is selected LOLUX When the shutter speed is changed SHUTTER 1/120, 1/250. 1/500, 1/1000, 1/2000 When the variable shutter speed is changed V.SHUTTER 1/50.1 - 1/2067.8 When the shutter is NORMAL SHUTTER NORMAL

(shutter speed: 1/50)

Event display area

E-29

CONTROLS, INDICATORS AND CONNECTORS

Indications on LCD Screen and Viewfinder Screen (Cont’d)

 Alarm indications

Alarm indications are displayed under the following circumstances. The warning messages are shown blinking.

• When remaining battery power or remaining tape is low.

• Improper operation attempted.

• Abnormality generated in the GY-DV300.

Warning indication area

Warning Indication Contents

TAPE NEAR END Displayed when the remaining tape is 3 minutes or less in the shooting

TAPE END Displayed when the tape has run out. TAPE BEG IN Displayed when the tape is at begining position. LOW VOLTAGE Displayed when remaining battery power becomes low. CLOSE CASSETTE COVER! NO T APE Displayed when no videocassette is inserted and the VTR trigger button

REC INHIBIT Displa yed when an unrecordab le videocassette (the switch on the bac k

1394 INHIBIT (GY-DV301 only) COPY INHIBIT Displayed when attempt to record a copy-guard protected signal is made . COPY GUARD Displayed when an attempt is made to playback a copy-guarded tape.

CASSETTE COVER OPEND! CASS.CARRIAGE UNLOCK

VTR WARNING [DEW] Displayed when condensation occurs in the unit. HEAD CLEANING REQUIRED! VTR WARNING (HARD) Lights when abnormality occurs in the unit. VTR WARNING (TAPE) Displayed when the tape is cut.

E-30

mode. It is not shown in the playback mode.

Displayed when operation is attempted while the cassette cov er is open.

is pressed.

of the cassette is set to “SAVE”) is loaded. Displayed if an attempt to record is made when no DV signal is input.

Displayed when the cassette cover was opened during recording. Displayed when the cassette cov er is closed b ut the cassette holder is

not locked.

Displayed in case of video head clogging.

Warning indication area

 MENU Setting Screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

N[CAM.A] .

CLOC K/

C MENU ALLRESETCELANC EXIT

ALA

]

 Auto White Balance Indication

WH I TE

AUTO

OPERATION

Used for making a variety of settings. See “MENU Setting Screen” on page 86.

AUTO WHITE and the result of the operation are displayed when the auto white balance adjustment is performed. See “Auto White Balance Adjustment” on page 66.

E-31

PREPARATIONS Basic System

MICROPHONE

MV-P615U MV-P618U

MIC HOLDER

IEEE1394 CABLE

VIDEO LIGHT

TELE CONVERSION LENS

WIDE CONVERSION LENS

DV CAMCORDER

CH-1 CH-2

AUDIO LEVEL

IRIS

ND FILTER

FOCUS

AUTO MANU

OFF

DV CAMCORDER GY-DV300

PUSH AUTO

IEEE1394 CABLE

NETWORK PACK

KA-DV300

AC ADAPTER/ BATTERY CHARGER

OPEN

AA-P30

BATTERY PACK (Large-capacity) BN-V428

E-32

TRIPOD

PREPARATIONS Power Supply Preparation

The GY-DV300 is operable with AC power supply or battery pack.

AC Operation

Use the optional AC Adapter/Charger AA-P30 as the AC po w er supply. The DC INPUT connector on the GY-DV300 accepts power voltage in the range of DC 6V to DC 12V.

POWER switch

DC INPUT connector

DC cable

 Set the POWER switch on the GY-DV300 to OFF.

If a battery pack is attached to the unit, detach the battery pack.

Plug one end of the DC cable provided with the AC Adapter/Charger into the DC INPUT connector of the GY-DV300, and then connect the other end to the DC OUTPUT connector on the AC Adapter/ Charger.

Plug the AC cable of the AC Adapter/Charger into an AC outlet. The POWER lamp illuminates when power is supplied to the AC Adapter/Charger.

* For details, see the instruction manual for the AA-P30.

CAUTION:

• Do not disconnect or connect the DC cable or AC cord while recording is taking place.

• Remaining battery power indication when the AC adapter is used

When the optional Network Pack KA-DV300 is connected, the remaining batter y

Fully charged

power indication for fully charged battery may not be displayed.

POWER lamp

To AC outlet

AC cord

AA-P30 DC OUTPUT connector

E-33

PREPARATIONS

Power Supply Preparation (cont’d)

Battery Pack Operation

Use the optional battery pack BN-V428 for battery pack operation.

Charging the Battery Pack

AC outlet

CHARGE lamp 1

POWER lamp

CHARGE lamp 2

AC cord

Battery pack

AA-P30

Attaching the Battery Pack on the GY-DV300

Before use the battery pack should be charged using the optional AC Adapter/Charger AA-P30.

Plug the AC cable of the AC Adapter/Charger into an AC outlet. The PO WER lamp illuminates.

While pushing the battery pack down, slide it in the direction of the arrow to mount it on the AC Adapter/Charger. Charging starts, and the CHARGE lamp blinks green. It changes to light steadily when charging is completed.

When charging is completed, remove the battery by sliding it in the opposite direction of the mounting direction.

* For details, see the instruction manual for the AA-

P30.

 If the DC cable is connected to the GY-DV300,

unplug the cable.

Hold the battery pack with the connector side facing the GY-DV300.

While pressing the battery pack against the GY DV300, slide it downw ard to attach it to the GYDV300.

Connector

Battery pack

Detaching the Battery Pack from the GY-DV300

 Ensure that the POWER switch on the GY-

DV300 is set to OFF.

While pressing the battery lock release button, slide the battery pack upward to remove it.

Battery lock release button

E-34

CAUTION:

Do not detach the battery pack while recording is taking place.

Battery Pack Operation (Cont’d)

Remaining Battery Power Indication

TALLY lamp

LCD screen

Remaining battery power indication

Fully charged

After the remaining battery power indication starts blinking, recording can be continued for approx. 5 minutes. (when BN-V428 is used)

Operating Time with Battery Pack

Battery Pack

BN-V428

PRECAUTIONS FOR THE BATTERY PACK

● When the battery pack is not in use, it must be stored in a cool, dry place. Do not leave the battery pack in a place where it might be subject to high temperatures (under direct sunlight in a car, etc.), as this could cause battery leakage or shorten the service life.

● When the terminal section of the batter y pack gets dirty, the operating time will be shortened.

● If the operating time becomes greatly reduced even immediately after recharging, the service life of the battery pack is nearly finished. Purchase a new battery pack.

Continuous Operating Time (25°C) GY-DV300 only

Approx. 120 min. Approx. 80 min.

When KA-DV300 in use

The remaining battery power condition can be checked by the remaining battery power indication on the LCD screen and the TALLY lamp. The battery condition is indicated as shown in the table below. Prepare for battery pack replacement in accordance with the indications.

Indication

LCD Screen

Blinking

After the no remaining battery power warning appears, the GY-DV300 automatically stops operation if the battery power operation is continued.

When a fully charged battery pack is attached, the approximate continuous operating time is as shown in the table on the left.

● Battery operating time may differ depending on the number of times the battery has been charged, charging conditions and the operating environment, etc. Regard the values in the table on the left as approximate reference times.

● Operating time is reduced in areas with a cold environment.

● Operating time is reduced when the power zoom lens is used frequently and when start/stop of recording is performed frequently.

Recharging

● Recharge the battery pack after completely discharging it. Repeated recharging with residual charge remaining could result in reduced battery capacity.

● If the battery capacity is reduced by repeating incomplete recharging, or recharging without discharging, once discharge the battery pack completely, then recharge it to restore the battery capacity.

● If the batter y pack is recharged with its internal temperature raised immediately after use, recharging may not be performed completely.

Tally Lamp

—

Slow blinking (1 blink per second)

Remaining

Battery Power

Remaining battery power is low . Prepare or replace with a fully charged battery pack.

No remaining battery power. Immediately replace with a fully charged battery pack.

E-35

PREPARATIONS

Attaching the Microphone (optional)

Using the optional KA-A33 microphone holder allows the optional microphone MV -P615U or MV-P618U (phantom microphone) to be attached. Mount the microphone holder on the microphone holder attachment base on the handle of the GYDV300.

Handle

Attachment base

MIC 2 IN

Y/C OUT

EARPHONE

Screw

Knob Microphone

hole

Microphone holder attachment base

MIC 1 IN

VIDEO OUT

CH-1CH-2

LINE

OUT

holder

Attachment screw

How to Attach

Mount the microphone holder on the microphone holder attachment base on the handle of the GY-DV300.

1 Loosen the attachment screw on the

microphone holder.

2 Fasten the attachment screw on the

microphone holder to secure the holder to the GY-DV300.

Turn the knob on the microphone holder anticlockwise to loosen it and open the microphone holder.

Place the microphone in the microphone holder. Place the microphone toward the front to prevent it from interfering with the cassette cover.

Turn the knob on the microphone holder clockwise to secure the microphone.

Connect the microphone cable to the MIC 1 or MIC 2 input connector on the GY-DV300.

Make sure to perform the correct setting for use of a phantom microphone. (☞ See page 50.)

MIC 1

MIC 2

E-36

Memo:

When using a microphone connected to the MIC 1 input connector, set the MIC1 INPUT SEL item to XLR on the SYSTEM [1/2] menu screen.

PREPARATIONS FOR OPERATION

Turning the Power ON

POWER

switch

MODE

Slide the POWER switch to “ON”.

switch

BAR

FWD

POWER

OFF

MODE CAM-B

CAM-A

GAIN

AUDIO

MIC1 MIC2

REV

MONITOR

CH-1

MIX

VTR

SHUTTER

CH-2CH-1

CH-2

PUSH

Power is now supplied to the unit.

 The GY-DV300 operation mode when the power is turned ON will differ depending on the setting

of the MODE switch as described in the following:

MODE Switch Operation Mode

“CAM-A” or “CAM-B” The GY-DV300 starts up be in the shooting mode. The camera image

appears in the viewfinder or on the LCD screen. When a recordable videocassette is loaded, the GY-DV300 enters the recording-standby mode automatically. “STBY” is displayed in the VTR operation mode indication area on the LCD screen and the viewfinder screen. In this condition, press the REC ST AR T/STOP button to start recording.

VTR The GY -DV300 starts up in the VTR playback mode. The camera image

does not appear in the viewfinder or on the LCD screen. If videocassette is loaded, the mode will be the STOP mode. “STOP” is indicated in the section for displaying the VTR operation mode on the LCD screen or viewfinder screen.

Turning the Power OFF

Place the GY-DV300 in the recording-standby or STOP mode.

Slide the POWER switch to “OFF”.

Remove the battery pack or the power supply to the DC INPUT connector. (When the GY-DV300 is not going to be used for at long time.)

CAUTION:

• Do not set the POWER switch to “OFF” while recording is taking place. Confirm that the STBY or STOP indication is shown in the VTR operation mode indication area before the power is turned off. Should the POWER switch accidentally be set to “OFF” during a recording, wait at least 5 seconds before turning the power on again.

• Before the power supply is disconnected, be sure to set the GY -DV300’s POWER switch to “OFF”. If the battery is removed or the power supply from the AC adapter is disconnected while the GYDV300’s POWER switch is set to “ON”, the manual mode operation setting values (IRIS , zoom, gain, shutter speed, white balance, etc.) are not backed up.

E-37

PREPARATIONS FOR OPERATION Cassette Loading

Erasure-prevention switch

Cassette holder

Cassette cover

Tape window

Videocassette

Loading the Cassette

Use a videocassette tape marked MiniDV.

● To record, slide the s witch on the bac k f or use in preventing accidental erasure to the “REC” side .

● Remove any the tape slack before loading.

Slide the EJECT switch on the top section of the GY-DV300 and then open the cassette cover.

Insert a videocassette into the cassette slot. With the window in the cassette facing outward and the erasure-prevention switch up, push down on the center section of the cassette back, ensuring that the cassette is inserted straight and all the way.

Slowly push the “PUSH HERE” section on the cassette holder with a finger until a click is heard. Confirm that the cassette holder does not come up when you remove your finger.

Gently close the cassette cover by pushing it in all the way.

 When the power is turned on, the condition

varies as shown in the following table.

MODE Switch

CAM A Recordingor standby mode CAM B

VTR STOP mode

* After the cassette cover is closed, it takes about

E-38

Erasure-Prevention Switch Position

REC

11 seconds before the unit can start recording or before it enters the STOP mode.

SAVE

STOP mode. REC INHIBIT displayed on the LCD screen and the viewfinder screen.

EJECT

VOLUME

EJECT switch

Unloading the Cassette

In the recording-standby or STOP mode, slide the EJECT switch to the side and then fully open the cassette cover.

● Tape ejection starts. It takes a few seconds before the cassette is ejected.

Take out the videocassette.

Close the cassette cover .

CAUTION:

• Do not slide the EJECT switch during recording. If the EJECT switch is slid during recording, the tape is ejected.

• Do not leave the unit for a long period with the cassette cover open. Dirt or other foreign objects may enter the unit and cause malfunction.

• When the cassette tape is inserted, press the “PUSH HERE” section on the cassette holder

to lock the cassette holder properly . Then close the cassette cover. Refrain from repeatedly raising and lowering the cassette holder when the cassette holder is not completely locked. The tape could become slack as a result of the operation.

PREPARATIONS FOR OPERATION

LCD Screen Adjustment

The LCD screen’s direction, angle, screen brightness, etc. can be adjusted.

 Viewing the LCD Screen

Slide the LCD lock release lever toward the rear side to open the LCD door. The LCD door can easily be opened by holding at the top and bottom of the door.

LCD screen

LCD door

LCD lock release lever

 Adjusting the Direction and Angle

of the LCD Screen

● With the LCD door in the open condition, rotate the LCD door. It can be turned 180° in upward direction and 90° in downward direction. When turned 180° in upward direction, the LCD

180° up

screen can be viewed from the lens side (vertically inverted image).

90° down

DISPLAY [1/2] menu screen

D I SPLAY[12]/ ZEBR A LCD BR

GHTNESSNALOR M

I LCD COLOR LCD PEAKI NG VF BRIGHTNESS VF COLOR VF PEAKING NEXT PAGE PAGE BACK

ALOR M

 Adjusting the LCD Screen

Adjustments are made on the DISPLA Y [1/2] menu screen. (See “Setting Menu Screens” on page 94.)

● LCD BRIGHTNESS: Adjusts the brightness of the LCD screen.

● LCD COLOR: Adjusts the colour saturation of the LCD screen.

● LCD PEAKING: Adjusts the contrast of the LCD screen.

 Closing the LCD Screen

Return the direction of the LCD screen to the normal position, and then close it into the camera body.

E-39

PREPARATIONS FOR OPERATION

Underside

Diopter adjustment knob

DISPLAY [1/2] menu screen

D I SPLAY[12]/ ZEBR A LCD BR

GHTNESSNALOR M

I LCD COLOR LCD PEAKI NG VF BRIGHTNESS VF COLOR VF PEAKING NEXT PAGE PAGE BACK

ALOR M

Adjusting the Viewfinder

 Adjusting the Position of the

Viewfinder

T o f acilitate low-angle shooting, the viewfinder can be turned approximately 75° upward.

 Diopter Adjustment

Move the diopter adjustment knob on the underside of the viewfinder until the viewfinder screen image is clearly visible.

 Adjustment of the Viewfinder


Adjustments are made on the DISPLA Y [1/2] menu screen. (See “Setting Menu Screens” on page 94.)

● VF BRIGHTNESS: Adjusts the brightness of the viewfinder screen.

● VF COLOR: Adjusts the colour saturation of the viewfinder screen.

● VF PEAKING: Adjusts the contrast of the viewfinder screen.

E-40

Setting, Displaying and

PREPARATIONS FOR OPERATION

The date and time of the built-in clock should be set. P owered b y the built-in rechargeable backup battery , the set date and time data are retained and continue to count even when the power is switched off.

● Whether to display the set date and time data on the LCD screen or the viewfinder screen or record it on the tape can be specified by settings on the menu screen.

Setting the Date and Time

Recording the Date and Time

MENU button

SELECT dial

GAIN

SHUTTER

TOP MENU screen

MENU MODE EARPHONELVELE01 SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

N[CAM.A] .

CLOC K/

C MENU ALLRESETCELANC EXIT

ALANU

]

Cursor

CLOCK/TC menu screen

CLOCK TC/ TC PRE

ET . .

S CLOCKADJUST . . DATE STYLE TIME STYLE SECDISPL AYON PAGE BACK

D/YYM/D

UR4HO

Memo:

The TIME STYLE, SEC DISPLAY and DATE STYLE items can also be set or changed after setting of the date and time is completed.

● The date and time and time code are set on the CLOCK/TC menu screen. Make the settings while observing the LCD screen or a monitor connected to the VIDEO OUT connector. When making the settings while observing a monitor connected to the VIDEO OUT connector, set the OUTPUT CHAR. item on the DISPLAY [2/2] screen menu to MIX.

Set the POWER switch to “ON”.

Press the MENU button to display the TOP MENU screen.

Rotate the SELECT dial to align the cursor (f) with the CLOCK/ TC item, and then press the SELECT dial in the direction of the camera body.

● The CLOCK/TC menu screen appears.

Make settings on the CLOCK/TC menu screen. (This includes display style, etc.) DATE STYLE : Selects the style for displaying the date.

YY/MM/DD (Year, month, day) MM/DD/YY (Month, day, year) DD/MM/YY (Day, month, year)

TIME STYLE : The time can be set to display as a 12-hour

or 24-hour clock system.

SEC DISPLAY

: T o select whether or not the second indication

should be displayed on the screen. However, regardless of this setting, the seconds are set when the date and time are set.

E-41

PREPARATIONS FOR OPERATION

Setting, Displaying and Recording the Date and Time (cont’d)

CLOCK/TC menu screen

CLOCK TC/

TC PRE

ET . .

S CLOCKADJUST . . DATE STYLE

TIME STYLE SECDISPL AY PAGE BACK

CLOCK/TC menu screen

CLOCK TC/

TC PRE

ET . .

CLOCKADJUST . . DATE STYLE TIME STYLE SECDISPL AY PAGE BACK

Date (Month, day, year)

CLOCK ADJUST menu screen

CL OCK ADJ UST

/DD/

YY )

10/01/01 00:00

T(EMM

PAGE BACK

Time (Hour, min, sec)

CLOCK ADJUST

CL OCK ADJ UST

T(EMM

A IMET

/DD/

YY )

21/30/ 01:30

1 Rotate the SELECT dial to align the cursor (f) with the item

to be set, and then press the SELECT dial.

● The setting area of the selected item starts blinking.

/YY/DD

UR4HO

2 Rotate the SELECT dial to change the setting, and then press

the SELECT dial.

● The setting area stops blinking and the setting is entered.

Display the screen for setting the date and time. Rotate the SELECT dial to align the cursor (f) with the CLOCK ADJUST item, and then press the SELECT dial.

● The CLOCK ADJUST screen appears.

/YY/DD

UR4HO

Set the date and time. The blinking digit is the one to be set.

1 When the SELECT dial is pressed, the blinking digit changes. 2 When the SELECT dial is rotated, the value of the blinking

digit changes. When the SELECT dial is rotated upward, the value becomes higher. When rotated downward, the v alue becomes smaller.

3 Repeat the procedure descr ibed in 1 and 2 above to set

the day, month, year, hours, minutes. The digits indicating seconds cannot be set.

4 Press the SELECT dial in sync with a time signal to enter the

date and time precisely.

When all the settings are completed, rotate the SELECT dial to align the cursor with the PAGE BACK item, and then press the SELECT dial.

● The CLOCK/TC menu screen returns.

To retur n to the normal screen, use either of the following methods. Press the MENU button or

Return to the TOP MENU screen and then select the EXIT item from the TOP MENU screen before pressing the SELECT dial.

PAGE BACK

Normal screen

Date time indication

(Selected on the

DISPLAY [2/2] menu screen)

E-42

Displaying the Time and Date on the Screen

Whether or not the time and date should be displayed on the screen is set with the TIME/DATE item on the DISPLAY [2/2] menu screen. The display style is selected by setting the DISP STYLE item.

DISPLAY [1/2] menu screen

DISPLAY[12]/ ZEBRA LCD BR

GHTNESSNALOR M

I LCD COLOR LCD PEAKI NG VF BRIGHTNESS VF COLOR VF PEAKING NEXT PAGE PAGE BACK

ALOR M

DISPLAY [2/2] menu screen

E TIME CODE TIME/DATE DISP STYLE AUD I OLEVEL

CENTER MARKOFF

CHAR.

OUTPUT PAGE BACK

O D DAT IMEE

O M

LAYISP +

]

Y[LA 2 / 2

DISP

TAPE R

MA I NON

Date

Time

Display the DISPLAY [2/2] menu screen.

1 Select the DISPLAY SET item on the TOP MENU screen. 2 Select the NEXT PAGE item on the DISPLAY [1/2] menu

screen.

Set the TIME/DATE item on the DISPLAY [2/2] menu screen. DISPLAY : The date and time are displayed on the LCD screen

or the viewfinder screen. The indications are not recorded on the tape.

DISP+REC :The date and time are displayed on the LCD screen

or the viewfinder screen and are recorded on the tape.

OFF : The date and time are not displayed and are not

recorded on the tape.

The display style is selected by setting the DISP STYLE item on the DISPLAY [2/2] menu screen.

DATE+TIME : Both date and time are displayed. DATE : Date only is displayed. TIME : Time only is displayed

 Display of date and time in the various operation modes. In shooting mode :The date and time of the internal clock

are displayed.

In VTR playback mode

: The date and time recorded on the tape

are displayed.

In VTR stop mode : The date and time of the internal clock

are displayed.

During DV signal input

(GY-DV301 only)

: The date and time from the DV

connector are displayed.

Recording the Date and Time Data

To record the date and time during shooting, set the following menu items.

● Recording of the date and time data may be interrupted momentarily if the LCD screen is turned to faced toward the lens (reversed display) during recording of the date and time data. When the ASPECT ratio is set to LETTER, the date and time indication is not recorded.

DISPLAY [2/2] menu screen

SYSTEM [2/2] menu screen

][

STSY EM 2 / 2

FADER TALLY HANDL E ZOOM ME D I UM DAT E RECBARS ASPE C T NET REMOTE VF+LCD PAGE BACK

● Set the TIME/DATE item to DISP+REC. * ASPECT item is fixed at 4:3.

● Select the display style with the DISP STYLE item.

Use the DATE REC item on the SYSTEM [2/2] menu screen to select the mode in which the date and time data should be recorded.

● BARS+CAM: Date and time data are recorded when colour bars and camera image are output.

● BARS: Date and time data are recorded only when colour bars are output.

When the MODE switch is set to the VTR side, the DATE REC item is not displayed.

E-43

PREPARATIONS FOR OPERATION

The built-in, rechargeable backup battery retains the date and time and the time code data. The built-in battery is constantly being charge whenever the GY-DV300 is connected to a power supply, but it gradually discharges while the GY-DV300 is disconnected from a power supply. The battery will be fully discharged when the GY-DV300 is not used for about three months, in which case the set date and time and time code data are reset. In this case, recharge the built-in battery and then set the date and time and time code data again. Howev er, it is possib le to use the GY-DV300 ev en if the built-in battery is discharged but the date and time and time code data cannot be recorded.

Charging the Built-in Battery

 How to charge

AC outlet

AC adapter AA-P30

DC IN

Connect the optional AC adapter AA-P30 to the GY-DV300 and an AC outlet or mount a charged battery on the GY-DV300.

Set the POWER switch on the GY-DV300 to “OFF” or “ON” (charging takes places with the POWER switch set to either of the positions.)

Leave the equipment in this condition for about 4 hours.

● The built-in battery will remain charged for about 3 months after being charged for about 4 hours.

E-44

Setting, Displaying and

PREPARATIONS FOR OPERATION

Time code data should be set in the built-in time code generator. User’s bits cannot be set. During recording, the time code is automatically recorded on the tape. When recording starts from the beginning of the tape, recording starts from the set time code.

Presetting the Time Code

Recording the Time Code

MENU button

SELECT dial

GAIN

SHUTTER

CLOCK/TC menu screen

CLOCK TC/

TC PRE

ET . .

S CLOCKADJUST . . DATE STYLE

TIME STYLE SECDISPL AYON PAGE BACK

D/YYM/D

UR4HO

TC PRESET screen

Hours Minutes Seconds Frames

TCTCPRESET

EARC

PAGE BACK

TCTCPRESET

EARC

PAGE BACK

ELANC

The time code is preset on the CLOCK/TC menu screen.

Display the CLOCK/TC menu screen. T o displa y the CLOCK/TC menu screen, perform the operations described in steps 1 to 3 in “Setting the Date and Time” on page

41.

Rotate the SELECT dial to align the cursor (f) with the TC PRESET item, and then press the SELECT dial.

● The TC PRESET screen appears.

Set the time code (hours, minutes, seconds, frames). The blinking digit is the one to be set.

1 When the SELECT dial is pressed, the blinking digit changes. 2 When the SELECT dial is rotated, the value of the blinking

digit changes. When the SELECT dial is rotated upward, the value becomes higher. When rotated downward, the v alue becomes smaller.

3 Repeat the procedure described in 1 and 2 above to set

the desired value for all digits.

4 The setting values are confirmed and entered when the frame

digit blinks and the SELECT dial is pressed.

When setting of all the digits is completed, rotate the SELECT dial to align the cursor with the PAGE BACK item, and then press the SELECT dial.

● The CLOCK/TC menu screen returns.

E-45

Setting, Displaying and Recording

PREPARATIONS FOR OPERATION

To zero-set the time code

1 Rotate the SELECT dial to

align the cursor with the CLEAR item, and then press the SELECT dial.

2 Rotate the SELECT dial to set

To retur n to the normal screen, use either of the following methods. Press the MENU button or Return to the TOP MENU screen and then select the EXIT item from the TOP MENU screen before pressing the SELECT dial.

the CLEAR item to EXECUTE, and then press the SELECT dial.

Memo:

The preset time code value is reset when the power is turned off.

Displaying the Time Code on the Screen

Whether or not the time code should be displayed on the screen is set with the TIME CODE item on the DISPLAY [2/2] menu screen.

the Time Code (cont’d)

DISPLAY [2/2] menu screen

]

Y[LA 2 / 2

DISP

TAPE R

MA I NON

E TIME CODE TIME/DATE DISP STYLE AUD I OLEVELON CENTER MARKOFF

CHAR.

OUTPUT PAGE BACK

O D DAT IMEE

LAYISP +

Display the DISPLAY [2/2] menu screen.

1 Select the DISPLAY SET item on the TOP MENU screen. 2 Select the NEXT PAGE item on the DISPLAY [1/2] menu

screen.

Set the TIME CODE item on the DISPLAY [2/2] menu screen. To display the time code, set the item to ON.

 Display of the time code in the various operation modes. In shooting mode : The current value of the built-in time

Time code indication

In VTR playback mode

code generator is displayed.

: The time code recorded on the tape

is displayed.

During DV signal recording

(GY-DV301 only)

: The current value of the built-in time

code generator is displayed.

Recording the Time Code

The time code is recorded on the tape during recording. The time code f ormats are fixed as regeneration mode.

REGEN : The time code already recorded on the tape is read, and the time code is recorded in

Memo:

• The time code recorded at the beginning of a tape may not be read.

• The preset time code is only valid when recorded from the beginning of the tape. (REC RUN operation

only) REC RUN : The time code starts counting from when recording is started.

• To record the preset time code from the beginning position of a brand-new tape , start recording after rewinding the tape completely.

continuation of the existing data. It will start from “00” if there is no time code recorded at the location where the recording is started.

E-46

SETTINGS BEFORE SHOOTING

Shooting Mode (Auto/Manual) Selection

MODE switch

MODE CAM-B

CAM-A

GAIN

VTR

SHUTTER

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

N[CAM.A] .

CLOC K/

C MENU ALLRESETCELANC EXIT

]

ALA

The GY-DV300 is provided with two positions, “CAM-A” and “CAM- B”, for registering mode settings for camera shooting. Settings made on separate menu screens for camera shooting can be allocated to each of the “CAM-A” and “CAM-B” mode positions. Also, the GY-DV300 offers tw o shooting modes, AUT O and MANUAL, which are selected by setting the MODE item on the TOP MENU screen. The AUTO or MANUAL shooting mode can be set separately for each of the “CAM-A” and “CAM-B” mode positions.

About the AUTO and MANUAL Shooting Modes

In the AUT O shooting mode, the settings OPERATION menu screen items will be those valid for the auto mode.

Contents

Mode AUTO shooting

MANUAL shooting

OPERATION Menu Screen

For setting iris, shutter speed, gain, white balance, audio recording level, and camerashake compensation.

The GY-DV300 is adjusted automatically. Make settings as desired on the OPERATION menu screen. Adjustments can be

made using the GY-DV300’s operation buttons and dial, etc.

E-47

SETTINGS BEFORE SHOOTING

Shooting Mode (Auto/Manual) Selection (cont’d)

How to Select Either MANUAL or AUTO Shooting Mode

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

N[CAM.A] .

CLOC K/

C MENU ALLRESETCELANC EXIT

ALA

]

Indication of set position of the MODE switch

● When the MODE item is set to MANUAL, the position of the MODE switch (“CAM-A” or “CAM-B”) is indicated after the CAMERA SET and OPERATION SET items.

The settings are valid for the position indicated for the MODE switch.

● When the MODE item is set to

AUTO, the OPERATION SET items are not displayed. The position of the MODE switch (“CAM-A” or “CAM-B”) is indicated after the CAMERA SET item.

MODE switch

MENU button

CAM-A

GAIN

MODE CAM-B

VTR

SHUTTER

SELECT dial

Set the MODE switch to the “CAM-A” or “CAM-B” position.

Press the MENU button to display the TOP MENU screen.

Rotate the SELECT dial to align the cursor (f) with the MODE item, and then press the SELECT dial.

● The MODE item setting area is seen blinking, and settings can now be changed.

Rotate the SELECT dial to set to AUTO or MANUAL.

AUTO : Auto shooting mode MANUAL : Manual shooting mode

Press the SELECT dial.

● The setting area stops blinking and the setting is confirmed and entered.

Rotate the SELECT dial to align the cursor (f) with the EXIT item, and then press the SELECT dial.

● The normal screen returns.

E-48

SETTINGS BEFORE SHOOTING

The GY -D V300 is provided with three sources f or audio input (i.e., built-in microphone and input connectors MIC 1 and MIC 2 for external microphones). T wo channels of sound can be recorded on the tape in digital PCM format. Select for each channel (CH1 and CH2) which sound should be recorded on the channel. The sound of each of the input sources is monaural.

MIC 1 input connector

MIC 2 input connector

Built-in microphone

Audio Input Signal Selection

Select whether the built-in microphone or a microphone connected to the MIC 1 input connector should be used.

The built-in microphone and a microphone connected to the MIC 1 input connector cannot be used at the same time. When using the GY-DV300 with the built-in microphone or a microphone connected to the MIC 1 input connector, select which one to use by setting the MIC1 INPUT SEL item on the SYSTEM [1/2] menu screen.

SYSTEM [1/2] menu screen

][

STSY EM 1 / 2 MIC1 INPUT SEL WIN D CUTMIC1 WIN D CUTMIC2 +

48V MI

AUD I O

MOD REC MODE LONG PAUSE T I ME30MIN NEXT PAGE PAGE BACK

 Set to INT to use the built-in

microphone.

 Set to MIC 1 to use the micro-

phone connected to the XLR input connector.

POWER

OFF

MODE

PUSH

CAM-B

VTR

CAM-A

GAIN

SHUTTER

BAR

FWD

AUDIO

CH-2CH-1

MIC1 MIC2

REV

MONITOR

CH-2

CH-1

MIX

AUDIO

CH-2CH-1

MIC1 MIC2

AUDIO input signal selector switch

Select the input signal to the CH-1, CH-2 audio channels

The audio signal input to the CH-1, CH-2 audio channels is selected with the AUDIO input selector switch. The input can be set separately for each channel.

Setting

The microphone sound from the built-in microphone

MIC 1

or a microphone connected to the MIC 1 input connector. (Make the selection with the MIC1 INPUT SEL item on the SYSTEM [1/2] menu screen.)

MIC 2

The microphone sound from a microphone connected to the MIC 2 input connector.

The same sound can be input to both the CH-1 and CH-2 channels.

Input Signal

E-49

SETTINGS BEFORE SHOOTING

Audio Input Signal Selection (cont’d)

Setting Whether Phantom Microphone Should be used as External Microphone

SYSTEM [1/2] menu screen

][

STSY EM 1 / 2 MIC1 INPUT SEL WIN D CUTMIC1 WIN D CUTMIC2 +

48V MI

AUD I O

MOD REC MODE LONG PAUSE T I ME30MIN NEXT PAGE PAGE BACK

When a microphone (phantom microphone) requiring +48V DC power supply is connected, set the +48V MIC1 or +48V MIC2 items on the SYSTEM [1/2] menu screen. +48V MIC1: Setting for the microphone connected to the MIC 1

input connector.

+48V MIC2: Setting for the microphone connected to the MIC 2

input connector.

● Set to ON when a phantom microphone is used.

● Set to OFF when other microphone type than phantom

microphone is used.

CAUTION:

• Confir m that the +48V MIC1 or +48V MIC2 items are set to OFF before connecting another microphone type than phantom microphone.

• When the setting of the +48V MIC1/MIC2 item is changed, noise will appear in the sound but this is normal.

E-50

SETTINGS BEFORE SHOOTING

MONITOR switch

The audio input in the shooting mode can be monitored through an earphone or headphones connected to the EARPHONE jack. The audio monitor output signal is monaural. * In the shooting mode, sound is not output from the built-in speaker.

Audio Monitor Selection

POWER

OFF

MODE CAM-B

CAM-A

GAIN

SHUTTER

BAR

FWD

AUDIO

MIC1 MIC2

REV

MONITOR

CH-1

MIX

CH-1

PUSH

VTR

CH-2CH-1

CH-2

MONITOR

CH-2

MIX

EARPHONE jack

䡲 Select the audio channel to be monitored using the MONITOR switch.

“CH-1” : The signal input to the CH-1 channel is output. “MIX” : The sound input to the CH1 and CH2 channels is output mixed. “CH-2” : The signal input to the CH-2 channel is output.

䡲 The volume of the monitored sound cannot be adjusted.

The volume of the monitor sound in the shooting mode is set with the EARPHONE LEVEL item on the TOP MENU screen. (☞ See page 90.)

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

N[CAM.A] .

CLOC K/

C MENU ALLRESETCELANC EXIT

ALA

]

E-51

SETTINGS BEFORE SHOOTING

ND FILTER

OFF

FOCUS ring

The FOCUS switch is used to select whether focus adjustment should tak e place in the auto mode or the manual mode.

FOCUS Switch

AUTO

The auto focus function will be operating and the camera automatically focuses on the subject.

Focus Mode Selection

CH-1 CH-2

AUDIO LEVEL

IRIS

FOCUS

AUTO MANU

PUSH AUTO

DV CAMCORDER GY-DV300

PROFESSINAL

OPEN

FOCUS switch

Focus Adjustment

AUTO

MANU

PUSH AUTO

FOCUS

MANU

The focus is manually adjusted by turning the FOCUS ring on the lens section. For manual focusing, ☞ see page 63.

Depending on the subject and the shooting conditions, focusing ma y not be obtainable in the auto focus mode. In this case, adjust the focus in the manual mode.

E-52

SETTINGS BEFORE SHOOTING

Handle

Angle of View (Zoom In/Zoom Out)

ZOOM lever

START/

STOP

VOLUME

ZOOM lever

The ZOOM lever is used for zoom-in and zoom-out operations. Zooming can be performed using either the ZOOM lever on the top section of the GY-DV300 or the ZOOM lever on the top of the handle section.

Zoom operation indication

Zoom-in : The subject becomes larger (max. 14 times)

Zoom-out : The subject becomes smaller and the picture angle

wider.

Memo:

During zooming, the zoom position and zoom ratio are indicated on the LCD screen and the viewfinder screen.

Zooming

䡲 Set the MODE switch to “CAM-A” or “CAM-B”. 䡲 To zoom in, press the ZOOM lever toward the “T” side. 䡲 To zoom out, press the ZOOM lever toward the “W” side.

SYSTEM [2/2] menu screen

][

STSY EM 2 / 2 FADER TALLY HAN DL E Z OOMMEDIUM DAT E RECBARS ASPE C T NET REMOTE VF+LCD PAGE BACK

● When the zoom lever on the top section is pushed lightly, the zoom speed will be slow; and when pushed hard, the zoom speed will be fast.

● The zoom speed of the ZOOM lever on the handle section is selected by setting the HANDLE ZOOM item on the SYSTEM [2/ 2] menu screen. (SLOW/MEDIUM/FAST).

E-53

SETTINGS BEFORE SHOOTING

The various conditions under which shooting should take place are set on the SYSTEM menu screen. The SYSTEM menu screen consists of two screens. (The SYSTEM menu screen settings must be made regardless of whether the AUTO or MANUAL shooting mode is used.)

Menu Screen Settings

Opening the SYSTEM menu screen

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

N[CAM.A] .

CLOC K/

C MENU ALLRESETCELANC EXIT

ALA

]

SYSTEM [1/2] menu screen

MIC1 INPUT SEL WIN D CUTMIC1 WIN D CUTMIC2 +

48V MI

AUD I O

MOD REC MODE LONG PAUSE T I ME30MIN NEXT PAGE PAGE BACK

][

STSY EM 1 / 2

SYSTEM [2/2] menu screen

][

STSY EM 2 / 2 FADER TALLY HANDLE ZO OMMEDIUM DAT E RECBARS ASPE C T NET REMOTE VF+LCD PAGE BACK

Set the MODE switch to “CAM-A” or “CAM-B”.

Press the MENU button to display the TOP MENU screen.

Rotate the SELECT dial to align the cursor (f) with the SYSTEM SET item, and then press the SELECT dial.

● The SYSTEM [1/2] menu screen appears.

Rotate the SELECT dial to align the cursor (f) with the item to be set, and then press the SELECT dial.

● The setting area of the selected item star ts blinking, and the set value can now be changed.

Rotate the SELECT dial to change the setting, and then press the SELECT dial.

● The setting area stops blinking and the setting is entered.

Repeat the steps 3 to 5 above to change other items.

T o display the SYSTEM [2/2] men u screen, align the cursor (f) with the NEXT PAGE item, and then press the SELECT dial.

When settings on the SYSTEM menu screen are completed, rotate the SELECT dial to align the cursor (f) with the PAGE BACK item, and then press the SELECT dial.

● The original menu screen returns.

To retur n to the normal screen, use either of the following methods.

● Press the MENU button

● Retur n to the TOP MENU screen and then select the EXIT item from the T OP MENU screen before pressing the SELECT dial.

MODE switch

MENU button

SELECT dial

CAM-A

GAIN

MODE CAM-B

VTR

SHUTTER

E-54

Contents of Settings on the SYSTEM [1/2] Screen

Item Contents of Setting

MIC1 INPUT SEL Selects whether the built-in microphone or a microphone connected to

the MIC 1 input connector should be used.

INT : Use this setting when the built-in microphone should be used. XLR : Use this setting when a microphone connected to the MIC 1 input

connector should be used.

WIND CUT MIC1 Selects whether or not the wind noise picked up by the internal

microphone or a microphone connected to the MIC 1 input connector is reduced. (ON/OFF)

WIND CUT MIC2 Selects whether or not the wind noise picked up by a microphone

connected to the MIC 2 input connector is reduced. (ON/OFF)

+48V MIC1/+48V MIC2 Sets whether +48 V power should be supplied to a microphone

AUDIO MODE Selects the sampling frequency for audio recording (32 kHz or 48 kHz).

REC MODE Selects the recording speed mode.

LONG PAUSE TIME Selects the time (minutes) before the tape protection mode (drum

connected to the MIC 1 or MIC 2 input connector. (MIC 1 and MIC 2 are set separately.) This should only be set to ON when a phantom microphone is used.

* 4 channels are available when the DV format is recorded with 12-bit,

32 kHz sampling, but the GY-DV300 records the CH-1 and CH-2 channels. The GY-DV300 does not allow after-recording.

SP : Standard Play recording mode. LP : Long Play recording mode (recording time is 1.5 times longer

than in the SP mode.)

* Tapes recorded in the LP mode on the GY-DV300 can only be played

back on this unit. When playing back on another unit, noise will appear in the picture and the sound.

automatically stops rotating) is engaged when the recording pause (the recording-standby mode) or still mode continues. (3 minutes or 30 minutes). When used in a cold environment, this becomes 3 minutes regardless of the setting.

E-55

SETTINGS BEFORE SHOOTING

Contents of Settings on the SYSTEM [2/2] Menu Screen

Item Contents of Setting

FADER Sets whether fade is performed when recording is started and stopped.

TALLY Selects whether the tally lamp lights during recording. Set to OFF to

HANDLE ZOOM Sets the zoom speed when the ZOOM lever on the handle section is

DATE REC Select the mode in which the date and time data should be recorded.

ASPECT The screen size of recorded images can be selected.

Menu Screen Settings (cont’d)

OFF : No fade. BLACK : Fade in from black screen when recording is started; fade

out to black screen when recording is stopped.

prevent the tally lamp from lighting during recording.

used. Select between three speeds. (SLOW, MEDIUM, FAST)

BARS : Date and time data are recorded only when color bars

are output.

BARS+CAM: Date and time data are recorded only when color bars

and camera image are output.

• When the date and time data should be recorded, the TIME/DATE item must be set to DISP+REC on the DISPLAY [2/2] menu screen.

4:3 : T o record with the normal screen size with an aspect ratio

of 4:3.

LETTER : To record with a LETTER BO X screen with an aspect ratio

of 16:9 where the upper and lower part of the image is cut off.

MEMO:

When the TIME/D ATE item on the DISPLAY [2/2] men u screen is set to DISP+REC, settings indicated by “– – –” cannot be set.

E-56

SHOOTING Basic Recording Operation

ZOOM lever

START/

STOP

CAM-A

GAIN

/STOP button

OFF

MODE CAM-B

VTR

SHUTTER

POWER

REC START

POWER switch

MODE switch

● Setting the recording mode (AUTO/MANUAL) The recording mode is set by means of the MODE item on the TOP MENU screen. (☞ See page 47, 48.)

LCD screen

VTR mode indication

Handle

ZOOM lever

REC START/STOP button

This section explains the basic recording procedures when the AUT O mode is selected as the shooting mode.

Set the POWER switch to “ON”. Power is supplied to the unit.

Set the MODE switch to “CAM-A” or “CAM-B”. The GY-DV300 enters the shooting mode.

● The set values indicated on the menu screen will be either those of “CAM-A” or “CAM-B” in accordance with the setting of the MODE switch.

Slide the EJECT switch to open the cassette cover. Ensure that the erasure-prevention switch on the back of the cassette is set to REC and insert a videocassette properly.

Slowly push the “PUSH HERE” section on the cassette holder with a finger until a click is heard. Confirm that the cassette holder does not come up when you remove your finger.

䡵 The tape is loaded and the unit enters the recor ding-standby

mode when the cassette cover is closed.

● When the recording-standby mode is engaged, STBY is indicated as the VTR mode on the LCD screen and the viewfinder screen.

Memo:

After the cassette cover is closed, it takes about 11 seconds before the unit is ready for recording.

Cassette cover

EJECT switch

E-57

SHOOTING

Basic Recording Operation (cont’d)

● ZOOM lever

A ZOOM lever is provided in two positions: one on the top section of the unit, and the other on top of the handle. Both can be used for zooming.

● REC START/STOP button

A REC START/STOP button is provided in two positions: one on the rear section of the unit, and the other on top of the handle. Both can be used for operation.

TAPE NEAR END

REC

VTR mode indication

Memo:

● When remaining time for recording is less than about 3 minutes, TAPE NEAR END is displayed on the LCD screen and the viewfinder screen and the TALLY lamp blinks slowly.

CAUTION:

● Noiseless transitions between scenes cannot be guaranteed if the POWER switch is set to “OFF” or the battery is removed during a recording.

Point the camera at the subject and determine the angle of view

with the ZOOM lever.

䡵 Adjusting the focus

● When the FOCUS switch is set to “AUTO”, the auto-focus

function will be operating and focusing is performed automatically.

● When the FOCUS switch is set to “MANUAL”, the FOCUS ring should be turned to adjust the focus. (☞ See page

63.)

Press the REC START/STOP button. Recording starts.

● Once recording has started, REC is indicated as the VTR mode on the LCD screen and the viewfinder screen and the TALLY lamp lights up.

Memo:

Whether the TALLY lamp should light dur ing recording is

selected with the TALLY item on the SYSTEM [2/2] menu screen.

To stop recording, press the REC START/STOP button. The unit rewinds the tape about 2 seconds before it enters the recording-standby mode. The VTR mode indication changes to STBY and the T ALLY lamp goes out.

To restart recording press the REC START/STOP button.

To end the recording, enter the recording-standby mode and perform the following operations as required.

䡲 When it is required to unload the videocassette:

Slide the EJECT switch.

䡲 When the power should be turned off:

Set the POWER switch to OFF.

E-58

BAR

FWD

REV

SHOOTING

The recorded scene can be checked and the position for recording the ne xt scene can be searched in the recording-standby mode.

Viewing the Recorded Scene (Edit Search)

FWD button

REV button

Screen indication during edit search

The VTR mode is indicated as ED.FWD or ED.REV on the LCD screen and the viewfinder screen during edit search.

ED. FWD

ED.FWD : Forward search ED.REV : Reverse search

Enter the recording-standby mode

䡲 To advance the tape in forward direction.

Press the FWD button. Playback is performed at normal speed as long as the button is pressed down.

When the FWD button is released, the unit returns to the recording-standby mode.

䡲 To rewind the tape in reverse direction.

Press the REV button. Playback in re verse direction is performed at normal speed as long as the button is pressed down.

When the REV button is released, the unit returns to the recording-standby mode.

Memo:

● When the recording speed mode (SP/LP) setting differs from the setting used for the part already recorded on the tape, the picture may be disturbed at the switching point.

● When executing Edit Search on a DVM80 tape and the remaining amount of tape is 3 minutes or less, “INVALID OPERATION” is displayed in order to protect the tape and Edit Search does not function. “INV ALID OPERA TION” is displayed if Edit Search is attempted in the condition in which the remaining tape amount is not indicated.

● During search, block noise may appear on the screen or the image may freeze. Likewise, the SP/LP indication ma y not be displayed correctly.

E-59

SHOOTING

If the Unit is Left in Recording-Standby Mode

Setting the time before the tape protection mode is engaged

The time before the tape protection mode is engaged from the recording-standby mode can be set as 30 minutes or 3 minutes by the LONG PAUSE TIME item on the SYSTEM [1/2] screen menu.

STOP

VTR mode indication

When the recording-standby mode has continued for about 30 minutes, the GY-DV300 automatically stops drum rotation in order to protect the tape. (Tape protect mode)

● In the tape protect mode, STOP is shown as the VTR mode indication on the LCD screen and the viewfinder screen.

䡲 To start recording from the tape protect mode, press the REC

START/STOP button.

● The drum star ts rotating, and recording starts after about 3

seconds.

䡲 To return to the recording-standby mode from the tape pr otect

mode, press the REC START/STOP button twice.

E-60

SHOOTING Recording the Color Bar

BAR button

BAR

Color bar signal of the built-in signal generator

An EBU standard color bar is output.

White

Yellow

Cyan

Green

Magenta

Red

It can be selected whether the camera image should be output or whether the color bar of the built-in signal generator should be output during recording-standby and recording.

䡲 The color bar is output when the BAR button is pressed while

the camera image is output.

䡲 To return to the camera image, press the BAR button again.

Blue

Black

E-61

SHOOTING

Using the AE (Automatic Exposure) Function

In addition to the automatic shooting mode, the GY-DV300 also offers the use of the AE (Automatic Exposure) function. The AE function combines the following three functions to automatically adjust the video signal level to their optimum levels.

Gain : ALC (Auto Level Control) Shutter Speed : EEI Iris : A uto iris

MENU button

GAIN

SHUTTER

SELECT dial

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

N[CAM.A] .

CLOC K/

C MENU ALLRESETCELANC EXIT

ALA

]

OPERATION menu screen

EROP AT I ON[A

IRIS

SHUTTE

R WH I T EBALANCEPUSHUAOT OIS CH1 AUD I O LEVEL CH2 AUD I O LEVEL PAGE BACK

]

––

– –

––

UTO

● When the AE item is ON, the IRIS and SHUTTER items cannot be set. White balance and audio recording level adjustment can be selected as AUTO or MANUAL.

䡲 Engage the recording-standby mode.

Press the MENU button to display the TOP MENU screen.

Use the SELECT dial to set the MODE item to MANUAL on the TOP MENU screen.

Rotate the SELECT dial to align the cursor (f) with the OPERATION SET item on the TOP MENU screen, and then press the SELECT dial.

● The OPERATION menu screen appears.

Use the SELECT dial to set the AE item on the OPERATION menu screen to ON, and then press the SELECT dial.

● The AE function becomes ON.

䡲 To stop use of the AE function, set the AE item to OFF on the

OPERATION menu screen.

E-62

MANUAL ADJUSTMENTS

FOCUS ring

In accordance with the conditions under which the subject is recorded, adjust the focus in the manual focus mode. In the auto focus mode, correct focus may be difficult to obtain under the following shooting conditions.

● When the subject is behind metal mesh.

● While panning quickly from a distant point to one nearby; the subject will be in focus when the panning

is stopped.

● In dark places.

● When the iris is at the CLOSE end.

Manual Focus Adjustment

IRIS FOCUS

AUTO

MANU

PUSH AUTO

FOCUS switch

Manual focus mode indication

Operation

In the recording-standby mode or during shooting, set the FOCUS switch to “MANU”. The manual focus mode is engaged, and the MF indicator that indicates the manual focus mode is display ed on the LCD screen and the viewfinder screen.

Turn the focus ring on the lens section to adjust the focus. 䡲 To return to the auto focus mode, set the FOCUS switch to

AUTO.

Memo:

To obtain correct focus, push the ZOOM lever to the “T” position and then adjust the focus while the subject is in the zoomed-in condition. The focus will be retained after zooming out. If the focus is adjusted in the wide-angle condition, the subject will be out of focus when you zoom in.

E-63

MANUAL ADJUSTMENTS

Manual Focus Adjustment (Cont’d)

Momentarily Using Auto Focus

It is possible to momentarily use the auto focus function while in the manual focus mode.

IRIS FOCUS

AUTO

MANU

PUSH AUTO

PUSH AUTO FOCUS button

Operation

● When the FOCUS switch is set to “AUTO”, the PUSH AUTO FOCUS button does not work.

Press the PUSH AUTO FOCUS button. The auto focus function operates while the button remains pressed.

When the button is released, the mode returns to the manual focus mode.

About Auto Focus

The auto focus function automatically moves the lens back and forth to adjust the focus. The auto focus function has the following characteristics.

● It adjusts so that the vertical lines in the subject are seen as clearly as possible.

● Focus is adjusted in accordance with parts showing most contrast.

● Focus is only adjusted in accordance with the center portion of the image.

Due to these characteristics, the auto function does not work well with the following types of scenes. Use manual focusing when shooting under these circumstances.

● When shooting both nearby and distant subjects at the same time.

● When shooting through dirty glass, like windows.

● When shooting scenes with light reflecting off the surface of the subject.

● When shooting where the illumination is low.

● When shooting subjects in fast motion.

● When shooting subjects with low contrast.

E-64

MANUAL ADJUSTMENTS Using ND Filter

When the shooting conditions are too bright, the ND-filter can be used to reduce the brightness to an appropriate level. The built-in ND-filter can adjust the brightness to about 1/32 of the original.

ND FILTER switch

Operation

● Please check the position of the ND FILTER switch before recording.

● Do not switch the position of the ND FILTER switch during recording. The image will be disturbed.

䡲 Engage the recording-standby mode.

Set the ND FILTER switch to “ON”.

● The built-in ND-filter is engaged, and ND filter indication appears on the LCD screen and the viewfinder screen.

Filter indication

䡲 The white balance will not be adjusted correctly when using

the ND-filter and shooting in the auto white balance mode.

Adjust the white balance in the manual white balance mode when using the ND-filter and shooting. (☞ See page 66.)

E-65

Obtaining Natural Tint

MANUAL ADJUSTMENTS

The auto white balance function of the GY-DV300 automatically makes adjustments to obtain natural tint. However, depending on the shooting conditions or the light source, sometime it may not be possible to obtain natural tint with this function. In this case, the manual white balance adjustment should be used. The result of manual white balance adjustment is stored in one of the GY-DV300’s 3 types of memories . (Memory 1, 2, 3)

1. Engaging the Manual White Balance Adjustment Mode

(White Balance)

White subject (white paper, etc.)

ND FILTER switch

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

CLOC K/

T MENU ALLRESETCELANC EXIT

N[CAM.A] .

]

MANUAL

OPERATION menu screen

EROP AT I ON[A

IRIS

SHUTTE

R WH I T EBALANCE OIS CH1 AUD I O LEVEL CH2 AUD I O LEVEL PAGE BACK

O A S

PUSH O A A

PUSH AUTO

White balance setting mode

E-66

FF UTO TEP

N UTO UTO

MENU button

GAIN

SHUTTER

AW button

SELECT dial

BAR

FWD

REV

䡲 Engage the recording-standby mode.

ALA

Press the MENU button to display the TOP MENU screen.

Using the SELECT dial, set the MODE item on the T OP MENU screen to MANUAL.

● The unit enters the manual shooting mode.

Rotate the SELECT dial to align the cursor (f) with the OPERATION SET item on the TOP MENU screen, and then press the SELECT dial.

● The OPERATION menu screen is displayed.

]

UAOT

Using the SELECT dial, set the WHITE BALANCE item on the OPERATION menu screen to PUSH AUTO, and then press the SELECT dial.

● The manual white balance adjustment mode is engaged.

To retur n to the normal screen, use either of the following methods.

● Press the MENU button or

● Retur n to the TOP MENU screen and then select the EXIT item from the T OP MENU screen before pressing the SELECT dial.

Memo:

In the manual white balance adjustment mode, the current white balance setting mode is displayed on the LCD screen or the viewfinder screen. WBP: Preset mode, WB1: Memory 1 mode WB2: Memory 2 mode, WB3: Memory 3 mode

2. Manual White Balance Adjustment

•

White balance adjustment is inhibited when PRESET is selected. The colour temperature is fixed at 3200K.

• The result of the manual white balance adjustment is stored in memory of the selected white balance mode. Even after the power has been turned off, the stored white balance condition is recalled when the relevant white balance mode is selected again.

Error indication when auto white balance adjustment is not completed normally .

An error message appears for about 3 seconds in the position indicated below.

WH I TE

AUTO

NG: OBJECT

Set the ND FIL TER switch in accordance with the lighting conditions .

Place a white object (white paper, etc.) near the centre of the screen and zoom in to fill the screen with white.

Select the mode in which the white balance setting should be memorized. q Press the AW button.

The current white balance setting mode is displayed f or about 3 seconds, after which the condition becomes the one in which adjustment of the white balance is enabled. (PRESET, MEMORY 1, 2, 3)

w Rotate the SELECT dial to select the mode for memorizing

the white balance setting. (Select the mode from among the MEMORY 1, 2, and 3 options.) When rotation of the SELECT dial stops, the selected mode is displayed for about 3 seconds.

Press the AW button for 1 second or more, and then release it.

● The auto white balance adjustment is invoked. During white balance adjustment, “AUTO WHITE OPERA TION” appears on the LCD screen and the viewfinder screen.

● When correct white balance is obtained, “AUTO WHITE OK” is displayed for about 3 seconds.

WH I TE

AUTO

OPERATION

AUTO

WH I TE

Error indication area

● NG: OBJECT (Improper subject)

Displayed when there is not enough white colour on an object or the colour temperature is not suitable. Replace the white subject or change the setting of the ND FIL TER switch.

● ERROR: LOW LIGHT (Insufficient illumination)

Displayed when the illumination is dim.

● ERROR: OVER LIGHT (Excessive illumination)

Displayed when the light is excessively bright.

During operation

䡲 To return to the auto white balance adjustment mode, use

either of the following methods.

● Set the WHITE BALANCE item to AUTO on the OPERATION menu screen or

● Set the MODE item to AUTO on the TOP MENU screen. In this case the shooting mode becomes the auto mode.

Completed correctly

E-67

MANUAL ADJUSTMENTS Manual Iris Adjustment

Adjust the iris (lens opening) manually in the following cases.

● For backlight compensation

● When the subject is too bright compared with the background

● When panning quickly from a bright place to a dark place

1. Engaging the Manual Iris Adjustment Mode

MENU button

SELECT dial

GAIN

SHUTTER

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET[CA --MA. OPERAT

CLOC K/

T MENU ALLRESETCELANC EXIT

N[CAM.A].

M 1

]

MANUAL

OPERATION menu screen

EROP AT I ON[A

IRIS

SHUTTE

R WH I T EBALANCE OIS CH1 AUD I O LEVEL CH2 AUD I O LEVEL PAGE BACK

O MANU S PUSH O A A

MANUAL

Iris (F-value)

Manual iris adjustment mode indication

E-68

FF TEP N

UTO UTO

]

䡲 Engage the recording-standby mode.

ALA

Press the MENU button to display the TOP MENU screen.

Using the SELECT dial, set the MODE item on the T OP MENU screen to MANUAL.

● The unit enters the manual shooting mode.

Rotate the SELECT dial to align the cursor (f) with the OPERATION SET item on the TOP MENU screen, and then press the SELECT dial.

● The OPERATION menu screen is displayed.

Using the SELECT dial, set the AE item on the OPERATION

UAOT

menu screen to OFF, and then press the SELECT dial.

Using the SELECT dial, set the IRIS item to MANUAL, and then press the SELECT dial.

To retur n to the normal screen, use either of the following methods.

● Press the MENU button or

● Retur n to the TOP MENU screen and then select the EXIT item from the T OP MENU screen before pressing the SELECT dial.

Memo:

The iris value (F-value) and “M” are displayed on the LCD screen and the viewfinder screen in the manual iris adjustment mode.

2. Manual Iris Adjustment

IRIS FOCUS

AUTO

MANU

PUSH AUTO

IRIS dial

Iris value (F-value)

Adjustment in the auto iris mode

When the IRIS dial is rotated in the auto iris mode, the iris can be adjusted from +3 steps to -3 steps from the auto iris condition. When rotated upward, the iris opens. When rotated downward, the iris closes. During operation of the IRIS dial, the stop value is indicated on the LCD screen and the viewfinder screen.

PUSH AUTO IRIS button

Rotate the IRIS dial. The iris value (F-value) can be adjusted from CLOSE to F1.6. Rotating the dial upward opens the iris, and rotating it downward closes the iris. The iris value is indicated on LCD screen and the viewfinder screen.

[Setting range: F1.6, F2, F2.8, F4, F5.6, F8, F11, F16, CLOSE]

䡲 To return to the auto iris adjustment mode, use either of the

following methods.

● Set the IRIS item to AUTO on the OPERATION menu screen

● Set the AE item to AUTO on the OPERATION menu screen

● Set the MODE item to AUTO on the TOP MENU screen.

In this case the shooting mode becomes the auto mode.

Momentarily Using the Auto Iris Mode

It is possible to momentarily use the auto focus function while in the manual iris mode.

Press the PUSH AUTO IRIS button. The auto iris function operates while the button remains pressed.

When the button is released, the mode returns to the manual iris mode.

Stop value by IRIS dial in the auto iris mode.

E-69

MANUAL ADJUSTMENTS

Manual Shutter Speed Adjustment

The shutter speed can be adjusted manually to obtain special effects or when shooting a fast-moving subject. The shutter speed can also be adjusted manually in the variab le scanning mode rate for shooting computer monitor screens.

Engaging the Manual Shutter Speed Adjustment Mode (STEP/VARIABLE)

MENU button

GAIN

SHUTTER

SELECT dial

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

CLOC K/

T MENU ALLRESETCELANC EXIT

N[CAM.A] .

]

MANUAL

OPERATION menu screen

EROP AT I ON[A

IRIS

SHUTTE

R WH I T EBALANCEAUTO OIS CH1 AUD I O LEVEL CH2 AUD I O LEVEL PAGE BACK

A S

A A

STEP or VARIABLE

Manual shutter speed mode indicator

E-70

UTO

TEP N

UTO UTO

䡲 Engage the recording-standby mode.

ALA

Press the MENU button to display the TOP MENU screen.

Using the SELECT dial, set the MODE item on the T OP MENU screen to MANUAL.

● The unit enters the manual shooting mode.

Rotate the SELECT dial to align the cursor (f) with the OPERATION SET item on the TOP MENU screen, and then press the SELECT dial.

● The OPERATION menu screen is displayed.

Using the SELECT dial, set the AE item on the OPERATION menu screen to OFF, and then press the SELECT dial.

]

Using the SELECT dial, set the SHUTTER item to STEP or VARIABLE, and then press the SELECT dial.

● Select the STEP setting to change the shutter speed in fixed steps (normal manual shutter speed adjustment).

● Select the VARIABLE setting for shooting computer screens, etc. (variable scan).

To retur n to the normal screen, use either of the following methods.

● Press the MENU button

●

Return to the T OP MENU screen and then select the EXIT item from the TOP MENU screen before pressing the SELECT dial.

Memo:

The “S” indicator for manual shutter speed is displayed on the LCD screen and the viewfinder screen in the manual shutter speed adjustment mode. The “S” indicator is not displayed when the shutter speed is set to NORMAL (1/50).

2. Adjusting the Shutter Speed Manually

Press the SHUTTER button.

● The currently set shutter speed is shown for about 3 seconds

SHUTTER 1/1000

STBY

Shutter speed indication

● Flickering occurs when shooting under a fluorescent light. This can be reduced by setting the shutter speed to 1/50 in regions where the power supply frequency is 50 Hz, and to 1/120 in 60 Hz regions.

on the LCD screen and the viewfinder screen.

● The shutter speed can be set while the shutter speed value is displayed.

Rotate the SELECT dial within 3 seconds (while the shutter speed is displayed) to set the shutter speed. Rotating the dial upward increases the shutter speed, and rotating it downward lowers the speed.

Stop rotating the SELECT dial when the desired shutter speed is indicated. The set value is displa yed for about 3 seconds bef ore the setting is confirmed.

Setting range

● The set shutter value is retained in the memory even if the power is turned OFF.

䡲 To return to the auto shutter speed adjustment mode, use

either of the following methods.

● Set the AE item to AUTO on the OPERATION menu screen

● Set the MODE item to AUTO on the TOP MENU screen.

In this case the shooting mode becomes the auto mode.

SHUTTER button

SELECT dial

STEP mode : NORMAL (1/50), 1/120, 1/250,

1/500, 1/1000, 1/2000

VARIABLE mode : 1/50.1 to 1/2067.8

GAIN

SHUTTER

Shooting a Computer Display

The shutter speed should be set to variable scan mode. The variable scan mode is used to match the GYDV300’s shutter speed with the variable scan frequency of computer screens, etc. When shooting a computer screen with the camera, bright over-exposed horizontal stripes will appear in the picture if the screen’s scan frequency is faster than the camer a’s frequency, and dark under-exposed stripes will appear if the screen’s scan frequency is slower than the camera’s scan frequency. While observing the LCD screen, adjust the shutter speed until a stable image is obtained.

E-71

MANUAL ADJUSTMENTS Manual Gain Adjustment

Using the ALC (Auto Lev el Control) function, the GY-DV300 automatically adjusts the gain (sensitivity) in accordance with the brightness of the subject. Howe v er, if the lighting conditions are poor and where the illumination is insufficient, it is possible to adjust the gain manually.

1. Engaging the Manual Gain Adjustment Mode

MENU button

SELECT dial

GAIN

SHUTTER

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

CLOC K/

T MENU ALLRESETCELANC EXIT

N[CAM.A] .

MANUAL

OPERATION menu screen

EROP AT I ON[A AE IRIS

SHUTTE

R WH I T EBALANCEAUTO OIS CH1 AUD I O LEVEL CH2 AUD I O LEVEL PAGE BACK

O A S

O A A

OFF

LCD screen

STBY

Manual gain mode indicator

E-72

(L: LOLUX indicator)

]

UTO

TEP

N UTO UTO

䡲 Engage the recording-standby mode.

ALA

Press the MENU button to display the TOP MENU screen.

Using the SELECT dial, set the MODE item on the T OP MENU screen to MANUAL.

● The unit enters the manual shooting mode.

Rotate the SELECT dial to align the cursor (f) with the OPERATION SET item on the TOP MENU screen, and then press the SELECT dial.

● The OPERATION menu screen is displayed.

] F

Using the SELECT dial, set the AE item on the OPERATION menu screen to OFF, and then press the SELECT dial.

● The manual gain adjustment mode is engaged.

To retur n to the normal screen, use either of the following methods.

● Press the MENU button or

● Select the EXIT item from the TOP MENU screen and then press the SELECT dial.

Memo:

The set gain value is displayed on the LCD screen and the viewfinder screen in the manual gain adjustment mode.

6dB

“L” is displayed in the LOLUX (low lux) mode. Nothing is displayed when the gain is set to 0 dB or AUTO.

2. Adjusting the Gain Manually

+ 6 dB

6dB

STBY

Indication of set gain value

● If the SELECT dial is pressed while the set gain value is displayed, the setting is returned to the factory setting (0 dB).

● In the auto gain adjustment mode, the GAIN button remains inoperative.

[Setting range: –3 dB to 0 dB to +18 dB]

● The set gain value is retained in the memory even if the power is

䡲 To return to the auto gain adjustment mode, use either of the

GAIN button

GAIN

SHUTTER

SELECT dial

Press the GAIN button.

● The currently set gain value is shown for about 3 seconds on the LCD screen and the viewfinder screen.

● The gain value can be set while the gain value is displayed.

Rotate the SELECT dial within 3 seconds (while the gain value is displayed) to set the gain. Rotating the dial upward or do wnward increases or decreases the gain value in steps of 1 dB.

Stop rotating the SELECT dial when the desired gain value is indicated. The set v alue is displayed f or about 3 seconds bef ore the setting is confirmed.

turned OFF.

following methods.

● Set the AE item to AUTO on the OPERATION menu screen

● Set the MODE item to AUTO on the TOP MENU screen.

In this case the shooting mode becomes the auto mode.

E-73

MANUAL ADJUSTMENTS

Manual Gain Adjustment (cont’d)

3. Engaging the LOLUX Mode with the GAIN Button

In the auto or manual gain adjustment mode, the LOLUX mode can be entered directly by operating the GAIN button.

GAIN button

GAIN

SHUTTER

About the LOLUX mode

Used when the brightness is still insufficient when the gain is set at +18 dB. Engaging the LOLUX mode results in an increase of +24 dB (approximately 16 times). The image definition on the screen will degrade to increase residual images, but this is due to the electrical sensitising and is not a malfunction.

Operation

Press the GAIN button for 1 second or more.

● The LOLUX mode is engaged.

The “L” indicator for the LOLUX mode appears on the LCD screen and the viewfinder screen.

S L

LOLUX mode indicator

STBY

T o exit the LOLUX mode , press the GAIN button f or 1 second or more.

● The originally set gain value is restored.

E-74

Displaying Zebra Patterns

MANUAL ADJUSTMENTS

Zebra patterns are oblique stripes than can be displayed to indicate very bright areas of the screen. Areas where zebra patterns are indicated are likely to be blurred with white if left unadjusted. The z ebra patterns can be used as a reference for manual adjustment of the brightness to adjust to the optimal level.

Zebra patterns

DISPLAY [1/2] menu screen

DISPLAY[12]/ ZEBRA LCD BR

GHTNESSNALOR M

I LCD COLOR LCD PEAKI NG VF BRIGHTNESS VF COLOR VF PEAKING NEXT PAGE PAGE BACK

ALOR M

for Adjustment

䡲 Whether or not zebra patterns should be displayed, and the

luminance level they should indicate, is selected by the setting of the ZEBRA item on the DISPLA Y [1/2] menu screen.

Display the DISPLAY [1/2] menu screen.

1 Press the MENU button to display the TOP MENU screen. 2 Rotate the SELECT dial to select the DISPLAY SET item,

and then press the dial to display the DISPLAY [1/2] menu screen.

Use the SELECT dial to select the ZEBRA item, and set the item to a value other than OFF.

Setting Zebra Display

70 ~ 80% Areas with a luminance level of 70% to 80% 85 ~ 95% Areas with a luminance level of 85% to 95% OVER 95% Areas with a luminance level above 95% OVER 100% Areas with a luminance level above 100% OFF Not displayed

● Zebra patterns are not recorded on the tape.

● Zebra patterns are not output from the VIDEO OUT or Y/C OUT connectors.

When you return to the normal screen, zebra patterns will appear in the appropriate areas.

Manually adjust iris, gain and shutter speed until the zebra patterns disappear.

Memo:

In the VTR playbac k mode (when the MODE s witch is set to VTR), the ZEBRA item is not shown on the DISPLAY [1/2] menu screen.

E-75

Manual Adjustment of the Audio

MANUAL ADJUSTMENTS

The audio recording level can be manually adjusted during shooting. The audio recording level can be adjusted separately for the CH-1 and CH-2 channels.

1. Engaging the Manual Audio Recording Level Adjustment Mode

Recording Level

MENU button

SELECT dial

GAIN

SHUTTER

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

CLOC K/

T MENU ALLRESETCELANC EXIT

N[CAM.A] .

M 1

]

MANUAL

OPERATION menu screen

EROP AT I ON[A

IRIS

SHUTTE

WH I T EBALANCEAUTO

OIS CH1 AUD I O LEVEL CH2 AUD I O LEVEL PAGE BACK

O A S

O M M

MANUAL

E-76

FF UTO TEP

䡲 Engage the recording-standby mode.

ALA

Press the MENU button to display the TOP MENU screen.

Using the SELECT dial, set the MODE item on the T OP MENU screen to MANUAL.

● The unit enters the manual shooting mode.

Rotate the SELECT dial to align the cursor (f) with the OPERATION SET item on the TOP MENU screen, and then press the SELECT dial.

● The OPERATION menu screen is displayed.

Using the SELECT dial, set the CH1 AUDIO LEVEL or CH2 AUDIO LEVEL item on the OPERATION menu screen to

]

MANUAL, and then press the SELECT dial.

● The manual audio recording level adjustment mode is engaged.

ALANU ALANU

CH1 AUDIO LEVEL Sets the recording level adjustment

mode for CH1 channel sound to manual.

CH2 AUDIO LEVEL Sets the recording level adjustment

mode for CH2 channel sound to manual.

To retur n to the normal screen, use either of the following methods.

● Press the MENU button

● Retur n to the TOP MENU screen and then select the EXIT item from the T OP MENU screen before pressing the SELECT dial.

2. Adjusting the Audio Recording Level Manually

AUDIO LEVEL

CH-1 CH-2

AUDIO LEVEL controls

● The standard level for recording audio on the tape is –12 dB.

If a tape recorded on the GYDV300 is played back on VCR whose audio standard level is – 20dB, the sound will be very loud. If a tape recorded on other VCR whose audio standard level is –20dB is played back on GYDV300, the sound will be very low.

Turn the AUDIO LEVEL controls. The audio recording level of CH-1 channel is adjusted with the CH-1 AUDIO LEVEL control, and the CH-2 channel is adjusted with the CH-2 AUDIO LEVEL control. The recording level is raised when the control is turned clockwise.

● Adjust the level while observing the audio level meter on the LCD screen or the viewfinder screen and/or monitoring the sound. The monitor sound is output from the EARPHONE jack ( See page 51.)

䡲 To return to the automatic audio recording level adjustment

mode, use either of the following methods.

● Set the CH1 AUDIO LEVEL or CH2 AUDIO LEVEL item on the OPERATION menu screen to AUTO

● Set the MODE item to AUTO on the TOP MENU screen. In this case the shooting mode becomes the auto mode.

The audio level meter is displayed by setting the AUDIO LEVEL item on the DISPLAY [2/2] menu screen to ON.

Reducing the Wind Noise of the Microphone

SYSTEM [1/2] menu screen Set the WIND CUT MIC1 or WIND CUT MIC2 item on the SYSTEM

MIC1 INPUT SEL WIN D CUTMIC1 WIN D CUTMIC2

48V MI

AUD I O

MOD REC MODE LONG PAUSE T I ME30MIN NEXT PAGE PAGE BACK

][

STSY EM 1 / 2

[1/2] menu screen to ON.

WIND CUT MIC1 Set to ON to reduce the wind noise of the

built-in microphone or a microphone connected to the MIC 1 input connector.

WIND CUT MIC2 Set to ON to reduce the wind noise of a

microphone connected to the MIC 2 input connector.

☞

E-77

Disabling Operation of the Camera-

MANUAL ADJUSTMENTS

When shooting with the camera under conditions where the camera-shake compensation function is not required, e.g., with the camera mounted on a tripod base, etc., set the function to OFF before shooting.

Shake Compensation Function

MENU button

SELECT dial

GAIN

SHUTTER

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

N[CAM.A] .

CLOC K/

C MENU ALLRESETCELANC EXIT

ALA

]

MANUAL

CAMERA menu screen

IRIS

SHUTTE

R WH I T EBALANCEAUTO OIS CH1 AUD I O LEVEL CH2 AUD I O LEVEL

PAGE BACK

O A S

O A A

UTO

TEP

FF UTO UTO

]

EROP AT I ON[A

OFF

The camera-shake compensation indicator

is extinguished. OIS: Optical Image Stabilizer E-78

䡲 Engage the recording-standby mode.

Press the MENU button to display the TOP MENU screen.

Using the SELECT dial, set the MODE item on the T OP MENU screen to MANUAL.

● The unit enters the manual shooting mode.

Rotate the SELECT dial to align the cursor (f) with the OPERATION SET item on the TOP MENU screen, and then press the SELECT dial.

● The OPERATION menu screen is displayed.

Using the SELECT dial, set the OIS item on the OPERATION menu screen to OFF, and then press the SELECT dial.

● The camera-shake compensation function is turned OFF.

To retur n to the normal screen, use either of the following methods.

● Press the MENU button or

● Retur n to the TOP MENU screen and then select the EXIT item from the T OP MENU screen before pressing the SELECT dial.

Memo:

When the camera-shake compensation function is turned OFF , the camer a-shake compensation indicator is not shown on the LCD screen and the viewfinder screen.

䡲 To turn the camera-shake compensation function ON again,

use either of the following methods.

● Set the OIS item on the OPERATION menu screen to ON or

● Set the MODE item to AUTO on the TOP MENU screen. In this case the shooting mode becomes the auto mode.

Adjusting the Quality of

MANUAL ADJUSTMENTS

The GY -D V300 allows man ual adjustment of the image quality of the camera image. By setting the various items on the CAMERA menu screen, you can make adjustments to obtain an image quality suiting your preference.

Camera Image

MENU button

SELECT dial

GAIN

SHUTTER

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

N[CAM.A] .

CLOC K/

C MENU ALLRESETCELANC EXIT

ALA

]

CAMERA menu screen

CMAERAA][

MAS T ER

BL ACK DET A I L DT L . V H BA L ANCE V.RESOLUT ION AUTO KNEE BLACK

COLORMATR IXON

GAMMA PAGE BACK

ALORM

● The set values are retained in the memory even if the power is turned OFF. (Settings are saved separately for “CAM-A” and “CAM-B”.)

䡲 Engage the recording-standby mode.

Press the MENU button to display the TOP MENU screen.

Rotate the SELECT dial to align the cursor (f) with the CAMERA SET item, and then press the SELECT dial.

● The CAMERA menu screen is displayed.

Make the various settings on the CAMERA menu screen.

Rotate the SELECT dial to select an item, make the setting and then press the SELECT dial to confirm and enter the setting.

Rotate the SELECT dial to change the setting of an item, and then press the SELECT dial to confirm and enter the setting.

Items for setting

● MASTER BLACK: Adjusts the pedestal level (master b lack)

● DETAIL: Adjusts the detail enhancement level.

● DTL. VH BALANCE: Selects the detail enhancement.

● V RESOLUTION: Selects the increase of the vertical

resolution.

● AUTO KNEE: Selects the auto knee function.

● BLACK: Selects the gain for black areas.

● COLOR MATRIX: Selects the colour matrix function.

● GAMMA: Selects the gamma curve.

䡲 For details on the items, see “CAMERA Menu Screen” on

page 96.

To retur n to the normal screen after completing the settings, use either of the following methods.

● Press the MENU button or

● Return to the TOP MENU screen and then select the EXIT item from the T OP MENU screen before pressing the SELECT dial.

E-79

PLAYBACK

The recorded picture can be viewed on the LCD screen or in the viewfinder. The playback sound is not output from the monitoring speaker of the GY-DV300.

Playback of Tape

Playback Procedure

● In the VTR playback mode, no camera image is displayed on the LCD screen or the viewfinder.

● The operation mode during VTR playback is indicated on the LCD screen and the viewfinder screen.

POWER switch

Set the POWER switch to “ON”.

Set the MODE switch to “VTR”.

● The GY-DV300 enters the VTR playback mode.

Insert the recorded videocassette.

● The cassette tape is loaded, and the STOP mode is engaged.

Press the BAR (f/w) button.

● Playback starts.

MODE switch BAR (f/w)

button

AW (a) button

FWD (g) button

REV (h) button

BAR

FWD

REV

MODE CAM-B

VTRCAM-A

PLAY

VTR operation mode indicator

E-80

Indicator showing the recording speed mode at the time of recording. (SP/LP)

Press the BAR (f/w) b utton again to stop playback temporarily.

● The unit enters the still mode (still picture shown).

To re-start playback, press the BAR (f/w) button.

To stop playback or still mode, press the AW (a) button.

● The unit enters the STOP mode.

Fast-Forward, Rewind (h)

● Fast-forward and rewind may take longer than normally under cold conditions.

䡲 Press the FWD (g) button in stop mode to fast forward the

tape. Press the REV (h) button in stop mode to rewind the tape.

䡲 Press the AW (a) button to stop fast forwarding or rewinding.

Search (Fast-Forward Playback/Rewind Playback)

䡲 Press the FWD (g) button in the play mode or still mode to play

back the tape in forward direction at high speed. Press the REV (h) button to search the tape in reverse direction.

䡲 Press the BAR (f/ w ) button to resume normal playback.

Memo:

● During search, block noise may appear on the screen or the image may freeze. Likewise, the SP/LP indication may not be displayed correctly.

䡲 Press the AW (a) button to stop.

BLANK Search

Used to locate blank (unrecorded) sections on the tape, such as after the end point of a recording.

Enter the stop mode.

Press the FWD (g) button and REV (h) button simultaneously.

● Blank search starts.

When a blank (unrecorded) section on the tape is located, the GY-DV300 enters the stop mode.

● During blank search, “BSRH” is displayed in the section indicating the operation mode on the LCD

screen or viewfinder screen.

Memo:

● When the still picture mode has continued for a specified period of time, the unit automatically switches to the tape protect mode. The time until the tape protect mode is initiated can be set to 30 minutes or 3 minutes with the LONG PAUSE TIME item on the SYSTEM [1/2] menu screen. Tape protect mode: Drum rotation stops to protect the tape.

● Noise may appear in the picture during still mode.

● When the automatic tracking function is activated at the start of the playback mode, digital noise

may appear in the picture.

● The GY-DV300 does not allow manual tracking adjustment.

● When playing back a tape recorded on another unit, digital noise may appear during playback.

● The data recorded on the tape for the date and time and time code can be displayed on the screen.

Whether or not the data should be displayed can selected on the DISPLAY [2/2] menu screen.

E-81

PLAYBACK

Built-in speaker

Adjusting the Playback Sound Volume

AUDIO OUT connector

EARPHONE jack

Playback audio volume

VOL.

PLAY

Audio level meters (Display of these is selected on the DISPLAY [2/2] menu screen.)

● Built-in speaker The audio from the built-in speaker is not output when an earphone is plugged into the EARPHONE jack.

VOLUME

ZOOM lever

The level of the playback sound can be controlled with the ZOOM lever on the top section of the GY-DV300.

䡲 Pressing the lever toward the TELE (+) side raises the pla yback

sound level, and pressing it toward the WIDE (–) side lowers it.

The playback sound is output through the built-in speaker, EARPHONE jack and AUDIO OUT connector.

● Characters indicating the playback sound volume are displayed on the LCD screen and the viewfinder screen.

E-82

PLAYBACK

Outputting CH-3/CH-4 Channel Sound

4 channels are available when the DV format is recorded with 12-bit, 32 kHz audio sampling. The GYDV300 records audio on the CH-1 and CH-2 channels . When the GY-D V300 is used for pla yback of tapes with sound recorded on the CH-3 and CH-4 channels on another unit, the PB AUDIO SELECT item on the VTR menu screen must be set.

MODE switch

MENU button

TOP MENU screen

MENU VTRSET .. SYSTEMSET .. DISPLAYSET . . CLOC K /

MENU A

RESETCELANC

EXIT

VTR menu screen

VTR PB A UD

OSELECT CH /21

I REM F F/REW F0F PAGE BACK

DRUM HOUR

MODE

MODE CAM-B

VTRCAM-A

GAIN

SHUTTER

SELECT dial

Setting

䡲 Confirm that the MODE switch is set to “VTR”.

Press the MENU button to display the TOP MENU screen.

Using the SELECT dial, select the VTR SET item, and then press the SELECT dial.

● The VTR menu screen is displayed.

Rotate the SELECT dial to align the cursor (f) with the PB. AUDIO SELECT item, and then press the SELECT dial.

● The setting area starts blinking.

Rotate the SELECT dial to make the settings.

REW

200

CH1/CH2 : T o reproduce the sound recorded during shooting. MIX : To simultaneously reproduce the sound recorded

during shooting and the sound after-recorded on CH-3 and CH-4.

CH3/CH4 : T o reproduce the sound after-recorded on CH-3 and

CH-4.

Setting

When the SELECT dial is pressed, the set value is confirmed.

To retur n to the normal screen, use either of the following methods.

● Press the MENU button or

● Return to the TOP MENU screen and then select the EXIT item before pressing the SELECT dial.

E-83

Connecting a Video Component

EXTERNAL COMPONENTS

Connecting the GY-DV300 to another video component equipped with DV I/O connector (IEEE1394 standard) using a DV cable (optional) enables dubbing of digital signals with high picture quality and high-quality sound. When used in a cold environment, this becomes 3 minutes regardless of the setting.

Memo:

The GY-DV300 cannot be used as the recording component.

with DV Connector

MODE switch

BAR button

BAR

AW button

MODE CAM-B

VTRCAM-A

DV connector

DV cable: VC-VDV204 (4P-4P)

REC START/STOP button

DV connector

VC-VDV206 (4P-6P)

When using the GY-DV300 as playback unit (dubbing to another videocassette)

● Pressing the BAR button during playback engages the still mode.

● When a still picture is dubbed, the dubbed picture will be coarse. Noise may also appear in the sound.

● When the BR-DV600EA’s TC DUPLICATE mode is used, the time code data played back on the GY-DV300 can also be dubbed.

Connect the units with the DV cable.

Tur n ON both units.

Set the MODE switch on the GY-DV300 to “VTR”.

Insert the videocassettes. GY-DV300: Insert the recorded videocassette. Recording unit: Insert the videocassette to be dubbed to.

Press the BAR (f/w) b utton on the GY -D V300 to start playback.

Start recording on the recording unit. For details, see the instructions to the unit used for recording.

When dubbing is completed. Stop recording on the recording unit, and then press the AW (a)

Memo:

● The operation methods differ with the characteristics and specifications of the connected equipment. Even if connection is possible, operation or data communication may sometimes be impossible to perform.

● When a D-9 (digital S) component is connected by means of IEEE1394, date and time data is not recorded on the D-9 component.

● If noise appears on the screen or the sound drops out, disconnect the DV cable and then connect it again or turn off the GY-DV300 before turning it on again.

● Audio noise may be heard when turning on/off the device connected to the DV connector or when switching video input. When performing these types of operations, turn the volume of the audio device, speakers, etc., connected to GY-DV301 to minimum.

E-84

button on the GY-DV300 to stop playback.

When using the GY-DV301 as recording unit (dubbing from another videocassette)

Date and time data: Data sent from the playback unit is recorded. Time code: The data generated by the GY-DV301’s time code generator. (☞ See page 43, 46.)

Time code

STBY

DV input signal indicator

● The GY -D V301 is pro vided with two REC ST ART/ST OP buttons: one on the rear section of the unit, and one on top of the handle. Both can be used f or the operation.

Connect the units with the DV cable.

Turn ON both units.

Set the MODE switch on the GY-DV301 to “VTR”.

Insert the videocassettes.

GY-DV301 : Insert the videocassette to be dubbed to. Player unit : Insert the recorded videocassette.

Start playback on the playback unit. For details, see the instructions to the unit used for playback.

● The playback picture from the playback unit appears on the GY-DV301’s LCD screen and viewfinder screen. The DV input signal indicator (DV) is shown on the screens.

Press the REC START/STOP button on the GY-DV301 to start recording.

䡲 T o temporarily pause the recording, press the REC ST ART/

STOP button.

䡲 To restart the recording, press the REC START/STOP

button again.

When dubbing is completed. Press the REC START/STOP button or the AW (a) button on the GY-DV301 to stop recording, and then stop playback on the playback unit.

Recording the GY-DV300 Camera Image for Backup Through the DV Connector

To use the GY-DV300 as camera and record a backup picture on another video component through the DV connector, set the MODE switch to “CAM-A” or “CAM-B”.

Memo:

When using the BR-DV600EA’s back-up recording function, backup can be set to start automatically in accordance with the status of remaining tape on the GY-DV300.

E-85

MENU SCREEN

MENU Screen Structure (Shooting Mode)

The MENU consists of multiple layers of menu screens. The following shows the MENU screen structure when the MODE switch on the rear section is set to “CAM-A” or “CAM-B”. Separate menu screens are displayed for each position of the MODE switch (“CAM-A” or “CAM-B” position). The current position of the MODE switch (e.g., “CAM-A” or “CAM-B”) is indicated after the CAMERA SET and OPERATION SET items on the TOP MENU screen.

The displayed screens differ with the setting of the MODE item (AUTO/ MANUAL). The OPERATION SET items can only be selected when the MODE item is set to MANUAL.

TOP MENU screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

N[CAM.A] .

CLOC K/

C MENU ALLRESETCELANC EXIT

ALA

]

Indicates position of MODE switch.

SYSTEM [1/2] menu screen

MIC1 INPUT SEL WIN D CUTMIC1 WIN D CUTMIC2 +

48V MI

AUD I O

MOD REC MODE LONG PAUSE T I ME30MIN NEXT PAGE PAGE BACK

][

STSY EM 1 / 2

DISPLAY [1/2] menu screen

D I SPLAY[12]/ ZEBRA LCD BR

GHTNESSNALOR M

I LCD COLOR LCD PEAKI NG VF BRIGHTNESS VF COLOR VF PEAKING NEXT PAGE PAGE BACK

N N N N N

CAMERA menu screen

CMAERAA][

MAS T ER

BL ACK

N DET A I L DT L . V H BA LAN CE V.RESOLUT ION AUTO KNEE

Only in MANUAL mode

BLACK COLORMATR IXON

PAGE BACK

OPERATION menu screen

]

EROP AT I ON[A AE IRIS SHUTTE

R WH I T EBALANCEAUTO OIS CH1 AUD I O LEVEL CH2 AUD I O LEVEL PAGE BACK

O A S

O A A

FF UTO TEP

N UTO UTO

SYSTEM [2/2] menu screen

FADER

TALLY

HAN LDEZOOMMEDIUM DAT E RECBARS ASPE C T NET REMOTE VF+LCD PAGE BACK

][

STSY EM 2 / 2

DISPLAY [2/2] menu screen

TIME CODE

ALOR M ALOR M ALOR M ALOR M ALOR M

ALORM ALORM ALORM ALORM

ALORM ALORMGMAMA

TIME/DATE DISP STYLE AUD I OLEVELON CENTER MARKOFF OUT P U T CH AR .MIX PAGE BACK

D DAT IMEE

LAYISP +

]

Y[LA 2 / 2

DISP

TAPE R

MA I NON

Screen for presetting time code

TCTCPRESET

EARC

PAGE BACK

ELANC

Normal screen

E-86

CLOCK/TC menu screen

CLOCK TC/

TC PRE

ET . .

S CLOCKADJUST . . DATE STYLE TIME STYLE SECDISPL AYON PAGE BACK

D/YYM/D

UR4HO

Screen for setting date and time

CL OCK ADJ UST

/DD/

YY )

10/01/01 00:00

T(EMM

PAGE BACK

MENU Screen Structure

MENU SCREEN

The following shows the MENU screen structure when the MODE switch on the rear section is set to “VTR”.

(VTR Playback/DV Signal Mode)

VTR menu screen

VTR

PB A UD

OSELECT CH /21

I REM F F/REW PAGE BACK

DRUM HOUR

REWFFMO D E

002 0

TOP MENU screen

MENU VTRSET .. SYSTEMSET .. DISPLAYSET . . CLOC K /

C MENU ALLRESETCELANC EXIT

Normal screen

SYSTEM menu screen

REC MODE SP LONG P AUS E T I ME03MI N TALLY ON NET REMOTE VF +LCD PAGE BACK

STSY EM

DISPLAY [1/2] menu screen

D I SPLAY[12]/ ZEBRA LCD BR

GHTNESSNALOR M

I LCD COLOR LCD PEAKI NG VF BRIGHTNESS VF COLOR VF PEAKING NEXT PAGE PAGE BACK

ALOR M

CLOCK/TC menu screen

CLOCK TC/

TC PRE

ET . .

S CLOCKADJUST . . DATE STYLE TIME STYLE SECDISPL AYON PAGE BACK

D/YYM/D

UR4HO

(GY-DV301 only)

DISPLAY [2/2] menu screen

E TIME CODE TIME/DATE DISP STYLE AUD I OLEVELON OUT P U T CH AR .MIX PAGE BACK

O D DAT IMEE

LAYISP +

]

Y[LA 2 / 2

DISP

TAPE R

MA I NON

Screen for presetting time code

TCTCPRESET

EARC

PAGE BACK

ELANC

Screen for setting date and time

CL OCK ADJ US T

/DD/

YY )

10/01/01

00:00

T(EMM

PAGE BACK

E-87

MENU SCREEN Setting Menu Screens

Various settings are made on the menu screens in accordance with the mode of usage of the GY-D V300. In the shooting mode, settings can be made on two separate sets of menus in accordance with the setting of the MODE switch (“CAM-A” or “CAM-B”). The contents of settings are retained in the GY- DV300’s memory also when the power is turned off.

● Menus cannot be set during a recording.

In the shooting mode, the MODE item on the TOP MENU screen is used to decide whether the AUTO mode or MANUAL mode should be used.

TOP menu screen

MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

N[CAM.A] .

CLOC K/

C MENU ALLRESETCELANC EXIT

Cursor

Indicates

ALA

]

position of MODE switch

POWER switch

MODE switch

MENU button

CAM-A

GAIN

MODE CAM-B

OFF

VTR

SHUTTER

POWER

SELECT dial

䡲 Make the settings while observing the LCD screen or the

viewfinder screen. If the OUTPUT CHAR. item on the DISPLA Y [2/2] screen is set to MIX, the menu screen can also be viewed on a monitor connected to the VIDEO OUT or Y/C OUT connector.

Set the POWER switch to “ON”.

Set the MODE switch. (“CAM-A”, “CAM-B”, “VTR”)

Press the MENU button for about 1 second.

● The TOP MENU screen appears.

Select the menu screen to be set. Rotate the SELECT dial to align the cursor (f) with the menu screen to be set, and then press the SELECT dial.

● The selected menu screen appears.

Select the menu item on the menu screen. Rotate the SELECT dial to align the cursor (f) with the menu item to be set, and then press the SELECT dial.

● The setting area of the selected item star ts blinking, and the desired value can now be set.

E-88

SYSTEM [1/2] menu screen

MIC1 INPUT SEL WIN D CUTMIC1 WIN D CUTMIC2

48V MI

AUD I O

MOD

REC MODE

LONG PAUSE T I ME30MIN

PAGE BACK

][

STSY EM 1 / 2

Set value

MIC1 INPUT SEL WIN D CUTMIC1 WIN D CUTMIC2

48V MI

AUD I O

MOD REC MODE LONG PAUSE T I ME30MIN NEXT PAGE PAGE BACK

][

STSY EM 1 / 2

TOP menu screen

MENU MODE EARPHONELVELE SYSTEMSET .. DISPLAYSET. . CAMERASET [ CA --MA. OPERAT

N[CAM.A] .

CLOC K/

C MENU ALLRESETCELANC EXIT

ALA

]

Changing the set value. Rotate the SELECT dial to change the setting, and then press the SELECT dial.

● The set value stops blinking and the setting is entered.

䡲 To change multiple items, repeat the procedures in steps 5

and 6 above.

Return to the TOP MENU. Rotate the SELECT dial to align the cursor (f) with the PAGE BACK item, and then press the SELECT dial.

䡲 To change settings on other menu screens, repeat the

procedures in steps 4 to 7 above.

To retur n to the normal screen after completing the settings, use either of the following methods.

● Press the MENU button or

● Retur n to the TOP MENU screen and align the cursor (f) with the EXIT item, and then press the SELECT dial.

E-89

MENU SCREEN Contents of Menu Screens

Different menu screens are display ed depending on whether the GY-DV300 is in the shooting mode or in the VTR playback mode. The setting values marked with the ● symbol in the explanations of the menu screens are the factor y settings.

TOP MENU Screen (Shooting Mode)

Item Set V alue Contents

MODE ● AUTO Selects the shooting mode.

EARPHONE MIN Sets the volume of the sound from the EARPHONE jack in the LEVEL 1 shooting mode. A higher value makes the sound louder.

SYSTEM SET Displays a menu screen related to the various functions available DISPLAY SET Displays a menu screen related to the display and brightness of CAMERA SET Displays a menu screen related to adjustment of the image OPERATION Displays a menu screen for individual setting of AUTO/MANUAL

CLOCK/TC Displays a menu screen for setting the date and time and the MENU ALL ● CANCEL To select whether the settings on menu screens should be reset

RESET EXECUTE to the factory settings. When the reset operation is performed,

EXIT The normal screen returns when the SELECT dial is pressed

MANUAL AUTO : Auto shooting mode.

● 10 20

MAX

MANUAL : Manual shooting mode.

in the shooting mode. the LCD screen and viewfinder screen. quality of the camera image. adjustment items in the shooting mode. This is only valid when

the MODE item is set to MANUAL. time code.

the menu settings for the CAM-A, CAM-B and VTR playback modes are all reset to the factory settings. CANCEL : Not reset EXECUTE : Reset. When the reset operation is performed, the

while the cursor is aligned with this item.

Adjustment items can be set separately on the OPERATION menu screen.

power is automatically turned ON again after it has been turned OFF.

TOP MENU Screen(VTR Playback/DV Signal Mode)

Item Set V alue Contents

VTR SET Displays a menu screen related VTR playback. SYSTEM SET Displays a menu screen related to the various functions. DISPLAY SET Displays a menu screen related to the display and brightness of

CLOCK/TC Displays a menu screen for setting the date and time and the MENU ALL ● CANCEL To select whether the settings on menu screens should be reset

RESET EXECUTE to the factory settings. When the reset operation is performed,

EXIT The normal screen returns when the SELECT dial is pressed

E-90

the LCD screen and viewfinder screen. time code.

the menu settings for the CAM-A, CAM-B and VTR playback modes are all reset to the factory settings. CANCEL : Not reset EXECUTE : Reset. When the reset operation is performed, the

while the cursor is aligned with this item.

power is automatically turned ON again after it has been turned OFF.

The displayed menu screens of the SYSTEM Menu Screen differ with the shooting mode and the VTR mode.

SYSTEM Menu Screen (Shooting mode)

In the shooting mode, the SYSTEM Menu Screen consists of two screens. (1/2 screen and 2/2 screen)

䡲 SYSTEM 1/2 screen

Item Set V alue Contents

MIC1 INPUT ● INT Selects whether the built-in microphone or a microphone SEL XLR connected to the MIC 1 input connector should be used.

WIND CUT ● OFF Selects whether or not the wind noise picked up by the internal MIC1 ON microphone or a microphone connected to the MIC 1 input

WIND CUT ● OFF Selects whether or not the wind noise picked up by a microphone MIC2 ON connected to the MIC 2 input connector is reduced.

+48V MIC1 ● OFF To set whether +48 V power should be supplied to a microphone

ON connected to the MIC 1 or MIC 2 input connector.

+48V MIC2 ● OFF OFF : +48 V power is not supplied.

ON ON : +48 V power is supplied. Use this setting when a

INT :

Use this setting when the built-in microphone should be used.

XLR: Use this setting when a microphone connected to the MIC

1 input connector should be used.

connector is reduced. OFF: Not reduced. ON : Reduced.

OFF: Not reduced. ON : Reduced.

MIC 1 and MIC 2 are set separately.

phantom microphone is used.

Memo:

“– – –” is displayed when the MIC1 INPUT SEL item is set to INT, and setting is not possible.

AUDIO MODE 32K Selects the sampling frequency for audio recording (common for

REC MODE ● SP Selects the recording speed mode.

● 48K CH-1 and CH-2)

LP SP : Standard Play recording speed mode.

32K :

Recording is performed with 12-bit, 32 kHz sampling frequency

48K :

Recording is performed with 16-bit, 48 kHz sampling frequency

4 channels are available when the DV format is recorded with 12-bit, 32 kHz audio sampling. The GY-DV300 records audio on the CH-1 and CH-2 channels. The GY-DV300 does not allow after-recording.

LP : Long Play recording speed mode (recording time is 1.5

times longer than in the SP mode.)

E-91

MENU SCREEN

Contents of Menu Screens (cont’d)

SYSTEM Menu Screens (Shooting mode) (Cont’d)

Item Set Value Contents

LONG PAUSE 3 MIN Selects the time (minutes) before the tape protection mode is TIME ● 30 MIN engaged when the recording-standby mode or still mode

NEXT PAGE The SYSTEM [2/2] menu screen appears when the SELECT dial

PAGE BACK The TOP MENU returns when the SELECT dial is pressed.

䡲 SYSTEM [2/2] Menu Screen

Item Set Value Contents

FADER ● OFF

BLACK OFF : No fade.

TALLY OFF Selects whether or not the TALLY lamp lights during recording.

● ON OFF: TALLY lamp does not light during recording.

HANDLE ZOOM SLOW Sets the zoom speed for when the ZOOM lever on the handle

● MEDIUM section is used. HIGH SLOW : Zoom operation is slow

DATE REC ● BARS Selects the mode for recording the date and time on the tape.

BARS+CAM When the date and time should be recorded on the tape, the

ASPECT ● 4:3 Selects the image size of the recorded image.

LETTER 4:3 : To record with the normal screen size with an

continues. Tape protection mode: Drum rotation stops automatically. When used in a cold environment, this becomes 3 minutes regardless of the setting. 3 MIN : 3 minutes 30 MIN : 30 minutes

is pressed.

Selects whether fade is performed when recording is started and stopped. BLACK :

ON : TALLY lamp lights during recording

MEDIUM : Normal zoom operation speed FAST : Zoom operation is fast

TIME/DATE item must be set to DISP+REC on the DISPLAY [2/2] menu screen. Select the style of the time and date with the DISP STYLE item on the DISPLAY [2/2] menu screen. BARS : BARS+CAM :

LETTER : To record with a LETTER BOX screen with an

Picture fades in from black screen when recording is started; fades out to black screen when recording is stopped.

Recorded when built-in colour bar signal is output. Recorded when built-in colour bar signal and the camera image are output.

aspect ratio of 4:3. aspect ratio of 16:9 where the upper and lower part

of the image is cut off.

Memo:

When the TIME/DATE item on the DISPLAY [2/2] menu screen is set to DISP+REC, settings indicated by “– – –” cannot be set.

E-92

SYSTEM Menu Screens (Shooting mode) (Cont’d)

Item Set Value Contents

NET REMOTE OFF Used when the optional network pack KA-DV300 is

VF+LCD ● OFF Selects whether or not displays are shown simultaneously on

PAGE BACK The SYSTEM [1/2] menu screen returns when the SELECT dial

● ON mounted. Selects whether the GY-DV300 should be controlled by

external signals. OFF: Not controlled. ON : Controlled

ON both the LCD screen and the viewfinder screen.

OFF : Not shown simultaneously. ON : Shown simultaneously.

is pressed.

SYSTEM Menu Screens (VTR Playback mode)

Item Set Value Contents

REC MODE ● SP Selects the recording speed mode when recording DV signals. (GY-DV301 only) LP SP: Standard recording speed

LONG PAUSE 3 MIN Selects the time (minutes) before the tape protection mode is TIME ● 30 MIN engaged when the recording-standby mode or still mode

TALLY OFF Selects whether or not the TALLY lamp should light when (GY-DV301 only) ● ON recording DV signals.

NET REMOTE OFF Used when the optional network pack KA-DV300 is mounted.

● ON Selects when the GY-DV300 should be controlled by external

VF+LCD ● OFF Selects whether or not displays are shown simultaneously on

ON both the LCD screen and the viewfinder screen.

PAGE BACK The TOP MENU returns when the SELECT dial is pressed.

LP : Long time recording speed mode (allows 1.5 times longer

recording than in the SP mode on the same amount of tape.)

continues. Tape protection mode: Drum rotation stops automatically. 3 MIN : 3 minutes 30 MIN : 30 minutes When used in a cold environment, this becomes 3 minutes regardless of the setting.

OFF: The TALLY lamp does not light. ON : The TALLY lamp lights.

signals. OFF: Not controlled. ON : Controlled

OFF : Not shown simultaneously. ON : Shown simultaneously.

E-93

MENU SCREEN

Contents of Menu Screens (cont’d)

DISPLAY Menu Screen

The DISPLAY Menu Screen consists of two screens (1/2 Screen and 2/2 Screen).

䡲 DISPLAY [1/2] Menu Screen

Item Set Value Contents

ZEBRA ● OFF Selects whether zebra patterns should be shown on the LCD

LCD Adjusts the brightness of the LCD screen. BRIGHTNESS To brighten ... Make value higher

LCD COLOUR Adjusts the colour saturation of the LCD screen.

LCD PEAKING Adjusts the contrast of the LCD screen.

VF Adjusts the brightness of the viewfinder screen.

BRIGHTNESS To brighten...... Make value higher

VF COLOUR Adjusts the colour saturation of the viewfinder screen.

VF PEAKING Adjusts the contrast of the viewfinder screen.

NEXT PAGE The DISPLAY [2/2] menu screen returns when the SELECT dial

PAGE BACK The TOP MENU returns when the SELECT dial is pressed.

䡲 DISPLAY [2/2] Menu Screen

Item Set Value Contents

TAPE REMAIN ● ON Selects whether the remaining tape time indication should be

TIME CODE ● ON Selects whether the time code should be shown on the LCD

E-94

70 – 80% screen and the viewfinder screen, and sets the luminance level 85 – 95% of the subject areas where the zebra pattern is displayed OVER 95% OFF: Not displayed. OVER 100% 70 – 80% : Zebra pattern displayed in areas with a luminance

85 – 95% : Zebra pattern displayed in areas with a OVER 95% : Zebra pattern displayed in areas with a OVER 100% : Zebra pattern displayed in areas with a

Memo:

When the MODE switch is set to VTR (VTR playback /DV mode), this item is not displayed.

MAX

4 1

● NORMAL

–1 –4

MIN

OFF shown on the LCD screen and the viewfinder screen.

OFF screen and the viewfinder screen.

To dim ... Make value lower

Higher colour saturation..... Make value higher

Lower colour saturation ..... Make value lower

To make contours sharper ...Make value higher To soften contours ... Make value lower

To dim .............Make value lower

Higher colour saturation..... Make value higher

Lower colour saturation ..... Make value lower

To make contours sharper ....... Make value higher

To soften contours ................... Make value lower

is pressed. (Menu screen for selecting display items)

ON : Displayed OFF: Not displayed

level of 70% to 80%. luminance level of 85% to 95%. luminance level above 95%. luminance level above 100%.

DISPLAY Menu Screen (cont’d)

Item Set Value Contents

TIME/DATE DISP+REC Selects whether the date and time should be shown on the LCD

● DISPLAY screen or the viewfinder screen, and whether the indications OFF should be recorded on the tape.

When the mode switch is set to VTR, DISP + REC changes into OFF (D+R). In this case, TIME/DATE is neither displayed nor recorded.

DISP+REC : Displayed on the LCD screen or the viewfinder

screen and recorded on the tape.

DISPLAY : Only displayed on the LCD screen or the

viewfinder screen. OFF : Neither displayed nor recorded. The conditions for recording the date and time are selected with the DATE REC item on the SYSTEM [2/2] menu screen.

Memo:

When DISP+REC is set, the ASPECT item on the SYSTEM [2/ 2] menu screen is fixed at 4:3.

DISP STYLE ● DATE+TIME Selects the style of the date and time indication and whether this

AUDIO LEVEL ● ON Selects whether the audio level meters should be shown on the

CENTER MARK ● OFF Sets whether or not a centre mark is displayed.

OUTPUT CHAR. OFF Selects whether on-screen-indications are displayed on a

PAGE BACK The DISPLAY [1/2] menu screen returns when the SELECT dial

TIME should be shown on the LCD screen and the viewfinder screen. DAT E DATE+TIME : Date and time are shown.

TIME : Time is shown. DATE :Date is shown.

OFF LCD screen and the viewfinder screen.

ON : Displayed OFF: Not displayed

ON ON : Displayed

OFF : Not displayed

Memo:

When the MODE switch is set to VTR (VTR playback /DV mode), this item is not displayed.

● MIX monitor connected to the VIDEO OUT or Y/C OUT connector. OFF : On-screen-indications are not displayed MIX : On-screen-indications are displayed

is pressed.

E-95

MENU SCREEN

Contents of Menu Screens (cont’d)

CAMERA Menu Screen

The CAMERA menu screen can only be set in the shooting mode. The position (“CAM A” or “CAM B”) of the MODE switch is indicated after the menu title name.

Item Contents

MASTER Adjusts the pedestal level (master black) which is the reference BLACK of black.

DETAIL Adjusts the contour (detail) enhancement level.

DTL. VH Sets the direction, horizontal (H) or vertical (V), in which detail FREQUENCY enhancement is applied more strongly.

V. RESOLUTION ● NORMAL Selects the increase of the vertical resolution.

AUTO KNEE OFF To select whether the auto knee function should operate.

Set Value

MAX

● NORMAL

-1

-9

MIN

MAX

● NORMAL

-1

-4

MIN

V.MAX NORMAL: Standard vertical resolution (450 lines).

● ON OFF: Does not operate.

To increase the pedestal level... Make value higher To decrease the pedestal level... Make value lower

To sharpen contours .......... Make value higher

To soften contours ............. Make value lower

To apply stronger enhancement in H direction

...................................... Make value higher

To apply stronger enhancement in V direction

...................................... Make value smaller

V.MAX: Increased vertical resolution (540 lines) However, the sensitivity is degraded and the bright sections may be coloured depending on the subject.

ON: Operates.

E-96

AUTO KNEE function

When shooting a foreground subject, such as a human being, etc., with a highbrightness background, if the brightness level is set for the f oreground subject, the background image will be blurred with white. In such a case , a clearer background is obtained when the auto knee function is used. This function is effective especially in the following cases:

● When shooting a human being indoors with a view to the landscape out through a window.

● When shooting a human being in the shade on a fine day.

● When shooting a high-contrast scene.

* If a fast-moving high-brightness section like a car in sunlight is shot, the auto

knee function may change the brightness of the entire image along with the motion of the object. In this case, set the auto knee function to OFF.

CAMERA Menu Screen (Cont’d)

Item Set Value Contents

BLACK ● NORMAL Selects the gain for the dark section of the image. Set to an

COLOR ● ON Sets the colour matrix. MATRIX OFF ON: The colour reproducibility is enhanced, but noise increases.

STRETCH appropriate position in accordance with the subject. COMPRESS NORMAL : Standard mode.

STRETCH : By stretching the signal only for the dark section,

contrast in the dark portion of the image is enhanced.

COMPRESS : When an entire image is relatively light and the

contrast is low, the gain of the dark section is compressed to increase the contrast.

OFF: The function is off.

Memo:

When the GAMMA item is set to CINEMA, the “– – –” indication will be shown for the COLOR MA TRIX item and the item cannot be set.

GAMMA ● NORMAL Selects the gamma curve which determines the reproduction of

PAGE BACK The TOP MENU returns when the SELECT dial is pressed.

CINEMA black.

NORMAL : Standard condition. Normally, this setting is

used.

CINEMA : Cinema mode. This setting is used to obtain a

gamma curve similar to that of cinema movies.

E-97

MENU SCREEN

Contents of Menu Screens (cont’d)

OPERATION Menu Screen

The OPERATION menu screen can only be set in the manual shooting mode. The position (“CAM A” or “CAM B”) of the MODE switch is indicated after the menu title name. The item values set off by the 䢇 symbol are the factory settings when the MODE switch is set to CAM-A. The item values set off by the 䡬 symbol are the factory settings when the MODE switch is set to CAM-B .

Item Set Value Contents

AE ● ON Sets the AE (automatic exposure) function to ON or OFF.

IRIS ● AUTO Selects automatic or manual iris adjustment.

SHUTTER ● STEP Selects whether fixed shutter speed (STEP) or variable scanning

WHITE ● AUTO Selects automatic or manual white balance adjustment. BALANCE 䡩 PUSH AUTO AUTO: Selects the auto mode.

OIS 䡩 OFF Selects whether or not camera-shake compensation should

CH1 AUDIO ● AUTO Selects whether the recording level adjustment of the CH1 LEVEL 䡩 MANUAL channel sound is performed automatically or manually.

CH2 AUDIO ● AUTO Selects whether the recording level adjustment of the CH2 LEVEL 䡩 MANUAL channel sound is performed automatically or manually.

PAGE BACK The TOP MENU returns when the SELECT dial is pressed.

OFF ON : AE function operates.

Gain is set to ALC, shutter to EEI, and iris is set to auto iris.

OFF: AE function does not operate.

● When ON, “– – –” is displayed for the following IRIS and SHUTTER items that cannot be set in this condition.

䡩 MANUAL Enabled when the AE item is OFF.

AUTO : Selects the auto mode. MANUAL : Selects the manual mode.

VARIABLE rate should be employed for manual shutter speed adjustment.

Enabled when the AE item is OFF. STEP : Enables setting of different fix ed shutter speeds .

(1/120, 1/250, 1/500, 1/1000, 1/2000)

VARIABLE : For changing the shutter speed at variable

scanning rate. Selected when shooting computer monitor screens, etc. (50.1 Hz to 2067.8 Hz)

PUSH AUTO: Selects the manual mode.

● ON operate. OFF: Not operating. ON : Operating.

AUTO : Selects the auto mode. MANUAL : Selects the manual mode.

E-98

CLOCK/TC Menu Screen

Item Set Value Contents

TC PRESET The screen for setting the time code appears when the SELECT

CLOCK The screen for setting the date and time appears when the ADJUST SELECT dial is pressed. (☞ See page 41.)

DATE STYLE YY/MM/DD For selecting the style of the date display.

MM/DD/YY YY/MM/DD: Year/Month/Date display style.

● DD/MM/YY MM/DD/YY: Month/Date/Year display style.

TIME STYLE ● 24 HOUR For selecting the style of the time display.

12 HOUR 24 HOUR : Displays the time using the 24-hour system.

SEC DISPLAY ● ON For selecting whether to include the seconds in the time display.

OFF ON : Seconds are displayed.

PAGE BACK The TOP MENU returns when the SELECT dial is pressed.

dial is pressed. (☞ See page 45.)

DD/MM/YY: Date/Month/Year display style.

12 HOUR : Displays the time using the 12-hour system.

OFF: Seconds are not displayed.

VTR Menu Screen

The VTR menu screen can only be set in the VTR playback mode.

Item Set Value Contents

PB AUDIO ● CH1/2 Used to select which channels to reproduce when playing back a SELECT MIX tape with sound recorded on 4 channels.

CH3/4 CH1/2 : To reproduce the sound recorded on CH-1 and CH-2.

The GY-DV300 records audio on the CH-1 and CH-2 channels during shooting.

MIX : To simultaneously reproduce the sound of all four

channels.

CH3/4 : To reproduce the sound of the CH-3 and CH-4

channels.

Memo:

The GY -D V300 does not allow after-recording on the CH-3 and CH-4 channels.

REM FF/REW ● FF/REW This selects the operation when the FF or REW command is MODE SEARCH received when the GY-DV300 is controlled by the Non-liner

editing controller. FF/REW : Fast forward or rewind operation. Normally, use this setting. SEARCH: FWD search or REV search operation. Use this setting if Cue up operation is not performed correctly when this item is set to FF/REW.

PAGE BACK The TOP MENU (VTR) returns when the SELECT dial is

pressed.

DRUM HOUR Indicates the accumulated hours of drum running time.

The cursor (f) cannot be aligned with this item.

E-99

TROUBLESHOOTING

The GY-DV300 displays messages in the case of improper operation, notices on remaining battery power and tape and warnings in the case of abnormalities during VTR operation on the LCD screen and in the viewfinder . The TALLY lamp also blinks when the remaining battery power or tape becomes low.

TALLY lamp

Alarm Indications and Actions

Indication

Screen

HEAD CLEANING REQUIRED!

 Indications on the LCD screen/Viewfinder screen

● Improper operation and notices

Indication Condition Remedy

CLOSE CASSETTE The cassette cov er is open. Close the cassette cover. COVER! The GY-DV300 does not operate

NO TAPE Displayed when no videocassette Insert a videocassette.

REC INHIBIT Displayed when an unrecordable Set the switch on the back of the cassette

1394 INHIBIT (GY-DV301 only)

COPY INHIBIT Displayed when attempt to record A copy-guard protected signal cannot be

COPY GUARD Displayed when an attempt is Copy-guarded tapes cannot be played

LOW VOLTAGE Displayed when remaining Prepare a charged battery or replace the

TAPE NEAR END The remaining tape is 3 minutes To continue the recording, prepare a new

TAPE END Displayed when the tape has run

TAPE BEGIN Displayed when the tape is at

CASSETTE COVER Displayed when the cassette cover OPEND! was opened during recording.

CASS.CARRIAGE Display ed when the cassette co v er Lock the cassette holder correctly. UNLOCK is closed but the cassette holder is

E-100

when the cassette cover is open.

is loaded.

videocassette (the switch on the is set to “REC”. back of the cassette is set to “SAVE”) is loaded.

Displayed if an attempt to record is made when no DV signal is input.

a copy-guard protected signal is recorded. made.

made to playback a copy-guarded back. tape.

battery power becomes low. battery immediately.

or less. (Only displayed in the tape or replace with a new tape shooting mode.) immediately.

out.

begining position

not locked.

Input the DV signal.

JVC GY-DV301 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
