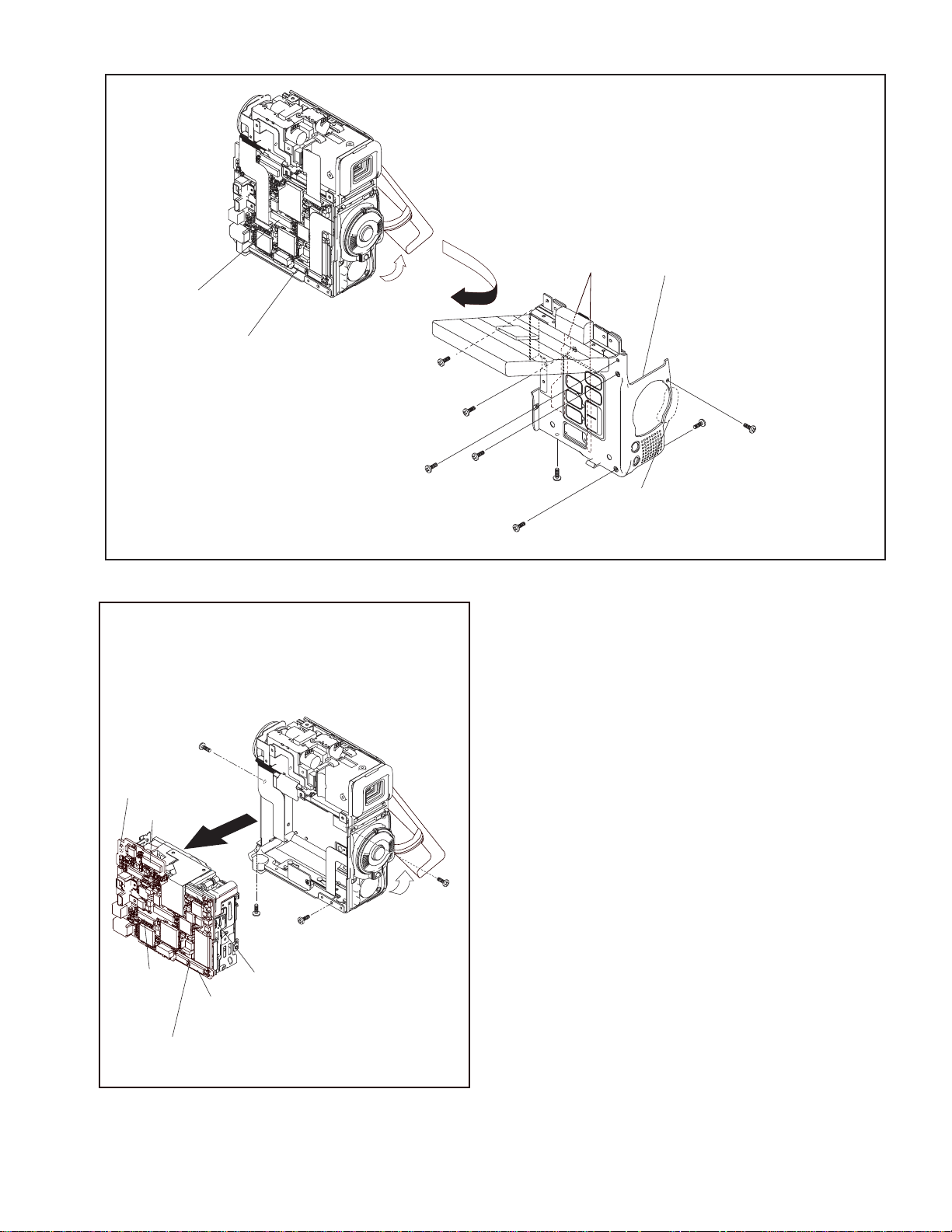

JVC GR-DX25E, GR-DX25EY, GR-DX25EZ, GR-DX25EK, GR-DX3 Service Manual

SERVICE MANUAL

DIGITAL VIDEO CAMERA

GR-DX25EX, GR-DX25EY, GR-DX25EZ, GR-DX25EK,

GR-DX35E

X, GR-DX35EY, GR-DX35EZ, GR-DX35EK

Regarding service information other than these sections, refer to the service manual No. 86740 (GR-DX75EX).
Also, be sure to note important safety precautions provided in the service manual.

SPECIFICATIONS

Camcorder

General

Power supply :

Power consumption

LCD monitor off,

viewfinder on : Approx. 3.4 W

LCD monitor on,

viewfinder off : Approx. 4.6 W

Dimensions
(W x H x D) : 55 mm x 102 mm x 96 mm

Weight : Approx. 440 g (without grip belt)
Operating

temperature :0°C to 40°C

Operating

humidity : 35% to 80%

Storage

temperature : –20°C to 50°C
Pickup : 1/6" CCD
Lens : F1.6, f =2.7 mm to 43.2 mm,

Filter diameter : ø30.5 mm
LCD monitor : 3" diagonally measured, LCD

Viewfinder : Electronic viewfinder with 0.24"
Speaker : Monaural

DC 11.0 V (Using AC Adapter)
DC 7.2 V

(with the LCD monitor closed and
the viewfinder pushed back in)

16:1 power zoom lens

panel/TFT active matrix system
(GR-DX55/DX45)

2.5" diagonally measured, LCD
panel/TFT active matrix system
(GR-DX35/DX25)

black/white LCD

(The specifications shown pertain specifically to the model GR-DX25EK, GR-DX35EK, GR-DX45EK and GR-DX55EK.)

Digital Video Camera

Format : DV format (SD mode)
Signal format : PAL standard

(Using battery pack)

Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject
to change without notice.

COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD

Recording/

Playback format : Video:

Cassette : Mini DV cassette
Tape speed : SP : 18.8 mm/s

Maximum

recording time : SP : 80 min.
(using 80 min. LP : 120 min.
cassette)

Digital component recording

: Audio: PCM digital recording,

32 kHz 4-channel (12-bit),
48 kHz 2-channel (16-bit)

LP : 12.5 mm/s

Connectors

S/AV

S-Video output : Y : 1 V (p-p), 75 Ω, analogue

S-Video input* : Y : 0.8 V (p-p) – 1.2 V (p-p), 75 Ω,

Video output : 1 V (p-p), 75 Ω, analogue
Video input* : 0.8 V (p-p) – 1.2 V (p-p), 75 Ω,

Audio output : 300 mV (rms), 1 kΩ, analogue,
Audio input* : 300 mV (rms), 50 kΩ, analogue,
Edit : ø3.5 mm, 2-pole

DV

Output : 4-pin, IEEE 1394 compliant
Input* : 4-pin, IEEE 1394 compliant

USB : 5-pin

* GR-DX55/DX35 only .

Power requirement
Output : DC 11 V

C : 0.29 V (p-p), 75 Ω, analogue

analogue

C : 0.2 V (p-p) – 0.4 V (p-p), 75 Ω,

analogue

analogue
stereo
stereo

AC Adapter

: AC 110 V to 240 V`, 50 Hz/60 Hz

, 1 A

GR-DX25EK M3D324
GR-DX25EX M3D324
GR-DX25EY M3D324
GR-DX25EZ M3D324
GR-DX35EK M3D325
GR-DX35EX M3D325
GR-DX35EY M3D325
GR-DX35EZ M3D325

No.86735

2003/06

CONTENTS

DIFFERENT LIST .............................................................................................................................................................. 1 only

5. PARTS LIST.................................................................................................................................................................... 5-1

DIFFERENT LIST

DIFFERENT TABLE OF FEATURE
The following table indicate main different points between models GR-DX75EX, GR-DX25EK, GR-DX25EX, GR-DX25EY, GR-

DX25EZ, GR-DX35EK, GR-DX35EX, GR-DX35EY and GR-DX35EZ.

ITEM

VIDEO FLASH USED NOT USED
DSC FLASH MEMORY(MEMORY CARD)
DV TERMINAL
ANALOG INPUT USED NOT USED USED
E-MAIL VIDEO CLIP REC
DIGITAL STILL CAMERA
AC CORD CEE PLUG BS PLUG CEE PLUG BS PLUG CEE PLUG
MEMORY CARD

Notes: Mark is same as left.

MODEL

USED(MMC-8MB)
USED(IN/OUT) USED(OUT) USED(IN/OUT)

USED NOT USED
USED NOT USED

PROVIDED(MMC 8MB)

GR-DX25EK

NOT USED

NOT USED

GR-DX25EX GR-DX25EY GR-DX25EZ GR-DX35EK GR-DX35EY GR-DX35EZGR-DX75EX

GR-DX35EK

1

VICTOR COMPANY OF JAPAN, LIMITED

12,3-chome,Moriya-cho,Kanagawa-ku,Yokohama,Kanagawa-prefecture,221-8528,JapanAV & MULTIMEDIA COMPANY.

Printed in Japan

0306 VP

4-2

S40889-01

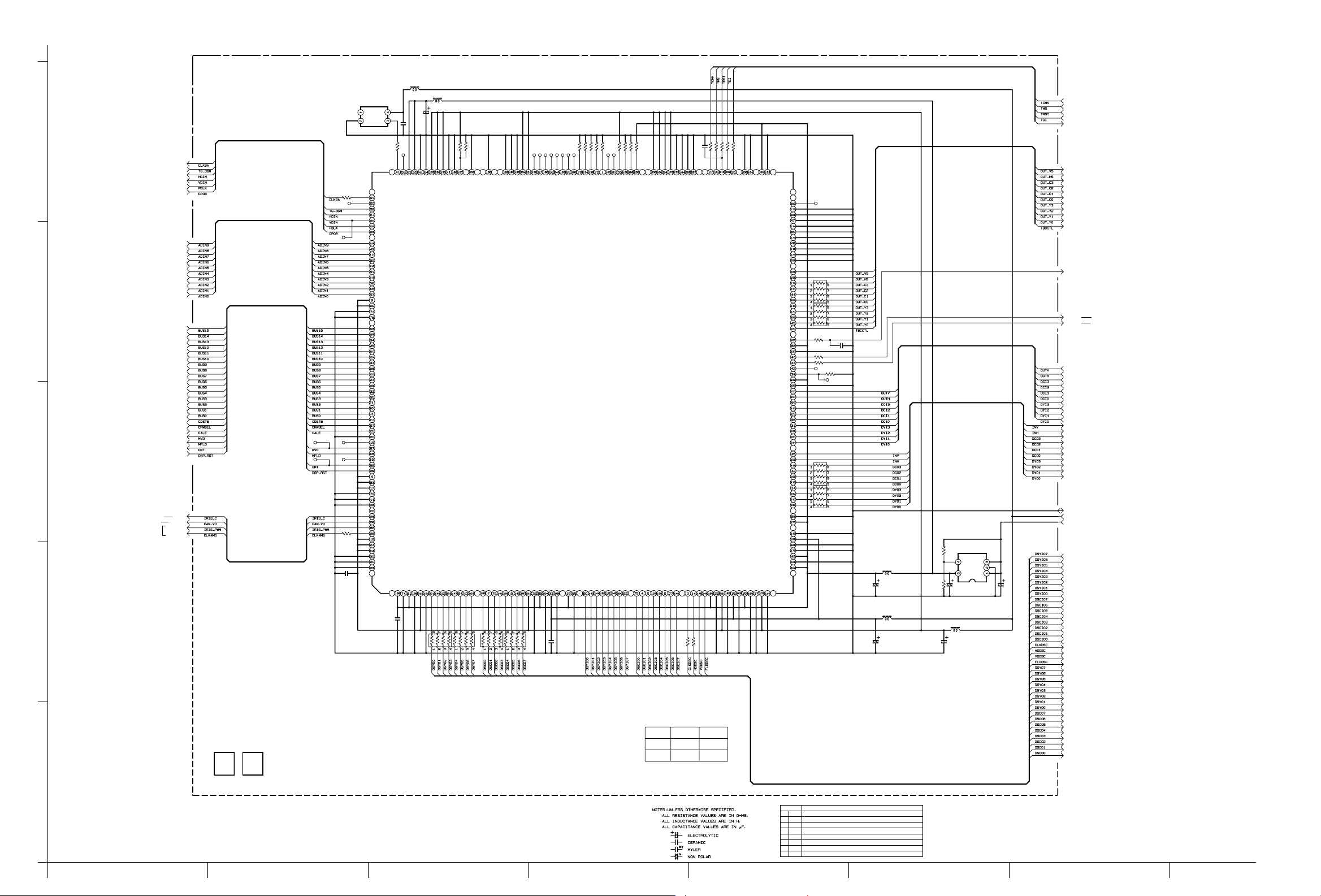

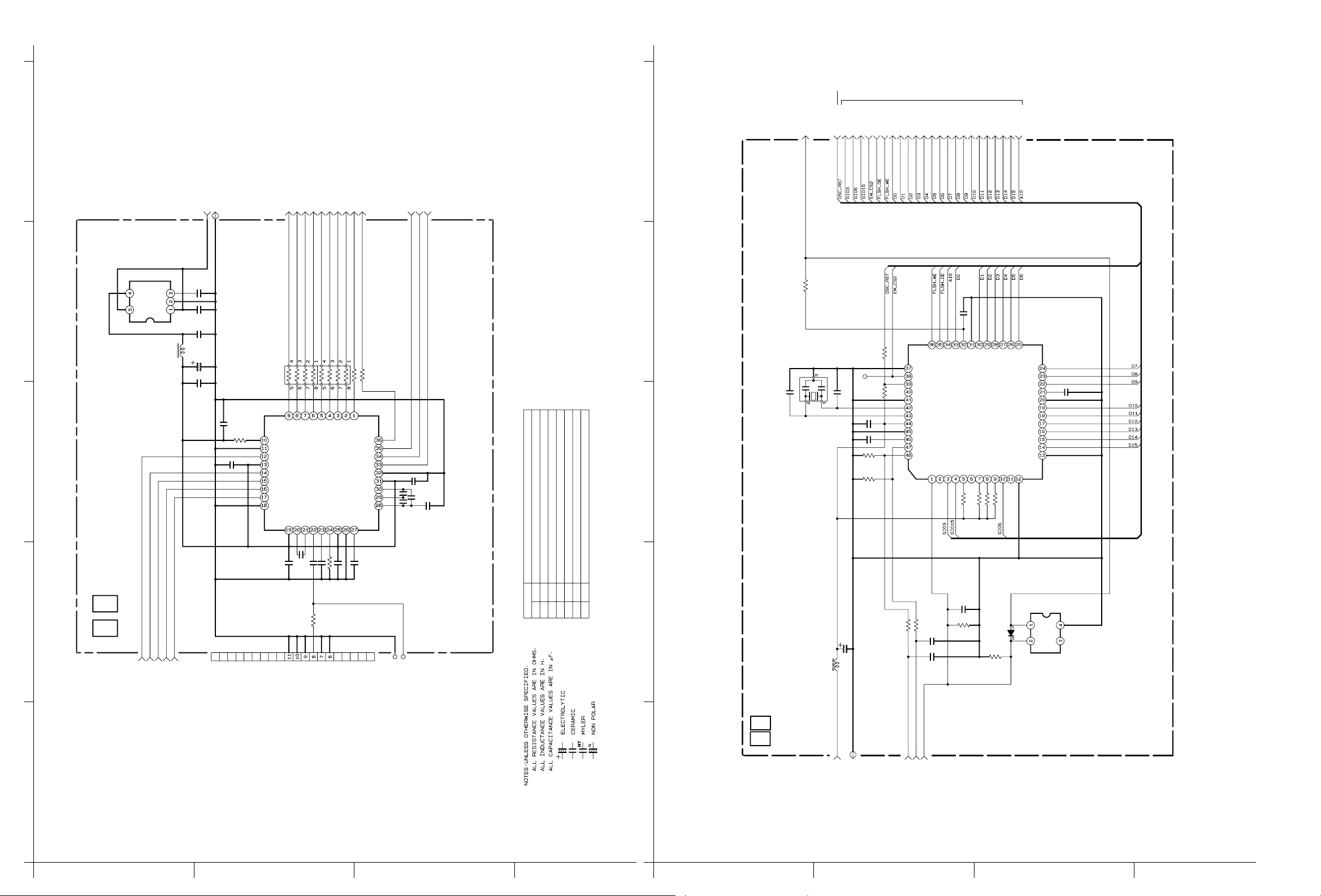

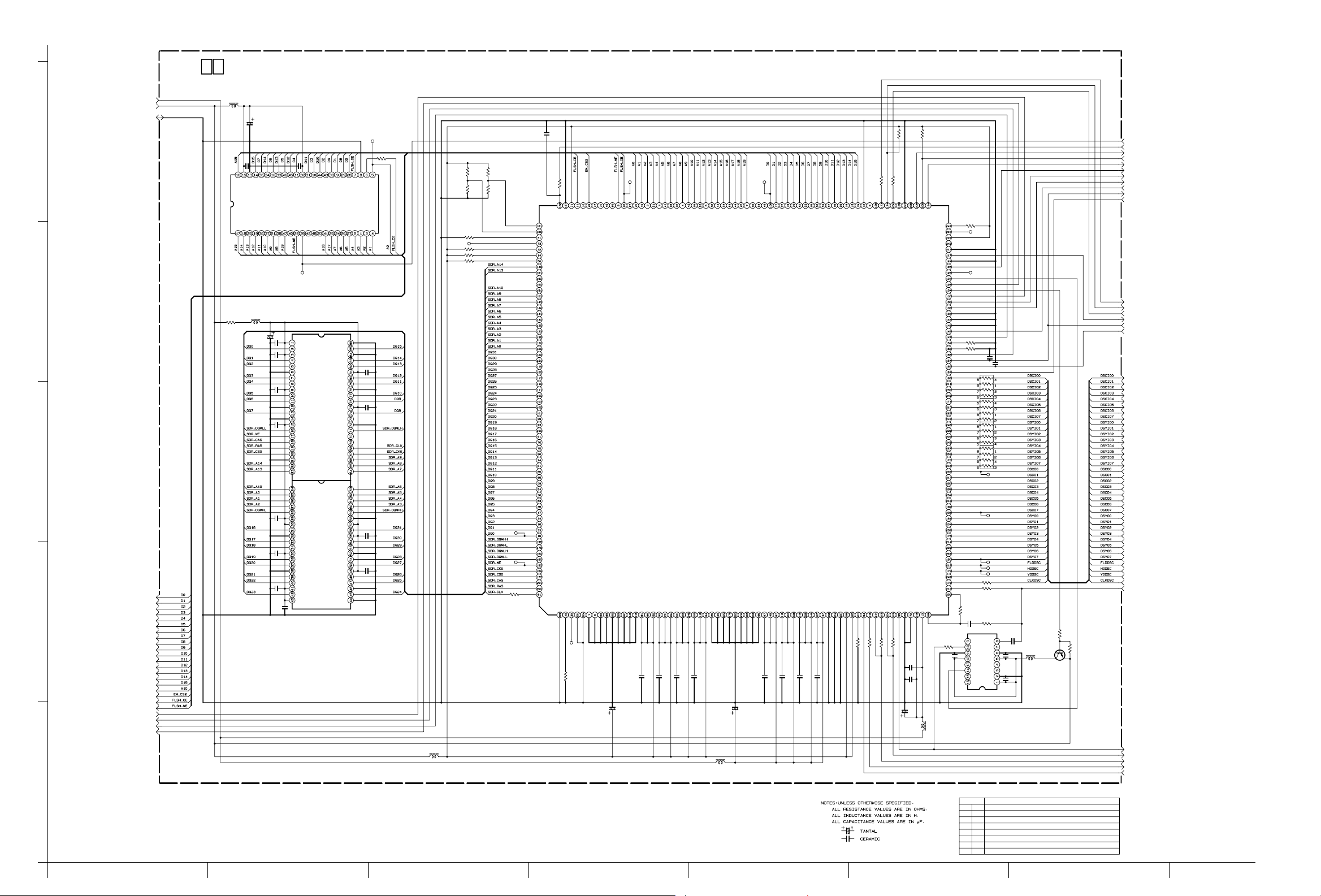

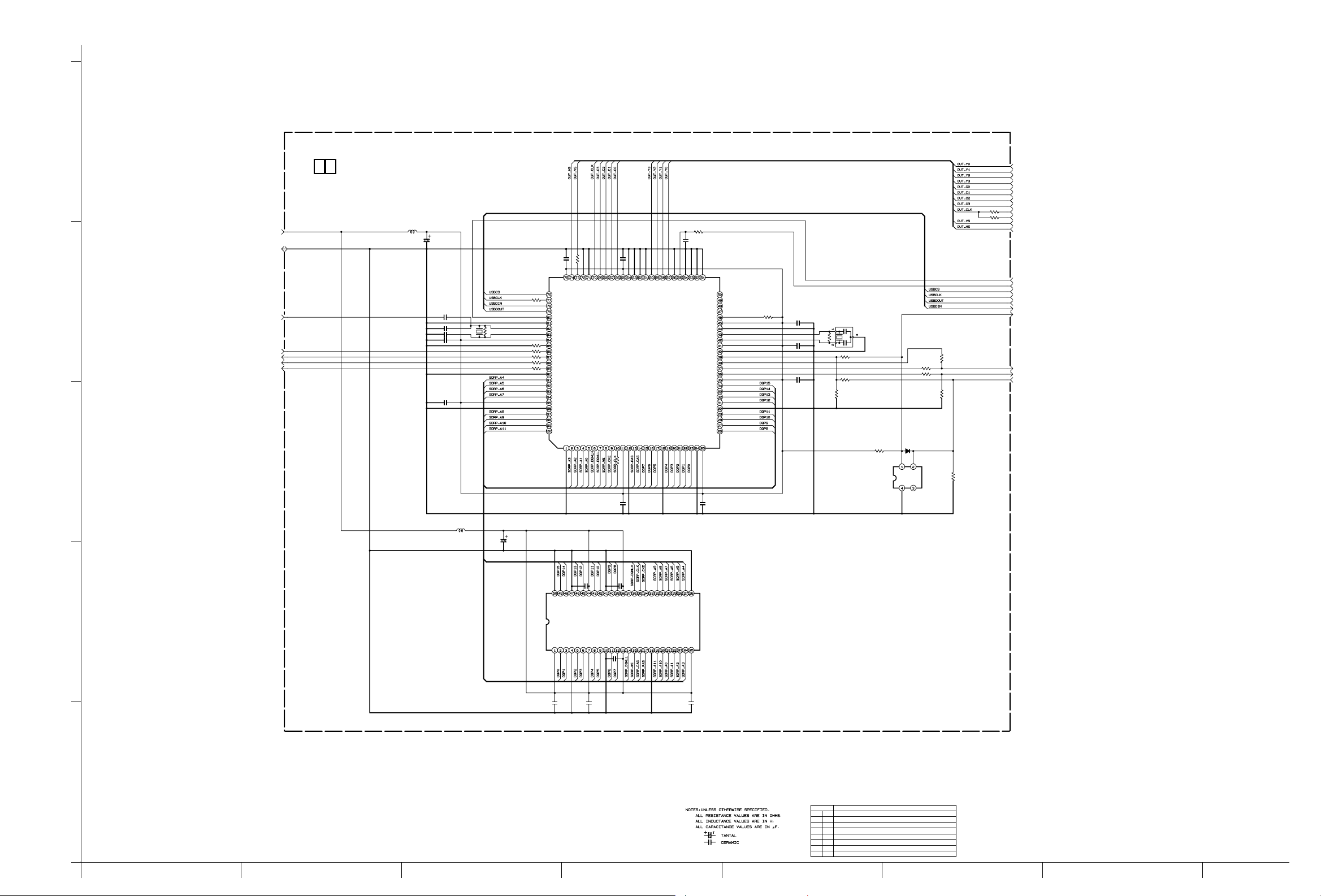

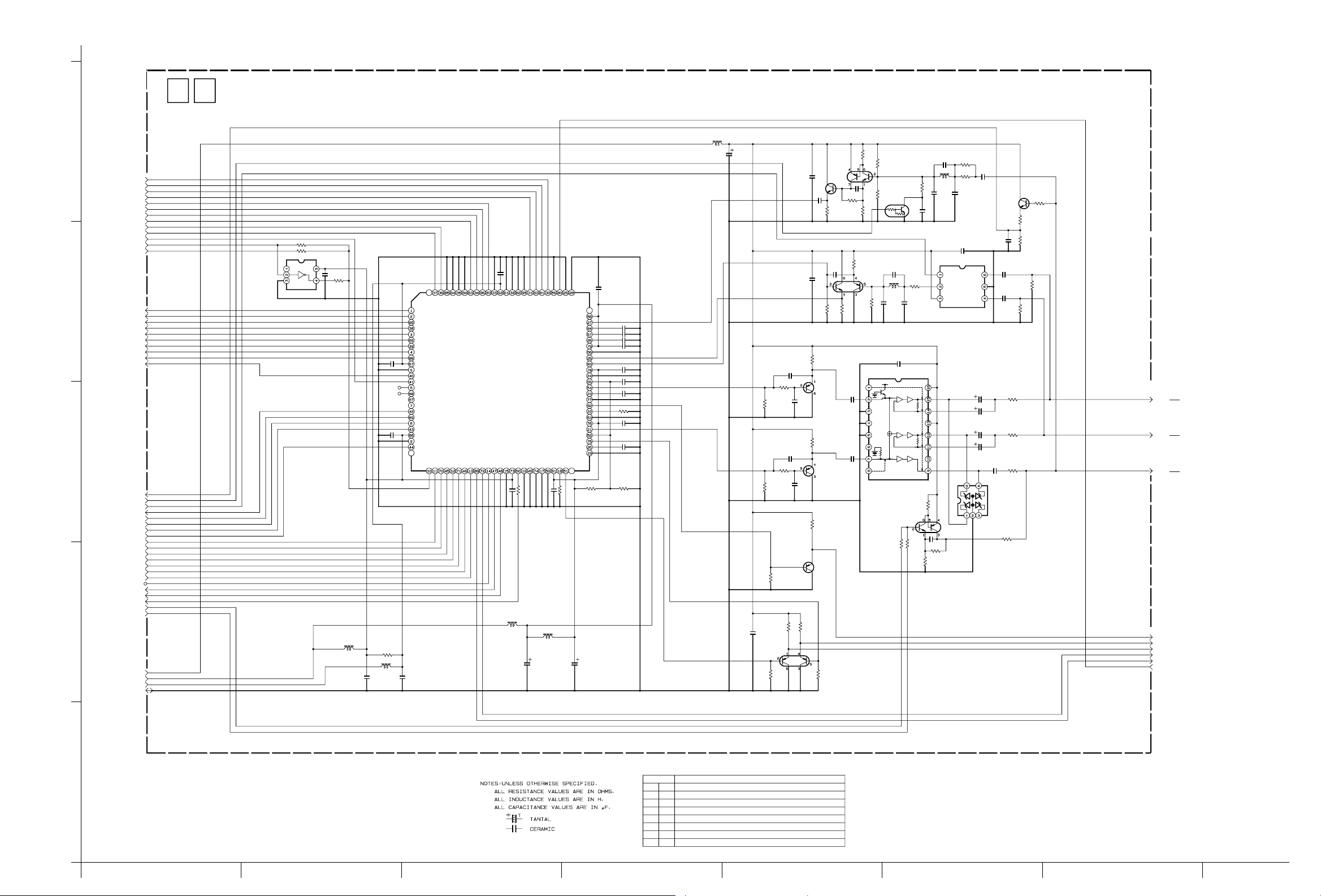

CIRCUIT BOARD NOTES

1. Foil and Component sides

1) Foil side (B side) :
Parts on the foil side seen from foil face (pattern face)
are indicated.

2) Component side (A side) :
Parts on the component side seen from component face
(parts face) indicated.

2. Parts location guides

Parts location are indicated by guide scale on the circuit board.

Note: For g eneral information in service manual, please

refer to the Service Manual of GENERAL INFORMA­TION Edition 4 No. 82054D (January 1994).

NOTES OF SCHEMATIC DIAGRAM

Safety precautions
The Components identified by the symbol are

critical for safety. For contin ued safety, replace safety
critical components only with manufacturer's recom­mended parts.

1. Units of components on the schematic diagram

Unless otherwise specified.

1) All resistance values are in ohm. 1/6 W, 1/8 W (refer to
parts list).
Chip resistors are 1/16 W.

K: KØ (1000Ø), M: MØ (1000KØ)

2) All capacitance values are in µF, (P: PF).

3) All inductance values are in µH, (m: mH).

4) All diodes are 1SS133, MA165 or 1N4148M (refer to parts
list).

Note: The Parts Number, value and rated voltage etc. in

the Schematic Diagram are for references only.
When replacing the parts, refer to the Parts List.

2. Indications of control voltage

AUX : Active at high.
AUX or AUX(L) : Active at low.

CHARTS AND DIAGRAMS

SECTION 4

4. Voltage measurement

1) Regulator (DC/DC CONV) circuits
REC : Colour bar signal.
PB : Alignment tape (Colour bar).
— : Unmeasurable or unnecessary to measure.

4) Indication on schematic diagram
Voltage Indications for REC and PB mode on the sche­matic diagram are as shown below.

REC mode

Note: If the voltages are not indicated on the schematic

5. Signal path Symbols

The arrows indicate the signal path as follows.

NOTE : The arrow is DVC unique object.

123

2.5

(5.0)

PB mode

1.8

PB and REC modes
(Voltage of PB and REC modes
are the same)

diagram, refer to the voltage charts.

Playback signal path
Playback and recording signal path

(A : Component side)

D : Discrete component)

B : Foil side

C : Chip component

REF No.

IC101 B C 6 A

LOCATION
IC

Category : IC

Horizontal “A” zone
Vertical “6” zone

3. Interpreting Connector indications

1
2

Removable connector

3

1
2

Wire soldered directly on board

3

1

Non-removable Board connector

2
3

1

2

4

Board to Board

3

Connected pattern on board
The arrows indicate signal path

Note: For the destination of each signal and further line

connections that are cut off from the diagram,
refer to "BOARD INTERCONNECTIONS"

Recording signal path
(including E-E signal path)

Capstan servo path
Drum servo path

(Example)

R-Y

Playback R-Y signal path

Y

Recording Y signal path

6. Indication of the parts for adjustments

The parts for the adjustments are surrounded with the circle as
shown below.

7. Indication of the parts not mounted on the circuit board

“OPEN” is indicated by the parts not mounted on the circuit
board.

R216

OPEN

4-1

NOTE ) :

5

4

3

2

1

4.1 BOARD INTERCONNECTIONS [FOR MEGA PIXEL with DSC MODEL]
