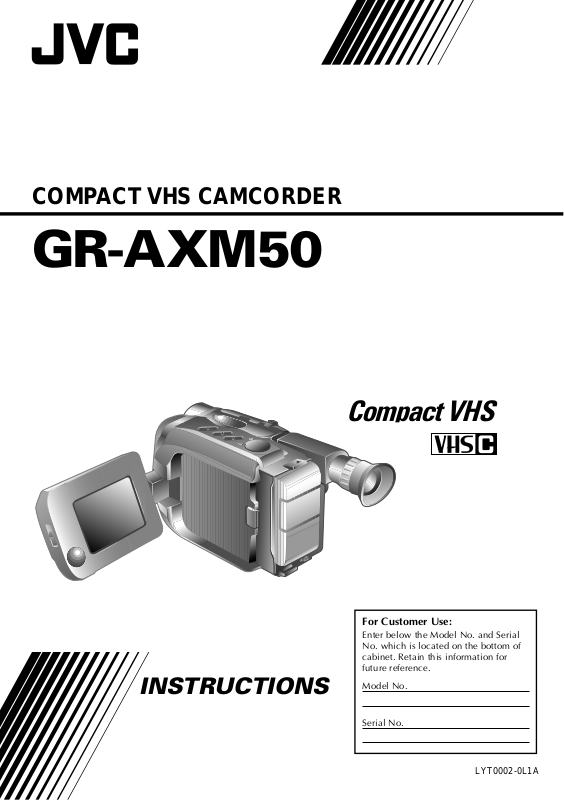

JVC GR-AXM50 User Manual
COMP ACT VHS CAMCORDER
GR-AXM50
Compact VHS
INSTRUCTIONS
For Customer Use:
Enter below the Model No. and Serial
No. which is located on the bottom of
cabinet. Retain this information for
future reference.
Model No.
Serial No.
LYT0002-0L1A
2 EN
Dear Customer,
Thank you for purchasing the JVC Compact VHS
camcorder. Before use, please read the safety
information and precautions contained in the
following pages to ensure safe use of your new
camcorder.
Using This Instruction Manual
• All major sections and subsections are listed in the
Table Of Contents (
• Notes appear after most subsections. Be sure to read
these as well.
• Basic and advanced features/operation are separated
for easier reference.
Z pg. 7).
It is recommended that you . . .
...... refer to the Index (Z pgs. 49 – 52) and
familiarize yourself with button locations, etc.
before use.
...... read thoroughly the Safety Precautions and Safety
Instructions that follow. They contain extremely
important information regarding the safe use of
your new camcorder.
You are recommended to carefully read the cautions
on pages 53 and 54 before use.
SAFETY
PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
NO USER-SERVICEABLE PARTS INSIDE.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
The AA-V11U AC Power Adapter/Charger should
be used with:
AC 120 V`, 60 Hz in the USA and Canada,
AC 110 – 240 V`, 50/60 Hz in other countries.
CAUTION (applies to the AA-V11U)
TO PREVENT ELECTRIC SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION (s’applique à l’AA-V11U)
POUR ÉVITER LES CHOCS ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISE ET POUSSER JUSQU’AU FOND.
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR
MOISTURE.
Warning on lithium battery
The battery used in this device may present a fire
or chemical burn hazard if mistreated. Do not
recharge, disassemble, heat above 100°C (212°F)
or incinerate.
Replace the battery with Panasonic (Matsushita
Electric), Sanyo or Maxell CR2025; use of another
battery may present a risk of fire or explosion.
n Dispose of used battery promptly.
n Keep away from children.
n Do not disassemble and do not dispose of in fire.
NOTES:
●
The rating plate (serial number plate) and safety
caution are on the bottom and/or the back of the
main unit.
●
The rating plate (serial number plate) of the AC
Power Adapter/Charger is on its bottom.
This Class B digital apparatus meets all requirements of the Canadian Interference – Causing
Equipment Regulations.
“Cet appareil numérique de la classe B respecte
toutes les exigences du Règlement sur le matériel
brouilleur du Canada.”
This camcorder is designed to be used with NTSCtype color television signals. It cannot be used for
playback with a television of a different standard.
However, live recording and viewfinder playback
are possible anywhere. Use the BN-V11U/V12U/
V22U/V25U battery packs and, to recharge them,
the provided multi-voltage AC Power Adapter/
Charger. (An appropriate conversion adapter may
be necessary to accommodate different designs of
AC outlets in different countries.)
ATTENTION:
The product that you have purchased is powered
by a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state
and local laws, it may be illegal to dispose of this
battery into the municipal waste stream. Check
with your local solid waste officials for details in
your area for recycling options or proper disposal.
IMPORTANT PRODUCT
SAFETY INSTRUCTIONS
Electrical energy can perform many useful functions. But improper use can result in potential
electrical shock or fire hazards. This product has
been engineered and
manufactured to assure your personal safety. In
order not to defeat the built-in safeguards, observe
the following basic rules for its installation, use and
servicing.
ATTENTION:
Follow and obey all warnings and instructions
marked on your product and its operating instructions. For your safety, please read all the safety and
operating instructions before you operate this
product and keep this manual for future reference.
INSTALLATION
1. Grounding or Polarization
(A) Your product may be equipped with a polarized
alternating-current line plug (a plug having one
blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety
feature.
If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still
fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of
the polarized plug.
(B) Your product may be equipped with a 3-wire
grounding-type plug, a plug having a third
(grounding) pin. This plug will only fit into a
grounding-type power outlet. This is a safety
feature.
If you are unable to insert the plug into the outlet,
contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the
grounding-type plug.
2. Power Sources
Operate your product only from the type of power
source indicated on the marking label. If you are not
sure of the type of power supply to your home, consult
your product dealer or local power company. If your
product is intended to operate from battery power, or
other sources, refer to the operating instructions.
3. Overloading
Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in a
risk of fire or electric shock.
4. Power Cord Protection
Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point
where they exit from the product.
EN 3
5. Ventilation
Slots and openings in the cabinet are provided for
ventilation. To ensure reliable operation of the product
and to protect it from overheating, these openings must
not be blocked or covered.
•Do not block the openings by placing the product on
a bed, sofa, rug or other similar surface.
•Do not place the product in a built-in installation
such as a bookcase or rack unless proper ventilation
is provided or the manufacturer’s instructions have
been adhered to.
6. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling
only as recommended by the manufacturer.
ANTENNA INSTALLATION
INSTRUCTIONS
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to
the product, be sure the antenna or cable system is
grounded so as to provide some protection against
voltage surges and built-up static charges. Article 810
of the National Electrical Code, ANSI/NFPA 70,
provides information with regard to proper grounding
of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge
unit, connection to grounding electrodes, and
requirements for the grounding electrode.
2. Lightning
For added protection for this product during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will
prevent damage to the product due to lightning and
power-line surges.
3. Power Lines
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light
or power circuits, or where it can fall into such power
lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from
touching such power lines or circuits as contact with
them might be fatal.
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
ANTENNA
LEAD IN WIRE
GROUND CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION
ELECTRIC SERVICE
EQUIPMENT
POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250. PART H)
NEC – NATIONAL ELECTRICAL CODE
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
4 EN
USE
1. Accessories
To avoid personal injury:
•Do not place this product on an unstable cart,
stand, tripod, bracket or table. It may fall, causing
serious injury to a child or adult, and serious
damage to the product.
•Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer or sold
with the product.
•Use a mounting accessory recommended by the
manufacturer and follow the manufacturer’s
instructions for any mounting of the product.
•Do not try to roll a cart with small casters across
thresholds or deep-pile carpets.
2. Product and Cart Combination
A product and cart combination should be moved
with care. Quick stops, excessive force, and uneven
surfaces may cause the product and cart combination to overturn.
3. Water and Moisture
Do not use this product
near water—for example,
near a bath tub, wash
bowl, kitchen sink or
laundry tub, in a wet
basement, or near a
swimming pool and the
like.
4. Object and Liquid Entry
Never push objects of any kind into this product
through openings as they may touch dangerous
voltage points or short-out parts that could result in
a fire or electric shock. Never spill liquid of any
kind on the product.
5. Attachments
Do not use attachments not recommended by the
manufacturer of this product as they may cause
hazards.
6. Cleaning
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
7. Heat
The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce
heat.
PORTABLE CART WARNING
(Symbol provided by RETAC)
SERVICING
1. Servicing
If your product is not operating correctly or exhibits
a marked change in performance and you are
unable to restore normal operation by following the
detailed procedure in its operating instructions, do
not attempt to service it yourself as opening or
removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to
qualified service personnel.
2. Damage Requiring Service
Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen
into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the product to its normal operation.
e. If the product has been dropped or damaged in
any way.
f. When the product exhibits a distinct change in
performance—this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer or have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock or
other hazards.
4. Safety Check
Upon completion of any service or repairs to this
product, ask the service technician to perform safety
checks to determine that the product is in safe
operating condition.
QUICK OPERATION GUIDE
EN 5
SUPPLY POWER
Hook on.
1
Push in.
2
BATT. RELEASE
Using the battery pack
1
Hook-on the battery pack's top end to the
camcorder. (Charging procedure, Z pg. 8)
2 Push in the battery pack until it locks into
place.
To remove the battery pack
Slide BATT. RELEASE and pull out the battery
pack.
PLAYBACK
PLAY/PAUSE
1
Set to “PLAY”
1 Set the power switch to “PLAY”.
2 Press REW.
— The tape will automatically stop at the
beginning of the tape.
3 Press PLAY/PAUSE.
— Playback starts and the playback picture
appears in the viewfinder or the LCD
monitor.
•To stop playback, press STOP.
(For more details,
•The viewfinder switches off automatically to
save power when the LCD monitor is opened
at an angle of over 45 degrees.
•The LCD monitor turns on/off when it is
opened/closed at approx. 45 degrees.
Or simply play back the tape on a VHS VCR
using the Cassette Adapter (VHS Playpak).
Z pg. 37
Z pg. 34.)
3
STOP
2
REW
INSERTING A VIDEO
CASSETTE
EJECT
2
4
1
MONITOR OPEN
1 Slide MONITOR OPEN to open the LCD
monitor.
•Open to an angle of over 45 degrees.
2 Press EJECT to open the cassette holder.
3 Insert a video cassette.
4 Press PUSH to close the cassette holder.
(For more details, Z pg. 13)
3
PUSH
SHOOTING
1
LENS COVER
open/close knob
2
Set to “CAMERA”
Recording Start/Stop button
3
1 Slide the LENS COVER open/close knob to
open the lens cover.
2 Set the power switch to “CAMERA”.
— The power indicator will light and an
image will appear in the LCD monitor or
the viewfinder.
3 Press the Recording Start/Stop button.
— Recording starts.
•To stop recording temporarily, momentarily
press the Recording Start/Stop button once
again.
(For more details, Z pg. 15, 16)
•The viewfinder switches off automatically to
save power when the LCD monitor is
opened at an angle of over 45 degrees.
•The LCD monitor turns on/off when it is
opened/closed at approx. 45 degrees.
6 EN
MAJOR FEATURES
REMEMBER
The Logical Choice
The only compact video
cassettes that can be
used with your VHS VCR*
Program AE with Special
Effects (
n Auto Mode Lock n Auto Mode Release
n Electronic Fog Filter n ND Effect
n Sepia n Twilight n Sports
n 1/1000 sec. High Speed Shutter
n 1/2000 sec. High Speed Shutter
LCD Color Monitor (Z pg. 16)
Z pg. 20)
180°
Integrated Auto Light
Z pg. 19)
(
Picture Stabilizer (Z pg. 24)
Digital Hyper Zoom
Z pg. 18)
(
Zoom-in
Zoom-out
Random Assemble Editing
Z pg. 39 – 41)
(
882
554411663
7
90°
PROVIDED ACCESSORIES
•AC Power Adapter/
Charger AA-V11U
•Cassette Adapter
(VHS PlayPak) C-P7U
•Shoulder
Strap
3
2
•Battery Pack
BN-V11U
•Lithium Battery
CR2025 x 2
Cassettes marked can be used with this camcorder.
7
•Remote Control
Unit RM-V705U
•DC Cord
CONTENTS
GETTING STARTED
Power..................................................................................... 8
Clock (Lithium) Battery Insertion/Removal........................................ 10
Viewfinder Adjustment ............................................................... 10
Date/Time Setting .................................................................... 11
Tape Length Setting ................................................................... 12
Recording Mode Setting .............................................................. 12
Loading/Unloading A Cassette ...................................................... 13
Grip Adjustment ....................................................................... 14
Shoulder Strap Attachment........................................................... 14
Tripod Mounting ....................................................................... 14
RECORDING
Basic Recording ........................................................................ 15
Basic Features.......................................................................... 18
Advanced Features .................................................................... 20
PLAYBACK
Basic Playback ......................................................................... 34
Features ................................................................................ 35
Basic Connections...................................................................... 36
Using The Cassette Adapter.......................................................... 37
EDITING
Tape Dubbing........................................................................... 38
Random Assemble Editing (R.A.Edit)................................................ 39
USING REMOTE CONTROL UNIT
Insert Editing........................................................................... 44
Audio Dubbing ......................................................................... 45
USER MAINTENANCE
TROUBLESHOOTING
INDEX
LCD monitor/Viewfinder ............................................................. 49
Controls................................................................................. 50
Connectors.............................................................................. 50
Indicators ............................................................................... 50
Other Parts............................................................................. 50
Terms .................................................................................... 52
CAUTIONS
SPECIFICATIONS
OPTIONAL ACCESSORIES
ESPAÑOL
FOR SERVICING
WARRANTY
EN 7
8
GETTING STARTED
15
RECORDING
34
PLAYBACK
38
EDITING
42
46
47
49
53
55
55
56
58
59
8 EN
END
indicator
CHG. (charge) indicator
Marks
POWER
indicator
REFRESH indicatorREFRESH switch
Hook on.
1
1
To AC outlet
Push in.
2
GETTING STARTED
Power
This camcorder’s 3-way power supply system lets you
choose the most appropriate source of power.
NOTES:
●
No function is available without power supply.
●
Use only specified power supply.
●
Do not use provided power supply units with other
equipment.
CHARGING THE BATTERY PACK
SUPPLY POWER
Connect the charger’s AC power cord to a wall
1
outlet. The power indicator lights.
ATTACH BATTERY PACK
Align the marks and slide the battery pack in the
2
direction of the arrow until it locks in place.
The CHG. indicator lights.
DETACH BATTERY PACK
When charging is completed, the END indicator
3
lights. Slide the battery pack opposite the direction of
the arrow.
BATT. PACK CHARGE DISCHARGE
BN-V11U approx. 1 hr. 10 min.
BN-V12U approx. 1 hr. 10 min.
BN-V22U approx. 2 hrs. 10 min. approx. 7 hrs.
BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs.
approx.
3 hrs. 30 min.
approx.
3 hrs. 30 min.
BATT. RELEASE
ATTENTION:
Before detaching the power source,
make sure that the camcorder’s power
is turned off. Failure to do so can result
in a camcorder malfunction.
**REFRESH
The AC power adapter features a REFRESH
function that allows you to fully discharge the
battery pack before recharging.
To discharge the battery . . .
..... attach the battery pack to the adapter as
shown in the above illustration. Then push
REFRESH. The REFRESH indicator lights
when discharging starts, and goes out
when discharging is complete.
USING THE BATTERY PACK
ATTACH BATTERY PACK
Hook its top end to the camcorder and push the
1
battery pack in until it locks in place.
DETACH BATTERY PACK
Slide BATT. RELEASE and pull out the battery pack.
2
Approximate recording time (unit: min.)
BATT. LCD monitor on/ LCD monitor off/
PACK Viewfinder off Viewfinder on
BN-V11U 50 (30) 50 (35)
BN-V12U 50 (30) 50 (35)
BN-V22U 105 (70) 110 (75)
BN-V25U 140 (95) 150 (100)
( ): when the light is on.
**CHARGE MARKER
Charge marker
A charge marker is provided on the battery pack to
help you remember whether it has been charged or
not. Two colors are provided (red and black)—you
choose which one means charged and which
means discharged.
NOTES:
●
The recording time per charge is affected by such factors as the time spent in Record/Standby mode and
the frequency of zooming. It is safer to have spare battery packs.
●
Charging times noted on page 8 are for fully discharged battey pack, and discharging times are for fully
charged battery pack.
●
Charging and discharging times vary according to the ambient temperature and the status of the battery
pack.
●
Remember to set the charge marker after charging a battery pack or after detaching a discharged one from
your camcorder.
●
Perform the REFRESH function after no less than 5 chargings.
●
High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t
allow it to discharge in container, such as a bag.
●
If you stop recharging or discharging part way through, make sure to remove the battery pack before
unplugging the adapter’s AC cord.
●
Remove the battery pack from the adapter immediately after discharging.
●
To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.
●
Make sure you unplug the DC cord before charging or discharging the battery pack.
●
A blinking CHG. indicator means that the battery pack has become hot. Wait until it cools down to
continue.
●
The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored
for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG.
indicator should light during recharging. If not, contact your nearest JVC dealer.
EN 9
DC OUT
terminal
To DC
in jack
AC Power
Adapter/Charger
DC cord
Car Battery Cord
AP-V7U (optional)
Car Battery Charger/Adapter
BH-V3U (optional)
AA-V11U
To AC outlet
To car's
cigarette
lighter socket
USING A CAR BATTERY
Use the optional Car Battery Cord or Car Battery
Charger/Adapter (connect as shown in the
illustration to the left).
NOTES:
●
When using the car battery, leave the engine
idling.
●
The optional Car Battery Charger (BH-V3U) can
also be used to charge the battery pack.
●
When using the optional Car Battery Charger or
Car Battery Cord (AP-V7U), refer to the respective
instruction booklet.
USING AC POWER
Use the AC Power Adapter (connect as shown in
the illustration to the left).
NOTE:
The supplied AC Power Adapter/Charger features
automatic voltage selection in the AC range from
110 V to 240 V.
10 EN
GETTING STARTED
(cont.)
Clock (Lithium) Battery Insertion/Removal
This battery is necessary for clock operation and to
perform date/time settings.
A
SWITCH OFF POWER
Switch off the unit’s power and remove the power
1
supply unit.
OPEN COVER
Open the clock battery compartment cover while
2
pressing the release tab.
REMOVE BATTERY (when replacing)
Insert a pointed, non-metallic object between the
3
battery and the compartment (A) and pull the
battery out.
INSERT BATTERY
Ensuring the plus (+) side is up, insert a CR2025
4
lithium battery and push it in.
CLOSE COVER
Close the compartment cover until it clicks in place.
5
NOTE:
See “SAFETY PRECAUTIONS” (Z pg. 2) for information
on safe handling of lithium batteries.
3
1
1
2
2
Set POWER to “CAMERA”.
Viewfinder Adjustment
POSITION VIEWFINDER
Adjust the viewfinder manually for best viewability
1
(see illustration at left).
SELECT MODE
Set the power switch to CAMERA.
2
ADJUST DIOPTER
Turn the diopter adjustment control until the
3
indications in the viewfinder are clearly focused.
PROGRAM AE select dial
LCD monitor or viewfinder
Gain Up S.LX
Menu Screen
Set Time and
Date Screen
Tele Macro OFF
Interval Timer OFF
Rec Time OFF
JLIP ID NO. 07
Tally ON
Set Character
Date/Time
END :MENU KEY
JAN 1.00 AM 12:00
MENU
Set Cancel
NEAR
FAR
EN 11
Date/Time Setting
SELECT MODE
First set the power switch to “CAMERA”. Turn the
1
PROGRAM AE select dial to any position except
AUTO LOCK.
ACCESS MENU SCREEN
Press MENU.
2
SELECT FUNCTION
Press – to move the highlight bar down to “Date/
3
Time”, then press NEAR. The Set Date And Time
screen appears.
SET DATE/TIME
Press FAR or NEAR until the item you want to set
4
begins blinking, then press + or – to until the correct
setting appears.
•If you decide you want to return the date and time
to the previous settings, press FAR or NEAR to
move the highlight bar to “Cancel”, then press
MENU.
•If you’re satisfied with the settings, go on to step 5.
START CLOCK OPERATION
Once you’ve set the date and time, press FAR or
5
NEAR until “Set” begins to blink, then press MENU.
The Menu screen reappears.
CLOSE MENU
Press MENU.
6
NOTES:
●
To display the date and time in the LCD monitor or the
viewfinder and on a connected TV, see “Date/Time
Insert” (Z pg. 28).
●
If, in step 4, you input an invalid date (FEB 30, JUN 31,
etc.) and perform step 5, “Input Error” appears blinking
at the bottom of the screen. Press +, –, FAR or NEAR to
input the correct number.
Date
Month/Day/Year
Time
12-hour indication with
AM or PM
12 EN
T20•30•40 tape length select button
SP-EP recording
mode button
Set POWER to “CAMERA”.
Tape length indicator
T30
T30 T40
T20
LCD monitor or
viewfinder
GETTING STARTED
(cont.)
Tape Length Setting
Set the tape length according to the length of the tape
used.
SET TAPE LENGTH
Press T20•30•40 until the required indication
1
appears in the LCD monitor or the veiwfinder. T20 =
20 minutes of recording time, T30 = 30 minutes,
and T40 = 40 minutes (in SP).
NOTE:
The tape remaining time (Z pg. 15) displayed in the
LCD monitor or the viewfinder is correct only if the
correct tape length has been selected.
Recording Mode Setting
Set depending on your preference.
SET RECORDING MODE
Press SP•EP button. “SP” (Standard Play) provides
1
higher picture and sound quality and is better for
dubbing, while “EP” (Extended Play) is more
economical, recording at 1/3 the speed of SP.
NOTE:
If the recording mode is switched during recording, the
playback picture will be blurred at the switching point.
Recording mode indicator
SP
SP
EP
EN 13
Loading/Unloading A Cassette
OPEN LCD MONITOR
2
2
4
4
3
3
1
5
1
Slide MONITOR OPEN and open the LCD monitor
1
to an angle of over 45 degrees.
OPEN CASSETTE HOLDER
Press EJECT until the holder opens. Do not use force
2
to open.
INSERT/REMOVE CASSETTE
Make sure the label is facing outward.
3
CLOSE CASSETTE HOLDER
Press PUSH and make sure the holder is closed and
4
locked.
GearErase Protection
Turn to take
up slack.
CLOSE LCD MONITOR
First make sure the holder is closed. Then close the
5
LCD monitor.
NOTES:
●
Closing the LCD monitor while the cassette holder is
still open may cause damage to the LCD monitor.
●
A cassette holder can’t be opened unless a power
supply is attached.
●
Make sure that the tape is not slack when loading the
cassette. If there is any slack, turn the gear on the
cassette in the direction of the arrow to take up the
slack.
●
Make sure the Erase Protection tab is in the position
that allows recording. If not, slide the tab. Some
cassettes have removable tabs. If the tab has been
removed, cover the hole with adhesive tape.
●
The cassette holder can’t be opened while the
camcorder is in the record mode.
14 EN
Recording Start/Stop button
3
2
1
1
2
GETTING STARTED
Grip Adjustment
EXPAND LOOP
Separate the Velcro strip.
1
INSERT HAND
Pass your right hand through the loop and grasp the
2
grip.
ADJUST STRAP LENGTH
Adjust so your thumb and fingers can easily operate
3
the Recording Start/Stop button and Power Zoom
lever. Refasten the Velcro strip.
Shoulder Strap Attachment
ATTACH STRAP
Following the illustration at left, thread the strap
1
through the top of the eyelet 1, then fold it back
and thread it through the keeper 2, and then
through the buckle 3. Repeat the procedure to
attach the other end of the strap to the other eyelet,
making sure the strap isn’t twisted.
ADJUST LENGTH
Adjust as shown in the illustration at left 1, then
2
slide both keepers snug against the eyelets to
prevent slipping 2.
(cont.)
Tripod Mounting
ALIGN AND TIGHTEN
Align the screw and camera direction stud on the
1
tripod with the camera’s mounting socket and stud
hole. Then tighten the screw.
CAUTION:
When using a tripod, be sure to open and extend
its legs fully to stabilize the camcorder. To
prevent damage to the unit caused by falling
over, do not use a small-sized tripod.
RECORDING
Tape remaining time indicator
25min
Power indicator
POWER
Start/Stop
Basic Recording
-
*(Now calculating)
120min
119min
3min
2min (Blinking)
1min (Blinking)
0min (Blinking)
-min
LENS COVER
Switch
DISPLAY button
EN 15
NOTE:
You should already have performed the procedures listed
below. If not, do so before continuing.
●
Power (Z pg. 8)
●
Tape Length/Recording Mode Setting (Z pg. 12)
●
Grip Adjustment (Z pg. 14)
LOAD A CASSETTE
First slide MONITOR OPEN and open the LCD
monitor to an angle of over 45 degrees.
1
Press EJECT to open the cassette holder, then insert
the cassette with the label facing out. Press PUSH to
ensure the holder is closed and locked.
Shooting while watching the viewfinder
ENTER RECORD–STANDBY MODE
Make sure the LCD monitor is closed and locked.
2
Slide the LENS COVER open/close switch to open
the lens cover, then set the power switch to
CAMERA.
•The power indicator lights and the camcorder
enters the Record–Standby mode.
•The scene you’re aimed at appears on the
viewfinder screen, with the word “PAUSE”
superimposed upon it.
START SHOOTING
Press the Recording Start/Stop button.
3
•The tally lamp lights while recording is in progress,
REC
and “
” appears in the viewfinder.
Tally lamp
NOTES:
●
When the power switch is set to CAMERA and the LCD monitor is opened at an angle of 45 degrees or more, the
LCD monitor switches on and the viewfinder switches off automatically to save power.
●
A cassette holder can’t be opened unless a power supply is attached.
●
There may be a delay after you press EJECT until the holder opens. Do not use force.
●
The tape’s remaining time is displayed in the LCD monitor or the viewfinder as shown.
●
The indicated remaining time is approximate.
●
The time required to calculate the remaining tape length, and the accuracy of the calculation, may vary
according to the type of tape used.
●
The tape remaining time indicator is correct only if the correct tape length has been selected (Z pg. 12).
●
“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this condition
for 5 minutes. “TAPE END” also appears when a cassette whose tape is already at its end is loaded.
●
While shooting, pressing DISPLAY lets you remove some indiations from the screen (Z pg. 49).
●
If the Record–Standby mode continues for 5 minutes without performing Zoom or any other operations, the
camcorder’s power shuts off automatically. Set the Power switch to “POWER OFF”, and then back to “CAMERA”
to turn the camcorder on again.
●
If the Recording Start/Stop button is pressed after the Record-Standby mode has continued for over 5 minutes,
recording may not start immediately.
●
If you’re recording on a cassette from the middle, use the RETAKE function (Z pg. 18) to find the end of the last
recording so you don’t erase any of it.
●
The LENS COVER warning blinks for about 5 seconds when the camcorder is turned on when the cover is closed.
●
While shooting, sound is not heard from the speaker.
Press the Recording Start/Stop button again to stop
recording.
4
•The camcorder re-enters the Record-Standby
mode.
STOP RECORDING
16 EN
RECORDING
Basic Recording (cont.)
Shooting while watching the LCD monitor
Before the following steps, perform step 1 (Z pg. 15).
Start/Stop
MONITOR
OPEN
25min
LENS COVER
Switch
POWER
Power indicator
Tape remaining time indicator
-
-min
*(Now calculating)
120min
119min
ENTER RECORD–STANDBY MODE
Make sure the LCD monitor is fully open. Slide the
2
LENS COVER open/close switch to open the lens
cover, then set the power switch to CAMERA.
•The power indicator lights and the camcorder
enters the Record–Standby mode.
•The scene you’re aimed at appears in the LCD
monitor, with the word “PAUSE” superimposed
upon it.
START SHOOTING
Tilt the LCD monitor upward/downward for best
3
viewability (Z pg. 17) and press the Recording
Start/Stop button.
•The tally lamp lights while recording is in progress,
REC
and “
” appears in the LCD monitor.
STOP RECORDING
Press the Recording Start/Stop button again to stop
4
recording.
•The camcorder re-enters the Record-Standby
mode.
NOTES:
●
When you use the LCD monitor outdoors in direct
sunlight, the LCD monitor may be difficult to see. If this
happens, we recommend that you use the viewfinder
(Z pg. 15).
●
For other notes, refer to pg. 15.
Tally lamp
3min
2min (Blinking)
1min (Blinking)
0min (Blinking)
EN 17
Journalistic shooting
In some situations different angles of shooting may be
required for more dramatic results.
OPEN LCD MONITOR
Make sure the LCD monitor is fully open.
1
TILT LCD MONITOR
Tilt the LCD monitor in the most convenient
2
direction.
•The LCD monitor can rotate almost full circle
(270°: 90° downward, 180° upward).
Self-recording
You can shoot yourself while viewing your own image in
the LCD monitor.
TILT LCD MONITOR UPWARD
Open the LCD monitor and tilt it upward to 180
1
degrees so that it faces forward.
BRIGHT dial
START RECORDING
Point the lens toward yourself and start recording.
2
•During self-recording, the monitor image and
indications do not appear inverted as when
viewing a mirror.
Brightness control
You can adjust the brightness of the LCD monitor by
turning the BRIGHT dial.
ADJUST BRIGHTNESS
If you want to brighten the image...
1
Turn the dial toward “+”.
If you want to darken the image...
Turn the dial toward “–”.
18 EN
Zoom-in
RETAKE (R/F)
Zoom-out
Zoom indicator
bar
Zoom Level
indicator
Power zoom lever
RECORDING
FEATURE: Zooming
PURPOSE: To produce the zoom in/out effect, or
OPERATION: 36X Hyper zoom
NOTES: ●
FEATURE: Quick Review
PURPOSE: To check the end of the last
OPERATION: 1) Press “
NOTE:
FEATURE: Retake
PURPOSE: To re-record certain segments.
OPERATION: 1) Make sure the camcorder is in the
NOTE:
an instantaneous change in image
magnification.
Digital circuitry doubles the
maximum 18x magnification offered
by optical zoom.
1) To zoom in, slide the Zoom Lever
toward “T”.
2) To zoom out, slide toward “W”.
During Hyper Zoom, the speed
increases the further you slide the
Zoom Lever.
●
Focusing may become unstable
during Hyper Zoom. In this case,
set the zoom while in Record–
Standby, set manual focus or Focus
Lock (Z pg. 22, 23), then zoom in
or out in Record mode.
●
The Zoom Level Indicator (5) only
moves during optical zoom. Once
the Zoom Level indicator reaches
the top of the zoom indicator bar,
all magnification from that point is
through digital processing.
●
During digital image processing,
the quality of the image may suffer.
recording.
during the Record–Standby mode.
•Tape is rewound for about 2
seconds and played back
automatically, then pauses in
Record–Standby mode for the
next shot.
Distortion may occur at start of
playback. This is normal.
Record–Standby mode.
2) Press either RETAKE button to
reach the start point for new
recording. Pressing “F” forwards
the tape and pressing “R” reverses
it.
3) Press Recording Start/Stop to start
recording.
Noise may appear during Retake.
This is normal.
Basic Features
” and release quickly
Loading...
