JVC GR-AX401, GR-AX501, GR-AX301, GR-AX201 User Manual

COMPACT VHS CAMCORDER

GR-AX501 GR-AX401 GR-AX301 GR-AX201

ENGLISH

INSTRUCTIONS

LYT0325-001A

2 EN

Dear Customer,

Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product.

Using This Instruction Manual

•All major sections and subsections are listed in the Table Of Contents (Z pg. 3).

•Notes appear after most subsections. Be sure to read these as well.

•Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

.... refer to the Index (Z pgs. 50 – 52) and familiarize yourself with button locations, etc. before use.

.... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe

use of this product.

You are recommended to carefully read the cautions on pages 53 and 54 before use.

SAFETY PRECAUTIONS

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

Warning on lithium cell battery (for clock operation and remote control unit)

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace the battery with Maxell, Panasonic (Matsushita Electric), Sanyo or Sony CR2025; use of another battery may present a risk of fire or explosion.

n Dispose of used battery promptly. n Keep away from children. n Do not disassemble and do not dispose of in

fire.

CAUTIONS:

n If you notice smoke or a peculiar smell coming

from the camcorder or AC adapter/charger, shut it down and unplug it immediately. Continue using the camcorder or AC adapter/charger under these conditions could lead to fire or electric shock. Contact your JVC dealer. Do not attempt to repair the malfunction yourself.

n To prevent shock, do not open the cabinet. No

user serviceable parts inside. Refer servicing to qualified personnel.

n When you are not using the AC Power

Adapter/Charger for a long period of time, it is recommended that you disconnect the power cord from AC outlet.

NOTES:

●

The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

●

The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom.

This camcorder is designed to be used with PALtype colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and viewfinder playback are possible anywhere. Use the BN-V12U/V20U battery packs and, to recharge them, the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

This unit is produced to comply with Standard IEC Publ. 65.

n Camcorder is designed exclusively for the

VHS-C video cassette. Only cassettes marked VHS-C can be used with this unit.

n HQ VHS is compatible with existing VHS

equipment.

MAJOR FEATURES

CONTENTS

EN3

n Programme AE with Special Effects

(

Z pg. 20, 21)

•Electronic Fog Filter

•ND Effect

•Sepia

•Twilight

•Sports

•Nega/Posi

•1/2000 sec. High Speed Shutter

n Snapshot

(GR-AX501/AX401 only) (

n 5-Sec. Recording

(GR-AX301/AX201 only) (

n Menu Adjustment ( n Picture Stabilizer (Z pg. 16) n Digital Hyper Zoom ( n Integrated Auto Light

(GR-AX501/AX401 only) (

Z pg. 18)

Z pg. 16)

Z pg. 24, 25, 26)

Z pg. 14)

Z pg. 17)

PROVIDED ACCESSORIES

•AC Power Adapter/ Charger AA-V15EG

•Cassette Adapter C-P7U

GETTING STARTED

4 – 11

Power ............................................ 4

Clock (Lithium) Battery Insertion/

Removal ........................................ 6

Date/Time Settings............................. 7

Recording Mode Setting ....................... 8

Tape Length Setting............................. 8

Loading/Unloading A Cassette ............... 9

Grip Adjustment ............................... 10

Viewfinder Adjustment ...................... 10

Shoulder Strap Attachment .................. 11

Tripod Mounting ............................... 11

RECORDING

12 – 33

Basic Recording................................ 12

Basic Features ................................. 14

Advanced Features............................ 18

PLAYBACK

34 – 39

Basic Playback................................. 34

Features ........................................ 35

Using The Cassette Adapter .................37

Basic Connections And Tape Dubbing .......38

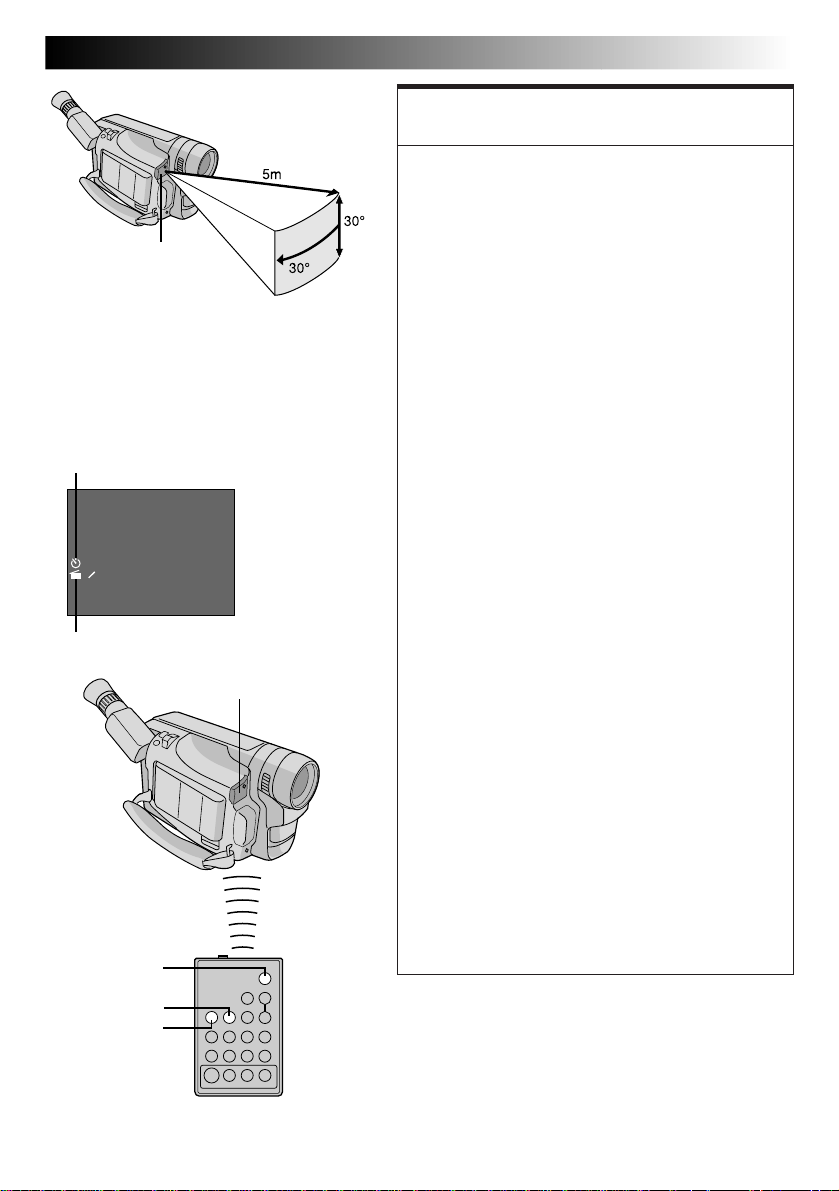

USING THE REMOTE CONTROL UNIT

Random Assemble Editing ................... 42

Insert Editing .................................. 46

Audio Dubbing ................................. 47

TROUBLESHOOTING

40– 47

48 – 49

•Battery Pack BN-V12U

•Shoulder Strap

•Audio/Video (A/V) cable

•Lithium Battery CR2025

•Remote Control RM-V700U (GR-AX501/AX401 only)

•Editing Cable (GR-AX501/AX401 only)

•DC Cord

• x1 for GR-AX301/AX201 (clock operation)

• x2 for GR-AX501/AX401 (clock operation and remote control)

INDEX

50 – 52

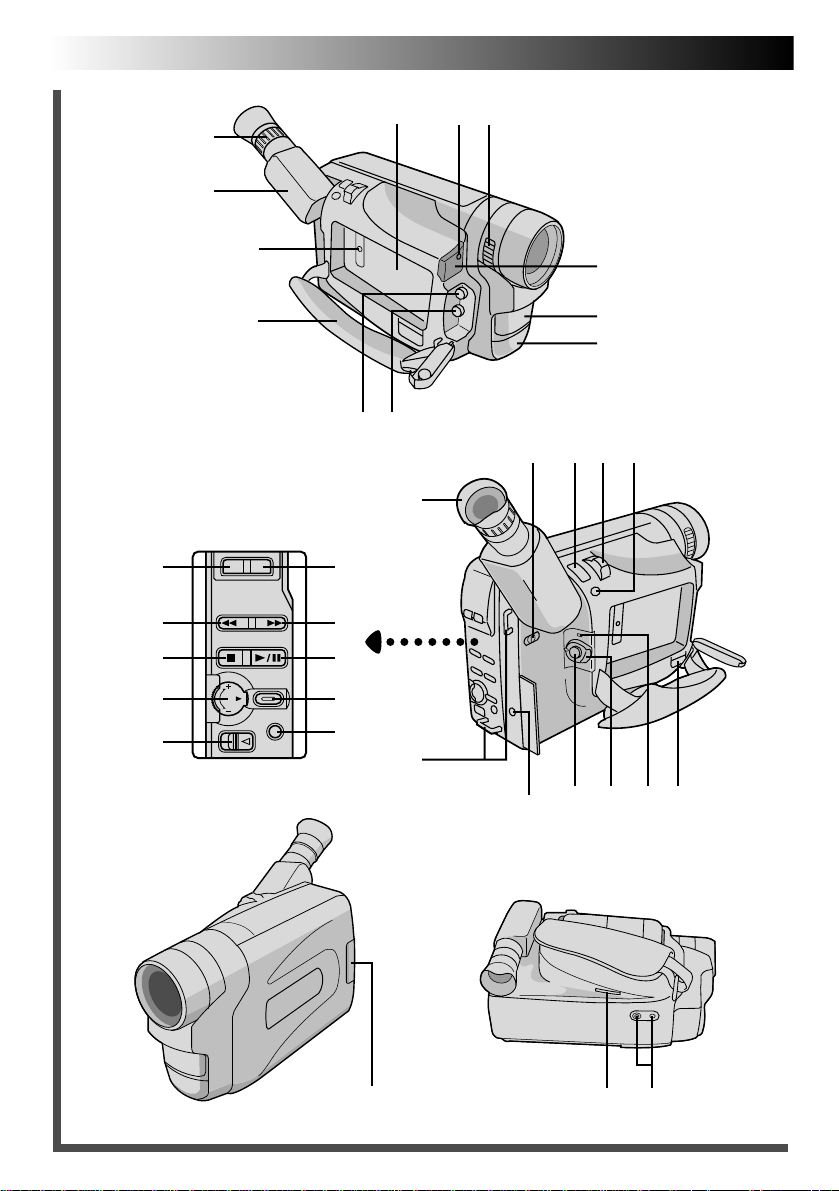

Controls, Connectors And Indicators ....... 50

Indications ..................................... 52

CAUTIONS

53 – 54

SPECIFICATIONS

OPTIONAL ACCESSORIES

4 EN

Marks

CHARGE indicator

REFRESH switch

REFRESH indicator

REFRESH

The AC Power Adapter/Charger features a REFRESH function that allows you to fully discharge the battery pack before recharging. Perform the REFRESH function after no less than 5 chargings.

To discharge the battery . . .

.... attach the battery pack to the adapter as

shown in the above illustration. Then push REFRESH. The REFRESH indicator lights when discharging starts, and goes out when discharging is complete.

To AC outlet

GETTING STARTED

Power

This camcorder’s 3-way power supply system lets you choose the most appropriate source of power.

NOTES:

●

No function is available without power supply.

●

Use only the specified power supply.

●

Do not use provided power supply units with other equipment.

CHARGING THE BATTERY PACK

SUPPLY POWER

Connect the charger’s AC power cord to a wall outlet.

ATTACH BATTERY PACK

Align the marks and slide the battery pack in the direction of the arrow until it locks in place.

•The CHARGE indicator begins blinking to indicate charging has started.

DETACH BATTERY PACK

When the CHARGE indicator stops blinking but stays lit, charging is finished. Slide the battery pack opposite the direction of the arrow.

Battery pack Charging time Discharging time

BN-V12U approx. 1 hr. 10 min. approx. 3 hrs. 30 min. BN-V20U approx. 1 hr. 50 min approx. 6 hrs. 40 min.

Hook on.

Push in.

BATTERY RELEASE

ATTENTION:

Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction.

USING THE BATTERY PACK

ATTACH BATTERY PACK

Hook its end to the camcorder ( ) and push the battery pack in until it locks in place ( ) .

DETACH BATTERY PACK

Slide BATTERY RELEASE and pull out the battery pack.

Battery pack

BN-V12U 75 (40) BN-V20U 115 (70)

( ) : when the video light is on (GR-AX501/AX401 only).

Approximate recording time (unit: min.)

INFORMATION:

VU-V856KIT is a set composed of the BN-V856U battery pack and AA-V80EG AC Power Adapter/Charger. The BN-V856U battery pack provides approx. 7 hours of recording time when the video light is off. Also read thoroughly the VU-V856KIT’s instruction manuals. It is impossible to charge the BN-V856U battery pack using the provided AC Power Adapter/Charger. Use the optional AA-V80EG AC Power Adapter/Charger.

EN5

Charge Marker

Charge marker

A charge marker is provided on the battery pack to help you remember whether it has been charged or not. Two colours are provided (red and black)—you choose which one means charged and which means discharged.

NOTES:

●

The recording time per charge is affected by such factors as the time spent in Record-Standby mode and the frequency of zooming. It is safer to have spare battery packs to cover 3 times the planned shooting time.

●

Charging times noted on page 4 are for a fully discharged battery pack, and discharging times are for a fully charged battery pack.

●

Charging and discharging times vary according to the ambient temperature and the status of the battery pack.

●

Remember to set the charge marker after charging a battery pack or after detaching a discharged one from your camcorder.

●

Perform the REFRESH function after no less than 5 chargings.

●

While the AC Power Adapter/Charger’s power cord is disconnected from the AC outlet, it is possible to discharge the battery by pressing the REFRESH switch. During that time, the AC Power Adapter/Charger does not charge the battery. When discharging is complete, detach the battery from the AC Power Adapter/ Charger to store it.

●

High temperatures can damage the battery pack, so use only where good ventilation is available. Do not allow it to discharge in a container, such as a bag.

●

If you stop recharging or discharging part way through, make sure to remove the battery pack before unplugging the adapter’s AC cord.

●

Remove the battery pack from the adapter immediately after discharging.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

Make sure you unplug the DC cord before charging or discharging the battery pack.

●

The CHARGE indicator may not light properly with a brand new battery pack, or with one that has been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHARGE indicator should blink during recharging. If not, contact your nearest JVC dealer.

GETTING STARTED

To DC IN jack

DC OUT terminal

DC Cord

Car Battery Charger/Adapter BH-V3E (optional)

AC Power Adapter/Charger AA-V15EG

To AC outlet

To car’s cigarette lighter socket

USING AC POWER

Use the AC Power Adapter/Charger (connect as shown in the illustration).

NOTES:

●

The provided AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V.

●

When using the DC cord, make sure you connect the end of the cord with the core filter to the camcorder. The core filter reduces interference.

USING A CAR BATTERY

Use the optional Car Battery Charger/Adapter (connect as shown in the illustration).

NOTES:

●

When using the car battery, leave the engine idling.

●

The optional Car Battery Charger/Adapter (BH-V3E) can also be used to charge the battery pack (except BN-V20U/V856U).

●

When using the optional Car Battery Charger/ Adapter, refer to the respective instruction booklet.

6 EN

Battery holder

Slot

GETTING STARTED

(cont.)

Clock (Lithium) Battery Insertion/Removal

This battery is necessary for clock operation and to perform date/time settings.

SWITCH OFF POWER

Switch off the unit’s power and remove the power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.).

REMOVE BATTERY HOLDER

Pull out the battery holder.

INSERT BATTERY IN HOLDER

Insert the battery in the holder, and be sure to have the “+” mark visible.

RE-INSERT HOLDER

Slide the holder back into the slot until you hear a click.

NOTES:

●

See “SAFETY PRECAUTIONS” (Z pg. 2) for information on safe handling of lithium batteries.

●

To avoid losing the battery and/or battery holder, place the camcorder with the grip side up as shown in the illustration when inserting/removing the battery.

MENU Button

Select Dial

Display

NEXT M . W . B . D . ZOOM TELE MACRO

DATE TIME

TAPE LENGTH

RETURN

DATE TIME

YEAR

MONTH

DAY

TIME

EXIT

NEXT M . W . B . D . ZOOM TELE MACRO DATE TIME TAPE LENGTH

RETURN

AUTO ON OFF

T45

AUTO ON OFF

T45

1999

22 : 50

Power lamp

Power Switch

Menu Screen

DATE/TIME Menu

1 1

24-hour indication

EN7

Date/Time Settings

ACCESS MENU SCREEN

Set the Power Switch to “PRO.”, then press MENU.

•The power lamp comes on.

SELECT FUNCTION

Rotate the Select Dial to move the highlight bar to “DATE/TIME”, then press it. The DATE/TIME Menu appears.

•If you decide you want to return the date and time to the previous settings, rotate the Select Dial to move the highlight bar to “EXIT” and press it, then go to step 6.

•If you want to set only the time without changing the date, go to step 4.

SET DATE

Rotate the Select Dial to move the highlight bar to the item you want to set and then press it. When the setting begins blinking, rotate the Select Dial until the correct setting appears and then press it. The setting stops blinking.

•Repeat this procedure until you’re satisfied with the Date settings (“YEAR”, “MONTH” and “DAY”).

SET TIME

Rotate the Select Dial to move the highlight bar to “TIME” and then press it. When the hour setting begins blinking, rotate the Select Dial until the correct setting appears and then press it. When the hour setting stops blinking and the minute setting begins blinking, rotate the Select Dial until the correct setting appears and then press it. The minute setting stops blinking.

START CLOCK OPERATION

When none of these settings (YEAR, MONTH, DAY, TIME) blinks, rotate the Select Dial to move the highlight bar to “EXIT”, and press it. The Menu Screen reappears with the highlight bar on “RETURN”.

CLOSE MENU SCREEN

Press the Select Dial.

NOTE:

To display the date and time in the camcorder’s display and on a connected TV, see “Date/Time Insert” (Z pg. 22).

GETTING STARTED

8 EN

NEXT M . W . B . D . ZOOM TELE MACRO DATE TIME

TAPE LENGTH

RETURN

T30

T45

T60

MENU Button

SP/LP Recording Mode Button

Select Dial Power Switch

Viewfinder

Tape length indicator

AUTO ON OFF

T45

Recording mode indicator

Menu Screen

TAPE LENGTH Setting Menu

Display

TAPE LENGTH

GETTING STARTED

(cont.)

Recording Mode Setting

Set depending on your preference.

SET RECORDING MODE

First set the Power Switch to “AUTO” or “PRO.”. Press SP/LP for more than 1 second. “SP” (Standard Play) provides higher picture and sound quality and is better for dubbing, while “LP” (Long Play) is more economical, providing twice the recording time.

NOTE:

If the recording mode is switched during recording, the playback picture will be blurred at the switching point.

Tape Length Setting

Set the tape length according to the length of the tape used.

ACCESS MENU SCREEN

First set the Power Switch to “PRO.”. Press MENU.

SELECT FUNCTION

Rotate the Select Dial to move the highlight bar to “TAPE LENGTH”, then press it. The TAPE LENGTH Setting Menu appears.

SET TAPE LENGTH

Rotate the Select Dial to move the highlight bar to the correct setting. T30 = 30 minutes of recording time, T45 = 45 minutes, and T60 = 60 minutes.

•If you decide you want to return the tape length to the previous setting, rotate the Select Dial to move the highlight bar to “EXIT”.

CLOSE MENU SCREEN

Press the Select Dial. The Menu Screen reappears with the highlight bar on “RETURN”. Press the Select Dial again to close the Menu Screen.

NOTE:

The tape remaining time (Z pg. 13) displayed in the viewfinder is correct only if the correct tape length has been selected.

EXIT

NEXT M . W . B . D . ZOOM TELE MACRO DATE TIME TAPE LENGTH

RETURN

AUTO ON OFF

T60

Cassette holder

Loading/Unloading A Cassette

OPEN CASSETTE HOLDER

Slide EJECT until the holder opens. Do not use force to open.

INSERT/REMOVE CASSETTE

Make sure the label is facing outward.

EN9

EJECT SwitchPUSH Button

Erase Protection Gear

Turn to take up slack.

CLOSE CASSETTE HOLDER

Press PUSH and make sure the holder is closed and locked.

NOTES:

●

The cassette holder can’t be opened unless a power supply is attached.

●

Make sure that the tape is not slack when loading the cassette. If there is any slack, turn the gear on the cassette in the direction of the arrow to take up the slack.

●

Make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape.

●

The cassette holder cannot be opened while the camcorder is in the record mode.

GETTING STARTED

10 EN

Power Zoom Lever

Recording Start/Stop Button

180°180

GETTING STARTED

Grip Adjustment

EXPAND LOOP

Separate the Velcro strip.

INSERT HAND

Pass your right hand through the loop and grasp the grip.

ADJUST STRAP LENGTH

Adjust so your thumb and fingers can easily operate the Recording Start/Stop Button and Power Zoom Lever. Refasten the Velcro strip.

Viewfinder Adjustment

SELECT OPERATION MODE

Set the Power Switch to “CAMERA” (“AUTO” or “PRO.”).

POSITION VIEWFINDER

Adjust the viewfinder manually for best viewability (see illustration on left).

(cont.)

PAUSE

Set “POWER” to “CAMERA” (“AUTO” or “PRO.”)

ADJUST DIOPTRE

Turn the Dioptre Adjustment Control until the indications in the viewfinder are clearly focused.

EN11

Shoulder Strap Attachment

ATTACH STRAP

Following the illustration at left, thread the strap through the top of the eyelet 1, then fold it back and thread it through the buckle 2. Repeat the procedure to attach the other end of the strap to the other eyelet

3, making sure the strap is not twisted.

ADJUST LENGTH

Adjust as shown in the illustration at left 4.

Tripod Mounting

ALIGN AND TIGHTEN

Align the screw and camera direction stud on the tripod with the camera’s mounting socket and stud hole. Then tighten the screw.

CAUTION:

When using a tripod, be sure to open and extend its legs fully to stabilise the camcorder. To prevent damage to the unit caused by falling over, do not use a small-sized tripod.

GETTING STARTED

12 EN

EJECT Switch

Recording Start/Stop Button

LENS COVER Open/Close Ring

Power Switch

Power lamp

RECORDING

Basic Recording

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

●

Power (Z pg. 4)

●

Recording Mode Setting (Z pg. 8)

●

Tape Length Setting (Z pg. 8)

●

Grip Adjustment (Z pg. 10)

●

Viewfinder Adjustment (Z pg. 10)

LOAD A CASSETTE

Slide EJECT to open the cassette holder, then insert the cassette with the label facing out. Press PUSH to ensure the holder is closed and locked.

ENTER RECORD-STANDBY MODE

Turn the LENS COVER Open/Close Ring to open the lens cover, then set the Power Switch to “CAMERA” (“AUTO” or “PRO.”).

•The power lamp lights and the camcorder enters the Record-Standby mode.

•The scene you are aimed at appears on the viewfinder screen, with the word “PAUSE” superimposed upon it.

Tally lamp (lights while recording is in progress)

START SHOOTING

Press the Recording Start/Stop Button.

•“ ” appears in the viewfinder while recording is in progress.

Power Switch Position

According to the Power Switch position you have selected, the following functions are available:

AUTO (Full Auto mode):

Allows you to record using NO special effects or manual adjustments. Suitable for standard recording.

Allows you to set various recording functions using the menus. If you want more creative capabilities than full auto recording, try this mode.

PRO. (PRO. mode):

POWER OFF:

Allows you to switch off the camcorder.

Tape remaining time indicator

25MIN

Recording Start/Stop Button

DISPLAY Button

MIN

(Now calculating)

120MIN

119MIN

3MIN

2MIN

(Blinking)

1MIN

(Blinking)

0MIN

(Blinking)

EN13

STOP RECORDING

Press the Recording Start/Stop Button again to stop recording.

•The camcorder re-enters the Record-Standby mode.

NOTES:

●

The cassette holder cannot be opened unless a power supply is attached.

●

There may be a delay after you slide EJECT until the holder opens. Do not use force.

●

The tape remaining time is only displayed in the viewfinder as shown.

●

The remaining time indicated in the viewfinder is approximate.

●

The time required to calculate the remaining tape length, and the accuracy of the calculation, may vary according to the type of tape used.

●

The tape remaining time indicator is correct only if the correct tape length has been selected (Z pg. 8).

●

“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this condition for 5 minutes. “TAPE END” also appears when a cassette whose tape is already at its end is loaded.

●

If the Record–Standby mode continues for 5 minutes without performing Zoom or any other operations, the camcorder’s power shuts off automatically. Set the Power Switch to “POWER OFF”, and then back to “CAMERA” to turn the camcorder on again.

●

If the Recording Start/Stop button is pressed after the Record-Standby mode has continued for over 5 minutes, recording may not start immediately.

●

If you are recording on a cassette from the middle (such as when a tape is removed and re-inserted during recording), use the Retake function (Z pg. 15) to find the end of the last recording so you don’t erase any of it.

●

The LENS COVER warning blinks for about 5 seconds when the camcorder is turned on with the cover closed.

●

To turn the tally lamp off during recording, refer to pgs. 24 and 26.

RECORDING

Viewfinder Indications

Press DISPLAY to make the following indications appear/ disappear from the camcorder’s display: cassette warning, tape remaining time, battery pack remaining power indicator and tape length indicator (Z pg. 52).

PRESS DISPLAY BUTTON

To turn off the indications, press DISPLAY for more than 1 second. Press again for more than 1 second to make the indications reappear.

NOTE:

Even if the indications are off, the tape remaining time appears blinking when the tape is near its end, and the battery pack remaining power indicator appears blinking when the power is almost gone.

14 EN

RECORDING

Basic Features

Zoom in

Display

Zoom indicator bar

Zoom level indicator

Approximate zoom ratio

Power Zoom Lever

Zoom out

FEATURE:

Zooming

PURPOSE:

To produce the zoom in/out effect, or an instantaneous change in image magnification. Digital circuitry extends the maximum magnification offered by optical zoom. This system is called Digital Zoom.

OPERATION:

Zoom In Push the Power Zoom Lever towards “T”.

Zoom Out Push the Power Zoom Lever towards “W”.

n The quicker you push the Power Zoom Lever, the

quicker the zoom action.

NOTES:

●

Focusing may become unstable during Zooming. In this case, set the zoom while in Record–Standby, lock the focus by using the manual focus (Z pg. 29), then zoom in or out in Record mode.

●

The zoom level indicator (5) moves during zoom. Once the zoom level indicator reaches the top of the zoom indicator bar, all magnification from that point is through digital processing.

●

When using Digital Zoom, the quality of image may suffer. To deactivate Digital Zoom, set “D.ZOOM” to “OFF” in the Menu Screen (Z pg. 25).

Power Switch

EN15

RETAKE (R/F) Button

FEATURE:

Quick Review

PURPOSE:

To check the end of the last recording.

OPERATION:

1) Press “ ” and release quickly during the Record–

Standby mode.

n Tape is rewound for about 2 seconds and played

back automatically, then pauses in Record–Standby mode for the next shot.

NOTE:

Distortion may occur at the start of playback. This is normal.

FEATURE:

Retake

PURPOSE:

To re-record certain segments.

OPERATION:

1) Make sure the camcorder is in the Record–Standby

mode.

2) Press either RETAKE to reach the start point for new recording. Pressing “F” forwards the tape and pressing “R” reverses it.

3) Press the Recording Start/Stop Button to start recording.

NOTE:

Noise bars appear and pictures may become monochrome or darken during Retake. This is normal.

RECORDING

16 EN

5 SEC. REC Button

Display

PAUSE

5 Sec. Rec mode indicator

Picture stabilizer indicator

P. STABILIZER Button

Power Switch

RECORDING

FEATURE:

Picture Stabilizer

Basic Features (cont.)

PURPOSE:

To compensate for unstable images caused by camerashake, particularly at high magnification.

OPERATION:

1) Press P. STABILIZER. “ ”appears.

n To switch off the Picture Stabilizer, press

P. STABILIZER. The indicator disappears.

NOTES:

●

Accurate stabilisation may not be possible if hand shake is excessive, or under the following conditions:

•

When shooting subjects with vertical or horizontal stripes.

•

When shooting dark or dim subjects.

•

When shooting subjects with excessive backlighting.

•

When shooting scenes with movement in various directions.

•

When shooting scenes with low-contrast backgrounds.

●

Switch off the Picture Stabilizer when recording with the camcorder on a tripod.

●

The “ ” indicator appears blinking if the Stabilizer cannot be used.

FEATURE:

5Sec. Rec (5-sec. Recording)

(GR-AX301/AX201 only)

PURPOSE:

To record a scene for 5 seconds, providing quick scene transitions like those seen in TV programmes.

OPERATION:

1) During Record–Standby, press 5 SEC. REC. “ 5S”

appears and 5Sec. Rec is reserved.

2) Press the Recording Start/Stop Button. Recording starts, and after 5-second recording is finished, the camcorder reenters the Record–Standby mode automatically.

n To cancel the 5Sec. Rec. function, press 5 SEC. REC

again so that “ 5S” disappears.

NOTE:

Fade/Wipe (Z pg. 19) cannot be activated by pressing 5 SEC. REC.

EN17

LIGHT OFF/AUTO/ON Switch

DANGER

n The video light can become extremely

hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.

n Do not place the camcorder into the

carrying case immediately after using the video light, since it remains extremely hot for some time.

n When operating, keep a distance of

about 30 cm. between the video light and people or objects.

n Do not use near flammable or explosive

materials.

n It is recommended that you consult your

nearest JVC dealer for replacing the video light.

FEATURE:

Video Light (GR-AX501/AX401 only)

PURPOSE:

To brighten the scene when natural lighting is too dim.

OPERATION:

1) Set the LIGHT OFF/AUTO/ON Switch as required:

OFF : Turns off the light. AUTO : Automatically turns on the light when the

ON : Always keeps the light on as long as the

n The video light can only be used with the

n It is recommended to set the white balance

n When not using the video light, turn it off to save

NOTES:

●

camcorder senses insufficient lighting on the subject.

camcorder is turned on.

camcorder’s power on.

(Z pg. 30) to when you use the video light.

battery power.

Even if the battery indicator ( ) does not blink if the battery pack’s charge is low, the camcorder may turn off automatically when you turn on the video light, or when you start recording with the video light turned on. When the LIGHT OFF/AUTO/ON Switch is set to “AUTO”:

•

Depending on the lighting conditions, the video light may keep turning on and off. In this case, manually switch the light on or off using the LIGHT OFF/AUTO/ON switch.

•

While the “Sports” or “High Speed Shutter” mode (Z pg. 21) is engaged, the light is likely to stay on.

•

While the “Twilight” mode (Z pg. 21) is engaged, the light will not activate.

RECORDING

+ 39 hidden pages
