JVC GC-QX3 User Manual

DIGITAL STILL CAMERA

GC-QX3

ENGLISH

STILL CAMERA

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which is located on the bottom of cabinet. Retain this information for future reference.

Model No.

Serial No.

LYT0543-001C

2 EN

Dear Customer,

Thank you for purchasing the Digital Still Camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new Digital Still Camera.

Using This Instruction Manual

• All major sections and subsections are listed in the Table Of Contents (Z pg. 8, 9).

• Notes appear after most subsections. Be sure to read these as well.

• Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

..... refer to “CONTROLS, CONNECTORS AND

INDICATORS” (Z pg. 10 – 17) and familiarize yourself with button locations, etc. before use.

..... read thoroughly the Safety Precautions and Safety

Instructions that follow. They contain extremely important information regarding the safe use of your new Digital Still Camera.

You are recommended to carefully read the cautions on pages 89 – 91 before use.

SAFETY PRECAUTIONS

The AA-V37 AC Power Adapter should be used with: AC 120 V`, 60 Hz in the USA and Canada, AC 110 – 240 V`, 50/60 Hz in other countries.

CAUTION (applies to the AA-V37)

TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION (s’applique à l’AA-V37)

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

NOTES:

●

The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

●

The rating plate (serial number plate) of the AC Power Adapter is on its bottom.

This camera is designed to be used with NTSCtype color television signals. It cannot be used for playback with a television of a different standard. However, shooting and LCD monitor playback are possible anywhere.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

NO USER-SERVICEABLE PARTS INSIDE.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

IMPORTANT PRODUCT SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this manual for future reference.

INSTALLATION

1. Grounding or Polarization

(A) Your product may be equipped with a polarized

alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B) Your product may be equipped with a 3-wire

grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

EN 3

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

•Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.

•Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

ANTENNA INSTALLATION INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION

ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

NEC – NATIONAL ELECTRICAL CODE

810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

4 EN

USE

1. Accessories

To avoid personal injury:

•Do not place this product on an unstable cart, stand, tripod, bracket or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

•Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.

•Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.

•Do not try to roll a cart with small casters across thresholds or deep-pile carpets.

2. Product and Cart Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

3. Water and Moisture

Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

PORTABLE CART WARNING (Symbol provided by RETAC)

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen

into the product.

c. If the product has been exposed to rain or water. d. If the product does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in

any way.

f. When the product exhibits a distinct change in

performance—this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

4. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.

QUICK START

EN 5

DC input connector

Knob

Memory card cover

Connect the Camera to a Power Outlet. (Z pg. 20)

Open the connector cover on the rear of the

camera.

Connect the DC cord to the DC input

connector.

Connect the DC cord to the DC input

connector on the AC adapter.

Connect the power cord to a power outlet.

•The power lamp lights.

Power outlet

Power lamp

DC cord

Power cord

AC adapter (AA-V37)

Memory card (3.3V type)

Insert the Memory card. (Z pg. 22)

Open the Memory card cover.

•Slide the knob to the open position.

Insert the Memory card.

•Insert the card so that the contact surface is facing up and the notch on the card is on the right.

Close the Memory card cover.

•Slide the knob to the close position.

6 EN

OFF

SET

QUICK START (cont.)

Shutter button

Lock button

Power dial

SET

OFF

Shoot a Picture. (Z pg. 30)

Turn the Power dial to “A” (full auto mode).

•Hold the Lock button down while turning the Power dial.

Point the lens at the subject, position yourself,

and half-press the Shutter button.

•Look through the finder.

•The focus is attained when the shoot standby lamp (green) changes from flashing to steadily on.

Press the Shutter button all of the way to take

the picture.

•The picture image is stored in the Memory card.

MODE switch

w e button

Lock button

Play back a Picture. (Z pg. 31)

Turn the Power dial to “B”.

•Hold the Lock button down while turning the Power dial.

Select “STILL PB” with the MODE switch.

Press the w e button to select the picture that

you wish to view.

Power dial

MAJOR FEATURES

EN 7

Three high-quality still image shooting modes

1. 6M Pro-Still (Pixel Shift Mode) (Z pg. 46)

This mode collects twice as much image data by using two exposures (with the CCD shifted one pixel for the second exposure), resulting in an image consisting of 6 million pixels, or twice as many in normal mode.

2. DR Pro-Still (Wide Range Mode) (Z pg. 47)

This mode uses two exposures, one with the exposure adjusted for the dark portions of the image, and one with the exposure adjusted for the bright portions of the image. By using the image data from both exposures, it is possible to achieve a wide dynamic range that was previously impossible. This mode avoids pictures where part of the image is blacked out or whited out, which occurs easily with conventional digital cameras.

3. NR Pro-Still (Noise Reduction Mode) (Z pg. 48)

This mode uses several exposures to collect a large amount of image information, then extracts the signal components and eliminates the noise components. This mode eliminates electronic noise, which occurs easily with conventional digital cameras.

Video Shooting

This feature is useful, if you want to send a short video by e-mail.

Collage shooting

This feature allows you to combine a subject with a previously photographed background with a simple operation.

Using the SmartMedia™ card* increases photo capacity

This unit is compatible with SmartMedia™ cards* (optional), which can be used to increase the number of pictures that can be taken. * “SmartMedia™ card” (which is described as

“Memory card” in this instruction manual) is a trademark of Toshiba Corporation.

Before taking important photos

● When you need to take an important photo, always take a test photo first and confirm that the camera is operating normally.

● Memory card is not installed when this unit is purchased. Be sure to install a Memory card before taking photos.

● Before shooting, always confirm how much memory is remaining from the memory card.

● We cannot bear any responsibility for an inability to shoot, record, or playback material normally in the event of a problem with a digital video camera, Memory card, etc.

● Store backups of important photos on a personal computer, etc. We cannot bear any responsibility for pictures stored in memory that are lost or altered.

Copyrights

You may only use material that you photograph or record with this digital camera for your own personal use, and not in any way that infringes on the copyrights of a third party. (Note that some performances and exhibits have restrictions against photography, even if only for your personal use.)

8 EN

SAFETY PRECAUTIONS 2 QUICK START 5 MAJOR FEATURES 7 CONTENTS 8 CONTROLS, CONNECTORS AND INDICATORS 10 GETTING STARTED 18

Charging the Battery ..................................................................................................... 18

Installing a Charged Battery .......................................................................................... 19

Connecting the Camera to a Power Outlet .................................................................... 20

Attaching the Hand strap .............................................................................................. 21

Attaching the Lens Cover .............................................................................................. 21

Inserting the Memory Card ........................................................................................... 22

Formatting a Memory Card ........................................................................................... 23

BASIC OPERATION 24

Viewfinder .................................................................................................................... 24

Shutter Button ............................................................................................................... 24

Good Photography Posture ........................................................................................... 25

Mounting the Camera on a Tripod ................................................................................ 25

Selecting the Shooting Mode ........................................................................................ 26

Zoom Shooting ............................................................................................................. 27

Selecting the Picture Size .............................................................................................. 28

Selecting the Picture Quality......................................................................................... 29

Full Auto Shooting ........................................................................................................ 30

Playing Back Still Pictures ............................................................................................. 31

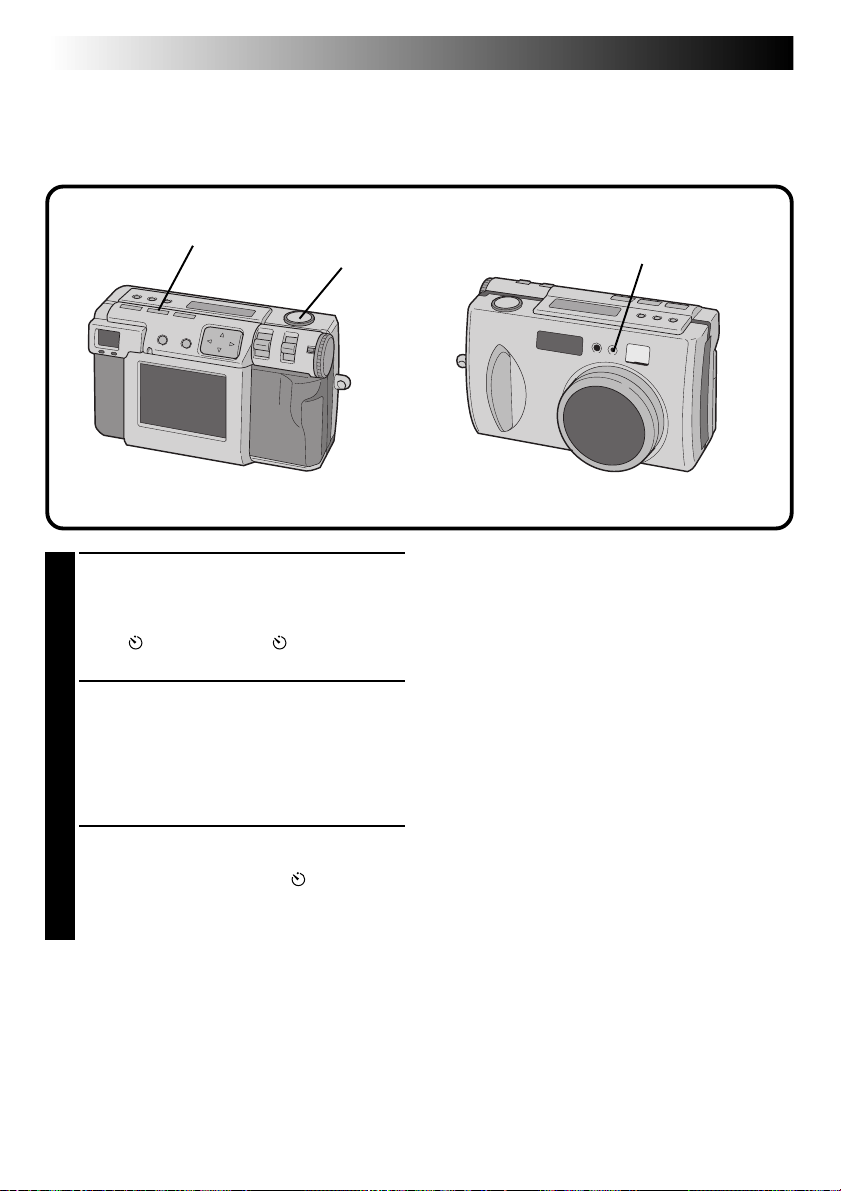

Self Timer ..................................................................................................................... 32

Flash Shooting .............................................................................................................. 33

MANUAL SHOOTING 34

Manual Focus ............................................................................................................... 34

Iris Setting ..................................................................................................................... 35

Macro Shooting ............................................................................................................ 36

Exposure Control .......................................................................................................... 37

White Balance Adjustment............................................................................................ 38

Manual White Balance Adjustment ............................................................................... 39

Sensitivity Setting .......................................................................................................... 40

Changing the Zoom Power While Shooting .................................................................. 41

Shooting Continuous Photos ......................................................................................... 42

Changing the AE/AF Area.............................................................................................. 43

Restoring the Default Settings ....................................................................................... 44

Collage Mode ............................................................................................................... 45

6M Pro-Still (Pixel Shift Mode) ...................................................................................... 46

DR Pro-Still (Wide Range Mode) ................................................................................... 47

NR Pro-Still (Noise Reduction Mode) ............................................................................ 48

Video Shooting ............................................................................................................. 49

PLAYBACK 50

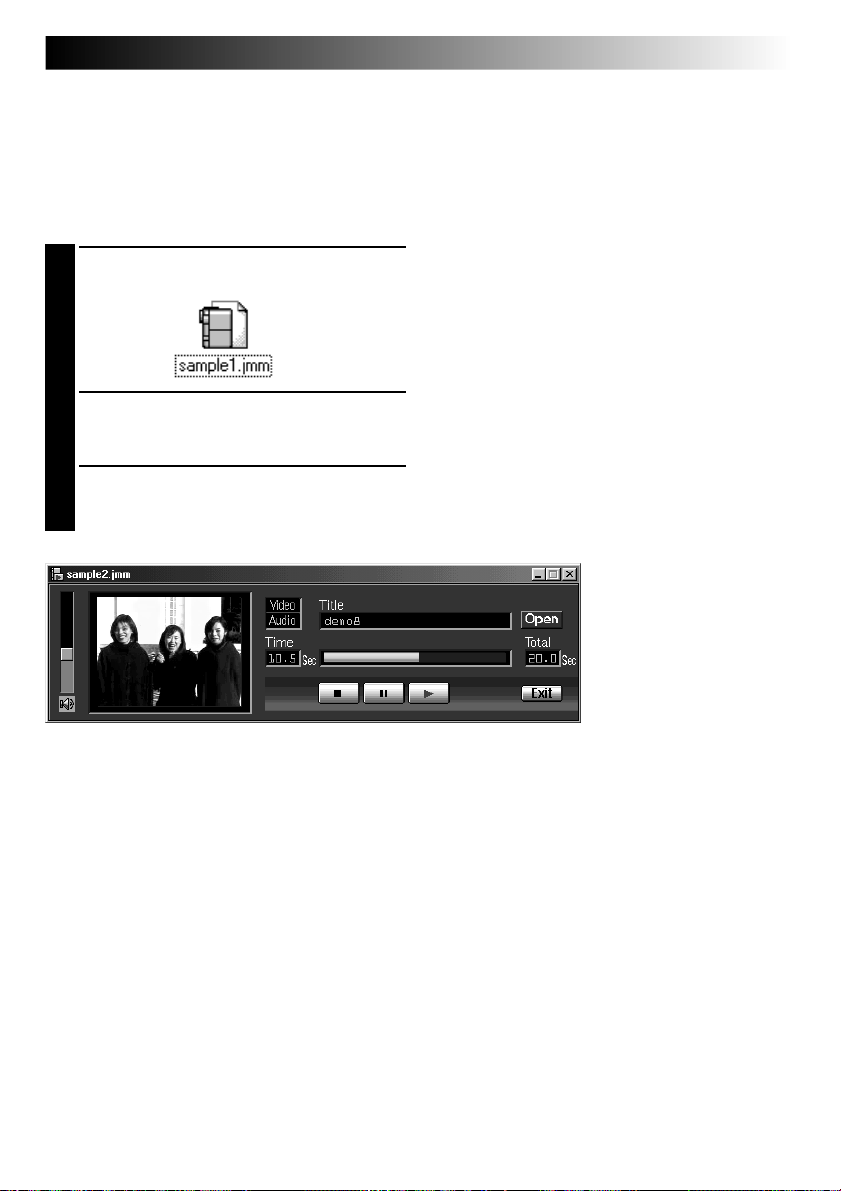

Video Playback............................................................................................................. 50

Display Mode during Playback ..................................................................................... 51

Brightness Adjustment of LCD Screen ........................................................................... 51

Protecting Pictures ........................................................................................................ 52

Deleting Pictures .......................................................................................................... 53

Adding Special Effects ................................................................................................... 54

Inputting the Date ......................................................................................................... 56

Inputting the Calendar .................................................................................................. 57

Connecting the Camera to a TV .................................................................................... 58

EN 9

PRINT 59

Connecting the Camera to a Printer .............................................................................. 59

Printing a Picture .......................................................................................................... 60

Printing by DPOF Setting .............................................................................................. 62

SUBSIDIARY SETTINGS 64

Changing Settings in the SET UP Menu ......................................................................... 64

Setting the Date and Time............................................................................................. 66

SOFTWARE SECTION FOR Windows SOFTWARE SECTION FOR Macintosh TROUBLE SHOOTING 82 SPECIFICATIONS 86 INDEX 88 CAUTIONS 89 FOR SERVICING (Only in U.S.A.) 92 WARRANTY (Only in U.S.A.) 93

67 75

PROVIDED ACCESSORIES

AC power adapter/

Battery BN-V37

CD-ROM Memory card (3.3V type) Hand strap Lens cover

charger (AA-V37)

DC cable USB cable Video cable

10 EN

Front View

CONTROLS, CONNECTORS AND INDICATORS

142 3

Top View

1 2 4 5

6 7 8 9 0 !

Front View

1 Flash............................................ Z pg. 33

Use the flash when shooting in dark conditions.

2 Flash sensor

This sensor is needed for adjusting the brightness when using the flash.

3 Self timer lamp ............................ Z pg. 32

Blinks when the self timer is running.

4 Zoom lens ................................... Z pg. 30

Point the lens towards the subject when taking a picture. Because the lens is extremely vulnerable to damage from physical impacts, handle it very carefully. Striking or dropping the lens can damage the lens.

EN 11

Top View

1 Exposure control button (+/–) ..... Z pg. 37

Press this button to check the brightness setting and to change the brightness setting for shooting photos.

2 FOCUS button ............................ Z pg. 34

Press this button to check the current focus mode or to change the focus mode.

3 Iris button ................................... Z pg. 35

Press this button to check the current iris mode or to change the iris mode.

4 LCD panel ...................................Z pg. 14

Indicates the current mode through text and symbols.

5 Shutter button ............................. Z pg. 24

This button has two modes: press it half way to focus on the subject; press it all of the way to shoot a photo.

6 Flash button ................................ Z pg. 33

Press this button to change the flash mode.

7 Self timer button ......................... Z pg. 32

Press this button to change the time setting for the self timer.

8 Macro button ..............................Z pg. 36

Press this button to set macro mode.

9 Directional button (r t w e) ..... Z pg. 23

Press this button to make various settings and selections.

0 ZOOM lever ......................... Z pg. 27, 51

Use this for zoom shooting and to adjust the brightness of the LCD screen.

! MODE switch........................ Z pg. 31, 36

Use this switch to change shooting and playback modes.

12 EN

Rear View

CONTROLS, CONNECTORS AND INDICATORS (cont.)

1 4

8 97 0

Bottom View

1 2

Rear View

1 2

3 4

1 Viewfinder

Look through here when framing and focusing your shot.

2 DISPLAY button ....................Z pg. 31, 38

Press this button to turn the LCD screen on and off, and to select the menu display in camera mode and the index display in playback mode.

3 EXE (execute) button ............. Z pg. 23, 50

This button is used to finalize selections on each menu, and also serves as a video playback button.

4 Lock button .................................Z pg. 23

Hold down this button in order to turn the Power dial.

5 Power dial ...................................Z pg. 23

Hold down the Lock button and turn this dial to turn the power on and off and to change the mode of the camera.

6 Shoot standby lamp (green) ........ Z pg. 30

The camera is ready to shoot a photo when this lamp changes from flashing to steadily on.

7 Connectors cover

Refer to the “Connectors” on the right.

8 Flash standby lamp (red) .............Z pg. 33

The flash is ready when this lamp changes from flashing to steadily on.

9 LCD screen ................................. Z pg. 15

The photo subject/playback picture is displayed on this screen.

0 Hand strap/lens cover mount...... Z pg. 21

This is used to attach the hand strap or a lens cover.

EN 13

Bottom View

1 Battery cover .............................. Z pg. 19

Open this cover to replace the battery.

2 Tripod mount hole ...................... Z pg. 25

Use this hole to mount the camera on a tripod. Use a tripod that does not have a rotation stopper.

3 Memory card cover..................... Z pg. 22

Open this cover to install/remove a Memory card.

Connectors

VIDEO

PRINTER

DIGITAL

Pull the cover to open.

1 VIDEO output connector ............Z pg. 58

This is to connect to view picture on a TV.

2 PRINTER output connector .........Z pg. 59

This is to connect an optional printer (GVSP2) to the camera via an optional cable.

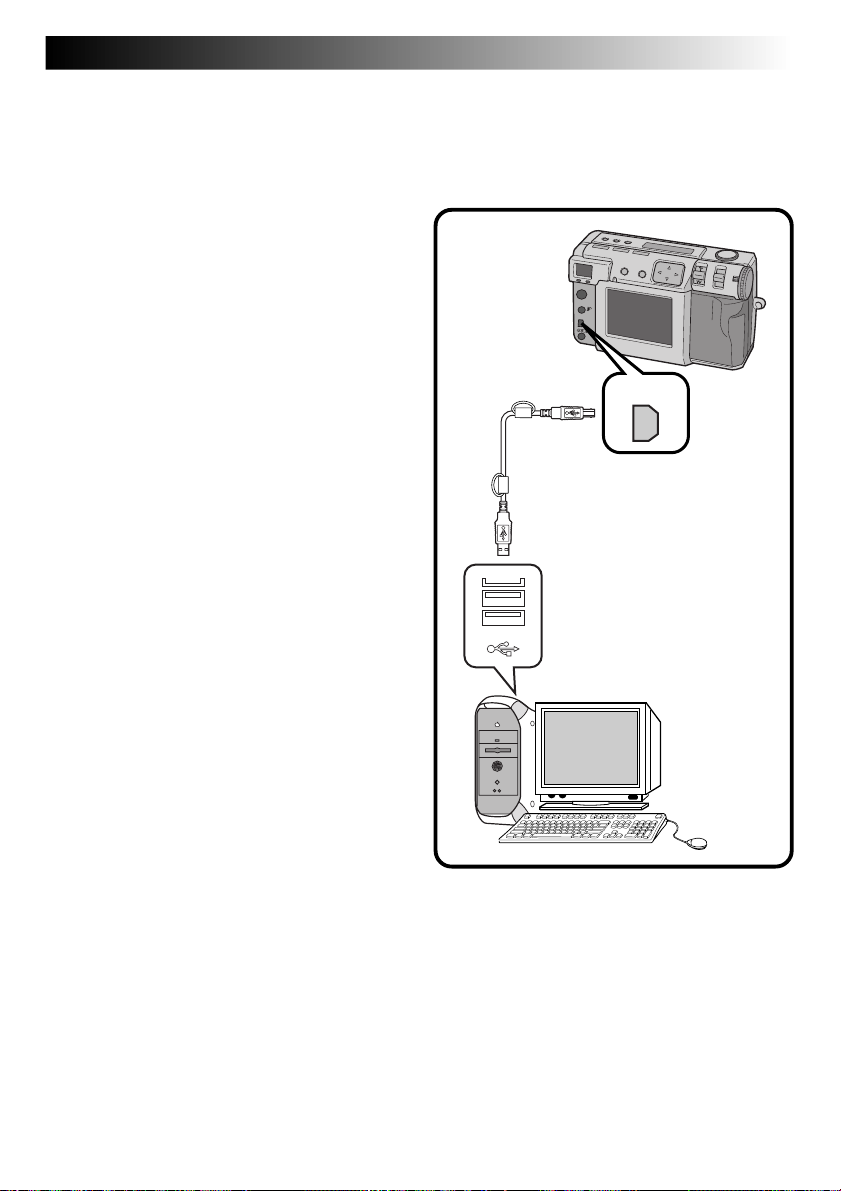

3 DIGITAL output connector ...Z pg. 68, 76

This is to connect the camera to a personal computer.

4 DC input connector .................... Z pg. 20

Power from the provided AC adapter (AAV37) is input here through a DC cord.

14 EN

LCD Panel

CONTROLS, CONNECTORS AND INDICATORS (cont.)

1 2

3 4 5 6 7

1 Indicator of initial settings having been

changed

This indicator is displayed if the initial settings have been changed.

2 Mode display

Displays the current mode.

3 Remaining battery power

indicator

This bar graph gives a rough indication of how much battery power is remaining.

4 Flash indicator ............................ Z pg. 33

This indicator is displayed if the flash button has been pressed and a mode that generates a flash (auto, forced on, or redeye prevention) has been set.

5 Timer mode indicator ................. Z pg. 32

This indicator is displayed if the Self timer button has been pressed and the timer mode has been set to either “1 second” or “8 seconds”.

6 Macro mode indicator ................ Z pg. 36

This indicator is displayed if the macro button has been pressed and the macro mode has been turned on.

7 Remaining photos counter

This indicates how many photos can still be taken.

Power Dial and Mode Display

The mode display appears on the LCD panel and screen, when the Power dial is set to certain position. Refer to the chart below for each mode. Press the DSP button to display the image, when the Power dial is set to “A”, “M” or “V”. Hold the Lock button down while turning the Power dial.

Power dial position LCD panel On-screen display Page

SET SET UP Displays the SET UP menu 16

B STILL PB Displays the playback image 31

OFF — — —

A CAM AUTO Displays the image 30 M MANUAL Displays the image 34 V VIDEO Displays the image 49

On-screen Display

During Shooting During Playback

112323

EN 15

2000. 12. 24

EXE

During Shooting

1 Flash indicator .......................Z pg. 33

Appears when the flash button has been pressed and a mode that generates a flash (auto, forced on, or red-eye prevention) has been set.

2 Macro mode indicator

Appears when the macro button has been pressed and the macro mode has been turned on.

3 Indicator of initial settings having been

changed

Appears when the initial settings have been changed. When the EXE button is pressed, the changed settings are displayed.

4 Timer mode indicator

Appears when the Self timer button has been pressed and the timer mode has been set to either “1 second” or “8 seconds”.

5 Date display ................................Z pg. 66

Depending on the setting, there are three different types of date displays: Year/ Month/Day, Month/Day/Year, and Day/ Month/Year.

............ Z pg. 36

............. Z pg. 32

654

During Playback

1 Picture size indicator .................. Z pg. 28

: 640 x 480 : 1024 x 768 : 2032 x 1536

2 Picture quality indicator ............. Z pg. 29

: standard quality : fine quality : uncompressed quality

3 Image position indicator

Indicates the current position of the displayed image in the memory.

indicator .................................Z pg. 62

Appears for a picture for which DPOF was set.

indicator ..................................Z pg. 53

Appears for a picture selected for deletion.

indicator .................................Z pg. 52

Appears for a protected picture.

16 EN

CONTROLS, CONNECTORS AND INDICATORS (cont.)

Menu Screens

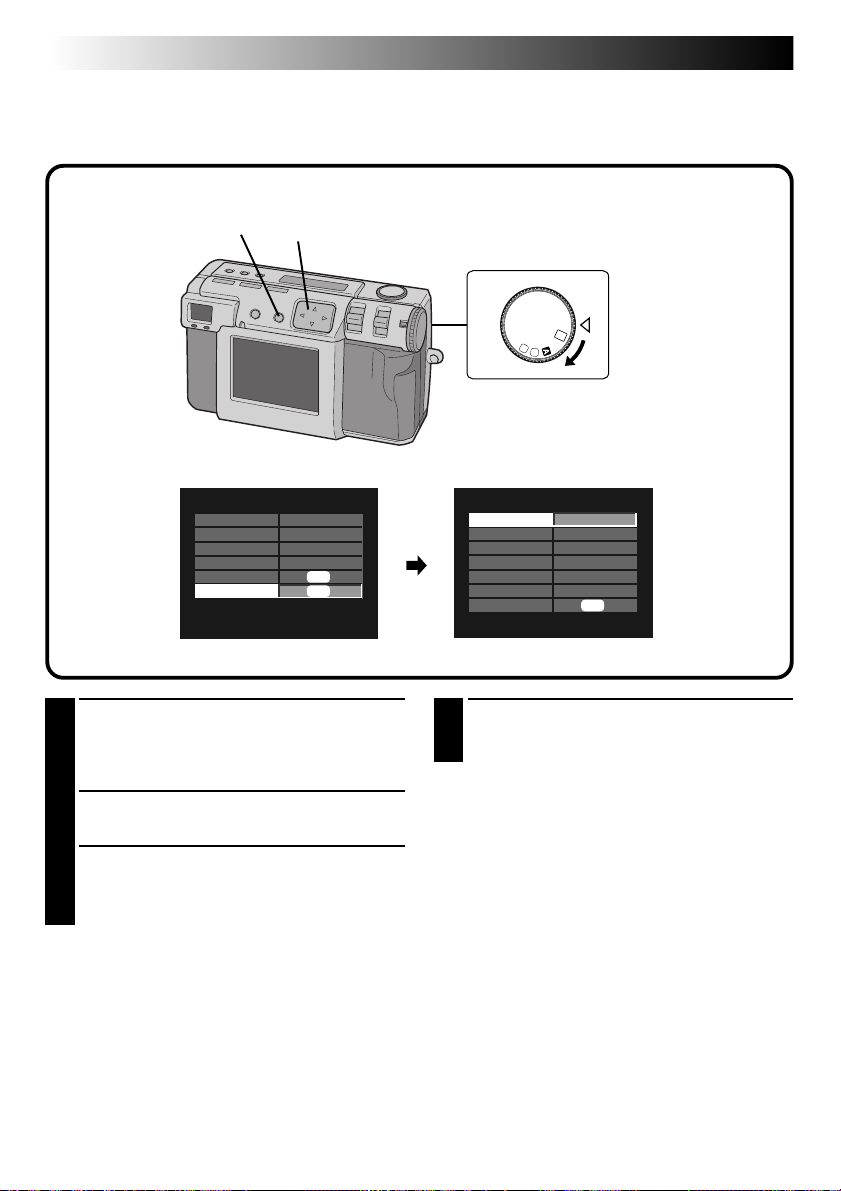

SET UP Menu Screen

Turn the Power dial to “SET” to display the SET UP screen.

Refer to the following pages for a detailed description of

SET UP

FRAME QUALITY

BEEP VOL.

Q. REVIEW FORMAT DATE/TIME

2032X1536

FINE

HIGH

EXE EXE

CAMERA SETTING Menu Screen

Turn the Power dial to “M”, then press the DSP button until the CAMERA SETTING screen appears. To turn off the menu screen, press the DSP button.

CAMERA SETTING

W. BALANCE SENS.

TELEPHOTO

M. DRIVE AE/AF CLEAR

AUTO

80 1X

OFF

MULTI

EXE

operation.

Z pg. 28 Z pg. 29 Z pg. 65

Z pg. 65 Z pg. 23 Z pg. 66

Refer to the following pages for a detailed description of operation.

Z pg. 38 Z pg. 40 Z pg. 41 Z pg. 42

Z pg. 43 Z pg. 44

CAMERA SETTING Confirmaton Screen

Turn the Power dial to “M”, then press the DSP button to turn on the LCD screen and hold down the EXE button. The CAMERA SETTING confirmation screen is displayed while the EXE button is held down.

Iris (Z pg. 35)

Focus (Z pg. 34)

F2.8/3.8

2.4m/8ft

W. BALANCE SENS.

TELEPHOTO

M. DRIVE AE/AF CLEAR

AUTO

80 1X

OFF

MULTI

EXE

1/750

+0.5

Shutter speed (automatic setting)

Exposure (Z pg. 37)

Playback Menu Screens

Turn the Power dial to “B” (playback), and then select each mode with the MODE switch. The selected mode appears on the LCD screen.

STILL PLAYBACK STILL PROTECT STILL DELETE

100-0003

STILL PROTECT

STILL DELETE

EN 17

THIS PIC.

ALL

SELECT

2000. 12. 24

THIS PIC.

ALL

SELECT

EXE EXE EXE

(Z pg. 31) (Z pg. 52) (Z pg. 53)

VIDEO PLAY VIDEO PROTECT VIDEO DELETE

THIS PIC.

ALL

SELECT

VIDEO PROTECT

EXE EXE EXE

THIS PIC.

ALL

SELECT

VIDEO DELETE

(Z pg. 50) (Z pg. 52) (Z pg. 53)

USB MODE EDIT DPOF SET

EDIT

No displays

EFFECT

DATE

RETURN

(Z pg. 71, 78) (Z pg. 54)

OFF OFF

EXE EXE

NEW/RESET

REVISE

FOR ALL

(Z pg. 62)

DPOF SET UP

EXE EXE EXE

NOTE:

●

It is not possible to change the settings on the menu screen when the item's letters appear gray.

18 EN

Charging the Battery

Charge the battery with the AC adapter (provided).

Battery BN-V37

Power outlet

Power lamp

Power cord

GETTING STARTED

Remove the battery.

Charging lamp

Connect the AC adapter's power cord to a

power outlet.

•The “Power” lamp lights.

Install the battery.

•The “Charging” lamp lights.

•Charging is complete when the “Charging” lamp turns off and the “Finish” lamp lights.

Remove the battery.

Finish lamp

AC adapter (AA-V37)

NOTES:

●

Approximate charging time is 90 minutes for one battery (BN-V37). (at a temperature from 10°C to 35°C or from 50°F to 95°F)

●

Charging is not possible if the DC cord is

connected to the AC adapter.

●

The battery is no longer usable, if the shooting

time is short with the battery fully charged. Replace the battery with new one.

Approximate number of pictures that can be taken with a fully charged battery (BN-V37)

Maximum number:

500 pictures (with the LCD screen turned off) 300 pictures (with the LCD screen turned on)

(when shooting every 5 seconds at normal temperature, without the flash and zooming)

Actual number:

65 pictures

(when shooting every 30 seconds at normal temperature, with the flash, zooming, auto focus and the LCD screen turned on)

NOTE:

●

Depending on the settings of the flash, zooming, etc., the number of pictures that can be taken may decrease.

EN 19

Installing a Charged Battery

The battery (provided) is not charged when the camera is purchased. Be sure to charge the battery with the AC adapter before using the camera.

Slide the battery cover slightly to open.

Insert a charged battery, making sure that it is

oriented correctly.

Close the battery cover and slide it back.

Removing the Battery

Slide the battery cover slightly to open.

Remove the battery.

Battery cover

20 EN

GETTING STARTED (cont.)

Connecting the Camera to a Power Outlet

The AC adapter (provided) is useful when shooting photos indoors for an extended period of time. The adapter can also be used overseas if you use a conversion plug.

DC input connector

Open the connector cover on the rear of the

camera.

Connect the DC cord to the DC input

connector.

Connect the DC cord to the DC input

connector on the AC adapter.

Connect the power cord to a power outlet.

•The power lamp lights.

Power outlet

Power lamp

DC cord

NOTES:

●

Make sure to use the provided AC adapter (AAV37).

●

Do not attempt to use an AC adapter for a video camera or other electronic device with this camera. Differences in voltage levels can damage the camera.

●

Use the AC adapter in order to safely format Memory cards, delete pictures or send pictures to a connected personal computer.

Power cord

AC adapter (AA-V37)

EN 21

Attaching the Hand strap

Attaching the Lens Cover

Pass one end of the hand strap through the

mounting hole.

Pass the other end through the loop.

Pass one end of the strap through the

mounting hole on the lens cover.

Pass the other end through the loop.

Attach the strap of the lens cover to the hand

strap.

NOTES:

●

Do not turn on the camera when the lens cover is attached. Doing so could result in the damage to the lens part.

●

Make sure to attache the lens cover when the camera is not in use.

●

Make sure to use the optional lens cleaning paper to clean fingerprints from the lens surface, and to clean the lens after shooting with the camera in warm, humid locations (by the seaside, in the mountains, etc.). Store the camera in a wellventilated location with little dust or debris.

22 EN

Inserting the Memory Card

Make sure to turn the Power dial to “OFF”, when inserting a Memory card. Memory card is not loaded in the camera, when purchasing the camera.

Open the Memory card cover.

•Slide the knob and then pull the cover.

Insert the Memory card.

•Insert the card so that the contact surface is facing up and the notch on the card is on the right.

•Do not touch the contact surface on the card.

Close the Memory card cover.

•Slide the knob to lock the cover.

NOTES:

●

There are two types of Memory cards (the 3.3V type which is indicated by a notch on the right side, and the 5V type which is indicated by a notch on the left side). This camera uses only Memory cards (3.3V) with a notch on the right side.

●

The maximum memory card capacity that can be used with this camera is 64MB.

●

To avoid damage to the Memory card, do not drop or strike the Memory card against hard objects.

●

To protect the entire content of the Memory card after shooting, peel and stick a write protect sticker as shown in the right.

GETTING STARTED (cont.)

Contact surface

Where the write protect sticker is placed

5V3.3V

Removing the Memory Card

Open the Memory card cover.

•Slide the knob and then pull the cover.

Remove the Memory card.

•Push on the card to remove it.

EN 23

OFF

SET

Formatting a Memory Card

If your Memory card has not been formatted, it must be formatted before it can be used. When a Memory card is formatted, all pictures in the card will be lost.

EXE button

FRAME QUALITY BEEP VOL. Q. REVIEW

FORMAT

DATE/TIME

Make sure to use the provided AC adapter (AAV37) to power the camera, when formatting a Memory card. (Z pg. 20)

When the message “FORMAT MEMORY

CARD” appears, turn the Power dial to “SET”.

•Hold the Lock button down while turning the Power dial.

•The SET UP screen appears.

Press the r t button to select “FORMAT“.

SET UP

2032X1536

FINE HIGH

EXE EXE

Press the EXE button.

•The FORMAT screen appears.

r t button

Press the r t button to select “YES“.

Press the EXE button.

•“NOW FORMATTING“ appears.

•Do not turn off the power or perform any

•The formatting starts, and the contents of

Lock button

Power dial

FORMAT

YES

other operations while formatting is in progress.

memory are erased. When formatting is completed, the SET UP screen appears.

EXE EXE

24 EN

BASIC OPERATION

Viewfinder

This camera is equipped with an optical viewfinder.

Normal Shooting

To focus, point the camera so that the subject appears within the finder, and then press the shutter button.

Macro Shooting

When shooting close-up, make sure the subject being photographed is within the frame inside the finder (indicated with diagonal lines).

NOTES:

●

In close-up (macro) shooting, the area that is actually photographed will be slightly below the area that can be seen in the viewfinder. The closer the camera is the subject, the greater that this displacement is.

●

It is recommended to view the subject with the LCD screen for an important shooting.

Shutter Button

Not pressed

Half-press

Full-press

The camera’s Shutter button is a two-step button. Pressing it halfway (to the first step) causes the photo standby lamp (green) to flash while the camera focuses automatically. Once the camera is focused, the photo standby lamp (green) lights steadily. Pressing the Shutter button halfway (to the first step) is called a “halfpress.“ Pressing the button from the half-press position to the full-press position causes the camera to take a picture.

NOTES:

●

Suddenly pressing the Shutter button with your finger or pressing too strongly can result in a picture that is at an angle or which is blurry. Press the button smoothly from the half-press position to the full-press position when taking pictures.

●

If you have pressed the Shutter button halfway and then release it, the camera will perform the autofocus operation again the next time that you press the Shutter button halfway.

●

If you press the Shutter button all the way instead of halfway, a picture can be taken after focusing automatically.

Good Photography Posture

With your left hand firmly supporting the camera to the left of and below the lens, support the camera body with your right hand. Next, look for your subject and determine the camera position. You can change the angle of the subject and the background by changing the direction in which you point the camera. You then frame the shot by using the zoom function, etc., to enlarge or reduce the subject to the desired size within the shot.

Mounting the Camera on a Tripod

Align the screw hole on the bottom of the

camera with the screw on the tripod.

Turn the screw on the tripod to secure the

camera in place.

•Adjust the screw and the length of the legs so that the camera does not wobble at all.

NOTE:

●

Use only tripods not equipped with a stud that prevents the camera from rotating.

EN 25

Use your left hand to hold the camera also.

Hold your arms firmly against your body.

Spread your legs apart slightly and adopt a firm stance.

Stud

Using a Tripod

We recommend use of a tripod in the circumstances described below in order to avoid problems caused by shaky hands. We especially recommend the use of a tripod when using pixel shift mode, wide range mode, or noise reduction mode.

• Low shots

Because it is difficult to assume a steady posture for a low shot, the shot will frequently be on a slant or blurred by shaky hands.

• Dark locations

When shooting in a location that prohibits the use of a flash (such as in a museum), the shutter speed is reduced, which increases the likelihood of problems caused by shaky hands.

• Shooting a distant object through the telephoto feature

Because the telephoto feature makes a small, distant space appear larger, even the slightest movement of the camera can cause blurring.

• Shooting an extreme closeup

Because a nearby object appears very large when shot in a closeup, the slightest movement in your body or hand can result in a blurred image.

26 EN

OFF

SET

BASIC OPERATION (cont.)

Selecting the Shooting Mode

The Power dial is used to switch among three shooting modes: “A”, “M” and “V”.

LCD panel

CAM AUTO

Mode display

A: CAM AUTO M: MANUAL V: VIDEO

Select the shooting mode with the Power dial.

•Hold the Lock button down while turning the Power dial.

Lock button

Power dial

Turn the Power dial to one of the following modes, depending on your needs:

“A”: To shoot photos in full auto mode

In this mode, the camera automatically sets the brightness, the shutter speed, the focus, and the white balance.

“M”: To shoot photos in manual mode

In this mode, you can set the brightness, the shutter speed, the focus, and the white balance manually.

“V”: To shoot video

You can shoot up to 20 seconds of video with a screen size of 160 x 120. This feature is useful if you want to send a short video by e-mail.

EN 27

Zoom Shooting

The camera incorporates a 2.3X zooming function that corresponds to a 37 mm to 86 mm lens of a 35 mm camera. Zooming allows you to shoot wide areas, as well as close-ups of subjects located far away, without changing the shooting position. Turn the Power dial to “A”, “M” or “V” when shooting with the zoom function.

ZOOM lever

Set ZOOM lever to “W” (wide angle).

You can shoot a wider angle.

ZOOM

Set ZOOM lever to “T” (telephoto).

You can shoot a distant subject in closeup.

NOTE:

●

With this camera, you can set the “AF” (autofocus)/”AE” (auto exposure) sensor point to either “SPOT” or “MULTI“. Switch to “SPOT” if the camera focuses on the background when you zoom in for a closeup. (Z pg. 43)

28 EN

Selecting the Picture Size

There are three picture sizes, starting with the highest resolution: 2032 x 1536 (QXGA) 1024 x 768 (XGA) 640 x 480 (VGA) Select the resolution that best fits your needs.

2,3

1,4

OFF

BASIC OPERATION (cont.)

SET UP

2032X1536

FINE HIGH

EXE EXE

SET

FRAME

QUALITY

BEEP VOL. Q. REVIEW FORMAT DATE/TIME

Turn the Power dial to “SET”.

•Hold the Lock button down while turning the Power dial.

•The SET UP screen appears.

Press the r t button to select “FRAME”.

Press the w e button to select either 2032 x

1536, 1024 x 768, or 640 x 480.

•The frame size is set.

•Turn the Power dial for shooting or other operations.

Turn the Power dial to “A” or “M” for

shooting.

Approximate number of pictures that can be stored (when using 8MB/16MB):

FRAME QUALITY 8MB 16MB

NO COMP. – 1

2032 x 1536 FINE 8 16

STANDARD 10 20 NO COMP. 3 6

1024 x 768 FINE 32 64

STANDARD 43 86 NO COMP. 8 16

640 x 480 FINE 65 130

STANDARD 87 174

NOTE:

●

The number of pictures that can be stored varies depending on the shooting condition.

Selecting the Picture Quality

You can select the picture quality according to the purpose for which you want to use the picture. There are three levels of picture quality, starting from the highest quality: NO COMP. (uncompressed) FINE (fine) STANDARD (standard)

2,3

EN 29

Turn the Power dial to “SET”.

•Hold the Lock button down while turning the Power dial.

•The SET UP screen appears.

Press the r t button to select “QUALITY”.

Press the w e button to select either “FINE”,

“STANDARD”, or “NO COMP.” mode.

•The new picture quality mode is set.

•Turn the Power dial for shooting or other operations.

Turn the Power dial to “A” or “M” for

shooting.

1,4

OFF

SET

FRAME

QUALITY

BEEP VOL.

Q. REVIEW FORMAT DATE/TIME

SET UP

2032X1536

FINE HIGH

NOTE:

• The number of pictures that can be stored will vary according to the images that are shot, the conditions under which the camera was used, the temperature when used, and the batteries that were used.

EXE EXE

+ 67 hidden pages
