JVC FS-SAD9, FS-SD5, FS-SD7 Service Manual

FS-SD5 / FS-SD7 / FS-SD9

SCHEMATIC DIAGRAMS

COMPACT COMPONENT SYSTEM

FS-SD5

FS-SD7 / FS-SD9

CD-ROM No.SML200012

Contents

REMOTE CONTROL

DIMMER SLEEP

DISPLAY FM MODE

PROGRAM

AHB PRO

BASS TREBLE CANCEL

FADE MUTING

MD/AUX FM / AM

REMOTE CONTROL

DIMMER SLEEP

DISPLAY FM MODE

PROGRAM

AHB PRO

BASS TREBLE CANCEL

FADE MUTING

MD/AUX FM / AM

Area Suffix

AUTO
PRESET

REPEATRANDOM

DOOR

CD

SLIDE

UP

SET

DOWN

CD

VOLUME

UT

FS-SD5

AUTO

PRESET

REPEATRANDOM

DOOR

CD

SLIDE

UP

SET

DOWN

CD

VOLUME

FS-SD7, FS-SD9

These models are different only speaker systems.

FS-SD7 and FS-SD9 are different only speaker cabinet.

Taiwan

Block diagrams
Standard schematic diagrams
Printed circuit board

This schematic diagrams is printed on 100% recycled paper.

COPYRIGHT 2000 VICTOR COMPANY OF JAPAN, LTD.

2-1
2-3
2-7

No.20885SCH

Dec. 2000

FS-SD5/FS-SD7/FS-SD9

1. This design of this product contains special hardware and many circuits and components specially
for safety purposes. For continued protection, no changes should be made to the original design
unless authorized in writing by the manufacturer. Replacement parts must be identical to those
used in the original circuits. Services should be performed by qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design alterations of
the product should not be made. Any design alterations or additions will void the manufacturer`s
warranty and will further relieve the manufacture of responsibility for personal injury or property
damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics.

These characteristics are often not evident from visual inspection nor can the protection afforded
by them necessarily be obtained by using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special safety characteristics are identified in
the Parts List of Service Manual. Electrical components having such features are identified by
shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a
substitute replacement which does not have the same safety characteristics as the recommended
replacement parts shown in the Parts List of Service Manual may create shock, fire, or other
hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the
like to be separated from live parts, high temperature parts, moving parts and/or sharp edges
for the prevention of electric shock and fire hazard. When service is required, the original lead
routing and dress should be observed, and it should be confirmed that they have been returned
to normal, after re-assembling.

5. Leakage currnet check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal parts
of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control
shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.
Do not use a line isolation transformer during this check.

Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure
the leakage current from each exposed metal parts of the cabinet , particularly any exposed
metal part having a return path to the chassis, to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.)

Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms
per volt or more sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by
a 0.15 F AC-type capacitor between an exposed
metal part and a known good earth ground.
Measure the AC voltage across the resistor with the
AC voltmeter.

AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)

Move the resistor connection to eachexposed metal
part, particularly any exposed metal part having a
return path to the chassis, and meausre the AC
voltage across the resistor. Now, reverse the plug in
the AC outlet and repeat each measurement. voltage
measured Any must not exceed 0.75 V AC (r.m.s.).

0.15 F AC TYPE

1500 10W

Place this
probe on
each exposed
metal part.

This corresponds to 0.5 mA AC (r.m.s.).

Good earth ground

1. This equipment has been designed and manufactured to meet international safety standards.

2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.

3. Repairs must be made in accordance with the relevant safety standards.

4. It is essential that safety critical components are replaced by approved parts.

5. If mains voltage selector is provided, check setting for local voltage.

!

Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

1-2

Important for Laser Products

FS-SD5/FS-SD7/FS-SD9

1.CLASS 1 LASER PRODUCT

2.DANGER : Invisible laser radiation when open and inter

lock failed or defeated. Avoid direct exposure to beam.

3.CAUTION : There are no serviceable parts inside the

Laser Unit. Do not disassemble the Laser Unit. Replace
the complete Laser Unit if it malfunctions.

4.CAUTION : The compact disc player uses invisible

laserradiation and is equipped with safety switches
whichprevent emission of radiation when the drawer is
open and the safety interlocks have failed or are de
feated. It is dangerous to defeat the safety switches.

VARNING : Osynlig laserstrålning är denna del är öppnad

och spårren är urkopplad. Betrakta ej strålen.

VARO : Avattaessa ja suojalukitus ohitettaessa olet

alttiina näkymättömälle lasersäteilylle.Älä katso
säteeseen.

5.CAUTION : If safety switches malfunction, the laser is able

to function.

6.CAUTION : Use of controls, adjustments or performance of

procedures other than those specified herein may result in
hazardous radiation exposure.

CAUTION

!

Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.

ADVARSEL : Usynlig laserstråling ved åbning , når

sikkerhedsafbrydere er ude af funktion. Undgå
udsættelse for stråling.

ADVARSEL : Usynlig laserstråling ved åpning,når

sikkerhetsbryteren er avslott. unngå utsettelse
for stråling.

REPRODUCTION AND POSITION OF LABELS

WARNING LABEL

CLASS 1
LASER PRODUCT

DANGER : Invisibie laser radiation
when open and interlock or
defeated.
AVOID DIRECT EXPOSURE TO
BEAM (e)

VARNING : Osynlig laserstrålning är
denna del är öppnad och spårren är
urkopplad. Betrakta ej strålen. (s)

VARO : Avattaessa ja suojalukitus
ohitettaessa olet alttiina
näkymättömälle lasersäteilylle.Älä
katso säteeseen. (d)

ADVARSEL :Usynlig laserstråling
ved åbning , når
sikkerhedsafbrydere er ude af
funktion. Undgå udsættelse for
stråling. (f)

1-3

FS-SD5/FS-SD7/FS-SD9

Preventing static electricity

Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

1.1. Grounding to prevent damage by static electricity

Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as DVD players.
Be careful to use proper grounding in the area where repairs are being performed.

1.1.1. Ground the workbench

1. Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over
it before placing the traverse unit (optical pickup) on it.

1.1.2. Ground yourself

1. Use an anti-static wrist strap to release any static electricity built up in your body.

(caption)
Anti-static wrist strap

Conductive material
(conductive sheet) or iron plate

1.1.3. Handling the optical pickup

1. In order to maintain quality during transport and before installation, both sides of the laser diode on the
replacement optical pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)

2. Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power
source can easily destroy the laser diode.

1.2. Handling the traverse unit (optical pickup)

1. Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.

2. Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific
details, refer to the replacement procedure in the text. Remove the anti-static pin when replacing the traverse
unit. Be careful not to take too long a time when attaching it to the connector.

3. Handle the flexible cable carefully as it may break when subjected to strong force.

4. It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it

1-4

FS-SD5/FS-SD7/FS-SD9

Dismantling and assembling the traverse unit

Notice regarding replacement of optical pickup

Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing
repairs to the optical pickup or connected devices.

1. Do not touch the area around the laser diode and actuator.

2. Do not check the laser diode using a tester, as the diode may easily be destroyed.

3. It is recommended that you use a grounded soldering iron when shorting or removing the laser diode.
Recommended soldering iron: HAKKO ESD-compatible product

4. Solder the land on the optical pickup's flexible cable.
Note : Short the land after shorting the terminal on the flexible cable using a clip, etc., when using an
ungrounded soldering iron.
Note : After shorting the laser diode according to the procedure above, remove the solder according
to the text explanation.

Laser pick-up unit

KSM-770ABA

Shorting

Short circuit land

1-5

FS-SD5/FS-SD7/FS-SD9

Disassembly method

<Main body>

Removing the rear cover (See Fig.1)

1.

Remove the ten screws A and the five screws B
attaching the rear cover on the back of the body.

Removing the right and left covers

(See Fig.2)

Prior to performing the following procedure, remove
the rear cover.

1.

Remove the four screws C attaching the side covers
on the bottom of the body.

2.

Move the left cover backward and remove outward.
Also remove the right cover in the same way.

A

B

C

Rear cover

A

A

Fig.1

B

A

Right cover

C

B

A

Removing the front panel assembly

(See Fig.3 to 5)

Prior to performing the following procedure, remove
the rear cover and the side covers.

1.

Remove the three screws D on the bottom of the
body.

2.

Release two joints a and two joints b on both sides of
the body using a screwdriver and remove the front
panel assembly toward the front.

Left side

Left cover

Fig.2

D

Bottom

Front panel assembly

Fig.3

Front panel assembly

Right side

1-6

Joints a

Joints b

Fig.5Fig.4

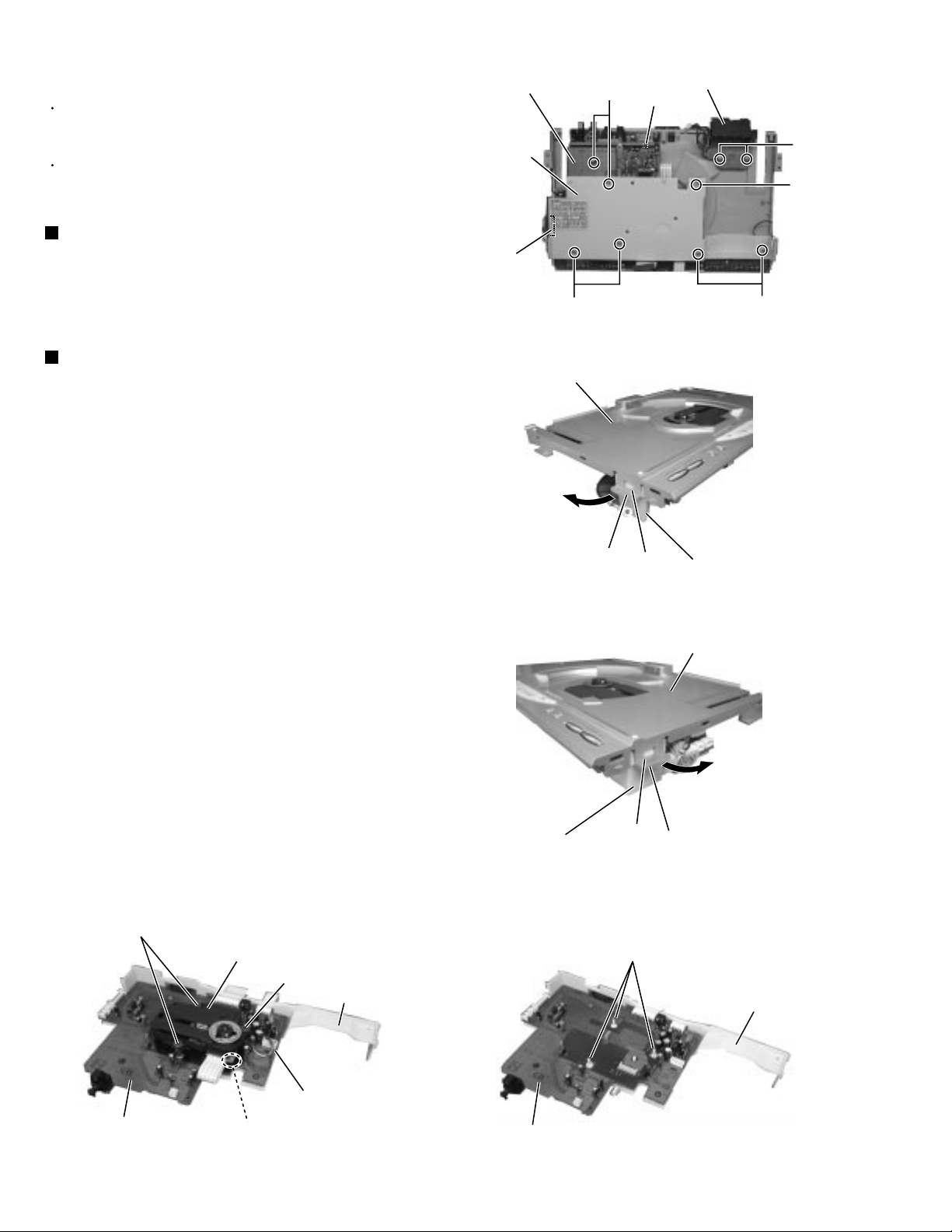

Removing the CD mechanism base
assembly (See Fig.6 to 13)

Prior to performing the following procedure, remove
the rear cover, the side covers and the front panel
assembly.

1.

Remove the four screws E attaching the CD door on
the upper side of the body.

2.

Disconnect the card wire from connector CN104 and
CN105 of the main board in the front part of the
body. Disconnect the card wire from CN101 of the
main board on the right side, and the harness from
CN705 and CN708 of the CD mechanism base
assembly respectively.

3.

Remove the four screws F attaching the CD
mechanism base assembly on the upper side of the
body. Remove the screw I attaching the earth
terminal on the right side.

E

FS-SD5/FS-SD7/FS-SD9

E

CD door

Fig.6

CD mechanism base assembly

4.

Remove the screw G attaching the heat sink board
on the back of the body. Disconnect the harness
from connector CN301 and pull the heat sink board
fully outward.

CD mechanism base assembly

F

CN104

Fig.7

CD mechanism base assembly

Main bard

CN101

Fig.8

CD mechanism base assembly

CN105

CN708

Main bard

F

I

CN705

CN804

Fig.9

Heat sink board

G

Fig.10

CN301

1-7

FS-SD5/FS-SD7/FS-SD9

5.

Raise the right and left door arms by turning the gear
a in the rear of the heat sink board.

6.

After the CD mechanism base assembly is detached
from the door arms, pull the CD mechanism base
assembly toward the front and disconnect the
harness from connector CN804 on the left side of the
door arm board.

7.

Pull out the CD mechanism base assembly toward
the front.

I

CD mechanism base assembly

Heat sink board

Door arm

Gear a

Fig.11

Door arm

Fig.12

CD mechanism base assembly

Door arm board (L)

CN804

Fig.13

Gear a

1-8

FS-SD5/FS-SD7/FS-SD9

Removing the door arm assembly / the
door arm board (R) and (L)

(See Fig.14 to 19)

Prior to performing the following procedure, remove
the rear cover, the side covers, the front panel
assembly and the CD mechanism base assembly.

1.

In case that the upper parts of the door arms
attached to the CD door are not level, let down them
to the level position by turning the gear a in the
direction of the arrow.

ATTENTION:

2.

Remove the four screws H on the upper side and
the one screw I on the left side of the body.

3.

Remove the four screws J attaching the door arm
board (L) and (R) on both sides of the door arm
assembly.

When the door arms incline, the door
arm assembly and the door arm board
(R) and (L) may not be removed.

Door arm

Door arm board (R)

Door arm

Door arm board (L)

Fan motor

Fig.14

Door arms (Attached to the CD door)

H

Door arm board (L)

Door arm assembly

Fig.16

J

Fig.15

Door arm assembly

H

Fig.17

Door arm assembly

J

Door arm board (R)

J

I

Fig.18

J

Fig.19

1-9

FS-SD5/FS-SD7/FS-SD9

Removing the power amplifier board

(See Fig.20 and 21)

Prior to performing the following procedure, remove
the CD mechanism base assembly.

1.

Disconnect the harnesses from connector CN102
and CN193 on the main board and release them
from the cord stopper respectively.

2.

Remove the two screws K and the two screws L
attaching the heat sink and the power amplifier
board.

Removing the transformer assembly

(See Fig.20)

Prior to performing the following procedure, remove
the CD mechanism base assembly.

1.

Disconnect the harnesses from connector CN191
and CN192 on the main board and release them
from the cord stopper respectively.

2.

Remove the four screws M attaching the
transformer assembly.

Door arm assembly

Cord stopper

M

Transformer assembly

CN191

M

Cord stopper

CN193

CN192

Fig.20

Heat sink board

Cord
stopper

Main board

CN106

CN102

CN181

Heat sink board

Removing the gear motor assembly

(See Fig.22 to 24)

Prior to performing the following procedure, remove
the CD mechanism base assembly and the door arm
assembly.

1.

1.Disconnect the harness from connector CN106 on
the main board and release it from the cord stopper.

2.

2.Remove the three screws N attaching the gear
motor assembly. Remove the gear motor assembly
with the gear motor stopper.

3.

Remove the belt from the gear motor assembly.

4.

Remove the two screws O from the gear motor
assembly.

Heat sink

Gear motor stopper

Motor

L

Fig.21

K

N

Gear motor assembly

Cord
stopper

CN102

CN106

N

Fig.22

1-10

O

Belt

Fig.23

Removing the fan motor assembly

(See Fig.24 and 25)

Prior to performing the following procedure, remove
the CD mechanism base assembly.

1.

Disconnect the harness from connector CN181 on
the main board.

2.

Remove the two screws P on the left side of the
body. Move the fan motor assembly upward to
remove it from the base chassis.

3.

Remove the two screws Q and the fan motor from
the fan bracket.

Fan motor

P

FS-SD5/FS-SD7/FS-SD9

Main bard

CN181

Fig.24

Q

Removing the main board (See Fig.26)

Prior to performing the following procedure, remove
the CD mechanism base assembly and the door arm
assembly.

To facilitate operation process, remove the gear
motor assembly before performing the following
procedure.

1.

Disconnect the harnesses from connector CN102,
CN106, CN191, CN192, CN193 and CN181 on the
main board.

2.

Remove the five screws R attaching the main board
with the cord clamp.

<Front panel assembly>

Removing the front panel board

(See Fig.27)

Prior to performing the following procedure, remove
the front panel assembly.

1.

Remove the seven screws S attaching the front
panel board inside the front panel assembly.

Fan bracket

CN191

R

S

Fan motor

Fig.25

Gear motor assembly

CN193

R

CN192

R

CN102

Fig.26

Front panel assembly

CN181

Main board

R

CN106

S

S

S

Fig.27

1-11

FS-SD5/FS-SD7/FS-SD9

<CD mechanism base assembly>

Prior to performing the following procedure, remove
the CD mechanism base assembly.

Refer to "Dismantling and assembling the CD
mechanism assembly" on page 1-5 for the treatment of
optical pickup.

Removing the speaker terminal board

(See Fig.28)

1.

Remove the two screws T attaching the speaker
terminal board on the underside of the CD
mechanism base assembly.

Removing the CD mechanism board / CD
mechanism assembly (See Fig.28 to 32)

1.

Turn over the CD mechanism base assembly and
disconnect the harness from connector CN703 and
CN706 on the CD mechanism board.

2.

Turn over the CD mechanism base assembly and
disconnect the harness from connector CN703 and
CN706 on the CD mechanism board.

CD mechanism board

CD mechanism
cover

CN703

U

CD mechanism assembly

U

Speaker terminal board

CN706

T

U

U

Fig.28

3.

Turn back the CD mechanism assembly and detach
the CD mechanism cover while pulling the CD
mechanism assembly outward to release the two
joint tabs marked c.

4.

Disconnect the card wire from the connector of the
CD mechanism assembly inside the CD mechanism
cover. Disconnect the harness from CN605 on the
CD mechanism board. Pull the CD mechanism
assembly out of the three shaft of the CD
mechanism cover.

ATTENTION:

5.

Remove the CD mechanism board from the CD
mechanism cover.

Cushion

When reassembling, confirm that the
cushion of the CD mechanism
assembly is reattached to the three
shafts.

CD mechanism assembly

Cushion

CD mechanism cover

Joint c

CD mechanism cover

Tab

Fig.29

Tab

Fig.30

Shafts

CD mechanism cover

CD mechanism assembly

Joint c

CD mechanism cover

CD mechanism board

1-12

Short circuit land

Fig.31

CN605

CD mechanism board

Fig.32

FS-SD5/FS-SD7/FS-SD9

Removing the jack board (See Fig.33)

Prior to performing following procedure, remove the
CD mechanism board.

1.

Disconnect the harness from connector CN502 on
the jack board.

2.

Remove the four screws V attaching the jack board.

Removing the switch board (See Fig.33)

Prior to performing following procedure, remove the
CD mechanism board.

1.

Disconnect the harness from connector CN502 on
the jack board.

2.

Remove the six screws W attaching the switch
board.

Jack board

V
V

W

CD mechanism board

CN502

V

Fig.33

Tabs d

Switch board

W

Removing the LED board

(See Fig.34 and 35)

1.

Disconnect the harness from connector CN706 on
the CD mechanism board on the underside of the
CD mechanism base assembly.

2.

Push inward the two tabs d attaching the LED board
case and release them.

3.

Pull out the LED board from the LED board case.

Fig.34

LED board

Fig.35

LED board case

1-13

FS-SD5/FS-SD7/FS-SD9

Maintenance of laser pickup

(1) Cleaning the pick up lens
Before you replace the pick up, please try to
clean the lens with a alcohol soaked cotton
swab.

(2) Life of the laser diode
When the life of the laser diode has expired,
the following symptoms will appear.

1. The level of RF output (EFM output:amplitude
of eye pattern) will below.

Is the level of

RFOUT under

1.25V 0.22Vp-p?

YES

O.K

NO

Replace it.

Replacement of laser pickup

Turn off the power switch and,disconnect the
power cord from the ac outlet.

Replace the pickup with a normal one.(Refer
to "Pickup Removal" on the previous page)

Plug the power cord in,and turn the power on.
At this time,check that the laser emits for
about 3seconds and the objective lens moves
up and down.
Note: Do not observe the laser beam directly.

Play a disc.

Check the eye-pattern at TP1.

Finish.

(3) Semi-fixed resistor on the APC PC board The semi-fixed resistor on the APC printed circuit board which is
attached to the pickup is used to adjust the laser power.Since this adjustment should be performed to match the
characteristics of the whole optical block, do not touch the semi-fixed resistor.
If the laser power is lower than the specified value,the laser diode is almost worn out, and the laser pickup should
be replaced.
If the semi-fixed resistor is adjusted while the pickup is functioning normally,the laser pickup may be damaged
due to excessive current.

1-14

Flow of functional operation until TOC read

Power ON

Play Key

Slider turns REST
SW ON.

Automatic tuning
of TE offset

Confirm that the voltage at the pin4
of CN605 is "H"/"L"/"H".

FS-SD5/FS-SD7/FS-SD9

Check Point

Tracking error waveform at TOC reading

Approx.3sec

Tracking
servo
off states

Automatic measurement
of TE amplitude and
automatic tuning of
TE balance

VREF

pin 25 of
IC601(TE)

Approx

1.8V

Disc states
to rotate

Tracking
servo
on states

Disc to be
braked to stop

TOC reading
finishes

500mv/div
2ms/div

Fig.1

Laser ON

Detection of disc

Automatic tuning of
Focus offset

Automatic measurement of
Focus S-curve amplitude

Disc is rotated

Focus servo ON
(Tracking servo ON)

Automatic measurement of
Tracking error amplitude

Automatic tuning of
Tracking error balance

Check that the voltage at the
pin40 of IC603 is + 5V?

Confirm that the Focus error
S-cuve signal at the pin28 of
IC603 is approx.2Vp-p

Confirm that the signal from
pin24 IC603 is 0V as a
accelerated pulse during
approx.400ms.

Confirm the waveform of
the Tracking error signal.
at the pin 25 of IC601 (R6009)
(See fig-1)

Automatic tuning of
Focus error balance

Automatic tuning of
Focus error gain

Automatic tuning of
Tracking error gain

TOC reading

Play a disc

Confirm the eys-pattern
at the lead of TP602

1-15

FS-SD5/FS-SD7/FS-SD9

Method of connecting treatment device wire

When the KSM-770ABA mechanism is used, the expansion cable is used as follows.

EXTFSSD5-JIG

extension wire

QUQB12-0840CJ

8pin card wire

QUQB12-0940DJ

9pin card wire

QUQB12-1840DJ

18pin card wire

QUQB12-1640DJ

16pin card wire

First short-circuit the pickup circuit before removing the pickup.Then carry out the replacement.

Refer to "Dismantling and assembling the traverse unit" on page 1-5.

KSM-770ABA

Laser pick-up unit

Shorting

1-16

Short circuit land

FS-SD5/FS-SD7/FS-SD9

Description of major ICs

BD3861FS-X (IC501) : Audio sound control

1. Pin layout

32 18

117

2. Block diagram

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

0dB~

-70dB

Vcc/2 Vcc/2

Vcc/2

Vcc/2

25k

25k

12345678910111213141516

25k

25k

25k

25k

25k

25k

Treble1
f0=10kHz

25k

25k

Treble2
f0=10kHz

Vcc/2

Vcc/2

25k

25k

Middle2
f0=1kHz

25k

25k

25k

25k

Middle1
f0=1kHz

25k

25k

25k

25k

Bass1
f0=90Hz

12k

100k

0dB~

-59dB

24k

Vcc/2

Vcc/2

Bass2
f0=90Hz

0dB~

-59dB

Vcc/2

Vcc/2

Logic

3. Pin function

Pin

Symbol SymbolFunction Function

No.

10
11
12
13
14
15
16

1
2
3
4
5
6
7
8
9

A1
A2
B1
B2
C1
C2
D1
D2
E1
E2

MIC

FIL

GND

DATA

CLK

Vcc

CH1 input pin A
CH2 input pin A
CH1 input pin B
CH2 input pin B
CH1 input pin C
CH2 input pin C
CH1 input pin D
CH2 input pin D
CH1 input pin E
CH2 input pin E
Microphone input pin
Filter pin
Ground pin
Serial data latch receiving pin
Serial clock receiving pin
Power supply pin

17
18

BASS21

19

BASS22
20
21

BASS11
22

BASS12
23
24
25
26
27
28
29
30
31
32

OUT2

OUT1

MID11
MID12
MID21
MID22

TRE2
TRE1
VOL1

VOL2
GOUT2
GOUT1

CH2 output pin
CH2 bass filter setting pin
CH2 bass filter setting pin
CH1 output pin
CH1 bass filter setting pin
CH1 bass filter setting pin
CH1 middle filter setting pin
CH1 middle filter setting pin
CH2 middle filter setting pin
CH2 middle filter setting pin
CH2 treble filter setting pin
CH1 treble filter setting pin
CH1 input volume input pin
CH2 input volume input pin
CH2 input gain output pin
CH1 input gain output pin

1-17

FS-SD5/FS-SD7/FS-SD9

UPD780024AGKA11 (IC701) : CPU for KSM-770ABA

1. Pin layout
64 ~ 49

1

48

2. Block diagram

~

16

17 ~ 32

16-bit TIMER/
EVENT COUNTER

8-bit TIMER/
EVENT COUNTER50

8-bit TIMER/
EVENT COUNTER51

WATCHDOG TIMER

WATCH TIMER

SERIAL
INTERFACE30

33

~

PORT0

PORT1

PORT2

PORT3

78K/0

CPU

CORE

ROM
(32K
BYTE)

PORT4

PORT5

SERIAL
INTERFACE31

UART0

A/D CONVERTER

INTERRUPT
CONTROL

BUZZER OUTPUT

CLOCK OUTPUT
CONTROL

RAM
(1024
BYTE)

VDD0 VDD1 Vss0 Vss1 IC

PORT6

PORT7

EXTERNAL
ACCESS

SYSTEM
CONTROL

1-18

FS-SD5/FS-SD7/FS-SD9

3. Pin function

Pin

No.

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

1
2
3
4
5
6
7
8
9

Symbol I/O Function

MT0
MT1
MTS

BLCTL

AHB

SMUTE

TUST

CDLED

VSS0

VDD0

MPX

RDSDI

DRMUTE

SCD

TUDATA(I)

TUDATA(O)

TUCK
SUBQ
XRST
SQCK

MLD

M DATA

MCLK
VDD1
AVSS

S TAT

REST

KEY1
KEY2
KEY3

SAFETY

LDCK

VERSION

AVREF

AVDD

RESET

XT2
XT1

IC
X2
X1

VSS1

REM

RDSCK

XKILL

BEAT

BUP
+BCTL
V DATA

VCLK
DOOR1
DOOR2
DOOR3

LOMUTE

RS

E
D84
D85
D86
D87

DIMMER

POUT

FTU
FCD

O

CD door motor control signal 0 output

O

CD door motor control signal 1 output

O

Motor speed control output (L:Normal, H:Slow)

O

Back light power supply control output

O

AHB ON/OFF control signal output (L:ON, H:OFF)

O

System mute control signal output

O

Tuner control strove output

O

CD LED control signal output (L:OFF, H:ON)

-

Ground at port section

-

Power supply at port section

I

Stereo indicator control signal input (L:Stereo)

I

RDS data input

O

Driver mute output

I

Voltage detection for safety of CD

I

Tuner control data input

O

Tuner control data output

O

Tuner control clock output

I

CD control Q code input

O

CD control reset signal output

O

CD control Q code clock signal output

O

CD control command load signal output

O

CD control command data signal output

O

CD control command clock signal output

-

Power supply without port section

-

Ground of A/D converter

I

CD control status signal input

I

CD rest switch detection signal input

I

Main body top section tact switch detection signal input

I

Main body top section tact switch detection signal input

I

Main body front section tact switch detection signal input

I

Voltage detection for safety

I

CD door motor lock detection signal input

I

Version detection

I

Reference voltage input for A/D converter

-

Analog power supply for A/D converter

I

System reset signal input

-

Sub clock

I

Sub clock signal input 32.768kHz

I

Connect to VSS0 or VSS1

-

Main clock

I

Main clock signal input 4.19MHz

-

Ground without port section

I

Remote controller signal input

I

RDS clock signal input

O

Sub clock OSC control signal output

O

Main clock shift control signal output

I

Back up detection signal input

O

Power supply control at back up operating

O

BD3861FS (VOL & FUNC IC) control data signal output

O

BD3861FS (VOL & FUNC IC) control clock signal output

I

Cd door position detection switch input

I

CD door position detection switch input

I

CD door position detection switch input

O

LINE OUT muting control signal output

O

LCD driver control resistor select signal output

O

LCD driver control enable signal output

O

LCD driver control data bus signal output

O

LCD driver control data bus signal output

O

LCD driver control data bus signal output

O

LCD driver control data bus signal output

O

Back light DIMMER control signal output

O

Power supply control signal output for amp section

O

Power supply control signal output for TUNER function

O

Power supply control signal output for CD function

UPD780024AGKA11

1-19

FS-SD5/FS-SD7/FS-SD9

AN8806SB-W(IC601) :RF&SERVO AMP

1.Pin layout

PD 1

LD 2
LDON 3
LDP 4
VCC 5
RF- 6

RF OUT 7
RF IN 8

C.AGC 9

ARF 10
C.ENV 11
C.EA 12

CS BDO 13

BDO 14
CS BRT 15
OFTR 16
/NRFDET 17

GND 18

2.Block diagram

36 PDAC
35 PDBD
34 PDF
33 PDE
32 PDER
31 PDFR
30 TBAL
29 FBAL
28 EF­27 EF OUT
26 TE­25 TE OUT
24 CROSS
23 TE BPF
22 VDET
21 LD OFF
20 VREF
19 ENV

6

29

728

27

910 17

8

11

12 19

­+

- +

­+

EQ

AGC

RF
DET

ENV CURCUIT

36

­+

35

­+

31

34

-

+

VCBA

-

+

VCBA

-

-

VCBA

+

­+

OFTR

BDO

­+

13

14

15

16

20

+

- +

32

33

­+

-

VCBA

+

+ -

­+

- +

21

2

+

-

24 25

30

23

26

22

14

3

1-20

FS-SD5/FS-SD7/FS-SD9

3. Pin function

Pin No.

1
2

3
4
5
6

7
8

9
10
11
12
13
14
15
16
17
18

19

20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

symbol

/NRFDET

PD

LD

LD ON

LDP

VCC

RF-

RF OUT

RF IN

C.AGC

ARF

C.ENV

C.EA

CS BDO

BDO

CS BRT

OFTR

GND

ENV

VREF

LD OFF

VDET

TE BPF
CROSS
TE OUT

TE-

FE OUT

FE­FBAL
TBAL

PDFR
PDER

PDF

PDE

PD BD

PD AC

I/O

I

APC amp . Input terminal
APC amp . Output terminal

O

LD ON/OFF control terminal

I

Connect to GND

-­Power supply

-­RF amp . Reversing input terminal

I

RFamp . Output terminal

O

AGC input terminal

I

AGC loop filter connection terminal

I/O

ARF output terminal

O

RF detection capacity connection terminal

I/O

HPF-amp capacity connection terminal

I/O

Capacity connection terminal for RF discernment side envelope detection

I/O

BDO output terminal

O

Capacity connection terminal for RF discernment side envelope detection

I/O

O

OFTR output terminal
RFDET output terminal

O

--

Connect to GND

O

3TENV output terminal

O

VREF output terminal

--

APC OFF control terminal

O

VDET output terminal

I

VDET input terminal

O

CROSS output terminal

O

TE amp . Output terminal

I

FE amp . Reversing input terminal

O

FE amp . output terminal

I

FE amp . Reversing input terminal

I

F.BAL control terminal

I

T.BAL control terminal

I/O

I-V amp conversion resistance adjustment terminal

I/O

I-V amp conversion resistance adjustment terminal

I

I-V amp input terminal
I-V amp input terminal

I
I

I-V amp input terminal

I

I-V amp input terminal

Function

AN8806SB-W

1-21

FS-SD5/FS-SD7/FS-SD9

LA6541-X(IC602) : Servo Driver

1. Pin Layout & Block Diagram

Vcc Vref Vin4 Vg4 Vo8 Vo7

24 23

22

20

21

19

11k

Vcc

Gnd

Vo6 Vo5 Vg3 Vin3 Cd Res

18

17 16

ohm

- +

- +

Level
shift

Level
shift

B T L
driver

B T L
driver

B T L
driver

B T L
driver

Level
shift

Level
shift

11k
ohm

1

2

Vcc Mute Vin1 Vg1 Vo1 Vo2 Vo3 Vo4 Vg2 Vin2 Reg

3456

Gnd

7 8 9101112

2. Pin functions

Pin

Symbol Function

No.

1

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

2
3
4
5
6
7
8
9

Vcc
Mute
Vin1

Vg1

Vo1

Vo2

Vo3

Vo4

Vg2
Vin2

Reg Out

Reg In

Res

Cd

Vin3

Vg3

Vo5

Vo6

Vo7

Vo8

Vg4
Vin4

Vref

Vcc

Power supply (Shorted to pin 24)
All BTL amplifier outputs ON/OFF
BTL AMP 1 input pin
BTL AMP 1 input pin (For gain adjustment)
BTL AMP 1 input pin (Non inverting side)
BTL AMP 1 input pin (Inverting side)
BTL AMP 2 input pin (Inverting side)
BTL AMP 2 input pin (Non inverting side)
BTL AMP 2 input pin (For gain adjustment)
BTL AMP 2 input pin
External transistor collector (PNP) connection. 5V power supply output
External transistor (PNP) base connection
Reset output
Reset output delay time setting (Capacitor connected externally)
BTL AMP 3 input pin
BTL AMP 3 input pin (For gain adjustment)
BTL AMP 3 output pin (Non inverting side)
BTL AMP 3 output pin (Inverting side)
BTL AMP 4 output pin (Inverting side)
BTL AMP 4 output pin (Non inverting side)
BTL AMP 4 output pin (For gain adjustment)
BTL AMP 4 output pin
Level shift circuit's reference voltage application
Power supply (Shorted to pin 1)

15

14

13

11k
ohm

RESET

Regulator

11k
ohm

Reg

out

In

1-22

LA4905 (IC301) : 2ch BTL power IC

1. Pinlayput

123

FS-SD5/FS-SD7/FS-SD9

2. Block diagram

STBY

D.C

PRE GND

IN 1

21

20

Vcc Vcc(SW)

Standby SW

10

Switching
regulator block

11

8
9

Ripple
filter

2

Input amplifier

H.L.S.

ABCD

H.L.S. :
Higher
Level signal
selector

Amplifier output stage

Nonlinear/output stage

SW
drive

SW B

15

SW E

14

SW OUT1

12

SW OUT2

13

SW GND

16

A

+OUT 1

7

3

CH 1

B

PWR GND 1

5

BEEP

IN 2

ON TIME

4

1

23

BEEP
amplifier

Input amplifier

ON MUTE
muting circuit

Power supply/ground shorting
protection circuit
Overvoltage/thermal protection
circuit

CH 2

Nonlinear amplifier/output stage

Pop noise
prevention circuit

-OUT 1

6

C

D

18

19

17

22

-OUT 2

PWR GND 2

+OUT 2

N.C.

1-23

FS-SD5/FS-SD7/FS-SD9

MN35510(IC603):Digital servo & Digital signal processer

1. Terminal Layout

20 ~ 1

2.Block Diagram

LRCKIN(MSEL)
BCLK(SSEL)
SRDATAIN
(PSEL)

IOSEL

CLVS
CRC
BLKCK
CLDCK
SBCK
SUBC
DEMPH
RESY
FLAG6(RESY)

SSEL
SQCK
SUBQ
AVDD2

AVDD2

PCK
EFM
PLLF
DSLF
IREF
DRF
ARF
RSEL
PSEL

MLD
MCLK
MDATA

CK384(EFM)
VCOF
BYTCK
SMCK
FCLK
CSEL
MSEL
X2
X1

ÊSTAT

DIGITAL
DEEMPHSIS

SUB
CODE
BUFFER

DSL.
PLL
VCO

VCO

ITUNING
GENERATION
PITCH
CONTROL

21

~

40

41 ~ 60

8TIMES
OVER SAMPUNC
DIGITAL FILTER

EFM
DEMODULATION

SYNC
INTERPOLATION

SUBCODE
DEMODULATION

MICRO
COMPUTER
INTERFACE

CONVERTER

A/D

80

~

61

1BIT
DAC
LOGIC
S

CIRC
ERROR
CORRECTION
DEINTERLEVE

CLV
SERVO

16k
SRAM

INPUT

PEM
(R)

PEM
(L)

D/A
CONVERTER

OUTPUT

DIGITAL
AUDIO
INTERFASE

DIGITAL
AUDIO
INTERFASE

INTER POLATION
SOFT MUTING DIGITAL
ATTENUATION
PEAK DETECTIVE
AUTO CUE

PORT

SERVO
TIMING GENERATOR

AVSS1
AVDD1
OUTR

OUTL

FLAG
IPFLAG

TX

ECM

PC

LRCK
SRDATA
BCLK
DMUTE

TRKV
KICK
VREF
TRVSTR
ECS
TVD
TRD
FOD
TBAL
FBAL
TOFS
TES
/TLOCK
/FLOCK
PLAY
LDON
WVEL
SENSE

1-24

D

/

D

V

V

V

S

D

D

S

D

D
1

/

R

V

T

S

S

E

T

S

S

1

T

F
E

R

T

F

E

E
N
V

T
R
C
R
S

B

V

D

D

O

E
T

/
R
F
D
E

O
F
T

FS-SD5/FS-SD7/FS-SD9

3. Description

Pin
No.

1

2
3
4
5
6

7

8
9

10

11

12
13

14

15
16

17

18

19
20
21
22

23

24

25

26

27

28

29

30
31
32
33

34
35

36

37
38

39
40

symbol

BCLK
LRCK
SRDATA
DVDD1
DVSS1
TX

MCLK

MDATA
MLD
SENSE
FLOCK
TLOCK
BLKCK
SQCK
SUBQ
DMUTE

STATUS

RST
SMCK

PMCK

TRV
TVD

PC

ECM

ECS

KICK
TRD
FOD

VREF

FBAL
TBAL

FE
TE

RF ENV

VDET
OFT
TRCRS

RFDET

BDO
LDON

I/O

O
O

O

O

O
O

O
O

Description

Not used
Not used
Not used

I

Power supply (Digital)

I

Connected to GND
Digital audio interface output

Micom command clock signal input

I

(Data is latched at signal's rising point)

Micom command data input

I
I

Micom command load signal input

Sence signal output
Focus lock signal output Active :Low

Tracking lock signal output Active :Low
sub-code - block - clock signal output

I

Outside clock for sub-code Q resister input
Sub-code Q -code output

O

I

Connected to GND
Status signal

O

(CRC,CUE,CLVS,TTSTOP,ECLV,SQOK)
Reset signal input (L:Reset)

I

I

Not used

I

Not used

O

Traverse enforced output

O

Traverse drive output

I

Not used

Spindle motor drive signal (Enforced

O

mode output) 3-State
Spindle motor drive signal (Servo error

O

signal output)

Kick pulse output

O

Tracking drive output

O
O

Focus drive output
Reference voltage input pin for D/A

I

output block (TVD,FOD,FBA,TBAL)
Focus Balance adjust signal output

O
O

Tracking Balance adjust signal output

Focus error signal input(Analog input)

I

Tracking error signal input(Analog input)

I
I

RF envelope signal input(Analog input)
Vibration detect signal input(H:detect)

I

Off track signal input(H:off track)

I

Track cross signal input

I

RF detect signal input(L:detect)

I

BDO input pin(L:detect)

I

Laser ON signal output(H:on)

O

Pin
No.

41
42
43
44

45

46

47

48
49
50
51

52
53
54

55
56

57

58

59

60

61

62
63

64

65

66
67

68

69

70
71
72
73
74
75
76

77

78

79
80

symbol

TES

PLAY

WVEL
ARF

IREF

DRF

DSLF

PLLF

VCOF
AVDD2
AVSS2

EFM
PCK
PDO
SUBC
SBCK

VSS

XI
X2
VDD
BYTCK

CLDCK

FLAG

IPPLAG

FLAG

CLVS
CRC

DEMPH

RESY

IOSEL
TEST

AVDD1

OUT L
AVSS1

OUT R
RSEL
CSEL
PSEL

MSEL
SSEL

I/O

Tracking error shunt signal output(H:shunt)

O

I

Not used

I

Not used

I

RF signal input
Reference current input pin

I

Bias pin for DSL

I

I/O

Loop filter pin for DSL

Loop filter pin for PLL

I/O

I

Not used

I

Power supply(Analog)
Connected to GND(Analog)

Not used

II I

Not used

I

Not used

I

Not used

I

Not used

Connected to GND(for X'tal oscillation

I

circuit)

Input of 16.9344MHz X'tal oscillation circuit

I

Output of X'tal oscillation circuit

O

I

Power supply(for X'tal cscillation circuit)

I

Not used

I

Not used

I

Not used

I

Not used

I

Not used

I

Not used

I

Not used
Not used

I

Not used

III

pull up
pull up

Power supply(Digital)

Lch audio output

O

I

Connected to GND
Rch audio output

O

II

pull up

Connected to GND

I

Connected to GND

I

Connected to GND

I

Pull up

Description

MN35510

1-25

FS-SD5/FS-SD7/FS-SD9

LC72136N (IC2) : PLL Frequency synthesizer

1. Pin layout

FM/AM

CLOCK

FM/ST/VCO

AM/FM

2. Block

XT

CE

DI

DO

SDIN

1
2
3
4
5
6
7
8
9
10
11

22
21
20
19
18
17
16
15
14
13
12

XT
GND
LPFOUT
LPFIN
PD
VCC
FMIN
AMIN

IFCONT
IFIN

3. Function

Pin

Symbol

No.

1

FM/AM

2

3

4

CLOCK

5

6

FM/ST/VCO

7

AM/FM

8

9

10

11

1

22

16

15

3

4

5

6

17

21

XT

CE

DI

DO

LW

MW

SDIN

Reference

Driver

Swallow Counter

1/2

C

2

B

I/F

Powe r

on

Reset

Function

I/O

X'tal oscillator connect (75kHz)

I

LOW:FM mode

O

When data output/input for 4pin(input) and

I

Swallow Counter

1/16,1/17 4bit

1/16,1/17 4bit

12bit

Programmable

Drivers

Data Shift Register & Latch

7821113

6pin(output): H

Input for receive the serial data from

I

controller

Sync signal input use

I

Data output for Controller

O

Output port

"Low": MW mode

O

Open state after the power on reset

O

Input/output port

I/O

Input/output port

I/O

Data input/output

I/O

Phase

Detector

Charge Pump

Unlock

Detector

Universal

Counter

Pin
No.

12

13

14

15

16

17

18

19

20

21

22

Symbol

IFIN

IFCONT

AMIN

FMIN

VCC

PD

LPFIN

LPFOUT

GND

XT

18

19

20

12

I/O

Function
IF counter signal input

I

IF signal output

O

Not use

-

AM Local OSC signal output

I

FM Local OSC signal input

I

Power suplly(VDD=4.5-5.5V)

­When power ON:Reset circuit move

PLL charge pump output(H: Local OSC

O

frequency Height than Reference frequency.

L: Low Agreement: Height impedance)

Input for active lowpassfilter of PLL

I

Output for active lowpassfilter of PLL

O

Connected to GND

­X'tal oscillator(75KHz)

I

1-26

TA2057N (IC1) : FM/AM IF AMP & Detector

1.Block Diagrams

FM
IF IN

24 23 22 21 20 19 18 17 16 15 14 13

AM
MIX
OUT Vstb QUAD FM OUT AM OUT MPX IN LPF 1 LPF 2 VCO L OUT

AM
IF IN

FS-SD5/FS-SD7/FS-SD9

AM
MIX

123456789 1110 12

AM
RF IN

2.Pin Function

Pin
No.

I/O

1

I

2

3

4

5

6

7

8

9

10

11

12

AM S.SENS

FM S.SENS

-

AM OSC OUT

O

-

I

-

O

O

O

O

REG

FM
IF

S.SENSFMS.SENS

Symbol

AM RF

AM OSC

VCC

AGC

GND

IF OUT

TU IND

ST IND

Rch OUT

AMRF signal input

AM local oscillation circuit

AM local oscillation signal output

Power supply

AGC voltage input terminal

Connect to GND

IF REQ signal output to IC2

Indicator drive output when tuning

Stereo indicator output

"H"mono . "L"stereo

Output Rch

TUN
LED

TUN
LED

VCO

DIVIDE

DECODE

LEVEL
SW

IF
BUFF

IF REQ
SW

Symbol

Lch OUT

O

O

O

O

MPX IN

I

AM OUT

O

FM OUT

O

FM QUAD

I

AM IF IN

I

-

AM MIX OUT

O

FM IF IN

I

AM

VCO

LPF2

LPF1

Vst

/REQ

Output Lch

Voltage controlled terminal

When voltage of terminal is MONO

at "H" and ST at "L"

When voltage of terminal is AM at

"H" and FM at "L"

Multi plex signal input

AM detection signal output

FM detection signal output

Bypass to FMIF

Input of AMIF signal

Fixed voltage output terminal

Output terminal for AM mixer

Input of FMIF signal

FM
DET

AM
IF

AM
OSC

AM
OSCAMOSC

BUFF

OUT

Function Function

AM
DET

AGC

Vcc AGC GND IF OUT

Pin
No.

I/O

13

14

15

16

17

18

19

20

21

22

23

24

AM/FM
MONO
SW

ST
LED

ST
LED

MUTE

R OUTAM

1-27

FS-SD5/FS-SD7/FS-SD9

KIA78S06P-T (IC702) : Regulator

1. Pin layout 2. Block diagram

3 INPUT

Q14

Q1

R9

1 2 3

Z1

Q16

R1

Q2 Q7

R11 R10

TA8409F-W (IC108) : Bridge driver

Q4

Q3

Q6

R2

R3

Q8

C1

R4

Q9

Q5

Q10

Q11

Q12

R8

Q13

R7R5R6

1 OUTPUT

2 COMMON

1. Pin layout 2. Pin function

Pin
No.

1

10

1
2
3
4
5

5

6

6
7
8
9

10

3. Block diagram

Vcc

2/2

STANDBY

CIRCUIT

9/10

IN1

1/1

IN2

SYMBOL

IN2
Vcc

OUT2

NC

GND

NC

Vs

OUT1

Vref

IN1

FUNCTION

INput terminal
Supply voltage terminal for logic
Output terminal
Non connection
GND terminal
Non connection
Supply voltage terminal for motor driver
Output terminal
Reference voltage terminal for control circuit
Input terminal

Vs

6/7

Vref

CIRCUIT

Vref

8/9

OUT1

7/8

M

3/3

OUT2

1-28

THERMAL

SHUTDOWN

CIRCUIT

5/5

GND

FS-SD5/FS-SD7/FS-SD9

BA15218F-W (IC102) : Dual ope. amp.

1. Pin layout & Block diagram

OUT1 1

- IN1 2

-

8 Vcc

7 OUT2

1

+ IN1 3

+

-

6 - IN2

2

VEE 4

+

5 + IN2

GP1U271X (IC801) : Receiver for remote

NJM4580D-D (IC101) : Dual ope amp.

1. Pin layout & Block diagram

A OUT 1

A -IN 2

AB

A +IN 3

V- 4

8 V+

7 B OUT

6 B -IN

5 B +IN

+

–

Amp.

Limiter Integrator Comparator

UPD78L5J-T (IC191) : Regulator

1. Pin layout 2. Block diagram

R13

Q10

R14

R15

D1

OUTPUT INPUT

GND

R16

Q15

B.P.F

Q5

Q11

Q4

R1 R2

Q1

Demodulator

R17 R9

Q8 Q9

Q6

R5

R4

Q2

R3

C1

R6

Q3

Q13

GND

R13

Q7

VCC Vout

D2

Q12

R14

R12

R11

R4

R7

INPUT

Q14

R10

OUTPUT

GND

1-29

FS-SD5 / FS-SD7 / FS-SD9

VICTOR COMPANY OF JAPAN, LIMITED

AUDIO & COMMUNICATION BUSINESS DIVISION
PERSONAL & MOBILE NETWORK BUINESS UNIT. 10-1,1Chome,Ohwatari-machi,maebashi-city,371-8543,Japan

No.20885SCH

Printed in Japan
200012(V)
