DVD VIDEO RECORDER

DR-M150SEK

STANDBY/ON

RAM/RW

INSTRUCTIONS

PUSHÐOPEN

PRÐ

Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996) Number : 3546

LPT1045-001A

Filename [M150SEK_02Safety.fm]

M150SEK_00.book Page 2 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left0

2 EN

SAFETY FIRST

Safety Precautions

The rating plate and the safety caution are on the rear of the unit.

WARNING: DANGEROUS VOLTAGE INSIDE WARNING: TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION:

A UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED. WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT

REPRODUCTION OF LABELS WARNING LABEL INSIDE OF THE UNIT

DISCLAIMER OF LIABILITY

JVC shall not be liable for any loss relating to the unit’s failure to properly record, store or playback any content (video, audio or otherwise) for any reason whatsoever. Any applicable warranties shall only cover replacement or repair of the effected unit, and shall not apply to recovery or replacement of lost content.

ATTENTION:

8 Using a mobile phone in the vicinity of the unit may cause

picture vibration on the TV screen or change the screen to a blue back display.

8 If there is a power outage when using the unit, the recorded

data may be erased.

8 Recorded programmes and data cannot be restored once

the disc is damaged.

8 When discarding batteries, environmental problems must be

considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

IMPORTANT:

8 Please read the various precautions on page 2 - 4 before installing or operating the unit. 8 It should be noted that it may be unlawful to re-record pre-recorded tapes, DVDs, or discs without the consent of the owner of

copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

CAUTION:

When you are not using the unit for a long period of time, it is recommended that you disconnect the power cord from the mains outlet.

8 Dangerous voltage inside. Refer internal servicing to qualified service personnel. To prevent electric shock or fire hazard, remove the

power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

8 The mains plug shall remain readily operable.

Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996) Number : 3546

● Manufactured under licence from Dolby Laboratories. ADolbyB and double-D symbol are trademarks of Dolby Laboratories.

● ADTSB and ADTS DIGITAL OUTB are trademarks of Digital Theater Systems, Inc.

● DVB (Digital Video Broadcasting) is a registered trademark of Digital Video Broadcasting Project. The Digital Video Broadcasting system

is manufactured under license from Digital Video Broadcasting Project.

● This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual

property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing users only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Page 2Wednesday, 15 June 2005 16:04

Filename [M150SEK_02Safety.fm]

M150SEK_00.book Page 3 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

The STANDBY/ON A button does not completely shut off mains power from the unit, but switches operating current on and off. ABB shows electrical power standby and ACB shows ON.

Failure to heed the following precautions may result in damage to the unit, remote control or disc.

1. DO NOT

place the unit ^

^ in an environment prone to extreme temperatures or

humidity.

^ in direct sunlight. ^ in a dusty environment. ^ in an environment where strong magnetic fields are

generated. In addition, do not place TVs or other appliances which tend to generate strong magnetic fields on top of the unit as it may cause picture disturbance.

^ on a surface that is unstable or subject to vibration.

2. DO NOT

block the unit’s ventilation openings or holes.

If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out. When installing the equipment, make sure there is a space allowance of 10 cm or more on both sides, on top and at the rear of the equipment.

3. DO NOT

4. DO NOT

place heavy objects on the unit or remote control. place anything which might spill on top of the unit

or remote control.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

5. DO NOT

6. DO NOT

expose the apparatus to dripping or splashing. use this equipment in a bathroom or places with

water. Also DO NOT place any containers filled with water or

liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.

7. DO NOT

place any naked flame sources, such as lighted

candles, on the apparatus.

8. AVOID

violent shocks to the unit during transport.

SAFETY FIRST

EN 3

IMPORTANT

Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain a proper safety approved extension lead/adapter or consult your dealer.

In the unlikely event of the plug fuse failing be sure to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. If the fuse fails again consult your nearest JVC dealer.

If nonetheless the mains plug is cut off remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:

Blue to N (Neutral) or Black Brown to L (Live) or Red

If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured Black. Brown wire to terminal coded L (Live) or coloured Red.

If in doubt — consult a competent electrician.

MOISTURE CONDENSATION

Moisture in the air will condense on the unit when you move it from a cold place to a warm place, or under extremely humid conditions^just as water droplets form on the surface of a glass filled with cold liquid. In conditions where condensation may occur, disconnect the unit’s power plug from the wall and keep it disconnected for a few hours to let the moisture dry, then turn on the unit.

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product.

ATTENTION:

This symbol is only valid in the European Union.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

to obtain information

Page 3Wednesday, 15 June 2005 16:04

Filename [M150SEK_02Safety.fm]

M150SEK_00.book Page 4 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

4 EN

SAFETY FIRST

Some Do’s And Don’ts On The Safe Use Of Equipment

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment)

are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or

changing connections. DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way^switch off,

withdraw the mains plug and consult your dealer. DON’T remove any fixed cover as this may expose dangerous voltages. DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has

a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special

arrangements may need to be made for infirm or handicapped people. DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of road safety. It is illegal to

watch television whilst driving. DON’T listen to headphones at high volume, as such use can permanently damage your hearing. DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten

the life of the equipment. DON’T use makeshift stands and NEVER fix legs with wood screws^to ensure complete safety always fit the manufacturer’s approved

stand or legs with the fixings provided according to the instructions. DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL...

^ NEVER let anyone especially children push anything into holes, slots or any other opening in the case^this could result in a fatal

electrical shock;

^ NEVER guess or take chances with electrical equipment of any kind^it is better to be safe than sorry!

Information On Reception Of Digital Transmissions

If your DR-M150 reports that no digital signals were found after auto-tuning, or if the number of channels found is fewer than expected, this does not necessarily indicate a fault. Because of the nature of digital transmissions, there can be several external causes for this. The following information may help you determine the exact cause.

Digital transmissions are broadcast at much lower power and on different channels or different transmitters to analogue transmissions. This may mean that you will require an aerial upgrade in order to receive them. Some smaller transmitters do not yet transmit digital signals at all. To see if you are in an area covered by digital signals, use the online postcode checker at http://www.dtg.org.uk/consumer/coverage.html This will give a good indication of the conditions in your area. A more detailed version of the postcode checker, which shows more details of the channels you can expect to receive in your area, is available at http://www.dtg.org.uk/retailer/coverage.html postcode checkers give a good indication of what is available but, due to local conditions, they cannot be 100% accurate.

If you require an aerial upgrade to receive digital transmissions, you should first contact your dealer who should be able to advise on a suitable aerial. If this is not practical, you should choose an aerial installer who is a member of the Confederation of Aerial Industries (CAI). All CAI members conform to a code of practice. You can search for your local CAI registered installer at: http://www.cai.org.uk/asp/installer.asp

If you have a shared communal aerial system, this may be designed to receive only the analogue transmissions in your area. You should check with your landlord or local housing authority to see if your aerial system can be upgraded to receive digital transmissions.

Please note that unless you are located very close to the transmitter, it is very unlikely that you will be able to receive digital transmissions reliably with an indoor aerial.

If you have any other questions regarding the reception of digital transmissions, please call JVC Customer Services on 0870-330-5000.

. Please note that these

Page 4Wednesday, 15 June 2005 16:04

Filename [M150SEK_03TOC.fm]

M150SEK_00.book Page 5 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right0

SAFETY FIRST 2

Safety Precautions .........................................................................2

Some Do’s And Don’ts On The Safe Use Of Equipment ...............4

Information On Reception Of Digital Transmissions ......................4

DISC INFORMATION 6

About Discs ....................................................................................6

INDEX 11

INSTALLING YOUR NEW UNIT 16

Basic Connection .........................................................................16

INITIAL SETTINGS 17

Auto Set Up..................................................................................17

Language .....................................................................................19

Monitor Set...................................................................................19

Setting DTV..................................................................................20

BASIC OPERATIONS ON DVD DECK 21

Basic Operation (TV)....................................................................21

Basic Playback.............................................................................22

Playback Features .......................................................................23

Live Memory Playback .................................................................27

Using The On-screen Bar ............................................................30

Basic Recording ...........................................................................34

Recording Features......................................................................35

TIMER RECORDING 37

EPG Timer Programming.............................................................37

Manual Timer Programming.........................................................38

On-Disc Timer Programming .......................................................39

Check, Cancel And Change Programmes ...................................41

Automatic Satellite Programme Recording ..................................42

NAVIGATION 43

Library Database Navigation........................................................43

Basic Operation Of Original Information ......................................44

Edit Original Information...............................................................46

Basic Operation Of Play List Information .....................................47

Edit Play List Information .............................................................48

Edit Library Information ................................................................51

Playback With MP3/JPEG Navigation..........................................52

CONTENTS

EN 5

EDITING 53

DV Dubbing ................................................................................. 53

Digital Audio Dubbing .................................................................. 54

Edit From A Camcorder ............................................................... 55

Edit To Or From Another Recorder ............................................. 56

Output/Input Set .......................................................................... 57

SYSTEM CONNECTIONS 59

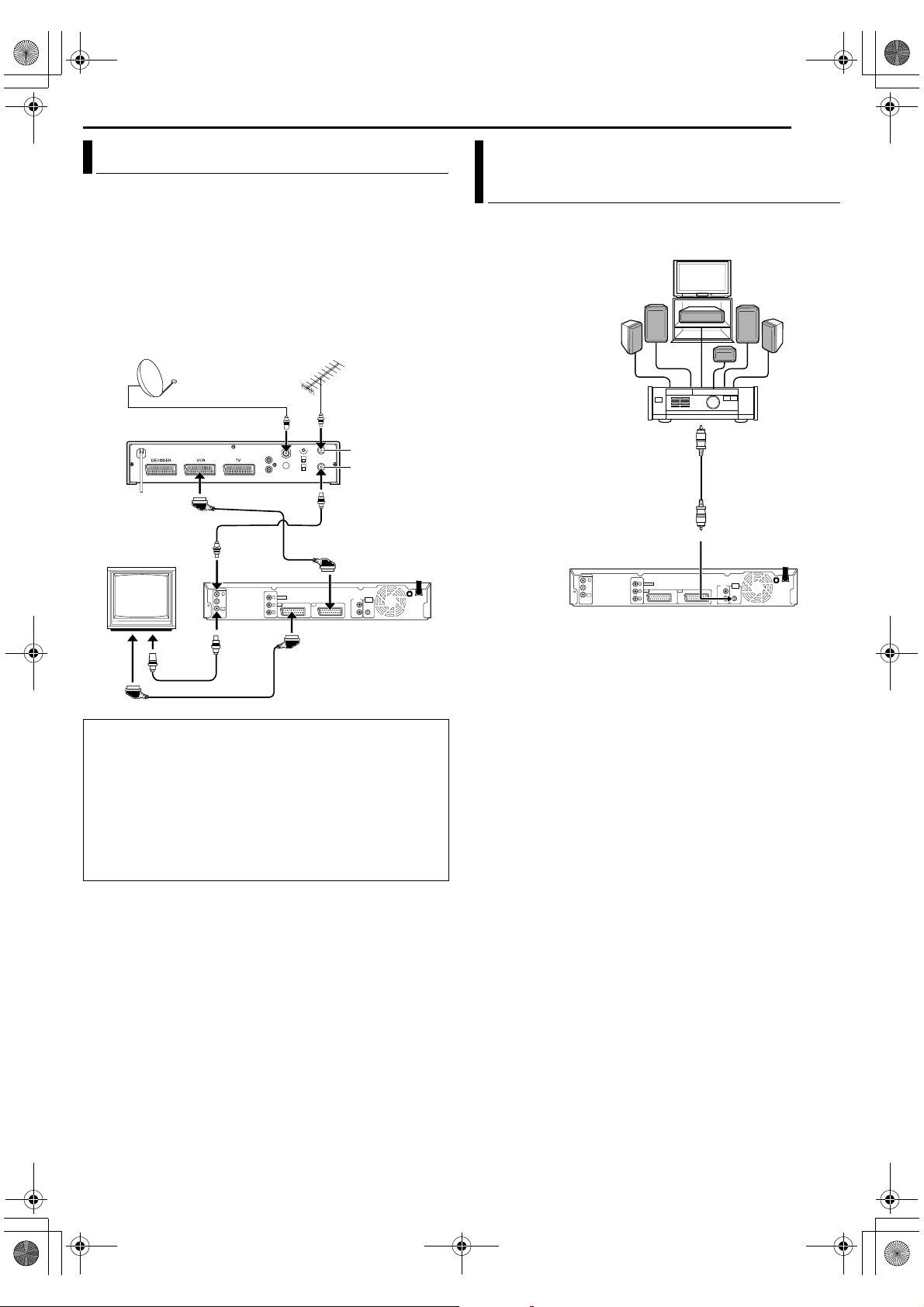

Connecting To A Satellite Receiver ............................................. 59

Connecting To A Dolby Digital Decoder Or

An Amplifier With Built-in DTS .................................................. 59

SUBSIDIARY SETTINGS 60

Mode Set ..................................................................................... 60

Remote Control Functions........................................................... 62

TV Multi-Brand Remote Control .................................................. 62

Tray Lock..................................................................................... 63

Child Lock.................................................................................... 63

Scan Mode Set ............................................................................ 63

Tuner Set..................................................................................... 64

Clock Set ..................................................................................... 66

Format A Disc.............................................................................. 67

Finalise A Disc............................................................................. 68

TROUBLESHOOTING 69

APPENDIX 72

LIST OF TERMS 74

HOW TO USE THIS INSTRUCTION MANUAL

● All major sections and subsections are listed in the Table Of Contents on page 5. Use this when searching for information on a specific

procedure or feature.

● The Index on pages 11 - 13 illustrates the controls and connections on the front and rear panel, the front display panel and the remote

control.

● The list of terms on page 74 lists frequently-used terms, and the number of the page on which they are used or explained in the manual.

● The A mark signals a reference to another page for instructions or related information.

● Operation buttons necessary for the various procedures are clearly indicated through the use of illustrations at the beginning of each

major section.

Page 5 June 15, 2005 4:04 pm

Filename [M150SEK_04DiscInfo.fm]

M150SEK_00.book Page 6 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left0

6 EN

DISC INFORMATION

About Discs

Recordable/Playable Discs

You can use discs with the following logos for recording and playback.

DVD-RAM

12 cm: 4.7 GB/9.4 GB 8cm: 1.4GB/2.8GB Ver. 2.0/2x speed Ver. 2.1/1x - 3x speed Ver. 2.2/5x speed

DVD-R

12 cm: 4.7 GB 8cm: 1.4GB Ver. 2.0/1x - 4x/8x speed (Video mode) Ver. 2.1/16x speed (Video mode)

● The above table is based on the information as of February 2005.

● Recording and playback may not be performed depending on the

characteristics and condition of the disc used, leading to unsatisfactory results. Using discs manufactured by JVC is recommended since they have been tested to be compatible with this unit.

DVD-RAM Discs

It is only possible to use discs which conform with DVD-RAM standard Version 2.0, 2.1 or 2.2.

● If you use a disc formatted under a different standard version,

format it on this unit before use.

● It may not be possible to record, play back, edit or dub a

DVD-RAM disc even if it conforms to the standard if it was recorded or edited on the devices from other manufacturers or on a PC, or if it has far too many titles, or if there is very little available capacity remaining on the disc.

● DVD-RAM discs recorded on this unit cannot be played back on

an incompatible DVD player.

● It is possible to record copy-once programmes of digital

broadcasts only onto 4.7/9.4 GB DVD-RAM discs. (2.8 GB DVD-RAM discs are not compatible.)

● This unit does not support discs contained in cartridges. Use the

disc after removing it from the cartridge. For details on discs in TYPE2 and TYPE4 (disc removable) cartridge, refer to its instruction manual.

● While recording, it is possible not only to start playback of a

programme currently being recorded, but also to watch another programme previously recorded.

DVD-RW

12 cm: 4.7 GB 8cm: 1.4GB Ver. 1.1/1x - 2x speed (Video mode/VR mode) Ver. 1.2/4x speed (Video mode/VR mode)

DVD-R/RW Discs

It is only possible to use DVD-R discs which conform with DVD-R standard Version 2.0 or 2.1. It is only possible to use discs which conform with DVD-RW standard Version 1.1 or 1.2. Available in VR mode and Video mode. When a DVD-R/RW disc (Video mode) is finalised (A pg. 68), it can be played back on a standard DVD player as a DVD VIDEO disc. When a DVD-RW disc (VR mode) is finalised (A pg. 68), it can be played back on DVD player compatible with the VR mode of DVD -RW d iscs .

Before finalising^

It is possible to record on unrecorded areas of the disc, edit the disc title and programme titles, and delete programmes.

● It is impossible to record or edit DVD-R/RW discs recorded on

other devices even if they have not been finalised.

● It is impossible to overwrite recorded areas of DVD-R discs.

● Available recording capacity does not increase even if a recorded

programme is deleted from a DVD-R disc.

After finalising^

After a DVD-R/RW disc (Video mode) has been finalised, it is possible to play back the recorded programmes (video and/or audio) on a standard DVD video player as a DVD VIDEO disc.

● Edited titles are displayed

as the ADVD m enu B in video mode.

● It is impossible to record,

edit or delete the data either in video mode or in VR mode.

● Either in video mode or in

VR mode, although the disc can be played back

CONTENTS MENU

81 Sister Princess ED2 14/11 0:55 PR12<HDD MN26

82 GALAXY ANGLE A#04 OP 06/10 9:30 PR12<HDD

83 GALAXY ANGLE A#04 ED 06/10 9:30 PR12<HDD

84 FISHING WORLD OP 22/12 20:00 PR3

85 FISHING WORLD ED 22/12 20:00 PR3

86 RALLY CAR OP 10/04 0:30 PR3

87 RALLY CAR ED 10/04 0:30 PR3

88 Chobits #04 OP 02/05 PR10

89 Chobits #04 ED 02/05 PR10

90 Chobits #25 ED 26/09 PR10 MN32 LPCM

16.11.2002

07.10.2002

22.12.2002

04.10.2002

02.05.2002

26.09.2002

on DVD players from other manufacturers, sometimes it may not be possible to play back depending on the disc and recording conditions.

● It is impossible to record on CD-R/RW or DVD-R discs used for

authoring.

● When recording copy-once programmes of digital broadcasts,

record in VR mode using CPRM compatible DVD-RW discs.

NOTE:

The following may result if you play back a DVD-R disc recorded on another unit.

● The disc does not play.

● A mosaic pattern (block noise) appears on the screen.

● Video or audio may be dropped out.

● The unit stops during playback.

Filename [M150SEK_04DiscInfo.fm]

M150SEK_00.book Page 7 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Discs For Playback Only

You can use discs with the following logos for playback only.

DVD VIDEO Video CD/Super Video CD

(example of region code indications)

Audio CD

CD-DA files

CD-RW

CD-DA/JPEG/ MP3 files

● Playback may not be performed depending on the characteristics

and condition of the disc used.

● DTS Audio CDs can also be played back. (An optional DTS

decoder is required)

● MP3 and JPEG discs can be played back on this unit only when

they have been recorded in the ISO9660 or Joliet format and finalised.

● JPEG files that can be played back on this unit must conform to

JFIF/Baseline process, and the maximum resolution of a JPEG file is 2,812 pixels in width and 2,112 pixels in height.

● CD-R/RW discs recorded in music CD format need to be finalised

to play back on this unit.

● Operation and audio quality of this unit are not guaranteed for

discs that do not conform to the Compact Disc specification (CD-DA). Before you play back a CD, check for the CD logo and read the notes on the package to confirm that it conforms to the Compact Disc specification.

● Depending on the intentions of the author of the software,

recording conditions of DVD discs and Video CD/SVCD discs may be restricted. Since this unit plays back discs according to the intentions of the author of the software as indicated on the disc, some functions may not operate as commanded.

● When switching from the first layer to the second layer of double-

layered DVD VIDEO discs, the image and sound may be momentarily distorted. This is not a malfunction.

● DVD-AUDIO discs compatible with DVD video players can be

played.

● Super Audio CDs (SACD) compatible with conventional CD

players can be played.

● It is possible to play back finalised +R/+RW (Video mode) discs.

ADVD B lights up on the front display panel.

CD-R

CD-DA/JPEG/ MP3 files

CD-ROM

JPEG/MP3 files

DISC INFORMATION

EN 7

Unplayable Discs

The unit may not be able to play back or it may take some time to read a disc depending on the recording status or condition of the disc, or if the disc is scratched, dirty or warped. In addition, do not attempt to play back discs in unusual shapes (heart-shaped, octagonal, or other forms). If such discs are accidentally played back, it may cause noise that can lead to speaker damage.

● CD-ROM discs (including PHOTO-CD and CD-G)

● Discs recorded in Packet Write (UDF) format

● 1.3 GB double density CDs (DDCD)

● High density CDs (HDCD)

● DVD-R DL (single-sided double-layer) discs

● +R DL (single-sided double-layer) discs

The following discs also cannot be played back.

● Discs of a region number other than A2B

● DVD-RAM (2.6 GB/5.2 GB)

● DVD-RAM (TYPE1)

Caution for DualDisc playback

The Non-DVD side of a ADualDiscB does not comply with the ACompact Disc Digital AudioB standard. Therefore, the use of Non-

DVD side of a DualDisc on this product may not be recommended.

Region Number

The world is divided into 6 regions for DVD VIDEO discs. DVD VIDEO discs are assigned a region number to indicate which region they may be played back in. A disc cannot be played back on this unit unless the region number of the disc matches that of the unit. The region number for this unit is A2B. Only discs whose region number includes A2B or AALLB can be played back such as shown below.

Examples of DVD VIDEO labels which can be played back using this unit.

Marks of discs in this instruction manual

Allows operation with a DVD-RAM disc.

Allows operation with a DVD-R disc.

Allows operation with a DVD - RW d i sc.

Allows operation with a DVD VIDEO disc.

Allows operation with a Video CD/Super Video CD (SVCD) disc.

Allows operation with an Audio CD disc.

Allows operation with a disc including MP3 files.

Allows operation with a disc including JPEG files.

Filename [M150SEK_04DiscInfo.fm]

M150SEK_00.book Page 8 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

8 EN

DISC INFORMATION

Recording Medium And Format

DVD-RAM

● Recording and erasing can be performed as many times as

possible on a disc.

● Editing can be performed after recording, such as deleting

unwanted parts.

● While recording, it is possible not only to start playback of a

programme currently being recorded, but also to watch another programme previously recorded.

DVD-RW (VR mode)

● Recording and erasing can be performed as many times as

possible on a disc.

● Editing can be performed after recording, such as deleting

unwanted parts.

DVD-RW (Video mode)

● Can be played back on other DVD players after finalising.

● New recording can be performed by erasing all the data on a disc

once played back.

DVD-R

● Can be played back on other DVD players after finalising.

● Suitable when keeping a recorded disc for a long time.

File Structure Of Discs

DVD VIDEO

Typically, DVD VIDEO discs are made up of larger units called AtitlesB. Each title has a number (title number) that can be used to select desired titles. Titles are further divided into units called AchaptersB. Each chapter has a number (chapter number) that can also be used to select desired chapters. Note that some discs are not divided into titles and chapters.

When you record a programme on a DVD-RAM/RW (VR mode) disc

A single recording session results in a single title. In addition, chapter marks are automatically inserted when recording is paused. It is also possible to insert chapter marks at desired locations during playback. (A pg. 25)

When you record a programme on a DVD-R/RW (Video mode) disc

A single recording session results in a single title. In addition, chapter marks are automatically inserted when recording is paused. It is possible to insert chapter marks at desired locations during playback. Once the disc has been finalised, these chapter marks are deleted and new chapter marks are assigned automatically approximately every 5 minutes.

DVD-RAM, DVD-RW, DVD-R or DVD VIDEO disc

Title1 Title2

Chapter 1 Chapter 2

● In Video mode, even before finalising, it is impossible to perform

Chapter 3

Chapter 1

Chapter 2

editing operations other than changing the disc name and/or title names and deleting programmes and/or titles.

● After finalising, it is impossible to perform editing operations.

Chapter 3

Audio CD/Video CD/SVCD

Typically, Audio CD discs are divided into separate tracks each containing one song. Each track is assigned a number. For example, the third track is Track 3. The same is true for Video CD/ SVCD discs. However, some discs are not divided into tracks.

Audio CD/Video CD/SVCD

Tr ac k 1 Tr ac k 2 Tr ac k 3 Tra c k 4

JPEG/MP3 Disc (CD-R/RW/ROM)

MP3/JPEG files put in directories nested in several levels on a disc will be organized as if they were put in single level directories (groups) by the MP3/JPEG Navigation of this unit. (A pg. 52)

File structure of a disc before starting the MP3/JPEG Navigation

Directory MP3 file JPEG file

File structure of the disc after starting the MP3/JPEG Navigation

Files are automatically grouped as follows and displayed on the MP3/JPEG Navigation screen. Data is displayed in the alphabetical order of file name. Files are grouped based on roots.

● This unit can recognise up to 9 hierarchies including directories

and files. Also, it can recognise up to 250 files in each group, and up to 99 groups on a disc.

NOTES:

● Video CD/SVCD discs that support Playback Control (PBC)

The contents of a disc are recorded into several hierarchies, and played back according to the instructions on the screen while navigating through the hierarchies. It is also possible to playback recorded tracks consecutively without activating the PBC function even when playing a PBC-compatible disc. (A pg. 26)

● Regarding the contents recorded on discs

Some files may not be played back depending on the file types and other factors.

Filename [M150SEK_04DiscInfo.fm]

F-1

S-VIDEO VIDEO L(MONO) AUDIO R

DVIN

M150SEK_00.book Page 9 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

DVD VIDEO Marks

Sometimes marks are printed on a DVD disc and/or on its packaging to indicate information regarding the contents and functions of the disc. Check the marks indicating the contents and functions of the disc. Note, however, that in some cases a disc may not include a mark even for a function it supports.

Marks related to video

Number of subtitles Number of angles

Recorded under the standard 4:3 aspect ratio

Video playback is in Wide video mode (16:9) on wide televisions, but in letter box on televisions with standard 4:3 aspect ratio.

Video playback is in Wide video mode (16:9) on wide televisions, but pan and scan is used on televisions with standard 4:3 aspect ratio (either the left or right side of the image is cutout).

Screen includes black bands at the top and the bottom of image which has a standard 4:3 aspect ratio (letter box)

DISC INFORMATION

EN 9

Placing A Disc

Opening the disc tray

Press M to open the disc tray.

● Pressing the button again closes the disc tray.

● Use the button to open and close the disc tray.

● Do not block the disc tray with your hand while it is opening or

closing as this may result in hardware failure.

● Do not place unplayable discs or any object other than a disc on

the disc tray.

● Do not press down strongly on the disc tray or place any heavy

objects on it.

Discs without cartridges

Marks related to audio

Number of audio tracks

Dolby Digital mark It has been developed by Dolby Laboratories as a digital surround system.

DTS (Digital Theater Systems) You can enjoy DTS audio if you connect an amplifier with a built-in DTS decoder to the DIGITAL OUT connector of the unit.

Label side facing up

Disc tray

Place the disc on the disc tray with the label side facing up. Since disc size changes depending on the disc to be played back, be sure to correctly align the disc with the grooves for its size. If the disc is not in its groove, it may be scratched or otherwise damaged. To insert an 8 cm disc, place it according to the inner groove.

DVD-RAM discs contained in cartridges

Double-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the side you wish to play back or record facing down. If you insert the disc with ASide AB facing down, programmes are recorded on side A.

Single-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the label side facing up.

Filename [M150SEK_04DiscInfo.fm]

M150SEK_00.book Page 10 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

10 EN

DISC INFORMATION

Care And Handling Of Discs

How to handle discs

When handling a disc, do not touch the surface of the disc. Since discs are made of plastic, they are easily damaged. If a disc gets dirty, dusty, scratched or warped, the images and sound will not be picked up correctly, and such a disc may cause the unit to malfunction.

Label side:

Do not damage the label side, stick paper to or use any adhesives on its surface.

Recording side:

Make sure that discs are not scratched and dirty on the recording side before use. Scratches and dirt on the recording side of a disc may hinder proper playback and recording. Also be careful that a DVD-RAM disc may get scratched or dirty when removed from cartridge then put back in after use.

Storage:

Make sure that discs are kept in their cases. If discs are piled on top of one another without their protective cases, they can be damaged. Do not put discs in a location where they may be exposed to direct sunlight, or in a place where the humidity or temperature is high. Avoid leaving discs in your car!

Maintenance of discs:

If there are fingerprints or other dirt adhering to a disc, wipe with a soft dry cloth, moving from the centre outwards. If a disc is difficult to clean, wipe with a cloth moistened with water. Never use record cleaners, petrol, alcohol or any anti-static agents.

CAUTION:

Sometimes during playback, noise may appear or images may be garbled. This is sometimes due to the disc. (It may not be up to industry standards.) These symptoms are caused by the discs, not by the malfunction of the unit.

Filename [M150SEK_05Name.fm]

PRÐ

PUSHÐOPEN

M150SEK_00.book Page 11 Wednesday, June 15, 2005 4:04 PM

Front View

STANDBY/ON

Masterpage:Right0

INDEX

EN 11

CB D E F GA

RAM/RW

F-1

S-VIDEO VIDEO L(MONO) AUDIO R

DVIN

A Standby/On Button (STANDBY/ON A) B Infrared Beam Receiving Window C Disc tray D Eject Button (M) A pg. 9 E Record Button (R) A pg. 34 F Stop Button (o) A pg. 22 G Play Button (I) A pg. 22

Rear View

ABC E GJH

ANTENNA

OUT

COMPONENT

VIDEOOUT

L-1

J K L

H Front Display Panel A pg. 12 I S-video Input Connector [S-VIDEO] A pg. 55 J Video/Audio Input Connectors [VIDEO/AUDIO (L(MONO)/

R)] A pg. 55

K DV Input connector [DV IN (A*)] A pg. 53

* i (i.Link) refers to the IEEE1394-1995 industry specification and

extensions thereof. The i logo is used for products compliant with the i.Link standard.

L Programme Buttons (PR +/–) A pg. 34

To access covered connectors, press at PUSH-OPEN to open the cover.

AUDIO

DIGITAL

OUT

IN/OUT

L-2

LEFT

RIGHT

PCM/STREAM COAXIAL

A Antenna Input Connector [ANTENNA IN] A pg. 16 B Component Video Output Connectors [COMPONENT

VIDEO OUT (Y/P

C L-1 Input/Output Connector [L-1 IN/OUT] A pg. 16, 56, 57,

59, 60

D L-2 Input Connector [L-2 IN] A pg. 56, 57, 59, 60 E Audio Output Connector [AUDIO OUT (LEFT/RIGHT)]

A pg. 16

F Digital Audio Output Connector [DIGITAL OUT (COAXIAL)]

A pg. 54, 60

G Region Number H AC Power Cord I Antenna Output Connector [ANTENNA OUT] A pg. 16

B/PR

)] A pg. 16

J Cooling Fan

● This prevents the temperature from rising inside the unit.

Do not remove it.

● Install the unit so as not to block the area around the fan.

● The unit may become hot when it is turned off, as the cooling

fan on the rear of the unit is not activated. However, the cooling fan may be activated in the following cases; ^ In the Automatic Satellite Programme Recording standby

mode (A pg. 42)

^ If you connect the satellite receiver to [L-2 IN], and if AL-2

SELECTB is set to ASAT VIDEO/RGBB or ASAT S-VIDEO/ RGBB. (A pg. 58)

^ When AJUST CLOCKB is set to AONB (A pg. 66).

(Set AJUST CLOCKB to AOFFB if you mind the noise of the fan.)

Filename [M150SEK_05Name.fm]

M150SEK_00.book Page 12 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

12 EN

INDEX

Front Display Panel

BACD JFEG

LPCM DISC FR XP SP LP EP

DVDVR-

A Video Indicator (z) A pg. 22

Lights when video mode is selected by pressing TV/VIDEO z.

B Disc Type Indicator

When a disc is loaded, the type of the disc is indicated.

Disc Status Indicator

When a disc is running, the disc marks rotate. During High-Speed Search:

Rotate faster than normal playback.

During Slow Motion:

Rotate slower than normal playback.

While recording:

Inner red ring lights in the same way as normal playback. During Instant Timer Recording (ITR), inner red ring slowly blinks.

While paused:

Disc marks blink when either recording or playing back. While stopped: Disc marks all light. While resume stopped: Disc marks all blink. While the disc tray opened: Disc marks all light out. No disc on the disc tray: Disc marks all light out.

VR Mode Indicator (VR) A pg. 67

Lights when a DVD-RW disc is formatted in VR mode.

C Linear PCM Indicator (LPCM)

Lights when AXP MODE REC AUDIOB is set to ALINEAR PCMB (A pg. 61) for recording with DVD-RAM, DVD-R and DVD-RW discs, and when Linear PCM audio is played.

D Recording Mode Indicator (XP/SP/LP/EP/FR) A pg. 34

Blinks when recording mode is being set. While AFRB is blinking, the left 3 digits of the Multi Display (MN) indicate setting values ranging from A60B to A480B. After the value has been set, only AFRB lights.

E Group/Title Indicator (GRP/TITLE)

AGRPB or ATITLEB lights depending on a disc loaded while the left 2 digits of the Multi Display (M) indicate the numbers explained below. AGRPB: Total number of groups or group number being played

back are displayed on the Multi Display.

ATITLEB: Total number of titles or title number being played

back are displayed on the Multi Display.

F Channel Indicator

Indicates the channel received.

G Track/Chapter Indicator (TRK/CHAP)

ATRKB or ACHAPB lights depending on a disc loaded while the 3rd and 4th digits from the left of the Multi Display (N) indicate the numbers explained below. ATRKB: Total number of tracks or track number being played

back are displayed on the Multi Display.

ACHAPB: Chapter number being played back are displayed on

the Multi Display.

RW VCD

RAM

H Random/Programme Playback Mode Indicator (RND/

PRGM) A pg. 33

ARNDB: Lights when Random Playback mode is set. APROGB: Lights when Programme Playback mode is set.

I Repeat Mode Indicator (x/1/A-B) A pg. 30, 31

Select Repeat Playback mode on the on-screen bar.

AxB: Whole disc is played back repeatedly. Ax1B: A single title/chapter/track is played back

repeatedly.

AxA-BB: The selected part (A-B) is played back repeatedly. No display: Repeat Playback mode is off.

J DISC Timer Indicator A pg. 39

: Lights when a disc set up for On-Disc Timer

Programming is loaded.

: Lights when timer recording other than On-Disc

Timer Programming is on stand-by or being executed.

: Lights when On-Disc Timer Programming is on

stand-by or being executed.

: Blinks quickly if you press TIMERj in the

following cases;

● Disc is not loaded.

● Clock has not been set.

● There is no programme setting.

K Video Output Indicator (q) A pg. 63

No display: Indicates that interlace mode is engaged. q: Indicates that progressive mode is engaged. (Example) q lights when video output mode is in progressive

mode.

L SAT j Indicator A pg. 42

Lights when the unit is in the Auto Satellite Programme Recording standby mode.

M Group/Title Number Display N Track/Chapter Number Display O Remaining Time/Elapsed Time Display A pg. 25, 35

Lights when remaining time of DVD-RAM, DVD-R and DVD-RW discs is displayed, and lights out when elapsed time is displayed. The right 6 digits of the Multi Display (P) indicate elapsed or remaining time of each track. No display: Indicates elapsed time of the disc. Displayed: Indicates remaining time of the disc.

P Remaining Time/Elapsed Time Display A pg. 25, 35 Q Multi Display

Displays clock, received channel, elapsed time, and remaining time. Also displays status of the unit.

Filename [M150SEK_05Name.fm]

M150SEK_00.book Page 13 Wednesday, June 15, 2005 4:04 PM

Remote Control

A B

D E

F G

M N O

P Q R

T U V

Y Z

a b

c d e

f g

h i j k l

m n o

Masterpage:Right+

INDEX

EN 13

Q Audio Button (AUDIO) A pg. 26 R TEXT Button A pg. 21 S INFO Button A pg. 21 T TV/DVD Switch A pg. 19 U DVD STANDBY/ON Button (DVD A) A pg. 40 V TV STANDBY/ON Button (TV A)

For turning on/off the power of the TV.

W TV Volume Buttons (TV 8 +/–)

For adjusting the volume of the TV.

X Programme Buttons (PR +/–) A pg. 34 Y Memo Button (MEMO) A pg. 44

Mark Button (MARK) A pg. 25

Z Timer Button (TIMERj) A pg. 37, 38 a Automatic Satellite Programme Recording Button (SATj)

A pg. 42

b Navigation Button (NAVIGATION) A pg. 43 c Enter Button (ENTER) d Return Button (RETURN) A pg. 26 e Forward Skip Button (T) A pg. 23, 26, 29, 33 f Forward Search Button (N) A pg. 23, 29

Forward Slow Button (SLOW +) A pg. 24

g Play Button (I) A pg. 22, 23, 28 h Pause Button (W) A pg. 22, 29 i Stop Button (o) A pg. 22

Clear Button (CLEAR

j Skip Search Button (v) A pg. 24, 29

Colour Button (Blue Button) A pg. 21

k One Touch Replay Button (w) A pg. 24, 29

Colour Button (Yellow Button) A pg. 21

l Angle Button (ANGLE) A pg. 25

Live Check Button (LIVE CHECK) A pg. 27, 29

m Subtitle Button (SUBTITLE) A pg. 21, 25 n Set Up Button (SET UP) A pg. 60 o Progressive Scan Button (PROGRESSIVE SCAN) A pg. 32,

How To Use

Before use, insert two AA size batteries into the remote control with the polarity (F and G) matched correctly as indicated on the battery compartment or on the lid.

● Point the remote control toward the receiving window.

● The maximum operating distance of the remote control is

about 8 m.

NOTE:

If the remote control doesn’t work properly, remove its batteries, wait a short time, replace the batteries and then try again.

) A pg. 32

A TV/VIDEO Button

For switching the input of a JVC TV.

B Open/Close Button (M) C Number Keys A pg. 23, 32, 33 D Cancel Button (CANCEL) A pg. 33 E Auxiliary Button (AUX) A pg. 38 F GUIDE Button A pg. 37 G Programme Button (PROG) A pg. 38 H Top Menu Button (TOP MENU) A pg. 23 I Selection Keys (FGDE) J Menu Button (MENU) A pg. 23 K Reverse Skip Button (S) A pg. 23, 26, 29, 33 L Reverse Search Button (O) A pg. 23, 29

Reverse Slow Button (SLOW –) A pg. 24

M Record Button (R) A pg. 34, 35 N On-Screen Button (ON SCREEN) A pg. 30

Colour Button (Green Button) A pg. 21

O Display Button (DISPLAY) A pg. 25, 35

Colour Button (Red Button) A pg. 21

P Recording Mode Button (REC MODE) A pg. 34, 42

Remain Button (REMAIN) A pg. 25, 35

Filename [M150SEK_05Name.fm]

M150SEK_00.book Page 14 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

14 EN

INDEX

Check Contents

CHECK ALL THE CONTENTS SHOWN BELOW

DVD Video Recorder

STANDBY/ON

RAM/RW

PUSHÐOPEN

PRÐ

RF Cable

21-pin SCART Cable

AAAB Batteries (x 2)

Infrared Remote Control Unit

I You are now ready to install your unit. (A pg. 16)

Filename [M150SEK_05Name.fm]

A B C

A B

1 2

AB C

M150SEK_00.book Page 15 Wednesday, June 15, 2005 4:04 PM

On-Screen Display

When ON SCREEN on the remote control is pressed, various operational indicators appear on the TV screen. To clear the operational indicators, press ON SCREEN twice.

When playing back a recorded title

A CB D E

TITLE1

TITLE14

EACH

CHAPTER1

0:01:08

CHAPTER1

0:01:23

6:04PM

PR 95

DVD-VIDEO

LPCM 2ch

A Disc type B Audio mode C Current status (playback) D Playback title number E Playback chapter number F Current playback point G Elapsed playing time

When recording

DVD-RW/VR

D E HF G

A Disc type B Recording mode C Current time D Recording point E Current status (recording) F Elapsed recording time G Audio mode H Recording channel number

When pressing REC MODE:

(Appears for eight seconds.)

REC QUALITY

XP:

SP:

LP : EP: FR:

RECORDABLE TIME

1:00

2:00

4:01 6:03 2:31 (FR150)

A Recording mode B Remaining disc time for each recording speed

Masterpage:Right+

INDEX

When using Live Memory playback

TITLE2TITLE2 0:12:27

TITLE12

EACH

CHAPTER1

0:13:34

CHAPTER--

0:00:00

6:36PM

PR 10

--:--

DVD-RAM

C D GE F

A Disc type B Current time C Bar meter for recording/playback D Recording mode E Current playback time/Elapsed recording time F Audio mode G Recording channel number

DV Dubbing When capturing images from the external DV

equipment

A B

DVD-RW/VR

A Disc type B Current time C Current recording point D Current status (recording) E Elapsed recording time F Sound mode G Recording channel (DV input)

DV DUBBING

A Displays when remote control is set to DV control mode. B Auto capture button C Sound monitor switch

D GE F

AUDIO 1

EN 15

During Instant Timer Recording (ITR)

TITLE13

CHAPTER1

0:13

ITR

A Record remaining time

Filename [M150SEK_05Name.fm]

M150SEK_00.book Page 16 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left0

16 EN

INSTALLING YOUR NEW UNIT

Basic Connection

TV aerial cable

Mains outlet

To [ANTENNA IN]

Back of unit

To [L-1 IN/OUT]

To [ANTENNA OUT]

RF cable (supplied)

To [COMPONENT VIDEO OUT

B/PR

)]

(Y/P

Component video cable (not supplied)

To 75 ohm terminal

It’s essential that your unit be properly connected.

ATTENTION:

● Your TV must have a 21-pin AV input connector (SCART) for

the basic connection to the unit.

● Connect the AC plug only after all connections to the TV has

been completed.

Mains power cord

21-pin SCART Cable (supplied)

To [AUDIO OUT]

Audio cable (not supplied)

THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.

1 Place the unit on a stable, horizontal surface. 2 Connect the unit to a TV depending on the TV and cables you

use.

8 Basic Connection To connect to a TV with 21-pin SCART input connector ^

A Disconnect the TV aerial cable from the TV. B Connect the TV aerial cable to the [ANTENNA IN] connector on

the rear panel of the unit.

C Connect the [ANTENNA OUT] connector on the rear panel of

the unit and the TV’s aerial connector with the supplied RF cable.

D Connect the [L-1 IN/OUT] connector on the rear panel of the

unit and the TV’s 21-pin SCART connector with a supplied 21pin SCART cable.

● The [L-1 IN/OUT] connector accepts and delivers either a

composite signal (regular video signal), Y/C signal or RGB signal.

● Set your TV to the VIDEO, Y/C, or RGB mode according to the

type of your TV’s SCART connector.

8 Component Video Connection To connect to TV’s component video input connectors ^

A Perform steps A - C of ABasic ConnectionB. B Connect the unit’s [COMPONENT VIDEO OUT (Y/P

B/PR

)]

connectors to the TV’s component video input connectors.

C Connect the unit’s [AUDIO OUT] connectors to the TV’s AUDIO

input connectors.

● You can obtain high-quality component video pictures.

● If your TV is not stereo-capable, use the unit’s [AUDIO OUT]

connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

● By using the component video connection, you can view the

images in the progressive mode. For switching to the progressive mode, refer to AScan Mode SetB (A pg. 63).

NOTE:

Select an appropriate option of AL-1 OUTPUTB as follows (A pg. 57):

When your TV’s SCART connector accepts:

Set AL-1 OUTPUTB to:

Composite signals ASCART VIDEOB

Y/C signal (separated luminance (brightness) and

ASCART S-VIDEOB

chrominance (colour) signals)

RGB signal ASCART RGBB

Component video signal ACOMPONENTB

● When the setting selected is not in accordance with the TV

connected and depending on the type of appliance connected to the unit, the correct picture will not appear.

● This unit only supports 625i/625p PAL signals. Other modes are

not receivable.

3 Plug the end of the mains power cord into a mains outlet.

● APLEASEB and AWAITB blink alternately on the front display

panel when the AC plug of the mains power cord is connected into a mains outlet. And it takes approximately 30 seconds for the unit to be turned on. This is not a malfunction.

If you possess a satellite receiver, refer to AConnecting To A Satellite ReceiverB as well. (A pg. 59)

Filename [M150SEK_05Name.fm]

M150SEK_00.book Page 17 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right0

Auto Set Up

Auto Channel Set/Auto Clock Set

After the A button on the unit (or DVD A on the remote control) is pressed for the first time to turn on the unit Set Up function sets the tuner channels and clock automatically.

RAM/RW

DVD A

Selection Keys

(FGDE)

ENTER

, the Auto

DVD

INITIAL SETTINGS

EN 17

ATTENTION:

Once you have performed AAuto Set UpB, even if the unit’s memory backup has expired, all the stored stations and their channel numbers remain in the unit’s memory and the unit will not perform AAuto Set UpB again. Perform clock set manually if the clock has not been set correctly by AAuto Set UpB. (A pg. 66) If you have moved to a different area, perform each setting as required.

● Tuner setting (A pg. 64)

● Clock setting (A pg. 66)

If a new station starts broadcasting in your area, perform tuner setting. (A pg. 64)

NOTES:

● If there is a power cut, or if you press A or SET UP while AAuto

Set UpB is in progress, AAuto Set UpB will be interrupted. Be sure to turn off the unit power once and try again from step 1.

● Auto Clock Set may not function properly depending on the

reception condition.

After AAuto Set UpB is completed, perform AMonitor SetB on page 19.

SET UP

Before starting, make sure of the following:

● The TV aerial cable should be connected to the unit.

● The unit’s mains power cord should be connected to a mains

outlet.

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

1 Press A on the unit or DVD A on the remote control to turn

on the unit. The AUTO SEARCH display appears on the TV screen.

2 Press selection keys to

select AAUTO SEARCHB, then press ENTER.

● Auto Channel Set for

digital terrestrial broadcast (DVB-T) is performed and the received digital terrestrial broadcast (DVB-T) channels are stored automatically.

● When Auto Channel Set

is completed, a broadcast receiving screen appears.

ATTENTION:

AAUTOB blinks on the front display panel; do NOT press any button on the unit or remote control until the front display panel shows clock time, A1B or AcB as illustrated on page 18.

INITIAL SET UP

INITIAL SET UP / CHANNEL SET

AUTO SEARCH

EXIT

CANCEL

SELECT

CH:65

SELECT WITH [CURSORS] THEN PRESS [ENTER]

SET UP

Auto Search

Programs

radio BBC ONE Scot BBC TWO Scot BBC THREE BBC NEWS 24 BBCi CBBC Channnel BBC R Scotland BBC R n Gaidheal

UHF

0% 100%

Press to Cancel search ...

Filename [M150SEK_05Name.fm]

M150SEK_00.book Page 18 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

18 EN

INITIAL SETTINGS

Results Of Auto Set Up Appearing On The Front Display Panel

If both Auto Channel Set and Auto Clock Set have been performed successfully, the correct current time is displayed.

Turn on the TV and select an input mode such as EXT1, then make sure that all necessary stations have been stored in the unit’s memory by using the PR +/– button(s).

● If station names have also been stored in the unit’s memory, the

station name will be displayed at the top right corner of the TV screen for about 5 seconds when the unit is tuned to a different station.

● If you want to set the tuner manually such as to add or skip

channels, or to set or change station names, see pages 64 and

65.

If Auto Channel Set has succeeded but Auto Clock Set has not, A1B is displayed.

If both Auto Channel Set and Auto Clock Set have failed, AcB is displayed.

A Turn on the TV and select an input mode such as EXT1, then

make sure that all necessary stations have been stored in the unit’s memory by using the PR +/– button(s).

● If station names have also been stored in the unit’s memory, the

station name will be displayed at the top right corner of the TV screen for about 5 seconds when the unit is tuned to a different station.

● If you want to set the tuner manually such as to add or skip

channels, or to set or change station names, see pages 64 and

65.

B Perform AClock SetB (A pg. 66).

ATTENTION:

After making sure the cables are connected properly, turn off the unit’s power once, then turn the unit’s power back on again. Perform AAuto Set UpB (A pg. 17) again.

IMPORTANT:

● To check if the channel numbers have been set correctly, perform

timer programming. (A pg. 37)

● In certain reception conditions, station names may not be stored

correctly. When programming timer recording, be sure to check that the desired channel is selected correctly. (A pg. 65)

● Your unit memorises all detected stations even if reception of

some of them is poor. You can delete those stations with an unacceptable picture. (A pg. 65, ADelete A ChannelB)

INFORMATION

Just Clock

Your unit is equipped with the Just Clock function which provides accurate time keeping through automatic adjustments at regular intervals, by reading data from the digital terrestrial broadcast (DVB-T) signal. If you want to take advantage of this function, simply set AJUST CLOCKB to AONB. (The default setting is AONB.) (A pg. 66)

If you have any difficulty with the above procedures call the JVC Customer Service Hot Line on 0870 330 5000.

Filename [M150SEK_05Name.fm]

M150SEK_00.book Page 19 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Language

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

DVD

Selection Keys

(FGDE)

ENTER

SET UP

INITIAL SETTINGS

EN 19

Monitor Set

You can select the monitor type depending on the TV used when you play back DVD VIDEO discs recorded for wide-screen TVs.

1 Press SET UP to access the Main Menu screen. 2 Press selection keys to

select AFUNCTION SET UPB, then press ENTER.

3 Press selection keys to

select AVIDEO IN/OUTB, then press ENTER.

4 Press selection keys to

select AMONITOR TYPEB, then press ENTER.

5 Press selection keys to

select the desired setting, then press ENTER.

6 Press SET UP to

complete the setting.

*The boldface settings below indicate the settings at your purchase.

DVD SET UP

VIDEO IN/OUT

MONITOR TYPE

F-1 INPUT

L-1 INPUT

L-1 OUTPUT

L-2 SELECT

SET UP

EXIT

DVD SET UP

VIDEO IN/OUT

MONITOR TYPE

F-1 INPUT

L-1 INPUT

L-1 OUTPUT

L-2 SELECT

SET UP

EXIT

FUNCTION SET UP

RECORDING SET

SELECT

FUNCTION SET UP

RECORDING SET

SELECT

INITIAL SET UP

16:9AUTO

VIDEO

SCART VIDEO

S-VIDEO/RGB

INITIAL SET UP

16:9AUTO

4:3LB 4:3PS

VIDEO

16:9AUTO

VIDEO

16:9FIX

SCART VIDEO

S-VIDEO/RGB

OTHERS

DISPLAY SET

SELECT WITH [CURSORS] THEN PRESS [ENTER]

DISPLAY SET

SELECT WITH [CURSORS]

THEN PRESS [ENTER]

Menu/Audio/Subtitle Language Set

Some DVD discs contain the DVD menu display, audio and subtitles in multiple languages. With these discs, you can set the default language as you like.

● The procedure shows how to set AMENU LANGUAGEB as an

example.

1 Press SET UP to access the Main Menu screen. 2 Press selection keys to select ADVD SET UPB, then press

ENTER.

3 Press selection keys

to select ALANGUAGE SETB, then press

DVD SET UP

LANGUAGE SET

ENTER.

4 Press selection keys

to select AMENU LANGUAGEB, then press ENTER.

5 Press selection keys

SET UP

to select your desired language, then press ENTER.

● See ALanguage Code ListB (A pg. 72).

6 Press SET UP to complete the setting.

NOTE:

When the selected language is not available on the disc, the disc’s default menu language is played back.

FUNCTION SET UP

AUDIO OUTPUT

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE OFF

SELECT WITH [CURSORS] THEN PRESS [ENTER]

SELECT

EXIT

INITIAL SET UP

UTILITY

ENGLISH

8 MONITOR TYPE ^ 4:3LB / 4:3PS / 16:9AUTO / 16:9FIX

4:3LB (Letter Box conversion): Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

● When recording a 16:9 (wide TV) programme, the picture

displayed on the screen will be vertically stretched and black bars do not appear on the top and the bottom. However, the picture will be displayed in its normal 16:9 aspect ratio with the top and bottom black bars when the programme is played back.

4:3PS (Pan&Scan): Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

16:9AUTO (Wide television conversion): Select this when the aspect ratio of your TV is 16:9 (wide TV).

16:9FIX (Wide television conversion): Select this when the aspect ratio of your TV is fixed to 16:9 (wide TV). The unit automatically adjusts the screen width of the output signal correctly when playing back a picture whose aspect ratio is 4:3.

Pan&Scan/Letter Box

In general, DVD VIDEO disc are produced for a wide-screen TV with 16:9 aspect ratio. Material with this ratio will not fit to a TV with 4:3 aspect ratio. There are two styles to display the image, APan&ScanB (PS) and ALetter BoxB (LB).

Pan&Scan

The right and left side of the image are cut off. The image fills the screen.

● The picture will be shown in the A4:3LBB mode

depending on the disc even if the A4:3PSB mode is selected.

Letter Box

Black bands appear at the top and bottom of the image. The image itself appears in 16:9 aspect ratio.

Filename [M150SEK_05Name.fm]

M150SEK_00.book Page 20 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

20 EN

INITIAL SETTINGS

Setting DTV

You can set the language and channel selection method when watching TV programmes and performing recording with this unit.

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

DVD

TV8 +/-

0-9 PR+/-

Selection Keys

(FGDE)

ENTER

Colour Buttons

TEXT

INFO

Setting The Audio Language

Set the audio language when watching TV programmes.

1 Press SET UP to access the Main Menu screen. 2 Press selection keys to select AINITIAL SET UPB, then press

ENTER.

3 Press selection keys to select ADTV SETTINGB, then press

ENTER.

4 Press selection keys

to select AAUD IO LANGUAGEB, then press ENTER.

5 Press selection keys

to select your desired language, then press ENTER.

6 Press SET UP to

complete the setting.

NOTE:

If the language that has been set is not available in a broadcast, the language that is available will be selected.

DVD SET UP

CHANNEL SET DTV SETT ING CLOCK SET

SET UP

RETURN

SUBTITLE SET UP

FUNCTION SET UP

AUDIO LANGUAGE

FAVOURITE MODE

RECORDING SUBTITLE

SELECT

INITIAL SET UP

ENGLISH

OFF

SELECT WITH [CURSORS] THEN PRESS [ENTER]

4 Press selection keys to select AFAVOURITE MODEB, then

press ENTER.

NOTE:

If AFavouritesB under AEDIT CHANNEL LISTB (A pg. 65) has not been set, AFAVOURITE M O D E B cannot be set to AONB. A warning message APLEASE SET A FAVOURITE PR IN EDIT PR LIST FIRSTB will be displayed.

5 Press selection keys to select AONB or AOFFB, then press

ENTER.

ON:

Only channels set in AFavouritesB with ASETTING FAVOURITE B(A pg. 65) are selected using PR +/–.

OFF:

All the channels stored on this unit are selected.

6 Press SET UP to complete the setting.

Setting The Subtitle Language

Some TV programmes contain subtitles. It is possible to set the subtitle language when recording these programmes.

1 Press SET UP to access the Main Menu screen. 2 Press selection keys

to select AINITIAL SET UPB, then press ENTER.

3 Press selection keys

to select ADTV SETTINGB, then press ENTER.

4 Press selection keys

to select ARECORDING SUBTITLEB, then press ENTER.

5 Press selection keys to select your desired language, then

press ENTER.

6 Press SET UP to complete the setting.

NOTE:

If the language that has been set is not available in a broadcast, the language that is available will be selected.

DVD SET UP

CHANNEL SET

AUDIO LANGUAGE

FAVOURITE MODE

RECORDING SUBTITLE

SET UP

EXIT

FUNCTION SET UP

DTV SETTING

SELECT

INITIAL SET UP

CLOCK SET

GAELIC

ENGLISH

OFF

ENGLISH

GAELIC WELSH

SELECT WITH [CURSORS] THEN PRESS [ENTER]

Setting Favourite Mode

You can select to tune to your frequently watched channels with this setting.

1 Press SET UP to access the Main Menu screen. 2 Press selection keys

to select AINITIAL SET UPB, then press ENTER.

3 Press selection keys

to select ADTV SETTINGB, then press ENTER.

DVD SET UP FUNCTION SET INITIAL SET UP

CHANNEL SET D TV SETTING CLOCK SET

AUDIO LANGUAGE

FAVOURITE MODE

RECORDING SUBTITLE

SET UP

EXIT

SELECT

ENGLISH

OFF

SELECT WITH [CURSORS] THEN PRESS [ENTER]

Filename [M150SEK_06DVD Operation.fm]

M150SEK_06DVD Operation.fm Page 21 Thursday, June 16, 2005 5:59 PM

Masterpage:Right0

Basic Operation (TV)

ATTENTION:

● It is not possible to watch pay-TV with this unit.

● While watching Digital terrestrial broadcast (DVB-T),

ON SCREEN and DISPLAY buttons function as colour buttons. To operate these buttons as ON SCREEN and DISPLAY buttons, press INFO to display the information bar.

Selecting The Desired Channel

Press PR +/– or the number keys to select the channel you wish to watch.

● When using the number keys, enter the PR number directly.

PR 6N Press 6. PR 6 1N Press 6 and 1 in sequence. PR122N Press 1, 2 then 2 in sequence.

● When using PR +/–, press +/– repeatedly to select the desired

channel. If AAUTO SEARCHB (A pg. 17) is performed and channels are being registered, only those registered channels are selected.

● The information bar is displayed when changing the channels

using PR +/–.

Checking Channel Information and Clock Time

Press INFO when the channel is being selected.

BASIC OPERATIONS ON DVD DECK

EN 21

Displaying The Subtitles

Press SUBTITLE when watching a programme.

● If the programme contains subtitles, the subtitles will be displayed

on the TV screen.

● When the unit is turned on, the subtitles set in ARECORDING

SUBTITLEB (A pg. 20) is displayed.

● When SUBTITLE on the remote control is pressed, a window

(SUB-GUI) with the current selected setting is superimposed on the TV screen for 5 seconds.

● While SUB-GUI is displayed, you can change the setting using

DE. (Selectable settings: OFF/ENG.(ENGLISH)/ GAEL.(GAELIC)/WELSH) Press ENTER to confirm the changes after changing. The SUBTITLE button is disabled when making changes.

● If the colour buttons or TEXT is pressed while the subtitles are

displayed, the subtitle display is switched off and SUB-GUI displays AOFFB for 5 seconds.

● During recording, the subtitles set in ARECORDING SUBTITLEB

(A pg. 20) being displayed will be recorded. The subtitles of the recorded programme will be the same as that displayed during recording.

● If recording starts while the subtitles are displayed, the subtitles

will also be recorded. If you do not want subtitles on the recorded image, perform recording after clearing the subtitles.

● The SUBTITLE button functions only after the unit has been

turned on and a TV programme is displayed on the TV screen. However, when SET UP is pressed to access the Main Menu, the subtitles will not be displayed.

Viewing Teletext Broadcast

● The information bar

13:19

ITV News

Now: 13:00-14:00 Steve Scott Next: 14:00-14:30 Steve Scott

CH61

appears.

Station name Receiving condition

ITV News

CH61

Current clock time

Channel number

Now: 13:00-14:00 Steve Scott

13:19

Next: 14:00-14:30 Steve Scott

Now: Programme information of the

current broadcast

Next: Programme indication of the

next broadcast

● To clear the information bar, press INFO again.

● While the information bar is displayed, the colour buttons on the

remote control does not function as colour buttons with scrolling function and so on.

ATTENTION:

The DISPLAY button and ON SCREEN button function of the respective red and green button on the remote control are given priority while the On-screen bar is displayed.

1 Press TEXT when the channel is being selected.

● The teletext menu screen appears.

2 Following the instructions on the screen, select the item with

FGD E, then press ENTER.

● The text information of

the selected item (for example, news) is displayed.

● The subtitles

disappear if TEXT is pressed while the subtitles are displayed.

● The colour buttons

can also be used to

Welcome to BBC!

BBC ONE

Press TEXT to exit Press O for full screen TV

SHORTCUTS BACK BBCi MENU

HOME

BBCi Menu

News

Sport

Weather

What's On

Entertainment

CBeebies

Travel

Finance

Help

06:18 20 Oct

BBC i

select the items.

● When recording is

performed while viewing the teletext, only the images of the programme are recorded. The text section will not appear. In this case, if the subtitle display is set to other than off in ARECORDING SUBTITLEB (A pg. 20), some programmes will display the subtitles in place of the teletext menu. The subtitles displayed will be recorded. If you do not want subtitles on the recorded image, perform recording after clearing the subtitles.

Adjusting The Volume

Press TV 8 +/– to adjust accordingly.

+: To increase the volume.

–: To turn down the volume.

Filename [M150SEK_06DVD Operation.fm]

M150SEK_00.book Page 22 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

22 EN

BASIC OPERATIONS ON DVD DECK

Basic Playback

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

RAM/RW

DVD

TV/VIDEO

ENTER

To play back an MP3/JPEG disc, see APlayback With MP3/JPEG NavigationB (A pg. 52).

1 Load a disc.

● For details, refer to APlacing A DiscB (A pg. 9).

● Pressing M also closes the disc tray.

● Playback begins automatically if an auto-playback DVD disc is

loaded.

2 Press I to start playback.

● If you load a DVD disc whose region code does not match the

unit, AREGION CODE ERROR CHECK DISCB appears on the

TV screen. For details, refer to ARegion NumberB (A pg. 7).

● With Video CD/SVCD discs with PBC control or some DVD

discs, the menu display may appear on the TV screen after starting playback. In this case, select an item which you want to play back from the menu. For details, refer to APlayback Control (PBC) FunctionB (A pg. 26) or ALocating A Desired Scene

Using The DVD MenuB (A pg. 23).

● The Library Database Navigation also enables you to search

and scan the beginning of the desired titles. (A pg. 44)

3 Press W to pause playback.

● To resume normal playback, press I.

4 Press o to stop playback.

● When a recordable disc is played, playback stops and a

programme received with the unit’s tuner resumes on the TV screen.

● When a playback-only disc is played, playback stops and the

TV screen becomes all blue when you press o. Pressing o again resumes a programme received with the unit’s tuner.

● If M is pressed during playback, playback stops, then the disc

tray opens.

NOTE:

When the Library Database Navigation screen appears, choose a thumbnail image of the desired title on the TV screen, then press ENTER. (A pg. 44)

Each time you press TV/VIDEO, the unit switches between video mode (or connected external mode) and TV mode. (A pg. 13) AzB lights on the front display panel when video mode is selected. (A pg. 12)

ATTENTION:

● It takes approximately 30 seconds to read a disc depending on

the type and condition of the disc since this unit is multi-disc compatible (DVD-RAM, DVD-RW, DVD-R). It may even take several minutes when a disc is dirty, scratched or warped.

● It may take a few seconds to start playback. This is not a

malfunction.

● Forward/reverse high-speed search and other operations

cannot be performed while playback is stopped.

Filename [M150SEK_06DVD Operation.fm]

M150SEK_00.book Page 23 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Playback Features

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

0-9

TOP MENU

Selection Keys

(FGDE)

ENTER

I T N

BASIC OPERATIONS ON DVD DECK

EN 23

Locating The Start Point Of The Item Or Skip The Item

Press S or T during playback.

● Pressing T locates the start point of the title (or track) or skips

to the marked point in the forward direction, then resumes playback.

● Pressing S locates the start point of the title (or track) or skips

to the marked point in the reverse direction, then resumes playback.

Current playback point

programme

Scene 2

(Chapter 2)

Tra c k 2

Reverse

● : marked points (A pg. 25)

Drama

Scene 3

(Chapter 3)

Track 3

programme

Scene 4

(Chapter 4)

Track 4

Forward

Movie

Scene 5

(Chapter 5)

Track 5

Variable Speed Search

Locating A Desired Scene Using The DVD Menu

DVD VIDEO discs may have top menu and disc menu.

Top m e n u

DVD discs generally have their own menus which show the disc contents. These menus contain various items such as titles of a movie, names of songs, or artist information. You can locate a desired scene by using the top menu displayed on the TV screen. Press TOP MENU to access the top menu.

Disc menu

Disc menus include playback data (angle menu, subtitle menu, etc.) specific to each title. Press MENU to access the disc menu.

1 Press TOP MENU or

MENU to access the

DVD m enu .

2 Press selection keys

to select the desired title, then press ENTER. The playback starts.

● It may be possible to

select the desired item using the number keys depending on the menu display.

NOTE:

When A7B appears on the TV screen in step 1, the disc does not have a top menu or disc menu.

Example:

During playback, press N for forward variable speed search, or O for reverse variable speed search.

● Each press of the button increases the search speed for each

direction.

● To resume normal playback, press I.

During playback, press and hold T for 2 or more seconds for forward variable speed search, or press and hold S for 2 or more seconds for reverse variable speed search.

● Releasing the button resumes normal playback.

Still Picture/Frame-By-Frame Playback

1 Press W to pause during playback. 2 Each press of W advances a frame.

● Each press of W advances the still picture frame by frame.

Press D or E to activate frame-by-frame playback.

● Each press of D or E reverses/advances the still picture frame by

frame.

● Frame-by-frame playback for reverse direction cannot be

performed with Video CD/SVCD discs.

● To resume normal playback, press I.

Filename [M150SEK_06DVD Operation.fm]

M150SEK_00.book Page 24 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

24 EN

BASIC OPERATIONS ON DVD DECK

TOP MENU

O/SLOW

DISPLAY

REMAIN

SUBTITLE

DVD A

MARK

Selection Keys

(FGDE)

ENTER

I T

N/SLOW +

v w

ANGLE

Slow Motion

1 Press W to pause during playback. 2 Press SLOW – (O) or SLOW + (N).

● Each press of SLOW – (O) or SLOW + (N) increases the

slow motion speed for each direction.

● Slow motion for reverse direction cannot be performed with

Video CD/SVCD discs.

Press and hold S or T for 2 or more seconds.

● Releasing the button resumes normal playback.

Skip Search

Press v during playback.

● Each press initiates an approximately 30 second period of fast-

motion playback. Normal playback resumes automatically.

● This function is not possible when playing back a Video CD using

the PBC function.

One Touch Replay

You can move back the playback position slightly. Press w.

● Each press skips back for approximately 7 seconds and resumes

playback.

● Pressing while paused skips back for approximately 7 seconds

and resumes pause.

● This function is not possible when playing back a Video CD using

the PBC function.

Resume Function

It is possible to memorise the position where you stop playback and resume playback from that position.

● Be sure to set ARESUMEB

to AONB or ADISC RESUMEB. (A pg. 61)

ATTENTION:

When a playback-only disc is played, pressing o once results in a blue screen. To perform Resume Function with these discs, follow the procedures as described below under the blue screen condition.

1 Press o during playback to memorise a resume point.

● The unit enters Resume Stop mode and memorises the

position where you have stopped playback as a resume point. (The inside of the disc status indicator on the front display panel blinks while memorising.)

● The unit retains a memory of the resume points of the last

30 discs played back, even though they have been ejected if ARESUMEB is set to ADISC RESUMEB. (A pg. 61)

● To clear the resume points:

(The inside of the disc status indicator stops blinking and lights.)

When ARESUMEB is set to AONB:

• Press DVD A to turn off the unit.

• Press

M to take out the disc.

• Press

o in stop mode.

• Press

TOP MENU to display the top menu, then start playback by

selecting an item, etc.

MENU to display the disc menu, then start playback by

• Press selecting an item, etc.

When ARESUMEB is set to ADISC RESUMEB:

• ARESUMEB must be set to AOFFB. (A pg. 61)

• Press

o in stop mode.

• Press

TOP MENU to display the top menu, then start playback by

selecting an item, etc.

MENU to display the disc menu, then start playback by

• Press selecting an item, etc.

2 Press I in stop mode to resume playback. The unit starts

playback from the resume point.

NOTES:

● ADISC RESUMEB setting works on DVD VIDEO, VCD, SVCD and

finalised DVD-R/DVD-RW (Video mode) discs. For other types of discs, the function under AONB setting will be applied even if ARESUMEB is set to ADISC RESUMEB. (A pg. 61)

● If you stop the playback of a disc for which a resume point has

already been memorised, the memory will be updated with the new resume point.

● After the unit has memorised the resume points for 30 discs,

remembering a new resume point will cause the unit to delete the oldest memorised point. Stopping playback of a disc for which a resume point is already stored may change the order in which the points are stored. This may potentially change the order in which points are deleted.

● When the unit memorises a resume point for a disc, it also

remembers audio language, subtitle and angle settings.

● This function may not work for some Video CD/SVCDs.

● When ARESUMEB is changed to AONB or AOFFB (A pg. 61),

resume points of the discs memorised with ARESUMEB set to ADISC RESUMEB will be cleared.

● Resume points are memorised for each side of a double-sided

disc.

DVD SET UP

VIDEO IN/OUT

AUTO TIMER

RESUME

SET UP

EXIT

FUNCTION SET UP

RECORDING SET

SELECT

INITIAL SET UP

DISPLAY SET OTHERS

OFF

SELECT WITH [CURSORS] THEN PRESS [ENTER]

Filename [M150SEK_06DVD Operation.fm]

M150SEK_00.book Page 25 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Marking Positions To Play Back Again Later

It is possible to mark positions (up to 999 points) where you want to play back once again later, and start playback from a marked position.

To mark positions:

During playback, press MARK at positions you want to mark.

● AMARKB is displayed on the TV

screen. You can easily locate the marked positions using S or T when you play back the disc.

To delete the marked positions:

While paused, press S or T to locate a marked position you want to delete, then press MARK.

● Crossed AMARKB appears on the TV

screen, and the marked position is deleted.

NOTES:

● When a DVD-R/RW (Video mode) disc is finalised, marked points

that are marked at the desired locations during playback are deleted and new marks are assigned automatically approximately every 5 minutes.

● If MARK is pressed when playing back a disc that does not allow

marks to be inserted, A7B appears on the TV screen.

Checking The Time Information

You can check time information of a disc on the front display panel and the TV screen. Each time you press DISPLAY, the display changes as follows:

8 DVD-RAM/DVD-R/DVD-RW During recording or playback

Clock time N Current title elapsed time N Disc remaining time N (back to the beginning)

● The clock time is displayed on the front display panel only.

● The clock time and disc remaining time will not be displayed

when playing back finalised DVD-R/RW discs.

During recording/playback or in stop mode

● It is possible to check disc remaining time according to recording

modes also by pressing REMAIN.

● In FR mode, it is possible to set recording time in detail. While the

recording mode and the disc remaining time are displayed by pressing REMAIN, press selection keys to select AFRB, then select the desired recording time. (A pg. 36)

● It is not possible to switch the recording mode during playback or

while recording.

8 Video CD/SVCD/Audio CD During playback or in stop mode

Current track elapsed time N Current track remaining time N Tot al elapsed time N Total remaining time N (back to the beginning)

NOTE:

When a PBC-compatible Video CD/SVCD disc is loaded, deactivate the PBC function. (A pg. 26)

BASIC OPERATIONS ON DVD DECK

EN 25

Angle Selection

You can enjoy a variety of scene angles if a DVD VIDEO disc contains Amulti-angleB parts, where the same scene was shot from different angles. If the disc contains Amulti-angleB parts, AyB appears on the TV screen at the beginning of the Amulti-angleB part.

1 Press ANGLE during playback.

The angle selection display appears on the TV screen.

2 Press ANGLE or the selection

keys to select your desired

angle.

● Each time you press ANGLE or the selection keys, the angle

changes.

● When A7B appears on the TV screen, the current scene is not

recorded from multiple angles. In addition, some discs prohibit angle selection.

● To clear the angle selection display, press ENTER. In addition,

the angle selection display disappears automatically if no operation is done for 5 seconds.

When 3 scene angles are contained.

Subtitle Selection

Some DVD VIDEO discs contain more than one subtitle language, from among which you can choose the desired subtitle language. AhB appears on the TV screen at the beginning of the part where more than one subtitle language are recorded.

1 Press SUBTITLE during

playback. The subtitle selection display appears on the TV screen.

● Each time you press

SUBTITLE, the subtitle display is switched on and off.

When 3 subtitle languages are contained.

2 Press selection keys to select your desired language.

● To clear the subtitle selection display, press ENTER.

NOTES:

● For disc that does not contain subtitle language, the number of

selectable languages will not be displayed. A-/-B appears on the TV screen.

● When the subtitle language won’t be changed with the procedure

above, change the subtitle on a disc menu displayed by pressing MENU.

ENGLISH

Filename [M150SEK_06DVD Operation.fm]

M150SEK_00.book Page 26 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

26 EN

BASIC OPERATIONS ON DVD DECK

0-9

Selection Keys

(FGDE)

ENTER

AUDIO

RETURN

Audio Channel Selection

During disc playback, you can choose the desired audio channel.

● When ASUPERIMPOSEB is set to AAUTO B, you can confirm on

the TV screen the audio channel you have chosen. (A pg. 61)

● Each time you press AUDIO , the

audio channel changes.

Audio Language/Sound Selection

Some DVD VIDEO discs contain the multiple audio language or sound. You can select the desired audio language or sound. For some Video CD/SVCD discs, you can switch the audio channel to choose Karaoke either with or without the vocal.

1 Press AUDIO during playback.

The Audio Language/Sound selection display appears on the TV screen.

2 Press AUD IO or the selection

keys to select your desired

audio language/sound.

● Each time you press AUDIO or the selection keys, the audio

language/sound changes.

● To clear the Audio Language/Sound selection display, press

ENTER.

NOTES:

● When A7B appears on the TV screen, no audio language is

recorded.

● When the audio language won’t be changed with the procedure

above, change the audio on a disc menu displayed by pressing MENU.

● Pressing AUDIO to select the audio language/sound is only

possible during playback. It is not possible to select by pressing AUDIO in stop mode. However, you can select the desired audio language/sound from the setup menu while in stop mode.

Example: DVD VIDEO

ENGLISH

When 3 audio languages are contained.

Playback Control (PBC) Function

TRACK

On-Screen Display

USE

For stereo discs

For audio of left channel

For audio of right channel

Some Video CD/SVCD discs support the PBC function. PBC is an abbreviation of APlay Back ControlB. A Video CD/SVCD disc recorded with PBC has its own menus, such as a list of the songs on the disc. You can locate a specific scene by using the menu.

1 Press I in stop mode. The PBC menu appears. 2 Press the number keys to enter the number of the desired

scene, then press ENTER. The unit starts playback of the selected item.

● APBCB is displayed on the front display panel.

● When ANEXTB or APREVIOUSB appears on the TV screen:

Pressing T advances to the next page. Pressing S returns to the previous page.

● You can return to the menu by pressing RETURN.

● The method of the operation is different depending on the disc.

NOTES:

● If you want to play back a PBC-compatible Video CD/SVCD disc

without activating the PBC function, start playback in stop mode by using the number keys, instead of the I button, to choose the track, then press ENTER.

● To activate the PBC function when a PBC-compatible Video CD/

SVCD disc is being played back without the PBC function, press o and clear the resume points (A pg. 24), then press I.

Filename [M150SEK_06DVD Operation.fm]

M150SEK_00.book Page 27 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

BASIC OPERATIONS ON DVD DECK

Live Memory Playback

You can watch a recorded portion of a programme even before recording ends (Live Memory Playback), or watch other programmes (Simultaneous Recording and Playback) while continuing to record onto the DVD-RAM disc.

(Live Memory Playback screen)(Recording screen)

To stop recording,

press

Recording stops

To start Live Memory Playback,

I to play back from the

press

beginning OR press

To stop Live Memory Playback,

w reverse

skip a little.

press o.

To clear, press

LIVE CHECK.

To stop Live Memory Playback,

press

Checking the picture

currently being

recorded

(Playback and Live Check screen)

To display, press

LIVE CHECK.

EN 27

Current playback point

(Live Memory Playback)

Recording start point

030min

Currently elapsed recording time

Current recording position

Playback

continues

(Recording point)

Recording continues

1 hour

Live Memory Playback


Recording


NOTES:

● Live Memory Playback could be performed approximately

30 seconds after recording has started.

● Although high-speed search up to approximately 30 seconds

before the current recording point is possible during Live Memory Playback, once the current recording point is reached, the unit resumes normal playback and maintains a delay of approximately 30 seconds so that recording and playback can continue.

● When using Live Memory Playback during timer recording, the

unit remains turned on and playback continues even after the end of the recording.

● When using Live Memory Playback during timer recording,

playback is automatically stopped just before recording starts, and then recording starts when the time arrives for the next timer programme.

● It is impossible to perform ITR even if you press R during Live

Memory Playback. Press o to display the programme being recorded, then perform ITR settings.

● Playback may be paused for a moment during Live Memory

Playback, which does not interfere with recording.

● When LIVE CHECK is pressed to display the picture currently

being recorded, the picture size may not be correct.

● Live Memory Playback cannot be performed while recording the

source from DV input. (A pg. 53)

Filename [M150SEK_06DVD Operation.fm]

M150SEK_00.book Page 28 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

28 EN

BASIC OPERATIONS ON DVD DECK

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

DVD

NAVIGATION

Selection Keys

(FGDE)

ENTER

I w

ON SCREEN

Live Memory Playback status can be checked by

ON SCREEN to display the bar meter

pressing on the superimpose display. The current status is superimposed on the TV screen.

Live Memory Playback

You can play back the previous part of the channel you are recording.

To watch from the recording start point

1 Press I during recording.

To watch from the point after reverse skipping a little during recording

1 Press w during recording.

● Live Memory Playback could be performed approximately

30 seconds after recording has started.

● Pressing once skips back for approximately 7 seconds and

resumes playback.

Simultaneous Recording and Playback

You can playback other programmes available in the Library Database Navigation on the disc.

To watch other previously recorded programmes during recording

1 Press NAVIGATION to display the Library Database Navigation

screen.

2 Press selection keys to select AORIGINALB, then press

ENTER.

3 Press selection keys to select a desired programme, then

press ENTER.

Bar meter display

Filename [M150SEK_06DVD Operation.fm]

M150SEK_00.book Page 29 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Buttons To Be Used During Live Memory Playback

NAVIGATION

A NAVIGATION

Displays Library Database Navigation menu. You can choose a title to play back.

B D

Pressing during pause mode reverses the still picture frame by frame.

C E

Pressing during pause mode advances the still picture frame by frame.

D S

● Pressing once skips back to the beginning of the programme or

chapter being played back.

● Pressing down for 2 or more seconds during playback reverses

playback at a faster speed. Releasing the button resumes normal playback.

Available only when paused

● Pressing down for 2 or more seconds reverses playback at a

slower speed.

E T

● Pressing once skips forward to the next programme or chapter

being played back.

● Pressing down for 2 or more seconds during playback

advances playback at a faster speed. Releasing the button resumes normal playback.

Available only when paused

● Pressing down for 2 or more seconds advances playback at a

slower speed.

F O

● Each press of the button during playback advances the

playback speed in 5 steps in the reverse direction.

● Pressing during pause mode reverses playback at a slower

speed.

LIVE CHECK

BASIC OPERATIONS ON DVD DECK

EN 29

G N

● Each press of the button during playback advances the

playback speed in 4 steps in the forward direction.

● Pressing during pause mode advances playback at a slower

speed.

H o

● Pressing once stops Live Memory Playback and returns to the

screen on air.

● Pressing again stops the recording and returns to the screen on

air.

I W

● Pressing once pauses playback (still picture playback).

● Pressing repeatedly advances the still picture frame by frame.

J v

It is useful when skipping over unwanted sections.

● Pressing once skips forward for approximately 30 seconds and

resumes playback.

● Pressing repeatedly skips forward continuously as many times

as pressed.

K w

It is useful when watching sports programmes, etc.

● Pressing once skips back for approximately 7 seconds and

resumes playback.

● Pressing repeatedly skips back continuously as many times as

pressed.

L LIVE CHECK

You can check, for example, if the programme you are recording has already finished.

● Pressing once displays the picture currently being recorded and

the one being played back simultaneously.

● Pressing successively clears the Live Check window and

displays only the picture currently being played back.

Filename [M150SEK_06DVD Operation.fm]

DVD-VIDEO

M150SEK_06DVD Operation.fm Page 30 Wednesday, June 15, 2005 8:09 PM

Masterpage:Left+

30 EN

BASIC OPERATIONS ON DVD DECK

Using The On-screen Bar

The on-screen bar allows you to control various playback functions. Some of the functions operated on Navigation Menu can be controlled on the On-screen bar.

Be sure to clear Library Database Navigation screen by pressing NAVIGATION.

ATTENTION:

While watching Digital terrestrial broadcast (DVB-T),

ON SCREEN button functions as colour button (green). Press INFO to display the information bar, then proceed with the

following procedures.

0-9

CANCEL

NAVIGATION

Selection Keys

(FGDE)

ENTER

A Disc type. B Select this for Repeat Playback. (A pg. 30) C Select this for A-B Repeat Playback. (A pg. 31) D Select this for search function. (A pg. 31) E Select this for time search function. (A pg. 32) F Select this for Picture Control function. (A pg. 32) G Select this to switch picture source type. (A pg. 32) H Current status area for the selected item. I Select this for Programme Playback. (A pg. 33) J Select this for Random Playback. (A pg. 33) K Select this to control the switching interval of the slide show.

(A pg. 33)

NOTE:

Although examples of the on-screen bar are provided here only for 3 types of discs, the on-screen bar will be displayed for whichever disc indicated in the left column.

Basic Operation On The On-screen Bar

Example: When selecting Picture Control function of DVD

During playback or while stopped

1 Press ON SCREEN twice to access the on-screen bar. The

item currently selected is highlighted and pointed by :.

SHARP AUTO 1

2 Press selection keys to select AB, then press ENTER. The

pop-up window appears under the selected item.

SHARP AUTO 1

CLEAR (o)

ON SCREEN

How To Access The On-screen Bar

1 Press ON SCREEN twice whenever a disc is loaded.

Contents of the on-screen bar during playback

DVD VIDEO

DVD-VIDEO

BCDEFG

Video CD/Super Video CD

VIDEO-CD

BCDEIJF

JPEG disc

JPEG

10 sec

SHARP AUTO 1

CINEMA

3 Press selection keys to select the desired option, then press

ENTER.

CINEMA AUTO 1

NORMAL CINEMA SHARP SOFT

To clear the on-screen bar Press ON SCREEN.

NOTE:

See the corresponding pages for details on each menu item.

Repeat Playback

You can repeat playback as you like according to the type of disc.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AxB, then press ENTER. The

pop-up window appears under the selected item.

CINEMA AUTO 1

OFF TITLE REPEAT CHAPTER REPEAT

3 Press selection keys repeatedly to select the desired Repeat

mode, then press ENTER.

BDK

Filename [M150SEK_06DVD Operation.fm]

DVD-VIDEO

M150SEK_00.book Page 31 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

DVD-RAM/RW/R

OFF:

Repeat playback is not performed.

ALL REPEAT:

The whole disc is played back repeatedly.

TITLE REPEAT:

The current title is played back repeatedly.

DVD VIDEO

OFF:

Repeat playback is not performed.

TITLE REPEAT:

The current title is played back repeatedly.

CHAPTER REPEAT:

The current chapter is played back repeatedly.

Audio CD/Video CD/SVCD/JPEG/MP3

OFF:

Repeat playback is not performed.

ALL REPEAT:

The whole disc is played back repeatedly.

TRACK REPEAT*:

The current track is played back repeatedly.

*ATRACK REPEATB cannot be selected for JPEG discs.

To clear the on-screen bar Press ON SCREEN.

To cancel Repeat Playback

Repeat the above procedure from step 1, select AOFFB in step 3, then press ENTER.

NOTES:

● Repeat Playback is not possible for a Video CD/SVCD with PBC

function.

● Repeat Playback may not work properly depending on the type of

the disc being used.

A-B Repeat Playback

BASIC OPERATIONS ON DVD DECK

NOTES:

● A-B Repeat Playback may not work properly depending on the

type of disc being used.

● The subtitles recorded around the A-B point may not appear.

● When the end of the item is reached before the end point is set,

the on-screen bar disappears from the TV screen. In such a case, repeat the procedure from step 1.

● The point B must be set at least 3 seconds after the point A.

● When playing back a DVD, A-B Repeat Playback is possible only

within the same title.

● AA-B xB cannot be selected during Programme and Random

Playback.

● AA-B xB cannot be selected while stopped.

EN 31

Locating The Beginning Of A Desired Selection

You can locate the beginning of a title, chapter, group or track.

During playback or while stopped

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select A9B, then press ENTER.

CINEMA AUTO 1

TITLE SEARCH CHAPTER SEARCH

3 Press selection keys to select the desired option, then press

ENTER.

● Skip this step for Video CD/SVCD and Audio CD.

NOTE:

Settings that are selectable during playback and stop mode differ depending on the type of disc and search used.

4 Press the number keys to enter the desired title or chapter

number, then press ENTER.

●

Playback starts from the selected section.

CINEMA AUTO 1

You can repeat the desired part.

During Playback

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AA-B xB. 3 Press ENTER at the beginning of the desired part you want to

repeat (point A). The elapsed playing time of the point A appears.

DVD-VIDEO

A 0:16:58 B

CINEMA AUTO 1

4 Press ENTER at the end of the desired part you want to repeat

(point B). The elapsed playing time of the point B appears.

● The selected part of the disc (between point A and B) is played

repeatedly.

DVD-VIDEO

A 0:16:58 0:17:45B

To clear the on-screen bar Press ON SCREEN.

To cancel A-B Repeat Playback

Press selection keys to select AA-B xB, then press ENTER.

CINEMA AUTO 1

TITLE ENTER

Example:

A To select track 5, press the number key A5B. B To select track 15, press the number keys A1B and A5B. C To select track 25, press the number keys A2B and A5B.

If you have specified a wrong number

Press CLEAR again.

To clear the on-screen bar Press ON SCREEN.

NOTES:

● When A7B is displayed on the TV screen in step 4, the chapter

you have selected is not contained in the disc, or chapter search does not work on the disc.

● Before you press ENTER, playback may start automatically when

you enter the section’s number depending on the disc.

● This function is not possible for a Video CD/SVCD with PBC

function.

(o) or CANCEL on the remote control and re-enter

Filename [M150SEK_06DVD Operation.fm]

DVD-VIDEO

M150SEK_00.book Page 32 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

32 EN

BASIC OPERATIONS ON DVD DECK

CANCEL

ENTER

ON SCREEN

0-9

Selection Keys

(FGDE) I

CLEAR (o)

Time Search

You can play back a disc from the desired point by specifying the elapsed playing time from the beginning of a programme (DVD-RAM, DVD-R, DVD-RW and DVD VIDEO) or a disc (Video CD/SVCD and Audio CD).

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select Aj9B, then press ENTER. The

pop-up window appears under the selected item.

DVD-VIDEO

TIME ENTER

3 Press the number keys to enter the desired time, then press

ENTER. Playback starts from the specified time.

Example: To play back from a point 12 (minutes): 50 (seconds) elapsed.

TIME

If you have specified a wrong number

Press CLEAR again.

To clear the on-screen bar Press ON SCREEN.

NOTES:

● When A7B is displayed on the TV screen in step 3, you have

selected a point that exceeds the recording time of the disc.

● Some DVD VIDEO discs do not contain time information, and it is

not possible to use the Time Search function. In such cases, A7B is displayed on the TV screen as well.

● This function is not possible for a Video CD/SVCD with PBC

function.

(o) or CANCEL on the remote control and re-enter

CINEMA AUTO 1

TIME

Press 1

TIME

Press 5

Press 2

Press 0

Adjusting The Picture Quality

You can obtain optimal picture quality by selecting an appropriate picture mode.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AB, then press ENTER. The

pop-up window appears under the selected item.

CINEMA AUTO 1

NORMAL CINEMA SHARP SOFT

3 Press selection keys to select the desired option, then press

ENTER.

NORMAL:

Normally select this.

CINEMA:

Suitable for a movie disc, etc.

SHARP:

Clearer, sharper-edged picture when viewing images with lots of flat, same-coloured surfaces such as cartoons.

SOFT:

Select this option when too much noise appears.

To clear the on-screen bar Press ON SCREEN.

Setting The Progressive Mode

You can obtain optimal picture quality by selecting whether the content on the disc is processed by field (video source) or by frame (film source).

1 Set the unit to the progressive scan mode. (A pg. 63) 2 Press ON SCREEN twice to access the on-screen bar. 3 Press selection keys to select AB, then press ENTER. The

pop-up window appears under the selected item.

SHARP AUTO 2

AUTO 1 AUTO 2 FILM VIDEO

4 Press selection keys to select the desired option, then press

ENTER.

AUTO 1:

This mode automatically detects film and video content for progressive playback. When film content is found, flag detection is used to invoke playback of film data in full screen. When video content is found, pictures from multiple fields are used to detect sections with movement, and then this movement undergoes advanced image processing for output of sharp, detailed progressive images without any reduction in image quality where movement occurs. Normally, operation in this mode is recommended.

AUTO 2:

Only the processing of sections with movement differs from AAUTO 1B . For video contents, the sections with movement are detected and the pictures are corrected by the filtering process for motion pictures.

FILM:

Suitable for playing back a progressive scanned film source disc.

Filename [M150SEK_06DVD Operation.fm]

VIDEO-CD

JPEG

M150SEK_00.book Page 33 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

VIDEO:

Suitable for playing back a video source disc. The outlines on the played back pictures will be soft.

To clear the on-screen bar Press ON SCREEN.

Programme Playback

You can programme up to 30 tracks (Video CD/SVCD or Audio CD) to play back in the desired order.

While stopped

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select APRGMB, then press ENTER.

The programme table appears under on-screen bar.

3 Press the number keys to enter the track numbers in the

desired order.

VIDEO-CD

Example:

A To select track 5, press the number key A5B and ENTER. B To select track 15, press the number keys A1B and A5B. C To select track 25, press the number keys A2B and A5B.

If you have specified a wrong selection

Press CANCEL. The last selection is erased. Or press CLEAR

4 Press I. Playback starts in the programmed order.

● When all of the programmed tracks have been played back,

Programme Playback stops, but the programmed information remains.

● To add tracks to the end of the programme, perform steps 1 to

● During Programme Playback, pressing T skips to the next

track of the programme. Pressing S returns to the beginning of the current track.

To clear the on-screen bar and the contents of the programme, Press ON SCREEN.

To cancel Programme Playback Press selection keys to select APRGMB, then press ENTER.

NOTE:

Programme Playback is not possible depending on the type of disc.

PROGRAM

USE [0-9] KEYS TO SELECT TRACK

Program Total Time

(o). The whole selection is erased.

BASIC OPERATIONS ON DVD DECK

EN 33

Random Playback

You can play back all the tracks on the disc in random order.

While stopped

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select ARNDB, then press ENTER.

Playback starts in random order.

RANDOM

To clear the on-screen bar Press ON SCREEN.

To cancel Random Playback Perform steps 1 and 2.

NOTE:

The same track will not be played back more than once during Random Playback.

Select The Switching Interval Of The Slide Show

You can control the switching interval of the slide show.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press selection keys to select AB, then press ENTER. The

pop-up window appears under the selected item.

10 sec

5 sec 10 sec 15 sec 20 sec 25 sec 30 sec

3 Press selection keys to select the desired option, then press

ENTER.

To clear the on-screen bar Press ON SCREEN.

NOTE:

JPEG files are played back as a slide show. It may take more time to display an image with larger file size.

Filename [M150SEK_06DVD Operation.fm]

M150SEK_00.book Page 34 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

34 EN

BASIC OPERATIONS ON DVD DECK

Basic Recording

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

ATTENTION:

It is not possible to record programmes on a DVD-R/RW disc which has already been finalised.

PR +/

RAM/RW

DVD

0-9

PR +/

ENTER

REC MODE

NOTES:

● It is recommended to format a DVD-RAM disc before use if you

use the disc on this unit for the first time. (A pg. 67)

● When using a brand-new DVD-RW disc, format the disc either in

VR mode or in Video mode. (A pg. 67)

● Recordings made on DVD-R/RW disc must be finalised to play

back on other DVD players. Perform AFinalise A DiscB (A pg. 68).

● You can record up to 99 programmes and 99 play lists on each

disc.

● Some programmes can only be recorded one time.

● When recording is started, an index of the first part of recording is

automatically recorded. (A pg. 43) To delete the index, refer to page 46.

● Recording sometimes may stop or cannot be performed even if

there is enough available capacity remaining on the disc.

Recording Mode

MPEG 2 format is used as recording format. As a guide for picture quality, the AbpsB unit is used to represent how much data can be recorded per second. The larger this value is, the better the picture quality becomes but more capacity is required for the recording. Select XP or SP for programmes where quick movement occurs, such as sports programmes, and LP or EP for talk shows, etc. with relatively less movement. The recording modes for a 4.7 GB disc are set as follows:

Recording mode Recording amount

(approx.)

Maximum recording

time (approx.)

XP 10 Mbps 1 hour

SP 5 Mbps 2 hours

LP 2.5 Mbps 4 hours

EP 1.6 Mbps 6 hours

60-360

1 - 6 hours

(A pg. 36) The amount varies

420 7 hours

depending on the

selected time.

480 8 hours

● For details on FR mode, refer to AFree Rate FunctionB (A pg. 36).

1 Load a recordable disc.

● For details, refer to APlacing A DiscB (A pg. 9).

2 Press PR +/– or the number keys to select the channel you

wish to record.

3 Press REC MODE repeatedly to select the recording mode,

then press ENTER.

● Each time you press REC MODE, the recording mode changes

as follows: XP N SP N LP N EP N FR (60-360*, 420, 480) N (Back to the beginning)

* The value is selectable from 1 to 6 hours in 5 minutes interval by

● For details on the recording mode, see the right column.

DE repeatedly after selecting

pressing value in 30 minutes interval, press and hold

FR60-FR360B. To change the

DE.

4 Press R on the unit to start recording. Or while holding R, press

I on the remote control.

5 Press W to pause recording.

● To resume recording, press I.

6 Press o to stop recording.

● It takes about 10 seconds to end the writing session when you

stop recording.

Filename [M150SEK_06DVD Operation.fm]

M150SEK_00.book Page 35 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Recording Features

DISPLAY

REMAIN

BASIC OPERATIONS ON DVD DECK

EN 35

Instant Timer Recording (ITR)

It is possible to set the recording time during recording. Upon completing recording, the unit stops and shut off automatically.

RAM/RW

1 Press R on the unit to start recording. 2 Press R again to engage the ITR mode.

● A0:30B is displayed on the front display panel.

3 If you want to record for more than 30 minutes, press R to

extend the time. Each press extends recording time by 30 minutes. Normal recording N 0:30 N 1:00 ... N Maximum disc remaining time N (back to the beginning)

NOTES:

● Perform ITR using the R button on the unit.

● The maximum recording time changes depending on the disc

remaining time.

Watch Another Programme While Recording On The Unit

While recording is going on, you can watch another programme on the TV. It does not interfere with recording.

1 Turn on the TV. 2 Select the desired channel to watch on the TV using your TV’s

remote control.

Elapsed Recording Time And Disc Remaining Time Indication

During recording, press DISPLAY repeatedly until the desired indication appears on the front display panel.

● Each time you press DISPLAY, the time indication changes as

follows: Elapsed recording time N Disc remaining time N Clock N (back to the beginning)

● You can also check the disc remaining time by pressing REMAIN

while the unit is stopped or recording is in progress. The list of disc remaining times for all recording modes appears on the TV screen.

Filename [M150SEK_06DVD Operation.fm]

M150SEK_00.book Page 36 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

36 EN

BASIC OPERATIONS ON DVD DECK

Free Rate Function

To record the entire programme, the unit automatically sets the appropriate recording mode depending on the combination of the total time of the programme to be recorded and either the remaining disc space or the specified recording time (from 60 minutes to 480 minutes when using 4.7 GB blank media disc).

8 To record the entire programme within the actual remaining

disc space

Select AFR (JUST)B in a recording mode selection procedure.

● Note that this function is available only for timer programming

recording (A pg. 37, 38).

8 To record the entire programme by specifying the desired

recording time

Select AFR60-FR360B, AFR420B or AFR480B in a recording mode selection procedure. (A pg. 34)

8 To record a 25 min. long daily programme five times just on

the same DVD disc for example

Perform AEPG Timer ProgrammingB (A pg. 37) procedure. Be sure to set the recording mode to AFR125B and set Weekly/Daily Rec Function to AMON-FRIB in step 4 to fit the total recording time to the whole disc space.

A: 1st

Blank

B: 2nd C: 3rd D: 4th E: 5th

Selection Of The Audio Channel To Be Recorded On A Disc

When a TV programme is recorded on a disc, only the audio as set in AAUDIO LANGUAGEB (A pg. 20) is recorded on the disc.

NOTE:

Before playing back a programme recorded in stereo, refer to AAudio Channel SelectionB (A pg. 26).

When the same programme is recorded in SP mode instead of in AFR125B, the 5th programme cannot be recorded.

A: 1st

Blank

NOTES:

● You can programme this unit to timer record, regardless of the

disc remaining time. When the disc remaining time is not enough, it is not possible to record until the end of the timer programme. (Example) If you programmed to timer record for 60 minutes in SP mode on a 120 minutes disc, the disc remaining time would be 30 minutes in XP mode, 60 minutes in SP mode, 120 minutes in LP mode, 180 minutes in EP mode, and 240 minutes in FR480 mode. Timer recording will not complete beyond these remaining times.

● The maximum recording time of FR (JUST) mode is the same as

the recording time of FR480 mode. When timer programming a long programme in FR (JUST) mode on a disc whose remaining time is short, it is recommended to check the disc remaining time in FR480 mode to see if the remaining time is enough for the programme.

● Even if more than one programme are timer programmed in FR

(JUST) mode, only the first one is recorded.

● In order to ensure that the recording fits on the disc, this feature

may leave a slight non-recorded section at the end of the disc.

● There may be some noise and sound disturbance at the point on

the disc where the unit switches the mode.

B: 2nd C: 3rd D: 4th E: Blank (20 min.)

Filename [M150SEK_07Timer Recording.fm]

M150SEK_00.book Page 37 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right0

EPG Timer Programming

EPG (Electronic Programme Guide) is a system built into this unit to enable viewing of TV programme information. The programme information is part of the text broadcast provided by the individual TV stations. This unit displays the programme information of a number of channels up to 8 days from the present on the AEPGB screen of the timer programming screen. With the AEPGB screen, you can perform timer programming with great ease using the remote control. You can programme this unit to timer record as many as 8 programmes.

ATTENTION:

If timer programming cannot be set or cancelled, wait for about 40 seconds and then try again.

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Make sure that the unit’s built-in clock is set properly.

● Slide the TV/DVD switch to DVD.

DVD

0-9

PR+/

GUIDE

1 Load a recordable disc.

● For details, refer to APlacing A DiscB (A pg. 9).

2 Press GUIDE to display the AEPGB screen.

● If a On-Disc Timer Programmed disc is loaded, a warning

screen appears and the On-Disc Timer Programming (A pg. 39) confirmation screen is displayed. Exit On-Disc Timer Programming, insert a disc that is not meant for On-Disc Timer Programming and re-perform the procedures from step 1.

3 Press FG to select the

desired date (date field: left).

● The cursor moves to the

channel field when E is pressed.

● You can press DE to

move to each field to change the setting.

● Press PR +/– to

proceed to the next page or to return to a previous on the AEPGB screen.

Electronic Programme Guide

Genre

15/08 16/08 17/08 18/08 19/08 20/08 21/08 22/08

13:00-14:00 Smashing Time look ahead at what'scoming up on E4, the newenter tainment channel from

Channel 4, including newFriends, newER, newAlly McBealas wellas araft

of brand as wellas well

Navigate

TIMER j

Selection Keys

(FGDE)

ENTER

Colour Buttons

8. YLE

18. YLE Rinnakka......

20. ITV Sport

41. Film Four

42. E4

900. YLEN AINO

901. YLEN KLASSI....

902. YLEN KLASSI....

All

13:00- Film Live 13:00- Smashing Time 14:30- E4 Preview 16:30- Film Four Preview 18:30- Big Brother Live 1 19:00- Big Film 19:30- Big Brother Live 2 20:00- E4 Preview

ENTER

Rec Timer Genre Scroll

Programme description field

13:01 15/08/2002

TIMER RECORDING

EN 37

● You can scroll the programme description field vertically by

pressing the yellow (w) or blue (v) button on the remote control.

4 Select the channel field (centre field) and the programme field

(right field) in the same way, then press the red (DISPLAY) button.

● The confirmation screen

appears.

● The items on the

confirmation screen can be changed with the following methods:

Number keys entry:

Start time, stop time and recording date.

DE entry:

Electronic Programme Guide

Genre

20/10

1. BBC ONE Scot

21/10

2. BBCTWO Scot

Name

22/10

7. BBCTHREE

Start

23/10

30. CBBCChannnel

End

24/10

40. BBXNEWS 24

Date

25/10

51. BBCi

Weekly Daily

26/10

89. BBCR Scotland

Rec Mode

27/10

90. BBCR n Gaidheal

3:00- 5:00 Histry:Britain

Secondary Schools, How industrialisationchanged the day-to-day lives of the British people.

Navigate Rec Timer Genre Scroll

All

Cancel Confirm

ENTER

5:41 19/09/2004

0:50- Witness 1:00- Histry:Britain 1750

Histry:Britain 1750

2:00- Histry:Britain1905-1910

03:00

3:00- Histry:Britain1980-1900

05:00

4:00- E1

20.10.2004

5:00- E2

SUN-SAT

6:00- E3

FR420

7:00- E4 Preview

Daily/Weekly recording and recording mode.

● Daily/Weekly recording can be set as shown in the table below.

● The red (DISPLAY) button on the remote control is operable no

matter which field the cursor is in.

● If the red (DISPLAY) button on the remote control is pressed

when the cursor is in the date field or channel field, the programme in the programme field that turns green is timer programmed.

Daily/Weekly Recording Function

WEEKLY MON-FRI

Select to record a weekly programme. Select to record a daily programme from Monday through Friday.

MON-SAT

Select to record a daily programme from Monday through Saturday.

SUN-SAT

Select to record a daily programme from Sunday through Saturday.

ONCE

Select to perform one time recording of a programme.

5 Confirm that the start/stop time, channel setting etc. are correct,

press DE to select AConfirmB, then press ENTER.

● appears on the extreme right of the programme field.

● To programme another timer, repeat steps 2 - 5.

● When the start time or stop time is manually changed in step 4

such that the time programmed is shorter than the actual programme time, appears on the extreme right of the programme field.

● If programmes overlapped or when the timer programming is

full, refer to AWhen Programmes Overlap Each Other (2)B (A pg. 41).

6 Press GUIDE to exit the AEPGB screen. 7 Press TIMERj to engage the unit’s timer mode.

● The unit turns off automatically and j appears on the front

display panel.

● To disengage the timer mode, press TIMERj again.

IMPORTANT:

If you have moved to a different area or if a broadcasting station’s channel number has been changed, the wrong channel number will be displayed on the AEPGB programme screen. When this happens, set the correct channel number for that station.

● When two successive programmes are recorded with the AEPGB

Timer Programming function, the ending of the first programme or the beginning of the second programme may not be recorded.

● This unit does not automatically extend the stop time when a

programme overruns. Press TIMERj to exit timer recording mode. The unit returns to the normal recording mode and continues to record the extended portion. You can also engage the AInstant Timer Recording (ITR)B (A pg. 35) mode to end the recording automatically.

Filename [M150SEK_07Timer Recording.fm]

M150SEK_00.book Page 38 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

38 EN

TIMER RECORDING

Manual Timer Programming

You can programme this unit to timer record as many as 8 programmes up to 30 days in advance. To perform normal timer programming without using EPG, use the following procedure to set your unit to timer record the programme.

ATTENTION:

If timer programming cannot be set or cancelled, wait for about 40 seconds and then try again.

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Make sure that the unit’s built-in clock is set properly.

● Slide the TV/DVD switch to DVD.

DVD

AUX

TIMER j

PROG

Selection Keys

(FGDE)

ENTER

6 Press selection keys to set the desired stop time (ASTOPB),

then press E.

● Each press of FG increases/decreases the stop time in

1 minute interval.

● To increase/decrease the stop time in 30 minutes interval, press

and hold FG.

7 Press selection keys to set the desired channel (ATV PROGB),

then press E.

8 Set the other recording options as required. 9 Press ENTER to access the Programme Confirmation screen. 10 Press ENTER to complete the timer programming.

● To programme another timer, repeat steps 2 - 10.

11 Press TIMERj to engage the unit’s timer mode.

● The unit turns off automatically and j appears on the front

display panel.

● To disengage the timer mode, press TIMERj again.

NOTES:

● When two successive programmes are recorded with the

AManual Timer ProgrammingB function, the ending of the first programme or the beginning of the second programme may not be recorded.

● If the copy limited programme is received during timer recording,

the unit enters Record Pause mode. Recording starts again if it is switched to a recordable broadcast during the time you programmed.

Satellite Receiver Users

To record a satellite broadcast using Manual Timer Programming: A Perform Manual Timer Programming.

● In step 7, press AUX to set ATV PROGB to ASATB. Then press

FG to enter the channel position for the satellite broadcast.

B Set the satellite receiver to the appropriate channel for

recording.

● Leave the satellite receiver’s power on.

1 Load a recordable disc.

● For details, refer to APlacing A DiscB (A pg. 9).

2 Press PROG to display

the APROGRAMME CHECKB screen.

● When 8 timer

programmes appear on the TV screen, you need to cancel some of the reserved programmes.

3 Press selection keys

repeatedly to select ANEW TIMER PROGRAMMEB, then press ENTER.

4 Press selection keys to

set the desired date (ADATEB), then press E.

5 Press selection keys to

set the desired start time (ASTARTB), then press E.

● Each press of FG increases/decreases the start time in

1 minute interval.

● To increase/decrease the start time in 30 minutes interval,

press and hold FG.

PROGRAMME CHECK

DATE START

05/07 SAT

10/07 THU 11/07 FRI LP 11/07 FRI LP

++++++++++++++++++ NEW TIMER PROGRAMME +++++++++++++++ +++

EXIT

PROG

TIMER PROGRAMME

DATE

05/07 SAT

DAILY/WEEKLY

EXIT

PROG

STOP

19:00 - 20:00 22:00 - 22:30

13:30 - 14:00 16:00 - 17:00

SELECT

REC MODE

CONFIRM

SELECT

TV PROG

DAILY/WEEKLY

WEEKLY

BBCi 51 BBC 40 CBBC 30 BBC 1

DISC TIMER PRGM

SELECT WITH [CURSORS] THEN PRESS [ENTER]

START

STOP TV PROG

SET TIMER PROGRA MMING WITH [CURSORS] THEN PRESS [ENTER]

REC MODE SP

VTM 1020:3020:00

NAME

Filename [M150SEK_07Timer Recording.fm]

M150SEK_00.book Page 39 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

On-Disc Timer Programming

On-Disc Timer Programming is a function used with discs that are especially intended for a specific programme. The disc is then programmed for a programme you always watch every day or every week. Since older programmes are automatically overwritten, a single disc can be used without worrying about how much recording capacity remains. You can programme each disc to timer record as many as 8 programmes up to 30 days in advance.

● Make sure that the unit’s built-in clock is set properly.

● Turn on the TV and select an input mode such as EXT1.

● Load a DVD-RAM or DVD-RW (VR mode) disc for

programming.

● Slide the TV/DVD switch to DVD.

ATTENTION:

● On-Disc Timer Programming is possible only with the disc for

On-Disc Timer Programming.

● If data is recorded on a disc for On-Disc Timer Programming

using a unit from another manufacturer, On-Disc Timer Programming may not function properly.

● If timer programming cannot be set or cancelled, wait for about

40 seconds and then try again.

DVD

DVD A

AUX

PROG

Selection Keys

(FGDE)

ENTER

TIMER RECORDING

EN 39

To Make The Disc For On-Disc Timer Programming

1 Press PROG to access

the Programme Check screen.

2 Press selection keys to

select ADISC TIMER PRGMB, then press ENTER.

● When some

programmes are recorded on the disc, a caution message appears. You can either format the disc (A pg. 67) or insert a new disc, then re-perform the procedure from step 1.

● When On-Disc Timer Programming has already been made on

the disc, press selection keys to select ANEW TIMER PROGRAMMEB, then press ENTER.

3 Press selection keys to

set the desired date (ADATEB), then press E.

4 Press selection keys to

set the desired start time (ASTARTB), then press E.

● Each press of FG

increases/decreases the start time in 1 minute interval.

● To increase/decrease the

start time in 30 minutes interval, press and hold FG.

5 Press selection keys to set the desired stop time (ASTOPB),

then press E.

● Each press of FG increases/decreases the stop time in

1 minute interval.

● To increase/decrease the stop time in 30 minutes interval, press

and hold FG.

6 Press selection keys to set the desired channel (ATV PROGB),

then press E.

7 Press selection keys to set ADAILY/WEEKLYB, then press E.

● For details on ADAILY/WEEKLYB setting, refer to ADaily/Weekly

Recording FunctionB (A pg. 37).

8 Set the other recording

options as required.

● ARecording ModeB

(A pg. 34)

● AModify Title NameB

(A pg. 46)

9 Press ENTER to access

the Programme Confirmation screen.

10 Press ENTER to

complete ATo Make The Disc For On-Disc Timer ProgrammingB.

● To programme another timer using ATo Make The Disc For On-

Disc Timer ProgrammingB, repeat steps 1 - 10.

11 Press DVD A to turn off the power.

● is displayed on the front display panel.

● To disengage the timer mode, press DVD A again.

Satellite Receiver Users

To timer record a satellite broadcast using On-Disc Timer Programming: A Perform On-Disc Timer Programming.

● In step 6, press AUX to set ATV PROGB to ASATB. Then press

FG to enter the channel position for the satellite broadcast.

B Set the satellite receiver to the appropriate channel for

recording.

● Leave the satellite receiver’s power on.

PROGRAMME CHECK

DATE

START

++++++++++++++++++ NEW TIMER PROGRAMME ++++++++++ ++++++++

EXIT

PROG

DISC TIMER PRGM

DATE

05/07 SAT

DAILY/WEEKLY

WEEKLY

EXIT

PROG

DISC TIMER PRGM

DATE

05/07 SAT

DAILY/WEEKLY

WEEKLY

EXIT

PROG

TV PROG

DAILY/WEEKLY

STOP

DISC TIMER PRGM

SELECT WITH [CURSORS] THEN PRESS [ENTER]

SELECT

START

REC MODE

CONFIRM

SELECT

START

REC MODE

CONFIRM

SELECT

STOP TV PROG

SET TIMER PROGRA MMING WITH [CURSORS] THEN PRESS [ENTER]

STOP TV PROG

SET TIMER PROGRA MMING WITH [CURSORS] THEN PRESS [ENTER]

REC MODE

NAME

YORN 120:3018:30

NAME

Filename [M150SEK_07Timer Recording.fm]

M150SEK_00.book Page 40 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

40 EN

TIMER RECORDING

To Timer Record The Programme With The Programmed Disc

1 Load a programmed disc. 2 Press DVD A to turn off the power.

● appears on the front display panel, and the unit enters

into timer standby mode.

● To disengage the timer mode, press DVD A again.

NOTES:

● On-Disc Timer Programming is not possible on a DVD-R or DVD-

RW (Video mode) disc.

● The information of a programme recorded with On-Disc Timer

Programming is not stored in the library.

● The play list is not created for the programmes recorded with On-

Disc Timer Programming.

● Programmes recorded with On-Disc Timer Programming cannot

be edited or protected.

● On-Disc Timer Programmed discs cannot be used for other

recordings other than On-Disc Timer Programming.

● On-Disc Timer Programmed discs cannot be used on units from

other manufacturers.

● The beginning of a programme may not be recorded. In addition,

if the 1st programme’s recording stop time and the 2nd programme’s recording start time is the same, the ending of the 1st programme may not be recorded.

● If there is a power outage while recording, the recordings when

the power outage occurs are not guaranteed.

How Discs Are Overwritten

(Example 1)

To record a 1-hour serial drama every Friday in SP mode

Blank

2nd 3rd 4th 3rd

The first programme is overwritten by the third.

(Example 2)

To record a 15-minutes serial drama every morning in XP mode

4th 1st

12/6 12/3

1st

2nd 1st

The second programme is overwritten by the fourth.

8th 5th

12/10 12/7

3rd 2nd

12/5 12/4

(Example 3)

To record a 90-minutes serial drama every Sunday in SP mode

Blank

1st

3rd

Blank

NOTE:

On-Disc Timer Programming may not always work as these examples.

7th 6th

12/9 12/8

2nd

Blank

Areas treated as blank cannot be played back even if they contain recorded material.

Filename [M150SEK_07Timer Recording.fm]

M150SEK_00.book Page 41 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Check, Cancel And Change Programmes

DVD

DVD A

CANCEL

GUIDE

PROG

1 Disengage the timer mode.

● When lights up on the front display panel, press DVD

● When j lights up on the front display panel, press TIMERj,

and press DVD A after j lights off.

● When ASAT jB lights up on the front display panel, press

SATj.

2 Press PROG to access the Programme Check screen.

● To return to the previous screen after you check the

programme, press PROG again.

To cancel the programme

● Press selection keys to select a programme to be cancelled,

then press CANCEL.

3 Press selection keys to select a programme to be changed,

then press ENTER.

4 Change the settings of the desired recording options as

required.

● Refer to steps 4 - 10 in Manual Timer Programming.

5 Press PROG to exit the programme screen. 6 Set the unit to timer standby mode.

For EPG or Manual Timer Programming

● Press TIMERj so that j lights up on the front display panel.

For On-Disc Timer Programming

● Press DVD A so that lights up on the front display

panel.

For Automatic Satellite Programme Recording

● Press SATj for 2 or more seconds.

TIMER j SAT j

Selection Keys

(FGDE)

ENTER

CLEAR (o)

TIMER RECORDING

EN 41

When Programmes Overlap Each Other (1)

If APROGRAMME OVERLAPPEDB appears, you have another programme overlapping the programme you have just made. Press PROG. Programme Check screen appears and conflicting programmes will be highlighted in pink.

Example: Programme 3 (you have just made) and Programme 4 overlap each other.

1 Confirm the overlapping

programmes.

NOTES:

● If you do not mind this

overlap, press PROG to finish the timer programme

PROGRAMME CHECK

DATE

START

05/07 SAT 06/01 THU 10/07 THU 10/07 THU

++++++++++++++++++ NEW TIMER PROGRAMME ++++++++++++++++++

EXIT

PROG

TV PROG

STOP

18:10-20:00 SP 18:10-20:00 SP 19:00-20:00 XP 19:45-20:30 LP

SELECT

DAILY/WEEKLY

BBC 40 BBCi 51 BBC 1 BBC 1

DISC TIMER PRGM

SELECT WITH [CURSORS] THEN PRESS [ENTER]

WEEKLY

REC MODE

setting.

● Recording is performed according to the order as displayed on

the Programme Check screen. The timer programme that follows will not be performed correctly.

To cancel the programme

Press selection keys to select a programme to be cancelled, then press CLEAR

● ATHE TIMER PROGRAMMING SETTING WAS CANCELLEDB

(o).

appears on the TV screen for about 5 seconds, then the normal screen resumes.

To change the programme

Press selection keys to select a programme to be changed, then press ENTER.

● Change each setting as required.

2 Press ENTER to exit the Programme screen. 3 Press TIMERj to enter into timer standby mode.

NOTE:

When any overlaps remain after deletion and modification of programmes, Programme Overlap list remains showing the conflicting programmes. In such a case, repeat the procedure above until the conflict is solved.

When Programmes Overlap Each Other (2)

With AEPGB Timer Programming, if appears on the extreme right of the programme field, you have another programme overlapping the programme you have just made.

1 Move the cursor to the programme with the indication in the

programme field, then press ENTER or the red (DISPLAY) button.

● The confirmation screen

appears.

2 Confirm the content,

then delete or change the current selected programme.

● To delete, select ADeleteB

then press ENTER.

● The individual items on

Electronic Programme Guide

Genre

20/10

1. BBC2W

21/10

2. BBCTWO Scot

Name

22/10

7. BBCTHREE

Start

23/10

30. CBBCChannnel

End

24/10

40. BBXNEWS 24

Date

25/10

51. BBCi

Weekly Daily

26/10

89. BBCR Scotland

Rec Mode

27/10

90. BBCR n Gaidheal

2:35- 3:00 Histry:Britain

Takea coupleof chef,add twocontestants, throwin someingredients and garnish liberally with AinsleyHarriott, Simmer and enjoy.

Navigate Rec Timer Genre Scroll

Cancel Confirm

ENTER

All

11:30- am.pm

the confirmation screen can be changed with the following methods:

Number keys entry: Start time, stop time and recording date. DE entry: Daily/Weekly recording and recording mode.

● To confirm the next overlapping programme, select AB

then press ENTER.

3 Select ACancelB or AOKB, then press ENTER to clear the

confirmation screen.

● Press GUIDE on the remote control to return to the digital

terrestrial broadcast (DVB-T) screen.

1:00-

BBC 2W

2:00-

03:00

3:00-

05:00

4:00- E1

20.10.2004

5:00- E2

Once

6:00- E3 7:00- E4 Preview

5:41 19/09/2004

Filename [M150SEK_07Timer Recording.fm]

M150SEK_00.book Page 42 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

42 EN

TIMER RECORDING

Automatic Satellite Programme Recording

This function allows you to automatically record a satellite programme which is timer programmed on your external satellite receiver. Connect a satellite receiver to the unit’s [L-2 IN] connector and programme the timer on the satellite receiver. The unit starts or stops recording by the signals input from the satellite receiver. After recording, the unit’s power shuts off automatically.

ATTENTION:

● When you record programmes by connecting to a digital

terrestrial receiver (Freeview receiver or similar), perform the same steps as AAutomatic Satellite Programme RecordingB (A pg. 42).

● Be sure not to turn on the satellite receiver before the

programme is executed. Otherwise, the unit will start recording when the satellite receiver’s power is turned on.

● If you have connected another appliance other than a satellite

receiver to the [L-2 IN] connector, be sure not to engage the Automatic Satellite Programme Recording mode. Otherwise, the unit will start recording when the connected appliance’s power is turned on.

● Automatic Satellite Programme Recording and timer recording

cannot be done at the same time.

SAT j

REC MODE

● Make sure the satellite receiver is connected to the unit’s [L-2

IN] connector.

● Programme the timer on the satellite receiver.

1 Set AL-2 SELECTB to ASAT VIDEO/RGBB or ASAT S-VIDEO/

RGBB. (A pg. 58)

● Also refer to AIMPORTANTB on page 59.

2 Press REC MODE repeatedly to set the recording mode. 3 Press and hold SATj for about 2 seconds to engage the

Automatic Satellite Programme Recording mode. ASAT jB and AVB appear on the front display panel and the unit turns off

automatically.

NOTES:

● To disengage the Automatic Satellite Programme Recording

mode, press SATj.

● If the unit’s power is off, it is not possible to engage the Automatic

Satellite Programme Recording mode.

● In step 3, if AVB blinks quickly on the front display panel even

though your satellite receiver’s power is off, Automatic Satellite Programme Recording will not work properly with that satellite receiver*. If this is the case, perform AManual Timer ProgrammingB (A pg. 38) to timer record a satellite programme.

* Some satellite receivers output signals even if the power is off. Automatic

Satellite Programme Recording is not possible with those satellite receivers.

AVB blinks on the front display panel while Automatic Satellite

●

Programme Recording is in progress.

● For timer programming of the satellite receiver, refer to the

instruction manual of the satellite receiver.

● Automatic Satellite Programme Recording is not possible if your

satellite receiver does not have a timer.

● Pressing the unit’s A button while Automatic Satellite

Programme Recording is in progress turns off the unit’s power and disengages the Automatic Satellite Programme Recording mode.

● If there are more than one satellite programmes you wish to

record with Automatic Satellite Programme Recording, it is not possible to set different recording modes for each programme.

● Depending on the type of satellite receiver, the unit may not

record a slight portion of the beginning of the programme or may record slightly longer than the actual length of the programme.

● If you engage the Automatic Satellite Programme Recording

mode when the satellite receiver’s power is on, the unit will not start Automatic Satellite Programme Recording even though AVB blinks on the front display panel. When the satellite receiver shuts off once and is turned back on again, the unit starts recording.

● When the Automatic Satellite Programme Recording mode is

engaged, or the unit’s power is turned off after Automatic Satellite Programme Recording is finished, the unit will not enter the timer mode even though AAUTO TIMERB is set to AONB.

● Just Clock (A pg. 66) does not work when the Automatic Satellite

Programme Recording mode is engaged.

Filename [M150SEK_08Navigation.fm]

M150SEK_00.book Page 43 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right0

Library Database Navigation

The Library Database Navigation enables you to search and select the desired titles recorded very easily. You can record up to 99 titles on a disc. Each time a title is recorded, the information of the title is registered for the Library Database Navigation automatically. So, you can confirm the information of the titles recorded with the Library Database Navigation screen. And, you can also select one of the titles recorded using the Library Database Navigation. The following screen appears as the Library Database Navigation screen when you press NAVIGATION. You can move the arrow to select the desired position on the screen by pressing the selection keys on the remote control.

ABCDE

ORIGINAL PLAY LIST LIBRARY

0001 1/6

1234

DANCE

DANCE CURNIV

28/07/03 MON

MODIFY DELETE EDITING PROTECT

SELECT

A INDEX

(Thumbnail of each programme)

B Menu index

ORIGINAL (A pg. 44) PLAY LIST (A pg. 47) LIBRARY (A pg. 51)

C Remaining time

(Based on the recording speed currently selected)

D Current/Total number of programme(s) E Icons F Recording information for the programme indicated by the

arrow

G Guidance for operations H Operational commands

REMAIN TIME 87min(SP)

10:00 - 11:00

NAVIGATION

EXIT

PR. 7 SP 60min

SELECT WITH [CURSORS] THEN PRESS [ENTER]

[OTHERS]

NAVIGATION

EN 43

Using Library Database Navigation system, you can easily modify registered information, edit the title or play list, as well as search for the beginning of each title.

About registration of information

The following information is automatically registered for each title when ordinary recording or timer recording is performed, then stored in an area specified on the unit.

● index* (reduced pictures to show programme titles)

● programme title*

● category*

● date and time

● channel (If the station name has been registered to the channel,

the station name is displayed.)

● recording mode

● length of recording time

The items marked with an asterisk (*) can be easily modified and registered again after recording by using Library Database Navigation system.

The limitations of registration

You can register information up to 99 programmes in a single DVD. When the amount of information is at the limits of registration, you cannot record new titles any more. In this case, you need to delete old titles to register new ones. (A pg. 44)

NOTES:

● Once a DVD-R/RW (Video mode) disc has been finalised, the

displays for original and play list do not appear. As only display for library appears, press TOP MENU to display the following screen to select the desired title.

CONTENTS MENU

81 Sister Princess ED2 14/11 0:55 PR12<HDD MN26

82 GALAXY ANGLE A#04 OP 06/10 9:30 PR12<HDD

83 GALAXY ANGLE A#04 ED 06/10 9:30 PR12<HDD

84 FISHING WORLD OP 22/12 20:00 PR3

85 FISHING WORLD ED 22/12 20:00 PR3

86 RALLY CAR OP 10/04 0:30 PR3

87 RALLY CAR ED 10/04 0:30 PR3

88 Chobits #04 OP 02/05 PR10

89 Chobits #04 ED 02/05 PR10

90 Chobits #25 ED 26/09 PR10 MN32 LPCM

● Sound of received channel may be interrupted while the Library

16.11.2002

07.10.2002

22.12.2002

04.10.2002

02.05.2002

26.09.2002

Database Navigation screen is displayed.

● You cannot perform timer recording during editing of thumbnail

images or play lists by pressing NAVIGATION. Press NAVIGATION to clear the editing screen before performing timer

recording.

The Icons and their meanings

This programme is write-protected.

This programme has stereo sounds.

This programme has monaural sounds.

This programme was recorded with timer recording.

Filename [M150SEK_08Navigation.fm]

M150SEK_00.book Page 44 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

44 EN

NAVIGATION

Basic Operation Of Original Information

You can scan the beginning of the title easily and play back with the Library Database Navigation.

● Turn on the TV and select an input mode such as EXT1.

● Load a DVD disc to play back.

● Slide the TV/DVD switch to DVD.

DVD

MEMO

NAVIGATION

Selection Keys

(FGDE)

ENTER

Play Back Title

1 Press NAVIGATION to display the Library Database Navigation

screen.

2 Press selection keys to select AORIGINALB, then press

ENTER.

3 Press selection keys to

select the index (small pictures) of the desired title, then press ENTER or I.

● With the arrow on

AORIGINALB, all titles will be played back according to the index order when I is pressed.

● All subsequent titles after

the selected index will be played back in order.

● The unit stops when playback ends, and resumes to a

broadcast receiving screen.

● Press o to stop playback. If ARESUMEB is set to AONB or ADISC

RESUMEB (A pg. 61), playback starts from the point where playback was previously stopped when I is pressed.

● When you want multiple titles to be played back in a determined

order, press selection keys to select the desired title, then press MEMO. The numbers of the playback order appear on the index. (Up to 30 titles)

● When you want to correct the order, move the arrow to the

desired index and press MEMO. The number disappears and the unit re-numbers the other titles automatically.

● When you want to cancel the order, press CLEAR(o).

SELECT

CLEAR/ o

ORIGINAL PLAY LIST LIBRARY

0001

1234

DANCE

DANCE CURNIV 28/07/03 MON

MODIFY DELETE EDITING PROTECT

REMAIN TIME 87 min(SP)

10:00 - 11:00

NAVIGATION

EXIT

PR. 7 SP 60min

SELECT WITH [CURSORS]

THEN PRESS [ENTER]

[OTHERS]

Protect Title (DVD-RAM & DVD-RW (VR mode) only)

You can protect titles to prevent accidental erasure of the important titles.

1 Press NAVIGATION to display the Library Database Navigation

screen.

2 Press selection keys to select AORIGINALB, then press

ENTER.

3 Press selection keys to select a title you want to protect, then

press G.

4 Press selection keys to select APROTECTB, then press

ENTER.

● AB appears on the TV screen.

● To cancel the protection, select APROTECTB again, then press

ENTER.

5 Press NAVIGATION to return to the normal screen.

NOTE:

All the titles on a disc will be deleted once the disc is formatted even if they are protected titles. (A pg. 67)

Delete Title

You cannot record any more with Library Database Navigation once the registered titles on the disc reach 99 titles. Deleting unnecessary titles after dubbing or other operations can increase remaining time and available recording capacity. (For DVD-R discs, although it is possible to delete recorded titles, available recording capacity does not increase.) The deleted title cannot be retrieved. Play lists and title information in the unit’s library are also deleted.

1 Press NAVIGATION to display the Library Database Navigation

screen.

2 Press selection keys to select AORIGINALB, then press

ENTER.

3 Press selection keys to select a title you want to delete, then

press G.

4 Press selection keys to select ADELETEB, then press ENTER.

● The confirmation screen appears.

5 Press selection keys to select AYESB, then press ENTER.

● To cancel the deletion, select ANOB, then press ENTER.

6 Press NAVIGATION to return to the normal screen.

Filename [M150SEK_08Navigation.fm]

M150SEK_00.book Page 45 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Delete Unwanted Part Of The Title (DVD-RAM & DVD-RW (VR mode) only)

You can delete unwanted part of a title.

1 Press NAVIGATION to

display the Library Database Navigation screen.

2 Press selection keys to

select AORIGINALB, then press ENTER.

3 Press selection keys to

select a title whose unwanted part you want to delete, then press G.

4 Press selection keys to select AEDITINGB, then press ENTER. 5 Press I to start

playback.

● Press O or N to find

the point where you want the deletion to begin, then press W.

6 Confirm the arrow is on

AINB, then press ENTER.

● The edit-in time is

displayed on the left of the AINB window.

7 Press I to resume playback.

● Press W to pause at the point where you want the deletion to

end.

8 Confirm the arrow is on AOUTB, then press ENTER.

● The edit-out time is displayed on the left of the AOUTB window.

9 Press selection keys to select APREVIEWB, then press ENTER

to preview the edited title.

To modify the points A Press selection keys to select ACLEARB, then press ENTER.

● Press selection keys to select ARETURNB, then press

ENTER to return to the screen in step 4.

B Press selection keys to select AINB. C Perform steps 5 - 9.

10 Press selection keys to select AEXECUTEB, then press

ENTER.

● The confirmation screen appears.

11 Press selection keys to select AYESB, then press ENTER.

● When you cancel the deletion, select ANOB, then press

ENTER.

12 Press NAVIGATION to return to the normal screen.

NOTES:

● There may be a discrepancy of several seconds between the

scene you intend to edit, and the scene which is actually edited.

● Available recording capacity may not match the deleted part after

deletion.

ORIGINAL PLAY LIST LIBRARY

0001

1234

DANCE

DANCE CURNIV 28/07/03 MON

MODIFY DELETE EDITING PROTECT

SELECT

DELETE SCENE

REMAIN TIME 87 min(SP)

10:00 - 11:00

NAVIGATION

EXIT

PR. 7 SP 60min

SELECT WITH [CURSORS]

THEN PRESS [ENTER]

ININOUT

0:00:29:24

RETURN PREVIEW EXECUTE CLEAR

NAVIGATION

SELECT

EXIT

-:--:--:--

:::

TITLE 05 CHAPTER 01

TIME 0000:00:53 **

SELECT SCENE WITH [PLAY/PAUSE etc.]

THEN PRESS [ENTER]

[OTHERS]

OUT

TOTAL TIME

NAVIGATION

EN 45

Filename [M150SEK_08Navigation.fm]

M150SEK_00.book Page 46 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

46 EN

NAVIGATION

Edit Original Information

● Turn on the TV and select an input mode such as EXT1.

● Load a DVD disc to modify.

● Slide the TV/DVD switch to DVD.

ATTENTION:

● It is not possible to modify discs recorded on DVD units from

other manufacturers.

● You cannot perform timer recording during editing of index by

pressing NAVIGATION. Press NAVIGATION to clear the editing screen before performing timer recording.

DVD

0-9/A-Z

NAVIGATION

Selection Keys

(FGDE)

RETURN

ENTER

T N

MODIFY NAME

00:00:21

10:00 - 11:00

NAVIGATION

EXIT

MODIFY CATEGORY

REPLACE

00:05:00

PR. 7 SP 60min

SELECT SCENE WITH [PLAY/PAUSE etc.] THEN PRESS [ENTER]

[OTHERS]

I S O

Modify Index

1 Press NAVIGATION to display the Library Database Navigation

screen.

2 Press selection keys to select AORIGINALB, then press

ENTER.

3 Press selection keys to select a title you want to modify, then

press G.

4 Press selection keys to select AMODIFYB, then press ENTER. 5 Press selection keys to select AMODIFY INDEXB, then press

ENTER.

6 Press I to start

playback. Press O or N to search for the

picture from the title, then press W.

7 Confirm the arrow is on

AREPLACEB, then press

ENTER.

● The new index appears

on the right window.

8 Confirm the arrow is on ARETURNB, then press ENTER.

● You can confirm the new index.

9 Press NAVIGATION to return to the normal screen.

MODIFY INDEX

28/07/03 MON

SELECT

Modify Title Name

1 Perform steps 1 - 4 of AModify IndexB (A pg. 46) before

continuing.

Press

selection keys

select AMODIFY NAMEB, then press

ENTER

3 Input a new title name.

● Press selection keys to

select the desired letter or symbol, then press ENTER.

● To erase the letter, press

selection keys to select

MODIFY INDEX

DANCE CURNIV 28/07/03 MON

SELECT

MODIFY NAME

DANCE CURNIV

DELETE ALL

DELETE

A B C D E F G H I 1 2 3 ! " # $ %

J K L M N O P Q R 4 5 6 & ' ( ) ∗

S T U V W X Y Z 7 8 9 0 +

10:00 - 11:00

RETURN

SAVE

NAVIGATION

EXIT

MODIFY CATEGORY

PR. 7 SP 60min

ENTER NAME WITH [0 - 9] KEYS THEN SELECT “SAVE”

[OTHERS]

ADELETEB or ADELETE ALLB, then press ENTER.

● You can enter up to 64 letters.

● You can also use the number keys on the remote control to

input the letters. For example, pressing the number key A2B repeatedly changes the letter in the order of AAB, ABB, ACB, AaB, AbB, AcB and A2B. The following buttons can also be used.

Number keys: To input alphabet, numbers and space.

DE buttons: To move the input position and insertion point. o button: To correct the letters. S/T buttons: To switch the character table.

4 Press selection keys to select ASAVEB, then press ENTER.

● The new title name is registered.

5 Press selection keys to select ARETURNB, then press ENTER.

● Return to the Library Database Navigation screen to confirm

the modified name.

6 Press NAVIGATION to return to the normal screen.

Modify Category

1 Perform steps 1 - 4 of AModify IndexB (A pg. 46) before

continuing.

2 Press selection keys to

select AMODIFY CATEGORYB, then press ENTER.

3 Press selection keys to

select the desired category, then press ENTER.

4 Press selection keys to

select ARETURNB, then press ENTER.

● Return to the Library Database Navigation screen to confirm

the modified category.

5 Press NAVIGATION to return to the normal screen.

MODIFY INDEX

MOVIES MUSIC DRAMA ANIMATION SPORTS

EDUCATION HOBBY

SHOPPING OTHERS

DANCE CURNIV 28/07/03 MON

SELECT

RETURN

MODIFY NAME

DOCUMENTARY

10:00 - 11:00

NAVIGATION

EXIT

MODIFY CATEGORY

NEWS WEATHER

ENTERTAINMENT

PR. 7 SP 60min

SELECT WITH [CURSORS] THEN PRESS [ENTER]

ART

[OTHERS]

Filename [M150SEK_08Navigation.fm]

M150SEK_00.book Page 47 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Basic Operation Of Play List Information

Play List

It is a collection of the scenes. A play list can be freely edited and played back without ever changing any original recording data. Using the random access of a disc (which allows video data to be instantly read no matter where it is on the disc), a play list includes information such as the timer counter for the playback start point and end point, indexes for checking the contents of recorded data, category information, and more. Playback according to a play list you have created allows you to enjoy various combinations of video images from a single title.

● Turn on the TV and select an input mode such as EXT1.

● Load a DVD disc to modify.

● Slide the TV/DVD switch to DVD.

ATTENTION:

It is not possible to modify discs recorded on DVD units from other manufacturers.

DVD

MEMO

NAVIGATION

Selection Keys

(FGDE)

ENTER

I T N

5 Confirm the arrow is on

AINB, then press ENTER.

● The edit-in time is

displayed on the left of the AINB window.

6 Press I to resume

playback.

● Press W to pause at the

point where you want the created play list to end.

NAVIGATION

CREATE

RETURN PREVIEW EXECUTE CLEAR

SELECT

NAVIGATION

EXIT

SELECT SCENE WITH [PLAY/PAUSE etc.] THEN PRESS [ENTER]

ININOUT

0:00:29:24

-:--:--:--

:::

TITLE 05 CHAPTER 01

TIME 0000:00:53 **

EN 47

OUT

TOTAL TIME

7 Confirm the arrow is on AOUTB, then press ENTER.

● The edit-out time is displayed on the left of the AOUTB window.

● The edit-out point must come after the edit-in point.

8 Press selection keys to select APREVIEWB, then press ENTER

to preview the play list.

● To cancel play list creation, press selection keys. to select

ARETURNB, then press ENTER.

To modify the points

A Press selection keys to select ACLEARB, then press ENTER. B Press selection keys to select AINB. C Perform steps 4 - 8.

9 Press selection keys to select AEXECUTEB, then press

ENTER. The play list is created.

10 Press NAVIGATION to return to the normal screen.

NOTES:

● There may be a discrepancy of several seconds between the

scene you intend to edit, and the scene which is actually edited.

● The title, index and category of the play list can be modified in the

same way as AORIGINALB. (A pg. 46)

● You can modify the play list that has just been created here by

adding, moving, or deleting unwanted parts to create a digest edition, etc.

Play Back Play List

1 Press NAVIGATION to display the Library Database Navigation

screen.

2 Press selection keys to select APLAY LISTB, then press

ENTER.

3 Press selection keys to select a play list to be played back,

then press ENTER.

● The unit stops when playback ends, and resumes to a

broadcast receiving screen.

● When you want the multiple play lists to be played back

continuously, press MEMO after selecting the desired play lists. The numbers of the playback order appear on the index. (Up to 30 titles)

Create Play List

1 Press NAVIGATION to

display the Library Database Navigation screen.

2 Press selection keys to

select APLAY LISTB, then press ENTER.

3 Press selection keys to

select ACREATEB, then press ENTER.

4 Press I to start playback.

● To move to other titles, press S or T.

● Press O or N to find the point where you want the created

play list to begin, then press W.

ORIGINAL

0001

1234

28/07/03 MON

MODIFY DELETE EDITING CREATE

SELECT

PLAY LIST LIBRARY

NAVIGATION

EXIT

SELECT WITH [CURSORS]

THEN PRESS [ENTER]

[OTHERS]

Delete Play List

1 Press NAVIGATION to display the Library Database Navigation

screen.

2 Press selection keys to select APLAY LISTB, then press

ENTER.

3 Press selection keys to select a play list you want to delete,

then press G.

4 Press selection keys to

select ADELETEB, then press ENTER.

● The confirmation screen

appears.

5 Press selection keys to

select AYESB, then press ENTER.

● To cancel the deletion,

select ANOB, then press ENTER.

6 Press NAVIGATION to return to the normal screen.

ORIGINAL

0001

1234

28/07/03 MON

SELECT

PLAY LIST LIBRARY

MODIFY DELETE EDITING CREATE

NAVIGATION

EXIT

SELECT WITH [CURSORS] THEN PRESS [ENTER]

[OTHERS]

Filename [M150SEK_08Navigation.fm]

M150SEK_00.book Page 48 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

48 EN

NAVIGATION

Edit Play List Information

● Turn on the TV and select an input mode such as EXT1.

● Load a DVD disc to modify.

● Slide the TV/DVD switch to DVD.

ATTENTION:

It is not possible to modify discs recorded on DVD units from other manufacturers.

DVD

NAVIGATION

Selection Keys

(FGDE)

ENTER

Modify Play List Name

1 Perform steps 1 - 4 of AModify IndexB (A pg. 48) before

continuing.

2 Press selection keys to select AMODIFY NAMEB, then press

ENTER.

3 Input a new title name.

See AModify Title NameB (A pg. 46).

4 Press selection keys to

select ASAVEB, then press ENTER.

5 Press selection keys to

select ARETURNB, then press ENTER.

● Return to the Library

MODIFY INDEX

DANCE CURNIV 28/07/03 MON

SELECT

MODIFY NAME

DANCE CURNIV

DELETE

DELETE ALL

A B C D E F G H I 1 2 3 ! " # $ %

J K L M N O P Q R 4 5 6 & ' ( ) ∗

S T U V W X Y Z 7 8 9 0 +

10:00 - 11:00

RETURN SAVE

NAVIGATION

EXIT

MODIFY CATEGORY

PR. 7 SP 60min

ENTER NAME WITH [0 - 9] KEYS THEN SELECT “SAVE”

[OTHERS]

Database Navigation screen to confirm the modified name.

6 Press NAVIGATION to return to the normal screen.

Modify Category

1 Perform steps 1 - 4 of AModify IndexB (A pg. 48) before

continuing.

2 Press selection keys to select AMODIFY CATEGORYB, then

press ENTER.

3 Press selection keys to

select the desired category, then press ENTER.

4 Press selection keys to

select ARETURNB, then press ENTER.

● Return to the Library

Database Navigation screen to confirm the modified category.

5 Press NAVIGATION to return to the normal screen.

MODIFY INDEX

MOVIES

DOCUMENTARY

SPORTS

EDUCATION HOBBY

SHOPPING OTHERS

DANCE CURNIV 28/07/03 MON

RETURN

NAVIGATION

SELECT

EXIT

MODIFY NAME

MUSIC DRAMA ANIMATION

10:00 - 11:00

MODIFY CATEGORY

NEWS WEATHER

ENTERTAINMENT

PR. 7 SP 60min

SELECT WITH [CURSORS] THEN PRESS [ENTER]

ART

[OTHERS]

Modify Index

1 Press NAVIGATION to display the Library Database Navigation

screen.

2 Press selection keys to select APLAY LISTB, then press

ENTER.

3 Press selection keys to select a play list you want to modify,

then press G.

4 Press selection keys to

select AMODIFYB, then press ENTER.

5 Press selection keys to

select AMODIFY INDEXB, then press ENTER.

6 Press I to start

playback. Press O or N to search for the

picture from the title, then press W.

7 Confirm the arrow is on

AREPLACEB, then press

ENTER.

● The new index appears

on the right window.

8 Confirm the arrow is on

ARETURNB, then press

ENTER.

● You can confirm the new

index.

9 Press NAVIGATION to return to the normal screen.

ORIGINAL PLAY LIST LIBRARY

0001

1234

DANCE

DANCE CURNIV 28/07/03 MON

MODIFY DELETE EDITING CREATE

SELECT

MODIFY INDEX

28/07/03 MON

RETURN

SELECT

REMAIN TIME 87min(SP)

10:00 - 11:00

NAVIGATION

EXIT

10:00 - 11:00

NAVIGATION

EXIT

PR. 7 SP 60min

SELECT WITH [CURSORS] THEN PRESS [ENTER]

MODIFY NAME

REPLACE

00:00:21

PR. 7 SP 60min

SELECT SCENE WITH [PLAY/PAUSE etc.]

THEN PRESS [ENTER]

MODIFY CATEGORY

00:05:00

[OTHERS]

Filename [M150SEK_08Navigation.fm]

M150SEK_00.book Page 49 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Delete Scenes

1 Press NAVIGATION to

display the Library Database Navigation screen.

2 Press selection keys to

select APLAY LISTB, then press ENTER.

3 Press selection keys to

select a play list from which you wish to delete unwanted scenes, then press G.

4 Press selection keys to select AEDITINGB, then press ENTER. 5 Press selection keys to

select ADELETE SCENEB, then press ENTER.

6 Press I to start

playback.

● Press O or N to find

the point where you want the deletion to begin, then press W.

7 Confirm the arrow is on AINB, then press ENTER.

● The edit-in time is displayed on the left of the AINB window.

8 Press I to resume playback.

● Press W to pause at the point where you want the deletion to

end.

9 Confirm the arrow is on AOUTB, then press ENTER.

● The edit-out time is displayed on the left of the AOUTB window.

10 Press selection keys

to select APREVIEWB, then press ENTER. A preview of the scene approximately 5 seconds before and after the deleted part is played back.

● To cancel the deletion,

press selection keys to select ARETURNB, then press ENTER.

To modify the points

A Press selection keys to select ACLEARB, then press ENTER. B Press selection keys to select AINB. C Perform steps 6 - 10.

11 Press selection keys to select AEXECUTEB, then press

ENTER.

12 Press NAVIGATION to return to the normal screen.

ORIGINAL PLAY LIST LIBRARY

0001

1234

DANCE

DANCE CURNIV 28/07/03 MON

MODIFY DELETE EDITING CREATE

SELECT

DELETE SCENE MOVE SCEN E ADD SCEN E

RETURN PREVIEW EXECUTE CLEAR

SELECT

DELETE SCENE MOVE SCEN E ADD SCEN E

RETURN PREVIEW EXECUTE CLEAR

SELECT

REMAIN TIME 87 min(SP)

10:00 - 11:00

NAVIGATION

EXIT

NAVIGATION

EXIT

NAVIGATION

EXIT

PR. 7 SP 60min

SELECT WITH [CURSORS]

THEN PRESS [ENTER]

SELECT SCENE WITH [PLAY/PAUSE etc.]

THEN PRESS [ENTER]

SELECT SCENE WITH [PLAY/PAUSE etc.]

THEN PRESS [ENTER]

ININOUT

-:--:--:--

:::

TITLE 05 CHAPTER 01 TIME -- --:--:--:--

ININOUT

-:--:--:--

:::

TITLE 05 CHAPTER 01 TIME -- --:--:--:--

[OTHERS]

OUT

TOTAL TIME

OUT

TOTAL TIME

NAVIGATION

EN 49

Move Scenes

1 Press NAVIGATION to

display the Library Database Navigation screen.

2 Press selection keys to

select APLAY LISTB, then press ENTER.

3 Press selection keys to

select a play list which you wish to move a scene, then press G.

4 Press selection keys to select AEDITINGB, then press ENTER. 5 Press selection keys to

select AMOVE SCENEB, then press ENTER.

6 Press I to start

playback.

● Press O or N to find

the point where you want the moved scene to begin, then press W.

7 Confirm the arrow is on

AINB, then press ENTER.

● The edit-in time is displayed on the left of the AINB window.

8 Press I to start playback.

● Press W to pause at the point where you want the moved scene

to end.

9 Confirm the arrow is on AOUTB, then press ENTER.

● The edit-out time is displayed on the left of the AOUTB window.

10 Press I to start playback.

● Find the point where you want the moved scene to be moved,

then press W.

11 Confirm the arrow is on AMOVE TOB, then press ENTER. 12 Press selection keys to select APREVIEWB, then press

ENTER. A preview of approximately 5 seconds before and after the point to which the scene has been moved is played back.

● To cancel the moving, press selection keys to select

ARETURNB, then press ENTER.

To modify the points

A Press selection keys to select ACLEARB, then press ENTER. B Press selection keys to select AINB. C Perform steps 6 - 12.

13 Press selection keys to select AEXECUTEB, then press

ENTER.

14 Press NAVIGATION to return to the normal screen.

ORIGINAL PLAY LIST LIBRARY

0001

1234

DANCE

DANCE CURNIV 28/07/03 MON

MODIFY DELETE EDITING CREATE

SELECT

DELETE SCENE MOVE SCENE ADD SCENE

RETURN PREVIEW EXECUTE CLEAR

SELECT

REMAIN TIME 87 min(SP)

10:00 - 11:00

NAVIGATION

EXIT

NAVIGATION

EXIT

PR. 7 SP 60min

SELECT WITH [CURSORS] THEN PRESS [ENTER]

SELECT SCENE WITH [PLAY/PAUSE etc.] THEN PRESS [ENTER]

ININOUT

-:--:--:--

:::

-:--:--:--

TITLE 05 CHAPTER 01 TIME -- --:--:--:--

[OTHERS]

OUT

TOTAL TIME

MOVE TO

Filename [M150SEK_08Navigation.fm]

M150SEK_00.book Page 50 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

50 EN

NAVIGATION

Add Scenes

1 Press NAVIGATION to display the Library Database Navigation

screen.

2 Press selection keys to

select APLAY LISTB, then press ENTER.

3 Press selection keys to

select a play list to which you wish to add a scene, then press G.

4 Press selection keys to

select AEDITINGB, then press ENTER.

5 Press selection keys to

select AADD SCENEB, then press ENTER.

6 Press I to start

playback.

● To move to other titles,

press S or T.

● Press O or N to find

the point where you want the created play list to begin, then press W.

7 Perform steps 5 - 10 of ACreate Play ListB (A pg. 47).

ORIGINAL PLAY LIST LIBRARY

0001

1234

DANCE

MODIFY DELETE EDITING CREATE

SELECT

DELETE SCENE MOVE SCENE ADD SCENE

RETURN PREVIEW EXECUTE CLEAR

SELECT

REMAIN TIME 87 min(SP)

NAVIGATION

EXIT

NAVIGATION

EXIT

SELECT WITH [CURSORS] THEN PRESS [ENTER]

SELECT SCENE WITH [PLAY/PAUSE etc.]

THEN PRESS [ENTER]

ININOUT

-:--:--:--

:::

TITLE 05 CHAPTER 01

TIME 0000:00:53 **

OUT

TOTAL TIME

Filename [M150SEK_08Navigation.fm]

M150SEK_00.book Page 51 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Edit Library Information

Each disc recorded on this unit is automatically numbered. If this number is retained, it is possible to find out the titles recorded in a disc quickly. Title information can be registered in the unit’s memory for up to 1300 titles.

NOTE:

If you do not want the information to be registered in the library automatically, set ASAVE AS LIBRARYB to AOFFB. (A pg. 61)

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

DVD

NAVIGATION

Selection Keys

(FGDE)

ENTER

Scan For Title From Library

NAVIGATION

When the disc that contains the selected title is not loaded

A prompt screen appears. Load the disc after pressing ENTER to close the prompt screen. Then perform steps 1 - 4.

NOTE:

If a disc registered in the library is recorded or modified on DVD units from other manufacturers, it may become impossible to operate properly.

EN 51

If a disc that is not registered in the library is loaded, a message confirming whether the disc should be registered appears when the Library Database Navigation screen is displayed. If registering, perform the following procedure.

1 Press NAVIGATION to display the Library Database Navigation

screen.

2 Press selection keys to select ALIBRARYB. 3 Press selection keys to select AREGISTERB, then press

ENTER.

● To quit registration, select ACANCELB, then press ENTER.

4 Press NAVIGATION to return to the normal screen.

NOTES:

● It is not possible to register discs used for On-Disc Timer

Programming. (A pg. 39)

● It is not possible to register discs formatted on devices other than

JVC’s DVD recorders.

● It is not possible to register discs recorded on devices other than

JVC’s DVD recorders.

Delete Information

1 Perform steps 1 - 3 of AScan For Title From LibraryB (A pg. 51)

before continuing.

2 Press selection keys to select a title whose information you

want to delete, then press G.

3 Press selection keys to select ADELETEB, then press ENTER.

● The confirmation screen appears.

4 Press selection keys to select ADELETEB, then press ENTER.

● To cancel the information deletion, select ACANCELB, then

press ENTER.

5 Press NAVIGATION to return to the normal screen.

1 Press NAVIGATION to display the Library Database Navigation

screen.

2 Press selection keys to

select ALIBRARYB, then press ENTER.

ORIGINAL PLAY LIST LIBR ARY

DISC No. CATEGORY

DATE NAME

3 Select the appropriate

sort button to sort the information, then press ENTER. ADISC No.B:

Sort by disc number.

ACATEGORYB:

Sort by category.

ADATEB:

Sort by date.

ANAMEB:

Sort by name.

● Each time when the sort button is selected and ENTER is

pressed, the sorting order switches between ascending order and descending order.

SELECT

DELETE

NAVIGATION

EXIT

SELECT WITH [CURSORS]

THEN PRESS [ENTER]

4 Press selection keys to select the desired title, then press

ENTER.

● If the DVD disc loaded on this unit contains the selected title,

the selected title and all subsequent titles will be played back.

Filename [M150SEK_08Navigation.fm]

M150SEK_00.book Page 52 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

52 EN

NAVIGATION

Playback With MP3/JPEG Navigation

This unit can play back discs that contain MP3 sound files and JPEG image files taken with digital still cameras or other devices. The MP3/JPEG Navigation enables you to search and select the desired files recorded on CD-R/RW or CD-ROM discs very easily.

● Turn on the TV and select an input mode such as EXT1.

AB C

MY BEST

MP 3

ROOT

20/11/03 THU 20/11/03 THU 20/11/0 3 THU 20/11 /03 THU

MUSIC/FRANCE/POPS 20/11/03 THU

RETURN

SELECT

JPEG

Europe Pops Ro ck

NAVIGATION

EXIT

SELECT WITH [CURSORS] THEN PRESS [ENTER]

GH I

SONG SONG

another.mp3 1/48

SELECT

01SONG

02SONG 03SONG 04SONG 05SONG 06SONG

RETURN

NAVIGATION

EXIT

07SONG

08SONG 09SONG 10SONG 11SONG 12SONG

SELECT WITH [CURSORS] THEN PRESS [ENTER]

SONG

SONG SONG SONG SONG SONG

1/1

Locating The Desired Group And Tracks

1 Load a disc. 2 Press NAVIGATION. 3 Press selection keys to select AMP 3B or AJPEGB, then press

ENTER.

4 Press selection keys to select the desired group, then press

ENTER.

● A list of files in the selected group appears.

5 Press selection keys to select a file you want to play back,

then press ENTER. The unit starts playback from the selected file.

● Playback stops when all the files in the selected group are

played back.

NOTES:

● If you press I instead of ENTER in step 4, the unit starts

playback from the first file of the group.

● JPEG files are played back as a slide show at the set intervals.

(A pg. 33)

● If a file name includes any 2 byte character, the unit may not

show the file name correctly.

● The order of the groups and items shown in steps 4 and 5 may

differ from the order shown on your PC.

● When you want multiple files to be played back continuously,

press MEMO instead of ENTER in step 5. Playbacks in the specified order when I is pressed. (Up to 30 titles)

● If you have specified a wrong selection, press CANCEL.

Or press CLEAR

After all the files are played back

A Perform steps 1 - 4. B Press CLEAR

● The title numbers are reset and erased.

C Press NAVIGATION to return to the normal screen.

(o), all the title numbers are erased.

(o).

A Name of the inserted disc B Sort buttons (AMP 3B/ AJPEGB) C Selected group number/total number of groups on the disc D Group name E Return button F Group name/Created date G File type indicator

: MP3

: JPEG

H Selected file I Selected file number/total number of files in the group that

contains the selected file

J Programme number/file name

Filename [M150SEK_09Editing.fm]

1 2

AB C

M150SEK_00.book Page 53 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right0

DV Dubbing

You can dub programmes from a camcorder or DV equipment connected to the unit with a DV cable. The unit’s remote control allows you the limited control of the connected camcorder or DV equipment functions during dubbing.

NOTES:

● Use the DV cable VC-VDV 204U for connection.

● When you connect a PC to the [DV IN] connector, we do not

assure the normal operation of this unit.

Your unit

RAM/RW

To [DV IN]

Camcorder

DV equipment

DV cable

(VC-VDV 204U)

(not supplied)

DV connector

EDITING

EN 53

The following on-screen display for DV dubbing appears when ON SCREEN is pressed while the channel has been set to ADVB.

DV DUBBING

AUDIO 1

A DV dubbing controller

If this mark is not displayed, check whether the DV equipment has been connected to the unit.

B Auto capture button

Select to start or pause the dubbing. If ENTER is pressed when the DV device is in the pause condition, preroll editing* where it is possible to dub with a start time that is highly accurate will be activated. When the DV device cannot be operated from the unit (such as in camera mode), proceed with normal recording (A pg. 34).

* Preroll editing refers to the playback after the DV tape is slightly rewind.

(For DV devices that do not support the may be longer.)

–1x speed, the rewinding time

C Sound monitor switch

For selecting the desired sound format for dubbing.

1 Connect a camcorder or DV equipment to the [DV IN] connector

on the unit’s front panel.

2 Press PR +/– to set the channel to ADV B.

● The on-screen display for DV dubbing appears.

3 Press REC MODE repeatedly to set the recording mode. 4 Locate the point from where you want to start dubbing, then

stop or pause playback by pressing the following buttons on the remote control: I, N, O, o, W.

● To play back in slow speed (1/10 of the normal speed), press W

to pause playback, then press O or N.

● To play back frame-by-frame, press W to pause playback, then

press W repeatedly. Each press of W advances a frame.

● To change the playback direction, press O or N.

5 Press selection keys to select , then press

ENTER. Select the desired sound track from the pull-down menu, then press ENTER.

AUDIO 1:

Select this to record the original stereo sound played back on the connected DV equipment.

AUDIO 2:

Select this to record the dubbed stereo sound played back on the connected DV equipment.

MIX:

Select this to record the sound of both AAUDIO 1B and AAUDIO 2B.

● Note that this selection is not available when the source

programme is recorded in 16BIT (48 kHz) mode.

6 Press selection keys to select , then press ENTER.

The dubbing starts.

● Playback on the external DV equipment and recording on the

unit should start simultaneously.

● To pause dubbing, press selection keys to select ,

then press ENTER. Both the unit and the external DV equipment pause dubbing.

● To resume dubbing, press selection keys to select ,

then press ENTER to start dubbing.

7 Press o to stop dubbing.

● Both the unit and the external DV equipment stop dubbing.

NOTES:

● Dubbing copyright guarded programmes is not possible.

● Original DV information such as the recording date and time are

not recorded.

● The superimposed indication during the operation or dubbing is

not recorded.

● If the dubbing is paused while the channel is set to ADVB, you

cannot switch channels.

● Only DV format video can be dubbed. It is not possible to dub

MPEG2 format video.

Filename [M150SEK_09Editing.fm]

M150SEK_00.book Page 54 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

54 EN

To skip unwanted part of the source picture

Press ENTER to stop both equipment, press I, N or O to locate the point where you want to resume dubbing, then press o.

● Press selection keys to select , then press ENTER to

EDITING

When you dub from DV equipment other than a camcorder

A Perform steps 1 - 3. B Locate the point from where you want to start dubbing,

then stop on the DV equipment.

● If you pause the DV equipment in this step, a few

second’s still picture will be recorded at the beginning of the recorded programme.

Set the input mode to ADV I N PUTB on the DV equipment.

● If input mode is set to other than ADV I NPUT B, unwanted

pictures may be recorded at the beginning of the recorded programme.

D Perform steps 6 and 7.

start dubbing.

Digital Audio Dubbing

You can dub selected audio from a DVD or Audio CD disc to a digital audio device. However, it is not possible to dub copy-protected discs.

● Turn on the TV and select an input mode such as EXT1.

Example: Dubbing to an MD

Recorder

Digital audio device (MD

To [DIGITAL OUT (COAXIAL)]

Player

deck, etc.)

Coaxial cable (not supplied)

Rear of unit

1 Connect the unit and a digital audio device using an optional

coaxial cable.

2 Place a disc on the unit and load an MD on the connected

digital audio device.

3 Select the audio to be dubbed. 4 Start playback slightly before the actual point from where you

wish to start dubbing.

5 Press W to pause playback. 6 Select the input mode on the connected digital audio device. 7 Press I to start playback on the unit. 8 Start recording on the digital audio device. 9 Stop recording on the digital audio device. Then press o to stop

playback on the unit.

NOTE:

There may be a discrepancy of several seconds between where you intend editing to start, and where it actually starts.

Filename [M150SEK_09Editing.fm]

M150SEK_00.book Page 55 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Edit From A Camcorder

You can use a camcorder as the source player and your unit as the recording deck.

A If the camcorder has no S-VIDEO output connector:

RAM/RW

Recorder

Player

B If the camcorder has an S-VIDEO output connector:

To [VIDEO/AUDIO

(L(MONO)/R)] input

Audio/video cable

(not supplied)

AUDIO/VIDEO OUT

EDITING

EN 55

1 Make connections.

A If the camcorder has no S-VIDEO output connector:

^ connect the camcorder’s AUDIO/VIDEO OUT connectors to

the unit’s [VIDEO/AUDIO (L(MONO)/R)] input connectors on the front panel.

● When using a monaural camcorder, connect its AUDIO OUT

connector to the [AUDIO (L(MONO))] input connector on your unit.

B If the camcorder has an S-VIDEO output connector:

^ connect the camcorder’s AUDIO OUT and S-VIDEO OUT

connectors to the unit’s [AUDIO (L(MONO)/R)] and [S-VIDEO] input connectors on the front panel.

2 Press PR +/– to select AF-1B.

● Set AF-1 INPUTB to AVIDEOB for the [VIDEO] input connector, or

AS-VIDEOB for the [S-VIDEO] input connector, depending on the

connector being used. (A pg. 58)

3 Press REC MODE repeatedly to set the recording mode. 4 Start playback on the camcorder slightly before the actual point

from where you wish to start dubbing.

5 Press R on the unit to start recording. Or while holding R, press

I on the remote control. The dubbing starts.

6 Upon completing dubbing, stop the unit and the camcorder.

● Stop recording on the recording deck (your unit), then stop

playback on the source player (camcorder).

NOTES:

● All necessary cables can be obtained from your dealer.

● Refer to the camcorder’s instruction manual for operating

procedure.

● The quality of the dubbed picture is poorer than that of the

original.

Recorder

Player

RAM/RW

To [S-VIDEO]

input

S-video cable (not supplied)

S-VIDEO OUT

AUDIO OUT

To [AUDIO] input

Audio cable (not supplied)

Filename [M150SEK_09Editing.fm]

M150SEK_00.book Page 56 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

56 EN

EDITING

Edit To Or From Another Recorder

You can use your unit as the source player or as the recording deck.

NOTE:

When using another recorder as the recording deck, refer to its instruction manual.

A When using your unit as the source player

TV receiver

B When using your unit as the recording deck

Player

21-pin SCART cable

(not supplied)

Recorder

21-pin SCART cable

(supplied)

Another recorder

Your unit

1 Connect another recorder’s 21-pin SCART connector to the

unit’s 21-pin SCART connector as illustrated.

A When using your unit as the source player:

^ connect its [L-1 IN/OUT] connector to the recording deck.

B When using your unit as the recording deck:

^ connect its [L-2 IN] connector to the source player.

● If another recorder is compatible with the Y/C signal:

^ when using your unit as the source player, set AL-1

OUTPUTB to ASCART S-VIDEOB. (A pg. 57)

^ when using your unit as the recording deck, set AL-2

SELECTB to AS-VIDEO/RGBB. (A pg. 58)

2 When using this unit as the recording deck, press PR +/– to

select AL-2B.

● Set AL-2 SELECTB to AVIDEO/RGBB or AS-VIDEO/RGBB.

(A pg. 58)

3 When using this unit as the recording deck, press REC MODE

repeatedly to set the recording mode.

4 Engage the Play mode of the source player. 5 Engage the Record mode of the recording deck. 6 Stop recording on the recording deck, then stop playback on the

source player.

NOTES:

● All necessary cables can be obtained from your dealer.

● For Y/C signal input/output, be sure to use a 21-pin SCART cable

that is compatible with the Y/C signal.

● When you use this unit as the source player for editing, be sure to

set ASUPERIMPOSEB to AOFFB before starting. (A pg. 61)

● If you are using another recorder with S-Video and Audio output

connectors, connect its S-Video and Audio output connectors to this unit’s [S-VIDEO] and [AUDIO] input connectors on the front panel. Then, set the unit’s input mode to AF-1B in step 2, and set AF-1 INPUTB to AS-VIDEOB. (A pg. 58)

TV receiver

21-pin SCART cable

(not supplied)

Recorder

Player

Your unit

21-pin SCART cable (supplied)

Another recorder

Filename [M150SEK_09Editing.fm]

M150SEK_00.book Page 57 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Output/Input Set

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

Selection Keys

(FGDE)

ENTER

SET UP

L-1 Output And L-1 Input Setting

The [L-1 IN/OUT] connector accepts and delivers either a composite signal (regular video signal) or a Y/C signal (a signal in which the luminance and chrominance signals are separated). Set OUTPUT

and AL-1 INPUTB to the appropriate mode depending on

the type of appliance connected to the unit’s [L-1 IN/OUT] connector.

1 Press SET UP to access the Main Menu screen. 2 Press selection keys to select AFUNCTION SET UPB, then

press ENTER.

3 Press selection keys

to select AVIDEO IN/ OUTB, then press ENTER.

4 Press selection keys

to select AL-1 OUTPUTB or AL-1 INPUTB, then press ENTER.

5 Press selection keys

DVD SET UP

VIDEO IN/OUT

MONITOR TYPE

F-1 INPUT

L-1 INPUT

L-1 OUTPUT

L-2 SELECT

SET UP

EXIT

FUNCTION SET UP

RECORDING SET

SELECT

to select the appropriate setting, then press ENTER.

6 Press SET UP to complete the setting.

L-1

INITIAL SET UP

DISPLAY SET

SELECT WITH [CURSORS] THEN PRESS [ENTER]

OTHERS

16:9AUTO

VIDEO

SCART VIDEO

VIDEO/RGB

EDITING

*The boldface settings below indicate the settings at your purchase.

EN 57

8 L-1 OUTPUT ^ SCART VIDEO / SCART S-VIDEO / SCART

RGB / COMPONENT

SCART VIDEO:

If a connected appliance’s input is compatible only with regular video signals, set to ASCART VIDEOB

SCART S-VIDEO:

If a connected appliance’s input is compatible with Y/C signals, set to ASCART S-VIDEOB. You can obtain a high-quality picture. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

SCART RGB:

If a connected appliance’s input is compatible with RGB signals, set to ASCART RGBB. You can obtain a high-quality RGB picture.

COMPONENT:

If a connected appliance’s input is compatible with Y/PB/PR signals, set to ACOMPONENTB. You can obtain a high-quality Y/ P

B/PR picture. Switch the TV to the input that you can watch

component video pictures.

8 L-1 INPUT ^ VIDEO / S-VIDEO

VIDEO:

If a connected appliance’s output is compatible only with regular video signals, set to AVIDEOB.

S-VIDEO:

If a connected appliance’s output is compatible with Y/C signals, set to AS-VIDEOB. You can obtain a high-quality picture. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

NOTES:

● If AL-1 OUTPUTB is set to ASCART S-VIDEOB or ASCART RGBB, it

is not possible to set AL-1 INPUTB to AS-VIDEOB.

● If AL-2 SELECTB is set to ASAT S-VIDEO/RGBB, it is not possible

to set AL-1 INPUTB to AS-VIDEOB.

● Component video signals are not output from the [L-1 IN/OUT]

connector.

● When Progressive scan mode is engaged, it is not possible to

select the setting of AL-1 OUTPUTB.

Filename [M150SEK_09Editing.fm]

M150SEK_00.book Page 58 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

58 EN

EDITING

Selection Keys

(FGDE)

ENTER

SET UP

L-2 Select Setting

Set AL-2 SELECTB to the appropriate mode depending on the type of appliance connected to the unit’s [L-2 IN] connector.

1 Perform steps 1 and 2 of AL-1 Output And L-1 Input SettingB

(A pg. 57).

2 Press selection keys to select AL-2 SELECTB, then press

ENTER.

3 Press selection keys

to select the appropriate setting, then press ENTER.

4 Press SET UP to

complete the setting.

*The boldface settings below indicate the settings at your purchase.

8 L-2 SELECT ^ VIDEO/RGB / S-VIDEO/RGB / SAT VIDEO/RGB /

SAT S-VIDEO/RGB

Select AVIDEO/RGBB or AS-VIDEO/RGBB to use this unit as the recording deck with the player connected to the [L-2 IN] connector, or to use the satellite receiver connected to the [L-2 IN] connector.

VIDEO/RGB:

If a connected appliance’s output is compatible only with regular video signals, set to AVIDEO/RGBB.

S-VIDEO/RGB:

If a connected appliance’s output is compatible with Y/C signals, set to AS-VIDEO/RGBB. You can obtain a high-quality picture. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

Select ASAT VIDEO/RGBB or ASAT S-VIDEO/RGBB to view a satellite programme with the TV set while the unit is turned off.

SAT VIDEO/RGB:

If a connected satellite receiver’s output is compatible with regular video signals, set to ASAT VIDEO/RGBB.

SAT S-VIDEO/RGB:

If a connected satellite receiver’s output is compatible with Y/C signals, set to ASAT S-VIDEO/RGBB. You can obtain a highquality S-VIDEO picture. (For connection, be sure to use a 21pin SCART cable that is compatible with the Y/C signal.)

DVD SET UP

VIDEO IN/OUT

MONITOR TYPE

F-1 INPUT

L-1 INPUT

L-1 OUTPUT

L-2 SELECT

SET UP

EXIT

FUNCTION SET UP

RECORDING SET

SELECT

INITIAL SET UP

16:9AUTO

VIDEO

SCART VIDEO

VIDEO/RGB

S-VIDEO

S-VIDEO/RGB SAT VIDEO/RGB

OTHERS

DISPLAY SET

SELECT WITH [CURSORS] THEN PRESS [ENTER]

NOTES:

● When RGB signals are output from the connected appliance

such as a satellite receiver, the unit will record in RGB signals.

● If you have a satellite receiver connected to the [L-2 IN]

connector, be sure to set AL-2 SELECTB back to appropriate mode after editing.

● When you want to play back and record RGB picture, connect the

satellite receiver’s RGB compatible output connector to the unit’s input connector.

● If you are not connecting a satellite receiver to the [L-2 IN]

connector, leave AL-2 SELECTB set to AVIDEO/RGBB.

● When AL-2 SELECTB is set to ASAT VIDEO/RGBB and ASAT

S-VIDEO/RGBB, ASATB appears on the TV screen or front display panel instead of AL-2B.

● If AL-1 OUTPUTB is set to ASCART S-VIDEOB, it is not possible to

set AL-2 SELECTB to ASAT VIDEO/RGBB.

● If AL-1 OUTPUTB is set to ASCART RGBB, it is not possible to set

AL-2 SELECTB to ASAT S-VIDEO/RGBB.

● If AL-1 OUTPUTB is set to ACOMPONENTB and AL-2 SELECTB to

ASAT VIDEO/RGBB or ASAT S-VIDEO/RGBB, be sure to connect

the [L-1 IN/OUT] connector with a TV.

● If AL-2 SELECTB is set to ASAT S-VIDEO/RGBB, be sure to set

AL-1 OUTPUTB to ASCART S-VIDEOB.

F-1 Input Setting

Set AF-1 INPUTB to the appropriate mode depending on the connector ([VIDEO] or [S-VIDEO]) being used on the front panel.

1 Perform steps 1 and 2 of AL-1 Output And L-1 Input SettingB

(A pg. 57).

2 Press selection keys to select AF-1 INPUTB, then press

ENTER.

3 Press selection keys

to select the appropriate setting, then press ENTER.

4 Press SET UP to

complete the setting.

*The boldface settings below indicate the settings at your purchase.

8 F-1 INPUT ^ VIDEO / S-VIDEO

VIDEO:

When connecting an appliance to the [VIDEO] input connector, set to AVIDEOB.

S-VIDEO:

When connecting an appliance to the [S-VIDEO] input connector, set to AS-VIDEOB

DVD SET UP

VIDEO IN/OUT

MONITOR TYPE

F-1 INPUT

L-1 INPUT

L-1 OUTPUT

L-2 SELECT

SET UP

EXIT

FUNCTION SET UP

RECORDING SET

SELECT

INITIAL SET UP

16:9AUTO

VIDEO

S-VIDEO

SCART VIDEO

S-VIDEO/RGB

OTHERS

DISPLAY SET

SELECT WITH [CURSORS] THEN PRESS [ENTER]

Filename [M150SEK_10Subsidiary.fm]

M150SEK_00.book Page 59 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right0

Connecting To A Satellite Receiver

Connect the satellite receiver to the [L-2 IN] connector, then connect the [L-1 IN/OUT] connector to the TV’s connector.

NOTES:

● Set AL-2 SELECTB to AVIDEO/RGBB or AS-VIDEO/RGBB.

(A pg. 58)

● You can use the Automatic Satellite Programme Recording

function with this connection. (A pg. 42)

● To record a programme via the satellite receiver, select L-2 mode

by pressing PR +/– so that AL-2B appears on the front display panel.

● For details, refer to the instruction manual of the satellite receiver.

Outdoor unit

Satellite cable

Satellite receiver

Aerial

TV aerial cable

ANTENNA IN

ANTENNA OUT

SYSTEM CONNECTIONS

EN 59

Connecting To A Dolby Digital Decoder Or An Amplifier With Built-in DTS

These instructions enable you to connect your unit to a Dolby Digital Decoder or an amplifier with built-in DTS.

Dolby Digital Decoder or

amplifier with built-in DTS

To DIGITAL AUDIO input

Coaxial cable (not supplied)

To [DIGITAL OUT

(COAXIAL)]

Rear of unit

IMPORTANT

When you set AL-2 SELECTB to ASAT VIDEO/RGBB or ASAT S-VIDEO/RGBB (A pg. 58), it is possible to view a satellite broadcast with the TV set to an input mode such as EXT1 even if the unit is turned off. When the unit is in Stop mode or recording, press TV/VIDEO on the remote control to turn off the Video indicator on the front display panel.

● If you turn on the unit when the satellite receiver’s power is off,

nothing appears on the TV screen. In this case, turn on the satellite receiver, or set the TV to its TV mode, or slide the TV/

DVD switch to TV to set the unit to the AV mode.

Rear of unit

1 Connect the unit and a Dolby Digital Decoder or an amplifier

with built-in DTS using an optional coaxial cable.

NOTE:

For details on [DIGITAL AUDIO OUT] connector setting, refer to ADIGITAL AUDIO OUTB. (A pg. 60)

Filename [M150SEK_10Subsidiary.fm]

M150SEK_00.book Page 60 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left0

60 EN

SUBSIDIARY SETTINGS

Mode Set

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

DVD

Selection Keys

(FGDE)

ENTER

AUDIO

SET UP

Various modes of this unit are categorised into menus nested in 2 levels shown in the following table. To change the settings of these modes, find the desired mode in the menu, then follow the procedure below. (For details on each menu, see pages 60 - 61.)

DVD SET UP LANGUAGE SET (A pg. 19)

FUNCTION SET UP VIDEO IN/OUT (A pg. 19, 57)

INITIAL SET UP CHANNEL SET (A pg. 64)

● The procedure below shows how to set the desired option of the

AXP MODE REC AUDIOB mode as an example.

1 Press SET UP to access the Main Menu screen. 2 Press selection keys to select AFUNCTION SET UPB, then

press ENTER.

3 Press selection keys to

select ARECORDING SETB, then press ENTER.

4 Press selection keys to

select AXP MODE REC AUDIO B, then press ENTER.

5 Press selection keys to

select the desired setting, then press ENTER.

6 Press SET UP to complete the setting.

AUDIO OUTPU T (A pg. 60) UTILITY (A pg. 67, 68)

RECORDING SET (A pg. 61) DISPLAY SET (A pg. 61) OTHERS (A pg. 61)

DTV SETTING (A pg. 20) CLOCK SET (A pg. 66)

DVD SET UP

VIDEO IN/OUT

SET UP

FUNCTION SET UP

RECORDING SET

SAVE AS LIBRARY

XP MODE REC AUDIO

SELECT

EXIT

INITIAL SET UP

DISPLAY SET

DOLBY DIGITAL

LINEAR PCM

SELECT WITH [CURSORS] THEN PRESS [ENTER]

OTHERS

*The boldface settings below indicate the settings at your purchase.

AUDIO OUTPUT

8 DIGITAL AUDIO OUT ^ DOLBY DIGITAL/PCM / STREAM/

/ PCM ONLY

PCM

Set to the appropriate mode according to the type of the device connected to [DIGITAL AUDIO OUT] connector.

DOLBY DIGITAL/PCM:

Select this when you connect the digital input connector of a Dolby Digital Decoder or an amplifier with a built-in Dolby Digital Decoder.

STREAM/PCM:

Select this when you connect the digital input connector of an amplifier with a built-in DTS, Dolby Digital, or MPEG multichannel decoder.

PCM ONLY:

Select this when you connect the linear PCM digital input of other audio equipment (amplifier, MD or DAT deck, etc.).

NOTE:

If you watch or play back a programme recorded on a DVD-RAM or DVD-RW (VR mode only) disc which contains multiple audio languages, select APCM ONLYB in advance and choose main or sub audio with AUDIO .

8 ANALOG AUDIO OUT ^ STEREO / DOLBY SURROUND

Select the appropriate setting to accommodate the unit to the connected A/V equipment. This function takes effect when a DVD VIDEO disc is played back.

STEREO:

Select this when listening to conventional two-channel stereo audio with the unit’s [AUDIO OUT] connectors connected to a stereo amplifier/receiver or TV set, or in case you want to record the audio from a DVD VIDEO disc to a Mini Disc, etc.

DOLBY SURROUND:

Select this when listening to audio with the unit’s [AUDIO OUT] connectors connected to an amplifier/receiver with a built-in surround decoder or a surround decoder.

8 D. RANGE CONTROL ^ NORMAL / WIDE RANGE / TV MODE

The dynamic range (the difference between the loudest sound and the quietest one) can be compressed during playback of a programme encoded in Dolby Digital format. This function takes effect when a DVD VIDEO disc recorded in Dolby Digital format is played back at low or middle volume.

NORMAL:

Normally select this setting to activate this function.

WIDE RANGE:

Select this to deactivate this function when you enjoy programme with wide dynamic range.

TV MODE:

Select this when connecting to a TV. Even soft sound can be well heard.

NOTES:

● This function has no effect on programmes other than those

recorded in Dolby Digital format.

● The effect of ANORMALB and AWIDE RANGEB may not be

different depending on discs.

8 OUTPUT LEVEL ^ STANDARD / LOW

You can lower the output level of analogue audio to accommodate the unit to the connected A/V equipment.

STANDARD:

Normally select this setting.

LOW:

The output level of analogue audio is lowered.

Filename [M150SEK_10Subsidiary.fm]

M150SEK_00.book Page 61 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

RECORDING SET

8 SAVE AS LIBRARY ^ OFF / ON

When this function is set to AONB, the recording information is automatically stored in the library. For details, refer to AEdit Library InformationB (A pg. 51).

8 XP MODE REC AUDIO ^ DOLBY DIGITAL / LINEAR PCM

You can select the audio format when you record a title in XP mode. When this function is set to ALINEAR PCMB, you can obtain a high-quality audio sound.

DOLBY DIGITAL:

To record in Dolby Digital format.

LINEAR PCM:

To record in Linear PCM format.

DISPLAY SET

8 SUPERIMPOSE ^ OFF / AUTO

When this function is set to AAUTOB, various operational indicators appear on the TV screen.

OFF:

To turn off superimposed indications.

AUTO:

To superimpose operational indications for approximately five seconds just after the corresponding operation.

NOTES:

● Even when ASUPERIMPOSEB is set to AOFFB, you can display

the various operational indicators by pressing ON SCREEN on the remote control. To clear the operational indicators, press ON SCREEN again.

● When you use this unit as the source player for editing, be sure to

set ASUPERIMPOSEB to AOFFB before starting. (A pg. 56)

● When you select AAUTOB, during playback, the operation mode

indicators may be disturbed depending on the type of disc being used.

SUBSIDIARY SETTINGS

EN 61

OTHERS

8 AUTO TIMER ^ OFF / ON

This is the setting for engaging timer recording standby mode.

OFF:

Press TIMERj to engage timer recording standby mode.

ON:

Timer recording standby mode is automatically engaged when the unit is turned off.

8 RESUME ^ OFF / ON / DISC RESUME

When this function is set to AONB or ADISC RESUMEB, you can use the resume function.

OFF:

You cannot use the resume function.

ON:

The resume function works on the disc loaded on the unit.

DISC RESUME:

The unit retains a memory of the resume points of the last 30 discs played back, even though they have been ejected.

NOTE:

ADISC RESUMEB setting works on DVD VIDEO, VCD, SVCD and finalised DVD-R/DVD-RW (Video mode) discs. For other types of discs, the function under AONB setting will be applied even if ARESUMEB is set to ADISC RESUMEB.

8 GREY BACK ^ OFF / ON

OFF:

Select this when you want to receive an unstable channel with poor signals.

ON:

When this function is set to AONB, the TV screen becomes all grey when receiving a channel not in use.

8 DIMMER ^ BRIGHT / DIMMED1 / DIMMED2 / OFF

You can change the brightness of the front display panel.

BRIGHT:

Normally select this. To turn on the display and blue lamp of the front display panel.

DIMMED1/DIMMED2:

To change the brightness level, and turn off the blue lamp of the front display panel.

OFF:

To turn off the display and blue lamp of the front display panel.

8 POWER SAVE ^ OFF / ON

When this function is set to AONB, you can reduce the power consumption while the unit is turned off.

NOTE:

During Power Save mode, the front display panel will be turned off.

Filename [M150SEK_10Subsidiary.fm]

M150SEK_00.book Page 62 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

62 EN

SUBSIDIARY SETTINGS

Remote Control Functions

Remote Control 1/2/3/4 Code Switching

The remote control is capable of controlling four JVC video units independently. Each of the units can respond to one of the four codes (1, 2, 3 or 4). The remote control is preset to send code 3 signals because your unit is initially set to respond to code 3 signals. You can easily modify your unit to respond to code 1, 2 or 4 signals.

RAM/RW

1-4

ENTER

TV Multi-Brand Remote Control

Your Remote can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer’s TVs can also be controlled.

● Slide the TV/DVD switch to TV.

DVD

TV/VIDEO

TV A

TV 8 +/

0-9

PR +/

ENTER

SET UP

● Keep pressing SET UP down during step 1.

1 Press the number key A1B for 1, A2B for 2, A3B for 3 or A4B for 4 to

change the remote control code, then press ENTER.

2 Press A on the unit to turn off the unit. 3 Press I on the unit for over 5 seconds while the unit is turned

off. The code currently set appears on the front display panel.

4 Press o on the remote control to change the unit’s code. The

code currently set on the remote control blinks on the front display panel for approximately 5 seconds, and is applied to the unit.

IMPORTANT:

Although the supplied Remote unit is compatible with JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability.

8 Set the TV brand code.

1 Keep pressing SET UP down during step 2. 2 Enter your TV’s brand code using the number keys, then press

ENTER. (A pg. 63)

3 Press TVA on the unit’s Remote to turn on the TV and try

operations.

● Once you have set the Remote to operate the TV, you do not

have to repeat this step until you replace your Remote’s batteries.

● Some brands of TVs have more than one code. If the TV does

not function with one code, try entering another.

8 Operate the TV.

1 Press the corresponding button: TVA, TV/VIDEO, PR +/–,

TV 8 +/–, number keys.

● For some brands of TVs, you must press ENTER after having

pressed the number keys.

Filename [M150SEK_10Subsidiary.fm]

M150SEK_00.book Page 63 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

TV Brand Code Table

BRAND NAME CODE

JVC FERGUSON FINLUX FUNAI LG/GOLDSTAR GRUNDIG HITACHI ITT MITSUBISHI MIVAR NEC NOKIA PANASONIC PHILIPS RCA SAMSUNG SANYO SHARP SONY THOMSON TOSHIBA

01, 23, 24, 25 27 30 32 18 19 10 28 03 29 20 31 04, 11 02 05 12, 33, 34, 35 13, 16 06 07 26 08, 14

SUBSIDIARY SETTINGS

EN 63

Scan Mode Set

If you connect the unit and TV with Component Video Connection (A pg. 11), you can select the scan mode from two modes. Interlaced scan mode which is used in the conventional TV system, and Progressive scan mode which enables reproduction of higher-quality images.

8 Interlaced scan

In the conventional video system, a picture is shown on the display monitor in two halves. The Interlaced scan system places lines of the second half of the picture in-between lines of the first half of the picture.

8 Progressive scan

Progressive scan displays all the horizontal lines of a picture at one time, as a single frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution.

ATTENTION:

● Your TV needs to be compatible with Progressive.

● Connect the unit and the TV using a component video cable.

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

Tray Lock

You can lock the disc tray to prohibit the unwanted disc ejection by children.

RAM/RW

To lock tray

When the unit is turned off, while holding o, press M on the unit. ALOCKB appears on the front display panel and the disc tray is locked.

To unlock tray

When the unit is turned off, while holding o, press M on the unit. AUNLOCKB lights up on the front display panel.

Child Lock

You can disable the operations of this unit using the Child Lock function.

● Turn on the unit.

1 When the unit is turned on, press and hold DVD A on the

remote control for more than 10 seconds.

● The unit turns off and enters into Child Lock mode.

● When in Child Lock mode, ACLB will appear on the front display

panel indicating that Child Lock mode is engaged when an attempt was made to operate buttons on the unit or remote control.

2 Press and hold DVD A on the remote control for 10 or more

seconds.

● Child Lock is released and the unit turns on.

When in Child Lock mode, pressing TIMERj on the remote control during timer recording releases Child Lock and recording is continued.

DVD

PROGRESSIVE SCAN

1 Set AL-1 OUTPUTB to ACOMPONENTB. (A pg. 57) 2 Press PROGRESSIVE SCAN for 3 or more seconds.

● Video output indicator (q) lights on the front display panel if

Progressive scan mode has been established. (A pg. 12)

● Each press of PROGRESSIVE SCAN for 3 or more seconds

switches the scan mode.

NOTES:

● Progressive scan video signal is output from the [COMPONENT

VIDEO OUT] connectors.

● Interlaced scan mode is the setting at your purchase.

● Interlaced scan mode might be suitable depending on video

material.

● Scan mode cannot be set while menu screen is displayed.

Filename [M150SEK_10Subsidiary.fm]

M150SEK_00.book Page 64 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

64 EN

SUBSIDIARY SETTINGS

Tuner Set

Your unit needs to memorise all necessary stations in channel positions in order to record TV programmes. Auto Channel Set automatically assigns all receivable stations in your area to call them up by using the PR +/– buttons without going through any vacant channels.

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

DVD

Selection Keys

(FGDE)

ENTER

SET UP

5 Upon completing

AAUTO SEARCHB, the screen display returns to the Main Menu screen and AAUTO SEARCH SCAN COMPLETEDB

DVD SET UP

CHANNEL SET DTV SETT ING CLOCK SET

FUNCTION SET UP

AUTO SEARCH

T-V LINK

SCAN COMPLETED

INITIAL SET UP

AUTO SEARCH

appears on the TV screen. Press ENTER.

6 Press SET UP to

SET UP

RETURN

SELECT

SELECT WITH [CURSORS] THEN PRESS [ENTER]

complete AAUTO SEARCHB.

IMPORTANT:

● In certain reception conditions, the station channel numbers

may not be stored correctly. When the channel numbers are not set properly, the programme that you do not intended to record will be timer recorded. When programming timer recording, be sure to check that the desired channel is selected correctly. ACheck, Cancel And Change ProgrammesB (A pg. 41)

● Your unit memorises all receivable stations even if reception of

some of them is poor. You can delete those stations with an unacceptable picture from the PR list. (A pg. 65, ADelete A ChannelB)

● If channel set is performed, all the favourite channels that have

been set will be removed. The AFAVOURITE MODEB (A pg. 20) setting will automatically be set to AOFFB.

NOTES:

● Fine tuning is performed automatically during Auto Channel Set.

● If you perform Auto Channel Set when the aerial cable is not

connected properly, ANO SIGNALB appears on the TV screen in step 4. In such a case, make sure of the aerial connection, select ARETRYB, then press ENTER. Auto Channel Set will start again.

IMPORTANT:

Perform the following steps only if ^ ^ Auto Channel Set has not been set correctly by Auto Set Up.

(A pg. 17)

^ you have moved to a different area or if a new station starts

broadcasting in your area.

Auto Channel Set

1 Press SET UP in DTV mode to access the Main Menu screen. 2 Press selection keys to select AINITIAL SET UPB, then press

ENTER.

3 Press selection keys to select ACHANNEL SETB, then press

ENTER.

4 Select AAUTO SEARCHB, then press ENTER.

● AAUTO SEARCHB

starts.

Auto Search

Programs

radio BBC ONE Scot BBC TWO Scot BBC THREE BBC NEWS 24 BBCi CBBC Channnel BBC R Scotland BBC R n Gaidheal

UHF

0% 100%

CANCEL

Press to Cancel search ...

CH:65

Manual Channel Set

Perform manual channel set to add new channels or when checking the signal condition of the channels.

1 Press SET UP in DTV mode to access the Main Menu screen. 2 Press selection keys to select AINITIAL SET UPB, then press

ENTER.

3 Press selection keys to select ACHANNEL SETB, then press

ENTER.

4 Press selection keys to select AMANUAL SEARCHB, then

press ENTER.

5 Press the number

keys to enter the

channel number, then press ENTER.

● AMANUAL SEARCHB

starts.

● Confirm the signal

condition with the signal level bar. If the picture is displayed, it does not matter even if the level bar indicates below mid-level.

● Once the channel is received, the screen displays the

programme list for a few seconds before returning to the AMANUAL SEARCHB screen.

● If the channel is not received, the screen display returns to the

AMANUAL SEARCHB screen without displaying the programme list.

● Repeat step 5 to add or check other channels.

6 Upon completing AMANUAL SEARCHB, press SET UP on the

remote control.

Manual Search

Channel Number

Signal Level

Signal Quality

Select

Value entry Search

ENTER

Filename [M150SEK_10Subsidiary.fm]

M150SEK_00.book Page 65 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Confirming Images Of Registered Channels

1 Press SET UP in DTV mode to access the Main Menu screen. 2 Press selection keys

to select AINITIAL SET UPB, then press ENTER.

3 Press selection keys

to select ACHANNEL

DVD SET UP

CHANNEL SET DTV SETT ING CLOCK SET

FUNCTION SET UP

AUTO SEARCH

MANUAL SEARCH

EDIT CHANNEL LIST

SETB, then press ENTER.

4 Press selection keys

to select AEDIT

SET UP

RETURN

SELECT

CHANNEL LISTB, then press ENTER.

● The AEdit PR ListB

display appears on the

PR1 BBC ONE Scot

TV screen.

5 Press DE to select

ASelectB.

6 Press FG to select the

channel, then press ENTER.

● The image of the

selected channel appears on the top left video field.

● Repeat this step as necessary to confirm the images of other

channels.

Select Delete Edit Name Favourites

ENTER

Select PR

Watch PR Select Function

INITIAL SET UP

SELECT WITH [CURSORS]

THEN PRESS [ENTER]

Edit PR List

1. BBCONE Scot

2. BBCTWO Scot

7. BBCTHREE

30. CBBCChannel

40. BBXNEWS 24

51. BBCi

89. BBCR Scotland

90. BBCR n Gaidheal

800. 16:9monoscope

801. 4:3monoscope

802. colorbar

7 Press SET UP to end.

Delete A Channel

1 Press SET UP in DTV mode to access the Main Menu screen. 2 Press selection keys to select AINITIAL SET UPB, then press

ENTER.

3 Press selection keys to select ACHANNEL SETB, then press

ENTER.

4 Press selection keys to select AEDIT CHANNEL LISTB, then

press ENTER.

● The AEdit PR ListB display appears on the TV screen.

5 Press DE to select ADeleteB. 6 Press FG to select the

channel, then press ENTER.

● The confirmation

screen appears.

7 Press DE to select

AYe s B, then press ENTER.

● The channel is deleted.

8 Repeat step 6 and 7 as

necessary.

9 Press SET UP to end.

PR1 BBC ONE Scot

Select Delete Edit Name Favourites

Select PR

Edit PR List

1. BBCONE Scot

2. BBCTWO Scot

7. BBCTHREE

30. CBBCChannel

40. BBXNEWS 24

51. BBCi

89. BBCR Scotland

90. BBCR n Gaidheal

800. 16:9monoscope

801. 4:3monoscope

802. colorbar

ENTER

Watch PR Select Function

SUBSIDIARY SETTINGS

EN 65

Set Stations

Set station names other than the ones registered in your unit.

1 Press SET UP in DTV mode to access the Main Menu screen. 2 Press selection keys to select AINITIAL SET UPB, then press

ENTER.

3 Press selection keys to select ACHANNEL SETB, then press

ENTER.

4 Press selection keys to select AEDIT CHANNEL LISTB, then

press ENTER.

● The AEdit PR ListB

display appears on the TV screen.

5 Press DE to select

AEdit NameB.

6 Press FG to select the

channel, then press ENTER.

7 Press the selection

PR30 CBBC channel

CBBC Channel

Select Delete Edit Name Favourites

Select PR

Edit PR List

1. BBCONE Scot

2. BBCTWO Scot

7. BBCTHREE

30. CBBCChannel

40. BBXNEWS 24

51. BBCi

89. BBCR Scotland

90. BBCR n Gaidheal

800. 16:9monoscope

801. 4:3monoscope

802. colorbar

ENTER

Edit PR name Select Function

keys to enter the characters at the character entry position, then press ENTER.

● Select the characters using FG.

● To move the cursor to the next column, press DE.

● After selecting all the necessary characters, press ENTER to

confirm the station name.

8 Press ENTER to return to the AEdit PR ListB screen.

● Repeat steps 6 - 8 as necessary.

9 Press SET UP to end.

Setting Favourites

You can tuned to your frequently watched channels with ease by setting the channels to AFavouritesB.

1 Press SET UP in DTV mode to access the Main Menu screen. 2 Press selection keys to select AINITIAL SET UPB, then press

ENTER.

3 Press selection keys to select ACHANNEL SETB, then press

ENTER.

4 Press selection keys to select AEDIT CHANNEL LISTB, then

press ENTER.

● The AEdit PR ListB

display appears on the

PR40 BBX NEWS 24

TV screen.

5 Press DE to select

AFavouritesB.

6 Press FG to select the

channel, then press ENTER.

● appears on the

extreme right of the selected channel field when AFavouritesB is set.

● Thereafter, the cursor will move to the channels with the

indication whenever FG is pressed.

Select Delete Edit Name Favourites

Select PR

7 Repeat steps 6 as necessary. 8 Press SET UP to end.

Edit PR List

1. BBC ONE Scot

2. BBC TWO Scot

7. BBC THREE

30. CBBC Channel

40. BBX NEWS 24

51. BBCi

89. BBC R Scotland

90. BBC R n Gaidheal

800. 16:9monoscope

801. 4:3monoscope

802. colorbar

ENTER

Add/Remove Select Function

Filename [M150SEK_10Subsidiary.fm]

M150SEK_00.book Page 66 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

66 EN

SUBSIDIARY SETTINGS

Clock Set

IMPORTANT:

If you performed Auto Set Up (A pg. 17), without ever having set the clock previously, the unit’s built-in clock is also set automatically. Perform the following steps only if ^ ^ Auto Clock Set has not been performed correctly by Auto Set

Up.

^ you want to change Just Clock setting. (See AJust ClockB in

the right column)

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Slide the TV/DVD switch to DVD.

TV DVD

5 Press selection keys to select AJUST CLOCKB, then press

ENTER. Press selection keys to set to the desired mode, then press ENTER.

● The default setting is AONB.

● If you set to AOFFB, you can disregard the next step as you

won’t be able to receive regular clock adjustments.

6 Press selection keys to select ATV PROGRAMMEB

, then press ENTER. Press selection keys to set the channel position to the number representing the station transmitting clock setting data, then press ENTER.

● The unit is preset to receive clock setting and adjustment data

from the channel selected in this step (step 6).

7 Press SET UP to start the clock operation.

NOTES:

● Just Clock adjusts the unit’s built-in clock automatically when it is

set to AONB.

● Just Clock is not effective when:

^ the unit’s power is on. ^ the unit is in the Timer mode. ^ a difference of more than 3 minutes exists between the built-in

clock’s time and the actual time.

^ the unit is in the Automatic Satellite Programme Recording

mode. (A pg. 42)

^ AL-2 SELECTB is set to ASAT VIDEO/RGBB or ASAT S-VIDEO/

RGBB. (A pg. 58)

● If Just Clock is set to AONB, the unit’s clock is automatically

adjusted at the start/end of Summer Time.

● Just Clock may not function properly depending on the reception

condition.

Selection Keys

(FGDE)

ENTER

SET UP

1 Press SET UP to access the Main Menu screen. 2 Press selection keys to select AINITIAL SET UPB, then press

ENTER.

3 Press selection keys

to select ACLOCK SETB, then press ENTER.

4 Press selection keys

to select AYEARB, then press ENTER. Press selection keys to set the year, then press ENTER.

● Repeat the same

DVD SET UP

SET UP

FUNCTION SET UP

CHANNEL SET DTV SETTIN G CLOCK SET

YEAR

DATE

TIME 18:56

JUST CLOCK ON

TV PROGRAMME 18

SELECT

EXIT

procedure to set the date and time.

● When you set the date, press and hold FG to change the date

by 15 days interval.

● When you set the time, press and hold FG to change the time

by 30 minutes interval.

INITIAL SET UP

2005

05/07 SAT

SELECT WITH [CURSORS] THEN PRESS [ENTER]

Just Clock

The Just Clock function provides accurate time keeping through automatic adjustments at regular intervals, by reading data from digital tuner signal. The Just Clock option can be set to AONB or AOFFB at the Clock Set screen. (The default setting is AONB.)

IMPORTANT:

● If you set Just Clock to AOFFB, time correction will not be

performed, which could adversely affect timer recording. We recommend you to keep Just Clock set to AONB.

● If you set Just Clock to AONB, automatic time acquisition is

performed even when the unit is turned off. As part of the circuitry of this unit is turned on during this intervals, the fan functions and a spinning sound is generated.

Filename [M150SEK_10Subsidiary.fm]

M150SEK_00.book Page 67 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right+

Format A Disc

Some DVD-RAM/RW discs are unformatted. Format the disc when you use an unformatted disc or you want to delete all recordings and data on the disc.

ATTENTION:

● When a disc is formatted, all recordings and data are erased. It

is impossible to restore them.

● Never turn off the unit or disconnect the mains power cord

while ANOW FORMATTING...B is displayed on the TV screen.

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Load a DVD-RAM/RW disc to format.

● Slide the TV/DVD switch to DVD.

DVD

Selection Keys

(FGDE)

ENTER

SET UP

SUBSIDIARY SETTINGS

EN 67

Format A DVD-RAM Disc

1 Press SET UP to access the Main Menu screen. 2 Press selection keys to select ADVD S ET UPB, then press

ENTER.

3 Press selection keys to

select AUTILITYB, then press ENTER.

4 Press selection keys to

select AFORMATB, then press ENTER.

● The confirmation screen

appears.

5 Press selection keys to

select AYESB, then press

DVD SET UP

LANGUAGE SET

FUNCTION SET UP

FORMAT

FINALISE

CANCEL DISC FINALISATION

EXIT

SELECT

SET UP

INITIAL SET UP

AUDIO OUTPUT

SELECT WITH [CURSORS] THEN PRESS [ENTER]

UTILITY

ENTER.

● The confirmation screen appears.

6 Press selection keys to select AOKB, then press ENTER. 7 Upon completing formatting, ACOMPLETEDB appears on the TV

screen. Press ENTER to complete formatting.

8 Press SET UP to return to the normal screen.

Format A DVD-RW Disc

1 Perform steps 1 - 3 of AFormat A DVD-RAM DiscB as above

before continuing.

2 Press selection keys to select AFORMATB, then press ENTER.

Press selection keys to choose AVR MODEB or AVIDEO MODEB, then press ENTER when ADISC WILL BE FORMATTEDB appears on the TV screen.

AVR MODEB:

To be chosen when you want to record, erase, or edit data on the disc repeatedly.

AVIDEO MODEB:

To be chosen when you want to erase all the data on the disc once played back to record new data, or play back the disc on other DVD players.

3 Press selection keys to select AYESB, then press ENTER. 4 Upon completing formatting, ACOMPLETEDB appears on the TV

screen. Press ENTER to complete formatting.

5 Press SET UP to return to the normal screen.

NOTES:

● It is impossible to format Version 1.0 DVD-RW discs in Video

mode.

● It is impossible to format DVD-R discs.

● All the titles on a disc will be deleted once the disc is formatted

even if they are protected titles.

Filename [M150SEK_10Subsidiary.fm]

M150SEK_00.book Page 68 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

68 EN

SUBSIDIARY SETTINGS

Finalise A Disc

Finalising DVD-R/RW discs recorded on this unit makes it possible for the discs to be played back on other DVD players. DVD-RW discs are finalised in the mode that the discs were formatted, enabling playback on compatible DVD players. Title names input in the Library Database Navigation are registered as title names in the DVD menu. (A pg. 51)

ATTENTION:

Never turn off the unit or disconnect the AC power cord while finalisation or cancellation of finalisation is in progress.

● Turn on the unit.

● Turn on the TV and select an input mode such as EXT1.

● Load a DVD-R/RW disc to finalise.

● Slide the TV/DVD switch to DVD.

DVD

TOP MENU

Selection Keys

(FGDE)

ENTER

Finalise A DVD-R/RW Disc

1 Perform steps 1 - 3 of AFormat A DVD-RAM DiscB (A pg. 67)

before continuing.

2 Press selection keys to select AFINALISEB, then press

ENTER.

3 The confirmation screen appears. Press selection keys to

select AYESB, then press ENTER.

4 The confirmation screen appears again. Press selection keys

to select AOKB, then press ENTER.

● To cancel finalisation, press ACANCELB.

5 Upon completing finalisation, ACOMPLETEDB appears on the

TV screen. Press ENTER to return to the previous screen.

6 Press SET UP to return to the normal screen.

● Menu screen is cleared.

● Once a DVD-R/RW (Video mode) disc has been finalised, the

displays for original and play list do not appear. As only display for library appears, press TOP MENU to select the desired title.

● Once a DVD-RW (VR mode) disc has been finalised, it can be

played on DVD players compatible with VR mode.

Cancel The Finalisation Of A DVD-RW Disc

1 Load a DVD-RW disc to cancel the disc finalisation, and

perform steps 1 - 3 of AFormat A DVD-RAM DiscB (A pg. 67) before continuing.

2 Press selection keys to select ACANCEL DISC

FINALISATIONB, then press ENTER.

3 Press selection keys to select AOKB, then press ENTER. 4 Upon completing cancellation of finalisation, ACOMPLETEDB

appears on the TV screen. Press ENTER to return to the previous screen.

5 Press SET UP to return to the normal screen.

● When the disc finalisation is cancelled, the mode in which the

disc was formatted is restored, making the disc recordable.

● It is not possible to cancel the finalisation of a DVD-R disc.

SET UP

Before finalising

● It is possible to record on a blank space.

● It is possible to enter title names. (A pg. 46)

● It is possible to delete titles. (A pg. 44)

● It is impossible to overwrite recorded areas of DVD-R discs.

● Available recording capacity does not increase even if a recorded

programme is deleted from a DVD-R disc.

● It is impossible to record or edit DVD-R/RW discs recorded on

other devices even if they have not been finalised.

After finalising (For DVD-R/RW (Video mode) discs)

● Video and audio that are recorded in conformity to the

DVD Video standard before finalising enables you to play back the discs as DVD VIDEO discs.

● Although DVD-R/RW discs finalised on this unit become playable

on DVD players compatible with DVD-R/RW discs, some discs still may not play, for which JVC cannot take responsibility.

● Marked points marked before finalising will be deleted, and titles

will be divided automatically into AchaptersB approximately every 5 minutes. (A pg. 8, 25)

● Depending on the DVD players and DVD-R/RW discs used, and

on the conditions of recording, it may not be possible to play back the discs. In this case, play back the discs on this unit.

● Additional recordings become impossible.

Filename [M150SEK_10Subsidiary.fm]

M150SEK_00.book Page 69 Wednesday, June 15, 2005 4:04 PM

Masterpage:Right0

Before requesting service for a problem, use this chart and see if you can solve the trouble yourself. Small problems are often easily solved, and this can save you the trouble of sending your unit off for repair.

Initialising

Malfunction occurs on the unit.

] Press A to turn off the unit, while holding A, press o for

3 seconds or more.

● ARESETTINGB blinks on the front display panel.

● Initialisation may be performed automatically depending on

the condition of the disc.

General

No power is supplied to the unit.

● The AC power plug is disconnected from the mains outlet.

]

Connect the AC power plug to the mains outlet securely. (Apg. 16)

The remote control does not work properly.

] Remove the batteries, wait for 5 minutes or more, then load the

batteries again.

● The setting of the remote control code is inappropriate.

] Set the same remote control code (1, 2, 3, or 4) on both the unit

and the remote control. (A pg. 62)

● The batteries are discharged.

] Replace the dead batteries with new ones.

The TV screen appears dark with no image display.

● The DTV transmission tower is nearby.

] Install an attenuator between the antenna and this unit.

● There may be some problems with the antenna or signal

transmission. Or you may be living in an area where reception is not possible. Please consult your dealer.

The digital broadcast screen freezes suddenly.

● Press and hold o and A on the unit simultaneously for

2 seconds or more to restart the unit.

Dubbing from the external equipment is not possible.

● The source (another video recorder, camcorder) has not been

properly connected.

] Confirm that the source is properly connected.

● All necessary power switches have not been turned on.

] Confirm that all units’ power switches are turned on.

● The setting of the input channel position is inappropriate.

] Select the input channel position (AF-1B, AL-1B or AL-2B) that

corresponds to the input terminal connected to the external equipment. (A pg. 55)

The on-screen display superimposed on the programme played back/received on this unit is recorded when you dub the programme to an external recording equipment.

] Set ASUPERIMPOSEB to AOFFB. (A pg. 61)

The unit does not operate.

● There are cases when the operation is prohibited on the disc.

● Lightning or static electricity may cause malfunction of the unit.

] Disconnect the AC power plug from the AC outlet and connect

again. Turn on the unit.

The remote control of a JVC TV will not operate the unit.

● The setting of the remote control code is inappropriate.

] To operate the unit using a JVC TV remote control, set the

remote control code of the unit to A1B. (Default: A3B) (A pg. 62)

The channel cannot be changed.

● Recording or Live Memory Playback is in progress.

] Press W to pause recording, change the channel, then press I

to resume recording.

TROUBLESHOOTING

EN 69

The error message does not go away.

● The DTV channel has been deleted from the PR list.

] Re-perform AAuto Channel SetB (A pg. 64).

The disc tray does not open.

] Remove the disc using the following method:

● Reset the unit by disconnecting the AC power plug from the

AC outlet and connect again.

● Press and hold M until the disc tray opens. (Approximately

30 seconds.)

● Remove the disc and press M to close the disc tray.

● The disc tray was locked.

] Unlock the tray. (A pg. 63)

Playback

Images do not appear on the TV screen.

● The TV receiver’s channel selector is not set to an input mode

such as EXT1.

] Set the TV to an input mode such as EXT1.

● When interlace scanned programme is played back,

progressive scan mode is selected.

] Press and hold PROGRESSIVE SCAN until q disappears

from the front display panel. (A pg. 63)

Playback does not start or stop immediately after playback is started by pressing I. On the front display panel, ANO DISCB appears.

● The disc is loaded upside down.

] Place the disc on the disc tray with the playback surface facing

down. (A pg. 9)

● A disc not being compatible with the unit is loaded.

] Load a playable disc on the unit. (A pg. 7)

● A dirty disc is loaded.

] Clean the disc. (A pg. 10)

● Defective disc is loaded.

] Replace the warped or scratched disc with a normal one.

Images are blurred or distorted when you start High-Speed Search.

] Images are blurred or distorted at the point where the playback

speed changes and this is not a malfunction of the unit.

Playback does not start.

] Playback does not start for approximately 30 seconds after

recording is stopped and this is not a malfunction of the unit.

Recording

The desired programme cannot be recorded.

● The channel position does not correspond to that in the

receiving area.

] Set the correct channel number for the receiving broadcast.

(A pg. 17, 64)

Recording and/or editing cannot be performed.

● No disc or a disc not being compatible with the unit is loaded.

] Load a recordable disc on the unit. (A pg. 6)

● The disc loaded is not formatted.

] Format the disc. (A pg. 67)

● A finalised disc is loaded.

] Recording cannot be made on finalised discs. Load a

recordable disc on the unit.

● The disc is full or does not have enough space for the title to be

recorded.

] Clear unnecessary titles on the disc or load a blank disc.

(A pg. 44)

Filename [M150SEK_10Subsidiary.fm]

M150SEK_00.book Page 70 Wednesday, June 15, 2005 4:04 PM

Masterpage:Left+

70 EN

TROUBLESHOOTING

Timer Recording

Timer programming cannot be made.

● Date and time is not correct.

] Set date and time correctly. (A pg. 18, 66)

● Timer recording is in progress.

] Timer programming can’t be performed while a timer recording

is in progress. Wait until it finishes.

Timer programming recording does not start.

● Date and time is not correct.

] Set date and time correctly. (A pg. 18, 66)

EPG Timer Programming cannot be made.

● Date and time is not correct.

] Set date and time correctly. (A pg. 18, 66)

● The channel number does not correspond to that in the

receiving area.

] Set the correct channel number for the receiving broadcast.

(A pg. 17, 64)

The EPG system does not timer record properly.

● The unit’s channels have been set incorrectly.

] Refer to AAuto Channel SetB (A pg. 64) and re-perform the

procedure.

Automatic Satellite Programme Recording does not start.

● The satellite receiver is not connected properly to this unit.

] Connect the satellite receiver to the unit’s [L-2 IN] connector

properly. (A pg. 42)

On the front display panel, AcB appears.

● Power failure occurred.

] Set date and time correctly. (A pg. 66)

The disc space does not increase when recorded titles are cleared.

● The PC’s data recorded on a DVD-RAM drive cannot be cleared

on this unit.

] Format the disc. (When the disc is soiled, wipe the disc with a

soft dry cloth before formatting.) (A pg. 10, 67)

APROGRAMME FULLB appears on the TV screen during timer programming.

● All 8 programmes have already been timer programmed.

] Clear unnecessary programmes on the unit, then try timer

programming again.
