JVC DR-M1 User Manual

Download

DVD VIDEO RECORDER

DR-M1SLE

INSTRUCTIONS

LPT0779-001B

SAFETY FIRST

Safety Precautions

The rating plate and the safety caution are on the rear of the unit.

WARNING: DANGEROUS VOLTAGE INSIDE WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION

A UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED.

WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTION

When you are not using the unit for a long period

of time, it is recommended that you disconnect the power cord from the mains outlet. Dangerous voltage inside. Refer internal servicing

to qualified service personnel. To prevent electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

IMPORTANT:

Please read the various precautions on pages 2 and

3 before installing or operating the unit. It should be noted that it may be unlawful to

re-record pre-recorded tapes, DVDs, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

CLASS 1 LASER PRODUCT REPRODUCTION OF LABELS

WARNING LABEL INSIDE OF THE UNIT

● Manufactured under licence from Dolby Laboratories. “Dolby” and double-D symbol are trademarks of Dolby Laboratories.

● “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

● S

HOWVIEW

from Gemstar Development Corporation.

● This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing users only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

is a registered trademark of Gemstar Development Corporation. The S

HOWVIEW

system is manufactured under licence

For Italy:

“It is declared that this product, brand JVC, conforms to the Ministry Decree n. 548 of 28 Aug.’95 published in the Official Gazette of the Italian Republic n. 301 of 28 Dec.’95”

The STANDBY/ON 1 button does not completely shut off mains power from the unit, but switches operating current on and off. “`” shows electrical power standby and “

When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

Failure to heed the following precautions may result in damage to the unit, remote control or disc.

1. DO NOT

— in an environment prone to extreme temperatures or humidity. — in direct sunlight. — in a dusty environment. — in an environment where strong magnetic fields are generated. — on a surface that is unstable or subject to vibration.

2. DO NOT

holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

3. DO NOT

control.

4. DO NOT

the unit or remote control.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

5. DO NOT

splashing.

6. DO NOT use this equipment in a bathroom or places

with water. Also DO NOT

with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.

7. DO NOT

lighted candles, on the apparatus.

8. AVOID violent shocks to the unit during transport.

place the unit —

block the unit’s ventilation openings or

place heavy objects on the unit or remote

place anything which might spill on top of

expose the apparatus to dripping or

place any naked flame sources, such as

” shows ON.

place any containers filled

MOISTURE CONDENSATION

Moisture in the air will condense on the unit when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form on the surface of a glass filled with cold liquid. In conditions where condensation may occur, disconnect the unit’s power plug from the wall and keep it disconnected for a few hours to let the moisture dry, then turn on the unit.

TTENTION:

To mobile phone users:

Using a mobile phone in the vicinity of the unit may cause picture vibration on the TV screen or change the screen to a blue back display.

On placing the unit:

Some TVs or other appliances generate strong magnetic fields. Do not place such appliances on top of the unit as it may cause picture disturbance.

CONTENTS

SAFETY FIRST 2

Safety Precautions ............................................... 2

DISC INFORMATION 5

About Discs ......................................................... 5

INDEX 10

INSTALLING YOUR NEW UNIT 16

Basic Connections ............................................. 16

S-VIDEO Connection ........................................ 17

Component Video Connection .......................... 18

INITIAL SETTINGS 19

Auto Set Up ....................................................... 19

Preset Download ............................................... 21

Monitor Set ....................................................... 23

Language ........................................................... 24

SAT CONTROL SET 26

Satellite Receiver Control Setting ....................... 26

T-V LINK 28

T-V Link Functions ............................................ 28

PLAYBACK OPERATIONS 29

Basic Playback .................................................. 29

Playback Features .............................................. 30

Live Memory Playback ...................................... 35

Using Play Set Up Menu ................................... 40

Parental Lock .................................................... 47

RECORDING 51

Basic Recording ................................................ 51

Recording Features ............................................ 52

EDITING 78

DV Dubbing ......................................................78

Edit From A Camcorder .....................................80

Edit To Or From Another Recorder ....................81

Output/Input Set ................................................ 82

Digital Audio Dubbing ...................................... 84

REMOTE CONTROL 85

Remote Control Functions ................................. 85

SYSTEM CONNECTIONS 88

Connecting To A Satellite Receiver ....................88

Connecting/Using A Decoder ............................90

Connecting To A Dolby Digital Decoder or An

Amplifier With Built-in DTS ............................ 91

SUBSIDIARY SETTINGS 92

Mode Set ...........................................................92

HOWVIEW

Tuner Set ........................................................... 98

Clock Set .........................................................104

Format a disc ...................................................106

Finalise a disc .................................................. 107

Scan Mode Set ................................................. 108

System Setup ................................. 97

TROUBLESHOOTING 109

GLOSSARY 113

SPECIFICATIONS 114

LIST OF TERMS 115

TIMER RECORDING 54

HOWVIEW

Manual Timer Programming .............................. 56

On-Disc Timer Programming ............................ 58

Automatic Satellite Programme Recording ......... 63

Timer Programming ....................... 54

NAVIGATION 64

Library Database DVD Navi .............................. 64

Modify Original Information .............................. 67

Modify Play List Information .............................. 70

Modify Library Information ................................ 74

Playback with MP3/JPEG Navigation ................. 76

DISC INFORMATION

About Discs

Recordable/playable discs

You can use discs with the following logos for recording and playback.

DVD -RAM

DVD-R

DVD-RW

● Recording and playback may not be performed depending on the characteristics and condition of the disc used, leading to unsatisfactory results. Using discs manufactured by JVC is recommended since they have been tested to be compatible with this unit.

DVD-RAM Discs

It is only possible to use discs which conform with DVD-RAM standard Version 2.0.

● It is impossible to record on DVD-RAM discs which do not conform to this standard. If you use a disc formatted under a different standard version, format it on this unit before use.

● It may not be possible to record, play back, edit or dub a DVD-RAM disc even if it conforms to the standard if it was recorded or edited on the devices from other manufacturers or on a PC, or if it has far too many titles, or if there is very little available capacity remaining on the disc.

● Some DVD-RAM discs are contained in a cartridge. This unit cannot handle this type of disc. Remove the disc from the cartridge (only discs with a removable cartridge); or the use of DVD-RAM discs not contained in a cartridge is recommended.

● DVD-RAM discs recorded on this unit cannot be played back on an incompatible DVD player.

● It is possible to record copy-once programmes of digital broadcasts only onto 4.7/9.4 GB DVD-RAM discs (2.8 GB DVD-RAM discs are not compatible).

12 cm: 4.7 GB/9.4 GB 8 cm: 1.4 GB/2.8 GB (VR mode)

12 cm: 4.7 GB 8 cm: 1.4 GB General Ver. 2.0 (Video mode)

12 cm: 4.7 GB Ver. 1.0 (VR mode only) Ver. 1.1 or higher (Video mode/VR mode)

DVD-R/RW Discs

It is only possible to use DVD-R discs which conform with DVD-R standard Version 2.0, and DVD-RW discs of Version 1.0 or higher. When a DVD-R/RW disc (Video mode) is finalised ( it can be played back on a standard DVD player as a DVD VIDEO disc. When a DVD-RW disc (VR mode) is finalised ( can be played back on a standard DVD player compatible with the VR mode of DVD-RW discs.

墌

Before finalising (

— it is possible to record on unrecorded areas of the disc, edit the disc title and programme titles, and delete programmes.

● It is impossible to record or edit DVD-R/RW discs recorded on other devices even if they have not been finalised.

● It is impossible to overwrite recorded areas of DVD-R discs.

● Available recording capacity does not increase even if a

recorded programme is deleted from a DVD-R disc.

After finalising (

After a DVD-R/RW disc (Video mode) has been finalised, it is possible to play back the recorded programmes (video and/or audio) on a standard DVD video player as a DVD VIDEO disc.

● Edited titles are displayed as the “DVD menu” in video mode.

● It is impossible to record, edit or delete the data either in video

mode or in VR mode.

● Either in video mode or in VR mode, although the disc can be played back on DVD players from other manufacturers, sometimes it may not be possible to play depending on the disc and recording conditions.

● It is impossible to record on CD-R/RW or DVD-R discs used for authoring.

● It is impossible to record onto DVD-R/RW (Video mode) discs broadcasts that allow you to copy once. The copy once programmes can only be recorded onto DVD-RW discs formatted in VR mode.

pg. 107) —

墌

pg. 107) —

墌

pg. 107), it

墌

pg. 107),

NOTES:

The following may result if you play back a DVD-R disc recorded on another unit.

● The disc does not play.

● A mosaic pattern (block noise) appears on the screen.

● Video or audio may be dropped out.

● The unit stops during playback.

DISC INFORMATION (cont.)

Discs for Playback Only

You can use discs with the following logos for playback only.

DVD VI DEO

(example of region code indications)

Audio CD

CD-DA files

CD-RW

CD-DA/ JPEG/MP3 files

●

Playback may not be performed depending on the characteristics and condition of the disc used.

●

DTS Audio CDs can also be played back (An optional DTS decoder is required).

●

MP3 and JPEG discs can be played back on this unit only when they have been recorded in the ISO9660 or Joliet format and finalised.

●

JPEG files that can be played back on this unit must conform to JFIF/Baseline process, and the maximum resolution of a JPEG file is 3,840 x 2,160 pixels.

●

CD-R/RW discs recorded in music CD format need to be finalised to play on this unit.

●

Operation and audio quality of this unit are not guaranteed for discs that do not conform to the Compact Disc specification (CD-DA). Before you play back a CD, check for the CD logo and read the notes on the package to confirm that it conforms to the Compact Disc specification.

●

Depending on the intentions of the author of the software, recording conditions of DVD discs and Video CD discs may be restricted. Since this unit plays back discs according to the intentions of the author of the software as indicated on the disc, some functions may not operate as commanded.

●

When switching from the first layer to the second layer of double-layered DVD VIDEO discs, the image and sound may be momentarily distorted. This is not a malfunction.

●

DVD-AUDIO discs compatible with DVD video players can be played.

●

Super Audio CDs (SACD) compatible with conventional CD players can be played.

Video CD

CD-R

CD-DA/ JPEG/MP3 files

CD-ROM

JPEG/MP3 files

Unplayable Discs

The following types of discs cannot be played using this unit. Do not attempt to play back any kind of disc that is damaged (cracked, warped, or repaired with adhesive tape) or discs in unusual shapes (heart-shaped, octagonal, or other forms). If such discs are accidentally played back, it may cause noise that can lead to speaker damage.

●

CD-ROM discs (including PHOTO-CD and CD-G)

●

Discs recorded in Packet Write (UDF) format.

●

Super Video CDs (SVCD)

●

1.3-GB double density CDs (DDCD)

●

High density CDs (HDCD)

The following discs also cannot be played back.

●

Discs of a region number other than “2”

●

DVD-RAM (2.6 GB/5.2 GB)

Region Number

The world is divided into 6 regions for DVD VIDEO discs. DVD VIDEO discs are assigned a region number to indicate which region they may be played back in. A disc cannot be played back on this unit unless the region number of the disc matches that of the unit. The region number for this unit is “2”. Only discs whose region number includes “2” or “ALL” can be played back such as shown below.

Examples of DVD VIDEO labels which can be played back using this unit.

Marks of discs in this instruction manual

Allows operation with a DVD-RAM disc.

Allows operation with a DVD-R disc.

Allows operation with a DVD-RW disc.

Allows operation with a DVD VIDEO disc.

Allows operation with a Video CD disc.

Allows operation with an Audio CD disc.

Allows operation with a disc including MP3 files.

Allows operation with a disc including JPEG files.

Recording Medium and Format

DVD-RAM

● Recording and erasing can be performed as many times as possible on a disc.

● Editing can be performed after recording, such as deleting unwanted parts.

● While recording, it is possible not only to start playback of a programme currently being recorded, but also to watch another programme previously recorded.

DVD-RW (VR mode)

● Recording and erasing can be performed as many times as possible on a disc.

● Editing can be performed after recording, such as deleting unwanted parts.

DVD-RW (Video mode)

● Can be played back on other DVD players.

● New recording can be performed by erasing all the data on a

disc once played back.

DVD-R

● Can be played back on other DVD players.

● Suitable when keeping a recorded disc for a long time.

File Structure of Discs

DVD VIDEO

Typically, DVD VIDEO discs are made up of larger units called “titles”. Each title has a number (title number) that can be used to select desired titles. Titles are further divided into units called “chapters”. Each chapter has a number (chapter number) that can also be used to select desired chapters. Note that some discs are not divided into titles and chapters.

When you record a programme on a DVD-RAM/RW (VR mode) disc

A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes from monaural or bilingual to stereo due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during playback. (

When you record a programme on a DVD-R/RW (Video mode) disc

A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during either recording or playback. Once the disc has been finalised, these chapter marks are deleted and new chapter marks are assigned automatically approximately every 5 minutes.

Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2 Chapter 3

pg. 32)

墌

DVD-RAM, DVD-RW, DVD-R or DVD VIDEO disc

Title 1 Title 2

● In Video mode, even before finalising, it is impossible to perform editing operations other than changing the disc name and/or title names and deleting programmes and/or titles.

● After finalising, it is impossible to perform editing operations.

Audio CD/Video CD

Typically, Audio CD discs are divided into separate tracks each containing one song. Each track is assigned a number. For example, the third track is Track 3. The same is true for Video CD discs. However, some discs are not divided into tracks.

Audio CD or Video CD

Track 1 Track 2 Track 3 Track 4

DISC INFORMATION (cont.)

JPEG/MP3 Disc (CD-R/RW/ROM)

MP3/JPEG files put in directories nested in several levels on a disc will be organized as if they were put in single level directories (groups) by the MP3/JPEG Navigation of this unit. (

pg. 76)

墌

File structure of a disc before starting the MP3/JPEG Navigation

Directory MP3 file JPEG file

File structure of the disc after starting the MP3/JPEG Navigation

Files are automatically grouped as follows and displayed on the MP3/JPEG Navigation screen. Data is displayed in the alphabetical order of file name. Files are grouped based on roots.

DVD VIDEO Marks

Sometimes marks are printed on a DVD disc and/or on its packaging to indicate information regarding the contents and functions of the disc. Check the marks indicating the contents and functions of the disc. Note, however, that in some cases a disc may not include a mark even for a function it supports.

Marks related to video

Mark Description

Number of subtitles

Number of angles

Recorded under the standard 4:3 aspect ratio

Screen includes black bands at the top and the bottom of image which has a standard 4:3 aspect ratio (letter box)

Video playback is in Wide video mode (16:9) on wide televisions, but in letter box on televisions with standard 4:3 aspect ratio.

●

This unit can recognise up to 9 hierarchies including directories and files. Also, it can recognise up to 250 files in each group, and up to 99 groups on a disc.

NOTES:

●

Video CD discs that support Playback Control (PBC)

The contents of a disc are recorded into several hierarchies, and played back according to the instructions on the screen while navigating through the hierarchies. It is also possible to playback recorded tracks consecutively without activating the PBC function even when playing a PBC-compatible disc. (

pg. 34)

墌

●

Regarding the contents recorded on discs

Some files may not be played back depending on the file types and other factors.

Video playback is in Wide video mode (16:9) on wide televisions, but pan and scan is used on televisions with standard 4:3 aspect ratio (either the left or right side of the image is cut-out).

Marks related to audio

Mark Description

Number of audio tracks

Dolby Digital mark It has been developed by Dolby Laboratories as a digital surround system.

DTS (Digital Theater Systems) You can enjoy DTS audio if you connect an amplifier with a built-in DTS decoder to the DIGITAL AUDIO OUT connector of the unit.

Placing a Disc

Opening the disc tray

Press x on the unit or remote control to open the disc tray.

Unit Remote control

● Pressing the button on the unit or on the remote control again closes the disc tray.

● Use the buttons on the unit or on the remote control to open and close the disc tray.

● Do not block the disc tray with your hand while it is opening or closing as this may result in hardware failure.

● Do not place unplayable discs or any object other than a disc on the disc tray.

● Do not press down strongly on the disc tray or place any heavy objects on it.

Discs without cartridges

Care and Handling of Discs

How to handle discs

When handling a disc, do not touch the surface of the disc. Since discs are made of plastic, they are easily damaged. If a disc gets dirty, dusty, scratched or warped, the images and sound will not be picked up correctly, and such a disc may cause the unit to malfunction.

Label side

Do not damage the label side, stick paper to or use any adhesives on its surface.

Recording side

Make sure that discs are not scratched and dirty on the recording side before use. Scratches and dirt on the recording side of a disc may hinder proper playback and recording. Also be careful that a DVD-RAM disc may get scratched or dirt when removed from cartridge then put back in after use.

Storage

Make sure that discs are kept in their cases. If discs are piled on top of one another without their protective cases, they can be damaged. Do not put discs in a location where they may be exposed to direct sunlight, or in a place where the humidity or temperature is high. Avoid leaving discs in your car!

Disc tray

● Place the disc on the disc tray with the label side facing up. Since disc size changes depending on the disc to be played back, be sure to correctly align the disc with the grooves for its size. If the disc is not in its groove, it may be scratched or otherwise damaged. To insert an 8 cm disc, place it according to the inner groove.

DVD-RAM discs contained in cartridges

Double-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the side you wish to play back or record facing down. If you insert the disc with “Side A” facing down, programmes are recorded on the side A.

Single-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the label side facing up.

Maintenance of discs

If there are fingerprints or other dirt adhering to a disc, wipe with a soft dry cloth, moving from the centre outwards. If a disc is difficult to clean, wipe with a cloth moistened with water. Never use record cleaners, petrol, alcohol or any anti-static agents.

CAUTION

Sometimes during playback, noise may appear or images may be garbled. This is sometimes due to the disc. (It may not be up to industry standards.) These symptoms are caused by the discs, not by the malfunction of the unit.

FRONT VIEW

INDEX

Standby/On Button (1 (STANDBY/ON))

pg. 19

墌

Infrared Beam Receiving Window

Programme Button (PR +/–) 墌pg. 51

Automatic Satellite Programme Recording Button (SAT#) 墌pg. 63

Recording Mode Button (REC MODE) 墌pg. 51

Disc Tray

Open/Close Button (x (OPEN/CLOSE)) 墌pg. 9

Back Skip Button (2) 墌pg. 31

Forward Skip Button (6) 墌pg. 31

Stop Button (8) 墌pg. 29, 51

Play Button (4 (PLAY)) 墌pg. 29

Pause Button (9 (PAUSE)) 墌pg. 29

Record Button (7 (REC)) 墌pg. 51

Front Display Panel 墌pg. 12

Video Indicator (VIDEO) 墌pg. 52

S-video/Video/Audio Input Connectors (S-VIDEO/VIDEO/AUDIO (L/R)) 墌pg. 80

DV Input connector (DV IN (i.Link*)) 墌pg. 78

* i.Link refers to the IEEE1394-1995 industry specification and

extensions thereof. The i logo is used for products compliant with the i.Link standard.

To access covered connectors, pull and open the connector cover.

REAR VIEW

Antenna Input Connector (ANTENNA IN)

pg. 16

墌

Component Video Output Connectors

(COMPONENT VIDEO OUT (L-1)) 墌pg. 18 S-video Output Connector (S-VIDEO OUT)

pg. 17

墌

Audio Output Connectors

(AUDIO OUT (RIGHT/LEFT)) 墌pg. 17 Digital Audio Output Connectors

(DIGITAL AUDIO OUT (COAXIAL/OPTICAL))

pg. 84, 91

墌

Region Number Label 墌pg. 6

Cooling Fan

This prevents the temperature from rising inside the unit.

●

Do not remove it. Install the unit so as not to block the area around the fan.

●

The fan may be activated even if the unit is turned off.

●

Mains Power Cord 墌pg. 16

Antenna Output Connector (ANTENNA OUT)

pg. 16

墌

L-1 Input/Output Connector (L-1 IN/OUT)

pg. 16, 81, 82, 88, 90

墌

L-2 Input/Decoder Connector

(L-2 IN/DECODER) 墌pg. 26, 81, 88, 90 AV COMPU LINK III Connector*

* Not function with this unit.

Satellite Control Connector (SAT CONTROL)

pg. 26

墌

FRONT DISPLAY PANEL

INDEX (cont.)

VPS/PDC Indicator 墌pg. 57

Appears when checking if the station being received transmits a VPS/PDC signal.

Disc Type/Status Indicator

When a disc is loaded, the type of the disc is indicated.

When a disc is running, the disc marks rotate. During High-Speed Search: Rotate faster than normal

During Slow Motion: Rotate slower than normal

While recording: Inner red ring lights in the same

While paused: Disc marks blink when either

While stopped: Disc marks all light. While resume stopped: Disc marks all blink. While the disc tray opened: Disc marks all light out. No disc on the disc tray: Disc marks all light out.

VR Mode Indicator 墌pg. 106

Lights when a DVD-RW disc is formatted in VR mode.

Timer Recording Indicator 墌pg. 54, 56, 58, 61

: Lights when a disc set up for On-Disc Timer

: Lights when timer recording other than On-Disc

Programming is loaded.

Timer Programming is on stand-by or being executed.

: Lights when On-Disc Timer Programming is on

stand-by or being executed.

: Blinks quickly if you press # (TIMER) in the

following cases;

Disc is not loaded.

●

Clock has not been set.

●

There is no programme setting.

●

playback.

way as normal playback. During Instant Timer Recording (ITR), inner red ring slowly blinks.

recording or playing back.

Recording Mode Indicator (XP/SP/LP/EP/FR)

pg. 52

墌

Blinks when recording mode is being set. While “FR” is blinking, the left 3 digits of the Multi Display (L M) indicate setting values ranging from “60” to “360”. After the value has been set, only “FR” lights.

Group/Title Indicator (GRP/TITLE) 墌pg. 7, 44

“GRP” or “TITLE” lights depending on a disc loaded while the left 2 digits of the Multi Display (L) indicate the numbers explained below. “GRP”: Total number of groups or group number being

“TITLE”: Total number of titles or title number being played

Track/Chapter Indicator (TRK/CHAP) 墌pg. 7, 44

“TRK” or “CHAP” lights depending on a disc loaded while the 3rd and 4th digits from the left of the Multi Display (M) indicate the numbers explained below. “TRK”: Total number of tracks or track number being

“CHAP”: Chapter number being played back are displayed

played back are displayed on the Multi Display.

back are displayed on the Multi Display.

played back are displayed on the Multi Display.

on the Multi Display.

Simulated Surround Effect Indicator (3D)

pg. 45

墌

Lights when a simulated surround effect is set to “3D-ON” in Play Set Up menu.

Linear PCM Indicator (LPCM)

Lights when “XP MODE REC AUDIO” is set to “LINEAR PCM” ( DVD-RW discs, and when Linear PCM audio is played.

Random/Programme Playback Mode Indicator

pg. 94) for recording with DVD-RAM, DVD-R and

墌

(RND/PRGM) 墌pg. 43

“RND”: Lights when Random Playback mode is set.

“PRGM”: Lights when Programme Playback mode is set.

Repeat Mode Indicator ( /1/A–B) 墌pg. 42

Select Repeat Playback mode in Play Set Up menu. “ ”: Whole disc is played back repeatedly. “ 1”: A single title/chapter/track is played back

“ A–B”: The selected part (A–B) is played back

No display: Repeat Playback mode is off.

(

pg. 43)

墌

(

pg. 43)

墌

repeatedly.

Video Output Indicator ( ) 墌pg. 108

No display: Indicates that interlace mode is engaged.

: Indicates that progressive mode is engaged. (Example) lights when video output mode is in progressive mode.

Group/Title Number Display 墌pg. 7, 44

Track/Chapter Number Display 墌pg. 7, 44

Remaining Time/Elapsed Time Indicator

pg. 32, 52

墌

Lights when remaining time of DVD-RAM, DVD-R and DVD-RW discs is displayed, and lights out when elapsed time is displayed. The right 6 digits of the Multi Display (O) indicate elapsed or remaining time of each track. No display: Indicates elapsed time of the disc. Displayed: Indicates remaining time of the disc.

Remaining Time/Elapsed Time Display

pg. 32, 52

墌

Multi Display

Displays clock, received channel, elapsed time, and remaining time. Also displays status of the unit (NO DISC/OPEN/CLOSE/ READING).

ON-SCREEN DISPLAY

When

DISPLAY

on the remote control is pressed, various operational indicators appear on the TV screen.

INDEX (cont.)

Disc Display

Displays the type of the disc loaded on the disc tray.

Title Number*

Displays number of the title currently being played back.

Playback Operation Status Indicator*

Indicates playback operation status by pictographs.

Playback Time*

Displays playback time of the title currently being played back.

Recording Mode

Displays recording mode as XP, SP, LP, EP, FR, and FR60– FR360. Current recording mode is displayed during recording, and recording mode in which the programme was recorded is displayed during playback. The recording mode is not displayed during play list playback.

Title Nu mb e r

Displays playback title number during playback, and recording title number during recording.

* During Live Memory playback, playback operation status is

displayed. During normal playback, the multichannel encoding method is displayed.

Chapter Number

Displays playback chapter number during playback, and recording chapter number during recording.

Clock Display

Bar Meter Display 墌pg. 37

Displays playback point and other information in bar meter.

Title Name Display

Displays title name newly registered to the title recorded on DVD-RAM/RW/R discs, or file name of JPEG and MP3 files.

Operation Status Indicator

Indicates operation status by pictographs. (Also indicates its speed for forward high-speed search, reverse high-speed search and slow motion.)

Time Display

Displays single title playback elapsed time, single track playback elapsed time, single track remaining time, total elapsed time, total remaining time, and other information in turn.

Station Name Display

Displays currently selected station name.

Audio Display

Displays audio that is being input.

Input Display

Displays currently selected input.

REMOTE CONTROL

Stop Button (8) 墌pg. 29, 38, 51, 78

Clear Button (CLEAR) 墌pg. 32, 40, 47, 54 Record Button (7 (REC)) 墌pg. 51

One Touch Replay Button ( ) 墌pg. 38, 39

Subtitle Button (SUBTITLE) 墌pg. 33

Angle Button (ANGLE) 墌pg. 33

Live Check Button (LIVE CHECK) 墌pg. 38 Open/Close Button (x (OPEN/CLOSE)) 墌pg. 9

Audio Button (AUDIO) 墌pg. 33

TV Muting Button ( ) 墌pg. 86 TV/CABLE/SAT/DVD switch 墌pg. 19

TV/CABLE/SAT STANDBY/ON Button (TV CBL

SAT 1) 墌pg. 86 DVD STANDBY/ON Button (DVD 1) 墌pg. 19

Memo Button (MEMO) 墌pg. 66, 73, 77

Mark Button (MARK) 墌pg. 32 Play Set Up Button (PLAY SET UP) 墌pg. 40

Progressive Scan Button (PROGRESSIVE SCAN)

pg. 108

墌

Display Button (DISPLAY)

pg. 14, 32, 37, 52, 57

墌

Menu Button (MENU) 墌pg. 30

a b we c d e

g h i

j k

Button 墌pg. 19, 38 Enter Button (ENTER) 墌pg. 19 Return Button (RETURN) 墌pg. 34, 54 Forward Skip Button (6) 墌pg. 31, 38 Next Button (NEXT) 墌pg. 34 Forward Search Button (5) 墌pg. 31, 38 Forward Slow Button (SLOW +) 墌pg. 31 Pause Button (9 (PAUSE)) 墌pg. 29, 38 Skip Search Button ( ) 墌pg. 31, 38 Remain Button (REMAIN) 墌pg. 32, 52 Recording Mode Button (REC MODE) 墌pg. 51 TV Volume Button (%+/–) 墌pg. 86 TV/CBL DVD Programme Button (PR +/–)

pg. 87

墌

Buttons with a small dot on the left side of the name can also be used to operate your TV. (

Video Button ( (VIDEO)) 墌pg. 52

Timer Button (# (TIMER)) 墌pg. 55, 57

Number Keys 墌pg. 30, 47, 51, 54, 68, 85, 99

Auxiliary Button (AUX) 墌pg. 97

Cancel Button (& (CANCEL))

pg. 40, 47, 54, 61, 77, 100

墌

Programme Check Button (PROG/CHECK)

pg. 61

墌

HOWVIEW

Top Menu Button (TOP MENU) 墌pg. 30

Button 墌pg. 54

墌

pg. 86)

Navigation Button (NAVIGATION) 墌pg. 64

Button 墌pg. 19

I rt

Set Up Button (SET UP) 墌pg. 23

Reverse Skip Button (2) 墌pg. 31, 38

Previous Button (PREVIOUS) 墌pg. 34 Play Button (4 (PLAY)) 墌pg. 29

Select Button (SELECT) Reverse Search Button (

3) 墌

pg. 31, 38

Reverse Slow Button (SLOW –) 墌pg. 31

How To Use

The remote control can operate most of your unit’s functions, as well as basic functions of TV sets and satellite receivers of JVC and other brands. ( Functions”)

●

Point the remote control toward the receiving window.

●

The maximum operating distance of the remote control is about 8 m.

pg. 85, “Remote Control

墌

NOTES:

●

When inserting the batteries, be sure to insert in the correct directions as indicated under the battery cover.

●

If the remote control doesn’t work properly, remove its batteries, wait for approximately 5 minutes, replace the batteries and then try operating the unit again.

INSTALLING YOUR NEW UNIT

It’s essential that your unit be properly connected.

Basic Connections

Aerial connector

(provided)

Mains power cord

TV aerial

cable

ANTENNA IN

Back of TV

RF cable (provided)

21-pin SCART connector

21-pin SCART cable

THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.

Check the contents.

Make sure the package contains all of the accessories listed in “SPECIFICATIONS” on page 114.

Install the unit.

Place the unit on a stable, horizontal surface.

Connect the unit to a TV.

Disconnect the TV aerial cable from the TV.

Connect the TV aerial cable to the ANTENNA IN connector on the rear panel of the unit.

Connect the ANTENNA OUT connector on the rear panel of the unit and the TV’s aerial connector with the provided RF cable.

Connect the L-1 IN/OUT connector on the rear panel of the unit and the TV’s 21-pin SCART connector with a provided 21-pin SCART cable.

●

The L-1 IN/OUT connector accepts and delivers either a composite signal (regular video signal), Y/C signal or RGB signal.

●

Select an appropriate option of “L-1 OUTPUT” as follows

墌

(

pg. 82):

L-1 IN/OUT

ANTENNA OUT

Mains outlet

Back of unit

TTENTION:

Your TV must have a 21-pin AV input connector (SCART) for the connection to the unit.

When your TV’s SCART connector accepts:

Y/C signal (separated luminance (brightness) and chrominance (colour) signals)

RGB signal “SCART RGB”

●

Set your TV to the VIDEO (or AV), Y/C, or RGB mode according to the type of your TV’s SCART connector.

●

For switching the TV’s mode, refer to the instruction manual of your TV.

Connect the unit to mains.

Connect the AC plug of the mains power cord into a mains outlet.

●

“LOADING” blinks on the front display panel when the AC plug of the mains power cord is connected into a mains outlet, and it takes the unit approximately 50 seconds to be turned on. This is not a malfunction.

After connection is completed, perform “Auto Set Up” on page 19.

Set “L-1 OUTPUT” to:

“SCART S-VIDEO”

S-VIDEO Connection

TV aerial cable

ANTENNA IN

S-VIDEO OUT

AUDIO OUT

Mains power cord

8 To connect to TV’s S-VIDEO input and AUDIO input

connectors

Connect the unit to a TV.

Connect the aerial, unit and TV as per “Basic

Connections”. (墌pg. 16) Connect the unit’s S-VIDEO OUT connector to the

TV’s S-VIDEO input connector. Connect the unit’s AUDIO OUT connectors to the TV’s

AUDIO input connectors.

Connect the unit to mains.

Connect the AC plug of the mains power cord into a mains outlet.

NOTES:

●

You can obtain high-quality S-VHS pictures.

●

With S-VIDEO connection, you cannot use the Preset Download function. (

●

If your TV is not stereo-capable, use the unit’s AUDIO OUT connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

●

For switching the TV’s video input mode, refer to the instruction manual of your television.

墌

pg. 21)

Audio cable (not provided)

S-Video cable (not provided)

ANTENNA OUT

S-VIDEO input

connector

Back of TV

RF cable (provided)

AUDIO input connectors

Mains outlet

Back of unit

Aerial connector

After the connection is completed, perform “Auto Set Up” on page 19.

Component Video Connection

TV aerial cable

COMPONENT VIDEO OUT (L-1)

AUDIO OUT

Mains power cord

INSTALLING YOUR NEW UNIT (cont.)

Component video connection enables you to obtain high-quality component video pictures.

8 To connect to TV’s component video input connectors

Connect the unit to TV.

Perform A–C in stepC in “Basic Connections”

(墌pg. 16). Connect the unit’s COMPONENT VIDEO OUT

connectors to the TV’s component video input connectors. Connect the unit’s AUDIO OUT connectors to the TV’s

AUDIO input connectors.

Connect the unit to mains.

Connect the AC plug of the mains power cord into a mains outlet.

NOTES:

●

If your TV is not stereo-capable, use the unit’s AUDIO OUT connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

●

For switching the TV’s video input mode, refer to the instruction manual of your television.

Component Video cable (not provided)

Component Video

Input connectors

AUDIO input connectors

RF cable (provided)

Mains outlet

Audio cable (not provided)

Aerial connector

Back of TV

Back of unit

After the connection is completed, perform “Auto Set Up” on page 19.

INITIAL SETTINGS

Auto Set Up

Auto Channel Set/Auto Clock Set/ Auto Guide Program Number Set

After the 1 button on the unit (or control) is pressed for the first time to turn on the unit simply selecting your country*, the Auto Set Up function sets the tuner channels, clock** and Guide Program numbers automatically.

* If you live in Belgium (BELGIUM) or Switzerland (SUISSE), you also

need to select your language.

**If you live in Hungary (MAGYARORSZÁG), Czech Republic (

REPUBLIKA), Poland (POLSKA) or other countries in Eastern Europe (OTHER EASTERN), set the clock manually.

DVD

1 on the remote

, by

ESKÁ

Before starting, make sure of the following:

●

The TV aerial cable should be connected to the unit.

●

The unit’s mains power cord should be connected to a mains outlet.

●

Turn on the TV and select the AV mode.

●

Slide the

On the unit

Press 1 on the unit.

On the remote control

Press

●

The Country Set display appears on the TV screen.

Press arrow to your country’s name.

(Example) DEUTSCHLAND is selected.

TV/CABLE/SAT/DVD

Turn on the unit.

DVD

1 on the remote control.

Select your country.

rt w e

to move the

switch to

DVD

NOTES:

●

If you have selected BELGIUM or SUISSE, go to stepC.

●

If you have selected MAGYARORSZÁG, CESKÁ REPUBLIKA, POLSKA or OTHER EASTERN, press screen appears. Set the clock manually ( Set”), then go to stepD.

●

If you have selected any other country name, go to stepD.

Select the language.

(Example) DEUTSCH is selected.

ENTER

Press

• The Language Set display appears on the TV screen.

Press the arrow to the language of your choice.

rt w e

to move

ENTER

墌

. The Clock Set

pg. 104, “Clock

INITIAL SETTINGS (cont.)

Perform Auto Set Up.

●

ENTER

Press

The AUTO SET/T-V LINK display appears on the TV screen.

Press rt to move the arrow to “AUTO EINSTELLUNG”, then press

“AUTO” blinks on the front display panel; do NOT press any button on the unit or remote control until the front display panel shows “– –:– –” as illustrated on page 22.

The AUTO SET screen will appear.

When you have connected the unit to a TV offering T-V Link via a fully-wired 21-pin SCART cable ( turned on, the unit automatically performs the Preset Download ( Set Up function.

ENTER

墌

pg. 16) and the TV is

墌

pg. 21) even if you select “AUTO SET” for Auto

TTENTION:

Once you have performed Auto Set Up, even if the unit’s memory backup has expired, all the stored stations and their Guide Program numbers remain in the unit’s memory and the unit will not perform Auto Set Up again. The unit only performs Auto Clock Set when the unit is turned on. If you have moved to a different area, perform each setting as required.

●

Tuner setting (

●

Clock setting (

If a new station starts broadcasting in your area, perform tuner setting. (

墌

pg. 98)

墌

pg. 104)

墌

pg. 98, “Tuner Set”)

NOTES:

●

In areas where no TV station transmits a PDC (Programme Delivery Control) signal, the unit can perform neither Auto Clock Set nor Auto Guide Program Number Set.

●

If there is a power cut, or if you press 1 or Set Up is in progress, Auto Set Up will be interrupted; be sure to turn off the unit power once and try again from stepA.

●

Auto Clock Set may not function properly depending on the reception condition.

●

If no sound accompanies the picture or the audio sounds unnatural on some channels that have been stored by Auto Set Up, the TV system setting for those channels may be incorrect. Select the appropriate TV system for those channels.

墌

(

pg. 101, “INFORMATION”)

After “Auto Set Up” is completed, perform “Monitor Set” on page 23.

SET UP

while Auto

Preset Download

Auto Channel Set by Downloading from TV/Auto Clock Set/Auto Guide Program Number Set

TTENTION:

You can use this function only with a TV offering T-V Link, etc.* Be sure to use a fully-wired 21-pin SCART cable.

* Compatible with TVs offering T-V Link, EasyLink, Megalogic,

SMARTLINK, Q-Link or DATA LOGIC via a fully-wired 21-pin SCART cable. The degree of compatibility and available functions may differ by system.

If you have connected the unit to your TV via a 21-pin SCART cable ( Download instead of the Auto Set Up in step D on page 20. After downloading, the unit sets the clock and Guide Program numbers automatically.

● The AUTO SET/T-V LINK display appears on the TV screen.

pg. 16), the unit will automatically perform Preset

墌

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Perform steps A to C of “Auto Set Up” (

continuing.

pg. 19) before

墌

Perform Preset Download.

Press ENTER.

Press rt to move the arrow to “T-V LINK” and press ENTER.

Preset positions on the front display panel increase from “PR 1”; do NOT press any button on the unit or remote control until the front display panel shows clock time, “PR 1” or “– –:– –” as illustrated on page 22.

NOTES:

● For details, refer to the instruction manual of your TV.

● In the area where no TV station transmits a PDC (Programme

Delivery Control) signal, the unit can perform neither Auto Clock Set nor Auto Guide Program Number Set.

● If there is a power cut, or if you press 1 or SET UP while downloading or set up is in progress, it will be interrupted; be sure to turn off the unit power once and try again from the beginning.

● Auto Clock Set may not function properly depending on the reception condition.

● On this unit, the characters available for station names (ID) are A–Z, 0–9, –, stations may differ from those of your TV. ( Stations (B)”)

, + and I (space). Some names of downloaded

pg. 102, “Set

墌

● The T-V LINK screen will

appear. When Preset Download is completed, “COMPLETED” appears for about 5 seconds, then the normal screen appears.

● If you press any button on the unit or remote control while downloading is in progress, it will be interrupted.

After “Preset Download” is completed, perform “Monitor Set” on page 23.

INITIAL SETTINGS (cont.)

Results of Auto Set Up/Preset Download appearing on the front display panel

If both Auto Channel Set and Auto Clock Set have been performed successfully, the correct current time is displayed.

Turn on the TV and select its AV mode, then make sure that all necessary stations have been stored in the unit’s memory by using the PR +/– button(s).

● If station names (ID – will be displayed at the top right corner of the TV screen for about 5 seconds when the unit is tuned to a different station.

● If you want to set the tuner manually such as to add or skip channels, to change channel positions, or to set or change station names, see pages 99 – 103.

If Auto Channel Set has succeeded but Auto Clock Set has not, “PR 1” (channel position) is displayed.

OR If both Auto Channel Set and Auto Clock Set have failed, “– –:– –” is displayed.

Turn on the TV and select its AV mode, then make sure that all necessary stations have been

stored in the unit’s memory by using the PR +/– button(s).

● If station names (ID – will be displayed at the top right corner of the TV screen for about 5 seconds when the unit is tuned to a different station.

● If you want to set the tuner manually such as to add or skip channels, to change channel positions, or to set or change station names, see pages 99 – 103.

Perform “Clock Set” on page 104.

NOTE:

After making sure the cables are connected properly, turn off the unit’s power once, then turn the unit’s power back on again. The Country Set display appears on the TV screen; perform “Auto Set Up” on page 19 or “Preset Download” on page 21 again.

pg. 103) have also been stored in the unit’s memory, the station name

墌

pg. 103) have also been stored in the unit’s memory, the station name

墌

IMPORTANT:

● To check if the Guide Program numbers have been set correctly, perform the S

● In certain reception conditions, station names may not be stored correctly, and auto Guide Program Number Set may not work

properly. If the Guide Program numbers are not set properly when you timer-record a TV programme using the S system, the unit will record a TV programme of a different station. When programming the timer using the S sure to check the desired channel is selected correctly. (

● Your unit memorizes all detected stations even if reception of some of them is poor. You can delete those stations with an unacceptable picture. (

pg. 100, “Delete A Channel”)

墌

pg. 54, “S

墌

HOWVIEW

Timer Programming. (墌pg. 54)

Timer Programming”)

HOWVIEW

system, be

INFORMATION

Language for the on-screen display

Auto Set Up also selects the language automatically for the on-screen display depending on the Country setting you have made in step B on page 19 (unless you have selected BELGIUM or SUISSE), as shown below.

SUOMI PORTUGAL DEUTSCHLAND POLSKA NORGE SVERIGE

If you want to change the language setting manually, see “On-screen Language Set” on page 24.

Just Clock

Your unit is equipped with the Just Clock function which provides accurate time keeping through automatic adjustments at regular intervals, by reading data from a PDC signal. If you want to take advantage of this function, simply set it to “ON”. ( Clock”)

SUOMI DANMARK

]

ENGLISH ÖSTERREICH

]

DEUTSCH CESKÁ REPUBLIKA]ENGLISH OTHER WESTERN

]

ENGLISH ITALIA

]

NORSK MAGYARORSZÁG]ENGLISH

]

SVENSKA ESPAÑA

]

DANSK NEDERLAND

]

DEUTSCH GREECE

]

ITALIANO OTHER EASTERN

]

CASTELLANO

]

NEDERLANDS

]

ENGLISH

]

ENGLISH

]

ENGLISH

]

pg. 104, “Just

墌

Monitor Set

You can select the monitor type depending on the TV used when you play back DVD VIDEO discs recorded for wide-screen TVs.

●

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

Press

Press we to move the arrow to “FUNCTION SET UP”, then press

Press we to move the arrow to “VIDEO IN/ OUT”, then press

Press rt to select “MONITOR TYPE”, then press

ENTER

Press rt to select the desired option, then press

ENTER

Press

TV/CABLE/SAT/DVD

switch to

Access the Main Menu screen.

SET UP

Access the “VIDEO IN/OUT” screen.

ENTER

Select the desired option.

Complete the setting.

SET UP

DVD

boldface

(The your purchase.)

Pan&Scan/Letter Box

In general, DVD VIDEO disc are produced for a wide-screen TV with 16:9 aspect ratio. Material with this ratio will not fit to a TV with 4:3 aspect ratio. There are two styles to display the image, “Pan&Scan” (PS) and “Letter Box” (LB).

Pan&Scan

The right and left side of the image are cut off. The image fills the screen.

●

The picture will be shown in the “4:3LB” mode depending on the disc even if the “4:3PS” mode is selected.

Letter Box

Black bands appear at the top and bottom of the image. The image itself appears in 16:9 aspect ratio.

settings in the table below indicate the settings at

MONITOR TYPE

(Letter Box conversion)

4:3LB

Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

4:3PS (Pan&Scan)

Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

16:9 AUTO (Wide television conversion)

Select this when the aspect ratio of your TV is 16:9 (wide TV).

16:9 FIX (Wide television conversion)

Select this when the aspect ratio of your TV is fixed to 16:9 (wide TV). The unit automatically adjusts the screen width of the output signal correctly when playing back a picture whose aspect ratio is 4:3.

Language

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

●

TV/CABLE/SAT/DVD

switch to

DVD

INITIAL SETTINGS (cont.)

Select the desired language.

Press rt to move the arrow to “ON SCREEN

LANGUAGE”, then press Press rt to select your desired language, then press

Press

ENTER

Complete the setting.

SET UP

ENTER

Menu/Audio/Subtitle Language Set

Some DVD discs contain the DVD menu display, audio and subtitles in multiple languages. With these discs, you can set the default language as you like.

The procedure shows how to set “MENU LANGUAGE”

●

as an example.

Access the Main Menu screen.

Press

Press we to move the

arrow to “DVD SET UP”, then press OK. Press we to move the

arrow to “LANGUAGE SET”, then press

SET UP

Access the “LANGUAGE SET” screen.

ENTER

On-screen Language Set

This unit offers you the choice to view on-screen messages in 10 different languages. Though Auto Set Up selects the language automatically (墌pg. 22), you can change the language setting manually as required.

Access the Main Menu screen.

Press

Press we to move the

arrow to “FUNCTION SET UP”, then press Press we to move the

arrow to “DISPLAY SET”, then press

SET UP

Access the “DISPLAY SET” screen.

ENTER

Select the desired language.

Press rt to move the arrow to “MENU LANGUAGE”,

then press

●

See “Language Code List” (

Press rt to select your desired language, then press

Press

ENTER

Complete the setting.

SET UP

ENTER

墌

pg. 25).

NOTE:

When the selected language is not available on the disc, the disc’s default menu language is played back.

Language Code List

AA AB AF AM AR AS AY AZ BA BE BG BH BI BN BO BR CA CO CS CY DZ EL EO ET EU FA FJ FO FY GA GD GL GN GU HA HI HR HU HY IA IE

Afar Abkhazian Afrikaans Ameharic Arabic Assamese Aym ara Azerbaijani Bashkir Byelorussian Bulgarian Bihari Bislama Bengali, Bangla Tibetan Breton Catalan Corsican Czech Welsh Bhutani Greek Esperanto Estonian Basque Persian Fiji Faroes e Frisian Irish Scots Gaelic Galician Guarani Gujarati Hausa Hindi Croatian Hungarian Armenian Interlingua Interlingue

IK IN IS IW JA JI JW KA KK KL KM KN KO KS KU KY LA LN LO LT LV MG MI MK ML MN MO MR MS MT MY NA NE OC OM OR PA PL PS PT QU RM

Inupiak Indonesian Icelandic Hebrew Japanese Yiddish Javanese Georgian Kazakh Greenlandic Cambodian Kannada Korean (KOR) Kashmiri Kurdish Kirghiz Latin Lingala Laothian Lithuanian Latvian, Lettish Malagasy Maori Macedonian Malayalam Mongolian Moldavian Marathi Malay (MAY) Maltese Burmese Nauru Nepali Occitan (Afan) Oromo Oriya Pa nj ab i Polish Pashto, Pushto Portuguese Quechua Rhaeto-Romance

RN RO RU RW SA SD SG SH SI SK SL SM SN SO SQ SR SS ST SU SW TA TE TG TH TI TK TL TN TO TR TS TT TW UK UR UZ VI VO WO XH YO ZU

Kirundi Rumanian Russian Kinyarwanda Sanskrit Sindhi Sangho Serbo-Croatian Singhalese Slovak Slovenian Samoan Shona Somali Albanian Serbian Siswati Sesotho Sundanese Swahili Ta m il Te l ug u Tajik Thai Tig ri nya Tu r km e n Tagalog Setswana To n ga Tu r ki s h Tsonga Ta t ar Tw i Ukrainian Urdu Uzbek Vietnamese Volapuk Wolof Xhosa Yoruba Zulu

Satellite Receiver Control Setting

Satellite receiver

Your unit

Transmitter

Satellite receiver

Satellite Controller (provided) (suggested locations)

Satellite Controller

(provided)

SAT CONTROL SET

The following procedure is required if you receive satellite channels through a satellite receiver. Approximately 20 seconds before the S programming (

墌

(

pg. 56) starts, the unit sets its input mode to “L-2” and automatically switches the satellite receiver’s channels using a provided Satellite Controller.

墌

pg. 54) or Manual Timer programming

HOWVIEW

timer

Installing Satellite Controller

Install a Satellite Controller.

Place a Satellite Controller so that the path between its transmitter and the satellite receiver’s remote sensor is unobstructed.

Attach the Satellite Controller.

Fix securely using the adhesive strip attached on the back of the Satellite Controller.

Make connections.

Be sure to connect the unit’s L-2 IN/DECODER connector to the satellite receiver’s 21-pin SCART connector.

NOTE:

When connecting your satellite receiver, refer to its instruction manual.

Connect the Satellite Controller to unit.

Connect the Satellite Controller to the SAT CONTROL connector on the rear panel.

21-pin SCART cable (provided)

Back of unit

SAT CONTROLL-2 IN/DECODER

Setting satellite receiver’s brand and channel

After installation, set the satellite receiver’s brand and channel correctly; otherwise, the Satellite Controller cannot work correctly.

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

●

Turn on the satellite receiver’s power.

Press

Press we to move the

arrow to “INITIAL SET UP”, then press Press we to move the

arrow to “SAT/GUIDE PR”, then press

TV/CABLE/SAT/DVD

Turn on the satellite receiver.

Access the Main Menu screen.

SET UP

Access the “SAT/GUIDE PR” screen.

ENTER

switch to

DVD

Select the satellite receiver’s brand.

Press rt to move the arrow to “SAT BRAND”, then

press Press rt to select the brand code from the list on

page 28, then press

● If the brand code you entered is invalid, the code field will be

reset. Enter the correct brand code again.

● If the unit is in playback or recording mode, you cannot set the

brand code.

Select the satellite receiver’s channel for

ENTER

testing.

Press the appropriate

to enter one of the

keys

channel positions on the satellite receiver, then press

twice.

ENTER

● You can select the channel

position between 1 to 999.

● After pressing

enters the Test mode.

ENTER

number

, the unit

Check the result of the test.

If the satellite receiver’s channel number has been changed to the same one as you set in stepE.

Press we to move the arrow to “YES”, then press

ENTER

to finish the Sat Control Set mode.

If the satellite receiver’s channel number has not been changed correctly

Press we to move the arrow to “NO”, then press

ENTER

Then perform the procedure again from stepD.

BRAND NAME CODE

JVC AMSTRAD ASTON CANAL SATELLITE CANAL + D-BOX ECHOSTAR (VIA DIGITAL) FINLUX FORCE GALAXIS GRUNDIG HIRSCHMANN HUMAX ITT NOKIA JERROLD KATHREIN LUXOR MASCOM MASPRO NOKIA PACE PANAS ONIC PHILIPS RADIX RFT SABA SAGEM SALORA SAMSUNG SIEMENS SKYMASTER TECHNISAT THOMSON TPS TRIAX WISI

73 60, 61, 62, 63, 92 97 81 81 85 82 68 89 88 64, 65, 102 64, 78, 99 88 68 75 70, 71, 96 68 93 70 87, 94 65, 67, 74, 86, 92, 97 74, 92 66, 84, 101 78 69 97 83, 90 68 83 64 69, 98 66, 100 97 83 91 64

T-V Link Functions

When you connect the unit to your TV via a fully-wired 21-pin SCART cable ( You can use these functions only with a TV offering T-V Link, etc.* For details, refer to the instruction manual of your TV.

* Compatible with TVs offering T-V Link, EasyLink, Megalogic,

SMARTLINK, Q-Link or DATA LOGIC via a fully-wired 21-pin SCART cable. The degree of compatibility and available functions may differ by system.

TV Auto Power On

The TV will turn on and be set to its AV mode automatically whenever you start playback. For details, refer to the instruction manual of your TV.

Unit Auto Standby

You can use your TV’s remote control to turn off the unit. For details, refer to the instruction manual of your TV.

Direct Rec

You can easily start recording the programme that you are watching on your TV. When you use this function, set “DIRECT REC” to “ON”. (

pg. 16), the following functions are available.

墌

pg. 94)

墌

T- V L I N K

NOTES:

● The Satellite Controller may not work with all types of satellite receiver.

● For some satellite receivers, you need to set its channel input mode to 2-digit.

● If your satellite receiver has more than two channel modes, be sure to set to “All Channel Mode”. For details, refer to the instruction manual of the satellite receiver.

● When selecting the satellite receiver’s channel ( signals from the remote control may interfere with signals transmitted from the Satellite Controller. In this case, move the remote control as close to the unit’s infrared beam receiving window as possible.

stepE),

墌

PLAYBACK OPERATIONS

Basic Playback

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the TV/CABLE/SAT/DVD switch to DVD .

●

To play back an MP3/JPEG disc, see “Playback with MP3/JPEG Navigation” (

Press x to open the disc tray.

Place the disc on the disc tray.

●

For details, refer to “Placing a Disc” (

Press x to close the disc tray.

●

Pressing 4 also closes the disc tray.

●

Playback begins automatically if an auto-playback DVD disc is loaded.

Press 4.

●

If you load a DVD disc whose region code does not match the unit, “REGION CODE ERROR” appears on the TV screen. For details, refer to “Region Number” (

●

If “The DISC can’t play now!” appears on the TV screen, refer to “Parental Lock” (

●

With Video CD discs with PBC control or some DVD discs, the menu display may appear on the TV screen after starting playback. In this case, select an item which you want to play back from the menu. Otherwise, the playback cannot go forward. Refer to “Locating a desired scene using the menu of a Video CD with PBC” ( scene using the DVD menu” (

●

The Library Database DVD Navi also enables you to search and select the desired programmes. (

pg. 76).

墌

Load a disc.

Start playback.

墌

pg. 9).

墌

pg. 6).

墌

pg. 47).

pg. 34) or “Locating a desired

墌

pg. 30).

墌

pg. 64)

TTENTION:

●

It takes approximately 30 seconds to read a disc depending on the type and condition of the disc since this unit is multi-disc compatible (DVD-RAM, DVD-RW, DVD-R). It may even take several minutes when a disc is dirty, scratched or warped.

●

It may take a few seconds to start playback. This is not a malfunction.

●

Forward/reverse high-speed search and other operations cannot be performed while playback is stopped.

Pause playback.

Press 9.

●

To resume normal playback, press 4.

Stop playback.

Press 8.

●

When a recordable disc is played, playback stops and a programme received with the unit’s tuner resumes on the TV screen.

●

When a playback-only disc is played, playback stops and the still image at the time you press 8 remains on the TV screen. Pressing 8 again resumes a programme received with the unit’s tuner.

●

If x is pressed during playback, playback stops, then the disc tray opens.

NOTES:

●

When the Library Database DVD Navi screen appears, choose a thumbnail image of the desired programme on the TV screen, then press 4 or ENTER. (

●

When 4 is pressed for the first time after purchase or a power cut, menu screen appears. (

墌

pg. 66)

墌

pg. 104)

Example:

Playback Features

●

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

TV/CABLE/SAT/DVD

switch to

DVD

PLAYBACK OPERATIONS (cont.)

Locating a desired scene using the DVD menu

DVD VIDEO discs may have top menu and disc menu.

Top me n u

DVD discs generally have their own menus which show the disc contents. These menus contain various items such as titles of a movie, names of songs, or artist information. You can locate a desired scene by using the top menu displayed on the TV screen.

TOP MENU

Press

Disc menu

Disc menus include playback data (angle menu, subtitle menu, etc.) specific to each title.

Press

Access the DVD menu.

TOP MENU

Press

to access the top menu.

to access the disc menu.

Start playback.

rt w e

Press

●

It may be possible to select the desired item using the

keys

depending on the menu display.

to select a desired title, then press

ENTER

number

NOTE:

When “X” appears on the TV screen in step1, the disc does not have a top menu or disc menu.

Locating the start point of the item or skip the item

Press 2 or 6 during playback.

●

Pressing 6 locates the start point of the item or skips the item for forward direction, then resumes playback.

●

Pressing 2 locates the start point of the item or skips the item for reverse direction, then resumes playback.

When a DVD-RAM/RW/R disc is played

Current programme

News

Reverse Forward

Example:

To locate the beginning of the next item, press 6 once. To locate the beginning of the current item, press 2 once. To locate the beginning of the previous item, press 2 three times.

When a DVD VIDEO, Audio CD or Video CD disc is played

programme

●

Drama

: marked points (

Playback point

programme

墌

pg. 32)

Movie

High-Speed Search

During playback, press 5 for forward high-speed search, or 3 for reverse high-speed search.

●

Each press of the button increases the search speed for each direction.

●

To resume normal playback, press 4.

During playback, press and hold 6 for 2 or more seconds for forward high-speed search, or press and hold

for 2 or more seconds for reverse high-speed search.

●

Releasing the button resumes normal playback.

Still Picture/Frame-By-Frame Playback

Pause during playback.

Press 9.

Activate frame-by-frame playback.

Press 9.

●

Each press of 9 advances the still picture frame by frame.

Press we.

●

Each press of we advances/reverses the still picture frame by frame.

●

Frame-by-frame playback for reverse direction cannot be performed with Video CD discs.

●

To resume normal playback, press 4.

Scene 2

(Chapter 2)

Tra c k 2

Reverse Forward

Example:

To locate the beginning of the next item, press 6 once. To locate the beginning of the current item, press 2 once.

Scene 3

(Chapter 3)

Track 3

Scene 4

(Chapter 4)

Track 4

Slow Motion

While paused, press 3 or 5.

●

Each press of 3 or 5 increases the slow motion speed for each direction (from 1/16 to 1/2 times the normal speed).

●

Slow motion for reverse direction cannot be performed with Video CD discs.

Press 2 or 6 for 2 or more seconds.

Skip Search

During playback, press .

●

Each press initiates an approximately 30-second period of fastmotion playback. Normal playback resumes automatically.

PLAYBACK OPERATIONS (cont.)

Marking positions to play again later

It is possible to mark positions (up to 999 points) where you want to play back once again later, and start playback from a marked position. Marking onto DVD-RAM/RW/R discs when recording is helpful to locate a start point when you play back the discs later.

Mark positions.

During playback, press MARK at positions you want to mark.

● “MARK” appears on the TV screen. You can easily locate the marked positions using

or 6 when you play

back the disc.

Delete the marked positions.

While paused, press 2 or

to locate a marked

position you want to delete, then press MARK.

● Crossed “MARK” appears on the TV screen, and the marked position is deleted.

Resume Function

It is possible to memorise the position where you stop playback and resume playback from that position.

Memorise a resume point.

Press 8 during playback.

● The unit enters Resume Stop mode and memorises the position where you have stopped playback as a resume point. (The inside of the disc status indicator on the front display panel blinks while memorising.)

● To clear the resume points: (The inside of the disc status indicator stops blinking and lights.)

•Press 1 to turn off the unit.

•Press x to take out the disc.

•Press 8 in stop mode.

•Press TOP MENU to display the top menu, then start

playback by selecting an item, etc.

•Press MENU to display the disc menu, then start playback by

selecting an item, etc.

Resume playback.

Press 4 in stop mode. The unit starts playback from the resume point.

NOTES:

● When a monaural programme or bilingual programme changes to a stereo programme while recording, a mark signal is automatically recorded.

● When a DVD-R/RW (Video mode) disc is finalised, marked points marked before finalising will be deleted, and programmes will be divided automatically into “chapters” approximately every 5 minutes. (

pg. 107, “Finalise a disc”)

墌

Checking the disc remaining time

You can change the counter display on the front display panel and TV screen to check disc remaining time (only discs before finalising).

During playback

Each press of DISPLAY changes the display as follows: Clock time (front display panel only) ] Current title elapsed time ] Disc remaining time ] (back to the beginning)

● Clock time is displayed only when a recordable disc is played.

In stop mode or during playback

● It is possible to check disc remaining time according to recording modes also by pressing REMAIN.

● In FR mode, it is possible to set recording time in detail using

. (

pg. 53, “Free Rate Function”)

墌

● It is not possible to switch the recording mode during playback

or while recording.

Switching Time Indication

(When 3 subtitle languages

are contained.)

(When 3 audio languages are

contained.)

You can check time information of an audio CD and a Video CD on the front display panel and the TV screen. Each press of DISPLAY changes the time indication as follows:

During playback

Current track elapsed time ] Current track remaining time ] Total elapsed time ] Total remaining time ] (back to the beginning)

In stop mode

0:00 ] Playback time of track 1 ] 0:00 ] Total length of a disc ] (back to the beginning)

NOTE:

When a PBC-compatible Video CD disc is loaded, deactivate the PBC function. (

墌

pg. 34)

Angle Selection

You can enjoy a variety of scene angles if a DVD VIDEO disc contains “multi-angle” parts, where the same scene was shot from different angles. If the disc contains “multi-angle” parts, “ ” appears on the TV screen at the beginning of the “multi-angle” part.

Access Angle display.

Press ANGLE during playback.

●

The angle selection display appears on the TV screen.

Access Subtitle display.

Press SUBTITLE during playback.

●

The subtitle selection display appears on the TV screen.

●

Each time you press SUBTITLE, the subtitle display is switched on and off.

Select the subtitle language.

Press we to select your desired language.

●

To clear the subtitle selection display, press ENTER.

NOTES:

●

When “X” appears on the TV screen, no subtitle language is recorded.

●

When the subtitle language won’t be changed with the procedure above, change the subtitle on a disc menu displayed by pressing MENU.

Audio Language/Sound Selection

Some DVD VIDEO discs contain the multiple audio language or sound. You can select the desired audio language or sound. For some Video CD discs, you can switch the audio channel to choose Karaoke either with or without the vocal.

Access Audio Language/Sound selection display.

Press AUDIO during playback.

(When 3 scene angles are

contained.)

Select the angle.

Press ANGLE or we to select your desired angle.

●

Each time you press ANGLE or we, the angle changes.

●

When “X” appears on the TV screen, the current scene is not recorded from multiple angles. In addition, some discs prohibit angle selection.

●

To clear the angle selection display, press ENTER. In addition, the angle selection display disappears automatically if no operation is done for 10 seconds.

Subtitle Selection

Some DVD VIDEO discs contain more than one subtitle language, from among which you can choose the desired subtitle language. “ ” appears on the TV screen at the beginning of the part where more than one subtitle language are recorded.

Select the audio language/sound.

Each time you press AUDIO or we, the audio language/ sound changes.

●

To clear the Audio Language/Sound selection display, press ENTER.

NOTES:

●

When “X” appears on the TV screen, no audio language is recorded.

●

When the audio language won’t be changed with the procedure above, change the audio on a disc menu displayed by pressing MENU.

●

It is only possible to select the audio language in stop mode. The audio language cannot be selected during playback.

PLAYBACK OPERATIONS (cont.)

NOTE:

It is not possible for DVD-R/DVD-RW (Video mode) disc playback to switch the audio channel. The audio channel is played back as set in “AUDIO REC” (

When you can’t switch the audio channel of a bilingual programme

When the unit is connected with a digital audio device using an optional optical cable and “DIGITAL AUDIO OUT” is set to “DOLBY DIGITAL/PCM”, it is not possible to switch the audio channel of a bilingual programme recorded on a DVD-RAM or DVD-RW (VR mode) disc. ( case, perform the following steps using the remote control to switch “DIGITAL AUDIO OUT” from “DOLBY DIGITAL/ PCM” to “PCM ONLY”.

A Press SET UP to access the Main Menu screen. B Press we to select “DVD SET UP”, then press ENTER. C Press we to select “AUDIO OUTPUT”, then press

ENTER.

D Press rt to select “DIGITAL AUDIO OUT”, then press

ENTER.

E Press rt to select “PCM ONLY”, then press ENTER.

(

pg. 93)

墌

F Press SET UP to complete the setting. G Press AUDIO to select the desired audio channel.

墌

pg. 94).

墌

pg. 91) In this

Playback Control (PBC) Function

Audio Channel Selection

When watching bilingual programmes or playing discs on which you recorded bilingual or stereo programmes, you can choose the desired audio channel.

● When “SUPERIMPOSE” is set to “AUTO” or “ON”, you can confirm on the TV screen the audio channel you have chosen. (

pg. 95)

墌

● Each time you press AUDIO , the audio channel changes.

TRACK

On-Screen

Display

For main and sub audio of bilingual programme

For main audio of bilingual programme

For sub audio of bilingual programme

For stereo discs

For audio of left channel

USE

— Locating a desired scene using the menu of a Video CD with PBC

Some Video CD discs support the PBC function. PBC is an abbreviation of “Play Back Control”. A Video CD disc recorded with PBC has its own menus, such as a list of the songs on the disc. You can locate a specific scene by using the menu.

Access the PBC menu.

In stop mode

Press 4.

Start playback.

Press the number keys to enter the number of the desired scene.

● The unit starts playback of the selected item. “PBC” appears on the front display panel.

● When “NEXT” or “PREVIOUS” appears on the TV screen: Pressing 6 advances to the next page. Pressing 2 returns to the previous page.

● You can return to the menu by pressing RETURN.

● The method of the operation is different depending on the

disc.

NOTES:

● If you want to playback a PBC-compatible Video CD disc without activating the PBC function, start playback in stop mode by using the number keys, instead of the 4 button, to choose the track, then press ENTER.

● To activate the PBC function when a PBC-compatible Video CD disc is being played back without the PBC function, press TOP MENU, or press 8 then press 4.

For audio of right channel

Live Memory Playback

This unit records pictures onto DVD-RAM discs, instead of video tapes, then plays back the pictures recorded on the discs. This makes it possible to achieve high-speed writing and read-out that has not been possible with conventional VCRs, enabling recording and playback simultaneously.

High-speed spin

(High-speed writing)

It is called “Live Memory Playback” to start playback of the programme being recorded, with a time-lag between a recording point and a playback point, as shown in the figure below.

Recording start point

Recording

Image figure of DVD-RAM disc

Current playback point

(Live Memory Playback)

Current recording position

Playback (High-speed read-out)

(Recording point)

Recording/playback status display

Live Memory Playback status can be checked by pressing

DISPLAY

meter on the superimpose display.

to display the bar

Playback continues

0 30 min. 1 hour

Currently elapsed recording time

Not only can this unit play back a programme previously recorded while recording or timer recording another programme, but the unit also allows you to play back from the beginning of a programme while continuing to record the same programme.

Recording continues

Press screen.

DISPLAY

Bar meter display

. The current status is superimposed on the TV

Superimpose display

PLAYBACK OPERATIONS (cont.)

Overview of Live Memory Playback

You can play back a programme you are recording from the beginning while continuing to record or timer record onto a DVD-RAM disc. This is called “Live Memory Playback”.

(Recording screen) (Live Memory Playback screen)

To start Live Memory Playback,

press 4 to play back from the

beginning OR press to

reverse-skip a little

To stop Live Memory

Playback, press 8

To stop recording,

press 8

Recording stops

Press NAVIGATION to display

Library Database DVD Navi

menu, then choose a

programme to play back.

Pressing LIVE CHECK during

Live Memory Playback allows

you to check the picture

currently being recorded.

To clear, press

LIVE CHECK

To stop Live Memory

Playback, press 8

Checking the

picture currently

being recorded

(Playback and Live Check screen)

Live Memory Playback


Recording

To display, press

LIVE CHECK


NOTES:

● Live Memory Playback cannot be performed for approximately 30 seconds after recording has started.

● Although high-speed search up to approximately 30 seconds before the current recording point is possible during Live Memory Playback, once the current recording point is reached, the unit resumes normal playback and maintains a delay of approximately 30 seconds so that recording and playback can continue.

● When using Live Memory Playback during timer recording, playback continues even after the end of the recording.

● When using Live Memory Playback during timer recording, playback is automatically stopped just before recording starts, and then recording starts when the time arrives for the next timer-programme.

● It is impossible to perform ITR even if you press 7 during Live Memory Playback. ( (ITR)”) Press 8 to display the programme being recorded, then perform ITR settings.

● Playback may be paused for a moment during Live Memory Playback, which does not interfere with recording.

● Live Memory Playback cannot be performed while recording the source from DV input.

● When LIVE CHECK is pressed to display the picture currently being recorded, the picture size may not be correct.

pg. 52, “Instant Timer Recording

墌

Display during Live Memory Playback

During recording, you can watch at your will what was previously recorded or is currently being recorded. It is possible to perform freely normal playback operations (forward/reverse high-speed search and variable-speed search) within the range of the red or blue bar on the TV screen. When Live Memory Playback reaches the point of 30 seconds before the current recording point by forward high-speed search or other operations, the unit returns to normal playback.

The superimpose display appears by pressing DISPLAY. ( The Live Check picture is displayed on the bottom right corner by pressing LIVE CHECK.

Playback counter

Live Memory Playback mark

Playback title number

Disc used

Tit l e name

Bar meter (see below)

This unit displays the current recording/playback status by the bar meter.

(Example of bar meter display)

Recorded

While stopped

During playback

While recording

pg. 14)

墌

Capacity of a disc

Total length of the programme being played back

Current playback position

Capacity of a disc

Remaining capacity when recording started

Recording mode

Recording title number

Recording counter display (remaining/elapsed time)

Present time

Recording channel Station name

Playback mark

Recording mark

Live Check picture

Recording mark

Not recorded

Current recording position

Live Memory Playback

Live Memory Playback of

another programme

Capacity of a disc

Recording start position

Capacity of a disc

Recording start position

Current playback position

Total length of the programme being played back

Blue (recorded part)

Red (recording part)

Current playback position

Current recording position

Green (playing part)

Grey (unrecorded or unplayed part)

Buttons to be used during Live Memory Playback

PLAYBACK OPERATIONS (cont.)

Available

buttons

LIVE CHECK

Functions

●

Pressing once skips forward to the beginning of the next chapter being played back.

●

Pressing down for 2 or more seconds during playback advances playback at 5 times the normal speed while pressed. Releasing the button resumes normal playback.

Available only when paused

●

Pressing down for 2 or more seconds advances playback at 1/16 times the normal speed.

●

Pressing once skips back to the beginning of the chapter being played back.

●

Pressing down for 2 or more seconds during playback reverses playback at 5 times the normal speed while pressed. Releasing the button resumes normal playback.

Available only when paused

●

Pressing down for 2 or more seconds reverses playback at 1/16 times the normal speed.

●

Each press of the button during playback advances the playback speed in 4 steps for forward direction.

Available only when paused

●

Pressing once advances playback by 1/16 times the normal speed.

●

Each press of the button during forward 1/ 16 times slow-motion advances slowmotion by 1/16 times, 1/4 times and 1/2 times the normal speed.

●

Each press of the button during playback advances the playback speed in 5 steps for reverse direction.

Available only when paused

●

Pressing once reverses playback by 1/16 times the normal speed.

●

Each press of the button during reverse 1/16 times slow-motion reverses slow-motion by 1/16 times, 1/4 times and 1/2 times the normal speed.

Pressing once pauses playback (still picture playback). Pressing repeatedly advances the still picture frame by frame.

Available only when paused

●

Advances/reverses the still picture frame by frame.

Stops Live Memory Playback to return to the screen being recorded. Then a resume point is stored. Pressing 8 again stops recording.

Pressing once skips forward for approximately 30 seconds and resumes playback. Pressing repeatedly skips forward continuously as many times as pressed. It is useful when skipping over unwanted sections.

Pressing once skips back for approximately 7 seconds and resumes playback. Pressing repeatedly skips back continuously as many times as pressed. It is useful when watching sports programmes, etc.

Pressing once displays the picture currently being recorded and the one being played back simultaneously. Pressing successively clears the Live Check window and displays only the picture currently being played back. You can check, for example, if the programme you are recording has already finished.

●

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

TV/CABLE/SAT/DVD

switch to

DVD

To play back from the beginning of the programme while recording

You can play back a programme you are recording from the beginning while continuing to record or timer record onto a DVD-RAM disc.

Start Live Memory Playback.

Press 4.

●

Playback starts from the beginning of the programme being recorded.

●

Pressing 2/6 allows you to locate the desired scenes.

To move back the playback position slightly while recording (One Touch Replay function)

You can move back the playback position while continuing to record or timer record onto a DVD-RAM disc.

Start One Touch Replay function.

Press .

●

Each press skips back for approximately 7 seconds and resumes playback.

●

Pressing while paused skips back for approximately 7 seconds and resumes pause.

To watch a programme previously recorded while recording

You can play back a programme you recorded previously while recording.

Start Live Memory Playback.

Press 4 while recording to establish Live Memory Playback mode.

Locate the beginning of the desired programme.

Press 2 or 6.

NOTE:

To stop playback, press 8. The programme being recorded is displayed.

Using Play Set Up

PLAYBACK OPERATIONS (cont.)

How to Access Play Set Up Menu

PLAY SET UP

Press

whenever a disc is loaded.

Play Set Up Menu allows you to control various playback functions. Some of the functions operated on Navigation Menu can be controlled on Set Up Menu.

Before using Play Set Up Menu

Be sure to clear Library Database DVD Navi screen by

NAVIGATION

pressing

Contents of Play Set Up Menu during playback

DVD VIDEO

Video CD

JPEG disc

Disc type.

Select this for Repeat Playback. (

Select this for A-B repeat Playback. (墌pg. 42)

Select this for search function. (

Select this for time search function. (墌pg. 45)

Select this to switch Simulated Surround Effect

墌

pg. 45)

pg. 46)

function. (

Select this for Picture Control function. (

Select this to switch picture source type. (

Current status area for the selected item.

Select this for Programme Playback. (

Select this for Random Playback. (墌pg. 43)

Select this to control the switching interval of the slide show. (

墌

pg. 42)

pg. 44)

墌

pg. 46)

墌

pg. 43)

pg. 46)

NOTE:

Although examples of Play Set Up Menu are provided here only for 3 types of discs, Play Set Up Menu will be displayed for whichever disc indicated in the left column.

Basic operation on Play Set Up Menu

Example: When selecting Picture Control function of DVD

During playback or while stopped

Access Play Set Up Menu.

PLAY SET UP

Press

●

The item currently selected is highlighted and pointed by

Select the menu item.

Press we to select “ ”, then press

●

The pop-up window appears under the selected item.

Select the option.

Press rt to select the desired option, then press

ENTER

To clear Play Set Up Menu

PLAY SET UP

Press

NOTE:

See the corresponding pages for details on each menu item.

PLAYBACK OPERATIONS (cont.)

Repeat Playback

You can repeat playback as you like according to the type of disc.

Access Play Set Up Menu.

PLAY SET UP

Press

Select the menu item.

Press we to select “ ”, then press

●

The pop-up window appears under the selected item.

Select the repeat mode.

Press rt repeatedly to select the desired Repeat mode, then press

DVD-RAM/RW/R

OFF ALL REPEAT

TITLE REPEAT:

DVD VIDEO

OFF TITLE REPEAT

CHAPTER REPEAT:

Audio CD/Video CD/JPEG/MP3

OFF

ALL REPEAT

TRACK REPEAT*:

* “TRACK REPEAT” cannot be selected for JPEG discs.

To clear Play Set Up Menu

Press

To cancel Repeat Playback

Repeat the above procedure from step 1, select “OFF” in step 3, then press

ENTER

: Repeat playback is not performed.

PLAY SET UP

NOTES:

●

Repeat Playback is not possible for a Video CD with PBC function.

●

Repeat Playback may not work properly depending on the type of the disc being used.

ENTER

Repeat playback is not performed.

: The whole disc is played back

repeatedly. The current title is played back

repeatedly.

: The current title is played back

repeatedly. The current chapter is played back

repeatedly.

Repeat playback is not performed. The whole disc is played back

repeatedly. The current track is played back

repeatedly.

ENTER

A-B Repeat Playback

You can repeat the desired part.

During playback

Access Play Set Up Menu.

PLAY SET UP

Press

Select the menu item.

Press we to select “ ”.

Locate the start point.

ENTER

Press want to repeat (point A).

●

The elapsed playing time of the point A appears

Locate the end point and start A-B Repeat Playback.

ENTER

Press repeat (point B).

●

The elapsed playing time of the point B appears.

●

The selected part of the disc (between point A and B) is played repeatedly.

To clear Play Set Up Menu

PLAY SET UP

Press

To cancel A-B Repeat Playback

Press we to select “ ”, then press

NOTES:

●

A-B Repeat Playback may not work properly depending on the type of disc being used.

●

The subtitles recorded around the A-B point may not appear.

●

When the end of the item is reached before the end point is set, Play Set Up Menu disappears from the TV screen. In such a case, repeat the procedure from step 1.

●

The point B must be set at least 3 seconds after the point A.

●

When playing back a DVD, A-B Repeat Playback is possible only within the same title.

●

“ ” cannot be selected during Programme and Random Playback.

●

“ ” cannot be selected while stopped.

at the beginning of the desired part you

at the end of the desired part you want to

ENTER

Random Playback

You can play back all the tracks on the disc in random order.

While stopped

Access Play Set Up Menu.

PLAY SET UP

Press

Select the menu item.

Select the tracks in the desired order.

number keys

Use

(1–9, 0) to enter the track numbers.

Press we to select “RND”, then press

●

Playback starts in random order.

To clear Play Set Up Menu

PLAY SET UP

Press

To cancel Random Playback

Perform steps 1 and 2.

ENTER

NOTE:

The same track will not be played back more than once during Random Playback.

Programme Playback

You can play back up to 30 tracks in the desired order.

While stopped

Access Play Set Up Menu.

PLAY SET UP

Press

Select the menu item.

Press we to select “PRGM”, then press

●

The programme table appears under Play Set Up Menu.

ENTER

Examples:

●

To select track 5, press the

●

To select track 15, press the

●

To select track 25, press the

If you have specified a wrong selection

Press &. The last selection is erased. Or press 8. The whole selection is erased.

Start playback.

Press 4. Playback starts in the programmed order.

●

When all of the programmed tracks have been played back, Programme Playback stops, but the programmed information remains.

●

To add tracks to the end of the programme, perform steps 1 through 3.

●

During Programme Playback, pressing 6 skips to the next selection of the programme. Pressing 2 returns to the beginning of the current selection.

To clear Play Set Up Menu

PLAY SET UP

Press

To cancel Programme Playback

Press we to select “PRGM”, then press

number key “5”

number key “1” number key “2”

and

and and

ENTER

“5” “5”

. . .

NOTE:

Programme Playback is not possible depending on the type of disc.

PLAYBACK OPERATIONS (cont.)

Locating the beginning of a desired selection

You can locate the beginning of a title, chapter, group or track.

During playback or while stopped

Access Play Set Up Menu.

Press

PLAY SET UP

Select the menu item.

Press we to select “ ”, then press

Select the desired item.

For DVD-RAM/RW/R, DVD VIDEO

“TITLE SEARCH” or “CHAPTER SEARCH” is selectable. (“TITLE SEARCH” only is selectable while stopped.)

For JPEG, MP3

“GROUP SEARCH” or “TRACK SEARCH” is selectable.

For Video CD, Audio CD

“TRACK” is selectable.

Press rt to select the desired item, then press

● Skip this step for Video CD and Audio CD.

Specify the number of the selected item.

Press

number keys

number, then press

● Playback starts from the selected section.

ENTER

(1–9, 0) to enter the desired item

ENTER

Examples:

To select track 5, press the To select track 15, press the To select track 25, press

If you have specified a wrong selection

Press & or 8 to clear the wrong number, then enter the correct one before you press

To clear Play Set Up Menu

Press

PLAY SET UP

number key “5”

number key “1”

number key “2”

in this step.

ENTER

and

, then

“5”

NOTES:

● When “X” is displayed on the TV screen in step4, the chapter you have selected is not contained in the disc, or chapter search does not work on the disc.

● Before you press when you enter the section’s number depending on the disc.

● This function is not possible for a Video CD with PBC function.

, playback may start automatically

ENTER

Time Search

You can play back a disc from the desired point by specifying the elapsed playing time from the beginning of a title (DVD-RAM, DVD-R, DVD-RW and DVD VIDEO) or a disc (Video CD and Audio CD).

Access Play Set Up Menu.

Press

PLAY SET UP

Select the menu item.

Press we to select “ ”, then press

● The pop-up window appears under the selected item.

Enter the time.

Use

number keys

ENTER

● Playback starts from the specified time.

Example: To play back from a point 12 (minutes): 50 (seconds) elapsed.

ENTER

(1–9, 0) to enter the time, then press

Press 1 Press 2

Simulated Surround Effect

It is possible to get a simulated surround effect from your stereo system. You can enjoy the virtual surround sound with your 2-channel stereo system.

Access Play Set Up Menu.

Press

PLAY SET UP

Select the menu item.

Press we to select “ ”, then press

● Above the selected item, “3D-ON” appears and Simulated Surround Effect is activated.

● Each time you press alternately.

To cancel the simulated surround effect

Press

ENTER

NOTES:

● The simulated surround effect works correctly only when playing back a title recorded in multichannels.

● Simulated Surround Effect does not affect the DVD VIDEO bitstream signal from the “DIGITAL AUDIO OUT” connector.

● When Simulated Surround Effect is activated, the settings of “ANALOG AUDIO OUT” and “D. RANGE CONTROL” are disabled. (

墌

ENTER

, “3D-ON” appears and disappears

ENTER

to clear “3D-ON” from the screen.

pg. 93)

Press 0Press 5

If you have specified a wrong selection,

Press & (for the last entered number) or 8 (for whole numbers) to clear the wrong number, then enter the correct one(s) before you press

To clear Play Set Up Menu

Press

PLAY SET UP

ENTER

in this step.

NOTES:

● When “X” is displayed on the TV screen in step3, you have selected a point that excesses the recording time of the disc.

● Some DVD VIDEO discs do not contain time information, and it is not possible to use the Time Search function. In such cases, “X” is displayed on the TV screen as well.

● This function is not possible for a Video CD with PBC function.

PLAYBACK OPERATIONS (cont.)

Adjusting the picture quality

You can obtain optimal picture quality by selecting an appropriate picture mode.

Access Play Set Up Menu.

PLAY SET UP

Press

Select the menu item.

Press we to select “ ”, then press

●

The pop-up window appears under the selected item.

Select the desired option.

Press rt to select the desired option, then press

NORMAL CINEMA SHARP

SOFT:

: Normally select this option.

: Suitable for a movie disc, etc.

: Clearer, sharper-edged picture when viewing

ENTER

images with lots of flat, same-coloured surfaces such as cartoons.

Select this option when too much noise appears.

Select the switching interval of the slide show

Setting the progressive mode

You can obtain optimal picture quality by selecting whether the content on the disc is processed by field (video source) or by frame (film source).

Access Play Set Up Menu.

PLAY SET UP

Press

Select the menu item.

Press we to select “ ”, then press

●

The pop-up window appears under the selected item.

Select the desired option.

Press rt to select the desired option, then press

AUTO 1

: Used to play a disc containing both video

AUTO 2

: Almost the same as the “AUTO 1”, but the

FILM

: Suitable for playing back a progressive

VIDEO:

ENTER

and film source materials. This system recognizes the source type (video or film) of the current disc according to the disc information. Normally select this option.

processing of the scenes with movement is different. Select “AUTO 1” or “AUTO 2” to your preference.

scanned film source disc. Suitable for playing back a video source disc.

The outlines on the played back pictures will be soft.

ENTER

You can control the switching interval of the slide show.

Access Play Set Up Menu.

PLAY SET UP

Press

Select the menu item.

Press we to select “ ”, then press

●

The pop-up window appears under the selected item.

Select the desired option.

Press rt to select the desired option, then press

●

Each time you press rt, the interval changes as follows:

5 SEC. { 10 SEC. { 15 SEC. { 20 SEC. { 25 SEC. { 30 SEC. { (Back to the beginning)

ENTER

NOTE:

When the progressive mode is set, be sure to set “L-1 OUTPUT” to “COMPONENT”. ( Setting (L-1 OUTPUT and L-1 INPUT)”) Progressive scan is output only from COMPONENT VIDEO OUT connector.

墌

pg. 82, “L-1 Output and L-1 Input

Parental Lock

This function restricts playback of DVD VIDEO discs which contain violent (and other) scenes according to the level set by the user. For example, if a movie which includes violent scenes supports the parental lock feature, such scenes which you do not want to let children view can be cut or replaced by other scenes.

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

●

TV/CABLE/SAT/DVD

switch to

DVD

Access the “PARENTAL LOCK” screen.

Press we to select

“UTILITY”, then press

ENTER

Press rt to select

“PARENTAL LOCK”, then press

Select the desired level.

Press rt repeatedly to

select “PARENTAL LEVEL”, then press Press rt repeatedly to

select the desired level, then press

● The smaller the value of level is, the more restrictive the Parental Lock level becomes.

● Select “NONE” to cancel the restriction.

Enter your password.

Press the enter your desired four-digit number, then press

● If you made a mistake, enter a correct number again.

ENTER

number keys

ENTER

To set Parental Lock for the first time

While stopped

Access the “DVD SET UP” screen.

Press

Press we to select “DVD SET UP”, then press

SET UP

ENTER

Select your country code.

Press rt repeatedly to

select “COUNTRY CODE”, then press

ENTER

Press rt repeatedly to

select your country code, then press

● If you do not need to change your country code, jump to G.

● See “Country/Area Code List for Parental Lock” (

Enter your password.

Press the stepD above, then press

Press

● The normal screen resumes.

number keys

Complete the setting.

SET UP

ENTER

twice.

pg. 49).

墌

to enter the same password as in

ENTER

NOTE:

Remember your password, or make a note of it.

PLAYBACK OPERATIONS (cont.)

To change the settings

You can change the Parental lock settings later.

Perform steps A to B of “To set Parental Lock for the first time” on page 47 to access the “PARENTAL LOCK” screen before continuing.

Change the level.

Press rt repeatedly to select “PARENTAL LEVEL”, then press

Press rt repeatedly to select the desired level, then press

Press rt repeatedly to select “COUNTRY CODE”, then press

Press rt repeatedly to select your country code, then press

●

See “Country/Area Code List for Parental Lock” (

Press the step D of “To set Parental Lock for the first time”, then

ENTER

press

ENTER

Change the country code.

ENTER

Enter your password.

number keys

to enter the same password as in

墌

pg. 49).

To temporarily release Parental Lock

When you set the parental lock level strictly, some discs may not be played back at all. When you insert such a disc and try to play it back, the confirmation screen appears on the TV screen, asking you whether you want Parental Lock to be temporarily released or not.

Access the password screen.

Place the disc on the disc tray.

●

If the disc is rated higher than the selected level, the confirmation screen appears.

Press we to select “YES”, then press

●

If you select “NO”, you cannot play back that disc.

Enter your password.

Press the stepD of “To set Parental Lock for the first time”, then press

●

number keys

ENTER

When you enter the correct password, the Parental Lock is released and the unit starts playback. If you enter a wrong password, “ENTRY ERROR RETRY” appears on the TV screen. Enter the correct password. If you have successively entered wrong password three times, “ENTRY ERROR CAN NOT CHANGE PASSWORD” appears on the TV screen. In such a case, press stop. Then play the disc again, and try the procedure again from stepA.

to enter the same password as in

ENTER

. The disc will

Complete the setting.

SET UP

Press

●

The normal screen resumes.

twice.

NOTE:

If you forget your password, enter “8888” in stepC.

NOTE:

If you forget your password, enter “8888” in stepB.

Country/Area Code List for Parental Lock

AD AE AF AG AI AL AM AN AO AQ AR AS AT AU AW AZ BA BB BD BE BF BG BH BI BJ BM BN BO BR BS BT BV BW BY BZ CA CC CF CG CH CI CK CL CM CN CO CR CU CV CX CY CZ DE DJ DK DM DO DZ EC EE EG EH ER

Andorra United Arab Emirates Afghanistan Antigua and Barbuda Anguilla Albania Armenia Netherlands Antilles Angola Antarctica Argentina American Samoa Austria Australia Aruba Azerbaijan Bosnia and Herzegovina Barbados Bangladesh Belgium Burkina Faso Bulgaria Bahrain Burundi Benin Bermuda Brunei Darussalam Bolivia Brazil Bahamas Bhutan Bouvet Island Botswana Belarus Belize Canada Cocos (Keeling) Islands Central African Republic Congo Switzerland Côte d’Ivoire Cook Islands Chile Cameroon China Colombia Costa Rica Cuba Cape Verde Christmas Island Cyprus Czech Republic Germany Djibouti Denmark Dominica Dominican Republic Algeria Ecuador Estonia Egypt Western Sahara Eritrea

ES ET FI FJ FK FM FO FR FX GA GB GD GE GF GH GI GL GM GN GP GQ GR GS GT GU GW GY HK HM HN HR HT HU ID IE IL IN IO IQ IR IS IT JM JO JP KE KG KH KI KM KN KP KR KW KY KZ LA LB

Spain Ethiopia Finland Fiji Falkland Islands (Malvinas) Micronesia (Federated States of) Faroe Islands France France, Metropolitan Gabon United Kingdom Grenada Georgia French Guiana Ghana Gibraltar Greenland Gambia Guinea Guadeloupe Equatorial Guinea Greece South Georgia and the South Sandwich Islands Guatemala Guam Guinea-Bissau Guyana Hong Kong Heard Island and McDonald Islands Honduras Croatia Haiti Hungary Indonesia Ireland Israel India British Indian Ocean Territory Iraq Iran (Islamic Republic of) Iceland Italy Jamaica Jordan Japan Kenya Kyrgyzstan Cambodia Kiribati Comoros Saint Kitts and Nevis Korea, Democratic People’s Republic of Korea, Republic of Kuwait Cayman Islands Kazakhstan Lao People’s Democratic Republic Lebanon

PLAYBACK OPERATIONS (cont.)

LC LI LK LR LS LT LU LV LY MA MC MD MG MH ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ NA NC NE NF NG NI NL NO NP NR NU NZ OM PA PE PF PG PH PK PL PM PN PR PT PW PY QA RE RO RU RW

Saint Lucia Liechtenstein Sri Lanka Liberia Lesotho Lithuania Luxembourg Latvia Libyan Arab Jamahiriya Morocco Monaco Moldova, Republic of Madagascar Marshall Islands Mali Myanmar Mongolia Macau Northern Mariana Islands Martinique Mauritania Montserrat Malta Mauritius Maldives Malawi Mexico Malaysia Mozambique Namibia New Caledonia Niger Norfolk Island Nigeria Nicaragua Netherlands Norway Nepal Nauru Niue New Zealand Oman Pa na ma Peru French Polynesia Papua New Guinea Philippines Pa ki st a n Poland Saint Pierre and Miquelon Pitcairn Puerto Rico Portu gal Pa la u Pa ra gu ay Qatar Réunion Romania Russian Federation Rwanda

SA SB SC SD SE SG SH SI SJ SK SL SM SN SO SR ST SV SY SZ TC TD TF TG TH TJ TK TM TN TO TP TR TT TV TW TZ UA UG UM US UY UZ VA VC VE VG VI VN VU WF WS YE YT YU ZA ZM ZR ZW

Saudi Arabia Solomon Islands Seychelles Sudan Sweden Singapore Saint Helena Slovenia Svalbard and Jan Mayen Slovakia Sierra Leone San Marino Senegal Somalia Suriname Sao Tome and Principe El Salvador Syrian Arab Republic Swaziland Turks and Caicos Islands Chad French Southern Territories To g o Thailand Tajikistan Tokelau Tu r km e n is t a n Tu n is i a To n ga East Timor Tu r ke y Trinidad and Tobago Tu va l u Taiwan, Province of China Tanzania, United Republic of Ukraine Uganda United States Minor Outlying Islands United States Uruguay Uzbekistan Vatican City State (Holy See) Saint Vincent and the Grenadines Ven ezuela Virgin Islands (British) Virgin Islands (U.S.) Viet Nam Vanuatu Wallis and Futuna Islands Samoa Ye m e n Mayotte Yu g o s l a v i a South Africa Zambia Zaire Zimbabwe

RECORDING

Basic Recording

●

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

TV/CABLE/SAT/DVD

switch to

DVD

Set the recording speed.

REC MODE

Press speed appears.

●

Each time you press as follows: XP ] SP ] LP ] EP ] FR60–FR360* ] (Back to the beginning)

* The value is selectable from 1 to 6 hours in 5-min. increment by

pressing the value in 30-min. increments, press and hold

●

For details on the recording speed, see page 52.

repeatedly until the desired recording

REC MODE

repeatedly after selecting “FR60–FR360”. To change

, the recording speed changes

TTENTION:

It is not possible to record programmes on a DVD-R disc which has already been finalised.

Start recording.

Press and hold 7, then press 4 on the remote control, or press 7 on the unit.

Pause recording.

Press 9.

●

To resume recording, press 4.

Stop recording.

Press 8. It takes about 10 seconds to end the writing session when you stop recording.

NOTES:

●

It is recommended to format a DVD-RAM disc before use if you use the disc on this unit for the first time.

●

When using a brand-new DVD-RW disc, format the disc either in VR mode or in Video mode. ( DVD-RW disc”)

●

You can record up to 99 programmes and 999 play lists on each disc.

●

Some programmes can only be recorded one time.

●

When recording is started, an index of the first part of recording is automatically recorded ( Database DVD Navi”). To record a satellite programmes, refer to page 63. To delete the index, refer to page 69.

●

Recording sometimes may stop or cannot be performed even if there is enough available capacity remaining on the disc.

墌

pg. 106, “Format a

墌

pg. 64, “Library

A B

●

For details, refer to “Placing a Disc” (

Press you wish to record.

Load a disc.

Press x to open the disc tray. Place a recordable disc on the disc tray.

Press x to close the disc tray.

墌

pg. 9).

Choose a programme.

PR +/–

or the

number keys

to select the channel

Recording Resume Function

If there is a power outage during recording, Instant Timer Recording (ITR) (

56), the recording will resume automatically when power is restored to the unit unless the unit’s memory backup has expired.

墌

pg. 52) or timer recording (墌pg. 54,

Recording Features

RECORDING (cont.)

Instant Timer Recording (ITR)

This easy method lets you record for from 30 minutes to 6 hours (selectable in 30-min. increments), and shuts the unit off after recording is finished.

Start recording.

Press 7 on the unit.

Engage the ITR mode.

Press 7 again. On the front display panel, “0:30” appears.

Set the recording duration.

If you want to record for more than 30 minutes, press 7 to extend the time. Each press extends recording time by 30 minutes.

NOTES:

● You can only perform ITR using the 7 button on the unit’s front panel.

● If “DIRECT REC” is set to “ON” in the menu, Instant Timer Recording (ITR) function does not work. (

墌

pg. 94)

Watch Another Programme While Recording on the Unit

While recording is going on, you can watch another programme on the TV by using the TV’s tuner. It is required that the remote control is set to be able to operate the TV in advance. (

pg. 86, “TV Multi-Brand Remote Control”)

墌

Recording Speed

MPEG2 format is used as recording format. As a guide for picture quality, the “bps” unit is used to represent how much data can be recorded per second. The larger this value is, the better the picture quality becomes but more capacity is required for the recording. Select XP or SP for programmes where quick movement occurs, such as sports programmes, and LP or EP for talk shows, etc. with relatively less movement. The recording speeds for a 4.7 GB disc are set as follows:

Recording

speed

XP 10 Mbps 1 hour

SP 5 Mbps 2 hours

LP 2 Mbps 4 hours

EP 1.6 Mbps 6 hours

FR60–FR360

(

pg. 53)

墌

Recording amount

(approx.)

The amount varies depending on the selected time.

Maximum recording

time (approx.)

6 hours

Switch the TV to TV mode.

During recording, press (

● Video mode is disengaged and the video indicator on the unit is turned off.

● The programme received on the TV’s tuner is displayed on the TV screen.

Switch the remote control to TV control mode.

Slide the

Press

TV/CABLE/SAT/DVD

Select the desired channel.

repeatedly.

PR +/–

) to select TV mode.

VIDEO

switch to TV.

NOTE:

If a decoder is connected to the unit (墌pg. 90), you can select a scrambled channel as well as other normal channels.

Elapsed Recording Time and Disc Remaining Time Indication

During recording, press desired indication appears on the front display panel.

● Each time you press follows:

Elapsed recording time ] Disc remaining time ] Clock ] (Back to the beginning)

● There is another way to check the disc remaining time. While the unit is stopped or recording is in progress, press The list of disc remaining times for all recording speeds appears on the TV screen.

DISPLAY

repeatedly until the

, the time indication changes as

REMAIN

Free Rate Function

To record the entire programme, the unit automatically set the appropriate recording speed depending on the combination of the total time of the programme to be recorded and either the remaining disc space or the specified recording time (from 60 minutes to 360 minutes).

To record the entire programme within the actual remaining disc space

Select “FR (JUST)” in a recording speed selection procedure. (

pg. 55, 57)

墌

●

Note that this function is available only for timer programming recording.

To record the entire programme by specifying the desired recording time

Select “FR60–FR360” in a recording speed selection procedure. (

pg. 51, 55, 57)

墌

To record a 25-min. long daily programme five times just on a same disc for example

Perform “S procedure. Be sure to set the recording speed to “FR125” and set Weekly/Daily Rec Function to “MON–FRI” in step E to fit the total recording time to the whole disc space.

When the same programme is recorded in SP mode instead of in “FR125”, the 5th programme cannot be recorded.

HOWVIEW

Timer Programming” (墌pg. 54)

Blank

A:1st B: 2nd C:3rd

D:4th E: 5th

NOTES:

●

You can programme this unit to timer-record, regardless of the disc remaining time. When the disc remaining time is not enough, recording may stop in the middle of a programme. To avoid this, make sure of the disc remaining time before setting timer-programming.

(Example)

●

The maximum recording time of FR (JUST) mode is the same as the recording time of EP mode. When timer-programming a long programme in FR (JUST) mode on a disc whose remaining time is short, it is recommended checking the disc remaining time in EP mode to see if the remaining time is enough for the programme.

●

Even if more than one programme are timer-programmed in FR (JUST) mode, only the first one is recorded.

●

In order to ensure that the recording fits on the disc, this feature may leave a slight non-recorded section at the end of the disc.

●

There may be some noise and sound disturbance at the point on the disc where the unit switches the mode.

If you programmed to timer-record for 60 minutes in SP mode on a 120-minute disc, the disc remaining time would be 30 minutes in XP mode, 60 minutes in SP mode, 120 minutes in LP mode, and 180 minutes in EP mode. Timer-recording will not complete beyond these remaining times.

Receiving Stereo and Bilingual Programmes

Your unit is equipped with a Sound-Multiplex decoder (A2) and a Digital stereo sound decoder (NICAM) making reception of stereo and bilingual broadcasts possible. When the channel is changed, the type of broadcast being received will be displayed on the TV screen for a few seconds.

Type of Broadcast Being Received

On-screen Display

Blank

A:1st B: 2nd C:3rd

D:4th E: Blank

(20 min.)

A2 Stereo A2 Bilingual Regular Monaural NICAM Stereo NICAM Bilingual NICAM Monaural

NOTES:

●

“SUPERIMPOSE” must be set to “ON” or “AUTO”. Otherwise the on-screen displays will not appear. (

●

If the quality of stereo sound being received is poor, the broadcast might be received in monaural with better quality.

墌

pg. 95)

Selection of the audio channel to be recorded on a disc

When a programme is recorded on a DVD-RAM or DVD-RW disc in VR mode, all audio channels of the receiving programme are recorded on the disc. When you record a programme on a DVD-R or DVD-RW disc in video mode, select the desired audio channel (from among “NICAM 1/MAIN”, “NICAM 2/SUB”, “MONO”) to be recorded on the disc. (

NOTE:

Before playing back a programme recorded in stereo, or a bilingual programme, refer to “Audio Channel Selection” on page 34.

墌

pg. 94)

TIMER RECORDING

HOWVIEW

Timer

Programming

You can programme this unit to timer-record as many as 8 programmes. With the S simplified because each TV programme has a corresponding code number which your unit is able to recognize. You can use the remote control to enter the S

HOWVIEW

Before performing the S Programming:

●

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

●

Make sure that the unit’s built-in clock is set properly.

system, timer programming is greatly

HOWVIEW

TV/CABLE/SAT/DVD

Tim e r

switch to

HOWVIEW

DVD

number.

Load a disc.

Press x to open the disc tray.

Place a recordable disc on the disc tray.

●

For details, refer to “Placing a Disc” (

Press x to close the disc tray.

Access the S

SHOWVIEW

Press

Enter the S

Press the enter the S of a programme you wish to record, then press

●

number keys

HOWVIEW

If you have made a mistake, press & and input the correct number before you press

ENTER

To clear all entered numbers at a time, press 8. If the number you entered is invalid, “SHOWVIEW NO. ERROR CONFIRM SHOWVIEW NO. THEN RETRY” appears on the TV screen. Input a valid S If “GUIDE PROGRAMME IS NOT SET SELECT CHANNEL YOU WANT TO RECORD” appears on the TV screen, set Guide Program Numbers ( When “PROGRAMME FULL DELETE UNWANTED TIMER PROGRAMME” appears on the TV screen, you need to cancel some of the reserved programmes. (

HOWVIEW

number

ENTER

墌

pg. 9).

screen.

number.

墌

number.

pg. 61)

HOWVIEW

pg. 97) manually.

Check the programme data.

The S

HOWVIEW

timer-recording information are displayed on the TV screen. Check if they are correct.

●

To cancel this setting, press

number you entered and the matching

SHOWVIEW

RETURN

IMPORTANT:

Make sure the channel position number you wish to record is displayed; if not, see “S and set the Guide Program number correctly.

HOWVIEW

System Setup” on page 97

Set the following recording options as

required.

Press we to select the desired option.

Press rt to select the desired setting, then press

ENTER

“REC MODE” ( “Free Rate Function”), “VPS/PDC” ( Recording”), “DAILY/WEEKLY” ( Rec Function”), “NAME” ( Name”), and “STOP” (To advance/go back the stop time by 30 minutes, press and hold rt).

ENTER

Press

ENTER

Press

●

To programme another timer, repeat steps B–G.

●

If “PROGRAM OVERLAPPED” appears on the TV screen, see “When programmes overlap each other” (

Press # ( “#” appears on the front display panel.

●

To disengage the timer mode, press # (

墌

pg. 52, “Recording Speed”) (墌pg. 53,

墌

pg. 57, “VPS/PDC

墌

pg. 55, “Daily/Weekly

pg. 68, “Modify Programme

Access the confirmation screen.

Complete timer programming.

墌

Engage the unit’s timer mode.

TIMER

). The unit turns off automatically and

TIMER

pg. 62).

) again.

NOTES:

●

There may be cases that S recording function prolongs the stop time of the programming.

●

When two successive programmes are recorded on a DVD-RW disc with S function, the beginning of the second one may be left off the recording.

●

HOWVIEW

used exclusively for On-Disc Timer Programming.

●

If the copy limited programme is received during timer-recording, the unit enters Record Pause mode. Recording starts again if it is switched to a recordable broadcast during the time you programmed.

Satellite Receiver Users

To timer-record a satellite broadcast using the S system:

A B

Daily/Weekly Rec Function

You can record programmes with one of the following weekly/ daily timer settings.

WEEKLY

MON–FRI

MON–SAT

SUN–SAT

Timer Programming is not possible on the discs

Perform “Satellite Receiver Control Setting” on page 26. Perform “S cannot set “VPS/PDC” to “ON”. Leave the satellite receiver’s power on.

HOWVIEW

Select to record a weekly programme. Select to record a daily programme from

Monday through Friday. Select to record a daily programme from

Monday through Saturday. Select to record a daily programme from

Sunday through Saturday.

HOWVIEW

Timer Programming”. In stepE, you

programming timer

programming timer recording

HOWVIEW

Manual Timer Programming

You can programme this unit to timer-record as many as 8 programmes. If you do not know the S you wish to record, use the following procedure to set your unit to timer-record the programme.

Before performing Manual Timer Programming:

●

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

●

Make sure that the unit’s built-in clock is set properly.

TV/CABLE/SAT/DVD

HOWVIEW

number for the programme

switch to

DVD

TIMER RECORDING (cont.)

Load a disc.

Press x to open the disc tray.

Place a recordable disc on the disc tray.

●

For details, refer to “Placing a Disc” (

Press x to close the disc tray.

Access Programme Check screen.

PROG/CHECK

Press

●

When “PROGRAMME FULL DELETE UNWANTED TIMER PROGRAMME” appears on the TV screen, you need to cancel some of the reserved programmes. (

Access the programme screen.

Press rt repeatedly to select “NEW TIMER PROGRAMME”, then press

ENTER

墌

pg. 61)

墌

pg. 9).

Enter the recording date.

Press rt repeatedly to set the desired date.

●

The current date appears on the TV screen. The date you enter appears in its place.

Enter the recording start time.

Press we to select “START”, then press rt repeatedly to set the desired start time.

●

Each press of rt advances/goes back the start time in 1-min. increments.

●

To advance/go back the start time in 30-min. increments, press and hold rt.

Enter the recording stop time.

Press we to select “STOP”, then press rt repeatedly to set the desired stop time.

●

Each press of rt advances/goes back the stop time in 1-min. increments.

●

To advance/go back the stop time in 30-min. increments, press and hold rt.

Enter the channel position.

Press we to select “TV PROG”, then press rt repeatedly to select the desired channel.

Set the other recording options as required.

Refer to stepE in “S

墌

pg. 54).

(

Access the confirmation screen.

ENTER

Press

●

To programme another timer, repeat steps B–J.

Press # ( “#” appears on the front display panel.

●

To disengage the timer mode, press # (

Complete timer programming.

ENTER

Engage the unit’s timer mode.

TIMER

HOWVIEW

). The unit turns off automatically and

Timer Programming”

TIMER

) again.

NOTES:

●

When two successive programmes are recorded on a DVD-RW disc with Manual timer programming recording function, the beginning of the second one may be left off the recording.

●

If the copy limited programme is received during timerrecording, the unit enters Record Pause mode. Recording starts again if it is switched to a recordable broadcast during the time you programmed.

Satellite Receiver Users

To timer-record a satellite broadcast using Manual Timer Programming:

Perform “Satellite Receiver Control Setting” on page 26.

Perform “Manual Timer Programming”. In stepG, press

AUX

to change “TV PROG” to “SAT”. Then press rt to enter the channel position for the satellite broadcast. In stepH, you cannot set “VPS/PDC” to “ON”. Leave the satellite receiver’s power on.

VPS/PDC Recording

Now available from some TV stations, PDC (Programme Delivery Control) and VPS (Video Programme System) are services designed to assure safe, accurate timer recording. With this system, special code signals are transmitted together with the audio/video signals. These code signals control your video unit and have precedence over the advertised times you may have preset into the timer. This means that your unit will start and stop recording when the preset TV programmes actually start and end — even if the broadcast time of a preset TV programme is changed.

NOTES:

●

When you use Manual Timer Programming, set the start time (VPS or PDC time) exactly as advertised in the TV listing. A different time than advertised will result in no recording.

●

VPS/PDC recording is also possible when a satellite receiver or a cable system is connected to L-2 IN/ DECODER connector on your unit.

●

VPS/PDC recording is also possible via the L-1 IN/OUT connector.

How to check if the station being received transmits a VPS/PDC signal

Hold down

appears blinking on the front display panel. If a VPS/PDC signal is detected from the station, “VPS/PDC” will stop blinking. If no VPS/PDC signal is detected from the station, “VPS/PDC” will blink at a slower rate. Press

DISPLAY

for about 5 seconds. “VPS/PDC”

again to return to normal display.

On-Disc Timer

TIMER RECORDING (cont.)

To make the disc for On-Disc Timer Programming

Programming

On-Disc Timer Programming is a function used with discs that are especially intended for a specific programme. The disc is then programmed for a programme you always watch every day or every week. Since older programs are automatically overwritten, a single DVD-RAM/RW (VR mode) disc can be used without worrying about how much recording capacity remains. (

pg. 60, “How discs are overwritten”)

墌

You can programme each disc to timer-record as many as 8 programmes.

Before performing On-Disc Timer Programming:

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

●

Make sure that the unit’s built-in clock is set properly.

●

TV/CABLE/SAT/DVD

TTENTION:

●

On-Disc Timer Programming is possible only with the disc for On-Disc Timer Programming.

●

If data is recorded on a disc for On-Disc Timer Programming using a unit from another manufacturer, OnDisc Timer Programming may no longer function properly.

switch to

DVD

Load a disc.

Press x to open the disc tray.

Place a recordable disc on the disc tray.

●

For details, refer to “Placing a Disc” (

Press x to close the disc tray.

Access Programme Check screen.

Press

PROG/CHECK

Access the programme screen.

When On-Disc Timer Programming is made for the first time on the disc

Press rt repeatedly to select “DISC TIMER PRGM”, then press

●

When some programmes are recorded on the disc, a caution message appears. In such a case, backup the programmes as required, then format the disc before making On-Disc Timer Programming. (

When On-Disc Timer Programming has already been made on the disc

Press rt repeatedly to select “NEW TIMER PROGRAMME”, then press

Press rt repeatedly to set the desired date.

●

The current date appears on the TV screen. The date you enter appears in its place.

ENTER

Enter the recording date.

pg. 106, “Format a disc”)

墌

ENTER

墌

pg. 9).

Enter the recording start time.

Press we to select “START”, then press rt repeatedly to set the desired start time.

●

Each press of rt advances/goes back the start time in 1-min. increments.

●

To advance/go back the start time in 30-min. increments, press and hold rt.

Enter the recording stop time.

Press we to select “STOP”, then press rt repeatedly to set the desired stop time.

● Each press of rt advances/goes back the stop time in 1-min. increments.

● To advance/go back the stop time in 30-min. increments, press and hold rt.

Enter the channel position.

Press we to select “TV PROG”, then press rt repeatedly to select the desired channel.

Set “DAILY/WEEKLY” option.

Refer to stepE in “S

pg. 54).

(

墌

● It is necessary to set “DAILY/WEEKLY” option for On-Disc

Timer Programming. ( Function”)

Set the other recording options as required.

Refer to stepE in “S

pg. 54).

(

墌

Access the confirmation screen.

Press

● To programme another timer, repeat steps B–K.

Satellite Receiver Users

To timer-record a satellite broadcast using the On-Disc Timer Programming function:

Perform “Satellite Receiver Control Setting” on page 26.

Perform “On-Disc Timer Programming”. In stepI, you

cannot set “VPS/PDC” to “ON”. Leave the satellite receiver’s power on.

ENTER

Complete timer programming.

ENTER

HOWVIEW

墌

HOWVIEW

Timer Programming”

pg. 55, “Daily/Weekly Rec

Timer Programming”

To timer-record the programme with the programmed disc

Load the disc.

Press x to open the disc tray.

Place the programmed disc on the disc tray.

● For details, refer to “Placing a Disc” (

Press x to close the disc tray.

Engage the unit’s timer mode.

Press

DVD 1

on the front display panel.

● To disengage the timer mode, press

. The unit turns off and “ ” appears

NOTES:

● Even if On-Disc Timer Programming is overlapping with other timer programming, any caution message does not appear. In such a case, recording will be executed in the descending order of the recording start time of the programme.

● On-Disc Timer Programming is not possible on a DVD-RW disc formatted in video mode. ( DVD-RW disc”)

● The information of a programme recorded with On-Disc Timer Programming is not stored in the library. (

● The play list is not created for the programmes recorded with On-Disc Timer Programming. (

● S

HOWVIEW

used exclusively for On-Disc Timer Programming.

● Manual Timer Programming is not possible on the On-Disc Timer Programmed disc. (

● Basic Recording is not possible on the On-Disc Timer Programmed disc. (

● The On-Disc Timer Programming function does not work on the unit form other manufactures even if the On-Disc Timer Programmed disc is loaded.

● The beginning of a programme may not be recorded. Also, if the 1st programme’s recording stop time and the 2nd programme’s recording start time is the same, the ending of the 1st programme may not be recorded.

● If there is a power cut while recording, the recordings before the power cut are not guaranteed.

Timer Programming is not possible on the discs

墌

pg. 51)

墌

pg. 56)

pg. 9).

墌

again.

pg. 74)

DVD

pg. 106, “Format a

pg. 70)

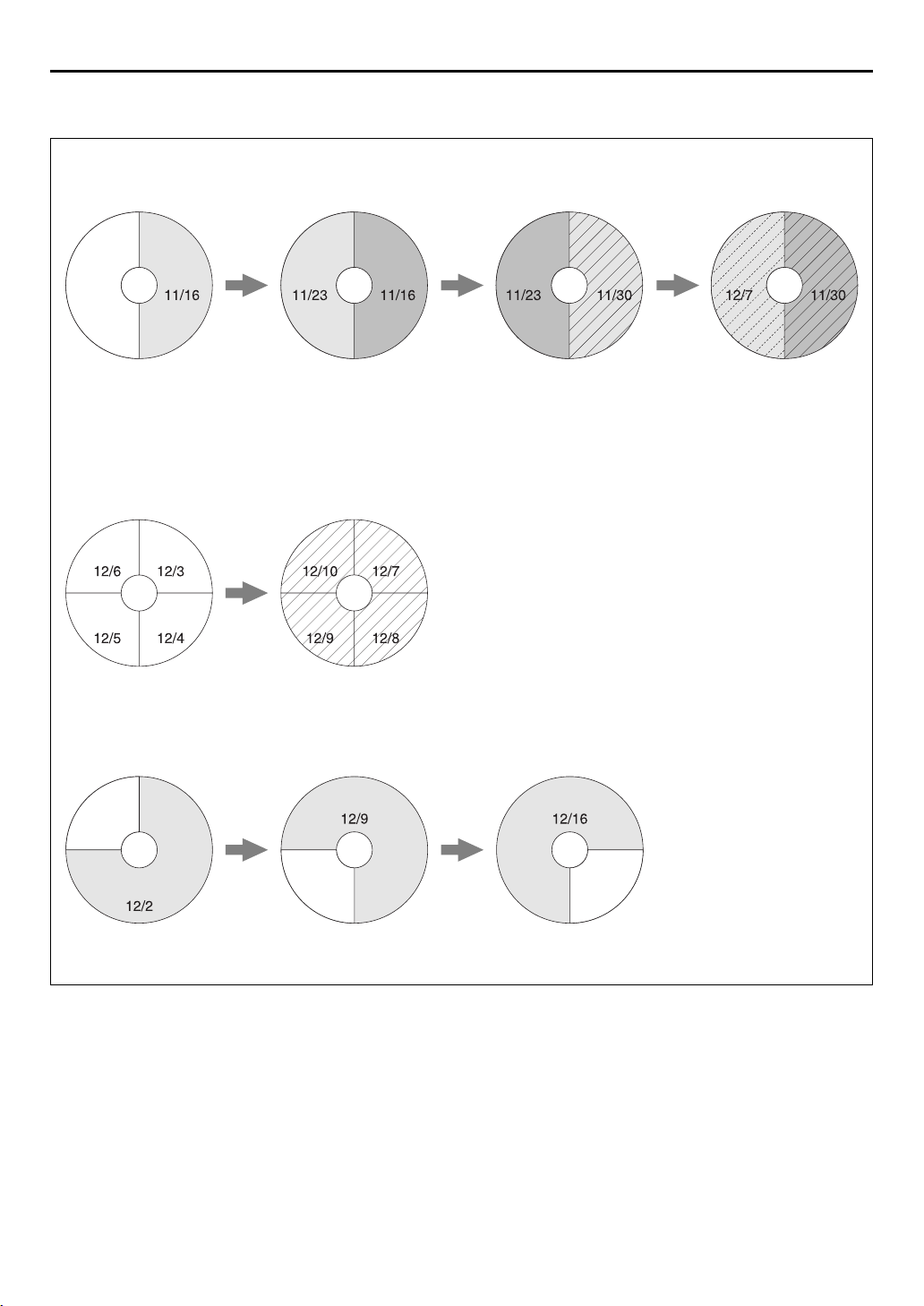

How discs are overwritten

(Example 1) To record a 1-hour serial drama every Friday in SP mode

TIMER RECORDING (cont.)

Blank

(Example 2) To record a 15-minute serial drama every morning in XP mode

4th 5th

(Example 3) To record a 90-minute serial drama every Sunday in SP mode

1st 2nd 1st 2nd 3rd 4th 3rd

1st

2nd3rd

8th

6th7th

Overwritten

The first programme is overwritten by the third.

Overwritten

The second programme is overwritten by the forth.

Blank

1st

Areas treated as blank cannot be played back even if they contain recorded material.

2nd 3rd

Blank Blank

NOTES:

● On-Disc Timer Programming may not always work as these examples.

● On-Disc Timer Programming may not complete successfully if the recording stop time is extended due to VPS/PDC.

Access the programme screen.

Press rt to select the programme, then press

Change a programme.

Change the settings of the desired recording options as required.

● Refer to steps D–I in “Manual Timer Programming” (

pg. 56).

墌

Complete timer correction.

Press

PROG/CHECK

● The previous screen resumes.

Engage the unit’s timer mode.

HOWVIEW

For S

Press # (

For On-Disc Timer Programming

Press

For Automatic Satellite Programme recording

Press

TIMER

DVD 1

on the unit for 2 seconds or more.

SAT#

or Manual Timer Programming

ENTER

Check, cancel and change programmes

Disengage the timer mode.

When “#” lights on the front display panel

Press # (

When “ ” lights on the front display panel

Press

DVD 1

When “SAT#” lights on the front display panel

Press

SAT#

Access Programme Check screen.

Press

PROG/CHECK

● To return to the previous screen after you check the programme, press

CHECK

To cancel the programme

Press rt repeatedly to select a programme to be cancelled, then press &.

), then press

TIMER

on the unit, then press

again.

PROG/

DVD 1

Programme’s information on the front display panel

You can check the details of the programmes even when the power is turned off. (It is necessary that the Power Save mode (

pg. 95, “POWER SAVE”) is disengaged or the unit is not

墌

in timer standby mode.) However, it is not possible to cancel or change the programme’s setting. A Press

● “NEW PROG” or “P-1” (if 8 programmes have already

B Press rt repeatedly until the desired programme

C Press e.

● Each time you press e, the indication changes as follows

Date (“DATE 08.03SU”) ] Start time (“ON 11:00”) ] Stop time (“OFF 11:30”) ] Channel (“PR 1”) ] Weekly/Daily (“MO-FR DAILY”) ] Programme number (“P-1”) and Recording speed (SP) ] (Back to the beginning) D Press

● The normal display resumes.

PROG/CHECK

been set) appears.

number (“P-1” to “P-8”) appears, then press

(the settings in parentheses are examples):

PROG/CHECK

to complete checking.

ENTER

TIMER RECORDING (cont.)

When programmes overlap each other

If “PROGRAM OVERLAPPED” appears, you have another programme overlapping the programme you have just made. Confirm with the arrow on “OK”, then press Programme Check screen appears and conflicting programmes will be highlighted in pink.

Example: Programme 3 (you have just made) and Programme 4 overlap each other.

Confirm the overlapping programmes.

Overlapping programmes appear on the TV screen.

PROG/CHECK

NOTE:

If you do not mind this overlap, press the timer programme setting. The programme with the lower programme number will be recorded and the other one will not be recorded correctly. If no changes are made for approximately 1 minute, the unit will return to the normal screen.

PROG/CHECK

to finish

Select the desired programme to be cancelled

or changed.

Press rt.

To cancel the programme

Press &.

● “THE TIMER PROGRAMMING SETTING WAS CANCELLED” appears on the TV screen for about 5 seconds, then the normal screen resumes.

To change the programme setting

Press

● Refer to steps D–J in “Manual Timer Programming” (

墌

Press

● Programme check screen appears.

● Refer to stepF in “Check, cancel and change programmes” (

墌

ENTER

Change the programme setting.

pg. 56).

Check if the conflict has been settled.

PROG/CHECK

Engage the unit’s timer mode.

pg. 61).

NOTE:

When any overlaps remain after deletion and modification of programmes, Programme Check screen remains showing the conflicting programmes. In such a case, repeat the procedure above until the conflict is solved.

Automatic Satellite

Programme Recording

TTENTION:

●

Be sure not to turn on the satellite receiver before the programme is executed; otherwise, the unit will start recording when the satellite receiver’s power is turned on.

●

If you have connected another appliance other than a satellite receiver to the L-2 IN/DECODER connector, be sure not to engage the Automatic Satellite Programme Recording mode; otherwise, the unit will start recording when the connected appliance’s power is turned on.

●

Automatic Satellite Programme Recording and timer-recording cannot be done at the same time.

This function allows you to automatically record a satellite programme which is timer-programmed on your external satellite receiver. Connect a satellite receiver to the unit’s L-2 IN/DECODER connector and programme the timer on the satellite receiver. When the signals come into the unit from the satellite receiver, the unit automatically turns on and starts recording.

Before performing the following steps:

●

Make sure the satellite receiver is connected to the unit’s L-2 IN/DECODER connector. (

●

Programme the timer on the satellite receiver.

●

Slide the

Set “L-2 SELECT” to “SAT VIDEO” or “SAT S-VIDEO”

墌

(

pg. 83, “L-2 Select Setting (L-2 SELECT)”).

●

Also refer to “IMPORTANT” on page 88.

Press

TV/CABLE/SAT/DVD

Select the L-2 SELECT mode.

Set the recording speed.

REC MODE

Engage the Automatic Satellite Programme

墌

pg. 88, 89)

switch to TV.

Recording mode.

Press and hold appears on the front display panel and the unit turns off automatically.

SAT

for about 2 seconds. “SAT#”

NOTES:

●

To disengage the Automatic Satellite Programme Recording mode, press

●

If the unit’s power is off, it is not possible to engage the Automatic Satellite Programme Recording mode.

●

In stepC, if “SAT#” blinks quickly on the front display panel even though your satellite receiver’s power is off, Automatic Satellite Programme Recording will not work properly with that satellite receiver*. If this is the case, perform “Manual Timer Programming”

墌

(

pg. 56) to timer-record a satellite programme.

* Some satellite receivers output signals even if the power is off. Automatic Satellite Programme Recording is not possible with those satellite receivers.

●

“SAT#” blinks on the front display panel while Automatic Satellite Programme Recording is in progress.

●

For timer programming of the satellite receiver, refer to the instruction manual of the satellite receiver.

●

Automatic Satellite Programme Recording is not possible if your satellite receiver does not have a timer.

●

Pressing the unit’s 1 button while Automatic Satellite Programme Recording is in progress turns off the unit’s power and disengages the Automatic Satellite Programme Recording mode.

●

If there are more than one satellite programmes you wish to record with Automatic Satellite Programme Recording, it is not possible to set different recording speeds for each programme.

●

Depending on the type of satellite receiver, the unit may not record a slight portion of the beginning of the programme or may record slightly longer than the actual length of the programme.

●

If you engage the Automatic Satellite Programme Recording mode when the satellite receiver’s power is on, the unit will not start Automatic Satellite Programme Recording even though “SAT#” blinks on the front display panel. When the satellite receiver shuts off once and is turned back on again, the unit starts recording.

●

You can also record a programme from your cable system in the same way if the system has a timer.

●

Just Clock (

●

When the Automatic Satellite Programme Recording mode is engaged, or the unit’s power is turned off after Automatic Satellite Programme Recording is finished, the unit will not enter the Timer mode even though “AUTO TIMER” is set to “ON” (

墌

pg. 104) does not work when the Automatic Satellite Programme Recording mode is engaged.

SAT

墌

pg. 96).

The Library Database DVD Navi enables you to search and select the desired programmes recorded on a DVD-RAM/R/RW

Library Database DVD Navi

The following screen appears as the Library Database DVD Navi screen when you press NAVIGATION. You can move the arrow to select the desired position on the screen by pressing rt w e on the remote control.

(VR) disc very easily. You can record up to 99 programmes on a disc. Each time a programme is recorded on the disc, the information of the programme is registered for the Library Database DVD Navi automatically. So, you can confirm the information of the programmes recorded on the disc with the Library Database DVD Navi screen. And, you can also select one of the programmes recorded on the disc using the Library Database DVD Navi.

Index

(Small still picture of each programme) Names of functions

ORIGINAL ( PLAY LIST ( LIBRARY ( Remaining time

(Based on the recording speed currently selected) Current/Total number of programme(s)

(For example, there are 6 recorded programmes and the programme indicated by the arrow is the 3rd one.) Icons

(Indicate the recording situation for each programme.) Recording information for the programme indicated by

the arrow Guidance for operations

Operational commands

墌

pg. 67)

墌

pg. 70)

pg. 74)

NAVIGATION

The Icons and their meanings

This programme is write-protected.

This programme has stereo sounds.

This programme has bilingual sounds.

This programme was recorded with timer recording.

Using Library Database DVD Navi system, you can easily modify registered information, edit the programme or play list, as well as search for the beginning of each programme.

About registration of information

The following information is automatically registered for each programme when ordinary recording or timer recording is performed, then stored in an area specified on the unit.

● index* (reduced still pictures to show programme titles)

● programme title*

● category*

● date and time

● channel

● recording speed

● length of recording time

The items marked with an asterisk (*) can be easily modified and registered again after recording by using Library Database DVD Navi system.

About editing of programmes

Library Database DVD Navi system has the following functions for editing of programmes.

● “Modify Original Information” (

● “Delete programme” (

The limitations of registration

You can register information up to 99 programmes. When the amount of information is at the limits of registration, you cannot record new programme any more. In this case, you need to delete old programmes to register new one. ( “Delete programme”)

墌

pg. 69)

墌

pg. 67)

墌

pg. 69,

NOTES:

● The Library Database DVD Navi screen is not displayed once a DVD-R/RW (Video mode) disc has been finalised. The DVD menu appears instead.

● On the other hand, the Library Database DVD Navi screen is displayed even if a DVD-RW (VR mode) disc has been finalised.

The display for original recording

The display for play list

The display for library

DVD menu

NAVIGATION (cont.)

Scan for Beginning(s) of Programme(s)

●

Turn on the TV and select the AV mode.

●

Slide the

TV/CABLE/SAT/DVD

switch to

DVD

You can scan the beginning of the programme easily with the Library Database DVD Navi.

Turn on the unit.

DVD

Press

Press x to open the disc tray.

Place a recorded disc on the disc tray.

●

For details, refer to “Placing a Disc” (

Press x to close the disc tray.

Press Library Database DVD Navi screen appears.

Press the arrow to “ORIGINAL”, then press

Press we to move the arrow on the index (small still pictures) of the desired programme.

●

When you want the plural programmes to be played back continuously, press

MEMO

desired programme. The numbers of the playback order appear on the index. You can select up to 30 programmes.

●

When you want to correct the order, move the arrow on the desired index and press the unit re-numbers the other programmes automatically.

●

When you want to cancel the order, press 8.

Load a disc.

Access the Index screen.

NAVIGATION

rt w e

ENTER

. The

to move

Select the programme(s).

after selecting the

MEMO

. The number disappears and

墌

pg. 9).

Start playback.

ENTER

Press

Press 9.

●

To resume normal playback, press 4.

Press 8.

. Or simply press 4. The playback starts.

Pause playback.

Stop playback.

Modify Original Information

Turn on the TV and select the AV mode.

●

Slide the

●

TV/CABLE/SAT/DVD

switch to

DVD

Modify Index

Turn on the unit.

Press

DVD 1

Press

screen appears. Press

then press

Press

rt w e

programme you want to modify, then press t.

Press

press Press we to move the arrow to “MODIFY INDEX”.

The “MODIFY INDEX” screen appears.

Access the Index screen.

NAVIGATION

rt w e

ENTER

. The Library Database DVD Navi

to move the arrow to “ORIGINAL”,

Select a programme.

to move the arrow to select one

Access the modify screen.

rt w e

ENTER

to move the arrow to “MODIFY”, then

Search for the picture

from the programme by pressing the appropriate buttons (3, 4, 5, or

). The pictures of the

programme appear on the left window.

Confirm the arrow is on “REPLACE”, then press

to register new index. New index appears on the right window.

● When you press return to the previous screen.

Return to the normal screen.

Press

NAVIGATION

● Press 8 to cancel pause mode after pressing

with the arrow on “RETURN” you can

ENTER

NAVIGATION

ENTER

NAVIGATION (cont.)

Modify Programme Name

Perform steps A to C of “Modify Index” ( continuing.

Access the modify screen.

Press

Press arrow to the desired letter or command, then press

ENTER

to complete the name.

● To correct a letter, press

● You can enter the letters up to 64.

● You can also enter the new name with

rt w e

press

ENTER

Press we to move the arrow to “MODIFY NAME”. The “MODIFY NAME” screen appears.

Enter new name.

rt w e

. Repeat this process

“DELETE” or “DELETE ALL”, then press

example, when you press 2 repeatedly, “A”, “B”, “C”, “a”, “b”, “c”, “2”, and then “A” appear by turns. You can use the following buttons.

Number keys

space

buttons:

button:

2/6

to move the arrow to “MODIFY”, then

to move the

rt w e

: for entering letters, numbers and blank

for moving the entering or inserting point

for correcting a letter

for changing character tables

buttons:

to move the arrow to

pg. 67) before

墌

ENTER

number keys

. For

Modify Category

Perform steps A to C of “Modify Index” (墌pg. 67) before continuing.

Access the modify screen.

Press

Press arrow to the desired category, then press

Press appears again.

Press

rt w e

press

ENTER

Press we to move the arrow to “MODIFY CATEGORY”. The “MODIFY CATEGORY” screen appears.

Select new category.

rt w e

ENTER

Return to the normal screen.

NAVIGATION

to move the arrow to “MODIFY”, then

to move the

ENTER

. The Library Database DVD Navi screen

Press press

rt w e

ENTER

to move the arrow to “UPDATE”, then

Return to the Library Database DVD Navi screen.

Press

rt w e

press

ENTER

appears again.

Press

NAVIGATION

to move the arrow to “RETURN”, then

. The Library Database DVD Navi screen

Return to the normal screen.

Protect title

You can protect the programme to prevent accidental erasure of the important programme.

Perform steps A to B of “Modify Index” (墌pg. 67) before continuing.

Select a programme.

Press

rt w e

want to protect, then press t.

Press we to move the arrow to “PROTECT”, then press

ENTER

● “ ” appears.

● To cancel the protection, repeat A–B again.

Press

NAVIGATION

NOTE:

All the programmes on a disc will be deleted once the disc is formatted even if they are protected titles. (

to move the arrow to a programme you

Protect the programme.

Return to the normal screen.

墌

pg. 106)

Delete programme

You cannot record any more with Library Database DVD Navi once the registered programmes on the disc reach 99 programmes. Deleting unnecessary programmes after dubbing

墌

(

pg. 81, “Edit To Or From Another Recorder”) or other operations can increase remaining time and available recording capacity. (For DVD-R discs, although it is possible to delete recorded programmes, available recording capacity does not increase.) The deleted programme is never resumed. Play lists and programme information in the unit’s library are also deleted.

Perform steps A to B of “Modify Index” ( continuing.

Select a programme.

Press we to move the arrow to select one programme you want to delete, then press t.

Access the delete screen.

rt w e

Press

ENTER

press

Press we to select “YES”, then press

●

When you cancel the deletion, select “NO”, then press

ENTER

NAVIGATION

Press

to move the arrow to “DELETE”, then

. The message appears for your confirmation.

Confirm the deletion.

Return to the normal screen.

墌

pg. 67) before

ENTER

Set edit-in and edit-out points.

Find the point where you want the deletion to begin, then press with the arrow on “IN”. The edit-in time is fixed and the elapsed playing time starts counting again.

Find the point where you want the deletion to end, then press out time is fixed.

●

Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out points.

Confirm the deletion.

●

To modify the points

Press

rt w e

Press

ENTER

press

rt w e

Press

ENTER

If you do not want to delete the scene, select “CLEAR” and press

The selected scene is deleted. To cancel the deletion, press we to select “NO”, then press

ENTER

Press we to select “YES”, then press

Press we to move the arrow to “CLEAR”, then press

ENTER

Repeat step C–E.

Return to the normal screen.

NAVIGATION

ENTER

with the arrow on “OUT”. The edit-

to move the arrow to “PREVIEW”, then

to preview the edited programme.

to select “EXECUTE”, then press

ENTER

Delete unwanted part of the programme

You can delete unwanted part of the programme.

Perform steps A to B of “Modify Index” ( continuing.

Select a programme.

Press we to move the arrow to select one programme whose unwanted part you want to delete, then press t.

Access the delete screen.

Press we to move the arrow to “EDITING”, then press

ENTER

Start playback.

Press 4 to start playback. The playback pictures appear in the window on the screen. The elapsed playing time starts counting with the arrow on “IN”.

墌

pg. 67) before

NOTES:

●

There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

●

Available recording capacity may not match the deleted part after deletion.

Modify Play List Information

●

Turn on the TV and select the AV mode.

●

Slide the

TV/CABLE/SAT/DVD

switch to

DVD

NAVIGATION (cont.)

Create Play List

Turn on the unit.

DVD

Press

Press x to open the disc tray.

Place a DVD-RAM or DVD-RW (VR mode) disc that

was recorded with this unit on the disc tray.

●

For details, refer to “Placing a Disc” (

Press x to close the disc tray.

Press screen appears.

Press then press t or

rt w e

Press

ENTER

press

Load a disc.

墌

Access the Play List screen.

NAVIGATION

rt w e

. The Library Database DVD Navi

to move the arrow to “PLAY LIST”,

ENTER

Create a play list.

to move the arrow to “CREATE”, then

pg. 9).

Play List

It is a collection of the scenes. A play list can be freely edited and played back without ever changing any original recording data. Using the random access of a DVD disc (which allows video data to be instantly read no matter where it is on the disc), a play list includes information such as the timer counter for the playback start point and end point, indexes for checking the contents of recorded data, category information, and more. Playback according to a play list you have created allows you to enjoy various combinations of video images from a single programme.

Start playback.

Press 4 to start playback. The playback pictures appear in the window on the screen. The elapsed playing time starts counting with the arrow on “IN”.

●

To locate the beginning of other titles, press 2/6.

Set edit-in and edit-out points.

Find the point where you want the created play list to begin, then press

ENTER

with the arrow on “IN”. The edit-in time is fixed and the elapsed playing time starts counting again.

Find the point where you want the created play list to end, then press edit-out time is fixed.

●

Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out points.

●

The edit-out point must come after the edit-in point.

Confirm the play list.

Press we to move the arrow to “PREVIEW”, then

ENTER

press

Press we to select “EXECUTE”, then press

●

The play list is created.

To modify the points

Press we to move the arrow to “CLEAR”, then press

ENTER

. Repeat step E–G.

ENTER

with the arrow on “OUT”. The

to preview the play list.

ENTER

Return to the normal screen.

NAVIGATION

Press

NOTES:

●

There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

●

The title, index and category of the play list can be modified in the same way as “ORIGINAL”. ( Information”)

●

You can modify the play list that has just been created here by adding, moving, or deleting unwanted parts to create a digest edition, etc.

墌

pg. 67, “Modify Original

Add scenes to a play list

Perform steps A to C of “Create Play List” ( continuing.

Select a play list.

Press we to move the arrow to the play list to which you wish to add a scene, then press t.

Access the Editing screen.

Press we to move the arrow to “EDITING”, then

ENTER

press

Press we to move the arrow to “ADD SCENE”.

Start playback.

Press 4 to start playback. The playback pictures appear in the window on the screen. The elapsed playing time starts counting with the arrow on “IN”.

●

To locate the beginning of other titles, press 2/6.

墌

pg. 70) before

Confirm the addition.

Press we to move the arrow to “PREVIEW”, then

ENTER

press before and after the edited scene.

Press we to select “EXECUTE”, then press

●

The selected scene is added.

To modify the points

Press we to move the arrow to “CLEAR”, then press

ENTER

Repeat step C–E.

Return to the normal screen.

NAVIGATION

Press

to preview approximately 5 seconds

ENTER

NOTE:

There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

Move scenes

Perform steps A to C of “Create Play List” (墌pg. 70) before continuing.

Select a play list.

Press we to move the arrow to a play list into which you wish to move a scene, then press t.

Access the Editing screen.

Press we to move the arrow to “EDITING”, then

ENTER

press

Press we to move the arrow to “MOVE SCENE”.

Set edit-in and edit-out points.

Find the point where you want the added scene to begin, then press edit-in time is fixed and the elapsed playing time starts counting again.

Find the point where you want the added scene to end, then press edit-out time is fixed.

●

Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out points.

ENTER

with the arrow on “IN”. The

ENTER

with the arrow on “OUT”. The

Start playback.

Press 4 to start playback. The playback pictures appear in the window on the screen. The elapsed playing time starts counting with the arrow on “IN”.

●

To locate the beginning of other titles, press 2/6.

NAVIGATION (cont.)

Set edit-in and edit-out points.

Find the point where you want the moved scene to

begin, then press edit-in time is fixed and the elapsed playing time starts counting again. Find the point where you want the moved scene to

end, then press edit-out time is fixed. Press 4 to start playback.

Find the point where you want the moved scene to be

moved, then press TO”.

● Press 3, 4, 5, 2, 6 or 9 to find the edit-in, edit- out and move-to points.

Confirm the move.

Press we to move the arrow to “PREVIEW”, then

press

ENTER

seconds before and after the point to which the scene has been moved. Press we to select “EXECUTE”, then press

● The selected scene is moved.

To modify the points

Press we to move the arrow to “CLEAR”, then press

Press

ENTER

Repeat step C–E.

Return to the normal screen.

NAVIGATION

ENTER

to preview the part approximately 5

with the arrow on “IN”. The

ENTER

with the arrow on “OUT”. The

with the arrow on “MOVE

ENTER

NOTE:

There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

Delete unwanted part from play list

Start playback.

Press 4 to start playback. The playback pictures appear in the window on the screen. The elapsed playing time starts counting with the arrow on “IN”.

● To locate the beginning of other titles, press 2/6.

Set edit-in and edit-out points.

Find the point where you want the deletion to begin,

then press time is fixed and the elapsed playing time starts counting again. Find the point where you want the deletion to end,

then press out time is fixed.

● Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out points.

Confirm the deletion.

Press we to move the arrow to “PREVIEW”, then

press

ENTER

seconds before and after the deleted part. Press we to select “EXECUTE”, then press

● The selected scene is deleted.

To modify the points

Press we to move the arrow to “CLEAR”, then press

Press

ENTER

Repeat steps C–E.

Return to the normal screen.

NAVIGATION

with the arrow on “IN”. The edit-in

ENTER

with the arrow on “OUT”. The edit-

ENTER

to preview the scene approximately 5

ENTER

NOTE:

There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

Perform ste ps A to C of “Create Play List” ( continuing.

Select a play list.

Press we to move the arrow to a play list from which you wish to delete unwanted parts, then press t.

Access the Editing screen.

Press we to move the

arrow to “EDITING”, then press Press we to move the

arrow to “DELETE SCENE”, then press

ENTER

pg. 70) before

墌

Play back play list

Perform steps A to C of “Create Play List” (墌pg. 70) before continuing.

Select the play list(s).

Press we to move the arrow on the index (small still pictures) of the desired play list.

●

When you want the plural play lists to be played back continuously, press after selecting the desired play lists. The numbers of the playback order appear on the index. You can select up to 30 play lists.

●

When you want to correct the order, move the arrow on the desired index and press the unit re-numbers the other play lists automatically.

●

When you want to cancel the order, press 8.

Start playback.

ENTER

Press

Pause playback.

Press 9.

●

To resume normal playback, press 4.

Stop playback.

Press 8.

MEMO

. The number disappears and

. Or simply press 4. The playback starts.

Delete play list

Perform steps A to C of “Create Play List” (墌pg. 70) before continuing.

Select a play list.

Press we to move the arrow to select one play list you want to delete, then press t.

Press we to move the arrow to “DELETE”, then press

ENTER

Confirm the deletion.

Press we to select “YES”, then press

●

When you cancel the deletion, select “NO”, then press

ENTER

Return to the normal screen.

NAVIGATION

Press

ENTER

NOTE:

Even if a play list is deleted, the programmes recorded on a DVD disc and the library information are not affected at all.

Modify Index

Perform steps A to C of “Create Play List” (

Perform steps C to F of “Modify Index” (

墌

pg. 70).

pg. 67).

Modify Programme Title

Perform steps A to C of “Create Play List” (

Perform steps A to E of “Modify Programme Name”

墌

pg. 68).

(

墌

pg. 70).

Modify Category

Perform steps A to C of “Create Play List” (

Perform steps A to D of “Modify Category” (墌pg. 68).

墌

pg. 70).

Modify Library Information

Programme information can be registered in the unit’s memory for up to 1,300 programmes. It is helpful when finding out on which disc the desired programme is recorded.

Turn on the TV and select the AV mode.

●

Slide the

●

TV/CABLE/SAT/DVD

switch to

DVD

NAVIGATION (cont.)

Scan for Programme from library

Turn on the unit.

Press

DVD 1

Press

screen appears. Press

press

Press we to move the arrow to the appropriate sort button to sort the information, then press

ENTER

“DISC No.” : Sort by disc number “CATEGORY” : Sort by category “DATE” : Sort by date “NAME” : Sort by name

● The sorting order can be switched between ascending order and descending order by pressing the sort buttons.

Access the library screen.

NAVIGATION

rt w e

ENTER

. The Library Database DVD Navi

to move the arrow to “LIBRARY”, then

Sort the information.

Select the programme(s).

Press we to move the arrow to select the desired programme, then press

● Playback begins automatically after the selected programme is located.

When the disc that contains the selected programme is not loaded

A screen prompting you to load the designated disc appears. Place the disc whose number is displayed on the screen after pressing Then perform steps B to D.

Return to the normal screen.

Press

NAVIGATION

ENTER

to close the prompt screen.

NOTE:

If a disc registered in the library is recorded or modified on DVD units from other manufacturers, it may become impossible to operate properly.

Register disc

Turn on the unit.

Press

DVD 1

Press x to open the disc tray.

Place a disc you want to register on the disc tray.

● For details, refer to “Placing a Disc” (

Press x to close the disc tray.

Press

screen appears. Press

press

Press we to move the arrow to “REGISTER”, then press

ENTER

Press we to select “REGISTER”, then press

Load a disc.

Access the library screen.

NAVIGATION

rt w e

ENTER

. The Library Database DVD Navi

to move the arrow to “LIBRARY”, then

Confirm the registration.

墌

pg. 9).

ENTER

Delete information

Turn on the unit.

Press

DVD 1

Press

screen appears. Press

press

Press

sort button to sort the information, then press Press we to move the arrow to a programme you

want to delete, then presst.

Press

rt w e

press

ENTER

Press we to select “DELETE”, then press

Access the library screen.

NAVIGATION

rt w e

ENTER

. The Library Database DVD Navi

to move the arrow to “LIBRARY”, then

Select a programme.

rt w e

to move the arrow to the appropriate

Delete the programme.

to move the arrow to “DELETE”, then

Confirm the deletion.

ENTER

Return to the normal screen.

Press

NAVIGATION

NOTES:

● It is not possible to register discs used for On-Disc Timer Programming. (

● It is not possible to register discs formatted on devices other than JVC’s DVD recorders.

● It is not possible to register discs recorded on devices other than JVC’s DVD recorders.

● It is not possible to register discs when “SAVE AS LIBRARY” is set to “OFF” in FUNCTION SET UP menu. (

墌

pg. 58)

墌

pg. 94)

Return to the normal screen.

Press

NAVIGATION

NAVIGATION (cont.)

Playback with MP3/JPEG Navigation

This unit can play back discs that MP3 sound files and JPEG image files taken with digital still cameras or other devices are recorded. The MP3/JPEG Navigation enables you to search and select the desired files recorded on CD-R/RW or CD-ROM discs very easily.

The following screen appears as the MP3/JPEG Navigation screen when you press desired position on the screen by pressing

rt w e

on the remote control.

Name of the inserted disc.

Sort buttons (“MP3”⁄“JPEG”)

Selected group number/total number of groups on the disc

Group name

Return button (“RETURN”)

Group name/Created date

File type indicator

:MP3

Selected file

Selected file number/total number of files in the group that contains the selected file

Programme number/file name

:JPEG

NAVIGATION

. You can move the arrow to select the

Locating the desired group and tracks

Load a disc.

Press x to open the disc tray.

Place a disc on the disc tray.

● For details, refer to “Placing a Disc” (

Press x to close the disc tray.

Access the MP3/JPEG Navigation screen.

Press

NAVIGATION

appears.

Display the item.

For MP3 Playback

Press we to move the arrow to “MP3”.

● Only groups which contain MP3 files appear.

For JPEG Playback

Press we to move the arrow to “JPEG”.

● Only groups which contain JPEG files appear.

Select the group.

Press we to move the arrow to the desired group, then press

ENTER

For MP3 Playback

● The tracks in the selected group appear.

For JPEG Playback

● The images in the selected group appear.

. The MP3/JPEG Navigation screen

墌

pg. 9).

Programme Playback

Perform steps A to D of “Locating the desired group and tracks” in the left column before continuing.

Select the items in the desired order.

Press

rt w e

then press

● The order number appears on the left of the track name.

● Repeat this step as necessary.

● To cancel the track, press

track, then press &.

● Pressing 8 clears all the order numbers.

Press 4.

● To quit the Programme Playback, press 8.

● Repeat playback can be performed if it is set as such in Play

Set Up menu. (

NOTES:

● It is not possible to select tracks and images simultaneously.

● It is not possible to select tracks or images in other groups.

On completion of the playback of all the items

Perform steps A to D of “Locating the desired group

and tracks” in the left column. Press 8.

● The order numbers are reset and cleared.

Press

to move the arrow to the desired item,

MEMO

rt w e

to move the arrow to the

Start playback.

pg. 42, “Repeat Playback”)

墌

NAVIGATION

to complete the procedure.

Select the item.

Press

rt w e

arrow to the desired item, then press starts playback from the selected item.

● The unit stops when all items in the selected group are played back.

to move the

ENTER

. The unit

NOTES:

● If you press 4 instead of playback from the first file of the group.

● JPEG files are played back as a slide show at the set intervals. (

pg. 46, “Select the switching interval of the slide show”)

墌

● If a file name includes any 2-byte character, the unit may not

show the file name correctly.

● Press rt to move the arrow to “RETURN”, then press to return to the screen that shows the group(s).

● The order of the groups and items shown in step D and E may differ from the order shown on your PC.

in stepD, the unit starts

ENTER

DV Dubbing

You can dub programmes from a camcorder or DV equipment connected to the unit with a DV cable. The unit’s remote control allows you the limited control of the connected camcorder or DV equipment functions during dubbing.

NOTE:

When you connect a PC to the DV IN connector, we do not assure the normal operation of this unit.

Your unit

DV IN connector

EDITING

Camcorder

DV equipment

DV cable

(not provided)

DV connector

Make connections.

Connect a camcorder or DV equipment to the DV IN connector on the unit’s front panel.

Prepare the unit for dubbing.

Load a DVD-RAM/RW/R

disc on the unit. Press

channel to “DV DUBBING”.

● The “DV DUBBING” controller appears on the TV screen.

Press we to move 0 to , then press

ENTER

Press rt repeatedly to select the desired sound track,

then press

AUDIO 1

AUDIO 2

MIX

: Select this to record the sound of both

● Note that this selection is not available when the source programme is recorded in 16BIT (48 kHz) mode.

Press

recording speed appears. ( Speed”)

to set the

PR +/–

ENTER

: Select this to record the original stereo sound

played back on the connected DV equipment.

: Select this to record the dubbed stereo sound

played back on the connected DV equipment.

“AUDIO 1” and “AUDIO 2”.

REC MODE

repeatedly until the desired

pg. 52, “Recording

墌

NOTES:

● Dubbing copyright guarded programmes is not possible.

● Original DV informations such as the recording date and time

are not recorded.

● The superimposed indication during the operation or dubbing is not recorded.

● The “DV DUBBING” controller disappears if buttons are pressed. To display the “DV DUBBING” controller again, press

Performing dubbing without using the “DV DUBBING” controller

Press

speed appears. Start playback on the external DV equipment slightly before

the actual point from where you wish to start dubbing. Press and hold 7, then press 4 on the remote control, or

press 7 on the unit.

● Dubbing starts.

When the dubbing ends, press 8 on the unit, then stop

playback on the external DV equipment.

PLAY SET UP

to set the channel to “DV DUBBING”.

PR +/– REC MODE

on the remote control.

repeatedly until the desired recording

SET UP

or other

Prepare the DV equipment for dubbing.

Locate the point from where you want to start dubbing, then stop or pause playback by pressing the following buttons on the remote control:

4, 5, 3, 8, 9

● To play back in slow speed (1/10 of the normal speed), press 9 to pause playback, then press 3 or 5.

● To play back frame-by-frame, press 9 to pause playback, then press 9 repeatedly. Each press of 9 advances a frame.

● To change the playback direction, press 3 or 5.

Start dubbing.

Press we to move the arrow to , then press

ENTER

● Playback on the external DV equipment and recording on the unit should start simultaneously.

● When the playback from the beginning is not possible, the “DV DUBBING” controller cannot be used. Perform dubbing without using the “DV DUBBING” controller. ( column)

● To pause dubbing, press we to move 0 to , then press pause dubbing. Pressing 9 on the unit also works the same way.

● To clear the “DV DUBBING” controller from the TV screen, press

Press 8 on the remote control.

● Both the unit and the external DV equipment stop dubbing.

. Both the unit and the external DV equipment

ENTER

PLAY SET UP

Stop dubbing.

墌

right

Edit From A

EDITING (cont.)

You can use a camcorder as the source player and your unit as the recording deck.

Slide the

TV/CABLE/SAT/DVD

switch to

DVD

Camcorder

If the camcorder has no S-VIDEO output connector:

Recorder

VIDEO input

Video cable (not provided)

VIDEO OUT

Camcorder

Player

If the camcorder has an S-VIDEO output connector:

Audio cable (not provided)

AUDIO OUT

AUDIO input

Make connections.

If the camcorder has no S-VIDEO output connector: — connect the camcorder’s AUDIO OUT and VIDEO OUT connectors to the unit’s AUDIO and VIDEO input connectors on the front panel.

If the camcorder has an S-VIDEO output connector: — connect the camcorder’s AUDIO OUT and S-VIDEO OUT connectors to the unit’s AUDIO and S-VIDEO input connectors on the front panel.

●

When using a monaural camcorder, connect its AUDIO OUT connector to the AUDIO L input connector on your unit.

Set the unit’s input mode.

PR +/–

Press

●

Set “F-1 INPUT” to “VIDEO” for the VIDEO input connector, or “S-VIDEO” for the S-VIDEO input connector, depending on the connector being used. ( (F-1 INPUT)”)

Press speed appears.

Start playback on the camcorder slightly before the actual point from where you wish to start dubbing.

to set the channel to “F-1”.

墌

pg. 83, “F-1 Input Setting

Set the recording speed.

REC MODE

repeatedly until the desired recording

Prepare the camcorder for dubbing.

Recorder

Camcorder

Player

S-VIDEO input

S-Video cable (not provided)

S-VIDEO OUT

Audio cable (not provided)

AUDIO OUT

AUDIO input

Start dubbing.

Press and hold 7, then press 4 on the remote control, or press 7 on the unit.

Stop dubbing.

Press 8 on the unit, then stop playback on the camcorder.

NOTES:

●

All necessary cables can be obtained from your dealer.

●

Refer to the camcorder’s instruction manual for operating procedure.

●

The quality of dubbed picture becomes poorer than that of the original.

Edit To Or From

You can use your unit as the source player or as the recording deck.

Slide the

TV/CABLE/SAT/DVD

switch to

DVD

Another Recorder

TV receiver

Player

21-pin SCART cable

(provided)

21-pin SCART cable

(not provided)

Another recorder

Recorder

TV receiver

Recorder

Your unit

Make connections.

Connect the player’s 21-pin SCART connector to the unit’s 21-pin SCART connector as illustrated.

When using your unit as the source player: — connect its L-1 IN/OUT connector to the recording deck.

When using your unit as the recording deck: — connect its L-1 IN/OUT or L-2 IN/DECODER connector to the source player.

●

If another recorder is compatible with the Y/C signal: — when using your unit as the source player, set “L-1 OUTPUT” to “SCART S-VIDEO”. ( L-1 Input Setting (L-1 OUTPUT and L-1 INPUT)”) — when using your unit as the recording deck, set “L-2 SELECT” to “S-VIDEO”. ( (L-2 SELECT)”)

Set the input mode of recording deck.

With this unit, press OUT connector, or “L-2” for the L-2 IN/DECODER connector, depending on the connector being used.

●

When using another recorder as the recording deck, refer to its instruction manual.

●

When using the L-2 IN/DECODER connector, set “L-2 SELECT” to “VIDEO” or “S-VIDEO”. ( Setting (L-2 SELECT)”)

墌

PR +/–

墌

pg. 82, “L-1 Output and

pg. 83, “L-2 Select Setting

to select “L-1” for the L-1 IN/

墌

pg. 83, “L-2 Select

21-pin SCART cable

(not provided)

Player

(provided)

Another recorder

Set the recording speed.

REC MODE

Press speed appears.

Start the source player.

Engage the Play mode of the source player.

Start the recording deck.

Engage the Record mode of the recording deck.

Stop dubbing.

Stop recording on the recording deck, then stop playback on the source player.

repeatedly until the desired recording

NOTES:

●

All necessary cables can be obtained from your dealer.

●

For Y/C signal input/output, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.

●

When you use this unit as the source player for editing, be sure to set “SUPERIMPOSE” to “OFF” before starting. (

●

If you are using another recorder with S-Video and Audio output connectors, connect its S-Video and Audio output connectors to this unit’s S-VIDEO and AUDIO input connectors on the front panel. Then, set the unit’s input mode to “F-1” in stepB, and set “F-1 INPUT” to “S-VIDEO”.

墌

(

pg. 83, “F-1 Input Setting (F-1 INPUT)”)

墌

pg. 95)

Output/Input Set

Turn on the TV and select the AV mode.

●

Slide the

●

TV/CABLE/SAT/DVD

L-1 Output and L-1 Input Setting (L-1 OUTPUT and L-1 INPUT)

The L-1 IN/OUT connector accepts and delivers either a composite signal (regular video signal) or a Y/C signal (a signal in which the luminance and chrominance signals are separated). Set “L-1 OUTPUT” and “L-1 INPUT” to the appropriate mode depending on the type of appliance connected to the unit’s L-1 IN/OUT connector.

switch to

DVD

EDITING (cont.)

Select the output or input mode for the L-1

IN/OUT connector.

Press rt to move the

arrow to “L-1 OUTPUT” or “L-1 INPUT”, then press Press rt to select the

appropriate setting, then press

(The

boldface

your purchase.)

L-1 OUTPUT

SCART VIDEO

SCART S-VIDEO:

SCART RGB

COMPONENT:

L-1 INPUT

VIDEO

S-VIDEO:

ENTER

settings in the table below indicate the settings at

: If a connected appliance’s input is

compatible only with regular video signals, set to “SCART VIDEO”. If a connected appliance’s input is compatible with Y/C signals, set to “SCART S-VIDEO”. You can obtain high-quality picture. (For connection, be sure to use a 21pin SCART cable that is compatible with the Y/C signal.)

: If a connected appliance’s input is

compatible with RGB signals, set to “SCART RGB”. You can obtain a high-quality RGB picture. If a connected appliance’s input is compatible with Y/P set to “COMPONENT”. You can obtain a high-quality Y/P picture. Switch the TV to the input that you can watch component video pictures.

: If a connected appliance’s output is

compatible only with regular video signals, set to “VIDEO”. If a connected appliance’s output is compatible with Y/C signals, set to “S-VIDEO”. You can obtain a highquality picture. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

B/PR

signals,

B/PR

Access the Main Menu screen.

Press

Press we to move the

arrow to“FUNCTION SET UP”, then press Press we to move the

arrow to “VIDEO IN/ OUT”, then press

SET UP

Access the Output/Input Set screen.

ENTER

Return to the normal screen.

Press

SET UP

NOTES:

● If “L-1 OUTPUT” is set to “SCART S-VIDEO”, “SCART RGB” or “COMPONENT”, it is not possible to set “L-1 INPUT” to “S-VIDEO”.

● If “L-2 SELECT” is set to “DECODER”, it is not possible to set “L-1 INPUT” to “S-VIDEO”.

● If “L-2 SELECT” is set to “DECODER”, it is only possible to set “L-1 OUTPUT” to “SCART VIDEO”.

● Component video signals are not output from the L-1 IN/OUT connector.

● When Progressive scan mode is engaged, it is not possible to select the setting of “L-1 OUTPUT”. (

墌

pg. 108)

L-2 Select Setting (L-2 SELECT)

Set “L-2 SELECT” to the appropriate mode depending on the type of appliance connected to the unit’s L-2 IN/DECODER connector.

Perform ste psA and B of “L-1 Output and L-1 Input Setting (L-1 OUTPUT and L-1 INPUT)” on page 82.

Select the input mode for the L-2 IN/

DECODER connector.

Press rt to move the

arrow to “L-2 SELECT”, then press ENTER. Press rt to select the

appropriate setting, then press ENTER.

(The boldface settings in the table below indicate the settings at your purchase.)

L-2 SELECT

Select “VIDEO” or “S-VIDEO” to use this unit as the recording deck with the player connected to the L-2 IN/ DECODER connector, or to use the satellite receiver connected to the L-2 IN/DECODER connector.

Select “SAT VIDEO” or “SAT S-VIDEO” to view a satellite programme with the TV set while the unit is turned off. (

墌

: If a connected appliance’s output is

VIDEO

S-VIDEO

pg. 88)

SAT VIDEO

SAT S-VIDEO

DECODER

compatible only with regular video signals, set to “VIDEO”.

: If a connected appliance’s output is

compatible with Y/C signals, set to “S-VIDEO”. You can obtain highquality picture. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

: If a connected satellite receiver’s

output is compatible only with regular video signals, set to “SAT VIDEO”.

: If a connected satellite receiver’s

output is compatible with Y/C signals, set to “SAT S-VIDEO”. You can obtain a high-quality S-VHS picture. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

: To use a decoder connected to the

L-2 IN/DECODER connector.

Return to the normal screen.

Press SET UP.

NOTES:

● If you have a satellite receiver or a decoder connected to the L-2 IN/DECODER connector, be sure to set “L-2 SELECT” back to appropriate mode after editing.

● If you are not connecting a satellite receiver or a decoder to the L-2 IN/DECODER connector, leave “L-2 SELECT” set to “VIDEO”.

● When “L-2 SELECT” is set to “SAT VIDEO” and “SAT S-VIDEO”, “SAT” appears on the TV screen or front display panel instead of “L-2”.

● If “L-1 OUTPUT” is set to “SCART S-VIDEO”, it is not possible to set “L-2 SELECT” to “DECODER” or “SAT VIDEO”.

● If “L-1 OUTPUT” is set to “SCART RGB”, it is not possible to set “L-2 SELECT” to “DECODER” or “SAT S-VIDEO”.

● If “L-1 OUTPUT” is set to “COMPONENT” and “L-2 SELECT” to “SAT VIDEO”, “SAT S-VIDEO” or “DECODER”, be sure to connect the L-1 IN/OUT connector with a TV.

F-1 Input Setting (F-1 INPUT)

Set “F-1 INPUT” to the appropriate mode depending on the connector (VIDEO or S-VIDEO) being used on the front panel.

Perform ste psA and B of “L-1 Output and L-1 Input Setting (L-1 OUTPUT and L-1 INPUT)” on page 82.

Select the input mode for the VIDEO/

S-VIDEO connector.

Press rt to move the

arrow to “F-1 INPUT”, then press ENTER. Press rt to select the

appropriate setting, then press ENTER.

(The boldface settings in the table below indicate the settings at your purchase.)

F-1 INPUT

: When connecting an appliance to

VIDEO

S-VIDEO

Return to the normal screen.

Press SET UP.

the VIDEO input connector, set to “VIDEO”.

: When connecting an appliance to

the S-VIDEO input connector, set to “S-VIDEO”.

Digital Audio

EDITING (cont.)

You can dub selected audio from a DVD or Audio CD disc to a digital audio device. However, it is not possible to dub copy-protected discs.

Example: Dubbing to an MD

Dubbing

●

Turn on the TV and select the AV mode.

●

Slide the

Rear of unit

TV/CABLE/SAT/DVD

Coaxial cable

(not provided)

DIGITAL AUDIO OUT

(COAXIAL)

switch to

Recorder

Optical cable (not provided)

DVD

Digital audio device (MD deck, etc.)

Player

Make connections.

Connect the unit and a digital audio device using either an optional optical cable or an optional coaxial cable.

Place a disc and load an MD.

For the unit

Press x to open the disc tray.

Place a disc on the disc tray.

Press x to close the disc tray.

For the digital audio device

Load an MD.

Prepare the unit for dubbing.

Select the audio to be dubbed.

Start playback slightly before the actual point from where you wish to start dubbing.

Press 9 to pause playback.

Prepare the digital audio device for dubbing.

Select the input mode.

Start dubbing.

Press 4 to start playback on the unit.

Start recording on the digital audio device.

DIGITAL AUDIO OUT

(OPTICAL)

Note for connection:

Remove the protection cap from the cable.

Stop dubbing.

Stop recording on the digital audio device. Then press 8 to stop playback on the unit.

NOTE:

There may be a discrepancy of several seconds between where you intend editing to start, and where it actually starts.

REMOTE CONTROL

Remote Control Functions

On the remote control

Keep pressing

Press the

“4”

for 4.

SET UP

down during steps A–B.

Change the remote control code.

number key “1”

for 1,

“2”

for 2,

“3”

for 3 or

Remote 1/2/3/4 Code Switching

The remote control is capable of controlling four JVC video units independently. Each of the units can respond to one of four codes (1, 2, 3 or 4). The remote control is preset to send 1 code signals because your unit is initially set to respond to 1 code signals. You can easily modify your unit to respond to 2, 3 or 4 code signals.

Slide the

TV/CABLE/SAT/DVD

switch to

DVD

Set the remote control code.

ENTER

Press

On the unit

Press 1 on the unit.

Press 4 on the unit for over 5 seconds while the unit is turned off.

●

The code currently set appears on the front display panel.

Press 8 on the remote control.

●

The code currently set on the remote control blinks on the front display panel for approximately 5 seconds, and is applied to the unit.

to set the code.

Turn off the unit.

Display the code.

Change the unit’s code.

NOTE:

When “POWER SAVE” is set to “ON” (墌pg. 95), it is not possible to change the remote code.

REMOTE CONTROL (cont.)

TV Multi-Brand Remote Control

Your remote control can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer’s TVs can also be controlled.

Before performing the following steps:

●

Turn off the TV using its remote control.

●

Slide the

TV/CABLE/SAT/DVD

switch to TV.

Set the TV brand code.

Keep pressing Enter your TV’s brand code using the press Press on the TV and try operations (

●

Once you have set the remote control to operate the TV, you do not have to repeat this step until you replace your remote control’s batteries.

●

Some brands of TVs have more than one code. If the TV does not function with one code, try entering another.

Press the corresponding button: (VIDEO), (TV Muting),

●

For some brands of TVs, you must press pressed the

BRAND NAME CODE

JVC HITACHI MAGNAVOX MITSUBISHI PANASON IC RCA SHARP SONY SAMSUNG SANYO SEARS TOSHIBA ZENITH

ENTER TV/CBL/SAT 1

Operate the TV.

TV/CBL DVD PR +/–, TV %+/–

number keys

down during stepA.

SET UP

number keys

on the unit’s remote control to turn

stepB).

墌

TV/CBL/SAT 1

ENTER

01, 03 10 02 03 04, 11 05 06 07 12 13 13 08 09

, then

(Volume),

after having

IMPORTANT:

Although the provided remote control unit is compatible with JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability.

Satellite Receiver Multi-Brand Remote Control

Your remote control can operate the basic functions of your satellite receiver set. In addition to JVC satellite receivers, other manufacturer’s satellite receivers can also be controlled.

Slide the

TV/CABLE/SAT/DVD

switch to

IMPORTANT:

Although the provided remote control unit is compatible with JVC satellite receivers, as well as many other models, it may not work with your satellite receiver, or in some instances, may have limited function capability.

CABLE/SAT

Set the satellite receiver brand code.

Keep pressing

SET UP

down during stepA.

Enter your satellite receiver’s brand code using the

number keys

TV/CBL/SAT

Press

, then press

ENTER

on the unit’s remote control to

turn on the satellite receiver and try operations

墌

(

stepB).

●

Once you have set the remote control to operate the satellite receiver, you do not have to repeat this step until you replace your remote control’s batteries.

●

Some brands of satellite receiver have more than one code. If the satellite receiver does not function with one code, try entering another.

Operate the satellite receiver.

Press the corresponding button:

CBL DVD PR +/–, number keys

●

For some brands of satellite receiver, you must press after having pressed the

●

number keys

The receivers.

BRAND NAME CODE

JVC AMSTRAD CANAL SATELLITE CANAL + D-BOX ECHOSTAR (VIA DIGITAL) FINLUX FORCE GALAXIS GRUNDIG HIRSCHMANN HUMAX ITT NOKIA KATHREIN LUXOR MASCOM MASPRO NOKIA PACE PANASON IC PHILIPS RADIX RFT SABA SAGEM SALORA SAMSUNG SIEMENS SKYMASTER TECHNISAT THOMSON TPS TRIAX WISI

number keys

may not function with some satellite

TV/CBL/SAT

73 60, 61, 62, 63, 92 81 81 85 82 68 89 88 64, 65, 102 64, 78, 99 88 68 70, 71, 96 68 93 70 87, 94 65, 67, 74, 86, 92 74, 92 66, 84, 101 78 69 97 83, 90 68 83 64 69, 98 66, 100 97 83 91 64

TV/

ENTER

SYSTEM CONNECTIONS

Connecting To A Satellite Receiver

Simple Connections

This is an example of a simple connection if your TV has one 21-pin AV input (SCART) connector.

Connect the satellite receiver to the L-2 IN/DECODER connector, then connect the L-1 IN/OUT connector to the TV’s connector.

Outdoor unit

Satellite cable

Satellite receiver

Aerial

TV aerial cable

NOTES:

●

Set “L-2 SELECT” to “VIDEO” or “S-VIDEO”. (

●

You can use the Automatic Satellite Programme Recording function (

●

To record a programme via the satellite receiver, select L-2 mode by pressing display panel.

●

For details, refer to the instruction manual of the satellite receiver.

ANTENNA IN

ANTENNA OUT

墌

pg. 63) with this connection.

PR +/–

so that “L-2” appears on the front

Aerial connector

21-pin SCART connector

Back of TV

墌

pg. 83)

Mains outlet

Back of unit

IMPORTANT:

When you set “L-2 SELECT” to “SAT VIDEO” or “SAT S-VIDEO” (墌pg. 83, “L-2 Select Setting (L-2 SELECT)”), it is possible to view a satellite broadcast with the TV set to its AV mode even if the unit is turned off. When the unit is in Stop mode or recording, press

on the remote control to turn off the VIDEO indicator on the unit.

●

If you turn on the unit when the satellite receiver’s power is off, nothing appears on the TV screen. In this case, turn on the satellite receiver, or set the TV to its TV mode, or press on the remote control to set the unit to the AV mode.

Perfect Connections (Recommended)

This is an example of recommended connections if your TV has two 21-pin AV input (SCART) connectors.

Connect the decoder to the satellite receiver’s connector if you have a decoder, L-1 IN/OUT connector to TV’s connector, and L-2 IN/DECODER connector to the satellite receiver’s connector. Then connect the satellite receiver and TV.

Outdoor unit

Satellite cable

Satellite receiver

Aerial

NOTES:

● Set “L-2 SELECT” to “VIDEO” or “S-VIDEO”. (

● You can use the Automatic Satellite Programme Recording

function (

● To record a programme via the satellite receiver, select L-2 mode by pressing display panel.

● To receive a scrambled broadcast, descramble the signal with the decoder connected to the satellite receiver.

● For details, refer to the instruction manual of the satellite receiver and decoder.

TV aerial cable

pg. 63) with this connection.

墌

so that “L-2” appears on the front

PR +/–

21-pin SCART connector

ANTENNA IN

ANTENNA OUT

Back of TV

pg. 83)

墌

Aerial connector

Decoder

Mains outlet

Back of unit

Connecting/Using A Decoder

TV receiver

TV aerial

cable

RF cable (provided)

L-1 IN/OUT

SYSTEM CONNECTIONS (cont.)

The L-2 IN/DECODER connector can be used as an input connector for an external decoder (descrambler). Simply connect a decoder and you can enjoy a variety of programming that is available through scrambled channels.

Select the input mode.

Set “L-2 SELECT” to “DECODER”. (墌pg. 83)

Connect the decoder.

Connect your unit’s L-2 IN/DECODER connector to the decoder’s 21-pin SCART connector using a 21-pin SCART cable.

Set the tuner.

Perform the procedure as described in “When Receiving A Scrambled Broadcast” on page 101.

L-2 IN/DECODER

Decoder

Connecting To A Dolby Digital Decoder or An Amplifier With Built-in DTS

These instructions enable you to connect your unit to a Dolby Digital decoder or an amplifier with built-in DTS.

Dolby Digital decoder or amplifier with built-in DTS

To DIGITAL AUDIO

input

Coaxial cable

(not provided)

Optical cable

(not provided)

Make connections.

Connect the unit and a Dolby Digital decoder or an amplifier with built-in DTS using either an optional optical cable or an optional coaxial cable.

NOTES:

● For Dolby Digital sound, set “DIGITAL AUDIO OUT” to “DOLBY DIGITAL/PCM”. (

● For DTS sound, set “DIGITAL AUDIO OUT” to “STREAM/ PCM”. (

墌

pg. 93)

CAUTIONS:

● This unit has a dynamic range of more than 110 dB with regards to its Hi-Fi audio capability. It is recommended that you check the maximum level if you are going to listen to the Hi-Fi audio signals through a stereo amplifier. A sudden surge in the input level to the speakers may damage them.

● Some speakers and televisions are specially shielded to prevent television interference. If both are of the non-shielded type, do not place the speakers adjacent to the TV set as this can adversely affect the playback picture.

墌

pg. 93)

DIGITAL AUDIO OUT

Back of unit

When you can’t switch the audio channel of a bilingual programme

When the unit is connected with a digital audio device using an optional optical cable and “DIGITAL AUDIO OUT” is set to “DOLBY DIGITAL/PCM”, it is not possible to switch the audio channel of a bilingual programme recorded on a DVD-RAM or DVD-RW (VR mode) disc. In this case, perform the following steps using the remote control to switch “DIGITAL AUDIO OUT” from “DOLBY DIGITAL/PCM” to “PCM ONLY”.

A Press SET UP to access the Main Menu screen. B Press we to select “DVD SET UP”, then press ENTER. C Press we to select “AUDIO OUTPUT”, then press

ENTER.

D Press rt to select “DIGITAL AUDIO OUT”, then press

ENTER.

E Press rt to select “PCM ONLY”, then press ENTER.

(

墌

F Press SET UP to complete the setting. G Press AUDIO to select the desired audio channel.

(

墌

(COAXIAL)

pg. 93)

pg. 34, “Audio Channel Selection”)

DIGITAL AUDIO OUT (OPTICAL)

Note for connection:

Remove the protection cap from the optical cable.

Mode Set

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

●

TV/CABLE/SAT/DVD

switch to

DVD

SUBSIDIARY SETTINGS

Various modes of this unit are categorized into menus nested in 2 levels shown in the following table. To change the settings of these modes, find the desired mode in the menu (for details on each menu, see pages 93 through 96), then follow the procedure below.

DVD SET UP LANGUAGE SET

AUDIO OUTPUT UTILITY

(墌pg. 24) (墌pg. 93)

(墌pg. 47, 106, 107)

FUNCTION SET UP VIDEO IN/OUT

INITIAL SET UP AUTO CH SET

● The procedure below shows how to set the desired option of the “AUDIO REC” mode as an example.

Access the Main Menu screen.

Press

Press we to select

“FUNCTION SET UP”, then press Press we to select

“RECORDING SET”, then press

Press rt to select

“AUDIO REC”, then press

ENTER

Press rt to select the

desired option, then press

ENTER

SET UP

Access the “RECORDING SET” screen.

ENTER

Select the desired option.

RECORDING SET DISPLAY SET OTHERS

MANUAL CH SET SAT/GUIDE PR CLOCK SET

(墌pg. 23, 82)

(墌pg. 94)

(墌pg. 95)

(墌pg. 96)

(墌pg. 98)

(墌pg. 99)

(墌pg. 27, 97)

(墌pg. 104)

Complete the setting.

Press

SET UP

AUDIO OUTPUT

(The boldface settings in the table below indicate the settings at your purchase.)

8 DIGITAL AUDIO OUT

DOLBY DIGITAL/PCM

STREAM/PCM

PCM ONLY

8 ANALOG AUDIO OUT

STEREO

DOLBY SURROUND

8 D. RANGE CONTROL

NORMAL

WIDE RANGE TV MODE

Set to the appropriate mode according to the type of the device connected to DIGITAL AUDIO OUT connector.

DOLBY DIGITAL/PCM

Select this when you connect the digital input connector of a Dolby Digital decoder or an amplifier with a built-in Dolby Digital decoder.

STREAM/PCM

Select this when you connect the digital input connector of an amplifier with a built-in DTS, Dolby Digital, or MPEG multichannel decoder.

PCM ONLY

Select the appropriate setting to accommodate the unit to the connected A/V equipment. This function takes effect when a DVD VIDEO disc is played back.

STEREO

DOLBY SURROUND

The dynamic range (the difference between the loudest sound and the quietest one) can be compressed during playback of a programme encoded in Dolby Digital format. This function takes effect when a DVD VIDEO disc recorded in Dolby Digital format is played back at low or middle volume.

NORMAL

WIDE RANGE

TV MODE

: Select this when you connect the linear PCM digital input of other audio equipment (amplifier, MD or DAT deck, etc.).

: Select this when listening to conventional two-channel stereo audio with the unit’s AUDIO OUT connectors connected to a stereo amplifier/receiver or TV set, or in case you want to record the audio from a DVD VIDEO disc to a Mini Disc, etc.

Select this when listening to multichannel surround audio with the unit’s AUDIO OUT connectors connected to an amplifier/receiver with a built-in surround decoder or a surround decoder.

Normally select this setting to activate this function.

Select this to deactivate this function when you enjoy wide dynamic range programme.

Select this when you hear the sound through the TV’s speaker(s).

8 OUTPUT LEVEL

STANDARD

LOW

NOTES:

● This function takes no effect on programmes other than that recorded in Dolby Digital format.

● This function dose not work when Simulated Surround Effect is activated. (

● The effect of “NORMAL” and “WIDE RANGE” may not be different depending on discs.

You can lower the output level of analog audio to accommodate the unit to the connected A/V equipment.

STANDARD

LOW

Normally select this setting.

The output level of analog audio is lowered.

墌

pg. 45)

RECORDING SET

(The boldface settings in the table below indicate the settings at your purchase.)

SUBSIDIARY SETTINGS (cont.)

8 SAVE AS LIBRARY

OFF

8 XP MODE REC AUDIO

DOLBY DIGITAL

LINEAR PCM

8 AUDIO REC

NICAM 1/MAIN

NICAM 2/SUB MONO

8 DIRECT REC

OFF

When this function is set to “ON”, the recording information is automatically stored in the library. For details, refer to “Modify Library Information” (

pg. 74).

墌

You can select the audio format when you record a programme in XP mode. When this function is set to “LINEAR PCM”, you can obtain a high-quality audio sound.

DOLBY DIGITAL

LINEAR PCM

You can select the desired NICAM audio channel to be recorded on a DVD-R/ RW (Video mode) disc.

NICAM 1/MAIN

NICAM 2/SUB

MONO

To record in Dolby Digital format.

To record in Linear PCM format.

To record the main language of NICAM audio.

To record the sub language of NICAM audio.

To record the standard (monaural) sound of NICAM audio.

NOTE:

This function works only for the NICAM bilingual programme.

When this function is set to “ON”, you can easily start recording the programme that you are watching on your TV. Press and hold 7 and press 4 on the remote control, or press 7 on the unit.

NOTES:

●

When you use the Direct Rec function, be sure to use a TV offering T-V LINK, etc. and connect a fully-wired 21-pin SCART cable between the unit and the TV. (

●

If “DIRECT REC” is set to “OFF”, the 7 button functions as described in “Basic Recording” (

●

During Direct Rec, “– –” appears on the front display panel.

●

If a programme is recorded with the Direct Rec, the station name will not be registered in the library. “– – – –” will be displayed for the station name.

●

Even if there is no power supply for more than 60 minutes, the unit keeps the setting.

墌

pg. 51).

墌

pg. 16)

8 INPUT COLOUR SYSTEM

PAL

SECAM

You can play back PAL discs, or record PAL and SECAM signals on this unit. Select the appropriate colour system.

: To record PAL signals.

PAL

: To record SECAM signals.

SECAM

DISPLAY SET

(The boldface settings in the table below indicate the settings at your purchase.)

8 SUPERIMPOSE

OFF

AUTO

8 GREY BACK

OFF

8 DIMMER

BRIGHT

DARK

8 POWER SAVE

OFF

You can select the modes of indications superimposed on the TV screen.

OFF

To turn off superimposed indications.

AUTO

To superimpose operational indications for approximately five seconds just after the corresponding operation.

To superimpose operational indications all the time.

NOTES:

●

When you use this unit as the source player for editing, be sure to set “SUPERIMPOSE” to “OFF” before starting. (

●

When you select “AUTO”, during playback, the operation mode indicators may be disturbed depending on the type of disc being used.

When this function is set to “ON”, the TV screen becomes all grey when receiving a channel not in use.

pg. 81, “Edit To Or From Another Recorder”)

墌

NOTE:

When you want to receive an unstable channel with poor signals, set this function to “OFF”.

You can change the brightness of the front display panel.

BRIGHT

Normally select this.

DARK

To dim the front display panel. (Blue lamp on the front display panel is turned off.)

When this function is set to “ON”, you can reduce the power consumption while the unit is turned off.

NOTES:

●

During Power Save mode — — the front display panel will be turned off. — the Just Clock function (

●

Power Save does not work when — — the unit is in the Timer mode. — the unit’s power is turned off after timer-recording or Instant Timer Recording. — the Automatic Satellite Programme Recording mode is engaged. ( — “L-2 SELECT” is set to “DECODER”, “SAT VIDEO” or “SAT S-VIDEO”. (

●

It takes some time for the unit to complete initialisation after you turn on unit power, with “WAKE UP” blinking on the front display panel.

pg. 104) does not work.

墌

pg. 63)

墌

pg. 83)

8 ON SCREEN LANGUAGE

This unit offers you the choice to view on-screen messages in 10 different languages. Though Auto Set Up selects the language automatically ( you can change the language setting manually as required. For details, refer to “On-screen Language Set” (

墌

pg. 24).

墌

pg. 19),

OTHERS

boldface

(The

SUBSIDIARY SETTINGS (cont.)

settings in the table below indicate the settings at your purchase.)

AUTO TIMER

OFF

When this function is set to “ON”, the timer is automatically engaged when the unit power is turned off, and automatically disengaged when the unit is powered back on.

NOTE:

For safety, when “AUTO TIMER” is set to “OFF”, all other functions are disabled while the Timer mode is engaged. To disengage the timer, press # (

TIMER

HOWVIEW

System Setup

IMPORTANT:

Normally, Auto Set Up (墌pg. 19), Preset Download (墌pg. 21) or Auto Channel Set (墌pg. 98) sets the Guide Program numbers automatically. You need to set the Guide Program numbers manually only in the following cases.

●

When timer-programming with the S your unit, is not selected,

when you add a channel after Auto Set Up, Preset Download or Auto Channel Set has taken place, —Set the Guide Program number for that station manually.

●

When you wish to timer-record a satellite programme with the S —Set the Guide Program numbers for all satellite broadcasts received on your satellite receiver.

●

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

TV/CABLE/SAT/DVD

HOWVIEW

switch to

system, the channel position, where the station you wish to record is received on

system,

DVD

HOWVIEW

Guide Program Number Set

Access the Main Menu screen.

SET UP

Press

Press we to select “INITIAL SET UP”, then press

Press we to select “SAT/ GUIDE PR”, then press

ENTER

Press rt to select “GUIDE PROGRAMME”, then press

Press rt to select the Guide Program number for the desired station as shown in the TV listings. Then press

ENTER

●

To change the Guide Program number in 10 increments, press and hold rt.

Access the “SAT/GUIDE PR” screen.

ENTER

Enter the Guide Program number.

ENTER

Enter the receiving channel position number.

Press rt to select “TV PROGRAMME”, then press

ENTER

●

Pressing

●

To timer-record a satellite programme with the S system, you need to install a provided Satellite Controller and perform the procedure described in “Satellite Receiver Control Setting” (

●

Repeat steps C and D as necessary.

Press

. Press rt to select the number of the unit’s channel position on which the Guide Program number’s broadcast is received by the unit or the satellite receiver. Then press

AUX

changes “TV PROGRAMME” to “SAT”.

墌

pg. 26).

ENTER

HOWVIEW

Complete the setting.

SET UP

Guide Program Number

“Guide Program (GUIDE PROGRAMME) number” refers to the assigned TV station numbers, according to broadcast area, for the S numbers can be found in most TV listings.

HOWVIEW

timer recording. The Guide Program

Tuner Set

●

Turn on the unit.

●

Turn on the TV and select the AV mode.

●

Slide the

TV/CABLE/SAT/DVD

switch to

DVD

SUBSIDIARY SETTINGS (cont.)

Your unit needs to memorise all necessary stations in channel positions in order to record TV programmes. Auto Channel Set automatically assigns all receivable stations in your area to call them up by using the vacant channels.

Auto Channel Set

Access the Main Menu screen.

SET UP

Press

Access the “AUTO CH SET” screen.

Press we to select “INITIAL SET UP”, then

ENTER

press

Press we to select “AUTO CH SET”, then

ENTER

press

Select your country.

rt w e

Press

ENTER

PR +/–

buttons without going through any

to select your country’s name, then press

IMPORTANT:

Perform the following steps only if — — Auto Channel Set has not been set correctly by Auto Set Up or by Preset Download. ( — you have moved to a different area or if a new station starts broadcasting in your area.

墌

pg. 19, 21)

Select the language.

rt w e

Press

ENTER

Press

●

When you have connected the unit to a TV offering T-V Link via a fully-wired 21-pin SCART cable ( unit automatically performs the Preset Download and the T-V LINK screen will appear.

墌

(

pg. 21)

●

The Auto Set screen appears, and remains on screen while the unit searches for receivable stations. Wait until the TV screen as shown in stepF appears.

to select the language of your choice.

Perform Auto Channel Set.

twice.

墌

pg. 16), the

View the Confirmation screen.

“SCAN COMPLETED” is displayed on the TV screen. Press “OK”, then the Confirmation screen appears. The confirmation screen lists the channel position number (PR), station channel number (CH), and station name (ID) (

pg. 103, “TV Station And ID List”) of all stored

墌

broadcast stations. The programme currently received on the selected channel position appears behind the confirmation screen. To view the next page, press

rt w e

●

Press

●

The stations located in the selected country appear at the top of the list. The Guide Program numbers will also be set automatically during Auto Channel Set.

Complete the setting.

SET UP

Using the Confirmation screen, you can skip or add channel positions, enter station names and perform other operations. Refer to pages 99 – 102 for the procedures. Depending on reception conditions, the stations may not be stored in order, and the station names may not be stored correctly. For information on scrambled broadcasts, refer to “When Receiving A Scrambled Broadcast” (

墌

pg. 101).

Manual Channel Set

Store channels that were not stored during Auto Set Up (

pg. 19), Preset Download (墌pg. 21) or Auto Channel Set

墌

(

pg. 98).

墌

IMPORTANT:

●

In certain reception conditions, station names may not be stored correctly, and Auto Guide Program Number Set may not work properly. When the Guide Programme numbers are not set properly, the programme that you do not intended to record will be timer-recorded by the S

HOWVIEW

timer using the S desired channel is selected correctly. ( “S

●

Your unit memorises all receivable stations even if reception of some of them is poor. You can delete those stations with an unacceptable picture from the list. (

墌

system of the unit. When programming the

HOWVIEW

Timer Programming”)

pg. 100, “Delete A Channel”)

system, be sure to check the

墌

pg. 54,

NOTES:

●

Fine tuning is performed automatically during Auto Channel Set. If you want to perform tuning manually, refer to “FineTuning Channels Already Stored” (

●

If you perform Auto Channel Set when the aerial cable is not connected properly, “SCAN COMPLETED –NO SIGNAL–” appears on the TV screen in stepF. In such a case, make sure of the aerial connection and press will start again.

●

pg. 101, “INFORMATION”)

墌

pg. 102).

墌

; Auto Channel Set

ENTER

Access the Main Menu screen.

Press

Press we to select “INITIAL SET UP”, then press

ENTER

Press we to select “MANUAL CH SET”, then press

ENTER

●

The Confirmation screen appears.

Press blank position in which you want to store a channel, then press Manual Channel Set screen appears.

SET UP

Access the Confirmation screen.

Select the channel position.

rt w e

twice

ENTER

to select a

. The

(Example) To store in position 12.

The programme currently received on the selected channel position appears behind the confirmation screen.

100

SUBSIDIARY SETTINGS (cont.)

Select the band.

Press rt to select

“BAND”, then press

ENTER

Press rt to change the

band between CH (regular) and CC (cable), then press

Enter the channel.

Press rt to select “CH”, then press

Press rt to input the channel number you want to

store.

● To enter the registered station name ( And ID List”), press rt to select “ID”, then press Press rt.

● For fine tuning adjustment, press rt to select “FINE”, then press

ENTER

● When storing a channel that sends scrambled broadcasts, press rt to select “DECODER”, then press to set “DECODER” to “ON” (“OFF” is the default setting).

● When “L-2 SELECT” is set to “VIDEO”, “S-VIDEO”, “SAT VIDEO” or “SAT S-VIDEO”, the “DECODER” setting cannot be changed. (

Press

● Repeat steps C–F as necessary.

Press

● To change positions, see “Change Station Channel Position” (

墌

● If you wish to set station names other than the ones registered

in your unit, see “Set Stations (B)” (

墌

Enter new channel information.

. The Confirmation screen appears.

ENTER

Close the Confirmation screen.

SET UP

pg. 100).

ENTER

pg. 103, “TV Station

墌

. Press rt to perform fine-tuning.

ENTER

pg. 83, “L-2 Select Setting (L-2 SELECT)”)

pg. 102).

墌

ENTER

. Press rt

TTENTION:

Guide Program numbers are not set when channels are stored manually. (

pg. 97, “S

墌

HOWVIEW

System Setup”)

Delete A Channel

Perform steps A and B of “Manual Channel Set” on page 99 to access the Confirmation screen before continuing.

Select the item.

Press

rt w e

Press &.

● The item next to the cancelled one moves up one line.

● Repeat steps A and B as necessary.

Press

SET UP

to select the item you want to delete.

Delete a channel.

Close the Confirmation screen.

Change Station Channel Position

Perform steps A and B of “Manual Channel Set” on page 99 to access the Confirmation screen before continuing.

Select the item.

Press

rt w e

press

ENTER

Press

rt w e

new channel position, then press

ENTER

Example: If you moved the

to select the item you want to move, then

Select the new position.

to select the

station in position 4 to position 2, the stations originally in positions 2 and 3 each move down one space.

● Repeat steps A and B as necessary.

Close the Confirmation screen.

Press

SET UP

twice.

JVC DR-M1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SAFETY FIRST

Safety Precautions

DISC INFORMATION

About Discs

Recordable/playable discs

Discs for Playback Only

Unplayable Discs

Region Number

Recording Medium and Format

File Structure of Discs

DVD VIDEO Marks

Placing a Disc

Care and Handling of Discs

FRONT VIEW

INDEX

REAR VIEW

FRONT DISPLAY PANEL

ON-SCREEN DISPLAY

REMOTE CONTROL

INSTALLING YOUR NEW UNIT

Basic Connections

S-VIDEO Connection

Component Video Connection

INITIAL SETTINGS

Auto Set Up

Preset Download

Results of Auto Set Up/Preset Download appearing on the front display panel

Monitor Set

Language

Menu/Audio/Subtitle Language Set

On-screen Language Set

Language Code List

Satellite Receiver Control Setting

SAT CONTROL SET

Installing Satellite Controller

Setting satellite receiver’s brand and channel

T-V Link Functions

TV Auto Power On

Unit Auto Standby

Direct Rec

T- V L I N K

PLAYBACK OPERATIONS

Basic Playback

Playback Features

Locating a desired scene using the DVD menu

Locating the start point of the item or skip the item

High-Speed Search

Still Picture/Frame-By-Frame Playback

Slow Motion

Skip Search

Marking positions to play again later

Resume Function

Checking the disc remaining time

Angle Selection

Subtitle Selection

Audio Channel Selection

Live Memory Playback

Recording/playback status display

Overview of Live Memory Playback

Display during Live Memory Playback

Buttons to be used during Live Memory Playback

To play back from the beginning of the programme while recording

To move back the playback position slightly while recording (One Touch Replay function)

To watch a programme previously recorded while recording

How to Access Play Set Up Menu

Basic operation on Play Set Up Menu

Repeat Playback

A-B Repeat Playback

Random Playback

Programme Playback

Locating the beginning of a desired selection

Time Search

Simulated Surround Effect

Adjusting the picture quality

Select the switching interval of the slide show

Setting the progressive mode
