D-ILA® HD SYSTEM

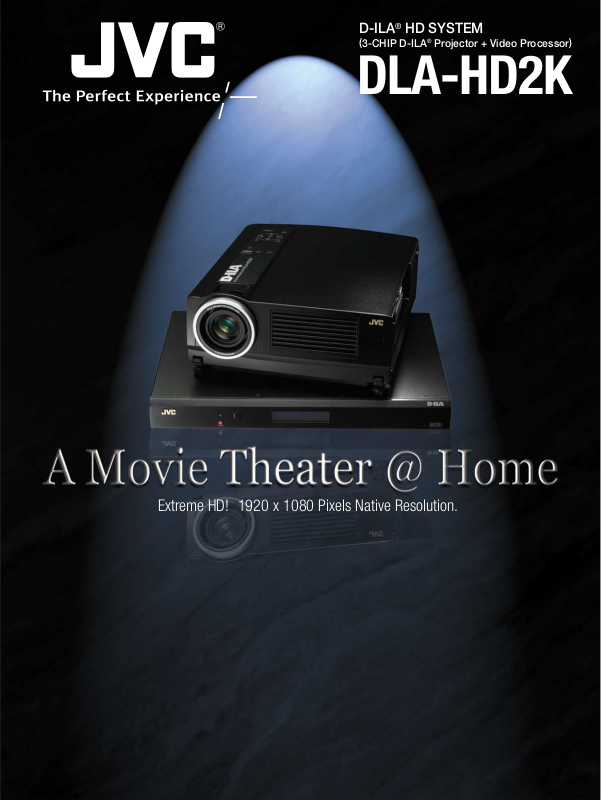

Extreme HD! 1920 x 1080 Pixels Native Resolution.
(
3-CHIP D-ILA
®
Projector + Video Processor
DLA-HD2K
)
Native 1920 x 1080 D-ILA Chips
Thanks to the newly developed HD D-ILA devices, the native
resolution of the DLA-HD2K is 1920 x 1080, the highest
widescreen resolution available today for home theater projector
applications*. This makes the system suitable not only for highend home theater use but also for critical viewing venues such
as museums and post-production screening rooms.
*As of February 2004.
Cost-effective NSH Lamp
The DLA-HD2K uses a 250W ultra high-pressure mercury NSH
lamp that helps to ensure lower running costs. And in most
applications, the lamp can be easily changed by the homeowner
without removing the projector from its mounts.
D-ILA: The Most Advanced LCOS Technology Available
JVC pioneered the use of LCOS (Liquid Crystal on Silicon) technology and is the
world’s leading supplier of LCOS projectors. JVC’s patented D-ILA chips are the
most highly refined form of LCOS, offering unique performance characteristics not
found elsewhere. The DLA-HD2K also boasts optimum color illumination and a
newly developed projection lens for its optical system that is explained below. This
combination of advanced technologies allows the DLA-HD2K to realize a high
contrast ratio of 2000:1 and breathtaking color reproduction.
■ Optimum Color Illumination helps to correct biased light
dispersion of the ultra high-pressure NSH lamp by using
illumination optics that optimize the f-number for each primary
color. This exclusive JVC process ensures accurate contrast of
individual colors and a D65 color temperature that provides vivid,
natural-looking color reproduction.
■ Newly Developed Projection Lens employs a 4-group, 13-layer
100% glass lens with an aluminum tube and anti-flare finish. This
high-quality construction embodies JVC’s no-compromise
approach to answering the performance potential of HDcompatibility. The optimized lens aperture is also carefully
calibrated to match the zoom position.
Exclusive Digital Video Module
The DLA-HD2K is equipped with a digital video module co-developed with Faroudja, a company renowned
worldwide for creating powerful processing technologies. This exclusive JVC digital video module can be
connected to various sources including 480p, 576i and 720p SD signals as well as 1080i and 1080p HD
signals. Faroudja’s color matrixing provides accurate color profiles for NTSC and HDTV, allowing the module
to convert standard analog and digital DVI video signals to a high-resolution digital video signal that can be
transmitted via the DVI-D connector to the projector. This module also allows for detailed video adjustment to
suit viewer preferences and user setup between it and the projector can be profiled. Furthermore, the
processor features motion adaptive de-interlacing with DCDi and 3-2 pull-down technology to ensure errorfree progressive signals.
Convenient, Space-saving 2-piece Design
Unlike bulky one-piece units, the projector head of the DLA-HD2K is only (xx" X xx" X xx") and weighs a mere
13 lbs. This smaller size allows for less conspicuous and more flexible installation as well as easier ceiling
mounting. The projector head is connected to a standard rack-mountable electronics unit by a single zero-loss
digital cable (DVI-D) transmitting the 1080/60P signal. The projector head and electronics unit can be separated
by up to 160 feet — an ideal configuration that keeps the cabling
to other electronic components to an absolute minimum while
preserving full digital quality at the projector head.
Projector
Digital Video
Processor
DVD Player D-VHS Recorder HDCP Compatible
DVD Player
HDMI Compatible
Equipment
Component DVI-D HDCP
1080p
720/480 1080i 720/480/1080i
Digital Cable (DVI-D)
Max. 5-meter cable
recommended
15m to 50m for optical
transmission
JVC Exclusive 3-Chip D-ILA (Direct Drive Image Light Amplifier)
■ Three D-ILA chips: JVC’s exclusive 3-chip D-ILA technology produces rich, natural colors without the annoying
flicker or “rainbow effect” that plagues single-panel projectors. Images are as smooth as film, boasting
incredible detail and vibrant, breathtakingly natural colors.
■ Cinema-quality picture with no visible grid: There is no visible grid or “screen door effect” with JVC’s D-ILA.
Since the gaps between pixels are not noticeable, the picture is extremely smooth. You can enjoy the benefits of
both film-like resolution and accurate reproduction of natural colors.
■ Superior Color Reproduction: JVC's unique optical engine produces rich, natural colors with smooth gradations
and low noise. Color temperature is set at D65, providing optimal cinema reproduction. JVC’s exclusive AG*
technology produces highly accurate gradations with low noise, particularly in darker areas of less than 20%
brightness.
■ True black reproduction: One important characteristic of D-ILA devices is that the crystals are aligned vertically,
meaning that the D-ILA technology can reproduce blacks that are truly black. It also offers a uniform response,
irrespective of brightness, so it can display a wide range of intermediate tones.
* Analog Gradation
● Comparison of gradation characteristics
D-ILA: Accurate colors with absolute white and black
Conventional projector (bluish white and reddish black)
Remote controllers
Projector Video module
Printed in Japan
ICN-0295
"JVC" is the trademark or registered trademark of Victor Company of Japan, Limited.
DISTRIBUTED BY
JVC PROFESSIONAL PRODUCTS COMPANY
DIVISION OF JVC AMERICAS CORP.
1700 Valley Road, Wayne, N.J. 07470
TEL: (973) 317-5000, (800) 582-5825 FAX: (973) 317-5030
Internet Web Site http://www.jvc.com/pro
E-mail: proinfo@jvc.com
JVC CANADA INC.
21 Finchdene Square, Scarborough, Ontario M1X 1A7
TEL: (416) 293-1311 FAX: (416) 293-8208
Internet Web Site http://www.jvcpro.com/
SPECIFICATIONS THROW DISTANCE vs. SCREEN WIDTH
DIMENSIONS
(Unit: inches/mm)
CONNECTORS
PROVIDED ACCESSORIES
(unknown)
PROJECTOR
Image Device 3-chip D-ILA® (0.8-inch diagonal)
Projection Lens Zoom lens (1:8 ~ 2.3:1, manual zoom/manual focus, 50%
offset)
Brightness 600 ANSI lumens at D65
Resolution 1920 x 1080 pixels
Aspect Ratio 16:9
Contrast 2000:1
Lamp 250W, UHP
Color Temperature D65/user selectable 1/user selectable2
GENERAL
Dimensions (W x H x D) 298 x 134 x 360mm (without protrusions)
Weight 13.2 lbs (6kg)
Power Requirement 100 – 240V AC, 50/60Hz
Power Consumption 350W
CONTROL TERMINALS
Remote 1 source
Serial Output 1 source (RS-232C)
DIGITAL VIDEO PROCESSOR
Horizontal Sync Frequency 31.5kHz – 63kHz
Vertical Sync 60Hz/50Hz
INPUT TERMINALS
RGB (BNC) x1
Analog RGB (D-Sub 15-Pin) x1
Digital RGB (HDCP compatible DVI-D) x1
Composite (BNC) x1
S-video (Y/C) x1
YPbPr (BNC) x1 (common with RGB)
OUTPUT TERMINALS
Digital RGB (DVI-D) x1
RGBHV (D-Sub 15-pin) x1
RGBHV (BNC) x1
CONTROL TERMINALS
Remote 1 source
Trigger 1 source
Serial Output 1 source (RS-232C)
GENERAL
Dimensions (W x H x D) 438 x 45 x 303mm
Weight 14 lbs (6.3kg)
Power Requirement 100 – 240V AC, 50/60Hz
Power Consumption 115W
Screen Size
(width)
in.
29.18
60
80
m
0.7412
1.524
2.032
Throw Distance (approx.)
Wide
ft.
3.75
7.8346
10.475
(3' 9")
(25' 8-29/64")
(10' 5-45/64)
m
1.143
2.388
3.193
Wide
ft.
4.9212
10.219
13.658
(4' 11-1/16")
(10' 2-41/64")
(13' 7-57/64")
m
1.5
3.115
4.163
⭋
⭋
Design and specifications subject to change without notice.
D-ILA is a registered trademark of Victor Company of Japan, Limited
All brand or product names may be trademarks and/or registered trademarks of their respective owners.
Any rights not expressly granted herein are reserved.
Copyright © 2004, Victor Company of Japan, Limited (JVC).All Rights Reser ved.
Projector
Digital Video Module
17-1/4"
(438)
11-15/16"
(303)
1-25/32"
(45)
Projector
Digital Video Module
100
130
150
170
200
230
250
270
298.33
2.54
3.302
3.81
4.318
5.08
5.842
6.35
6.858
7.5776
13.123
17.093
19.74
22.388
26.358
30.328
32.975
35.62
39.37
(13' 1-31/64)
(17' 1-1/8")
(19' 8-57/64")
(22' 4-21/32")
(26' 4-19/64")
(30' 3-15/16")
(32' 11-45/64")
(35' 7-7/16")
(39' 4-7/16")
4
5.21
6.017
6.824
8.034
9.244
10.051
10.857
12
17.099
22.257
25.695
29.137
34.294
39.452
42.893
46.332
51.204
(17' 1-13/64")
(22' 3-3/32")
(25' 11/32")
(29' 41/64")
(34' 3-17/32")
(39' 5-27/64")
(42' 10-23/32")
(46' 3-63/64")
(51' 2-29/64”)
5.212
6.784
7.832
8.881
10.453
12.025
13.074
14.122
15.607
