JVC CS-AW7220, CS-AW7020, CS-AW7040, CS-AW7240 User Manual

SUBWOOFER

CAISSON DE GRAVE

CS-AW7020 CS-AW7040
CS-AW7220 CS-AW7240

ENGLISH

FRANÇAISESPAŃOL

CS-AW7020 CS-AW7220
CS-AW7040 CS-AW7240

For Customer Use:

Enter below the Model No, and Serial
No, which is located either on the rear
or bottom of the speaker unit. Retain
this information for future reference.

Model No.

INSTRUCTION MANUAL

MANUEL D'INSTRUCTIONS

MANUAL DE INSTRUCCIONES

Serial No.

LVT1743-001A

Thank you for purchasing the ARSENAL Car Stereo Speaker. These Speakers can be
mounted in the trunk of your vehicle. For the secure installation and perfect operation
of your speakers, please read the following carefully.

Parts

ENGLISH

3. Jump2. Screw x 10

1. Grille

4. Fuse (10A) x 2

For proper installation and use

1.Before connecting the speakers to the amplifier, confirm that the power has been
turned off. The click noise generated by the connection if the power is on may
damage the speakers.

2.The amplifier and speakers should be connected between corresponding terminals,
i.e. left to left, and right to right, as well as "+" to "+", and "–" to "–". Connection with
reversed polarity will degrade the quality of stereo reproduction.

3.Do not subject the speakers to excessive input. The power handling capacity of the
CS-AW7020/CS-AW7040/CS-AW7220/CS-AW7240 is 600 watts (R.M.S. MUSIC
POWER). Any excessive input may damage the speakers.

4.The CS-AW7020/CS-AW7040/CS-AW7220/CS-AW7240 has an impedance of 2Ω
,4Ω,8Ω. Make sure that the output impedance of the amplifier's speaker terminal is
rated at 2Ω,4Ω,8Ω.

5.When cleaning the speakers, use a soft cloth and wipe the surface gently. Do not
apply thinner or solvent.

6.Be sure to carefully follow the instructions for:

Cable Connections

Fuse Replacement
Switching the Impedance Selector
Subwoofer Mounting and Smart Trim Ring Installation

5. Hexagon socket

screw keys

Consult Page 19 of this Instruction Manual for details on these procedures.

- 2 -

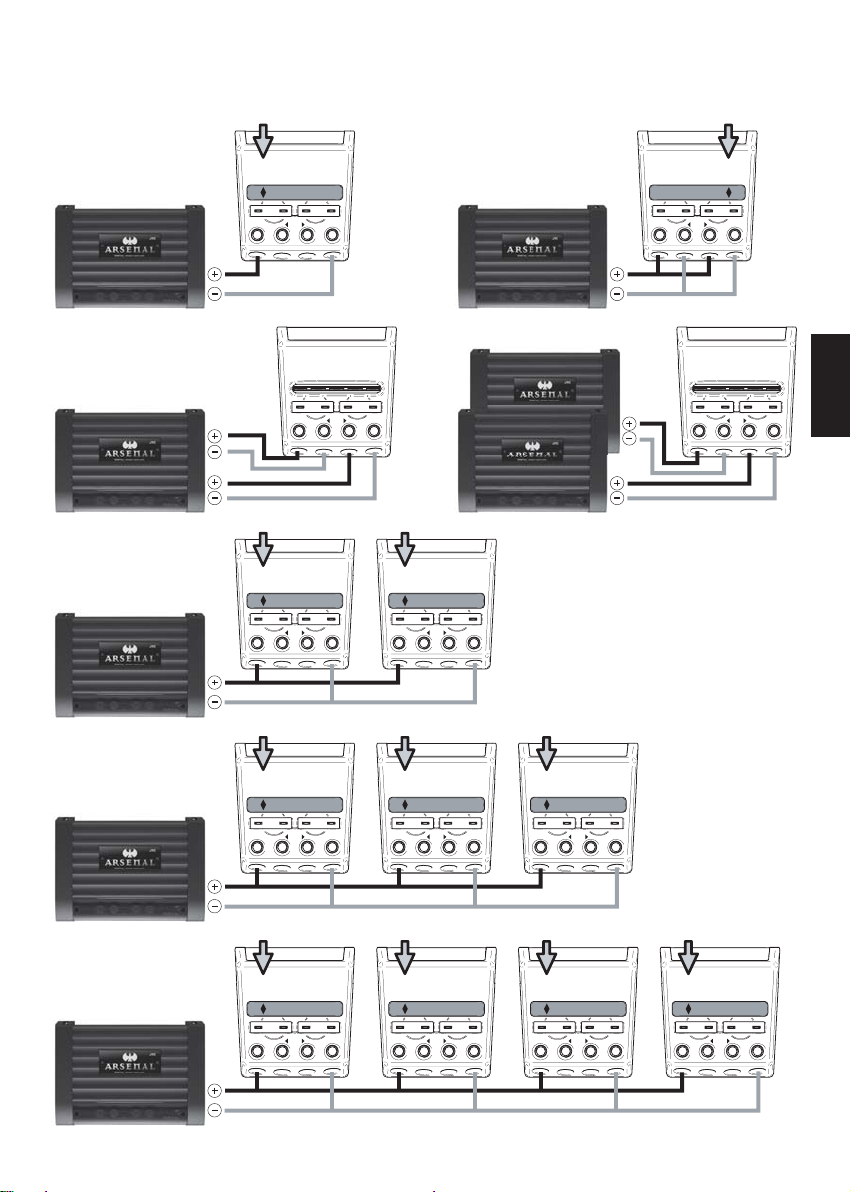

Dual 4 Ω Application Diagrams

1 Mono Amplifier
1 Subwoofer
Jumper set to Series
8Ω(4Ω+4Ω) Load

1 2ch Amplifier
1 Subwoofer
Jumper is Removed
4Ω Load

1 Mono Amplifier
2 Subwoofers
Jumper set to Series
Subwoofers wired in Parallel
4Ω Load

JUMPER

Mono

Stereo

4Ω 2-Chan

JUMPER

Mono

4Ω

JUMPER

1 Mono Amplifier
1 Subwoofer

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

-

Jumper set to Parallel
8Ω(4Ω+4Ω) Load

Mono

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

4Ω

4Ω4Ω8Ω4Ω

-

2Ω

*JUMPER is Removed *JUMPER is Removed

SERIES PARALLEL

Input Bi-Amp Input

Only

-

-

+ +

Bi-Amp Configuration 2 Mono Amplifiers
1 Subwoofer Jumper is Removed 4Ω Load

Mono

4Ω

SERIES PARALLEL

Input Bi-Amp Input

Only

-

+ +

Mono

4Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

-

+

+

4Ω

4Ω 4Ω 4Ω

8Ω 8Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

-

ENGLISH

-

1 Mono Amplifier
3 Subwoofers
Jumper set to Series
Subwoofers wired in Parallel

2.6Ω Load

1 Mono Amplifier
4 Subwoofers
Jumper set to Series
Subwoofers wired in Parallel
2Ω Load

JUMPER

Mono

2.6Ω

JUMPER

Mono

2Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

4Ω

4Ω

8Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

4Ω

4Ω

8Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

Only

-

+

+

4Ω8Ω4Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

Only

-

+

4Ω8Ω4Ω

+

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

-

Only

-

-

+

+

4Ω8Ω4Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

JUMPER

SERIES PARALLEL

-

Input Bi-Amp Input

+

4Ω8Ω4Ω 4Ω8Ω4Ω

Jumper Plug

Only

-

+

-

- 3 -

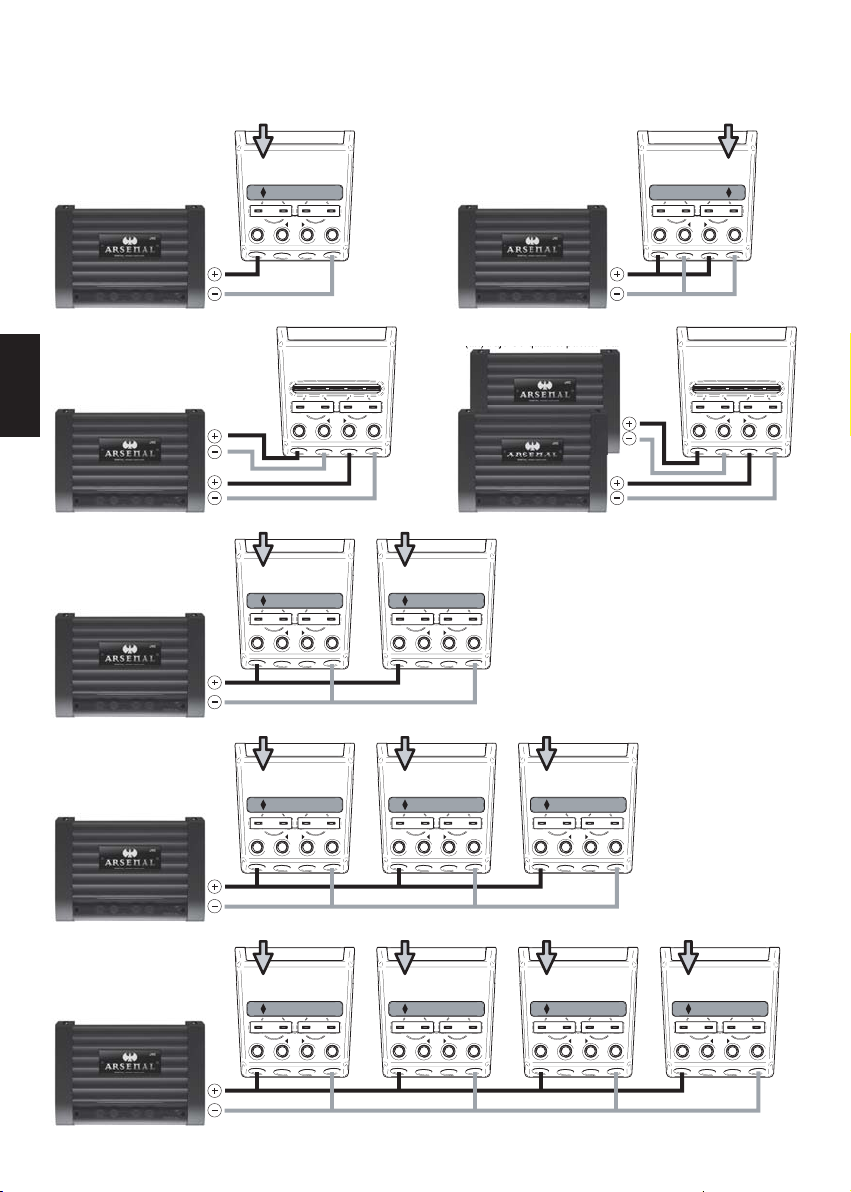

Dual 2 Ω Application Diagrams

1 Mono Amplifier
1 Subwoofer
Jumper set to Series
4Ω(2Ω+2Ω) Load

ENGLISH

1 2ch Amplifier
1 Subwoofer
Jumper is Removed
2Ω Load

1 Mono Amplifier
2 Subwoofers
Jumper set to Series
Subwoofers wired in Parallel
2Ω Load

JUMPER

Mono

Stereo

2Ω 2-Chan

JUMPER

Mono

2Ω

JUMPER

1 Mono Amplifier
1 Subwoofer

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

-

Jumper set to Parallel
4Ω(2Ω+2Ω) Load

Mono

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

2Ω

2Ω2Ω4Ω2Ω

-

1Ω

*JUMPER is Removed *JUMPER is Removed

SERIES PARALLEL

Input Bi-Amp Input

Only

-

-

+ +

Bi-Amp Configuration 2 Mono Amplifiers
1 Subwoofer Jumper is Removed 2Ω Load

Mono

2Ω

SERIES PARALLEL

Input Bi-Amp Input

Only

-

+ +

Mono

2Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

-

+

+

2Ω

2Ω 2Ω 2Ω

4Ω 4Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

-

-

1 Mono Amplifier
3 Subwoofers
Jumper set to Series
Subwoofers wired in Parallel

1.3Ω Load

1 Mono Amplifier
4 Subwoofers
Jumper set to Series
Subwoofers wired in Parallel
1Ω Load

JUMPER

Mono

1.3Ω

JUMPER

Mono

1Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

2Ω

2Ω

4Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

2Ω

2Ω

4Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

Only

-

+

+

2Ω4Ω2Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

Only

-

+

2Ω4Ω2Ω

+

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

-

Only

-

-

+

+

2Ω4Ω2Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

JUMPER

SERIES PARALLEL

-

Input Bi-Amp Input

+

2Ω4Ω2Ω 2Ω4Ω2Ω

Jumper Plug

Only

-

+

-

- 4 -

To install the sealed enclosure

When the speaker cannot be attached in the car, make the sealed enclosure as recommended in the table below—20 mm (3/4 inch) MDF is also
recommended for the enclosure materials.

CS-AW7020 / CS-AW7040 CS-AW7220 / CS-AW7240
A 15-13/32 inch (391.7 mm)
B 15-13/32 inch (391.7 mm)
C

11-13/32 inch (290.1 mm) 13-29/32 inch (353.6 mm)
D

9-4/32 inch (232 mm) 10-14/32 inch (275.9 mm)
E

9-23/32 inch (247 mm) 11-10/32 inch (295 mm)
FG4/32 inch (3 mm) 4/32 inch (3 mm)

1.57 ft3 (0.045 m3) 2.17 ft3 (0.062 m3)

16-13/32 inch (417.1 mm)
16-13/32 inch (417.1 mm)

Front & Rear Bae Boards (x 2)

C

B

Top & Bottom Sides (x 2)

G : Internal Volume

A

Left & Right Sides (x 2)

Mounting Hole

* Screw: Dia. 4mm x 50mm (x 8) (supplied)

Dimension

ENGLISH

To install the ported enclosure

When the speaker cannot be attached in the car, make the sealed enclosure as recommended in the table below—20 mm (3/4 inch) MDF is also
recommended for the enclosure materials.

Front & Rear Bae Boards (x 2)

C

CS-AW7020 / CS-AW7040 CS-AW7220 / CS-AW7240
A 15-13/32 inch (391.7 mm) 15-13/32 inch (391.7 mm)
B

18-13/32 inch (467.9 mm) 18-13/32 inch (467.9 mm)
C

13-13/32 inch (340.9 mm) 15-13/32 inch (391.7 mm)
D

9-23/32 inch (247 mm) 10-14/32 inch (275.9 mm)
E

9-23/32 inch (247 mm) 11-10/32 inch (295 mm)
F

4/32 inch (3 mm) 4/32 inch (3 mm)
G

1 inch (25.4 mm) 1 inch (25.4 mm)
H

13 inch (330.2 mm) 14 inch (355.6 mm)

IJ13-19/32 inch (345.4 mm) 13-6/32 inch (335.3 mm)

3

1.85 ft

(0.052 m3) 2.54 ft3 (0.072 m3)

B

Top & Bottom Sides (x 2)

J : Internal Volume

Left & Right Sides (x 2)

A

G

* Screw: Dia. 4mm x 50mm (x 8) (supplied)

I

- 5-

H

Mounting Hole
Dimension

0.123 ft

3

600 W

65.4 oz

10 mm

0.18 ft

3

600 W

86.2 oz

10 mm

0.64 ft

3

1.24 ft

CS-AW7040CS-AW7020

3

3

0.65 ft

Dia. 2 - 4/32 inch

53.59 mm

39.6 mm

CS-AW7240CS-AW7220

3

1.24 ft

Dia. 2 - 4/32 inch
( 53.59 mm )

39.6 mm

SPL : Sound pressure levelSPL (dB,1W/1M)

BL : Product of Flux density and
Effective Voicecoil-wire length

Vas : Volume of air equal to the driver
compliance

3

Me : Effective massMe (g)

Fs : Driver free air resonanceFs (Hz)

Qms : Q of driver at Fs considering
only non-electrical resistance
Qes : Q of driver at Fs considering
only electrical resistance
Qts : Total Q of driver at FsQts
Pe[max.] : Maximum continuous input
power
Xmax. : Maximum effective voicecoil
travel without distortion

SPL : Sound pressure levelSPL (dB,1W/1M)

BL : Product of Flux density and
Effective Voicecoil-wire length

Vas : Volume of air equal to the driver
compliance

3

Me : Effective massMe (g)

Fs : Driver free air resonanceFs (Hz)

Qms : Q of driver at Fs considering
only non-electrical resistance
Qes : Q of driver at Fs considering
only electrical resistance
Qts : Total Q of driver at FsQts
Pe[max.] : Maximum continuous input
power
Xmax. : Maximum effective voicecoil
travel without distortion

Nominal Impedance (Ω)

Displacement (Liter)
Hole Cutout Diameter (inch)
(mm)
Mounting Depth (inch)
(mm)

Re (Ω) Re : DC voice coil resistance

ENGLISH

BL (T.M)

Vas (Liter)

Vas (CuFt)

D (mm) D : Effective cone diameter

parallel

83.49 dB

0.98 Ω 3.83 Ω 7.6 Ω1.92 Ω

6.85 13.75 17.218.68

17.08 L 16.98 L 18.28 L18.08 L

0.6 ft

145.986 g 147.109 g 122.443 g124.084 g

series seriesparallel

2Ω + 2Ω 4Ω + 4Ω

83.54 dB 84.12 dB84.02 dB

Dia. 9 - 6/32 inch

( 233 mm )

6 - 14/32 inch

( 163.5 mm )

3

0.599 ft

Dia. 202 mm

39.6 Hz 39.5 Hz 41.8 Hz41.7 Hz

Qms

Qes

10.261 10.282 9.1699.021

0.756 0.74 0.8240.83

0.704 0.691 0.7560.76

Pe [max.] (W)

Xmax.(mm)

Freq.Responce (Hz)
Magnet Mass (oz)
(g)
Voice Coil(Aluminum)Dia.(inch)
(mm)
Hvc (mm) Hvc : Voice coil Height
Hag (mm) Hag : Gap Height

Nominal Impedance (Ω)

Displacement (Liter)
Hole Cutout Diameter (inch)
(mm)
Mounting Depth (inch)
(mm)

Re (Ω) Re : DC voice coil resistance

BL (T.M)

Vas (Liter)

Vas (CuFt)

D (cm) D : Effective cone diameter

14.95 mm 14.8 mm

25 ~500 Hz

Dia. 2 - 5/32 inch

54.5 mm

39.9 mm

parallel

85.13 dB

( 1854.1 g )

series seriesparallel

2Ω + 2Ω 4Ω + 4Ω

85.2 dB 85.65 dB85.87 dB

Dia. 10 - 29/32 inch

( 277 mm )

7 - 6/32 inch

( 182.5 mm )

0.98 Ω 3.84 Ω 7.61 Ω1.94 Ω

6.84 13.72 19.149.56

38.7 L 38.76 L 35.05 L35.23 L

3

1.37 ft

171.854 g 172.934 g 157.336 g157.028 g

1.37 ft

Dia. 246 mm

34.6 Hz 34.5 Hz 38 Hz37.9 Hz

Qms

Qes

10.277 10.089 9.0148.931

0.786 0.765 0.7810.794

0.73 0.711 0.7190.73

Pe [max.] (W)

Xmax.(mm)

Freq.Responce (Hz)
Magnet Mass (oz)
(g)
Voice Coil(Aluminum)Dia.(inch)
(mm)
Hvc (mm) Hvc : Voice coil Height
Hag (mm) Hag : Gap Height

14.95 mm 14.8 mm

23 ~500 Hz

Dia. 2 - 5/32 inch

( 54.5 mm )

39.9 mm

( 2443.7 g )

- 6 -

NOTESParameters

NOTESParameters

Nous vous remercions pour I'achat d'un haut-parleur auto stéréo de ARSENAL dans
le coffre de votre véhicule. Pour un montage sûr et un fonctionnement parfait de ce
haut-parleur, il est conseillé de lire attentivement ce qui suit.

Parts

3. Jump2. Screw x 10

1. Grille

4. Fuse (10A) x 2

Montage et utilisation corrects

1.Vérifier que l'alimentation est coupée avant de raccorder les haut-parleurs à
l'amplificateur. Les craquements produits par le raccordement lors que l'alimentation
est fournie peuvent endomma ger les haut-parleurs.

2.Raccorder les bornes correspondantes de l’amplificateur et les haut-parleurs,
c'est-à-dire, gauche à gauche, droit à droite, de même que “+” à “+” et “–” à “–”. Un
raccordement effectué en inversant les polarités réduira la qualité de la reproduction
sonore stéréo-phonique.

3.Ne pas appliquer un niveau d'entrée excessif aux haut-parleurs. La puissance
d'entrée admissible pour les haut-parleurs
CS-AW7020/CS-AW7040/CS-AW7220/CS-AW7240 est de 600 watts (puissance
musicale R.M.S.). Tout signal d'entrée excessif risque de les endommager.

4.Les haut-parleurs CS-AW7020/CS-AW7040/CS-AW7220/CS-AW7240 ont une
impédance de 2Ω,4Ω,8Ω. ll faut par conséquent s'assurer que l'impédance de sortie
aux bornes de haut-parleur de l'amplificateur soit aussi de 2Ω,4Ω,8Ω.

5.Nettoyer le haut-parleur en le frottant légèrement à l'aide d'un chiffon doux. Ne
jamais utiliser de solvants ni de détergents.

6.Veuillez suivre attentivement les instructions suivantes pour:

Connections de Câble

Remplacement de Fusible
Changement de la Sélection d'Impédance
Montage du Subwoofer et Installation Pratique de la Moulure de Finition

Consultez la Page 19 de ce Manuel d'Instruction pour les détails de cesprocédures.

- 7 -

5. Hexagon socket
screw keys

FRANÇAIS

Diagrammes d’application duale 4Ω

1 amplificateur mono
1 (un) caisson de basse
Cavalier branché en Série
Impédance de charge de
8Ω(4Ω+4Ω)

FRANÇAIS

1 amplificateur mono
1 (un) caisson de basse
Cavalier branché en Parallèle
Impédance de charge de 8Ω(4Ω+4Ω)

1 amplificateur mono
2 (deux) caissons de basse
Cavalier branché en Série
Subwoofers wired in Parallel
Impédance de charge de 4Ω

JUMPER

Mono

Stereo

4Ω 2-Chan

JUMPER

Mono

4Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

-

+

+

*JUMPER is Removed

SERIES PARALLEL

Input Bi-Amp Input

Only

-

+ +

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

-

+

+

4Ω

4Ω 4Ω 4Ω

8Ω 8Ω

-

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

+

1 amplificateur mono
1 (un) caisson de basse
Cavalier branché en Parallèle
Impédance de charge de
8Ω(4Ω+4Ω)

Mono

Configuration en double amplification
2 amplificateurs mono
1 (un) caisson de basse Cavalier débranché
Impédance de charge de 4Ω

Mono

Mono

4Ω

Only

-

+

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

4Ω2Ω4Ω4Ω8Ω4Ω

-

*JUMPER is Removed

SERIES PARALLEL

Input Bi-Amp Input

Only

-

+ +

4Ω

-

1 amplificateur mono
3 (trois) caissons de basse
Cavalier branché en Série
Subwoofers wired in Parallel
Impédance de charge de 2.6Ω

1 amplificateur mono
4 (quatre) caissons de basse
Cavalier branché en Série
Subwoofers wired in Parallel
Impédance de charge de 2Ω

JUMPER

Mono

2.6Ω

JUMPER

Mono

2Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

4Ω

4Ω

8Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

4Ω

4Ω

8Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

Only

-

+

+

4Ω8Ω4Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

Only

-

+

4Ω8Ω4Ω

+

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

-

Only

-

-

+

+

4Ω8Ω4Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

JUMPER

SERIES PARALLEL

-

Input Bi-Amp Input

+

4Ω8Ω4Ω 4Ω8Ω4Ω

Jumper Plug

Only

-

+

-

- 8 -

Diagrammes d’application duale 2Ω

1 amplificateur mono
1 (un) caisson de basse
Cavalier branché en Série
Impédance de charge de
4Ω(2Ω+2Ω)

Mono

1 amplificateur mono
1 (un) caisson de basse
Cavalier branché en Parallèle
Impédance de charge de 4Ω(2Ω+2Ω)

Stereo

1 amplificateur mono
2 (deux) caissons de basse
Cavalier branché en Série
Subwoofers wired in Parallel
Impédance de charge de 2Ω

Mono

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

*JUMPER is Removed

SERIES PARALLEL

Input Bi-Amp Input

+ +

2Ω 2-Chan

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

2Ω

4Ω 4Ω

2Ω

-

Only

-

-

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

2Ω 2Ω 2Ω

Only

-

+

+

1 amplificateur mono
1 (un) caisson de basse
Cavalier branché en Parallèle
Impédance de charge de
4Ω(2Ω+2Ω)

Configuration en double amplification
2 amplificateurs mono
1 (un) caisson de basse Cavalier débranché
Impédance de charge de 2Ω

SERIES PARALLEL

Input Bi-Amp Input

+

Mono

2Ω1Ω2Ω2Ω4Ω2Ω

*JUMPER is Removed

Mono

2Ω

Mono

2Ω

-

JUMPER

Jumper Plug

Only

-

-

+

SERIES PARALLEL

Input Bi-Amp Input

Only

-

+ +

FRANÇAIS

-

1 amplificateur mono
3 (trois) caissons de basse
Cavalier branché en Série
Subwoofers wired in Parallel
Impédance de charge de 1.3Ω

1 amplificateur mono
4 (quatre) caissons de basse
Cavalier branché en Série
Subwoofers wired in Parallel
Impédance de charge de 1Ω

JUMPER

Mono

1.3Ω

JUMPER

Mono

1Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

2Ω

2Ω

4Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

2Ω

2Ω

4Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

Only

-

+

+

2Ω4Ω2Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

Only

-

+

2Ω4Ω2Ω

+

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

-

Only

-

-

+

+

2Ω4Ω2Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

JUMPER

SERIES PARALLEL

-

Input Bi-Amp Input

+

2Ω4Ω2Ω 2Ω4Ω2Ω

Jumper Plug

Only

-

+

-

- 9 -

Pour installer l’enceinte hermétique

Si le haut-parleur ne peut pas être xé directement dans cette voiture, fabriquez une enceinte hermétique de façon recommandéeà l’aide des
spécications données dans le tableau ci-dessous; le
MDF—20 mm (3/4 pouce) est recommandé pour le matériau
de l’enceinte.

CS-AW7020 / CS-AW7040 CS-AW7220 / CS-AW7240
A 15-13/32 inch (391.7 mm)
B 15-13/32 inch (391.7 mm)
C

11-13/32 inch (290.1 mm) 13-29/32 inch (353.6 mm)
D

9-4/32 inch (232 mm) 10-14/32 inch (275.9 mm)
E

9-23/32 inch (247 mm) 11-10/32 inch (295 mm)
FG4/32 inch (3 mm) 4/32 inch (3 mm)

1.57 ft3 (0.045 m3) 2.17 ft3 (0.062 m3)

16-13/32 inch (417.1 mm)
16-13/32 inch (417.1 mm)

Écrans acoustiques avant et arrière (x 2)

C

B

Faces supérieure et
inférieure (x 2)

FRANÇAIS

G : Volume interne

A

Faces gauche et
droite (x 2)

* Vis: Dia. 4mm x 50mm (x 8) (fournis)

Faces gauche
et droite (x 2)

Pour installer l’enceinte hermétique

Si le haut-parleur ne peut pas être xé directement dans cette voiture, fabriquez une enceinte hermétique de façon recommandéeà l’aide des
spécications données dans le tableau ci-dessous; le
MDF—20 mm (3/4 pouce) est recommandé pour le matériau
de l’enceinte.

Écrans acoustiques avant et arrière (x 2)

C

CS-AW7020 / CS-AW7040 CS-AW7220 / CS-AW7240
A 15-13/32 inch (391.7 mm) 15-13/32 inch (391.7 mm)
B

18-13/32 inch (467.9 mm) 18-13/32 inch (467.9 mm)
C

13-13/32 inch (340.9 mm) 15-13/32 inch (391.7 mm)
D

9-23/32 inch (247 mm) 10-14/32 inch (275.9 mm)
E

9-23/32 inch (247 mm) 11-10/32 inch (295 mm)
F

4/32 inch (3 mm) 4/32 inch (3 mm)
G

1 inch (25.4 mm) 1 inch (25.4 mm)
H

13 inch (330.2 mm) 14 inch (355.6 mm)

IJ13-19/32 inch (345.4 mm) 13-6/32 inch (335.3 mm)

3

1.85 ft

(0.052 m3) 2.54 ft3 (0.072 m3)

B

Faces supérieure et
inférieure (x 2)

J : Volume interne

Faces gauche et

A

droite (x 2)

Faces gauche
et droite (x 2)

* Vis: Dia. 4mm x 50mm (x 8) (fournis)

G

I

H

- 10 -

0.123 ft

3

600 W

65.4 oz

10 mm

0.18 ft

3

600 W

86.2 oz

10 mm

CS-AW7040CS-AW7020

3

3

0.64 ft

0.65 ft

Dia. 2 - 4/32 inch
( 53.59 mm )

39.6 mm

CS-AW7240CS-AW7220

3

3

1.24 ft

1.24 ft

Dia. 2 - 4/32 inch
( 53.59 mm )

39.6 mm

REMARQUES

Re : Résistance de la bobine mobile
en CC
BL : Produit de la densité de flux et de
la longueur efficace de fil de la bobine
mobile
Vas : Volume d'air égal à la conformité
de l'excitateur

3

Me : Masse effectiveMe (g)

Fs : Résonance à l'air libre de
l'excitateur

Qms : Q de l'excitateur à Fs considérant
uniquement la résistance non-électrique

Qes : Q de l'excitateur à Fs considérant
uniquement la résistance électrique

Qts : Q total de l'excitateur à FsQts
Pe[max.] : Puissance d'entrée
continue maximum

Xmax. : Déplacement effectif maximum
de la bobine mobile sans distorsion

REMARQUES

Re : Résistance de la bobine mobile
en CC
BL : Produit de la densité de flux et de l
a longueur efficace de fil de la bobine
mobile
Vas : Volume d'air égal à la conformité
de l'excitateur

3

Me : Masse effectiveMe (g)

Fs : Résonance à l'air libre de
l'excitateur

Qms : Q de l'excitateur à Fs considérant
uniquement la résistance non-électrique

Qes : Q de l'excitateur à Fs considérant
uniquement la résistance électrique

Qts : Q total de l'excitateur à FsQts
Pe[max.] : Puissance d'entrée
continue maximum

Xmax. : Déplacement effectif maximum
de la bobine mobile sans distorsion

Paramètres

Impédance nominale (Ω)
SPL (dB,1W/1M) SPL : Niveau de pression sonore
Déplacement (Liter)
Diamètre du tuou de découpe (
(mm)
Profondeur de montage (pouces)
(mm)

Re (Ω)

BL (T.M)

Vas (Iitre)

Vas (CuFt)

D (mm) D : Diamètre effectif du cône

Fs (Hz)

Qms

Qes

parallel

2Ω + 2Ω 4Ω + 4Ω

83.49 dB

pouces)

83.54 dB 84.12 dB84.02 dB

0.98 Ω 3.83 Ω 7.6 Ω1.92 Ω

6.85 13.75 17.218.68

17.08 L 16.98 L 18.28 L18.08 L

3

0.599 ft

0.6 ft

145.986 g 147.109 g 122.443 g124.084 g

39.6 Hz 39.5 Hz 41.8 Hz41.7 Hz

10.261 10.282 9.1699.021

0.756 0.74 0.8240.83

series seriesparallel

Dia. 9 - 6/32 inch

( 233 mm )

6 - 14/32 inch

( 163.5 mm )

Dia. 202 mm

0.704 0.691 0.7560.76

Pe [max.] (W)

Xmax. (mm)

Réponse en fréquence (Hz)
Masse de l’aimant (once)
(g)
Diamètre de la bobine mobile (
(mm)
Hvc (mm) Hvc : Hauteur de la bobine mobile
Hag (mm) Hvc : Hauteur de la bobine mobile

Paramètres

Impédance nominale (Ω)
SPL (dB,1W/1M) SPL : Niveau de pression sonore
Déplacement (Liter)
Diamètre du tuou de découpe (
(mm)
Profondeur de montage (pouces)
(mm)

pouces)

pouces)

Re (Ω)

BL (T.M)

Vas (Iitre)

Vas (CuFt)

D (mm) D : Diamètre effectif du cône

Fs (Hz)

Qms

Qes

14.95 mm 14.8 mm

25 ~500 Hz

Dia. 2 - 5/32 inch

( 54.5 mm )

39.9 mm

parallel

85.13 dB

( 1854.1 g )

series seriesparallel

2Ω + 2Ω 4Ω + 4Ω

85.2 dB 85.65 dB85.87 dB

Dia. 10 - 29/32 inch

( 277 mm )

7 - 6/32 inch
( 182.5 mm )

0.98 Ω 3.84 Ω 7.61 Ω1.94 Ω

6.84 13.72 19.149.56

38.7 L 38.76 L 35.05 L35.23 L

3

1.37 ft

171.854 g 172.934 g 157.336 g157.028 g

1.37 ft

Dia. 246 mm

34.6 Hz 34.5 Hz 38 Hz37.9 Hz

10.277 10.089 9.0148.931

0.786 0.765 0.7810.794

0.73 0.711 0.7190.73

Pe [max.] (W)

Xmax. (mm)

Réponse en fréquence (Hz)
Masse de l’aimant (once)
(g)
Diamètre de la bobine mobile (
(mm)
Hvc (mm) Hvc : Hauteur de la bobine mobile
Hag (mm) Hvc : Hauteur de la bobine mobile

pouces)

14.95 mm 14.8 mm

23 ~500 Hz

Dia. 2 - 5/32 inch

( 54.5 mm )

39.9 mm

( 2443.7 g )

- 11 -

FRANÇAIS

Le agradecemos la adquisición del Altavoz Estereofónico para Automóvil de
ARSENAL. Para efectuar una instalación segura y para que el altavoz funcione
correctamente, lea detenidamente las siguientes instrucciones.

Parts

3. Jump2. Screw x 10

1. Grille

ESPAŃOL

4. Fuse (10A) x 2

Instalación y uso correctos

1.Antes de conectar los altavoces con el amplificador, confirme que esté cortada la
alimentación eléctrica. El ruido producido al realizar la conexión con la alimentación
conectada puede causar daños en los altavoces.

2.Deben conectares los terminales correspondientes del amplificador y de los
altavoces, es decir izquierdo a izquierdo y derecho a derecho,asi co mo “+” a “+” y
“–” a “–”. Si las polaridades se co nectan inversamente, la reproducción este
reofónica se deteriorará.

3.No someta los altavoces a una entrada excesiva. La capacidad máxima de los
CS-AW7020/CS-AW7040/CS-AW7220/CS-AW7240 es de 600 votios (POTENCIA
MUSICAL R.M.S.). Una entra da excesiva dañará los altavoces.

4.Los CS-AW7020/CS-AW7040/CS-AW7220/CS-AW7240 tienen 2Ω,4Ω,8Ω de
impedancia. Asegúrese de que la impe dancia de salida del terminal para altavoces
de amplificador sea de 2Ω, 4Ω,8Ω.

5.Cuando limpie los altavoces, utilice un paño suave y frote la superficie con cuidado.
No aplique solventes ni diluyentes.

6.Asegurese de seguir cuidadosamente las instrucciones para:

Conecciones de Cable

Reemplazo de fucible
Cambiando el Selector de Resistencia
Instalar el subwoofer y la moldura del anillo

5. Hexagon socket

screw keys

Consulte la Page 19 de este Manual de Instrucciones para los detalles de estos

procedimientos.

- 12 -

Diagramas de Aplicasion Dual 4Ω

1 amplificador monofónico
1(un) bajo
Puente fijado en serie
Carga a 8Ω(4Ω+4Ω)

Amplificador 1,2 ch
1(un) bajo
Se quita el puente
Carga a 4Ω

1 amplificador monofónico
2 (Dos) bajos
Puente fijado en serie
Subwoofers wired in Parallel
Carga a 4Ω

JUMPER

Mono

Stereo

4Ω 2-Chan

JUMPER

Mono

4Ω

JUMPER

1 amplificador monofónico
1(un) bajo

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

-

Puente fijado en Paralelo
Carga a 8Ω(4Ω+4Ω)

Mono

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

4Ω

4Ω4Ω8Ω4Ω

-

2Ω

*JUMPER is Removed *JUMPER is Removed

SERIES PARALLEL

Input Bi-Amp Input

Only

-

-

+ +

Configuracion Bi-Amplificada
2 amplificadores monofónicos
1(un) bajo Se quita el puente Carga a 4Ω

Mono

4Ω

SERIES PARALLEL

Input Bi-Amp Input

Only

-

+ +

Mono

4Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

-

+

+

4Ω

4Ω 4Ω 4Ω

8Ω 8Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

-

-

ESPAŃOL

1 amplificador monofónico
3 (Tres) bajos
Puente fijado en serie
Subwoofers wired in Parallel
Carga a 2.6Ω

1 amplificador monofónico
4 (Cuatro) bajos
Puente fijado en serie
Subwoofers wired in Parallel
Carga a 2Ω

JUMPER

Mono

2.6Ω

JUMPER

Mono

2Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

4Ω

4Ω

8Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

4Ω

4Ω

8Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

Only

-

+

+

4Ω8Ω4Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

Only

-

+

4Ω8Ω4Ω

+

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

-

Only

-

-

+

+

4Ω8Ω4Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

JUMPER

SERIES PARALLEL

-

Input Bi-Amp Input

+

4Ω8Ω4Ω 4Ω8Ω4Ω

Jumper Plug

Only

-

+

-

- 13 -

Diagramas de Aplicasion Dual 2Ω

1 amplificador monofónico
1(un) bajo
Puente fijado en serie
Carga a 4Ω(2Ω+2Ω)

Amplificador 1,2 ch
1(un) bajo
Se quita el puente
Carga a 2Ω

ESPAŃOL

1 amplificador monofónico
2 (Dos) bajos
Puente fijado en serie
Subwoofers wired in Parallel
Carga a 2Ω

JUMPER

Mono

Stereo

2Ω 2-Chan

JUMPER

Mono

2Ω

JUMPER

1 amplificador monofónico
1(un) bajo

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

-

Puente fijado en Paralelo
Carga a 4Ω(2Ω+2Ω)

Mono

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

2Ω

2Ω2Ω4Ω2Ω

-

1Ω

*JUMPER is Removed *JUMPER is Removed

SERIES PARALLEL

Input Bi-Amp Input

Only

-

-

+ +

Configuracion Bi-Amplificada
2 amplificadores monofónicos
1(un) bajo Se quita el puente Carga a 2Ω

Mono

2Ω

SERIES PARALLEL

Input Bi-Amp Input

Only

-

+ +

Mono

2Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

-

+

+

2Ω

2Ω 2Ω 2Ω

4Ω 4Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

-

-

1 amplificador monofónico
3 (Tres) bajos
Puente fijado en serie
Subwoofers wired in Parallel
Carga a 1.3Ω

1 amplificador monofónico
4 (Cuatro) bajos
Puente fijado en serie
Subwoofers wired in Parallel
Carga a 1Ω

JUMPER

Mono

1.3Ω

JUMPER

Mono

1Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

2Ω

2Ω

4Ω

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

2Ω

2Ω

4Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

Only

-

+

+

2Ω4Ω2Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

Only

-

+

2Ω4Ω2Ω

+

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

-

-

Only

-

-

+

+

2Ω4Ω2Ω

JUMPER

SERIES PARALLEL

Jumper Plug

Input Bi-Amp Input

Only

-

+

+

JUMPER

SERIES PARALLEL

-

Input Bi-Amp Input

+

2Ω4Ω2Ω 2Ω4Ω2Ω

Jumper Plug

Only

-

+

-

- 14 -

Para instalar la caja sellada

Cuando el altavoz no se pueda instalCuando el altavoz no se pueda instalCuando el altavoz no se pueda instalusar MDF—20 mm (3/4 pulg.) como
material para la caja.

CS-AW7020 / CS-AW7040 CS-AW7220 / CS-AW7240
A 15-13/32 inch (391.7 mm)
B 15-13/32 inch (391.7 mm)
C

11-13/32 inch (290.1 mm) 13-29/32 inch (353.6 mm)
D

9-4/32 inch (232 mm) 10-14/32 inch (275.9 mm)
E

9-23/32 inch (247 mm) 11-10/32 inch (295 mm)
FG4/32 inch (3 mm) 4/32 inch (3 mm)

1.57 ft3 (0.045 m3) 2.17 ft3 (0.062 m3)

16-13/32 inch (417.1 mm)
16-13/32 inch (417.1 mm)

Pantallas acústicas delantera y trasera (x 2)

C

B

Lados superior e
inferior (x 2)

G : El Volumen interior

A

Lados izquierdo y
derecho (x 2)

* Tcrnillo: Dia. 4mm x 50mm (x 8) (suministrado)

Para instalar la caja sellada

Lados superior e inferior (x 2)Cuando el altavoz no se pueda instalar en el automóvil, construya la caja sellada recomendada en la tablade
abajo—Asimismo, serecomienda usar
MDF—20 mm(3/4 pulg.) como material para la caja.

Pantallas acústicas delantera y trasera (x 2)

C

CS-AW7020 / CS-AW7040 CS-AW7220 / CS-AW7240
A 15-13/32 inch (391.7 mm) 15-13/32 inch (391.7 mm)
B

18-13/32 inch (467.9 mm) 18-13/32 inch (467.9 mm)
C

13-13/32 inch (340.9 mm) 15-13/32 inch (391.7 mm)
D

9-23/32 inch (247 mm) 10-14/32 inch (275.9 mm)
E

9-23/32 inch (247 mm) 11-10/32 inch (295 mm)
F

4/32 inch (3 mm) 4/32 inch (3 mm)
G

1 inch (25.4 mm) 1 inch (25.4 mm)
H

13 inch (330.2 mm) 14 inch (355.6 mm)

IJ13-19/32 inch (345.4 mm) 13-6/32 inch (335.3 mm)

3

1.85 ft

(0.052 m3) 2.54 ft3 (0.072 m3)

B

Lados superior e
inferior (x 2)

J : El Volumen interior

Lados izquierdo y

A

G

derecho (x 2)

ESPAŃOL

Dimensión del
oricio de
montaje

* Tcrnillo: Dia. 4mm x 50mm (x 8) (suministrado)

I

H

Dimensión del
oricio de
montaje

- 15 -

0.123 ft

3

600 W

65.4 oz

10 mm

0.18 ft

3

600 W

86.2 oz

10 mm

CS-AW7040CS-AW7020

3

3

0.64 ft

0.65 ft

Dia. 2 - 4/32 inch
( 53.59 mm )

39.6 mm

CS-AW7240CS-AW7220

3

3

1.24 ft

1.24 ft

Dia. 2 - 4/32 inch
( 53.59 mm )

39.6 mm

Re : Resistencia de la bobina móvil de
CC
BL : Producto de densidad de flujo y
longitud efectiva del cable de la
bobina móvil
Vas: Volumen de aire equivalente en
conformidad con el excitador

3

Me : Masa efectivaMe (g)

Fs : Resonancia del aire sin excitadorFs (Hz)

Qms : Q del excitador a Fs considerando
sólo la resistencia no eléctrica

Qes : Q del excitador a Fs considerando
sólo la resistencia eléctrica

Qts : Total Q dei excitador a Fs
Pe[max.] : Potencia máxima de
entrada contínua

Xmax. : Máximo desplazamiento
efectivo de la bobina móvil sin distorsón

Re : Resistencia de la bobina móvil de
CC
BL : Producto de densidad de flujo y
longitud efectiva del cable de la
bobina móvil
Vas: Volumen de aire equivalente en
conformidad con el excitador

3

Me : Masa efectivaMe (g)

Fs : Resonancia del aire sin excitadorFs (Hz)

Qms : Q del excitador a Fs considerando
sólo la resistencia no eléctrica

Qes : Q del excitador a Fs considerando
sólo la resistencia eléctrica

Qts : Total Q dei excitador a Fs
Pe[max.] : Potencia máxima de
entrada contínua

Xmax. : Máximo desplazamiento
efectivo de la bobina móvil sin distorsón

Parámetros NOTAS

Impedancia nominal (Ω)
SPL (dB,1W/1M) SPL : Nivel de presión de sonido
Desplazamiento (litro)
Diámetro del orificio cortado (pulgada)
(mm)
Profundidad de montaje (pulgada)
(mm)

Re (Ω)

BL (T.M)

Vas (litro)

Vas (pies cúbicos)

D (mm) D : Diámetro efectivo del cono

parallel

83.49 dB

series seriesparallel

2Ω + 2Ω 4Ω + 4Ω

83.54 dB 84.12 dB84.02 dB

Dia. 9 - 6/32 inch

( 233 mm )

6 - 14/32 inch

( 163.5 mm )

0.98 Ω 3.83 Ω 7.6 Ω1.92 Ω

6.85 13.75 17.218.68

17.08 L 16.98 L 18.28 L18.08 L

3

0.599 ft

0.6 ft

145.986 g 147.109 g 122.443 g124.084 g
Dia. 202 mm

39.6 Hz 39.5 Hz 41.8 Hz41.7 Hz

Qms

Qes

Qts

ESPAŃOL

Pe [máx.] (W)

Xmax. (mm)

Respuesta de frec (Hz)
Masa del imán (oz)
(g)
Diám.de la bobina móvil (pulgada)
(mm)
Hvc (mm) Hvc : Altura de bobina móvil
Hag (mm) Hag : Altura de entrehierro

Parámetros NOTAS

Impedancia nominal (Ω)
SPL (dB,1W/1M) SPL : Nivel de presión de sonido
Desplazamiento (litro)
Diámetro del orificio cortado (pulgada)
(mm)
Profundidad de montaje (pulgada)
(mm)

Re (Ω)

BL (T.M)

Vas (litro)

Vas (pies cúbicos)

D (mm) D : Diámetro efectivo del cono

10.261 10.282 9.1699.021

0.756 0.74 0.8240.83

0.704 0.691 0.7560.76

14.95 mm 14.8 mm

25 ~500 Hz

Dia. 2 - 5/32 inch

( 54.5 mm )

39.9 mm

parallel

85.13 dB

( 1854.1 g )

series seriesparallel

2Ω + 2Ω 4Ω + 4Ω

85.2 dB 85.65 dB85.87 dB

Dia. 10 - 29/32 inch

( 277 mm )

7 - 6/32 inch

( 182.5 mm )

0.98 Ω 3.84 Ω 7.61 Ω1.94 Ω

6.84 13.72 19.149.56

38.7 L 38.76 L 35.05 L35.23 L

3

1.37 ft

171.854 g 172.934 g 157.336 g157.028 g

1.37 ft

Dia. 246 mm

34.6 Hz 34.5 Hz 38 Hz37.9 Hz

Qms

Qes

Qts

10.277 10.089 9.0148.931

0.786 0.765 0.7810.794

0.73 0.711 0.7190.73

Pe [máx.] (W)

Xmax. (mm)

Respuesta de frec (Hz)
Masa del imán (oz)
(g)
Diám.de la bobina móvil (pulgada)
(mm)
Hvc (mm) Hvc : Altura de bobina móvil
Hag (mm) Hag : Altura de entrehierro

14.95 mm 14.8 mm

23 ~500 Hz

Dia. 2 - 5/32 inch

( 54.5 mm )

39.9 mm

( 2443.7 g )

- 16 -

inch

7/32

Dia.

8-

[ 5.5 mm ] HOLES

Dia. 9-23/32 inch

[ 247 mm ]

inch

7/32

Dia.

8-

[ 5.5 mm ] HOLES

Dia. 11-20/32 inch

[ 295 mm ]

Dia. 10-14/32 inch [ 265 mm ]
Dia. 10-26/32 inch [ 275 mm ]

1-9/32 inch

[ 32.51 mm ]

6-14/32 inch [ 163.5 mm ]

Dia. 12-12/32 inch [ 314 mm ]
Dia. 12-24/32 inch [ 324 mm ]

Dia. 10-28/32 inch [ 275.94 mm ]Dia. 9-4/32 inch [ 231.96 mm ]

CS-AW7020 CS-AW7220
CS-AW7040 CS-AW7240

1-9/32 inch

[ 32.69 mm ]

7-7/32 inch [ 182.5 mm ]

- 17 -

Santoprene Surround

Multi Mount Smart
Trim Ring
(Patent Pending)

Air Vented
Aluminum
Cast Basket

Integlated Dual-Layer
Cone construction

Woven Tinsel Lead
(Patent Pending)

Rapid Fire Impedance
Selector Speaker Terminal
( Patent Pending)

4 (2+2) Layer Voice Coils

Heat Transfer Silicon

Aero Vent Bottom Plate

T3 Chassis (Thermal Transfer Technology)

Glass Fiber
Laminated
Hemp Cone

Hemp-Fiber Drive
Cone

Dual Diametric
Progressive Spider

Aluminum Voice
Coil Former

Dual Stacked
Strontium Magnet

Heat Transfer Silicon

- 18 -

- 19 -

TO OUR VALUED CUSTOMER

THANK YOU FOR PURCHASING THIS JVC PRODUCT.

WE WANT TO HELP YOU ACHIEVE A PERFECT EXPERIENCE.

NEED HELP ON HOW TO HOOK UP?

NEED ASSISTANCE ON HOW TO OPERATE?

NEED TO LOCATE A JVC SERVICE CENTER?

LIKE TO PURCHASE ACCESSORIES?

IS HERE TO HELP!

TOLL FREE: 1(800)252-5722

http://www.jvc.com

Remember to retain your Bill of Sale for Warranty Service.

Do not attempt to service the product yourself

Caution

To prevent electrical shock, do not open the cabinet.
There are no user serviceable parts inside.
Please refer to qualified service personnel for repairs.

EN, FR, SP
© 2007 Victor Company of Japan, Limited

Printed in China
