Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.

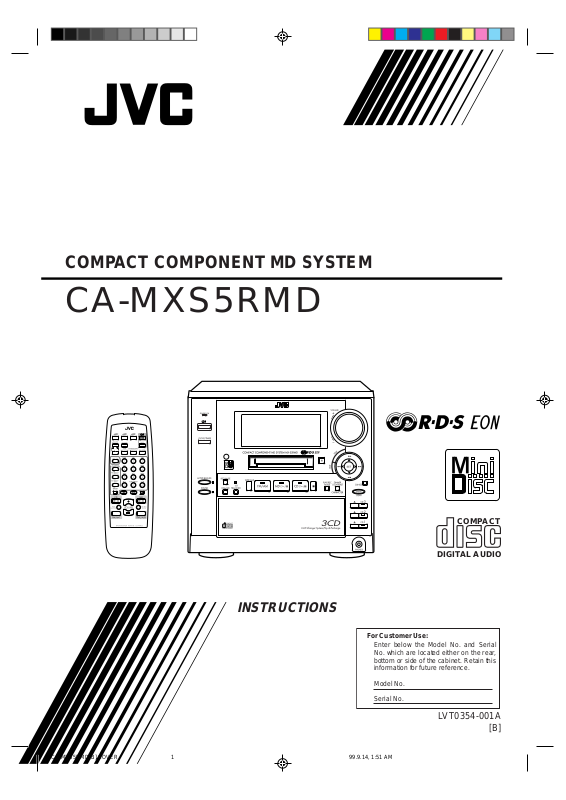

COMPACT COMPONENT MD SYSTEM
CA-MXS5RMD
COMPACT
DIGITAL AUDIO
INSTRUCTIONS
LVT0354-001A
[B]
Warnings, Cautions and Others
IMPORTANT for the U.K.
DO NOT cut off the mains plug from this equipment. If the
plug fitted is not suitable for the power points in your
home or the cable is too short to reach a power point,
then obtain an appropriate safety approved extension
lead or consult your dealer.
BE SURE to replace the fuse only with an identical
approved type, as originally fitted.
If nontheless the mains plug is cut off ensure to remove
the fuse and dispose of the plug immediately, to avoid a
possible shock hazard by inadvertent connection to the
mains supply.
If this product is not supplied fitted with a mains plug then
follow the instructions given below:
IMPORTANT:
DO NOT make any connection to the terminal which is
marked with the letter E or by the safety earth symbol or
coloured green or green-and-yellow.
The wires in the mains lead on this product are coloured
in accordance with the following code:
Blue :Neutral
Brown : Live
As these colours may not correspond with the coloured
markings identifying the terminals in your plug proceed as
follows:
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured
black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or coloured
red.
IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.
Caution –– switch!
Disconnect the mains plug to shut the power off completely
(the STANDBY/ON lamp goes off).
The switch in any position does not disconnect the
mains line.
• When the unit is on standby, the STANDBY/ON lamp
lights red.
• When the unit is turned on, the STANDBY/ON lamp lights
green.
The power can be remote controlled.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
– G-1 –
IMPORTANT FOR LASER PRODUCTS
REPRODUCTION OF LABELS
1 CLASSIFICATION LABEL, PLACED ON REAR
ENCLOSURE
CLASS 1
LASER PRODUCT
1. CLASS 1 LASER PRODUCT
2. DANGER: Invisible laser radiation when open and interlock
failed or defeated. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user
serviceable parts inside the Unit; leave all servicing to
qualified service personnel.
Caution: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage,
locate the apparatus as follows:
1 Front:
No obstructions and open spacing.
2 Sides/ Top/ Back:
No obstructions should be placed in the areas shown by
the dimensions below.
3 Bottom:
Place on the level surface. Maintain an adequate air path
for ventilation by placing on a stand with a height of 10 cm
or more.
2 WARNING LABEL, PLACED INSIDE THE UNIT
DANGER: Invisible laser
radiation when open and
interlock failed or defeated.
AVOID DIRECT EXPOSURE
TO BEAM. (e)
VARNING: Osynlig laserstrålning när denna del är
öppnad och spärren är
urkopplad. Betrakta ej
strålen. (s)
ADVARSEL: Usynlig laserstråling ved åbning, når
sikkerhedsafbrydere er ude
af funktion. Undgå udsættelse for stråling (d)
VARO: Avattaessa ja suojalukitus ohitettaessa olet
alttiina näkymättömälle
lasersäteilylle. Älä katso
säteeseen. (f)
Front viewSide view
15 cm
26 cm26 cm
15 cm
1 cm1 cm
15 cm
15 cm
CA-MXS5RMDCA-MXS5RMD
10 cm
– G-2 –
Introduction
We would like to thank you for purchasing one of our JVC products.
Before operating this unit, read this manual carefully and thoroughly to
obtain the best possible performance from your unit, and retain this manual
for future reference.
About This Manual
This manual is organized as follows:
• The manual mainly explains operations using the
buttons and controls on the unit. You can also use the
buttons on the remote control if they have the same
or similar names (or marks) as those on the unit.
If operation using the remote control is different
from that using the unit, it is then explained.
• Basic and common information that is the same for
many functions is grouped in one place, and is not
repeated in each procedure. For instance, we do not
repeat the information about turning on/off the unit,
setting the volume, changing the sound effects, and
others, which are explained in the section “Basic and
Common Operations” on pages 14 – 16.
• The following marks are used in this manual:
Gives you warnings and cautions to prevent
from damage or risk of fire/electric shock.
Furthermore, gives you information which
is not good for obtaining the best possible
performance from the unit.
Gives you information and hints you had
better know.
Precautions
Installation
• Install in a place which is level, dry and neither too hot
nor too cold — between 5˚C (41˚F) and 35˚C (95˚F).
• Install the unit in a location with adequate ventilation to
prevent internal heat buildup in the unit.
• Leave sufficient distance between the unit and the TV.
• Keep the speakers away from the TV to avoid
interference with TV.
Power sources
• When unplugging the unit from the wall outlet, always
pull the plug, not the AC power cord.
DO NOT handle the AC power cord with wet
hands.
Moisture condensation
Moisture may condense on the lens inside the unit in the
following cases:
• After starting heating in the room
• In a damp room
• If the unit is brought directly from a cold to a warm
place
Should this occur, the unit may malfunction. In this case,
leave the unit turned on for a few hours until the moisture
evaporates, unplug the AC power cord, then plug it in
again.
Others
• Should any metallic object or liquid fall into the unit,
unplug the unit and consult your dealer before operating
any further.
• If you are not going to operate the unit for an extended
period of time, unplug the AC power cord from the wall
outlet.
DO NOT disassemble the unit since there are
no user serviceable parts inside.
If anything goes wrong, unplug the AC power cord and
consult your dealer.
DO NOT install the unit in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust or vibration.
– 1 –
Contents
Location of the Buttons and Controls........... 3
Front Panel .............................................................4
Remote Control ...................................................... 5
Become familiar with the buttons and controls on your unit.
Front Panel
Display Window
/
1
2
3
4
5
6
7
l
z
x
c
t
y
u
i
o
;
a
8
9
p
q
w
e
r
s
d
f
g
h
j
k
– 3 –
Continued
See pages in the parentheses for details.
Front Panel
1 MD loading slot
2
(Standby/On) button and STANDBY/ON lamp
(11)
3 CLOCK/TIMER button (11, 51)
4 Remote sensor
5 Recording lamp (34)
6 ACTIVE BASS EX. (extension) button and lamp (15)
7 SOUND button and lamp (16)
8 REC PAUSE button (34)
9 CD 3 MD button (35)
p 1ST TRACK REC button (35)
q TAPE/AUX button (15, 34)
• Pressing this button also turns on the unit.
w FM/AM button and lamp (15, 18)
• Pressing this button also turns on the unit.
e MD # / 8 (play/pause) button and lamp (15, 29)
• Pressing this button also turns on the unit.
r CD # / 8 (play/pause) button and lamp (15, 25)
• Pressing this button also turns on the unit.
t MD 0 (eject) button (29)
• Pressing this button also turns on the unit.
y VOLUME control (15)
u TITLE button (45, 49)
i Joy control
• 1
o EDIT button (40)
; CANCEL button (11, 27, 30, 40, 46)
a ENTER/DEMO button (12, 40, 46)
s Disc number buttons and lamps (25)
• CD 1, CD 2, and CD 3
d CD 0 (open/close) buttons (25)
• Pressing one of these buttons also turns on the unit.
/ ¡ / 4 / ¢ , and SET
Pressing SET also turns on the unit.
Pressing one of these buttons also turns on the unit.
f DIMMER/CONTRAST button (13)
CHARACTER button (45)
g PHONES jack (15)
h PLAY/REC MODE button (26, 30, 36, 37)
j 7 (stop) button (25, 29, 34)
k Disc trays (25)
Display window
l Main display
• Shows the source name, track number, and other
information.
/ Timer mode indicators
•
, DAILY (Daily Timer) and REC (Recording
Timer)
z MD/CD play mode indicators
• MD, CD, PRGM (Program), RANDOM, and
REPEAT (1/CD/ALL)
x Tuner mode indicators
• STEREO and TUNED
c RDS operation indicators
• RDS, EON, and TA/NEWS/INFO
When using the remote control, point it at the remote
sensor on the front panel.
About the indications in the main display
When using some functions with the remote control, the indications in the main display appear differently at first from those when using
the same functions with the buttons on the unit.
Ex. When selecting a CD track
using the remote control
This indication does not appear when
using the buttons on the unit except the
TAPE/AUX, FM/AM, MD # / 8, CD # / 8,
TITLE, and EDIT buttons.
– 4 –
Remote Control
1
2
3
4
5
t
y
u
i
6
7
8
o
9
p
;
a
q
w
e
s
d
f
r
* When using the remote control:
For RDS operations, press RDS CONTROL on the remote
control first when using the buttons (5, 7, 8, 9, p and
i).
For entering MD titles, press MD TITLE on the remote
control first when using the buttons (7, 8, 9, p, o).
• After entering titles, make sure to change the operation
mode of the remote control to the one you want to use by
pressing CD 3 / 8 (q), FM/AM (e), MD 3 / 8 (s), or
TAPE/AUX (f).
Remote Control
1 Disc number buttons (25)
• CD 1, CD 2, and CD 3
Pressing one of these buttons also turns on the unit.
d MD REC PAUSE button (34)
f TAPE/AUX button (15, 34)
(Standby/On) button (11)
TA/NEWS/INFO button (21)
• 1 – 10, +10 buttons (19, 26, 29)
• Character entry buttons (A – Z, 0 – 9) (48)
• ø / Ø buttons (48)
• AUTO PRESET button (18)
(18, 26, 27, 29)
• Pressing this button also turns on the unit.
• Pressing this button also turns on the unit.
– 5 –
Getting Started
Continued
Unpacking
After unpacking, check to be sure that you have all the
following items.
The number in the parentheses indicates the quantity of the
pieces supplied.
• AM loop antenna (1)
• FM antenna (1)
• Remote control (1)
• Batteries (2)
If any is missing, consult your dealer immediately.
Connecting Antennas
FM antenna
ANTENNA
M
A
LO
C
M
P
O
FM
(75 )
XIA
A
O
A
EXT
L
FM antenna (supplied)
To connect an outdoor FM antenna
Before connecting it, disconnect the supplied FM antenna.
Outdoor FM antenna
(not supplied)
ANTENNA
AM
T
EX
M
A
P
O
LO
FM
(75 )
XIAL
A
O
C
A 75Ω antenna with coaxial type
connector (DIN 45325) should be used.
1 Attach the FM antenna to the FM (75 Ω) COAXIAL
terminal.
2 Extend the FM antenna.
3 Fasten it up in the position which gives you the best
reception.
About the supplied FM antenna
The FM antenna supplied with this unit can be used as temporary
measure. If reception is poor, you can connect an outdoor FM
antenna.
– 6 –
AM antenna
Connecting Speakers
You can connect the speakers using the speaker cords.
1
AM loop antenna
(supplied)
2
3
Vinyl-covered
wire
(not supplied)
Red
1
2
Black
Speaker cord
3, 4
Red
Connect the AM loop antenna to the AM LOOP
1
terminals as illustrated.
2 Turn the AM loop antenna until you have the best
reception.
To connect an outdoor AM antenna
When reception is poor, connect a single vinyl-covered
wire to the AM EXT terminal and extend it horizontally.
(The AM loop antenna must remain connected.)
For better reception of both FM and AM (MW/LW)
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
Right
speaker
speaker
1 Twist the core of the cord at the end of each cord,
then remove the insulation.
2 Open the speaker terminal.
3 Insert the end of the speaker cord to the terminal.
Match the polarity of the speaker terminals: Red (+) to
red (+) and black (–) to black (–).
4 Close the speaker terminal on the rear of the unit.
Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the unit.
– 7 –
Left
Continued
Connecting Other Equipment
You can connect the following equipment to this unit:
• Cassette deck — used as a playback and recording
device. By using the cassette deck, you can record any
source played back on this unit.
• Audio equipment with an optical digital output terminal
— used only as a digital playback device.
When you connect and use these equipment, refer also to
the manuals supplied with them.
Be sure that the plugs of the audio cords and the jacks on
the rear of the unit are color coded: White plugs and jacks
are for left audio signals, and red ones for right audio
signals.
• DO NOT connect other equipment while the
power is on.
• DO NOT plug in any equipment until all
connections are complete.
To connect a cassette deck
To connect audio equipment with an optical digital
output terminal
Protective cap
Before connecting the other equipment,
remove the protective cap from the terminal.
Audio equipment with an
optical digital output
To optical digital
output
To input (REC)
Cassette deck
To output (PLAY)
By using audio cords (not supplied), connect:
• Between the audio input jacks on the cassette deck and
the TAPE OUT (REC) jacks — For recording on the
cassette deck.
• Between the audio output jacks on the cassette deck and
the TAPE IN (PLAY) jacks — For playing a tape.
Connect between the optical digital output terminal on the
other equipment and the AUX terminal.
– 8 –
NOW, you can plug in the unit and other connected
equipment FINALLY!
To a wall outlet
Putting the Batteries into the Remote
Control
Insert the batteries — R6P(SUM-3)/AA(15F) — into the
remote control, by matching the polarity (+ and –) on the
batteries with the + and – markings on the battery
compartment.
When the remote control can no longer operate the unit,
replace both batteries at the same time.
1
When connecting the AC power cord into a wall outlet, the
unit automatically starts display demonstration.
• Pressing TITLE on the unit while the unit is turned on,
shows the title entry screen (if there is no MD in the MD
loading slot). You can experience how to select a
character on this screen.
To stop and cancel the display demonstration, press
ENTER/DEMO during display demonstration. “MODE
OFF!” appears in the main display, the unit is turned off,
then the display dims and “POWER SAVING” appears in
the dimmed main display.
After canceling the display demonstration, it will start only
when the AC power cord is reconnected or when a power
failure is recovered.
• Pressing any button on the unit or the remote control
stops the demonstration temporarily.
To start the display demonstration manually
See “Changing the Main Display Screen” on page 12.
If you do not cancel the display demonstration, it
will start automatically in the following cases
• 2 minutes after the unit is turned off.
• When no operation is done for more than 2 minutes after the
unit is turned on.
If you do not want to start the display demonstration
when the AC power cord is reconnected or when a
power failure is recovered
See “To store the selected main display screen in backup memory”
on page 13.
2
R6P(SUM-3)/AA(15F)
3
• DO NOT use an old battery together with a new
one.
• DO NOT use different types of batteries together.
• DO NOT expose batteries to heat or flame.
• DO NOT leave the batteries in the battery
compartment when you are not going to use the
remote control for an extended period of time.
Otherwise, it will be damaged from battery leakage.
– 9 –
Basic Settings
The buttons and controls enlarged in the illustration below are used and explained in this section (pages 11 to 13).
Front panel
Continued
Remote control
– 10 –
Before operating the unit any further, first set the clock
built in this unit, then some other basic settings.
Turning On the Power
When you press the play button (#/8) for a particular
source or the source selecting buttons such as FM/AM and
TAPE/AUX, the unit automatically turns on (and starts
playback if the source is ready).
• Pressing SET on the unit also turns on the unit.
To turn on the unit without playing, press
STANDBY/ON lamp on the unit lights green.
so that the
Setting the Clock
You can set the clock whether the unit is turned on or in
standby mode.
On the unit ONLY:
1
Press CLOCK/TIMER.
The hour digit in the main display starts flashing.
2
Push and hold the joy control rightward (¢ ) or
leftward (4
) to adjust the hour, then press SET.
To turn off the unit (on standby), press
the STANDBY/ON lamp lights red.
A little power is always consumed even while the unit is in
standby mode.
To switch off the power supply completely, unplug the
AC power cord from the AC outlet.
You can change the opening or ending screen
illustrated above
Instead of showing the above opening or ending screen, you can
make your original screens. To make and store your original
screens, see “Creating Your Own Opening and Ending Screens” on
page 49.
When you unplug the AC power cord or if a power
failure occurs
The clock is reset to “0:00” right away, while the tuner preset
stations and other settings will be erased in a few days.
again so that
• If you want to correct the hour after pressing SET,
press CANCEL. The hour digit starts flashing again.
3
Push and hold the joy control rightward (¢ ) or
leftward (4
SET.
“ADJUST OK!” appears in the main display, and the
built-in clock starts.
) to adjust the minute, then press
To adjust the clock again
Once you have adjusted the clock, you need to press
CLOCK/TIMER repeatedly until the CLOCK SET screen
appears in the main display (the hour digit starts flashing).
If there is a power failure
The clock loses the setting and is reset to “0:00.” You need to set
the clock again.
– 11 –
Continued
Changing the Main Display Screen
You can change the screen pattern which appears in the
main display.
On the unit ONLY:
You can do the following procedure while the unit is turned
on or in standby mode.
1
Press ENTER/DEMO.
The DISPLAY MODE screen appears.
• If “MODE OFF” appears, press ENTER/DEMO
again.
2
Push the joy control upward (¡ ) or downward
(1
) to select the screen pattern you want.
DEMO:To show the display demonstration in the
main display.
When the AC power is unplugged, this
setting is automatically restored unless
you have stored another setting in backup
memory. See “To store the selected main
display screen in backup memory” on
page 13.
DOLPHIN: To make dolphins swim in the main
display. You can also select the startingtime (no operation period) when to start
the dolphin screen.
OFF:To cancel the display demonstration and
the dolphin screen.
3
When selecting “DOLPHIN” in the above step:
Push the joy control repeatedly rightward (¢
or leftward (4
operation period).
• You can select the starting-time from among 1, 3,
and 5 minutes.
) to select the starting-time (no
)
How these settings work
• When selecting “DEMO”:
Display demonstration starts.
If you do not cancel the display demonstration by
pressing ENTER/DEMO, display demonstration
automatically starts in the following cases:
– 2 minutes after the unit is turned off.
– When no operation is done for more than 2 minutes.
•
When selecting “DOLPHIN”:
– If the unit is turned on: Dolphins start swimming in
the lower portion of the main display.
If you press any button while dolphins are swimming
in the main display, normal screen (see illustration
below) resumes. However, dolphin starts swimming
again if no operation is done for your specified
starting-time (1, 3 and 5 minutes).
– If the unit is turned off (on standby): “DOLPHIN
ON!” appears in the main display, and the unit is
turned off again.
•
When selecting “OFF”:
Both display demonstration and dolphin screen are
canceled, and one of the following screens (normal
screens) appears in the lower portion of the main display.
While recording or editing an MD
Display demonstration and dolphin screen will not appear.
Normal screens
Playback screen: while playing any source or receiving
a station
4
Press SET to finish the setting.
Stop screen: while pausing or receiving no station:
• If the source is “TAPE” or “AUX DIGIT.,” only the playback
screen will appear.
– 12 –
To store the selected main display screen in backup
memory
You can store the selected main display screen in back up
memory. So, even though the AC power is unplugged or a
power failure occurs, the setting is kept in memory and will
not be reset to the display demonstration.
On the unit ONLY:
1
Unplug the AC power cord.
2
Plug the AC power cord again while holding 7 and
ENTER/DEMO at the same time.
3
Select the main display screen setting (DEMO,
DOLPHIN, or OFF) by following steps 1 to 4 on
page 12.
To erase backup memory
Repeat steps 1 and 2 of the above procedure.
Backup memory is cleared.
• When the AC power plug is reconnected or a power
failure is recovered, display demonstration automatically
starts.
Changing the Display Brightness and
Contrast
To change the brightness
You can change the display brightness whether the unit is
turned on or in standby mode.
You can set and memorize the display brightness setting
each for power-on time and for power-off (standby) time.
On the unit ONLY:
Press DIMMER/CONTRAST.
Each time you press the button, the display brightness
changes as follows:
• When the unit is turned off (on standby):
Dark (POWER SAVING mode*) += Dimmer**
• When the unit is turned on:
Bright += Dimmer***
*During POWER SAVING mode:
• Much less electric power (1.6 watt) is consumed. If not
selected, 14 watts of electric power are consumed even
while the unit is turned off (on standby).
• “POWER SAVING” appears in the main display.
• You cannot insert an MD in the MD loading slot. To insert
an MD, turn on the unit first.
** You can turn on the unit by inserting an MD in the MD
loading slot.
*** When using some functions, the display window brightens for
a while. For examples, when selecting the source either using
the buttons on the unit or on the remote control, selecting the
CD or MD track using the buttons on the remote control, etc.
During display demonstration
The display always brightens regardless of the dimmer setting.
To change the contrast
You can change the display contrast only when the unit is
turned on.
On the unit ONLY:
1
Press and hold DIMMER/CONTRAST for more
than 2 seconds.
The CONTRAST ADJ. screen appears.
2
Push and hold the joy control upward (¡ ) or
downward (1
• You adjust the contrast within the range of 0 to +64.
3
Press SET to finish the adjustment.
) to adjust the contrast.
– 13 –
Basic and Common Operations
The buttons and controls enlarged in the illustration below are used and explained in this section (pages 15 to 16).
Front panel
Continued
Remote control
– 14 –
Selecting the Sources and Starting Play
Adjusting the Volume
To select the tuner as the source, press FM/AM. The unit
automatically turns on, the lamp on the FM/AM button
lights, and the last received station is tuned in.
• For more detailed operations, see pages 17 to 23.
To select the CD player as the source, press CD #/8.
The unit automatically turns on, and the lamp on the
CD #/8 button lights. (Play starts if a CD is on one of the
CD trays.)
To stop play, press 7.
• For more detailed operations, see pages 24 to 27.
To select the MD player as the source, press MD #/8.
The unit automatically turns on and the lamp on the
MD #/8 button lights. (Play starts if an MD is in the MD
loading slot).
To stop play, press 7.
• For more detailed operations, see pages 28 to 31.
To select the external equipment as the source, press
TAPE/AUX. The unit automatically turns on.
• Each time you press the button, the source alternate
between “TAPE” and “AUX DIGIT.”
TAPE:To use the equipment connected to the
TAPE jacks.
When selecting “TAPE,” the sound input
level appears for a while. (See page 34
for the sound input level.)
AUX DIGIT. (DIGITAL):To use the digital equipment
connected to the AUX terminal.
• For operating the external equipment, see the manuals
supplied with them.
While selecting the digital equipment (“AUX
DIGITAL”) as the source
The sampling frequency of the connected digital equipment is
shown in the main display. (If no equipment is connected to the
AUX terminal, “UNLOCK” appears.)
You can adjust the volume level only while the unit is
turned on.
Turn VOLUME clockwise to increase the volume or
counterclockwise to decrease it.
When using the remote control, press VOLUME + to
increase the volume or press VOLUME – to decrease it.
For private listening
Connect a pair of headphones to the PHONES jack. No sound
comes out of the speakers. Be sure to turn down the volume before
connecting or putting on the headphones.
DO NOT turn off (on standby) the unit with the
volume set to an extremely high level; otherwise, the
sudden blast of sound can damage your hearing,
speakers and/or headphones when you turn on the
unit or start playing any source.
REMEMBER you cannot adjust the volume level
while the unit is in standby mode.
To turn down the volume level temporarily
Press FADE MUTING on the remote control.
To restore the sound, press the button again.
Reinforcing the Bass Sound
The richness and fullness of the bass sound is maintained
regardless of how low you set the volume.
You can use this effect only for playback.
To get the effect, press ACTIVE BASS EX. (extension) so
that the ACTIVE BASS EX. on the unit lamp lights up.
Ex. When the sampling frequency is 44.1 kHz
To cancel the effect, press the button again so that the
lamp goes off.
– 15 –
Selecting the Sound Modes
You can select one of the 6 preset sound modes (3 surround
modes and 3 SEA – Sound Effect Amplifier – modes) and 1
manual mode. The sound modes can be applied only to
playback sounds, and cannot be used for recording.
To select the sound modes, press SOUND until the sound
mode you want appears on the display. The SOUND lamp
also lights.
• Each time you press the button, the sound modes change
as follows:
D.CLUB
FLAT
(Canceled)
Surround modes *:
D. (Dance) CLUB:Increases resonance and bass.
HALL:Adds depth and brilliance to the
STADIUM:Adds clarity and spreads the sound,
SEA modes:
ROCK:Boosts low and high frequency.
POP:Good for vocal music.
CLASSIC:Good for classical music.
Manual mode:
MANUAL:Your individual mode stored in
HALLSTADIUMROCK
MANUAL
sound.
like in an outdoor stadium.
Good for acoustic music.
memory. See “Creating Your Own
Sound Mode — MANUAL Mode.”
CLASSIC
POP
Creating Your Own Sound Mode —
MANUAL Mode
You can create and store your own sound mode.
• There is a time limit in doing the following steps. If the
setting is canceled before you finish, start from step 1
again.
On the unit ONLY:
1
Press SOUND repeatedly until “MANUAL” appears
in the main display.
2
Press SET.
3
Adjust the equalizer pattern.
1) Push the joy control rightward (¢
leftward (4
to adjust (LOW, MID, HIGH).
2) Push the joy control upward (¡
downward (1
of the selected frequency range.
) to select the frequency range
) to adjust the level (–3 to +3)
) or
) or
FLAT:Cancels the sound mode.
* Surround elements are added to the sound modes to create a
being-there feeling in your room.
To check the sound mode currently selected, press
SOUND once while the SOUND lamp on the unit is lit.
The currently selected sound mode screen will appear in
the main display.
Ex. when “D.CLUB” is currently selected.
3) Repeat steps 1) and 2) to adjust the level of the
other frequency ranges.
4
Press SET again (or wait until the above indication
disappears).
The equalizer pattern you have created is stored in
memory.
To use your own sound mode
Select “MANUAL” when using the sound modes. See
“Selecting the Sound Modes.”
– 16 –
Listening to FM and AM (MW/LW) Broadcasts
The buttons and controls enlarged in the illustration below are used and explained in this section (pages 18 to 23).
Front panel
Remote control
You cannot use the buttons on the front panel to operate the RDS functions.
Use only buttons on the remote control.
– 17 –
Loading...
+ 44 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
