JVC AV-32S565 User Manual

Color Television Users Guide

For Model:

AV-32S565

Illustration of AV-32S565 and RM-C1257G

Important Note:

In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user’s guide in a convenient place for future reference. Keep the carton and original packaging for future use.

Model Number:

Serial Number:

LCT1639-001A-A

0504TNH-II-IM

Important Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: To reduce the risk of electric shock. Do not

remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS TV

SET TO RAIN OR MOISTURE.

CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES

REGARDING THE USE OF THIS UNIT.

1. Operate only from the power source specified on the unit.

2. Avoid damaging the AC plug and power cord.

3. Avoid Improper installation and never position the unit where good ventilation is unattainable.

4. Do not allow objects or liquid into the cabinet openings.

5. In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

Changes or modifications not approved by JVC could void the warranty.

* When you don’t use this TV set for a long period of time, be sure to disconnect both the

power plug from the AC outlet and antenna for your safety.

* To prevent electric shock do not use this polarized plug with an extension cord, receptacle or

other outlet unless the blades can be fully inserted to prevent blade exposure.

IMPORTANT RECYCLING INFORMATION

This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org

2

• As an “ENERGY STAR®” partner, JVC has determined that this product or product model meets the “ENERGY STAR efficiency.

®

” guidelines for energy

Important Safeguards

CAUTION:

Please read and retain for your safety.

Electrical energy can perform many useful functions. This TV set has been engineered and manufactured to assure your personal safety. But improper use can result in potential electrical shock or fire hazards. In order not to defeat the safeguards incorporated in this TV set, observe the following basic rules for its installation, use and servicing. Also follow all

warnings and instructions marked on your TV set.

INSTALLATION

1 Your TV set is equipped with a polarized AC line plug (one

blade of the plug is wider than the other). This safety feature allows the plug to fit into the power outlet only one way. Should you be unable to insert the plug fully into the outlet, try reversing the plug. Should it still fail to fit, contact your electrician.

2 Operate the TV set only from a power source as indicated on the TV set or refer to the

operating instructions for this information. If you are not sure of the type of power supply to your home, consult your TV set dealer or local power company. For battery operation, refer to the operating instructions.

3 Overloaded AC outlets and extension cords are dangerous, and so are frayed power cords

and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

4 Do not allow anything to rest on or roll over the power cord, and do not place the TV set

where power cord is subject to traffic or abuse. This may result in a shock or fire hazard.

5 Do not use this TV set near water — for example, near a bathtub, washbowl, kitchen sink, or

laundry tub, in a wet basement, or near swimming pool, etc.

6 If an outside antenna is connected to the TV set, be sure the antenna system is grounded

so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection requirements for the grounding electrode.

(POLARIZED-TYPE)

3

7 An outside antenna system should not be located in the vicinity of overhead power lines

or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

ELECTRICAL SERVICE EQUIPMENT

NEC - NATIONAL ELECTRIC CODE

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ARTICLE 250, PART H)

8 TV sets are provided with ventilation openings in the cabinet to allow heat generated during

operation to be released.

Therefore:

— Never block the bottom ventilation slots of a portable TV set by placing it on a bed, sofa,

rug, etc.

— Never place a TV set in a “built-in” enclosure unless proper ventilation is provided. — Never cover the openings with a cloth or other material. — Never place the TV set near or over a radiator or heat register.

9 To avoid personal injury:

— Do not place a TV set on a sloping shelf unless properly secured.

— Use only a cart or stand recommended by the TV set manufacturer. — Do not try to roll a cart with small casters across thresholds or deep pile carpets. — Wall or shelf mounting should follow the manufacturer’s instructions, and should use a

mounting kit approved by the manufacturer.

Use

10 Caution children about dropping or pushing objects into the TV set through cabinet

openings. Some internal parts carry hazardous voltages and contact can result in a fire or electrical shock.

11 Unplug the TV set from the wall outlet before cleaning. Do not use liquid or an aerosol

cleaner.

12 Never add accessories to a TV set that has not been designed for this purpose. Such

additions may result in a hazard.

4

PORTABLE CART WARNING

(Symbol provided by RETAC)

13 For added protection of the TV set during a lightning storm or when the TV set is to be left

unattended for an extended period of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to product due to lightning storms or power line surges.

14 A TV set and cart combination should be moved with care. Quick stops, excessive force,

and uneven surfaces may cause the TV set and cart combination to overturn.

Service

15 Unplug this TV set from the wall outlet and refer servicing to qualified service personnel

under the following conditions: A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the TV set. C. If the TV set has been exposed to rain or water. D. If the TV set does not operate normally by following the operating instructions. Adjust

only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV set to normal operation.

E. If the TV set has been dropped or damaged in any way. F. When the TV set exhibits a distinct change in performance — this indicates a need for

service.

16 Do not attempt to service this TV set yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

17 When replacement parts are required, have the service technician verify in writing that the

replacement parts he uses have the same safety characteristics as the original parts. Use of manufacturer’s specified replacement parts can prevent fire, shock, or other hazards.

18 Upon completion of any service or repairs to this TV set, please ask the service technician

to perform the safety check described in the manufacturer’s service literature.

19 When a TV set reaches the end of its useful life, improper disposal could result in a picture

tube implosion. Ask a qualified service technician to dispose of the TV set.

20 Note to CATV system installer.

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

5

The four key feature buttons at the center of the remote can be used for basic operation of the television. The top and bottom buttons will scan forward and back through the available channels. To move rapidly through the channels using JVC’s Hyperscan feature, press and hold CH+ or CH –. The channels will zip by at a rate of five channels per second. The right and left buttons will turn the volume up or down. These buttons are also marked with four arrows and are used with JVC’s onscreen menu system. To use the onscreen menus, press the M

ENU button.

MUTING

VOL

–

MENU

Basic Operation

Turn the television on and off by pressing the POWER button at the top right corner of the remote.

• Make sure the TV/CATV switch is set to TV. Move the switch to CATV only if you need to operate a cable box.

• Slide the VCR/DVD selector switch to VCR to control a VCR. Slide to DVD to control a DVD player. Please see pages 16 to 18 for instructions on programming your remote control to operate a cable box, VCR or DVD player.

10

CH +

CH –

OK

VOL

+

BACK

POWER

TV

CATV

VCR DVD

Quick Setup Connections

Step 2 – Connecting Your Devices

Please follow the flow chart below to determine which connection setup is right for you. Then, refer to the appropriate diagrams to connect your television to other devices that you may have. After you are finished connecting your devices, plug the power cord into the nearest power outlet and turn on the TV.

A VCR is not necessary for operation of the television. If you follow these diagrams and the television does not work properly, contact your local cable operator.

• To connect a DVD player, see Diagram #3. A DVD player is optional.

• If you have a satellite television system, please refer to the satellite TV manual.

Do you use a Cable TV Box?

Yes

Do you have a VCR? Do you have a VCR?

Yes No Yes No

Diagram #2

Diagram #1 Diagram #3 Diagram #1

No

11

Quick Setup Connections

Diagram #1

Cable or Antenna

Output

75Ω

( VHF/UHF )

Coaxial Cable

OR

OUT IN

TV Rear Panel

Cable Box

Note:

• If you do not have a cable box, connect the cable wire from the wall outlet into the back of

the TV.

Diagram #2

INPUT 3

INPUT 2

INPUT 1

AUDIO

R L

VIDEO S VIDEO

OVER

TV Rear Panel

75Ω

( VHF/UHF )

Cable or Antenna

OUT OUT

IN

Output

Coaxial Cable

OR

Two-Way Splitter

VCR

IN

OUT

R L V

IN

OUT

OUT IN

Cable Box

Notes:

• If your VCR is a mono sound unit, it will have only one audio out jack. Connect it to the

LEFT AUDIO INPUT on the front of the TV.

• Use the S-Video connection if possible for superior picture quality.

• Your VCR must be turned on to view premium cable channels.

12

Quick Setup Connections

Notes:

• Green, blue and red are the most common colors for DVD cables. Some models may vary colors. Please consult the user’s manual for your DVD player for more information.

• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete one set of connections (DVD or audio output) before starting the other to avoid accidentally switching the cables.

• You may also connect the DVD player to Input 1.

Diagram #3

Cable or Antenna

Output

Two-Way

Splitter

IN

OUT OUT

75Ω

( VHF/UHF )

TV Rear Panel

INPUT 3

INPUT 2

INPUT 1

Coaxial Cable

R L V

IN

OUT

AUDIO

R L

OR

VIDEO S VIDEO

OVER

AUDIO OUT

R L

IN

OUT

VCR

COMPONENT VIDEO

INPUT 1INPUT 2

Y

b

P

Pr

OUT

Y

b

P

Pr

Green

Y

Blue

P

B

Red

P

R

DVD Player (OPTIONAL)

13

Quick Setup Connections

r

Connecting to a Camcorder

You may connect a camcorder, game console or other equipment to your television by using the front input jacks (Input 4) located under the front panel door. To acces, push on the door to open it. You can also connect these using the television’s rear input jacks, using the same instructions.

INPUT-4

OVER

S–VIDEO VIDEO L/ MONO – AUDIO–R

– OR–

MENU

CHANNEL

OPERATE

VOLUME

Camcorde

1) Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on

the side of the TV, OR connect an S-Video cable from the side of the TV to the camcorder.

2) Connect a white cable from the camcorder LEFT AUDIO OUT, into the LEFT AUDIO IN on

the side of the TV.

3) Connect a red cable from the camcorder RIGHT AUDIO OUT, into the RIGHT AUDIO IN on

the side of the TV.

Note:

• If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the

L/MONO on the front of the TV.

14

Quick Setup Auto Tuner Setup

Step 3 – Auto Tuner Setup

JVC’s onscreen menu system lets you set your television up to meet your own personal viewing preferences. The menu screens and their features are discussed in detail in this book. The menu settings are optional, you can set as many or as few of them as you wish. But to begin watching your television right away you will need to run the Auto Tuner Setup. This lets your television learn the channels it is able to receive. To run the Auto Tuner Setup follow the steps below.

Press the Menu button on the remote control

π†

To AUTO TUNER SETUP

√®

To operate

AUTO TUNER SETUP

TUNER MODE

OK

PRESS TO START

SELECT OPERATE EXIT

√®

To choose CABLE (if you are connected to a cable system) or AIR (if you use an

antenna)

π†

To move to START

√®

To start Auto Tuner Setup

The Auto Tuner will now memorize all of the clear, active channels your television can receive. This will take one or two minutes.

CABLE

MENU

NOW

PROGRAMMING !

48

When the setup is finished, PROGRAMMING OVER ! is displayed. Your quick setup is now complete. You can now begin watching your television, or you can continue on in this guide for more information on programming your remote control, or using the JVC onscreen menu system to customize your television viewing experience.

Cable Box and Satellite Users: After your auto tuner setup is complete, you may, (depending on the type of hookup), have only 1 channel, usually 3 or 4 in the auto tuner memory. This is normal.

STOP

The Quick Setup is complete

15

Remote Programming

Setting the CATV, VCR and DVD Codes

You can program your remote to operate your cable box, satellite receiver, VCR or DVD player by using the instructions and codes listed below. If the equipment does not respond to any of the codes listed below or to the code search function, use the remote control supplied by the manufacturer.

Cable Box or Satellite Codes

The remote control is programmed with cable box and satellite codes for power on/off, channel up/down, and 10 key operation.

1) Find the cable box or satellite brand from the list of codes shown below.

2) Slide the 2-way selector switch to “CATV”.

3) Press and hold down the D

key pad.

4) Release the DISPLAY button, and confirm the operation of the cable box/satellite receiver.

• If your cable or satellite box does not respond to the first code, try the others listed. If it does

not respond to any code, try the search codes function, on page 19.

ISPLAY button, then enter the first code number listed with the 10

Cable Box CODES

ABC Archer Cableview Citizen Curtis Diamond Eagle Eastern GC Brand Gemini General Instrument

Hamlin

Hitachi Jerrold

Macom

Magnavox Memorex

Movietime Oak Panasonic

Paragon

Philips

Pioneer Pulsar

024 032, 025 051, 032 022, 051 058, 059 024, 032, 025 029 034 032, 051 022, 043 065, 024, 025,

026, 027, 020, 021, 022, 057, 023 040, 041, 042, 045, 058, 064 049, 024

065, 024, 025, 026, 027, 020, 021, 022, 057, 023

049, 050, 051, 054

033 030 032, 051 039, 037, 048 055, 056, 060,

071, 073 063

028, 029, 030, 052, 053, 031, 069

047, 062 051, 032

Cable Box CODES

Puser RCA Realistic Regal

Regency Rembrandt

Samsung Scientific Atlanta SLMark Sprucer Stargate

Telecaption Teleview Texscan

Tocom Toshiba Unika

Universal Videoway Viewstar Zenith Zenith/Drake

Satellite

032 061, 070 032 058, 064, 040,

041, 042, 045, 068 034

037, 032, 051, 038

051 057, 058, 059 051, 047 051, 056 032, 051

067 047, 051 044 035, 036, 066 050 032, 025

022, 032 052 029, 030 063, 046 046

Digital Satellite Systems

Echostar

Express VU

G.E. G.I. Gradiente

Hitachi

HNS (Hughes)

Panasonic Philips

Primestar

Proscan RCA Sony Star Choice Toshiba Uniden

CODES

100, 113, 114, 115

100, 113

106 108

112 104, 111

104 105 102, 103

108

106, 109, 110 106, 109, 110

107 104, 108 101 102, 103

16

Remote Programming

VCR Codes

The remote control is programmed with VCR codes for power on/off, play, stop, fast-forward, rewind, pause, record, channel up/down operation.

1) Find the VCR brand from the list of codes shown below.

2) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “VCR”.

3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10

key pad.

4) Release the D

• If your VCR does not respond to the first code, try the others listed. If it does not respond to

any of the codes, try the search codes function on page 19.

• After you program your remote, some VCR buttons may not work properly. If so, use the

VCR’s remote.

• To record, hold down the REC button on the remote and press PLAY.

ISPLAY button, and confirm the operation of the VCR.

VCRs CODES

Admiral Aiwa Akai

Audio Dynamic Bell & Howell Broksonic Canon CCE Citizen Craig Curtis Mathes

Daewoo

DBX Dimensia Emerson

Fisher

Funai

G.E. Go Video

Goldstar Gradiente

Hitachi

Instant Replay Jensen JVC

Kenwood

LXI 027, 064, 058,

Magnavox

035 027, 032, 095 029, 072, 073,

074 003, 005 063, 071 020, 026, 094 023, 025 043 064 063, 029, 064 045, 024, 027,

093 043, 059, 024,

092 003, 004, 005 045, 093

043, 026, 077, 061, 025, 042, 020, 076

063, 066, 067, 065, 071, 091

027, 026, 020, 000

033, 045, 024 037, 051, 049,

050, 089 064 083, 084, 081,

000, 001 023, 045, 058,

027, 081, 093

024, 023 003 000, 001, 002,

003, 004, 005 003, 004, 064,

005

065, 066, 063, 067

031, 023, 024, 086

VCRs CODES

Marantz Marta Memorex MGA

Minolta Mitsubishi

Multitech NEC

Olympic Optimus

Orion Panasonic

Penney

Pentax

Philco

Philips

Pioneer

Proscan

Quasar

Radio Shack

RCA

Realistic 024, 063, 036,

003, 004, 005 064 024, 067 038, 040, 047,

048, 041, 042 058, 045, 093 038, 040, 047,

048, 041, 042, 078, 090

047, 027, 062 003, 004, 005,

000 024, 023

028, 021, 035, 064 026, 020

023, 024, 021, 022

024, 058, 045, 063, 003, 004, 005, 093

058, 005, 045, 093

031, 024, 027, 023, 026, 020, 043

031, 023, 024, 086

023 045, 058, 023,

024, 031, 046, 059, 060, 033, 087, 093

021, 022, 023, 024

033, 024, 063, 036, 067, 040, 027

033, 045, 058, 023, 024, 031, 046, 059, 060, 083, 084, 085, 087, 093

067, 040, 027

VCRs CODES

Samsung

Samtron Sansui

Sanyo

Scott

Sears

Shintom Sharp

Signature 2000 Singer Sony

SV 2000 Sylvania

Symphonic Tashiro Tatung Tea c

Technics

Teknika Toshiba Vector Research Wards

Yamaha 063, 003, 004,

Zenith 044, 082, 064,

037, 060, 062, 033, 089

089 003, 026, 020,

052 063, 067, 091,

071 059, 060, 062,

067, 038, 040, 047, 048, 026, 020

063, 064, 065, 066, 058, 000, 001 075

035, 036, 080, 088 027, 035

075 028, 029, 030,

053, 054, 055 027 031, 023, 024,

027 027, 081

064 003, 004, 005 003, 004, 027,

005 021, 022, 023,

024 024, 027, 070 059, 046, 079 005

035, 036, 067, 044, 064

005

094

17

Remote Programming

DVD Codes

The remote control is programmed with DVD codes for power on/off, play, stop, fast-forward, rewind, previous/next chapter, tray open/close, and still/pause operation.

1) Find the DVD player brand from the list of codes shown below.

2) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “DVD”.

3) Press and hold down the Display button, then enter the first code number listed with the 10

key pad.

4) Release the Display button, and confirm the operation of the DVD player.

• If your DVD player does not respond to the first code, try the others listed. If it does not respond to any of the codes, try the search codes function on page 19.

• After you program your remote, some DVD buttons may not work properly. If so, use the

DVD player’s remote.

DVD Player CODES

Aiwa Apex Denon Hitachi JVC Kenwood Konka Mitsubishi Onkyo Oritron Panasonic Philips Pioneer Raite

043 040 020, 037 030, 031 000 035 039 025 041 044 020 023, 036 022 033

DVD Player CODES

RCA Sampo Samsung Sharp Silvania Sony

Technics Toshiba Vialta 050 Wave Yamaha Zenith

021, 026 034 030 028 038

024, 045, 046, 047

020 023

042 020 027, 032

18

Remote Programming

Search Codes

Cable/Satellite Search Codes Function

1) Slide the first 2-Way Mode Selector switch to CATV.

2) Press the P

3) Press the POWER button on the remote, and see if the cable or satellite box responds.

4) If there was a response, press RETURN+. The codes are now set. If there was no

response, repeat Step 3. If you repeat Step 3 a total of 80 times without a response, use the remote control that came with your equipment.

5) Press RETURN+ to exit.

VCR/DVD Search Codes Function

1) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “VCR” or

“DVD”.

2) Press the VCR or DVD POWER and RETURN+ buttons. Hold for at least three seconds and

release.

3) Press the VCR or DVD POWER button, and see if the VCR or DVD responds.

4) If there was a response, press RETURN+. The codes are now set. If there was no

response, repeat Step 3. If you repeat Step 3 a total of 80 times for the VCR (40 times for the DVD player), and there is no response, use the remote control that came with your equipment.

5) Press Return+ to exit.

OWER and RETURN+ buttons. Hold for at least three seconds and release.

19

Onscreen Menus

Using the Guide

Certain symbols are used throughout this guide to help you learn about the features of your new television. The ones you will see most frequently are:

π†

Up and Down arrows mean press the CH+ or CH– buttons. Pressing the CH+ or CH–

buttons let you:

• Move vertically in a main menu screen

• Move through a submenu screen

• Move to the next letter, number, or other choice in a submenu

• Back up to correct an error

• Scan through TV channels (when not in a menu screen)

√®

Left and right arrows mean press the VOLUME+ or VOLUME– buttons to move left or right

to:

• Select a highlighted menu item

• Select an item in a submenu

• Select numbers in certain menu options

• Turn the volume up or down (when not in a menu screen)

The “press button” icon means you should press the button named on your remote

control. (Button names appear in SMALL CAPITAL LETTERS.)

The “helping arrow” icon points to the highlighted or selected item in a menu.

To bring up the onscreen menu, press the MENU button on the remote control. The item that appears in green is the one currently selected. If you use the MENU button on the TV’s front panel instead of the remote, an additional menu screen showing INPUT and VIDEO STATUS will appear between INITIAL SETUP and PICTURE ADJUST.

PREVIOUS AUTO TUNER SETUP CHANNEL SUMMARY V-CHIP SET LOCK CODE AUTO DEMO

INITIAL SETUP

OFF

NEXT PAGE SELECT OPERATE EXIT

(3/3)

MENU

Note:

• Menus shown in this book are illustrations, not exact replications of the television’s onscreen displays.

20

Onscreen Menus

The Onscreen Menu System

Your television comes with JVC’s onscreen menu system. The onscreen menus let you make adjustments to your television’s operation simply and quickly. Examples of the onscreen menus are shown on the next page. Detailed explanations on using each menu follow later in this guide.

The Onscreen Menu System

To open the onscreen menu system, press the MENU button on the remote control. You navigate within the onscreen menus by using the four directional arrow buttons on the remote control. (These buttons are also the CH +/– and VOL +/– buttons. Channel and volume functions will not operate when the onscreen menu is active).

The selected feature and option on a menu screen are highlighted in a different color.

Selected Option (Green)

To move to a different feature use the π† arrows to move up or down the list. When you press the up arrow at the top of the list or the down arrow at the bottom, the next menu screen will appear. Use the arrows √ ® to select an option from the highlighted feature. Pressing

ENU on the remote control will close the onscreen menu system and return you to normal

M television viewing.

Each menu and its features will be discussed in the following pages of this guide.

LANGUAGE CLOSED CAPTION

ENG. FRAN. ESP.

Selected Option (Blue)

Notes:

• If you do not press any buttons for a few seconds, the onscreen menu will automatically shut off.

• Button names in this guide are shown in SMALL CAPITAL LETTERS.

• Menus may appear in different sizes onscreen depending on the aspect ratio selected.

• Some menu items may not appear in menu screens when certain aspect ratios or inputs are selected.

21

Onscreen Menus

Press the MENU button

PREVIOUS AUTO TUNER SETUP CHANNEL SUMMARY V-CHIP SET LOCK CODE AUTO DEMO

NEXT PAGE SELECT OPERATE EXIT

INITIAL SETUP

MENU

INITIAL SETUP 03

PICTURE ADJUST

00

COLOR

00


00

BRIGHT

00

DETAIL

00

COLOR TEMPERATURE

NEXT PAGE SELECT OPERATE

STANDARD

LOW

MENU

PICTURE ADJUST 01

PICTURE ADJUST

PREVIOUS STANDARD

DIG. NOISE CLEAR VSM NATURAL CINEMA

OFF

AUTO

OFF

EXIT

ON

(3/3)

(1/2)

Note:

• When the MENU button on the TV front panel is pressed, the FRONT PANEL CONTROL menu between INITIAL SETUP 03 and PICTURE ADJUST 01 will appear.

PREVIOUS LANGUAGE CLOSED CAPTION AUTO SHUT OFF

TILT CORRECTION

INITIAL SETUP

ENG. FRAN. ESP.

OFF

(2/3)

MENU

INITIAL SETUP 02

PREVIOUS NOISE MUTING FRONT PANEL LOCK

VIDEO INPUT LABEL

INITIAL SETUP

OFF

MENU

INITIAL SETUP 01

ON

(1/3)

RESET

NEXT PAGE SELECT OPERATE EXIT

PICTURE ADJUST 02

SOUND ADJUST

PREVIOUS BASS TREBLE BALANCE MTS

RESET

00 00 00

STEREO SAP MONO

NEXT PAGE SELECT OPERATE EXIT

SOUND ADJUST

22

(2/2)

MENU

CLOCK / TIMERS

PREVIOUS SET CLOCK ON / OFF TIMER

SELECT OPERATE EXIT

MENU

CLOCK/TIMERS

Initial Setup

Auto Tuner Setup

If you have already run the Auto Tuner as part of the quick setup earlier in this guide, please skip ahead to “Channel Summary” to continue setting up your television. In Auto Tuner Setup, the TV automatically scans through all available channels, memorizing the active ones and skipping over blank ones or channels with weak signals. This means you scan using the

HANNEL +/- buttons), you will receive only clear active channels.

C

Press the MENU button

π†

√® √®

To AUTO TUNER SETUP

To operate

To choose CABLE or AIR

Press the OK button to start

Programming will take approximately 1 to 2 minutes. The auto tuner is finished when the message PROGRAMMING OVER! appears onscreen.

Press the MENU button when finished

Channel Summary

Channel summary allows you to customize the line-up of channels received by your TV. You can add or delete channels from the line-up or prevent any unauthorized viewers from watching any or all 181 channels.

Press the M

π†

√®

To CHANNEL SUMMARY

To operate

The Channel summary screen will now be displayed with the channels set to scan marked with an “√”. You can delete channels from the scan by removing the “√”. If any channels were missed during auto tuner setup and you wish to add them, you may by placing an “√” next to the channel number.

π† √® To the SCAN column

Press the O

Press the MENU button when finished

You can block access to a channel by activating the channel lock.

Press the MENU button

π†

To CHANNEL SUMMARY

√®

To operate

π† √® To the Lock Column ( )

Press the Z

Press the M

ENU button

K button to include or delete from scan

ERO button to lock or unlock that channel

ENU button when finished

AUTO TUNER SETUP

TUNER MODE

OK

PRESS TO START

SELECT OPERATE EXIT

CHANNEL SUMMARY

CHNO.

SCAN CHNO. SCANID ID 01 02

MTV 03 04

A&E 05

E!

OK

SELECT OPERATE EXIT

CABLE

MENU

06

HBO

07

L 08 09 10

MENU

23

Initial Setup

How to set the channel label:

Press the M

π†

√®

π†

Press the OK button to enter

√®

π†

...continue to follow these directions for all four spaces

Press the OK button to finish

Your characters are now set

Press the M

If you want to reset the characters you set:

Press the MENU button

π†

√®

π†

Press the O

Your characters are now reset

Notes:

• You can use characters for: Alphabet, numbers, marks and spaces.

• It is possible to set the maximum of 40 channel labels.

• If you try to set more than the 40 maximum, the message "MEMORY OVERFLOW" will

To CHANNEL SUMMARY To operate To the ID column

To select the character you want To move to the next space

To CHANNEL SUMMARY To enter To select RESET

appear.

ENU button

ENU button when finished

K button to finish

ID

CHANNEL 09

RESET

OK

PRESS TO FINISH

SELECT OPERATE EXIT

MENU

You can block access to a channel by activating the channel lock.

Press the MENU button

π†

To CHANNEL SUMMARY

√®

To operate

π† √® To the Lock Column ( )

Press the ZERO button to lock or unlock that channel

Press the MENU button when finished

24

Initial Setup

Channel Guard Message

When a viewer attempts to watch a guarded channel, the following message appears:

To watch a channel that you have locked, enter the Lock Code using the 10 key pad. If the wrong code is entered, the message “INVALID LOCK CODE!” will flash on the screen.

The channel cannot be accessed until the correct code is entered.

Notes:

• Once a channel has been unlocked, it will remain unlocked until the television is turned off.

• See also “Set Lock Code”, page 31.

V-Chip

Your TV is equipped with V-Chip technology which enables you to block channels or content that you feel to be inappropriate for children, based on US and Canada rating guidelines. V-Chip has no effect on video signals from a DVD discs, VCR tapes or Camcorder connection.

Note: Some programs, and movies are broadcast without a ratings signal. Even if you set up V-Chip ratings limits, these programs will not be blocked. See page 26 for information on how to block unrated programs.

Note (for Canadian viewers): The V-Chip function is based on specifications designed for the United States and therefore may not work properly in Canada.

THIS CHANNEL IS LOCKED BY CHANNEL GUARD. PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT.

NO. - - - -

You can customize the V-Chip settings of your television to match your personal tastes. The V-Chip menu below is the starting point for your V-Chip settings

You can use US V-Chip settings (for programming broadcast from the United States), Canadian V-Chip settings (for programming broadcast from Canada), and movie ratings. You may use any or all of the settings (US V-Chip, Canada V-Chip, Movie ratings). Descriptions for setting each of the three V-Chip formats appear in the next six pages along with descriptions of the rating categories.

To access the rating categories:

Press the M

π†

√®

To V-CHIP To operate (Lock icon will appear)

Press ZERO to access the V-Chip menu

√®

To turn V-Chip ON or OFF (V-Chip must be turned

ENU button

V-CHIP V-CHIP SET US TV RATINGS SET MOVIE RATINGS SET CANADIAN RATINGS ENG SET CANADIAN RATINGS FRE UNRATED

OFF

VIEW

ON for rating settings to operate)

π†

To move to SET US TV RATINGS,

SELECT OPERATE EXIT

MENU

SET MOVIE RATINGS, or SET CANADIAN RATINGS (see following pages for descriptions of each item)

25

Initial Setup

Unrated Programs

Unrated programming refers to any programming which does not contain a rating signal. Programming on television stations which do not broadcast rating signals will be placed in the “Unrated Programming” category.

Examples of Unrated programs:

• Emergency Bulletins • Locally Originated Programming

• News • Political Programs

• Public Service Announcements • Religious Programs

• Sports • Weather

• Some Commercials

Note:

• TV programs or movies that do not have rating signals will be blocked if the unrated category is set to BLOCK.

Directions to Block Unrated Programs

You can block programs that are not rated.

Press the MENU button

π†

√®

To V-CHIP To operate (The lock icon appears)

Press ZERO to access V-Chip setup options

π†

√®

To UNRATED To VIEW or BLOCK

Press MENU when done

V-CHIP V-CHIP SET US TV RATINGS SET MOVIE RATINGS SET CANADIAN RATINGS ENG SET CANADIAN RATINGS FRE UNRATED

SELECT OPERATE EXIT

OFF

VIEW

MENU

26

Initial Setup

US V-Chip Ratings

U.S. PARENTAL RATING SYSTEMS Programs with the following ratings are appropriate for children.

❒ TV Y is Appropriate for All Children

Programs are created for very young viewers and should be suitable for all ages, including children ages 2 - 6.

❒ TV Y7 is for Older Children

Most parents would find such programs suitable for children 7 and above. These programs may contain some mild fantasy violence or comedic violence, which children should be able to discern from reality.

Programs with the following ratings are designed for the entire audience. ❒ TV G stands for General Audience

Most parents would find these programs suitable for all age groups. They contain little or no violence, no strong language, and little or no sexual dialog or situations.

❒ TV PG Parental Guidance Suggested

May contain some, but not much, strong language, limited violence, and some suggestive sexual dialog or situations. It is recommended that parents watch these programs first, or with their children.

❒ TV 14 Parents Strongly Cautioned

Programs contain some material that may be unsuitable for children under the age of 14 including possible intense violence, sexual situations, strong coarse language, or intensely suggestive dialog. Parents are cautioned against unattended viewing by children under 14.

❒ TV MA Mature Audiences Only

These programs are specifically for adults and may be unsuitable for anyone under 17 years of age. TV MA programs may have extensive V, S, L, or D.

Viewing Guidelines

In addition to the ratings categories explained above, information on specific kinds of content are also supplied with the V-Chip rating. These types of content may also be blocked. The content types are:

• V/FV is for VIOLENCE/FANTASY VIOLENCE

• S stands for SEXUAL CONTENT

• L stands for strong LANGUAGE

• D stands for suggestive DIALOG

27

Initial Setup

Setting US V-Chip Ratings

Press the MENU button

π†

√®

To V-CHIP To operate (lock icon appears)

Press ZERO to access the V-Chip menu

√®

π†

√®

To turn V-Chip ON or OFF To move to SET US TV RATINGS

To operate

Directions to set US V-Chip Ratings

Line up the cursor in the column (TV PG, TV G, etc.) with the content row (V/FV, S, etc.) and press the feature on or off. An item is locked if the icon appears instead of a “—”.

For example. To block viewing of all TV 14 shows, move the cursor to the top row of that column and add a lock icon. Once you’ve put a lock on the top row, everything in that column is automatically locked.

π† or √®

to move the cursor to the correct location. Press OK to turn the locking

V-CHIP V-CHIP SET US TV RATINGS SET MOVIE RATINGS SET CANADIAN RATINGS ENG SET CANADIAN RATINGS FRE UNRATED

SELECT OPERATE EXIT

OFF

VIEW

MENU

π† √®

To the TV 14 Column

Press the OK button to lock

Press the MENU button when finished

Note:

• If you want to change the setup, move the cursor to the top column and change the lock icon to “—” by pressing O

K

again. You may then select individual categories to block.

SET US TV RATINGS

TVMATV14TVPGTVGTVY7TV

V/FV S L D

OK

SELECT OPERATE

Y

MENU

EXIT

28

Initial Setup

Movies Ratings

❒ NR – Not Rated

This is a film which has no rating. In many cases these films were imported from countries which do not use the MPAA ratings system. Other NR films may be from amateur producers who didn’t intend to have their film widely released.

NR (Not Rated) Programming may contain all types of programming including children’s programming, foreign programs, or adult material.

❒ G – General Audience

In the opinion of the review board, these films contain nothing in the way of sexual content, violence, or language that would be unsuitable for audiences of any age.

❒ PG – Parental Guidance

Parental Guidance means the movie may contain some contents such as mild violence, some brief nudity, and strong language. The contents are not deemed intense.

❒ PG-13 – Parents Strongly Cautioned

Parents with children under 13 are cautioned that the content of movies with this rating may include more explicit sexual, language, and violence content than movies rated PG.

❒ R – Restricted

These films contain material that is explicit in nature and is not recommended for unsupervised children under the age of 17.

❒ NC-17 – No One Under 17

These movies contain content which most parents would feel is too adult for their children to view. Content can consist of strong language, nudity, violence, and suggestive or explicit subject matter.

❒ X – No One under 18

Inappropriate material for anyone under 18.

Directions to set Movie (MPAA) Ratings

Press the MENU button

π†

√®

Press ZERO to access V-Chip setup options

π†

√®

For example:

To block viewing of X and NC-17 rated from shows:

π† √®

Press the MENU button to finish

To V-CHIP To operate (Lock icon appears)

To SET MOVIE RATINGS To enter movies menu

To the X Column

Press the OK button to lock

To the NC-17 Column

Press the OK button to lock

SET MOVIE RATINGS

P

N

R

17

X

C

NR

OK

SELECT OPERATE

13

PG

G

MENU

EXIT

29

Initial Setup

Canadian V-Chip Ratings

❒ E – Exempt

Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.

❒ C – Programming Intended for Children

Violence Guidelines: There will be no realistic scenes of violence. Depictions of aggressive behavior will be infrequent and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature.

❒ C8+ – Programming Intended for Children 8 and Over

Violence Guidelines: Any realistic depictions of violence will be infrequent, discreet, of low intensity and will show the consequences of the acts. There will be no offensive language, nudity or sexual content.

❒ G – General Audience

Programming will contain little violence and will be sensitive to themes which could affect younger children.

❒ PG – Parental Guidance

Programming intended for a general audience, but which may not be suitable for younger children. Parents may consider some content not appropriate for children aged 8-13.

❒ 14+ – 14 Years and Older

Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens. Programming may contain mature themes and scenes of intense violence.

❒ 18+ – Adult

Material intended for mature audiences only.

Directions to set Canadian V-Chip Ratings

Press the MENU button

π†

√®

Press ZERO to access V-Chip setup options

π†

√®

For example:

To block viewing of programming rated 14+ and 18+:

√®

Press the MENU button to finish

To V-CHIP To operate (lock icon appears)

To SET CANADIAN RATINGS ENG (for English) To enter ratings menu

To the 18+ Column

Press the OK button to lock

To the 14+ Column

Press the OK button to lock

SET CANADIAN RATINGS ENG

C

P

G

14+

18+

OK

SELECT OPERATE

8

G

C

MENU

EXIT

30

Initial Setup

Set Lock Code

Channel guard and V-Chip settings are protected by a four-digit lock code. Your TV comes preset with a lock code of “0000”. You may change the code to any four-digit number you wish. To change the lock code, follow the steps below.

Press the M

π†

√®

To SET LOCK CODE

To operate (lock icon appears)

Press ZERO to access the lock code

ENU button

SET LOCK CODE

LOCK CODE

0000

The first digit will be highlighted

√®

To select the number

π†

To move to the next digit

SELECT OPERATE EXIT

OK

PRESS TO FINISH

MENU

Continue to follow these directions for all four numbers

Press the O

K button to finish (your lock code is now set)

Press the MENU button when finished

When a viewer attempts to watch a blocked channel, this message appears:

The channel will remain blocked until the correct lock code is entered (see above for information on setting your lock code).

THIS PROGRAMMING EXCEEDS YOUR RATING LIMITS. PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT. NO. - - - -

Notes:

• After a power interruption you must reset the lock code.

• Write your lock code number down and keep it hidden from potential viewers.

• If you forget the lock code, a new code may be set using the steps listed above.

Auto Demo

This function lets you preview the many different viewing modes of your TV. It will cycle through “Multi Screen Demo”, “Picture in Picture Demo”, the different “16:9” ratios and all of the different “Video Status” modes.

Press the M

π†

To AUTO DEMO

√®

To turn AUTO DEMO ON or OFF

ENU button

Note:

• To stop auto demo, press the MENU button, and select auto demo by pressing the

√®

the

buttons. Press the MENU button to finish.

π†

buttons, and turn it off by pressing

PREVIOUS AUTO TUNER SETUP CHANNEL SUMMARY V-CHIP SET LOCK CODE AUTO DEMO

NEXT PAGE SELECT OPERATE EXIT

INITIAL SETUP

OFF

(4/4)

MENU

31

Initial Setup

Language

You can choose to view your onscreen menus in three languages: English, French (Français) or Spanish (Español).

Press the M

π†

√®

To LANGUAGE

To choose a language: ENG. (English), FRAN.

(French) or ESP. (Spanish)

Press the M

Closed Caption

Many broadcasts now include an onscreen display of dialog called closed captions. Some broadcasts may also include displays of additional information in text form. Your television can access and display this information using the closed caption feature. To activate the closed caption feature, follow the steps below.

Press the M

π†

√® √®

π†

√®

To CLOSED CAPTION To operate To select CAPTION or TEXT in MODE

To select CAPTION or TEXT

To select a caption (CC1 to CC4) or text

channel (T1 to T4)

Press the OK button to save

Press the M

ENU button

ENU button when finished

ENU button

ENU button when finished

PREVIOUS LANGUAGE CLOSED CAPTION AUTO SHUT OFF

TILT CORRECTION

CLOSED CAPTION

CAPTION TEXT

SELECT OPERATE EXIT

INITIAL SETUP

ENG. FRAN. ESP.

OK

PRESS TO FINISH

OFF

MENU

TEXTMODE

CC1

MENU

(2/3)

T1

Notes:

• Closed caption subtitles are usually found on closed caption channel CC1. Some programs may include additional text information which is usually found on text channel T1. The other channels are available for future use.

• Closed captioning may not work correctly if the signal being received is weak or if you are playing a video tape.

• Most broadcasts containing closed captioning will display a notice at the start of the program.

• To select the mode, press the C.C. button. See page 46.

32

Initial Setup

Auto Shut Off

This function automatically shuts off your TV when there is no signal from the channel the TV is on.

Press the MENU button

π†

To AUTO SHUT OFF

√®

To turn ON or OFF

Press the M

ENU button when finished

• If the channel that you have on does not receive a

signal for more than one minute, the blinking text “NOT RECEIVING A SIGNAL AUTO SHUT OFF IN 9 MIN.”

PREVIOUS LANGUAGE CLOSED CAPTION AUTO SHUT OFF

TILT CORRECTION

appears on the screen, and starts the countdown. If no signal is being received within 10 minutes, the TV shuts itself off.

Tilt Correction

This adjusts the pictures so that it looks even on the screen and not lopsided.

Press the MENU button

π†

√® √®

To TILT CORRECTION To enter To adjust TILT CORRECTION

Press the MENU button when finished

PREVIOUS LANGUAGE CLOSED CAPTION AUTO SHUT OFF

TILT CORRECTION

NEXT PAGE SELECT OPERATE EXIT

INITIAL SETUP

ENG. FRAN. ESP.

INITIAL SETUP

ENG. FRAN. ESP.

MENU

OFF

(3/4)

OFF

(3/4)

Noise Muting

This feature inserts a blank blue screen over channels which are not broadcasting or are too weak to be received clearly.

Press the M

π†

√®

To NOISE MUTING

To turn noise muting ON or OFF

Press the MENU button when finished

Note:

ENU button

PREVIOUS NOISE MUTING FRONT PANEL LOCK

VIDEO INPUT LABEL

INITIAL SETUP

ON

OFF

MENU

• Noise muting will not work during auto tuner setup or when you operate channel summary.

33

(1/3)

Initial Setup

Front Panel Lock

This allows you to lock the keys on the front of the TV, so that a child may not accidentally change your viewing preferences.

Press the M

π†

To FRONT PANEL LOCK

√®

To turn ON or OFF

Press the MENU button when finished

ENU button

PREVIOUS NOISE MUTING FRONT PANEL LOCK

VIDEO INPUT LABEL

INITIAL SETUP

OFF

ON

You can turn off this feature in the following ways:

• Unplug the power cord, and plug it back in. Do this if

NEXT PAGE SELECT OPERATE EXIT

MENU

your batteries die, or you lose your remote control.

• Use the remote control.

• Press the M

ENU button on the front of the TV for more than 3 seconds. In this case, the OSD

for FRONT PANEL LOCK will appear.

Note:

• To turn ON/OFF the TV, press the POWER button for more than 3 seconds. This feature will remain ON.

Video Input Label

This function is used to label video input connections for the onscreen displays.

Press the M

π†

√®

π†

√®

To VIDEO INPUT LABEL

To operate

To select the desired video input

To select the desired preset input label (see

ENU button

chart below)

Press the OK button to save

Press the MENU button when finished

Preset

Select when...

Labels

You have a VCR connected to the video input

VCR

You have a DVD connected to the video input

DVD

You have a Digital VCR connected to the video input

D-VHS

You have a Set-top Box connected to the video input

STB

You have a Satellite Receiver connected to the video input

SAT

You have an Amplifier connected to the video input

AMP

You have a Video Game connected to the video input

GAME

You have a Video Camera connected to the video input

CAM

You have a Video Disc player connected to the video input

DISC

PREVIOUS NOISE MUTING FRONT PANEL LOCK

VIDEO INPUT LABEL

NEXT PAGE SELECT OPERATE EXIT

VIDEO-1 VIDEO-2 VIDEO-3 VIDEO-4

SELECT OPERATE EXIT

INITIAL SETUP

VIDEO INPUT LABEL

OK

PRESS TO FINISH

OFF

MENU

VCR DVD SAT

GAME

MENU

ON

(2/4)

34

Picture Adjust

Picture Settings

These settings allow you to change and adjust the way the picture appears on your television.

TINT

Tint allows you to adjust the levels of red and green in your TV picture.

COLOR

The color function lets you make all the colors in the TV picture appear either more vivid or subtle.


Picture allows you to adjust the levels of black and white on the TV screen, giving you a darker or brighter picture overall.

BRIGHT

You can adjust the overall brightness of the TV picture with the Bright control.

DETAIL

The Detail feature adjusts the level of fine detail displayed in the picture.

Adjust the Picture Settings

Press the MENU button

π† To TINT, COLOR, PICTURE, BRIGHT or

DETAIL

√ ®

To enter

TINT

√ ®

To adjust the setting

π†

To move to the next setting

+02

Press the MENU button when finished

PICTURE ADJUST

PREVIOUS TINT

00

COLOR

00


00

BRIGHT

00

DETAIL

00

COLOR TEMPERATURE

NEXT PAGE SELECT OPERATE

STANDARD

LOW

(1/2)

MENU

EXIT

Color Temperature

You can decide how strong or dull the colors appear on the TV screen.

Press the M

π†

To COLOR TEMPERATURE

√®

To enter

COLOR TEMPERATURE LOW HIGH

√®

To set LOW or HIGH

Press the MENU button when finished

ENU button

TINT COLOR PICTURE BRIGHT DETAIL COLOR TEMPERATURE

NEXT PAGE SELECT OPERATE

PICTURE ADJUST

STANDARD

LOW

(1/2)

MENU

EXIT

35

Picture Adjust

Digital Noise Clear

With digital noise clear, this helps take our static or noise from a channel that may not be coming in clearly.

Press the M

π†

To DIG. NOISE CLEAR

√®

To enter

π†

To select the mode “LOW”, “HIGH” or “OFF”

Press the MENU button when finished

(VSM) Velocity Scan Modulation

Velocity scan modulation circuitry varies the electron beam’s horizontal scanning speed to help accentuate the differences in picture brightness to sharpen the edges of images.

Press the M

π†

√®

Press the MENU button when finished

To VSM

To enter

VSM ON OFF

To turn VSM ON or OFF

ENU button

DIG. NOISE CLEAR

OFF

LOW

HIGH

PICTURE ADJUST

PREVIOUS STANDARD DIG. NOISE CLEAR VSM NATURAL CINEMA

RESET

NEXT PAGE SELECT OPERATE EXIT

AUTO

MENU

OFF

ON

(2/2)

Natural Cinema

Natural cinema corrects the problem of blurred edges which may occur when viewing a program originally shot on film (such as motion pictures) or animation. If you notice blurring at the edges of these programs, choose N conversion errors that occur when film, which is shot at 24 frames-per-second, is broadcast at the television rate of 30 frames-per-second.

Press the MENU button

π†

To NATURAL CINEMA

√®

To enter

π†

To select the mode “AUTO", "ON" or "OFF”

ATURAL CINEMA and set it to AUTO. Natural Cinema helps correct

NATURAL CINEMA

AUTO

ON

OFF

Press the MENU button when finished

Notes: The natural cinema mode is automatically set to “AUTO” in the following cases:

• Turning on or off

• Changing the channel or input mode

• Using multi-screen functions

36

Picture Adjust

Reset

Reset resets all picture adjustments (tint, color, picture, bright, detail, color temperature, dig. noise clear and VSM) at once to the default settings.

Press the M

π†

To RESET

√®

To enter

The onscreen menu disappears for a moment, and

then the settings are reset to the default setting for all the picture adjustments.

Press the M

ENU button

ENU button when finished

PICTURE ADJUST

PREVIOUS STANDARD DIG. NOISE CLEAR VSM NATURAL CINEMA

RESET

OFF

AUTO

MENU

ON

(2/2)

37

Sound Adjust

Sound Settings

These settings allow you to change and adjust the sound on your television.

BASS –

You can increase or decrease the level of low-frequency sound in the TV’s audio with

the bass adjustment.

TREBLE –

BALANCE –

Adjust the Sound Settings

Press the MENU button

π† To BASS, TREBLE or BALANCE

√ ®

π†

Press the MENU button when finished

Notes:

• You can reset the sound adjustments (BASS, TREBLE and BALANCE) you set at once as the default setting when you select reset. See page 37.

• You can adjust BALANCE only when A.H.S. is off. See page 44.

MTS (Multi-Channel Television Sound)

MTS technology allows several audio signals to be broadcast at once, giving you a choice in what you wish to hear with a TV program. In addition to mono or stereo sound, an MTS broadcast may also include a second audio program (SAP).

Press the MENU button

π†

√®

(The ON AIR arrow tells you if a broadcast is in stereo and/or contains an SAP).

Press the MENU button when finished

Notes:

• Keep the TV in stereo mode to get the best sound quality. The sound will work in stereo mode even if a certain broadcast is in mono sound only.

• Choose the mono setting to reduce excessive noise on a certain channel or broadcast.

• Selecting SAP will allow you to hear an alternative soundtrack, if one is available.

• MTS unavailable if your television’s input source is in input 1, 2, 3 or 4 mode, as described on page 43.

Use treble to adjust the level of high-frequency sound in your TV’s audio.

Adjust the level of sound between the TV’s left and right speakers with the

balance setting.

To adjust the setting

To move to the next setting

To MTS

Select the mode

BASS TREBLE BALANCE MTS

RESET

NEXT PAGE SELECT OPERATE EXIT

BASS TREBLE BALANCE MTS

RESET

SOUND ADJUST

STEREO SAP MONO

MENU

SOUND ADJUST

STEREO SAP MONO

NEXT PAGE SELECT OPERATE EXIT

MENU

Reset

Reset resets all Sound Adjustments (Bass, Treble and Balance) at once to the default settings. See page 37 on how to use reset.

38

Clock/Timers

Set Clock

Before you use any of your TV’s timer functions, you must first set the clock. You may precisely set your clock using the XDS time signal broadcast by most public broadcasting stations. If you do not have this in your area, you will have to set the clock manually. See manual clock set below. To set the clock using the XDS signal:.

Press the MENU button

π†

To SET CLOCK

√®

To operate

When you set the clock automatically, choose AUTO by pressing the

π†

√®

π†

√®

To TIME ZONE

To select your time zone

ATLANTIC

EASTERN

HAWAII

CENTRAL

ALASKA

To D.S.T. (daylight savings time)

To turn D.S.T. ON or OFF

MOUNTAIN

PACIFIC

√

or ® arrows.

SET CLOCK

MODE TIME TIME ZONE D.S.T.

OK

PRESS TO FINISH

SELECT OPERATE EXIT

AUTO

-- : -- --

ATLANTIC

ON

MENU

Press OK to finish

Press the MENU button when finished

When you set the clock manually, choose MANUAL by pressing the √ or ® arrows.

π†

√®

π†

√®

Press OK to start clock

To move to the hour

To set the hour

To move to minutes

To set the minutes

THANK YOU !!

SET CLOCK

MODE TIME TIME ZONE D.S.T.

OK

PRESS TO START CLOCK

SELECT OPERATE EXIT

MANUAL

-- : -- --

ATLANTIC

MENU

ON

Press the MENU button when finished

Notes:

• D.S.T. can be used only for US and Canada when it is set to ON in the SET CLOCK menu.

• Only when the MODE set to AUTO, the Daylight Savings Time feature automatically adjusts your TV’s clock for Daylight Savings. The clock will move forward one hour at 2:00 am on the first Sunday in April. The clock will move back one hour at 2:00 am on the last Sunday in October.

• You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions.

39

Clock/Timers

On/Off Timer

The on/off timer lets you program your television to turn itself on or off. You can use it as an alarm to wake up, to help you remember important programs, or as a decoy when you’re not home.

Press the M

π†

√® √®

†

√®

†

To ON/OFF TIMER

To operate (begins with ON TIME)

To set the hour (AM/PM) you want the TV to turn on

To move to minutes

To set the minutes

To accept ON TIME and move to OFF TIME (the

time the TV will turn off). Set the OFF TIME the same way as ON TIME

†

To accept OFF TIME and move to CHANNEL

√®

To select channel

†

To ON VOLUME

√®

To set the volume level

†

To move to MODE

√®

Choose ONCE or EVERYDAY

†

To ON/OFF TIMER

√®

Choose YES to accept the timer setting, choose NO if you don’t wish to accept

Press the OK button to finish

Press the MENU button to exit the menu

ENU button

ON/OFF TIMER ON TIME OFF TIME CHANNEL ON VOLUME MODE ON/OFF TIMER

PRESS TO FINISH

SELECT OPERATE EXIT

OK

7:00 PM

10:00 PM

CURRENT

EVERYDAY

MENU

NO

03

Notes:

• The on/off time cannot be set to locked or guarded channels.

• In order for the on/off timer to work, the clock must be set.

• After a power interruption, the timer settings must be reset.

40

Button Functions

Multi Screen Function

Your television has two kinds of screen: PIP and INDEX (9 channels).

Note: After you press any multiscreen button, if you press the menu button, only the picture

adjust screen will appear.

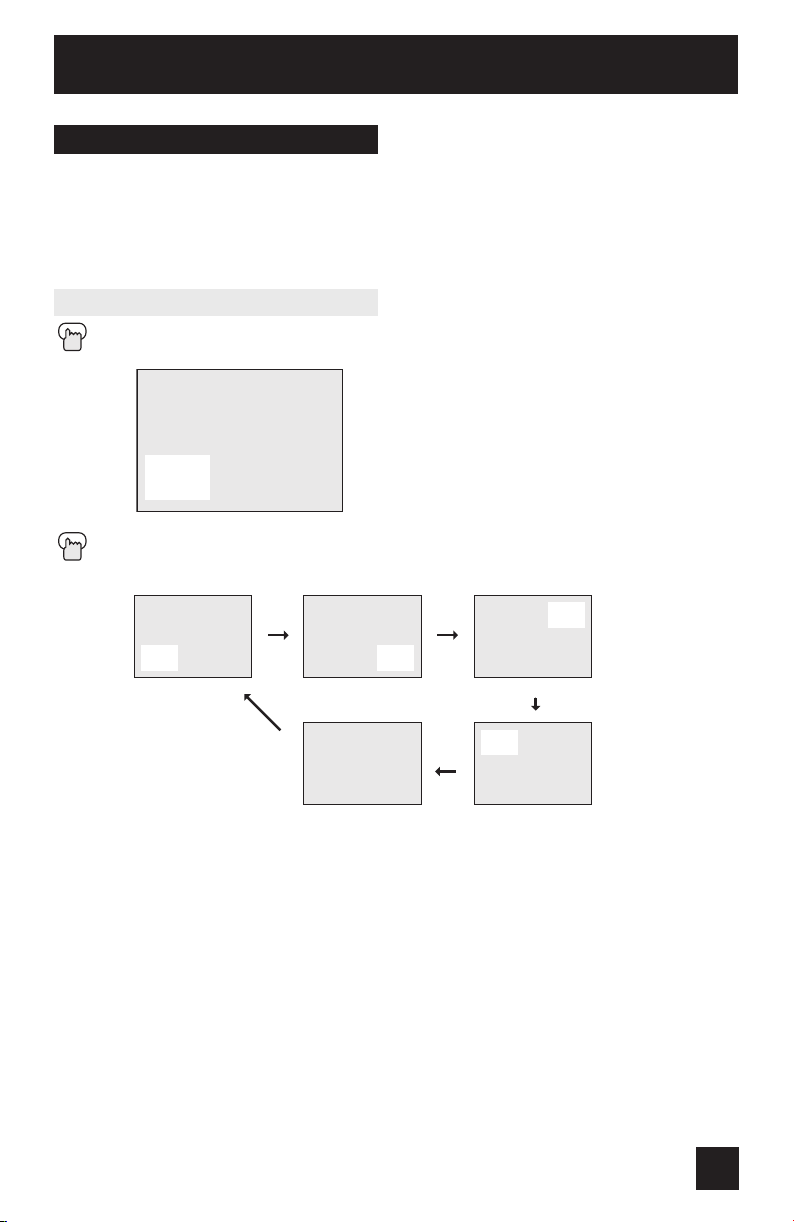

Twin

Turn PIP on by pressing the TWIN button

Twin

T

Each press of TWIN will shift the PIP window to a different corner and turn off.

Note:

• You cannot select the component input in the PIP mode. (Except if the input is a 525i component signal).

• When you select the AUTO TUNER SETUP, CHANNEL SUMMARY, V-CHIP, the PIP window turns off.

WIN

07

02

TWIN TWIN

TWIN

"PIP OFF"

TWIN

41

Button Functions

Index

This allows you to quickly look at up to 9 channels at a time so that you can decide which one to watch.

1

2

3

4

5

6

7

8

9

Notes:

• Only RF input signal will be displayed.

• You can watch the channel added in channel summary. See page 23.

Freeze

Pressing the FREEZE button causes the screen to change to the PIP screen display with the still picture displayed on the right. In order to return to the normal display, press the FREEZE button once again.

Swap

You can exchange the channel (or input) displayed in the PIP screen window for the main screen image by pressing the SWAP button.

Select

With SELECT, you can select the picture (channel) while viewing PIP screen. When you press SELECT button, the channel number on the top will be highlighted. Each press of SELECT will shift the channel.

42

Button Functions

Power

Turns the TV on or off.

Press the P

Number Buttons - 10Key Pad

Use the number buttons on the remote control to move directly to a specific channel. For example, to move to channel 12:

0 (ZERO)

1 (ONE)

2 (TWO)

Tune

Lets you decide the input channel and select it. After you press the number buttons on the remote, press the TUNE button. For example, to move to channel 12:

1 (ONE)

2 (TWO)

OWER button

Press the T

UNE button

Input

Selects the signal input source for the television: Input-1, 2, 3 or 4 for video devices like VCR’s DVD players, or camcorders.

Press the INPUT button

By every press of the INPUT button, you can change the input mode.

Notes:

• When you return to TV mode, press the RETURN+ button or direct 10 key pad.

• You can also access the FRONT CONTROL PANEL screen by using the MENU button on the front of the TV instead of the remote control. It appears between INITIAL SETUP and PICTURE ADJUST screen, and it has INPUT and VIDEO STATUS menus. Choose INPUT by pressing Menu ( √ OPERATE ® ).

†

on the front panel and choose a mode by using the CHANNEL+/- buttons

Channel +/–

Use these buttons to move up or down all the available channels your TV is able to receive.

Volume +/–

Use these buttons to raise or lower the TV’s volume level.

43

Button Functions

Return +

The Return+ button has two functions:

Return - Returns to the channel viewed just before the channel currently onscreen.

Return+ - Lets you program a specific channel to return to while scanning through the

R

channels using the CH+ and CH– buttons.

ETURN+ and hold for three seconds

RETURN CHANNEL

PROGRAMMED!

The channel currently active has been programmed as your return+ channel. Now scan

RETURN+

• To cancel your return+ channel, press and hold the RETURN+ button for three seconds. The

message “RETURN CHANNEL CANCELLED!” will appear.

• Return+ works only with the CHANNEL+/- buttons. Pressing any number key will cancel return+.

through the channels using the CHANNEL+/- buttons.

You will return to your programmed channel.

Sound

HYPER SURROUND - Creates a deep, three-dimensional sound effect by channeling the

audio through the TV's front-firing speakers.

Press the SOUND button

π†

√®

Press the MENU when finished

To select HYPER SURROUND

To choose the setting

SOUND EFFECT

HYPER SURROUND

OPERATE EXIT

SELECT

ON OFF

MENU

Muting

The MUTING button instantly turns the volume down completely when you press it. Press MUTING and the volume level will instantly go to zero. To restore the volume to its previous level, press MUTING again.

44

Button Functions

Video Status

The Video Status button gives you a choice of four TV picture display settings, including a display of your own preferences.

Standard - Resets the picture display to the factory settings.

Dynamic - Gives a vivid picture with better contrast when viewing in

Theater - Gives a rich, film-like look to video when viewing in a dimly

Game - Used for when you are playing video games connected to

Press the V By every press of the VIDEO STATUS button, you change the mode.

Note:

• You can also change the mode by pressing the

• You can also access the FRONT CONTROL PANEL screen by using the MENU button on

the front of the TV instead of the remote control. It appears between INITIAL SETUP and PICTURE ADJUST screen, and it has INPUT and VIDEO STATUS menus. Choose VIDEO STATUS by pressing Menu† on the front panel and choose a mode by using the CHANNEL+/- buttons ( √ OPERATE ® ).

a brightly lit room.

lit room.

your TV.

IDEO STATUS button

π†

buttons.

TheaterPro D6500K

The TheaterPro D6500K color temperature technology function makes sure that the video you watch is set to the standard color temperature, so that what you see is as true to what the film to video editors intended it to be.

VIDEO STATUS

STANDARD

DYNAMIC THEATER

GAME

Press the THEATERPRO button

Sleep Timer

The Sleep Timer can turn the TV off for you after you fall asleep. Program it to work in intervals of 15 minutes, for a total time of up to 180 minutes.

Press the SLEEP TIMER button

0 15 30 45 60 75 90 105 120 135 150 165 180

Sleep Timer Message

20 seconds before the automatic shutoff, this message will appear:

GOOD NIGHT!!

PUSH SLEEP TIMER BUTTON

You then have 20 seconds to press the S

delay the shut off for another 15 minutes.

TO EXTEND

LEEP TIMER button to

45

Button Functions

Display

The display screen shows the current status of timers and inputs.

Press the D

ISPLAY button

The screen to the right shows the following information:

•

The current channel or AV input (Channel 05)

• The current time (12:20 pm)

• Sleep timer status/minutes remaining (The Sleep Timer is off)

• On/off timer status (Set to turn on everyday at 7:00 PM, off at 10:00 PM)

• Each Press of the D

ISPLAY button changes the display mode:

05

NOW SLEEP TIMER ON/OFF TIMER ON TIME OFF TIME

Display Time Channel Off

Display - Full screen shown above

Time - Shows the current time only

Channel - Shows the current channel

Off - Turns display off

Notes:

• You may also turn off the display at any step by pressing MENU.

• If the clock, sleep timer or on/off timer are not set, the display screen will show: “CLOCK NOT SET”, “SLEEP TIMER OFF”, and “ON/OFF TIMER OFF” respectively.

C.C. (Closed Caption)

Use the C.C. (Closed Caption) button to select the mode of closed caption.

Press the C.C. button

12:20 PM

OFF

EVERYDAY

7:00 PM

10:00 PM

ONOFF

• When you select ON, it will be the mode selected in the Closed Caption Menu.

• See page 32 when you set the caption/text mode.

46

Button Functions

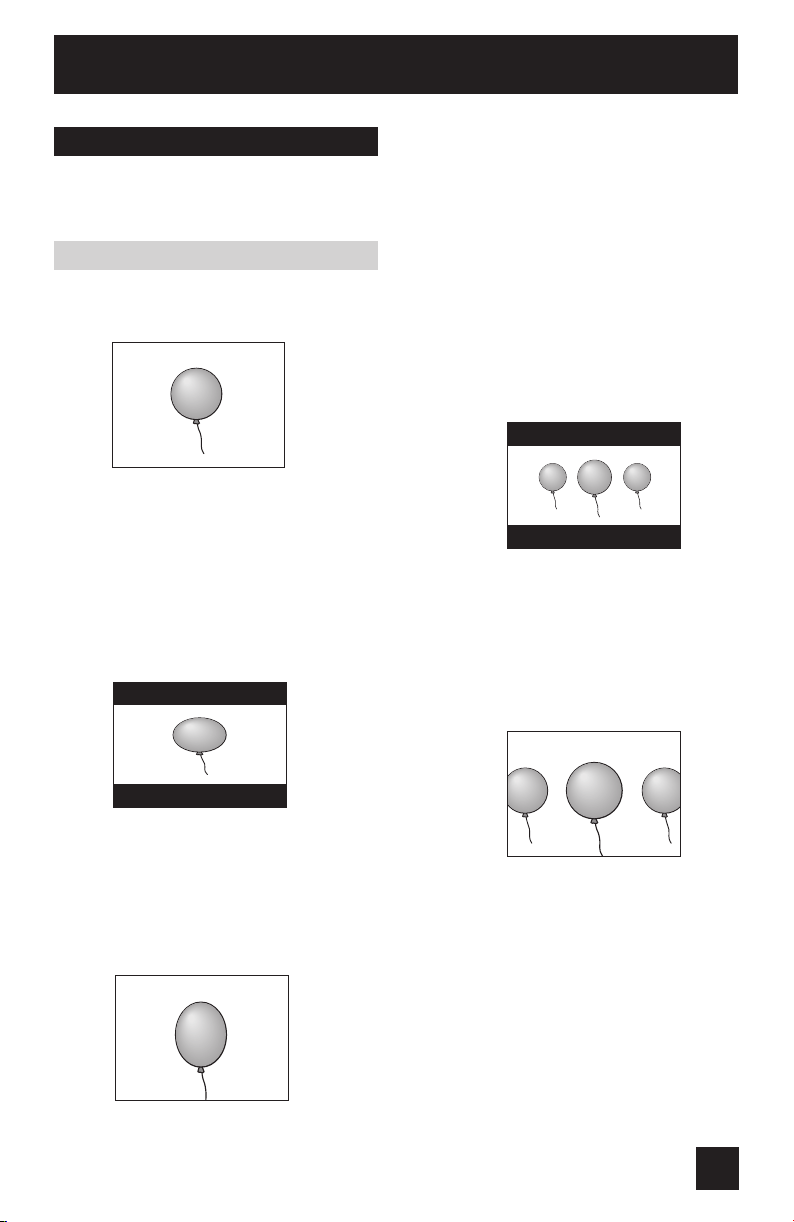

Aspect

This feature will help you adjust the picture you are watching to give you the best possible picture quality.

Aspect Ratios

4:3 - Use this aspect mode when you

are watching a 4:3 broadcast.

16:9 - If you select 16:9 aspect mode while watching a 4:3 broadcast, this will stretch the picture so as to fit into the 16:9 format. When you select this mode, black bars will appear on the top and bottom of the TV screen.

16:9 - Use this aspect mode when you are watching a 16:9 broadcast. This is also referred to as "widescreen", for example on a DVD disc. When you select this mode, black bars will appear on the top and bottom of the TV screen.

HD ZOOM - If you are watching a 4:3 high definition broadcast and you select this aspect mode, it will zoom in on the picture.

V STRETCH - If you are watching a 4:3 broadcast, this aspect mode will stretch the picture vertically on your TV

47

Button Functions

Aspect Ratios (Continued)

Press the ASPECT button

• By pressing the A

When you change the aspect ratios, it is different from their broadcast or recorded program.

SPECT button, you can change the size.

HD (1080i, 720p)NTSC, 480i, 480p

ASPECT

4:3

16:9

V STRETCH

Notes:

• You can also choose the size by pressing the

• When you change the aspect ratio or signal, reset the picture position to center.

π† buttons.

ASPECT

16:9

HD ZOOM

Menu

The Menu button allows you to access JVC’s onscreen menu system. Press MENU to activate the onscreen menu system.

• See individual topics like “Sound Adjust” for specific information on using menus.

OK

This button confirms your selection when you are in one of the onscreen menus.

Back

This button allows you to go back in the menu to change a selection or correct a mistake.

48

Button Functions

TV/CATV Slide Switch

Use either the television’s own tuner or a cable box to select channels. Set this switch to TV to operate the television’s built-in tuner. Move the switch to CATV to operate a cable box.

Note:

• See page 16 for information on programming your remote for cable box operation.

VCR/DVD Slide Switch

You can control a VCR or DVD player with the buttons on the lower part of the remote control. Move the slide switch to VCR or DVD to operate.

Notes:

• The remote is preset with the code 000 to control JVC-brand VCR’s. For any other manufacturer’s brand VCR, please see the code chart and instructions on page 17.

• The remote is preset with the code 000 to control JVC-brand DVD players. For any other manufacturer’s brand DVD player, please see the code chart and instructions on page 18.

VCR Buttons

You can use this remote control to operate the basic functions of your VCR. These functions include: play, record, rewind, fast-forward, stop, pause, channel scan, TV/VCR, power on, and power off.

Move the selector switch to VCR to operate.

• The remote is preset with the code 000 to control JVC-brand VCR’s. For any other manufacturer’s brand VCR, please see the code chart and instructions on page 17.

DVD Buttons

You can also use this remote control to operate the basic functions of your DVD player. These functions include: play, rewind, fast-forward, stop, still/pause, previous/next, tray open/close, power on, and power off.

Move the selector switch to DVD to operate.

• The remote is preset with the code 000 to control JVC-brand DVD players. For any other manufacturer’s brand DVD player, please see the code chart and instructions on page 18.

Light

All remote control buttons are illuminated, except for the TV/CATV slide switch, VCR/DVD slide switch and LIGHT button. Press the LIGHT button to turn the illumination on for 4 seconds.

49

Troubleshooting

PROBLEMS CHECK

There is no power

There is no picture or sound

• See if the power cord became unplugged.

• Check for a blown fuse or circuit breaker or a power outage.

• The antenna could be disconnected.

• The input mode could be set improperly. See page 43.

• The tuner (Auto Tuner Setup) could be set improperly. See page 23.

• The TV station may be having difficulties. Check to see if other stations are working.

Remote control is not operating properly or at all

You cannot select a certain channel

The power turns off by itself

The clock is wrong

The color quality is poor

There are lines across the picture

The picture is spotted

There are double pictures (ghosts)

Picture is snowy (image noise)

Screen is 40% black

Stereo or bilingual programs can't be heard

Static electricity

• Check to see that the batteries are still working and properly installed.

• Make sure the remote has a clear sight path to the TV.

• Check that the TV/CATV switch is in the proper position.

• You may be too far from the TV. You must be within 23 feet (7 meters).

• Make sure the channels have been programmed. See "Channel Summary", page 23.

• Check to see if the channel is locked. See "Channel Summary - Lock" page 24.

• Make sure the set did not become unplugged.

• Perhaps the On/Off Timer is set. See page 40.

• Check to see if the Sleep Timer was set. See page 45.

• The power was interrupted and the clock was not reset. See page 39.

• Tint and Color may be improperly adjusted. See page 35.

• The Video Status mode may be turned to the wrong setting. See page 45.

• There could be interference from another electrical appliance, such as a computer, another TV or VCR. Move any such appliances further away from the TV.

• There could be interference from a high-wattage appliance, like a hairdryer or vacuum, operating nearby. Move the antenna away from the appliance or change to a coaxial cable connection which is less prone to interference.

• A building or passing airplane can reflect the original signal and produce a second, slightly delayed one. Adjust your antenna position.

• Your antenna may be damaged, disconnected or turned. Check the antenna connection. If the antenna is damaged, replace it.

• The Closed Caption Text mode is on. Turn it off in the Closed Caption Menu, page 32.

• Make sure the MTS settings are correct. See "MTS" on page 38.

• It is normal to feel static electricity if you brush or touch the screen.

You hear occasional crackling sounds

50

• It is normal for the TV to make crackling sounds when first turned on or off. Unless the sound or picture become abnormal, this is fine.

515253

Specifications

MODEL

Reception Format

Reception Range

Power Source AC 120V, 60Hz

Power Consumption

Screen Size

Audio Output

Speakers

Antenna Terminal

External Input Jacks

S-Video Input Jack

Component Input Jacks

Audio Output Jacks (FIX)

NTSC, BTSC System (Multi-Channel Sound)

Sub Mid, Mid, Super, Hyper and Ultra bands (181 channel frequency synthesizer system)

75 ohms (VHF/UHF) (F-type connector)

Audio: 500mVrms (-4dBs) high impediance

Y: 1Vp-p positive, 75 ohms (negative sync provided)

C: 0.286 Vp-p (burst signal), 75 ohms

Y: 1Vp-p positive, 75 ohms (negative sync provided)

AV-32S565

VHF 2 to 13, UHF 14 to 69

215W

32 inch / 80 cm

measured diagonally

4:3 Ratio

7.5W + 7.5W

2 x 4 3/4 inch / 5 x 12 cm oval x 2

Video: 1 Vp-p, 75 ohms

P

B/PR: 0.7 Vp-p, 75 ohms

500 mVrms (-4dBs) Low impedance

(400 Hz when modulated 100%)

Dimensions (In) WxHxD (cm)

Weight (lbs / kg)

Accessories

34 5/8 x 27 5/8 x 22 1/4

87.7 x 69.9 x 56.5

145.2 / 66

Remote control unit x 1 / AA batteries x 2

Specifications subject to change without notice.

Note:

• Reception of channel A-5 ("95" of the TV set's on-screen cable channel numbers) is not recommended for your TV set.

Notes

54

Notes

55

JVC COMPANY OF AMERICA

Division of JVC Americas Corp.

1700 Valley Road

Wayne, New Jersey, 07470

JVC CANADA, INC.

21 Finchdene Square

Scarborough, Ontario

Canada, M1X 1A7

Color Television Users Guide

For Models:

AV-32S585 AV-32S575

Illustration of AV-32S585 and RM-C1257G

Important Note:

In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user’s guide in a convenient place for future reference. Keep the carton and original packaging for future use.

Model Number:

Serial Number:

LCT1638-001A-A

0504TNH-II-IM

Important Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: To reduce the risk of electric shock. Do not

remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS TV

SET TO RAIN OR MOISTURE.

CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES

REGARDING THE USE OF THIS UNIT.

1. Operate only from the power source specified on the unit.

2. Avoid damaging the AC plug and power cord.

3. Avoid Improper installation and never position the unit where good ventilation is unattainable.

4. Do not allow objects or liquid into the cabinet openings.

5. In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair

it yourself or remove the rear cover.

Changes or modifications not approved by JVC could void the warranty.

* When you don’t use this TV set for a long period of time, be sure to disconnect both the

power plug from the AC outlet and antenna for your safety.

* To prevent electric shock do not use this polarized plug with an extension cord, receptacle or

other outlet unless the blades can be fully inserted to prevent blade exposure.

IMPORTANT RECYCLING INFORMATION

This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org

2
