Thank you for buying this JVC colour television. To make sure you understand how to use your new TV, please read this manual tho roug hly be fore you begin.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING THE USE OF THIS UNIT.

1. Operate only from the power source specified (AC 220 – 240 V, 50 Hz) on the unit.

2. Avoid damaging the AC plug and power cord.

3. Avoid improper installation and never position the unit where good ven tilation is unatt ainable. When installing this television, distance recommendations must be maintained between the floor and wall, as well as instalment in a tightly

15 cm

enclosed area or piece of furniture. Adhere to the minimum distance guidelines shown for

10 cm 10 cm 15 cm

safe operation.

4. Do not allow objects or liquid into the cabinet openings.

5. In the event of a fault, unplug the unit and call a service tech nician. Do no t attempt to repair it yourself or remove the rear cover.

6. The surface of the TV screen is easily damaged. Be very careful with it when handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully . Never use any cleaner or detergent on it.

When you do not use this TV set for a long period of time, be sure to disconnect the power pl ug from the AC socket.

CONTENTS

ENGLISH

PREPARATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

T-V LINK FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

BASIC OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

REMOTE CONTROL BUTTONS AND FUNCTIONS . . . . . . . .9

MENU OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

PICTURE SETTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

PICTURE FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

SOUND SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

EXT SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

INSTALL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

DEMO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

ADDITIONAL MENU OPERATIONS. . . . . . . . . . . . . . . . . . . .28

ADDITIONAL PREPARATION. . . . . . . . . . . . . . . . . . . . . . . . .30

CH/CC NUMBER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

TV BUTTONS AND PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . .33

TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

4444

35(3$5$7,21

35(3$5$7,2135(3$5$7,21

&RQQHFWLQJ#WKH#$HULDO#DQG#9&5

■■■■

&RQQHFWLQJ#WKH#$HULDO#DQG#9&5&RQQHFWLQJ#WKH#$HULDO#DQG#9&5

If connecting a VCR, follow A → B → C → D. If not connecting a VCR, follow 1 → 2.

*1: To operate T-V LINK functions, a T-V LINK compatible

VCR must be connected to the EXT-2 terminal on the TV. For details about T-V LINK functions, see “T-V LINK FUNCTIONS” on page 5.

Note:

For further details, refer to the manuals provided with the

•

devices to be connected.

•

The connecting cables are not provided.

•

A video can be viewed from the VCR without performing

. For details, refer to your VCR instruction manual.

•

To connect additional external devices, please see “ADDITIONAL PREPARATION” on page 30.

•

When a decoder is connected to a T-V LINK compatible VCR, set the DECODER (EXT-2) function to ON. For details, see “Using the DECODER (EXT-2) function” on page 28. Otherwise, you will not be able to view scrambled channels.

AC Outlet

(AC 220 - 240 V,

50 Hz)

21-pin SCART Cable

VHF/UHF

Aerial

EXT-2

EXT-3

EXT-1

EXT-2

EXT-1

EXT-3

75-ohm Coaxial

Cable

75-ohm Coaxial

Cable

3XWWLQJ#%DWWHULHV#LQWR#WKH#5HPRWH#&RQWURO

■■■■

3XWWLQJ#%DWWHULHV#LQWR#WKH#5HPRWH#&RQWURO3XWWLQJ#%DWWHULHV#LQWR#WKH#5HPRWH#&RQWURO

Use two AAA/R03 dry cell batteries. Insert the batteries from the ó end, making sure the ô and ó polarities are correct.

To open the battery compartment, slide the door downwards and lift off. Replace the door by sliding it upwards until it is secure.

Note:

Follow the warnings printed on the batteries.

•

Battery life is about six months to one year, depending on your frequency of use.

•

If the remote control does not work properly, replace the batteries.

•

The batteries we supply are only for setting up and testing your TV, please replace them as soon as necessary.

•

Always use good quality batteries.

VCR

AV IN/OUT

Terminal

To Aerial

Input

To Aerial

Output

,QLWLDO#6HWWLQJV

■■■■

,QLWLDO#6HWWLQJV,QLWLDO#6HWWLQJV

When the TV is first turned on, it enters the initial setting mode, and the JVC logo is displ ayed . Foll ow th e ins truc tio ns on the on-screen display to make the initial settings.

Press the Main power button on the TV.

The Power lamp lights red (for power on), then green (for TV on) and the JVC logo is displayed.

Note:

If the power lamp stays red and does not change to

•

green: Your TV is in the standby mode. Press the (Standby) button on the remote control to turn your TV on.

•

The JVC logo does not appear when your TV has been turned on once. In this case, use the “LANGUAGE” and “AUTO PROGRAM” functions to make the initial settings. For details, see “INSTALL” on page 23.

PREPARATION

ENGLISH

Main power button

Power lamp

Press the

The LANGUAGE menu appears.

Press the ENGLISH. Then press the

button.

éééé

buttons to choose

ëë

éééé

ton.

English is set for the on-screen display description. The COUNTRY menu appears as a sub-menu of the AUTO PROGRAM function.

Press the

ìì

and

buttons to

ëë

choose the country where you are now located.

but-

1 2 3

4 5 6

7 8

TV OK

Blue button

PREPARATION

Press the blue button to start the AUTO PROGRAM function.

The AUTO PROGRAM menu appears and received TV channels are automatically regis tered in the Pro gramme numbers (PR).

To cancel the AUTO PROGRAM function:

Press the è button.

After the TV channels have been registered in the Programme numbers (PR), the EDIT menu appears.

You can proceed to edit the Programme numbers (PR) using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 24.

When not using the EDIT/MANUAL function:

If you do not need to use the EDIT/MANUAL function, go to the next step.

Note:

When your TV can detect the TV channel name from

•

the TV channel broadcast signal, it automatically registers the TV channel name (ID) to the Programme number (PR) in which the TV channel has been registered.

•

If a TV channel you want to view is not set to a Programme number (PR), manually set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 24.

•

The TV channel is not registered in Programme number PR 0 (AV). When you want to register a TV channel to PR 0 (AV), manually set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 24.

Press the

button to display the

éééé

T-V LINK menu.

Operate the T-V LINK menu according to the type of a VCR connected to the EXT-2 terminal.

When a T-V LINK compatible VCR is not connected:

Press the è button to exit the T-V LINK menu. The T-V LINK menu disappears.

When a T-V LINK compatible VCR is connected:

Follow the operating procedure “Downloading the data to VCR” on page 28 to transmit the Programme number (PR) data.

Now, the initial settings are complete, and you can watch the TV.

709#/,1.#)81&7,216

709#/,1.#)81&7,216709#/,1.#)81&7,216

When a T-V LINK compatible VCR is connected to the EXT2 Terminal on the TV, it is ea sier to set up the VCR and to view videos. T-V LINK uses the following features:

To use T-V LINK functions:

A T-V LINK compatible VCR is necessary. The VCR must be connected to the EXT-2 terminal on the TV by a fully wired SCART cable.

Note:

A “T-V LINK compatible VCR” means a JVC VCR with the

•

T-V LINK logo or a VCR with one of the following logos. However, these VCRs may support some or all of the features described below. For details, refer to your VCR instruction manual.

“Q-LINK” (a trademark of Panasonic Corporation) “Data Logic” (a trademark of Metz Corporation) “Easy Link” (a trademark of Phillips Corporation) “Megalogic” (a trademark of Grundig Corporation) “SMARTLINK” (a trademark of Sony Corporation)

3UH0VHW#'RZQORDG

■■■■

3UH0VHW#'RZQORDG3UH0VHW#'RZQORDG

Download the registered data on the TV channels from the TV to the VCR. The Preset Download function automatica lly begins when t he initial setting is complete or whenever the AUTO PROGRAM or EDIT/MANUAL operations are performed.

Note:

•

This function can be operated via VCR operation.

Note:

Operation via the TV is not possible.

•

Generally, the VCR cannot record a TV channel that cannot be received properly by the VCR’s tuner, even though you can view that TV channel on the TV. However, some VCRs can record a TV channel by using the TV’s output if that channel can be viewed on the TV, even though the TV channel cannot be received properly by the VCR’s tuner. For details, refer to your VCR instruction manual.

79#$XWR#3RZHU#2Q29&5#

■■■■

79#$XWR#3RZHU#2Q29&5#79#$XWR#3RZHU#2Q29&5# ,PDJH#9LHZ

,PDJH#9LHZ

,PDJH#9LHZ,PDJH#9LHZ

When the VCR starts playing, the TV automatically turns on and the images from EXT-2 terminal are displayed on the screen. When the VCR menu is operated, the TV automatically turns on and the images from EXT-2 terminal are displayed on the screen.

Note:

This function does not operate if your TV’s main power is

•

turned off. Set your TV’s main power to on (standby mode).

ENGLISH

When “FEATURE NOT AVAILABLE” is displayed:

If “FEATURE NOT AVAILABLE” is displayed, the download was not performed correctly. Before trying to downlo ad again, ensure the following:

The VCR power is turned on.

•

The VCR is T-V LINK compatible.

•

The VCR is connected to the EXT-2 terminal.

•

The SCART cable is fully wired.

'LUHFW#5HF

■■■■

'LUHFW#5HF'LUHFW#5HF

“What You See Is What You Record” You can record to VCR the images that you are currently viewing on TV by a simple operation. For details, read the manual for your VCR. Operate via the VCR. “VCR IS RECORDING” is displayed.

In the following conditions, the VCR will stop re cording if the TV is turned off, if the TV channel or input is switched, or if the menu is displayed on the TV:

•

When recording images from an external device connected to the TV.

•

When recording a TV channel after it has been unscrambled on a decoder.

•

When recording a TV channel by using the TV’s output because that TV channel cannot be properly received on the VCR’s tuner.

%$6,&#23(5$7,21

%$6,&#23(5$7,21%$6,&#23(5$7,21

7XUQ#WKH#0DLQ#SRZHU#RQ

■■■■

7XUQ#WKH#0DLQ#SRZHU#RQ7XUQ#WKH#0DLQ#SRZHU#RQ

Press the Main power button on the TV.

The Power lamp lights red and your TV is in the standby mode.

Note:

•

If the Power lamp lights green, the TV is already on.

To turn the Main power off:

Press the Main power button again. The Power lamp goes off.

Note:

To save energy, turn the main power off if you are not us-

•

ing the TV for a long period of time.

7XUQ#WKH#79#RQ#IURP#VWDQGE\#PRGH

■■■■

7XUQ#WKH#79#RQ#IURP#VWDQGE\#PRGH7XUQ#WKH#79#RQ#IURP#VWDQGE\#PRGH

Main power button

Power lamp

Press the button, the

(Standby) button, the

üüüü

buttons or the Number

ëë

èèèè

buttons.

The Power lamp lights red to green and your TV will be turned on.

To turn the TV off:

Press the The Power lamp changes from gree n to red and the TV e nters standby mode.

&KRRVH#D#79#FKDQQHO

■■■■

&KRRVH#D#79#FKDQQHO&KRRVH#D#79#FKDQQHO

Choose a Programme number (PR) in which the desired Programme TV channel has been set.

Use the

Press the ëëëë buttons to choose the desired Programme number (PR).

Use the Number buttons:

Enter the desired Programme number (PR) with the Number buttons.

Use the PR LIST:

(standby) button again.

üüüü

ëëëë

buttons:

Example

→

•PR12

•PR6

Press the play the PR LIST.

press ú and

→

press õ.

åååå

(Information) button to dis-

ùùùù

1 2 3

4 5 6

7 8 9

TV OK

F.T/L

FREEZE

SUB-P

Number buttons

BASIC OPERATION

Press the

ìììì

and

ëëëë

buttons to choose a

Programme number (PR). Then press the

button.

éééé

Note:

For Programme numbers (PR) with the CHILD

•

LOCK function set, the displayed next to the Programme number (PR) in the PR LIST.

•

You cannot use the gramme number (PR) with the CHILD LOCK funtion set.

•

Even if you try to choose a Programme number (PR) with the CHILD LOCK function set, the (CHILD LOCK) mark will appear, and you cannot watch the TV channel. To watch the TV channel, see “CHILD LOCK” on page 21.

•

If you do not have a clear picture or no colour appears, change the colour system manually. See “COLOUR SYSTEM” on page 16.

$GMXVW#WKH#YROXPH

■■■■

$GMXVW#WKH#YROXPH$GMXVW#WKH#YROXPH

Press the

buttons to adjust the vol-

ìì

(CHILD LOCK) mark is

@@@@

ëëëë

buttons to choose a Pro-

@@@@

ume.

The Volume indicator appears and the volume changes as you press the

:DWFK#LPDJHV#IURP#H[WHUQDO#

■■■■

:DWFK#LPDJHV#IURP#H[WHUQDO#:DWFK#LPDJHV#IURP#H[WHUQDO# GHYLFHV

GHYLFHV

GHYLFHVGHYLFHV

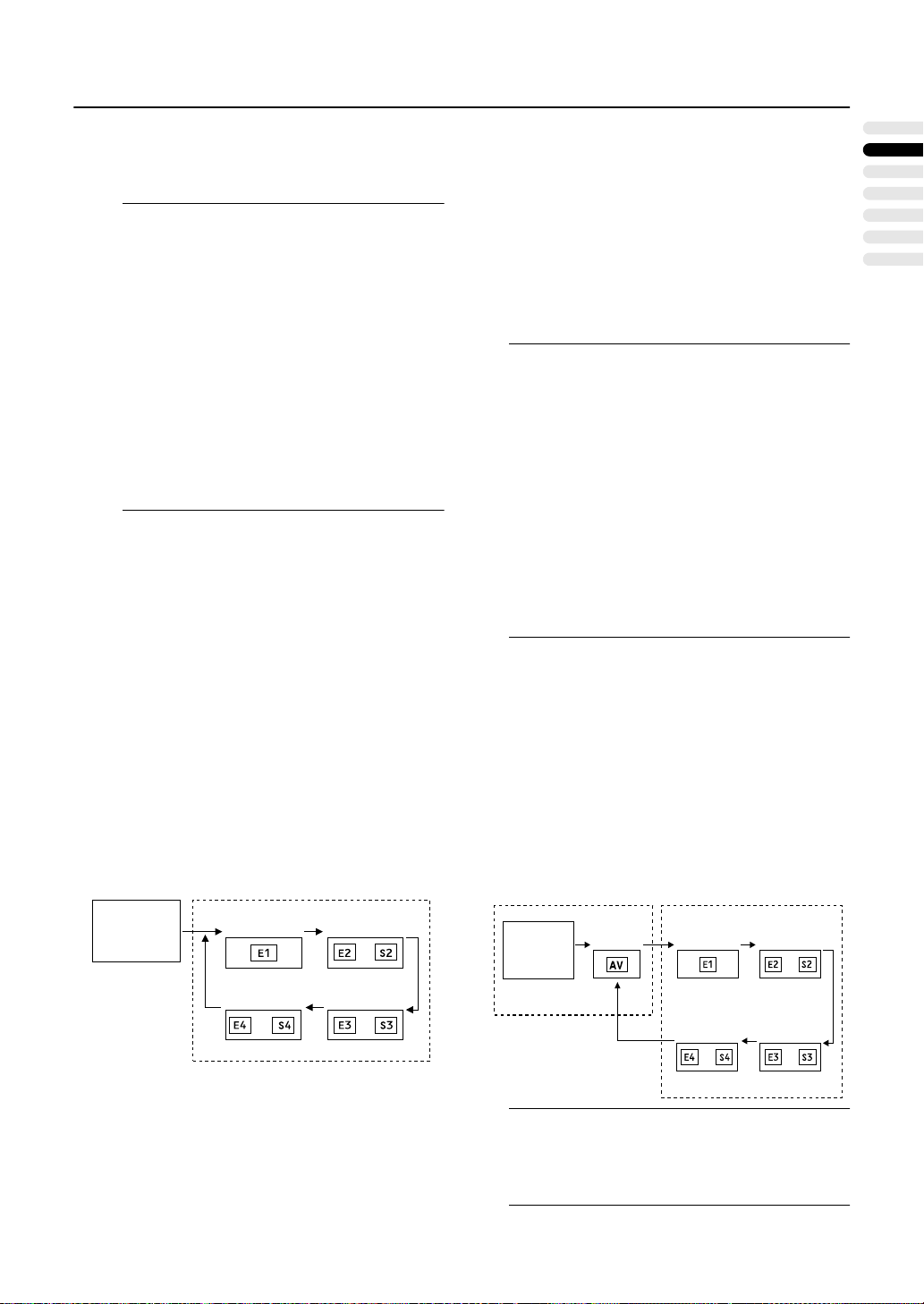

Choose an EXT terminal to which the desired exte rnal device has been connected.

Use the

Press the Pressing the

Programme

PR 1 – PR 99

–/+

buttons.

button:

ââ

button to choose an EXT terminal.

button changes the choice as follows:

TV mode EXT modes

numbers

EXT-1

EXT-2

Use the

Press the

Use the PR LIST:

ëëëë

buttons:

ëëëë

buttons to choose an EXT terminal.

Press the

(Information) button to dis-

åååå

play the PR LIST.

and

ëëëë

buttons to choose an

éééé

button

Press the

ìììì

EXT terminal. Then press the

Note:

The EXT terminals are registered after the Pro-

•

gramme number PR 99.

•

You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details, see “K(S-VIDEO input)” on page 19.

•

If you do not have a clear picture or no colour appears, change the colour system manually. See “COLOUR SYSTEM” on page 16.

•

When choosing an EXT terminal with no input signal, the EXT terminal number becomes fixed on the screen.

•

This TV set has a function which can automatically change over the input according to a special signal output from an external device.(The EXT-4 terminal does not support it.)

To return to a TV channel:

Press the è button, the tons.

ëëëë

buttons or the Number but-

To use the Programme number PR 0 (AV):

When the TV and VCR are connected only by the Aeri al cable, choosing the Programme number PR 0 (AV) allows you to view images from the VCR. Set the VCR RF channel to the Programme number PR 0 (AV) manu ally. For details, see “EDIT/MANUAL” on page 24.

Pressing the lows:

TV mode

Programme

numbers

PR 1 – PR 99

button changes the choice as fol-

EXT modes

EXT-1PR 0

EXT-2

ENGLISH

EXT-4

EXT-3

EXT-4

Note:

The VCR RF channel is sent as the RF signal from

•

the VCR.

•

Also refer to your VCR instruction manual.

EXT-3

BASIC OPERATION

2SHUDWLQJ#ZLWK#WKH#EXWWRQV#RQ#WKH#79

■■■■

2SHUDWLQJ#ZLWK#WKH#EXWWRQV#RQ#WKH#792SHUDWLQJ#ZLWK#WKH#EXWWRQV#RQ#WKH#79

Press the P

buttons to turn the

BBBB

TV on from standby mode.

Press the P

buttons to choose a

BBBB

Programme number (PR) or an EXT terminal.

Press the the

(Volume) button and

DDDD

buttons to adjust the vol-

ume.

Press the D

The volume level indicator appears.

Press the

level indicator is displayed.

D (Volume) button.

ýýýýbuttons while the volume

CCCC

(Behind the front cover)

;

5(027(#&21752/#%877216#$1'#)81&7,216

5(027(#&21752/#%877216#$1'#)81&7,2165(027(#&21752/#%877216#$1'#)81&7,216

0XWLQJ#%XWWRQ

0XWLQJ#%XWWRQ0XWLQJ#%XWWRQ

You can turn the volume off instantly.

1 2 3

4 5 6

7 8 9

TV OK

F.T/L

Press the ume. Pressing the

(Muting) button to turn off the Vol-

ãããã

(Muting) button again

ãããã

resumes the previous Volume level.

1XPEHU#%XWWRQV

1XPEHU#%XWWRQV1XPEHU#%XWWRQV

You can choose a Programme number (PR) by entering the Programme number.

Example:

→

•PR12

•PR6

You can also press the an EXT terminal.

=220#%XWWRQ

=220#%XWWRQ=220#%XWWRQ

You can change the screen size according to the picture aspect ratio. Choose the optimum one from the following ZOOM modes.

press ú and ù.

→

press õ.

button repeatedly to choose

AUTO(WSS):

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is include d in the broadcast signal or the signal from an external de vice, the TV automatic ally changes the ZOOM mode to 16:9 ZOOM mode or FULL mode according to the WSS signal.

If a WSS signal is not included, the picture is displ ayed in accordance with the ZOOM mode set with the 4:3 AUTO ASPECT function.

ENGLISH

How to open the cover

Note:

For details of the 4:3 AUTO ASPECT function, see “4:3

•

AUTO ASPECT” on page 17.

•

When the AUTO(WSS) mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, press the change to another ZOOM mode.

button and

REGULAR:

Use to view a normal pictu re ( 4:3 asp ect rat io) as its origi nal size is.

REMOTE CONTROL BUTTONS AND FUNCTIONS

PANORAMIC:

This mode stretches the left and right sides of a normal picture (4:3 Aspect Ratio) to fill the screen, without making the picture appear unnatural.

Note:

•

The top and bottom of the picture are slightly cut off.

14:9 ZOOM:

This mode zooms up the Wide Picture (14:9 Aspect Ratio) to the upper and lower limits of the screen.

16:9 ZOOM:

This mode zooms up the Wide Picture (16:9 Aspect Ratio) to the full screen.

16:9 ZOOM SUBTITLE:

This mode zooms up the Wide Picture (16:9 Aspect Ratio) with subtitles to the full screen.

Press the

mode. Then press the

The picture expands and the chosen ZOOM mode is displayed in about 5 seconds.

Note:

The ZOOM mode may be automatically changed

•

due to the control signal from an external device. When you want to return to the previous ZOOM mode, choose the ZOOM mode again.

$GMXVWLQJ#WKH#YLVLEOH#DUHD#RI#WKH#SLF0

$GMXVWLQJ#WKH#YLVLEOH#DUHD#RI#WKH#SLF0$GMXVWLQJ#WKH#YLVLEOH#DUHD#RI#WKH#SLF0 WXUH

WXUH

WXUHWXUH

If subtitles or the top (or bottom) of the picture are cut off, adjust the visible area of the picture manually.

Press the

The ZOOM menu appears.

Press the

ëëëë

buttons to choose a ZOOM

button.

éééé

çç

button.

button to display the ZOOM

éééé

mode indication.

Indicator is displayed.

While it is displayed, press the ∞/5 but-

tons to adjust the visible area vertically.

FULL:

This mode uniformly stretches the left and right sides o f a normal picture (4:3 aspect ratio) to fill the wide TV screen.

Note:

Use for pictures with a 16:9 aspect ratio that have been

•

squeezed into a normal picture (4:3 aspect ratio), you can restore their original dimensions.

&KRRVH#WKH#=220#PRGH

&KRRVH#WKH#=220#PRGH&KRRVH#WKH#=220#PRGH

Press the

çç

button to display the

ZOOM menu.

Note:

You cannot adjust the visible area in REGULAR or

•

FULL mode.

+<3(5#6281'#%XWWRQ

+<3(5#6281'#%XWWRQ+<3(5#6281'#%XWWRQ

You can enjoy sounds with a wider ambience.

Press the

(HYPER SOUND) button to turn

ääää

the HYPER SOUND function on or off.

Note:

The HYPER SOUND function does not work properly with

•

mono sound.

•

The HYPER SOUND function can be also turned on or off by using the SOUND SETTING menu. For details, see “HYPER SOUND” on page 18.

REMOTE CONTROL BUTTONS AND FUNCTIONS

#,QIRUPDWLRQ#%XWWRQ

#,QIRUPDWLRQ#%XWWRQ#,QIRUPDWLRQ#%XWWRQ

You can display the PR LIST or the Current Time on the screen.

Press the

Pressing the å (Information) button changes the display as follows:

Note:

You can choose Programme numbers (PR) or EXT termi-

•

nals with the PR LIST. For details, see “Use the PR LIST:” on page 6.

•

This TV uses teletext data to set the current time. If the TV has not received a TV channel that has teletext programmes since it was turned on, the time display is blank. To view the current time, choose a TV channel that has teletext programmes. The time will still be displayed as long as you do not turn off the TV, even if you choose other TV channels.

•

When watching videos, an incorrect current time is sometimes displayed.

•

The å (Information) button is also used to operate menus. For details, see “MENU OPERATION” on page 14.

79#%XWWRQ

79#%XWWRQ79#%XWWRQ

You can return to a TV channel instantly.

Press the

The TV returns to the TV mode and a TV channel appears.

Note:

The è button is also used to operate menus. For details,

•

see “MENU OPERATION” on page 14.

ìì

You can adjust the volume.

Press the

Note:

The

•

ìììì

tails, see “MENU OPERATION” on page 14.

(Information) button.

åååå

No indication

button.

èèèè

#%XWWRQV

#%XWWRQV#%XWWRQV

buttons to adjust the sound.

ìììì

buttons are also used to operate menus. For de-

6WDQGE\#%XWWRQ

6WDQGE\#%XWWRQ6WDQGE\#%XWWRQ

Press the

(Standby) button to turn the TV

üüüü

on or off.

When the TV is turned on, the power lamp changes from red to green.

&RORXU#%XWWRQV

&RORXU#%XWWRQV&RORXU#%XWWRQV

The colour buttons are used for the teletext operations or the menu operations. For details, see “~ Teletext Control Buttons and VCR ( DVD Switch” on page 12 or “MENU OPER- ATION” on page 14.

2.#%XWWRQ

2.#%XWWRQ2.#%XWWRQ

The é button is used to operate menus. For details, see “MENU OPERATION” on page 14.

ëë

You can choose a Programme number (PR) or an EXT terminal.

Press the

#%XWWRQV

#%XWWRQV#%XWWRQV

ëëëë

buttons to choose an Pro-

gramme number (PR) or an EXT terminal.

The

buttons are also used to operate menus.

ëëëë

For details, see “MENU OPERATION” on page 14.

9&52'9'# &RQWURO# %XWWRQV# DQG

9&52'9'# &RQWURO# %XWWRQV# DQG9&52'9'# &RQWURO# %XWWRQV# DQG

9&5#

9&5#9&5#

These buttons can be used to operate a JVC brand VCR or DVD player. Pressing the button having the same appearance as the original remote control button of a device makes the function work in the same way as the original remote control.

Set the VCR

#'9'#6ZLWFK

((((

#'9'#6ZLWFK#'9'#6ZLWFK

DVD Switch to the VCR or

((((

DVD position.

VCR:

When you are operating the VCR, set the switch to the VCR position.

DVD:

When you are operating the DVD player, set the switch to the DVD position.

(Text):

((((

When you are viewing Teletext programmes, set the switch to the

Press the VCR/DVD Control Button to con-

(Text) position.

((((

trol your VCR or DVD player.

Note:

If your device is not made by JVC, these buttons

•

cannot be used.

•

Even if your device is made by JVC, some of these buttons or any one of the buttons may not work, depending on the device.

•

You can use the nel. The VCR will receive or choose the chapter the DVD player plays back.

•

Some DVD player models use the both operating of Fast forward/backward functions and choosing the chapter. In this case, the buttons do not work.

buttons to choose a TV chan-

BBBB

buttons for

BBBB

1/¡

ENGLISH

REMOTE CONTROL BUTTONS AND FUNCTIONS

####7HOHWH[W#&RQWURO#%XWWRQV#DQG#9&5#

■■■■

7HOHWH[W#&RQWURO#%XWWRQV#DQG#9&5#

7HOHWH[W#&RQWURO#%XWWRQV#DQG#9&5#7HOHWH[W#&RQWURO#%XWWRQV#DQG#9&5#

TV OK

F.T/L

#'9'

#'9'#6ZLWFK

((((

#'9'#'9'

Note:

If you have trouble receiving teletext broadcasts,

•

consult your local dealer or the teletext station,

•

In the Text mode, the ZOOM mode is fixed to the FULL mode.

•

No menu operations are possible when viewing a teletext programme.

8VLQJ#WKH#/LVW#0RGH

8VLQJ#WKH#/LVW#0RGH8VLQJ#WKH#/LVW#0RGH

You can store the numbers of your favourite teletex t pages in memory and call them up quickly using the colour buttons.

#6ZLWFK

#6ZLWFK#6ZLWFK

To store the page numbers:

%DVLF#RSHUDWLRQ

%DVLF#RSHUDWLRQ%DVLF#RSHUDWLRQ

You can view three types of teletext broadcasts on the TV: FLOF (Fastext), TOP and WS T.

Choose a TV channel with a teletext broad-

cast. Set the VCR

DVD switch to the

((((

(Text)

((((

position.

Press ææææ (Text) button to display the tele-

text.

Pressing

ææææ

(Text) button changes the mode as follo ws:

Pre

The stored page numbers are displayed at the bottom of the screen.

Press a Colour button to choose a posi-

ðð

button

to engage the List mode.

tion. Then press the Number buttons to enter the page number.

1 2 3

4 5 6

7 8 9

Press and hold down

The four page numbers blink white to indicate that they are stored in memory.

(Store) button.

ññññ

To call up a stored page:

Press the ð

ð button to engage the List

ðð

mode. Press a colour button to which a page has

been assigned.

To exit the List mode:

Press the ð button again.

+ROG

+ROG+ROG

You can hold a teletext page on the screen for as long as y ou want, even while several other teletext pages are being received.

TV mode

Choose a teletext page by pressing the

ëëëë

buttons, Number buttons or Colour

Text mode

buttons.

To return to the TV mode:

Press the è button or

(Text) button.

ææææ

Press the

Hold indication

To cancel the Hold function:

Press ï (Hold) button again.

(Hold) button.

ïïïï

6XE0SDJH

6XE0SDJH6XE0SDJH

Some teletext pages include sub-pa ges that are automatically displayed. You can hold any sub-page, or view it at any time.

Press the

(Sub-page) button to operate

îîîî

the Sub-page function. Press the Number buttons to enter a sub-

page number.

Example:

• 3rd sub-page

To cancel the Sub-page function:

Press the î (Sub-page) button again.

Note:

You can also choose a sub-page by pressing the

•

red or green button.

5HYHDO

5HYHDO5HYHDO

Some teletext pages include hidden text (such as answers to a quiz). You can display the hidden text.

Each time you press the

→

press û, û, û and ø.

(Reveal) button,

íííí

text is hidden or revealed.

REMOTE CONTROL BUTTONS AND FUNCTIONS

&DQFHO

&DQFHO&DQFHO

You can search for a teletext page while watching TV.

Press the Number button to enter a page

number, or press a Colour button.

The TV searches for a teletext page.

Press

The TV programme appears. When the TV finds the teletext page, its page number appears in the upper left of the screen.

Press

(Cancel) button.

êêêê

(Cancel) button to return to a tele-

êêêê

text page when the page number is on the screen.

Note:

The TV mode cannot be resumed even by pressing

•

the

(Cancel) button. A TV programme is tempo-

rarily displayed instead of the teletext programme.

ENGLISH

6L]H

6L]H6L]H

You can double the height of the teletext display.

Press the

,QGH[

,QGH[,QGH[

You can return to the index page instantly.

Press

FLOF (Fastext)/TOP/WST:

Returns to page 100 or a previously specified page.

List mode:

Returns to the page number di splayed in the lower left area of the screen.

ìììì

(size) button.

(Index) button.

ëëëë

0(18#23(5$7,21

0(18#23(5$7,210(18#23(5$7,21

This TV has a number of functions you can operate using menus. To fully utilize all your TV’s functions, yo u need to understand the basic menu operating techniques fully.

Press the

button to display the

éééé

MENU (main menu).

The MENU (main menu) appears. In it, the titles of the menus are displayed.

Press the menu title, and press the

The menu appears.

buttons to choose a

éééé

button.

Operate the menus according to the operation description of each function.

Note:

For details, refer to the operation descriptions of

•

each function described for each menu which follows this “MENU OPERATION”.

•

The display appearing at the bottom of a menu indicates a button on the remote controller you can use when you operate a chosen function.

Press

button to complete the

éééé

setting.

The menu disappears.

To return to the previous menu:

Press å (information) button.

To exit a menu instantly:

Press the è button.

3,&785(#6(77,1*

3,&785(#6(77,1*3,&785(#6(77,1*

To display the PICTURE SETTING menu:

Press the é button to display MENU

(main menu). Press the ë button to choose PICTURE

SETTING, and press the é button.

7,17

■■■■

7,177,17

You can select one of three TINT modes (three kinds of picture settings) to adjust the picture settings automatically.

Press the ë buttons to choose TINT.

Press ì buttons to choose a mode.

COOL:

A cool white colour base with a boost in the colour and contrast levels that creates a more vivid picture.

WARM:

A warm orange/red colour base that creates the appropriate colour and contrast levels for watching films.

NORMAL:

A normal white colour base with normal colour and contrast levels.

Note:

You can change the HUE setting (picture hue) only

•

when the colour system is NTSC 3.58 or NTSC 4.43.

To return to the default settings in each TINT mode:

Press the blue button. Returns the picture settings in the currently chosen TINT

mode to the default settings, and stores them in the TINT mode again.

Press the

tings.

The menu disappears.

(&2#02'(

■■■■

(&2#02'((&2#02'(

When you set the ECO MODE function to ON, the screen contrast is automatically adjusted to a setting suitable for the brightness of your room. This reduces eye strain for you and the power consumption of the TV.

Press ë buttons to choose ECO MODE.

Press ì buttons to choose ON.

To cancel the ECO MODE function:

Press ì buttons to choose OFF.

Press the

ting.

The menu disappears.

button to complete the set-

éééé

button to complete the set-

éééé

ENGLISH

Press the

ting.

The menu disappears.

3LFWXUH#$GMXVWPHQW

■■■■

3LFWXUH#$GMXVWPHQW3LFWXUH#$GMXVWPHQW

You can change the picture settings of each TINT mode as you like. The picture settings changed are stored in the TINT mode.

Press the ë buttons to choose an item.

Press the ì buttons to change the set-

ting.

Lower

Darker

Softer

Lighter

Reddish

button to complete the set-

éééé

Item

CONTRAST

(picture contrast)

BRIGHT

(picture brightness)

SHARP

(picture sharpness)

COLOUR

(picture colour)

HUE

(picture hue)

Greenish

Higher

Brighter

Sharper

Deeper

3,&785(#)($785(6

3,&785(#)($785(63,&785(#)($785(6

To display the PICTURE FEATURES menu:

Press the

(main menu). Press the ë button to choose PICTURE

FEATURES, and press the é button.

$872#915

■■■■

$872#915$872#915

The AUTO VNR function optimally reduces noise of the TV automatically according to the noise of the current picture. The function also adjusts the optimum Sh arpn es s (SHARP).

Press the ë buttons to choose AUTO

VNR. Press the ì buttons to choose AUTO.

MIN:

The AUTO VNR function is cancelled. When you set the mode to AUTO but feel that the sharp ness of the original picture has not be reproduced fully , cha nge the mode to MIN. However, a noise remaining in the original picture may be emphasized.

MAX:

This mode always maximizes the noi se redu ction effec t irrespective of state of the picture. When you set the mode to AUTO but feel that the noise is remarkable, change the mode to MAX. However, this may redu ce the sharpness of the picture.

Press the

ting.

The menu disappears.

button to display MENU

éééé

button to complete the set-

éééé

&2/285#6<67(0

■■■■

&2/285#6<67(0&2/285#6<67(0

The colour system is chosen automatically. However, if the picture is not clear or no colour appears, choose the colour system manually.

Press the ë buttons to choose COLOUR

SYSTEM. Then press the

The Sub-menu of the COLOUR SYSTEM function appears.

Press the ì buttons to choose the ap-

propriate colour system.

PAL:

PAL system

SECAM:

SECAM system

NTSC 3.58:

NTSC 3.58 MHz system

NTSC 4.43

NTSC 4.43 MHz system

AUTO:

This function detects a colour sys tem fro m the i nput s ignal. Only when you are viewing a picture from Programme number PR 0 (AV), or EXT terminal, you can choose using the AUTO function.

Press the

ting.

The menu disappears.

Note:

The AUTO function may not function properly if you

•

have poor signal quality. If the picture is abnormal in the AUTO function, choose another colour system manually.

•

When in the Programme numbers PR 0 (AV) to PR 99, you cannot choose NTSC 3.58 or NTSC 4.43.

button to complete the set-

éééé

button.

7=6#$872#$63(&7

■■■■

7=6#$872#$63(&77=6#$872#$63(&7

This function only works when the ZOOM mode is set to AUTO (WSS) mode. It sets the ZOOM mode you want to use for when a WSS signal is not include d in the b roadc ast sign al or the signal from an external devic e. You ca n c ho os e o ne of three ZOOM modes.

Note:

For details of the AUTO(WSS) mode, see the “AU-

•

TO(WSS)” section within “3 ZOOM Button” on page 9.

Press the ë buttons to choose 4:3 AUTO

ASPECT. Then press the

The Sub-menu of the 4:3 AUTO ASPECT function appears.

Press the ë buttons to choose a ZOOM

mode.

éééé

button.

PICTURE FEATURES

ENGLISH

Press the

tings.

The menu disappears.

button to complete the set-

éééé

6281'#6(77,1*

6281'#6(77,1*6281'#6(77,1*

+<3(5#6281'

■■■■

+<3(5#6281'+<3(5#6281'

You can enjoy sounds with a wider ambience.

To display the SOUND SETTING menu:

Press the

(main menu). Press the ë button to choose SOUND

SETTING. Then press the

67(5(2#2#,‡,,

■■■■

67(5(2#2#,‡,,67(5(2#2#,‡,,

When you are viewing a bilingual broadcast programme, you can choose the sound from Bilingual I (Sub I) or Bilingual II (Sub II). When the stereo broadcasting is receiv ed poorly, you can change from stereo to mono sound so that you can hear the broadcast more clearly and easily.

Press ë buttons to choose STEREO / I • II.

Press ì buttons to choose a sound

mode.

:Stereo sound

:mono sound

ýF

:Bilingual I (sub I)

:Bilingual II (sub II)

Press the

ting.

The menu disappears.

button to display MENU

éééé

button.

éééé

button to complete the set-

éééé

Press

SOUND. Press ì buttons to choose ON.

To cancel the HYPER SOUND function:

Press the ì buttons to choose OFF.

Press the

ting.

The menu disappears.

Note:

The HYPER SOUND function does not work properly

•

with mono sound.

•

You can turn on or off the HYPER SOUND function with a single press. For details, see “4 HYPER SOUND Button” on page 10.

buttons to choose HYPER

button to complete the set-

éééé

Note:

The sound mode you can choose differs depending

•

on the TV programme.

•

This function does not work in the EXT modes. And this function does not appear in the SOUND SETTING menu.

6RXQG#$GMXVWPHQW

■■■■

6RXQG#$GMXVWPHQW6RXQG#$GMXVWPHQW

You can adjust the sound to your liking.

Press the ë buttons to choose an item.

Press the ì buttons to adjust it.

Weaker Weaker

Left

Press the

ting.

The menu disappears.

button to complete the set-

éééé

Item

BASS

TREBLE

BALANCE

Stronger Stronger

Right

(;7#6(77,1*

(;7#6(77,1*(;7#6(77,1*

To display EXT SETTING menu:

Press the

button to display MENU

éééé

(main menu). Press the ë button to choose EXT SET-

TING. Then press the

+609,'(2#LQSXW,

■■■■

When connecting a device (such as S-VHS VCR) which enables an S-VIDEO signal (Y/C signal) to be output, you can enjoy high-quality picture of the S-VIDEO signal (Y/C signal).

Preparation:

•

At first, read the Device Instruction Manual and “ADDITIONAL PREPARATION” on page 30 to connect the device to the TV properly. Second, follow the Device Instruction Manual to set the device so that a S-VIDEO signal (Y/C signal) can be output to the TV.

•

Do not set nected to a device which cannot output a S-VIDEO (Y/C signal). If it is set wrongly, a picture cannot appear.

+609,'(2#LQSXW,

+609,'(2#LQSXW,+609,'(2#LQSXW,

KKKK

(S-VIDEO input) to the EXT terminal con-

Press the ë buttons or ì buttons to

éééé

button.

choose an EXT terminal.

EXT-1

EXT-3

EXT-2

EXT-4

Press the

button to complete the set-

éééé

ting.

The menu disappears.

Note:

The EXT-1 terminal does not support S-VIDEO signal

•

(Y/C signal) and you cannot set in the EXT-1 terminal.

•

Setting

KKKK

character from “E” to “S”. For example, “E2” is changed to “S2”.

•

Even an device which enables the S-VIDEO signal (Y/ C signal) to be output may output a regular video signal (composite signal) depending on the device setting. If a picture cannot appear because

VIDEO input)

Instruction Manual carefully again to check for the device settings.

/,67

■■■■

/,67/,67

You can have a name corresponding to the device s conne cted for each EXT terminal. Giving a name to an EXT terminal makes the EXT terminal number appear on the screen, together with the name.

Press the ë buttons or ì buttons to

(S-VIDEO input) changes the head

setting has been made, read the device

KKKK

(S-VIDEO input)

KKKK

(S-

choose an EXT terminal.

EXT-1

Press the blue button to display the name

EXT-3

EXT-2

EXT-4

list (LIST).

ENGLISH

Press the yellow button and set the

(S-VIDEO input).

A KKKK (S-VIDEO input) mark is displayed. You can view an S-VIDEO signal (Y/C signal) instead of the regular video signal (composite signal).

To cancel the

Press the yellow button and turn off KKKK (S-VIDEO input) mark.

The regular video signal (composite signal) pictures are resumed.

(S-VIDEO input) setting:

KKKK

EXT SETTING

Press the ë buttons to choose a name.

Then press the

The LIST disappears and the name is assigned to the EXT terminal.

To erase a name assigned to the EXT t ermin al:

Choose a blank space.

éééé

button.

Press the

button to complete the set-

éééé

ting.

The menu disappears.

Note:

You cannot assign an EXT terminal name not found

•

in the name list (LIST).

'8%%,1*

■■■■

'8%%,1*'8%%,1*

You can choose a signal source to be output from an EXT-2 terminal. You can choose any one of the output signals of the device connected to the EXT terminal and the picture and sound from a TV channel you are currently viewing to output it to the EXT-2 terminal.

Press the ì buttons to choose the EXT-2

terminal. Press the ë buttons to choose an EXT

terminal or TV.

The arrow in the menu represents a sign al flo w . Th e l eft side of the arrow denotes a signal source output from the EXT-2 terminal.

EXT-1/EXT-3/EXT-4:

The output signal of the device connected to an EXT terminal passes through the TV and i s output from the EXT2 terminal.

TV:

The picture and sound of the TV channel you are currently viewing are output from the EXT-2 terminal.

Press the

button to complete the set-

éééé

ting.

The menu disappears.

Note:

During dubbing, you cannot turn off the TV. Turning

•

off the TV also turns off the output from the EXT-2 terminal.

•

When you choose an EXT terminal as an output, you can view a TV programme or a picture from the other EXT terminal while dubbing the picture from a device connected to the EXT terminal onto a VCR connected to the EXT-2 terminal.

•

The RGB signals from TV games cannot be output.Teletext programmes cannot be output.

)($785(6

)($785(6)($785(6

To display the FEATURES menu:

Press the

(main menu). Press the ë button to choose FEATURES.

Then press the

6/((3#7,0(5

■■■■

6/((3#7,0(56/((3#7,0(5

You can set the TV to automatically turn off after a specified period of time.

Press the ë buttons to choose SLEEP

TIMER. Then press the

A Sub-menu of the SLEEP TIMER function appears.

button to display MENU

éééé

button.

éééé

button.

éééé

%/8(#%$&.

■■■■

%/8(#%$&.%/8(#%$&.

You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an external device.

Press the ë buttons to choose BLUE BACK.

Press the ì buttons to choose ON.

To cancel the BLUE BACK function:

Press the ì buttons to choose OFF.

Press the

The menu disappears.

&+,/'#/2&.

■■■■

&+,/'#/2&.&+,/'#/2&.

When there is a TV channel you wish your children not to watch, you can use the CHILD LOCK function to lock out the TV channel. Even when a child chooses a Programme number (PR) in which a locked TV channel has been registered, the screen will change to blue an d d is pl ay s so the TV channel cannot be viewe d. Unless you ente r a preset ID number by a special operation, the lock cannot be released and the child cannot view the TV channel programs.

7R#VHW#WKH#&+,/'#/2&.#IXQFWLRQ

7R#VHW#WKH#&+,/'#/2&.#IXQFWLRQ7R#VHW#WKH#&+,/'#/2&.#IXQFWLRQ

button to complete the setting.

éééé

(CHILD LOCK)

ENGLISH

Press the ì buttons to set the period of

time.

You can set the period of time a maximum of 120 minutes (2 hours) in 10 minute increments.

To cancel the SLEEP TIMER function:

Press the ï button to set a period of time to “OFF.”

Press the

tings.

The menu disappears.

Note:

One minute before the SLEEP TIMER function turns

•

off the TV, “GOOD NIGHT!” appears.

•

The SLEEP TIMER function cannot be used to turn off the TV’s main power.

•

When the SLEEP TIMER function is on, you can display the Sub-menu of the SLEEP TIMER function again to confirm and/or change the remaining period of time of the SLEEP TIMER function. Press the

button to exit the menu after confirming and / or

changing the remaining time.

button to complete the set-

éééé

Press the ë buttons to choose CHILD

LOCK. Then press the â

“SET ID NO.” (ID number setting screen) appears.

Set the ID number to your liking.

Press the ë buttons to choose a number.

Press the ì buttons to move the cursor.

Press the

The Sub-menu of CHILD LOCK appears.

éééé

button.

â button.

ââ

Press the ë buttons to choose a TV

channel.

Every time you press the ë buttons, the Programme number (PR) changes, and the picture of the TV channel registered in the Programme number (PR) is displayed on the screen.

FEATURES

Press the blue button and set the CHILD

LOCK function.

(CHILD LOCK) appears and the TV channel is locked.

To reset the CHILD LOCK function:

Press the blue button again.

(CHILD LOCK) disappears.

Press the

button to complete the set-

éééé

ting.

The menu disappears.

Note:

To disable easy resetting of the CHILD LOCK func-

•

tion, the menu disappears by choosing the CHILD LOCK function and pressing the ordinary menu operation.

7R#YLHZ#D#ORFNHG#79#FKDQQHO

7R#YLHZ#D#ORFNHG#79#FKDQQHO7R#YLHZ#D#ORFNHG#79#FKDQQHO

Choose a Programme number (PR) in

button as in the

which a TV channel locked with the Number buttons or PR LIST.

The screen changes to blue and the @ (CHILD LOCK) appears. You cannot view the TV channel.

'(&2'(5#+(;705,

■■■■

'(&2'(5#+(;705,'(&2'(5#+(;705,

Only when connecting a Decoder with a T-V LINK compatible VCR connected to the EXT-2 terminal, you can use this function. To operate this function, see “Using the DECODER (EXT-2) function” on page 28.

Caution:

•

If you have not connected

patible VCR connected to the EXT-2 terminal,

function to “ON” by mistake causes the picture/sound of a TV channel you are currently viewing not to be issued.

a Decoder with a T-V LINK com-

setting this

Press the

(Information) button to dis-

åååå

play “ID NO.” (ID No. input screen).

Press the Number buttons to enter the ID

number.

The lock is temporarily released so yo u can v iew the TV channel.

If you have forgotten the ID number:

Perform step 1 of “To set the CHILD LOCK function”. After confirming the ID number, press the è button to exit the menu.

Note:

Even if you reset the lock temporarily, it does not

•

mean that the CHILD LOCK function set for the TV channel is cancelled. The next time anyone attempts to view the TV channel, it will be locked again.

•

When you would like to cancel the CHILD LOCK function, you must perform the operation “To set the CHILD LOCK function” again.

•

To disable easy choosing of a Programme number (PR) in which a locked TV channel has been registered, the Programme number (PR) has been set that it cannot be chosen by the operation buttons at the TV.

•

To disable easy resetting of the lock, “ID NO.” (ID No. input screen) is set so that it cannot appear unless you press the å (Information) button.

buttons or the

,167$//

,167$//,167$//

Press the blue button to start the AUTO

PROGRAM function.

The AUTO PROGRAM menu appears and received TV channels are automatically regis tered in the P rogramme numbers (PR).

To display the INSTALL menu:

Press the é button to display MENU

(main menu). Press the

STALL menu. Then press the

/$1*8$*(

■■■■

/$1*8$*(/$1*8$*(

You can choose the language you want to use for the onscreen display from the language list in a menu.

Press the

GUAGE. Then press the é button.

A sub-menu of the LANGUAGE function appears.

Press the

guage. Press the

ting.

The menu disappears.

$872#352*5$0

■■■■

$872#352*5$0$872#352*5$0

You can automatically register the T V channel s which c an be received well at your residence in the TV’s Programme numbers (PR) by performing the following.

Press the

PROGRAM. Then press the

The COUNTRY menu appears as a sub-menu of the AUTO PROGRAM function.

Press the

the country where you are now located.

button to choose the IN-

ëëëë

éééé

buttons to choose LAN-

ëëëë

buttons to choose a lan-

ëëëë

button to complete the set-

éééé

buttons to choose AUTO

ëëëë

button.

éééé

and ∞/5 buttons to choose

ìììì

button.

To cancel the AUTO PROGRAM function:

Press the è button.

After the TV channels have been regis-

tered in the Programme numbers (PR), the EDIT menu appears.

You can proceed to edit the Programme numbers (PR) using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 24.

When not using the EDIT/MANUAL function:

If you do not need to use the EDIT/MANUAL function, go to the next step.

Press the

LINK menu.

Operate the T-V LINK menu according to

the type of VCR connected to the EXT-2 terminal.

When a T-V LINK compatible VCR is not connected:

Press the è button to exit the T-V LINK menu. The T-V LINK menu disappears, a nd all th e s et ting s are

completed.

When a T-V LINK compatible VCR is connected:

Follow the operating procedure “Downloading the data to VCR” on page 28 to transmit the Programme number (PR) data to the VCR.

Note:

When your TV can detect the TV channel name from

•

the TV channel broadcast signal, it automatically registers the TV channel name (ID) to the Programme number (PR) in which the TV channel has been registered.

•

If a TV channel you want to view is not set to a Programme number (PR), manually set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 24.

•

The TV channel is not registered in Programme number PR 0 (AV). When you want to register a TV channel to PR 0 (AV) manually set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 24.

button to display the T-V

éééé

ENGLISH

INSTALL

(',720$18$/

■■■■

(',720$18$/(',720$18$/

The EDIT/MANUAL functions are divided into two types: editing of the current Programme numbers (PR) (EDIT functions) and manual registration of a TV channel you want to view to the Programme number (PR) (MANUAL function). The details about these functions are as follows:

MOVE:

This function changes a Programme number (PR) of a TV channel.

ID:

This function registers a Channel na m e (I D) to a TV channel.

INSERT:

This function adds a new TV channel in the current Programme numbers (PR) list by using the CH/CC number.

DELETE:

This function deletes an unnecessary TV channel.

MANUAL:

This function manually registers a new TV channel in a Programme number (PR).

Caution:

•

Using the MOVE, DELETE or INSERT function rewrites the current Programme numbers (PR) list. Resultingly, the Programme number (PR) of some of the TV channels will change.

•

Using the MANUAL function for a TV channel for which the CHILD LOCK function has been set cancels the CHILD LOCK function for the TV channel.

•

Using the MANUAL function for a TV channel for which the DECODER (EXT-2) function has been set to ON returns the setting of the DECODER (EXT-2) function for the TV channel to OFF.

•

When a TV channel has already been registered in PR 99, using the INSERT function deletes the TV channel.

Follow the operation description of a func-

tion you want to use and operate the function.

Press the

button to complete the set-

éééé

tings.

The T-V LINK menu appears.

Operate the T-V LINK menu according to

the type of VCR connected to the EXT-2 terminal.

When a T-V LINK compatible VCR is not connected:

Press the è button to exit the T-V LINK menu. The T-V LINK menu disappears and all the settings are

completed.

When a T-V LINK compatible VCR is connected:

Follow the operating procedure “Downloading the data to VCR” on page 28 to transmit the Programme number (PR) data to the VCR.

029(

029(029(

Press the

ëëëë

buttons to choose a TV

channel.

Every time you press the number (PR) is changed over, and the picture of the TV channel registered in the Programme number (PR) appears on the screen.

ëëëë

buttons, the Programme

Note:

For Programme number PR 0, “AV” appears in the Pro-

•

gramme numbers (PR) list.

•

An EXT terminal number does not appear in the Programme numbers (PR) list.

•

The CH/CC number is a number unique to the TV and corresponding to the Channel number of a TV channel. For the relationship of a Channel number and a CH/CC number, see “CH/CC NUMBER” on page 32.

•

You cannot use the INSERT function if you do not know a Channel number of a TV channel. Use the MANUAL function to register a TV channel in the Programme number (PR).

Press the

MANUAL. Then press the

ëëëë

buttons to choose EDIT/

button.

éééé

Press the

îîîî

button to start the MOVE func-

tion.

Press the

ëëëë

buttons to choose a new

Programme number (PR).

To cancel the MOVE function:

Press the å (Information) button.

Press the

ïïïï

button to change the Programme number (PR) of a TV channel to a new Programme number (PR).

,','

Press the

ëëëë

buttons to choose a TV

channel.

Every time you press the number (PR) is changed over, and the picture of the TV channel registered in the Programme number (PR) appears on the screen.

Press the red button to start the ID func-

ëëëë

buttons, the Programme

tion.

Press the

ëëëë

buttons to choose the first character of a Channel name (ID) you want to attach to the TV channel.

INSTALL

Note:

You can register your unique Channel name (ID) to

•

the TV channel. When step 3 is completed, do not go to step 4, but press the cursor and the completing the Channel name (ID). Then press the

button to register the Channel name (ID) to the

TV channel.

,16(57

,16(57,16(57

Preparation:

•

A CH/CC number unique to this TV and corresponding to the Channel number of a TV channel is required. Find the corresponding CH/CC number from a table “CH/CC NUMBER” on page 32. based on the Channel number of the TV channel.

•

When the COUNTRY setting is not FRANCE, use a two-digit CH/CC number. When the COUNTRY setting is FRANCE, use a three-digit CH/CC number.

•

Only when you add a TV channel (SECAM-L system) from a French station, be sure to set COUNTRY to FRANCE. If the COUNTRY setting is not FRANCE, follow the description “Changing the COUNTRY setting” on page28 to change the COUNTRY setting to FRANCE, then start the INSERT function.

Press the

ëëëë

buttons to choose a Pro-

ìììì

buttons to choose a character for

buttons to move the

gramme number (PR) for which you will register a new TV channel.

Press the green button and start the IN-

SERT function.

ENGLISH

Press the blue button to display the ID LIST

(channel name list).

Press the

ëëëë

buttons to choose the Chan-

nel name (ID).

To cancel the ID function:

Press the å (Information) button.

Press the

button to register a Channel

éééé

name (ID) to a TV channel.

Press the

ëëëë

buttons to choose “CC” or “CH” according to the CH/CC number of the TV channel.

When the COUNTRY setting is FRANCE:

Choose “CH1”, “CH2”, “CC1” or “CC2”.

To cancel the INSERT function:

Press the å (Information) button.

Press the Number buttons to enter the re-

maining CH/CC number.

The TV shifts to registration mode. When the registration is completed, t he picture o f the TV

channel appears on the screen.

Note:

The CH/CC number is a number indicating the

•

broadcast frequency to the TV. If the TV cannot detect the TV channel corresponding to the broadcast frequency indicated by the CH/CC number, a picture in the no-signal state appears.

INSTALL

'(/(7(

'(/(7('(/(7(

Press the

buttons to choose a TV

ëëëë

channel.

Every time you press the ë buttons, the Programme number (PR) is changed over, and the picture of the TV channel registered in the Programme number (PR) appears on the screen.

Press the yellow button to delete the TV

channel.

The TV channel is deleted from the Programme numbers (PR) list.

0$18$/

0$18$/0$18$/

Preparation:

•

As long as you register the TV channel (SECAM-L system) from a French station, be sure to set the COUNTRY setting to FRANCE. If the COUNTRY setting is not FRANCE, follow the description “Changing the COUNTRY setting” on page 28 to change the COUNTRY setting to FRANCE, then start the MANUAL function.

Press the

ëëëë

buttons to choose a Programme number (PR) to which you want to register a new TV channel.

Press the blue button to activate the MAN-

UAL function.

At the right side following the CH/CC number, the SYSTEM (broadcasting system) of the TV channel appears.

Other TV channels:

If you do not know the correct broadcasting system, set the SYSTEM to “B/G”. If “B/G” is not correct, it results in the fact that you will not hear the sound normally when the TV detects a TV channel. In this case , retry to set the SYSTEM again correctly so that no problem arises.

Press the green or red button to search for

a TV channel.

Scanning stops when the TV finds a TV channel. Then the TV channel is displayed.

Press the green or red button repeatedly

until the TV channel you want appears.

If the TV channel reception is poor:

Press the blue or yellow button to fine-tune th e TV channel.

If you cannot hear the normal sound e ven when the picture of the TV channel appears normally:

The SYSTEM setting is wrong. Press the îîîî button and choose a SYSTEM that has normal sound.

Press the

button and register the TV

éééé

channel to a Programme number (PR).

The normal EDIT menu is resumed.

To cancel the MANUAL function:

Press the å (Information) button.

Press the

îîîî

button to choose the SYSTEM (broadcasting system) for a TV channel you want to register.

TV channel (SECAM-L system) from a French station:

Set the SYSTEM to “L”. If it is set to one other than “L”, you cannot receive the TV channel of th e SECAM-L system.

'(02

'(02'(02

To display the DEMO menu:

Press the

(main menu). Press the

press the

The DEMO function automatically demonstrates some of the TV functions.

Press the

tings.

The DEMO function is set to ON, and the demonstration will start.

To stop the demonstration:

Press one of the buttons on the remote control.

When the DEMO function is set to ON:

Each time the TV is turned on, the demonstration starts automatically. If you do not want th at to happen, p erform the following operations to cancel the DEMO function:

Display the DEMO menu again.

Press the

function.

button to display MENU

éééé

ëëëë

button to choose DEMO. Then button.

éééé

ëëëë

buttons to choose ON.

button to complete the set-

éééé

ëëëë

buttons to choose OFF.

button to cancel the DEMO

éééé

ENGLISH

$'',7,21$/#0(18#23(5$7,216

$'',7,21$/#0(18#23(5$7,216$'',7,21$/#0(18#23(5$7,216

'RZQORDGLQJ#WKH#GDWD#WR#9&5

■■■■

'RZQORDGLQJ#WKH#GDWD#WR#9&5'RZQORDGLQJ#WKH#GDWD#WR#9&5

You can transmit to the latest P rogramme numb ers (PR) data to the VCR with the T-V LINK function.

Caution:

•

Only when the T-V LINK compatible VCR is connected to the EXT-2 terminal, this operation is enabled.

•

Only when the T-V LINK menu is bein g display ed, this op eration is enabled.

Turn on the VCR.

Press the

The data transmission begins.

The T-V LINK menu disappears once the data transmission ends.

When the T-V LINK menu is changed over to another menu:

The menu operation at the TV side is com pleted and it is shifted to the menu operation at the VCR side. Refer to the VCR Instruction Manual and operate the VCR.

Note:

If “FEATURE NOT AVAILABLE” appears at the T-V

•

LINK menu, ensure the following three items are correct; then press the mission.

−

Has the T-V LINK compatible VCR been connected to the EXT-2 terminal?

−

Has the VCR power been turned on?

−

Does the SCART cable that is connected to the EXT-2 terminal to T-V LINK compatible VCR have all proper connections?

&KDQJLQJ#WKH#&28175<#VHW0

■■■■

&KDQJLQJ#WKH#&28175<#VHW0&KDQJLQJ#WKH#&28175<#VHW0 WLQJ

WLQJ

WLQJWLQJ

After the AUTO PROGRAM function is completed, you can change the country you have already set by using the AUTO PROGRAM function. When registering the TV channels for French broadcast stations (SECAM-L system), perform this operation to change the country.

Display the INSTALL menu.

When the EDIT menu is currently being displayed:

Press the å (Information) to return to the INSTALL menu.

éééé

button.

button to retry data trans-

Press the

PROGRAM. Then press the

A COUNTRY menu appears as a sub-menu of the AUTO PROGRAM function.

Press the

choose a country. Press the

ting.

The menu disappears.

To return to the INSTALL menu from the COUNTRY menu:

Press the ton.

8VLQJ#WKH#'(&2'(5#+(;705,##

■■■■

8VLQJ#WKH#'(&2'(5#+(;705,##8VLQJ#WKH#'(&2'(5#+(;705,## IXQFWLRQ

IXQFWLRQ

IXQFWLRQIXQFWLRQ

When connecting a Decoder with a T-V LINK compatible VCR connected to the EXT-2 terminal, use the DECODER (EXT-2) function to unscramble the scrambled TV channels.

Turn on the Decoder power.

Display the TV channel capable of being

unscrambled with the Decoder on the TV.

Even if the Decoder is funct ioning, a scrambl ed picture appears at this time.

Press the

The MENU (main menu) appears.

Press the

TURES. Then press the

The FEATURES menu appears.

Press the

ER (EXT-2) . Then press the choose ON.

An unscrambled picture appears.

To cancel the DECODER (EXT-2) function:

Press the

ëëëë

buttons to choose AUTO

button.

éééé

ìììì

and the

button to complete the set-

éééé

(Information) button instead of the é but-

button to display the MENU.

éééé

buttons to choose FEA-

ëëëë

buttons to choose DECOD-

ëëëë

buttons to choose OFF.

ìììì

ëëëë

buttons to

button.

éééé

ìììì

buttons to

ADDITIONAL MENU OPERATIONS

Press the

button to complete the set-

éééé

ting.

The T-V LINK menu appears.

Follow the operating procedure “Down-

loading the data to VCR” on page 28 to transmit the Programme number (PR) data to the VCR.

If you have another TV channel capable of

being unscrambled with a Decoder, repeat steps 2 through 7.

Note:

If for some reason the DECODER (EXT-2) function

•

has been set to “ON” but the TV channel cannot be unscrambled, check the following:

−

Has the Decoder been connected to the VCR properly according to the VCR and Decoder Instruction Manuals?

−

Has the Decoder power been turned on?

−

Can the TV channel be unscrambled with a Decoder?

−

Is it necessary to change the VCR settings in order to connect the Decoder? Confirm that the VCR is set properly by rechecking the VCR Instruction Manual.

ENGLISH
