Colour Television

AV28WT5EK AV24WT5EK

Contents

Safety precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Setting up your TV. . . . . . . . . . . . . . . . . . . . . . . . . . . 4

T-V LINK functions. . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using your TV–the basics . . . . . . . . . . . . . . . . . . . . . 8

Remote control buttons and functions

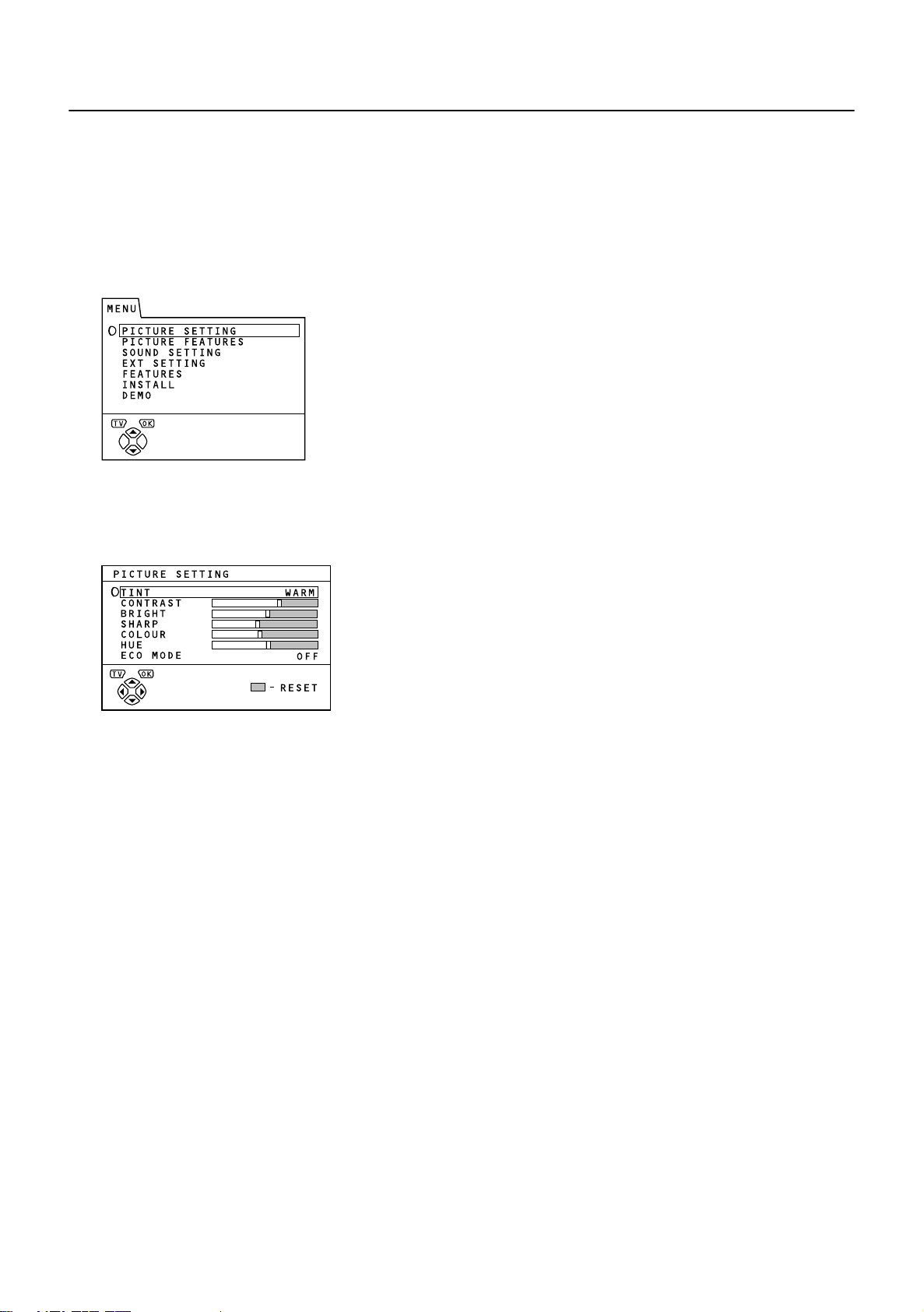

Using the TV’s menus . . . . . . . . . . . . . . . . . . . . . . . 16

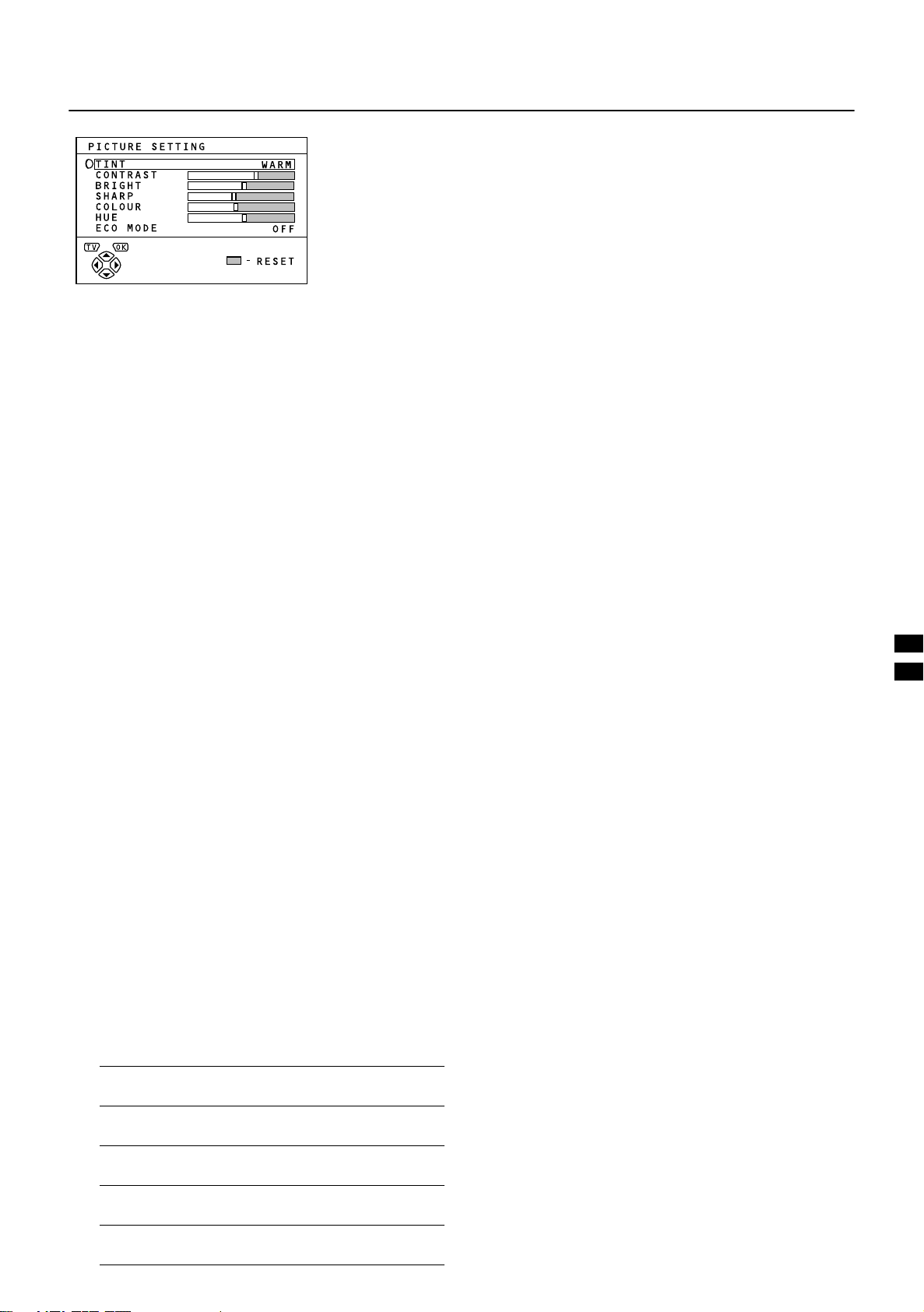

Picture setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

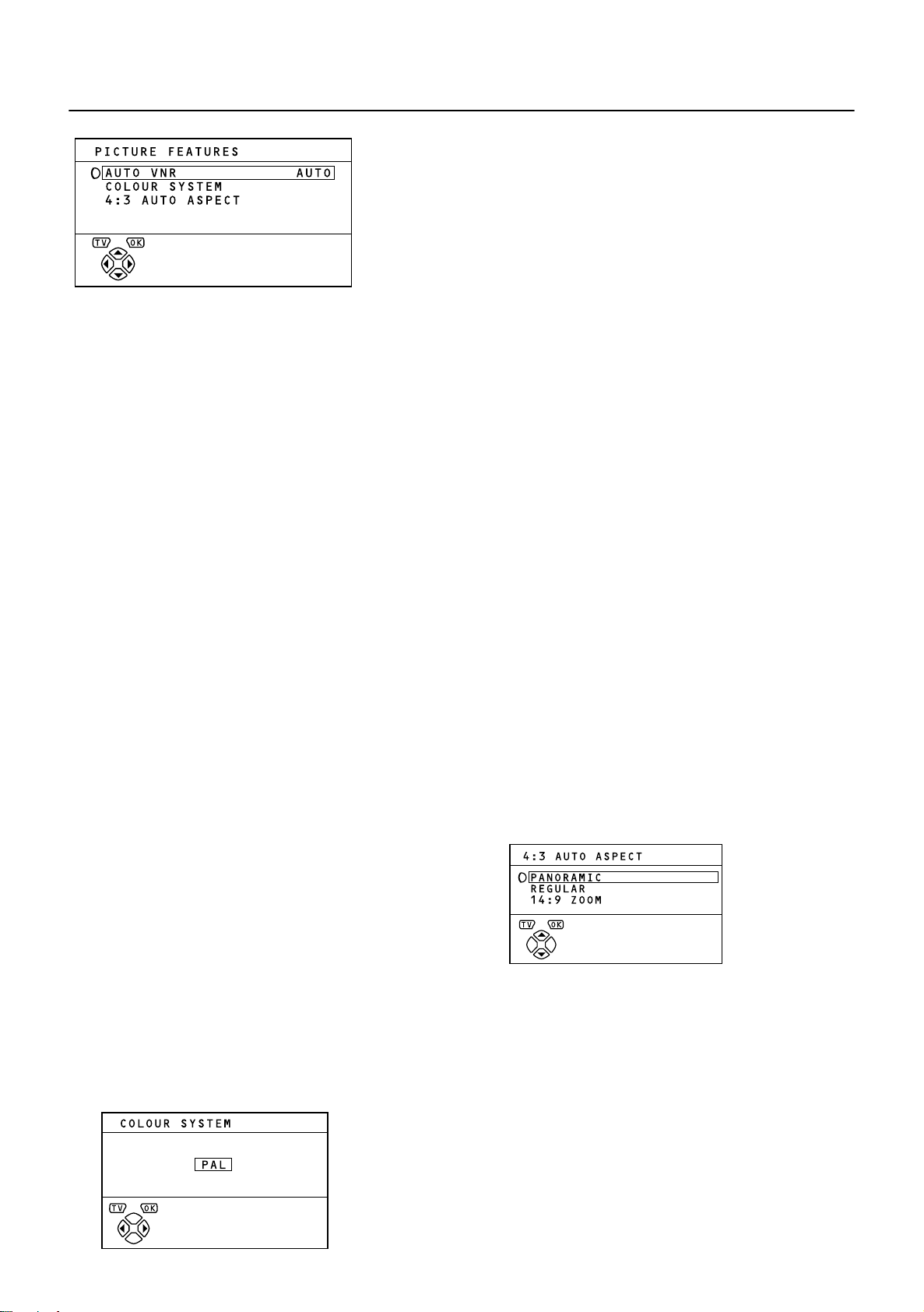

Picture features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Sound setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

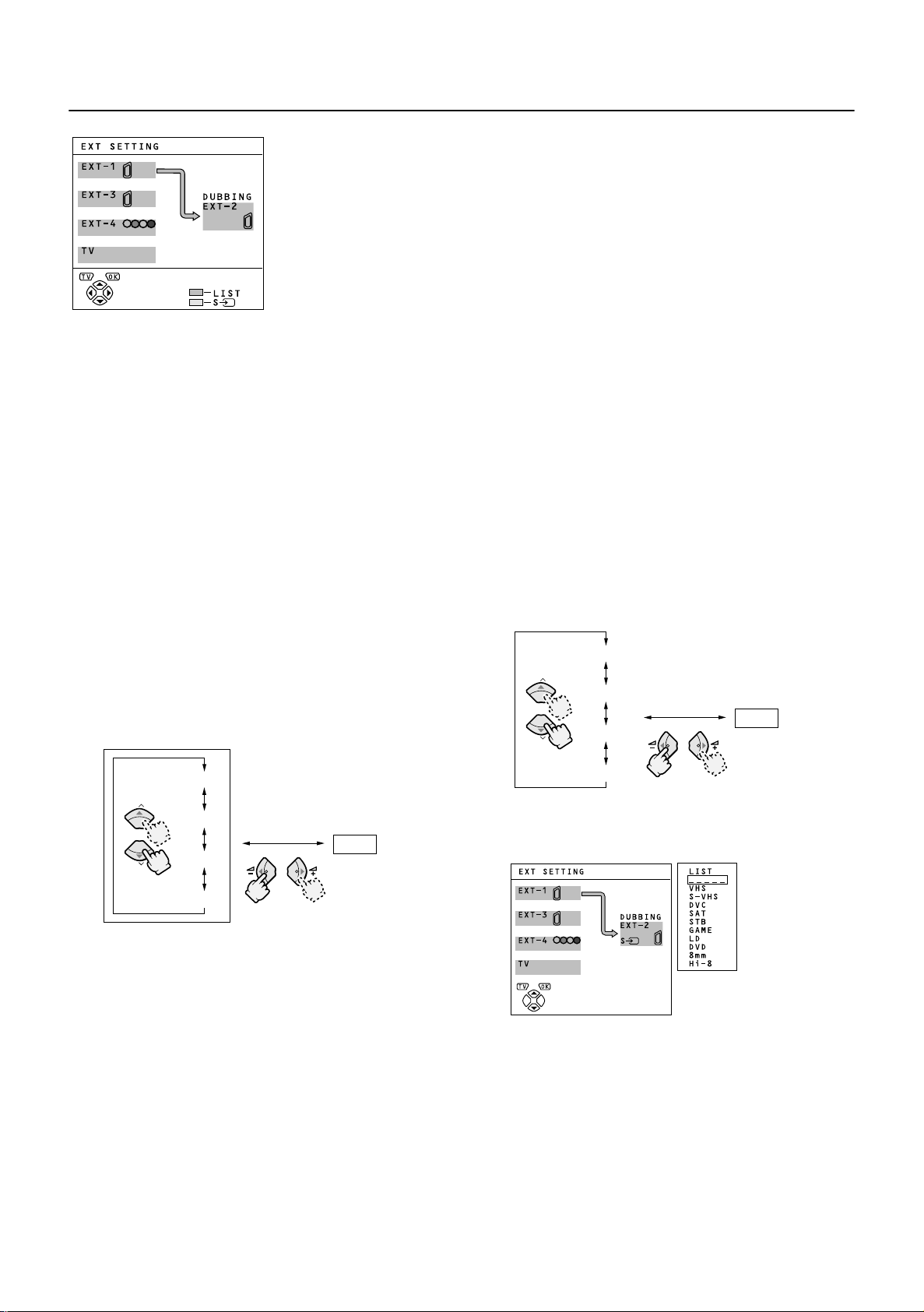

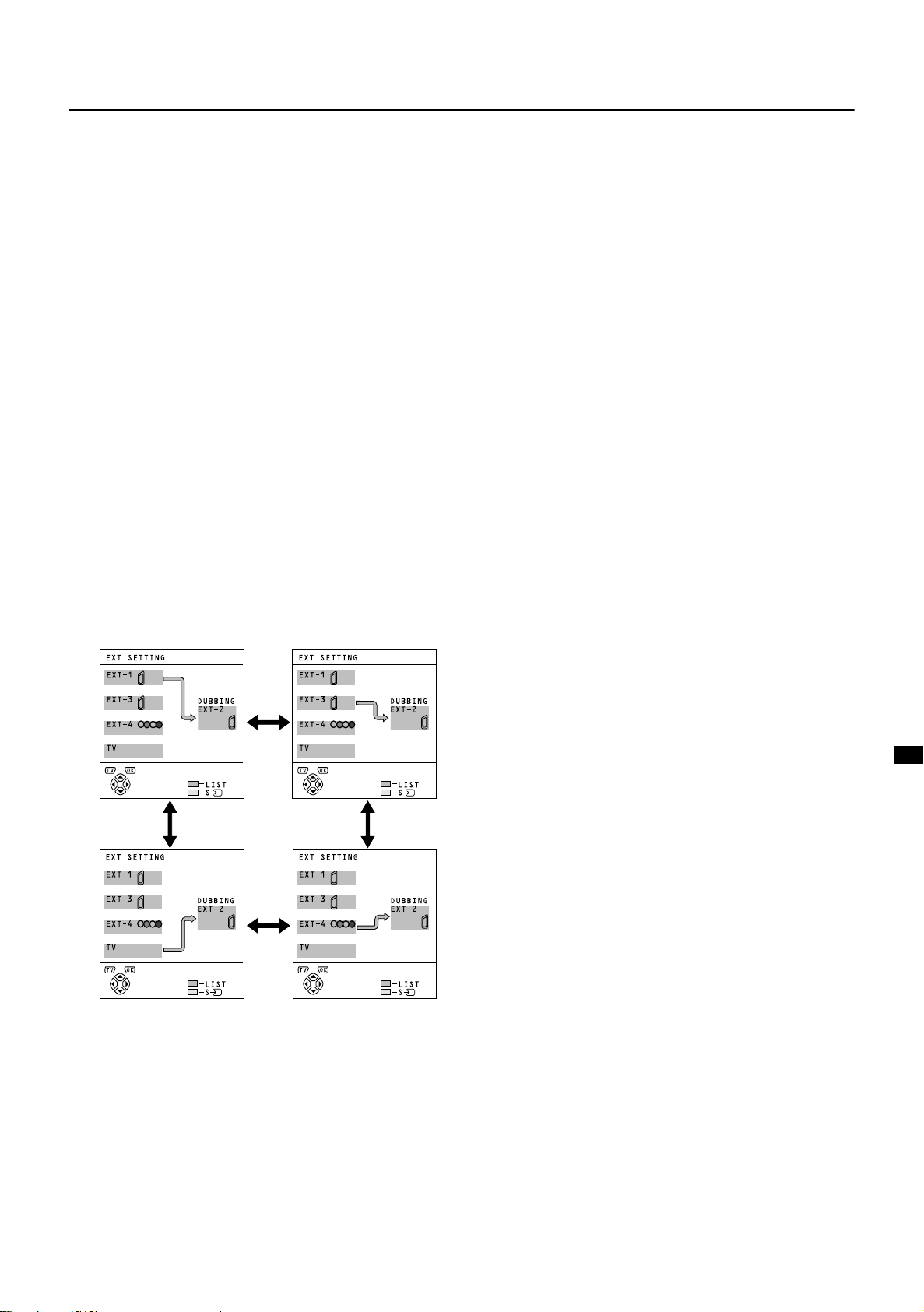

EXT SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

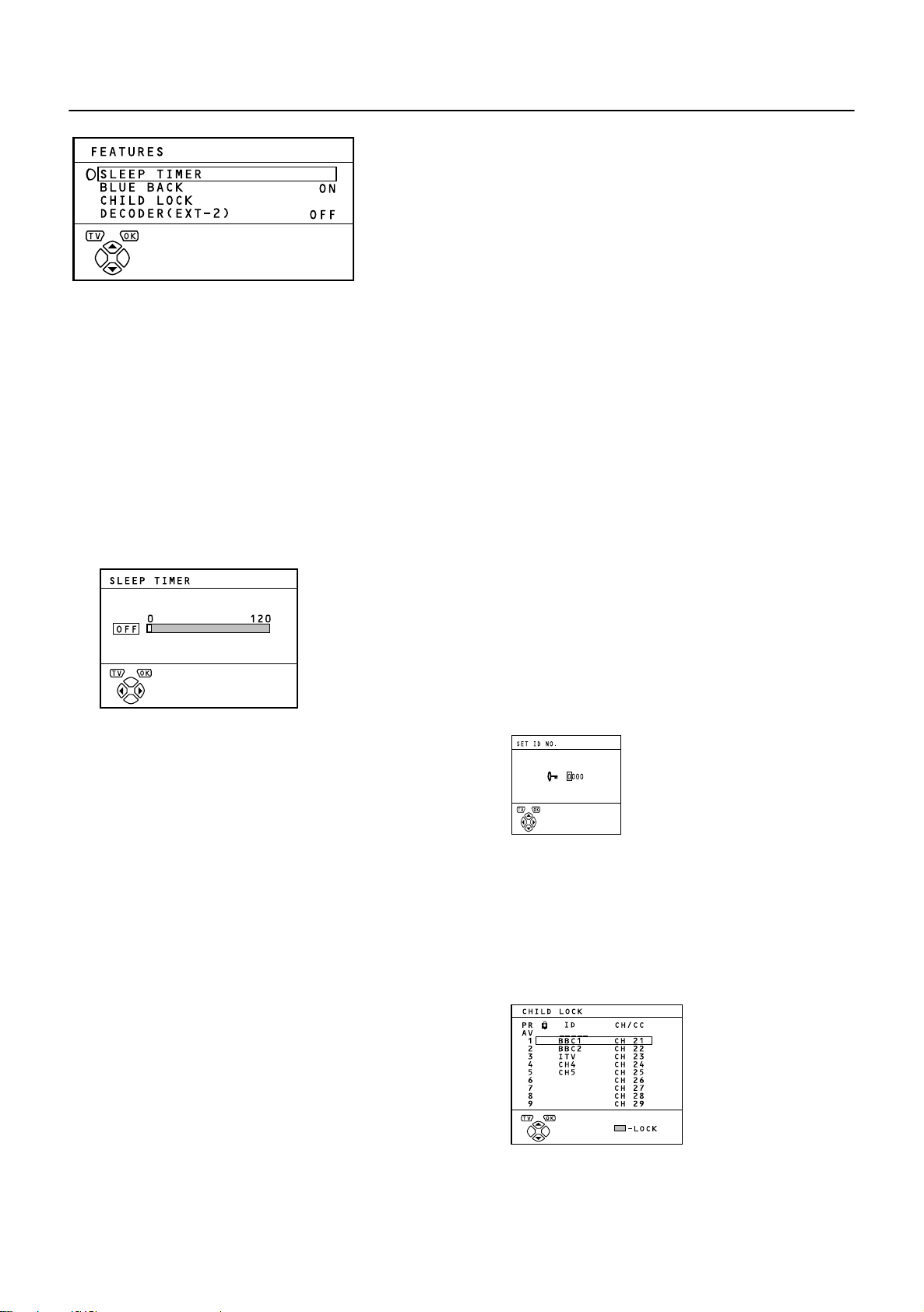

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

INSTALL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

DEMO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Other menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Further preparation . . . . . . . . . . . . . . . . . . . . . . . . . 30

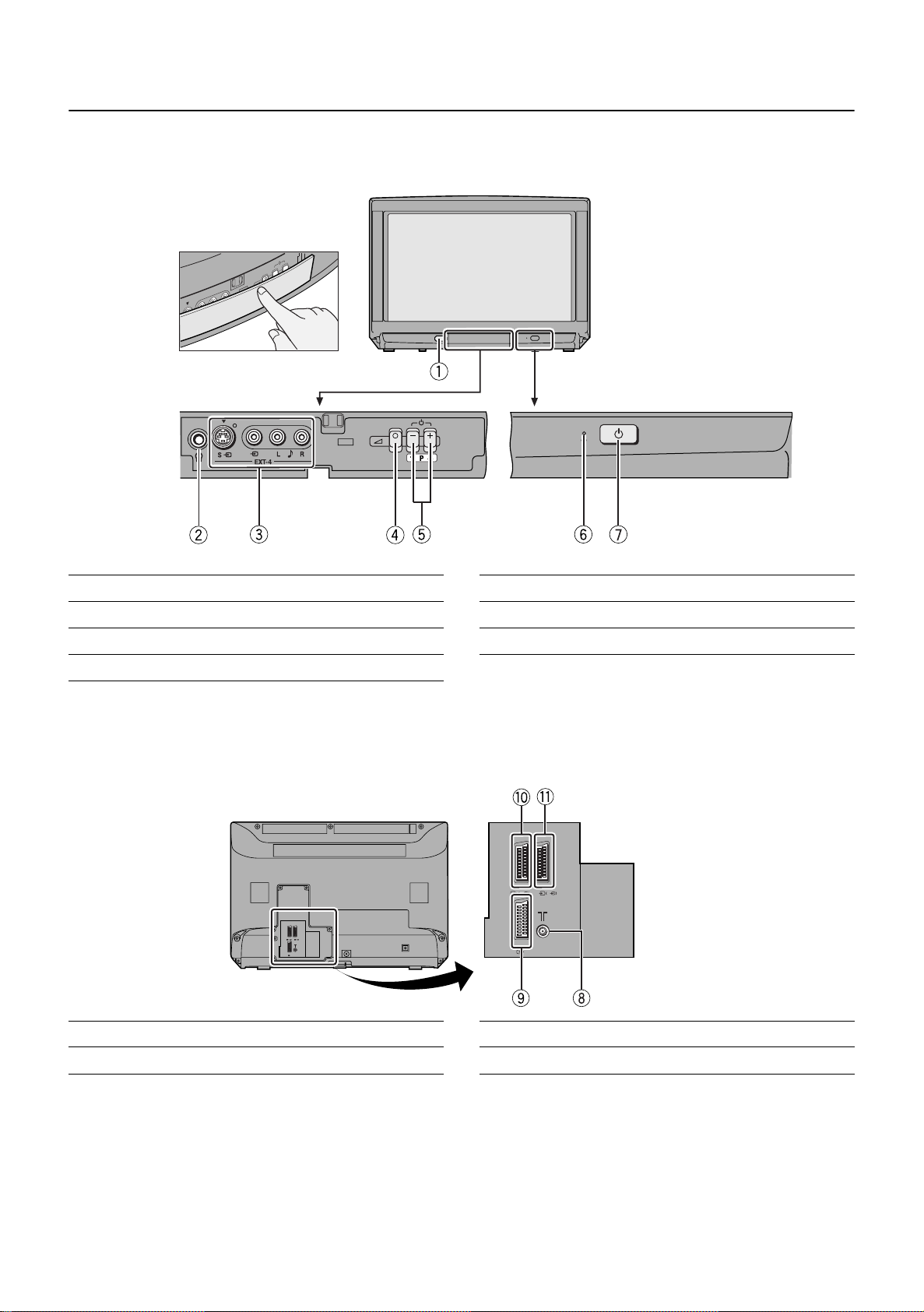

TV buttons and parts . . . . . . . . . . . . . . . . . . . . . . . . 32

. . . . . . . . . . . . 11

INSTRUCTIONS

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Thank you for buying this colour television. To make sure you fully understand how to use your new TV, please read this manual thoroughly before you begin.

6DIHW\#SUHFDXWLRQV

6DIHW\#SUHFDXWLRQV6DIHW\#SUHFDXWLRQV

:DUQLQJ

■■■■

:DUQLQJ:DUQLQJ

To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

■■■■

&DXWLRQ

&DXWLRQ&DXWLRQ

To ensure personal safety, observe the following rules regarding the use of this unit.

1 Operate only from the power source specified (AC 220 –

240 V, 50 Hz) on the unit. 2 Avoid damaging the AC plug and power cord. 3 Avoid improper installation and never position the unit

where good ventilation is unattainable.

When installing this television, distance recommen dations

must be maintained between the floor and wall, as well as

instalment in a tightly enclosed area or piece of furniture.

Please adhere to the minimum distance guidelines shown

for safe operation.

15 cm

■■■■

:DUQLQJ

:DUQLQJ:DUQLQJ

DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adaptor or consult your dealer.

If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If a new mains plug has to be fitted, then follow the instruction given below:

Important

Do not make any connection to the larger terminal which is

marked with the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code: Blue: Neutral Brown: Live

10 cm 10 cm 15 cm

4 Do not allow objects or liquid into the cabinet openings. 5 In the event of a fault, unplug the unit and call a service

technician. Do not attempt to repair it yourself or remove

the rear cover. 6 The surface of the TV screen is easily damaged. Be very

careful with it when hendling the TV.

Should the TV screen become soiled, wipe it with a soft dry

cloth. Never rub it forcefully. Never use any cleaner or

detergent on it. 7 When you don’t use this TV set for a long period of time, be

sure to disconnect the power plug from the AC outlet. 8 Do not hold the front panel door when moving the TV, if you

do you may break it.

As these colours may not correspond with the coloured marking identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

When replacing the fuse only a correctly rated approved type should be used and be sure to re-fit the fuse cover.

If in doubt — consult a competent electrician.

How to replace the fuse

Open the fuse compartment with a blade screwdriver, and replace the fuse.

Fuse

■■■■

*XLGHOLQHV#IRU#VDIH#RSHUDWLRQ

*XLGHOLQHV#IRU#VDIH#RSHUDWLRQ*XLGHOLQHV#IRU#VDIH#RSHUDWLRQ

This equipment has been designed and manufactured to comply with international safety standards. However, as with any electrical appliance, care must be taken to ensure optimal results and operational safety.

• Before attempting to use this equipment, read the operating instructions thoroughly.

• Ensure that all electrical connections (including the mains plug, extension leads, etc.) have been made in accordance with the

manufacturer’s instructions.

• If ever in doubt about the installation, operation or safety of this equipment, consult your dealer.

• Handle all glass panels or covers with care.

• Never operate this equipment if it appears damaged or operates abnormally. Turn the power off, disconnect th e main power

plug and consult your dealer.

• Never remove any affixed panels or covers. Doing so may result in electrical shock.

• Never leave this equipment operating unattended unless otherwise specifically stated that it is designed to do so or in standby

mode. Only use the designated power switch to turn off the power and ensure that all potential users are instructed how to do so. Make special arrangements for infirm or handicapped persons.

• Never watch TV while operating a motor vehicle. It is illegal to watch TV while driving.

• Never listen to headphones at high volume. Doing so may damage your hearing.

• Never obstruct the ventilation of this equipment. Doing so may cause overheating and result in a malfunction or damage.

• Never use makeshift stands or attempt to affix legs with wood screws. When using a manufacture r’s app roved stand or le gs,

use only the fixtures provided and follow the installation instructions.

• Never allow this equipment to be exposed to rain or moisture.

• Never allow anyone, especially children, to insert anything into an opening in the case. Doing so may result in a fatal electrical

shock.

• Never guess or take chances with electrical equipment of any kind. It is better to be safe than sorry.

6HWWLQJ#XS#\RXU#79

EXT-1

EXT-2

EXT-3

EXT-1

EXT-2

EXT-3

VCR

UHF aerial

75-ohm coaxial

cable

aerial plug

Mains outlet

(AC 220 - 240 V,

50 Hz)

21-pin SCART Cable

aerial

plug

75-ohm

coaxial

cable

aerial plug

AV IN/OUT

terminal

to aerial

output

To Aerial

Input

power

Cord

6HWWLQJ#XS#\RXU#79

6HWWLQJ#XS#\RXU#796HWWLQJ#XS#\RXU#79

&RQQHFWLQJ#WKH#DHULDO#DQG#YLGHR#FDVVHWWH#UHFRUGHU#+9&5,

■■■■

&RQQHFWLQJ#WKH#DHULDO#DQG#YLGHR#FDVVHWWH#UHFRUGHU#+9&5,&RQQHFWLQJ#WKH#DHULDO#DQG#YLGHR#FDVVHWWH#UHFRUGHU#+9&5,

If you are connecting a VCR, follow A → B → C → D in the diagram opposite. If you are not connecting a VCR, follow 1 → 2.

• For more details, see the manuals that came with the

equipment you want to connect.

• The connecting cables are not provided.

• You can watch a video using the VCR without doing C.

For details, see your VCR instruction manual.

• To connect more equipment, please see “Further

preparation” on page 30.

• If you connect a decoder to a T-V LINK compatible VCR,

set the DECODER (EXT-2) function to ON. For details, see

“Using the DECODER (EXT-2) function” on page 29.

Otherwise, you will not be able to watch scrambled

channels.

To use the T-V LINK functions, you must have a T-V LINK compatible VCR connected by a SCART cable C to the EXT2 terminal on the TV. For details about T-V LINK functions, see “T-V LINK functions” on page 7.

■■■■

Use two AAA/R03 dry cell batteries. Insert the batteries holding from the ó end, making sure the

ô and ó terminals are correctly lined up. To open the battery compartment, slide the door downwards

and lift off. Replace the door by sliding it upwards until it fastens into place.

• Follow the warnings printed on the batteries.

• Battery life is about six months to one year, depending on

• If the remote control does not work properly, fit new

• The batteries we supply are only for setting up and

• Always use good-quality batteries.

3XWWLQJ#EDWWHULHV#LQWR#WKH#UHPRWH#FRQWURO

3XWWLQJ#EDWWHULHV#LQWR#WKH#UHPRWH#FRQWURO3XWWLQJ#EDWWHULHV#LQWR#WKH#UHPRWH#FRQWURO

how much you use the remote control.

batteries.

testing your TV. Please replace them as soon as you

need to.

,QLWLDO#VHWWLQJV

main power button

power lamp

,QLWLDO#VHWWLQJV

■■■■

,QLWLDO#VHWWLQJV,QLWLDO#VHWWLQJV

When the TV is first turned on, it goes into the initial setting mode, and you will see the JVC logo. Follow the in structions on the screen to make the initial settings.

Press the main power button on the TV

The power lamp lights red (for power on), then green (for TV on) and the JVC logo is appears.

• If the power lamp stays red and does not change to

green: your TV is in the standby mode. Press the

(standby) button on the remote control to turn your TV on.

• If the JVC logo does not appear this is because your

TV has already been turned on for the first time: use the “LANGUAGE” and “AUTO PROGRAM”

functions to make the initial settings. For details, see “INSTALL” on page 24.

Press the

The LANGUAGE menu appears.

button

3333

1 2 3

4 5 6

7 8

Setting up your TV

Press the ë

ë buttons to choose

ëë

ENGLISH

The on-screen display will then be in English.

TV OK

Setting up your TV

If you have had any problems setting up

your new TV, please call the Helpline at

0870 330 5000

Enjoy your new TV!

To receive SKY 1 you need a satelite tuner. You must have the satellite tuner set to SKY 1 before starting the AUTO PROGRAM function which follows.

Press the

button to start the

3333

AUTO PROGRAM function

The AUTO PROGRAM menu appears and the TV channels you receive are automatically stored in the programme numbers list (PR).

To cancel the AUTO PROGRAM function:

Press the

After the TV channels have been

4444

button.

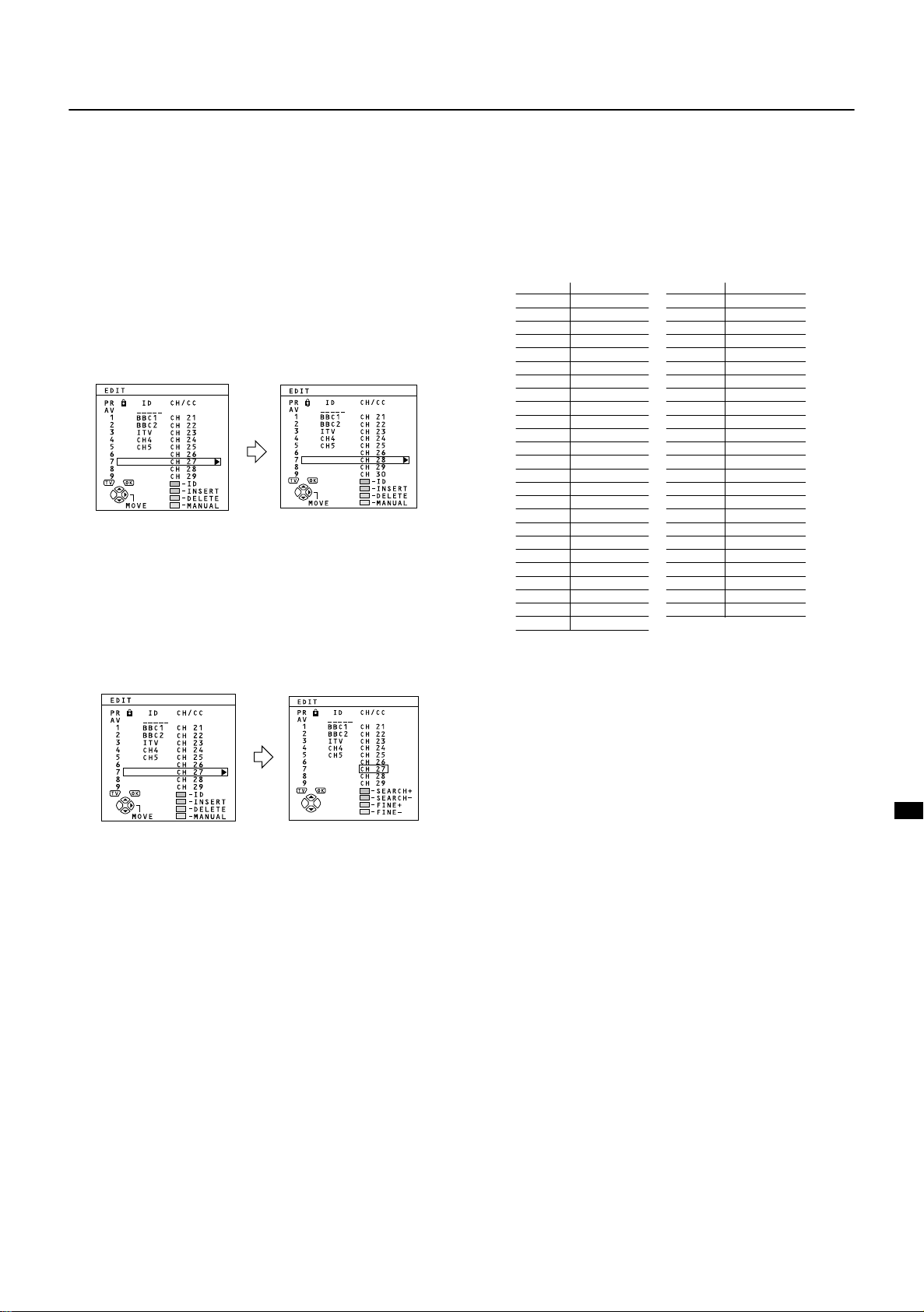

registered in the programme numbers list (PR), the EDIT menu appears

If you want to, you can now edit the programme numbers (PR) using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 25.

If you do not want to edit programme numbers (PR), go to the next step.

Note:

• BBC1, BBC2, ITV, Channel 4 and Channel 5 are

automatically set to programme numbers PR 1 to PR

5. SKY 1 is set to programme number PR 6, but no TV channel name (ID) is set. If the TV doesn’t receive one of these TV channels, that programme number (PR) will not be set.

• If a TV channel you want to view is not set to a

programme number (PR), you can set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 25.

• The AUTO PROGRAM function does not set the

programme number PR 0 (AV) for your video cassette recorder. You will need to set this using the MANUAL function.

• In some areas you may get TV reception from more

than one transmitter, for example different ITV regions. In this case each TV channel could be set twice. If this happens, the first set of channels will have the stronger signal. If you want to delete the second set of channels, you will have to do it manually (see page 27).

Press the

button to display the

3333

T-V LINK menu

Follow the T-V LINK menu according to the type of VCR you have connected to the EXT-2 terminal

If you do not have a T-V LINK compatible VCR connected:

Press the

The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected:

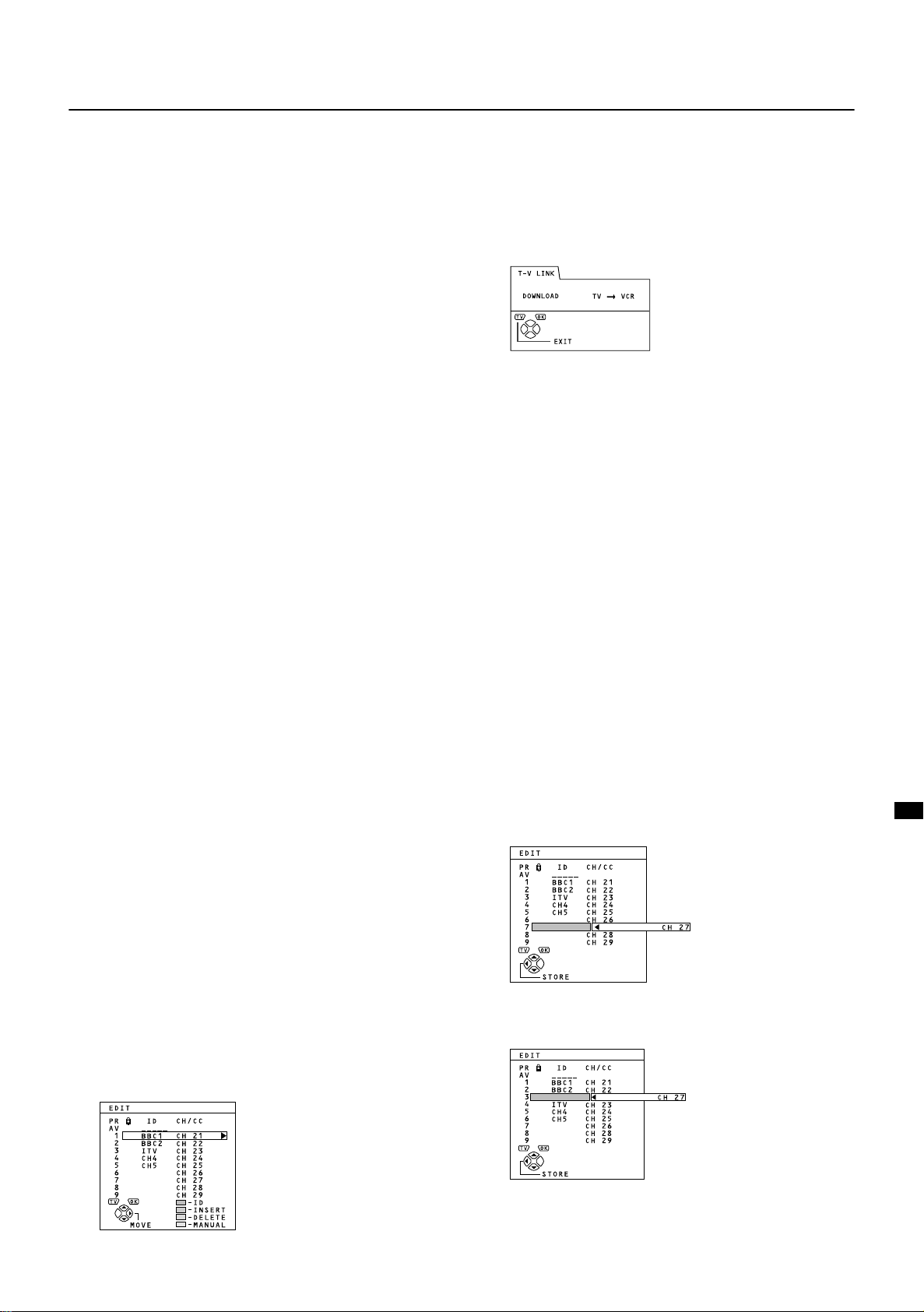

Follow the operating procedure “Downloading data to a VCR” on page 29 to transmit the programme number (PR) data.

Now, the initial settings are complete,

button to leave the T-V LINK menu.

4444

and you can watch the TV

709#/,1.#IXQFWLRQV

709#/,1.#IXQFWLRQV709#/,1.#IXQFWLRQV

When you have a T-V LINK compatible VCR connected to the EXT-2 Terminal on the TV, it is easier to set up the VCR and to view videos. T-V LINK uses the following features:

3UH0VHW#GRZQORDG

■■■■

3UH0VHW#GRZQORDG3UH0VHW#GRZQORDG

The VCR will automatically download the registered data on the TV channels from the TV. This means you do not need to set up the program channels on your VCR manually. The preset download function automatically begins when the initial setting is complete or whenever you carry out the AUTO PROGRAM or EDIT/MANUAL functions.

You can also carry out this function using your VCR controls.

When “FEATURE NOT AVAILABLE” is displayed:

If “FEATURE NOT AVAILABLE” is displayed, the download was not performed correctly. Before trying to download again, check that:

•the VCR power is turned on

•the VCR is T-V LINK compatible

•the VCR is connected to the EXT-2 terminal

•the SCART cable is fully wired.

'LUHFW#5HF

■■■■

'LUHFW#5HF'LUHFW#5HF

79#DXWR#SRZHU#RQ29&5#

■■■■

79#DXWR#SRZHU#RQ29&5#79#DXWR#SRZHU#RQ29&5# LPDJH#YLHZ

LPDJH#YLHZ

LPDJH#YLHZLPDJH#YLHZ

When the VCR starts playing, the TV automatically turn s on and the images from the EXT-2 terminal appear on the screen.

When the VCR menu is operated, the TV automatically turns on and the images from the EXT-2 terminal appear on the screen.

This function does not happen if your TV’s main power is turned off. Set your TV’s main power to on (standby mode).

Note:

• A “T-V LINK compatible VCR” means a JVC video

cassette recorder with the T-V LINK logo, or with one of the following logos. However, these VCRs may support some or all of the features described earlier. For details, see your VCR instruction manual.

“Q-LINK” (a trademark of Panasonic Corporation) “Data Logic” (a trademark of Metz Corporation) “Easy Link” (a trademark of Phillips Corporation) “Megalogic” (a trademark of Grundig Corporation) “SMARTLINK” (a trademark of Sony Corporation).

“What You See Is What You Record” You can easily record to VCR the images that you are

watching on the TV. For details, read the manual for your VCR.

Use your VCR controls. “VCR IS RECORDING” is displayed.

In the following situations, the VCR will stop recordin g if the TV is turned off, if the TV channel or input is changed, or if the menu is displayed on the TV:

•when recording images from an external device connected

to the TV (for example a camcorder)

•when recording a TV channel after it has been unscrambled

on a decoder

•when recording a TV channel by using the TV’s output

because the VCR’s own tuner cannot properly receive that channel

• You cannot carry out Direct Rec using your TV’s control.

• Generally, the VCR cannot record a TV channel that it

cannot receive properly on its own tuner, even if you can

view that TV channel on the TV. However, some VCRs

can record a TV channel by using the TV’s output if that

channel can be viewed on the TV. For details, see your

VCR instruction manual.

8VLQJ#\RXU#79²WKH#EDVLFV

main power button

power lamp

number buttons

8VLQJ#\RXU#79²WKH#EDVLFV

8VLQJ#\RXU#79²WKH#EDVLFV8VLQJ#\RXU#79²WKH#EDVLFV

7XUQ#WKH#PDLQ#SRZHU#RQ

■■■■

7XUQ#WKH#PDLQ#SRZHU#RQ7XUQ#WKH#PDLQ#SRZHU#RQ

Press the main power button on the TV

The power lamp lights red and your TV is in the st andby mode.

If the Power lamp lights green, the TV is already on.

To turn the main power off:

Press the main power button again.

The power lamp goes off.

To save energy, turn the main power off if you are not using the TV for a long time.

7XUQ#WKH#79#RQ#IURP#VWDQGE\#PRGH

■■■■

7XUQ#WKH#79#RQ#IURP#VWDQGE\#PRGH7XUQ#WKH#79#RQ#IURP#VWDQGE\#PRGH

Press the

button, the

(standby) button, the

buttons or the number

ëë

4444

buttons

The power lamp goes from red to green and your TV will be turned on.

To turn the TV off:

Press the

The power lamp changes from green to red and the TV goes into standby mode.

&KRRVH#D#79#FKDQQHO

■■■■

&KRRVH#D#79#FKDQQHO&KRRVH#D#79#FKDQQHO

Choose the programme number (PR) that the TV channel has been set to.

Use the

Press the ëëëë buttons to choose the programme number (PR) you want.

Use the number buttons:

Enter the programme number (PR) of the channel using the number buttons.

Example

• PR12

•PR6

Use the PR LIST:

Press the

display the PR LIST

(standby) button again.

====

ëëëë

buttons:

→

press ~ and

→

press ¤.

(information) button to

1 2 3

4 5 6

7 8 9

TV OK

F.T/L

FREEZE

SUB-P

;

Press the

PR 0

EXT-1

EXT-4

EXT-2

EXT-3

TV mode

EXT modes

Programme

numbers

PR 1 to PR 99

ìììì

and

ëëëë

buttons to choose a

programme number (PR). Then press the

button.

3333

• For Programme numbers (PR) where you have the CHILD

LOCK function set, the

next to the programme number (PR) in the PR LIST.

• You cannot use the

number (PR) which has the CHILD LOCK set.

• Even if you try to choose a programme number (PR) with

the CHILD LOCK set, the

appear, and you cannot watch the TV channel. To watch

the TV channel, see “CHILD LOCK” on page 22.

&KDQJLQJ#WKH#YROXPH

■■■■

&KDQJLQJ#WKH#YROXPH&KDQJLQJ#WKH#YROXPH

Press the

ìì

(CHILD LOCK) mark appears

@@@@

ëëëë

buttons to choose a Programme

(CHILD LOCK) mark will

@@@@

buttons to change the

volume.

The volume indicator appears, and the volume changes, as you press the

:DWFKLQJ#LPDJHV#IURP#

■■■■

:DWFKLQJ#LPDJHV#IURP#:DWFKLQJ#LPDJHV#IURP#

CCCC

buttons.

Using your TV–the basics

ëëëë

Use the

Press the

Use the PR LIST:

Press the

buttons:

ëëëë

buttons to choose an EXT terminal

(information) button to

display the PR LIST

and

ëëëë

buttons to choose

3333

button

Press the

ìììì

an EXT terminal. Then press the

• The EXT terminals are listed after programme number PR

99.

• You can choose two types of video input signal:

S-VIDEO (Y/C signal) and regular video (composite signal). For details, see “K(S-VIDEO input)” on page 20.

• If you do not have a clear picture or no colour appears,

change the colour system manually. See “COLOUR SYSTEM” on page 18.

• If you choose an EXT terminal with no input signal, the

EXT terminal number becomes fixed on the screen.

• This TV set can automatically change over the input

according to a special signal from an external device. (The EXT-4 terminal does not support it.)

H[WHUQDO#HTXLSPHQW

H[WHUQDO#HTXLSPHQWH[WHUQDO#HTXLSPHQW

Choose the EXT terminal that the external equipment has been connected to.

Use the

Press the Pressing the

button:

AAAA

button to choose an EXT terminal.

AAAA

button changes the choice as follows:

AAAA

TV mode EXT modes

Programme

numbers

PR 1 to PR 99

EXT-1

EXT-4

EXT-2

EXT-3

To use the programme number PR 0 (AV):

When the TV and VCR are connected only by the aerial cable, choosing the programme number PR 0 (AV) allows you to view images from the VCR. Set the VCR RF channel to programme number PR 0 (AV) manually. For details, see “EDIT/MANUAL” on page 25. Pressing the

• The VCR sends its playback image along the aerial cable

as an RF (radio frequency) signal.

• Also see your VCR instruction manual.

To return to a TV channel:

Press the buttons.

button changes the choice as follows:

AAAA

button, the

4444

ëëëë

buttons or the number

Using your TV–the basics

8VLQJ#WKH#EXWWRQV#RQ#WKH#79

■■■■

8VLQJ#WKH#EXWWRQV#RQ#WKH#798VLQJ#WKH#EXWWRQV#RQ#WKH#79

Press the P B

B buttons to turn the

TV on from standby mode

Press the P

buttons to choose a

programme number (PR) or an EXT terminal

Press the

The volume level indicator appears

Press the

level indicator is on screen

(volume) button and the

DDDD

buttons to change the volume

DDDD

(volume) button

buttons whi l e t h e v o l u m e

(Behind the front cover)

5HPRWH#FRQWURO#EXWWRQV#DQG#IXQFWLRQV

5HPRWH#FRQWURO#EXWWRQV#DQG#IXQFWLRQV5HPRWH#FRQWURO#EXWWRQV#DQG#IXQFWLRQV

0XWLQJ#EXWWRQ

0XWLQJ#EXWWRQ0XWLQJ#EXWWRQ

You can turn the sound off instantly.

1 2 3

4 5 6

7 8 9

TV OK

Press the sound. Pressing the

(muting) button to turn off the

>>>>

(muting) button again

>>>>

restores the previous volume level

1XPEHU#EXWWRQV

1XPEHU#EXWWRQV1XPEHU#EXWWRQV

You can choose a programme number (PR) by entering the programme number

Example:

• PR12

•PR6

You can also press the EXT terminal.

=220#EXWWRQ

=220#EXWWRQ=220#EXWWRQ

You can change the screen size by changing to the picture aspect ratio. The normal aspect ratio is 4:3 (width:height). Choose the ideal one from the following ZOOM modes.

→

press ~ and Ÿ .

→

press ¤.

AAAA

button repeatedly to choose an

AUTO(WSS):

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode to 16:9 ZOOM mode or FULL mode according to the WSS signal.

If a WSS signal is not included, the picture is displayed in accordance with the ZOOM mode set with the 4:3 AUTO ASPECT function.

How to open the cover

• For details of the 4:3 AUTO ASPECT function, see “4:3

AUTO ASPECT” on page 18.

• When the AUTO(WSS) mode does not function correctly

due to poor WSS signal quality or when you want to change the ZOOM mode, press the 5555 button and change to another ZOOM mode.

REGULAR:

Use to view a normal picture (4:3 aspect ratio) as this is its original shape.

Remote control buttons and functions

PANORAMIC:

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

• The top and bottom of the picture are slightly cut off.

14:9 ZOOM:

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

16:9 ZOOM:

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Press the

mode. Then press the

The picture expands and the chosen ZOOM mode is displayed in about 5 seconds.

• The ZOOM mode may be automatically changed

due to the control signal from an external device. When you want to return to the previous ZOOM mode, choose the ZOOM mode again.

$GMXVWLQJ#WKH#YLVLEOH#DUHD#RI#WKH#

$GMXVWLQJ#WKH#YLVLEOH#DUHD#RI#WKH#$GMXVWLQJ#WKH#YLVLEOH#DUHD#RI#WKH# SLFWXUH

SLFWXUH

SLFWXUHSLFWXUH

If subtitles or the top (or bottom) of the picture are cut off, you can adjust the visible area of the picture manually.

Press the

The ZOOM menu appears.

Press the

ëëëë

buttons to choose a ZOOM

button

3333

button

5555

button to display the ZOOM

3333

mode indicatior.

The indicator appears.

16:9 ZOOM SUBTITLE:

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

FULL:

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

• For 16:9 aspect ratio pictures that have been squeezed

into a normal picture (4:3 aspect ratio), use the FULL

mode to restore the picture to its original shape.

&KRRVH#WKH#=220#PRGH

&KRRVH#WKH#=220#PRGH&KRRVH#WKH#=220#PRGH

Press the

button to display the ZOOM

5555

While it is displayed, press the

ëëëë

buttons

to change the height of the picture.

• You cannot adjust the visible area in REGULAR or

FULL mode.

+<3(5#6281'#EXWWRQ

+<3(5#6281'#EXWWRQ+<3(5#6281'#EXWWRQ

You can enjoy sounds with a wider ambience.

Press the

(HYPER SOUND) button to turn

òòòò

the HYPER SOUND function on or off

• The HYPER SOUND function does not work properly with

mono sound.

• The HYPER SOUND function can be also turned on or off

by using the SOUND SETTING menu. For details, see “HYPER SOUND” on page 19.

Remote control buttons and functions

#,QIRUPDWLRQ#EXWWRQ

#,QIRUPDWLRQ#EXWWRQ#,QIRUPDWLRQ#EXWWRQ

You can display the PR LIST or the current time on the screen.

Press the

Pressing the display as follows:

• You can choose programme numbers (PR) or EXT

terminals with the PR LIST. For details, see “Use the PR

LIST:” on page 8.

• This TV uses teletext data to set the time. If the TV has not

received a TV channel that has teletext programmes

since it was turned on, the time display is blank. To see

the time, choose a TV channel that has teletext

programmes. The time will still be displayed as long as

you do not turn off the TV, even if you choose other TV

channels.

• When watching videos, the incorrect time is sometimes

displayed.

• The

For details, see “Using the TV’s menus” on page 16.

79#EXWWRQ

79#EXWWRQ79#EXWWRQ

You can return to a TV channel instantly.

(information) button will also operate menus.

(information) button

(information) button changes the

Current time

No display

&RORXU#EXWWRQV

&RORXU#EXWWRQV&RORXU#EXWWRQV

The colour buttons are used for the teletext operations or the menu operations. For details, see “~ Teletext control buttons and VCR/(/DVD switch” on page 14 or “Using the TV’s menus” on page 16.

2.#EXWWRQ

2.#EXWWRQ2.#EXWWRQ

The

button is used to operate menus. For details, see

3333

“Using the TV’s menus” on page 16.

ëë

You can choose a programme number (PR) or an EXT terminal.

Press the

#%XWWRQV

#%XWWRQV#%XWWRQV

ëëëë

buttons to choose a

Programme number (PR) or an EXT terminal.

The For details, see “Using the TV’s menus” on page 16.

These buttons will operate a JVC brand VCR or DVD player. Pressing a button that looks the same as the device’s original remote control button has the same effect as the original remote control.

buttons will also operate menus.

ëëëë

9&52'9'# FRQWURO# EXWWRQV# DQG

9&52'9'# FRQWURO# EXWWRQV# DQG9&52'9'# FRQWURO# EXWWRQV# DQG

9&52

9&52((((2'9'#VZLWFK

9&529&52

Set the VCR/

2'9'#VZLWFK

2'9'#VZLWFK2'9'#VZLWFK

((((

/DVD switch to the VCR or

DVD position.

VCR:

When you are using a VCR, set the switch to the VCR position.

DVD:

When you are using a DVD player, set the switch to the DVD position.

(Text):

((((

When you are viewing Teletext programmes, set the switch to the

(Text) position.

((((

Press the

The TV returns to the TV mode and a TV channel appears.

• The

4444

“Using the TV’s menus” on page 16.

ìì

You can adjust the volume.

Press the

• The

ìììì

“Using the TV’s menus” on page 16.

6WDQGE\#EXWWRQ

6WDQGE\#EXWWRQ6WDQGE\#EXWWRQ

Press the

button.

4444

button will also operate menus. For details, see

#%XWWRQV

#%XWWRQV#%XWWRQV

buttons to adjust the sound.

ìììì

buttons will also operate menus. For details, see

(standby) button to turn the TV

====

on or off.

When the TV is turned on, the power lamp changes from red to green.

Press the VCR/DVD control button to

control your VCR or DVD player

• If your device is not made by JVC, these buttons will

not work.

• Even if your device is made by JVC, some of these

buttons may not work, depending on the device you are using.

• You can use the

the VCR will receive, or choose the chapter the DVD player plays back.

• Some models of DVD player use the

both operating the fast forward/backward functions and for choosing the chapter. In this case, the 1/ ¡ buttons do not work.

buttons to choose a TV channel

BBBB

buttons for

BBBB

Remote control buttons and functions

####7HOHWH[W#FRQWURO#EXWWRQV#DQG#9&52

■■■■

7HOHWH[W#FRQWURO#EXWWRQV#DQG#9&52

7HOHWH[W#FRQWURO#EXWWRQV#DQG#9&527HOHWH[W#FRQWURO#EXWWRQV#DQG#9&52

2'9'

2'9'#VZLWFK

((((

2'9'2'9'

Choose a teletext page by pressing the

ëëëë

buttons, number buttons or colour

#VZLWFK

#VZLWFK#VZLWFK

buttons

TV OK

To return to the TV mode:

Press the

• If you have trouble receiving teletext broadcasts,

contact your local dealer or the teletext station.

• In Text mode, the ZOOM mode is fixed to FULL.

• You cannot operate menus when viewing a teletext

programme.

8VLQJ#WKH#/LVW#0RGH

8VLQJ#WKH#/LVW#0RGH8VLQJ#WKH#/LVW#0RGH

You can store the numbers of your favourite teletext pages in memory and call them up quickly using the colour buttons.

button or

4444

(Text) button.

To store the page numbers:

Press the

button to go into the List

ùùùù

mode

The page numbers you have stored are displayed at the bottom of the screen.

Press a colour button to choose a

position. Then press the number buttons to enter the page number

1 2 3

4 5 6

7 8 9

%DVLF#RSHUDWLRQ

%DVLF#RSHUDWLRQ%DVLF#RSHUDWLRQ

You can view two types of teletext broadcasts on the TV: FLOF (Fastext) and WST (World Standard Text).

Choose a TV channel with a teletext

broadcast Set the VCR/

((((

/DVD switch to the

(Text)

((((

position

Press the

(Text) button to display

the teletext

Pressing the : follows:

: (Text) button changes the mode as

TV mode

Text mode

Press and hold down the

The four page numbers blink white to show that they are stored in memory.

button

öööö

To call up a stored page:

Press the

Press a colour button having a stored page

To leave the List mode:

Press the ù

ùùùù

button to enter the List mode

ù button again.

ùù

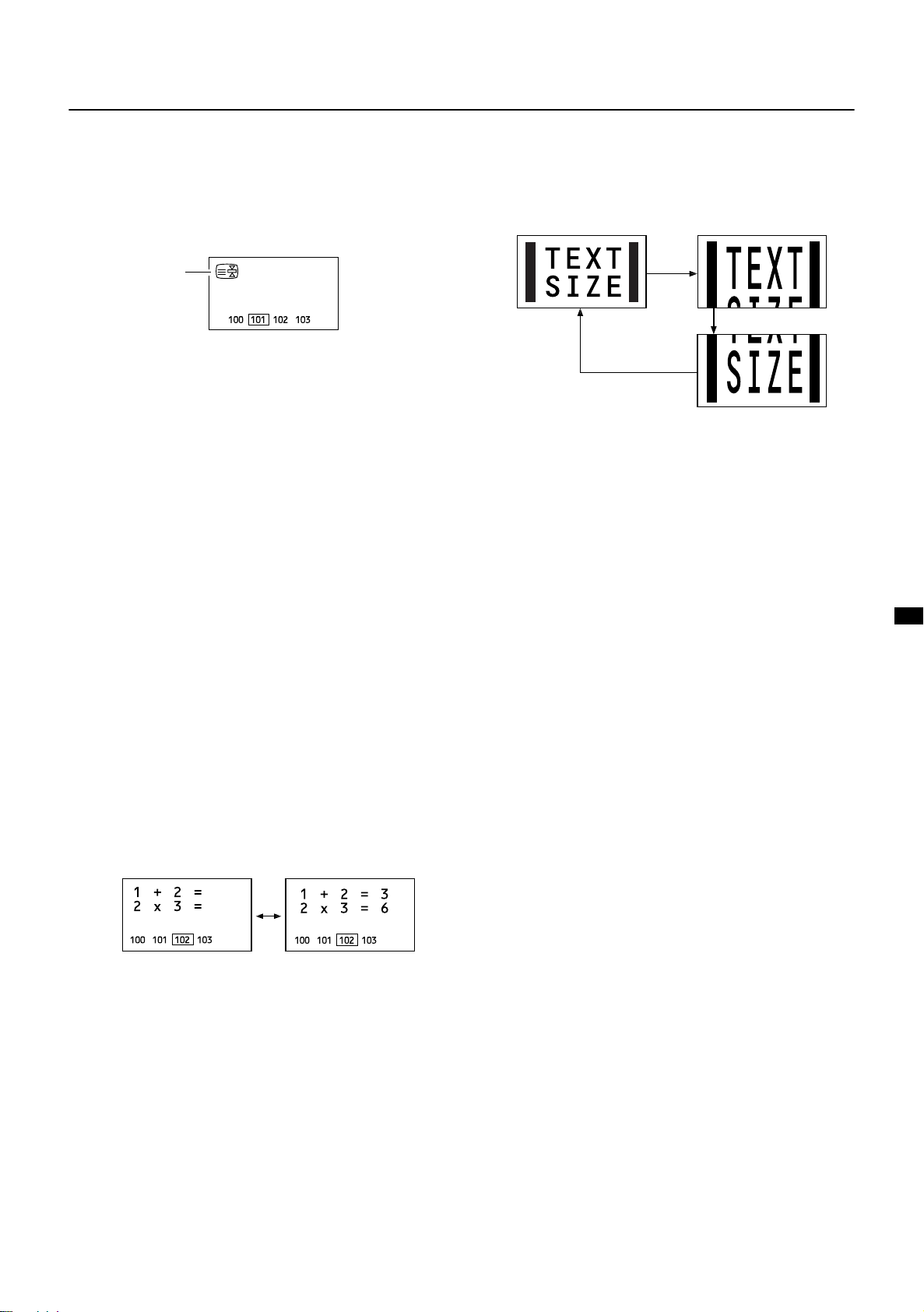

+ROG

+ROG+ROG

You can hold a teletext page on the screen for as long as you want, even while several other teletext pages are being received.

Remote control buttons and functions

6L]H

6L]H6L]H

You can double the height of the teletext display.

Press the

÷÷÷÷

button.

Press the

To cancel the Hold function:

Press the û

6XE0SDJH

6XE0SDJH6XE0SDJH

Some teletext pages include sub-pages that are automatically displayed.

You can hold any sub-page, or view it at any time.

Press the

sub-page function Press the Number buttons to enter a

sub-page number

To cancel the sub-page function:

Press the

• You can also choose a sub-page by pressing the

5HYHDO

5HYHDO5HYHDO

Some teletext pages include hidden text (such as the answers to a quiz).

You can display the hidden text.

Each time you press the hidden or revealed

ûûûû

button

Hold indication

û button again.

ûû

button to operate the

õõ

Example:

• 3rd sub-page → press ), ), ) and 3.

button again.

õõõõ

red or green button.

øøøø

button, text is

,QGH[

,QGH[,QGH[

You can return to the index page instantly.

Press the

FLOF (Fastext)/WST (World Standard Text):

Returns to page 100 or a previously specified page.

List mode:

Returns to the page number displayed in the lower left area of the screen.

&DQFHO

&DQFHO&DQFHO

You can search for a teletext page while watching TV.

Press the number button to enter a page

number, or press a colour button

The TV searches for a teletext page.

Press the

The TV programme appears. When the TV finds the teletext page, its page number appears in the upper left of the screen.

Press the

page when the page number is on the screen

úúúú

button

üüüü

button.

üüüü

button to return to a teletext

Note:

• The TV mode cannot be resumed by pressing the

button. To return to the TV mode press the

üüüü

button.

4444

8VLQJ#WKH#79·V#PHQXV#

8VLQJ#WKH#79·V#PHQXV#8VLQJ#WKH#79·V#PHQXV#

This TV has a number of functions you can op erate using menus. To use all your TV’s functions fully, you need to understand how to use the basic menus.

Press the 3 button to display the MENU (main menu)

The MENU (main menu) appears. In it, the titles of the menus are displayed.

Press the menu title, and press the

The menu appears.

buttons to choose a

button

3 Follow the menus according to the

function you want to use

• For more details, see the descriptions of each menu

and its functions, on the following pages.

• The display appearing at the bottom of a menu

shows you a button on the remote control that you can use when you operate a chosen function.

4 Press the

setting

The menu disappears.

To return to the previous menu:

Press the

To exit a menu instantly:

Press the 4 button.

button to complete the

(information) button.

3LFWXUH#VHWWLQJ

3LFWXUH#VHWWLQJ3LFWXUH#VHWWLQJ

To display the PICTURE SETTING menu:

Press the 3 button to display the MENU

(main menu) Press the ë buttons to choose PICTURE

SETTING, and press the

7,17

■■■■

7,177,17

You can select one of three TINT modes (three kinds of picture settings) to adjust the picture settings automatically.

Press the ë buttons to choose TINT

button

• You can change the HUE setting (picture hue) only

when the colour system is NTSC 3.58 or NTSC 4.43. (See “Specifications” on page 34.)

To return to the default settings in each TINT mode:

Press the blue button.

This returns the picture settings in the TINT mode you have chosen to the default settings, and stores them in the TINT mode.

Press the 3 button to complete the

settings

The menu disappears.

(&2#02'(

■■■■

(&2#02'((&2#02'(

When you set the ECO MODE function to ON, the screen contrast is automatically adjusted to a setting suitable for the brightness of your room. This reduces eye strain for you and the amount of power the TV uses.

Press the ë buttons to choose ECO

MODE

Press the ì buttons to choose a mode

COOL:

A cool white colour base with a boost in the colour and contrast levels that creates a more vivid picture.

WARM:

A warm orange/red colour base that creates the appropriate colour and contrast levels for watching films.

NORMAL:

A normal white colour base with normal colour and contrast levels.

Press the 3 button to complete the

setting

The menu disappears.

3LFWXUH#DGMXVWPHQW

■■■■

3LFWXUH#DGMXVWPHQW3LFWXUH#DGMXVWPHQW

You can change the picture settings of each TINT mode as you like.

The picture settings changed are stored in the TINT mode.

Press the ë buttons to choose an item.

Press the ì buttons to change the

setting.

Press the ì buttons to choose ON

To cancel the ECO MODE function:

Press the ì buttons to choose OFF.

Press the 3 button to complete the

setting

The menu disappears.

Lower

Darker

Softer

Lighter

Reddish

Item

CONTRAST

(picture contrast)

BRIGHT

(picture brightness)

SHARP

(picture sharpness)

COLOUR

(picture colour)

HUE

(picture hue)

Higher

Brighter

Sharper

Deeper

Greenish

3LFWXUH#IHDWXUHV

3LFWXUH#IHDWXUHV3LFWXUH#IHDWXUHV

To display the PICTURE FEATURES menu:

Press the 3 button to display MENU (main

menu) Press the ë buttons to choose PICTURE

FEATURES, and press the

$872#915

■■■■

$872#915$872#915

VNR Stands for “video noise reduction”. The AUTO VNR function reduces any “noise” (interference or snowing) in the current picture. The function also adjusts the optimum sharpness of the picture (SHARP).

Press the ë buttons to choose AUTO

VNR Press the ì buttons to choose AUTO

MIN:

The AUTO VNR function is cancelled. If you set the mode to AUTO but feel that the sharpness of the original picture has not been reproduced fully, change the mode to MIN. However, any noise remaining in the original picture may be emphasized.

MAX:

This mode always reduces any noise as much as possible, irrespective of state of the picture. When you set the mode to AUTO but still notice some noise, change the mode to MAX. However, this may reduce the sharpness of the picture.

button

Press the ì buttons to choose the

appropriate colour system.

PAL:

PAL system

NTSC 3.58:

NTSC 3.58 MHz system

NTSC 4.43

NTSC 4.43 MHz system

AUTO:

This function detects a colour system from the input signal. You can only use this when you are viewing a picture from programme number PR 0 (AV), or on EXT terminal.

Press the 3 button to complete the

setting

The menu disappears.

• The AUTO function may not work properly if you

have poor signal quality. If the picture is abnormal in the AUTO function, choose another colour system manually.

• You cannot choose NTSC 3.58 or NTSC 4.43 for

programme numbers PR 0 (AV) to PR 99.

7=6#$872#$63(&7

■■■■

7=6#$872#$63(&77=6#$872#$63(&7

This function only works when the ZOOM mode is set to AUTO(WSS) mode. It sets the ZOOM mode you want to use for when a WSS signal is not included in the broadcast signal or the signal from an external device. You can choose one of three ZOOM modes.

• For details of the AUTO(WSS) mode, see the “AUTO

(WSS)” section within “3 ZOOM button” on page 11.

Press the ë buttons to choose 4:3 AUTO

ASPECT. Then press the

The sub-menu of the 4:3 AUTO ASPECT function appears.

button

Press the 3 button to complete the

setting.

The menu disappears.

&2/285#6<67(0

■■■■

&2/285#6<67(0&2/285#6<67(0

The colour system is chosen automatically. However, if the picture is not clear or no colour appears, choose the colour system manually.

Press the ë buttons to choose COLOUR

SYSTEM. Then press the

The sub-menu of the COLOUR SYSTEM function appears.

button

Press the ë buttons to choose a ZOOM

mode Press the 3 button to complete the

setting

The menu disappears.

6RXQG#VHWWLQJ

6RXQG#VHWWLQJ6RXQG#VHWWLQJ

To display the SOUND SETTING menu:

Press the 3 button to display the MENU

(main menu) Press the ë buttons to choose SOUND

SETTING. Then press the

67(5(2#2#,‡,,

■■■■

67(5(2#2#,‡,,67(5(2#2#,‡,,

When you are viewing a bilingual broadcast programme, you can choose the sound from Bilingual I (Sub I) or Bilingual II (Sub II). If you have poor reception on a stereo broadcast, you can change from stereo to mono sound so that you can hear the broadcast more clearly and easily.

button

+<3(5#6281'

■■■■

+<3(5#6281'+<3(5#6281'

You can enjoy sounds with a wider ambience.

Press the ë buttons to choose HYPER

SOUND Press the ì buttons to choose ON

To cancel the HYPER SOUND function:

Press the ì buttons to choose OFF.

Press the 3 button to complete the

setting

The menu disappears

• The HYPER SOUND function does not work properly

with mono sound.

• You can turn the HYPER SOUND function on or off

with a single press. For details, see “4 HYPER SOUND button” on page 12.

Press the ë buttons to choose

STEREO / I • II Press the ì buttons to choose a sound

mode

:Stereo sound

:mono sound

ýýF

:Bilingual I (sub I)

:Bilingual II (sub II)

Press the 3 button to complete the

setting

The menu disappears.

• The sound mode you can choose differs depending

on the TV programme.

• This function does not work in the EXT modes. And

this function does not appear in the SOUND SETTING menu.

6RXQG#DGMXVWPHQW

■■■■

6RXQG#DGMXVWPHQW6RXQG#DGMXVWPHQW

You can adjust the sound to your liking.

Press the ë buttons to choose an item

Press the ì buttons to adjust it

Weaker Weaker

Left

Press the 3 button to complete the

setting

The menu disappears.

Item

BASS

TREBLE

BALANCE

Stronger Stronger

Right

(;7#6(77,1*

(;7#6(77,1*(;7#6(77,1*

To display the EXT SETTING menu:

Press the 3 button to display the MENU

(main menu) Press the ë buttons to choose EXT

SETTING. Then press the

+609,'(2#LQSXW,

■■■■ K

You can connect a device (such as an S-VHS VCR) to enjoy the high-quality picture of the S-VIDEO signal (Y/C signal).

Preparation:

•First read the device’s instruction manual and

“Further preparation” on page 30 to connect the device to the TV properly. Second, follow the device’s instruction manual to set the device so that it sends an S-VIDEO signal (Y/C signal) to the TV.

•Do not set KKKK(S-VIDEO input) to an EXT terminal

connected to a device which cannot output an S-VIDEO (Y/ C signal). If it is set wrongly, a picture cannot appear.

+609,'(2#LQSXW,

+609,'(2#LQSXW,+609,'(2#LQSXW,

Press the

buttons or

button

buttons to

choose an EXT terminal

Press the 3 button to complete the

setting.

The menu disappears.

• The EXT-1 terminal does not support S-VIDEO signal

(Y/C signal) and you cannot set KKKK (S-VIDEO input) in the EXT-1 terminal.

• Setting K

character from “E” to “S”. When an EXT terminal receives a normal video signal, “E1”, “E2”, “E3” or “E4” appears on the display. This changes to “S2”, “S3” or “S4” when it receives an S-VIDEO signal.

•

Even a device which can output an S-VIDEO signal (Y/C signal) may output a regular video signal (composite signal) depending on the device setting. If a picture cannot appear because the input) instruction manual carefully again to check for the device settings.

/,67

■■■■

/,67/,67

You can store a name for each of the devices connected to each EXT terminal. Giving a name to an EXT terminal makes the EXT terminal number appear on the screen, together with its name.

Press the ë buttons or ì buttons to

K (S-VIDEO input) changes the head

setting has been made, read the device

KKKK (S-VIDEO

choose an EXT terminal

EXT-1

EXT-3

EXT-4

EXT-2

EXT-1

EXT-3

Press the yellow button and set the

EXT-4

EXT-2

(S-VIDEO input)

An KKKK (S-VIDEO input) mark is displayed. You can view an S-VIDEO signal (Y/C signal) instead of the regular video signal (composite signal).

To cancel the

Press the yellow button and turn off the KKKK (S-VIDEO input) mark.

The regular video signal (composite signal) pictures are resumed.

(S-VIDEO input) setting:

KKKK

Press the blue button to display the name

list (LIST)

EXT SETTING

Press the ë buttons to choose a name.

Then press the

The LIST disappears and the name is assigned to the EXT terminal.

To erase a name assigned to the EXT terminal:

Choose a blank space.

Press the 3 button to complete the

button.

setting.

The menu disappears.

• You cannot choose an EXT terminal name that is not

on the name list (LIST).

'8%%,1*

■■■■

'8%%,1*'8%%,1*

You can choose a signal source to be output from the EXT-2 terminal.

You can do this with the output signal of the device connected to another EXT terminal, or the picture and sound from a TV channel you are currently viewing.

Press the ì buttons to choose the EXT-2

terminal.

Press the 3 button to complete the

setting.

The menu disappears.

• During dubbing, you cannot turn off the TV. Turning

off the TV also turns off the output from the EXT-2 terminal.

• When you choose an EXT terminal as an output, you

can view a TV programme or a picture from the other EXT terminal while dubbing the picture from a device connected to the EXT terminal onto a VCR connected to the EXT-2 terminal.

• The RGB signals from TV games cannot be

output.Teletext programmes cannot be output.

Press the ë buttons to choose another

EXT terminal or TV.

The arrow in the menu represents a signal flow. The left side of the arrow shows a signal source output from the EXT-2 terminal.

EXT-1/EXT-3/EXT-4:

The output signal of the device connected to an EXT terminal passes through the TV and is output from the EXT-2 terminal.

TV:

The picture and sound of the TV channel you are currently viewing are output from the EXT-2 terminal.

)($785(6

)($785(6)($785(6

%/8(#%$&.

■■■■

%/8(#%$&.%/8(#%$&.

You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an external device.

To display the FEATURES menu:

Press the 3 button to display the MENU

(main menu) Press the ë buttons to choose

FEATURES. Then press the

6/((3#7,0(5

■■■■

6/((3#7,0(56/((3#7,0(5

You can set the TV to automatically turn off after a set time.

Press the

TIMER. Then press the

A sub-menu of the SLEEP TIMER function appears.

Press the

time

You can set the time for up to 120 minutes (2 hours) in 10 minute steps.

To cancel the SLEEP TIMER function:

Press the ï button to set the period of time to “OFF.”

Press the 3 button to complete the

setting

The menu disappears.

• One minute before the SLEEP TIMER function turns

off the TV, “GOOD NIGHT!” appears.

• The SLEEP TIMER function cannot be used to turn

off the TV’s main power.

• When the SLEEP TIMER function is on, you can

display the sub-menu of the SLEEP TIMER function again to confirm or change the remaining period of time of the SLEEP TIMER function. Press the button to leave the menu after confirming or changing the remaining time.

buttons to choose SLEEP

buttons to set the period of

button

Press the

BACK Press the ì buttons to choose ON

To cancel the BLUE BACK function:

Press the ì buttons to choose OFF.

Press the 3 button to complete the

setting

The menu disappears.

&+,/'#/2&.

■■■■

&+,/'#/2&.&+,/'#/2&.

When there is a TV channel you do not want your children to watch, you can use the CHILD LOCK function to lock out the TV channel. Even when a child chooses a programme number (PR) for a locked TV channel the screen will change to blue and display cannot be viewed. Unless you enter a pre-set ID number by a special operation, the lock cannot be released and the child cannot view the TV channel.

7R#VHW#WKH#&+,/'#/2&.#IXQFWLRQ

7R#VHW#WKH#&+,/'#/2&.#IXQFWLRQ7R#VHW#WKH#&+,/'#/2&.#IXQFWLRQ

Press the ë buttons to choose CHILD

LOCK. Then press the A button.

“SET ID NO.” (ID number setting screen) appears.

To set the ID number you want

Press the ë buttons to choose a number

Press the ì buttons to move the cursor

Press the 3 button.

The sub-menu of CHILD LOCK appears.

buttons to choose BLUE

(CHILD LOCK) so the TV channel

@@@@

Press the ë buttons to choose a TV

channel

Every time you press the ë buttons, the programme number (PR) changes, and the picture of the TV channel registered in the programme number (PR) is displayed on the screen.

Press the blue button and set the CHILD

LOCK function.

(CHILD LOCK) appears and the TV channel is locked.

To reset the CHILD LOCK function:

Press the blue button again.

(CHILD LOCK) disappears.

Press the 3 button to complete the

setting.

The menu disappears.

• To disable easy resetting of the CHILD LOCK

function, the menu disappears if you choose the CHILD LOCK function and press the

7R#YLHZ#D#ORFNHG#79#FKDQQHO

7R#YLHZ#D#ORFNHG#79#FKDQQHO7R#YLHZ#D#ORFNHG#79#FKDQQHO

Choose a programme number (PR) for a

button.

locked TV channel, by using the number buttons or PR LIST

The screen changes to blue and the @ (CHILD LOCK) appears. You cannot view the TV channel.

FEATURES

'(&2'(5#+(;705,

■■■■

'(&2'(5#+(;705,'(&2'(5#+(;705,

You can only use this function if you have a decoder connected to a T-V LINK compatible VCR, which in turn is connected to the EXT-2 terminal. To use this function, see “Using the DECODER (EXT-2) function” on page 29.

•If you have not connected a decoder with a T-V LINK compatible VCR to the EXT-2 terminal, setting this function to “ON” by mistake causes the picture/sound of a TV channel you are currently viewing to disapper.

Press the

(information) button to

display “ID NO.” (ID No. input screen)

Press the number buttons to enter the ID

number

The lock is temporarily released so you can view the TV channel.

If you have forgotten the ID number:

Perform step 1 of “To set the CHILD LOCK function”. After confirming the ID number, press the exit the menu.

• Even if you reset the lock temporarily, it does not

mean that the CHILD LOCK function set for the TV channel is cancelled. The next time anyone tries to view the TV channel, it will be locked again.

• When you want to cancel the CHILD LOCK function,

you must perform the operation “To set the CHILD LOCK function” again.

• To stop it being easy to choose the programme

number (PR) of a locked TV channel, the programme number (PR) has been set so that it cannot be chosen by the of the TV.

• To stop it being easy to reset of the lock, “ID NO.” (ID

No. input screen) is set so that it cannot appear unless you press the

buttons or the buttons

(Information) button.

button to

,167$//

,167$//,167$//

To display the INSTALL menu:

Press the

(main menu)

button to display the MENU

3333

To cancel the AUTO PROGRAM function:

Press the 4 button.

After the TV channels have been stored in

the programme numbers (PR) list, the EDIT menu appears

You can now edit the programme numbers (PR) list using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 25.

When not using the EDIT/MANUAL function:

If you do not need to use the EDIT/MANUAL function, go to the next step.

Press the

INSTALL menu. Then press the

/$1*8$*(

■■■■

/$1*8$*(/$1*8$*(

You can choose the language you want to use for the on-screen display from the language list in the menu.

Press the

LANGUAGE. Then press the

A sub-menu of the LANGUAGE function appears.

Press the

language Press the

setting

The menu disappears.

$872#352*5$0

■■■■

$872#352*5$0$872#352*5$0

To receive SKY 1 you need a satellite tuner. You must have the satellite tuner set to SKY 1 before starting the AUTO PROGRAM function.

You can automatically store the TV channels for which you have the best reception. Store them in the TV’ s programme numbers (PR) list by doing the following.

Press the

PROGRAM Press the

PROGRAM function

The AUTO PROGRAM menu appears and the TV channels you receive are automatically registered in the programme numbers (PR) list.

buttons to choose the

ëëëë

buttons to choose

ëëëë

3333

buttons to choose a

ëëëë

button to complete the

3333

buttons to choose AUTO

ëëëë

button to start the AUTO

3333

button

3333

button

Press the

Operate the T-V LINK menu according to

the type of video cassette recorder (VCR) you have connected to the EXT-2 terminal

If you do not have a T-V LINK compatible VCR connected:

Press the 4 button to leave the T-V LINK menu.

The T-V LINK menu disappears, and all the settings are completed.

If you have a T-V LINK compatible VCR connected:

See “Downloading data to a VCR” on page 29 to transmit the programme number (PR) data to the VCR.

• If a TV channel you want to view is not set to a

Programme number (PR), set it manually using the MANUAL function. For details, see “EDIT/MANUAL” on page 25.

• The AUTO PROGRAM function does not set the

programme number PR 0 (AV) for your video cassette recorder. You will need to set this using the manual function.

• In some areas you may get TV reception from more

than one transmitter, for example. different ITV regions. In this case each TV channel could be set twice. If this happens, the first set of channels will have the stronger signal. If you want to delete the second set of channels, you will have to do it manually (see page 27).

button to display the T-V LINK

3333

(',720$18$/

■■■■

(',720$18$/(',720$18$/

The EDIT/MANUAL functions are divided into two types:

editing the current programme numbers (PR)

•

(EDIT functions); and

manually storing a TV channel you want to view a

•

programme number (PR) (MANUAL function). Here are the details about these functions:

MOVE:

This function changes the programme number (PR) of a TV channel.

ID:

This function registers a channel name (ID) to a TV channel.

INSERT:

This function adds a new TV channel in the current programme numbers (PR) list by using the CH number.

DELETE:

This function deletes a TV channel you do not want to list.

MANUAL:

This function manually stores a new TV channel in a programme number (PR).

• For programme number PR 0, “AV” appears in the

programme numbers (PR) list.

• An EXT terminal number does not appear in the

programme numbers (PR) list.

• The CH number is a number unique to the TV and

corresponds to the channel number of a TV channel. For the relationship between a channel number and a CH number, see “CH NUMBER” on page 27.

• You cannot use the INSERT function if you do not know

the channel number of a TV channel. Use the MANUAL function to register a TV channel in the programme number (PR) list.

Caution:

•

Using the MOVE, DELETE or INSERT functions rewrites the current programme numbers (PR) list. Therefore, the programme numbers (PR) of some of the TV channels will change.

•

Using the MANUAL function for a TV channel for which the CHILD LOCK function has been set cancels the CHILD LOCK function for that channel.

•

Using the MANUAL function for a TV channel for which the DECODER (EXT-2) function has been set to ON returns the setting of the DECODER (EXT-2) function for that channel to OFF.

•

When a TV channel has already been registered in PR 99, using the INSERT function deletes that TV channel.

Press the

MANUAL. Then press the

ëëëë

buttons to choose EDIT/

button

3333

Follow the options for the function you

want to use Press the

button to complete the

3333

settings

The T-V LINK menu appears.

Follow the T-V LINK menu according to the

type of VCR you have connected to the EXT-2 terminal

If you do not have a T-V LINK compatible VCR connected:

Press the 4 button to leave the T-V LINK menu.

The T-V LINK menu disappears and all the settings are completed.

If you have a T-V LINK compatible VCR connected:

Follow the operating procedure “Downloading data to a VCR” on page 29 to transmit the programme number (PR) data to the VCR.

029(

029(029(

Press the

ëëëë

buttons to choose a TV

channel

Every time you press the number (PR) changes, and the picture of the TV channel stored in the programme number (PR) appears on the screen.

Press the

îîîî

button to start the MOVE

ëëëë

buttons, the programme

function

Press the

ëëëë

buttons to choose a new

programme number (PR)

INSTALL

To cancel the MOVE function:

Press the

(information) button.

INSTALL

Press the

ïïïï

button to change the programme number (PR) of a TV channel to a new programme number (PR)

,','

Press the

ëëëë

buttons to choose a TV

channel

Every time you press the number (PR) changes, and the picture of the TV channel stored in the programme number (PR) appears on the screen.

Press the red button to start the ID

ëëëë

buttons, the programme

function

Press the

ëë

buttons to choose the first character of a channel name (ID) you want to give the TV channel

• You can give your own unique channel name (ID) to

the TV channel. When you have finished step 3, do not go to step 4. Press the cursor, and press the character of the channel name (ID). Then press the

button to register the channel name (ID) to the TV

3333

channel.

,16(57

,16(57,16(57

Preparation:

•You need to find the CH number for the TV channel. Find the CH number from the “CH NUMBER” table on page 27 based on the channel number of the TV channel.

Press the

ëëëë

buttons to choose a

ìììì

ëëëë

buttons to move the

buttons to choose each

Programme number (PR) for which you will register a new TV channel

Press the green button and start the

INSERT function

To cancel the INSERT function:

Press the

(Information) button.

Press the blue button to display the ID LIST

(channel name list)

Press the

ëë

buttons to choose the

channel name (ID)

To cancel the ID function:

Press the

(Information) button.

button to give a channel

3333

name (ID) to a TV channel

Press the number buttons to enter the

remaining CH number

The TV shifts to registration mode.

When the registration is completed, the picture of the TV channel appears on the screen.

• The CH number is a number given to each

broadcast frequency that carries a TV channel. If the TV cannot detect the TV channel corresponding to the broadcast frequency indicated by the CH number, a “no-signal” picture appears.

'(/(7(

CH Channel

CH 21 E21 CH 22 E22 CH 23 E23 CH 24 E24 CH 25 E25 CH 26 E26 CH 27 E27 CH 28 E28 CH 29 E29 CH 30 E30 CH 31 E31 CH 32 E32 CH 33 E33 CH 34 E34 CH 35 E35 CH 36 E36 CH 37 E37 CH 38 E38 CH 39 E39 CH 40 E40 CH 41 E41 CH 42 E42 CH 43 E43 CH 44 E44 CH 45 E45

CH Channel

CH 46 E46 CH 47 E47 CH 48 E48 CH 49 E49 CH 50 E50 CH 51 E51 CH 52 E52 CH 53 E53 CH 54 E54 CH 55 E55 CH 56 E56 CH 57 E57 CH 58 E58 CH 59 E59 CH 60 E60 CH 61 E61 CH 62 E62 CH 63 E63 CH 64 E64 CH 65 E65 CH 66 E66 CH 67 E67 CH 68 E68 CH 69 E69

'(/(7(

'(/(7('(/(7(

Press the

buttons to choose a TV

ëë

channel

Every time you press the ë buttons, the programme number (PR) changes over, and the picture of the TV channel stored in the programme number list (PR) appears on the screen.

Press the yellow button to delete the TV

channel

The TV channel is deleted from the programme numbers (PR) list.

0$18$/

0$18$/0$18$/

INSTALL

&+#180%(5

■■■■

&+#180%(5&+#180%(5

• When you want to use the INSERT function on page 26,

find the CH number corresponding to the channel number of the TV channel from this table.

If you want to know a particular TV channel’s channel menu, look in TV listings magazines or contact the broadcaster.

Press the

programme number (PR) for a new TV channel

Press the blue button to activate the

MANUAL function

To cancel the MANUAL function:

Press the

Press the green or red button to search for

a TV channel

Scanning stops when the TV finds a TV channel. Then the TV channel is displayed.

Press the green or red button repeatedly

until the TV channel you want appears

If the TV channel reception is poor:

Press the blue or yellow button to fine-tune the TV channel.

Press the

channel to a programme number (PR)

The normal EDIT menu appears.

ëë

buttons to choose a

(Information) button.

button and register the TV

3333

'(02

'(02'(02

The DEMO function automatically demonstrates some of the TV functions.

To display the DEMO menu:

Press the

(main menu)

button to display the MENU

3333

Press the

Then press the Press the

Press the

setting

The DEMO function is set to ON, and the demonstration will start.

To stop the demonstration:

Press one of the buttons on the remote control.

When the DEMO function is set to ON:

Each time the TV is turned on, the demonstration starts automatically. If you do not want that to happen, cancel the DEMO function:

ëëëë

buttons to choose DEMO.

button

3333

ëëëë

buttons to choose ON

button to complete the

3333

1 Display the DEMO menu again 2 Press the

3 Press the

function

ëëëë

buttons to choose OFF

button to cancel the DEMO

3333

2WKHU#PHQXV

2WKHU#PHQXV2WKHU#PHQXV

'RZQORDGLQJ#GDWD#WR#D#9&5

■■■■

'RZQORDGLQJ#GDWD#WR#D#9&5'RZQORDGLQJ#GDWD#WR#D#9&5

You can send to the latest programme numbers (PR) data to a VCR with the T-V LINK function.

•You can only do this when a T-V LINK compatible VCR is connected to the EXT-2 terminal.

•This only works when the T-V LINK menu is being displayed.

Turn on the VCR

Press the

The data transmission begins.

The T-V LINK menu disappears once the data transmission ends.

When the T-V LINK menu changes over to another menu:

The TV has finished its menu. This new menu is opperated from the VCR. See the VCR instruction manual for what to do next.

• If “FEATURE NOT AVAILABLE” appears at the T-V

LINK menu, check the following three items. Then press the

− Has a T-V LINK compatible VCR been

connected to the EXT-2 terminal?

− Has the VCR power been turned on?

− Does the SCART cable that connects the EXT-2

terminal to the T-V LINK compatible VCR have all its proper connections?

8VLQJ#WKH#'(&2'(5#+(;705,##

■■■■

8VLQJ#WKH#'(&2'(5#+(;705,##8VLQJ#WKH#'(&2'(5#+(;705,## IXQFWLRQ

IXQFWLRQ

IXQFWLRQIXQFWLRQ

If you have a decoder connected to a T-V LINK compatible VCR, which in turn is connected to the EXT-2 terminal, use the DECODER (EXT-2) function to unscramble the scrambled TV channels.

Turn on the decoder power

Display the scrambled TV channel on the

Even if the decoder is working, a scrambled picture appears.

button

3333

button to retry data transmission.

3333

Press the

FEATURES. Then press the

The FEATURES menu appears.

Press the

DECODER (EXT-2) . Then press the buttons to choose ON

An unscrambled picture appears.

To cancel the DECODER (EXT-2) function:

Press the

setting

The T-V LINK menu appears.

Follow “Downloading data to a VCR” on

page 29 to transmit the programme number (PR) data to the VCR

If you have another TV channel you want to

unscramble using a decoder, repeat steps 2 to 7.

• If the DECODER (EXT-2) function has been set to

“ON” but the TV channel cannot be unscrambled, check the following:

ìììì

− Has the decoder been connected to the VCR

properly according to the VCR and decoder instruction manuals?

− Has the decoder power been turned on?

−

Can the TV channel be unscrambled with a decoder?

− Do you need to change the VCR settings in order

to connect the decoder? Confirm that the VCR is set properly by rechecking the VCR Instruction manual.

buttons to choose

ëëëë

3333

buttons to choose

ëëëë

buttons to choose OFF.

button to complete the

3333

button.

ìììì

Press the

The MENU (main menu) appears.

button to display the MENU

3333

)XUWKHU#SUHSDUDWLRQ

(Behind the door)

)XUWKHU#SUHSDUDWLRQ

)XUWKHU#SUHSDUDWLRQ)XUWKHU#SUHSDUDWLRQ

&RQQHFWLQJ#H[WHUQDO#HTXLSPHQW

■■■■

&RQQHFWLQJ#H[WHUQDO#HTXLSPHQW&RQQHFWLQJ#H[WHUQDO#HTXLSPHQW

Connect the equipment to the TV, making the correct rear panel and front panel connections.

Before connecting anything:

• Read the manuals that came with the equipment.

Depending on the equipment, the connection method may be different from the diagram. Also, the equipment settings may need to change depending on the connection method.

• Turn off all the equipment including the TV.

• The “Specifications” on page 34 give the details of the

EXT terminals. If you are connecting equipment not listed in the following connection diagram, see the table to choose the best EXT terminal.

• Connecting cables are not supplied.

1 VCR (composite signal) 2 VCR (composite signal/S-VIDEO signal) 3 T-V LINK compatible VCR (composite signal/S-VIDEO

signal)

4 Decoder 5 DVD player (composite signal/S-VIDEO signal) 6 DVD player (composite signal/RGB signal) 7 TV game (composite signal/RGB signal) 8 TV game (composite signal/S-VIDEO signal) 9 Headphones 0 Camcorder (composite signal/S-VIDEO signal)

- SCART cable

= Audio cable ~ Video cable ! S-VIDEO cable

EXT-2

EXT-3

EXT-1

EXT-2

EXT-1

EXT-3

(TXLSPHQW#ZKLFK#FDQ#RXWSXW#WKH#

(TXLSPHQW#ZKLFK#FDQ#RXWSXW#WKH#(TXLSPHQW#ZKLFK#FDQ#RXWSXW#WKH# 609,'(2#VLJQDO#+<2&#VLJQDO,#VXFK#DV

609,'(2#VLJQDO#+<2&#VLJQDO,#VXFK#DV

609,'(2#VLJQDO#+<2&#VLJQDO,#VXFK#DV609,'(2#VLJQDO#+<2&#VLJQDO,#VXFK#DV DQ#609+6#9&5

DQ#609+6#9&5

DQ#609+6#9&5DQ#609+6#9&5

Connect the equipment to an EXT terminal (but not the EXT-1 terminal).

You can choose between an S-VIDEO signal (Y/C signal) and a regular video signal (composite signal). For details of how to operate the equipment, see “K(S-VIDEO input)” on page 20.

709#/,1.#FRPSDWLEOH#9&5

709#/,1.#FRPSDWLEOH#9&5709#/,1.#FRPSDWLEOH#9&5

Be sure to connect the T-V LINK compatible VCR to the EXT-2 terminal. If not, the T-V LINK function will not work properly.

• When connecting a T-V LINK compatible VCR to the

EXT-2 terminal, be sure to connect the decoder to the VCR. If not, the T-V LINK function may not work properly. After you have stored TV channels in the programme numbers (PR) list, set the DECODER (EXT-2) function for the programme number (PR) to ON to unscramble a scrambled TV channel. For details, see “Using the DECODER (EXT-2) function” on page 29.

Further preparation

&RQQHFWLQJ#KHDGSKRQHV

&RQQHFWLQJ#KHDGSKRQHV&RQQHFWLQJ#KHDGSKRQHV

Connect the headphones with a stereo mini-jack (3.5mm diameter) to the headphone jack at the TV front panel.

• When you connect the headphones, the TV speakers go

off.

9LGHR#RU# VRXQG#VLJQDO#RXWSXW#IURP

9LGHR#RU# VRXQG#VLJQDO#RXWSXW#IURP9LGHR#RU# VRXQG#VLJQDO#RXWSXW#IURP WKH#(;705#WHUPLQDO

WKH#(;705#WHUPLQDO

WKH#(;705#WHUPLQDOWKH#(;705#WHUPLQDO

You can change over the output of the video/sound signal from the EXT-2 terminal. This is useful when you want to dub the video/sound from another device onto the VCR connected to the EXT-2 terminal. For details on how to do this, see “DUBBING” on page 21.

79#RXWSXW#IURP#WKH#(;704#WHUPLQDO

79#RXWSXW#IURP#WKH#(;704#WHUPLQDO79#RXWSXW#IURP#WKH#(;704#WHUPLQDO

The video/sound signal of a TV channel you are viewing is always output from the EXT-1 terminal.

• Changing over a programme number (PR) also changes

over the TV output from the EXT-1 terminal.

• The video/sound signal from an EXT terminal cannot be

output.

• Teletext programmes cannot be output.

79#EXWWRQV#DQG#SDUWV

79#EXWWRQV#DQG#SDUWV79#EXWWRQV#DQG#SDUWV

)URQW#SDQHO

■■■■

)URQW#SDQHO)URQW#SDQHO

Push to open

(Behind the cover)

1 Remote control sensor and ECO sensor 5 P 2 Headphone jack (mini jack) page 30 6 Power lamp pages 5 and 8 3 EXT-4 terminal pages 20 and 30 7 Main power button pages 5 and 8

(Volume) button page 10

DDDD

•Do not hold the TV by the front panel cover when moving the TV set. If you do, you may break the cover.

5HDU#3DQHO

■■■■

5HDU#3DQHO5HDU#3DQHO

EXT-2

EXT-3

EXT-1

8 Aerial socket page 4 0 EXT-2 terminal pages 4, 7, 20 and 30 9 EXT-1 terminal pages 4, 20 and 30 - EXT-3 terminal pages 20 and 30

buttons / CCCC buttons page 10

∨∨∨∨/∧

∧

∧ ∧

EXT-2

EXT-3

EXT-1

7URXEOHVKRRWLQJ

7URXEOHVKRRWLQJ7URXEOHVKRRWLQJ

If a problem arises while you are using the TV, please read this troubleshooti ng guide carefully before you ask to have the TV repaired. You may be able to fix it easily by yourself. For example, if the mains plug is disconnected from the mains outlet, or the TV aerial has problems, you may think there is a problem with the TV itself.

Important:

•This troubleshooting guide only covers problems whose causes are not easy to decide. If you have a question when you are operating a function, read the page(s) for that function carefully, not this troubleshooting guide.

•If you follow the advice in this troubleshooting guide without any success, unplug the mains plug and ask for your TV to be repaired. Do not attempt to repair the TV by yourself or to remove the rear cover of the TV.

,I#\RX#FDQQRW#WXUQ#RQ#WKH#79

,I#\RX#FDQQRW#WXUQ#RQ#WKH#79,I#\RX#FDQQRW#WXUQ#RQ#WKH#79

•Is the mains plug connected to the mains outlet?

•Is the power lamp lit? If not, press the main power button.

1R#SLFWXUH#RU#QR#VRXQG

1R#SLFWXUH#RU#QR#VRXQG1R#SLFWXUH#RU#QR#VRXQG

•Have you chosen a TV channel with very poor reception? If so, the BLUE BACK function will be activated: the entire screen becomes blue, and the sound is muted. If you still want to view the TV channel, follow the description “BLUE BACK” on page 22 to try to change the BLUE BACK function setting to OFF.

•Have you connected he ad ph on es to the TV? Connecting headphones to the TV turns off the TV speakers.

3RRU#SLFWXUH

3RRU#SLFWXUH3RRU#SLFWXUH

•If noise (snow) totally block out the picture, there may be a problem with the aerial or aerial cable. Check the following to try to solve the problem:

− Have the TV and aerial been connected properly?

− Has the aerial cable been damaged?

− Is the aerial pointing in the right direction?

− Is the aerial itself faulty?

•If the TV or aerial suffers interference from other equipment,

stripes or noise may appear in the picture. Move any equipment sach as an amplifier, personal computer, or a hair drier, that can cause interference away from your TV. Or try moving the TV. If the aerial suffers interference from a radio tower or high-voltage wire, please contact your local dealer.

•If the TV suffers interference from signals reflecting from mountains or buildings, double-pictures (ghosting) will occur. Try to change the aerial’s direction or replace it with one with better directionality.

•Are your COLOUR SYSTEM settings correct? Follow the description “COLOUR SYSTEM” on page 18 to try to solve the trouble.

•Have the COLOUR and BRIGHT settings been adjusted properly? Follow the description “Picture adjustment” on page 17 to try to adjust them properly.

•Videotaping teletext is not recommended because it may not record correctly.

•When a white and bright still image (such as a white dress) is displayed on the screen, the white part may look as if it is coloured. This is unavoidable due to the nature of the picture tube itself, and not due to a TV failure. When the picture disappears from the screen, the unnatural colours will also disappear.

3RRU#VRXQG

3RRU#VRXQG3RRU#VRXQG

•Have you adjusted BASS or TREBLE properly? If not, follow the description “Sound adjustment” on page 19.

•When TV channel reception is poor, it can be hard to hear stereo or bilingual sound. In this case, follow the description “STEREO / I•II” on page 19 to hear the sound more easily by changing it to a mono sound.

,I#WKH#79#GRHV#QRW#UHVSRQG#WR#WKH#

,I#WKH#79#GRHV#QRW#UHVSRQG#WR#WKH#,I#WKH #79#GRHV#QRW#UHVSRQG#WR#WKH# UHPRWH#FRQWURO

UHPRWH#FRQWURO

UHPRWH#FRQWUROUHPRWH#FRQWURO

•Have the batteries of the remote control worn out? Follow the description “Putting batteries into the remote control” on page 4 and replace them with new batteries.

•Have you attempted to use the remote control from the sides or rear of the TV or from more than seven metres away from the TV ? Use the remote control in the front of your TV or from less than seven metres away.

•When you are viewing a teletext programme, you cannot operate the menus. Press the ordinary TV programme, and then try operating the menus.

•If the TV will not respond suddenly, press the main power button on the TV and turn off the main power. Press the main power button again to turn on the TV. If the TV returns to a normal state, it is not a failure.

2WKHU#LVVXHV

2WKHU#LVVXHV2WKHU#LVVXHV

•When the SLEEP TIMER function operates, the TV is automatically turned off. If the TV is turned off suddenly, try to press the = (standby) button to turn on the TV once again. If the TV goes back to normal, there is no problem.

•When a WSS signal is included in the broadcast signal or the signal from an external device, or when the TV is receiving a control signal from an external device, the ZOOM mode will change automatically. When you want to return to the previous ZOOM mode, press the 5555 button to choose the ZOOM mode again.

•If you bring a magnetised device such as a speaker near to your TV, the picture may be warped or unnatural colors now appear at the corners of the screen. In this case, keep the device away from your TV. If speakers cause this to happen, use magnetic-shielded speakers instead.

•The TV may make a crackling sound due to a sudden change in temperature. The picture or sound may be nomal. If you hear crackling sounds frequently while you are viewing the TV, there may be other causes. As a precaution, ask your service technician to inspect it.

•Touching the screen may cause you to feel a slight electric shock due to its static electricity. This is unavoidable due to the construction of the picture tube. It is not a problem with the TV. You can rest assured that this static discharge is not harmful.

button to return to the

6SHFLILFDWLRQV

6SHFLILFDWLRQV6SHFLILFDWLRQV

Model

Item

Broadcasting systems CCIR I Colour systems PAL

•

The EXT terminals also support the NTSC 3.58/4.43 MHz system.

Channels and frequencies Sound-multiplex systems NICAM (I) system Teletext systems FLOF (Fastext), WST (World Standard Text) Power requirements 220 - 240 V AC, 50 Hz Power consumption Maximum: 156 W, Average: 122 W,

Picture tube size Viewable area 66 cm (measured diagonally) Audio output Rated Power output: 5 W + 5 W Speakers (10 cm EXT-1 terminal Euroconnector (21-pin, SCART)

EXT-2 terminal Euroconnector (21-pin, SCART)

EXT-3 terminal Euroconnector (21-pin, SCART)

EXT-4 terminal RCA connectors × 3

Headphone jack Stereo mini-jack (3.5 mm in diameter) Dimensions (W Weight 34.2 kg 23.1 kg Accessories Remote control unit

H × D) 716 mm × 489 mm × 496 mm 645 mm × 427 mm × 443 mm

E21-E69

Standby: 0.8 W

•

Video input, Audio L/R inputs and RGB inputs are available.

•

TV broadcast outputs (Video and Audio L/R) are available.

•

Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

•

Video and Audio L/R outputs are available.

•

T-V LINK functions are available.

•

Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

S-VIDEO connector

•

Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

AAA/R03 dry cell battery

AV28WT5EK*

3 cm) oval × 2

Maximum: 127 W, Average: 92 W, Standby: 0.8 W

Viewable area 56 cm (measured diagonally)

1 (RM-C55 (Silver) or RM-C51 (Black) is supplied.)

AV24WT5EK*

* A basic model number. The actual model number may have characters added (such as “S” for silver) showing the

colour of the TV set.

We may change the design and specifications without notice.

Pictures displayed on the screen using this TV’s ZOOM functions should not be shown for any commercial or demonstration purpose in public places (cafes, hotels, etc.) without the consent of the owners of copyright of the original picture sources, as this would be an infringement of copyright.

Specifications

AV28WT5EK/AV24WT5EK

LCT0899-001B-U 0101-T-CR-JMUK

JVC AV-28WT5, AV-24WT5 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
