JVC AV-28H5BL-B, AV-28H5BU-B, AV-28H5SL-B, AV-28H5SR-B, AV-28H5SU-B Service Manual

SERVICE MANUAL

COLOUR TELEVISION

YA263E20061

AV-28H5BL/B, AV-28H5BL/Q, AV-28H5BU/B, AV-28H5BU/Q,
AV-28H5SL
AV-28H5SU

/B,AV-28H5SL/Q,AV-28H5SR/B,AV-28H5SR/Q,

/B,AV-28H5SU/Q,AV-28H50SU/B,AV-28H50SU/Q,

BASIC CHASSIS

ML3

AV-32H5BU
AV-32H5SU
AV-32H57SU

/B,AV-32H5BU/Q,AV-32H5SR/B,AV-32H5SR/Q,

/B,AV-32H5SU/Q,AV-32H50SU/B,AV-32H50SU/Q,

/B,AV-32H57SU/Q

Supplementary

The following items for the A models and B models were changed partly from C models and D models.
Therefore, this service manual describes only the items which differ from those of the C models and
D models service manual.
For details other than those described in this manual, please refer to the C models service manual (No.YA263,
2005/4)(No.YA263D, 2006/1) D models service manual (No.YA263B, 2005/10)(No.YA263D, 2006/1).

A models B models C models D models

AV-28H5BL/B, AV-28H5BU/B,
AV-28H5SL/B, AV-28H5SR/B,
AV-28H5SU/B, AV-28H50SU/B,
AV-32H5BU/B, AV-32H5SR/B,
AV-32H5SU/B, AV-32H50SU/B,
AV-32H57SU/B

AV-28H5BL/Q, AV-28H5BU/Q,
AV-28H5SL/Q, AV-28H5SR/Q,
AV-28H5SU/Q, AV-28H50SU/Q,
AV-32H5BU/Q, AV-32H5SR/Q,
AV-32H5SU/Q, AV-32H50SU/Q,
AV-32H57SU/Q

AV-28H5BL, AV-28H5BU,
AV-28H5SL, AV-28H5SR,
AV-28H5SU, AV-28H50SU,
AV-32H5BU, AV-32H5SR,
AV-32H5SU, AV-32H50SU,
AV-32H57SU

AV-28H5BL/P, AV-28H5BU/P,
AV-28H5SL/P, AV-28H5SR/P,
AV-28H5SU/P, AV-28H50SU/P,
AV-32H5BU/P, AV-32H5SR/P,
AV-32H5SU/P, AV-32H50SU/P,
AV-32H57SU/P

HOW TO IDENTIFY MODELS

"/B" models : "BE" is added to the serial No. after at the Rating label.
"/Q" models : "QE" is added to the serial No. after at the Rating label.

AV-28H5BL AV-28H5BU AV-28H5SL AV-28H5SR
AV-28H5SU AV-28H50SU AV-32H5BU AV-32H5SR
AV-32H5SU AV-32H50SU AV-32H57SU

BE

QE

Indicated

COPYRIGHT © 2006 Victor Company of Japan, Limited

No.YA263E

2006/1

DIFFERENCE LIST

USING P.W. BOARD

AV-28H5BU
AV-28H5BL

P.W.B ASS'Y Name

MAIN PWB SML-1302A-U2 ← SML-1312A-U2 ←

POWER & DEF PWB SML-2302A-S2 SML-2302A-H3 SML-2312A-U2 SML-2312A-H3

CRT SOCKET PWB SML-3302A-U2 SML-3302A-H3 SML-3312A-U2 SML-3312A-H3

SIDE CONTROL PWB SML-8131A-U2 SML-8131A-H3 SML-8141A-U2 SML-8141A-H3

FRONT CONTROL PWB SML-8301A-U2 SML-8301A-H3 SML-8311A-U2 SML-8311A-H3

AV JACK PWB SML0J301A-U2 SML0J301A-H3 SML0J311A-U2 SML0J311A-H3

100HZ PWB SML0Z301A-U2 ← SML0Z311A-U2 ←

P.W.B ASS'Y Name AV-28H50SU AV-28H50SU/P AV-28H50SU/B AV-28H50SU/Q Description

MAIN PWB SML-1302A-U2 ← SML-1312A-U2 ←

POWER & DEF PWB SML-2302A-S2 SML-2302A-H3 SML-2312A-U2 SML-2312A-H3

CRT SOCKET PWB SML-3302A-U2 SML-3302A-H3 SML-3312A-U2 SML-3312A-H3

SIDE CONTROL PWB SML-8133A-U2 SML-8133A-H3 SML-8143A-U2 SML-8143A-H3

FRONT CONTROL PWB SML-8302A-U2 SML-8302A-H3 SML-8312A-U2 SML-8312A-H3

AV JACK PWB SML0J301A-U2 SML0J301A-H3 SML0J311A-U2 SML0J311A-H3

100HZ PWB SML0Z301A-U2 ← SML0Z311A-U2 ←

P.W.B ASS'Y Name

MAIN PWB SML-1301A-U2 ← SML-1311A-U2 ←

POWER & DEF PWB SML-2301A-S2 SML-2301A-H3 SML-2311A-U2 SML-2311A-H3

CRT SOCKET PWB SML-3301A-U2 SML-3301A-H3 SML-3311A-U2 SML-3311A-H3

SIDE CONTROL PWB SML-8131A-U2 SML-8131A-H3 SML-8141A-U2 SML-8141A-H3

FRONT CONTROL PWB SML-8301A-U2 SML-8301A-H3 SML-8311A-U2 SML-8311A-H3

AV JACK PWB SML0J301A-U2 SML0J301A-H3 SML0J311A-U2 SML0J311A-H3

100HZ PWB SML0Z301A-U2 ← SML0Z311A-U2 ←

AV-28H5SL
AV-28H5SR
AV-28H5SU

AV-32H5BU
AV-32H5SR
AV-32H5SU

AV-28H5BU/P
AV-28H5BL/P

AV-28H5SL/P
AV-28H5SR/P
AV-28H5SU/P

AV-32H5BU/P
AV-32H5SR/P
AV-32H5SU/P

AV-28H5BU/B
AV-28H5BL/B

AV-28H5SL/B
AV-28H5SR/B
AV-28H5SU/B

AV-32H5BU/B
AV-32H5SR/B
AV-32H5SU/B

AV-28H5BU/Q
AV-28H5BL/Q

AV-28H5SL/Q
AV-28H5SR/Q
AV-28H5SU/Q

AV-32H5BU/Q
AV-32H5SR/Q
AV-32H5SU/Q

Description

Description

P.W.B ASS'Y Name

MAIN PWB SML-1301A-U2 ← SML-1311A-U2 ←

POWER & DEF PWB SML-2301A-S2 SML-2301A-H3 SML-2311A-U2 SML-2311A-H3

CRT SOCKET PWB SML-3301A-U2 SML-3301A-H3 SML-3311A-U2 SML-3311A-H3

SIDE CONTROL PWB SML-8133A-U2 SML-8133A-H3 SML-8143A-U2 SML-8143A-H3

FRONT CONTROL PWB SML-8302A-U2 SML-8302A-H3 SML-8312A-U2 SML-8312A-H3

AV JACK PWB SML0J301A-U2 SML0J301A-H3 SML0J311A-U2 SML0J311A-H3

100HZ PWB SML0Z301A-U2 ← SML0Z311A-U2 ←

1-2 (No.YA263E)

AV-32H50SU
AV-32H57SU

AV-32H50SU/P
AV-32H57SU/P

AV-32H50SU/B
AV-32H57SU/B

AV-32H50SU/Q
AV-32H57SU/Q

Description

EXPLODED VIEW PARTS LIST-1

Ref. No.

V01 W66QDE993X996 W66ERF112X044 ITC Inc.DEF YOKE/PC MAGNET
11 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
22 LC12098-006A-U --- RATING LABEL Not supply
40 SML-3302A-U2 SML-3312A-U2 CRT SOCKET PWB
41 SML-8301A-U2 SML-8311A-U2 FRONT CONTROL PWB
42 SML-2302A-S2 SML-2312A-U2 POWER & DEF PWB
43 SML0J301A-U2 SML0J311A-U2 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1302A-U2 SML-1312A-U2 MAIN PWB
46 SML-8131A-U2 SML-8141A-U2 SIDE CONTROL PWB

Ref. No.

V01 W66QDE993X996 W66ERF112X044 ITC Inc.DEF YOKE/PC MAGNET
11 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
22 LC12098-022A-U --- RATING LABEL Not supply
40 SML-3302A-U2 SML-3312A-U2 CRT SOCKET PWB
41 SML-8301A-U2 SML-8311A-U2 FRONT CONTROL PWB
42 SML-2302A-S2 SML-2312A-U2 POWER & DEF PWB
43 SML0J301A-U2 SML0J311A-U2 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1302A-U2 SML-1312A-U2 MAIN PWB
46 SML-8131A-U2 SML-8141A-U2 SIDE CONTROL PWB

AV-28H5BU AV-28H5BU/B

AV-28H5BL AV-28H5BL/B

Part No.

Part No.

PART NAME DESCRIPTION

PART NAME DESCRIPTION

Ref. No.

V01 W66QDE993X996 W66ERF112X044 ITC Inc.DEF YOKE/PC MAGNET
11 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
22 LC12098-021A-U --- RATING LABEL Not supply
40 SML-3302A-U2 SML-3312A-U2 CRT SOCKET PWB
41 SML-8301A-U2 SML-8311A-U2 FRONT CONTROL PWB
42 SML-2302A-S2 SML-2312A-U2 POWER & DEF PWB
43 SML0J301A-U2 SML0J311A-U2 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1302A-U2 SML-1312A-U2 MAIN PWB
46 SML-8131A-U2 SML-8141A-U2 SIDE CONTROL PWB

Ref. No.

V01 W66QDE993X996 W66ERF112X044 ITC Inc.DEF YOKE/PC MAGNET
11 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
22 LC12394-001A-U --- RATING LABEL Not supply
40 SML-3302A-U2 SML-3312A-U2 CRT SOCKET PWB
41 SML-8301A-U2 SML-8311A-U2 FRONT CONTROL PWB
42 SML-2302A-S2 SML-2312A-U2 POWER & DEF PWB
43 SML0J301A-U2 SML0J311A-U2 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1302A-U2 SML-1312A-U2 MAIN PWB
46 SML-8131A-U2 SML-8141A-U2 SIDE CONTROL PWB

AV-28H5SL AV-28H5SL/B

AV-28H5SR AV-28H5SR/B

Part No.

Part No.

PART NAME DESCRIPTION

PART NAME DESCRIPTION

(No.YA263E)1-3

Ref. No.

V01 W66QDE993X996 W66ERF112X044 ITC Inc.DEF YOKE/PC MAGNET
11 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
22 LC12098-005A-U --- RATING LABEL Not supply
40 SML-3302A-U2 SML-3312A-U2 CRT SOCKET PWB
41 SML-8301A-U2 SML-8311A-U2 FRONT CONTROL PWB
42 SML-2302A-S2 SML-2312A-U2 POWER & DEF PWB
43 SML0J301A-U2 SML0J311A-U2 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1302A-U2 SML-1312A-U2 MAIN PWB
46 SML-8131A-U2 SML-8141A-U2 SIDE CONTROL PWB

AV-28H5SU AV-28H5SU/B

Part No.

PART NAME DESCRIPTION

Ref. No.

11 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
22 LC12097-003A-U --- RATING LABEL Not supply
40 SML-3301A-U2 SML-3311A-U2 CRT SOCKET PWB
41 SML-8301A-U2 SML-8311A-U2 FRONT CONTROL PWB
42 SML-2301A-S2 SML-2311A-U2 POWER & DEF PWB
43 SML0J301A-U2 SML0J311A-U2 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1301A-U2 SML-1311A-U2 MAIN PWB
46 SML-8131A-U2 SML-8141A-U2 SIDE CONTROL PWB

Ref. No.

11 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
22 LC12394-002A-U --- RATING LABEL Not supply
40 SML-3301A-U2 SML-3311A-U2 CRT SOCKET PWB
41 SML-8301A-U2 SML-8311A-U2 FRONT CONTROL PWB
42 SML-2301A-S2 SML-2311A-U2 POWER & DEF PWB
43 SML0J301A-U2 SML0J311A-U2 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1301A-U2 SML-1311A-U2 MAIN PWB
46 SML-8131A-U2 SML-8141A-U2 SIDE CONTROL PWB

AV-32H5BU AV-32H5BU/B

AV-32H5SR AV-32H5SR/B

Part No.

Part No.

PART NAME DESCRIPTION

PART NAME DESCRIPTION

Ref. No.

11 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
22 LC12097-002A-U --- RATING LABEL Not supply
40 SML-3301A-U2 SML-3311A-U2 CRT SOCKET PWB
41 SML-8301A-U2 SML-8311A-U2 FRONT CONTROL PWB
42 SML-2301A-S2 SML-2311A-U2 POWER & DEF PWB
43 SML0J301A-U2 SML0J311A-U2 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1301A-U2 SML-1311A-U2 MAIN PWB
46 SML-8131A-U2 SML-8141A-U2 SIDE CONTROL PWB

1-4 (No.YA263E)

AV-32H5SU AV-32H5SU/B

Part No.

PART NAME DESCRIPTION

Part No.

AV-28H5BU/P

Ref. No.

V01 W66QDE993X996 W66ERF112X044 ITC Inc.DEF YOKE/PC MAGNET
11 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
40 SML-3302A-H3 SML-3312A-H3 CRT SOCKET PWB
41 SML-8301A-H3 SML-8311A-H3 FRONT CONTROL PWB
42 SML-2302A-H3 SML-2312A-H3 POWER & DEF PWB
43 SML0J301A-H3 SML0J311A-H3 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1302A-U2 SML-1312A-U2 MAIN PWB
46 SML-8131A-H3 SML-8141A-H3 SIDE CONTROL PWB

Ref. No.

11 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
40 SML-3301A-H3 SML-3311A-H3 CRT SOCKET PWB
41 SML-8301A-H3 SML-8311A-H3 FRONT CONTROL PWB
42 SML-2301A-H3 SML-2311A-H3 POWER & DEF PWB
43 SML0J301A-H3 SML0J311A-H3 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1301A-U2 SML-1311A-U2 MAIN PWB
46 SML-8131A-H3 SML-8141A-H3 SIDE CONTROL PWB

AV-28H5BL/P

AV-28H5SL/P
AV-28H5SR/P
AV-28H5SU/P

Part No.

AV-32H5BU/P
AV-28H5BL/P

AV-28H5SL/P
AV-32H5SR/P
AV-28H5SU/P

A V - 2 8 H 5 B U / Q
AV-28H5BL/Q

AV-28H5SL/Q
AV-28H5SR/Q
AV-28H5SU/Q

AV-32H5BU/Q
AV-28H5BL/Q

AV-28H5SL/Q
AV-32H5SR/Q
AV-28H5SU/Q

PART NAME DESCRIPTION

PART NAME DESCRIPTION

EXPLODED VIEW PARTS LIST-2

Ref. No.

V01 W66QDE993X996 W66ERF112X044 ITC Inc.DEF YOKE/PC MAGNET
10 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
25 LC12098-013A-U --- RATING LABEL Not supply
40 SML-3302A-U2 SML-3312A-U2 CRT SOCKET PWB
41 SML-8302A-U2 SML-8312A-U2 FRONT CONTROL PWB
42 SML-2302A-S2 SML-2312A-U2 POWER & DEF PWB
43 SML0J301A-U2 SML0J311A-U2 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1302A-U2 SML-1312A-U2 MAIN PWB
46 SML-8133A-U2 SML-8143A-U2 SIDE CONTROL PWB

AV-28H50SU AV-28H50SU/B

Part No.

PART NAME DESCRIPTION

(No.YA263E)1-5

Ref. No.

10 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
25 LC12098-012A-U --- RATING LABEL Not supply
40 SML-3301A-U2 SML-3311A-U2 CRT SOCKET PWB
41 SML-8302A-U2 SML-8312A-U2 FRONT CONTROL PWB
42 SML-2301A-S2 SML-2311A-U2 POWER & DEF PWB
43 SML0J301A-U2 SML0J311A-U2 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1301A-U2 SML-1311A-U2 MAIN PWB
46 SML-8133A-U2 SML-8143A-U2 SIDE CONTROL PWB

AV-32H50SU AV-32H50SU/B

Part No.

PART NAME DESCRIPTION

Ref. No.

10 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
25 LC12098-014A-U --- RATING LABEL Not supply
40 SML-3301A-U2 SML-3311A-U2 CRT SOCKET PWB
41 SML-8302A-U2 SML-8312A-U2 FRONT CONTROL PWB
42 SML-2301A-S2 SML-2311A-U2 POWER & DEF PWB
43 SML0J301A-U2 SML0J311A-U2 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1301A-U2 SML-1311A-U2 MAIN PWB
46 SML-8133A-U2 SML-8143A-U2 SIDE CONTROL PWB

Ref. No.

V01 W66QDE993X996 W66ERF112X044 ITC Inc.DEF YOKE/PC MAGNET
10 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
40 SML-3302A-H3 SML-3312A-H3 CRT SOCKET PWB
41 SML-8302A-H3 SML-8312A-H3 FRONT CONTROL PWB
42 SML-2302A-H3 SML-2312A-H3 POWER & DEF PWB
43 SML0J301A-H3 SML0J311A-H3 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1302A-U2 SML-1312A-U2 MAIN PWB
46 SML-8133A-H3 SML-8143A-H3 SIDE CONTROL PWB

AV-32H57SU AV-32H57SU/B

AV-28H50SU/P AV-28H50SU/Q

Part No.

Part No.

PART NAME DESCRIPTION

PART NAME DESCRIPTION

Part No.

Ref. No.

10 QQR0491-001 QQR0491-001 FERRITE CORE (x2)
40 SML-3301A-H3 SML-3311A-H3 CRT SOCKET PWB
41 SML-8302A-H3 SML-8312A-H3 FRONT CONTROL PWB
42 SML-2301A-H3 SML-2311A-H3 POWER & DEF PWB
43 SML0J301A-H3 SML0J311A-H3 AV JACK PWB
44 SML0Z301A-U2 SML0Z311A-U2 100HZ PWB
45 SML-1301A-U2 SML-1311A-U2 MAIN PWB
46 SML-8133A-H3 SML-8143A-H3 SIDE CONTROL PWB

1-6 (No.YA263E)

AV-32H50SU/P
AV-32H57SU/P

AV-32H50SU/Q
AV-32H57SU/Q

PART NAME DESCRIPTION

PRINTED WIRING BOARD PARTS LIST [AV-28H5BU/B, AV-28H5BL/B, AV-28H5SL/B, AV-28H5SR/B, AV-28H5SU/B]



MAIN P.W. BOARD ASS'Y (SML-1312A-U2)



Ref No. Part No. Part Name Description Local

IC101 MSP3415GQGB8V3M IC
IC201 CXA2089Q-X IC
IC501 LM324D-X IC
IC551 LA6515 IC
IC601 AN5277 IC
IC701 ATE32-28H5BU IC (SERVICE)
IC901 AN78L08-T IC
IC902 MM1565AF-X IC
IC903 L7809CP IC

Q001 2SC3928A/QR/-X TRANSISTOR
Q002 2SC3928A/QR/-X TRANSISTOR
Q101 UN2213-X DIGI TRANSISTOR
Q201 2SC3928A/QR/-X TRANSISTOR
Q202 2SC3928A/QR/-X TRANSISTOR
Q207 UN2226-X DIGI TRANSISTOR
Q210 2SA1530A/QR/-X TRANSISTOR
Q211 UN2215-X TRANSISTOR
Q212 2SA1530A/QR/-X TRANSISTOR
Q213 UN2226-X DIGI TRANSISTOR
Q214 UN2215-X TRANSISTOR
Q215 KTA1267/YG/-T TRANSISTOR
Q216 2SC3928A/QR/-X TRANSISTOR
Q217 KTC3199/YG/-T TRANSISTOR
Q219 2SC3928A/QR/-X TRANSISTOR
Q305 KTC3199/YG/-T TRANSISTOR
Q501 2SC3928A/QR/-X TRANSISTOR
Q502 2SC3928A/QR/-X TRANSISTOR
Q604 2SA1530A/QR/-X TRANSISTOR
Q605 2SC3928A/QR/-X TRANSISTOR
Q606 2SC3928A/QR/-X TRANSISTOR
Q609 2SA1530A/QR/-X TRANSISTOR
Q610 UN2226-X DIGI TRANSISTOR
Q611 UN2226-X DIGI TRANSISTOR
Q701 2SA1530A/QR/-X TRANSISTOR
Q702 2SC3928A/QR/-X TRANSISTOR

D201 UDZS12B-X Z DIODE
D202 UDZS12B-X Z DIODE
D203 UDZS12B-X Z DIODE
D204 UDZS12B-X Z DIODE
D205 UDZS12B-X Z DIODE
D206 UDZS12B-X Z DIODE
D207 UDZS12B-X Z DIODE
D208 UDZS12B-X Z DIODE
D209 UDZS12B-X Z DIODE
D213 UDZS15B-X Z DIODE
D214 UDZS15B-X Z DIODE
D302 UDZS3.9B-X Z DIODE
D501 1SS355-X SI DIODE
D502 1SS355-X SI DIODE
D503 1SS355-X SI DIODE
D504 1SS355-X SI DIODE
D604 1SS355-X SI DIODE
D605 1SS355-X SI DIODE
D606 1SS355-X SI DIODE
D607 1SS355-X SI DIODE
D701 UDZS5.6B-X Z DIODE 1.5k
D702 UDZS5.6B-X Z DIODE 1.5k
D703 UDZS5.6B-X Z DIODE 1.5k
D704 UDZS5.6B-X Z DIODE 1.5k
D705 1SS355-X SI DIODE
D981 1SS355-X SI DIODE
D982 1SS355-X SI DIODE
D983 1SS355-X SI DIODE

C004 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C005 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C006 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C007 QETN1HM-106Z E CAPACITOR 10uF 50V M
C010 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C011 QETN1HM-106Z E CAPACITOR 10uF 50V M
C012 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C013 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C101 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C102 QETN1HM-106Z E CAPACITOR 10uF 50V M
C103 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C104 QETN1CM-107Z E CAPACITOR 100uF 16V M
C105 QETN1HM-106Z E CAPACITOR 10uF 50V M
C106 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C107 QETN1CM-107Z E CAPACITOR 100uF 16V M
C108 QETN1HM-105Z E CAPACITOR 1uF 50V M
C109 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C110 QETN1HM-106Z E CAPACITOR 10uF 50V M

Ω

1/10W J

Ω

1/10W J

Ω

1/10W J

Ω

1/10W J

Ref No. Part No. Part Name Description Local

C111 NCB31CK-105X C CAPACITOR 1uF 16V K
C112 NCB31CK-105X C CAPACITOR 1uF 16V K
C113 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C114 QETN1HM-106Z E CAPACITOR 10uF 50V M
C115 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C116 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C117 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C118 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C119 NDC31HJ-2R0X C CAPACITOR 2pF 50V J
C120 NDC31HJ-2R0X C CAPACITOR 2pF 50V J
C121 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C122 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C123 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C124 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
C201 QETN1HM-106Z E CAPACITOR 10uF 50V M
C202 QETN1HM-106Z E CAPACITOR 10uF 50V M
C203 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C204 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C205 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C206 QETN1HM-106Z E CAPACITOR 10uF 50V M
C207 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C209 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C210 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C213 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C215 QETN1HM-106Z E CAPACITOR 10uF 50V M
C216 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C220 QETN1HM-106Z E CAPACITOR 10uF 50V M
C221 QETN1HM-106Z E CAPACITOR 10uF 50V M
C222 QETN1HM-106Z E CAPACITOR 10uF 50V M
C223 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C224 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C225 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C226 QETN1HM-106Z E CAPACITOR 10uF 50V M
C227 QETN1HM-106Z E CAPACITOR 10uF 50V M
C228 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C229 QETN1HM-106Z E CAPACITOR 10uF 50V M
C230 QENC1EM-106Z BP E CAPACITOR 10uF 25V M
C231 QENC1EM-106Z BP E CAPACITOR 10uF 25V M
C232 QETN1CM-107Z E CAPACITOR 100uF 16V M
C233 QETN1CM-107Z E CAPACITOR 100uF 16V M
C234 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C235 QETN1CM-107Z E CAPACITOR 100uF 16V M
C236 QETN1CM-477Z E CAPACITOR 470uF 16V M
C237 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C238 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C239 QETN1CM-477Z E CAPACITOR 470uF 16V M
C303 QETN1CM-227Z E CAPACITOR 220uF 16V M
C304 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C308 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C310 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C311 NCB31HK-102X C CAPACITOR 1000pF 50V K
C312 NCB31HK-102X C CAPACITOR 1000pF 50V K
C503 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C504 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C505 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C506 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C507 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C508 QETN1CM-107Z E CAPACITOR 100uF 16V M
C509 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C510 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C515 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C551 NCF31CZ-224X C CAPACITOR 0.22uF 16V Z
C552 NCF31CZ-224X C CAPACITOR 0.22uF 16V Z
C553 QETN1EM-476Z E CAPACITOR 47uF 25V M
C554 NCF31CZ-224X C CAPACITOR 0.22uF 16V Z
C555 NCF31CZ-224X C CAPACITOR 0.22uF 16V Z
C561 NDC31HJ-390X C CAPACITOR 39pF 50V J
C612 NCB31HK-272X C CAPACITOR 2700pF 50V K
C613 NCB31HK-272X C CAPACITOR 2700pF 50V K
C614 QETN1HM-105Z E CAPACITOR 1uF 50V M
C615 QETN1HM-105Z E CAPACITOR 1uF 50V M
C619 QETM1VM-228 E CAPACITOR 2200uF 35V M
C622 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C623 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C624 NCB31HK-102X C CAPACITOR 1000pF 50V K
C626 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C627 QETN1HM-106Z E CAPACITOR 10uF 50V M
C629 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C630 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C631 NCB31HK-102X C CAPACITOR 1000pF 50V K
C632 NCB31HK-102X C CAPACITOR 1000pF 50V K
C633 QETN1HM-107Z E CAPACITOR 100uF 50V M
C636 NCB31CK-105X C CAPACITOR 1uF 16V K
C637 NCB31CK-105X C CAPACITOR 1uF 16V K
C638 NCB31HK-102X C CAPACITOR 1000pF 50V K
C701 NCB31CK-104X C CAPACITOR 0.1uF 16V K

(No.YA263E)1-7



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C702 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C711 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C901 QETN1CM-107Z E CAPACITOR 100uF 16V M
C902 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C903 QETN1CM-107Z E CAPACITOR 100uF 16V M
C904 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C905 QETN1HM-106Z E CAPACITOR 10uF 50V M
C906 NCB20JK-225X C CAPACITOR 2.2uF 6.3V K
C907 NDC31HJ-471X C CAPACITOR 470pF 50V J
C908 QETN1AM-477Z E CAPACITOR 470uF 10V M
C909 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C910 QETN1CM-107Z E CAPACITOR 100uF 16V M

R002 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R003 NRSA63J-101X MG RESISTOR 100
R006 NRSA63J-0R0X MG RESISTOR 0
R007 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R008 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R009 NRSA63J-681X MG RESISTOR 680Ω 1/16W J
R010 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R011 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R101 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R102 NRSA63J-101X MG RESISTOR 100
R103 NRSA63J-103X MG RESISTOR 10k
R106 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R201 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R202 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R205 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R206 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R208 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R209 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R210 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R211 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R212 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R213 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R214 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R215 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R216 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R217 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R218 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R220 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R221 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R222 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R226 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R227 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R229 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R232 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R233 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R234 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R235 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R236 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R237 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R238 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R239 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R240 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R241 NRSA63J-101X MG RESISTOR 100
R242 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R243 NRSA63J-101X MG RESISTOR 100
R244 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R245 NRSA63J-101X MG RESISTOR 100
R246 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R247 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R249 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R251 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R253 NRSA63J-153X MG RESISTOR 15k
R255 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R258 NRSA63J-823X MG RESISTOR 82k
R259 NRSA63J-823X MG RESISTOR 82k
R260 NRSA63J-104X MG RESISTOR 100k
R261 NRSA63J-391X MG RESISTOR 390
R262 NRSA63J-391X MG RESISTOR 390
R263 NRSA63J-104X MG RESISTOR 100k
R264 NRSA63J-101X MG RESISTOR 100
R265 NRSA63J-101X MG RESISTOR 100
R266 NRSA63J-101X MG RESISTOR 100
R267 NRSA63J-101X MG RESISTOR 100
R268 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R269 NRSA63J-101X MG RESISTOR 100
R270 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R271 NRSA63J-333X MG RESISTOR 33k
R272 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R273 NRSA63J-222X MG RESISTOR 2.2k
R274 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R275 NRSA63J-391X MG RESISTOR 390
R276 NRSA63J-391X MG RESISTOR 390Ω 1/16W J
R277 NRSA63J-101X MG RESISTOR 100
R278 NRSA63J-222X MG RESISTOR 2.2k
R279 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R280 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R281 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R282 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R283 QRG01GJ-101 OMF RESISTOR 100Ω 1W J
R284 QRK126J-181X UNF C RESISTOR 180Ω 1/2W J
R285 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R286 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R287 QRK126J-151X UNF C RESISTOR 150Ω 1/2W J
R288 NRSA63J-750X MG RESISTOR 75
R289 NRSA63J-101X MG RESISTOR 100
R290 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R291 NRSA63J-560X MG RESISTOR 56Ω 1/16W J
R292 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R293 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R294 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R295 NRSA63J-101X MG RESISTOR 100
R296 NRSA63J-0R0X MG RESISTOR 0
R297 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R298 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R313 QRK126J-331X UNF C RESISTOR 330Ω 1/2W J
R315 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R316 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R317 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R501 NRSA63J-123X MG RESISTOR 12k
R502 NRSA63J-123X MG RESISTOR 12k
R503 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R504 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R505 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J
R506 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R507 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R509 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R510 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R511 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R512 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R513 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R514 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R515 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R516 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R517 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R518 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R519 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R520 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R521 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R523 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J
R524 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J
R525 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R526 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J
R527 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R528 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R529 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R530 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R531 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R532 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R533 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R536 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J
R537 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R542 NRSA63J-0R0X MG RESISTOR 0
R551 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J
R552 NRSA63J-100X MG RESISTOR 10
R553 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J
R554 NRSA63J-562X MG RESISTOR 5.6k
R555 NRSA63J-154X MG RESISTOR 150kΩ 1/16W J
R556 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R557 NRSA63J-100X MG RESISTOR 10Ω 1/16W J
R558 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R559 NRSA63J-333X MG RESISTOR 33k
R560 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R615 NRSA63J-0R0X MG RESISTOR 0
R616 NRSA63J-0R0X MG RESISTOR 0
R617 NRSA63J-272X MG RESISTOR 2.7k
R620 NRSA63J-272X MG RESISTOR 2.7k
R621 NRSA63J-103X MG RESISTOR 10k
R622 NRSA63J-103X MG RESISTOR 10k
R625 NRSA63J-183X MG RESISTOR 18k
R629 NRSA63J-103X MG RESISTOR 10k
R630 NRSA63J-273X MG RESISTOR 27k
R631 NRSA63J-473X MG RESISTOR 47k
R632 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R635 NRSA63J-822X MG RESISTOR 8.2k
R637 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R638 NRSA63J-103X MG RESISTOR 10k
R639 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R640 NRSA63J-681X MG RESISTOR 680
R641 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R642 NRSA63J-681X MG RESISTOR 680
R643 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R644 NRSA63J-0R0X MG RESISTOR 0
R645 NRSA63J-0R0X MG RESISTOR 0
R702 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R703 NRSA63J-221X MG RESISTOR 220Ω 1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

1-8 (No.YA263E)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R704 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R705 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R706 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R707 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R708 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R709 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R710 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J

L001 QQL244K-270Z PEAKING COIL 27uH K
L002 QQL244K-100Z PEAKING COIL 10uH K
L101 QQL244K-4R7Z PEAKING COIL 4.7uH K

CN001 QGB1505J1-35 CONNECTOR B-B (1-35)
CN002 QGC2507C1-96 CONNECTOR (1-96)
CN003 QGB1506L1-16 CONNECTOR B-B (1-16)
CN004 QGB1506L1-16 CONNECTOR B-B (1-16)
CN00B QJK002-041614-E SIN CR C-B WIRE
J601 QNN0596-001 PIN JACK AUDIO OUT
K001 NQR0129-004X FERRITE BEADS
K101 NQR0389-003X FERRITE BEADS
K102 NQR0389-003X FERRITE BEADS
K551 QQR0621-002Z FERRITE BEADS
K552 QQR0621-002Z FERRITE BEADS
K601 NQR0199-001X FERRITE BEADS
K602 NQR0199-001X FERRITE BEADS
LC101 NQR0431-001X EMI FILTER 0.22uF 50V Z



TU001 QAU0442-001 TUNER
X101 QAX0773-001Z CRYSTAL 18.432000MHz

POWER & DEF P.W. BOARD ASS'Y (SML-2312A-U2)



Ref No. Part No. Part Name Description Local

IC401 LA78041 IC
IC461 LM393P IC
IC901 STR-G9656-F3 IC



IC941 QAL0515-002 POWER TRANSF
IC951 SE140N IC
IC961 PQ120RDA1SZ IC

Q461 RDN050N20 POWER MOS FET
Q462 KTC3199/YG/-T TRANSISTOR
Q463 KTC3199/YG/-T TRANSISTOR
Q464 KTA1267/YG/-T TRANSISTOR
Q481 DTC124ESA-T DIGI TRANSISTOR
Q482 KTC3199/YG/-T TRANSISTOR
Q501 BSN304-T MOS FET



Q521 2SC5904-RL POW TRANSISTOR H. OUT
Q581 2SA1208/ST/Z1-T TRANSISTOR
Q582 DTC144ESA-T DIGI TRANSISTOR
Q583 KTC3199/YG/-T TRANSISTOR
Q941 KTC3199/YG/-T TRANSISTOR
Q942 KTC3199/YG/-T TRANSISTOR

D402 1N4003SG-T2 SI DIODE
D461 FR105GT-T3 SI DIODE
D462 1SS133-T2 SI DIODE
D463 1SS133-T2 SI DIODE
D481 1SS133-T2 SI DIODE
D501 1SS244-T2 SI DIODE
D521 V11CA-C1 SI DIODE
D522 FMV-3FU-F1 SI DIODE
D523 MTZJ22B-T2 Z DIODE
D525 FR105GT-T3 SI DIODE
D541 FR105GT-T3 SI DIODE
D542 MTZJ3.9B-T2 Z DIODE
D551 FR105GT-T3 SI DIODE
D552 FR105GT-T3 SI DIODE
D553 FR105GT-T3 SI DIODE
D582 MTZJ7.5B-T2 Z DIODE
D583 MTZJ7.5S-T2 Z DIODE
D584 FR105GT-T3 SI DIODE
D901 D3SBA60 DIODE
D902 FR107GT-T3 SI DIODE
D904 FR105GT-T3 SI DIODE
D905 1SS133-T2 SI DIODE
D906 MTZJ27B-T2 Z DIODE
D907 1SS133-T2 SI DIODE
D910 MTZJ15B-T2 Z DIODE
D911 1SS133-T2 SI DIODE
D931 S1WB/A/60-4101 BRIDGE DIODE
D945 1SS133-T2 SI DIODE
D951 FR305G-FL SI DIODE
D952 FR305G-FL SI DIODE
D953 HER153G-T3 SI DIODE
D954 HER202G-FL SI DIODE

D956 FSF05A20 SI DIODE
D958 MTZJ33B-T2 Z DIODE
D959 1SS133-T2 SI DIODE
D981 1SS133-T2 SI DIODE
D983 1SS133-T2 SI DIODE

C404 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C405 QDC31HJ-820Z C CAPACITOR 82pF 50V J
C406 QETM1VM-108 E CAPACITOR 1000uF 35V M
C408 QETN1VM-337Z E CAPACITOR 330uF 35V M
C409 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C410 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C411 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C414 QCB31HK-682Z C CAPACITOR 6800pF 50V K
C415 QDC31HJ-470Z C CAPACITOR 47pF 50V J
C461 QEZ0414-226 BP E CAPACITOR 22uF 50V M
C462 QFN32DJ-152Z M CAPACITOR 1500pF 200V J
C463 QFN32DJ-152Z M CAPACITOR 1500pF 200V J
C464 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C465 QETN1HM-106Z E CAPACITOR 10uF 50V M
C466 QFP31HJ-272Z PP CAPACITOR 2700pF 50V J
C467 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J
C468 QETN1EM-476Z E CAPACITOR 47uF 25V M
C470 QCS31HJ-470Z C CAPACITOR 47pF 50V J
C471 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C481 QETN1HM-105Z E CAPACITOR 1uF 50V M
C501 QCB32HK-331Z C CAPACITOR 330pF 500V K
C502 QFN32DK-103 M CAPACITOR 0.01uF 200V K
C503 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C521 QFZ0122-112 MPP CAPACITOR 1100pF 1.8kV H
C522 QFZ0196-113 MPP CAPACITOR 0.011uF 1.5kV H
C523 QFN32DJ-393 M CAPACITOR 0.039uF 200V J
C524 QFP32JJ-223 PP CAPACITOR 0.022uF 630V J
C526 QFZ0197-204 MPP CAPACITOR 0.2uF 250V J
C527 QFZ0197-124 MPP CAPACITOR 0.12uF 250V J
C529 QFZ0197-154 MPP CAPACITOR 0.15uF 250V J
C530 QCB32HK-561Z C CAPACITOR 560pF 500V K
C531 QFZ0194-534 MPP CAPACITOR 0.53uF 250V J
C532 QETM2CM-227 E CAPACITOR 220uF 160V M
C533 QETN2EM-475Z E CAPACITOR 4.7uF 250V M
C541 QFVF1HJ-105Z MF CAPACITOR 1uF 50V J
C551 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C552 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C553 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C554 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C556 QETN2EM-106Z E CAPACITOR 10uF 250V M
C558 QETN1CM-477Z E CAPACITOR 470uF 16V M
C581 QETN1CM-107Z E CAPACITOR 100uF 16V M
C582 QETN1EM-476Z E CAPACITOR 47uF 25V M
C583 QETN2AM-106Z E CAPACITOR 10uF 100V M
C584 QETN1AM-227Z E CAPACITOR 220uF 10V M



C901 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K



C902 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K



C903 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K



C904 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C905 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C906 QCZ9054-472 C CAPACITOR 4700pF AC250V Z
C907 QEZ0649-227 E CAPACITOR 220uF 400V M
C908 QCB32HK-103 C CAPACITOR 0.01uF 500V K
C909 QCZ0340-391 C CAPACITOR 390pF 2kV K
C910 QETN1HM-476Z E CAPACITOR 47uF 50V M
C911 QCB31HK-102Z C CAPACITOR 1000pF 50V K
C912 QCZ0340-561 C CAPACITOR 560pF 2kV K
C914 QCB31HK-471Z C CAPACITOR 470pF 50V K
C915 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C916 QCB32HK-152Z C CAPACITOR 1500pF 500V K



C931 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C932 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C933 QCZ9054-472 C CAPACITOR 4700pF AC250V Z
C934 QEZ0632-226 E CAPACITOR 22uF 400V M
C941 QTMN1CM-477Z E CAPACITOR 470uF 16V M
C942 QETN1AM-337Z E CAPACITOR 330uF 10V M
C951 QEZ0203-227 E CAPACITOR 220uF 160V M
C952 QEZ0255-228 E CAPACITOR 2200uF 16V M
C953 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C954 QETM1VM-228 E CAPACITOR 2200uF 35V M
C956 QETM1AM-338 E CAPACITOR 3300uF 10V M
C959 QFVF1HJ-684Z MF CAPACITOR 0.68uF 50V J
C960 QCZ0325-821 C CAPACITOR 820pF 2kV K
C968 QETM1AM-338 E CAPACITOR 3300uF 10V M



C991 QCZ9079-102 C CAPACITOR 1000pF AC250V M



C993 QCZ9079-222 C CAPACITOR 2200pF AC250V M

R401 QRE141J-562Y C RESISTOR 5.6k
R402 QRE141J-562Y C RESISTOR 5.6kΩ 1/4W J
R403 QRE141J-222Y C RESISTOR 2.2k
R404 QRX01GJ-1R0 MF RESISTOR 1
R405 QRL029J-151 OMF RESISTOR 150Ω 2W J
R406 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1W J

(No.YA263E)1-9



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R407 QRX01GJ-1R5 MF RESISTOR 1.5Ω 1W J
R408 QRX01GJ-1R5 MF RESISTOR 1.5Ω 1W J
R409 QRE141J-823Y C RESISTOR 82kΩ 1/4W J
R410 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R461 QRG029J-820 OMF RESISTOR 82Ω 2W J
R462 QRE141J-473Y C RESISTOR 47kΩ 1/4W J
R463 QRE141J-682Y C RESISTOR 6.8kΩ 1/4W J
R464 QRX01GJ-2R7 MF RESISTOR 2.7
R468 QRE141J-102Y C RESISTOR 1k
R469 QRE141J-272Y C RESISTOR 2.7kΩ 1/4W J
R471 QRE141J-391Y C RESISTOR 390Ω 1/4W J
R472 QRA14CF-1002Y CMF RESISTOR 10kΩ 1/4W F
R473 QRE141J-473Y C RESISTOR 47kΩ 1/4W J
R474 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R475 QRE141J-102Y C RESISTOR 1k
R476 QRE141J-102Y C RESISTOR 1k
R477 QRE141J-563Y C RESISTOR 56kΩ 1/4W J
R478 QRE141J-333Y C RESISTOR 33kΩ 1/4W J
R481 QRE141J-274Y C RESISTOR 270kΩ 1/4W J
R482 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R501 QRE141J-471Y C RESISTOR 470Ω 1/4W J
R502 QRE141J-123Y C RESISTOR 12kΩ 1/4W J
R503 QRE121J-152Y C RESISTOR 1.5k
R504 QRL039J-272 OMF RESISTOR 2.7k
R505 QRL039J-272 OMF RESISTOR 2.7kΩ 3W J
R506 QRE121J-5R6Y C RESISTOR 5.6Ω 1/2W J
R521 QRE121J-471Y C RESISTOR 470Ω 1/2W J
R522 QRE141J-333Y C RESISTOR 33kΩ 1/4W J
R523 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R524 QRC121K-152Z COMP RESISTOR 1.5kΩ 1/2W K
R525 QRL039J-103 OMF RESISTOR 10kΩ 3W J
R541 QRE141J-332Y C RESISTOR 3.3kΩ 1/4W J
R542 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R543 QRE121J-272Y C RESISTOR 2.7kΩ 1/2W J
R551 QRT039J-3R3 MF RESISTOR 3.3Ω 3W J
R552 QRT039J-3R3 MF RESISTOR 3.3Ω 3W J
R581 QRF154K-4R7 UNF WW RESISTOR 4.7Ω 15W K
R582 QRE141J-681Y C RESISTOR 680Ω 1/4W J
R583 QRE121J-682Y C RESISTOR 6.8kΩ 1/2W J
R584 QRE141J-183Y C RESISTOR 18kΩ 1/4W J
R585 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R586 QRA14CF-7151Y CMF RESISTOR 7.15kΩ 1/4W F
R587 QRA14CF-2101Y CMF RESISTOR 2.1kΩ 1/4W F
R588 QRE141J-103Y C RESISTOR 10kΩ 1/4W J



R591 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J
R901 QRE121J-331Y C RESISTOR 330Ω 1/2W J
R902 QRF054K-3R3 UNF WW RESISTOR 3.3Ω 5W K
R903 QRF104K-3R9 UNF WW RESISTOR 3.9Ω 10W K
R904 QRL039J-683 OMF RESISTOR 68kΩ 3W J
R905 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R906 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R908 QRL039J-823 OMF RESISTOR 82kΩ 3W J
R909 QRL039J-823 OMF RESISTOR 82kΩ 3W J
R910 QRE121J-680Y C RESISTOR 68Ω 1/2W J
R911 QRE121J-332Y C RESISTOR 3.3kΩ 1/2W J
R914 QRZ0237-R10 UNF WW RESISTOR 0.1
R915 QRE121J-681Y C RESISTOR 680Ω 1/2W J
R916 QRE121J-152Y C RESISTOR 1.5k
R944 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R945 QRE141J-563Y C RESISTOR 56k
R946 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R949 QRE141J-334Y C RESISTOR 330kΩ 1/4W J
R951 QRE121J-222Y C RESISTOR 2.2kΩ 1/2W J
R952 QRL039J-223 OMF RESISTOR 22kΩ 3W J
R953 QRT039J-R33 MF RESISTOR 0.33
R981 QRE141J-153Y C RESISTOR 15kΩ 1/4W J
R982 QRE141J-102Y C RESISTOR 1k



R991 QRZ9046-825Z C RESISTOR 8.2MΩ 1/2W K



R992 QRZ9046-105Z C RESISTOR 1MΩ 1/2W K

L461 QQR1195-001 CHOKE COIL
L462 QQR1422-001 CHOKE COIL
L521 QQLZ031-180 CHOKE COIL 18uH
L522 QQR1191-002 LINEARITY COIL
L551 QQLZ026-540 COIL 54uH ±7%



L903 QQR1200-001 CHOKE COIL
L941 QQL26AM-4R7Z CHOKE COIL 4.7uH M
L942 QQL26AK-220Z CHOKE COIL 22uH K
L951 QQLZ026-460 COIL 46uH
T5 0 1 QQR1111 - 0 01 LI NEAR I T Y COI L



T901 QQS0258-001 SW TRANSF

CN003 QGB1506M1-16 CONNECTOR B-B (1-16)
CN004 QGB1506M1-16 CONNECTOR B-B (1-16)
CN0HV QGZ8005C3-05 CONNECTOR (1-5)



CP931 QMFZ052-2R0-E FUSE 2A AC250V



CP951 ICP-N75-T IC PROTECTOR 2.7A



CP952 ICP-N75-T IC PROTECTOR 2.7A



CP954 ICP-N75-T IC PROTECTOR 2.7A

Ω

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/2W J

Ω

Ω

1/2W J

Ω

1/4W J

Ω

Ω

1/4W J

1W J

3W J

3W J

±

7%

K401 QQR0621-002Z FERRITE BEADS
K522 QQR1114-001Z FERRITE BEADS
K523 QQR1114-001Z FERRITE BEADS
K524 QQR1114-001Z FERRITE BEADS
K901 QQR1113-001Z FERRITE BEADS
K952 QQR0621-002Z FERRITE BEADS
K953 QQR0621-002Z FERRITE BEADS
K955 QQR0621-002Z FERRITE BEADS



LF901 QQR1095-001 LINE FILTER



PC901 PS2581AL1/QW/ PHOTO COUPLER



RY941 QSK0099-001 RELAY



TH901 QAD0121-9R0 P THERMISTOR 9

Ω

CRT SOCKET P.W. BOARD ASS'Y (SML-3312A-U2)



Ref No. Part No. Part Name Description Local

IC3201 TDA6111Q/N4 IC
IC3202 TDA6111Q/N4 IC
IC3203 TDA6111Q/N4 IC

Q3104 2SC3928A/QR/-X TRANSISTOR
Q3105 2SC1627A/OY/-T SI TRANSISTOR
Q3108 2SA2005/DE/ POW TRANSISTOR
Q3109 2SC5511/DE/ POW TRANSISTOR
Q3301 2SA1530A/QR/-X TRANSISTOR
Q3303 2SA1530A/QR/-X TRANSISTOR
Q3304 2SC3928A/QR/-X TRANSISTOR

D3102 1SS355-X SI DIODE
D3103 FR105GT-T3 SI DIODE
D3104 FR105GT-T3 SI DIODE
D3201 FR105SGT-T2 SI DIODE
D3202 FR105SGT-T2 SI DIODE
D3203 FR105SGT-T2 SI DIODE
D3204 FR105GT-T3 SI DIODE
D3205 1N4003SG-T2 SI DIODE
D3206 1N4003SG-T2 SI DIODE
D3207 1N4003SG-T2 SI DIODE
D3208 MA8062/M/-X Z DIODE
D3209 UDZS13B-X Z DIODE
D3210 UDZS13B-X Z DIODE
D3301 1SS355-X SI DIODE
D3302 1SS355-X SI DIODE
D3303 1SS355-X SI DIODE
D3306 UDZS3.6B-X Z DIODE

C3106 QETN1HM-335Z E CAPACITOR 3.3uF 50V M
C3107 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3110 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3111 QCB32HK-472Z C CAPACITOR 4700pF 500V K

Ω

C3113 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3114 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3116 QETN1AM-107Z E CAPACITOR 100uF 10V M
C3117 QETN1AM-107Z E CAPACITOR 100uF 10V M
C3118 QEHR1AM-337Z E CAPACITOR 330uF 10V M
C3120 NDC31HJ-561X C CAPACITOR 560pF 50V J
C3201 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C3202 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C3203 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C3204 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C3205 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C3206 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C3207 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3208 QEHR1VM-476Z E CAPACITOR 47uF 35V M
C3209 QEHR1VM-476Z E CAPACITOR 47uF 35V M
C3210 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C3211 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C3212 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C3213 NDC31HJ-181X C CAPACITOR 180pF 50V J
C3214 NDC31HJ-181X C CAPACITOR 180pF 50V J
C3215 NDC31HJ-181X C CAPACITOR 180pF 50V J
C3216 QETN1CM-227Z E CAPACITOR 220uF 16V M
C3218 QETM2EM-336 E CAPACITOR 33uF 250V M
C3219 QFZ0097-223 MM CAPACITOR 0.022uF 1.25KV M
C3221 QETN2EM-106Z E CAPACITOR 10uF 250V M
C3222 QETN2EM-106Z E CAPACITOR 10uF 250V M
C3223 QEHR2EM-106Z E CAPACITOR 10uF 250V M
C3224 QETN2EM-106Z E CAPACITOR 10uF 250V M
C3225 NDC31HJ-151X C CAPACITOR 150pF 50V J
C3301 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3303 NCB31CK-563X C CAPACITOR 0.056uF 16V K

Ω

R3103 NRSA63J-101X MG RESISTOR 100
R3109 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R3112 NRSA63J-272X MG RESISTOR 2.7k

1/16W J

Ω

1/16W J

1-10 (No.YA263E)



Ref No. Part No. Part Name Description Local

R3114 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R3115 NRSA63J-560X MG RESISTOR 56Ω 1/16W J
R3116 QRG01GJ-101 OMF RESISTOR 100Ω 1W J
R3117 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R3122 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R3123 QRE121J-563Y C RESISTOR 56kΩ 1/2W J
R3124 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R3125 QRE121J-563Y C RESISTOR 56k
R3126 NRSA63J-470X MG RESISTOR 47
R3127 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R3128 NRSA63J-390X MG RESISTOR 39Ω 1/16W J
R3129 QRE121J-2R7Y C RESISTOR 2.7Ω 1/2W J
R3130 QRE121J-2R7Y C RESISTOR 2.7Ω 1/2W J
R3131 NRSA63J-390X MG RESISTOR 39Ω 1/16W J
R3132 NRSA63J-121X MG RESISTOR 120
R3133 QRL029J-681 OMF RESISTOR 680



R3134 QRZ9021-561 FUSI RESISTOR 560Ω 1W J
R3201 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3202 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3203 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3208 NRSA63J-154X MG RESISTOR 150kΩ 1/16W J
R3209 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R3218 NRSA63J-272X MG RESISTOR 2.7k
R3219 NRSA63J-272X MG RESISTOR 2.7k
R3220 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R3222 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3223 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R3224 QRL029J-104-F OMF RESISTOR 100kΩ 2W J
R3225 QRL029J-104-F OMF RESISTOR 100kΩ 2W J
R3226 QRL029J-104-F OMF RESISTOR 100kΩ 2W J
R3227 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R3228 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R3229 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R3230 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K
R3231 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K
R3232 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K
R3234 QRZ0107-474Z C RESISTOR 470kΩ 1/2W K
R3235 QRZ0107-102Z C RESISTOR 1kΩ 1/2W K
R3236 QRZ0107-105Z C RESISTOR 1MΩ 1/2W K
R3237 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3239 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3240 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R3241 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R3242 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R3301 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R3302 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R3303 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R3304 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R3305 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R3306 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R3308 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R3311 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R3312 NRSA63J-120X MG RESISTOR 12Ω 1/16W J
R3313 NRSA63J-331X MG RESISTOR 330Ω 1/16W J

L3204 QQL26AJ-102Z PEAKING COIL 1mH J

CN300G QJK002-063231-E SIN CR C-B WIRE
CN300R QJB003-093626-E SIN ID C-B WIRE
CN30E1 QGZ8005C3-01 CONNECTOR (1-1)
CN30SC QGZ0017C1-01Z CONNECTOR (1-1)
CN3VM1 WJK0167-001A-E E-SI C WIRE C-B
K3101 QQR1114-001Z FERRITE BEADS
K3103 QQR1114-001Z FERRITE BEADS
K3104 QQR1114-001Z FERRITE BEADS
K3105 QQR0621-002Z FERRITE BEADS
K3202 QQR1113-001Z FERRITE BEADS
SG3201 QAF0078-501Z SURGE ABSORBER 500V
SG3202 QAF0078-501Z SURGE ABSORBER 500V
SG3203 QAF0078-501Z SURGE ABSORBER 500V



SK3001 QNZ0536-001 CRT SOCKET

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

2W J

Ω

1/16W J

Ω

1/16W J

SIDE CONTROL P.W. BOARD ASS'Y (SML-8141A-U2)



Ref No. Part No. Part Name Description Local

C8101 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C8102 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C8103 NCB31HK-102X C CAPACITOR 1000pF 50V K
C8104 NCB31HK-102X C CAPACITOR 1000pF 50V K
C8131 NCB31HK-472X C CAPACITOR 4700pF 50V K
C8132 NCB31HK-472X C CAPACITOR 4700pF 50V K
C8133 NCB31CK-104X C CAPACITOR 0.1uF 16V K

R8101 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R8102 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R8103 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R8111 QRE121J-101Y C RESISTOR 100Ω 1/2W J
R8112 QRE121J-101Y C RESISTOR 100Ω 1/2W J
R8113 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R8114 NRSA63J-102X MG RESISTOR 1k
R8133 NRSA63J-750X MG RESISTOR 75

L8111 QQL244K-5R6Z PEAKING COIL 5.6uH K
L8112 QQL244K-5R6Z PEAKING COIL 5.6uH K
L8131 QQL244K-270Z PEAKING COIL 27uH K
L8132 QQL244K-270Z PEAKING COIL 27uH K

J8111 QNS0257-001 3.5 JACK HEADPHONE
J8131 QNN0591-001 PIN JACK EXT-4(V/L/R)
J8132 QND0084-001 S JACK EXT-4(S)
K8111 NQR0129-004X FERRITE BEADS
K8131 NQR0129-004X FERRITE BEADS
S8101 QSW0619-003Z TACT SWITCH CH UP
S8102 QSW0619-003Z TACT SWITCH MENU
S8103 QSW0619-003Z TACT SWITCH CH DOWN

Ω

1/16W J

Ω

1/16W J

FRONT CONTROL P.W. BOARD ASS'Y
(SML-8311A-U2)



Ref No. Part No. Part Name Description Local

IC8851 GP1UM281QKVF IR DETECT UNIT

Q8801 UN2212-X DIGI TRANSISTOR

D8801 LH22440-T16 LED POWER

C8851 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8852 QETN1CM-107Z E CAPACITOR 100uF 16V M



C8901 QFZ9072-474 MM CAPACITOR 0.47uF AC250V K

R8801 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R8802 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R8804 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R8851 NRSA63J-102X MG RESISTOR 1k
R8852 QRE121J-470Y C RESISTOR 47

CN800W WJK0200-002A-E E-SI C WIRE C-B



F8901 QMF5AD2-3R15-J1 FUSE 3.15A AC250V



LF8901 QQR1095-001 LINE FILTER



S8901 QSW0824-001 PUSH SWITCH POWER

Ω

1/16W J

Ω

1/2W J

(No.YA263E)1-11

AV JACK P.W. BOARD ASS'Y (SML0J311A-U2) 100HZ SW P.W. BOARD ASS'Y (SML0Z311A-U2)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

D0101 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0102 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0103 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0104 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0115 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0116 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0117 UDZS5.6B-X Z DIODE 1.5k
D0118 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0119 UDZS5.6B-X Z DIODE 1.5k
D0121 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J

C0101 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0102 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0103 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0104 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0105 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0106 NCB31HK-221X C CAPACITOR 220pF 50V K
C0107 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0108 NCB31HK-221X C CAPACITOR 220pF 50V K
C0109 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0110 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0111 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C0112 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C0113 NCB31CK-104X C CAPACITOR 0.1uF 16V K

R0101 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0102 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0103 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0104 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0105 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0106 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0107 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0108 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0109 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0203 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0204 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0205 NRSA63J-750X MG RESISTOR 75Ω 1/16W J

CN0001 QGB1505K1-35 CONNECTOR B-B (1-35)
J0001 QNZ0465-001 21P CONNECTOR EXT-3
J0002 QNZ0463-001 21P CONNECTOR EXT-1/EXT-2
K0101 NQR0129-004X FERRITE BEADS
K0102 NQR0129-004X FERRITE BEADS
K0103 NQR0129-004X FERRITE BEADS

Ω

1/10W J

Ω

1/10W J

IC001 SDA5550M-QB IC(MICRO C ROM)
IC002 S-80828CNNB-G-W IC
IC003 LP62S2048AX7LTF IC
IC005 PM39LV027JJ02-W IC
IC191 PQ2L3252MS-X IC
IC201 VSP9402A-VK-B13 IC
IC301 DDP3315C-QA-G3 IC
IC901 R1170H181B-X IC
IC902 MM1563DF-X IC
IC903 MM1565AF-X IC

Q001 2SC3928A/QR/-X TRANSISTOR
Q002 2SK3019-X MOS FET
Q003 2SK3019-X MOS FET
Q202 2SA1530A/QR/-X TRANSISTOR
Q203 2SA1530A/QR/-X TRANSISTOR
Q301 2SA1530A/QR/-X TRANSISTOR
Q302 2SC3928A/QR/-X TRANSISTOR
Q304 2SC4672/PQ/-W POW TRANSISTOR
Q305 2SA1530A/QR/-X TRANSISTOR
Q306 2SA1530A/QR/-X TRANSISTOR
Q307 2SA1530A/QR/-X TRANSISTOR
Q308 2SC3928A/QR/-X TRANSISTOR
QA001 UMX1N-W PAIR TRANSISTOR
QA002 UMX1N-W PAIR TRANSISTOR
QA301 UMX1N-W PAIR TRANSISTOR
QA302 UMT1N-W PAIR TRANSISTOR

D001 1SS355-X SI DIODE
D002 1SS355-X SI DIODE
D003 UDZS6.8B-X Z DIODE
D006 UDZS3.9B-X Z DIODE
D007 UDZS3.9B-X Z DIODE
D301 DA221-X DIODE ARRAY
D302 DA221-X DIODE ARRAY
D303 DA221-X DIODE ARRAY
D304 DA221-X DIODE ARRAY
D305 1SS355-X SI DIODE
D306 DA221-X DIODE ARRAY
D307 UDZS3.9B-X Z DIODE
D308 UDZS3.3B-X Z DIODE
D310 UDZS3.9B-X Z DIODE

C001 NDC31HJ-151X C CAPACITOR 150pF 50V J
C002 NCB31HK-102X C CAPACITOR 1000pF 50V K
C003 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C004 NDC31HJ-330X C CAPACITOR 33pF 50V J
C005 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C006 NDC31HJ-330X C CAPACITOR 33pF 50V J
C007 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C009 NEHL1CM-476X E CAPACITOR 47uF 16V M
C010 NEHL1CM-107X E CAPACITOR 100uF 16V M
C011 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C012 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C013 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C014 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C016 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C017 NEHL1HM-106X E CAPACITOR 10uF 50V M
C019 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C020 NEHL1CM-476X E CAPACITOR 47uF 16V M
C021 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C022 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C023 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C024 NEHL1CM-476X E CAPACITOR 47uF 16V M
C026 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C027 NEHL1CM-476X E CAPACITOR 47uF 16V M
C029 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C030 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C031 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C032 NDC31HJ-151X C CAPACITOR 150pF 50V J
C035 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C191 NEHL1CM-107X E CAPACITOR 100uF 16V M
C192 NCB20JK-225X C CAPACITOR 2.2uF 6.3V K
C193 NCB20JK-225X C CAPACITOR 2.2uF 6.3V K
C194 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C195 NEHL1CM-107X E CAPACITOR 100uF 16V M
C196 NCB20JK-225X C CAPACITOR 2.2uF 6.3V K
C197 NEHL1CM-107X E CAPACITOR 100uF 16V M
C201 NDC31HJ-331X C CAPACITOR 330pF 50V J
C202 NDC31HJ-331X C CAPACITOR 330pF 50V J
C203 NDC31HJ-331X C CAPACITOR 330pF 50V J
C205 NCB31HK-473X C CAPACITOR 0.047uF 50V K
C206 NCB31HK-473X C CAPACITOR 0.047uF 50V K
C207 NCB31HK-473X C CAPACITOR 0.047uF 50V K
C208 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C209 NCB31HK-473X C CAPACITOR 0.047uF 50V K
C210 NCF31AZ-105X C CAPACITOR 1uF 10V Z

1-12 (No.YA263E)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C211 NCB31HK-473X C CAPACITOR 0.047uF 50V K
C212 NCB31HK-473X C CAPACITOR 0.047uF 50V K
C213 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C214 NCB31AK-334X C CAPACITOR 0.33uF 10V K
C215 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C219 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C220 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C221 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C222 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C223 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C224 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C225 NDC31HJ-330X C CAPACITOR 33pF 50V J
C226 NDC31HJ-330X C CAPACITOR 33pF 50V J
C227 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C228 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C229 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C230 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C231 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C233 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C301 NEHL1HM-105X E CAPACITOR 1uF 50V M
C303 NDC31HJ-180X C CAPACITOR 18pF 50V J
C304 NDC31HJ-180X C CAPACITOR 18pF 50V J
C305 NEHL1HM-105X E CAPACITOR 1uF 50V M
C306 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C307 NDC31HJ-561X C CAPACITOR 560pF 50V J
C308 NEHL1HM-105X E CAPACITOR 1uF 50V M
C309 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C311 NDC31HJ-150X C CAPACITOR 15pF 50V J
C312 NCB31HK-562X C CAPACITOR 5600pF 50V K
C313 NCB31HK-333X C CAPACITOR 0.033uF 50V K
C314 NCB31HK-333X C CAPACITOR 0.033uF 50V K
C315 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C316 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C319 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C320 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C321 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C322 NEHL1HM-335X E CAPACITOR 3.3uF 50V M
C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C324 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C325 NEHL1CM-106X E CAPACITOR 10uF 16V M
C329 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C330 NEHL1CM-106X E CAPACITOR 10uF 16V M
C331 NCB31HK-682X C CAPACITOR 6800pF 50V K
C332 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C333 NEHL1CM-106X E CAPACITOR 10uF 16V M
C334 NDC31HJ-561X C CAPACITOR 560pF 50V J
C335 NDC31HJ-561X C CAPACITOR 560pF 50V J
C336 NDC31HJ-561X C CAPACITOR 560pF 50V J
C338 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C341 NDC31HJ-221X C CAPACITOR 220pF 50V J
C342 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C901 NEHL1CM-106X E CAPACITOR 10uF 16V M
C902 NEHL1CM-106X E CAPACITOR 10uF 16V M
C903 NCB10JK-106X C CAPACITOR 10uF 6.3V K
C904 NEHL1CM-106X E CAPACITOR 10uF 16V M
C905 NEHL1CM-106X E CAPACITOR 10uF 16V M
C906 NCB20JK-225X C CAPACITOR 2.2uF 6.3V K
C907 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C908 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C909 NCB20JK-225X C CAPACITOR 2.2uF 6.3V K
C910 NDC31HJ-471X C CAPACITOR 470pF 50V J
C911 NEHL1CM-106X E CAPACITOR 10uF 16V M
C912 NCB11CK-225X C CAPACITOR 2.2uF 16V K
C913 NCB20JK-225X C CAPACITOR 2.2uF 6.3V K
C914 NDC31HJ-471X C CAPACITOR 470pF 50V J
C915 NEHL1CM-107X E CAPACITOR 100uF 16V M
C916 NEHL1CM-106X E CAPACITOR 10uF 16V M
C917 NEHL1CM-106X E CAPACITOR 10uF 16V M
C918 NEHL1CM-106X E CAPACITOR 10uF 16V M

Ω

R001 NRSA63J-102X MG RESISTOR 1k
R002 NRSA63J-104X MG RESISTOR 100k
R003 NRSA63J-334X MG RESISTOR 330k
R004 NRSA63J-102X MG RESISTOR 1k
R008 NRSA63J-221X MG RESISTOR 220
R009 NRSA63J-221X MG RESISTOR 220
R010 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R013 NRSA63J-221X MG RESISTOR 220
R014 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R015 NRSA63J-221X MG RESISTOR 220
R016 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R022 NRSA63J-0R0X MG RESISTOR 0
R023 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R026 NRSA63J-0R0X MG RESISTOR 0
R027 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R028 NRSA63J-0R0X MG RESISTOR 0
R029 NRSA63J-221X MG RESISTOR 220
R030 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R031 NRSA63J-221X MG RESISTOR 220Ω 1/16W J

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R032 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R036 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R037 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R038 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R039 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R040 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R041 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R042 NRSA63J-102X MG RESISTOR 1k
R043 NRSA63J-103X MG RESISTOR 10k
R045 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R046 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R047 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R048 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R049 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R050 NRSA63J-473X MG RESISTOR 47k
R051 NRSA63J-473X MG RESISTOR 47k
R053 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R054 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R055 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R057 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R060 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R061 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R062 NRSA63J-0R0X MG RESISTOR 0
R063 NRSA63J-0R0X MG RESISTOR 0
R064 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R065 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R066 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R068 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R069 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R071 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R072 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R074 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R075 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R076 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R077 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R078 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R080 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R081 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R083 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R084 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R085 NRSA63J-391X MG RESISTOR 390Ω 1/16W J
R086 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R087 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R088 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R089 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R092 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R093 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R094 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R101 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R102 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R105 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R111 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R114 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R201 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R202 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R203 NRSA63J-750X MG RESISTOR 75
R207 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R208 NRSA63J-222X MG RESISTOR 2.2k
R209 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R210 NRSA63J-222X MG RESISTOR 2.2k
R211 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R212 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R213 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R214 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R215 NRSA63J-101X MG RESISTOR 100
R216 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R217 NRSA63J-682X MG RESISTOR 6.8k
R218 NRSA63J-221X MG RESISTOR 220
R219 NRSA63J-103X MG RESISTOR 10k
R221 NRSA63J-221X MG RESISTOR 220
R222 NRSA63J-331X MG RESISTOR 330
R223 NRSA63J-0R0X MG RESISTOR 0
R224 NRSA63J-0R0X MG RESISTOR 0
R227 NRSA63J-0R0X MG RESISTOR 0
R231 NRSA63J-750X MG RESISTOR 75
R232 NRSA63J-750X MG RESISTOR 75
R233 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R234 NRSA63J-0R0X MG RESISTOR 0
R301 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R302 NRSA63J-103X MG RESISTOR 10k
R303 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R304 NRSA63J-0R0X MG RESISTOR 0
R305 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R306 NRSA63J-0R0X MG RESISTOR 0
R309 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R310 NRSA63J-0R0X MG RESISTOR 0
R311 NRSA63J-683X MG RESISTOR 68k
R314 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R315 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

(No.YA263E)1-13



Ref No. Part No. Part Name Description Local

R318 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J
R319 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R320 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R321 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R322 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R323 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R324 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R325 NRSA63J-563X MG RESISTOR 56k
R326 NRSA63J-682X MG RESISTOR 6.8k
R327 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R328 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R329 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R330 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R331 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R332 NRSA63J-101X MG RESISTOR 100
R333 NRSA63J-103X MG RESISTOR 10k
R334 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R336 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J
R337 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R338 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R339 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R341 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R342 NRSA63J-470X MG RESISTOR 47
R343 NRSA63J-330X MG RESISTOR 33
R344 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R345 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R346 NRSA63J-330X MG RESISTOR 33Ω 1/16W J
R347 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R348 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R349 NRSA63J-330X MG RESISTOR 33Ω 1/16W J
R350 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R351 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R352 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R353 NRSA63J-271X MG RESISTOR 270Ω 1/16W J
R354 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R355 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R357 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R358 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R359 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R360 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R362 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R901 NRS12BJ-101W MG RESISTOR 100Ω 1/2W J
R902 NRS12BJ-101W MG RESISTOR 100Ω 1/2W J
R904 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R905 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
RA001 NRZ0040-0R0X NET RESISTOR 0Ω 1/16W J x4
RA002 NRZ0040-0R0X NET RESISTOR 0Ω 1/16W J x4
RA003 NRZ0040-0R0X NET RESISTOR 0Ω 1/16W J x4
RA004 NRZ0040-0R0X NET RESISTOR 0Ω 1/16W J x4
RA005 NRZ0040-0R0X NET RESISTOR 0Ω 1/16W J x4
RA006 NRZ0040-0R0X NET RESISTOR 0Ω 1/16W J x4
RA007 NRZ0040-0R0X NET RESISTOR 0Ω 1/16W J x4
RA301 NRZ0034-471W NET RESISTOR 470Ω 1/32W J x4
RA302 NRZ0034-471W NET RESISTOR 470Ω 1/32W J x4

L001 NQL092K-4R7X COIL 4.7uH K
L002 NQL092K-4R7X COIL 4.7uH K
L003 NQL092K-4R7X COIL 4.7uH K
L004 NQL092K-4R7X COIL 4.7uH K
L005 NQL092K-4R7X COIL 4.7uH K
L006 NQL092K-4R7X COIL 4.7uH K
L007 NRSA02J-0R0X MG RESISTOR 0
L008 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
L009 NQL092K-8R2X P COIL 8.2uH K
L201 NQL092K-3R3X COIL 3.3uH K
L202 NQL092K-3R3X COIL 3.3uH K
L203 NQL092K-3R3X COIL 3.3uH K
L301 NQL914K-100X COIL 10uH K
L901 NQL914K-100X COIL 10uH K
L902 NQL914K-100X COIL 10uH K
L903 NQL914K-100X COIL 10uH K
L904 NQL914K-100X COIL 10uH K

K001 NQR0129-004X FERRITE BEADS
K002 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
K901 NRSA02J-0R0X MG RESISTOR 0
K902 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K905 NRSA02J-0R0X MG RESISTOR 0
K906 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K907 NRSA02J-0R0X MG RESISTOR 0
K908 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
LC001 NQR0415-003X EMI FILTER 0.47uF 16V M
LC002 NQR0415-003X EMI FILTER 0.47uF 16V M
LC003 NQR0415-003X EMI FILTER 0.47uF 16V M
LC004 NQR0415-003X EMI FILTER 0.47uF 16V M
X001 NAX0618-001X CRYSTAL
X201 NAX0661-001X CRYSTAL
X301 NAX0643-001X CRYSTAL

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/10W J

Ω

1/10W J

Ω

1/10W J

Ω

1/10W J

1-14 (No.YA263E)

PRINTED WIRING BOARD PARTS LIST [AV-28H50SU/B]

MAIN P.W. BOARD ASS'Y (SML-1312A-U2)

REFER TO PARTS LIST IN PAGE 3-7 FOR THIS P.W. BOARD.

POWER & DEF P.W. BOARD ASS'Y (SML-2312A-U2)

REFER TO PARTS LIST IN PAGE 3-9 FOR THIS P.W. BOARD.

CRT SOCKET P.W. BOARD ASS'Y (SML-3312A-U2)

REFER TO PARTS LIST IN PAGE 3-10 FOR THIS P.W. BOARD.

SIDE CONTROL P.W. BOARD ASS'Y (SML-8143A-U2)



Ref No. Part No. Part Name Description Local

C8101 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C8102 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C8103 NCB31HK-102X C CAPACITOR 1000pF 50V K
C8104 NCB31HK-102X C CAPACITOR 1000pF 50V K
C8131 NCB31HK-472X C CAPACITOR 4700pF 50V K
C8132 NCB31HK-472X C CAPACITOR 4700pF 50V K
C8133 NCB31CK-104X C CAPACITOR 0.1uF 16V K

R8101 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R8102 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R8103 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R8111 QRE121J-101Y C RESISTOR 100Ω 1/2W J
R8112 QRE121J-101Y C RESISTOR 100Ω 1/2W J
R8113 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R8114 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R8133 NRSA63J-750X MG RESISTOR 75Ω 1/16W J

L8111 QQL244K-5R6Z PEAKING COIL 5.6uH K
L8112 QQL244K-5R6Z PEAKING COIL 5.6uH K
L8131 QQL244K-270Z PEAKING COIL 27uH K
L8132 QQL244K-270Z PEAKING COIL 27uH K

J8111 QNS0257-001 3.5 JACK HEADPHONE
J8131 QNN0591-001 PIN JACK EXT-4(V/L/R)
J8132 QND0084-001 S JACK EXT-4(S)
K8111 NQR0129-004X FERRITE BEADS
K8131 NQR0129-004X FERRITE BEADS
S8101 QSW0619-003Z TACT SWITCH CH UP
S8102 QSW0619-003Z TACT SWITCH MENU
S8103 QSW0619-003Z TACT SWITCH CH DOWN

AV JACK P.W. BOARD ASS'Y (SML0J311A-U2)

REFER TO PARTS LIST IN PAGE 3-12 FOR THIS P.W. BOARD.

100HZ SW P.W. BOARD ASS'Y (SML0Z311A-U2)

REFER TO PARTS LIST IN PAGE 3-12 FOR THIS P.W. BOARD.

FRONT CONTROL P.W. BOARD ASS'Y
(SML-8312A-U2)



Ref No. Part No. Part Name Description Local

IC8851 GP1UM281QKVF IR DETECT UNIT

Q8801 UN2212-X DIGI TRANSISTOR

D8801 LH22440 LED POWER

C8851 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8852 QETN1CM-107Z E CAPACITOR 100uF 16V M



C8901 QFZ9072-474 MM CAPACITOR 0.47uF AC250V K

R8801 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R8802 NRSA63J-331X MG RESISTOR 330
R8804 NRSA63J-0R0X MG RESISTOR 0
R8851 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R8852 QRE121J-470Y C RESISTOR 47

CN800W WJK0200-008A-E E-SI C WIRE C-B



F8901 QMF5AD2-3R15-J1 FUSE 3.15A AC250V



LF8901 QQR1095-001 LINE FILTER



S8901 QSW0824-001 PUSH SWITCH POWER

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

(No.YA263E)1-15

PRINTED WIRING BOARD PARTS LIST [AV-28H5BU/Q, AV-28H5BL/Q, AV-28H5SL/Q, AV-28H5SR/Q, AV-28H5SU/Q]



MAIN P.W. BOARD ASS'Y (SML-1312A-U2)

REFER TO PARTS LIST IN PAGE 3-7 FOR THIS P.W. BOARD.

POWER & DEF P.W. BOARD ASS'Y (SML-2312A-H3)



Ref No. Part No. Part Name Description Local

IC401 LA78041 IC
IC461 LM393P IC
IC901 STR-G9656-F3 IC



IC941 QAL0515-002 POWER TRANSF
IC951 SE140N IC
IC961 PQ120RDA1SZ IC

Q461 RDN050N20 POWER MOS FET
Q462 KTC3199/YG/-T TRANSISTOR
Q463 KTC3199/YG/-T TRANSISTOR
Q464 KTA1267/YG/-T TRANSISTOR
Q481 DTC124ESA-T DIGI TRANSISTOR
Q482 KTC3199/YG/-T TRANSISTOR
Q501 BSN304-T MOS FET



Q521 2SC5904-RL POW TRANSISTOR H.OUT
Q581 2SA1208/ST/Z1-T TRANSISTOR
Q582 DTC144ESA-T DIGI TRANSISTOR
Q583 KTC3199/YG/-T TRANSISTOR
Q941 KTC3199/YG/-T TRANSISTOR
Q942 KTC3199/YG/-T TRANSISTOR

D402 1N4003SG-T2 SI DIODE
D461 FR105GT-T3 SI DIODE
D462 1SS133-T2 SI DIODE
D463 1SS133-T2 SI DIODE
D481 1SS133-T2 SI DIODE
D501 1SS244-T2 SI DIODE
D521 V11CA-C1 SI DIODE
D522 FMV-3FU-F1 SI DIODE
D523 MTZJ22B-T2 Z DIODE
D525 FR105GT-T3 SI DIODE
D541 FR105GT-T3 SI DIODE
D542 MTZJ3.9B-T2 Z DIODE
D551 FR105GT-T3 SI DIODE
D552 FR105GT-T3 SI DIODE
D553 FR105GT-T3 SI DIODE
D582 MTZJ7.5B-T2 Z DIODE
D583 MTZJ7.5S-T2 Z DIODE
D584 FR105GT-T3 SI DIODE
D901 D3SBA60 DIODE
D902 FR107GT-T3 SI DIODE
D904 FR105GT-T3 SI DIODE
D905 1SS133-T2 SI DIODE
D906 MTZJ27B-T2 Z DIODE
D907 1SS133-T2 SI DIODE
D910 MTZJ15B-T2 Z DIODE
D911 1SS133-T2 SI DIODE
D931 S1WB/A/60-4101 BRIDGE DIODE
D945 1SS133-T2 SI DIODE
D951 FR305G-FL SI DIODE
D952 FR305G-FL SI DIODE
D953 FR155GV-FL SI DIODE
D954 HER202G-FL SI DIODE
D956 FSF05A20 SI DIODE
D958 MTZJ33B-T2 Z DIODE
D959 1SS133-T2 SI DIODE
D981 1SS133-T2 SI DIODE
D983 1SS133-T2 SI DIODE

C404 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C405 QDC31HJ-820Z C CAPACITOR 82pF 50V J
C406 QETM1VM-108 E CAPACITOR 1000uF 35V M
C408 QETN1VM-337Z E CAPACITOR 330uF 35V M
C409 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C410 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C411 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C414 QCB31HK-682Z C CAPACITOR 6800pF 50V K
C415 QDC31HJ-470Z C CAPACITOR 47pF 50V J
C461 QEZ0414-226 BP E CAPACITOR 22uF 50V M
C462 QFN32DJ-152Z M CAPACITOR 1500pF 200V J
C463 QFN32DJ-152Z M CAPACITOR 1500pF 200V J
C464 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C465 QETN1HM-106Z E CAPACITOR 10uF 50V M
C466 QFP31HJ-272Z PP CAPACITOR 2700pF 50V J
C467 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J
C468 QETN1EM-476Z E CAPACITOR 47uF 25V M
C470 QCS31HJ-470Z C CAPACITOR 47pF 50V J
C471 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J

Ref No. Part No. Part Name Description Local

C481 QETN1HM-105Z E CAPACITOR 1uF 50V M
C501 QCB32HK-331Z C CAPACITOR 330pF 500V K
C502 QFN32DK-103 M CAPACITOR 0.01uF 200V K
C503 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C521 QFZ0122-112 MPP CAPACITOR 1100pF 1.8kV H
C522 QFZ0196-113 MPP CAPACITOR 0.011uF 1.5kV H
C523 QFN32DJ-393 M CAPACITOR 0.039uF 200V J
C524 QFP32JJ-223 PP CAPACITOR 0.022uF 630V J
C526 QFZ0197-204 MPP CAPACITOR 0.2uF 250V J
C527 QFZ0197-124 MPP CAPACITOR 0.12uF 250V J
C529 QFZ0197-154 MPP CAPACITOR 0.15uF 250V J
C530 QCB32HK-561Z C CAPACITOR 560pF 500V K
C531 QFZ0194-534 MPP CAPACITOR 0.53uF 250V J
C532 QETM2CM-227 E CAPACITOR 220uF 160V M
C533 QETN2EM-475Z E CAPACITOR 4.7uF 250V M
C541 QFVF1HJ-105Z MF CAPACITOR 1uF 50V J
C551 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C552 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C553 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C554 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C556 QETN2EM-106Z E CAPACITOR 10uF 250V M
C558 QETN1CM-477Z E CAPACITOR 470uF 16V M
C581 QETN1CM-107Z E CAPACITOR 100uF 16V M
C582 QETN1EM-476Z E CAPACITOR 47uF 25V M
C583 QETN2AM-106Z E CAPACITOR 10uF 100V M
C584 QETN1AM-227Z E CAPACITOR 220uF 10V M



C901 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K



C902 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K



C903 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K



C904 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C905 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C906 QCZ9054-472 C CAPACITOR 4700pF AC250V Z
C907 QEZ0649-227 E CAPACITOR 220uF 400V M
C908 QCB32HK-103 C CAPACITOR 0.01uF 500V K
C909 QCZ0340-391 C CAPACITOR 390pF 2kV K
C910 QETN1HM-476Z E CAPACITOR 47uF 50V M
C911 QCB31HK-102Z C CAPACITOR 1000pF 50V K
C912 QCZ0340-561 C CAPACITOR 560pF 2kV K
C914 QCB31HK-471Z C CAPACITOR 470pF 50V K
C915 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C916 QCB32HK-152Z C CAPACITOR 1500pF 500V K



C931 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C932 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C933 QCZ9054-472 C CAPACITOR 4700pF AC250V Z
C934 QEZ0632-226 E CAPACITOR 22uF 400V M
C941 QTMN1CM-477Z E CAPACITOR 470uF 16V M
C942 QETN1AM-337Z E CAPACITOR 330uF 10V M
C951 QEZ0203-227 E CAPACITOR 220uF 160V M
C952 QEZ0255-228 E CAPACITOR 2200uF 16V M
C953 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C954 QETM1VM-228 E CAPACITOR 2200uF 35V M
C956 QETM1AM-338 E CAPACITOR 3300uF 10V M
C959 QFVF1HJ-684Z MF CAPACITOR 0.68uF 50V J
C960 QCZ0325-821 C CAPACITOR 820pF 2kV K
C968 QETM1AM-338 E CAPACITOR 3300uF 10V M



C991 QCZ9079-102 C CAPACITOR 1000pF AC250V M



C993 QCZ9079-222 C CAPACITOR 2200pF AC250V M

R401 QRE141J-562Y C RESISTOR 5.6kΩ 1/4W J
R402 QRE141J-562Y C RESISTOR 5.6k
R403 QRE141J-222Y C RESISTOR 2.2k
R404 QRX01GJ-1R0 MF RESISTOR 1
R405 QRL029J-151 OMF RESISTOR 150Ω 2W J
R406 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R407 QRX01GJ-1R5 MF RESISTOR 1.5
R408 QRX01GJ-1R5 MF RESISTOR 1.5Ω 1W J
R409 QRE141J-823Y C RESISTOR 82k
R410 QRE141J-103Y C RESISTOR 10k
R461 QRG029J-820 OMF RESISTOR 82
R462 QRE141J-473Y C RESISTOR 47k
R463 QRE141J-682Y C RESISTOR 6.8k
R464 QRX01GJ-2R7 MF RESISTOR 2.7
R468 QRE141J-102Y C RESISTOR 1k
R469 QRE141J-272Y C RESISTOR 2.7k
R471 QRE141J-391Y C RESISTOR 390
R472 QRA14CF-1002Y CMF RESISTOR 10k
R473 QRE141J-473Y C RESISTOR 47kΩ 1/4W J
R474 QRE141J-103Y C RESISTOR 10k
R475 QRE141J-102Y C RESISTOR 1kΩ 1/4W J
R476 QRE141J-102Y C RESISTOR 1k
R477 QRE141J-563Y C RESISTOR 56kΩ 1/4W J
R478 QRE141J-333Y C RESISTOR 33k
R481 QRE141J-274Y C RESISTOR 270kΩ 1/4W J
R482 QRE141J-103Y C RESISTOR 10k
R501 QRE141J-471Y C RESISTOR 470Ω 1/4W J
R502 QRE141J-123Y C RESISTOR 12k

Ω

1/4W J

Ω

1/4W J

Ω

1W J

Ω

1W J

Ω

1/4W J

Ω

1/4W J

Ω

2W J

Ω

1/4W J

Ω

1/4W J

Ω

1W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W F

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

1-16 (No.YA263E)



Ref No. Part No. Part Name Description Local

R503 QRE121J-152Y C RESISTOR 1.5kΩ 1/2W J
R504 QRL039J-272 OMF RESISTOR 2.7kΩ 3W J
R505 QRL039J-272 OMF RESISTOR 2.7kΩ 3W J
R506 QRE121J-5R6Y C RESISTOR 5.6Ω 1/2W J
R521 QRE121J-471Y C RESISTOR 470Ω 1/2W J
R522 QRE141J-333Y C RESISTOR 33kΩ 1/4W J
R523 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R524 QRC121K-152Z COMP RESISTOR 1.5k
R525 QRL039J-103 OMF RESISTOR 10k
R541 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R542 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R543 QRE121J-272Y C RESISTOR 2.7kΩ 1/2W J
R551 QRT039J-3R3 MF RESISTOR 3.3Ω 3W J
R552 QRT039J-3R3 MF RESISTOR 3.3Ω 3W J
R581 QRF154K-4R7 UNF WW RESISTOR 4.7
R582 QRE141J-681Y C RESISTOR 680
R583 QRE121J-682Y C RESISTOR 6.8kΩ 1/2W J
R584 QRE141J-183Y C RESISTOR 18kΩ 1/4W J
R585 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R586 QRA14CF-7501Y CMF RESISTOR 7.5kΩ 1/4W F
R587 QRA14CF-2101Y CMF RESISTOR 2.1kΩ 1/4W F
R588 QRE141J-103Y C RESISTOR 10kΩ 1/4W J



R591 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J
R901 QRE121J-331Y C RESISTOR 330
R902 QRF054K-3R3 UNF WW RESISTOR 3.3Ω 5W K
R903 QRF104K-3R9 UNF WW RESISTOR 3.9Ω 10W K
R904 QRL039J-683 OMF RESISTOR 68kΩ 3W J
R905 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R906 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R908 QRL039J-823 OMF RESISTOR 82kΩ 3W J
R909 QRL039J-823 OMF RESISTOR 82kΩ 3W J
R910 QRE121J-680Y C RESISTOR 68Ω 1/2W J
R911 QRE121J-332Y C RESISTOR 3.3kΩ 1/2W J
R914 QRZ0237-R10 UNF WW RESISTOR 0.1
R915 QRE121J-681Y C RESISTOR 680Ω 1/2W J
R916 QRE121J-152Y C RESISTOR 1.5kΩ 1/2W J
R944 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R945 QRE141J-563Y C RESISTOR 56kΩ 1/4W J
R946 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R949 QRE141J-334Y C RESISTOR 330kΩ 1/4W J
R951 QRE121J-222Y C RESISTOR 2.2kΩ 1/2W J
R952 QRL039J-223 OMF RESISTOR 22kΩ 3W J
R953 QRT039J-R33 MF RESISTOR 0.33Ω 3W J
R981 QRE141J-153Y C RESISTOR 15kΩ 1/4W J
R982 QRE141J-102Y C RESISTOR 1kΩ 1/4W J



R991 QRZ9046-825Z C RESISTOR 8.2MΩ 1/2W K



R992 QRZ9046-105Z C RESISTOR 1MΩ 1/2W K

L461 QQR1195-001 CHOKE COIL
L462 QQR1422-001 CHOKE COIL
L521 QQLZ031-180 COIL 18uH
L522 QQR1191-002 LINEARITY COIL
L551 QQLZ026-540 COIL 54uH ±7%
L901 QQL401K-100Z COIL 10uH K
L902 QQL401K-100Z COIL 10uH K



L903 QQR1200-001 CHOKE COIL
L941 QQL26AM-4R7Z COIL 4.7uH M
L942 QQL26AK-220Z COIL 22uH K
L951 QQLZ026-460 COIL 46uH
T5 0 1 QQR1111 - 0 0 1 DR I VE T R A NSF



T901 QQS0258-001 SW TRANSF

CN003 QGB1506M1-16 CONNECTOR B-B (1-16)
CN004 QGB1506M1-16 CONNECTOR B-B (1-16)



CP931 QMFZ052-2R0-E FUSE 2A AC250V



CP951 ICP-N75-T IC PROTECTOR 2.7A



CP952 ICP-N75-T IC PROTECTOR 2.7A



CP954 ICP-N75-T IC PROTECTOR 2.7A
K401 QQR0621-002Z FERRITE BEADS
K522 QQR1114-001Z FERRITE BEADS
K523 QQR1114-001Z FERRITE BEADS
K524 QQR1114-001Z FERRITE BEADS
K901 QQR1113-001Z FERRITE BEADS
K952 QQR0621-002Z FERRITE BEADS
K953 QQR0621-002Z FERRITE BEADS
K955 QQR0621-002Z FERRITE BEADS



LF901 QQR1095-001 LINE FILTER



PC901 PS2581AL1/QW/ PHOTO COUPLER



RY941 QSK0099-001 RELAY



TH901 QAD0121-9R0 P THERMISTOR 9

Ω

1/2W K

Ω

3W J

Ω

15W K

Ω

1/4W J

Ω

1/2W J

Ω

±

7%

Ω

CRT SOCKET P.W. BOARD ASS'Y (SML-3312A-H3)



Ref No. Part No. Part Name Description Local

IC3201 TDA6111Q/N4 IC
IC3202 TDA6111Q/N4 IC
IC3203 TDA6111Q/N4 IC

Q3104 2SC3928A/QR/-X TRANSISTOR
Q3105 2SC1627A/OY/-T TRANSISTOR
Q3108 2SA2005/DE/ POW TRANSISTOR
Q3109 2SC5511/DE/ POW TRANSISTOR
Q3301 2SA1530A/QR/-X TRANSISTOR
Q3303 2SA1530A/QR/-X TRANSISTOR
Q3304 2SC3928A/QR/-X TRANSISTOR

D3102 1SS355-X SI DIODE
D3103 FR105GT-T3 SI DIODE
D3104 FR105GT-T3 SI DIODE
D3201 FR105SGT-T2 SI DIODE
D3202 FR105SGT-T2 SI DIODE
D3203 FR105SGT-T2 SI DIODE
D3204 FR105GT-T3 SI DIODE
D3205 1N4003SG-T2 SI DIODE
D3206 1N4003SG-T2 SI DIODE
D3207 1N4003SG-T2 SI DIODE
D3208 MA8062/M/-X Z DIODE
D3209 UDZS13B-X Z DIODE
D3210 UDZS13B-X Z DIODE
D3301 1SS355-X SI DIODE
D3302 1SS355-X SI DIODE
D3303 1SS355-X SI DIODE
D3306 UDZS3.6B-X Z DIODE

C3106 QETN1HM-335Z E CAPACITOR 3.3uF 50V M
C3107 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3110 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3111 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3113 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3114 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3116 QETN1AM-107Z E CAPACITOR 100uF 10V M
C3117 QETN1AM-107Z E CAPACITOR 100uF 10V M
C3118 QEHR1AM-337Z E CAPACITOR 330uF 10V M
C3120 NDC31HJ-561X C CAPACITOR 560pF 50V J
C3201 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C3202 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C3203 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C3204 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C3205 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C3206 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C3207 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3208 QEHR1VM-476Z E CAPACITOR 47uF 35V M
C3209 QEHR1VM-476Z E CAPACITOR 47uF 35V M
C3210 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C3211 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C3212 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C3213 NDC31HJ-181X C CAPACITOR 180pF 50V J
C3214 NDC31HJ-181X C CAPACITOR 180pF 50V J
C3215 NDC31HJ-181X C CAPACITOR 180pF 50V J
C3216 QETN1CM-227Z E CAPACITOR 220uF 16V M
C3218 QETM2EM-336 E CAPACITOR 33uF 250V M
C3219 QFZ0097-223 MM CAPACITOR 0.022uF 1.25KV M
C3221 QETN2EM-106Z E CAPACITOR 10uF 250V M
C3222 QETN2EM-106Z E CAPACITOR 10uF 250V M
C3223 QEHR2EM-106Z E CAPACITOR 10uF 250V M
C3224 QETN2EM-106Z E CAPACITOR 10uF 250V M
C3225 NDC31HJ-151X C CAPACITOR 150pF 50V J
C3303 NCB31CK-563X C CAPACITOR 0.056uF 16V K

R3103 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R3109 NRSA63J-153X MG RESISTOR 15k
R3112 NRSA63J-272X MG RESISTOR 2.7k
R3114 NRSA63J-152X MG RESISTOR 1.5k
R3115 NRSA63J-560X MG RESISTOR 56
R3116 QRG01GJ-101 OMF RESISTOR 100
R3117 NRSA63J-331X MG RESISTOR 330
R3122 NRSA63J-122X MG RESISTOR 1.2k
R3123 QRE121J-563Y C RESISTOR 56k
R3124 NRSA63J-470X MG RESISTOR 47
R3125 QRE121J-563Y C RESISTOR 56k
R3126 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R3127 NRSA63J-122X MG RESISTOR 1.2k
R3128 NRSA63J-390X MG RESISTOR 39Ω 1/16W J
R3129 QRE121J-2R7Y C RESISTOR 2.7
R3130 QRE121J-2R7Y C RESISTOR 2.7Ω 1/2W J
R3131 NRSA63J-390X MG RESISTOR 39
R3132 NRSA63J-121X MG RESISTOR 120Ω 1/16W J
R3133 QRL029J-681 OMF RESISTOR 680



R3134 QRZ9021-561 FUSI RESISTOR 560Ω 1W J
R3201 NRSA63J-102X MG RESISTOR 1k
R3202 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

2W J

Ω

1/16W J

Ω

1/16W J

(No.YA263E)1-17



Ref No. Part No. Part Name Description Local

R3203 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3208 NRSA63J-154X MG RESISTOR 150kΩ 1/16W J
R3209 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R3218 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R3219 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R3220 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R3222 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3223 NRSA63J-272X MG RESISTOR 2.7k
R3224 QRL029J-104-F OMF RESISTOR 100k
R3225 QRL029J-104-F OMF RESISTOR 100kΩ 2W J
R3226 QRL029J-104-F OMF RESISTOR 100kΩ 2W J
R3227 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R3228 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R3229 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R3230 QRZ0107-152Z C RESISTOR 1.5k
R3231 QRZ0107-152Z C RESISTOR 1.5k
R3232 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K
R3234 QRZ0107-474Z C RESISTOR 470kΩ 1/2W K
R3235 QRZ0107-102Z C RESISTOR 1kΩ 1/2W K
R3236 QRZ0107-105Z C RESISTOR 1MΩ 1/2W K
R3237 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3239 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3240 NRSA63J-562X MG RESISTOR 5.6k
R3241 NRSA63J-562X MG RESISTOR 5.6k
R3242 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R3301 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R3302 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R3303 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R3304 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R3305 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R3306 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R3308 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R3311 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R3312 NRSA63J-120X MG RESISTOR 12Ω 1/16W J
R3313 NRSA63J-331X MG RESISTOR 330Ω 1/16W J

L3204 QQL26AJ-102Z COIL 1mH J

CN300G QJK002-063231-E SIN CR C-B WIRE
CN300R QJB003-093626-E SIN ID C-B WIRE
CN3VM1 WJK0167-001A-E E-SI C WIRE C-B
K3101 QQR1114-001Z FERRITE BEADS
K3103 QQR1114-001Z FERRITE BEADS
K3104 QQR1114-001Z FERRITE BEADS
K3105 QQR0621-002Z FERRITE BEADS
K3202 QQR1113-001Z FERRITE BEADS
SG3201 QAF0078-501Z SURGE ABSORBER 500V
SG3202 QAF0078-501Z SURGE ABSORBER 500V
SG3203 QAF0078-501Z SURGE ABSORBER 500V



SK3001 QNZ0536-001 CRT SOCKET

Ω

1/16W J

Ω

2W J

Ω

1/2W K

Ω

1/2W K

Ω

1/16W J

Ω

1/16W J

SIDE CONTROL P.W. BOARD ASS'Y (SML-8141A-H3)



Ref No. Part No. Part Name Description Local

C8101 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C8102 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C8103 NCB31HK-102X C CAPACITOR 1000pF 50V K
C8104 NCB31HK-102X C CAPACITOR 1000pF 50V K
C8131 NCB31HK-472X C CAPACITOR 4700pF 50V K
C8132 NCB31HK-472X C CAPACITOR 4700pF 50V K
C8133 NCB31CK-104X C CAPACITOR 0.1uF 16V K

Ω

R8101 NRSA63J-821X MG RESISTOR 820
R8102 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R8103 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R8111 QRE121J-101Y C RESISTOR 100
R8112 QRE121J-101Y C RESISTOR 100Ω 1/2W J
R8113 NRSA63J-102X MG RESISTOR 1k
R8114 NRSA63J-102X MG RESISTOR 1k
R8133 NRSA63J-750X MG RESISTOR 75

L8111 QQL244K-5R6Z COIL 5.6uH K
L8112 QQL244K-5R6Z COIL 5.6uH K
L8131 QQL244K-270Z COIL 27uH K
L8132 QQL244K-270Z COIL 27uH K

J8111 QNS0257-001 3.5 JACK HEADPHONE
J8131 QNN0591-001 PIN JACK EXT-4(V/L/R)
J8132 QND0084-001 S JACK EXT-4(S)
K8111 NQR0129-004X FERRITE BEADS
K8131 NQR0129-004X FERRITE BEADS
S8101 QSW0619-003Z TACT SWITCH CH UP
S8102 QSW0619-003Z TACT SWITCH MENU
S8103 QSW0619-003Z TACT SWITCH CH DOWN

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

FRONT CONTROL P.W. BOARD ASS'Y
(SML-8311A-H3)



Ref No. Part No. Part Name Description Local

IC8851 GP1UM281QKVF IR DETECT UNIT

Q8801 UN2212-X DIGI TRANSISTOR

D8801 LH22440-T16 LED POWER

C8851 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8852 QETN1CM-107Z E CAPACITOR 100uF 16V M



C8901 QFZ9072-474 MM CAPACITOR 0.47uF AC250V K

R8801 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R8802 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R8804 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R8851 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R8852 QRE121J-470Y C RESISTOR 47

CN800W WJK0200-002A-E E-SI C WIRE C-B



F8901 QMF5AD2-3R15-J1 FUSE 3.15A AC250V



LF8901 QQR1095-001 LINE FILTER



S8901 QSW0824-001 PUSH SWITCH POWER

Ω

1/2W J

AV JACK P.W. BOARD ASS'Y (SML0J311A-H3)



Ref No. Part No. Part Name Description Local

D0101 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0102 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0103 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0104 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0115 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0116 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0117 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0118 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0119 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J
D0121 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J

C0101 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0102 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0103 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0104 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0105 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0106 NDC31HJ-221X C CAPACITOR 220pF 50V J
C0107 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0108 NDC31HJ-221X C CAPACITOR 220pF 50V J
C0109 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0110 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0111 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C0112 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C0113 NCB31CK-104X C CAPACITOR 0.1uF 16V K

R0101 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0102 NRSA63J-750X MG RESISTOR 75
R0103 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0104 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0105 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0106 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0107 NRSA63J-750X MG RESISTOR 75
R0108 NRSA63J-750X MG RESISTOR 75
R0109 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0203 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0204 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R0205 NRSA63J-750X MG RESISTOR 75

CN0001 QGB1505K1-35 CONNECTOR B-B (1-35)
J0001 QNZ0465-001 21P CONNECTOR EXT-3
J0002 QNZ0463-001 21P CONNECTOR EXT-1/EXT-2
K0101 NQR0129-004X FERRITE BEADS
K0102 NQR0129-004X FERRITE BEADS
K0103 NQR0129-004X FERRITE BEADS

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

100HZ SW P.W. BOARD ASS'Y (SML0Z311A-U2)

REFER TO PARTS LIST IN PAGE 3-12 FOR THIS P.W. BOARD.

1-18 (No.YA263E)

PRINTED WIRING BOARD PARTS LIST [AV-28H50SU/Q]

MAIN P.W. BOARD ASS'Y (SML-1312A-U2)

REFER TO PARTS LIST IN PAGE 3-7 FOR THIS P.W. BOARD.

POWER & DEF P.W. BOARD ASS'Y (SML-2312A-H3)

REFER TO PARTS LIST IN PAGE 3-16 FOR THIS P.W. BOARD.

CRT SOCKET P.W. BOARD ASS'Y (SML-3312A-H3)

REFER TO PARTS LIST IN PAGE 3-17 FOR THIS P.W. BOARD.

SIDE CONTROL P.W. BOARD ASS'Y (SML-8143A-H3)



Ref No. Part No. Part Name Description Local

C8101 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C8102 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C8103 NCB31HK-102X C CAPACITOR 1000pF 50V K
C8104 NCB31HK-102X C CAPACITOR 1000pF 50V K
C8131 NCB31HK-472X C CAPACITOR 4700pF 50V K
C8132 NCB31HK-472X C CAPACITOR 4700pF 50V K
C8133 NCB31CK-104X C CAPACITOR 0.1uF 16V K

R8101 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R8102 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R8103 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R8111 QRE121J-101Y C RESISTOR 100Ω 1/2W J
R8112 QRE121J-101Y C RESISTOR 100Ω 1/2W J
R8113 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R8114 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R8133 NRSA63J-750X MG RESISTOR 75Ω 1/16W J

L8111 QQL244K-5R6Z COIL 5.6uH K
L8112 QQL244K-5R6Z COIL 5.6uH K
L8131 QQL244K-270Z COIL 27uH K
L8132 QQL244K-270Z COIL 27uH K

J8111 QNS0257-001 3.5 JACK HEADPHONE
J8131 QNN0591-001 PIN JACK EXT-4(V/L/R)
J8132 QND0084-001 S JACK EXT-4(S)
K8111 NQR0129-004X FERRITE BEADS
K8131 NQR0129-004X FERRITE BEADS
S8101 QSW0619-003Z TACT SWITCH CH UP
S8102 QSW0619-003Z TACT SWITCH MENU
S8103 QSW0619-003Z TACT SWITCH CH DOWN

AV JACK P.W. BOARD ASS'Y (SML0J311A-H3)

REFER TO PARTS LIST IN PAGE 3-18 FOR THIS P.W. BOARD.

100HZ SW P.W. BOARD ASS'Y (SML0Z311A-U2)

REFER TO PARTS LIST IN PAGE 3-12 FOR THIS P.W. BOARD.

FRONT CONTROL P.W. BOARD ASS'Y
(SML-8312A-H3)



Ref No. Part No. Part Name Description Local

IC8851 GP1UM281QKVF IR DETECT UNIT

Q8801 UN2212-X DIGI TRANSISTOR

D8801 LH22440 LED POWER

C8851 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8852 QETN1CM-107Z E CAPACITOR 100uF 16V M



C8901 QFZ9072-474 MM CAPACITOR 0.47uF AC250V K

R8801 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R8802 NRSA63J-331X MG RESISTOR 330
R8804 NRSA63J-0R0X MG RESISTOR 0
R8851 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R8852 QRE121J-470Y C RESISTOR 47

CN800W WJK0200-008A-E E-SI C WIRE C-B



F8901 QMF5AD2-3R15-J1 FUSE 3.15A AC250V



LF8901 QQR1095-001 LINE FILTER



S8901 QSW0824-001 PUSH SWITCH POWER

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

(No.YA263E)1-19

PRINTED WIRING BOARD PARTS LIST [AV-32H5BU/B, AV-32H5SR/B, AV-32H5SU/B]



MAIN P.W. BOARD ASS'Y (SML-1311A-U2)



Ref No. Part No. Part Name Description Local

IC101 MSP3415GQGB8V3M IC
IC201 CXA2089Q-X IC
IC501 LM324D-X IC
IC551 LA6515 IC
IC601 AN5277 IC
IC701 ATE32-32H5BU IC (SERVICE)
IC901 AN78L08-T IC
IC902 MM1565AF-X IC
IC903 L7809CP IC

Q001 2SC3928A/QR/-X TRANSISTOR
Q002 2SC3928A/QR/-X TRANSISTOR
Q101 UN2213-X DIGI TRANSISTOR
Q201 2SC3928A/QR/-X TRANSISTOR
Q202 2SC3928A/QR/-X TRANSISTOR
Q207 UN2226-X DIGI TRANSISTOR
Q210 2SA1530A/QR/-X TRANSISTOR
Q211 UN2215-X TRANSISTOR
Q212 2SA1530A/QR/-X TRANSISTOR
Q213 UN2226-X DIGI TRANSISTOR
Q214 UN2215-X TRANSISTOR
Q215 KTA1267/YG/-T TRANSISTOR
Q216 2SC3928A/QR/-X TRANSISTOR
Q217 KTC3199/YG/-T TRANSISTOR
Q219 2SC3928A/QR/-X TRANSISTOR
Q305 KTC3199/YG/-T TRANSISTOR
Q501 2SC3928A/QR/-X TRANSISTOR
Q502 2SC3928A/QR/-X TRANSISTOR
Q604 2SA1530A/QR/-X TRANSISTOR
Q605 2SC3928A/QR/-X TRANSISTOR
Q606 2SC3928A/QR/-X TRANSISTOR
Q609 2SA1530A/QR/-X TRANSISTOR
Q610 UN2226-X DIGI TRANSISTOR
Q611 UN2226-X DIGI TRANSISTOR
Q701 2SA1530A/QR/-X TRANSISTOR
Q702 2SC3928A/QR/-X TRANSISTOR

D201 UDZS12B-X Z DIODE
D202 UDZS12B-X Z DIODE
D203 UDZS12B-X Z DIODE
D204 UDZS12B-X Z DIODE
D205 UDZS12B-X Z DIODE
D206 UDZS12B-X Z DIODE
D207 UDZS12B-X Z DIODE
D208 UDZS12B-X Z DIODE
D209 UDZS12B-X Z DIODE
D213 UDZS15B-X Z DIODE
D214 UDZS15B-X Z DIODE
D302 UDZS3.9B-X Z DIODE
D501 1SS355-X SI DIODE
D502 1SS355-X SI DIODE
D503 1SS355-X SI DIODE
D504 1SS355-X SI DIODE
D604 1SS355-X SI DIODE
D605 1SS355-X SI DIODE
D606 1SS355-X SI DIODE
D607 1SS355-X SI DIODE
D701 UDZS5.6B-X Z DIODE 1.5k
D702 UDZS5.6B-X Z DIODE 1.5k
D703 UDZS5.6B-X Z DIODE 1.5k
D704 UDZS5.6B-X Z DIODE 1.5k
D705 1SS355-X SI DIODE
D981 1SS355-X SI DIODE
D982 1SS355-X SI DIODE
D983 1SS355-X SI DIODE

C004 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C005 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C006 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C007 QETN1HM-106Z E CAPACITOR 10uF 50V M
C010 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C011 QETN1HM-106Z E CAPACITOR 10uF 50V M
C012 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C013 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C101 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C102 QETN1HM-106Z E CAPACITOR 10uF 50V M
C103 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C104 QETN1CM-107Z E CAPACITOR 100uF 16V M
C105 QETN1HM-106Z E CAPACITOR 10uF 50V M
C106 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C107 QETN1CM-107Z E CAPACITOR 100uF 16V M
C108 QETN1HM-105Z E CAPACITOR 1uF 50V M
C109 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C110 QETN1HM-106Z E CAPACITOR 10uF 50V M

Ω

1/10W J

Ω

1/10W J

Ω

1/10W J

Ω

1/10W J

Ref No. Part No. Part Name Description Local

C111 NCB31CK-105X C CAPACITOR 1uF 16V K
C112 NCB31CK-105X C CAPACITOR 1uF 16V K
C113 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C114 QETN1HM-106Z E CAPACITOR 10uF 50V M
C115 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C116 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C117 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C118 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C119 NDC31HJ-2R0X C CAPACITOR 2pF 50V J
C120 NDC31HJ-2R0X C CAPACITOR 2pF 50V J
C121 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C122 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C123 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C124 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
C201 QETN1HM-106Z E CAPACITOR 10uF 50V M
C202 QETN1HM-106Z E CAPACITOR 10uF 50V M
C203 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C204 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C205 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C206 QETN1HM-106Z E CAPACITOR 10uF 50V M
C207 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C209 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C210 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C213 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C215 QETN1HM-106Z E CAPACITOR 10uF 50V M
C216 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C220 QETN1HM-106Z E CAPACITOR 10uF 50V M
C221 QETN1HM-106Z E CAPACITOR 10uF 50V M
C222 QETN1HM-106Z E CAPACITOR 10uF 50V M
C223 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C224 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C225 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C226 QETN1HM-106Z E CAPACITOR 10uF 50V M
C227 QETN1HM-106Z E CAPACITOR 10uF 50V M
C228 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C229 QETN1HM-106Z E CAPACITOR 10uF 50V M
C230 QENC1EM-106Z BP E CAPACITOR 10uF 25V M
C231 QENC1EM-106Z BP E CAPACITOR 10uF 25V M
C232 QETN1CM-107Z E CAPACITOR 100uF 16V M
C233 QETN1CM-107Z E CAPACITOR 100uF 16V M
C234 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C235 QETN1CM-107Z E CAPACITOR 100uF 16V M
C236 QETN1CM-477Z E CAPACITOR 470uF 16V M
C237 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C238 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C239 QETN1CM-477Z E CAPACITOR 470uF 16V M
C303 QETN1CM-227Z E CAPACITOR 220uF 16V M
C304 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C308 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C310 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C311 NCB31HK-102X C CAPACITOR 1000pF 50V K
C312 NCB31HK-102X C CAPACITOR 1000pF 50V K
C503 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C504 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C505 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C506 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C507 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C508 QETN1CM-107Z E CAPACITOR 100uF 16V M
C509 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C510 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C515 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C551 NCF31CZ-224X C CAPACITOR 0.22uF 16V Z
C552 NCF31CZ-224X C CAPACITOR 0.22uF 16V Z
C553 QETN1EM-476Z E CAPACITOR 47uF 25V M
C554 NCF31CZ-224X C CAPACITOR 0.22uF 16V Z
C555 NCF31CZ-224X C CAPACITOR 0.22uF 16V Z
C561 NDC31HJ-390X C CAPACITOR 39pF 50V J
C612 NCB31HK-272X C CAPACITOR 2700pF 50V K
C613 NCB31HK-272X C CAPACITOR 2700pF 50V K
C614 QETN1HM-105Z E CAPACITOR 1uF 50V M
C615 QETN1HM-105Z E CAPACITOR 1uF 50V M
C619 QETM1VM-228 E CAPACITOR 2200uF 35V M
C622 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C623 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C624 NCB31HK-102X C CAPACITOR 1000pF 50V K
C626 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C627 QETN1HM-106Z E CAPACITOR 10uF 50V M
C629 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C630 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C631 NCB31HK-102X C CAPACITOR 1000pF 50V K
C632 NCB31HK-102X C CAPACITOR 1000pF 50V K
C633 QETN1HM-107Z E CAPACITOR 100uF 50V M
C636 NCB31CK-105X C CAPACITOR 1uF 16V K
C637 NCB31CK-105X C CAPACITOR 1uF 16V K
C638 NCB31HK-102X C CAPACITOR 1000pF 50V K
C701 NCB31CK-104X C CAPACITOR 0.1uF 16V K

1-20 (No.YA263E)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C702 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C711 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C901 QETN1CM-107Z E CAPACITOR 100uF 16V M
C902 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C903 QETN1CM-107Z E CAPACITOR 100uF 16V M
C904 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C905 QETN1HM-106Z E CAPACITOR 10uF 50V M
C906 NCB20JK-225X C CAPACITOR 2.2uF 6.3V K
C907 NDC31HJ-471X C CAPACITOR 470pF 50V J
C908 QETN1AM-477Z E CAPACITOR 470uF 10V M
C909 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C910 QETN1CM-107Z E CAPACITOR 100uF 16V M

R002 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R003 NRSA63J-101X MG RESISTOR 100
R006 NRSA63J-0R0X MG RESISTOR 0
R007 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R008 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R009 NRSA63J-681X MG RESISTOR 680Ω 1/16W J
R010 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R011 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R101 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R102 NRSA63J-101X MG RESISTOR 100
R103 NRSA63J-103X MG RESISTOR 10k
R106 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R201 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R202 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R205 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R206 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R208 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R209 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R210 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R211 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R212 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R213 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R214 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R215 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R216 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R217 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R218 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R220 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R221 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R222 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R226 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R227 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R229 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R232 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R233 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R234 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R235 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R236 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R237 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R238 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R239 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R240 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R241 NRSA63J-101X MG RESISTOR 100
R242 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R243 NRSA63J-101X MG RESISTOR 100
R244 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R245 NRSA63J-101X MG RESISTOR 100
R246 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R247 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R249 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R251 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R253 NRSA63J-153X MG RESISTOR 15k
R255 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R258 NRSA63J-823X MG RESISTOR 82k
R259 NRSA63J-823X MG RESISTOR 82k
R260 NRSA63J-104X MG RESISTOR 100k
R261 NRSA63J-391X MG RESISTOR 390
R262 NRSA63J-391X MG RESISTOR 390
R263 NRSA63J-104X MG RESISTOR 100k
R264 NRSA63J-101X MG RESISTOR 100
R265 NRSA63J-101X MG RESISTOR 100
R266 NRSA63J-101X MG RESISTOR 100
R267 NRSA63J-101X MG RESISTOR 100
R268 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R269 NRSA63J-101X MG RESISTOR 100
R270 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R271 NRSA63J-333X MG RESISTOR 33k
R272 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R273 NRSA63J-222X MG RESISTOR 2.2k
R274 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R275 NRSA63J-391X MG RESISTOR 390
R276 NRSA63J-391X MG RESISTOR 390Ω 1/16W J
R277 NRSA63J-101X MG RESISTOR 100
R278 NRSA63J-222X MG RESISTOR 2.2k
R279 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R280 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R281 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R282 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R283 QRG01GJ-101 OMF RESISTOR 100Ω 1W J
R284 QRK126J-181X UNF C RESISTOR 180Ω 1/2W J
R285 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R286 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R287 QRK126J-151X UNF C RESISTOR 150Ω 1/2W J
R288 NRSA63J-750X MG RESISTOR 75
R289 NRSA63J-101X MG RESISTOR 100
R290 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R291 NRSA63J-560X MG RESISTOR 56Ω 1/16W J
R292 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R293 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R294 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R295 NRSA63J-101X MG RESISTOR 100
R296 NRSA63J-0R0X MG RESISTOR 0
R297 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R298 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R313 QRK126J-331X UNF C RESISTOR 330Ω 1/2W J
R315 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R316 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R317 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R501 NRSA63J-123X MG RESISTOR 12k
R502 NRSA63J-123X MG RESISTOR 12k
R503 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R504 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R505 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J
R506 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R507 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R509 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R510 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R511 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R512 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R513 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R514 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R515 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R516 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R517 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R518 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R519 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R520 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R521 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R523 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J
R524 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J
R525 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R526 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J
R527 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R528 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R529 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R530 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R531 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R532 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R533 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R536 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J
R537 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R542 NRSA63J-0R0X MG RESISTOR 0
R551 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J
R552 NRSA63J-100X MG RESISTOR 10
R553 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J
R554 NRSA63J-562X MG RESISTOR 5.6k
R555 NRSA63J-154X MG RESISTOR 150kΩ 1/16W J
R556 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R557 NRSA63J-100X MG RESISTOR 10Ω 1/16W J
R558 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R559 NRSA63J-333X MG RESISTOR 33k
R560 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R615 NRSA63J-0R0X MG RESISTOR 0
R616 NRSA63J-0R0X MG RESISTOR 0
R617 NRSA63J-272X MG RESISTOR 2.7k
R620 NRSA63J-272X MG RESISTOR 2.7k
R621 NRSA63J-103X MG RESISTOR 10k
R622 NRSA63J-103X MG RESISTOR 10k
R625 NRSA63J-183X MG RESISTOR 18k
R629 NRSA63J-103X MG RESISTOR 10k
R630 NRSA63J-273X MG RESISTOR 27k
R631 NRSA63J-473X MG RESISTOR 47k
R632 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R635 NRSA63J-822X MG RESISTOR 8.2k
R637 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R638 NRSA63J-103X MG RESISTOR 10k
R639 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R640 NRSA63J-681X MG RESISTOR 680
R641 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R642 NRSA63J-681X MG RESISTOR 680
R643 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R644 NRSA63J-0R0X MG RESISTOR 0
R645 NRSA63J-0R0X MG RESISTOR 0
R702 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R703 NRSA63J-221X MG RESISTOR 220Ω 1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

(No.YA263E)1-21



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R704 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R705 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R706 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R707 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R708 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R709 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R710 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J

L001 QQL244K-270Z PEAKING COIL 27uH K
L002 QQL244K-100Z PEAKING COIL 10uH K
L101 QQL244K-4R7Z PEAKING COIL 4.7uH K

CN001 QGB1505J1-35 CONNECTOR B-B (1-35)
CN002 QGC2507C1-96 CONNECTOR (1-96)
CN003 QGB1506L1-16 CONNECTOR B-B (1-16)
CN004 QGB1506L1-16 CONNECTOR B-B (1-16)
CN00B QJK002-041614-E SIN CR C-B WIRE
J601 QNN0596-001 PIN JACK AUDIO OUT
K001 NQR0129-004X FERRITE BEADS
K101 NQR0389-003X FERRITE BEADS
K102 NQR0389-003X FERRITE BEADS
K551 QQR0621-002Z FERRITE BEADS
K552 QQR0621-002Z FERRITE BEADS
K601 NQR0199-001X FERRITE BEADS
K602 NQR0199-001X FERRITE BEADS
LC101 NQR0431-001X EMI FILTER 0.22uF 50V Z



TU001 QAU0442-001 TUNER
X101 QAX0773-001Z CRYSTAL 18.432000MHz

POWER & DEF P.W. BOARD ASS'Y (SML-2311A-U2)



Ref No. Part No. Part Name Description Local

IC401 LA78041 IC
IC461 LM393P IC
IC901 STR-G9656-F3 IC



IC941 QAL0515-002 POWER TRANSF
IC951 SE140N IC
IC961 PQ120RDA1SZ IC

Q461 RDN050N20 POWER MOS FET
Q462 KTC3199/YG/-T TRANSISTOR
Q463 KTC3199/YG/-T TRANSISTOR
Q464 KTA1267/YG/-T TRANSISTOR
Q481 DTC124ESA-T DIGI TRANSISTOR
Q482 KTC3199/YG/-T TRANSISTOR
Q501 BSN304-T MOS FET



Q521 2SC5905-RL POW TRANSISTOR H. OUT
Q581 2SA1208/ST/Z1-T TRANSISTOR
Q582 DTC144ESA-T DIGI TRANSISTOR
Q583 KTC3199/YG/-T TRANSISTOR
Q941 KTC3199/YG/-T TRANSISTOR
Q942 KTC3199/YG/-T TRANSISTOR

D402 1N4003SG-T2 SI DIODE
D461 FR105GT-T3 SI DIODE
D462 1SS133-T2 SI DIODE
D463 1SS133-T2 SI DIODE
D481 1SS133-T2 SI DIODE
D501 1SS244-T2 SI DIODE
D521 V11CA-C1 SI DIODE
D522 FMV-3FU-F1 SI DIODE
D523 MTZJ22B-T2 Z DIODE
D525 FR105GT-T3 SI DIODE
D541 FR105GT-T3 SI DIODE
D542 MTZJ3.9B-T2 Z DIODE
D551 FR105GT-T3 SI DIODE
D552 FR105GT-T3 SI DIODE
D553 FR105GT-T3 SI DIODE
D582 MTZJ7.5B-T2 Z DIODE
D583 MTZJ7.5S-T2 Z DIODE
D584 FR105GT-T3 SI DIODE
D901 D3SBA60 DIODE
D902 FR107GT-T3 SI DIODE
D904 FR105GT-T3 SI DIODE
D905 1SS133-T2 SI DIODE
D906 MTZJ27B-T2 Z DIODE
D907 1SS133-T2 SI DIODE
D910 MTZJ15B-T2 Z DIODE
D911 1SS133-T2 SI DIODE
D931 S1WB/A/60-4101 BRIDGE DIODE
D945 1SS133-T2 SI DIODE
D951 FR305G-FL SI DIODE
D952 FR305G-FL SI DIODE
D953 HER153G-T3 SI DIODE
D954 HER202G-FL SI DIODE

D956 FSF05A20 SI DIODE
D958 MTZJ33B-T2 Z DIODE
D959 1SS133-T2 SI DIODE
D981 1SS133-T2 SI DIODE
D983 1SS133-T2 SI DIODE

C404 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C405 QDC31HJ-820Z C CAPACITOR 82pF 50V J
C406 QETM1VM-108 E CAPACITOR 1000uF 35V M
C408 QETN1VM-337Z E CAPACITOR 330uF 35V M
C409 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C410 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C411 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C414 QCB31HK-682Z C CAPACITOR 6800pF 50V K
C415 QDC31HJ-470Z C CAPACITOR 47pF 50V J
C461 QEZ0414-226 BP E CAPACITOR 22uF 50V M
C462 QFN32DJ-152Z M CAPACITOR 1500pF 200V J
C463 QFN32DJ-152Z M CAPACITOR 1500pF 200V J
C464 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C465 QETN1HM-106Z E CAPACITOR 10uF 50V M
C466 QFP31HJ-272Z PP CAPACITOR 2700pF 50V J
C467 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J
C468 QETN1EM-476Z E CAPACITOR 47uF 25V M
C470 QCS31HJ-470Z C CAPACITOR 47pF 50V J
C471 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C481 QETN1HM-105Z E CAPACITOR 1uF 50V M
C501 QCB32HK-331Z C CAPACITOR 330pF 500V K
C502 QFN32DK-103 M CAPACITOR 0.01uF 200V K
C503 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C521 QFZ0122-112 MPP CAPACITOR 1100pF 1.8kV H
C522 QFZ0196-113 MPP CAPACITOR 0.011uF 1.5kV H
C523 QFN32DJ-393 M CAPACITOR 0.039uF 200V J
C524 QFP32GJ-223 PP CAPACITOR 0.022uF 400V J
C526 QFZ0197-204 MPP CAPACITOR 0.2uF 250V J
C527 QFZ0197-823 MPP CAPACITOR 0.082uF 250V J
C529 QFZ0197-184 MPP CAPACITOR 0.18uF 250V J
C530 QCB32HK-561Z C CAPACITOR 560pF 500V K
C531 QFZ0194-534 MPP CAPACITOR 0.53uF 250V J
C532 QETM2CM-227 E CAPACITOR 220uF 160V M
C533 QETN2EM-475Z E CAPACITOR 4.7uF 250V M
C541 QFVF1HJ-105Z MF CAPACITOR 1uF 50V J
C551 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C552 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C553 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C554 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C555 QCB32HK-102Z C CAPACITOR 1000pF 500V K
C556 QETN2EM-106Z E CAPACITOR 10uF 250V M
C558 QETN1CM-477Z E CAPACITOR 470uF 16V M
C581 QETN1CM-107Z E CAPACITOR 100uF 16V M
C582 QETN1EM-476Z E CAPACITOR 47uF 25V M
C583 QETN2AM-106Z E CAPACITOR 10uF 100V M
C584 QETN1AM-227Z E CAPACITOR 220uF 10V M



C901 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K



C902 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K



C903 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K



C904 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C905 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C906 QCZ9054-472 C CAPACITOR 4700pF AC250V Z
C907 QEZ0649-227 E CAPACITOR 220uF 400V M
C908 QCB32HK-103 C CAPACITOR 0.01uF 500V K
C909 QCZ0340-391 C CAPACITOR 390pF 2kV K
C910 QETN1HM-476Z E CAPACITOR 47uF 50V M
C911 QCB31HK-102Z C CAPACITOR 1000pF 50V K
C912 QCZ0340-561 C CAPACITOR 560pF 2kV K
C914 QCB31HK-471Z C CAPACITOR 470pF 50V K
C915 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C916 QCB32HK-152Z C CAPACITOR 1500pF 500V K



C931 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C932 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C933 QCZ9054-472 C CAPACITOR 4700pF AC250V Z
C934 QEZ0632-226 E CAPACITOR 22uF 400V M
C941 QTMN1CM-477Z E CAPACITOR 470uF 16V M
C942 QETN1AM-337Z E CAPACITOR 330uF 10V M
C951 QEZ0203-227 E CAPACITOR 220uF 160V M
C952 QEZ0255-228 E CAPACITOR 2200uF 16V M
C953 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C954 QETM1VM-228 E CAPACITOR 2200uF 35V M
C956 QETM1AM-338 E CAPACITOR 3300uF 10V M
C959 QFVF1HJ-684Z MF CAPACITOR 0.68uF 50V J
C960 QCZ0325-821 C CAPACITOR 820pF 2kV K
C968 QETM1AM-338 E CAPACITOR 3300uF 10V M



C991 QCZ9079-102 C CAPACITOR 1000pF AC250V M



C993 QCZ9079-222 C CAPACITOR 2200pF AC250V M

R401 QRE141J-562Y C RESISTOR 5.6k
R402 QRE141J-562Y C RESISTOR 5.6k
R403 QRE141J-222Y C RESISTOR 2.2k
R404 QRX01GJ-1R0 MF RESISTOR 1Ω 1W J
R405 QRL029J-151 OMF RESISTOR 150Ω 2W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

1-22 (No.YA263E)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R406 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R407 QRX01GJ-1R5 MF RESISTOR 1.5Ω 1W J
R408 QRX01GJ-1R5 MF RESISTOR 1.5Ω 1W J
R409 QRE141J-823Y C RESISTOR 82kΩ 1/4W J
R410 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R461 QRG029J-820 OMF RESISTOR 82Ω 2W J
R462 QRE141J-473Y C RESISTOR 47kΩ 1/4W J
R463 QRE141J-682Y C RESISTOR 6.8k
R464 QRX01GJ-3R3 MF RESISTOR 3.3
R468 QRE141J-102Y C RESISTOR 1kΩ 1/4W J
R469 QRE141J-272Y C RESISTOR 2.7kΩ 1/4W J
R471 QRE141J-391Y C RESISTOR 390Ω 1/4W J
R472 QRA14CF-1002Y CMF RESISTOR 10kΩ 1/4W F
R473 QRE141J-473Y C RESISTOR 47kΩ 1/4W J
R474 QRE141J-103Y C RESISTOR 10k
R475 QRE141J-102Y C RESISTOR 1k
R476 QRE141J-102Y C RESISTOR 1kΩ 1/4W J
R477 QRE141J-563Y C RESISTOR 56kΩ 1/4W J
R478 QRE141J-333Y C RESISTOR 33kΩ 1/4W J
R481 QRE141J-224Y C RESISTOR 220kΩ 1/4W J
R482 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R501 QRE141J-471Y C RESISTOR 470Ω 1/4W J
R502 QRE141J-123Y C RESISTOR 12k
R503 QRE121J-152Y C RESISTOR 1.5k
R504 QRL039J-222 OMF RESISTOR 2.2kΩ 3W J
R505 QRL039J-222 OMF RESISTOR 2.2kΩ 3W J
R506 QRE121J-5R6Y C RESISTOR 5.6Ω 1/2W J
R521 QRE121J-471Y C RESISTOR 470Ω 1/2W J
R522 QRE141J-333Y C RESISTOR 33kΩ 1/4W J
R523 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R524 QRC121K-152Z COMP RESISTOR 1.5kΩ 1/2W K
R525 QRL039J-103 OMF RESISTOR 10kΩ 3W J
R541 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R542 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R543 QRE121J-272Y C RESISTOR 2.7kΩ 1/2W J
R551 QRT039J-3R3 MF RESISTOR 3.3Ω 3W J
R552 QRT039J-3R3 MF RESISTOR 3.3Ω 3W J
R581 QRF154K-4R7 UNF WW RESISTOR 4.7Ω 15W K
R582 QRE141J-681Y C RESISTOR 680Ω 1/4W J
R583 QRE121J-682Y C RESISTOR 6.8kΩ 1/2W J
R584 QRE141J-183Y C RESISTOR 18kΩ 1/4W J
R585 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R586 QRA14CF-7501Y CMF RESISTOR 7.5kΩ 1/4W F
R587 QRA14CF-2201Y CMF RESISTOR 2.2kΩ 1/4W F
R588 QRE141J-103Y C RESISTOR 10kΩ 1/4W J



R591 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J
R901 QRE121J-331Y C RESISTOR 330Ω 1/2W J
R902 QRF054K-3R3 UNF WW RESISTOR 3.3Ω 5W K
R903 QRF104K-3R9 UNF WW RESISTOR 3.9Ω 10W K
R904 QRL039J-683 OMF RESISTOR 68kΩ 3W J
R905 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R906 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R908 QRL039J-823 OMF RESISTOR 82kΩ 3W J
R909 QRL039J-823 OMF RESISTOR 82kΩ 3W J
R910 QRE121J-680Y C RESISTOR 68Ω 1/2W J
R911 QRE121J-332Y C RESISTOR 3.3k
R914 QRZ0237-R10 UNF WW RESISTOR 0.1
R915 QRE121J-681Y C RESISTOR 680Ω 1/2W J
R916 QRE121J-152Y C RESISTOR 1.5kΩ 1/2W J
R944 QRE141J-103Y C RESISTOR 10k
R945 QRE141J-563Y C RESISTOR 56kΩ 1/4W J
R946 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R949 QRE141J-334Y C RESISTOR 330kΩ 1/4W J
R951 QRE121J-222Y C RESISTOR 2.2kΩ 1/2W J
R952 QRL039J-223 OMF RESISTOR 22k
R953 QRT039J-R33 MF RESISTOR 0.33Ω 3W J
R981 QRE141J-153Y C RESISTOR 15k
R982 QRE141J-102Y C RESISTOR 1k



R991 QRZ9046-825Z C RESISTOR 8.2MΩ 1/2W K



R992 QRZ9046-105Z C RESISTOR 1MΩ 1/2W K

L461 QQR1195-001 CHOKE COIL
L462 QQR1422-001 CHOKE COIL
L521 QQLZ031-180 CHOKE COIL 18uH
L522 QQR1191-002 LINEARITY COIL
L551 QQLZ026-540 COIL 54uH ±7%



L903 QQR1200-001 CHOKE COIL
L941 QQL26AM-4R7Z CHOKE COIL 4.7uH M
L942 QQL26AK-220Z CHOKE COIL 22uH K
L951 QQLZ026-460 COIL 46uH ±7%
T5 0 1 QQR1111 - 0 0 1 LI NEARI T Y COI L



T901 QQS0258-001 SW TRANSF

CN003 QGB1506M1-16 CONNECTOR B-B (1-16)
CN004 QGB1506M1-16 CONNECTOR B-B (1-16)
CN0HV QGZ8005C3-05 CONNECTOR (1-5)



CP931 QMFZ052-2R0-E FUSE 2A AC250V



CP951 ICP-N75-T IC PROTECTOR 2.7A



CP952 ICP-N75-T IC PROTECTOR 2.7A

Ω

1/4W J

Ω

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/2W J

Ω

1/2W J

Ω

1/4W J

Ω

Ω

1/4W J

Ω

1/4W J

1W J

3W J



CP954 ICP-N75-T IC PROTECTOR 2.7A
K401 QQR0621-002Z FERRITE BEADS
K522 QQR1114-001Z FERRITE BEADS
K523 QQR1114-001Z FERRITE BEADS
K524 QQR1114-001Z FERRITE BEADS
K901 QQR1113-001Z FERRITE BEADS
K952 QQR0621-002Z FERRITE BEADS
K953 QQR0621-002Z FERRITE BEADS
K955 QQR0621-002Z FERRITE BEADS



LF901 QQR1095-001 LINE FILTER



PC901 PS2581AL1/QW/ PHOTO COUPLER



RY941 QSK0099-001 RELAY



TH901 QAD0121-9R0 P THERMISTOR 9

Ω

CRT SOCKET P.W. BOARD ASS'Y (SML-3311A-U2)



Ref No. Part No. Part Name Description Local

IC3201 TDA6111Q/N4 IC
IC3202 TDA6111Q/N4 IC
IC3203 TDA6111Q/N4 IC

Q3104 2SC3928A/QR/-X TRANSISTOR
Q3105 2SC1627A/OY/-T SI TRANSISTOR
Q3108 2SA2005/DE/ POW TRANSISTOR
Q3109 2SC5511/DE/ POW TRANSISTOR
Q3301 2SA1530A/QR/-X TRANSISTOR
Q3303 2SA1530A/QR/-X TRANSISTOR
Q3304 2SC3928A/QR/-X TRANSISTOR

D3102 1SS355-X SI DIODE
D3103 FR105GT-T3 SI DIODE
D3104 FR105GT-T3 SI DIODE
D3201 FR105SGT-T2 SI DIODE
D3202 FR105SGT-T2 SI DIODE
D3203 FR105SGT-T2 SI DIODE
D3204 FR105GT-T3 SI DIODE
D3205 1N4003SG-T2 SI DIODE
D3206 1N4003SG-T2 SI DIODE
D3207 1N4003SG-T2 SI DIODE
D3208 MA8062/M/-X Z DIODE
D3209 UDZS13B-X Z DIODE
D3210 UDZS13B-X Z DIODE
D3301 1SS355-X SI DIODE
D3302 1SS355-X SI DIODE
D3303 1SS355-X SI DIODE
D3306 UDZS3.6B-X Z DIODE

C3106 QETN1HM-335Z E CAPACITOR 3.3uF 50V M
C3107 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3110 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3111 QCB32HK-472Z C CAPACITOR 4700pF 500V K

Ω

C3113 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3114 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3116 QETN1AM-107Z E CAPACITOR 100uF 10V M
C3117 QETN1AM-107Z E CAPACITOR 100uF 10V M
C3118 QEHR1AM-337Z E CAPACITOR 330uF 10V M
C3120 NDC31HJ-561X C CAPACITOR 560pF 50V J
C3201 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C3202 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C3203 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C3204 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C3205 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C3206 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C3207 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3208 QEHR1VM-476Z E CAPACITOR 47uF 35V M
C3209 QEHR1VM-476Z E CAPACITOR 47uF 35V M
C3210 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C3211 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C3212 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C3213 NDC31HJ-181X C CAPACITOR 180pF 50V J
C3214 NDC31HJ-181X C CAPACITOR 180pF 50V J
C3215 NDC31HJ-181X C CAPACITOR 180pF 50V J
C3216 QETN1CM-227Z E CAPACITOR 220uF 16V M
C3218 QETM2EM-336 E CAPACITOR 33uF 250V M
C3219 QFZ0097-223 MM CAPACITOR 0.022uF 1.25KV M
C3221 QETN2EM-106Z E CAPACITOR 10uF 250V M
C3222 QETN2EM-106Z E CAPACITOR 10uF 250V M
C3223 QEHR2EM-106Z E CAPACITOR 10uF 250V M
C3224 QETN2EM-106Z E CAPACITOR 10uF 250V M
C3225 NDC31HJ-151X C CAPACITOR 150pF 50V J
C3301 QETN1HM-105Z E CAPACITOR 1uF 50V M
C3303 NCB31CK-563X C CAPACITOR 0.056uF 16V K

Ω

R3103 NRSA63J-101X MG RESISTOR 100
R3109 NRSA63J-153X MG RESISTOR 15k

1/16W J

Ω

1/16W J

(No.YA263E)1-23



Ref No. Part No. Part Name Description Local

R3112 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R3114 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R3115 NRSA63J-560X MG RESISTOR 56Ω 1/16W J
R3116 QRG01GJ-101 OMF RESISTOR 100Ω 1W J
R3117 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R3122 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R3123 QRE121J-563Y C RESISTOR 56kΩ 1/2W J
R3124 NRSA63J-470X MG RESISTOR 47
R3125 QRE121J-563Y C RESISTOR 56k
R3126 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R3127 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R3128 NRSA63J-390X MG RESISTOR 39Ω 1/16W J
R3129 QRE121J-2R7Y C RESISTOR 2.7Ω 1/2W J
R3130 QRE121J-2R7Y C RESISTOR 2.7Ω 1/2W J
R3131 NRSA63J-390X MG RESISTOR 39
R3132 NRSA63J-121X MG RESISTOR 120
R3133 QRL029J-681 OMF RESISTOR 680Ω 2W J



R3134 QRZ9021-561 FUSI RESISTOR 560Ω 1W J
R3201 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3202 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3203 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3208 NRSA63J-154X MG RESISTOR 150kΩ 1/16W J
R3209 NRSA63J-101X MG RESISTOR 100
R3218 NRSA63J-272X MG RESISTOR 2.7k
R3219 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R3220 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R3222 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3223 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R3224 QRL029J-104-F OMF RESISTOR 100kΩ 2W J
R3225 QRL029J-104-F OMF RESISTOR 100kΩ 2W J
R3226 QRL029J-104-F OMF RESISTOR 100kΩ 2W J
R3227 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R3228 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R3229 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R3230 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K
R3231 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K
R3232 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K
R3234 QRZ0107-474Z C RESISTOR 470kΩ 1/2W K
R3235 QRZ0107-102Z C RESISTOR 1kΩ 1/2W K
R3236 QRZ0107-105Z C RESISTOR 1MΩ 1/2W K
R3237 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3239 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3240 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R3241 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R3242 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R3301 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R3302 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R3303 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R3304 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R3305 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R3306 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R3308 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R3311 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R3312 NRSA63J-120X MG RESISTOR 12Ω 1/16W J
R3313 NRSA63J-331X MG RESISTOR 330Ω 1/16W J

L3204 QQL26AJ-102Z PEAKING COIL 1mH J

CN300G QJK002-063231-E SIN CR C-B WIRE
CN300R QJB003-093626-E SIN ID C-B WIRE
CN30E1 QGZ8005C3-01 CONNECTOR (1-1)
CN30SC QGZ0017C1-01Z CONNECTOR (1-1)
K3101 QQR1114-001Z FERRITE BEADS
K3103 QQR1114-001Z FERRITE BEADS
K3104 QQR1114-001Z FERRITE BEADS
K3105 QQR0621-002Z FERRITE BEADS
K3202 QQR1113-001Z FERRITE BEADS
SG3201 QAF0078-501Z SURGE ABSORBER 500V
SG3202 QAF0078-501Z SURGE ABSORBER 500V
SG3203 QAF0078-501Z SURGE ABSORBER 500V



SK3001 QNZ0536-001 CRT SOCKET

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

SIDE CONTROL P.W. BOARD ASS'Y (SML-8141A-U2)

REFER TO PARTS LIST IN PAGE 3-11 FOR THIS P.W. BOARD.

FRONT CONTROL P.W. BOARD ASS'Y
(SML-8311A-U2)

REFER TO PARTS LIST IN PAGE 3-11 FOR THIS P.W. BOARD.

AV JACK P.W. BOARD ASS'Y (SML0J311A-U2)

REFER TO PARTS LIST IN PAGE 3-12 FOR THIS P.W. BOARD.

100HZ SW P.W. BOARD ASS'Y (SML0Z311A-U2)

REFER TO PARTS LIST IN PAGE 3-12 FOR THIS P.W. BOARD.

1-24 (No.YA263E)

PRINTED WIRING BOARD PARTS LIST [AV-32H50SU/B, AV-32H57SU/B]

MAIN P.W. BOARD ASS'Y (SML-1311A-U2)

REFER TO PARTS LIST IN PAGE 3-20 FOR THIS P.W. BOARD.

POWER & DEF P.W. BOARD ASS'Y (SML-2311A-U2)

REFER TO PARTS LIST IN PAGE 3-22 FOR THIS P.W. BOARD.

CRT SOCKET P.W. BOARD ASS'Y (SML-3311A-U2)

REFER TO PARTS LIST IN PAGE 3-23 FOR THIS P.W. BOARD.

SIDE CONTROL P.W. BOARD ASS'Y (SML-8143A-U2)

REFER TO PARTS LIST IN PAGE 3-15 FOR THIS P.W. BOARD.

FRONT CONTROL P.W. BOARD ASS'Y
(SML-8312A-U2)

REFER TO PARTS LIST IN PAGE 3-15 FOR THIS P.W. BOARD.

AV JACK P.W. BOARD ASS'Y (SML0J311A-U2)

REFER TO PARTS LIST IN PAGE 3-12 FOR THIS P.W. BOARD.

100HZ SW P.W. BOARD ASS'Y (SML0Z311A-U2)

REFER TO PARTS LIST IN PAGE 3-12 FOR THIS P.W. BOARD.

(No.YA263E)1-25

PRINTED WIRING BOARD PARTS LIST [AV-32H5BU/Q, AV-32H5SR/Q, AV-32H5SU/Q]



MAIN P.W. BOARD ASS'Y (SML-1311A-U2)

REFER TO PARTS LIST IN PAGE 3-20 FOR THIS P.W. BOARD.

POWER & DEF P.W. BOARD ASS'Y (SML-2311A-H3)



Ref No. Part No. Part Name Description Local

IC401 LA78041 IC
IC461 LM393P IC
IC901 STR-G9656-F3 IC



IC941 QAL0515-002 POWER TRANSF
IC951 SE140N IC
IC961 PQ120RDA1SZ IC

Q461 RDN050N20 POWER MOS FET
Q462 KTC3199/YG/-T TRANSISTOR
Q463 KTC3199/YG/-T TRANSISTOR
Q464 KTA1267/YG/-T TRANSISTOR
Q481 DTC124ESA-T DIGI TRANSISTOR
Q482 KTC3199/YG/-T TRANSISTOR
Q501 BSN304-T MOS FET



Q521 2SC5905-RL POW TRANSISTOR H.OUT
Q581 2SA1208/ST/Z1-T TRANSISTOR
Q582 DTC144ESA-T DIGI TRANSISTOR
Q583 KTC3199/YG/-T TRANSISTOR
Q941 KTC3199/YG/-T TRANSISTOR
Q942 KTC3199/YG/-T TRANSISTOR

D402 1N4003SG-T2 SI DIODE
D461 FR105GT-T3 SI DIODE
D462 1SS133-T2 SI DIODE
D463 1SS133-T2 SI DIODE
D481 1SS133-T2 SI DIODE
D501 1SS244-T2 SI DIODE
D521 V11CA-C1 SI DIODE
D522 FMV-3FU-F1 SI DIODE
D523 MTZJ22B-T2 Z DIODE
D525 FR105GT-T3 SI DIODE
D541 FR105GT-T3 SI DIODE
D542 MTZJ3.9B-T2 Z DIODE
D551 FR105GT-T3 SI DIODE
D552 FR105GT-T3 SI DIODE
D553 FR105GT-T3 SI DIODE
D582 MTZJ7.5B-T2 Z DIODE
D583 MTZJ7.5S-T2 Z DIODE
D584 FR105GT-T3 SI DIODE
D901 D3SBA60 DIODE
D902 FR107GT-T3 SI DIODE
D904 FR105GT-T3 SI DIODE
D905 1SS133-T2 SI DIODE
D906 MTZJ27B-T2 Z DIODE
D907 1SS133-T2 SI DIODE
D910 MTZJ15B-T2 Z DIODE
D911 1SS133-T2 SI DIODE
D931 S1WB/A/60-4101 BRIDGE DIODE
D945 1SS133-T2 SI DIODE
D951 FR305G-FL SI DIODE
D952 FR305G-FL SI DIODE
D953 FR155GV-FL SI DIODE
D954 HER202G-FL SI DIODE
D956 FSF05A20 SI DIODE
D958 MTZJ33B-T2 Z DIODE
D959 1SS133-T2 SI DIODE
D981 1SS133-T2 SI DIODE
D983 1SS133-T2 SI DIODE

C404 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C405 QDC31HJ-820Z C CAPACITOR 82pF 50V J
C406 QETM1VM-108 E CAPACITOR 1000uF 35V M
C408 QETN1VM-337Z E CAPACITOR 330uF 35V M
C409 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C410 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C411 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C414 QCB31HK-682Z C CAPACITOR 6800pF 50V K
C415 QDC31HJ-470Z C CAPACITOR 47pF 50V J
C461 QEZ0414-226 BP E CAPACITOR 22uF 50V M
C462 QFN32DJ-152Z M CAPACITOR 1500pF 200V J
C463 QFN32DJ-152Z M CAPACITOR 1500pF 200V J
C464 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C465 QETN1HM-106Z E CAPACITOR 10uF 50V M
C466 QFP31HJ-272Z PP CAPACITOR 2700pF 50V J
C467 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J
C468 QETN1EM-476Z E CAPACITOR 47uF 25V M
C470 QCS31HJ-470Z C CAPACITOR 47pF 50V J
C471 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J

Ref No. Part No. Part Name Description Local

C481 QETN1HM-105Z E CAPACITOR 1uF 50V M
C501 QCB32HK-331Z C CAPACITOR 330pF 500V K
C502 QFN32DK-103 M CAPACITOR 0.01uF 200V K
C503 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C521 QFZ0122-112 MPP CAPACITOR 1100pF 1.8kV H
C522 QFZ0196-113 MPP CAPACITOR 0.011uF 1.5kV H
C523 QFN32DJ-393 M CAPACITOR 0.039uF 200V J
C524 QFP32GJ-223 PP CAPACITOR 0.022uF 400V J
C526 QFZ0197-204 MPP CAPACITOR 0.2uF 250V J
C527 QFZ0197-823 MPP CAPACITOR 0.082uF 250V J
C529 QFZ0197-184 MPP CAPACITOR 0.18uF 250V J
C530 QCB32HK-561Z C CAPACITOR 560pF 500V K
C531 QFZ0194-534 MPP CAPACITOR 0.53uF 250V J
C532 QETM2CM-227 E CAPACITOR 220uF 160V M
C533 QETN2EM-475Z E CAPACITOR 4.7uF 250V M
C541 QFVF1HJ-105Z MF CAPACITOR 1uF 50V J
C551 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C552 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C553 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C554 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C555 QCB32HK-102Z C CAPACITOR 1000pF 500V K
C556 QETN2EM-106Z E CAPACITOR 10uF 250V M
C558 QETN1CM-477Z E CAPACITOR 470uF 16V M
C581 QETN1CM-107Z E CAPACITOR 100uF 16V M
C582 QETN1EM-476Z E CAPACITOR 47uF 25V M
C583 QETN2AM-106Z E CAPACITOR 10uF 100V M
C584 QETN1AM-227Z E CAPACITOR 220uF 10V M



C901 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K



C902 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K



C903 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K



C904 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C905 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C906 QCZ9054-472 C CAPACITOR 4700pF AC250V Z
C907 QEZ0649-227 E CAPACITOR 220uF 400V M
C907 QEZ0476-227 E CAPACITOR 220uF 400V H
C908 QCB32HK-103 C CAPACITOR 0.01uF 500V K
C909 QCZ0340-391 C CAPACITOR 390pF 2kV K
C910 QETN1HM-476Z E CAPACITOR 47uF 50V M
C911 QCB31HK-102Z C CAPACITOR 1000pF 50V K
C912 QCZ0340-561 C CAPACITOR 560pF 2kV K
C914 QCB31HK-471Z C CAPACITOR 470pF 50V K
C915 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C916 QCB32HK-152Z C CAPACITOR 1500pF 500V K



C931 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C932 QCZ9054-472 C CAPACITOR 4700pF AC250V Z



C933 QCZ9054-472 C CAPACITOR 4700pF AC250V Z
C934 QEZ0632-226 E CAPACITOR 22uF 400V M
C934 QETM2GM-226 E CAPACITOR 22uF 400V M
C941 QTMN1CM-477Z E CAPACITOR 470uF 16V M
C942 QETN1AM-337Z E CAPACITOR 330uF 10V M
C951 QEZ0203-227 E CAPACITOR 220uF 160V M
C952 QEZ0255-228 E CAPACITOR 2200uF 16V M
C953 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C954 QETM1VM-228 E CAPACITOR 2200uF 35V M
C956 QETM1AM-338 E CAPACITOR 3300uF 10V M
C959 QFVF1HJ-684Z MF CAPACITOR 0.68uF 50V J
C960 QCZ0325-821 C CAPACITOR 820pF 2kV K
C968 QETM1AM-338 E CAPACITOR 3300uF 10V M



C991 QCZ9079-102 C CAPACITOR 1000pF AC250V M



C993 QCZ9079-222 C CAPACITOR 2200pF AC250V M

R401 QRE141J-562Y C RESISTOR 5.6kΩ 1/4W J
R402 QRE141J-562Y C RESISTOR 5.6kΩ 1/4W J
R403 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R404 QRX01GJ-1R0 MF RESISTOR 1
R405 QRL029J-151 OMF RESISTOR 150Ω 2W J
R406 QRE141J-222Y C RESISTOR 2.2k
R407 QRX01GJ-1R5 MF RESISTOR 1.5
R408 QRX01GJ-1R5 MF RESISTOR 1.5
R409 QRE141J-823Y C RESISTOR 82k
R410 QRE141J-103Y C RESISTOR 10k
R461 QRG029J-820 OMF RESISTOR 82
R462 QRE141J-473Y C RESISTOR 47k
R463 QRE141J-682Y C RESISTOR 6.8k
R464 QRX01GJ-3R3 MF RESISTOR 3.3
R468 QRE141J-102Y C RESISTOR 1k
R469 QRE141J-272Y C RESISTOR 2.7kΩ 1/4W J
R471 QRE141J-391Y C RESISTOR 390
R472 QRA14CF-1002Y CMF RESISTOR 10kΩ 1/4W F
R473 QRE141J-473Y C RESISTOR 47k
R474 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R475 QRE141J-102Y C RESISTOR 1k
R476 QRE141J-102Y C RESISTOR 1kΩ 1/4W J
R477 QRE141J-563Y C RESISTOR 56k
R478 QRE141J-333Y C RESISTOR 33kΩ 1/4W J
R481 QRE141J-224Y C RESISTOR 220k

Ω

1W J

Ω

1/4W J

Ω

1W J

Ω

1W J

Ω

1/4W J

Ω

1/4W J

Ω

2W J

Ω

1/4W J

Ω

1/4W J

Ω

1W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

1-26 (No.YA263E)



Ref No. Part No. Part Name Description Local

R482 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R501 QRE141J-471Y C RESISTOR 470Ω 1/4W J
R502 QRE141J-123Y C RESISTOR 12kΩ 1/4W J
R503 QRE121J-152Y C RESISTOR 1.5kΩ 1/2W J
R504 QRL039J-222 OMF RESISTOR 2.2kΩ 3W J
R505 QRL039J-222 OMF RESISTOR 2.2kΩ 3W J
R506 QRE121J-5R6Y C RESISTOR 5.6Ω 1/2W J
R521 QRE121J-471Y C RESISTOR 470
R522 QRE141J-333Y C RESISTOR 33k
R523 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R524 QRC121K-152Z COMP RESISTOR 1.5kΩ 1/2W K
R525 QRL039J-103 OMF RESISTOR 10kΩ 3W J
R541 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R542 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R543 QRE121J-272Y C RESISTOR 2.7k
R551 QRT039J-3R3 MF RESISTOR 3.3
R552 QRT039J-3R3 MF RESISTOR 3.3Ω 3W J
R581 QRF154K-4R7 UNF WW RESISTOR 4.7Ω 15W K
R582 QRE141J-681Y C RESISTOR 680Ω 1/4W J
R583 QRE121J-682Y C RESISTOR 6.8kΩ 1/2W J
R584 QRE141J-183Y C RESISTOR 18kΩ 1/4W J
R585 QRE141J-222Y C RESISTOR 2.2kΩ 1/4W J
R586 QRA14CF-7501Y CMF RESISTOR 7.5k
R587 QRA14CF-2201Y CMF RESISTOR 2.2k
R588 QRE141J-103Y C RESISTOR 10kΩ 1/4W J



R591 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J
R901 QRE121J-331Y C RESISTOR 330Ω 1/2W J
R902 QRF054K-3R3 UNF WW RESISTOR 3.3Ω 5W K
R903 QRF104K-3R9 UNF WW RESISTOR 3.9Ω 10W K
R904 QRL039J-683 OMF RESISTOR 68kΩ 3W J
R905 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R906 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R908 QRL039J-823 OMF RESISTOR 82kΩ 3W J
R909 QRL039J-823 OMF RESISTOR 82kΩ 3W J
R910 QRE121J-680Y C RESISTOR 68Ω 1/2W J
R911 QRE121J-332Y C RESISTOR 3.3kΩ 1/2W J
R914 QRZ0237-R10 UNF WW RESISTOR 0.1
R915 QRE121J-681Y C RESISTOR 680Ω 1/2W J
R916 QRE121J-152Y C RESISTOR 1.5kΩ 1/2W J
R944 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R945 QRE141J-563Y C RESISTOR 56kΩ 1/4W J
R946 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R949 QRE141J-334Y C RESISTOR 330kΩ 1/4W J
R951 QRE121J-222Y C RESISTOR 2.2kΩ 1/2W J
R952 QRL039J-223 OMF RESISTOR 22kΩ 3W J
R953 QRT039J-R33 MF RESISTOR 0.33Ω 3W J
R981 QRE141J-153Y C RESISTOR 15kΩ 1/4W J
R982 QRE141J-102Y C RESISTOR 1kΩ 1/4W J



R991 QRZ9046-825Z C RESISTOR 8.2MΩ 1/2W K



R992 QRZ9046-105Z C RESISTOR 1MΩ 1/2W K

L461 QQR1195-001 CHOKE COIL
L462 QQR1422-001 CHOKE COIL
L521 QQLZ031-180 COIL 18uH
L522 QQR1191-002 LINEARITY COIL
L551 QQLZ026-540 COIL 54uH
L901 QQL401K-100Z COIL 10uH K
L902 QQL401K-100Z COIL 10uH K



L903 QQR1200-001 CHOKE COIL
L941 QQL26AM-4R7Z COIL 4.7uH M
L942 QQL26AK-220Z COIL 22uH K
L951 QQLZ026-460 COIL 46uH
T5 0 1 QQR1111 - 0 0 1 DR I VE T R A NSF



T901 QQS0258-001 SW TRANSF

CN003 QGB1506M1-16 CONNECTOR B-B (1-16)
CN004 QGB1506M1-16 CONNECTOR B-B (1-16)



CP931 QMFZ052-2R0-E FUSE 2A AC250V



CP951 ICP-N75-T IC PROTECTOR 2.7A



CP952 ICP-N75-T IC PROTECTOR 2.7A



CP954 ICP-N75-T IC PROTECTOR 2.7A
K401 QQR0621-002Z FERRITE BEADS
K522 QQR1114-001Z FERRITE BEADS
K523 QQR1114-001Z FERRITE BEADS
K524 QQR1114-001Z FERRITE BEADS
K901 QQR1113-001Z FERRITE BEADS
K952 QQR0621-002Z FERRITE BEADS
K953 QQR0621-002Z FERRITE BEADS
K955 QQR0621-002Z FERRITE BEADS



LF901 QQR1095-001 LINE FILTER



PC901 PS2581AL1/QW/ PHOTO COUPLER



RY941 QSK0099-001 RELAY



TH901 QAD0121-9R0 P THERMISTOR 9

Ω

1/2W J

Ω

1/4W J

Ω

1/2W J

Ω

3W J

Ω

1/4W F

Ω

1/4W F

Ω

±

7%

±

7%

Ω

CRT SOCKET P.W. BOARD ASS'Y (SML-3311A-H3)



Ref No. Part No. Part Name Description Local

IC3201 TDA6111Q/N4 IC
IC3202 TDA6111Q/N4 IC
IC3203 TDA6111Q/N4 IC

Q3104 2SC3928A/QR/-X TRANSISTOR
Q3105 2SC1627A/OY/-T TRANSISTOR
Q3108 2SA2005/DE/ POW TRANSISTOR
Q3109 2SC5511/DE/ POW TRANSISTOR
Q3301 2SA1530A/QR/-X TRANSISTOR
Q3303 2SA1530A/QR/-X TRANSISTOR
Q3304 2SC3928A/QR/-X TRANSISTOR

D3102 1SS355-X SI DIODE
D3103 FR105GT-T3 SI DIODE
D3104 FR105GT-T3 SI DIODE
D3201 FR105SGT-T2 SI DIODE
D3202 FR105SGT-T2 SI DIODE
D3203 FR105SGT-T2 SI DIODE
D3204 FR105GT-T3 SI DIODE
D3205 1N4003SG-T2 SI DIODE
D3206 1N4003SG-T2 SI DIODE
D3207 1N4003SG-T2 SI DIODE
D3208 MA8062/M/-X Z DIODE
D3209 UDZS13B-X Z DIODE
D3210 UDZS13B-X Z DIODE
D3301 1SS355-X SI DIODE
D3302 1SS355-X SI DIODE
D3303 1SS355-X SI DIODE
D3306 UDZS3.6B-X Z DIODE

C3106 QETN1HM-335Z E CAPACITOR 3.3uF 50V M
C3107 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3110 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3111 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3113 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3114 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3116 QETN1AM-107Z E CAPACITOR 100uF 10V M
C3117 QETN1AM-107Z E CAPACITOR 100uF 10V M
C3118 QEHR1AM-337Z E CAPACITOR 330uF 10V M
C3120 NDC31HJ-561X C CAPACITOR 560pF 50V J
C3201 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C3202 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C3203 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C3204 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C3205 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C3206 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C3207 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3208 QEHR1VM-476Z E CAPACITOR 47uF 35V M
C3209 QEHR1VM-476Z E CAPACITOR 47uF 35V M
C3210 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C3211 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C3212 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C3213 NDC31HJ-181X C CAPACITOR 180pF 50V J
C3214 NDC31HJ-181X C CAPACITOR 180pF 50V J
C3215 NDC31HJ-181X C CAPACITOR 180pF 50V J
C3216 QETN1CM-227Z E CAPACITOR 220uF 16V M
C3218 QETM2EM-336 E CAPACITOR 33uF 250V M
C3219 QFZ0097-223 MM CAPACITOR 0.022uF 1.25KV M
C3221 QETN2EM-106Z E CAPACITOR 10uF 250V M
C3222 QETN2EM-106Z E CAPACITOR 10uF 250V M
C3223 QEHR2EM-106Z E CAPACITOR 10uF 250V M
C3224 QETN2EM-106Z E CAPACITOR 10uF 250V M
C3225 NDC31HJ-151X C CAPACITOR 150pF 50V J
C3303 NCB31CK-563X C CAPACITOR 0.056uF 16V K

R3103 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R3109 NRSA63J-153X MG RESISTOR 15k
R3112 NRSA63J-272X MG RESISTOR 2.7k
R3114 NRSA63J-152X MG RESISTOR 1.5k
R3115 NRSA63J-560X MG RESISTOR 56
R3116 QRG01GJ-101 OMF RESISTOR 100
R3117 NRSA63J-331X MG RESISTOR 330
R3122 NRSA63J-122X MG RESISTOR 1.2k
R3123 QRE121J-563Y C RESISTOR 56k
R3124 NRSA63J-470X MG RESISTOR 47
R3125 QRE121J-563Y C RESISTOR 56k
R3126 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R3127 NRSA63J-122X MG RESISTOR 1.2k
R3128 NRSA63J-390X MG RESISTOR 39Ω 1/16W J
R3129 QRE121J-2R7Y C RESISTOR 2.7
R3130 QRE121J-2R7Y C RESISTOR 2.7Ω 1/2W J
R3131 NRSA63J-390X MG RESISTOR 39
R3132 NRSA63J-121X MG RESISTOR 120Ω 1/16W J
R3133 QRL029J-681 OMF RESISTOR 680



R3134 QRZ9021-561 FUSI RESISTOR 560Ω 1W J
R3201 NRSA63J-102X MG RESISTOR 1k
R3202 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

2W J

Ω

1/16W J

Ω

1/16W J

(No.YA263E)1-27



Ref No. Part No. Part Name Description Local

R3203 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3208 NRSA63J-154X MG RESISTOR 150kΩ 1/16W J
R3209 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R3218 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R3219 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R3220 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R3222 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3223 NRSA63J-272X MG RESISTOR 2.7k
R3224 QRL029J-104-F OMF RESISTOR 100k
R3225 QRL029J-104-F OMF RESISTOR 100kΩ 2W J
R3226 QRL029J-104-F OMF RESISTOR 100kΩ 2W J
R3227 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R3228 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R3229 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R3230 QRZ0107-152Z C RESISTOR 1.5k
R3231 QRZ0107-152Z C RESISTOR 1.5k
R3232 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K
R3234 QRZ0107-474Z C RESISTOR 470kΩ 1/2W K
R3235 QRZ0107-102Z C RESISTOR 1kΩ 1/2W K
R3236 QRZ0107-105Z C RESISTOR 1MΩ 1/2W K
R3237 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R3239 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R3240 NRSA63J-562X MG RESISTOR 5.6k
R3241 NRSA63J-562X MG RESISTOR 5.6k
R3242 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R3301 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R3302 QRE121J-474Y C RESISTOR 470kΩ 1/2W J
R3303 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R3304 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R3305 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R3306 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R3308 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R3311 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R3312 NRSA63J-120X MG RESISTOR 12Ω 1/16W J
R3313 NRSA63J-331X MG RESISTOR 330Ω 1/16W J

L3204 QQL26AJ-102Z COIL 1mH J

CN300G QJK002-063231-E SIN CR C-B WIRE
CN300R QJB003-093626-E SIN ID C-B WIRE
K3101 QQR1114-001Z FERRITE BEADS
K3103 QQR1114-001Z FERRITE BEADS
K3104 QQR1114-001Z FERRITE BEADS
K3105 QQR0621-002Z FERRITE BEADS
K3202 QQR1113-001Z FERRITE BEADS
SG3201 QAF0078-501Z SURGE ABSORBER 500V
SG3202 QAF0078-501Z SURGE ABSORBER 500V
SG3203 QAF0078-501Z SURGE ABSORBER 500V



SK3001 QNZ0536-001 CRT SOCKET

Ω

1/16W J

Ω

2W J

Ω

1/2W K

Ω

1/2W K

Ω

1/16W J

Ω

1/16W J

SIDE CONTROL P.W. BOARD ASS'Y (SML-8141A-H3)

REFER TO PARTS LIST IN PAGE 3-18 FOR THIS P.W. BOARD.

FRONT CONTROL P.W. BOARD ASS'Y
(SML-8311A-H3)

REFER TO PARTS LIST IN PAGE 3-18 FOR THIS P.W. BOARD.

AV JACK P.W. BOARD ASS'Y (SML0J311A-H3)

REFER TO PARTS LIST IN PAGE 3-18 FOR THIS P.W. BOARD.

100HZ SW P.W. BOARD ASS'Y (SML0Z311A-U2)

REFER TO PARTS LIST IN PAGE 3-12 FOR THIS P.W. BOARD.

1-28 (No.YA263E)

PRINTED WIRING BOARD PARTS LIST [AV-32H50SU/Q, AV-32H57SU/Q]

MAIN P.W. BOARD ASS'Y (SML-1311A-U2)

REFER TO PARTS LIST IN PAGE 3-20 FOR THIS P.W. BOARD.

POWER & DEF P.W. BOARD ASS'Y (SML-2311A-H3)

REFER TO PARTS LIST IN PAGE 3-26 FOR THIS P.W. BOARD.

CRT SOCKET P.W. BOARD ASS'Y (SML-3311A-H3)

REFER TO PARTS LIST IN PAGE 3-27 FOR THIS P.W. BOARD.

SIDE CONTROL P.W. BOARD ASS'Y (SML-8143A-H3)

REFER TO PARTS LIST IN PAGE 3-19 FOR THIS P.W. BOARD.

FRONT CONTROL P.W. BOARD ASS'Y
(SML-8312A-H3)

REFER TO PARTS LIST IN PAGE 3-19 FOR THIS P.W. BOARD.

AV JACK P.W. BOARD ASS'Y (SML0J311A-H3)

REFER TO PARTS LIST IN PAGE 3-18 FOR THIS P.W. BOARD.

100HZ SW P.W. BOARD ASS'Y (SML0Z311A-U2)

REFER TO PARTS LIST IN PAGE 3-12 FOR THIS P.W. BOARD.

(No.YA263E)1-29

PACKING PARTS LIST-1

Ref. No.

2 GA10001-017A-U GA10001-088B-U EURO LABEL

Ref. No.

2 GA10001-071A-U GA10001-091B-U EURO LABEL

Ref. No.

2 GA10001-070A-U GA10001-090A-U EURO LABEL

Ref. No.

2 GA10001-074A-U GA10001-089A-U EURO LABEL

Ref. No.

2 GA10001-016A-U GA10001-087B-U EURO LABEL

Ref. No.

2 GA10001-015A-U GA10001-085A-U EURO LABEL

AV-28H5BU AV-28H5BU/B

AV-28H5BL AV-28H5BL/B

AV-28H5SL AV-28H5SL/B

AV-28H5SR AV-28H5SR/B

AV-28H5SU AV-28H5SU/B

AV-32H5BU AV-32H5BU/B

Part No.

Part No.

Part No.

Part No.

Part No.

Part No.

PART NAME DESCRIPTION

PART NAME DESCRIPTION

PART NAME DESCRIPTION

PART NAME DESCRIPTION

PART NAME DESCRIPTION

PART NAME DESCRIPTION

Ref. No.

2 GA10001-075A-U GA10001-086A-U EURO LABEL

Ref. No.

2 GA10001-014A-U GA10001-084A-U EURO LABEL

Ref. No.

2 GA10001-043A-U GA10142-009B-U EURO LABEL

Ref. No.

2 GA10001-073A-U GA10142-012B-U EURO LABEL

Ref. No.

2 GA10001-072A-U GA10142-011A-U EURO LABEL

Ref. No.

2 GA10001-076A-U GA10142-010A-U EURO LABEL

AV-32H5SR AV-32H5SR/B

AV-32H5SU AV-32H5SU/B

AV-28H5BU/P AV-28H5BU/Q

AV-28H5BL/P AV-28H5BL/Q

AV-28H5SL/P AV-28H5SL/Q

AV-28H5SR/P AV-28H5SR/Q

Part No.

Part No.

Part No.

Part No.

Part No.

Part No.

PART NAME DESCRIPTION

PART NAME DESCRIPTION

PART NAME DESCRIPTION

PART NAME DESCRIPTION

PART NAME DESCRIPTION

PART NAME DESCRIPTION

Ref. No.

2 GA10001-042A-U GA10142-008B-U EURO LABEL

1-30 (No.YA263E)

AV-28H5SU/P AV-28H5SU/Q

Part No.

PART NAME DESCRIPTION

Ref. No.

2 GA10001-039A-U GA10142-006B-U EURO LABEL

AV-32H5BU/P AV-32H5BU/Q

Part No.

PART NAME DESCRIPTION

Ref. No.

2 GA10001-077A-U GA10142-007B-U EURO LABEL

Ref. No.

2 GA10001-038A-U GA10142-005B-U EURO LABEL

AV-32H5SR/P AV-32H5SR/Q

AV-32H5SU/P AV-32H5SU/Q

Part No.

Part No.

PART NAME DESCRIPTION

PART NAME DESCRIPTION

(No.YA263E)1-31

PACKING PARTS LIST-2

Ref. No.

2 GA10001-019A-U GA10001-093A-U EURO LABEL

3 GA10039-001A-U LC11318-003G-U CUSHION ASSY 4pcs in 1set

Ref. No.

2 GA10001-018A-U GA10001-092A-U EURO LABEL

Ref. No.

2 GA10001-031A-U GA10001-094A-U EURO LABEL

Ref. No.

2 GA10001-044A-U GA10142-014B-U EURO LABEL

Ref. No.

2 GA10001-040A-U GA10142-013B-U EURO LABEL

Ref. No.

2 GA10001-048A-U GA10142-015B-U EURO LABEL

AV-28H50SU AV-28H50SU/B

AV-32H50SU AV-32H50SU/B

AV-32H57SU AV-32H57SU/B

AV-28H50SU/P AV-28H50SU/Q

AV-32H50SU/P AV-32H50SU/Q

AV-32H57SU/P AV-32H57SU/Q

Part No.

Part No.

Part No.

Part No.

Part No.

Part No.

PART NAME DESCRIPTION

PART NAME DESCRIPTION

PART NAME DESCRIPTION

PART NAME DESCRIPTION

PART NAME DESCRIPTION

PART NAME DESCRIPTION

1-32 (No.YA263E)

SECTION 1

PRECAUTION

Please refer to "C models (No.YA263)" about this section.

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

Please refer to "C models (No.YA263)" about this section.

SECTION 3

DISASSEMBLY

Please refer to "C models (No.YA263)" about this section.

SECTION 4

ADJUSTMENT

Please refer to "C models (No.YA263)" about this section.

SECTION 5

TROUBLESHOOTING

Please refer to "C models (No.YA263)" about this section.

(No.YA263E)1-33

Victor Company of Japan, Limited
CRT Display Category 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan

(No.YA263E)

Printed in Japan

VPT

SCHEMATIC DIAGRAMS

COLOUR TELEVISION

YA263E20061

AV-28H5BL/B, AV-28H5BL/Q, AV-28H5BU/B, AV-28H5BU/Q,
AV-28H5SL
AV-28H5SU

/B,AV-28H5SL/Q,AV-28H5SR/B,AV-28H5SR/Q,

/B,AV-28H5SU/Q,AV-28H50SU/B,AV-28H50SU/Q,

BASIC CHASSIS

ML3

AV-32H5BU
AV-32H5SU
AV-32H57SU

/B,AV-32H5BU/Q,AV-32H5SR/B,AV-32H5SR/Q,

/B,AV-32H5SU/Q,AV-32H50SU/B,AV-32H50SU/Q,

/B,AV-32H57SU/Q

CD-ROM No.SML200601

Supplementary

The following items for the A models and B models were changed partly form C models and D models.
Therefore, this service manual describes only the items which differ from those of the C models and
D models service manual.
For details other than those described in this manual, please refer to the C models service manual
(No.YA263, 2005/4)(No.YA262D, 2006/1) D models service manual (No.YA262B, 2005/6)(No.YA262D, 2006/1).

A models B models C models D models

AV-28H5BL/B, AV-28H5BU/B,
AV-28H5SL/B, AV-28H5SR/B,
AV-28H5SU/B, AV-28H50SU/B,
AV-32H5BU/B, AV-32H5SR/B,
AV-32H5SU/B, AV-32H50SU/B,
AV-32H57SU/B

AV-28H5BL/Q, AV-28H5BU/Q,
AV-28H5SL/Q, AV-28H5SR/Q,
AV-28H5SU/Q, AV-28H50SU/Q,
AV-32H5BU/Q, AV-32H5SR/Q,
AV-32H5SU/Q, AV-32H50SU/Q,
AV-32H57SU/Q

AV-28H5BL, AV-28H5BU,
AV-28H5SL, AV-28H5SR,
AV-28H5SU, AV-28H50SU,
AV-32H5BU, AV-32H5SR,
AV-32H5SU, AV-32H50SU,
AV-32H57SU

AV-28H5BL/P, AV-28H5BU/P,
AV-28H5SL/P, AV-28H5SR/P,
AV-28H5SU/P, AV-28H50SU/P,
AV-32H5BU/P, AV-32H5SR/P,
AV-32H5SU/P, AV-32H50SU/P,
AV-32H57SU/P

COPYRIGHT © 2006 Victor Company of Japan, Limited

No.YA263E

2006/1

AV-28H5BL/B, AV-28H5BL/Q, AV-28H5BU/B, AV-28H5BU/Q,
AV-28H5SL/B, AV-28H5SL/Q, AV-28H5SR/B, AV-28H5SR/Q,
AV-28H5SU/B, AV-28H5SU/Q, AV-28H50SU/B, AV-28H50SU/Q,
AV-32H5BU/B, AV-32H5BU/Q, AV-32H5SR/B, AV-32H5SR/Q,
AV-32H5SU/B, AV-32H5SU/Q, AV-32H50SU/B, AV-32H50SU/Q,
AV-32H57SU

/B

, AV-32H57SU

/Q

STANDARD CIRCUIT DIAGRAM

NOTE ON USING CIRCUIT DIAGRAMS

1.SAFETY

The components identified by the symbol and shading are
critical for safety. For continued safety replace safety ciritical
components only with manufactures recommended parts.

2.SPECIFIED VOLTAGE AND WAVEFORM VALUES

The voltage and waveform values have been measured under the
following conditions.

(1)Input signal : Colour bar signal

(2)Setting positions of
each knob/button and
variable resistor

(3)Internal resistance of tester

(4)Oscilloscope sweeping time

(5)Voltage values

Since the voltage values of signal circuit vary to some extent
according to adjustments, use them as reference values.

: Original setting position
when shipped

: DC 20kΩ/V

: H

: V

: Othters

: All DC voltage values

20µs / div

5ms / div

Sweeping time is
specified

3.INDICATION OF PARTS SYMBOL [EXAMPLE]

In the PW board

: R209

R209

4.INDICATIONS ON THE CIRCUIT DIAGRAM

(1)Resistors

Resistance value

No unit : [Ω]

K
M

Rated allowable power
No indication : 1/16 [W]

Others : As specified

Type

No indication

OMR

MFR

MPR

UNFR

FR

Composition resistor 1/2 [W] is specified as 1/2S or Comp.

(2)Capacitors

Capacitance value

1 or higher : [pF]

less than 1

Withstand voltage

No indication : DC50[V]

Others : DC withstand voltage [V]

AC indicated
Electrolytic Capacitors

47/50[Example]: Capacitance value [µF]/withstand voltage[V]

: [kΩ]

: [MΩ]

: Carbon resistor

: Oxide metal film resistor

: Metal film resistor

: Metal plate resistor

: Uninflammable resistor

: Fusible resistor

: [µF]

: AC withstand voltage [V]

Type
No indication

MM
PP
MPP
MF
TF
BP

TAN

(3)Coils

No unit

Others

(4)Power Supply

Respective voltage values are indicated

(5)Test point

: Test point

(6)Connecting method

(7)Ground symbol

: LIVE side ground

: ISOLATED(NEUTRAL) side ground

: EARTH ground

: DIGITAL ground

5.NOTE FOR REPAIRING SERVICE

This model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE : ( ) side GND and the
ISOLATED(NEUTRAL) : ( ) side GND. Therefore, care must be
taken for the following points.

(1)Do not touch the LIVE side GND or the LIVE side GND and the
ISOLATED(NEUTRAL) side GND simultaneously. if the above
caution is not respected, an electric shock may be caused.
Therefore, make sure that the power cord is surely removed from
the receptacle when, for example, the chassis is pulled out.

(2)Do not short between the LIVE side GND and ISOLATED(NEUTRAL
side GND or never measure with a measuring apparatus measure
with a measuring apparatus ( oscilloscope, etc.) the LIVE side GND
and ISOLATED(NEUTRAL) side GND at the same time.
If the above precaution is not respected, a fuse or any parts will be broken.

Since the circuit diagram is a standard one, the circuit and
circuit constants may be subject to change for improvement
without any notice.

NOTE
Due improvement in performance, some part numbers show
in the circuit diagram may not agree with those indicated in
the part list.
When ordering parts, please use the numbers that appear
in the Parts List.

: Ceramic capacitor
: Metalized mylar capacitor

: Polypropylene capacitor
: Metalized polypropylene capacitor
: Metalized film capacitor
: Thin film capacitor
: Bipolar electrolytic capacitor
: Tantalum capacitor

: [µH]

: As specified

: B1

: 9V

: Only test point display

: Connector

: Receptacle

: Wrapping or soldering

: B2 (12V

: 5V

)

)

(No.YA263E)2-1

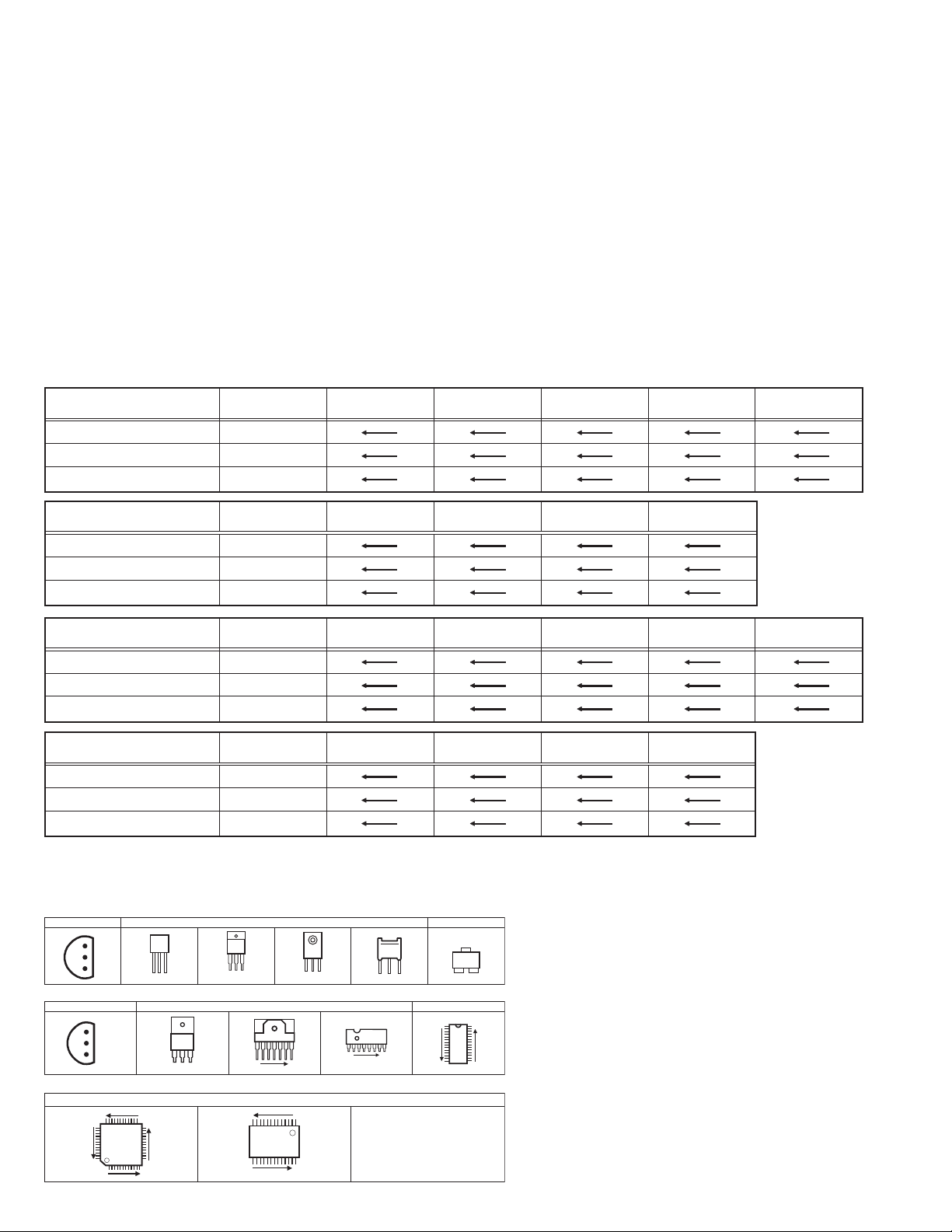

CONTENTS

SEMICONDUCTOR SHAPES ......................................................................2-2

CIRCUIT DIAGRAMS

MAIN PWB CIRCUIT DIAGRAM ................................................................................................................ 2-3

POWER & DEF PWB CIRCUIT DIAGRAM ................................................................................................. 2-7

100HZ PWB CIRCUIT DIAGRAM ............................................................................................................... 2-9

PATTERN DIAGRAMS

MAIN PWB PATTERN .............................................................................................................................. 2-13

POWER & DEF PWB PATTERN ............................................................................................................... 2-15

100HZ PWB PATTERN ............................................................................................................................. 2-17

USING P.W. BOARD

P.W.B ASS’Y name

MAIN P.W. BOARD

POWER & DEF P.W. BOARD

100HZ P.W. BOARD

P.W.B ASS’Y name

MAIN P.W. BOARD

POWER & DEF P.W. BOARD

100HZ P.W. BOARD

P.W.B ASS’Y name

MAIN P.W. BOARD

POWER & DEF P.W. BOARD

100HZ P.W. BOARD

P.W.B ASS’Y name

MAIN P.W. BOARD

POWER & DEF P.W. BOARD

100HZ P.W. BOARD

AV-28H5BU/B AV-28H5BL/B AV-28H5SL/B AV-28H5SR/B AV-28H5SU/B AV-28H50SU/B

SML-1312A-U2

SML-2312A-U2

SML0Z311A-U2

AV-32H5BU/B AV-32H5SR/B AV-32H5SU/B AV-32H50SU/B AV-32H57SU/B

SML-1311A-U2

SML-2311A-U2

SML0Z311A-U2

AV-28H5BU/Q AV-28H5BL/Q AV-28H5SL/Q AV-28H5SR/Q AV-28H5SU/Q AV-28H50SU/Q

SML-1312A-U2

SML-2312A-H3

SML0Z311A-U2

AV-32H5BU/Q AV-32H5SR/Q AV-32H5SU/Q AV-32H50SU/Q AV-32H57SU/Q

SML-1311A-U2

SML-2311A-H3

SML0Z311A-U2

SEMICONDUCTOR SHAPES

TRANSISTOR

BOTTOM VIEW FRONT VIEW TOP VIEW

E
C
B

IC

BOTTOM VIEW FRONT VIEW TOP VIEW

OUT

E

IN

CHIP IC

N

1

ECB

IN OUTE

B
(G)E(S)C(D)

TOP VIEW

1 N

ECB

1

N

ECB

1 N

2-2(No.YA263E)

CHIP TR

1

C

BE

N

CIRCUIT DIAGRAMS

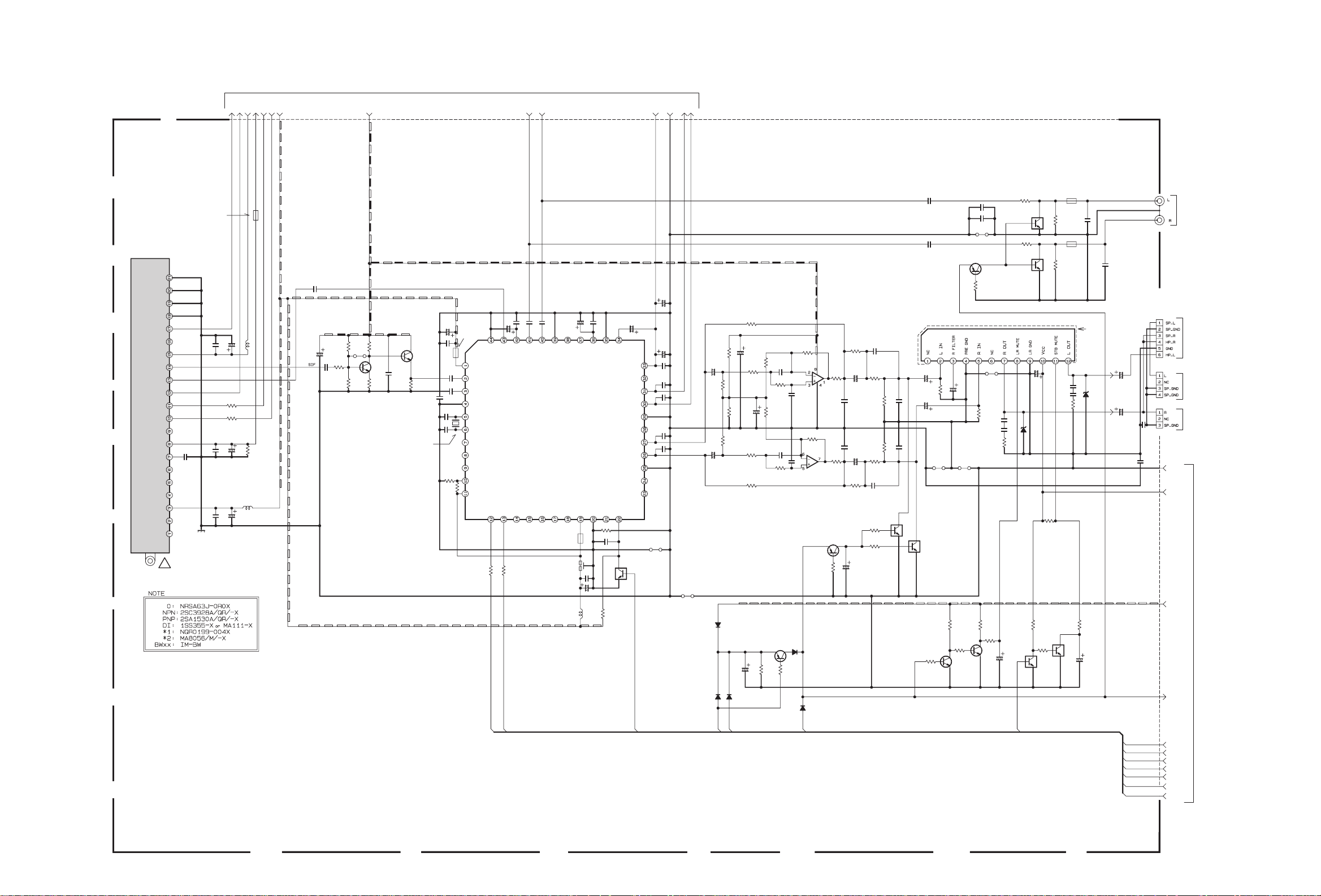

MAIN PWB CIRCUIT DIAGRAM (1/2) SHEET1

V_TV

AGC5VSDA1

SCL1_2

32V

AFC

K001
OPEN

GND

GND

GND

GND

NC

SDA

TU001

QAU0442-001

BTL

AFT

SCL

NC

BT

C003
OPEN

NC

NC

NC

BM

NC

NC

!

.1

C006

.01

C001
OPEN

C004

/16

R003

R002

10

C002
OPEN

1000

C007

C005

L002

/50

10

100

100

R001
OPEN

L001

27

/16

C010
1

NOTE : To find the pages showing the corresponding schematic diagram, follow the indication below.

SHEET No : Refer to the original service manual.

**SHEET2

R

C113

.1

/16

VREFTOP

SC1_IN_R

MSP3415GQGB8V3M

TPTPTPTPNC

L

C111C112

11

/16/16

ASG1

SC1_IN_L

IC101

NQR0389-003X

NQR0431-001X

C103
.1

C104
100

L101

QQL244K-4R7Z

C110

10

K102

LC101

/16

4.7

/50

SC2_IN_R

/16

C109

.1

/16

SC2_IN_L

DVSUP

AGNDC

DVSS

R106

C121

AHVSS

NC

.01

R103

10k

0

C108
1

CAPL_M

AHVSVP

SCI_OUT_L

SCI_OUT_R

VREF1

DACM_L

DACM_R

VREF2

RESETQ

/50

NC

NC

NC

NC

Q101

UN2213-X

9V

/10

F

C114

10

/50

AVSS

AVSUP

ANA_IN+

ANA_IN-

TESTEN

XTAL_IN

XTAL_OUT

NC

D_CTR_OUT1

D_CTR_OUT0

ADR_SEL

STANBY

R101 R102

100 100

MCNO_IN

C011

C012

.01100

/50

R007

2.2k

R006

R009

Y001
OPEN

Q001

R008 R010

1k 330

680

NPN

C013

.01

R011

1k

QAX0773-001Z

Q002

NPN

X101

18.576MHZ

C102

10

.1

C124

C119

C120

R105
OPEN

/50

C101

/16

0

2p

2p

R104
OPEN

C117

C118

K101
NQR0389-003X

.01

.01

CHCH

Y002
BW10

GND

RTV

LTV

8V

C636
1

/16

C631
.001

C632
.001

Y003
BW10

C637
1

/16

C107

100

/16

R615

0

C105

/50

10

C106

.1

/16

C115

.001

C116
.001

C123
.001

CH CHCH CH

C122
.001

Y004

R614
OPEN

C616
OPEN

R605

OPEN

R601

R603

OPEN

R602
OPEN

D603
OPEN

1000

C626

R604
OPEN

R607
OPEN

R616

/25

OPEN

0

R637
47K

C601
OPEN

N

N

C602
OPEN

0

R606C603
OPENOPEN

R609
OPEN

C604
OPEN

R608
OPEN

C606
OPEN

Q604

PNP

C607
OPEN

R630
27K

D606

R610
OPEN

C605
OPEN

R611
OPEN

IC602

OPEN

( 2/2)

DI

IC602

OPEN
( 1/2)

R628
OPEN

Q601
OPEN

R612
OPEN

R613
OPEN

C608
OPEN

C609
OPEN

R645

R644

0

N

C610
OPEN

C611
OPEN

N

0

C625
OPEN

C634
OPEN

R617

2.7k

R618
OPEN

R619
OPEN

R620

2.7k

C635
OPEN

R626
OPEN

R627
OPEN

Q602
OPEN

C612

.0027

C613

.0027

C614
1

/50

C615
1

Q603
OPEN

/50

R643

47k

Y601 Y602

Q605

NPN

Q609
OPEN

MUTING

R641
OPEN

IC601

/50

R621

C633

10k

100

R622

10k

0BW

R629 R632
10k 8.2k

R631

47k

Q606

NPN

R635

8.2k

Y603

BW

C617
OPEN

C618
OPEN

R623
OPEN

A2_GND

AN5277

R642

680

Q610
OPEN

MUTING

R640

680

Q611
OPEN

MUTING

OPEN

D601

C627

/50

10

**SHEET No : Refer to this service manual.

J601

K601

NQR0199-001X

R638

10k

C630

.01

K602

NQR0199-001X

R639

10k

LC32265-001B

HS601

C629

FIX_GND

.01

QNN0596-001

*

CN00S
QGA2501C5-06Z

*

C622

1000

R633
OPEN

R636
OPEN

Q607
OPEN

/35

C619

1000

QETM1VM-228

R625

18k

C620
OPEN

C621
OPEN

R624
OPEN

Q608
OPEN

R634
OPEN

C628
OPEN

D602
OPEN

1000

C623

/25

/25

C624
.001

C638
1000p

CN0SL
QGA2501C5-04Z

CN0SR
QGA2501C5-03Z

A2_GND

A_VCC

STB_5V

*

*

**SHEET2

D605

D604

DI

SCL1_2

SDA1

MSP_RST

6V

DI

PROTECT

D607

DI

MAIN PWB ASS'Y (1/2)

SML-1312A-U2 [AV-28H5BU/B, AV-28H5BL/B, AV-28H5SL/B, AV-28H5SR/B, AV-28H5SU/B, AV-28H50SU/B
AV-28H5BU/Q, AV-28H5BL/Q, AV-28H5SL/Q, AV-28H5SR/Q, AV-28H5SU/Q, AV-28H50SU/Q]
SML-1311A-U2 [AV-32H5BU/B, AV-32H5SR/B, AV-32H5SU/B, AV-32H50SU/B, AV-32H57SU/B
AV-32H5BU/Q, AV-32H5SR/Q, AV-32H5SU/Q, AV-32H50SU/Q, AV-32H57SU/Q]

2-4(No.YA263E)(No.YA263E)2-3

A_MUTE

P_ON/OFF

6V

A_MUTE

P_ON/OFF

PROTECT

MSP_RST

SDA1

SCL1_2

A.MUTE

6V

A_MUTE

P_ON/OFF

PROTECT

MSP_RST

SDA1

SCL1_2

c10384_1213_1/2_0.0

MAIN PWB CIRCUIT DIAGRAM (2/2) SHEET 2

*

*

**SHEET1

CN00F

QGA2501C1-09

*

CN001

QGB1505J1-35

PROTECT

32V

A_VCC

A2_GND

GND

STB_5V

CN0C1

QGA2501F1-06

220

220

220

R705

220

R702

SDA0

D704

ZD5.6

R703

R704

D703D702

ZD5.6ZD5.6

SCL0

SDA1

SCL1_2

R271

R272

33k

33k

C223
1

/10

F

F

C224
1

/10

R207R206R205
OPEN7575

C2/SC_R2

Q202

NPN

SW

R201

10k

R293

10k

R292

SW

15k

Q219
NPN

DI

DI

D983

D982
DI

D701

ZD5.6

R274

2.2k

R273

2.2k

SW

Q201

NPN

R202

10k

D981

5V

9V

6V

8V

SDA1

SCL1_2

SCL1_2

SDA1

D213

D214

ZD15

ZD15

SC_YS2

AV_LINK

SDA2

SCL1_2

R294

10k

PROTECT

P_ON/OFF

V_TV

SC_YS1

SC_R1

SC_G1

SC_B1

SC_G2

SC_B2

A.MUTE

AFC

AFC

**SHEET1

AGC

LRLTV

AGC

LTV

L

R

L_TVOUT

V_TV

R_TVOUT

R4

L4

V4

Y4

C4

L1

V1

R1

V2/Y2

V1

L2

TV_OUT

R2

SLOW1

L_TVOUT

R_TVOUT

L1

R1

SLOW2

V2/Y2

V2_OUT

V3/Y3

V3/Y3

L3

R3

C3

C3

SLOW3

R2

SLOW2

L2

L3

R3

SLOW3

MP_SW

Q210
OPEN

MUTING

R260
OPEN

RTV

RTV

MSP_RST

R210

33k

R215

2.2k

R217 R218

2.2k 33k

A_MUTE

MSP_RST

P_ON/OFF

A.MUTE

A.MUTE

P_ON/OFFL4A_MUTE

R232

82k

R233

82k

Q207
OPEN

MUTING

C202

10

/50

R209

2.2k

R211

R208

2.2k

R220

8.2k

R203
OPEN

R226

8.2k

R204 R228
OPEN OPEN

C212
OPEN

R258

33k

C204
1

/10

C205
1

/10

F

C203

.01

C206

10

/50

C207
1

/10

F

R216

C208

33k

OPEN

C209
1

/10

F

C210

.01

0

R296

R221

15k

Q203 R248

R222

OPEN OPEN

12k

R223
OPEN

R224

C211
OPEN

OPEN

R297

0

R227

15k

Q205

R229

OPEN

12k

R230
OPEN

R231
OPEN

R275
390

82k

R259 D207

R276
390

82k ZD12

Q211
OPEN
MUTING

Q214
OPEN
MUTING

F

SW

R225
OPEN

SW

Q206
OPEN

NOTE : To find the pages showing the corresponding schematic diagram, follow the indication below.

**100HZ PWB ASS'Y (1/2)

CN002 (SHEET4)

GND

GND

NC

SC_B2

R242

100

R251

8.2k

R254
OPEN

C219
OPEN

LTV

D204
ZD12

D205
ZD12

Q212
OPEN
MUTING

R263
OPEN

C213

/10

1

F

R235

33k

C215

10

/50

C216
1

/10 F

R237

33k

R212
100

R241
100

100

100

100

100

100

C218
OPEN

100

R238

D212
OPEN

R249

100

CH

D211
OPEN

R250

R298

OPEN

0

R253

15k

SW

Q208

R255

OPEN

12k

R256
OPEN

R257
OPEN

D206
ZD12

R261

390

C220

10

/50

R262

390

C221

/50

10

Q213
OPEN
MUTING

R234

2.2k

R236

2.2k

CH

C217
OPEN

R240
100

R213
100

R214
100

R243

R244

CH

R245

R246

R247

R219
OPEN

SW

Q204
OPEN

SW

SLOW1

C226

/50

10

C227

/50

10

EW

SC_B2/B-Y50

SC_G2

EW

RTV

C214
OPEN

CH

100

R239

D201
ZD12

R252
OPEN

SW

Q209
OPEN

/16

HFLB

SC_R2/R-Y50

SC_G2/Y50

C2/SC_R2

HFLB

100

R266
100

C240
OPEN

C222 R264

10/50

V4

GND

SC_B1

NC

HD

SC_B1

SC_G1

HD

A.MUTE

IC201

CXA2089Q-X

R268
100

D202
ZD12

C201

10/50

Y4

R4

IC901

AN78L08-T

SC_R1HDSC_G1

ABL

NC

SC_R1

SC_YS1

ABL

R270R269R267R265
100100100100

D210
OPEN

C225

.01

C4

C902 C903C901
.1 100100

/16 /16

GND

SC_YS1

VD+

CH CH

C561 C562
39p OPEN

VD+

VD_

C232

100

/16

D203
ZD12

GND

VD-

GND

VPROT

HPROT

M_C

M_CV/Y

V_TV

NC

VPROT

HPROT

R277

C228

100

.01

C229
10

/50

N

C231

10

/25

R281R282
1k1.2k

C233

100

/16

R285

100

Q215
PNP2

C908

/10

470

6V

6V

6V6VGND

GND

S_CV

NC

NC

Q216
NPN
BUFFER

R278

2.2k

C230

10

/25

N

C234
.01

R286
100

Q217
NPN2

R287
150
R1/2

D208
ZD12

R295
100

R289
100

R290
100

C236

470

C237

R279

1

/10

5.6k

F

F

R280

C238

5.6k

/10

1

R283

100

OMF1

R284
180

C239

/16

470

R1/2

R291

56

D209
ZD12

TV_OUT

IC903

L7809CP

C909

/16

.1

VM

GND

GND

GND

C235
100

/16

R288

75

/16

V2_OUT

MP_SW

C910

/16

100

Rout

( 5V)

( 5V)

12V

12V

RTV

LTV

NC

NC

ROUT

GOUTIKAV_LINK

SVM

R

L

Gout

Bout

C.V

BOUT

R708

GND

AV_LINK

YS2

SC_YS2

SDA2

SCL1_2

ROTATE

D705

0

Q701 C702

PNP .1

RESET

C904

/10

1

C905

/50

10

IK

NC( PWMV)

NC

R552

10

R558

5.6k

C551

/16

.22

C552

.22

/16

DI

F

2.2

NCB20JK-225X

CN002

F

F

LM324D-X

R709

2.2k

R710
100k

C906

/6.3

IC551

R551
120k

R553
68k

K552

BW

C502
OPEN

IC501

/16

Vin

Sub

VoNCGND

GND

LA6515 ROTATION

R554

5.6k

Y504
OPEN

R502
12k

1000p

C703
OPEN

IC902
MM1565AF-X

Cn Cont

CH

C907
470p

GND

MSP_RSTVSHS

R560

4.7k

C501
OPEN

R503

4.7k

C503

V_PULSE

MSP_RESET

AGC

R501

12k

CH

R505
120k

Q702

NPN

RESET

**100HZ PWB ASS'Y (2/2)

CN002 (SHEET5)

AUDIO_MUTE

AMP_MUTE

AGC

R555
150k

R559

H_PULSE

AFC

RT_GND

33k

R514

3.9k

C506

/16

.1

A_PROT

NC

AFC

NC

R556
100k

R557

10

C554

/16

.22

C555

/16

.22

R518

12k

R512

C504

/16

.1

C505

/16

.1

GND

VCC

C507

/16

.1

R517
12k

R504
12k

C509

/16

.1

GND

GND

NC

RESET

W_ON/OFF

A_MUTE

RESET

C553

/25

47

RT_12V

F

K551

F

R506

4.7k

R507

27k

R510R509

56k12k

15k

R511

6.8k

R513

3.3k

R515

33k

/16

100

R516
12k

C508

R519

4.7k

R521

R520

47k

33k

R531

4.7k

R522
OPEN

BW

SDA2

IIC_FREE

SDA2

Q502

NPN

CORRECTEHT

R533

2.7k

Q503
OPEN
INV

C512
OPEN

SDA1

SDA1

SCL1_2

SCL1_2

R525

22k

R528

4.7k

SCL1_2

R534
OPEN

GND

SDA0

SDA0

BOUT

GOUT

ROUT

SVM

D501

DI

/25

H/P_DET

KEY

SCL0

SCL0

KEY

C701

/16

R316
56k

C308

/16

.22

R317
10k

R526 R527

68k 56k

R529

82k

Y501
OPEN

R530

1M

C511
OPEN

R535
OPEN

STB3.3V

Vcc

A0

EEPROM

Y502

0

C513
OPEN
CH

C514
OPEN

( KEY2)

PROTECT

IC701

GND

PROTECT

( KEY3)

PW_ON/OFF

.1

P_ON/OFF

SCL0

R706

100.1100

SCL0

TEST

A2

A1

R313

330

R1/2

R314
OPEN

Q305
NPN2

R315

C309
OPEN

100

R524R523
220k220k

R536
220k

C515

.01

R542

0

Q501

NPN

EHTCORRECT

R537

12k

Y503

R532C510

12k.033

R539
OPEN

GND

STB_5V

ECO

C711

/16

LED

SDA0

R707

SDA0Vss

C303 C304

/16

220 .01

R311
OPEN
R1/2

.22

R312
OPEN

R540
OPEN

0

R541
OPEN

R538
OPEN

Q504
OPEN

INV

PW_LED

ROTATE

C310

REMOCON

ROTATION

REMOCON

EW

/16

ABL

RESET

VS

HS

HD

VD+

VD_

VPROT

HPROT

HFLB

SHEET No : Refer to the original service manual.
**SHEET No : Refer to this service manual.

CN002
QGC2507C1-96

CN00K

1000p

D502

DI

D503

DI

D504

DI

QGA2501C5-03Z

*

CN00B
QJK002-041614-E

*

C311

CN0RT
QGA2501C5-03Z

CN00R
QGA2501C1-09

*

D301
OPEN

D302
ZD3.9

IK

KEY

REMOCON

LED

PROTECT

C312

1000p

CN003
QGB1506L1-16 QGB1506L1-16

**POWER&DEF PWB ASS'Y

CN003 (SHEET3)

CN004

**POWER&DEF PWB ASS'Y

CN004 (SHEET3)

NOTE : Refer to the part list for the part number of IC701.

MAIN PWB ASS'Y (2/2)

SML-1312A-U2 [AV-28H5BU/B, AV-28H5BL/B, AV-28H5SL/B, AV-28H5SR/B, AV-28H5SU/B, AV-28H50SU/B
AV-28H5BU/Q, AV-28H5BL/Q, AV-28H5SL/Q, AV-28H5SR/Q, AV-28H5SU/Q, AV-28H50SU/Q]
SML-1311A-U2 [AV-32H5BU/B, AV-32H5SR/B, AV-32H5SU/B, AV-32H50SU/B, AV-32H57SU/B
AV-32H5BU/Q, AV-32H5SR/Q, AV-32H5SU/Q, AV-32H50SU/Q, AV-32H57SU/Q]

(No.YA263E)2-5 2-6(No.YA263E)

c10384_1213_2/2_0.0

POWER & DEF PWB CIRCUIT DIAGRAM SHEET 3

NOTE : To find the pages showing the corresponding schematic diagram, follow the indication below.

SHEET No : Refer to the original service manual.
**SHEET No : Refer to this service manual.

S1WB/A/60-4101

!

L903
QQR1200-001

C906

!

.0047

D906
MTZJ27B

R913
OPEN

!

C931

QCZ9054-472

C932

!

QCZ9054-472

D931

QCZ9054-472

!

C905
.0047

QCZ9054-472

C907

GND3

C917
OPEN

C912
560p
2kV

220/400

QEZ0649-227

C933

R905

470k

1/2W

R906
470k

QEZ0476-227

1/2W

or1

FR107GT-T3

!

GND1

GND1

D902

K901

QQR1113-001Z

FR105GT-T3

R916

1.5k
1/2W

CP931

QMFZ052-2R0-E

C934

QETM2GM-226
QEZ0632-226

C908

1500p/500

D904

D907

DI

!

CP

/500

.01

QCB32HK-103

C916

R911

3.3k
1/2W

R912
OPEN

D911

DI

82k

R908

OMF3W

C909

390p

2kV

R910

1/2W

D905
DI

C911

.001

C915

.1

PS2581AL1/QW/

68

PC901

!

QAL0515-002

QQS0258-001

82k

OMF3W

R909

MY

!

!

IC941

!

C992
OPEN

C993

QCZ9079-222

!

T901

RY941
QSK0099-001

C991
QCZ9079-102

R991

!

8.2M
QRZ9046-825Z

CP941

BW

CP

C941

QTMN1CM-477Z

D945
DI

Y952

BW

Y953

BW

K951
OPEN

K952

QQR0621

-002Z

Y951

OPEN

K953

QQR0621

-002Z

K955
QQR0621

-002Z

K956
OPEN

A_GND

!

R951

2.2k

1/2W

QQL26AM-4R7Z

C960
820p

QCZ0325-821

FR305G-FL

HER153G-T3

FMX-G12S

C964
OPEN

D954

HER202G-FL

D959

L941

D951

D953

C962
OPEN

D956

FSF05A20

DI

R942

HS954

OPEN

ICP-N75-T

C942

330

/10

D941
BW10

R941

BW

R943

BW

OPEN

R948

BW10

Q942

NPN

R947
OPEN

MTZJ33B-T2

2kV

D952
FR305G-FL

C961
OPEN

CP

!

!

CP

HS956
LC33021-001A

!

CP

CP954

CP951

ICP-N75-T

CP952
ICP-N75-T

QQLZ026-460

C951

220/160

QEZ0203-227

C952

2200

QEZ0255-228

C956
3300
QETM1AM

R954

OPEN

OMF3W

Y954

BW

C959

.68

/16

-338

L951

B1_0

/10

C954

QETM1VM-228

TF

46

IC961

PQ120RDA1SZ

IN OUT GND SW

C955

OPEN

HS961

LC33021-001A

C966
OPEN

Y956
BW10

IC951
SE140N

D957

BW

MY

GND

*

QGA7901C1-02

QGA7901C1-02

CN00W

CNDEG

OPEN

Y904

OPEN

Y905

LF901

QFZ9072-473

!

QQR1095-001

QFZ9075-473

C903

!

R992

-9R0

IC901

STR-G9656-F3

DRIVE

!

OPEN

OPEN

L901
OPEN

Y901

Y902

L902
OPEN

OCP/FB

R902

QRF054K-3R3

BW15

BW10

R903

3.9
10W
QRF104K-3R9

Y908
OPEN

Y909
OPEN

C904

!

.0047
QCZ9054-472

D901

D3SBA60

QCZ9054-472

GND3

R904
68k

OMF3W

C914

D910

470p

MTZJ15B

C910

VIN

GND

S

D

47/50

D909
OPEN

R915

R914

K902

680

.1

BW

1/2W

QRZ0237-R10

C902

!

QFZ9072-104
QFZ9075-104

Y906

Y907

QRZ9046-105Z

AC

AC

CN0UP

OPEN

!

C901

QFZ9072-473

QFZ9075-473

!

TH901

DEG

QAD0121

DEG

R901
330

1/2W

HS901

LC32673-001B

OMF3W

L942

22

QQL26AK-220Z

R946

R949

330k

10k

Q941

R944

NPN

10k

R945

56k

R952

22k

C967

D958

OPEN

C958

C953

OPEN

1000

/16

Y955
OPEN

R953

.68

OMF3W

QRT039J-R33

R964

R963

OPEN

OPEN

OMF3W

OMF3W

**MAIN PWB ASS'Y(2/2)

CN003 (SHEET2)

CN003

QGB1506M1-16

6V

STB5V

POW_ON/OFF

BT32

R981
15k

D981

DI

PROTECT%

R982
1k

D983

DI

C968
3300

QETM1AM-338

6V

/10

A_VCC

A_GND

GND

GND

GND

GND6V6V6V32V

BT32

PROTECT%

L522

L551

R504

R505

R522

R523

R541

R542

C521

C522

C523

R464

R481

STB_5V

PROTECT

STB5V

R524
QRC121K-152Z

POW_ON/OFF

GND

POW_ON/OFF

D523

MTZJ22B-T2

R477

56k

R478

SML-2311A

QQR1191

QQLZ026

QFZ0122

QFZ0196

QFN32DJ

QRX01GJ

A_GND

A_GND

A_GND

A_GND

BSN304-T

H.DRIVE

R501

470

R502

12k

R504

OMF3W

1.5k

33k

-002

-540

2.2k

2.2k

33k 33k

10k

2.2k

2.2k

-112

-113

-393

-3R3

220k

A_VCC

A_VCC

Q501

BUFFER

D463

DI

SML-2312A

QQR1191

QQLZ026

2.7k

2.7k

10k

3.3k

2.2k

QFZ0122

QFZ0200

QFN32DJ

QRX01GJ

270k

A_VCC

G

R503

QQR1111-001

1.5k
1/2W

C504
OPEN

D

C501

/500

330p

S

D501

1SS24

4-T2

R505

OMF3W

Q463

NPN

R475

1k

R476
1k

SML-2361A

SML-2362A

QQR1191

QQR1191

-002

-001

QQLZ026

QQLZ026

-540

-560

2.7k

3.3k

27k

12k

1.5k

3.3k

QFZ0122

QFZ0122

-102

-112

QFZ0200

QFZ0196

-113

-123

QFN32DJ

QFN32DJ

-393

-473

QRX01GJ

QRX01GJ

-2R7

-3R3

220k

POWER & DEF PWB ASS'Y

SML-2312A-U2 [AV-28H5BU/B, AV-28H5BL/B, AV-28H5SL/B, AV-28H5SR/B, AV-28H5SU/B, AV-28H50SU/B
AV-28H5BU/Q, AV-28H5BL/Q, AV-28H5SL/Q, AV-28H5SR/Q, AV-28H5SU/Q, AV-28H50SU/Q]
SML-2311A-U2 [AV-32H5BU/B, AV-32H5SR/B, AV-32H5SU/B, AV-32H50SU/B, AV-32H57SU/B
AV-32H5BU/Q, AV-32H5SR/Q, AV-32H5SU/Q, AV-32H50SU/Q, AV-32H57SU/Q]

2-8(No.YA263E)(No.YA263E)2-7

T501

HDT

R473
47k

R474
10k

-002

-540

2.7k

2.7k

33k

10k

3.3k

2.2k

-112

-113

-393

-2R7

270k

C502

.01/200

QFN32DK-103

R472
10k

**MAIN PWB ASS'Y(2/2)

CN004 (SHEET2)

CN004

QGB1506M1-16

HS401

LC30416-002B

VD+

R401

5.6k

R403

2.2k

R402

5.6k

R407

1.5

OMF1W

Q521

!

*

H.OUT

5.6

R506
1/2W

C503

TF

.22

R522

R523

1%

R471
390

IC461
LM393P

GND

R469

C471

.01

2.7k

SML-2311A

QFP32GJ

C524

QFZ0197

C527

QFZ0197

C529

QCB32HK

C555

LC31212

HS521

2SC5905-RL

Q521

QRA14CF

R587

QRA14CF

R586

QETM1VM-108

1N4003SG-T2

C402

OPEN

D524

OPEN

VCC

-223

-823

-184

-102Z

-002B

-2201Y

-7501Y

1000/35

C414

.0068

C467
.001

MY

SML-2312A

QFP32JJ

QFZ0197

QFZ0197

LC31212

2SC5904-RL

QRA14CF

QRA14CF

IC401

C406

D402

CH

C401

OPEN

CH

R406

2.2k

R405

OMF2W

R408

1.5

OMF1W

C413
OPEN

HS521

*

D521

K522

V11CA-C1

QQR1114-001Z

C521

1800VH

K521
OPEN

MY

C523

200V

C468

C470

47/25

47p

5%

PP

MY

QFN32DJ-152Z

C466
.0027

QFP31HJ-272Z

SML-2361A

QFP32GJ

-223

-223

QFZ0197

-823

-124

QFZ0197

-184

-154

QCB32HK

OPEN OPEN

-102Z

LC31212

-001C

-002B

2SC5905-RL

QRA14CF

-2101Y

-2201Y

QRA14CF

-7151Y

-7501Y

330/35

150

C411

.1/100

MY

D522

FMV-3FU-F1

R468
1k

Y462

OPEN

.0015

SML-2362A

QFP32JJ

QFZ0197

QFZ0197

LC31212

2SC5904-RL

QRA14CF

QRA14CF

C408

C407
OPEN

R465

BW

-001C

-2101Y

-7151Y

BW

Y522

QRG029J-820

FR105GT-T3

C463

-223

-124

-154

QQR0621-002Z

BW

Y521

RDN050N20

/200

V.OUTLA78041

C403
OPEN

C415

MY

TF

D401

OPEN

C404

.1

K401

R404

1.0
OMF1W

TF

C409
.47

TF

C410
.47

C412
OPEN

C522

HS522
LC32987-001A

C524

*

R461

82

MY

D461

QFN32DJ-152Z

R479

OPEN

Q461

HS461

D

LC33021-001A

G

D462

S

DI

R464

GND

GND

GND

GND

H_DRIVE

ABL

VS

ABL

VS

R409

R410

82k

10k

DTC124ESA-T

D481

CH

DI

C481

C405
82p

1/50

Y523

BW15

Y524
BW15

C525
OPEN
250VAC

T521
OPEN

Y525

BW15

C462

.0015

/200

L462

QQR1422-001

OPEN

R480

OMF3W

R462
47k

TF

C465

10/50

C464
.1

R463

6.8k

VD-

VD+

GND

Q481

R481

*

C533

4.7

/250

C528
OPEN

C526

QFZ0197-204

QQLZ031-180

C527

*

QQR1195-001

V_PROT

EW_DRIVE

EW_DRIVE

PROTECTOR

FR105GT-T3

250VAC

Y526

BW15

Q464

H_PROT

R482

R525

QRL039J-103

D525

250VAC

L521

L461

PNP

H_PULSE

10k

Q482

C529

Q462

12V

12V

X_ray1

PROTECT%

470/16

NPN

C552

1000/16

C554

R521
470

1/2W

560p/500

1000/16

L522

C530

10k

*

C461

QEZ0414-226

Y461

BW

NPN

C558

QQR1114-001Z

QRT039J-3R3

N13V

QRT039J-3R3

R552

R551

.0015/500

CN0HV

QRZ9017-4R7

L561

OPEN

K523

C553

QFZ0194-534

R582

C532

220/160

QETM2CM-227

QGZ8005C3-05

C531

!

FR105GT-T3

FR105GT-T3

C561

OPEN

HV

R591

4.7

.0015/500

FR105GT-T3

D551

D552

.53

680

R584
18k

R585

2.2k

FR

D584

10/100

C551

B1_2

C581
100/16

QETN1CM-107Z

Q581
2SA1208/ST/Z1-T

R561
OPEN

MY

C583

C582
47/25

R562
OPEN

X_ray2

!

K524

QQR1114-001Z

R581

4.7
QRF154K-4R7

R583

6.8k

MTZJ7.5B-T2

R586

1%

T551

QQH0181-001

B1_1

15W

1/2W

D582

T561
OPEN

D583

MTZJ7.5S-T2

1%

C562
OPEN

C584R587
220/10

D541

FR105GT-T3

D553
FR105GT-T3

C555

Q582

DTC144ESA-T

R563
OPEN

VA561

OPEN

PROTECT%

Q583
NPN

R588
10k

R555
OPEN

L551

C541

QFVF1HJ-105Z

TF

C556

10/250

*

HEATER

W-Z1

DAF

R543

2.7k

1/2W

D542

MTZJ3.9B-T2

ABL

R541

R542

CN00X

QGA2501C5-05Z

B1

NC

X_ray1

X-ray

X_ray2

X-ray

GND

PROTECT%

W-Z2
DAF

PROTECT%

HEATER

CN00G
QGA2501C5-06Z

B1

NCHBNC

GND

HEATER

*

c10386001_1213_2/2_0.0

100HZ PWB CIRCUIT DIAGRAM (1/2) SHEET 4

NOTE : To find the pages showing the corresponding schematic diagram, follow the indication below.

SHEET No : Refer to the original service manual.
**SHEET No : Refer to this service manual.

SC_YS1

SC_YS2

SC_R1

SC_G1

SC_B1

SC_R2

SC_G2

SC_B2

S_CV

M_CV/Y

M_C

R205
OPEN

R206
OPEN

R231

75

R232

75

R233

75

L201

NQL092K-3R3X

L202

NQL092K-3R3X

L203

NQL092K-3R3X

R204
OPEN

C901 C902

/16 /16

10 10

Q201
OPEN

R207

2.2k

R208

2.2k

1.8VA

L901

L902

OPEN

QA201

R220
OPEN

R211

2.2k

10

10

R201

R202

R203

75

75

75

C903

10

/6.3

R225 R226
OPEN OPEN

CH

C201
330p

C202
330p

Q202

PNP

R209

2.2k

R210

2.2k

1.8V

B1

/6.3

C205
.047

C206
.047

C207
.047

CH

CH

C203
330p

R212

2.2k

NRSA02J-0R0X

R1170H181B-X

B2

IC901

Q203

C204
OPEN

C215
.1

C219

.01

PNP

Vo

CE

R224R223

C209
.047

C211
.047

C212
.047

/16

C232
OPEN

K907

YS2

R218

R213

220

R221 R222

220 330

Rin1

FBL1

FBL2

CVBso2

CVBso1

VDDAc2

F

C222

/10

1

330

1.8VD

C221

C223

1/10

/10

1

FF

VDDD4

VSSAfbl

VDDAfbl

VSSAc2

VDDD1

VSSD1

F

C224 C229

/10

11

NAX0661-001X

C908C906
1/102.2

L903

10

L904

10

C911C904 C905

/16/16 /16

1010 10

00

R228
OPEN

R229
OPEN

R230
OPEN

C208

/10

1

F

F

C210

/10

1

F

C213

/10

1

R227

0

F

C220

/10

1

0

3.3VA

C907

/10F/16

1

GND

NC VDD

Bin1

VDDArgb

VSSArgb

VDD33rgb

VSS33rgb

Rin2

Gin2

Bin2

NC

VDDAc1

VSSAc1

CVBS1

CVBS2

CVBS3

CVBS4

CVBS5

CVBS6

CVBS7

VDD33c

VSS33c

C916
10

Gin1

CVBso3

K906

0

NRSA02J-0R0X

VSSD4

VDDAppl

C225
33p

X201

20.25MHz

F

3.3V

C909

2.2
/6.3

Y301

Y302

Y303

Y304

YUV0

0

0

0

0

YUV1

YUV2

656o1

656o0

IC201

VSP9402A-VK-B13

Xout

Xin

CH CH

C226

33p

NRSA02J-0R0X

Vin

Sub

VoNCGND

CH

B2

GNDGND

656o2

TCLK

Cn Cont

C910
470p

C227
1

/10

/10

VSSD3

VDDP1

F

K905

F

0

VDDD3

VSSP1

IC902
MM1563DF-X

C917

10/16

12V

Q301
PNP

GND

GNDA

C228

/10

1

VSSP3

CLKout

656Hin/CLKF20

VDDDACV

R301

5.6k

SC_B2

NC

GND

GND

ROTATION

R219

10k

F

RESET

VDDP3

AVOUT

VSSDACU

R303

22k

C301

/50

1

EW

HFLB

SC_G2

EW

SC_G2/Y50

SC_B2/B-Y50

R217

6.8k

C214

.33

Vout

VDDDACU

C915
100

/16

R302

10k

Q302

NPN

HD

SC_R2

HFLB

SC_R2/R-Y50

/10

5V

C912

2.2

HD

YUV3

656o3

656Vin/BLANK

AUOUT

/16

HD

GND

YUV4

V50/

VSSDACY

B1

SC_B1

SC_B1

656o4

BLANK

ADR/TDI

H50/IRQ

Hout

656o5

656o6

SCL

VDDP2

VSSP2

656o7

656CLK

TMS

SDA

VDDD2

VSSD2

AYOUT

VDDACY

VSSDACU

MM1565AF-X

C913

2.2
/6.3

C307
560p

CH

R311

68k

SC_G1

NC

SC_G1

V

IC903

Vin

Sub

VoNCGND

B2

ABL

SC_R1

ABL

SC_R1

NC

GND

R214

100

F

C230

/10

1

C233

5p

R215

100

F

C231
1/10

Cn Cont

CH

C914

470p

VD+

SC_YS1

SC_YS1

YUV5

YUV6

YUV7

CH

R216

R905

R904

R901

100

R902

100

C918

/16

10

NRSA02J-0R0X

VD-

M_C

VPROT

M_CV/Y

NC

VD-

VD+

M_C

GND

GND

VPROT

1k

470

470

1/2W

1/2W

HPROT

M_CV/Y

0

R234

K901

0

HPROT

STB3.3V

YUV0

YUV1

YUV2

YUV3

YUV4

YUV5

YUV7

YUV6

C339

C340

R362

0

R307
OPEN

R308
OPEN

R356
OPEN

R906
OPEN

D308

UDZS3.3B-X

R903
OPEN

R312
OPEN

6V

S_CV

6V

6V

6V

S_CV

6V

NC

GND

NC

GND

**MAIN PWB ASS'Y(2/2)

CN002 (SHEET5)

(No.YA263E)2-9 2-10(No.YA263E)

RA301

NRZ0034-471W

RA302

NRZ0034-471W

OPEN

OPEN

R309

0

R310

C304

18p

NAX0643-001X

NAX0619-001X

C305
1/50

C316
1

GNDD

K908

0

NRSA02J-0R0X

R315

0

R314

470

C302
OPEN

NRSA02J-0R0X

GND

GND

GND

GND

**SHEET5

3.3VD

C308

/50

1

D307

UDZS3.9B-X

F

C309

/10

1

Y0

Y1

Y2

Y3

Y4

Y5

Y6

Y7

R304

0

656EN

LLC2

R305

0

HS

R357

0

VS

FREQSEL

CM1

CM0

R306

0

0

VS2

C303

18p
CHCH

XTAL1

XTAL2

X301

5.00MHz

NC

GNDP

F

VSUPP
C306
1/10

FIFORRD

NC

FIFORD

NC

FIFOWR

NC

FIFORWR

NC

PWM1

PWM2

PWMV

HOUT

VSTBY SVM

/6.3

0

K902

R313
OPEN

Q303
OPEN

R316
OPEN

VM

12V

12V

DFVBL

H2SYNC

V2SYNCNCASG1

D301
DA221-X

D302
DA221-X

D303
DA221-X

CH

C341
220p

OPEN

K903

HD

ROUT

IDTV_S_SW

5V

5V

NC

VM

Rout

IDTV_S_SW

GOUT

D304
DA221-X

R360

LINK

CVBS

BOUT

SC_YS2

C.V

Bout

Gout

GND

SC-YS2

AV_LINK

10k

IK

NC( PWMV)

R320

22k

R359

NC

10k

HFLB

CN002

HFLB

C337
OPEN

CH

GNDD

SAFETY

R322

3.3k

HPROT

C7

VSUPD

IC301

DDP3315C-QA-G3

RGB/DEF

VPROT

RSW2

CH

C338

1000p

R319

2.2k

R323

3.3k

R321

R361

10k

OPEN

VPROT

ABL

C6

RSW1

C310
OPEN

R317
OPEN

C5

SENSE

D311
OPEN

D305

CVBS

SCL1_1

SDA1_1

DDP_RST

SCL1_1

SDA1_1

D309
OPEN

R330

NC

CH

C312

.0056

R329

6.8k

10k

R331

100

R332

100

C315

.1
/16

R333

10k

C319
.01

C320
.01

C321
.01

C323

.1

/16

C324 C325 L301

/10F/16

110 10

C327
OPEN

C328
OPEN

R327

6.8k

C314
.033

R336

1.8k

3.3

C313
.033

C322

R334

/50

1k

QA301
UMX1N-W
BUFFER

R328

1k

SW

D310

UDZS3.9B-X

R338

3.3k

VD-

Q308

C326
OPEN

QA302
UMT1N-W
BUFFER

NPN

C342

0.22

C1

C2

C3

C4

SDA

SCL

RESQ

TEST

HCS

ASG2

Bin2/Pb

Gin2/Y

Rin2/Pr

FBLin2

Bin1

Gin1

Rin1

FBLin1

AGND

VRD

VSUPO

XREF

GNDO

Bout

Gout

Rout

GNDM

VERT+

VERT-EWNC C0

R324

10k

R318

18k

DI

C311

15p

R325

56k

R326

6.8k

EW

R335
OPEN

R337

6.8k

R340
OPEN

/16

OSD_B

OSD_G

OSD_R

OSD_YS

H2SYNC

C331
.0068

V2SYNC

R339

1k

VD+

OSD_YS

OSD_YS

OSD_R

OSD_R

OSD_G

OSD_G

D306
DA221-X

OSD_B

OSD_B

V2SYNC

V2SYNC

NC

R344

150

R347

150

R350

150

R353

270

H2SYNC

H2SYNC

CVBS

LINK

IDTV_S_SW

LINK

IDTV_S_SW

C332 C333C330 C329
.1 1010 .1

/25 /16/16 /16

R358

R342R341

472.7k

Q304
2SC4672/PQ/-W

R343

33

Q305

R345

R346

33

Q306

R348

R349

33

Q307

R351

47

CH

C334
560p

PNP

BOUT

R352

470

470

CH

C335
560p

PNP

GOUT

R354

470

470

CH

C336
560p

PNP

ROUT

R355

470

470

VM

100HZ PWB ASS'Y(1/2)

SML0Z311A-U2

c10387_1213_1/2_0.0

100HZ PWB CIRCUIT DIAGRAM (2/2) SHEET 5

L006

4.7

NQL092K-4R7X

IC004

OPEN

BYTE%

DQ14

DQ13

DQ12

DQ11

DQ10

VCC

A16

VSS

DQ7

DQ6

DQ5

DQ4

VCC

DQ3

DQ2

DQ9

DQ1

DQ8

DQ0

OE%

VSS

CE%

A0

R114

WE

( BLANK)

D6 A17

A17

A0

D7

D6

D5

D4

D3

.1

D2

D1

D0

FLPSEN

A1

B

10k

A14

A14

A13

A13

A8

A8

A9

A9

A11

A11

FLPSEN

OE

A10

A10

CE

D7

B

C035
.1
/16

R113
OPEN

R070
OPEN

A16

A15

A15

A14

A14

A13

A13

A12

A12

A11

A11

A10

A10

A9

A9

A8

A19

R082

NC( A20)

OPEN

WE%

RESET

C033

NC

OPEN

NC

RY/BY

A19

A18

A18

A17

A8

A7

A7

A6

A6

A5

A5

A4

A4

A3

A3

A2

A2

A1

B

A7

A6

A5

A4

A3

A2

A1

A0

D0

A15

A12

A15

A12D1

A7

PM39LV027JJ02-W

A6

A5

A4

A3

A2

A1

A0

D0 D7

D2

D1D2D3D4D5

DQ15/A-1

A18

A16

A18

A16

IC005

PLCC32

GNDD3D4D5D6 A17

47

K002

C022

C024

/16

0

/16

C027

/16

47

C023

.1

/16

R110
OPEN

A19

A18

A17VSA16

CN001

CN001

( QGB0501L1-60X)

R069

10k

R093

4.7k

A11

A9

A8

A13

RWR

R076

0

A16

A18

R111

A17

0

A14

A12

A7

A6

A5

A4

A19

R112
OPEN

B

D0A0

D1D2D3D4D5D6D7

A1A2A3A4A5A6A7

QA002

UMX1N-W

R068
10k

IC003

LP62S2048AX7LTF

A11

A9

A8

A13

WE%

CE2( A17)

A15

VCC

A17( A18)

A16

A14

A12

A7

A6

A5

A4 A3

A8

A9

**SHEET4

LINK

LINK

R064

10k

R065
220

D002

DI

R066
15k

D003
UDZS6.8B-X

R067
OPEN

R094

R075

0

10k

R092

1k

RRD

OE%

A10

CE1%

D8

D7

D6

D5

D4

GND

D3

D2

D1

A0

A1

A2

A15

A14

A13

A12

A11

A10

C028
OPEN

NQL092K-4R7X

C020

/16

47

A10

A15

D7

D6

D5

D4

D3

D2

D1

D0

A0

A1

A2

A3

RRD

PSEN

FLPSEN

0

R071

R095

OPEN

L005

4.7

C019

/16

.1

C021

/16

.1

RD

WR

RWR

0

R080

R072

R091
OPEN

ALE

R073
OPEN

GND

OSD_R

OSD_G

OSD_B

C025
OPEN

PWDET

R017

R019

R020
OPEN

.1

R074

4.7k

C031

OPEN

OPEN

/16

TV_LINK_IN

TV_LINK_OUT

C009C010

/16/16

47100

R018
OPEN

L001 C007

R013

R014

R015

R016

L002

B

OPEN

TXA

RXA

GND

IRQ

CN00U

OPEN

TXD

RXD

IRQ

RESET

HP_DET

ATT_SW

PW_LED

OPEN

R098

OPEN

R096

C034
OPEN

OPEN

R011

RSTA8

P4.2

XTAL2

XTAL1

NC

VSSA

VDDA2.5

R

G

B

BLANK/COR

NC

P1.7

NC

WR

RD

NC

A19/P4.4

A18/P4.1

A16

A17/P4.0

A15

FL_PGM

VDD2.5

VSS

VDD33

A14

A12

A13

A7

FL_RST

RESET

MSP_RST

P4.3

HP_DET

ATT_SW

A6A9A5

NRZ

RA004

A5A6A9

A8

HS

AGC

AFC1

C004

CHCH

33p

6MHz

C006 X001

33p

NAX0618-001X

4.7

/16

.1

220

220

220

220

R021
OPEN

C008 IC001
OPEN

R022

0

WR

R023

RD

0

A19

A18

RA002

A16

NRZ

A17

A15

4.7

A14

A12

A13

A7

R077

R024

LC001

0

OPEN

/16

C030

.1

NQR0415-003X

RA003

NRZ

R025
OPEN

MSP_RST

IDTV_POW

220

220

R009

R010

OPEN

R097

P1.5

P1.6

PW_LED

IDTV_POW

SDA5550M-QB

TELETEXT

A11A4ALE

NRZ

A4

A11

ATT_SW

IDTV_POW

IRQ OSD_B

IDTV_RST

TV_LINK_OUT

220

R008

OPEN

R099

P1.2

P1.3

P1.4

MSP_RST

IDTV_RST

TV_LINK_OUT

PSENA3A10

RA005

A3

ALE

PSEN

IRQ

IDTV_RST

AMP_MUTE

OSD_B

OSD_G

OSD_G

OPEN

R100

R006

P1.0

P1.1

IRQ

VSP_SEL

0

R026

A10

A_MUTE

OSD_YS

OSD_R

OSD_YS

OSD_R

C003

.1

/16

LC004

OPEN

R007

VSS

VDD33

VSS

VDD33A2A1

0 OPEN

NQR0415-003X

R027

LC002

SUB_MUTE

RXD

PROT

DDP_RST

1k

OPEN

R004

R090

C002
.001

NQR0415-003X

P3.5

P3.6

P3.7

RX

PROTECT

NC( TEST)

FL_CED7A0D6D0

NRZ

RA006

A2

C013

.1

/16

DDP_RST

REMOTE

TV_LINK_IN

330k01k

R003

P3.3

P3.4

DDP_RST

TV_LINK_IN

AMP_MUTE

SUB_MUTE

D6

A0D7A1

SCL1

SDA1

IDTV_S_SW

TXD

R001

OPEN

OPEN

R056

R107

P3.1

P3.2

TX

REMOCON

LED2/ECO

AFC1

POW

A_MUTE

SDA1

SCL1

SDA0

SCL0

NRZ

RA007

D5

D0

P3.0

HS/SSC

AGC

KEY

VDDA2.5

VDD33

VSS2.5

VDD2.5

XROM

D5

HP_DET

CH

R002
100k

VSSA

CVBS

EXTIF

STOP

C001
150p

VSNC

NC

P2.3

P2.2

P2.1

P2.0

OCF

ENE

P0.7

P0.6

P0.5

P0.4

P0.3

P0.2

P0.1

P0.0

D3

D2

D4

D1

V2SYNC

V2SYNC

R081 R078

00

R036

R035

R034

R033

R105

R057

R058

R059

R032

R031

R030

R029

NQR0415-003X

LC003

C011

R028

NRSA02J-0R0X

NRSA02J-0R0X

KEY

RXD

H2SYNC

H2SYNC

R108

R109

4.7

L003

0

RA001

NRZ

L007

0

L008

0

TXD

PROT

.1

POW

OPEN

OPEN

R055

R054

470

R085 L009

390

R086

10k

CH

C032
150p

C016
.1

/16

C029

.1

/16

0

OPEN

OPEN

OPEN

100

100

OPEN

OPEN

220

220

220

220

/16

4.7

L004

D3

D2

D4

D1

B

R045

100

R046

100

LED2/ECO

22k

R053

100

NQL092K-8R2X

C015
OPEN

C012
.1

/16

UDZS3.9B-X

PW_LED

REMOTE

R079
OPEN

R051
OPEN

R050

0

R049
1k

C014

.033
/25

D006D007

UDZS3.9B-X

CVBS

C017
10

/50

R083

3.3k

R084

47k

Q001

NPN

LED2/ECO

R052
OPEN

K001
OPEN

R087

1.2k

AFC1OSD_YS

R048

82k

R047 C026
100k .1

POW

A_MUTE

AMP_MUTE

SUB_MUTE

SDA1_1

SCL1_1

SDA0

SCL0

SDA1_1

SCL1_1

4.7k

R088

SDA1_1

SCL1_1 SCL1

AGC

KEY

/16

R101

R102

R103

R104

R037

R038

RESET

Q002

2SK3019-X

4.7k

1.5k

OPEN

OPEN

4.7k

4.7k

R039

10k

R106
OPEN

R040

47k

D001
DI

C005
.1
/16

4.7k

R089

DGS

Q003

2SK3019-X

DGS

STB3.3V

/16

IC002
S-80828CNNB-G-W
RESET

OUT

GND

Vcc

NC

QA001

RESETUMX1N-W

R043

10k

STB3.3V

R061

10k OPEN

R060

10k

B2

C192C191

2.2100
/6.3

C193

2.2

ROTATION

R062

0

LC005

R063

0

LC006

OPEN

STB_5V

STB2.5V

C196 C197

/6.3B2/16

2.2 100

VO1

VO2

IC191

IN

GND

Nr

PQ2L3252MS-X

B2

C194

/16

/6.3

.1

R041

10k

R042

1k

SDA1

D009

D008
OPEN

OPEN

VS

HS

C195

/16

100

**SHEET4

NOTE : To find the pages showing the corresponding schematic diagram, follow the indication below.

SHEET No : Refer to the original service manual.
**SHEET No : Refer to this service manual.

CN002

GND

GND

MSP_RESET

AGC

V_PULSE

AFC

H_PULSE

IRQ

GND

GND

SDA2

RESET

ATT_SW

IDTV_RST

IDTV_POW

AMP_MUTE

SUB_MUTE

AUDIO_MUTE

IIC_FREE

**MAIN PWB ASS'Y(2/2)

CN002 (SHEET4)

2-12(No.YA263E)(No.YA263E)2-11

SDA1

SCL1_2

SCL1_2

TXD

KEY

RXD

GND

STB3.3V

PROTECT

GND

PW_ON/OFF

STB_5V

LED2/ECO

PW_LED

ROTATION

REMOCON

100HZ PWB ASS'Y(2/2)

GND

SCL0

SDA0

H/P_DET

SML0Z311A-U2

c10387_1213_2/2_0.0

T

PATTERN DIAGRAMS

MAIN PWB PATTERN

SR

C623

C638

SL

S

C624

CL002

W671

RON

K

W452

RT

B

C551C552

W216

C555

W407

W408

C622

C554

R552

R560

R557

R559

R624

C620

C617

W429

R554

IC551

C621

C618

R623

W410

D602

R555

R551

W433

D601

R553

W721

R556

R558

W706

W679

C553

W703

W695

HS601

K552

W683

W261

C901

W241

C608

C602

W232

R609

W611

W414

R612

R604
R606

R602

C902

IC602

R644

R601

C903

R610

IC901

C232

C604

W492

R283

R608

W226

W474

R605

C607

W227

C616

W491

C605

W231

R603

R206

R205

W246

C233

R284

R614

W631

W453

W242

C603

W421

W417

F

R207

W230

W490

R708

W225

R257

C219

R254

W229

R274
R272

R271
R273

C711

W257

R103

C224

R291

W479

W477

D214

W217

W431

Q701

Q209

D705

C121

R256

Q101

D209

C223

C103

W469

W442

R251

R709

D213

W210

C703

R106

Q702

R710

C702

C122

C115

C239

W441

R252

IC101

C116

W601

R255

LC101

C123

R298

R253

W440

W428

W426

Q215

W104

R263

Q212

W103

R285

C107

Q208

C104

K102

Q213

W101

W604

D204

Q207

R102

D205

C309

R312

R315

R101

R233

C106

R232

R250

W245

C007

L002

C228

R245

W404

Q216

W648

R247

W699

R246

R218

C210

R243

W607

W406

R217

C209

C208

R277

R244

W647

C011

W509

R238
R239

R264

W605

R215

C562

R212

C217

R237

W646

W690

R242

R214
R213

R241

R240

W696

R216

C207

W214

C561

C216

W645

W498

W219

W402

R209

C205

C204

C213
R235

W422

D212

W644

R210
R211

R236

C214

Y504

C508

R011

R501R502
C501C502

W223

W658

W643

W480

R234

C013

C507

R503

C503

C006

R008

R006

R010

Q002

Q001

R009
R007

CN001

W669

C203

R208

C206

C202

C215

W641

W642

W420

R506

R518

C504

R512

R509

R514

C505

IC501

R517

C506

Y002

L101

W506

R105

R104

C120

C119

X101

W466

C220

C105

W444

Q305

W465

C109

R262

C231

W663

W662

R314

W448

W622

C108

W664

C221

W612

W447

W621

R316

W486

W470

W458

C110

R261

R281
R282

W215

W445

W516

C310

C311

W608

D301

W248

C124

C118

D502

C111

C114

W450

C117

D503

W620

R313

W685

K101

C201

D504

C113

W722

R311

C101

C222

W619

C112

W665

C102

C225

W403

W256

W235

W483

W478

C237

D208

W437

W618

D302

W507

C238

C312

R

D203

R287

W617

R290

R289

W213

C304

W221

W713

W205

D210

R279

C236

R288

W254

W510

R280

W471

Q217

W457

D202

W684

C218

R295

W212

W211

R317

W499

D201

R268

R269

R270

C230

C308

C303

C512

R522

W260

CN004

R225

R534

C511

R286

W698

C235

W615

Q503

R267

W638

R538

R266

C234

R539

C514

R230

C212

R231

W487

Q206

R228

W489

R265

W650

W494

Q504

C513

R535

W635

C240

R204

R229

D211

W614

R249

W108

C229

IC201

W418

R226

R227

W449

W610

Q205

R297

R278

W649

W432

W430

W425

W419

W415

W413

C012

R504

W484

R511

R516

W668

W459

W640

R505

W460

Y001

W670

W463

R513

W678

C010

W676

W674

R519

R002

R003

R510

R515

W502

W439

R531

R536

W603

W236

R507

R525

R527

Y503

W220

W438

R520

K001

W689

W686

R524

C515

R521

C509

R529

C001

R001

W110

C002

W691

W224

R219

W461

R223

R221

Q203

R296

R248

CN002

R523

D501

W208

R526

R530

R528

R541

R540

Q502

C003

R224

C510

Q204

R533

R220

R222

R542
Y501

Y502

R537

W697

C211

TU001

W238

Q201

R201

Q202

R203

Q501

R532

R202

R292

Q219

W656

W255

W475

W411

L001

R260

Q210

C227

R294

R293

W454

C632

W533

C004

R276

D702

D701

W530

W609

C005

Q609

R641
R642

C636

W401

W495

W233W234

R275

Q214

W476

D207

C226

Q610

R638

W515

C630

W423

D703 D704

R704

R702

R703

R258R259

C631

K601

J601

R639

W405

Q211

D206

W202

Q611

C637

R640

Y003

K602

C629

R705

C1

C611

C635

R620

W262

R645

R613

C609

R611

W263

R625

IC601

W468

C619

W692

W682

C628

R634

W528

CL001

K551

W624

W531

R635

D981

R637

C627

C905

C626

Q608

R636

D605

Q606

C906

Q607

R632

Q604

R630

IC902

W259

CN003

C904

R707

D604

R633

IC701

R629

R631

Y603

Y602

W434

R706

Q605

D606

D603

C907

W443

R643

W535

W651

C701

R622

W462

W244

W464

W517

W249

D607

W655

W637

D983

W632

W630

W629

W626

W625

W409

W652

C625

W481

W613

W247

W606

W253

C614

W639

W636

W316

W712

W250

R621

R628

Q601

W317

W252

R618

Q602

R626

W688

C633

R627

W534

Q603

C612

Y004

C908

W207

R616

R615

C610

C606

R607

C601

W485

W482

C615

C613

W451

R619

R617

C634

Y601

W681

W680

D982

W633

W623

W318

C910

C909

W714

W446

W456

W666

W718

W627

W659

IC903

W634

W715

W719

(No.YA263E)2-13 2-14(No.YA263E)

POWER & DEF PWB PATTERN

FRONT

R947

R941

R943

R942

R948

R946

Q941

C942

R944

W404

W401

R949

L941

C941

D941

CP941

R954

D954

K955

CN003

R964

R963

Y954

CP954

HS954

W402

C953

C958

C954

IC961

C955

W405

C964

C959

K956

C961

C952

CP951

D953

K953

W406

K952

W408

W608

W411

W203

D981

D958

R982

C968

W204

Y956

R953

HS961

HS956

D956

Y951

C956

CP952

C962

D959

W607

Y952

W410

Y955

Y953

C960

D983

D952

D951

C951K951

W

C902

LF901

Y905

Y904

C903

C992

Y907

Y906

C993

R945

L942

Q942

UP

R902

W601

W602

C932

D931

C931

C933

W603

C934

IC941

CP931

W413

R952

C967

C463

W414

W205

W206

L462

L461

P

Y526

Y525

L951

HS461

R464

Q461

D461

R479

R461

R480

C461

Y461

C527

C533

C525

D462

D525

C462

Q462

C465

L521

C529

C526

C528

W207

W208

R462

W209

D463

R478

R476

R477

R522

R465

R524

Q464

R525

R463

R523

C411

R481

Q481

C402

R402

D401

W424

R407

C481

C407

R401

R403

C414

R408

R561

C401

R406

W216

C403

C552

R562

W614

C561

D481

HS401

W615

R552

IC401

C558

W425

W426

W616

C406

C554

R551

C404

W427

R409

L551

R591

R555

W428

R410

D402

D584

C405

G

W429

C415

R586

C408

W218

R587

C583

C556

W430

C464

W211

W418

Q482

C562

C468

W421

CL006

R472

R473

R474

W213

R482

W215

W214

W423

W422

T561

Z

W210

R404

D523

R475

R468

CL005

C413

R471

C467

CN004

W419

W212

C470

W420

C471

K401

IC461

C410

C409

VA561

R563

R469

Q463

Y462

C466

C412

R405

C905

D945

C991

R951R981

R991

R908

W201

R915

R906

D910

C917

D906

T901

R911

R910

IC901

D905

C911

W409

C916

D904

R912

D907

C910

W412

HS901

D902

C909

K901

C912

K902

D909

W202

W403

W407

C914

W606

C904

C908

R909

C907

R905

Y909

Y908

R913

L903

R914

D957

R916

C915

D911

C966

PC901

IC951

W609

W610

R501

R502

Q501

R503

R504

R505

T501

R521

Y522

K521

HS521

HS522

C503

Y521

D522

C522

C521

Q521

W417

C582

R585

W611

W416

Q582

Y523

Y524

P

C504

T521

C524

D524

C523

W415

C502

C501

D501

R506

C532

Q581

R584

C530

D582

L561

L522

K522

R582

C581

R583

D521

C531

R581

HV

T551

W613

W612

K524

D552

C553

D541

X

RY941

R992

R904

W604

W605

C906

D901

L901

L902

Y902

R903

Y901

TH901

R901

C901

DEG

C551

D551

K523

R541

C541

W217

D542

R542

C584

R588

Q583

C555

D553

Z

W219

R543

D583

2-16(No.YA263E)(No.YA263E)2-15

T

MICON 100Hz PWB PATTERN [SOLDER SIDE] MICON 100Hz PWB PATTERN [PARTS SIDE]

R231

R232

RON

R073

R072

R080

R071

R233

C201

C202

C203

C208

C213

R221

R222

C210

C221

C223

C227

C228

R234

R306

R305

C304

C303

R308

R309

R310

R307

R357

D309

CN001

R330

R356

C315

Q308

R362

C021
R076

R082

C309

C033

R113

C028

U

C342

C230

R214

C306

R335
C326
R334

R340

C035

R318

R114

C233

R215

D310

C302

R216

R319
R317
C310

R326
C312

C231

C220

R312

C222

C224

C229

D308

R905

D311

R359

R320

R903

R321

R904

C327

R360

C329

R322

R361

R336

R323

R028

R337

R024

R104

R059

R058

C313

R057

R033

R349

C336

R346

C335

C334

R343

R034

R019

R015

R035

R328
R339

R014

R018

R036

R017

013
R

R311
C307

R302
R303

R016

R090

R102

R901

R103

R902

K907

K908

R101

C332

K905

K906

CN002

CN002

K901

K902

R046

L008

K903

R225

QA201

R045

L007

C195

R223

R224

R226

D003

R094

R065

C192

R075

R066

C333

C914

D002

IC191

C193

R067

R064

C909

C910

C915

C913

C194

C911

C017

R341

R092

QA002

R095

C191

C027

IC901

R091

C010

C196

R093

R069

C907

IC902

D306

R068

R001

C197

IC903

R083

C001

C903

Q304

R096

R002

R007

C917

C918

K001

C003

R006

R008

R084

R055

R052

R079

C004

R301

R342

R109
R078
R081

R108

C916

R051

LC004

C908

Q001

R050

R009

C015

R107

R056

R003

R099

R097
R010
R098

R011

Q301

R004
C002

R100

R358

R054

C912

X001

R049

C034

R053

C906

R314

C341

C026

R048

R315

R316

C902

C904

L903

C301

R047

L201

R201

L202

R202

C206

C205

C323

IC201

IC003

L005

R111

R203

C321

Y302

C212

C322

C020

R110

IC005

C211

C320

IC301

X301

C019

C209

C319

R230

C207

R333

R229

R228

R332

R304

R331

R213

R218

C214

R217

C232

Y304

R219

C340

C339

RA302

RA301

D307

C308

RONT

Y301

IC004

C022

K002

R074

C023

R070

L006

C024

C025

R313

R212

Q303

Q203

C901

L901

L902

C905

R329

C314

L904

QA302

R327

Q302

R351

R350

Q307

R355

R348

Q306

R347

R354

R345

Q305

R344

R352

R060

LC006

D009

R063

R061

D008

R062

LC005

L009

C014

R087

C006

R085

L003

C032

C008

C029

L001

C007

R086

C016

R105

R020

R089

R022

R088

R021

R032

IC001

R023

RA002

R042

R031

D007

R037

R041

R030

R077

R039

R040

R043

R209

R353

R029

R038

C030

IC002

R210

Q003

D006

L002

Q002

D001

R211

C012

LC003

LC001

R106

Q202

D304

C031

QA001

C011

C005

R207

C225

C330

R208

C331

D303

L004

RA003

R338

QA301

C338

RA001

R204

D302

Q201

C328

X201

R205

C009

R025

C226

D301

D305

R206

C311
R325

LC002

R324

C324

L301

R220

C204
C215

C219

C316

R906

C337

RA006RA007

R027
R026

RA004RA005

L203

R227

C305

C325

Y303

R112

C013

(No.YA263E)2-17 2-18(No.YA263E)

Victor Company of Japan, Limited
CRT Display Category 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan

(No.YA263E)

Printed in Japan

VPT
