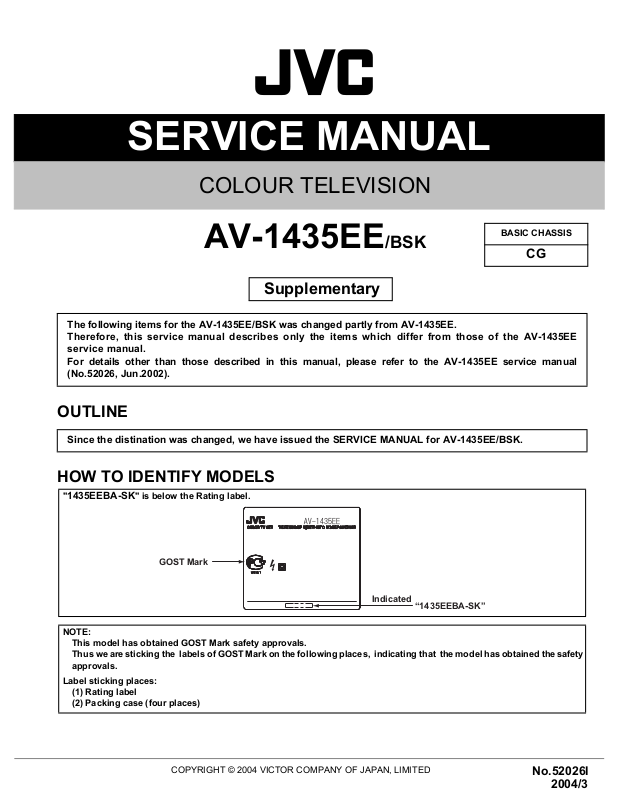

SERVICE MANUAL

COLOUR TELEVISION

52026I20043

BASIC CHASSIS

AV-1435EE/BSK

Supplementary

The following items for the AV-1435EE/BSK was changed partly from AV-1435EE.
Therefore, this service manual describes only the items which differ from those of the AV-1435EE
service manual.
For details other than those described in this manual, please refer to the AV-1435EE service manual
(No.52026, Jun.2002).

OUTLINE

CG

Since the distination was changed, we have issued the SERVICE MANUAL for AV-1435EE/BSK.

HOW TO IDENTIFY MODELS

"1435EEBA-SK" is below the Rating label.

GOST Mark

Indicated

NOTE:

This model has obtained GOST Mark safety approvals.
Thus we are sticking the labels of GOST Mark on the following places, indicating that the model has obtained the safety
approvals.

Label sticking places:

(1) Rating label
(2) Packing case (four places)

“1435EEBA-SK”

COPYRIGHT © 2004 VICTOR COMPANY OF JAPAN, LIMITED

No.52026I

2004/3

DIFFERENCE LIST

USING P.W. BOARD (Page 34)

P.W.B ASS'Y Name AV-1435EE AV-1435EE/BSK DESCRIPTION

MAIN PWB SCG-1418A-H2 SCG-1505A-H2 Non compatible

EXPLODED VIEW PARTS LIST-1 (Page 35)

 Ref. No.

 1 LC10831-024A LC10831-024A-HK FRONT CABINET

AV-1435EE AV-1435EE/BSK

PARTS No.

PARTS NAME DESCRIPTION

EXPLODED VIEW PARTS LIST-2 (Page 36)

 Ref. No.

 V01 A34KQW42X A34KQW42X01 PICTURE TUBE(ITC) Inc.DEF YOKE/PC MAGNET/WEDGE

 L01 QQW0171-001 QQW0096-001 DEG COIL

 DY01 QQD0052-001 --- DEF YOKE Delete

 T1522 QQH0132-001 QQH0132-001-KD FB TRANSF

10 CE42153-00AJ1 --- WEDGE ASSY (×3)Delete

11 CE40305-00B --- PC MAGNET Delete

16 CM12961-E01-VH CM12961-E01-KH REAR COVER

 20 LC20377-009B-H GG20024-001B-H RATING LABEL

AV-1435EE AV-1435EE/BSK

PARTS No.

PARTS NAME DESCRIPTION

PRINTING WIRING BOARD PARTS LIST

MAIN P.W. BOARD ASS'Y (Page 46~49)

PARTS No.

 Ref. No.

SCG-1418A-H2 CG-1505A-H2

D1704 LH22440-T16 SLR-342VR-T16 LED POWER
D1705 LE22440-T16 SLR-342DU-T16 LED TIMER
C1301 NCB31HK-681X NCB31HK-123X C CAPACITOR 0.012uF 50V K
C1430 QFN32AJ-102Z QFN32AJ-472Z M CAPACITOR 4700pF 100V J

R1401 NRSA02J-103X NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R1431 NRSA02J-103X NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

 T1921 QQS0213-001 QQS0161-001 SW TRANSF

CN10S3 WJK0136-002A QGA2501C5-04Z CONNECTOR W-B (1-4)

 TU1001 QAU0246-002 QAU0287-001 TUNER

PARTS NAME DESCRIPTIONAV-1435EE AV-1435EE/BSK

PACKING (Page 67)

 Ref. No.

2 GG20025-005A-H GG20025-003A-H CORNER LABEL (×2)

VICTOR COMPANY OF JAPAN, LIMITED

AV & MULTIMEDIA COMPANY VIDEO DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan

(No.52026I)

AV-1435EE AV-1435EE/BSK

PARTS No.

PARTS NAME DESCRIPTION
