JVC AV-1434EE, AV-1434TEE, AV-14F10, AV-14FR10, AV-14FTG2/-A Service Manual

AV-1434TEE/AV-1434EE

AV-14FTT2/AV-14FTG2

SER VICE MANUAL

COLOUR TELEVISION

AV-14FR10/AV-14F10

AV-14FR10/AV-14F10
AV-1434TEE/AV-1434EE
AV-14FTT2/AV-14FTG2

/-A

BASIC CHASSIS

CG

[ RM-C364GY ][ RM-C90 ]

CONTENTS

SPECIFICATIONS

!

SAFETY PRECAUTIONS

!

FEATURES

!

MAIN DIFFERENCE LIST

!

FUNCTIONS

!

SPECIFIC SERVICE INSTRUCTIONS

!

SERVICE ADJUSTMENTS

!

PARTS LIST

!

★

OPERATING INSTRUCTIONS

★

STANDARD CIRCUIT DIAGRAM

1

････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････

･････････････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････

･･･････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････

･･･････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････

･････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD.

･････････････････････････････

･･････････････････････････････････････････････････････････

･･･････････････････････

･･････････････････････････････････････････････

･･･････････････････････････････････

････････････････････････････････････････････････････････････････

･･･････････････････････

･･････････････････････････････････････････････

･･････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････

･････････････････････････････････････････････

････････････････････････････････････････････････････････････････

･････････････････････

･･････････････････････････････････････････

････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････

････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

･････････････

･･････････････････････････

････････････････

････････････････････････････････

･･･

･･････

2
3
4
5

･･

6

････

8
15
33

2-1

No.51865

Nov. 2000

Nov. 2001

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

SPECIFICATIONS

ITEM

Dimensions(W×H×D)
Mass

TV RF System

Colour System

Teletext System

Picture Tube
High Voltage

Receiving Frequency

Intermediate
Frequency

Colour Sub Carrier Frequency

RF Mode PAL / SECAM
VIDEO Mode PAL / SECAM / NTSC3.58 / NTSC4.43

VHF (VL) 43.75MHz～155.75MHz
VHF (VH) 155.78MHz～466.25MHz
UHF 466.28MHz～864.75MHz

CA TV

VIF Carrier 38.0MHz

SIF Carrier

CONTENT

AV-1 4FR1 0 / AV -143 4TEE / AV -14F TT2 AV-1 4F10 / AV -1434 EE / AV - 14FT G 2

462mm×340.5mm×375mm
10kg

B/G, I, D/K, K1,

FLOF (UK system )
WST (world standard syste m)

Visible size: 3 4cm measured diagona l ly

22.5kV±1.5kV(at zero beam current )

Cable TVs of Mid (X-Z, S1-S10)
Super (S11-S20) & Hyper (S21-S41)
bands receivable

32.5MHz(5.5MHz)

31.5MHz (6.5MHz)

32.0MHz (6.0MHz)
PAL (4.43MHz),

SECAM (4.40625MHz / 4.25MHz)
NTSC (3.58MHz / 4.43MHz)

××××

/-A

AC220～240V, 50 / 60Hz

Power Input

Power Consumpti on
Speaker
Audio Output
Aerial Input Terminal
Input

Output

Headphone jack
Remote Control Unit

Rated Voltage

Video 1V(p-p), 75Ω, RCA×2 (Front / Rear)

Audio

Video 1V(p-p), 75Ω, RCA×1

Audio

AC110～240V, 50 / 60Hz
[ Only AV -1 4 F TT2 ]

68W (Max) / 47W(Avg.)
5cm×9cm, Oval type×2
2W (monaural)
75Ω Unbalanced

500mV(rms) (-4dBs), High impe dance ,
RCA×2 (Front / Rear)

500mV(rms) (-4dBs), Low impedance,
RCA×1

3.5mm min i jack
RM-C90

(Battery size : AA / R06 / UM-3×2)

Design and specificat ions ar e s ubjec t to change without notice.

AC110～240V, 50 / 60Hz
[ Only AV -1 4 F TG2

RM-C364GY
(Battery size : AA / R06 / UN-3×2)

/-A

]

2

No. 51865

A

A

A

SAFETY PRECAUTIONS

V-14FR10/AV-14F10

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

1. The design of this product contains special hardware, many
circuits and components specially for safety purposes. For
continued protection, no changes should be made to the original
design unless authorized in writing by the manufacturer.
Replacement parts must be identical to those used in the original
circuits. Service should be performed by qualified personnel
only.

2. Alterations of the design or circuitry of the products should not be
made. Any design alterations or additions will void the
manuf act urer's warr an t y and wil l fur t h er reli ev e the manufacturer
of responsi bility f or person al injury or pr operty dam age res ulting
therefrom.

3. Many electrical and mechanical parts in the products have
special s afety-relat ed charact eristics. T hese char acteristics are
often not evident f rom visual i nspection nor can t he protect ion
afford ed by them n ecess arily be obt ained by using rep lacem ent
compon ents rated f or higher voltag e, watt ag e, etc. R epl acem ent
parts which have these special safety characteristics are
identified in the parts list of Service manual.

compon ents hav in g su ch feat ures are id entif ied by s hadin g
on the sche matics and by (

The us e of a subst itute replacement w hich does not

manual.

have the same safety characteristics as the recommended
replac ement part shown i n the p arts list of S ervic e manu al may
cause shock, fire, or other hazards.

) on the parts list in Service

!!!!

Electrical

4.

Don't short b etween the LIV E side groun d and ISOLATED
(NEUTRAL) side ground or EARTH side ground when
repairing.

Some model's power circuit is partly different in the GND. The
difference of the GND is show n b y th e LIVE : (") side GND, the
ISOLATED(NEUTRAL ) : (#) side GND and EARTH : ($) side
GND. Don't short between the LIVE side GND and
ISOLATED(NEUTRAL) side GND or EARTH side GND and
never meas ure with a measuri ng apparatus (osc illoscope etc .)
the LIVE side GND and ISOLATED(NEUTRAL) side GND or
EARTH side GND at the same time.
If above not e wi ll n ot be kept, a fus e or an y part s will be broken.

5. If any repair has been made to the chassis, it is recommended
that the B1 setting should be checked or adjusted (See
ADJUSTMENT OF B1 POWER SUPPLY).

6. The hig h voltage app lied t o the picture t ube must c onform wit h
that specified in Service manual. Excessive high voltage can
cause an increase in X-Ray emission, arcing and possible
component damage, therefore operation under excessive high
voltag e conditions s hould b e kept to a mi nimum, or sh ould be
prevented. If severe arcing occurs, remove the AC power
immediately and determine the cause by visual inspection
(incorrect install ation, cracked or melted high voltag e harness,
poor solderi ng, etc.). To maintain the pr oper minimum level of
soft X-Ray emission, components in the high voltage circuitry
including the picture tube must be the exact replacements or
alternatives approved by the manufacturer of the complete
product.

7. Do not check high voltage by drawing an arc. Use a high voltage
meter or a high voltage probe with a VTVM. Discharge the
picture tube before attempting meter connection, by connecting
a clip l ead to th e g roun d fr am e and c on necti ng t h e oth er end of
the lead through a 10k! 2W resistor t o the an ode button.

8. W hen servic e is requir ed, obser ve the origin al lead dress . Extr a
precaut ion shou ld be gi ven to assure c orrect l ead dr ess in t he
high voltage circuit area. Where a short circuit has occurred,
those comp onents that in dicat e evidenc e of over heating should
be replaced. Always use the manufacturer's replacement
components.

9.

Isolation Check
(Saf ety for Electrical Shock Hazard)

After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
termin als , vid eo/ au dio input an d output term in als , C on trol knobs,
metal c abinet, s crewhead s, earph one j ack, contr ol shafts, etc.)
to be sure the product is safe to operate without danger of
electrical shock.

(1)

Dielectric Stren gth Test

The isol ation b etween th e AC pr imar y circuit and all metal parts
expos ed t o th e user, p ar tic u larly any expo sed metal part h aving a
return p ath to the chassis should withst and a voltage of 3000V
AC (r.m.s .) for a period of one secon d.

(. . . . W ithstand a voltag e of 1100 V AC ( r.m.s.) to an applianc e

rated up t o 120V, and 3000V AC (r. m.s.) t o an appl iance rat ed
200V or mor e, f or a peri od of on e s ec on d.)
This method of test requires a test equipment not generally found
in the service trade.

(2)

Leak age Current Check

Plug the AC lin e c or d dir ec t l y int o t he AC outlet ( d o not use a line
isolation transformer during this check.). Using a "Leakage
Current Tester", measure the leakage current from each exposed
metal part of the cabinet, particularly any exposed metal part
having a return path to the chassis, to a known good earth
ground ( water pipe, etc. ). An y leak age c urr ent mus t not exceed

0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).

Alternate Check Method

""""

Plug the AC lin e c or d dir ec t l y int o t he AC outlet ( d o not use a line
isolati on transform er during t his check. ). Use an AC voltmet er
having 1000 ohms per volt or more sensitivity in the following
manner. Connect a 1 500! 10W resistor paralleled by a 0.15"F
AC-typ e capacitor betw een an expos ed metal part and a know n
good earth ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the resistor
connect ion t o each exp os ed met al p art, part icul arl y any exp osed
metal part h avin g a return p ath to th e chassis , and meas ure th e
AC voltag e across the res istor. N ow, re vers e the plug in the AC
outlet and repeat each measurement. Any voltage measured
must not exceed 0.75V AC (r.m.s.). This corresponds to 0.5mA
AC (r.m.s.).
However , i n t ropical area, this must n ot exceed 0.3 V AC (r.m.s. ).
This corresponds to 0.2mA AC (r.m.s.).

AC VOLTMETER

0.15μF AC-TYPE

1500

GOOD EARTH GROUND

!

(HAVING 1000
OR MORE SENSITIVITY)

10W

/V,

!

PLACE THIS PROBE
ON EACH EXPOSED
METAL PART

No.51865

3

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

FEATURES

N ew chass is d esi gn en ables use of an int eractive on-s c reen control.

!

Wide range voltage (110V～240V) AC power input (AV-14FTT2 / AV-14FTG2

!

With AUDIO / VIDEO INPUT & OUTPUT terminal.

!

MUTING button can reduce the audio level to zero instantly.

!

Functional remote control to operate TV set (for channel select, volume control, power ON/OFF, etc.) from a distance.

!

2

C bus control utilizes single chip ICs for IF, V/C, DEF. VSM PRESET, PRESET & TURBO TIMER.

I

!

By means of AUTO PROGRAM, the TV stations can be selected automatically and the TV channels can also be rearranged automatically.

!

The TELETEXT SYSTEM has a built-in FASTEXT / WST system (for AV-14FR10 / AV-1434TEE / AV-14FTT2)

!

Built-in ECO MODE (ECONOMY, ECOLOGY)

!

In accord ance with t he bright ness in a room , the brig htness and / of contras t of the pictur e can be ad justed aut omatically t o make t he
optimu m pic tu re which is eas y on t h e eye.

Built-in ON TIMER, RETURN + & CHILD LOCK.

!

SYSTEM BLOCK DIAGRAM

)

/-A

IC702

MEMORY

IC701

SCL2/SDA2 TCL/TDA

MICRO

COMPUTER

IC301

VIDEO/CHROMA

DECORDER

SCL1/SDA1

IC821

TEXT DECORDER

(for AV-14FR10 / AV-1434TEE / AV-14FTT2)

TU001

TUNER

4

No. 51865

A

A

A

MAIN DIFFERENCE LIST

V-14FR10/AV-14F10

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

!

Part Name

Model Name

AV-14FR10 AV-1434TEE AV-14FTT2

MAIN PWB SCG-1289A-H2 SCG-1290A-H2

!

FRONT CABINET LC10831-013A-H LC10831-018A-H LC10831-017A-H
PACKING CASE GG10056-059A-H GG10056-060A-H GG10056-058A-H
REMOTE CONTROL UNIT RM-C90-1H

!

RATING LABEL GG20014-002A-H GG20014-005A-H LC20377-001B-H

!

INST. BOOK LCT1028-001A-H LCT1029-001A-H LCT0990-001B-H

!

DIGEST MANUAL LCT0992-001B-H

!

POWER CORD QMPR340-165-K2

!

Part Name

Model Name

AV-14F10 AV-1434EE AV-14FTG2

QMP40D0-200J5
or QMP40D0-200J3

MAIN PWB SCG-1285A-H2 SCG-1286A-H2 SCG-1024A-H2

/-A

!

FRONT CABINET LC10831-014A-H LC10831-015A - H LC10831-012A - H
PACKING CASE GG10056-047A-H G G10056-045A-H LC10845-027A-H
REMOTE CONTROL UNIT RM-C364GY-1H

!

RATING LABEL GG20014-002A-H G G20014-005A-H LC20413-002B-H

!

INST. BOOK LCT1039-001A-H LCT1029-001A-H LCT0994-001B-H

!

DIGEST MANUAL LCT1034-001A-H LCT0993-001B-H

!

POWER CORD

QMP40D0-200J5
or QMP40D0-200J3

QMPR010-200-E2
or QMPR010-200-K 2

No. 51865

5

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

FUNCTIONS

FRONT PANEL

■

MENU buttons

①

CHANNEL －/＋ buttons

②

VOLUME －/＋ buttons

③

ECO sensor

④

REMOTE CONTROL sensor

⑤

ON TIMER lamp

⑥

POWER lamp

⑦

MAIN POWER button

⑧

A/V INPUT terminal

⑨

HEADPHONE jack

⑩

⑩⑨ ①② ③ ④⑤⑥⑦⑧

REAR PANEL

■■■■

1

2
4

5

3

ANT Terminal

1

VIDEO INPUT Terminal

2

VIDEO OUTPUT Terminal

3

AUDIO INPUT Terminal

4

AUDIO OUT PUT Terminal

5

6

No. 51865

A

A

A

REMOTE CONTROL UNIT

■■■■

RM-C90 : (AV-14FR10 / AV-1434TEE / AV-14FTT2)

1
2

3
4

5
6

7
8
9

A

B
C
D

E

F

G
H

I

ECO SENSOR key

1

COLOUR SYSTEM key

2

SOUND SYSTEM key

3

DISPLAY key

4

TV/VIDEO key

5

OFF TIMER key

6

PICTURE MODE key

7

CHANNEL SCAN key

8

RETURN＋key

9

CHANNEL －/＋ key

A

POWER key

B

MUTING key

C

TV/TEXT key

D

MENU key

E

MENU ▲/▼ key
MENU / key

Number (CH.) key

F

－/－－key

G

VOLUME －/＋ key

H

Teletext key

I

V-14FR10/AV-14F10

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

RM-C364GY : (AV-14F10 / AV-1434EE / AV-14FTG2

/

-A

)

ECO SENSOR key

1

SOUND SYSTEM key

2

COLOUR SYSTEM key

3

TV/VIDEO key

4

OFF TIMER key

5

CHANNEL SCAN key

6

RETURN＋key

7

DISPLAY key

8

CHANNEL－/＋ key

9

POWER key

A

PICTURE MODE key

B

Number (CH.) key

C

－/－－key

D

MUTING key

E

MENU key

F

MENU ▲/▼ key
MENU －/＋ key

VOLUME－/＋ key

G

No. 51865

7

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

SPECIFIC SERVICE INSTRUCTIONS

DISASSEMBLY PROCEDURE

REMOVING THE REAR COVER

1. Unplug the power plug.

2. As shown i n figure, rem ove the
screw marked

3. Withdraw the rear cover toward you.

""""

.

screws marked

5

REMOVING THE MAIN PW BOARD

After removing the rear cover.

!

1. Slight ly raise t he both s ides of th e MAIN PW BOAR D by hand

and remove the PWB stopper marked

2. Withdraw the MAIN PW BOARD backward.

(If necessary, take off the wire clamp , connectors etc.)

from the fro n t ca bi n e t.

####

REMOVING THE SPEAKER

After removing the rear cover.

!

1. As shown in figure, remove the

2. Follow the same steps when removing the other hand speaker.

screws marke d

2

$$$$

!!!!

.

and a

CHECKING THE MAIN PW BOARD

1. To check the back side of the PW Board.

1) Pull out the MAIN PW Board. (Refer to REMOVING THE MAIN
PW Board)

2) Erect th e PW Boar d ver t ically so that you can eas il y check the
back side of the PW Board.

[CAUTION]

When erecting the PW Board, be careful so that there will be no

!

co n tacting w ith oth e r PW Bo ard.

Before turning on power, make sure that the CRT earth wire and

!

other conn ec tor are prop er l y c onn ec t ed.

WIRE CLAMPING AND CABLE TYING

1. Be sure to clamp the wire.

2. Never remove the cable tie used for tying the wires together.
Should it be inadvertently removed, be sure to tie the wires with a
new cable tie.

8

No. 51865

A

A

A

FRONT CABI.

CRT SOCKET

PWB

MAIN PWB

SPEAKER

D

(

××××

V-14FR10/AV-14F10

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

2)

POWER

CORD

C

REAR

COVER

B

(

1)

××××

A

(

5)

××××

No. 51865

9

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

REPLACEMENT OF MEMORY ICs

1. MEMORY ICs

This mod el uses memor y ICs . This m em ory IC data are for proper operation of th e vid eo an d deflecti on cir cuits.
When replaci n g m emor y ICs , be sure to use ICs written with the ini ti al v alu es of d ata.

2. PROCEDURE FOR REPLACING MEMORY ICs

(1) Power off

Switch th e p ow er off and disc onn ec t the power plug from the wall out let .

(2) Replace ICs

Be sure to u se memo ry ICs written with the i nitial data values.

(3) Power on

Connect the power plu g int o t h e wall outlet and s wi tc h the power on.

(4) Check and set SYSTEM CONSTANT SET

It must not adjust without adjustment signals.

・・・・

1) Press the

DISPLAY

CONTROL UNIT simultaneously.

2) T he SERVICE MENU screen of F ig . 1 wil l b e dis pl ayed.

3) W hile the SE RVICE MENU is dis pl ayed, ag ain pr ess t he

PICTURE MODE

screen of Fi g. 2 will be displa yed .

4) Ch eck t he setting values of t h e SYSTEM C O NSTANT SET of Table 1 If the
value is dif ferent, s elect the s etting it em with the

the correct value with the

5) Press the

DISPLAY

(5) Rec ei v e ch an n el of setting

Refer to the
(channels preset) as described

(6) User Setting

Check th e user set ting val ue of T able 2, and if setti ng valu e is diff erent, s et
the correct value.
For setting, refer to the

(7) Setting of SERVICE MENU

Verif y the s etting items of t h e SE RV IC E ME NU , an d r es et w h ere necess ar y.
For setting, refer to the

NOTE

Although th e key position of the
that of th e

RM-C364

same So p lease use th e attached di agram for t he
unit for the
By the way,

RM-C364

MEN U -/+ Key

key and the

PICTURE MODE

key of the REMOTE

DISPLAY

key s imultaneous ly, and th e SYSTEM CONSTAN T SET

▼/▲key, and set

MENU

- / + key.

MENU

key twice, and return to the normal screen.

OPERATING INSTRUCTIONS

OPERATING INSTRUCTIONS

SERVICE ADJUSTMENTS

RM-C90

and set the receive channels

.

.

remote control unit is different from

remot e contr ol u nit, t he func tions of both units are th e

RM-C90

.

functions in the same manner as for / key.

key an d

remote control

SERVICE MENU

1.IF 2.V/C

3.DEF 4.VSM PRESET

5.PRESET

6.TURBO TIMER OFF

1-6 SELECT DISP : EXIT

******

***********

***** **

************

**********

*** ** **

*** ** **** ***

*** ** ***** ** **

**.***

****

** ***

** ***** ***

Fig.1

SYSTEM CONSTANT-

SYSTEM CONSTANT SET 1

COLOUR : TRIPLE
BILINGUAL : NO
TUNER : MA
ECO SENSOR :
LANGUAGE :

: SELECT

/

- / + : OPERATE DISP : EXIT

***
***

SYSTEM CONSTANT-

SYSTEM CONSTANT SET 2

B/B SOUND :
LOCK : 180
COLOUR AUTO :
QSS : MINT
ALC : NO
TEXT RATE : 20

: SELECT

/

- / + : OPERATE DISP : EXIT

***

***

SYSTEM CONSTANT-

***

******

ⅠⅠⅠⅠ

ⅡⅡⅡⅡ

ⅢⅢⅢⅢ

KEY ASSIGNMENT OF REMOTE CONTROL UNIT

DISPLAY ke y

MENU

/ key


MODE key

MENU

▼/▲

NUMBERS

key

key

SYSTEM CONSTANT SET 3

AMP TUNER : NO
VNR : YES
TEXT TABLE :

: SELECT

/

- / + : OPERATE DISP : EXIT

***

Fig.2

(RM-C90)

10

No. 51865

A

A

A

SETTING OF SYSTEM CONSTANT SET

A

Setting item Setting contents

COLOUR

BILINGUAL

TUNER

ECO SENSOR

MULTI.

YES NO

MA

MU

YES NO

V-14FR10/AV-14F10

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

Setting value

AV-14FR10 AV-1434TEE AV-14FTT2 AV-14F10 AV-1434EE

PALTRIPLE

TRIPLE

NO

MA

YES

AV-

14FTG2

/-A

LANGUAGE

B/B SOUND

LOCK

COLOUR AUTO

QSS

ALC

TEXT RATE

AMP TUNER

VNR

TEXT TABLE

USER SETTING VALUES

Setting item Setting value Setting item Setting value

YES 10 20
250 240

10 20 40 80

E/R/A/F E/R/C

ON

YES

MINT MQSS

YES NO

YES

YES NO

RA

OFF

NO

NO

CYL

E/R/U

230

～

E/F

E/R/C

OFF

180

NO

MINT

NO

20

NO

YES

ARA

Table 1

E/R/C E/R/A/F E/R/C E/R/C E/R/A/F

ON

YES

CYL

SUB POWER ON LANGUAGE ENGLISH
CHANNEL POSITION 1 POSITION CHANNEL PRESET Refer to OPERATING INSTRUCTION
VOLUME Ab out 10 ECO SENSOR OFF

TV/VIDEO
ON SCREEN DISPLAY

COLOUR SYSTEM PAL ON TIMER PR1 0:00
SOUND SYSTEM B / G BLUE BACK OFF
OFF TIMER OFF OSD.Shows 00 CHILD LOCK OFF
PICTURE MODE (VSM) BRIGHT

TV VNR OFF
POSITION INDICATION AUTO SHUTOFF OFF

Table 2

No. 51865

11

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

INITIAL SETTING VALUE OF SERVICE MENU

1. Adjustment of the SERVICE MENU is made on the basis of the initial setting values ; however, the new setting values which
set the screen in its optimum condition may differ from the initial setting.

2. Do not change the initial Setting Values of the Setting (Adjustment) items not listed In “ADJUSTMENT”.

2. V/C

Setting item

2. DRIVE

3. BRIGHT

4. CONT.

5. COLOUR

6. TINT

7. SECAM BL ADJ.

8. SHARP

3. DEFLECTION

1. VER. POSITI ON

2. HOR. POSITION

Do Not Adj.

Setting item Variable range

Colour system

RED
GREEN1. CUT OFF
BLUE
RED
BLUE

TV
VIDEO

TV
VIDEO

Variable

range

-128～+127

-128～+127

-127～+127

-63～+63

-63～+63

-63～+63

-31～+31

-32～+31

-04 ～ +03

-16 ～ +15

Initial settin g val ue

PAL SECAM NTSC 3.58 NTSC 4.43

-50

+ 0

+ 0
+ 0
+ 0

+ 0 + 0
+ 0 + 0

+ 0

- 12(Fixed)
+10(Fixed)

Initial settin g val ue

fv : 50Hz MODE fv : 60Hz MODE

- 2 - 3
+1 + 4

3. VER. HEIGHT

4. VER. LINEARITY

5. VER. SCURVE

6. HOR. VCO ADJUST

4.VSM PRESET

VSM mode

Setting item

SETTING VALUE +15

TINT
COLOUR
BRIGHT
CONT.
SHARP

SETTING VALUE +15

SETTING VALUE +15

SETTING VALUE +30 +15 +11

SETTING VALUE +15 +12

Do Not Adj.

VSM preset

-64 ～ +63

-32 ～ +31

-32 ～ +31

-63 ～ +62

BRIGHT STANDARD SOFT

-40 + 0

+13 - 3

-32 + 0
+ 0 + 0

12

No. 51865

A

A

A

5. PRESET
The items in the following table, it is no requirement for adjustment.

If values had changed by the miss operation, set the initial setting values in the following table.

Colour System Do Not Adj u st

V-14FR10/AV-14F10

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

Setting item

1. C TRAP FIX

2. SHARP PEAK

3. ABL

4. GAMMA

5. Y. DELAY TIME

6. BLACK EXP START

7. C-BPF

8. CW / SCP

9. VIF DET LEVEL

11. IF AGC MIN

12. VIF AGC

13. VIF PMOD

19. VNR

TV

VIDEO

TV

VIDEO

Initial setting value (Fixed value)

PAL SECAM NTSC 3.58 NTSC 4.43

1 1 1 1
0 0 0 0

1 1 1 1
0 0 0 0
0 2 2 3
0 2 0 2

＋3 ＋3 ＋3 ＋3

1 1 0 0
1 1 1 1
0 0 0 0
0 0 0 0
0 0 0 0
0 0 0 0
0 0 0 0

15 15 15 15

20. RGB LIM

21. RGB LIMIT LEVEL

23. TEXT H. POSITION

24. READ DATA

Sound System Do Not Ad j u s t

Setting item B/G I D/K M

10. SIF DET LEVEL

14. SIF BPF BW ADJUST

15. SIF TRAP FO ADJUST

16. SIF TRAP FO ADJUST 2

17. SIF -TR AP

18. SIF -BPF

22. SIF SW

1 1 1 1
2 2 2 2

-3 -3 -3 -3

0

＋

0

＋

0

＋

0

＋

0 0 0 0
0 0 0 1
1 1 1 0

0

＋

0

＋

0

＋

0

＋

0

＋

0

＋

0

＋

0

＋

0

＋

0

＋

0

＋

0

＋

No. 51865

13

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

REPLACEMENT OF IC301 (IF V/C DECODER)

For the IC3 01(IF V/C DEC ODER) of this model , all data ar e written in t he micro-c omputer . So, write t he data in the micro-

!

comput er i n ac cor d ance with the fol lowing proc edures befo r e st arting adjustment .

RE PLACING PROCEDUR ES

Turn the POWER OFF.

(1)

Replace the IC301 with a new one.

(2)

While pr essi ng MENU but ton an d VO L+ bu tton ON th e F RO NT CABIN ET s imu ltan eous ly, t urn t he POWER ON. When th e P OW ER is

(3)

turned ON, the data is written in the micro-computer immediately.

LOCATIONS OF FRONT PANEL BUTTONS AND LAMPS

MENU buttons

1

CHANNEL －/＋ buttons

2

(MENU －/＋ buttons)

VOLUME －/＋ buttons

3

(MENU －/＋ buttons)

ECO sensor

4

REMOTE CONTROL sensor

5

ON TIMER lamp

6

POWER lamp

7

MAIN POWER button

8

14

No. 51865

A

A

A

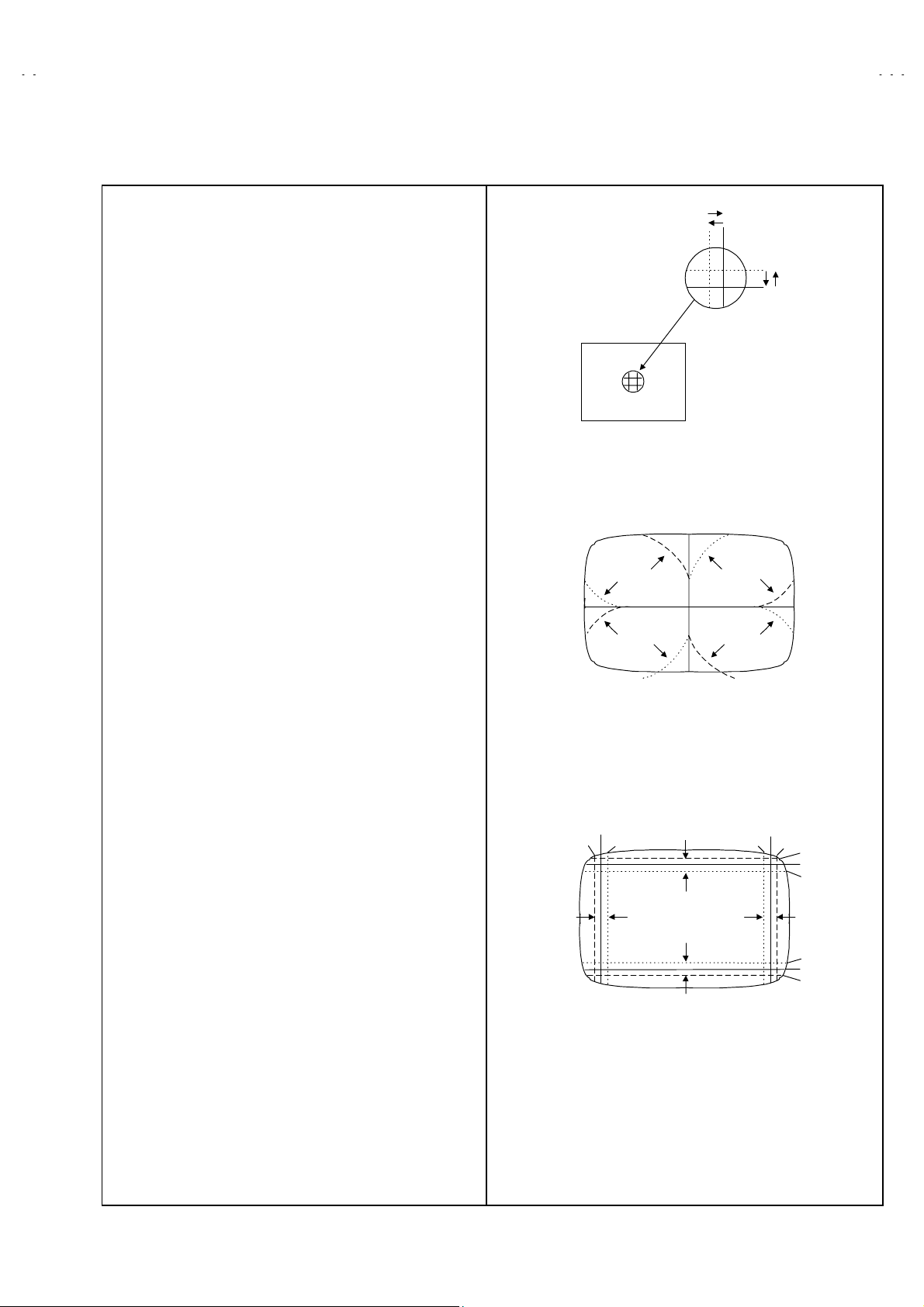

SERVICE ADJUSTMENT

BEFORE STARTING SERVICE ADJUSTMENT

1. There are 2 way of adjusting this TV: One is with the

REMOTE CONTRO L UNIT and t he oth er is t he conv ention al
method using adjustment pa rts and components.

2. T he adju stment with t he REM OTE C ONTR OL UNIT is m ade

on the basis of the initial setting values. The setting values
which adjust the screen t o it s o pt i mum cond ition may differ
from the initial setting values.

3. Make sure that connection is correctly made to AC power

source.

4. Turn on the p ower of the set and eq uipment before use, and

start the adjustment procedures after waiting at least 30 minutes.

5. Unl ess other wis e specifi ed, prep are the mos t suitab le rec eption

or input signal for adjustment.

6. Never touch a ny adjustment parts, which are not specified
in the list for thi s a djust men t VR s, tr an sfor ms, cond en ser s,
etc.

7. Preparation for adjustment
Unless oth erwis e sp ec if i ed i n t h e adj us t m en t i ns tr uc t ions, preset
the following functions with the REMOTE CONTROL UNIT.

User mode positi on

PICTURE MODE (VSM) BRIGHT
VNR OFF
TINT / COLOUR / BRIGHT

CONT. / SHARP
BLUE BACK OFF

OFF TIMER OFF
ECO SENSOR OFF
AUTO SHUT OFF OFF

V-14FR10/AV-14F10

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

CENTER

MEASURING INSTRUMENT AND FIXTURES

1. DC voltmeter (or digital voltmeter)

2. Oscilloscope

3. Signal generator (Pat tern generator) [PAL / SECAM / NTSC]

4. Remote control unit

ADJUSTMENT ITEMS

Adjustment item Adjustment item

B1 POWER SUPPLY

FOCUS adjustm ent VSM PRESET setting
IF circuit adjustment

V/C (Video / Chroma) circuit adjustment

DEFLECTION circuit adjustment

PURITY/ CONVERGENCE adjustment

No. 51865

15

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

BASIC OPERATION OF SERVICE MENU

The adjustment using SERVICE MENU

!

The followi ng adjustm ent items us e the SERVICE ME NU in the seri es of the adjust ment. The adjus tments are made on the basis of the
initial setting values. The adjustment values which adjust the screen to the optimum condition can be different from the initial setting values.
With the SERVICE MENU, various settings can be made, and they are broadly classified in the following items of settings.

1.IF

･･･････････････････････

2.V/C

･･････････････････････

3.DEF

･････････････････････

4.VSM PRESET

5.PRESET

6.TURBO TIMER

Key operation of the SERVICE MENU

!

････････････

･････････････････

････････････

[Enter to SERVICE MENU]

Press the

DISPLAY

key and th e

UNIT simultaneously. Then enter the SERVICE MENU mode as shown in Fig.1.

[Exit from SERVICE MENU]

When complete the adjustment work, press the
SERVICE MENU.
And then press the

DISPLAY

[Select from SERVICE MENU]

In SERVICE MENU, press th e num ber (1～6) key of the remote control unit, to select
any of the adj ustment items.

The colours which selected item characters are changed.

Adjustment of the IF circuits.
Adjustment of the VIDEO/CHROMA circuit.
Adjustment of the DEFLECTION circuit.
Adjustm en t of th e initial setting values of VS M c on dition as ST AN DA RD , S O FT and B RI GH T .
(VSM : Video Status Memory)
Adjustmen t of the RF ci rcuit

[Do not adjust]

.

For quick s et ti ng t h e TI MER c ou nt value, adjus table not onl y b y mi nuets but als o by s ec ond.

[Should be OFF]

.

SERVICE MENU

PICTURE M ODE

key again, return to the normal screen.

key of the REMOTE CONTROL

DISPLAY

key to return to the

SERVICE MENU

1.IF 2.V/C

3.DEF 4.VSM PRESET

5.PRESET

6.TURBO TIMER OFF

1-6 SELECT DISP : EXIT

******

***********

***** **

************

**********

*** ** **

*** ** **** ***

*** ** ***** ** **

** ***

** ***** ***

Fig.1

**.***

***

****

******

KEY ASSIGNMENT OF REMOTE CONTROL UNIT

DISPLAY ke y

MENU

/ key


MODE key

MENU

key

▼/▲

NUMBERS

key

(RM-C90)

KEY ASSIGNMENT OF REMOTE CONTROL UNIT

DISPLAY ke y

MENU

key

－/＋


MODE key

NUMBERS

key

MENU

key

▼/▲

(RM-C364GY)

16

No. 51865

A

A

A

[Method of setting]

1. IF

[1. VCO]

1 Key

①
②
③
④

[2. DELAY POINT]

①
②
③

DISPLAY Key

･････････････････････････

1 Key

･････････････････････････

The VCO (CW) screen will be displ ay ed a all ow m ar k when the AFC voltage is at a cert ai n l evel .
DISPLAY Key

1 Key

･････････････････････････

2 Key

･････････････････････････

MENU -/+

･･････････････････

･････････････････････

････････････････････

Selec t
Selec t

As you press this key twice, you will return to the

Selec t
Selec t
Set (adjust) the setting values of the setting items.
When this is pre ssed twice, you will return to the

.

1.IF

1.VCO

.

1.IF

2.DELAY POINT

.

SERV ICE MEN U

SERVICE MENU

V-14FR10/AV-14F10

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

.

.

2.V/C, 3.DEF

2~4Key

①

MENU ▼/▲ Key

②

MENU -/+

③

DISPLAY Key

④

6.TURBO TIMER

By pressing the 6 key, you can change the ON or OFF (

①

and

4.VSM PRESET

･･･････････････････････

･･････････････

･････････････････････

･･････････････････

(Should be OFF)

!

(It is easier to checks the Operation of TIMER)
If you turn the TV power off, this setting becomes OFF automatically.

Select on e from
Select setting items.
Adjust the values of the items.
When this is pressed, return to the

If it is ON, the timer in TIMER mode change s from 1 mi nute into 1 sec temporarily.

2. V/C, 3. DEF

should be OFF

and

4. VSM PRESET

SERVICE MENU

).

.

.

No. 51865

17

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

SERVICE MENU FLOW CHART

SERVICE MENU

SERVICE MENU

1.IF 2.V/C

3.DEF 4.VSM PRESET

5.PRESET

6.TURBO TIMER OFF

1-6 SELECT DISP : EXIT

******

***********

***** **

************

**********

*** ** **

*** ** **** ***

*** ** ***** ** **

6.TURBO TIMER

** ***

** ***** ***

OFF

ON /

**.***

***

****

******

OFF

(By pressing 6-key)

SUB MENU 1. IF

IF

1. VCO

2. DELAY POINT

1-2 : SELECT DISP : EXIT

SUB MENU 2. V/C

V/C PAL

1. CUTOFF

50Hz

: SELECT

/

- / + : OPERATE DISP : EXIT

(R)
(G)
(B)

* **
* **
* **

VCO (CW)

TOO HIGH
ABOVE REFERENCE
JUST REFERENCE
BELOW REFE RENCE
TOO LOW
AFT ADJUST
VCO ADJUST
FINE

DELAY POINT UHF

AGC TAKE-OVE R

- / + : OPERATE DISP : EXIT

***.**

DISP : EXIT

MHz

***(**)

***(**)

***(**)***(**)
***(**)

***(**)

***(**)***(**)

**

SUB MENU 3. DEF

DEF

1. VER. POSITION

50Hz

: SELECT

/

- / + : OPERATE DISP : EXIT

PAL

***

SUB MENU 4. VSM PRESET

BRIGHT

TINT
COLOUR
BRIGHT
CONT.
SHARP

: SELECT

/

- / + : OPERATE DISP : EXIT

**
**
**
**
**

SUB MENU 5. PRESET

PRESET

1. C-TRAP FIX

50Hz

: SELECT

/

- / + : OPERATE DISP : EXIT

18

PAL

No. 51865

B/G

***

A

A

A

ADJUSTMENT LOCATIONS

V-14FR10/AV-14F10

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

TOP

MAIN PWB

F901

CRT SOCKET PWB

TP-47R

TP-47G

T

IC701

(SOLDER SIDE)

U

TP-47B

E1

TP-E

CRT EARTH WIRE
(BRAIDED ASS'Y)

IC702
MEMORY IC

FRONT

DEG

PW

S

TU001

IC301

T

1

S

1Pin TP-91(B1)
2Pin NC
3Pin X-ray2
4Pin X-ray1
5Pin TP-E( )

HV

U

HVT

UPPER:FOCUS
LOWER:SCREEN

No. 51865

19

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

ADJUSTMENTS

B1 POWER SUPPLY

Item

Check of
B1 Power

Measuring

instrument

Signal
generator

Supply

DC Vol t ­meter

FOCUS ADJUS TMENT

Item

Adjustment
of FOCUS

Measuring

instrument

Signal
generator

IF CIRCUIT ADJUSTMENT

Item

Measuring

instrument

Test point Adjustm ent part Description

TP-91 (B1)
TP-E (

)

!!!!

1. Inp ut a w h ol e blac k sig n al.

2. Connect a DC voltmeter to TP-91(B1) and TP-E (!).

3. Make sure that the voltage is DC114.5±1.5V.

Test point Adjustm ent part Description

FOCUS VR
[In HVT]

1. Input a cross-hatch signal.

2. While watc hing t he scr een, ad just t he FOCU S VR t o mak e the
vertic al and hor i z ontal lines as fin e and s h ar p as poss i bl e.

3. Make sure that when the screen is darkened, the lines remain in
good focus.

Test point Adjustm ent part Description

Adjustment
of VCO(CW)

Signal
generator

Remote
control unit

VCO (CW)

TOO HIGH
ABOVE REFERENCE
JUST REFERENCE
BELOW REFE RENCE
TOO LOW
AFT ADJUST
VCO ADJUST
FINE

DISP : EXIT

ADJUSTMENT AT THIS POINT IS USELESS

***.**

MHz

***(**)

***(**)

***(**)***(**)

***(**)

***(**)

***(**)***(**)

ADJUSTMENT POINT

1. VCO

YELLOW

Do not adjust

TOO HIGH

ABOVE REFERENCE

JUST REFERENCE

BELOW REFERENCE

TOO LOW

Please use signal generator which is c orrect proof about the

●

sending frequency.

1. Input the PAL full colour bar (210.25MHz) signal.

2. Select 1.IF from the

SERV ICE MEN U

3. Pr ess 1 key and select

4. Select

5. Press

VCO ADJUST

-/+ key until the colour of the characters TOO

MENU

1.VCO

with

MENU

.

.

▲/▼ key.

HIGH ch anges blu e to yel low. Th en gr ad uall y pr ess t he

-/+ key until the TOO LOW changes yellow. At this time, confirm
th a t th e value of

6. Select

7. Press

AFT A D JUST

MENU

VCO ADJUST

with

-/+ key until the char acters JUST REFER ENCE

MENU

is near +00.

▲/▼ key.

changes blue to yellow.

8. Press the

DISPLAY

key three times to retur n to normal screen.

MENU

20

No. 51865

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

Item

Adjustment
of DELAY
POINT
(AGC)

Measuring

instrument

Signal
generator

Remote
control unit

DELAY POINT UHF

AGC TAKE-OVER

- / + : OPERATE DISP : EXIT

Test point Adjustm ent part Description

**

DELAY POINT

(AGC TAKE-OVER)

1. Inp ut a bl ac k an d w hit e si gnal (colour off).

2. Select

3. Select
control un it.

4. Set the setting values of the setting items as shown bellow
table.

5. T hen adjust the ME NU - or + key u nti l video nois e disappears .

6. Turn to other channels and make sure that there are no
irregularities.

from the SERVICE MENU.

1. IF

2. DELAY POINT

by pres sing t he 2 key on the remote

Setting Item Variable range Initial setting value

DELAY POINT

(AGC TAKE OVER)

NTSC 3 . 58
OTHER

0～127

48

43

No. 51865

21

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

VIDEO / CHROMA CIRCUIT ADJUSTMENT

The setting (adjustment) using the REMOTE CONTROL UNIT is made on the basis of the initial setting values.
The setting values which adjust the screen to the optimum condition can be different from the initial setting values.
Do not change the initial setting values of the setting items not listed in “ADJUSTMENT”.

Item

Adjustment
of WHITE
BALANCE
(Low light)

Measuring

instrument

Signal
generator

Remote
control unit

: SELECT

- / + : OPERATE DISP : EXIT

Test point Adjustm ent part Description

V/C AUTO

1. CUTOFF

50Hz

/

KEY ASSIGNMENT OF REMOTE CONTROL UNIT

CUTOFF OFF

CUTOFF ON

R. CUTOFF(

R. DRIVE(

R. CUTOFF(

R. DRIVE(

△

△

123

4

)

)

△

7

)

△

)

R

56

8

GB

9

1. CUT OFF (R)
CUT OFF (G)
CUT OFF (B)

SCREEN VR
[IN HVT]

* **

(R)

* **

(G)

* **

(B)

G.CUTOFF(

B. CUTOFF(
B. DRIVE(

B. CUTOFF(
B. DRIVE(

G.CUTOFF(

△

1. Inp ut a bl ac k an d w hit e si gnal (colour off).

2. Select
(R), (G) and (B) .

OFF

from the SERVICE MENU, then select

2. V/C

1. CUT

3. Set each value to initial setting value with 4～9 keys of the

remote control unit.

4. Press t he

key of the rem ote contr ol unit to show the singl e

1

horizontal line on screen.

5. Turn the

SCREEN VR

fully coun te r- clockwi se, the n sl o wly tu r n i t
clockwis e to where one of a red, blu e or green colour is f aintly
visible.

6. Use keys

of the remote control u nit and ad jus t the oth er 2

4～9

colours which except t he appeared c olour to wh ere the singl e
horizontal line appears white.

7. Turn the

SCREEN VR

to where the single horizontal line glows

faintly.

8. Press the

9. Press the

)

△

△

)

)

△

)

△

)

△

)

1. CUT OFF

key to turn off th e si ngl e h or iz on tal line.

2

DISPLAY

Adjustment item

key twice to return to the normal screen.

Variable

range

-128～+127

R

-128～+127

G

-128～+127

B

Initial settin g

value

-50

-50

-50

Adjustment
of WHITE
BALANCE
(High light)

Signal
generator

Remote
control unit

2. DRIVE (R
DRIVE (B)

)

1. Input a black an d w hit e signal (c olour off).

2. Select

3. Select

from the SERVICE MENU.

2. V/C

2. DRIVE (R) / (B)

with MEN U ▼/▲ key, and set each
value to i niti al set ting val ue wit h 4 and 7 or 6 and 9 keys of th e
remote control unit.

4. Use the keys

and 7 or 6 and 9 to produc e a wh it e sc reen

4

5. Press the DISPLAY key twice to return to the nomal screen.

V/C AUTO

* **

2. DRIVE

50Hz

: SELECT

/

- / + : OPERATE DISP : EXIT

22

(R)
(B)

* **

No. 51865

Adjustment item

2. DRIVE

R
B

Variable

range

-128～+127

-128～+127

Initial settin g

value

+0
+0

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

Item

Adjustment
of
SUB
BRIGHT

Adjustment
of
SUB CONT.

Adjustment
of
SUB
COLOUR

ⅠⅠⅠⅠ

Measuring

instrument

Remote
control unit

Remote
control unit

Remote
control unit

Test point Adjustm ent part Description

3. BRIGHT

4. CONT.

5. COLOUR [Method of adjustment without measuring instrument]

PAL COLOUR

1. Receive any broadc ast.

2. Select

3. Select

4. Set the initi al s etti ng value wit h th e ME NU - or + k ey.

5. If the brigh tness is n ot the best w ith the initi al set valu e, mak e
fine adjus t m ent un til you get the best br i ght ness.

1. Receive any broadc ast.

2. Select

3. Select

4. Set the initi al s etti ng value wit h th e ME NU - or + k ey.

5. If the contrast is not the best with the initial set value, make fine
adjust m ent un t il you get t h e bes t c ontrast.

1. R ec eive a PAL broadc ast.

2. Select

3. Select

4. Set the initial setting value for PAL COLOUR with the MENU -

- or + key.

5. If the colour is not the best with the in itial set valu e, make fine

adjust m ent un t il you get t h e bes t c ol our .

from SERVICE MENU.

2. V/C

3. BR I GHT

2. V/C

4. CONT

2. V/C

5. COLOUR

with the MENU ▼/▲key.

from SERVICE MENU.

. with the MENU ▼/▲key.

from the SERVICE MENU.

with the MENU ▼/▲ key.

SECAM COLOUR

NTSC 3.58 COLOUR

NTSC 4.43 COLOUR

No. 51865

1. Receive a SECAM broadc as t.

2. M ak e fine adjustm en t of SE CAM COLOUR as previous ly.

1. Receive a NT SC 3.58MHz br oadcast.

2. Make similar fine adjustment of NTSC 3.58 COLOUR as
previously.

When NTSC 3.58 adjustment completed, NTSC 4.43 will be
automatically set at the respective values.

23

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

Item

Adjustment
of SUB
COLOUR

ⅡⅡⅡⅡ

W

Measuring

instrument

Signal
generator

Oscillo­scope

Remote
control unit

Y

Cy

Test point Adjustm ent part Description

TP-47R/G

TP-E (

!!!!

[CRT SOCKET
PWB]

Mg

5. COLOUR [Method of adjustment using measuring instrument]

)

R

(A)

B

(－)

0V

(＋)

1. Input a PAL full field colour bar signal (75% white).

2. Select

3. Select

4. Set the initi al setting value of PAL C OLOUR with th e MENU

- or + key.

5. Connect the osc i lloscop e bet w een TP -4 7R /G an d TP -E .

6. Adjust PAL COLOUR t o bri ng t h e val ue of
to

+9V

from SERVICE MENU.

2. V/C

5. COLOUR

(W-G). (Voltage value between (W) and (G))

with the MENU ▼/▲ key.

G

SECAM COLOUR

1. Input a SECAM full field colour bar signal (75% white).

2. S et the initi al s etti ng val u e of SECAM CO LOUR with the MENU

- or + key.

3. Adjust SECAM COLOUR to bring the value of
illustr ation to

(W-G). (Voltage value between (W) and (G))

+3V

in the illustration

(A)

(A)

in the

NTSC 3.58 COLOUR

NTSC 4.43 COLOUR

24

1. Input a NTSC 3.58 full field colour bar signal (75% white).

2. Set the initial setting value of NTSC 3.58 COLOUR with the
MENU - or + key.

3. Adjust NTSC 3 .58 COLOUR to bring the valu e of
illustr ation to

When NTSC 3.58 is set, NTSC 4.43 will be automatically set at the
respective valu es.

(W-G). (Voltage value between (W) and (G))

+6V

No. 51865

(A)

in the

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

Item

Adjustment
of TINT

ⅠⅠⅠⅠ

Adjustment
of TINT

ⅡⅡⅡⅡ

Measuring

instrument

Signal
generator

Remote
control unit

Signal
generator

Oscillo­scope

Remote
control unit

Test point Adjustm ent part Descrip tion

6. TINT [Method of adjustment without measuring instrument]

1. Input a NTSC 3.58 full field colour bar signal (75% white).

2. Select

3. Select

4. Set the initi al s etti ng value of NT SC 3.58 wit h t h e MEN U

- or + key.

5. If you cannot g et th e b est tint with th e init i al s etting value, m ake
fine adjustment until you get the best tint.

When NTSC 3.58 is set, NTSC 4.43 will be automatically set at the
respective valu es.

1. Input a NTSC 3.58 full field colour bar signal (75% white).

2. Select

3. Select

4. Set the initi al s etti ng value of NT SC 3.58 wit h t h e MEN U

- or +key.

5. Connect the osc i lloscop e bet w een TP -4 7R /G an d TP -E .

6. Adjust NTSC 3.58 TINT to bring the value of
illustr ation to

from SERVICE MENU.

2. V/C

with the MENU ▼/▲ key.

6. TINT

from SERVICE MENU.

2. V/C

with the MENU ▼/▲ key.

6. TINT

(W-Cy). (Voltage value between (W) and Cy))

+6V

TP-47R/G
TP-E (

!!!!

[CRT
SOCKET
PWB]

NTSC 3.58 TINT

NTSC 4.43 TINT

6. TINT [Method of adjustment using measuring instrument]

)

NTSC 3.58 TINT

(B)

in the

W

B

R

Mg

(－)

0V

Y

Cy

G

(B)

(＋)

NTSC 4.43 TINT

When NTSC 3.58 is set, NTSC 4.43 will be automatically set at the
respective valu es.

No. 51865

25

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

Item

of SECAM
BLACK
OFFSET

Measuring

instrument

Remote
control unit

Signal
generator

KEY ASSIGNMENT OF REMOTE CONTROL UNIT

Test point Adjustm ent part Description

7.SECAM
BL ADJUST

COLOUR

ON

123

COLOUR

OFF

[Method of adjustment using measuring instrument]Adjustment

1. Receive a SECAM full field colour bar signal.

2. Select

3. Select

4. Set the initi al s etting valu e wit h the – or + MENU key.

5. Switch the ①key (c olour OF F) and ②key (colour ON) on the
remote c ontrol and make sure that there is no colour on t he
black an d white screen.

6. If the black and w hite screen is not best with t he initial s etting
value, make fine adjustm ent until you get th e best blac k and
white screen.

7. While watching the screen, adjust the value to be the same
colour between O N & OF F by T en key on the r emote c ontrol
unit.

8. Press t h e DISPLAY key twice to return to the normal screen.

from SERVICE MENU.

2. V/C

7. SE CAM BL ADJUS T

with ▼/▲MENU key.

4

7

56

8

9

26

No. 51865

A

V-14FR10/AV-14F10

A

A

g

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

DEFLECTION CIRCUIT ADJUST MENT

There are 2 modes of adjustment (setting value) ------ ① 50Hz mode and ② 60Hz mode ----- depending upon the kind of signals

!

(vertical frequency 50Hz / 60Hz).

When adjus ted in mod e ① , mode ② will be automatically set.

!

The setting (adjustment) using the REMOTE CONTROL UNIT is made on the basis of the initial setting values.
The setting values which adjust the screen to the optimum condition can be different from the initial setting values.

Item

Adjustment
of

V.HEIGHT

!!!!

&
V.POSITION

Screen

size

92%

Measuring

instrument

Signal
generator

Remote
control unit

DEF

1. VER. POSIT I ON

50Hz

: SELECT

/

- / + : OPERA T E DISP : EXIT

Test point Adjustment part Descrip tion

AUTO

***

Screen size

1. VER. POSITION

3. VER. HEIGHT

size
100%

1. Input a cross-hatch si gnal.

2. Select

3. Select

4. Set the initial setting value

- / + key.

5. Adjust
the MENU - / + key.

6. Select

7. Set the initial setting value with the MENU - / + key.

8. As shown in F ig.1, adj ust
screen size

remote control unit.

from SERVICE MENU.

3. DEF.

1. VER. POSITION

1.VER. POSITIO N

3. V. HEIGHT

92%

with the MENU ▼/▲ key.

of the picture size with the MENU - / + keys of

with the MENU ▼/▲ key.

1. VER. POSITION

to make

VER. HEIGHT

V=V"

with the MENU

as show n in Fig.2 wit h

and m ake th e ver tic al

Adjustment

of

HOR.

!!!!

POSITION

Picture size 100%

.1

Fi

Signal
generator

Remote
control unit

HH"

Fig.2

2.HOR. POSITION

V

V"

No. 51865

9. Input a circl e pattern si gn al .

10. Select

11. Set the initial setting value of

12. Adjust

2. HOR POSITION

MENU - / + key.

2. HOR. POSITION

with the MENU - / + key.

with the MENU ▼/▲ key.

to make

2. HOR. POSITION

as show n in Fig. 2

H=H"

with the

27

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

Item

Adjustment
of VER. LIN.
& VER.
SCURVE

Measuring

instrument

Signal
generator

Remote
control unit

Test point Adjustm ent part Description

When the vertical linearity has been deteriorated

4. VER. LIN.

5. VER. SCURVE

TOP

CENTER

●●●●

remarkably, perform the following steps.

13. Input a cross-hatch signal.

14. Select

15. Set the initial setting value of

16. Select

17. Set the initial setting value of

18. Adjust

Make sur e th at the adjust ment is prop erly d one on the sc reen of
60Hz mode.

[NOTE]

!

!

!

4. VER. LIN.

key.

5. VER. SCURVE

MENU - / + key.

4. VER. L I N.

of each line as shown in Fig.3 on

BOTTOM

Adjust t o m ake bot h 50H z & 60Hz ar e th e same v. si ze and

fine straight line.
When adjus t ag ai n, adjust 50Hz mode first .
When adjus t in 60 Hz m ode, only 60H z m od e is adj us t.

become uniform.

with the MENU ▼/▲ key.

4. VER LIN.

with the MENU ▼/▲ key.

and

5. VER. SCURVE

with the MENU - / +

5. VER. SCURVE

so that the spaces

TOP, CENTER

with the

and

Fig.3

BOTTOM

28

No. 51865

A

A

A

VSM PRESET SETTING

V-14FR10/AV-14F10

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

Item

Setting of
VSM
PRESET

Measuring

instrument

Test point Adjustm ent part Description

Remote
control unit

BRIGHT

TINT
COLOUR
BRIGHT
CONT.
SHARP

/ :SELECT

- / + : OPERATE DISP : EXIT

**
**
**
**
**

TINT
COLOUR
BRIGHT
CONT.
SHARP

item

TINT

COLOUR

BRIGHT

CONT.

SHARP

1. Select

4. VSM PRESET

from the SERVICE MENU.

2. Select BRIGHT with the PICTURE MODE key.

3. Adjust the MENU ▼/▲ and MENU - or + k ey to bring the s et
values of

TINT

SHARP

～～～～

to the valu es sh ow n in the table.

4. Respectively select the VSM PRESET mode for SOFT and
STANDARD, and make similar adjustment as in 3 above.

Mode

BRIGHT STANDARD SOFT

+15

+15

+15

+30 +15 +11

+15 +12

No. 51865

29

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

PURITY / CONVERGENCE ADJUSTMENT

PURITY ADJU STMENT

1. Demagnet ize CRT with the demagnetize r.

2. Loosen the retainer screw of the deflection yoke.

3. R emove the wed g es.

4. Input a green r aster signal f rom the sign al gener ator, an d turn
the screen to green raster.

5. M ove t h e def l ec tion yoke bac k w ar d.

6. Brin g the long l ug of the pur ity magnets on the sh ort lug an d
position them horizontally. (Fig.2)

7. Adj us t t h e g ap b etween t w o l ugs s o th at th e G R EEN RAST ER
will come into the center of the screen. (Fig.3)

8. Move the defl ection yoke forward, and fix the pos ition of the
deflection yoke so that the whole screen will become green.

9. Insert the wedge to the top side of the deflection yoke so that it
will not move.

CRT

WEDGE

P : PURITY MAGNET
4 : 4 POLES
6 : 6 POLES

Fig.1

PURITY MAGNETS

DEFLECTION

YOKE

P

46

P / C

MAGNETS

P/C M A GNETS

"

(con ver g ence magnets )
(con ver g ence magnets )

10. Input a crosshatch signa l.

11. Verify that the screen is horiz ont al.

12. Inp ut red and blu e raster si gnals, and make su re that pur ity is
properly adjust ed.

Long lug

Short lug

(FRONT VIEW)

Bring the long lug over the short lug
and position them horizontally.

Fig.2

GREEN RASTER

CENTER

Fig.3

30

No. 51865

A

A

A

STATIC CONVERGENCE ADJUSTMENT

1. Input a crosshatch signal.

2. Using 4- pole conver gence magn ets, overlap th e red and bl ue
lines in the center of the screen (Fig.1) and turn them to
magenta (red/blue).

3. Using 6-pole convergence magnets, overlap the
magent a(red/bl ue) and green lines in th e center of th e screen
and turn them to white.

4. R epeat 2 and 3 above, an d m ak e best conver g ence.

DYNAMIC CONVERGENCE ADJUSTMENT

1. Move t he defl ecti on yok e up an d d own an d overl ap the l ines in
the periphery. (Fig. 2)

2. Move the deflection yoke left to right and overlap the lines in the
periphery. (Fig. 3)

3. R epeat 1 and 2 above, an d m ak e best conver g ence.

(FRONT VIEW)

(FRONT VIEW)

BLUE

GREEN

RED

RED

Fig.1

GREEN

V-14FR10/AV-14F10

V-1434TEE/AV-1434EE

V-14FTT2/AV-14FTG2

BLUE

RED

GREEN

BLUE

After adjus t m ent, fix the wed g e at the original pos it i on.

●

Fasten the retainer screw of the deflection yoke.
F i x th e 6 m agn ets w ith glue.

(FRONT VIEW)

GREEN

RED

BLUE

BLUE

GREEN RED

Fig.2

BLUE

Fig.3

GREEN

RED

RED
GREEN
BLUE

BLUE

GREEN

RED

No. 51865

31

A

V-14FR10/AV-14F10

A

A

V-1434TEE/AV-1434EE
V-14FTT2/AV-14FTG2

REPLACEMENT OF CHIP COMPONENT

CAUTIONS

#

1. Avoid heating for more than 3 seconds.

2. Do not rub the electrodes and the resist parts of the pattern.

3. When removing a chip part, melt the solder adequately.

4. Do not r euse a chip part after removi n g it .

SOLDERING IRON

#

1. Use a high ins ul at i on s old er in g iron with a thin p oint ed end of it.

2. A 30w soldering iron is recommended for easily removing parts.

REPLACEMEN T STEPS

#

How to remove Chip parts

1.
Resistors, capacitors, etc

$$$$

(1) As shown in the figure, push the part with tweezers and

alternately melt the solder at eac h end.

(2) Shif t wit h t w eez ers an d r em o ve th e chip part.

Transistors, diodes, variable resistors, etc

$$$$

(1) Apply extra solder to each lead.

2. How t o i nst al l Chip p arts

Resistors, capacitors, etc

$$$$

(1) Apply solder to the pattern as indicated in the figure.

(2) Grasp th e chip part with twe ezers and pl ace it on the s older.

Then heat an d m elt t h e s old er at b oth en ds of th e chip part .

Transistors, diodes, variable resistors, etc

$$$$

(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the solder.
(3) First solder lead

as indicated in the figure.

A

SOLDER

(2) As shown in the figure, push the part with tweezers and

alternat el y melt t he s old er at each lead . Shif t and r emov e th e
chip part.

Note : After removing the part, remove remaining solder from the

pattern.

32

SOLDER

No.51865

A

(4) Then solder leads

A

C
and C.

B

C

B

B

VICTOR COMPANY OF JAPAN, LIMITED

HOME AV NETWORK BUSINESS UNIT 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama, Kanagawa-prefecture, 221-8528, Japan

4

AV14FR10-H #4, AV14F10-H #4

AV1434TEE-H #4, AV1434EE-H #4

AV14FTT2-H #4, AV14FTG2A-H #4

VP 0111
DP7051
