JVC 3834RV0038A, HR-XV45SEK, HR-XV45SEF, HR-XV45SER, HR-XV45SEU Instructions Manual

...

Download

DVD PLAYER &

PAL

VIDEO CASSETTE RECORDER

HR-XV45SEK

INSTRUCTIONS

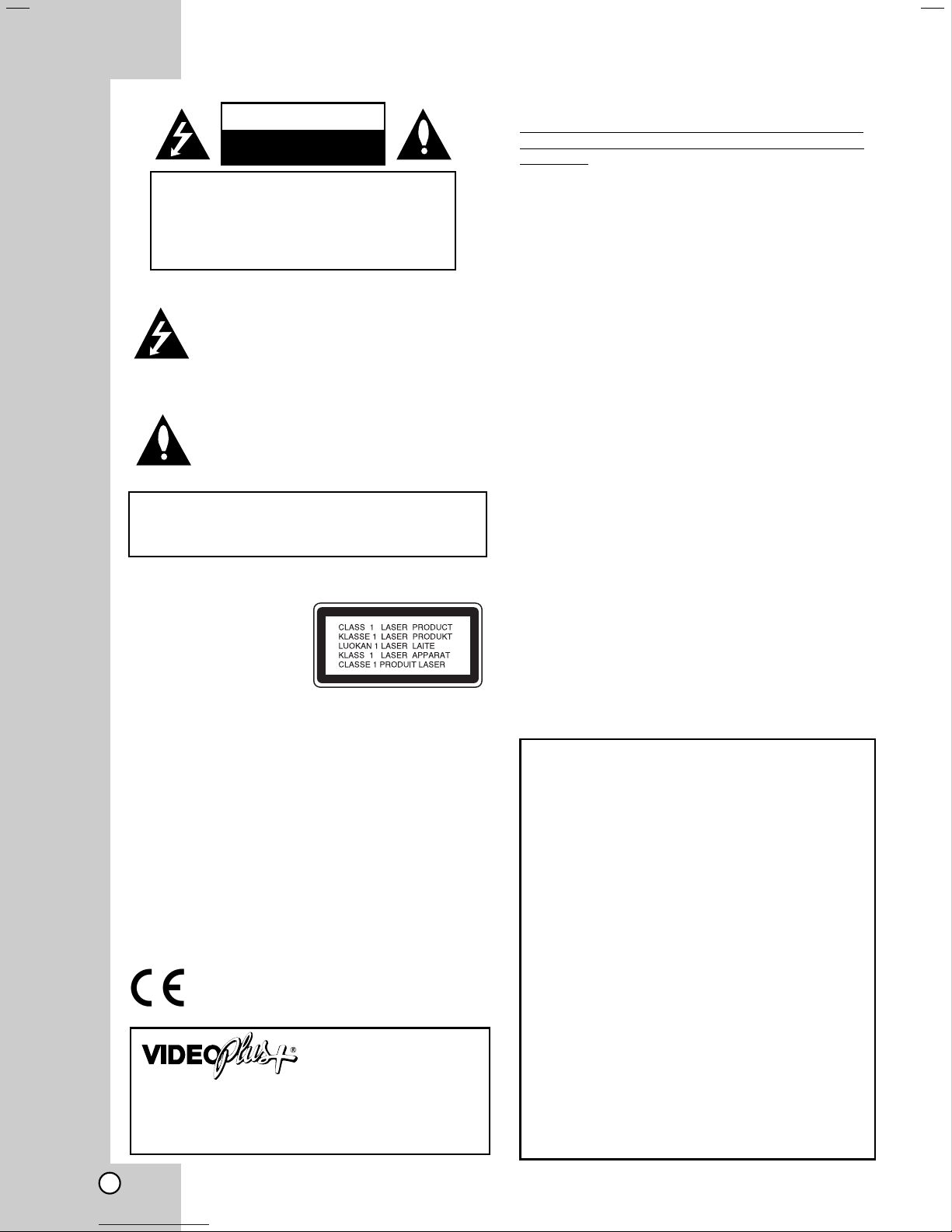

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

PERSONNEL.

Notes on copyrights:

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyright material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

SERIAL NUMBER: The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No. ___________________________________

Serial No. ___________________________________

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION:

This Digital Video Disc Player employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference, should the unit require maintenance, contact an authorized service location-see service procedure. Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.

CAUTION: The apparatus shall not be exposed to water, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC.

VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The VIDEO Plus+ system is manufactured under license from Gemstar Development Corporation.

Important notes on controlling this unit

This unit uses one set of controls to operate both DVD and VCR. The following buttons are helpful in successfully controlling each part.

1. POWER Button Press the POWER button on the remote control or front panel to turn on this unit.

2. DVD Button Press DVD button on the remote control when you want to control the DVD. The DVD indicator will light on the front panel display to show that the DVD is selected.

3. VCR Button Press the VCR button on the remote control when you want to control the VCR. The VCR indicator will light on the front panel display to show that the VCR is selected.

4. DVD/VCR Button Press the DVD/VCR button on the front panel to toggle control between the DVD and the VCR.

Contents

Introduction . . . . . . . . . . . . . . . . . . .4

Symbol Used in this Manual . . . . . . . . . . . . . . .4

About the Symbol Display . . . . . . . . . . . . . .4

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . .4

Handling Discs . . . . . . . . . . . . . . . . . . . . . . . .4

Storing Discs . . . . . . . . . . . . . . . . . . . . . . . . .4

Cleaning Discs . . . . . . . . . . . . . . . . . . . . . . . .4

Types of Playable Discs . . . . . . . . . . . . . . . . . . .5

Regional code . . . . . . . . . . . . . . . . . . . . . . . . . .5

Disc-related terms . . . . . . . . . . . . . . . . . . . . . . .6

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Display Window . . . . . . . . . . . . . . . . . . . . . . . . .7

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . .8

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Installation and Setup . . . . . . . . . .10

Connecting to a TV & Decoder (or Satellite) . .10

Connecting to Optional Equipment . . . . . . . . .11

Before Operation-VCR part . . . . . . . . . . . . .12-16

Tuning in a video channel on your TV . . . .12

Using your VCR for the very first time . . .12

Setting the clock Manually . . . . . . . . . . . . .13

To set the colour system . . . . . . . . . . . . . .13

How to using the main menu . . . . . . . . . . .14

Tuning in TV Stations Automatically . . . . .14

Tuning in TV Stations Manually . . . . . . . . .15

Changing the order of TV Stations . . . . . .16

Deleting TV stations . . . . . . . . . . . . . . . . . .16

Before Operation-DVD part . . . . . . . . . . . . .17-21

On-Screen Display . . . . . . . . . . . . . . . . . . . . . .17

Initial Settings . . . . . . . . . . . . . . . . . . . . . . .18-21

General Operation . . . . . . . . . . . . . . . . . . . .18

LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . .18

 Menu Language . . . . . . . . . . . . . . . . . . . .18

 Disc Audio / Subtitle / Menu . . . . . . . . . . . .18

DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . .19

 TV Aspect . . . . . . . . . . . . . . . . . . . . . . . . .19

 Display Mode . . . . . . . . . . . . . . . . . . . . . .19

AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

 Dolby Digital / DTS / MPEG . . . . . . . . . . . .19

 Sample Freq. (Frequency) . . . . . . . . . . . .19

 Dynamic Range Control (DRC) . . . . . . . . .19

 Vocal . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

OTHERS . . . . . . . . . . . . . . . . . . . . . . . . . . .20

 PBC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

 Auto Play . . . . . . . . . . . . . . . . . . . . . . . . . .20

 DivX(R) VOD . . . . . . . . . . . . . . . . . . . . . . .20

LOCK (Parental Control) . . . . . . . . . . . . . . . .21

 Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

 Password (Security Code) . . . . . . . . . . . . .21

 Area Code . . . . . . . . . . . . . . . . . . . . . . . . .21

Operation . . . . . . . . . . . . . . . . . . . .22

Playing a tape . . . . . . . . . . . . . . . . . . . . . . .22-24

 CM (Commercial Message) Skip . . . . . . . .22

 OPR (Optimum Picture Response) . . . . . .22

Instant Timer Recording . . . . . . . . . . . . . . . . .23

VIDEO Plus+ Programming . . . . . . . . . . . . . . .24

Timer recording using On Screen Display .25-26

Playing a DVD or Video CD . . . . . . . . . . . . . . .27-29

General Features . . . . . . . . . . . . . . . . . . . . . . .27

Moving to another TITLE . . . . . . . . . . . . . . .27

Moving to another CHAPTER/TRACK . . . . . .27

Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Changing the Audio Channel . . . . . . . . . . . .27

Still Picture and Frame-by-Frame Playback . .28

Slow Motion . . . . . . . . . . . . . . . . . . . . . . . . .28

Random . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . .28

Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

3D Surround . . . . . . . . . . . . . . . . . . . . . . . . .28

Time Search . . . . . . . . . . . . . . . . . . . . . . . . .28

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Marker Search . . . . . . . . . . . . . . . . . . . . . . .29

Special DVD Features . . . . . . . . . . . . . . . . . . .29

Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . .29

Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . . .29

Camera Angle . . . . . . . . . . . . . . . . . . . . . . .29

Changing the Audio Language . . . . . . . . . . .29

Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Playing an Audio CD or MP3 Disc . . . . . . . . . . . .30

Audio CD and MP3 Disc Features . . . . . . . . . . . .31

Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Moving to another Track . . . . . . . . . . . . . . . .31

Repeat Track/All/Off . . . . . . . . . . . . . . . . . . .31

Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Random . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . .31

3D Surround . . . . . . . . . . . . . . . . . . . . . . . . .31

Programmed Playback . . . . . . . . . . . . . . . . . . . . .32

Repeat Programmed Tracks . . . . . . . . . . . . .32

Erasing a Track from Program List . . . . . . . .32

Erasing the Complete Program List . . . . . . . .32

Viewing a JPEG Disc . . . . . . . . . . . . . . . . . . . . . .33

Slide Show . . . . . . . . . . . . . . . . . . . . . . . . . .33

Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . .33

Moving to another File . . . . . . . . . . . . . . . . .33

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

To rotate picture . . . . . . . . . . . . . . . . . . . . . .33

To listen to MP3 music watching picture

. . . . . . .33

Playing a DVD VR format Disc . . . . . . . . . . . . .34

Maintenance and Service . . . . . . . . . . . . . . . . .34

Playing a DivX Movie Disc . . . . . . . . . . . . . . . .35

Additional Features-VCR part . . . . . . . . . . .36-37

On Screen Display . . . . . . . . . . . . . . . . . . . .36

Tape Counter Memory Stop . . . . . . . . . . . . .36

Video Doctor (Self-Diagnosis) . . . . . . . . . . . .36

Hi-Fi Stereo Sound System . . . . . . . . . . . . .37

Wide Screen Compatibility 16:9 . . . . . . . . . .37

To set the decoder . . . . . . . . . . . . . . . . . . . .37

Additional Features . . . . . . . . . . . . . . . . . . . . .38

Last Scene Memory . . . . . . . . . . . . . . . . . . .38

Screen Saver . . . . . . . . . . . . . . . . . . . . . . . .38

Copying from DVD To VCR . . . . . . . . . . . . . . .38

Recording from another video recorder . . . . .38

Reference . . . . . . . . . . . . . . . . . . . .39

Language Codes . . . . . . . . . . . . . . . . . . . . . . .39

Country Codes . . . . . . . . . . . . . . . . . . . . . . . . .39

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .40

Specification . . . . . . . . . . . . . . . . . . . . . . . . . .41

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Introduction

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference.

This manual provides information on the operation and maintenance of your DVD player. Should the unit require service, contact an authorized service location.

Symbol Used in this Manual

The lightning flash symbol alerts you to the presence of dangerous voltage within the product enclosure that may constitute a risk of electric shock.

The exclamation point alerts you to the presence of important operating and maintenance / servicing instructions.

Indicates hazards likely to cause harm to the unit itself or other material damage.

Note:

Indicates special notes and operating features.

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

Tip:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols is applicable only to the disc represented by the symbol.

DVD

VCD

MP3

JPEG

DivX

DVD and finalized DVD±R/RW

Video CDs

Audio CDs

MP3 Discs

JPEG Discs

DivX Discs

About the Symbol Display

“ ” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specific DVD video disc.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Selecting the Viewing Source

You must select one of your output sources (DVD or VCR) to view on the TV screen.

• If you want to view DVD deck output source:

Press DVD until DVD indicator in the display window lights and output source of DVD deck is viewed on the TV screen.

• If you want to view VCR deck output source:

Press VCR until VCR indicator in the display window lights and output source of VCR deck is viewed on the TV screen.

Notes:

• If you insert a disc while the DVD+VCR is in the

VCR mode, the DVD+VCR will switch to DVD mode automatically.

• If you insert a cassette tape without prevention tab

while the DVD+VCR is in the DVD mode, the DVD+VCR will switch to VCR mode automatically.

Types of Playable Discs

DVD (8 cm / 12 cm disc)

Video CD (VCD) (8 cm / 12 cm disc)

Regional code

This DVD player is designed and manufactured for playback of region “2” encoded DVD software. This unit can play only DVD discs labeled “2” or “ALL”.

Notes on Regional Codes

Audio CD (8 cm / 12 cm disc)

In addition, this unit plays DivX file, DVD -R, DVD +R, DVD -RW, DVD +RW, SVCD, and CD-R / CD-RW that contains audio titles, MP3 or JPEG files.

This indicates a product feature that is capable of playing DVD-RW discs recorded with Video Recording format.

Notes:

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD -R, DVD +R, DVD -RW, DVD +RW) disc itself, some CD-R/RW (or DVD -R, DVD +R, DVD -RW, DVD +RW) discs cannot be played on the unit.

• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.

• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal) since they may result in malfunctions.

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your DVD player’s regional code or the disc cannot play.

• If you try to play a DVD with a different region code from your player, the message “Check Regional Code” appears on the TV screen.

Introduction

Notes on DVDs and Video CDs

Some playback operations of DVDs and Video CDs may be intentionally programmed by software manufacturers. This unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, therefore some playback features may not be available or other functions may be added.

Manufactured under license from Dolby Laboratories. “Dolby”, and the double-D symbol are trademarks of Dolby Laboratories.

DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc.

Disc-related terms

DVD ±R / DVD ±RW

DVD -R and DVD +R are two different standards for recordable DVD drives and discs. This format allows information to be recorded onto the DVD disc only once. DVD +RW and DVD -RW are two standards for re-writable media, meaning the DVD content can be erased and re-recorded. Single-sided discs can hold

4.38 Gigabytes and double-sided discs hold twice as much. There are no dual layer single sided recordable discs.

VCD (Video CD)

A VCD holds up to 74 minutes (650 MB disc) or 80 minutes (700 MB disc) of MPEG-1 full-motion video along with quality stereo sound.

MPEG

MPEG is an international standard for video and audio compression. MPEG-1 is used in encoding video for VCD and provides for multichannel surround sound coding such as PCM, Dolby Digital, DTS and MPEG audio.

MP3

MP3 is a popular compression format used for digital audio files that yields very high near-CD quality.

JPEG

Joint Pictures Expert Group. JPEG is a compressed file format that allows you to save images with no limit on the number of colors.

DivX

DivX is the name of a revolutionary new video codec which is based on the new MPEG-4 compression standard for video.You will be able to play DivX movies using this DVD player.

PBC: Playback Control (Video CD only)

Playback control is available for Video CD (VCD) version 2.0 disc formats. PBC allows you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc. Video CDs not equipped with PBC (Version 1.1) operate in the same way as audio CDs.

Title (DVD video discs only)

A title is generally a distinct section of a DVD disc. For example the main feature could be title 1, a documentary describing how the film was made could be title 2, and cast interviews could be title 3. Each title is assigned a reference number enabling you to locate it easily.

Chapter (DVD video discs only)

A chapter is a segment of a title such as a scene in a film or one interview in a series. Each chapter is assigned a chapter number, enabling you to locate the chapter you want. Depending on the disc, chapters may not be recorded.

Scene (VCD)

On a video CD with PBC (playback control) functions, moving pictures and still pictures are divided into sections called “scenes”. Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want. A scene is composed of one or several tracks.

Track

A distinct element of audiovisual information, such as the picture or sound track for a specific language (DVD), or a musical piece on a video or audio CD. Each track is assigned a track number, enabling you to locate the track you want. DVD discs allow one track of video (with multiple angles) and several tracks of audio.

Front Panel

Go to beginning of current chapter/track or to PREVIOUS chapter/track. Press and hold for two seconds for a fast reverse search. Rewinds the tape.

Go to NEXT chapter/track. Press and hold for two seconds for a fast forward search. Winds the tape forwards.

ÁÁ

Stops playback.

Pause playback or recording. Press repeatedly for frame-by-frame playback.

OPEN/CLOSE ( )

Opens or closes the disc tray.

Remote Sensor

Point the remote

control here.

EJECT

Tape Eject

Tape Compartment

To record normally or to activate One-touch Timer Recording by repeated presses.

Introduction

DVD/VCR Selector

11//

Switches the

unit to ON or

OFF.

Disc Tray

Insert a disc here.

N Starts playback.

Display Window

DVD+VCR is in timer recording or a

Indicates repeat mode.

Adisc is loaded in the DVD deck.

(Lights when a disc is loaded in the

DVD deck and flashes when no disc is

loaded.)

DVD deck is selected.

DVD

Display window

Shows the current status of the unit.

timer recording is programmed.

[P]

PROG.(-/+)

Channel Programme Selectors

A Cassette is in the VCR deck.

VCR deck is selected.

VCR recording is engaged. DVD to VHS copy is in progress.

Indicates TV mode. (See Notes on page 23.)

Audio IN (L/R) Jacks

Video IN Jack

VCR REC

Indicates total playing time/elapsed time/current time

Switches DVD+VCR ON and OFF.

TV/VCR

11//

To view channels selected by the VCR

tuner or by the TV tuner.

DVD

Select the DVD+VCR function mode to

DVD.

VCR

Select the DVD+VCR function mode

to VCR.

DISPLAY

- -

Accesses On-Screen Display (DVD).

- Shows you the current time or

- -

counter (VCR).

- Selects menu options.

- PR/TRK (+/-): Selects VCR

channels. Adjusts manually the tape’s

picture on the screen.

/B/v/V

SETUP/MENU (i)

Accesses or removes DVD Setup

menu and VCR menu.

ENTER/OK

Confirms menu selections. Displays

functions on the TV screen.

- Pause playback or recording.

- Press repeatedly for frame-by-frame playback.

(m)

- Rewinds the tape during the STOP mode.

- For fast reverse picture search.

Starts playback.

(M)

- Advances the tape during the STOP mode.

- For fast forward picture search.

0-9 numerical buttons

Selects numbered options in a menu.

REPEAT

Repeat chapter, track, title or all.

RANDOM ( )

- Plays tracks in random order.

- CM SKIP

REPEAT A-B

Repeats sequence between two

Selects recording speed.

points (A and B)

VIDEO Plus+

To display the programme menu

for VIDEO Plus+ programming.

Remote Control



OPEN/CLOSE, EJECT( )

- Ejects the tape in the VCR deck.

- Opens and closes the disc tray.

AUX

Select input source for recording into

tape

DISC MENU

Accesses menu on a DVD disc.

SKIP (. / >)

Skip to beginning of current chapter or track, press twice in quick successions to go to previous chapter or track. Skip to next chapter or track.

RETURN

- Removes the setup menu.

- Displays the menu of a video CD with PBC.

Stops playback or recording.

MNL. PROG.

Places a track on the program list.

CLEAR ( )

Removes a track number on the program menu or a mark on the MARKER SEARCH menu.



A.MONITOR

Selects an audio language (DVD) or an audio channel (VCD).



SUBTITLE

Selects a subtitle language.



ANGLE

Selects a DVD camera angle, if available.



ZOOM

Enlarges DVD video image.



MARKER

Marks any point during playback.



Displays Marker Search menu.



TITLE

Displays the disc’s Title menu, if available.



REC ()

Records normally or activates One touch Timer Recording with repeated presses.

Remote Control Operation

Point the remote control at the remote sensor and press the buttons.

Do not mix old and new batteries and never mix different types of batteries such as standard, alkaline, etc.

Remote control battery installation

Detach the battery cover on the rear

AAA

of the remote control, and insert two batteries (size AAA) with and

aligned correctly.

Rear Panel

AERIAL

Connect the aerial using this jack.

DVD/VCR OUT (VIDEO/AUDIO (Left/Right))

Connect to a TV with video and audio inputs.

AUDIO OUT (Left/Right) (DVD EXCLUSIVE OUT)

Connect to an amplifier, receiver or stereo system.

EURO AV2 DECODER (VCR IN+OUT/DVD OUT)

Connect to pay-TV decoder, Set Top Box or another

video recorder.

Connect to a power source.

Introduction

AC Power Cord

COAXIAL (DVD EXCLUSIVE OUT) (Digital audio out jack)

Connect to digital (coaxial) audio equipment.

RF.OUT

Connect to your TV using this jack.

Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

EURO AV1 AUDIO/VIDEO (VCR IN+OUT/DVD OUT)

Connect to your TV set or another video recorder.

Installation and Setup

Tips:



Depending on your TV and other equipment there are various ways you can connect the player.



Please refer to the manuals of your TV, VCR, stereo system or other devices as necessary for additional connection information.

Notes:

 The picture and sound of a nearby TV, VCR, or radio may

be distorted during playback. Position the units away from each other or turn off the unit after removing the disc.

 Make sure the DVD+VCR is connected directly to the TV

and tune the TV to the correct video input channel.

 Do not connect the DVD+VCR’s AUDIO OUT jack to the

phono in jack (record deck) of your audio system. Do not connect the DVD+VCR via another VCR. The DVD image could be distorted by the copy protection system.

Connecting to a TV & Decoder (or Satellite)

Make one of the following connections, depending on the capabilities of your existing equipment.

Basic connection (AV)

1. Connect the EURO AV1 AUDIO/VIDEO on the rear panel of this unit to the SCART input socket on the TV using a SCART lead (not supplied). For TV without SCART, connect the yellow VIDEO OUT jack and DVD/VCR AUDIO OUT jacks of this unit to the TV.

2. Some TV broadcasters transmit encoded television signals which you can only see with a purchased or rented decoder. You can connect such a decoder (descrambler) to this unit.

Basic connection (RF)

1. Connect the RF antenna cable from your indoor/ outdoor antenna to AERIAL jack on the rear panel of this unit.

2. Connect the supplied RF antenna cable from the RF.OUT jack on the rear panel of this unit to your television’s Antenna Input.

AUDIO INPUT

VIDEO INAERIAL

Rear of this unit (Basic connection)

SCART INPUT

Decoder (or Satellite)

Rear of TV

Connecting to Optional Equipment

2 channel analog stereo or Dolby Surround connection.

Rear of this unit

Amplifier (Receiver)

DVD exclusive out

Digital multi-channel connection

AUDIO INPUT

DIGITAL INPUT

COAXIAL

Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic II /Pro Logic

Connect the Left and Right AUDIO OUT jacks on this unit to the audio left and right in jacks on your amplifier, receiver or stereo system, using the audio cables.

Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/ Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2 or DTS)

1. Connect this unit’s DIGITAL AUDIO OUT jack (COAXIAL) to the corresponding in jack on your amplifier. Use an optional digital (coaxial) audio cable.

2. You will need to activate this unit’s digital output. (See “AUDIO” on page 19).

Digital Multi-channel sound

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel Audio/Video receiver that supports one or more of the audio formats supported by your unit (MPEG 2, Dolby Digital and DTS). Check the receiver manual and the logos on the front of the receiver.

Notes:



If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.



To see the audio format of the current DVD in the On-Screen Display, press A.MONITOR.

Installation and Setup

Warning:

Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is selected.

Before Operation-VCR part

Tuning in a video channel on your TV

Notes:



The output frequency of this DVD+VCR is set at UHF channel 36. If channel 36 is already used by another TV station, or if the picture is distorted, you can change the transmitter channel of your DVD+VCR. Stages 5 ~ 8 will show you how to change the output frequency of your DVD+VCR.



Your TV receives signals from the DVD+VCR like another TV station. You have to select a channel number on your TV and tune it in so that you may watch video tapes. If you have used a SCART then your TV should already have a dedicated video channel built into it, usually called AV.

1. Make sure that you have correctly installed your DVD+VCR as described earlier in this book.

11//++

Press

to turn on your DVD+VCR.

Turn on your TV.

2. Insert a pre-recorded video tape into your DVD+VCR and press NNon the remote control.

Select a TV channel which you wish to watch video. Don’t worry if you don’t have a video-tape to play at this stage! If you switch your DVD+VCR on and continue stages 3 ~ 4, instead of seeing video playback tune your TV until you see a bright blue screen.

3. Tune this channel until the video picture is sharp and the sound is clear. If you have used a SCART or AUDIO and VIDEO cables you will not have to tune your TV, simply select the AV channel. The AV channel is already pre-tuned for optimum video playback on your TV.

7. Use PROG. (-/+) to select another video channel. You may select any channel number between 22 and 68.

8. Select a TV channel which you wish to watch video.

11//

Press

+ on the front of your DVD+VCR when

you have finished. Tune this channel so that a bright blue screen appears. Store this channel on your TV.

Notes:

Make sure that you have correctly installed your DVD+VCR and successfully tuned in a dedicated video channel on your TV. If you do not tune in a dedicated video channel on your TV you will be unable to view and record video tapes!

Using your VCR for the very first time

Following picture will display on the TV screen when you have just connected your video recorder for the very first time.

To make tuning TV stations, please follow stages 3 to 4 as shown "ACMS" (see p.14).

RF CHANNEL 36

4. Store this channel on your TV. You will need to look at the TV instruction book if you do not know how to do this.

5. Only carry out stages 5 ~ 8 if you cannot

obtain clear video playback as described in stages 1 ~ 4.

Select a TV channel which you wish to watch video. Make sure that your DVD+VCR is in standby pressing

11//

+ on the remote control (only the clock

will be displayed).

6. Press PROG. (-/+) on the front of your DVD+VCR for more than 4 seconds. RF36 will appear in the display window. The following picture will be displayed on the TV screen.

ACMS

Pr-12

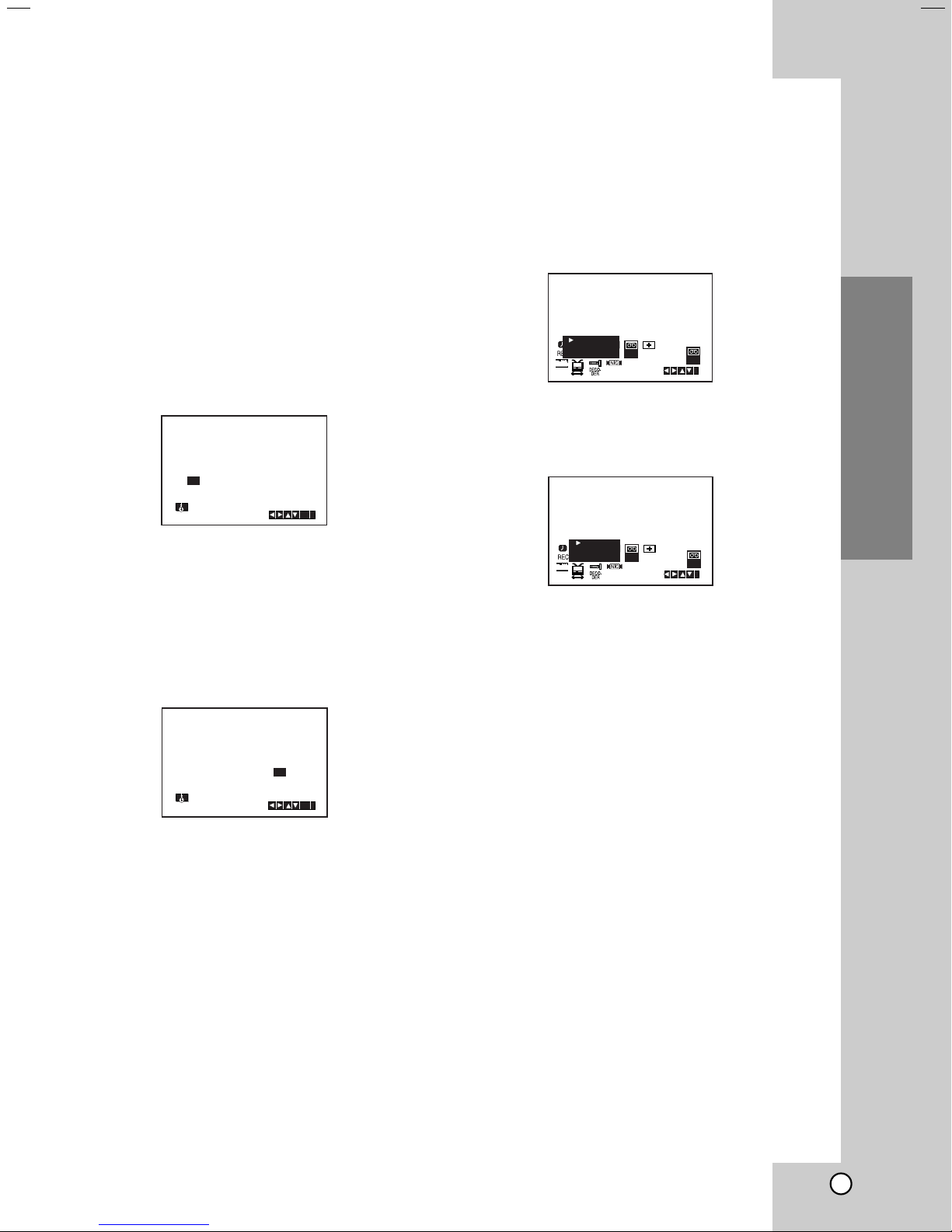

Setting the clock Manually

To set the colour system

The clock in your VCR controls time and date settings for your VCR. The clock is set automatically during ACMS (Automatic Channel Memory System) when your VCR detects a channel that broadcasts a Teletext signal. If the broadcast signal is weak the clock will not be set and will require setting manually.

1. Press i. Press 1 or 2 to select SET. Press OK. The ACSS mode can be set to “OFF” by pressing

OK if you want to set the time manually.

HH MM DD MM YY

:..- -

- -

SET

2. Use the vvorVVon the remote control to alter the HOURS, MINUTES, DAY, MONTH and YEAR. Please note your VCR uses a 24 hour clock. e.g. 1pm will be displayed as 13:00. The day of the week will appear automatically when you enter the year.

- - - -

ACSS : ON

- - - - -

1. Press i.

2. The main menu will appear on the TV screen.

3. Press 1 or 2 to select the SYS and press OK.

4. Press 3 or 4 to select according to the COLOUR system used.

AUTO

PAL

SET

ON OFF

OSD

MESECAM

SYS

5. Press 1 or 2 to select the RF AUDIO. Press 3 or 4 to select according to the RF AUDIO used.

RF-I/I

RF-B/G

SET

SYS

RF-D/K

OSD

OSD ON OFF

SYS

6. Press i to remove the menus from the TV screen.

Installation and Setup

3. If you make a mistake press 1 or 2 and enter the correct details.

HH MM DD MM YY

:..00 1 01 05 SAB 8

SET

ACSS : SPE.

4. Press i to return to a TV picture.

How to using the main menu

Tuning in TV Stations

This DVD+VCR can easily be programmed by using the menus displayed on screen. The menus are controlled from the Remote Control Handset.

1. Switch on your TV set and video recorder by pressing the

2. Press i button. The main menu will appear on the TV screen.



REC - Timer recording setting (see p. 25).



PR SET - Manual tuning setting (see p. 15).



ACMS - ACMS (Automatic Channel Memory



SET - Date & clock setting (see p. 13).



SYS - To set the Colour TV System (see p. 13).



F. OSD ON/OFF - To display the operational



DECODER - To use a pay-TV decoder (or



O NIC -

11//

+ button.

SYS

OSD

OSD ON OFF

SET

System) (see p. 14).

(Dr.) - To check a problem with your VCR

(see p. 36).

mode of your VCR (see p. 36).

(16:9/4:3) - To select the aspect ratio of your

TV (see p. 37).

Satellite) with your VCR (

see p. 37

(OPR) - To improve the playback picture

(see p. 22). To activate or deactivate the NICAM digital sound (

see p. 37

Automatically

If the TV broadcast signal is weak your VCR may not detect the necessary information and will not be able to store them correctly. To overcome this problem please turn to the MANUAL TUNING section on page 15.

1. Press

2. Press i button.

ON OFF

4. Press OK to again to start the automatic tuning

5. The TV STATION TABLE will appear when tuning

11//

+ to turn on your DVD+VCR.

The main menu will appear on the TV screen. Press 1 or 2 to select the ACMS.

Press OK.

Pr-12

ACMS

SET

OSD

SYS

ACMS

Pr-12

ACMS

Pr-12

ACMS

process.

01 C02 00 02 C03 00 03 C04 00

Pr-12

ACMS

BBC1 BBC2 ITV

is completed. Press i to save your settings.

MOVE :

BBC1

BBC2 ITV CH4 CH5

- - - - -

,DELETE :

01 C02 00

02 C03 00 03 C04 00 04 C05 00 05 C06 00 06 - - - 07 - - - 08 - - - -

SET

Tip:

You can change the menu language on the DVD setup menu. (See the Menu Language on page 18.)

3. Press 1 and 2 to select the desired menu. Press OK and press 3 or 4 to select.

4. Press i to remove the menus from the TV screen.

Notes: Please note currently only a limited number of TV companies transmit the Programme Delivery Control (PDC) signal which enables your DVD+VCR to successfully identify and store them. If your DVD+VCR has difficulty in identifying a TV station please turn the page to find out how to manually tune in and name a TV station. While automatic tuning is taking place the time and date will set automatically. If - - :- - appears in the DVD+VCR display it means that the broadcast signal is weak and the clock was not set. Please turn to CLOCK SET section of this book on page 13.

Tuning in TV Stations Manually

SYS

SET

OSD ON OFF

OSD

ACMS

Pr-12

SET

PR CH MFT STATION 01 00

CHANNEL/CABLE : AV

C03

SET

PR-03

02 C02 00 PR-02 03 C03 00 PR-03

04 - - - - - - - - -

05 - - - - - - - - 06 - - - - - - - - 07 - - - - - - - - 08 - - - - - - - - -

01 C01 00 PR-01

,DELETE :

MOVE :

SET

PR CH STATION 04 - - - - - -

MFT

SET

C - -

CHANNEL/CABLE : AV

04 00C04

SET

CH MFT STAZIONE

04 00C04

PR-04

SET

CH MFT STAZIONE

02 C02 00 PR-02 03 C03 00 PR-03

04 C04 00 PR-04

05 - - - - - - - - 06 - - - - - - - - 07 - - - - - - - - 08 - - - - - - - - -

01 C01 00 PR-01

SET

CANCELLA:

SPOSTA:

PR CH STATION 04 00

C04

MFT

CHANNEL/CABLE : AV

SET

In certain areas of the country broadcast signals may be too weak for your DVD+VCR’s automatic tuning process to find or assign TV stations correctly. You must tune in these weaker broadcast stations manually in order for your DVD+VCR to store them.

1. Press i. The main menu will appear on the TV screen.

1 or 2 to select the PR SET.

Press Press OK.

2. Press i. The station table will appear.

3. Press 3 or 4 to select the programme number that you want to tune (for example, PR 04).

6. Press 2 to select STATION so that you may name your TV station. Press OK.

7. Use 3 or 4 to select letters and numbers for the station name. Use 1 or 2 to move back and forth between characters. Press OK.

8. Press i, confirm the station placement.

Installation and Setup

4. Press OK. Press AUX to select C (Standard stations) or S (Cable stations): C02 - C69, S01 - S41. Enter the channel number of station that you want

to tune, use 3 or 4 to find the required station.

5. Searching will stop when it locates a stations. Press 2 to select MFT. Control the fine tuning of the station by using 3 or

If you wish to manually tune other stations repeat stages 3 - 8.

9. Press i again. Your new TV station has now been tuned into your DVD+VCR.

Changing the order of TV Stations

Deleting TV Stations

After tuning TV stations into your VCR you may wish to change the order in which they are stored without having to retune them against! The instructions given on this page will show you how you can simply move them into your desired order.

1. Press i. The main menu will appear on the TV screen. Press 1 or 2 to select the PR SET. Press OK.

PR CH MFT STATION 01 00 PR-03

Pr-12

ACMS

SYS

SET

OSD

OSD ON OFF

SET

2. Press i. Press 3 or 4 to select the programme number you want to move (for example, PR 03). Press 2.

01 C01 00 PR-01

02 C02 00 PR-02

03 C03 00 PR-03

04 C04 00 PR-04

05 - - - - - - - - 06 - - - - - - - - 07 - - - - - - - - 08 - - - - - - - - -

SET

MOVE :

,DELETE :

3. Press 3 or 4 to select the programme number you want to move to (for example, PR 05).

C03

SET

01 C01 00 PR-01

02 C02 00 PR-02

03 C03 00 PR-03 04 C04 00 PR-04

05 - - - - - - - - 06 - - - - - - - - 07 - - - - - - - - 08 - - - - - - - - -

SET

CHANNEL/CABLE : AV

After tuning TV stations into your VCR you may wish to delete a station. how you can easily delete any unwanted TV stations.

1. Press i. The main menu will appear on the TV screen. Press 1 or 2 to select the PR SET. Press OK.

PR CH MFT STATION 01 00 PR-03

MOVE :

C03

,DELETE :

CHANNEL/CABLE : AV

SET

Pr-12

ACMS

SYS

SET

OSD

OSD ON OFF

SET

2. Press i.

3. Press 3 or 4 to select the programme number you want to delete. (for example, PR 01)

01 C01 00 PR-01

02 C02 00 PR-02

03 C04 00 PR-04 04 - - - - - - - - 05 C03 00 PR-03

06 - - - - - - - - 07 - - - - - - - - 08 - - - - - - - - -

SET

4. Press 1. After a short while, the selected station will be deleted. If you wish to delete other TV stations repeat stages 3 - 4.

01 C01 00 PR-01

02 C02 00 PR-02

03 C04 00 PR-04 04 - - - - - - - - 05 C03 00 PR-03

06 - - - - - - - - 07 - - - - - - - - 08 - - - - - - - - -

SET

4. Press OK. The selected programme will be moved to the new programme number. If you wish to move other TV stations repeat stages 1 - 4.

01 C01 00 PR-01

02 C02 00 PR-02

03 C04 00 PR-04 04 - - - - - - - - -

05 C03 00 PR-03

06 - - - - - - - - 07 - - - - - - - - 08 - - - - - - - - -

SET

MOVE :

,DELETE :

5. Press i to remove the menus from the TV screen.

01 C01 00 PR-02

02 C02 00 PR-04

03 - - - - - - - - 04 C03 00 PR-03

- - - - - - - - -

06 - - - - - - - - 07 - - - - - - - - 08 - - - - - - - - -

SET

MOVE :

,DELETE :

5. Press i to remove the menus from the TV screen.

1 / 3

1 / 12

0:20:09

ABC

1 ENG

1 / 3

3D SUR

1 / 3

0:20:09

STEREO

3D SUR

1 / 3

0:20:09

MP3

ABC

ENG

3D SUR

Before Operation-DVD part

On-Screen Display

You can display the general playback status on the TV screen. Some items can be changed using the menu. To use the on-screen display:

1. Press DISPLAY during playback.

2. Press v / V to select an item.

The selected item is highlighted.

3. Press b / B to change the setting. You can also

use the number buttons if appropriate (e.g. inputting the title number). For some functions, press ENTER to execute the setting.

Notes:

• Some discs may not provide all of the features

shown below.

• If no button is pressed for 10 seconds, the on-screen display disappears.

Playback Status/Restrictions

Title

Repeat title

A - B

Repeat sequence

1 / 9

Enter a Marker

MARKER SEARCH 123456789

Marker Search menu

Resume play from this point

Example: On-Screen Display during playing DVD Video

Items

Title Number

Chapter Number

Time search

Audio language and Digital Audio Output mode

Subtitle language

Angle

Sound

Selection Method

b/ B

ENTER

b/ B

ENTER

Numbers, ENTER

b/ B

A.MONITOR

b/ B

SUBTITLE

b/ B

ANGLE

b/ B

Example: On-Screen Display during playing VCD

Items

Track Number (or PBC mode)

Time search

Selection Method

b/ B

ENTER

Numbers

ENTER

, Numbers

Installation and Setup

, Numbers

Action prohibited or not available

Audio Channel

Sound

b/ B

A.MONITOR

b/ B

Example: On-Screen Display during playing divx movie disc

Items

Track Number

Time search

Audio language and Digital Audio Output mode

Subtitle language

Sound

Selection Method

b/ B

ENTER

Numbers, ENTER

b/ B

A.MONITOR

b/ B

SUBTITLE

b/ B

,Numbers

Initial Settings

Menu Language

Original

English

Off

Original

Disc Audio

Disc Subtitle

Disc Menu

Move

Select

LANGUAGE

By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 18 to 21.

To display and exit the Menu:

Press SETUP MENU to display the menu. A second press of SETUP MENU will take you back to initial screen.

To go to the next level:

Press B on the remote control.

LANGUAGE

Menu Language

Select a language for the Setup menu and on-screen display.

To go back to the previous level:

Press b on the remote control.

General Operation

1. Press SETUP MENU. The Setup menu appears.

2. Use v / V to select the desired option then press B to move to the second level. The screen shows the current setting for the selected item, as well as alternate setting(s).

3. Use v / V to select the second desired option then press B to move to the third level.

Use v / V to select the desired setting then press

4. ENTER to confirm your selection. Some items require additional steps.

5. Press SETUP MENU or NNto exit the Setup menu.

Disc Audio / Subtitle / Menu

DVD

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

Original: Refers to the original language in which the disc was recorded.

Other:

To select another language, press number buttons then ENTER to enter the corresponding 4-digit number according to the language code list in the reference chapter. If you enter the wrong language code,

()

press CLEAR

DISPLAY

TV Aspect

Widescreen

16 : 9

Display Mode

OffProgressive Scan

Move

Select

TV Output Select RGB

TV Aspect

4:3 :

Select when a standard 4:3 TV is connected.

16:9 : Select when a 16:9 wide TV is connected.

Display Mode

Display Mode setting works only when the TV Aspect mode is set to “4:3”.

LetterBox: Displays a wide picture with bands on the upper and lower portions of the screen.

Panscan:

entire screen and cuts off the portions that do not fit.

DVD

Automatically displays the wide picture on the

AUDIO

Each DVD disc has a variety of audio output options. Set this unit AUDIO options according to the type of audio system you use.

AUDIO

Dolby Digital

DTS

MPEG

Sample Freq.

DRC

Dolby Digital / DTS / MPEG

Bitstream: Select “Bitstream” if you connect the

DVD Player’s DIGITAL OUT jack to an amplifier or other equipment with a Dolby Digital, DTS or MPEG decoder.

PCM (for Dolby Digital / MPEG): Select when connected to a two-channel digital stereo amplifier. DVDs encoded in Dolby Digital or MPEG will be automatically downmixed to two-channel PCM audio.

Bitstream

PCM

48KHz

OnVocal

Move

Select

DivXDVD

Installation and Setup

Off (for DTS): If you select “Off”, the DTS signal is

not output through the DIGITAL OUT jack.

Sample Freq. (Frequency)

DVD

If your receiver or amplifier is NOT capable of handling 96 kHz signals, select 48 kHz. When this choice is made, this unit automatically converts any 96 kHz signals to 48 kHz so your system can decode them.

If your receiver or amplifier is capable of handling 96 kHz signals, select 96 kHz. When this choice is made, this unit passes each type of signal through without any further processing.

Check the documentation for your amplifier to verify its capabilities.

Dynamic Range Control (DRC)

DivXDVD

With the DVD format, you can hear a program’s soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). This allows you to listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect.

Vocal

DVD

Set to On only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc mix into normal stereo sound.

OTHERS

PBC

Off

Move

Auto Play

OTHERS

Select

SelectDivX(R) VOD

DivX(R) Video On Demand

Your registration code is : XXXXXXXX

To learn more visit

www.divx.com/vod

(Done)

View DivX(R) VOD Rental

This rental has 3 views left.

Do you want to use one

of your 3 views now?

(Yes) (No)

Rental Expired

(Done)

Authorization Error

This player is not authorized to play this video.

(Done)

DivX(R) VOD

DivX

The PBC, Auto Play and DivX(R) VOD settings can be changed.

PBC

VCD

Set Playback Control (PBC) to On or Off.

On: Video CDs with PBC are played according to the PBC.

Off: Video CDs with PBC are played the same way as Audio CDs.

Auto Play

DVD

You can set up the DVD Player so a DVD disc automatically starts playing whenever the DVD is inserted. If Auto Play mode is set to On, this DVD player will search for title that has the longest playback time and then play back the title automatically.

You can display the DivX DRM (Digital Rights Management) Registration code for your unit only.

The Registration code is used for VOD (Video-OnDemand) service agent. You can purchase or rent an encrypt move file.

Notes:

If you rent the DivX VOD file, it has several options of viewing limits as shown below.

• Display the number which you can watch the file.

On: Auto Play function is active.

Off: Auto Play function is not active.

Notes:

The Auto Play function may not work for some DVDs.

• The rental has been expired.

• Display the authorization error.

LOCK (Parental Control)

LOCK

Rating

New

Unlock

Password

Area Code

Move

Select

Password (Security Code)

You can enter or change password.

1. Select Password on the LOCK menu then press B.

G B

2. Follow step 2 as shown left (Rating). “Change” or “New” is highlighted.

3. Enter the new 4-digit code, then press ENTER. Input it again to verify.

Rating

DVD

Some movies contain scenes that may not be suitable for children to view. Many of these discs contain parental control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated from 1 to 8, depending on the country. Some discs offer more suitable scenes as an alternative.

The parental control feature allows you to block access to scenes below the rating you input, there by preventing your children from being able to view material you believe is unsuitable.

1. Select “Rating” on the LOCK menu then

press B.

2. To access the Rating, Password and Country Code features, you must input the 4-digit security code you created. If you have not yet entered a security code you are prompted to do so.

Input a 4-digit code and press ENTER. Enter it again and press ENTER to verify. If you make a mistake before pressing ENTER, press CLEAR ().

4. Press SETUP MENU to exit the menu.

If you forget your Security Code

If you forget your security code you can clear it using the following steps:

1. Press SETUP MENU to display the Setup menu.

2. Input the 6-digit number “210499” and the security code is cleared.

3. Enter a new code as described above.

Area Code

DVD

Enter the code of the country/area whose standards were used to rate the DVD video disc, based on the list in the reference chapter.

1. Select “Area Code” on the LOCK menu then press B.

2. Follow step 2 as shown left (Rating).

3. Select the first character using v / V buttons.

4. Press ENTER and select the second character using v / V buttons.

Installation and Setup

3. Select a rating from 1 to 8 using the v / V buttons.

Rating 1-8: Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

Unlock

If you select unlock, parental control is not active and the disc plays in full.

Notes:

If you set a rating for the player, all disc scenes with the same rating or lower are played. Higher rated scenes are not played unless an alternate scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback stops. You must enter the 4-digit password or change the rating level in order to play the disc.

4. Press ENTER to confirm your rating selection, then

press SETUP MENU to exit the menu.

5. Press ENTER to confirm your country code selection.

Operation

SYS

SET

OSD ON OFF

OSD

ACMS

Pr-12

SET

OFF SOFT SHARP

Playing a tape

You will only be able to load and eject video cassettes when your DVD+VCR is plugged into the mains. Your DVD+VCR may also playback recordings from NTSC tapes (on PAL TV).

Getting a better picture

When a cassette is inserted and playback started, the automatic tracking function works to get the best possible picture automatically. If the quality of the recording is poor, repeatedly press manually adjust the tracking until any distortions have been removed.

1. Make sure that you have correctly connected your DVD+VCR as described earlier in this book. Turn on your TV.

11//

Press

+ to turn on your DVD+VCR.

Insert the video cassette into your DVD+VCR. The video cassette should have the window side facing up and the arrow facing away from you.

2. Press N to start playing your tape. If you load a video cassette which has had its record protection tab removed, playback of the cassette will start automatically.

AUTO TRACKING

Your DVD+VCR will automatically adjust the tracking to give the best picture quality. If noise bars appear during playback, adjust the tracking manually by pressing PR/TRK (-/+).

3. Press X to still a picture. Press X repeatedly to advance the tape frame by frame. If you press M, the picture will be slowed down at about 1/19 times the normal playback. Tapes can be paused for up to 5 minutes. After 5 minutes your DVD+VCR will stop the tape to prevent damaging the tape or your DVD+VCR . Still picture quality can be improved slightly by using v or V.

4. Press N to continue playing your tape.

Double speed playback

Press the "N (X2)" button during normal playback. The tape will play back at double speed and without sound. Press the "N (X2)" button to return to playback at normal speed

Picture search:

During playing back press either m or M to this will enable you to rapidly wind the tape (7 times normal playback) see where you are on the tape.

or 44on the remote control to

Logic search:

During fast forwarding or rewinding press and hold m or M the picture will be played back at 7 times normal playback speed.

5. Slow motion playback

, Shuttle :

During playing back or still picture press F or G. You can reach the following playback speeds. (-7xplay, -3xplay, -play, still, 1/19 slow, play, 2xplay, 7xplay) To switch off the slow motion and shuttle, press the desired function. During slow motion and shuttle, the noise bars may appear on the picture according to the status of tape. If distortions can be seen in the picture, reduce them with v or V.

6. Press 99to end playback. Press EJECT (). If the end of the tape is reached, your DVD+VCR will stop playback automatically, rewind, stop, eject the tape.

CM (Commercial Message) Skip:

This feature enables you during playback of a tape to skip a commercial break in a few seconds, then resume normal playback. While tape is playing press on the remote control to skip commercial (or another programme material). Repeatedly press to skip: 1 Press 30 seconds 2 Press 60 seconds 3 Press 90 seconds 4 Press 120 seconds 5 Press 150 seconds 6 Press 180 seconds

OPR (Optimum Picture Response)

This feature automatically improves playback picture quality by adjusting your DVD+VCR to the condition of the tape. Please note that the OPR icon ( ) will only appear in play that mode when playing a tape.

1. Press i.

2. Press 1 or 2 to select ()OPR.

3. Press OK.

4. Press

or 44repeatedly to select: OFF, SOFT or

SHARP. Please note you may only set OPR when playing a tape.

5. Press i return to screen.

Notes:

• When playing back tapes that have been overrecorded with new content, the original audio may be audible during auto tracking.

• The image may be distorted during special playback

LP mode.

Instant Timer Recording

Your DVD+VCR allows you to make recordings using a variety of simple methods:

Instant Timer Recording start recording immediately for a set period of time or until the video cassette runs out.

Your DVD+VCR incorporates Long Play (LP) which enables you to record up to twice the amount of time on a video cassette. For example an E-180 will record up to 180 minutes using Standard Play (SP); using LP you will be able to record up to 360 minutes. Please note there will be a slight loss in picture and sound quality when using LP.

1. Make sure that you have correctly connected your DVD+VCR as described earlier in this book.

11//

Press

2. Insert a video cassette with protection tab into your DVD+VCR. The video cassette should have the window side facing up and the arrow facing away from you.

+ to turn on your DVD+VCR.

7. Press X to avoid recording unwanted scenes. Press X to continue recording.

Tapes can be paused for up to 5 minutes; RECP will be displayed when a tape is paused. After 5 minutes your DVD+VCR will stop recording to prevent damaging the tape or your DVD+VCR.

8. Press xxto end recording. Press EJECT ( ).

Notes:

 If you do not wish to record on a tape (this can hap-

pen quite easily by accident!) remove the protection tab on the back edge of the video cassette.

 It is possible to record on a video cassette with the

record protection tab removed by covering the hole with self adhesive tape.

 Remember you can record one programme while

watching another by starting your instant recording, press TV/VCR to select TV mode and then selecting a different channel on your TV.

Operation

3. Press33or 44to select the programme number you wish to record. You may also directly select programme number using the numbered buttons on the remote control.

4. If you wish to record directly from the SCART or RCA jacks, repeatedly press AUX until the socket you wish to record from is displayed.

AV 1 for recording from EURO AV1 SCART jacks on the rear of your unit. AV 2 for recording from EURO AV2 SCART jacks on the rear of your unit. AV 3 for recording from VIDEO IN and AUDIO IN (Left & Right) jacks on the front of your unit.

5. Press if you wish to record in Long Play or Standard Play. SP will produce improved picture and sound quality, however LP will provide twice as much recording time as SP.

6. Press REC (zz) on the remote to start recording.

Press zzon your unit or press REC (zz) on the remote several times. Each successive press will increase the record time by 30 minutes until you reach a maximum of 9 hours.

VIDEO Plus+ Programming

VIDEO Plus+ greatly simplifies entering the date, channel, start and end times of a Timer Recording by simply entering VIDEO Plus+ Code. VIDEO Plus+ Codes are published in most TV guide magazines; they can vary one to nine numbers in length.

1. Make sure that TV channels have been tuned and stored in correct Insert a video cassette with protection tab into your DVD+VCR.

2. Press VIDEO Plus+.

3. Press the numbered buttons to enter the

PlusCode of the TV programme that you wish to

record. If you make a mistake press revised number.

VIDEO Plus+ order.

VIDEO PLUS+ CODE NO.

- - - - - - - - -

REC

0~9,

F then enter the

5. Press

F or G to select the settings that you wish to

revise. (PR, DATE, TIME VPS/PDC and SP). Press

D or E to enter the correct information.

PR DATE TIME

PR-01 12

- - - -

- - - - - - - -~::

11 11 55~::

SP SP SP SP SP SP SP

6. Press G to select the recording speed. Press

D or E to select the desired tape speed

(SP, IP, or LP). IP mode determines how much tape is left and switches speed from SP to LP, if necessary, to complete recording the program. IP mode is not selected when VPS/PDC is ON. Check that the timer event details are correct. If you wish to record from AUDIO IN and VIDEO IN on the front or from either of the EURO SCART sockets on the back of VCR, press AUX to select for correct display (AV1, AV2 or AV3).

PR DATE TIME

PR-01 12

- - - -

- - - - - - - -~::

11 11 55~::

SP SP SP SP SP SP

VIDEO PLUS+ CODE NO.

246876543

DELETE :

0~9,

REC

4. Press OK. If PLEASE CHECK is displayed it means that you have entered the wrong

entered the

VIDEO Plus+ numbers incorrectly.

VIDEO Plus+ numbers,

If “- -” is displayed, you have to enter the programme number of the station, you want to record from.

PR DATE TIME

PR-01 12

- - - -

- - - - - - - -~::

11 11 55~::

SP SP SP SP SP SP SP

7. If you want to make another VIDEO Plus+ recording repeat stages 2 - 7. Press i twice. If PLEASE CHECK is displayed, you have entered incorrect information and will need to re-enter the data.

11//

Press

I to switch your DVD+VCR power off

mode.

will appear in the video recorder’s display while your VCR waits to make the recording. To watch a DVD during timer recording standby mode, press

8. Press

11//

I and DVD to switch to DVD mode.

11//

I to end recording.

Notes:

Programme Delivery Control (PDC)

The Programme Delivery Control (PDC) system adjusts the start and end times of a timer record event. This can be particularly useful with sports events which may run over into extra time. The PDC signal is transmitted by the broadcaster and this controls your video recorder’s timer. Currently only a limited number of TV companies transmit PDC signals. Please make sure that when recording from channels that do not broadcast PDC that you turn PDC OFF.

Timer recording using On

PR DATE

T I M E

- - - -

- -

- - - - SP

- -

- - - - - - - -~::

DELETE:

PR DATE

T I M E

- - - -

- SP

- - - - SP

PR-03

- - - - - - - -~::

PR DATE

T I M E

- - - - SP

PR-03 3

- - - - - - - -~::

DLY SU MO TU WE TH FR SA

41400 1530~::

PR DATE

T I M E

- - - - SP

PR-03

- - - - - - - -~::

41400 1530~::

PR DATE

T I M E

- - - - SP

PR-03

- - - - - - - -~::

41400 1530~::

PR DATE

T I M E

- - - - SP

PR-03

- - - - - - - -~::

VPS/PDC : ON

Screen Display

You may set up to seven timer record events within one month of the current date.

Note:

Before setting the timer make sure that you have set the DVD+VCR clock correctly and you know which stations you have tuned TV stations on your DVD+VCR.

1. Insert a video cassette with protection tab into your DVD+VCR. The video cassette should have the window side facing up and the arrow facing away from you.

2. Press i. Press 1 or 2 to select REC ( ). Press OK.

3. Press OK to start setting the timer record event.

4. Use the v/V to enter the station that you wish to record then press 2.

6. Use v/V/1/2 buttons to enter the recording start

and end times of the programme that you wish to record.

Please note your DVD+VCR uses a 24 hour clock. e.g. 1pm will be displayed as 13:00.

7. Press B and press v or V to switch VPS/PDC on

or off.

Operation

8. Press B to select the recording speed. Press v or V to select the desired tape speed (SP, IP, or LP). IP mode determines how much tape is left and switches speed from SP to LP, if necessary, to complete recording the program. IP mode is not selected when VPS/PDC is ON.

Note: If all timer record events are full press v or V to

select the event that you wish to remove and replace. Press b to delete the event.

5. Use the v/V to enter the date of the

programme. If you press OK before entering the date you may select one of the following automated recording features. Press 1 or 2 to select, then press OK to confirm. DLY To record every day (except Saturday and Sunday) at the same time. SU~SA To record at the same time every week.

Timer recording using On Screen Display (Continued)

9. Press i to set another timer record event and follow steps 3 to 8. Check that the timer event details are correct. Press i return to screen.

If PLEASE CHECK is displayed, you have entered incorrectly and will need to re-enter the data.

10. Press

11//++

to switch your DVD+VCR to Timer

Standby mode.

The timer symbol ( ) will appear in the display window while your DVD+VCR waits to make the recording.

11. Press

11//++

to end timer recording.

Notes:

 If you want to stop recording while recording is in

progress, press

 The DVD+VCR will automatically power off when

11//++

to stop recording.

Timer Recording ends.

 During timer recording standby mode, the DVD and

VCR mode cannot be operated. To use the DVD+VCR, press VCR, press

11//++

. After you use the DVD or

11//++

again to put the VCR into timer

recording standby mode.

 If at a later date you wish to delete or change any

of the settings in timer event memory you may do so without having to enter all the timer event information again. Simply display the timer event screen. Use v or V to select the event that you wish to delete or change.

Press b to delete the event...or Press OK to change; then press b or B to select; Station, Date, Start and End times and recording speed. Press v or V to enter the correct information.

 If Timer record events Overlap...

Make sure that the preset times of the timer recording events do not overlap. If they do, the earlier programme will always be given priority.

Example:

Programme 1 is programmed to start at 16:00 and end at 17:00. Programme 2 is programmed to start at 16:30 and end at 17:30. (In this case, Programme 1 will be recorded in its entirety, but only the last 30 minutes of Programme 2 will be recorded.)

 To watch a DVD while performing a timer recording,

press DVD to select DVD mode.

Playing a DVD or Video CD

General Features

Playback Setup

1. Turn on the TV and select the video input source connected to the DVD player.

2. Turn on the audio system (if applicable) and select the input source connected to the DVD player.

3. Press OPEN/CLOSE ( ) to open the disc tray and load your chosen disc in the tray, with the playback side down.

4. Press OPEN/CLOSE ( ) to close the tray. Playback starts automatically. If playback does not

start, press N. In some cases, the disc menu might appear

instead:

DVD

Use the bB v Vbuttons to select the title/chapter you want to view, then press ENTER to start. Press TITLE or DISC MENU to return to the menu screen.

VCD

Use the number buttons to select the track you want to view and press RETURN to return to the menu screen. Menu settings and operating procedures may differ. Follow the instructions on the each menu screen. You also may set PBC to Off (See “PBC” on page 20).

Notes:

• If parental control is set and the disc is not within

the rating settings you must input the password. (See “Lock Menu” on page 21.)

• DVDs may have a region code. Your player does

not play discs that have a region code different from your player. The region code for this player is 2 (two).

Note:

Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu.

Moving to another TITLE

DVD

When a disc has more than one title, you can move to another title. Press DISPLAY while playback is stopped then the appropriate number (0-9) or use b / B to move to another title. You can play any title by inputting its number while playback is stopped.

Moving to another CHAPTER/TRACK

DivXVCDDVD

When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:

• Press . or > briefly during playback to select

the next chapter/track or to return to the beginning of the current chapter/track.

• Press . twice briefly to step back to the

previous chapter/track.

•To go directly to any chapter during DVD playback,

press DISPLAY and press v / V to select the chapter/track icon. Then, input the chapter/track

number or use b / B.

1. Press

2. Press

m or M during playback. m or M repeatedly to select the required

DivXVCDDVD

speed. DVD, DivX disc; X2, X4, X16 or X100 Video CD; X2, X4 or X8

3. To exit SEARCH mode, press N.

Changing the Audio Channel

VCD

Press A.MONITOR repeatedly during playback to hear a different audio channel (Stereo, Left, or Right).

Still Picture and Frame-by-Frame Playback

DivXVCDDVD

1. Press X on the remote control during playback. Advance the picture frame-by-frame by pressing X repeatedly.

2. To exit still motion mode, press N.

Slow Motion

DivXVCDDVD

1. Press X during playback.

The DVD player will now go into PAUSE mode.

2. Use m or M to select the required speed: t 1/16, t 1/8, t 1/4, or t 1/2 (backward), or T 1/16, T 1/8, T 1/4, or T 1/2 (forward).

With a Video CD, the Slow speed changes: T 1/16, T 1/8, T 1/4 or T 1/2 (forward).

3. To exit Slow Motion mode, press N.

Note:

Slow motion playback in reverse is not possible with Video CDs and DivX Discs.

Random

Karaoke DVDVCD

1. Press RANDOM during playback or in stop mode. The unit automatically begins random playback and RANDOM appears on the TV screen.

2. Press RANDOM again to normal.

Tip:

By pressing > during random playback, the unit selects another title (track) and resumes random playback.

Note:

On a Video CD with PBC, You must set PBC to Off on the setup menu to use the random function (See “PBC” on page

20).

Repeat A-B

DivXVCDDVD

To repeat a sequence.

1. Press REPEAT A-B at your chosen starting point. “ A

* ” appears briefly on the TV screen.

2. Press REPEAT A-B again at your chosen end point. “A B” appears briefly on the TV screen and the repeat sequence begins.

Repeat

DivXVCDDVD

You can play a title/chapter/all/track on a disc. Press REPEAT during playback to select a desired repeat mode.

DVD Video Discs - Repeat Chapter/Title/Off

• Chapter: repeats the current chapter.

• Title: repeats the current title.

• Off : does not play repeatedly.

Video CDs, Divx discs - Repeat Track/All/Off

• Track : repeats the current track

• All : repeats all the tracks on a disc.

• Off : does not play repeatedly.

Notes:

• On a Video CD with PBC, you must set PBC to Off on the setup menu to use the repeat function (See “PBC” on page 20).

• If you press > once during Repeat Chapter (Track) playback, the repeat playback cancels.

3D Surround

DivXVCDDVD

To produce a 3D surround effect that simulates multi-channel audio from two stereo speakers (instead of the five+ speakers normally required for multi-channel audio from a home theater system).

1. Press DISPLAY during playback.

2. Use 3 or 4 to select the sound option.

The sound option will be highlighted.

3. Use 1 or 2 to to select “3D SUR”.

To turn off the 3D Surround effect, select “Normal”.

Time Search

DivXVCDDVD

To start playing at any chosen time on the disc:

1. Press DISPLAY during playback. The time search

box shows the elapsed playing time.

2. Press v / V to select the time clock icon and

“-:--:--” appears.

3. Input the required start time in hours, minutes, and

seconds from left to right. If you enter the wrong numbers, press CLEAR ( ) to remove the numbers you entered. Then input the correct numbers.

4. Press ENTER to confirm. Playback starts from the

selected time.

3. Press REPEAT A-B again to cancel.

Zoom

DivXVCDDVD

Use zoom to enlarge the video image.

1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.

2. Each press of the ZOOM button changes the TV screen in the sequence: 100% size → 400% size → 1600% size → screen fit mode → 100% size

Screen fit mode: You can change the way the image appears on the screen when you’re playing a DVD movie. Press 33/

to select between Normal, Enhanced,

and Maximum.

3. Use the bBvVbuttons to move through the zoomed picture.

4. To resume normal playback, press ZOOM repeatedly or press CLEAR ( ) button.

Notes:

• Zoom may not work on some DVDs.

• Screen fit mode is available for playing the DVD

disc, VR disc and movie file.

Marker Search

DivXVCDDVD

To enter a Marker

You can start playback from up to nine memorized points. To enter a marker, press MARKER at the desired point on the disc. The Marker icon appears on the TV screen briefly. Repeat to enter up to nine markers.

To Recall or Clear a Marked Scene

1. During disc playback, press SEARCH. The marker search menu appears on the screen.

2. Within 10 seconds, press b / B to select a marker number that you want to recall or clear.

3. Press ENTER and playback starts from the marked scene. Or, press CLEAR ( ) and the marker number is erased from the list.

4. You can play any marker by inputting its number on the marker search menu.

Special DVD Features

Checking the contents of DVD discs: Menus

DVDs may offer menus that allow you to access special features. To use the disc menu, press DISC MENU. Input the corresponding number or use the b B v V buttons to highlight your selection. Then press ENTER.

Title Menu

1. Press TITLE. If the current title has a menu, the menu appears on the screen. Otherwise, the disc menu may appear.

2. The menu offers features such as camera angles, spoken language and subtitle options, and chapters for the title.

3. Press TITLE to exit.

Disc Menu

Press DISC MENU and the disc menu is displayed. Press DISC MENU again to exit.

Camera Angle

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback. Press ANGLE repeatedly during playback to select a desired angle. Note that the number of the current angle appears on the display.

Changing the Audio Language

Press A.MONITOR repeatedly during playback to hear a different audio language or audio track. With DVD-RW discs recorded in VR mode that have both a main and a Bilingual audio channel, you can switch between Main (L), Bilingual (R), or a mix of both (Main + Bilingual) by pressing AUDIO.

Subtitles

Press SUBTITLE repeatedly during playback to see the different subtitle languages.

DVD

DivXDVD

Operation

Note:

• The subtitle file of the DivX file is displayed only

smi, srt and sub.

• If there is no information or there is a code that can

not read in the DivX file, “ 1 ” or etc. are displayed.

Playing an Audio CD or MP3 Disc

The DVD player can play MP3 formatted recordings on CD-ROM, CD-R, or CD-RW discs.

Audio CD

Once you insert an audio CD a menu appears on the TV screen. Press v / V to select a track then press N or ENTER and playback starts.

AUDIO CD

0:52:07

1 / 12

List

Track1

Track2

Track3

Track4

Track5

Track6

Track7

Track8

MP3

1. Press v / V to select a folder, and press ENTER

to see the folder contents.

2. Press v / V to select a track then press N or

ENTER. Playback starts.

MUSIC

0:00:00

1 / 12

List

1-Music1

2-Music2

3-Music3

4-Music4

5-Music5

6-Music6

7-Music7

DISPLAY

Info

ID3 TAG

• When playing a file containing information such as track titles, you can see the information by pressing DISPLAY. [ Song, Artist, Album, Comment, Genre ]

PROGRAM

Program

Clear All

Edit

Program

Clear All

Edit

MP3 disc compatibility with this player is limited as follows:

• Sampling frequency: within 8 - 48 kHz (MP3)

• Bit rate: within 8 - 320kbps (MP3)

• The player cannot read an MP3 file that has a file extension other than “.mp3”.

• CD-R physical format should be ISO 9660

• If you record MP3 files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.

• File names should have a maximum of 8 letters and must incorporate an .mp3 extension.

• They should not contain special letters such as / ? * : “ < > l etc.

• The total number of files on the disc should be less than 650.

This DVD player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

• If there is no information, “No ID3 TAG” appear on the menu screen.

Tip:

• If you are in a file list on the MUSIC menu and want to return to the Folder list, use the v / V to highlight and

press ENTER.

• Press DISC MENU to move to the next page.

• On a CD with MP3 and JPEG you can switch MP3 and JPEG. Press TITLE and MUSIC or PHOTO word on top of the menu is highlighted.

• When playing a file containing information such as track titles, you can see the information by pressing DISPLAY.

Audio CD and MP3 Disc

Random

MP3CD

Features

Pause

1. Press X during playback.

2. To return to playback, press N, ENTER or press X again.

Moving to another Track

1. Press . or > briefly during playback to go to the next track or to return to the beginning of the current track.

2. Press . twice briefly to go back to the previous track.

3. In case of audio CD, to go directly to any track, enter the track number using the numbered buttons (0-9).

Repeat Track/All/Off

You can play a track/all on a disc.

1. Press REPEAT when playing a disc. The repeat icon appears.

2. Press REPEAT to select a desired repeat mode.

• Track: repeats the current track

• All: repeats all the tracks on a disc.

• Off(No display): does not play repeatedly.

Note:

If you press > once during Repeat Track playback, the repeat playback cancels.

MP3CD

1. Press RANDOM during playback or when playback is stopped. Random Playback begins immediately and RANDOM appears on the menu screen.

2. To return to normal playback, press RANDOM repeatedly until RANDOM disappears from the menu screen.

Tip:

By pressing > during random playback, the unit selects another track and resumes random playback.

Repeat A-B

1. To repeat a sequence during disc playback press REPEAT A-B at your chosen starting point. The Repeat icon and “A” appear on the menu screen.

2. Press REPEAT A-B again at your chosen end point. The Repeat icon and “A-B” appear on the menu screen, and the sequence begins to play repeatedly.

3. To exit the sequence and return to normal play, press REPEAT A-B again. The Repeat icon disappears from the menu screen.

3D Surround

To produce a 3D surround effect that simulates multi-channel audio from two stereo speakers (instead of the five+ speakers normally required for multi-channel audio from a home theater system).

Operation

1. Press

2. Press

m or M during playback.

m or M repeatedly to select the required

MP3CD

speed: X2, X4, X8 backward or forward.

3. To exit SEARCH mode, press N.

1. Press A.MONITOR during playback. “3D SUR.” appears on the menu screen.

2. To return to normal playback, press A.MONITOR repeatedly until “3D SUR.” disappears from the menu screen.

Programmed Playback

The program function enables you to store your favorite tracks from any disc in the player memory. A program can contain 30 tracks.

1. Insert a disc.

Audio CD or MP3 Discs:

AUDIO CD or MUSIC menu appears.

2. Press MNL.PROG..

Note:

Press MNL.PROG. again, then the mark will disappear to exit the Program Edit mode.

The mark will appear to the right of the word “Program” on the right side of the menu screen.

1-Music1

2-Music2

3-Music3

4-Music4

5-Music5

6-Music6

7-Music7

DISPLAY

MUSIC

0:00:00

List

1 / 12

Info

PROGRAM

Edit

2-Music2

4-Music4

6-Music6

1-Music1

Program

Clear All

AUDIO CD

0:52:07

List

Track1

Track2

Track3

Track4

Track5

Track6

Track7

Track8

1 / 12

Track5

Track7

Track4

Track1

PROGRAM

Edit

Program

Clear All

Repeat Programmed Tracks

1. Press REPEAT when playing a disc. The repeat icon appears.

2. Press REPEAT to select a desired repeat mode.

• Track: repeats the current track

• All: repeats all the tracks on programmed list.

• Off(No display): does not play repeatedly.

Note:

If you press > once during Repeat Track playback, the repeat playback cancels.

Erasing a Track from Program List

1. Video CD : Press MNL.PROG. in the stop mode to enter Program Edit mode.

2. Press B to move to the “Program” list.

3. Use v/V to select the track that you wish to erase from the “Program” list.

4. Press CLEAR ( ). Repeat to erase additional tracks on the list.

Audio CD Menu MP3 Menu

Video CD: Press MNL.PROG. while playback is stopped. The program menu appears. Press MNL.PROG. to exit the menu.

Note:

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the programmed playback (See “PBC” on page 20).

VIDEO CD

Track1

Track2

Track3

Track4

Track5

List

Track5

Track2

Track3

Track1

Program

Clear All

Video CD Menu

3. Select a track on the “List”, then press ENTER to place the selected track on the “Program” list. Repeat to place additional tracks on the list.

4. Press B. Select the track you want to start playing on the “Program” list.

5. Press N or ENTER to start. Playback begins in the order in which you programmed the tracks. Playback stops after all of the tracks on the “Program” list have played once.

Erasing the Complete Program List

1. Follow steps 1-2 of “Erasing a Track from Program List” as above.

2. Use 33/44to select “Clear All”, then press ENTER.

The complete Program for the disc will be erased.

Note:

The programs are also cleared when the disc is removed.

6. To resume normal playback from programmed playback, select a track of CD (or MP3) list and then press N.

Preview

List

JPEG Folder 1

JPEG Folder 2

JPEG Folder 3

JPEG Folder 4

JPEG Folder 5

JPEG Folder 6

JPEG Folder 7

JPEG Folder 8

>>>


Viewing a JPEG Disc

Moving to another File

JPEG

Using this DVD Player you can view discs with JPEG files.

1. Insert a disc and close the tray. The PHOTO menu appears on the TV screen.

2. Press v / V to select a folder, and press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the previous Folder

list, use the v / V buttons on the remote to highlight and press ENTER.

3. If you want to view a particular file, press v / V to highlight a file and press ENTER or N.

Viewing the file proceeding starts. The on-screen messages displayed with the file can be turned off by pressing the RETURN (Hide) button on the remote control. While viewing a file, you can press x to move to the previous menu (PHOTO menu).

Slide Show

JPEG

Press . or > or cursor b or B once while viewing a picture to advance to the next or previous file.

Zoom

JPEG

Use zoom to enlarge the photo image. (see 29 page)

To rotate picture

Press

v / V during showing a picture to rotate the

picture clockwise or counter clockwise.

To listen to MP3 music watching picture

JPEG

You can display files while listening to MP3 music files recorded on the same disc.

1. Insert the disc containing the two types of file in the player.

2. Press TITLE to display PHOTO menu.

3. Press v / V to select a photo file.

4. Use B / V to select icon then press ENTER. Playback starts. The playback will continue until STOP is pressed.

Tip:

To listen to only the desired music watching picture, programmed the desired tracks from the “MUSIC” menu and then proceed as above

Operation

Use vVbBto highlight the (Slide Show) then press ENTER.

Tip:

• There are three Slide Speed options : >>> (Fast), >> (Normal) and > (Slow).

• On a disc with MP3 and JPEG you can switch MP3 and JPEG. Press TITLE and MUSIC or PHOTO word on top of the menu is highlighted.

• Press RETURN, information of file is hidden.

Still Picture

JPEG

1. Press X during slide show.

The player will now go into PAUSE mode.

2. To return to the slide show, press N or press X

again.

JPEG disc compatibility with this player is limited as follows:

• Depending upon the size and number of JPEG files, it could take a long time for the DVD player to read the disc’s contents. If you don’t see an on-screen display after several minutes, some of the files may be too large — reduce the resolution of the JPEG files to less than 2M pixels as 2760 x 2048 pixels and burn another disc.

• The total number of files and folders on the disc should be less than 650.

• Some discs may be incompatible due to a different recording format or the condition of disc.

• Ensure that all the selected files have the “.jpg” extensions when copying into the CD layout.

• If the files have “.jpe” or “.jpeg” extensions, please rename them as “.jpg” file.

• File names without “.jpg” extension will not be able to be read by this DVD+VCR. Even though the files are shown as JPEG image files in Windows Explorer.

Playing a DVD VR format Disc

DVD-VR

Maintenance and Service

This unit will play DVD-R/RW discs recorded using the DVD-Video format that have been finalized using a DVD-recorder.

• This unit will play DVD-RW discs recorded using the Video Recording (VR) format.

1. Insert a disc and close the tray. The DVD-VR menu appears on the TV screen.

2. Press v / V to select a track then press N or ENTER and playback starts.

3. Press TITLE to move to the list menu.

Note:

• Unfinalized DVD-R/RW discs cannot be played in this

player.

• Some DVD-VR disc are made with CPRM data by DVD

RECORDER. Player does not support these kinds of discs.

What is ‘CPRM’?

CPRM is a copy protection system (with scramble system) only allowing the recording of ‘copy once’ broadcast programs. CPRM stands for Content Protection for Recordable Media. This player is CPRM compatible, which means that you can record copy-once broadcast programs, but you cannot then make a copy of those recordings. CPRM recordings can only be made on DVD-RW discs formatted in VR mode, and CPRM recordings can only be played on

players that are specifically compatible with CPRM.

Refer to the information in this chapter before contacting a service technician.

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.

• Do not leave rubber or plastic products in contact with the unit for a long period of time. since they leave marks on the surface.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.

Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use.

For details, please contact your nearest authorized service center.

Playing a DivX Movie Disc

Using this DVD Player you can play DivX disc.

1. Insert a disc and close the tray. The MOVIE menu appears on the TV screen.

MOVIE

0:00:00

List

Movie Folder 1

Movie Folder 2

Movie Folder 3

Movie Folder 4

Movie Folder 5

Movie Folder 6

Movie Folder 7

Movie Folder 8

2. Press v / V to select a folder, and press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the Folder list, use the

v / V buttons on the remote to highlight and press ENTER.

3. If you want to view a particular file, press v / V to highlight a file and press ENTER or N.

4. Press x to exit.

Tip:

• Press DISC MENU to move to the next page.

DivX disc compatibility with this player is limited as follows:

•Available resolution size of the DivX file is under 720x576 (W x H) pixel.

• The file name of the DivX subtitle is available by 56 characters.

• If there is impossible code to express in the DivX file, it may be displayed as " _ " mark on the display.

• If the number of the screen frame is over 30 per 1 second, this unit may not operate normally.

• If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.

• If the file is recorded with GMC, the unit supports only 1-point of the record level.

GMC?

* GMC is the acronym for Global Motion Compensation. It

is an encoding tool specified in MPEG4 standard. Some MPEG4 encoders, like DivX or Xvid, have this option. There are different levels of GMC encoding, usually called 1-point, 2-point, or 3-point GMC.

Operation

• On a CD with MP3, JPEG and MOVIE file, you can switch

MUSIC, PHOTO and MOVIE menu. Press TITLE and MUSIC, PHOTO and MOVIE word on top of the menu is highlighted.

• The disc subtitle may not be displayed properly, if a DivX subtitle is downloaded through the internet.

• If the Disc Subtitle setup menu does not have the DivX Subtitile language you are going to play, the subtitle may

not be displayed properly.

Note:

If DivX Subtitle file name is not same with DivX file name, Subtitle will not be displayed on the screen.

A DivX Movie file and the subtitle file must be located in same directory.

Playable DivX file

".avi ", ".mpg ", ".mpeg "

Playable Subtitle format

SubRip(*.srt/*.txt) SAMI(*.smi) SubStation Alpha(*.ssa/*.txt) MicroDVD(*.sub/*.txt) SubViewer 2.0(*.sub/*.txt) TMPlayer(*.txt) Dvd Subtitle System(*.txt) VobSub (*.sub) b Sub/idx, stream based format.

Playable Codec format

"DIVX3.xx ", "DIVX4.xx ", "DIVX5.xx ", "XVID ",

"MP43 ", "3IVX ".

Playable Audio format

"AC3 ", "DTS ", "PCM ", "MP3 ".

• Sampling frequency: within 8 - 48 kHz (MP3)

• Bit rate: within 8 - 320kbps (MP3)

Additional Features-VCR part

On Screen Display

You may easily display the current time or tape counter, amount of tape left, day, month, year, day of week, programme channel, tape speed and operational mode of your VCR will appear on the TV screen. If a recording is taking place these On Screen Displays will not be recorded onto the tape.

1. Press DISPLAY to display. Press DISPLAY repeatedly to cycle through the display options. The tape counter and amount of tape left will appear if there is a tape loaded.

2. After 3 seconds the majority of the On Screen Displays will clear leaving only the clock or tape counter and the amount of tape left on the screen. Press DISPLAY again to remove all displays from the TV screen.

Note: It cannot display when f.OSD is OFF.

Tape Counter Memory Stop

The Digital Tape Counter can be displayed on the display window instead of the time by pressing DISPLAY on the remote control. The Digital Tape Counter indicates the relative positions of recordings on the tape.

1. Press DISPLAY. Press CLEAR ( ) to set the counter to 0:00:00. Press N or start recording.

The tape counter will display the actual play time in hours, minutes and seconds.

2. Press x when playback or recording is complete.

Press m. The tape will rewind and automatically stop when the counter returns to 0:00:00.

Video Doctor (Self-Diagnosis)

This feature informs you that there is a problem with your DVD+VCR. These error messages will appear on the TV screen.

1. Press i. Press 11or 22to select . Press OK.

Pr-12

ACMS

SYS

SET

OSD

OSD ON OFF

ANTENNA CONNECT

HEAD STATUS TAPE STATUS NO. OF TIMER PROGRAMME NEXT TIMER PROGRAMME

PLEASE CHECK

2. Press 33or 44to check a problem.

ANTENNA CONNECT

O PLEASE CHECK:

Connect the aerial into the jack securely.

HEAD STATUS

O PLEASE CLEAN:

Clean your video heads.

TAPE STATUS

O NOT RECORDABLE:

Insert a tape with its protection tab in place

NO. OF TIMER PROGRAMME

O 2

Shows the number of timer recording.

NEXT TIMER PROGRAMME

O PR-01 26 10:00~11:00 SP

Shows the current status of timer recording.

3. Press i to remove the menus from the TV screen.

Note:

To rewind to the beginning of the tape, press m again.

Hi-Fi Stereo Sound System

SYS

SET

OSD ON OFF

OSD

ACMS

Pr-12

SET

SYS

SET

OSD ON OFF

OSD

ACMS

Pr-12

SET

AUTO 4:3 16:9

SYS

SET

OSD ON OFF

OSD

ACMS

Pr-12

SET

AUTO 4:3 16:9

Your VCR will record and playback Hi-Fi stereo sound. In addition it has a stereo NICAM digital stereo sound decoder. This allows you to record and playback the sound in several different ways. Video cassettes recorded on your VCR will have a normal mono audio track and two VHS Hi-Fi stereo audio tracks. These stereo tracks allow you to make audio recordings in Hi-Fi stereo or bilingual mode from a TV broadcast, stereo audio system, video disc or another Hi-Fi VCR.

1. Your VCR’s NICAM digital sound decoder allows you to enjoy broadcasts with NICAM sound, as well as standard stereo, bilingual and mono sound. The particular type of sound received or that recorded will be briefly displayed on the TV screen for a couple of seconds:

STEREO NICAM

Sound is automatically recorded on the Hi-Fi stereo and mono tracks of the video tape.

BIL NICAM

Both audio channels will be recorded on the Hi-Fi stereo tracks. The primary language channel (left) will be recorded on the mono track of the video tape.

MONO

The sound is recorded on the Hi-Fi tracks and the mono track of the video tape without any separation.

2. Press AUDIO repeatedly until the desired audio mode appears.

3. The choice is STEREO, LEFT, RIGHT and MONO. In BIL NICAM playback the primary language is output on the left channel and the secondary channel is output simultaneously from the right channel when audio output is set to STEREO. The primary language will be output from both channels when the audio setting is MONO. Please note that when adjusting the tracking control Hi-Fi stereo sound may revert to MONO.

Note: When OFF is selected in NIC, only mono sound will be output.

Wide Screen Compatibility 16:9

Your DVD+VCR can record and play back wide screen aspect ratio programmes (16:9). To record a wide screen format programme successfully the correct type of wide screen signal must be broadcast by the TV station.

1. Switch on your DVD+VCR. Press i.

Press

F or G to select .

Press OK.

2. Press v/V repeatedly to select: AUTO, 4:3 or

16:9.

AUTO:

Automatically plays back Wide-Screen programmes as Wide-Screen and Normal programmes as normal.

4:3

Only for playing back and recording Normal format recordings (4:3).

16:9:

Only for playing back and recording Wide-Screen format recordings (16:9).

3. Press i to remove the menus from the TV screen. To enjoy Wide-Screen playback you must connect your VCR to the TV using a SCART cable.

To set the decoder

We have already described, how to connect a decoder for pay-TV station as CANAL+ or PREMIERE on page 10. For the recording of an encoded station you do not have to control anything. You just select the station and wait shortly until the decoding will start.

1. Press i. The main menu will appear on the TV screen. Press

F or G to select the DECODER.

Press OK.

2. Press

3. Press i to return to a TV picture.

D or E to select.

ON: When the decoder is connected to the AV2 socket. OFF: When another VCR is connected to the AV2 socket.

Operation

Additional Features

Recording from another video

Last Scene Memory

VCDCDDVD

This player memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off the player. If you load a disc that has the scene memorized, the scene is automatically recalled.

Note:

This player does not memorize the scene of a disc if you switch off the player before commencing to play the disc.

Screen Saver

The screen saver appears when you leave the DVD player in Stop mode for about five minutes.

Copying from DVD To VCR

This unit allows you to copy the contents of a DVD to a VHS tape with a press of the REC (z) button.

Notes:

If the DVD you are attempting to copy is copy protected, you may not be able to copy the disc.

1. Insert Disc Insert the disc you wish to copy in the DVD deck and close the disc tray.

recorder

With this video recorder you can make recordings from an external source, such as copying from another video recorder or a camcorder.

Note:

In the following description, this video recorder will be one used for recording and will be referred to as VCR B. The other appliance will be used for playback and will be referred to as VCR A.

1. VCR A should be connected to the SCART socket on the rear panel of your unit or the AV sockets on the front panel of your unit.

2. Insert the recorded tape into VCR A and a blank tape into VCR B.

3. Press AUX until the socket you wish to record from is displayed. (VCR B)

AV 1 for recording from EURO AV1 SCART socket on the rear of your unit. AV 2 for recording from EURO AV2 SCART socket on the rear of your unit. AV 3 for recording from VIDEO IN and AUDIO IN (Left & Right) sockets on the front of your unit.

4. To start recording, press the REC (z) on VCR B and PLAY on VCR A.

2. Insert VHS Tape Insert a blank VHS videotape into the VCR deck.

3. Copy the DVD to VHS Tape Press the REC (z) button.



The DVD will go into Play mode and the VCR will go into Record mode.



If the DVD disc menu appears, you may need to press the Play button manually to begin copying.

Note:

If you press the REC (z) button, be sure this unit in DVD mode.

4. Stop the Copy Process

When the DVD is finished playing, press x to end

the copy.



You must stop the Copy process manually when the DVD movie ends, or the unit may replay and record over and over again.

5. When you want to finish copying, press the x on

both video recorders.

Reference

Language Codes

Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.

Language Code

Abkhazian 6566 Afar 6565 Afrikaans 6570 Albanian 8381 Ameharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Aymara 6588 Azerbaijani 6590 Bashkir 6665 Basque 6985 Bengali; Bangla 6678 Bhutani 6890 Bihari 6672 Breton 6682 Bulgarian 6671 Burmese 7789 Byelorussian 6669 Cambodian 7577 Catalan 6765 Chinese 9072 Corsican 6779 Croatian 7282 Czech 6783 Danish 6865 Dutch 7876 English 6978 Esperanto 6979 Estonian 6984 Faroese 7079

Language Code

Fiji 7074 Finnish 7073 French 7082 Frisian 7089 Galician 7176 Georgian 7565 German 6869 Greek 6976 Greenlandic 7576 Guarani 7178 Gujarati 7185 Hausa 7265 Hebrew 7387 Hindi 7273 Hungarian 7285 Icelandic 7383 Indonesian 7378 Interlingua 7365 Irish 7165 Italian 7384 Japanese 7465 Javanese 7487 Kannada 7578 Kashmiri 7583 Kazakh 7575 Kirghiz 7589 Korean 7579 Kurdish 7585 Laothian 7679 Latin 7665 Latvian, Lettish 7686

Language Code

Lingala 7678 Lithuanian 7684 Macedonian 7775 Malagasy 7771 Malay 7783 Malayalam 7776 Maltese 7784 Maori 7773 Marathi 7782 Moldavian 7779 Mongolian 7778 Nauru 7865 Nepali 7869 Norwegian 7879 Oriya 7982 Panjabi 8065 Pashto, Pushto 8083 Persian 7065 Polish 8076 Portuguese 8084 Quechua 8185 Rhaeto-Romance 8277 Rumanian 8279 Russian 8285 Samoan 8377 Sanskrit 8365 Scots Gaelic 7168 Serbian 8382 Serbo-Croatian 8372 Shona 8378 Sindhi 8368

Language Code

Singhalese 8373 Slovak 8375 Slovenian 8376 Somali 8379 Spanish 6983 Sudanese 8385 Swahili 8387 Swedish 8386 Tagalog 8476 Tajik 8471 Tamil 8465 Tatar 8484 Telugu 8469 Thai 8472 Tibetan 6679 Tigrinya 8473 Tonga 8479 Turkish 8482 Turkmen 8475 Twi 8487 Ukrainian 8575 Urdu 8582 Uzbek 8590 Vietnamese 8673 Volapük 8679 Welsh 6789 Wolof 8779 Xhosa 8872 Yiddish 7473 Yoruba 8979 Zulu 9085

Area Codes

Choose a area code from this list.

Area Code

Afghanistan AF Argentina AR Australia AU Austria AT Belgium BE Bhutan BT Bolivia BO Brazil BR Cambodia KH Canada CA Chile CL China CN Colombia CO Congo CG Costa Rica CR Croatia HR Czech Republic CZ Denmark DK Ecuador EC Egypt EG El Salvador SV

Area Code

Ethiopia ET Fiji FJ Finland FI France FR Germany DE Great Britain GB Greece GR Greenland GL Islands HM Hong Kong HK Hungary HU India IN Indonesia ID Israel IL Italy IT Jamaica JM Japan JP Kenya KE Kuwait KW Libya LY Luxembourg LU

Area Code

Malaysia MY Maldives MV Mexico MX Monaco MC Mongolia MN Morocco MA Nepal NP Netherlands NL Netherlands Antilles AN New Zealand NZ Nigeria NG Norway NO Oman OM Pakistan PK Panama PA Paraguay PY Philippines PH Poland PL Portugal PT Romania RO Russian Federation RU

Area Code

Saudi Arabia SA Senegal SN Singapore SG Slovak Republic SK Slovenia SI South Africa ZA South Korea KR Spain ES Sri Lanka LK Sweden SE Switzerland CH Taiwan TW Thailand TH Turkey TR Uganda UG Ukraine UA United States US Uruguay UY Uzbekistan UZ Vietnam VN Zimbabwe ZW

Reference

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom

DVD or VCR do not work properly.

No power.

The power is on, but the DVD player does not work.

No picture.

No sound.

The picture is poor.

The DVD player does not start playback.

The remote control does not work properly.

Video tape cannot be inserted.

No Hi-Fi sound

No NICAM sound recording

Cause

 DVD or VCR button is not switched

properly.

 The power cord is disconnected.

 No disc is inserted.

 The TV is not set to receive DVD

signal output.

 The video cable is not connected

securely.

 The Progressive Scan is set to “On”

on the setup menu but is connected to a standard (analog) television.

 The equipment connected with the

audio cable is not set to receive DVD signal output.

 The audio cables are not connected

securely.

 The power of the equipment connect-

ed with the audio cable is turned off.

 The Digital Audio Output is set to the

wrong position.

 The disc is dirty.  The TV channels are not tuned in properly.

 An unplayable disc is inserted.

 The disc is placed upside down.

 The disc is not placed within the

guide.

 The disc is dirty.  The Rating level is set.

 There is an obstacle in the path of the

remote control and this unit.

 The batteries in the remote control

are exhausted.

 Is the cassette compartment empty?

 Audio mode is not set properly.

 NICAM mode is not set properly.

Correction

 Refer to page 2.

 Plug the power cord into the wall

outlet securely.

 Insert a disc. (Check that the DVD or,

audio CD indicator in the display window is lit.)

 Select the appropriate video input

mode on the TV so the picture from the DVD player appears on the TV screen.

 Connect the video cable into the jacks

securely.

 Set Progressive Scan to “Off”

(see page 19).

 Select the correct input mode of the

audio receiver so you can listen to the sound from the DVD player.

 Connect the audio cable into the jacks

securely.

 Turn on the equipment connected

with the audio cable.

 Set the Digital Audio Output to the

correct position, then turn on the DVD player again by pressing

 Clean the disc.  Check tuning, carry out tuning again.

 Insert a playable disc. (Check the disc

11//++

type and Regional code.)

 Place the disc with the playback side

down.

 Place the disc on the disc tray cor-

rectly inside the guide.

 Clean the disc.  Cancel the Rating function or change

the rating level.

 Remove the obstacle.

 Replace the batteries with new ones.

 Eject the tape in.

 Select “STEREO” by repeatedly press-

ing “AUDIO” on the remote control.

 Make sure NICAM in the menu is set

to AUTO for the station to be recorded.

Specification

General

Power requirements AC 200-240V, 50 Hz Power consumption 17W Dimensions (approx.) 430 X 78.5 X 265 mm (w/h/d) Mass (approx.) 4.2 kg Operating temperature 5˚C to 35˚C (41˚F to 95˚F) Operating humidity 5 % to 90 % Timer 24 hours display tape RF Modulator UHF 22 - 68 (Adjustable)

System

Laser Semiconductor laser, wavelength 650 nm Video Head system Double azimuth 6 heads, helical scanning. Signal system PAL Frequency response DVD (PCM 96 kHz): 8 Hz to 44 kHz

DVD (PCM 48 kHz): 8 Hz to 22 kHz

CD: 8 Hz to 20 kHz Signal-to-noise ratio More than 100dB (ANALOG OUT connectors only) Harmonic distortion Less than 0.008% Dynamic range More than 100 dB (DVD)

More than 95 dB (CD)

title

Inputs (VCR)

Audio -6.0dBm, more than 10 kohms (SCART)

-6.0dBm, more than 47 kohms (RCA)

Video 1.0 Vp-p, 75 ohms, unbalanced (SCART/RCA)

Outputs (DVD)

VIDEO OUT 1 Vp-p 75 ohms, sync negative Audio output (digital audio) 0.5 V (p-p), 75 Ω, RCA jack x 1

Audio output (analog audio) 2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R)x2/SCART (TO TV)

Outputs (VCR)

Audio -6.0dBm, less than 1 kohms (SCART) Video 1.0Vp-p, 75 ohms, unbalanced (SCART)



Design and specifications are subject to change without notice.

Reference

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Precautions

When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear). When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

Failure to heed the following precautions may result in damage to the unit, remote control or disc.

1. DO NOT place the unit —

— in an environment prone to extreme temperatures or humidity. — in direct sunlight. — in a dusty environment. — in an environment where strong magnetic fields are generated. — on a surface that is unstable or subject to vibration.

2. DO NOT block the unit’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

3. DO NOT place heavy objects on the unit or remote control.

4. DO NOT place anything which might spill on top of the unit or remote control.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

5. DO NOT expose the apparatus to dripping or splashing.

6. DO NOT use this equipment in a bathroom or places with water. Also DO NOT place any containers filled with water

or liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.

7. DO NOT place any naked flame sources, such as lighted candles, on the apparatus.

8. AVOID

IMPORTANT Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

In the unlikely event of the plug fuse failing be sure to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. If the fuse fails again consult your nearest JVC dealer.

If nonetheless the mains plug is cut off remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green.

The wires in the mains lead are coloured in accordance with the following code: If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured Black. Brown wire to terminal coded L (Live) or coloured Red.

If in doubt — consult a competent electrician.

Some Do's And Don'ts On The Safe Use Of Equipment
