LCD Television Users Guide

EnglishEspañol Français

LT-32A200

32" class (31.5" Diagonal)

HIGH DEFINITION TELEVISION

Important Note:

In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user’s guide in a convenient place for future reference. Keep the carton and original packaging for future use.

Model No: Serial Number:

0209TKH-FU-FU

5 Precautions

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS

FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear or bottom of the cabinet.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacture’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

FCC WARNING

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the apparatus and receiver.

3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

English

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 3.2 inches (8cm) or more around this apparatus.

Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW.

WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the instructions.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the AC power cord with wet hands.

• Do not remove this unit’s cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to this unit. For service and adjustment inside the cabinet, call a qualified dealer or an authorized service center.

• Do not pull on the AC power cord when disconnecting it from an AC outlet. Grasp it by the plug.

• Do not put your fingers or objects into the unit.

LOCATION AND HANDLING

• The openings should not be blocked by placing the unit on a bed, sofa, carpet, rug, or other similar surface.

• Do not install the unit near or over a radiator or heat register.

• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.

• Avoid a place with drastic temperature changes.

• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit. Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit.

• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.

NOTE ABOUT RECYCLING

• This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

• Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

WHEN CARRYING THIS UNIT

• At least two people are required when carrying this unit.

• Make sure to hold the upper and bottom frames of the unit firmly as illustrated.

5 Trademark Information

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• Products that have earned ENERGY STAR® are designed to protect the environment through superior energy efficiency.

NTRODUCTION

screw holes



screw holes



5 Supplied Accessories

remote control (RM-C-2150)

• If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual.

batteries (AA x 2) Screw for attaching the

stand x 4 (FPH34200)

5 Attaching the Stand

You must attach the stand to the unit to have it as a table top unit. Be sure the front and rear of the stand match the proper direction.

Spread a thick and soft cloth over a

table as shown below. Place the main unit face down onto it. Make sure not to damage the screen. At least two people are required at this step.

Align the 2 stand hooks with the two

hooks under the bottom of the main unit (shown by arrow the stand in the direction as shown by arrow mounting holes are aligned. Make sure not to put the AC power cord between the stand and the unit.



front side

To remove the stand from this unit

Unscrew the screws indicated by above “➂”screw holes. After the screws are removed pull the stand up toward the rear of the unit. Be careful not to drop the stand when you remove it.

), then slide

➀

until it stops and the 4

➁



Drive screws in the 4 threaded holes

at the bottom of the stand until they are tight.

Note:

• When attaching the stand, ensure that all screws are tightly fastened. If the stand is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit.

• Make sure to use a table which can support the weight of this unit and is larger than this unit.

• Make sure the table is in a stable location.

5 Symbols Used in this Manual

The following is the description for the symbols used in this manual. Description refers to:

: Analog TV operation

• If neither symbol appears under the function heading, operation is applicable to both.

DTV

: Digital TV operation

English

INTRODUCTION PREPARATION

5 Features

• DTV/TV/CATV

- You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels.

• Information Display (DTV only)

- You can display the title, contents and other information of the current DTV program on the TV screen.

• Autoscan

- This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures.

• Child Lock

- This feature allows you to block children’s access to inappropriate programs.

• Closed Caption Decoder

- Built-in closed caption decoder displays text for closed caption supported programs.

• MTS/SAP Tuner

- Audio can be selected from the remote control.

• Auto Shut Off Function

- If there is no signal input from the antenna terminal and no operation for 15 minutes, the unit will turn off automatically.

• Sleep Timer

- This feature will automatically turn off the power of the unit at a specific time.

• Choices for On-screen Language

- Select your on-screen language: English, Spanish or French.

• Stereo Sound Function

• PLL Frequency Synthesized Tuning

- Provides free and easy channel selection and lets you tune directly to any channel using the number buttons on the remote control.

• Various Adjustment for Picture and Sound

- Customizes image quality to suitable for your room and sets the sound as your preference.

• HDMI Input

- When using HDMI1 input, you can enjoy this unit as a PC monitor if your PC has DVI output terminal.

• Component Video Input

• S-video Input

• AV Input

• Digital Audio Output

• Analog Audio Output

5 Contents

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Trademark Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INTRODUCTION

Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Symbols Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Remote Control Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PREPARATION

Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Connection to Cable Receiver or Satellite Box . . . . . . . . . . . 8

External Device Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Cable Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Plug In the AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

WATCHING TV

Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Still Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Switching Each Input Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Switching Audio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

TV Screen Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

TV Screen Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

OPTIONAL SETTING

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Autoscan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Manual Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Antenna Confirmation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Picture Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Sound Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

PC Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Energy Saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Current Software Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

TROUBLESHOOTING

FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

INFORMATION

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Cable Channel Designations . . . . . . . . . . . . . . . . . . . . . . . . . . .37

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Electrical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Other Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

NTRODUCTION

5 Control Panel

1. y (power) (p. 13)

Press to turn the unit on and off.

2. CH

3. SETUP (p. 13)

4. VOL

5. infrared sensor window

6 7

6. POWER ON indicator

7. STAND BY indicator

/ + (p. 14 / p. 15)

Press to select channels or move up (+) / down ( through the main menu items.

Press to display the main menu.

/ + (p. 14)

Press to adjust the volume or move right (+) / left ( through the main menu items.

Receives infrared rays transmitted from the remote control.

Lights up blue when power is on.

Lights up red when power is off.

)

42 13

5 Te rmi na ls

Note:

service terminal (service use only)

• User should not connect any devices to the service terminal such as digital camera, keyboard, mouse, etc. (because these will not work).

[Side Panel]

8. S-video input jack (p. 10)

S-video cable connection from an external device.

9. video input jack (p. 11) RCA video cable connection from an external device.

10. audio input jack (p. 10 / p. 11) RCA audio cable connection from an external device.

11. HDMI 2 input jack (p. 8 / p. 9) HDMI connection from HDMI device.

[Rear Panel]

12. AC power cord (p. 12)

Connect to a standard AC outlet to supply power to this unit.

13. cable management (p. 12)

15 16

Use this holder to bundle the cables.

14.

component video and audio input jack

RCA component video cable and RCA audio cable connection from an external device.

15. audio output jack (p. 11) RCA audio cable connection for an external device.

16. audio input jack for HDMI 1 (p. 9 RCA audio cable connection from a DVI device. When you connect your PC that has a DVI terminal, use a stereo mini plug-RCA conversion cable as well. (For HDMI 1 input jack only)

17. digital audio output jack (p. 11) Coaxial digital cable connection for a decoder or an audio receiver.

18. antenna input jack (p. 8) RF

coaxial cable connection for your antenna or cable

TV signal.

19. HDMI 1 input jack (p. 8 / p. 9 / p. 12) HDMI connection for HDMI or DVI device. When you connect your PC that has a DVI terminal, you can enjoy this unit as a PC monitor.

20. HDMI 3 input jack (p. 8 / p. 9) HDMI connection from HDMI device.

/ p. 12

(p. 8 / p. 10)

)

5 Remote Control Function

English

INTRODUCTION PREPARATION

1. MUTE (p. 14) Press to turn the sound on and

4 5

off.

2. Number buttons (p. 14)

• Press to select channels.

(hyphen)

• Press to shift the subchannel from the main channel.

3. SETUP (p. 13)

Press to display the main menu.

/ B / K / L (p. 13)

Press to move left / right / up /

down through the items.

5. ENTER (p. 13)

Press to decide the command of

setting when the main menu is displayed.

6. INFO (p. 16)

Digital mode (DTV)

• Press to display the channel information, signal type and TV setting.

Analog mode (TV)

• Press to display the channel number, signal type and TV setting.

External input mode

• Press to display the external input mode, signal type and TV setting.

7. CHANNEL

ress to select channels and the

external input mode.

8. INPUT SELECT (p. 15)

Press to access connected

external devices

like a BD/DVD recorder.

/ + (p. 15)

9. POWER (p. 13)

Press to turn the unit on and off.

10. AUDIO (p. 15) Digital mode (DTV)

• Press to select the audio language.

Analog mode (TV)

• Press to select the audio mode.

11. SLEEP (p. 14) Press to activate the sleep timer.

12. STILL (p. 15) Press to pause screen image.

13. CH RETURN (p. 14) Press to return to previously

viewed channel.

14. SCREEN MODE (p. 17) Press to select aspect ratio

available for the TV screen.

15. BACK (p. 16) Press to return to the previous

menu operation.

16. VOLUME

Press to adjust the volume.

/ + (p. 14)

WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

5 Installing the Batteries

Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control.

Battery Precautions:

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

• Do not mix different types of batteries together (e.g., Alkaline and Carbon-Zinc, or rechargeable batteries like ni-cad, ni-mh, etc) or old batteries with fresh ones.

• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries; they can overheat and rupture.

REPARATION

(red)

(blue)

(gre )

red

b u

ree

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store. High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.

Before you connect... Be sure your antenna or other device is connected properly before plugging in the AC power cord.

5 Antenna Connection

Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.

e.g.)

VHF / UHF antenna

RF coaxial cable

cable TV signal

* Once connections are completed, turn on the unit and begin initial setup. Channel scanning is necessary for the unit

to memorize all available channels in your area. (Refer to “Initial Setup” on page 13.)

Note:

• If you have any question about the DTV’s antenna, visit www.antennaweb.org for further information.

• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters). Contact your local electronics store for these items.

• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit.

• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than settop versions.

• To switch your reception source easily between antenna and cable, install an antenna selector.

• If you connect to the cable system directly, contact the CATV installer.

rear of this unit

5 Connection to Cable Receiver or Satellite Box

Use an HDMI or an RCA component video cable to connect the HDMI or the component video input jack of the unit to the HDMI or the component video output jack of the cable receiver / satellite box. If you connect to the unit’s component Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Component Video connector.

COMPONENT VIDEO OUT

(green)(green)

HDMI cable

Pr/CrPb/CbY

(red)(red)

(blue)(blue)

RCA component video cable and RCA audio cable

side or rear of this unit

(green)

(blue)

(red)

e.g.)

satellite dish

cable TV signal

including PPV

RF coaxial cable

ANT IN

HDMI OUT

AUDIO OUT

S ER O CM

cable receiver / satellite box

* You can also connect this unit to the cable receiver or satellite box other than the HDMI or the component video

output jack because they might have different output jacks.

* Required cables and connecting methods of the cable receiver / satellite box, or the availability channel for the

clear QAM may differ depending on the cable / satellite provider. For more information, please contact your cable / satellite provider.

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store. High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.

English

INTRODUCTION

5 External Device Connection

[HDMI Connection]

HDMI connection offers the highest picture quality. HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable. HDMI CEC (Consumer Electronics Control) allows the TV to connect and control multiple HDMI CEC enabled devices with a single remote. CEC (Consumer Electronics Control) is an optional protocol used in HDMI.

HDMI CEC on this TV is compliant with “High-Definition Multimedia Interface Specification”. The TV does not support HDMI CEC functions that are not listed below. The TV does not guarantee to support use of all HDMI CEC enabled devices. Devices that are not enabled to HDMI CEC cannot be controlled with this TV.

Control the TV using the HDMI CEC

enabled device

Turn the TV on and switch to the video

source of the operating device.

Switch to the video source of the

operating device.

e.g.)

TT E 5 CHA TER 15 RE EAT A B

BD/DVD recorder with the HDMI output jack

Control the HDMI CEC enabled device

using the TV

Turn off the operating device by pressing

the power button for three seconds or more, and turning off the TV.

* Some device may not support this

function. For more details refer to the device’s manual.

HDMI cable

HDMI OUT

Send status of the TV to the HDMI CEC

enabled device

When switching the TV’s external input

or channel.

When switching the TV’s menu language.

* Information regarding behaviour of the

device when status is received, refer to the external device’s manual.

side or rear of this unit

PREPARATION

WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

Note:

• This unit accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals.

• This unit accepts only 2 channel audio signal (LPCM).

• You need to select “PCM” for the digital audio output of the device you connected or check the HDMI audio setting. There may be no audio output if you select “Bitstream”, etc.

• This unit only accepts signals in compliance with EIA861.

[HDMI-DVI Connection]

Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack.

e.g.)

S ER O P M

cable receiver or satellite box with the DVI output jack

DVI OUT

AUDIO OUT

HDMI-DVI conversion cable

To HDMI1 input jack only

RCA audio cable

Note:

• This unit accepts 480i / 480p / 720p / 1080i video signals.

• HDMI-DVI connection requires separate RCA audio connections as well.

• Audio signals are converted from digital to analog for this connection.

• DVI does not display 480i image that is not in compliance with EIA/CEA-861/861B.

INFORMATION

rear of this unit

REPARATION

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store.

[Component Video Connection]

RCA component video connection offers better picture quality for video devices connected to the unit. If you connect to the unit’s component Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Component Video Connector.

e.g.)

RCA component video cable

rear of this unit

TT E 5 CHA TER 15 RE EAT A B

BD/DVD recorder with

(red)(blue)(green)

COMPONENT VIDEO OUT

AUDIO OUT

Pr/CrPb/CbY

(green)

(blue)

(red)

the component video output jack

RCA audio cable

Note:

• This unit accepts 480i / 480p / 720p / 1080i video signals.

[S-video Connection]

S-video connection offers good picture quality for video devices connected to the unit. If you connect to the unit’s S-Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Video connector.

e.g.)

TTLE 5 CHAP ER 15 REPE T -B

AUDIO OUT

S-VIDEO

OUT

S-video cable

side of this unit

BD/DVD recorder with the S-Video output jack

RCA audio cable

Note:

• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store.

English

INTRODUCTION

[Video Connection]

RCA video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit’s Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Video connector. When the audio jack of the video device is monaural, connect an RCA audio cable to the audio L input jack.

e.g.)

camcorder video game

ST REO

STANDBY

VCR

AUDIO OUT

VIDEO

OUT

RCA audio cable

RCA video cable

side of this unit

Note:

• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.

[Audio Output Connection]

PREPARATION

WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

À Digital (for digital broadcasting only)

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound. Use a digital audio coaxial cable to connect the unit to external digital audio devices.

À Analog (for both analog and digital broadcasting)

If you connect this unit to an external analog audio device, you can enjoy stereo (2-channel) audio. Use an RCA audio cable to connect the unit to external analog audio devices.

e.g.)

AUDIO IN

stereo system

RCA audio cable

rear of this unit

digital audio coaxial cable

Dolby Digital

decoder

DIGITAL AUDIO

COAXIAL IN

INFORMATION

REPARATION

k only

DVI

sion cable

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store.

[PC Connection]

This unit can be connected to your PC that has a DVI terminal. Use an HDMI-DVI conversion cable for this connection and it requires stereo mini plug-RCA conversion cable as well. If you connect this unit to your PC, you can use this unit as a PC monitor.

e.g.)

stereo mini plug-RCA

conversion cable

DVI OUT

personal computer

The following signals can be displayed:

Format Resolution Refresh rate Format Resolution Refresh rate

VGA 640 x 480 60Hz

SVGA 800 x 600 60Hz

XGA 1,024 x 768 60Hz

Other formats or non-standard signals will not be displayed correctly.

HDMI-DVI conversion cable should be with ferrite core.

To HDMI1

input jack only

HDMI-DVI

conversion cable

1,280 x 768 60Hz

WXGA

1,360 x 768 60Hz

Note:

• Please purchase the HDMI-DVI conversion cable that has a ferrite core.

• The following operations may reduce noise.

- Attach a ferrite core to the AC power cord of your PC.

- Unplug the AC power cord and use the built-in battery of your PC.

5 Cable Management

5 Plug In the AC Power Cord

rear of this unit

Keep the cables through this holder to avoid tangle them.

rear of this unit

Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are completed.

AC power cord

AC outlet

rear of this unit

Caution:

• Do not connect the AC power cord to a power supply outside the indicated voltage of this unit (AC 120V). Connecting the AC power cord to a power supply outside of this range may result in fire or electrical shocks.

Note:

• Each time you plugged in the AC power cord, any operations will not be performed for a few seconds. This is not a malfunction.

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

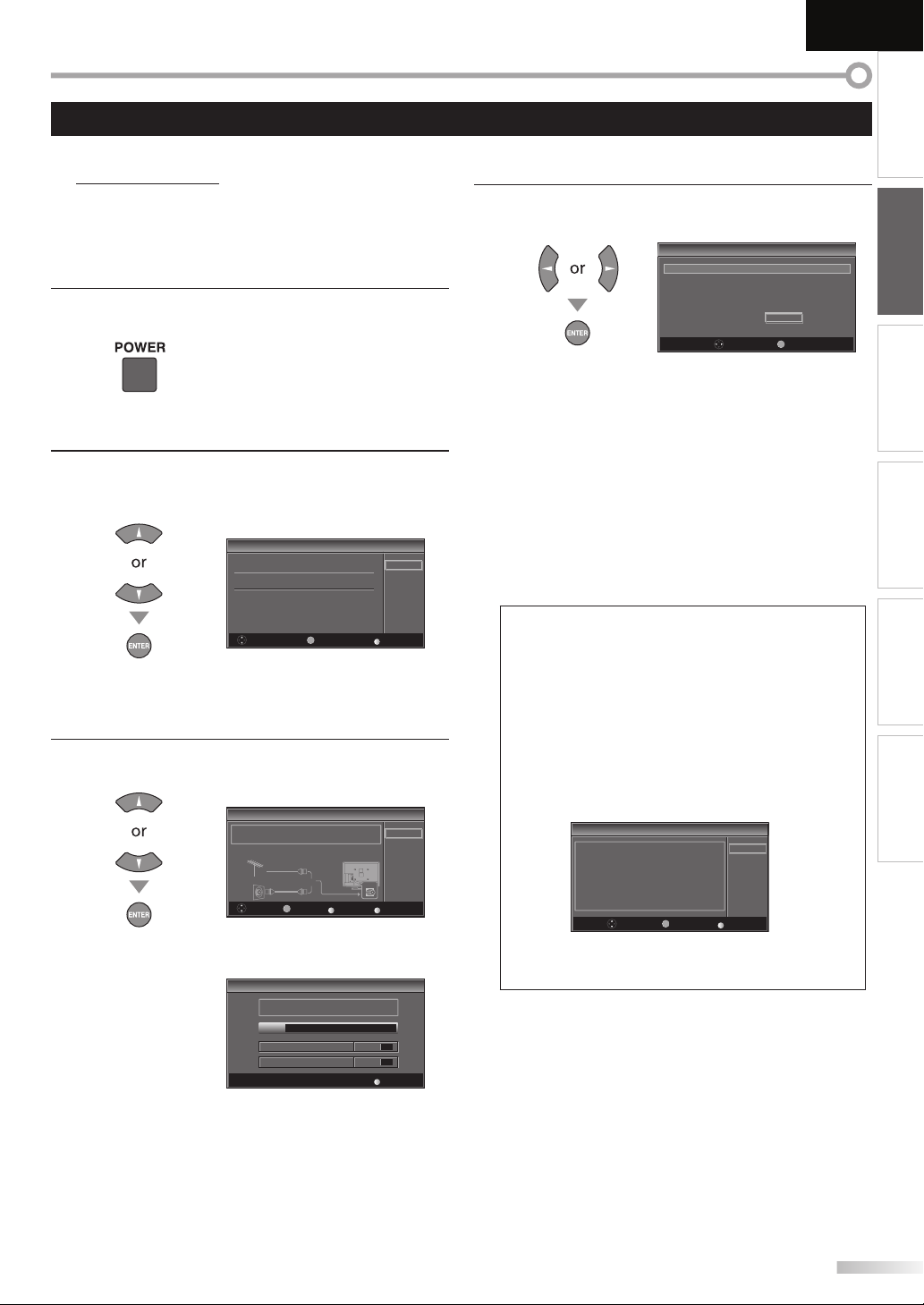

5 Initial Setup

This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu and autoscan, which automatically scans and memorizes viewable channels.

Before you begin:

Make sure the unit is connected to antenna or cable.

After making all the necessary connections,

press [POWER] to turn on the unit.

• This operation may take a few moments.

Use [Cursor K / L] to select the on-screen language

from the choices on the right side of the TV screen. (English / Español / Français)

Initial Setup

it p

Select the language for setup display

Elija el idioma de ajuste

Sélect onner langue écran config

Select Enter

E TER

• “Initial Setup” menu on step 3 will be displayed in the selected language after you press [ENTER].

Use [Cursor K / L] to select “Antenna” for TV channels

or “Cable” for CATV channels, then press [ENTER].

Initial Setup

Make sure the antenna is connected o“ANT IN” jack

Se ect he dest nation of “ANT IN” jack

Antenna

Cabe

BACK

ENT R

Select Enter

• “Autoscan” will begin.

Initial Setup

it p

Now the system s scanning for channels p ease wait Autoscan w ll take up to 20 m nu es to complete

Analog channels 0ch

Digital channels 0ch

Engl sh

Español

Français

SETUP

Skip

Antenna

Cable

Skip

ANTIN

SETUP

Skip

Back

SETUP

Skip

Use [Cursor s / B] to select the desired location setting,

then press [ENTER].

Initial Setup

i l S

Select “Retail” or “Home” for your location

Select Enter

• Select ”Retail”, the unit will be set up with predefined setting for retail displays. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification.

• Select ”Home”, the unit is set to maximize the energy efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference.

• When the initial setup is completed, the lowest memorized channel with the confirmation message of the location setting will be displayed on the TV screen.

Note:

• If you connect the cable system directly, contact the CATV installer.

• If you press [POWER] or [SETUP] during autoscan, this setting will be canceled.

• The initial autoscan function can be executed for either “Antenna” or “Cable” only once. When you change the connection (Antenna / Cable), set autoscan again. (Refer to page 18.)

• If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, “Helpful Hints” appears. Follow the instructions listed on the TV screen.

Initial Setup

In p

No channel s registered

Try Autoscan again?

Verfy that you have a cable connected o he

on he back of the TV the channel nstallation p ocess

searches this connection If you are using a cable or satel ite

box please conf rm the input which you have connec ed the

box and press the “INPUT SELECT” key on the remote conrol to

se ect he appropr ate source input

Select

EN ER

"ANT IN" jack

Enter

SETUP

Skip

• You must set ”Home” in step 4. Otherwise, the settings of picture and sound quality you adjusted will not be memorized after you turn off the unit.

After an initial setup is completed...

• If you want to scan the channels automatically again, refer to “Autoscan” on page 18.

• You can add the desired channels unmemorized by “Autoscan”. Refer to “Manual Register” on page 19.

• If you want to change to another language, refer to “Language Selection” on page 20.

• If you want to change the location setting, refer to “Location” on page 31.

Retry

Later

HomeRetail

NTER

English

INTRODUCTION

PREPARATION

WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

ATCHING TV

5 Channel Selection

Select channels by using [CHANNEL

• To select the memorized channels, use

[CHANNEL

/ +

• To select the non-memorized channels, use

[the Number buttons].

To Use [the Number buttons]

- When selecting channel 11

DTV

- When selecting digital channel 11-1 Be sure to press [-] before entering the subchannel number.

• Press [CH RETURN] to return to the previously channel.

About digital TV broadcasting:

With its high definition broadcast, digital broadcasting far surpasses analog broadcasting in both its picture and sound quality. Not all digital TV broadcasts are high definition (HD). To confirm whether your watching TV program is in HD, refer to the program guide, contact your cable / satellite provider or local TV stations.

NTSC

(analog mode)

CH4

(Soccer)

Air time

6:00pm

6:30pm

/ +

] or [the Number buttons].

ATSC

(digital mode)

(Soccer)

CH4-1

main channel

CH4-1

(Soccer)

CH4-2

(News)

CH4-3

(Tennis)

5 Volume Adjustment

This section describes how to adjust the volume. The mute function, which turns the sound off and on, is also described.

Use [VOLUME

-/ +

] to adjust the audio volume.

Volume

The volume bar will be displayed at the bottom of the TV screen when adjusting the volume.

• The volume bar will automatically disappear in a few seconds.

Press [MUTE] to turn off and on the sound.

Mute

“Mute” is displayed on the TV screen for a few seconds.

-/ +

Press [MUTE] again or [VOLUME

] to recover the

original volume.

5 Sleep Timer

The sleep timer can be set to automatically turn off the unit after an incremental period of time.

Press [SLEEP] to set the sleep timer.

Sleep

Sleep timer display appears on the TV screen.

Off

main channel

CH4-1

main channel

(Soccer)

CH4-1

main channel

can be changed by using

[CHANNEL

/ +].

(Soccer)

CH4-2

subchannel

CH4

(Soccer)

7:00pm

7:30pm

8:00pm

What is the subchannel?

By using high compression technology, digital broadcasting offers a service that enables multiple signals to send simultaneously. Therefore, you can select more than one program per main channel since digital broadcasting technology distinguishes between multiple channels broadcast by a single network.

Note:

• “No Signal” will appear on the TV screen after the subchannel broadcast is over.

• “Audio only program“ message will appear on the TV screen, when you receive only sound signal.

subchannelsubchannel

(News)

Press [SLEEP] repeatedly to change the amount of time

until shut off.

Sleep

120min.

You can set your unit to turn off after a set period of time (from 30 to 120 minutes).

• Each press of [SLEEP] will increase the time by 30 minutes.

• After setup, the sleep timer display can be called up for checking by pressing [SLEEP].

To cancel the sleep timer

Press [SLEEP] repeatedly until “Sleep Off” is displayed on the TV screen.

Note:

• The sleep timer display will automatically disappear in a few seconds.

• When you disconnect the unit from the AC outlet or when a power failure occurs, the sleep timer setting will be canceled.

English

INTRODUCTION

5 Still Mode

You can pause the image shown on the TV screen.

Press

[STILL] to pause the image shown on the TV

screen.

Still

• The sound output will not be paused.

• If no signal is detected or protected signal is received during still mode, the image remains paused and the sound output will be muted.

• The still function will be released after 5 minutes.

To cancel still mode, press any button except [POWER].

5 Switching Each Input Mode

You can easily switch with the remote control to the DTV (ATSC) and TV (NTSC) or to access external devices when they are connected to the unit.

Press [INPUT SELECT] or [CHANNEL +] repeatedly to cycle through the input modes.

DTV/TV channel

Video

Component

HDMI1

HDMI2

HDMI3

(or PC input)

5 Switching Audio Mode

This section describes how to switch the audio in the analog mode and how to switch the audio language in the digital mode.

Press [AUDIO] to display the currently selected audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel.

When all audio are available

When stereo and monaural audio are available

When SAP and monaural audio are available

When only monaural audio is available

STEREO : Outputs stereo-audio SAP : Outputs second audio program MONO : Outputs mono-audio

DTV

Press [AUDIO] to display the currently selected

language and the number of available languages.

Press [AUDIO] repeatedly to cycle through the

available audio languages.

SAP / STEREO SAP / MONO

SAP / STEREO

MONO / STEREO MONO / STEREO

SAP / MONO SAP / MONO

(cannot be switched)

SAP / STEREO

MONO

11-1

English 1/3

PREPARATION WATCHING TV

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

• Pressing [CHANNEL -] reverses the direction of the input modes.

• Available languages differ depending on the broadcast. “Other” is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.

Note:

• [AUDIO] does not control external audio devices.

• The information display will automatically disappear in a few seconds.

ATCHING TV

5 TV Screen Information

You can display the currently selected channel or other information such as the audio mode on the TV screen.

In the analog mode, the current channel number and the audio mode are displayed.

DTV

In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed.

Press [INFO].

SAP / STEREO

480i

• The current channel number, audio mode, type of resolutions for video signal, TV aspect ratio, CC and TV program rating are displayed on the top-right corner of the TV screen.

• To clear the display, press [INFO] again. You can also press [BACK].

TV-PG DLSV

4:3

4 3

Press [INFO] to display the details of the currently selected program.

Broadcasting information

The following information is displayed.

1 2

A Day of Memories

Da M m ie

A quarter-century ago,which may now qualify as the good old days of newspapering,run-of-paper sales accounted for 80 percent of the industry's advertising revenues. Department stores and supermarket were

TV: TV-14

1 program title 2 program guide

(The program guide added to broadcasting information is displayed to a maximum of 4 lines.)

3 broadcast station 4 channel number 5 audio language

(Refer to “Switching Audio Mode” on page 15.)

6 effective scanning lines and scan mode 7 digital TV format 8 program aspect ratio 9 CC (not available if closed caption is set to “Off”) 10 child lock rating

KABC

English 1/2

1080i

Rating

11-1

16:9HDHD

16:9

5 6, 7, 8

9 10

Note:

• When the program guide consists of more than 4 lines, use [Cursor K/ L] to scroll.

• “No description provided.” is displayed when the program guide is not provided.

• While the program guide is displayed, the closed caption function is interrupted.

• In external input mode, the following screen is displayed; e.g.) When an external device is connected to VIDEO input

jack.

Video

480iSDSD

TV-PG DLSV

• The information display will automatically disappear in 1 minute.

5 TV Screen Display Mode

4 types of display modes can be selected when the broadcasting station is sending 4:3 or 16:9 video signal. And 3 types of display modes can be selected for PC input signal.

Press [SCREEN MODE] repeatedly to switch the TV aspect ratio.

For 4:3 video signal

English

INTRODUCTION

PREPARATION WATCHING TV

For 16:9 video signal

Sidebar Full

Wide Cinema

Sidebar

Display a 4:3 picture at its original size. Sidebars appear on both edges of the screen.

Full

Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen.

Cinema

Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally and vertically to fill the screen. This crops out the top and bottom of the picture.

Wide

Display the picture with its center at the original size and the edges stretched horizontally to fill the screen.

Full

Expand

Zoom

Cinema

Full

Display a 16:9 picture at its original size.

Zoom

Display a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.

Cinema

Display a vertically stretched picture.

Expand

Display a horizontally stretched picture.

For PC input signal through

Normal Full

HDMI1

input mode

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

Dot By Dot

Normal

Display a proportionately stretched picture. Sidebars appear on both edges of the screen.

Full

Display a picture that is stretched out of proportion to fill the screen.

Dot By Dot

Display a picture in its original size.

PTIONAL SETTING

5 Main Menu

This section describes the overview of the main menu displayed when you press [SETUP]. For more details, see the reference page for each item. The main menu consists of the function setting items below.

Press [SETUP].


SOUND

CHANNEL

DETAIL


You can adjust the picture quality. (Refer to “Picture Adjustment” on page 21.)

SOUND

You can adjust the sound quality. (Refer to “Sound Adjustment” on page 22.)

CHANNEL

• You can automatically scan the viewable channels. (Refer to “Autoscan” on page 18.)

• You can skip the undesired channels when selecting the channels using [CHANNEL (Refer to “Channel List” on page 19.)

• You can add the channels that were not scanned by the autoscan. (Refer to “Manual Register” on page 19.)

DETAIL

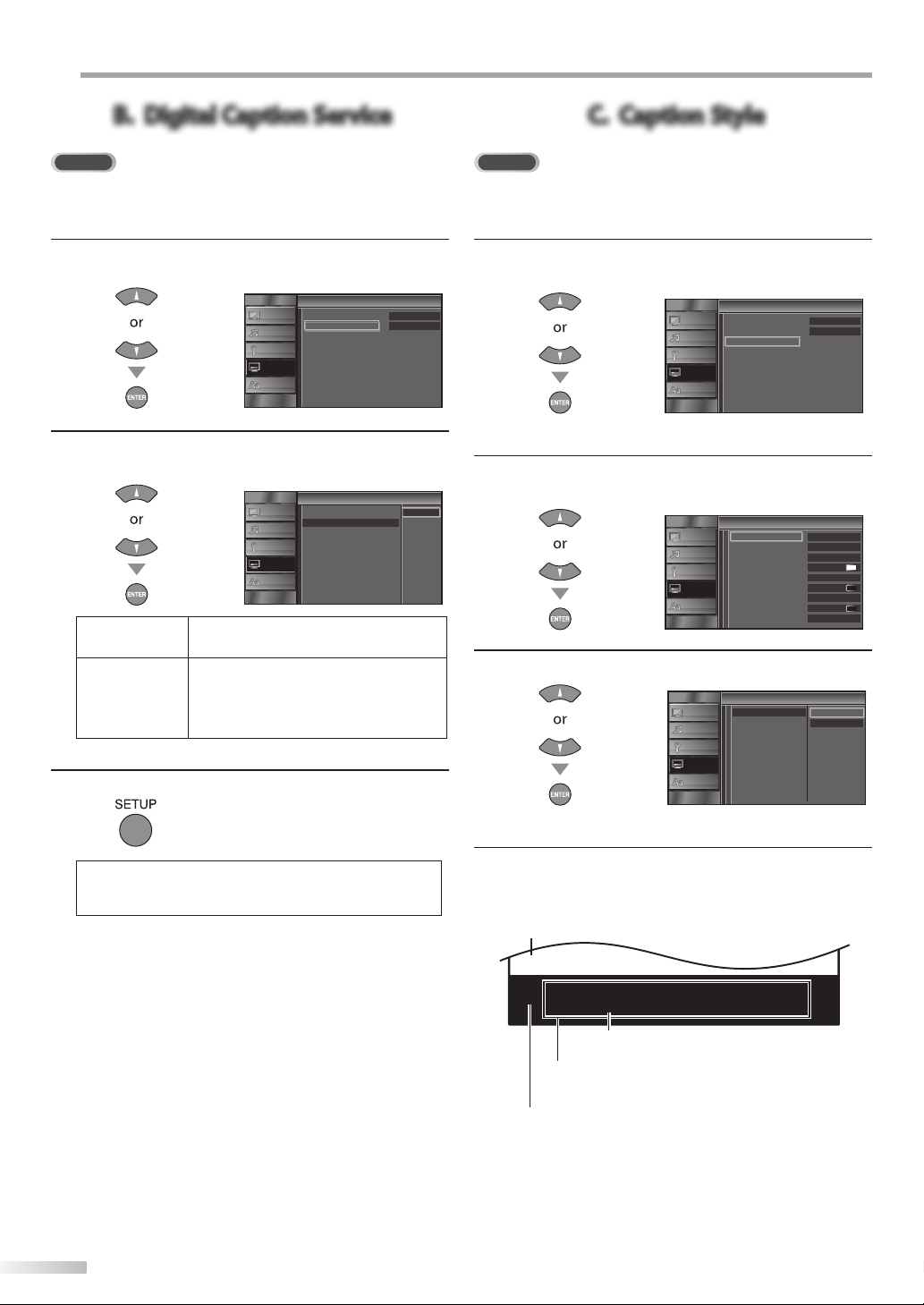

• You can change the display format for closed caption, which displays the dialogue of a TV program or other information across the TV screen. (Refer to “Closed Caption” on page 23.)

• You can set the viewing limitations. (Refer to ‘‘Child Lock” on page 26.)

• You can adjust the position, stability and clarity of the PC screen. (Refer to “PC Settings” on page 30.)

• You can select the energy saving mode. (Refer to “Energy Saving Mode” on page 31.)

• When you adjust the desired “PICTURE” and “SOUND” mode, you must switch the setting from “Retail” to “Home”. (Refer to “Location” on page 31.)

• You can confirm the version of the software currently used in this unit. (Refer to ”Current Software Info” on page 32.)

LANGUAGE

You can change the language (English, Spanish, French) displayed on the main menu. (Refer to “Language Selection” on page 20.)

LANGUAGE

5 Autoscan

If you switch wires (e.g., between antenna and CATV) or if you move the unit to a different area after the initial setting, or if you restore the DTV channel you deleted, you will need to perform autoscan.

Before you begin: Make sure the unit is connected to antenna or cable.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL” , then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

Use [Cursor K / L] to select “Autoscan”, then press

[ENTER].

Use [Cursor K / L] to select an appropriate option, then press [ENTER].

• When aerial antenna is connected, select “Antenna”.

• When connected to CATV, select “Cable”.

• “Autoscan” will begin.

• When the scanning and memorizing are completed, the lowest memorized channel will be displayed.

Note:

• After setting “Autoscan”, using [CHANNEL - / +] on the remote control skips unavailable programs automatically.

• If you connect the cable system directly, contact the CATV installer.

• If you press [POWER] or [SETUP] during autoscan, the setting will be canceled.

• Even if “Autoscan“ is completed, the channel setting will be lost if the AC power cord is unplugged before turning off the unit by pressing [POWER].

• The PIN Code will be required once you set a PIN Code in the “Child Lock“ (Refer to page 26).

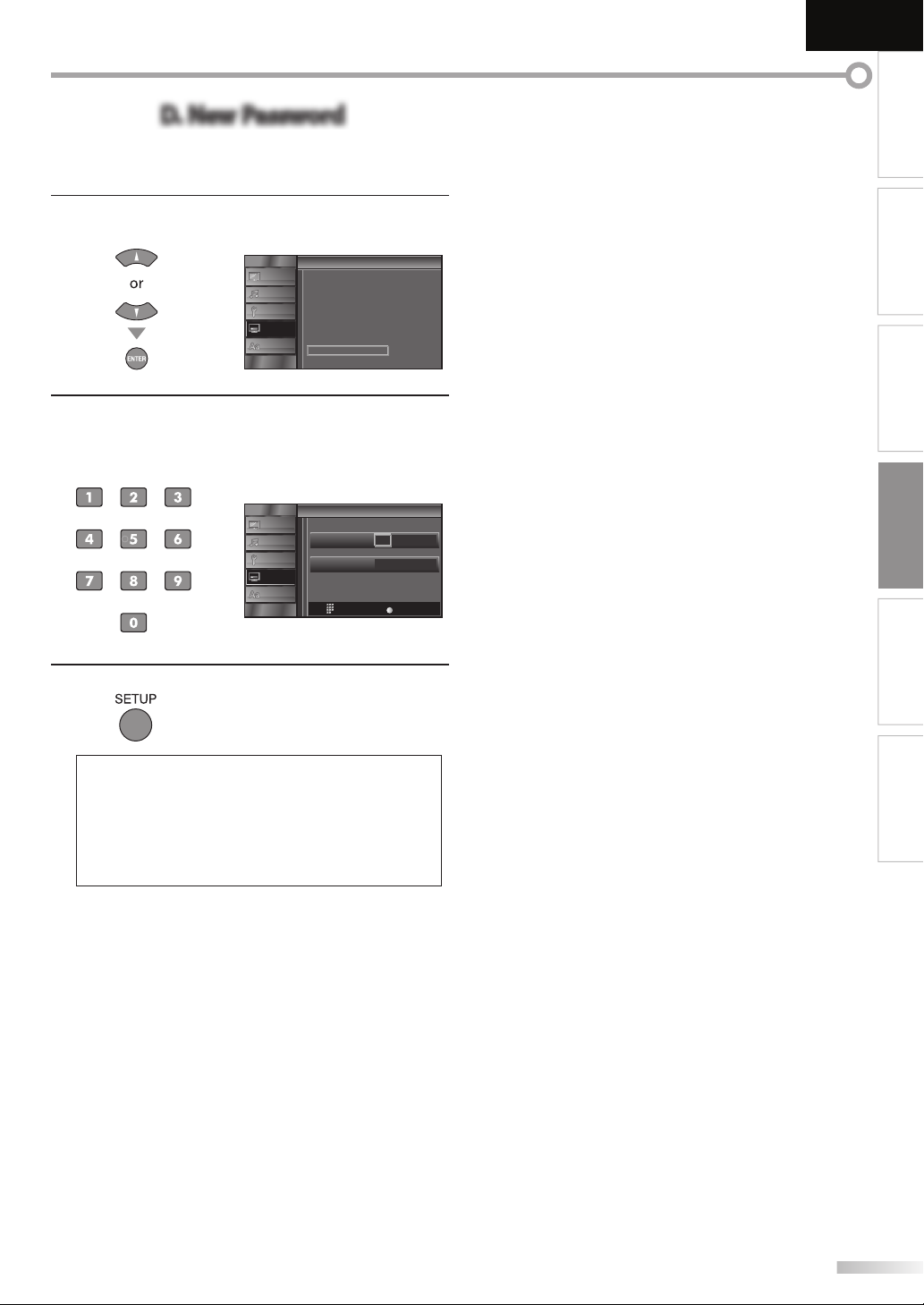

• If you want to change your PIN Code, follow the instruction of “New Password” (Refer to page 29).

Channel


SOUND

CHANNEL

DETAIL

LANGUAGE


SOUND

CHANNEL

DETAIL

LANGUAGE

Now the system is scanning for Channe s please wait Autoscan w ll take up to 20 minutes to complete

75%

Analog channels 10ch

Digital channels 6ch

Autoscan

Channel List

Manual Reg ster

Antenna

Autoscan

Autoscan will rescan all channels Autoscan will take up to 20 minutes to complete

Select the destination of "ANTIN" jack

Antenna

Cable

SETUP

Exit

Back

Antenna

Cable

ANTIN

English

INTRODUCTION

5 Channel List

The channels selected here can be skipped when selecting the channels using [CHANNEL -/ +]. Those channels can still be selected with [the Number buttons].

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL”, then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

Use [Cursor K / L] to select “Channel List”, then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

Channel

Autoscan

Channel List

Manual Register

Antenna

5 Manual Register

This function lets you add the channels that were not added by the autoscan due to the receptible condition at the initial setting.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL”, then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

Use [Cursor K / L] to select “Manual Register”, then

press [ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

Channel

Autoscan

Channel List

Manual Register

Antenna

PREPARATION

WATCHING TV

OPTIONAL SETTING

TROUBLESHOOTING

Use [Cursor K / L] to select the channel you want to

remove, then press [ENTER].

Channel List

h i


Highlight channe s for Ch Up/Down key selection

SOUND

CHANNEL

DETAIL

LANGUAGE

E TER

Ch Select Watch/Skip

• The channel display for the removed channel darkens. You will not be able to select the channel again using [CHANNEL / ].

• To reactivate a removed channel, use [Cursor K / L] and press [ENTER]. The registered channels are highlighted.

• When you remove a main channel, its subchannels are removed as well.

Note:

• The channel with the “DTV” indicated on the display is ATSC. Otherwise the channel is NTSC.

Press [SETUP] to exit.

DTV

DTV 8

DTV

DTV 67

BACK

Back

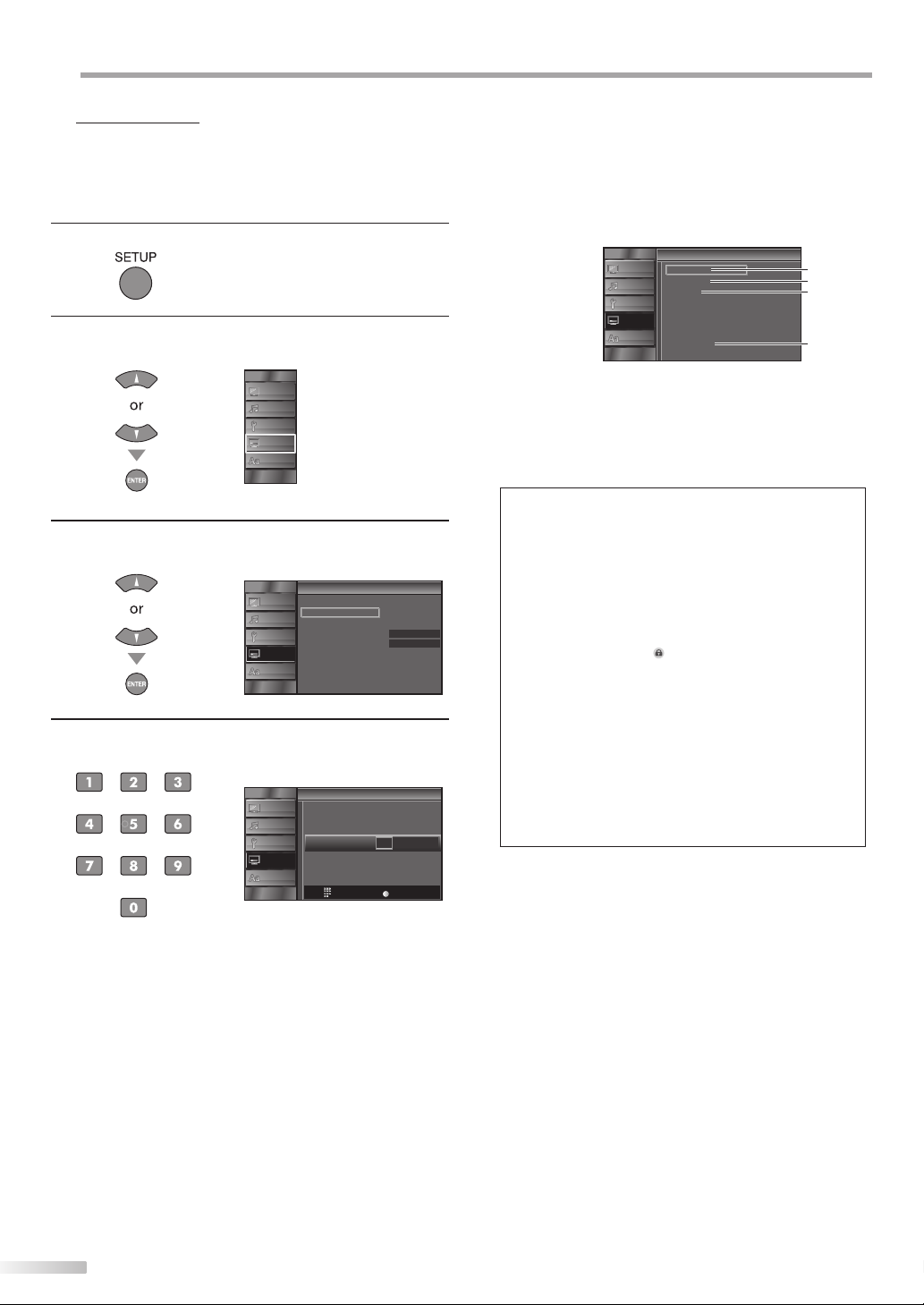

Use [the Number buttons] to enter the number of the

channel you want to add, then press [ENTER].

INFORMATION


SOUND

CHANNEL

DETAIL

LANGUAGE

Manual Register

For analog channels select a channel to register using number keys

For digital channe s you must perform Autoscan function

Ch Change

Press [SETUP] to exit.

Note:

• If setup completes successfully, “Added to the channel list” is displayed.

• If external input is used, it is not possible to register the channel and “Unavailable” will be displayed on the TV screen.

• By using [CHANNEL channels only.

/ + ], you can select the memorized

Reg ster

BACK

Back

PTIONAL SETTING

5 Antenna Confirmation

DTV

This function lets you check the digital signal strength of each channel.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “CHANNEL”, then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

Use [Cursor K / L] to select “Antenna”, then press

[ENTER].

Use [the Number buttons] or [CHANNEL / ] to

select the channel for which you want to check the digital signal strength.


SOUND

CHANNEL

DETAIL

LANGUAGE

Channel

Autoscan

Channel List

Manual Register

Antenna

5 Language Selection

You can choose English, Spanish, or French as your on-screen language.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “LANGUAGE”, then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

Use [Cursor K / L] to select “English”, “Español” or

“Français”, then press [ENTER].

Press [SETUP] to exit.


Se ect the language for setup disp ay

SOUND

Elija el idioma de ajuste

CHANNEL

Sélect onner langue écran config

DETAIL

LANGUAGE

Language

English

Español

França s

Antenna


SOUND

CHANNEL

DETAIL

LANGUAGE

• If the channel is set to analog channel or external input, you cannot confirm the antenna condition.

Antenna

n a


SOUND

Indicator s available for digital broadcasting

CHANNEL

only

DETAIL

LANGUAGE

Press [SETUP] to exit.

Current50 50 Max

Ch Change

11-1

Back

Video

Back

Note:

• If you need the English menus instead of the Spanish or

French menus, press [SETUP]. Use [Cursor K / L] to select “IDIOMA” or “LANGUE”, then press [ENTER]. Use [Cursor K Press [SETUP] to exit the main menu.

/ L] to select “English”, then press [ENTER].

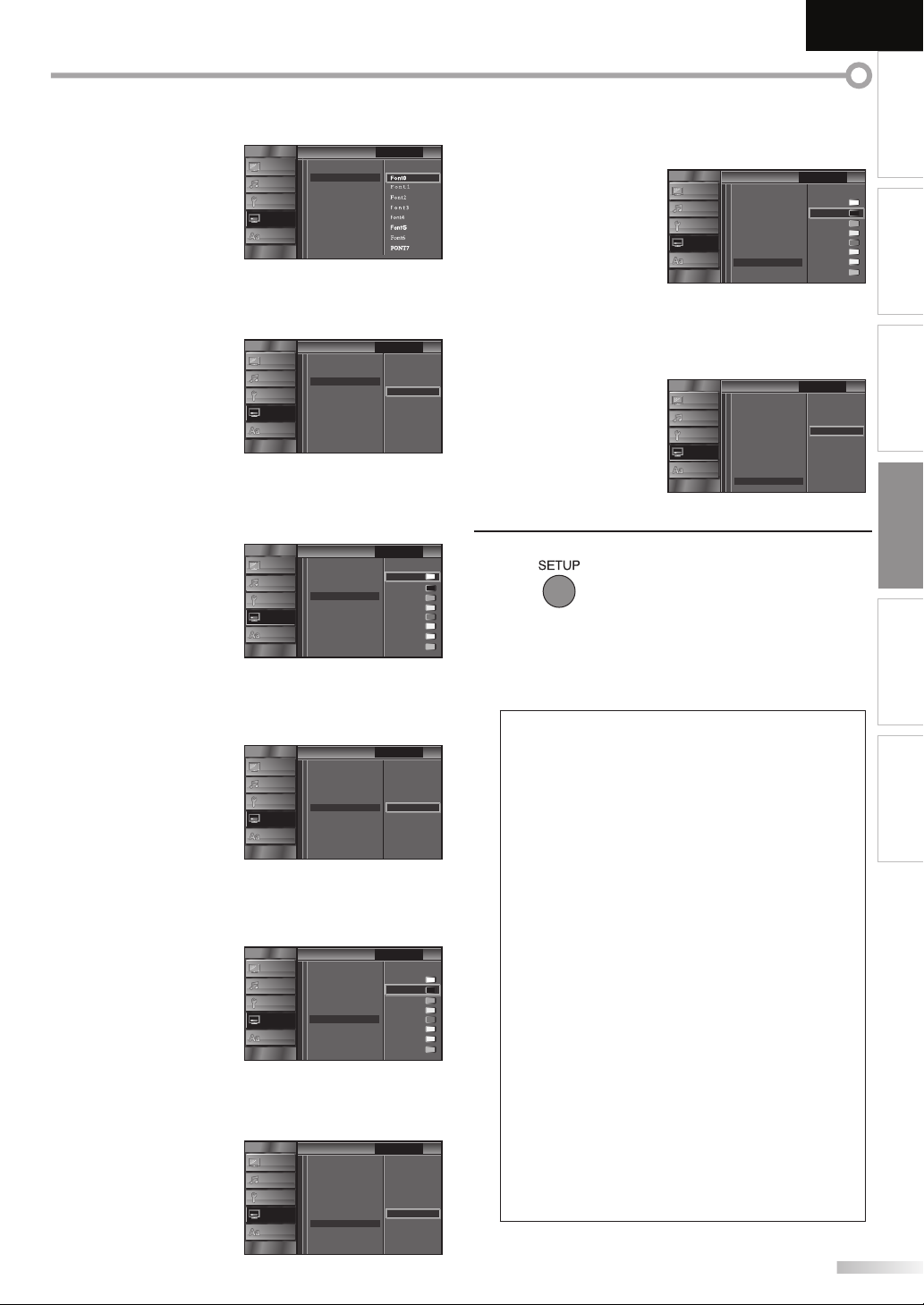

5 Picture Adjustment

You can adjust brightness, contrast, color, tint, sharpness and color temperature.

English

INTRODUCTION

Before you begin: You must set ”Home” in ”Location” (Refer to page 31).

Otherwise, the settings you adjusted will not be memorized after you turn off the unit.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “PICTURE”, then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

Use [Cursor K / L] to select the item you want to adjust,

then press [ENTER].


i u

Adjust the picture quality.


SOUND

CHANNEL

DETAIL

LANGUAGE

Picture Mode

Brightness

Contrast

Color

Tint

Sharpness

Color Temperature

Personal

Normal

Picture Mode

Use [Cursor K / L] to select the desired setting, then press [ENTER]. (‘‘Personal“, ‘‘Standard“, ‘‘Sports“, ‘‘Movie“ and ‘‘Game“)

Brightness, Contrast, Color, Tint, Sharpness, Color Temperature

Use [Cursor K / L] to select the desired setting, then use [Cursor

Brightness

Brightness 30

Adjust

Contrast

Adjust Move

Color

Color 36

Adjust Move

Tint

Adjust Move

Sharpness

Adjust Move

Color Temperature

Color Temp. Normal

Adjust Move

] to adjust.

Cursor

to decrease

ENT R

Move

Enter

0Sharpness

ENTER

Enter

ENTER

Enter

ENTER

Enter

ENTER

Enter

ENTER

Enter

brightness

to decrease contrast

to decrease color intensity

to add red to add green

to soften to sharpen

to add warm colors

Cursor

to increase brightness

to increase contrast

to increase color intensity

to add cool colors

PREPARATION

WATCHING TV

OPTIONAL SETTING

TROUBLESHOOTING

INFORMATION



Picture Mode

Brightness

SOUND

Contrast

Color

CHANNEL

Tint

Sharpness

DETAIL

Color Temperature

LANGUAGE

Personal

Standard

Sports

Movie

Game

Press [SETUP] to exit.

Note:

• To cancel picture adjustment, press [SETUP].

• Only the ‘‘Personal“ setting can be adjusted.

PTIONAL SETTING

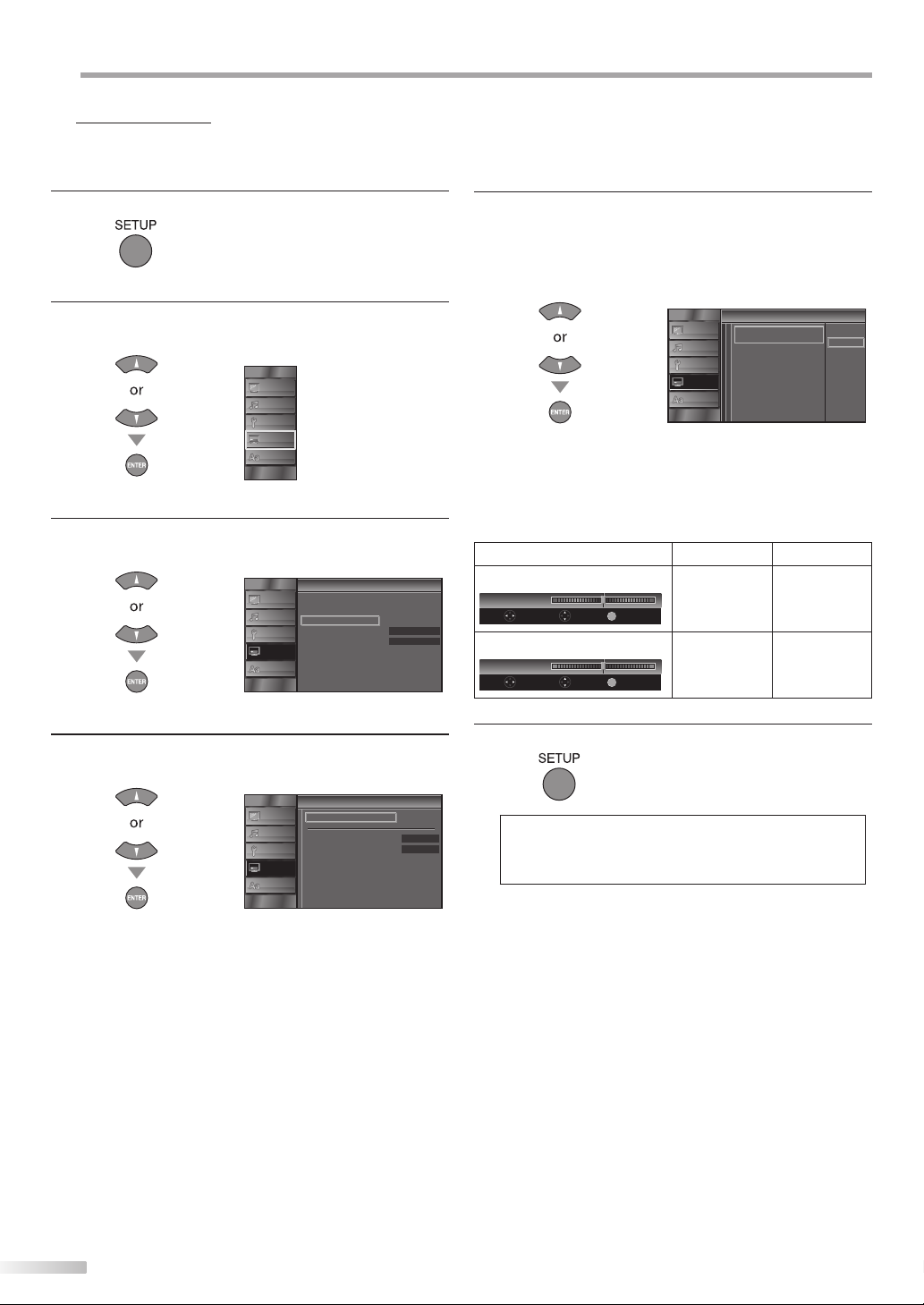

5 Sound Adjustment

You can adjust the sound mode, equalizer and some other sound functions.

Before you begin: You must set ”Home” in ”Location” (Refer to page 31).

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “SOUND”, then press

[ENTER].

Use [Cursor K / L] to select the sound type you want to

adjust, then press [ENTER].

Adjust the following items.

Sound Mode

Use [Cursor K / L] to select the desired setting, then press [ENTER]. (“Personal “, “Standard “, “Movie “, “Music “and “News “)

Equalizer

Adjust tonal quality for each frequencies. Use [Cursor s / and use [Cursor K / L] to adjust the level, then pr

[ENTER].

Virtual Surround Sound

Virtual Surround Sound gives you the stereo phonic virtual space through your existing 2-channel stereo system.

Otherwise, the settings you adjusted will not be memorized after you turn off the unit.


SOUND

CHANNEL

DETAIL

LANGUAGE

Sound


SOUND

CHANNEL

DETAIL

LANGUAGE

Sound Mode

Equalizer

Virtual Surround Sound

Auto Volume Level ng

TV Speakers

Standard

Off

Ext Amp

Sound

Sound Mode


Equalizer

SOUND

V rtual Surround Sound

Auto Volume Leveling

CHANNEL

TV Speakers

DETAIL

] to select the specific frequency

LANGUAGE


SOUND

CHANNEL

DETAIL

LANGUAGE

Equalizer

qu r

120Hz0500Hz01 5kHz05kHz010kHz

Personal

Standard

Movie

Music

News

ess

Use [Cursor K / L] to select the desired option, then press [ENTER].

Virtual Surround Sound

t r n u


This selects the modes for more spatial or surround sound reproduction

SOUND

CHANNEL

DETAIL

LANGUAGE

On Emphasized effect.

Off Natural effect.

Auto Volume Leveling

This function keeps a constant loudness differential between the TV commercials and the programs.

Use [Cursor K / L] to select the desired option, then press [ENTER].

Auto Volume Leveling

o Vo g


Auto Volume Leveling reduces volume d fferences between channels and programs,

SOUND

providing a consistent audio level

CHANNEL

DETAIL

LANGUAGE

Off

Select if you want to reduce volume differences between the TV commercials and the programs.

Select if you want to remove the auto volume leveling.

TV Speakers

Select the audio output from the unit’s speakers, or not. If your amplifier compatible with the CEC function is connected to this unit using an HDMI cable, some part of the sound operations such as volume up can access synchronized by using this unit’s remote control.

Use [Cursor K / L] to select the desired option, then press [ENTER].

TV Speakers

"On":


Sound will be output from he TV speakers

SOUND

"Off":

Sound will not be output from he

CHANNEL

TV speakers

"Ext Amp":

Operation s possib e by connecting

DETAIL

to the HDMI CEC compa ible amp with a HDMI cable For deta ls look

LANGUAGE

in the user manual

Off

The sound will be output from the unit’s speakers.

The sound will not be output from the unit’s speakers.

This function allows you to control audio

Ext. Amp

output from CEC-compatible devices with the unit’s remote control.

Press [SETUP] to exit.

Note:

• To cancel sound adjustment, press [SETUP].

• We do not guarantee 100% interoperability with other brands of CEC compliant devices.

Off

Ext Amp

English

A. Caption Service

INTRODUCTION

5 Closed Caption

You can view closed captioning (CC) for TV programs, movies and news. Closed caption refers to text of dialogue or descriptions displayed onscreen.

Press [SETUP] to display the main menu.

Use [Cursor K / L] to select “DETAIL”, then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

Use [Cursor K / L] to select “Closed Caption”, then

press [ENTER].

See the following description for setting each item.

...

“A. Caption Service”

...

“B. Digital Caption Service”

...

“C. Caption Style”


SOUND

CHANNEL

DETAIL

LANGUAGE


SOUND

CHANNEL

DETAIL

LANGUAGE

Closed Caption

lo p

Caption Service

Digital Caption Service

Caption Style

D page 23

D page 24

Detail

Closed Caption

Child Lock

PC Sett ngs

Energy Sav ng Mode

Location

Current Software Info

Off

Home

A B C

A. Caption Service

Use [Cursor K / L] to select “Caption Service”, then

press [ENTER].

Closed Caption


Caption Service

Digital Caption Service

SOUND

Caption Style

CHANNEL

DETAIL

LANGUAGE

Use [Cursor K / L] to select the desired closed caption,

then press [ENTER].

Closed Caption

Caption Service Off


Digital Caption Service

SOUND

Caption Style

CHANNEL

DETAIL

LANGUAGE

Caption mode

CC1 and Text1;

are the primary caption and text services. The captioning or text is displayed in the same language as the program’s dialogue (up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture).

CC3 and Text3;

serve as the preferred data channels. The captioning or text is often a secondary language.

CC2, CC4, Text2 and Text4;

are rarely available and broadcasters use them only in special conditions, such as when “CC1” and “CC3” or “Text1” and “Text3” are not available.

• There are 3 display modes according to programs:

Paint-on mode:

Displays input characters on the TV screen immediately.

Pop-on mode:

Once characters are stored in memory, they are displayed all at once.

Roll-up mode:

Displays the characters continuously by scrolling (max. 4 lines).

PREPARATION

Off

WATCHING TV

CC1

OPTIONAL SETTING

CC2

CC3

CC4

Text1

Text2

Text3

Text4

TROUBLESHOOTING

INFORMATION

Press [SETUP] to exit.

PTIONAL SETTING

B. Digital Caption Service

C. Caption Style

B. Digital Caption Service

DTV

In addition to the basic closed caption described on page 23, DTV has its own closed caption called digital caption service. Use this menu to change the settings for digital caption service.

Use [Cursor

L] to select “Digital Caption Service”,

then press [ENTER].

Closed Caption


Use [Cursor

Caption Service

Digital Caption Service

SOUND

Caption Style

CHANNEL

DETAIL

LANGUAGE

L] to select the desired digital caption

Off

service, then press [ENTER].

Closed Caption

Off

Service 1~6

Press [SETUP] to exit.


Caption Service

Digital Caption Service

SOUND

Caption Style

CHANNEL

DETAIL

LANGUAGE

Select if you do not want digital caption service. This is the default.

Select one of these before changing any other item in “Closed Caption” menu. Choose “Service1” under normal circumstances.

Off

Service1

Service2

Service3

Service4

Service5

Service6

C. Caption Style

DTV

You can change the caption style such as font, color or size, etc.

Use [Cursor

L] to select “Caption Style”, then press

[ENTER].

Closed Caption


Caption Service

D gital Caption Service

SOUND

Caption Style

CHANNEL

DETAIL

LANGUAGE

Use [Cursor

L] to select “User Setting”, then press

[ENTER].

Caption Style


User Setting

Font Sty e

SOUND

Font Size

Font Color

CHANNEL

Font Opacity

Background Color

DETAIL

Background Opacity

LANGUAGE

Edge Color


SOUND

CHANNEL

DETAIL

LANGUAGE

Edge Type

Caption Style

Caption S yle

User Setting

Font Style

Font Size

Font Color

Font Opacity

Background Color

Background Opacity

Edge Color

Edge Type

Use [Cursor

L] to select “On”, then press [ENTER].

n S

Off

Font0

Middle

Wh te

So id

Black

So id

Black

None

Off

Note:

• “Digital Caption Service” that you can switch differs depending on the broadcast description.

Use [Cursor

[ENTER]. Then use [Cursor

L] to select an item, then press

L] to select the desired

setting and press [ENTER].

Picture display

ABCDEFGHIJKL

Edge (Edge Color and Edge Type)

Font (Font Style, Font Size, Font Color and Font Opacity

or Transparency) Background (Background Color and Background Opacity or Transparency)

• The setting description for each item is shown on the next page.

• Review your setting choice made on the next page by looking in the upper right corner of the displayed setting box (not all selections show the differences selected).

English

INTRODUCTION

Font Style

Closed Captioning font style can be changed as below.


SOUND

CHANNEL

DETAIL

LANGUAGE

Caption Style

p S

User Setting

Font Style

Font Size

Font Color

Font Opacity

Background Color

Background Opacity

Edge Co or

Edge Type

Closed Caption

Font Size

Font size of the displayed caption can be switched as below.


SOUND

CHANNEL

DETAIL

LANGUAGE

Caption Style

p S

User Setting

Font Style

Font Size

Font Color

Font Opacity

Background Color

Background Opacity

Edge Co or

Edge Type

Closed Caption

Large

Middle

Small

Font Color

Font color of the displayed caption can be switched as below.

Caption Style


SOUND

CHANNEL

DETAIL

LANGUAGE

p S

User Setting

Font Style

Font Size

Font Color

Font Opacity

Background Color

Background Opacity

Edge Co or

Edge Type

Closed Caption

White

Black

Red

Green

Blue

Yellow

Magenta

Cyan

Edge Color

Edge color of the displayed caption can be switched as below.

Caption Style


SOUND

CHANNEL

DETAIL

LANGUAGE

t yle

User Setting

Font Style

Font Size

Font Color

Font Opacity

Background Color

Background Opacity

Edge Color

Edge Type

Closed Caption

Edge Type

Edge type of the displayed caption can be switched as below.

Press [SETUP] to exit.


SOUND

CHANNEL

DETAIL

LANGUAGE

Caption Style

t yle

User Setting

Font Style

Font Size

Font Color

Font Opacity

Background Color

Background Opacity

Edge Color

Edge Type

Closed Caption

White

Black

Red

Green

Blue

Yel ow

Magenta

Cyan

None

Raised

Depressed

Uniform

L Shadow

R Shadow

PREPARATION

WATCHING TV

OPTIONAL SETTING

TROUBLESHOOTING

Font Opacity

Font opacity of the displayed caption can be switched as below.


SOUND

CHANNEL

DETAIL

LANGUAGE

Caption Style

p S

User Setting

Font Style

Font Size

Font Color

Font Opacity

Background Color

Background Opacity

Edge Co or

Edge Type

Closed Caption

Solid

Flash

Translucent

Transparent

Background Color

Background color of the displayed caption can be switched as below.

Caption Style


SOUND

CHANNEL

DETAIL

LANGUAGE

p S

User Setting

Font Style

Font Size

Font Color

Font Opacity

Background Color

Background Opacity

Edge Color

Edge Type

Closed Caption

White

B ack

Red

Green

Blue

Yellow

Magenta

Cyan

Background Opacity

Background opacity of the displayed caption can be switched as below.


SOUND

CHANNEL

DETAIL

LANGUAGE

Caption Style

p S

User Setting

Font Style

Font Size

Font Color

Font Opacity

Background Color

Background Opacity

Edge Co or

Edge Type

Closed Caption

Solid

Flash

Translucent

Transparent

Note:

• To show the closed caption on your TV screen, broadcast signal must contain the closed caption data.

• Not all TV programs and commercials have the closed caption or all types of the closed caption.

• Captions and texts may not match the TV voice exactly.

• Changing channels may delay the closed caption for a few seconds.

• Adjusting or muting the volume may delay the closed caption for a few seconds.

• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screen action. This is not a malfunction.

• The caption or text characters will not be displayed while the main menu or functions display is shown.

• If a black box appears on the TV screen, this means that the closed caption is set to the text mode. To clear the box, select “CC1”, “CC2”, “CC3”, “CC4” or “Off”.

• If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are:

- Automobile ignition noise

- Electric motor noise

- Weak signal reception

- Multiplex signal reception (ghosts or screen flutter)

• The unit retains the closed caption setting if the power fails.

• Closed caption will not be displayed when you are using an HDMI connection.

• When the unit receives special effects playback signal (i.e., Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the unit may not display the correct caption or text.

INFORMATION

PTIONAL SETTING

5 Child Lock

Child lock reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programs inappropriate for children and any channels or external input modes can be invisible.

Press [SETUP] to display the main menu.

Use [Cursor

L] to select “DETAIL”, then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

Use [Cursor K / L] to select “Child Lock”, then press

[ENTER].

Detail


Closed Caption

Child Lock

SOUND

PC Sett ngs

Energy Saving Mode

CHANNEL

Location

DETAIL

Current Software Info

LANGUAGE

Use [the Number buttons] to enter the 4-digit

numbers for your PIN Code.

Child Lock


SOUND

CHANNEL

Enter password.

DETAIL

LANGUAGE

PIN Code

See the following description for setting each item.

Child Lock


SOUND

CHANNEL

DETAIL

LANGUAGE

Channel Lock

MPAA Rating

TV Rating

Canadian Eng ish Rating

Canadian French Rating

Downloadable Rating

Clear Downloadable Rating

New Password

B C

...

“A. Channel Lock”

...

“B. MPAA Rating”

...

“C. TV Rating”

...

“D. New Password”

D page 27

D page 28

D page 29

Note:

• When you select a rating and set it to “Block”, the higher ratings will be blocked automatically. The lower ratings will be available for viewing.

• When you set the highest rating to “View”, all ratings turn to “View” automatically.

• To block any inappropriate programs, set your limits in “MPAA Rating”, “TV Rating” and “Downloadable Rating”.

Home

----

BACK

Back

• The child lock setting will be retained after a power failure (except the access code reverts to 0000).

• If the rating is blocked,

will appear.

• “Downloadable Rating” will be available when the unit receives a digital broadcast using the new rating system.

• If the broadcasting signal does not have the Downloadable Rating information, “Downloadable Rating is currently not available.” will appear. This message will also appear when you try to access “Downloadable Rating” after you have cleared the Downloadable Rating information, and the new information has not been downloaded since.

• The Canadian rating systems on this unit based on CEA-766-A and the Canadian Radio-Television and Telecommunications Commission (CRTC) policy.

• When you have not set up your PIN Code, enter 0000.

• When the PIN Code is correct, “Child Lock” menu is displayed.

English

A. Channel Lock

B. MPAA Rating

INTRODUCTION

A. Channel Lock

Particular channels or external input modes can be invisible in this function.

Use [Cursor K / L] to select “Channel Lock”, then press

[ENTER].

Child Lock


Cannel Lock

MPAA Ratng

SOUND

TV Rating

Canadian English Rat ng

CHANNEL

Canadian French Rating

DETAIL

Downloadable Rating

C ear Downloadable Rating

LANGUAGE

New Password

Use [Cursor K / L] to select the desired rating, then

press [ENTER] repeatedly to switch between “View” and “Block”.

Channel Lock

h k

Press [SETUP] to exit.


SOUND

CHANNEL

DETAIL

LANGUAGE

Video Component HDMI 1 HDMI 2 HDMI 3 11 1 DTV

E TER

Select View/B ock

B. MPAA Rating

MPAA Rating is the rating system created by MPAA (Motion Picture Association of America).

PREPARATION

Use [Cursor K / L] to select “MPAA Rating”, then press

[ENTER].

Child Lock


Cannel Lock

MPAA Rating

SOUND

TV Rating

Canadian Eng ish Rating

CHANNEL

Canadian French Rating

DETAIL

Downloadable Rating

Clear Downloadable Rating

LANGUAGE

New Password

Use [Cursor K / L] to select the desired rating, then

press [ENTER] repeatedly to switch between “View” and “Block”.

MPAA Rating


SOUND

CHANNEL

DETAIL

BACK

Back

LANGUAGE

Rating Category

X Mature audience only

NC-17 No one under 17 admitted

Restricted; under 17 requires accompanying parent or adult guardian

PG-13 Unsuitable for children under 13

PG Parental guidance suggested

G General audience

NR No rating

X NC 17 R PG 13 PG G NR

EN ER

Se ect View/Block

WATCHING TV

OPTIONAL SETTING

BACK

Back

TROUBLESHOOTING

INFORMATION

Press [SETUP] to exit.

PTIONAL SETTING

C. TV Rating

Use [Cursor K / L] to select “TV Rating”, then press

[ENTER].

Child Lock


Cannel Lock

MPAA Ratng

SOUND

TV Rating

Canadian English Rat ng

CHANNEL

Canadian French Rating

DETAIL

Downloadable Rating

C ear Downloadable Rating

LANGUAGE

New Password

Use [Cursor K / L / s

] to select the desired rating, then press [ENTER] repeatedly to switch between “View” and “Block”.

TV Rating

Press [SETUP] to exit.


SOUND

CHANNEL

DETAIL

LANGUAGE

TV MA TV 14 TV PG TV G TV Y7 TV Y

ENT R

Select View/Block

To set the sub ratings

As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below.

V S L D

BACK

Rating Category

TV-MA Mature audience only higher

TV-14 Unsuitable for children under 14

TV-PG Parental guidance suggested

TV-G General audience

TV-Y7

Appropriate for all children 7 and older

TV-Y Appropriate for all children lower

Sub Rating Category Rating

FV Fantasy Violence TV-Y7

V Violence

S Sexual Situation

L Coarse Language

D Suggestive Dialogue TV-PG, TV-14

Back

Note:

• Blocked sub rating will appear beside the main rating category in “TV Rating” menu.

• You cannot block a sub rating (D, L, S or V) if the main rating is set to “View”.

• Changing the category to “Block” or “View” automatically changes all its sub ratings to the same (“Block” or “View”).

TV-PG TV-14 TV-MA

Use [Cursor K / L /

] to select the desired rating,

then press [ENTER] repeatedly to switch between “View” and “Block”.

TV Rating

R i g


SOUND

CHANNEL

DETAIL

LANGUAGE

TV MA TV 14 TV PG TV G TV Y7 TV Y

E TER

Select View/B ock

V S L D

BACK

Back

D. New Password

Although the default code “0000” is supplied with the unit, you can set your own PIN Code.

English

INTRODUCTION

Use [Cursor K / L] to select “New Password”, then press

[ENTER].

Child Lock


Channel Lock

MPAA Ratng

SOUND

TV Rating

Canadian English Rat ng

CHANNEL

Canadian French Rating

DETAIL

Downloadable Rating

C ear Downloadable Rating

LANGUAGE

New Password

Press [the Number buttons] to enter the new 4-digit

PIN Code.

• Enter PIN Code again in “Confirm password.” entry field.

New Password


Enter password.

SOUND

CHANNEL

DETAIL

LANGUAGE

Confirm password.

----

PIN Code

Press [SETUP] to exit.

PREPARATION

WATCHING TV

OPTIONAL SETTING

BACK

Back

TROUBLESHOOTING

Note:

• Make sure new PIN Code and confirm PIN Code must be exactly the same. If they are different, the space is cleared for reentering.

• Your PIN Code will be erased and return to the default (0000) when a power failure occurs. If you forget the PIN Code, unplug the AC power cord for 10 seconds to restore the PIN Code to 0000.

INFORMATION

PTIONAL SETTING

5 PC Settings

This function lets you adjust the PC screen position during PC input through the HDMI 1 input jack.

Press [SETUP] to display the main menu.

Use [Cursor

L] to select “DETAIL”, then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

Use [Cursor

L] to select “PC Settings”, then press

[ENTER].


SOUND

CHANNEL

DETAIL

LANGUAGE

Detail

Closed Caption

Child Lock

PC Sett ngs

Energy Sav ng Mode

Location

Current Software Info

Home

Adjust the setting.

Position Reset

Use [Cursor K / L] to select “Reset”, then press [ENTER].

Position Reset


SOUND

CHANNEL

DETAIL

LANGUAGE

i n

Resets the d splay position of the p cture

• The horizontal/vertical position, of the PC screen are automatically adjusted.

Horizontal Position, Vertical Position

Use [Cursor

Horizontal Position

H. Position

Adjust Move

Vertical Position

V. Position

Adjust Move

] to adjust.

Cursor

to move PC

EN ER

Enter

EN ER

Enter

screen left

to move PC

screen down

Cursor

to move PC screen right

to move PC screen up

Cancel

Reset

Use [Cursor K / L] to select the setting you want to

adjust, then press [ENTER].

PC Settings

C in


SOUND

CHANNEL

DETAIL

LANGUAGE

Position Reset

Hor zontal Pos t on

Vertical Position

Press [SETUP] to exit.

Note:

• You may not obtain an appropriate screen with “Position Reset” for some signals. In this case, adjust the settings manually.

English

INTRODUCTION

5 Energy Saving Mode

You can set whether the power consumption is saved or not.

Press [SETUP] to display the main menu.

Use [Cursor

[ENTER].

Use [Cursor

press [ENTER].

L] to select “DETAIL”, then press


SOUND

CHANNEL

DETAIL

LANGUAGE

L] to select “Energy Saving Mode”, then

Detail


Closed Caption

Child Lock

SOUND

PC Sett ngs

Energy Saving Mode

CHANNEL

Location

DETAIL

Current Software Info

LANGUAGE

Home

5 Location

When you select ”Retail”, the power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification.

Press [SETUP] to display the main menu.

Use [Cursor

[ENTER].

Use [Cursor

[ENTER].

L] to select “DETAIL”, then press


SOUND

CHANNEL

DETAIL

LANGUAGE

L] to select “Location”, then press

Detail


Closed Caption

Child Lock

SOUND

PC Settings

Energy Saving Mode

CHANNEL

Location

DETAIL

Current Software Info

LANGUAGE

Home

PREPARATION

WATCHING TV

OPTIONAL SETTING

TROUBLESHOOTING

Use [Cursor

press [ENTER].

Off

Press [SETUP] to exit.

L] to select the desired mode, then

Energy Saving Mode


SOUND

CHANNEL

DETAIL

LANGUAGE

r i g

When set to “On”, power consumption is reduced by decreasing backl ght brightness

Select if you want to reduce the power consumption.

The power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification.

Use [Cursor

L] to select the desired location, then

INFORMATION

press [ENTER].

Location

Off

Press [SETUP] to exit.


SOUND

CHANNEL

DETAIL

LANGUAGE

Location Home is recommended for normal home use In the Retail Store mode, all settings are fixed

Retail

Home

PTIONAL SETTING

5 Current Software Info

This function shows what version of the software currently used.

Press [SETUP] to display the main menu.

Use [Cursor

[ENTER].

Use [Cursor

then press [ENTER].

L] to select “DETAIL”, then press


SOUND

CHANNEL

DETAIL

LANGUAGE

L] to select “Current Software Info”,

Detail


Closed Caption

Child Lock

SOUND

PC Sett ngs

Energy Saving Mode

CHANNEL

Location

DETAIL

Current Software Info

LANGUAGE

Home

Confirm the version of the software currently used.

Current Software Info

u n f r


Release Verson:

SOUND

CJ32OS 1 0

CHANNEL

DETAIL

LANGUAGE

Press [SETUP] to exit.

Back

ROUBLESHOOTING

5 FAQ

English

INTRODUCTION

Question Answer

• Check the antenna or cable connection to the main unit.

• Check the batteries of the remote control.

• Check if there is an obstacle between the infrared sensor window and the remote control.

• Test the signal output. If OK, then possible infrared sensor trouble.

My remote control does not work. What should I do?

How come the Initial setup appears every time I turn on this unit?

Why I cannot watch some TV programs.

How come there is no image from the connected external devices?

Whenever I entered channel number, it changes automatically.

Why are captions not displayed entirely? Or, captions are delayed behind the dialogue.

How can I set the clock ? • There is no clock function on this unit.

(Refer to “IR Signal Check” on page 36.)

• Aim the remote control directly at the infrared sensor window on the front of the unit.

• Reduce the distance to the unit.

• Re-insert the batteries with their polarities (+/– signs) as indicated.

• When there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unit.

• Move the infrared-equipped device away from this unit, change the angle of the infrared sensor or turn off the infrared communication function.

• Connect the RF coaxial cable to the unit directly and run the initial setup.

• Make sure to complete the channel scan before turning off the unit.

• Make sure autoscan has been completed. (Refer to “Autoscan” on page 18.)

• Autoscan must be completed when you set up the unit for the first time or move it to a location where previously unavailable channels are broadcast.

• The selected channel may not be broadcasting.

• When autoscan is interrupted and not completed, some channels will not be received. Make sure to complete. (Refer to “Autoscan” on page 18.)

• The selected channel cannot be viewed by the “Child Lock” setting. (Refer to ‘‘Child Lock” on page 26.)

• The unit requires some kind of antenna input. An indoor antenna (VHF /UHF), an external antenna (VHF /UHF) or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the unit.

• Check if the right input mode is selected by pressing [INPUT SELECT] or using [CHANNEL

15.)

• Check the antenna or cable connection to the unit.

• When using the Composite Video Connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr/Cr) connectors are connected to their corresponding colored jacks on the unit.

• Many digital channels have alternate channel numbers. The unit changes the numbers automatically to the ones signifying the broadcasting stations. These are the numbers used for analog broadcasts.

• Captions that are delayed a few seconds behind the actual dialogue are common for live broadcasts. Most captioning production companies can display a dialogue to maximum of 220 words per minute. If a dialogue exceeds that rate, selective editing is used to insure that the captions remain up-to date with the current TV screen dialogue.

/ +

]. (Refer to “Switching Each Input Mode” on page

PREPARATION

WATCHING TV

OPTIONAL SETTING

TROUBLESHOOTING

INFORMATION

ROUBLESHOOTING

5 Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this manual,

check the following chart and all connections once before calling for service.

Symptom Remedy

• Make sure the AC power cord is plugged in.

No power

Control button does not work.

Power is ON but no screen image.

No picture or sound

No color

Adjusted ‘‘PICTURE” or ‘‘SOUND” is not effective every time turn on the unit.

Sound OK, picture poor

Picture OK, sound poor

You see a distorted picture or hear an unusual sound.

• Make sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the AC outlet.

• If a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself.

• Press only one button at a time. Do NOT press more than one buttons at the same time.

• Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.

• Check whether all the cables to the unit are connected to the correct output jack of your device like BD/DVD recorder.

• Make sure that the selected input mode is connected to the working input jack.

• Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer.

• Check if the power is on.

• Check if the right input mode is selected.

• Check whether all the cables to the unit are connected to the correct output jack of your device like BD/DVD recorder.

• View other TV channels. The problem might be limited to the broadcasting station.

• Turn off the unit and wait for about 1 minute, then turn on the unit again.

• Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.

• Make sure that the selected input mode is connected to the working input jack.

• Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer.

• Make sure that the sound is not muted. Press [MUTE] so that the volume bar and current volume level will appear on the TV screen.

• Make sure that the volume is NOT set to “0” or “Mute”. If so, use [VOLUME adjust the desired volume.

• View other TV channels. The problem might be limited to the broadcasting station.

• Adjust “Color” in the main menu.

• You must set ”Home” in ”Location” (Refer to page 31). Otherwise, the settings you adjusted will not be memorized after you turn off the unit.

• Electrical interference from nearby appliances may affect picture quality.

• Adjust “Contrast” and “Brightness” in the main menu.

• View other TV channels. The problem might be limited to the broadcasting station.

• For the best picture quality, watch “high definition” wide screen programs. If the HD content is not available, watch “standard definition” programs instead.

• View other TV channels. The problem might be limited to the broadcasting station.

• Check if the audio cable is connected in correctly.

• You may be getting interference from electrical appliances, automobiles, motorcycles or  uorescent lights.

• Try moving the unit to another location to see if this is the cause of the problem.

-/ +

] to

Ghosts, lines or streaks in picture

You see “noise” or “trash” on the screen.

Different color marks on the TV screen

• Electrical interference from nearby appliances may affect picture quality.

• View other TV channels. The problem might be limited to the broadcasting station.

• When the capabilities of the unit exceed the capabilities of the digital broadcasting, the signal will be increased to match the capabilities of the display of the unit. This may cause noise or trash.

• View other TV channels. The problem might be limited to the broadcasting station.

English

INTRODUCTION

Symptom Remedy

You switch to a different input and the volume.

You switch to a different input and the screen size changes.

The display image does not cover the entire screen.

Captions are displayed as a white box. No caption is displayed in the Closed Caption-supported program.

No caption is displayed when playing back a disc or a cassette tape containing captions.

Black box is displayed on the TV screen.

• This unit will memorize the volume level from the last time you adjusted it.

• If the volume of the sound from another device is higher or lower, then the loudness will change.

• This unit will memorize the viewing mode from the last time you used the particular input modes.

• If you are using the unit as a PC monitor, make sure that “Horizontal Position” and “Vertical Position” in “PC Settings” are set correctly.

• If you are watching TV or using the video, S-video, component video or HDMI with 480i input, press [SCREEN MODE] repeatedly to switch various screen modes.

• Interference from buildings or weather conditions may cause captioning to be incomplete.

• Broadcasting station may shorten the program to insert advertisement. The closed caption decoder cannot read the information of the shortened program.

• The disc or cassette tape may be illegally copied, or the caption signal might not have been read during copying.

• The text mode is selected for caption. Select “CC1”, “CC2”, “CC3”, “CC4” or “Off”.

Note:

• The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of blue, green or red. This is not to be considered a defect in the LCD screen.

• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this manual for more details on correct operations.

PREPARATION

WATCHING TV

OPTIONAL SETTING

TROUBLESHOOTING

INFORMATION

NFORMATION

5 Glossary

ATS C

Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards.

Aspect Ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height).

CEC (Consumer Electronics Control)

This allows you to operate the linked functions between our brand devices with CEC feature and this unit. We do not guarantee 100% interoperability with other brands of CEC compliant devices.

Component Video

This is a video signal format that conveys each of 3 principal colors of light (red, blue and green) through different signal lines. This allows the viewers to experience picture colors as original as it is. There are several signal formats, including Y / Pb / Pr and Y / Cb / Cr.

Dolby Digital

The system developed by Dolby Laboratories to compress digital sound. It offers stereo sound (2ch) or multi-channel audio.

HDMI

(High-Definition Multimedia Interface)

Interface that supports all uncompressed, digital audio/video formats including set-top box, BD/DVD recorder or digital television, over a single cable.

HDTV (High Definition TV)

Ultimate digital format that produces high resolution and high picture quality.

NTSC

Acronym that stands for National Television Systems Committee and the name of the current analog broadcasting standards. Off the air NTSC signals will no longer be sent by broadcasting stations after Feb 17,

2009.

Password / PIN Code

A stored 4-digit number that allows access to parental control features.

SAP (Secondary Audio Program)

Second-audio channel delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting.

SDTV (Standard Definition TV)

Standard digital format that is similar to the NTSC picture quality.

S-video

Offers higher quality images by delivering each signal, color (c) and luminance (y) independently of each other through a separate cable.

5 Maintenance

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry.

• Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

Panel Cleaning

Wipe the panel of the unit with a soft cloth. Before cleaning the panel, disconnect the AC power cord.

Servicing

Should your unit become inoperative, do not try to correct the problem yourself. There are no user serviceable parts inside. Turn off the unit, unplug the AC power cord and call our toll free customer support line found on the cover of this manual to locate an authorized service center.

IR Signal Check

If the remote control is not working properly, you can use a digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal.

• With a digital camera (including built-in cell phone cameras): Point the Digital Camera towards the remote control infrared diode at the front of the remote control. Press any button on the remote control and look through the camera display. If the infrared pulsating light appears through the camera, the remote control is sending out an IR signal.

EnglishEspañol Français

5 Cable Channel Designations

If you subscribe to cable TV, the channels are displayed as 1-135. Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations.

CATV channel

TV Display

CATV channel

TV Display

CATV channel

TV Display

CATV channel

TV Display

CATV channel

TV Display

CATV channel

TV Display

CATV channel

TV Display

5A122334455667788991010111112121313A14B15C16D17E18F19G20H

I22J23K24L25M26N27O28P29Q30R31S32T33U34V35W36W+1

W+743W+844W+945W+1046W+1147W+1248W+1349W+1450W+1551W+1652W+1753W+1854W+1955W+2056W+2157W+2258W+2359W+2460W+2561W+2662W+27

W+2864W+2965W+3066W+3167W+3268W+3369W+3470W+3571W+3672W+3773W+3874W+3975W+4076W+4177W+4278W+4379W+4480W+4581W+4682W+4783W+48

W+4985W+5086W+5187W+5288W+5389W+5490W+5591W+5692W+5793W+5894A-595A-496A-397A-298A-199W+59

W+65

W+66

W+67

W+68

W+69

W+70

W+71

W+72

W+73

W+74

W+75

W+76

W+77

W+78

106

W+86

127

107

W+87

128

108

W+88

129

109

W+89

130

110

W+90

131

111

W+91

132

112

W+92

133

113

W+93

134

114

W+94

135

115

116

117

118

119

W+79

120

W+2 W+339W+440W+541W+6

37 38

W+60

W+61

100

W+80

121

101

W+81

122

102

W+82

123

W+62

W+83

103

124

W+63

104

W+84

125

W+64

105

W+85

126

INTRODUCTION

PREPARATION

WATCHING TV

5 General Specifications

TV format: ATSC / NTSC-M TV standard Closed caption system:

§15.122 / FCC (digital CC)

§15.119 / FCC (analog CC)

Channel coverage (ATSC/NTSC):

Terrestrial VHF: 2~13 UHF: 14~69 CATV 2~13, A~W,

W+1~W+94 (analog W+1~W+84),

A-5~A-1, 5A

Tuning system: Channel frequency synthesized tuning system Channel access: Direct access keyboard,

Programmable scan, and up / down

5 Electrical Specification

Sound Output: 10W, 8Ω x 2

5 Other Specifications

Terminals:

Antenna input: VHF / UHF / CATV 75Ω unbalanced (F-type) Audio input: RCA jack (L/R) x 6 500mV rms Video input: RCA jack x 1 1V p-p (75Ω) S-video input: Mini DIN 4-pin jack x 1 Y: 1V p-p (75Ω)

C: 286mV p-p (75Ω) Component video input:

RCA jack x 3 Y: 1V p-p (75Ω)

Pb/Cb: 700mV p-p (75Ω) Pr/Cr: 700mV p-p (75Ω)

HDMI input: HDMI 19pin x 3 Coaxial digital audio output:

RCA jack x1 500mV p-p (75Ω) Audio output: RCA jack (L/R) x 2 500mV rms

Remote control: Operating temperature:

41°F (5°C) to 104°F (40°C)

Power requirements: 120V~ AC +/- 10%, 60Hz +/- 0.5%

Power consumption (maximum): 155W LCD: 32 inches class (31.5 inches measured diagonally) Dimensions: <without stand> <with stand>

W: 30.0 inches (760mm) 30.0 inches (760mm) H: 20.5 inches (519.3mm) 22.2 inches (563mm) D: 4.5 inches (113.5mm) 9.3 inches (234mm)

Weight: 19.5 lbs. (8.8kg) 20.6 lbs. (9.3kg)

Digital encoded infrared light system

OPTIONAL SETTING TROUBLESHOOTING

INFORMATION

• Designs and speci cations are subject to change without notice and without our legal obligation.

• If there is a discrepancy between languages, the default language will be English.

Do not attempt to service the product yourself

JVC COMPANY OF AMERICA

Division of JVC Americas Corp.

1700 Valley Road

Wayne, New Jersey, 07470

Printed in China

JVC Loves the Earth

A91F5UH

1EMN24859 ★★★★★

JVC 1EMN24859, A91F5UH User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TROUBLESHOOTING
