Juwel SeaSkim INT User manual

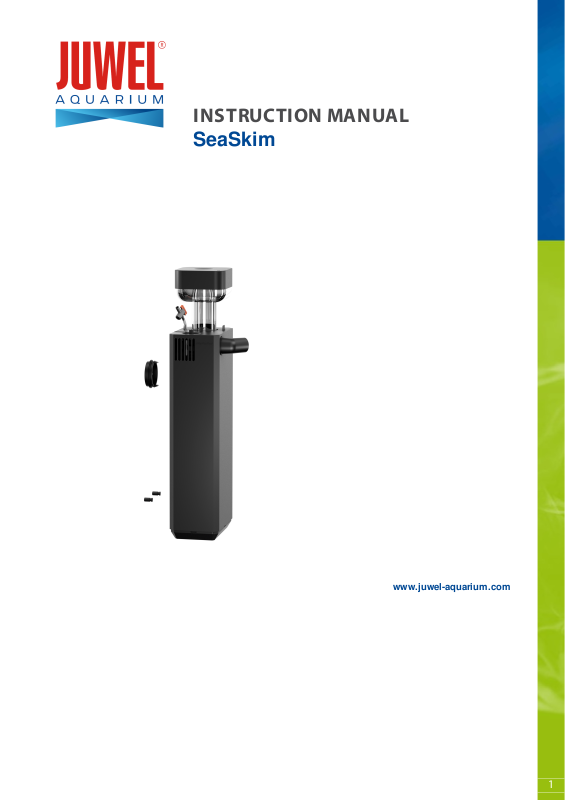

INSTRUCTION MANUAL

SeaSkim

www.juwel-aquarium.com

1

Introduction

Thank you for choosing a JUWEL Aquarium product.
Our products represent over 50 years experience in the manufacturing of aquariums and their acessories applying most modern
production techniques bringing together the JUWEL Aquarium system, which is both easy to use and simple to maintain.

Please read this instruction manual carefully and completely to make s ure you have received all components before setting up
the aquarium. Please observe the safety instructions and maintenance guidelines given in this manual.
This instruction manual has been carefully prepared to provide you with accurate and complete information. All efforts have been
made to ensure that the information given is correct. However, we cannot accept responsibility for printing or other errors.
Technical details are always approximate and are not warranted characteristics and may be subject to change without notice.

The product fulfils with the regulations of the European Union (EU), and it is therefore compliant with CE standards.

www.juwel-aquarium.de/en/declaration-of-conformity/

SAFETY INSTRUCTIONS:

This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

•

The power plugs of the electrical devices must not become moist. Connect
the power plugs to the power supply at such a height that the connection
cable forms a loop which would enable the water to drip down.

•

At all times, only operate the electrical devices for your aquarium (lighting,
heater, pump etc.) using an earth leakage circuit breaker (EL circuit breaker)
with a maximum tripping current of 30 mA. If the socket that you are using in
your home installation is not safeguarded with such a circuit breaker, please
use a commerc ially available power strip with an integrated earth leakage
circuit breaker.

•

The electrical devices may only be operated in rooms.•

Pull the power plug of all devices operated in water before coming into
contact with the water.

•

2

A) Foam collector unit cover

B) Foam collector unit
C) SeaSkim housing lid
D) Outlet nozzle
E) Air controller
F) Air hose
G) Air pressure controller
H) Mount
I) SeaSkim housing
J) Distance pieces

3

JUWEL SeaSkim

The JUWEL SeaSkim combines the product benefits of an internal skimmer characterised by the fact that no water exits the
aquarium with a compact shape and high skimming capacity.

With output of 1500 l/h, the integrated pump air intake of 150 l/h and consequently ensures effective protein skimming for
seawater aquariums with a volume of 100 - 500 litres. However, the JUWEL SeaSkim does not serve as filter system
replacement in the seawater aquarium.

The skimming utilises the fact that many so-called surface-active substances accumulate at the boundary between water and
air, especially in saltwater. This includes proteins and their first stages of decomposition (these contain the undesired elements
nitrogen and phosphorus), but also smallest dirt particles (solids) etc.

Installation in JUWEL aquariums

The JUWEL SeaSkim is intended for installation in the JUWEL Rio, Lido, Vision and Trigon aquariums. These Juwel aquariums
are characterised by the fact that an opening for the SeaSkim is already available and closed by means of a cap. Remove the
cap closing the cover

Recommendation: Flap set for JUWEL SeaSkim

If the cover of y our JUWEL aquarium does not include a special opening for SeaSkim, we rec ommend that you contact your
specialist retailer.

The matching flap set for SeaSkim can be purchased there as an original JUWEL spare part.

Installation of the mount for the JUWEL SeaSkim

The SeaSkim is permanently installed by means of the mount included in the delivery . This ensures the correct position in the
aquarium and consequently optimum skimming results. The aquarium should be emptied to such an extent that you may wipe the
panes dry.

You achieve the correct position by using the enclosed template for positioning the mount.

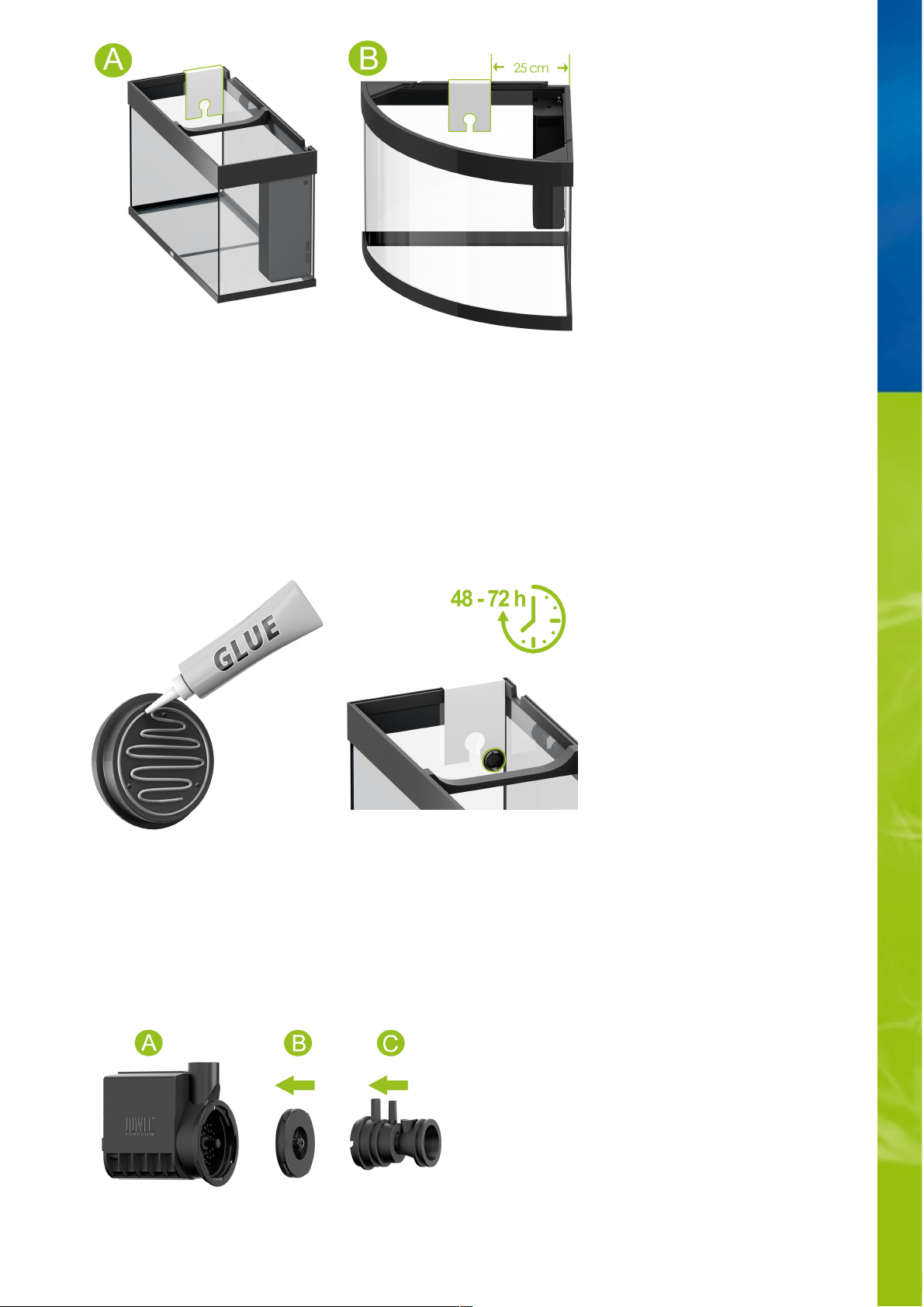

1. Initially fold the template at the designated lines and align it in the manner detailed below.

2. Aquarium model RIO, LIDO, VISION:
Hang the template from the inside over the edge of the frame of the left side pane and align it at the rear left corner (ref. figure
A).

2. Aquarium model TRIGON:
Hang the template with a distance of 25 cm to the rear outer edge of the frame from the inside over the edge of the frame of the
left side pane (ref. figure B).

3. Secure the template by means of an adhesive strip in order to avoid shifting.
